Deleting Mecp2 from the cerebellum rather than its neuronal subtypes causes a delay in motor learning in mice

  1. Nathan P Achilly
  2. Ling-jie He
  3. Olivia A Kim
  4. Shogo Ohmae
  5. Gregory J Wojaczynski
  6. Tao Lin
  7. Roy V Sillitoe
  8. Javier F Medina
  9. Huda Y Zoghbi  Is a corresponding author
  1. Jan and Dan Duncan Neurological Research Institute, Texas Children’s Hospital, United States
  2. Program in Developmental Biology, Baylor College of Medicine, United States
  3. Medical Scientist Training Program, Baylor College of Medicine, United States
  4. Department of Human and Molecular Genetics, Baylor College of Medicine, United States
  5. Howard Hughes Medical Institute, Baylor College of Medicine, United States
  6. Department of Neuroscience, Baylor College of Medicine, United States
  7. Department of Pathology and Immunology, Baylor College of Medicine, United States
  8. Department of Neurology, Baylor College of Medicine, United States
  9. Department of Pediatrics, Baylor College of Medicine, United States
Short Report
  • Cited 0
  • Views 1,051
  • Annotations
Cite this article as: eLife 2021;10:e64833 doi: 10.7554/eLife.64833

Abstract

Rett syndrome is a devastating childhood neurological disorder caused by mutations in MECP2. Of the many symptoms, motor deterioration is a significant problem for patients. In mice, deleting Mecp2 from the cortex or basal ganglia causes motor dysfunction, hypoactivity, and tremor, which are abnormalities observed in patients. Little is known about the function of Mecp2 in the cerebellum, a brain region critical for motor function. Here we show that deleting Mecp2 from the cerebellum, but not from its neuronal subtypes, causes a delay in motor learning that is overcome by additional training. We observed irregular firing rates of Purkinje cells and altered heterochromatin architecture within the cerebellum of knockout mice. These findings demonstrate that the motor deficits present in Rett syndrome arise, in part, from cerebellar dysfunction. For Rett syndrome and other neurodevelopmental disorders, our results highlight the importance of understanding which brain regions contribute to disease phenotypes.

Introduction

Loss-of-function mutations in MECP2 (human gene) cause a severe childhood disorder called Rett syndrome (Amir et al., 1999). After a period of normal development, patients lose previously acquired milestones and develop debilitating neurological deficits (Hagberg et al., 1983; Neul et al., 2014). Of these symptoms, motor deterioration is a significant problem for patients and manifests as ataxia, apraxia, hypotonia, and spasticity (Neul et al., 2014; Sandweiss et al., 2020). In mice, the complete loss of Mecp2 (mouse gene) causes deficits in motor coordination and motor learning, hind limb clasping, hypoactivity, and tremors that mimic those seen in patients (Chen et al., 2001; Guy et al., 2001; Pelka et al., 2006). Furthermore, mice that conditionally lack Mecp2 in the cortex or basal ganglia partially replicate these Rett-like impairments (Chen et al., 2001; Gemelli et al., 2006; Su et al., 2015), suggesting that forebrain dysfunction contributes to the motor deficits seen in patients. However, other brain regions such as the cerebellum also control motor activity (Bostan and Strick, 2018) and may contribute to the complex, wide-ranging motor phenotypes of Rett syndrome.

The cerebellum contains approximately 75% of all neurons in the brain (Lange, 1975; Sarko et al., 2009) and integrates sensory inputs in order to fine-tune motor output (Manto et al., 2012). This function is critical for motor coordination and motor learning as impairments in the cerebellar circuitry cause ataxia, dystonia, and tremor (White et al., 2016; Bostan and Strick, 2018; Darmohray et al., 2019; Machado et al., 2020). The cerebellum also contributes to non-motor behaviors such as social interaction, reward, and memory (Wagner et al., 2017; Carta et al., 2019; McAfee et al., 2019; Kelly et al., 2020). Interestingly, some of the motor and non-motor symptoms of Rett syndrome overlap with those of conditions that perturb cerebellar function such as spinocerebellar ataxias, tumors, and strokes (Schmahmann, 2004; Sokolov, 2018; Sandweiss et al., 2020). Therefore, we hypothesized that Mecp2 deficiency disrupts cerebellar function and leads to motor phenotypes similar to those seen in Rett syndrome. To test this hypothesis, we deleted Mecp2 from the cerebellum and discovered that cerebellar knockout (KO) animals had deficits in motor learning that were overcome with additional training. This motor learning delay was accompanied by irregular firing patterns of Purkinje cells and a reduction in H3K9me3 levels in heterochromatic foci of granule cells, Purkinje cells, and molecular layer interneurons. These data indicate that Mecp2 deficiency in the cerebellum is consequential and contributes to the motor dysfunction seen in Rett syndrome.

Results

Deleting Mecp2 from all major neuronal subtypes in the cerebellum causes a delay in motor learning

To confirm that MeCP2 (mouse protein) is expressed in cerebellar neurons, we performed immunostaining for MeCP2 and a variety of neuron-specific makers in 6-month-old wild-type mice. MeCP2 was expressed in granule cells, Purkinje cells, and molecular layer interneurons (Figure 1A–D). This suggests that MeCP2 may contribute to the function of these neuronal populations.

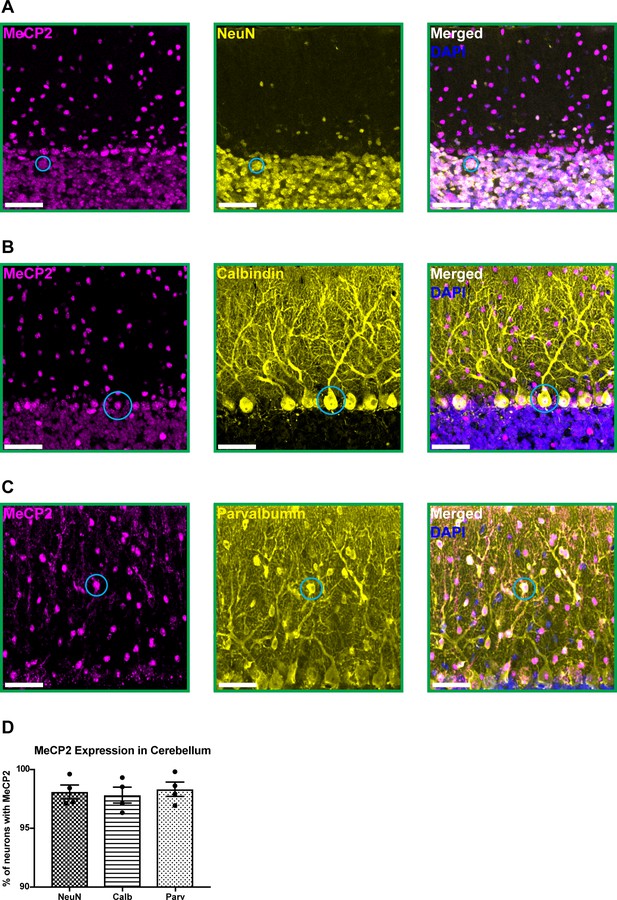

MeCP2 is expressed in cerebellar neurons of 6-month-old wild-type mice.

(A–C) MeCP2 (magenta) staining in NeuN+ neurons (yellow) in the granular layer (A: solid cyan circle), Calbindin+ neurons (yellow) in the Purkinje cell layer (B: solid cyan circle), and Parvalbumin+ neurons (yellow) in the molecular layer (C: solid cyan circle). Scale bar, 25 µm. (D) Quantification of the percentage of NeuN+, Calbindin+, and Parvalbumin+ neurons that express MeCP2. N = 4 biologically independent mice per group. Data are presented as mean ± s.e.m.

To test this, we conditionally deleted Mecp2 either from all major cell types in the cerebellum using En1Cre mice or individually from granule cells, Purkinje cells, and cerebellar inhibitory neurons (Purkinje cells and molecular layer interneurons) using Atoh1Cre, Pcp2Cre, and Ptf1aCre mice, respectively (Hoshino et al., 2005; Joyner and Zervas, 2006; Hashimoto and Hibi, 2012; Sługocka et al., 2017). We verified the recombination efficiency using Rosa26lsl-tdTomato reporter mice and found that granule cells, Purkinje cells, and molecular layer interneurons expressed tdTomato (Figure 2—figure supplement 1A–C; Figure 2—figure supplement 2A–B,D–E,G–H). We crossed Cre-expressing and Mecp2flox/+ animals to generate Mecp2 conditional KO mice and littermate controls (WT, Flox, and Cre) and confirmed that MeCP2 was deleted from the cerebellum or from granule cells, Purkinje cells, and cerebellar inhibitory neurons (Purkinje cells and molecular layer interneurons) (Figure 2—figure supplement 1D,E; Figure 2—figure supplement 2C,F,I).

Because the cerebellum is involved in motor coordination and learning (Mauk et al., 2000), we analyzed the motor performance of cerebellar KO mice using the rotarod (Deacon, 2013). In this assay, healthy mice spend progressively more time on a rotating rod as their motor skill improves, while mice with incoordination and motor learning impairments spend less time on the apparatus. Although the performance of 2- and 4-month-old cerebellar KO mice was normal compared to control mice, 6-month-old cerebellar KO mice had an initial motor learning delay that was overcome with additional training (Figure 2A,B; Figure 2—figure supplement 3A,B). These motor learning deficits were not due to abnormalities in general locomotor activity or strength (Figure 2—figure supplement 3C–F). Although the cerebellum is implicated in non-motor behaviors (Klein et al., 2016), we did not observe any deficits in sensorimotor gating, social behavior, or contextual fear memory in cerebellar KO mice (Figure 2—figure supplement 3G–K).

Figure 2 with 3 supplements see all

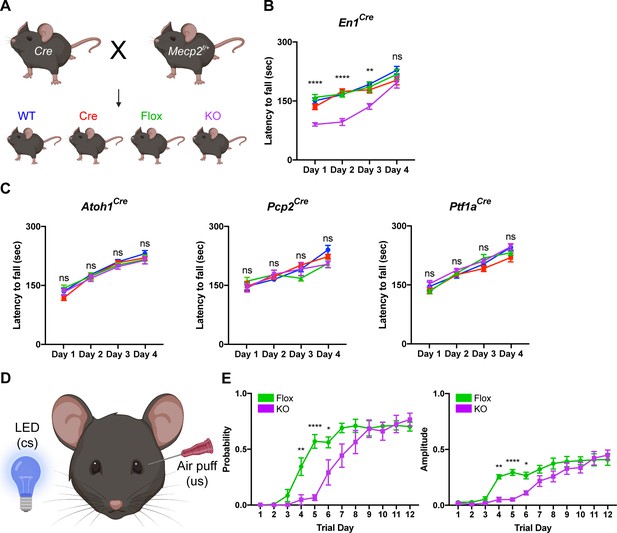

Deleting Mecp2 from the cerebellum, but not its neuronal subtypes, causes motor learning deficits in 6-month-old mice.

(A) Breeding scheme to generate WT, Cre, Flox, and KO mice. (B) Latency to fall on the rotarod over four training days in the En1Cre group. (C) Latency to fall on the rotarod over four training days in mice lacking Mecp2 in the granule cells (Atoh1Cre), Purkinje cells (Pcp2Cre), and Purkinje cells and molecular layer interneurons (Ptf1aCre). (D) Schematic of eyeblink conditioning that pairs an LED light (conditioned stimulus, cs) with an air puff (unconditioned stimulus, us) to generate an anticipatory eyelid closure (conditioned response) before the air puff. (E) Response probability and amplitude of eyelid closure over 12 training days in Flox and KO mice. N = 8–17 biologically independent mice per group. Data are presented as mean ± s.e.m. Statistical significance was determined by two-way ANOVA with Tukey’s multiple comparisons test. ns (p>0.05), *(p<0.05), **(p<0.01), ****(p<0.0001).

Studies from other Mecp2 KO mice have demonstrated that behavioral deficits originate from dysfunction in excitatory and inhibitory neurons (Chao et al., 2010; Meng et al., 2016). Furthermore, distinct behavioral phenotypes arise when Mecp2 is removed from different subtypes of inhibitory neurons (Ito-Ishida et al., 2015; Mossner et al., 2020). For example, altered social behavior and seizures in Mecp2 KO mice originate from dysfunction o parvalbumin- and somatostatin-expressing inhibitory neurons, respectively (Chao et al., 2010; Ito-Ishida et al., 2015). Therefore, we hypothesized that the motor learning deficits in cerebellar KO mice originate from the loss of Mecp2 in excitatory granule cells, inhibitory Purkinje cells, and/or molecular layer interneurons. However, we did not detect rotarod deficits in cell type-specific KO animals at an age when cerebellar KO mice were symptomatic (Figure 2C).

In addition to the cerebellum, multiple brain regions including the cortex and basal ganglia contribute to motor learning on the rotarod (Sakayori et al., 2019). Therefore, we used eyeblink conditioning, an alternate task of motor learning for which the cerebellum is strictly necessary, to validate the motor learning deficits observed in cerebellar KO mice (Figure 2D; Heiney et al., 2014). Compared to control mice, cerebellar KO mice exhibited an initial delay in the probability and amplitude of eyelid closure that improved with additional training, suggesting that cerebellar-dependent motor learning is disrupted by the loss of Mecp2 (Figure 2E). These results demonstrate that deleting Mecp2 from the major cell types in the cerebellum causes a delay in motor learning.

Purkinje cell firing is irregular in cerebellar KO mice

Because removing Mecp2 perturbs synaptic function in cortical and hippocampal neurons (Na et al., 2013; He et al., 2014; Meng et al., 2016; Ure et al., 2016), we hypothesized that alterations in the electrophysiological properties of cerebellar neurons might explain the motor phenotypes in cerebellar KO mice. To accomplish this, we monitored the activity of Purkinje cells in awake animals by recording their simple spikes, which originate from granule cell inputs, and complex spikes, which originate from inferior olivary neuron inputs (Schmolesky et al., 2002; Davie et al., 2008; Arancillo et al., 2015; Figure 3A–C). Because Purkinje cells are the final output stage of the cerebellar cortex, they serve as a reliable indicator of circuit dysfunction in the cerebellar circuit (Arancillo et al., 2015). We targeted Purkinje cells at the ventral portion of lobule V, targeting cells in the medial wall of the primary fissure, which includes the cerebellar microzone that supports eyeblink conditioning (Heiney et al., 2014; Ohmae and Medina, 2015). Focusing on lobule V instead of widely sampling from the cerebellum allowed us to compare the results of Purkinje cells within the same cerebellar subregion while minimizing the effect of zebrin-derived differences in firing proprieties because Purkinje cells in lobule V are largely zebrin negative (Ozol et al., 1999; Zhou et al., 2014Peter et al., 2016). Although the mean firing rates were unchanged, simple spike firing was more irregular in cerebellar KO mice, as was evident by an increase in the coefficient of variation (CV) and coefficient of variation 2 (CV2) (Figure 3D). This electrophysiological abnormality was not due to defects in Purkinje cell morphology or the density of excitatory and inhibitory synaptic puncta (Figure 3E,F). Thus, deleting Mecp2 from the cerebellum disrupts aspects of Purkinje cell firing without overt neuroanatomical abnormalities.

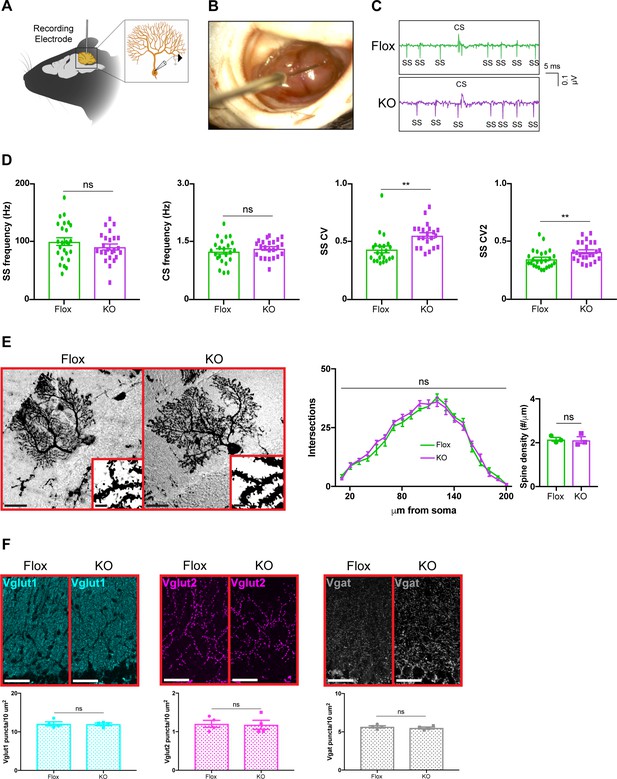

Purkinje cell firing rate is more irregular in cerebellar KO mice but is independent of overt morphological abnormalities.

(A) Schematic of in vivo extracellular recording of Purkinje cells. (B) Photograph of a recording electrode inside a surgically implanted recording chamber. (C) Representative traces of Purkinje cell firing in Flox and KO mice displaying simple spikes (ss) and complex spikes (cs). (D) Simple spike firing rate, complex spike firing rate, coefficient of variation (CV), and coefficient of variation 2 (CV2). Simple and complex spikes were differentiated by their characteristic waveforms during offline analysis. (E) Golgi stain of Purkinje cells in Flox and KO mice. Scale bar, 25 µm. Inner panel demonstrates dendritic spines on Purkinje cells. Scale bar, 5 µm. Sholl analysis and spine density quantification in Flox and KO mice. (F) Staining and quantification of Vglut1 (cyan), Vglut2 (magenta), and Vgat (gray) puncta density in the cerebellum of Flox and KO mice. Scale bar, 25 µm. For (D), 23–27 neurons were analyzed from three biologically independent mice per group. For (E), 10–15 neurons were analyzed from three biologically independent mice per group. For (F), N = 4 biologically independent mice per group. Data are presented as mean ± s.e.m. Statistical significance was determined by two-tailed, unpaired student’s t-test (D, F) and two-way ANOVA with Tukey’s multiple comparisons test (E). ns (p>0.05), **(p<0.01).

H3K9me3 levels in heterochromatic foci are reduced in cerebellar KO mice

MeCP2 is a nuclear protein that binds methylated cytosines on DNA throughout the genome and regulates gene expression (Tillotson and Bird, 2019). Multiple studies have demonstrated that MeCP2 regulates heterochromatin structure in cortical and hippocampal neurons (Baker et al., 2013; Linhoff et al., 2015; Ito-Ishida et al., 2020). We hypothesized that cerebellar neurons in KO mice would display similar structural abnormalities. To test this, we assayed the intensity of DAPI, H3K4me3, H3K9me3, and H3K27me3 in the heterochromatic foci of granule cells, Purkinje cells, and molecular layer interneurons (Figure 4—figure supplement 1A–C). We analyzed mice lacking Mecp2 in the cerebellum (En1Cre) as well as in its neuronal subtypes (Atoh1Cre, Pcp2Cre, and Ptf1aCre) and compared each KO strain to their control littermates. To avoid contaminating our results with measurements from glia, which have different levels of histone methylation than neurons (Girdhar et al., 2018), we only analyzed cells that expressed NeuN, which labels granule cells, and RORα, which labels Purkinje cells and molecular layer interneurons (Figure 4—figure supplement 2A–C). In cerebellar KO mice (En1Cre), the level of H3K9me3 was reduced in the heterochromatic foci of granule cells, Purkinje cells, and molecular layer interneurons, but the levels of DAPI, H3K4me3, and H3K27me3 were unaffected (Figure 4A–D). Interestingly, this phenomenon was also observed in granule cells of Atoh1Cre KO mice, Purkinje cells of Pcp2Cre KO mice, and Purkinje cells and molecular layer interneurons of Ptf1aCre KO mice (Figure 4A–D). Thus, deleting Mecp2 from the cerebellum reduces levels of H3K9me3 in heterochromatic foci, indicating that some aspects of heterochromatin architecture are altered by the loss of Mecp2. It is noteworthy that this change was present in mice lacking Mecp2 in neuronal subtypes of the cerebellum, even though these mice lacked behavioral phenotypes (Figure 2C).

Figure 4 with 2 supplements see all
The loss of Mecp2 in cerebellar neurons disrupts histone methylation in heterochromatic foci.

The intensity of DAPI and histone methylation marks was measured in the heterochromatic foci of granule cells (GC), Purkinje cells (PC), and molecular layer interneurons (ML) in Flox and KO mice. (A) Normalized DAPI intensity in heterochromatic foci. (B) Normalized H3K4me3 intensity in heterochromatic foci. (C) Normalized H3K9me3 intensity in heterochromatic foci. (D) Normalized H3K27me3 intensity in heterochromatic foci. 15–20 neurons were analyzed per mouse. Data were normalized to the values of Flox mice. N = 4–5 biologically independent mice per group. Data are presented as mean ± s.e.m. Statistical significance was determined by two-tailed, unpaired student’s t-test. ns (p>0.05), *(p<0.05), **(p<0.01).

Discussion

Our study revealed three important features of cerebellar dysfunction that occur following the loss of Mecp2. First, we did not observe non-motor phenotypes in cerebellar KO mice even though the cerebellum is implicated in non-motor behaviors such as social interaction and cognition (Mauk et al., 2000; Tsai et al., 2012; Klein et al., 2016). This suggests that non-motor phenotypes in Rett syndrome are likely not caused by cerebellar dysfunction. Second, we did not observe motor deficits in any of the cell type-specific KO mice. The same phenomenon is seen for the sensorimotor gating deficits of Mecp2 null mice, which are present in mice lacking Mecp2 in all inhibitory neurons but not in individual subtypes of inhibitory neurons (Chao et al., 2010; Ito-Ishida et al., 2015). This suggests that the cerebellar-related motor deficits are the result of combined dysfunction in the entire circuit rather than dysfunction in a single cell type. Finally, the behavioral deficits in cerebellar KO mice were milder than mice lacking Mecp2 in the cortex and basal ganglia. In cerebellar KO mice, the phenotypes were restricted to motor learning and appeared in 6-month-old mice, whereas the motor deficits in mice lacking Mecp2 in the cortex and basal ganglia are more profound and arise in 2-month-old mice (Chen et al., 2001; Gemelli et al., 2006; Su et al., 2015). Thus, the motor symptoms of Rett syndrome arise from a combination of cerebellar, cortical, and basal ganglia dysfunction.

Purkinje cells serve as the final output stage of the cerebellar cortex and integrate synaptic inputs from granule cells, molecular layer interneurons, and inferior olivary neurons (Arancillo et al., 2015). Thus, they are an ideal cell type for determining if functional defects occurred at any point in the cerebellar circuit. The irregular firing rates of Purkinje cells suggest that the motor phenotypes of KO mice are caused by defects in the cerebellar circuitry. Although the synaptic changes in cerebellar KO mice were mild compared to those observed in other Mecp2 KO models (Chao et al., 2010; Meng et al., 2016), they may still contribute to the behavioral deficits since similar findings are observed in other mouse models of cerebellar dysfunction. For example, the loss of the α3 isoform of the Na+/K+ pump in mice causes motor incoordination and dystonia (Calderon et al., 2011). In these mice, the mean firing rate of their Purkinje cells is normal, but the firing rates are irregular, similar to what we observed in cerebellar KO mice (Fremont et al., 2014). Just like cerebellar KO mice, the Purkinje cells of Car8wdl mice have irregular simple spike activity, which ultimately contributes to motor incoordination on the rotarod (White et al., 2016). Because Purkinje cells integrate input from multiple cell types, the irregularity of simple spike firing could arise from a combination of factors including impairments in intrinsic Purkinje cell responses, abnormal excitatory input from granule cells, and/or perturbations in synaptic modulation from molecular layer interneurons.

The behavioral and synaptic impairments were accompanied by a reduction in the level of H3K9me3 in the heterochromatic foci of cerebellar neurons. This defect was present in a cell-autonomous manner when Mecp2 was removed from granule cells, Purkinje cells, and molecular layer interneurons (En1Cre) and when Mecp2 was removed from subtypes of cerebellar neurons (Atoh1Cre, Pcp2Cre, and Ptf1aCre). Yet, these mice lacked behavioral phenotypes. Similar to our findings, changes in the heterochromatic foci of Mecp2-null hippocampal neurons are present in presymptomatic Mecp2+/– female mice (Ito-Ishida et al., 2020). In symptomatic Mecp2+/− female mice, the levels of H3K4me3 and H3K27me3, but not H3K9me3, were elevated in Mecp2-null hippocampal neurons (Ito-Ishida et al., 2020). In addition, H4K20me3 is abnormally distributed in Mecp2-null hippocampal neurons, but not cerebellar granule neurons (Linhoff et al., 2015). Thus, our results indicate that alterations in heterochromatin architecture do not always coincide with behavioral abnormalities and are influenced by the particular cell type and histone modification.

The Cre-LoxP system allowed us to selectively remove Mecp2 from various cerebellar cell types, but for some of these mouse strains, Cre is expressed outside the cerebellum. En1Cre is expressed in the midbrain, spinal cord interneurons, and muscle (Atit et al., 2006; Joyner and Zervas, 2006; Bikoff et al., 2016). Fortunately, we do not believe that removing Mecp2 from these regions confounded our behavioral observations. First, removing Mecp2 from dopaminergic neurons, including those in the midbrain, does not affect rotarod performance (Samaco et al., 2009). Second, although the loss of Mecp2 in spinal cord interneurons could contribute to defects on the rotarod, it is unlikely to affect eyeblink conditioning as this reflex is mediated by circuits in the cerebellum and brainstem (Bracha, 2004). Third, the loss of Mecp2 in skeletal muscle does not affect muscle morphology or physiology (Conti et al., 2015). Finally, although Ptf1aCre removes Mecp2 from Purkinje cells and molecular layer interneurons, the absence of motor deficits in Pcp2Cre KO mice, which only targets Purkinje cells, indicates that the loss of Mecp2 from molecular layer interneurons does not cause the behavioral deficits seen in En1Cre KO mice. Moreover, Ptf1aCre is expressed in inferior olivary neurons, a main source of input to the cerebellum (Hoshino et al., 2005). The absence of motor phenotypes in Ptf1aCre KO mice suggests that the loss of Mecp2 in inferior olivary neurons does not disrupt motor function in mice.

A unique and interesting finding was the improvement in motor learning after additional training in cerebellar KO mice. To our knowledge, this phenomenon is not observed in other Mecp2 KO mice (Li and Pozzo-Miller, 2012; Lombardi et al., 2015). However, a related effect is seen in female Mecp2 heterozygous mice in which their memory deficits are rescued with forniceal deep brain stimulation (DBS) (Hao et al., 2015; Lu et al., 2016). The effects of DBS on brain circuitry share similarities to that of repetitive activation during training (De Zeeuw and Ten Brinke, 2015; Herrington et al., 2016; Lu et al., 2016; Langille and Brown, 2018). In cerebellar KO mice, it is possible that activation of the cerebellar circuitry during training improves their motor phenotypes by enhancing synaptic function in a manner similar to the proposed mechanism of DBS. This also raises the possibility that repetitive circuit activation via training could improve other behavioral deficits in Mecp2 KO mice.

Taken together, our results reveal that cerebellar dysfunction contributes to motor deficits following the loss of Mecp2. Interestingly, the behavioral, synaptic, and cellular deficits in cerebellar KO mice were relatively mild compared to other Mecp2 KO models. So, even though Mecp2 is broadly expressed throughout the brain, neuronal subtypes between brain regions, and even those within a brain region, respond differently to the loss of Mecp2. As future studies seek to better define the function of Mecp2 and use this knowledge to design effective therapies, it is important to keep in mind that the functional consequences of Mecp2 loss are context specific.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional
information
AntibodyRabbit polyclonal anti-Histone H3AbcamRRID:AB_302613
Cat# ab1791
1:20,000
AntibodyRabbit monoclonal anti-MeCP2Cell Signaling TechnologiesRRID:AB_2143849
Cat# 3456
1:1000
AntibodyMouse monoclonal anti-MeCP2AbcamRRID:AB_881466
Cat# ab50005
1:500
AntibodyMouse monoclonal anti-NeuNMillipore SigmaRRID:AB_2298772
Cat# MAB377
1:250
AntibodyMouse monoclonal anti-Calbinin-D28KSwantRRID:AB_10000347
Cat# 300
1:10,000
AntibodyRabbit polyclonal anti-ParvalbuminSwantRRID:AB_2631173
Cat# PV27
1:1000
AntibodyRabbit polyclonal anti-Vglut1Synaptic SystemsRRID:AB_887877
Cat# 135 302
1:1000
AntibodyGuinea pig polyclonal anti-Vglut2Synaptic SystemsRRID:AB_887884
Cat# 135 404
1:1000
AntibodyGuinea pig polyclonal anti-VgatSynaptic SystemsRRID:AB_1106810
Cat# 131 005
1:1000
AntibodyRabbit polyclonal anti-histone H3 (tri methyl K4)Cell Signaling TechnologiesRRID:AB_2616028
Cat# 9751
1:500
AntibodyRabbit polyclonal anti-histone H3 (tri methyl K9)AbcamRRID:AB_306848
Cat# ab8898
1:500
AntibodyRabbit polyclonal anti-histone H3 (tri methyl K27)Millipore SigmaRRID:AB_310624
Cat# 07–449
1:500
AntibodyGoat polyclonal anti-RORαSanta Cruz BiotechnologyRRID:AB_655755
Cat# sc-6062
1:250
AntibodyGoat anti-mouse IgG Alexa Fluor 488Thermo FischerRRID:AB_2534069
Cat# A-11001
1:500
AntibodyGoat anti-guinea pig IgG Alexa Fluor 555Thermo FischerRRID:AB_2535856
Cat# A-21435
1:500
AntibodyGoat anti-rabbit IgG Alexa Fluor 647Thermo FischerRRID:AB_2535812
Cat# A-21244
1:500
AntibodyDonkey anti-rabbit IgG Alexa Fluor 488Thermo FischerRRID:AB_2535792
Cat# A-21206
1:500
AntibodyDonkey anti-goat IgG Alexa Fluor 555Thermo FischerRRID:AB_2535853
Cat# A-21432
1:500
AntibodyDonkey anti-mouse IgG Alexa Fluor 647Thermo FischerRRID:AB_162542
Cat# A-31571
1:500
Commercial assay, kitParaformaldehydeMillipore SigmaCat# 158127
Commercial assay, kitPierce BCA Protein AssayThermo FischerCat# 23225
Commercial assay, kitFD Rapid Golgi Stain KitFD NeurotechnologiesCat# PK401
Strain, strain background (Mus musculus)(C57BL/6J)
Rosa26lsl-tdTomato
The Jackson LaboratoryRRID: IMSR_JAX:007914
Strain, strain background (Mus musculus)(C57BL/6J)
En1Cre
The Jackson LaboratoryRRID: IMSR_JAX:007916
Strain, strain background (Mus musculus)(C57BL/6J)
Atoh1Cre
The Jackson LaboratoryRRID:IMSR_JAX:011104
Strain, strain background (Mus musculus)(C57BL/6J)
Pcp2Cre
The Jackson LaboratoryRRID:IMSR_JAX:004146
Strain, strain background (Mus musculus)(C57BL/6J)
Ptf1aCre
The Jackson LaboratoryRRID:IMSR_JAX:007909
Strain, strain background (Mus musculus)(C57BL/6J)
Mecp2flox/+ and Mecp2flox/flox
The Jackson LaboratoryRRID:IMSR_JAX:007177
OtherDAPI stainThermo FischerRRID:AB_2629482
Cat# D-1306
OtherTissue-Tek Optimum Cutting Temperature CompoundSakuraCat# 4583
OtherSuperfrost Plus microscope slidesThermo FischerCat# 12-550-15
OtherProLong Gold Antifade mounting mediumThermo FischerCat# P10144
OtherNuPAGE LDS sample bufferThermo FischerCat# NP0007
OtherNuPAGE Sample reducing agentThermo FischerCat# NP0004
Other15-well NuPAGE 4–12% Bis–Tris GelThermo FischerCat# NP0336BOX
Other15-well NuPAGE 4–12% Bis–Tris GelThermo FischerCat# NP0336BOX
OtherPVDF blotting membraneGE Healthcare Life SciencesCat# 10600021
OtherOdyssey TBS Blocking BufferLI-COR BiosciencesCat# 927–50000
Software, algorithmSpike2Cambridge Electronic DesignRRID:SCR_000903
Software, algorithmMATLABMathworksRRID: SCR_001622
Software, algorithmImage Studio LiteLI-COR BiosciencesRRID:SCR_013715
Software, algorithmImageJ-FijiOtherRRID:SCR_002285
Software, algorithmNeurolucida 360MBF BiosciencesRRID:SCR_016788
Software, algorithmNeurolucida ExplorerMBF BiosciencesRRID:SCR_017348
Software, algorithmImarisBitplaneRRID:SCR_007370
Software, algorithmPrismGraphPad SoftwareRRID: SCR_002798

Animals

Mice were maintained on a C57B/6J background on a 14 hr light: 10 hr dark cycle with standard mouse chow and water ad libitum. Mice were group housed up to five mice per cage. All behavioral experiments were performed during the light cycle at the same time of day. The following Cre-expressing mice were used for breeding: En1Cre (En1tm2(cre)Wrst/J), Atoh1Cre (B6.Cg-Tg(Atoh1Cre)1Bfri/J), Pcp2Cre (B6.129-Tg(Pcp2-cre)2Mpin/J), and Ptf1aCre (Ptf1atm1(cre)Hnak/RschJ). Cre-expressing male mice were bred to Mecp2flox/+ female mice (Chen et al., 2001) to generate WT, Cre, Flox, and KO mice for behavior experiments. Cre-expressing male mice were bred to Mecp2flox/flox female mice (Chen et al., 2001) to generate Flox and KO mice for eyeblink conditioning, histological, and electrophysiological experiments. Mice were obtained from the Jackson Laboratories and maintained by breeding mice to wild-type C57B/6J mice. Only male offspring were used because the mosaic nature of Mecp2 expression in females would confound the results (Calfa et al., 2011). Behavioral, histological, and electrophysiological analyses were performed blind to genotypes. The Baylor College of Medicine Institutional Animal Care and Use Committee approved all research and animal care procedures.

Behavioral assays

Request a detailed protocol

For each test, mice were habituated in the room for 30 min. A light intensity of 150 lx and 60 dB background white noise was presented during habituation and testing. All assays were performed at the same time of day.

Rotarod

Request a detailed protocol

Mice were placed on an accelerating rotarod apparatus (Ugo Basile), while the cylinder increased from 5 rpm to 40 rpm over a 5 min period. Latency to fall was measured when the mouse fell off the apparatus or rode the cylinder for two consecutive revolutions without regaining control. Mice were tested over 4 days, with each day consisting of four attempts and a 30 min rest after each attempt.

Eyeblink conditioning

Request a detailed protocol

Eyeblink conditioning was performed as previously described (Heiney et al., 2014). Briefly, animals were anesthetized with isoflurane (1.5–2% by volume in O2, SuriVet). A midline incision was made to expose the skull, and two small screws were placed on either side of the midline at bregma. A thin stainless steel headplate was placed on the skull such that the screws fit in the hole in the headplate. The plate was adhered to the skull using Metabond cement (Parkell). After 5 days of recovery, mice were habituated to the head restraint in the testing chamber for 2 days prior to training for 1 hr. Each training session consisted of 100 trials of the conditioned stimulus (CS, blue LED light) paired with the unconditioned stimulus (US, 20–30 psi periocular air puff). The interstimulus interval was 200 ms with an intertrial interval of at least 10 s. The pressure of the periocular air puff was set for each mouse to elicit a full reflexive blink. The conditioned response (CR, eyelid closure) was monitored using infrared illumination and a high-speed camera (Allied Vision) combined with MATLAB (Mathworks) using a custom-written software and acquisition toolbox. Mice were trained for 12 days after habituation. Eyelid traces were normalized to the full blink range. Trials were considered to contain a CR if the eyelid closure exceeded 5% from the baseline mean within the CS–US interval. The CR probability was quantified as the number of CRs divided by the total number of trials for each day. The CR amplitude was quantified as the maximum eyelid position within the CS-US interval relative to the trial baseline position for each day.

Open-field assay

Request a detailed protocol

Mice were placed in a clear, open Plexiglas box (40 × 40 × 30 cm, Stoelting) with an overhead camera and photo beams to record horizontal and vertical movements. Activity was measured over 10 min and quantified using ANY-maze (Stoelting).

Parallel rod footslip

Request a detailed protocol

Mice were placed into the center of a wire grid laid in an open-field chamber (Accuscan) for 10 min. The number of footslips through the wire grid was recorded and analyzed using ANY-maze (Stoelting). The number of footslips was normalized to the total distance traveled.

Grip strength

Request a detailed protocol

Mice were held by the tail and allowed to grasp the bar of a grip strength meter (Chatillon-Ametek) with both forepaws. The mouse was pulled away from the bar until it released from the bar. The maximum force generated was averaged over three trials and normalized to the weight of the mouse.

Wire hang time

Request a detailed protocol

Mice were allowed to grasp the middle of a 3 mm plastic coated wire suspended six inches above a plastic-covered foam pad. The plastic wire was inverted for a maximum of 180 s or until the mouse fell off.

Three-chamber interaction

Request a detailed protocol

During the habituation phase, mice were placed in the middle of the three-chamber apparatus (Ugo Basile) containing two empty barred cages in the right and left chambers for 10 min. During the social interaction phase, an age-matched C57BL/6J wild-type male mouse was placed in one cage and a black Lego block of similar size was placed in the other. Partner mice were habituated to the chamber for 1 hr per day for two consecutive days before testing. The test mouse was returned to the middle zone and allowed to explore the chamber for 10 min. Mouse movement was recorded and analyzed using ANY-maze (Stoelting).

Fear-conditioning assay

Request a detailed protocol

On the first day, mice were placed in a holding room and delivered to the testing room in a temporary cage. Mice were trained in a fear-conditioning chamber (Med Associates, Inc) that delivers an electric shock paired with a tone. This device was located inside a soundproof box that contained a digital camera and loudspeaker. Each mouse was placed individually in the chamber and left undisturbed for 2 min. A tone (80 dB, 5 kHz, 30 s) coincided with a foot-shock (2 s, 0.7 mA) and was repeated after 1 min. The apparatus was cleaned with isopropanol. The mouse was returned to the temporary cage after an additional minute and returned the home-cage in the holding room. Fear memory was assessed after 1 day of training. To test contextual fear memory, mice were placed in the original environment without a tone or foot-shock for 5 min. Mice were returned to their home-cage in the holding room. To test cued fear memory, mice were returned to the testing room and placed in the chamber, which was modified to distinguish it from the original context. The chamber was made triangular with the addition of white panels, cleaned with 70% ethanol, and scented with a cup of vanilla extract under the floor. The mouse was allowed to explore the novel environment for 3 min, after which the original tone (80 dB, 5 kHz, 3 min) was presented. Mouse movement was recorded and analyzed using ANY-maze (Stoelting). Freezing was scored only if the animal was immobile for at least 1 s.

Acoustic startle and pre-pulse inhibition

Request a detailed protocol

Mice were placed in a Plexiglas tube and allowed to habituate for 5 min with a 70 dB background noise. The test sessions consisted of six trials of each sound stimuli lasting 20 ms: no stimulus, a 120 dB sound burst, or a 120 dB sound burst with a 74 dB, 78 dB, or 82 dB pre-pulse stimuli presented 100 ms before the startle stimulus. The maximum startle response was recorded and analyzed during the 65 ms period following the onset of the startle stimulus (SR-Lab). Pre-pulse inhibition was calculated as 1 − (startle response with pre-pulse stimulus/startle response only × 100).

Histology and immunofluorescence staining

Request a detailed protocol

For immunofluorescence, animals were transcardially perfused with 50 ml ice-cold 4% paraformaldehyde in 0.1 M phosphate-buffered saline (PBS). Brains were dissected, post-fixed overnight at 4°C, washed with 0.1 M PBS, and placed in 30% sucrose in 0.1 M PBS for 24 hr. Brains were embedded in Tissue-Tek Optimum Cutting Temperature Compound (Sakura) and stored at −80°C until further use. Fifty micrometer floating sections were cut using a cryostat (Leica) and collected in 0.1 M PBS. Sections were incubated in blocking solution (0.3% Triton X-100, 5% normal goat serum, or 5% normal donkey serum in 0.1 M PBS) for 1 hr at room temperature followed by primary antibody in blocking solution for 24 hr at 4°C. The following primary antibodies were used: rabbit anti-MeCP2 (1:1000, Cell Signaling Technology), mouse anti-MeCP2 (1:500, Abcam), mouse anti-NeuN (1:250, Millipore Sigma), mouse anti-Calbinin-D28K (1:10,000, Swant), rabbit anti-parvalbumin (1:1000, Swant), rabbit anti-Vglut1 (1:1000, Synaptic Systems), guinea pig anti-Vglut2 (1:1000, Synaptic Systems), guinea pig anti-Vgat (1:1000, Synaptic Systems), rabbit anti-Histone H3 (tri methyl K4) (1:500, Cell Signaling Technology), rabbit anti-Histone H3 (tri methyl K9) (1:500, Abcam), rabbit anti-Histone H3 (tri methyl K27) (1:500, Millipore Sigma), and goat anti-RORα (1:250, Santa Cruz Biotechnology). Sections were washed with 0.1 M PBS and incubated in secondary antibody for 2 hr at room temperature. The following secondary antibodies were used: goat anti-mouse IgG Alexa Fluor 488 (1:500, Thermo Fisher), goat anti-guinea pig IgG Alexa Fluor 555 (1:500, Thermo Fisher), goat anti-rabbit IgG Alexa Fluor 647 (1:500, Thermo Fisher), donkey anti-rabbit IgG Alexa Fluor 488 (1:500, Thermo Fisher), donkey anti-goat IgG Alexa Fluor 555 (1:500, Thermo Fisher), and donkey anti-mouse IgG Alexa Fluor 647 (1:500, Thermo Fisher). Sections were washed with 0.1 M PBS, counterstained with 1 mM DAPI (Thermo Fisher) for 5 min, and mounted on electrostatic Superfrost Plus microscope slides (Thermo Fisher) with ProLong Gold Antifade mounting medium (Thermo Fisher). Slides were cured overnight at room temperature and stored at 4°C prior to imaging. For Golgi–Cox staining, the brains were removed from the skull and processed using the FD Rapid Golgi Stain Kit (FD Neurotechnologies). All steps were carried out according to the manufacturer’s instructions. The tissue was sectioned at 100 μm and transferred to electrostatic glass slides and mounted with ProLong Gold Antifade mounting medium (Thermo Fisher). For Nissl staining, 50 μm frozen sections were mounted onto electrostatic Superfrost Plus microscope slides (Thermo Fisher), dehydrated overnight in 1:1 ethanol:chlorofom, rehydrated in 100% and 95% ethanol, stained with 0.1% cresyl violet, washed in 95% and 100% ethanol, cleared with xylene, and mounted with ProLong Gold Antifade mounting medium (Thermo Fisher). Slides were stored at room temperature prior to imaging.

Imagining and quantification

Request a detailed protocol

Brightfield images were captured with the AxioCam MRc5 camera (Zeiss) mounted on an Axio Imager (Zeiss). Confocal images were captured with the TCS SP8 microscope (Leica) using a 10× or 63× objective. Z-stack images were acquired at 10 μm steps (tdTomato reporter characterization), 0.5 μm steps (tdTomato reporter characterization, MeCP2 characterization, and morphological analysis), and 0.1 μm steps with an additional 10× zoom (heterochromatin analysis). Laser settings were set above background levels based on the signal intensity of tissue stained only with the secondary antibody and kept consistent across samples in each experiment. MeCP2-expressing cells were counted using the Coloc2 function in ImageJ-Fiji (Schindelin et al., 2012). Vglut1, Vglut2, and Vgat puncta were counted using the Analyze Particles function in ImageJ-Fiji (Schindelin et al., 2012). Neuronal structure reconstruction, Sholl analysis, and spine quantification were performed with Neurolucida 360 and Neurolucida Explorer (MBF Bioscience). Individual nuclei were isolated, and heterochromatic foci were visualized using the surface tool in Imaris (Bitplane). The relative signal intensity was calculated by dividing the signal intensity in the heterochromatic foci by the total signal intensity in the nucleus. The values for KO mice were normalized to the values for Flox mice.

Purkinje cell electrophysiology

Request a detailed protocol

Single-unit extracellular recording was performed as previously described (Heiney et al., 2018). A 2–3 mm diameter craniotomy was opened over the right side of the cerebellum (6.5 mm posterior and 2.0 mm lateral from bregma), and the dura was protected by a layer of Kwik-Sil (WPI). A custom 3D printed recording chamber and interlocking lid (NeuroNexus) was secured over the craniotomy with dental acrylic to provide additional protection. After 5 days of recovery, the mouse was fixed in place on a treadmill via a previously implanted headplate. Purkinje cell simple spikes (SSpk) and complex spikes (CSpk) were isolated using a tetrode (Thomas Recording, AN000968) acutely driven into the cerebellar cortex with microdrives mounted on a stereotactic frame (Narishige MMO-220A and SMM-100). The final recording site in each mouse was marked by an electrical microlesion (0.01 mA direct current, 60 s) (Heiney et al., 2018), and the other locations of recorded Purkinje cells were reconstructed based on the stereotaxic position of each recording location relative to the lesion site, which was visualized by Nissl staining. Recording data were excluded from further analysis if Purkinje cells were not located in lobule V. Data were recorded, and stimuli were delivered using an integrated Tucker-Davis Technologies and MATLAB system (TDT RZ5, medusa, RPVdsEx) running custom code (github.com/blinklab/neuroblinks). SSpks and CSpks were sorted offline using threshold-crossing and template-matching algorithms in Spike2 software (Cambridge Electronic Design). Experimenters blind to mouse genotype also examined voltage waveform traces throughout the recording sessions, performed additional manual sorting, and excluded recordings with poor SSpk and CSpk isolation as further quality-control measures for spike sorting. Finally, to confirm that SSpks and CSpks originated from the same Purkinje cell, we checked that there was a 10–40 ms pause in SSpk activity after each CSpk (Simpson et al., 1996). Recordings with poor SSpk and CSpk isolation were excluded from further analysis. Inter-spike intervals (ISIs) were calculated for consecutive simple spikes. CV was computed by the standard deviation of the ISIs divided by the mean of the ISIs, and CV2 was computed by 2 × |ISIn – ISIn-1| / (ISIn + ISIn-1) and averaged across all consecutive ISIs within a neuron.

Western blotting

Request a detailed protocol

The cerebellum of KO and control mice was rapidly dissected, flash frozen in liquid nitrogen, and stored at −80°C until further use. The cerebellum was placed in a glass homogenizer with ice-cold lysis buffer (2% sodium dodecyl sulfate [SDS], 100 mM Tris–HCl, pH 7.5, protease inhibitor, and phosphatase inhibitor). The cerebellum was homogenized with 10 strokes of pestle A and 10 strokes of pestle B. Samples were sonicated on the Bioruptor sonication device (Diagendoe) for 30 s ON and 30 s OFF for 10 cycles. The homogenate was centrifuged at 10,000 × g for 10 min at 4°C. Protein concentration from the supernatant was measured using a Pierce BCA Protein Assay Kit (Thermo Fisher). Lysates were diluted to 1 μg/μl in an extraction buffer of 1× NuPAGE LDS Sample Buffer (Thermo Fisher), 1× NuPAGE Sample Reducing Agent (Thermo Fisher), and 1× RIPA buffer (100 mM Tris pH 8.0, 300 mM NaCl, 0.2% SDS, 1% sodium deoxycholate, 2% Nonidet P-40, 5 mM EDTA, protease inhibitor, and phosphatase inhibitor). Samples were then heated at 95°C for 10 min. Ten micrograms of protein was loaded into a 15-well NuPAGE 4–12% Bis–Tris gel (Thermo Fisher) and run in MES buffer (50 mM MES, 50 mM Tris base, 0.1% SDS, 1 mM EDTA pH 7.3) for 20 min at 200 V. Proteins were transferred onto PVDF blotting membranes (GE Healthcare Life Sciences) in Tris–glycine buffer (25 mM Tris, 190 mM glycine, 20% methanol). Membranes were rinsed in ddH2O and dried at room temp for 1 hr. Membranes were rehydrated in methanol, blocked for 1 hr at room temperature with Odyssey TBS Blocking Buffer (LI-COR Biosciences), and incubated in primary antibody diluted in blocking buffer overnight at 4°C. The following primary antibodies were used: rabbit anti-MeCP2 (1:1000, Cell Signaling Technology) and rabbit anti-Histone H3 (1:20,000, Abcam). The membranes were washed with TBS-T for 10 min, and then incubated in secondary diluted in blocking buffer for 2 hr at room temperature. The following secondary antibody was used: IRDye 680RD goat anti-rabbit IgG (LI-COR Biosciences). The membranes were washed with TBS-T for 10 min and imaged on an Odyssey imager (LI-COR Biosciences). Relative signal intensity was quantified using Image Studio Lite (LI-COR Biosciences).

Statistical analysis

Request a detailed protocol

Data are displayed as mean ± s.e.m., and the significance threshold was set at α=0.05 (ns, *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001). Sample sizes were determined based on prior statistics and data characterizing the phenotypes of MeCP2 mutant mice (Chao et al., 2010; Ito-Ishida et al., 2015; Meng et al., 2016). Statistical analysis was performed using Prism (GraphPad). Data were analyzed with the experimenters blinded to genotype.

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files.

References

Decision letter

  1. Gail Mandel
    Reviewing Editor; Oregon Health and Science University, United States
  2. Gary L Westbrook
    Senior Editor; Oregon Health and Science University, United States
  3. Gail Mandel
    Reviewer; Oregon Health and Science University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This short report describes the phenotypes observed when Mecp2 (mutations of which cause Rett syndrome) was deleted from the entire cerebellum, but not when it was deleted from specific cerebellar cell types. The authors used a range of assays to assess the effect of deleting Mecp2 and the experiments in general are well conducted and analyzed. Interestingly, motor learning attenuated some of the phenotypes. Although the underlying mechanism(s) are not revealed by these studies, the results provide a foundation for future work. All reviewers were pleased with your revisions.

Decision letter after peer review:

Thank you for submitting your article "Deleting Mecp2 from the entire cerebellum rather than its neuronal subtypes causes a delay in motor learning in mice" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Gail Mandel as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Gary Westbrook as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Essential revisions:

All reviewers thought this work made new and interesting points, appropriate for a short report format, related to a cerebellar contribution to the neurological disorder, Rett syndrome. The authors should address all of the comments/concerns in the three reviews as listed below, but we mention the more major ones here. None of the reviewers requested new experiments.

1) All reviewers had questions/comments, based on the cre deleter approach, about authors' interpretation of which cerebellar brain region or cell types contributed to the phenotypes under study. Responses to this issue will likely require clarification/modifications to their Discussion.

2) Two reviewers also had concerns/questions related to the physiology recordings which need to be addressed and may require, in addition to editorial clarification, new representative traces.

3) Finally, one reviewer questions the value of the gene expression changes, which lead to some open ended questions.

We hope you find these comments useful and we look forward to your revised manuscript.

Reviewer #1:

In this work, using the cre deleter system, authors delete Mecp2 from either specific cell types within cerebellum or from "whole cerebellum", and then test for Rett-like phenotypes in the mice. For the whole cerebellum deletions, authors use the En1 promoter to drive the cre recombinase. This cre deleter strategy follows previous successful studies by the Zoghbi lab used to uncover brain region or cell specific phenotypes contributing to Rett-like symptoms in mice. The phenotypes herein are evaluated using a multi-disciplinary approach involving genetic manipulation with immunohistochemical validation, motor behaviors, training (motor learning), electrophysiology and transcription. There are two major unexpected/interesting findings from this work: (1) only removal from the whole cerebellum results in phenotypes and (2) an improvement in motor learning by training. While potentially important and at reasonable depth for a short report, authors should clarify some of the methods or experiments that underlie their conclusions.

Figure 3. Technical point: The acquisition of the representative data presented was digitized too slowly, leading to missing pieces of the traces. Also, there appears to be something qualitatively different about the KO trace. When the figure is enlarged, the data seems to show more than one trace present in places (e.g. last SS). A quantitative description for the criteria by which the simple and complex traces were distinguished and resolved from one another needs to be articulated in legend and Materials and methods.

Title and Abstract: Curious why authors don't emphasize the finding that training reverses the cerebellar phenotypes because that is a very interesting aspect of the work.

The authors' descriptor of "whole" cerebellum is imprecise and could benefit from better wording, perhaps, for example, describing the result as deletion of major neuronal types in the cerebellum. I raise this issue because Figure 2—figure supplement 1 shows cre recombination (TdT positivity) from the EN1 promoter in an area adjacent to the cerebellum. This result is consistent with the JAX description of this line, cited in the Materials and methods as the source for this line, which also points to expression in tissues outside the cerebellum, including muscle. In the Discussion, authors should discuss this issue specifically along with their references to work indicating that other brain regions are not likely involved in the phenotypes measured here.

Related to above, authors confirm a lack of MeCP2 expression in specific neuronal populations in cerebellum using the En1-Cre, but there are other less abundant cell types in the cerebellum including oligodendroyctes and Bergman glia. Does the En1 Cre mediate excision from these populations as well? If not, could the expression of MeCP2 in these cells be preventing the appearance of a more robust phenotype? Again, this could be a discussion point.

Where there any cellular deficits following the loss of MeCP2 in individual populations? For example, several labs including that of the senior author, have described alterations in heterochromatin in MeCP2 mutant neurons. It would be interesting to see if this phenotype was present in the various cell types of the cerebellum even though there were no behavioral phenotypes.

The Hoshino et al., 2005 reference is incorrect. This paper in pub med is attributed to a different set of authors: Meredith et al. in the Johnson lab. I believe the reference should be: Hoshino M, Nakamura S, Mori K, Kawauchi T, Terao M, Nishimura YV, Fukuda A, Fuse T, Matsuo N, Sone M, Watanabe M, Bito H, Terashima T, Wright CVE, Kawaguchi Y, Nakao K, Nabeshima YI. Ptf1a, a bHLH transcriptional gene, defines GABAergic neuronal fates in cerebellum. Neuron. 2005;47:201-213. doi: 10.1016/j.neuron.2005.06.007.

For all figures, legends need to state the type of statistical analyses used., not just the p values. Figure 3 as noted above.

Reviewer #2:

In this manuscript the authors investigated the role of the cerebellum in Rett syndrome, characterized by loss-of-function in MECP2. MeCP2 KO mice in basal ganglia and cortex present severe motor impairments but cerebellar KO mice have not been studied. To address this question, the authors first studied rotarod performance of cerebellar cell-specific KO mice and whole cerebellum KO mice at 2, 4 and 6-month-old. They verified that the delay observed in 6-month-old cerebellar KO mice in motor learning was cerebellar specific and was no due to deficiency in general locomotor activity or strength. They also attest of any non-motor symptoms in these mice. They combined these behavioral experiments with electrophysiological recordings and morphological study of Purkinje cells as well as transcriptional analysis of the whole cerebellum.

They concluded that cerebellar dysfunction (more variability of firing pattern of Purkinje cells and transcriptional abnormalities) is involved somehow in the motor deficiencies observed in MeCP2 KO mice. Overall, this is a very nice piece of work. Nevertheless, I have some comments below that I feel will help improve the clarity of the paper.

1) One of the major finding of the paper is that KO in different subpopulations does not cause deficiency; however, there is no real KO specific for inhibitory interneurons of the cerebellum (both Purkinje and interneurons (Figure 2—figure supplement 2G-I). The conclusion may not be appropriate; please discuss.

2) Why recordings of PC only? When it is shown that it is not the only population involved in that deficit as MeCP2 KOL7 mice show no deficits. Please justify. Also, there is no CV measurement? Why only CV2?

3) Complete depletion of Mecp2 causes ataxia in mice. But complete depletion of Mecp2 in the cerebellum of mice does not induce ataxia, which is mainly caused by cerebellar dysfunction. Please discuss.

4) Are the 2-month-old, 4-month-old, and 6-month-old mice the same animals?

Reviewer #3:

The study presented a clear question to be investigated, used appropriate paradigms to address the question, and the results are largely clear. Sample sizes are more than sufficient given the variances reported, and the statistical analyses employed appropriate stringent tests. The study does selectively focus on male subjects, but given the specific question being asked, and the confound X-linked mosaicism would have on subtle behavioral changes in females, this choice is defendable. In short, this is a strong study overall and I have only a few suggestions for the authors to consider.

The first relates to the specificity of cre expression in the driver lines employed. What was shown nicely was the near complete ablation of MeCP2 in total cerebellum or in the targeted cell populations of the cerebellum. What is not as clear is to what degree (if any) recombination occurred within cells in other regions of the brain. While En1-Cre is largely restricted to cerebellum, Atoh1-Cre and Ptf1a-Cre are also expressed peripherally and in other brain regions. Figure 2—figure supplement 2 shows preservation of MeCP2 hippocampus in the En1-Cre line, which is not unexpected, but there is no discussion about non-cerebellar targets. The low magnitude view of Td-tomato is insufficient to show modest expression levels in extra-cerebellar cells. To be fair, this does not affect the results interpretations as none of the cell-type specific ablations yielded phenotypic alterations. But for at least Pftf1-Cre mice, recombination would be expected in a host of other interneuronal populations, and the lack of behavioral consequence would indicate the ablation of Mecp2 from those targets is also insufficient for behavioral manifestations (which is consistent with previous work from the group).

The second relates to the behavioral tasks selected and the degree to which cerebellum function influences performances in those tasks. The tasks interrogated are a standard informative battery, but do not include fine dexterity assays that would be more likely to reveal a selective dysfunction of cerebellar circuitry. The conditioned eye blink test is arguably the most cerebellar sensitive. While performance delays were seen in the cerebellar-KO mice relative to Flox mice, they did "learn" the task and reach the probability and amplitude responses of the Flox mice. However, unlike the rotarod test, there did not appear to be any increased learning rate. Might this suggest differences in how internal cerebellar circuits are affected the absence of Mecp2?

The third relates to the candidate gene expression comparisons. It is not clear what this section adds to the study mechanistically without additional investigation of candidate gene product function. Further, the results did not reproduce the changes previously reported for 16 of the 20 targets investigated, and this was also not discussed. The progressiveness of alteration shown for the 4 targets was also interesting, but not discussed. Why would preservation be seen at 2 months? The postnatal maturation of the cerebellum is largely complete by 2 months, and the lack of changes at this time indicates these alterations do not simply arise from MeCP2 absence. This section would benefit from additional discussion or it could be removed and serve as the starting point for an subsequent study.

https://doi.org/10.7554/eLife.64833.sa1

Author response

Reviewer #1:

In this work, using the cre deleter system, authors delete Mecp2 from either specific cell types within cerebellum or from "whole cerebellum", and then test for Rett-like phenotypes in the mice. For the whole cerebellum deletions, authors use the En1 promoter to drive the cre recombinase. This cre deleter strategy follows previous successful studies by the Zoghbi lab used to uncover brain region or cell specific phenotypes contributing to Rett-like symptoms in mice. The phenotypes herein are evaluated using a multi-disciplinary approach involving genetic manipulation with immunohistochemical validation, motor behaviors, training (motor learning), electrophysiology and transcription. There are two major unexpected/interesting findings from this work: (1) only removal from the whole cerebellum results in phenotypes and (2) an improvement in motor learning by training. While potentially important and at reasonable depth for a short report, authors should clarify some of the methods or experiments that underlie their conclusions.

Figure 3. Technical point: The acquisition of the representative data presented was digitized too slowly, leading to missing pieces of the traces. Also, there appears to be something qualitatively different about the KO trace. When the figure is enlarged, the data seems to show more than one trace present in places (e.g. last SS). A quantitative description for the criteria by which the simple and complex traces were distinguished and resolved from one another needs to be articulated in legend and Materials and methods.

We apologize for the poor image quality. We replaced them with high-resolution images. We included a brief description of the criteria for simple and complex spikes in the legend and included a detailed description in the Materials and methods.

Title and Abstract: Curious why authors don't emphasize the finding that training reverses the cerebellar phenotypes because that is a very interesting aspect of the work.

This is indeed an interesting finding and was the inspiration for a much more expanded story that is beyond the scope of this study. We included this piece of data here to provide a complete picture of our findings, however, because the data are limited to males and we did not perform additional experiments to follow up on this observation, we did not feel that including it in the title was appropriate.

The authors' descriptor of "whole" cerebellum is imprecise and could benefit from better wording, perhaps, for example, describing the result as deletion of major neuronal types in the cerebellum. I raise this issue because Figure 2—figure supplement 1 shows cre recombination (TdT positivity) from the EN1 promoter in an area adjacent to the cerebellum. This result is consistent with the JAX description of this line, cited in the Materials and methods as the source for this line, which also points to expression in tissues outside the cerebellum, including muscle. In the Discussion, authors should discuss this issue specifically along with their references to work indicating that other brain regions are not likely involved in the phenotypes measured here.

Rather than saying “entire cerebellum” we now say “all major neuronal subtypes in the cerebellum” when describing the results. We also discuss the issue of Cre specificity in the Discussion. Although En1 is expressed in the midbrain and spinal cord interneurons, we do not believe this contributes to the phenotypes we observed because dopaminergic (TH-Cre) KO mice have a normal rotarod performance (Samaco et al., 2009). These mice lack Mecp2 in the substantia nigra, a region in the midbrain that is critical for motor function. Thus, it is less likely that midbrain dysfunction contributes to the rotarod deficit we observed in our En1-Cre KO mice. Although, the loss of Mecp2 from spinal cord interneurons could contribute to the rotarod deficits, they are unlikely to affect eyeblink conditioning because this reflex is mediated by circuits in the cerebellum and brainstem (Bracha, 2004). Finally, the loss of Mecp2 from skeletal muscle does not affect muscle morphology or physiology (Conti et al., 2015), so En1-Cre expression and the subsequent removal of Mecp2 in muscle is unlikely to contribute to the motor phenotypes we observed.

Related to above, authors confirm a lack of MeCP2 expression in specific neuronal populations in cerebellum using the En1-Cre, but there are other less abundant cell types in the cerebellum including oligodendroyctes and Bergman glia. Does the En1-Cre mediate excision from these populations as well? If not, could the expression of MeCP2 in these cells be preventing the appearance of a more robust phenotype? Again, this could be a discussion point.

En1-Cre mediates excision from cerebellar oligodendrocytes and Bergmann glia because these are derived from progenitors in rhombomere 1 (part of the En1 expression domain) (Hashimoto et al., 2016; Yamada and Watanabe, 2002).

Where there any cellular deficits following the loss of MeCP2 in individual populations? For example, several labs including that of the senior author, have described alterations in heterochromatin in MeCP2 mutant neurons. It would be interesting to see if this phenotype was present in the various cell types of the cerebellum even though there were no behavioral phenotypes.

We analyzed heterochromatin architecture by staining for DAPI, H3K4me3, H3K9me3, and H3K27me3 in cerebellar KO mice as well as mice lacking Mecp2 in cerebellar subtypes. The amount of H3K9me3 in the heterochromatic foci of granule cells, Purkinje cells, and molecular layer interneurons was reduced in cerebellar KO mice compared to control mice. Interestingly, this defect was also present in granule cells of Atoh1-Cre KO mice, Purkinje cells of L7-Cre KO mice, and Purkinje cells and molecular layer interneurons of Ptf1a-CreKO. These findings are described in a new Figure 4 since to replace the transcriptional data (old Figure 4) that reviewer 3 felt were not necessary.

The Hoshino reference is incorrect. This paper in pub med is attributed to a different set of authors: Meredith et al. in the Johnson lab. I believe the reference should be: Hoshino M, Nakamura S, Mori K, Kawauchi T, Terao M, Nishimura YV, Fukuda A, Fuse T, Matsuo N, Sone M, Watanabe M, Bito H, Terashima T, Wright CVE, Kawaguchi Y, Nakao K, Nabeshima YI. Ptf1a, a bHLH transcriptional gene, defines GABAergic neuronal fates in cerebellum. Neuron. 2005;47:201-213. doi: 10.1016/j.neuron.2005.06.007.

Thank you for this important catch. It is now corrected.

For all figures, legends need to state the type of statistical analyses used., not just the p values. Figure 3 as noted above.

We added the type of statistical analyses used to each figure legend.

Reviewer #2:

In this manuscript the authors investigated the role of the cerebellum in Rett syndrome, characterized by loss-of-function in MECP2. MeCP2 KO mice in basal ganglia and cortex present severe motor impairments but cerebellar KO mice have not been studied. To address this question, the authors first studied rotarod performance of cerebellar cell-specific KO mice and whole cerebellum KO mice at 2, 4 and 6-month-old. They verified that the delay observed in 6-month-old cerebellar KO mice in motor learning was cerebellar specific and was no due to deficiency in general locomotor activity or strength. They also attest of any non-motor symptoms in these mice. They combined these behavioral experiments with electrophysiological recordings and morphological study of Purkinje cells as well as transcriptional analysis of the whole cerebellum.

They concluded that cerebellar dysfunction (more variability of firing pattern of Purkinje cells and transcriptional abnormalities) is involved somehow in the motor deficiencies observed in MeCP2 KO mice. Overall, this is a very nice piece of work. Nevertheless, I have some comments below that I feel will help improve the clarity of the paper.

1) One of the major finding of the paper is that KO in different subpopulations does not cause deficiency; however, there is no real KO specific for inhibitory interneurons of the cerebellum (both Purkinje and interneurons (Figure 2—figure supplement 2G-I). The conclusion may not be appropriate; please discuss.

Although there is no Cre-expressing mouse that exclusively targets molecular layer interneurons of the cerebellum, we still conclude that the loss of Mecp2 in this population does not cause behavioral deficits. Because L7-CreKO mice do not have behavioral deficits, the lack of behavioral deficits in Ptf1a-Cre KO mice indicates that deleting Mecp2 from molecular layer interneurons is also not sufficient to cause behavioral deficits. We clarified this in the Discussion.

2) Why recordings of PC only? When it is shown that it is not the only population involved in that deficit as MeCP2 KO L7 mice show no deficits. Please justify. Also, there is no CV measurement? Why only CV2?

There are two main reasons why we chose to study Purkinje cells in our in vivo analyses. First, granule cell parallel fibers and molecular layer interneuron axons together modulate simple spike activity, and inferior olivary neurons drive complex spikes. Recording from Purkinje cells is an efficient and reliable method of examining the entire circuit in vivo because they serve as the final output stage of the cerebellar cortex, so we can acquire information about the entire circuit from a single cell type. Second, recording from the other cell types in the cerebellar cortex is more challenging, as their signals are more ambiguous and less reliable. Granule cell signals are complex and difficult to isolate in vivo due to their long periods of silence (Ruigrok, Hensbroek and Simpson, 2011). Although molecular layer interneurons can be recorded in vivo (Ruigrok, Hensbroek and Simpson, 2011; Barmack and Yakhnitsa, 2008), their sparse distribution and “gradient” of identities (stellate cells or basket cells) makes analyzing their function more reliable when they are analyzed indirectly as changes in Purkinje cell simple spike activity (Brown et al., 2019). Therefore, Purkinje cells are the ideal cell type for examining whether functional changes have occurred at any point in the cerebellar circuit.

We included CV measurements in Figure 3.

3) Complete depletion of Mecp2 causes ataxia in mice. But complete depletion of Mecp2 in the cerebellum of mice does not induce ataxia, which is mainly caused by cerebellar dysfunction. Please discuss.

Previous work has shown that complete loss of Mecp2 causes ataxia, as revealed by an impairment on the rotarod (Pelka et al., 2006). We have shown that the loss of Mecp2 in the cerebellum also cause a similar impairment. In contrast to the permanent impairments observed in global Mecp2KO mice, however, the impairments in the cerebellar KO mice improved with additional training. We modified the text in the Introduction and Discussion to clarify similarities and differences between our observations and those previously reported in global KO mice. We hypothesize that the motor impairments on the rotarod in global Mecp2KO arise from dysfunction in the cerebellum as well as other regions implicated in motor function, such as the cortex and basal ganglia.

4) Are the 2-month-old, 4-month-old, and 6-month-old mice the same animals?

These are different cohorts of animals. This was clarified in the legend of Figure 2—figure supplement 3.

Reviewer #3:

The study presented a clear question to be investigated, used appropriate paradigms to address the question, and the results are largely clear. Sample sizes are more than sufficient given the variances reported, and the statistical analyses employed appropriate stringent tests. The study does selectively focus on male subjects, but given the specific question being asked, and the confound X-linked mosaicism would have on subtle behavioral changes in females, this choice is defendable. In short, this is a strong study overall and I have only a few suggestions for the authors to consider.

The first relates to the specificity of cre expression in the driver lines employed. What was shown nicely was the near complete ablation of MeCP2 in total cerebellum or in the targeted cell populations of the cerebellum. What is not as clear is to what degree (if any) recombination occurred within cells in other regions of the brain. While En1-Cre is largely restricted to cerebellum, Atoh1-Cre and Ptf1a-Cre are also expressed peripherally and in other brain regions. Figure 2—figure supplement 2 shows preservation of MeCP2 hippocampus in the En1-Cre line, which is not unexpected, but there is no discussion about non-cerebellar targets. The low magnitude view of Td-tomato is insufficient to show modest expression levels in extra-cerebellar cells. To be fair, this does not affect the results interpretations as none of the cell-type specific ablations yielded phenotypic alterations. But for at least Pftf1-Cre mice, recombination would be expected in a host of other interneuronal populations, and the lack of behavioral consequence would indicate the ablation of Mecp2 from those targets is also insufficient for behavioral manifestations (which is consistent with previous work from the group).

Indeed, the loss of Mecp2 in inhibitory neurons plays an important role in the pathogenesis of Rett syndrome phenotypes (Chao et al., 2010; Ito-Ishida et al., 2015). However, cerebellar interneurons are the only inhibitory neurons within the brain that express Ptf1a (Meredith et al., 2009). Ptf1a is also expressed outside the cerebellum in neurons of the inferior olive (Hoshino et al., 2005), which send inputs onto Purkinje cells via climbing fibers, and spinal cord interneurons (Bikoffet al., 2016). Although our study focuses on the cerebellum, we can conclude that the loss of Mecp2 in these extracerebellar regions is also not sufficient to cause behavioral phenotypes.

The second relates to the behavioral tasks selected and the degree to which cerebellum function influences performances in those tasks. The tasks interrogated are a standard informative battery, but do not include fine dexterity assays that would be more likely to reveal a selective dysfunction of cerebellar circuitry. The conditioned eye blink test is arguably the most cerebellar sensitive. While performance delays were seen in the cerebellar-KO mice relative to Flox mice, they did "learn" the task and reach the probability and amplitude responses of the Flox mice. However, unlike the rotarod test, there did not appear to be any increased learning rate. Might this suggest differences in how internal cerebellar circuits are affected the absence of Mecp2?

Differences in the learning rates of rotarod and eyeblink conditioning may reflect how internal cerebellar circuits respond to the absence of Mecp2. How these circuits adapt to training in cerebellar KO mice is an area of ongoing investigation in our laboratory.

The third relates to the candidate gene expression comparisons. It is not clear what this section adds to the study mechanistically without additional investigation of candidate gene product function. Further, the results did not reproduce the changes previously reported for 16 of the 20 targets investigated, and this was also not discussed. The progressiveness of alteration shown for the 4 targets was also interesting, but not discussed. Why would preservation be seen at 2 months? The postnatal maturation of the cerebellum is largely complete by 2 months, and the lack of changes at this time indicates these alterations do not simply arise from MeCP2 absence. This section would benefit from additional discussion or it could be removed and serve as the starting point for an subsequent study.

We removed this section from the manuscript as it will serve as the foundation for a follow-up study. We replaced it with chromatin architecture experiments (new Figure 4) that were requested by reviewer #1.

References:

1) Barmack NH, Yakhnitsa V. 2008. Functions of interneurons in mouse cerebellum. J Neurosci 28:1140-52. doi: 10.1523/JNEUROSCI.3942-07.2008

2) Brown AM, Arancillo M, Lin T, Catt DR, Zhou J, Lackey EP, Stay TL, Zuo Z, White JJ, Sillitoe RV. 2019. Molecular layer interneurons shape the spike activity of cerebellar Purkinje cells. Sci Rep 9:1742. doi: 10.1038/s41598-018-38264-1

3) Meredith DM, Masui T, Swift GH, MacDonald RJ, Johnson JE. 2009. Multiple transcriptional mechanisms control Ptf1a levels during neural development including autoregulation by the PTF1-J complex. J Neurosci 29:11139-48. doi: 10.1523/JNEUROSCI.2303-09.2009

4) Ruigrok TJ, Hensbroek RA, Simpson JI. 2011. Spontaneous activity signatures of morphologically identified interneurons in the vestibulocerebellum. J Neurosci 31:712-24. doi: 10.1523/JNEUROSCI.1959-10.2011

5) Yamada K, Watanabe M. 2002. Cytodifferentiation of Bergmann glia and its relationship with Purkinje cells. Anat Sci Int 77:94-108. doi: 10.1046/j.0022-7722.2002.00021.x

https://doi.org/10.7554/eLife.64833.sa2

Article and author information

Author details

  1. Nathan P Achilly

    1. Jan and Dan Duncan Neurological Research Institute, Texas Children’s Hospital, Houston, United States
    2. Program in Developmental Biology, Baylor College of Medicine, Houston, United States
    3. Medical Scientist Training Program, Baylor College of Medicine, Houston, United States
    Contribution
    Conceptualization, Formal analysis, Validation, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0307-2662
  2. Ling-jie He

    1. Jan and Dan Duncan Neurological Research Institute, Texas Children’s Hospital, Houston, United States
    2. Department of Human and Molecular Genetics, Baylor College of Medicine, Houston, United States
    3. Howard Hughes Medical Institute, Baylor College of Medicine, Houston, United States
    Contribution
    Conceptualization, Validation, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Olivia A Kim

    Department of Neuroscience, Baylor College of Medicine, Houston, United States
    Contribution
    Software, Formal analysis, Validation, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Shogo Ohmae

    Department of Neuroscience, Baylor College of Medicine, Houston, United States
    Contribution
    Software, Formal analysis, Validation, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1726-4961
  5. Gregory J Wojaczynski

    Department of Neuroscience, Baylor College of Medicine, Houston, United States
    Contribution
    Software, Formal analysis, Validation, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Tao Lin

    1. Jan and Dan Duncan Neurological Research Institute, Texas Children’s Hospital, Houston, United States
    2. Department of Pathology and Immunology, Baylor College of Medicine, Houston, United States
    Contribution
    Resources, Validation, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Roy V Sillitoe

    1. Jan and Dan Duncan Neurological Research Institute, Texas Children’s Hospital, Houston, United States
    2. Program in Developmental Biology, Baylor College of Medicine, Houston, United States
    3. Department of Neuroscience, Baylor College of Medicine, Houston, United States
    4. Department of Pathology and Immunology, Baylor College of Medicine, Houston, United States
    Contribution
    Resources, Supervision, Funding acquisition, Project administration, Writing - review and editing
    Competing interests
    Reviewing Editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6177-6190
  8. Javier F Medina

    Department of Neuroscience, Baylor College of Medicine, Houston, United States
    Contribution
    Resources, Software, Supervision, Funding acquisition, Methodology, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  9. Huda Y Zoghbi

    1. Jan and Dan Duncan Neurological Research Institute, Texas Children’s Hospital, Houston, United States
    2. Program in Developmental Biology, Baylor College of Medicine, Houston, United States
    3. Howard Hughes Medical Institute, Baylor College of Medicine, Houston, United States
    4. Department of Neuroscience, Baylor College of Medicine, Houston, United States
    5. Department of Pathology and Immunology, Baylor College of Medicine, Houston, United States
    6. Department of Neurology, Baylor College of Medicine, Houston, United States
    7. Department of Pediatrics, Baylor College of Medicine, Houston, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    hzoghbi@bcm.edu
    Competing interests
    Senior editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0700-3349

Funding

National Institutes of Health (R01NS057819)

  • Huda Y Zoghbi

National Institutes of Health (F30HD09787)

  • Nathan P Achilly

National Institutes of Health (R01MH093727)

  • Javier F Medina

National Institutes of Health (R01NS112917)

  • Javier F Medina

National Institutes of Health (RF1MH114269)

  • Javier F Medina

National Institutes of Health (F31NS103427)

  • Olivia A Kim

National Institutes of Health (5U54HD083092)

  • Nathan P Achilly
  • Ling-jie He
  • Olivia A Kim
  • Shogo Ohmae
  • Gregory J Wojaczynski
  • Tao Lin
  • Huda Y Zoghbi

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This project was funded by the National Institutes of Health (R01NS057819 to HYZ; F30HD09787 to NPA; R01MH093727, R01NS112917, and RF1MH114269 to JFM; F31NS103427 to OAK; R01NS089664 and R01NS100874 to RVS), the Howard Hughes Medical Institute (HYZ), and the Baylor College of Medicine Intellectual and Developmental Disabilities Research Center (NIH 5U54HD083092). We thank all members of the Zoghbi and Medina labs for their critical review of the manuscript. Figure diagrams were created with BioRender.com.

Ethics

Animal experimentation: Baylor College of Medicine Institutional Animal Care and Use Committee (IACUC, Protocol AN-1013) approved all mouse care and manipulation.

Senior Editor

  1. Gary L Westbrook, Oregon Health and Science University, United States

Reviewing Editor

  1. Gail Mandel, Oregon Health and Science University, United States

Reviewer

  1. Gail Mandel, Oregon Health and Science University, United States

Publication history

  1. Received: November 12, 2020
  2. Accepted: January 13, 2021
  3. Version of Record published: January 26, 2021 (version 1)

Copyright

© 2021, Achilly et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,051
    Page views
  • 180
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Computational and Systems Biology
    2. Neuroscience
    Jack Goffinet et al.
    Research Article Updated

    Increases in the scale and complexity of behavioral data pose an increasing challenge for data analysis. A common strategy involves replacing entire behaviors with small numbers of handpicked, domain-specific features, but this approach suffers from several crucial limitations. For example, handpicked features may miss important dimensions of variability, and correlations among them complicate statistical testing. Here, by contrast, we apply the variational autoencoder (VAE), an unsupervised learning method, to learn features directly from data and quantify the vocal behavior of two model species: the laboratory mouse and the zebra finch. The VAE converges on a parsimonious representation that outperforms handpicked features on a variety of common analysis tasks, enables the measurement of moment-by-moment vocal variability on the timescale of tens of milliseconds in the zebra finch, provides strong evidence that mouse ultrasonic vocalizations do not cluster as is commonly believed, and captures the similarity of tutor and pupil birdsong with qualitatively higher fidelity than previous approaches. In all, we demonstrate the utility of modern unsupervised learning approaches to the quantification of complex and high-dimensional vocal behavior.

    1. Neuroscience
    Iris Bachmutsky et al.
    Short Report Updated

    Opioids are perhaps the most effective analgesics in medicine. However, between 1999 and 2018, over 400,000 people in the United States died from opioid overdose. Excessive opioids make breathing lethally slow and shallow, a side-effect called opioid-induced respiratory depression. This doubled-edged sword has sparked the desire to develop novel therapeutics that provide opioid-like analgesia without depressing breathing. One such approach has been the design of so-called ‘biased agonists’ that signal through some, but not all pathways downstream of the µ-opioid receptor (MOR), the target of morphine and other opioid analgesics. This rationale stems from a study suggesting that MOR-induced ß-arrestin 2 dependent signaling is responsible for opioid respiratory depression, whereas adenylyl cyclase inhibition produces analgesia. To verify this important result that motivated the ‘biased agonist’ approach, we re-examined breathing in ß-arrestin 2-deficient mice and instead find no connection between ß-arrestin 2 and opioid respiratory depression. This result suggests that any attenuated effect of ‘biased agonists’ on breathing is through an as-yet defined mechanism.
