Augmenter of liver regeneration regulates cellular iron homeostasis by modulating mitochondrial transport of ATP-binding cassette B8

Version of Record

Accepted for publication after peer review and revision.

Download
Cite
Share
CommentOpen annotations (there are currently 0 annotations on this page).

Version of Record published: April 19, 2021 (This version)
Accepted Manuscript published: April 9, 2021 (Go to version)
Accepted: April 6, 2021
Received: November 25, 2020

1. Of interest
Genetically engineered mesenchymal stem cells as a nitric oxide reservoir for acute kidney injury therapy

Haoyan Huang, Meng Qian ... Zongjin Li

Research Article Sep 29, 2023
Further reading

Abstract
Introduction
Results
Discussion
Materials and methods
Appendix 1
Data availability
References
Decision letter
Author response
Article and author information
Metrics

Abstract

Chronic loss of Augmenter of Liver Regeneration (ALR) results in mitochondrial myopathy with cataracts; however, the mechanism for this disorder remains unclear. Here, we demonstrate that loss of ALR, a principal component of the MIA40/ALR protein import pathway, results in impaired cytosolic Fe/S cluster biogenesis in mammalian cells. Mechanistically, MIA40/ALR facilitates the mitochondrial import of ATP-binding cassette (ABC)-B8, an inner mitochondrial membrane protein required for cytoplasmic Fe/S cluster maturation, through physical interaction with ABCB8. Downregulation of ALR impairs mitochondrial ABCB8 import, reduces cytoplasmic Fe/S cluster maturation, and increases cellular iron through the iron regulatory protein-iron response element system. Our finding thus provides a mechanistic link between MIA40/ALR import machinery and cytosolic Fe/S cluster maturation through the mitochondrial import of ABCB8, and offers a potential explanation for the pathology seen in patients with ALR mutations.

Introduction

Chronic loss of Augmenter of Liver Regeneration (ALR) results in mitochondrial myopathy and cataract, and combined respiratory chain deficiency (Di Fonzo et al., 2009; Calderwood et al., 2016; Nambot et al., 2017). Several mutations in ALR have been described for this disorder. Some of these documented mutations result in premature stop codon, while the R194H mutation has been shown to affect the protein stability through increasing dissociation of its cofactor FAD (Daithankar et al., 2010; Nambot et al., 2017). Cellular studies demonstrated that R194H mutant ALR is not functional, and mutant cells can be complemented by ectopic expression of wild type (WT) ALR (Di Fonzo et al., 2009). While patients with ALR mutations lack its protein expression, how reduced ALR protein levels are linked to human pathology remains to be determined.

ALR is a sulfhydryl oxidase with two isoforms – a full-length isoform that is predominantly in the mitochondria, but has also been observed in other locations depending on the cell type, and a shorter cytosolic isoform (Ibrahim and Weiss, 2019). The cytosolic isoform of ALR, which is thought to function in hepatic regeneration (Li et al., 2002; Ibrahim and Weiss, 2019), lacks the first 80 amino acids, but retains the catalytic domain necessary to oxidize cysteines. Within the mitochondria, the full-length isoform of ALR localizes to the mitochondrial intermembrane space. Although the function of ALR is not entirely understood, it has been implicated in hepatic regeneration after injury (Polimeno et al., 2011), protection against hepatic and renal injury (Huang et al., 2018; Liu et al., 2019), facilitation of cardiac development (Dabir et al., 2013), and maintenance of embryonic stem cells (Todd et al., 2010). Mice with liver-specific deletion of ALR from birth develop steatohepatitis and hepatocellular carcinoma and have exacerbated hepatic injury when exposed to alcohol, while postnatal deletion of ALR in the liver induces oxidative stress and promotes hepatic steatosis (Gandhi et al., 2015; Kumar et al., 2016; Kumar et al., 2019). Previous studies demonstrated that ectopic expression of mitochondria-targeted human ALR rescues the cytoplasmic iron-sulfur (Fe/S) cluster maturation defects in Erv1-null yeast (Lange et al., 2001), suggesting that ALR may be the functional homolog of yeast Erv1p and play a role in Fe/S cluster biogenesis. However, a recent paper demonstrated that the defects of cytosolic Fe/S clusters in Erv1-null yeast may be related to a second mutation leading to decreased glutathione levels (Ozer et al., 2015). Therefore, the involvement of yeast Erv1p and mammalian ALR in cytosolic Fe/S cluster biogenesis still requires further investigation.

The synthesis of Fe/S clusters occurs in the mitochondria on the scaffold protein iron-sulfur cluster assembly enzyme (ISCU). Iron destined for Fe/S cluster synthesis is imported into mitochondria by mitoferrin 1/2 and is delivered to ISCU by frataxin. The fully assembled Fe/S clusters are then transferred to Fe/S cluster-containing proteins. Because several cytosolic proteins also require Fe/S clusters for their function, another set of cytosolic proteins, collectively named as the cytosolic iron/sulfur cluster assembly (CIA) machinery, facilitates the incorporation of Fe/S clusters into cytosolic proteins (Lill et al., 2006). However, the identity of the molecule that supplies CIA machinery and how it gets out of mitochondria has not been identified. To date, ABCB7 and ABCB8 are the two mammalian mitochondrial transporters thougth to be critial for cytosolic Fe/S cluster maturation (Ichikawa et al., 2012; Ye and Rouault, 2010). Proper cytosolic Fe/S cluster maturation is critical for cell health. Deletion of Abcb8 in mouse heart leads to cytosolic Fe/S cluster deficiency and spontaneous cardiomyopathy (Ichikawa et al., 2012). Conditional deletion of Iop1, one component of CIA machinery, in mice results in complete lethality, and deletion of this gene in mouse embryonic fibroblasts leads to cellular iron accumulation and rapid cell death (Song and Lee, 2011). Previous studies in yeast have implicated three essential players for cytoplasmic Fe/S cluster biogenesis – Atm1p, Erv1p, and glutathione (Lill et al., 2006). Additionally, Erv1 has also been shown to mediate cytosolic Fe/S cluster biogenesis in the parasitic trypanosome T. brucei (Haindrich et al., 2017).

To support adequate Fe/S cluster biogenesis, iron first enters the cells through transferrin receptor-mediated uptake. It can subsequently be stored in the cytoplasm or incorporated into heme and Fe/S clusters in the mitochondria (Hentze et al., 2010; Ye and Rouault, 2010). While adequate supply of iron is required for normal cellular function, excess iron can catalyze the formation of reactive oxygen species. Therefore, the levels of cellular iron are tightly regulated. The iron regulatory protein (IRP)-iron response element (IRE) system is the master regulator of cellular iron in mammals. There are two IRPs in mammalian systems, IRP1 and IRP2. In the iron-replete state, IRP1 acquires an Fe/S cluster and functions as a cytosolic aconitase, while IRP2 is proteolytically degraded in an iron- and oxygen-dependent process. In the iron-starved state, IRP1 loses its Fe/S cluster and becomes activated, and IRP2 is stabilized. Both proteins then bind to IREs within the 5’- and 3’-untranslated regions (UTRs) of mRNA and posttranscriptionally regulate gene expression (De Domenico et al., 2008; Hentze et al., 2010; Anderson et al., 2012).

In yeast, Erv1p, together with Mia40, is part of the oxidative folding machinery required for the import of a subset of mitochondrial proteins. Mia40 oxidizes the cysteine residues within imported proteins, and the reduced Mia40 is re-oxidized by Erv1p, effectively recycling Mia40 for further use (Müller et al., 2008). A similar electron transfer process has also been demonstrated using recombinant human MIA40 and ALR proteins (Banci et al., 2011). A subset of proteins imported by the Mia40/Erv1p machinery, including Tim 13 and Tim 22, are involved in the mitochondrial import of other proteins (Müller et al., 2008; Wrobel et al., 2013). Nevertheless, the functional significance of this protein import system on cytosolic Fe/S cluster maturation and cellular iron regulation in mammalian systems remains unclear.

In this paper, we demonstrate that cytoplasmic Fe/S cluster maturation depends on a functional mitochondrial protein import system consisting of ALR and MIA40. Mitochondrial ALR facilitates the mitochondrial import of ABCB8, a protein needed for the maturation of cytosolic Fe/S proteins. Thus, a reduction in ALR and eventual reduction in the cytosolic Fe/S clusters leads to activation of IRP1 and subsequent cellular iron accumulation.

Results

Downregulation of Alr results in cytosolic Fe/S maturation defects

Previous yeast studies demonstrated that loss of Erv1p resulted in cytosolic Fe/S cluster deficiency, which was rescued with forced overexpression of human ALR (Lange et al., 2001). Although the defect is restricted to cytosolic protein, humans with chronic loss of ALR demonstrate mitochondrial myopathy with respiratory chain defect (Di Fonzo et al., 2009; Calderwood et al., 2016; Nambot et al., 2017). In MEF, we identified the full-length and short isoforms, with the former one predominantly in the mitochondria and the latter one in the cytoplasm (Figure 1—figure supplement 1A), as reported previously (Ibrahim and Weiss, 2019). To elucidate the role of ALR in cytosolic Fe/S cluster maturation and mitochondrial function in mammalian cells, we first downregulated Alr in mouse embryonic fibroblasts (MEFs) using pooled siRNA and demonstrated a significant reduction of Alr at the mRNA level (Figure 1A). Of note, three out of the four siRNAs in the pooled siRNA target regions shared by the full-length and the short isoform of ALR, and we observed reduction of protein levels of both isoforms (Figure 1B and Figure 1—figure supplement 1B). While previous literature in moue embryonic stem cell described significant cell death after Alr downregulation (Todd et al., 2010), we did not observe significant cell death at 72 hr after downregulation of Alr (Figure 1—figure supplement 1C). This discrepancy likely reflects distinct roles for ALR in differentiated versus undifferentiated cell types. As the quantity of cytosolic Fe/S clusters cannot be measured directly, the protein levels of glutamine PRPP amidotransferases (GPAT), a cytosolic protein whose maturation requires Fe/S clusters, and the activities of xanthine oxidase (XO) and cytosolic aconitase, both of which use Fe/S clusters as cofactors, were used as surrogate markers for cytosolic Fe/S cluster maturation. Downregulation of Alr decreased GPAT protein levels (Figure 1C), and reduced XO (Figure 1D) and cytosolic aconitase activity (Figure 1E). We also measured the activity of the Fe/S cluster-containing mitochondrial complexes I and II, and found no change in complex I and II activity with Alr downregulation (Figure 1F and G). To further assess mitochondrial function, we measured oxygen consumption in intact cells fueled with glucose and L-glutamine using Seahorse Extracellular Flux Assay, and did not observe significant difference in mitochondrial oxygen consumption (Figure 1—figure supplement 1D). Our results therefore demonstrated that acute reduction in ALR impairs specifically cytosolic Fe/S cluster maturation in mammalian cells similar to the previously published yeast studies.

Figure 1 with 1 supplement see all

Download asset Open asset

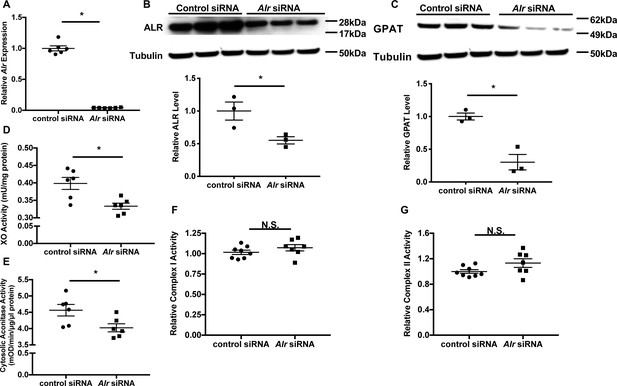

Downregulation of *Alr* results in cytoplasmic Fe/S cluster maturation defects.

(A) mRNA (n = 6) and (B) protein (n = 3) levels of *Alr* in wild type (WT) mouse embryonic fibroblasts (MEFs) with or without *Alr* downregulation. GPAT protein levels (n = 3, C), xanthine oxidase (XO, n = 6, D), and cytosolic aconitase (n = 6, E) activities in cells treated with *Alr* siRNA. Mitochondrial complex I (n = 7–8, F) and complex II activity (n = 7–8, G) in WT MEFs with *Alr* downregulation. Cells were harvested 48 hr after transfection for RNA analysis and 72 hr after transfection for protein analysis. Quantification of western blotting images is shown in the same panel. Data are presented as mean ± standard error mean (SEM). *p<0.05 by ANOVA. N.S. = not significant.

Downregulation of Alr increases cellular iron through activation of the IRP-IRE system

We next investigated changes in cellular iron with Alr downregulation. Transferrin receptor-1 (Tfrc) mRNA levels were increased in wild type MEFs with Alr downregulation (Figure 2A). Consistent with changes in Tfrc expression, we also observed an increase in transferrin-mediated iron uptake in cells treated with Alr siRNA (Figure 2B). The increased iron uptake resulted in higher steady state levels of iron in both the cytoplasm and mitochondria (Figure 2C), similar to other genetic models with cytosolic Fe/S cluster maturation defects (Sato et al., 2011; Ichikawa et al., 2012). Since non-transferrin-bound iron is not present in normal culturing conditions, these results suggest that downregulation of Alr increases cellular iron, likely through upregulation of Tfrc.

Figure 2 with 1 supplement see all

Download asset Open asset

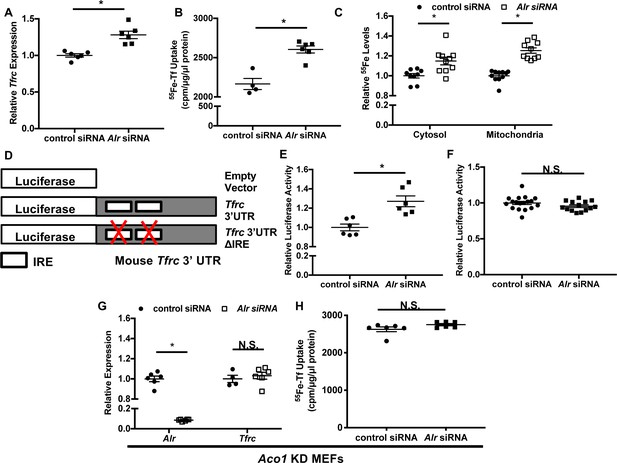

Downregulation of ALR increases *Tfrc* levels and cellular iron content through IRP1.

*Tfrc* mRNA levels (A) and transferrin-dependent iron uptake (B) in wild type (WT) mouse embryonic fibroblasts (MEFs) with *Alr* downregulation (n = 5–6). (C) Steady-state ⁵⁵Fe levels in cytosolic and mitochondrial fraction from cells treated with *Alr* siRNA (n = 6). (D) Schematic representation of *Tfrc* 3’UTR reporter constructs. (E) Full-length *Tfrc* 3’UTR reporter activities were measured in WT MEFs with ALR downregulation (n = 6). (F) IRE-deleted *Tfrc* 3’UTR reporter activities in WT MEFs with ALR downregulation (n = 14–18). (G) *Alr* and *Tfrc* mRNA levels in *Aco1* knockdown (KD) MEFs treated with *Alr* siRNA (n = 4–6). (H) TFRC-mediated ⁵⁵Fe uptake in *Aco1* KD MEFs treated with *Alr* siRNA (n = 6). Experiments were run 48 hr after siRNA transfection for mRNA levels and 60 hr after transfection for steady state ⁵⁵Fe levels and transferrin-mediated iron uptake. For luciferase assay, cells were sequentially transfected with siRNA and reporter construct (24 hr apart), and assayed 24 hr after transfection of reporter constructs. Data are presented as mean ± SEM. *p<0.05 by ANOVA. N.S. = not significant.

Both transcriptional and posttranscriptional regulation have been shown to alter Tfrc mRNA levels (Tacchini et al., 2008; Anderson et al., 2012; Bayeva et al., 2013). We therefore next studied the mechanism for the upregulation of Tfrc by Alr knockdown. We first generated a luciferase reporter construct harboring 700 base pairs of the Tfrc promoter upstream of the Tfrc transcription start site (Figure 2—figure supplement 1A). Downregulation of Alr did not change luciferase activity of this construct (Figure 2—figure supplement 1B), suggesting that ALR does not regulate Tfrc expression at the transcriptional level. We next made a construct containing the full-length Tfrc 3’-UTR downstream of luciferase cDNA (Figure 2D). Luciferase activity of this reporter increased with iron chelation (Figure 2—figure supplement 1C), and with Alr downregulation (Figure 2E), suggesting that ALR posttranscriptionally regulates Tfrc through stabilization of Tfrc mRNA.

Since Tfrc is modulated at the mRNA level by IRPs, we then studied the role of IRP1/2 in ALR-mediated changes in Tfrc. We first made a luciferase construct with all IRE sites removed from the Tfrc 3’-UTR (Figure 2D). As expected, this construct displayed no responsiveness to iron chelation (Figure 2—figure supplement 1D). Furthermore, downregulation of Alr had no effect on the luciferase activity of the IRE-deleted reporter construct (Figure 2F), suggesting that activation of the IRP/IRE system is required for the effects of ALR on cellular iron homeostasis.

We then assessed the role of IRP2 by treating Ireb2 (encoding IRP2) knockout (KO) MEFs with Alr siRNA. Alr knockdown in these cells resulted in a significant reduction in ALR protein levels (Figure 2—figure supplement 1E), and a significant increase in Tfrc mRNA levels and transferrin-mediated iron uptake (Figure 2—figure supplement 1F and G), suggesting that the regulation of Tfrc by ALR is independent of IRP2. Thus, we focused our studies on IRP1. We first created a stable MEF line expressing Aco1 (encoding IRP1) shRNA in order to examine the effect of Alr downregulation in the absence of IRP1, but we only achieved 40% downregulation of Aco1 at the mRNA level (Figure 2—figure supplement 1H). This could be due to the inefficient expression of shRNA relative to endogenous expression of Aco1 or the thermodynamic property of the shRNA we utilized. To more effectively downregulate Aco1 expression, we treated cells expressing Aco1 shRNA with siRNA against Aco1 (referred to as Aco1 KD MEFs hereafter) and achieved a significant decrease in Aco1 transcript levels (Figure 2—figure supplement 1I). Although treatment of Aco1 KD MEFs with Alr siRNA significantly reduced Alr mRNA levels (Figure 2G), Tfrc mRNA levels and TFRC-mediated iron uptake were not increased (Figure 2G and H). Since IRP1 is activated upon losing its mature Fe/S cluster, our results indicate that Alr downregulation impairs Fe/S cluster maturation and subsequently promotes increases in Tfrc mRNA and cellular iron levels in an IRP1-dependent manner.

The full-length isoform of ALR regulates cellular iron and cytosolic Fe/S cluster maturation

The ALR gene encodes two isoforms: a full-length isoform predominantly localized to the mitochondria, and a shorter cytoplasmic isoform lacking the first 80 amino acids (Li et al., 2002; Ibrahim and Weiss, 2019). To determine which isoform of ALR regulates cellular iron and the maturation of cytosolic Fe/S clusters, we generated lentiviral constructs containing the protein coding regions of the two isoforms of human ALR, but lacking 3’-UTR sequences. Using these constructs, we overexpressed these two isoforms in MEFs and confirmed the localization of each isoform to their respective cellular compartments (Figure 3—figure supplement 1A and B).

We then knocked-down endogenous Alr with siRNA targeting the 3’-UTR of mouse Alr mRNA, followed by lentiviral overexpression of either isoform using the aforementioned virus. This approach allowed us to selectively overexpress individual isoforms of ALR in the absence of the endogenous ALR protein. Quantitative reverse transcription polymerase chain reaction (qRT-PCR) using species-specific primer sets confirmed that only endogenous, but not exogenous, Alr was downregulated by siRNA (Figure 3—figure supplement 1C and D). Overexpression of the full-length (predominantly mitochondrial) but not the short (cytosolic) isoform of ALR rescued the increase in Tfrc mRNA levels and transferrin-dependent iron uptake (Figure 3A and B). In addition, the cytosolic Fe/S cluster maturation defects, including reduced cytosolic aconitase and XO activity, and decreased GPAT protein levels, were all reversed by the re-expression of the full-length but not the cytosolic isoform of ALR (Figure 3C–F, Figure 3—figure supplement 1E). These observations indicate that the full-length ALR isoform regulates cytosolic Fe/S cluster maturation, which in turn affects IRP1 activity and cellular iron levels.

Figure 3 with 1 supplement see all

Download asset Open asset

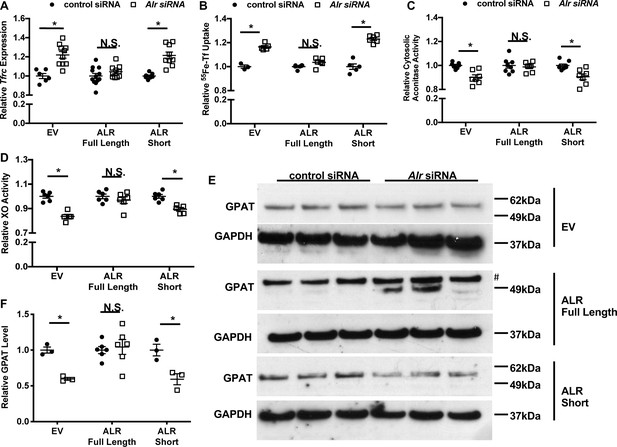

Overexpression of full-length but not cytosolic isoform of ALR rescues the iron-sulfur cluster maturation defects from ALR downregulation.

*Tfrc* mRNA levels (n = 6, A) and transferrin-dependent iron uptake (n = 4–6, B) were measured in wild type (WT) mouse embryonic fibroblasts (MEFs) with endogenous *Alr* downregulation and concurrent overexpression of different ALR isoforms. Cytosolic aconitase (n = 7–8, C) and XO activities (n = 5–6, D), and GPAT protein levels (n = 3–6, E) are measured in cells with downregulation of endogenous ALR and overexpression of various ALR isoforms. ^# indicates the band corresponds to GPAT protein. (F) Quantification of panel E. EV = empty vector. ALR short = cytosolic isoform of ALR lacking the first 80 amino acids. Data are presented as mean ± SEM. Cells were infected with lentivirus overexpressing the respective ALR isoforms, and transfected with 3’UTR-specific ALR siRNA 24 hr after lentivirus infection. mRNA levels were assayed 48 hr after siRNA transfection, and protein levels and cytosolic XO activity were assayed 72 hr after siRNA transfection. *p<0.05 by ANOVA with post hoc Tukey comparison. N.S. = not significant.

ALR deficiency impairs mitochondrial transport of ABCB8

Our results thus far indicate that full-length ALR is required for cytosolic Fe/S cluster maturation; however, the mechanism by which ALR carries out this function is not clear. Given that this isoform is predominantly mitochondrial, we first focus our investigation on other mitochondrial proteins implicated in Fe/S cluster biogenesis. ALR downregulation results in Fe/S cluster maturation defects in the cytoplasm but not in the mitochondria, and this phenotype bears striking similarity to cells with deficiency in ABCB7 or ABCB8 (Pondarré et al., 2006; Ichikawa et al., 2012), two mitochondrial proteins involved in the maturation of cytoplasmic Fe/S clusters. We therefore hypothesized that ALR influences cytosolic Fe/S cluster maturation by modulating the levels of ABCB7 and/or ABCB8. To obtain sufficient quantities of functional mitochondria for further experiments, we used HEK293 cells for the next set of studies. First, we showed that siRNA treatment resulted in a significant decrease in ALR mRNA and protein levels in HEK293 cells (Figure 4—figure supplement 1A and B). The multiple bands seen in the ALR blot is similar to the previously described molecular weight of full-length ALR in human cells (Ibrahim and Weiss, 2019). HEK293 cells with ALR downregulation also demonstrated cytosolic Fe/S cluster maturation defects as measured by GPAT protein levels (Figure 4—figure supplement 1C and D). However, the mRNA levels of ABCB7 and ABCB8 (Figure 4A) and total cellular ABCB7 and ABCB8 protein levels (Figure 4B and C) did not change with ALR downregulation.

Figure 4 with 1 supplement see all

Download asset Open asset

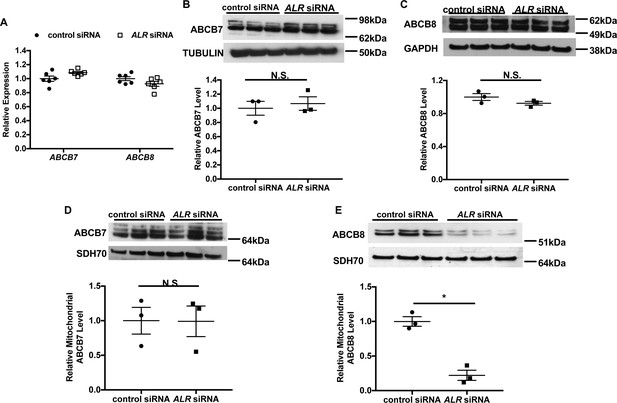

Downregulation of *ALR* in HEK293 cells reduces mitochondrial ABCB8 protein level.

(A) mRNA levels of ABCB7 and ABCB8 in HEK293 cells with *ALR* downregulation harvested 48 hr after siRNA transfection (n = 6). Total cellular levels of ABCB7 (B) and ABCB8 (C) in HEK293 cells with *ALR* downregulation. Mitochondrial levels of ABCB7 (D) and ABCB8 (E) in HEK293 cells with *ALR* downregulation. Samples for protein analysis were harvested 72 hr after transfection. Densitometry analysis is shown together with representative images. n = 3 for panels **B–E**. SDH70 = 70 kDa subunit of mitochondrial succinate dehydrogenase, a mitochondrial loading control. Data are presented as mean ± SEM. *p<0.05 by ANOVA. N.S. = not significant.

As ALR is involved in mitochondrial protein import, we next examined the amount of ABCB7 and ABCB8 protein contained within the mitochondrial fraction from cells with ALR downregulation. ALR downregulation did not change the mitochondrial level of ABCB7 (Figure 4D), but caused a significant reduction in mitochondrial ABCB8 (Figure 4E). Additionally, ABCB7 overexpression did not rescue the increase in Tfrc expression in ALR-downregulated MEFs (Figure 4—figure supplement 1E), demonstrating lack of functional overlap between ABCB7 and ABCB8. These results suggest that ALR may be required for the mitochondrial import of ABCB8 but not ABCB7.

To determine whether ALR influences the mitochondrial transport of ABCB8, we generated a doxycycline (DOXY)-inducible expression system that allows for monitoring of protein accumulation after DOXY treatment. HEK293 cells stably expressing reverse tetracycline transactivator (rtTA3) were transfected with a tetracycline-responsive bicistronic construct containing GFP and a 6x-His-tagged gene of interest. This system results in mitochondrial protein accumulation in a time-dependent manner in response to DOXY treatment (Figure 5—figure supplement 1A and B). To correct for differences in transfection efficiency, the mitochondrial level of the His-tagged protein was normalized to the cytosolic level of GFP.

Mammalian MIA40 does not contain a presequence needed for mitochondrial targeting. Instead, the folding and retention of nascent MIA40 in the mitochondria require a functional oxidative folding system consisting of MIA40 and ALR, both of which are localized to the mitochondrial intermembrane space (Sztolsztener et al., 2013). We first validated our assay system by showing that the mitochondrial import of newly synthesized MIA40 was decreased with ALR downregulation (Figure 5A). As a negative control, we examined the mitochondrial import of an eGFP fusion protein containing the first 69 amino acids of ATP synthase subunit 9 (SU9), which serves as a mitochondrial localization sequence and mediates mitochondrial import through a membrane potential-dependent but MIA40/ALR-independent mechanism (Wrobel et al., 2013). This construct is subsequently referred to as SU9-eGFP. As expected, mitochondrial import of the His-tagged SU9-eGFP did not change with ALR downregulation (Figure 5—figure supplement 1C). We then studied the effects of ALR downregulation on the mitochondrial import of ABCB7 and ABCB8. ALR downregulation resulted in reduced mitochondrial import of ABCB8 (Figure 5B), but not ABCB7 (Figure 5C). These findings suggest that ALR downregulation impairs the mitochondrial import of ABCB8, which in turn affects cytosolic Fe/S cluster maturation.

Figure 5 with 1 supplement see all

Download asset Open asset

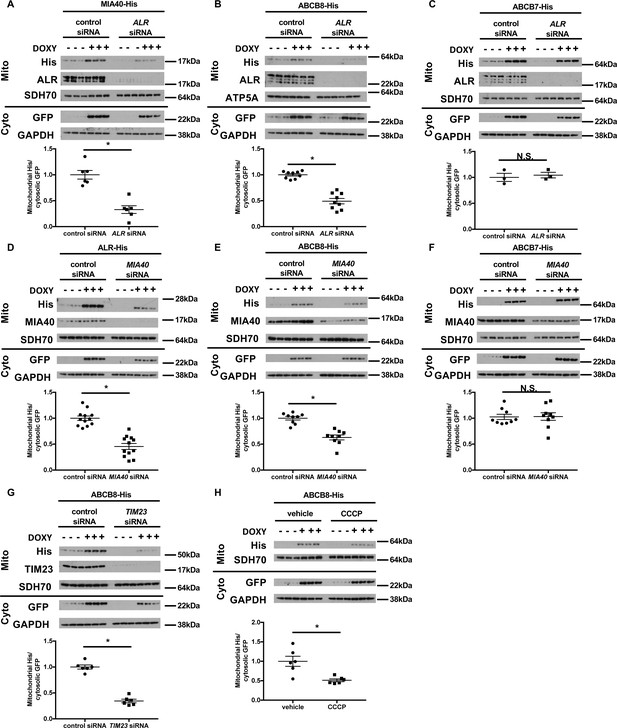

Mitochondrial import of ABCB8 requires ALR, MIA40, TIM23, and mitochondrial membrane potential.

Imported levels of MIA40-His (n = 6, A), whose mitochondrial translocation depends on Mia40/ALR protein transport pathway, ABCB8-His (n = 9, B), and ABCB7-His (n = 3, C) in cells treated with ALR siRNA with and without doxycycline (DOXY) treatment for 6 hr. Imported levels of ALR-His (n = 12, D), ABCB8-His (n = 9, E), and ABCB7-His (n = 9, F) in cells with or without *MIA40* downregulation with and without DOXY treatment for 6 hr. (G) Imported levels of ABCB8-His in cells with or without *MIA40* downregulation with and without DOXY treatment for 6 hr (n = 6). (H) Imported levels of ABCB8-His in cells treated with carbonyl cyanide 3-chlorophenylhydrazone (CCCP) and/or DOXY (n = 6). Representative western blotting results and densitometry analyses are shown in each panel. Mito = mitochondrial fraction. Cyto = cytosolic fraction. SDH70 = 70 kDa subunit of succinate dehydrogenase. ATP5A = ATP synthase subunit 5A. Cells were first transfected with siRNA and then treated with doxycycline when indicated 48 hr later. Data are presented as mean ± SEM. *p<0.05 by ANOVA. N.S. = not significant.

ABCB8 interacts with MIA40/ALR protein import machinery prior to its transport by the TIM23 complex

While the direct involvement of ALR in mitochondrial protein transport has not been described, ALR is known to play a critical role in the MIA40-mediated protein import pathway by re-oxidizing MIA40 (Kallergi et al., 2012). We therefore tested whether downregulation of MIA40 recapitulated the defects of mitochondrial protein transport observed with ALR downregulation. We first confirmed that MIA40 downregulation in HEK293 cells resulted in increased TFRC expression (Figure 5—figure supplement 1D and E), similar to what we observed with ALR downregulation (Figure 2A). In cells with MIA40 downregulation, we observed a decrease in mitochondrial import of ALR, a known substrate of MIA40 (Kallergi et al., 2012), but not SU9-eGFP (Figure 5D and Figure 5—figure supplement 1F). Similar to our finding with ALR downregulation, MIA40 downregulation impaired mitochondrial import of ABCB8 but not ABCB7 (Figure 5E and F). These observations collectively indicate that mitochondrial import of ABCB8 requires both MIA40 and ALR.

Similar to many other inner mitochondrial membrane proteins transported by the TIM23 complex (Jensen and Dunn, 2002), ABCB8 also contains a cleavable N-terminal targeting sequence. We therefore tested whether it is also transported by the TIM23 complex. Downregulation of TIM23 (an integral protein of the TIM23 complex) resulted in decreased mitochondrial import of both SU9-eGFP (Figure 5—figure supplement 1G, positive control) and ABCB8 (Figure 5G), while the mitochondrial import of MIA40 (the negative control) was not affected (Figure 5—figure supplement 1H). Additionally, dissipation of mitochondrial membrane potential, a required factor for TIM23-mediated protein transport (Jensen and Dunn, 2002), decreased mitochondrial transport of SU9eGFP and ABCB8 (Figure 5H and Figure 5—figure supplement 1I). These results collectively support a model in which, after passing through the outer mitochondrial membrane, ABCB8 peptide interacts with the MIA40 protein import complex prior to being transported to the inner mitochondrial membrane by the TIM23 complex. A similar mechanism has been described for the yeast mitochondrial ribosomal protein Mrp10 (Longen et al., 2014).

To test whether ABCB8 directly interacts with MIA40, we overexpressed C-terminal His-tagged MIA40 in HEK293 cells and loaded the isolated mitochondrial lysate onto a Ni-NTA column to pull down MIA40 and its interacting proteins. Endogenous ABCB8 copurified with MIA40 (Figure 6A), suggesting that ABCB8 interacts with MIA40 during its translocation into the mitochondria. Mutation of either or both of the two cysteine residues in MIA40, which have been shown to be required for substrate interaction (Peleh et al., 2016), abolished the interaction between MIA40 and ABCB8 (Figure 6B).

Figure 6 with 1 supplement see all

Download asset Open asset

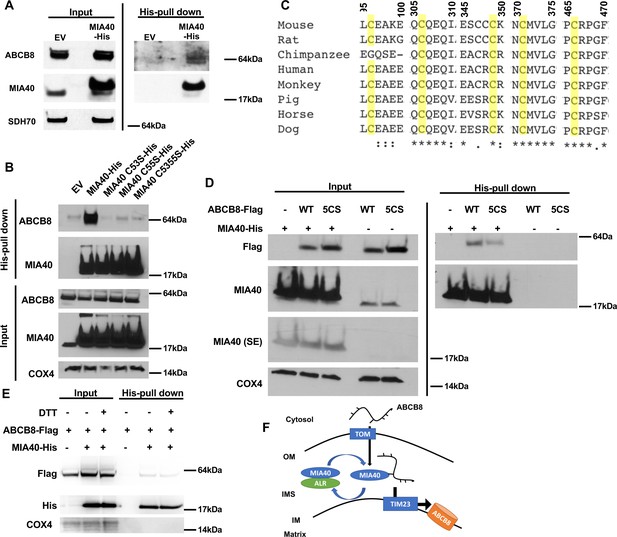

ABCB8 interacts with Mia40 during its transport into mitochondria.

(A) Representative western blot image of mitochondrial lysates and His-tag pulldown fraction from cells overexpressing His-tagged MIA40 or empty vector. (B) Co-immunoprecipitation of His-tagged MIA40 and endogenous ABCB8 in mitochondrial fraction from cells overexpressing indicated constructs. (C) Clustal Omega alignment of ABCB8 protein sequences from higher vertebrate showing the location of five conserved cysteines (highlighted in yellow). (D) Co-immunoprecipitation of His-tagged MIA40 and Flag-tagged ABCB8 in mitochondrial fraction from cells overexpressing indicated constructs. (E) Co-immunoprecipitation of His-tagged MIA40 and Flag-tagged ABCB8 in mitochondrial fraction in the presence and absence of 100 mM dithiothreitol (DTT). (F) Schematic representation of proposed model in which ABCB8 peptide interacts with the MIA40/ALR protein import machinery prior to insertion into inner mitochondrial membrane through TIM23 complex. EV = empty vector. 5CS = ABCB8 Flag construct with mutations of five conserved cysteines to serine. SE = short exposure. OM = outer mitochondrial membrane. IMS = intermembrane space. IM = inner mitochondrial membrane. WT = wild type.

Since MIA40 recognizes cysteine residues on target proteins to facilitate their mitochondrial import (Sideris et al., 2009), we hypothesize that MIA40 and ABCB8 interact through disulfide bond formation. We first performed alignment of ABCB8 protein sequences in vertebrates, and identified five highly conserved cysteine residues (Figure 6C). While mutating each of these residues had minimal effect on the interaction between ABCB8 and MIA40 (Figure 6—figure supplement 1A), mutation of all five cysteines to serines (5CS-ABCB8) greatly diminished the interaction of ABCB8 to MIA40 (Figure 6D). To further support this model, we perform pulldown experiment of wild type MIA40 and ABCB8 in the presence of 100 mM dithiothreitol (DTT). DTT greatly diminished the interaction between MIA40 and ABCB8 (Figure 6E), similar to the 5CS mutant. The five conserved cysteine residues are not conserved between ABCB7 and ABCB8 (Figure 6—figure supplement 1B), thereby explaining the differential dependency of MIA40/ALR protein import system on mitochondrial import of these two proteins. Thus, these five cysteine residues are collectively needed for recognition by MIA40, and the absence of one is not sufficient to disrupt the interaction between ABCB8 and MIA40. Taken together, these observations suggest that MIA40 and ABCB8 interact through disulfide bond formation.

Discussion

Mutations in ALR have been linked to mitochondrial myopathy (Di Fonzo et al., 2009; Calderwood et al., 2016; Nambot et al., 2017), but how dysfunctional ALR drives the disease phenotype remained to be determined. Previous studies hint that ALR may function similar to its yeast homolog Erv1p and involve in cytosolic Fe/S cluster maturation (Lange et al., 2001). We hereby demonstrated that through its role in mitochondrial intermembrane space, ALR is critical for cytosolic Fe/S cluster biogenesis. The iron overload phenotype of cells with ALR deletion is reminiscent of loss of components of the CIA machinery (Song and Lee, 2011) or other mitochondrial protein required for cytosolic Fe/S cluster biogenesis (Ichikawa et al., 2012). Importantly, we discovered that downregulation of ALR prevents mitochondrial import of ABCB8, which in turn can result in cytosolic Fe/S cluster maturation defects. Although ALR localizes to various compartments of the cells, our data strongly indicate that the role of ALR in the maturation of cytosolic Fe/S cluster proteins in mammalian systems depends on its localization to the mitochondria and its function in the MIA40/ALR protein import pathway. Our paper thus elucidated the molecular link between ALR and cytosolic Fe/S cluster maturation in mammalian systems.

Patients with mutations in ALR that result in reduced ALR protein level develop a syndrome consisting of mitochondrial myopathy, cataract and combined respiratory chain deficiency (Di Fonzo et al., 2009; Calderwood et al., 2016; Nambot et al., 2017). Our mechanistic studies demonstrated that ALR downregulation impairs mitochondrial import of ABCB8 protein, and decreased ABCB8 levels have been shown to cause defective cytosolic Fe/S cluster maturation (Ichikawa et al., 2012). This decreased mitochondrial ABCB8 level and ensued cytosolic Fe/S cluster maturation defect activate IRP1 and increase cellular iron uptake. Additionally, reduction in mitochondrial ABCB8 levels is also associated with increased sensitivity of cells to oxidative stress (Ichikawa et al., 2012). These two mechanisms may explain the profound muscle damage observed in patients carrying ALR mutations. It is also worth pointing out that elevated iron level has been causally linked to the cardiomyopathy phenotype in mice with cardiac-specific ABCB8 deletion (Chang et al., 2016). Therefore, it would be of great interest to determine genetic or pharmacologic modulation of cellular iron as a therapy for these patients.

Tissue samples from patients with ALR mutation demonstrated depressed mitochondrial respiratory chain activity (Di Fonzo et al., 2009; Calderwood et al., 2016). In contrast, our data (Figure 1F and G) and yeast studies (Lange et al., 2001) demonstrated that ALR downregulation does not affect mitochondrial Fe/S cluster assembly, and similar results have been demonstrated with ABCB8 downregulation (Ichikawa et al., 2012). There could be two potential explanations for the discrepancy. First of all, not all reported patients with ALR mutations have complex IV deficiency. Therefore, there are likely other disease modifier genes explaining this incomplete penetrance of phenotype. Additionally, the difference between these findings may be due to acute versus chronic depletion of ALR. Chronic mitochondrial iron overload, a cellular response seen in many models of cytoplasmic Fe/S cluster maturation defects (Lange et al., 2001; Pondarré et al., 2006; Ichikawa et al., 2012), has been linked to mitochondrial damage. Extensive mitochondrial damage has also been demonstrated in tissue samples from patients with ALR mutations (Nambot et al., 2017). It is therefore not surprising that respiratory complex activities will also be reduced in cells full of defective mitochondria. Taken together, respiratory chain deficiency in those patients is likely to be a secondary effect of chronic cytoplasmic Fe/S cluster deficiency.

Mitochondrial proteins utilize different sets of importers to reach their final destination. Import of intermembrane space proteins requires cooperation between the TOM complex and the MIA40/ALR machinery. On the other hand, proper insertion of mitochondrial inner membrane proteins requires both the TOM complex and either the TIM22 or the TIM23 complex (Webb and Lithgow, 2010). Both Atm1p, the yeast homolog of ABCB7, and Mdl1p, which shares significant sequence homology with ABCB8, utilize the Tim23 complex for mitochondrial import in a membrane potential-dependent manner (Webb and Lithgow, 2010; Stiller et al., 2016). In this paper, we demonstrated that the transport of mammalian ABCB8 into the mitochondria is not only TIM23-dependent but also MIA40/ALR dependent. One potential explanation for the dual dependence of ABCB8 on MIA40/ALR protein import machinery as well as TIM23 complex for mitochondrial transport is that MIA40/ALR import machinery is important for the function of TIM23 complex. However, downregulation of MIA40 or ALR does not affect mitochondrial import of the canonical TIM23 complex substrate SU9-eGFP (Figure 5—figure supplement 1C and D), and the function of the Tim23 complex was not altered in yeast lacking Mia40 (Wrobel et al., 2013). Therefore, modulation of MIA40/ALR complex likely affects the mitochondrial of ABCB8 import upstream of TIM23 and import into the inner mitochondrial membrane. We thus propose a model where a nascent ABCB8 peptide interacts with the MIA40/ALR import system and TIM23 complex sequentially during mitochondrial import, similar to the mechanism that is reported for p53 and Mrp10 for mitochondrial import (Zhuang et al., 2013; Longen et al., 2014). Taken together, we have identified the MIA40/ALR system as a novel player in mitochondrial import of ABCB8 through direct interaction with the newly synthesized peptide, which occurs prior to peptide insertion into the inner mitochondrial membrane via the TIM23 complex (Figure 6F).

Our results demonstrate physical interaction between MIA40 and ABCB8 and suggest that ABCB8 is a novel substrate for the MIA40/ALR protein import system. Our sequence alignment identifies five cysteine residues that are preserved throughout higher vertebrates. These cysteines likely play a redundant function in the interaction between MIA40 and ABCB8, as the physical interaction between these ABCB8 and MIA40 did not diminish until all five cysteines were mutated. Furthermore, significantly less ABCB8 was copurified with MIA40 under a reducing condition, thereby supporting the model that ABCB8 interacts with MIA40 partially through disulfide bond formation. It is worth noting that the five conserved cysteines, or any other cysteine residues in ABCB8, do not form a CX₂C or a CX₉C consensus motif that is characteristic of most MIA40 substrates (Sideris et al., 2009). Therefore, how MIA40 recognizes these residues and how this molecular interaction facilitates mitochondrial transport of ABCB8 require further investigation.

Although our proposed model explains how ALR is involved in cellular iron homeostasis, this mechanism likely presented late in the evolution process. Our multispecies alignment of ABCB8 homologs revealed five conserved cysteines in higher vertebrates, and our experimental evidence argues that all five cysteines are important in the interaction with MIA40. However, not all five cysteines are conserved in lower vertebrates such as zebrafish and Xenopus. Additionally, the functional homolog of ABCB8 in yeast has not been identified yet. While it was speculated that Mdl1p was the yeast homolog of mammalian ABCB8 (Ichikawa et al., 2012), Mdl1p only shared 28% sequence identity and additional 34% sequence similarity with human ABCB8 protein. Most of the sequence similarities reside in the ATPase domain of the protein. Therefore, our proposed mechanism is likely a late product of evolution and a similar mechanism may not exist in yeast.

In summary, we demonstrated that cytosolic Fe/S cluster maturation in mammalian cells depends on the mitochondrial isoform of ALR, which mediates the transport of ABCB8 into mitochondria. ALR thus plays a role in cellular iron regulation through indirectly regulating IRP1 activity. Sequence variation in conserved cysteine residues in ABCB7 and ABCB8 may explain why the mitochondrial import of only ABCB8 but not ABCB7 depends on the MIA40/ALR pathway. This report presents the first mechanism of how seemingly unrelated mitochondrial proteins involved in sulfur redox homeostasis and mitochondrial protein import are linked together in the cytosolic Fe/S cluster maturation pathway, and provides additional insights into cellular iron regulation, with possible implications in diseases presenting with altered cellular iron homeostasis and Fe/S cluster maturation.

Materials and methods

Cloning

Request a detailed protocol

Tfrc promoter reporter construct was generated by cloning a fragment from −897 bp to +129 bp around mouse TfR1 transcription site into pGL3basic reporter. Tfrc 3’UTR luciferase construct was described previously (Bayeva et al., 2012). IRE sites in this construct were deleted using QuickChange Site-Directed Mutagenesis Kit (Agilent). pLenti-rtTA3, SU9-eGFP, and pBI-eGFP plasmids were purchased from Addgene. Human ABCB7 cDNA plasmid was a generous gift from Dr. Berry Paw (Brigham and Women’s Hospital and Boston Children’s Hospital). Human MIA40 and ALR cDNA clones were purchased from Open BioSystems. Coding sequence of Mia40, ALR, ABCB8, SU9-eGFP, and ABCB7 were tagged with 6x-His tag and subcloned into pBI-eGFP (Addgene) for import experiment. ABCB8 with 6x-His or 3x-Flag tag in the C terminus and Mia40 with 6x-His tag in the C terminus were inserted into pCMV6-XL6. Cysteine mutants of ABCB8 were generated using PCR-based site-directed mutagenesis. All constructs were sequenced before experiments.

Cell culture

Request a detailed protocol

Ireb2 KO MEFs and wild type MEFs isolated from littermate control were generous gifts from Dr. Tracey Rouault (NICHD, NIH). Mouse embryonic fibroblasts were cultured in Dulbecco's Modified Eagle's Medium (DMEM, Corning) supplemented with 10% fetal bovine serum (FBS), 100 U/ml penicillin, and 100 U/ml streptomycin. We have verified that Ireb2 was knockout in the Ireb2 KO MEFs. HEK293 cells were purchased from ATCC and cultured in Minimum Essential Medium (MEM, Corning) supplemented with 10% FBS, 100 U/ml penicillin, 100 U/ml streptomycin, and 1 mM sodium pyruvate. We have not performed separate verification since receiving the HEK293 cell line from ATCC. The cell lines were regularly using PCR-based mycoplasma detection kit (ABM) and were negative for mycoplasma contamination.

Lentivirus production

Request a detailed protocol

Full-length and cytoplasmic isoforms of ALR were cloned into pHIV-eGFP vector. The resultant vector was packaged into lentiviral vector in HEK293T cells after cotransfection with pSPAX and pMD2.G plasmids. Aco1 shRNA constructs were purchased from Openbiosystems and packaged into lentiviral vector as above. The culture supernatant was mixed with polybrene to a final concentration of 15 μg/ml and used to infect MEFs. To select for cells stably expressing Aco1 shRNA, MEFs were maintained in complete media with 6 µg/mL puromycin (Sigma) after infection. pLenti-rtTA3 (Addgene) was packaged into lentiviral vector in HEK293T cells after cotransfection with pSPAX and pMD2.G plasmids. Culture supernatant was used to infect HEK293 as described above, and cells with stable integration of viral genome were selected with 10 µg/mL Blasticidin (Invitrogen).

Transfection siRNA against human ALR, MIA40, TIM23, and mouse Alr and Aco1 were purchased from Dharmacon. siRNA against 3’UTR sequence of mouse Alr were purchased from Qiagen. siRNAs were transfected into HEK293 or MEF using Dharmafect 1 Transfection Reagent (Dharmacon). Plasmids were transfected into MEF using Lipofectamine 2000 reagent (Invitrogen) and into HEK293 cells using either Lipofectamine 2000 reagent (Invitrogen) or calcium phosphate transfection.

Reverse transcription and quantitative real-time PCR

Request a detailed protocol

RNA was isolated from cells using RNA-STAT60 (Tel-Test), and reverse transcribed with Taqman Reverse Transcription Reagents (Invitrogen) according to manufacturers’ instruction. Quantification of relative gene expression was done using Fast SYBR Green Master Mix (Applied Biosystems) and run on 7500 Fast Real-Time PCR system (Applied Biosystems). Primer sequences is included in the Supplementary file 1.

Cellular uptake of ⁵⁵Fe-transferrin and steady state cellular iron content

Request a detailed protocol

⁵⁵FeCl₃ (Perkin Elmer) was first conjugated to nitrilotriacetic acid (NTA, Sigma) before adding transferrin (Tf) in 2:1 molar ratio. The mix was incubated at room temperature for one hour. ⁵⁵Fe-transferrin was separated from unbound ⁵⁵Fe by running on PD-10 desalting column (GE Healthcare). For uptake experiment, cells were incubated with media containing 55 μg/ml ⁵⁵Fe-Tf for two hours. Residual membrane-bound iron was removed by washing cells with cold 200 μM deferoxamine (DFO) in phosphate buffered saline (PBS). Radioactivity was quantified on a Beckman scintillation counter, and the results were normalized to cellular protein content of the same sample. For steady state cellular ⁵⁵Fe content, cells were incubated with 280 μM of ⁵⁵FeNTA for two days. The subcellular fractions were isolated and radioactivity in the fraction was measured as described above.

Mitochondrial fractioning

Request a detailed protocol

Mitochondria from cells were purified using Mitochondrial Isolation Kit for Cells (Pierce) according to manufacturer’s instruction.

Enzyme activity assay

Request a detailed protocol

Complex I and II activity were measured with Complex I and Complex II Enzyme Activity Microplate Assay Kit (MitoScience), respectively, according to manufacturer’s instruction. Xanthine oxidase activity was measured using AmplexRed Xanthine Oxidase Activity Kit (Invitrogen). For cytosolic aconitase assay, cytosolic fraction was concentrated on Amicon Ultra-0.5 Centrifugal Filter Unit with 10 kDa cutoff (Millipore) and the buffer was exchanged to PBS. The aconitase activity in the concentrated fraction was measured using Aconitase Activity Assay kit (MitoScience).

Mitochondrial respiration measurement

Request a detailed protocol

60 hr after transfections, cells were trypsinized and equal number of cells were replated onto Seahorse XF96 cell culture plates in complete media. Cells were allowed to attach for 8 hr, and then washed with PBS twice to remove the complete media before incubating with assay medium (DMEM without glutamine, with 4.5 g/L glucose, and 2 mM L-glutamine). Oxygen consumption was measured using Seahorse Extracellular Flux Analyzer according to manufacturer’s instructions, and mitochondrial oxygen consumption was calculated as baseline oxygen consumption minus non-mitochondrial oxygen consumption (measured in the presence of 50 μM of rotenone and antimycin A).

Cell death assay

Request a detailed protocol

60 hr after siRNA transfection, cells were stained with propidium iodide (PI) and Hoechst 33342. Cell death rate was calculated as the number of PI-positive nuclei over total nuclei number.

Luciferase assay

Request a detailed protocol

Twenty-four hours after transfection with Firefly reporter construct and Renilla luciferase construct (as normalization control for transfection efficiency), cells were solubilized in 1x passive lysis buffer (Promega). The lysates were loaded onto a 96 well plate, and the luciferase activity was determined using Dual Luciferase Assay System (Promega) with Modulus Microplate Reader (Turner Biosystems). The ratio between firefly and renilla luciferase activities was normalized to that of empty vector under corresponding treatments.

Western blotting

Request a detailed protocol

Proteins were resolved on 4–12% Novex Bis-Tris poly-acrylamide gel (Invitrogen) and blotted onto nitrocellulose membrane (Invitrogen). Approximately 20–40 μg of whole cell lysate and approximately 6–10 μg of cytosolic or mitochondrial fractions were loaded onto the gel. Membranes were incubated with primary antibodies for ABCB8 (made in-house), ABCB7, MIA40, ALR, Tim 23, 6x-His, and GFP (ProteinTech), glyceraldehyde 3-phosphate dehydrogenase (GAPDH), ATP synthase F1 subunit alpha (ATP5a), cytochrome oxidase subunit 4 (COX4) and α-tubulin (Abcam), FLAG (Sigma), β- actin (Cell Signaling), GPAT (a generous gift from Dr. Roland Lill [University of Marburg]), or 70 kDa subunit SDH (Invitrogen) overnight, before the addition of horseradish peroxidase (HRP)-conjugated secondary antibodies (Jackson ImmunoResearch). The presence of target protein was visualized using Super Surgical Western Pico ECL substrate (Pierce). Quantification of western blotting image was done using ImageJ (NIH).

Mitochondrial import of target protein

Request a detailed protocol

36 hr after transfection, cells were treated with 1 ug/ml doxycycline, and harvested after 6 hr for mitochondrial fractionation. For carbonyl cyanide 3-chlorophenylhydrazone (CCCP) treatment, 2.5 uM CCCP was added at the fourth hour and the cells were incubated for additional 2 hr. The mitochondrial level of protein of interest is normalized to the GFP levels in the cytosolic fraction from the same sample.

Ni-NTA pulldown assay

Request a detailed protocol

Mitochondrial pallets were lysed in PBS containing 1% Triton X100 (Sigma), protease inhibitor (G Biosciences) and 10 mM imidazole (GE Healthcare). The lysate was cleared via centrifugation and loaded to His Spin Trap spin column (GE Healthcare). The column was sequentially washed with PBC containing 20, 40, and 80 mM imidazole and eluted with PBS containing 200 mM imidazole. 100 mM DTT was included in the lysis buffer when indicated.

Statistical analysis

Request a detailed protocol

Data are presented as mean ± standard error mean (SEM). Statistical significance was assessed with ANOVA, with post hoc Tukey’s test for multiple group comparison. All analysis were conducted using GraphPad Prism nine software. A P-value less than 0.05 was considered statistically significant.

Appendix 1

Appendix 1—key resources table

Reagent type (species) or resource	Designation	Source or reference	Identifiers	Additional information
Antibody	Rabbit polyclonal anti-GPAT antibody	Dr. Roland Lill, University of Marburg	N/A	WB(1:1000)
Antibody	Rabbit polyclonal anti-ABCB8 antibody	Lab generated. For reference, see Ardehali et al 2004.	N/A	WB(1:1000)
Antibody	Rabbit polyclonal anti-GAPDH antibody	Abcam	ab9485	WB(1:6000)
Antibody	Rabbit polyclonal anti-ALR antibody	ProteinTech	11293–1-AP	WB(1:1000-1:4000)
Antibody	Rabbit polyclonal anti-ABCB7 antibody	ProteinTech	11158–1-AP	WB(1:500)
Antibody	Rabbit polyclonal anti-alpha tubulin antibody	Abcam	ab4074	WB(1:2000)
Antibody	Mouse monoclonal anti-SDH70 antibody (2E3GC12FB2AE2)	Invitrogen	459200	WB(1:7000)
Antibody	Mouse monoclonal anti-6x-His antibody	ProteinTech	66005–1-Ig	WB(1:4000-1:6000)
Antibody	Mouse monoclonal anti-GFP antibody	ProteinTech	66002–1-Ig	WB(1:4000-1:6000)
Antibody	Mouse monoclonal anti-ATP5A antibody [15H4C4] - Mitochondrial Marker	Abcam	ab14748	WB(1:4000)
Antibody	Rabbit polyclonal anti-Mia40 antibody	ProteinTech	21090–1-AP	WB(1:4000)
Antibody	Rabbit polyclonal anti-Tim23 antibody	ProteinTech	11123–1-AP	WB(1:4000)
Antibody	Mouse monoclonal Flag M2 antibody	Sigma	F1804	WB(1:1000-1:4000)
Antibody	Mouse monoclonal anti-COX4 antibody [1A12A12]	Abcam	ab110272	WB(1:1000)
Antibody	Rabbit polyclonal anti-beta actin antibody	Cell Signaling	4967	WB(1:2000)
Antibody	HRP-conjugated donkey polyclonal anti-rabbit IgG antibody	Jackson ImmunoResearch	711-035-152	WB(1:2000-1:12000)
Antibody	HRP-conjugated donkey polyclonal anti-mouse IgG antibody	Jackson ImmunoResearch	715-035-150	WB(1:2000-1:12000)
Chemical compound, drug	⁵⁵Fe radionuclide.	Perkin Elmer	NEZ043002MC
Chemical compound, drug	RNA-Stat60	Teltest	Cs-502
Chemical compound, drug	Glycogen	Life Technologies	AM9510
Chemical compound, drug	Lipofectamine 2000	Life Technologies	11668019
Chemical compound, drug	Apo-transferrin, human	Sigma	T1147
Chemical compound, drug	Dharmafect Transfection Reagent I	Dharmacon	T-2001–03
Chemical compound, drug	Deferoxamine mesylate	Sigma	D9533-1G	(150 µM)
Chemical compound, drug	Doxycycline	Fisher Scientific	AC446060050	(1 µg/mL)
Chemical compound, drug	Blasticidin	Life Technologies	R21001	(10 µg/mL)
Chemical compound, drug	Puromycin	Sigma	P8833-25MG	(6 µg/mL)
Chemical compound, drug	DMEM, 4.5 g/L glucose with L-glutamine and sodium pyruvate	Corning	10-013CV
Chemical compound, drug	MEM	Corning	15-010CV
Chemical compound, drug	Sodium pyruvate solution	Corning	25–000 CI
Commercial assay, kit	qScript cDNA Synthesis Kit	Quanta	95047–500
Commercial assay, kit	PerfeCTa SYBR Green FastMix	Quanta	95074–05K
Commercial assay, kit	Dual-Luciferase Reporter Assay System	Promega	E1980
Commercial assay, kit	BCA Protein Assay Kit	Pierce	23225
Commercial assay, kit	Amplex Red Xanthine/Xanthine Oxidase Assay Kit	ThermoFisher	A22182
Commercial assay, kit	Complex I Enzyme Activity Microplate Assay Kit	Abcam	ab109721
Commercial assay, kit	Complex II Enzyme Activity Microplate Assay Kit	Abcam	ab109908
Commercial assay, kit	Mitochondria Isolation Kit for Cultured Cells	Thermo Scientific	89874
Commercial assay, kit	Aconitase Activity Assay Kit	Abcam	ab109712
Commercial assay, kit	Seahorse Extracellular FluxPak	Agilent	102416–100
Cell line (human)	HEK293 cells	ATCC	CRL-1573
Transfected construct (human)	HEK293 cells stably expressing rtTA3	This manuscript.	N/A	Cells were stably infected with rtTA3 lentivirus made from pLenti CMV rtTA3 Blast (w756-1) plasmid
Cell line (mouse)	WT and IRP2 KO mouse embryonic fibroblasts	Dr. Tracey Rouault NICHD, NIH	N/A
Transfected construct (mouse)	WT MEFs stably expressing Irebp1 shRNA	This manuscript	N/A	Cells were stably infected with lentivirus expressing mouse Irebp1 shRNA made from rtTA3 lentivirus made from pGIPZ-shIrebp1
Sequence-based reagents	siGenome siRNA against mouse GFER	Dharmacon	MQ-065586-01-0002
Sequence-based reagents	Negative Control siRNA	Qiagen	1027310
Sequence-based reagents	siGenome siRNA against human GFER	Dharmacon	MQ-065586-01-0002
Sequence-based reagents	siGenome siRNA against mouse IRP1	Dharmacon	MQ-043541-01-0002
Sequence-based reagents	siRNA against mouse ALR 3’UTR	Qiagen	SI01011199, SI01011220
Sequence-based reagents	Primer for qRT-PCR (Supplementary file 1)	This manuscript	N/A	Please see Supplementary file 1
Recombinant DNA reagent	pGIPZ-shIrebp1	OpenBioSystems	V2LMM_82191
Recombinant DNA reagent	pRL-TK (Renilla Luciferase)	Promega	E2241	Luciferase reporter construct expressing Renilla luciferase
Recombinant DNA reagent	pMIR-REPORT	Ambion	AM5795	Empty 3’UTR luciferase reporter construct expressing Firefly luciferase
Recombinant DNA reagent	pGL3 Basic Firefly Reporter construct	Promega	E1751	Promoter luciferase reporter construct expressing Firefly luciferase
Recombinant DNA reagent	Mouse Tfrc 3’-UTR luciferase and mutants	This manuscript and Bayeva et al., 2012	N/A
Recombinant DNA reagent	Mouse Tfrc promoter luciferase construct	This manuscript	N/A
Recombinant DNA reagent	pBI-MCS-EGFP	Addgene	16542
Recombinant DNA reagent	pLenti CMV rtTA3 Blast (w756-1)	Addgene	26429
Software, algorithm	GraphPad Prism	GraphPad	Version 9
Software, algorithm	ImageJ	NIH	1.53 c

Data availability

There are no sequencing or structural data generated in the manuscript. All data generated and analyzed during this study are included in the manuscript and supporting files.

References

(2012) Mammalian iron metabolism and its control by iron regulatory proteins
Biochimica Et Biophysica Acta (BBA) - Molecular Cell Research 1823:1468–1483.
https://doi.org/10.1016/j.bbamcr.2012.05.010
- Google Scholar
1. Banci L
2. Bertini I
3. Calderone V
4. Cefaro C
5. Ciofi-Baffoni S
6. Gallo A
7. Kallergi E
8. Lionaki E
9. Pozidis C
10. Tokatlidis K
(2011) Molecular recognition and substrate mimicry drive the electron-transfer process between MIA40 and ALR
PNAS 108:4811–4816.
https://doi.org/10.1073/pnas.1014542108
- PubMed
- Google Scholar
1. Bayeva M
2. Khechaduri A
3. Puig S
4. Chang HC
5. Patial S
6. Blackshear PJ
7. Ardehali H
(2012) mTOR regulates cellular iron homeostasis through tristetraprolin
Cell Metabolism 16:645–657.
https://doi.org/10.1016/j.cmet.2012.10.001
- PubMed
- Google Scholar
1. Bayeva M
2. Chang HC
3. Wu R
4. Ardehali H
(2013) When less is more: novel mechanisms of iron conservation
Trends in Endocrinology & Metabolism 24:569–577.
https://doi.org/10.1016/j.tem.2013.07.003
- PubMed
- Google Scholar
1. Calderwood L
2. Holm IA
3. Teot LA
4. Anselm I
(2016) Adrenal insufficiency in mitochondrial disease: a rare case of GFER-Related mitochondrial encephalomyopathy and review of the literature
Journal of Child Neurology 31:190–194.
https://doi.org/10.1177/0883073815587327
- PubMed
- Google Scholar
1. Chang HC
2. Wu R
3. Shang M
4. Sato T
5. Chen C
6. Shapiro JS
7. Liu T
8. Thakur A
9. Sawicki KT
10. Prasad SV
11. Ardehali H
(2016) Reduction in mitochondrial iron alleviates cardiac damage during injury
EMBO Molecular Medicine 8:247–267.
https://doi.org/10.15252/emmm.201505748
- PubMed
- Google Scholar
(2013) A small molecule inhibitor of redox-regulated protein translocation into mitochondria
Developmental Cell 25:81–92.
https://doi.org/10.1016/j.devcel.2013.03.006
- PubMed
- Google Scholar
(2010) Structure of the Human Sulfhydryl Oxidase Augmenter of Liver Regeneration and Characterization of a Human Mutation Causing an Autosomal Recessive Myopathy,
Biochemistry 49:6737–6745.
https://doi.org/10.1021/bi100912m
- Google Scholar
(2008) Regulation of iron acquisition and storage: consequences for iron-linked disorders
Nature Reviews Molecular Cell Biology 9:72–81.
https://doi.org/10.1038/nrm2295
- PubMed
- Google Scholar
1. Di Fonzo A
2. Ronchi D
3. Lodi T
4. Fassone E
5. Tigano M
6. Lamperti C
7. Corti S
8. Bordoni A
9. Fortunato F
10. Nizzardo M
11. Napoli L
12. Donadoni C
13. Salani S
14. Saladino F
15. Moggio M
16. Bresolin N
17. Ferrero I
18. Comi GP
(2009) The Mitochondrial Disulfide Relay System Protein GFER Is Mutated in Autosomal-Recessive Myopathy with Cataract and Combined Respiratory-Chain Deficiency
The American Journal of Human Genetics 84:594–604.
https://doi.org/10.1016/j.ajhg.2009.04.004
- Google Scholar
1. Gandhi CR
2. Chaillet JR
3. Nalesnik MA
4. Kumar S
5. Dangi A
6. Demetris AJ
7. Ferrell R
8. Wu T
9. Divanovic S
10. Stankeiwicz T
11. Shaffer B
12. Stolz DB
13. Harvey SA
14. Wang J
15. Starzl TE
(2015) Liver-specific deletion of augmenter of liver regeneration accelerates development of steatohepatitis and hepatocellular carcinoma in mice
Gastroenterology 148:379–391.
https://doi.org/10.1053/j.gastro.2014.10.008
- PubMed
- Google Scholar
(2017) The intermembrane space protein Erv1 of Trypanosoma brucei is essential for mitochondrial Fe-S cluster assembly and operates alone
Molecular and Biochemical Parasitology 214:47–51.
https://doi.org/10.1016/j.molbiopara.2017.03.009
- PubMed
- Google Scholar
(2010) Two to tango: regulation of mammalian iron metabolism
Cell 142:24–38.
https://doi.org/10.1016/j.cell.2010.06.028
- PubMed
- Google Scholar
1. Huang LL
2. Long RT
3. Jiang GP
4. Jiang X
5. Sun H
6. Guo H
7. Liao XH
(2018) Augmenter of liver regeneration promotes mitochondrial biogenesis in renal ischemia–reperfusion injury
Apoptosis 23:695–706.
https://doi.org/10.1007/s10495-018-1487-2
- PubMed
- Google Scholar
1. Ibrahim S
2. Weiss TS
(2019) Augmenter of liver regeneration: essential for growth and beyond
Cytokine & Growth Factor Reviews 45:65–80.
https://doi.org/10.1016/j.cytogfr.2018.12.003
- PubMed
- Google Scholar
1. Ichikawa Y
2. Bayeva M
3. Ghanefar M
4. Potini V
5. Sun L
6. Mutharasan RK
7. Wu R
8. Khechaduri A
9. Jairaj Naik T
10. Ardehali H
(2012) Disruption of ATP-binding cassette B8 in mice leads to cardiomyopathy through a decrease in mitochondrial iron export
PNAS 109:4152–4157.
https://doi.org/10.1073/pnas.1119338109
- PubMed
- Google Scholar
1. Jensen RE
2. Dunn CD
(2002) Protein import into and across the mitochondrial inner membrane: role of the TIM23 and TIM22 translocons
Biochimica Et Biophysica Acta (BBA) - Molecular Cell Research 1592:25–34.
https://doi.org/10.1016/S0167-4889(02)00261-6
- Google Scholar
(2012) Targeting and maturation of Erv1/ALR in the mitochondrial intermembrane space
ACS Chemical Biology 7:707–714.
https://doi.org/10.1021/cb200485b
- PubMed
- Google Scholar
1. Kumar S
2. Wang J
3. Rani R
4. Gandhi CR
(2016) Hepatic deficiency of augmenter of liver regeneration exacerbates Alcohol-Induced liver injury and promotes fibrosis in mice
PLOS ONE 11:e0147864.
https://doi.org/10.1371/journal.pone.0147864
- PubMed
- Google Scholar
1. Kumar S
2. Rani R
3. Karns R
4. Gandhi CR
(2019) Augmenter of liver regeneration protein deficiency promotes hepatic steatosis by inducing oxidative stress and microRNA‐540 expression
The FASEB Journal 33:3825–3840.
https://doi.org/10.1096/fj.201802015R
- Google Scholar
1. Lange H
2. Lisowsky T
3. Gerber J
4. Mühlenhoff U
5. Kispal G
6. Lill R
(2001) An essential function of the mitochondrial sulfhydryl oxidase Erv1p/ALR in the maturation of cytosolic Fe/S proteins
EMBO reports 2:715–720.
https://doi.org/10.1093/embo-reports/kve161
- Google Scholar
1. Li Y
2. Wei K
3. Lu C
4. Li Y
5. Li M
6. Xing G
7. Wei H
8. Wang Q
9. Chen J
10. Wu C
11. Chen H
12. Yang S
13. He F
(2002) Identification of hepatopoietin dimerization, its interacting regions and alternative splicing of its transcription
European Journal of Biochemistry 269:3888–3893.
https://doi.org/10.1046/j.1432-1033.2002.03054.x
- Google Scholar
1. Lill R
2. Dutkiewicz R
3. Elsässer H-P
4. Hausmann A
5. Netz DJA
6. Pierik AJ
7. Stehling O
8. Urzica E
9. Mühlenhoff U
(2006) Mechanisms of iron–sulfur protein maturation in mitochondria, cytosol and nucleus of eukaryotes
Biochimica Et Biophysica Acta (BBA) - Molecular Cell Research 1763:652–667.
https://doi.org/10.1016/j.bbamcr.2006.05.011
- Google Scholar
1. Liu L
2. Xie P
3. Li W
4. Wu Y
5. An W
(2019) Augmenter of liver regeneration protects against Ethanol-Induced acute liver injury by promoting autophagy
The American Journal of Pathology 189:552–567.
https://doi.org/10.1016/j.ajpath.2018.11.006
- PubMed
- Google Scholar
(2014) The disulfide relay of the intermembrane space oxidizes the ribosomal subunit mrp10 on its transit into the mitochondrial matrix
Developmental Cell 28:30–42.
https://doi.org/10.1016/j.devcel.2013.11.007
- PubMed
- Google Scholar
(2008) Precursor oxidation by Mia40 and Erv1 promotes vectorial transport of proteins into the mitochondrial intermembrane space
Molecular Biology of the Cell 19:226–236.
https://doi.org/10.1091/mbc.e07-08-0814
- PubMed
- Google Scholar
1. Nambot S
2. Gavrilov D
3. Thevenon J
4. Bruel AL
5. Bainbridge M
6. Rio M
7. Goizet C
8. Rötig A
9. Jaeken J
10. Niu N
11. Xia F
12. Vital A
13. Houcinat N
14. Mochel F
15. Kuentz P
16. Lehalle D
17. Duffourd Y
18. Rivière JB
19. Thauvin-Robinet C
20. Beaudet AL
21. Faivre L
(2017) Further delineation of a rare recessive encephalomyopathy linked to mutations in GFER thanks to data sharing of whole exome sequencing data
Clinical Genetics 92:188–198.
https://doi.org/10.1111/cge.12985
- PubMed
- Google Scholar
1. Ozer HK
2. Dlouhy AC
3. Thornton JD
4. Hu J
5. Liu Y
6. Barycki JJ
7. Balk J
8. Outten CE
(2015) Cytosolic Fe-S cluster protein maturation and iron regulation are independent of the mitochondrial Erv1/Mia40 import system
Journal of Biological Chemistry 290:27829–27840.
https://doi.org/10.1074/jbc.M115.682179
- Google Scholar
(2016) Mia40 is a trans-site receptor that drives protein import into the mitochondrial intermembrane space by hydrophobic substrate binding
eLife 5:e16177.
https://doi.org/10.7554/eLife.16177
- PubMed
- Google Scholar
1. Polimeno L
2. Pesetti B
3. Annoscia E
4. Giorgio F
5. Francavilla R
6. Lisowsky T
7. Gentile A
8. Rossi R
9. Bucci A
10. Francavilla A
(2011) Alrp, a survival factor that controls the apoptotic process of regenerating liver after partial hepatectomy in rats
Free Radical Research 45:534–549.
https://doi.org/10.3109/10715762.2011.555482
- PubMed
- Google Scholar
1. Pondarré C
2. Antiochos BB
3. Campagna DR
4. Clarke SL
5. Greer EL
6. Deck KM
7. McDonald A
8. Han AP
9. Medlock A
10. Kutok JL
11. Anderson SA
12. Eisenstein RS
13. Fleming MD
(2006) The mitochondrial ATP-binding cassette transporter Abcb7 is essential in mice and participates in cytosolic iron-sulfur cluster biogenesis
Human Molecular Genetics 15:953–964.
https://doi.org/10.1093/hmg/ddl012
- PubMed
- Google Scholar
1. Sato K
2. Torimoto Y
3. Hosoki T
4. Ikuta K
5. Takahashi H
6. Yamamoto M
7. Ito S
8. Okamura N
9. Ichiki K
10. Tanaka H
11. Shindo M
12. Hirai K
13. Mizukami Y
14. Otake T
15. Fujiya M
16. Sasaki K
17. Kohgo Y
(2011) Loss of ABCB7 gene: pathogenesis of mitochondrial iron accumulation in erythroblasts in refractory anemia with ringed sideroblast with isodicentric (X)(q13)
International Journal of Hematology 93:311–318.
https://doi.org/10.1007/s12185-011-0786-y
- Google Scholar
(2009) A novel intermembrane space–targeting signal docks cysteines onto Mia40 during mitochondrial oxidative folding
Journal of Cell Biology 187:1007–1022.
https://doi.org/10.1083/jcb.200905134
- Google Scholar
1. Song D
2. Lee FS
(2011) Mouse Knock-out of IOP1 protein reveals its essential role in mammalian cytosolic Iron-Sulfur protein biogenesis
Journal of Biological Chemistry 286:15797–15805.
https://doi.org/10.1074/jbc.M110.201731
- Google Scholar
(2016) Mitochondrial OXA translocase plays a major role in biogenesis of Inner-Membrane proteins
Cell Metabolism 23:901–908.
https://doi.org/10.1016/j.cmet.2016.04.005
- PubMed
- Google Scholar
(2013) Disulfide bond formation: sulfhydryl oxidase ALR controls mitochondrial biogenesis of human MIA40
Traffic 14:309–320.
https://doi.org/10.1111/tra.12030
- PubMed
- Google Scholar
(2008) Role of HIF-1 and NF-κB transcription factors in the modulation of transferrin receptor by inflammatory and Anti-inflammatory signals
Journal of Biological Chemistry 283:20674–20686.
https://doi.org/10.1074/jbc.M800365200
- Google Scholar
1. Todd LR
2. Damin MN
3. Gomathinayagam R
4. Horn SR
5. Means AR
6. Sankar U
(2010) Growth factor erv1-like modulates Drp1 to preserve mitochondrial dynamics and function in mouse embryonic stem cells
Molecular Biology of the Cell 21:1225–1236.
https://doi.org/10.1091/mbc.e09-11-0937
- PubMed
- Google Scholar
1. Webb CT
2. Lithgow T
(2010) Mitochondrial biogenesis: sorting mechanisms cooperate in ABC transporter assembly
Current Biology 20:R564–R567.
https://doi.org/10.1016/j.cub.2010.05.024
- PubMed
- Google Scholar
(2013) Mitochondrial protein import: mia40 facilitates Tim22 translocation into the inner membrane of mitochondria
Molecular Biology of the Cell 24:543–554.
https://doi.org/10.1091/mbc.e12-09-0649
- PubMed
- Google Scholar
1. Ye H
2. Rouault TA
(2010) Human iron-sulfur cluster assembly, cellular iron homeostasis, and disease
Biochemistry 49:4945–4956.
https://doi.org/10.1021/bi1004798
- PubMed
- Google Scholar
1. Zhuang J
2. Wang PY
3. Huang X
4. Chen X
5. Kang JG
6. Hwang PM
(2013) Mitochondrial disulfide relay mediates translocation of p53 and partitions its subcellular activity
PNAS 110:17356–17361.
https://doi.org/10.1073/pnas.1310908110
- PubMed
- Google Scholar

Decision letter

Carlos Isales

Reviewing Editor; Medical College of Georgia at Augusta University, United States
Mone Zaidi

Senior Editor; Icahn School of Medicine at Mount Sinai, United States
Carlos Isales

Reviewer; Medical College of Georgia at Augusta University, United States
Thomas S Weiss

Reviewer; University Children Hospital (KUNO), Germany

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

This manuscript provides important mechanistic insights into how mutations in the Augmenter of Liver Regeneration (ALR) impacts iron handling and thus cellular iron content. This has potential implications for ALR in regenerative biology in other systems.

Decision letter after peer review:

Thank you for submitting your article "Augmenter of Liver Regeneration Regulates Cellular Iron by Modulating Mitochondrial Transport of ATP-Binding Cassette B8" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Carlos Isales as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Mone Zaidi as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Thomas S Weiss (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential Revisions:

1. While the work is interesting the manuscript suffers from a lack of convincing data with regards to sorting out Alr effects that are driven by the cytoplasmic isoform, versus the mitochondrial isoform. The separation between the different isoforms is shown only from figure 3; therefore, the results shown in figure 1 and 2 may have been interpreted differently if the two isoforms were differentiated. For example, in figure 1 the authors show that downregulating Alr had no significant effect on mitochondrial complex I and II activities, however, since there was no differentiation between mitochondrial and cytoplasmic isoforms, the lack of effect on mitochondrial complexes may imply enrichment of the cytoplasmic isoform. Additional data would be helpful.

2. The authors describe a stable MEF line expressing Aco1 shRNA that they created in order to test the effects of Aco1 downregulation, however, they achieved only 40% downregulation of Aco1 at the mRNA level. Therefore, they add siRNA for Aco1 and achieved greater decrease in Aco1 transcript levels. Although this technique proved to be more efficient, it is recommended that the authors discuss why the shRNA technique, which is usually very efficient, did not work in this case, as well as how combining shRNA and siRNA is applicable in studying ALR disease.

3. Mitochondrial function studies are missing from the paper. The authors mentioned in the result section that their limitation in performing mitochondrial function experiments was due to a difficulty to attain large amounts of mitochondria from MEF cells, as compared to 293 cells, which were used for this purposes. To my knowledge, MEFs are pretty easy in obtaining mitochondria for mitochondrial studies; furthermore, the authors could use more cells or bigger plates to obtain a high amount of mitochondria. Therefore, to my opinion, this explanation for using 293 cells is not valid.

4. In the material and method section as well in the figure caption the authors should present more details about how the experiments are performed enabling scientists to reproduce the data: e.g.

How long were the cells treated with siRNA before harvesting and analysis? Does the cells after ALR siRNA treatment show signs of apoptosis or cell stress as reported for murine embryonic stem cells after 72h of ALR-siRNA treatment (PMID: 20147447)?

How much protein is loaded on the gel?

What are the primer sequences for PCR differentiating endogenous and exogenous ALR (3'-UTR)?

5. Endogenous expression and localization of ALR isoforms in MEFs and HEK293 cells should be shown (western blot range from 10 to 30 kDa). Figure S3A: There are no visible bands in EV lane in cytosolic and mitochondria fractions, which would correspond to endogenous expression.

https://doi.org/10.7554/eLife.65158.sa1

Author response

Essential Revisions:

1. While the work is interesting the manuscript suffers from a lack of convincing data with regards to sorting out Alr effects that are driven by the cytoplasmic isoform, versus the mitochondrial isoform. The separation between the different isoforms is shown only from figure 3; therefore, the results shown in figure 1 and 2 may have been interpreted differently if the two isoforms were differentiated. For example, in figure 1 the authors show that downregulating Alr had no significant effect on mitochondrial complex I and II activities, however, since there was no differentiation between mitochondrial and cytoplasmic isoforms, the lack of effect on mitochondrial complexes may imply enrichment of the cytoplasmic isoform. Additional data would be helpful.

We have included a representative western blot demonstrating the localization of various isoforms of ALR in MEF (Figure 1 figure supplement 1A). We utilized a pool of 4 siRNA to downregulate ALR in MEF cells. Three out of the four siRNA target regions shared by the long and the short isoform of ALR. Therefore, we would expect that the long isoform of ALR would be targeted equally (if not more preferentially) compared to the short isoform of ALR. Although we only showed the change in full length ALR in the main figure, we included an uncropped gel in Figure 1 figure supplement 1B that demonstrated downregulation of the short isoform of ALR after siRNA treatment. We have also revised the manuscript to better highlight the fact that siRNA targets both long and short isoforms of ALR. To further corroborate our model, we demonstrated the defect of mitochondrial ABCB8 import in cells with Mia40 downregulation. Given the similar phenotype between ALR and MIA40 downregulation and the fact that ALR and MIA40 together form one of the mitochondrial protein import systems, we deduce that mitochondrial ALR is critical for ABCB8 import into the mitochondria and therefore regulates cellular iron homeostasis.

2. The authors describe a stable MEF line expressing Aco1 shRNA that they created in order to test the effects of Aco1 downregulation, however, they achieved only 40% downregulation of Aco1 at the mRNA level. Therefore, they add siRNA for Aco1 and achieved greater decrease in Aco1 transcript levels. Although this technique proved to be more efficient, it is recommended that the authors discuss why the shRNA technique, which is usually very efficient, did not work in this case, as well as how combining shRNA and siRNA is applicable in studying ALR disease.

While shRNAs are generally efficient, knockdown efficiency of the commercially available constructs have not been previously validated. It is well-documented that shRNA efficiency can be influenced by multiple factors, including the level of expression, the secondary structure of the shRNA, the location of the targeted sequences, and the exact sequence and thermodynamic property of the shRNA (Li et al., 2007; Taxman et al., 2010). The purpose of combining shRNA and siRNA is to utilize a multiple-targeting strategy to suppress Aco1 expression, thereby creating an artificial condition to test whether ALR still has an effect on cellular iron homeostasis independent of Aco1. We have added discussion in the text.

3. Mitochondrial function studies are missing from the paper. The authors mentioned in the result section that their limitation in performing mitochondrial function experiments was due to a difficulty to attain large amounts of mitochondria from MEF cells, as compared to 293 cells, which were used for this purposes. To my knowledge, MEFs are pretty easy in obtaining mitochondria for mitochondrial studies; furthermore, the authors could use more cells or bigger plates to obtain a high amount of mitochondria. Therefore, to my opinion, this explanation for using 293 cells is not valid.

We have performed additional mitochondrial functional studies in MEFs and did not observe any changes in baseline oxygen consumption with ALR downregulation. The results are now included in Figure 1 figure supplement 1D.

4. In the material and method section as well in the figure caption the authors should present more details about how the experiments are performed enabling scientists to reproduce the data: e.g.

How long were the cells treated with siRNA before harvesting and analysis? Does the cells after ALR siRNA treatment show signs of apoptosis or cell stress as reported for murine embryonic stem cells after 72h of ALR-siRNA treatment (PMID: 20147447)?

How much protein is loaded on the gel?

What are the primer sequences for PCR differentiating endogenous and exogenous ALR (3'-UTR)?

Thank you for raising this issue. Cells were harvested 48 hours after siRNA treatment for RNA analysis and 60-72hr after siRNA treatment for protein analysis. About 20-40ug of whole cell lysate and around 10ug of mitochondrial fraction were loaded to the gel. Additional details are also now included in figure legends. We did not observe significant cell death with ALR downregulation, and the results are now shown in Figure 1 figure supplement 1C. This difference likely reflects the distinct roles of ALR in differentiated versus undifferentiated cell types. The exogenous ALR sequence is human origin, and we have designed primers targeting specifically for human versus mouse ALR mRNA. The primer sequences are included in Supplemental table 1.

5. Endogenous expression and localization of ALR isoforms in MEFs and HEK293 cells should be shown (western blot range from 10 to 30 kDa). Figure S3A: There are no visible bands in EV lane in cytosolic and mitochondria fractions, which would correspond to endogenous expression.

The antibody we used has limited detection of mouse ALR. The lack of signal in Figure S3A was limited by short exposure period and the relatively low protein amount (6ug) per lane loaded onto the gel. We confirmed the localization of ALR in a separate western blot experiment shown in Figure 1 figure supplement 1A.

https://doi.org/10.7554/eLife.65158.sa2

Article and author information

Author details

Hsiang-Chun Chang

Feinberg Cardiovascular and Renal Research Institute, Northwestern University School of Medicine, Chicago, United States

Contribution
Conceptualization, Data curation, Software, Formal analysis, Validation, Investigation, Methodology, Writing - original draft, Project administration, Writing - review and editing

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0002-9201-4500
Jason Solomon Shapiro

Feinberg Cardiovascular and Renal Research Institute, Northwestern University School of Medicine, Chicago, United States

Contribution
Data curation, Validation, Investigation, Methodology, Writing - review and editing

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0003-0880-3142
Xinghang Jiang

Feinberg Cardiovascular and Renal Research Institute, Northwestern University School of Medicine, Chicago, United States

Contribution
Investigation

Competing interests
No competing interests declared
Grant Senyei

Feinberg Cardiovascular and Renal Research Institute, Northwestern University School of Medicine, Chicago, United States

Contribution
Investigation, Methodology

Competing interests
No competing interests declared
Teruki Sato

Feinberg Cardiovascular and Renal Research Institute, Northwestern University School of Medicine, Chicago, United States

Contribution
Investigation

Competing interests
No competing interests declared
Justin Geier

Feinberg Cardiovascular and Renal Research Institute, Northwestern University School of Medicine, Chicago, United States

Contribution
Investigation

Competing interests
No competing interests declared
Konrad T Sawicki

Feinberg Cardiovascular and Renal Research Institute, Northwestern University School of Medicine, Chicago, United States

Contribution
Formal analysis, Investigation, Writing - review and editing

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0003-2124-0081
Hossein Ardehali

Feinberg Cardiovascular and Renal Research Institute, Northwestern University School of Medicine, Chicago, United States

Contribution
Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Writing - review and editing

For correspondence
h-ardehali@northwestern.edu

Competing interests
Reviewing editor, eLife

"This ORCID iD identifies the author of this article:" 0000-0002-7662-0551

Funding

NIH Office of the Director (R01 HL127646)

Hossein Ardehali

NIH Office of the Director (R01 HL140973)

Hossein Ardehali

NIH Office of the Director (R01 HL138982)

Hossein Ardehali

American Heart Association (12PRE12030002)

Hsiang-Chun Chang

NIH Office of the Director (T32 GM008152)

Hsiang-Chun Chang

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank Drs. Roland Lill, Barry Paw, Tracey Rouault, and Celeste Simon for sharing reagents. We would also like to thank technical help from Chunlei Chen. H-CC is supported by American Heart Association 12PRE12030002 and NIH T32 GM008152. HA is supported by NIH R01 HL127646, R01 HL140973, and R01 HL138982.

Senior Editor

Mone Zaidi, Icahn School of Medicine at Mount Sinai, United States

Reviewing Editor

Carlos Isales, Medical College of Georgia at Augusta University, United States

Reviewers

Carlos Isales, Medical College of Georgia at Augusta University, United States
Thomas S Weiss, University Children Hospital (KUNO), Germany

Version history

Received: November 25, 2020
Accepted: April 6, 2021
Accepted Manuscript published: April 9, 2021 (version 1)
Version of Record published: April 19, 2021 (version 2)

Copyright

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
