Identification of novel HPFH-like mutations by CRISPR base editing that elevate the expression of fetal hemoglobin

  1. Nithin Sam Ravi
  2. Beeke Wienert
  3. Stacia K Wyman
  4. Henry William Bell
  5. Anila George
  6. Gokulnath Mahalingam
  7. Jonathan T Vu
  8. Kirti Prasad
  9. Bhanu Prasad Bandlamudi
  10. Nivedhitha Devaraju
  11. Vignesh Rajendiran
  12. Nazar Syedbasha
  13. Aswin Anand Pai
  14. Yukio Nakamura
  15. Ryo Kurita
  16. Muthuraman Narayanasamy
  17. Poonkuzhali Balasubramanian
  18. Saravanabhavan Thangavel
  19. Srujan Marepally
  20. Shaji R Velayudhan
  21. Alok Srivastava
  22. Mark A DeWitt
  23. Merlin Crossley
  24. Jacob E Corn
  25. Kumarasamypet M Mohankumar  Is a corresponding author
  1. Centre for Stem Cell Research (a Unit of inStem, Bengaluru), Christian Medical College Campus, India
  2. Sree Chitra Tirunal Institute for Medical Sciences and Technology, India
  3. Innovative Genomics Institute, University of California, Berkeley, United States
  4. Institute of Data Science and Biotechnology, Gladstone Institutes, United States
  5. School of Biotechnology and Biomolecular Sciences, University of New South Wales, Australia
  6. Manipal Academy of Higher Education, India
  7. Department of Haematology, Christian Medical College & Hospital, India
  8. Cell Engineering Division, RIKEN BioResource Center, Japan
  9. Research and Development Department, Central Blood Institute Blood Service Headquarters, Japanese Red Cross Society, Japan, Japan
  10. Department of Biochemistry, Christian Medical College, India
  11. Department of Microbiology, Immunology and Molecular Genetics, University of California, Los Angeles, United States
  12. Institute of Molecular Health Sciences, Department of Biology, Switzerland

Abstract

Naturally occurring point mutations in the HBG promoter switch hemoglobin synthesis from defective adult beta-globin to fetal gamma-globin in sickle cell patients with hereditary persistence of fetal hemoglobin (HPFH) and ameliorate the clinical severity. Inspired by this natural phenomenon, we tiled the highly homologous HBG proximal promoters using adenine and cytosine base editors that avoid the generation of large deletions and identified novel regulatory regions including a cluster at the –123 region. Base editing at –123 and –124 bp of HBG promoter induced fetal hemoglobin (HbF) to a higher level than disruption of well-known BCL11A binding site in erythroblasts derived from human CD34+ hematopoietic stem and progenitor cells (HSPC). We further demonstrated in vitro that the introduction of –123T > C and –124T > C HPFH-like mutations drives gamma-globin expression by creating a de novo binding site for KLF1. Overall, our findings shed light on so far unknown regulatory elements within the HBG promoter and identified additional targets for therapeutic upregulation of fetal hemoglobin.

Editor's evaluation

This paper describes the innovative use of base editing to mutagenize an enhancer region in the iconic globin locus, demonstrating a new method while also finding a potential novel locus for downstream therapeutic approaches.

https://doi.org/10.7554/eLife.65421.sa0

Introduction

Fetal hemoglobin (HbF) is a tetramer consisting of two alpha-globin chains and two gamma-globin chains, which are highly expressed during the fetal stage of human life. The expression of HbF is silenced progressively after birth until it constitutes only about 1% of total hemoglobin (Bauer and Orkin, 2012). Naturally occurring mutations in the regulatory regions of the gamma-globin (HBG) genes have been shown to reactivate expression and increase HbF levels during adult life (Jacob and Raper, 1958). This inherited genetic condition is benign and is known as hereditary persistence of fetal hemoglobin (HPFH). Individuals, who inherit HPFH alongside other genetic disorders affecting the adult beta-globin gene, such as sickle cell disease or beta-thalassemia, were shown to have fewer, if any, symptoms (Jacob and Raper, 1958; Thein, 2018). Hence, high levels of HbF expression have been shown to be beneficial for improving the clinical outcomes of patients with sickle cell anemia and beta-thalassemia.

Genome editing approaches have largely focused on the beneficial effects of HPFH mutations to increase HbF levels in sickle cell disease (Traxler et al., 2016). These mutations either create de novo binding sites for erythroid activators or disrupt the binding sites of repressors, thereby increasing the expression of HbF. For example, the –175T > C, –198T > C and –113A > G HPFH point mutations create de novo binding sites for the erythroid master regulators TAL1, KLF1, and GATA1, respectively (Fischer and Nowock, 1990; Martyn et al., 2019; Stoming et al., 1989; Wienert et al., 2017; Wienert et al., 2015). Similarly, the introduction of HPFH-associated mutations around –115 bp from the transcription start site (TSS) of HBG (–114C > A, –117G > A, and a 13 bp deletion [∆13 bp]), and around –200 bp from the TSS (–195C > G, –196C > T, –197C > T, –201C > T and –202C > T/G), were shown to disrupt the binding sites of the two major fetal globin repressors, BCL11A and ZBTB7A/LRF, respectively (Martyn et al., 2018). However, the roles and locations of other regulatory elements in the HBG promoter that are involved in activation or de-repression are less well understood. Thus, tiling the HBG promoter using base editors could unravel molecular mechanisms of human hemoglobin switching and reveal additional point mutations that could be useful for therapeutic gamma-globin upregulation.

Targeted introduction of HPFH mutations into the HBG promoter by nuclease-mediated homology-directed repair is relatively inefficient and can result in high rates of random insertions and deletions (indels) through non-homologous end-joining DNA repair pathways (Cavazzana et al., 2017). In addition, due to the high homology between the duplicated HBG1 and HBG2 genes, simultaneous editing of both HBG promoters by programmable nucleases that cause double-stranded breaks (DSBs) sometimes results in ~4.9 kb deletion comprising the HBG intergenic region with uncertain consequences (Li et al., 2018; Métais et al., 2019; Wienert et al., 2017).

To overcome these limitations, we implemented a strategy to screen and identify potential regulatory mutations within the proximal promoters of the two human fetal globin genes HBG1 and HBG2. We employed CRISPR base editing to introduce an array of point mutations into the HBG promoters and then screen for those mutations that induce HbF to therapeutic levels, without the confounding effects of creating DSBs. Similar to previous findings, we observed that base editing using adenine and cytosine base editors (ABEs and CBEs, respectively) is highly efficient in creating point mutations without inducing high levels of indels (Gaudelli et al., 2017; Komor et al., 2016). We identified several novel point mutations that are associated with a significant increase in gamma-globin expression and could be of therapeutic interest. Our results demonstrated that base editors are a powerful tool for mapping the so far unknown regulatory elements within the HBG promoters and provide a proof-of-concept approach for the treatment of beta-hemoglobinopathies.

Results

Previous studies have shown that the highly homologous HBG1 and HBG2 proximal promoters play a crucial role in the gamma-globin expression. Several non-deletional forms of HPFH-associated point mutations in the promoter region of HBG1 and HBG2 have been associated with increased expression of gamma-globin (Wienert et al., 2015). To identify novel regulatory elements in the human HBG promoters that influence gamma-globin expression, we performed a base editing screen to introduce point mutations in all compatible locations within 320 bp upstream of the TSS of the HBG genes. In brief, we created stable HUDEP-2 cells (Kurita et al., 2013) (an immortalized human erythroid progenitor cell line) expressing base editors (ABE or CBE), and then screened guide RNAs (gRNAs) targeting the proximal promoter region of HBG1 and HBG2 for their ability to upregulate fetal globin expression. The top gRNAs were validated for editing efficiency and HbF levels. Moreover, the plausible mechanism of novel gRNAs identified from the study on HbF elevation was further characterized by electrophoretic mobility shift assay (EMSA) and Chromatin immunoprecipitation quantitative PCR (ChIP-qPCR). Finally, the potential therapeutic induction of HbF levels for the identified novel gRNAs were validated in erythroid cells derived from healthy donor CD34+ HSPCs.

Base editors as a preferred genome editing tool for targeting the highly homologous HBG promoter region

First, we generated stable HUDEP-2 cell lines that express different gene editors, ABE, CBE, or Cas9, respectively. HUDEP-2 cells were transduced with ABE7.10 RA, BE3RA-FNLS, or Cas9 lentiviral constructs (hereafter named HUDEP-2-ABE, CBE, or Cas9). The vector copy number (VCN) of HUDEP-2 cells transduced with ABE, CBE, or Cas9 lentiviral constructs ranged from 0.25 to 0.85 by real-time PCR (Figure 1—figure supplement 1a). Previously defined sgRNAs targeting the BCL11A binding motif (Traxler et al., 2016) in the HBG1 and HBG2 promoters with a suitable editing window for ABE, CBE, and Cas9 were transduced with the VCN of 0.6–1.2 (Figure 1—figure supplement 1a). The editing efficiency was 88% for Cas9, 10–51% for ABE, and 59–73% for CBE, with the transduction efficiency (as measured by GFP expression) greater than 98% (Figure 1a). After differentiating the cells into erythroid progenitors, the percentage of HbF positive cells was higher in case of ABE and CBE than Cas9 (Figure 1b). While gene editing was very high with Cas9, we did not observe a corresponding increase in the HbF positive cells which might be due to a previously described 4.9 kb deletion comprising the HBG2 gene and HBG1-HBG2 intergenic region. It has been previously reported that introducing DSBs in highly homologous HBG promoters with Cas9 nucleases may generate this deletion (Li et al., 2018). Therefore, we determined the frequency of this deletions by qRT-PCR in all the edited samples. As expected, the 4.9 kb deletion was observed at a high frequency (76%) in Cas9 edited cells. We also noted some deletions in base edited samples but significantly fewer than with Cas9 (Figure 1c). Consistent with the frequency of the 4.9 kb deletion, the globin chain analysis by RP-HPLC showed lower levels of G gamma but not A gamma chain only in Cas9 edited cells in comparison to ABE and CBE edited cells after normalizing to the control (Figure 1d). These results suggest that ABE and CBE are highly efficient in editing the highly homologous regions like gamma-globin promoter without causing a large deletion between the two HBG genes.

Figure 1 with 1 supplement see all
Base editors are preferred tool over Cas9 for editing the highly homologous HBG1 and HBG2 promoter.

Highly homologous HBG promoter was edited by adenine base editor (ABE), cytosine base editor (CBE), and Cas9 with suitable guide RNAs (gRNAs) that target the well-known BCL11A binding site (–115 transcription start site [TSS]). (a) Transduction efficiency of gRNA-2 (for ABE and CBE) or gRNA-7 (for Cas9), percentage of individual base conversion for ABE and CBE (with gRNA-2) and insertions and deletions (indels) for Cas9 (with gRNA-7) before and after erythroid differentiation are represented. The transduction efficiency was analyzed by FACS, the individual base substitution and indel percentage were analyzed by EditR and ICE software respectively after sanger sequencing. (b) Flow cytometry analysis of fetal hemoglobin (HbF) and erythroid maturation markers (CD235a and CD71) expression in edited HUDEP-2 cells. The percentage of HbF-expressing cells were analyzed before and after differentiation into erythroblasts. (c) Analysis of HBG2 deletion (due to 4.9 kb deletion) by qRT-PCR in the base edited and Cas9 edited HUDEP-2 cells. (d) Expression of G gamma-globin chain in ABE, CBE, and Cas9 edited HUDEP-2 cells, measured by RP-HPLC after differentiation into erythroblasts. The data were normalized with respective controls. Data are expressed as mean ± SEM from three biological replicates, asterisks indicate levels of statistical significance (**p < 0.01).

Screening of HBG proximal promoter with base editors identifies novel HPFH like mutations

To identify the potential regulatory regions involved in gamma-globin expression, we therefore selected ABE and CBE for tiling the HBG promoter. Transcriptomic analysis of the stable cell lines expressing ABE and CBE showed a significant correlation with the wild type HUDEP-2 cells, confirming that the gene expression profiles are not altered (Figure 1—figure supplement 1b). As the base editors and gRNAs are constitutively expressed, we determined the editing frequency of ABE and CBE stables with gRNA-2 for its effect on HbF elevation at different time points during expansion and differentiation. The editing efficiency and HbF levels in both ABE and CBE increases over time with no discernable effect on erythroid differentiation (Figure 1—figure supplement 1c-h). We then generated ABE and CBE gRNAs in all compatible locations up to 320 bp upstream of the TSS of the HBG1 and HBG2 promoters. Guide RNAs were designed with a suitable base editing window (target nucleotide in positions 3–9 from NGG PAM distal end) for ABE and CBE (Figure 2a). Among the 41 gRNAs designed, 36 gRNAs had a base editing window for ABE, and 32 gRNAs had a base editing window for CBE (Supplementary file 1). An overview of the methodology used in this study is illustrated in Figure 2b: All the gRNAs were cloned in a lentiviral vector with a GFP reporter. Lentivirus was produced for each gRNA; HUDEP-2-ABE and -CBE cells were then transduced in an arrayed format with equal transduction efficiency (~1 VCN/cell). The mean transduction efficiency for all these gRNAs in both ABE and CBE samples were around 97%. The gRNA transduced cells were then expanded for 8 days, successful base editing was then confirmed by NGS and Sanger sequencing.

Figure 2 with 3 supplements see all
Screening of HBG promoter using base editors to identify novel point mutations that elevate fetal hemoglobin (HbF) expression.

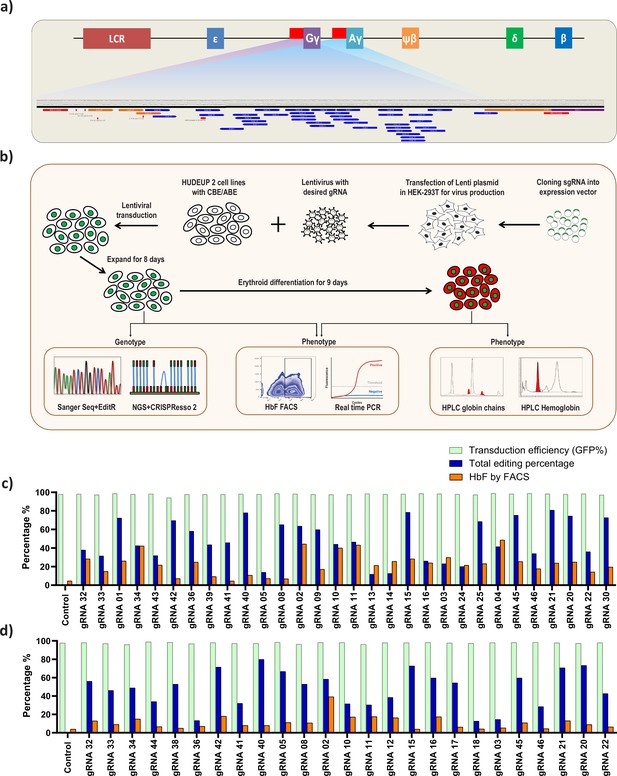

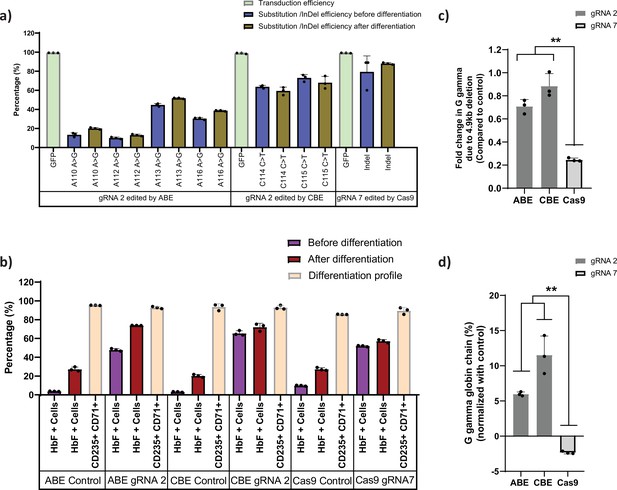

(a) Schematic representation of the overall screening approach, adenine base editor (ABE) or cytosine base editor (CBE) expressing HUDEP-2 cells were transduced with guide RNA (gRNAs) that target the proximal promoter of the HBG gene. The edited cells were expanded for 8 days. Editing efficiency was evaluated by Sanger sequencing and NGS, while functional analysis was carried out using FACS and qRT-PCR. Top targets from both the ABE and CBE screens with the highest induction of HbF were validated and differentiated to erythroid cells. The differentiated cells were further subjected to FACS, qRT-PCR, RP-HPLC, and HPLC analysis to determine the number of HbF positive cells, HBG expression, individual gamma-globin chains, and fetal hemoglobin levels, respectively. (b) Representation of gRNA targeting HBG promoter region in HUDEP-2 cell line, gRNAs targeting –320 bp upstream of transcription start site (TSS) in HBG genes (HBG1 and HBG2) promoter regions are represented in the figure. gRNAs common for HBG1 and HBG2 promoters are represented in blue, while the gRNAs specific to HBG1 promoter are represented in orange color, the primers used for deep sequencing are represented as a red bar. Comparison of transduction efficiency, base editing frequency, and HbF expression in HUDEP-2 cells expressing ABE (c) and CBE (d) transduced with different gRNAs targeting the HBG proximal promoter. The base edited cells were sequenced by NGS and analyzed for total editing frequency using CRISPResso-2. The transduction efficiency (GFP+ cells) and HbF positive cells were analyzed by FACS.

First, we determined the overall efficiency of ABE-induced A-to-G conversions and CBE induced C-to-T conversions at different target sites of HBG promoter by NGS. The gRNAs associated with lower base editing efficiency (<10%) were excluded from further analysis as they do not provide insights on HBG regulation (gRNAs -37, -38, -7, -18, -19, -29 in ABE, and gRNAs -1, -35, -37, -6, -7, -13, -19 in CBE) (data not shown). After excluding the low editing gRNAs, the total base editing efficiency (overall conversion achieved by a gRNA) varied from 12% to 81% and 13% to 80% for ABE (n = 30) and CBE (n = 25) respectively (Figure 2c and d) as determined by CRISPResso-2 analysis. The individual base conversion frequency (base conversion at single base pair resolution) of ABE (A:T to G:C) and CBE (C:G to T:A) ranged from 0% to 74% and 0% to 61%, respectively (Figure 2—figure supplement 1a and c). Sanger sequencing data analyzed by EditR further confirmed the base substitution efficiency at the target loci (Figure 2—figure supplement 1b and d). The base substitution efficiency for each gRNAs varied drastically depending on the base editing window for ABE and CBE. The average editing efficiency observed was high (>30%) in the canonical positions for ABE (A5-A7) and CBE (C5-C7), while it varied between 1% to 27% in the non-canonical positions for ABE (A1-A4, A8-A12) and CBE (C1-C4, C8-C16) for the different gRNAs used in this study (Figure 2—figure supplement 2e-f).

Subsequently, we explored the product purity and indel percentage for all gRNAs in ABE and CBE, as previous studies have shown that the base editors generate a low frequency of unintended edits at the target sites (Koblan et al., 2018). Most of the gRNAs in CBE transduced cells showed unanticipated C- to non-T edits (C-R/G-Y), among which C-to-G conversion was predominant. In the case of ABE, we observed a minimal level of unexpected base conversions (A-Y/T-R) at a few on-target sites, consistent with previous studies (Gaudelli et al., 2017; Komor et al., 2016, Figure 2—figure supplement 2a-b). The indel frequency obtained from deep sequencing data was less than 2% in both ABE and CBE (Figure 2—figure supplement 2c-d). Our results suggest that ABE exhibits higher product purity and lower indel frequency than CBE in all cases. In summary, we show that both ABE and CBE can effectively introduce A-to-G and C-to-T nucleotide substitutions respectively in the proximal promoters of HBG1 and HBG2.

To evaluate whether the targeted base substitution at the HBG promoter by using ABE or CBE has increased HbF expression, we analyzed the HbF positive cells in ABE and CBE edited cells by flow cytometry after intracellular HbF staining. The percentage of HbF positive cells ranged from 2% to 44% in ABE and 1% to 35% in CBE (Figure 2c–d). In our preliminary analysis, among the 30 gRNAs in ABE and 25 gRNAs in CBE that we have screened for editing the HBG promoter region, five gRNAs in ABE and one gRNA in CBE showed a greater increase in the number of HbF positive cells (in a range of 40–50%).

We identified several gRNAs in ABE (gRNA -39, -41, -42, -08) and in CBE (gRNA -33, -44, -38, -41, -40, -15, -17, -46, -20, -21) which have higher total editing efficiency (>40%) at the target site but resulted in low HbF level (<10%). We were curious to know whether these gRNAs can affect the binding sites of activators resulting in downregulation of gamma-globin expression. To test this hypothesis, we transduced the selected gRNAs in K562 cell lines stably expressing ABE or CBE, a cell model which has high basal level of HbF expression. The transduction efficiency was more than 98% and achieved a higher individual base editing efficiency for each of the gRNAs in both ABE and CBE (Figure 2—figure supplement 3a-b). However, we did not observe any decrease in the number of HbF positive cells (98% of cells were HbF positive) in any of the samples suggesting that the targeted regions did not have binding sites for essential transcriptional activators (Figure 2—figure supplement 3c-d).

Interestingly, some of the top candidates from the screen include target regions that were previously identified as binding sites for BCL11A (gRNA-2), KLF-1 (gRNA-4), and TAL-1 (gRNA-3), but we also identified a few other novel target sites (gRNA-10, gRNA-11, gRNA-15, gRNA-16, gRNA-21, gRNA-32, gRNA-34, gRNA-42). The gRNAs-2, -3, and -4 recreates the well-known naturally occurring HPFH mutations –114C > T, –117G > A, −175T > C and –198T > C (Liu et al., 2018; Martyn et al., 2018; Stoming et al., 1989; Wienert et al., 2018; Wienert et al., 2017). We compared the percentage of HbF positive cells with the editing efficiency for each of gRNAs at the target region in both ABE and CBE cells (Figure 2c–d). The total base editing efficiency was generally higher when compared to the proportion of HbF positive cells except in few cases (gRNA-3, -4, -13, -14, -37, and -38 in ABE edited cells). Together, the candidate gRNAs which upregulated HbF from the primary screening of the HBG promoter by ABE and CBE provides targets for further validation.

Base editing at potential target sites in the HBG promoter substantially induces HbF expression

The top eight gRNAs from the ABE screen (gRNAs -2, -3, -4, -10, -11, -15, -32, and -34) and the CBE screen (gRNAs -2, -10, -11, -16, -21, -32, -34, and -42) which resulted in the highest levels of HbF positive cells were further validated. Out of the top eight gRNAs identified from the base editor screen, five gRNAs (gRNA-2, gRNA-10, gRNA-11, gRNA-32, and gRNA-34) were common in both ABE and CBE, indicating that these target regions might play an important role in HBG silencing. The edited cells were cultured in erythroid differentiation media after the initial expansion, and a set of functional assays were carried out (Figure 2b). Corresponding to the screening results, the total editing efficiency ranged from 24% to 78% and 36% to 85% with mean transduction efficiencies of 96% and 90% for ABE and CBE, respectively (Figure 3a–b and Figure 3—figure supplement 1f). We observed individual base conversion of A- to-G (ranging from 0% to 65%) or C- to -T (ranging from 1% to 57%) at the respective target regions with less than 2% indel frequency (Figure 3—figure supplement 1a-b and e). Further, we also observed the undesired non-C-to-T conversions (i.e., C- to-A or C-to-G) at the on-target site by CBE but not with ABE (Figure 3—figure supplement 1a-b and Figure 3—figure supplement 2a-b). The distribution of specific nucleotide substitution mediated by ABE or CBE for all the top eight gRNAs are highlighted in Figure 3—figure supplement 2a-b, respectively. ABE showed higher base editing efficiencies of the cognate A and Ts (A113 and A116 for gRNA-02, T175 for gRNA-03, T198 for gRNA-04) than the bystander A and Ts (A110 and A112 for gRNA-02, T181 for gRNA-03, T199 for gRNA-04) for the creation of HPFH mutations. In the case of CBE, we also observed the C-to-T base conversion at the nucleotides adjacent to the protospacer sequence as previously observed (Arbab et al., 2020; Webber et al., 2019). One such example is gRNA-10 and gRNA-11 in CBE; we observed the base conversion outside the protospacer sequence (–117 site) in addition to on-target editing at –122 site within the base editing window (Figure 3—figure supplement 1b and Figure 3—figure supplement 2b). The base conversion at –117 site disrupts the core binding motif of the major fetal globin repressor – BCL11A (Martyn et al., 2018; Wienert et al., 2018; Yang et al., 2019). We distinguished the editing frequency in HBG1 and HBG2 promoters by phasing the edits with single nucleotide variations at positions −271, –307, –317, and –324 which are unique in HBG1 and HBG2 promoters, using Bowtie 2 and IGV software (Robinson, 2012; Langmead and Salzberg, 2013). Our analysis showed that base editing rates were highly similar and there is no variation in base substitution efficiency between the highly homologous HBG1 and HBG2 promoters (Figure 3—figure supplement 1c-d).

Figure 3 with 4 supplements see all

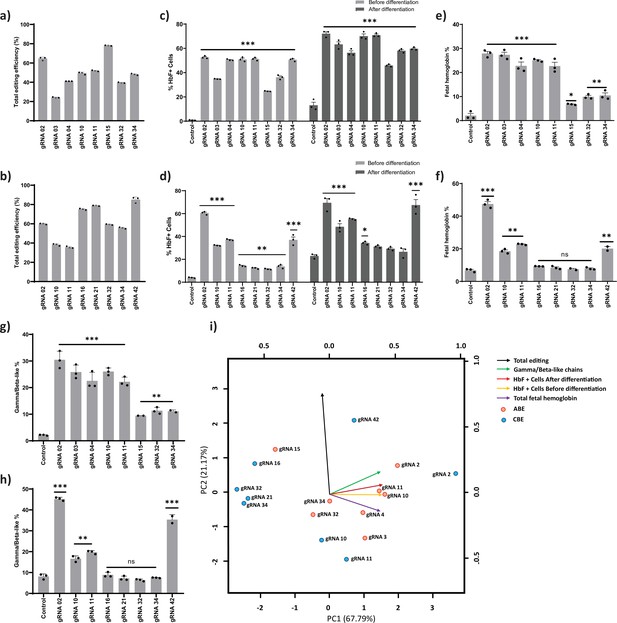

Validation of targeted base editing for top eight guide RNAs (gRNAs) from the primary screen of adenine base editor (ABE) and cytosine base editor (CBE) at HBG promoters.

HUDEP-2 cells expressing ABE or CBE transduced with the top eight gRNAs were analyzed by deep sequencing at the targeted regions in the HBG promoter. The total editing efficiencies of ABE (a) or CBE (b) are represented as the percentage of total sequencing reads with target C:A converted to T:G at specified sites. Evaluation of fetal hemoglobin (HbF) positive cells in HUDEP-2 cells expressing ABE (c) or CBE (d) transduced with the respective gRNAs, before and after differentiation by flow cytometry; globin chains analysis in ABE (e) or CBE (f) edited HUDEP-2 cells after erythroid differentiation by RP-HPLC; HbF analysis in ABE (g) or CBE (h) edited HUDEP-2 cells after erythroid differentiation by HPLC. (i) Principal component analysis plot for the correlation between the outcomes of base editing using top eight gRNAs. The relationship between the base edit frequency, HbF+ cells, HbF, and gamma/beta-like chains in ABE or CBE edited HUDEP-2 stable cell for the indicated gRNAs were analyzed. The first two principal components are plotted, and the variance accounted for by each principal component is shown. Data are expressed as mean ± SEM from three biological replicates (p > 0.05). Asterisks indicate levels of statistical significance **p < 0.01, ***p < 0.001.

We analyzed the HBG expression before and during differentiation by qRT-PCR. We observed a significant increase in the HBG mRNA expression for all the top eight gRNAs in ABE edited cells (p < 0.01 - p < 0.0001) (Figure 3—figure supplement 3a). In the case of CBE, gRNAs -2, -10, -11, and-42 showed a substantial increase in HBG mRNA expression (p < 0.05 - p < 0.0001), while gRNAs -16, -21, -32, and -34 showed a modest level of expression as compared with the control (Figure 3—figure supplement 3g) before differentiation. The globin mRNA expression pattern in both ABE (Figure 3—figure supplement 3b) and CBE (Figure 3—figure supplement 3h) edited cells also followed a similar trend during erythroid differentiation. We also determined the number of HbF positive cells before and after erythroid differentiation using FACS. As expected, the percentage of HbF positive cells in differentiated erythroid cells was slightly higher than that of the undifferentiated edited cells (Figure 3c–d). Further, we determined the effect of base editing on erythroid differentiation using flow cytometry analysis with CD235a and CD71 markers. The shift in expression of CD71 positive cells alone to CD71/CD235a double positive cells reflects the erythroid differentiation pattern of HUDEP-2 cells (Kurita et al., 2013). The percentage of double positive cells was 83–90% for CBE and above 95% for ABE edited cells compared to the control, which was 77% and 97%, respectively, suggesting that the differentiation ability of the edited cells was not affected (Figure 3—figure supplement 3d and Figure 3—figure supplement 3j).

Furthermore, the level of globin chains was analyzed by using reverse-phase HPLC in differentiated erythroid cells from both ABE (Figure 3—figure supplement 3c) and CBE edited samples (Figure 3—figure supplement 3i). We observed a significant induction of gamma-globin chain expression, which represented 10% to30% of total beta-like globin content in all the ABE edited samples (gRNAs -2, -3, -4, -10, -11, -15, -32, and -34) (Figure 3g). In the case of CBE, the gamma-globin chain levels were around 6% to45% of total beta-like globin content, among which gRNAs -2, -42, -10, and -11 showed significant elevation when compared to the control (Figure 3h). In both ABE and CBE edited cells, the increase in gamma-globin chains was consistently associated with a reciprocal reduction in beta-globin chains thereby maintaining the alpha to beta-like globin chain ratio (Figure 3—figure supplement 3c and Figure 3—figure supplement 3i). Even though the HBG1 and HBG2 promoters were base edited with equal efficiency, HBG1 showed moderately higher expression levels compared to HBG2 in most of the ABE and CBE edited cells. The decrease in HBG2 expression in these samples might be due to biased HbF regulation or the 4.9 kb deletion that deletes the HBG2 gene.

To find whether decrease in HBG2 expression is due to the 4.9 kb deletion, gRNAs which showed significant reduction in HBG2 over HBG1 expression in ABE (gRNA-4, -10, -11, -15, -32, -34) and CBE (gRNA-2, -10, -11, -32, -34, -42) edited cells were further investigated by qRT-PCR. Interestingly, the frequency of 4.9 kb deletion in ABE ranged from 2% to 32% while in CBE it ranged from 0% to 12% (Figure 3—figure supplement 3e and Figure 3—figure supplement 3k). To determine the correlation between the reduction in HBG2 chain expression and the frequency of large deletion, Pearson correlation analysis was performed in the above-mentioned gRNAs in ABE and CBE edited cells. We observed a high correlation (r = 0.71) in the case of ABE, whereas much lower correlation was observed with CBE (r = 0.26) (Figure 3—figure supplement 3f and Figure 3—figure supplement 3i). These data suggest that the reduction in G gamma chain expression is due to higher frequency of deletions in the ABE edited samples, while in the case of CBE, the decrease in the G gamma chain expression is independent of larger deletions and might be due to the biased expression of gamma-globin.

We observed a substantial difference in deletion rates across gRNAs as well as between base editors (Figure 3—figure supplement 3e and Figure 3—figure supplement 3k). The difference in the DNA sequence composition which often affects the editing efficiency might also be responsible for varied deletion observed across the gRNAs targeting the HBG promoter. On the other hand, processivity of the editors could account for the difference in deletion observed with the same gRNA while editing with CBE and ABE. As the base editors cannot dock on an already edited strand, CBE with a higher rate of editing (~50% editing on day 1) is prevented from interacting again with the DNA, thus reducing the chances of deletion compared to ABE which takes longer to achieve similar editing (~50% editing on day 8) (Figure 1—figure supplement 1b and c). This observation is further supported by the minimal deletion seen in samples edited with ABE8e which has a higher processivity (~90% editing within 24 hr) compared to both CBE and ABE 7.10 (Figure 3—figure supplement 4c, Richter et al., 2020).

Next, we analyzed the level of hemoglobin tetramers in the differentiated cells by HPLC to determine whether increase in HBG chain expression resulted in functional HbF production. We observed a significant induction of HbF in all the top eight target gRNA transduced cells in ABE (gRNAs- 2, -3, -4, -10, -11, -15, -32, and -34), whereas only gRNA-2, -10, -11, and -42 expressed higher levels of HbF in CBE edited cells (Figure 3e–f). Consistent with globin chain analysis, we observed that the increase in HbF variant is associated with compensatory downregulation of adult hemoglobin levels in the edited cells. The relationship between the editing efficiency and HbF expression was analyzed for all the top-scoring gRNAs in ABE and CBE edited cells (Figure 3i). Among the validated top eight gRNAs in ABE and CBE, gRNA-2, -10, -11 with ABE and gRNA-2 with CBE resulted in a high target editing efficiency with a corresponding increase in HbF expression. In case of gRNA-42 with CBE, only a modest level of HbF elevation was achieved even with higher editing efficiency. On the other hand, gRNAs -3 and -4 with ABE and gRNAs -10 and -11 with CBE showed higher elevation of HbF levels despite lower base conversion efficiency. The higher number of HbF positive cells with minimal base editing might be due to heterogenous editing at target site per cell since there are two copies each of HBG1 and HBG2. Further, irrespective of editing at the target region, the binding of CRISPR-Cas9 complex through the gRNAs at the HBG promoter might disrupt the binding of major transcriptional repressor that are involved in globin expression (Shariati et al., 2019).

Among the samples which resulted in higher HbF induction with lower editing efficiency, we validated gRNA-03 and -11 with a hyperactive variant of ABE (ABE8e) to determine whether further elevation in HbF level can be attained by increasing the editing efficiency. The HUDEP-2 cells stably expressing ABE8e were transduced with gRNA-03 and -11, with a VCN of 0.28% for the editor and 0.56% for the gRNA (Figure 3—figure supplement 4e). We observed a high percentage of base substitution at the target site (more than 95%) with the corresponding increase in the HbF positive cells and gamma-globin chains in both the gRNAs (Figure 3—figure supplement 4a-c). The erythroid differentiation capacity of the edited cells was equivalent to that of control (Figure 3—figure supplement 4b). The frequency of larger deletions was also significantly reduced perhaps because of the higher processive rate of ABE8e (Figure 3—figure supplement 4d). Thus, the ABE8e variant has improved the base editing efficiency at the target region and provided higher level of HbF induction with a reduced frequency of larger deletion.

Through this screen, we identified multiple novel individual regulatory regions and validated well-known HPFH mutations in the HBG proximal promoter that are important for gamma-globin regulation. Interestingly, gRNA-2 (with ABE or CBE) and gRNA-4 (with ABE) disrupt the binding site for the major gamma-globin repressors, BCL11A and LRF/ZBTB7A, and generate the binding motif for the transcriptional activators, GATA1 and KLF1, thus resulting in overall activation of HBG expression. Base editing of –114C > T, –115C > T and –116A > G mutations disrupts the binding of BCL11A and the base conversion at –198T > C and –199T > C affect the binding of LRF/ZBTB7A to the HBG promoter. Further, the installation of –113A > G and –198T > C mutations by gRNA-2 and gRNA-4, generate a binding site for GATA1 and KLF-1, respectively. Moreover, the base conversion at −175T > C by gRNA-3 (with ABE) creates a TAL1 binding site. The novel gamma-globin regulatory region identified includes the target base substitution mediated by gRNA-10, -11, -15, -21, -32, and -34 with ABE or CBE. With gRNAs -10 and -11, ABE converts nucleotide at –123T > C and –124T > C position, whereas CBE converts nucleotide at –122G > A (on-target editing site) and –117G > A (outside the editing window) positions. Target base substitutions at –123T > C and –124T > C positions result in greater induction of HBG expression, equivalent to that of the known HPFH mutations that disrupt the binding of BCL11A. Overall, the potential gRNAs include gRNA-2, 3-, -4, -10, and -11 with ABE and gRNA-2 with CBE that exhibit high induction of HbF expression.

Base editing of the –123 region of HBG promoter in human CD34+ HSPCs

To further determine the therapeutic potential of novel targets identified from this study on induction of gamma-globin expression, we performed base editing of CD34+ HSPCs from healthy donor (Figure 4a). Electroporation of the ABE8e mRNA with gRNA targeting the BCL11A binding site (gRNA-2) and –123 novel cluster (gRNA-11) effectively generated highly efficient base editing at the target site. The editing efficiency observed at individual base positions were –110 (31%), –112 (37%), –113 (80%), and –116 (66%) with gRNA-2 and –123 (89%), –124 (91%) with gRNA-11 (Figure 4b). In case of gRNA-11, the base editing events generated a high proportion of –123 and –124 mutations in combination at the target site. We cultured the base edited CD34+ HSPCs under erythroid differentiation conditions and analyzed HbF expression. The relative levels of HBG expression were significantly higher in gRNA-11 (>6-fold) and gRNA-2 (>5-fold) edited samples when compared to control (AAVS1 edited sample) by qRT-PCR (Figure 4d). In contrast, a significant downregulation of HBB and unchanged levels of HBA expression were observed in both the tested targets. Similarly, we observed a substantial increase in HbF protein expression in erythroblast derived from base edited CD34+ HSPCs. Flow cytometry and HPLC variant analysis confirmed the robust increase in the proportion of HbF positive cells and their HbF content compared with control samples for all the tested targets, with the higher effect in gRNA-11 (Figure 4e and g). The globin chain analysis showed an increase in expression of HBG1 and HBG2 globin chain levels and a reduction of HBB globin chain level (Figure 4f). Importantly, base editing of the HBG proximal promoter with gRNA-2 or -11 did not alter enucleation potential or the expression of erythroid maturation markers CD235a or CD71 (Figure 4h–i). Finally, we determined the frequency of the 4.9 kb deletion in CD34+ HSPCs electroporated with ABE8e and gRNA-2 or -11. We observed a very minimal frequency of the 4.9 kb deletion which might be due to higher processivity and transient expression of the base editor mRNA (Figure 4c). The present results suggest that the level of HbF induction mediated by the installation of novel –123 cluster HPFH-like mutations (through gRNA-11) is comparable to the naturally occurring –115 cluster HPFH mutations (through gRNA-2) that disrupt the binding site of BCL11A. Together, our data demonstrate that adenine base editing of the HBG1 and HBG2 promoters to recreate the novel –123 cluster HPFH-like mutations is a potential approach for the therapeutic induction of fetal globin level and treatment for beta-hemoglobinopathies.

Therapeutic induction of fetal hemoglobin (HbF) in erythroblast derived from healthy donor CD34+ hematopoietic stem and progenitor cells (HSPCs) upon base editing of HBG promoter.

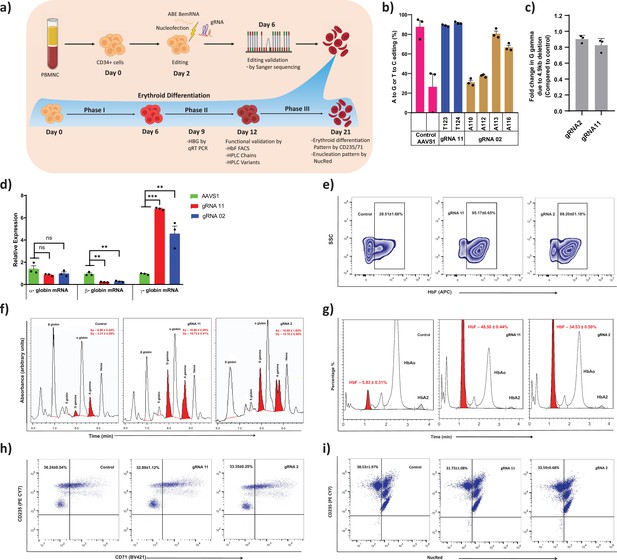

(a) Schematic representation of steps involved in based editing of CD34+ HSPCs. Mobilized CD34+ HSPCs from healthy donor were nucleofected using MaxCyte system with adenine base editor (ABE)8e mRNA and respective guide RNAs (gRNAs) on day 2 of expansion. During expansion, CD34+ HSPCs were analyzed at day 6 for the editing efficiency and 4.9 kb deletion. (b) Efficiency of individual base conversion at the target sites were measured by EditR after Sanger sequencing. (c) Analysis of HBG2 deletion (due to 4.9 kb large deletion) by qRT-PCR. The based edited CD34+ HSPCs were cultured in a three-phase liquid culture system for erythroid differentiation and enucleation. (d) Relative expression of globin transcripts analyzed by qRT-PCR (ΔΔCT) in erythroblasts derived from base edited CD34+ HSPCs on day 9 of differentiation. The functional validation of HbF elevation was analyzed in erythroblasts derived from the indicated samples by FACS, HPLC, and RP-HPLC on day 12 of erythroid differentiation. (e) HbF positive cells analyzed by flow cytometry are represented as zebra plots. (f) RP-HPLC chromatogram profiles of individual globin chains and (g) HPLC chromatogram profile of hemoglobin variants. On the final day of erythroid differentiation, the expression of maturation markers and enucleation fraction were measured by FACS analysis. (h) Flow cytometry for the erythroid maturation markers CD235a+ and CD71+. (i) Enucleation pattern was determined by flow cytometry analysis for CD235a with NucRed in erythroid cells derived from CD34+ HSPCs. Asterisks indicate levels of statistical significance **p < 0.01, ***p < 0.001.

The –123 T>C and –124 T>C HPFH-like mutations creates a de novo binding site for KLF1

Finally, we investigated the possibility that novel HPFH-like mutations introduced by the base editor might either create or disrupt the binding site for transcriptional regulators. Interestingly, we observed that the base editing at –123T > C and –124T > C sites by ABE with a single gRNA creates the consensus binding site for the master erythroid transcription factor KLF1 (Figure 5a and b; Tallack et al., 2010). We performed EMSA to verify binding of KLF1 to a probe containing this core element. We observed modest but clear binding of KLF1 to the –123T > C and –124T > C mutated probe in EMSA but not with the wild type probe (Figure 5—figure supplement 1a-b) or probes containing either –123T > C or –124T > C mutations alone (Figure 5c–d). This confirms that the combination of –123T > C and –124T > C mutation is important for the KLF1 binding to the HBG promoter. Next, we performed ChIP experiments to determine whether the KLF-1 directly interacts with –123T > C and –124T > C mutated region of HBG promoter in vivo. The KLF1 ChIP was performed in three independent HUDEP-2 clones sorted from wild type cells or the double mutant edited cells, respectively. The ChIP results were normalized to an unrelated positive control, a KLF1 binding site at the SP1 locus. We observed a weak increase in the signal of KLF1 binding to the HBG promoters in the cells edited to contain the –123 and –124 mutations, but the effect was modest, and a similarly weak enhancement was also observed at an arbitrary negative control locus, VEGF (Figure 5—figure supplement 1c). Thus, as seen in the EMSA, the KLF1 binding is at best weak and may be below the level of detection by ChIP. Future investigations would be required to confirm that KLF1 binding to this site is the main in vivo mechanism of –123T > C and –124T > C HPFH driven upregulation of gamma-globin.

Figure 5 with 1 supplement see all
KLF1 binds to the −123T > C and -124T > C region of the HBG proximal promoter in vitro.

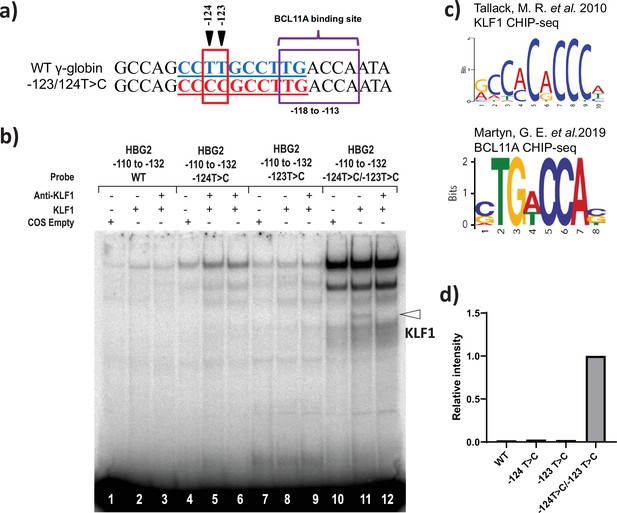

(a) Introduction of T-to-C mutation at –123 and –124 of the HBG promoter (–132 to –110 bp) creates the de novo binding site for the KLF1, the wild type and novel KLF binding motif is highlighted in blue and red, respectively. (b) In vivo binding motifs of transcription factors KLF1 and BCL11A as determined by ChIP-Seq as previously reported. (c) Electrophoretic mobility shift assay (EMSA) showing KLF1 binding to –123T > C/–124T > C probe but failing to bind to –124T > C probe, –123T > C probe and WT probe with the –123T/–124T region of the HBG promoter in vitro. Lanes 1, 4,7, and 10 contain nuclear extracts from COS cells transfected with a pcDNA3 empty vector. Lanes 2–3, 5–6, 8–9, and 11–12 contain nuclear extracts from COS cells overexpressing KLF1. Binding of KLF1 to the –123T > C/–124T > C HPFH mutant probe can be observed in lane 11, with a super shift of KLF1 in the presence of anti-KLF1 antibody in lane 12. (d) Quantification of relative intensity of bands (KLF1 binding to the probe) from the EMSA using Image Lab 6.0.1 (Bio-Rad) software.

Figure 5—source data 1

Electrophoretic mobility shift assay (EMSA) showing KLF1 binding to –123T > C/–124T > C probe but failing to bind to –124T > C probe, –123T > C probe, and wild type (WT) probe with the –123T/–124T region of the HBG promoter in vitro.

Lanes 1, 4, 7, and 10 contain nuclear extracts from COS cells transfected with a pcDNA3 empty vector. Lanes 2–3, 5–6, 8–9, and 11–12 contain nuclear extracts from COS cells overexpressing KLF1. Binding of KLF1 to the –123T > C/–124T > C hereditary persistence of fetal hemoglobin (HPFH) mutant probe can be observed in lane 11, with a super shift of KLF1 in the presence of anti-KLF1 antibody in lane 12.

https://cdn.elifesciences.org/articles/65421/elife-65421-fig5-data1-v2.zip

Off-target and gene expression analysis after base editing at the HBG promoter

ABE and CBE are known to create Cas-dependent DNA off-target and transient Cas-independent RNA off-target at low levels (Anzalone et al., 2020). It has been reported that the Cas-independent DNA off-target is very low and undetectable (Anzalone et al., 2020). We used Cas-OFFinder tool to predict the Cas-dependent DNA off-target for the novel gRNA (gRNA-11). The identified target regions were deep sequenced by NGS. Despite the higher on-target efficiency, off-target editing was not observed at the top target sites (Figure 6a). Next, we performed transcriptome-wide RNA sequencing on ABE and CBE stables with or without gRNA-2 and -11 to check whether base editing induced major spurious RNA deamination. The distribution frequency of A-to- I (in ABE) or C-to-U (in CBE) conversion across the base edited samples was very similar to that of the parental stable cell line (Figure 6b–e). To further verify that editing the gamma-globin promoter is not affecting the expression of other genes involved in globin regulation, we performed the differential analysis on these samples for the specific genes involved in globin regulation. We observed that there is no significant difference between the edited and control cells except for both gamma- and delta-globin genes (Figure 6—figure supplement 1).

Figure 6 with 1 supplement see all

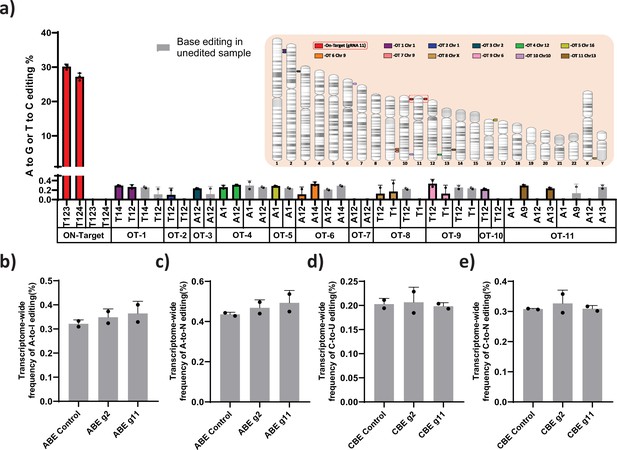

Evaluation of Cas-dependent DNA off-target and Cas-independent RNA off-target editing by adenine base editor.

(a) Base conversions at the top 11 Cas-dependent DNA off-target sites in adenine base editor (ABE) 7.10 stable edited with guide RNA (gRNA)-11, along with the on-target events. The positions of the off-target and on-target loci are represented in their respective chromosome. The frequency of transcriptome-wide cellular levels of A- to- I (b), A- to- N (c), C- to -U (d), and C- to- N (e) RNA editing in BE3 stables (CBE), ABE 7.10 stables (ABE), BE3 stables edited with gRNAs-2 or -11, and ABE edited with gRNAs-2 or -11 are represented. The data are mean ± SD of two technical replicates.

Overall, these results support that the ABE and CBE are useful in creating specific point mutations in the homologous HBG1 and HBG2 promoters, leading to a potential increase in the number of HbF positive cells and overall HbF production with a significant reduction in the larger deletion frequency.

Discussion

During normal globin switching, interactions of cis-acting elements with several different transcription factors lead to the silencing of fetal globin and in turn the activation of beta-globin (Ikuta et al., 1996). To obtain insights into the regulation of gamma-globin gene expression, we have used two complementary base editing approaches to screen the HBG promoter at single nucleotide resolution. This approach allowed us to identify several novel nucleotide substitutions in the HBG promoter that elevate HbF levels by altering the binding site for transcriptional activators or repressors.

Current approaches to studying fetal globin regulation by programmable nucleases often result in the deletion of the HBG2 gene due to the introduction of DSBs in both HBG promoters (Traxler et al., 2016). The elimination of the 4.9 kb intergenic region (including the HBG2 gene) appears to allow the locus control region (LCR) to directly interact with the HBG1 promoter and drive its expression (Métais et al., 2019). It can be challenging to determine the exact role of different HPFH mutations on individual gamma-globin expression because mutations can occur in either or both HBG2 and HBG1 promoters. Further, the CRISPR-Cas9-based editing produces different combination of indel at the target sites which makes it difficult to pinpoint the precise mutations involved in the gene regulation. A base editing strategy converts target bases in the editing window without the generation of DSBs and hence largely avoids splicing of the HBG locus. Using this strategy, we targeted regions in both HBG1 and HBG2 promoters and were able to efficiently edit sites in the promoters with fewer or no large deletions, which gave us the opportunity to evaluate gamma-globin expression from two active promoters.

We did observe a small percentage of 4.9 kb deletions even with base editors that use a nickase variant of the CRISPR/Cas9 system in our study. The larger deletions may be mainly a result of simultaneous CRISPR-Cas9-induced DSBs or by paired nickase-mediated two single-strand breaks (SSBs) on opposite DNA strands of the HBG1 and HBG2 gene (Ran et al., 2013a). Interestingly, recent studies have shown the possibility of adjacent SSB on the same DNA strand leading to the formation of genomic deletions in plants. The deletion frequency depends upon the initial release of the single-stranded fragment between the two SSBs (Schiml et al., 2016). Further reports suggest the conversion of the persistent nick into DSBs by the replication fork. The R-loop primed replication fork encounters the single-strand nick site in DNA template and collapses to produce a DSB (Kuzminov, 2001; Wimberly et al., 2013). Based on these findings, we predict the concurrent introduction of SSB by base editors at the editing site of the HBG1 and HBG2 promoter might generate some 4.9 kb larger deletions, though we observed very few.

Several different HPFH point mutations have been reported in the HBG promoters; and the effect of these mutations on gamma-globin expression in the native cellular environment has been deciphered for this limited set of mutations (Bauer and Orkin, 2012; Liu et al., 2018; Martyn et al., 2019; Wienert et al., 2017; Wienert et al., 2015). Our findings are in agreement with previous reports that the point mutations in three different regions of the HBG promoters centered around positions −198, –175, and −115 mimic the HPFH-associated point mutations affecting essential regulators of HbF expression (Liu et al., 2018; Martyn et al., 2019; Martyn et al., 2018; Stoming et al., 1989; Wienert et al., 2017; Wienert et al., 2015). Among the known HPFH point mutations, base conversion within the –115 cluster (from –110 to –116) showed the highest increase in promoter activity, confirming previous studies (Fucharoen et al., 1990; Gilman et al., 1988; Zertal-Zidani et al., 1999; Motum et al., 1994). CBE-mediated base conversion (C- to- T) at positions –114 and –115 resulted in a significantly greater induction of HbF than the multiple A-to-G nucleotide substitutions at −110, –112, −113, and –116 positions made by ABE. Recently, it has been shown that the major HbF repressor BCL11A directly binds to the core TGACC motif located at – 114 to –118 (Liu et al., 2018; Martyn et al., 2018). Naturally occurring HPFH mutations at –117G > A, –114C > A, –114C > T, –114C > G, and Δ13bp disrupts binding of BCL11A to the promoter (Martyn et al., 2018). The –113A > G HPFH mutation within the –115 cluster creates a binding site for the master erythroid regulator GATA1 without disrupting the binding of BCL11A (Martyn et al., 2019). Our results are consistent with these previous reports showing that disruption of the core binding region of BCL11A and the creation of a de novo binding sites for GATA1 results in the elevation of fetal globin in wild type HUDEP-2 cells (Wienert et al., 2017). ABE-mediated T-to-C substitution at position –198 of the HBG gene promoter has previously been shown to be associated with British HPFH and substantially elevates expression of HbF by creating a de novo binding site for the erythroid gene activator KLF1 (Tate et al., 1986; Wienert et al., 2017). Another known HPFH mutation (–175T > C) has been shown to promote enhancer looping to the HBG promoter through recruitment of the activator TAL1 (Wienert et al., 2015). Further, increased editing efficiency at the –175T > C position with the hyperactive variants of ABE (ABE8e) resulted in the highest induction of HbF synthesis in human erythroid cells.

In this study, we have identified several new point mutations in the HBG promoter associated with high HbF levels. HBG promoter base editing by ABE-mediated conversion (A- to-G) revealed multiple potential HbF regulatory regions compared to CBE since the targeted region had more ABE-compatible gRNAs than CBE. In addition to the known mutations, we have identified novel substitutions at –69 (C -to- T), –70 (C- to- T), –122 (G -to -A), –123 (T -to- C), and –124 (T -to -C) of the HBG promoters as potential new regulatory mutations that can elevate gamma-globin expression. The levels of gamma-globin expression resulting from these mutations were very similar to those of well-characterized, naturally occurring HPFH mutations. Our study has predicted that nucleotide substitutions at –123T > C and –124T > C positions of the HBG promoter might result in reactivation of gamma-globin expression through the creation of a binding site for KLF-1, which was then confirmed by EMSA. This result, together with the observation that a de novo KLF1 site formed by the –198T-to-C mutation can upregulate fetal globin (Tate et al., 1986; Wienert et al., 2017) raises the possibility that introduction of a KLF1 binding site anywhere around the HBG promoter could potentially upregulate HBG gene expression. In contrast to our finding in EMSA, we observed only a very weak signal for the binding of KLF1 at the edited site of the HBG promoter by ChIP. Thus, our hypothesis, primarily on the basis of observing in vitro binding of KLF1 in EMSAs, is that the –123 and –124 mutations create a new KLF1 binding site, that is relatively weak and difficult to detect using ChIP but other hypotheses are possible. For instance, it could create a binding site for another activator. The relative proximity of this site to the BCL11A site, that begins around –117, suggests it may also directly or indirectly affect BCL11A binding. Further work needs to be done to assess these possibilities.

The current screening approaches that we used to identify the regulatory element in the proximal promoter of HBG is limited by several technical issues. The availability of NGG PAM sequences in the target region confines the resolution of the screening approach. The editing efficiency for ABE7.10 RA or BE3RA-FNLS is not uniform across the target regions (Koblan et al., 2018). The effect of transverse mutation in the target region on gene regulation is not possible as the current base editors are mainly involved in the installation of transition mutations (Gaudelli et al., 2017; Komor et al., 2016). The bystander mutation introduced by the base editors at the target regions makes it difficult to identify functional regulatory single nucleotides responsible for the gamma-globin regulation. These limitations can be overcome by the use of several different strategies including the use of alternative base editor variants that recognize the non-canonical PAM site (Richter et al., 2020). In addition, recently developed hyperactive variant of base editors will improve the increasing editing efficiency at the target site with the broader editing window (Richter et al., 2020). The scope of this study can be further increased by the dual ABE and CBE that can mediate both conversions (A-to-G and C-to-T) simultaneously, and also by prime editing approach which can widen the range of precise conversions in the desired region (Anzalone et al., 2019; Zhang et al., 2020).

The translational potential of genome edited HSPCs depends on long-term engraftment and repopulation ability. However, genotoxicity and cytotoxicity that can arise as a result of DSBs generated by programmable nucleases can be a limiting factor (Cullot et al., 2019; Yu et al., 2016). A previous study in nonhuman primates observed that the HBG promoter editing by Cas9 resulted in HBG2 deletion with up to 27% frequency and that cells with this deletion were under-represented after engraftment (Humbert et al., 2019). Base editing at the target sites of HBG1 and HBG2 promoter by ABE and CBE does not result in high frequency of large deletions in the intergenic region as seen with Cas9 and only showed low levels of indel formation. ABEs have an inherent advantage over CBEs as they generate desired edits (A:T to G:C) with high fidelity, whereas the latter generate unanticipated edits. In corroboration with existing findings, our results also suggest that ABE is a better base editor than CBE with respect to purity of base conversion and indel formation (Lee et al., 2018). Moreover, preliminary results from our study suggest that the base editing of the HSPCs by ABE8e variant with the novel site (by gRNA-11) elevated HbF to therapeutic levels in erythroid progeny. Further, our study did not observe any significant DNA and RNA off-target in the ABE and CBE edited cells. Our proof of principle study validated the various gRNAs that can elevate the HbF levels to therapeutic levels laying the groundwork for potential clinical applications. This approach could address a range of beta-globin disorders avoiding the need to develop specific therapeutic products for each of them.

In summary, we have demonstrated that CRISPR base editing can be utilized to drive the expression of HbF to therapeutically relevant levels in an erythroid progenitor cell line and in HSPCs. After screening every gRNAs within the 320 bp region of the HBG promoter, we identified nine gRNAs that, when paired with the appropriate base editor, can introduce HPFH-like mutations without the generation of indels. We identified five novel regulatory regions for HBG1 and HBG2 that are required for the silencing of gamma-globin in adult erythroid cells shedding light on the molecular mechanisms behind hemoglobin switching (Figure 7). Our work is an exemplification of base editors in mapping gene regulatory elements in highly homologous locus and we hope base editing strategy will be among the pre-eminent therapeutic strategies for monogenetic disorders like beta-hemoglobinopathies in the future.

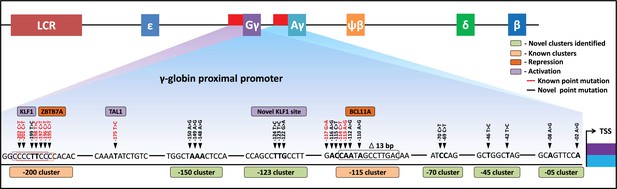

Schematic representation of known and identified point mutations in HBG promoter region that elevates fetal hemoglobin (HbF): The proximal promoter region of HBG2 and HBG1 is represented from transcription start site (TSS) till –205 bases.

Novel clusters identified from this study are highlighted in Sage (five clusters), and known clusters are highlighted in Melon (two clusters). Among these clusters, known base conversions are represented in black and identified hereditary persistence of fetal hemoglobin (HPFH)-like mutations are represented in red text. The novel base conversions from our study are represented in bold font. Transcriptional activators (lavender) and repressors (orange) that bind to the known clusters are also depicted in the figure.

Materials and methods

Designing and cloning of the gRNA

Request a detailed protocol

The gRNAs for targeting the HBG1 and HBG2 promoter region were designed using SnapGene and Benchling. The gRNAs for CBE were designed using design-type ‘gRNAs for base editing’ in the Benchling tool; from the 43 hits, we selected 32 non-overlapping gRNAs. The gRNAs for ABE were designed manually using SnapGene software. The forward oligonucleotide consists of the gRNA sequence without PAM (20 bp) and ‘CACCG’ overhang at the 5' end, while the reverse oligonucleotide consists of reverse complement of gRNA without PAM (20 bp), ‘AAAC’ overhang at the 5' end and a ‘C’ added at 3' end. The synthetic complementary oligonucleotides listed in Supplementary file 1 were annealed (Ran et al., 2013b; Shalem et al., 2014) and cloned into BsmBI digested pLKO5.sgRNA.EFS.GFP/RFP vector (gift from Benjamin Ebert, Addgene #57822/#57823) (Heckl et al., 2014). The oligo-annealed products were diluted 1:200-fold, from which 6 μl was taken along with 50 ng of vector backbone and ligation reaction was set up as per the manufacturer’s instruction from NEB. The ligated product was transformed into DH10B competent cells and plated in LB agar containing 100 μg/ml of ampicillin for selection (Sambrook and Russell, 2006). Three colonies were picked from the plate and inoculated in LB for colony PCR. Colony PCR was carried out using GoTaq Hot Start Polymerase premix (Promega) and 1 μl each of forward and reverse sequencing primers (10 picomoles) (Supplementary file 2) along with 1 μl of processed cells in a thermocycler (Applied Biosystems Veriti). The cyclic conditions were as follows: initial denaturation at 95°C for 10 min, 35 cycles of 95°C for 30 s, 55°C for 30 s, 72°C for 45 s, followed by a final extension at 72°C for 7 min. After confirming the expected amplification in 1% agarose gel, second round of PCR was carried out using the 20 ng of pre-cleaned product from the first round of PCR using BigDye Terminator v3.1 Cycle Sequencing Kit as per manufacturer’s protocol and given for Sanger sequencing.

Plasmid constructs

Request a detailed protocol

The plasmids used in this study, pLenti-FNLS-P2A-Puro (Addgene#110841-CBE) and pLenti-ABERA-P2A-Puro (Addgene#112675-ABE), were a gift from Lukas Dow (Zafra et al., 2018), and pMD2.G and psPAX2 (second-generation lentiviral packaging construct, Addgene #12259, 11260) were a gift from Didier Trono. The pLenti-ABE8e-puro vector was constructed by amplifying ABE8e from the TadA-8e V106W plasmid (a plasmid gifted from David Liu, Addgene#138495) (Richter et al., 2020) using the primers mentioned in Supplementary file 2. The amplified PCR product was then cloned into pLenti-ABERA-P2A-Puro backbone after digestion with BamH1 and Nhe1 by HIFI assembly (NEB). The gRNA sequence from lentiCRISPR V2 vector (a construct gifted from Feng Zhang, Addgene#52961) was removed by digestion with EcoR1 and Kpn1 enzyme (NEB). The digested plasmid was then re-ligated with NEB Ligase after a exonuclease treatment (NEB Exonuclease 1) to generate a lentiCRISPR V2.1 vector (Sanjana et al., 2014). The plasmids were isolated using NucleoBond Xtra Midi EF (Macherey-Nagel) according to the manufacturer’s instruction.

Cell culture

Request a detailed protocol

HUDEP-2 cell lines were cultured in StemSpan SFEM II (STEMCELL Technologies) supplemented with 50 ng/ml SCF (ImmunoTools), 3 U/ml EPO (Zyrop 4000 IU injection), 1× Pen-Strep (Gibco), 1 μM dexamethasone (Alfa Aesar), 1 μg/ml doxycycline (Sigma-Aldrich), and 1× L-glutamine 200 mM (Gibco) (Kurita et al., 2013). The cells were culture at 37°C with 5% CO2 and were confirmed negative for mycoplasma (Universal Mycoplasma detection kit-ATCC). K562 cell line was cultured in RPMI (Roswell Park Memorial Institute media) (Hyclone) supplemented with 1× penicillin-streptomycin-glutamine (Gibco) and 10% fetal bovine serum (FBS) (Gibco). COS-7 cells and HEK 293T cells were cultured in Dulbecco’s modified Eagle medium (DMEM, Gibco) supplemented with 10% (v/v) FBS and 1× Pen-Strep.

The left-over peripheral blood mononuclear cells (PBMNCs) were obtained from a healthy donor after infusion according to the clinical protocols approved by the Intuitional Review Boards of Christian Medical College, Vellore. The PBMNCs were purified by density gradient centrifugation (Lymphoprep Density Gradient Medium|STEMCELL Technologies) followed by RBC lysis. CD34+ cells were isolated from the purified PBMNCs by EasySep Human CD34 positive selection kit II (STEMCELL Technologies) and expanded in HSC expansion media as described earlier (Genovese et al., 2014). The isolated cells were analyzed for primitive cell surface markers (CD34+ CD133+ and CD90+) after 24 hr of expansion (Genovese et al., 2014).

Lentivirus production

Request a detailed protocol

HEK293T cells (1 × 106) were cultured in 10 cm cell culture dish (Corning). Around 80% confluency, 2.5 μg of pMD2.G (envelope plasmid), and 3.5 μg of psPAX2 (packaging plasmid) along with 4 μg (construct with gRNA) or 5 μg (construct with ABE/CBE/Cas9) of lentiviral vector were transfected using FuGENE-HD as per the manufacturer’s protocol. The viral supernatants were separately collected at 48 and 72 hr; and concentrated using Lenti-X Concentrator (Takara). The concentrated pellet was resuspended in 200 µl of 1×PBS, and the aliquots were stored at –80°C.

Lentiviral transduction

Request a detailed protocol

The desired lentivirus (100 µl aliquot) along with 6 μg/ml polybrene (Sigma-Aldrich), and 1% HEPES 1 M buffer (Gibco) were added to HUDEP-2 or K562 cells (0.5 million cells in one well of a six-well plate) and spinfected at 800 g for 30 min at room temperature. The cells were incubated for 48 hr with lentivirus at 37°C and then incubated in fresh medium. For the stable cell line generation, the cells transduced with pLenti-FNLS-P2A-puro or pLenti-ABERA-P2A-puro or pLenti-ABE8e-puro or lentiCRISPR V2.1viral vector were then treated with 1 μg/ml puromycin (Gibco) for 10 days. In case of gRNA transduction with pLKO5.sgRNA.EFS.GFP/RFP vector, the transduced cells were analyzed by FACS for GFP/RFP expression.

In vitro transcription

Request a detailed protocol

The template for in vitro transcription (IVT) was prepared by linearizing ABE8e plasmid (Addgene#138495) with Pme1 (NEB) and purified using PCI (phenol-chloroform-isoamyl alcohol). IVT was carried out using T7 mScript Standard mRNA Production System (CELLSCRIPT) components by previously described method with full substitution of pseudouridine-5'-triphosphate (Jena Bioscience) for uridine (Mahalingam et al., 2022). The purified mRNA was stored as aliquots (5 µg/vial) in –80°C.

Electroporation of CD34+ cells

Request a detailed protocol

CD34+ cells were expanded in HSC expansion media for 48 hr. Around 1 million of CD34+ cells were pelleted then resuspended in 19 µl MaxCyte buffer (Hyclone) along with 5 µg ABE8e mRNA (5 µl) and 100 pmole desired gRNA (1 µl) (Synthego) (target information in Supplementary files 1 and 2). The resuspended cells were loaded into one well of OC25 × 3 Maxcyte cuvette and electroporated with program ‘HSC-3’. After electroporation, the content was transferred to single well of 12-well plate (Corning) and allowed to recover for 20 min in the incubator (5% CO2, 37°C). To the recovered cells, 1 ml of HSC expansion media was added and then expanded for 48 hr before performing any further experiments.

Erythroid differentiation

Request a detailed protocol

For the erythroid differentiation of HUDEP-2 cells, we followed previously established protocol with slight modification (Trakarnsanga et al., 2017). After 8 days of expansion, around 1 million of edited cells were seeded in 65 mm cell culture dish (Eppendorf) with 5 ml of differentiation media consisting of IMDM glutamax (Gibco), 3% AB serum (MP Biomedicals), 2% FBS, 0.1% insulin solution human (Sigma-Aldrich), 3 U/ml Heparin sodium salt (MP Biomedicals), 200 μg/ml Holo Transferrin (BBI Solutions), 3 U/ml EPO, 10 μg/ml SCF, 1 ng/ml IL3 (Immuno Tools), 1× Pen-Strep, and 1 μg/ml doxycycline. Erythroid differentiation was carried out in 10 cm dish with regular media change (on days 3 and 6) up to the end of differentiation (for 9 days). On day 6, these cells were cultured in erythroid differentiation medium with 500 μg/ml of holotransferrin and devoid of doxycycline.

For erythroid differentiation of CD34+ cells, HSPCs were cultured in a three-phase liquid culture system and subjected to enucleation analysis as previously described (Psatha et al., 2018). The erythroid differentiation pattern was evaluated in the erythroblast obtained from HUDEP-2 cells (on day 9) and CD34+ cells (on day 21) by FACS analysis of CD235a and CD71 markers.

Analysis of base editing efficiency

Request a detailed protocol

Genomic DNA was isolated from the edited samples using DNA isolation kit (NucleoSpin Blood – Macherey-Nagel). For Sanger sequencing, the targets were PCR amplified using GoTaq Hot Start Polymerase premix (Promega), the primers used are listed in Supplementary files 1 and 2. For NGS, the targets were PCR amplified (the primers listed in Supplementary files 1 and 2) using GXL premix (Takara Bio) and sequenced using MiSeq System (Illumina). The library preparation and sequencing was carried out as per previously described protocol (Corn, 2017). The Fastq files obtained were analyzed for base editing using CRISPResso-2 (Clement et al., 2019). The data obtained from Sanger sequencing were used to analyze indels and the base editing efficiency by tools like Inference of CRISPR Edits (ICE) (Synthego) and EditR, respectively (Hsiau et al., 2018; Kluesner et al., 2018).

For characterization of editing in individual HBG1 and HBG2 promoter, NGS 4F and NGS 2R primers (Supplementary files 1 and 2) were used to amplify HBG promoter. After NGS , the Fastq file obtained were aligned to HBG1 and HBG2 sequence using Bowtie2 based on nucleotide variation at −307, –317, and –324. The aligned reads were visualized using IGV (Robinson, 2012; Langmead and Salzberg, 2013) and the editing efficiency was computed individually for both the genes ((edited reads/total reads) ×100).

Real-time PCR

Request a detailed protocol

Total RNA from the edited cells were isolated using the NucleoSpin RNA kit (Macherey-Nagel) and reverse transcribed using cDNA Synthesis Kit (iScript Bio-Rad). The relative expression (ΔΔCT) of HBB, HBA, and HBG genes was determined using the respective primers (Supplementary file 2) by qRT-PCR using SsoFast EvaGreen Supermixes (Bio-Rad) in QuantStudio 6 Flex Real-Time PCR System (Applied Biosystems). The qRT-PCR mixture (10 μl) contains 1 μl each of respective forward and reverse primer (5 µM), 5 μl of SYBR green master mix, 2 μl of H2O, and 1 μl of 5-fold diluted cDNA template. GAPDH was used as an internal control gene to normalize the data for ΔΔCT (relative expression analysis). The cycling condition was performed as per the manufacturer’s protocol (Bio-Rad). A dissociation curve analysis was carried out to ensure there is no unspecific amplification.

The VCN was assessed in genomic DNA isolated from the transduced samples using qRT-PCR as previously described with a few modification (Barczak et al., 2015). Primers targeting U6 promoter (for gRNA integration), Cas9 gene (for Cas9 and base editors’ integration), and WPRE (for gRNA and Cas9 variant integration together) were used. Exon 2 of HBB gene was used as a single copy gene-specific reference. The primers used are listed in Supplementary file 2. pLKO5.sgRNA. EFS.GFP (Plasmid #57822, Addgene) and an inhouse plasmid carrying HBB CDS (details not provided) were used as standards.

HbF intracellular staining

Request a detailed protocol

To evaluate the frequency of HbF positive cells, the cells were fixed, permeabilized, and intracellular staining was performed using Fetal Hemoglobin Monoclonal Antibody (HBF-1), APC (Invitrogen) as previously described (Canver et al., 2015). The stained cells were analyzed by FACS (BD FACSAria III Cell Sorter or CytoFLEX LX Flow Cytometer – BC) to measure the number of HbF positive cells.

Hemoglobin detection by HPLC

Request a detailed protocol

The differentiated cells were collected and washed with 1× PBS and resuspended in 1100 μl cold ddH2O. The cells were sonicated for 30 s with 50% Amp in ice and centrifuged at 14,000 rpm for 15 min at 4°C. The supernatant (1000 μl) was analyzed for hemoglobin variants by VARIANT II Hemoglobin Testing System (Bio-Rad). The hemoglobin percentages were calculated by the Bio-Rad’s Clinical Data Management (CDMTM) Software. Reverse phase HPLC (Shimadzu Corporation-Phenomenex) (Loucari et al., 2018) was performed in remaining 100 μl of the supernatant for the analysis of individual globin chains expression . The ratio of gamma (A and G gamma)/beta-like (gamma, beta, and delta) globin was calculated and represented in percentage.

Validation of 4.9 kb large deletion

Request a detailed protocol

To quantify the large deletion in HBG promoter region, qPCR was carried as previously reported (Li et al., 2018) (using primers from Supplementary file 2). To verify the effect of larger deletion on gamma-globin expression, the globin chain analysis was carried out using RP HPLC in the differentiated erythroid cells. The A gamma- and G gamma-globin chain percentage obtained from each sample were normalized with control.

COS-7 cell transfections and nuclear extraction

Request a detailed protocol

COS-7 cells were transfected with 5 µg of mammalian expression plasmids pcDNA3-empty (Invitrogen) or pSG5/mEKLF-Mouse (Miller and Bieker, 1993) using FuGENE 6 (Promega) in 10 cm culture dish, according to the manufacturer’s instructions. Transfected cells were incubated at 37°C for 48 hr before harvest. Nuclear extractions were performed as previously described (Andrews and Faller, 1991).

Electrophoretic mobility shift assay

Request a detailed protocol

Oligonucleotides used in radiolabelled probes are listed in Supplementary file 2. The sense strand for each probe was labelled with P-32 from γ-32P ATP (Perkin Elmer) using T4 PNK (NEB), before annealing the antisense strand by slow cooling from 100°C to room temperature. The annealed probes were purified using quick spin columns for radiolabelled DNA purification (Roche). Plasmids were overexpressed and harvested from COS-7 cells, and ‘empty’ extract without the target protein was used to aid identification of background bands caused by endogenous protein binding. Antibody for KLF1 was used as indicated to identify the protein on the gel (Crossley et al., 1996). Complexed samples were loaded on 6% native polyacrylamide gel in TBE buffer (45 mM Tris, 45 mM boric acid, 1 mM EDTA). Electrophoresis was performed at 4°C and 250 V for 1 hr and 40 min, and then vacuum dried before exposing a FUJIFILM BAS Cassette2 phosphor screen overnight. Imaging was performed on a GE Typhoon FLA 9500 fluorescent image analyzer.

ChIP qPCR

Request a detailed protocol

Each immunoprecipitation was performed using 5 × 107 cells of wild type and edited HUDEP-2 cells before differentiation. Cells were cross-linked in 1% formaldehyde solution and incubated at room temperature for 10 min before the reaction was quenched by addition of glycine to a final concentration of 125 mM. Cross-linked cells were lysed and sonicated for 10 cycles of 30 s with 30 s intermissions at 4°C to obtain chromatin fragments of approximately 200–300 bp. Immunoprecipitations were performed using 100 µl of Dynabeads Protein G (ThermoFisher Scientific) complexed to 15 µg of KLF1 antibody (OriGene, #TA305808) or normal rabbit IgG (Cell Signaling Technology #2729S) at 4°C overnight. Magnetic beads were separated and washed thoroughly before elution and cross-linking was reversed by incubation at 65°C overnight. DNA was then purified and quantified within reference to whole cell extract on a ViiA 7 Real-Time PCR System using SYBR green reagents and the ΔΔCt method for specific targets (Supplementary file 2).

RNA sequencing and analysis

Request a detailed protocol

Total RNA extracted using NucleoSpin RNA kit (Macherey-Nagel) was quality assessed by Agilent 2100 Bioanalyzer (Agilent Technologies). From 1 μg of total RNA polyadenylated transcripts was purified using oligo-dT beads (TruSeq RNA Sample Preparation Kit, Illumina). Fragmentation was carried out in the presence of divalent cation followed by reverse transcription using Superscript II Reverse Transcriptase kit (Life Technologies). Following cDNA purification by Ampure XP SPRI beads (Beckman Coulter) Illumina adapter ligation and amplification were carried out. The quantification and the quality were assessed by NanoDrop spectrophotometer (Thermo Scientific) and Bioanalyzer (Agilent Technologies), respectively. Libraries were sequenced by using Illumina NovoSeq 6000 platform as 150 bp paired-end reads. Fastq files were generated with bcl2fastq and then trimmed to remove low-quality bases, adapter seq, and unpaired sequence using TrimGalore. Homo sapiens genome assembly GRCh38 was used as a reference to align the trimmed reads. NFCore RNA Seq pipeline was used to resolve the expressed transcripts quantitatively and qualitatively (Ewels et al., 2020). The files are accessible through the GEO Series accession number GSE192801.

Transcriptome analysis was carried out in wild type HUDEP-2, ABE, and CBE stable cells with or without gRNA-2 and -11 in duplicate. The transcript was counted from the sorted bam files by the aligner mentioned above. Interactive Gene Expression Analysis Kit (iGEAK) RNA-seq v1.0 a R and JavaScript-based tool was used to normalize gene expression levels and perform differential expression analysis (Choi and Ratner, 2019).

Off-target analysis

Request a detailed protocol

Cas-OFFinder was used to find the Cas-dependent DNA off-target, up to three mismatches were allowed in selecting targets (target information in Supplementary file 3). The targets were amplified and sequenced using Illumina MiSeq platform (using primers mentioned in Supplementary file 2). CRISPResso2 was used to align the reads, only high-quality reads were used for this analysis (q = 30). REDItools v2 was used to calculate the transcriptome-wide A-to-I and C-to-U conversion in ABE and CBE edited samples. Except the respective nucleotide (A for ABE and C for CBE), all nucleotides were removed from the analysis. Read coverage and read quality criteria were followed as described earlier (Koblan et al., 2021). The frequency of A converted to I/N and C converted to U/N was calculated by dividing the total number of converted nucleotides by the respective nucleotides after filtering (A-to-(I or N)/A*100 or C-to-(U or N)/C*100). The experiment was carried out as two biological replicates.

Statistical analysis

Request a detailed protocol

The statistical tests were performed using GraphPad Prism 8.1. Since all the data were normally distributed, unpaired two-sided t-test or one-way ANOVA was used as appropriate. In all the tests, p < 0.05 was considered statistically significant. Linear regression was carried out to find out if any correlation exists between two variables. Also, to find the relationship between the samples, Pearson correlation was performed. Principal component analysis (PCA) was performed using R statistical package.

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Genetic reagent (Homo sapiens)GRCh38GenBank883148
Strain, strain background (Escherichia coli)DH10BECOS, Yeastern BiotechCAT # FYE507-10VL
Recombinant DNA reagentpLKO5.sgRNA.
EFS.GFP
AddgeneAddgene_57822; RRID:Addgene_57822
Recombinant DNA reagentpLKO5.sgRNA.
EFS.RFP
AddgeneAddgene_57823; RRID:Addgene_57823
Recombinant DNA reagentpLenti-FNLS-
P2A-Puro
AddgeneAddgene_110841; RRID:Addgene_110841
Recombinant DNA reagentpLenti-ABERA-P2A-PuroAddgeneAddgene_112675; RRID:Addgene_112675
Recombinant DNA reagentpMD2.GAddgeneAddgene_12259; RRID:Addgene_12259
Recombinant DNA reagentpsPAX2AddgeneAddgene_12260; RRID:Addgene_12260
Recombinant DNA reagentTadA-8e V106WAddgeneAddgene_138495; RRID:Addgene_138495
Recombinant DNA reagentlentiCRISPR V2AddgeneAddgene_52961; RRID:Addgene_52961
Recombinant DNA reagentlentiCRISPRV2.1This studyCas9 expressing
lentiviral plasmid
without gRNA
scaffold
Recombinant DNA reagentpLenti-ABE8e-P2A-PuroThis studyABE8e expressing
lentiviral plasmid
Recombinant DNA reagentpcDNA-3Invitrogen
Recombinant DNA reagentpSG5/mKLFMiller and Bieker, 1993
AntibodyPE Mouse Anti-Human CD34 (mouse monoclonal)BD PharmingenCAT # 550761; RRID:AB_393871FACS (2 µl/test)
AntibodyAPC Mouse Anti-Human CD133 (mouse monoclonal)BD PharmingenCAT # 566596; RRID:AB_2744280FACS (2 µl/test)
AntibodyBV421 Mouse Anti-Human CD90 (mouse monoclonal)BD PharmingenCAT # 562556; RRID:AB_2737651FACS (2 µl/test)
AntibodyPE-Cy7 Mouse Anti-Human CD235a (mouse monoclonal)BD PharmingenCAT # 563666; RRID:AB_2738361FACS (2 µl/test)
AntibodyBV421 Mouse Anti-Human CD71 (mouse monoclonal)BD PharmingenCAT # 562995; RRID:AB_2737939FACS (2 µl/test)
AntibodyPE Mouse Anti-Human CD235a (mouse monoclonal)BD PharmingenCAT # 555570; RRID:AB_395949FACS (2 µl/test)
AntibodyFITC Mouse Anti-Human CD71 (mouse monoclonal)BD PharmingenCAT # 555536; RRID:AB_395920FACS (2 µl/test)
AntibodyFetal Hemoglobin Antibody, APC (mouse monoclonal)InvitrogenCAT # MHFH05; RRID:AB_10374595FACS (2 µl/test)
AntibodyAntibody for KLF1 (rabbit polyclonal)Crossley et al., 1996EMSA (1:30 final
dilution)
AntibodyAnti-KLF1 antibody (goat polyclonal)OriGene#TA305808ChiP (15 µg/IP)
AntibodyNormal rabbit IgGCell Signaling Technology#2729SChiP (15 µg/IP)
Commercial assay or kitNucRed Live 647 ReadyProbes ReagentInvitrogenCAT # R37106FACS (2 µl/test)
Commercial assay or kitZymoclean Gel DNA recovery kitZymo ResearchCAT # D4001
Commercial assay or kitNucleoBond Xtra MidiMNREF # 740410
Commercial assay or kitNucleoSpin RNAMNREF # 740955
Commercial assay or kitNucleoSpin Blood – DNA kitMNREF # 740951
Commercial assay or kitEasySep Human CD34 Positive Selection KitSTEMCELL TechnologiesCAT # 17856
Commercial assay or kitT7 mScript Standard mRNA Production SystemCell ScriptC-MSC100625
Commercial assay or kitRadiolabelled DNA columnRocheG25DNA-RO
Commercial assay or kitiScript cDNA Synthesis KitBio-RadCAT # 1708891
Commercial assay or kitBigDye Terminator v3.1 Cycle Sequencing KitApplied BiosystemCAT # 4337458
Commercial assay or kitSsoFast EvaGreen SupermixBio-RadCAT # 172–5200
Commercial assay or kitUniversal Mycoplasma detection kitATCCCAT # 30–1012K
Chemical compound, drugT4 Polynucleotide KinaseNEBCAT # M0201
Chemical compound, drugT4 DNA LigaseNEBCAT # M0202
Chemical compound, drugNEBuilder HiFi DNA Assembly Master MixNEBCAT # E2621
Chemical compound, drugBamHI-HFNEBCAT # R3136
Chemical compound, drugNhEI-HFNEBCAT # R3131
Chemical compound, drugBsmB1NEBCAT # R0580
Chemical compound, drugKpnI-HFNEBCAT # R3142
Chemical compound, drugEcoRI-HFNEBCAT # R3101
Chemical compound, drugExonuclease I (E. coli)NEBCAT # M0293
Chemical compound, drugPme1NEBCAT # R0560
Chemical compound, drugGoTaq Green Master MixPromegaCAT # M712B
Chemical compound, drugPrimeSTAR GXL PremixTakara BioCAT # R051A
Chemical compound, drugDynaBeads PGInvitrogen10003D
Chemical compound, drugFormaldehydeSigma-AldrichF87751% v/v final
concentration
Chemical compound, drugGlycineAjax FinechemAJA1083125 mM final
concentration
Chemical compound, drugγ-Kuzminov, 2001P ATPPerkin-ElmerBLU502A250UC1 µl/15 pmol
probe
Chemical compound, drugInsulinSigma-AldrichCAT # 11061-68-0
Chemical compound, drugHeparinMP BiomedicalsCAT # 9041-08-1
Chemical compound, drugHolotransferrinBBI Solutions#SKU T101-5
Chemical compound, drugSCFImmuno ToolsCAT # 11343325
Chemical compound, drugEPOZydus
Nephrosciences
Zyrop 4000 IU Injection
Chemical compound, drugIL6Immuno ToolsCAT # 11340066
Chemical compound, drugIL3Immuno ToolsCAT # 11340035
Chemical compound, drugFLT3Immuno ToolsCAT # 11343305
Chemical compound, drugTPOImmuno ToolsCAT # 11344863
Chemical compound, drugHydrocortisoneMP BiomedicalsCAT # 2930949
Chemical compound, drugAB SerumMP BiomedicalsCAT # 101996
Chemical compound, drugPenstrepGibcoCAT # 15140122
Chemical compound, drugDexamethasoneAlfa AesarCAS# 1177-87-3
Chemical compound, drugDoxycyclineSigma-AldrichCAS# 24390-14-5
Chemical compound, drugGlutamineGibcoCAT # 25030081
Chemical compound, drugFBSGibcoCAT # 10270106
Chemical compound, drugPBSHycloneCAT # SH30256.02
Chemical compound, drugPolybreneSigma-AldrichCAS # 28728-55-4
Chemical compound, drugHepesGibcoCAT # 15630080
Chemical compound, drugPuromycinGibcoCAT # A1113803
Chemical compound, drugPseudouridineJena BioscienceCAT # NU-1139
Chemical compound, drugLymphoprepSTEMCELL TechnologiesCAT # 07851
Chemical compound, drugStemSpan SFEM-IISTEMCELL TechnologiesCAT # 09655
Chemical compound, drugDMEMHycloneCAT # SH30243.01
Chemical compound, drugRPMIHycloneCAT # SH30027.01
Chemical compound, drugIMDM-GlutamaxGibcoCAT # 31980030
Chemical compound, drugFugene HDPromega
Corporation
CAT # E2312
Chemical compound, drugLenti-X concentratorTakaraCAT # 631232
Chemical compound, drugMaxcyte bufferHycloneCAT # EPB1
Chemical compound, drugLB AgarHIMEDIAM1151
Chemical compound, drugLB BrothHIMEDIAM1245
Chemical compound, drugAmpicillin Sodium SaltSRL61,314
Chemical compound, drugTriton X-100Fisher ScientificCAS #:9002931
Chemical compound, drugGlutaraldehydeMP BiomedicalsCAT # 198,595
Biological samplePBMNCsCMCIRB Min. No. 10,549 (others) dated 15/02/2017
Cell line (Homo sapiens)HEK 293TATCC
Cell line (Homo sapiens)HUDEP-2Cell Engineering
Division, RIKEN BioResource Center
Cell line (Homo sapiens)K562ATCC
Cell line (African green monkey)COS-7Gluzman, 1981
Sequence-based reagentgRNAsThis paperCheck Supplementary file 1
Sequence-based reagentProbes, RT-qPCR and PCR primersThis paperCheck Supplementary file 2
Software, algorithmReditools 2GitHub - BioinfoUNIBA/REDItools2, Giudice, 2022RNA off-target
Software, algorithmSynthego ICESynthegoInDel for Sanger
sequenced data
Software, algorithmEditREditR: Edit Deconvolution by Inference of Traces in R (shinyapps.io)Base editing
efficiency for
Sanger sequenced
data
Software, algorithmIGVHome | Integrative Genomics Viewer (broadinstitute.org)Visualize Aligned
data
Software, algorithmCRISPResso-2CRISPResso2 (partners.org)Base editing
efficiency for NGS
data
Software, algorithmSnapgeneSnapGene | Software for everyday molecular biologygRNA designing
Software, algorithmBenchlingCRISPR gRNA Design Tool | BenchlinggRNA
designing
Software, algorithmFlowJo 10.7.1Home | FlowJo, LLCFACS data
analysis
Software, algorithmCas off-finderCRISPR RGEN Tools (rgenome.net)DNA off-target
prediction
Software, algorithmCosmidCRISPR Target Search (gatech.edu)Primer designing
for predicted DNA
off-targets
Software, algorithmBowtie 2Bowtie 2: fast and sensitive read alignment (sourceforge.net)Sequence
alignment
Software, algorithmTrimGaloreBabraham Bioinformatics - Trim Galore!FastQ files
processing
Software, algorithmNFCore RNA Seq pipelinernaseq » nf-coreRNA sequencing
pipeline
Software, algorithmInteractive Gene Expression Analysis Kit (iGEAK)iGEAK! (google.com)
Software, algorithmGraphPad Prism 8.0.1GraphPad Prism (https://graphpad.com)RRID:SCR_015807

Data availability

The transcriptome data have been deposited in GEO under accession code GSE192801 All the raw data from this study have been deposited in Dyrad (https://doi.org/10.5061/dryad.bzkh1897h).

The following data sets were generated
    1. Ravi N
    2. Wyman SK
    3. Mohankumar KM
    (2022) NCBI Gene Expression Omnibus
    ID GSE192801. Identification of novel HPFH-like mutations by CRISPR base editing that elevate the expression of fetal hemoglobin.
    1. Mohankumar KM
    (2022) Dryad Digital Repository
    Data from: Identification of novel HPFH-like mutations by CRISPR base editing that elevate the expression of fetal hemoglobin.
    https://doi.org/10.5061/dryad.bzkh1897h

References

Decision letter

  1. Stephen C Ekker
    Reviewing Editor; Mayo Clinic, United States
  2. Naama Barkai
    Senior Editor; Weizmann Institute of Science, Israel

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for sending your article entitled "Identification of novel HPFH-like mutations by CRISPR base editing that elevate the expression of fetal hemoglobin" for peer review at eLife. Your article is being evaluated by 2 peer reviewers, and the evaluation is being overseen by a Reviewing Editor and Patricia Wittkopp as the Senior Editor.

The main concerns are the extent and varied nature of the different technical aspects of the paper. Whether these can be addressed in a focused fashion within a reasonable time-period is the question at hand.

Reviewer #1:

Disrupting transcriptional regulation of HBG to induce fetal hemoglobin (HbF) expression is a promising therapeutic strategy for sickle cell disease (SCD). To identify novel HBG regulatory elements, Ravi et al., utilized cytosine (CBE) and adenine (ABE) base editors to mutagenize the proximal HBG promoter region in HUDEP-2 immortalized human erythroid progenitor cells. The authors were able to achieve successful editing across a number of target sites with several inducing functional upregulation of HbF. Notably, for one ABE target the induction of HBG could be explained by the creation of a consensus binding site for KLF1, although the degree of induction was less than that achieved by disruption of a previously identified BCL11A binding site. These data highlight advantages of using base editors as a mutagenesis tool and extend our current understanding of HBG gene regulation which may have future therapeutic relevance in SCD.

Strengths:

Genetic mapping of key regulatory elements within the HGB promoter region has been conducted using nuclease-based mutagenesis but is limited by the imprecise repair outcomes of NHEJ and by frequent deletion of the region intervening the highly homologous sequences of the duplicated HBG1 and HBG2 loci. The use of base editors is an elegant strategy to overcome these challenges.

Although nuclease-based indel induction can be readily used to disrupt regulatory elements, it is less useful for the introduction of novel transcription factor binding sites unless paired with inefficient homology directed repair approaches. The current study demonstrates a key advantage of base editing which is the ability to efficiently create transcription factor binding sites. This broadens the scope of functional alterations that can be introduced within gene regulatory elements.

In addition to demonstrating that base editors are a useful tool for regulatory element mapping, the current study sheds new light on the regulation of HBG expression by resolving five additional regulatory regions located within the HBG proximal promoter region that could have therapeutic relevance in SCD.

Weaknesses:

Although the paper successfully identifies five novel regulatory regions within the HBG promoter that when modified increase HbF expression, none of these edits induce HbF as effectively as disruption of the previously identified BCL11A binding site. Thus, from a translational standpoint the results do not appear to be a significant advance. However, the substantial variation in editing at each site may be limiting the magnitude of HbF induction.

Variable editing across target sites has been described for both CBE and ABE, so it's not unexpected that it was observed in the current study. However, without data showing the transduction efficiency of the sgRNA vectors (by GFP flow) it is difficult to conclude that the variation is solely a function of the target or target sequence context. At a few of the sites with low genetic editing there is a significant increase in HbF expression, suggesting that if the editing at these sites were improved the functional induction of HbF could be substantial.

The use of lentivirus delivered gRNAs would appear to be amenable to pooled screening, but in the current study the screen was conducted in an arrayed fashion. The ability to conduct a pooled screen could substantially expand the utility of this approach and it would have been very interesting to see how the results from a pooled and arrayed screen compared to one another.

Lastly, while the functional readouts in the current study are compelling and largely correlate with the editing, confirmation in a second system would further inspire confidence in the results. In particular, members of this team and others have carried out editing in primary human CD34+ hematopoietic stem/progenitor cells (HSPC) followed by erythroid differentiation. Confirmation of the identified targets in primary cells with therapeutic relevance would inspire further confidence in the results.

– GFP flow data for the transduction efficiency of sgRNA vectors should be included. This is critical to confirm that the editing variability is due to target site and not transduction efficiency. It would also be helpful to confirm that none of the gRNA sequences contain premature termination sequences as well.

– The nature of the replicates are unclear. In figures 2 and 3 there are no error bars and in the figures with error bars it in not clear the definition of the biological replicates. Were these independent transductions of the cells, or repeat measures of the same transduced populations?

– In the functional validation experiments, were these independent transductions or use of the initial transduced populations? What were the sgRNA transduction rates in the populations used?

– Several previous editing strategies have been used to increase HbF. It would be informative if prior editing strategies were included in this study for comparison.

– Quantification of the EMSA in figure 6c should be included.

– Additional analysis to quantify and more clearly represent the correlation between genome editing and HBG (HbF) induction would be helpful for readers.

– Follow up validation of promising targets using transient transfection approaches would be informative as well.

– Despite low indels the frequency of deletion between HBG1 and 2 by PCR should be measured and the gel included next to a nuclease control.

– ABE gRNA 03 gave low genetic editing rates but apparently higher HbF induction. it would be very interesting to see how this target behaved if targeted with recently published hyperactive (ABE8e etc) variants. If high editing were achieved it would seem this could be an attractive target for therapy.

– Additional analysis to quantify and more clearly represent the correlation between genome editing and HBG (HbF) induction would be helpful for readers.

– For promising targets, confirmation in primary CD34+ HSPC would increase the impact of the current study.

– The observation of editing outside the spacer window described as novel in line 188 has been previously observed: Webber et al., Nature Comm (https://www.nature.com/articles/s41467-019-13007-6), Arbab et al., Cell (https://www.sciencedirect.com/science/article/abs/pii/S0092867420306322). These studies should be cited and text changed to describe these results as confirmatory.

– Line 221 describing reduction of double positive cells in CBE treated cells. Since results are not significant this statement should be removed.

Reviewer #2:

In this study, the Authors use base editors to generate mutations in the promoters of the genes encoding the γ-globin chains of the fetal hemoglobin in an adult erythroid cell line. Several of these mutations are associated with increased γ-globin gene expression, paving the way for the development of therapeutic strategies for β-hemoglobinopathy patients who have been shown to benefit from persistent expression fetal hemoglobin in adulthood. The major strengths of this work are: (i) the discovery of novel mutations associated with elevated feta hemoglobin levels; (ii) the impact of these discovery in the field of gene therapy for β-hemoglobinopathies.

The weakness of this study is the technical quality that can be improved to support the Authors' conclusions.

Remarks to the Authors:

– While many findings of this study are interesting, in the Results section it is not clear which are the specific questions. The results are a list of data that are partially interpreted only in the Discussion. I would suggest the Authors to better explain their findings in the Results section (e.g., comparison of different strategies disrupting repressor binding sites or recruiting transcriptional activators).

– It would be interesting to study if any of the mutations that do not increase HbF, down-regulate γ-globin expression (in cells that do express HbF) to identify binding sites for activators.

– The Authors should better characterize the cell lines expressing base editors. If I understood correctly, these cells are constitutively expressing the base editors (and the gRNAs). Some base editors are known to induce off-targets at DNA and RNA levels. This possibility should be investigated (at least the RNA off-targets) to verify that the major players in HbF regulation are properly expressed by performing a side-by-side comparison of cells expressing the base editors and untransduced cells. In addition, if base editors and gRNA are constitutively expressed, base editing efficiency can change overtime and should be evaluated in the same cells in which the Authors measure HbF expression.

– Evaluation of HbF+ cells (by flow cytometry) and globin mRNAs (by qRT-PCR) should be performed in differentiated cells, as HbF expression changes upon differentiation.

– The Authors should specify if control cells express the base editors and a control gRNA.

– The first screening of gRNAs is performed without replicates (Figure 2 and 3 and related supplementary figures). Furthermore, many of the gRNAs produce very few editing events, thus it is not possible rule out if the target regions are important for γ-globin expression. Therefore, I would exclude from the analysis the gRNAs associated with a low genome editing as these results are confounding and do not give insights in the regulation of γ-globin expression. Maybe Figure 2 and 3 (and related supplementary figures) could be kept as supplementary data.

– Line 178: the -117 mutation (occurring upstream of the gRNA target site) should be reported in Figure 4.

– Interestingly, the Authors observed that the -123/-124 mutations create a binding site for KLF1. However, most of the editing events generate only one of the 2 mutations (figure 4 suppl 2), would individual mutations be sufficient to generate a KLF1 binding site? Can this be tested by performing an EMSA assay with oligos harboring individual mutations? If individual mutations are not generating a KLF1 binding site, would the observed HbF reactivation be justified by the recruitment of KLF1 only to a minor fraction of the alleles harboring the concomitant editing of the 2 nucleotides?

Finally, can the Authors perform ChIP experiments to demonstrate the increase KLF1 recruitment upon editing of the -123/-124 region?

– Lines 311-314: "CBE mediated base conversion (C to T) at positions – 114 and -115 resulted in significantly greater induction of HbF than the multiple A to G nucleotide substitutions at -110, -112, -113, -116 positions made by ABE." I believe that this or similar statements should be supported by the analysis of clonal populations harboring the same number of edited promoters.

– Figure 3-Suppl Figure 1: it would be helpful to plot HbF expression of the negative controls.

– SEM is missing in Figure 4-suppl Figure 1, panels A and C.

– Figure 5-Suppl Figure 1, panel d: why α and β chains are reduced in samples gRNA02 and gRNA 42?

– Figure 5-Suppl Figure 1: Can the Authors comment on the imbalanced Agamma/Ggamma ratio in sample gRNA 42? Could it be due to the potential deletion of the HBG2 gene? Besides Indels, did the Authors measure the frequency of the 4.9kb deletions in base-edited samples?

– It would be interesting to perform experiments in primary cells to validate these interesting findings.

https://doi.org/10.7554/eLife.65421.sa1

Author response

Reviewer #1:

Disrupting transcriptional regulation of HBG to induce fetal hemoglobin (HbF) expression is a promising therapeutic strategy for sickle cell disease (SCD). To identify novel HBG regulatory elements, Ravi et al., utilized cytosine (CBE) and adenine (ABE) base editors to mutagenize the proximal HBG promoter region in HUDEP-2 immortalized human erythroid progenitor cells. The authors were able to achieve successful editing across a number of target sites with several inducing functional upregulation of HbF. Notably, for one ABE target the induction of HBG could be explained by the creation of a consensus binding site for KLF1, although the degree of induction was less than that achieved by disruption of a previously identified BCL11A binding site. These data highlight advantages of using base editors as a mutagenesis tool and extend our current understanding of HBG gene regulation which may have future therapeutic relevance in SCD.

Strengths:

Genetic mapping of key regulatory elements within the HGB promoter region has been conducted using nuclease-based mutagenesis but is limited by the imprecise repair outcomes of NHEJ and by frequent deletion of the region intervening the highly homologous sequences of the duplicated HBG1 and HBG2 loci. The use of base editors is an elegant strategy to overcome these challenges.

Although nuclease-based indel induction can be readily used to disrupt regulatory elements, it is less useful for the introduction of novel transcription factor binding sites unless paired with inefficient homology directed repair approaches. The current study demonstrates a key advantage of base editing which is the ability to efficiently create transcription factor binding sites. This broadens the scope of functional alterations that can be introduced within gene regulatory elements.

In addition to demonstrating that base editors are a useful tool for regulatory element mapping, the current study sheds new light on the regulation of HBG expression by resolving five additional regulatory regions located within the HBG proximal promoter region that could have therapeutic relevance in SCD.

We thank the reviewer for the supportive words and the positive comments about our study.

Weaknesses:

Although the paper successfully identifies five novel regulatory regions within the HBG promoter that when modified increase HbF expression, none of these edits induce HbF as effectively as disruption of the previously identified BCL11A binding site. Thus, from a translational standpoint the results do not appear to be a significant advance. However, the substantial variation in editing at each site may be limiting the magnitude of HbF induction.

The reviewer brings up an excellent consideration. As the reviewer has rightly pointed out, one of the shortcomings in this study is to obtain equivalent editing efficiency in all the target regions and correlate the extent of editing with HbF levels. To overcome this problem, we have used ABE 8e (a variant with high processivity) to increase the editing efficiency of low editing gRNA with high HbF (Figure 3-Sup figure 4). Finally, we have evaluated a novel target site (gRNA 11) identified from this study with ABE 8e in healthy donor CD34+ HSPCs. As expected, we were able to obtain higher editing efficiency at the target site. Importantly, the corresponding increase in HbF levels was better than the current clinical trial target that disrupts the BCL11A binding site (Figure 4).

Variable editing across target sites has been described for both CBE and ABE, so it's not unexpected that it was observed in the current study. However, without data showing the transduction efficiency of the sgRNA vectors (by GFP flow) it is difficult to conclude that the variation is solely a function of the target or target sequence context. At a few of the sites with low genetic editing there is a significant increase in HbF expression, suggesting that if the editing at these sites were improved the functional induction of HbF could be substantial.

We appreciate the reviewer’s comment. We have now included the analysis of transduction efficiency for all the gRNAs as suggested by the reviewer. The data indicate that the variation in the HbF levels depends on the target site rather than the transduction efficiency (Figure 2 and Figure 3-Sup figure 1). Also, we have evaluated the low editing gRNA with high HbF using the ABE 8e variant, which significantly increased the editing efficiency and the HbF levels (Figure 3-Sup figure 4).

The use of lentivirus delivered gRNAs would appear to be amenable to pooled screening, but in the current study the screen was conducted in an arrayed fashion. The ability to conduct a pooled screen could substantially expand the utility of this approach and it would have been very interesting to see how the results from a pooled and arrayed screen compared to one another.

This is an interesting suggestion. Previous work published by Kim et al., (Genome Res. 2018 Jun; 28(6): 859-868) showed that arrayed CRISPR based screen can be more sensitive than a pooled screen. Their group has pointed out that subtle phenotypic effects may not be observable in a pooled screen when compared to an array screen, as the samples in arrayed screens exhibit clear phenotypic variation even with minor editing. Another study (Raphaella W L So et al., Mol Neurodegener. 2019 Nov 14;14(1):41.) has reported that cells in a pooled culture can negatively affect other cells particularly when they undergo inflammatory response or senescence after editing, this is not the case in arrayed screen as the individual targets are separated.

Lastly, while the functional readouts in the current study are compelling and largely correlate with the editing, confirmation in a second system would further inspire confidence in the results. In particular, members of this team and others have carried out editing in primary human CD34+ hematopoietic stem/progenitor cells (HSPC) followed by erythroid differentiation. Confirmation of the identified targets in primary cells with therapeutic relevance would inspire further confidence in the results.

We appreciate the reviewer’s comment. We have now performed base editing in CD34+ HSPCs and were able to achieve HbF levels at a therapeutically significant level (Figure 4).

– GFP flow data for the transduction efficiency of sgRNA vectors should be included. This is critical to confirm that the editing variability is due to target site and not transduction efficiency. It would also be helpful to confirm that none of the gRNA sequences contain premature termination sequences as well.

We agree entirely with the reviewer and have included the plot for the transduction efficiency of individual gRNAs with their respective editing efficiency at the target site (Figure 2c and d and Figure 3-Sup figure 1f). We also thank the reviewer for bringing the premature termination sequences to our attention. We have verified that there are no premature termination sequences in the gRNAs used in our study.

– The nature of the replicates are unclear. In figures 2 and 3 there are no error bars and in the figures with error bars it in not clear the definition of the biological replicates. Were these independent transductions of the cells, or repeat measures of the same transduced populations?

We apologize for the confusion. We performed the first round of screening for the 41 gRNAs in two different base editor expressing HUDEP-2 cell lines (ABE and CBE) without replicates (data in Figure 2c and d). After performing the screen, the top 8 gRNAs based on HBF expression were taken for further validation in triplicates with independent transduction of cells (Figure 3).

– In the functional validation experiments, were these independent transductions or use of the initial transduced populations? What were the sgRNA transduction rates in the populations used?

Thank you for this comment. The functional validation experiments were performed as three independent transductions of cells. The transduction efficiency of all the gRNAs were presented in Figure 3-Sup figure 1f.

– Several previous editing strategies have been used to increase HbF. It would be informative if prior editing strategies were included in this study for comparison.

This is an excellent suggestion. We have compared the editing of previously identified BCL11A binding site with the Cas9 and two different base editors (CBE and ABE) in parallel to evaluate the fetal globin expression in HUDEP-2 cells. Indeed, we observed the higher frequency of large deletions (encompassing HBG2 gene) with the lower level of G γ chain expression in Cas9 edited cells in comparison with ABE and CBE. These results further validate the conclusion that ABE and CBE are highly efficient in editing the highly homologous regions like γ globin promoter without causing any major deletions. We have added the new figure (Figure 1) and relevant descriptions based upon these results in the revised manuscript.

– Quantification of the EMSA in figure 6c should be included.

Thank you for this comment. As suggested by the reviewer, we have quantified the EMSA bands based on its intensity and included these data in Figure 5d and Figure 5-Sup figure 1b.

– Additional analysis to quantify and more clearly represent the correlation between genome editing and HBG (HbF) induction would be helpful for readers.

We completely agree with the reviewer. We have now represented the correlation between genome editing and HbF induction more clearly using principal component analysis (PCA) in Figure 3i. Among the validated top eight gRNAs in ABE and CBE, gRNA- 2, 10, 11 with ABE and gRNA-2 with CBE resulted in a high target editing efficiency with a corresponding increase in HbF expression. In case of gRNA 42 with CBE, only a modest level of HbF elevation was achieved even with higher editing efficiency. On the other hand, gRNAs -3 and 4 with ABE and gRNAs -10 and 11 with CBE showed higher elevation of HbF levels despite lower base conversion efficiency. Overall, the potential gRNAs include gRNA-2, 3, 4, 10, and 11 with ABE and gRNA-2 with CBE that exhibit high induction of HbF expression.

– Follow up validation of promising targets using transient transfection approaches would be informative as well.

We thank the reviewer for this comment. To this end, we have performed base editing of promising target regions in human CD34+ HSPCs by electroporation of ABE8e mRNA with gRNA-2 or gRNA-11 that targets the BCL11A binding motif at position −118 to −114 position and the putative KLF1 consensus motif at -123 and -124 position in the HBG1/HBG2 gene promoters respectively. We cultured the base- edited CD34+ HSPCs under erythroid differentiation conditions and determined the effect of base editing on HbF expression, erythroid differentiation, and enucleation. We have now included the comprehensive analysis of the base editing healthy donor CD34+ HSPCs by transient transfection in the revised manuscript (Figure 4).

– Despite low indels the frequency of deletion between HBG1 and 2 by PCR should be measured and the gel included next to a nuclease control.

Thank you for the thoughtful comment. As per the reviewer’s suggestion, we have performed the 4.9kb deletion analysis in the edited samples by using qRT PCR as previously reported by André Lieber’s group (Chang Li et al., Blood. 2018 Jun 28;131(26): 2915-2928.). We have validated the 4.9kb large deletion frequency (encompassing HBG2 gene) for ABE, CBE and Cas9 in HUDEP-2 cell lines targeting the BCL11A binding site at the highly homologous HBG promoter. The Cas9 edited cells resulted in higher frequency of 4.9 kb deletion as anticipated. Interestingly, we have observed the deletions in the base edited cells but significantly lower when compared to Cas9 (Figure 1c). To extend this finding, we measured the frequency of the larger deletion for the other potential target sites that resulted in lower level of HBG2 chain expression (Figure 3-Sup figure 3e and k) and also in base edited CD34+ HSPCs cells (Figure 4c).

– ABE gRNA 03 gave low genetic editing rates but apparently higher HbF induction. it would be very interesting to see how this target behaved if targeted with recently published hyperactive (ABE8e etc) variants. If high editing were achieved it would seem this could be an attractive target for therapy.

Thank you for this comment. We have now evaluated the gRNA-3 which resulted in higher induction of HbF with low editing efficiency using the hyperactive variant ABE8e and subsequently analyzed for the further possible increase in HbF expression by increasing the editing efficiency in HUDEP-2 cells. The ABE8e variant has greatly increased the base editing efficiency at the target site and resulted in higher levels of HbF induction with reduced frequency of the larger deletion in comparison with ABE7.10 (Figure 3-Sup figure 4d). This result suggests that adenine base editing of the HBG1 and HBG2 promoters to create the -175 T>C change with ABE 8e is a potential strategy for the therapeutic induction of fetal globin level and treatment for sickle disease and β thalassemia.

– Additional analysis to quantify and more clearly represent the correlation between genome editing and HBG (HbF) induction would be helpful for readers.

– For promising targets, confirmation in primary CD34+ HSPC would increase the impact of the current study.

We thank the reviewer for the great suggestion. As detailed above in Response 1.7, we analyzed the therapeutic potential of novel targets (gRNA-11) identified from this study on induction of γ globin expression by base editing of CD34+ HSPCs from a healthy donor (Figure 4). Base editing of the -123 region of HBG promoter resulted in a therapeutic level of induction of HbF in erythroblasts derived from human CD34+ HSPCs, without having any detrimental effects on erythroid differentiation and enucleation. Notably, the level of HbF induction was more pronounced with the installation of novel -123 cluster HPFH like mutations than the creation of -115 cluster HPFH mutation which disrupts the BCL11A binding site. The results indicate that base editing at the -123 region of HBG promoter may offer a new therapeutic approach for the treatment of β-hemoglobinopathies.

– The observation of editing outside the spacer window described as novel in line 188 has been previously observed: Webber et al., Nature Comm (https://www.nature.com/articles/s41467-019-13007-6), Arbab et al., Cell (https://www.sciencedirect.com/science/article/abs/pii/S0092867420306322). These studies should be cited and text changed to describe these results as confirmatory.

We apologize for the mistake. We have now added the relevant citations and rephrased the sentence in the Results section.

– Line 221 describing reduction of double positive cells in CBE treated cells. Since results are not significant this statement should be removed.

We agree entirely with the reviewer and have removed the statement in the revised manuscript.

Reviewer #2:

In this study, the Authors use base editors to generate mutations in the promoters of the genes encoding the γ-globin chains of the fetal hemoglobin in an adult erythroid cell line. Several of these mutations are associated with increased γ-globin gene expression, paving the way for the development of therapeutic strategies for β-hemoglobinopathy patients who have been shown to benefit from persistent expression fetal hemoglobin in adulthood. The major strengths of this work are: (i) the discovery of novel mutations associated with elevated feta hemoglobin levels; (ii) the impact of these discovery in the field of gene therapy for β-hemoglobinopathies.

We thank the reviewers for highlighting the importance of our study, as we also believe that it will advance the field of gene therapy for β-hemoglobinopathies.

The weakness of this study is the technical quality that can be improved to support the Authors' conclusions.

We appreciate the reviewer’s constructive comment. As per the reviewer’s suggestion, we have worked on the technical quality of our study and manuscript to further improve and support our conclusions.

Remarks to the Authors:

– While many findings of this study are interesting, in the Results section it is not clear which are the specific questions. The results are a list of data that are partially interpreted only in the Discussion. I would suggest the Authors to better explain their findings in the Results section (e.g., comparison of different strategies disrupting repressor binding sites or recruiting transcriptional activators).

We thank the reviewer for the great suggestion. We agree entirely with the reviewer and acknowledge that in the first version of the manuscript we did not adequately interpret the results. Prompted by the comment of the reviewers we have reworked the current version of the manuscript in the Results section to include a detailed explanation of the findings and interpreted the results more clearly as suggested.

– It would be interesting to study if any of the mutations that do not increase HbF, down-regulate γ-globin expression (in cells that do express HbF) to identify binding sites for activators.

It is a very interesting perspective that the reviewer has pointed out. To examine this observation, we have selected the gRNAs that have higher editing efficiency at the target site with the decreased expression of γ-globin from our preliminary screen. These gRNAs were screened in K562 cell line (which has higher basal level of HbF) with the base editors to identify the potential activator binding sites in the HBG promoter. The percentage of HbF positive cells remains unaltered after editing suggesting that the targeted regions did not have binding sites for transcriptional activators. This new data is now discussed in revised version the manuscript (Figure 2-Sup figure 3).

– The Authors should better characterize the cell lines expressing base editors. If I understood correctly, these cells are constitutively expressing the base editors (and the gRNAs). Some base editors are known to induce off-targets at DNA and RNA levels. This possibility should be investigated (at least the RNA off-targets) to verify that the major players in HbF regulation are properly expressed by performing a side-by-side comparison of cells expressing the base editors and untransduced cells. In addition, if base editors and gRNA are constitutively expressed, base editing efficiency can change overtime and should be evaluated in the same cells in which the Authors measure HbF expression.

We thank the reviewer for the excellent suggestion. We used the constitutively expressing base editor along with the gRNA for our experiments. We have now conducted the transcriptome profiling of base editor stable cell line (both ABE7.10 and BE3) and compared with the wild type HUDEP-2 cells. The data presented in the new figure (Figure 1-Sup figure 1 (b)) shows that the gene expression profiles are not altered and exhibit a significant correlation with the wild type HUDEP-2 cells. We have also characterized the base editor stable cell lines for the editing efficiency at different time points (in days) and its effect on HbF expression using the known gRNA-2 (targeting BCL11A binding site). The editing efficiency and HbF levels in both ABE and CBE increases over time with no discernible effect on erythroid differentiation (Figure 1-Sup figure 1 (c-h)). As the reviewers have suggested, we have also investigated the possible DNA and RNA off target effects and analyzed the expression of major molecular targets that are involved in HbF regulation in the base edited samples. Transcriptome wide RNA sequencing on ABE and CBE stables with gRNAs 2 or 11 confirms that the distribution frequency of A-to- I (in ABE) or C-to-U (in CBE) conversion across the base edited samples were very similar to that of the parental stable cell line (Figure 6b-e). The Cas-dependent DNA off target were also validated, we were not able to observe any significant undesired off target effects despite higher on target editing efficiency (Figure 6a). We performed the differential expression analysis for the 34 selected genes that are involved in globin regulation and observed no significant difference in base edited cells compared to the control (Figure 6-Sup figure 1).

– Evaluation of HbF+ cells (by flow cytometry) and globin mRNAs (by qRT-PCR) should be performed in differentiated cells, as Hb expression changes upon differentiation.

Thank you for this comment. We agree with the reviewer that HbF expression will change upon erythroid differentiation. As the reviewer suggested, we have determined the level of globin mRNA by qRT-PCR and HbF positive cells by flow cytometry for the top 8 targets in the ABE and CBE edited cells after erythroid differentiation (Figure 3c and d, Figure 3-Sup figure 3b and h ). The number of HbF positive cells in differentiated erythroid cells was slightly higher than that of the undifferentiated cells. The relative expression of γ globin in the erythroid differentiated samples followed a similar trend to that of the undifferentiated sample.

– The Authors should specify if control cells express the base editors and a control gRNA.

Thank you for this comment. The control cells used in our study constitutively express the base editors and the control gRNA (with scrambled sequence) in HUDEP2 cells. In case of CD34+ HSPCs, we used the gRNA targeting the AAVS1 site (a safe harbour locus) along with base editor mRNA as a control. We have added the relevant information in the revised manuscript as suggested by the reviewer.

– The first screening of gRNAs is performed without replicates (Figure 2 and 3 and related supplementary figures). Furthermore, many of the gRNAs produce very few editing events, thus it is not possible rule out if the target regions are important for γ-globin expression. Therefore, I would exclude from the analysis the gRNAs associated with a low genome editing as these results are confounding and do not give insights in the regulation of γ-globin expression. Maybe Figure 2 and 3 (and related supplementary figures) could be kept as supplementary data.

We thank the reviewer for the suggestion. We agree entirely with the reviewer that the target region of many of the low editing gRNAs might have a possible role in γ globin regulation. Therefore, we excluded the gRNAs-37,38,7,18,19 and 29 from ABE and gRNAs-1,35,37,6,7,13 and 19 from CBE from the analysis because of the lower editing efficiency (<10%) at the target site. We have moved the figure 2 to the supplementary figures (Figure 2-Sup figure 1a and c) as suggested by the reviewer. Figure 3 was kept in main figure (as Figure 2) as it is to represent the level of HbF induction with the total editing efficiency for all the gRNAs from the primary screening.

– Line 178: the -117 mutation (occurring upstream of the gRNA target site) should be reported in Figure 4.

We appreciate the reviewer’s suggestion on including the base conversion events that occurred upstream of the protospacer target site. We have now represented all these mutations in the new figure (Figure 3-Sup figure1b) as suggested.

– Interestingly, the Authors observed that the -123/-124 mutations create a binding site for KLF1. However, most of the editing events generate only one of the 2 mutations (figure 4 suppl 2), would individual mutations be sufficient to generate a KLF1 binding site? Can this be tested by performing an EMSA assay with oligos harboring individual mutations? If individual mutations are not generating a KLF1 binding site, would the observed HbF reactivation be justified by the recruitment of KLF1 only to a minor fraction of the alleles harboring the concomitant editing of the 2 nucleotides?

Finally, can the Authors perform ChIP experiments to demonstrate the increase KLF1 recruitment upon editing of the -123/-124 region?

We thank the reviewer for the excellent suggestion. We have performed a new EMSA to determine the effect on KLF1 binding to a probe containing the individual and combination of -123/ -124 mutations along with the wild type probe. The results indicate that the combination of -123 T>C and -124 T>C mutation (but not with the -123 T>C or -124 T>C individual mutation) is required for the KLF1 binding to the HBG promoter in vitro (Figure 5c-d, Figure 5-Sup figure 1a and b). To substantiate this finding, we improved the editing efficiency at the target site with the hyperactive variant of ABE (ABE 8e) and gRNA-11 which results in the higher proportion of -123 T>C and -124 T>C combination mutations with substantial increase in HbF expression in the CD34+ HSPCs (>90% base substitution at 123 T>C and -124 T>C position with >90% HbF+ cells) (Figure 4b and e). The ChIP results were not conclusive. They did not show a significant enrichment of KLF-1 at the 123 T>C and -124 T>C mutated region of HBG promoter when compared to an arbitrarily chosen negative control (VEGFA) but did exhibit slightly better enrichment compared to the WT clones (Figure 5-Sup figure 1c). It should be noted that as seen in the EMSA the KLF1 binding is at best weak and may be below the level of detection by ChIP in these experiments. Future investigations would be required to confirm that KLF1 binding to this site is the main in vivo mechanism of -123 T>C and -124 T>C HPFH driven up-regulation of γ globin. We have worded our manuscript carefully to make this point clear.

– Lines 311-314: "CBE mediated base conversion (C to T) at positions – 114 and -115 resulted in significantly greater induction of HbF than the multiple A to G nucleotide substitutions at -110, -112, -113, -116 positions made by ABE." I believe that this or similar statements should be supported by the analysis of clonal populations harboring the same number of edited promoters.

We respectfully suggest that the effect of individual mutations at the -115 clusters of HBG promoter on γ globin regulation are extensively characterized by previous publications (Martyn et al., Nature genetics 2018., Liu N et al., Cell 2018). Further, we believe that the change in HbF induction by ABE and CBE are mainly due to the variation in the binding affinity of BCL11A towards the mutated core TGACCA motif. The previous publication by Yang et al., (Cell Research (2019) 29:960– 963) proves that the nucleotides at -114 and -115 positions are very important for BCL11A binding when compared to other nucleotides at the -115 region of HBG promoter, which is highly consistent with our observations of CBE mediated base conversion at – 114 and -115 position.

– Figure 3-Suppl Figure 1: it would be helpful to plot HbF expression of the negative controls.

Thank you for this comment. We have included the HbF expression of the negative control and presented in the new updated Figure 2 c and d (previously Figure 3-Sup figure 1) of the revised version of manuscript as suggested by the reviewer.

– SEM is missing in Figure 4-suppl Figure 1, panels A and C.

Thank you for this comment. We have included the SEM for the updated new Figure 3a and b (previously Figure 4-Sup figure 1) as suggest by the reviewers.

– Figure 5-Suppl Figure 1, panel d: why α and β chains are reduced in samples gRNA02 and gRNA 42?

This is a great question. We believe based on the previous report that the higher induction of γ globin chain is shown to downregulate β globin chain expression thereby maintaining the α to β-like globin chain ratio (Huang P et al., Genes Dev. 2017). They have indicated that in fetal stages/HPFH condition, the LCR directly interacts with γ globin promoter for its regulation. Therefore, the LCR will not be able to access β globin promoter which results in reduced expression of β globin chain. In case of α globin, we are not entirely sure about the mechanism, but previous reports have shown that induction of HbF using inducers have down regulated α globin chain expression (Khamphikham P et al., Br J Haematol 2020).

– Figure 5-Suppl Figure 1: Can the Authors comment on the imbalanced Agamma/Ggamma ratio in sample gRNA 42? Could it be due to the potential deletion of the HBG2 gene? Besides Indels, did the Authors measure the frequency of the 4.9kb deletions in base-edited samples?

We thank the reviewer for bringing up an excellent point. We are not entirely sure about the reason for variation in A γ and G γ expression in gRNA 42. As reviewers suggested, we have now performed the qRT-PCR analysis on CBE stables cells transduced with gRNA-42 to ensure that the difference in γ chain expression is due to 4.9kb large deletion. We did not observe the large deletion in gRNA 42 edited cells (Figure 3-Sup figure 3k). Thus, the decrease in G γ chain expression is independent of the large deletion and might be due to the biased expression of the γ globin.

– It would be interesting to perform experiments in primary cells to validate these interesting findings.

We thank the reviewers for the great suggestion. As detailed above in Response 1.7, we performed the base editing to introduce novel -123 cluster mutations at the HBG promoter in heathy donor CD34+HSPCs. Targeted adenosine base editing at the -123 region of the HBG promoter induced robust γ globin expression (than the base editing at the BCL11 binding site) in CD34+ HSPC-derived human erythroblasts, without having any detrimental effect on erythroid differentiation and maturation (Figure 4).
