Calibration of cell-intrinsic interleukin-2 response thresholds guides design of a regulatory T cell biased agonist

  1. Caleb R Glassman
  2. Leon Su
  3. Sonia S Majri-Morrison
  4. Hauke Winkelmann
  5. Fei Mo
  6. Peng Li
  7. Magdiel Pérez-Cruz
  8. Peggy P Ho
  9. Ievgen Koliesnik
  10. Nadine Nagy
  11. Tereza Hnizdilova
  12. Lora K Picton
  13. Marek Kovar
  14. Paul Bollyky
  15. Lawrence Steinman
  16. Everett Meyer
  17. Jacob Piehler
  18. Warren J Leonard
  19. K Christopher Garcia  Is a corresponding author
  1. Department of Molecular and Cellular Physiology, Stanford University School of Medicine, United States
  2. Immunology Graduate Program, Stanford University School of Medicine, United States
  3. Department of Structural Biology, Stanford University School of Medicine, United States
  4. Department of Biology, University of Osnabrück, Germany
  5. Laboratory of Molecular Immunology and Immunology Center, National Heart, Lung, and Blood Institute, NIH, United States
  6. Division of Blood and Marrow Transplantation, Department of Medicine, Stanford University School of Medicine, United States
  7. Department of Neurology and Neurological Sciences, Stanford University, United States
  8. Division of Infectious Diseases and Geographic Medicine, Department of Medicine, Stanford University, United States
  9. Laboratory of Tumor Immunology, Institute of Microbiology of Czech Academy of Sciences, Czech Republic
  10. Department of Pediatrics, Stanford University, United States
  11. Howard Hughes Medical Institute, Stanford University School of Medicine, United States
Research Article
  • Cited 0
  • Views 634
  • Annotations
Cite this article as: eLife 2021;10:e65777 doi: 10.7554/eLife.65777

Abstract

Interleukin-2 is a pleiotropic cytokine that mediates both pro- and anti-inflammatory functions. Immune cells naturally differ in their sensitivity to IL-2 due to cell type and activation state-dependent expression of receptors and signaling pathway components. To probe differences in IL-2 signaling across cell types, we used structure-based design to create and profile a series of IL-2 variants with the capacity to titrate maximum signal strength in fine increments. One of these partial agonists, IL-2-REH, specifically expanded Foxp3+ regulatory T cells with reduced activity on CD8+ T cells due to cell type-intrinsic differences in IL-2 signaling. IL-2-REH elicited cell type-dependent differences in gene expression and provided mixed therapeutic results: showing benefit in the in vivo mouse dextran sulfate sodium (DSS) model of colitis, but no therapeutic efficacy in a transfer colitis model. Our findings show that cytokine partial agonists can be used to calibrate intrinsic differences in response thresholds across responding cell types to narrow pleiotropic actions, which may be generalizable to other cytokine and growth factor systems.

Introduction

Cytokines are secreted factors that regulate diverse aspects of cell physiology through assembly of cell surface receptors and induction of the JAK-STAT signaling cascade. Cytokines are highly pleiotropic due to broad expression of receptor components on diverse cell types. In vivo, pleiotropy is managed by local cytokine secretion and differential expression of receptor subunits and signaling pathway components depending on cell type and activation state. The actions of a single cytokine on multiple cell types has limited both basic understanding of cell type-dependent cytokine activity in vivo and therapeutic interventions that rely on the systemic administration of cytokine. Thus, new approaches are needed to limit cytokine pleiotropy in order to understand basic aspects of cytokine biology across cell types and develop improved therapeutic modulators of cytokine signaling.

Interleukin-2 (IL-2) is a classical pleiotropic cytokine that signals through a heterodimeric receptor formed by IL-2 receptor beta (IL-2Rβ, CD122) and common gamma chain (γc, CD132) expressed on T cells, natural killer (NK) cells, and B cells (Hatakeyama et al., 1989; Takeshita et al., 1992). Cells can further enhance their sensitivity to IL-2 by expression of the non-signaling subunit, IL-2 receptor alpha (IL-2Rα, CD25) which sensitizes cells to IL-2 signaling (Cosman et al., 1984; Leonard et al., 1984; Nikaido et al., 1984). Although IL-2 was originally described as a T cell stimulatory factor (Morgan et al., 1976), mice deficient in IL-2 or the IL-2 receptor were found to develop severe autoimmunity (Sadlack et al., 1995; Sadlack et al., 1993; Suzuki et al., 1995; Willerford et al., 1995). This seeming paradox was resolved by the finding that IL-2 signaling is critical for maintenance of regulatory T cells (Tregs) which play an important role in suppressing immune activation (Fontenot et al., 2005). Indeed, transfer of Tregs was shown to inhibit autoimmune syndrome in IL-2Rβ-deficient mice (Malek et al., 2002). Thus, IL-2 acts as a central regulator of immunity by supporting both pro- and anti-inflammatory responses.

While many immune cells express components of the IL-2 receptor, cell types differ in their requirements for and sensitivity to IL-2 signaling. NK cells express high levels of IL-2Rβ and respond to both IL-2 and the related cytokine, IL-15 which shares signaling receptors IL-2Rβ/γc with IL-2 (Carson et al., 1994; Giri et al., 1994). Naïve T cells express low levels of IL-2 receptor components and thus are relatively insensitive to IL-2 stimulation until after upregulation of IL-2 receptor components following activation (Au-Yeung et al., 2017; Leonard et al., 1985). Unlike naïve T cells, Tregs constitutively express IL-2Rα (Sakaguchi et al., 1995) and are further sensitized to IL-2 by miR-155-dependent repression of suppressor of cytokine signaling 1 (SOCS1) (Lu et al., 2015; Lu et al., 2009). These differences in cell type sensitivity create threshold effects where low doses of IL-2 activate Tregs without inducing signaling on naïve T cells and NK cells while high doses of IL-2 activate both Tregs as well as naïve T cells and NK cells (Grinberg-Bleyer et al., 2010; Matsuoka et al., 2013; Yu et al., 2015); however, exploiting this phenomenon clinically has been difficult due to a narrow therapeutic window between pro- and anti-inflammatory IL-2 signaling (Pham et al., 2015).

Previous attempts to overcome IL-2 pleiotropy and target signaling to distinct cell populations have focused on differential expression of IL-2 receptor components. Antibodies against IL-2 that favor binding to IL-2Rα expressing cells (JES6-1) can potentiate Tregs by sterically blocking interactions between IL-2Rβ and IL-2 (Boyman et al., 2006; Spangler et al., 2015). Similarly, IL-2 muteins with reduced affinity for IL-2Rβ have been used to increase dependence on IL-2Rα and enhance Treg selectivity (Khoryati et al., 2020; Peterson et al., 2018; Shanafelt et al., 2000). While using ligands to target differences in receptor expression provides some amount of cell type selectivity, cells employ diverse mechanisms to regulate IL-2 sensitivity.

To probe intrinsic differences in IL-2 signaling across cell types, we took an unbiased and structure-based approach by generating a series of IL-2 muteins with reduced affinity for γc, which we surmised would modulate the stability of the heterodimeric signaling complex and serve to ‘titrate’ signal strength. We then systematically characterized their cell type specificity in vivo. Functionally, these IL-2 variants exhibit partial agonism, eliciting a submaximal response at saturating concentrations of cytokine. We identified an IL-2 mutein, IL-2-REH (L18R, Q22E, Q126H), that induces proliferation of Foxp3+Tregs with reduced activity on NK cells and CD8+ T cells. This mutein showed increased dependence on IL-2Rα expression and decreased capacity to overcome negative regulation by SOCS1, thereby mirroring two key features of IL-2 sensitivity in Tregs, constitutive expression of IL-2Rα and miR-155-mediated suppression of SOCS1. Expanded Tregs retain suppressive capacity in vitro and improved recovery in the dextran sulfate sodium (DSS)-induced colitis model of inflammatory bowel disease. These results demonstrate that cell type-intrinsic differences in IL-2 signaling can be exploited by partial agonists to generate new cytokines with reduced pleiotropy and improved therapeutic properties.

Results

IL-2 receptor partial agonists control STAT5 signaling by modulating receptor dimerization

IL-2 signaling is initiated when IL-2 first binds to IL-2Rβ, following recruitment of γc, which results in trans-phosphorylation of JAK1/JAK3, and activation of STAT5 and other pathway components. To systematically probe the relationship between receptor dimerization and downstream signaling, we targeted residues in IL-2 that make contact with γc in order to modulate the efficiency of receptor heterodimer formation (Wang et al., 2005Figure 1A). This mutational strategy has the advantage of capping maximal signaling (Emax) by weakening the recruitment of γc, the final step of IL-2 receptor assembly. We selected mutations on IL-2 that form contacts with γc and installed these mutations in a variant of IL-2 with high affinity for IL-2Rβ, super-2 (H9) (Levin et al., 2012), which effectively ‘clamps’ IL-2Rβ and reduces dependence on IL-2Rα such that the Emax for the mutants are determined by the efficiency of γc recruitment into the complex. For this and subsequent experiments, IL-2 variants were expressed with an N-terminal mouse serum albumin (MSA) tag to aid expression and extend half-life in vivo. A panel of H9 variants with L18R, Q22E, and variable amino acid substitutions at Q126 were tested for STAT5 signaling in YT cells, an IL-2 responsive human NK cell line, by phosphoflow cytometry. This mutational strategy yielded a panel of IL-2 partial agonists characterized by reduced maximal STAT5 phosphorylation at saturating doses of cytokine (Figure 1B). The diversity of response profiles from these IL-2 muteins indicates that changes to a single amino acid side chain can modulate the full range of induction of intracellular signaling, from 100% Emax to essentially no activity.

Figure 1 with 1 supplement see all
Structure-based design and biophysical characterization of IL-2 receptor partial agonists.

(A) Cartoon representation of the human interleukin-2 (IL-2) receptor complex (PDB: 2B5I). IL-2 is shown in magenta, IL-2 receptor beta (IL-2Rβ) is shown in blue, common gamma (γc) is shown in gold, IL-2 receptor alpha (IL-2Rα) is shown in teal. Insert shows IL-2 residues targeted for mutagenesis. (B) Amino acid substitution at IL-2 Q126 tune cytokine activity. IL-2 variants were expressed on the super-2 H9 background (L80F, R81D, L85V, I86V, I92F), an IL-2 variant with high affinity for IL-2Rβ, and assayed for dose-dependent phosphorylation of STAT5 (pSTAT5) by phosphoflow cytometry in YT cells following a 15 min stimulation. MFI, mean fluorescence intensity. Data are shown as mean ± standard deviation of duplicate wells and are representative of two independent experiments. (C–E) Mutations in IL-2 at the γc binding interface impair receptor dimerization in the context of live cell membranes. (C) Schematic of single-molecule particle tracking experiment. HeLa cells expressing IL-2Rβ and γc with an N-terminal mXFPm and mXFPe were labeled with anti-GFP nanobodies ‘minimizer’ (MI) and 'enhancer’ (EN), conjugated to Rho11 and DY647, respectively. Cells were stimulated with 100 nM H9 or variants as indicated and dual-color single-molecule images were captured by total internal reflection fluorescence microscopy (TIRFM). (D) Representative fields showing single-molecule trajectories of Rho11, DY647 and co-trajectories. (E) Quantification of IL-2Rβ and γc heterodimerization via the fraction of co-trajectories of Rho11 and DY647. Each dot represents a single cell. (F–G) IL-2 partial agonists have impaired binding to γc in solution. (F) Schematic of surface plasmon resonance (SPR) binding experiment. (G) SPR curves showing binding of pre-complexed human IL-2Rβ with H9 or variants (1:1) to human γc immobilized on a streptavidin sensor chip. Measurements were made with 5 μM analyte and reference subtracted for binding to an irrelevant biotinylated target. RU = response unit.

For further characterization, we selected a smaller panel of IL-2 muteins that represented a broad range of pSTAT5 signaling intensities: H9-REH, H9-REK, and the IL-2 antagonist H9-RETR which has been previously characterized (Mitra et al., 2015). Based on the mutational strategy used, we expect IL-2 partial agonists to reduce receptor dimerization due to weakened interactions with γc. To monitor receptor dimerization, we used dual-color single-molecule particle co-tracking of IL-2Rβ and γc in the plasma membrane of living cells by total internal reflection fluorescence (TIRF) microscopy. HeLa cells were transfected with IL-2Rβ and γc fused to an N-terminal nonfluorescent GFP variants mXFPm and mXFPe, respectively. These GFP variants were orthogonally labeled with anti-GFP nanobodies ‘minimizer’ (MI) conjugated with Rho11 and ‘enhancer’ (EN) conjugated with DY647 (Kirchhofer et al., 2010Figure 1C). Receptor dimerization was quantified by assessing co-tracking individual Rho11 and DY647 molecules. Under these conditions, IL-2Rβ and γc show minimal co-diffusion in the absence of ligand (Figure 1D–E), indicating that the receptors are monomeric. Addition of H9 caused an increase in co-diffusion, consistent with ligand-induced dimerization (Figure 1D–E). As predicted, H9-REH and H9-REK showed reduced receptor dimerization relative to H9 as measured by co-tracking of IL-2Rβ and γc (Figure 1E). To confirm that reduced receptor dimerization was the result of impaired interactions with γc, we used surface plasmon resonance (SPR) to measure binding of IL-2Rβ and IL-2 muteins to immobilized γc (Figure 1F). Precomplexed cytokine and IL-2Rβ were used in these assays as the affinity of IL-2 for γc is too weak to measure directly. H9-REH, H9-REK, and H9-RETR had reduced γc binding relative to H9, indicating the reduced receptor dimerization observed in cells is due to impaired interactions with γc (Figure 1G).

For preliminary characterization, IL-2 variants with enhanced affinity for IL-2Rβ were used to facilitate comparison of partial agonists; however, this strategy may direct activity of IL-2 muteins toward NK cells in vivo due to their high levels of IL-2Rβ expression. To eliminate this potential source of bias, we expressed γc binding muteins in the context of wild-type human IL-2 (IL-2-REH, IL-2-REK, and IL-2-RETR) and confirmed their effects on STAT5 signaling compared to wild-type IL-2 (Figure 1—figure supplement 1).

The IL-2 receptor partial agonist IL-2-REH specifically increases the frequency and number of regulatory T cells in vivo

To determine the cell type specificity of IL-2 partial agonists in vivo, we took advantage of the strong proliferative effect of IL-2 by assessing the frequency of immune cell populations following cytokine treatment. 30 μg doses of MSA-fused cytokine were administered to C57BL/6J mice on days 0, 3, and 6 prior to analysis on day 7. Under these conditions, we did not observe overt toxicity from cytokine treatment although IL-2 and to a lesser extent IL-2-REH had increased spleen size relative to mice receiving phosphate-buffered saline (PBS) control (Figure 2—figure supplement 1A–B).

IL-2 administration reduced the frequency of T and B cells while causing an increase in the frequency of NK cells and granulocytes (Figure 2A–D). Analysis of absolute cell numbers indicated that these changes are due to the expansion of NK cells and granulocytes with no changes in the absolute numbers of T and B cells (Figure 2—figure supplement 1C–F). While granulocytes are not thought to be directly responsive to IL-2, the increase in granulocyte frequency and number is likely due to activation or recruitment due to pro-inflammatory mediators produced by NK cells and T cells. Importantly, this effect was attenuated in mice which received IL-2-REH. In contrast, IL-2-REH increased the frequency of T cells while modestly reducing B cell frequency due to expansion of T cells (Figure 2A–D, Figure 2—figure supplement 1C–F).

Figure 2 with 3 supplements see all

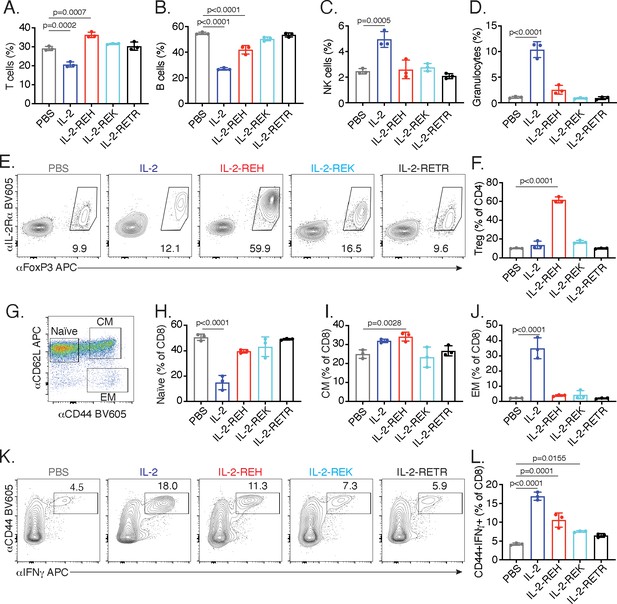

IL-2 receptor partial agonists elicit cell type-specific responses in vivo.

C57BL/6J mice were dosed with three 30 μg intraperitoneal injections of mouse serum albumin (MSA)-conjugated IL-2 or muteins diluted in PBS on day 0, 3, and 6. On day 7, spleen and lymph nodes were harvested for immune cell profiling. (A-D) IL-2 treatment decreases the frequency of T and B cells while increasing the frequency of NK cells and granulocytes in spleen. T cells were gated as CD3+, B cells were defined as CD3-CD19+, NK cells were analyzed as CD3-NK1.1+, and granulocytes were defined as CD3-Ly6G+SSChi. All populations were expressed as a percentage of live CD45+ cells. For absolute numbers and gating, see Figure 2—figure supplement 1. (E) IL-2-REH increases the frequency of regulatory T cells in spleen. Tregs were defined as IL-2Rα+Foxp3+ and expressed as a percentage of liveCD3+CD4+. Similar results were observed in lymph nodes. For absolute numbers, see Figure 2—figure supplement 2A. For gating, see Figure 2—figure supplement 2B. (G-J) IL-2 increases the frequency of effector memory CD8+ T cells with a decrease in naïve CD8+ T cells while IL-2-REH increases the frequency of central memory CD8+ T cells. (G) Gating scheme to identify naïve, central memory (CM), and effector memory (EM) CD8+ T cells. (H-J) Quantification of memory cell frequency in spleen expressed as a percent of liveCD3+CD8+ T cells. For absolute numbers, see Figure 2—figure supplement 3A–C. For gating, see Figure 2—figure supplement 3D. (K-L) IL-2, IL-2-REH, and IL-2-REK enhance IFNγ producing CD8+ T cells in proportion to their agonist activity. For cytokine recall, lymph node cells were restimulated with phorbol 12-myristate 13-acetate (PMA) and ionomycin in the presence of Monensin (GolgiStop) for 4 hr. For gating, see Figure 2—figure supplement 3E. Bar graphs show mean ± standard deviation of n = 3 mice per group. Data were analyzed by one-way ANOVA with Tukey’s multiple comparisons and are representative of two or more independent experiments.

The increase in T cell frequency and number following IL-2-REH administration led us to investigate which subpopulation of T cells might be responsible for this effect. Within the CD4+ T cell compartment, Tregs are known to be dependent on IL-2 signaling (Fontenot et al., 2005). IL-2 administration did not significantly impact Treg frequency or absolute number; however, IL-2-REH dramatically increased the frequency and number of Tregs without increasing the frequency or number of IL-2Rα+ conventional CD4+ T cells (Figure 2E–F, Figure 2—figure supplement 2).

In CD8+ T cells, IL-2 is known to drive differentiation to an ‘effector memory’ phenotype characterized by increased cytotoxicity, expression of the memory T cell marker CD44, and loss of the lymph node homing marker CD62L (Manjunath et al., 2001; Moogk et al., 2016). In contrast, IL-15, which shares IL-2Rβ/γc signaling receptors with IL-2, promotes induction of a ‘central memory’ phenotype characterized by expression of both CD44 and CD62L. Central memory CD8+ T cells have improved persistence and antitumor effects in the context of adoptive cell therapy (Klebanoff et al., 2005; Manjunath et al., 2001; Wherry et al., 2003). Assessment of CD8+ T cell memory populations following cytokine treatment revealed that IL-2 decreased the frequency of naïve CD8+ T cells with an increase in effector memory T cells while IL-2-REH caused a slight increase in the frequency and number of central memory CD8+ T cells (Figure 2G–J, Figure 2—figure supplement 3A–D). In addition to altering memory phenotype, IL-2 signaling in CD8+ T cells can induce the expression of the pro-inflammatory cytokine IFNγ which acts as an important mediator of antitumor and antiviral immunity (Castro et al., 2018; Sa et al., 2013). IL-2, and to a lesser extent IL-2-REH and IL-2-REK, increased the frequency of IFNγ-producing CD8+ T cells following restimulation (Figure 2K–L, Figure 2—figure supplement 3E). Thus, IL-2-REH preferentially increased Tregs without inducing the increases in NK cells, granulocytes, and CD8+ effector memory T cells observed with IL-2 administration.

REH increases Treg frequency via selective proliferation of Foxp3+ cells

The increase in regulatory T cell frequency and number following IL-2-REH treatment led us to investigate the source of Tregs in IL-2-REH-treated mice. Regulatory T cells can be broadly classified into two groups, ‘natural’ Tregs (nTreg) which develop in the thymus and induced Tregs (iTreg) which differentiate from naïve T cells in the periphery (Curotto de Lafaille and Lafaille, 2009). The increase in regulatory T cells in response to IL-2-REH could either be due to differentiation of Tregs from conventional CD4+ T cells or proliferation of a preexisting population of Foxp3+ cells. To determine if IL-2-REH caused differentiation of conventional CD4+ T cells into Tregs, we adoptively transferred conventional CD4+ T cells into congenic recipient mice, administered IL-2-REH, and assessed the frequency of Tregs in the donor and recipient compartments (Figure 3A). If IL-2-REH induces the differentiation of conventional CD4+ T cells to Tregs, we would expect to find increased Tregs in both the donor and recipient. Alternatively, if IL-2-REH causes the proliferation of a preexisting population of Foxp3+ cells, we would expect to find elevated Treg frequencies in recipient CD4+ T cells but not cells from the donor. IL-2-REH increased the frequency of Tregs in the CD45.1 recipient compartment but not the CD45.2 donor, strongly suggesting that IL-2-REH acts to expand preexisting Tregs (Figure 3B–C, Figure 3—figure supplement 1A).

Figure 3 with 1 supplement see all

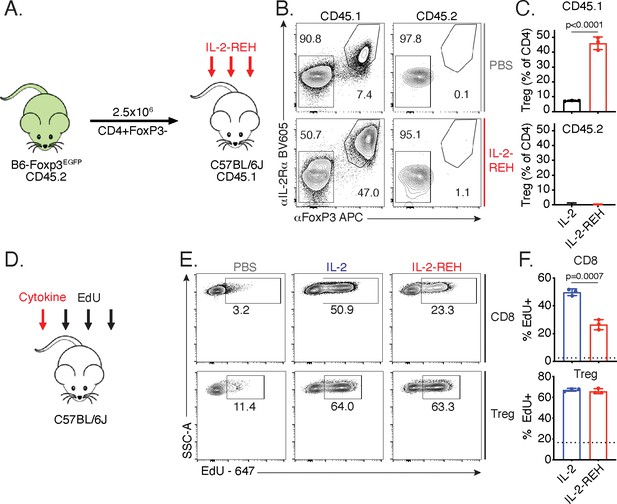

IL-2-REH increases Treg frequency via selective proliferation of Foxp3+ cells.

(A–C) Increased frequency of Tregs in IL-2-REH-treated mice is not the result of differentiation from conventional CD4+ T cells. (A) Schematic of experimental design. Conventional CD4+ T cells from B6-Foxp3EGFP mice (CD45.2) were transferred to congenic recipients (CD45.1). Mice were treated with three 30 μg injections of IL-2-REH or PBS control on day 0, 3, and 6 prior to analysis on day 7. Flow cytometry plots (B) and quantification (C) of Treg frequencies. Tregs were defined as IL-2Rα+Foxp3+ and expressed as a percent of CD3+CD4+ T cells. For gating, see Figure 3—figure supplement 1A. (D–F) IL-2-REH induces proliferation of Tregs with reduced activity on CD8+ T cells relative to IL-2. (D) Schematic of proliferation tracking experiment. C57BL/6J mice were treated with a single 30 μg injection of cytokine on day 0 followed by EdU injections on day 0, 1, and 2 prior to analysis on day 3. Flow cytometry plots (E) and quantification (F) of EdU incorporation in Tregs (CD3+CD4+Foxp3+) and CD8+ T cells (CD3+CD8+). Dashed line indicates EdU incorporation in PBS-treated mice. For gating, see Figure 3—figure supplement 1B. Bar graphs show mean ± standard deviation of n = 3 mice per group. Groups were compared by unpaired t-test and data are representative of two independent experiments.

Given that Tregs in IL-2-REH-treated mice do not arise through differentiation from conventional CD4+ T cells, the increase may be due to selective proliferation of Tregs in IL-2-REH-treated mice. To test whether IL-2-REH caused specific expansion of Tregs, mice were administered a single injection of cytokine followed by daily administration of the thymidine analog, EdU, to track proliferation (Figure 3D). IL-2 and IL-2-REH resulted in a similar level of EdU incorporation in Tregs while IL-2 led to higher levels of EdU incorporation than IL-2-REH in CD8+ T cells (Figure 3E–F, Figure 3—figure supplement 1B). Together, these results indicate that IL-2-REH selectively expands Tregs in vivo from a preexisting population of Foxp3+ cells.

IL-2-REH promotes greater IL-2 signaling in Tregs than CD8+ T cells

The ability of IL-2-REH to preferentially support Treg proliferation in vivo could be due to cell type-intrinsic differences in IL-2 sensitivity between CD8+ T cells and Tregs or due to indirect effects from multiple IL-2 responsive populations in vivo. To determine if IL-2 and IL-2-REH elicit distinct signaling in Tregs and CD8+ T cells, we analyzed STAT5 phosphorylation and transcriptional changes following cytokine stimulation ex vivo. In regulatory T cells, IL-2-REH induced phosphorylation of STAT5 to about 40% of the maximal level achieved by IL-2 following a 20 min stimulation (Figure 4A). RNA-seq analysis revealed that IL-2 and IL-2-REH induced very similar gene expression programs in Tregs following a 4 hr cytokine stimulation as indicated by the small number of differentially regulated genes (Figure 4B). This was not due to lack of response as we identified many genes that were differentially regulated following stimulation with IL-2 compared to unstimulated Tregs, including the GPCR chaperone, Ramp3, and the metabolic enzyme, glutaminase 2 (Gls2) (Figure 4C). A well-described role of IL-2 in T cells is to promote survival and proliferation while enhancing effector functions including cytokine secretion. To assess these effects, we performed quantitative polymerase chain reaction (qPCR) on a subset of IL-2 regulated genes including the STAT5 target genes, lymphotoxin α (Lta) and Bcl2 (Villarino et al., 2016). IL-2 and IL-2-REH increased expression of Bcl2, Myc, Ifng, Gzmb, and Lta (Figure 4D–H); however, quantitative differences between genes were observed with IL-2-REH inducing lower levels of Lta relative to IL-2 (Figure 4H).

IL-2-REH selectively promotes signaling in Tregs with reduced activity on CD8+ T cells relative to IL-2.

(A) IL-2-REH promotes STAT5 phosphorylation in regulatory T cells. Dose-response curve (left) and histogram at 80 nM (right) showing STAT5 phosphorylation in Tregs following a 20 min cytokine stimulation. Dose-response curves show mean ± standard deviation of duplicate wells. MFI, mean fluorescence intensity. (B–C) IL-2 and IL-2-REH produce similar transcriptional profiles in regulatory T cells. Purified Tregs from B6-Foxp3EGFP mice were stimulated with 200 nM cytokine for 90 min or 4 hr prior to RNA-seq. (B) Volcano plot of differentially expressed genes in Tregs following 4 hr stimulation with IL-2 or IL-2-REH. (C) Heatmap showing the top 30 differentially regulated genes (sorted by FDR) between unstimulated and IL-2-treated Tregs. Expression was normalized to that of unstimulated Tregs to show cytokine-induced changes. (D–H) Quantitative polymerase chain reaction (qPCR) of IL-2 regulated genes in Tregs following a 4 hr stimulation with 200 nM cytokine. For quantification, cycle threshold (Ct) values were normalized to expression of Gapdh and expressed as fold change relative to unstimulated cells. Bar graphs show mean ± standard deviation of triplicate measurements. (I) IL-2-REH fails to induce STAT5 phosphorylation in CD8+ T cells. Dose-response (left) and histogram at 2 μM (right) of STAT5 phosphorylation in ex vivo CD8+ T cells following a 20 min cytokine stimulation. Dose-response curves show mean ± standard deviation of duplicate wells. (J–K) IL-2 and IL-2-REH induce distinct transcriptional profiles in CD8+ T cells. Purified CD8+ T cells were stimulated with 200 nM cytokine for 90 min or 4 hr prior to RNA-seq. (J) Volcano plot showing differentially expressed genes in CD8+ T cells following 4 hr stimulation with IL-2 or IL-2-REH. (K) Heatmap showing the top 30 differentially regulated genes between unstimulated and IL-2-treated CD8+ T cells. Expression was normalized to that of unstimulated CD8+ T cells. (L–P) qPCR of IL-2 regulated genes in CD8+ T cells following a 4 hr stimulation with 200 nM cytokine. Data were analyzed as in D-H. Results are representative of two or more independent experiments.

In CD8+ T cells, IL-2 induced STAT5 phosphorylation to a much greater extent than IL-2-REH (Figure 4I). Accordingly, RNA-seq analysis identified many differentially regulated genes following stimulation with IL-2 or IL-2-REH (Figure 4J–K). Among the genes upregulated by IL-2 were the cell cycle gene Cdk6 and the effector cytokines Tnf and Lta. These transcriptional changes were confirmed by qPCR where IL-2 but not IL-2-REH resulted in upregulation of Bcl2, Myc, Ifng, Gzmb, and Lta (Figure 4L–P). The differences between IL-2-REH responsiveness in vitro suggest that in vivo differences in cytokine-induced proliferation may reflect intrinsic differences in cytokine responsiveness between cell subsets with IL-2-REH eliciting preferential signaling in Tregs relative to CD8+ T cells.

IL-2-REH exploits intrinsic differences in IL-2 signaling to elicit cell type-specific activity

To extend our observations to a broader set of IL-2 responsive lymphocytes, we profiled IL-2 receptor expression and pSTAT5 signaling in NK cells and T cells following a 20 min cytokine stimulation (Figure 5—figure supplement 1). NK cells, which are negative for IL-2Rα but express high levels of IL-2Rβ and intermediate levels of γc, respond selectively to IL-2 but not IL-2-REH, IL-2-REK, or, IL-2-RETR. Similarly, ex vivo CD4+ and CD8+ T cells, which are negative for IL-2Rα and express low to intermediate levels of IL-2Rβ and γc, respond to IL-2 but not partial agonists. In contrast, Tregs which constitutively express IL-2Rα and intermediate levels of IL-2Rβ and γc respond to IL-2 and IL-2-REH but only weakly to IL-2-REK. Activated CD4+ and CD8+ T cells (blasts) express elevated levels of IL-2Rα, IL-2Rβ, and γc, have increased responsiveness to both IL-2-REH and IL-2-REK, with IL-2-REH acting as a full agonist on CD8+ T cell blasts. Thus, cells differ greatly in their responsiveness to IL-2 partial agonist based on cell type and activation status.

To better understand the relationship between IL-2 receptor expression and sensitivity to partial agonists, we plotted STAT5 phosphorylation against receptor expression for each of the cell types analyzed. IL-2-REH and IL-2-REK responsiveness positively correlated with expression of IL-2Rα and γc but not IL-2Rβ, indicating that expression of IL-2Rα and γc may contribute to the selectivity of IL-2 partial agonists (Figure 5A–C).

Figure 5 with 1 supplement see all

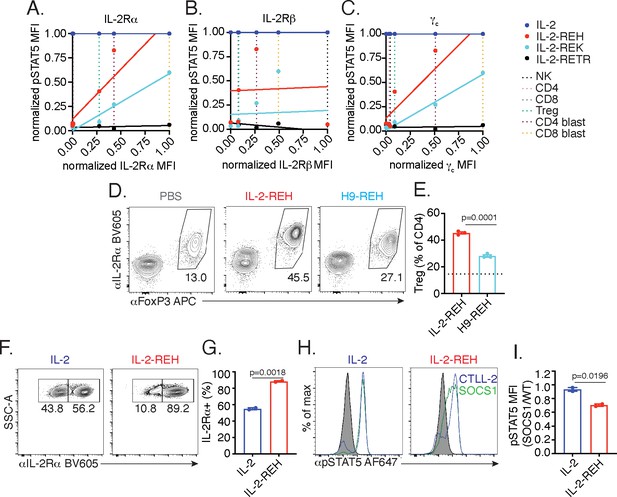

IL-2-REH exploits intrinsic differences in IL-2 signaling to elicit cell type-specific activity.

(A–C) IL-2 partial agonist activity depends on IL-2Rα and γc expression. Correlation plots showing STAT5 phosphorylation and receptor expression in NK cells, CD4+ T cells, CD8+ T cells, and Tregs. Dashed lines represent receptor expression normalized to the highest and lowest expressing cell types. pSTAT5 MFI at saturating cytokine concentration was normalized to stimulation with IL-2. See also Figure 5—figure supplement 1. (D–E) IL-2Rβ affinity regulates cell type selectivity of IL-2-REH. C57BL/6J mice were dosed with three 30 μg intraperitoneal injections of IL-2-REH or H9-REH diluted in PBS on day 0, 3, and 6 followed by analysis on day 7. Flow cytometry plots (D) and quantification (E) of Treg frequency expressed as a percent of CD3+CD4+ T cells. Bar graphs show mean ± standard deviation of n = 3 mice per group. Dashed line represents Treg frequency in PBS-treated mice. Groups were compared using an unpaired t-test. (F–G) IL-2Rα expression controls proliferation in response to IL-2-REH. Wild-type and IL-2Rα-/- CTLL-2 cells were mixed at 1:1 ratio and cultured in the presence of 200 nM IL-2 or IL-2-REH for three days prior to quantification of IL-2Rα expression by flow cytometry. Bar graph shows mean ± standard deviation of duplicate wells. Groups were compared using an unpaired t-test. (H–I) IL-2-REH signaling is more sensitive to negative regulation by suppressor of cytokine signaling 1 (SOCS1). SOCS1-p2a-eGFP expressing CTLL-2s were mixed with wild-type CTLL-2 cells, rested overnight, and stimulated with 1 μM IL-2 or IL-2-REH for 30 min prior to fixation, permeabilization, and detection of pSTAT5 by phosphoflow cytometry. Wild-type and SOCS1 overexpressing cells were gated on the basis of GFP expression. (H) Histograms showing pSTAT5 staining in wild-type (blue) and SOCS1 expressing (green) CTLL-2 cells. (I) pSTAT5 staining in SOCS1 expressing cells expressed as a ratio to pSTAT5 staining in wild-type CTLL-2s. Bar graph shows mean ± standard deviation of duplicate wells. Groups were compared using an unpaired t-test. MFI, mean fluorescence intensity. Results are representative of at least two independent experiments.

Given the positive correlation between IL-2Rα expression and responsiveness to partial agonists, we sought to test if IL-2Rα dependence was important for the selective activity of IL-2-REH in vivo. To do so, we installed the IL-2-REH γc binding mutations in the context of super-2 (H9), an IL-2 variant with high affinity for IL-2Rβ and reduced dependence on IL-2Rα (Levin et al., 2012). Increased affinity for IL-2Rβ (H9-REH) attenuated the IL-2-REH-mediated increase in Treg frequency, indicating that IL-2Rα dependence is important for cell type selectivity of IL-2-REH in vivo (Figure 5D–E).

To directly assess the role of IL-2Rα expression in IL-2-REH responsiveness, we generated an IL-2Rα deficient variant of CTLL-2s, an IL-2-dependent murine cell line, by CRISPR knockout. Wild-type and IL-2Rα-deficient cells were co-cultured at a 1:1 ratio in IL-2 or IL-2-REH for 72 hr, and changes in the frequency of IL-2Rα-expressing cells were used as a readout of IL-2Rα dependence. When cultured in IL-2, cells remained roughly at their input ratios, suggesting a negligible contribution of IL-2Rα expression. In contrast, co-culture in IL-2-REH produced an enrichment in IL-2Rα-expressing cells suggesting knockout cells were reduced in their capacity to respond to IL-2-REH (Figure 5F–G).

In addition to constitutive expression of IL-2Rα, Tregs are further sensitized to IL-2 signaling by miR-155 dependent suppression of SOCS1 (Lu et al., 2015; Lu et al., 2009). As SOCS1 acts as a negative regulator of IL-2 signaling by inhibiting JAK1 (Liau et al., 2018), we reasoned that SOCS1 expression may disproportionately inhibit signaling in response to IL-2-REH, which induces lower levels of receptor dimerization relative to wild-type IL-2. To determine the impact of SOCS1 on STAT5 signaling, we transduced CTLL-2 cells with lentivirus encoding SOCS1 along with a GFP expression marker. Wild-type and SOCS1 overexpressing cells were mixed, stimulated with IL-2 or IL-2-REH, and the ratio of pSTAT5 signaling in SOCS1 expressing cells relative to wild-type CTLL-2s was quantified. Overexpression of SOCS1 impaired phosphorylation of STAT5 in response to IL-2-REH but not IL-2, suggesting that the IL-2-REH signaling is more sensitive to negative regulation by SOCS1 (Figure 5H–I). Thus, IL-2-REH exploits two key features of IL-2 sensitivity in Tregs, constitutive IL-2Rα expression and miR-155 suppression of SOCS1.

IL-2-REH expanded Tregs retain suppressive capacity and enhance recovery from DSS-induced colitis

We hypothesized that IL-2-REH-mediated expansion of Tregs might have utility in the suppression of immune activation in the setting of autoimmune disease. To confirm that expanded Tregs retained their ability to suppress T cell proliferation following IL-2-REH treatment, we tracked Treg expansion over time and performed Treg suppression assays using Tregs from PBS, IL-2, or IL-2-REH-treated mice. Tregs from cytokine-treated mice were capable of suppressing proliferation of conventional CD4+ T cells (Tcon) at similar ratios, indicating that IL-2-REH-induced proliferation does not impair the suppressive capacity of expanded Tregs (Figure 6—figure supplement 1).

An early demonstration of the suppressive capacity of regulatory T cells was provided by adoptive transfer experiments showing that Tregs are able to suppress T cell-mediated colitis (Read et al., 2000). In this model, colitis is induced by transfer of naïve CD45RBhi cells into immunodeficient mice and can be prevented by co-transfer of CD45RBlo cells of which IL-2Rα+Tregs are essential (Ostanin et al., 2009). To determine if IL-2-REH could expand Tregs and prevent disease in the context of T cell colitis, we transferred CD45RBlo cells with or without Tregs and administered IL-2-REH at the onset of weight loss (Figure 6—figure supplement 2A). Under these conditions, Tregs were able to suppress colitis; however, this was inhibited by administration of IL-2-REH (Figure 6—figure supplement 2B). Interestingly, this was not due to an inability of IL-2-REH to expand Tregs as elevated Treg frequency was observed in cytokine-treated mice (Figure 6—figure supplement 2C). Similarly, IL-2-REH was able to stimulate Tregs as measured by expression of activation markers IL-2Rα, GzmB, and ICOS (Figure 6—figure supplement 2D–F). These findings suggest that Treg expansion at later time points does not correlate with disease protection in the transfer model of T cell colitis; however, an important caveat is that the high frequency of responding T cells in this case may not reflect the typical circumstance during inflammatory disease progression. Furthermore, the IL-2Rα-selectivity of IL-2-REH may simultaneously activate IL-2Rα+CD8+ T cells in inflammatory lesion, providing an opposing effect to therapeutic benefit from the Treg expansion.

To determine if systemic treatment with IL-2-REH could provide therapeutic benefit during an ongoing immune response, we used the DSS-induced colitis model, treating mice with IL-2, IL-2-REH, or the previously described IL-2Rα selective IL-2 mutein, IL-2-N88D (Peterson et al., 2018), starting on day 3 at the onset of DSS-induced weight loss (Figure 6A). In these experiments, we administered lower doses of IL-2 similar to those used in the treatment of nonobese diabetic mice when adjusted for the molecular weight of the fusion protein (Grinberg-Bleyer et al., 2010). All mice lost weight as a result of DSS administration; however, IL-2-REH improved recovery as measured by body weight on day 16 (Figure 6B, Figure 6—figure supplement 3). This effect was unique to IL-2-REH and not seen in mice receiving PBS control, IL-2, or, IL-2-N88D which lost significant amounts of weight relative to untreated mice. Consistent with these findings, hematoxylin and eosin (H and E) staining of distal colon sections showed elevated disease score following DSS induction, an effect which was attenuated in mice receiving IL-2-REH but not IL-2 or IL-2-N88D (Figure 6C–D). The mitigating effects of IL-2-REH administration on weight loss and disease score were accompanied by increased Treg frequency in the mesenteric lymph nodes, indicating that IL-2-REH expansion of Tregs is maintained in the context of an inflammatory response (Figure 6E). Importantly, DSS induction did not alter IL-2-REH specificity as IL-2 but not IL-2-REH or IL-2-N88D increased NK cell frequency in the mesenteric lymph node (Figure 6F).

Figure 6 with 3 supplements see all

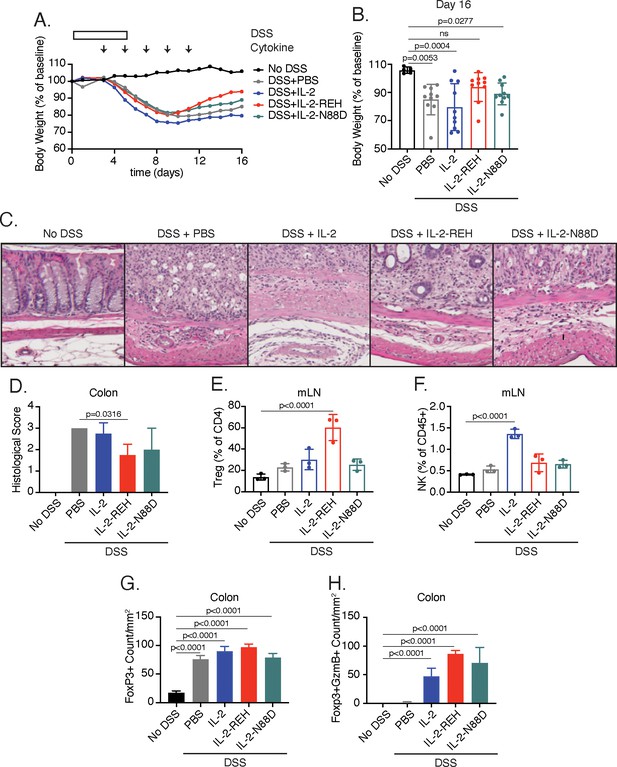

IL-2-REH enhances recovery from DSS-induced colitis.

C57BL/6J mice were placed on 3–3.5% dextran sulfate sodium (DSS in drinking water for 6 days. Starting on day 3, mice received subcutaneous injections of PBS (n = 10), 5 μg IL-2 (n = 10), 5 μg IL-2-REH (n = 10) or 5.3 μg IL-2-N88D (n = 10) every other day for 10 days. Data were compared to mice maintained on drinking water without DSS (n = 5). (A) Mean body weight measurements following 3% DSS induction. Weights were normalized to body weight on day 0. For body weight curves of individual mice, see Figure 6—figure supplement 3A–E. (B) IL-2-REH enhances recovery from DSS-induced colitis. Comparison of body weights on day 16. If mice died prior to day 16, the final body weight measurement was used for analysis. For survival curve, see Figure 6—figure supplement 3F. Bar graphs show mean ± standard deviation and were analyzed by one-way ANOVA relative to no DSS condition, multiple comparisons were corrected using Dunnett’s test. Data are representative of two independent experiments. (C-D) IL-2-REH attenuates DSS-induced colon damage. (C) Representative hematoxylin and eosin (H and E) staining of distal colon sections on day 13. (D) Quantification of disease score from H&E staining of distal colon. Mice received no DSS (n = 3) or 3.5% DSS with PBS (n = 4), 5 μg IL-2 (n = 4), 5 μg IL-2-REH (n = 4), or 5.3 μg IL-2-N88D (n = 3). Groups were compared by one-way ANOVA with Tukey’s multiple comparisons. (E) IL-2-REH treatment increases the frequency of regulatory T cells in mesenteric lymph nodes (mLNs). Flow cytometry analysis of mLN cellularity was performed 10 days post 3% DSS induction. Bar graphs show mean ± standard deviation of n = 3 mice per group. Data were analyzed by one-way ANOVA with Tukey’s multiple comparisons. (F) IL-2 increases NK cell frequency in the mesenteric lymph nodes, analyzed as in E. (G-H) Quantification of colon infiltrating Tregs by immunohistochemistry (IHC). Bar graphs show mean ± standard deviation of colon sections from n = 3 mice per group. (G) DSS increases Treg infiltration in colon. Quantification of Tregs by IHC staining for Foxp3 in colon. (H) Cytokine treatment enhances Treg activation in colon. Quantification of Foxp3+GzmB+ cells by IHC. Groups were compared using one-way ANOVA with Tukey’s multiple comparisons relative to untreated mice.

To further characterize the effect of cytokine treatment on disease progression, we performed immunohistochemistry of colon sections from control and diseased mice. While disease induction did not impact Treg frequency in mesenteric lymph nodes, DSS administration enhanced Treg infiltration in the colon, an effect that was not significantly impacted by cytokine treatment (Figure 6G). Previously, the cytotoxic effector molecule, granzyme B (GzmB) has been implicated in the suppressive activity of Tregs through killing of antigen presenting cells (Cao et al., 2007). Treatment with IL-2, IL-2-REH, or, IL-2-N88D increased the presence GzmB+Foxp3+ cells, suggesting that all of these cytokines were capable of promoting Treg activation in the tissue (Figure 6H); however, in the case of IL-2 and IL-2-N88D, this did not translate to improved outcome. Thus, IL-2-REH retains the ability to expand and activate Tregs in the context of an ongoing immune response, thereby improving recovery from DSS-induced colitis.

The discrepancy between our findings in T cell transfer colitis and DSS-induced colitis suggest that the timing and nature of the inflammatory response play a large role in the efficacy of Treg expansion in ameliorating pathological inflammation. These findings highlight the complexity of strategies for Treg expansion as a therapeutic regimen in autoimmune disease.

Discussion

IL-2 play a central role in the initiation, maintenance, and resolution of the immune response by activating multiple cell types. The countervailing effects of IL-2 to both activate and suppress the immune response is critical for maintaining immune homeostasis but has hampered basic understanding of IL-2 activity on different cell types in vivo and limited the clinical utility of cytokine administration. Here, we identify an IL-2 agonist which specifically expands a preexisting population of regulatory T cells due to differences in IL-2 receptor expression and signaling pathway intermediates. The mechanistic principles we demonstrate here for determining cell type selectivity of IL-2 partial agonists can likely be generalized to other cytokine and growth factor systems that signal through dimeric receptors.

This mechanism-based approach taken here differs from previously reported IL-2 muteins with attenuated binding to IL-2Rβ and thus increased dependence on IL-2Rα (Khoryati et al., 2020; Peterson et al., 2018; Shanafelt et al., 2000). Here, the strategy of systematically altering the affinity of IL-2 for γc to generate IL-2 variants with submaximal signaling at saturating concentrations of cytokine is conceptually analogous to modulation of G-protein coupled receptor (GPCR) signaling by partial agonists (Pliska, 1999; Shukla, 2019). Unlike GPCR which undergo ligand-induced confirmational changes, cytokine receptor signaling depends largely on receptor dimerization (Engelowski et al., 2018). We find that modulating the affinity of IL-2 for its receptor can shift the monomer-dimer equilibrium and promote distinct levels of intracellular signaling. Importantly, these effects are highly dependent on expression of receptor subunits such that IL-2 muteins which fail to signal on one cell population act as full or partial agonists on others (Figure 5—figure supplement 1). The affinity of IL-2 for IL-2Rβ predominantly impacts the dose sensitivity of cytokine signaling rather than the maximal response such increased cytokine concentration can compensate for reduced IL-2Rβ affinity. The approach we have taken here in which we modulate the interaction between IL-2 and γc is less dependent on cytokine concentration and has the capacity to alter receptor dimerization even at saturating concentrations of cytokine (Figure 1E).

Cell type-specific signaling through IL-2Rβ/γc is not unique to engineered cytokines. Indeed, IL-2 shares signaling receptors IL-2Rβ and γc with IL-15 (Carson et al., 1994; Giri et al., 1994). Despite exhibiting very similar signaling on CD8+ T cells in vitro (Ring et al., 2012), IL-2 and IL-15 have many divergent biological functions in vivo (Lodolce et al., 1998; Ma et al., 2006). Differences in IL-2 and IL-15 have been attributed to unique receptors, IL-2Rα and IL-15Rα, which play important roles in determining cell type specificity of cytokine signaling (Waldmann, 2006). In contrast to IL-2 and IL-15, partial agonists achieve cell type selectivity through a distinct mechanism, relying on different thresholds for IL-2 signaling across cell types rather than unique alpha receptors to achieve biological specificity.

This mechanism of functional diversification through altered receptor dimerization shares some features with type I interferons (IFNs), a large class of cytokines that signal though receptors IFNAR1 and IFNAR2. Despite the use of a shared receptor complex, type I IFNs play nonredundant roles in antiviral immunity by modulating the strength of receptor dimerization (Ng et al., 2016; Ng et al., 2015). While IL-2 and IL-15 are the only natural ligands of the IL-2Rβ/γc receptor complex, we show here that additional IL-2 receptor agonists with divergent biological behavior can be generated by systematically altering receptor binding. This strategy relies on intrinsic differences in cytokine sensitivity that can be exploited by designed cytokine variants to satisfy thresholds on certain cell types but not others. As many cytokines use differences in receptor expression and signaling pathway components to achieve cell type selectivity, this approach may be more generally applicable to other pleiotropic cytokines.

Materials and methods

Protein expression and purification

Request a detailed protocol

Constructs encoding mouse serum albumin (MSA, amino acids 19–608) fused to wild-type or mutant human IL-2 (amino acids 21–153) were cloned into the pAcGP67a vector (BD Biosciences) with an N-terminal gp67 signal peptide and a C-terminal 6xHis tag. The super-2 variant H9 (L80F, R81D, L85V, I86V, I92F) with enhanced affinity for IL-2Rβ was used as indicated (Levin et al., 2012). All mutations are listed based on their position in the mature polypeptide for consistency with previous reports. For binding studies, the extracellular domains of IL2Rβ (amino acids 27–240) and γc (amino acids 23–254) with a C-terminal biotin acceptor peptide (N-GLNDIFEAQKIEWHE-C) were cloned into the pAcGP67a vector (BD Biosciences) with an N-terminal gp67 signal peptide and a C-terminal 6xHis tag. Baculovirus was produced by transfection of Spodotera frugiperda (Sf9) insect cells with Cellfectin II (Gibco) and Sapphire Baculovirus DNA (Allele) followed by viral amplification in Sf9. High titer virus was used to infect Trichoplusia ni (High-Five) cells (Invitrogen). Protein was isolated from supernatant 48–72 hr post infection by Ni-NTA affinity chromatography and size exclusion chromatography (SEC) using Superdex S200 column (GE). Purity was confirmed by SDS-PAGE and IL-2 bioactivity was tested by pSTAT5 signaling on YT cells. For biotinylation, human γc was expressed, purified by Ni-NTA affinity chromatography, and incubated with soluble BirA ligase in buffer containing 0.5 mM Bicine (pH 8.3), 100 mM ATP, 100 mM magnesium acetate, and 500 μM biotin overnight at 4C (Fairhead and Howarth, 2015). Biotinylated γc was purified by SEC as described above.

For in vivo experiments, endotoxin was removed using High Capacity NoEndo Columns (Viva Products) and levels were quantified using the LAL Chromogenic Endotoxin Quantitation Kit (Thermo). All in vivo preparations had <1U endotoxin/dose. For DSS studies, the previously described IL-2 mutein with reduced affinity for IL-2Rβ, IL-2-N88D, was expressed with T3A mutation to eliminate O-glycosylation and C125A mutation to prevent intrachain disulfides. To extend half-life, N88D was expressed with an N-terminal Fc domain lacking Fc effector functions (hIgG1-P329G LALA) (Schlothauer et al., 2016) in Expi293 cells (Gibco) by transient transfection.

Single-molecule particle tracking

Request a detailed protocol

Receptor dimerization in the plasma membrane was quantified by dual-color single-molecule co-tracking as described in detail previously (Mendoza et al., 2019; Wilmes et al., 2015). For this purpose, HeLa cells were transfected with IL-2Rβ and γc N-terminally fused to engineered, nonfluorescent variants of monomeric GFP mXFPm and mXFPe, respectively, that are orthogonally recognized by the anti-GFP nanobodies ‘Minimizer’ (MI) and ‘Enhancer’ (EN) (Kirchhofer et al., 2010). After transfection, cells were seeded on coverslips coated with PLL-PEG-RGD (You et al., 2014) and imaging experiments were performed 48 hr post transfection. Single-molecule imaging experiments were conducted by total internal reflection fluorescence (TIRF) microscopy with an inverted microscope (Olympus IX71) equipped with a triple-line total internal reflection (TIR) illumination condenser (Olympus). A 150× magnification objective with a numerical aperture of 1.45 (UAPO 150 ×/1.45 TIRFM, Olympus) was used for TIR illumination of the sample. All experiments were carried out at room temperature in medium without phenol red, supplemented with an oxygen scavenger and a redox-active photoprotectant to minimize photobleaching (Vogelsang et al., 2008). Cell surface receptors were labeled by addition of 2.5 nM of each MI and EN conjugated to Rho11 (ATTO-TEC) and DY647 (Dyomics), respectively, which were kept in the supernatant throughout imaging experiments. After incubation with IL-2 variants for 5 min, dual-color videos of 150 frames were recorded at a rate of 31.25 Hz using total internal reflection fluorescence microscopy. The fluorophores were simultaneously excited at 561 nm and 642 nm and fluorescent signals of the respective channels were separated with an image splitter and detected with a backilluminated electron multiplied (EM) CCD camera (iXon DU897D, Andor Technology). Single molecule tracking and co-tracking was performed using ‘SLIMfast,’ an in-house software written in MATLAB (kindly provided by Christian P. Richter) based on the multiple-target tracing (MTT) algorithm (Sergé et al., 2008). Individual receptor dimers were identified by co-localization within a maximum intermolecular distance of 100 nm and a minimum trajectory length of 10 consecutive frames (Wilmes et al., 2015).

Surface plasmon resonance

Request a detailed protocol

Interactions between IL-2 muteins and γc were assessed by surface plasmon resonance (SPR) on a BIAcore T100 instrument. Biotinylated human γc was immobilized on a streptavidin sensor chip (GE) at low density (<100 RU). To facilitate measurement of complex assembly, IL-2 muteins were expressed in the context of H9 and incubated with equimolar human IL-2Rβ. Binding measurements were performed at 25°C with a flow rate of 50 μL/min. Precomplexed cytokine and receptor (5 μM) were injected over the chip for 120 s followed by a 500 s dissociation phase. Following each injection, the chip was regenerated with 4M MgCl2. Traces were background-subtracted for binding to an unrelated biotinylated protein immobilized in the reference channel.

Cell culture

Request a detailed protocol

Mammalian cell lines were maintained in complete RPMI (RPMI 1640-GlutaMAX supplemented with 10% fetal bovine serum, nonessential amino acids, sodium pyruvate, 15 mM HEPES and penicillin-streptomycin) at 37°C with 5% CO2. Cells were tested for mycoplasma using MycoAltert PLUS mycoplasma detection kit (Lonza). YT cells were maintained at low passage number and verified by IL-2 receptor expression and responsiveness (Yodoi et al., 1985). CTLL-2 cells (AATC TIB-214), a murine IL-2-dependent T cell line, were obtained from the vendor and maintained in complete RPMI supplemented with 1000 IU/mL recombinant mouse IL-2. IL-2Rα-deficient CTLL-2 cells were generated by lentiviral transduction using lentiCRISPRv2 encoding gRNA 5’-ACAACTTACCCAGAAATCGG-3’ (Sanjana et al., 2014). Transduced cells were sorted on the basis of IL-2Rα expression using a SH800S cell sorter equipped with 100 μm chip (Sony) and mixed 1:1 with wild-type CTLL-2 cells. Mixed cells were cultured in the presence of 200 nM IL-2 or IL-2-REH for 3 days prior to analysis of cell counts and IL-2Rα+ cell frequency. For SOCS1 overexpression, the open reading frame encoding mouse SOCS1 (1–212) followed by a p2a ribosomal skip sequence and enhanced green fluorescent protein (eGFP) was cloned into lentiviral gene ontology vector, LeGO (Weber et al., 2010). Cells were transduced with lentivirus and sorted on the basis of eGFP expression using a SH800S cell sorter equipped with 100 μm chip (Sony). Transduced cells were mixed 1:1 with wild-type CTLL-2s and stimulated with 1 μM IL-2 or IL-2-REH prior to analysis of STAT phosphorylation by flow cytometry.

pSTAT5 staining

Request a detailed protocol

2–3 × 105 cells were stimulated in 100 μL complete RPMI with cytokine in a 96 well plate prior to fixation with 1.6% paraformaldehyde for 10 min at room temperature. Cells were permeabilized with 100% ice-cold methanol and stored at −20°C prior to staining. Cells were washed twice with FACS buffer (PBS pH7.2, 2% FBS, 2 mM EDTA) and stained with 1:50 anti-STAT5 pY694 AF647 (BD) for 1 hr at room temperature. Mean fluorescence intensity (MFI) was monitored using a CytoFLEX flow cytometer (Beckman Coulter). MFI was normalized to pSTAT5 MFI in the absence of cytokine and at saturating levels of IL-2.

For T cell signaling, spleen and lymph nodes from B6-Foxp3EGFP mice (C.Cg-Foxp3tm2Tch/J) were processed to generate a single cell suspension. Fc receptors were blocked with TrueStain FcX (Biolegend) and cells were stained with αCD3 AF700 (500A2, eBiosience), αCD4 eFluor 450 (GK1.5, eBioscience), and αCD8 BV785 (53–6.7, BioLegend). CD8+ T cells were defined as CD3+CD8+, conventional CD4+ T cells were defined as CD3+CD4+Foxp3, while Tregs were gated as CD3+CD4+Foxp3+ on the basis of GFP expression.

For NK cell signaling, murine NK cells were isolated from spleen and lymph nodes of C57BL/6J mice by negative selection using Miltenyi NK cell isolation kit (Miltenyi Biotec). To enhance recovery, purified NK cells were mixed with CellTrace Violet (Invitrogen) labeled carrier cells and stimulated for 20 min at 37°C. Cells were fixed using Lyse/Fix buffer (BD) and permeabilized using Phosflow Perm Buffer III (BD).

For IL-2 receptor staining, a single cell suspension from spleen and lymph nodes of B6-Foxp3EGFP mice was pre-stained with TrueStain FcX (Biolegend) followed by a panel of αCD3 PerCP-Cyanine5.5 (145–2 C11, eBioscience), αCD4 eFluor 450 (GK1.5, eBioscience), αCD8 BV785 (53–6.7, BioLegend), αNK1.1 PE (PK136, eBioscience), and αCD19 PC7 (1D3, eBioscience). To this panel were added antibodies against IL-2Rα (CD25, PC61, Biolegend), IL-2Rβ (CD122, TM-b1, Biolegend), or γc (CD132, TUGm2, Biolegend) labeled in APC.

RNA-seq and qPCR

Request a detailed protocol

Tregs were isolated from B6-Foxp3EGFP mice using CD4+ T cell isolation kit (Miltenyi) followed by fluorescence-activated cell sorting (FACS) for GFP expression to isolate Tregs. CD8+ T cells were isolated from C57BL/6J mice using CD8+ T cell isolation kit (Miltenyi). Isolated cells were stimulated with 200 nM IL-2 or IL-2-REH and RNA was extracted using the Zymo RNA miniprep kit (Zymo Research). 500 ng RNA was used for RNA-Seq library preparation with the Kapa mRNA HyperPrep Kit (KK8580, Kapa Biosystems) and indexed with NEXTflex DNA Barcodes-24 as previously reported (Lin et al., 2017). Indexed samples were loaded to 2% E-Gel pre-cast gels (ThermoFisher). DNA fragments between 250 bp and 400 bp were recovered and purified with Zymoclean Gel DNA Recovery Kit (ThermoFisher), quantified by Qubit (Invitrogen), and sequenced on an Illumina HiSeq3000 system. Sequenced reads (50 bp, single end) were obtained with the Illumina CASAVA pipeline and mapped to the mouse genome mm10 (GRCm38, Dec. 2011) using Bowtie2 and Tophat2. Only uniquely mapped reads were retained. Raw counts that fell on exons of each gene were calculated and normalized by using RPKM (Reads Per Kilobase per Million mapped reads). Differentially expressed genes were identified with the R Bioconductor package ‘edgeR’ and expression heat maps were generated with the R package ‘pheatmap’.

For quantitative polymerase chain reaction (qPCR), Tregs and CD8+ T cells were stimulated for 4 hr with 200 nM cytokine prior to RNA isolation using RNeasy kit (QIAGEN). cDNA was generated using the iScript reverse transcriptase kit. qPCR was performed using PowerTrack SYBR Green (ThermoFisher) and analyzed on StepOnePlus Real-Time PCR System (Applied Biosystems). For analysis, Ct values were exported from StepOne Software and ΔCt was calculated for all samples relative to Gapdh control. ΔΔCt was calculated relative to unstimulated cells and fold change was expressed as 2-ΔΔCt.

Cell profiling

Request a detailed protocol

C57BL/6J mice were maintained in specific pathogen-free housing under a protocol approved by the Stanford Veterinary Service Center. For profiling experiments, mice were administered 30 μg injections of IL-2 or muteins on days 0, 3, and 6. On day 7, spleen and lymph nodes were harvested and a single cell suspension was generated. For transcription factor staining, cells were surface stained prior to fixation and permeabilization using Foxp3 transcription factor buffer set (eBiosciences). For cytokine recall, cells were cultured in 1 μg/mL Ionomycin (Sigma), 50 ng/mL phorbol 12-myristate 13-acetate (PMA, Sigma) and GolgiStop (BD) for 4 hr. Cells were surface stained prior to fixation and permeabilization using Cytofix/Cytoperm kit (BD).

Adoptive transfer

Request a detailed protocol

Conventional CD4+ T cells from B6-Foxp3EGFP were isolated using the CD4+ T cell isolation kit (Miltenyi) followed by FACS of conventional T cells (GFP negative) cells using a SH800S cell sorter equipped with 100 μm chip (Sony). Isolated cells were resuspended in PBS and transferred via retro-orbital injection into CD45.1 mice (B6.SJL-PtprcaPepcb/BoyJ) and allowed to engraft for 4 hr prior to injection of 30 μg IL-2-REH or PBS control. Mice were administered two additional cytokine doses on days 3 and 6 prior to analysis of Treg frequencies on day 7.

In vivo proliferation tracking

Request a detailed protocol

C57BL/6J mice were administered a single 30 μg dose of IL-2 or IL-2-REH followed by daily 100 μg injections of Click-iT EdU (Invitrogen) on day 0, 1, and 2. On day 3, spleen and lymph nodes were harvested. Cells were surface stained, fixed, and permeabilized using Foxp3 transcription factor buffer set (eBiosciences). Following Foxp3 staining, cells were washed and resuspended in Click-iT saponin based permeabilization and wash reagent prior to performing click reaction according to manufactures protocols.

In vitro Treg suppression

Request a detailed protocol

CD4+ T cells from B6-Foxp3EGFP mice were isolated by magnetic-activated cell sorting (MACS) followed by FACS for GFP+ (Treg) and GFP– (Tcon) cells using a SH800S cell sorter equipped with 100 μm chip (Sony). 2.5 × 104 Tcons from PBS-treated mice were loaded with CellTrace Violet (CTV, Invitrogen) and incubated with 1:1 Dynabeads Mouse T-Activator CD3/CD28 (Gibco) and varying numbers of Tregs from cytokine-treated mice. Cells were cultured for 3 days prior to FACS analysis of CTV dilution in Tcons.

T cell colitis

Request a detailed protocol

CD4+ T cells were isolated from the spleens of BALB/c mice (Taconic) by MACS followed by FACS sorting for CD45RBhiCD25- (naïve) and CD45RBloCD25+ (Treg). 3 × 105 naïve CD4+ T cells were transferred with or without 1 × 104 Tregs into female C. B-17 scid mice (Taconic). Body weight was monitored weekly and cytokine administration was initiated at the onset of weight loss on day 24. Mice received 5 μg injections of IL-2-REH twice weekly for three weeks followed by a second week-long course beginning on day 57. The frequency and activation of Tregs were monitored in blood on day 42.

DSS-induced colitis

Request a detailed protocol

Female C57BL/6 mice (B6NTac, Taconic) aged 8–12 weeks were administered 3–3.5% dextran sulfate sodium (DSS) (36,000–50,000 M.Wt, MP Biomedical) in drinking water ad libitum for 6 days. Starting on day 3 of DSS treatment, mice were injected with cytokine or PBS control subcutaneously (s.c.) every other day for a total of five injections. For flow cytometry and histological analysis, mice were euthanized by CO2 asphyxiation on day 10. Colons were removed, flushed, and 2–2.5 cm pieces of the most distal part of the colon were fixed in 10% buffered formalin for histology and IHC analysis. Histological scoring for tissue damage was performed according to Wirtz et al., 2017.

Statistics

Statistics were performed using Prism v8.4 (GraphPad Software). Data are expressed as mean ± standard deviation unless otherwise indicated.

Appendix 1

Appendix 1—key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Gene (M. musculus)Serum AlbuminUniprotP07724
Gene (Homo-sapiens)Interleukin 2 (IL-2)UniprotP60568
Gene (Homo-sapiens)Interleukin two receptor beta (IL-2Rβ)UniprotP14784
Gene (Homo-sapiens)Common gamma chain (γc)UniprotP31785
Gene (M. musculus)Suppressor of cytokine signaling 1 (SOCS1)UniprotO35716
Strain, strain background (M. musculus)Female C57BL/6JThe Jackson LaboratoryJAX:000664
Strain, strain background (M. musculus)Female B6.SJL-Ptprca Pepcb/BoyJThe Jackson LaboratoryJAX:002014
Strain, strain background (M. musculus)Female B6.Cg-Foxp3tm2Tch/JThe Jackson LaboratoryJAX:006772
Strain, strain background (M. musculus)Female C57BL/6TaconicC57BL/6NTac
Strain, strain background (M. musculus)Female BALB/cTaconicBALB/cAnNTac
Strain, strain background (M. musculus)Female C.B-17 scidTaconicC.B-Igh-1b/IcrTac-Prkdcscid
Cell line (M. musculus)Mouse T Cell line (CTLL-2)ATCCTIB-214
Cell line (Homo-sapiens)Human NK Cell line (YT)Yodoi et al., 1985
Cell line (Spodoptera frugiperda)Insect ovarian Cell lineATCCCat#CRL-1711
Cell line (Trichoplusia ni)Insect ovarian Cell lineExpression SystemsCat#94–002F
Cell line (Homo-sapiens)Expi293FGibcoCat#A14527
Cell line (Homo-sapiens)Human adenocarcinoma Cell line (Hela)ATCCCat#CCL-2
AntibodyAnti-mouse CD16/32 TruStain FcX (93) rat monoclonalBioLegendCat#101320(1:100)
AntibodyAnti-mouse CD3ε (145–2 c11) Armenian hamster monoclonalBioLegendCat#100340(2.5 μg/mL) plate bound
AntibodyAnti-mouse CD28 (37.51) Syrian hamster monoclonalBio X CellCat#BE0015-1(5 μg/mL)
AntibodyAnti-mouse CD45.1 e450 (A20) mouse monoclonaleBioscienceCat#48-0453-82(1:100)
AntibodyAnti-mouse CD45.2 APC-eF780 (104) mouse monoclonaleBioscienceCat#47-0454-82(1:100)
AntibodyAnti-mouse CD45.2 APC (104) mouse monoclonaleBioscienceCat#17-0454-82(1:100)
AntibodyAnti-mouse CD3ε BV785 (17A2) rat monoclonalBioLegendCat#100232(1:100)
AntibodyAnti-mouse CD3ε AF700 (eBio500A2) Syrian hamster monoclonaleBioscienceCat#56-0033-82(1:100)
AntibodyAnti-mouse CD3ε PerCP-Cy5.5 (145–2 C11) Armenian hamster monoclonaleBioscienceCat#44-0031-82(1:100)
AntibodyAnti-mouse CD19 PE-Cy7 (1D3) rat monoclonaleBioscienceCat#25-0193-81(1:100)
AntibodyAnti-mouse NK1.1 FITC (PK136) mouse monoclonaleBioscienceCat#11-5941-85(1:100)
AntibodyAnti-mouse NK1.1 PE (PK136) mouse monoclonaleBioscienceCat#12-5941-82(1:100)
AntibodyAnti-mouse Ly6G eF450 (RB6-8C5) rat monoclonaleBioscienceCat#48-5931-82(1:100)
AntibodyAnti-mouse CD25 BV605 (PC61) rat monoclonalBioLegendCat# 102035(1:100)
AntibodyAnti-mouse CD25 APC (PC61) rat monoclonalBioLegendCat#102011(1:100)
AntibodyAnti-mouse CD122 APC (TM-β1) rat monoclonalBioLegendCat#123214(1:100)
AntibodyAnti-mouse CD132 APC (TUGm2) rat monoclonalBioLegendCat#132308(1:100)
AntibodyAnti-mouse Foxp3 APC (FJK-16S) rat monoclonaleBioscienceCat#17-5773-82(1:100)
AntibodyAnti-mouse Foxp3 PE (FJK-16s) rat monoclonaleBioscienceCat#12-5773-82(1:100)
AntibodyAnti-mouse CD4 FITC (RM4.5) rat monoclonaleBioscienceCat#11-0042-85(1:100)
AntibodyAnti-mouse CD4 PE-Cy7 (GK1.5) rat monoclonaleBioscienceCat#25-0041-82(1:100)
AntibodyAnti-mouse CD4 Pacific Blue (GK1.5) rat monoclonalBioLegendCat# 100427(1:100)
AntibodyAnti-mouse CD8 Alexa Fluor 488 (53–6.7) rat monoclonalBioLegendCat#100726(1:100)
AntibodyAnti-mouse CD8 BV785 (53–6.7) rat monoclonalBioLegendCat#100750(1:100)
AntibodyAnti-mouse CD62L (MEL-14) rat monoclonalBioLegendCat# 104411(1:100)
AntibodyAnti-mouse CD44 (IM7) rat monoclonalBioLegendCat#103047(1:100)
AntibodyAnti-mouse IFNγ AF647 (XMG1.2) rat monoclonalBDCat#557735(1:100)
AntibodyAnti-pSTAT5 AF647 (47/Stat5 pY694) mouse monoclonalBDCat#612599(1:100)
Recombinant DNA reagentLeGO mSOCS1-p2a-eGFPThis studyModified from Weber et al., 2010 mSOCS1 1–212
AS linker p2a cleavage peptide eGFP (UniProt C5MKY7)
Recombinant DNA reagentlentiCRISPR v2 sgIL2RAThis studyModified from Sanjana et al., 2014, see gRNA seq below
Recombinant DNA reagentpSEMS leader-mXFPm IL-2RβThis studymECFP (W67F, E143K) hIL-2Rβ 27–551
Recombinant DNA reagentpSEMS leader-mXFPe γcThis studymEGFP (Y67F, N199D, Y201F) hγc23–369
Sequence-based reagentmouse IL-2Rα gRNAThis studygRNAACAACTTACCCAGAAATCGG
Sequence-based reagentGapdh_FIDTPCR primerGTGGAGTCATACTGGAACATGTAG
Sequence-based reagentGapdh_RIDTPCR primerAATGGTGAAGGTCGGTGTG
Sequence-based reagentBcl2_FIDTPCR primerCCAGGAGAAATCAAACAGAGGT
Sequence-based reagentBcl2_RIDTPCR primerGATGACTGAGTACCTGAACCG
Sequence-based reagentIfng_FIDTPCR primerTCCACATCTATGCCACTTGAG
Sequence-based reagentIfng_RIDTPCR primerCTGAGACAATGAACGCTACACA
Sequence-based reagentGzmb_FIDTPCR primerCATGTCCCCCGATGATCTC
Sequence-based reagentGzmb_RIDTPCR primerAAGAGAGCAAGGACAACACTC
Sequence-based reagentLta_FIDTPCR primerTCTCCAGAGCAGTGAGTTCT
Sequence-based reagentLta_RIDTPCR primerCTCAGAAGCACTTGACCCAT
Sequence-based reagentMyc_FIDTPCR primerGTCGTAGTCGAGGTCATAGTTC
Sequence-based reagentMyc_RIDTPCR primerCTGTTTGAAGGCTGGATTTCC
Peptide, recombinant proteinMSA-IL-2 and variantsThis studyMSA aa19-608, GGGSGS linker, human IL-2 aa21-153, 6xHis
Peptide, recombinant proteinMSA-H9 and variantsThis studyMSA aa19-608, GGGSGS linker, human IL-2 (L80F, R81D, L85V, I86V, I92F) aa21-153, 6xHis
Peptide, recombinant proteinFc-IL-2-N88DThis studyhIgG1-P329G LALA IL-2-N88D (T3A, C125A), 6xHis
Peptide, recombinant proteinAnti-GFP minimizer Rho11Kirchhofer et al., 2010
Peptide, recombinant proteinAnti-GFP enhancer DY647Kirchhofer et al., 2010
Peptide, recombinant proteinHuman IL-2Rβ extracellular domainThis studyaa27-240, 6xHis
Peptide, recombinant proteinHuman γc extracellular domain, biotinThis studyaa23-254, Biotin Acceptor Peptide, 6xHis
Commercial assay or kitCD4+T Cell Isolation Kit, mouseMiltenyi BiotecCat#130-104-454
Commercial assay or kitMouse CD8α + T cell isolation kitMiltenyi BiotecCat#130-104-075
Commercial assay or kitMouse NK cell Isolation KitMiltenyi BiotecCat#130-115-818
Commercial assay or kitLS magnetic selection columnMiltenyi BiotecCat#130-042-401
Commercial assay or kitHigh Capacity NoEndo ColumnsProtein ArkCat#Gen-NoE48HC
Commercial assay or kitChromogenic Endotoxin Quant KitPierceCat#A39552
Commercial assay or kitRNeasy Plus Mini KitQiagenCat#74134
Commercial assay or kitiScript Reverse Transcription SupermixBioRadCat#1708840
Commercial assay or kitPowerTrack SYBR GreenApplied BiosystemsCat#A46109
Commercial assay or kitCellTrace Violet Cell Proliferation KitInvitrogenCat# C34557
Commercial assay or kitClick-iT EdU Alexa Fluor 647 Flow Cytometry Assay KitInvitrogenCat#C10424
Commercial assay or kitPropidium IodideBDCat#556463
Commercial assay or kitFixable Viability Dye eFluor 780eBioscienceCat#65-0865-14
Commercial assay or kitFoxp3/Transcription Factor Staining Buffer SeteBioscienceCat#00-5523-00
Commercial assay or kitCytofix/Cytoperm Fixation/Permeablization KitBDCat#554714
Commercial assay or kitGolgiStopBDCat#554724
Commercial assay or kitCellfectin IIGibcoCat#10362100
Commercial assay or kitSapphire Baculovirus DNAAlleleCat#ABP-BVD-10002
Commercial assay or kitFixLyse BufferBDCat#558049
Commercial assay or kitPerm Buffer IIIBDCat#558050
Commercial assay or kitDynabeads Mouse T-Activator CD3/CD28 for T-Cell Expansion and ActivationGibcoCat#11456D
Commercial assay or kitSA sensor chipCytivaCat#BR-1005–31
Commercial assay or kitZymo RNA miniprep kitZymo ResearchCat#R2051
Commercial assay or kitKapa mRNA HyperPrep KitRocheCat#08098093702
Commercial assay or kitMycoAlert PLUS Mycoplasma Detection Kit (50 Tests)LonzaCat#LT07-705
Chemical compound, drugIonomycinSigmaCat#I9657-1MG
Chemical compound, drugPhorbol 12-myristate 13-acetate (PMA)SigmaCat#P8139-5MG
Chemical compound, drugDextran Sulfate Sodium Salt (36,000–50,000 M.Wt)MP biomedicalSKU#02160110-CF
Software, algorithmFlowJo v10.5Tree StarRRID:SCR_008520
Software, algorithmGraphPad Prism 8.3.0GraphPad SoftwareRRID:SCR_002798
Software, algorithmBIAevaluation softwareCytivaRRID:SCR_015936
Software, algorithmStepOne SoftwareApplied BiosystemsRRID:SCR_014281
Software, algorithmMATLABMathWorksRRID:SCR_001622
Software, algorithmIllumina CASAVA pipelineIlluminaRRID:SCR_001802
Software, algorithmBowtie2RRID:SCR_016368
Software, algorithmTophat2RRID:SCR_013035
Software, algorithmedgeRRRID:SCR_012802
Software, algorithmpheatmapRRID:SCR_016418

Data availability

Sequencing data have been deposited in GEO under accession number, GSE162928.

The following data sets were generated

References

    1. Sakaguchi S
    2. Sakaguchi N
    3. Asano M
    4. Itoh M
    5. Toda M
    (1995)
    Immunologic self-tolerance maintained by activated T cells expressing IL-2 receptor alpha-chains (CD25). Breakdown of a single mechanism of self-tolerance causes various autoimmune diseases
    Journal of Immunology 155:1151–1164.
    1. Yodoi J
    2. Teshigawara K
    3. Nikaido T
    4. Fukui K
    5. Noma T
    6. Honjo T
    7. Takigawa M
    8. Sasaki M
    9. Minato N
    10. Tsudo M
    (1985)
    TCGF (IL 2)-receptor inducing factor(s). I. regulation of IL 2 receptor on a natural killer-like cell line (YT cells)
    Journal of Immunology 134:1623–1630.

Decision letter

  1. Michael L Dustin
    Reviewing Editor; University of Oxford, United Kingdom
  2. Tadatsugu Taniguchi
    Senior Editor; Institute of Industrial Science, The University of Tokyo, Japan
  3. Michael L Dustin
    Reviewer; University of Oxford, United Kingdom

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

You have used structure based design to create IL-2-REH, a partial agonist that can promote preferential expansion of Treg in vivo. Testing IL-2-REH in two models of auto inflammatory disease- the DSS and transfer colitis models- you have found protection in the DSS model, but not the transfer colitis model, despite increase Treg numbers. The results are important to the field in providing a new approach to cytokine engineering and also pointing to the potential complexity of therapies based on Treg expansion in amelioration of auto-inflammatory and autoimmune diseases.

Decision letter after peer review:

Thank you for submitting your article "Calibration of cell-intrinsic Interleukin-2 response thresholds guides design of a regulatory T cell biased agonist" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Michael L Dustin as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Tadatsugu Taniguchi as the Senior Editor.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

The elegant protein engineering and novelty of the IL-2 weak agonist development is appreciated by all reviewers. However all reviewers concurred that it would be better to test the in vivo function of the IL-2REH expanded Treg and in vivo IL-2REH effects on colitis development in a transfer colitis model, as opposed to the DSS model.

Essential Revisions:

1. You perform a set of transfer colitis experiments to test IL-2REH pre-expanded Treg vs non-expanded Treg,

2. The effect of IL-2REH during the colitis induction by Teff of Teff + Treg.

3. Another essential experiment is to test lower doses of IL-2 as indicated by reviewer 3.

Reviewer #1:

Bottom of page 6- the description of the single molecule tracking experiment to investigate receptor dimerisation is not clear. It seems that they have expressed β and common γ chains with the same GFP mutant, but them somehow tagged them with different dye labelled nano bodies and then tracked these on the surface to track movement of heterodimers. The authors need to better explain how β and common γ chains are selectively labelled- there must be some difference in the GFP tags or this would/could not work. The term co-locomotion is unconventional as it suggests that the receptors are self-propelled on the surface of the cell. It should be possible to determine if the motion is diffusive and then co-diffusion. If there is an active component it would more typically be referred to as transport. Locomotion is a term more reserved for movement of cells.

Bottom of page 9- The way the authors refer to recipient and donor seems is written as if it refers to the mice, rather than the recipient (endogenous CD25+ and CD25-) or donor (CD25-) cells. The authors just need to clarify that it’s the cells they are referring to. The logic of the experiment is otherwise sound.

Bottom of page 13- they state that IL-2 REH mirrors two key features of IL-2 sensitivity in Treg. It’s not clear if "mirrors" is the correct term here. Would a better term be "exploits" in selective expansion of Treg in the steady state.

The authors use a DSS colitis model, which is not a classical autoimmune colitis, but more of a transient barrier disruption leading to inflammation that is influenced by T cells, but not directly T cell mediated as transfer colitis model. The in vivo results would be greatly clarified by repeating these points with the transfer colitis model.

Reviewer #2:

Many years ago, the laboratory of Chris Garcia embarked into a powerful research line under the general concept of "separating" the different functions of IL-2 from adverse effects as well as, more recently, the differential effects on regulatory T cells (Treg) and effector T cells and NK cells.

For example, some years ago the authors described that IL-2 activity was greater on CD25HI cells (e.g. Treg) in the presence of JES6-1, and greater on CD25LO cells (e.g. CD8+ T cells) in the presence of S4B6. JES6-1 and S4B6 are two different anti-IL-2 antibodies.

Chris Garcia's lab also was involved in the generation of several IL-2 muteins, in which the Il2 gene was mutated to improve IL-2 binding to CD122. This generated an IL-2 molecule that was relatively more capable of expanding CTL than Treg, a "superkine" that was, at the time, sought after by cancer immunologists.

In their laboratory's current iteration, Dr. Garcia and co-workers added a number of mutations that weaken the binding to IL2Rg (CD132/Common gc). Their successful structural predictions led to IL-2 muteins that display reduced STAT5 phosphorylation at saturating mutein doses. This manuscript is another useful attempt to understand the differential effects of IL-2, and the practical implications.

Of the shown IL-2 muteins, IL-2-REH is the one with highest phospho-STAT5-inducing activity. It is also the one that induces the highest expansion of Treg cells. Comparatively with IL-2, IL-2-REH is a better inducer of Treg expansion and a poor inducer of CTL expansion and gene expression. Other muteins may have too low an activity on IL-2 receptor to trigger any of the IL-2 functions. The dependence of IL-2-REH on IL2ra for signaling was shown by a number of independent ways, and is convincing.

1. This is not an issue unique to this paper, but it is unclear why IL-2, but, to some degree also IL-2-REH, cause splenomegaly with granulocytosis. Granulocytes don't express IL-2 receptors, so why are they recruited so early and in such high numbers? There must be a very powerful proinflammatory signal produced by NK cells or conventional T cells in response to IL-2. If IL-2-REH is to become a therapy, it would require repeated administration, and, perhaps, it would induce granulocytosis as well in a chronic setting. The readers will benefit from a discussion on this topic.

2. Does IL-2-REH induce IL2ra expression in conventional CD4 cells and CD8 T cells, as does IL-2? The blasts used in Figure 5 are not generated using IL-2 muteins, and IL2ra did not make it to the top 30 genes in Figure 4, so I can't tell. If IL2ra expression is induced by IL-2-REH in conventional T cells, wouldn't one expect that, after a brief delay, IL-2-REH would lead to the proliferation of conventional T cells as well?

3. It is important to characterize the duration of Treg increase (also quality) in vivo, much beyond day 7 post IL-2-REH treatment beginning.

4. From the early Foxp3 days, it was apparent that there is a subset (10-20%) of Foxp3+ Tregs that are CD25-low, in a continuum pattern. In Dr. Garcia's data, both the IL-2 and IL-2-REH expanded Tregs express higher surface IL2ra than the untreated cells or H9-REH-treated cells. Unless the effect is short-lived, the level (MFI) of surface IL2ra expression attained in each case may be correlating with the functionality of the Tregs, and could be another important parameter to consider for suppression of autoimmune disease in vivo.

5. I don't understand the result in Figure 5H, left panel. SOCS1 inhibits IL-2 signaling, but, in this experiment, overexpression of SOCS1 does not appear to have any effect on STAT5 phosphorylation when IL-2 was added. Do CTLL-2 cells express so much intrinsic SOCS1, that overexpression becomes irrelevant? Perhaps the reverse experiment (Socs1 knockdown) should have been attempted. How are the basal levels of SOCS1 in Tconv and Treg, and how does IL-2 and IL-2-REH affects SOCS1 expression?

6. The DSS Colitis experiment is somewhat disappointing. While IL-2-REH drives a striking increase of Treg in mLN and of Foxp3+Gzmb+ cells the colonic tissue, the level of protection from disease is not striking. What other variables could be participating in the amelioration? Perhaps another colitis model, such as the adoptive transfer model (also called the Powrie model), might be beneficial, as it would even test the stability of the transferred Tregs in host mice that did not receive IL-2 or IL-2 muteins.

My conclusion is that this is an important contribution, but some experiments that are easy to perform could add valuable information to the manuscript.

Reviewer #3:

First paragraph of the introduction lacks references.

Page 3 Line 14: "severe"

Page 6 line 12: It is not clear what RETR is.

Figure 1 and S1: S1 pSTAT5 MFI shows that human IL-2 saturates the pSTAT5 at 100 nM while H9 (high affinity variant for IL-2Rb) saturates it at 102 nM. This seems to contradict with the justification of the use of H9 instead of WT IL-2. However, towards the end of the Results section H9 is more properly described and referenced as "IL-2 variant with high affinity for IL-2Rb and reduced dependence on IL-2Ra (Levin et al.,2012)". This should come upfront at Figure 1 for clarity. Also, although it is a minor point, if there are TIRF and SPR data for WT IL-2, they can replace the H9 data in Figure 1 or be added to Supplementary Figure 1 as IL-2Ra dependency of REH variants may account for some differences in those readouts too.

Figure 2 and S2: In Figure 2 A-D and S2 B-F, PBS injected spleen percentages add up to more than 100% while the total numbers don't match the T and B percentages. The graphs may come from different experiments, so authors should clarify the mismatches and replace the graphs.

Figure 2 would also benefit from showing a decrease in the total numbers of Foxp3-CD4+ effector cells in complementary to the increase in Treg #. IFNγ production of CD4+ T cells can also be added to the supplementary figures.

P8 Line 14: "increased cytotoxicity" instead of "increase cytotoxicity"

Figure 3-4-5: Well-performed experiments with clear findings.

Figure 6:

The data presented by the authors are promising, albeit brief. In the colitis model, although IL-2-REH treated mice displayed faster and greater recovery, especially at later time points, findings may be reflective of the IL-2 dose administered. DSS colitis is a chemical injury model that represents the physiology of mucosal healing in human ulcerative colitis, however it is inferior to CD45RBhi CD4+ T cell transfer colitis model in the way it represents the contribution of effector and regulatory T cells.

In order to reach a fair conclusion about the therapeutic effect of IL2-REH on colitis, it should also be compared to lower doses of IL-2. The in vitro findings provided in Figure 5 supplement 1 suggest that the negative effects of IL-2 can be alleviated or at least matched to that of IL2-REH at low IL-2 doses. Figure 5 supplement 1 indicates that minimum IL-2 dose (100 nM) that provides maximum pSTAT5 signaling in Tregs doesn't induce signaling in any of the effector cells except for the CD4 blasts. Therefore, a more ideal approach for characterizing the therapeutic effects of IL2-REH in vivo should involve comparison of different IL-2 and IL-2-REH doses in CD45RBhi CD4+ T cell transfer colitis model. In such a system, the activity of CD45RBlow CD4+ regulatory cells can be tested with or without IL-10 blockade, however blockade experiment is not crucial.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Calibration of cell-intrinsic Interleukin-2 response thresholds guides design of a regulatory T cell biased agonist" for further consideration by eLife. Your revised article has been evaluated by Tadatsugu Taniguchi (Senior Editor), a Reviewing Editor, and two of the original reviewers.

You have used structure based design to create IL-2-REH, a partial agonist that can promote preferential expansion of Treg in vivo. Testing IL-2-REH in two models of auto inflammatory disease- the DSS and transfer colitis models- you have found protection in the DSS model, but not the transfer colitis model, despite increase Treg numbers. The results are important to the field in providing a new approach to cytokine engineering and also pointing to limitations of Treg expansion in amelioration of auto inflammatory disease.

The reviewers appreciate your effort to look at the transfer colitis model. The point that IL2REH can promote proliferation, yet not improve the clinical outcome in the model is an important point for the field and should be included in the final paper.

1. Incorporate the transfer colitis data on Treg expansion and clinical scores in a supplemental figure and discuss the implications for the advance in selective Treg expansion, but remaining challenges to translate this into clinical impact.

Reviewer #1:

The authors have evaluated IL-2-REH in a different colitis model and tested a range of doses in the DSS model. The results support the ability of IL-2-REH to selectively expand Treg, but the clinical scores in the transfer colitis model were worse with IL-2-REH, even as Treg expansion was increased. The authors have addressed a number of minor issues in the text and added additional discussion that improve the manuscript. The authors have addressed a challenge related to selective expansion of Treg in vivo, but the limitation is that expansion of Treg may not be sufficient, in all cases, to achieve remission of inflammatory disease.

Reviewer #3:

While the authors have spent praiseworthy effort on revising the key points raised by reviewers, some points require further clarification and revision. Because of the marginal effects of both IL-2 and IL-2-REH in DSS colitis and slightly disease-exacerbating potential of IL2-REH in the adoptive transfer colitis model, one should be extra cautious to mention the therapeutic effects of this particular IL-2 mutein in colitis. One of the reasons for the unexpected outcome in transfer colitis might actually be due to the timing of initial cytokine dose (day 24) which could have tipped the balance off towards effector activation. Therefore, it would be useful to share transfer colitis data with readers adding also a relevant statement into Discussion section stating the reservations about therapeutic effects of IL-2-REH, at least in the colitis models tested.

I agree that the transfer colitis model, while powerful, is unlikely to show differences between untreated and cytokine treated groups given the data presented in Figure 6—figure supplement 2. However, instead of replacing it with DSS-induced colitis model that only shows some marginal effect and in vitro suppression assays one should rather consider titrating the transferred CD45RBlo/Foxp3.GFP numbers down in transfer colitis setting. This may provide some room for Treg expansion and the effects of cytokine treatment may be visible if a regimen with earlier cytokine doses is adapted. Furthermore, the in vitro suppression assay graph in Figure 6—figure supplement 1 is insufficient without a "No Treg" control to evaluate the degree of suppression in the Treg+ groups.

https://doi.org/10.7554/eLife.65777.sa1

Author response

Essential Revisions:

1. You perform a set of transfer colitis experiments to test IL-2REH pre-expanded Treg vs non-expanded Treg,

We have not carried out this experiment because we have already shown in the paper that IL-2REH expanded Tregs suppress targets as well as IL-2 expanded T cells. In the reviewer’s suggested experiment, T cell transfer colitis, disease is induced by homeostatic proliferation of naïve CD4+ T cells, an effect that is suppressed by co-transfer of regulatory T cells. Classic experiments by Fiona Powrie’s group use expression of CD45RB to identify naïve cells (CD45RBhi) which are transferred alone or in conjunction with CD45RBlo cells, of which the CD25+ Treg fraction is critical (Read et al., 2000). In our hands, Tregs account for 40-50% of CD45RBlo cells in untreated mice (Author response image 1). Given the abundance of Tregs among CD45RBlo population, we would expect that Tregs from PBS, IL-2 and IL-2-REH all to induce similar levels of disease suppression since, importantly, we have shown that IL-2-REH expanded Tregs retain their suppressive capacity in vitro (Figure 6 —figure supplement 1), but that their suppressive capacity does not exceed that of Treg cells expanded by IL-2.

For these reasons, we feel that T cell transfer colitis experiments using IL-2-REH expanded Tregs will provide limited additional value beyond the data presented in current Figure 6 —figure supplement 1 showing that IL-2-REH expanded Tregs retain suppressive capacity.

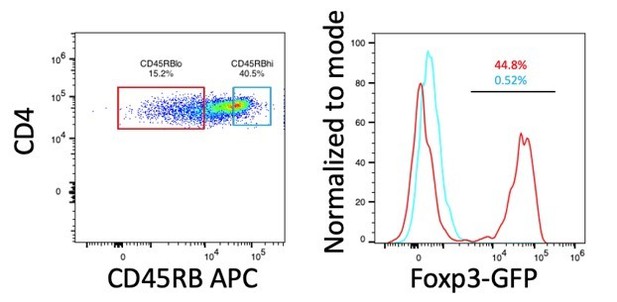

Author response image 1
Expression of Foxp3 in CD45RBhi and CD45RBlo cells.

CD4+ T cells (CD3+CD4+) from spleen of B6-Foxp3EGFP mice were gated on CD45RB expression based on a previously established protocol (Ostanin et al., 2009). Histograms and frequencies for CD45RBhi cells are shown in cyan, histograms and frequencies for CD45RBlo cells are shown in red.

2. The effect of IL-2REH during the colitis induction by Teff of Teff + Treg.

We have now performed transfer colitis experiments in which CD45RBhi cells were co-transferred with or without Tregs and mice were dosed with IL-2-REH at the onset of weight loss. For these experiments, we only administered IL-2-REH to mice which received Tregs as we have previously shown that IL-2-REH does not induce the differentiation of Tregs from Tcons (Figure 2A-C). Under these conditions, IL-2-REH expands Tregs but does not provide a therapeutic benefit (Figure 6—figure supplement 2B/C). In fact, IL-2-REH administration at this late time point exacerbated disease, likely by a small degree of potentiation of CD45RBhi cells which become activated (CD25+) during colitis induction. We do not think the lack of therapeutic efficacy in this experiment compromises the message of the paper or the value of IL-2REH as a new class of mechanism-based Treg potentiators with possible utility in autoimmune diseases. In the clinical situation IL-2REH will be administered systemically, as we did for the DSS model.

More generally, we wish to emphasize that our collective findings in the paper were more to highlight a new class of cell-selective IL-2 analogs, and the concept of exploiting cell type intrinsic response thresholds by cytokines in vivo, which certainly has therapeutic relevance as we have shown, but the paper falls far short of definitive proof of IL-2REH utility as a drug for autoimmune disease. Indeed, the clinical utility of Treg expansion by any means for treating autoimmunity, remains to be determined. We could make minor text modification to the manuscript to better balance the conceptual advances with the clinical implications.

3. Another essential experiment is to test lower doses of IL-2 as indicated by reviewer 3.

The dose of IL-2 used in the DSS colitis experiments (5mg of MSA-hIL-2, every 2 days) is similar to that used in low-dose IL-2 regimes for the treatment of diabetes in NOD mice when adjusted for the molecular weight of albumin (Grinberg-Bleyer et al., 2010). However, we have also performed DSS experiments at even lower doses of IL-2 similar to those used in the treatment of systemic lupus erythematosus (SLE) (He et al., 2020). Administration of ultra-low-dose IL-2 does not provide a therapeutic benefit in these experiments (Author response image 2). We have updated the text to include explanation of dosing in the original DSS experiment (Page 14, lines 17-19).

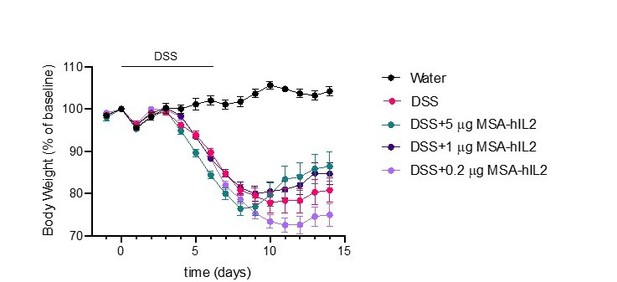

Author response image 2
Effects of IL-2 dose on DSS-induced colitis.

C57BL/6J mice were placed on 3.5% DSS in drinking water for 6 days. Starting on day 4, mice received subcutaneous injections of PBS (n=10), 5mg IL-2 (n=10), 1mg IL-2 (n=10) or 0.2mg IL-2 (n=10) every other day for 3 doses. Data were compared to mice maintained on drinking water without DSS (n=5). Data are expressed as mean +/- SEM.

Reviewer #1:

Bottom of page 6- the description of the single molecule tracking experiment to investigate receptor dimerisation is not clear. It seems that they have expressed β and common γ chains with the same GFP mutant, but them somehow tagged them with different dye labelled nano bodies and then tracked these on the surface to track movement of heterodimers. The authors need to better explain how β and common γ chains are selectively labelled- there must be some difference in the GFP tags or this would/could not work. The term co-locomotion is unconventional as it suggests that the receptors are self-propelled on the surface of the cell. It should be possible to determine if the motion is diffusive and then co-diffusion. If there is an active component it would more typically be referred to as transport. Locomotion is a term more reserved for movement of cells.

We thank the reviewer for pointing out this potential area of confusion surrounding the receptor tracking experiments. For specific labeling of IL-2Rb and gc, we have used two engineered variants of GFP, which are orthogonally recognized by two different anti-GFP nanobodies, enhancer and minimizer. In the revised manuscript, we have included a more detailed description of this approach in the method section and main text (Page 6, lines 18-21) as well as Figure 1C-D and the corresponding part of the figure legend. Further, as suggested by the reviewer we have changed the term “co-locomotion” to “co-diffusion”.

Bottom of page 9- The way the authors refer to recipient and donor seems is written as if it refers to the mice, rather than the recipient (endogenous CD25+ and CD25-) or donor (CD25-) cells. The authors just need to clarify that it’s the cells they are referring to. The logic of the experiment is otherwise sound.

We thank the reviewer for this note. The text has been updated to clarify this point (Page 10, line 6).

Bottom of page 13- they state that IL-2 REH mirrors two key features of IL-2 sensitivity in Treg. It’s not clear if "mirrors" is the correct term here. Would a better term be "exploits" in selective expansion of Treg in the steady state.

We agree with the reviewer and have changed to wording of this sentence (Page 14, line 2).

The authors use a DSS colitis model, which is not a classical autoimmune colitis, but more of a transient barrier disruption leading to inflammation that is influenced by T cells, but not directly T cell mediated as transfer colitis model. The in vivo results would be greatly clarified by repeating these points with the transfer colitis model.

As discussed in our comment to ‘essential revision #1’ above, the high frequency of Tregs among CD45RBlo cells makes comparison of IL-2-REH expended Tregs difficult in the transfer colitis model. Given that we see similar suppression of Tcon proliferation by Tregs isolated from PBS, IL-2 and IL-2-REH treated mice and that Tregs already represent a high proportion of CD45RBlo cells in untreated mice, we would not expect to see differences between groups using the T cell transfer colitis model with pre-expanded Tregs.

Reviewer #2:

Many years ago, the laboratory of Chris Garcia embarked into a powerful research line under the general concept of "separating" the different functions of IL-2 from adverse effects as well as, more recently, the differential effects on regulatory T cells (Treg) and effector T cells and NK cells.

For example, some years ago the authors described that IL-2 activity was greater on CD25HI cells (e.g. Treg) in the presence of JES6-1, and greater on CD25LO cells (e.g. CD8+ T cells) in the presence of S4B6. JES6-1 and S4B6 are two different anti-IL-2 antibodies.

Chris Garcia's lab also was involved in the generation of several IL-2 muteins, in which the Il2 gene was mutated to improve IL-2 binding to CD122. This generated an IL-2 molecule that was relatively more capable of expanding CTL than Treg, a "superkine" that was, at the time, sought after by cancer immunologists.

In their laboratory's current iteration, Dr. Garcia and co-workers added a number of mutations that weaken the binding to IL2Rg (CD132/Common gc). Their successful structural predictions led to IL-2 muteins that display reduced STAT5 phosphorylation at saturating mutein doses. This manuscript is another useful attempt to understand the differential effects of IL-2, and the practical implications.

Of the shown IL-2 muteins, IL-2-REH is the one with highest phospho-STAT5-inducing activity. It is also the one that induces the highest expansion of Treg cells. Comparatively with IL-2, IL-2-REH is a better inducer of Treg expansion and a poor inducer of CTL expansion and gene expression. Other muteins may have too low an activity on IL-2 receptor to trigger any of the IL-2 functions. The dependence of IL-2-REH on IL2ra for signaling was shown by a number of independent ways, and is convincing.

1. This is not an issue unique to this paper, but it is unclear why IL-2, but, to some degree also IL-2-REH, cause splenomegaly with granulocytosis. Granulocytes don't express IL-2 receptors, so why are they recruited so early and in such high numbers? There must be a very powerful proinflammatory signal produced by NK cells or conventional T cells in response to IL-2. If IL-2-REH is to become a therapy, it would require repeated administration, and, perhaps, it would induce granulocytosis as well in a chronic setting. The readers will benefit from a discussion on this topic.

We agree with the reviewer that the expansion of granulocytes upon systemic IL-2 administration is most likely a secondary effect induced by NK cell or T cell secretion of pro-inflammatory cytokines. This effect is greatly attenuated with IL-2-REH such that there is not a significant difference in granulocyte frequency or number following REH administration. We have updated the text to discuss this point (Page 8, lines 7-10).

2. Does IL-2-REH induce IL2ra expression in conventional CD4 cells and CD8 T cells, as does IL-2? The blasts used in Figure 5 are not generated using IL-2 muteins, and IL2ra did not make it to the top 30 genes in Figure 4, so I can't tell. If IL2ra expression is induced by IL-2-REH in conventional T cells, wouldn't one expect that, after a brief delay, IL-2-REH would lead to the proliferation of conventional T cells as well?

Expression of Il2ra is more strongly induced by IL-2 than IL-2-REH in CD8+ T cells following ex vivo stimulation (Author response image 3). Consistent with this effect, IL-2Ra surface expression on CD4+FoxP3- cells was elevated by IL-2 but not IL-2-REH (Figure 2—figure supplement 2 and response to point 4 below). Given that our in vivo experiments last from 3-7 days and we do not observe significant expansion of conventional cells with IL-2-REH, we think it unlikely that IL-2-REH induces sufficient expression of IL-2Ra to enhance sensitivity of conventional T cells.

Author response image 3
Expression of Il2ra in CD8+ T cells following 4-hour stimulation with 200nM cytokine.

Reads per kilobase per million (RPKM) were normalized to unstimulated CD8+ T cells.

3. It is important to characterize the duration of Treg increase (also quality) in vivo, much beyond day 7 post IL-2-REH treatment beginning.

We have performed tracking experiment to monitor the kinetics of Treg expansion and contraction. Following dosing of cytokine on day 0, 3 and 6, Tregs remain elevated for three days followed by contraction back to baseline levels 1 week after cessation of cytokine administration. This data has been added Figure 6—figure supplement 1C.

4. From the early Foxp3 days, it was apparent that there is a subset (10-20%) of Foxp3+ Tregs that are CD25-low, in a continuum pattern. In Dr. Garcia's data, both the IL-2 and IL-2-REH expanded Tregs express higher surface IL2ra than the untreated cells or H9-REH-treated cells. Unless the effect is short-lived, the level (MFI) of surface IL2ra expression attained in each case may be correlating with the functionality of the Tregs, and could be another important parameter to consider for suppression of autoimmune disease in vivo.

The reviewer is correct to point out that IL-2 and IL-2-REH elicit increased IL-2Ra expression on Tregs. Despite these differences, Tregs from cytokine treated mice were similar in their suppressive capacity to Tregs from untreated mice (Figure 6—figure supplement 1). Instead, the major effect of IL-2-REH appears to be expansion of Tregs rather than increased suppressive capacity on a per-cell basis.

5. I don't understand the result in Figure 5H, left panel. SOCS1 inhibits IL-2 signaling, but, in this experiment, overexpression of SOCS1 does not appear to have any effect on STAT5 phosphorylation when IL-2 was added. Do CTLL-2 cells express so much intrinsic SOCS1, that overexpression becomes irrelevant? Perhaps the reverse experiment (Socs1 knockdown) should have been attempted. How are the basal levels of SOCS1 in Tconv and Treg, and how does IL-2 and IL-2-REH affects SOCS1 expression?

The observation that SOCS1 overexpression does not inhibit IL-2 signaling in CTLL-2 cells may be due to the fact that CTLL-2 cells depend on IL-2 signaling for survival. Previously, CTLL-2s have been characterized to be low in SOCS1 expression through a transcriptional repression mechanism (Gregorieff et al., 2000). Our results suggest that the level of SOCS1 achieved by overexpression is sufficient to suppress IL-2-REH signaling but not IL-2 signaling.

These experiments were designed to test the role of SOCS1 in suppression of IL-2-REH signaling as Tregs have previously been shown to express low levels of SOCS1 through a micro-RNA dependent mechanism (Lu et al., 2009). To the authors second question about the effects of cytokine on SOCS1 expression, we see that IL-2 induces Socs1 expression in both Tregs and CD8+ T cells following 4-hour stimulation with 200nM cytokine while REH induces Socs1 selectively in Tregs although to a lesser extent than seen with REH (Figure 6—figure supplement 2B/C). Given the acute nature of the stimulations used in Figure 5H-I, we think that feedback is unlikely to explain these results, however, induction of SOCS1 by IL-2 may serve to inhibit STAT signaling in vivo where cytokines are administered over a longer time scale.

Author response image 4
Expression of Socs1 in Tregs and CD8+ T cells following 4-hour stimulation with 200nM cytokine.

Reads per kilobase per million (RPKM) were normalized to unstimulated cells.

6. The DSS Colitis experiment is somewhat disappointing. While IL-2-REH drives a striking increase of Treg in mLN and of Foxp3+Gzmb+ cells the colonic tissue, the level of protection from disease is not striking. What other variables could be participating in the amelioration? Perhaps another colitis model, such as the adoptive transfer model (also called the Powrie model), might be beneficial, as it would even test the stability of the transferred Tregs in host mice that did not receive IL-2 or IL-2 muteins.

We thank the reviewer for their comments on the effects of IL-2-REH in the DSS-induced colitis model. While IL-2-REH does not prevent induction of weight loss, these experiments show that IL-2-REH is capable of expanding Tregs in the context of an inflammatory response and reducing disease severity as measured by histological score and body weight. As mentioned in our response to ‘essential revision #1’, we feel that the transfer colitis model, while powerful, is unlikely to show differences between untreated and cytokine treated groups given the high prevalence of Tregs among CD45RBlo cells in naïve mice. For this reason, we think that the DSS-induced colitis model and in vitro suppression assays shown in Figure 6 and Figure 6 —figure supplement 1 better capture the effects of IL-2-REH.

My conclusion is that this is an important contribution, but some experiments that are easy to perform could add valuable information to the manuscript.

We thank the reviewer for their constructive suggestions.

Reviewer #3:

First paragraph of the introduction lacks references.

Page 3 Line 14: "severe"

This has been corrected.

Page 6 line 12: It is not clear what RETR is.

A description of H9-RETR has been added.

Figure 1 and S1: S1 pSTAT5 MFI shows that human IL-2 saturates the pSTAT5 at 100 nM while H9 (high affinity variant for IL-2Rb) saturates it at 102 nM. This seems to contradict with the justification of the use of H9 instead of WT IL-2. However, towards the end of the Results section H9 is more properly described and referenced as "IL-2 variant with high affinity for IL-2Rb and reduced dependence on IL-2Ra (Levin et al.,2012)". This should come upfront at Figure 1 for clarity. Also, if there are TIRF and SPR data for WT IL-2, they can replace the H9 data in Figure 1 or be added to Supplementary Figure 1 as IL-2Ra dependency of REH variants may account for some differences in those readouts too.

We have added a more complete description of super-2 (page 6, line 1). The use of super-2 for initial characterization was to account for differences in EC50 between IL-2 and partial agonists (compare Figure 1B and Figure 1—figure supplement 1). These differences are likely due to a high level of cooperativity in the binding of IL-2Rb and gc (Wang et al., 2005). The biochemical data looking at receptor dimerization was performed in the absence of IL-2Ra to focus on the impact of gc-interface mutations on IL-2 receptor dimerization. In these cases, super-2 is necessary to allow comparison of partial agonists.

Figure 2 and S2: In Figure 2 A-D and S2 B-F, PBS injected spleen percentages add up to more than 100% while the total numbers don't match the T and B percentages. The graphs may come from different experiments, so authors should clarify the mismatches and replace the graphs.

Thank you for pointing out this potential area of confusion. In our submission, the frequency of B, NK and granulocytes were expressed as a percentage of CD3- cells while the frequency of CD3+ cells is expressed as a % of CD45+. We have updated the graphs to express all populations as a percent of CD45+ for simplicity.

Figure 2 would also benefit from showing a decrease in the total numbers of Foxp3-CD4+ effector cells in complementary to the increase in Treg #. IFNγ production of CD4+ T cells can also be added to the supplementary figures.

Data showing the frequency and number of FoxP3-IL-2Ra+ cells has been added to Figure 2 —figure supplement 2C-E. As would be predicted, we see elevated IL-2Ra+ Tcons following treatment with IL-2 but not IL-2-REH. For intracellular cytokine stain in CD4+ T cells, we did not observe an IL-2 dependent increase in IFNg+ cells following PMA-Ionomycin treatment, indicating that the requirements for IFNg production in CD4 and CD8+ T cells are likely different.

P8 Line 14: "increased cytotoxicity" instead of "increase cytotoxicity"

This has been corrected.

Figure 3-4-5: Well-performed experiments with clear findings.

We thank the reviewer for their positive comments.

Figure 6:

The data presented by the authors are promising, albeit brief. In the colitis model, although IL-2-REH treated mice displayed faster and greater recovery, especially at later time points, findings may be reflective of the IL-2 dose administered. DSS colitis is a chemical injury model that represents the physiology of mucosal healing in human ulcerative colitis, however it is inferior to CD45RBhi CD4+ T cell transfer colitis model in the way it represents the contribution of effector and regulatory T cells.

We than the reviewer for their comments about the dose of IL-2 used in these experiments. As explained in our response to ‘essential revision #3’, the 5mg dose of MSA-IL-2 used in these experiments is similar to that used previously to assess low-dose IL-2 in treatment of non-obese diabetic mice when adjusted for the molecular weight of albumin (Grinberg-Bleyer et al., 2010). We have further characterized the impact of ultra-low dose IL-2 on DSS-induced colitis, however, we do not find enhanced benefit at 1mg or 0.2mg of MSA-IL-2 (Author response image 2). The text has been updated to include an explanation of the dosing strategy used in the DSS experiments (page 14, lines 17-19).

While we agree with the reviewer that the role of Tregs in the T cell transfer colitis model has been well established, the high frequency of Tregs among CD45RBlo cells in naïve mice means that IL-2-REH is unlikely to provide additional benefit relative to Tregs from PBS treated mice. For this reason, we think the DSS-induced colitis model in conjunction with the in vitro suppression presented in Figure 6 —figure supplement 1 better highlight the benefit of IL-2-REH expanded Tregs.

In order to reach a fair conclusion about the therapeutic effect of IL2-REH on colitis, it should also be compared to lower doses of IL-2. The in vitro findings provided in Figure 5 supplement 1 suggest that the negative effects of IL-2 can be alleviated or at least matched to that of IL2-REH at low IL-2 doses. Figure 5 supplement 1 indicates that minimum IL-2 dose (100 nM) that provides maximum pSTAT5 signaling in Tregs doesn't induce signaling in any of the effector cells except for the CD4 blasts. Therefore, a more ideal approach for characterizing the therapeutic effects of IL2-REH in vivo should involve comparison of different IL-2 and IL-2-REH doses in CD45RBhi CD4+ T cell transfer colitis model. In such a system, the activity of CD45RBlow CD4+ regulatory cells can be tested with or without IL-10 blockade, however blockade experiment is not crucial.

As mentioned above, the dose of IL-2 used in the DSS-colitis experiments (5mg of MSA-IL-2 every other day) is similar to the previously established ‘low dose IL-2’ used for the reversal of non-obese diabetes when adjusted for the molecular weight of albumin fusion (Grinberg-Bleyer et al., 2010) and the text has been updated to include this information (page 14, lines 17-19). In addition, further reducing the dose of IL-2 similar to that used in the clinical treatment of SLE did not improve colitis outcome (Author response image 2).

While we agree that the T cell transfer colitis model is a powerful method for assessing the suppressive capacity of Tregs, as discussed in our response to ‘essential revision 1’, the high frequency of Tregs among CD45RBlo cells will likely mask any effect of IL-2-REH expansion. For this reason, we think the DSS-induced colitis model is preferable.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

You have used structure based design to create IL-2-REH, a partial agonist that can promote preferential expansion of Treg in vivo. Testing IL-2-REH in two models of auto inflammatory disease- the DSS and transfer colitis models- you have found protection in the DSS model, but not the transfer colitis model, despite increase Treg numbers. The results are important to the field in providing a new approach to cytokine engineering and also pointing to limitations of Treg expansion in amelioration of auto inflammatory disease.

The reviewers appreciate your effort to look at the transfer colitis model. The point that IL2REH can promote proliferation, yet not improve the clinical outcome in the model is an important point for the field and should be included in the final paper.

1. Incorporate the transfer colitis data on Treg expansion and clinical scores in a supplemental figure and discuss the implications for the advance in selective Treg expansion, but remaining challenges to translate this into clinical impact.

Thank you for the summary of our work and suggestions about how to improve the manuscript. We agree that showing and discussing the apparent disconnect between Treg expansion and disease suppression in transfer colitis would be beneficial for readers. We now present that data in Figure 6 —figure supplement 2 and include a discussion of our findings (page 14 line 16 – page 15 line 11 and page 16 line 19-22).

Reviewer #1:

The authors have evaluated IL-2-REH in a different colitis model and tested a range of doses in the DSS model. The results support the ability of IL-2-REH to selectively expand Treg, but the clinical scores in the transfer colitis model were worse with IL-2-REH, even as Treg expansion was increased. The authors have addressed a number of minor issues in the text and added additional discussion that improve the manuscript. The authors have addressed a challenge related to selective expansion of Treg in vivo, but the limitation is that expansion of Treg may not be sufficient, in all cases, to achieve remission of inflammatory disease.

We thank the reviewer for their thoughtful evaluation of our work. We have updated the text to include a more complete explanation of our finding that Treg expansion does not necessarily correlate with disease outcome in the T cell transfer colitis model (page 14 line 16 – page 15 line 11).

Reviewer #3:

While the authors have spent praiseworthy effort on revising the key points raised by reviewers, some points require further clarification and revision. Because of the marginal effects of both IL-2 and IL-2-REH in DSS colitis and slightly disease-exacerbating potential of IL2-REH in the adoptive transfer colitis model, one should be extra cautious to mention the therapeutic effects of this particular IL-2 mutein in colitis. One of the reasons for the unexpected outcome in transfer colitis might actually be due to the timing of initial cytokine dose (day 24) which could have tipped the balance off towards effector activation. Therefore, it would be useful to share transfer colitis data with readers adding also a relevant statement into Discussion section stating the reservations about therapeutic effects of IL-2-REH, at least in the colitis models tested.

We agree that a more complete discussion of the in vivo effects of IL-2-REH specifically and Treg expansion more generally would be of use. To this end, we now present the transfer colitis data in Figure 6 —figure supplement 2 and discussion of differences in DSS and transfer colitis models (page 16 lines 19-22).

I agree that the transfer colitis model, while powerful, is unlikely to show differences between untreated and cytokine treated groups given the data presented in Figure 6—figure supplement 2. However, instead of replacing it with DSS-induced colitis model that only shows some marginal effect and in vitro suppression assays one should rather consider titrating the transferred CD45RBlo/Foxp3.GFP numbers down in transfer colitis setting. This may provide some room for Treg expansion and the effects of cytokine treatment may be visible if a regimen with earlier cytokine doses is adapted. Furthermore, the in vitro suppression assay graph in Figure 6—figure supplement 1 is insufficient without a "No Treg" control to evaluate the degree of suppression in the Treg+ groups.

We agree with the reviewer that under conditions of limiting Tregs, IL-2-REH may be able to provide Treg expansion such that colitis is suppressed. Indeed, this was the aim of the transfer colitis in Figure 6—figure supplement 2. We used a 1:30 CD45RBhi to Treg ratio, however, Tregs were still suppressive even at this low ratio. While we agree that optimization of the transfer colitis model may demonstrate the efficacy of IL-2-REH treatment under conditions of limiting Tregs or with altered timing, we feel that the scope of these experiments is beyond that of the current study.

To the reviewers second point, a “No Treg” control was included in Figure 6 —figure supplement 1 (see upper FACS plots) but for clarity we have now included a dashed line in the plot to indicate the CellTrace Violet dilution in the absence of Tregs.

https://doi.org/10.7554/eLife.65777.sa2

Article and author information

Author details

  1. Caleb R Glassman

    1. Department of Molecular and Cellular Physiology, Stanford University School of Medicine, Stanford, United States
    2. Immunology Graduate Program, Stanford University School of Medicine, Stanford, United States
    3. Department of Structural Biology, Stanford University School of Medicine, Stanford, United States
    Contribution
    Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    Coauthor on a patent which includes discoveries described in this manuscript (WO/2019/104092).
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3342-7989
  2. Leon Su

    1. Department of Molecular and Cellular Physiology, Stanford University School of Medicine, Stanford, United States
    2. Department of Structural Biology, Stanford University School of Medicine, Stanford, United States
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    Coauthor on a patent which includes discoveries described in this manuscript (WO/2019/104092).
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7654-9997
  3. Sonia S Majri-Morrison

    1. Department of Molecular and Cellular Physiology, Stanford University School of Medicine, Stanford, United States
    2. Department of Structural Biology, Stanford University School of Medicine, Stanford, United States
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    Coauthor on a patent which includes discoveries described in this manuscript (WO/2019/104092).
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2612-328X
  4. Hauke Winkelmann

    Department of Biology, University of Osnabrück, Osnabrück, Germany
    Contribution
    Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3688-6854
  5. Fei Mo

    Laboratory of Molecular Immunology and Immunology Center, National Heart, Lung, and Blood Institute, NIH, Bethesda, United States
    Contribution
    Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Peng Li

    Laboratory of Molecular Immunology and Immunology Center, National Heart, Lung, and Blood Institute, NIH, Bethesda, United States
    Contribution
    Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Magdiel Pérez-Cruz

    Division of Blood and Marrow Transplantation, Department of Medicine, Stanford University School of Medicine, Stanford, United States
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  8. Peggy P Ho

    Department of Neurology and Neurological Sciences, Stanford University, Stanford, United States
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  9. Ievgen Koliesnik

    Division of Infectious Diseases and Geographic Medicine, Department of Medicine, Stanford University, Stanford, United States
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  10. Nadine Nagy

    Division of Infectious Diseases and Geographic Medicine, Department of Medicine, Stanford University, Stanford, United States
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  11. Tereza Hnizdilova

    Laboratory of Tumor Immunology, Institute of Microbiology of Czech Academy of Sciences, Prague, Czech Republic
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  12. Lora K Picton

    1. Department of Molecular and Cellular Physiology, Stanford University School of Medicine, Stanford, United States
    2. Department of Structural Biology, Stanford University School of Medicine, Stanford, United States
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  13. Marek Kovar

    Laboratory of Tumor Immunology, Institute of Microbiology of Czech Academy of Sciences, Prague, Czech Republic
    Contribution
    Methodology, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6602-1678
  14. Paul Bollyky

    Division of Infectious Diseases and Geographic Medicine, Department of Medicine, Stanford University, Stanford, United States
    Contribution
    Methodology, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2499-9448
  15. Lawrence Steinman

    1. Department of Neurology and Neurological Sciences, Stanford University, Stanford, United States
    2. Department of Pediatrics, Stanford University, Stanford, United States
    Contribution
    Methodology, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  16. Everett Meyer

    Division of Blood and Marrow Transplantation, Department of Medicine, Stanford University School of Medicine, Stanford, United States
    Contribution
    Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  17. Jacob Piehler

    Department of Biology, University of Osnabrück, Osnabrück, Germany
    Contribution
    Methodology, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2143-2270
  18. Warren J Leonard

    Laboratory of Molecular Immunology and Immunology Center, National Heart, Lung, and Blood Institute, NIH, Bethesda, United States
    Contribution
    Methodology, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5740-7448
  19. K Christopher Garcia

    1. Department of Molecular and Cellular Physiology, Stanford University School of Medicine, Stanford, United States
    2. Department of Structural Biology, Stanford University School of Medicine, Stanford, United States
    3. Howard Hughes Medical Institute, Stanford University School of Medicine, Stanford, United States
    Contribution
    Conceptualization, Funding acquisition, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    kcgarcia@stanford.edu
    Competing interests
    Coauthor on a patent which includes discoveries described in this manuscript (WO/2019/104092). Founder of Synthekine.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9273-0278

Funding

National Institute of Allergy and Infectious Diseases (R37-AI051321)

  • K Christopher Garcia

Czech Science Foundation (18-12973S)

  • Marek Kovar

National Science Foundation (DGE-1656518)

  • Caleb R Glassman

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors would like to thank Geoff Smith and Arthur Weiss for technical guidance and thoughtful discussion. Emma Dean, Casey Weaver, Amy Fan, Robert Saxton and members of the Garcia Lab provided critical feedback and thoughtful discussion.

Ethics

Animal experimentation: Mice were maintained in the Stanford animal facility according to protocols approved by the Stanford University Institutional Animal Care and Use Committee under Administrative Panel on Laboratory Animal Care (APLAC) protocol number 32279.

Senior Editor

  1. Tadatsugu Taniguchi, Institute of Industrial Science, The University of Tokyo, Japan

Reviewing Editor

  1. Michael L Dustin, University of Oxford, United Kingdom

Reviewer

  1. Michael L Dustin, University of Oxford, United Kingdom

Publication history

  1. Received: December 15, 2020
  2. Accepted: April 30, 2021
  3. Version of Record published: May 18, 2021 (version 1)

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 634
    Page views
  • 101
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Fatima Alghoul et al.
    Research Article

    During embryogenesis, Hox mRNA translation is tightly regulated by a sophisticated molecular mechanism that combines two RNA regulons located in their 5’UTR. First, an internal ribosome entry site (IRES) enables cap-independent translation. The second regulon is a translation inhibitory element or TIE, which ensures concomitant cap-dependent translation inhibition. In this study, we deciphered the molecular mechanisms of mouse Hoxa3 and Hoxa11 TIEs. Both TIEs possess an upstream open reading frame (uORF) that is critical to inhibit cap-dependent translation. However, the molecular mechanisms used are different. In Hoxa3 TIE, we identify an uORF which inhibits cap-dependent translation and we show the requirement of the non-canonical initiation factor eIF2D for this process. The mode of action of Hoxa11 TIE is different, it also contains an uORF but it is a minimal uORF formed by an uAUG followed immediately by a stop codon, namely a ‘start-stop’. The ‘start-stop’ sequence is species-specific and in mice, is located upstream of a highly stable stem loop structure which stalls the 80S ribosome and thereby inhibits cap-dependent translation of Hoxa11 main ORF.

    1. Biochemistry and Chemical Biology
    M'Lynn E Fisher et al.
    Research Article

    The sarcoplasmic reticulum calcium pump SERCA plays a critical role in the contraction-relaxation cycle of muscle. In cardiac muscle, SERCA is regulated by the inhibitor phospholamban. A new regulator, dwarf open reading frame (DWORF), has been reported to displace phospholamban from SERCA. Here, we show that DWORF is a direct activator of SERCA, increasing its turnover rate in the absence of phospholamban. Measurement of in-cell calcium dynamics supports this observation and demonstrates that DWORF increases SERCA-dependent calcium reuptake. These functional observations reveal opposing effects of DWORF activation and phospholamban inhibition of SERCA. To gain mechanistic insight into SERCA activation, fluorescence resonance energy transfer experiments revealed that DWORF has a higher affinity for SERCA in the presence of calcium. Molecular modeling and molecular dynamics simulations provide a model for DWORF activation of SERCA, where DWORF modulates the membrane bilayer and stabilizes the conformations of SERCA that predominate during elevated cytosolic calcium.
