Post-transcriptional repression of circadian component CLOCK regulates cancer-stemness in murine breast cancer cells

  1. Takashi Ogino
  2. Naoya Matsunaga
  3. Takahiro Tanaka
  4. Tomohito Tanihara
  5. Hideki Terajima
  6. Hikari Yoshitane
  7. Yoshitaka Fukada
  8. Akito Tsuruta
  9. Satoru Koyanagi
  10. Shigehiro Ohdo  Is a corresponding author
  1. Department of Pharmaceutics, Faculty of Pharmaceutical Sciences, Kyushu University, Japan
  2. Department of Glocal Healthcare Science, Faculty of Pharmaceutical Sciences, Kyushu University, Japan
  3. Department of Biological Sciences, School of Science, The University of Tokyo, Japan
Research Article
  • Cited 0
  • Views 706
  • Annotations
Cite this article as: eLife 2021;10:e66155 doi: 10.7554/eLife.66155

Abstract

Disruption of the circadian clock machinery in cancer cells is implicated in tumor malignancy. Studies on cancer therapy reveal the presence of heterogeneous cells, including breast cancer stem-like cells (BCSCs), in breast tumors. BCSCs are often characterized by high aldehyde dehydrogenase (ALDH) activity, associated with the malignancy of cancers. In this study, we demonstrated the negative regulation of ALDH activity by the major circadian component CLOCK in murine breast cancer 4T1 cells. The expression of CLOCK was repressed in high-ALDH-activity 4T1, and enhancement of CLOCK expression abrogated their stemness properties, such as tumorigenicity and invasive potential. Furthermore, reduced expression of CLOCK in high-ALDH-activity 4T1 was post-transcriptionally regulated by microRNA: miR-182. Knockout of miR-182 restored the expression of CLOCK, resulted in preventing tumor growth. Our findings suggest that increased expression of CLOCK in BCSCs by targeting post-transcriptional regulation overcame stemness-related malignancy and may be a novel strategy for breast cancer treatments.

Introduction

Breast cancer is the most common cancer in women globally. There are many diagnostic and therapeutic strategies developed for the treatment of breast cancer; however, recurrence and metastasis remain causes of poor prognosis in breast cancer patients. These problems are thought to be associated with tumor heterogeneity, as tumors are composed of heterogeneous cells with structural and biochemical differences (Anderson et al., 2011; Burrell et al., 2013; Ding et al., 2012). Some specific tumor cell populations present as cancer stem-like cells (CSCs) have a high malignant potential and resistance to chemotherapy, due to their high differentiation and self-renewal capacities (Bonnet and Dick, 1997; Meacham and Morrison, 2013; Patrawala et al., 2006; Visvader and Lindeman, 2008). Therefore, targeting CSCs may improve breast cancer prognosis, but remains challenging due to the malignant properties of CSCs.

Breast cancer stem-like cells (BCSCs) were first reported in solid tumors and specific BCSC markers such as cell surface antigens CD44/CD24 have been identified to isolate stem-like cell populations (Al-Hajj et al., 2003). Aggressive breast tumors like triple-negative breast cancers (TNBCs) are composed of large populations of cells with high aldehyde dehydrogenase (ALDH) activity (Charafe-Jauffret et al., 2009; Ginestier et al., 2007). Evidence suggests that breast cancer cells exhibiting high ALDH activity are associated with poor prognosis and late-stage tumors (Charafe-Jauffret et al., 2010; Marcato et al., 2011); ALDH is now also considered as a CSC marker for other types of cancers (Jiang et al., 2009; Li et al., 2010; Pearce et al., 2005).

Our recent study demonstrated that the number of cells with high ALDH activity exhibits circadian oscillation in 4T1 breast cancer tumors implanted in mice (Matsunaga et al., 2018). A time-dependent variation in the number of cells with high ALDH activity cells affected the anti-tumor effects of chemotherapeutic drugs. Molecular circadian oscillators consisting clock genes induce time-dependent changes in the chemosensitivity of cancer cells by controlling the expression of cell cycle regulators and apoptotic factors (Horiguchi et al., 2013). However, we also found that oscillation in the expression of clock genes was suppressed in ALDH-positive CSCs but not in the surrounding cells in the tumor microenvironment (Matsunaga et al., 2018). WNT10a rhythmically secreted from the microenvironment stimulates ALDH-positive CSCs in a time-dependent manner, and this activation of the WNT/β-catenin signaling in CSCs results in a rhythmic expression of ALDH.

Studies have reported the association of clock gene dysfunction with cancer malignancy (Katamune et al., 2019; Katamune et al., 2016; Masri et al., 2015). Notably, oncogenic transformation of Period2 circadian gene-defective cells results in the development of chemoresistance (Katamune et al., 2019), suggesting the relevance of circadian clock disruption in the maintenance of CSC properties. However, the role of the circadian clock system in the regulation of CSC biology needs to be explored further.

In this study, we elucidated the role of each circadian clock gene in the maintenance of CSC properties of mouse 4T1 breast cancer cells. Among the clock genes, expression levels of Clock mRNA and its protein were downregulated in ALDH-positive 4T1 cells, and transduction of CLOCK-expressing lentivirus into the ALDH-positive 4T1 cells attenuated their malignant potential. Further, we investigated the underlying mechanism of CLOCK downregulation in ALDH-positive 4T1 cells. Our findings present a possible strategy to overcome the malignancy of BCSCs by targeting miRNA-mediated post-transcriptional regulation of circadian component CLOCK.

Results

Expression of CLOCK is suppressed in ALDH-positive 4T1 cells

CSCs are often characterized by high ALDH activity associated with malignancy and is used for identification and isolation of CSCs (Ginestier et al., 2007; Ma and Allan, 2011; Nagare et al., 2016). As reported previously (Kim et al., 2013), ALDEFULOR assay revealed the presence of a high ALDH activity (ALDH-positive) cell population among the 4T1 breast cancer cells. To confirm the stem-like properties of the isolated ALDH-positive 4T1 cells, the separated cells were plated under spheroid-forming conditions. The ALDH-positive 4T1 cells were capable of forming tumor spheroids (p<0.01, Figure 1A), whereas such spheroid formations were not observed by ALDH-negative 4T1 cells, suggesting characterization of CSC-like properties by high ALDH activity in 4T1 cells.

Figure 1 with 1 supplement see all

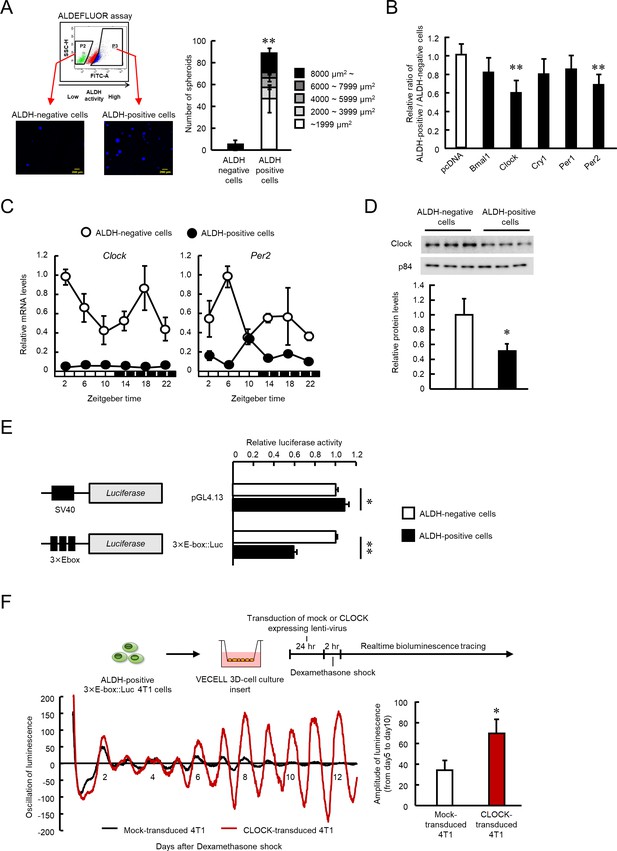

The role of CLOCK in the regulation of ALDH activity in 4T1 mouse breast cancer cells.

(A) Representative photograph of Hoechst-stained tumor spheroids of ALDH-negative or -positive 4T1 cells in agarose. Values are the mean with SD (n = 3). **p<0.01; significant difference from ALDH-negative cells (t6 = 12.598, Student's t-test). (B) Influence of each clock gene expression vector on the ratio of ALDH positive- to negative-cell populations. ALDH-positive 4T1 cells were cultured on 3D scaffold chambers after being transiently transfected with each expression vector using electroporation. ALDH activity was evaluated 5 days after transfection. Values are the mean with SD (n = 6). The mean value of the pcDNA group is set at 1.0. **p<0.01; significant difference from the pcDNA group (F5,30 = 6.807, p<0.001, ANOVA, Dunnett’s post hoc test). (C) The temporal mRNA expression profiles of Clock and Per2 in ALDH-positive and ALDH-negative cells isolated from 4T1 tumor-bearing mice kept under the light/dark cycle (zeightgber time 0. lights on ; zeitgeber time 12. lights off). Values are the mean with SD (n = 3). Data were normalized by β-Actin mRNA levels. (D) Difference in the expression levels of CLOCK protein between ALDH-negative and -positive 4T1 cells. The value of ALDH-negative cells is set at 1.0. Values are the mean with SD (n = 3). *p<0.05; significant difference between two groups (t4 = 3.915, Student’s t-test). (E) Difference in the promoter activities of E-box-driven luciferase reporter in ALDH-negative and -positive 4T1 cells. pGL4.13 or 3 × E-box::Luc reporter vectors were transfected into 4T1 cells, and luciferase assay was performed after cell sorting. Values are the mean with SD (n = 3). The value of ALDH-negative cells is set at 1.0. **p<0.01, *p<0.05; significant difference between two groups (t4 = 2.941 for pGL4.13, t4 = 43.287 for 3 × E-box::Luc, Student’s t-test). (F) The influence of lenti-viral CLOCK transduction on the circadian oscillation of E-box-driven luciferase bioluminescence. Top panel shows the scheme of experimental procedure. Bottom panels show real-time bioluminescence tracing of luciferase activity after dexamethasone synchronization (left) and mean of amplitude of bioluminescence oscillation from day 5 to day 10 after synchronization (n = 3) (right). *p<0.05; significant difference between two groups (t4 = 3.691, Student’s t-test).

Next, we investigated whether the clock gene product affected the ALDH activity of 4T1 cells. To achieve this, ALDH-positive 4T1 cells were collected by ALDEFULOR assay, and then transfected with plasmid vectors expressing products of the circadian genes, BMAL1, CLOCK, CRY1, PER1, or PER2 and these expression vectors sufficiently increased the levels of circadian gene transcripts (Figure 1—figure supplement 1). Among the gene products, CLOCK and PER2 significantly reduced the ratio of the ALDH-positive cell population to the ALDH-negative cell population (p<0.01 respectively, Figure 1B); but the effect was more potent in CLOCK-transfected 4T1 cells. As we reported previously, the expression levels and circadian oscillation of Clock and Per2 mRNA were disrupted in 4T1 tumor bearing mice (Figure 1C). In particular, the expression levels of Clock mRNA were lower in ALDH-positive cells than ALDH-negative cells throughout the day. Therefore, we further focused on the role of the Clock gene in ALDH-positive 4T1 cells.

CLOCK acts as a transcriptional factor by binding to E-box (CACGTG) elements to increase the expression of target genes (Gekakis et al., 1998; Hogenesch et al., 1998; Ueda et al., 2005). The levels of Clock mRNA and protein were significantly lower in ALDH-positive 4T1 cells than in ALDH-negative 4T1 cells in vitro (p<0.05, Figure 1D); also E-box driven luciferase activity was significantly reduced (p<0.01, Figure 1E). Furthermore, increased CLOCK expression by lentiviral transduction enhanced oscillation of E-box driven luciferase bioluminescence in ALDH-positive 4T1 cells (p<0.05, Figure 1F). These findings suggest a negative correlation between CLOCK function and stemness-related properties in 4T1 cells.

CLOCK-mediated suppression of 4T1 cell malignancy

We investigated if an increase in CLOCK levels alters the malignant properties of 4T1 cells, by infecting 4T1 cells with CLOCK expressing lentivirus. Transduction of the Clock gene significantly increased its protein levels in 4T1 cells (p<0.01, Figure 2A). Flow-cytometric analysis revealed a reduction in the population of ALDH-positive 4T1 cells by transduction of the Clock gene (p<0.01, Figure 2B). Nine isoforms of ALDH have been confirmed to be active in ALDEFLUOR assay (Zhou et al., 2019); however, only the expressions of Aldh3a1, 3a2, 3b1, and 5a1 were detected in 4T1 cells. Among them, expression levels of Aldh3a1 were considerably decreased in CLOCK-expressing 4T1 cells (Figure 2C), suggesting repression of ALDH activity by CLOCK in 4T1 cells through the downregulation of the isoform Aldh3a1. Database analysis of the mouse Aldh3a1 gene upstream region led to identification of CCAAT/enhancer binding protein α (C/EBPα) as a mediator of CLOCK-controlled expression of ALDH (Figure 2—figure supplement 1A). There was increase of C/EBPα expression in enhanced CLOCK-expressing 4T1 cells (Figure 2—figure supplement 1B). Transfection of 4T1 cells with C/EBPα-expressing vectors decreased gene promoter activity and protein levels of Aldh3a1 (Figure 2—figure supplement 1D and E), and knockdown of C/EBPα increased protein levels of Aldh3a1 (Figure 2—figure supplement 1F). These results suggest that C/EBPα has important roles on CLOCK-mediated ALDH suppression, through transcriptional repression of Aldh3a1 gene in 4T1 cells. A significant decrease in the mRNA levels of stemness related factors Klf4, Nanog, and Myc was also noted in the ALDH-positive population of enhanced CLOCK-expressing 4T1 cells (p<0.01, Figure 2D). Additionally, growth ability and spheroid formation of enhanced CLOCK-expressing 4T1 cells were lower than those of mock lentivirus-transduced cells (p<0.01, Figure 2E and F).

Figure 2 with 1 supplement see all

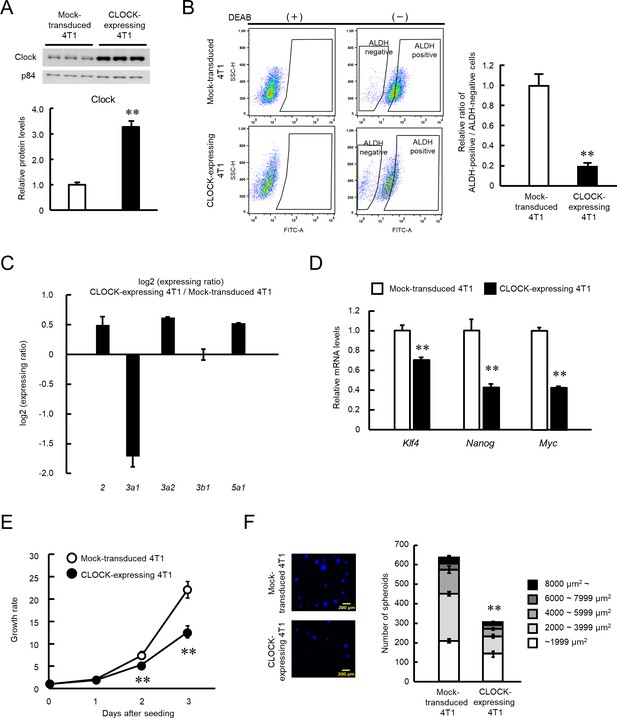

Suppression of stemness properties of 4T1 cells by CLOCK.

(A) CLOCK protein levels in mock-transduced and Clock-expressing lentivirus-infected 4T1 cells. Values show mean with SD (n = 3). **p<0.01; significant difference from mock-transduced 4T1 cells (t4 = 15.736, Student’s t-test). (B) The flow cytometric analysis of ALDEFLUOR assay of CLOCK-expressing 4T1 cells. The population of ALDH-positive cells was defined based on each DEAB group, whose means of fluorescence intensity were set almost the same. The right panel shows the difference in the ratio of ALDH positive- to negative-cell populations between mock-transduced and CLOCK-expressing 4T1 cells. Values show the mean with SD (n = 6). **p<0.01; significant difference from mock-transduced 4T1 cells (t10 = 22.455, Student’s t-test). (C) Difference in the mRNA levels of ALDH isoforms between mock-transduced and CLOCK-expressing 4T1 cells. Values show the mean with SD (n = 3). (D) The mRNA levels of stemness-related genes in ALDH-positive mock-transduced and CLOCK-expressing 4T1 cells. Data were normalized by the18s rRNA levels. Values show the mean with SD (n = 3). The values of the mock-transduced group are set at 1.0. **p<0.01: significant difference from mock-transduced 4T1 cells (t4 = 9.261 for Klf4; t4 = 8.001 for Nanog; t4 = 32.576 for Myc; Student’s t-test). (E) Difference in growth ability between mock-transduced and CLOCK-expressing 4T1 cells. Values show the mean with SD (n = 5–6). Cell viability of seeding day (day 0) are set at 1.0. **p<0.01; significant difference between from mock-transfected 4T1 cells at corresponding time points. (F7, 38 = 425.953, two-way ANOVA with the Tukey–Kramer test). (F) Difference in the spheroid formation ability between mock-transduced and CLOCK-expressing 4T1 cells. The left panel shows a representative photograph of the Hoechst-stained spheroids formed by mock-transduced or CLOCK-expressing 4T1 cells. The right panel shows the number of spheroid and the parcellation of the diameter. Values show the mean with SD (n = 3). **p<0.01; significant difference from mock-transduced 4T1 cells (t4 = 27.067, Student’s t-test, for number of spheroids).

Malignancy of CSCs is characterized by their invasive and metastatic capacities (Polyak and Weinberg, 2009; Singh and Settleman, 2010; Weidenfeld and Barkan, 2018), hence we conducted two types of invasion assays in vitro. TGFβ1-induced invasion of cancer cells into collagen type 1 was assessed using a 3D cell culture chip, and the invasive potential of enhanced CLOCK-expressing 4T1 cells was lower than that of Mock-transduced 4T1 cells (p<0.01, Figure 3A). The low invasive potential of enhanced CLOCK-expressing 4T1 cells was also observed in the spheroid invasion assay (Figure 3B). Mock-transduced 4T1 cells formed spheroids that invaded into the hydrogels, whereas no invasion by CLOCK-expressing 4T1 cells-formed spheroids was detected. One of the main processes of invasion is epithelial-mesenchymal transition (EMT), represented by decrease in epithelial adherent molecules and increase in mesenchymal adherent molecules (Nieto et al., 2016). There was an increase in mRNA and protein levels of epithelial molecules, E-cadherin, and Claudin1 in enhanced CLOCK-expressing 4T1 cells (Figure 3C and Figure 3D). In contrast, the expression of mesenchymal molecules, Vimentin, Snail1, and Twist1, was decreased in CLOCK-expressing 4T1 cells (Figure 3C and Figure 3D). Taken together, the in vitro data suggest attenuation of 4T1 cells invasive potential through EMT suppression by enhancement of CLOCK expression.

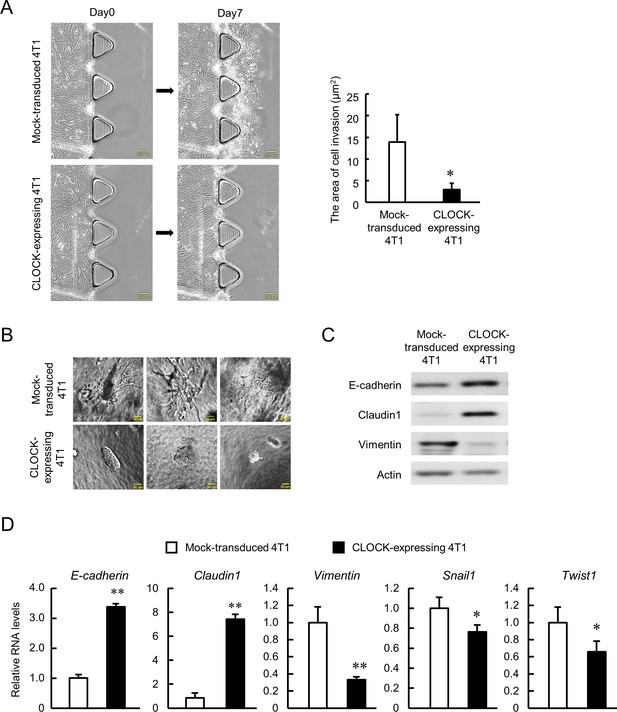

Suppression of invasive potential of 4T1 cells by CLOCK.

(A) Decrease in the invasion ability of CLOCK-expressing 4T1 cells. Microphotographs show invasion of cells into 3D collagen gel. The right panel shows difference in the invasion area between mock-transduced and CLOCK-expressing 4T1 cells. Values show mean with SD (n = 3). *p<0.05; significant difference from mock-transduced 4T1 cells (t4 = 2.968, Student’s t-test). (B) Representative microphotographs of spheroid invasion by mock-transduced and CLOCK-expressing 4T1 cells. Invasive morphology was detected by mock-transduced 4T1 cells. (C) Difference in the expression of adhesion molecules between mock-transduced and CLOCK-expressing 4T1 cells. (D) Differential expression of EMT-related molecules between mock-transduced and CLOCK-expressing 4T1 cells. E-cadherin and Claudin1 indicate the ‘epithelial’ state, and Vimentin, Snail1, and Twist1 indicate the ‘mesenchymal’ state. Data were normalized by the 18s rRNA levels. Values show the mean with SD (n = 3). The values of the mock-transduced group are set at 1.0. **p<0.01, *p<0.05; significant difference compared with mock-transduced 4T1 cells (t4 = 28.550 for E-cadherin; t4 = 18.159 for Claudin1; t4 = 6.233 for Vimentin; t4 = 2.873 for Snail1; t4 = 2.881 for Twist1; Student’s t-test).

Anti-tumor effects of CLOCK in 4T1 cells-bearing mice

Next, we investigated the anti-tumor effects of CLOCK in 4T1 cell-bearing mice. Mock-transduced or enhanced CLOCK-expressing 4T1 cells were implanted into the mammary fat pad of female BALB/c mice, and the tumor volume was measured every week. The growth rate of enhanced CLOCK-expressing 4T1 cell-formed tumors was significantly lower than that of tumors formed by Mock-transduced 4T1 cells (p<0.01, Figure 4A). Similarly, low intensity of immunohistological staining for Ki-67 was observed in enhanced CLOCK-expressing 4T1 tumors (p<0.01, Figure 4B). Moreover, CLOCK-expressing 4T1 cell-bearing mice had limited formation of tumor colonies in lung and bone marrow (p<0.01, Figure 4C and D). The in vivo results reveal suppression of tumor malignancy by enhancement of CLOCK expression in 4T1 cells.

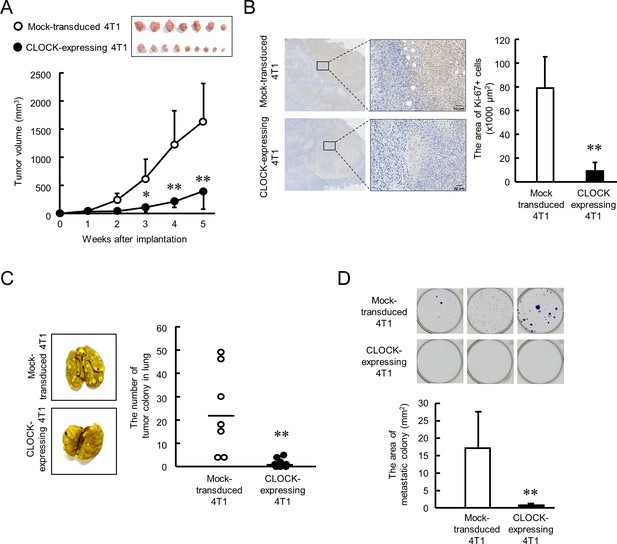

CLOCK-induced suppression of malignancy of 4T1 tumors in mice.

(A) The ability of tumor growth in mice implanted with mock-transduced or CLOCK-expressing 4T1 cells. Top panel shows the photograph of tumor burden isolated from each 4T1 cell implanted mice 6 weeks after implantation. Values are the mean with SD (n = 8–9 animals). **p<0.01; *p<0.05, significant difference compared with mock-transduced 4T1 cell-implanted mice at corresponding time points (F9, 67 = 19.956, p<0.001; two-way ANOVA with the Tukey–Kramer test). (B) Immunohistochemical staining of Ki-67 in mock-transduced or CLOCK-expressing 4T1 tumors. Complexes with Ki-67 and antibodies were visualized by 3, 3’-diaminobenzidine (brown), and nuclei were stained with hematoxylin (blue). Scale bars indicate 50 µm. Values show mean with SD (n = 6 animals). **p<0.01; significant difference from mock-transduced 4T1 cells (t10 = 6.213, Student’s t-test). (C) The number of pulmonary tumor colonies in mice implanted with mock-transduced or CLOCK-expressing 4T1 cells. Pulmonary colonies were assessed 6 weeks after implantation. The left panels show representative photographs of pulmonary tumor colonies of mock-transduced or CLOCK-expressing 4T1 cells implanted in mice. Right panel shows the quantification of the number of tumor colonies in lungs (n = 7–9 animals). **p<0.01; significant difference from mock-transdaced 4T1 (t14 = 3.601; Student’s t-test). (D) The number of metastatic colonies isolated from tumor-bearing mice femora bone marrow. The top panels show the representative photograph of tumor colonies stained by crystalbiolet. The bottom panel shows the quantification of the area of tumor colonies. Values show mean with SD (n = 8 animals). **p<0.01; significant difference from mock-transduced 4T1 cells (t14 = 3.871, Student’s t-test).

Post-transcriptional regulation of Clock mRNA expression in ALDH-positive 4T1 cells

To investigated the underlying mechanisms of downregulation of Clock expression in ALDH-positive 4T1 cells may be a therapeutic target for overcoming malignant properties of BCSCs; hence, we constructed a luciferase reporter containing the 5’-upstream region of the mouse Clock gene (Clock::Luc). The 5’-upstream regions included ROREs (orphan receptor response elements), RARE (retinoic acid response element), and an E-box like sequence (Figure 5A left). The expression levels of Luciferase mRNA derived from Clock::Luc in ALDH-positive 4T1 cells was slightly, but significantly, higher than in ALDH-negative cells (p<0.01, Figure 5A right). Moreover, no significant difference in mRNA levels of transcription factors regulating Clock gene expression between ALDH-positive and -negative cells was found (Supplementary file 2). This suggests that suppression of Clock gene expression in ALDH-positive 4T1 cells was not due to decrease in its transcriptional activity; hence, we changed focus to the post-transcriptional regulation mechanism repressing Clock mRNA expression in ALDH-positive cells.

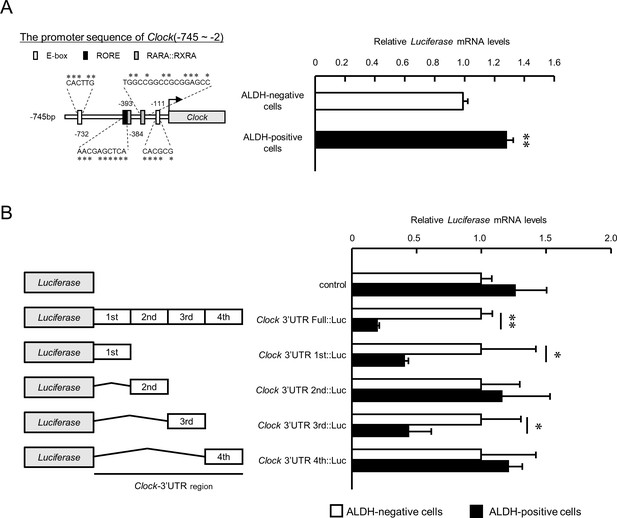

The post-transcriptional regulation of Clock gene expression in ALDH-positive 4T1 cells.

(A) Comparison of the promoter activity of the mouse Clock gene between ALDH-negative and -positive 4T1 cells. Left panel shows the schematic representation of the mouse Clock gene promoter. Numbers near the boxes are nucleotide residues in which E-box, RORE, and RAR/RXR response elements are positioned relative to the transcription start site (+1). Right panel shows the mRNA expression of the Luciferase gene Clock::Luc in ALDH-negative and -positive 4T1 cells. Data were normalized by Neomycin phosphotransferase (Neor) as an internal control. Values are the mean with SD (n = 3).**p<0.01;significant difference between from ALDH-negative cells. The value of ALDH-negative cells is set at 1.0. (B) The mRNA expression of the Luciferase gene in ALDH-negative and -positive 4T1 cells transfected with luciferase reporter constructs containing varying lengths of the 3’UTR of the Clock gene. Data were normalized by the expression levels of hRLuc mRNA. Values are the mean with SD (n = 3). The values of each ALDH-negative cell are set at 1.0. *p<0.05, **p<0.01; significant difference between the two groups (t4 = 7.665 for Clock-3’UTR Full::Luc; t4 = 4.375 for Clock-3’UTR 1 st::Luc; t4 = 2.751 for Clock-3’UTR 3rd::Luc; Student’s t-test).

Luciferase mRNA level of the reporter vector containing bp +1 to +4522 of the mouse Clock 3’UTR (Clock 3’UTR Full::Luc) was markedly decreased compared with that of the control pGL4.13 reporter vector without the 3’UTR (Figure 5B). Furthermore, the Luciferase mRNA level of the Clock 3’UTR Full::Luc vector in ALDH-positive 4T1 cells was significantly lower than in ALDH-negative cells (p<0.01), suggesting post-transcriptional regulation of Clock expression in ALDH-positive 4T1 cells. Significant differences in the luciferase mRNA levels between ALDH-positive and ALDH-negative 4T1 cells were also detected when the cells were transfected with Clock 3’UTR 1 st::Luc and Clock 3’UTR 3rd::Luc (p<0.05 respectively, Figure 5B). These results suggest that specific 3’UTRs of mouse Clock mRNA are responsible for its post-transcriptional regulation in ALDH-positive 4T1 cells.

miR-182 suppresses Clock mRNA expression in ALDH-positive 4T1 cells

miRNAs suppress target gene expression by targeting the mRNA 3’UTR (Lewis et al., 2005). Therefore, we attempted to identify the miRNA repressing the expression of Clock mRNA in ALDH-positive cells by conducting miRNA microarray analysis. The analysis was done by setting three identification criteria: (Acharyya et al., 2012) miRNA expression twofold higher in ALDH-positive cells than in ALDH-negative cells, with signal intensity of at least over 100; (Al-Hajj et al., 2003) miRNAs binding to the Clock 3’UTR based on the miRDB database (target score >90); and (Anderson et al., 2011) miRNAs binding to the Clock 3’UTR from bp +1 to +900 or from bp +1922 to +3600 based on the microRNA.org database (Figure 6A). These analyses identified mmu-miR-182 as the miRNA upregulated in ALDH-positive cells with the greatest fold change (Supplementary file 3). There was no significant difference in the levels of previously known Clock gene-targeting miRNAs like miR-1306, miR-290–295 family, miR-17 (Umemura et al., 2017), and miR-211 (Bu et al., 2018). Therefore, we focused on miR-182 as a possible candidate to repress Clock mRNA expression in ALDH-positive cells.

Figure 6 with 2 supplements see all

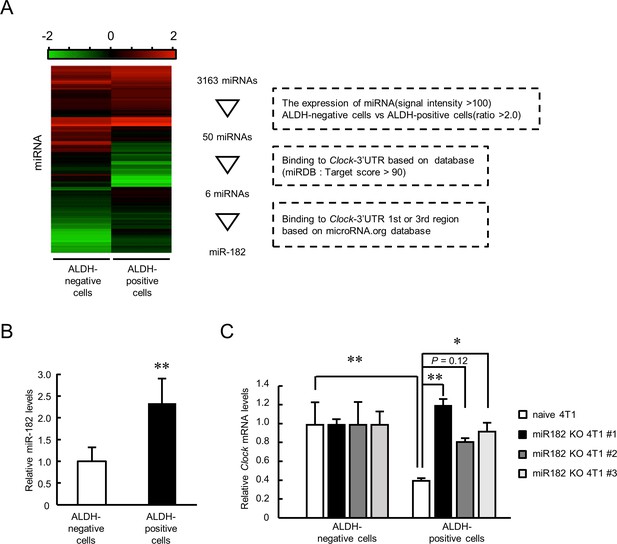

Role of miR-182 in post-transcriptional regulation of Clock gene expression in ALDH-positive 4T1 cells.

(A) Procedure of selecting miRNA that regulates Clock expression in ALDH-positive 4T1 cells. Heatmap shows the differential expression of miRNA between ALDH-negative and -positive 4T1 cells. microRNA target prediction databases (miRDB and microRNA.org) were applied to this selection. (B) The expression levels of mmu-miR-182 in ALDH-negative and -positive cells. Data were normalized by the β-Actin mRNA levels. Values are the mean with SD (n = 5). The value of ALDH-negative cells is set at 1.0. **p<0.01; significant difference from ALDH-negative cells (t8 = 3.828, Student’s t-test). (C) miR-182 negatively regulates the expression of Clock mRNA in ALDH-positive 4T1 cells. Three miR-182 KO clones were selected for this experiment. Data were normalized by the 18 s rRNA levels. Values are the mean with SD (n = 3). The values of ALDH-negative cells are set at 1.0. *p<0.05, **p<0.01; significant difference between two groups (F7,16 = 7.681, p<0.01, ANOVA with the Tukey–Kramer post hoc test).

The expression of miR-182 in ALDH-positive cells was significantly higher than that in ALDH-negative cells (p<0.01, Figure 6B). Treatment with a miR-182 inhibitor increased the luciferase activity in Clock 3’UTR 1 st::Luc-transfected 4T1 cells (Figure 6—figure supplement 1A); indicating post-transcriptional regulation of mouse Clock mRNA expression through its 3’UTR from bp +1 to +900 by miR-182. We prepared miR-182 knockout (KO) 4T1 cells using CRISPR/Cas9 system (Figure 6—figure supplement 1B). Three clones were isolated and deletion of genomic region of miR-182 was confirmed (Figure 6—figure supplement 1C). Clock gene mRNA levels significantly increased in the ALDH-positive population of all three miR-182 KO 4T1 cells (Figure 6C), indicating that miR-182 suppresses the expression of Clock mRNA in ALDH-positive 4T1 cells.

Depletion of miR-182 suppresses tumor growth in 4T1 cells-bearing mice

The final set of experiments investigated whether depletion of miR-182 affects tumor malignant properties. Naive 4T1 or miR-182 KO 4T1 #1 cells were implanted into the mammary fat pad of female BALB/c mice. The tumor growth of miR-182 KO 4T1 cell-bearing mice was significantly lower than that of tumors formed by naive 4T1 cells (p<0.01, Figure 7A). The expression levels of Clock mRNA in resected tumor were significantly increased by knockout of miR-182 (Figure 7—figure supplement 1A), and the effect was more potent in ALDH-positive cell (Figure 7—figure supplement 1B). Limited number of tumor colonies were observed in miR-182 KO cells implanted-mice lung (p<0.01, Figure 7B), also in bone marrow (p<0.01, Figure 7C). These data suggest that tumor malignancy can be attenuated by targeting miR-182 through post-transcriptional activation of CLOCK. Furthermore, highly expression levels of miR-182 were detected in naive 4T1 cell-formed tumor compared with other organs (Figure 7D). Similar results were also confirmed in clinical data from miR-TV database (Figure 7—figure supplement 2), suggesting that tumor-selective effects were expected by targeting miR-182. Taken together, miR-182-mediated post-transcriptional regulation of CLOCK may be a novel insight for treatment of breast cancer attenuating tumor malignancy.

Figure 7 with 4 supplements see all

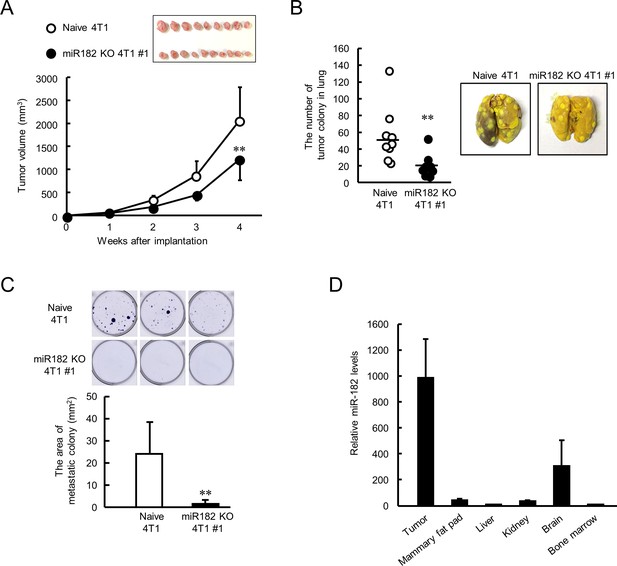

Suppression of malignant properties of 4T1 tumor by knockout of miR-182.

(A) The ability of tumor growth in mice implanted with naive or miR-182 KO 4T1 cells. Values are the mean with SD (n = 9–10 animals). **p<0.01; significant difference compared with naive 4T1 cell-implanted mice at corresponding time points (F7, 63 = 39.494, p<0.001; two-way ANOVA with the Tukey–Kramer test). Top panel shows the photograph of tumors isolated from each 4T1 cell implanted mice 5 weeks after implantation. (B) The number of pulmonary tumor colonies in mice implanted with naive or miR-182 KO 4T1 cells. Left panel shows the quantification of the number of tumor colonies in lungs (n = 9 animals). **p<0.01; significant difference from naive 4T1 group(t16 = 2.993; Student’s t-test). The right panels show representative photographs of pulmonary tumor colonies of naive or miR-182 KO 4T1 cells implanted in mice. Pulmonary tumor colonies were assessed 5 weeks after implantation. (C) The number of metastatic colonies isolated from tumor-bearing mice femora bone marrow. The top panels show the representative photograph of tumor colonies stained by crystalbiolet. The bottom panel shows the quantification of the area of tumor colonies. Values show mean with SD (n = 6 animals). **p<0.01; significant difference from naive 4T1 cells (t10 = 3.354, Student’s t-test). (D) The organ distribution of miR-182 in naive 4T1-bearing mice. Data were normalized by the 18 s rRNA levels. Values are the mean with SD (n = 3 animals). The value of bone marrow is set at 1.0.

Discussion

The dysfunction of circadian clock genes is associated with tumor malignancy (Katamune et al., 2019; Katamune et al., 2016; Masri et al., 2015); hence, activation of clock function can be a therapeutic strategy for treatment of cancers. Our current study demonstrates a relationship between the malignancy of BCSCs and the expression of CLOCK, a major component of the molecular circadian machinery. Low expression levels of CLOCK were detected in ALDH-positive 4T1 cells, and enhancing CLOCK expression in 4T1 cells attenuated tumor growth and invasive potential. Furthermore, the expression of CLOCK in ALDH-positive 4T1 cells is regulated at the post-transcriptional level and may be a target to attenuate the malignancy of 4T1 cells (Figure 8).

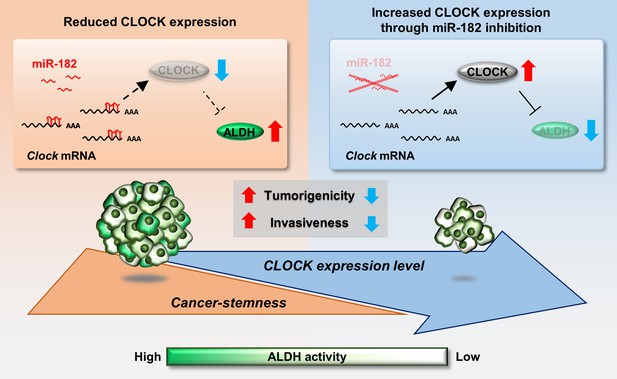

Schematic diagrams indicating the role of CLOCK in the regulation of malignancy of breast cancer stem-like cells.

mmu-miR-182 post-transcriptionally suppresses the expression of Clock in ALDH-positive 4T1 cells, leading to maintenance of their malignancy. Increased CLOCK levels attenuate the stemness properties of ALDH-positive cells.

Enhancement of CLOCK expression decreased the number of ALDH-positive populations of 4T1 cells. The detoxification capacity of ALDH can protect stem cells against oxidative damage and is an important factor in their longevity (Bigarella et al., 2014; Ito et al., 2006). High ALDH activity also protects cells from the cytotoxic effects of chemotherapeutic drugs through the degradation of reactive oxygen species (Awad et al., 2010; Katamune et al., 2019). High activity of ALDH correlates with tumor grade, metastasis, and poor prognosis in patient breast tumor (Charafe-Jauffret et al., 2010; Marcato et al., 2011); consequently, low expression levels of CLOCK in ALDH-positive 4T1 cells likely promote their malignant properties by regulating ALDH activity. C/EBPα was identified as a mediator of CLOCK-induced ALDH suppression. Reports suggest that upregulation of C/EBPα contributes suppression of breast tumors through induction of apoptosis and inhibition of cell proliferation (Lourenço and Coffer, 2017). These tumor-suppressive effects may also correlate with repressing the transcription of Aldh3a1. However, further investigation is required to evaluate whether this CLOCK-induced ALDH suppression can be generalized to all types of cancer cells because the function of C/EBPα is altered by organs, differentiation state of cells, and transcriptional co-regulators (Lourenço and Coffer, 2017; Ossipow et al., 1993; Ramji and Foka, 2002).

The circadian clock genes are ubiquitously expressed throughout the body, generating circadian oscillations of numerous biological processes at the molecular level (Yoo et al., 2004; Zvonic et al., 2006). The molecular oscillations underlying the generation of circadian rhythms develop gradually during ontogenesis. Oscillation in the expression of clock genes is not detected in immature cells such as mouse embryonic stem (ES) cells and induced pluripotent stem (iPS) cells (Yagita et al., 2010). In particular, the expression of CLOCK is decreased in mouse embryos, and increasing CLOCK expression during development is considered to be important for normal differentiation (Umemura et al., 2017). We previously reported that oscillations of clock genes were dampened in ALDH-positive 4T1 cells compared with those in ALDH-negative cell populations (Matsunaga et al., 2018). In this study, we also observed a decrease in expression of CLOCK mRNA and protein in ALDH-positive 4T1 cells in vivo and in vitro, with lower expression decreasing E-box-mediated transcriptional activity. Increased CLOCK expression by lentiviral transduction enhanced oscillation of E-box-mediated reporter luciferase bioluminescence in ALDH-positive 4T1 cells. It is difficult to distinguish the role of CLOCK in the regulation of ALDH expression from its role in the molecular circadian machinery; however, dampened rhythm of clock gene expression in ALDH-positive 4T1 cells may contribute to their stem-like properties. Further studies are required to investigate the relationship between enhanced oscillation of circadian gene expression and attenuation of cancer malignancy.

The malignancy of CSCs is altered depending on their differential states (Bisson and Prowse, 2009; Campos et al., 2010; Xiong et al., 2017; Tampaki et al., 2017). The malignant properties of 4T1 cells were attenuated by transduction with CLOCK expressing lentivirus, resulting in decreased tumor growth of tumor-bearing mice. Some pluripotent markers, such as Klf4, Nanog, and Myc, have important roles in maintenance of the undifferentiated state of cancer cells (Jeter et al., 2011; Lathia and Liu, 2017; Lawson et al., 2015; Yu et al., 2011), negatively correlated with treatment outcomes in cancer patients (Cheng et al., 2018; Dong et al., 2014; Elbadawy et al., 2019; Rasti et al., 2018). In addition to pluripotent marker genes, enhanced expression of CLOCK in 4T1 cells altered the expression of genes to suppress EMT; this may explain the underlying mechanism of attenuation of invasive potential in enhanced CLOCK-expressing 4T1 cells. Cancer cells undergo EMT in response to different environmental conditions, causing a functional and phenotypical transition of polarized epithelial cells into mesenchymal cells. Mesenchymal transcriptional factors such as Snail1 and Twist1 promote CSC-like phenotypes, resulting in resistance to treatment, cancer recurrence, and metastasis (Liang et al., 2015; Mani et al., 2008; Ren et al., 2016). Increased levels of Nanog can also generate mesenchymal-like cells by repressing the expression of E-cadherin (Siu et al., 2013). The prevention of EMT by altered gene expression in enhanced CLOCK-expressing 4T1 cells may contribute to the attenuation of CSC-like properties. 4T1 cells are reported metastasize to lung, liver, brain, and bone (Pulaski and Ostrand‐Rosenberg, 2000). 4T1 is lung tropic cancer cells (Monteran et al., 2020); thus, metastatic colonies were detected mainly from lung in this study. Only few tumor colonies were detected except for bone at this stage. To evaluate the effect of CLOCK expression on metastatic capacities to multiple organs, further investigations are also needed to employ several cancer cells.

Reporter gene analysis revealed that the downregulation of CLOCK in ALDH-positive 4T1 cells is caused by post-transcriptional suppression through binding of miR-182 to the 3’UTR of Clock mRNA. miR-182 is associated with organ development, T cell differentiation, and cancer (Stittrich et al., 2010; Wei et al., 2015; Xu et al., 2007), and belongs to a polycistronic miRNA cluster with miR-96 and miR-183 located within a 4-kbp area in the murine genome (Wei et al., 2015). The sequence of miR-96 and miR-183 in the cluster was not affected by genomic deletion of miR-182, but their expression levels were compensatory increased in miR-182 KO 4T1 cell #1 (Figure 6—figure supplement 2). Despite an increase in miR-96 and miR-183 levels, the deletion of miR-182 increased the expression of CLOCK and decreased tumor growth. Hence, miR-182 plays a major role in tumor biology and the post-transcriptional regulation of CLOCK. The polycistronic cluster of miR-96/miR-182/miR-183 is highly conserved in sequence and functions between humans and mice, and also the 3’UTR sequence of human CLOCK gene around miR-182 binding site is highly conserved (Figure 7—figure supplement 3). High miR-182 levels in human breast tumor tissue correlate with poor prognosis (Chiang et al., 2013; Guttilla and White, 2009; Lei et al., 2014), which suggest clinical importance of miR-182 for cancer patient’s prognosis.

Patients with early breast cancers are considered to have a good prognosis; however, aggressive breast cancers, such as TNBCs, are more serious (Dent et al., 2007; Luo et al., 2013). BCSCs are possible therapeutic targets for better prognosis, but standard treatments targeting BCSCs are not available. The tumor microenvironment may be responsible for several malignant properties like recurrence, metastasis, and resistance to treatments (Acharyya et al., 2012; Meads et al., 2009; Shah et al., 2015), and studies reveal that these malignant properties are caused at the molecular level, with the interaction between BCSCs and the microenvironment also associated with tumor malignancy. Therefore, efforts to develop novel therapy targeting molecules responsible for the interaction between BCSCs and the microenvironment are underway. However, the complicated molecular interactions make drug development targeting BCSCs difficult; hence, a comprehensive understanding of BCSC biology is crucial for improvements in breast cancer therapy. The present study provides novel insights to attenuate cancer stemness by regulating the expression of circadian clock genes. The amino acid sequence and function of CLOCK are highly conserved among species; thus, similar effects can be expected in human malignant breast cancers. However, both tumor-promotional and tumor-suppressive relevance are existing between CLOCK expression and outcome (Figure 7—figure supplement 4). To assess the true relevance to patient prognosis, evaluation of CLOCK expression levels in CSCs may be needed.

Existing agents increasing the expression of CLOCK may be ineffective for the treatment of CSCs as they increase the levels of CLOCK protein through transcriptional activation (Solt et al., 2012; Sulli et al., 2018). Antisense oligonucleotides can be a powerful tool for targeting miRNAs, with high affinity to their target (Scharner and Aznarez, 2021). Several issues still exist for the development of these antisense therapeutics because of their pharmacokinetics and stabilities. Researches about novel drug delivery carriers and modified nucleotides is developing in this few decades to overcome these weaknesses (Saarbach et al., 2019; Vandghanooni et al., 2020). Using these technologies, selective targeting of the CLOCK 3’UTR as a novel treatment strategy for malignant breast cancers is needed in order to therapeutically activate the circadian clock genes in CSCs.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Gene (Mus musculus)ClockNCBI Gene
Database
NCBI Gene:
12753
Cell line (Mus musculus)4T1ATCCCat #: CRL-2539;
RRID:CVCL_0125
Cell line (Homo sapiens)Lenti-X 293TClonetechCat #: 632180
Transfected construct (Mus musculus)miRDIAN Hairpin InhibitorHorizon DiscoveryCat #: IH-310436–08
AntibodyRabbit polyclonal anti-CLOCKAbcamCat #: ab3517
RRID:AB_303866
WB (1:4000)
AntibodyRabbit polyclonal anti-p84 (THOC1)ProteintechCat #: 10920–1-AP
RRID:AB_2202239
WB (1:1500)
AntibodyGoat polyclonal anti-E-CadherinR and D systemsCat #: AF748
RRID:AB_355568
WB (1:1000)
AntibodyRabbit polyclonal anti-Claudin 1ProteintechCat #: 13050–1-AP
RRID:AB_2079881
WB (1:2000)
AntibodyMouse monoclonal anti-VimentinR and D systemsCat #: MAB21052
RRID:AB_2832972
WB (1:1000)
AntibodyGoat polyclonal anti-Actin-HRPSanta Cruz BiotechnologyCat #: sc-1616WB (1:5000)
AntibodyMouse monoclonal anti-Ki-67Agilent TechnologyCat #: M7240
RRID:AB_2142367
IHC (1:200)
Recombinant DNA reagentpcDNA3.1(+) (plasmid)InvitrogenCat #: V79020
Recombinant DNA reagentpGL4.18 (plasmid)PromegaCat #: E6731
Recombinant DNA reagentpGL4.13 (plasmid)PromegaCat #: E6681
Recombinant DNA reagentpRL-SV40 (plasmid)PromegaCat #: E2231
Sequence-based reagentPrimer for sgRNA synthesisThis paperCCTCTAATA
CGACTCACT
ATAGGCAAT
GGTAGAACT
CACACGTTT
AAGAGCTAT
GC
Sequence-based reagentMouse Clock promoter FThis paperPCR primers for construction of reporter vectorATACTCGAGA
GGTCACTTG
GGTCGT
Sequence-based reagentMouse Clock promoter RThis paperPCR primers for construction of reporter vectorATAAGATCT
CCTTCCCCT
CCTCCACG
Peptide, recombinant proteinRecombinant Cas9ClontechCat #: Z2641N
Peptide, recombinant proteinRecombinant Mouse TGF-β1R and D systemsCat #: 7666 MB
Commercial assay or kitALDEFLUOR KitStemCell TechnologiesCat #: ST-01700
Commercial assay or kitLipofectamine LTX and Plus RegentThermoFisher SCIENTIFICCat #: 15338100
Commercial assay or kitDual-Luciferase reporter assay systemPromegaCat #: E1910
Commercial assay or kitReverTra Ace qPCR RT KitToyoboCat #: FSQ-201
Commercial assay or kitTHUNDERBIRD SYBR qPCR MixToyoboCat #: QPS-201
Commercial assay or kitTaqman MicroRNA Reverse Transcription KitApplied BiosystemsCat #: 4366596
Commercial assay or kitTaqman MicroRNA AssayApplied BiosystemsCat #: 4427975
Commercial assay or kitGuide-it sgRNA in vitro transcription kitClontechCat #: Z2635N
Commercial assay or kitLentiviral High Titer Packaging Mix with pLVSIN seriesTakara bioCat #: 6952
Commercial assay or kitCellTiter-Glo Luminescent cell viability assayPromegaCat #: 7572
Chemical compound, drug6-ThioguanineFujifilmCat #: 203–03771
Software, algorithmBD FACS DivaBD BiosciencesRRID:SCR_001456
Software, algorithmFlowJoBD BiosciencesRRID:SCR_008520
Software, algorithmLumicycle analysis softwareActimetrics
Software, algorithmImageQuant LAS 3000GE HealthcareRRID:SCR_014246
Software, algorithmBZ analyzer softwareKEYENCERRID:SCR_017205
Software, algorithmOff-SpotterThomas Jefferson UniversityRRID:SCR_015739
Software, algorithmJMPStatistical DiscoveryRRID:SCR_014242
OtherHoechst33342Dojindo laboratoriesCat #: 346–07951

Cells and treatments

Request a detailed protocol

4T1 mouse breast cancer cells were purchased from American Type Culture Collection, and cultured under a 5% CO2 environment at 37°C in Roswell Park Memorial Institute (RPMI)−1640 medium supplemented with 10% FBS and 1% penicillin/streptomycin on two-dimensional (2D) CELLSTAR cell culture flasks (Greiner Bio-One, Monroe, NC) or synthetic three-dimensional (3D) scaffold biomaterials, Vecell 3D-inserts (Vecell Inc, Kitakyusyu, Japan). We confirmed that there was no microbial in this cell line using a TaKaRa PCR Mycoplasma Detection Set. We confirmed that cell lines were authenticated by ATCC using short tandem repeat (STR) PCR analysis, and these cell lines were used in less than 3 months from frozen stocks.

Construction of expression and reporter vectors

Request a detailed protocol

Expression vectors for mouse BMAL1, CLOCK, CRYPTOCHROME1 (CRY1), PERIOD1 (PER1), PERIOD2 (PER2), and C/EBPα were constructed using cDNA generated from mouse liver RNA by RT-PCR. The coding regions were ligated into the pcDNA3.1(+) vector (Invitrogen; Life Technologies, Carlsbad, CA). MicroRNA expression vectors against mouse Cebpα gene were constructed using BLOCK-IT Pol II miR RNAi Expression Vector kit (Invitrogen), according to the manufacturer’s instruction. In order to construct reporter vectors, the mouse Clock gene promoter region spanning from −745 to −8 bp (the distance in base pairs from the putative transcription start site, +1) was also amplified by PCR, and the product was ligated into the pGL4.18 luciferase reporter vector (Promega, Madison, WI). The primer sequences used for amplification of the mouse Clock gene promoter region were as follows: forward primer, 5’-ATACTCGAGAGGTCACTTGGGTCGT-3’; reverse primer, 5’-ATAAGATCTCCTTCCCCTCCTCCACG-3’. The mouse Aldh3a1 gene promoter region spanning from −2000 to +15 bp was also amplified by PCR, and the product was ligated into the pGL4.18 luciferase reporter vector (Promega). The primer sequences used for amplification of the mouse Aldh3a1 gene promoter region were as follows: forward primer, 5’-ATACTCGAGAACCCTGGAGACTTTGTTCT-3’; reverse primer, 5’-AATAGATCTTGGAACTCCTGGAATAAGCAAG-3’.

The pGL4.13 reporter vector in which the mouse Clock mRNA 3’-untranslated region (3’UTR) was inserted downstream of the luciferase gene was also constructed. To prepare the reporter constructs containing varying lengths of the 3’UTR of the mouse Clock gene, the nucleotide immediately after the stop codon in exon 23 of the mouse Clock gene was defined as +1. The 3’UTR of the mouse Clock gene (+1 to +4522) was divided into four sections from bp +1 to +900 (Clock 3’UTR 1 st::Luc), from bp +901 to +1921 (Clock 3’UTR 2nd::Luc), from bp +1922 to +3600 (Clock 3’UTR 3rd::Luc), and from bp +3601 to +4522 (Clock 3’UTR 4th::Luc). Each section of the 3’UTR of the mouse Clock gene was amplified by PCR and then cloned downstream of the luciferase gene into the pGL4.13 reporter vector.

Luciferase reporter assay

Request a detailed protocol

3 × E-box luciferase reporter vector (3 × E-box::Luc) and pRL-SV40 (Promega) as an internal-control reporter were transfected using lipofectamine LTX reagent according to the manufacturer’s instructions. Twenty-four hours after transfection, ALDH-positive (ALDH-high activity) and ALDH-negative (ALDH-low activity) cells were gated based on the ALDEFLUOR assay (StemCell Technologies, Vancouver, Canada) as described below. Collected cells were lysed and then subjected to the Dual-Luciferase reporter assay (Promega). The ratio of firefly to Renilla luciferase activities in each sample served as a measure of normalized luciferase activity.

ALDEFLUOR assay

Request a detailed protocol

Dissociated single cells from cell lines were suspended in ALDEFLUOR assay buffer containing an ALDH substrate, bodipy-aminoacetaldehyde, at 1.5 µM, and incubated for 40 min at 37°C. A specific inhibitor of ALDH, diethylaminobenzaldehyde; DEAB, at a 10-fold molar excess, was used as negative control. Fluorescence-activated cell sorting (FACS; BD Biosciences, San Jose, CA) was performed for more than 1 × 106 cells under low pressure in the absence of UV light. The data were analyzed by BD FACSDiva software V6.1.3 or FlowJo (BD Biosciences).

Spheroid formation assay

Request a detailed protocol

The ability of cells to grow in an anchorage-independent manner was assessed to evaluate the spheroid formation. Cells were seeded in 10% FBS containing RPMI soft agar at a density of 5 × 103 cells in 24-well plate. On day 7 after seeding, spheroid formation was assessed by staining with Hoechst33342 (Dojindo Laboratories, Kumamoto, Japan). The number and size of spheroid were measured by BZ analyzer (KEYENCE, Osaka, Japan).

Real-time bioluminescence tracing

Request a detailed protocol

The bioluminescence of cultured 3 × E-box::Luc-expressing 4T1 cells was recorded using a real-time monitoring system (Lumicycle, Actimetrics, Wilmette, USA). The ALDH-positive populations of 3 × E-box::Luc-expressing 4T1 cells were cultured on spheroid forming condition, VECELL 3D inserts with 3D tumorsphere medium XF (PromoCell, Heidelberg, Germany). The 3D inserts were placed in 35 mm dishes and stimulated with 100 nM dexamethasone for synchronization of their circadian clocks. The amplitude of bioluminescence derived from 3 × E-box::Luc was calculated using the Lumicycle analysis software (Actimetrics).

Quantitative RT-PCR analysis

Request a detailed protocol

Total RNA was extracted using RNAiso (Takara Bio Co., Ltd., Shiga, Japan) or ReliaPrep RNA Cell Miniprep System (Promega). cDNA was synthesized using a ReverTra Ace qPCR RT Kit (Toyobo, Osaka, Japan) and amplified by PCR. Real-time PCR analysis was performed on diluted cDNA samples using the THUNDERBIRD SYBR qPCR Mix (Toyobo) with the 7500 Real-time PCR system (Applied Biosystems, Tokyo, Japan). Primer sequences for amplification of target genes are listed in Supplementary file 1. For quantitation of miRNA, total RNA was reverse-transcribed by the Taqman MicroRNA Reverse Transcription Kit and Taqman MicroRNA Assay (Applied Biosystems). Data were normalized using 18 s and β-Actin mRNAs levels.

Western blot analysis

Request a detailed protocol

Protein samples were prepared by CelLytic MT Cell Lysis Reagent (Sigma-Aldrich St. Louis, MO) supplemented with protease inhibitor cocktail, which contained 2 µg/mL of aprotinin, 2 µg/mL of leupeptin, and 100 µmol/L of phenylmethylsulfonyl fluoride. Then, 20 mg of the protein lysate was resolved by SDS–PAGE on 8% or 10% gels, transferred to polyvinylidene difluoride membranes, and probed with antibodies against Clock (ab3517; Abcam, Cambridge, UK), E-cadherin (AF748; R and D systems, Minneapolis, MN), Claudin1 (13050–1-AP; proteintech, Rosemont, IL), Vimentin (MAB21052; R and D systems), p84 (THOC1, 10920–1-AP; proteintech), and β-Actin (sc-1616; SantaCruz Biotechnology, Texas, TX). Specific antigen–antibody complexes were visualized using horseradish peroxidase–conjugated secondary antibodies and a chemiluminescence reagent. The membranes were photographed, and the density of each band was analyzed with an ImageQuant LAS 3000 (Fuji Film, Japan).

Establishment of 4T1 cells stably expressing CLOCK

Request a detailed protocol

In order to establish stably CLOCK-expressing 4T1 cells, full-length mouse Clock cDNA was subcloned into lentiviral vectors under control of the EF1α promoter. Lentivirus particles were prepared by the Lentiviral High Titer Packaging Mix with pLVSIN series (Clonetech, Palo Alto, CA) with Lenti-X 293 T cell lines. 4T1 cells were infected with Clock-expressing lentivirus and maintained in medium containing 5 µg/mL of puromycin.

Database analysis of Aldh3a1 promoter region

Request a detailed protocol

To identify the repressor of Aldh3a1 induced by enhanced CLOCK-expressing, 5’-upstream region of the mouse Aldh3a1 gene was analyzed by JASPAR database. Binding score was set at 95%, and then candidates were narrowed down as follows: (Acharyya et al., 2012) candidates registered as transcriptional repressor, (Al-Hajj et al., 2003) candidates which have complete E-box element in promoter region and confirmed binding signal of CLOCK in ChIP-Atlas database, and (Anderson et al., 2011) candidates confirmed the binding signal in Aldh3a1 promoter region in ChIP-Atlas database.

Invasion assay

Request a detailed protocol

For the collagen invasion assay, cells were seeded on a collagen-filled 3D Cell Culture Chip (AIM BIOTECH, Singapore) according to the manufacturer’s instructions. Culture medium containing 20 ng/mL of TGF-β was replaced every day. For the spheroid invasion assay, cells were embedded in vitrogel 3D (TheWell BIOSCIENCE, North Brunswick, NJ) containing 1 mg/mL of collagen type 1 at a density of 2 × 105 cells/mL. Culture medium was replaced every 2 days. Approximately 1–2 weeks after seeding, cells were observed using the KEYENCE all-in-one microscope BZ-X800.

Determination of growth rate of cultured cells

Request a detailed protocol

Cells were seeded at a density of 500 cells/well in 100 µL of culture medium in 96-well plates. The viability of cells was determined at 24 hr intervals after seeding of cells using ATP luminescent cell visibility assay kit (Promega). Growth rate was calculated dividing the change in cell viability against basal value (day 0).

Animals and treatments

Request a detailed protocol

Five-week-old female Balb/c mice (Charles River Laboratory Japan, Inc; Yokohama, Japan) were housed under a standardized light–dark cycle at 24 ± 1°C and 60 ± 10% humidity with food and water ad libitum. Thirty microliters of medium containing 1 × 105 of each 4T1 cells were implanted in the mammary fat pads or right hind footpads of mice. The tumor volume was estimated according to the following formula: tumor volume (mm3) = 0.5 × length (longest diameter) × width (shortest diameter)2. Six weeks after implantation of 4T1 tumor cells into the mice, the lungs were removed, rinsed, and fixed in Bouin’s solution to stain the tumor nodules. To isolate metastatic tumor colony in bone marrow, bone marrow cells were collected from mouse femora and treated with RBC lysis buffer (155 mM NH4Cl, 10 mM NaHCO3, 0.1 mM EDTA). Cells were suspended in RPMI medium, and cultured under a 5% CO2 environment at 37°C for 2 weeks. 60 µM of 6-thioguanine (6-TG) were added in culture medium to select 4T1 metastatic tumor cells. Tumor colonies were fixed with methanol, and then stained by 0.2% crystalbiolet for quantification. All experimental procedures were performed after approval and following the guidelines of Kyushu University.

Immunohistochemical staining of Ki-67

Request a detailed protocol

To determine the index of tumor cell proliferation, immunohistochemical staining was performed using monoclonal antibody against Ki-67 (MIB1: M7240; Agilent Technology). Tumor tissues were removed from mice and fixed with 4% paraformaldehyde in PBS at 6 weeks after implantation. Paraffin-embedded tumor sections were deparaffinized and rehydrated through graded ethanol, followed by blocking endogenous peroxidase. Tumor sections subjected to heat-induced antigen retrieval and incubated with primary antibody. Specific antigen–antibody complexes were visualized using horseradish peroxidase–conjugated secondary antibodies with 3,3’-diaminobenzidine (DAB) solution and sections were counterstained with hematoxylin.

Transcriptional and post-transcriptional assay of Clock mRNA

Request a detailed protocol

Clock::Luc or each Clock 3’UTR luciferase constructs was transfected using lipofectamine LTX reagent according to the manufacturer’s instructions. Twenty-four hours after transfection, ALDH-positive and ALDH-negative cells were gated based on the ALDEFLUOR assay (StemCell Technologies) as described above. Total RNA was extracted from collected cells, and then Luciferase mRNA levels were assessed by qRT-PCR to evaluate transcriptional or post-transcriptional regulation of Clock mRNA. To normalize transfection efficiency, the expression levels of Neomycin phosphotransferase (Neor) derived from Clock::Luc vector was assessed in transcriptional assay. In post-transcriptional assay, the expression levels of RLuc mRNA derived from co-transfected pRL-SV40 vector (Promega) for normalization.

mRNA microarray analysis

Request a detailed protocol

ALDH-positive and ALDH-negative 4T1 cells were prepared from cultured 4T1 cell. Total RNA was extracted from cells using a QIAGEN RNeasy Mini Kit (QIAGEN). The quality of the total RNA was checked using an Agilent 2200 TapeStation (Agilent Technologies, Santa Clara, CA). Then, 50 ng of total RNA of each gene was used for the labeling reaction with the one-color protocol of an Agilent Low-Input QuickAmp Labeling Kit (Agilent Technologies). Labeled RNA was hybridized to a 60K Agilent 60-mer SurePrint technology (SurePrint G3 Mouse Gene Expression 8 × 60K Microarray Kit version 2.0) according to the manufacturer's protocol. All hybridized microarray slides were washed and scanned using an Agilent scanner. Relative hybridization intensities and background hybridization values were calculated using Agilent Feature Extraction software (version 9.5.1.1). Raw signal intensities and flags for each probe were calculated from hybridization intensities and spot information according to procedures recommended by Agilent. The raw signal intensities of two samples were log2-transformed and normalized using a quantile algorithm in the ‘preprocessCore’ library package of the Bioconductor software (http://www.bioconductor.org/). This produced a gene expression matrix consisting of 55,681 probe sets; differentially expressed genes between samples were selected using a Z-score of 2.0 or more and a ratio of 1.5-fold or more. For downregulated genes, a Z-score of −2.0 or less and a ratio of 0.75 or less were used. The full data have been deposited in National Center for Biotechnology Information gene expression omnibus (Accession#:GSE103598).

miRNA microarray analysis

Request a detailed protocol

ALDH-positive and -negative 4T1 cells were separated by ALDEFLUOR assay as described above. Total RNA was extracted from cells using RNAiso. The quality of the total RNA was checked using an Agilent 2200 TapeStation (Agilent Technologies, Palo Alto, USA). Then, 1000 ng of total RNA was hybridized, washed, and scanned by the Flash Tag Biotin HSR RNA Labeling Kit according to the manufacturer’s protocol. In total, 3163 miRNAs were scanned on the GeneChip miRNA 4.0 Array (Affymetrix, Santa Clara, CA) and data were analyzed by Affymetrix Transcriptome Analysis Console 3.0. Differentially expressed miRNAs between samples were selected by calculating ratios as follows: for upregulated miRNAs, a ratio of twofold or more; for downregulated miRNAs, a ratio of 0.5-fold or less. The full data have been deposited in National Center for Biotechnology Information gene expression omnibus (Accession#:GSE157655).

Treatment of miR-182::hairpin inhibitor

Request a detailed protocol

Hairpin inhibitor of miR-182 (Horizon Discovery Ltd., Cambridge, UK) was transfected using Lipofectamine 2000 reagent (Invitrogen) according to the manufacturer’s instructions. 48 hr after transfection, cells were harvested, and subjected to Dual-Luciferase reporter assay (Promega).

Preparation of mmu-miR-182 knockout 4T1 cells

Request a detailed protocol

Genomic editing and knockout of miR-182 were performed using the CRISPR/Cas9 system. sgRNA targeting a proximal region of mmu-miR-182–5 p was constructed by the Guide-it sgRNA In Vitro Transcription Kit (Takara Bio). The primer sequence was as follows: 5’-CCTCTAATACGACTCACTATAGGCAATGGTAGAACTCACACGTTTAAGAGCTATGC-3’. Guide-it Recombinant Cas9 (Electroporation-ready) (Takara Bio) and sgRNA were co-transfected by electroporation, and single cells were seeded by FACS Aria. Each clone was cultured, and mutations in genomic DNA were detected by Sanger sequencing. Prediction of sgRNA off-target effects was performed using Off-Spotter (Pliatsika and Rigoutsos, 2015). Three bases of mismatches with sgRNA are detected in eight alleles, and any mutations were not confirmed in these alleles.

Statistical and data analyses

Request a detailed protocol

JMP software was used to perform statistical analyses. The values presented are expressed as the mean with SD. All experiments were performed at least in triplicate. The significance of differences between two groups was analyzed by two-tailed Student’s t-tests while those with greater than two groups were analysis of variance (ANOVA), followed by Tukey–Kramer post hoc tests or Dunnett’s test. Equal variances were not formally tested. A 5% level of probability was considered significant. No statistical method was used to predetermine sample sizes; however, our sample sizes were similar to those reported in previous studies (Koyanagi et al., 2016; Matsunaga et al., 2018).

Data availability

The full data of microarray analysis have been deposited in National Center for Biotechnology Information gene expression omnibus (miRNA microarray, accession#:GSE157655; mRNA microarray, accession#:GSE103598). All data generated or analysed during this study are included in the manuscript and supporting files. Source data files of the quantitative data have been provided for all figures.

The following previously published data sets were used

References

Decision letter

  1. Caigang Liu
    Reviewing Editor; Shengjing Hospital of China Medical University, China
  2. Mone Zaidi
    Senior Editor; Icahn School of Medicine at Mount Sinai, United States
  3. Caigang Liu
    Reviewer; Shengjing Hospital of China Medical University, China

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Cancer stem cells (CSCs) function as the root of recurrence and metastasis in breast cancer. Therefore, targeting CSCs may improve breast cancer prognosis. The findings of the work focus on the regulation circadian component CLOCK on CSC and present a possible strategy to overcome the malignancy of BCSCs by targeting miRNA-mediated post-transcriptional regulation, which propose an innovative impact on the novel rationales to eradicate CSCs.

Decision letter after peer review:

Thank you for submitting your article "Post-transcriptional repression of circadian component CLOCK regulates cancer-stemness in murine breast cancer cells" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Caigang Liu as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Mone Zaidi as the Senior Editor.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Summary:

The authors studied the relationship between CLOCK gene and ALDH expression in BCSCs and provided a potential strategy targeting miR-182 for management of breast cancer. The findings are interesting and the major conclusions are justified by the current work.

Essential Revisions:

1. In figure 1, the impact of high ALDH expression on the circadian rhythm needs to be included though has been previously reported. Correlation between CLOCK and ALDH and clinical prognosis should be discussed and presented in Supplemental Figures to provide more convincible results. Detailed data on metastasis to different organs in 4T1 PDX model would better to be supplemented in figure 4 and figure 7.

2. How many alleles were shown for the miR-182 CRISPR editing and how was this obtained? Were the sequences of the indels in all alleles established and what effort was made to rule out off-target events? All of the above should be described in Materials and methods.

3. Statistical methods were not mentioned, neither were number of replicates, animals and animal sex described in the Methods and Figure Legends. The description of Results should be written more and ALDH should be discussed deeper on its potential direct regulation relationship with CLOCK. The limits of the current study would better to be mentioned in Discussion.

Reviewer #1:

In this article the authors elucidated that one of the circadian components, CLOCK, functions as the regulator of ALDH, whose high expression characterizes the stemness of breast cancer cells. Also, the post-transcription regulation by miR-182 was also revealed to further discover the upstream regulator of CLOCK and proposed that repression of miR-182 may be a potent avenue for breast cancer therapy. The authors employed 4T1 cell line and murine PDX model to study the impact of CLOCK on the expression of ALDH by measurement of several markers reflecting the stemness and proliferative and metastatic ability of breast cancer cells, thus explained one possible mechanism which associate the disruption of circadian rhythm with the stemness of BCSC. The topic was relative innovative as the field of relationship between circadian rhythm and tumor biology has attracted more intense interest recently. The whole study was logically designed and the amount of work completed by the authors is basically abundant to justify the conclusion. However, if further evaluation on the detailed mechanism of interaction between CLOCK and ALDH be supplemented would be more rigorous. Additionally, only miR-182 was evaluated for its clinical significance, the clinical data about the relationship between expression of CLOCK and ALDH and the outcome of patients is warranted.

Strengths:

1. On the cellular experiment level, the authors firstly transfected 4T1 cell with five candidate circadian gene, among which overexpression of CLOCK has the most prominent impact on decline of ALDH-positive cells. Thus, further studies were launched to examine the effect of CLOCK on ALDH expression level and transcription activity of CLOCK in ALDH-positive cells, explaining the negative regulation between CLOCK and ALDH. Also, CLOCK-transduced 4T1 cells were evaluated for its transcriptional level of 3 stemness-related genes and growth rate and spheroid formation ability was compared with mock-transduced cells, the results all indicate that high expression of CLOCK correlates with enhanced stemness property and proliferation rate of tumor cell. in vitro measurement of tumor cell migration was conducted to mimic and dynamically monitor the metastatic process by 3D cell culture chip and spheroid invasion assay, which are all fresh new measurement method that objectively reflect the decreased invasive potential of CLOCK-transduced cells, the metastatic capacity was quantified by testing the expression level of EMT process related genes. All of the above work is abundant to support the negative regulation of CLOCK on ALDH, along with the biological property of tumor cells.

2. Additional in vivo experiments were conducted with 4T1 bearing PDX murine model and the CLOCK-expressing group display increased growth rate and more pulmonary metastatic foci.

3. By comparing the difference in Luciferase mRNA level, the authors proved that the regulation of CLOCK expression is in a post-transcription manner by miRNA binding to 3'UTR of CLOCK gene instead of during the transcription process. Subsequently miRNA microarray analysis was conducted and miR-182 was assessed as the miRNA regulating CLOCK expression. Level of miR-182 is higher in ALDH-positive cells and knockout of which in ALDH-positive cells result in higher clock mRNA level, in vivo experiments also shown decreased malignancy in miR-182 knockout 4T1 cells. All of the above findings indicate the negative role of miR-182 on CLOCK expression and repression of miR-182 show promise for breast cancer treatment.

Weaknesses:

1. The CLOCK expression level displays a negative correlation with ALDH, while the precise mechanism of CLOCK regulating ALDH or the interaction between CLOCK and ALDH are not mentioned.

2. Insufficient in vive experiment data regarding metastasis in different organs in figure 4 and figure 7, metastatic foci on other organs should be included to enrich the in vivo experiment data.

3. Clinical relevance of miR-182 was evaluated with data source from public database, however the impact of expression level of CLOCK and ALDH on outcome of patients was not mentioned, this part of data and analysis is important to prove the clinical significance.

Comments for authors:

1. The CLOCK expression level displays a negative correlation with ALDH, while the precise mechanism of CLOCK regulating ALDH or the interaction between CLOCK and ALDH are not mentioned. As is referred to in the paper CLOCK functions as transcription factor, figure out the regulation process of CLOCK on the transcription process of downstream structural genes, thus impact on ALDH expression would be more rigorous.

2. In figure 4 and figure 7, the in vivo study of 4T1 PDX model only contains pulmonary metastasis, bone and liver metastasis also constitute the major role in breast cancer metastasis, so metastatic foci on other organs should be included to enrich the in vivo experiment data.

3. Clinical relevance of miR-182 was evaluated with data source from public database, however the impact of expression level of CLOCK and ALDH on outcome of patients was not mentioned, this part of data and analysis is important to prove the clinical significance.

Reviewer #2:

This manuscript investigates functional role of aldehyde dehydrogenase (ALDH) and Clock protein in breast cancer stem-like cells (BCSCs). The authors find a possible target: CLOCK, which should be repressed in high-ALDH-activity breast cancer 4T1 cells and abrogated tumor growth and invasive potential. A new microRNA, miR-182, was found for post-transcriptional regulation of CLOCK.

This study is of interest but it lacks depth so, if the authors are able to provide a more concrete and complete analysis, the paper should be accepted.

1. How many alleles were shown for the miR-182 CRISPR editing (Fig7), how was this obtained? Were the sequences of the indels in all alleles established? What effort was made to rule out off-target events? (e.g. sequencing of potential off target candidates).

2. In Page 6 lines 174, the promoter activity of CLOCK::Luc was detected. However, in the Figure 5A the mRNA level of luciferase was detected. It was confused for readers which method was used in Figure 5A? What internal control (b-Actin or Renilla) was measured for the mRNA level of luciferase in Figure 5A and 5B, there was no shown in Method and Figure Legends.

3. The statistical description is preliminary. What statistics used was unknown in the Methods. How many replicates were not mentioned in the Figure Legend? Number of animals, animal sex were not mentioned in the Methods and Figure Legend.

4. Although it is empirically believed that the relevant processing does not affect the expression of internal reference genes such as GAPDH, in order to remind the rigor of the data, the authors should analyze the transcriptome of GAPDH under the conditions in the manuscript.

5. The results description and Discussion should be written more. ALDH should be more discussed.

6. Clock gene levels should be tested in the miR-182 KO xenograft and lung metastasis cancer samples.

Reviewer #3:

This manuscript is of potential interest to readers in the field of cancer stem cells and circadian. The data quality is high. And the findings are interesting and supporting data are solid.

Deregulation of the circadian in cancer cells is implicated in tumor malignancy. In this manuscript, Ogino et al. showed that repression of CLOCK regulates cancer-stemness in murine breast cancer cells. Their previous study demonstrated that the cells with high ALDH exhibit circadian oscillation. In this study, they demonstrated that the expression of CLOCK was repressed in high-ALDH cancer cells, and enhancement of CLOCK expression abrogated the stemness properties of cancer cells. Furthermore, miR-182 was identified to control the degradation of CLOCK mRNA. Knockout of miR-182 restored the expression of CLOCK, leading to decreased tumor growth.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Post-transcriptional repression of circadian component CLOCK regulates cancer-stemness in murine breast cancer cells" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, including Caigang Liu as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Mone Zaidi as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Qingkai Yang (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1. It will be better to add the limits of the study in the discussion.

2. Specify how to selectively target the CLOCK 3'UTR of clock (line 355).

3. Please format the manuscript according to the requirements of eLife journal.

Summary:

The authors supplemented the experimental data, more detailed description of method to firmly hold back the conclusion that Clock could repress transcription of ALDH, and targeting miR-182 which function as the upstream negative regulator of Clock could be a potential therapeutic target. The most prominent strength was to propose one possible mechanism which mediates Clock mediating downstream ALDH transcription, though concluded from computational prediction and deserves further validation. The results support their conclusion, which will pose an innovative impact on the novel rationales to eradicate cancer stem cells.

Reviewer #1:

1. Since the pulmonary tropism of 4T1 cells and low rate of metastasis to other organs have been explained, you may consider to add this to Discussion as one more limit of the study and employ multiple cell lines in your future research.

2. Formal of the revised manuscript seems have not fully meet the requirements of eLife journal regarding revised submission, please make corresponding adjustments.

Reviewer #3:

In this revised manuscript, the authors have conducted a set of new experiments and added additional data, and have addressed reviewers' comments and also revised the manuscript accordingly. As a result, the quality of this paper has been further improved.

https://doi.org/10.7554/eLife.66155.sa1

Author response

Reviewer #1:

[…] 1. The CLOCK expression level displays a negative correlation with ALDH, while the precise mechanism of CLOCK regulating ALDH or the interaction between CLOCK and ALDH are not mentioned. As is referred to in the paper CLOCK functions as transcription factor, figure out the regulation process of CLOCK on the transcription process of downstream structural genes, thus impact on ALDH expression would be more rigorous.

As reviewer’s valuable comment, this point is very important concern. Thus, we conducted further investigation about the suppressing mechanisms of ALDH activity induced by enhanced-CLOCK expression. CLOCK is a major transcriptional activator, so we assumed that there are some transcriptional repressors mediating Aldh3a1 suppression. Analysis of the promoter region of Aldh3a1 gene identified CCAAT/enhancer binding protein α (C/EBPα) as a mediator of CLOCK-induced ALDH suppression. Probably, the attenuation of malignant properties of 4T1 was not fully explained only by C/EBPα; however, this mediator should have important roles for this attenuation. These data were presented as Figure 2—figure supplement 1 of revised manuscript. Descriptions about these data were incorporated into Result and Discussion section as follows:

Result section (Page5, line132 – 140.)

“Database analysis of the mouse Aldh3a1 gene upstream region led to identification of CCAAT/enhancer binding protein α (C/EBPα) as a mediator of CLOCK-controlled expression of ALDH (Figure 2—figure supplement 1A). […] These results suggest that C/EBPα has important roles on CLOCK-mediated ALDH suppression, through transcriptional repression of Aldh3a1 gene in 4T1 cells.”

Discussion section (Page8, line260 – 267.)

“C/EBPα was identified as a mediator of CLOCK-induced ALDH suppression. Reports suggest that up-regulation of C/EBPα contributes breast tumors suppression through induction of apoptosis and inhibition of cell proliferation (Lourenço and Coffer, 2017). […]. However, further investigation is required to evaluate whether this CLOCK-induced ALDH suppression can generalized to all types of cancer cells because the function of C/EBPα is altered by organs, differentiation state of cells, and transcriptional co-regulators (Lourenço and Coffer, 2017; Ossipow et al., 1993; Ramji and Foka, 2002).”

2. Insufficient in vive experiment data regarding metastasis in different organs in figure 4 and figure 7, metastatic foci on other organs should be included to enrich the in vivo experiment data.

4T1 breast cancer cells metastasize to mainly lung, but also liver, brain, and bone (Heppner et al., 2000). Therefore, we evaluated the number of metastatic foci on these organs. Only few tumor colonies were detected in lung, and not any tumor colonies were detected in brain in this experiment. Tumor colonies were detected from bone, so we incorporated these data into Figure 4D and Figure 7C of revised manuscript. Descriptions about these data were incorporated into Result and Materials and methods section as follows:

Result section (Page6, line170 and Page7, line232 – 233.)

“Moreover, CLOCK-expressing 4T1 cell-bearing mice had limited formation of tumor colonies in lung and bone marrow (P <0.01, Figure 4C and 4D). Limited number of tumor colonies were observed in miR-182 KO cells implanted-mice lung (P<0.01, Figure 7B); also in bone marrow (P<0.01, Figure 7C).”

Materials and methods section (Page18, line483 – 488.)

“To isolate metastatic tumor colony in bone marrow, bone marrow cells were collected from mouse femora and treated with RBC lysis buffer (155 mM NH4Cl, 10 mM NaHCO3, 0.1 mM EDTA). […] Tumor colonies were fixed with methanol, then stained by 0.2% crystalbiolet for quantification.”

3. Clinical relevance of miR-182 was evaluated with data source from public database, however the impact of expression level of CLOCK and ALDH on outcome of patients was not mentioned, this part of data and analysis is important to prove the clinical significance.

As suggested, clinical relevance of CLOCK or ALDH is important for our manuscript. ALDHs are referred to as a marker of poor prognosis in several reports(Charafe-Jauffret et al., 2010; Marcato et al., 2011). Also, disruption of Clock genes is reported as tumor promoter (Cadenas et al., 2014). However, there are both positive and negative clinical relevance for Clock expression in clinical database. This both clinical relevance may be due to these clinical data were obtained from heterogenic tumor cells. Therefore, we revised descriptions as follows with Figure 7—figure supplement 4:

Discussion section (Page10, line336 – 339.)

“The amino acid sequence and function of CLOCK is highly conserved among species; thus, similar effects can be expected in human malignant breast cancers. […] To assess the true relevance to patient prognosis, evaluation of CLOCK expression levels in CSCs may be needed.”

Reviewer #2:

This manuscript investigates functional role of aldehyde dehydrogenase (ALDH) and Clock protein in breast cancer stem-like cells (BCSCs). The authors find a possible target: CLOCK, which should be repressed in high-ALDH-activity breast cancer 4T1 cells and abrogated tumor growth and invasive potential. A new microRNA, miR-182, was found for post-transcriptional regulation of CLOCK.

This study is of interest but it lacks depth so, if the authors are able to provide a more concrete and complete analysis, the paper should be accepted.

1. How many alleles were shown for the miR-182 CRISPR editing (Fig7), how was this obtained? Were the sequences of the indels in all alleles established? What effort was made to rule out off-target events? (e.g. sequencing of potential off target candidates).

Three bases of mismatches with sgRNA were detected in Chromosome 1, 5, 8, 9, 10, 14, 15, and 16 using Off-Spotter software. We performed Sanger sequencing analysis, and any mutations were not confirmed in these alleles. Therefore, we revised descriptions as follows:

Materials and methods section (Page20 – 21, line559 – 562.)

“Prediction of sgRNA off-target effects was performed using Off-Spotter (Pliatsika and Rigoutsos, 2015). Three bases of mismatches with sgRNA are detected in eight alleles, and any mutations were not confirmed in these alleles.”

2. In Page 6 lines 174, the promoter activity of CLOCK::Luc was detected. However, in the Figure 5A the mRNA level of luciferase was detected. It was confused for readers which method was used in Figure 5A? What internal control (b-Actin or Renilla) was measured for the mRNA level of luciferase in Figure 5A and 5B, there was no shown in Method and Figure Legends.

As reviewer’s valuable comments, our manuscript was lacking Methods about transcriptional- or post transcriptional regulation of Clock mRNA. In the experiment about promoter activity using CLOCK::Luc (Figure 5A), Neomycin phosphotransferase (Neor) derived from CLOCK::Luc vector was assessed to normalize transfection efficiency. On the other hand, in the post transcriptional assay using each CLOCK 3’UTR reporter (Figure 5B), the expression levels of RLuc mRNA derived from co-transfected pRL-SV40 vector were assessed for normalization. These information were incorporated into Materials and methods section, and Result sections was revised as follows:

Result section (Page6, line180.)

“The expression levels of Luciferase mRNA derived from Clock::Luc in ALDH-positive 4T1 cells was slightly, but significantly, higher than in ALDH-negative cells (P<0.01, Figure 5A right).”

Materials and methods section (Page19, line502 – 511.)

“Transcriptional and post-transcriptional assay of Clock mRNA.

Clock::Luc or each Clock 3’UTR luciferase construct were transfected using lipofectamine LTX reagent according to the manufacturer’s instructions. […] In post-transcriptional assay, the expression levels of RLuc mRNA derived from co-transfected pRL-SV40 vector (Promega) for normalization.”

3. The statistical description is preliminary. What statistics used was unknown in the Methods. How many replicates were not mentioned in the Figure Legend? Number of animals, animal sex were not mentioned in the Methods and Figure Legend.

All experiments were performed at least in triplicate. Two-tailed Student’s t tests were applied in analysis of two groups, and analysis of variance (ANOVA), followed by Tukey–Kramer post-hoc tests or Dunnett’s test were applied in analysis of more than three groups. These statistical analyses were performed using JMP software. These information were incorporated into Materials and methods section.

Materials and methods section (Page21, line565 – 572.)

“JMP software was used to perform statistical analyses. […] The significance of differences between two groups was analyzed by two-tailed Student’s t tests while those with greater than two groups were analysis of variance (ANOVA), followed by Tukey–Kramer post-hoc tests or Dunnett’s test.”

For animal experiments, female Balb/c mice were used in all experiments, and number of animals were described in each figure legend.

4. Although it is empirically believed that the relevant processing does not affect the expression of internal reference genes such as GAPDH, in order to remind the rigor of the data, the authors should analyze the transcriptome of GAPDH under the conditions in the manuscript.

As suggested, some reports indicated that the expression of internal reference genes such as GAPDH showed circadian oscillation (Shinohara et al., 1998). Therefore, we preliminary confirmed the expression of three internal reference genes, 18s rRNA, β-Actin, and Gapdh under the conditions: enhanced-CLOCK expression or miR-182 knockout. The expressions of 18s rRNA and β-Actin were stably detected; however, the expression levels of Gapdh were difficult to detect stably in 4T1 cells. Moreover, mRNA microarray data (Accession#: GSE103598, in this manuscript) show no alteration of expression levels in 18s rRNA and β-Actin between ALDH-positive and -negative cells, so we applied 18s rRNA or β-Actin to normalize qPCR data.

5. The results description and Discussion should be written more. ALDH should be more discussed.

According to reviewer’s valuable comment, we conducted further investigation about the interaction between CLOCK and ALDH. Database analysis of promoter region of Aldh3a1 identified CCAAT/enhancer binding protein α (C/EBPα) as a mediator of CLOCK-induced ALDH suppression. C/EBPα is reported as breast tumor suppressor, and highly expression is detected well-differentiated cells. Consequently, High ALDH activity in cancer stem cells may be due to low expression of CLOCK and C/EBPα, resulted in poor prognosis of patient. These data were presented as Figure 2—figure supplement 1 of revised manuscript. Descriptions about these data were incorporated into Result and Discussion section as follows:

Result section (Page5, line132 – 140.)

“Database analysis of the mouse Aldh3a1 gene upstream region led to identification of CCAAT/enhancer binding protein α (C/EBPα) as a mediator of CLOCK-controlled expression of ALDH (Figure 2—figure supplement 1A). […] These results suggest that C/EBPα has important roles on CLOCK-mediated ALDH suppression, through transcriptional repression of Aldh3a1 gene in 4T1 cells.”

Discussion section (Page8, line257 – 267.)

“High activity of ALDH correlates with tumor grade, metastasis, and poor prognosis in patient breast tumor (Charafe-Jauffret et al., 2010; Marcato et al., 2011); consequently, low expression levels of CLOCK in ALDH-positive 4T1 cells likely promote their malignant properties by regulating ALDH activity. […] ALDH suppression can generalized to all types of cancer cells because the function of C/EBPα is altered by organs, differentiation state of cells, and transcriptional co-regulators (Lourenço and Coffer, 2017; Ossipow et al., 1993; Ramji and Foka, 2002).”

6. Clock gene levels should be tested in the miR-182 KO xenograft and lung metastasis cancer samples.

As suggested, we confirmed the expression levels of Clock gene in the miR-182 KO xenograft both in whole tumor cells and ALDH-sorted tumor cells. The Clock levels were increased by miR-182 knockout, and the effect was drastically in ALDH-positive cells. In lung metastasis cancer samples, it was difficult to evaluate because the number of tumor colonies were fewer in miR-182 KO 4T1 implanted mice lung than naive 4T1 at the same point. These data were presented as Figure 7—figure supplement 1 of revised manuscript. Descriptions about these data were incorporated into Result section as follows:

Result section (Page7, line228 – 231.)

“The expression levels of Clock mRNA in resected tumor were significantly increased by knockout of miR-182 (Figure 7—figure supplement 1A); and the effect was more potent in ALDH-positive cell (Figure 7—figure supplement 1B).”

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Reviewer #1:

1. Since the pulmonary tropism of 4T1 cells and low rate of metastasis to other organs have been explained, you may consider to add this to Discussion as one more limit of the study and employ multiple cell lines in your future research.

According to your valuable comment, we added about pulmonary tropism of 4T1 in Discussion section, and the metastatic capacity to other organs is unclear point. As your suggestion, we should investigate these points using multiple cell lines in our future research. Thus, we revised manuscript as follows in Discussion section:

Discussion section (Page10, line305 – 310.)

“4T1 is lung tropic cancer cells (Monteran et al., 2020); thus, metastatic colonies were detected from mainly lung in this study. […] To evaluate the effect of CLOCK expression on metastatic capacities to multiple organs, further investigations are also needed to employ several cancer cells.”

2. Formal of the revised manuscript seems have not fully meet the requirements of eLife journal regarding revised submission, please make corresponding adjustments.

As suggested, we revised our manuscript according to eLife editorial support. We uploaded Figures, Figure supplements, and Supplementary files individually, and listed at the end of article files.

https://doi.org/10.7554/eLife.66155.sa2

Article and author information

Author details

  1. Takashi Ogino

    Department of Pharmaceutics, Faculty of Pharmaceutical Sciences, Kyushu University, Fukuoka, Japan
    Contribution
    Resources, Data curation, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft
    Contributed equally with
    Naoya Matsunaga
    Competing interests
    No competing interests declared
  2. Naoya Matsunaga

    1. Department of Pharmaceutics, Faculty of Pharmaceutical Sciences, Kyushu University, Fukuoka, Japan
    2. Department of Glocal Healthcare Science, Faculty of Pharmaceutical Sciences, Kyushu University, Fukuoka, Japan
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Project administration, Writing - review and editing
    Contributed equally with
    Takashi Ogino
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0004-4535
  3. Takahiro Tanaka

    Department of Pharmaceutics, Faculty of Pharmaceutical Sciences, Kyushu University, Fukuoka, Japan
    Contribution
    Resources, Data curation, Formal analysis, Validation, Visualization, Methodology
    Competing interests
    No competing interests declared
  4. Tomohito Tanihara

    Department of Pharmaceutics, Faculty of Pharmaceutical Sciences, Kyushu University, Fukuoka, Japan
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  5. Hideki Terajima

    Department of Biological Sciences, School of Science, The University of Tokyo, Tokyo, Japan
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
  6. Hikari Yoshitane

    Department of Biological Sciences, School of Science, The University of Tokyo, Tokyo, Japan
    Contribution
    Resources, Funding acquisition, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6319-3354
  7. Yoshitaka Fukada

    Department of Biological Sciences, School of Science, The University of Tokyo, Tokyo, Japan
    Contribution
    Resources, Funding acquisition, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  8. Akito Tsuruta

    Department of Pharmaceutics, Faculty of Pharmaceutical Sciences, Kyushu University, Fukuoka, Japan
    Contribution
    Resources, Supervision, Validation
    Competing interests
    No competing interests declared
  9. Satoru Koyanagi

    1. Department of Pharmaceutics, Faculty of Pharmaceutical Sciences, Kyushu University, Fukuoka, Japan
    2. Department of Glocal Healthcare Science, Faculty of Pharmaceutical Sciences, Kyushu University, Fukuoka, Japan
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Validation, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  10. Shigehiro Ohdo

    Department of Pharmaceutics, Faculty of Pharmaceutical Sciences, Kyushu University, Fukuoka, Japan
    Contribution
    Conceptualization, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    ohdo@phar.kyushu-u.ac.jp
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4795-9764

Funding

Ministry of Education, Culture, Sports, Science and Technology (Grant-in-Aid for Scientific Research A, 16H02636)

  • Shigehiro Ohdo

Ministry of Education, Culture, Sports, Science and Technology (Challenging Exploratory Research, 17H06262)

  • Shigehiro Ohdo

Ministry of Education, Culture, Sports, Science and Technology (Challenging Exploratory Research, 20K21484)

  • Satoru Koyanagi

Ministry of Education, Culture, Sports, Science and Technology (Challenging Exploratory Research, 20K21901)

  • Naoya Matsunaga

Ministry of Education, Culture, Sports, Science and Technology (Scientific Research B, 18H03192)

  • Naoya Matsunaga

Ministry of Education, Culture, Sports, Science and Technology (Specially Promoted Research, 17H06096)

  • Yoshitaka Fukada

Ministry of Education, Culture, Sports, Science and Technology (Scientific Research B, 25440041)

  • Hikari Yoshitane

Japan Agency for Medical Research and Development (PRIME, 17937210)

  • Hikari Yoshitane

Ministry of Education, Culture, Sports, Science and Technology (JSPSKAKENHI Grant, 17J01969)

  • Takashi Ogino

Japan Agency for Medical Research and Development (JP20am0101091)

  • Shigehiro Ohdo

Japan Agency for Medical Research and Development (JP21am0101091)

  • Shigehiro Ohdo

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This research was supported by Platform Project for Supporting Drug Discovery and Life Science Research (Basis for Supporting Innovative Drug Discovery and Life Science Research (BINDS)) from the Japan Agency for Medical Research and Development (AMED). VECELL 3D plates were gifted by Makoto Kodama, PhD (VECELL, Inc). We are grateful for the technical support provided by the Research Support Center, Graduate School of Medical Sciences, Kyushu University.

Ethics

Animal experimentation: All experimental procedures were performed after approval and following the guidelines of Kyushu University (approval number: A20-131-0).

Senior Editor

  1. Mone Zaidi, Icahn School of Medicine at Mount Sinai, United States

Reviewing Editor

  1. Caigang Liu, Shengjing Hospital of China Medical University, China

Reviewer

  1. Caigang Liu, Shengjing Hospital of China Medical University, China

Publication history

  1. Received: December 30, 2020
  2. Accepted: April 22, 2021
  3. Accepted Manuscript published: April 23, 2021 (version 1)
  4. Version of Record published: May 6, 2021 (version 2)

Copyright

© 2021, Ogino et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 706
    Page views
  • 116
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Cell Biology
    Brian Spurlock et al.
    Short Report Updated

    Gene knockout of the master regulator of mitochondrial fission, Drp1, prevents neoplastic transformation. Also, mitochondrial fission and its opposing process of mitochondrial fusion are emerging as crucial regulators of stemness. Intriguingly, stem/progenitor cells maintaining repressed mitochondrial fission are primed for self-renewal and proliferation. Using our newly derived carcinogen transformed human cell model, we demonstrate that fine-tuned Drp1 repression primes a slow cycling ‘stem/progenitor-like state’, which is characterized by small networks of fused mitochondria and a gene-expression profile with elevated functional stem/progenitor markers (Krt15, Sox2 etc) and their regulators (Cyclin E). Fine tuning Drp1 protein by reducing its activating phosphorylation sustains the neoplastic stem/progenitor cell markers. Whereas, fine-tuned reduction of Drp1 protein maintains the characteristic mitochondrial shape and gene-expression of the primed ‘stem/progenitor-like state’ to accelerate neoplastic transformation, and more complete reduction of Drp1 protein prevents it. Therefore, our data highlights a ‘goldilocks’ level of Drp1 repression supporting stem/progenitor state dependent neoplastic transformation.

    1. Cancer Biology
    Luca Tirinato et al.
    Research Article Updated

    Although much progress has been made in cancer treatment, the molecular mechanisms underlying cancer radioresistance (RR) as well as the biological signatures of radioresistant cancer cells still need to be clarified. In this regard, we discovered that breast, bladder, lung, neuroglioma, and prostate 6 Gy X-ray resistant cancer cells were characterized by an increase of lipid droplet (LD) number and that the cells containing highest LDs showed the highest clonogenic potential after irradiation. Moreover, we observed that LD content was tightly connected with the iron metabolism and in particular with the presence of the ferritin heavy chain (FTH1). In fact, breast and lung cancer cells silenced for the FTH1 gene showed a reduction in the LD numbers and, by consequence, became radiosensitive. FTH1 overexpression as well as iron-chelating treatment by Deferoxamine were able to restore the LD amount and RR. Overall, these results provide evidence of a novel mechanism behind RR in which LDs and FTH1 are tightly connected to each other, a synergistic effect that might be worth deeply investigating in order to make cancer cells more radiosensitive and improve the efficacy of radiation treatments.
