Apical contacts stemming from incomplete delamination guide progenitor cell allocation through a dragging mechanism

  1. Eduardo Pulgar
  2. Cornelia Schwayer
  3. Néstor Guerrero
  4. Loreto López
  5. Susana Márquez
  6. Steffen Härtel
  7. Rodrigo Soto
  8. Carl-Philipp Heisenberg
  9. Miguel L Concha  Is a corresponding author
  1. Institute of Biomedical Sciences, Faculty of Medicine, Universidad de Chile, Chile
  2. Biomedical Neuroscience Institute, Chile
  3. Institute of Science and Technology Austria, Austria
  4. Physics Department, FCFM, Universidad de Chile, Chile
  5. National Center for Health Information Systems, CENS, Chile
  6. Center for Geroscience, Brain Health and Metabolism, Chile
Research Article
  • Cited 0
  • Views 465
  • Annotations
Cite this article as: eLife 2021;10:e66483 doi: 10.7554/eLife.66483

Abstract

The developmental strategies used by progenitor cells to allow a safe journey from their induction place towards the site of terminal differentiation are still poorly understood. Here, we uncovered a mechanism of progenitor cell allocation that stems from an incomplete process of epithelial delamination that allows progenitors to coordinate their movement with adjacent extra-embryonic tissues. Progenitors of the zebrafish laterality organ originate from the superficial epithelial enveloping layer by an apical constriction process of cell delamination. During this process, progenitors retain long-lasting apical contacts that enable the epithelial layer to pull a subset of progenitors on their way to the vegetal pole. The remaining delaminated cells follow the movement of apically attached progenitors by a protrusion-dependent cell-cell contact mechanism, avoiding sequestration by the adjacent endoderm, ensuring their collective fate and allocation at the site of differentiation. Thus, we reveal that incomplete delamination serves as a cellular platform for coordinated tissue movements during development.

Introduction

During embryo development, naïve cell lineages undergo concurrent processes of fate specification and morphogenesis as critical steps towards the generation of differentiated tissues and organs. These early progenitor cells often travel long distances from their induction site to the site of terminal differentiation, making them vulnerable to environmental cues and movement of neighbouring tissues. When faced with these environmental hazards, progenitors may deviate from their correct pathway or change their potential, leading to a reduction in the pool of progenitors available for later stages of differentiation. The success of this journey is critical when the number of progenitors in a tissue or organ is limited. In these cases, small reductions in the number of progenitors can lead to developmental abnormalities resulting in a dysfunctional organ (Moreno-Ayala et al., 2020). Several embryonic tissues and organs originate from small sets of progenitor cells. These include the primordial germ cells that give rise to gametes in vertebrate and invertebrate gonads, the posterior lateral line primordium that give rise to neuromasts along the trunk and tail of fish and amphibians, and the progenitors of the laterality organ involved in left-right pattern formation in various vertebrates (reviewed in Dalle Nogare and Chitnis, 2017; Matsui and Bessho, 2012; Reig et al., 2014; Richardson and Lehmann, 2010). Despite the importance of the developmental pathways followed by these small groups of progenitor cells and their impact on the physiology of the organism, we still know little about the set of developmental strategies that progenitor cells deploy in vivo to overcome the challenges imposed by the environment as they travel to the site of terminal differentiation. Here, we examine this question during the early stages of morphogenesis of the embryonic laterality organ, the first organ to form during vertebrate development, using the zebrafish as a model organism.

The zebrafish laterality organ or left-right organiser is a transient embryonic structure of epithelial nature known as Kupffer’s vesicle that contains motile cilia necessary for left-right axis determination (Cooper and D’Amico, 1996; Essner et al., 2005; Kramer-Zucker et al., 2005). This organ-like epithelial structure originates from a small group of 20–30 progenitors, known as dorsal forerunner cells (DFCs), which arise at the dorsal margin of the late blastula by a process of cell ingression that converts the superficial epithelial cells of the extra-embryonic enveloping layer (EVL) into deep mesenchymal-type DFCs (Oteiza et al., 2008). After ingression, DFCs move as a cell collective from their place of origin at the equator of the embryo towards the vegetal pole, reaching the terminal location for organ differentiation at the posterior tip of the notochord (Figure 1A; Figure 1—video 1; Cooper and D’Amico, 1996; Oteiza et al., 2010). On their journey, DFCs are positioned ahead of the margin of the deep cell layer (DCL), where specification signals and massive internalisation movements transform the marginal epiblast into the mesendoderm (Figure 1B; Pinheiro and Heisenberg, 2020). Despite the proximity to the DCL margin and the fact that DFCs share critical determinants with the mesendoderm (Alexander and Stainier, 1999; Warga and Kane, 2018), the movement and fate of DFCs do not appear to be affected by specification signals or mass internalisation movements of the mesendoderm, remaining separate from this cellular domain during their vegetal movement. Notably, DFCs follow the same vegetal ward direction of movement as the overlying EVL during epiboly (Bruce and Heisenberg, 2020) and appear to be physically connected to this extra-embryonic epithelial tissue, as revealed by the presence of puncta enriched in the tight junction (TJ)-associated zonula occludens one protein (ZO-1) at the DFC-EVL interface (Ablooglu et al., 2010; Oteiza et al., 2010). This observation raises the question of whether the putative DFC-EVL connections play a role in the movement of DFCs to the site of organ differentiation. This hypothesis has not yet been tested experimentally.

Figure 1 with 3 supplements see all

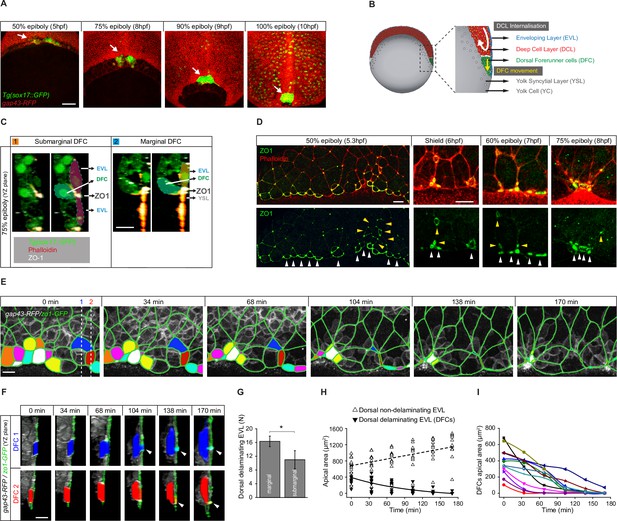

Dorsal forerunner cells (DFCs) delaminate by apical constriction and retain apical attachments with the enveloping layer (EVL) and yolk syncytial layer (YSL).

(A) Dorsal views of confocal z-stack maximum projections showing the collective vegetal movement of DFCs between shield stage and 100% epiboly in a representative Tg(sox17::GFP) embryo injected with gap43-RFP mRNA. DFCs are in green (arrows) while the plasma membrane of all cells is in red. Note that the sox17::GFP transgene also labels the scattered population of endodermal cells at advanced stages of epiboly (see criteria to discriminate DFCs from endodermal cells in Material and methods) (extracted from Figure 1—video 1). Scale bar, 100 µm. (B) Schematic diagram of a cross section along the sagittal plane of the zebrafish embryo at 60% of epiboly. DFCs move to the vegetal pole ahead of the deep cell layer (DCL) margin, where mesendodermal progenitors internalise. (C) Confocal microscopy zy-plane of a 75% epiboly Tg(sox17::GFP) embryo (green) stained with phalloidin (red) and zonula occludens one protein (ZO-1) (white), showing submarginal (left) and marginal (right) DFCs connected with the EVL and YSL by focal apical attachments enriched in ZO-1 and F-actin (extracted from Figure 1—figure supplement 1). Scale bar, 20 µm. (D) Phalloidin and ZO-1 immunostaining (merge on top and ZO-1 on bottom) of the dorsal margin of wild-type embryos between 50% and 75% epiboly. Images correspond to surface confocal sections showing the apical domains of marginal (white arrowheads) and submarginal (yellow arrowheads) delaminating DFCs in contact with the YSL and EVL. Scale bar, 20 µm. (E) Time series of dorsal views of confocal z-stack maximum projections of a representative embryo injected with zo1-GFP and gap43-RFP between 50% and 80% epiboly, showing EVL cell junctions (green outlines) and the apical domains of EVL cells as they delaminate to become DFCs (coloured areas) (extracted from Figure 1—video 2). Scale bar, 20 µm. (F) Time series of confocal z-sections showing two delaminating EVL cells (DFCs) taken from panel E in lateral views (blue and red cells) as they move below the plane of the EVL epithelium during the process of delamination. Note that delaminating cells retain a focal apical attachment with the EVL (arrowhead, top) and YSL (arrowhead, bottom). Scale bar, 20 µm. (G) Quantification of the number of dorsal EVL cells undergoing delamination to become DFCs at both marginal and submarginal positions, expressed as means ± s.d. *p ≤ 0.05 (n = 49 marginal DFCs and 33 submarginal DFCs from three embryos). (H) Temporal changes in apical area of delaminating dorsal EVL cells (DFCs) (black triangles) and neighbouring non-delaminating dorsal EVL cells (white triangles) in a representative embryo during the process of delamination (n = 12 DFCs and 11 dorsal EVL cells from the representative embryo shown in E). Continuous and dashed lines indicate the mean values of apical area of delaminating and non-delaminating dorsal EVL cells, respectively. (I) Temporal changes in apical area of individual delaminating DFCs in a representative embryo during the process of delamination (n = 12 delaminating DFCs from the representative embryo shown in E). Each curve corresponds to a single cell. Animal is to the top in all image panels. Source data for all plots are provided in Figure 1—source data 1.

Here, we addressed this hypothesis by combining in vivo imaging and biomechanical manipulation in zebrafish embryos. We found that DFCs arise from the EVL by an apical constriction process of cell delamination. During this process, DFCs retain long-term physical connections with the EVL and yolk syncytial layer (YSL) through TJ-enriched apical attachments, at the time both extra-embryonic tissues spread to the vegetal pole in the movement of epiboly. We demonstrated that extra-embryonic tissue spreading is transmitted to DFCs through the apical attachments to drag their vegetal movements. As DFCs detach from the extra-embryonic cellular domains after completing delamination or undergoing division, long polarised protrusions and E-cadherin (E-cad)-mediated adhesion integrate detached cells to the vegetal movement of attached DFCs, avoiding sequestration by the endoderm and ensuring the vegetal motion of all progenitors as a group. Thus, we unveil a drag-mediated guidance mechanism of progenitor cell morphogenesis that relies on the concerted activities of the epithelial delamination process underlying progenitor cell specification and the directed spreading of adjacent extra-embryonic tissues.

Results

DFCs ingress by cell delamination through an apical constriction process that provides long-term apical attachments with extra-embryonic tissues

The previous observation of puncta enriched in the TJ adaptor protein ZO-1 at the interface between a subset of DFCs and the overlying epithelial EVL during late epiboly stages (Ablooglu et al., 2010; Oteiza et al., 2008) suggests that DFCs establish contacts that attach them to the extra-embryonic surface epithelium. To investigate this possibility, we started by studying the spatial distribution of these enriched ZO-1 regions. Double immunolabelling for ZO-1 and phalloidin at 75% epiboly confirmed that ZO-1 puncta marked discrete areas, also enriched in F-actin, where DFCs contacted the EVL at cell-cell junctions near the margin of the epithelium (Figure 1C – left; Figure 1—figure supplement 1). Also, we observed the punctuated co-accumulation of ZO-1 and F-actin at the epithelial margin where DFCs contacted the YSL (Figure 1C – right; Figure 1—figure supplement 1). Indeed, the latter population of marginal DFCs was more abundant than submarginal DFCs (Figure 1D and G). We then asked how these contacts arise by examining the temporal progression of ZO-1 from early to late epiboly stages throughout DFC formation. Previous work has shown that DFCs originate from dorsal EVL cells through ingression (Oteiza et al., 2008) although the underlying mechanism is currently unknown. We found that at early epiboly stages EVL cells fated to become DFCs accumulated ZO-1 along their apical junctions (Figure 1D). Later, as epiboly progressed, the apical face of these cells gradually reduced in area to leave punctuated apical domains enriched in ZO-1 and F-actin proteins (Figure 1D). Together, these findings reveal that DFCs arise from dorsal EVL cells by a mechanism of epithelial cell delamination mediated by apical constriction. Remarkably, this process leaves discrete apical attachments connecting delaminating DFC progenitors with the extra-embryonic tissues.

To investigate the dynamics of apical constriction leading to the formation of apical attachments, we performed in vivo imaging from late blastula to epiboly stages using a GFP-tagged version of ZO-1. We found that EVL cells fated to become DFCs gradually shrunk their apical area while moving beneath the epithelial sheet (Figure 1E and F; Figure 1—video 2), a behaviour that was specific as neighbouring dorsal EVL cells exhibited the opposite behaviour, increasing their apical area as epiboly progressed (Figure 1H). Interestingly, the kinetics of apical area reduction varied among cells (Figure 1I) and resulted in discrete apical attachments that connected these cells with the YSL and EVL for extended periods (Figure 1F). Collectively, these findings indicate that DFC progenitors retain long-term apical attachments with the extra-embryonic YSL and EVL as a consequence of the apical constriction process of cell delamination that gives rise to the cells.

Cell delamination is concurrent with the vegetal movement of DFCs and extra-embryonic tissues

The presence of apical attachments connecting delaminating DFCs with the YSL and EVL opens the possibility that extra-embryonic tissues guide the vegetal movement of these cells. However, previous studies have hypothesised that the vegetal movement of DFCs relies on polarised protrusive activity (Ablooglu et al., 2010; Zhang et al., 2016). To discriminate between these two guidance mechanisms, we first examined the organisation of polarised protrusions in DFCs. Using in vivo imaging in an actin transgenic reporter line, we found that DFCs formed dynamic membrane protrusions (Figure 2E), as previously observed (Ablooglu et al., 2010; Zhang et al., 2016). However, protrusions were enriched at the rear (lateral and animal) edges and not at the leading (vegetal) edge of the DFC cluster (Figure 2A–D) arguing against a primary role of polarised cell protrusions in directing the vegetal movement of DFCs. To further support this idea, we inhibited the formation of actin-based cell protrusions through the expression of a dominant negative form of Rac (Rac1-T17N) (Bakkers et al., 2004). DFCs expressing Rac1-T17N did not form lamellar nor filopodial-like protrusions as in controls but instead showed extensive membrane blebbing with no directional bias (Figure 2F). Nevertheless, they still retained a persistent collective movement towards the vegetal pole (Figure 2I and K) as in controls (Figure 2H and J).

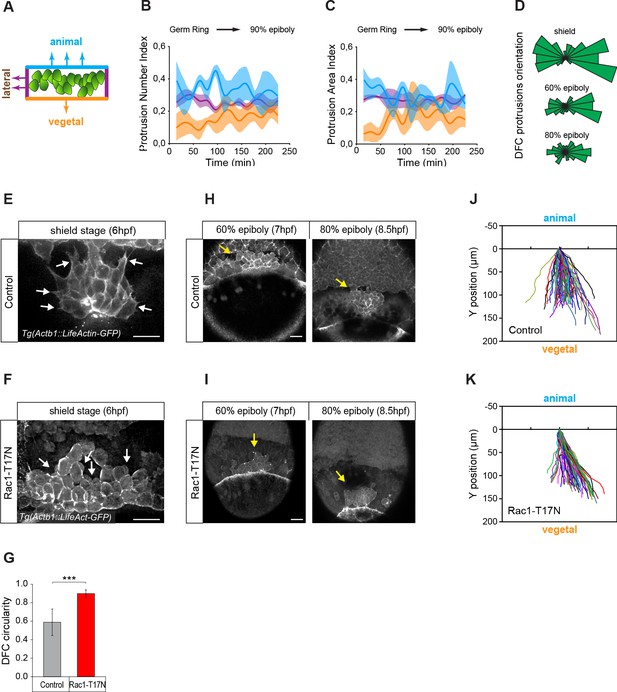

Vegetally directed polarised protrusions are not required for dorsal forerunner cell (DFC) vegetal movement.

(A) Schematic representation of the DFC cluster showing how cell protrusions extending from the vegetal (orange), lateral (purple), and animal (light blue) edges of the cluster were quantified in Tg(actb1::lifeactin-RFP) embryos to build the plots of (B) and (C). (B) Kinetic of normalised DFC protrusion number in living embryos (n = 3 embryos). (C) Kinetic of normalised DFC protrusion area in living embryos (n = 3 embryos). (D) Circular distribution plots of DFC protrusion orientation at different developmental stages obtained from fixed Tg(sox17::utrn-GFP) embryos (n = 11, 10, and 9 embryos for shield, 60% epiboly and 80% epiboly, respectively). (E, F) Dorsal views of confocal z-stack maximum projections showing the protrusions formed in DFCs (white arrows) from representative living Tg(actb1::lifeactin-RFP) embryos at shield stage in control (E) and Rac1-T17N injected (F) conditions. Scale bar, 20 µm. (G) Plot of circularity index of DFC protrusions in control and Rac1-T17N injected embryos, expressed as means ± s.d. ***p ≤ 0.001 (n = 42 cells from two control embryos and 62 cells from 3 Rac1-T17N embryos). (H, I) Dorsal views of confocal z-stack maximum projections showing the vegetal movement of the DFC cluster (yellow arrows) from representative living Tg(actb1:lifeactin-RFP) embryos from 60% to 80% epiboly stages in control (H) and Rac1-T17N injected (I) conditions. Scale bar, 20 µm. (J, K) Tracking plots of DFC movement in control (J) and Rac1-T17N injected (K) conditions, showing the directional movement of DFCs (n = 2 embryos for control and 3 embryos for Rac1-T17N injected conditions). Animal is to the top in all image panels. Source data for all plots are provided in Figure 2—source data 1.

Since the vegetal movement of DFCs does not seem to rely on a guidance mechanism based on vegetally directed polarised cell protrusions, we tested whether apical attachments could play a key role in this process. For this, we first determined the extent to which the vegetal movement of DFCs temporally matched the process of delamination using confocal microscopy (Figure 3A). We observed that DFCs travelled over 350 µm towards the vegetal pole from the time in which the first cell started the process of apical constriction at around dome stage until the last cells delaminated after detachment from the extra-embryonic tissues at around 90% epiboly (Figure 3B – horizontal axes). In agreement with the variable kinetics of apical constriction (Figure 1I), the onset of apical constriction and the time of detachment leading to delamination were also highly variable in the DFC population (Figure 3B and C – red and blue circles, respectively). Together, the absence of vegetal ward polarised cell protrusions in DFCs and the close concurrency of cell delamination with the vegetal movement of DFCs suggest that apical attachments with the YSL and EVL integrate delaminating DFCs to the vegetalward movements of the extra-embryonic tissues during epiboly. In support of this idea, the simultaneous tracking of DFCs and EVL cells revealed that the speed, direction, and extent of DFC vegetal movement tightly matched the vegetal spreading of the EVL (Figure 3D–G; Figure 3—video 1). Furthermore, DFCs and overlying EVL cells shared the same bias in the orientation of the elongation axis (Figure 3—figure supplement 1), indicating a morphogenetic coupling between the two tissues. Collectively, these results suggest that apical attachments derived from the process of cell delamination work as tissue-tissue connectors that couple delaminating DFCs with the vegetal spreading of the extra-embryonic YSL and EVL, guiding their vegetal movement during epiboly.

Figure 3 with 2 supplements see all

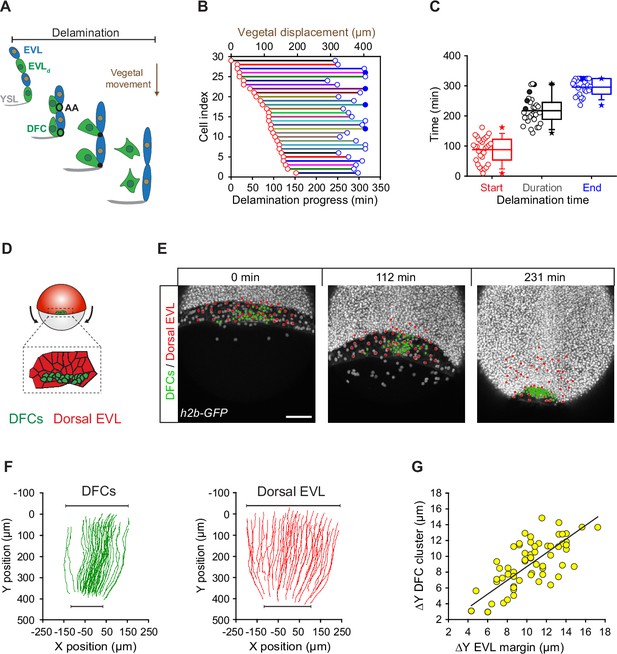

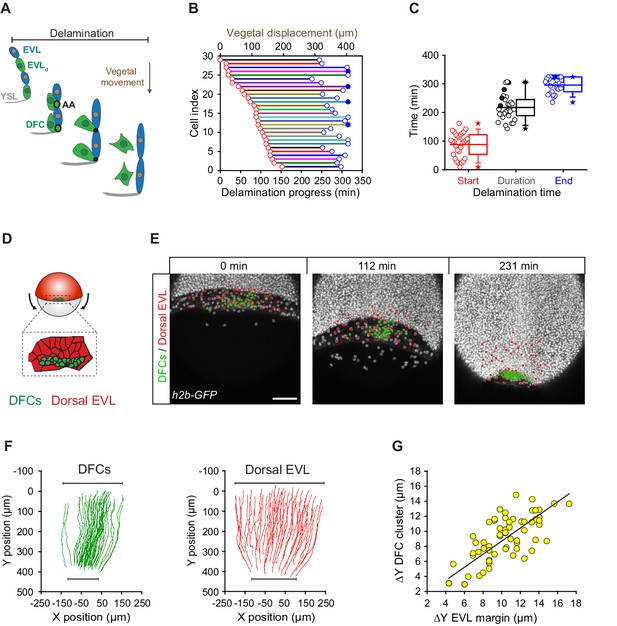

Dorsal forerunner cell (DFC) delamination is asynchronous and coexists with the vegetal movement of DFCs and the enveloping layer (EVL).

(A) Schematic diagram showing the origin of DFCs from the EVL through cell delamination. Apical attachments (AA) that result from apical constriction connect delaminating DFCs with the EVL and YSL during their vegetal movements. When DFCs complete delamination, they lose apical attachments and are released from the EVL and YSL. (B) Plot depicting the relationship between the time of the DFC delamination process and the vegetal movements of delaminating cells for all cells in a single representative Tg(actb1::lifeactin-RFP) embryo. The start (red circles) and end (blue circles) times of cell delamination, and the total duration of this process (horizontal lines) are shown for individual delaminating cells (bottom axis) and compared with their vegetal movements (top axis). Filled blue circles indicate a subset of delaminating cells that still retained their apical attachments by the end of the movies (n = 29 delaminating cells from one representative embryo). (C) Combined box and distribution plots of the start and end times, and of the total duration of cell delamination for the same representative embryo as in B. Circles correspond to individual values while the box depicts the interquartile range from 25% to 75% of the data around the average (vertical line inside the box), the whisker depicts s.d., and stars indicate maximum and minimum values. Filled blue and black circles indicate the subsets of delaminating cells that still retained apical attachments by the end of the movies (n = 29 delaminating cells from one representative embryo, same as in B). (D–G) Delaminating DFC mirrors the movement of dorsal EVL cells. Schematic diagram (D) and dorsal views of confocal z-stack maximum projections (E) of a representative wild-type embryo injected with h2b-GFP mRNA to label all nuclei (white dots) (extracted from Figure 3—video 1). (F) Tracks of delaminating cells (DFCs, green) and neighbouring non-delaminating dorsal EVL cells (red) between shield stage and 90% of epiboly, showing the paths of vegetal movement and convergence. (G) Correlation plot between the changes in position along the y-axis of the centre of mass of the DFC cluster and the EVL margin (Pearson’s r = 0.97552) (n = 62 tracked delta time points from three embryos). Scale bar, 100 µm. Animal is to the top in all image panels. Source data for all plots are provided Figure 3—source data 1.

Extra-embryonic tissues pull DFCs through apical attachments to guide their vegetal movement

To directly test if apical attachments between DFCs and the extra-embryonic tissues guide the vegetal movement of DFCs, we first disrupted the vegetal spreading of the YSL/EVL. Previous reports have shown that contraction and friction-based flows of a ring-like YSL actomyosin network drive YSL/EVL vegetal spreading during epiboly (Behrndt et al., 2012; Cheng et al., 2004; Heisenberg and Bellaiche, 2013). Therefore, we inhibited the activity of the YSL actomyosin ring by decreasing the levels of phosphorylated myosin II through expressing, specifically in the YSL, the N-terminal region of the myosin phosphatase target subunit 1 (N-ter-MYPT1) (Figure 4—figure supplement 1A,B). Embryos expressing N-ter-MYPT1 (MYPT1) showed a speed drop in YSL/EVL vegetalward spreading. Likewise, DFCs decreased their vegetal ward speed to the same extent (Figure 4—figure supplement 1C,D). Similarly, local disruption by laser ablation of the YSL actomyosin ring in direct contact with marginal DFC apical attachments decreased the speed of EVL spreading, as previously shown (Behrndt et al., 2012), simultaneously decreasing the speed of DFC vegetal movement near the ablated zone (Figure 4A and B; Figure 4—video 1). Together, these results demonstrate that the progress of DFC vegetal movement requires the vegetal spreading of the extra-embryonic YSL/EVL.

Figure 4 with 4 supplements see all

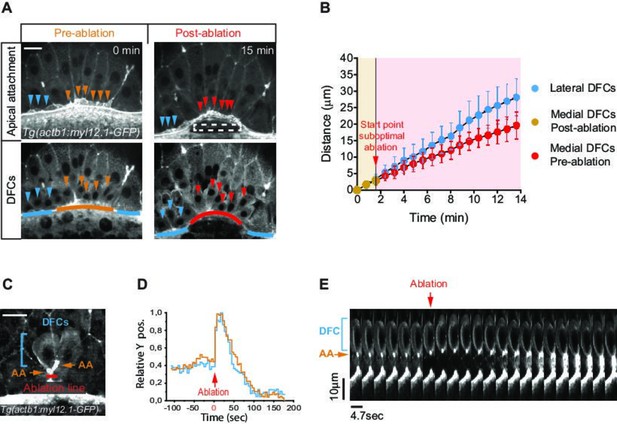

Apical attachments transmit extra-embryonic tissue spreading to guide dorsal forerunner cell (DFC) vegetal movement.

(A, B) Laser disruption of the yolk syncytial layer (YSL) actomyosin network impairs DFC vegetal movements. (A) Dorsal views of a Tg(actb1::myl12.1-GFP) embryo at early shield stage (5.8 hpf) before and after laser ablation of the cortical actomyosin ring of the YSL (extracted from Figure 4—video 1). Confocal optical planes are at the level of the enveloping layer (EVL) to reveal the apical attachments (top) and at a deeper z-position to show the body (bottom) of delaminating DFCs. The dashed rectangle depicts the zone of laser ablation. Arrowheads point to apical attachments (top) and the nuclei of individual DFCs (bottom), while lines depict the position of the EVL margin immediately above the ablation zone (orange and red) and lateral to this region (blue). Scale bar, 20 μm. (B) Plot showing the changes in position of delaminating DFCs along the y-axis before and after ablation, with the pulses of laser ablation starting just before minute 2 (red arrow). Medial and lateral DFCs correspond to the cells shown in panel A (coloured arrowheads), whose apical attachments associate with the EVL/YSL margin above or lateral to the ablated YSL zone, respectively. Values correspond to means ± s.d. (C–E) Laser line ablation of an EVL cortical junction below the apical attachments of two submarginal delaminating DFCs in a Tg(actb1::myl12.1-GFP) embryo at 70% of epiboly. (C) Dorsal view of a pre-ablation stage showing delaminating DFCs (blue bracket), their apical attachments (AA, orange arrows), and the ablation line (red). Scale bar, 20 µm. (D) Plot showing the changes in relative position of delaminating DFCs (blue) and apical attachments (orange) along the y-axis before and after ablation, with zero corresponding to the time of the laser pulse (red arrow). (E) Kymograph showing the movement of a DFC and its apical attachment during the laser ablation plotted in D (extracted from Figure 4—video 2). Scale bar, 10 µm. Animal is to the top in all image panels. Source data for all plots are provided in Figure 4—source data 1.

Next, we conducted two types of experiments to assess if extra-embryonic tissue movement is transmitted to DFCs through their apical attachments. As a first experiment, we transiently released a subset of DFC apical attachments from the influence of EVL spreading by performing laser ablation of a cortical EVL junction located immediately vegetal to DFC apical attachments (Figure 4C). We observed that apical attachments recoiled towards the animal pole after ablation, triggering a fast retraction of the DFC body, indicating that both apical attachments and DFCs were under vegetally directed tension (Figure 4D and E; Figure 4—video 2). Subsequently, the constricted cortical zone induced by wound repair pulled apical attachments towards the vegetal pole, restoring the vegetal directionality of DFC movement, further indicating that apical attachments are able to transmit motion information from the EVL to DFCs (Figure 4D and E; Figure 4—video 2). Finally, we took advantage of the particular spatial configuration that DFCs adopt in some wild-type embryos, in which subsets of cells developed as individuals isolated from the core group of DFCs, to test the requirement of apical attachments for DFC directed vegetal movements (Figure 5A). In these ‘natural’ experiments, we observed that isolated individual DFCs devoid of apical attachments (hereafter referred to as ‘detached DFCs’) moved without persistence and directionality, even towards the animal pole in the opposite direction to the vegetal movement of the YSL/EVL (Figure 5B–E; Figure 4—video 3). In contrast, isolated individual DFCs connected with the extra-embryonic tissues by apical attachments (hereafter referred to as ‘attached DFCs’) showed a persistent and directed movement toward the vegetal pole, mimicking the movement of extra-embryonic tissues (Figure 5B–E; Figure 4—video 3). Importantly, the persistence and speed of movement of DFCs correlated with the persistence and speed of movement of apical attachments (Figure 5G and H), and this close spatial and temporal relationship between apical attachments and DFC movements (Figure 5F–I) was only lost upon detachment (Figure 5E; Figure 4—video 3), indicating the requirement of physical attachment to extra-embryonic tissues for the persistent directed vegetal movement of DFCs. Taken together, these findings demonstrate that apical attachments are required to transmit vegetal spreading from extra-embryonic tissues to attached DFCs, guiding their vegetal movement during epiboly.

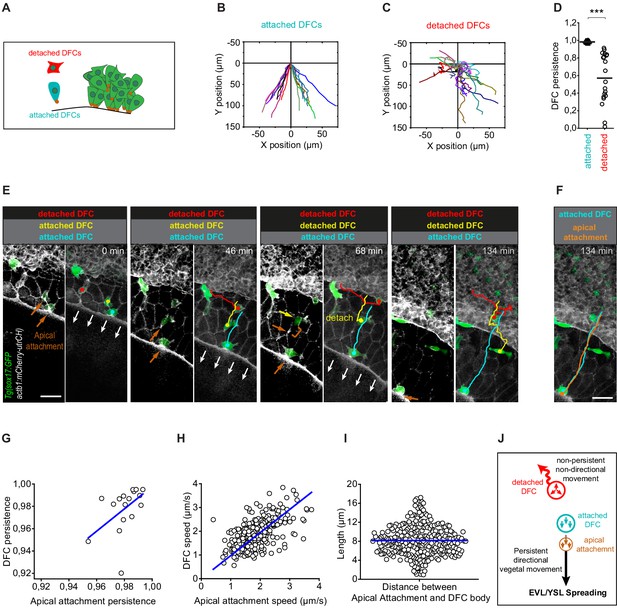

Apical attachments promote a persistent vegetal movement of attached dorsal forerunner cells (DFCs).

(A) Schematic diagram showing single isolated DFCs transiting the process of delamination far from the main DFC cluster (green). Single isolated DFCs are either transiting delamination and be attached to extra-embryonic tissues (blue cell; attachment shown as a brown dot) or be detached from these tissues after completing delamination (red cell). (B–D) Movement directionality and persistence of single isolated attached and detached DFCs. Tracking plots of single isolated attached (B) and detached (C) DFCs, and the differences in movement persistence (D), obtained from living Tg(sox17::GFP;actb1::mCherry-utrCH) embryos at around 60% epiboly (n = 17 attached DFCs from eight embryos and 20 detached DFCs from eight embryos). *** (p ≤ 0.001). (E) Time series of dorsal views of confocal z-stack maximum projections of a representative living Tg(sox17::GFP;actb1::mCherry-utrCH) embryo starting at 60% of epiboly (extracted from Figure 4—video 3) showing the movement of three DFCs developing as single cells in isolation from the main DFC cluster (see schematic in panel A). The blue cell is attached to the extra-embryonic yolk syncytial layer (YSL) and enveloping layer (EVL) during the entire series. The red cell is detached from these tissues during the entire series. The yellow cell is initially attached to the EVL but at time 68 min completes delamination and detaches from the EVL. Note that after detaching, DFC movement loses persistence and becomes non-directional. Brown arrows show the accumulation of actin at apical attachments. The brown bracket at time 68 min shows the distance between the position of the apical actin accumulation that labelled the recently lost apical attachment and the position of the detached DFC. White arrows show the vegetal movement of the YSL/EVL margin during epiboly. (F) Comparison of the tracks of the movement of the blue attached DFC shown in (E) and the movement of its apical attachment (brown). Scale bar, 50 µm. (G–I) Correlation plots between the movement persistence of DFCs and their apical attachments (G; Pearson’s r = 0.99984; n = 17 attached cells and apical attachments from eight embryos) and between the movement speed of DFCs and their apical attachments (H; Pearson’s r = 0.96085; n = 276 attached cells and apical attachments from eight embryos), and distribution plot of the distance (length) between the apical attachment and body of DFCs (I; n = 276 apical attachments and DFC bodies from eight embryos). (J) Schematic diagram showing the proposed drag-mediated mechanism guiding the motion of attached DFCs. YSL/EVL vegetal spreading is transmitted to delaminating DFCs through apical attachments to guide their vegetal movements. Single isolated DFCs devoid of apical attachments (detached DFCs) are insensible to YSL/EVL dragging and show non-directional movements. Animal is to the top in all image panels. Source data for all plots are provided in Figure 5—source data 1.

DFCs sustain a collective vegetal movement despite the increase of detached cells

The tracking of single isolated detached DFCs revealed that they failed to engage in directed and persistent vegetal movements (Figure 5A–E and J; Figure 4—video 3). Importantly, this behaviour was also present in a subset of detached cells initially located close to or inside the central cluster of DFCs during epiboly. We observed that in 55% of embryos, often one or two, and up to five detached DFCs per embryo left the cluster as single cells (Figure 6A). These cells moved mainly in direction to the animal pole, being sequestered by the internalisation movement of the DCL and incorporating into this embryonic cell layer (Figure 6B; Figure 6—video 1). Remarkably, this group of DFCs mimicked the morphology and movement behaviour of endodermal cells and at later stages differentiated in endodermal tissue derivatives (Figure 6—figure supplement 1A). Furthermore, DFCs transplanted into the paraxial region of host embryos, where endodermal and mesodermal progenitors develop, also followed endodermal cell fate and form endodermal tissue derivatives (Figure 6—figure supplement 1B). Thus, detached DFCs are prone to leave the cell cluster being sequestered by the DCL, and in this new environment integrate into the endodermal cell layer, losing their primal fate. However, this behaviour was barely seen in normal development. Indeed, detached DFCs following the endodermal path were observed in only 55% of all analysed embryos and represented a small fraction of the complete pool of detached DFCs (Figure 6A). In contrast, the number of detached DFCs increased steadily during epiboly as cells completed the process of delamination (Figure 3B). These findings prompted us to investigate how the detached DFC population integrates into the collective movement of attached DFCs, which is guided by the extra-embryonic tissues. To address this issue, we first analysed how the detached DFC population evolves in number during their collective vegetal movement. Immunostaining for ZO-1 and F-actin revealed that at the onset of epiboly the entire population of DFCs were transiting the process of delamination and thus were all attached to the YSL and EVL (Figure 6C). However, as epiboly progressed, detached DFCs steadily increased to outnumber the attached DFC population from around 75% epiboly, and by 90% epiboly they became the predominant pool of DFCs (Figure 6C). Through time-lapse microscopy, we found that the progressive increase of detached cells was not only due to DFCs completing the process of delamination (Figure 3B), but detached DFCs also emerged from events of cell division (Figure 6D and E). As previously noted, despite the continuous increase in the number of detached DFCs (Figure 6E), the entire population of DFCs still moved in direction to the vegetal pole in coordination with the vegetal spreading of extra-embryonic tissues until advanced stages of epiboly (Figure 6F). Only around 85–90% of epiboly, when the percentage of detached cells reached 80%, the DFC cluster detached from the EVL and significantly lowered its vegetal movement (Figure 6E and F). Taken together, these results reveal that the DFC cluster retains a collective vegetal motion during a prolonged period of epiboly, regardless of the progressive expansion of the detached DFC population, raising the question of how detached DFCs move towards the vegetal pole.

Figure 6 with 2 supplements see all
Dorsal forerunner cells (DFCs) move to the vegetal pole as a collective despite the increase of detached cells.

(A, B) Individual detached DFCs can leave the main cluster towards the deep cell layer (DCL) during normal development. (A) Schematic diagram showing events of escape (top) and quantification of the percentage of embryos showing escape events of defined numbers of detached DFCs after in vivo imaging of Tg(sox17::GFP) embryos (bottom, n = 22 embryos). (B) Dorsal views of confocal z-stack maximum projections at shield stage (top) and 75% epiboly (bottom) of a representative Tg(sox17::GFP) embryo injected with gap43-RFP mRNA, labelling DFCs in green and the plasma membrane of all cells in red (extracted from Figure 6—video 1). Arrows indicate two detached DFCs leaving the main cluster towards the DCL. These cells then mimic the behaviour of endodermal cells and differentiate into endodermal tissue derivatives (Figure 6—figure supplement 1). Scale bar, 50 µm. (C–E) Origin and progressive increase of detached DFCs during development. (C) Quantification of attached and detached DFCs between 50% and 90% epiboly (5.3–9 hpf), as determined from fixed embryos stained with phalloidin and zonula occludens one protein (ZO-1) (see Figure 1C and D). Values correspond to means ± s.d. (n = 5–11 embryos per stage). (D) Kinetic of cumulative frequency of DFC division events (n = 3 individual representative embryos). (E) In vivo kinetics of attached and detached DFCs in a single representative living Tg(sox17::GFP) embryo injected with lifeactin-mcherry mRNA to label F-actin. Plot shows the percentage of attached (filled green circles) and detached (empty green circles) DFCs over time. (F) In vivo progression in the movement speed of the centre of mass of the DFC cluster (green), the enveloping layer (EVL) margin (red), and the actomyosin ring of the yolk syncytial layer (YSL) (blue) (n = 10 DFCs, 5 EVL cell margins, and 4 actomyosin ring points from the same representative embryo as in E). Values correspond to means ± s.d. In E and F, movies started at shield stage and extended until 90% epiboly. The vertical yellow bar indicates the stage when the movement of DFCs uncouples from the vegetal movement of the EVL and YSL (around 80% epiboly, when detached DFCs reach ∼80%). Animal is to the top in all image panels. Source data for all plots are provided in Figure 6—source data 1.

DFC-DFC contact interactions integrate detached cells to the vegetal movement of attached DFCs providing a clustered collective movement

The observation that most detached DFCs move towards the vegetal pole despite their ability to migrate out of the DFC cluster and be sequestered by the DCL suggests the existence of specific mechanisms that integrate these detached cells into the movement of attached DFCs. During epiboly, DFCs change from being a collection of dispersed progenitors to a tightly packed cellular cluster (Figure 1A; Figure 1—video 1; Oteiza et al., 2008). Quantitative assessment of collective cell behaviour revealed that DFC clustering was achieved by progressively decreasing the distance between progenitors and increasing the contact with the surrounding cells (Figure 7A and B). During this process, DFCs express e-cadherin mRNA (Kane et al., 2005) and also localise E-cad at the cell membrane (Figure 7E), and previous reports have shown that functional abrogation of this adhesion molecule affects the cluster cohesion of DFCs leading to a scattered organisation of DFCs at 90% of epiboly (Oteiza et al., 2010). Thus, E-cad-mediated DFC-DFC adhesion could play a role of integrating detached DFCs into the vegetal movement of attached DFCs. Therefore, we tested by time-lapse microscopy whether the directed vegetal movement of detached DFCs requires E-cad-mediated contact interactions. We found that E-cad knockdown disrupted cluster cohesion, leading to multiple racemes of DFCs that moved in the vegetal direction guided by their apical attachments with the YSL and EVL (Figure 7F). Remarkably, the number of detached cells exiting the DFC group towards the DCL increased significantly in these embryos (Figure 7G and H). These results indicate that E-cad-mediated DFC-DFC adhesion is necessary for the recruitment of detached DFCs into the vegetal motion of attached DFCs, avoiding cell escape and promoting the formation of a tight cellular cluster.

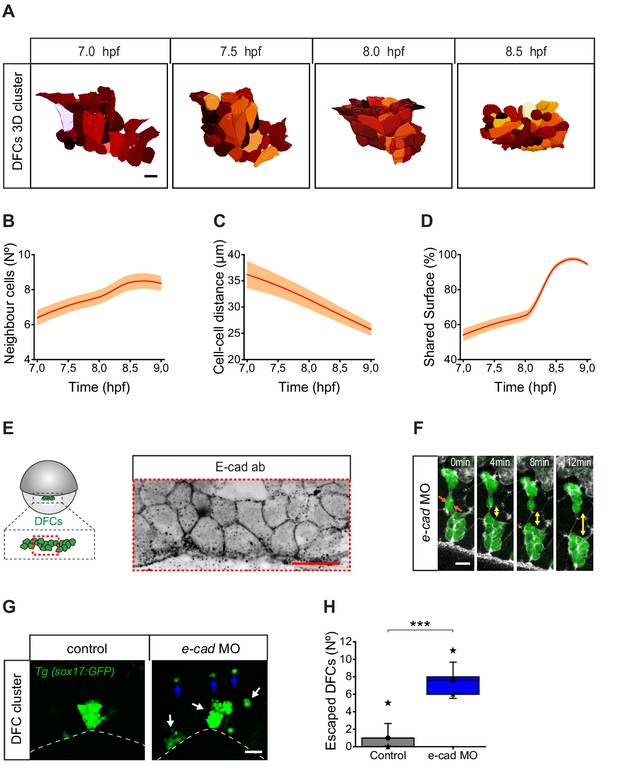

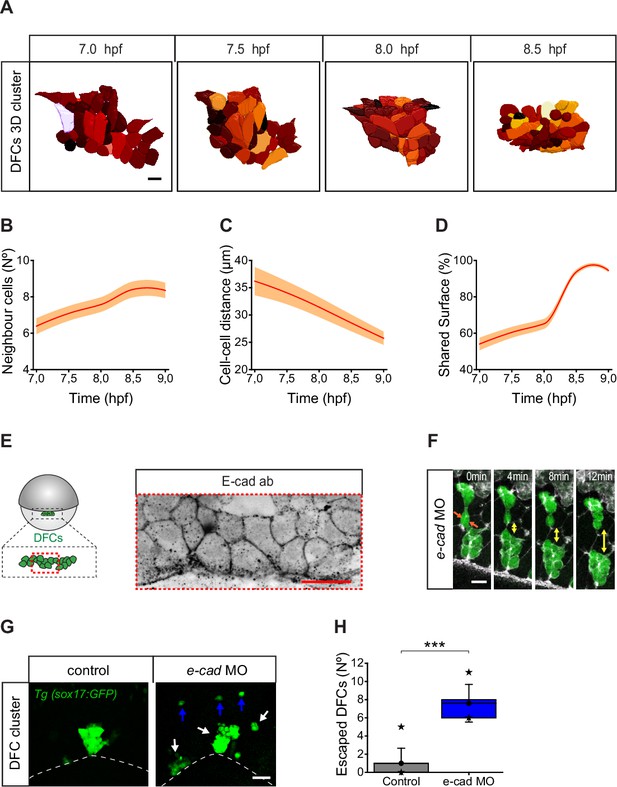

Dorsal forerunner cells (DFCs) increase cell-cell contact and cluster compaction during vegetal movement.

(A) Dorsal view of a 3D cell reconstruction of a single DFC cluster from a Tg(β-actin::HRAS-EGFP) embryo at different time points of collective movement. Individual cells are labelled in different colours according to their volume. Scale bar, 20 µm. (B–D) Quantification plots of the number of neighbour cells (B), and of the distance (C) and shared surface (D) between neighbouring DFCs (n = 44, 46, 47, 59 cells for 7, 7.5, 8, and 8.5 hpf, respectively, from a single embryo). (E) Dorsal view of confocal z-stack maximum projection of a DFC cluster immunostained for E-cadherin (E-cad) in a representative 60% epiboly embryo. Scale bar, 20 µm. (F) Time series of dorsal views of confocal z-stack maximum projections showing the evolution of a small raceme of DFCs in a representative 80% epiboly Tg(sox17::GFP) embryo injected with e-cad MO. The double-sided arrows indicate how the DFC raceme becomes apart as DFCs lose their initial adhesive contacts (arrows). Scale bar, 20 µm. (G) Dorsal views of confocal z-stack maximum projections showing DFCs from representative 80% epiboly Tg(sox17::GFP) control (left) and e-cad MO injected (right) embryos showing the defective collective organisation of DFCs into multiple racemes (white arrows) and the increase of escaped cells (blue arrows). Scale bar, 50 µm. (H) Quantification of the number of DFCs escaping from the central cluster towards the animal pole in control and e-cad MO injected embryos. The box depicts the interquartile range from 25% to 75% of the data around the average (vertical line inside the box), the whisker depicts s.d., and stars indicate maximum and minimum values (n = 5 embryos for e-cad MO and 9 embryos for control conditions). *** (p ≤ 0.001). Animal is to the top in all image panels. Source data for all plots are provided in Figure 7—source data 1.

We observed that the DFC population organised as a single cell cluster from early stages of vegetal movement in 57% of embryos (Figure 8A and C). However, in the remaining 43% of embryos, DFCs initially formed two (28%) or three (15%) small cell clusters separated by an average distance of 50 µm, which only at later stages of epiboly coalesced to form a single cluster (Figure 8B–D). Thus, it remained unknown how cells located far apart in the initially dispersed small DFC clusters approached to each other to establish adhesive contacts. To address this question, we followed the movement of DFCs by in vivo microscopy. Our time-lapse image analysis revealed that DFCs located at the edges of distant cell clusters initiated adhesive contacts by sending out long polarised protrusions that resulted in the establishment of long-term adhesion between cells, allowing DFC clustering (Figure 8E; Figure 8—video 1). The protrusions involved in this process differed from other protrusions formed by DFCs not only by their longer length, but also by their increased lifetime and alignment between clusters (Figure 8F–I). Collectively, these results indicate that long-range cell-cell contact interactions mediated by polarised protrusions function as seeds for the establishment of stable adhesion between DFCs. Remarkably, using transgenic embryos expressing a fluorescent biosensor for F-actin only in DFCs, we observed a temporal connection between the formation of protrusion-mediated adhesive contacts and the loss of apical attachments. Subsets of small clusters of DFCs that contained several cells with apical attachments began to detach from extra-embryonic tissues only after initiating protrusion-mediated adhesive contacts with the central cluster of attached DFCs (Figure 8J – 0–16 min; Figure 8—video 2). Subsequently, they completed the delamination process when fully integrated into the central DFC cluster (Figure 8J – 23–47 min; Figure 8—video 2). Taken together, these findings indicate that cell-cell contact interactions between DFCs integrate detached cells into the vegetal movement of attached cells to guide the clustering and directional vegetal movement of the entire DFC collective.

Figure 8 with 2 supplements see all

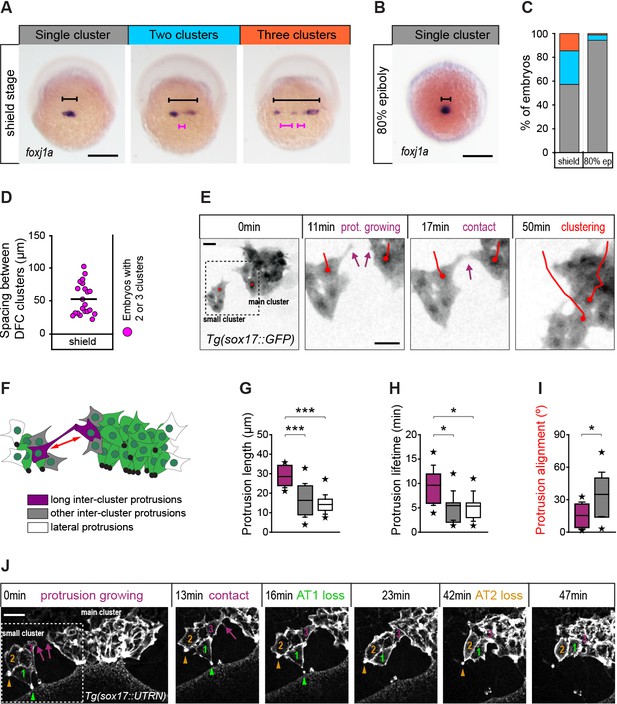

Contact interactions between dorsal forerunner cells (DFCs) couple the motion of attached and detached cells promoting a clustered collective movement.

(A) Spatial distribution patterns of DFCs in dorsal views of wild-type embryos at shield stage revealed by foxj1a mRNA expression. During DFC formation, these cells are organised at the dorsal margin as single or multiple clusters spanning different widths (black bracket) along the medio-lateral axis, also showing variable spacing between clusters (purple bracket). (B) Same as in (A) showing an embryo with a single compact cluster (black bracket) at 80% epiboly. Scale bars of A and B, 250 µm. (C) Quantification of the percentage of embryos showing single (grey), two (light blue), or three (orange) DFC clusters at shield stage and at 80% of epiboly (n = 110 embryos at shield stage, and 88 embryos at 80% of epiboly). (D) Quantification of the spacing between DFC clusters at shield stage (n = 16 embryos with two or three clusters). (E) Temporal confocal series of DFCs from a Tg(sox17::GFP) embryo showing long protrusions (purple arrows) contacting DFCs from neighbouring clusters. After the initial contact, DFCs from the lateral small cluster approach and establish adhesive contacts with the main cluster (red lines). Scale bar, 20 µm. (F) Schematic diagram showing the different types of protrusions formed by DFCs when two clusters approach and coalesce into a single cluster: long inter-cluster protrusions involved in cluster coalescence (purple), other inter-cluster protrusions (grey), and protrusions formed at lateral sides of the contacting clusters (white). The double-sided red arrow indicates the axis of alignment between approaching clusters. (G–I) Quantification of the length (G), lifetime (H), and alignment (I) of the protrusions described in (F). Boxes depict the interquartile range from 25% to 75% of the data around the average (vertical line inside the box), whiskers depict s.d., and stars indicate maximum and minimum values (n = 8 long inter-cluster protrusions from three embryos, 15 other inter-cluster protrusions from three embryos, and 14 lateral protrusions from three embryos). *** p ≤ 0.001; * (p ≤ 0.05). (J) Temporal confocal series from a representative Tg(sox17::utrn-GFP) embryo showing a DFC from a small lateral cluster (cell 3) sending long protrusions and establishing adhesive contacts with the main cluster before other DFCs from the small cluster (1 and 2) lose apical attachments (AT, arrowheads) (extracted from Figure 8—video 2). Scale bar, 20 µm. Animal is to the top in all image panels. Source data for all plots are provided in Figure 8—source data 1.

Discussion

Here, we show a previously unexplored mechanism of morphogenesis of a small group of progenitor cells that stems from the mechanistic link between the process of epithelial delamination underlying progenitor specification and the directed movement of adjacent extra-embryonic tissues. This morphogenetic mechanism safeguards progenitors from undesired losses while guiding their directed motion and allocation as a cluster at the site of organ differentiation. In zebrafish, DFCs are the laterality organ progenitors and arise by delamination from the EVL, an extra-embryonic surface epithelium that protects the early embryo and at later stages gives rise to the periderm (Kimmel et al., 1990). When DFCs are formed, the EVL epithelium spreads from the equator to the embryo’s vegetal pole during the movement of epiboly in conjunction with the YSL, an extra-embryonic syncytium to which the vegetal margin of the EVL is tied. Remarkably, the apical constriction process underlying the delamination of DFC progenitors follows a temporal progression that allows these cells to retain long-term apical attachments with the EVL and YSL as they spread towards the vegetal pole during epiboly. Apical attachments work as tissue connectors that couple DFCs with the vegetal spreading of extra-embryonic tissues, guiding their motion towards the site of differentiation at the vegetal pole. In contrast with previous hypotheses indicating that autonomous motility (Ablooglu et al., 2010) and contact-mediated repulsive interactions with the marginal DCL (Zhang et al., 2016) drive DFC vegetal movement, we show that mechanical drag by extra-embryonic tissue movement provides the critical guidance cues for DFC directed locomotion. Remarkably, this guidance mechanism is mediated by apical attachments that stem from an incomplete process of delamination, allowing DFCs to coordinate their movement with the adjacent extra-embryonic tissues. Epithelial delamination is a conserved mechanism to generate new mesenchymal cell types in various developmental contexts (Shook and Keller, 2003; Thiery et al., 2009). Here, we show that besides this canonical function, incomplete delamination serves as a generic mechanism for coordinated tissue movement during development, driving the allocation of newly formed mesenchymal cell groups.

Apical attachments guiding DFC movement arise from a process of apical constriction that is asynchronous among DFCs. We show that such asynchrony generates two distinct populations of progenitors, one holding apical attachments and being pulled by the vegetal movement of extra-embryonic tissues, and a second population of detached delaminated DFCs that follows the vegetal movement of apically attached DFCs through DFC-DFC contact mechanisms. In the context of these evolving two populations, having an asynchronous process of cell delamination potentially increases the chances of maintaining a minimal number of apically attached DFCs able to carry the detached DFC population along their movements, a factor that becomes relevant as epiboly progresses and the ratio of attached/detached DFCs decreases. Furthermore, as apical constriction imposes mechanical stress along the epithelial plane (Heer and Martin, 2017; Martin and Goldstein, 2014), we can speculate that having asynchrony in a collective process of apical constriction promotes the even dissipation of mechanical stress over time and space, protecting the integrity of the epithelium. Future work combining mechanical perturbations/measurements with physical modelling will have to test these hypotheses directly.

Delaminated DFCs are intrinsically motile and can move towards the DCL, being sequestered by the massive internalisation movements of this embryonic cellular domain during gastrulation. Importantly, when DFCs reach the DCL, either during normal development or after transplantation, they follow the endodermal path revealing that DFCs have a previously unrecognised potential to become endoderm that is expressed if they enter the developmental field of the endoderm. Such potential co-option of DFCs by the endodermal DCL reduces the number of progenitors, and this can have a detrimental impact on left-right asymmetry development, increasing the incidence of embryo laterality defects (Moreno-Ayala et al., 2020). Here, we show that DFCs transiting the process of delamination avoid endodermal fate by establishing E-cad-mediated adhesive contacts with the sub-population of attached DFCs before completing the process of delamination. Thus, DFC-DFC contact interactions mediated by E-cad play a dual function, to protect delaminated cells from escaping towards the endoderm and to ensure they move together with the attached DFC population as a collective group. Importantly, DFCs located at long distances establish adhesive contacts by sending long polarised protrusions whose persistence and directionality differ from the other short-lived random protrusions formed by most DFCs. The mechanisms underlying the formation of these directed long protrusions are currently unknown. Notably, recent work shows that migrasomes containing the chemokine ligands Cxcl12a/b become enriched in the extracellular space surrounding DFCs (Jiang et al., 2019), thus opening the possibility that long polarised protrusions are a manifestation of a chemoattraction mechanism mediated by these guidance molecules. It is also remarkable the observation that small sub-groups of DFCs delaminate only after establishing adhesive contacts with the main DFC cluster suggesting a mechanistic coupling between cell adhesion, cell motility, and the process of delamination. Both emerging possibilities, the guidance of contact-mediated DFC clustering through environmental chemical cues and the coordination of cellular behaviours at a supra-cellular scale, are interesting aspects to explore in future work. Together, these findings provide a novel developmental function for E-cad, mediating the transfer of movement information between two distinct populations of progenitor cells defined by their state in the delamination process: attached (transiting delamination) and detached (delaminated). Remarkably, motion transfer from attached to detached DFCs resembles the leader-to-follower motion transmission observed in events of collective cell locomotion, many of which also require cadherin-dependent cell-cell contact interactions (Friedl and Gilmour, 2009; Reig et al., 2014; Theveneau and Mayor, 2013). In the case of DFCs, the role of E-cad in motion transmission complements the previously described function in clusterisation (Hong and Dawid, 2009; Matsui et al., 2011; Oteiza et al., 2008), and together ensure that progenitors reach the site of terminal differentiation in a sufficient number and organised as a tight collective, a prerequisite to proceed into further stages of organogenesis (Oteiza et al., 2010; Oteiza et al., 2008). It is worth mentioning that the proposed mechanism of DFC leader-to-follower locomotion works until the percentage of attached cells falls below the 20% limit, around 85–90% of epiboly. After this stage, the DFC cluster loses its physical connections with the YSL and EVL and begins an internal cellular reorganisation process leading to rosette formation and organ differentiation (Oteiza et al., 2008). During this transition, the DFC cluster continues a vegetal displacement until the end of epiboly but at a slower rate and becomes covered by the DCL. The mechanisms driving this subsequent migratory phase are unknown and could involve contact interactions with the DCL margin.

Developmental cases of cells being dragged through physical bonds with adjacent tissues have recently begun to be reported. Among them, Caenorhabditis elegans primordial germ cells internalise during gastrulation due to cohesive contacts that these cells establish with the moving ingressing endoderm (Chihara and Nance, 2012). In annual killifish, the embryonic DCL spreads during epiboly as a result of adhesive contacts with the basal epithelial domain of the expanding EVL (Reig et al., 2017). In zebrafish, the vegetal spreading of the EVL during epiboly follows the autonomous movement of the YSL to which is tightly bonded at its margin by TJ complexes (Behrndt et al., 2012; Betchaku and Trinkaus, 1978; Koppen et al., 2006; Schwayer et al., 2019). Therefore, mechanical drag is an emergent mechanism of cell movement whose extent and impact during embryo morphogenesis needs to be further investigated. Here, we show that drag-mediated locomotion is a crucial driver of organogenesis that emerges at the interface of embryonic and extra-embryonic cellular domains highlighting the essential role of mechanical information from extra-embryonic tissues in driving early embryo development (Christodoulou et al., 2019; Hiramatsu et al., 2013; Reig et al., 2017).

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Danio rerio, both sex)AB wild typeICBM-University of ChileRRID:ZDB-GENO-960809-7
Genetic reagent (Danio rerio, both sex)Tg(sox17::utrn-GFP)Woo et al., 2012 DOI: 10.1083/jcb.201203012.RRID:ZFIN-ALT-120911-1
Genetic reagent (Danio rerio, both sex)Tg(sox17::GFP)Sakaguchi et al., 2006 DOI: 10.1242/dev.02581RRID:ZFIN-ALT-061228-2
Genetic reagent (Danio rerio, both sex)Tg(β-actin::HRAS-EGFP)Cooper et al., 2005 DOI: 10.1002/dvdy.20252
Genetic reagent (Danio rerio, both sex)Tg(actb1::myl12.1-eGFP)Behrndt et al., 2012 DOI: 10.1126/science.1224143RRID:ZFIN-ALT-130108-2
Genetic reagent (Danio rerio, both sex)Tg(actb1::mCherry-utrCH)Behrndt et al., 2012 DOI: 10.1126/science.1224143
Antibody(Mouse monoclonal) anti-ZO1Thermo Fisher ScientificCat# 339100 RRID:AB_2533147(1:200)
Antibody(Rabbit polyclonal) anti-Phospho-Myosin Light Chain 2 (Ser19)Cell SignalingCat# 3671 RRID:AB_330248(1:200)
Antibody(Rabbit polyclonal) anti-Cdh1Maitre et al., 2012 DOI: 10.1126/science.1225399MPI-CBG (#174)(1:200)
Antibody(Goat polyclonal) anti-mouse Alexa Fluor 488Thermo Fisher ScientificCat# A-11001 RRID:AB_2534069(1:200)
Antibody(Goat polyclonal) anti-rabbit Alexa Fluor 568Thermo Fisher ScientificCat# A-11011 RRID:AB_143157(1:200)
Recombinant DNA reagentpCS2-Gap43-RFP (plasmid)Reig et al., 2017 DOI: 10.1038/ncomms15431Membrane-bound RFP
Recombinant DNA reagentpCS2-lifeACT-RFP (plasmid)Behrndt et al., 2012 DOI: 10.1126/science.1224143Actin-RFP
Recombinant DNA reagentpCS2-GFP-zo1-1b (plasmid)Schwayer et al., 2019 DOI: 10.1016/j.cell.2019.10.006Directed to apical junctions
Recombinant DNA reagentN-ter(1-300aa)-Mypt1 (plasmid)Jayashankar et al., 2013 DOI: 10.1371/journal.pone.0075766Inhibits actomyosin network
Recombinant DNA reagentpCS2-h2b-GFP (plasmid)Keller et al., 2008 DOI: 10.1126/science.1162493Nuclear GFP
Recombinant DNA reagentpCS2-foxj1a (plasmid)Neugebauer et al., 2009 DOI: 10.1038/nature07753TAAATCGCAGCTCTTCCTTCCAACGFoxj1a sequence in pCS2 backbone for riboprobe synthesis
Sequence-based reagentCadherin-1 (cdh1 MO)This paperGene ToolsTAAATCGCAGCTCTTCCTTCCAACG
Commercial assay or kitmMESSAGE mMACHINE SP6 Transcription KitThermo Fisher ScientificCat# AM1340
Software, algorithmFijiSchindelin et al., 2012 DOI: 10.1038/nmeth.2019RRID:SCR_002285https://imagej.net/Fiji
Software, algorithmMATLABMATLAB SoftwareRRID:SCR_001622https://la.mathworks.com/products/matlab.html
Software, algorithmVolocityQuorum Technologies IncRRID:SCR_002668https://quorumtechnologies.com/
Software, algorithmOriginOriginLabRRID:SCR_014212https://www.originlab.com/

Fish strains and maintenance

Request a detailed protocol

Zebrafish (Danio rerio) strains were maintained and raised according to previously published procedures (Westerfield, 2000). Embryos were grown in E3 solution at 28°C and staged according to morphology. Fish care and procedures were approved by the Ethical Review Committee and comply with the Animals Scientific Procedures Act 0466 (Protocol CBA#0466 FMUCH). Zebrafish strains used were: wild-type AB, Tg(actb1::myl12.1-eGFP) (Behrndt et al., 2012), Tg(sox17::utrn-GFP) (Woo et al., 2012), Tg(sox17::GFP) (Sakaguchi et al., 2006), Tg(actb1::mCherry-utrCH) (Behrndt et al., 2012), Tg(actb1::myl12.1-eGFP; actb1::mCherry-utrCH), and Tg(β-actin::HRAS-EGFP) (Cooper et al., 2005).

Morpholino and mRNA injections

Request a detailed protocol

Synthetic mRNA was produced using the SP6 mMessage mMachine kit (Thermo Fisher Scientific). Glass capillaries (BF100-98-15, Sutter Instruments) were pulled using a needle puller (P-97, Sutter Instruments) and mounted on a microinjection system (Picospritzer III, Parker Hannifin). Embryos were microinjected at the one-cell stage as previously described (Barth and Wilson, 1995), unless stated otherwise: 100 pg of Gap43-RFP (Reig et al., 2017) or 40 pg of lifeACT-RFP (Behrndt et al., 2012) mRNA or h2b-GFP (Keller et al., 2008) were injected as a counterstain for whole embryo visualisation; 20 pg of zo1-GFP mRNA was injected to label apical junctions during DFC delamination (Schwayer et al., 2019); 75 pg of N-ter(1-300aa)-Mypt1 mRNA (Jayashankar et al., 2013) was injected into the yolk cell at 3.3 hpf for functional inhibition of the actomyosin network in the YSL; and 2 ng of cdh1 MO (5'- TAAATCGCAGCTCTTCCTTCCAACG -3', GeneTools) (Maitre et al., 2012) was injected to abrogate cdh1 function.

In situ hybridisation

Request a detailed protocol

Whole mount in situ hybridisation was performed as previously described (Barth and Wilson, 1995). Antisense RNA probes were synthesised from partial cDNAs of foxj1a (Neugebauer et al., 2009). After staining, embryos were embedded in 70% glycerol and photographed on a Nikon SMZ100 dissecting scope using a Nikon digital camera with NIS software. Images were imported into Adobe Photoshop. For these and all other experiments, image manipulation was limited to adjustment of levels, colour balance, contrast, and brightness.

Immunohistochemistry

Request a detailed protocol

Embryos between 50% and 90% of epiboly (5.3–9 hpf) were fixed and stained as described previously (Oteiza et al., 2010). Embryos were mounted on agarose-coated dishes embedded in 1% low melting point agarose. Samples were imaged on a Leica TCS LSI Confocal microscope with HCS software using a 5× objective and 488/520 (λexc/λem) lasers. The following antibodies and dilutions were used: mouse anti-ZO-1 (339,100 Invitrogen, 1:200), anti-pMLC2 (3,671 Cell Signaling, 1:200), anti-Cdh1 (MPI-CBG #174, 1:200), goat anti-mouse Alexa Fluor 488 (A-11001, Thermo Fisher Scientific), and goat anti-rabbit Alexa Fluor 568 (A-110011, Thermo Fisher Scientific).

Whole embryo confocal imaging

Request a detailed protocol

Tg(sox17::GFP) embryos injected with 50 pg of gap43-RFP mRNA were mounted in 0.5% low melting point agarose in a custom-designed chamber at either dome or 50% epiboly stage. The temperature was kept constant at 28°C throughout the imaging experiment using a temperature control system. Whole embryo in vivo microscopic imaging was performed in a Leica TCS LSI Confocal microscope with HCS software using a 5× objective and 488/520 (λexc/λem) lasers.

Identification of DFCs expressing the sox17::GFP transgene

Request a detailed protocol

Although both DFCs and endodermal cells express sox17::GFP, DFCs start expressing this transgene slightly earlier than endodermal cells and at higher levels. We took advantage of this feature and identified DFCs at early stages, from around 50% epiboly. These identified DFCs not only expressed sox17::GFP, but also position themselves ahead of the margin of the DCL. Also, at early stages they are attached to the EVL, show a larger size than endodermal cells, and often organise in one, two, or three clusters (see Figure 8A). In contrast, endodermal cells that express the sox17::GFP transgene are located within the DCL margin (or in anterior positions) and show a dispersed scattered organisation. Importantly, DFCs identified according to these criteria could be followed over time after detachment from the EVL/YSL by time-lapse microscopy to faithfully characterised their behaviour and fate, ruling out any possibility that they could be mistaken for native endodermal cells.

Isochronic transplantation

Request a detailed protocol

Tg(sox17::GFP) and Tg(sox17::GFP) embryos injected with 50 pg of lifeactin-mCherry mRNA at one-cell stage were used as host and donor embryos, respectively. Host and donor embryos were dechorionated manually at 30% epiboly stage, and cultured in sterile 0.3× Danieau buffer in petri dishes coated with 1% agarose. During transplantation, embryos were arranged over a 1% agarose multi-well camera filled with sterile 1× Danieau buffer to increase the concentration of calcium ions and thus allow the proper sealing of the transplant point. DFCs from donor embryos were removed with a 20-µm-diameter glass capillary between shield and 70% epiboly stage, and then transplanted to the most marginal paraxial region of deep blastoderm of host embryos at equivalent stages. After 15 min, DFC-transplanted host embryos were transferred to a solution of sterile 0.3× Danieau buffer supplemented with penicillin and streptomycin. Later, embryos were fixed in 4% PFA for 2 hr at room temperature and observed in a Leica TCS LSI Confocal microscope with HCS software using a 5× objective and 488/520 (λexc/λem) lasers.

High-resolution confocal imaging

Request a detailed protocol

Tg(sox17::GFP) and Tg(sox17::utrn-GFP) embryos were used for high-resolution confocal imaging of cell protrusions. Embryos were imaged from shield stage onwards in a Volocity ViewVox spinning disc (Perkin Elmer) coupled to a Zeiss Axiovert 200 confocal microscope using a Plan-Apochromat 40×/1.2 W lasers 488/520, 568/600, and 647/697 nm (λexc/λem). Processing and analysis of digital images were performed using Fiji (Schindelin et al., 2012), MATLAB (MATLAB 2014), Volocity (Improvision), and Adobe Photoshop.

Laser ablation

Request a detailed protocol

Mechanical disruption of the actomyosin ring within the YSL was performed as previously described by conducting laser ablation on a UV laser ablation setup (Behrndt et al., 2012) equipped with a Zeiss 63 × 1.2 NA water immersion lens using Tg(actb1::myl12.1-eGFP) embryos. Embryos were mounted at 50% epiboly (5.3 hpf) and the YSL actomyosin cortex close to the EVL margin was repeatedly ablated by applying 10 UV pulses at 1000 Hz on a rectangular ROI. Suboptimal ablation intensity was applied to just disrupt the cortical actomyosin flux and marginal ring, and avoid the activation of a wound response within the yolk cell. The kinetic of EVL cells, DFCs, and YSL marginal actomyosin network adjacent to the disrupted cortex was compared with the kinetic of close neighbouring tissues showing intact regions of the actomyosin network as an internal control. Cortical laser ablation of the EVL was performed parallel to the EVL margin and perpendicular to the EVL actomyosin cortex by applying 25 UV pulses at 1000  Hz along a 10 μm line. Retraction of apical ties and DFCs were quantified from maximum z-projections images.

Cell protrusion analysis

Request a detailed protocol

Quantification of cell protrusions was assessed by making volumetric binary masks from 4D confocal images using manual threshold to keep the presence of protrusions and avoid artefacts. Each volume was reduced to a 2D cluster mask by z-projection based on maximum intensity. Manual correction allowed to keep protrusion zones that were occluded due to dimensional reduction. The Fiji tool Local Thickness was used to generate a central mask to describe the cluster central zone without the protrusions. Masks containing just the protrusions zones were obtained by subtracting cluster masks and central masks. Each protrusion was defined with a protrusion axis that connected the base and tip of the protrusion. A long axis connected the cluster centroid and the base of each protrusion. Individual protrusion orientation was described calculating the angle between the long axis and the protrusion axis. For single long protrusion analysis, protrusion were selected by visual inspection in different regions of DFC clusters (Figure 8F). Using Fiji software (Schindelin et al., 2012), protrusion length was calculated as the maximum distance between the centre of cell nucleus and the tip of protrusion. Protrusion timing was calculated by visual identification as the total time spent among protrusion formation and complete retraction. Protrusion alignment was measured as the angle formed among a vector that passes through the two nuclei’s centre of DFC that will generate a contact between two clusters and the vector formed among centre of nucleus a tip of protrusion.

Cell segmentation

Request a detailed protocol

Images obtained from in vivo imaging of gap43-RFP or ZO1-GFP mRNA injected embryos were segmented manually using Wacom Cintiq Touch Screen tablet (Wacom) and Fiji software (Schindelin et al., 2012). A maximum z-projection using Fiji was first applied to each xyz stack to obtain a 2D sequence and simplify the xy segmentation of cell boundaries. To perform segmentation in the yz plane, z-projections containing the central region of cell volume of marginal and submarginal DFCs were selected and reconstructed using Fiji.

3D reconstruction of DFCs

Request a detailed protocol

Contours of deconvolved z-stacks time points of DFCs obtained from in vivo imaging of Tg(β-actin::HRAS-EGFP) were segmented manually using the Wacom Cintiq/Cintiq-15X Touch Screen tablet and Interactive Pen Display (Wacom). Binary masks of segmented cell were generated with a custom-made macro written for the public domain image analysis software Image-SXM (http://www.liv.ac.uk/~sdb/imageSXM). Cellular contours in 3D were improved by the application of a modified version of an active surface model (Kass et al., 1988). Briefly, an initial surface mesh was computed from the manually segmented DFCs contours. The active surface model was applied and supervised interactively to set the appropriate combination of elasticity, rigidity, viscosity, external force, and iteration coefficients, to produce a final surface model that assimilates closely the morphology of the cellular contour. Parameters of DFCs interaction inside the cluster configuration were calculated from these surface model.

Cell tracking

Request a detailed protocol

Cell movement was tracked by following the cell’s centre in Tg(sox17::GFP) embryos, and the nucleus in H2B mRNA injected embryos. YSL tracking was performed by following arbitrary landmarks inside the marginal actomyosin network. Tracking of apical attachments was assessed by following actin-rich zones localised in the apical face of DFCs. Tracking was performed manually in 2D from maximum z-projections using Fiji plugin MTrack J. Speed and persistence (ratio of displacement to trajectory length) of movement was then calculated from tracking data.

Statistical analysis

Request a detailed protocol

All experiments were performed at least three times. Unless indicated, plots display the mean and the standard deviation. Statistical inference analysis was conducted initially by a Shapiro-Wilk test to assess if the data were normally distributed. Two-sample F-test of equality of variance was applied to assess if the samples had the same variance. Significance for two groups with normal distribution was calculated through a two-tail t-test and the p-value was selected depending if the dataset had or not equality of variance. For other distributions, non-parametric Kolmogorov-Smirnov or Mann-Whitney tests were applied. All statistical analyses were conducted using the Origin 2016 (OriginLab). ns: p > 0.05, *: p ≤ 0.05, **: p ≤ 0.01, and ***: p ≤ 0.001.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 1, 2, 3, 4, 5, 6, 7 and 8.

References

    1. Barth KA
    2. Wilson SW
    (1995)
    Expression of zebrafish nk2.2 is influenced by Sonic hedgehog/vertebrate hedgehog-1 and demarcates a zone of neuronal differentiation in the embryonic forebrain
    Development 121:1755–1768.
    1. Kimmel CB
    2. Warga RM
    3. Schilling TF
    (1990)
    Origin and organization of the zebrafish fate map
    Development 108:581–594.
  1. Book
    1. Westerfield M
    (2000)
    The Zebrafish Book a Guide for the Laboratory Use of Zebrafish (Danio rerio
    University of Oregon Press.

Decision letter

  1. Julien Vermot
    Reviewing Editor; Department of Bioengineering, Imperial College London, Faculty of Engineering, London, United Kingdom
  2. Richard M White
    Senior Editor; Memorial Sloan Kettering Cancer Center, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

We found your work of general interest with an important contribution for the fields of cell biology and morphogenesis. Your work highlights a novel mechanism of cell movement where cells pull a second group of cells leading into a coordinated movement. We congratulate you for this nice piece of work.

Decision letter after peer review:

Thank you for submitting your article "Apical contacts stemming from incomplete delamination guide progenitor cell allocation through a dragging mechanism" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Richard White as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

(1) The authors describe how detached DFCs reattach to the main cluster via polarized protrusions (Figure 6). The existence of preferentially polarized protrusions even before cell contact suggests that there are long range cues that help direct cell processes, but no attempt has been made to identify these cues. Even if the authors do not perform extra experiments, could they discuss possible players in their discussion?

The findings of ECad are not that surprising because ECad is already known to be involved in DFC migration. It seems from Figure 6 that ECad MO doesn't completely stop clustering, suggesting other adhesive proteins are involved and this is not explored further. It would be great to provide some examples and possibly test the implication of these factors.

(2) It is not clear how the different mechanisms of escaped DFCs finding their way back to joining the main cluster fit together. How many escaped DFCs escape as single cells? How often does 6F occur? Are small clusters found in 6D formed via individual escaped DFCs joining together, or by an event like 6F except delamination happened before the cluster attached itself to the main cluster?

(3) Figure 1C and D aims to show that ZO1 is accumulated at the junctions between DFC and EVL cells. In order to reach that conclusion they need to show images in which the DFC are easily identifiable (e.g. Tg(Sox17::GFP)) in addition of the ZO1 expression. Unfortunately in Figure 1C they merge the ZO1 and phalloidin channels and in Figure 1D they do not show the Tg(Sox17::GFP).

(4) The conclusion that apical contraction is mediated by actomyosin dynamic is the weakest aspect of the manuscript, and at the same time the least interesting. First, it is expected that apical contraction is driven by actomyosin dynamic; so, no novelty there. Second, the data here are just corelations and there is no functional experiment that really demonstrates that actomyosin activity is required for apical contraction. Third, the images shown in Figure 3G and corresponding Video 3 are confusing. It is not clear what region of the cell to look at, as the levels of myosin are quite variable across different regions. In addition, Figure 3H shows that the apical area reach almost cero at 7 min, but I cannot see that in the images or video. In conclusion, without stronger evidence we suggest to remove this part, as it does not contribute to the main mechanism explored in this manuscript.

(5) The authors use the data from Figure 3 and Figure S2 to propose that DFC and EVL movements are linked. The problem with this analysis is that the comparison in the movement of DFC and EVL is done at the cell population level. A better analysis could be achieved by analysing single cells; for example the tracks of single DFCc could be compared with the track of neighbour EVL cells. This could show that the similarities between DFC and EVL cells movement decreases with the distance between these two cell populations, if they are really moving together.

(6) The observation that detached cells can cluster with the DFC cells via protrusions and E-cadherin is an interesting observation. However further analysis should be performed. Are the detached cells producing protrusions in random orientations and only those growing in the direction of the DFC cluster become larger or more stable? What about the protrusions produced by the DFC cluster, are longer or more stable if directed to detached DFC cells? How does the protrusions dynamics change with the distance between the detached DFC cells and the DFC cluster? Answering these questions could give an idea about the mechanism by which single cells are reintegrated to the DFC cluster.

(7) The authors conclude that apical constriction of EVL cells depends on actomyosin dynamics. The authors show a compelling correlation between apical constriction and actomyosin accumulation (Figure 2). However, no functional perturbations of actomyosin activity were shown to disrupt apical constriction. Thus, it remains unknown whether apical constriction requires actomyosin activity.

(8) The evidence presented supports, but does not fully demonstrate, the proposed drag mechanism. Manipulation of the YSL actomyosin ring (by myosin dephosphorylation or laser ablation) shows that both DFC and EVL cells require YSL actomyosin ring contraction for vegetal movement. In addition, DFC and EVL cell velocity and directionality indicates a correlation between the movements of the two cell types. Based on these results, it is proposed that apical attachments between the layers allow the EVL to drag the DFCs. To directly test this hypothesis, the authors turn to laser ablations. If the drag hypothesis is correct, I would predict that severing all (or several) of the attachments would result in the EVL leaving the DFCs behind. This would convincingly demonstrate that EVL cells drag DFCs via attachments. However-potentially due to technical reasons-the authors sever only one of the attachments. The DFCs recoil, but the attachment is almost immediately reconnected, and there is no apparent effect on movement of EVL or DFCs. Therefore, it is unclear whether apical attachments are necessary for DFC movement.

(9) The data presented clearly show attachments between DFCs and EVL. However, it also appears that leading DFCs are attached to the YSL actomyosin ring. Experimental perturbations indicate that contractility of the actomyosin ring is required for DFC movement, raising the possibility that the YSL actomyosin ring may 'pull' the DFCs vegetally. The authors should comment on this alternative mechanism.

10) Previous work has also suggested that DFCs have intrinsic motility and respond to chemoattraction (Zhang, et al., 2016. Development; Ablooglu, et al., 2010. Development; Jiang, et al., 2019. Nat Cell Biol). Although the authors characterize protrusive activity of DFCs, no functional evidence is presented to rule out this mechanism. It is also possible that the proposed mechanisms of DFC movement are not mutually exclusive.

(11) It should be clarified that DFCs detach from the EVL ~8-9 hpf, which is part way through their journey to the site of differentiation and organ formation in the tailbud between 10-11 hpf. It may be useful for the authors to speculate on mechanisms that control the later part of this journey, which may provide foundations for future work.

(12) Imaging of apical constriction of EVL cells (Figure 1) to form DFCs is convincing. However, there may be some confusion between epithelial EVL cells and mesenchymal DFCs. It should be clarified that EVL cells are polarized epithelial cells, otherwise it may be unclear to the reader how apical surfaces are defined in these cells. In addition, "DFC apical constriction" (as written in the text) may be confusing since DFCs are considered to be mesenchymal-like cells, likely with front-rear polarity rather than apical-basal polarity.

(13) Since the presented results do not fully 'demonstrate' the proposed drag mechanism, I suggest the authors soften their conclusions.

(14) It is not clear whether "escaper DFCs" (Figure 5) are DFCs or endoderm cells, since the sox17:GFP transgene is expressed in both cell types. The authors should comment on this in the text.

https://doi.org/10.7554/eLife.66483.sa1

Author response

Essential revisions:

1) The authors describe how detached DFCs reattach to the main cluster via polarized protrusions (Figure 6). The existence of preferentially polarized protrusions even before cell contact suggests that there are long range cues that help direct cell processes, but no attempt has been made to identify these cues. Even if the authors do not perform extra experiments, could they discuss possible players in their discussion?

As we have shown in the new quantitative analysis of protrusion formation in Figure 8, DFCs produce a type of protrusion that, compared to other protrusions formed by the same cells, are longer, show an extended lifetime, and are aligned between clusters. These findings suggest that this type of polarised protrusions could be a manifestation of some type of short- or long-range attraction mechanism. Although addressing the molecular nature of this mechanism is beyond the scope of this article, we provide in the discussion a molecular candidate to be addressed in future work based on a recent publication from the Meng and Yu laboratories (Jian et al., 2009; Nature Cell Biology 21: 966-977). This publication shows that migrasomes containing the chemokine ligands Cxcl12a/b are enriched in the extracellular space surrounding DFCs, making it possible that chemokine signalling can function as a guidance mechanism for directing polarised protrusions and clustering of DFCs.

The findings of ECad are not that surprising because ECad is already known to be involved in DFC migration. It seems from Figure 6 that ECad MO doesn't completely stop clustering, suggesting other adhesive proteins are involved and this is not explored further. It would be great to provide some examples and possibly test the implication of these factors.

Indeed, previous work from several laboratories have shown that E-cad is required for DFC cluster formation (Hong and Dawid, 2009 PNAS 106:2230-5; Matsui et al., 2011 PNAS 108:9881-6; Oteiza et al., 2010 Development 137:3459-68). These publications and the present work have also shown that cluster formation is not completely abolished after E-cad knockdown. This finding could be in part related to the fact that E-cad MO experiments (and other published experimental conditions) might only induce a partial loss of E-cad function. But it is also possible the existence of compensatory mechanisms (e.g. increase in the expression of other cadherins) or the involvement of other adhesion molecules. To date there is no description of other adhesion proteins participating in DFC clustering. This is an interesting aspect of DFC clusterisation that has not been the focus of our work and should definitively be addressed in the future. A possible avenue of future work is exploring the role of N-cadherin as preliminary data from our lab shows that N-cad is also expressed in DFCs and that knockdown of this adhesion molecule induces the formation of a smaller, misshapen Kupffer's vesicle and, consequent, a left-right asymmetry defect (data not shown).

(2) It is not clear how the different mechanisms of escaped DFCs finding their way back to joining the main cluster fit together. How many escaped DFCs escape as single cells?

All detached DFCs that escape into the DCL do so as single cells. However, the number of escaped cells varies from embryo to embryo. As shown in the new quantification panel of Figure 6A, only 55% of embryos show escaped DFCs. Among them, the most frequent cases are embryos with 1 (18%) or 2 (23%) escaped cells, whereas embryos with 3 (5%) and 4-5 (9%) escaped cells are much less frequent. In the source data section, we have included additional information related to escaped cells, such as the developmental stage of DFC escaped cells and whether or not a cell escape occurs in association with a cell division event.

How often does 6F occur?

The original Figure 6F (now Figure 8J) showed that a small cluster of DFCs integrated into the central cluster of DFCs before losing their apical attachments to the YSL/EVL. Thus, this figure illustrates a case in which detached DFCs avoid escape by first establishing adhesive contacts with attached DFCs within the small cluster, and then by engaging into the vegetal movement of the central cluster. We provide a new quantification of the frequency of this behaviour in Figure 8. We observed that in the early stages of vegetal movement (shield phase), the population of DFCs was organised as a single cluster of cells in only 57% of embryos. In the remaining 43% of embryos, DFCs initially formed 2 (28%; similar to the configuration shown in Figure 8J) or 3 (15%) small clusters of cells separated by an average distance of 50µm. As shown in Figure 8J (also in Figures 8B-D), the configuration of 2-3 clusters coalesced to form a single cluster only at later stages of epiboly, using the DFC-DFC contact mechanism proposed in the paper (Figures 8B-D,J).

Are small clusters found in 6D formed via individual escaped DFCs joining together, or by an event like 6F except delamination happened before the cluster attached itself to the main cluster?

The small cluster seen in original Figure 6D (new Figure 8E) forms similarly to the cluster shown in Figure 8J. In both cases, the small clusters are the result of an early DFC multi-cluster configuration seen in about 43% of embryos, which coalesce into a single cluster only in the late stages of epiboly. The only difference between the small cluster shown in Figure 8E and 8J is the GFP labelling: in 8E the DFCs are labelled with cytoplasmic GFP whereas the GFP in 8J labels the F-actin, which reveals the DFC apical attachments with the EVL and YSL, which are invisible in 8E.

(3) Figure 1C and D aims to show that ZO1 is accumulated at the junctions between DFC and EVL cells. In order to reach that conclusion they need to show images in which the DFC are easily identifiable (e.g. Tg(Sox17::GFP)) in addition of the ZO1 expression. Unfortunately in Figure 1C they merge the ZO1 and phalloidin channels and in Figure 1D they do not show the Tg(Sox17::GFP).

We have modified Figure 1C to show the staining of ZO1, phalloidin and the sox17::GFP transgene in separate channels with different colours, revealing more clearly the specific accumulation of ZO1 (and F-actin) at the apical junctions of the marginal and sub-marginal DFCs with the EVL and YSL. Also, we have incorporated a supplemental figure (Figure 1—figure supplement 1) where we show a dorsal view of the Tg(sox17::GFP) embryo used to take the images shown in panels 1 and 2 of Figure 1C, revealing the punctuated coaccumulation of ZO-1 and F-actin at the DFC-EVL interfaces.

(4) The conclusion that apical contraction is mediated by actomyosin dynamic is the weakest aspect of the manuscript, and at the same time the least interesting. First, it is expected that apical contraction is driven by actomyosin dynamic; so, no novelty there. Second, the data here are just corelations and there is no functional experiment that really demonstrates that actomyosin activity is required for apical contraction. Third, the images shown in Figure 3G and corresponding Video 3 are confusing. It is not clear what region of the cell to look at, as the levels of myosin are quite variable across different regions. In addition, Figure 3H shows that the apical area reach almost cero at 7 min, but I cannot see that in the images or video. In conclusion, without stronger evidence we suggest to remove this part, as it does not contribute to the main mechanism explored in this manuscript.

We agree with the reviewers that the description of actomyosin dynamics is not central to the story and does not contribute to the main mechanism of DFC locomotion. Therefore, we have followed the suggestion and removed this part of the manuscript.

(5) The authors use the data from Figure 3 and Figure S2 to propose that DFC and EVL movements are linked. The problem with this analysis is that the comparison in the movement of DFC and EVL is done at the cell population level. A better analysis could be achieved by analysing single cells; for example the tracks of single DFCc could be compared with the track of neighbour EVL cells. This could show that the similarities between DFC and EVL cells movement decreases with the distance between these two cell populations, if they are really moving together.

The analysis in the original Figure S2 (now part of panels D-G in Figure 3) is in fact a population-level analysis based on single-cell tracking comparing the speed and directionality of DFC movement with the speed and directionality of EVL movement. We have complemented this analysis with a correlation analysis between the movement of the DFC cluster and the movement of the EVL margin (New Figure 3G). Nevertheless, the aim of this analysis was to give a first approximation of the spatio-temporal connection between the movement of DFCs and EVL and we did not intend with this analysis to demonstrate a causal connection between the two processes. To address this point more directly, we have performed a new correlation analysis at the individual cell level between the movement of DFCs and the movement of their apical attachments, which is shown in the new Figure 5E-I. This analysis revealed that the movement of DFCs and their apical attachments are indeed closely correlated, and that this link is lost when the attachments are lost supporting a requirement of this attachments for the directed vegetal movement of DFCs.

(6) The observation that detached cells can cluster with the DFC cells via protrusions and E-cadherin is an interesting observation. However further analysis should be performed. Are the detached cells producing protrusions in random orientations and only those growing in the direction of the DFC cluster become larger or more stable? What about the protrusions produced by the DFC cluster, are longer or more stable if directed to detached DFC cells? How does the protrusions dynamics change with the distance between the detached DFC cells and the DFC cluster? Answering these questions could give an idea about the mechanism by which single cells are reintegrated to the DFC cluster.

We agree with the reviewers that a more in-depth analysis was needed and therefore have performed a quantitative analysis of the dynamics of cell protrusions shown in the new Figure 8 (panels E-I). In the analysis we make a clear distinction between the behaviour of cell protrusions involved in DFC clustering versus the behaviour of protrusions not involved in clustering, which are produced by DFCs both between clusters and on the lateral sides of them. We show that protrusions involved in clustering are longer, show a longer lifetime and also align between clusters, in contrast to the small, short-lived and randomly-oriented nature of the other protrusions. We have incorporated these results into the main text, Figure 8E-I, and mention in the discussion that long polarised protrusions involved in clustering could be a manifestation of a chemo attractive mechanism.

(7) The authors conclude that apical constriction of EVL cells depends on actomyosin dynamics. The authors show a compelling correlation between apical constriction and actomyosin accumulation (Figure 2). However, no functional perturbations of actomyosin activity were shown to disrupt apical constriction. Thus, it remains unknown whether apical constriction requires actomyosin activity.

As explained in point (4), actomyosin dynamics do not contribute to the main mechanism of DFC locomotion, so we have followed the reviewers' suggestion and removed this part of the manuscript.

(8) The evidence presented supports, but does not fully demonstrate, the proposed drag mechanism. Manipulation of the YSL actomyosin ring (by myosin dephosphorylation or laser ablation) shows that both DFC and EVL cells require YSL actomyosin ring contraction for vegetal movement. In addition, DFC and EVL cell velocity and directionality indicates a correlation between the movements of the two cell types. Based on these results, it is proposed that apical attachments between the layers allow the EVL to drag the DFCs. To directly test this hypothesis, the authors turn to laser ablations. If the drag hypothesis is correct, I would predict that severing all (or several) of the attachments would result in the EVL leaving the DFCs behind. This would convincingly demonstrate that EVL cells drag DFCs via attachments. However-potentially due to technical reasons-the authors sever only one of the attachments. The DFCs recoil, but the attachment is almost immediately reconnected, and there is no apparent effect on movement of EVL or DFCs. Therefore, it is unclear whether apical attachments are necessary for DFC movement.

We agree that severing the apical attachments of DFCs would indeed be the ultimate experiment to directly test the requirement of apical attachments for the vegetal movement of DFCs, but, as the reviewers rightly presume, this experiment is not technically possible (laser ablation of the apical attachment inevitably leads to the death of the DFC). However, we argue that the EVL ablation experiments we provide in the article, combined with the “natural” experiments of single isolated DFCs (not mentioned by the reviewers), for which we provide additional analysis to demonstrate the link between the movement of attached DFCs and their apical attachments (Figure 5F-I), strongly support the drag-mediated mechanism. Below we explain in more detail the rationale for these experiments and discuss their results (also included in new version of text).

(i) EVL ablation experiment (Figure 4C-E). In this experiment we transiently released a subset of DFC apical attachments from the influence of EVL spreading by performing laser ablation of a cortical EVL junction located immediately vegetal to DFC apical attachments. We reasoned that if the EVL carries the DFCs through the apical attachments, they should be under tension and, therefore, cutting an EVL junction in a vegetal position to the attachments should result in a transient recoil towards the animal pole of both the apical attachment and body of the DFC, which is what we observed. We also observed that wound repair after ablation caused an accumulation of actin in the EVL that resulted in a pull of the apical attachments towards vegetal and a resulting movement of the DFC in the same direction, corroborating that the apical attachments are capable of transmitting movement information from the EVL to the DFCs to guide their movement.

(ii) “Natural” experiment (Figure 5). We took advantage of the particular spatial configuration that DFCs adopt in some wild-type embryos, in which subsets of cells developed as individuals isolated from the core group of DFCs, to test the requirement of apical attachments for DFC directed vegetal movements. In these “natural” experiments, we observed that isolated individual DFCs devoid of apical attachments moved without persistence and directionality, even towards the animal pole in the opposite direction to the vegetal movement of the YSL/EVL. In contrast, isolated individual DFCs connected with the extra-embryonic tissues by apical attachments showed a persistent and directed movement toward the vegetal pole, mimicking the movement of extra-embryonic tissues. Importantly the persistence and speed of movement of DFCs correlated with the persistence and speed of movement of apical attachments, and this close spatial and temporal relationship between apical attachments and DFC movements was only lost upon detachment (Figure 5F-I), indicating the requirement of physical attachment to extra-embryonic tissues for the persistent directed vegetal movement of DFCs.

Taken together, these findings demonstrate that apical attachments are required to transmit vegetal spreading from extra-embryonic tissues to attached DFCs, guiding their vegetal movement during epiboly. This mechanism appears critical for the guidance of DFC locomotion but we do not claim is the only mechanism, as cell protrusions and contact interactions with the DCL margin may facilitate the guidance and act in coordination with EVL/YSL drag.

9) The data presented clearly show attachments between DFCs and EVL. However, it also appears that leading DFCs are attached to the YSL actomyosin ring. Experimental perturbations indicate that contractility of the actomyosin ring is required for DFC movement, raising the possibility that the YSL actomyosin ring may 'pull' the DFCs vegetally. The authors should comment on this alternative mechanism.

The combined role of EVL and YSL (to which the marginal DFCs are attached) is indeed a central aspect of our proposal. We mention it in several places but, as is evident from the reviewers' comments, it is not sufficiently clear, so we have made changes to the main text and discussion to make this point even clearer.

10) Previous work has also suggested that DFCs have intrinsic motility and respond to chemoattraction (Zhang, et al., 2016. Development; Ablooglu, et al., 2010. Development; Jiang, et al., 2019. Nat Cell Biol). Although the authors characterize protrusive activity of DFCs, no functional evidence is presented to rule out this mechanism. It is also possible that the proposed mechanisms of DFC movement are not mutually exclusive.

We have performed additional experiments to complement the analysis of protrusion formation and to address more directly the role of polarised cell protrusions in DFC vegetal movement, which is now shown in new Figure 2 (panels F-L). To test the requirement of polarised cell protrusions for DFC vegetal movement, we inhibited the formation of actin-based cell protrusions by expressing a dominant negative form of Rac (Rac1-T17N). We showed that DFCs expressing Rac1-T17N did not form lamellar or filopodial protrusions as in controls, but displayed extensive membrane blebbing without directional bias. However, they still retained a persistent collective movement towards the vegetal pole. This result, together with the lack of vegetally-oriented polarised protrusions in the WT, indicates that the primary mechanism of DFC vegetal movement does not require polarised cell protrusions, and that other mechanisms must play a role, in this case, the EVL/YSL drag mechanisms proposed in the paper.

11) It should be clarified that DFCs detach from the EVL ~8-9 hpf, which is part way through their journey to the site of differentiation and organ formation in the tailbud between 10-11 hpf. It may be useful for the authors to speculate on mechanisms that control the later part of this journey, which may provide foundations for future work.

We have clarified this point in the results and also provide some speculation in the discussion, as suggested.

12) Imaging of apical constriction of EVL cells (Figure 1) to form DFCs is convincing. However, there may be some confusion between epithelial EVL cells and mesenchymal DFCs. It should be clarified that EVL cells are polarized epithelial cells, otherwise it may be unclear to the reader how apical surfaces are defined in these cells. In addition, "DFC apical constriction" (as written in the text) may be confusing since DFCs are considered to be mesenchymal-like cells, likely with front-rear polarity rather than apical-basal polarity.

We understand this concern and to avoid confusion we have clarified when possible in the text the epithelial nature of the EVL cells, the mesenchymal nature of the DFCs, and the dual behaviour of EVL cell transiting delamination (DFC progenitors).

13) Since the presented results do not fully 'demonstrate' the proposed drag mechanism, I suggest the authors soften their conclusions.

See discussion in point 8.

14) It is not clear whether "escaper DFCs" (Figure 5) are DFCs or endoderm cells, since the sox17:GFP transgene is expressed in both cell types. The authors should comment on this in the text.

Although both DFCs and endodermal cells express sox17::GFP, DFCs start expressing this transgene slightly earlier than endodermal cells and at higher levels. We took advantage of this feature and identified DFCs at early stages, from around 50% epiboly. These identified DFCs not only expressed sox17::GFP but also position themselves ahead of the margin of the deep cell layer (DCL). Also, at early stages they are attached to the EVL, show a larger size than endodermal cells, and often organise in 1, 2 or 3 clusters (see Figure 8A). In contrast, endodermal cells that express the sox17::GFP transgene are located within the DCL margin (or in anterior positions) and show a dispersed scattered organisation. Importantly, DFCs identified at early stages according to these criteria could be followed over time after detachment from the EVL/YSL by time-lapse microscopy to faithfully characterised their behaviour and fate, ruling out any possibility that they could be mistaken for native endodermal cells. We have incorporated this information into the Material and Methods section.

https://doi.org/10.7554/eLife.66483.sa2

Article and author information

Author details

  1. Eduardo Pulgar

    1. Institute of Biomedical Sciences, Faculty of Medicine, Universidad de Chile, Santiago, Chile
    2. Biomedical Neuroscience Institute, Santiago, Chile
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Validation, Visualization, Writing – original draft, Writing – review and editing
    Competing interests
    none
  2. Cornelia Schwayer

    Institute of Science and Technology Austria, Klosterneuburg, Austria
    Contribution
    Investigation, Methodology, Writing – review and editing
    Competing interests
    none
  3. Néstor Guerrero

    1. Institute of Biomedical Sciences, Faculty of Medicine, Universidad de Chile, Santiago, Chile
    2. Biomedical Neuroscience Institute, Santiago, Chile
    Contribution
    Investigation, Methodology
    Competing interests
    none
  4. Loreto López

    1. Institute of Biomedical Sciences, Faculty of Medicine, Universidad de Chile, Santiago, Chile
    2. Biomedical Neuroscience Institute, Santiago, Chile
    Contribution
    Investigation
    Competing interests
    none
  5. Susana Márquez

    Physics Department, FCFM, Universidad de Chile, Santiago, Chile
    Contribution
    Methodology, Software
    Competing interests
    none
  6. Steffen Härtel

    1. Institute of Biomedical Sciences, Faculty of Medicine, Universidad de Chile, Santiago, Chile
    2. Biomedical Neuroscience Institute, Santiago, Chile
    3. National Center for Health Information Systems, CENS, Santiago, Chile
    Contribution
    Funding acquisition, Methodology, Supervision
    Competing interests
    none
  7. Rodrigo Soto

    Physics Department, FCFM, Universidad de Chile, Santiago, Chile
    Contribution
    Methodology, Software, Writing – review and editing
    Competing interests
    none
  8. Carl-Philipp Heisenberg

    Institute of Science and Technology Austria, Klosterneuburg, Austria
    Contribution
    Conceptualization, Funding acquisition, Methodology, Resources, Supervision, Writing – review and editing
    Competing interests
    none
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0912-4566
  9. Miguel L Concha

    1. Institute of Biomedical Sciences, Faculty of Medicine, Universidad de Chile, Santiago, Chile
    2. Biomedical Neuroscience Institute, Santiago, Chile
    3. Center for Geroscience, Brain Health and Metabolism, Santiago, Chile
    Contribution
    Conceptualization, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    mconcha@uchile.cl
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3353-9398

Funding

Fondo Nacional de Desarrollo Científico y Tecnológico (1190806)

  • Eduardo Pulgar
  • Rodrigo Soto
  • Steffen Härtel
  • Miguel L Concha

Fondo Nacional de Desarrollo Científico y Tecnológico (1161274 1181823)

  • Steffen Härtel
  • Miguel L Concha

Instituto Milenio de Neurociencia Biomedica (ICN09_015)

  • Steffen Härtel
  • Miguel L Concha

Millennium Nucleus Physics of Active Matter from ANID (ANID)

  • Susana Márquez
  • Rodrigo Soto
  • Miguel L Concha

Fondo de Equipamiento Cientifico y Tecnologico (EQM130051)

  • Miguel L Concha

Fondo de Financiamiento de Centros de Investigacion en Areas Prioritarias (15150012)

  • Miguel L Concha

Fondo Nacional de Desarrollo Científico y Tecnológico (3160478)

  • Eduardo Pulgar

Comisión Nacional de Investigación Científica y Tecnológica (PIA ACT-1402)

  • Rodrigo Soto
  • Steffen Härtel
  • Miguel L Concha

Comisión Nacional de Investigación Científica y Tecnológica (PIA ACT192015)

  • Miguel L Concha

Comisión Nacional de Investigación Científica y Tecnológica (REDES170212 REDES130020)

  • Eduardo Pulgar
  • Steffen Härtel
  • Miguel L Concha

H2020 European Research Council (Advanced grant 742573)

  • Carl-Philipp Heisenberg

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the bioimaging and zebrafish facilities of ICBM-U.Chile and IST Austria for continuous support. We also thank Felipe Santibañez and Mauricio Cerda for providing algorithms for image analysis.

Ethics

Fish care and procedures were approved by the Ethical Review Committee and comply with the Animals Scientific Procedures Act 0466 (Protocol CBA#0466 FMUCH).

Senior Editor

  1. Richard M White, Memorial Sloan Kettering Cancer Center, United States

Reviewing Editor

  1. Julien Vermot, Department of Bioengineering, Imperial College London, Faculty of Engineering, London, United Kingdom

Publication history

  1. Received: January 12, 2021
  2. Preprint posted: April 29, 2021 (view preprint)
  3. Accepted: August 25, 2021
  4. Accepted Manuscript published: August 27, 2021 (version 1)
  5. Version of Record published: September 23, 2021 (version 2)

Copyright

© 2021, Pulgar et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 465
    Page views
  • 87
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Physics of Living Systems
    Yonghyun Song, Changbong Hyeon
    Research Article Updated

    Spatial boundaries formed during animal development originate from the pre-patterning of tissues by signaling molecules, called morphogens. The accuracy of boundary location is limited by the fluctuations of morphogen concentration that thresholds the expression level of target gene. Producing more morphogen molecules, which gives rise to smaller relative fluctuations, would better serve to shape more precise target boundaries; however, it incurs more thermodynamic cost. In the classical diffusion-depletion model of morphogen profile formation, the morphogen molecules synthesized from a local source display an exponentially decaying concentration profile with a characteristic length λ. Our theory suggests that in order to attain a precise profile with the minimal cost, λ should be roughly half the distance to the target boundary position from the source. Remarkably, we find that the profiles of morphogens that pattern the Drosophila embryo and wing imaginal disk are formed with nearly optimal λ. Our finding underscores the cost-effectiveness of precise morphogen profile formation in Drosophila development.

    1. Developmental Biology
    2. Neuroscience
    Tania Moreno-Mármol et al.
    Research Article

    The vertebrate eye-primordium consists of a pseudostratified neuroepithelium, the optic vesicle (OV), in which cells acquire neural retina or retinal pigment epithelium (RPE) fates. As these fates arise, the OV assumes a cup-shape, influenced by mechanical forces generated within the neural retina. Whether the RPE passively adapts to retinal changes or actively contributes to OV morphogenesis remains unexplored. We generated a zebrafish Tg(E1-bhlhe40:GFP) line to track RPE morphogenesis and interrogate its participation in OV folding. We show that, in virtual absence of proliferation, RPE cells stretch and flatten, thereby matching the retinal curvature and promoting OV folding. Localized interference with the RPE cytoskeleton disrupts tissue stretching and OV folding. Thus, extreme RPE flattening and accelerated differentiation are efficient solutions adopted by fast-developing species to enable timely optic cup formation. This mechanism differs in amniotes, in which proliferation drives RPE expansion with a much-reduced need of cell flattening.
