Glial insulin regulates cooperative or antagonistic Golden goal/Flamingo interactions during photoreceptor axon guidance

  1. Hiroki Takechi
  2. Satoko Hakeda-Suzuki  Is a corresponding author
  3. Yohei Nitta
  4. Yuichi Ishiwata
  5. Riku Iwanaga
  6. Makoto Sato
  7. Atsushi Sugie
  8. Takashi Suzuki  Is a corresponding author
  1. Graduate School of Life Science and Technology, Tokyo Institute of Technology, Japan
  2. Center for Transdisciplinary Research, Niigata University, Japan
  3. Brain Research Institute, Niigata University, Japan
  4. Mathematical Neuroscience Unit, Institute for Frontier Science Initiative, Kanazawa University, Japan
  5. Laboratory of Developmental Neurobiology, Graduate School of Medical Sciences, Kanazawa University, Japan
Research Article
  • Cited 0
  • Views 828
  • Annotations
Cite this article as: eLife 2021;10:e66718 doi: 10.7554/eLife.66718

Abstract

Transmembrane protein Golden goal (Gogo) interacts with atypical cadherin Flamingo (Fmi) to direct R8 photoreceptor axons in the Drosophila visual system. However, the precise mechanisms underlying Gogo regulation during columnar- and layer-specific R8 axon targeting are unknown. Our studies demonstrated that the insulin secreted from surface and cortex glia switches the phosphorylation status of Gogo, thereby regulating its two distinct functions. Non-phosphorylated Gogo mediates the initial recognition of the glial protrusion in the center of the medulla column, whereas phosphorylated Gogo suppresses radial filopodia extension by counteracting Flamingo to maintain a one axon-to-one column ratio. Later, Gogo expression ceases during the midpupal stage, thus allowing R8 filopodia to extend vertically into the M3 layer. These results demonstrate that the long- and short-range signaling between the glia and R8 axon growth cones regulates growth cone dynamics in a stepwise manner, and thus shapes the entire organization of the visual system.

Introduction

During development, well-defined synaptic connections are formed in the brain between specific neurons to facilitate higher-order information processing. Synapses are often arranged into structures that reflect the functional organization of synaptic contacts (Huberman et al., 2010; Luo and Flanagan, 2007; Sanes and Yamagata, 2009). Each brain layer receives discrete axonal inputs that carry specific information. Therefore, external inputs dissolve into distinct modules in the brain. In the visual system, photoreceptors connect to columns located around the target region, thereby preserving the spatial relationships between the visual world and its representation in the brain (Huberman et al., 2010; Sanes and Zipursky, 2010). Layers separate the brain into horizontal planes, whereas columnar units group the axons into bundles that are perpendicular to the layers (Clandinin and Zipursky, 2002; Mountcastle, 1997; Sanes and Zipursky, 2010). The integration of the individual column and layer processes enables the modular processing of perceived information. Thus, specific layer-column axonal targeting to unique synaptic partners is a fundamental step in the complex formation of functional neuronal networks inside the brain (Huberman et al., 2010; Luo and Flanagan, 2007; Millard and Pecot, 2018; Nériec and Desplan, 2016).

The Drosophila visual system is an attractive model for studying the formation of the functional organization of synaptic connections because its optic ganglion has a layered and columnar structure (Hadjieconomou et al., 2011; Millard and Pecot, 2018; Sanes and Zipursky, 2010). The visual system of the adult Drosophila consists of the compound eye and four optic ganglia (in order: lamina, medulla, and lobula complex). The compound eye is composed of an array of approximately 800 ommatidia, each containing eight photoreceptor cells (R cells, R1–R8) arranged in a stereotypic pattern. R7 and R8 axons project to the second optic ganglion, namely, the medulla. The medulla is subdivided into columnar units and 10 distinct layers. R7, R8, and Mi1 axons elongate into the medulla at the earliest stage. They function as the pioneering axons during the formation of the medulla columns, which are comprised of approximately 100 different axons (Trush et al., 2019). R8 extends its axon to a single medulla column, followed by a single R7 axon. Eventually, R8 targets the M3 layer of the medulla, whereas R7 targets the M6 layer. Across development, the R8 neurons undergo three stages of axonal targeting (Akin and Zipursky, 2016; Hadjieconomou et al., 2011). First, single R8 axons project to a single column and form a horseshoe-shaped terminal that encircles the medulla columnar center (phase 1: third instar larva). Second, the R8 axons remain at the medulla neuropil surface without bundling with each other (phase 2: 24% APF [After Puparium Formation]). Third, R8 axons extend filopodia to target the M3 layer (phase 3: 48% APF). Many studies have detailed the molecular mechanisms that underlie the layer-specific targeting of R neurons (Akin and Zipursky, 2016; Hadjieconomou et al., 2011; Hakeda-Suzuki and Suzuki, 2014; Hakeda-Suzuki et al., 2017; Kulkarni et al., 2016; Mencarelli and Pichaud, 2015; Millard and Pecot, 2018; Özel et al., 2015). However, little is known about the formation of the medulla columnar structure.

Previous work in our lab identified a single transmembrane protein, Golden goal (Gogo), by a large-scale screen to search for genes that control R axon pathfinding (Berger et al., 2008). Functional studies have revealed that Gogo, with the atypical cadherin Flamingo (Fmi), guides R8 axons to the M3 layer (Hakeda-Suzuki et al., 2011; Senti et al., 2003; Tomasi et al., 2008). Gogo and Fmi colocalization is essential for this function. The R8 axons of gogo or fmi single mutants exhibit similar phenotypes, including defects in the axonal array due to the irregular distances between axons and the difficulty in targeting the M3 layer. Furthermore, the dephosphorylated state of a triplet Tyr-Tyr-Asp (YYD) motif in the Gogo cytoplasmic domain is important for R8 axon targeting (Mann et al., 2012). However, when the YYD motif is phosphorylated, Gogo appears to interfere with the ability of the R8 axon to target the M3 layer. The Drosophila insulin receptor (DInR), a tyrosine kinase receptor, is one of the kinases that phosphorylate the YYD motif of Gogo (Mann et al., 2012). A growing number of recent studies have revealed the functional involvement of DInR in nervous system development (Fernandes et al., 2017; Rossi and Fernandes, 2018; Song et al., 2003). Therefore, DInR may be one mechanism through which Gogo and Fmi regulate R8 axon pathfinding. Because Gogo and Fmi are conserved across C. elegans to humans, elucidating their role in development in Drosophila can greatly enhance our understanding of the molecular mechanisms of development in higher-order species.

The current study was able to examine stepwise R8 axonal targeting events across development by following protein localization and by specifically controlling Gogo and Fmi levels in R8 axons. In phase 1, Gogo and Fmi cooperated in guiding the R8 growth cone to its correct place inside the column (gogo function 1). In phase 2, Gogo was phosphorylated by the glial insulin signal and began to counteract Fmi to repress filopodia extension (gogo function 2). In phase 3, R8 axons only expressed Fmi, which directed them to the M3 layer (no gogo function). These results indicate that the glial insulin signal controls Gogo phosphorylation, thereby regulating growth cone dynamics, including the formation of the horseshoe shape and filopodia extension. Overall, this regulates axon-column and axon-axon interactions. Gogo possesses an interesting property wherein the phosphorylation states maintain two separate axon pathfinding functions. This is an economical strategy for increasing protein functions when there are a limited number of genes. As a result, this mechanism maintains the regular distance between R8 axons and enables the ordered R8 axonal targeting of the column.

Results

Gogo expression, but not Fmi expression, ceases around the midpupal stage

During development, Gogo and Fmi proteins are expressed broadly and dynamically in photoreceptors and the optic lobe. To monitor the precise expression and localization patterns of Gogo and Fmi proteins during R8 axonal targeting, knock-in flies that tag the desired proteins in a cell-specific manner with GFP or mCherry were generated using the CRISPR/Cas9 system (Chen et al., 2014; Kondo and Ueda, 2013; Sander and Joung, 2014). The use of these flies allowed the observation of endogenous R8 axon-specific Gogo and Fmi localization across the developmental stages between the third instar larvae and adulthood (Figure 1). Gogo protein was strongly expressed in the tip of R8 axons during developmental phases 1 and 2 (Figure 1C–E). Contrary to previous hypotheses (Hakeda-Suzuki et al., 2011), Gogo protein was not present during phase 3, when R8 axons filopodia elongate toward the deeper medulla layers (Figure 1F,G and Figure 1—figure supplement 1). Conversely, Fmi-mCherry expression in R8 axons was observed throughout the development stages (Figure 1H–K). Fmi was localized in the R8 axon tip, including thin filopodia structures during phase 3, when Gogo expression was not present (Figure 1K). Gogo and Fmi protein localization in the R8 axon tip during phase 1 essentially overlapped, although there were several characteristic differences (Figure 1M–P). Gogo-GFP signal was relatively weak in the filopodia, but accumulated at the rim of the horseshoe-shaped axon terminal that encircled the medulla columnar center (Figure 1M’, N). On the other hand, Fmi-mCherry signal was widely distributed in the R8 axon terminal, including filopodia-like protrusions (Figure 1M”, N). These protein localization data indicate that Gogo and Fmi functionally cooperate, so that R8 axons recognize the center of the medulla column during phase 1. The results indicate that Fmi alone promotes vertical filopodia elongation into the M3 layer during phase 3.

Figure 1 with 1 supplement see all

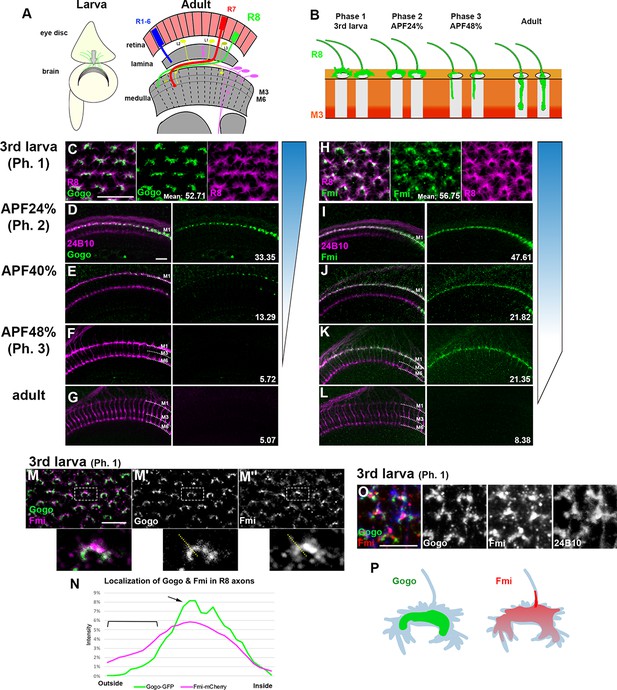

R8-specific labeling of Gogo and Fmi.

(A) Schematics of the Drosophila visual system in the third instar larva and the adult. (B) Schematics of the phase-specific R8 targeting during development. (C–G) Gogo localization at the terminals of R8 axons (green) during developmental phases was visualized by combining Gogo-FsF-GFP and R8-specific FLPase (sensFLP) co-labeled with R8-specific myr-RFP (C) or mAb24B10 for all R axons (D–G) (magenta). The numbers indicate the average intensity of GFP (max. 85, n = 3, 24 axons each). (H–L) Fmi protein localization at the terminals of R8 axons (green) during developmental phases was visualized by Fmi-FsF-mCherry and R8-specific FLPase (sensFLP) co-labeled with R8-specific mCD8GFP (H) or mAb24B10 for all R axons (I–L) (magenta). The numbers indicate the average intensity of mCherry (max. 85, n = 3, 24 axons each). (M–P) Localization of Gogo (green) and Fmi (magenta) protein at the tip of the R8 axon in third instar larva (phase 1) (M). (N) The fluorescent intensity of Gogo-GFP (green) and Fmi-mCherry (magenta) was measured from outside to inside of the columns across the horseshoes as shown in M (yellow dotted lines). The average of eight axons (n = 3 animals) was calculated. Gogo was strongly enriched at the rim of the horseshoe-shaped R8 axon terminal (M’, arrow in N). Fmi was distributed broadly including filopodia (M’’, bracket in N). 3D images of Gogo (green) and Fmi (red) localization at the tip of R8 axon (blue) in third instar larva (phase 1) (O). Schematic of Gogo (green) and Fmi (red) expression in R8 cells (blue) (P). Scale bars 10 μm.

Gogo and Fmi cooperatively guide R8 axons to encircle the columnar center of the medulla

R8 cell-specific strong loss-of-function (LOF) animals were generated to observe phase-specific Gogo and Fmi functions (Figure 2). An RNAi insertion and a heterozygous null mutation were combined (Hakeda-Suzuki et al., 2017), thus resulting in a strong phenotype equivalent to known gogo or fmi null mutations (Figure 2—figure supplement 1A–F). In the R8 cell-specific gogo LOF, R8 axons correctly targeted each column, but the termini intruded into the medulla columnar center and failed to form a proper horseshoe shape during phase 1 (Figure 2A,B and D). In phase 2, the R8 axonal termini displayed greater horizontal filopodial extension than normal, thereby enhancing the probability of encountering neighboring gogo loss-of-function R8 axons over time (Figure 2B). This excessive R8 filopodia coincides with the disrupted R8 axon termini lineup and the invasion of layers slightly deeper than M1 during phases 2 and 3 (Figure 2E,F,H and J). Axon bundling and incorrect targeting become more prominent later in development. As a result, multiple R8 axons (usually two) were often observed innervating a single column (yellow arrow in Figure 2F and J). During live imaging, vertical extension could be observed during phase 3 in tangled gogo loss-of-function R8 axons, thus indicating that it is difficult to uncouple axons once they have become tangled (Figure 2—videos 1 and 2). This can explain the observation that columnar organization becomes worse in a larger mutant area compared with a single isolated mutant axon (Tomasi et al., 2008).

Figure 2 with 3 supplements see all

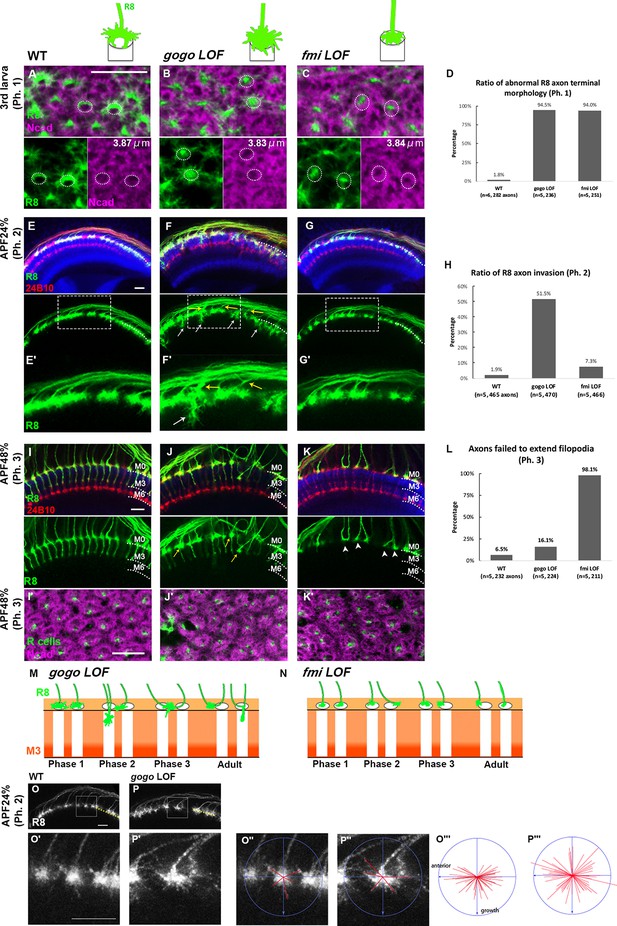

Gogo and Fmi regulates the growth cone dynamic.

(A–L) The medulla of control, R8-specific gogo loss-of-function mutations, and R8-specific fmi loss-of-function was analyzed. (A–C) The medulla of the third instar larvae (phase 1) was labeled with UAS-mCD8GFP for R8 (green) and anti-N-cadherin (magenta) to visualize columns. The dashed circles demarcate columns. The numbers indicate the average diameter of the medulla columns visualized with anti-N-cadherin (n = 3, 18 columns). (D) Quantification of the R8 axon terminals that intruded into the medulla columnar center and failed to form a proper horseshoe shape during phase 1. (E–G) The medulla at APF24% (phase 2) was labeled with UAS-mCD8GFP for R8 (green), mAb24B10 for all R axons (red) and anti-N-cadherin (blue). gogo loss-of-functions showed R8 axon bundling and overextension beyond the R8 temporary layer (arrows). (H) Quantification of the invasion R8 axons at phase 2. (I–K) The medulla at APF48% (phase 3) was labeled with UAS-mCD8GFP for R8 (green), mAb24B10 for all R axons (red), and anti-N-cadherin (blue). gogo loss-of-function showed R8 axon bundling (arrows), whereas in fmi loss-of-functions, R8 axons failed to extend filopodia vertically toward the M3 layer (arrowheads). (I’–K’) Medulla were labeled with N-cadherin (magenta) and R axons with mAb24B10 (green) to highlight the columnar pattern. (L) Quantification of R8 axons that failed to vertically extend their filopodia toward the M3 layer during phase 3. (M, N) Schematics of R8-targeting phenotype in gogo loss-of-function and fmi loss-of-function in each phase. (O, P). To elucidate the function of Gogo in phase 2, gogo RNAi was expressed in R8 axons in gogo heterozygous mutant only after puparium formation (APF0%) using Gal80ts to eliminate the effect of gogo LOF in phase 1. Since the axons were sparsely labeled using Flp-out system, some axon terminals were isolated and each filopodia can be identifiable (white square in O and P. Enlarged images in O’ and P’). The centers of the growth cones were plotted, and the orientation of axon growth perpendicular to boundary line of medulla was determined. Tips of the five longest filopodia were connected to the center by red lines (O’’, P’’). Fifty lines from ten axons were collected and merged into one image (O’’’, P’’’). In the phase 2-specific gogo LOF, anterior R8 axon growth cones extended longer filopodia in more radial directions than wild type. Scale bars 10 μm.

To determine whether Gogo function in phase 2 is independent of phase 1, we performed a phase-specific knockdown of gogo using Gal80ts. The temperature was changed from 18°C to 27°C during white pupal formation, so that the gogo RNAi began to be expressed after the early pupal stage. By this stage, the R8 axons that innervate the anterior half of the optic lobe had already developed a horseshoe shape as a wild type (Figure 2—figure supplement 1H). In phase 2, those anterior R8 axon growth cones extended longer filopodia in more radial directions than the wild type (Figure 2O–P'''), indicating that gogo loss-of-function defects observed in phase 2 were independent of those of phase 1. Altogether, these data suggest that gogo has two functions: column center encircling (function 1) in phase 1, and proper filopodia extension (function 2) during phase 2. Both of these functions were essential for avoiding axon bundling and for promoting a proper array of medulla columns during later development (Figure 2I’, J’ and M).

Similar to the gogo phenotype, the fmi LOF had R8 axon terminals that intruded into the medulla columnar center and failed to form a proper horseshoe shape during phase 1 (Figure 2C and D). In contrast to the gogo LOF, R8 filopodia horizontal extension was abnormally shortened. As a result, R8 axons maintained their distance from neighboring R8 axons and lined up orderly at the medulla surface during phase 2 (Figure 2G and H). Toward phase 3, R8 axons began to lose proper distance among themselves, thus resulting in defective columnar organization (Figure 2I’ and K’). We attributed these defects to the initial failure of fmi R8 axons to encircle the medulla columnar center during phase 1. Moreover, in phase 3, fmi R8 axons failed to vertically extend their filopodia toward the M3 layer (Figure 2K and L). These results indicate that Gogo and Fmi function in opposing manners during phases 2 and 3 of R8 axon targeting (Figure 2M and N). Given that gogo and fmi LOFs had disorganized medulla columns in later stages (Figure 2J’ and K’), it can be concluded that the column center encircling during phase 1 is important for R8 axons to follow the correct columnar path and to develop organized arrays.

Gogo performs a cooperative and antagonistic function toward Fmi

Previous studies that are primarily based on genetic interactions have indicated that Gogo and Fmi must interact to recognize their ligand molecule (Hakeda-Suzuki et al., 2011). Loss-of-function mutations were used to observe any genetic Gogo/Fmi interactions during phase 1. The use of RNAi lines to knockdown each gene in an R8-specific manner resulted in morphological defects in the termini of a fraction of R8 axons (38.2% of gogoRNAi and 11.9% of fmiRNAi; Figure 3A,B,C and E). Double knockdown synergistically enhanced these morphological defects (76.6% of termini; Figure 3D and E), thus suggesting that Gogo and Fmi cooperate during phase 1 to correctly recognize and encircle the medulla columnar center.

Figure 3 with 2 supplements see all

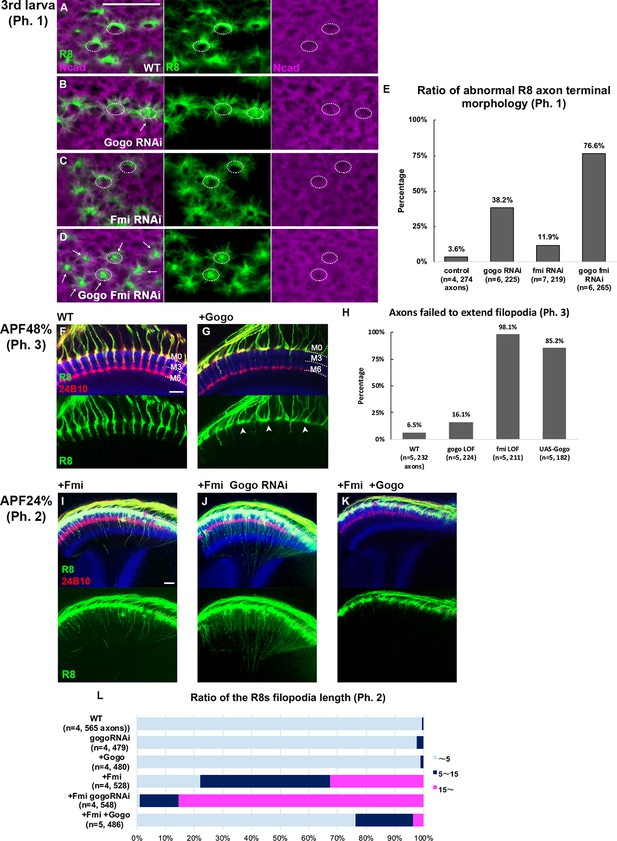

Gogo has dual functions, 'cooperative’ and ‘antagonistic’ toward Fmi.

(A–E) R8 axons in wild type (A), R8-specific knockdowns of gogo (B), fmi (C), and gogo, fmi double knockdowns (D) in phase 1 were visualized using R8-specific UAS-mCD8GFP (green) counterstained with anti-N-cadherin (magenta). (E) Quantification of the R8 axon terminals that intruded into the medulla columnar center and failed to form a proper horseshoe shape at phase 1 (third instar larva). (F–L) Genetic interaction between fmi and gogo. R8 axons are labeled with mCD8GFP (green), and counterstained with mAb24B10 (red) and anti-N-cadherin (blue). R8 axons overexpressing gogo failed to extend their filopodia vertically toward the M3 layer (arrowheads in G compared with F). (H) Quantification of R8 axons failed to vertically extend their filopodia toward the M3 layer during phase 3 (APF48%). (I) Upon fmi overexpression, R8 cells extended their vertical filopodia toward the deeper layer of the medulla during phase 2 (APF24%). The vertical filopodia extension was further promoted by gogo RNAi (J) and strongly suppressed by gogo overexpression (K). (L) Quantification of R8 filopodia length. The length of the longest filopodia was measured in 3D images and divided into three classes: <5 μm (light blue), 5–15 μm (dark blue), and >15 μm (magenta). Scale bars 10 μm.

The next set of experiments was attempted to rescue these loss-of-function mutant phenotypes by overexpressing the opposing gene to test whether Gogo and Fmi are mutually compensatory. Fmi overexpression in R8-specific gogo LOF did not rescue R8 axon termini morphological defects (Figure 3—figure supplement 1I and K). Likewise, Gogo overexpression in R8-specific fmi LOF did not rescue the morphological defects (Figure 3—figure supplement 1J and L). These results indicate that Gogo and Fmi do not have redundant gene functions and cannot compensate for each other.

To investigate the function 2 of Gogo, we examined the genetic interaction between gogo and fmi LOF in phase 2. Compared to the gogo single LOF, gogo/fmi double LOF showed much milder bundling and invasion defects in phase 2 (Figure 3—figure supplement 1A–H), suggesting an antagonistic function between gogo and fmi in phase 2. The antagonistic effect was more dramatic when these genes were overexpressed. When gogo was overexpressed in an R8-specific manner in phase 3, gogo-overexpressed R8 axons failed to vertically extend their filopodia toward the M3 layer, similar to that in fmi LOF (Figure 3F–H, compared with Figure 2K). Conversely, fmi-overexpressed R8 axons extended their filopodia vertically toward the layers much deeper than the wild type and passes through the medulla during phase 2 (Figure 3I). To observe the genetic relationship between Gogo and Fmi, Gogo levels were manipulated, and the effect on filopodia extension in fmi-overexpressed R8 axons was observed. gogo knockdown on an fmi overexpression background enhanced premature vertical filopodia extension during phase 2 (Figure 3J and L), thus resulting in the R8 axon bundling phenotype observed at the adult stage (Figure 3—figure supplement 1M–P). Conversely, gogo and fmi cooverexpression suppressed filopodia extension compared with fmi overexpression alone (Figure 3K and L). These results underscore that Fmi promotes filopodia extension, which is counteracted by Gogo. Thus, as the development proceeds, Gogo genetically showed cooperative interaction (phase 1) to antagonizing interaction (phase 2) toward Fmi.

The two functions of Gogo are regulated by the same functional ectodomain

To examine how Gogo switches its functional role regarding Fmi, we first checked if Gogo has multiple functional stretches in the extracellular domain that could elicit each function. Gogo has a GOGO domain that contains eight conserved cysteines, a Tsp1 domain, and a CUB domain in its extracellular portion. Previous work has shown that both the GOGO and Tsp1 domains are required for Gogo function (Tomasi et al., 2008). To determine which Gogo ectodomain is required in higher resolution, a smaller segment of each domain was deleted from the genome using CRISPR/Cas9. Severe morphological phenotypes similar to the gogo null mutant were observed in any of the small GOGO or Tsp1 domain deletions in phase 1 (Figure 3—figure supplement 2A–H). Furthermore, overexpression of the Gogo fragment lacking GOGO or Tsp1 domains showed weaker suppression of filopodia extension in the fmi overexpression mutants compared to the full-length Gogo overexpression (Figure 3—figure supplement 2I–O). These results demonstrated that GOGO and Tsp1 domains are required in both phases 1 and 2. Therefore, the same stretch of extracellular portion (GOGO–Tsp1) is required for the both functions of Gogo, indicating that switching between two functions of Gogo is not relevant to the extracellular portion during the early developmental stages.

Gogo localization is dependent on Fmi localization inside filopodia

The functional domain in the extracellular portion of Gogo indicates that Gogo/Fmi interactions occur throughout development, including phases 1 and 2. Previous studies have shown that Gogo and Fmi colocalize at the cell-cell contacts of cultured cells (Hakeda-Suzuki et al., 2011). In order to test it in more in vivo situation, we tried to observe the changes of the Gogo or Fmi protein localization at phase 1 in the loss- or gain-of-function mutants (Figure 4). In the LOF mutants, interpretation of the localization changes was not possible because the growth cone morphology had changed drastically. Therefore, we focused on situations in which the protein was overexpressed. Fmi localization was not altered in gogo overexpression mutants (Figure 4F and H). Conversely, in fmi overexpression, Gogo localization shifted toward the stalk of the axon terminal, where Fmi accumulates (Figure 4C–E). Moreover, Gogo localization was shifted along the vertical filopodia stimulated by Fmi to prematurely extend during phase 2 (Figure 4I and J). These results indicate that Gogo localization is controlled by Fmi, and that the physical interaction between Gogo and Fmi controls the formation of the horseshoe structure during phase 1 and filopodia extension during phase 2.

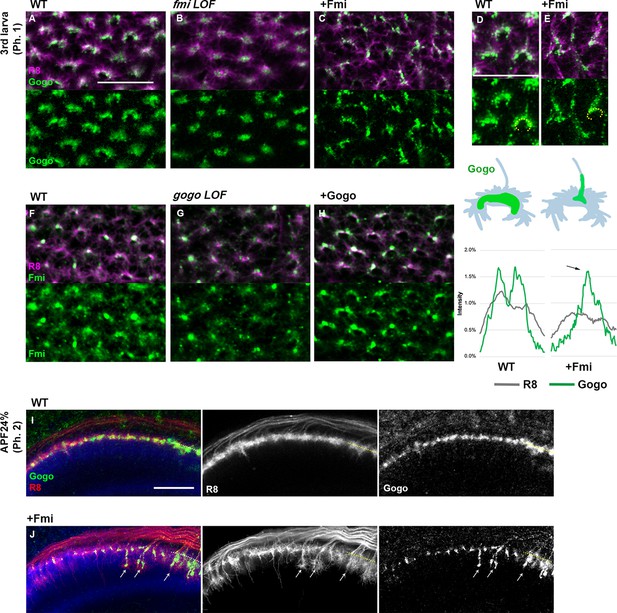

Gogo localization in R8 changes depending on the expression level of Fmi.

(A–H) Localization of R8-specific Gogo-GFP (A–E) and Fmi-mCherry (D–H) in loss-of-function (heterozygous mutation with R8-specific RNAi) or overexpression backgrounds. R8 axons were labeled with myr-RFP or mCD8GFP. (D–E) 3D images of Gogo localization in R8 cells of wild type (D) or Fmi overexpression (E). The fluorescent intensity of Gogo-GFP (green) and R8 myr-RFP (gray) was measured along the horseshoe structures (the dotted lines in D, E) and the average of four axons (n = 2 animals) is shown in the graph below each image. Upon Fmi overexpression, strong Gogo expression was observed at the stalk of the axon terminal (C and E compared with A and D, arrow in the histogram of +Fmi). (F–H) Fmi localization did not show remarkable change in gogo loss-of-function (G) nor in gogo overexpression (H) mutants compared with the wild type (F). (I, J) R8-specific Gogo-GFP (green) during phase 2 in wild type (I) and Fmi overexpression mutants (J). R8 axons are labeled with myr-RFP (red) and counterstained with anti-N-cadherin (blue). Gogo protein was localized along the vertical filopodia that prematurely extended during phase 2 (arrows in J compared with I). Scale bars 10 μm.

Dephosphorylated and phosphorylated Gogo have distinct functions toward Fmi

We next tested whether cytoplasmic domain of Gogo serves as a switch to change between its two-faced functions. Previous studies suggest that the cytoplasmic domain of Gogo is important for Gogo/Fmi collaborative functions, while they interact in cis (Hakeda-Suzuki et al., 2011; Tomasi et al., 2008). It has also been shown that the YYD tripeptide motif in the cytoplasmic domain is required for Gogo function (Mann et al., 2012). Furthermore, Tyr1019 and Tyr1020 are known as the true phosphorylation sites in vivo (Mann et al., 2012). To test whether regulation of Gogo phosphorylation is required for function 1 during phase 1, the Gogo phosphomimetic form (GogoDDD), non-phosphomimetic form (GogoFFD) and deletion of the entire cytoplasmic domain (GogoΔC) were used to rescue the gogo mutant phenotype. GogoDDD and GogoΔC were unable to rescue the mutant morphological phenotype, whereas wild-type Gogo and GogoFFD significantly rescued the phenotype during phase 1 (Figure 5A–F). These results indicate that the unphosphorylated YYD motif of the cytoplasmic domain is required for R8 axons to correctly recognize the medulla column and encircle the columnar center (function 1).

Figure 5 with 1 supplement see all

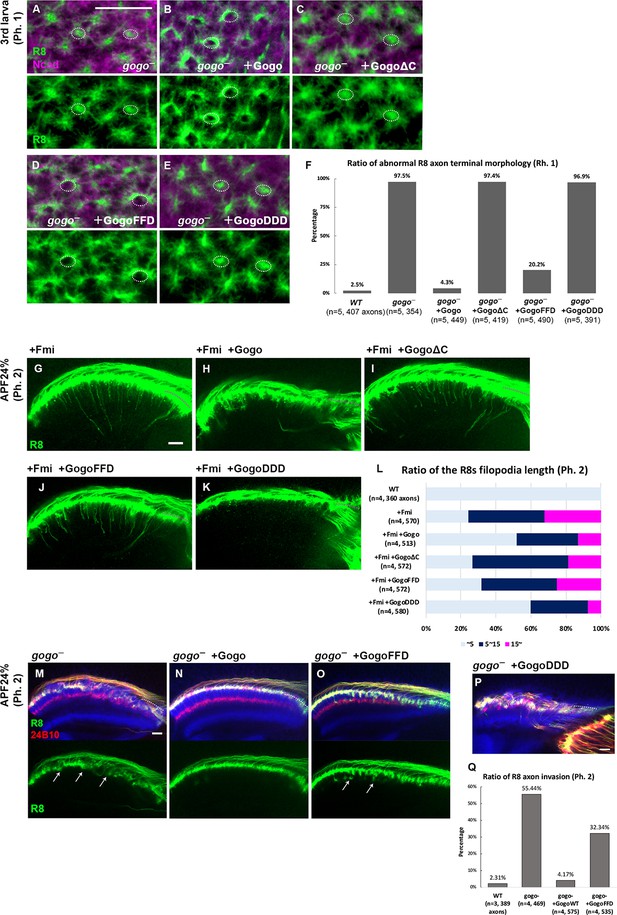

Dual function of Gogo controlled by the phosphorylation of YYD motif.

(A–F) gogo rescue experiments in a background of gogo[H1675]/gogo[D1600] during phase 1 (third instar larva). R8 axons were visualized with mCD8GFP (green), and columns were labeled with N-cadherin (magenta). The targeting defects of gogo mutants (A) were almost completely rescued by wild-type Gogo (B) and GogoFFD (D, non-phosphomimetic), but not rescued by GogoΔC (C) or GogoDDD (E, phosphomimetic). (F) Quantification of R8 axon terminals that intruded into the medulla columnar center and failed to form a proper horseshoe shape at phase 1 (third instar larva). (G–L) Horizontal images of R8 axons expressing GogoFFD or GogoDDD in an Fmi overexpression background at phase 2 (APF24%). R8 filopodia elongation was significantly repressed by wild-type Gogo (H) or GogoDDD (K), but not by GogoΔC (I) nor GogoFFD expression (J). Quantification of R8 axon filopodia length (L). The length of the longest filopodia in a 3D image was measured and divided into three classes: <5 μm (light blue), 5–15 μm (dark blue), >15 μm (magenta). (M–Q) Ectopic filopodia extension and axon bundling (arrows in M) in gogo mutants (gogo[H1675]/gogo[D1600]) were rescued by wild-type Gogo (N), but not by GogoFFD expression (arrows in O) during phase 2 (APF24%). (P) The R8 axons in GogoDDD-rescued animals were too disrupted to be quantified. (Q) Quantification of the R8 axon invasion during phase 2. Scale bars 10 μm.

Next, we sought to determine which Gogo form is functional during filopodia extension in phase 2. The GogoFFD and GogoDDD transgenes were expressed in fmi-overexpressed flies (Figure 5G–L). GogoFFD did not suppress filopodia extension (Figure 5J and L), but GogoDDD did (Figure 5K and L). This indicates that the phosphorylated form of Gogo is required for filopodia suppression (function 2).

In previous studies, GogoFFD rescued the R axon targeting defects in adult stage to a considerable extent (Mann et al., 2012). However, in the current study at earlier stages, GogoFFD did not completely rescue ectopic filopodia extension and axon bundling, thus resulting in a slightly premature R8 termini intrusion into the medulla neuropil during phase 2 (Figure 5M–Q). Therefore, Gogo phosphorylation may occur sometime between phases 1 and 2 to suppress excessive filopodia formation and extension during normal R8 axon development. These results suggest that non-phosphorylated Gogo governs function 1, while the phosphorylated form controls function 2, and that each phosphorylation state has a decisive function in axon pathfinding to form complex functional neuronal circuits.

Suppression of Fmi by phosphorylated Gogo is mediated via adducin

Gogo interacts with the actin-capping protein Hu-li tai shao (Hts, Drosophila adducin homolog) to control R8 neuron axonal extension (Ohler et al., 2011). Thus, we hypothesized that function 2 of Gogo, which suppresses filopodia, relies on the actin-capping ability of Hts. Thereafter, R8-specific hts LOF was analyzed. During phase 2, hts LOF R8 axon termini had excessive radial filopodia extensions and an axon-axon bundling phenotype similar to gogo-/- mutants (Figure 5—figure supplement 1A and B), suggesting that Hts works with Gogo to prevent excessive filopodia extension. To determine which Gogo form works with Hts, Hts was co-overexpressed with GogoDDD or GogoFFD, and observed during phase 3 (Figure 5—figure supplement 1C) and in adulthood (Figure 5—figure supplement 1D). Wild-type Gogo or GogoDDD overexpression partially suppressed filopodia extension (Figure 5—figure supplement 1C). GogoDDD/Hts coexpression, but not GogoFFD/Hts coexpression, synergistically suppressed filopodia extension or resulted in R8 axon stalling at the medulla surface layers (Figure 5—figure supplement 1C–E). These data indicate that phosphorylated Gogo sends signals via Hts to suppress filopodia extension.

Glial cell insulin signal is critical for Gogo phosphorylation

The Gogo/Fmi interaction phenotype can be considered ‘cooperative’ in function 1 (phase 1) but changes to ‘antagonistic’ in function 2 (phase 2) (Figures 2 and 3). This indicates that Gogo is phosphorylated during the transition from functions 1 to 2, but the mechanism is unclear. Previous work indicates that DInR phosphorylates Gogo and is important for its function (Mann et al., 2012). DInR has tyrosine kinase activity and is known to phosphorylate the YYD motif. Therefore, R8-specific dinr LOF was created. The dinr LOF did not have defects in phase 1 (Figure 6A). During phase 2, the dinr LOF R8 axons displayed a similar phenotype to the GogoFFD rescue and exhibited radial filopodia extensions, thus resulting in R8 axon bundling and the premature invasion of the deeper medulla layers (Figure 6A–C, compare with Figure 5D and O).

Figure 6 with 1 supplement see all

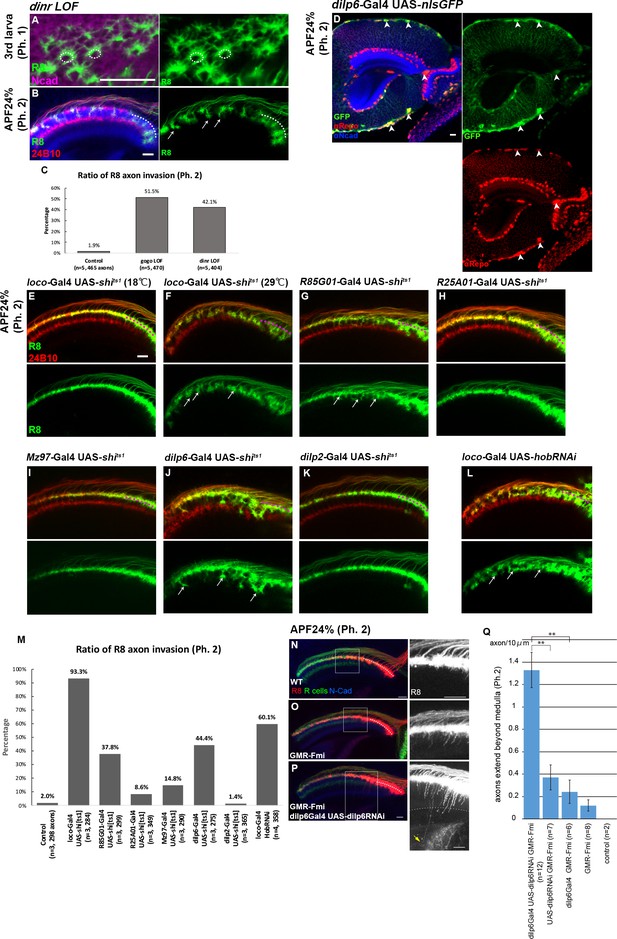

Glial insulin switches the Gogo-Fmi function from ‘cooperative’ to ‘antagonistic'.

(A–C) The phenotype of R8-specific dinr loss-of-function (dinr heterozygotes with R8 cell-specific RNAi) at the third instar larvae and APF24% (phase 1 and 2) was analyzed using R8-specific mCD8GFP (green) counterstained with mAb24B10 (red in B) and anti-N-cadherin (magenta in A, blue in B). R8 axons bundled together, resulting in invasion into deeper medullar layers in phase 2 (arrows in B). (C) Quantification of the R8 axon invasion during phase 2. (D) Dilp6-Gal4 expression monitored by nuclear GFP reporter (green) was mainly observed in cortex and surface glial cells in the optic lobe during phase 2 (arrowheads). Glial cells were labeled with anti-repo (red), and optic neuropils with anti-N-cadherin (blue). (E–K) The secretion of the Dilp was blocked in cells expressing UAS-shits1 using loco-Gal4 (E and F) in all glial cells, GMR85G01-Gal4 (G) in surface and cortex glia, GMR25A01-Gal4 (H), Mz97-Gal4 (I) in wrapping and neuropil glia, dilp6-Gal4 (J) and dilp2-Gal4 (K). During phase 2, R8 axons labeled by myr-tdTomato (green) showed the bundling phenotype in surface and cortex glia-specific shits1 expression (arrows in F, G, and J). Although these Gal4 drivers were expressed from the larval stages, the effect of blocking by shi[ts] began from APF0% when the temperature was shifted to 29°C. (L) Glia-specific inhibition of Dilp secretion by hobbit RNAi expressed under a loco-Gal4 driver. R8 axons bundled with each other, resulting in invasion into the deeper medullar layers (arrows). (M) Quantification of R8 axon invasion in E–L. (N–Q) To investigate the genetic interaction between glial dilp6 and filopodia extension during phase 2, dilp6 RNAi was expressed in glial cells using dilp6-Gal4, and Fmi was overexpressed in photoreceptors using GMR-Fmi. R8 axons were visualized using myr-tdTomato (red, white in the right side of each panel) together with all photoreceptor axons (green) and N-cadherin (blue). GMR-Fmi flies showed enhanced filopodia extension (O). Knockdown of dilp6 using dilp6-Gal4 and UAS-dilp6RNAi significantly enhanced the phenotype (P), and several filopodia extended over the medulla (arrow). The dotted line indicates the lower edge of the medulla. (Q) Quantification of the number of axons that extend over the medulla. Medulla region was determined according to the Ncad staining. Total number of the filopodia extensions beyond the medulla were counted from several images, and the average number per 10 μm section was calculated. **p<0.001, Welch’s t-test. Scale bars 10 μm.

We next sought to determine how DInRs on R8 axons receive insulin signals. Previous gene expression studies in the developing optic lobe revealed that among the eight dilp genes, dilp6 is expressed in glial cells in Drosophila (Fernandes et al., 2017; Okamoto and Nishimura, 2015; Rossi and Fernandes, 2018; Sousa-Nunes et al., 2011). By using Gal4 lines, dilp6 was confirmed to be expressed in the surface and cortex glia at all developmental stages (Figure 6D and Figure 6—figure supplement 1A–I). To identify whether glia contributes to Gogo phosphorylation in R8 axons, glial-specific protein secretion was blocked during phase 2. Dynamin is known to control peptide secretion, including insulin-like peptides (Wong et al., 2015). The temperature-sensitive dynamin mutant (shibirets1 [shits1]) was specifically expressed in glial cells to block Dilp secretion. This produced a defective phenotype similar to the dinr LOF; R8 axons showed radical filopodia extensions and bundling with premature invasion into deeper medulla layers (Figure 6E and F). These defects were also observed when shits1 was specifically overexpressed in surface and cortex glial cells (Figure 6G,J and M). Conversely, we could not see any defects when we block the protein secretion from insulin-producing cells (IPC) (Figure 6K and M) or other types of glial cells, including medulla neuropil glia and Chiasm glia (Figure 6H,I and M).

The hobbit gene is known to regulate Dilp secretion (Neuman and Bashirullah, 2018). Therefore, hobbit was knocked down to block Dilp secretion specifically in glial cells. This produced a similar phenotype as the dinr LOF, thus supporting the idea that glial Dilp controls R8 axonal targeting (Figure 6L).

We further investigated the genetic interaction between dilp6 and Fmi overexpression (Figure 6N–Q). Fmi overexpression counteracted phosphorylated Gogo, and created the sensitized background to study Gogo function 2 (Figure 5K). In this background, we found that dilp6 RNAi knockdown combined with dilp6-Gal4 expression (driver for surface and cortex glia) could further enhance the defects caused by Fmi overexpression (Figure 6P and Q).

Taken together, these results suggest that glial Dilp6 at least partially mediates the Gogo phosphorylation signal into R8 axons. Thus, taken together, the data indicate that in R8 neurons, DInR phosphorylates the Gogo cytoplasmic YYD motif upon receiving glia-derived insulin signals during phase 2.

Glia supplies Fmi that interacts with R8 axons in the columnar center

We have shown that Gogo and Fmi direct R8 axons to recognize the columnar center. However, the component that R8 recognizes during phase 1 is unclear. We hypothesized that the Fmi located on R8 axons functions as a cadherin and homophilically adheres with Fmi on neighboring cells, thereby allowing R8 axons to correctly target the medulla. R7, R8, and Mi1 neurons are known to be the core members during the earliest medulla column formation step (Trush et al., 2019). To test whether functional Fmi is located on R7 or Mi1, Fmi was specifically knocked down in R7 or Mi1 neurons. This did not result in detectable defects in the overall R8 axon targeting or termini morphology (Figure 7—figure supplement 1A and B). During the analysis of glial cell function for insulin signaling, we noticed a firm localization of the Fmi protein at the glial protrusion in the columnar center at phase 1 (Figure 7A and B).

Figure 7 with 2 supplements see all

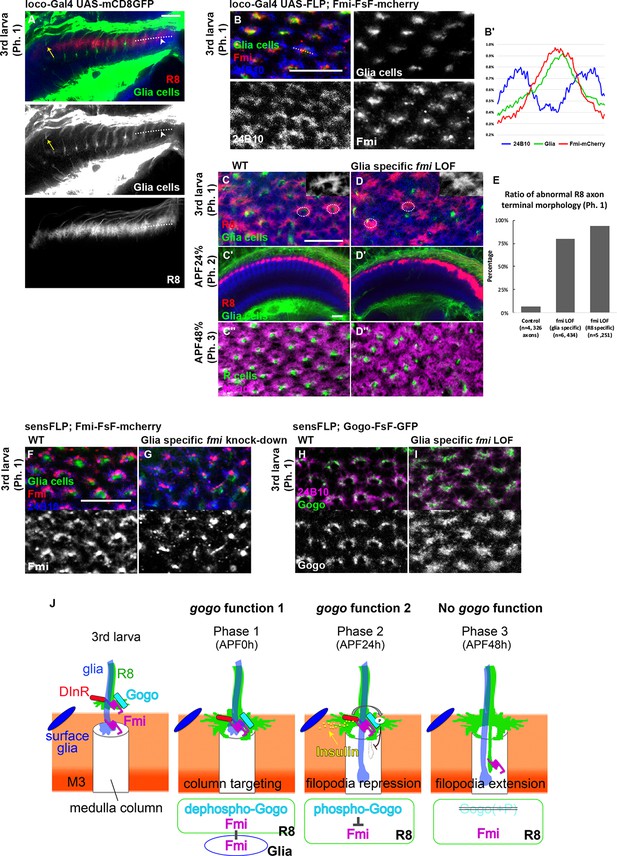

Glial Fmi and R8 Gogo/Fmi instruct R8 to recognize the columnar center.

(A) R8 axon terminals visualized with myr-tdTomato (red, white) and glial cells visualized with mCD8GFP (green) and counterstained with anti-N-cadherin (blue) in phase 1 (third instar larva). The glial protrusion extended into the medulla layers as early as the R8 growth cone enters (arrowhead). In the oldest column, the glial protrusions have begun to retract (yellow arrow). (B) Fmi protein localization at the terminals of glial cells (red) was visualized by Fmi-FsF-mCherry and glial-specific FLPase (loco-Gal4 UAS-FLP) co-labeled with glial-specific mCD8GFP (green) and mAb24B10 for all R axons (blue) in phase 1 (third instar larva). The fluorescence intensity of Fmi-mCherry (red), glial-specific mCD8GFP (green), and stained R axons (blue) was measured across the column (dotted lines) and the average of eight axons (n = 3 animals) was shown in the graph (B’). (C–E) Medulla of the wild type (C) and glial-specific fmi loss-of-function (fmi heterozygote with glial cell-specific RNAi [loco-Gal4, UAS-RNAi, at 29℃]) (D) at each phase (third instar larvae, APF24%, 48%). Labeling is the same as in (A). The medulla columnar pattern is labeled with N-cadherin (magenta) and R axons with mAb24B10 (green). In glial-specific fmi loss-of-function, R8 axon terminals intruded into the medulla columnar center and failed to form a proper horseshoe shape during phase 1 (D), but no bundling was observed during phase 2 (D’). The columnar array was disrupted at APF48% (phase 3) (D’’). (E) Quantification of the R8 axon terminals that intruded into the medulla columnar center and failed to form a proper horseshoe shape at phase 1 (third instar larva). (F, G) The protrusions of glial cells (green) in medulla neuropils and Fmi-mCherry (red) in R8 cells were visualized in phase 1 (third instar larva). R axons were labeled with mAb24B10 (blue). (H, I) Localization of R8 specific Gogo-GFP (green) in glia-specific fmi loss-of-function. R axons are labeled with mAb24B10 (magenta) in phase 1 (third instar larva). (J) Model for the interaction between dual-function Gogo and Fmi to navigate R8 axons. In phase 1, non-phosphorylated Gogo/Fmi at R8 termini interact in trans with Fmi localized on the glial surface to correctly recognize the medulla columnar center (gogo function 1). In phase 2, Gogo is phosphorylated dependent on insulin signaling derived from surface and cortex glia. Phospho-Gogo antagonizes Fmi, thereby suppressing filopodia extension (gogo function 2). In phase 3, Fmi alone brings the R8 axon to the M3 layer, since Gogo protein is no longer expressed in R8 axons by this phase (no gogo function). Scale bars 10 μm.

The glial protrusion seemed to extend into the medulla layers as early as the entry of the R8 growth cone (arrowhead in Figure 7A). The protrusion passes the R8 growth cone and extends deeply into the medulla layers. However, it starts to retract towards the late third instar of larvae (yellow arrow in Figure 7A), and completely retracts from medulla layers in APF24% (phase 2) (Figure 7C’).

Considering that glial cells also contact R8 axons, glia-specific fmi LOF were created. Strikingly, the phenotypes were similar to that of the gogo and fmi R8 LOFs (Figure 2D and H). R8 axon termini in the optic lobe of these mutants failed to encircle the columnar center and intrude into the central area (Figure 7C–E), but no bundling at phase 2 (Figure 7C’ and D’). In the phase 3, columnar organization was disturbed as well. Proper distance was not maintained between R8 axons and the fine columnar array was disrupted in glia-specific fmi LOF (Figure 7C’’ and D’’).

Changes in R8 axon Gogo and Fmi localization were analyzed in glia-specific fmi knockdowns to further assess the functional relationship between glial Fmi and R8 Gogo/Fmi. In this knockdowns, R8 axon Fmi localization was weaker in the filopodia tips and accumulated in the axon termini stalk (Figure 7F and G). R8 axon Gogo localization was more diffuse throughout the entire termini structure, including the filopodia (Figure 7H and I). These localization changes indicate that Gogo and Fmi relocate from the R8 axon horseshoe rim to other regions when R8 axon Fmi cannot bind to glial Fmi. These results also indicate that the in trans interaction between glial Fmi and R8 Gogo/Fmi mediates precise R8 axon recognition of the medulla columnar center, including the formation of a horseshoe structure. Therefore, the phenotypes described here may be the consequence of the specific interruption of function 1, but not function 2 of Gogo. In other words, this glial Fmi and R8 Gogo interaction is mediated by non-phosphorylated Gogo, and later the phosphorylation of Gogo switches the Gogo/Fmi function from ‘collaborative’ (function 1) to ‘antagonistic’ (function 2) (Figure 5).

Taken together, these results suggest that the glial insulin signal controls the phosphorylation status of Gogo, which regulates the growth cone dynamics of R8 and mediates axon-glia and axon-axon interactions (Figure 6). This mechanism maintains a consistent distance between R8 axons, enables ordered R8 targeting of the column, and eventually contributes to the formation of the organized array of the medulla columns (Figure 7J).

Discussion

The current study demonstrated that R8 axons are guided in a stepwise manner via Gogo/Fmi interactions that initially have a collaborative relationship, which later becomes antagonistic during the development of the visual system (Figure 7J). During phase 1, dephosphorylated Gogo interacts with Fmi in cis, and cooperatively functions to navigate R8 axons to the correct target. During this stage, R8 Gogo interacts with glial Fmi to locate the column center and enable R8 axon terminals to form a horseshoe-like morphology that encircles the central area of the medulla column. During phase 2, Gogo is phosphorylated by the insulin signal derived from the surface and cortex glia. Phosphorylated Gogo antagonizes Fmi via Hts (adducin) to suppress filopodia extension. During phase 3, Gogo is no longer expressed in R8 axons; therefore, Fmi alone navigates R8 axons to the M3 layer. Two Gogo states control axon-axon interaction to maintain R8 axon distance and axon-column interaction for proper column targeting.

Similar Gogo/Fmi interactions are broadly utilized in the Drosophila nervous system. Previous work has shown that Gogo and Fmi function in dendrite formation during the embryonic stage (Hakeda-Suzuki et al., 2011; Hakeda and Suzuki, 2013). Additionally, phenotypic and genetic interaction analysis of gogo/fmi mutants/knockdowns in the mushroom body (MB) revealed that Gogo and Fmi functionally cooperate or antagonize depending on the context to regulate correct axon targeting similar to visual system (Figure 7—figure supplement 2). The MB is a higher center for olfactory learning and memory (de Belle and Heisenberg, 1994). Previous studies have shown that fmi mutant axons also have targeting defects in MB neurons (Reuter et al., 2003). Given that Fmi is broadly functionally conserved among species (Berger-Müller and Suzuki, 2011; Rapti et al., 2017; Shi et al., 2014; Tissir et al., 2002), elucidating the conserved function of Gogo/Fmi interactions in the Drosophila brain can provide valuable insights into the formation of higher-order nervous systems, such as the mammalian brain.

Gogo and Fmi cooperatively mediate R8 axon-column interaction in function 1 (phase 1)

During phase 1, R8 axon terminals form a horseshoe-like shape and encircle the medulla column center. In this phase, Gogo and Fmi protein localize at the R8 axon terminal fringe surrounding the medulla center and appear to interact in cis (Figure 1M). Because GogoFFD rescued the gogo mutant phenotype at this time point, it can be deduced that only the non-phosphorylated version is required (Figure 5D–F).

We asked what does phosphorylation do to the function of Gogo. Gogo/Fmi interactions in cis occur with the same affinity regardless of the Gogo phosphomimetic version in S2 cultured cells (Mann et al., 2012). Furthermore, GogoDDD and GogoFFD localization did not differ in the R8 axon termini during phase 1 in vivo (Figure 5—figure supplement 1F), suggesting that the phosphorylation status of Gogo does not change the molecular affinity of Gogo/Fmi.

Gogo phosphorylation may control multiple aspects of this process, including downstream Gogo/Fmi intracellular signaling. The Fmi downstream signaling pathway components that regulate dendrite formation or planar cell polarity (PCP) are well known (Berger-Müller and Suzuki, 2011; Kimura et al., 2006; Li et al., 2016; Lu et al., 1999; Usui et al., 1999; Wang et al., 2016). Previous studies have shown that PCP complex mutants display normal R8 axon targeting in adulthood (Hakeda-Suzuki et al., 2011). Moreover, the RNAi knockdown of components that are thought to regulate the dendrite formation downstream of Fmi, such as PCP complexes and G alpha proteins, did not result in defective R8 axon targeting phenotypes (data not shown). Functionally, the deletion of the intracellular domain of Fmi can promote filopodia elongation but does not mediate column center encircling (Figure 5—figure supplement 1G–I). Given that the Gogo cytoplasmic domain is also required for column center encircling (Figure 5C), the Gogo/Fmi interaction in phase 1 may send signals via both Gogo and Fmi cytoplasmic domains.

Previous studies have reported that Gogo/Fmi co-overexpression in R7 axons redirects them to the M3 layer. This occurs when GogoFFD, but not GogoDDD, is expressed (Mann et al., 2012). The observation of this redirection process showed that R7 axons do not extend in a stepwise manner such as R8 axons but retreat to the M3 layer from M6 (Figure 7—figure supplement 1C and D). This indicates that Gogo/Fmi co-overexpression does not form a code for M3 targeting but promotes cytoskeletal reorganization, which might lead to R7 axon retraction. Consistent with this idea, R7 retraction was recapitulated by overexpressing Rho by using GMR-Rho1 (Figure 7—figure supplement 1F). It is well known that Rho promotes cytoskeletal reorganization by activating caspase (Aznar and Lacal, 2001; Barrett et al., 1997; Mashima et al., 1999; Shi and Wei, 2007; Sokolowski et al., 2014). The retraction ratio was also enhanced by co-overexpressing Gogo (Figure 7—figure supplement 1H and J).

Strong Gogo/Fmi co-overexpression results in serious cell death in the retina (Tomasi et al., 2008), with greater cell death in GogoFFD than in GogoDDD. If these cell deaths are the result of increased cytoskeleton reorganization, it may indicate that GogoFFD and Fmi cooperatively regulate the cytoskeleton ectopically in various phases throughout photoreceptor development. This cytoskeletal reorganization mediated by GogoFFD might regulate the cytoskeleton in a similar manner when R8 axon Gogo/Fmi interact with glial Fmi to form the horseshoe structure during phase 1 (Figures 2 and 7). However, the manner in which GogoFFD sends signals via downstream components and regulates cytoskeleton reorganization is unknown; this must be addressed in the future.

Glia interact with R8 cells to guide R8 axons in function 1 (phase 1)

This study shows that Gogo/Fmi at the R8 termini interacts in trans with Fmi, which is localized on the glial surface during phase 1 (Figure 7). Related to these findings, N-cadherin (Ncad) plays a role in medulla column formation (Trush et al., 2019). Ncad mutant R8 axons have a defect in targeting the medulla column, which is thought to be due to the difference in adhesive properties of the axons in the column, that is, the differential adhesion hypothesis (DAH) (Foty and Steinberg, 2005; Murakawa and Togashi, 2015; Trush et al., 2019). In this system, axons with greater Ncad expression tend to target the center of the column, whereas those with lower expression tend to surround the edge of the column border. Ncad overexpression in R8 axons results in changes in termini morphology and in the coverage of the entire medulla column surface (Trush et al., 2019).

In the current studies, Fmi overexpression in the R8 axon termini did not change the horseshoe shape (Figure 3—figure supplement 1I). However, fmi LOF in R8 axons resulted in misguided filopodia invading the column center; this does not support the DAH theory for Fmi (Figure 2C). Therefore, we suggest that as a cadherin, Fmi interacts homophilically in trans as Fmi/Fmi between glia and R8 cells. Conversely, Gogo interacts with Fmi in cis to form Gogo/Fmi on the R8 membrane. Distinct signaling regulation via Gogo and Fmi cytoplasmic domains enables R8 axons to correctly target the medulla column.

One interesting observation is that Gogo localization differed between R8 axon- and glial-specific fmi LOFs: Gogo protein localization is more diffuse in R8 fmi LOF than in glial fmi LOF (Figures 4B and 7I). It is known that Gogo and Fmi do not interact in trans, which was shown in cell culture systems (Hakeda-Suzuki et al., 2011). These observations suggest that Gogo/Fmi is not only interacting with glial Fmi, but the Gogo ligand (factor X) exists on the glial membrane and interacts with Gogo as Gogo/factor X, in addition to the Fmi/Fmi interaction. The functional role of factor X on glial cells is unknown. Therefore, it is important to identify the role of factor X to reveal the functional significance of glial-derived signaling during phase 1 of R8 axon targeting.

Temporal and spatial regulation of Gogo phosphorylation status by glia

In phase 1, R8 axons interact with Fmi on glial cells. In phase 2, R8 axons receive insulin from surface and cortex glia. However, insulin expression started at the transcriptional level during phase 1 (Figure 6—figure supplement 1H and I); therefore, the temporal relationship of Gogo phosphorylation and insulin expression onset does not match apparently.

One explanation is that it is regulated via changes in the relative position between the glia and medulla during development. Glial position changes across phases 1 to 2 as the entire brain structure changes. There is a huge distance between glia and the medulla neuropil during phase 1 that drastically shrinks by phase 2. This physical distance between glia and R8 axon termini might influence the reception efficiency of insulin.

The second explanation is that there might be a slow transition between the non-phosphorylated state to the phosphorylated state. Gogo coexists as two phosphorylated states in the tip of R8 axons when R8 axons reach the medulla column. Only the microlocalization of the two phosphorylated states might be differently regulated. The shape of the growth cone was shown to be different between GogoFFD rescue and wild type rescue in the gogo mutant during phase 1 (Figure 5B and D). This difference might be due to Gogo phosphorylation and may occur even in wild type overexpression that gained the ability to suppress filopodia extension in phase 1.

The transition of total Gogo protein levels in the R8 axons also appeared to be slow. This is based on the observation that gogo-Gal4 strain, in which Gal4 is knocked into the gogo intron locus by using the MiMIC system (Venken et al., 2011), loses GFP protein levels (monitored by UAS-mCD8GFP, Figure 1—figure supplement 1) gradually, similar to the gradual decrease of Gogo-GFP fusion protein during the midpupal stages. This indicates that Gogo protein perdurance is similar to mCD8GFP and is not actively degraded by the ubiquitin-proteasome pathway. In summary, in contrast to the stepwise regulation of R8 axon extension that occurs in precise temporal phases, the slow transition of Gogo phosphorylation and the protein level decrease seem not to be the only regulatory signals that determine whether R8 axons are extended or not.

Gogo acts antagonistically against Fmi in R8 axon-axon interactions in function 2 (phase 2)

Filopodia are formed by actin polymerization. If the concentration is above a specific threshold, in vitro experiments suggest that actin can polymerize itself. The actin concentration in vivo is typically higher than the threshold. This suggests that actin should primarily be controlled by factors that interfere with or suppress uncoordinated actin fiber polymerization in the R8 axon growth cone (Pantaloni et al., 2001; Pollard and Borisy, 2003). To prevent filopodia extension, actin-capping proteins bind to the end of F-actin, which blocks further actin fiber polymerization. The current study showed that phosphorylated Gogo activates the actin-capping protein Hts to prevent uncontrolled actin polymerization in R8 axon termini (Figure 5—figure supplement 1C–E). The overexpression of Hts in R8 axons alone did not prevent R8 filopodia extension, thus suggesting that phosphorylated Gogo is required. However, a previous cell culture study demonstrated that physical Gogo/Hts interactions take place regardless of the phosphorylation status of the YYD motif (Mann et al., 2012). This suggests that phosphorylated Gogo regulates Hts enzymatic activity rather than binding. The enzymatic activity of the Hts homolog adducin is controlled by Ser/Thr kinases in mammals (Fukata et al., 1999; Matsuoka et al., 1996; Matsuoka et al., 2000). This type of Ser/Thr kinase activation might occur in conjunction with the activation of the Tyr kinase that phosphorylates the Gogo YYD motif. These regulations may result in Gogo counteracting Fmi to suppress radial filopodia extension, thereby suppressing R8 axon-axon interactions during phase 2.

Genomic economy of Gogo regulation in neuronal circuit formation

This study demonstrates that the insulin secreted from surface and cortex glia switches the phosphorylation status of Gogo, thereby regulating its two distinct functions. Non-phosphorylated Gogo mediates the initial recognition of the glial protrusion in the medulla column center. Phosphorylated Gogo suppresses radial filopodia extension by counteracting Fmi to prevent axon bundling and to maintain the one axon-to-one column ratio (Figure 7J).

Phosphorylated protein is typically activated or inactivated by phosphorylation. For example, to become activated and transduce downstream signaling, Robo and Eph have tyrosine phosphorylation sites and need to be dephosphorylated or phosphorylated, respectively (Dearborn et al., 2002; Sun et al., 2000). Few proteins have two distinct functions that are independently assigned to phosphorylation status (Li et al., 2018), and the current study demonstrates that Gogo is one of them. This mechanism is of great interest from a genomic economy point of view, where the animal genome takes an economical strategy to maximize protein functions and networks with a limited number of genes. The genomic economical strategy was likely important in the establishment of complex functional neuronal circuits during the evolution of higher-order species. Therefore, this mechanism is highly likely to be conserved across species.

Materials and methods

Fly strains and genetics

Request a detailed protocol

Flies were kept in standard Drosophila media at 25°C unless otherwise indicated. The following fly stocks and mutant alleles were used: sensFLP, 20C11FLP, GMR-(FRT.Stop)-Gal4 (Chen et al., 2014); gogo[H1675], gogo[D1600], UAS-GogoT1, ato-Δmyc, GMR-GogoΔN-D, GMR-GogoΔN-E, GMR-GogoΔN-G, GMR-GogoΔN-H, UAS-GogoFL-myc, UAS-GogoΔC-myc, UAS-GogoΔN-myc (Tomasi et al., 2008); UAS-GogoΔC, <gogo<, <fmiN<, fmi[E59], UAS-Fmi, UAS-Fmi ΔC (Hakeda-Suzuki et al., 2011); UAS-GogoFL-P40, UAS-GogoFFD-P40, UAS-GogoDDD-P40, GMR-GogoFFD-myc, GMR-gogoDDD-myc (Mann et al., 2012); UAS-add1-myc, hts[null] (Ohler et al., 2011); sens-lexA, LexAop-myrTomato, bshM-Gal4, UAS-myrGFP (Trush et al., 2019); GMR-Rho1 (Hariharan et al., 1995); dilp7-Gal4 (Yang et al., 2008); dlip4-Gal4 is a gift from Dr. Pierre-Yves Plaçais (CNRS France).

The following stocks used in this study are available in stock centers: UAS-FRT-stop-FRT-mcd8GFP, loco-Gal4, Act-Gal4, sensGal4, R85G01Gal4, R25A01Gal4, Mz97Gal4, UAS-stinger, Rh6-mCD8-4xGFP-3xmyc, Rh4-mCD8-4xGFP-3xmyc, gogo-Gal4, OK107-Gal4, UAS-dicer2, UAS-40D, tub-Gal80ts, UAS-FLP, UAS-mCD8GFP, UAS-myrRFP, UAS-nlsGFP, UAS-shi[ts1], UAS-htsRNAi, UAS-hobRNAi, UAS-dlip1 RNAi, UAS-dlip2 RNAi, UAS-dlip3 RNAi, UAS-dlip4 RNAi, UAS-dlip5 RNAi, UAS-dlip6 RNAi, UAS-dlip7 RNAi, UAS-dlip8 RNAi, dlip1-Gal4, dlip2-Gal4, dlip3-Gal4, dlip5-Gal4, UAS-Fz RNAi, UAS-Fz2 RNAi, UAS-dsh RNAi, UAS-Gq RNAi, UAS-Go RNAi, UAS-GsRNAi, UAS-Gi RNAi, UAS-Gf RNAi, UAS-cta RNAi (BDSC); dilp6-Gal4 (DGRC); UAS-gogoRNAi UAS-fmiRNAi (VDRC). The following fly strains were generated in this work: gogo-FSF-GFP, fmi-FSF-mcherry, gogoΔGOGO1, gogoΔGOGO2, gogoΔGOGO3, gogoΔGOGO4, gogoΔCUB, gogoΔTSP1, gogoFlpstop. The specific genotypes utilized in this study are listed in Table S1.

Generation of Gogo-FsF-GFP and Fmi-FsF-GFP knock-in allele

Request a detailed protocol

Gogo-FsF-GFP and Fmi-FsF-GFP knock-in allele was generated by CRISPR/Cas9 technology (Kondo and Ueda, 2013). A knock-in vector containing the homology arms, the flip-out cassette with GFP (FRT-stop-FRT-GFP), and the red fluorescent transformation marker gene (3xP3RFP) was generated as described previously (Trush et al., 2019). The oligo DNAs used for amplification of Gogo and Fmi fragments and creating gDNA are listed in Supplementary file 2. A gRNA vectors were injected to eggs of yw; attP40[nos-Cas9]/CyO or y1 w1118; attP2[nos-Cas9]/TM6C, Sb Tb together with the knock-in vector. The precise integration of the knock-in vector was verified by PCR and sequencing.

The gogo mutants deleting a specific domain gogoΔGOGO1, gogoΔGOGO2, gogoΔGOGO3, gogoΔGOGO4, gogoΔCUB, and gogoΔTSP1 mutants were generated by CRISPR/Cas9 technology (Kondo and Ueda, 2013). A part of gogo gene deleting a specific domain was amplified by overlapping PCR. Single or multiple gDNA vectors were created and cloned into pBFv-U6.2 vector. The DNA oligos used for cloning and creating the gDNA are listed in Supplementary file 2.

Generation of GogoFlpStop mutant

Request a detailed protocol

GogoFlpStop mutant was generated by replacing gogo intronic MiMIC cassette (BDSC; 61010) with the FlpStop cassette using ϕC31 integrase (Hu et al., 2011). The FlpStop cassette is a gift from Dr. Thomas R Clandinin.

Immunohistochemistry and imaging

Request a detailed protocol

The experimental procedures for brain dissection, fixation, and immunostaining as well as agarose section were as described previously (Hakeda-Suzuki et al., 2011). The following primary antibodies were used: mAb24B10 (1:50, DSHB), rat antibody to CadN (Ex#8, 1:50, DSHB), mouse antibody to Repo (8D12, 1:20, DSHB) mouse antibody to myc (4E10, 1:100, Santa Cruz), rabbit antibody to RFP (1:500 ROCKLAND), rabbit antibody to GFP conjugated with Alexa488 (1:200, Life technologies). The secondary antibodies were Alexa488, Alexa568, or Alexa633-conjugated (1:400, Life technologies). Images were obtained with Nikon C2+ and A1 confocal microscopes and processed with Adobe Photoshop and Illustrator.

Live imaging was done according to Özel et al., 2015. Images were obtained with Zeiss LSM880NLO + COHERENT Chameleon Vision.

Quantitative methods

Request a detailed protocol

In Figure 1C–L, average Gogo-GFP or Fmi-mCherry intensity was calculated in each axon termini. GFP or mCherry per axon of the confocal image was manually selected by ImageJ and averaged (max. 85, n = 3, 24 axons each). Each axon was identified by R8-specific maker (myr-RFP, mCD8GFP) or staining with mAb24B10.

In Figure 1N, the relative fluorescence intensities of both Gogo-GFP and Fmi-mCherry labels are plotted for a representative dotted line drawn from the edge to the center of the medulla column (as shown in Figure 1M). Since the total fluorescence intensity of GFP, mCherry, and 24B10 stained per axon is different, each intensity was normalized by the total intensity for each axon. The histogram in Figures 4D, E and 7B’ were also quantified along the dotted lines.

In Figures 2D, 3E, 5F, Figure 5—figure supplement 1H, Figure 7E, the number of abnormal R8 axon terminal was calculated manually as a fraction of all GFP-expressing photoreceptors in third instar larvae (phase 1). Abnormal R8 axon terminal was defined as the termini intruded into the medulla columnar center and failed to form a proper horseshoe shape.

In Figure 2D, the diameter of the medulla column was measured, the longest diameter of the circular structure stained by anti-Ncad antibody.

In Figures 2H, 5Q, Figure 5—figure supplement 1B, Figure 6C,M, the number of R8 axon invasions were calculated manually as a fraction of all GFP-expressing photoreceptors in 24% APF (phase 2). Since R8 axons overlapped before entering the medulla, a precise quantification was not possible and we estimated the bundling, we compared the number of R8 photoreceptors invading medulla between wild type and the tested sample.

In Figures 2L and 3H, the number of R8 axons that failed to extend filopodia to medulla neuropil was calculated manually as a fraction of all GFP-expressing photoreceptors in 48% APF (phase 3). Medulla surface (M0) was identified by staining with anti-Ncad.

In Figure 5—figure supplement 1E, the number of R8 axons stopping at M0 was calculated manually as a fraction of all GFP-expressing photoreceptors in adult stage. Medulla surface (M0) was identified by staining with anti-Ncad.

In Figure 3L, Figure 3—figure supplement 2O, 5L, the length of the longest filopodia was measured in 3D images. The 3D images were taken by the Nikon A1 confocal microscope with a thickness of 40 μm. The 3D images were subdivided into 10 μm thicknesses and the length of filopodia was measured. The 3D reconstruction was done using Nikon NlS-Elements AR Analysis. Multiple filopodia extended from one axon, but only the longest filopodia was measured. Each axon and filopodia can be identified by adjusting the brightness. The longest filopodia was measured from M0 using anti-Ncad staining as a reference.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided.

References

    1. Sun Q
    2. Bahri S
    3. Schmid A
    4. Chia W
    5. Zinn K
    (2000)
    Receptor tyrosine phosphatases regulate axon guidance across the midline of the Drosophila embryo
    Development 127:801–812.

Decision letter

  1. Claude Desplan
    Reviewing Editor; New York University, United States
  2. Marianne E Bronner
    Senior Editor; California Institute of Technology, United States
  3. Kai Zinn
    Reviewer; California Institute of Technology, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This work contributes to our understanding of how neurons and glia interact during Drosophila optic lobe development. It makes the remarkable finding that the cell adhesion protein, Gogo, that interacts with an atypical cadherin, Fmi, switches from cooperating with Fmi to opposing it during development. This switch in function appears to be controlled by Gogo phosphorylation by the insulin receptor in response to a signal from glial cells.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "Glial insulin regulates cooperative or antagonistic Golden goal/Flamingo interactions during photoreceptor axon guidance" for consideration by eLife. Your article has been reviewed by a Senior Editor, a Reviewing Editor, and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Thomas Hummel (Reviewer #1); Franck Pichaud (Reviewer #3).

Our decision has been reached after consultation between the reviewers. As you know, this is a critical and unique part of the eLife process and allows the reviewers to discuss their opinion, to realize things they might have missed or to correct opinions. Based on an intense discussion on your paper and on the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

The reviewers did find the topic to be of significant interest but several serious issues preclude publication in eLife. However, if you were able on the future to address these concerns, we would be happy to receive a new submission that could be processed fairly quickly.

The main issues are as follows:

- The evidence supporting a switch in function for Gogo with respect to Fmi is not strong enough. The main evidence is based on genetic interactions and it is not clear that the three step mechanism can explain pathfinding.

The reviewers were all concerned about step 2 and would have liked to see better arguments to support and explain what this step two is, and how one specific step is affected by another.

- Although the role of Insulin-induced phopshorylation and that fact that Gogo function is regulated by the insulin pathway are an exciting phenomenon, this was already published in your own paper in 2012 and is thus not totally new, even though the source of the signal was now identified.

- The paper lacks quantification and some of the manipulations that are not specific enough to lead to strong conclusions (eg hobbit).

Reviewer #1:

The study by Suzuki and colleagues addresses the developmental assembly of afferent axons into columnar circuit units, a highly conserved structural feature throughout nervous systems. Previous work has identified a close functional interaction between the two transmembrane proteins FMI and GOGO in Drosophila columnar photoreceptor targeting and the current study provides novel insights in the temporal dynamics and cellular interactions of this molecular cross talk. Based on gene expression analysis, genetic interaction studies and cell type specific manipulations the authors could show that GOGO modulates FMI activity in specific developmental steps and that glial cells play in important role in neuronal GOGO-FMI modulation.

The manuscript is well written and the presented data are of high quality. The generation of novel sophisticated genetic tools allows a detailed analysis of the sequential cellular interaction and provides a new level of understanding about the complexity and hierarchy of neuronal connectivity development. However, regarding the proposed mechanism, the manuscript could be more convincing by addressing some issues regarding the function of GOGO in the second step of axon targeting and the role of insulin signaling and FMI adhesion in axon-glia interaction.

While the localization of the synergistic role of GOGO in supporting FMI adhesion is convincing and in is in line of what has been demonstrated before, the proposed subsequent antagonistic activity seems less clear. First of all, regarding the subdivision of R cell targeting into 3 consecutive steps, step1 – axon targeting – and step 3 – axon vertical extension – are well justified as distinct morphological processes but what is happening at step 2? The manuscript makes different statements about step 2, like R8 axons remain at the medulla neuropil surface in the introduction or proper filopodia extension in the phenotype description. The failure to suppress inappropriate horizontal filopodia extensions in GOGO mutants seems a direct consequence of the axon-glia adhesion defects in step 1, which later result in multi-axon columns. Therefore if step 2 is better defined as a developmental process, the importance of the proposed antagonistic GOGO function will become more logical. Alternatively, without step 2 a simplified model with a singular function of GOGO in supporting FMI-mediated axon-glia interaction at step 1, which is then followed by the GOGO downregulation due to glia-induced DILR signaling seems equally likely. In addition, as there is no GOGO expression at step3, it doesn't make sense to investigate the role of Gogo during step3 or conclude that Gogo and Fmi function in opposing manners during step 3 of R8 axon targeting. The fact that prolonged GOGO expression stabilizes the initial axon targeting step is in lines with a mechanisms which simply removes GOGO from the FMI-mediated axon-glia contact thereby allowing further axon extension.

Regarding the functional activity of GOGO at step 2, the main data supporting a switch from cooperation into an antogonistic function are derived from different sets of genetic interaction studies, with double knock down are only analyzed for step 1 indicating synergistic interactions and combined OE and KD are only shown for step 2 concluding antagonistic effects of GOGO on FMI. To exclude a different effect of the genetic manipulation and further support of a stage-specific change in GOGO activity, the modulation of the FMI GOF phenotype should be analyzed in step 1 and the single gene and double knock down could be targeted to stage 2 using the Gal80ts method. Similarly, in the localization of phosphorylated GOGO, a direct comparison of mutant rescue in step 1 and GOF modification for step 2 is problematic to conclude a differential requirement. Here the same experiments should be conducted for all developmental time points. In addition, as there is no direct result provided that the phosphorylation status of GOGO changes in step2, this central statement by the authors is only built on the genetic interaction studies and needs additional experimental data.

The role of insulin signaling by glial cells in controlling axon targeting is a key aspect of the manuscript and clearly the main conceptual novelty. Covered by the last two paragraphs, the analysis largely relies on phenotypic similarities and no functional interactions. More importantly, the fact that no candidate signal could be identified makes the main conclusion regarding the non-autonomous regulation problematic at this point and should be analyzed further.

As glial cells support R cell axon guidance from the initial outgrowth all the way into the optic lobes, the R8 axons connectivity phenotypes induced by the different genetic manipulation of the insulin pathway and FMI adhesion might be an indirect consequence of earlier disturbances, like the disruption of the precise temporal ingrowth or selective axon fasciculation. Here, a more in-depth developmental analysis would be further strengthened the main conclusion of the manuscript.

First, for all gene disruption experiments and glia cell manipulation, phenotype analysis should be extended to late third instar and early pupal stages, to support the sequential activity of FMI and Insulin signaling in axon columnar connectivity. In addition, experiments could be targeted specifically to the pupal stage leaving the initial axon targeting unaffected. Second, as little is known about the role of glial cells at this stage, it would be very helpful to provide more insights into the developmental profile of glial cell morphology and the sequence of axon glia interactions. When do glial cell processes enter the medulla column? What is the spatial organization of growth cone and glial processes. How dynamic is glial cell morphology from initial axon targeting to vertical extension? Second, to further test for putative redundant dilp gene function, combined gene knock down experiments and genetic interaction studies, e.g. in an GOGO-FMI sensitized background could be performed. Are dilp mutants available?

Reviewer #2:

This is an interesting story. It shows that Gogo works with Fmi in some contexts, and against it in others. That may be regulated by Gogo phosphorylation. I am concerned, however, that the interpretation is so specific, in that they infer the phosphorylation state of Gogo in vivo based on rescue with FF and DD mutants. DD mutants are not necessarily phosphomimetic, and FF mutants are not just unphosphorylated. If a PTB protein normally interacts with the unphosphorylated tyrosine,(s) then the FF mutants would block that binding. In reality, Gogo phosphorylation in vivo is probably not that clear-cut. Also, kinases other than InR might be involved.

1) One major problem is the lack of quantitation of much of the data. This is an interesting story, but without more quantitation it is hard to understand the penetrance of the phenotypes.

2) WT and heterozygote controls are missing in many graphs and image panels. Since this paper is heavily dependent on RNAi experiments, authors need to report controls without driver. These are missing here. "wt" is not a control for RNAi; ideally, one needs to examine RNAi with no driver, and driver with no RNAi.

3) The phenotype that is reported in the paper at 24h APF, the authors refer to it as the "axon bundling" phenotype. I would refer to the phenotype at 24h APF as premature filopodial extension, which can be easily distinguished in these images. In WT, R8 do not extend filopodia till after 36h APF and they do not stabilize and elongate till after 46h APF (Orkun and Zipursky, 2016). If there is "axon bundling" (which is not visible in the current figures) a higher magnification would help show that phenotype in detail.

4) The phenotype identified in L3 as "correct axon targeting" (or "mistargeting at column" in Figure 3 graph) should be defined as R8 terminal morphology, which can be either horseshoe-shaped or oval morphology.

a) Authors should also show the N-Cadherin panel so that readers can see what the cross-sections of the columns look like in the different genotypes.

b) They should quantitate this, maybe by using the diameter of the column to normalize for the various genetic combinations.

c) Is it possible that in some of the genotypes, the cross-section of the column is smaller/constricted as compared to that in wild-type, and this affects morphology of R8 and thus an indirect effect? For eg. In Figure 5—figure supplement panel F: authors refer to fmi- + fmiρC as non-rescue, where I think there is rescue. Increase in the gain of the green R cell channel obscures the horse-shoe shape of R8 and thus looks like there is no rescue when actually there is (compare the 1st and the 3rd panel in this set).

5) M1 and M3 layers should be marked in all image panels.

6) Instead of referring as step1, 2 etc – it is hard to follow the various steps especially since the main data points are at L3, 24h APF and 48h APF. One should use the phenotype in referring to those steps:

L3 – R8 terminal morphology (horse-shoe).

24h APF – No filopodial extension.

48h APF – R8 axon terminals go to the M3 layer.

This would make it easier to interpret the phenotypes presented. For e.g. 24h APF phenotype would be premature extension and 48h APF R8 axons stopped in M1 layer or overshoot the M3 layer.

Figure 2:

Phenotypes need to be quantitated, especially since this is a new type of mutant (R8-RNAi + het for a gogo mutation). There are 3 types of phenotypes: 3rd instar column targeting-need to know % penetrance; filopodial extension in E-need % of columns affected; axon crossovers in F and failure to extend to M3 in J-need % of columns affected.

Figure 3:

a) Panel E-H: M1 and M3 layers should be marked. Don't understand what is happening in H. Do those axons stop at M3? If Gogo OE gives an Fmi mutant like phenotype with stopping at M1, shouldn't Fmi+Gogo OE give the same? Is Fmi OE overriding an inhibition of Fmi by Gogo?

b) Panel I: Include +Gogo alone and wild-type control in the quantitation. Don't understand this quantitation. What is being measured in H? I don't see any filopodia there.

Figure 4:

a) Panels A-C: Gogo localization in fmi overexpression is changed according to the authors. But is this because the morphology of R8 terminal is different from control (if one compares only the R8 panels)? Also, spacing of R8 is not present in a consistent grid like pattern that is seen in wild-type. It seems like fmi overexpression might alter R8 morphology resulting in altered Gogo localization as a secondary consequence.

b) Panels A-H: Gogo and Fmi localization in the mutants vs overexpression in L3: it is hard to understand when the authors call Fmi/Gogo is mislocalized vs unaltered b/c there is no quantitation or obvious differences to make that determination.

c) Panels I-J: Since there is an increase in filopodial extension at 24h APF in Fmi overexpression only in R8 axons, authors should quantitate that R8 overexpression phenotype (as measured by % columns with Gogo-containing filopodia going past correct layer.

Figure 5:

a) Panels A-F: This is informative data regarding structure-function analysis of Gogo protein in defining R8 morphology in L3, but WT control is missing in panel F graph (and should be shown for reference).

b) Panels G-L: Effect on R8 premature filopodial extension at 24h APF when Gogo variants are overexpressed in all PRs: Interesting data, but needs wild-type control.

c) Panels M-P: do these get fixed at later developmental stages in gogo mutant? No information in Materials and methods on how they were quantitated.

d) Figure 5—figure supplement 1: Quantitation missing on hts mutant @ 24h APF, need to compare with gogo and double mutants.

e) Figure 5—figure supplement 1: No mention of panels E-G in the text.

Figure 6:

a) Panel A: Quantitation of dinr mutant needed.

b) Panel B: Authors should split the image to show the repo+ cells only. Because one cannot see the Repo+ red signal in the 2 cells (indicated by the top arrowheads).

c) Panels C-J: It would be helpful to know when these drivers come on.Could be differences in effects due to early vs. late expression in glia.

d) hob RNAi quantitation should be included.

Figure 7:

a) Panel A: show with 24B10 where the R7 layer is, so that one can see the position of the endings of the glial process that seem to be positioned below the R8 layer.

b) Panel B: quantitate co-localization with fmi and glial marker. This is very hard to interpret.

c) Panels C-H: No quantitation shown. Difficult to see what the authors are trying to show here. Also, the authors should show horizontal orientation for glial specific knockdown of fmi in mid-pupae or adult.

d) Panel D: Columns are disorganized in glial specific knockdown of fmi. So, R8 positioning could be a result of the columnar disorganization rather than fmi instructing R8.

Reviewer #3:

I am reviewing this paper with the view that it is probably not an option to perform experiments at this time, while still making sure that the authors conclusions are well supported by the data presented in the paper. This is why I do not suggest additional experiments..

This is an interesting study by a group that are experts in studying how the transmembrane proteins Gogo and Fmi regulate targeting of the R8 axon in the fly visual system. The present work builds upon previous studies from the lab. Overall the data quality is excellent. The key observation here is that the phosphorylation status of Gogo seems to act as a switch and is required during distinct phases of R8 projection. Secretion from glial cells, and also Fmi expression in these cells, is required for proper R8 projection. These observations are interesting. However, the study suffers from significant draw backs that unfortunately prevent me from supporting it for publication at this stage.

Firstly, this study presents significant overlap with a previous paper from the lab (Mann, 2012) that reported Gogo phosphorylation/dephosphorylation regulation by the insulin pathway, and showed that this is required for proper R8 projection in the fly visual system. While the present work looks at how these phenotypes develop through time, the idea that phosphorylation of Gogo might be regulated by Dilps and that it might change Gogo's function during R8 pathfinding is not new.

I also think that there is a need to better define and present the evidence for a switch in function for Gogo with respect to Fmi. Similarly, the authors should also make it clearer the extent to which Steps 1-3 are interdependent (or not). Isn't it possible that if step 1 fails, then 2 and 3 will also fail as a consequence? This is important because the authors tend to present these steps as relatively independent, but it is not made clear why they hold that view.

The work also feels very qualitative, especially Figure 1, and Figure 4. The authors conclusion would be greatly strengthened by providing quantifications next to the panels. I feel that given this is a relatively well-studied model system, the authors should try to come up with a better way to quantify the shape and location of the R8 termini. This would make it convincing and could even reveal new interesting features of the phenotype (and wild type).

https://doi.org/10.7554/eLife.66718.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

Reviewer #1:

The study by Suzuki and colleagues addresses the developmental assembly of afferent axons into columnar circuit units, a highly conserved structural feature throughout nervous systems. Previous work has identified a close functional interaction between the two transmembrane proteins FMI and GOGO in Drosophila columnar photoreceptor targeting and the current study provides novel insights in the temporal dynamics and cellular interactions of this molecular cross talk. Based on gene expression analysis, genetic interaction studies and cell type specific manipulations the authors could show that GOGO modulates FMI activity in specific developmental steps and that glial cells play in important role in neuronal GOGO-FMI modulation.

The manuscript is well written and the presented data are of high quality. The generation of novel sophisticated genetic tools allows a detailed analysis of the sequential cellular interaction and provides a new level of understanding about the complexity and hierarchy of neuronal connectivity development. However, regarding the proposed mechanism, the manuscript could be more convincing by addressing some issues regarding the function of GOGO in the second step of axon targeting and the role of insulin signaling and FMI adhesion in axon-glia interaction.

While the localization of the synergistic role of GOGO in supporting FMI adhesion is convincing and in is in line of what has been demonstrated before, the proposed subsequent antagonistic activity seems less clear. First of all, regarding the subdivision of R cell targeting into 3 consecutive steps, step1 – axon targeting – and step 3 – axon vertical extension – are well justified as distinct morphological processes but what is happening at step 2? The manuscript makes different statements about step 2, like R8 axons remain at the medulla neuropil surface in the introduction or proper filopodia extension in the phenotype description. The failure to suppress inappropriate horizontal filopodia extensions in GOGO mutants seems a direct consequence of the axon-glia adhesion defects in step 1, which later result in multi-axon columns. Therefore if step 2 is better defined as a developmental process, the importance of the proposed antagonistic GOGO function will become more logical. Alternatively, without step 2 a simplified model with a singular function of GOGO in supporting FMI-mediated axon-glia interaction at step 1, which is then followed by the GOGO downregulation due to glia-induced DILR signaling seems equally likely. In addition, as there is no GOGO expression at step3, it doesn't make sense to investigate the role of Gogo during step3 or conclude that Gogo and Fmi function in opposing manners during step 3 of R8 axon targeting. The fact that prolonged GOGO expression stabilizes the initial axon targeting step is in lines with a mechanisms which simply removes GOGO from the FMI-mediated axon-glia contact thereby allowing further axon extension.

We thank the reviewer for their comments. While we fully understand the reviewer's point, we still believe that step (phase) 2 exists, and that it is required for normal R8 axon targeting. For that, we have the following 4 lines of evidence:

1) Glial fmi loss-of-function mutation disrupted the horseshoe shape at phase 1, but not bundling at phase 2. We have added this data to Figure 7C’ and D’.

2) The nonphosphorylated GogoFFD rescue was not perfect, and there was still some axonal bundling, shown in Figure 5O.

3) We also added an experiment as suggested below by the reviewer: the phase 2-specific gogo RNAi knockdown experiment using Gal80ts. As we anticipated, the gogo LOF phenotype characterized by longer filopodia in more radial directions, was also observed in the phase 2-specific gogo knockdown, suggesting that the defects of Gogo LOF in phase 2 are independent of phase 1. We described these results in Figure 2O-P''.

4) The DInR LOF mutant does not have defects in phase 1 (horseshoe shape), but exhibits a bundling phenotype in phase 2 (Figure 6A and Figure 6B, respectively). Therefore, there exists a signaling molecule that specifically regulates only phase 2, but not phase 1.

Regarding the functional activity of GOGO at step 2, the main data supporting a switch from cooperation into an antogonistic function are derived from different sets of genetic interaction studies, with double knock down are only analyzed for step 1 indicating synergistic interactions and combined OE and KD are only shown for step 2 concluding antagonistic effects of GOGO on FMI.

We have already included "combined OE and KD in phase 1 in Figure 3-figure supplement 1I-L).

Images of phase 2 in the double knockdown mutants have also been added to Figure 3-figure supplement 1H). Here we demonstrate that fmi LOF can suppress the bundling phenotype of gogo LOF in phase 2.

To exclude a different effect of the genetic manipulation and further support of a stage-specific change in GOGO activity, the modulation of the FMI GOF phenotype should be analyzed in step 1.

These data were included in Figure 3—figure supplement 1I and K in the previous version. Here we showed that, during phase 1, Fmi OE & gogo LOF showed much greater filopodia extension with a disrupted horseshoe shape compared to mere Fmi OE. We believe the reason why the filopodia are affected even in phase 1 is because the function of gogo cannot be separated perfectly with phases or time, but rather the shift may happen gradually, and species in either phase might coexist or be loosely separated in a spatial manner (e.g. from the growth cone rim at the column center to the filopodia towards outside) at certain time points between phase 1 and phase 2. We discuss this issue in the Discussion section.

…and the single gene and double knock down could be targeted to stage 2 using the Gal80ts method.

We thank the reviewer for their helpful suggestions. As mentioned above, we have addressed the question of “what is step 2? " by adding additional characterization data. We added an experiment conducting a stage-specific gogo knockdown experiment using Gal80ts. As we anticipated, the gogo LOF phenotype characterized by longer filopodia in more radial directions was also observed in step 2-specific gogo knockdowns, suggesting that step 2 is independent of step 1. These results are displayed in Figure 2O-P''.

We observed that adding fmi LOF suppressed the gogo LOF bundling phenotype, as shown in Figure 3—figure supplement 1F-H. We could not conduct double LOF Gal80ts experiments as it was prohibitively highly technically demanding to transfect Gal80ts on top of a double LOF. We believe that it is sufficient to show the antagonistic effect in phase 2 in double LOF mutants.

Similarly, in the localization of phosphorylated GOGO, a direct comparison of mutant rescue in step 1 and GOF modification for step 2 is problematic to conclude a differential requirement. Here the same experiments should be conducted for all developmental time points.

We have added the DDD rescue in phase 2 to Figure 5P, and FFD DDD OE in phase 1 to Figure 5—figure supplement 1F in the revised manuscript.

In addition, as there is no direct result provided that the phosphorylation status of GOGO changes in step2, this central statement by the authors is only built on the genetic interaction studies and needs additional experimental data.

We agree with the reviewer that there is no direct result showing the change in phosphorylation status in phase 2. In spite of our efforts to generate phospho-specific Gogo antibodies, we could not observe staining in tissue samples. We only could show that the phosphorylated form existed in larval eye discs, as in our previous paper (Mann et al., 2012). As we argued in the Discussion section, the change in phosphorylation status can be very slow, or does not necessarily even happen, as spatial separation throughout the phases can also theoretically achieve the proper R8 targeting.

Similarly, when we overexpressed Gogo in phase 1 in a fmi LOF background, we observed filopodia suppression, which is the Gogo function normally seen in phase 1 (Figure 3—figure supplement 1J-L). Again, we believe that the function of Gogo cannot be separated perfectly by phase or by time, but rather we think that the shift happens gradually, and both species may co-exist at certain time points. We discuss this issue further in the Discussion section.

The role of insulin signaling by glial cells in controlling axon targeting is a key aspect of the manuscript and clearly the main conceptual novelty. Covered by the last two paragraphs, the analysis largely relies on phenotypic similarities and no functional interactions. More importantly, the fact that no candidate signal could be identified makes the main conclusion regarding the non-autonomous regulation problematic at this point and should be analyzed further.

We determined a genetic interaction between dilp6 and fmi in a glia-specific manner, indicating that dilp6 is at least indirectly involved in this signal. The details of the experiments are explained below, and the additional data has been added to Figure 6N-Q.

As glial cells support R cell axon guidance from the initial outgrowth all the way into the optic lobes, the R8 axons connectivity phenotypes induced by the different genetic manipulation of the insulin pathway and FMI adhesion might be an indirect consequence of earlier disturbances, like the disruption of the precise temporal ingrowth or selective axon fasciculation. Here, a more in-depth developmental analysis would be further strengthened the main conclusion of the manuscript.

First, for all gene disruption experiments and glia cell manipulation, phenotype analysis should be extended to late third instar and early pupal stages, to support the sequential activity of FMI and Insulin signaling in axon columnar connectivity. In addition, experiments could be targeted specifically to the pupal stage leaving the initial axon targeting unaffected.

First, we would like to point out that the glia that guide R8 axons to the center of the column (Figure 7B, C; phase 1) and the glia that mediate insulin secretion (Figure 6—figure supplement 1H and I; phase 1- 2) are different population of cells. Therefore, we respectfully disagree with the reviewer that the initial defect in glia population 1 can result in the defects in glia population 2.

To clarify this point, as pointed out by the reviewer, we have added images of glial-specific fmi LOF mutants at APF24% and DInR R8 LOF mutants at third instar (horseshoe morphology) to Figures6 and Figure 7.

Glial-specific fmi LOF mutation disrupted the horseshoe shape in phase 1, but phase 2 appeared perfectly normal, while DInR R8 LOF mutants at the third instar showed normal phase 1 but disrupted phase 2 morphology (bundling). Since these two genes (fmi and InR) showed very different LOF phenotypes in different phases, we do not believe that the first defect (Fmi) can be the source of the other defects observed later in the system.

Second, as little is known about the role of glial cells at this stage, it would be very helpful to provide more insights into the developmental profile of glial cell morphology and the sequence of axon glia interactions. When do glial cell processes enter the medulla column? What is the spatial organization of growth cone and glial processes. How dynamic is glial cell morphology from initial axon targeting to vertical extension?

We thank the reviewer for this encouraging comment. We have shown the sequential organization in Figure 7A, since the medulla contains a relatively wide span of R8 axons of different ages. We also added the text below to explain when the glial process enters the column in the Results section. In the oldest glia column, the glia extension appears to have begun retracting (Figure 7A, yellow arrow). We also added an image of APF24% Loco-Gal4 UAS-mCD8::GFP to observe the development of these glia. The column-center glia were retracted at least to the M1 layer (this description was added to the Results section). After that time point, we are not confident about what happens to the column-center glia, due to the lack of specific promoter drivers to follow.

We added the following text to the result section:

“The glial protrusion seems to extend into the medulla layers as early as the R8 growth cone enters (arrowhead in Figure 7A). The protrusion passes the R8 growth cone and extends deeply to the medulla layers. However, it starts to retracts towards the latest period of third instar larvae (yellow arrow in Figure 7A), and completely retracted from the medullar layers in APF24% (phase 2) (Figure 7C’).”

Second, to further test for putative redundant dilp gene function, combined gene knock down experiments and genetic interaction studies, e.g. in an GOGO-FMI sensitized background could be performed. Are dilp mutants available?

As mentioned in the text, the dilp6 mutant alone does not display any defects in R8 axon targeting. However, thanks to the reviewer's suggestion, we performed additional experiments in a sensitized background and looked for genetic interactions. To overcome the redundancy of dilp function, we utilized the Fmi OE as a sensitized background to explore GOGO-FMI function.

Fmi OE already demonstrated extended filopodia, counteracting the putative phosphorylated Gogo function. In this situation, if dilp signal gets weaker, the phosphorylated Gogo should be reduced and will have more filopodia extension. To test this hypothesis, we knocked down dilp6 only in glial cells in the Fmi OE background. We observed a significant enhancement in filopodia extension compared to the control, indicating that dilp6 from glial cells likely affects filopodia extension through GOGO phosphorylation.

The additional data has been added to Figure 6 as N-Q.

Reviewer #2:

This is an interesting story. It shows that Gogo works with Fmi in some contexts, and against it in others. That may be regulated by Gogo phosphorylation. I am concerned, however, that the interpretation is so specific, in that they infer the phosphorylation state of Gogo in vivo based on rescue with FF and DD mutants. DD mutants are not necessarily phosphomimetic, and FF mutants are not just unphosphorylated. If a PTB protein normally interacts with the unphosphorylated tyrosine,(s) then the FF mutants would block that binding. In reality, Gogo phosphorylation in vivo is probably not that clear-cut. Also, kinases other than InR might be involved.

1) One major problem is the lack of quantitation of much of the data. This is an interesting story, but without more quantitation it is hard to understand the penetrance of the phenotypes.

We thank the reviewer for their comments. We have quantified much of the data, now shown in Figure 1C-L and N, Figure 2D, H, and L, Figure 3H, Figure 4D and E, Figure 6C and Q, Figure 7B’ and E, and Figure 3-figure supplement 1I and Figure 5—figure supplement 1B and H.

2) WT and heterozygote controls are missing in many graphs and image panels. Since this paper is heavily dependent on RNAi experiments, authors need to report controls without driver. These are missing here. "wt" is not a control for RNAi; ideally, one needs to examine RNAi with no driver, and driver with no RNAi.

We agree with the reviewer about the need for controls; however, because we are using R8-Gal4 to drive UAS-GFP to observe the shape of the R8 growth cone, taking out R8-Gal4 is not technically possible. The "WT" indicated here is actually Gal4 with no RNAi, which we believe to be the best control possible.

3) The phenotype that is reported in the paper at 24h APF, the authors refer to it as the "axon bundling" phenotype. I would refer to the phenotype at 24h APF as premature filopodial extension, which can be easily distinguished in these images. In WT, R8 do not extend filopodia till after 36h APF and they do not stabilize and elongate till after 46h APF (Orkun and Zipursky, 2016). If there is "axon bundling" (which is not visible in the current figures) a higher magnification would help show that phenotype in detail.

We agree with the reviewer, and have changed the figure titles to read “ratio of R8 axon invasion” for all of these phenotypes. We also observed that the R8 axon terminals could not line up at the M0 layer at APF24% (phase 2), and invaded the medulla layers. Since this type of invasion generally coincides with axonal bundling and disorganization of the growth cone distances, we hypothesized that the invasion was likely to be an indirect consequence of the disorganization and bundling of R8 axons, which is consistent with our finding that in the gogo mutant, filopodia extension could not be suppressed.

We have added magnified images to Figure 2E’-G’, and also changed the titles of the quantification graphs.

4) The phenotype identified in L3 as "correct axon targeting" (or "mistargeting at column" in Figure 3 graph) should be defined as R8 terminal morphology, which can be either horseshoe-shaped or oval morphology.

We have adopted this change to “R8 axon terminal morphology”, as suggested.

a) Authors should also show the N-Cadherin panel so that readers can see what the cross-sections of the columns look like in the different genotypes.

We have added these panels to Figure 2A-C and Figure 3A-D.

b) They should quantitate this, maybe by using the diameter of the column to normalize for the various genetic combinations.

We have quantified the diameter of the columns of gogo or fmi LOF mutants, shown in Figure 2A-C. The column diameters of the gogo or fmi LOF mutants were all similar, indicating that the targeting phenotype is not due to the column size.

c) Is it possible that in some of the genotypes, the cross-section of the column is smaller/constricted as compared to that in wild-type, and this affects morphology of R8 and thus an indirect effect? For eg. In Figure 5—figure supplement panel F: authors refer to fmi- + fmiρC as non-rescue, where I think there is rescue. Increase in the gain of the green R cell channel obscures the horse-shoe shape of R8 and thus looks like there is no rescue when actually there is (compare the 1st and the 3rd panel in this set).

We agree that fmi- + fmiDC looks different than the control. This is because fmiDC can induce filopodia extension, as indicated in Figure 5—figure supplement 1H. We also found that the filopodial structure in the growth cone is more enhanced than the control; however the horseshoe shape is almost completely absent in fmi- + fmiDC, and there was no significant difference compared to the control (Figure 5—figure supplement 1H,G).

5) M1 and M3 layers should be marked in all image panels.

We have added these lines as suggested by the reviewer.

6) Instead of referring as step1, 2 etc – it is hard to follow the various steps especially since the main data points are at L3, 24h APF and 48h APF. One should use the phenotype in referring to those steps:

L3 – R8 terminal morphology (horse-shoe).

24h APF – No filopodial extension.

48h APF – R8 axon terminals go to the M3 layer.

This would make it easier to interpret the phenotypes presented. For e.g. 24h APF phenotype would be premature extension and 48h APF R8 axons stopped in M1 layer or overshoot the M3 layer.

According to the suggestion, we have changed the text accordingly:

Phase 1: Gogo function 1: L3- R8 terminal morphology (horseshoe)

Phase 2: Gogo function 2: 24% APF – No bundling

Phase 3: no Gogo function: 48% APF – R8 axon extend to the M3 layer

Figure 2:

Phenotypes need to be quantitated, especially since this is a new type of mutant (R8-RNAi + het for a gogo mutation). There are 3 types of phenotypes: 3rd instar column targeting-need to know % penetrance; filopodial extension in E-need % of columns affected; axon crossovers in F and failure to extend to M3 in J-need % of columns affected.

We have added quantification in Figure 2D, H, and L.

Figure 3:

a) Panel E-H: M1 and M3 layers should be marked. Don't understand what is happening in H. Do those axons stop at M3? If Gogo OE gives an Fmi mutant like phenotype with stopping at M1, shouldn't Fmi+Gogo OE give the same? Is Fmi OE overriding an inhibition of Fmi by Gogo?

We have marked the temporary layer with magenta line in the revised manuscript.

Yes, Fmi OE partially overrides the Gogo OE phenotype, which we believe is an additive effect.

b) Panel I: Include +Gogo alone and wild-type control in the quantitation. Don't understand this quantitation. What is being measured in H? I don't see any filopodia there.

In this experiment, we have added +Gogo alone and wild-type control to the quantitation. Short filopodia can be seen in Panel H (now I in the revised figure).

Figure 4:

a) Panels A-C: Gogo localization in fmi overexpression is changed according to the authors. But is this because the morphology of R8 terminal is different from control (if one compares only the R8 panels)? Also, spacing of R8 is not present in a consistent grid like pattern that is seen in wild-type. It seems like fmi overexpression might alter R8 morphology resulting in altered Gogo localization as a secondary consequence.

We have shown that Gogo is localized to the stalk upon Fmi OE (Figure 4D,E). The growth cone morphology does not change much, suggesting that the mislocalization is not due to the growth cone morphology. We have quantified the data in a graph to be more precise (Figure 4D,E).

b) Panels A-H: Gogo and Fmi localization in the mutants vs overexpression in L3: it is hard to understand when the authors call Fmi/Gogo is mislocalized vs unaltered b/c there is no quantitation or obvious differences to make that determination.

We agree with the reviewer that Gogo and Fmi localization is difficult to compare, especially in the mutants since the growth cone morphology is heavily altered. We have changed the text as follows to emphasize only the OE situation.

“In the LOF mutants, it was not possible to interpret the changes in localization, since the growth cone morphology had changed drastically. Therefore, we focused on situations in which the proteins were overexpressed.”

For the OE situation, we also added a visualization of the measurement of the localization signals of Gogo (Figure 4D,E).

c) Panels I-J: Since there is an increase in filopodial extension at 24h APF in Fmi overexpression only in R8 axons, authors should quantitate that R8 overexpression phenotype (as measured by % columns with Gogo-containing filopodia going past correct layer.

We have quantified the filopodial extension phenotype elsewhere (Figure 3I and L); in this panel, we only sought to highlight the mislocalization of Gogo protein in Fmi OE background.

Figure 5:

a) Panels A-F: This is informative data regarding structure-function analysis of Gogo protein in defining R8 morphology in L3, but WT control is missing in panel F graph (and should be shown for reference).

We have added the WT to the quantification graph (Figure 5F).

b) Panels G-L: Effect on R8 premature filopodial extension at 24h APF when Gogo variants are overexpressed in all PRs: Interesting data, but needs wild-type control.

We have added the WT to the quantification graph (Figure 5L).

c) Panels M-P: do these get fixed at later developmental stages in gogo mutant? No information in Materials and methods on how they were quantitated.

The bundling phenotype seems to be less drastic in adult stages, but still not perfect, as we showed in our previous study (Mann et al., 2012). We have added an explanation to the Materials and methods section.

d) Figure 5—figure supplement 1: Quantitation missing on hts mutant @ 24h APF, need to compare with gogo and double mutants.

We have added the quantification of the hts mutant to Figure 5—figure supplement 1B. However, it is very technically demanding to put all of these components together in a single fly to create the double mutant.

e) Figure 5—figure supplement 1: No mention of panels E-G in the text.

We have mentioned these panels in the Discussion section.

Fig6:

a) Panel A: Quantitation of dinr mutant needed.

We have added the quantification of the dinr mutant to Figure 6C.

b) Panel B: Authors should split the image to show the repo+ cells only. Because one cannot see the Repo+ red signal in the 2 cells (indicated by the top arrowheads).

We have split the image in Figure 6D.

c) Panels C-J: It would be helpful to know when these drivers come on. Could be differences in effects due to early vs. late expression in glia.

These driver promoters are ‘on’ from the larval stages (since it is controlled by shi[ts], these effects occur from APF0). Therefore, we do not anticipate that there are any differences in effects due to early vs late expression. This information was added to the Figure 6 legend.

d) hob RNAi quantitation should be included.

We have added the quantification of hobbit RNAi to Figure 6M.

Fig7:

a) Panel A: show with 24B10 where the R7 layer is, so that one can see the position of the endings of the glial process that seem to be positioned below the R8 layer.

In the third instar larvae, R7 axons are well behind (above) the R8 axons spatially, so we believe that showing R8 is sufficient.

b) Panel B: quantitate co-localization with fmi and glial marker. This is very hard to interpret.

We have added the visual quantification of the localization of Fmi in glial cells (or R cells) as Figure 7B’.

c) Panels C-H: No quantitation shown. Difficult to see what the authors are trying to show here.

We have added this quantification as Figure 7E.

Also, the authors should show horizontal orientation for glial specific knockdown of fmi in mid-pupae or adult.

We have added the images of APF24% as Figure 7C’, D’.

d) Panel D: Columns are disorganized in glial specific knockdown of fmi. So, R8 positioning could be a result of the columnar disorganization rather than fmi instructing R8.

According to the Trush et al., (2019), R8 is one of the earliest axons that enters the medulla column. Only Mi1 is known to arrive earlier than R8, which makes it hard to imagine that R8 is already affected by the columnar structure which is shaped by R8 itself. It is more natural to interpret that glial Fmi guides R8 axons through homophilic interaction mediated by Fmi.

Reviewer #3:

I am reviewing this paper with the view that it is probably not an option to perform experiments at this time, while still making sure that the authors conclusions are well supported by the data presented in the paper. This is why I do not suggest additional experiments..

This is an interesting study by a group that are experts in studying how the transmembrane proteins Gogo and Fmi regulate targeting of the R8 axon in the fly visual system. The present work builds upon previous studies from the lab. Overall the data quality is excellent. The key observation here is that the phosphorylation status of Gogo seems to act as a switch and is required during distinct phases of R8 projection. Secretion from glial cells, and also Fmi expression in these cells, is required for proper R8 projection. These observations are interesting. However, the study suffers from significant draw backs that unfortunately prevent me from supporting it for publication at this stage.

Firstly, this study presents significant overlap with a previous paper from the lab (Mann, 2012) that reported Gogo phosphorylation/dephosphorylation regulation by the insulin pathway, and showed that this is required for proper R8 projection in the fly visual system. While the present work looks at how these phenotypes develop through time, the idea that phosphorylation of Gogo might be regulated by Dilps and that it might change Gogo's function during R8 pathfinding is not new.

We agree with the reviewer that the current study has some overlap with the former publication, as this study is a continuation of the previous study; however, the current manuscript has made the following significant conceptual advances:

1) Gogo and Fmi protein localizations are now visualized.

2) As we have obtained a new marker for R8 during pupal stages, the true function of gogo in developmental stages is now known to be recognizing the column center (glia) in phase 1, and antagonizing filopodia extension in phase 2. These functions are specifically controlled by the phosphorylated species of Gogo.

3) New functionality for Fmi in column center glia has been discovered.

4) The source and ligand are now revealed as Dilp6 from glial cells.

In addition, the genetic evidence of dilp6 from glial cells as the ligand is newly added to the current version of the manuscript. We hope altogether that the current form of the manuscript contains enough evidence to not only understand the function of Gogo and R8 axon pathfinding, but to convince the reviewers of the elucidated mechanisms of axon guidance and layer-specific targeting in the complex nervous system.

I also think that there is a need to better define and present the evidence for a switch in function for Gogo with respect to Fmi. Similarly, the authors should also make it clearer the extent to which Steps 1-3 are interdependent (or not). Isn't it possible that if step 1 fails, then 2 and 3 will also fail as a consequence? This is important because the authors tend to present these steps as relatively independent, but it is not made clear why they hold that view.

This is a valid point, and we have addressed this issue by generating a phase 2-specific knockdown of gogo, as explained above.

We still believe that phase 2 exists, and that it is required for normal R8 axon targeting, based on the following 4 lines of evidence:

1) Glial fmi loss-of-function mutation disrupted the horseshoe shape at phase 1, but not bundling at phase 2. We have added this data to Figure 7C’ and D’.

2) The nonphosphorylated GogoFFD rescue was not perfect, and there was still some axonal bundling, shown in Figure 5O.

3) We also added an experiment suggested below by the reviewer: the phase 2-specific gogo RNAi knockdown experiment using Gal80ts. As we anticipated, the gogo LOF phenotype, characterized by longer filopodia in more radial directions, was also observed in the phase 2-specific gogo knockdown, suggesting that the defects of Gogo LOF in phase 2 are independent of phase 1. We describe these results in Figure 2O-P''.

4) The DInR LOF mutant does not have defects in phase 1 (horseshoe shape), but exhibits a bundling phenotype in phase 2 (Figure 6A and Figure 6B, respectively). Therefore, there exists a signaling molecule that specifically regulates only phase 2, but not phase 1.

Point (1) above shows that in phase 1-specific disruption of Gogo-Fmi interaction, there is a disorganized array of R8 axons (Figure 7D’’), but not R8 bundling or invasion into the medulla layers. We think this is the phenotype of phase 1-specific disruption of gogo function, while point (3) demonstrates the phase 2-specific disruption of gogo function (Figure 2O-P’’). There, we see longer filopodia expanding in more radial directions, although the phenotype became milder because of residual Gal80 function and later onset of RNAi knockdown. The adult phenotype of gogo mutants may represent the addition of these phenotypes of phases 1 and 2. The disorganized array will enhance the R8 bundling and invasion when the filopodia become longer in random directions. However, from the experimental evidence, we show that the gogo functions in phase 1 and phase 2 are independent of each other inside the growth cone.

The work also feels very qualitative, especially Figure 1, and Figure 4. The authors conclusion would be greatly strengthened by providing quantifications next to the panels. I feel that given this is a relatively well-studied model system, the authors should try to come up with a better way to quantify the shape and location of the R8 termini. This would make it convincing and could even reveal new interesting features of the phenotype (and wild type).

This is a valid point, and we have addressed this issue by quantifying most of the phenotypes in Figure 1, Figure 4, and Figure 7, as was also suggested by other reviewers.

https://doi.org/10.7554/eLife.66718.sa2

Article and author information

Author details

  1. Hiroki Takechi

    Graduate School of Life Science and Technology, Tokyo Institute of Technology, Yokohama, Japan
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  2. Satoko Hakeda-Suzuki

    Graduate School of Life Science and Technology, Tokyo Institute of Technology, Yokohama, Japan
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Writing - original draft, Writing - review and editing
    For correspondence
    hakeda@bio.titech.ac.jp
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8749-1479
  3. Yohei Nitta

    1. Center for Transdisciplinary Research, Niigata University, Niigata, Japan
    2. Brain Research Institute, Niigata University, Niigata, Japan
    Contribution
    Conceptualization, Funding acquisition, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0712-428X
  4. Yuichi Ishiwata

    Graduate School of Life Science and Technology, Tokyo Institute of Technology, Yokohama, Japan
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  5. Riku Iwanaga

    Graduate School of Life Science and Technology, Tokyo Institute of Technology, Yokohama, Japan
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  6. Makoto Sato

    1. Mathematical Neuroscience Unit, Institute for Frontier Science Initiative, Kanazawa University, Kanazawa, Japan
    2. Laboratory of Developmental Neurobiology, Graduate School of Medical Sciences, Kanazawa University, Kanazawa, Japan
    Contribution
    Resources, Supervision, Funding acquisition
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7763-0751
  7. Atsushi Sugie

    1. Center for Transdisciplinary Research, Niigata University, Niigata, Japan
    2. Brain Research Institute, Niigata University, Niigata, Japan
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared
  8. Takashi Suzuki

    Graduate School of Life Science and Technology, Tokyo Institute of Technology, Yokohama, Japan
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Investigation, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    suzukit@bio.titech.ac.jp
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9093-2562

Funding

Japan Society for the Promotion of Science (19J14499)

  • Hiroki Takechi

Japan Society for the Promotion of Science (18J00367)

  • Yohei Nitta

Japan Society for the Promotion of Science (18K06250)

  • Satoko Hakeda-Suzuki

Japan Society for the Promotion of Science (18K14835)

  • Yohei Nitta

Japan Society for the Promotion of Science (17H03542)

  • Makoto Sato

Japan Society for the Promotion of Science (17H04983)

  • Atsushi Sugie

Japan Society for the Promotion of Science (19K22592)

  • Atsushi Sugie

Ministry of Education, Culture, Sports, Science and Technology (16H06457)

  • Takashi Suzuki

Ministry of Education, Culture, Sports, Science and Technology (17H05739)

  • Makoto Sato

Ministry of Education, Culture, Sports, Science and Technology (17H05761)

  • Makoto Sato

Ministry of Education, Culture, Sports, Science and Technology (19H04771)

  • Makoto Sato

Takeda Science Foundation (Life Science Research Grant)

  • Atsushi Sugie

Takeda Science Foundation (Visionary Research Grant)

  • Takashi Suzuki

The authors declare that there was no funding for this work.

Acknowledgements

We gratefully acknowledge Dr. Pierre-Yves Plaçais (CNRS France) for providing the dlip4-Gal4 line and Dr. Thomas R Clandinin (Stanford Univ.) for FlpStop cassette. We thank Kyoto Stock Center (DGRC), Bloomington Drosophila Stock Center, Vienna Drosophila Resource Center (VDRC), and Developmental Studies Hybridoma Bank for providing fly or antibody stocks. We thank Enago (http://www.enago.jp) for the English language review. This work was supported by Grant-in-Aid for JSPS Fellows 19J14499 (HT), 18J00367 (YN), JSPS KAKENHI Grant number 18K06250 (SH-S), 18K14835 (YN), 17H03542 (MS), 17H04983 (AS), 19K22592 (AS), Grant-in Scientific Research on Innovation Areas from the Ministry of Education, Culture, Sports, Science, and Technology of Japan ‘Dynamic regulation of Brain Function by Scrap and Build System’ 16H06457 (TS), 17H05739 (MS) ‘Interplay of developmental clock and extracellular environment in brain formation’ 17H05761 (MS), 19H04771 (MS), Takeda Science Foundation Life Science Research Grant (AS) and Takeda Visionary Research Grant from the Takeda Science Foundation (TS).

Senior Editor

  1. Marianne E Bronner, California Institute of Technology, United States

Reviewing Editor

  1. Claude Desplan, New York University, United States

Reviewer

  1. Kai Zinn, California Institute of Technology, United States

Publication history

  1. Received: January 20, 2021
  2. Accepted: March 2, 2021
  3. Accepted Manuscript published: March 5, 2021 (version 1)
  4. Version of Record published: March 22, 2021 (version 2)

Copyright

© 2021, Takechi et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 828
    Page views
  • 92
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Developmental Biology
    Eugene A Katrukha et al.
    Research Article

    The neuronal microtubule cytoskeleton underlies the polarization and proper functioning of neurons, amongst others by providing tracks for motor proteins that drive intracellular transport. Different subsets of neuronal microtubules, varying in composition, stability and motor preference, are known to exist, but the high density of microtubules has so far precluded mapping their relative abundance and three-dimensional organization. Here we use different super-resolution techniques (STED, Expansion Microscopy) to explore the nanoscale organization of the neuronal microtubule network in rat hippocampal neurons. This revealed that in dendrites acetylated microtubules are enriched in the core of the dendritic shaft, while tyrosinated microtubules are enriched near the plasma membrane, thus forming a shell around the acetylated microtubules. Moreover, using a novel analysis pipeline we quantified the absolute number of acetylated and tyrosinated microtubules within dendrites and found that they account for 65-75% and ~20-30% of all microtubules, respectively, leaving only few microtubules that do not fall in either category. Because these different microtubule subtypes facilitate different motor proteins, these novel insights help to understand the spatial regulation of intracellular transport.

    1. Cell Biology
    2. Developmental Biology
    Emir E Avilés-Pagán et al.
    Research Advance Updated

    Control of mRNA translation is a key mechanism by which the differentiated oocyte transitions to a totipotent embryo. In Drosophila, the PNG kinase complex regulates maternal mRNA translation at the oocyte-to-embryo transition. We previously showed that the GNU activating subunit is crucial in regulating PNG and timing its activity to the window between egg activation and early embryogenesis (Hara et al., 2017). In this study, we find associations between GNU and proteins of RNP granules and demonstrate that GNU localizes to cytoplasmic RNP granules in the mature oocyte, identifying GNU as a new component of a subset of RNP granules. Furthermore, we define roles for the domains of GNU. Interactions between GNU and the granule component BIC-C reveal potential conserved functions for translational regulation in metazoan development. We propose that by binding to BIC-C, upon egg activation GNU brings PNG to its initial targets, translational repressors in RNP granules.
