Single-cell RNA-seq analysis reveals penaeid shrimp hemocyte subpopulations and cell differentiation process

  1. Keiichiro Koiwai  Is a corresponding author
  2. Takashi Koyama
  3. Soichiro Tsuda
  4. Atsushi Toyoda
  5. Kiyoshi Kikuchi
  6. Hiroaki Suzuki
  7. Ryuji Kawano
  1. Department of Biotechnology and Life Science, Tokyo University of Agriculture and Technology, Japan
  2. Laboratory of Genome Science, Tokyo University of Marine Science and Technology, Japan
  3. Fisheries Laboratory, Graduate School of Agricultural and Life Sciences, The University of Tokyo, Japan
  4. Graduate School of Fisheries and Environmental Sciences, Nagasaki University, Japan
  5. bitBiome Inc, Japan
  6. Advanced Genomics Center, National Institute of Genetics, Japan
  7. Department of Precision Mechanics, Faculty of Science and Engineering, Chuo University, Japan
https://doi.org/10.7554/eLife.66954
Share this article
Cite this article
  1. Keiichiro Koiwai
  2. Takashi Koyama
  3. Soichiro Tsuda
  4. Atsushi Toyoda
  5. Kiyoshi Kikuchi
  6. Hiroaki Suzuki
  7. Ryuji Kawano
(2021)
Single-cell RNA-seq analysis reveals penaeid shrimp hemocyte subpopulations and cell differentiation process
eLife 10:e66954.
https://doi.org/10.7554/eLife.66954
  2. Download BibTeX
  3. Download .RIS

Abstract

Crustacean aquaculture is expected to be a major source of fishery commodities in the near future. Hemocytes are key players of the immune system in shrimps; however, their classification, maturation, and differentiation are still under debate. To date, only discrete and inconsistent information on the classification of shrimp hemocytes has been reported, showing that the morphological characteristics are not sufficient to resolve their actual roles. Our present study using single-cell RNA sequencing revealed six types of hemocytes of Marsupenaeus japonicus based on their transcriptional profiles. We identified markers of each subpopulation and predicted the differentiation pathways involved in their maturation. We also predicted cell growth factors that might play crucial roles in hemocyte differentiation. Different immune roles among these subpopulations were suggested from the analysis of differentially expressed immune-related genes. These results provide a unified classification of shrimp hemocytes, which improves the understanding of its immune system.

Introduction

Aquaculture is an important source of animal protein and is considered one of the most important long-term growth areas of food production, providing 60% of fish for human consumption (FAO, 2020) (http://www.fao.org/fishery/statistics/en). However, crustaceans that lack an adaptive immune system (Jiravanichpaisal et al., 2006; Tassanakajon et al., 2013; Flegel, 2019) are vulnerable to pathogens. This means that ordinal vaccination is not applicable to crustaceans, unlike in fish aquaculture. Shrimp is the main target species for crustacean aquaculture. Therefore, an immune priming system for shrimp, which is entirely different from conventional vaccines, needs to be developed to control the infection of pathogens. However, little is known about the immune system of crustaceans due to the lack of biotechnological tools, such as uniform antibodies and other biomarkers (Zhang et al., 2019).

Hemocytes, which are immune cells of crustaceans, are traditionally divided into three morphological types based on the dyeing of intracellular granules, which was established by Bauchau and colleagues (Bauchau, 1981; Söderhäll and Smith, 1983; Johansson et al., 2000). However, there have been additional reports on the classification of the hemocytes of shrimp; they were classified into four, eight, and five types based on electron microscopy (van de Braak et al., 2002), another dyeing method (Kondo et al., 2012), and iodixanol density gradient centrifugation (Dantas-Lima et al., 2013), respectively. As the morphology and dye staining properties of shrimp hemocytes are not absolute indicators, no unified understanding of their role has been established yet. Molecular markers, such as specific mRNAs, antibodies, or lectins, are usually available for characterizing the subpopulations of cells in model organisms, but this is not often the case for non-model organisms. Although monoclonal antibodies have been developed for some hemocytes of shrimp (Rodriguez et al., 1995; van de Braak et al., 2000; Sung et al., 1999; Sung and Sun, 2002; Winotaphan et al., 2005; Lin et al., 2007; Xing et al., 2017), their number is lower than that of humans, and their correspondence to the cell type, as well as their differentiation stage, is under debate.

Recently, single-cell mRNA sequencing (scRNA-seq) techniques have dramatically changed this scene, allowing researchers to annotate non-classified cells solely based on the mRNA expression patterns of each cell. In particular, droplet-based mRNA sequencing, such as Drop-seq, developed by Macosko (Macosko et al., 2015), has gained popularity for classifying cells and identifying new cell types. The enormous amount of biological data obtained from scRNA-seq leads us to classify cells into specific groups, analyze their heterogeneity, predict the functions of single-cell populations based on the gene expression profiles, and determine the cell proliferation or development pathways based on the pseudo-time ordering of a single cell (Trapnell et al., 2014; Soneson and Robinson, 2018). More recently, hemocytes of invertebrate, fly, and mosquito models have been subjected to these types of microfluidic-based scRNA-seq to reveal their functions (Raddi et al., 2020; Tattikota et al., 2020; Cho et al., 2020; Cattenoz et al., 2020; Fu et al., 2020).

Here, we performed scRNA-seq analysis on Marsupenaeus japonicus hemocytes to classify the hemocyte types and characterize their functions using the custom-built Drop-seq platform. To perform scRNA-seq, a high-quality gene reference is essential; however, such reference genomes are scarce for crustaceans because of the extremely high proportion of simple sequence repeats (Zhang et al., 2019). We circumvented this problem by preparing reference genes using hybrid de novo assembly of short- and long-read RNA sequencing results. The sequences obtained from the scRNA-seq were mapped onto the reference genes successfully. Our scRNA-seq uncovered the transcriptional profiles of a few thousand M. japonicus hemocytes. We identified the markers of each population and the differentiation pathways associated with their maturation. We also discovered the cell growth factors that might play crucial roles in hemocyte differentiation. Different immune roles among these subpopulations were also suggested from the analysis of differentially expressed immune-related genes. Our results present a unified classification of shrimp hemocytes and a deeper understanding of the immune system of shrimp.

Results

scRNA-seq clustering of M. japonicus hemocytes

Our study utilized scRNA-seq to determine the cellular subtypes with a distinct transcriptional expression (Figure 1A). To map the scRNA-seq sequences from M. japonicus hemocytes, we first prepared a high-quality de novo assembled reference genes using hybrid assembly of short- and long-read RNA sequencing results. The quality of assembled genes was quality-checked by BUSCO against arthropoda database. BUSCO tool showed 91.5% (35.6% complete and single-copy genes and 55.9% complete and duplicated genes) as complete genes, showing good completeness of the assembly. Some of the assembled genes constructed in this study showed homology to the same genes despite processed EvidentialGene program to remove similar sequences. Cluster database at high identity with tolerance (CD-HIT) programs was also applied on our draft assembled genes, but it was not able to cluster better than EvidentialGene program. Since we thought that subjective clustering of specific genes by ourselves would result in bias, we conducted our analysis based on the results of clustering by EvidentialGene program. Then, by using self-built Drop-seq microfluidic chips, single hemocytes were captured and their mRNA was barcoded using the droplet-based strategy. This process was performed in triplicates for three shrimp individuals. Following library preparation and sequencing, the transcriptomes obtained from scRNA-seq were mapped against the reference genes to discover the cell types.

Figure 1
Download asset Open asset

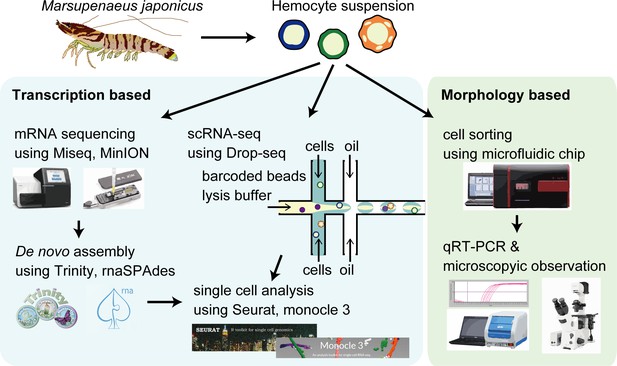

The schematic of single-cell mRNA sequencing (scRNA-seq) analysis of penaeid shrimp M. japonicus hemocytes.

Single hemocytes were analyzed through the microfluidics-based Drop-seq, mRNA sequencing for the preparation of de novo assembled gene sets, in silico analysis workflow, and morphology-based cell classification.

Using the Drop-seq procedure, we profiled a total of 2566 cells and obtained a median value of 2427 unique molecular identifiers (UMIs), 1193 genes, and 2.9% of mitochondrial genes per cell across three replicates (Figure 2, Figure 2—figure supplement 1A–C). There was some transcriptional variability, which may have resulted from the artifacts of the Drop-seq system, because it is consistent with the original Drop-seq paper (Macosko et al., 2015) and with recent findings in other organisms, such as fish (Carmona et al., 2017), flies (Tattikota et al., 2020; Cho et al., 2020), and mosquitoes (Raddi et al., 2020). We constructed three Drop-seq libraries, which accumulates 1500 cells each from three individual shrimps. The sequence depth of read number per single-cell counts about 800,000 reads per cell based on the calculation that 400 million reads from NextSeq 500/550 High Output v2 kit/three individual shrimp/1500 cells. Conventionally, this read number is sufficient for any biological clustering with reference to the additional information of Drop-seq original paper; however, we obtained a median value of 2427 UMIs per cell, which is lower than other organisms such as Drosophila melanogaster counting 8000 UMIs (Tattikota et al., 2020) or HEK (human) and 3T3 (mouse) cells counting 9000 UMIs (Macosko et al., 2015), respectively. This is due to the lack of genomic information of M. japonicus; hence, we prepared de novo assembled transcripts for the read mapping. As the genomic analysis of M. japonicus further progresses, we believe that these UMI values will be improved.

Figure 2 with 1 supplement see all
Download asset Open asset

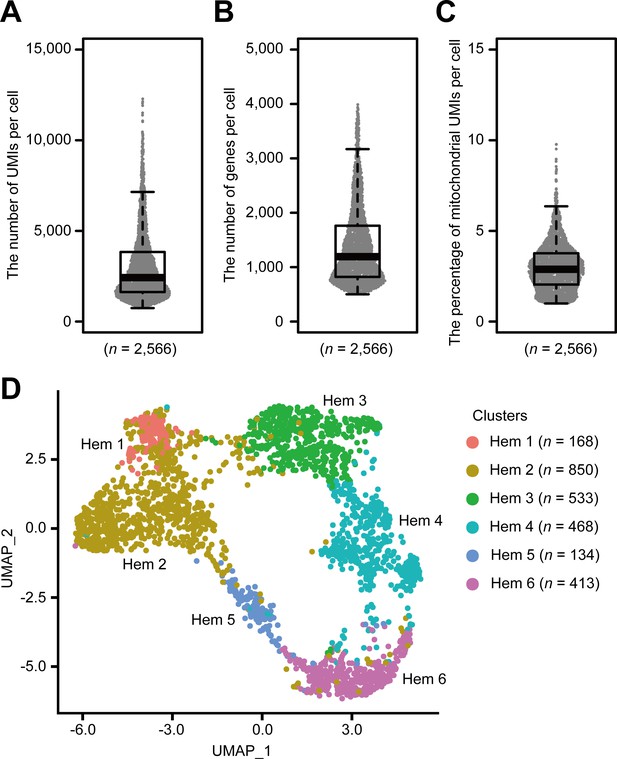

Single-cell mRNA sequencing (scRNA-seq) analysis of penaeid shrimp M. japonicus hemocytes.

Distribution and the median of the number of transcripts (unique molecular identifiers [UMIs]) (A), genes (B), and percentage of mitochondrial UMIs (C) detected per cell. Uniform manifold approximation and projection (UMAP) plot of SCTransform batch corrected and integrated of hemocytes from three shrimps (n = 2566) (D). scRNA-seq analysis of penaeid shrimp M. japonicus hemocytes.

Figure 2—source data 1

Excel sheets pertaining to UMIs, genes , mitochondrial UMIs detected per hemocyte used for Figure 2A-C.

https://cdn.elifesciences.org/articles/66954/elife-66954-fig2-data1-v2.xlsx

Applying the SCTransform batch correction method integrated into the Seurat package allowed us to remove the individual differences. SCTransform successfully integrated all three shrimp datasets (Figure 2—figure supplement 1D), among which we identified a total of six clusters (Figure 2D). Each cluster contained the following number of cells: Hem 1, 168 cells (6.5%); Hem 2, 850 cells (33.1%); Hem 3, 533 cells (20.8%); Hem 4, 468 cells (18.2%); Hem 5, 134 cells (5.2%); and Hem 6, 413 cells (16.1%).

Since not all the de novo assembled transcripts were expressed in this single-cell data, the highly expressed transcript that represents 50% of the total normalized expression data was extracted as ‘Ex50’ for further analysis. The functions of 1362 transcripts composed Ex50 were predicted by blastx program on penaeid shrimp proteins and by eggNOG-mapper annotation for the eukaryotic orthologous groups (KOGs) and gene ontologies (GOs) (Supplementary file 1).

KOGs and GOs analysis on clusters

Among 1362 transcripts composed Ex50, 865 (70.9%) transcripts on shrimp proteins, 886 (65.1%) transcripts on KOG annotation, and 614 (45.1%) transcripts on GO annotation were annotated.

In the result of KOGs, seven KOG annotations (i.e., chromatin structure and dynamics, amino acid transport and metabolism, lipid transport and metabolism, transcription, replication, recombination and repair, signal transduction mechanisms, and intracellular trafficking, secretion, and vesicular transport) were highly expressed among most of the cells in cluster Hem 1 (Figure 3A). In the result of GOs, two GO annotations (i.e., molecular transducer activity and growth) were highly expressed in cluster Hem 1. Furthermore, one GO annotation, immune system process, was highly expressed in cluster Hem 6 (Figure 3B). This result showed that a group of genes involved in cell division and metabolism are highly expressed in Hem 1. It was also predicted that immune-related genes were strongly expressed in Hem 6. Genes involved in basic metabolism, such as lipid metabolism and transcription, were expressed in almost all clusters, but among those the expression tended to be stronger in Hem 1.

Figure 3
Download asset Open asset

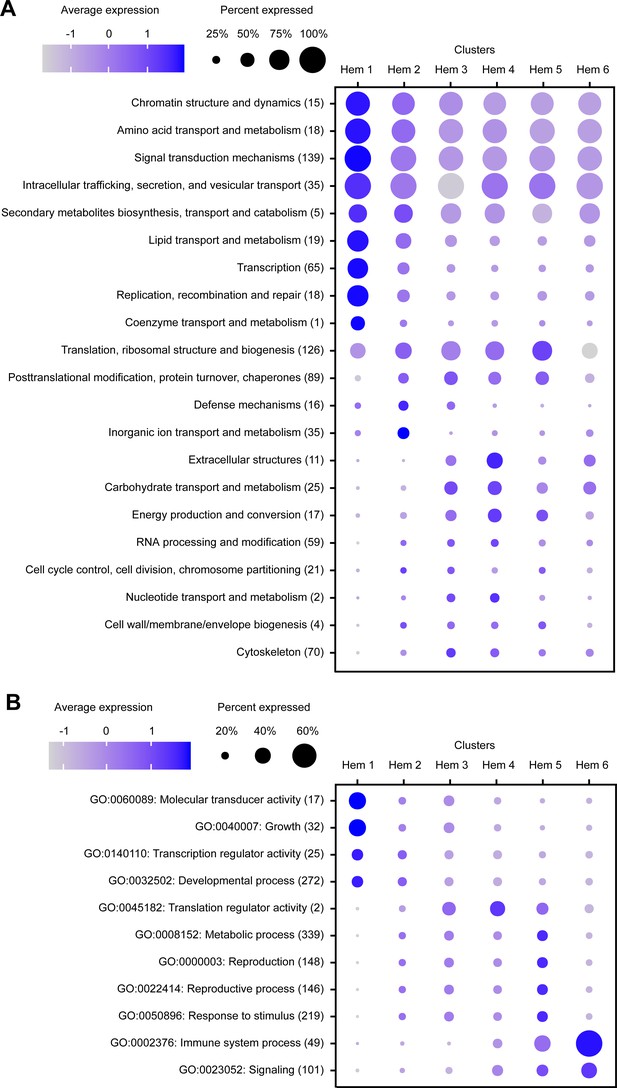

Dot plot profiling of the eukaryotic orthologous group (KOG) and gene ontology (GO) analyses in each cluster.

Dot plot representing the average expression of KOGs (A) and GOs (B) per cluster. Color gradient of dots represents the expression level, while the size represents the percentage of cells expressing any genes per cluster. The numbers in parentheses represent the number of genes estimated as distinct function of KOGs or GOs.

Cluster-specific markers and their functional prediction

A total of 415 cluster-specific markers were predicted using the Seurat FindMarkers tool (Figure 4A; Supplementary file 2). For each cluster, 167 (Hem 1), 29 (Hem 2), 38 (Hem 3), 37 (Hem 4), 42 (Hem 5), and 102 (Hem 6) markers were identified. Important markers in each cluster are described in the dot plot figure (Figure 4B).

Figure 4
Download asset Open asset

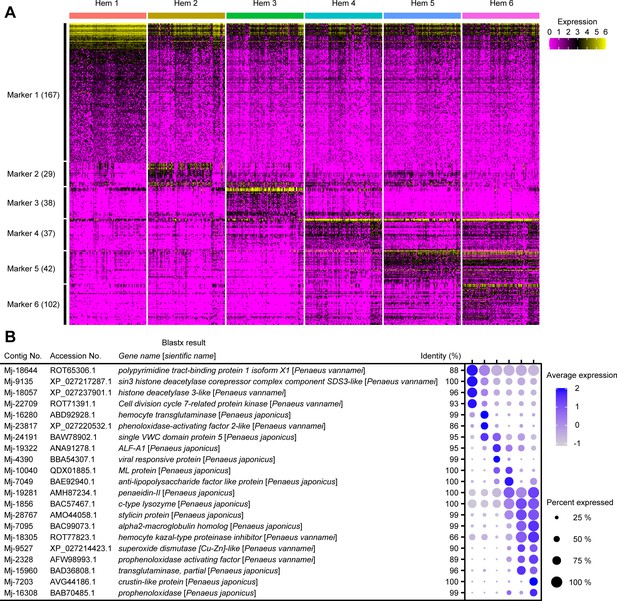

The cluster-specific marker genes predicted using the Seurat FindMarkers tool.

Heat map profile of the marker in each cluster (A). Color gradient represents the expression level of each single cell. The numbers in parentheses represent the number of genes estimated as markers of each cluster. Important marker genes in each cluster (B). Color gradient of the dot represents the expression level, while the size represents the percentage of cells expressing any genes per cluster. Detailed blast results of each marker on penaeid shrimp are listed in Supplementary file 2.

Many of Hem 1-specific markers were related to cell proliferation, cell migration, and colony formation. For example, sin3 histone deacetylase corepressor complex component SDS3 (SUDS3) (Mj-9135) and histone deacetylase (HDAC) (Mj-18057) are known to be essential for the proliferation through controlling cell cycle progression, DNA replication and repair, and cell death in mammal studies (Dannenberg et al., 2005; McDonel et al., 2012). Polypyrimidine tract-binding protein 1 (PTBP1) (Mj-18644) is also a gene related to cell proliferation, cell migration, and colony formation in human tumor studies (Cheung et al., 2009; Shibayama et al., 2009; Monzón-Casanova et al., 2020). It is a multifunctional RNA-binding protein that is overexpressed in glioma, a type of tumor that occurs in the brain, and a decreased expression of PTBP inhibits cell migration and increases the adhesion of cells to fibronectin and vitronectin (Cheung et al., 2009; Shibayama et al., 2009). PTBP has been shown to be involved in germ cell differentiation in D. melanogaster and is essential for the development of Xenopus laevis (Jiao et al., 2016). Cell division cycle 7-related protein kinase (CDC7) (Mj-22708 and Mj-22709) is required for continuous DNA replication in mammalian cells, and reduced levels of Cdc7 kinase are viable but exhibit significantly reduced body size and impaired cell proliferation (Kim et al., 2003). The high expression of homologues of cell proliferation-related genes suggests that Hem 1 is a cluster related to cell proliferation in shrimp hemocytes.

Among the Hem 2 markers, three markers were annotated with hemocyte transglutaminase (HemTGase) (Mj-16280, Mj-16290, and Mj-21219), two markers were annotated with phenoloxidase-activating factor 2-like (PPAF2-like) (Mj-15851 and Mj-23817), and two markers were annotated with single VWC domain protein 5 (Vago 5) (Mj-24191 and Mj-24193). TGase is an immature hemocyte marker of crayfish and shrimp. When the extracellular TGase is digested, hemocytes start to differentiate into mature hemocytes (Lin et al., 2008; Huang et al., 2004; Lin et al., 2011). The high expression of HemTGase suggests that Hem 2 is in the early stage of hemocytes. PPAF2 has a role to activate phenoloxidase (PO) cascade involving melanization (Boonchuen et al., 2021). Vago 5 is a kind of shrimp cytokine functionally similar to interferon and found to be involved in shrimp antiviral immunity (Li et al., 2015; Gao et al., 2019). PPAF2 and Vago 5 do not directly exhibit defense mechanisms, but work by activating other genes and other immune system. Therefore, Hem 2 may work as an immune activator against other hemocytes.

In cluster Hem 3, two markers were annotated with anti-lipopolysaccharide factor-A1 (ALF-A1) (Mj-19322 and Mj-23779), and one marker was annotated with viral responsive protein (VRP) (Mj-4390). In cluster Hem 4, one marker was annotated with anti-lipopolysaccharide factor-like (ALF-like) (Mj-7049), one marker was annotated with myeloid differentiation factor 2–related lipid-recognition protein (ML protein) (Mj-10040), and three markers were annotated with penaeidin-II (Mj-18245, Mj-19281, and Mj-20968). ALF and penaeidin-II are well-studied antimicrobial peptides (AMPs) (Destoumieux et al., 1997; Bachère et al., 2004; An et al., 2016; Liu et al., 2006; Mekata et al., 2010; Rosa and Barracco, 2010; Rosa et al., 2013). These AMPs are stored in the granules of hemocytes. VRP protein is distributed in granular-containing hemocytes and induced its expression by virus infection (Elbahnaswy et al., 2017). ML protein recognizes a lipid component of virus and induces the expression of Vago 5 (Gao et al., 2019), which is highly expressed in Hem 2. The expression of AMPs and VRP supporting Hem 3 and 4 are granular-containing hemocytes, and the expression of virus infection-related genes, VRP and ML protein, suggests that Hem 4 might play important roles when viruses infect shrimp.

In clusters Hem 5 and Hem 6, many of the cluster-specific markers showed similarity with immune-related genes of penaeid shrimp. In clusters Hem 5 and Hem 6, markers showed a high similarity with alpha2-macroglobulin, c-type lysozyme, stylicin, crustin, penaeidin-II, hemocyte kazal-type proteinase inhibitor (KPI), superoxide dismutase (SOD), prophenoloxidase (proPO), PPAF, and TGase. Hem 5 and 6 were found to have high expressions of immune-related genes by GO analysis, and our maker analysis results support this observation.

G2/M and S phase clustering and pseudo-temporal ordering of hemocytes delineate hemocyte lineages

Cell cycle of each cell was calculated by Seurat CellCycleScoring function based on the homologue genes of Drosophila G2/M and S phase markers (https://github.com/hbc/tinyatlas, Kirchner and Barrera, 2019). In the search for cell cycle-specific markers, we found that a large portion of cells in Hem 1 expressed the G2/M-related genes of Drosophila (Supplementary file 3; Figure 5—figure supplement 2). For examples, HP1 and Su(var)205 are known to be essential for the maintenance of the active transcription of the euchromatic genes functionally involved in cell-cycle progression, including those required for DNA replication and mitosis in Drosophila (De Lucia et al., 2005; Paro and Hogness, 1991). CTCF has zinc finger domains and plays an important role in the development and cell division of fly and mammalian cells (Mohan et al., 2007; Rasko et al., 2001). These findings suggested that hemocytes grouped as Hem 1 are tightly regulated by these G2/M phase-related genes to promote cell division. Among the total of 2566 cells, G1 phase consisted of 66% (1693 cells), G2/M phase consisted of 9% (236 cells), and S phase consisted of 25% cells (637 cells), respectively. With the exception of Hem 1, the percentage of G1 phase was the highest, and S phase was the second highest among all clusters; Hem 2 to Hem 6 (Figure 5A, B). On the other hand, Hem 1 showed the highest percentage of G2/M phase, followed by G1 phase and the lowest percentage of S phase. KOG and GO analyses of each cluster showed that Hem 1 cluster has high expression of chromatin dynamics, duplication, and growth functions (Figure 3). Thereby, we determined that Hem 1 is a cluster in the early stage of hemocyte development, which might have the potential of self-renewing or just came out from the hematopoietic tissue (HPT). A previous study using flow cytometry reported a significantly lower percentage of S phase, about 0.5% (Sequeira et al., 1996). It is possible that the genes used in the analysis of S phase had lower homology with Drosophila markers than the gene set used in the analysis of G2/M phase, and thus did not score as accurately as Drosophila.

Figure 5 with 2 supplements see all
Download asset Open asset

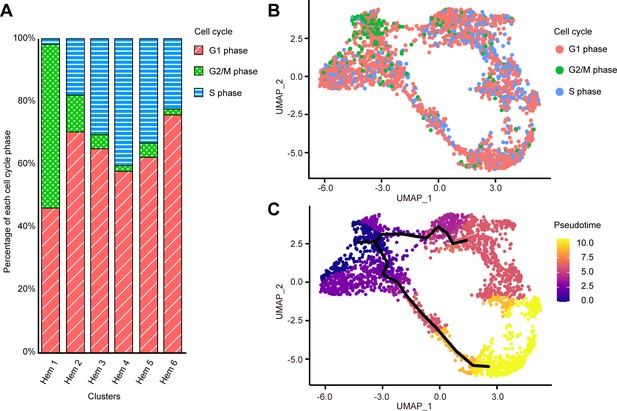

Cell cycle distribution of each cluster and pseudo-temporal ordering of hemocyte lineages.

Percentage of each cell cycle on clusters (A). Uniform manifold approximation and projection plot of cell cycles of hemocytes from three shrimps (n = 2566) (B). Visualization of clusters onto the pseudotime map using monocle 3 (C). The black lines indicate the main path of the pseudotime ordering of the cells. Color gradient of each dot represents the pseudotime.

Figure 5—source data 1

Source data of the percentage of each cell state per cluster used for Figure 5A.

https://cdn.elifesciences.org/articles/66954/elife-66954-fig5-data1-v2.xlsx

We further performed lineage-tree reconstruction using the Monocle 3 learn_graph function to investigate the dynamics of hemocyte differentiation because the differentiation and proliferation pathways of hemocytes in shrimp and other crustaceans are still under debate (Söderhäll, 2016). We considered Hem 1 to be the initial state of hemocytes and set it as the starting point in the differentiation process because Hem 1 expressed cell proliferation-related genes, TGase (an immature hemocyte marker), and G2/M phase-related genes (De Lucia et al., 2005; Paro and Hogness, 1991; Mohan et al., 2007; Rasko et al., 2001; Scott et al., 2007; Junkunlo et al., 2017; Junkunlo et al., 2019). From this pseudo-temporal ordering analysis, we found two main lineages starting from Hem 1 to Hem 4, and Hem 6 at the endpoints (Figure 5C). In crayfish, hematopoietic stem cells are present in HPT, and two types of hemocyte lineages starting from a hematopoietic stem cell exist (Lin and Söderhäll, 2011). In Penaeus monodon, hyaline cells (i.e., agranulocytes) are considered as the young and immature hemocytes of two types of matured hemocytes (van de Braak et al., 2002). Our pseudo-temporal ordering analysis revealed that the hemocytes of M. japonicus differentiate from a single subpopulation into two major populations. The differentiation process was continuous, not discrete, which was in agreement with previous arguments on the crustacean hematopoiesis mechanism (van de Braak et al., 2002; Lin and Söderhäll, 2011; Noonin et al., 2012).

Possibility of application of Drosophila hemocyte-type marker to shrimp

Since the hemocyte type-specific markers are better studied in Drosophila, we checked the Ex50 that are similar to the markers of Drosophila to determine whether they are applicable to shrimp. Among the specific markers of four types of Drosophila hemocytes, 8 genes in prohemocytes, 14 genes in plasmatocytes, 35 genes in lamellocytes, and 5 genes in crystal cells showed similarity with the shrimp genes (Figure 6; Supplementary file 4).

Figure 6
Download asset Open asset

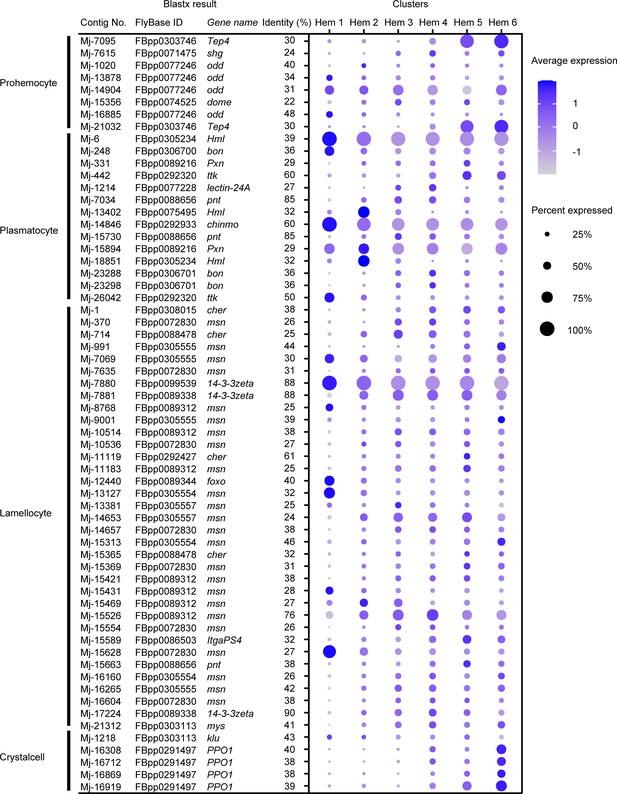

Dot plots profiling of Drosophila hemocyte-type markers in each cluster.

Color gradient of the dot represents the expression level, while the size represents the percentage of cells expressing any gene per cluster. Detailed blast results are listed in Supplementary file 4.

In case of prohemocyte markers, Mj-7095 and Mj-21032 showed cluster-specific expression and were annotated on thioester-containing protein 4 (Tep4) with identity 30%, which participates in the cellular immune response to certain Gram-negative bacteria in Drosophila (Figure 6). Prohemocytes are progenitor cells in Drosophila; however, the expression of these marker genes was not strong in Hem 1, which was expected to be progenitor cells in shrimp, but rather was high in Hem 5 and 6. In the blastx results on penaeid shrimp proteins, Mj-7095 and Mj-21032 were annotated on alpha2-macroglobulin gene (Supplementary file 1). Alpha2-macroglobulin (a2m) of shrimp contributes clotting pathway to eliminate bacterial infection, and its proteins are contained within the secretory granules of hemocytes (Chaikeeratisak et al., 2012). Therefore, it is not reasonable to use these markers as a common marker with prohemocytes in shrimp.

Drosophila plasmatocytes are known as small round cell and professional phagocytes reminiscent of the cells from the mammalian monocyte/macrophage lineage (Meister and Lagueux, 2003). Mj-6 and Mj-14846 showed cluster-specific expression on the plasmatocyte markers (Figure 6). Mj-6 was annotated with hemolection (Hml) of Drosophila and hemocytin-like of Litopenaeus vannamei. Mj-14846 was annotated with chronologically inappropriate morphogenesis (chinmo) of Drosophila and genetic suppressor element 1-like of L. vannamei. Hml of Drosophila is involved in the clotting reaction. It has been estimated that some of the hemocytes expressing Hml are self-renewing in Drosophila single-cell study (Tattikota et al., 2020). chinmo plays a role in the proliferation of developing hemocytes in Drosophila (Flaherty et al., 2010). Since our results also predict that Hem 1 is a group of progenitor or self-renewing cells, these genes could be a potentially useful marker for identifying progenitor or self-renewing cells of shrimp.

Mj-7880 showed characteristic expression within the identical cluster among lamellocyte markers (Figure 6). Mj-7880 was annotated with 14-3-3zeta of Drosophila and 14-3-3-like protein of L. vannamei. There are various isoforms of 14-3-3 genes, and 14-3-3zeta is a marker for lamellocytes, but it is also known that 14-3-3 proteins function in normal cell cycle progression in Drosophila (Su et al., 2001). In shrimp, Mj-7880 is probably working as cell cycle-specific roles, which is why Mj-7880 is strongly expressed in Hem 1.

Among Drosophila crystal cell markers, four contigs, Mj-16308, Mj-16712, Mj-16869, and Mj-16919, were annotated on prophenoloxidase 1 (PPO1) of Drosophila (Figure 6). These four contigs were also annotated on proPO of M. japonicus and phenoloxidase 3-like of L. vannamei. From the single-cell study of Drosophila hemocytes, the expression level of PPO1 increased with the maturation of crystal cells (Tattikota et al., 2020). Crystal cells contain about −5% of total number of hemocytes of Drosophila and contain the enzymes necessary for humoral melanization that accompanies a number of immune reactions (Meister and Lagueux, 2003). It is very interesting to note that the ratio of Hem 6 is larger in shrimp compared to in Drosophila crystal cells, but the expression of proPO is highest in Hem 6, the estimated endpoint of differentiation by pseudotime analysis (Figure 5C). It is not possible to assign crystal cells of Drosophila and Hem 6 of shrimp as homologous cells because of the unknown similarities in morphology and other functions, but at least PPO/proPO can be considered to be a marker gene commonly expressed in mature hemocytes of both Drosophila and shrimp.

Expression of cell growth-related genes

The exploration of cluster-specific markers revealed that cell growth-related genes were specifically expressed in certain clusters. We identified 10 cell growth-related genes from Ex50 that are predicted to be involved in cell growth and differentiation: extracellular signal-regulated kinase (ERK), mitogen-activated protein kinase kinase 4 (MKK4), insulin-like growth factor-binding protein 4 (IGFBP-4), vascular endothelial growth factor 1 (VEGF-1), VEGF-3, astakine, crustacean hematopoietic factor-like protein (CHF-like), PDGF/VEGF-related factor 1, growth hormone secretagogue receptor type 1 (GHSR), and platelet-derived growth factor receptor alpha-like (PDGFRA-like) (Figure 7A; Supplementary file 1).

Figure 7
Download asset Open asset

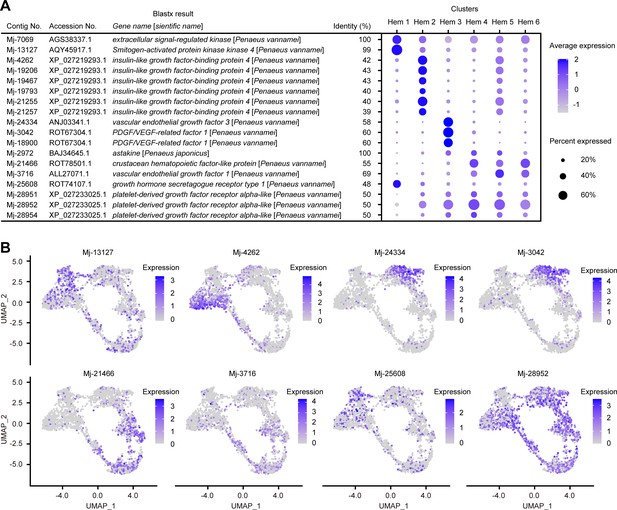

Cell growth-related gene expressions on clusters and single hemocytes.

Dot plots profiling of cell growth-related genes in each cluster (A). Color gradient of the dot represents the expression level, while the size represents the percentage of cells expressing any gene per cluster. Expression profiling of cell growth-related genes on uniform manifold approximation and projection plot (B). Color gradient of each dot represents the expression level. The details of the identified genes are listed in Supplementary file 1.

Both ERK and MKK4 are a series of genes involved in mitogen-activated protein kinase (MAPK) pathways. In Drosophila, MAPK pathway is activated by signaling from several receptors, causing hemocyte proliferation and differentiation (Zettervall et al., 2004). Although it has been investigated that MAPK pathway contributes to the defense responses of shrimp (Yang et al., 2012; He et al., 2018; Luo et al., 2020), it is not yet known whether this pathway directly affects the proliferation or differentiation of hemocytes. However, the high expression of ERK and MKK4 in Hem 1 strongly suggests that MAPK pathway is involved in the proliferation of hemocytes in shrimp. Therefore, not only immune responses but also cell-type variation is a good point of focus for future research on studies of MAPK pathway in shrimp.

Hem 2 highly expressed IGFBP-4 (Figure 7). IGFBP delivers IGFs to the target cells in mammal studies and is essential for cell growth or differentiation (Varma Shrivastav et al., 2020). The high expression of a receptor of the insulin-like peptide at mature hemocytes in the mosquito suggests that the insulin signaling pathway regulates hemocyte proliferation (Castillo et al., 2011). The silencing and overexpression of IGFBP caused a decrease and increase in the growth of hemocytes of abalone Haliotis diversicolor (Wang et al., 2015). These studies indicate that the IGFBP-related insulin signaling pathway is important for hemocyte proliferation and differentiation in invertebrates. IGFBP-4 might play an essential role in the differentiation of hemocytes from Hem 1 to Hem 2 in shrimp. The high expression of IGFBP is determined in the brain and gonads of L. vannamei (Ventura-López et al., 2017). This fact also suggests that IGFBP plays a possible role in organ growth and maturation in shrimp. It is worth noting that the expression of IGFBP-4 is strong at the site where Hem 3 and Hem 5 seem to be in the early stage of differentiation, which may indicate that IGFBP-4 is acting to initiate differentiation into Hem 3 and Hem 5 from Hem 2 (Figure 7B).

Cells expressing VEGF-3 and PDGF/VEGF-related factor 1 were dominant in Hem 3. The vascular endothelial growth factor (VEGF) signaling pathway is essential for vasculogenesis, cell proliferation, and tumor migration in mammals (Neufeld et al., 1999; Peichev et al., 2000). Furthermore, in Drosophila, VEGF homologs control the number of circulating hemocytes (Munier et al., 2002). The high expression of VEGF-3 and PDGF/VEGF-related factor 1 in Hem 3 indicated that Hem 2 would differentiate into Hem 3 the VEGF signaling pathway. Interestingly, a different homologue of VEGF, VEGF 1, was highly expressed in Hem 4, Hem 5, and Hem 6. These hemocytes are estimated as endpoints of differentiation by pseudotime analysis (Figure 5C). This means that the different types of VEGFs, VEGF-1 and VEGF-3, may induce differentiation into different hemocytes.

Astakines, which were expressed in Hem 3, Hem 4, and Hem 5, are produced by granular-containing hemocytes and are released into the plasma (Söderhäll et al., 2005). Astakines function as decreasing the extracellular TGase activity and inducing the differentiation of hemocyte precursor into maturation (Söderhäll, 2016). Our analysis showed that astakine was expressed from a part of matured hemocytes, which is predicted as granular-containing hemocytes. Therefore, as in the previous study (Lin et al., 2011), it is thought that astakine act on precursor hemocytes, Hem 1 and Hem 2, to promote maturation in shrimp.

From Ex50 genes, we identified two candidate receptors related to cell growth, GHSR and PDGFRA-like. GHSR is a receptor for ghrelin and stimulates growth hormone secretion in vertebrates (Smith et al., 2001). Growth hormone-releasing peptide-6 (GHRP-6) is a synthetic peptide that mimics the effect of the endogenous ligand ghrelin and has a strong growth hormone secretagogues activity. In shrimp, GHRP-6 functions as a growth promoter peptide. More interestingly, the total hemocyte number in hemolymph was increased by supplying of GHRP-6 (Martínez et al., 2017). Therefore, GHSR is thought to play an important role in increasing hemocyte number in shrimp. PDGFRA, as the name suggests, is the receptor for platelet-derived growth factor (PDGF). It regulates cellular growth and differentiation by binding to its ligand (Lei and Kazlauskas, 2009). In crayfish, PDGF regulates hemocyte differentiation from immature to matured (Junkunlo et al., 2017). The strong expression of PDGFRA in shrimp was detected in Hem 2 to Hem 6, not in Hem 1, suggesting that PDGF signals are important for hemocyte maturation but not for proliferation of hemocytes in shrimp.

So far, we described the expression of proliferation- and differentiation-promoting genes. However, there was also the specific expression of the hemocyte homeostasis regulatory gene, crustacean hematopoietic factor (CHF) (Lin and Söderhäll, 2011). CHF is a hematopoietic factor of crayfish, and the silencing of CHF leads to an increase in the apoptosis of cells in HPT and a reduction in the number of circulating hemocytes (Jiao et al., 2016). Additionally, the silencing of laminin, a receptor of CHF, reduces the number of circulating hemocytes by decreasing the number of agranulocytes, as opposed to granulocytes, in P. vannamei (Charoensapsri et al., 2015). CHF-like was expressed in cluster Hem 4, Hem 5, and Hem 6 (Figure 7). Taken together, CHF-like expressed from matured hemocytes might work as a hematopoietic factor against immature hemocytes, such as Hem 1 and Hem 2.

Expression of immune-related genes

Hemocytes of shrimp play key roles in their immunity; therefore, we identified immune-related genes from Ex50, and then analyzed their expression levels to deduce the detailed immune functions of each cluster (Supplementary file 1).

AMPs and antimicrobial enzymes play the most important role in the immunity of shrimps and are well known to be stored in granulocytes (Bachère et al., 2004; Rosa and Barracco, 2010). The expression patterns of AMPs and antimicrobial enzymes revealed that the major AMPs of penaeid shrimp were expressed in clusters Hem 4 to Hem 6 (Figure 8A, B, Figure 8—figure supplement 1). Therefore, Hem 4 to Hem 6 were predicted to be granulocytes. Whereas almost all the expressions of AMP genes were increased as hemocytes grew (Figure 5C, Figure 8B), the expression patterns of ALFs were different from other AMPs (Figure 8—figure supplement 1). It is predicted that the diversity of shrimp ALFs contributes to create synergism-improving shrimp antimicrobial defenses (Rosa et al., 2013). Analysis of each function of ALFs may lead to a more detailed understanding of immune function in each cluster of hemocytes in shrimp.

Figure 8 with 6 supplements see all
Download asset Open asset

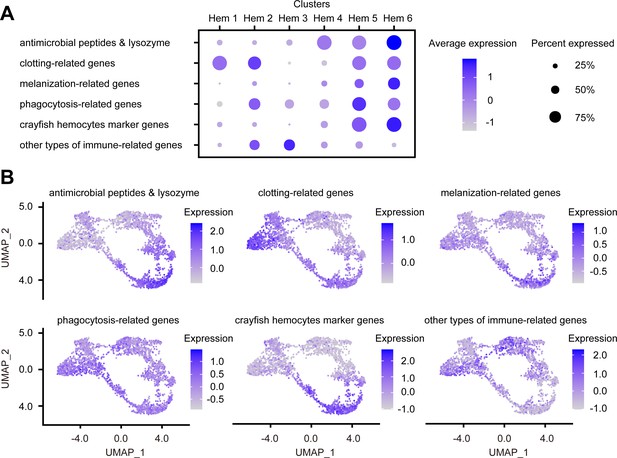

Dot plots and uniform manifold approximation and projection (UMAP) plot profiling of immune-related genes.

Dot plot representing the average expression of each immune-related gene per cluster (A). Color gradient of the dot represents the expression level, while the size represents the percentage of cells expressing any genes per cluster. The numbers in parentheses represents the number of genes estimated as immune-related. Expression profiling of immune-related genes on UMAP plot (B). Color gradient of each plot represents the expression level. The details of the identified genes are listed in Supplementary file 1.

Clotting is an important innate immune response in shrimp. Transglutaminase (TGase) plays critical roles in clotting and hematopoiesis, and there are two types of TGases in shrimp (Lin et al., 2008; Söderhäll, 2016; Lin and Söderhäll, 2011; Chen et al., 2005). In crayfish, different types of TGases are localized in different types of hemocyte, in immature hemocytes and granular hemocytes, respectively (Junkunlo et al., 2020). In our scRNA-seq, different types of TGases were expressed in different cluster of hemocytes (Figure 8—figure supplement 2), indicating that shrimp TGases are also expressed in different places. More interestingly, it is reported that TGase is not expressed in all granulocytes in crayfish (Junkunlo et al., 2020). Our result was in accordance with the previous study because not 100% of the hemocytes expressed TGase in clusters Hem 5 and Hem 6. Alpha2-a2m of shrimp contributes to clotting pathway and are stored in the granules of hemocytes (Chaikeeratisak et al., 2012). Since our results also showed strong expression of a2m in Hem 5 and Hem 6, these clusters are predicted to be a granulocyte. Coagulation factor and hemocytin are related to clotting pathway in invertebrates (Lavine and Strand, 2002; Kotani et al., 1995). Strong expression of the whole clotting-related genes was predicted in Hem 1, Hem 2, Hem 5, and Hem 6, except Hem 3 and Hem 4 (Figure 8). Although it is not possible to estimate which genes are working in clotting pathway and how, it is clear that there were populations, Hem 3 and Hem 4, that are not involved in clotting.

Melanization is performed by PO and controlled by the prophenoloxidase (proPO) activation cascade in shrimp (Amparyup et al., 2013). Except prophenoloxidase-activating factor 2-like (PPAF2-like) and QM protein, melanization-related genes were expressed in Hem 4 to Hem 6. This result is consistent with the fact that proPO was a marker gene for mature hemocytes (Figure 8—figure supplement 3). In the previous study, the strong PO activity was observed in granules of hemocytes in crayfish (Giulianini et al., 2007), suggesting that PO activity and granules are closely related. In addition, it is considered that mature granulocytes are involved in melanization. Although the detailed functions of PPAF2-like and QM protein were still unknown except that these genes are involved in proPO cascade in shrimp, it is reasonable to conclude that melanization or proPO cascade is the product of a cascade reaction through the entire hemocytes, not just granulocytes.

Phagocytosis is a crucial defense mechanism against bacteria and viruses in shrimp. Many types of genes are involved in phagocytosis, such as receptors for recognition, downstream signal pathways, and intracellular regulators (Liu et al., 2020). In kuruma shrimp M. japonicus, integrin alpha PS is reported as a marker for hemocytes that mediates phagocytosis (Koiwai et al., 2018). However, it is reported that different subpopulations of hemocytes seem to exhibit specific preferences of different bacteria or viruses in phagocytosis (Liu et al., 2020). Since there are many cascades for phagocytosis and various molecules work together, it is difficult to determine which cluster is centralized, but various phagocytosis-related genes are expressed relatively strongly in Hem 5 (Figure 8—figure supplement 4). Rab7 was found to be highly expressed in Hem 1, which is known to be involved in the endosomal trafficking pathway of virus-infected penaeid shrimp (Zhao et al., 2015). However, there have been no detailed functional studies of Rab7 on whether it is involved in phagocytosis in shrimp, so it is early to determine its role in Hem 1.

Some of the hemocyte type-specific markers related to their immune function have been studied in crayfish: proPO in matured hemocytes, copper/zinc superoxide dismutase (SOD) in semi-granular cells (SGC), and Kazal-type proteinase inhibitor (KPI) in granular cells (GC), and TGase in immature cells (Söderhäll, 2013). The usefulness of proPO and TGase as markers has already been discussed above. Both KPI and SOD were mostly expressed at both Hem 5 and Hem 6, and their expression levels were similar between these clusters (Figure 8—figure supplement 5). These results suggest that the functional segregation of hemocytes in shrimp is different from that in crayfish.

We also identified other immune-related genes (Figure 8—figure supplement 6). Notch and pellino regulate AMPs expression through the signaling pathway (Zhang et al., 2020; Li et al., 2014; Ning et al., 2018). As discussed in the section explaining cluster-specific markers, ML protein, VRP, and Vago 5 are related to virus infection. Molecules that directly affect defense, such as AMPs and clotting-related genes, are more abundantly expressed in Hem 4 to Hem 6, whereas molecules that regulate immune system seem to be more abundantly expressed in Hem 1 to Hem 3. In other words, it was predicted that agranulocytes play a role in signaling for immune system, and that granulocytes are responsible for direct biological defense functions. In addition, the expression of virus infection-related genes, ML protein, VRP, and Vago 5, suggests Hem 2, Hem 3, and Hem 4 might play important roles when virus infect shrimp.

In the mosquito, scRNA-seq revealed a new subpopulation called ‘antimicrobial granulocytes’ that expressed characteristic AMPs (Raddi et al., 2020). Similarly, in M. japonicus, the expression patterns of immune-related genes were also different among certain clusters, suggesting that shrimp hemocytes are more heterogeneous than previously thought. It is anticipated that the class of granulocytes discussed in previous studies is actually a mixture of clusters exhibiting different roles.

Validation of marker genes and the relationship between clusters and morphology

Our scRNA-seq results revealed six major subpopulations and their marker genes, and the possible differentiation trajectory of kuruma shrimp M. japonicus hemocytes. Next, we examined the correlation between the morphology and expression of marker genes. Two major populations of hemocytes were sorted based on the forward versus side scatter plot obtained using microfluidic-based fluorescence-activated cell sorter (FACS). The sorted populations were observed using microscopy. FACS was able to separate hemocytes into two morphologically different populations (Figure 9A–E, Figure 9—figure supplement 1): smaller cells with low internal complexity in region 1 (R1) (50.7 ± 5.2%) and larger cells with high internal complexity in region 2 (R2) (47.7 ± 3.4%). From differential interference contrast (DIC) and dye staining imaging (Figure 9A–D), we observed that cells in the R1 region contained no or few granules in the cytoplasm. The nucleus occupied a large portion of the volume in these cells (Figure 9C). Conversely, those in the R2 region had many granules in the cytoplasmic region, which occupied a large portion of cells (Figure 9D).

Figure 9 with 1 supplement see all
Download asset Open asset

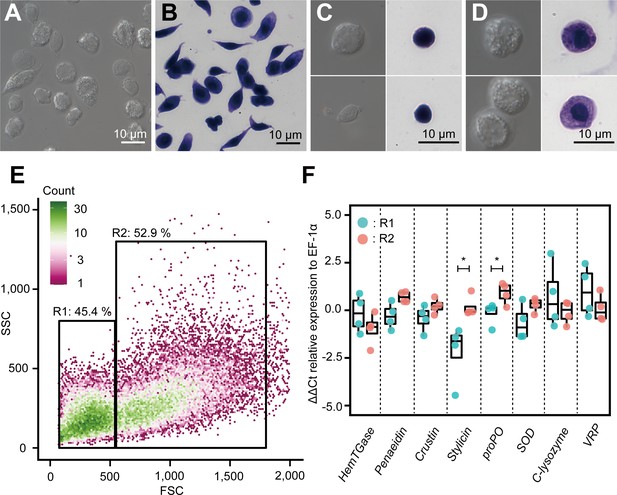

Morphological analysis of hemocytes and transcript profiles based on morphology.

(A) Differential interference contrast (DIC) image of unsorted total hemocytes. (B) Dye-stained total hemocytes. (C) DIC imaging and dye staining of region 1 (R1)-sorted hemocytes. (D) DIC imaging and dye staining of region 2 (R2)-sorted hemocytes. (E) Fluorescence-activated cell sorting (FACS) analysis of hemocytes. Based on the forward scatter (FSC) and side scatter (SSC) two-dimensional space, two regions (R1 and R2) were obtained. (F) Differential gene expression analysis between R1 and R2 of hemocytes sorted using FACS. ∆∆Ct values were analyzed using qRT-PCR. Higher ∆∆Ct values indicate a higher accumulation of mRNA transcripts. The p values shown in the figures are represented by *p<0.05.

Figure 9—source data 1

Source data for CT values of each gene used for Figure 9F.

https://cdn.elifesciences.org/articles/66954/elife-66954-fig9-data1-v2.xlsx

We conducted qRT-PCR analysis to determine the expression of some representative genes in these populations. The results showed that the average ∆∆Ct values of the transcripts of HemTGase were higher in R1 hemocytes than in R2 hemocytes, while the values of penaeidin, crustin, stylicin, proPO, and SOD were higher in R2 hemocytes (Figure 9F). The average ∆∆Ct values of transcripts of c-type lysozyme and VRP were similar in R1 and R2 hemocytes. The combination of FACS and qRT-PCR results confirmed that the gene expression of the two populations in shrimp hemocytes was roughly divided based on morphology, that is, agranulocytes and granulocytes, which is consistent with our scRNA-seq analysis. Some of these genes were not statistically different in the t-test, but due to the small sample size, we used the mean values for discussion. Granulocytes found in the R2 region expressed major AMPs, such as penaeidin, crustin, and stylicin, suggesting that they consist of clusters Hem 4 to Hem 6. However, c-type lysozyme, which was expressed in Hem 4 to Hem 6 in scRNA-seq, was higher on the cells in R1 region. The reason why only c-lysozyme was expressed in different population from the other AMPs was unclear. VRP, which is a marker of Hem 3 (Figure 8—figure supplement 6), was expressed in cells in both R1 and R2 regions, indicating that Hem 3 exists in both populations and is indistinguishable from the morphological characteristics. Our conclusion that the cells in R1 and R2 regions separated by FACS consist of Hem 1–3 and Hem 4–6, respectively, is quantitatively supported by the fact that Hem 1–3 and Hem 4–6 cover 60.4 and 39.6% of whole cells, respectively.

Discussion

Our single-cell transcriptome analysis revealed that there are six subpopulations of hemocytes in shrimp. This result provides us a detailed and advanced understanding of the cell classification over previous strategies based on various approaches, such as simple staining (Söderhäll and Smith, 1983; Johansson et al., 2000; van de Braak et al., 2002), monoclonal antibodies (Xing et al., 2017), flow cytometry (Koiwai et al., 2017), and lectin-binding profiles (Koiwai et al., 2019). We hope that future studies will clarify the relationships between these phenotypic features and our classification to comprehend the role of each cluster in the immune system of shrimp.

The cluster-specific markers and cell proliferation-related genes found here helped us to understand how shrimp hemocytes differentiate. A strong expression of TGase, cell proliferation-related genes, and G2/M state-related genes in Hem 1 suggested that hemocytes in this cluster are oligopotent and located upstream in the differentiation process. In crustaceans, especially shrimp and crayfish, it is known that hemocytes are produced in HPT, and that differentiated hematopoietic cells from HPT circulate in the body fluid (van de Braak et al., 2002; Söderhäll, 2016; Söderhäll, 2013). Hem 1 accounts for only 6.5% of the analyzed cells, which indicates that only a very small fraction of oligopotent or initial state hemocytes exists among the circulating hemocytes. Many of the markers that were characteristically expressed in Hem 1 could not be functionally predicted by the BLAST search (Supplementary file 1). We speculate that the characteristic genes of Hem 1 are associated with cell duplication or differentiation. The division and differentiation mechanisms of shrimp hemocytes are still largely unknown, and no techniques on culture shrimp hemocytes in vitro have been reported. The analysis of these unknown gene characteristics may reveal these mechanisms.

Our results also revealed that the growth-related genes were expressed on specific clusters (Figure 7). It was predicted that several growth factors are involved in differentiation and maturation of hemocytes, and that these factors play roles in the maturation of hemocytes through several cellular processes. In P. monodon, a model has been proposed in which hemocytes differentiate linear to two types of granulocytes from a single type of agranulocytes (van de Braak et al., 2002). Our study strongly supports this previous study. We would also like to emphasize that shrimp hemocytes are not completely separated into distinct cell types, and their differentiation process is rather continuous. Loss and gain function studies of these growth-related genes are necessary to prove the full differentiation process of penaeid shrimp hemocytes.

Crayfish’s hemocytes and Drosophila hemocytes have been classified into three and four major types according to the marker genes, respectively (Tattikota et al., 2020; Cho et al., 2020; Söderhäll, 2016). The relationship between Drosophila and shrimp was almost impossible to establish on the hemocyte-type markers. Also, for crayfish hemocyte markers, there was no difference between clusters according to SOD and KPI that are the markers of SGC and GC, respectively. Insects and crustaceans are thought to become independent about 500 million years ago (Rota-Stabelli et al., 2013; Thomas et al., 2020), and shrimp and crayfish are thought to have become evolutionarily independent about 450 million years ago (Wolfe et al., 1901). Thus, it is straightforward to reason that the functions of these genes have changed during the evolutionary process. Therefore, we should not simply argue that the morphological and functional similarities between shrimp and Drosophila/crayfish hemocytes are the same. Interestingly, however, proPO (or PPO) was found to be highly expressed in mature hemocytes in shrimp, Drosophila, and crayfish alike. Therefore, it is possible that proPO is a marker gene for mature hemocytes, at least in common with these three species. It is unclear to what extent this trend will hold, but it is interesting to examine why this trend is conserved across species.

There have been a number of studies to investigate the function of hemocytes, but most of them were done on whole hemocytes because of the difficulty in distinguishing and isolating cell types. Here, we predicted the major functions, that is AMPs releasing, clotting, melanization, and phagocytosis, of each hemocyte population. The strong expression of the AMPs, melanization, and phagocytosis-related genes in mature hemocytes revealed that granulocytes are the cells that play a central role in immune activity in shrimp. Furthermore, clotting-related genes were strongly expressed in Hem 1 and Hem 2, indicating that agranulocytes are the main player in clotting. In addition, the expression of genes that is known to be elevated by viral infection was high in Hem 3 and Hem 4. This may indicate that these hemocyte populations are the ones that work during virus infection. Or, the percentage of this hemocyte population may increase during viral infection, while the amount of gene expression in the hemocytes remains the same. This aspect will be clarified by studying the expression dynamics in shrimps infected with viruses or bacteria. In mature hemocytes, the final products of the immune response, such as AMPs, a2m, and proPO, were strongly expressed, whereas the genes responsible for the middle of the cascade, such as PPAF, Notch, pellino, ML protein, and Vago 5, were expressed in immature or differentiated hemocytes. This observation suggests that the immune system is not governed solely by granulocytes, but there is a communication with agranulocytes in response to foreign substances.

In conclusion, we succeeded in classifying shrimp hemocytes into six subpopulations based on their transcriptional profiles, while they were only classified into two groups using FACS. Furthermore, our results imply that hemocytes differentiate from a single initial population. Although we have not yet successfully cultured crustacean hemocytes in passaging cultures, information on these subpopulations and marker genes will provide a foothold for hemocyte culture studies. Despite our success in the classification of hemocytes, we have not yet been able to fully understand the functions of each hemocyte group in detail. One reason for this is that the functions of some marker genes are still unknown. The present single-cell transcriptome data serves as a platform providing the necessary information for the continuous study of shrimp genes and their functions. Additionally, we have only determined the subpopulations of hemocytes in the normal state, so that our next goal will be to analyze the hemocytes in the infected state of certain diseases at different levels of cell maturation. In this way, we will be able to identify the major subpopulations that may work against the infectious agent. Likewise, it will be interesting to see how hemocytes from fertilized eggs mature. Additionally, single-cell analysis of HPTs can also be expected to reveal more detailed differentiation mechanisms. Unlike terrestrial invertebrates, such as Drosophila and mosquitoes, shrimps are creatures that live in the ocean and are evolutionarily distant from each other. There is room for improvement in genomic information, library preparation efficiency, functional prediction, etc., but this kind of single-cell study in shrimp will provide efficient solutions to aquaculture problems.

Materials and methods

Key resources table
Reagent type
(species)
or resource		DesignationSource or referenceIdentifiersAdditional information
Biological sample (Marsupenaeus japonicus)HemocytesNANAHemocytes from hemolymph from 20 g of kuruma shrimp
Sequence-based reagent1st PCR primerMacosko et al., 2015DOI: 10.1016/j.cell.2015.05.002AAGCAGTGGTATCAACGCAGAGT
Sequence-based reagentP5 universal primerIllumina, IncNAAATGATACGGCGACCACCGAGATCTACACGCCTGTCCGCGGAAGCAGTGGTATCAACGCAGAGT*A*C
Sequence-based reagenti7 index primerIllumina, IncNAN703: CAAGCAGAAGACGGCATACGAGATTTCTGCCTGTCTCGTGGGCTCGG
N704: CAAGCAGAAGACGGCATACGAGATGCTCAGGAGTCTCGTGGGCTCGG
N705: CAAGCAGAAGACGGCATACGAGATAGGAGTCCGTCTCGTGGGCTCGG
Sequence-based reagentCustom sequence primerMacosko et al., 2015DOI: 10.1016/j.cell.2015.05.002GCCTGTCCGCGGAAGCAGTGGTATCAACGCAGAGTAC
Sequence-based reagentEF-1αKoiwai et al., 2019DOI:10.1007/s12562-019-01311-5 sequence accession number: AB458256For: ATTGCCACACCGCTCACA
Rev: TCGATCTTGGTCAGCAGTTCA
Sequence-based reagentHemTGaseYeh et al., 2006DOI: 10.1016/j.bbapap.2006.04.005 sequence accession number: DQ436474For: GAGTCAGAAGTCGCCGAGTGT
Rev: TGGCTCAGCAGGTCGTTTAA
Sequence-based reagentPenaeidinAn et al., 2016DOI: 10.1016/j.dci.2016.02.001 sequence accession number: KU057370For: TTAGCCTTACTCTGTCAAGTGTACGCC
Rev: AACCTGAAGTTCCGTAGGAGCCA
Sequence-based reagentCrustinHipolito et al., 2014DOI: 10.1016/j.dci.2014.06.001 sequence accession number: AB121740For: AACTACTGCTGCGAAAGGTCTCA
Rev: GGCAGTCCAGTGGCTTGGTA
Sequence-based reagentStylicinLiu et al., 2015DOI: 10.1016/j.fsi.2015.09.044 sequence accession number: KR063277For: GGCTCTTCCTTTTCACCTG
Rev: GTCGGGCATTCTTCATCC
Sequence-based reagentproPOKoiwai et al., 2019DOI: 10.1007/s12562-019-01311-5 sequence accession number: AB073223For: CCGAGTTTTGTGGAGGTGTT
Rev: GAGAACTCCAGTCCGTGCTC
Sequence-based reagentSODHung et al., 2014DOI: 10.1016/j.fsi.2014.07.030 sequence accession number: AB908996For: GCCGACACTTCCGACATCA
Rev: TTTTGCTTCCGGGTTGGA
Sequence-based reagentC-lysozymeHikima et al., 2003DOI:10.1016/s0378-1119(03)00761-3For: ATTACGGCCGCTCTGAGGTGC
Rev: CCAGCAATCGGCCATGTAGC
Sequence-based reagentVRPElbahnaswy et al., 2017DOI: 10.1016/j.fsi.2017.09.045 sequence accession number: LC179543For: CTACGGTCGCTACCTTCGTTTG
Rev: TCAACAACGCTTCTGAACTTATTCC
Commercial assay or kitTRI REAGENTMolecular Research Center, IncTR118NA
Commercial assay or kitDirect-zol RNA MiniPrepZymo ResearchR2050NA
Commercial assay or kitDynabeads Oligo(dT)25Thermo Fisher ScientificDB61002NA
Commercial assay or kitDirect RNA Sequencing kitOxford Nanopore TechnologiesSQK-RNA002 kitNA
Commercial assay or kitMinION Flow CellOxford Nanopore TechnologiesFlow Cell R9.4.1NA
Commercial assay or kitNegative PhotoresistNippon Kayaku Co., Ltd.SU-8 3050NA
Commercial assay or kitPolydimethylsiloxane sylgard 184Dow Corning Corp.SYLGARD 184
Silicone Elastomer Kit		NA
Commercial assay or kitBarcoded Bead SeqBChemGenes CorporationMACOSKO-2011–10NA
Commercial assay or kitMaxima H Minus Reverse TranscriptaseThermo Fisher ScientificEP0751NA
Commercial assay or kitExonuclease INew England BiolabsM0293SNA
Commercial assay or kitKAPA HiFi HotStart ReadyMixRoche Ltd.KK2601NA
Commercial assay or kitKAPA HiFi DNA polymeraseRoche Ltd.KK2103NA
Commercial assay or kitAgencourt AMPure XP beadsBeckman CoulterA63882NA
Commercial assay or kitDNA Clean and Concentrator KitZymo ResearchD4013NA
Commercial assay or kitQubit dsDNA HS Assay KitThermo Fisher ScientificQ32851NA
Commercial assay or kitHigh-Capacity cDNA Reverse Transcription KitThermo Fisher Scientific4368814NA
Commercial assay or kitKOD SYBR qPCRTOYOBO Co. Ltd.QKD-201NA
Cell staining solutionMay-Grünwald‘s eosin methylene blue solution modifiedMerck KGaA101424NA
Cell staining solutionGiemsa’s Azure Eosin Methylene Blue solutionMerck KGaA109204NA
Software, algorithmGuppy v3.6.1Oxford Nanopore TechnologiesNAhttps://community.nanoporetech.com/
Software, algorithmMinKNOW v3.6.5Oxford Nanopore TechnologiesNAhttps://community.nanoporetech.com/
Software, algorithmTALC v1.01Broseus et al., 2020a, Broseus et al., 2020bDOI: 10.1093/bioinformatics/btaa634https://gitlab.igh.cnrs.fr/lbroseus/TALC
Software, algorithmrnaSPAdes v3.14.1Bushmanova et al., 2019a, Bushmanova et al., 2019bDOI: 10.1093/gigascience/giz100https://cab.spbu.ru/software/rnaspades/
Software, algorithmTrinity 2.10.0Grabherr et al., 2011, Grabherr et al., 2018DOI: 10.1038/nbt.1883https://github.com/trinityrnaseq/trinityrnaseq/wiki
Software, algorithmEvidentialGene v2022.01.20Gilbert, 2019NAhttp://arthropods.eugenes.org/EvidentialGene/
Software, algorithmBUSCO v5.0.0Seppey et al., 1962DOI: 10.1007/978-1-4939-9173-0_14https://busco.ezlab.org/
Software, algorithmBlast+ v2.2.31Altschul et al., 1990;
Camacho et al., 2009		DOI: 10.1016/s0022-2836(05)80360-2
DOI: 10.1186/1471-2105-10-421		https://ftp.ncbi.nlm.nih.gov/blast/executables/blast+/LATEST/
Software, algorithmDrop-seq tools v2.3.0McCarroll Lab Wysoker et al., 2020NAhttps://github.com/broadinstitute/Drop-seq
Software, algorithmPicard ToolkitBroad Institute Picard Toolkit, 2019NAhttp://broadinstitute.github.io/picard/
Software, algorithmSTAR v2.7.8aDobin et al., 2013; Dobin et al., 2021DOI:
10.1093/bioinformatics/bts635		https://github.com/alexdobin/STAR
Software, algorithmSurat v4.0.1Butler et al., 2018; Stuart et al., 2019DOI: 10.1038/nbt.4096
DOI: 10.1016/j.cell.2019.05.031		https://satijalab.org/seurat/
Software, algorithmMonocle 3 v0.2.3.0Trapnell et al., 2014, Trapnell et al., 2021DOI: 10.1038/nbt.2859https://github.com/cole-trapnell-lab/monocle3

Shrimp and cell preparation

Request a detailed protocol

Twenty-three female kuruma shrimp, M. japonicus, with an average weight of 20 g, were purchased from a local distributor and maintained in artificial seawater with a 34 ppt salinity with a recirculating system at 20°C. Hemolymph was collected using an anticoagulant solution suitable for penaeid shrimp (Söderhäll and Smith, 1983) from an abdominal site. The collected hemolymph was centrifuged at 800 × g for 10 min to collect the hemocytes, which were then washed twice with PBS, and the osmolarity was adjusted to kuruma shrimp (KPBS: 480 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4·12H2O, 1.47 mM KH2PO4, pH 7.4).

Preparation of expressing gene list of hemocytes

Request a detailed protocol

De novo assembled transcript data were prepared as a reference for mapping Drop-seq data because the genome sequence of M. japonicus is still unknown. To improve the quality of the de novo assembled transcript sequences, we prepared long-read mRNA sequences using MinION (Oxford Nanopore Technologies) direct RNA sequencing to conduct hybrid de novo assembly. Poly(A) tailed RNA was purified from 58 μg of total RNA from the hemocytes of 16 shrimp using Dynabeads Oligo(dT)25 (Thermo Fisher Scientific), and 500 ng of poly-(A) RNA was ligated to adaptors using a direct RNA sequencing kit (Oxford Nanopore Technologies) according to the manufacturer’s manual version DRS_9080_v2_revL_14Aug2019. Finally, 44 ng of the library was obtained and sequenced using MinION by using a MinION flow cell R9.4.1 (Oxford Nanopore Technologies). All sequencing experiments were performed using MinKNOW v3.6.5 without base calling. Raw sequence data were then base-called using Guppy v3.6.1. Once the raw signal from the MinION fast5 files was converted into fastq files, the sequencing errors were corrected using TALC v1.01 (Broseus et al., 2020a, https://gitlab.igh.cnrs.fr/lbroseus/TALC, Broseus et al., 2020b), by using the Illumina short reads sequence of M. japonicus shrimp hemocytes (DDBJ Sequence Read Archive [DRA] accession number DRA004781). The corrected long-read sequences from MinION and short-read sequences from Illumina Miseq were hybrid de novo assembled using rnaSPAdes v3.14.1 (Bushmanova et al., 2019a, https://cab.spbu.ru/software/rnaspades/, Bushmanova et al., 2019b) and Trinity 2.10.0 (Grabherr et al., 2011, https://github.com/trinityrnaseq/trinityrnaseq/wiki, Grabherr et al., 2018). All assembled de novo transcripts were merged and subjected to the EvidentialGene program v2022.01.20 (http://arthropods.eugenes.org/EvidentialGene/, Gilbert, 2019) to remove similar sequences with a default parameter. The remaining sequences were renamed as Mj-XXX and were subjected to BUSCO analysis to check the quality of assembling (Seppey et al., 1962). The assembled transcripts were used as a hemocyte-expressing gene list. The assembled sequences and code used to perform base-calling and de novo assembly are available on GitHub at https://github.com/KeiichiroKOIWAI/Drop-seq_on_shrimp (Koiwai, 2021a, copy archived at swh:1:rev:cddd130b4cb841168bf3e29d0fbfef0de5ef2ad7, Koiwai, 2021b).

Single-cell and single-bead encapsulation by a microfluidic device and exonuclease and reverse transcribe reaction on a bead

Request a detailed protocol

The Drop-seq procedure was used to encapsulate single hemocytes and single mRNA capture beads together into fL-scale microdroplets, as previously described (Macosko et al., 2015). The following steps were performed in triplicates for three shrimp individuals. Briefly, the self-built Drop-seq microfluidic device was prepared by molding polydimethylsiloxane (PDMS; Sylgard 184, Dow Corning Corp.) from the microchannel structure formed by the negative photoresist (SU-8 3050, Nippon Kayaku Co.). Using this device, droplets containing a cell and a Barcoded Bead SeqB (ChemGenes Corporation) were produced up to 2 mL per sample using a pressure pump system (Droplet generator, On-chip Biotechnologies Co., Ltd.). During the sample introduction, the vial bottles containing cells and beads were shaken using a vortex mixer to prevent sedimentation and aggregation (Biočanin et al., 2019). Droplets were collected from the channel outlet into the 50 mL corning tube and incubated at 80°C for 10 min in a water bath to promote hybridization of the poly(A) tail of mRNA and oligo d(T) on beads. After incubation, droplets were broken promptly and barcoded beads with captured transcriptomes were reverse transcribed using Maxima H Minus Reverse Transcriptase (Thermo Fisher Scientific) at room temperature (RT) for 30 min, then at 42°C for 90 min. Then, the beads were treated with Exonuclease I (New England Biolabs) to obtain single-cell transcriptomes attached to microparticles (STAMP). The first-strand cDNAs on beads were amplified using PCR. The beads obtained above were distributed throughout PCR tubes (1000 beads per tube), wherein 1× KAPA HiFi HS Ready Mix (KAPA Biosystems) and 0.8 µM 1st PCR primer were included in a 25 μL reaction volume. PCR amplification was achieved using the following program: initial denaturation at 95°C for 3 min; 4 cycles at 98°C for 20 s, 65°C for 45 s, and 72°C for 6 min; 12 cycles of 98°C for 20 s, 67°C for 20 s, and 72°C for 6 min; and a final extension at 72°C for 5 min. The amplicons were pooled, double-purified with 0.9× AMPure XP beads (Beckman Coulter), and eluted in 100 μL of ddH2O. Sequence-ready libraries were prepared according to Picelli et al., 2014. A total of 1 ng of each cDNA library was fragmented using home-made Tn5 transposome in a solution containing 10 mM TAPS-NaOH (pH 8.5), 5 mM MgCl2, and 10% dimethylformamide at 55°C for 10 min. The cDNA fragments were purified using a DNA Clean and Concentrator Kit (Zymo Research) and eluted in 25 µL of ddH2O. The index PCR reaction was performed by adding 12 µL of the elute to a mixture consisting of 1× Fidelity Buffer, 0.3 mM dNTPs, 0.5 U KAPA HiFi DNA polymerase (KAPA Biosystems), 0.2 µM P5 universal primer, and 0.2 µM i7 index primer. Each reaction was achieved as follows: initial extension and subsequent denaturation at 72°C for 3 min and 98°C for 30 s; 12 cycles of 98°C for 10 s, 63°C for 30 s, and 72°C for 30 s; and a final extension at 72°C for 5 min. The amplified library was purified using 0.9× AMPure XP beads and sequenced (paired-end) on an Illumina NextSeq 500 sequencer (NextSeq 500/550 High Output v2 kit [75 cycles]); 20 cycles for read1 with custom sequence primer, 8 cycles for index read, and 64 cycles for read2. Before performing the Drop-seq on M. japonicus shrimp hemocytes, we validated the protocol by performing the same procedure using a mixture of HEK293 and NIH3T3 cells and sequencing the test library using a Miseq Reagent Kit v3 (150 cycles).

Analysis of single-cell data

Request a detailed protocol

Paired-end reads were processed and mapped to the reference de novo assembled gene list of hemocytes following the Drop-seq Core Computational Protocol version 2.0.0 and the corresponding Drop-seq tools v2.3.0 (https://github.com/broadinstitute/Drop-seq; Wysoker et al., 2020), provided by McCarroll Lab (http://mccarrolllab.org/dropseq/). The Picard suite (https://github.com/broadinstitute/picard, Picard Toolkit, 2019). was used to generate the unaligned bam files. The steps included the detection of barcode and UMI sequences, filtration and trimming of low-quality bases and adaptors or poly(A) tails, and the alignment of reads using STAR v2.7.8a (Dobin et al., 2013). The cumulative distribution of reads from the aligned bam files was obtained using BAMTagHistogram, and the number of cells was inferred using Drop-seq tools.

Data integration

Request a detailed protocol

After digital expression data from three shrimps were read using Seurat v4.0.1 (Butler et al., 2018; Hafemeister and Satija, 2019) (https://satijalab.org/seurat/). To remove data from low-quality cells or empty droplets, we filtered digital expression data with unique feature counts over 4000 or less than 500 and mitochondrial counts over 10% or less than 1%, then the remained 2566 dataset was used for the further analysis. SCTransform (Hafemeister and Satija, 2019) was performed to remove the technical variation, while retaining biological heterogeneity. We ran a PCA using the expression matrix of the top 3000 most variable genes. The total number of principal components (PCs) required to compute and store was 50. The UMAP was then performed using the following parameters: n.neighbors, min.dist, and n.components were 50L, 0.2, and 2, respectively, to visualize the data in the two-dimensional space, and then the clusters were predicted with a resolution of 0.4.

Functional prediction of the highly expressed genes and clusters

Request a detailed protocol

The de novo assembly constructed 30,986 transcripts. However, not all transcripts were not so expressed in our single-cell data. Thereby, we limited to the highly expressed genes as ‘Ex50’ that represent 50% of the total normalized expression data. The functions of Ex50 were predicted using BLAST program v2.2.31 (Camacho et al., 2009; Altschul et al., 1990) on three common penaeid shrimp, L. vannamei, P. monodon, and M. japonicus, proteins (totally 62,242 proteins were downloaded from NCBI Protein Groups on 10 April 2021) with the blastx parameter of e-value as 1e-6, and KOGs and GOs of each Ex50 were also predicted using TransDecoder (https://github.com/TransDecoder/TransDecoder, Zimmermann et al., 2018) and eggNOG-mapper (http://eggnog-mapper.embl.de/, Cantalapiedra et al., 2021). From the annotated result, 21 KOGs and eleven GOs were selected, then average expressions were calculated on the clusters by AddModuleScore function of Seurat. The functions of each cluster were also predicted based on the marker genes. Marker genes were predicted using the Seurat FindAllMarkers tool with the following parameters: min.pct as 0.5, logfc.threshold as 1, and test.

Prediction of cell cycles based on Drosophila G2/M and S phase marker genes

Request a detailed protocol

To calculate cell cycle, Ex50 genes were annotated with Drosophila G2/M and S phase marker genes (https://github.com/hbc/tinyatlas, Kirchner and Barrera, 2019) using blastx parameter of e-value as 1e-6. Based on this result, we calculated cell cycle score of each single cell by Seurat CellCycleScoring function.

Pseudo-temporal ordering of cells using Monocle 3

Request a detailed protocol

The integrated data of Seurat were transferred to Monocle 3 (Trapnell et al., 2014, https://github.com/cole-trapnell-lab/monocle3, Trapnell et al., 2021), to calculate a cell trajectory using the learn_graph function. We assigned the start point based on the expression of cell proliferation-related genes and Drosophila marker genes of the cell cycle.

Comparison with Drosophila hemocyte marker genes

Request a detailed protocol

To check whether the Drosophila marker genes are applicable to shrimp, we performed a BLAST search on the Drosophila cell-type markers (https://github.com/hbc/tinyatlas, Kirchner and Barrera, 2019). Ex50 were blastx searched on D. melanogaster genes (dmel-all-gene-r6.34.fasta; downloaded from FlyBase https://flybase.org/) with the parameters of e-value as 1e-6.

Visualization of cell growth-related and immune-related genes on single hemocytes

Request a detailed protocol

To visualize the immune-related genes of shrimp, we identified the distinct sequences from Ex50 based on their blastx results against penaeid shrimp proteins. Here, we focused on the cell growth-related genes and on immune-related genes, such as AMPs, lysozyme, clotting-related, melanization-related, phagocytosis-related, superoxide dismutase, Kazal-type proteinase inhibitors, and other immune-related genes listed in Supplementary file 1. The average expressions of each immune-related genes were calculated on the clusters by AddModuleScore function of Seurat.

Cell sorting of hemocytes and qRT-PCR of marker genes

Request a detailed protocol

To validate the Drop-seq results on hemocytes, populations of hemocytes in the forward scatter (FSC) and side scatter (SSC) two-dimensional space were sorted using a microfluidic cell sorter (On-chip sort, On-chip Biotechnologies Co., Ltd.) from four shrimp individuals (Figure 9—figure supplement 1). In the FSC/SSC two-dimensional space, two main populations were predicted as R1: small/simple and R2: large/complexity populations, which were defined as agranulocytes and granulocytes, respectively. After sorting, some sorted hemocytes were immediately fixed in 2% formalin in KPBS and stained with a May-Grunwald and Giemsa staining solution to observe the cellular components. Briefly, fixed hemocytes were smeared on a glass slides and dried, stained for 5 min with 20% May-Grunwald stain solution (Merck KGaA) in 6.67 mM phosphate buffer (pH 6.6), washed with phosphate buffer, stained for 15 min with 4% Giemsa stain solution (Merck KGaA) in 6.67 mM phosphate buffer (pH 6.6), and washed with tap water, dried, mounted with malinol (Muto Pure Chemicals). Non-stained and stained hemocytes were subjected to microscopy IX71 (Olympus Corporation) to observe their structures.

Total RNA was also collected from sorted cells and pre-sorted cells. The concentration of RNA was measured using a nanodrop, and cDNA was transcribed using a High-Capacity cDNA Reverse Transcription Kit (Thermo Fisher Scientific). Constructed cDNA was diluted five times with TE buffer and subjected to qRT-PCR with a number of cycles as 40 using KOD SYBR qPCR (TOYOBO Co. Ltd.), following the manufacturer’s protocol. When the CT value was not detectable, we set a CT value of 40 to use for ΔCT calculation. The expression of each gene was calculated using the ΔΔCT method against elongation factor-1 alpha and total hemocytes.

Statistics

Statistics of qRT-PCR were performed on R software. Significance between two hemocyte R1 and R2 was calculated by unpaired t-test. The p values shown in the figures are represented by *p<0.05.

Data files and analysis code

Request a detailed protocol

The raw sequence data of newly sequenced M. japonicus transcriptomic reads were archived in the DDBJ Sequence Read Archive (DRA) of the DNA Data Bank of Japan as follows: MinION mRNA direct sequencing: DRA010948; Drop-seq shrimp rep1: DRA010950; shrimp rep2: DRA010951; shrimp rep3: DRA010952; mixture sample of HEK293 and 3T3 cells: DRA010949. The Seurat digital expression data were archived in the Genomic Expression Archive of the DNA Data Bank of Japan: E-GEAD-403. Fast5 data of MinION direct RNA sequencing will be made available upon request from the authors. The code used to perform de novo assembly, clustering, and marker analysis is available on GitHub at https://github.com/KeiichiroKOIWAI/Drop-seq_on_shrimp, Koiwai, 2021a.

Data availability

Sequencing data have been deposited in DDBJ under accession codes DRA010948, DRA010949, DRA010950, DRA010951, and DRA010952. Digital expression data of Drop-seq from three shrimp were archived in DDBJ under accession code E-GEAD-403. Data code can be accessed at https://github.com/KeiichiroKOIWAI/Drop-seq_on_shrimp (copy archived at https://archive.softwareheritage.org/swh:1:rev:cddd130b4cb841168bf3e29d0fbfef0de5ef2ad7). All data generated or analyzed during this study are included in the manuscript and supporting files. All tables are provided as Supplementary files. Source data files are provided to support the sinaplots in Figure 2, Figure 2-figure supplement 1. Source data files are provided to support thepercentage of cell state in Figure 5. Source data file is provided to support the bar graph in Figure 9F.

The following data sets were generated
    1. Koiwai K
    2. Koyama T
    3. Tsuda S
    4. Toyoda A
    5. Kikuchi K
    6. Suzuki H
    7. Kawano R
    (2020) DDBJ Sequence Read Archive
    ID DRA010948. Direct RNA sequencing data of hemocytes of Marsupenaeus japonicus using MinION.
    https://trace.ddbj.nig.ac.jp/DRASearch/submission?acc=DRA010948
    1. Koiwai K
    2. Koyama T
    3. Tsuda S
    4. Toyoda A
    5. Kikuchi K
    6. Suzuki H
    7. Kawano R
    (2020) DDBJ Sequence Read Archive
    ID DRA010949. Raw sequence data of drop-seq on mixture sample of HEK293 and 3T3 cells.
    https://trace.ddbj.nig.ac.jp/DRASearch/submission?acc=DRA010949
The following previously published data sets were used
    1. Koiwai K
    2. Alenton RRR
    3. Shiomi R
    4. Nozaki R
    5. Kondo H
    6. Hirono I
    (2016) DDBJ Sequence Read Archive
    ID DRA004781. Transcriptome analysis on different sub-populations of hemocytes of kuruma shrimp Marsupenaeus japonicus.
    https://trace.ddbj.nig.ac.jp/DRASearch/submission?acc=DRA004781

References

    1. Bauchau AG
    (1981)
    Cruataceans
    Invertabrate Blood Cells 2:385–420.
  11. Software
    1. Bushmanova E
    2. Antipov D
    3. Lapidus A
    4. Prjibelski AD
    (2019b)
    rnaSPAdes , version v3.14.1
    Center for Algorithmic Biotechnology, St.Petersburg State University, https://cab.spbu.ru/software/rnaspades/.
  30. Book
    1. FAO
    (2020)
    Fishery and Aquaculture Statistics 2018/FAO Annuaire
    FAO.
  35. Software
    1. Gilbert D
    (2019) EvidentialGene, version v2022.01.20
    Genome Informatics Lab of Indiana University Biology Department.
    http://arthropods.eugenes.org/EvidentialGene/
    1. Rasko JE
    2. Klenova EM
    3. Leon J
    4. Filippova GN
    5. Loukinov DI
    6. Vatolin S
    7. Robinson AF
    8. Hu YJ
    9. Ulmer J
    10. Ward MD
    11. Pugacheva EM
    12. Neiman PE
    13. Morse HC
    14. Collins SJ
    15. Lobanenkov VV
    (2001)
    Cell growth inhibition by the multifunctional multivalent zinc-finger factor CTCF
    Cancer Research 61:6002–6007.
    1. Rosa RD
    2. Barracco MA
    (2010)
    Antimicrobial peptides in crustaceans
    Invertebrate Survival Journal 7:262–284.
    1. Seppey M
    2. Manni M
    3. Zdobnov EM
    (1962)
    BUSCO: assessing genome assembly and annotation completeness
    Methods in Molecular Biology 2019:227–245.
    1. Su TT
    2. Parry DH
    3. Donahoe B
    4. Chien CT
    5. O'Farrell PH
    6. Purdy A
    (2001)
    Cell cycle roles for two 14-3-3 proteins during Drosophila development
    Journal of Cell Science 114:3445–3454.

Decision letter

  1. Jiwon Shim
    Reviewing Editor; Hanyang University, Republic of Korea
  2. Utpal Banerjee
    Senior Editor; University of California, Los Angeles, United States

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

Unlike in classical model organisms, it has been challenging to comprehensively understand the biological attributes of cells in non-model systems such as in shrimps. This study takes advantage of single-cell RNA sequencing and profiles the diversity and putative lineages of shrimp hemocytes. The primary claims are well supported by the data, and this study will contribute substantially, not only to crustacean biology but also related areas.

Decision letter after peer review:

Thank you for submitting your article "Single-cell RNA-seq analysis reveals penaeid shrimp hemocyte subpopulations and cell differentiation process" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Utpal Banerjee as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential Revisions:

The reviewers agreed that the study was well-performed and analyzed and bears the potentials to improve understandings of shrimp immune systems. Reviewers raised several concerns and recognized that additional data QC is essential to make strong conclusions. Requirements on in vivo validation will further strengthen the paper; however, the reviewers agreed it would not be feasible to perform the experiments suggested. Please find the list below and details in reviewers' comments.

Data QC:

1. de novo assembly and correlation to reference genome

2. Cell viability and low UMI

3. Batch effects (similarities between triplicates) and doublets

4. Cutoff values for the number of UMI per cell

5. Mitochondrial contents

6. Additional analysis for subcluster clustering including Hem1 and Hem6

7. Re-validation of pseudotime and lineage analyses

in vivo validation:

The reviewers acknowledged that it is difficult to do in-depth in vivo verification with shrimps. The working model (e.g. Figure 7) could be modified or removed if additional in vivo validations are not provided. If possible, in vivo experiments could be supplied to keep the model.

Reviewer #1 (Recommendations for the authors):

1. Page 5 line 88, Cho et al. Nature Communications (2020) [PMID 32900993] sequenced Drosophila hemocytes in various conditions using the Drop-Seq platform.

2. Page 11 line 162, typo; TINGAL to TINAGL

3. In Figure 3B, please consider adding pseudotime density plots for each Hem cluster. I think this can clearly show where Hem clusters are located in the trajectory.

4. In Figure 6F, the authors showed that a subset of marker genes are differentially expressed in R1 or R2 groups with the use of qRT-PCR. However, it is not clear the data is statistically sound to claim the result. Additional statistical analysis is required to adequately support the authors' claim.

5. The authors used "top 3,000 most variable genes" in the PCA while the data have 3,334 commonly expressed genes. Are all these variable genes included in the "common genes"? This point should be confirmed.

Reviewer #2 (Recommendations for the authors):

It would help a reader to analyze the data if the Drosophila genes corresponding to the Mj genes in figure3 supplement 1 and figure 3 supplement 2 were included at the side in the "table".

Figure 7 is too speculative since no functional experiments (as RNAi) has been done to confirm the schedule, and therefore figure 7 should be removed.

The quality check should also be discussed more as well as the low number of UMI, and the percentage of mitochondrial genes should be included.

The last part with FACS sorting and qPCR could be removed, since this doesn't add any information or confirmation. The proposed lineages could also be discussed in a bit more critical way.

Reviewer #3 (Recommendations for the authors):

The following suggestions might help the authors to strength the science or improve the manuscript:

1. There is a small cluster of cells of Hem1 up of the label of 'Hem1' in Figure 1, but this small cluster was gone in all other analysis. Can you discuss about this particular cluster?

2. Previous study indicates phagocytosis by hemocyte is a crucial defense mechanism for the host against infections (PMID: 32194551). Those phagocytotic hemocytes should be terminally differentiated cells, and phagocytosis related genes should express in those cells. Can you check how those genes are expressed in the shrimp hemocytes? This could further confirm your differentiation hypothesis.

3. Two additional Drosophila hemocyte single-cell RNA sequencing papers should be cited (PMID: 32487456; PMID: 32162708).

4. The method used for the dye staining in Figure 6B and D should be presented in the Materials and methods part.

5. The primer sequence used for qRT-PCR should be presented in the Materials and methods part.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Single-cell RNA-seq analysis reveals penaeid shrimp hemocyte subpopulations and cell differentiation process" for further consideration by eLife. Your revised article has been evaluated by Utpal Banerjee (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

As you can find below comments, the reviewers agreed that the authors addressed most of the concerns by reanalyzing and processing the data. Yet, the new data raise additional points with regards to (1) considerably different conclusions obtained by alternative parameters and (2) multiple calls of the same gene transcripts in some analyses due to the lack of reference genome. These points need to be reanalyzed if possible or at least be discussed.

Reviewer #1 (Recommendations for the authors):

The authors performed additional analyses and successfully addressed all the major concerns. The authors substantially enhanced the quality of data by removing dead cells and increasing UMI/gene counts. Although overall numbers of UMI and genes are still lower than those of other model organisms, it would be potentially improved with a reference genome which is expected to be built shortly. The quality of clustering is also clear enough. Further, descriptions of in vivo experiments and models are simplified as suggested, and I hope to see in-depth validation in the near future.

Reviewer #2 (Recommendations for the authors):

The authors have responded to all questions but my main concern is that when they remade the analysis nearly completely, the results were so different with a new software and when new parameters are used. This is a bit worrying especially for the lineage determination. In the first version the conclusion was four lineages and now only two lineages. The authors need to explain why the resolution is so very different.

A problem that should at least be discussed is related to the lack of genome sequence, and this is evident for example in figure 8 figure supplement 1, where several transcripts seem to be from the same gene (AMH87234.1 = Mj-18245 + Mj-19281+ Mj-20968 and ABW88999.1=Mj-3787+Mj-19067+Mj-19338+Mj-28125). This is always a problem when using transcriptome instead of a fully annotated genome, and it is important to be aware of that single-cell RNA-seq provides only a snapshot of each individual cell and they may be in different stages of the cell cycle and / or turnover of RNA. Therefore, transcripts belonging to the same gene should be merged when possible. I realize that this is impossible for all transcripts, but for known important immune genes and/or cell cycle genes used in the clustering and lineage determination it should be done.

Regarding the validation at line 492 and forward, this is still not meaningful. The authors say that BrdU incorporation and in situ hybridization are not possible for shrimp hemocytes, but there are several published studies showing in situ hybridization of crustacean hemocytes so this answer is difficult to understand. The FACS-analysis is not a good enough separation, and in situ hybridization of some of the transcripts could be of value to show the morphology of the corresponding cell. Maybe morphology doesn't tell us so much, but this is important to show.

Reviewer #3 (Recommendations for the authors):

The authors did a great job in the revised manuscript to address all the concerns that I had for the first submission.

https://doi.org/10.7554/eLife.66954.sa1

Author response

Essential Revisions:

The reviewers agreed that the study was well-performed and analyzed and bears the potentials to improve understandings of shrimp immune systems. Reviewers raised several concerns and recognized that additional data QC is essential to make strong conclusions. Requirements on in vivo validation will further strengthen the paper; however, the reviewers agreed it would not be feasible to perform the experiments suggested. Please find the list below and details in reviewers' comments.

Thank you for the review comments and the summary. We have also examined the percentage of mitochondria-derived sequences and verified why there were so few UMIs in one cell. A detailed response is given below. We believe that this correction answers your point.

Data QC:

1. de novo assembly and correlation to reference genome

The genome sequence of the kuruma shrimp M. japonicus has only been registered, and the high-quality data has not been published yet. Therefore, we could not perform validation using the genome sequence. However, by applying the BUSCO tool to the assembled sequences, we verified the quality of the assembly genes.

2. Cell viability and low UMI

By confirming the mitochondrial-derived sequences, we cleared up the suspicion that large numbers of dead cells were contaminating. We have also succeeded in increasing the number of UMIs by changing mapping software and adjusting the parameters. The value of UMIs is still lower than that of other model organisms, but we think that will improve as the reference genome is published in the future. I have discussed this in the manuscript.

3. Batch effects (similarities between triplicates) and doublets

The triplicate distribution after batch correction is shown in the Figure 2—figure supplement 1 and Figure 5—figure supplement 1. For Doublets, we assumed UMI less than 4000 this time because none of them had prominent UMI.

4. Cutoff values for the number of UMI per cell

Since there are no set rules here, we set the parameters for one cell (in the same way as in comment 3) based on the initial distribution diagram.

5. Mitochondrial contents

As we answered in the cell viability and low UMI section, we checked and figured the results of mitochondrial contents.

6. Additional analysis for subcluster clustering including Hem1 and Hem6

7. Re-validation of pseudotime and lineage analyses

Based on the new UMI counts, we re-did in silico Clustering and pseudotime analysis with new parameters.

in vivo validation:

The reviewers acknowledged that it is difficult to do in-depth in vivo verification with shrimps. The working model (e.g. Figure 7) could be modified or removed if additional in vivo validations are not provided. If possible, in vivo experiments could be supplied to keep the model.

We strongly agree this comment, it is necessary to check how hemocytes are differentiated and classified by using marker antibodies, in situ, etc., but it is difficult to perform that experiment accurately in shrimp immediately. As commented by the editor, the figure here has been removed.

Reviewer #1 (Recommendations for the authors):

1. Page 5 line 88, Cho et al. Nature Communications (2020) [PMID 32900993] sequenced Drosophila hemocytes in various conditions using the Drop-Seq platform.

Thank you for your comment. We have added it to the reference.

2. Page 11 line 162, typo; TINGAL to TINAGL

Thank you, we removed the sentence.

3. In Figure 3B, please consider adding pseudotime density plots for each Hem cluster. I think this can clearly show where Hem clusters are located in the trajectory.

Thank you for useful comments. We have made new figures for pseudotime analysis. (Figure 5A and B).

4. In Figure 6F, the authors showed that a subset of marker genes are differentially expressed in R1 or R2 groups with the use of qRT-PCR. However, it is not clear the data is statistically sound to claim the result. Additional statistical analysis is required to adequately support the authors' claim.

We did t-test for all qRT-PCR result and put results on the figure.

5. The authors used "top 3,000 most variable genes" in the PCA while the data have 3,334 commonly expressed genes. Are all these variable genes included in the "common genes"? This point should be confirmed.

We have re-done the previous analysis and changed to analyze the genes that account for 50% of the expression level, as previous analysis we still used "top 3,000 most variable genes" in the PCA.

Reviewer #2 (Recommendations for the authors):

It would help a reader to analyze the data if the Drosophila genes corresponding to the Mj genes in figure3 supplement 1 and figure 3 supplement 2 were included at the side in the "table".

Thank you for suggestion. We figured the relationship between Mj genes and Drosophila genes corresponding as Figure 6.

Figure 7 is too speculative since no functional experiments (as RNAi) has been done to confirm the schedule, and therefore figure 7 should be removed.

We understood your comment. Since we could not conduct any functional research about marker genes, we have removed figure 7.

The quality check should also be discussed more as well as the low number of UMI, and the percentage of mitochondrial genes should be included.

The number of UMIs/cell has been improved as a result of changes to the mapping software and the parameters used when analyzing the UMI detection method for each cell. This is still lower than human cells, but we believe it is the best we can do now that genomic information is not available. The ratio of mitochondria is calculated and summarized in the Figure 2.

The last part with FACS sorting and qPCR could be removed, since this doesn't add any information or confirmation. The proposed lineages could also be discussed in a bit more critical way.

What we want to show here is that it is very difficult to classify hemocytes by morphologically, and even if we could, it is likely to be divided into two rough groups (FACS result). As in the answer to the question above, we believe the advantage of this project is that we were able to search for marker candidates and provide guidelines for cell classification in the future. Of course, in the future, we hope to look at the function and expression of each gene.

Reviewer #3 (Recommendations for the authors):

The following suggestions might help the authors to strength the science or improve the manuscript:

1. There is a small cluster of cells of Hem1 up of the label of 'Hem1' in Figure 1, but this small cluster was gone in all other analysis. Can you discuss about this particular cluster?

Based on the new UMI counts, we re-did in silico Clustering and pseudotime analysis with new parameters. It made more clear result.

2. Previous study indicates phagocytosis by hemocyte is a crucial defense mechanism for the host against infections (PMID: 32194551). Those phagocytotic hemocytes should be terminally differentiated cells, and phagocytosis related genes should express in those cells. Can you check how those genes are expressed in the shrimp hemocytes? This could further confirm your differentiation hypothesis.

Thank you for your constructive feedback. We discussed about phagocytosi-related genes in this study.

3. Two additional Drosophila hemocyte single-cell RNA sequencing papers should be cited (PMID: 32487456; PMID: 32162708).

Thank you for the input. We added the reference on revised manuscript.

4. The method used for the dye staining in Figure 6B and D should be presented in the Materials and methods part.

Thank you for the suggestion. We added the protocol.

5. The primer sequence used for qRT-PCR should be presented in the Materials and methods part.

Yes, thank you. The sequences are on the Key Resource Table.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

As you can find below comments, the reviewers agreed that the authors addressed most of the concerns by reanalyzing and processing the data. Yet, the new data raise additional points with regards to (1) considerably different conclusions obtained by alternative parameters and (2) multiple calls of the same gene transcripts in some analyses due to the lack of reference genome. These points need to be reanalyzed if possible or at least be discussed.

Thank you for the review comments and the summary. As for the comment (1), we believe that this is due to the fact that the number of UMIs detections has increased, allowing for a more accurate analysis. As for the comment (2), this is true, but we will not know which genes are important until we map and analyze them. If we summarized only specific genes by ourselves, it would be a bias, so we conducted the analysis based on this result. A detailed response is given below. Thanks again to your and reviewers’ comments, we were able to make our paper better. We believe that this revision will meet your expectations.

Reviewer #1 (Recommendations for the authors):

The authors performed additional analyses and successfully addressed all the major concerns. The authors substantially enhanced the quality of data by removing dead cells and increasing UMI/gene counts. Although overall numbers of UMI and genes are still lower than those of other model organisms, it would be potentially improved with a reference genome which is expected to be built shortly. The quality of clustering is also clear enough. Further, descriptions of in vivo experiments and models are simplified as suggested, and I hope to see in-depth validation in the near future.

Thank you for carefully reading our revised manuscript. We think your comments helped us to improve our manuscript. We will continue mapping to the genome sequence in near future and conduct more detailed single-cell analysis based on this manuscript.

Reviewer #2 (Recommendations for the authors):

The authors have responded to all questions but my main concern is that when they remade the analysis nearly completely, the results were so different with a new software and when new parameters are used. This is a bit worrying especially for the lineage determination. In the first version the conclusion was four lineages and now only two lineages. The authors need to explain why the resolution is so very different.

Thank you for deep reading our revised manuscript and your all comments improved our revised manuscript. This is probably due to the improvement in the number of detected UMIs. The early version showed four pathways because the resolution of the analysis was low, and we think the newer version, with its improved resolution of gene analysis per cell, is the best for the current situation. Also, the endpoints of the previous four pathways are thought to be enclosed in the current pathway. We do not believe that our result is complete, and we expect that more detailed studies will be conducted in the future as reference genomes become available.

A problem that should at least be discussed is related to the lack of genome sequence, and this is evident for example in figure 8 figure supplement 1, where several transcripts seem to be from the same gene (AMH87234.1 = Mj-18245 + Mj-19281+ Mj-20968 and ABW88999.1=Mj-3787+Mj-19067+Mj-19338+Mj-28125). This is always a problem when using transcriptome instead of a fully annotated genome, and it is important to be aware of that single-cell RNA-seq provides only a snapshot of each individual cell and they may be in different stages of the cell cycle and / or turnover of RNA. Therefore, transcripts belonging to the same gene should be merged when possible. I realize that this is impossible for all transcripts, but for known important immune genes and/or cell cycle genes used in the clustering and lineage determination it should be done.

We understand this concern you pointed. However, we will not know which genes are important until we map and analyze them. We also used a program called EvidentialGene to exclude similar genes as much as possible, and we tried to exclude duplicates using a program called CD-HIT, but it did not work as well as EvidentialGene. As you pointed out, if we summarized only specific genes by ourselves, it would be a bias, so we conducted the analysis based on the results of clustering by EvidentialGene in this manuscript. We have added sentences in the main text to help the reader understand our thoughts on this point.

Regarding the validation at line 492 and forward, this is still not meaningful. The authors say that BrdU incorporation and in situ hybridization are not possible for shrimp hemocytes, but there are several published studies showing in situ hybridization of crustacean hemocytes so this answer is difficult to understand. The FACS-analysis is not a good enough separation, and in situ hybridization of some of the transcripts could be of value to show the morphology of the corresponding cell. Maybe morphology doesn't tell us so much, but this is important to show.

Yes, we think this is an important point. Also, we strongly agree with the "Maybe morphology doesn't tell us so much" part. However, we believe that the significance of this paper lies in the fact that we applied single cell analysis to shrimp hemocytes and established guidelines for a classification. The actual function of the markers and differentiation factors discovered in this study is the target of future research, and we would like to challenge more molecular biological assay systems at that time. We believe that the reader will understand the challenges of this research result, as we have also described them in the summary section after Line 595.

https://doi.org/10.7554/eLife.66954.sa2

Article and author information

Author details

  1. Keiichiro Koiwai

    1. Department of Biotechnology and Life Science, Tokyo University of Agriculture and Technology, Koganei, Japan
    2. Laboratory of Genome Science, Tokyo University of Marine Science and Technology, Minato, Japan
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Funding acquisition, Investigation, Visualization, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    koiwai@kaiyodai.ac.jp
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8890-8229

  2. Takashi Koyama

    1. Fisheries Laboratory, Graduate School of Agricultural and Life Sciences, The University of Tokyo, Hamamatsu, Japan
    2. Graduate School of Fisheries and Environmental Sciences, Nagasaki University, Nagasaki, Japan
    Contribution
    Resources, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7140-7244

  3. Soichiro Tsuda

    bitBiome Inc, Shinjuku, Japan
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    is an employee of bitBiome inc, and does not own any stock of the company.

  4. Atsushi Toyoda

    Advanced Genomics Center, National Institute of Genetics, Mishima, Japan
    Contribution
    Resources, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0728-7548

  5. Kiyoshi Kikuchi

    Fisheries Laboratory, Graduate School of Agricultural and Life Sciences, The University of Tokyo, Hamamatsu, Japan
    Contribution
    Resources, Supervision, Funding acquisition
    Competing interests
    No competing interests declared

  6. Hiroaki Suzuki

    Department of Precision Mechanics, Faculty of Science and Engineering, Chuo University, Bunkyo, Japan
    Contribution
    Resources, Supervision, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8899-0955

  7. Ryuji Kawano

    Department of Biotechnology and Life Science, Tokyo University of Agriculture and Technology, Koganei, Japan
    Contribution
    Resources, Supervision, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6523-0649

Funding

Japan Society for the Promotion of Science (20K15603)

  • Keiichiro Koiwai

Japan Society for the Promotion of Science (19J00539)

  • Keiichiro Koiwai

Japan Society for the Promotion of Science (17H06425)

  • Kiyoshi Kikuchi

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank Fumiko Sunaga for her technical support in performing cell sorting and analysis, and Editage (http://www.editage.com) for English-language editing. This work was supported by JSPS KAKENHI Grant-in-Aid for Early-Career Scientists (20K15603) and Grant-in-Aid for JSPS Fellows (19J00539) to K Koiwai; Grant-in-Aid for Scientific Research on Innovative Areas (17H06425) to K Kikuchi.

Senior Editor

  1. Utpal Banerjee, University of California, Los Angeles, United States

Reviewing Editor

  1. Jiwon Shim, Hanyang University, Republic of Korea

Version history

  1. Received: January 28, 2021
  2. Accepted: June 15, 2021
  3. Accepted Manuscript published: June 16, 2021 (version 1)
  4. Version of Record published: July 8, 2021 (version 2)

Copyright

© 2021, Koiwai et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,560
    Page views
  • 537
    Downloads
  • 40
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Keiichiro Koiwai
  2. Takashi Koyama
  3. Soichiro Tsuda
  4. Atsushi Toyoda
  5. Kiyoshi Kikuchi
  6. Hiroaki Suzuki
  7. Ryuji Kawano
(2021)
Single-cell RNA-seq analysis reveals penaeid shrimp hemocyte subpopulations and cell differentiation process
eLife 10:e66954.
https://doi.org/10.7554/eLife.66954

Categories and tags

Further reading

    1. Cell Biology
    2. Medicine

    Glucagon-like peptide-1 receptor activation stimulates PKA-mediated phosphorylation of Raptor and this contributes to the weight loss effect of liraglutide

    Thao DV Le, Dianxin Liu ... Julio E Ayala
    Research Article Updated

    The canonical target of the glucagon-like peptide-1 receptor (GLP-1R), Protein Kinase A (PKA), has been shown to stimulate mechanistic Target of Rapamycin Complex 1 (mTORC1) by phosphorylating the mTOR-regulating protein Raptor at Ser791 following β-adrenergic stimulation. The objective of these studies is to test whether GLP-1R agonists similarly stimulate mTORC1 via PKA phosphorylation of Raptor at Ser791 and whether this contributes to the weight loss effect of the therapeutic GLP-1R agonist liraglutide. We measured phosphorylation of the mTORC1 signaling target ribosomal protein S6 in Chinese Hamster Ovary cells expressing GLP-1R (CHO-Glp1r) treated with liraglutide in combination with PKA inhibitors. We also assessed liraglutide-mediated phosphorylation of the PKA substrate RRXS*/T* motif in CHO-Glp1r cells expressing Myc-tagged wild-type (WT) Raptor or a PKA-resistant (Ser791Ala) Raptor mutant. Finally, we measured the body weight response to liraglutide in WT mice and mice with a targeted knock-in of PKA-resistant Ser791Ala Raptor. Liraglutide increased phosphorylation of S6 and the PKA motif in WT Raptor in a PKA-dependent manner but failed to stimulate phosphorylation of the PKA motif in Ser791Ala Raptor in CHO-Glp1r cells. Lean Ser791Ala Raptor knock-in mice were resistant to liraglutide-induced weight loss but not setmelanotide-induced (melanocortin-4 receptor-dependent) weight loss. Diet-induced obese Ser791Ala Raptor knock-in mice were not resistant to liraglutide-induced weight loss; however, there was weight-dependent variation such that there was a tendency for obese Ser791Ala Raptor knock-in mice of lower relative body weight to be resistant to liraglutide-induced weight loss compared to weight-matched controls. Together, these findings suggest that PKA-mediated phosphorylation of Raptor at Ser791 contributes to liraglutide-induced weight loss.

    1. Cell Biology
    2. Developmental Biology

    Cylicins are a structural component of the sperm calyx being indispensable for male fertility in mice and human

    Simon Schneider, Andjela Kovacevic ... Hubert Schorle
    Research Article

    Cylicins are testis-specific proteins, which are exclusively expressed during spermiogenesis. In mice and humans, two Cylicins, the gonosomal X-linked Cylicin 1 (Cylc1/CYLC1) and the autosomal Cylicin 2 (Cylc2/CYLC2) genes, have been identified. Cylicins are cytoskeletal proteins with an overall positive charge due to lysine-rich repeats. While Cylicins have been localized in the acrosomal region of round spermatids, they resemble a major component of the calyx within the perinuclear theca at the posterior part of mature sperm nuclei. However, the role of Cylicins during spermiogenesis has not yet been investigated. Here, we applied CRISPR/Cas9-mediated gene editing in zygotes to establish Cylc1- and Cylc2-deficient mouse lines as a model to study the function of these proteins. Cylc1 deficiency resulted in male subfertility, whereas Cylc2-/-, Cylc1-/yCylc2+/-, and Cylc1-/yCylc2-/- males were infertile. Phenotypical characterization revealed that loss of Cylicins prevents proper calyx assembly during spermiogenesis. This results in decreased epididymal sperm counts, impaired shedding of excess cytoplasm, and severe structural malformations, ultimately resulting in impaired sperm motility. Furthermore, exome sequencing identified an infertile man with a hemizygous variant in CYLC1 and a heterozygous variant in CYLC2, displaying morphological abnormalities of the sperm including the absence of the acrosome. Thus, our study highlights the relevance and importance of Cylicins for spermiogenic remodeling and male fertility in human and mouse, and provides the basis for further studies on unraveling the complex molecular interactions between perinuclear theca proteins required during spermiogenesis.

    1. Cell Biology
    2. Structural Biology and Molecular Biophysics

    Baited reconstruction with 2D template matching for high-resolution structure determination in vitro and in vivo without template bias

    Bronwyn A Lucas, Benjamin A Himes, Nikolaus Grigorieff
    Research Advance

    Previously we showed that 2D template matching (2DTM) can be used to localize macromolecular complexes in images recorded by cryogenic electron microscopy (cryo-EM) with high precision, even in the presence of noise and cellular background (Lucas et al., 2021; Lucas et al., 2022). Here, we show that once localized, these particles may be averaged together to generate high-resolution 3D reconstructions. However, regions included in the template may suffer from template bias, leading to inflated resolution estimates and making the interpretation of high-resolution features unreliable. We evaluate conditions that minimize template bias while retaining the benefits of high-precision localization, and we show that molecular features not present in the template can be reconstructed at high resolution from targets found by 2DTM, extending prior work at low-resolution. Moreover, we present a quantitative metric for template bias to aid the interpretation of 3D reconstructions calculated with particles localized using high-resolution templates and fine angular sampling.
