Tissue-specific modulation of gene expression in response to lowered insulin signalling in Drosophila

  1. Luke Stephen Tain
  2. Robert Sehlke
  3. Ralf Leslie Meilenbrock
  4. Thomas Leech
  5. Jonathan Paulitz
  6. Manopriya Chokkalingam
  7. Nagarjuna Nagaraj
  8. Sebastian Grönke
  9. Jenny Fröhlich
  10. Ilian Atanassov
  11. Matthias Mann
  12. Andreas Beyer  Is a corresponding author
  13. Linda Partridge  Is a corresponding author
  1. Max-Planck Institute for Biology of Ageing, Germany
  2. CECAD Cologne Excellence Cluster on Cellular Stress Responses in Aging Associated Diseases, Germany
  3. Department of Proteomics and Signal Transduction, Max-Planck-Institute of Biochemistry, Germany
  4. Center for Molecular Medicine (CMMC) & Cologne School for Computational Biology (CSCB), University of Cologne, Germany
  5. Institute of Healthy Ageing, and GEE, UCL, United Kingdom
Research Article
  • Cited 0
  • Views 1,647
  • Annotations
Cite this article as: eLife 2021;10:e67275 doi: 10.7554/eLife.67275

Abstract

Reduced activity of the insulin/IGF signalling network increases health during ageing in multiple species. Diverse and tissue-specific mechanisms drive the health improvement. Here, we performed tissue-specific transcriptional and proteomic profiling of long-lived Drosophila dilp2-3,5 mutants, and identified tissue-specific regulation of >3600 transcripts and >3700 proteins. Most expression changes were regulated post-transcriptionally in the fat body, and only in mutants infected with the endosymbiotic bacteria, Wolbachia pipientis, which increases their lifespan. Bioinformatic analysis identified reduced co-translational ER targeting of secreted and membrane-associated proteins and increased DNA damage/repair response proteins. Accordingly, age-related DNA damage and genome instability were lower in fat body of the mutant, and overexpression of a minichromosome maintenance protein subunit extended lifespan. Proteins involved in carbohydrate metabolism showed altered expression in the mutant intestine, and gut-specific overexpression of a lysosomal mannosidase increased autophagy, gut homeostasis, and lifespan. These processes are candidates for combatting ageing-related decline in other organisms.

Introduction

Human life expectancy is increasing (Oeppen and Demography, 2002) and is predicted to continue to do so (Kontis et al., 2017). However, healthspan, the period of life spent in good health and free from the chronic diseases and disorders of ageing, is not keeping up with lifespan and there is therefore a growing period of functional decline and ill health at the end of life (Crimmins, 2015; Niccoli and Partridge, 2012; Partridge et al., 2018). Lowered activity of the insulin and IGF-1-like signalling (IIS) network can extend lifespan in laboratory model organisms (Kenyon, 2011; Partridge et al., 2011), and possibly humans through specific mutations (Flachsbart et al., 2009; Study of Osteoporotic Fractures et al., 2009), and can reduce the incidence of age-related impairments and diseases (Mannick et al., 2014; Mannick et al., 2018). Identifying the molecular mechanisms and understanding exactly how reducing IIS activity prolongs longevity may hence lead to interventions that ameliorate the effects of ageing and prevent age-related pathology.

Gene expression profiling in whole organisms has identified genes and molecular mechanisms that ameliorate ageing in IIS mutants in C. elegans (Ewald et al., 2015; Halaschek-Wiener et al., 2005; Kaletsky et al., 2016; McElwee et al., 2007; Murphy et al., 2003; Oh et al., 2006) and Drosophila (Alic et al., 2011; Teleman et al., 2008). Recent transcriptomic analysis in mice (Page et al., 2018), and proteomic analysis in Drosophila (Tain et al., 2017) showed that the responses to lowered IIS are highly tissues-specific. How these tissue-specific responses are regulated is less clear, and tissue-specific profiling of both the transcriptome and the proteome can give a more informative picture, not only of the molecular changes mediating tissue-specific functional responses to mutations that increase healthspan, but also of how gene expression itself is regulated to achieve those responses (Barrett et al., 2012).

IIS affects not only lifespan, but also other processes including development, growth, and reproduction (Bartke, 2011). Isolating the potentially causal changes in gene expression that specifically modulate longevity in IIS mutants is therefore challenging. In the fruit fly Drosophila, IIS is activated through insulin-like peptides (DILPs) (Grönke et al., 2010). Genetic ablation of the median secretory neurons (mNSC), which produce DILPs, or null mutation of 3 dilp genes (dilp2-3,5) that are expressed in the mNSC neurons, systemically lowers IIS, resulting in extended lifespan, reduced body size, reduced female fertility, and delayed development (Grönke et al., 2010; Broughton et al., 2005). However, the extent to which these traits change is greater in dilp2-3,5 mutants than mNSC-ablated flies, perhaps because IIS activity is reduced throughout development in dilp2-3,5 mutants, while lowered IIS commences only later in larval life in mNSC-ablated flies (Grönke et al., 2010; Broughton et al., 2005).

A naturally occurring endosymbiotic bacterium, Wolbachia pipientis, present in many insect species (Werren and Windsor, 2000), interacts with IIS (Ikeya et al., 2009), and increases the longevity of dilp2-3,5 mutants (Grönke et al., 2010). Wolbachia also increases the resistance of dilp2-3,5 mutants to xenobiotics, but does not affect other phenotypes associated with reduced IIS (Grönke et al., 2010). Changes in gene expression that require Wolbachia in IIS mutants are therefore potentially causal for longevity, and identifying them could thus aid in isolating the specific mechanisms and processes that mediate IIS mutant longevity.

Here, we have simultaneously profiled tissue-specific changes in gene expression at both the transcriptomic and proteomic level in the gut, brain, thorax, and fat body of dilp2-3,5 mutant flies. Combining our proteomic analysis with transcriptome profiling, we have examined the role of transcriptional and proteomic responses in remodelling of the tissue-specific proteomes in response to lowered IIS. To pinpoint whether these changes were causal for longevity, we quantified whether these changes in expression were altered in the presence of Wolbachia. Surprisingly, we found that, unlike in the gut, brain, and thorax, the majority of fat-body-specific gene expression changes in response to reduced IIS were regulated post-transcriptionally, and that this regulation was entirely dependent upon the presence of Wolbachia. To increase the specificity and robustness of our analysis, we performed a novel meta-analysis of the proteomic responses to those in a previously studied mutant, mNSC-ablated flies (Tain et al., 2017). Importantly, our tissue-specific gene expression analysis and cross model meta-analysis allowed the identification of both conserved, and model-specific, responses to reduced IIS, which may contribute to IIS-mediated longevity.

We identified novel functional signatures of reduced endoplasmic reticulum (ER)-protein targeting and an increased DNA damage/repair response that require Wolbachia and that were specific to the fat body of dilp2-3,5 mutants. We then showed that DNA damage is reduced, and genome stability increased, in the fat body of dilp2-3,5 mutant flies and, importantly, that these effects require Wolbachia. Furthermore, we showed that increased expression of one subunit of the minichromosome maintenance complex was sufficient to reduce DNA damage in the fat body, and extend lifespan.

Finally, we identified a gut-specific upregulation of lysosomal alpha-mannosidases in response to lowered IIS that occurred only in the presence of Wolbachia. Furthermore, we showed that gut-specific overexpression of one lysosomal alpha-mannosidase was sufficient to maintain gut homeostasis and extend lifespan.

Results

Tissue-specific remodelling of gene expression in response to reduced IIS

Reducing IIS activity can remodel gene expression via downstream transcription factors (Partridge et al., 2011; Kenyon, 2010; Fontana et al., 2010). To determine the effect of reduced IIS on tissue-specific gene expression, we compared transcript and protein expression levels in dilp2-3,5 mutants to those of wild-type controls (wDah). We reproducibly identified a total of 11331 transcripts and 7234 proteins (Appendix 1A-C), of which 3683 transcripts and 3738 proteins showed significantly altered expression in at least one tissue of dilp2-3,5 mutant flies (adj. p-value<=0.1) (Appendix 1D, Supplementary file 12). In total, the gut, fat body, brain, and thorax of dilp2-3,5 mutant flies showed 563, 1004, 365, and 2535 differentially expressed transcripts, respectively (Appendix 1D). In contrast, we detected a total of 1824, 1678, and 1473 differentially expressed proteins in the gut, fat body, and brain of dilp2-3,5 mutant flies, respectively, but only 339 were changed in the thorax (Appendix 1D). Overall both the proteomic and transcriptomic responses to reduced IIS were highly tissue-specific, only 22 proteins and 17 transcripts showed altered expression in all four tissues (Appendix 1D).

Reduced IIS post-transcriptionally remodels the fat-body-specific proteome

Under steady state conditions, protein abundance is primarily determined by mRNA abundance (Liu et al., 2016). To determine if the correlation between mRNA and protein abundance was perturbed in response to lowered IIS activity, we compared tissue-specific transcripts and corresponding proteins in dilp2-3,5 mutants. On average across the four tissues, two thirds of the significant tissue-specific changes in transcript levels in dilp2-3,5 mutants were mirrored by changes in expression of the encoded proteins (Figure 1A, Supplementary file 3). One third, however, were regulated in opposite directions, possibly through post-transcriptional regulation (Figure 1A, Supplementary file 3).

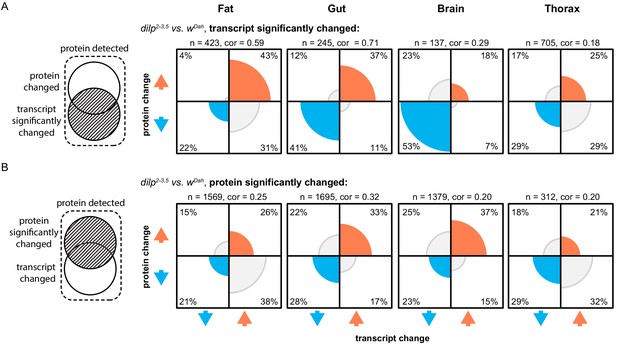

Reducing IIS modulates both the tissue-specific transcriptomic and proteomic landscapes.

Plots show the proportion of protein/transcript pairs that are regulated in the same (both up [orange] or both down [blue]) or opposite (grey) directions in response to reduced IIS (dilp2-3,5 vs. wDah). Correlations were calculated between the protein and transcript log-fold changes of significantly regulated protein/transcript pairs in each plot. (A) All protein/transcript pairs in the respective tissue where the transcript is significantly regulated (adj. p-value≤0.1) in response to reduced IIS, irrespective of if the associated protein is significantly regulated (Supplementary file 34). (B) All protein/transcript pairs in the respective tissue where the protein is significantly regulated (adj. p-value≤0.1) in response to reduced IIS, irrespective of if the associated transcript was significantly regulated (Supplementary file 34). Correlations (cor.), number of protein/transcript pairs (n) shown above each plot. Rounded percentages of protein/transcript pairs within a specific quadrant of the plots are shown within the respective quadrants (may not total 100%).

To more precisely examine the effect of post-transcriptional regulation on the proteome in dilp2-3,5 mutants, we compared the expression of proteins whose level was significantly regulated in response to reduced IIS, to their associated transcripts. This comparison was made irrespective of whether those transcripts were significantly regulated (Figure 1B, Supplementary file 4).

Our analysis revealed that gene expression changes in response to reduced IIS changes in the gut, brain, and thorax were mainly driven by changes in transcription (Figure 1B). However, many gene expression changes in response to lowered IIS in the fat body were post-transcriptional (Figure 1B). Over 50% of the proteins changed in the fat body of dilp2-3,5 mutants were oppositely regulated from their associated transcripts (Figure 1B). In total, 1569 proteins were differentially expressed in the fat body of dilp2-3,5 mutant flies (Figure 1B). Of those, 729 proteins changed expression in the same direction as their transcripts and were enriched for functions associated with proteostasis, amino acid metabolism, and mitochondria (Figure 1B shown in blue and orange, Supplementary file 5). The remaining 840 proteins were regulated in the opposite direction to that of their transcripts. This included 601 significantly downregulated proteins, which were enriched for functions relating to translation/peptide generation, endoplasmic reticulum (ER), and lipids. The remaining 239 proteins were significantly upregulated and enriched for functions relating to DNA replication/repair, and chromatin remodelling (Figure 1B, Supplementary file 5). Thus, gene expression changes in response to lowered IIS in the brain, gut, and thorax, were driven by transcription; however, in the fat body those changes were primarily post-transcriptional. Together, these findings highlight the importance of quantifying post-transcriptional gene expression when analysing IIS mutants, as many gene expression changes would have been missed if examined solely at the mRNA level.

Identifying tissue-specific, differential gene expression potentially causal in longevity

To further narrow down changes in gene expression that may have a causal role in IIS mutant longevity, we examined both transcriptomic and proteomic changes in the presence and absence of the intracellular, bacterial symbiont Wolbachia pipientis. The presence of Wolbachia is required for lifespan extension of dilp2-3,5 mutants, but not for other IIS-related phenotypes such as growth and fecundity (Grönke et al., 2010). We identified both transcripts and proteins whose expression changed in the dilp2-3,5 mutant, but only in the Wolbachia-positive background (Appendix 2A), and found both Wolbachia-independent and Wolbachia-dependent changes (Appendix 2B, Supplementary file 12). The majority of Wolbachia-dependent changes were differentially regulated in the fat body (235 proteins and 249 transcripts) of dilp2-3,5 mutants, with relatively few changes occurring in the gut, brain, and thorax (Appendix 2B). Of those genes whose Wolbachia-dependent expression was altered in the fat body, only 26 were regulated, and regulated in the same direction, on both the transcript and protein level, suggesting considerable post-transcriptional regulation in response to reduced IIS, specifically in this tissue (Figure 1B). Surprisingly, we found the previously described post-transcriptional pattern of oppositely regulated proteins and transcripts (Figure 1B) was dependent on Wolbachia in the fat body of dilp2-3,5 mutants (Appendix 2D-E).

To identify functional signatures associated to Wolbachia-dependent gene expression changes in response to reduced IIS, we performed GO enrichment analysis. Transcripts whose regulation was Wolbachia-dependent in fat body were enriched for glucosidase and peptidase enzyme families (Appendix 2C, Supplementary file 6). Proteins whose regulation was Wolbachia-dependent were enriched for proteins associated with DNA replication and damage/repair responses in fat body, and mannose metabolism in the gut (Appendix 2C, Supplementary file 6). Thus, examining tissue-specific, Wolbachia-dependent, changes in gene expression in response to reduced IIS has identified DNA damage/repair responses in fat body and mannose metabolism in the gut as possible regulators of longevity in dilp2-3,5 mutants. Furthermore, the discrepancy between regulation at the transcript and protein in the fat body suggest increased levels of post-transcriptional regulation in response to reduced IIS.

Proteomic responses to reduced IIS in two independent Drosophila models

Several genetic interventions in Drosophila that reduce IIS result in increased lifespan. To identify robust and conserved changes in protein expression in response to reduced IIS, we examined the overlap in differentially expressed proteins between dilp2-3,5 mutants and the previously published tissue-specific proteomes of mNSC-ablated flies (Tain et al., 2017). There was a significant correlation between the tissue-specific changes in each IIS mutant (Appendix 3A-B). However, we also detected 1810 differentially regulated proteins whose expression was not changed in mNSC-ablated flies (Appendix 3B) (Tain et al., 2017). Thus, mutant-specific changes occurred, but a significant proportion of the differential expression was also conserved between the two mutants.

Both to increase the power of our analysis and detect shared functional signatures between the two IIS mutants, we performed an undirected network propagation analysis (Vanunu et al., 2010), which incorporates protein-protein interaction information. We clustered the resulting network propagation scores (Supplementary file 7) that were either shared or detected in only one mutant, and identified functional categories within the clusters with GO enrichment analysis (Figure 2, Supplementary file 8).

Hierarchical clustering and GO enrichment analysis of significantly regulated proteins in two independent models of reduced IIS activity.

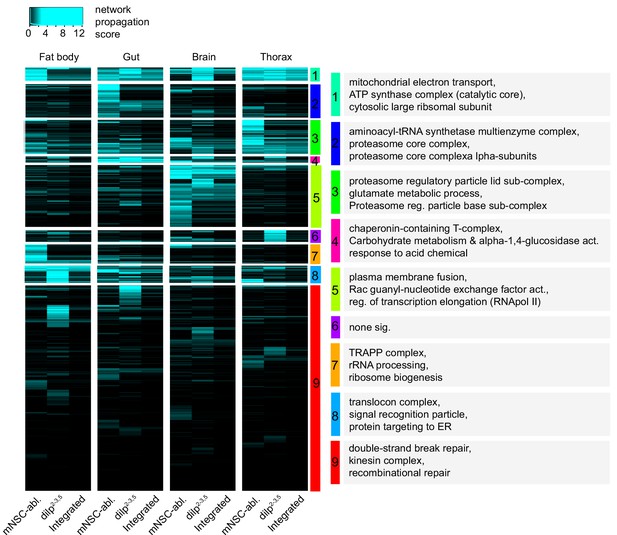

Tissue-specific heatmap of network propagation scores (Supplementary file 7) based on the comparisons of tissue-specific, long-lived IIS mutant proteomes vs. wild-type controls in two independent model systems of reduced IIS: dilp2-3,5 vs. wDah (dilp2-3,5) and InsP3‐Gal4/UAS‐rpr vs. wDah (mNSC-abl.). For every protein and tissue, the minimum of both scores in that tissue was calculated to show conserved changes between the models (Integrated). Clusters denoted by colour and for each cluster. GO enrichment analysis and selected terms shown in grey boxes (see Supplementary file 8 for all significant terms).

Proteins whose tissue-specific expression pattern was shared between both dilp2-3,5 mutants and mNSC-ablated flies represent robust and conserved proteomic changes in response to lowered IIS. Those proteins were associated with translation and ribosomal biogenesis, membrane fusion, mitochondrial electron transport, proteostasis, proteasome assembly, and ER protein targeting (clusters 1–8, Figure 2). Some of these processes have been directly or indirectly associated with the longevity of IIS mutants (Tain et al., 2017; Essers et al., 2016; Augustin et al., 2017). However, the link between lifespan and fat body-specific ER protein targeting (cluster 8, Figure 2) in response to reduced IIS has so far not been explored.

Proteins whose tissue-specific expression pattern was detected in the dilp2-3,5 mutants, but not mNSC-ablated flies, represent possible mutant-specific proteomic changes in response to lowered IIS. Importantly, as dilp2-3,5 mutant flies are considerably longer lived than mNSC-ablated flies (Grönke et al., 2010; Broughton et al., 2005) any dilp2-3,5-specific proteomic changes may provide insight into additional mechanisms regulating longevity. DNA damage and repair response was one such functional signature present only in fat body only of dilp2-3,5 mutants, and may thus represent such an additional pro-longevity response to reduced IIS (Cluster 9, Figure 2).

Combining our tissue-specific transcriptomic, proteomic, Wolbachia-dependent regulation, and cross model proteomic analyses, of gene expression remodelling in response to reduced IIS led us to examine three main findings that were functional candidates for relevance for longevity. Firstly, we investigated the targeting and translation of proteins to the ER in fat body in more detail. These functional signatures were enriched in the fat body of dilp2-3,5 mutants and linked to proteins whose levels decreased in response to reduced IIS despite increased expression of the associated transcripts (Figure 1B, Supplementary file 5). Furthermore, translational and ER-targeting functional signatures were conserved between dilp2-3,5 mutants and mNSC-ablated flies (Figure 2, clusters 7 and 8). Second, we analysed the importance of fat body-specific DNA damage and repair responses, whose functional signatures were identified as both Wolbachia-dependent changes in response to reduced IIS and only present in dilp2-3,5 mutants. Finally, we analysed gut-specific mannose metabolism, which we identified as both gut-specific Wolbachia-dependent changes in response to reduced IIS, and conserved between two models of reduced IIS.

Lowered IIS reduces expression of ER-specific co-translational targeting machinery in the fat body

The correct transport and trafficking of newly formed polypeptides within a cell is essential for the creation and maintenance of the distinct subcellular environments required for cellular function. Our analysis identified a fat-body-specific enrichment for proteins associated to the ER and involved in targeting proteins to the ER in dilp2-3,5 mutants (Figure 2, Supplementary file 8). To determine if the response to reduced IIS was both tissue- and ER-specific, we calculated average log-fold changes of proteins associated with several cellular compartment terms (Figure 3A). ER and Golgi associated proteins were consistently downregulated in the fat body of both mNSC-ablated and dilp2-3,5 mutant flies (Figure 3A). Importantly, this regulation did not appear in other tissues or in the absence of Wolbachia, suggesting that reduced ER-targeting of proteins is specific to the fat body and may be causal for the longevity of IIS mutants (Figure 3A). Secreted proteins (extracellular space) and intrinsic membrane components, which are processed in the ER, were also downregulated in the fat body in both models of reduced IIS, and only in the presence of Wolbachia (Figure 3A).

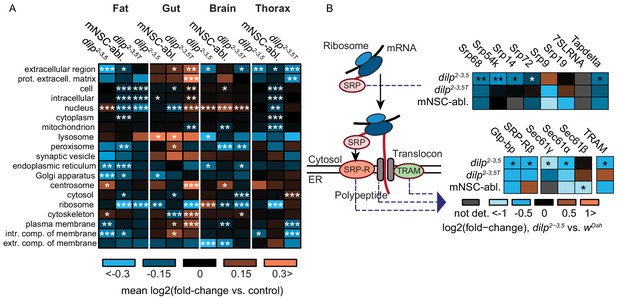

Tissue-specific regulation of ER-associated cellular compartments and the ER co-translational targeting machinery in two independent models of reduced IIS.

(A) Heatmap of mean log-fold changes in proteins annotated with selected GO cellular compartment terms, in the contrasts dilp2-3,5 vs. wDah (dilp2-3,5), dilp2-3,5T vs. wDahT (dilp2-3,5T (denotes Wolbachia minus genotypes, see Methods section) ), and InsP3‐Gal4/UAS‐rpr vs. wDah (mNSC-abl.) flies (Tain et al., 2017). Significance of difference vs. zero was calculated using a two-sided Student’s t-test (*p<0.05,**p<0.01,***p≤0.001). (B) Changes in protein expression of SRP, SRP-receptor (SRP-R) sub-units, TRAM and translocon components. Asterisks indicate Benjamini-Hochberg-corrected significance of the limma moderated t-test (*p≤0.1, **p≤0.01, ***p≤0.001).

One key mechanism for delivering proteins to the ER is co-translational targeting, the process of importing newly synthesised proteins directly into the ER (Cross et al., 2009). Nascent polypeptides with signal peptides are recognized by the signal recognition particle (SRP) in the cytosol. SRP-bound nascent peptides are then transported to the SRP-receptor on the ER membrane and passed into the ER lumen through the ER translocon channel, with the aid of translocating proteins (Saraogi and Shan, 2011). There, translation is resumed by co-translational targeting through ER-bound ribosomes (Saraogi and Shan, 2011). Regulation of the SRP, SRP-receptor, and translocon complex thus determines ER import and co-translational targeting capacity. Tellingly, several components of the ER import and co-translational targeting machinery were down-regulated in the fat bodies of dilp2-3,5 mutants, and showed a similar trend in mNSC-ablated flies (Figure 3B). This included four of the seven SRP subunits (Srp68, Srp54k, Srp14, and Srp72), both SRP-receptor subunits (Gtp-bp and SRPRβ), two of the three translocon core subunits (Sec61gamma and Sec61alpha), and the translocating chain-associating membrane protein (TRAM) (Figure 3B). However, although the down-regulation of TRAM and SRP subunits was mostly Wolbachia-specific, regulation of the SRP-receptor subunits did not depend on Wolbachia (Figure 3B). Together, these results suggest that reduced IIS regulates the ER co-translational targeting and protein import machinery, specifically in the fat body of long-lived IIS mutant flies. Furthermore, since much of this regulation was dependent on Wolbachia, it may be important for the longevity of IIS mutants.

DNA damage response and genome stability is increased in the fat body of long-lived IIS mutant flies

A prevalent theory of ageing is that accumulation of molecular damage, including damage to DNA, progressively diminishes cellular function over time and leads to the functional deterioration associated with advancing age (Maynard et al., 2015). Several DNA damage and DNA repair pathways exist to prevent and counteract this damage, maintain genomic stability, and in turn maintain cellular and organismal functionality. Our bioinformatic analysis identified a post-transcriptionally increased abundance of proteins associated with DNA repair and DNA damage responses, in the fat body of dilp2-3,5 mutants but not in mNSC-ablated flies (Figure 2, Supplementary file 8). Surprisingly, very few of these proteins were detected as significantly regulated in the fat body of mNSC-ablated flies. This suggests that the increased quality and greater depth of proteomic coverage may have uncovered previously undetected, tissue-specific regulation of these proteins in response to reduced IIS. Most (78%) of the 50 regulated proteins within the GO terms DNA replication and DNA damage/repair responses were significantly and co-ordinately up-regulated in the fat body of long lived dilp2-3,5 mutants (Figure 4A, Supplementary file 9). Furthermore, the regulation of these proteins in dilp2-3,5 mutants required the presence of Wolbachia (Figure 4A). Thus, DNA damage/repair responses and genome stability may be increased specifically in the fat body of dilp2-3,5 mutants, and that increase may be associated with longevity.

Figure 4 with 1 supplement see all

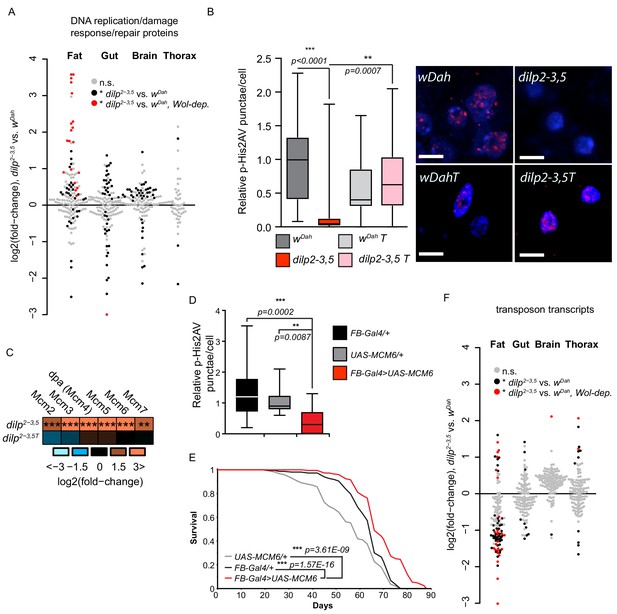

Regulation of DNA damage responses and genome stability in response to reduced IIS.

(A) log2-fold change of DNA replication/DNA damage response proteins, dilp2-3,5 vs. wDah (Supplementary file 9). Significantly regulated proteins (black dots), Wolbachia-dependent (red dots regulation (adj. p-value≤0.1)), and unregulated (grey dots). (B) Relative p-His2Av foci per fat body nuclei in aged (60d) of dilp2-3,5 mutants compared to controls (wDah) in the presence (dilp2-3,5) and absence (wDahT and dilp2-3,5T) of Wolbachia (averaged foci/nucleus from independent samples n > 14, scale bar shows 5 μM). (C) Regulation MCM complex proteins, dilp2-3,5 vs. wDah, in the presence and absence (dilp2-3,5T) of Wolbachia. Significance of difference vs. zero was calculated using a two-sided Student’s t-test (*p<0.05, **p<0.01, ***p≤0.001) exact p values shown in Supplementary file 2. (D) Relative p-His2Av foci per fat body nuclei in aged (60d) of flies overexpressing MCM6 specifically in the fat body (FB-Gal4>UAS-MCM6, n = 15) compared to genetic controls (FB-Gal4/+, n = 16 and UAS-MCM6/+, n = 13). Averaged foci/nucleus from independent samples. (E) Survival analysis of flies fat-body-specifically overexpressing MCM6 (FB-Gal4;UAS-MCM6) compared to the UAS-MCM6/+ and FB-Gal4/+ genetic controls. Statistical significance between survival curves was determined by log-rank test (n = 150). (F) Differential expression of transposons, dilp2-3,5 and wDah, in each tissue (fat, gut, brain, thorax) (Supplementary file 10). Significantly changed transposons (black dots), regulated and expression is Wolbachia-dependent (red dots) (adj. p-value≤0.1) and not significantly regulated (grey dots).

In response to DNA damage, including double strand breaks (DSBs), H2AX (His2Av in Drosophila) is phosphorylated (Serine 139) (Rogakou and Sekeri-Pataryas, 1999). His2Av phosphorylation (p-His2Av) thus serves as an early marker of DNA damage (Mah et al., 2010), and can be used to measure DNA damage associated with ageing in model organisms (Park et al., 2012; Wang et al., 2009) and humans (Sedelnikova et al., 2008). To determine if the fat-body-specific upregulation of DNA damage/repair response proteins in IIS mutant flies was sufficient to protect against DNA damage, we quantified the number of p-His2Av foci per nucleus in the fat body of aged (60d) flies (Figure 4B). The number of p-His2Av foci was significantly lower in the fat body of aged dilp2-3,5 mutants compared to similarly aged control flies (wDah) (Figure 4B), and only in the presence of Wolbachia (Figure 4B). Thus, our analysis suggests that DNA damage is reduced in the fat body of IIS mutant flies, and that the reduction in damage may be linked to the longevity.

To determine which proteins may play a role in protecting the fat body from DNA damage, we assessed histone and chromatin proteins. However, with the exception of H2A and H2B in the fat bodies of dilp2-3,5 mutants we detected no consistent regulation of histones (Supplementary file 12). In agreement with our previous bioinformatic analysis, proteins associated with the GO-terms chromatin-remodelling, -silencing, -binding, and -organisation were up-regulated in fat body of dilp2-3,5 mutants (Supplementary file 9). For example, the subunits of chromatin-remodelling complexes Tip60 (MRG15, pont, and rept) (Kusch et al., 2004), ISWI, Chrac-14, and the INO80 complex were up-regulated in the fat body of IIS mutants flies (Supplementary file 2). These complexes each play a role in chromatin remodelling and DNA damage, and may act to maintain genome stability (Clapier and Cairns, 2009; Conaway and Conaway, 2009). In addition, all six subunits of the replicative helicase minichromosome maintenance complex (MCM2-7) (Bell and Dutta, 2002), which is required for both DNA repair and genome stability (Bailis and Forsburg, 2004), were up-regulated in response to reduced IIS, and only in the presence of Wolbachia (Figure 4C). We therefore, tested if tissue-specific increased expression of the minichromosome maintenance complex can decrease the level of DNA damage in the ageing fat body. Of the six up-regulated MCM subunits in the dilp2-3,5 mutant fat body, MCM6 was up-regulated to the greatest extent (12-fold) (Supplementary file 2). Overexpression of MCM6 using the constitutive, fat body-specific, Gal4 driver Fat body (FB), significantly reduced the number of p-His2Av foci in aged fat body compared to controls (Figure 4D). Importantly, fat-body-specific overexpression of MCM6 was sufficient to extend lifespan (Figure 4E, Figure 4—figure supplement 1). Thus, increased expression of MCM6 in the fat body was sufficient to reduced DNA damage and to extend longevity.

Preventing and repairing DNA damage whilst maintaining chromatin structure and genome stability is essential for cellular and organismal health and their dysfunction is a hallmark of ageing (López-Otín et al., 2013; Wood and Helfand, 2013). Maintaining the silenced state of heterochromatin in several model organisms, including yeast, worms, flies and, possibly, humans, is important for healthy ageing (Benayoun et al., 2015; Feser and Tyler, 2011; Larson et al., 2012). Loss of heterochromatin structure also occurs during replicative senescence of human fibroblasts in culture, and correlates with increased expression of transposable elements (TEs) (De Cecco et al., 2013). Increased expression of TEs with age also occurs in mice (De Cecco et al., 2013), flies (Wood et al., 2016), and C. elegans (Dennis et al., 2012). To determine if heterochromatin, and thus genome stability, is maintained in response to reduced IIS activity we analysed the tissue-specific expression of TEs in dilp2-3,5 mutants and control flies (wDah). In total, across all tissues, we detected transposon transcripts from 117 of the 176 canonical transposons described for Drosophila (Gramates et al., 2017Figure 4F, Supplementary file 10). Relatively few transposons were significantly regulated in the gut, brain, and thorax, in response to lowered IIS, 9, 2, and 12, respectively (Figure 4F). However, 68 transposons were significantly expressed in the fat body of dilp2-3,5 mutants flies, 12 up- and 56 down-regulated (Figure 4F). Of those 68 transposons whose expression was regulated in the fat body of IIS mutant, 24 were only regulated in the presence of Wolbachia, and in turn, 75% of those were down-regulated (Figure 4F). These findings suggest that reducing IIS activity increases the fat-body-specific maintenance of genome stability, by reducing the expression of TEs, reducing DNA damage, and, together, that these changes may contribute the longevity of IIS mutant flies.

Lysosomal alpha-mannosidase expression is increased in the gut of long-lived IIS mutant flies and its overexpression is sufficient to extend lifespan

Modulation of gene expression during ageing, or in response to interventions that diminish the effects of ageing, have revealed several conserved pro-longevity metabolic processes (Murphy et al., 2003; Teleman et al., 2008; Page et al., 2018; Tain et al., 2017; Afschar et al., 2016; Dobson et al., 2018; Hahn et al., 2017; Narayan et al., 2016; Stout et al., 2013) including carbohydrate metabolism (Teleman et al., 2008; Afschar et al., 2016; Narayan et al., 2016). Our bioinformatic analysis identified a gut-specific enrichment for proteins involved in carbohydrate metabolism, specifically lysosomal alpha-mannosidases (lysosomal-mannosidases), in both dilp2-3,5 mutants and mNSC-ablated flies (Figure 2). To determine if the response to reduced IIS was tissue-specific, we calculated the average log-fold changes of all significantly regulated lysosomal alpha-mannosidases (Figure 5A–B). All lysosomal alpha-mannosidases were detected and significantly upregulated at the protein level, and to a similar extent at the transcript level, in the gut of dilp2-3,5 mutant flies (Figure 5A–B). Importantly, this upregulation did not appear to the same extent in other tissues. Furthermore, the gut-specific upregulation of five out of the six lysosomal alpha-mannosidases only occurred in the presence of Wolbachia (Figure 5B). Thus, increased levels of lysosomal alpha-mannosidases may be beneficial for longevity.

Figure 5 with 1 supplement see all

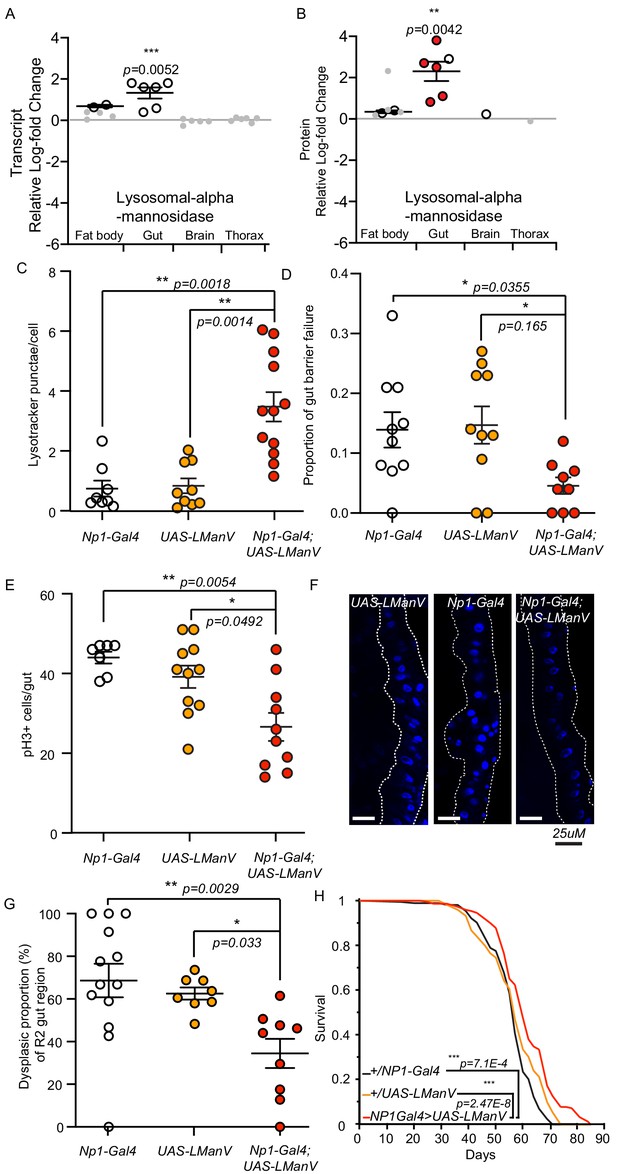

Lysosomal alpha-mannosidase expression is gut-specifically increased in response to reduced IIS, and gut-specific expression is sufficient to maintain gut health and extend lifespan.

(A) Significant (white circles) and non-significant (grey points) tissue-specific log2-fold change of lysosomal alpha-mannosidase transcript (A) and protein (B) expression in dilp2-3,5 vs. wDah. Significantly regulated proteins (white circles), Wolbachia-dependent (red circles) regulation (adj. p-value≤0.1). Directional significance established by one sided Student’s t-test. (C) Quantification of LysoTracker Red stained vacuoles per nucleus in the gut of flies gut-specifically overexpressing LManV (Np1-Gal4;UAS-LManV, n = 12, Red circles) compared to genetic controls (Np1-Gal4/+, n = 8, white circles and UAS-LManV/+, n = 9, orange circles). Chart shows mean and error bars represent S.E.M. Significance determined by Kruskall-Wallace test and Dunn’s multiple comparisons test. (D) Proportion of aged (65d) flies exhibiting gut barrier function failure in response to gut-specific overexpression of LManV (Np1-Gal4;UAS-LManV red circles) compared to genetic controls (Np1-Gal4/+ white circles and UAS-LManV/+ orange circles) (n = 10). Significance determined by Kruskal-Wallis test and Dunn’s multiple comparisons test. (E) Age-related changes in intestinal stem cell proliferation in response to gut-specific overexpression of LManV (Np1-Gal4;UAS-LManV, n = 10, 65d, red circles) compared to genetic controls (Np1-Gal4/+ white circles, n = 7, and UAS-LManV/+ orange circles, n = 11). Significance determined by Kruskal-Wallis test and Dunn’s multiple comparisons test. (F) Representative images and (G) quantification of age-related dysplasia in gut epithelia. Gut-specific overexpression of LManV (Np1-Gal4;UAS-LManV red circles) significantly reduced age-related intestinal dysplasia in 65-day-old flies compared to genetic controls (Np1-Gal4/+ white circles and UAS-LManV/+ orange cirlces). Significance determined by One-way ANOVA and multiple comparisons (Sidak’s). (H) Survival analysis of flies gut-specifically overexpressing LManV (Np1-Gal4;UAS-LManV, red) compared to the UAS-LManV/+ (orange) and Np1-Gal4/+ (black) heterozygous controls. Statistical significance between survival curves was determined by log-rank test (n = 150). **<0.01, *<0.05.

Gut barrier dysfunction is correlated with reduced lifespan in Drosophila and preserving gut homeostasis is correlated with longevity (Biteau et al., 2010; Regan et al., 2016; Rera et al., 2012). We thus tested if increased gut-specific expression of lysosomal mannosidase can maintain homeostasis in the ageing gut. Of the six significantly upregulated lysosomal alpha-mannosidases in the dilp2-3,5 mutant gut, lysosomal alpha-mannosidase V (LManV) was one of the most significantly regulated (Figure 5B). Overexpression of LManV using the constitutive, mid gut-specific, Gal4 driver Np1 (Jiang et al., 2009) increased the level of LManV (Figure 5—figure supplement 1A). Flies overexpressing LManV also showed increased numbers of lysosomes in the gut, suggesting increased homeostasis on the cellular level may aid in overall gut function (Figure 5C). Gut-specific over expression of LManV significantly reduced the level of age-related gut barrier failure by 69% compared to controls (Figure 5D). Age-related over-proliferation of intestinal stem cells leading to cell crowding, tumour formation, and the resulting loss of gut epithelial organisation may play a major role in gut barrier dysfunction (Biteau et al., 2010; Regan et al., 2016). Thus, to determine if overexpression of LManV can prevent age-related over-proliferation of intestinal stem cells we quantified the number of phospho-histone-positive (pH3+) cells, a marker for actively dividing cells and a direct measure of stem cell proliferation (Biteau et al., 2010). Gut-specific overexpression of LManV significantly reduced the number of pH3+ cells in the gut of aged flies compared to controls (Figure 5E). In addition, the reduction in pH3+ cells in flies overexpressing LManV correlated with the amelioration of age-related dysplasia in the gut (Figure 5F–G). Finally, gut-specific overexpression of LManV was sufficient to extend lifespan (Figure 5H, Figure 5—figure supplement 1B). Thus, increased expression of LManV specifically in the gut was sufficient to increase gut homeostasis, maintain gut structure, maintain gut barrier function, and to extend lifespan.

Discussion

Reduced IIS activity extends lifespan and ameliorates the effects of ageing (Partridge et al., 2011; Fontana et al., 2010; Kenyon, 2010). The diverse roles of IIS (Bartke, 2011) and the tissue-specificity of responses to lowered IIS (Page et al., 2018; Tain et al., 2017) mean the precise molecular mechanisms that mediate IIS mutant longevity remain unclear. In order to identify robust and conserved gene expression changes in response to lowered IIS, we have profiled the tissue-specific transcriptome and proteomes of dilp2-3,5 mutant flies. Using an interaction between Wolbachia and IIS (Grönke et al., 2010) and a proteomic comparison to the previously published proteomes of mNSC-ablated flies (Tain et al., 2017), we identified expression changes that are both conserved and associated with longevity. We identified fat body-specific post-transcriptional changes in protein expression associated with ER co-translational targeting and DNA damage responses and genome stability that may be causal for longevity. We then quantified a reduction in DNA damage and an increase in genome stability in the fat body of dilp2-3,5 mutant flies that occurred only in the presence of Wolbachia. We then showed that fat body-specific overexpression of MCM6, a DNA damage response protein, was sufficient to reduce DNA damage and extend lifespan. We also identified, transcriptionally driven, gut-specific changes in lysosomal alpha-mannosidases and demonstrated experimentally that gut-specific, but not ubiquitous, ectopic expression of LManV, was sufficient to extend the lifespan of otherwise wild-type flies.

Profiling tissue-specific gene expression changes in responses to reduced IIS

We profiled expression in four major insulin sensitive tissues, the brain, gut, fat body, and muscle. We have generated a tissue-specific transcript profile of adult Drosophila that includes 11331 transcripts. We have also increased the coverage of the adult Drosophila proteome by almost 20%, from 6085 (Tain et al., 2017) to 7234. In total, we detected the differential expression of 3683 transcripts and 3738 proteins in response to reduced IIS, accounting for 33% and 52% of the detected transcriptome and proteome, respectively. Our analysis thus provides a resource to the scientific community, for both tissue-specific gene expression and also the role of gene expression in IIS-dependent traits.

Identifying conserved tissue-specific gene expression changes in response to reduced IIS associated to longevity

IIS affects many processes, not only lifespan, including development, growth, and reproduction (Bartke, 2011). Thus isolating the specific changes in gene expression that modulate longevity in IIS mutants is problematic. To identify changes in gene expression that may be causal to longevity, we have utilised a known interaction between the endosymbiotic bacteria Wolbachia and IIS (Ikeya et al., 2009). The interaction between Wolbachia and IIS in dilp2-3,5 mutants results in extended lifespan and increased xenobiotic stress resistance, but does not affect other phenotypes associated with reduced IIS. We identified expression changes, both at the transcript and protein level that only occurred in the presence of Wolbachia. Surprisingly, the majority of those changes were detected only at the protein level, and predominantly in a single tissue, the fat body. Thus, our analysis revealed potential tissue-specific and causal regulators of longevity in IIS mutants. Furthermore, we highlight the importance of tissue-specific proteomic, not only transcriptomic, profiling.

To identify robust and conserved changes to the tissue-specific proteomes of long-lived IIS mutant flies, we performed a meta-analysis between the differentially expressed proteins in dilp2-3,5 mutant flies and the previously published tissue-specific proteomes of mNSC-ablated flies (Tain et al., 2017). Along with detecting targets previously unknown to be tissue-specific responses to reduced IIS (described below), our analysis showed regulation of elements known to be key in the responses to reduced IIS in Drosophila. These included reduced translation (Tain et al., 2017; Essers et al., 2016), increased detoxification (Afschar et al., 2016), modulation of proteostasis (Tain et al., 2017; Bai et al., 2013; Demontis and Perrimon, 2010; Tawo et al., 2017), and mitochondrial respiration (Tain et al., 2017). Importantly, despite the independent nature of our two IIS models, and the considerable difference in the strength of the IIS associated phenotypes (size, fecundity, and lifespan), these key responses were shared between the models. We thus conclude that these processes represent robust responses to reduced IIS.

Fat-body-specific post-transcriptional regulation in IIS mutants requires Wolbachia

Gene expression can be controlled both through transcriptional and post-transcriptional regulation (Liu et al., 2016). To be able to respond to rapid environmental changes cells can adapt their proteomes through post-transcriptional regulation, as transcriptional regulation may be too slow. To determine how the tissue-specific proteomes of dilp2-3,5 mutant flies were regulated, we compared them to our tissue-specific transcriptomic profiling of the thorax, gut, brain, and fat body of dilp2-3,5 mutant flies. The majority of changes in protein expression in the gut, brain, and thorax of dilp2-3,5 mutants corresponded to similar changes in transcript expression. This was not the case in the mutant fat body, where over 50% of proteins were regulated in the opposite direction to their transcripts. Those genes whose fat body-specific expression was post-transcriptionally regulated in response to reduced IIS were enriched for processes such as DNA damage/repair responses and ER/translation. Furthermore, this regulation required Wolbachia. Thus, only profiling the transcriptome would have lead to a misinterpretation of the tissue-specific effects of IIS repression and failed to identify possible mediators of longevity.

Fat-body-specific ER co-translational targeting is reduced in IIS mutant flies

Declining function of protein homeostasis (proteostasis) leading to reduced cellular viability is one of the hallmarks of ageing (López-Otín et al., 2013; Taylor and Dillin, 2011). Preventing this decline by reducing translation (Hansen et al., 2007; Pan et al., 2007; Wang et al., 2014), or by increasing expression of proteasomal subunits (Tain et al., 2017; Chen et al., 2006; Kruegel et al., 2011; Tonoki et al., 2009; Vilchez et al., 2012) can extend lifespan in yeast, C. elegans and Drosophila. Here, we show that another aspect of proteostasis, protein targeting/trafficking may also play a role in ageing. Sorting proteins to the correct cellular location is a vitally important part of proteostasis and dysfunction in the sorting of proteins can lead to disease (Balch et al., 2008). We identified a fat-body-specific downregulation of proteins associated to the ER, and proteins involved in co-translational import into the ER in response to reduced IIS. Importantly, these changes were common to both dilp2-3,5 mutants and mNSC-ablated flies, and only occurred in the presence of Wolbachia, suggesting this regulation may play a specific role in IIS mutant longevity.

Newly synthesised proteins can be directly trafficked into the ER through co-translational import, via the SRP and translocon (Saraogi and Shan, 2011). We quantified several SRP, SRP-receptor, and translocon subunits as significantly down-regulated in the fat body of long-lived IIS mutants. Thus, co-translational import into the ER may be tissue-specifically decreased in response to reduced IIS, possibly as a means of post-transcriptionally regulating the proteome.

Interestingly, the role of ER itself in post-transcriptional regulation is vital, with the ER acting as a major cellular compartment for translation, primarily of secreted and membrane proteins (Reid and Nicchitta, 2012; Reid and Nicchitta, 2015). The reduction in co-translational import to the ER detected in IIS mutants may therefore result in a specific reduction in translation of secreted proteins. However, our analysis suggests the response is more likely to represent a general reduction in translation, because the expression of both secreted, and membrane, proteins was reduced to the same extent.

Reduced translation is a common feature of long-lived models, especially models of reduced IIS activity, where both translational capacity and translational rate are decreased (Tain et al., 2017; Essers et al., 2016). Translational capacity is decreased in both the Drosophila gut and fat body of IIS mutants, with fewer cytoplasmic ribosomes associating with mRNAs undergoing active translation (Essers et al., 2016). Translational rate, however, is only decreased in the fat body of IIS mutant flies (Tain et al., 2017; Essers et al., 2016). Unlike tissue-specific reductions in translational capacity, fat-body-specific reductions in translational rate are dependent on dFoxo in IIS mutants and are thus potentially important for longevity. Functional signatures associated to a general reduction in translation were detected in both the gut and the fat body. However, changes in the expression of co-translational import machinery proteins were unique to the fat body in response to reduced IIS. Changes in the ER co-translational import machinery proteins could lead to more global changes in translation.

Fat-body-specific regulation of the DNA damage/repair machinery and maintenance of genome stability in response to lowered IIS

Our study examined the role of DNA damage responses and genome stability in response to reduced IIS. Key elements of the DNA damage response were strongly, and specifically, induced in the fat body of dilp2-3,5 flies. Furthermore, we found that this response required Wolbachia and therefore the proteins of the DNA damage response and genome stability machinery are good candidates for regulators of IIS mutant longevity.

Progressive age-related incidents of DNA damage are common amongst most species examined, and may be the cause cellular dysfunction and thus ageing (Maynard et al., 2015). Preventing DNA damage may therefore be beneficial for longevity. Using phosphorylated His2Av as a marker for early DNA damage (Mah et al., 2010), we were able to confirm a reduction of DNA damage in the fat body of IIS mutant flies that required the presence of Wolbachia. This correlated with the changes in expression of the DNA damage response and repair pathways detected in the fat body of dilp2-3,5 mutants. We identified the replicative helicase MCM complex as regulated in response to reduced IIS. Furthermore, all subunits of the MCM complex were upregulated, but only in the presence of Wolbachia. Thus, the MCM complex may play a role in modulating the longevity of IIS mutant flies.

The MCM complex is an evolutionarily conserved replicative helicase required for initiation and elongation during DNA replication (Bell and Dutta, 2002). In addition, the MCM complex has been shown to play a role in transcription, chromatin remodelling, and genome stability (Bailis and Forsburg, 2004; Forsburg, 2004). More recently, MCM complex proteins have been shown to be recruited to sites of DNA damage (Drissi et al., 2015) and play a role in repair responses (Drissi et al., 2018). Increased MCM protein levels in the fat body of IIS mutants may aid in preventing age-related DNA damage and/or increase the efficiency of repair pathways and thus promote longevity. Indeed, increased expression of a single subunit (MCM6) of the MCM complex in the fat body was sufficient to significantly reduce age-associated DNA damage in that tissue. Furthermore, increased expression of MCM6 in the fat body was sufficient to extend longevity. Together, these data suggest a role for increased DNA damage/repair responses as possible modulators of IIS-mediated longevity.

These changes also extended to proteins that regulate genome stability. DNA damage and genomic instability are closely linked (Celeste et al., 2002). Loss of genome stability leads to deregulation of transcription and has been associated with ageing across a wide range of model organisms including Drosophila (Maxwell et al., 2011; Wood et al., 2010). Combined with the dysregulation of DNA surveillance mechanisms with age, loss of stability can lead to the deleterious activation and mobilisation of TEs (Dennis et al., 2012; Maxwell et al., 2011; Chen et al., 2016). However, interventions exist that can prevent TE activation. Dietary restriction can ameliorate transposon de-repression and loss of gene silencing with age (Wood et al., 2016; Jiang et al., 2013). We find that transposon expression was diminished, specifically in the fat body, in response to reduced IIS. Our study suggests that a direct intervention to reduce IIS in Drosophila can tissue-specifically activate DNA maintenance mechanisms to maintain transposon repression and potentially delay genomic instability. One important distinction to be studied in the future will be to determine whether increased genome stability prevents DNA damage, or if reduced DNA damage increases genome stability.

Gut-specific regulation of lysosomal alpha-manosidase ameliorates age-related gut pathology and is sufficient to extend lifespan

Managing nutrient uptake and regulating metabolism, including carbohydrate metabolism, is vitally important for an organism. Changes to carboydrate metabolism has been linked to ageing and interventions that ameliorate the effects of ageing (Afschar et al., 2016; Narayan et al., 2016). We identified proteins of a key enzyme family as regulated in response to reduced IIS, namely lysosomal alpha-mannosidases. All the lysosomal alpha-mannosidases were upregulated, but most only in the presence of Wolbachia. This suggests lysosomal alpha-mannosidases may play a role in modulating the longevity of IIS mutant flies.

Mutations that affect mannose metabolism enzyme activity result in multiple genetic disorders, with more severe mutations leading to multi-organ insufficiencies (Freeze et al., 2014). The normal function of lysosomal alpha-mannosidases is to cleave mannose residues from the oligosaccharides of glycosylated proteins, thereby aiding in lysosomal recycling of glycoproteins (Nemčovičová et al., 2013). The question therefore remains, how can increased lysosomal alpha-manosidase expression in the gut extend lifespan? Increased lysosomal alpha-manosidase expression in response to reduced IIS may regulate proteostasis through lysosomal protein recycling. Importantly, our analysis showed increased lysosomal alpha-manosidase expression increased the number of lysosomes in the gut, which may increase gut health on a cellular level. Furthermore, we showed that increased lysosomal alpha-manosidase expression maintained gut health, reduced age-related gut pathologies, and increased longevity. In the future, targeting lysosomal alpha-mannosidases in the gut may therefore prove to be therapeutic against the effects of ageing.

In summary, here we present a highly reproducible, tissue-specific, transcriptomic and proteomic dataset containing over 11,000 transcripts and 7000 proteins quantified from adult Drosophila and show how their expression changes in response to reduced IIS activity. To identify robust modulators of longevity, we have examined proteomic changes that are conserved between two models of reduced IIS and utilised the requirement of Wolbachia for IIS-mediated longevity to triage those proteomic changes most likely causal for longevity. We show that post-transcriptional regulation plays a major role in remodelling the fat body-specific proteome in response to reduced IIS, and that many possible candidates for mediating longevity are post-transcriptionally regulated in that tissue. We then identified two processes, ER co-translational ER import and DNA-damage responses/genome stability, regulated in the fat body of long-lived IIS mutant flies, potentially causal to their longevity. We also show that fat-body-specific overexpression of MCM6 is sufficient to reduced age-associated DNA damage and extend lifespan. Furthermore, we show that gut-specific overexpression of LManV was sufficient to increase gut homeostasis and extend lifespan. Together, our analysis offers a valuable resource to the scientific community, and highlights the importance of tissue-specific proteomic profiling and cross model comparison to discover potentially unidentified modulators of longevity.

Materials and methods

Fly stocks, fly husbandry, and dissection

Request a detailed protocol

All flies were backcrossed into a white Dahomey (wDah) strain genetic background for at least eight generations. Naturally Dahomey carry the intracellular bacterium Wolbachia pipientis. Wolbachia minus (wDahT) flies were generated by treating wDah flies with Tetracycline (25 mg/ml in standard SYA food) for three generations followed by a minimum of five generations to allow for full recovery from tetracycline treatment and restoration of intestinal flora. Unless specifically stated all strains, including FB-Gal4, NP1-Gal4, UAS-MCM6 (RRID:FlyBase_FBst0500029), and UAS-LManV, were backcrossed into a Wolbachia-positive white Dahomey (wDah) strain genetic background. The presence or absence of Wolbachia was tested in all stocks via PCR using primers for the Wolabchia surface protein (wsp), specifically the primer combination wsp81F (AAAAATTAAACGCTACTCCA) and wsp691R (TGGTCCAATAAGTGATGAAGAAAC). dilp2-3,5T mutants were generated by back crossing flies into the wDahT background for a minimum of 10 generations (Grönke et al., 2010).

Fly stocks were maintained at 25°C on a 12 hr light and 12 hr dark cycle and fed a standard sugar/yeast/agar diet (Bass et al., 2007). All experimental flies were once mated females, and raised at controlled larval densities. Adult flies were kept in SYA food vials (25 flies per vial) and aged 10 d prior to tissue dissection in cold phosphate buffered saline (PBS) and directly frozen on dry ice. Dissection of Drosophila gut included malpighian tubules. Dissected thorax contained predominantly muscle. To generate UAS-LManV flies the ORF was PCR amplified with primers 1 (ATGAAGTTCCTGGGCAT) and 2 (TTATTCATGTTTAATGATGAATGTTCG) and the LManV cDNA UFO03585 (Drosophila Genomics Resource Center) and subsequently cloned into the pUAST attb vector (RRID:Addgene_18944). The CDS was amplified and inserted via restriction digest using KpnI and NotI. pUAST attb LManV was inserted into the fly genome by the φC31 and attP/attB integration system (Bischof et al., 2007) using the attP40 landing site.

Immunohistochemistry

Request a detailed protocol

Tissues were dissected in cold PBS and immediately fixed in 4% formahldehyde for 30 min, washed three times in PBS and incubated (1 hr) in blocking solution (0.5% BSA PBS-Tween 0.5%). Tissues were then incubated with anti p-His2Av (Ser137)(1:100)(Rockland immunochemicals Inc, RRID:AB_828383) in blocking solution on a rotator at o/n at 4°C, washed three times, and incubated with anti-rabbit HRP-conjugated secondary antibody (1:1000). Tissues were then washed three times in PBS and mounted in mounting medium (Vectashield H-1200) containing DAPI. Images were taken using confocal microscope (Leica TCS SP5X) with 40 × 1.25 oil objective. Laser power and optical settings were kept constant between images. Images were then analyzed using Imaris 8.0 software (RRID:SCR_007370). The number of p-His2av (Ser137) puncti and DAPI stained nuclei were quantified according to user guidelines and puncti/nucleus calculated. In total between 14 and 17 independent biological replicates were used for quantification (wDah n = 16, wDahT n = 15, dilp2-3,5 n = 17, dilp2-3,5T n = 14). Per individual one micrograph was included for quantification each containing a minimum of six fat body cells (based on DAPI-stained nuclei count).

All image analysis and quantification were performed under blinded conditions.

Intestinal health assays

Intestinal dysplasia

Request a detailed protocol

Aged (65d) guts from female flies were dissected in cold PBS and fixed in 4% formaldehyde for 30 min, washed, and mounted in mounting medium containing 1.5 ug/ml DAPI (Vetashield, H1200). DAPI was images using a confocal microscope (Leica SP8-X). For each genotype 8–13 guts were imaged in the area proximal to the proventriculus (R2 region). Dysplasia was measured under blinded conditions using ImageJ, and the average proportion of the dysplasic gut relative to the length of gut within the image was calculated. Scoring of dysplasia was performed by measuring the length of gut with several layers of nuclei that formed small nuclear ‘nests’ of unpolarised cells that clustered atypically and lead to loss of epithelial organisation. Healthy, non-pathalogical, gut was measured as large absorptive cells aligned to forma single layer epithelium with even spacing.

Intestinal barrier function

Request a detailed protocol

Aged (65d) flies were transferred to SYA food vials containing 2.5% (w/v) Brilliant Blue (AppliChem), a non-absorbable blue dye. A minimum of 160 flies per genotype was assayed. After 48 hr, flies were then examined for the presence of dye leakage into the body as previously described (Rera et al., 2012).

Intestinal stem cell proliferation

Request a detailed protocol

Aged (65d) guts from female flies were dissected in cold PBS and fixed in 4% formaldehyde for 30 min, washed three times in PBS and incubated (1 hr) in blocking solution (0.5% BSA PBS-Tween 0.5%). Tissues were then incubated with anti-PH3 (Cell Signalling Technologies 9701 1:500, RRID:AB_331535) in blocking solution on a rotator at o/n at 4oc, washed three times, and incubated with a Alexa Fluor 594 donkey anti-rabbit secondary antibody (Thermo Fisher A21207, 1:1000, RRID:AB_141637). Tissues were then washed three times in PBS and mounted in mounting medium (Vectashield H-1200) containing DAPI. PH3-positive cells were then counted per gut.

LysoTracker staining and quantification

Request a detailed protocol

For LysoTracker staining, fat bodies from female flies (10d) were dissected in PBS and immediately stained with LysoTracker Red DND-99 (Invitrogen) dye (1 μM in PBS) for 2 min. Tissues were then washed three times in PBS and mounted in mounting medium (Vectashield H-1200) containing DAPI. Images were taken using confocal microscope (Leica TCS SP8X) with 40 × 1.25 oil objective. Laser power and optical settings were kept constant between images. Images were then analyzed using Imaris 8.0 software (RRID:SCR_007370). The number of LysoTracker puncti and DAPI-stained nuclei were quantified according to user manual guidelines and puncti/nucleus calculated. All image analysis and quantification were performed under blinded conditions.

Lifespan analysis

Request a detailed protocol

Survival assays were performed on once mated female flies, reared at standard densities, and transferred to vials (10–25/vial). Flies were transferred to fresh food every 2–3 days and deaths scored on transferal. Replicates for lifespans shown in Figures 4E and 5H are shown in Figure 4—figure supplement 1 and Figure 5—figure supplement 1. Source data for completed lifespans is available in Source data 1.

Peptide digestion for LC-MS/MS analysis

Request a detailed protocol

Fly tissues (50/sample) from five biological replicates were lysed in pre-heated (95°C) 6 M guanidine chloride, 10 mM TCEP, 40 mM CAA, 100 mM Tris pH 8.5 lysis buffer. Following shaking at 1400 rpm (95°C) tissues were sonicated for five cycles (Bioruptor plus). Lysis buffer was then diluted 11-fold in digestion buffer (25 mM Tris 8.5 pH, 10% acetonitrile) and vortexed. Overnight trypsin (Trypsin Gold, Promega) digestion was carried out at 37°C at a 1:50 trypsin to protein ratio. Samples were sonicated again for five cycles, and further digested with gentle agitation at 37°C for 4 hr using a 1:100 trypsin to protein ratio. Samples were then placed in a SpeedVac (5 min, 37°C) to remove acetonitrile. Peptides were desalted using SDB.XC StageTips (Rappsilber et al., 2003). Peptides were then eluted using (80% acetonitrile, 0.1% formic acid), dried in a SpeedVac (35 min, 29°C), and quantified via Nanodrop.

LC-MS/MS analysis

Request a detailed protocol

Peptides were loaded on a 50 cm column with a 75 μm inner diameter, packed in-house with 1.8 μm C18 particles (Dr Maisch GmbH, Germany) and dried via SpeedVac (35 min, 29°C). Reversed phase chromatography was performed using the Thermo EASY-nLC 1000. Buffer A was 0.1% formic acid and buffer B, 80% acetonitrile in 0.1% formic acid. Peptides were separated using a segmented gradient from 3% to 20% buffer B for 85 min and from 20% to 40% buffer B for 55 min. The Q-Exactive was operated in the data-dependent mode with survey scans acquired at a resolution of 120,000; the resolution of the MS/MS scans was set to 15,000. Up to the 20 most abundant isotope patterns with charge ≥2 and<7 were selected for HCD fragmentation with an isolation window of 1.5 Th and normalised collision energies of 27. The maximum ion injection times for the survey scan and the MS/MS scans were 50 and 100 ms, respectively, and the AGC target value for the MS and MS/MS scan modes was set to 1E6 and 1E5, respectively. The MS AGC underfill ratio was set to 20% or higher. Sequenced peptides were put on a dynamic exclusion for 45 s.

Protein identification and quantification

Request a detailed protocol

Protein identification was carried out using MaxQuant (Cox and Mann, 2008) version 1.5.0.4 (RRID:SCR_014485) using the integrated Andromeda search engine (Cox et al., 2011). The data were searched against the canonical and isoform, Swiss1Prot and TrEMBL, Uniprot sequences corresponding to Drosophila melanogaster (20,987 entries). The database was automatically complemented with sequences of contaminating proteins by MaxQuant. For peptide identification, cysteine carbamidomethylation was set as ‘fixed’ and methionine oxidation and protein N“fixed’ and methionine oxidation athionine oxidation at as ‘fixed’ and methionine oxidation aequences of contaminating proteins by MaxQuantor cleavage after lysine and arginine, also when followed by proline, and up to two missed cleavages. The minimum number of peptides and razor peptides for protein identification was 1; the minimum number of unique peptides was 0. Protein and peptide identification was performed with FDR of 0.01. In order to transfer identifications to peptides not selected for fragmentation in the separate analyses, the option to peptides protein identification was 1; the minimum number of unique peptides was 0. Proteinow’ of 20 min. Protein and peptide identifications were performed within, not across, tissue groups. Label‐free quantification (LFQ) and normalisation was done using MaxQuant (Cox et al., 2014). The default parameters for LFQ were used, except that the ‘LFQ min. ratio count’ parameter was set to 1. Unique plus razor peptides were used for protein quantification. LFQ analysis was done separately on each tissue.

Perseus informatics analysis

Request a detailed protocol

The results of the LFQ analyses were loaded into the Perseus statistical framework (http://www.perseus-framework.org/) version 1.4.1.2 (RRID:SCR_015753). Protein contaminants, reverse database identifications and proteins ‘Only identified by site’ were removed, and LFQ intensity values were log2 transformed. After categorical annotation into four categories based on genotype (dilp2-3,5/wDah) and presence of Wolbachia (yes/no), the data were filtered in order to contain a minimum of four valid values in at least one category. The remaining missing values were replaced, separately for each column, from normal distribution using width of 0.3 and down shift of 1.8.

Proteomics differential expression analysis

Request a detailed protocol

We used the limma R package (version 3.30.13) to test the significance of the insulin response, that is the difference in protein expression between dilp2-3,5 and wDah, in each of the four tissues (fat, brain, gut, thorax) and in the presence and absence of the endosymbiont Wolbachia. In addition, we determined the significance of the two-way interactions between dilp2-3,5 and Wolbachia for each protein (dilp2-3,5 - wDah vs. dilp2-3,5T - wDahT). p-Values were corrected for multiplicity on a per-tissue basis using the Benjamini-Hochberg method. Wolbachia-dependent proteins were defined as proteins with a significant change both between dilp2-3,5 and wDah and in the two-way interaction between Wolbachia-status and insulin response (adj. p-value<=0.1). To identify Wolbachia-independently regulated proteins, we determined for each insulin-responsive protein whether it was equivalently regulated by dilp2-3,5 and dilp2-3,5T, that is whether the 90% confidence interval of its log-fold-change fell within an interval ([−t; t], t = 0.085), by applying a TOST equivalence test on the fitted limma contrast. The threshold t was calculated by first calculating the median of interaction log2-fold changes in each tissue and then averaging them.

RNAseq analysis

Request a detailed protocol

Isolation of RNA from frozen tissue samples of all genotypes (wDah control and dilp2-3,5 flies, both in the presences and absence of Wolbachia) was performed on three independent biological replicates using Trizol Reagent (Thermo Fisher Scientific), according to the manufacturer’s instructions, followed by DNase treatment (Qiagen). RNA quality was determined using the BioRad Experion (BioRad). RNA-seq library preparation and sequencing was performed by the Max Planck Genome centre Cologne, Germany (http://mpgc.mpipz.mpg.de/home). Stranded TruSeq RNA-seq library preparation was performed on 2 μg of total RNA after rRNA depletion (Ribo-zero). Brain samples were treated as above, however total RNA input was reduced (500 ng).

CircRNA data, extracted from the tissue-specific RNAseq data for Wolbachia positive wDah and dilp2-3,5 mutants, have been previously published (Weigelt et al., 2020).

Libraries were sequenced with 37 mio, 100 bp single reads on an Illumina HiSeq2500 (Illumina). Adapter trimming was carried out using flexbar (version 2.5, RRID:SCR_013001), using minimum read length after trimming of 30, and quality threshold of 20. Transcripts were then mapped to the BDGP6.28 reference genome using tophat2 (version 2.1.0, RRID:SCR_013035) and counted via summarizeOverlaps (part of the Bioconductor R package GenomicAlignments, version 1.10.1, RRID:SCR_006442) with the option ‘intersectionNotEmpty’. FPKM for comparison with the proteome were calculated using DESeq2 (version 1.14.1, RRID:SCR_015687). Differential expression analysis was carried out tissue-wise using a two-factor linear model with interaction effect in DESeq2, testing the insulin response in each tissue analogously to our proteomics analysis. p-Values were adjusted for multiplicity by DESeq2 using the Benjamini-Hochberg procedure on a per-tissue basis, with independent filtering enabled. Wolbachia-dependent transcripts were defined as transcripts with a significant change both between dilp2-3,5 and wDah and in the two-way interaction between Wolbachia-status and insulin response (adj. p-value<=0.1). Due to lower power of the RNAseq assay compared to our proteomics, no Wolbachia-independently regulated transcripts were identified.

To determine transposon expression, we separately mapped all sample reads to canonical transposon reference sequences obtained from flybase (Gramates et al., 2017) using RSEM (RRID:SCR_013027). To get more robust estimates, dispersion and library normalisation factors were calculated based on the combined counts of both gene and transposon quantifications. We then fitted a two-factor linear model using edgeR (RRID:SCR_012802). Differential expression analysis was carried out as described for the primary analysis, but using the edgeR likelihood ratio test. p-Values were corrected for multiplicity using the Benjamini-Hochberg method. Wolbachia-dependent transposons were defined as transposons with a significant change both between dilp2-3,5 and wDah and in the two-way interaction between Wolbachia-status and insulin response (adj. p-value<=0.1).

Network propagation

Request a detailed protocol

We mapped the absolute log-fold changes of dilp2-3,5 vs. wDah, as well as mNSC-ablated vs. wDah (Tain et al., 2017) comparisons to the protein-protein-interaction network obtained from DroID (RRID:SCR_006634) (Murali et al., 2011). Separately for both comparisons, we then performed network propagation (Vanunu et al., 2010), iteratively propagating the fold-change information through the network (spreading coefficient = 0.8) until a steady state was reached. In an additional step, we corrected for a known bias in network propagation that favours hub nodes by subtracting the propagation scores of in silico randomised fold changes from the initial result. We further integrated the scores from both models in each tissue into a consensus score. This was done by taking the minimum of both scores for each protein, effectively selecting proteins that were high-scoring in both. Next, we clustered network propagation scores across all tissues using hierarchical clustering in R (Ward’s method). For each cluster, we carried out GO enrichment analysis (see 5.8) against the background set of all genes included in the network propagation analysis.

GO enrichment analysis

Request a detailed protocol

Gene ontology annotations of genes and proteins were taken from the org.Dm.eg.db R package (version 3.4.0, Bioconductor RRID:SCR_006442). We excluded GO terms with fewer than five or more than 1000 annotated genes. For each gene list, significance of functional enrichment of GO terms in the gene list compared to the background list was determined using Fisher tests. For proteomics gene lists, the background was restricted to genes whose proteins were detected in the respective tissue. For transcriptomics gene lists, the background was restricted to genes whose transcripts were detected at a median count above five in the respective tissue. To reduce redundancy of functional categories, we clustered together GO terms that differed in five or fewer gene list member genes; the smallest GO term by total annotations was selected as the primary (most specific) term to represent the cluster. We then carried out correction for multiple hypothesis testing using the Benjamini-Hochberg method on all primary GO terms to obtain adjusted Fisher test p-values.

Appendix 1

Tissue-specific differential expression of the Drosophila proteome in response to reduced IIS at the level of proteome and transcriptome

(A)Pairwise correlations between replicates belonging to the same genotype, across all genotypes and tissues, for both transcriptomic and proteomic measurements. (B) Principle component analysis projections of all transcriptomic and proteomic replicates, respectively, showing clear separation of the tissues. 12 samples, comprising three biological replicates of the four genotypes (wDah and dilp2-3,5 mutant flies plus/minus Wolbachia) are plotted for each tissue. For the proteomic analysis 20 samples, comprising five biological replicates of the four genotypes (wDah and dilp2-3,5 mutant flies plus/minus Wolbachia) are plotted for each tissue. Proteomic replicates show relatively little variation and thus overlay each other. (C) Total number of transcripts and proteins (incl. isoforms mapped to unique flybase identifiers) that were detected across fat body, gut, brain, and thorax, and the overlap between tissues. Total numbers detected in each tissue are given in parentheses. (D) Number of differentially expressed transcripts and proteins (including isoforms) by tissue between dilp2-3,5 mutants and controls (wDah) (adj. p-value≤0.1) across all tissues, as well as their overlap. Total numbers detected in each tissue are given in parentheses.

Appendix 2

The Wolbachia-dependent transcriptome and proteome response to IIS. (A) Bioinformatics flowchart showing the derivation and numbers of transcripts/proteins that were differentially regulated in response to reduced IIS (dilp2-3,5 vs wDah), showed an interaction between the responses to reduce IIS and the presence of Wolbachia (dilp2-3,5 - wDah vs. dilp2-3,5T - wDahT (denotes Wolbachia genotypes, see Methods section)) and if those changes in expression occurred in a Wolbachia-dependent or -independent manner in a tissue. Specific bioinformatics analyses are described in the methods section. (B) Numbers of transcripts and proteins in each tissue that were differentially regulated between dilp2-3,5 and wDah (middle column), and at the same time detected as Wolbachia-independent (left column) or Wolbachia-dependent (right column), by tissue. (C) Significantly enriched (Fisher-test, FDR ≤ 0.05) functional GO terms among Wolbachia-dependent regulated transcripts and proteins in dilp2-3,5 mutants, by tissue. Barcharts are segmented into cells that correspond to individual significantly regulated proteins. Colour indicates log-fold-change. Gene ontologies associated with DNA replication (*) and DNA damage (**). (D-E) Proportions of protein/transcript pairs that were concordantly regulated (both up or down) or oppositely regulated, in the absence of Wolbachia (dilp2-3,5T vs. wDahT). Correlations were calculated between the protein and transcript log-fold changes of significantly regulated protein/transcript pairs in each plot. (D) All protein/transcript pairs in the respective tissue where the transcript was independently significantly regulated (adj. p-value≤0.1). (E) All protein/transcript pairs in the respective tissue where the protein was independently significantly regulated (adj. p-value≤0.1).

Appendix 3

Correlation and comparison of tissue-specific proteome remodelling between two independent models of reduced IIS. (A) Tissue-specific correlation of directional log-fold changes between dilp2-3,5 mutants and controls (wDah) and mNSC-ablated flies and controls (wDah). Black dots show proteins with a significant combined P-value after multiplicity adjustment (p≤0.1). Numbers in quadrants show the number of these significant proteins in each quadrant. Circle-segments and percentages represent the fraction of significant proteins over total proteins in the given tissue. Red dots signify proteins that were individually significant in both proteomics comparisons. (B) Total number of differentially expressed proteins (including isoforms), irrespective of tissue, and tissue-specifically, in mNSC-ablated flies (Tain et al., 2017) and dilp2-3,5 mutants (adj. p-value≤0.1).

Data availability

Sequencing data have been deposited in GEO under accession code GSE122190 The mass spectrometry proteomics data have been deposited to the ProteomeXchange Consortium via the PRIDE partner repository with the dataset identifier PXD011589.

The following data sets were generated
    1. Tain LS
    2. Sehlke R
    3. Meilenbrock RL
    4. Leech T
    5. Paulitz J
    6. Chokkalingam M
    7. Nagaraj N
    8. Grönke S
    9. Fröhlich J
    10. Atanassov I
    11. Mann M
    12. Beyer A
    13. Partridge L
    (2021) PRIDE
    ID PXD011589. Tissue-specific modulation of gene expression in response to lowered insulin signalling in Drosophila.

References

  1. Book
    1. Essers P
    2. Tain LS
    3. Nespital T
    4. Goncalves J
    5. Froehlich J
    6. Partridge L
    (2016)
    Reduced Insulin/insulin-Like Growth Factor Signaling Decreasestranslation
    Nature Publishing Group.
    1. Kenyon C
    (2011) The first long-lived mutants: discovery of the insulin/IGF-1 pathway for ageing
    Philosophical Transactions of the Royal Society B: Biological Sciences 366:9–16.
    https://doi.org/10.1098/rstb.2010.0276
    1. Werren JH
    2. Windsor DM
    (2000) Wolbachia infection frequencies in insects: evidence of a global equilibrium?
    Proceedings of the Royal Society of London. Series B: Biological Sciences 267:1277–1285.
    https://doi.org/10.1098/rspb.2000.1139

Decision letter

  1. Seung-Jae V Lee
    Reviewing Editor; Korea Advanced Institute of Science and Technology, Republic of Korea
  2. Matt Kaeberlein
    Senior Editor; University of Washington, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This elegant and thorough study enhances understanding of mechanisms underlying how reduced insulin signaling delays aging in different tissues. This paper also demonstrates the power of using tissue-specific profiling of transcriptome and proteome in combination with Drosophila molecular genetics for research to elucidate underlying mechanisms for health and longevity. The authors did an excellent job of addressing all three reviewers' concerns, and the reviewers are satisfied with the revision.

https://doi.org/10.7554/eLife.67275.sa1

Author response

Reviewer #1 (Evidence, reproducibility and clarity (Required)):

Summary

Tain describes the impact of dilp2,3,5 mutant on transcriptional and protein profiles from fat body, gut, brain and thorax. This expands from previous work where profiles were generated from whole adults or when using different manipulations to alter insulin/IGF signaling. Transcriptional change correlated with protein profile change in most tissue, except fat body. These expression effects interacted with antibiotic treatment, which the authors attribute to Wolbachia; previous work showed that dilp2,3,5 only extends lifespan in antibiotic treated adults. From analysis of the expression changes, Tain tested candidate pathways for ability to modulate aging. Longevity could be increased by minichromosome gene expression in fat body, and lysosomal mannosidase gene expression in the gut. These results refine the catalog of potential cellular mechanisms by which altered IIS controls lifespan. The paper and conclusions should be improved at several points.

Major comments

The interaction with Wolbachia is interesting and important. The data imply there is some sort of age-associated damage caused by microbes that is forestalled by dilp235 mutation. When flies are treated with antibiotics, this damage absent and reduced IIS cannot improve survival. (This interpretation implies antibiotic treatment increases lifespan of wildtype flies but data among labs varies and no data on this point are given in the current paper.) The key problem for now is to show the effects are caused by Wolbachia rather than a general impact upon the fly microbiome. Tetracycline knocks down many bacteria and no evidence is given to distinguish that alternative from just removing Wolbachia. This issue must be experimentally resolved, or the work should be rewritten without claiming Wolbachia is the cause. I would also like to see data confirming Wolbachia is present and absent in the stocks currently used in the study (not from years past). And, when were the T+/- stocks produced, in this study or many years back (this matters because it affects time for other microbiome to recover)?

We thank the reviewer for identifying a clear misunderstanding with our methods. There was no treatment of flies with antibiotics during the experiments described in the manuscript. The description of the methods is now more transparent. For the generation of Wolbachia minus wDah stocks (wDahT), which naturally carry Wolbachia, were treated with tetracycline (25 mg/ml) for 3 generations. This was then followed by several generations to allow for full recovery from tetracycline treatment and to restore intestinal flora. Importantly, treatment with tetracycline and the resultant removal of Wolbachia did not alter lifespan in the wDah stocks [24, 27]. dilp2,3-5 mutants, both with and without Wolbachia, were previously generated by Grönke et al. 2010. To achieve this, dilp2-3,5 mutants were backcrossed for at least 10 generations into the previously described wDah or wDahT stock. The presence of Wolbachia was then checked by PCR as described above (Technical details are described in the updated methods).

We hope that this has clarified our methods to the reviewer. We have now expanded and clarified the methodology section text to better describe the generation of our Wolbachia positive and negative stocks. These changes are outlined below.

Original methods text in the “Fly stocks, fly husbandry, and dissection” section of the method section on pg.31

“All flies were backcrossed into a white Dahomey (wDah) strain genetic background for at least 8 generations. Wolbachia minus (wDahT) flies were generated as previously described [24], wDah flies were treated once with Tetracycline to remove Wolbachia.”

This section of the methodology text has now been edited as seen below.

“All flies were backcrossed into a white Dahomey (wDah) strain genetic background for at least 8 generations. Naturally Dahomey carry the intracellular bacterium Wolbachia pipientis. Wolbachia minus (wDahT) flies were generated by treating wDah flies with Tetracycline (25 mg/ml in standard SYA food) for 3 generations followed by a minimum of 5 generations to allow for full recovery from tetracycline treatment and restoration of intestinal flora. Unless specifically stated all strains, including FB-Gal4, NP1-Gal4, UAS-MCM6, and UAS-LManV, were backcrossed into a Wolbachia positive white Dahomey (wDah) strain genetic background. The presence or absence of Wolbachia was tested in all stocks via PCR using primers for the Wolabchia surface protein (wsp), specifically the primer combination wsp81F (AAAAATTAAACGCTACTCCA) and wsp691R (TGGTCCAATAAGTGATGAAGAAAC). dilp2-3,5T mutants were generated by back crossing flies into the wDahT background for a minimum of 10 generations [24].”

In addition, we have performed an additional PCR on all stocks used to show Wolbachia infection status for the reviewers (see below). As stated in the methods all stocks were positive for Wolbachia (wDah, dilp2-3,5, UAS-MCM6, FB-Gal4, UASLManV, NP1-Gal4, unless explicitly stated (wDahT, dilp2-3,5T)

Reviewer response Figure 1. Wolbachia infection status of all stocks used within the study. Samples shown represent pooled (5 flies) DNA from the following genotypes; wDah, wDahT, dilp2-3,5, dilp2-3,5T, UAS-MCM6, FB-Gal4, UAS-LManV, NP1-Gal4, and a no DNA control. The presence or absence of Wolbachia was tested in all stocks via PCR using primers for the Wolabchia surface protein (wsp), specifically the primer combination wsp81F (AAAAATTAAACGCTACTCCA) and wsp691R (TGGTCCAATAAGTGATGAAGAAAC). Lower panel shows a positive PCR control for Rpl32. Hyperladder 50bp (Bioline) was loaded to indicate product size.

MCM6 expression was strongly elevated in dilp235 mutant fat body when Wolbachia positive. Tain establishes experimentally that transgene expression of this gene reduces His-foci and TEs. It extends lifespan, which transcends the paper from a correlational project to causal inference. I think this needs to go a bit further. What was the Wolbachia state of the flies in the survival study? I think they should be Wolbachia positive; please clarify. I also recommend treating these flies to remove Wolbachia and remeasuring survival; if the logic of this paper is robust we expect the benefit of MCM6 upon survival to not show up. It is difficult to conclude genome stability/TEs regulation by dilp235 as a mechanism to increase survival dependent on Wolbachia when the transgene survival experiment with MCM6 does not include a Wolbachia treatment.

We agree with the reviewer that the Wolbachia status of the MCM6 survival assay, along with all genotypes, is important information for the reader and we have now included information on the Wolbachia status of all genotypes in the methods section (see below). Unless specifically stated all fly stocks used in this study carry Wolbachia. Furthermore, as stated in the previous response, PCR confirmation of Wolbachia status for all stocks is shown above.

Method section additional text added (pg.31)

Unless specifically stated all strains, including FB-Gal4, NP1-Gal4, UAS-MCM6, and UAS-LManV, were backcrossed into the Wolbachia positive white Dahomey (wDah) strain.

The reviewer suggests to overexpress MCM6 also in the Wolbachia negative background to show that the beneficial effect of fat body-specific MCM6 expression requires the presence of Wolbachia in the wild type background, independent of reduced IIS. We thank the reviewer for their comment. Our data show that fat body-specific overexpression of MCM6 is sufficient to extend lifespan, independently of reduced IIS activity. We agree that we cannot exclude that this effect is independent of Wolbachia as all overexpression work was performed in Wolbachia positive backgrounds. However, Wolbachia status has no influence on either the lifespan (Grönke et al. 2010 [24 in the main text]) or the level of DNA damage (pHis2Av punctae/cell in Figure 4B) of wDah flies. As such we would not expect differences in DNA damage or lifespan upon overexpression of MCM6.

I have concerns on the genetics of the survival data. For MCM6 there is as much of a survival difference between the two parental genotypes as there is between the F1 and the gal4 control. This looks like hybrid vigor and you cannot rule that out by 'eight generations of backcrossing'. I would like to see a second design, familiar to the authors: drive MCM6 in adult fat body using geneswitch. That ensures all cohorts are coisogenic and keeps the expression just in adults, where you want it. I have the same concerns for the lysosome survival study.

We thank the reviewer for their comments. We will address these points in the revision. Specifically we intend to extend our lifespan analysis to included tissue specific Geneswitch drivers in the at body (for the over expression of UAS-MCM6) and in the gut (for the overexpression of LManV).

Minor comments

I found the manuscript too long and wordy. The results contain discussion and conclusions that are repeated in the Discussion. Remove redundancy. Throughout the paper, be more telegraphic and direct, in particular consider using less of the first person narrative style. Describe the data and not the author's actions; this will make the paper more concise and readable.

We thank he reviewer for their comment. We will make every effort throughout to ensure the text more concise and clear for the reader.

Reviewer #1 (Significance (Required)):

The work adds to a growing list of potential downstream effects by which reduced insulin signaling extends lifespan. The paper extends approaches already published by the lab but with specific tissues and a different genotype of reduced IIS. It develops additional network level analyses, measures of tissue performance, and new pathways to consider. It builds on how Wolbachia is a crucial variable in the fly aging model, and while we don't understand this mechanism the point is strongly reinforced in this paper.

The audience will span workers in aging biology, cell and genome homeostatsis, insulin/IGF biology, and -omics analysis.

Referees cross-commenting

I see we agree overall the submission could move forward when it addresses its needs for additional data, and improves its presentation. I think the work overstates it significance but I still find value in its results. The conclusions should be made more robust, especially those where the candidate genes are thought to control lifespan; I am perplexed why the authors did not use Geneswitch as a genetic design since this is standard operating procedure for that group. And the replicate survival plots in the supplemental data are both incomplete (missing a genotype) and show a transient period effect in the controls. The Wolbachia angle is crucial to the explanations of the results, but the paper lacks transparency and robustness on the nature of the stocks and their infection status, and the transgene longevity experiments are made without considering this variable. I want the revision to address these key issues.

We thank the reviewers for their specific comments and cross-commenting summary. As detailed above we will address the reviewers concerns both here, and in the revision. Firstly, we have addressed the issue of the Wolbachia status of our stocks above. Secondly, we will perform additional lifespan analysis using Geneswitch drivers as a genetic design to increase the robustness of the analysis.

Reviewer #2 (Evidence, reproducibility and clarity (Required)):

In this manuscript entitled "Tissue-specific modulation of gene expression in response to lowered insulin signaling in Drosophila", the authors extended our knowledge regarding the causality of insulin signaling mutations in longevity, by performing tissue specific transcriptomic and proteomic analysis using fruit flies. Specifically, the authors determined transcriptomic and proteomic changes in four fly tissues (gut, brain, thorax and fat body) caused by two insulin-reduced mutations, dilp2-3,5 and wDah, with or without gut bacteria Wolbachia pipientis. They showed that the majority of expression changes in fat body of the insulin signaling mutant flies were post-transcriptional and Wolbachia dependent. They then found that the induction of DNA damage and repair proteins in fat body was sufficient for longevity in insulin mutants, supported by bioinformatic analysis and lifespan data with fat body-specific overexpression of MCM6. Lastly, they showed that gut-specific overexpression of lysosomal mannosidase, which they identified from their bioinformatic analysis, was sufficient to increase autophagy, gut homeostasis, and consequently lifespan. Following are my concerns the authors should address.

Major comments

The major claim of this study is tissue-specific modulation of gene expression on longevity and other physiological changes. However, the key data of the papers are insufficient for this claim. Following are two experiments they need to perform to further support their main argument.

1. In Figure 4, the authors identified fat body-specific upregulation of DNA damage/repair responses in dilp2-3,5 mutants by measuring p-His2Av puncta in fat body. The authors need to measure the p-His2Av puncta in other tissues.

2. In Figure 5, the authors demonstrated that gut-specific overexpression of lysosomal α-mannosidase (LManV) increases gut health and lifespan in flies. The authors need to test whether overexpression of LManV in other tissues affects lifespan.

The reviewer states “The major claim of this study is tissue-specific modulation of gene expression on longevity and other physiological changes. However, the key data of the papers are insufficient for this claim.” Our response to both major comments point 1 and 2 follows below.

We thank the reviewer for their comment and agree that we have examined physiological changes only in tissues in which the expression changes were identified in response to reduced IIS. Our manuscript details the identification of tissue-specific changes in gene expression in responses to reduced IIS. We use our analysis of those tissue-specific changes in response to reduced IIS to direct the tissue-specific expression of, potentially lifespan modulating, individual genes in the specific tissue in which those expression changes occurred. Our approach is an unbiased approach directed by out expression profiling. In our tissue-specific expression profiling we identified gut-specific up-regulation of LManV and a fat body-specific up-regulation of MCM6 in long-lived IIS mutant flies. Both responses are novel responses. We then showed gut- and fat body-specific expression of LManV or MCM6, respectively, was sufficient to extend lifespan in otherwise wild type flies. As such, we believe our manuscript shows tissue-specific modulation of gene expression is sufficient to induce physiological changes (reduced DNA damage/increased genome stability and increased gut health) and extend lifespan.

Furthermore, if increased expression of LManV or MCM6 in other tissues were to extend lifespan, possibly through increasing autophagy or DNA damage responses in that tissue, it would be interesting, but would be the result of ectopic expression and not related to expression changes in response to reduced IIS nor IIS-mediated longevity. Importantly, significant expression of LManV and MCM6 was mostly limited to the gut and the fat body respectively.

Minor comments

1. The authors postulated that "post-transcriptional changes" is equivalent to "proteomic changes". In fact, "transcriptomic changes" also reflect post-transcriptional changes including splicing and RNA decay. The authors need to avoid using posttranscriptional changes and proteomic changes interchangeably and use an exact definition.

We thank the reviewer for bringing this to our attention and will edited the text throughout to and clarity and more precisely define our meaning upon full revision.

2. The logical flow from Figure 2 to Figure 3-5 is relatively weak. The authors should strengthen their argument with better logical flow.

The reviewer suggests strengthening the logical flow from Figure 2 to Figure 3-5. Our manuscript characterizes tissue-specific transcriptomic and proteomic expression changes in response to reduced IIS. The changes in gene expression are outlined in Figure 1 and Figure S1 A-E. Using two complimentary analyses (see below) we focused on investigated proteomic changes/responses to reduced IIS that may be causal for longevity.

To focus on expression changes that may contribute to the long life of dilp2-3,5 mutants we examined expression changes that required Wolbachia (Figure S2). The presence of Wolbachia is required for lifespan extension of dilp2-3,5 mutants, but not for other IIS-related phenotypes (Grönke et al. 2010). Therefore, Wolbacha-dependent changes to the transcriptome or proteome may be causal for the longevity of IIS mutants.

To identify robust tissue-specific gene expression changes in response to reduced IIS we also performed hierarchical clustering and GO enrichment analysis of significantly regulated proteins in two independent models of reduced IIS activity, namely dilp2-3,5 mutants and mNSC-ablated flies (Tain et al. 2017). Importantly, dilp2-3,5 mutant flies are longer lived than mNSC-ablated flies and any dilp2-3,5-specific proteomic changes may provide insight into additional mechanisms regulating longevity. We identified several conserved proteomic changes (and processes linked to those proteins) between the two models, several of which have been directly associated with longevity of IIS mutants. In addition we identified fat body-specific ER protein targeting, and gut-specific carbohydrate metabolism/α glucosidase activity, specifically mannose metabolism, robust expression changes in response to reduced IIS. Furthermore, we identified DNA damage and repair responses as a functional signature present only in the fat body of dilp2-3,5 mutants. Therefore, our bioinformatic analyses led us to focus on three tissue-specific functional signatures/processes that may contribute the longevity in IIS mutants; translation/ER transport and DNA damage/repair responses in the fat body, and Mannose metabolism in the gut.

We have now edited the text following from the description of Figure 2 to better explain the logical flow from Figure 2 to Figure 3-5. The original text and edited text are shown below.

Original text:

“Combining our tissue-specific transcriptomic, proteomic, and cross model proteomic analyses, of gene expression remodelling in response to reduced IIS led us to examine three main findings that were functional candidates for relevance for longevity. First, we investigated the targeting and translation of proteins to the ER in fat body in more detail. Second, we analysed the importance of fat bodyspecific DNA damage and repair responses. Finally, we analysed gut-specific mannose metabolism. “

Edited text to emphasize the logical flow:

Combining our tissue-specific transcriptomic, proteomic, Wolbachia-dependent regulation, and cross model proteomic analyses, of gene expression remodelling in response to reduced IIS led us to examine three main findings that were functional candidates for relevance for longevity. Firstly, we investigated the targeting and translation of proteins to the ER in fat body in more detail. These functional signatures were enriched in the fat body of dilp2-3,5 mutants and linked to proteins whose levels decreased in response to reduced IIS despite increased expression of the associated transcripts (Figure 1B, Table 5). Furthermore, translational and ER-targeting functional signatures were conserved between dilp2-3,5 mutants and mNSC-ablated flies (Figure 2, cluster 7 and 8). Second, we analysed the importance of fat body-specific DNA damage and repair responses, whose functional signatures were identified as both Wolbachia dependent changes in response to reduced IIS and only present in dilp2-3,5 mutants. Finally, we analysed gut-specific mannose metabolism, which we identified as both gut-specific Wolbachia-dependent changes in response to reduced IIS, and conserved between two models of reduced IIS. “

3. In Figure 2, heat maps of network propagation scores do not provide any information of protein change directions. Moreover, it is ambiguous which cluster is specific to particular experimental conditions. Devise another quantified visualization with direction changes.

The reviewer is correct, the tissue-specific heat map shown in Figure 2 does not show any information on the directionality of protein expression changes in response to reduced. All proteins included in Figure 2 are listed within the associated Supplemental Table (Table S8) and the tissue-specific directionality data for every significantly regulated protein in response to reduced IIS is present within Supplemental Table 2.

The importance of the data represented in Figure 2 is not directionality, but rather identifying proteins whose expression is regulated in one or both models of reduced IIS (dilp2-3,5 mutants and mNSC-ablated flies), and in which tissues those changes occur. We believe that including directionality information in such a data representation as Figure 2 may overcomplicate the figure and draw attention away from the main point of the figure. The figure was designed to highlight tissue-specific functional signatures (through GO enrichment analysis) occurring in one model of reduced IIS (dilp2-3,5 mutants or mNSC-ablated flies), or both (shown as the “integrated” column in Figure 2).

We do agree with the reviewer that in addition it is important to see that there are not major discrepancies between the two models in the direction of the regulation on the individual protein level. This information is currently contained with Supplemental Table 2 and 8. To make this more readily accessible to the reader we will generate an additional supplemental figure in the final revision that shows side-by-side the directional changes of each protein.

4. The authors should cite sources of analysis tools in Methods.

We thank the reviewer for pointing out the missing citations and we will remedy this in the final revision upon completion of our additional analysis.

5. The authors need to correct errors and provide more information for followings:

1. On page 5, it is unclear which means the “half” in Figure S1E. Explain what corresponds to 22 proteins and 17 transcripts in Figure S1E. In Figure S1B, specify the number of replicates. Samples in proteomics do not seem to be replicates. In Figure S1E, avoid using “#transcripts” and “#proteins”.

On page 5, it is unclear which means the “half” in Figure S1E.

The text has been edited to remove this reference. Figure S1E (and associated text if the legend of Figure S1) has also been removed as it represents duplicate information from that found in Figure S1C.

Edited text

Overall both the proteomic and transcriptomic responses to reduced IIS were highly tissue-specific, only 22 proteins and 17 transcripts showed altered expression in all four tissues (Figure S1E).

Explain what corresponds to 22 proteins and 17 transcripts in Figure S1E.

In total we identified a total of 11331 transcripts and 7234 proteins (Figure S1AC), of which 3683 transcripts and 3738 proteins showed significantly altered expression in at least one tissue of dilp2-3,5 mutant flies. Of those differentially regulated genes only 17 were regulated on the transcript level and 22 on the protein level across all 4 tissues tested here.

In Figure S1B, specify the number of replicates. Samples in proteomics do not seem to be replicates.

Per tissue, and per genotype we have a total of three biological replicates of the RNA-Seq and 5 biological replicates for the proteomic analysis, as stated in the methods section (see below). Given that we have 4 genotypes (wDah plus/minus Wolbachia and dilp2-3,5 mutants plus/minus Wolbachia) we have a total of 12 samples per tissue in the RNA-seq and 20 samples per tissue in the proteomic analysis. The PCA analysis was performed on all samples of tissue, irrespective of the genotype to show clear separation between tissues. As mentioned below in the legend of Figure S1 (see below) the variability between samples of a single tissue was so low in comparison to the differences between tissues that in the PCA the replicates overlay each other.

Pg. 25 – Figure legend S1

(B) Principle component analysis projections of all transcriptomic and proteomic replicates, respectively, showing clear separation of the tissues. Proteomic replicates overlay each other.

The text of the Figure S1 legend has been edited (below) to convey this information more clearly to the reader.

Figure S1. Tissue-specific differential expression of the Drosophila proteome in response to reduced IIS at the level of proteome and transcriptome.

(A) Pairwise correlations between replicates belonging to the same genotype, across all genotypes and tissues, for both transcriptomic and proteomic measurements. (B) Principle component analysis projections of all transcriptomic and proteomic replicates, respectively, showing clear separation of the tissues. 12 samples, comprising 3 biological replicates of the 4 genotypes (wDah and dilp23,5 mutant flies plus/minus Wolbachia) are plotted for each tissue. For the proteomic analysis 20 samples, comprising 5 biological replicates of the 4 genotypes (wDah and dilp2-3,5 mutant flies plus/minus Wolbachia) are plotted for each tissue. Proteomic replicates show relatively little variation and thus overlay each other.

Pg. 35 – RNAseq analysis

Isolation of RNA from frozen tissue samples of all genotypes (wDah control and dilp2-3,5 flies, both in the presences and absence of Wolbachia) was performed on three independent biological replicates

Pg. 33 – Peptide digestion for LC-MS/MS analysis

Fly tissues (50/sample) from five biological replicates were lysed in pre-heated (95oC) 6 M guanidine chloride, 10 mM TCEP, 40 mM CAA, 100 mM Tris pH 8.5 lysis buffer.

2) On page 5, please explain "mirrored" in detail. In Figure 1A, the sum of proportion in gut exceeds 100%. In Figure 1B, correlation coefficients between proteome and transcriptome are lower in brain and thorax than fat body. Nevertheless, the authors mentioned "gene expression changes in response to lowered IIS in the fat body were primarily post-transcriptional."

We thank the reviewer for their comment. Mirrored was used to describe concordant co-regulation of transcript and protein abundance in response to reduced IIS. We have now edited this text to ensure this is clear (see below).

On average across the four tissues, two thirds of the significant tissue specific changes in transcript levels in dilp2-3,5 mutants were matched by concordant changes in expression of the encoded proteins (Figure 1A, Table 3).

The reviewer is correct the sum of the percentages exceeds 100%, by 1%. This is a by-product of summing rounded percentages. This is now specifically mentioned in the figure legend.

We have edited the text to state

However, many gene expression changes in response to lowered IIS in the fat body were post-transcriptional (Figure 1B).

3) On page 6, it is unclear which "729 proteins" were represented in Figure 1B. It is uncertain how many proteins are upregulated or downregulated.

The 729 proteins refers to 729 proteins, of the 1569 significantly regulated proteins in the fat body of dilp2-3,5 mutants, whose expression is co-regulated with their associated transcripts. In Figure 1B the 729 proteins whose expression follows this pattern is shown in orange and blue, of which 26% were up regulated and 21% were down regulated.

The text has been edited for clarity (Pg.6).

Of those, 729 proteins changed expression in the same direction as their transcripts and were enriched for functions associated with proteostasis, amino acid metabolism, and mitochondria (Figure 1B shown in blue and orange, Table 5).

4) On page 7, it is difficult to understand what "high degree of post-transcriptional regulation" is.

Of those genes whose Wolbachia-dependent expression was altered in the fat body, only 26 were regulated on both the transcript and protein level. This concordant with our previous analysis in the fat body suggesting a high degree of post-transcriptional regulation in response to reduced IIS (Figure 1B).

Text has been edited to

Of those genes whose Wolbachia-dependent expression was altered in the fat body, only 26 were regulated, and regulated in the same direction, on both the transcript and protein level, suggesting considerable post-transcriptional regulation in response to reduced IIS, specifically in this tissue (Figure 1B).

The wording "entirely dependent" seems too strong.

Text edited to state “dependent” not “entirely dependent”

5) On page 10, the authors mentioned “Tellingly, several components of the ER import and co-translational targeting machinery were down-regulated in the fat bodies of the two IIS mutants (Figure 3B).” In fact, these proteins do not seem to be significantly downregulated upon mNSC-ablation in Figure 3B.

Text edited

Tellingly, several components of the ER import and co-translational targeting machinery were down-regulated in the fat bodies of DILP2-3,5 mutants, and showed a similar trend in mNSC-ablated flies (Figure 3B).

6. Please describe in Figure 1 legend in detail.

We thank the reviewer for their point and have now expanded the legend of Figure 1 to increase clarity for the reader.

Edited text Pg. 22

Figure 1. Reducing IIS modulates both the tissue-specific transcriptomic and proteomic landscapes. Plots show the proportion of protein/transcript pairs that are co-regulated regulated in the same (both up (orange) or both down (blue)) or opposite (grey) directions in response to reduced IIS (dilp2-3,5 vs. wDah). Correlations were calculated between the protein and transcript log-fold changes of significantly regulated protein/transcript pairs in each plot. (A) All protein/transcript pairs in the respective tissue where the transcript is significantly regulated (adj. P-value ≤ 0.1) in response to reduced IIS, irrespective of if the associated protein is significantly regulated (Table 3-4). (B) All protein/transcript pairs in the respective tissue where the protein is significantly regulated (adj. P-value ≤ 0.1) in response to reduced IIS, irrespective of if the associated transcript was significantly regulated (Table 3-4). Correlations (cor.), number of protein/transcript pairs (n) shown above each plot. Percentages of protein/transcript pairs within a specific quadrant of the plots are shown within the respective quadrants.

7) In Figure 3B, describe categories in separated heat maps.

The separated heatmaps shown in Figure 3B show the proteomic log fold changes of all proteins directly linked to the SRP translocon. This is stated in the legend of Figure 3 (See below).

Figure 3. Tissue-specific regulation of ER associated cellular compartments and the ER co-translational targeting machinery in two independent models of reduced IIS. (A) Heatmap of mean log-fold-changes in proteins annotated with selected GO cellular compartment terms, in the contrasts dilp2-3,5 vs. wDah (dilp2-3,5), dilp2-3,5T vs. wDahT (dilp2-3,5T), and InsP3-Gal4/UASrpr vs. wDah (mNSC-abl.) flies [28]. Significance of difference vs. zero was calculated using a two-sided t-test (*p<0.05,**p<0.01,***p≤0.001). (B) Changes in protein expression of SRP, SRP-receptor (SRP-R) sub-units, TRAM and translocon components. Asterisks indicate BH-corrected significance of the limma moderated t-test (*p <0.1, **p< 0.01, ***P < 0.001.

8) In Figure 5A, there is no data in brain or thorax. In Figure 5 (not in the legend), add a description about white, yellow, and red circles.

We apologise for any confusion caused by the plots shown in Figure 5A. The plots show only log-fold change of lysosomal α-mannosidases whose expression was significantly regulated in response to reduced IIS (shown in the white circles). In the case of the lysosomal α-mannosidases we only detected significant regulation of the transcripts in the fat body and the gut (Figure 5A) and in the fat body, gut, and brain on the level of the proteins (Figure 5B). We have now included data on the detected, but not significantly regulated transcripts and proteins (shown in grey)

We have edited the figure legend to state that both significant and non-significant expression changes are shown. Furthermore, detection of lysosomal α mannosidase proteins was mostly limited to the gut and fat body. We have also added a colour key description.

Legend now edited as below.

Figure 5. Lysosomal α-mannosidase expression is gut-specifically increased in response to reduced IIS, and gut-specific expression is sufficient to maintain gut health and extend lifespan. (A) Significant (white circles) and non-significant (grey points) tissue-specific log2-fold change of lysosomal α-mannosidase transcript (A) and protein (B) expression in dilp2-3,5 vs. wDah. Significantly regulated proteins (white circles), Wolbachia-dependent (red circles) regulation (adj. P-value ≤ 0.1). Directional significance established by one sided Student’s ttest. (C) Quantification of LysoTracker Red stained vacuoles per nucleus in the gut of flies gut-specifically overexpressing LmanV (Np1-Gal4;UAS-LmanV, n = 12, Red circles) compared to genetic controls (Np1-Gal4/+, n = 8 , white circles and UASLManV/+, n = 9, orange circles). Chart shows mean and error bars represent S.E.M. Significance determined by Kruskall-Wallace test and Dunn’s multiple comparisons test. (D) Proportion of aged (65d) flies exhibiting gut barrier function failure in response to gut-specific overexpression of LmanV (Np1Gal4;UAS-LmanV red circles) compared to genetic controls (Np1-Gal4/+ white circles and UAS-LmanV/+ orange circles) (n = 10). Significance determined by Kruskal-Wallis test and Dunn’s multiple comparisons test. € Age-related changes in intestinal stem cell proliferation in response to gut-specific overexpression of LmanV (Np1-Gal4;UAS-LmanV, n = 10, 65d, red circles) compared to genetic controls (Np1-Gal4/+ white circles, n = 7, and UAS-LmanV/+ orange circles, n = 11). Significance determined by Kruskal-Wallis test and Dunn’s multiple comparisons test. (F) Representative images and (G) quantification of age-related dysplasia in gut epithelia. Gut-specific overexpression of LmanV (Np1Gal4;UAS-LmanV red circles) significantly reduced age-related intestinal dysplasia in 65-day-old flies compared to genetic controls (Np1-Gal4/+ white circles and UAS-LmanV/+ orange cirlces). Significance determined by One-way ANOVA and multiple comparisons (Sidak’s). (H) Survival analysis of flies gut-specifically overexpressing LmanV (Np1-Gal4;UAS-LmanV, red) compared to the UASLManV/+ (orange) and Np1-Gal4/+ (black) heterozygous controls. Statistical significance between survival curves was determined by log-rank test (n = 150).

** <0.01, *<0.05.

9) In Figure S2A, the explanation of the interaction is insufficient. The reason why classification of transcripts is not in the figure is not obvious. In Figure S2C, it is better to mark which GO terms are associated with DNA replication and DNA damage/repair responses, respectively. Use complete description of “oxidoreductase activity.…” In Figure S2 legend, explain what stacking is in a single bar in Figure S2C.

We thank the reviewer for their comment. To ensure it is clear for both the reviewer and the reader we have included a more detailed explanation of the interaction term in the figure legend and refer readers to the methods section for a more full description (see below).

The same logic was used to classify both proteins and transcripts as Wolbachia dependent or not. We initially included only protein data to show the bioinformatics scheme. We thank the reviewer for bringing this to our attention and have now edited Figure S2A to include numbers associated to transcript classification.

Figure S2C and its corresponding legend has been edited to highlight specifically the GO terms associated with DNA damage and DNA replication, see below.

Figure S2. The Wolbachia-dependent transcriptome and proteome response to IIS. (A) Bioinformatics flowchart showing the derivation and numbers of transcripts/proteins that were differentially regulated in response to reduced IIS (dilp2-3,5 vs wDah), showed an interaction between the responses to reduce IIS and the presence of Wolbachia (dilp2-3,5 – wDah vs. dilp2-3,5T – wDahT) and if those changes in expression occurred in a Wolbachia-dependent or -independent manner in a tissue. Specific bioinformatics analyses are described in the methods section. (B) Numbers of transcripts and proteins in each tissue that were differentially regulated between dilp2-3,5 and wDah (middle column), and at the same time detected as Wolbachia-independent (left column) or Wolbachia dependent (right column), by tissue. (C) Significantly enriched (Fisher-test, FDR ≤ 0.05) functional GO terms among Wolbachia-dependent regulated transcripts and proteins in dilp2-3,5 mutants, by tissue. Barcharts are segmented into cells that correspond to individual significantly regulated proteins. Colour indicates logfold-change. Gene ontologies associated with DNA replication (*) and DNA damage (**). (D-E) Proportions of protein/transcript pairs that were concordantly regulated (both up or down) or oppositely regulated, in the absence of Wolbachia (dilp2-3,5T vs. wDahT). Correlations were calculated between the protein and transcript log-fold changes of significantly regulated protein/transcript pairs in each plot. (D) All protein/transcript pairs in the respective tissue where the transcript was independently significantly regulated (adj. P-value ≤ 0.1). € All protein/transcript pairs in the respective tissue where the protein was independently significantly regulated (adj. P-value ≤ 0.1).

We thank the reviewer for bringing this to our attention and have included the full description of the shortened GO term which now is edited to:

oxidoreductase activity, acting on CH-OH group of donors

“In Figure S2 legend, explain what stacking is in a single bar in Figure S2C”

The stacking within a single bar of the bar charts shown in Figure S2C allows the reader to see the number and the log-fold change (in response to reduced IIS) of individual regulated proteins associated to a specific enriched GO term. This is stated in the figure legend.

“Barcharts are segmented into cells that correspond to individual significantly regulated proteins. Colour indicates log-fold-change”

10) In Figure S3B, calculate representation factor and significance of the overlaps.

This information will be added to Figure S3B in the final revision.

11) The authors wrote “p-value” in various ways, including P-value, p-value, p-value, pvalue, and p value in figure legends, supplemental figures, and supplemental tables. Choose one among P-value {less than or equal to} 0.1, p{less than or equal to}0.1, p {less than or equal to} 0.1, p <= 0.1, and <.1. Use [n=10] or [n = 10] not [n= 10].

This information has been standardised throughout.

12) Use one between “log-fold-changes” and “log-fold changes”. Use “logrank test or logrank test” instead of “Log Rank test”. Use “one sided Student’s t-test” instead of “Onesided ttest” or “Student’s ttest”. Use “one-way ANOVA” not “One-way ANOVA”. Use “(one or two sided) Fisher’s exact test” instead of “Fisher test”.

This information has been standardised throughout.

13) Use the full name of “BH-correction”.

This information has been standardised to Benjamini Hochberg throughout.

14) On page 6, use “gut, brain, and thorax” instead of “brain gut and thorax”.

Text corrected

15) In Figure 4D, align boxes with legends.

Corrected

16) In Figure S1A, use transcriptomics instead of RNAseq. In Figure S1B, use point boundaries in the PCA. In Figure S1C and D, choose between either -omics and -ome. In Figure S1 legend, specify that “incl.” means “including”.

Edited and corrected. In Figure S1D incl. is now spelt out as including.

17) In Figure S2B, use same colors in transcripts and proteins.

Changed.

18) In Figure S3B, use same colors in Venn diagrams.

Colour has now been added to the Venn diagrams of Figure S3B.

19) In Figure S4, use a colored rectangle instead of a colored line.

Changed.

20) On page 4, "increased expression" instead of "increase expression".

Text edited.

21) On page 6, use comma for separation and change "gut brain and thorax" to "gut, brain, and thorax".

Text edited.

22) On page 7, use italics for genotypes "dilp2-3,5". Use "GO enrichment analysis" not "GO enrichment".

Text edited.

23) On page 10, remove "regulated" from "a post-transcriptionally regulated increased abundance".

Text edited.

24) On page 13, use "average log-fold changes" not "average log-old changes".

Text edited.

25) On page 14 and 24, change "Lysosomal" to "lysosomal".

Text has been edited.

26) Add a space between number and unit. For example, on page 23, "5µM" should be changed to "5 µM".

Text has been edited.

27) On page 36, change "proteome" to "transcriptome".

This sentence refers to using FPKM values, calculated using DESeq2, to compare expression between the transcriptome and the proteome. In this instance proteome was used correctly.

28) In Figure 4C, change "-3" to "<-3".

Corrected.

29) In Figure 5 legend, B to F should be C to H.

Corrected.

30) In Figure S2B, change "# wolbachia−dependent transcripts" to "Number of Wolbachia−dependent transcripts". In Figure S2 legend, begin sentences with capital letters.

Corrected.

Reviewer #2 (Significance (Required)):

This study will contribute to aging research by helping understanding how reduced insulin signaling delay aging in different tissues by employing various factors. This paper also demonstrated power of approach using tissue-specific profiling of transcriptome and proteome in combination with Drosophila molecular genetics for research to elucidate underlying mechanisms for health and longevity.

My expertise is genetics of aging research.

Referees cross-commenting

I agree with the other two reviewers' comments. By addressing all three reviewers' comments, this nice paper will be improved substantially.

Reviewer #3 (Evidence, reproducibility and clarity (Required)):

In this manuscript, Tain and colleagues reported a comprehensive transcriptomic and proteomics analysis on Drosophila IIS mutants. They found that flies with reduced IIS signaling exhibited tissue-specific transcriptional and proteomic profiles. Interestingly, the transcriptional changes in fat body of IIS mutants were not always consistent with the proteomic changes. Through bioinformatics and functional characterization, the authors identified three enriched pathways that are potentially associated with IISregulated longevity, 1) Protein targeting and translation in ER of the fat body; 2) Fat body-specific DNA damage and repair responses; 3) Gut-specific mannose metabolism. Lastly, overexpression of either minichromosome maintenance protein subunit MCM6 in the fat body or lysosomal α-mannosidase (LManV) in the gut extends lifespan. The study is well designed and the manuscript is well prepared. The work will contribute significantly to our understating of the evolutionarily conserved longevity pathway like IIS. I only have a few minor concerns listed below that need to be addressed before the manuscript is acceptable for publication.

1) To narrow down the candidate genes that may have a causal role in IIS-regulated longevity, the authors examined the Wolbachia-independent and Wolbachia-dependent changes. As an alternative, it would be great if the authors could compare their -omics data to previous aging transcriptomes to identify IIS-regulated candidate genes with age-related expression profiles.

We agree with the reviewer that comparing our –omics data to previously published aging/IIS responsive transcriptomic datasets would be very interesting, if those transcriptomic datasets were tissue-specific. Unfortunately, very few datasets that examine tissue-specific gene expression changes in response to reduced IIS exist. Furthermore, those datasets that do exist use different platforms, for example Microarrays (Alic et al. 2014) that result in noncomparable levels of sensitivity. Alic et al. 2014 used Dros.2 microarrays to determine differential gene expression in the fat body of flies overexpressing dFoxo under the control of the geneswitch driver S106. They detected 174 differentially expressed genes with an FDR of 10%. In our current study, using RNA-Seq, we detect differential expression of over a 1000 transcripts in the fat body of dilp2-3,5 mutants, almost 600 of which were regulated in that tissue alone.

In addition to compatibility issues arising from analysis platforms, the tissue specific nature of the current and previous –omic profiling studies is very important in performing meta-analyses of the kind suggested by the reviewer. Our current analysis highlights the tissue-specific nature of both transcriptomic and proteomic responses to reduced IIS (Figure S1D). Only 17 transcripts and 22 proteins were regulated in all 4 tissues of the dilp2-3,5 mutants examined here (Figure S1D). The majority of differentially expressed transcripts and proteins show differential expression in one tissue alone. For example, of the 1004 significantly regulated transcripts in the fat body of dilp2-3,5 mutants, 590 were regulated in the fat body alone.

Therefore, whilst we do believe the meta-analysis approach suggested by the reviewer would be beneficial to the field and would lead to the discovery of further prolongevity targets, the tissue-specific RNA-Seq datasets to do such meta analyses in flies do not yet exist.

2) The identification of ER co-translational targeting and protein translocation was very intriguing. However, no functional characterization was shown. Have the authors tried to examine the role of TRAM and SRP subunits in lifespan control?

We agree with the reviewer that altered ER co-translational targeting and protein translocation in response to reduced IIS is very interesting, and is a possible direction for future work. However, we have, as of yet, not examined the role of SRP subunits in the tissue-specific regulation of lifespan.

3) The rationale behind the analysis on transposable elements (TEs) was a little unclear. Is TE enriched in any of the GO analysis? And the authors did not provide evidence supporting a role of IIS mutant in regulating age-related changes in TE expression.

We thank the reviewer for their comment and address their points below

GO terms associated with TE expression was not specifically enriched in our analysis. We used TE expression analysis as a proxy for genomic stability, which along with DNA damage was enriched in our GO enrichment analysis, specifically in the fat body of long-lived dilp2-3,5 mutants. As described in our main text (Pg. 12-13) genome stability declines with age, and is itself a hallmark of ageing ([46,47]). Loss of genome stability is associated with increased mis-expression of transposable elements. Thus, any reduction in TE expression, by increased genome stability, in response to reduced IIS may be a mechanism of IIS-mediated longevity.

We agree with the reviewer that all evidence associated to changes in TE expression in response to reduced IIS is limited to our single 10d age. As the changes we see in TE expression are likely due to global changes in genome stability and not of specific TEs, performing expression analyses on individual TEs is unlikely to yield a robust and conclusive answer to age-related changes in TE expression. Therefore we propose to examine global TE expression in IIS mutants utilising available Drosophila transcriptomic datasets. One such dataset was published recently in Wolbachia positive dilp2-3,5 mutants (Weigelt et al. 2020 doi.org/10.1016/j.molcel.2020.06.011). We will perform this analysis upon full revision.

Reviewer #3 (Significance (Required)):

This study revealed interesting tissue-specific responses to reduced IIS signaling, including many previously uncharacterized transcriptional and proteomic changes. The work will contribute significantly to our understating of the evolutionarily conserved longevity pathway like IIS.

https://doi.org/10.7554/eLife.67275.sa2

Article and author information

Author details

  1. Luke Stephen Tain

    Max-Planck Institute for Biology of Ageing, Cologne, Germany
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Robert Sehlke
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5845-7383
  2. Robert Sehlke

    1. Max-Planck Institute for Biology of Ageing, Cologne, Germany
    2. CECAD Cologne Excellence Cluster on Cellular Stress Responses in Aging Associated Diseases, Cologne, Germany
    Contribution
    Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Project administration
    Contributed equally with
    Luke Stephen Tain
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6781-7272
  3. Ralf Leslie Meilenbrock

    Max-Planck Institute for Biology of Ageing, Cologne, Germany
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9864-0257
  4. Thomas Leech

    Max-Planck Institute for Biology of Ageing, Cologne, Germany
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  5. Jonathan Paulitz

    1. Max-Planck Institute for Biology of Ageing, Cologne, Germany
    2. CECAD Cologne Excellence Cluster on Cellular Stress Responses in Aging Associated Diseases, Cologne, Germany
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Manopriya Chokkalingam

    CECAD Cologne Excellence Cluster on Cellular Stress Responses in Aging Associated Diseases, Cologne, Germany
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Nagarjuna Nagaraj

    Department of Proteomics and Signal Transduction, Max-Planck-Institute of Biochemistry, Martinsried, Germany
    Contribution
    Formal analysis, Methodology
    Competing interests
    No competing interests declared
  8. Sebastian Grönke

    Max-Planck Institute for Biology of Ageing, Cologne, Germany
    Contribution
    Resources, Supervision
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1539-5346
  9. Jenny Fröhlich

    Max-Planck Institute for Biology of Ageing, Cologne, Germany
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  10. Ilian Atanassov

    Max-Planck Institute for Biology of Ageing, Cologne, Germany
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8259-2545
  11. Matthias Mann

    Department of Proteomics and Signal Transduction, Max-Planck-Institute of Biochemistry, Martinsried, Germany
    Contribution
    Supervision
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1292-4799
  12. Andreas Beyer

    1. CECAD Cologne Excellence Cluster on Cellular Stress Responses in Aging Associated Diseases, Cologne, Germany
    2. Center for Molecular Medicine (CMMC) & Cologne School for Computational Biology (CSCB), University of Cologne, Cologne, Germany
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Writing - original draft, Writing - review and editing
    For correspondence
    andreas.beyer@uni-koeln.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3891-2123
  13. Linda Partridge

    1. Max-Planck Institute for Biology of Ageing, Cologne, Germany
    2. Institute of Healthy Ageing, and GEE, UCL, London, United Kingdom
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    partridge@age.mpg.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9615-0094

Funding

Max-Planck-Gesellschaft

  • Luke Stephen Tain
  • Robert Sehlke
  • Ralf Leslie Meilenbrock
  • Thomas Leech
  • Jonathan Paulitz
  • Sebastian Grönke
  • Jenny Fröhlich
  • Matthias Mann
  • Nagarjuna Nagaraj

Bundesministerium für Bildung und Forschung (0315893A-B)

  • Luke Stephen Tain
  • Robert Sehlke
  • Manopriya Chokkalingam
  • Andreas Beyer

FP7 Ideas: European Research Council (FP7/2007-2013)

  • Linda Partridge

European Research Council (268739)

  • Linda Partridge

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We acknowledge contributions from the Proteomic facility at the Max Planck Institute for Biology of Ageing, the Max Planck Genome Center Cologne, the Drosophila transgenic facility at the Max Planck Institute for Biology of Ageing and the FACS and Imaging core facility of Max Planck Institute for Biology of Aging. We acknowledge funding from the Max Planck Society (to LT, RS, JP, RM, SG, JF, NN, MM, LP) and a Bundesministerium für Bildung und Forschung Grant SyBACol 0315893A-B (to AB, MC, LT, LP). The research leading to these results has received funding from the European Research Council under the European Union’s Seventh Framework Programme (FP7/2007-2013) / ERC grant agreement number 268739 (to LP).

Senior Editor

  1. Matt Kaeberlein, University of Washington, United States

Reviewing Editor

  1. Seung-Jae V Lee, Korea Advanced Institute of Science and Technology, Republic of Korea

Publication history

  1. Received: March 5, 2021
  2. Accepted: March 18, 2021
  3. Version of Record published: April 21, 2021 (version 1)
  4. Version of Record updated: April 23, 2021 (version 2)

Copyright

© 2021, Tain et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,647
    Page views
  • 141
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
