SIRT1 regulates sphingolipid metabolism and neural differentiation of mouse embryonic stem cells through c-Myc-SMPDL3B

  1. Wei Fan
  2. Shuang Tang
  3. Xiaojuan Fan
  4. Yi Fang
  5. Xiaojiang Xu
  6. Leping Li
  7. Jian Xu
  8. Jian-Liang Li
  9. Zefeng Wang  Is a corresponding author
  10. Xiaoling Li  Is a corresponding author
  1. Signal Transduction Laboratory, National Institute of Environmental Health Sciences, Research Triangle Park, United States
  2. CAS Key Laboratory of Computational Biology, CAS-MPG Partner Institute for Computational Biology, Shanghai Institute of Nutrition and Health, Shanghai Institutes for Biological Sciences, University of Chinese Academy of Sciences, CAS Center for Excellence in Molecular Cell Science, Chinese Academy of Sciences, China
  3. Integrative Bioinformatics Support Group, National Institute of Environmental Health Sciences, Research Triangle Park, United States
  4. Biostatistics & Computational Biology Branch, National Institute of Environmental Health Sciences, Research Triangle Park, United States
  5. Children's Medical Center Research Institute, Department of Pediatrics, Harold C. Simmons Comprehensive Cancer Center, and Hamon Center for Regenerative Science and Medicine, University of Texas Southwestern Medical Center, United States
Research Article
  • Cited 1
  • Views 617
  • Annotations
Cite this article as: eLife 2021;10:e67452 doi: 10.7554/eLife.67452

Abstract

Sphingolipids are important structural components of cell membranes and prominent signaling molecules controlling cell growth, differentiation, and apoptosis. Sphingolipids are particularly abundant in the brain, and defects in sphingolipid degradation are associated with several human neurodegenerative diseases. However, molecular mechanisms governing sphingolipid metabolism remain unclear. Here, we report that sphingolipid degradation is under transcriptional control of SIRT1, a highly conserved mammalian NAD+-dependent protein deacetylase, in mouse embryonic stem cells (mESCs). Deletion of SIRT1 results in accumulation of sphingomyelin in mESCs, primarily due to reduction of SMPDL3B, a GPI-anchored plasma membrane bound sphingomyelin phosphodiesterase. Mechanistically, SIRT1 regulates transcription of Smpdl3b through c-Myc. Functionally, SIRT1 deficiency-induced accumulation of sphingomyelin increases membrane fluidity and impairs neural differentiation in vitro and in vivo. Our findings discover a key regulatory mechanism for sphingolipid homeostasis and neural differentiation, further imply that pharmacological manipulation of SIRT1-mediated sphingomyelin degradation might be beneficial for treatment of human neurological diseases.

eLife digest

All cells in the brain start life as stem cells which are yet to have a defined role in the body. A wide range of molecules and chemical signals guide stem cells towards a neuronal fate, including a group of molecules called sphingolipids. These molecules sit in the membrane surrounding the cell and play a pivotal role in a number of processes which help keep the neuronal cell healthy.

Various enzymes work together to break down sphingolipids and remove them from the membrane. Defects in these enzymes can result in excess levels of sphingolipids, which can lead to neurodegenerative diseases, such as Alzheimer’s, Parkinson’s and Huntington’s disease. But how these enzymes are used and controlled during neuronal development is still somewhat of a mystery. To help answer this question, Fan et al. studied an enzyme called SIRT1 which has been shown to alleviate symptoms in animal models of neurodegenerative diseases.

Stem cells were extracted from a mouse embryo lacking the gene for SIRT1 and cultured in the laboratory. These faulty cells were found to have superfluous amounts of sphingolipids, which made their membranes more fluid and reduced their ability to develop into neuronal cells. Further investigation revealed that SIRT1 regulates the degradation of sphingolipids by promoting the production of another enzyme called SMPDL3B. Fan et al. also found that when female mice were fed a high-fat diet, this caused sphingolipids to accumulate in their embryos which lacked the gene for SIRT1; this, in turn, impaired the neural development of their offspring.

These findings suggest that targeting SIRT1 may offer new strategies for treating neurological diseases. The discovery that embryos deficient in SIRT1 are sensitive to high-fat diets implies that activating this enzyme might attenuate some of the neonatal complications associated with maternal obesity.

Introduction

First isolated from brain extract in the 1880s, sphingolipid is a class of natural lipids containing a backbone of sphingoid base sphingosine (Chen et al., 2010; Merrill et al., 2007; Pralhada Rao et al., 2013). Sphingolipids not only are the structural components of cell membranes, but also act as signaling molecules to control various cellular events, including signal transduction, cell growth, differentiation, and apoptosis (Hannun and Obeid, 2008; van Meer et al., 2008). Particularly, sphingolipids are enriched in microdomains/lipid rafts, a liquid-ordered phase in plasma membrane, where sphingomyelin, glycosphingolipids, and cholesterol form unique platforms for many different proteins that are important for nutrient transport, organelle contact, membrane trafficking, and homotypic fusion (Brown and London, 1998).

The homeostasis of sphingolipids is maintained by a highly coordinated metabolic network that links together various pathways with ceramide as a central node (Figure 1—figure supplement 1A). Firstly, ceramide can be de novo synthesized in endoplasmic reticulum (ER), starting from the condensation of serine and fatty acyl-CoA by serine palmitoyltransferase (SPT). Ceramide is then transported to the Golgi complex and further converted into more complex forms of sphingolipids, such as glycosphingolipids or sphingomyelin. Secondly, ceramide can be regenerated by hydrolysis of complex sphingolipids in the Golgi complex and plasma membrane, which is catalyzed by a class of specific hydrolases and phosphodiesterases. For example, regeneration of ceramide from sphingomyelin can be mediated by plasma-membrane-bound sphingomyelin phosphodiesterases (SMPDs), including SMPDL3B, a GPI-anchored lipid raft SMPD (Heinz et al., 2015). By degrading sphingomyelin, SMPDL3B regulates plasma membrane fluidity, which in turn impacts TLR-mediated innate immunity in macrophages (Heinz et al., 2015) and modulates insulin receptor signaling in podocytes (Mitrofanova et al., 2019). Sphingolipid metabolism is highly sensitive to environmental/nutritional perturbations. Sphingolipid biosynthesis and accumulation can be induced by high-fat diet (HFD) feeding in multiple tissues in mice (Choi and Snider, 2015). Sphingolipids are also accumulated during aging (Giusto et al., 1992; Lightle et al., 2000), and caloric restriction, a dietary regimen known to extend life span and delay a number of age-associated diseases, decreases sphingolipid accumulation by reducing the activity of SPT (Tacconi et al., 1991). Dietary serine restriction also alters sphingolipid diversity and synthesis to constrain tumor growth (Muthusamy et al., 2020).

Disruption of sphingolipid homeostasis has been involved in the pathogenesis of a number of human diseases, such as Niemann-Pick disease and neurodegenerative Alzheimer’s, Parkinson’s, and Huntington’s diseases. These human diseases are generally the outcomes of defect in enzymes that degrade the sphingolipids (Brice and Cowart, 2011; Alvarez-Vasquez et al., 2005). Such degradation defect leads to accumulation of sphingolipids, which in turn dramatically alters cellular membrane structure and signaling, thereby triggering various diseases. Consequently, manipulation of one enzyme or metabolite in sphingolipid degradation pathways may result in unexpected changes in cellular metabolic programs and related cellular functions (Brice and Cowart, 2011; Alvarez-Vasquez et al., 2005). However, molecular mechanisms that regulate the expression of these sphingolipid degrading enzymes remain unclear.

In the present study, we investigated the role of SIRT1 in regulation of sphingolipid degradation in mouse embryonic stem cells (mESCs) and mouse embryos. SIRT1 is an NAD+-dependent protein deacetylase critical for multiple cellular processes, including metabolism, inflammation, stress response, and stem cell functions (Houtkooper et al., 2012; Tang et al., 2014; Han et al., 2008). SIRT1 is also a key regulator of animal development (McBurney et al., 2003; Cheng et al., 2003; Wang et al., 2008) and is particularly important in the central nervous system. For instance, SIRT1 has a major influence on hypothalamic function, and cell-type specific SIRT1 mutations result in defects in systemic energy metabolism, circadian rhythm, and the lifespan of the animal (Dietrich et al., 2010; Ramadori et al., 2010; Ramadori et al., 2011; Satoh et al., 2013). SIRT1 also modulates dendritic and axonal growth (Hisahara et al., 2008; Michán et al., 2010), and regulates synaptic plasticity and memory formation in adult brain (Gao et al., 2010). Moreover, SIRT1 has been shown to ameliorate neurodegenerative phenotypes in animal models of Alzheimer’s, Parkinson’s, and Huntington’s disease (reviewed in Herskovits and Guarente, 2014). However, despite multiple mechanisms proposed for these critical roles of SIRT1 in the brain, how SIRT1 regulates neural development and functions remains unclear. Through global metabolomics and cellular metabolic characterizations, we discovered that SIRT1 deficiency in mESCs results in abnormal accumulation of sphingolipids, primarily due to reduced degradation of these lipids. We further found that this abnormal accumulation of sphingolipids does not affect the maintenance of pluripotent mESCs, but delays their neural differentiation during in vitro neural differentiation and in vivo mouse embryogenesis. Moreover, we provide evidence that SIRT1 regulates sphingolipid metabolism through deacetylation of c-Myc transcription factor, which promotes the expression of SMPDL3B and subsequent sphingomyelin degradation in mESCs. Together, our study identifies the SIRT1-c-Myc axis as an important regulatory mechanism for cellular sphingolipid metabolism and neural differentiation.

Results

Deletion of SIRT1 in ESCs results in accumulation of sphingomyelin

During a large-scale unbiased metabolomic analysis of WT and SIRT1 KO mESCs cultured in a serum-containing M10 medium, we discovered that SIRT1 KO mESCs display altered lipid metabolism, particularly metabolites involved in sphingolipid metabolism (Figure 1A and Supplementary file 1), in addition to previously reported metabolic defects in methionine metabolism (Tang et al., 2017). Specifically, SIRT1 KO mESCs had a dramatic accumulation of sphingomyelin in both complete medium and a methionine restricted medium (Figure 1B, Figure 1—figure supplement 1B, and Supplementary file 1). Moreover, deletion of SIRT1 in mel1 human ESCs by CRISPR/Cas9-mediated gene editing technology (Figure 1—figure supplement 1C) also led to accumulation of several types of sphingomyelin regardless of medium methionine contents (Supplementary file 2), indicating that SIRT1 regulates sphingolipid metabolism in ESCs independently of cellular methionine metabolism.

Figure 1 with 1 supplement see all

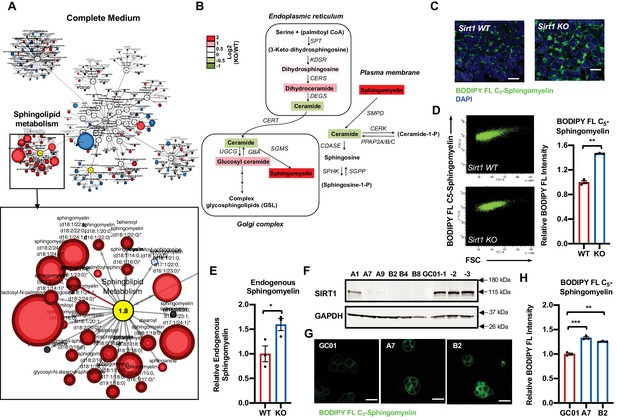

Deletion of SIRT1 in mESCs results in a dramatic accumulation of sphingomyelin.

(A) Metabolomic analysis reveals a massive accumulation of sphingolipids in SIRT1 KO mESCs. WT and SIRT1 KO mESCs were cultured in a complete mESC maintenance medium (M10) and metabolites were analyzed by metabolomics as described in Materials and methods. The networks of significantly changed metabolites in lipid metabolism were analyzed by Cytoscape 2.8.3. Metabolites increased in SIRT1 KO mESCs were labeled red (p<0.05) or pink (0.05 < p < 0.10), metabolites decreased in SIRT1 KO mESCs were labeled blue (p<0.05) or light blue (0.05 < p < 0.10). Metabolite node size is proportional to the fold change in KO vs WT (n = 5 biological replicates). (B) The relative abundance of different metabolites mapped into sphingolipid metabolism pathways. Metabolites in sphingolipid metabolism in WT and SIRT1 KO mESCs were analyzed as in (A) and the relative abundance of metabolites involved in sphingolipid metabolism was displayed by the heat map (n = 5 biological replicates). (C–D) SIRT1 KO mESCs have increased levels of BODIPY FL-labeled sphingomyelin. WT and SIRT1 KO mESCs cultured in ESGRO medium were labeled with BODIPY FL-labeled sphingomyelin for 30 min at 4°C then chased at 37°C for 30 min. The intensity of BODIPY FL-labeled sphingomyelin in cells was analyzed by (C) confocal fluorescence imaging and by (D) quantitative FACS (n = 3 biological replicates, ***p<0.001). Scale bars: 20 µm. (E) SIRT1 KO mESCs have increased levels of endogenous sphingomyelin. WT and SIRT1 KO mESCs cultured in ESGRO medium were extracted and total levels of endogenous sphingomyelin were determined in extracts by an enzyme-coupled colorimetric assay as described in Materials and methods (n = 3 biological replicates, *p<0.05). (F–H) Deletion of SIRT1 in E14 mESCs leads to accumulation of sphingomyelin. (F) SIRT1 was deleted in E14 mESC line using CRISPR/cas9 mediated gene editing technology and (G) relative levels of BODIPY FL-labeled sphingomyelins were imaged and (H) measured (n = 2 independent clones with three biological replicates for each clone, ***p<0.001). GC-01, pCRISPR-CG01 vector. Scale bars: 20 µm.

To confirm that deletion of SIRT1 indeed increases sphingomyelin contents in ESCs, we loaded WT and SIRT1 KO mESCs cultured in serum-free ESGRO medium with a green-fluorescent dye labeled sphingomyelin, BODIPY FL-C5-sphingomyelin, for 30 min at 4°C, then chased at 37°C for 30 min. Both WT and SIRT1 KO mESCs were labeled with this green-fluorescent sphingomyelin (Figure 1C). However, SIRT1 KO mESCs had marked accumulation of BODIPY FL-C5-sphingomyelin inside cells, presumably in ER and Golgi, compared to WT mESCs. Quantitative FACS analysis showed that SIRT1 KO mESCs have about a 50% increase in cellular levels of BODIPY FL-C5-sphingomyelin compared to WT mESCs (Figure 1D). An enzyme-coupled colorimetric assay further revealed a ~60% increase of endogenous sphingomyelin in SIRT1 KO mESCs (Figure 1E). Interestingly, the accumulation of sphingomyelin was specific to mESCs, as SIRT1 KO MEFs had a comparable staining intensity of BODIPY FL-C5-sphingomyelin as WT MEFs (Figure 1—figure supplement 1D). Additionally, SIRT1 KO mESCs had a similar staining intensity of BODIPY FL-C5-Ceramide compared to WT mESCs (Figure 1—figure supplement 1E), suggesting that accumulation of sphingolipids in SIRT1 KO mESCs is specific to sphingomyelin.

SIRT1 KO mESCs in above analyses were previously generated in R1 mES cell line using traditional gene targeting technology (McBurney et al., 2003). To further confirm our observation that SIRT1 deficiency in mESCs induces accumulation of sphingomyelin, we deleted Sirt1 gene in another widely used full pluripotent mES cell line, E14 cells (Wakayama et al., 1999), by CRISPR/Cas9-mediated gene editing technology (Figure 1F). Consistent with observations in SIRT1 KO mESCs, these SIRT1 KO E14 mESC clones also had an enhanced staining of BODIPY FL-C5-sphingomyelin when analyzed by confocal fluorescence imaging (Figure 1G) and by quantitative FACS analysis (Figure 1H). Taken together, our results indicate that deletion of SIRT1 in ESCs results in accumulation of sphingomyelin in independent ES cell lines.

Deletion of SIRT1 induces accumulation of sphingomyelin through SMPDL3B

Cellular levels of sphingomyelin are regulated by a tight balance between their synthesis and breakdown, which are mediated by activities of sphingomyelin synthases (SGMSs) and sphingomyelin phosphodiesterases (SMPDs), respectively (Figure 1—figure supplement 1A). Many of these enzymes were highly expressed in mESCs (Figure 2—figure supplement 1A and B). To better understand how SIRT1 deficiency in mESCs leads to sphingomyelin accumulation, we surveyed the expression levels of these enzymes in WT and SIRT1 KO mESCs. SIRT1 KO mESCs had significantly reduced expression of a sphingomyelin synthase Sgms2 (Figure 2A and Figure 2—figure supplement 1B), and a dramatic reduction of a sphingomyelin phosphodiesterase SMPDL3B, one of the most highly expressed SMPDs in mESCs (Figure 2—figure supplement 1A), in both ESGRO and M10 media (Figure 2A–C). Since sphingomyelin was accumulated in SIRT1 KO mESCs, we focused on the reduction of Smpdl3b. As shown in Figure 2D, the reduced expression of SMPDL3B in SIRT1 KO mESCs was coupled with a decreased rate to clear away preloaded BODIPY FL-C5-sphingomyelin in a time-lapse video analysis, suggesting that reduction of SMPDL3B-mediated sphingomyelin degradation may be responsible for accumulation of sphingomyelin observed in SIRT1 KO mESCs.

Figure 2 with 1 supplement see all

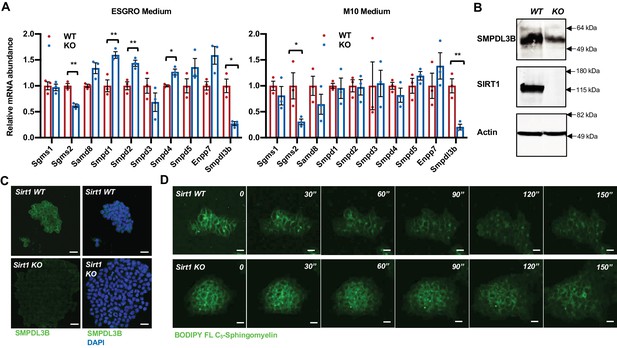

SIRT1-deficient mESCs have reduced expression of SMPDL3B and sphingomyelin degradation.

(A) SIRT1 KO mESCs have reduced mRNA levels of Smpdl3b. WT and SIRT1 KO mESCs were cultured in either ESGRO medium or M10 medium. The mRNA levels of indicated enzymes involved in sphingomyelin synthesis (Sgms) and degradation (Smpd) were analyzed by qPCR (n = 3 biological replicates, *p<0.05, **p<0.01). (B–C) SIRT1 KO mESCs have reduced protein levels of SMPDL3B. The protein levels of SMPDL3B were analyzed by (B) immunoblotting and (C) immuno-fluorescence staining. Scale bars: 20 µm. (D) SIRT1 KO mESCs have reduced degradation of sphingomyelin. WT and SIRT1 KO mESCs were preloaded with BODIPY FL-C5 sphingomyelin for 30 min at 4°C, then incubated with BODIPY FL-C5 sphingomyelin-free medium at 37°C. The dynamic of BODIPY FL-sphingomyelin was monitored for additional 12 hr at 37°C. WT and SIRT1 KO mESC clones that have comparable preloaded levels of BODIPY FL-C5 sphingomyelin were shown. Scale bars: 20 µm.

To test this possibility, we manipulated the levels of SMPDL3B in WT and SIRT1 KO mESCs and analyzed their impacts on cellular levels of sphingomyelin. Stable overexpression of SMPDL3B significantly reduced accumulation of BODIPY FL-C5-sphingomyelin in SIRT1 KO but not WT mESCs when cells were cultured in serum-containing M10 medium (Figure 3A–C). In serum-free ESGRO medium, overexpression of SMPDL3B reduced accumulation of BODIPY FL-C5-sphingomyelin and endogenous sphingomyelin in both WT and SIRT1 KO mESCs (Figure 3—figure supplement 1A–C). Moreover, the ability of SMPDL3B to reduce cellular levels of sphingomyelin is dependent on its enzymatic activity, as a catalytic inactive mutant of this enzyme, SMPDL3B H135A (Heinz et al., 2015; Mitrofanova et al., 2019), failed to decrease the levels of BODIPY FL-C5-sphingomyelin and endogenous sphingomyelin in WT and SIRT1 KO mESCs (Figure 3—figure supplement 1D, Figure 3D–F). These results indicate that SMPDL3B is capable of removing sphingomyelin in mESCs, particularly in SIRT1 KO mESCs. Conversely, shRNA-mediated stable knockdown of SMPDL3B (Figure 3G) enhanced the accumulation of BODIPY FL-C5-sphingomyelin (Figure 3H and I) and endogenous sphingomyelin (Figure 3J) in WT mESCs but not further in SIRT1 KO mESCs, indicating that accumulation of sphingomyelin observed in SIRT1 KO mESCs is primarily due to reduced expression of SMPDL3B.

Figure 3 with 1 supplement see all

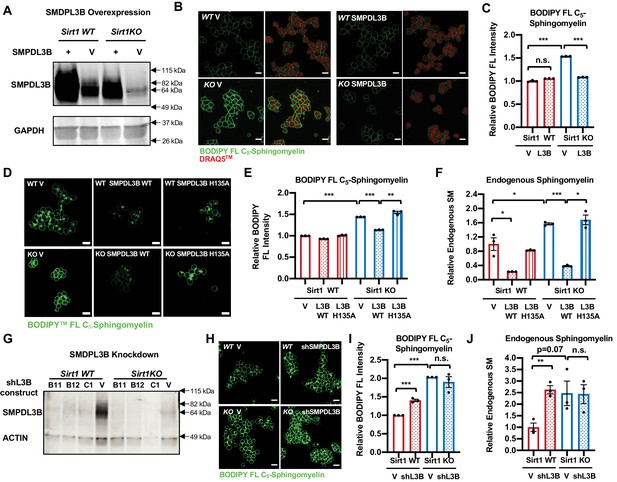

SMPDL3B directly controls the sphingomyelin contents in mESCs.

(A) Overexpression of SMPDL3B in mESCs. WT and SIRT1 KO mESCs were infected with lentiviral particles containing empty vector (V) or a construct expressing SMPDL3B. The expression of SMPDL3B was analyzed by immuno-blotting. (B–C) Overexpression of SMPDL3B reduces sphingomyelin levels in mESCs cultured in M10 medium. The cellular levels of sphingomyelin in WT and SIRT1 KO mESCs with or without overexpression of SMPDL3B were analyzed by (B) BODIPY FL-sphingomyelin confocal imaging, and (C) FACS assay (n = 3 biological replicates, *p<0.05, **p<0.01). Scale bars in (B): 20 µm. L3B in (C): SMPDL3B. (D–F) Overexpression of WT but not a catalytic inactive mutant SMPDL3B reduces sphingomyelin levels in mESCs cultured in in M10 medium. WT and SIRT1 KO mESCs transfected with an empty vector (V), a construct expressing WT SMPDL3B protein (SMPDL3B WT), or a construct expressing a catalytic inactive mutant SMPDL3B protein (SMPL3B H135A). The cellular levels of sphingomyelin in these transfected cells were analyzed by (D) BODIPY FL-sphingomyelin staining, (E) BODIPY FL-sphingomyelin FACS assay, or (F) an enzyme-coupled colorimetric assay for endogenous sphingomyelin. (n = 3 biological replicates, *p<0.05, **p<0.01, ***p<0.001). (G) Stable knockdown of the expression of SMPDL3B in mESCs. WT and SIRT1 KO mESCs were infected with lentiviral particles containing empty vector (V) or shRNA constructs for SMPDL3B (B11, B12, C1). The expression of SMPDL3B were analyzed by immuno-blotting. shL3B: shRNAs against SMPDL3B. (H–J) Knocking down SMPDL3B increases sphingomyelin levels in WT mESCs but not significantly further in SIRT1 KO mESCs in ESGRO medium. The cellular levels of sphingomyelin in WT and SIRT1 KO mESCs with or without stable knockdown of SMPDL3B were analyzed by (H) BODIPY FL-sphingomyelin confocal imaging, (I) BODIPY FL-sphingomyelin FACS assay, or (J) an enzyme-coupled colorimetric assay for endogenous sphingomyelin (n = 3 biological replicates, **p<0.01, ***p<0.001). Scale bars: 20 µm.

SIRT1 promotes transcription of Smpdl3b through c-Myc

As an NAD+-dependent protein deacetylase that deacetylates histones, transcription factors, cofactors, as well as splicing factors, SIRT1 has been shown to modulate gene expression at multiple levels. We confirmed that SIRT1 indeed regulates the expression of Smpdl3b and sphingomyelin degradation through its catalytic activity, as a SIRT1 catalytic inactive mutant (H355Y, HY) failed to rescue defective Smpdl3b expression and reduce BODIPY FL-C5-sphingomyelin accumulation in SIRT1 KO mESCs compared to WT SIRT1 protein (Figure 4). When interrogated each step along the expression of Smpdl3b gene in SIRT1 KO mESCs, we found that qPCR primers designed to amplify different segments of mature Smpdl3b mRNA all detected a reduced abundance of the full-length mature Smpdl3b mRNA upon SIRT1 deletion in mESCs (Figure 5—figure supplement 1A and B). Moreover, the abundance of Smpdl3b mRNA was reduced in both nuclear and cytosolic fractions in SIRT1 KO mESCs (Figure 5—figure supplement 1C). Northern blotting analysis using random probes generated from the full-length Smpdl3b cDNA further showed that deletion of SIRT1 in mESCs reduces the abundance of the full-length Smpdl3b mRNA without detectable accumulation of other minor isoforms (Figure 5—figure supplement 1D). Finally, RNA-seq analysis of total Ribo-minus RNA (total RNA after depletion of ribosomal RNAs) revealed that the abundance of RNA species from both exonic and intronic regions of Smpdl3b gene were reduced in SIRT1 KO mESCs (Figure 5—figure supplement 1E and Supplementary file 3), and no defective splicing of Smpdl3b pre-mRNA was detected in these cells (not shown). All these observations strongly suggest that the reduction of SMDPL3B expression in SIRT1 KO mESCs is due to defective transcription of Smpdl3b gene. In support of this notion, SIRT1 KO mESCs had a drastic depletion of Pol II near the TSS of Smpdl3b gene, along with decreased deposition of an activation mark H3K4me3 yet increased deposition of a repression mark H3K27me3 (Figure 5A), indicative of a strong attenuation of transcriptional activation of Smpdl3b gene in SIRT1 KO mESCs.

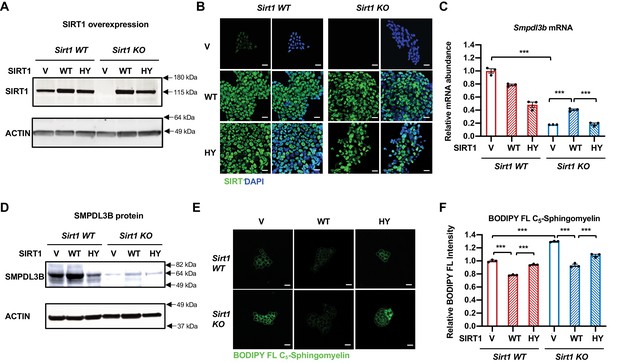

Expression of WT but not catalytically inactive SIRT1 partially rescues the sphingomyelin defect in SIRT1 KO mESCs.

(A–B) SIRT1 protein levels in indicated mESCs. WT and SIRT1 KO mESCs were infected with lentiviral particles containing empty vector (PLenti-III-EF1α) or constructs expressing WT or a catalytically inactive mutant SIRT1 (H355Y, HY). The expression of SIRT1 was analyzed by either (A) immunoblotting or (B) immunofluorescence staining. Bars in B: 20 µm. (C–D) Expression of the HY mutant SIRT1 represses the expression of Smpdl3b in WT mESCs, whereas expression of WT but not the HY mutant SIRT1 increases the expression of Smpdl3b in SIRT1 KO mESCs. The expression of SMPDL3B was analyzed by either (C) qPCR or (D) immunoblotting. (n = 3 biological replicates, ***p<0.001). (E–F) Expression of WT but not HY mutant SIRT1 significantly reduces the sphingomyelin levels in both WT and SIRT1 KO mESCs. Indicated WT and SIRT1 KO mESCs cultured in ESGRO medium were labeled with BODIPY FL-labeled sphingomyelin for 30 min at 4 °C then incubated at 37°C for 30 min. The intensity of BODIPY FL-labeled sphingomyelin in cells were analyzed by (E) confocal fluorescence imaging and by (F) quantitative FACS (n = 3 biological replicates, ***p<0.001). Bars in E: 20 µm.

Figure 5 with 2 supplements see all

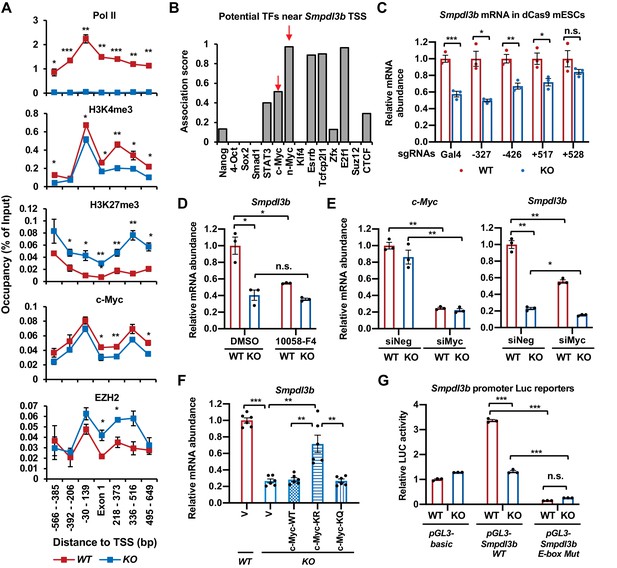

SIRT1 promotes the transcription of Smpdl3b through c-Myc in mESCs.

(A) SIRT1 KO mESCs have reduced transcription of Smpdl3b. WT and SIRT1 KO mESCs cultured in ESGRO medium were crosslinked and subjected for ChIP-qPCR profiling of PolII, c-Myc, EZH2, and indicated chromatin activation or repression marks near the TSS region of Smpdl3b gene (n = 4 biological replicates, *p<0.05, **p<0.01, ***p<0.001). (B) Association scores of potential transcription factors (TFs) near the TSS of Smpdl3b gene. The association scores of indicated TFs were obtained from a published dataset (Evans et al., 2014). A higher score is suggestive of a higher chance of Smpdl3b gene being targeted by the potential TF. (C) A guide RNA (gRNA) targeting the +528 locus at the TSS region of Smpdl3b gene rescues the expression of this gene. sgRNAs targeting indicated loci near the TSS region of Smpdl3b gene were transfected into WT and SIRT1 KO mESCs stably expressing a dox-inducible dCas9 and BirA-V5 (dCas9 mESCs). The mRNA levels of Smpdl3b were analyzed by qPCR (n = 3 biological replicates, *p<0.05, **p<0.01, ***p<0.001). (D) Inhibition of c-Myc activity reduces the expression of Smpdl3b gene in mESCs. WT and SIRT1 KO mESCs were treated with DMSO or 10 mM 10058-F4 for 48 hr. The mRNA levels of Smpdl3b were analyzed by qPCR (n = 3 biological replicates, *p<0.05, **p<0.01, ***p<0.001). (E) Knocking down c-Myc significantly reduces the expression of Smpdl3b gene in mESCs. WT and SIRT1 KO mESCs were transfected with siRNAs against c-Myc for 48 hr. The mRNA levels of c-Myc and Smpdl3b were analyzed by qPCR (n = 3 biological replicates, *p<0.05, **p<0.01). (F) Overexpression of the KR mutant of c-Myc partially reduces the expression of Smpdl3b gene in SIRT1 KO mESCs. The mRNA levels of Smpdl3b in indicated mESCs were analyzed by qPCR (n = 6 biological replicates, **p<0.01, ***p<0.001). (G) Mutation of the c-Myc binding E-box element on the promoter of Smpdl3b gene abolishes the expression of Smpdl3b luciferase reporter in mESCs. Luciferase reporters containing the basic vector (pGL3-basic), the WT promoter of Smpdl3b gene, or a promoter of Smpdl3b gene with a mutant E-box were transfected into WT and SIRT1 KO mESCs, and the luciferase activities were measured as described in Materials and methods (n = 3 biological replicates, ***p<0.001).

Figure 5—source data 1

Numerical data for graphs in A, B, C, D, E, F, and G.

https://cdn.elifesciences.org/articles/67452/elife-67452-fig5-data1-v2.xlsx

Sequence analysis of the TSS region revealed multiple potential transcription factors (TFs) that may target Smpdl3b gene, including two known SIRT1 deacetylation substrates, c-Myc and N-Myc (Tang et al., 2017; Menssen et al., 2012; Figure 5B). To determine the promoter region(s) and associated TF(s) that are responsible for the transcription suppression of Smpdl3b gene in SIRT1 KO mESCs, we designed small gRNAs (sgRNAs) to target different potential TF loci along the Smpdl3b promoter (Figure 5—figure supplement 2A, top), then analyzed their impacts on the expression of Smpdl3b after transfecting into WT and SIRT1 KO mESCs generated from a mouse ES cell line stably expressing a dox-inducible dCas9 and BirA-V5 (dCas9 mESCs, Figure 5—figure supplement 2B; Liu et al., 2017). It has been demonstrated that transfected sgRNAs in these cells are able to guide the deactivated Cas9 (dCas9) to bind to their targeting loci without further cleavage, resulting in altered transcription of the target gene (Liu et al., 2017). Compared to control Gal4 sgRNA and other sgRNAs, a sgRNA targeting a locus near 528 bp downstream of the TSS of Smpdl3b gene rescued the defective expression of Smpdl3b mRNA in SIRT1 KO dCas9mESCs (Figure 5C). Further bioinformatic analysis showed that this locus is overlapped with previously mapped binding regions of two TFs, c-Myc and EZH2 (Figure 5—figure supplement 2A, bottom). c-Myc is a known SIRT1 deacetylation substrate, and deacetylation of c-Myc by SIRT1 has been reported to increase its stability and activity (Menssen et al., 2012). We have previously shown that c-Myc is hyperacetylated but unstable in SIRT1 KO mESCs, which reduces its binding to target promoters thereby decreasing their transcription (Tang et al., 2017). The association of c-Myc protein to the promoter of Smpdl3b gene was indeed significantly reduced in SIRT1 KO mESCs by a ChIP-qPCR assay (Figure 5A, c-Myc). Moreover, inhibition of c-Myc activity by 10058-F4 (Yin et al., 2003; Figure 5D) or knocking down c-Myc with siRNAs (Figure 5E) significantly reduced the mRNA abundance of Smpdl3b in WT mESCs but not or to a less extend in SIRT1 KO mESCs, indicating that c-Myc is a key transcription factor in SIRT1-mediated regulation of Smpdl3b. Furthermore, SIRT1 promoted the transcription of Smpdl3b in part through deacetylating c-Myc, as a c-Myc mutant with its major acetylation site mutated to R to mimic deacetylated c-Myc (K323R, KR), partially rescued the expression of Smpdl3b in SIRT1 KO mESCs compared to empty vector (V), WT c-Myc, and a c-Myc mutant with its major acetylation site mutated Q to mimic acetylated c-Myc (K323Q, KQ) (Figure 5—figure supplement 2C and Figure 5F). Finally, a Smpdl3b promoter luciferase reporter containing a mutant c-Myc binding site (E-box) displayed a dramatically reduced activity in mESCs compared to a WT Smpdl3b promoter luciferase reporter (Figure 5G, pGL3-Smpdl3b E-box Mut vs pGL3-Smpdl3b WT in WT mESCs). Additionally, this mutant luciferase reporter had a comparable low activity in SIRT1 KO mESCs vs WT mESCs, further suggesting that the differential expression levels of Smpdl3b in WT and SIRT1 KO mESCs is mediated by c-Myc.

EZH2, an H3K27me3 methyltransferase and the functional enzymatic component of the Polycomb Repressive Complex 2 (PRC2), is also a deacetylation substrate of SIRT1 (Wan et al., 2015). Deacetylation of K348 of EZH2 by SIRT1 has been reported to reduce its stability and activity (Wan et al., 2015), which is consistent with our current observation that deletion of SIRT1 in mESCs significantly increased the occupancy of EZH2 and H3K27me3 on the promoter of Smpdl3b gene (Figure 5A, EZH2, H3K27me3). However, in contrast to c-Myc, neither inhibition of EZH2 activity by its inhibitor EPZ6438 (Figure 5—figure supplement 2D) nor knockdown of EZH2 by siRNAs (Figure 5—figure supplement 2E–G) significantly affected the expression of Smpdl3b in mESCs, particularly in SIRT1 KO mESCs, indicating that blocking EZH2-catalyzed H3K27 trimethylation alone is not sufficient to rescue SIRT1 deficiency-induced transcriptional suppression of Smpdl3b in mESCs. Collectively, our data demonstrate that SIRT1 activates the expression of Smpdl3b in mESCs primarily through deacetylation of c-Myc.

SIRT1-regulated sphingolipid metabolism affects in vitro neural differentiation

SMPDL3B-catalyzed sphingomyelin degradation has been shown to reduce plasma membrane fluidity (Heinz et al., 2015). As expected from their reduced expression of SMPDL3B, SIRT1 KO mESCs had a reduced fraction of ordered structures (thereby increased membrane fluidity) compared to WT mESCs when probed with Di-4-ANEPPDHQ, an electrical potential sensitive fluorescent dye for detection of microdomains and (dis)ordered membrane in live cells (Figure 6A, vehicle). Treatment with methyl-β-cyclodextrin (MβCD), a cholesterol-extracting agent, further decreased the membrane order, particularly in SIRT1 KO mESCs (Figure 6A, MβCD). In line with this observation, pathways involved in cell surface receptor signaling pathway and intracellular signal transduction were among the most significantly disrupted Gene Ontology (GO) Biological Process (GO BP) in SIRT1 KO mESCs when compared with WT mESCs in our Ribo-minus RNA-seq dataset (Figure 6—figure supplement 1).

Figure 6 with 1 supplement see all
Sphingomyelin accumulation increases membrane fluidity and induces expression of Nestin in SIRT1 KO mESCs.

(A) SIRT1 KO mESCs have an increased membrane fluidity. WT and SIRT1 KO mESCs cultured in ESGRO medium were preincubated with or without 2.5 mM MβCD for 1 hr, then stained with 5 μM di-4-ANEPPDHQ for at least 30 min. The relative ordered fraction in each group was analyzed as described in Materials and methods (n = 30 clones/group, *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001). Bars: 10 µm. (B–C) Exogeneous sphingomyelin treatment increases Nestin but not pluripotency markers in mESCs. WT and SIRT1 KO mESCs were treated with indicated concentrations of sphingomyelin (SM) in ESGRO medium for 48 hr. (B) The intensity of AP was analyzed as described in Materials and methods. Bars: 100 µm. (C) The protein abundance of pluripotency marker OCT3/4, Nanog and neuroepithelial stem cell marker Nestin in WT and Sirt1 KO mESCs were determined by immunoblotting. (D) Overexpression of WT but not a catalytic inactive mutant SMPDL3B reduces the expression of Nestin in SIRT1 KO mESCs. WT and SIRT1 KO mESCs transfected with an empty vector (V), a construct expressing WT SMPDL3B protein (SMPDL3B WT), or a construct expressing a catalytic inactive mutant SMPDL3B protein (SMPL3B H135A) were stained for SMPDL3B and Nestin. Scale bars: 20 µm.

Sphingolipids are bioactive lipids important for stem cell survival and differentiation (Bieberich, 2008; Wang et al., 2018). Since we previously observed that SIRT1 KO mESCs have a compromised pluripotency (Tang et al., 2017), we investigated whether sphingomyelin accumulation in SIRT1 KO mESCs is responsible for their reduced pluripotency. Compared to WT mESCs, SIRT1 KO mESCs had a reduced staining intensity of Alkaline Phosphatase (AP), a marker of undifferentiated ESCs (Figure 6B), along with decreased expression of OCT3/4 and Nanog, two pluripotent stem cell markers, and increased expression of Nestin, a neuroectodermal stem cell (NSC) marker (Figure 6C). However, sphingomyelin treatment did not consistently affect the AP staining intensity (Figure 6B) nor induced any significantly changes on the expression of pluripotency markers in either WT or SIRT1 KO mESCs (Figure 6C, OCT3/4 and Nanog). In contrast, sphingomyelin dose-dependently increased the expression of Nestin, a NSC marker that was induced in SIRT1 KO mESCs, but not in WT mESCs (Figure 6C, Nestin). Moreover, overexpression of WT but not H135A mutant SMPDL3B reduced the expression of Nestin in SIRT1 KO mESCs (Figure 6D), suggesting that SMPDL3B deficiency-resulted sphingomyelin accumulation may interfere neural differentiation in SIRT1 KO mESCs instead of their pluripotency.

Consistent with this observation, during a 4-week in vitro neural differentiation of mESCs (Figure 7A; Ying et al., 2003; Abranches et al., 2009), the mRNA levels of Sirt1 and Smpdl3b were significantly reduced in WT E14 mESCs, along with dramatic decrease of Nanog and Oct4 and massive induction of several NSC and neural differentiation factors, such as Sox3, Nestin, Notch3, and Tau (Figure 7B, WT). However, both the reduction of pluripotency markers and the induction of NSC/neural differentiation factors were significantly blunted when SIRT1 was deleted in E14 mESCs (Figure 7B, KO), indicating that SIRT1 deficiency impairs in vitro neural differentiation of these cells. Further cellular and morphological analyses by immunofluorescence staining of progenitor and neuronal markers showed that progenitors and neurons differentiated from WT E14 mESCs have high expression of marker proteins and typical mature neuronal morphology, including elongated axons and dendrites, after 4-week differentiation (Figure 7C, WT). Progenitors and neurons differentiated from SIRT1 KO E14 mESCs, on the other hand, had low levels of these markers and lacked typical neuronal morphology (Figure 7C, KO). Additionally, SIRT1 KO mESCs also displayed defective neural differentiation after in vitro differentiation (Figure 7D), indicating that SIRT1 deficiency in mESCs impairs neural differentiation in vitro in a cell line independent manner.

SIRT1 KO mESCs have an impaired neural differentiation in vitro.

(A) A diagram of the in vitro neural differentiation system. (B) SIRT1 KO E14 mESCs are less responsive to in vitro neural differentiation than WT mESCs. The expression of indicated genes were analyzed by qPCR during 4 weeks of in vitro neural differentiation. Please note that deletion of SIRT1 resulted in reduction in both repression of pluripotent factors and induction of markers for neural progenitors/stem cells and neurons (n = 3 biological replicates, *p<0.05, **p<0.01). (C) SIRT1 KO E14 mESCs have reduced expression of neural differentiation markers and disordered neuronal morphology. WT and SIRT1 KO E14 mESCs after 4 weeks of in vitro neural differentiation were stained for a neural progenitor marker SOX1 (left panels) and neuronal markers beta III tubulin (TUBB3, middle panels) and TH (right panels). Scale bars: 20 µm. (D) SIRT1 KO mESCs have reduced expression of TUBB3 and mature neuronal morphology. WT and SIRT1 KO mESCs after 4 weeks of in vitro neural differentiation were stained for TUBB3. Scale bars: 50 µm.

To validate that defective neural differentiation of SIRT1 KO mESCs is related to their accumulation of sphingomyelin, we analyzed whether adding back SMPDL3B in these cells will rescue their neural differentiation defects. Morphologically, putting back SMPDL3B into SIRT1 KO mESCs increased neurons with elongated axons and dendrites (Figure 8A and B, SIRT1 KO SMPDL3B), which was associated with the increased fraction of cells positive of several neural markers when analyzed by FACS analysis (Figure 8C, SIRT1 KO SMPDL3B). Moreover, the expression of several progenitor and neuronal markers was also increased by adding back SMPDL3B in SIRT1 KO mESCs when analyzed by immunofluorescence staining (Figure 8D, SIRT1 KO SMPDL3B) or by qPCR (Figure 8E, SIRT1 KO SMPDL3B). Overexpression of SMPDL3B in WT mESCs, however, disrupted the expression of progenitor markers and morphology of neurons (Figures 8B, C and D, SIRT1 WT SMPDL3B), suggesting that a balanced sphingomyelin degradation is required to maintain normal neural differentiation. Conversely, in vitro neural differentiation of WT and SIRT1 KO mESCs with or without stable knockdown of SMPDL3B revealed that reduction of this enzyme disrupts neural differentiation in both WT and SIRT1 KO mESCs (Figure 8F), indicative the importance of this enzyme in normal neural differentiation. Finally, putting back WT SIRT1 protein into SIRT1 KO mESCs rescued expression of progenitor marker SOX1 and NSC marker Nestin as well as neuronal morphology after in vitro neural differentiation (Figure 8G, SIRT1 KO-WT). In contrast, putting back a catalytic inactive SIRT1 mutant failed to restore marker protein expression and/or neuronal morphology (Figure 8G, SIRT1 KO-HY), confirming that the neural differentiation defects observed in SIRT1 KO mESCs are primarily due to a lack of SIRT1 deacetylase activity. Taken together, our observations indicate that SIRT1-mediated transcription of Smpdl3b and sphingolipid degradation influence neural differentiation in vitro.

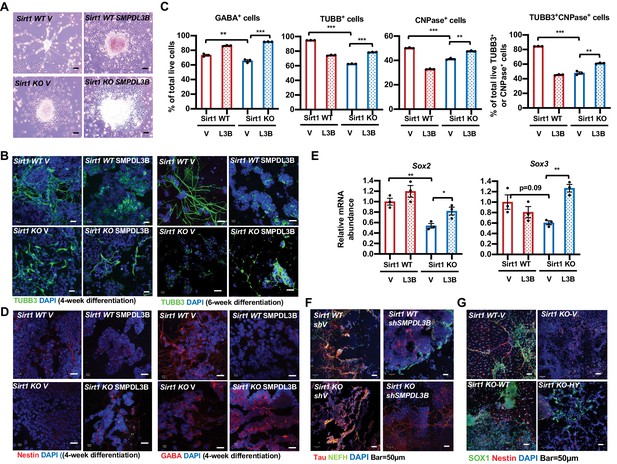

Reduced expression of SMPDL3B is partially responsible for impaired in vitro neural differentiation in SIRT1 KO mESCs.

(A) Overexpression of SMPDL3B partially rescues gross neuronal morphology in in vitro differentiated SIRT1 KO mESCs. WT and SIRT1 KO mESCs stably infected with lentiviral particles containing empty vector (V) or constructs expressing SMPDL3B protein were subjected to 4 weeks of in vitro neural differentiation. The cell morphology was analyzed using regular light microscopy fixed with ZEISS AxioCamHR camera. Scale bars: 20 µm. (B) Overexpression of SMPDL3B partially rescues neuronal morphology in in vitro differentiated SIRT1 KO cells. WT and SIRT1 KO mESCs expressing vector (V) or SMPDL3B were differentiated for 4 weeks or 6 weeks. Six weeks of differentiation is for a better morphological analysis. The expression of TUBB3 and neuronal morphology were analyzed by immunofluorescence staining. Scale bars: 20 µm. (C) Overexpression of SMPDL3B partially increased the fraction of differentiated cells in in vitro differentiated SIRT1 KO cells. WT and SIRT1 KO mESCs expressing vector (V) or SMPDL3B were differentiated as in (A). The fraction of differentiated cells positive of indicated neural markers were quantified by FACS (n = 3 biological replicates, **p<0.01, ***p<0.001). (D) Overexpression of SMPDL3B partially rescues the expression of neural markers in in vitro differentiated SIRT1 KO cells. WT and SIRT1 KO mESCs expressing vector (V) or SMPDL3B were differentiated as in (A). The expression of indicated neural markers were analyzed by immunofluorescence staining. Scale bars: 20 µm. (E) Overexpression of SMPDL3B partially rescues the expression of neural progenitor markers in in vitro differentiated SIRT1 KO cells. WT and SIRT1 KO mESCs expressing vector (V) or SMPDL3B were differentiated as in (A). The expression of SOX2 and SOX3 were analyzed by qPCR (n = 3 biological replicates, *p<0.05, **p<0.01). (F) Knocking down SMPDL3B in WT mESCs impairs neural differentiation in vitro. WT and SIRT1 KO mESCs with or without stable knockdown of SMPDL3B were in vitro differentiated into neurons for 4 weeks. The expression of neural markers Tau and NEFH were analyzed by immunofluorescence staining. Scale bars: 50 µm. (G) WT but not a catalytic inactive SIRT1 rescues neural differentiation in vitro. WT and SIRT1 KO mESCs expressing vector (V), WT SIRT1, or a mutant SIRT1 lacking catalytic activity (HY) were in vitro differentiated into neurons for 4 weeks. The expression of neural markers SOX1 and Nestin were analyzed by immunofluorescence staining. Scale bars: 50 µm.

Maternal HFD feeding induces accumulation of sphingomyelin and impairs neural development in SIRT1-deficient embryos

To assess the importance of sphingolipid metabolism in SIRT1-regulated neural differentiation in vivo, we investigated whether embryonic SIRT1 deficiency is associated with altered sphingomyelin accumulation and neural differentiation in mice. Consistent with our previous observations (Tang et al., 2017), systemic deletion of SIRT1 in C57BL/6J mice leads to intrauterine growth retardation when dams were fed on a regular chow diet (containing 4% fat) (Figure 9A, chow). The mRNA levels of Smpdl3b were significantly reduced in the brain of SIRT1 KO E18.5 embryos (Figure 9B). However, these embryos did not display any detectable defects in brain sphingomyelin levels, nor in expression of a number of neural progenitor and neuron markers (Figure 9C and D, chow) despite reported developmental defects in other systems (McBurney et al., 2003; Cheng et al., 2003; Wang et al., 2008). Since HFD feeding has been shown to induce sphingolipid biosynthesis and turnover of sphingolipids in multiple tissues (Choi and Snider, 2015), we tested whether maternal HFD feeding could induce sphingomyelin accumulation and disrupt neural development in SIRT1 KO embryos. Intriguingly, maternal feeding of an HFD diet containing 36% fat for 4–8 weeks before breeding significantly reduced intrauterine growth of embryos, particularly on SIRT1 KO embryos, at E18.5 (Figure 9A, HFD). Maternal HFD feeding also elevated sphingomyelin contents in all tested regions of brain in SIRT1 KO but not WT E18.5 embryos (Figure 9C, HFD). These maternal HFD feeding-induced gross and metabolic alterations were associated with reduced expression of many intermediate progenitor and mature neuron markers (Figure 9D, HFD) without significant changes on early stage neuroepithelial cell markers and oligodendrocyte markers (not shown), suggesting that SIRT1 deficiency-induced sphingomyelin accumulation specifically delays neuron maturation in mouse embryos.

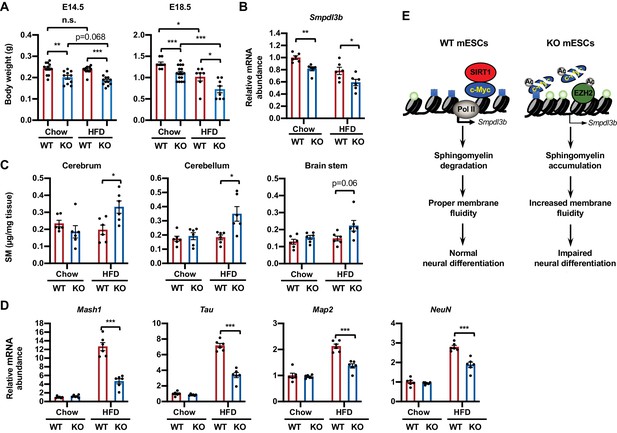

Maternal high-fat diet (HFD) feeding impairs neural development in SIRT1 deficient embryos.

(A) Maternal HFD feeding reduces body weight of embryos. Maternal HFD feeding was performed 4-8 weeks before pregnancy (pre-feeding) as described in Materials and methods. Body weight of E14.5 and E18.5 embryos were measured (*p<0.05, **p<0.01, ***p<0.001). (B) SIRT1 KO embryos have reduced expression of Smpdl3b in brains. The mRNA levels of Smpdl3b in brain of E18.5 embryos from chow fed dams or HFD fed dams were analyzed by qPCR (n = 6 embryos, *p<0.05, **p<0.01). (C) Maternal HFD feeding induces sphingomyelin accumulation in brains of SIRT1 KO embryos. Maternal HFD feeding was performed 4-8 weeks before pregnancy (pre-feeding) as described in Materials and methods. Brains from E18.5 embryos were dissected into three parts and the endogenous sphingomyelins were extracted and measured (n = 6 embryos, *p<0.05). (D) Maternal HFD feeding induces defective expression of neural markers in brains of SIRT1 KO embryos. The mRNA levels of indicated neural markers in brain of E18.5 embryos from chow fed dams or HFD fed dams were analyzed by qPCR (n = 6 embryos, *p<0.05, **p<0.01, ***p<0.001). (E) SIRT1 regulates sphingomyelin degradation and neural differentiation of mESCs through c-Myc and EZH2. SIRT1 is highly expressed in mESCs cells, where it functions to promote association of c-Myc and recruitment of Pol II to activate transcription of Smpdl3b gene and subsequent sphingomyelin degradation. This action of SIRT1 is important for maintenance of a proper membrane fluidity for normal neural differentiation in response to nutritional/developmental cues. Deletion of SIRT1 causes hyperacetylation and instability of c-Myc, leading to Pol II depletion and transcriptional repression of Smpdl3b. SIRT1 deficiency-induced hyperacetylation and stabilization of EZH2 likely enforce this transcriptional suppression by adding H3K27me3 mark. This transcriptional repression of Smpdl3b is associated with accumulation of sphingomyelin, which increases membrane fluidity and impairs neural differentiation. Light blue squares: H3K4me3; Light green circles: H3K27me3; Ac: acetylation.

Figure 9—source data 1

Numerical data for bar graphs in A, B, C, and D.

https://cdn.elifesciences.org/articles/67452/elife-67452-fig9-data1-v2.xlsx

Discussion

Highly enriched in the nervous system, sphingolipids are important for the development and maintenance of the functional integrity of the nervous system (van Echten-Deckert and Herget, 1758; Olsen and Færgeman, 2017). Perturbations of the sphingolipid metabolism has been shown to rearrange the plasma membrane, resulting in development of various human diseases, particularly neurological diseases (Piccinini et al., 2010). However, despite these diverse biological functions, the transcriptional regulation of sphingolipid metabolism is largely unknown. In the present study, we show that cellular sphingomyelin degradation is under transcriptional control of SIRT1, an important cellular metabolic sensor. We provide evidence that the SIRT1-Myc axis is vital for transcriptional activation of SMPDL3B, a major GPI-anchored plasma-membrane-bound sphingomyelin phosphodiesterase in mESCs. This transcriptional regulation directly impacts cellular levels of sphingomyelin and membrane fluidity, and is important in regulation of neural differentiation in response to developmental signals (Figure 9E). Our findings therefore identify a unique genetic regulatory pathway for sphingolipid homeostasis. Given the high sensitivity of SIRT1 to nutritional and environmental perturbations (e.g. activation upon caloric restriction and repression after HFD feeding or during aging Cantó and Auwerx, 2009; Imai, 2009), our study further suggests that SIRT1-Myc-regulatetd sphingolipid degradation may be an important element in mediating reported environmental influence on sphingolipid metabolism (Choi and Snider, 2015; Giusto et al., 1992; Lightle et al., 2000; Tacconi et al., 1991). It will be of great interest to test this possibility in future studies.

As the most conserved mammalian NAD+-dependent protein deacetylase, SIRT1 has a number of important functions in the brain, including regulation of late stage of neural development and protection against a number of neurodegenerative diseases (Herskovits and Guarente, 2014). In particular, SIRT1 has been shown to modulate the neural and glial specification of neural precursors (Prozorovski et al., 2008; Kang et al., 2010) and repress low glucose induced proliferation and neurogenesis of neural stem and progenitor cells (NSCs) in vitro (Fusco et al., 2016). Our observations in the present study demonstrate that SIRT1 is also a key metabolic regulator for the differentiation of neural progenitors/NSCs from ESCs. Our results show that SIRT1 is highly expressed in mESCs cells (Figure 7B), where it functions to promote c-Myc-mediated transcriptional activation of SMPDL3B and sphingomyelin degradation (Figures 14). This action of SIRT1 appears to have minimal impacts on the pluripotency of mESCs (Figure 6B and C), but instead is important for maintenance of a proper membrane fluidity for normal neural differentiation in response to nutritional/developmental cues (Figure 9E). Thus, by interacting with different protein factors, SIRT1 is important for neural differentiation and development at multiple stages.

How impaired degradation of sphingomyelin might influence the differentiation of ESCs remains unclear. Our observations that SMPDL3B deficiency in SIRT1 KO mESCs is associated with increase of membrane fluidity (Figure 6A) and that pathways involved in cell surface receptor signaling pathway are one of the most significantly downregulated biological processes in SIRT1 KO mESCs (Figure 6—figure supplement 1) suggest that impaired signaling transduction may underlie the impaired neural differentiation of these cells. This idea is consistent with the notion that sphingomyelin is important for formation of microdomains/lipid rafts on the plasma membrane for organization of many signaling proteins (Brown and London, 1998). Future studies are needed to directly test whether the plasma membrane/microdomain association of signaling proteins involved in neural differentiation (e.g. insulin and/or bFGF signaling pathways) is disrupted and whether the phosphorylation of downstream signal transduction factors is reduced in SIRT1 KO mESCs upon induction of neural differentiation. Our findings further suggest that an appropriate content of sphingomyelin, thereby a suitable degree of membrane fluidity, is required to maintain a proper signaling transduction for normal neural differentiation, as too much sphingomyelin resulted from direct sphingomyelin supplementation (Figure 6C) or SMPDL3B knockdown (Figure 8F) and too little sphingomyelin resulted from SMPDL3B overexpression (Figure 8B and D) all impair the expression of neural markers and differentiation.

Our observations that Smpdl3b promoter is targeted by both c-Myc and EZH2, consequently with ‘co-localization’ of antagonistic epigenetic marks H3K4me3 and H3K27me3 at the same locus near its TSS (Figure 4A and S5A), suggest that Smpdl3b in mESCs might be a bivalent promoter-associated gene (Bernstein et al., 2006; Sanz et al., 2008; Vastenhouw and Schier, 2012). The bivalent chromatin domains in ESCs often mark lineage regulatory genes, and it has been proposed that bivalent domains might repress lineage control genes by H3K27me3 during pluripotency while keeping them poised for activation upon differentiation with H3K4me3 (Vastenhouw and Schier, 2012). Interestingly, the bivalent chromatin domain on Smpdl3b appears to keep it active in mESCs while poising it to be repressed upon differentiation. Moreover, while long-recognized as a transcription repressor through deacetylation of histones, SIRT1 plays an active role in remodeling this bivalent domain by stabilizing c-Myc while restricting EZH2-induced H3K27me3 in mESCs (Figure 9E). Our present study reveals that this SIRT1/c-Myc/EZH2-regulated bivalent domain remodeling enables swift membrane remodeling in response to developmental signals, allowing more efficient and synchronous neural differentiation. Premature disruption of this chromatin remodeling complex in mESCs alters membrane fluidity (Figure 5A), which may in turn affect developmental signaling transduction (e.g. insulin, bFGF) and impair neural differentiation. Future studies will be needed to elucidate the general role of this bivalent chromatin switch in regulation of pluripotency vs lineage genes, as well as in process of somatic cell reprogramming and/or transformation.

The transcriptional regulation of sphingolipid metabolism and neural differentiation by the SIRT1-Myc axis in mESCs revealed in our present study is very intriguing, as we have previously reported that the same regulatory axis is key for methionine metabolism and maintenance of pluripotency in mESCs (Tang et al., 2017). While our data show that accumulation of sphingomyelin in SIRT1 KO mESCs is independently of methionine metabolism (Figure 1—figure supplement 1B and Supplementary file 1), additional studies are needed to assess how the SIRT1-Myc regulatory axis coordinates diverse metabolic processes to shape stem cell fates in response to different environmental signals. It is also worth noting that SIRT1 KO mESCs have additional lipid metabolic defects, including depletion of monoacyglycerols, accumulation of plasmalogens, acetylcholine, and monohydroxy fatty acids, and altered phospholipids, regardless of medium methionine concentrations (Figure 1—figure supplement 1B and Supplementary file 1). It will be of importance to evaluate the contribution of these lipid metabolic defects to the observed hypersensitivity of SIRT1 KO embryos to maternal HFD feeding-induced intrauterine growth retardation (Figure 9A) in future studies.

Our study has a few important implications. Firstly, the previously uncharacterized transcriptional regulation of SIRT1 on sphingomyelin degradation directly links cellular levels of sphingomyelin and membrane fluidity with cellular energy status, and provides a possible molecular mechanism for the beneficial impacts of SIRT1 small molecule activators and/or NAD+-boosting dietary supplements on human neurodegenerative diseases. Secondly, given the prevalence of obesity and metabolic syndrome in the reproductive population in modern society, the hypersensitivity of SIRT1 KO embryos to maternal HFD feeding-induced intrauterine growth retardation and neurodevelopmental defects suggests that pharmacological activation of SIRT1 by small molecule activators and/or NAD+-boosting dietary supplements might be able to attenuate maternal obesity-associated neonatal complications and defective childhood neurodevelopment (Iessa and Bérard, 2015; Helle and Priest, 2020; Tong and Kalish, 2021).

In summary, our study uncovers a SIRT1-Myc-mediated transcriptional regulation of sphingomyelin degradation that modulates neural differentiation of ESCs. This finding highlights the importance of SIRT1 and its regulation in mESC differentiation and embryonic development, and may have important implications in potential therapeutic strategies again human neurodegenerative diseases and/or maternal obesity-induced adverse developmental outcomes.

Materials and methods

Key Resources Table

Request a detailed protocol

Please see the appendix.

Mammalian cell lines

Request a detailed protocol

WT ad SIRT1 KO mESCs generated in R1 mESC line have been reported previously (Tang et al., 2014; McBurney et al., 2003). They were a gift from Dr. Michael McBurney at Ottawa Hospital Research Institute.

ES-E14TG2a (E14) mESC line was purchased from ATCC. WT and SIRT1 KO E14 mESCs were generated by CRISPR/Cas9 mediated gene editing technology using lentivirus carrying either all-in-one empty vector pCRISPR-CG01 vector or pCRISPR-CG01 containing different sgRNAs targeting mouse Sirt1 gene (GeneCopoeia). Stable single colonies were picked up and screened with immunoblotting assay using anti-SIRT1 antibodies. Three independent WT and SIRT1 KO E14 mESCs were used for the experiments to minimize the potential off-target effects of each individual line. mESCs stably transfected with pEF1α-FB-dCas9-puro (Addgene #100547) and pEF1α-BirA-V5-neo (Addgene #100548) vectors (dCas9 mESCs) are described previously (Liu et al., 2017). WT and SIRT1 KO dCas9 mESCs were generated by a similar strategy as WT and SIRT1 KO E14 mESCs. Different sgRNA sequences targeting promoter region of Smpdl3b (Supplementary file 4) were cloned into plasmid pSLQ1651-sgRNA(F + E)-sgGal4 (Addgene #100549) and then were packed into lentivirus. The WT and SIRT1 KO dCas9 mESCs were infected with those lentiviruses to deliver sgRNA into cells, which then guided the dCas9 to bind on the promotor region of Smpdl3b and interfere its expression.

WT and SIRT1 KO mESCs with stable Smpdl3b knockdown were generated by infecting WT and SIRT1 KO mESCs with lentivirus containing vector pLKO.1 or constructs expressing shRNAs against Smpdl3b (B11, B12, and C1) (Sigma). WT and SIRT1 KO mESCs with stable overexpression of SMPDL3B were generated with lentivirus carrying vector pLenti-III-ef1α (Addgene) or constructs expressing the full-length SMPDL3B protein. The SMPDL3B H135A mutant was constructed with QuikChange II XL Site-Directed Mutagenesis Kit (Agilent Technologies, 200522–5) against pLenti-III-ef1α-Smpdl3b by using primers described in Supplementary file 4. The expression of SMPDL3B in these cells was analyzed by immunoblotting or immunofluorescence staining.

WT and SIRT1 KO mESCs with stable overexpression of WT or a catalytic inactive H355Y mutant (HY) were generated using lentivirus carrying empty vector pLenti-III-ef1α (Addgene) or constructs expressing the full-length WT or HY SIRT1 proteins.

To knockdown the Ezh2 and C-Myc gene expression, WT and Sirt1 KO mESCs were transfected with siRNA against mouse Ezh2 (ThermoFisher, 4390771-s65775; siNeg: 4390843) and c-Myc (Santa Cruz sc-29227; siNeg: siRNA-A sc-37007), with Lipofectamine RNAiMAX (ThermoFisher Scientific). The knockdown of genes expression was evaluated by Quantitative real-time PCR 48 hr after transfection.

All mouse stem cells were maintained on gelatin-coated plates in the ESGRO Complete Clonal Grade Medium (Millipore), and then cultured in the M10 medium (High-glucose DMEM, 10% ES cell FBS, 2 mM L-glutamine, 1 mM sodium pyruvate, 0.1 mM nonessential amino acids, 10 μM 2-mercaptoethanol, and 500 units/ml leukocyte inhibitory factor) for some experiments.

Mel1 hESCs was a gift from Dr. Andrew Elefanty and Edouard Stanley at the University of Queensland, Australia. WT and SIRT1 KO mel1 hESCs were generated by CRISPR/Cas9 mediated gene editing technology using a plasmid containing Cas9, gRNA (AGAGATGGCTGGAATTGTCC (- strand)) and a GFP indicator. The GFP positive cells were purified by flow cytometry, and were either grown on 10 cm dishes with a serial dilution, or in the 96-well plates at a density of 1 cell/well. Single colonies were picked up and subjected to immunofluorescence assay with anti-SIRT1 antibodies. The cell colonies without SIRT1 staining were sequenced to confirm the mutation. Three independent SIRT1 KO mel1 lines were used for the experiments to minimize the potential off target effects of each individual line.

All cell lines were not authenticated at our end. All original and genetically modified ESCs are routinely checked (at least every 6 months) by the NIEHS Quality Assurance Laboratory for contamination of mycoplasma and other microbes by prolonged culture followed with qPCR-based assays, and they were all free of mycoplasma in our study.

Mouse models

Request a detailed protocol

Whole body SIRT1 knockout, heterozygote and their age-matched littermate WT mice on the C57BL/6J background have been reported before (Tang et al., 2014). They were housed in individualized ventilated cages (Techniplast, Exton, PA) with a combination of autoclaved nesting material (Nestlet, Ancare Corp., Bellmore, NY and Crink-l’Nest, The Andersons, Inc, Maumee, OH) and housed on hardwood bedding (Sani-chips, PJ Murphy, Montville, NJ). Mice were maintained on a 12:12 hr light:dark cycle at 22 ± 0.5°C and relative humidity of 40% to 60%. Mice were provided ad libitum autoclaved rodent diet (NIH31, Harlan Laboratories, Madison, WI) and deionized water treated by reverse osmosis. Mice were negative for mouse hepatitis virus, Sendai virus, pneumonia virus of mice, mouse parvovirus 1 and 2, epizootic diarrhea of infant mice, mouse norovirus, Mycoplasma pulmonis, Helicobacter spp., and endo- and ectoparasites upon receipt and no pathogens were detected in sentinel mice during this study.

Mice were randomly assigned to experimental groups after they were allowed to acclimate for at least one week prior to experiments.

Metabolomic analysis

Request a detailed protocol

WT and SIRT1 KO mESCs were cultured in the complete M10 medium containing 200 μM methionine or methionine restricted M10 medium containing 6 μM methionine for 6 hr (n = 5 biological replicates). WT and SIRT1 KO mel1 hESCs were cultured in serum-free TeSR-E8 medium containing 116 μM methionine or a methionine restricted medium containing 6 μM methionine for 6 hr on Matrigel (n = 4 biological replicates). Cells were then harvested and profiled by metabolomics analysis as previously described (Tang et al., 2017). Specifically, about 100 μl of packed cell pellet per sample were submitted to Metabolon, Inc (Durham, NC, USA), where the relative amounts of small molecular metabolites were determined using four platforms of Ultrahigh-Performance Liquid Chromatography-Tandem Mass Spectroscopy (UPLC-MS/MS) as previously described (Evans et al., 2014). All methods utilized a Waters ACQUITY UPLC and a Thermo Scientific Q-Exactive high-resolution/accurate mass spectrometer interfaced with a heated electrospray ionization (HESI-II) source and Orbitrap mass analyzer operated at 35,000 mass resolution. Raw data collected from above four analyses were managed by the Metabolon Laboratory Information Management System (LIMS), extracted, peak-identified and QC processed using Metabolon’s hardware and software. The hardware and software foundations for these informatics components were the LAN backbone, and a database server running Oracle 10.2.0.1 Enterprise Edition. The final relative abundance of metabolites in each sample was normalized by the respective total protein concentration.

Sphingolipid analysis

View detailed protocol

To confirmed the alteration of sphingolipids in SIRT1 KO mESCs, WT and SIRT1 KO mESCs cultured in serum-free ESGRO medium or serum-containing M10 medium were incubated with 5 µM BODIPY FL C5-Sphingomyelin (N-(4,4-Difluoro-5,7-Dimethyl-4-Bora-3a,4a-Diaza-s-Indacene-3-Pentanoyl)Sphingosyl Phosphocholine) (Invitrogen, D3522) or 5 µM BODIPY FL C5-Ceramide (N-(4,4-Difluoro-5,7-Dimethyl-4-Bora-3a,4a-Diaza-s-Indacene-3-Pentanoyl)Sphingosine) (Invitrogen, D3521) together with 5 µM delipidated BSA (as a delivery carrier) in Hanks' buffered salt solution containing 10 mM HEPES (HBSS/HEPES buffer pH 7.4) at 4°C for 30 min to load SM/ceramide. They were then incubated in medium without BODIPY FL C5-Sphingolipid at 37°C for additional 30 min. The intensity of cellular BODIPY FL C5-Sphingomyelin/Ceramide were analyzed by Zeiss LSM 780 UV confocal microscope and by Flow cytometry analysis (Abs 505 nm and Em 511 nm).

To analyze the degradation of sphingomyelins, WT and SIRT1 KO mESCs were pre-load with BODIPY FL C5-Sphingomyelin at 4°C for 30 min. They were then incubated in medium without BODIPY FL C5-Sphingomyelin at 37°C, and the dynamics of loaded BODIPY FL C5-Sphingomyelins in cells were followed using Zeiss LSM 780 UV confocal microscope for additional 12 hr at 37°C.

The relative contents of endogenous sphingomyelins in WT and SIRT1 KO mESCs were analyzed using a commercially available Sphingomyelin Assay Kit (Abcam ab133118) per manufacturer’s instruction.

Quantitative real-time PCR (qPCR)

Request a detailed protocol

Total RNAs were isolated from mESCs or mice tissues using Qiagen RNeasy mini-kit (74104). The nuclear and cytoplasmic RNA were separated and enriched by Fisher BioReagents SurePrep Nuclear or Cytoplasmic RNA Purification Kit (Fisher Scientific, BP280550). The cDNA was synthesized with ABI High-Capacity cDNA Reverse Transcription Kits (4374967) and further analyzed with qPCR using iQ SYBR Green Supermix (Biorad). Three biological replications are performed for each experiment and raw data are normalized to the expression level of Rplp0 mRNA levels. The primers used in RT-PCR are listed in (Supplementary file 4).

Immunofluorescence analysis mESCs grown on 0.1% gelatin coated coverslips were washed with PBS and fixed with 4% paraformaldehyde (PFA) in PBS (pH 7.4) solution for 20 min at room temperature. They were then incubated with 1% glycine/PBS for 10 min, and cell membrane was permeabilized with 0.3% Triton X-100 in 1% glycine/PBS for 10 min. Cells were further blocked with 1% BSA and 0.05% Tween 20 in PBS for 30 min, incubated with primary antibodies (Key Resources Table) diluted with the blocking solution for overnight at 4°C, then the secondary antibodies Alexa Fluor 488, 594 and 633 (for flow cytometry sorting) (Invitrogen, A-11008, A-11032, A-21052) at 1:1000 in PBS for 1 hr at room temperature. Cells were counterstained for Nuclei with DRAQ5 Fluorescent Probe Solution (Thermal Fisher, 62251) or directly mounted on glass slides with VECTASHIELD Antifade Mounting Media (VECTOR LABORATORY) which contains DAPI. The images of stained cells are acquired by Zeiss LSM 780 UV confocal microscope.

Northern blotting

Request a detailed protocol

The probe for Northern Blot hybridization is generated by using North2South Biotin Random Prime Labeling Kit (ThermoFisher, 17075). A 100 ng DNA product, which was synthesized from PCR reaction by using primer pair ‘5’- CACCGCTAGCGCCACCatgacgctgctcgggtggctgata-3’ and 5’- CACCGCGGCCGCtaacacctccagtacgtgcaggct-3’’ and the cDNA synthesized from total RNA isolated from mESCs, was used as a template to yield biotin-labeled single strand DNA probe that covers the full-length Smpdl3b mRNA sequence. Forty µg of total RNA isolated from mESC were separated with agarose electrophoresis with RNA Gel Loading Dye (2X) (ThermoFisher, R0641) and NorthernMax 10X Running Buffer (Ambion, AM8671). The separated total RNA samples were further transblotted to positively charged nylon transfer membrane (Cat. 77016) by using S and S TurboBlotter Rapid Downward Transfer System (DAIGGER Scientific) and SSC buffer (ThermoFisher, AM9763). The RNA samples transferred to membrane were further crosslinked by using Stratalinker UV Crosslinker (Model 1800) immediately upon completion of transblotting. The hybridization was performed by using North2South Chemiluminescent Hybridization and Detection Kit (ThermoFisher,17097) and the signaling of positive hybridization on membrane was detected with Chemiluminescent Nucleic Acid Detection Module (ThermoFisher, 89880). All procedures were performed by strictly following protocols for each kit provided by manufacturers.

Immunoblotting

Request a detailed protocol

Cells were washed once with PBS, and were then lysed and scraped with 2 x SDS loading buffer without bromophenol blue. Samples were boiled for 10 min, and quantified. Equal amount of protein lysates was loaded and resolved on SDS-PAGE gel and transferred onto an PVDF membrane (Millipore). Blots were blocked with 5% BSA for 1 hr, incubated with primary antibodies at 4°C overnight, incubated with secondary antibodies for 2 hr, and detected by Odyssey (LI-Cor inc).

Chromatin immunoprecipitation (ChIP)

Request a detailed protocol

To determine the association of RNA polymerase II (Pol II), c-Myc, EZH2, and histone marks H3K4me3 and H3K27me3 on mouse Smpdl3b locus in WT and SIRT1 KO mESCs, cells were fixed, harvested, and sonicated. The resulting sonicated chromatin was processed for immunoprecipitation with respective antibodies (Key Resources Table) as previously described (Shimbo et al., 2013).

RNA-seq analysis

Request a detailed protocol

Total RNA was extracted from WT and SIRT1 KO mESCs cultured in ESGRO medium in triplicates. All RNA-seq libraries were prepared with the TruSeq Stranded/Ribo kit (Illumina, San Diego, CA) and sequenced using the pair-end 76 bp protocol at about 520 million reads per library using the NovaSeq platform (Illumina) per the manufacturer’s protocol. Adaptor sequences were removed by Trim Galore (v0.4.4). Then reads were aligned to mouse genome version GRCm38/mm10 using STAR (v2.5.3a) (Dobin et al., 2013) with Gencode vM18 annotation. Gene expression values were quantified using RSEM (v1.2.28) (Li and Dewey, 2011) and differences in gene expression between experimental conditions were estimated using R package DEseq2 (Love et al., 2014) with input reads count from FeatureCounts (Liao et al., 2014) in Subread.

GO Biological Process enrichment analysis was performed on 2541 significantly downregulated genes (q < 0.01) in SIRT1 KO mESCs in g:Profiler (https://biit.cs.ut.ee/gprofiler/gost).

Gene set enrichment analysis (GSEA) (v4.1.0) was implemented against all gene ontology (GO) gene sets in Molecular Signatures database (MsigDB v7.2) with 10000 permutations (min size 15, max size 500, FDR q < 0.25).

Promoter analysis of Smpdl3b gene

Request a detailed protocol

Potential transcription factors (TFs) on the promoter of Smpdl3b gene were predicted using ‘Match’ from geneXplain (genexplain.com), in which the association scores, including ‘Core Motif Similarity’ and ‘Weight Matrix Similarity’ were calculated (Chen et al., 2008). A higher score implies a higher chance of the gene being the target of this TF.

Inhibition of c-Myc or EZH2 in mESCs

Request a detailed protocol

To test the possible roles of transcriptional factor c-Myc and EZH2 in regulation of Smpdl3b expression in mESCs, WT and SIRT1 KO mESCs were treated with c-Myc Inhibitor CAS 403811-55-2–Calbiochem (10058-F4) (Millipore Sigma, 475956) at 10 μM or EZh2 inhibitor Tazemetostat (EPZ-6438) (MCE, HY-13803) at indicated concentrations for 48 hr. WT and SIRT1 KO mESCs were also transfected with siRNA against mouse c-Myc (Santa Cruz, sc-29227) or EZH2 (ThermoFisher, 4390771) to knockdown their expression respectively. Cells were collected for 48 hr after transfection for qPCR analysis.

Site-direct mutagenesis

Request a detailed protocol

To further determine the influence of the acetylation status of c-Myc on expression of Smpdl3b, mouse c-Myc protein was first cloned into the pHAGE-EF1α-HA-Puro vector (Zheng et al., 2016). The major acetylation site of c-Myc protein, K323, was then mutated to either R to mimic deacetylated c-Myc (K323R) or Q to mimic acetylated c-Myc (K323Q) using QuickChange II Site-Directed Mutagenesis Kit (Agilent Technologies, 200522–5) against pHAGE-EF1α-HA-Puro-c-Myc. pHAGE-EF1α-HA-Puro vector, WT, K323R, and K323Q c-Myc constructs were transfected into WT and SIRT1 KO mESCs using Lipofectamine 3000 Reagent (Invitrogen, L3000001). The overexpression of WT and mutant c-Myc protein in cells were confirmed by immunofluorescence staining of transfected cells with anti-c-Myc antibody (Abcam).

To test the importance of the enzymatic activity of SMPDL3B in regulation of sphingomyelin degradation and neural differentiation, mouse WT SMPDL3B protein was first cloned into the pLenti-III-EF1α vector (Zhang et al., 2011). An active site H135 was then mutated to A using QuickChange II Site-Directed Mutagenesis Kit (Agilent Technologies, 200522–5) against pLenti-III-EF1α-Smpdl3b.

The sequences of cloning and mutagenesis primers were listed in Supplementary file 4.

Luciferase assay

Request a detailed protocol

To directly analyze the transcriptional regulation of Smpdl3b expression by c-Myc/SIRT1, firefly luciferase reporters driven by a 3.1 kb mouse Smpdl3b promoter fragment (amplified by 5’- tcttacgcgtgctagcccgggctcgagACTCATCCAAAGGACCCAGGTT-3’ and 5’- tttatgtttttggcgtcttCCATGGGGCAGCAGGCACACATG-3’) containing either wild type (WT) or a mutant c-Myc binding site (E-box) were cloned into pGL3 basic vector. The E-box mutant was constructed with QuikChange II XL Site-Directed Mutagenesis Kit (Agilent Technologies, 200522–5) using primers 5’- cgcgggttcccaccttgtggccagaagatcttctgggcagaactactcgtttggc-3’ and 5’- gccaaacgagtagttctgcccagaagatcttctggccacaaggtgggaacccgcg-3’. The WT or mutant plasmids were then transfected into WT and SIRT1 KO mESCs together with the control pRL-TK plasmid (Renilla Luciferase, Promega). Cells were cultured for 48 hr and the luciferase activity was measured using the Dual-Luciferase Reporter Assay System (Promega, E1751). The final firefly luciferase activity was normalized to the co-expressed renilla luciferase activity.

Measurement of membrane fluidity

Request a detailed protocol

WT and SIRT1 KO mESCs were seeded on glass cover slips and cultured in ESGRO medium overnight. They were then preincubated for 1 hr with or without 2.5 mM MβCD (Sigma-Aldrich, C4555), and stained with 5 μM di-4-ANEPPDHQ (ThermoFisher, D36802) for 30 min. Coverslips were mounted using ProLongGold (Invitrogen), images were acquired on a Zeiss LSM780 confocal microscope. The fluorescent dye was excited at 488 nm and images from 30 individual colonies in each group were acquired at 560 nm for emission from ordered phase and 620 nm for emission from disordered phase. The images were further analyzed ImageJ according to a method described previously (Owen et al., 2012).

In vitro neural differentiation of mESCs

Request a detailed protocol

In vitro neural differentiation of WT and SIRT1 KO mESCs were performed essentially as described (Ying et al., 2003; Abranches et al., 2009). Specifically, WT and SIRT1 KO mESCs maintained in ESGRO Complete PLUS Clonal Grade Medium (Millipore SF001-500P) were gently dissociated with 0.05% Trypsin and plated onto 0.1% gelatin coated cell culture dish at a density of 1 × 104 cells / cm2 with RHB-A medium (Clontech TaKaba Cellartis, Y40001). Medium was changed every 2 days and cultured for 4 days. Cells were then dissociated with 0.05% Trypsin again and plated into cell culture dish coated with 1 µg/ml Laminin (Sigma, L2020) at a density of 2 × 104 cells/cm2 in RHB-A medium supplemented with 5 ng/ml murine bFGF (Sigma, SRP4038-50UG). Medium was changed again every 2 days for the next 3 weeks. Cell morphology was monitored during the differentiation. The differentiated neural cells were maintained in RHB-A: Neurobasal (ThermoFisher,10888022): B27 Supplement (ThermoFisher,17504044) (1:1:0.02) medium to for a better survival.

FACS analysis

Request a detailed protocol

To quantify the factions of differentiated cells at different stages during in vitro neural differentiation, differentiated cells were harvested with trypsin and fixed with 4% PFA. After fixation, cells are washed with PBS and immunofluorescence stained with different neural markers, and analyzed by FACS.

Alkaline phosphatase staining

Request a detailed protocol

The alkaline phosphatase staining assay was performed using the Alkaline Phosphatase staining kit II as per manufacturer's instructions (Stemgent, Cambridge, MA; cat. no. 00–0055).

Maternal HFD feeding

Request a detailed protocol

To investigate the effects of maternal HFD feeding on embryonic development of control and SIRT1 KO mice, 6- to 8-week-old SIRT1 heterozygous (Sirt1+/-) female mice were fed with either control chow diet (NIH-31 contains 4% fat) or a HFD (D12492 contains 36% fat) for 4–8 weeks. They were then bred with age matched Sirt1+/- ± mice fed with chow diet. Early next morning, females with the mating plug (E0.5) were separated from the males into a new cage and put back on the HFD. Embryos from E14.5 and E18.5 were then collected and analyzed. The total feeding time on the HFD is up to 11 weeks. Embryos were collected from at least four dams (pregnant females) for each time point, this sample size was estimated using Chi square based on 100% penetrance of body weight reduction of SIRT1 KO embryos and a 95% power.

All animal procedures were reviewed and approved by National Institute of Environmental Health Sciences Animal Care and Use Committee, under an Animal Study Proposal number 2017–0008 STL. All animals were housed, cared for, and used in compliance with the Guide for the Care and Use of Laboratory Animals and housed and used in an Association for the Assessment and Accreditation of Laboratory Animal Care, International (AAALAC) Program.

Quantification and statistical analysis

Request a detailed protocol

Values are expressed as mean ± standard error of mean (SEM) from at least three independent experiments or biological replicates, unless otherwise indicated in the figure legend. Significant differences between the means were analyzed by the two-tailed, unpaired, Student’s t-test, and differences were considered significant at *p<0.05 using Microsoft Office Excel (Version 16.16.27). No methods were used to determine whether the data met assumptions of the statistical approach (e.g. test for normal distribution).

Bioinformatic analyses of RNA-seq data are detailed in RNA-seq analysis section.

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (M. musculus)Sirt1MGI93759
Gene (M. musculus)Smpdl3bMGI100340
Gene (M. musculus)MycMGI17869
Gene (M. musculus)Ezh2MGI14056
Strain, strain background (M. musculus)SIRT1 KO mouse lineTang et al., 2014Whole body SIRT1 KO mice (SIRT1 KO) on C57BL/6J background
Strain, strain background (Escherichia coli)Stbl3ThermoFisherC737303Competent cells
Cell line (M. musculus)WT mESCsA gift from McBurney et al., 2003WT R1 mouse embryonic stem cell line
Cell line (M. musculus)SIRT1 KO mESCsA gift from McBurney et al., 2003SIRT1 KO R1 mouse embryonic stem cell line generated by gene targeting technology
Cell line (M. musculus)ES-E14TG2a (E14)ATCCCRL-1821; RRID:CVCL_9108Mouse embryonic
stem cell line
Cell line (M. musculus)ES-E14TG2a (E14), WTThis paperWT E14 mouse embryonic stem cell line, generated with a CRISPR/Cas9 vector (pCRISPR-CG01)
(Materials and Methods, Mammalian cell lines)
Cell line (M. musculus)ES-E14TG2a (E14), SIRT1 KOThis paperSIRT1 KO E14 mouse embryonic stem cell line, generated with pCRISPR-CG01-mSirt1 (Materials and Methods, Mammalian cell lines)
Cell line (M. musculus)dCas9 mESCsLiu et al., 2017Mouse embryonic stem cell line stably expressing a dox-inducible dCas9 and BirA-V5
Cell line (M. musculus)dCas9 mESCs, WTThis paperWT dCas9 mESCs generated with a CRISPR/Cas9 vector (pCRISPR-CG01) (Materials and Methods, Mammalian cell lines)
Cell line (M. musculus)dCas9 mESCs, SIRT1 KOThis paperSIRT1 KO dCas9 mESCs generated with pCRISPR-CG01-mSirt1(Materials and Methods, Mammalian cell lines)
Cell line (Homo sapiens)mel1 hESCsDr. Andrew Elefanty and Edouard Stanley at the University of Queensland, AustraliaNIH Registration number: 0139Human embryonic cell line
Cell line (Homo sapiens)mel1 hESCs,
SIRT1 KO
This paperSIRT1 KO human embryonic cell line generated with Cas9WT-hSirt1(Materials and Methods, Mammalian cell lines)
Transfected construct (M. musculus)pCRISPR-CG01GeneCopoeiaRRID:Addgene_74293Backbone vector of all-in-one sgRNA clones for mouse Sirt1 gene
Transfected construct (M. musculus)pCRISPR-CG01-mSirt1GeneCopoeiaMCP000956-CG01-3-B-a; bAll-in-one sgRNA constructs targeting mouse Sirt1 gene
Transfected construct (H. sapiens)Cas9WT-hSirt1Horizon Discovery (gift)All-in-one sgRNA construct targeting human Sirt1 gene
Transfected construct (M. musculus)pSLQ1651-sgRNA(F + E)-sgGal4Addgene (a gift from Liu et al., 2017)http://n2t.net/addgene: 100549; RRID:Addgene_100549backbone vector of constructs of sgRNAs targeting the promoter region of Smpdl3b gene
Transfected construct (M. musculus)pSLQ1651-sgRNA(F + E)-sgGal4-327; −426;+517;+528This paperConstructs of sgRNAs targeting the promoter region of Smpdl3b gene (Materials and Methods, Mammalian cell lines)
Transfected construct (M. musculus)pLKo.1(plasmid)SigmaSHC001; RRID:Addgene_10879Backbone vector of Smpdl3b gene silencing shRNA plasmid constructs
Transfected construct (M. musculus)pLKo.1-B11; B12; C1 (plasmid)SigmaTRCN0000099683;
TRCN0000311166;
TRCN0000304921
Smpdl3b gene silencing shRNA plasmid constructs
Transfected construct (M. musculus)pLenti-III-ef1α (plasmid)Addgene (a gift from Zhang et al., 2011)http://n2t.net/addgene: 27964; RRID:Addgene_27964Backbone vector of Sirt1WT and HY mutant, Smpdl3b and H135A mutant expression constructs
Transfected construct (M. musculus)pLenti-III-ef1α-Sirt1 WT (plasmid)This paperSirt1WT expression construct (Materials and Methods, Mammalian cell lines)
Transfected construct (M. musculus)pLenti-III-ef1α-Sirt1 H355Y (plasmid)This paperSirt1 H335Y mutant expression construct (Materials and Methods, Mammalian cell lines)
Transfected construct (M. musculus)pLenti-III-ef1α-Smpdl3b (plasmid)This paperSmpdl3b expression construct (Materials and Methods, Mammalian cell lines)
Transfected construct (M. musculus)pLenti-III-ef1α- Smpdl3b H135A Mut (plasmid)This paperSmpdl3b H135A mutant expression construct (Materials and Methods, Mammalian cell lines)
Transfected construct (M. musculus)pHAGE-ef1α-HA-PuroZheng et al., 2016
(a gift from Guang Hu)
backbone vector of c-Myc WT, K323R and K323Q mutant constructs
Transfected construct (M. musculus)pHAGE-ef1α-HA-Puro-c-Myc-WTThis paperc-Myc expression construct (Materials and Methods, Site-direct mutagenesis)
Transfected construct (M. musculus)pHAGE-ef1α-HA-Puro-c-Myc-K323RThis paperc-Myc K323R mutant expression construct (Materials and Methods, Site-direct mutagenesis)
Transfected construct (M. musculus)pHAGE-ef1α-HA-Puro-c-Myc-K323QThis paperc-Myc K323Q mutant expression construct (Materials and Methods, Site-direct mutagenesis)
Recombinant DNA reagentpGL3 basic (plasmid)PromegaE1751Backbone vector of luciferase assay plasmids constructs
Recombinant DNA reagentpGL3-Smpdl3b (plasmid)This paperSmpdl3b gene promoter region luciferase assay plasmids construct (Materials and Methods, Luciferase assay)
Recombinant DNA reagentpGL3-Smpdl3b E-box Mut (plasmid)This paperSmpdl3b gene promoter region E-box mutation luciferase assay plasmids construct (Materials and Methods, Luciferase assay)
AntibodyAnti-SIRT1(Rabbit polyclonal)Cell Signaling2028; RRID:AB_1196631IF(1:400)
WB(1:1000)
AntibodyAnti-SIRT1(Rabbit polyclonal)Cell Signaling2493; RRID:AB_2188359IF(1:200)
WB(1:1000)
AntibodyAnti-SMPDL3B (Mouse monoclonal)Santa Cruzsc-137113; RRID:AB_2193525IF (1:400)
WB(1:1000)
AntibodyAnti-SMPDL3B (Rabbit polyclonal)Thermo Fisher ScientificPA5-40798; RRID:AB_2606294IF(1:400)
AntibodyAnti-Nanog (Rabbit polyclonal)Milliporeab5731; RRID:AB_2267042WB(1:1000)
AntibodyAnti-OCT3/4(Goat polyclonal)Santa Cruzsc8628; RRID:AB_653551WB(1:1000)
AntibodyAnti-NESTIN (Mouse monoclonal)Thermo Fisher ScientificMA1-110; RRID:AB_2536821IF(1:400)
WB(1:1000)
Antibodyanti-Sox1(Rabbit polyclonal)Thermo Fisher ScientificPA5-23370; RRID:AB_2540893IF(1:400)
AntibodyAnti-Tau (Mouse monoclonal)Abcamab80579; RRID:AB_1603723IF(1:400)
AntibodyAnti-Tyrosine Hydroxylase (Rabbit polyclonal)Abcamab137721; RRID:AB_2891220IF(1:400)
AntibodyAnti-beta III Tubulin (Rabbit polyclonal)Abcamab18207; RRID:AB_444319IF(1:400)
FACS: 1:400
AntibodyAnti-GABA (Mouse monoclonal)Millipore SigmaSAB4200721; RRID:AB_2891218IF(1:400)
FACS: 1:400
AntibodyAnti-CNPase Monoclonal Antibody (Mouse monoclonal)Thermo Fisher ScientificMA5-31374; RRID:AB_2787011FACS(1:400)
AntibodyAnti-Neurofilament heavy polypeptide (Rabbit polyclonal)Abcamab8135; RRID:AB_306298IF(1:400)
AntibodyAnti-CRISPR/Cas9 (Mouse monoclonal)Millipore SigmaSAB4200701; RRID:AB_2891217WB (1:1000)
AntibodyAnti-Ezh2 (Rabbit monoclonal)Cell Signaling5246; RRID:AB_10694683CHIP(1:100)
WB(1:1000)
AntibodyAnti-C-Myc (Rabbit monoclonal)Cell Signaling5605; RRID:AB_1903938CHIP(1:100)
AntibodyAnti-C-Myc (Mouse monoclonal)Abcamab32; RRID:AB_303599IF(1:400)
AntibodyAnti-Pol II (Mouse monoclonal)Santa Cruzsc-56767; RRID:AB_785522ChIP(1:100)
AntibodyAnti-H3K9Me2 (Rabbit polyclonal)Active Motif39753; RRID:AB_2793331ChIP (1:100)
AntibodyAnti-H3K4Me3(Rabbit polyclonal)Active Motif39159; RRID:AB_2615077ChIP (1:100)
AntibodyAnti-H3K27Me3 (Rabbit polyclonal)Active Motif39155; RRID:AB_2561020ChIP (1:100)
AntibodyAnti-SGMS1 (Rabbit polyclonal)Sigma -AldrichSAB2102133; RRID:AB_10604972IF(1:400)
AntibodyAnti-SGMS2 (Rabbit polyclonal)Thermo Fisher ScientificPA5-26744; RRID:AB_2544244IF (1:400)
AntibodyAnti-SMPD2 (Rabbit polyclonal)Proteintech15290–1-AP; RRID:AB_2891221IF (1:400)
AntibodyAnti-SMPD4 (Rabbit polyclonal)AbcamAb133935; RRID:AB_2891216IF (1:400)
AntibodyAnti-Actin (Mouse monoclonal)Millipore SigmaMAB1501; RRID:AB_2223041WB(1:10,000)
AntibodyAnti-GAPDH (Rabbit monoclonal)Cell Signaling2118S; RRID:AB_561053WB(1:5000)
AntibodyGoat anti-Rabbit IgG (H + L)InvitrogenA-11008; RRID:AB_143165Secondary antibody Alexa Fluor 488
IF and FACS (1:1000)
AntibodyGoat anti-Mouse IgG (H + L)InvitrogenA-11032; RRID:AB_2534091Secondary antibody Alexa Fluor 594
IF (1:1000)
AntibodyGoat anti-Mouse IgG (H + L)InvitrogenA-21052; RRID:AB_2535719Secondary antibody Alexa Fluor 633
FACS (1:1000)
Sequence-based reagentPlease see Supplementary file 4
Peptide, recombinant proteinmurine bFGFSigmaSRP4038-50UGGrowth factor supplement for In vitro neural differentiation of mESCs
Commercial assay or kitSphingomyelin Assay KitAbcamAb133118Endogenous SM enzymatic detection
Commercial assay or kitAlkaline Phosphatase staining kit IIStemgent00–0055Alkaline phosphatase staining
Commercial assay or kitRNeasy mini-kitQiagen74104RNA isolation
Commercial assay or kitHigh-Capacity cDNA Reverse Transcription KitsABI4374967cDNA synthesizes
Commercial assay or kitiQ SYBR Green SupermixBiorad1708887Quantitative real-time PCR detection systems
Commercial assay or kitNorth2SouthTM Biotin Random Prime Labeling KitThermo17075Northern blot hybridization probes generation
Commercial assay or kitS and S TurboBlotter Rapid Downward Transfer SystemDAIGGER SCIENTIFICNorthern blot RNA transblotting
Commercial assay or kitNorth2South Chemiluminescent Hybridization and Detection KitThermo17097Northern blotting hybridization
Commercial assay or kitChemiluminescent Nucleic Acid Detection ModuleThermo89880Northern blotting detection
Commercial assay or kitTruSeq Stranded/Ribo kitIlluminaRNA-seq libraries preparation kits
Commercial assay or kitFisher BioReagents SurePrep Nuclear or Cytoplasmic RNA Purification KitFisher ScientificBP280550Nuclear and cytoplasmic RNA separation
Commercial assay or kitEzh2 siRNAThermofisher4390771-s65775 siNeg:4390843Ezh2 knockdown
Commercial assay or kitC-Myc siRNASanta Cruzsc-29227; siNeg: siRNA-A sc-37007C-Myc knockdown
Commercial assay or kitLipofectamine RNAiMAXThermoFisher13778075RNAi Transfection Reagent
Commercial assay or kitLipofectamine 3000InvitrogenL3000001Transfection Reagent
Commercial assay or kitQuickChange II Site-Directed Mutagenesis KitAgilent Technologies200522–5Site-specific mutagenesis
Commercial assay or kitDual-Luciferase Reporter Assay SystemPromegaE1960Luciferase activity detection
Commercial assay or kitBODIPY FL C5-SphingomyelinInvitrogenD3522Dye for Sphingolipid analysis
Commercial assay or kitBODIPY FL C5-CeramideInvitrogenD3521Dye for Sphingolipid analysis
Chemical compound, drugdi-4-ANEPPDHQThermoFisherD36802Measurement of membrane fluidity
Chemical compound, drugSphingomyelinSigma-AldrichS0756Sphingomyelin
Chemical compound, drugMβCDSigma-AldrichC4555Methyl-β-cyclodextrin
Chemical compound, drugTazemetostat; EPZ-6438MCEHY-13803EZh2 inhibitor
Chemical compound, drugCAS 403811-55-2–Calbiochem; 10058-F4Millipore Sigma475956c-Myc Inhibitor
Software, algorithmTrim Galore (v0.4.4)Krueger, 2021RRID:SCR_011847RNA-seq analysis
Software, algorithmSTAR aligner (v2.5.3a)Dobin et al., 2013RRID:SCR_004463RNA-seq analysis
Software, algorithmRSEM (v1.2.28)Li and Dewey, 2011RRID:SCR_013027RNA-seq analysis
Software, algorithmDEseq2Love et al., 2014RRID:SCR_015687RNA-seq analysis
Software, algorithmFeatureCounts (version 1.4.6)Liao et al., 2014RRID:SCR_012919RNA-seq analysis
Software, algorithmg:Profilerhttps://biit.cs.ut.ee/gprofiler/gostRRID:SCR_006809RNA-seq analysis, Pathway enrichment
Software, algorithmGene set enrichment analysis (GSEA) (v4.1.0)https://www.gsea-msigdb.orgRNA-seq analysis, Pathway enrichment
Software, algorithmMatchgeneXplain (genexplain.com)Promoter analysis of Smpdl3b gene
Software, algorithmMetabolon Laboratory Information Management System (LIMS)Metabolon, IncMetabolomic analysis
Software, algorithmMicrosoft Office Excel (version 16.16.27)MicrosoftRRID:SCR_016137Data graphing and statistical analysis
Software, algorithmPrism 9 (v9.0.0)GraphpadRRID:SCR_000306Data graphing and statistical analysis
OthersVECTASHIELD Antifade Mounting MediaVector LaboratoryH-1800Contains DAPI
OthersDRAQ5 Fluorescent Probe SolutionThermal Fisher62251Cells nuclei counterstaining

Data availability

The RNA-seq (RNA-seq) data has been deposited to Gene Expression Omnibus under the accession number GSE163920 ( https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE163920). Additional information on DEGs is available from Supplementary File 3. Metabolomics data (lipid alterations) between WT and SIRT1 KO mESCs is available in Supplementary File 1. Sphingolipid profiles between WT and SIRT1 KO mESCs and hESCs are available in Supplementary File 2. All oligos used in the study are available in Supplementary File 4. All antibodies used in the study are available in the Key Resources Table.

The following data sets were generated
    1. Fan W
    2. Li X
    (2021) NCBI Gene Expression Omnibus
    ID GSE163920. The role of SIRT1 in regulation of transcription and splicing in mouse embryonic stem cells.

References

Decision letter

  1. Peter Tontonoz
    Reviewing Editor; University of California, Los Angeles, United States
  2. Matt Kaeberlein
    Senior Editor; University of Washington, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

This paper will be of broad interest to cell biologists and advances the current understanding of the relationship between lipid metabolism and stem cell function. The paper defines mechanistic connections between SIRT1, sphingolipids, and stem cell differentiation. The data generated from multiple complementary experimental approaches are of high quality and convincingly support the claims made.

Decision letter after peer review:

Thank you for submitting your article "SIRT1 regulates sphingolipid metabolism and neural differentiation of mouse embryonic stem cells through c-Myc- SMPDL3B" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Matt Kaeberlein as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

The reviewers appreciated the interest of the findings and the high quality the experiments. Most of the reviewers' specific comments can be addressed with text clarifications and discussions. Major new experimental studies are not required.

Essential revisions:

1. A discussion about how impairing the degradation of sphingomyelin might influence the differentiation of ESCs (signaling, protein localization in membranes etc.) would be a valuable addition to the manuscript.

2. With respect to Figure 6C please comment on why SM treatment increases protein levels of Nestin in WT ESC but decreases protein levels of Nestin in Sirt1 KO ESCs. Would removing SM with SMase also lower the protein levels of Nestin in Sirt1 ESCs?

3. The labeling in Figure 8 is very confusing and there are apparent inconsistencies between the data presented here and the data in Figure 6. The four panels in the top left of Figure 8B (staining for TUBB3) seem to show more TUBB3 (or at least equal amounts) in the Sirt1 KO cells, and reintroduction of Smpdl3 to the Sirt1 KO cells appears to lower TUBB3. This is inconsistent with the text. TUBB3 staining is also presented in the four panels on the top right of Figure 8B. The label under the graph says 6 weeks induction but there is no indication in the text or the methods what this means. The TUBB3 staining in these four panels (top right of Figure 8B) shows that TUBB3 is lower in the Sirt1 KOs (empty vector). This set of panels is consistent with the text but its not clear what the difference is between the TUBB3-stained panels on the top right and the TUBB3-stained panels on the top left. In the bottom left four panels of Figure 8B, Nestin staining is lower in the Sirt1 KOs compared to WT treated with vector control. This is inconsistent with Figure 6C which shows that Nestin is higher in the Sirt1 KOs.

4. The authors present strong evidence that sphingomyelin degradation is mediated via SMPDL3B, but its enzymatic activity has not been directly investigated. Could SMPDL3B phosphodiesterase activity be detected in cellular assays or the requirement for its enzymatic activity demonstrated in rescue experiments?

5. Was Smpdl3b expression kinetics determined in the neural differentiation experiment shown in Figure 7B? The expression pattern from pluripotent to more committed cells (which I expect to follow SIRT1) would be informative for potential temporal effects during neural development.

6. The authors mainly focus on the murine system, but also provide evidence for accumulation of sphingomyelin in human ES cells upon SIRT1 knockout. However, this effect seems to be less striking in human than in murine cells (Table S2). Is there a reason why the metabolomics experiment was performed in presence of serum for the murine and in serum-free conditions for the human datasets? Could this be a reason for the observed discrepancy?

7. In Figure S5, the functional annotation analysis has been performed using all 2839 genes downregulated in SIRT1 KO ES cells, without considering their significance (padj). I suggest performing this analysis considering only genes that show a significant reduction in SIRT1 KO. It could also make sense to intersect significantly down-regulated genes with genes involved in lipid metabolism to identify potential candidates contributing to SIRT1/SMPDL3B-function.

https://doi.org/10.7554/eLife.67452.sa1

Author response

Essential revisions:

1. A discussion about how impairing the degradation of sphingomyelin might influence the differentiation of ESCs (signaling, protein localization in membranes etc.) would be a valuable addition to the manuscript.

Many thanks for this suggestion. We added a paragraph of discussion on the possible molecular mechanisms underlying defective ESC differentiation caused by impaired sphingomyelin degradation (Page 17, Line 403-415):

“How impaired degradation of sphingomyelin might influence the differentiation of ESCs remains unclear. […] Future studies are needed to directly test whether the plasma membrane/microdomain association of signaling proteins involved in neural differentiation (e.g. insulin and/or bFGF signaling pathways) is disrupted and whether the phosphorylation of downstream signal transduction factors is reduced in SIRT1 KO mESCs upon induction of neural differentiation.”.

2. With respect to Figure 6C please comment on why SM treatment increases protein levels of Nestin in WT ESC but decreases protein levels of Nestin in Sirt1 KO ESCs. Would removing SM with SMase also lower the protein levels of Nestin in Sirt1 ESCs?

Thanks for the insightful question. Based on our observations in this study, we believe that an appropriate content of sphingomyelin, thereby a suitable degree of membrane fluidity, is required to maintain a proper signaling transduction for normal maintenance of pluripotent stem cells as well as for normal neural differentiation. Specifically, for the results in Figure 6C, since WT ESCs have a low level of sphingomyelin, we speculate that supplementation with exogenous sphingomyelin increases membrane contents of sphingomyelin, which may in turn increase the microdomain formation and inappropriately enhance neural differentiation signaling. SIRT1 KO mESCs, on the other hand, already have accumulation of sphingomyelin. Further treatment with exogenous sphingomyelin may disrupt the membrane structure, leading to impaired expression of Nestin. Yes, removing sphingomyelin by SMPDL3B in SIRT1 KO mESCs could lower the protein levels of Nestin. As shown in our new Figure 6D, overexpression of WT but not H135A mutant SMPDL3B reduced the expression of Nestin in SIRT1 KO mESCs. We added a few sentences in the Discussion (Page 18, Line 415-421) on the importance of an appropriate sphingomyelin content/membrane fluidity in pluripotent stem cells and neural differentiation:

“Our findings further suggest that an appropriate content of sphingomyelin, thereby a suitable degree of membrane fluidity, is required to maintain a proper signaling transduction for normal neural differentiation, as too much sphingomyelin resulted from direct sphingomyelin supplementation (Figure 6C) or SMPDL3B knockdown (Figure 8F) and too little sphingomyelin resulted from SMPDL3B overexpression (Figure 8B and 8D) all impair the expression of neural markers and differentiation.”

3. The labeling in Figure 8 is very confusing and there are apparent inconsistencies between the data presented here and the data in Figure 6. The four panels in the top left of Figure 8B (staining for TUBB3) seem to show more TUBB3 (or at least equal amounts) in the Sirt1 KO cells, and reintroduction of Smpdl3 to the Sirt1 KO cells appears to lower TUBB3. This is inconsistent with the text. TUBB3 staining is also presented in the four panels on the top right of Figure 8B. The label under the graph says 6 weeks induction but there is no indication in the text or the methods what this means. The TUBB3 staining in these four panels (top right of Figure 8B) shows that TUBB3 is lower in the Sirt1 KOs (empty vector). This set of panels is consistent with the text but its not clear what the difference is between the TUBB3-stained panels on the top right and the TUBB3-stained panels on the top left. In the bottom left four panels of Figure 8B, Nestin staining is lower in the Sirt1 KOs compared to WT treated with vector control. This is inconsistent with Figure 6C which shows that Nestin is higher in the Sirt1 KOs.

We apologize for the confusion caused by data in Figure 6 and Figure 8.

Firstly, please let us to clarify that the data Figure 6 is from undifferentiated mESCs, in which deletion of SIRT1 leads to increased expression of neural differentiation markers (which should be silenced at the pluripotent stage). On the other hand, data in Figure 8 is from cells after 4 weeks of neural differentiation (excepted for the right four panels in Figure 8B). Our data indicate that although SIRT1 KO mESCs have an increased expression of neural marker at the stem cell stage, upon differentiation, the induction of these markers is blunted. Therefore, both the reduction of pluripotency markers and the induction of NSC/neural differentiation factors were significantly blunted when SIRT1 was deleted, which is consistent with our qPCR data in Figure 7B.

Secondly, the two TUBB3 staining in Figure 8B are from different time points after differentiation. The left four panels are after regular 4 weeks of neural differentiation, while the right four panels are after 6 weeks of neural differentiation for a better morphological analysis. The primary purpose of the TUBB3 staining was to show the atypical morphology of these TUBB3 positive neurons differentiated from SIRT1 KO mESCs. They were not meant to show their overall expression levels. The overall expression of TUBB3 in 4-week neural differentiation culture was quantified by FACS in original Figure 8D (new Figure 8C).

To avoid further confusion, we rearranged Figure 8 in the revision. We split the original Figure 8B into two parts, with TUBB3 staining as new Figure 8B for neuronal morphological alteration. The Nestin and GABA staining images are now new Figure 8D for neural marker expression alteration.

4. The authors present strong evidence that sphingomyelin degradation is mediated via SMPDL3B, but its enzymatic activity has not been directly investigated. Could SMPDL3B phosphodiesterase activity be detected in cellular assays or the requirement for its enzymatic activity demonstrated in rescue experiments?

Great suggestion. To address this question, we generated a catalytic inactive mutant of SMPDL3B (H135A), then overexpressed it into WT and SIRT1KO mESCs and analyzed its impact on cellular levels of sphingomyelin and expression of Nestin in mESCs. Our data indicate that the activity of SMPDL3B is required to reduce cellular levels of sphingomyelin in WT, particularly SIRT1 KO, mESCs (Figure 3D, 3E, and 3F). Its activity is also required to rescue (repress) the abnormal activation of Nestin in undifferentiated SIRT1 KO mESCs (Figure 6D). Unfortunately, due to the visa renewal issue of Dr. Fan, we did not have sufficient time to test whether the enzymatic activity of SMPDL3B is required to rescue the neural differentiation defects in SIRT1 KO mESCs.

5. Was Smpdl3b expression kinetics determined in the neural differentiation experiment shown in Figure 7B? The expression pattern from pluripotent to more committed cells (which I expect to follow SIRT1) would be informative for potential temporal effects during neural development.

Thanks for the suggestion. We analyzed the mRNA levels of Smpdl3b during the 4-week of neural differentiation, and the result is shown in new Figure 7B. Yes, the expression pattern of Smpdl3b is similar to that of SIRT1 during in vitro neural differentiation.

6. The authors mainly focus on the murine system, but also provide evidence for accumulation of sphingomyelin in human ES cells upon SIRT1 knockout. However, this effect seems to be less striking in human than in murine cells (Table S2). Is there a reason why the metabolomics experiment was performed in presence of serum for the murine and in serum-free conditions for the human datasets? Could this be a reason for the observed discrepancy?

Yes, the reviewer is correct that the accumulation of sphingomyelin in SIRT1 KO mESCs is much more striking than that in SIRT1 KO hESCs. We also believe this difference is primarily due to the presence of serum in mESC culture, as serum is the major source of lipids for cultured cells.

The reason for why mESCs were cultured in serum-containing medium while hESCs were cultured in serum-free medium for the metabolomics experiments was primarily technical. As mentioned in Figure 1, the metabolomics experiments were first performed to assess the impact of methionine on the maintenance of SIRT1 KO ESCs for one of our previous studies (30). We had to use serum-containing medium for methionine restriction in mESCs due to the unavailability of methionine-restricted serum-free ESGRO medium. hESCs, on the other hand, can only be maintained in serum-free medium as serum will induce their differentiation. We were able to make methionine-restricted serum-free medium for hESCs.

7. In Figure S5, the functional annotation analysis has been performed using all 2839 genes downregulated in SIRT1 KO ES cells, without considering their significance (padj). I suggest performing this analysis considering only genes that show a significant reduction in SIRT1 KO. It could also make sense to intersect significantly down-regulated genes with genes involved in lipid metabolism to identify potential candidates contributing to SIRT1/SMPDL3B-function.

Thanks again for the suggestion. We reanalyzed our RNA-seq data using an improved reads count algorithm (FeatureCounts in Subread) and updated the Table S3 with a new DEG list generated with q (padi)<0.01 as a cutoff. GO analysis of the 2541 significantly downregulated genes in SIRT1 KO mESCs revealed that pathways involved in cell surface receptor signaling pathway and intracelluar signal transduction were among the most significantly disrupted GO Biological Process (GO BP) in SIRT1 KO mESCs when compared with WT mESCs (new Figure S6A). Interestingly, Smpdl3b was grouped in three overlapping pathways involved in phosphorus metabolism (highlighted in red). Future studies are needed to explore the intriguing link between sphingomyelin degradation and phosphorus metabolism, including phosphate transport, production, and protein phosphorylation-mediated signaling.

https://doi.org/10.7554/eLife.67452.sa2

Article and author information

Author details

  1. Wei Fan

    Signal Transduction Laboratory, National Institute of Environmental Health Sciences, Research Triangle Park, Triangle Park, United States
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  2. Shuang Tang

    Signal Transduction Laboratory, National Institute of Environmental Health Sciences, Research Triangle Park, Triangle Park, United States
    Present address
    Cancer Institute and Department of Nuclear Medicine, Fudan University Shanghai Cancer Center, Shanghai, China
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Xiaojuan Fan

    CAS Key Laboratory of Computational Biology, CAS-MPG Partner Institute for Computational Biology, Shanghai Institute of Nutrition and Health, Shanghai Institutes for Biological Sciences, University of Chinese Academy of Sciences, CAS Center for Excellence in Molecular Cell Science, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Formal analysis, Visualization, Methodology
    Competing interests
    No competing interests declared
  4. Yi Fang

    Signal Transduction Laboratory, National Institute of Environmental Health Sciences, Research Triangle Park, Triangle Park, United States
    Contribution
    Data curation, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Xiaojiang Xu

    Integrative Bioinformatics Support Group, National Institute of Environmental Health Sciences, Research Triangle Park, Triangle Park, United States
    Contribution
    Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Leping Li

    Biostatistics & Computational Biology Branch, National Institute of Environmental Health Sciences, Research Triangle Park, Triangle Park, United States
    Contribution
    Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Jian Xu

    Children's Medical Center Research Institute, Department of Pediatrics, Harold C. Simmons Comprehensive Cancer Center, and Hamon Center for Regenerative Science and Medicine, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Resources, Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1988-7337
  8. Jian-Liang Li

    Integrative Bioinformatics Support Group, National Institute of Environmental Health Sciences, Research Triangle Park, Triangle Park, United States
    Contribution
    Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6487-081X
  9. Zefeng Wang

    CAS Key Laboratory of Computational Biology, CAS-MPG Partner Institute for Computational Biology, Shanghai Institute of Nutrition and Health, Shanghai Institutes for Biological Sciences, University of Chinese Academy of Sciences, CAS Center for Excellence in Molecular Cell Science, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Visualization, Methodology, Writing - review and editing
    For correspondence
    wangzefeng@picb.ac.cn
    Competing interests
    No competing interests declared
  10. Xiaoling Li

    Signal Transduction Laboratory, National Institute of Environmental Health Sciences, Research Triangle Park, Triangle Park, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Writing - original draft, Writing - review and editing
    For correspondence
    lix3@niehs.nih.gov
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5920-7784

Funding

National Institute of Environmental Health Sciences (Z01 ES102205)

  • Xiaoling Li

National Natural Science Foundation of China (31730110 and 31661143031)

  • Zefeng Wang

National Institutes of Health (R01CA230631 and R01DK111430)

  • Jian Xu

China Postdoctoral Science Foundation (2020M681437)

  • Xiaojuan Fan

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Drs. Serena Dudek, Anton Jetten, and members of the Li laboratory for critical reading of the manuscript. We also thank NIEHS Epigenomics Core Facility for performing RNA-seq experiments, and Scotty Dowdy from Cellular and Molecular Pathology Branch and Comparative Medicine Branch of NIEHS for assistance on animal studies.

Ethics

Animal experimentation: All animal procedures were reviewed and approved by National Institute of Environmental Health Sciences Animal Care and Use Committee. All animals were housed, cared for, and used in compliance with the Guide for the Care and Use of Laboratory Animals and housed and used in an Association for the Assessment and Accreditation of Laboratory Animal Care, International (AAALAC) Program. Animal Study Proposal number 2017-0008 STL.

Senior Editor

  1. Matt Kaeberlein, University of Washington, United States

Reviewing Editor

  1. Peter Tontonoz, University of California, Los Angeles, United States

Publication history

  1. Received: February 11, 2021
  2. Accepted: May 26, 2021
  3. Accepted Manuscript published: May 27, 2021 (version 1)
  4. Version of Record published: June 21, 2021 (version 2)

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 617
    Page views
  • 94
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Lisa M Strong et al.
    Research Article Updated

    Autophagy is a cellular process that degrades cytoplasmic cargo by engulfing it in a double-membrane vesicle, known as the autophagosome, and delivering it to the lysosome. The ATG12–5–16L1 complex is responsible for conjugating members of the ubiquitin-like ATG8 protein family to phosphatidylethanolamine in the growing autophagosomal membrane, known as the phagophore. ATG12–5–16L1 is recruited to the phagophore by a subset of the phosphatidylinositol 3-phosphate-binding seven-bladedß -propeller WIPI proteins. We determined the crystal structure of WIPI2d in complex with the WIPI2 interacting region (W2IR) of ATG16L1 comprising residues 207–230 at 1.85 Å resolution. The structure shows that the ATG16L1 W2IR adopts an alpha helical conformation and binds in an electropositive and hydrophobic groove between WIPI2 ß-propeller blades 2 and 3. Mutation of residues at the interface reduces or blocks the recruitment of ATG12–5–16 L1 and the conjugation of the ATG8 protein LC3B to synthetic membranes. Interface mutants show a decrease in starvation-induced autophagy. Comparisons across the four human WIPIs suggest that WIPI1 and 2 belong to a W2IR-binding subclass responsible for localizing ATG12–5–16 L1 and driving ATG8 lipidation, whilst WIPI3 and 4 belong to a second W34IR-binding subclass responsible for localizing ATG2, and so directing lipid supply to the nascent phagophore. The structure provides a framework for understanding the regulatory node connecting two central events in autophagy initiation, the action of the autophagic PI 3-kinase complex on the one hand and ATG8 lipidation on the other.

    1. Cell Biology
    Laura Le Pelletier et al.
    Research Article

    Aging is associated with central fat redistribution and insulin resistance. To identify age-related adipose features, we evaluated the senescence and adipogenic potential of adipose-derived-stromal cells (ASCs) from abdominal subcutaneous fat obtained from healthy normal-weight young (<25y) or older women (>60y). Increased cell passages of young-donor ASCs (in vitro aging), resulted in senescence but not oxidative stress. ASC-derived adipocytes presented impaired adipogenesis but no early mitochondrial dysfunction. Conversely, aged-donor ASCs at early passages displayed oxidative stress and mild senescence. ASC-derived adipocytes exhibited oxidative stress, and early mitochondrial dysfunction but adipogenesis was preserved. In vitro aging of aged-donor ASCs resulted in further increased senescence, mitochondrial dysfunction, oxidative stress and severe adipocyte dysfunction. When in vitro aged young-donor ASCs were treated with metformin, no alteration was alleviated. Conversely, metformin treatment of aged-donor ASCs decreased oxidative stress and mitochondrial dysfunction resulting in decreased senescence. Metformin's prevention of oxidative stress and of the resulting senescence improved the cells' adipogenic capacity and insulin sensitivity. This effect was mediated by the activation of AMP-activated-protein-kinase as revealed by its specific inhibition and activation. Overall, aging ASC-derived adipocytes presented impaired adipogenesis and insulin sensitivity. Targeting stress-induced senescence of ASCs with metformin may improve age-related adipose tissue dysfunction.
