Behavioral control by depolarized and hyperpolarized states of an integrating neuron

  1. Aylesse Sordillo
  2. Cornelia I Bargmann  Is a corresponding author
  1. Lulu and Anthony Wang Laboratory of Neural Circuits and Behavior, The Rockefeller University, United States
  2. Chan Zuckerberg Initiative, United States
Research Article
  • Cited 0
  • Views 1,229
  • Annotations
Cite this article as: eLife 2021;10:e67723 doi: 10.7554/eLife.67723

Abstract

Coordinated transitions between mutually exclusive motor states are central to behavioral decisions. During locomotion, the nematode Caenorhabditis elegans spontaneously cycles between forward runs, reversals, and turns with complex but predictable dynamics. Here, we provide insight into these dynamics by demonstrating how RIM interneurons, which are active during reversals, act in two modes to stabilize both forward runs and reversals. By systematically quantifying the roles of RIM outputs during spontaneous behavior, we show that RIM lengthens reversals when depolarized through glutamate and tyramine neurotransmitters and lengthens forward runs when hyperpolarized through its gap junctions. RIM is not merely silent upon hyperpolarization: RIM gap junctions actively reinforce a hyperpolarized state of the reversal circuit. Additionally, the combined outputs of chemical synapses and gap junctions from RIM regulate forward-to-reversal transitions. Our results indicate that multiple classes of RIM synapses create behavioral inertia during spontaneous locomotion.

Introduction

Neurons coordinate their activity across networks using a variety of signals: fast chemical transmitters, biogenic amines, neuropeptides, and electrical coupling via gap junctions (Tritsch and Sabatini, 2012; Zell et al., 2020; Taylor et al., 2019; Liu et al., 2017; Nagy et al., 2019). Signals from many neurons coalesce to generate large-scale brain activity patterns that are correlated with movement, while reflecting the animal’s memory, internal state, and sensory experience (Kato et al., 2015; Musall et al., 2019). The mechanisms for generating stable, mutually exclusive activity and behavioral states across networks, while allowing behavioral flexibility, are incompletely understood.

The relationships between neurons, synapses, circuits, and behavior can be addressed precisely in the compact nervous system of Caenorhabditis elegans. Like many animals, C. elegans has locomotion-coupled, global brain activity states (Kato et al., 2015; Musall et al., 2019; Nguyen et al., 2016; Venkatachalam et al., 2016). Many of its integrating interneurons and motor neurons are active during one or more of three basic motor behaviors – forward runs, reversals, and turns (Figure 1A). A set of interneurons including AIB, AVA, and RIM are active when animals reverse (Gordus et al., 2015; Kato et al., 2015; Nguyen et al., 2016; Venkatachalam et al., 2016); a different set, AIY, RIB, and AVB, are active during forward runs (Kaplan et al., 2020; Kato et al., 2015; Li et al., 2014; Nguyen et al., 2016); and a set including AIB, RIB, and RIV are active during sharp omega turns, which typically follow a reversal (Kato et al., 2015; Nguyen et al., 2016; Venkatachalam et al., 2016; Wang et al., 2020). The functional role of each integrating neuron can be evaluated by considering the neuron’s regulation of specific locomotor features, like reversal speed or turn angle, and its influence on locomotor transitions. The AVA neurons, for example, are backward command neurons that drive reversals; when AVA neurons are optogenetically depolarized, animals reverse, and when AVA neurons are ablated or acutely silenced reversals are short and infrequent (Chalfie et al., 1985; Gordus et al., 2015; Liu et al., 2017; Pokala et al., 2014; Roberts et al., 2016). Acute silencing of AVA often causes aberrant pauses – thwarted reversals – followed by a turn, indicating that AVA neurons are required for the execution of a reversal, but not for the global dynamics of the forward-reversal-turn sequence (Kato et al., 2015; Pokala et al., 2014). Other neurons in the locomotor circuit are implicated in transition dynamics. For example, altering AIB and RIB activity can change the probability and timing of the reversal-to-turn transition without generating abnormal pause states (Pokala et al., 2014; Wang et al., 2020).

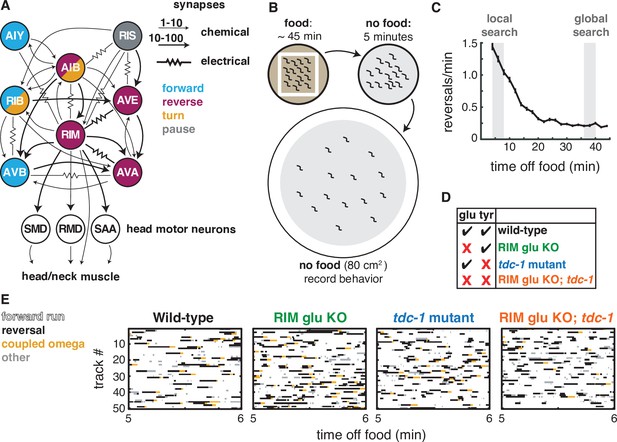

Figure 1 with 1 supplement see all
Two RIM neurotransmitters affect spontaneous locomotion.

(A) RIM synapses with interneurons, motor neurons, and muscle implicated in spontaneous foraging behavior (Cook et al., 2019; White et al., 1986). Colors of neurons indicate associated locomotor states based on neural manipulations and functional calcium imaging (Alkema et al., 2005; Gray et al., 2005; Kato et al., 2015; Li et al., 2014; Pokala et al., 2014; Steuer Costa et al., 2019; Wang et al., 2020; Zheng et al., 1999). (B) Off-food foraging assay. (C) Mean reversals per minute of wild-type animals in foraging assays. Vertical lines indicate standard error of the mean. Gray shaded boxes indicate local search (4–8 min off food) and global search (36–40 min off food) intervals analyzed in subsequent figures. n = 324. (D) RIM neurotransmitter mutants. RIM glu KO: RIM-specific knockout of the vesicular glutamate transporter EAT-4 (Figure 1—figure supplement 1). tdc-1, tyrosine decarboxylase mutant, which lacks tyramine in RIM and octopamine in RIC. (E) Ethograms of 50 randomly chosen tracks per genotype during minute 5–6 of local search. Color code: white, forward runs; black, reversals; yellow, omega turns coupled to a reversal; gray, pauses, shallow turns, and omega turns that were not preceded by a reversal.

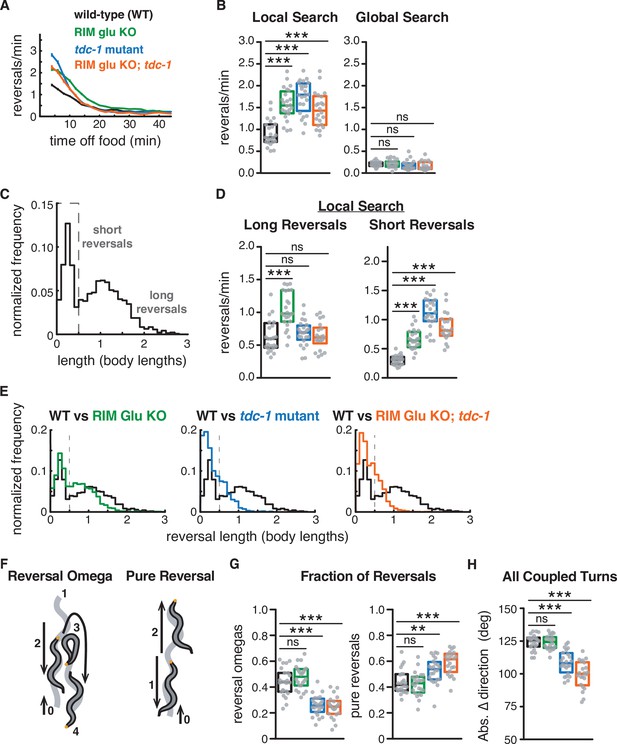

Figure 2 with 2 supplements see all
RIM glutamate and tyramine suppress spontaneous reversals and increase reversal length.

(A) Mean reversals per minute in foraging assays for genotypes analyzed in Figures 23. Vertical dashes indicate standard error of the mean. n = 296–332. All strains bear tdc-1p::nFLP and the elt-2p::nGFP marker (Figure 2—figure supplement 1, Supplementary file 1, Table 3: Reversals and forward runs, n values). (B) Mean frequency of all reversals during local search (4–8 min off food, left) and global search (36–40 min off food, right). (C) Normalized probability distribution of wild-type reversal lengths during local search. Short reversals cover less than 0.5 body lengths. (D) Mean frequency of long reversals (>0.5 body lengths, left) and short reversals (<0.5 body lengths, right) during local search. (E) Normalized probability distribution of mutant reversal lengths during local search, plotted with WT distributions. (F) A forward-moving animal (0) initiates a reversal (1–2) that is coupled to an omega turn (3) and terminates in forward movement (4) (reversal-omega, left). A forward-moving animal (0) initiates a reversal (1) that terminates in forward movement (2) (pure reversal, right). Yellow dot indicates nose. (G) Fraction of all reversals during local search that terminate in an omega turn (left) or forward movement (right) for each genotype. (H) Absolute change in direction after a reversal-turn maneuver (including omega and shallower turns) for each genotype. (B, D, G, H) Each gray dot is the mean for 12–15 animals on a single assay plate (Source data 1), with 22–24 plates per genotype. Boxes indicate median and interquartile range for all assays. Asterisks indicate statistical significance compared to WT using a Kruskal–Wallis test with Dunn’s multiple comparisons test (**p-value<0.01, ***p-value<0.001, ns = p-value≥0.05). (C, E) n = 1443–2760 events per genotype. The reversal defects in (RIM) tyramine- and (RIC) octopamine-deficient tdc-1 mutants are not shared by octopamine-deficient tbh-1 mutants (Figure 2—figure supplement 2).

Among the interneurons in the locomotor circuit, RIM, a pair of motor/interneurons, has both straightforward and apparently paradoxical functions (Figure 1A). RIM is active during both spontaneous and stimulus-evoked reversals, and its activity correlates with reversal speed (Gordus et al., 2015; Kagawa-Nagamura et al., 2018; Kato et al., 2015). RIM releases the neurotransmitter tyramine, which extends reversals by inhibiting the AVB forward-active neurons and suppresses head oscillations by inhibiting the head muscles, in both cases through the tyramine-gated chloride channel LGC-55 (Alkema et al., 2005; Pirri et al., 2009). RIM tyramine also sharpens reversal-coupled omega turns by activating SER-2, a G protein-coupled receptor on motor neurons (Donnelly et al., 2013). In addition to these effects on locomotion parameters, RIM has puzzling effects on behavioral transitions. Optogenetic depolarization of RIM drives reversals, but ablation of RIM paradoxically increases spontaneous reversals, indicating that RIM can either induce or suppress reversals (Gordus et al., 2015; Gray et al., 2005; Guo et al., 2009; López-Cruz et al., 2019; Zheng et al., 1999). RIM also mediates competition between sensory inputs and motor circuits, generating variability in behavioral responses to external stimuli (Gordus et al., 2015; Ji et al., 2019), and biases choices between attractive and aversive stimuli (Ghosh et al., 2016; Hapiak et al., 2013; Li et al., 2012; Wragg et al., 2007). On longer timescales, RIM modulates learning as well as physiological responses to temperature or unfolded protein stress (De Rosa et al., 2019; Fu et al., 2018; Ha et al., 2010; Jin et al., 2016; Özbey et al., 2020).

Here, we develop an integrated view of RIM’s role in locomotor features, motor transitions, and behavioral dynamics through cell-specific manipulation of its synapses. In addition to tyramine, RIM expresses the vesicular glutamate transporter EAT-4, identifying it as one of the 38 classes of glutamatergic neurons in C. elegans (Lee et al., 1999; Serrano-Saiz et al., 2013). RIM also forms gap junctions with multiple neurons whose activity is associated with reversals (AIB, AVA, AVE), as well as neurons active during pauses (RIS) and forward runs (AIY) (Cook et al., 2019; White et al., 1986; Figure 1A). eat-4 and gap junction subunits are broadly expressed throughout the foraging circuit, precluding a simple interpretation of null mutants in these genes (Bhattacharya et al., 2019; Serrano-Saiz et al., 2013). Therefore, we used a cell-specific knockout of eat-4 and a cell-specific gap junction knockdown to isolate the synaptic functions of RIM. By examining behavioral effects of multiple transmitters and gap junctions, we reveal distinct functions of RIM during reversals, when its activity is high, and during forward locomotion, when its activity is low. Notably, our results indicate that while RIM depolarization extends reversals, the propagation of hyperpolarization through RIM gap junctions extends the opposing forward motor state. This work indicates that a single interneuron class employs different classes of synapses to shape mutually exclusive behaviors.

Results

RIM glutamate and tyramine suppress spontaneous reversals and increase reversal length

The goal of this work was to understand how RIM influences spontaneous behavioral dynamics, including individual features of locomotion and transitions between motor states. We used an off-food foraging assay in which forward, reversal, and turn behaviors emerge from predictable internal states (Calhoun et al., 2014; Gray et al., 2005; Hills et al., 2004; López-Cruz et al., 2019; Wakabayashi et al., 2004; Figure 1B). When removed from food and placed on a featureless agar surface, C. elegans engages in local search, in which a high frequency of spontaneous reversals limits dispersal from the recently encountered food source. Over about 15 min, animals spontaneously transition into global search, a state with infrequent reversals and long forward runs that promotes dispersal (Figure 1C). We recorded animals throughout this assay, and identified and quantified reversals, turns, forward runs, and pauses from behavioral sequences (example tracks in Figure 1E). The full dataset is available for further analysis (Source data 1, Dryad, GitHub, see Materials and methods), and a summary of results is included in Figure 8.

We began by examining the effects of RIM glutamate on local search (Figure 1D and E). C. elegans mutants lacking the vesicular glutamate transporter eat-4 or various glutamate receptors have abnormal local search behaviors (Baidya et al., 2014; Chalasani et al., 2007; Choi et al., 2015; Hills et al., 2004; López-Cruz et al., 2019). To selectively inactivate glutamatergic transmission from RIM, we used an FRT-flanked endogenous eat-4 locus and expressed FLP recombinase under a tdc-1 promoter, which intersects with eat-4 only in RIM (López-Cruz et al., 2019; Figure 1—figure supplement 1). The resulting animals lacking RIM glutamate had an increased frequency of reversals during local search, but not global search (Figures 1E and 2A and B). To ensure that these effects were caused by the desired mutation, we examined controls with the modified eat-4 locus alone or the FLP recombinase alone, accompanied by the same fluorescent marker (Figure 2—figure supplement 1). For all experiments performed here, the ‘wild-type’ (WT) controls include appropriate genetic controls and transgenic marker controls; for full genotypes, see Supplementary file 1, Table 1: Strain details.

RIM is the primary neuronal source of tyramine, whose synthesis requires the tyrosine decarboxylase encoded by tdc-1 (Alkema et al., 2005). As previously reported, tdc-1 mutants had an increased reversal frequency during local search (Figures 1E and 2A and B; Alkema et al., 2005). tdc-1 is also expressed in RIC neurons, where it is used, together with tbh-1, in the biosynthesis of the neurotransmitter octopamine (Alkema et al., 2005). tbh-1 did not affect reversal frequency during local search, identifying tyramine as the relevant transmitter for reversals (Figure 2—figure supplement 2). The RIM glu KO; tdc-1 double mutant was similar to each single mutant (Figure 2A and B). Thus, both of RIM’s neurotransmitters, glutamate and tyramine, suppress spontaneous reversals.

Reversals during local search segregate into short reversals of less than half a body length, and long reversals that average >1 body length (Gray et al., 2005; Figure 2C and D). Using these criteria, both short and long reversals increased in frequency in RIM glu KO animals during local search, but only short reversals increased in frequency in tdc-1 mutants or the RIM glu KO; tdc-1 double mutant (Figure 2D). To better understand this distinction, we conducted an analysis of the full reversal length distribution (Figure 2E). In fact, both RIM glu KO animals and tdc-1 mutants had decreased reversal lengths compared to WT, with a stronger effect in tdc-1 mutants, indicating that RIM glutamate and tyramine both extend reversal length.

Long reversals are more likely to be followed by an omega turn than short reversals (Chalasani et al., 2007; Croll, 2009; Gray et al., 2005; Huang et al., 2006; Wang et al., 2020; Zhao et al., 2003; Figure 2F). The fraction of reversal-omega maneuvers was reduced in tdc-1 mutants (Figure 2G, left), while pure reversals that terminate in an immediate forward run increased (Figure 2G, right); as previously reported, omega turn angles were also shallower in tdc-1 mutants (Figure 2H). RIM glu KO animals had normal reversal-omega frequencies and turn angles after reversals, despite a decrease in reversal length (Figure 2G and H).

RIM neurotransmitters distinguish reversal and reversal-omega behaviors

Analysis of the frequency distributions of all reversal lengths, speeds, and durations uncovered additional distinctions between the functions of RIM glutamate and tyramine (Figure 3A–I). First, while reversal lengths were decreased in a graded fashion by RIM glu KO or tdc-1 (Figures 2E and 3A), reversal speeds were substantially reduced only in tdc-1 mutants (Figure 3B). tdc-1 and RIM glu KO had similar decreases in reversal durations (Figure 3C). We found that genetic markers and background controls could affect these parameters by up to 12%; with that in mind, we discuss only effect sizes of ≥0.15 in these and other quantitative experiments (see Materials and methods and Figure 2—figure supplement 1).

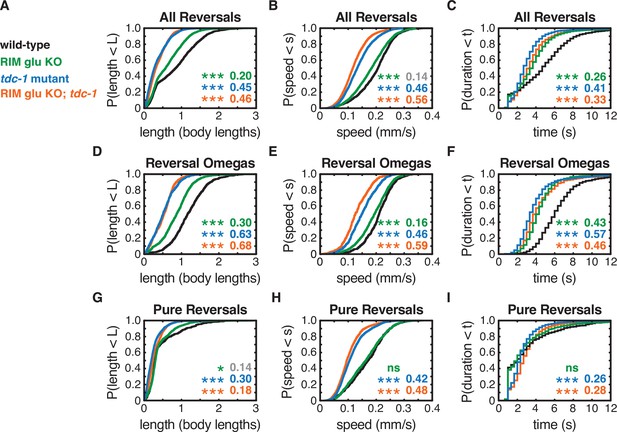

RIM neurotransmitters differently affect pure reversal and reversal-omega behaviors.

(A–C) For all reversals during local search, empirical cumulative distributions of reversal length (A), reversal speed (B), and reversal duration (C). (D–F) For reversal-omega maneuvers during local search, empirical cumulative distributions of reversal length (D), reversal speed (E), and reversal duration (F). (G–I) For pure reversals during local search, empirical cumulative distributions of reversal length (G), reversal speed (H), and reversal duration (I). Asterisks indicate statistical significance compared to WT using a two-sample Kolmogorov–Smirnov test, with a Bonferroni correction (*p-value<0.05, ***p-value<0.0001, ns = p-value≥0.05). Numbers in figures indicate effect size (see Materials and methods). Although statistically significant, the smaller effect sizes indicated in gray are similar to values from control strains (e.g., Figure 2—figure supplement 1) and fall under the 0.15 cutoff for discussion established from those controls. n = 500–3132 events from 22 to 24 assays, 12–15 animals per assay (Supplementary file 1, Table 3: Reversals and forward runs, n values). The strong reversal defects in (RIM) tyramine- and (RIC) octopamine-deficient tdc-1 mutants are not shared by octopamine-deficient tbh-1 mutants, which do affect forward locomotion (Figure 2—figure supplement 2).

Separating different classes of reversals (Figure 2F and G) revealed that the RIM glu KO decreased reversal-omega duration but did not affect pure reversal duration (Figure 3D–I). tdc-1 mutants decreased the duration of reversal-omegas, increased the duration of pure reversals, and decreased the speed of all reversals (Figure 3D–I). RIM glu KO; tdc-1 double mutant animals resembled tdc-1 mutants. These results are in agreement with previous work showing that pure reversals and reversal-omega maneuvers have distinct kinetics and circuit requirements (Wang et al., 2020).

Forward runs are heterogeneous compared to reversals, with an exponential distribution of durations (Figure 2—figure supplement 2; Wakabayashi et al., 2004). Neither RIM glu KO animals nor tdc-1 mutants had strong effects on forward run durations compared to controls (Figure 2—figure supplement 2). Both tdc-1 and tbh-1 mutants had substantially diminished forward speeds, suggesting a role of octopamine in forward locomotion (Figure 2—figure supplement 2). Because the octopaminergic RIC neurons were not the focus of this work, forward speed was not examined further.

In summary, tyramine affects both the speed and the duration of all classes of reversals, whereas RIM glutamate only increases the duration of reversals that are coupled to omega turns. RIM neurotransmitters do not substantially affect forward run durations, consistent with low RIM activity during forward runs. RIC octopamine increases forward and reversal speed.

Additional RIM transmitters contribute to global search dynamics

In addition to glutamate and tyramine, RIM expresses multiple neuropeptides (flp-18, pdf-2, and others) (Bhardwaj et al., 2018; Ghosh et al., 2016; Taylor et al., 2019). Release of both classical transmitters and neuropeptides is inhibited by the tetanus toxin light chain, which cleaves the synaptic vesicle fusion protein synaptobrevin (Schiavo et al., 1992). Expression of tetanus toxin in RIM and RIC under the tdc-1 promoter resulted in defects resembling those of tdc-1 mutants (Figure 4A–C): reversal frequency increased, while reversal length, speed, and durations decreased, during local search behavior (Figure 4D–G). Efficient RIM-only promoters are not available, but expression of tetanus toxin in RIC alone caused only minor defects in reversal frequency and speed, implicating RIM as a major regulator of reversal parameters (Figure 4—figure supplement 1, Figure 4—figure supplement 2). RIC tetanus toxin expression reduced forward locomotion speed to a similar extent as tbh-1 mutants (Figure 4—figure supplement 1).

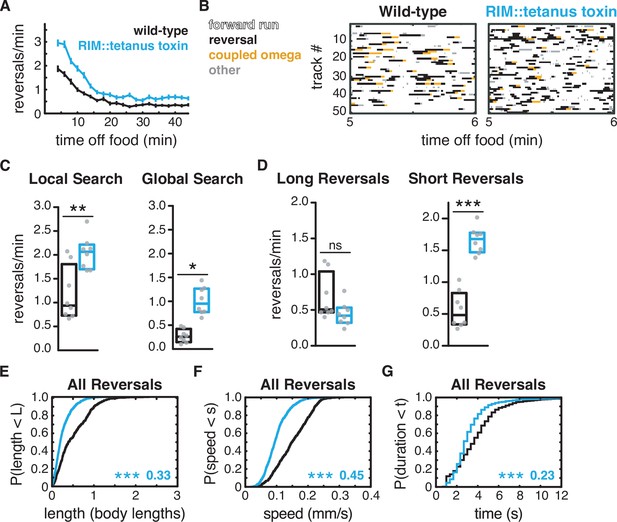

Figure 4 with 2 supplements see all
Additional RIM transmitters contribute to global search dynamics.

(A) Mean reversals per minute in animals expressing tetanus toxin light chain under the RIM- and RIC-specific tdc-1 promoter. Reversal defects are milder or absent when tetanus toxin is expressed under the RIC-specific tbh-1 promoter (Figure 4—figure supplement 1). Vertical dashes indicate standard error of the mean. n = 103–111. (B) Ethograms of 50 randomly chosen tracks per genotype during minute 5–6 of local search. Color code: white, forward runs; black, reversals; yellow, omega turns coupled to a reversal; gray, pauses, shallow turns, and omega turns that were not preceded by a reversal. (C) Mean frequency of all reversals during local search (4–8 min off food, left) and global search (36–40 min off food, right). (D) Mean frequency of long reversals (>0.5 body lengths, left) and short reversals (<0.5 body lengths, right) during local search. (E–G) For all reversals during local search, empirical cumulative distributions of reversal length (E), reversal speed (F), and reversal duration (G). (C, D) Each gray dot is the mean for 12–15 animals on a single assay plate (Source data 1), with eight plates per genotype. Boxes indicate median and interquartile range for all assays. Asterisks indicate statistical significance compared to WT using a Mann–Whitney test (*p-value<0.05, **p-value<0.01, ***p-value<0.001, ns = p-value≥0.05). (E–G) Asterisks indicate statistical significance compared to WT using a two-sample Kolmogorov–Smirnov test (***p-value<0.0001). Numbers indicate effect size. n = 595–1066 events from eight assays, 12–15 animals per assay (Supplementary file 1, Table 3: Reversals and forward runs, n values).

The expression of tetanus toxin in RIM and RIC also increased reversals during the global search period, an effect that was not observed in RIM glutamate KO or tyramine-deficient mutants (Figure 4A and C). Tetanus toxin expression in RIC alone did not affect reversal frequency during global search (Figure 4—figure supplement 1). These results suggest that another transmitter from RIM, perhaps a neuropeptide, suppresses reversals during global search.

Artificial hyperpolarization of RIM reveals unexpected functions in forward runs

To relate RIM functions to its membrane potential, we hyperpolarized RIM by expressing the Drosophila histamine-gated chloride channel (HisCl) under the tdc-1 promoter and exposing the animals to histamine while off food (Pokala et al., 2014; Figure 5A and B). Unexpectedly, silencing RIM with HisCl led to a substantial decrease in spontaneous reversal frequency, which was most evident during local search (Figure 5A–C). The effects on reversal frequency were opposite to those of RIM ablation, RIM neurotransmitter mutants, or RIM::tetanus toxin expression, all of which increased spontaneous reversal frequency (Alkema et al., 2005; Gray et al., 2005; Figures 24). The decrease in reversals was accompanied by an increase in forward run durations (Figure 5D). The opposite effects of RIM ablation and acute silencing suggest that RIM has active functions when hyperpolarized that stabilize and extend forward runs.

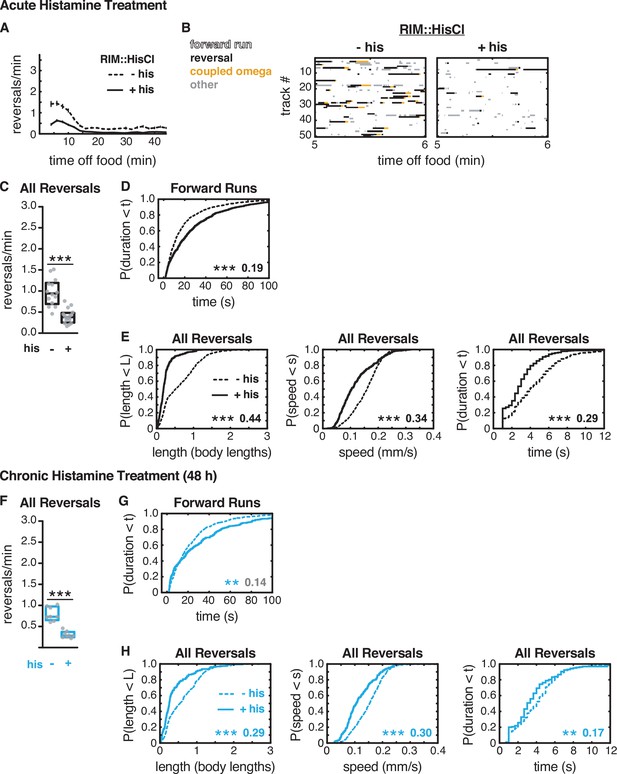

Figure 5 with 3 supplements see all
Artificial hyperpolarization of RIM extends forward runs and suppresses reversals.

(A–E) Acute hyperpolarization of RIM::HisCl with histamine. (F–H) Chronic hyperpolarization of RIM::HisCl with histamine (48 hr). (A) Mean reversals per minute in animals expressing HisCl in RIM, with (+his) or without (–his) acute histamine treatment. Vertical dashes indicate standard error of the mean. n = 93–109. (B) Ethograms of 50 randomly chosen tracks per genotype during minute 5–6 of local search. Color code: white, forward runs; black, reversals; yellow, omega turns coupled to a reversal; gray, pauses, shallow turns, and omega turns that were not preceded by a reversal. (C, F) Mean frequency of all reversals during local search, with or without histamine, in RIM::HisCl animals. Each gray dot is the mean for 12–15 animals on a single assay plate (Source data 1), with 14–16 plates per genotype. Boxes indicate median and interquartile range for all assays. Asterisks indicate statistical significance compared to untreated controls using a Mann–Whitney test (***p-value<0.001). (D, G) Durations of forward runs during local search with and without histamine, in RIM::HisCl animals; empirical cumulative distributions include all runs ≥ 2 s. (E, H) For all reversals during local search, empirical cumulative distributions of reversal length, reversal speed, and reversal duration, with (solid lines) and without (dashed lines) histamine, in RIM::HIsCl animals. (D, E, G, H) Asterisks indicate statistical significance compared to untreated controls using a two-sample Kolmogorov–Smirnov test (**p-value<0.01, ***p-value<0.0001). Numbers indicate effect size. Although statistically significant, the smaller effect size indicated in gray is similar to values from control strains (e.g., Figure 2—figure supplement 1). n = 394–1071 events per genotype from 14 to 17 assays (D, E), n = 156–487 events per genotype from eight assays (G, H), 12–15 animals per assay (Supplementary file 1, Table 3: Reversals and forward runs, n values).

Reversal length, speed, and duration were greatly reduced by hyperpolarization of RIM, effects that were similar to but stronger than the effect of tdc-1 or tetanus toxin (Figure 5E, Figure 5—figure supplement 1). These results suggest that RIM glutamate and tyramine are released when RIM is depolarized, as expected, to extend reversals and increase reversal speed. However, the stronger effects of RIM::HisCl indicate that hyperpolarization affects other targets as well.

A possible explanation for the distinct effects of RIM::HisCl silencing with histamine, versus RIM inactivation with mutations or ablation, is that acute and chronic neuronal silencing have different effects (Yeon et al., 2021). To examine this possibility, we incubated RIM::HisCl animals on histamine for 48 hr, beginning in the L2 larval stage, and tested their behavior as adults. Chronic histamine treatment caused decreases in reversal frequency, reversal length, and reversal speed that were similar to those in acutely treated animals (Figure 5F–H, Figure 5—figure supplement 2).

We hypothesized that RIM hyperpolarization might suppress reversals by decreasing the activity of the AVA backward command neurons. In order to test this possibility, we examined spontaneous calcium dynamics in AVA after hyperpolarizing RIM::HisCl with histamine. Immobilized animals were exposed to Escherichia coli-conditioned media, then switched to buffer to induce a local search-like state characterized by sustained epochs of high AVA activity (Figure 5—figure supplement 3). Acute RIM silencing decreased the fraction of time that AVA activity was high and reduced spontaneous AVA transitions from the low- to the high-activity state (Figure 5—figure supplement 3). AVA activity fell after 30 min in buffer, consistent with a change to a global search-like state; at the same time, the effects of RIM silencing were diminished. These results are consistent with a model in which RIM hyperpolarization acutely suppresses AVA activity. However, as neuronal dynamics in immobilized and freely moving animals are substantially different, they may not fully reflect the effects of RIM hyperpolarization on AVA during off-food foraging (Hallinen et al., 2021).

RIM gap junctions stabilize forward runs

To explain the effect of hyperpolarized RIM neurons, we considered the gap junctions that RIM forms with a variety of other neurons in the local search circuit (Figure 1A). RIM shares the most gap junctions with AVA and AVE that, like RIM, have high activity during reversals and low activity during forward runs. We hypothesized that RIM gap junctions stabilize the forward motor state by propagating hyperpolarizing currents between RIM and AVA (and possibly other) neurons, thereby preventing their depolarization.

Invertebrate gap junctions are made up of innexin subunits, which assemble as homo- or heteromers of eight subunits on each of the two connected cells (Burendei et al., 2020; Oshima et al., 2016). Most C. elegans neurons express multiple innexin genes; RIM neurons express 11 innexin genes, including unc-9 (Bhattacharya et al., 2019). unc-9 is expressed in many classes of neurons, and mutants have strong defects in forward and backward locomotion (Brenner, 1974; Kawano et al., 2011; Liu et al., 2017; Liu et al., 2006; Park and Horvitz, 1986; Shui et al., 2020; Starich et al., 2009). To bypass its broad effects, neuronal unc-9 function can be reduced in a cell-specific fashion by expressing unc-1(n494), a dominant negative allele of a stomatin-like protein that is an essential component of neuronal UNC-9 gap junctions (Chen et al., 2007; Jang et al., 2017). We knocked down UNC-9 gap junctions in RIM by driving unc-1(n494) cDNA under the tdc-1 promoter. While unlikely to inactivate all RIM innexins and gap junctions, this manipulation should alter unc-9 gap junction signaling in a RIM-selective manner.

RIM gap junction knockdown animals had superficially coordinated locomotion and exhibited the characteristic shift from local to global search over time (Figure 6A). However, these gap junction knockdown animals had a greatly increased frequency of reversals compared to WT (Figure 6A–C). Both short and long reversals were increased in frequency during both local search and global search, while reversal length, speed, and duration were only slightly reduced (Figure 6C–G, Figure 6—figure supplement 1). The RIM gap junction knockdown also resulted in a substantial decrease in forward run duration (Figure 6H, Figure 6—figure supplement 1).

Figure 6 with 3 supplements see all
RIM gap junctions suppress spontaneous reversals.

(A) Mean reversals per minute in animals bearing an unc-1(n494) dominant negative transgene to knock down unc-9-containing gap junctions (RIM gap junction KD). Vertical dashes indicate standard error of the mean. n = 77–85. (B) Ethograms of 50 randomly chosen tracks per genotype during minute 5–6 of local search. Color code: white, forward runs; black, reversals; yellow, omega turns coupled to a reversal; gray, pauses, shallow turns, and omega turns that were not preceded by a reversal. (C) Mean frequency of all reversals during local search (4–8 min off food, left) and global search (36–40 min off food, right). (D) Mean frequency of long reversals (>0.5 body lengths, left) and short reversals (<0.5 body lengths, right) during local search. (E–G) For all reversals during local search, empirical cumulative distributions of reversal length (E), reversal speed (F), and reversal duration (G). (H) Durations of forward runs during local search; empirical cumulative distributions include all runs ≥ 2 s. (C, D) Each gray dot is the mean for 12–15 animals on a single assay plate (Source data 1), with six assays per genotype. Boxes indicate median and interquartile range for all assays. Asterisks indicate statistical significance compared to WT using a Mann–Whitney test (*p-value<0.05, **p-value<0.01). (E–H) Asterisks indicate statistical significance compared to WT using a two-sample Kolmogorov–Smirnov test (**p-value<0.01, ***p-value<0.001, ns = p-value≥0.05). Numbers indicate effect size. Although statistically significant, the smaller effect sizes indicated in gray fall below the 0.15 cutoff for discussion established by observing control strains (e.g., Figure 2—figure supplement 1). n = 330–933 events per genotype from six assays, 12–15 animals per assay (Supplementary file 1, Table 3: Reversals and forward runs, n values). Note that the tdc-1 promoter also expresses unc-1(n494) in RIC. Reversal frequencies are not altered in an RIC-selective unc-1(n494) strain, but forward and reversal speed and forward run duration are decreased (Figure 6—figure supplement 3).

Combining the gap junction knockdown with a tdc-1 mutation yielded additive effects, with both forward and reversal parameters altered (Figure 6—figure supplement 2). Knocking down UNC-9 gap junctions in RIC alone did not affect reversal frequency, but decreased both forward speed and reversal speed, as well as forward run duration (Figure 6—figure supplement 3). These results support the hypothesis that unc-9-containing gap junctions in RIM promote forward locomotion.

To ask whether the unc-9-containing gap junctions propagate the effects of RIM hyperpolarization, we crossed the RIM gap junction knockdown into the RIM::HisCl strain. Combining the RIM gap junction knockdown with RIM hyperpolarization resulted in mutual suppression of their effect on reversal frequency, so that double mutants had a similar reversal frequency to wild-type animals (Figure 7A and B). The shortened forward run durations observed in RIM gap junction knockdown animals were also suppressed when RIM was hyperpolarized (Figure 7C). These results suggest that forward states are stabilized in part, but not entirely, through unc-9-containing gap junctions.

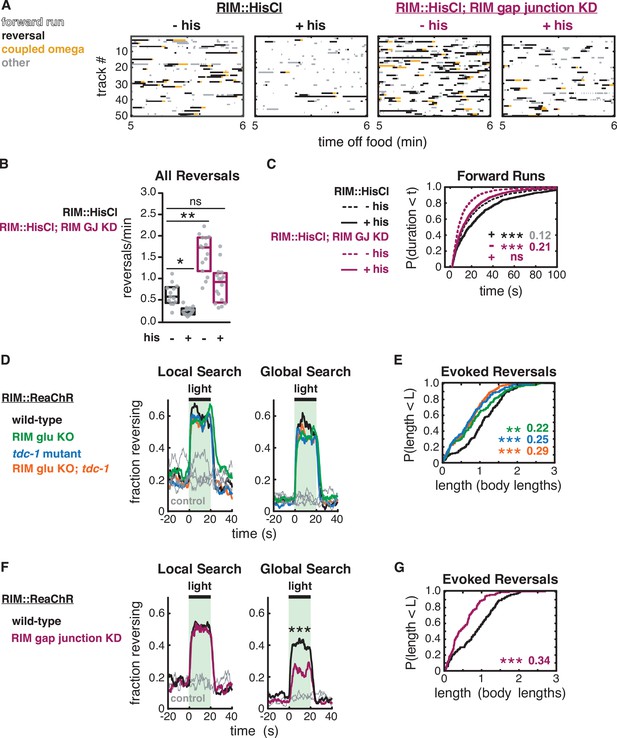

Figure 7 with 1 supplement see all
RIM gap junctions mediate effects of hyperpolarization and depolarization.

(A–C) Behavior of RIM::HisCl and RIM::HisCl; RIM gap junction knockdown animals. (A) Ethograms of 50 randomly chosen tracks per genotype during minute 5–6 of local search. Color code: white, forward runs; black, reversals; yellow, omega turns coupled to a reversal; gray, pauses, shallow turns, and omega turns that were not preceded by a reversal. (B) Mean frequency of all reversals during local search (4–8 min off food), with or without histamine. Each gray dot is the mean for 12–15 animals on a single assay plate (Source data 1), with 13–16 plates per genotype. Boxes indicate median and interquartile range for all assays. Asterisks indicate statistical significance compared to untreated WT controls using a Kruskal–Wallis test with Dunn’s multiple comparisons test (*p-value<0.05, **p-value<0.01, ns = p-value≥0.05). (C) Durations of forward runs during local search with (solid lines) and without (dashed lines) histamine; empirical cumulative distributions include all runs ≥2 s. n = 768–1994 events from 13 to 16 assays, 12–15 animals per assay (Supplementary file 1, Table 3: Reversals and forward runs, n values). (D–G) Effects of RIM::ReaChR activation in wild-type, RIM glu KO, tdc-1 mutants, RIM glu KO; tdc-1 double mutants, and RIM gap junction knockdown animals. (D, F) Animals were exposed to light for 20 s (green shading), with or without all-trans retinal pretreatment, during local search (8–14 min off food, left) or global search (38–44 min off food, right). Neurotransmitter mutants do not suppress optogenetically evoked reversals (D). RIM gap junction knockdown suppresses optogenetically evoked reversals during global search (F) (***p<0.001, Figure 7—figure supplement 1). Similar results were obtained at lower and higher light levels. (E, G) For all reversals induced during the light pulse during local search (8–14 min off food), empirical cumulative distributions of reversal length. All animals were pretreated with all-trans retinal. n = 119–193 reversals from 12 to 15 assays, 12–15 animals per assay, 2 (E) or 3 (G) light pulses per assay conducted 8–14 min after removal from food (Supplementary file 1, Table 3: Reversals and forward runs, n values). (C, E, G) Asterisks indicate statistical significance compared to controls of the same genotype using a two-sample Kolmogorov–Smirnov test with a Bonferroni correction (**p-value<0.01, ***p-value<0.001, ns = p-value≥0.05). Numbers indicate effect size.

Strong depolarization of RIM engages neurotransmitter-independent functions

Optogenetic depolarization of RIM rapidly increases reversal frequency (Gordus et al., 2015; Guo et al., 2009; López-Cruz et al., 2019; Figure 7D). The frequency of optogenetically induced reversals was unaffected by tdc-1, RIM glu KO, or the double mutant, whether examined during local search or during global search (Figure 7D, Figure 7—figure supplement 1). This result suggests that RIM does not require tyramine or glutamate neurotransmitters to trigger optogenetically induced reversals.

We considered whether RIM gap junctions might propagate optogenetic depolarization to AVA command neurons. The RIM gap junction knockdown did not affect optogenetically induced reversal frequencies during local search, but it did decrease optogenetically induced reversals during global search (Figure 7F, Figure 7—figure supplement 1). These results suggest a minor role for unc-9 gap junctions in the initiation of optogenetically induced reversals.

Optogenetically induced reversals were shorter in RIM glu KO, tyramine-deficient, and RIM gap junction knockdown animals than in WT (Figure 7E and G). Thus, optogenetically induced reversals are extended by all RIM synaptic outputs.

Discussion

A cycle of forward runs interrupted by reversals and turns dominates the spontaneous locomotion of C. elegans during local search. We show here that RIM generates behavioral inertia to inform the dynamics of these locomotor states (Figure 8). RIM stabilizes reversals through its chemical synapses while depolarized and stabilizes forward runs through its gap junctions while hyperpolarized. Together with other results (Kawano et al., 2011), our results suggest that hyperpolarization through gap junctions is a recurrent circuit motif in C. elegans locomotion.

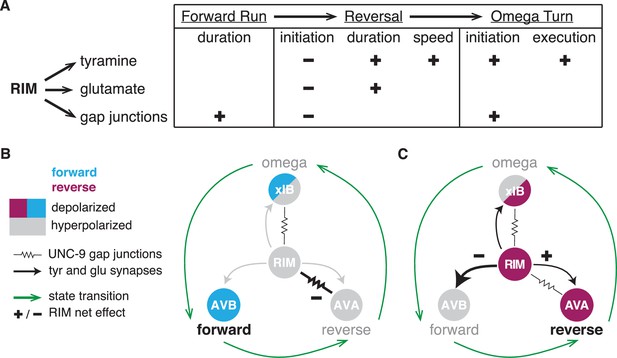

RIM synapses generate behavioral inertia and jointly regulate forward-to-reversal transitions.

(A) Summary of synaptic regulation of spontaneous behaviors (Figures 27). (+) indicates that the normal function of the synapse increases the behavioral parameter (e.g., RIM tyramine increases reversal speed because tdc-1 mutant reversals are slower than wild-type). (–) indicates that the synapse decreases the parameter (e.g., RIM tyramine, glutamate, and unc-1/unc-9 gap junctions all inhibit reversal initiation because the mutants have more spontaneous reversals than wild-type). Additional RIM transmitters inhibit reversals during global search (Figure 4), and RIC octopamine and gap junctions increase forward and reversal speed, but not reversal initiation (Figure 2—figure supplement 2, Figure 4—figure supplement 1, Figure 6—figure supplement 3). (B, C) AVB, AVA, and xIB (AIB + RIB) are representative of the neurons that promote forward runs, reversals, and omega turns, respectively. AVB and RIB are depolarized during forward runs; RIM, AVA, and AIB are depolarized during reversals; AIB and RIB are depolarized during turns. (B) RIM unc-1/unc-9 gap junctions stabilize forward runs by propagating a hyperpolarizing signal to reversal-promoting neurons. (C) RIM tyramine and glutamate stabilize reversals by inhibiting forward-promoting neurons and may also activate reversal-promoting neurons.

RIM neurotransmitters cooperate to stabilize reversals

RIM controls specific locomotor features: it increases spontaneous reversal speed and duration (Gray et al., 2005, this work), suppresses head oscillations during reversals, and sharpens the omega turns coupled to reversals (Alkema et al., 2005; Donnelly et al., 2013; Pirri et al., 2009). These functions all rely on the RIM transmitter tyramine, which also increases the length of reversals evoked by aversive sensory stimuli (Alkema et al., 2005; Pirri et al., 2009). We found that RIM glutamate increases spontaneous reversal length and duration, but only during the coupled reversal-omega maneuver, and does not increase reversal speed. Both RIM glutamate and tyramine also extend reversals evoked by acute depolarization.

Neurons that release both classical transmitters, like glutamate, and biogenic amines, like tyramine, can employ them additively, cooperatively, or distinctly. In mice, dopaminergic neurons that project from the ventral tegmental area to the nucleus accumbens release both dopamine and glutamate, and either transmitter can support positive reinforcement (Zell et al., 2020). In both Drosophila and mice, the glutamate transporter enhances dopamine loading into synaptic vesicles for a cooperative effect (Aguilar et al., 2017; Münster-Wandowski et al., 2016). At a more subtle level, GABA and dopamine co-released from terminals in the mammalian striatum affect target neurons differently – GABA rapidly inhibits action potentials, while dopamine modulates activity through slower GPCR pathways (Tritsch and Sabatini, 2012). The nonadditive effects of RIM glutamate and tyramine on spontaneous and optogenetically evoked behavioral dynamics in C. elegans suggest that they act as co-transmitters to cooperatively stabilize reversal states when RIM is depolarized.

C. elegans glutamate receptors and tyramine receptors are broadly expressed in the locomotor circuit. Among RIM’s synaptic targets, the AIB and AVA reversal-promoting neurons express excitatory AMPA-type glutamate receptors, as does RIM itself (Brockie et al., 2001; Hart et al., 1995; Taylor et al., 2019), and glutamate is released onto AVA during reversals (Marvin et al., 2013). RIM glutamate might reinforce the reversal state by depolarizing AVA, while RIM tyramine inhibits the competing forward state via the tyramine-gated chloride channel LGC-55 on AVB (Pirri et al., 2009). AVA also expresses a glutamate-gated chloride channel, avr-14, that inhibits spontaneous reversals; a genetic interaction between avr-14 and an RIM-specific knockdown of eat-4 suggests that this receptor could be a target of RIM glutamate (Li et al., 2020). Since all of these receptors coexist in a circuit rich in positive and negative feedback (Roberts et al., 2016), cell-specific knockouts of receptors as well as neurotransmitters may be needed to define their functions precisely.

The promoter used to alter RIM activity and signaling, tdc-1, is also expressed in RIC neurons. RIC-specific manipulation did not appreciably affect reversal frequency or duration, although it might contribute alongside RIM. RIC neurotransmitters and gap junctions did affect both forward and reversal speed.

RIM gap junctions extend forward runs

For both chemogenetic hyperpolarization and optogenetic depolarization of RIM, the effects on reversal frequency were opposite to those predicted from RIM ablation. Hyperpolarization led to an unanticipated increase in forward run durations, pointing to an active function for RIM when silenced. RIM and its gap junction partners AVA, AVE, and AIB have low activity during forward locomotion; our results suggest that in the hyperpolarized forward state RIM gap junctions inhibit the AVA backward command neurons and possibly others as well (Gordus et al., 2015; Kagawa-Nagamura et al., 2018; Kato et al., 2015).

Our conclusion that RIM gap junctions stabilize a hyperpolarized state resonates with previous studies in a different part of the reversal circuit. In addition to their gap junctions with RIM, the AVA neurons form gap junctions with unc-9-expressing VA and DA motor neurons that drive backward locomotion. Genetic inactivation of those gap junctions results in defects in forward locomotion and increases calcium levels in AVA (Kawano et al., 2011). From this result, the UNC-9-UNC-7 gap junctions were inferred to decrease the activity of AVA based on hyperpolarizing current flow from VA and DA motor neurons. This role is similar to the role we propose for gap junctions between AVA and RIM. In fact, it could be molecularly similar: the unc-9 innexin expressed in VA/DA neurons and RIM can form heterotypic gap junctions with the unc-7 innexin expressed in AVA (Kawano et al., 2011). However, unlike the RIM gap junction knockdown, which acts primarily to affect the duration of coordinated forward runs, the AVA-motor neuron knockdown results in highly uncoordinated movement.

The experiments here, and in Kawano et al., 2011, are limited by the fact that behavior and calcium imaging do not directly measure gap junction conductances. Moreover, direct measurements of gap junctions between AVA and VA5 motor neurons indicate that UNC-9-UNC-7 gap junctions transmit depolarizing current from VA5 to AVA (Liu et al., 2017; Shui et al., 2020). That said, reconstitution in Xenopus oocytes revealed a startling array of rectifying and membrane potential-dependent properties of UNC-9-UNC-7 gap junctions, depending on which of the seven UNC-7 splice forms is expressed (Shui et al., 2020). How innexins and their splice forms contribute to RIM-to-AVA communication, other than requiring unc-9 function in RIM, remains to be determined.

Interactions between chemical and electrical synapses play prominent roles in motor circuits including the stomatogastric ganglion of crustaceans, the heartbeat circuit in leeches, and rapid escape circuits in nematodes, arthropods, and fish (Kristan et al., 2005; Marder, 1998; Szczupak, 2016). Antagonism between electrical and chemical synapses has also been observed in the reversal-to-omega-turn transition in C. elegans (Wang et al., 2020). Although chemical synapses in these circuits can be either excitatory or inhibitory, their electrical synapses have all been thought to be excitatory. We speculate that inhibitory electrical synapses resembling those of RIM gap junctions may emerge as stabilizing elements of other motor circuits with long-lasting, mutually exclusive states.

Optogenetic depolarization of RIM elicits reversals, an effect that is reciprocal to that of RIM hyperpolarization. While gap junctions from RIM to AVA could be attractive candidates for this activity, the overall increase in reversal frequency upon RIM depolarization was only slightly diminished by the unc-9 gap junction knockdown and unaffected by RIM chemical transmitters. RIM expresses 11 innexin genes, the most of any neuron (Bhattacharya et al., 2019). RIM gap junctions may depolarize AVA via innexins that are not affected by the unc-1(dn) transgene, such as inx-1 (Hori et al., 2018), which synergizes with unc-9 to promote reversals evoked by optogenetic RIM depolarization (Li et al., 2020). Similarly, the unc-1(dn) transgene only partly suppresses the effects of RIM hyperpolarization on reversal frequency, suggesting that unc-9 may act with additional innexin subunits to propagate RIM hyperpolarization to AVA. Cell-specific knockout of inx-1 and other innexins should provide a deeper understanding of RIM gap junctions in AVA, AIB, AVE, and other neurons.

RIM regulates motor state transitions

The dynamic functions of RIM in spontaneous motor state transitions during local search are regulated by the combined action of tyramine, glutamate, and gap junction signaling. All of these synaptic outputs inhibit reversal initiation, even though RIM glutamate and tyramine stabilize the reversal once it has begun.

Among the characterized neurons within the foraging circuit, RIM is the only neuron where ablation has opposite effects on the initiation and execution of a behavioral state (Gray et al., 2005). The dynamic transition from forward to backward locomotion requires coordinated activity changes across the circuit, with positive and negative feedback between forward- and reversal-active neurons (Roberts et al., 2016; Figure 1A). A role for RIM gap junctions in preventing reversals is consistent with its proposed action in the hyperpolarized (forward) state, but tyramine and glutamate release are likely to rely upon depolarization. In one model, a low level of neurotransmitter release during forward-to-reversal transitions might oppose reversal initiation, while higher levels promote it. Low-level release would be consistent with the graded electrical properties of many C. elegans neurons, including motor neurons (Liu et al., 2009) and RIM (Liu et al., 2018), which can also result in graded transmitter release.

We note, however, that chronic or developmental effects of tyramine might also contribute to the increased reversal frequency upon RIM ablation, tdc-1 mutations, or tetanus toxin expression. Tyramine release during learning can lead to long-term circuit remodeling, and tyramine mediates systemic responses to starvation and other stresses (De Rosa et al., 2019; Ghosh et al., 2016; Jin et al., 2016; Özbey et al., 2020). Reversal frequencies during local search are regulated by prior experience on bacterial food, including its density and distribution (Calhoun et al., 2014; López-Cruz et al., 2019); tyramine is a candidate to mediate this longer-term behavioral effect.

These transitions, as well as the interactions between RIM, AIB, and RIB that promote transitions from reversals to omega turns, deserve fuller scrutiny (Wang et al., 2020). Here, we have focused on high-resolution analysis of behavior to complement the increasingly rich studies of neuronal activity associated with locomotion (Ji et al., 2019; Kato et al., 2015; Kaplan et al., 2020; Nguyen et al., 2016; Venkatachalam et al., 2016). Integration of high-resolution behavior with high-resolution imaging is a critical next step to examine transition dynamics.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Caenorhabditis elegans N2, hermaphrodite)Wild-typeThis paperID_BargmannDatabase:CX17882See Figures 13, Figure 2—figure supplements 1 and 2
Strain, strain background (C. elegans N2, hermaphrodite)CX0007This paperID_BargmannDatabase:CX0007Child of CX17882; See Supplementary file 1, Table 1: Strain details
Strain, strain background (C. elegans N2, hermaphrodite)RIM glu KOThis paperID_BargmannDatabase:CX17881See Figures 13, Figure 2—figure supplement 2
Strain, strain background (C. elegans N2, hermaphrodite)tdc-1This paperID_BargmannDatabase:CX17883See Figures 13, Figure 2—figure supplement 2
Strain, strain background (C. elegans N2, hermaphrodite)RIM glu KO; tdc-1This paperID_BargmannDatabase:CX17884See Figures 13, Figure 2—figure supplement 2
Strain, strain background (C. elegans N2, hermaphrodite)elt-2p::nGFP; wild-typeThis paperID_BargmannDatabase:CX18118See Figure 2—figure supplement 1
Strain, strain background (C. elegans N2, hermaphrodite)elt-2p::nGFP; edited eat-4This paperID_BargmannDatabase:CX17461; ID_BargmannDatabase:CX18118See Figure 2—figure supplement 1
Strain, strain background (C. elegans N2, hermaphrodite)tbh-1DOI:10.1016/j.neuron.2005.02.024RRID:SCR_007341: MT9455See Figure 2—figure supplement 2
Strain, strain background (C. elegans N2, hermaphrodite)Wild-typePMC1213120RRID:SCR_007341:N2See Figure 4, Figure 4—figure supplements 1 and 2, Figure 6—figure supplement 2
Strain, strain background (C. elegans N2, hermaphrodite)RIM::tetanus toxin::mCherryDOI:10.1016/j.cell.2015.02.018ID_BargmannDatabase:CX14993See Figure 4, Figure 4—figure supplements 1 and 2
Strain, strain background (C. elegans N2, hermaphrodite)tbh-1p::tetanus toxin::mCherryThis paperID_BargmannDatabase:CX17912See Figure 4—figure supplement 1
Strain, strain background (C. elegans N2, hermaphrodite)RIM::HisCl; wild-typeDOI:10.1073/pnas.1400615111ID_BargmannDatabase:CX18193See Figures 5 and 7, Figure 5—figure supplements 1 and 2
Strain, strain background (C. elegans N2, hermaphrodite)RIM::HisCl; tdc-1This paperID_BargmannDatabase:CX18194See Figure 5—figure supplement 1
Strain, strain background (C. elegans N2, hermaphrodite)AVA::GCaMP5; wild-typeDOI:10.1016j.cell.2015.02.018ID_BargmannDatabase: CX15380See Figure 5—figure supplement 3
Strain, strain background (C. elegans N2, hermaphrodite)AVA::GCaMP5; RIM::HisClThis paperID_BargmannDatabase: CX15380;ID_BargmannDatabase: CX18193See Figure 5—figure supplement 3
Strain, strain background (C. elegans N2, hermaphrodite)Wild-typeThis paperID_BargmannDatabase:CX17546See Figure 6, Figure 4—figure supplement 1, Figure 6—figure supplements 13
Strain, strain background (C. elegans N2, hermaphrodite)RIM gap junction KDThis paperID_BargmannDatabase:CX14853See Figure 6, Figure 6—figure supplements 13
Strain, strain background (C. elegans N2, hermaphrodite)tdc-1DOI:10.1016/j.neuron.2005.02.024RRID:SCR_007341:MT13113See Figure 6—figure supplement 2
Strain, strain background (C. elegans N2, hermaphrodite)RIM gap junction KD; tdc-1This paperID_BargmannDatabase:CX14853RRID:SCR_007341:MT13113See Figure 6—figure supplement 2
Strain, strain background (C. elegans N2, hermaphrodite)RIC gap junction KDThis paperID_BargmannDatabase: CX18293See Figure 6—figure supplement 3
Strain, strain background (C. elegans N2, hermaphrodite)RIM::HisCl;RIM gap junction KDThis paperID_BargmannDatabase:CX18137See Figure 7
Strain, strain background (C. elegans N2, hermaphrodite)RIM::ReaChR: wild-typeThis paperID_BargmannDatabase:CX17885See Figure 7, Figure 7—figure supplement 1
Strain, strain background (C. elegans N2, hermaphrodite)RIM::ReaChR:RIM glu KOThis paperID_BargmannDatabase:CX17886See Figure 7, Figure 7—figure supplement 1
Strain, strain background (C. elegans N2, hermaphrodite)RIM::ReaChR: tdc-1This paperID_BargmannDatabase:CX17887See Figure 7, Figure 7—figure supplement 1
Strain, strain background (C. elegans N2, hermaphrodite)RIM::ReaChR:RIM glu KO; tdc-1This paperID_BargmannDatabase:CX17888See Figure 7, Figure 7—figure supplement 1
Strain, strain background (C. elegans N2, hermaphrodite)RIM::ReaChR: wild-typeDOI:10.1016/j.neuron.2019.01.053ID_BargmannDatabase:CX17694See Figure 7, Figure 7—figure supplement 1
Strain, strain background (C. elegans N2, hermaphrodite)RIM::ReaChR:RIM gap junction KDThis paperID_BargmannDatabase:CX18195See Figure 7, Figure 7—figure supplement 1
Chemical compound, drugHistamine dihydrochlorideSigmaH7250CAS 56-92-8
Chemical compound, drug(-)-Levamisole hydrochlorideSigmaL9756CAS 16595-80-5
Chemical compound, drugPolydimethylsiloxane (PDMS)Sigma7610369:1 base:curing agent, Sylgard 184
Software, algorithmImageJImageJ (http://imagej.nih.gov/ij/)RRID:SCR_003070Version 1.50i
Software, algorithmGraphPad PrismGraphPad Prism (https://graphpad.com)RRID:SCR_002798Versions 7.0c, 8.4.1
Software, algorithmMATLABMathWorks (https://www.mathworks.com/)RRID:SCR_001622Versions R2014a, R2016b, R2018b
Software, algorithmMetamorphMolecular Devices (https://www.moleculardevices.com)RRID:SCR_002368Version 7.8.2.0
Software, algorithmStreampixNorpix(https://www.norpix.com/products/streampix/streampix.php)RRID:SCR_015773Versions 6 and 8
Software, algorithmPythonPython (https://www.python.org/)RRID:SCR_008394Version 3.8.1
Software, algorithmAnalysis codeThis paper (https://doi.org/10.5061/dryad.ht76hdrf6, https://github.com/navinpokala/BargmannWormTracker)See Dryad repository or Github

Nematode and bacterial culture

Request a detailed protocol

In all experiments, bacterial food was E. coli strain OP50. Nematodes were grown at room temperature (21–22°C) or at 20°C on nematode growth media plates (NGM; 51.3 mM NaCl, 1.7% agar, 0.25% peptone, 1 mM CaCl2, 12.9 μM cholesterol, 1 mM MgSO4, 25 mM KPO4, pH 6) seeded with 200 µL of a saturated E. coli liquid culture grown in LB at room temperature or at 37°C, and stored at 4°C (Brenner, 1974). All experiments were performed on young adult hermaphrodites, picked as L4 larvae the evening before an experiment.

WT controls are derived from the N2 Bristol strain, and an additional WT strain CX0007 was derived by loss of the transgene from CX17882, to maximize the similarity of controls within an experiment. Mutant strains were backcrossed into N2 at least 3× to reduce background mutations. WT controls in all figures were matched to test strains for transgenes and co-injection markers. Full genotypes and detailed descriptions of all strains and transgenes appear in Supplementary file 1, Table 1:. Strain details.

Molecular biology and transgenics

Request a detailed protocol

A 4.5 kb region upstream of tdc-1 that drives expression in RIM and RIC neurons was used for all RIM manipulations. In all cases other than the RIM glutamate knockout, these reagents affect RIC as well as RIM. To separate the functions of the RIM and RIC neurons, we used a 4.5 kb region upstream of tbh-1 to drive expression in RIC neurons. Phenotypes specific to the tdc-1 transgenes were inferred to have an essential contribution from RIM. Relevant strains and plasmids are described in Supplementary file 1, Table 1: Strain details, and Supplementary file 1, Table 2:. Plasmids generated for this study.

Transgenic animals were generated by microinjecting the relevant plasmid of interest with a fluorescent co-injection marker (myo-2p::mCherry, myo-3p::mCherry, elt-2p::nGFP, elt-2p::mCherry, unc-122p::GFP) and empty pSM vector to reach a final DNA concentration of 100 ng/µL. Transgenes were maintained as extrachromosomal arrays.

Foraging assay

Request a detailed protocol

Off-food foraging assays were performed and analyzed following López-Cruz et al., 2019. Animals were first preconditioned to a homogenous E. coli lawn to standardize their behavioral state (Calhoun et al., 2014). The homogenous lawn was made by seeding NGM plates with a thin uniform layer of saturated E. coli liquid culture ~16 hr before the beginning of the assay. 20 young adult hermaphrodites were placed on this lawn for 45 min prior to recording and constrained to a fixed area of 25 cm2 using filter paper soaked in 20 mM CuCl2. 12–15 of these preconditioned animals were transferred to an unseeded NGM plate briefly to clear adherent bacteria, and then transferred to a large unseeded NGM assay plate, where they were constrained to a fixed area of ~80 cm2 using filter paper soaked in 20 mM CuCl2. Video recordings of these animals began within 5–6 min from food removal to capture local search behavior. Animals were recorded for 45 min as previously described using a 15 MP PL-D7715 CMOS video camera (Pixelink). Frames were acquired at 3 fps using Streampix software (Norpix) using four cameras to image four assays in parallel. LED backlights (Metaphase Technologies) and polarization sheets were used to achieve uniform illumination (López-Cruz et al., 2019). Each experimental strain was assayed a minimum of six times over 2 days, with control strains assayed in parallel.

Animals were tracked using custom MATLAB software (BargmannWormTracker) without manual correction of tracks (López-Cruz et al., 2019; Pokala et al., 2014). Tracker software is available at: https://github.com/navinpokala/BargmannWormTracker (Pokala, 2019).

Quantification of spontaneous behavior

Request a detailed protocol

Behavioral states were extracted from the State array generated by BargmannWormTracker. Local search event frequencies per minute were calculated 4–8 min after removal from food. Global search frequencies per minute were calculated 36–40 min after removal from food. Only tracks that were continuous for the entire 4 min time interval were included in frequency analysis. When calculating frequencies, tracks taken on a single day from a single assay plate were averaged to give a single data point, for example, in Figure 2B and D.

Distributions of reversal parameters and forward run durations were calculated using events observed during local search, 4–8 min after removal from food. All reversals were included; only forward runs over 2 s in length were included. Reversal length is the path length calculated using the X-Y coordinates, worm length, and pixel size extracted from the tracker. Reversal and forward run speed are the average of mean and median speed extracted from the tracker.

Tracks that were less than 5 min long, tracks approaching the copper barrier, and tracks that did not include a complete reversal or forward run were not included in reversal and forward run parameter analyses.

Data and relevant functions pertaining to these analyses are available at Dryad: https://doi.org/10.5061/dryad.ht76hdrf6 and GitHub: https://github.com/BargmannLab/SordilloBargmann2021.

Optogenetic manipulations

Request a detailed protocol

The red-shifted channelrhodopsin ReaChR (Lin et al., 2013) was expressed under the tdc-1 promoter and animals were stimulated during the off-food foraging assay described above, following López-Cruz et al., 2019. Experimental animals were treated with 12.5 µM all-trans retinal overnight and during preconditioning on homogeneous food lawns; control animals were prepared in parallel on plates that did not contain retinal. Optogenetic stimuli were delivered with a 525 nm Solis HighPower LED (ThorLabs) controlled by custom MATLAB software and strobed at a 5% duty cycle. Two (Figure 7D–E and Figure 7—figure supplement 1A–C) or three (Figure 7F and G and Figure 7—figure supplement 1D–F) pulses of ~45 µW/mm2 light were delivered for 20 s each with a 100 s interpulse interval starting at 8 or 10 min (local search) and 38 or 40 min (global search). These light intensities elicited the maximal behavioral effect of ReaChR. Additional lower light intensities (not shown) were included in each experiment, with pulses always separated by 100 s.

For behavioral quantification, tracks were aligned around the light pulses and extracted over a 120 s period, with the light pulse delivered at 50–70 s. Only tracks that were continuous for the entire 120 s period were used. The change in reversal frequency was calculated by subtracting the mean reversal frequency during an 18 s time window before light onset from the mean reversal frequency during an 18 s time window during the light pulse. Behavioral parameters were scored only for the first reversal of duration ≥0.5 s that began during the light stimulation.

Acute histamine treatment

Request a detailed protocol

The Drosophila histamine-gated chloride channel HisCl1 was expressed under the tdc-1 promoter. Animals were treated with histamine following Pokala et al., 2014. Histamine dihydrochloride (Sigma-Aldrich H7250) was dissolved in Milli-Q purified water, filtered, and stored at –20°C. Histamine solution was added to cooled NGM (45–50°C) for a final concentration of 10 mM to make assay plates. Animals were habituated on homogeneous OP50 lawns on histamine-free NGM plates, transferred to food-free, histamine-free NGM plates for cleaning, and then recorded on 10 mM histamine assay plates for 45 min. See ‘Foraging assay’ and ‘Quantification of spontaneous behavior’ sections.

Chronic histamine treatment

Request a detailed protocol

Histamine was prepared as above. Treated animals were grown on 10 mM histamine plates seeded with OP50 lawns for ~48 hr prior to being assayed, and were habituated, cleaned, and assayed on 10 mM histamine plates. Untreated controls were grown, transferred, and assayed in parallel on histamine-free NGM plates. Treated and untreated animals were subsequently retrieved from assay plates and transferred to histamine-free NGM plates seeded with a homogeneous OP50 lawn for ~60–90 min to allow treated animals to recover from the histamine treatment. All animals were then assayed a second time on histamine-free plates. See ‘Foraging assay’ and ‘Quantification of spontaneous behavior’ sections.

AVA GCaMP imaging

Request a detailed protocol

GCaMP 5.0 was expressed in AVA under the rig-3 promoter. GCaMP dynamics were imaged in a high-throughput microfluid chip following Dobosiewicz, Liu, and Bargmann, 2019. Before beginning the experiment, animals were removed from food and gently washed in NGM buffer (51.3 mM NaCl, 0.25% peptone, 1 mM CaCl2, 1 mM MgSO4, 25 mM KPO4). Approximately 20 animals of each genotype were then loaded into separate arenas of a custom-fabricated two-arena polydimethylsiloxane (PDMS; Sigma 761036, made from 9:1 base:curing agent, Sylgard 184) imaging device. Conditional media were prepared by inoculating NGM buffer with a single colony of OP50 bacteria, incubating overnight in a 37°C shaking incubator (final OD600 = 0.3–0.4), and removing bacteria with 0.22 μm filters (Millex). Animals were paralyzed for ~50 min in darkness in conditioned media with 2 mM levamisole (Sigma) and 10 mM histamine. Conditioned media were replaced with NGM buffer with 2 mM levamisole and 10 mM histamine 5 min after the recording began to evoke a local search-like state. GCaMP dynamics were imaged at 10 frames/s for 40 min and tracked using custom ImageJ software. Two experiments were performed over 2 days.

Experiments were performed on a Zeiss AxioObserver A1 inverted microscope fit with a 5×/0.25 NA Zeiss Fluar objective, a Hamamatsu Orca Flash 4 sCMOS camera with a 0.63× c-mount adapter to increase field of view. 474 nm wavelength light was delivered with a Lumencor SOLA-LE lamp. Metamorph 7.8.2. software was used to control image acquisition, light pulsing, stimulus switching (National Instruments NI-DAQmx connected to an Automate Valvebank 8 II actuator that controls a solenoid valve), and stimulus selection (Hamilton 8-way distribution valve).

AVA GCaMP analysis

Request a detailed protocol

Spontaneous AVA GCaMP dynamics were analyzed at 0–5 min after conditioned media removal (local search) and 30–35 min after conditioned media removal (global search). 15–20 tracks were analyzed from each genotype per experiment.

ON and OFF states were determined using methods adapted from Gordus et al., 2015. Custom Python and MATLAB scripts were used to quantify fluorescence in AVA. Data were smoothed over 1 s (10 frame) intervals. The median 10% of the lowest observed fluorescence was set as F0 and used to calculate the change of fluorescence for each frame (ΔF = F F0), which was subsequently normalized to F0 (ΔF/F0). Smoothed traces with ΔF/F0 >10% were given an initial binary ON state assignment defined as above or below 50% of the Fmax. Subsequently, (1) the time derivative (dF/dt) for each trace was calculated and smoothed over 3 s intervals, (2) threshold dF/dt parameters for ON/OFF transitions were defined based on minima and maxima of each dF/dt and (3) final ON/OFF states and were defined using both the dF/dt parameters and the initial binary assignment. Multiple thresholds and correction factors were tested; while they led to small changes in absolute values, they did not affect the conclusions about effects of RIM silencing on AVA ON and OFF states.

Relevant functions pertaining to these analyses are available at Dryad: https://doi.org/10.5061/dryad.ht76hdrf6 and GitHub: https://github.com/BargmannLab/SordilloBargmann2021.

Statistical analyses

Request a detailed protocol

All statistical analyses were conducted in GraphPad Prism except for the two-sample Kolmogorov–Smirnov test, which was performed in MATLAB. When making multiple comparisons, the p-values of the two-sample Kolmogorov–Smirnov test were adjusted with a Bonferroni correction. The effect size was calculated for all significant distribution comparisons as the D statistic, which represents the maximum distance between the empirical cumulative distributions of the data. Because of the large n values in these experiments, even very small effects reached statistical significance. Based on control strains (e.g., Figure 2—figure supplement 1), we set a meaningful effect size of ≥0.15 as a cutoff for discussing results. See Supplementary file 1, Table 3: Reversals and forward runs, n values. A summary of all p-values and statistical tests can be found in Supplementary file 1, Table 4: Statistical analysis. Sample sizes and experimental design were selected based on previous experiments that used the same assays and similar perturbations in López-Cruz et al., 2019.

Data availability

All primary behavioral data and relevant functions pertaining to data analysis are available at Dryad (https://doi.org/10.5061/dryad.ht76hdrf6) and Github (https://github.com/BargmannLab/SordilloBargmann2021; copy archived at swh:1:rev:d528552991e834f6aa5d7d6dde63ec23e799fc93). Source data 1 includes raw numbers for all dot plots in Figures 2-7 and supplementary figures. Source data 2 includes raw numbers for Figure 5—figure supplement 3. Tracker software is available at: https://github.com/navinpokala/BargmannWormTracker.

The following data sets were generated
    1. Sordillo A
    2. Bargmann CI
    (2021) Dryad Digital
    Behavioral control by depolarized and hyperpolarized states of an integrating neuron.
    https://doi.org/10.5061/dryad.ht76hdrf6

References

    1. White JG
    2. Southgate E
    3. Thomson JN
    4. Brenner S
    (1986) The structure of the nervous system of the nematode Caenorhabditis elegans
    Philosophical Transactions of the Royal Society of London. Series B, Biological Sciences 314:1–340.
    https://doi.org/10.1098/rstb.1986.0056

Decision letter

  1. Yuichi Iino
    Reviewing Editor; University of Tokyo, Japan
  2. Ronald L Calabrese
    Senior Editor; Emory University, United States
  3. Yuichi Iino
    Reviewer; University of Tokyo, Japan

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

In this work, authors focused on the role of RIM neurons, which are known to be important for locomotion control of C. elegans, but whose precise role was unclear and enigmatic. Now they show that RIM depolarization extends reversals via synaptic (glutamatergic) and secretory (tyraminergic) signaling, while RIM hyperpolarization promotes forward locomotion via electrical signaling through gap junctions. As a result, RIM was shown to act for stabilizing both forward and backward movement, which is important for understanding of C. elegans behavior in general. Upon revision, authors added new experimental results and edited the text to add explanation to clarify the ambiguity.

Decision letter after peer review:

Thank you for submitting your article "Behavioral control by depolarized and hyperpolarized states of an integrating neuron" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Yuichi Iino as Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Ronald Calabrese as the Senior Editor.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) As pointed out by reviewer #2 point 1, evaluation of the effect of manipulation of RIM activity, especially by HisCl, on connected neurons needs to be performed, probably by calcium imaging. A similar test was previously done by Gordus et al., 2015, Figure 4, in odor-stimulated animals. Authors need to do similar experiments but in the absensce of stimuli and in the local and global off-food state, to see how it effects spontaneous rather than evoked ON/OFF state transitions in AIB and AVA, for example.

2) As pointed out by reviewer #3 point 2, it is essential to clarify the difference between RIM ablation and RIM transient silencing. The HisCl silencing differs from ablation in two ways. One is acute v. chronic perturbation, and the other is hyperpolarization vs. absence of a cell. The authors focus on the latter, but interpretation of the data would change if they found that chronic hyperpolarization did not cause the same effect as acute hyperpolarization, such as compensatory changes in the neuronal functions.

3) As pointed by reviewer #1, authors' claim that activation by RIM depolarization is through synaptic transmission and inhibition by RIM hyperpolarization is through gap junctions needs to be strengthened. RIM::HisCl prolongs forward movement and reduces reversal rate both in the tdc-1 (Figure 5C) and gap junction knockdown background (Figure 7B), but the his- data in Figure 5C look different from Figure 2B. Authors also claim that reversal length is shortened in the tdc-1/eat-4 mutants (Figure 3), but not in the gap junction knockdown mutant (Figure 6E). However, the wild type data differ considerably between the two figures. More repeated measurements are needed to build confidence in the authors' interpretation of data given that the baselines wander.

Authors are encouraged to address other comments/questions by the reviewers, such as, why the local/global difference? Why would hyperpolarization propagate more readily than depolarization through the gap junctions?

Reviewer #1 (Recommendations for the authors):

My only concern is that it is still not clear whether the HisCl effect is mediated by gap junctions, because HisCl and unc-1(n494) have just additive effect causing mutual suppression. This is expected to happen also in cases where HisCl and unc-1 act in different pathways. The same ambiguity remains for the ReaChR experiments. Although RIM expresses many gap junction genes and the specificity of unc-1(n494) is not known, inx-1 is a good candidate, because previous study (Hori et al., 2018) suggested that inx-1 is not down regulated by unc-1(n494). inx-1 mutants exist and the defect in locomotion is mild. It is recommended that authors test inx-1 mutant, or inx-1; unc-1(n494), and test the effect of HisCl and ReaChR under these backgrounds. It is noted, however, that considering 11 innexins are expressed in RIM, there is no guarantee that this experiment will turn out informative.

In figure 2, data show that tdc-1 mutants have higher frequency of reversal, while this effect was not observed in Figure 5C (without His). Is there any speculation by the authors about the cause of this discrepancy?

Reviewer #2 (Recommendations for the authors):

1. Physiological effects are not measured in this study, which is a little surprising given the availability of tools. This might be particularly interesting in the experiments related to electrical coupling (HisCl and innexin dominant negative), as it would strengthen the claim that RIM electrical synapses act to suppress activity in reversal command neurons to prolong the forward state. That said, the conclusions stand on the interpretation of the behavioural results.

2. It is surprising that the electrical coupling between RIM and the reversal circuit appears to play only an inhibitory role. I would have expected the dnUNC-1 experiment to destabilize both forward and reverse states, but this does not appear to be the case, as reversal measurements (speed, length, duration) are unchanged. And then there is the puzzling and weak/differential effect (lines 265-267) of dnUNC-1 in local vs global search. Finally it seems odd that optogenetically induced but not spontaneous reversals are destabilized by disrupting RIM gap junction signaling. I wonder if the authors have thoughts on why this relationship seems to have this directional bias, and what might difference between spontaneous and evoked reversals might explain this.

3. Figure 2 and 3. Much of the analysis uses a distinction between "long" and "short" reversals. This distinction is based on a clearly bimodal distribution (Figure 2C) that supports the idea that these are 2 categorically different behaviors with overlapping length distributions. The use of a cutoff will miscategorize some "long" distributions at the short end of that distribution as "short" and vice versa, but that's fine. What's less clear is that using this cutoff makes sense in the case of some of the mutants/transgenics analyzed. In Figure 2E it appears that in tdc-1 and tdc-1; RIM-Glu-KO animals, long reversals are essentially abolished-the bimodal shape of the WT and RIM-Glu-KO distributions is gone, and the reversals that fall into the "long" category by virtue of being above the WT-based cutoff are the tail of the short reversal distribution (which is masked by the overlap in WT). This seems to make sense with the rev-omega reduction seen when tdc-1 is mutated. I can't tell, but is it plausible that the differences in reversal-omega is sufficiently explained by the fact that all tdc-1 reversals (no matter which side of the cutoff they are on) are behaviorally "short reversals"? I don't think this raises concerns about the major conclusions of the paper, but I am wondering if there is an analysis approach that considers the fit of the data to one or two distributions, and whether it might simplify the interpretation of some of the

analysis.

4. Figure 4. With the above in mind, seeing the full distribution of reversal lengths in Figure 4 would be instructive.

Reviewer #3 (Recommendations for the authors):

The manuscript sets the stage for two potentially exciting discoveries. The first is that RIMs use tyraminergic and glutamatergic co-transmission to control foraging. Because VGLUT is intertwined with monoamine signaling, this point demands another experiment to conclusively demonstrate that glutamate from RIMs is important for RIM control of foraging. The second is that RIMs have separable functions when depolarized and hyperpolarized. The model presented predicts that chronic hyperpolarization will have effects similar to acute hyperpolarization. In addition to testing the model, it will build confidence to see that two different methods to hyperpolarize RIMs cause similar effects on foraging behavior.

https://doi.org/10.7554/eLife.67723.sa1

Author response

Essential revisions:

1) As pointed out by reviewer #2 point 1, evaluation of the effect of manipulation of RIM activity, especially by HisCl, on connected neurons needs to be performed, probably by calcium imaging. A similar test was previously done by Gordus et al., 2015, Figure 4, in odor-stimulated animals. Authors need to do similar experiments but in the absensce of stimuli and in the local and global off-food state, to see how it effects spontaneous rather than evoked ON/OFF state transitions in AIB and AVA, for example.

We addressed this point with a new set of experiments added as Figure 5- supplement 3 and discussed on page 10 of the text. As requested, we imaged spontaneous calcium transients in AVA neurons in RIM::HisCl animals, which were immobilized in a configuration similar to the one in the Gordus paper referenced by the reviewer. We used immobilized animals because the results are quantitatively reproducible, and we and others have experience in conducting and interpreting them.

High AVA activity is a proxy for the reversal state. To generate a state analogous to local search, we switched the immobilized animals from bacteria-conditioned medium to buffer. Over a 30-minute period in buffer, the fraction of time animals spent in a high AVA activity state decreased, as predicted if features of local and global search are represented in these animals.

Hyperpolarizing RIM with RIM::HisCl led to the following changes (1) during the “local search” interval, the fraction of time animals spent in a high AVA activity state was reduced to the level appropriate for “global search” (2) during “local search”, the number of transitions from a low to a high AVA activity state was reduced. These results are consistent with the behavioral results indicating that RIM::HisCl reduces the duration and frequency of reversals during local search (Figure 5A-C). Notably, AVA activity in the “global search” period was less affected, in agreement with the behavioral effects of RIM::HisCl.

We did not examine AIB calcium responses, because AIB activity is often uncoupled from that of RIM and AVA, and is correlated with turning states as well as reversals (Gordus et al., 2015; Wang et al., 2020), so it would be difficult to interpret these results.

In summary, these imaging results support our behavioral results and suggest that silencing RIM suppresses reversals by reducing AVA activity. However, it is worth noting that immobilization alters neuronal dynamics in C. elegans (Hallinen et al., 2021). Imaging freely-moving animals would be a more definitive experiment, but those methods are still in development (in a number of labs), and establishing and validating them is beyond the scope of this paper. We include a statement of this limitation in the revised paper (p. 10).

2) As pointed out by reviewer #3 point 2, it is essential to clarify the difference between RIM ablation and RIM transient silencing. The HisCl silencing differs from ablation in two ways. One is acute v. chronic perturbation, and the other is hyperpolarization vs. absence of a cell. The authors focus on the latter, but interpretation of the data would change if they found that chronic hyperpolarization did not cause the same effect as acute hyperpolarization, such as compensatory changes in the neuronal functions.

As the reviewer notes, there can be differences between acute and chronic neuronal inactivation. Indeed, a recent paper identifies a C. elegans sensory circuit in which chronic silencing results in functional compensation, masking the effects of acute silencing (Yeon et al., 2021). To address this point, we conducted experiments in which we chronically silenced RIM for 48 hours using the RIM::HisCl system, and then tested the animals for behavior. We observed very similar effects of chronic and acute RIM silencing on local search behavior, including the unexpected decrease in reversal frequency as well as the expected decrease in reversal duration (now added as Figure 5F-5H). These results support the interpretation that RIM silencing is different from RIM ablation.

3) As pointed by reviewer #1, authors' claim that activation by RIM depolarization is through synaptic transmission and inhibition by RIM hyperpolarization is through gap junctions needs to be strengthened. RIM::HisCl prolongs forward movement and reduces reversal rate both in the tdc-1 (Figure 5C) and gap junction knockdown background (Figure 7B), but the his- data in Figure 5C look different from Figure 2B. Authors also claim that reversal length is shortened in the tdc-1/eat-4 mutants (Figure 3), but not in the gap junction knockdown mutant (Figure 6E). However, the wild type data differ considerably between the two figures. More repeated measurements are needed to build confidence in the authors' interpretation of data given that the baselines wander.

Technical issue: As noted by Reviewer #3, we conducted all experiments together with controls that were matched for genetic background and co-injected plasmids. Different wild-type control strains were used in Figures 2 and 3 (tdc-1p::nFLP, elt-2p::nGFP) versus Figure 5 and 7 (tdc-1p::HisCl::SL2::mCherry) and Figure 6 (unc-122p::GFP), as described in Supplementary File 1, Table S1, strain details. These differences, plus small day-to-day variation between experiments (also noted in López-Cruz et al., 2019 and Zhao et al., 2003), are the likely source of the differences in baseline that Reviewer #1 noted. We clarify that point on page 5 of the text.

We performed additional repetitions of the acute histamine silencing experiments, and obtained the same results (i.e. Figures 5C-E and 7B-C now include more replicates). Additionally, the new Figure 5 includes a chronic silencing experiment, which repeats the results of acute silencing and also includes recovery after removal from histamine (Figure 5—figure supplement 2).

Interpretation/discussion, Reversal length in Figure 3 vs Figure 6E: Comparing reversal measures, there is, in fact, a small decrease in reversal length in the gap junction knockdown (0.11), which narrowly missed our threshold for discussion (0.15) but was smaller than the decrease in synaptic mutants (0.20-0.46). The effect of the gap junction knockdown was repeated in separate experiments in Figure 6 —figure supplement 2, with a slightly larger effect (0.16), and was additive with the synaptic mutants. In addition, reversals induced by optogenetic activation of RIM are shorter in the gap junction knockdown (Figure 7G). We changed the language on page 11 to indicate that the gap junction knockdown affected reversal length, but to a lesser extent than synaptic mutants.

Authors are encouraged to address other comments/questions by the reviewers, such as, why the local/global difference? Why would hyperpolarization propagate more readily than depolarization through the gap junctions?

Reviewer #1 (Recommendations for the authors):

My only concern is that it is still not clear whether the HisCl effect is mediated by gap junctions, because HisCl and unc-1(n494) have just additive effect causing mutual suppression. This is expected to happen also in cases where HisCl and unc-1 act in different pathways. The same ambiguity remains for the ReaChR experiments. Although RIM expresses many gap junction genes and the specificity of unc-1(n494) is not known, inx-1 is a good candidate, because previous study (Hori et al., 2018) suggested that inx-1 is not down regulated by unc-1(n494). inx-1 mutants exist and the defect in locomotion is mild. It is recommended that authors test inx-1 mutant, or inx-1; unc-1(n494), and test the effect of HisCl and ReaChR under these backgrounds. It is noted, however, that considering 11 innexins are expressed in RIM, there is no guarantee that this experiment will turn out informative.

Additive effects: We know that the unc-1(dn) does not inactivate all gap junctions, and believe that is the reason for the partial effect of the knockdown in Figure 7, either alone (Figure 7F-G) or with RIM::HisCl (Figure 7B-C). We agree that inx-1 is a strong candidate to mediate the remaining effect. In a recent paper, Li et al., (2020) showed that inx-1; unc-9 double mutants are defective in reversal initiation upon acute RIM depolarization, but single mutants are not. These results match our single mutant knockdown in Figure 7F, and support the model that inx-1 (unc-1(dn)-resistant) and unc-9 (unc-1(dn)-sensitive) gap junctions both propagate depolarizing RIM signals to drive reversals. At the same time, the complementary value of our experiment is the ability to manipulate one neuron, RIM, as most gap junction subunits are expressed in many cells and could be affecting multiple parts of the circuit. We currently lack reagents for cell-specific knockout of inx-1. We now clarify these points on page 16 and cite the Li paper for the possible contribution of inx-1.

In figure 2, data show that tdc-1 mutants have higher frequency of reversal, while this effect was not observed in Figure 5C (without His). Is there any speculation by the authors about the cause of this discrepancy?

We acknowledge the concern with Figure 5C; in addition to our Figure 2, previous reports from Alkema at al., 2005 and Li et al., 2020 also show higher frequency of reversal in tdc-1 mutants. We do not know why this experiment is anomalous, and have moved it to Figure 5 —figure supplement 1.

Reviewer #2 (Recommendations for the authors):

1. Physiological effects are not measured in this study, which is a little surprising given the availability of tools. This might be particularly interesting in the experiments related to electrical coupling (HisCl and innexin dominant negative), as it would strengthen the claim that RIM electrical synapses act to suppress activity in reversal command neurons to prolong the forward state. That said, the conclusions stand on the interpretation of the behavioural results.

See Essential Revision #1. Although this reviewer said that behavioral results were sufficient, we recognize the issue and imaged spontaneous calcium transients in AVA command neurons in RIM::HisCl animals. We obtained results indicating that silencing RIM reduces AVA activity, now included in Figure 5 —figure supplement 3 and described on page 10.

2. It is surprising that the electrical coupling between RIM and the reversal circuit appears to play only an inhibitory role. I would have expected the dnUNC-1 experiment to destabilize both forward and reverse states, but this does not appear to be the case, as reversal measurements (speed, length, duration) are unchanged. And then there is the puzzling and weak/differential effect (lines 265-267) of dnUNC-1 in local vs global search. Finally it seems odd that optogenetically induced but not spontaneous reversals are destabilized by disrupting RIM gap junction signaling. I wonder if the authors have thoughts on why this relationship seems to have this directional bias, and what might difference between spontaneous and evoked reversals might explain this.

See Essential Revision #3. Why aren’t reversal states shorter in the gap junction knockdown? In fact, there was a small decrease in reversal length in the gap junction knockdown (0.11), which narrowly missed our threshold for discussion (0.15) but was smaller than the decrease in synaptic mutants (0.20-0.46). The result was reproducible in a different strain background, where the effect size was slightly greater (0.16; Figure 6 —figure supplement 2). That matches the observation that the reversals induced by optogenetic activation of RIM are shorter in the gap junction knockdown (Figure 7G). We changed the language on page 11 to say that the effect of the gap junction knockdown on reversal length was less than that of the synaptic mutants. We also note that RIM expresses genes for 11 innexins, and it is possible that other innexins propagate depolarizing currents to a greater extent than UNC-9. For example, inx-1 is resistant to the unc-1(n494) dominant negative transgene (Hori et al., 2018) and acts in parallel with unc-9 to propagate RIM depolarization (Li et al., 2020). We now make these points on page 16.

As the reviewer notes, we see evidence that RIM gap junctions propagate depolarizing currents in the optogenetic experiments in Figure 7F-G. First, reversals are invoked less efficiently during global search in unc-1(dn) gap junction knockdowns, and second, all evoked reversals are shorter. At this point we can only speculate on the difference between spontaneous and evoked reversals, and local versus global search reversals.

3. Figure 2 and 3. Much of the analysis uses a distinction between "long" and "short" reversals. This distinction is based on a clearly bimodal distribution (Figure 2C) that supports the idea that these are 2 categorically different behaviors with overlapping length distributions. The use of a cutoff will miscategorize some "long" distributions at the short end of that distribution as "short" and vice versa, but that's fine. What's less clear is that using this cutoff makes sense in the case of some of the mutants/transgenics analyzed. In Figure 2E it appears that in tdc-1 and tdc-1; RIM-Glu-KO animals, long reversals are essentially abolished-the bimodal shape of the WT and RIM-Glu-KO distributions is gone, and the reversals that fall into the "long" category by virtue of being above the WT-based cutoff are the tail of the short reversal distribution (which is masked by the overlap in WT). This seems to make sense with the rev-omega reduction seen when tdc-1 is mutated. I can't tell, but is it plausible that the differences in reversal-omega is sufficiently explained by the fact that all tdc-1 reversals (no matter which side of the cutoff they are on) are behaviorally "short reversals"? I don't think this raises concerns about the major conclusions of the paper, but I am wondering if there is an analysis approach that considers the fit of the data to one or two distributions, and whether it might simplify the interpretation of some of the analysis.

We agree that the reversals in tdc-1 may all be “short.” Recent work from Wang et al., (2020) has elegantly shown different kinetics and circuit mechanisms for short reversals (not coupled to turns) and long reversals (coupled to turns). While those reversals were evoked, rather than spontaneous, their general behavioral results match our results in Figures 2-3. They studied a different set of cells and mutants from those described here, so the results are complementary to ours. We cite those results on page 7.

4. Figure 4. With the above in mind, seeing the full distribution of reversal lengths in Figure 4 would be instructive.

Figure 4 (RIM::Tetanus toxin) is a good confirmation of the overall synaptic results, but we would like to focus on figures that drive our main conclusions. The primary data are all available on Dryad and Github for use by any interested scientist.

Reviewer #3 (Recommendations for the authors):

The manuscript sets the stage for two potentially exciting discoveries. The first is that RIMs use tyraminergic and glutamatergic co-transmission to control foraging. Because VGLUT is intertwined with monoamine signaling, this point demands another experiment to conclusively demonstrate that glutamate from RIMs is important for RIM control of foraging. The second is that RIMs have separable functions when depolarized and hyperpolarized. The model presented predicts that chronic hyperpolarization will have effects similar to acute hyperpolarization. In addition to testing the model, it will build confidence to see that two different methods to hyperpolarize RIMs cause similar effects on foraging behavior.

With respect to glutamatergic transmission, Li et al. (2020) have identified a glutamate receptor subunit, avr-14, that affects spontaneous reversals and shows a genetic interaction with RNAi knockdown of eat-4 in RIM. These results support the suggestion that RIM uses glutamate as a transmitter. We now cite that result on page 14.

With respect to acute and chronic silencing, see Essential Revisions point 2. We added new data to Figure 5F-H showing that similar behavioral results upon acute or chronic (48 hours) silencing of RIM. We also show rapid recovery from chronic silencing in Figure 5 —figure supplement 2.

References

Gordus, A., Pokala, N., Levy, S., Flavell, S. W., and Bargmann, C. I. (2015). Feedback from network states generates variability in a probabilistic olfactory circuit. Cell, 161(2), 215-227. doi:10.1016/j.cell.2015.02.018

Hallinen, K. M., Dempsey, R., Scholz, M., Yu, X., Linder, A., Randi, F., et al., (2021). Decoding locomotion from population neural activity in moving C. elegans. eLife, 10. doi:10.7554/eLife.66135

Hori, S., Oda, S., Suehiro, Y., Iino, Y., and Mitani, S. (2018). Off-responses of interneurons optimize avoidance behaviors depending on stimulus strength via electrical synapses. PLoS Genet, 14(6), e1007477. doi:10.1371/journal.pgen.1007477

Li, Z., Zhou, J., Wani, K., Yu, T., Ronan, E. A., Piggott, B. J., et al., (2020). A C. elegans neuron both promotes and suppresses motor behavior to fine tune motor output. BioRxiv, 11.02.354472. doi:10.1101/2020.11.02.354472

Lopez-Cruz, A., Sordillo, A., Pokala, N., Liu, Q., McGrath, P. T., and Bargmann, C. I. (2019). Parallel multimodal circuits control an innate foraging behavior. Neuron, 102(2), 407-419 e408. doi:10.1016/j.neuron.2019.01.053

Wang, Y., Zhang, X., Xin, Q., Hung, W., Florman, J., Huo, J., et al., (2020). Flexible motor sequence generation during stereotyped escape responses. eLife, 9. doi:10.7554/eLife.56942

Yeon, J., Takeishi, A., and Sengupta, P. (2021). Chronic vs acute manipulations reveal degeneracy in a thermosensory neuron network. MicroPubl Biol, 2021. doi:10.17912/micropub.biology.000355

Zhao, B., Khare, P., Feldman, L., and Dent, J. A. (2003). Reversal frequency in Caenorhabditis elegans represents an integrated response to the state of the animal and its environment. J Neurosci, 23(12), 5319-5328. PMC6741178

https://doi.org/10.7554/eLife.67723.sa2

Article and author information

Author details

  1. Aylesse Sordillo

    Lulu and Anthony Wang Laboratory of Neural Circuits and Behavior, The Rockefeller University, New York, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6678-8748
  2. Cornelia I Bargmann

    1. Lulu and Anthony Wang Laboratory of Neural Circuits and Behavior, The Rockefeller University, New York, United States
    2. Chan Zuckerberg Initiative, Redwood City, United States
    Contribution
    Conceptualization, Funding acquisition, Supervision, Writing - review and editing
    For correspondence
    cori@rockefeller.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8484-0618

Funding

Howard Hughes Medical Institute (CIB was an HHMI Investigator)

  • Cornelia I Bargmann
  • Aylesse Sordillo

Chan Zuckerberg Initiative (Lab support to CIB)

  • Aylesse Sordillo

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Philip Kidd, Andrew Gordus, Qiang Liu, Elias Scheer, Javier Marquina-Solis, Audrey Harnagel, James Lee, Friederike Buck, Leslie Vosshall, Vanessa Ruta, Yishi Jin, and Jeremy Dittman for thoughtful discussions and comments on the manuscript. We thank Audrey Harnagel for her help in designing and executing the AVA imaging experiment. We thank Alejandro López-Cruz for his collaboration in creating the cell-specific eat-4 knockout strain. This work was supported by the Howard Hughes Medical Institute, of which CIB was an investigator, and by the Chan Zuckerberg Initiative.

Senior Editor

  1. Ronald L Calabrese, Emory University, United States

Reviewing Editor

  1. Yuichi Iino, University of Tokyo, Japan

Reviewer

  1. Yuichi Iino, University of Tokyo, Japan

Publication history

  1. Preprint posted: February 19, 2021 (view preprint)
  2. Received: February 20, 2021
  3. Accepted: October 19, 2021
  4. Version of Record published: November 5, 2021 (version 1)

Copyright

© 2021, Sordillo and Bargmann

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,229
    Page views
  • 127
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Stephanie Maynard et al.
    Research Article

    Precise quantitative information about the molecular architecture of synapses is essential to understanding the functional specificity and downstream signaling processes at specific populations of synapses. Glycine receptors (GlyRs) are the primary fast inhibitory neurotransmitter receptors in the spinal cord and brainstem. These inhibitory glycinergic networks crucially regulate motor and sensory processes. Thus far the nanoscale organization of GlyRs underlying the different network specificities has not been defined. Here, we have quantitatively characterized the molecular arrangement and ultra-structure of glycinergic synapses in spinal cord tissue using quantitative super-resolution correlative light and electron microscopy (SR-CLEM). We show that endogenous GlyRs exhibit equal receptor-scaffold occupancy and constant packing densities of about 2000 GlyRs µm-2 at synapses across the spinal cord and throughout adulthood, even though ventral horn synapses have twice the total copy numbers, larger postsynaptic domains and more convoluted morphologies than dorsal horn synapses. We demonstrate that this stereotypic molecular arrangement is maintained at glycinergic synapses in the oscillator mouse model of the neuromotor disease hyperekplexia despite a decrease in synapse size, indicating that the molecular organization of GlyRs is preserved in this hypomorph. We thus conclude that the morphology and size of inhibitory postsynaptic specializations rather than differences in GlyR packing determine the postsynaptic strength of glycinergic neurotransmission in motor and sensory spinal cord networks.

    1. Neuroscience
    Haleigh N Mulholland et al.
    Research Article

    Intracortical inhibition plays a critical role in shaping activity patterns in the mature cortex. However, little is known about the structure of inhibition in early development prior to the onset of sensory experience, a time when spontaneous activity exhibits long-range correlations predictive of mature functional networks. Here, using calcium imaging of GABAergic neurons in the ferret visual cortex, we show that spontaneous activity in inhibitory neurons is already highly organized into distributed modular networks before visual experience. Inhibitory neurons exhibit spatially modular activity with long-range correlations and precise local organization that is in quantitative agreement with excitatory networks. Furthermore, excitatory and inhibitory networks are strongly co-aligned at both millimeter and cellular scales. These results demonstrate a remarkable degree of organization in inhibitory networks early in the developing cortex, providing support for computational models of self-organizing networks and suggesting a mechanism for the emergence of distributed functional networks during development.
