De novo macrocyclic peptides dissect energy coupling of a heterodimeric ABC transporter by multimode allosteric inhibition

  1. Erich Stefan
  2. Richard Obexer
  3. Susanne Hofmann
  4. Khanh Vu Huu
  5. Yichao Huang
  6. Nina Morgner
  7. Hiroaki Suga  Is a corresponding author
  8. Robert Tampé  Is a corresponding author
  1. Institute of Biochemistry, Biocenter, Goethe University Frankfurt, Germany
  2. Department of Chemistry, Graduate School of Science, The University of Tokyo, Japan
  3. Institute of Physical and Theoretical Chemistry, Goethe University Frankfurt, Germany
Research Article
  • Cited 0
  • Views 980
  • Annotations
Cite this article as: eLife 2021;10:e67732 doi: 10.7554/eLife.67732

Abstract

ATP-binding cassette (ABC) transporters constitute the largest family of primary active transporters involved in a multitude of physiological processes and human diseases. Despite considerable efforts, it remains unclear how ABC transporters harness the chemical energy of ATP to drive substrate transport across cell membranes. Here, by random nonstandard peptide integrated discovery (RaPID), we leveraged combinatorial macrocyclic peptides that target a heterodimeric ABC transport complex and explore fundamental principles of the substrate translocation cycle. High-affinity peptidic macrocycles bind conformationally selective and display potent multimode inhibitory effects. The macrocycles block the transporter either before or after unidirectional substrate export along a single conformational switch induced by ATP binding. Our study reveals mechanistic principles of ATP binding, conformational switching, and energy transduction for substrate transport of ABC export systems. We highlight the potential of de novo macrocycles as effective inhibitors for membrane proteins implicated in multidrug resistance, providing avenues for the next generation of pharmaceuticals.

Introduction

ATP-binding cassette (ABC) transporters utilize the energy of ATP binding and hydrolysis to move a vast variety of chemically distinct compounds across cell membranes (Rees et al., 2009; Thomas and Tampé, 2020; Locher, 2016; Szakács et al., 2014). They are implicated in many physiological processes and diseases including cystic fibrosis (Stutts et al., 1995; Csanády et al., 2019), diabetes (Aguilar-Bryan and Bryan, 1999), lipid-trafficking disorders (Brooks-Wilson et al., 1999), antibiotic resistance (Orelle et al., 2019), and acquired drug resistance in cancer chemotherapy (Kartner et al., 1983; Litman et al., 2000). ABC transporters are composed of two transmembrane domains (TMDs), forming the substrate translocation pathway, and two nucleotide-binding domains (NBDs), converting the chemical energy of ATP binding and hydrolysis into mechanic transitions (Rees et al., 2009; Locher, 2016; Thomas and Tampé, 2018; Oldham et al., 2008). The heterodimeric multidrug resistance transporter TmrAB from Thermus thermophilus shares structural and functional homology with the transporter associated with antigen processing (TAP) and can restore antigen presentation in human TAP-deficient cells (Kim et al., 2015; Nöll et al., 2017; Zutz et al., 2011). TmrAB is particularly suitable for mechanistic and structural studies, as the various conformers along the translocation trajectory are only accessible at elevated temperatures, thus providing active control over the system (Nöll et al., 2017; Zutz et al., 2011; Hofmann et al., 2019; Stefan et al., 2020; Barth et al., 2018; Barth et al., 2020; Diederichs and Tampé, 2021).

To correlate ATP binding and hydrolysis to substrate transport, several catalytic models for ABC systems have been depicted including alternating sites (Senior et al., 1995), constant contact (Jones and George, 2009), and processive clamp/ATP switch (Higgins and Linton, 2004; Janas et al., 2003; Abele and Tampé, 2004). In all models, substrate translocation is coupled with conformational transitions, which are linked to the ATP hydrolysis cycle (Thomas and Tampé, 2020; Szöllősi et al., 2018). The conformational landscape of a heterodimeric ABC transporter has recently been elucidated through nine high-resolution X-ray and cryo-EM structures (Nöll et al., 2017; Hofmann et al., 2019). To functionally integrate these conformers into the substrate translocation trajectory, we performed single-turnover transport studies using a variant with a slowdown in ATP hydrolysis. Using single liposome-based translocation assays, the unidirectional substrate export along a single conformational switch induced by ATP binding was demonstrated (Stefan et al., 2020).

Many bioactive toxins, antibiotics, and inhibitors are macrocyclic peptides (CPs) with unnatural amino acid modifications (Nicolaou et al., 1999; Obexer et al., 2017). CPs are regarded as next-generation pharmaceutical compounds to target ‘undruggable’ proteins implicated in disease and diagnosis (Morrison, 2018; Vinogradov et al., 2019; Zorzi et al., 2017). To this end, various engineered and modified CPs are clinically approved or under clinical trials, for example, Peginesatide, Linaclotide, and Pasireotide. Compared to conventional small-molecule drugs, CPs usually display an elevated selectivity as well as an increased potency, and they are easy to manufacture (Craik et al., 2013; Driggers et al., 2008). The random nonstandard peptide integrated discovery (RaPID) system comprises the identification of synthetic/de novo CPs against desired target protein complexes to enable structural and functional investigations (Murakami et al., 2006a; Murakami et al., 2006b). As a major advantage, unnatural amino acids such as N-chloroacetyl-d-tyrosine (Goto et al., 2008), N-methyl alanine (Yamagishi et al., 2011), and carboranyl alanine (Yin et al., 2019) can be incorporated by the Flexible In-vitro Translation (FIT) system, relying on aminoacylating ribozymes called Flexizymes (Goto et al., 2011) to construct highly diverse peptide libraries. Using the RaPID system, CPs were identified for receptor tyrosine kinases (Yin et al., 2019), ubiquitin ligase (Yamagishi et al., 2011), the Zika virus protease (Nitsche et al., 2019), prolyl hydroxylase (McAllister et al., 2018), and phosphoglycerate mutases (Yu et al., 2017).

To dissect the catalytic cycle and energy coupling of substrate translocation of a wild-type ABC transporter, we selected and identified high-affinity macrocyclic peptides against TmrAB applying the mRNA display-based RaPID system. Enriched CPs specifically bind to TmrAB and are high-affinity allosteric inhibitors, which prevent substrate transport and ATP turnover. Two mechanistically distinct CP inhibitor classes were elucidated that arrest the ABC transporter either before or right after ATP-binding induced substrate translocation. Thus, these CPs arrest TmrAB in the inward-facing (IF) and outward-facing conformation, respectively. Our work illustrates the important aspects of ATP binding and conformational switching for productive substrate translocation by a heterodimeric ABC transporter, and it also highlights the potential of CPs targeting transient conformers of membrane protein complexes to develop next-generation drug products.

Results

Identification of macrocyclic peptides

We elicited macrocyclic peptide binders against a heterodimeric ABC transport complex employing the RaPID approach. mRNA-encoded peptide libraries with 10–15 randomized amino acid positions were constructed by transcription of degenerate DNA templates, ligation of a puromycin linker, followed by FIT that relies on a reconstituted Escherichia coli translation system. The final library size was on the order of 1012 macrocyclic peptides. Head-to-side chain cyclization was mediated through ribosomal incorporation of N-chloroacetyl-d-tyrosine at the initiator position, which post-translationally undergoes intramolecular thioether formation with a downstream cysteine (Figure 1A). Catalytically reduced TmrAE523QB (TmrAEQB) complexes reconstituted in lipid nanodiscs with biotinylated membrane scaffold proteins (MSP) were purified by gel filtration and used as bait on streptavidin magnetic beads for affinity selection (Figure 1—figure supplement 1). Empty nanodiscs were utilized for library clearing, purging non-target specific binders from the peptide library. After five iterative rounds of selection, including in vitro translation, affinity panning, reverse transcription, and PCR recovery, high-affinity binders were identified by deep sequencing. Along the affinity selection, several unrelated peptide families were enriched which differed in amino acid composition and length (Figure 1B, C). The most abundant macrocyclic peptides after the fifth selection round, CP6, CP12, CP13, and CP14, constituted 41% of the final sequenced pool and could not be grouped into families (Figure 1C). For further analyses, CPs were produced by solid-phase peptide synthesis and extended by a linear C-terminal tail harboring a lysine residue for site-directed labeling by fluorescein (F) or biotin (B), yielding CPFs and CPBs, respectively (Figure 1B). All CPs were cyclized in solution through thioether formation. In the case of CP6, the second cysteine at position 14 was utilized for cyclization, rather than cysteine at position 4, which emerged in the randomized region. CPs were purified by reversed-phase (RP) HPLC, and their correct masses were confirmed by mass spectrometry (Figure 1—figure supplement 1).

Figure 1 with 1 supplement see all

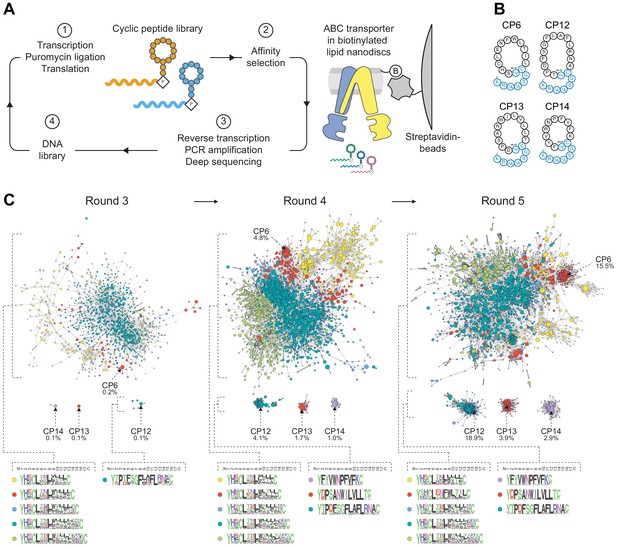

Selection of macrocyclic peptides (CPs) by random nonstandard peptide integrated discovery (RaPID).

(A) RaPID selection of CPs. Starting from a DNA library, macrocyclic peptides were generated through transcription and ribosomal translation using the Flexible In-vitro Translation (FIT) system. Cognate mRNA was covalently attached to the nascent peptide through incorporation of mRNA-linked puromycin. ABC transporter TmrAEQB reconstituted in lipid nanodiscs (Nds) was immobilized on streptavidin matrices and used as bait during affinity selections. After several iterative rounds of selection, high-affinity binders were isolated and identified by deep sequencing. (B) CPs targeting TmrAB. Enriched CPs were produced by solid-phase synthesis and conjugated with a short linear extension (colored in blue). Head-to-side chain thioether cyclization was mediated between the N-terminal N-chloroacetyl-D-tyrosine and a cysteine residue. The C-terminal lysine was used for site-directed labeling of fluorescein (F) or biotin (B). (C) Enrichment of CPs targeting TmrAB. The 5000 most abundant macrocyclic peptides per selection round based on deep sequencing were utilized to generate sequence similarity networks (Gerlt et al., 2015). Nodes represent unique peptide sequences, node sizes depict peptide frequency, and node colors exhibit peptide length. Sequence alignments of peptide clusters were generated using WebLogo (Crooks et al., 2004).

Macrocyclic peptides bind with high affinity and selectivity

In order to analyze the binding affinity and specificity of CPs to TmrAB, we established a fluorescence polarization assay. Fluorescein-labeled CPFs were incubated with increasing concentrations of TmrAB reconstituted in liposomes at a protein-to-lipid ratio of 1:20 (w/w). The equilibrium binding revealed nanomolar binding affinities for all CPFs, with KD values ranging from 20 to 50 nM (Figure 2A, B). If empty liposomes (without reconstituted TmrAB) were added to CPFs, no binding was detected, demonstrating a specific interaction of all CPs with TmrAB (Figure 2A, B). Notably, TmrAB complexes could be affinity-captured on streptavidin beads pre-loaded with biotinylated CPBs and detected in the eluate but not in the flow-through (Figure 2C, Figure 2—figure supplement 1). If streptavidin beads were not pre-loaded with CPBs, TmrAB did not bind and was exclusively found in the flow-through. To explore the specificity of binding, we used CP13B and CP14B immobilized on streptavidin matrices to isolate intact TmrAB complexes from solubilized E. coli membranes. These results demonstrate the high specificity of the interaction and illustrate that the CPs can be used for efficient affinity purification of the membrane protein complex (Figure 2D, Figure 2—figure supplement 1). For all CPFs, kinetically stable CPF-TmrAB complexes were formed as confirmed by gel filtration (Figure 2—figure supplement 1). To address whether the CPs recognize a linear or non-linear epitope, we examined the binding of CPFs after disrupting the quaternary and tertiary structure of TmrAB complexes by adding anionic detergent SDS. Under these conditions, binding of TmrAB to all CPFs was impaired, indicating a conformation-specific interaction (Figure 2—figure supplement 1). We also analyzed the CPF-TmrAB complexes by native mass spectrometry (MS), demonstrating a stoichiometric interaction (Figure 2E, Figure 2—figure supplement 2).

Figure 2 with 2 supplements see all
CPFs specifically interact with TmrAB displaying nanomolar binding affinities.

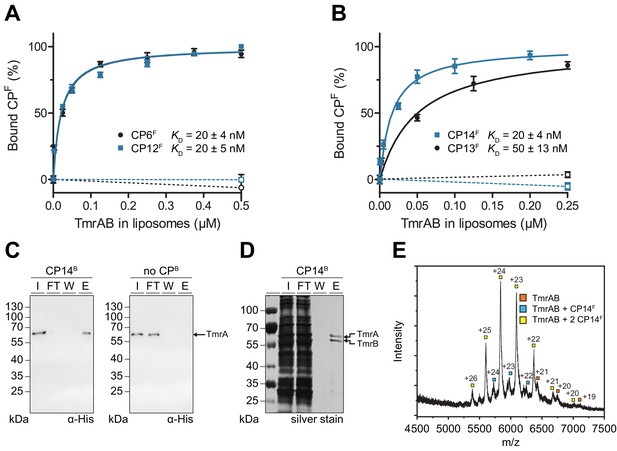

(A, B) Equilibrium binding analysis. Fluorescence anisotropy of CPFs (50 nM) was determined at λex/em = 485/520 nm with increasing concentrations of TmrAB which was reconstituted in liposomes. TmrAB concentrations were calculated based on the random (50/50%) orientation in proteoliposomes (Stefan et al., 2020). As a control, equal amounts of empty liposomes were added to CPFs (dashed lines, open symbols). The difference in fluorescence polarization was normalized to free (0%) and 100% bound CPF. Mean values ± SD (n = 3) are shown, and data were analyzed by a one-site binding model. (C) TmrAB binds specifically to CP14B-loaded matrices. Streptavidin beads loaded with CP14B (1 µM) were mixed with purified TmrAB (60 nM) for 1 hr at 4°C. Beads were washed and bound TmrAB was eluted by adding SDS loading buffer for 10 min at 95°C. Amounts of TmrA in input (I), flow-through (FT), wash fraction (W), and eluate (E) were analyzed by SDS-PAGE and immunoblotting (α-His). Beads without CPB served as negative control (right panel). (D) One-step purification of TmrAB via immobilized CP14B matrices. Streptavidin-agarose beads were loaded with CP14B (1 µM) and mixed with DDM-solubilized membranes of E. coli containing TmrAB as described in (C). Bound TmrAB was eluted in SDS loading buffer and analyzed by SDS-PAGE (silver stain). (E) Native mass spectrometry. TmrAB (4 µM) was buffer exchanged to ESI buffer and incubated with a 2-fold molar excess of CP14F for 10 min on ice. Protein complexes were investigated by ESI-TOF-mass spectrometry. Derived masses, TmrAB: 134.9 kDa, TmrAB +CP14F: 137.4 kDa, TmrAB +2 CP14F:140.0 kDa.

Macrocyclic peptides are potent inhibitors of ATP hydrolysis and substrate transport

In order to investigate the functional impact of CPs, we examined the effect of the CPs on ATP hydrolysis and substrate transport of TmrAB (Figure 3A). We reconstituted TmrAB in liposomes and first assayed the ATPase activity. In the presence of the CPFs, ATPase activity was completely blocked to the level of autohydrolysis (Figure 3B). We next set out to investigate peptide transport by TmrAB using a filter-based transport assay. To investigate whether CPs are recognized as substrates by TmrAB, we added fluorescein-labeled CPFs and examined ATP-dependent translocation. In contrast to the linear substrate peptide C4F, none of the CPFs were transported by TmrAB (Figure 3C). Next, we examined ATP-dependent transport of C4F peptides in the presence and absence of the different CPs. The data reveal that CP6F and CP12F completely blocked peptide translocation, while CP13F or CP14F only caused a partial inhibition (Figure 3D).

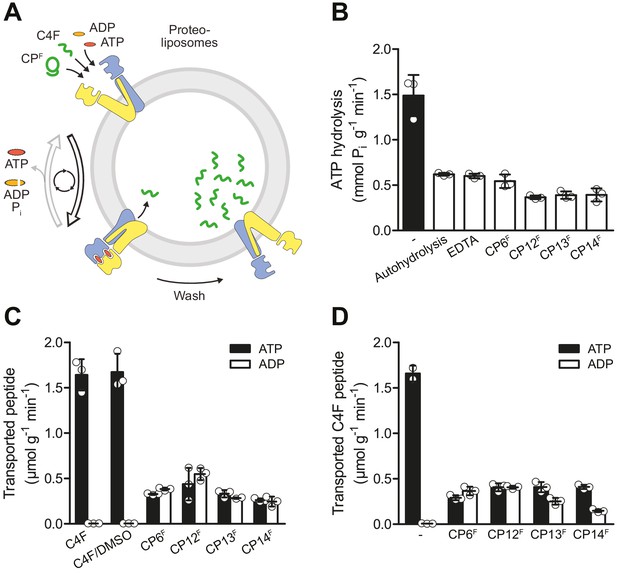

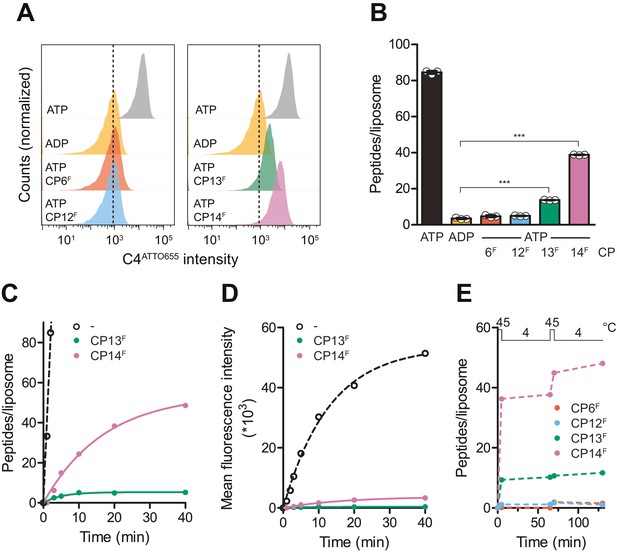

CPFs are potent inhibitors of ATP turnover and substrate transport.

(A) Experimental scheme of ATP hydrolysis and peptide transport by TmrAB. (B) CPFs inhibit ATP hydrolysis. TmrAB in liposomes (100 nM) was incubated with ATP (2 mM, traced with [γ32P]-ATP), and MgCl2 (5 mM) in the presence and absence of CPFs (1 µM) for 10 min at 45°C. Autohydrolysis was determined in the absence of TmrAB, and background turnover was conducted in the presence of EDTA (10 mM). Release of [γ32P] was quantified by thin layer chromatography. (C) CPFs are not transported by TmrAB. TmrAB (0.4 µM) reconstituted in liposomes was incubated with C4F peptide (3 µM) or CPFs (1 µM) in the presence of ATP/ADP (3 mM) and MgCl2 (5 mM) for 5 min at 45°C. Since CPFs were dissolved in maximal 0.5% (v/v) of DMSO, C4F plus 0.5% DMSO served as control. Proteoliposomes were washed on filter plates, and transported peptides were quantified at λex/em = 485/520 nm. (D) Inhibition of substrate translocation. TmrAB in liposomes (0.4 µM) were incubated with C4F peptide (3 µM), ATP/ADP (3 mM), and MgCl2 (5 mM) in the presence and absence of CPFs (1 µM) for 15 min at 45°C. Transported peptides were quantified as described in (C). In (B–C), mean values ± SD (n = 3) are shown.

To elucidate the mechanistic basis for the inhibition of ATP hydrolysis and substrate transport, we investigated the effects of CPs on substrate binding. In the first approach, fluorescent CPFs were used as reporters in fluorescence polarization. At competitive concentrations above their KD values (Stefan et al., 2020), the transported peptides R9LQK or C4ATTO655 did not affect binding of CPFs to TmrAB (Figure 4A). In the second inverse approach using CPBs as competitors, we did not observe a competition of C4F peptide binding, in contrast to the linear peptide C4ATTO655, which interfered with C4F peptide binding (Figure 4B). In addition, we examined the impact of CPBs on ATP binding to TmrAB by scintillation proximity assays (SPA) (Figure 4C). CP12B and CP14B showed no effect on ATP binding. For CP6B and CP13B, only minor effects on ATP binding were detected (Figure 4C). Taken together, CPs are high-affinity allosteric inhibitors of TmrAB that leave ATP binding and substrate interaction largely unaffected, while impairing ATP hydrolysis and substrate translocation across the membrane.

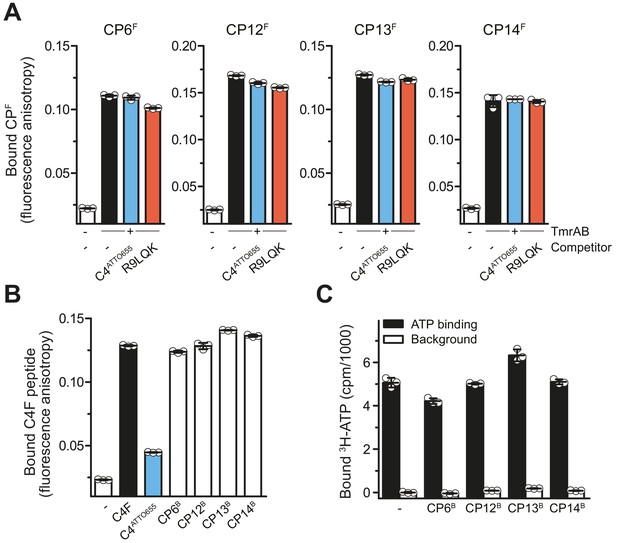

CPs do not affect peptide or ATP binding of TmrAB.

(A) CPFs binding TmrAB is not affected by substrate peptide binding. After the addition of TmrAB (0.6 µM for CP6F and CP13F, 0.7 µM for CP12F, 0.5 µM for CP14F), fluorescence anisotropy of CPFs (50 nM) were monitored at λex/em = 485/520 nm. For competition, C4ATTO655 peptide (2 µM) or R9LQK peptide (200 µM) were added. (B) Binding of C4F peptide is not affected by CPBs. C4F peptides (50 nM) were mixed with TmrAB (4 µM), and fluorescence anisotropy was monitored as described in (A). For competition, C4ATTO655 (10 µM) or CPBs (6 µM) were added. (C) CPBs do not largely affect ATP binding. TmrAB (0.2 µM) were immobilized on SPA beads and incubated with ATP (3 μM, traced with 3H-ATP) in the presence and absence of CPBs (1 µM each) for 30 min on ice. ATP binding was monitored by SPA. Background values were determined after releasing TmrAB complexes from the beads by adding imidazole (200 mM). The background signal in the absence of CPBs was set to 0 cpm. In the case of CP13, the value of bound ATP exceeds the control without CPs. As this is an equilibrium experiment, this can be rationalized by the fact that CP13 stabilizes the ATP-bound OF conformer.

Macrocyclic peptides are conformation-specific inhibitors

ABC transport complexes such as TmrAB run through multiple conformational states along the ATP hydrolysis cycle to drive unidirectional substrate transport (Hofmann et al., 2019; Stefan et al., 2020). Within the substrate translocation cycle, two major conformers, inward-facing (IF) and outward-facing (OF), were identified. To investigate whether CPs favor one of these conformers, we probed the binding of CPFs by fluorescence polarization analysis. For these studies, we utilized the catalytically reduced TmrAEQB variant, which can be populated either in the IF (in the absence of ATP) or OF (ATP-trapped) conformation as demonstrated previously (Stefan et al., 2020). In the latter case, the interaction studies were performed immediately after the IF-to-OF switch by incubation with ATP for 5 min at 45°C. To exclude an OF-to-IF return (τ1/2 of 25 min) (Stefan et al., 2020), the fluorescence anisotropy was recorded only within the first minute of incubation. Binding of CP6F and CP12F showed lower dissociation constants for the OF conformation in contrast to CP13F and CP14F, which show a preference for the OF conformer (Figure 5A, B, Figure 5—figure supplement 1A). These findings were further corroborated by demonstrating that CP13F and CP14F bind in the absence and presence of ATP and ADP, while CP6F and CP12F preferentially bind under conditions where IF TmrAB is exclusively populated (Figure 5—figure supplement 1B).

Figure 5 with 1 supplement see all
CPs bind preferentially to IF- und OF conformation and stabilize nucleotide occlusion.

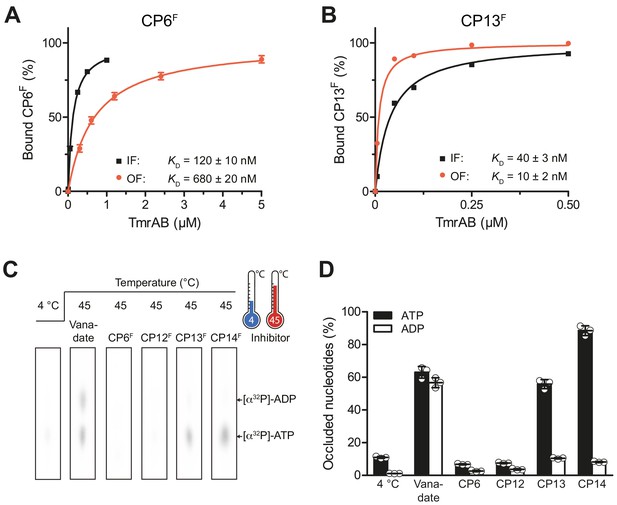

Conformation-specific preference of CPs. (A, B) CP6F (A) or CP13F (B, 50 nM each) were incubated with increasing concentrations of detergent-solubilized inward-facing TmrAB (in the absence of Mg-ATP) or outward-facing TmrAEQB, which was trapped with Mg-ATP (1 mM) for 5 min at 45°C as described (Hofmann et al., 2019; Stefan et al., 2020). Immediately after, the fluorescence anisotropy was assayed at λex/em = 485/520 nm. The difference in fluorescence polarization was normalized to free and fully bound CPF. Data were fitted by a one-site binding model. (C) Nucleotide occlusion promoted by CPs. TmrAB (2 µM each) were mixed with CPFs (4 µM), ATP (1 mM, traced with [α32P]-ATP), and MgCl2 (5 mM) for 5 min at 4°C or 45°C. Cold ATP (10 mM) was added, and freely exchangeable nucleotides were removed by rapid gel filtration. Occluded nucleotides were analyzed by thin layer chromatography and autoradiography. Representative radiograms for independent triplicates are shown. (D) Stably occluded nucleotides, [α32P]-ATP and [α32P]-ADP, were quantified by autoradiography. Data were normalized to the vanadate-trapped state. In (A, B, D), mean values ± SD (n = 3) are shown.

We also examined the impact of CPFs on the IF-to-OF transition of wild-type TmrAB induced by ATP binding through nucleotide occlusion (stable trapping) as the readout. We induced the IF-to-OF switch with radiotraced [α32P]-ATP for 5 min at 45°C in the presence and absence of CPs and removed unbound nucleotides by rapid gel filtration. Subsequently, the occluded nucleotides were identified and quantified by thin layer chromatography and autoradiography (Figure 5C, D). As a reference, wild-type TmrAB was trapped by orthovanadate in a post-hydrolysis transition state, characterized by the stoichiometric (1:1) occlusion of ATP and ADP, which is in agreement with the 2.8 Å cryo-EM structure (Hofmann et al., 2019). It is important to note that nucleotide occlusion strictly requires elevated temperatures to allow a IF-to-OF conformation switch, and does not occur at 4°C (Figure 5C, D). In the presence of CP6F and CP12F, nucleotide occlusion was completely abolished. Notably, CP13F and CP14F promoted stable ATP occlusion in wild-type TmrAB – blocking hydrolysis to ADP, which is indicative of stabilization of a pre-hydrolysis state (Figure 5C, D). Similar results were obtained for the catalytically reduced variant TmrAEQB (Figure 5—figure supplement 1C). In this case, CP6F and CP12F inhibited ATP occlusion and blocked the IF-to-OF transition induced by ATP binding. Conversely, as TmrAEQB is trapped in a pre-hydrolysis state, ATP is occluded in the presence or absence of CP13F or CP14F. In conclusion, CP6F and CP12F display preferential binding to the IF conformation and inhibit the IF-to-OF switch by ATP binding. In contrast, CP13F and CP14F favorably bind to the OF conformation, promoting ATP occlusion, thus stabilizing TmrAB in a pre-hydrolysis state.

Stabilization of a pre-hydrolysis state after substrate translocation

To investigate whether an IF-to-OF transition and conformational arrest by CP13F or CP14F can still result in a productive substrate translocation, we followed peptide transport by wild-type TmrAB by single liposome-based flow cytometry (Figure 6A). To this end, wild-type TmrAB was reconstituted in liposomes with a diameter of ~160 nm at a protein-to-lipid ratio of 1:20 (w/w), yielding a random (50/50) orientation, and a reconstitution efficiency of 95% as reported (Stefan et al., 2020). This procedure resulted in ~30 transport-competent (NBDs outside) TmrAB complexes per liposome. In flow cytometry, single liposomes were gated based on side and forward scatter intensities and then used for the evaluation of mean fluorescence intensities of transported peptide substrates (Figure 6—figure supplement 1). By calibration and linear regression (R2 = 0.99), the mean fluorescence values of C4ATTO655 were converted into the number of transported peptides per liposome (Figure 6—figure supplement 1). In the presence and absence of CPFs, TmrAB-containing liposomes were incubated with C4ATTO655 peptide and ATP for 5 min at 45°C. Along a single IF-to-OF switch and arrest by CP13F or CP14F, approx. 10 or 30 C4ATTO655 peptides per liposome were transported, respectively (Figure 6B). From that, a coupling ratio of 0.3 to 1.0 peptides per transporter along the ATP-induced IF-to-OF switch can be derived. These results are in agreement with the observation that CP13F or CP14F promote ATP occlusion and inhibit ATP hydrolysis of wild-type TmrAB by stabilizing a pre-hydrolysis state. In contrast, CP6F and CP12F completely prevented C4ATTO655 peptide translocation. These findings are consistent with the results that CP6F and CP12F block C4F multiple-turnover transport (Figure 3D) and impair the IF-to-OF transition, as demonstrated by their preferential binding to the IF conformation and inhibition of nucleotide occlusion (Figure 5A, B). Taking into account that the CPs are membrane impermeable, these results indicate that the binding epitope of all CPs is on the TmrAB regions facing the cytosol.

Figure 6 with 1 supplement see all
CPs block multiple-turnover transport monitored by quantitative flow cytometry.

(A) Single turnover by IF-to-OF switch monitored by single-liposome flow cytometry. TmrAB in liposomes (0.4 µM) were incubated with C4ATTO655 peptide (1 µM), ATP/ADP (3 mM), MgCl2 (5 mM), and CPFs (1 µM) for 5 min at 45°C. Transport reactions were stopped by the addition of EDTA (10 mM). 100,000 proteoliposomes were analyzed by flow cytometry monitoring fluorescein and ATTO655 intensities. (B) Mean fluorescence intensities of C4ATTO655 were converted into the number of peptides per liposome using the regression analysis described above (two-tailed T-test, ***p<0.0001). (C, D) Slowdown of multiple-turnover substrate transport. TmrAB reconstituted in liposomes (0.4 µM) was incubated with C4ATTO655 peptide (1 µM), ATP/ADP (3 mM), MgCl2 (5 mM), and CPFs (1 µM) for various periods of time at 45°C. Transported peptides per liposomes were evaluated and corrected by ADP background levels as described in (B). Transport kinetics were fitted monoexponentially. In (C), mean fluorescence intensities of transported C4ATTO655 were converted into the number of peptides per liposome as described above. (E) Two consecutive transport cycles. TmrAB reconstituted in liposomes was incubated with C4ATTO655 peptide, ATP/ADP, MgCl2, and CPFs as described in (A) for 5 min at 45°C, 60 min at 4°C, 5 min at 45°C, and 60 min at 4°C. Transported peptides per liposome were evaluated as described in (B) and corrected by background levels in the presence of ADP. In (B–E), mean values ± SD (n = 3) are displayed.

To investigate whether CP13F and CP14F prevent multiple rounds of conformational switching after long-term incubation, C4ATTO655 translocation by wild-type TmrAB in the presence of CPFs was examined over a period of 40 min. Compared to the positive control in the absence of CPFs, CP13F and CP14F drastically reduced the peptide transport rate (Figure 6C, D). For CP13F, a single turnover driving peptide transport was observed before wild-type TmrAB became conformationally arrested (Figure 6C). In the presence of CP14F, we noted a slow turnover of wild-type TmrAB driving peptide transport over a period of 40 min (Figure 6C, D). To confirm the conformational arrest of wild-type TmrAB by CP13F and the slow turnover in the presence of CP14F, we examined two successive cycles of conformational transitions by flow cytometry. Liposomes containing wild-type TmrAB were incubated with C4ATTO655 peptide, ATP/ADP, and CPFs for 5 min at 45°C to induce the IF-to-OF switch and for 60 min at 4°C to allow the OF-to-IF return transition. Both steps were repeated to yield two consecutive cycles of conformational transitions. In the presence of CP13F, peptide transport was exclusively observed along the first IF-to-OF switch, indicating a conformational arrest of wild-type TmrAB over a period of 2 hr (Figure 6E). For CP14F, peptide transport was detected in both IF-to-OF switches, which confirmed the slow relaxation of wild-type TmrAB from a pre-hydrolysis to an IF state between both cycles (Figure 6E). In the presence of CP6F or CP12F, peptide translocation was completely abrogated as the underlying IF-to-OF switch was precluded (Figure 6E, Figure 6—figure supplement 1). Taken together, the macrocyclic peptides CP13 and CP14 stabilize a pre-hydrolysis state, thus allowing a single-turnover translocation along the IF-to-OF switch.

Discussion

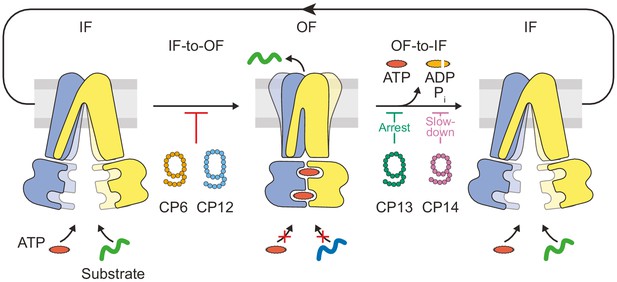

In this study, we identified macrocyclic peptides as multimode inhibitors, which block the heterodimeric ABC transport complex TmrAB at different stages in the substrate translocation cycle with nanomolar affinities. We reveal that CPs can be employed to arrest TmrAB at different stages during a single IF-to-OF switch induced by ATP binding, which drives substrate transport across the membrane (Figure 7). These IF-to-OF and OF-to-IF inhibitors stabilize TmrAB states that are distinct from the vanadate trapped states and allowed us to unravel mechanistic principles of substrate transport for wild-type ABC transproters and illustrate the potential of selective inhibitors as next-generation antibiotics. These findings will help to investigate key functional determinants of membrane proteins involved in multidrug resistance.

Substrate translocation precedes ATP hydrolysis in a heterodimeric ABC transporter.

In the resting IF state, TmrAB binds nucleotides and substrates independently, which is not affected by CPs. ATP binding induces an IF-to-OF switch, which drives unidirectional substrate translocation. CP6F and CP12F bind preferentially to the IF state and block the transition to the OF state, preventing ATP occlusion and ATP hydrolysis. CP13F and CP14F favor and stabilize a pre-hydrolysis OF state after the IF-to-OF conformation switch and peptide translocation. CPs block ATP hydrolysis at different steps of the transport cycle. In the absence of CPs, ATP hydrolysis and phosphate release initiate the OF-to-IF return restoring transporter function.

To select specific CPs for a heterodimeric ABC transport complex, we successfully applied the RaPID system to isolate high-affinity CPs for soluble and membrane proteins (Yu et al., 2017; Sakai et al., 2019; Kodan et al., 2014; Tanaka et al., 2013). It has been shown that CPs are powerful agents to stabilize protein conformers or protein complexes for structural and functional investigations (Huang et al., 2019; Passioura and Suga, 2017). Upon cyclization of the peptide backbone, CPs mimic the complementary-determining regions (CDRs) of antibodies penetrating into buried cavities (Hill et al., 2014; McGeary and Fairlie, 1998). Compared to conventional antibodies and antibody fragments, the incorporation of unnatural amino acids largely expands the chemical diversity of paratopes to reach unexplored binding modes (Craik et al., 2013; Makley and Gestwicki, 2013; Tsomaia, 2015). By using the catalytically reduced variant TmrAEQB reconstituted in lipid nanodiscs as bait during selections, we hypothesized that even transient states could be populated that would allow us to isolate macrocycles with unique bioactivities (Hofmann et al., 2019; Stefan et al., 2020). As demonstrated by affinity isolation, gel filtration, and native mass spectrometry, all CPs selected against TmrAEQB in lipid nanodiscs also specifically bind to wild-type TmrAB in various lipid models. These findings illustrate the potential of the RaPID system to identify specific binders for delicate membrane proteins and less-populated transition states under carefully chosen conditions, which is a key requirement for pharmaceutical compounds (Vinogradov et al., 2019; Zorzi et al., 2017). Intriguingly, the most enriched macrocyclic peptides also display inhibitory activity, even though the selection is based on target binding alone. Based on deep sequencing, CP6 and CP12, acting on the IF state, showed higher enrichment than CP13 and CP14, acting on the OF state, which is consistent with the selections being performed at 4°C, where TmrAB adopts the IF state. However, due to high binding affinities of OF-specific CP13 and CP14, these CPs were also enriched along the course of the selection. In contrast to CPs elicited against the homodimeric ABC transporter cmABCB1 from Cyanidioschyzon merolae (aCAP) (Kodan et al., 2014) and the MATE transporter (MaD3S, MaD5, MaL6) (Tanaka et al., 2013), the CPs discovered in this study exclusively target the transporter from the cytosolic side. In the case of aCAP, which was selected against detergent stabilized P-glycoprotein, the CP not only interacts with both protein subunits but also with the membrane, acting as an allosteric inhibitor thus stabilizing this ABC transporter in the IF conformation. Like aCAP, the CPs from this study are also enriched in aliphatic and aromatic amino acids, which could indicate membrane interactions. The ability of the CP6, CP12, CP13, and CP14 to specifically interact with either the IF or OF TmrAB conformer however, again suggests that the success of this selection experiment in discovering multimode inhibitors relied on specific preparation of the bait protein during the selection process.

In recent years, the molecular understanding of the conformation space of ABC transporters has been largely expanded (Thomas and Tampé, 2020; Locher, 2016; Hofmann et al., 2019; Fan et al., 2020). High-resolution structures in different conformational states allowed to build a detailed mechanistic model of the substrate transport cycle composed of two major conformational transitions (IF-to-OF and OF-to-IF) (Hofmann et al., 2019; Fan et al., 2020; Manolaridis et al., 2018; Kim and Chen, 2018). We demonstrated unidirectional substrate transport along a single IF-to-OF switch induced by ATP binding for a catalytically reduced variant of TmrAB (Stefan et al., 2020). These results were consistent with the processive-clamp/ATP switch model where ATP binding and the subsequent IF-to-OF switch represent the power stroke to drive substrate transport (Higgins and Linton, 2004; Janas et al., 2003; Abele and Tampé, 2004). To date, however, it remains an open question whether a single ATP-binding-induced conformational switch drives substrate translocation in the case of fully functional wild-type ABC transporters. Additionally, the relevance of futile ATP hydrolysis cycles as well as factors contributing to energy coupling (ratio of consumed ATP per translocated substrate) have remained unexplained for wild-type TmrAB and other ABC systems (Fan et al., 2020; Bock et al., 2019). To address these pressing questions, we used the in vitro-selected peptidic macrocycles as mechanistic probes to arrest TmrAB at different stages of the substrate transport cycle. Inhibitors for ABC transporters exploit various modes of action such as substrate competition, conformational arrest, or hampering of ATP hydrolysis to affect substrate transport (Srikant and Gaudet, 2019; Aller et al., 2009; Ozvegy-Laczka et al., 2005; Orlando and Liao, 2020; Ho et al., 2018).

For the selected CPs, we observed a remarkably strong inhibition of ATP hydrolysis and substrate transport, which did not largely interfere with ATP or substrate binding. We rationalized that these macrocyclic peptides affect conformational transitions within the translocation cycle. Using nucleotide occlusion as readout, we could show that CP13F and CP14F stabilize wild-type TmrAB in a pre-hydrolysis state, unlike the vanadate-trapped state solved by cryo-EM, which occludes ADP and vanadate in the canonical ATP-binding site (Hofmann et al., 2019). Our hypothesis was that wild-type TmrAB in the presence of CP13 or CP14 is able to perform the the IF-to-OF transition induced by ATP binding, whereas only the opposite OF-to-IF transitions triggered by ATP hydrolysis are blocked. To test this hypothesis, we performed peptide transport assays with fully functional wild-type TmrAB in the presence of CP13 and CP14 and determined stoichiometric or near-stoichiometric amount of transported peptide per TmrAB complex. This coupling rate is comparable to the almost ideal coupling ratio observed under single-turnover conditions for a catalytically reduced variant (Stefan et al., 2020). This energy coupling is substantially higher compared to multiple-turnover steady-state approaches for wild-type TmrAB (Bock et al., 2019).

By analyzing peptide translocation of arrested wild-type TmrAB over long periods of time, we observed a slow turnover in the case of CP14, and a full conformational arrest for CP13. These observations were underpinned by analyzing two consecutive cycles of IF-to-OF switches and OF-to-IF return transitions in regard to peptide translocation. In the presence of CP14, wild-type TmrAB was able to transport peptides along the ATP-induced IF-to-OF switch followed by the relaxation from an ATP-bound OF state to an IF state in order to start a new IF-to-OF switch in the second cycle. In contrast, after the translocation of peptide, CP13 arrested wild-type TmrAB in an ATP-bound state and prevented the OF-to-IF return transition and further conformational cycling. On the other hand, CP6 and CP12 block peptide transport to background level as an IF-to-OF transition and ATP occlusion is prevented. Using macrocyclic inhibitors, we demonstrated, for the first time for a wild-type ABC transporter, that substrate translocation is driven along a single IF-to-OF switch triggered by ATP binding.

In this work, we utilized synthetic macrocyclic inhibitors to reveal fundamental mechanistic principles of ATP binding and hydrolysis, conformational transitions, and energy coupling of substrate translocation of a heterodimeric ABC transport complex. We highlight the versatility of macrocycles and their potential to study mechanistic determinants of membrane protein complexes. In future approaches, conformation-selective compounds along with single-liposome or single-molecule techniques will be essential to uncover unexplored aspects of conformational transitions, translocation events, and energy coupling of membrane translocation complexes.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceIdentifiersAdditional information
AntibodyMonoclonal α-His antibodySigma-AldrichSAB1305538Mouse origin. Final dilution: 1/2,000 (v/v)
Antibodyα-Mouse-HRP conjugateSigma-AldrichAP130PGoat origin. Final dilution: 1/20,000 (v/v)
Chemical compound, drugβ-n-Dodecyl β-D-maltoside (DDM)Carl RothCN26.5
Chemical compound, drugBovine brain lipid extractSigma-AldrichB1502
Chemical compound, drug[2,5’,8-3H(N)]-ATP (3H-ATP)PerkinElmerNET118900
Chemical compound, drug32P]-ATPHartmann AnalyticFP-207
Chemical compound, drugCopper-chelated PVT SPA beadsPerkinElmerRPNQ0095
Chemical compound, drugClAc-D-Tyr-CMESynthesized according to
DOI: 10.1021/cb200388k
Chemical compound, drugFmoc-protected amino acidsMerck Millipore/Watanabe Chemical Industriesvarious
Chemical compound, drugHBTUWatanabe Chemical IndustriesA00149
Chemical compound, drugHOBtWatanabe Chemical IndustriesA00014
Chemical compound, drugNovaPEG Rink Amide resinMerck Millipore855047
Chemical compound, drugN,N-DiisopropylethylamineNacalai Tesque14014–55
Chemical compound, drugN,N-DimethylformamideNacalai Tesque13016–23
Chemical compound, drug5/6-Carboxyfluorescein succinimidyl esterThermo Fisher Scientific46410
Chemical compound, drugAcetonitrileWako Chemicals015–08633
Chemical compound, drugTrifluoroacetic acidNacalai Tesque3483305
Chemical compound, drugD-BiotinNacalai Tesque04822–91
Chemical compound, drugPluronic F127Sigma-AldrichP2443
Chemical compound, drugAlbumin, Bovine, AcetylatedNacalai Tesque01278–44
Chemical compound, drugNTPsJena BioscienceNU-1010 NU-1011 NU-1012 NU-1013
Chemical compound, drugDynabeads M-280 StreptavidinThermo Fisher Scientific11206
Sequence-based reagentT7g10M.F46Eurofins Genomics K.K. (Japan)PCR primerTAATACGACTCACTATAGGGTTAACTTTAAGAAGGAGATATACATA
Sequence-based reagentNNK(n).R(3n + 45)n = 10–15Eurofins Genomics K.K. (Japan)PCR primer for DNA libraryGCTGCCGCTGCCGCTGCCGCA(MNN)nCATATGTATATCTCCTTCTTAAAG
Sequence-based reagentCGS3an13.R36Eurofins Genomics K.K. (Japan)PCR primerTTTCCGCCCCCCGTCCTAGCTGCCGCTGCCGCTGCC
Sequence-based reagentIni-3'.R20-MeGene Design Inc (Japan)PCR primer for tRNAfMetCAU assemblyTGmGTTGCGGGGGCCGGATTT (Gm = 2'-Methoxylated G)
Sequence-based reagentIni-3'.R38Eurofins Genomics K.K. (Japan)PCR primer for tRNAfMetCAU assemblyTGGTTGCGGGGGCCGGATTTGAACCGACGATCTTCGGG
Sequence-based reagentIni1-1G-5'.F49Eurofins Genomics K.K. (Japan)PCR primer for tRNAfMetCAU assemblyGTAATACGACTCACTATAGGCGGGGTGGAGCAGCCTGGTAGCTCGTCGG
Sequence-based reagentIni cat.R44Eurofins Genomics K.K. (Japan)PCR primer for tRNAfMetCAU assemblyGAACCGACGATCTTCGGGTTATGAGCCCGACGAGCTACCAGGCT
Sequence-based reagentFx5'.F36Eurofins Genomics K.K. (Japan)PCR primer for eFx assemblyGTAATACGACTCACTATAGGATCGAAAGATTTCCGC
Sequence-based reagenteFx.R45Eurofins Genomics K.K. (Japan)PCR primer for eFx assemblyACCTAACGCTAATCCCCTTTCGGGGCCGCGGAAATCTTTCGATCC
Sequence-based reagenteFx.R18Eurofins Genomics K.K. (Japan)PCR primer for eFx assemblyACCTAACGCTAATCCCCT
Sequence-based reagentT7e × 5 .F22Eurofins Genomics K.K. (Japan)PCR primer for eFx assemblyGGCGTAATACGACTCACTATAG
Sequence-based reagentDNA-PEG-puromycinGene Design Inc, Osaka, Japanlinker for mRNA displayCTCCCGCCCCCCGTCC-(PEG18)5-CC-Pu
GeneTmrAQ72J05TTC0976Species: Thermus thermophilus
GeneTmrBQ72J04TTC0977Species: Thermus thermophilus
Peptide, recombinant proteinRRY-C*-KSTELThis study (methods and material)C* denotes fluorescein-labeled Cys
Peptide, recombinant proteinMacrocyclic peptides CP6, CP12, C13 and CP14This study (methods and material)
Peptide, recombinant proteinKOD DNA PolymerasePrepared in house (methods and material)
Peptide, recombinant proteinT7 RNA polymerasePrepared in house (methods and material)
Peptide, recombinant proteinT4 RNA ligasePrepared in house (methods and material)
Peptide, recombinant proteinFIT systemPrepared in house according to DOI: 10.1038/nprot.2015.08250 mM HEPES-KOH (pH 7.6), 12 mM magnesium acetate, 100 mM potassium acetate, 2 mM spermidine, 20 mM creatine phosphate, 2 mM DTT,2 mM ATP, 2 mM GTP, 1 mM CTP,1 mM UTP, 0.5 mM 19 proteinogenic amino acids other than Met, 1.5 mg/ml E. coli total tRNA, 0.73 µM AlaRS, 0.03 µM ArgRS, 0.38 µM AsnRS, 0.13 µM AspRS,0.02 µM CysRS, 0.06 µM GlnRS, 0.23 µM GluRS, 0.09 µM GlyRS, 0.02 µM HisRS,0.4 µM IleRS, 0.04 µM LeuRS, 0.11 µM LysRS, 0.03 µM MetRS, 0.68 µM PheRS,0.16 µM ProRS, 0.04 µM SerRS, 0.09 µM ThrRS, 0.03 µM TrpRS, 0.02 µM TyrRS,0.02 µM ValRS, 0.6 µM MTF, 2.7 µM IF1,0.4 µM IF2, 1.5 µM IF3,0.26 µM EF-G, 10 µM EF-Tu,10 µM EF-Ts, 0.25 µM RF2,0.17 µM RF3, 0.5 µM RRF,0.1 µM T7 RNA polymerase, 4 µg/ml creatine kinase, 3 µg/ml myokinase,0.1 µM pyrophosphatase, 0.1 µM nucleotide-diphosphatase kinase, 1.2 µM ribosome
Recombinant DNA reagentpET-22bMerck Millipore69744Vector for protein expression in E. coli
Strain, strain background (Escherichia coli)BL21(DE3)Thermo FisherC600003Chemically competent cells
Software, AlgorithmPrism 5GraphPad
Software, algorithmCytoscapeShannon P et al. Genome Research 2003 13(11) 2498–504
Software, algorithmEFI-ESTGerlt JA et al. Biochim Biophys Acta 1854: 1019-37
Software, algorithmWebLogoCrooks GE et al. Genome 561 Res 14: 1188–90

Expression and purification of TmrAB

Request a detailed protocol

TmrAB and TmrAE523QB (TmrAEQB), harboring a C-terminal His-tag at TmrA, were expressed in E. coli BL21(DE3) grown in LB high-salt media at 37 °C (Nöll et al., 2017; Hofmann et al., 2019; Stefan et al., 2020). Expression was induced at an OD600 of 0.6 by adding 0.5 mM isopropyl β-d-thiogalactopyranoside (IPTG, Carbolution) for 3 hr at 37°C. Cells were harvested by centrifugation for 15 min at 4,500 g and resuspended in lysis buffer (20 mM HEPES-NaOH pH 7.5, 300 mM NaCl, 50 μg/ml lysozyme, 0.2 mM PMSF). After sonication, membranes were isolated by centrifugation at 100,000 g for 30 min at 4°C. Membranes were solubilized by adding 20 mM β-n-dodecyl β-D-maltoside (β-DDM, Carl Roth) in purification buffer (20 mM HEPES-NaOH pH 7.5, 300 mM NaCl) for 1 hr at 4°C. Samples were cleared at 100,000 g for 30 min, and solubilized proteins were loaded onto Ni-NTA agarose (Qiagen) at 4°C for 1 hr. Resin was washed with 20 column volumes of SEC buffer (20 mM HEPES-NaOH pH 7.5, 150 mM NaCl, 1 mM β-DDM) containing 50 mM imidazole. TmrAB was eluted in SEC buffer containing 300 mM imidazole. The eluate buffer was exchanged to SEC buffer using PD-10 desalting column (GE Healthcare).

Expression and purification of membrane scaffold proteins

Request a detailed protocol

MSP1D1 was expressed in E. coli BL21(DE3) cultivated in LB high-salt media at 37°C. At an OD600 of 1.0, expression was induced by adding 1 mM IPTG for 1 hr at 37°C. Temperature was reduced to 28°C for additional 4 hr. MSP1D1 was purified as described (Hofmann et al., 2019). Briefly, cells were harvested by centrifugation at 4,500 g for 15 min and disrupted by sonication in 40 mM Tris–HCl pH 8.0, 300 mM NaCl, 1% Triton X-100. Lysate was cleared by centrifugation for 30 min at 30,000 g and loaded onto Ni-NTA agarose (Qiagen) for 1 hr at 4°C. Resin was washed with 20 column volumes of 40 mM Tris–HCl pH 8.0, 300 mM NaCl, 50 mM imidazole. MSP1D1 was eluted in 40 mM Tris–HCl pH 8.0, 300 mM NaCl, 400 mM imidazole. The eluate buffer was exchanged to 20 mM Tris–HCl pH 7.4, 100 mM NaCl, 0.5 mM EDTA using PD-10 desalting column (GE Healthcare).

Reconstitution in lipid nanodiscs

Request a detailed protocol

TmrAB was reconstituted in lipid nanodiscs (Hofmann et al., 2019) composed of biotinylated MSP1D1. For biotinylation, purified MSP1D1 was buffer-exchanged to 20 mM HEPES-NaOH pH 7.5, 150 mM NaCl using Zeba spin desalting column (Thermo Fisher). A four-fold molar excess of EZ-Link NHS-PEG4-biotin (Thermo Fisher) was added for 2 hr on ice. Residual NHS-PEG4-biotin was quenched by adding 10 mM of Tris–HCl pH 8.0. To remove the excess of NHS-PEG4-biotin, samples were buffer exchanged to 20 mM HEPES-NaOH pH 7.5, 150 mM NaCl using PD-10 desalting column (GE Healthcare). Bovine brain lipids (Sigma-Aldrich) were solubilized in 20 mM of β-DDM. Biotinylated MSP1D1 was mixed with bovine brain lipids with and without TmrAB in a TmrAB/MSP1D1/lipid molar ratio of 1/7.5/100 in SEC buffer without detergent to form TmrAB-filled or empty liposomes, respectively. Samples were incubated for 30 min at 20°C, and SM-2 Bio-beads (Bio-Rad) were added in two steps at 4°C (1 hr and overnight) for detergent removal. Samples were concentrated using Amicon Ultra-0.5 ml centrifugal filters with 50 kDa cut-off (Merck Millipore). Reconstituted nanodiscs were isolated by size-exclusion chromatography (SEC) via Superdex 200 Increase 3.2/300 (GE Healthcare).

Library generation

Request a detailed protocol

For library construction, DNA oligonucleotides (Eurofins Genomics) were assembled by PCR amplification using KOD polymerase in Phusion buffer (NEB). DNA products were purified by phenol/chloroform/isoamylalcohol extraction and ethanol precipitation (Hayashi et al., 2012). The final sequence contained a T7 promotor, the start codon, the randomized region flanked by a cysteine codon, a (GS)3 linker, the stop codon, and a short sequence stretch for annealing of the polyethylene glycol (PEG)-puromycin splinter. Templates for tRNAfMetCAU and Flexizyme (eFx) were prepared by primer assembly and converted to RNA through run-off transcription using T7 RNA polymerase (Goto et al., 2008; Shin et al., 2017). The tRNAfMetCAU was aminoacylated with chloroacetyl-d-tyrosine-cyanomethyl ester (ClAc-D-Tyr-CME) by eFx for 2 hr on ice (Goto et al., 2011; Hayashi et al., 2012).

Selection of macrocyclic peptides

Request a detailed protocol

Macrocyclic peptides against the heterodimeric ABC transporter were selected using the RaPID system as described (Yamagishi et al., 2011; Hayashi et al., 2012). Briefly, DNA libraries (NNK10-15) were transcribed to RNA using T7 RNA polymerase and purified by denaturating PAGE and ethanol precipitation. Libraries were mixed in equimolar ratios, and a DNA-PEG-puromycin splinter was covalently attached using T4 RNA ligase. The product was purified by phenol/chloroform/isoamylalcohol extraction and ethanol precipitation (Hayashi et al., 2012). Puromycin-modified RNAs were translated by FIT supplemented with 50 μM ClAc-D-Tyr-tRNAfMetCAU for 30 min at 37°C at an RNA-puromycin concentration of 1 μM. The used FIT system was deficient in RF1, l-methionine, and 10-formyl-5,6,7,8-tetrahydrofolic acid to allow reprogramming of the initiator position. Subsequently, EDTA (10 mM) was added, followed by reverse transcription using MMLV reverse transcriptase (Promega). Dynabeads M280 Streptavidin (Invitrogen) were loaded with TmrAEQB reconstituted in biotinylated lipid nanodiscs (binding capacity: 0.3 pmol/μl bead slurry) for 20 min at 4°C. Beads were washed with selection buffer (20 mM HEPES-NaOH pH 7.5, 150 mM NaCl, 0.001% Pluronic F127) supplemented with acetylated BSA (1 g/l, Nacalai Tesque). Subsequently, the mRNA-peptide library was added and incubated for 15 min at 4°C (without supplementing additional reducing agents). The beads were washed three times with selection buffer followed by elution of cDNA in Phusion buffer for 5 min at 95°C. Recovered cDNA was quantified by real-time PCR using Taq polymerase and SYBR Green and amplified by Fusion polymerase (NEB). In subsequent rounds, the mRNA-peptide library was subjected to unmodified beads and beads with immobilized empty nanodiscs, to remove non-target specific binders prior to incubation with TmrAEQB (Hayashi et al., 2012). Isolated and amplified DNA served as the input for subsequent selection rounds in an iterative manner. For sequencing, Nextera XT dual indices (Illumina) were added to both DNA termini of the recovered DNA pool by PCR using KOD polymerase. Sequencing was performed on a MiSeq sequencer (Illumina) (Rogers et al., 2018).

Synthesis of macrocyclic peptides

Request a detailed protocol

Macrocycles were produced by Fmoc solid-phase synthesis on a Syro I (Biotage) synthesizer. NovaPEG Rink amide resin (Merck Millipore) was used as the solid support, giving rise to C-terminal amides. A combination of HBTU/HOBt (1/1, six equivalents) was utilized for carboxylate activation during the coupling steps. Double couplings were performed for Arg residues. To allow on-resin labeling and cyclization, orthogonally protected amino acids – Fmoc-Lys(MMT)-OH and Fmoc-Cys(StBu)-OH – were used, respectively. Chloroacetylation of the N terminus was achieved by manual coupling of chloroacetic acid using HBTU/HOBt (1/1, 10 equivalents) on resin for 1 hr. For site-directed labeling, the MMT protection group of the C-terminal lysine was cleaved by repeated incubations with 1% (v/v) trifluoroacetic acid (TFA) and 5% (v/v) triisopropyl silane (TIPS) in dichloromethane (DCM). The resin was washed with DCM, N,N-dimethylformamide (DMF), 20% (v/v) N,N-diisopropylethylamine in DMF, DMF, methanol, and DCM. Deprotected lysine side chains were conjugated with 5/6-carboxyfluorescein succinimidyl ester (ThermoFisher Scientific) or d-biotin in combination with HBTU/HOBt. The resin was dried and incubated with TFA/2,2′-(ethylenedioxy)diethanethiol (DODT)/TIPS/water in a 92.5/2.5/2.5/2.5 (v/v) ratio for 2.5 hr at 20°C. Excess TFA was removed using GeneVac centrifugal evaporators (SP Industries), and peptides were precipitated and washed six times with diethylether on ice. Peptides were dissolved in 90% (v/v) dimethylsulfoxide (DMSO) in water, and the pH was adjusted to 10.0 by addition of triethylamine. For complete macrocyclization, samples were incubated at 20°C for 2 hr. TFA was added to reduce the pH to a value between 1.0 and 2.0. For CP6F, the StBu protection group of Cys was removed by adding 20 equivalents of tributylphosphine in 95% (v/v) trifluoroethanol in water. CP6F was pre-purified by reversed-phase (RP) HPLC using a SNAP C18 column (Biotage) on an Isolera-One system (Biotage), applying a linear acetonitrile gradient containing 0.1% (v/v) TFA. All macrocycles were purified by RP-HPLC on a Prominence LC-20AP system (Shimadzu) equipped with a Chromolith column (Merck Millipore) applying a linear acetonitrile gradient containing 0.1% (v/v) TFA. Identity and purity of macrocycles was confirmed by MALDI-TOF-MS and HPLC analysis.

Reconstitution in liposomes

Request a detailed protocol

Liposomes composed of E. coli polar lipids and DOPC (7/3 w/w; Anatrace) were destabilized with Triton X-100, and purified TmrAB was added in a 1/20 (w/w) ratio. Detergent was removed by adding SM-2 Bio-beads (Bio-Rad) in four steps (1 hr, overnight, 2 hr, and 2 hr) at 4°C. Proteoliposomes were harvested at 270,000 g for 30 min at 4°C and resuspended in transport buffer (20 mM HEPES-NaOH pH 7.5, 150 mM NaCl, 5% [v/v] glycerol) to a final lipid concentration of 5 mg/ml.

Fluorescence anisotropy

Request a detailed protocol

To determine equilibrium binding constants, CPFs (50 nM) were incubated with increasing concentrations of TmrAB-containing or empty liposomes. To probe the conformational selectivity, CPFs (50 nM) were mixed with detergent-solubilized IF TmrAB or OF TmrAEQB. Before, OF TmrAEQB was nucleotide-trapped by incubation with ATP (1 mM) and MgCl2 (3 mM) in the absence of CPFs for 5 min at 45°C. For competition binding studies, CPFs (50 nM) were mixed with detergent-solubilized TmrAB (0.6 µM for CP6F and CP13F, 0.7 µM for CP12F, 0.5 µM for CP14F) in the presence of RRYCATTO655KSTEL (C4ATTO655, 2 µM) or RRYQKSTEL peptide (R9LQK, 200 µM). For peptide competition studies, RRYCfluoresceinKSTEL (C4F, 50 nM) were incubated with detergent-solubilized TmrAB (4 µM), CPBs (6 µM), or C4ATTO655 (10 µM). To examine conformational selective binding, TmrAB (0.6 µM for CP6F and CP13F, 0.7 µM for CP12F, 0.5 µM for CP14F) were incubated with CPFs (50 nM) and SDS (1% (v/v)) for 10 min at 20°C. Fluorescence anisotropy was analyzed at λex/em of 485/520 nm using a microplate reader (CLARIOstar, BMG LABTECH). Fluorescence anisotropy was calculated using:

(1) r=I||II||+2I

with I||: parallel intensity and I: perpendicular intensity. Binding of CPFs were fitted by a one-site binding model (Langmuir 1:1) using:

(2) Y=Bmax[L]KD+[L]

with Y: binding, Bmax: maximal binding, KD: equilibrium dissociation constant, and [L]: ligand concentration. Data represent mean ± SD from three experiments.

Macrocyclic peptide-mediated isolation of TmrAB

Request a detailed protocol

CPBs (1 µM) were immobilized on streptavidin beads (Thermo Scientific) and incubated with purified TmrAB for 1 hr at 4°C. Alternatively, DDM-solubilized E. coli membranes containing TmrAB were added to reach a final protein concentration of 2 mg/ml. Beads were washed by centrifugation at 200 g for 1 min with SEC buffer (20 mM HEPES-NaOH pH 7.5, 150 mM NaCl, 1 mM β-DDM). Bound protein was eluted by adding SDS loading buffer (50 mM Tris–HCl pH 6.8, 2% [w/v] SDS, 10% [v/v] glycerol, 0.1% [w/v] bromophenol blue, 100 mM DTT) for 10 min at 95°C. Equal aliquots of input, flow-through, washing fraction, and eluate were analyzed by SDS–PAGE and immunoblotting (α-His).

Gel filtration

Request a detailed protocol

Purified TmrAB (1 µM) was incubated with CP12F, CP13F, CP14F (2 µM each), or CP6F (5 µM) in SEC buffer (20 mM HEPES-NaOH pH 7.5, 150 mM NaCl, 1 mM β-DDM) for 10 min on ice. CPF-TmrAB complexes were analyzed by gel filtration using Superdex 200 Increase 3.2/300 (GE Healthcare).

Mass spectrometry

Request a detailed protocol

Detergent-solubilized TmrAB was buffer-exchanged to ESI buffer (100 mM ammonium acetate pH 7.2, 1 mM β-DDM) using Zeba desalting columns (Thermo Scientific). TmrAB (4 µM) was incubated with a twofold molar excess of CPFs for 10 min on ice. CPF-TmrAB complexes were examined by electrospray ionization-mass spectrometry (ESI-MS) on a Synapt G2S (Waters Corporation) equipped with a high-mass quadrupole upgrade. Pd/Pt sputtered nESI tips were pulled in house from borosilicate glass capillaries on a Flaming/Brown micropipette puller (P-1000, Sutter Instrument Co). Capillary and cone voltages were set to 1.85 kV and 150 V, respectively. The source block temperature was set to 30°C. Neither trap nor transfer collision energy was used. Data analysis was performed using the software MassLynx V4.1.

ATP binding assay

Request a detailed protocol

DDM-solubilized TmrAB (0.2 µM) was incubated with ATP (2.8 μM), [2,5’,8-3H(N)]-ATP (0.2 µM, 3H-ATP, PerkinElmer), MgCl2 (3 mM), and CPBs (1 µM) for 30 min on ice. Copper-chelated SPA beads (PerkinElmer) were added to a final concentration of 5 mg/ml. Total binding was determined at 20°C in cpm mode (Wallac MicroBeta). Bound TmrAB complexes were eluted by adding 200 mM of imidazole, and background binding was determined. Data represent mean ± SD from three experiments.

Peptide transport assays

Request a detailed protocol

TmrAB in liposomes (0.4 µM) were incubated with ATP/ADP (3 mM), MgCl2 (5 mM), C4F peptide (3 µM), and CPFs (1 µM) for 15 min at 45°C. Reactions were stopped by adding EDTA (10 mM), and proteoliposomes were washed with transport buffer (20 mM HEPES-NaOH pH 7.5, 150 mM NaCl, 5% [v/v] glycerol) on PEI-equilibrated MultiScreen plates (0.65 µm, Merck Millipore). Proteoliposomes were solubilized by adding SDS (1% [v/v]) in transport buffer for 10 min at 20°C. Transported peptides were quantified at λex/em = 485/520 nm using a microplate reader (CLARIOstar, BMG LABTECH).

Single-liposome assays

Request a detailed protocol

TmrAB-containing liposomes (0.4 µM) were incubated with C4ATTO655 peptides (1 µM), ATP or ADP (3 mM each), MgCl2 (5 mM), and CPFs (1 µM) for 5 min at 45°C. Transport reactions were stopped by adding EDTA (10 mM). Samples were diluted to a final TmrAB concentration of 20 nM with transport buffer (20 mM HEPES-NaOH pH 7.5, 150 mM NaCl, 5% [v/v] glycerol) and analyzed by flow cytometry (FACSCelesta). For regression analysis, liposomes were loaded with increasing amounts of peptides to convert the fluorescence intensities into the number of peptides per liposome (Stefan et al., 2020). For this, liposomes were destabilized by adding Triton X-100 while increasing the C4ATTO655 concentration. Equal amounts of carboxyfluorescein (Sigma-Aldrich) served as loading control. Detergent was removed by adding SM-2 Bio-beads (Bio-Rad) as detailed above. Liposomes were harvested for 30 min at 270,000 g and washed three times by centrifugation. Generally, 20,000–100,000 proteoliposomes were selected according to sideward and forward scatter areas. Single events were selected based on the height of forward scatter plotted against the area of forward scatter. Mean fluorescence intensities of fluorescein and ATTO655 were calculated using FlowJo 10.6.1 software. Data represent mean ± SD from three experiments.

ATP hydrolysis assays

Request a detailed protocol

TmrAB reconstituted in liposomes (100 nM) were incubated with ATP (2 mM) traced with [γ32P]-ATP (Hartmann Analytic), ouabain (1 mM), NaN3 (5 mM), EGTA (50 µM), MgCl2 (3 mM), and CPFs (1 µM) for 10 min at 45°C. Autohydrolysis and background hydrolysis were examined in the absence of proteoliposomes or the presence of EDTA (10 mM). Samples were spotted onto polyethyleneimine cellulose plates (Merck Millipore), and thin-layer chromatography was performed with 0.8 M LiCl-acetic acid pH 3.2. Plates were developed overnight on Exposure Cassette-K (Bio-Rad) and evaluated on Personal Molecular Imager System (Bio-Rad). Data were recorded in triplicates and the mean values ± SD (n = 3) are shown.

Nucleotide occlusion

Request a detailed protocol

Detergent-solubilized TmrAB (2 µM) were incubated with ATP (1 mM) traced with [α32P]-ATP (Hartmann Analytic), MgCl2 (5 mM), CPFs (4 µM), or orthovanadate (1 mM) for 5 min at 45°C. Cold ATP (10 mM) was added, and unbound nucleotides were removed by rapid gel filtration (Bio-Spin columns P-30, Bio-Rad). ATP (10 mM) was added, and samples were spotted onto polyethyleneimine cellulose plates (Merck Millipore). Thin-layer chromatography was performed using 0.75 M KH2PO4 pH 3.4. Plates were developed overnight on Exposure Cassette-K (Bio-Rad) and evaluated on Personal Molecular Imager System (Bio-Rad). Representative radiograms of three experiments are displayed.

Labeling and purification of substrate peptides

Request a detailed protocol

C4 peptide (RRYCKSTEL) was synthesized on solid phase using standard Fmoc chemistry. For fluorophore labeling, C4 peptide was incubated with a 1.2 molar excess of 5-iodoacetamide-fluorescein (Sigma-Aldrich) or ATTO655-maleimide (ATTO-TEC) in PBS DMF buffer (8.1 mM Na2HPO4 pH 6.5, 137 mM NaCl, 2.7 mM KCl, 1.8 mM KH2PO4, 20% [v/v] DMF) for 1 hr at 20°C. Peptides were purified by reversed-phase HPLC (Jasco; PerfectSil 300 ODS C18), utilizing a linear acetonitrile gradient from 5% to 80% supplemented with 0.1% (v/v) TFA. Purified fluorescently labeled peptides were snap-frozen in liquid nitrogen and freeze-dried (Lyovac GT2, Heraeus).

Data presentation and statistics

Request a detailed protocol

All measurements were performed in triplicates (n = 3). All diagrams were prepared in GraphPad Prism5, and mean values ± SD were presented. Statistical analysis was performed in GraphPad Prism5 applying two-tailed t-tests.

Data availability

All data denerated or analyzed during this study are included in the manuscript and support files. A source data file has been provided for Figure 1C (Sequencing Data), Figure 2-6, Figure 2-supplement figure 1 and Figure 5-supplement figure 1.

References

    1. McGeary RP
    2. Fairlie DP
    (1998)
    Macrocyclic peptidomimetics: potential for drug development
    Current Opinion in Drug Discovery & Development 1:208–217.
  1. Conference
    1. Murakami H
    2. Ohta A
    3. Goto Y
    4. Sako Y
    5. Suga H
    (2006b)
    Flexizyme as a versatile tRNA acylation catalyst and the application for translation
    Nucleic Acids Symposium Series. pp. 35–36.

Decision letter

  1. David Drew
    Reviewing Editor; Stockholm University, Sweden
  2. Olga Boudker
    Senior Editor; Weill Cornell Medicine, United States
  3. David Drew
    Reviewer; Stockholm University, Sweden

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The RaPID technology is applied on the heterodimeric ABC transporter TmrAB from Thermus thermophilus to generate high-affinity macrocyclic peptides (MCPs) with conformational-specific preferences. The MCPs reveal novel, allosteric binding sites in TmrAB, which do not inhibit ATP or substrate binding, but block ATP hydrolysis. The MCPs are used as tool compounds to provide evidence that ATP binding, rather than ATP hydrolysis, is sufficient to drive substrate export in this highly-coupled ABC exporter. The authors further demonstrate that MCPs can be generated for membrane proteins embedded in nanodiscs, rather than in detergent, which is an important technical step for peptide-based drug discovery.

Decision letter after peer review:

Thank you for submitting your article "De-novo macrocyclic peptides dissect energy coupling of a heterodimeric ABC transporter by multimode allosteric inhibition" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including David Drew as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Olga Boudker as the Senior Editor.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

This is an excellent technical and mechanistic work describing the discovery and characterization of macrocyclic peptides (MCPs) that target the heterodimeric ABC transporter TmrAB from Thermus thermophilus. It is significant because it reports on the discovery of at least two distinct classes of MCPs that trap TmrAB in distinct states, and the authors use these unique MCPs as powerful probes to provide new insight into the catalytic mechanism of TmrAB. The MCPs reveal novel allosteric binding sites in TmrAB and provides evidence that ATP binding, rather than ATP hydrolysis, is sufficient to drive substrate export in this highly-coupled ABC exporter. Overall, this work 1) introduces potent and selective modulators of the model TmrAB transporter, 2) provides key mechanistic insight into the still unsettled transport mechanism of TmrAB through pharmacological arrest, and 3) highlights the potential of MCPs as pharmacological tools and their potential as early drug leads.

1. While Figure 5A/B are very welcome data, the authors do not systematically determine the affinity of all four MCPs in the liposome and detergent conditions that are used interchangeably throughout this study. Given the potential impact on Kd (i.e. CP6 shows an apparent 6-60-fold decrease in affinity from the liposomes to DDM condition), it seems of particular importance that the Koff for CP14 can be established (ideally at 45 degrees) in order to fully understand it's propensity to disassociate (i.e. bind/unbind) during the time course and temperature changes of the experiments presented in Figure 5C/D, and Figure 6E, since this has clear implications for the authors present interpretations as summarized in Figure 7. We would expect SPR experiments in detergent and liposomes (or nanodiscs) are important data to present "IF" these experiments are technically achievable. If not, Ki measurements of the CP's for C4-peptide uptake in liposomes with 50:50 orientation, should be able to provide a proxy for the binding affinity that should correlate with the preferences of the peptides for the OF or IF states as determined here in detergent.

Comments for authors:

Manuscript strengths:

1. The authors build on their prior work on TmrAB to present and utilize an arsenal of well-established biochemical and biophysical assays throughout the manuscript.

2. In general, the authors are thoughtful in their use of these novel MCPs to characterize the mechanism of action on TmrAB and to provide key and novel insights into the TmrAB transport mechanism.

3. The scope of discovery and characterization presented in this work is rather unique for any membrane transport system; it will undoubtedly be of high interest to the ABC transporter field and to membrane biologists in general.

Manuscript weaknesses; support of claims and conclusions:

1. While Figure 5A/B are very welcome data, the authors do not systematically determine the affinity of all four MCPs in the liposome and detergent conditions that are used interchangeably throughout this study. Given the potential impact on Kd (i.e. CP6 shows an apparent 6-60-fold decrease in affinity from the liposomes to the detergent condition), it seems of particular importance that the Koff for CP14 can be established (ideally at 45 degrees) in order to fully understand it's propensity to disassociate (i.e. bind/unbind) during the time course and temperature changes of the experiments presented in Figure 5C/D, and Figure 6E, since this has clear implications for the authors present interpretations as summarized in Figure 7.

2. Quantitative analysis (Figure 5): CP13 has an affinity of 40 nM for the IF and 10 nM for OF. Why is it selective for OF? Since the concentration of the CP13 used in the assay is above 40 nM does this not imply that the IF state will also be recognized and trapped at this concentration? Does this really mean CFs are conformation specific or would it be more correct to conclude that they have conformational-specific preferences?

3. Would different macrocyclic peptides have been generated if TmrAB was presented in detergent and the wild type protein was used instead? Whilst this is not a critical comparative control and the beneficial benefits of using nanodiscs are obvious, it would have helped to have included this control to fully benchmark the new methodological developments.

4. The currently described MCPs are not able membrane permeable and so cannot be used in vivo without further chemical modification.

5. As stated in line 129/130, all CPs analyzed blocked ATPase activity to the level of autohydrolysis. If the CPs abolished ATPase activity how is it possible that substrate transport is only partially inhibited by CP13 and CP14 (line 135/136) since transport depends on ATPase activity?

6. It is unclear why the CP13 has a coupling ratio of 0.3. Does it mean that 30% of the transporters are not inhibited by CP13? Or does CP13 imposes inefficient coupling?

7. Figure 3C and 3D: There are higher levels of transported peptide as compared to the WT protein when is ADP is added. It is unclear if the amount of transported CF4 in the presence of CPs really "background" as claimed by the authors?

https://doi.org/10.7554/eLife.67732.sa1

Author response

Essential revisions:

[…]

1. While Figure 5A/B are very welcome data, the authors do not systematically determine the affinity of all four MCPs in the liposome and detergent conditions that are used interchangeably throughout this study. Given the potential impact on Kd (i.e. CP6 shows an apparent 6-60-fold decrease in affinity from the liposomes to DDM condition), it seems of particular importance that the Koff for CP14 can be established (ideally at 45 degrees) in order to fully understand it's propensity to disassociate (i.e. bind/unbind) during the time course and temperature changes of the experiments presented in Figure 5C/D, and Figure 6E, since this has clear implications for the authors present interpretations as summarized in Figure 7. We would expect SPR experiments in detergent and liposomes (or nanodiscs) are important data to present "IF" these experiments are technically achievable. If not, Ki measurements of the CP's for C4-peptide uptake in liposomes with 50:50 orientation, should be able to provide a proxy for the binding affinity that should correlate with the preferences of the peptides for the OF or IF states as determined here in detergent.

We would like to thank the reviewers for these insightful comments and the very positive feedback, highlighting the importance of the macrocyclic inhibitors, which can be used as potential pharmacological tools and also provide key mechanistic insights into heterodimeric ABC transporters.

To investigate the kinetic stability of detergent-solubilized TmrAB-CP complexes, we performed gel filtration, which routinely takes up to 45 min (Figure 2—figure supplement 1C). Over this period of time, we detected the co-elution of CPs and TmrAB with minute amounts of unbound CPs, demonstrating the formation of kinetically stable complexes. With regard to the experiments shown in Figure 5C/D, nucleotide occlusion was recorded immediately after trapping and rapid gel filtration. In Figure 6E, the proteoliposomes were not washed and the CPs were added at 1 µM, which was up to 50-fold above the equilibrium dissociation constant of CPs to yield high occupancy. In both cases (Figure 5C/D and 6E), CPs were added in excess, and no extensive washing steps were introduced.

Therefore, we assumed a high occupancy of CPs in the course of the experiments, as depicted in Figures 5C/D and 6E. It is technically extremely challenging and demanding to investigate the accurate binding and dissociation rates by SPR for small molecules and large membrane protein complexes. Although the determination of these rates might increase the impact of this work, we do not feel, that in the COVID-19 situation, this information would largely change the conclusion described in the initial submission. In addition, we have characterized two mechanistically similar inhibitors, additional experiments with the inferior inhibitor CP14 would not produce any other results.

Comments for authors:

[…] Manuscript weaknesses; support of claims and conclusions:

1. While Figure 5A/B are very welcome data, the authors do not systematically determine the affinity of all four MCPs in the liposome and detergent conditions that are used interchangeably throughout this study. Given the potential impact on Kd (i.e. CP6 shows an apparent 6-60-fold decrease in affinity from the liposomes to the detergent condition), it seems of particular importance that the Koff for CP14 can be established (ideally at 45 degrees) in order to fully understand it's propensity to disassociate (i.e. bind/unbind) during the time course and temperature changes of the experiments presented in Figure 5C/D, and Figure 6E, since this has clear implications for the authors present interpretations as summarized in Figure 7.

Please see our comment above.

2. Quantitative analysis (Figure 5): CP13 has an affinity of 40 nM for the IF and 10 nM for OF. Why is it selective for OF? Since the concentration of the CP13 used in the assay is above 40 nM does this not imply that the IF state will also be recognized and trapped at this concentration? Does this really mean CFs are conformation specific or would it be more correct to conclude that they have conformational-specific preferences?

The reviewer is right, and we already carefully rephrased the conformational-specific preferences in the main text of our original manuscript. In addition, we corrected the first sentence of the legend of Figure 5 and changed ‘conformation specific’ to ‘conformational-specific preference’ (line 760).

3. Would different macrocyclic peptides have been generated if TmrAB was presented in detergent and the wild type protein was used instead? Whilst this is not a critical comparative control and the beneficial benefits of using nanodiscs are obvious, it would have helped to have included this control to fully benchmark the new methodological developments.

We addressed this aspect in the detailed point-to-point reply.

4. The currently described MCPs are not able membrane permeable and so cannot be used in vivo without further chemical modification.

These peptides were only characterized in in vitro systems. In this context, passive membrane permeability can be excluded. Passive membrane permeability is dependent on peptide conformations that shield all groups involved in hydrogen bond formation (including backbone amides and polar side chains) so that the peptide can, in rare cases, partition into the lipid bilayer. With regard to in vivo contexts, cell permeability is also achieved via endocytosis or endocytosis-like pathways amongst other mechanisms. In this regard, cell permeability has been observed for various RaPID peptides (e.g. Kawamura et al. DOI: 10.1038/ncomms14773, Dai et al. DOI:10.1038/ncomms14773). Since we did not perform in vivo experiments, which are also beyond the scope of this work, we cannot comment on cell permeability.

5. As stated in line 129/130, all CPs analyzed blocked ATPase activity to the level of autohydrolysis. If the CPs abolished ATPase activity how is it possible that substrate transport is only partially inhibited by CP13 and CP14 (line 135/136) since transport depends on ATPase activity?

This question brings up a very important aspect of our manuscript, because many mechanistic determinants of asymmetric ABC transporters remain elusive: What defines the origin of the power stroke that drives unidirectional substrate transport? Which factors control the energy coupling of consumed ATP per translocated substrate? Which conformational transition drives unidirectional substrate transport? To address these key questions in the field, we evolved high-affinity, conformation-selective macrocyclic peptides by combinatorial design using the RaPID system and deep sequencing. The identified macrocyclic peptides arrest the ABC transport complex before and after the power stoke trajectory. For the first time to our knowledge, macrocyclic peptide inhibitors are used to realize single-turnover analyses of a wildtype ABC transporter to extend quantitative mechanistic determinants, a strategy which has not yet been realized with antibody fragments.

In our study, we demonstrate that selected macrocycles are not simple competitive inhibitors as they block ATP hydrolysis and substrate transport at nanomolar concentrations, while retaining ATP or substrate binding. Macrocycles interact in an allosteric, conformation-selective manner and stabilize a pre-hydrolysis state of the ABC transporter. By employing these macrocyclic peptides, the transport cycle can be dissected in single-turnover events, demonstrating an energetically coupled substrate transport step of a wildtype transporter along a single IF-to-OF switch induced by ATP binding.

Single-turnover studies are of immediate relevance to membrane transporters and highlight the potential of peptidic macrocycles as next-generation drugs targeting elaborate membrane protein complexes implicated in multidrug resistance. We outline a general framework to identify selective inhibitors against delicate membrane proteins that can be applied to almost any medically relevant protein complex.

6. It is unclear why the CP13 has a coupling ratio of 0.3. Does it mean that 30% of the transporters are not inhibited by CP13? Or does CP13 imposes inefficient coupling?

This is most likely inefficient coupling because, so far, many ABC export system have been described with very inefficient energetic coupling ratios.

7. Figure 3C and 3D: There are higher levels of transported peptide as compared to the WT protein when is ADP is added. It is unclear if the amount of transported CF4 in the presence of CPs really "background" as claimed by the authors?

Thank you for mentioning this potentially misleading point. We changed Figure 3C and included labels stating that peptide C4F was analyzed in ATP-dependent transport in the absence and presence of DMSO. In Figure 3C/D, the indicated transporter peptides of 0.25-0.5 µmol / g / min are background but also potentially binding to TmrAB as slight differences between ADP and ATP can be observed, indirectly reflecting preferential binding to the IF and OF conformation of TmrAB. We also rephrase the legend of Figure 3C.

https://doi.org/10.7554/eLife.67732.sa2

Article and author information

Author details

  1. Erich Stefan

    Institute of Biochemistry, Biocenter, Goethe University Frankfurt, Frankfurt, Germany
    Contribution
    Resources, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing, Performed all protein biochemistry experiments
    Contributed equally with
    Richard Obexer
    Competing interests
    No competing interests declared
  2. Richard Obexer

    Department of Chemistry, Graduate School of Science, The University of Tokyo, Tokyo, Japan
    Contribution
    Resources, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - review and editing, Designed and carried out the random nonstandard peptide integrated discovery (RaPID) approach to identify and synthesize macrocyclic peptides
    Contributed equally with
    Erich Stefan
    Competing interests
    No competing interests declared
  3. Susanne Hofmann

    Institute of Biochemistry, Biocenter, Goethe University Frankfurt, Frankfurt, Germany
    Contribution
    Resources, Data curation
    Competing interests
    No competing interests declared
  4. Khanh Vu Huu

    Institute of Physical and Theoretical Chemistry, Goethe University Frankfurt, Frankfurt, Germany
    Contribution
    Data curation, Formal analysis, Performed the native MS analyses
    Competing interests
    No competing interests declared
  5. Yichao Huang

    Department of Chemistry, Graduate School of Science, The University of Tokyo, Tokyo, Japan
    Contribution
    Data curation, Synthesize macrocyclic peptides
    Competing interests
    No competing interests declared
  6. Nina Morgner

    Institute of Physical and Theoretical Chemistry, Goethe University Frankfurt, Frankfurt, Germany
    Contribution
    Formal analysis, Supervision, Funding acquisition, Validation, Performed the native MS analyses
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1872-490X
  7. Hiroaki Suga

    Department of Chemistry, Graduate School of Science, The University of Tokyo, Tokyo, Japan
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Validation, Project administration, Writing - review and editing, Designed and carried out the random nonstandard peptide integrated discovery (RaPID) approach to identify and synthesize macrocyclic peptides
    For correspondence
    hsuga@chem.s.u-tokyo.ac.jp
    Competing interests
    No competing interests declared
  8. Robert Tampé

    Institute of Biochemistry, Biocenter, Goethe University Frankfurt, Frankfurt, Germany
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing, Initiated, supervised, and conceived the study
    For correspondence
    tampe@em.uni-frankfurt.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0403-2160

Funding

Deutsche Forschungsgemeinschaft (TA 157/12-1)

  • Robert Tampé

Deutsche Forschungsgemeinschaft (CRC 807/P16)

  • Robert Tampé

European Research Council (789121)

  • Robert Tampé

LOEWE DynaMem (A03)

  • Robert Tampé

Japan Society for the Promotion of Science (JP20H05618)

  • Hiroaki Suga

Japan Society for the Promotion of Science (JP20am0101090)

  • Hiroaki Suga

JSPS Grants-in-Aid for Research Fellowship (P15333)

  • Richard Obexer

Deutsche Forschungsgemeinschaft (CRC 807/P24)

  • Nina Morgner

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr. Rupert Abele, Dr. Simon Trowitzsch, Dr. Lukas Sušac, Dr. Christoph Thomas, Andrea Pott, Inga Nold, and all members of the Institute for Biochemistry for discussion and many helpful comments. RO gratefully acknowledges support from a JSPS Grants-in-Aid for Research Fellowship (P15333). This research was also supported by Japan Society for the Promotion of Science (JSPS) Grant-in-Aid for Specially Promoted Research (JP20H05618 to HS) and the Japan Agency for Medical Research and Development (AMED), Platform Project for Supporting Drug Discovery and Life Science Research, Basis for Supporting Innovative Drug Discovery and Life Science Research (JP20am0101090 to HS). The support by the German Research Foundation (CRC 807/P24 to NM; CRC 807/P16 to RT), the Reinhart Koselleck Project (TA 157/12–1 to RT), by LOEWE DynaMem A03, and by an ERC Advanced Grant (789121 to RT) of the European Research Council is gratefully acknowledged.

Senior Editor

  1. Olga Boudker, Weill Cornell Medicine, United States

Reviewing Editor

  1. David Drew, Stockholm University, Sweden

Reviewer

  1. David Drew, Stockholm University, Sweden

Publication history

  1. Received: February 21, 2021
  2. Accepted: April 29, 2021
  3. Accepted Manuscript published: April 30, 2021 (version 1)
  4. Version of Record published: May 12, 2021 (version 2)

Copyright

© 2021, Stefan et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 980
    Page views
  • 160
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    Urszula Nowicka et al.
    Research Article

    Mitochondria are organelles with their own genomes, but they rely on the import of nuclear-encoded proteins that are translated by cytosolic ribosomes. Therefore, it is important to understand whether failures in the mitochondrial uptake of these nuclear-encoded proteins can cause proteotoxic stress and identify response mechanisms that may counteract it. Here, we report that upon impairments in mitochondrial protein import, high-risk precursor and immature forms of mitochondrial proteins form aberrant deposits in the cytosol. These deposits then cause further cytosolic accumulation and consequently aggregation of other mitochondrial proteins and disease-related proteins, including α-synuclein and amyloid β. This aggregation triggers a cytosolic protein homeostasis imbalance that is accompanied by specific molecular chaperone responses at both the transcriptomic and protein levels. Altogether, our results provide evidence that mitochondrial dysfunction, specifically protein import defects, contributes to impairments in protein homeostasis, thus revealing a possible molecular mechanism by which mitochondria are involved in neurodegenerative diseases.

    1. Biochemistry and Chemical Biology
    2. Chromosomes and Gene Expression
    Robert P Fuchs et al.
    Research Article Updated

    Temozolomide (TMZ), a DNA methylating agent, is the primary chemotherapeutic drug used in glioblastoma treatment. TMZ induces mostly N-alkylation adducts (N7-methylguanine and N3-methyladenine) and some O6-methylguanine (O6mG) adducts. Current models propose that during DNA replication, thymine is incorporated across from O6mG, promoting a futile cycle of mismatch repair (MMR) that leads to DNA double-strand breaks (DSBs). To revisit the mechanism of O6mG processing, we reacted plasmid DNA with N-methyl-N-nitrosourea (MNU), a temozolomide mimic, and incubated it in Xenopus egg-derived extracts. We have shown that in this system, MMR proteins are enriched on MNU-treated DNA and we observed robust, MMR-dependent, repair synthesis. Our evidence also suggests that MMR, initiated at O6mG:C sites, is strongly stimulated in cis by repair processing of other lesions, such as N-alkylation adducts. Importantly, MNU-treated plasmids display DSBs in extracts, the frequency of which increases linearly with the square of alkylation dose. We suggest that DSBs result from two independent repair processes, one involving MMR at O6mG:C sites and the other involving base excision repair acting at a nearby N-alkylation adduct. We propose a new, replication-independent mechanism of action of TMZ, which operates in addition to the well-studied cell cycle-dependent mode of action.
