VASP-mediated actin dynamics activate and recruit a filopodia myosin

  1. Ashley L Arthur
  2. Amy Crawford
  3. Anne Houdusse
  4. Margaret A Titus  Is a corresponding author
  1. Department of Genetics, Cell Biology, and Development, University of Minnesota, United States
  2. Structural Motility, Institut Curie, Paris Université Sciences et Lettres, Sorbonne Université, France
Research Article
  • Cited 0
  • Views 803
  • Annotations
Cite this article as: eLife 2021;10:e68082 doi: 10.7554/eLife.68082

Abstract

Filopodia are thin, actin-based structures that cells use to interact with their environments. Filopodia initiation requires a suite of conserved proteins but the mechanism remains poorly understood. The actin polymerase VASP and a MyTH-FERM (MF) myosin, DdMyo7 in amoeba, are essential for filopodia initiation. DdMyo7 is localized to dynamic regions of the actin-rich cortex. Analysis of VASP mutants and treatment of cells with anti-actin drugs shows that myosin recruitment and activation in Dictyostelium requires localized VASP-dependent actin polymerization. Targeting of DdMyo7 to the cortex alone is not sufficient for filopodia initiation; VASP activity is also required. The actin regulator locally produces a cortical actin network that activates myosin and together they shape the actin network to promote extension of parallel bundles of actin during filopodia formation. This work reveals how filopodia initiation requires close collaboration between an actin-binding protein, the state of the actin cytoskeleton and MF myosin activity.

Introduction

The efficient and directed migration of cells depends on their ability to detect and respond to chemical signals and physical cues in the environment. Filopodia are dynamic, thin membrane projections supported by a parallel bundle of actin filaments. They detect extracellular cues and play roles in processes such as neuronal growth cone guidance, durotaxis, cell-cell junction formation during development, and metastasis (Heckman and Plummer, 2013; Arjonen et al., 2011; Cao et al., 2014; Shibue et al., 2012; Gallop, 2020). Although most intensely studied in animal cells, filopodia are ubiquitous in moving cells and have been observed in various Rhizaria, including predatory vampire amoebae, Discoba, Apusoza, Amoeboza, and Holozoa (Sebé-Pedrós et al., 2013; Cavalier-Smith and Chao, 2003; Hess et al., 2012; Hanousková et al., 2019; Yabuki et al., 2013). Filopodia formation is orchestrated by a conserved core set of proteins that drive the formation and extension of actin bundles. These include a Rho family GTPase (Rac1, Cdc42), an actin polymerase (VASP or formin), an actin cross-linker and a MyTH4-FERM Myosin (MF; myosin tail homology 4, band 4.1, ezrin, radixin, moesin) (Mattila and Lappalainen, 2008; Sebé-Pedrós et al., 2013; Nobes and Hall, 1995; Tuxworth et al., 2001; Faix et al., 2009). MF myosin motors regulate the formation of filopodia and other parallel actin based structures (Weck et al., 2017). Dictyostelium amoebae null for DdMyo7 do not produce filopodia or any filopodia-like protrusions, and expression of Myo10 in various mammalian cell types induces filopodia formation, implicating these myosins in filopodia initiation (Bohil et al., 2006; Tuxworth et al., 2001; Sousa and Cheney, 2005). These MF myosins are strikingly localized to filopodia tips, yet their function during filopodia initiation remains poorly defined.

Filopodia are slender, actin-filled projections that extend from the cell cortex. Actin polymerization aided by VASP or formin facilitates the formation of a critical bundle size of 15–20 filaments which overcomes membrane tension and extends outwards as the actin filaments are cross-linked together (Mattila and Lappalainen, 2008; Mogilner and Rubinstein, 2005). Two models have been proposed for how these parallel actin bundles are formed. In one case, the branched actin network is reorganized into a parallel array by the polymerase and bundler VASP (Svitkina et al., 2003; Yang and Svitkina, 2011). In an alternative model, a linear actin polymerase such as formin nucleates new filaments that are rapidly bundled together and grow perpendicular to the plasma membrane (Faix and Rottner, 2006). MF myosins are thought to act during initiation by cross-linking actin filaments (Tokuo et al., 2007), perhaps zipping them together as the motors walk up the filament toward the cortex (Berg and Cheney, 2002; Ropars et al., 2016). Support for this model comes from the observation that forced dimers of motors can induce filopodia or filopodia-like protrusions in cells (Tokuo et al., 2007; Arthur et al., 2019; Masters and Buss, 2017; Liu et al., 2021). Myo10 has also been implicated in elongation by transporting VASP toward the tip of the growing filopodium to promote continued growth (Tokuo and Ikebe, 2004).

The mechanism by which MF myosins are recruited to filopodial initiation sites is not well-understood. These myosins are regulated by head-tail autoinhibition, with the myosin folded into a compact conformation whereby binding of the C-terminal MF domain to the motor domain inhibits its activity. Opening up of the myosin followed by dimerization is required for activation of the myosin (Umeki et al., 2011; Sakai et al., 2011; Yang et al., 2006; Arthur et al., 2019). Partner binding mediated by their MyTH4-FERM (MF) domains can typically stabilize the open, activated form of these myosins as well as promote dimerization (Sakai et al., 2011; Arthur et al., 2019; Liu et al., 2021). The MF domains in these myosins can indeed mediate interaction with partner proteins such as microtubules (Weber et al., 2004; Toyoshima and Nishida, 2007; Planelles-Herrero et al., 2016) and the cytoplasmic tails of adhesion and signaling receptors (Hirao et al., 1996; Hamada et al., 2000; Zhang et al., 2004; Zhu et al., 2007; Pi et al., 2007). Myo10 has a unique tail among MF myosins with PH domains that bind to PIP3 rich membranes, which facilitates autoinhibition release and subsequent dimerization via a coiled-coil domain (Plantard et al., 2010; Umeki et al., 2011; Lu et al., 2012; Ropars et al., 2016). DdMyo7, like mammalian microvilli and stereocilia myosins Myo7 and Myo15, lacks PH domains and it is not clear if activation is regulated by the concentration of some partners, or additional cellular signals.

MF myosin and the actin regulators VASP and formin have been observed to coalesce into punctae during the initiation step that precedes extension (Petersen et al., 2016; Young et al., 2018; Cheng and Mullins, 2020). The mechanism by which Myo7s are targeted to such sites is unknown, but the first step of this process is likely to be regulated via relief of autoinhibition. Characterization of filopodia formation in Dictyostelium allows for a systematic examination of how DdMyo7 is recruited to the cell cortex through identification of the essential features of this myosin. The mechanism of DdMyo7 recruitment to the cortex and its potential functional relationship with the actin polymerase and bundler VASP were investigated to gain new insights into motor activation and the early steps of filopodia formation.

Results

The DdMyo7 motor restricts cortical localization of the tail

Disruption of the Dictyostelium myoi (myo7) gene encoding DdMyo7 results in a significant defect in filopodia formation that is rescued by expression of GFP-DdMyo7 (Figure 1A, Figure 1—figure supplements 1A and 2A; Tuxworth et al., 2001; Petersen et al., 2016). Most strikingly localized to filopodia tips, DdMyo7 is also in the cytosol and localized to the leading edge of cells (Figure 1B, Figure 1—figure supplement 1A). In the course of characterizing functionally important regions of DdMyo7, it was observed that the tail domain (aa 809 - end) is localized all around the cell periphery in contrast to the full-length myosin which is often restricted at one edge of the cell cortex, (Figure 1B; Petersen et al., 2016; Arthur et al., 2019). This was unexpected as the myosin tail region is largely regarded as playing a key, even determining, role in targeting myosins. DdMyo7-mCherry and GFP-DdMyo7 tail were co-expressed in Dictyostelium cells (Figure 1B, Figure 1—figure supplement 1B) and a line scan through the cell showed that while both are present at a region of the cell that is extending outwards and producing filopodia (i.e. the leading edge), the tail is also strongly enriched in the cell rear (Figure 1C, line from Figure 1B). The extent of co-localization of the full-length myosin with the tail domain was assessed using cytofluorograms. This method quantifies co-localization of two proteins by comparing the intensity of the two fluorescent signals on a pixel-wise basis for a field of cells with r representing the correlation coefficient (Bolte and Cordelières, 2006). Quantification revealed less correlation between DdMyo7 and the tail (r = 0.63) than is seen for the two full-length myosins (r = 0.86) (Figure 1D). Due to the transient polarity of vegetative cells, a second measure of distribution of DdMyo7 on the cortex was carried out. To quantify the localized enrichment of DdMyo7 without any bias for manually identifying the leading edge, the intensity all around the cortex of cells was measured using a high throughput automated image analysis FIJI macro, Seven (Petersen et al., 2016Figure 1E). Actin is typically enriched at the leading edge with high intensity at one edge and lower intensity elsewhere (Figure 1F,G). The standard deviation of intensities values around the periphery was calculated for each cell (as exemplified in Figure 1H). This analysis shows that actin (RFP-Lifeact; Brzeska et al., 2014) and GFP-DdMyo7 are localized asymmetrically with a high standard deviation of cortical intensity (Figure 1F,G,I). In contrast, the tail appears uniformly localized around the periphery (Figure 1F,G) and has a lower average SD for the cortical intensity around the cell periphery (Figure 1I). Interestingly, a tail-less forced dimer of the motor (motor-FD; Figure 1A) that is capable of inducing filopodial protrusions (Arthur et al., 2019) is also localized asymmetrically with a high standard deviation of intensity (Figure 1F,I). Together, these data establish that restricted localization of full-length DdMyo7 is dependent on its motor domain.

Figure 1 with 2 supplements see all

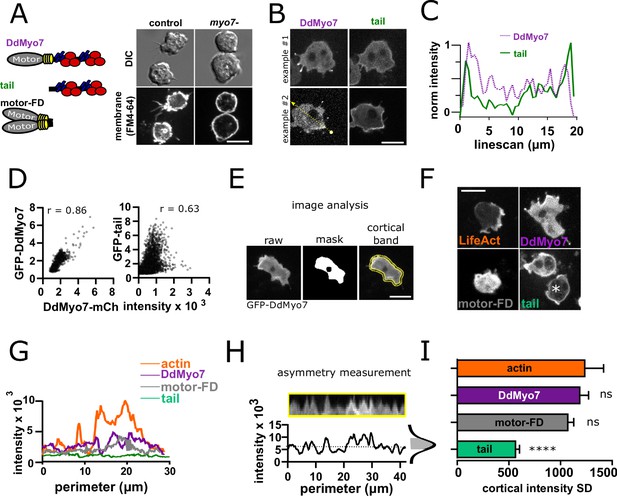

DdMyo7 has a distinct cortical localization from its tail domain.

(A) (left) Schematic of DdMyo7 illustrating its motor domain (gray), 4 IQ domains (yellow) and tandem MyTH4-FERM domains (blue-MyTH4, red-FERM) in the tail, the tail fragment, and a motor forced dimer (motor-FD); (right) Dictyostelium control, or myo7 null cells visualized with DIC and the membrane dye FM4-64 showing DdMyo7 is critical for filopodia formation. (B) Confocal images showing two examples of wild-type cells co-expressing DdMyo7-mCherry and GFP-DdMyo7-tail. The localization of DdMyo7-mCherry is at the cortex and in filopodia tips, and GFP-tail fragment localized around cortex. (C) Line intensity profile along the line shown in panel B. (D) Cytofluorograms of a representative field of cells comparing the colocalization between DdMyo7-mCherry intensity (x-axis) and GFP-DdMyo7 or GFP-DdMyo7 tail intensity (y-axis). (E) Analysis strategy for measuring entire cell peripheral intensity. (F) Micrographs of cells expressing RFP-Lifeact, GFP-DdMyo7, GFP-Tail, or GFP-Motor-Forced Dimer (FD) asterisks (*) on GFP-tail indicates the cell analyzed in G. (A,B,E,F) Scale bars are 10 µm. (G) Peripheral line scan intensity of cells from F. (H). Sample cortical band intensity showing the mean and variation of intensities around the periphery (asymmetry measurement), shaded region of the intensity distribution represents the standard deviation. (I). Cortical band standard deviation (SD; n > 93 cells from three experiments for each group) (see also Figure 1—source data 1). A higher SD indicates asymmetric localization. One-way ANOVA with multiple comparison correction compared to actin, ****p<0.001, ns not significant (see also Figure 1—source data 2).

Figure 1—source data 1

Values of the cortical standard deviation measurements (cortical asymmetry) for each cell for Figure 1I.

https://cdn.elifesciences.org/articles/68082/elife-68082-fig1-data1-v2.xlsx
Figure 1—source data 2

Statistical test results for Figure 1I.

https://cdn.elifesciences.org/articles/68082/elife-68082-fig1-data2-v2.xlsx

DdMyo7 is localized to dynamic cortical actin

The apparent asymmetrical distribution of DdMyo7 to the leading edge (Figure 1F) suggested that the actin at the cortex has a role in the recruitment and localization of DdMyo7. DdMyo7 and actin appear to colocalize at the leading edge in cells expressing both GFP-DdMyo7 and an actin marker (Lifeact) (Figure 2A). Linescans show that indeed there is strong correlation of Lifeact and DdMyo7 fluorescence around the cell periphery (Figure 2B, yellow line from 2A). Cytofluorogram analysis also revealed strong correlation of the DdMyo7 and actin fluorescence intensities (Figure 2C). A line scan taken perpendicular to an extending leading edge showed a steady accumulation of DdMyo7 intensity at the same time as an increase in actin intensity (Figure 2D,E). DdMyo7 and actin normalized intensities during leading edge extension were measured for 10 independent cells and a spline fit shows a robust correlation with actin intensity (Figure 2F).

Figure 2 with 1 supplement see all

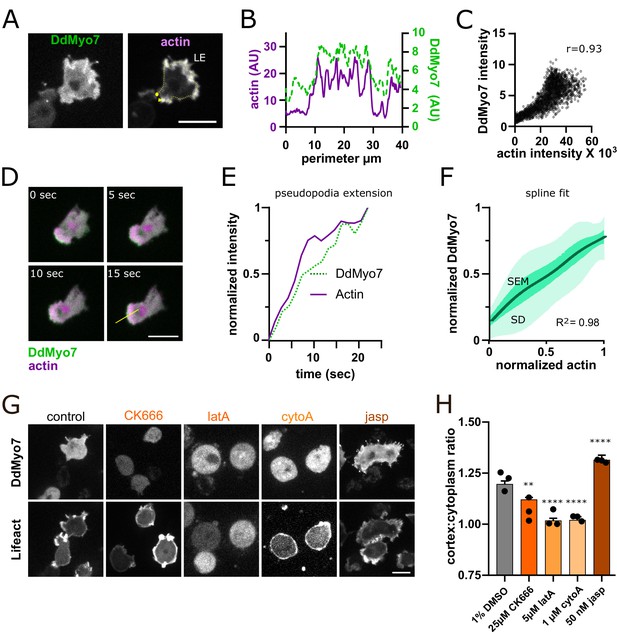

Actin dynamics regulate DdMyo7 recruitment to the cortex.

(A) Dictyostelium co-expressing GFP-DdMyo7 and RFP-Lifeact. (B) Line intensity profile from yellow dotted line in A (circle = beginning, arrowhead indicates end of scan). (C) Cytofluorogram from a representative field of cells showing the colocalization of actin and DdMyo7, r is correlation coefficient. (D) Confocal image series of an extending pseudopod. (E) Normalized linescan intensity profile of DdMyo7 and actin in extending pseudopod along the line from panel D. (F) Intensity correlation of GFP-DdMyo7 and RFP-Lifeact plotted as the average spline fit of 10 extending pseudopodia (SD - light green shading, SEM - dark green shading, see also Figure 2—source data 1). (G) Confocal micrographs of cells expressing GFP-DdMyo7 (top) or RFP-Lifeact (actin, bottom) treated with specified drug. (A,D,G) Scale bar is 10 µm. (H) Cortex:cytoplasm ratio (cortex is 0.8 µm band of cell periphery, cytoplasm is the rest of cell excluding the nucleus) of GFP-DdMyo7 of cells treated with anti-actin drugs, circles are experimental means (see also Table 1). One-way ANOVA with multiple comparison correction, shown to 1% DMSO control, **p<0.01, p****<0.0001.

Figure 2—source data 1

Normalized intensity values for each of the 10 extending pseudopodia in Figure 2F.

https://cdn.elifesciences.org/articles/68082/elife-68082-fig2-data1-v2.xlsx

The dependence of DdMyo7 localization on actin polymerization at the cortex was tested by treating cells with actin modulating drugs. CytochalasinA (cytoA) binds to the fast-growing (barbed) end of actin filaments and blocks incorporation of actin monomers, capping and stabilizing filaments (Cooper, 1987). LatrunculinA (latA) sequesters monomers and prevents actin filament growth, and CK-666 blocks the Arp2/3 complex and actin branching (Coué et al., 1987; Nolen et al., 2009). Cells were incubated with each of these drugs and the impact on DdMyo7 cortical targeting was assessed by measuring the intensity ratio of DdMyo7 in a 0.8 μm band around the perimeter versus the cytoplasm (see Figure 1E). Control cells have a cortex:cytoplasm ratio of about ~1.2, indicating an overall 20% enrichment of DdMyo7 on the cell cortex (Figure 2G,H; Arthur et al., 2019). Treatment of cells with either cytoA or latA reduced the ratio to ~1 indicating a total loss of cortical localization of DdMyo7 (Figure 2H). CK-666 also significantly reduced DdMyo7 cortical recruitment (Figure 2G,H). Consistent with the reduction or loss of polymerized actin and cortical DdMyo7, filopodia formation was significantly reduced with these actin modulating drugs (Table 1). Cells were also treated with jasplakinolide (jasp) that promotes monomer nucleation and stabilizes ADP-Pi actin filaments (Merino et al., 2018). Jasp treatment had the opposite effect, resulting in increased recruitment of DdMyo7 to the cortex and increased filopodia formation (Figure 2G,H; Table 1). The addition of PI3Kinase inhibitors did not disrupt DdMyo7 cortical targeting or filopodia formation, but did disrupt the localization of a PIP3 reporter (GFP-CRAC, Parent et al., 1998; Figure 2—figure supplement 1A–C, Table 1). Microtubules have been implicated in regulating filopodia in melanoma cells, modulating their localization, density and merging (Schober et al., 2007). Treatment of Dictyostelium cells with the microtubule depolymerizing compound nocodazole disrupts cytosolic microtubules (visualized by cells expressing GFP-tubulin Neujahr et al., 1998, Figure 2—figure supplement 1E). Nocodazole reduced DdMyo7 cortical targeting and partially inhibited filopodia formation, particularly at higher concentrations (50 µM) (Figure 2—figure supplement 1E,G,I; Table 1). Interestingly, cortical targeting of the DdMyo7 tail fragment is not reduced in cells treated with nocodazole (Figure 2—figure supplement 1F,H) in spite of the presence of two MF domains with micromolar affinity for microtubules in the DdMyo7 tail (Planelles-Herrero et al., 2016). Additionally, DdMyo7 is not strongly localized to microtubules (Figure 2—figure supplement 1D,E). Together, the data suggest that microtubule-actin crosstalk may impact the dynamics of the cortical actin network and thus indirectly control the cortical recruitment of full-length DdMyo7.

Table 1
Cortical recruitment ratio of DdMyo7 and filopodia per cell for GFP-DdMyo7/myo7 null cells treated with various pharmacological compounds.
ControlsBuffer only1% DMSONoco. Ctrl.
Percent of cells with filopodia423829
Filopodia number + SEM2.01 ± 0.111.97 ± 0.091.5 ± 0.17
Cortex:cytoplasm ratio + SEM1.18 ± 0.011.2 ± 0.021.31 ± 0.03
N, n4, 2383, 2294138
CytochalasinA1 µM5 µM30 µM
Percent of cells with filopodia08.519
Filopodia number + SEM01.3 ± 0.040.1 ± 0.06
Cortex:cytoplasm ratio + SEM1.02 ± 0.021.07 ± 0.011.04 ± 0.02
N, n3, 663, 2341, 42
LatrunculinA1 µM5 µM15 µM
Percent of cells with filopodia194.720
Filopodia number + SEM1.73 ± 0.061.33 ± 0.050.24 ± 0.06
cortex:cytoplasm ratio + SEM1.12 ± 0.011.02 ± 0.011.08 ± 0.02
N, n4, 3873, 1271, 74
Jasplakinolide15 nM50 nM100 nM
Percent of cells with filopodia557248
Filopodia number + SEM1.47 ± 0.233.89 ± 0.22.21 ± 0.09
Cortex:cytoplasm ratio + SEM1.19 ± 0.031.34 ± 0.031.24 ± 0.02
N, n1, 843, 2193, 337
LY294002/wortmannin20 μM LY29400260 μM LY2940022 μM WM
Percent of cells with filopodia224030
Filopodia number + SEM0.56 ± 0.440.87 ± 0.120.84 ± 0.16
Cortex:cytoplasm ratio + SEM1.22 ± 0.081.17 ± 0.041.16 ± 0.02
N, n2, 94, 1942, 101
CK66625 μM
Percent of cells with filopodia10.7
Filopodia number + SEM0.145 ± 0.03
Cortex:cytoplasm ratio + SEM1.12 ± 0.01
N, n3, 366
Nocodazole5 μM15 μM50 μM
Percent of cells with filopodia32148
Filopodia number + SEM1.74 ± 0.221.27 ± 0.111.1 ± 0.09
Cortex:cytoplasm ratio + SEM1.15 ± 0.031.12 ± 0.011.1 ± 0.01
N, n2, 594, 1332, 127
  1. Percent of all cells with at least one filopodia. Average number of filopodia per cells from cells with at least one filopodia. Cortex:cytoplasm ratio is intensity ratio of a 0.8 µm band around the periphery compared to the cytoplasm. N is number of experiments, n is number of cells. SEM is standard error of the mean. See also Table 1—source data 14.

Table 1—source data 1

Filopodia per cell values for each cell for lines analyzed in Table 1.

https://cdn.elifesciences.org/articles/68082/elife-68082-table1-data1-v2.xlsx
Table 1—source data 2

Statistical test results for filopodia per cell data in Table 1 (see also Figure 2—figure supplement 1).

https://cdn.elifesciences.org/articles/68082/elife-68082-table1-data2-v2.xlsx
Table 1—source data 3

Cortex: cell ratio values for each cell for lines presented in Table 1.

https://cdn.elifesciences.org/articles/68082/elife-68082-table1-data3-v2.xlsx
Table 1—source data 4

Statistical test results for cortex: cell ratio data in Table 1 (see also Figure 2—figure supplement 1).

https://cdn.elifesciences.org/articles/68082/elife-68082-table1-data4-v2.xlsx

The role of VASP in DdMyo7 cortical recruitment

Filopodia initiation and extension is driven by regulators of actin polymerization such as VASP and formin (Mattila and Lappalainen, 2008; Figure 3A,B). The actin bundler/polymerase DdVASP accumulates at the leading edge of cells and is important for filopodia formation (Han et al., 2002; Breitsprecher et al., 2008). Interestingly, the Dictyostelium vasp null mutant phenocopies the myo7 null mutant - it lacks filopodia, has reduced adhesion and smaller cell size (Han et al., 2002; Tuxworth et al., 2001). This is of particular note as mammalian Myo10 and VASP are observed to co-transport in filopodia and co-immunoprecipitate, suggesting a role for Myo10 in the transport of VASP to filopodia tips to promote filopodia growth (Tokuo and Ikebe, 2004; Lin et al., 2013). There is currently no evidence that DdMyo7 and Dictyostelium VASP (DdVASP) interact with each other and co-immunoprecipitation experiments in Dictyostelium did not detect any interaction (Figure 3—figure supplement 1A). Surprisingly, in spite of this lack of interaction, DdMyo7 fails to target efficiently to the cortex of vasp- cells (Figure 3C,D). In contrast, DdVASP localizes to the cortex regardless of the presence of DdMyo7 (Figure 3C,D).

Figure 3 with 1 supplement see all

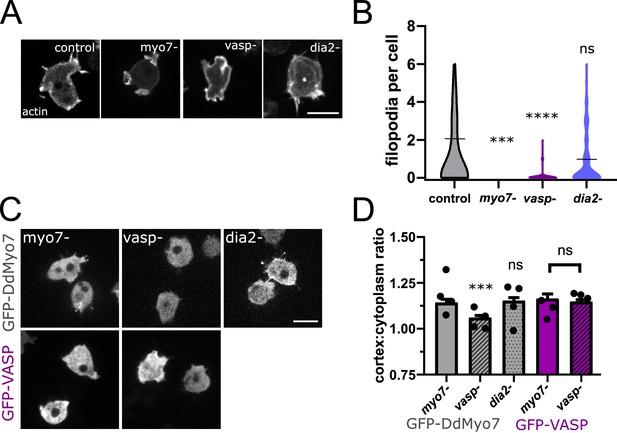

VASP is required for DdMyo7 cortical recruitment.

(A) Confocal images of wild type, myo7 null, vasp null or dia2 null cells expressing RFP-Lifeact (actin). (B) Violin plot of number of filopodia per cell (see also Figure 3—source data 1). (C) Micrographs of cells expressing GFP-DdMyo7 (top) or GFP-VASP in myo7 null, vasp null or dDia2 null cells. (D) Quantification of the cortical band (0.8 µm of periphery) relative to the cytoplasmic intensity of either GFP-Myo7 or GFP-VASP. (A,C) Scale bar is 10 µm (see also Figure 3—source data 3). (B, D) One-way ANOVA with multiple comparison correction or student’s t-test to compare GFP-VASP, ns, not significant, p***<0.001, p****<0.0001, circles are experimental means (see also Figure 3—source data 2 and 4).

Formins are localized to the leading edge of migrating cells and play an important role in filopodia formation (Schirenbeck et al., 2005; Pellegrin and Mellor, 2005; Yang et al., 2007). Formins promote actin polymerization by incorporating actin monomers at the barbed end of actin filaments and elongate parallel actin filaments (Breitsprecher and Goode, 2013; Mellor, 2010). The Dictyostelium diaphanous related formin dDia2 makes significant contributions to filopodia formation and is required for normal filopodia length (Figure 3A,B; Schirenbeck et al., 2005). Formin activity is not required for cortical recruitment of DdMyo7 as it is found to localize normally to the cortex of dDia2 null (Figure 3C,D). These data reveal that DdVASP or its actin polymerization activity is critical for DdMyo7 recruitment and suggests that this bundler/polymerase acts upstream of DdMyo7.

Selective recruitment of DdMyo7 requires specific actin polymerization factors

The finding that DdVASP is critical for DdMyo7 cortical targeting raises the question of how it is acting to recruit this myosin. One simple explanation is that DdMyo7 is targeting to regions of the cell cortex where dynamic actin polymerization occurs. This hypothesis was tested by examining if robust recruitment of DdMyo7 could occur in the absence of DdVASP when actin polymerization was stimulated using different manipulations. Treatment of Dictyostelium with latrunculinA treatment followed by washout produces robust actin waves (Gerisch et al., 2004). These waves are made of a dense Arp2/3 branched actin meshwork and class I myosins (MyoB, MyoC) (Jasnin et al., 2019; Brzeska et al., 2020). Control or vasp null cells expressing both RFP-LimEΔcoil (a marker for F-actin) and GFP-DdMyo7 were induced to form waves that are readily apparent as broad circles of actin that emanate outwards toward the cell periphery. Robust actin waves marked by RFP-LimEΔcoil were observed but DdMyo7 was not observed in the waves in either cell line (n = 6 per genotype; Figure 4A, Figure 4—figure supplement 1A,B). Next, vasp-cells were treated with jasplakinolide to stimulate actin polymerization (Figure 4—figure supplement 1C). No increase in cortical targeting of DdMyo7 was observed in vasp nulls treated with jasplakinolide when compared to untreated cells (Figure 4B,E). Blocking capping protein by overexpressing the capping protein inhibitor V-1 stimulates filopodia formation in Dictyostelium (Figure 4—figure supplement 1D, Jung et al., 2016). V-1 also stimulates cortical actin network formation in vasp null Dictyostelium (Figure 4C). However, no increase in targeting was observed in vasp nulls with induced overexpression of V-1 (Figure 4B,D), nor was filopodia formation restored (Figure 4F).

Figure 4 with 1 supplement see all

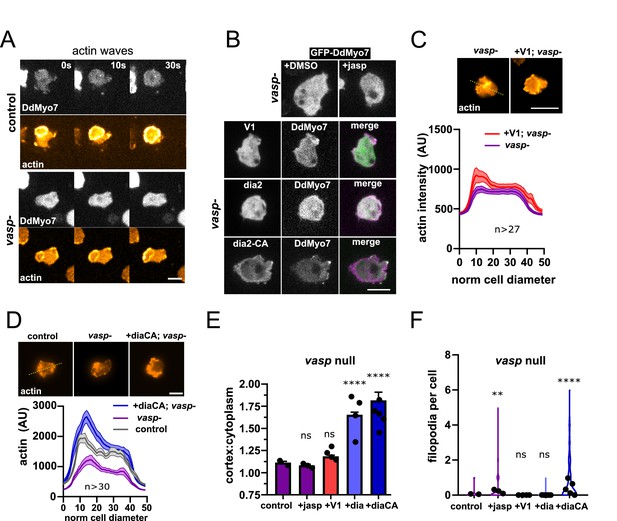

Linear actin polymerization drives DdMyo7 to the cortex.

(A) Image series showing DdMyo7 is absent from latrunculinA-induced actin waves in control (top) or vasp null (bottom) cells. (B) (top) Confocal images of GFP-DdMyo7 in vasp null cells treated with either DMSO or 50 nM jasp treatment. (bottom) Images of vasp null cells expressing GFP or mCherry DdMyo7 and different actin modulating proteins (GFP-V1, green; GFP-dia2WT, green; RFP-dia2CA, magenta). (C, D) Average actin intensity (phalloidin staining, top) of cells through the longest cell axis. The line is the mean and the shaded area is the SEM (graphs, bottom) (see also Figure 4—source data 1). (A–D), Scale bar is 10 µm. (E) Quantification of the cortical band intensity of DdMyo7 in vasp null cells, with no treatment, treated with jasp, or also overexpressing V-1, dia2, or dia2-CA (see also Figure 4—source data 2). (F) Violin plot of filopodia per cell (see also Figure 4—source data 4). (E-F). One-way ANOVA with multiple comparison correction, ns, not significant, **p<0.05, p****<0.0001 (see also Figure 4—source data 3 and 5).

Activation of formins can also result in robust polymerization of actin filaments that are organized into linear bundles (Breitsprecher and Goode, 2013). These polymerases are tightly controlled by autoinhibition with the conserved DAD domain binding to the N-terminal DID domain, blocking actin nucleation activity. Mutation of conserved basic residues in the C-terminal DAD domain creates a constitutively activated (CA) formin (Wallar et al., 2006). A pair of charged residues are present in the dDia2 DAD domain and these were mutated - R1035A, R1036A - to create a CA formin (see alignment in Figure 4—figure supplement 1E). Either dDia2 or dDia2-CA overexpressing vasp null cells exhibit restored and increased DdMyo7 cortical targeting (Figure 4B,E). Overexpression of dDia2-CA also promoted a modest rescue of filopodia formation (Figure 4F; Table 2). Linescans of cells stained with phalloidin show that while vasp nulls have less cortical F-actin than wild type cells, expression of dDia2-CA in vasp nulls resulted in increased cortical F-actin (Figure 4D). In summary, stimulation of actin polymerization by inducing actin waves, treating cells with jasplakinolide, or blocking capping protein is not sufficient to promote DdMyo7 cortical recruitment in vasp null cells. In contrast, expression of activated formin is sufficient for cortical recruitment in vasp null cells. This strongly suggests that DdMyo7 cortical targeting specifically requires the activity of actin regulators that generate parallel actin filaments.

Table 2
Quantification of filopodia number and cortical targeting.
myo7-DdMyo7KKAAE386VE386V-KKAAI426ACAAXTailGFP-VASP
percent of cells with filopodia5480132258n.c.n.c.
filopodia number + SEM2.53 ± 0.155.32 ± 0.331 ± 01.5 ± 0.091.75 ± 0.152.87 ± 0.14n.c.n.c.
cortex:cytoplasm ratio + SEM1.18 ± 0.021.67 ± 0.061 ± 0.011.32 ± 0.041.19 ± 0.041.39 ± 0.031.61 ± 0.071.18 ± 0.29
N, n4, 1983, 1333, 1863, 593, 373, 2373, 553, 91
vasp-GFP-DdMyo7VASP-∆TETVASP -WTVASP-FAB-K-EGFP-VASPDdMyo7-CAAXDdMyo7-TailDdMyo7-KKAAGFP-Dia2mCherry-Dia2-CAGFP-V1
percent of cells with filopodia7356914n.c.4n.c.40290
filopodia number + SEM1.25 ± 0.073.78 ± 0.313.07 ± 0.251.39 ± 0.03n.c.1.2 ± 0.03n.c.1 ± 00 ± 02.03 ± 0.240 ± 0
cortex:cytoplasm ratio + SEM1.06 ± 0.011.2 ± 0.021.47 ± 0.051.19 ± 0.011.18 ± 0.331.24 ± 0.011.35 ± 0.021.29 ± 0.021.65 ± 0.031.82 ± 0.091.12 ± 0.02
N, n3, 1183, 1313, 813, 3223, 2004, 2393, 2133, 19354478,943,35
Ax2 controlGFP-DdMyo7GFP-DdMyo7-CAAXGFP-DdMyo7-TailGFP-DdMyo7-KKAAGFP-VASP
percent of cells with filopodia4554n.c.73n.c.
filopodia num ber + SEM2.36 ± 0.22.9 ± 0.15n.c.3.65 ± 0.2n.c.
cortex:cytoplasm ratio + SEM1.35 ± 0.031.45 ± 0.041.41 ± 0.021.79 ± 0.071.16 ± 0.25
N, n4, 1245, 2664, 3513, 2194, 216
  1. The percent of all cells with at least one filopodia. Average number of filopodia per cells from cells with at least one filopodia. Cortex:cytoplasm ratio is intensity ratio of a 0.8 µm band around the periphery compared to the cytoplasm. N is number of experiments, n is number of cells. SEM is standard error of the mean. GFP-VASP and GFP-DdMyo7-Tail fail to efficiently target to filopodia tips and thus were not counted (n.c.) in this analysis. (See source data: Figure 4—source data 1 and 2; Figure 5—source data 13; Figure 6—source data 15; Figure 7—source data 1, 2, 4 and 5).

Mechanism of VASP-mediated actin polymerization required for DdMyo7 recruitment

The properties of VASP critical for DdMyo7 recruitment were investigated using separation of function mutations. VASP accelerates the rate of actin polymerization, bundles actin filaments and blocks capping protein from binding to the barbed ends of actin filaments (Breitsprecher et al., 2008; Breitsprecher et al., 2011; Hansen and Mullins, 2010). VASP is a constitutive tetramer that can bundle actin by binding to the sides of filaments (see Figure 5A; (Bachmann et al., 1999; Breitsprecher et al., 2008; Brühmann et al., 2017). DdVASP F-actin binding is mediated by a region within the EVH2 domain (aa 264–289) and tetramerization by a region at the C-terminus (aa 341–375) (Schirenbeck et al., 2006; Breitsprecher et al., 2008). Two different mutants were used to test if the VASP bundling activity is required for DdMyo7 recruitment (Figure 5D). A monomeric VASP was created by deleting the tetramerization domain (∆tet; ∆341–375)) and an F-actin binding mutant was generated in which conserved lysines were mutated to glutamate (FAB K-E; KR275, 276EE + K278E + K280E; based on Hansen and Mullins, 2010). The FAB K-E mutations are predicted to slow but not eliminate actin polymerization (Breitsprecher et al., 2008; Schirenbeck et al., 2006; Applewhite et al., 2007; Hansen and Mullins, 2010). Co-expression of either DdVASP-∆tet or DdVASP-FAB K-E with DdMyo7 in vasp null cells cannot fully restore DdMyo7 cortical recruitment (Figure 5B,E). The monomeric VASP-∆tet mutant partially rescues filopodia formation while the FAB K-E mutant does not (Figure 5C). The residual filopodia forming activity of the VASP-∆tet monomer could be attributed to its remaining anti-capping activity that is lost in the F-actin binding mutant (Breitsprecher et al., 2008; Hansen and Mullins, 2010). Both mutants are predicted to lack any bundling activity and show decreased recruitment of DdMyo7 to the cortex. These data indicate that bundling linear F-actin at the membrane could promote DdMyo7 targeting.

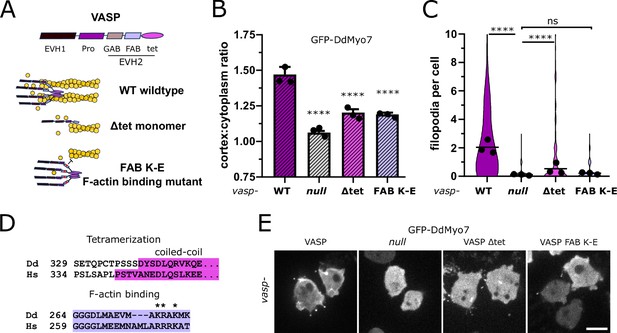

Reduced cortical recruitment of DdMyo7 by VASP mutants.

(A) Schematic of domains of DdVASP (top) and proposed interaction of DdVASP wildtype, monomeric (∆tet), and F-actin binding (FAB K-E) mutant with actin filaments. (B) Quantification of the cortical recruitment of GFP-DdMyo7 co-expressed in the vasp null with wildtype or mutant DdVASP (non-fluorescent) rescue constructs (see also Figure 5—source data 1). (C) Quantification of GFP-DdMyo7 positive filopodia per cell of vasp null cells with wildtype or mutant DdVASP rescue constructs (see also Figure 5—source data 3). (B–C) Circles represent experimental means. One-way ANOVA with multiple comparison correction, p****<0.0001, ns not significant (see also Figure 5—source data 2 and 4). (D) Clustal Omega alignment of Dictyostelium and human VASP sequences with conserved domains highlighted and mutated residues starred. (E) Micrographs of GFP-DdMyo7 in vasp nulls, or vasp nulls expressing wildtype DdVASP or mutant DdVASP rescue constructs. Scale bar is 10 µm.

Release of DdMyo7 autoinhibition dictates the spatial restriction of its recruitment

DdMyo7 is enriched at the leading edge of cells, in contrast to the tail alone that localizes all around the cortex (Figure 1F,I). This difference suggests that head-tail autoinhibition restricts DdMyo7 localization. DdVASP is required for cortical localization but the apparent lack of interaction between DdMyo7 and DdVASP suggests an indirect role. Furthermore, the GFP-DdMyo7 tail domain in vasp null cells targets to the cortex efficiently (Figure 6A–C). This confirms that direct DdMyo7 tail - DdVASP binding is not required for localization to the cortex. Together these results suggested that VASP mediated actin networks release autoinhibition of DdMyo7. If so, then loss of autoinhibition regulation of DdMyo7 should eliminate the requirement of VASP for DdMyo7 to target to the cortex. To test this, two highly conserved charged residues at the extreme C-terminus of DdMyo7 (K2333, K2336) essential for head-tail autoinhibition were mutated (Yang et al., 2009; Petersen et al., 2016). Overexpression of this constitutively active mutant (DdMyo7-KKAA) stimulates filopodia formation and increases cortical localization in wild-type cells (Table 2, Petersen et al., 2016; Arthur et al., 2019). DdMyo7-KKAA was expressed in vasp null cells where it targets to the cortex (Figure 6A–B). The cortical targeting of DdMyo7-KKAA in vasp nulls is not as robust as seen in control cells (Figure 6C), and it is localized more uniformly around the cortex in vasp nulls (less enriched in the leading edge or pseudopod) compared to controls (Figure 6E). These observations are consistent with VASP-mediated actin assembly having a role in local activation and recruitment of DdMyo7 to the cortex.

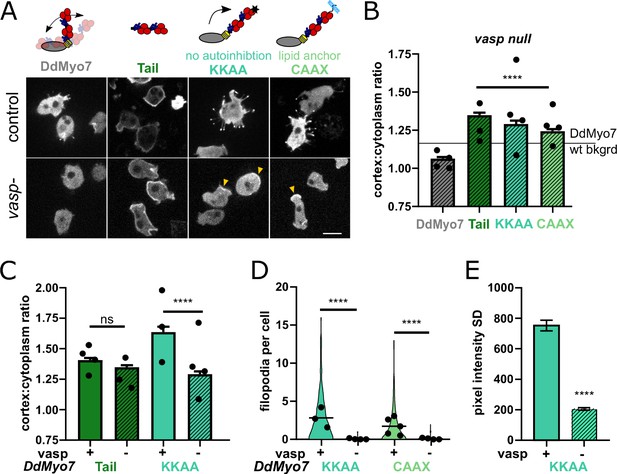

VASP-mediated actin assembly relieves DdMyo7 head-tail autoinhibition to promote targeting and filopodia formation.

(A) (top) Diagrams depicting mutants analyzed. (bottom) Micrographs of GFP-DdMyo7 fusion proteins in control and vasp null cells, scale bar is 10 μm. Arrows indicate cortical enrichment of DdMyo7. (B) Quantification of cortical recruitment of GFP-DdMyo7 and variants in vasp null cells (see also Table 2 and Figure 6—source data 1). The line represents the mean GFP-DdMyo7 recruitment in wild type cells. (C) Comparison of cortical targeting of activated DdMyo7-KKAA or tail in vasp null versus control cells (see also Figure 6—source data 1 and 2). (D) Quantification of number of filopodia per cell in control or vasp null cells (see also Table 2; Figure 6—source data 3). (B–D) Circles represent experimental means. One way ANOVA with multiple comparison test, ns not significant, p***<0.001, p****<0.0001, ns, not significant (see also Figure 6—source data 2 and 4). (E) Quantification of the cortical band intensity variation of DdMyo7-KKAA in control versus vasp null cells (see also Figure 6—source data 5). Students t-test ****p<0.0001.

Figure 6—source data 1

Cortex: cell ratio values for each cell for lines analyzed in Figure 6B.

https://cdn.elifesciences.org/articles/68082/elife-68082-fig6-data1-v2.xlsx
Figure 6—source data 2

Statistical test results for Figure 6B,C.

https://cdn.elifesciences.org/articles/68082/elife-68082-fig6-data2-v2.xlsx
Figure 6—source data 3

Filopodia per cell values for each cell for lines analyzed in Figure 6D.

https://cdn.elifesciences.org/articles/68082/elife-68082-fig6-data3-v2.xlsx
Figure 6—source data 4

Statistical test results for Figure 6D.

https://cdn.elifesciences.org/articles/68082/elife-68082-fig6-data4-v2.xlsx
Figure 6—source data 5

Values of the cortical standard deviation measurements (cortical asymmetry) measured for each cell for Figure 6E.

https://cdn.elifesciences.org/articles/68082/elife-68082-fig6-data5-v2.xlsx

VASP and cortical DdMyo7 are both required for filopodia formation

The finding that loss of head-tail autoinhibition restores cortical recruitment of DdMyo7 raised the question of whether an autoactivated motor is sufficient to rescue the filopodia formation defect seen in the vasp null cells. Expression of DdMyo7-KKAA in vasp nulls did not rescue their filopodia formation defect (Figure 6D), indicating that a specific DdVASP activity is required for filopodia initiation. The requirement for both cortical DdVASP and DdMyo7 for filopodia formation was further tested by targeting of the myosin to the cortex or membrane by fusing a prenylation sequence to its C-terminus (DdMyo7-CAAX, adapted from Weeks et al., 1987). DdMyo7-CAAX was robustly localized to the cortex in myo7 null, wild type and vasp null cells (Figure 6A,B; Table 2). Expression of DdMyo7-CAAX in wildtype or myo7 nulls cells significantly stimulated filopodia formation (Figure 6A,D, Table 2). However, filopodia are not formed when DdMyo7-CAAX was expressed in vasp null cells (Figure 6A,D). These results establish that targeting DdMyo7 to the membrane alone is not sufficient for filopodia initiation and that DdVASP must also be present.

Role of myosin motor activity in targeting and filopodia formation

The data suggest that activation of autoinhibited DdMyo7 is promoted at the front of the cell in regions rich in newly polymerized F-actin. Actin binding by myosin involves conformational changes in the myosin head (Houdusse and Sweeney, 2016) and could destabilize the interactions between the motor head and the tail. To test this, two DdMyo7 mutants were designed, each with mutations in highly conserved connectors of the motor domain. Their functions are established by studies performed on the highly conserved motor domain of DdMyo2 (Sasaki et al., 2003; Friedman et al., 1998). The non-hydrolyzer mutant (E386V) binds ATP but cannot hydrolyze it, and thus stays in weak actin-binding state, while the uncoupler mutant (I426A) can undergo conformational changes allowing strong interactions with F-actin but these conformational changes are not transmitted to the lever arm to produce force (illustrated in Figure 7A).

Figure 7 with 1 supplement see all

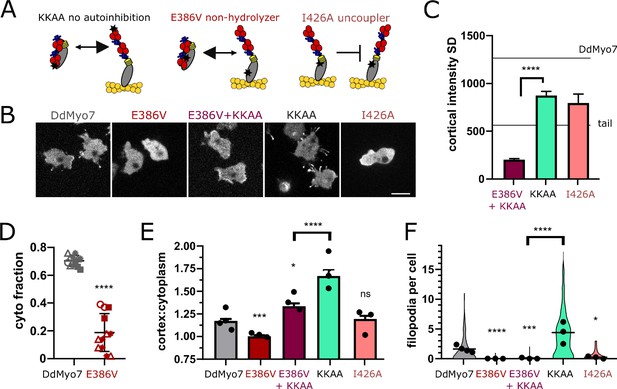

DdMyo7 motor activity is required to release autoinhibition.

(A) Schematic of proposed effect of mutations on DdMyo7 function (see alignment in Figure 7—figure supplement 1). (B) Confocal images of myo7 null cells expressing GFP-DdMyo7 fusion proteins, scale bar is 10 µm. (C) Quantification of the cortical band intensity variation. Mean lines from Figure 1I data on graph for comparison. DdMyo7 versus I426A uncoupler, p=0.07, not significant (see also Figure 7—source data 1 and 2). (D) Fraction of DdMyo7 cosedimenting with the cytoskeleton, symbols with the same shape are technical replicates, students t-test ****p<0.0001 (see also Figure 7—figure supplement 1, Figure 7—source data 3). (E) Quantification of cortical recruitment of DdMyo7 and mutants (see also Figure 7—source data 4). (F) Filopodia number per cell of wildtype and DdMyo7 mutants (see also Figure 7—source data 6). (E–F) Data for KKAA is taken from Figure 6, experimental means shown as circles. (C, E, and F) One-way ANOVA with multiple comparison correction, p*<0.05, p***<0.001, p****<0.0001, ns not significant (see also Figure 7—source data 5 and 7).

The non-hydrolyzer (E386V) has a mutated glutamate in Switch II that is required to assist hydrolysis (Figure 7—figure supplement 1A, Friedman et al., 1998). The non-hydrolyzer failed to efficiently cosediment with the actin cytoskeleton upon centrifugation (Figure 7D, Figure 7—figure supplement 1B) indicating that it was indeed a weak actin binding mutant. The DdMyo7-E386V mutant does not target efficiently to the cell periphery (Figure 7B,E) or rescue filopodia formation (Figure 7F; Table 2). The lack of cortical localization by the non-hydrolyzer suggests that the tail remains bound to the motor, favoring an autoinhibited conformation, and is not free to bind to the cortex (see Figure 7A). To test this, the autoinhibition point mutations (KKAA) were introduced into the non-hydrolyzer to disrupt the head/tail interface. Blocking autoinhibition (KKAA) in the non-hydrolysis mutant (DdMyo7-E386A + KKAA) strikingly restores cortical targeting (Figure 7B,E; Table 2) but not filopodia formation (Figure 7F; Table 2).

A second motor mutation, I426A, resides in the relay helix and disrupts the interface with the converter that is critical to direct the swing of the lever arm during force generation. This mutant uncouples ATP hydrolysis from force generation (Figure 7—figure supplement 1A, Sasaki et al., 2003). Thus, the uncoupler (DdMyo7-I426A) undergoes actin-activated ATP hydrolysis, likely due to conformational changes directed from binding to actin, but it cannot exert force (illustrated in Figure 7A). DdMyo7-I426A cortical targeting is similar to what is seen for wild-type DdMyo7 (Figure 7B,E). This indicates that actin binding destabilizes the autoinhibited form in this mutant. DdMyo7-I426A fails to efficiently rescue the filopodia formation defect of myo7 null cells despite its targeting to the cortex (Figure 7F and Table 2), establishing that force generation by DdMyo7 is essential for filopodia initiation.

The uncoupler mutant motor is predicted to have normal actin binding and indeed its cortical asymmetry is similar to wild-type DdMyo7 (Figure 7B,C). In contrast, the motor of the non-hydrolyzer DdMyo7-E386A + KKAA mutant has weak actin binding so interaction with the cortex would be directed by the tail. As predicted, the DdMyo7-E386A + KKAA mutant is localized more uniformly around the cortex (low cortical SD, Figure 7B,C). These observations provide support for the model that while the tail aids overall cortical localization, motor-actin binding refines leading edge targeting of DdMyo7.

Discussion

Filopodia formation in amoeba requires both an MF myosin and VASP (Tuxworth et al., 2001; Han et al., 2002). The motor domain of the MF myosin DdMyo7, not the tail, targets it to actin-rich dynamic regions of the cortex where filopodia emerge (Figure 1). Actin network dynamics generated by DdVASP activity in vivo are important for myosin localization, promoting release of head-tail autoinhibition (Figure 6), freeing and activating the motor domain for binding to actin at the leading edge (Figures 1 and 7). This controlled activation of MF myosin leads to tuned activity at the right time and the right place to concentrate motors and facilitate filopodia formation, mainly from the leading edge of the cell. The role of DdVASP goes beyond simple recruitment of the motor since targeting of DdMyo7 at the membrane is not sufficient for filopodia initiation in vasp null cells (Figure 6A,D). Thus, both MF myosin and DdVASP together are needed to reorganize and polymerize actin at the cell cortex for filopodia to form (Figures 3 and 4). The data presented here support a model that DdMyo7 is mostly in a closed confirmation or OFF state (Figure 8A). VASP activity, possibly bundling or polymerizing unbranched actin at the leading edge is upstream of DdMyo7 activation (Figure 8B). DdMyo7 is activated by motor binding to a DdVASP generated actin network (Figure 8C), specifically the open state is stabilized by motor binding to the linear, bundles of actin resulting from DdVASP activity. Together, DdVASP and DdMyo7 drive filopodia initiation by further bundling and polymerizing actin (Figure 8D).

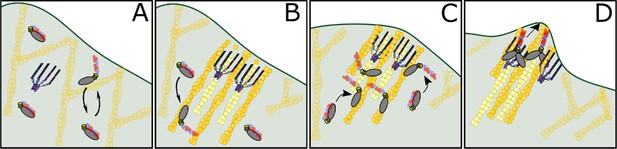

Model of DdMyo7 and VASP mediated filopodia initiation.

(A) The leading edge of the cell has a branched actin network and DdMyo7 is mostly autoinhibited in the cytoplasm. DdMyo7 monomers cycle back to a closed state if they do not dimerize. (B) VASP polymerizes actin at the leading edge, organizing the filaments into linear, parallel bundles. The DdMyo7 autoinhibitory state is destabilized is in the presence of this dense network via binding to actin filaments. (C) The motor of autoinhibited DdMyo7 binds to actin within the VASP-actin network, and the tail undergoes partner-mediated dimerization due to close proximity of other myosins. (D) Cooperative actions of VASP (bundles and polymerizes) and DdMyo7 dimers (bundle) organize actin filaments into nascent filopodia that continue to elongate by actin polymerization.

The role of DdVASP in myosin recruitment

Disruption of the dynamic actin network at the cortex that occurs by loss of vasp (Figure 4D) or by treatment with anti-actin drugs such as cytoA or latA results in loss of cortical localization of DdMyo7 (Figure 2G,H). Dictyostelium VASP is a potent actin polymerase, its activity speeds actin elongation, bundles filaments and blocks capping proteins from binding to the growing ends of actin filaments (Breitsprecher et al., 2008). Both its actin polymerization and bundling activities could be important for DdMyo7 recruitment (Figure 5). In the absence of DdVASP, increased cortical actin generated by the formin dDia2 can also recruit and activate DdMyo7 (Figure 4B-E). However, recruitment is not restored by several other means of increasing actin polymerization, including generating actin waves, polymerizing actin with jasplakinolide or blocking capping protein by overexpression of V-1. Thus, DdVASP does not simply recruit DdMyo7 by generating new actin polymers, but rather it is the nature of the network that DdVASP builds, likely growing linear actin filaments that are bundled together in parallel, that is critical for activation of DdMyo7.

The actin cortex of vasp nulls is less dense than found for wild-type cells as revealed by phalloidin staining, suggesting that a robust leading edge actin network collapses without VASP (Figure 4D). Interestingly, evidence for VASP-dependent changes in the cortical actin network has recently been shown in B16 melanoma cells (Damiano-Guercio et al., 2020). Their cortical actin network is normally dense and with many filaments oriented perpendicular to the membrane but in the absence of VASP, the network is more disperse and actin filaments are oriented in shallower angles with respect to the membrane (Damiano-Guercio et al., 2020). Thus, the formation of a VASP-mediated actin network at the cortex is likely to be important in this context as well as in other cell types.

Motor-dependent release of autoinhibition and leading edge targeting

The motor domain of DdMyo7 and not the tail localizes this myosin to the dynamic leading edge of the cell (Figure 1). The tail alone is uniformly localized all around the cortex suggesting that it only provides general cortical targeting while the motor-FD is enriched at the front of the cell (Figure 1). Cortical targeting requires DdVASP or activated formin activity, suggesting an enrichment of parallel actin filaments in the cortex is needed for normal DdMyo7 activation (Figure 3D, Figure 4D). Mutation of DdMyo7 to lock the motor in a weak actin-binding state, even in the absence of autoinhibition such as in the case of the double non-hydrolyzer/autoinhibition mutant (E386A; KKAA), does not promote leading edge targeting. In contrast, a mutant that can bind actin but uncouples force generation from ATP hydrolysis (I426A) is localized more similarly to wild-type DdMyo7 (Figure 7A–C). Together these observations reveal that a functional motor that can hydrolyze ATP and bind actin is necessary for targeted, cortical recruitment of DdMyo7 to a DdVASP generated actin network, predominantly at the leading edge of the cell (Figure 7).

The motor is typically sequestered by interaction with the tail in the autoinhibited state, a widely used mechanism for controlling myosin activity and reducing unnecessary energy expenditure (Heissler and Sellers, 2016). DdMyo7 head/tail autoinhibition is mediated by charged residues in the FERM domain, similar to fly myosin 7a, and this regulates both cortical targeting and filopodia number (Petersen et al., 2016; Arthur et al., 2019; Yang et al., 2009). Preventing autoinhibition (KKAA) results in enhanced targeting to actin and, in the presence of DdVASP, filopodia formation (Petersen et al., 2016; Arthur et al., 2019; Figure 7B,C,E,F). It also bypasses the loss of cortical targeting observed in the absence of DdVASP, as the tail is now free to bind to any target sites in the cortex (Figure 6). The autoinhibited off state occurs when the equilibrium is biased toward the closed conformation. In this state, the motor has reduced affinity for actin and the partner binding sites in the tail are occluded. The results here lead to the following appealing model for how the motor specifies targeting of DdMyo7 to the leading edge (Figure 8). The compact, autoinhibited DdMyo7 freely diffuses throughout the cell. High local concentrations of actin in the cortical region facilitate interactions with actin, which destabilizes the inactive myosin, shifting the conformational equilibrium toward the open state. This makes the tail available to interact with partners and dimerize, and allows an active motor domain to engage with the actin network. If the motor does not dimerize, then DdMyo7 likely returns to a closed, off state, which diffuses and can be recycled back into the cytoplasm. It is tempting to speculate that the closely apposed actin filament bundles generated by VASP (or dDia2) favor stabilizing the open state because of the high local concentration of actin. This would promote dimerization, either because the tails could interact with each other more readily or because a dimerization partner is also present in the network. Once dimerized, this likely processive motor can productively engage with the cortex (e.g. generating force to align and/or bundle filaments) in collaboration with VASP to promote filopodia extension. Thus, motor domain mediated binding to a specific actin network is a key means of restricting localization of DdMyo7 during filopodia formation.

Conserved and divergent models of filopodia myosin function

The mechanism of autoinhibition via motor-tail stabilizing interactions has been conserved throughout the evolution of myosins (Umeki et al., 2011; Sakai et al., 2011; Yang et al., 2009; Petersen et al., 2016; Weck et al., 2017; Heissler and Sellers, 2016). Mechanisms to overcome autoinhibition likely developed to restrict the recruitment and activation of myosins in time and space, allowing cells to fine-tune their activity. Here it is shown that DdMyo7 autoinhibition is relieved by the cortical actin network generated by DdVASP. While this differs from the PIP3-mediated recruitment of metazoan Myo10, once activated these two evolutionarily distant filopodia myosins use similar mechanisms to generate filopodia. They both dimerize upon recruitment to the actin-rich cortex (Arthur et al., 2019; Lu et al., 2012) where they likely contribute to the reorganization of the Arp2/3 branched actin network to orient actin filaments perpendicular to the membrane (Svitkina et al., 2003; Tokuo et al., 2007; Ropars et al., 2016; Arthur et al., 2019). Interestingly, both DdMyo7 and Myo10 work in cooperation with VASP, although they appear to do so in different ways. In the case of Myo10, it is seen to co-transport with VASP along the length of filopodia during extension and co-immunoprecipitate with VASP, although it is not known if the two proteins interact directly in vivo (Tokuo and Ikebe, 2004; Kerber et al., 2009; Lin et al., 2013). In contrast, the activity of DdVASP generates an actin-rich leading edge that recruits and activates DdMyo7 and there is no evidence that the two proteins interact with each other at present (Figures 1, 3 and 6, and Figure 3—figure supplement 1A).

Dictyostelium filopodia have actin filaments that are loosely bundled (Medalia et al., 2007). They lack an obvious fascin homologue, a bundling protein localized to filopodia in many cell types. However, there is a calcium-sensitive bundler ABP-34 with three actin binding sites, similar to fascin (Fechheimer, 1987; Lim et al., 1999). ABP-34 is selectively localized to filopodia and has been suggested to play a role in filopodia formation in Dictyostelium but its exact function remains unclear (Fechheimer, 1987; Rivero et al., 1996). In the absence of a clear filopodia bundling protein, it is possible that DdMyo7 dimers contribute to actin bundling.

Dictyostelium are highly motile cells with dynamic, short lived filopodia. Given the early origins of Amoebozoa, a simple mechanism of coupling motor activation to actin dynamics at the pseudopod suggests that amoeboid filopodia formation is driven by a minimal regulatory circuit. It is tempting to speculate that VASP-dependent recruitment of an MF myosin represents an early form of cooperation between these two proteins. Perhaps as filopodia played wider roles in development and migration as multicellularity evolved, a signaling-based mechanism of MF myosin recruitment emerged with PIP3 binding to the three PH domain motif of Myo10 that replaced the first MF domain in present in other MF myosins. Thus, once Myo10 activation became dependent on PIP3, its motor activity was then used to promote VASP transport and filopodia extension. The evolution of the functional relationship between VASP and MF myosin would be interesting to explore in organisms such as Drosophila that make filopodia but lack Myo10 (Drosophila instead have a Myo22 with two MF domains like DdMyo7) and in the earliest organisms that have Myo7, Myo22, and Myo10 such as the filasterean Capsaspora and choanoflagellate Salpingoeca (Kollmar and Mühlhausen, 2017). It is possible that VASP plays a role in the recruitment of Myo10 to initiation sites or its activation in some systems, but this remains to be determined. The development of genetic tools in several evolutionarily significant organisms such as Capsaspora and Salpingoeca (Parra-Acero et al., 2018; Booth et al., 2018; Booth and King, 2020), unicellular organisms at the onset of multicellularity, should now allow for the study of the evolution of the VASP-filopodial MF myosin relationship in the targeting and activation of filopodial myosins.

Materials and methods

Cell lines, cell maintenance, and transformations

Request a detailed protocol

Dictyostelium control/wild-type (AX2 or AX3), myo7 null (HTD17-1) (Tuxworth et al., 2001), vasp null (Han et al., 2002), and dDia2 null (Schirenbeck et al., 2005) cells were cultured in HL5 media (Formedium). Transgenic lines were generated by methods similar to those described (Gaudet et al., 2007Paschke et al., 2018). Briefly, axenic lines grown in HL5 cells were harvested, washed twice with ice cold H50 (20 mM HEPES, pH 7.0, 50 mM KCl, 10 mM NaCl, 1 mM MgSO4, 5 mM NaHCO3, 1 mM NaH2PO4 and flash spun at 8,000–10,000 X g in a microcentrifuge tube until the rotor reached speed). Cells were resuspended at 5e7 cells/mL and 100 µL of cells was combined with 10 or 15 µg DNA in a 0.1 cm gap cuvette. Cells were electroporated by pulsing twice, 5 s apart with a Bio-Rad Gene-Pulser set to 0.85 kV, 25 µF, and 200 Ω. Cells were recovered 10 min on ice and plated in a 10 cm dish for 24 hr before moving to selection media, either 10 µg/mL G418, 35 µg/mL HygromycinB or both.

Expression of the fusion proteins or null backgrounds was verified by western blotting using either anti-Myo7 (UMN87, Tuxworth et al., 2005), anti-GFP (Biolegend - B34), or anti-VASP (Breitsprecher et al., 2008) with anti-MyoB used as a loading control (Novak et al., 1995Figure 1—figure supplement 2). Bands were detected using fluorescent secondary antibodies (LiCor) imaged with the LiCor Odyssey.

Generation of expression plasmids

Request a detailed protocol

The GFP-DdMyo7 expression plasmid was created by fusing gfp to the 5' end of the myoi gene (Titus, 1999) (dictyBase DDB: G0274455; Dictybase.org [Fey et al., 2013]) then cloning it into the pDXA backbone with the actin-15 promotor and a NeoR cassette as described (Tuxworth et al., 2001). Plasmids used for the expression of the full length tail (aa 809 - end) (Tuxworth et al., 2001), the KKAA autoinhibition mutant (K2333A/K2336A) (Petersen et al., 2016), motor forced dimer (aa 1–1020 followed by the mouse Myo5A coiled coil region and a GCN4 leucine zipper) Arthur et al., 2019 have been described previously. An expression clone for the full-length GFP-DdMyo7 with a C-terminal prenylation site (CAAX) was generated using Q5 mutagenesis (New England Biolabs) to add codons encoding the CTLL* prenylation motif from Dictyostelium RasG (UNIPROT: P15064) to the 3' end of the myoi gene. A DdMyo7-mCherry expression plasmid was generated by first TA cloning a PCR product (myo42 to myi185 +2) encompassing the 3' region of the myoi gene (encoding aa 475 - end) minus the stop codon using StrataClone (Agilent) (pDTi289 +2). This fragment was then cloned into pDMCCherry, a modified pDM358 (Veltman et al., 2009) with the mCherry gene inserted for C-terminal fusions, generating pDTi299. The 5' end of myoi was then inserted by restriction cloning to create pDTi340. A motor mutant that cannot hydrolyze MgATP, the non-hydrolyzer E386V was designed based on a characterized Dictyostelium Myo2 mutant (Friedman et al., 1998). The combined non-hydrolyzer + KKAA was made by standard ligation cloning to introduce the motor domain sequence from the non-hydrolyzer mutant into KKAA full-length expression plasmid by restriction enzyme digest with BsiWI and BstEII. The uncoupler mutant (I426A) based on a characterized Dictyostelium Myo2 mutant (Sasaki et al., 2003) was cloned by Q5 mutagenesis. Fluorescent protein fusions of DdMyo7 were made using a combination of Q5 mutagenesis, Gibson assembly and restriction enzyme cloning. A DdMyo7-Scarlet I expression plasmid, pDTi517, was generated by first cloning a full-length myoi gene that has a BglII site at the 5' end, lacks its internal BglII site and also its 3' stop codon, pDTi515 +2, using a combination of Q5 mutagenesis, Gibson assembly and restriction enzyme cloning. The base Scarlet I-pDM304 expression plasmid for C-terminal fusions was generated by restriction enzyme cloning a codon-optimized synthesized Scarlet I gene (GenScript) into the extrachromosomal expression plasmid pDM304 (Veltman et al., 2009). The myoi gene was then cloned into mScarlet I-pDM304. Restriction cloning was used to create wild type and non-hydrolyzer mNeon DdMyo7 expression plasmids (pDTi516 and pDTi527, respectively). First, the base mNeon-pDM304 expression plasmid for N-terminal fusions was generated by restriction enzyme cloning a codon-optimized synthesized mNeon gene (GenScript) into the extrachromosomal expression plasmid pDM304 (Veltman et al., 2009). Then a full-length myoi gene that has a BglII site at the 5' end and lacks its internal Bgl II site was generated and cloned into either pDM448 (Veltman et al., 2009) for GFP-DdMyo7 expression (pDTi492) or mNeon-pDM304 for mNeon-DdMyo7 expression (pDTi516). Restriction cloning was used to exchange the 5' region of the gene carrying the E386V mutation into the wild type pDTi516 expression plasmid, creating pDTi527. The dDia2-CA mutant was created by first PCR-amplifying the forH gene (using forH4L and forH8 oligos) from GFP-dDia2 (Schirenbeck et al., 2005) then TA cloning the product using StrataClone (Agilent) to generate dDia2-SC. Mutations to generate a double R1035A, R1036A mutation were introduced dDia2-SC by Q5 mutagenesis (dDia2-CA SC). The wild type or mutant genes were restriction cloned into the extrachromosomal expression plasmid pDM449 (Veltman et al., 2009) to generate mRFPmars-dDia2-CA. An inducible V-1 expression plasmid was created by first PCR-amplifying the mtpn gene with V-1 F and V-1 R oligos (dictyBase:DDB_G0268038) using Ax2 genomic DNA then TA cloning the product using StrataClone (Agilent) to generateV-1 SC. The V-1 insert was then restriction cloned into the extrachromosomal expression plasmid pDM334 (Veltman et al., 2009) to generate GFP-inducible V-1. The sequence of all PCR generated clones was confirmed by Sanger sequencing (GeneWiz and University of Minnesota Genomics Center).

The GFP-VASP expression plasmid was a gift from Dr. Richard Firtel (UCSD) (Han et al., 2002). The VASP tetramer and FAB, Δtet mutants were not fused to GFP to avoid any steric hindrance with the fluorescent protein. The full-length VASP cDNA (dictyBase:DDB_G0289541) was cloned into the pDM344 shuttle vector (Veltman et al., 2009) and the NgoM-IV fragment from this plasmid was ligated into pDM358-mApple that has the mApple gene (Shaner et al., 2008) cloned in between the act6 promoter and act15 terminator of pDM358 (Veltman et al., 2009). VASP-∆tet was created by introducing a SmaI site and stop codon into the vasp gene, altering the coding sequence from 334 PSLSAPL to 334 PSLSAPG* using Q5 mutagenesis. The F-actin-binding mutant (FAB K-E) was based on mutating previously identified critical F-actin binding residues (K275, R276, K278, and K280); (Schirenbeck et al., 2006) to glutamic acid (Hansen and Mullins, 2010) by Q5 mutagenesis. The sequence of all PCR generated clones was confirmed by Sanger sequencing (University of Minnesota Genomics Center). Oligonucleotides used are in the key resource table.

Microscopy and imaging experiments

Live-cell imaging

Request a detailed protocol

Microscopy of live cells was carried out as previously described (Petersen et al., 2016). Briefly, cells were adhered to glass bottom imaging dishes (CellVis, D35-10-1.5-N) and starved for 45–75 min in nutrient-free buffer (SB, 16.8 mM phosphate, pH 6.4), and then imaged at 1–4 Hz on a spinning disk confocal (3i Marianas or Zeiss AxioObserver Z.1) with a 63 X / 1.4NA Plan Apo oil-immersion objective. The sample temperature was maintained at 19–21°C. Samples were illuminated with 50 mW lasers (488 nm or 561 nm) with Semrock filters for 488- or 561-nm excitation and a Yokogawa CSU-X1 spinning disk, and captured with a Photometrics Evolve 512 EMCCD camera (final 0.212 micron pixel size). 4–6 Z sections of 0.28–0.5 microns were taken with a 50–250 ms exposure with 10–40% laser power. Cells were imaged for 10 s – 10 min or longer depending on experiment. Cells were plated at a density of 5 × 105 per mL. Ten fields of view were collected from each imaging dish, with 2–20 cells per field of view. All data sets represent cells from at least three independent experiments and two independently transformed cell lines.

Drug treatments

Request a detailed protocol

Cells were washed free of media, adhered to glass bottom dishes and starved in nutrient-free buffer for 40 min. The buffer was replaced by buffer supplemented with the noted concentration of jasplakinolide (in 0.5% DMSO), cytochalasinA, latrunculin A, CK666, nocodazole, LY294002, wortmannin or just DMSO alone. Jasplakinolide treatment was for 5–20 min, cells were incubated with all other compounds for 15–20 min, prior to imaging for 10–30 min. Additional drug concentration data are in Table 1. Cells expressing mApple-DdMyo7 and inducible GFP-V1 were induced overnight with 10 μg/mL doxycycline (Sigma) to turn on expression of V-1 prior to imaging as above. Cells were treated with 0.25 μg/mL FM4-64 (Invitrogen) for 2–5 min to image filopodia with a membrane marker.

LatrunculinA-induced actin waves

Request a detailed protocol

Cells expressing GFP-DdMyo7 and the actin reporter RFP-LimE∆coil (Gerisch et al., 2004) were induced to generate travelling actin waves using a modified protocol (Gerisch et al., 2004). Cells rinsed with 16 mM phosphate buffer pH 6.4 were seeded on glass bottom dishes (Celvis) at 5 × 105 cell/mL, incubated in phosphate buffer for 30 min and then supplemented with 5 µM latrunculinA for 20 min. The solution was diluted to 0.5 µM latA and cells incubated for an additional 30 min, then imaged for up to 2 hr. Images were captured in 5–10 0.3 µm Z sections by spinning disk confocal microscopy (see above) every 5 s to make 10–30 min movies.

Actin intensity linescans

Request a detailed protocol

Cells were seeded as above and fixed using picric acid (Humbel and Biegelmann, 1992). Cells were incubated with 568- or 647- Alexa phalloidin (Invitrogen) for 45 min, rinsed with PBS-glycine, then water and mounted using ProLong-Diamond (Molecular Probes). Slides were imaged using a Nikon Widefield Eclipse NiE microscope with a 40X/1.3 NA Plan Fluor oil objective, CoolSNAP ES2 CCD camera and SOLA light source. Maximum Z projections (5–10 0.3 µm) were analyzed by manually drawing a linescan perpendicular to the long axis and compiled with the FIJI/ImageJ macro and RStudio scripts (Zonderland et al., 2019).

Cytoskeleton association

Request a detailed protocol

Log phase cells expressing wildtype or E386V mNeon-DdMyo7 were grown on bacteriological plastic plates (150 mm) were rinsed twice in PB then resuspended, counted and 5 × 107 cells collected by centrifugation (Beckman J6, 200 x g). The pellet was resuspended in 1 ml lysis buffer (100 mM Tris, pH 8.1, 5 mM MgCl2, 5 mM EDTA and 2.5 mM EGTA), washed once then lysed with Lysis Buffer +1% Tx-100, 1 mM TLCK (Sigma), 1 mM TPCK (Sigma), 1X HALT protease inhibitor cocktail (Pierce ThermoFisher) at room temperature. The 0.5 ml sample was spun immediately at 20,000 x g, 4 °C for 20 min. The supernatant was collected and pellet resuspended and homogenized in 0.25 ml of lysis buffer. An equal volume of ULSB gel sample buffer was added to aliquots from the sup and pellet and the samples run on a 4–15% gradient TGX SDS PAGE gel (BioRad) then transferred to nitrocellulose (Licor). The blot was probed for the presence of DdMyo7 and actin followed by fluorescent secondary antibodies (LiCor) and then imaged with the LiCor Odyssey. Quantification of the DdMyo7 band was performed using Image Studio Lite (Licor).

Data analysis

Protein alignments

Request a detailed protocol

Myosin motor domain sequences were aligned using T-Coffee algorithm ‘Expresso’ (Notredame et al., 2000). These included Uniprot sequence entries: P54697, Q9U1M8, P08799,P19524, K4JEU1, Q9V3Z6, Q9HD67,Q13402, Q6PIF6. Diaphanous related formins were aligned using Clustal Omega, using Uniprot entries: Q54N00, O70566, O60879, P41832, P48608 and the DAD domain basic residue highlighted is based on Wallar et al., 2006; Lammers et al., 2005. VASP mutations were made by first creating a structural alignment with DdVASP (Uniprot: Q5TJ65) and Human VASP (Uniprot: P50552) in T-Coffee algorithm ‘Expresso’.

Image analysis

Request a detailed protocol

Cortex to cell ratio, cortical asymmetry and filopodia per cell were quantified using a custom FIJI plugin ‘Seven’ (Petersen et al., 2016, code available on github linked to titus.umn.edu). Raw data for all experiments is provided (see source data files associated with each figure and table). Cells not expressing transgenic proteins were excluded from the analysis. Analysis was done on maximum intensity projections. First, the image is thresholded to mask the cell. This mask excludes the nucleus, which is devoid of DdMyo7 signal, and filopodia tips extended from the cell body. The cortical band (0.8 μm) intensity, standard deviation of intensity in the cortical band was measured for each cell. Next, a radial tip search identifies filopodia and registers them to each cell to count the number of filopodia per cell. Extending pseudopodia and actin correlation were done in FIJI by reslicing through extending pseudopodia and making plot profiles of the edge of the cell. Intensity profiles were normalized between 0 and 1, and multiple cells were averaged by fitting a restricted cubic spline.

Statistical analysis

Request a detailed protocol

Statistics were calculated in Prism 8 (GraphPad). One-way ANOVA analysis with post hoc Tukey test or Dunnett’s multiple comparison to wild-type control was used to compare groups; Student’s t test was used when only comparing two datasets. Statistical tests were calculated on full datasets, experimental means are shown on graphs to demonstrate experimental variability. Data points deemed definite outliers (0.1%) by Rout method were excluded for cortex:cytoplasm ratio. Error bars are SEM, unless noted. Significance differences are in comparison to control (DdMyo7), unless noted. Tables have filopodia number as average number of filopodia in cells with at least one filopod. SEM is standard error of the mean. Capitalized ‘N’ indicates number of experiments lowercase n is number of cells. Full statistical analysis is included in the source data tables accompanying each figure.

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
cell line (Dictyostelium)control wild typeProvided by Dr. Günther Gerisch (MPI Martinsried)Ax2Available at Dictybase.org
cell line (Dictyostelium)control wild typeProvided by Dr. Rick Firtel (UCSD)Ax3Available at Dictybase.org
cell line (Dictyostelium)myo7 nullTitus Lab Tuxworth et al., 2001myo7 null HTD17-1
(G1-20)
Ax3 background
cell line (Dictyostelium)control non-homologous recombinant - myo7 nullTitus Lab
Tuxworth et al., 2001
G1-21Ax3 background
cell line (Dictyostelium)vasp nullFirtel Lab
Han et al., 2002
vasp-Ax3 background
cell line (Dictyostelium)dDia2 nullProvided by Dr. Jan Faix (Hannover Med Sch, Hannover Germany) Schirenbeck et al., 2005dia-Ax2 background
OtherHL5 Medium including GlucoseFormediumHLG0103Dictyostelium growth medium
DatabaseDictybase.orgFey et al., 2013
SoftwarePrism 8.0GraphpadStatistical Analysisgraph preparation, statistical analysis
SoftwareSevenPetersen et al., 2016https://github.com/tituslabumn/Seven
AntibodyRabbit anti-DdMyo7UMN-87 Tuxworth et al., 20051:2000
Antibodymouse monoclonal anti-GFP, clone B34Biolegend9026021:5000
AntibodyRabbit polyclonal anti-vaspProvided by Dr. Jan Faix (Hannover Med Sch, Hannover Germany) Breitsprecher et al., 20081:500
AntibodyRabbit polyclonal anti myoBTitus Lab Novak et al., 19951:2000
AntibodyRabbit polyclonal anti-mCherryProteintech26765–1-AP1:500
AntibodyGoat anti rabbit secondaryLicorIR6801:2500-1:10,000
AntibodyGoat anti mouse secondaryLicorIR8001:2500-1:10,000
AntibodyMouse monoclonal anti- Dictyostelium actinProvided by Dr. Günther Gerisch (MPI Martinsried) Westphal et al., 19971:4000
Chemical compoundG418Fisher ScientificBP-673antibiotic
Chemical compoundG418Gold BiotechnologyG-418antibiotic
Chemical compoundHygromycin BGold BiotechnologyH-270antibiotic
Chemical compoundDoxycycline HyclateSigmaD9891antibiotic
Chemical compoundPencillin G Sodium SaltSigmaP3032antibiotic
Chemical compoundStreptomycin SulfateSigmaS9137antibiotic
Chemical compound, drugCytochalasin ASigmaC-6637
Chemical compound, drugJasplakinolideSigmaJ4580
Chemical compound, drugLatrunculin ASigmaL5163
Chemical compound, drugLY294002EMD Millipore440204
Chemical compound, drugNocodazoleSigmaM1404
Chemical compound, drugWortmanninSigmaW1628
Chemical compound, drugCK666Gift from Dr. Brad Nolen (U. Oregon) Nolen et al., 2009
Chemical compound, drugAlexa Fluor 568 PhalloidinInvitrogenA12380
Chemical compound, drugAlexa Fluor 647 PhalloidinInvitrogenA22287
Chemical compound, drugFM 4-64 DyeThermoFisherT13320
otherQ5 polymeraseNew England BiolabsM049L
commercial assay or kitNEBuilder HiFi DNA AssemblyNew England BiolabsE5520S
Recombinant DNA reagentsynthesized gene - mScarlet IGenscriptactagtggtggttcaggaGTTTCAAAAGGTGAAGCCGTTATTAAAGAATTTATGAGATTCAAGGTTCACATGGAAGGAAGTATGAACGGTCATGAATTTGAGATTGAAGGAGAAGGTGAAGGTAGACCATATGAAGGCACCCAAACAGCTAAATTAAAAGTAACTAAAGGTGGTCCATTACCATTTAGTTGGGATATTTTATCTCCACAATTTATGTATGGTTCACGTGCTTTCAttAAACATCCAGCAGATATTCCAGATTATTATAAACAATCATTTCCAGAA GGTTTTAAATGGGAACGTGTCATGAACTTTGAAGATGGTGGAGCAGTTACAGTCACACAAGATACCTCATTAGAAGATGGTACATTAATATATAAAGTTAAATTACGTGGTACTAATTTTCCACCAGACGGTCCAGTAATGCAAAAAAAAACAATGGGCTGGGAAGCTAGT ACAGAACGTTTATATCCTGAAGATGGTGTCCTTAAAGGCGATATAAAAATGGCCTTGAGATTAAAGGATGGTGGTAGGTATTTAGCAGATTTCAAAACCACTTATAAAGCAAAAAAACCAGTTCAAATGCCAGGTGCATATAATGTTGATAGAAAACTTGATATTACCAGTCATAATGAAGATTACACAGTTGTCGAACAATACGAACGTTCTGAAGGTCGTCATAGCACTGGTGGTATGGATGAATTATACAAATAAgctagc
Recombinant DNA reagentsynthesized gene - mNeonGenscriptggatccATGGTGAGTAAAGGTGAAGAAGATAATATGGCATCGTTACCAGCTACACATGAGTTACATATATTCGGTAGCATTAATGGTGTTGATTTTGATATGGTGGGACAAGGTACCGGTAATCCTAATGATGGTTACGAAGAACTAAATTTAAAATCGACTAAAGGTGACTTACAATTTTCTCCATGGATTTTAGTGCCACATATAGGGTATGGTTTTCATCAATACTTACCATATCCAGATGGTATGTCACCATTTCAAGCTGCAATGGTTGATGGATCAGGTTATCAAGTTCATAGAACAATGCAATTTGAAGATGGTGCTTCATTAACTGTTAATTATAGATACACATATGAAGGCTCACATATTAAAGGTGAAGCTCAAGTTAAAGGTACTGGTTTCCCAGCCGATGGCCCAGTTATGACAAATAGTTTAACAGCAGCAGATTGGTGTAGATCCAAAAAAACTTATCCAAATGATAAAACAATTATTTCAACTTTTAAATGGTCATATACAACCGGTAATGGTAAACGTTATCGTTCAACAGCCCGTACAACATATACTTTTGCTAAACCAATGGCAGCTAATTATTTAAAAAATCAACCAATGTATGTTTTTCGTAAAACAGAGTTAAAACATTCAAAAACAGAACTTAATTTTAAAGAATGGCAAAAAGCATTTACAGACGTTATGGGTATGGATGAACTTTATAAGagatct
Sequence-based reagentCAAX FIDTDNAPCR Primer (pDTi346 plasmid)ttattaTAAAAAAATTAAAATAAAATAAAATCTCGTG
Sequence-based reagentCAAX RIDTDNAPCR Primer (pDTi346 plasmid)tgtacaTTGAGAAGAATAAAATTGATAAACTG
Sequence-based reagentE386V FIDTDNAPCR Primer (pDTi364 plasmid)ttttgtAAATTTTAAAAAGAATAGTTTTGAACAATTTTG
Sequence-based reagentE386V RIDTDNAPCR Primer (pDTi364 plasmid)ccaaagATATCCAATACACCAATAAATGTTG
Sequence-based reagentI426A FIDTDNAPCR Primer (pDTi435 plasmid)AAAAGAAAAAgctAATTGGAGTAAGATCGTATATAATG
Sequence-based reagentI426A RIDTDNAPCR Primer (pDTi435 plasmid)TCATATTCTTCTTGTTCTAATTTAAAAATATG
Sequence-based reagentmyi42in-house synthesisPCR Primer (pDTi289 + 2 plasmid)catgccatggcagcagcagcaACCTTAAAGAGAAAAGCACCAGTCG
Sequence-based reagentmyi185 + 2IDTDNAPCR primer (pDTi289 + 2 plasmid)gctagcaaTTGAGAAGAATAAAATTGATAAACTGAAGC
Sequence-based reagentVASP339* FIDTDNArelated to pVASP29 plasmidtaataaAGAGCATCTCAACATTAACTAG
Sequence-based reagentVASP339* RIDTDNAPCR Primer (pVASP29 plasmid)cccgggAGCTGATAAGGATGGTGAAG
Sequence-based reagentFAB K-E FIDTDNAPCR Primer (pVASP34 plasmid)gaaatggagGCAGCAGCATCTCAACCAA
Sequence-based reagentFAB K-E RIDTDNAPCR primer (pVASP34 plasmid)ggcttcctcGGCCATAACTTCGGCCAT-
Sequence-based reagentforH4L FIDTDNAPCR primer (dDia2-SC plasmid)AATTGACCAGATCTAATTTGAG
Sequence-based reagentforH8 RIDTDNAPCR primer (dDia2 SC plasmid)actagtTTATTTTTTTAATTGGCCTGATGG
Sequence-based reagentforH9 FIDTDNAPCR primer (dDia2-CA SC plasmid)ggatccATGTCTTTTGATTTAGAGAGTAATAGTAGTGG
Sequence-based reagentforH10 RIDTDNAPCR primer (dDia2-CA SC plasmid)ATTCAAAGATagaagaGTTGGTGATTCTGTCATTG
Sequence-based reagentV1 FIDTDNAPCR primer (V-1 SC plasmid)agatctATGGAAGAACAAAATGATTTCAC
Sequence-based reagentV1 RIDTDNAPCR primer (V-1 SC plasmid)actagtTTATTTTAATAATGCTTTAATATCAGC
Transformed construct (Dictyostelium)GFP-DdMyo7-TailTitus Lab Tuxworth et al., 2005pDTi35pSmall, G418, Extrachromosomal
Transformed construct (Dictyostelium)GFP-DdMyo7Titus Lab Tuxworth et al., 2001pDTi74pBS, G418, Integrating
Transformed construct (Dictyostelium)GFP-DdMyo7motor-FDTitus Lab Arthur et al., 2019pDTi490pDXA, G418, Extrachromosomal
Transformed construct (Dictyostelium)GFP-DdMyo7-KKAATitus Lab Arthur et al., 2019pDTi321pBS, G418, Integrating
Transformed construct (Dictyostelium)GFP-DdMyo7-E386VTitus Lab this paperpDTi364pBS, G418, Integrating
Transformed construct (Dictyostelium)GFP-DdMyo7-E386V; KKAATitus Lab this paperpDTi386pBS, G418, Integrating
Transformed construct (Dictyostelium)GFP-DdMyo7-CAAXTitus Lab this paperpDTi346pBS, G418, Integrating
Transformed construct (Dictyostelium)GFP-DdMyo7-I426ATitus Lab this paperpDTi435pTX-GFP, G418, Extrachromosomal
Transformed construct (Dictyostelium)GFP-DdMyo7Titus Lab this paperpDTi504pDM317, G418, Extrachromosomal
Transformed construct (Dictyostelium)mNeon-DdMyo7Titus Lab, this paperpDTi516pDM304, G418, Extrachromosomal
Transformed construct (Dictyostelium)mNeon-DdMyo7-E386VTitus Lab, this paperpDTi527pDM304, G418, Extrachromosomal
Transformed construct (Dictyostelium)DdMyo7-mCherryTitus Lab, this paperpDTi340pDM358, Hyg, Extrachromosomal
Transformed construct (Dictyostelium)mApple-DdMyo7Titus LabpDTi512pDM358, Hyg, Extrachromosomal
Transformed construct (Dictyostelium)GFP-VASPProvided by Dr. Rick Firtel (UCSD) Han et al., 2002GFP-VASPEXP4+, G418, Extrachromosomal
Transformed construct (Dictyostelium)VASPTitus Lab, this paperVASPpDM358, Hyg, Extrachromosomal
Transformed construct (Dictyostelium)VASP-∆TETTitus Lab, this paperVASP-∆TETpDM358, Hyg, Extrachromosomal
Transformed construct (Dictyostelium)VASP-FABTitus Lab, this paperVASP-FABpDM358, Hyg, Extrachromosomal
Transformed construct (Dictyostelium)diaWTProvided by Dr. Jan Faix (Hannover Med Sch, Hannover Germany) Schirenbeck et al., 2005GFP-dDia2pDGFP-MCS, G418, Integrating
Transformed construct (Dictyostelium)diaCATitus Lab, this papermRFP-mars-diaCApDM449, Hyg, Extrachromosomal
Transformed construct (Dictyostelium)GFP-V1Titus Lab, this paperTetracycline -Inducible GFP-V1pDM334, G418, Extrachromosomal
Transformed construct (Dictyostelium)RFP-LifeactBrzeska et al., 2014pDM358, Hyg, Extrachromosomal
Transformed construct (Dictyostelium)RFP-LimEΔcoilGerisch et al., 2004
Transformed construct (Dictyostelium)GFP-tubulinProvided by Dr. Günther Gerisch (MPI Martinsried) Neujahr et al., 1998pDEXRH, G418, Integrating

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files.

References

    1. Humbel BM
    2. Biegelmann E
    (1992)
    A preparation protocol for postembedding immunoelectron microscopy of Dictyostelium discoideum cells with monoclonal antibodies
    Scanning Microscopy 6:817–825.
    1. Mellor H
    (2010) The role of formins in filopodia formation
    Biochimica et Biophysica Acta (BBA) - Molecular Cell Research 1803:191–200.
    https://doi.org/10.1016/j.bbamcr.2008.12.018

Decision letter

  1. Derek Applewhite
    Reviewing Editor; Reed College, United States
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands
  3. Derek Applewhite
    Reviewer; Reed College, United States
  4. Scott Hansen
    Reviewer; University of Oregon, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The data presented here support the hypothesis that actin architecture plays a role in the recruitment of actin polymerase VASP and the filopodia machinery and further illuminates the relationship between the myosin DdMyo7, DdVASP, and filopodial formation in Dictyostelium. Given the importance of filopodia formation to a myriad of cellular processes, this paper should draw broad attention from the cell biology community.

Decision letter after peer review:

Thank you for submitting your article "VASP mediated actin dynamics activate and recruit a filopodia myosin" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Derek Applewhite as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Anna Akhmanova as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Scott Hansen (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Summary:

This paper will be of general interest to cell biology community as it focuses on the basic mechanisms of filopodia formation. The data presented here supports the claims by authors in showing that a specific actin architecture is needed to fully recruit filopodia machinery. Several quantitative imaging techniques were used to rigorously determine the requirements of this actin architecture.

Essential revisions:

1) Provide some discussion about the actin bundling protein, fascin, at the beginning and/or end of the manuscript. From my understanding, fascin is not expressed in Dicty. However, it's important for generating filopodia in many mammalian cell types. Do DdVASP and DdMyo7 serve the function of fascin? Alternatively, are there other actin bundling proteins that are critical for filopodia formation in Dicty?

2) There are a couple of far-reaching statements that should either be supported with more experiments or toned down with further explanation.

a. Line 195: "The microtubule disrupting compound nocodazole had no effect on DdMyo7 in spite of the presence of two MF domains with micromolar affinity for microtubules in the DdMyo7 tail." In Supp. Figure 2A, I wouldn't say that there's "no effect" because there is clearly less DdMyo7 in the nocodazole treated cell than in the control image.

b. In line with the point above, look at Line 190: "The changes in DdMyo7 localization are specific to treatments that alter actin dynamics." Considering there are these microtubule binding domains in the DdMyo7 tail, only a few microtubule based assays were performed. What about the effect of microtubule dynamics? What about different drug concentrations? I think probing the level of actin-microtubule crosstalk that could potentially be at play here would be fascinating, but also outside the scope of this paper. However, to back up the statement in Line 190 that is due to actin dynamics alone, either more experiments need to be performed, or the statement should be toned down while considering other mechanistic possibilities.

c. Line 238: "Actin waves were generated in either control or vasp null cells and in all cells visualized all waves are completely devoid of DdMyo7 (Figure 4A)." First of all, do you mean that the waves are devoid of DdMyo7 in both the control and vasp- cells? In the control of Figure 4A, there is very slight enhancement of DdMyo7 at the identified actin wave site. In the vasp- case, there is still DdMyo7 present in the location of the actin wave, but it just isn't concentrated in a ring type formation – so to say that it is completely devoid of it is not true. Please clarify.

3. Discussion section: Actin-dependent release of autoinhibition and leading edge targeting

In line 418, you say "Overcoming autoinhibition is thus essential for liberating the motor and allowing it to target DdMyo7 to the dynamic cortex."

Then in line 424, "Motor activity (i.e. ATP hydrolysis) and actin binding are needed to release autoinhibition and promote cortical recruitment of DdMyo7."

These statements seem circular to me. I agree with what is said in Line 418. But in Line 424, how can motor activity and actin binding release autoinhibition if autoinhibition prevents motor activity and actin binding?

You show that blocking autoinhibition results in enhanced cortical targeting and filopodia formation, and you say at the end of the paragraph that the motor domain mediated binding to a specific actin network is a key way to restrict localization of DdMyo7 during filopodia formation, but I don't think that necessarily points to the conclusion drawn in the section heading that autoinhibition is released by actin-binding.

https://doi.org/10.7554/eLife.68082.sa1

Author response

Essential revisions:

1) Provide some discussion about the actin bundling protein, fascin, at the beginning and/or end of the manuscript. From my understanding, fascin is not expressed in Dicty. However, it's important for generating filopodia in many mammalian cell types. Do DdVASP and DdMyo7 serve the function of fascin? Alternatively, are there other actin bundling proteins that are critical for filopodia formation in Dicty?

We appreciate your bringing up this important point. It is true that there does not appear to be a true fascin homolog in Dicty. ABP-34 is the best candidate for a filopodia actin bundling protein, it is a small, Ca2+-sensitive bundling protein with three actin binding sites that has been localized along the length of filopodia (Fechheimer, 1987, JCB). While it clearly bundles actin filaments, its role in filopodia formation has not been thoroughly investigated. Early work suggests that it regulates filopodia formation but the reported phenotypes of different knock-out mutants (Rivero et al., 1996, JCB) are hard to reconcile. The other known major bundling proteins, a-actinin and the filamin homologue (gelation factor) are not reported to be localized to filopodia and have not been implicated in their formation.

We now discuss the potential role of a known Dictyostelium actin bundler in filopodia formation and also propose a possible role of DdMyo7 dimers to serve a role in filament bundling (lines 486-492):

Dictyostelium filopodia have actin filaments that are loosely bundled (Medalia et al., 2007). […] In the absence of a clear filopodia bundling protein, it is possible that DdMyo7 dimers contribute to actin bundling.”

2) There are a couple of far-reaching statements that should either be supported with more experiments or toned down with further explanation.

a. Line 195: "The microtubule disrupting compound nocodazole had no effect on DdMyo7 in spite of the presence of two MF domains with micromolar affinity for microtubules in the DdMyo7 tail." In Supp. Figure 2A, I wouldn't say that there's "no effect" because there is clearly less DdMyo7 in the nocodazole treated cell than in the control image.

Thanks to the reviewers for their keen eye. The original experiments used DdMyo7-mCherry (to image with GFP-tubulin) which does not have as good of signal to noise as GFP fusion proteins, posing challenges for some of the analysis. Prompted by this reviewer's comment we revisited the nocodazole experiments and include a full new dataset testing the role of nocodazole on DdMyo7 cortical recruitment and filopodia formation at a range of drug concentrations using cells that only express mNeon-DdMyo7 that is much brighter than the original mCherry fusion. The impact of nocodazole on cells only expressing GFP-tubulin was analyzed in parallel to assess the effectiveness of the drug. In these experiments, treatment of cells with increasing concentrations of nocodazole (5, 15, 50 µM) progressively disassembles microtubules without affecting the overall DdMyo7 expression levels (Figure 2—figure supplement 1D). (more below)

b. In line with the point above, look at Line 190: "The changes in DdMyo7 localization are specific to treatments that alter actin dynamics." Considering there are these microtubule binding domains in the DdMyo7 tail, only a few microtubule based assays were performed. What about the effect of microtubule dynamics? What about different drug concentrations? I think probing the level of actin-microtubule crosstalk that could potentially be at play here would be fascinating, but also outside the scope of this paper. However, to back up the statement in Line 190 that is due to actin dynamics alone, either more experiments need to be performed, or the statement should be toned down while considering other mechanistic possibilities.

The reviewers raise an important point about microtubule and actin network cross-talk. It is true we have not carried out an extensive analysis of the role of microtubules or microtubule-actin crosstalk during filopodia formation or the role of microtubules in DdMyo7 function or localization. However, prompted by this comment and the one above we went back to take a closer look at the impact of microtubules on filopodia formation and DdMyo7 cortical localization.

We do not observe robust colocalization of DdMyo7 on microtubules, that typically emanated radially from the cell’s centrosome, as quantified by Cytofluorogram analysis (Figure 2—figure supplement 1D).

A full new dataset testing the role of nocodazole on DdMyo7 cortical recruitment and filopodia formation at a range of drug concentrations using cells that only express mNeon-DdMyo7 is now included in the manuscript. The effect of nocodazole on cells only expressing GFP-tubulin was analyzed in parallel to assess the effectiveness of the drug. Treatment of cells with increasing concentrations of nocodazole (5, 15, 50 µM) is seen to progressively disassemble microtubules without affecting the overall DdMyo7 expression levels (Figure 2—figure supplement 1E). The cells do appear smaller and rounder at higher concentrations where microtubule depolymerization is most complete. Nocodazole does not appear to eliminate filopodia formation altogether as cells continue to make filopodia when the microtubule network is depolymerized. However, the average filopodia number decreases with increasing nocodazole concentration (Figure 2—figure supplement 1I; Table 1). We do see a significant disruption in cortical recruitment of mNeon-DdMyo7 treated with 5-50µM Nocodazole compared to the DMSO control. Interestingly, 30 µM nocodazole treatment does not reduce the cortical localization of the GFP-DdMyo7 tail fragment (Figure 2—figure supplement 1F,H), suggesting that the reduced cortical localization of DdMyo7 is due to a change in actin dynamics and not because its localization is directly microtubule dependent.

In light of the new nocodazole results, we cannot so simply state that actin dynamics alone are all that is needed to control DdMyo7 localization and that microtubules have no role. Indeed, it would be interesting in the future to investigate how microtubule-actin crosstalk might impact actin modulating proteins or actin dynamics that are required for DdMyo7 recruitment. Given this, we have now include the new data in Figure 2—figure supplement 1, and add the text quoted below (lines 193-204) and, importantly, have toned down the language.

“Treatment of Dictyostelium cells with the microtubule depolymerizing compound nocodazole disrupts cytosolic microtubules (visualized by cells expressing GFP-tubulin (Neujahr et al., 1998), Figure 2 – figure 2 supplement 1E). […] Together, the data suggest that microtubule-actin crosstalk may impact the dynamics of the cortical actin network and thus indirectly control the cortical recruitment of full length DdMyo7.”

c. Line 238: "Actin waves were generated in either control or vasp null cells and in all cells visualized all waves are completely devoid of DdMyo7 (Figure 4A)." First of all, do you mean that the waves are devoid of DdMyo7 in both the control and vasp- cells? In the control of Figure 4A, there is very slight enhancement of DdMyo7 at the identified actin wave site. In the vasp- case, there is still DdMyo7 present in the location of the actin wave, but it just isn't concentrated in a ring type formation – so to say that it is completely devoid of it is not true. Please clarify.

We apologize for the overstatement here. What we mean is that unlike PIP3 or Myo1B or Myo1C (such as shown in Brzeska et al. Plos One 2014), there is no strong co-localization of DdMyo7 to the traveling actin wave. To more clearly demonstrate this, we have included an example linescan through a kymograph that shows the peaks of actin intensity during a wave that does not coincide with peaks of DdMyo7 localization (Figure 4—figure supplement 1B). We have also updated the text so that it now states (lines 262-266):

“Control or vasp null cells expressing both RFP-LimE (a marker for F-actin) and GFP-DdMyo7 were induced to form waves that are readily apparent as broad circles of actin that emanate outwards towards the cell periphery. Robust actin waves marked by RFP-LimE were observed but DdMyo7 was not observed in the waves in either cell line (n=6 per genotype; Figure 4A, Figure 4—figure supplement 1A,B).”

3. Discussion section: Actin-dependent release of autoinhibition and leading edge targeting

In line 418, you say "Overcoming autoinhibition is thus essential for liberating the motor and allowing it to target DdMyo7 to the dynamic cortex."

Then in line 424, "Motor activity (i.e. ATP hydrolysis) and actin binding are needed to release autoinhibition and promote cortical recruitment of DdMyo7."

These statements seem circular to me. I agree with what is said in Line 418. But in Line 424, how can motor activity and actin binding release autoinhibition if autoinhibition prevents motor activity and actin binding?

We appreciate your pointing out the inconsistency between the two statements, highlighting the need to make the key points in the discussion clear. This section of the Discussion has now been revised and expanded a bit to better describe our current view of how autoinhibition is released. We would like to emphasize that the autoinhibited conformation is in an equilibrium with the open, active conformation but largely biased towards the closed state in the cytosol. In this state, the motor has weak affinity for actin. Once in regions of high local concentration of actin, interaction of the motor with actin would destabilize the closed, inhibited conformation to switch it towards the open state. The motor could then bind to actin and dimerize. Put another way, actin binding is not directly relieving autoinhibition but rather it is necessary for myosins to be captured in their open state when the dense local actin network is comprised mainly of parallel actin filaments. The exact mechanism of this mechanism remains unknown and a major goal for future experiments will be to determine the precise order of events and relationship between autoinhibition and motor activity.

The following text has been added to the Discussion (line 448-463) to better clarify our model and also indicate the uncertainty as the precise nature of these steps -

“The results here lead to the following appealing model for how the motor specifies targeting of DdMyo7 to the leading edge (Figure 8). […] Thus, motor domain mediated binding to a specific actin network is a key means of restricting localization of DdMyo7 during filopodia formation.”

You show that blocking autoinhibition results in enhanced cortical targeting and filopodia formation, and you say at the end of the paragraph that the motor domain mediated binding to a specific actin network is a key way to restrict localization of DdMyo7 during filopodia formation, but I don't think that necessarily points to the conclusion drawn in the section heading that autoinhibition is released by actin-binding.

We appreciate this comment and to better represent our findings we have changed the section heading from: “Actin dependent release of autoinhibition and leading edge targeting” to “Motor dependent release of autoinhibition and leading edge targeting”.

https://doi.org/10.7554/eLife.68082.sa2

Article and author information

Author details

  1. Ashley L Arthur

    Department of Genetics, Cell Biology, and Development, University of Minnesota, Minneapolis, United States
    Present address
    Department of Molecular Biophysics & Biochemistry, Yale University, New Haven, United States
    Contribution
    Conceptualization, Resources, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8661-2873
  2. Amy Crawford

    Department of Genetics, Cell Biology, and Development, University of Minnesota, Minneapolis, United States
    Contribution
    Resources, Formal analysis, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6147-7716
  3. Anne Houdusse

    Structural Motility, Institut Curie, Paris Université Sciences et Lettres, Sorbonne Université, Paris, France
    Contribution
    Conceptualization, Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8566-0336
  4. Margaret A Titus

    Department of Genetics, Cell Biology, and Development, University of Minnesota, Minneapolis, United States
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    titus004@umn.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7583-9092

Funding

Centre National de la Recherche Scientifique

  • Anne Houdusse

Agence Nationale de la Recherche (ANR-17-CE11-0029-01)

  • Anne Houdusse

Agence Nationale de la Recherche (LabexCelTisPhyBio 11-LBX-0038)

  • Anne Houdusse

Agence Nationale de la Recherche (ANR-10-IDEX-0001-02PSL)

  • Anne Houdusse

National Institutes of Health (F31GM128325)

  • Ashley L Arthur

National Institutes of Health (R01GM122917)

  • Margaret A Titus

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Livia Songster, Annika Schroder and Casey Eddington for many helpful discussions and assistance with experiments and analysis. We also thank Dr. Karl Petersen for the initial characterization of the motor mutations and for support with SEVEN. We are grateful to Professor Robert Insall (Beatson) for stimulating discussions, Dr. John Cooper (Washington U), Dr. Volodya Gelfand (Northwestern U), Dr. Lil Fritz-Laylin and members of the Fritz-Laylin lab (UMass Amherst) for helpful comments and critical reading of the manuscript. Thanks to Dr. Jan Faix (U Hannover) for providing the dDia2 nulls and VASP antibody and Dr Brad Nolen (U Oregon) for supplying the CK666, Dr. Günther Gerisch (Max Planck) for the GFP-tubulin plasmid, Dr. GW Gant Luxton for use of the spinning disk confocal microscope and also to the University of Minnesota Imaging Center for additional imaging support. Our thanks to Dictybase.org for providing the Veltman plasmids and maintaining this valuable community resource. The AH team is part of the LabexCelTisPhyBio:11-LBX-0038, which is part of the Initiatives of Excellence of Université Paris Sciences et Lettres (ANR-10-IDEX-0001-02PSL). This work was supported by the CNRS, ANR-17-CE11-0029-01, and ANR-19-CE11-0015-02 (AH) and the NIH National Institute of General Medical Sciences (F31GM128325 to ALA and R01GM122917 to MAT).

Senior Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewing Editor

  1. Derek Applewhite, Reed College, United States

Reviewers

  1. Derek Applewhite, Reed College, United States
  2. Scott Hansen, University of Oregon, United States

Publication history

  1. Received: March 4, 2021
  2. Accepted: May 20, 2021
  3. Accepted Manuscript published: May 27, 2021 (version 1)
  4. Version of Record published: August 9, 2021 (version 2)

Copyright

© 2021, Arthur et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 803
    Page views
  • 173
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Lisa M Strong et al.
    Research Article Updated

    Autophagy is a cellular process that degrades cytoplasmic cargo by engulfing it in a double-membrane vesicle, known as the autophagosome, and delivering it to the lysosome. The ATG12–5–16L1 complex is responsible for conjugating members of the ubiquitin-like ATG8 protein family to phosphatidylethanolamine in the growing autophagosomal membrane, known as the phagophore. ATG12–5–16L1 is recruited to the phagophore by a subset of the phosphatidylinositol 3-phosphate-binding seven-bladedß -propeller WIPI proteins. We determined the crystal structure of WIPI2d in complex with the WIPI2 interacting region (W2IR) of ATG16L1 comprising residues 207–230 at 1.85 Å resolution. The structure shows that the ATG16L1 W2IR adopts an alpha helical conformation and binds in an electropositive and hydrophobic groove between WIPI2 ß-propeller blades 2 and 3. Mutation of residues at the interface reduces or blocks the recruitment of ATG12–5–16 L1 and the conjugation of the ATG8 protein LC3B to synthetic membranes. Interface mutants show a decrease in starvation-induced autophagy. Comparisons across the four human WIPIs suggest that WIPI1 and 2 belong to a W2IR-binding subclass responsible for localizing ATG12–5–16 L1 and driving ATG8 lipidation, whilst WIPI3 and 4 belong to a second W34IR-binding subclass responsible for localizing ATG2, and so directing lipid supply to the nascent phagophore. The structure provides a framework for understanding the regulatory node connecting two central events in autophagy initiation, the action of the autophagic PI 3-kinase complex on the one hand and ATG8 lipidation on the other.

    1. Cell Biology
    Laura Le Pelletier et al.
    Research Article

    Aging is associated with central fat redistribution and insulin resistance. To identify age-related adipose features, we evaluated the senescence and adipogenic potential of adipose-derived-stromal cells (ASCs) from abdominal subcutaneous fat obtained from healthy normal-weight young (<25y) or older women (>60y). Increased cell passages of young-donor ASCs (in vitro aging), resulted in senescence but not oxidative stress. ASC-derived adipocytes presented impaired adipogenesis but no early mitochondrial dysfunction. Conversely, aged-donor ASCs at early passages displayed oxidative stress and mild senescence. ASC-derived adipocytes exhibited oxidative stress, and early mitochondrial dysfunction but adipogenesis was preserved. In vitro aging of aged-donor ASCs resulted in further increased senescence, mitochondrial dysfunction, oxidative stress and severe adipocyte dysfunction. When in vitro aged young-donor ASCs were treated with metformin, no alteration was alleviated. Conversely, metformin treatment of aged-donor ASCs decreased oxidative stress and mitochondrial dysfunction resulting in decreased senescence. Metformin's prevention of oxidative stress and of the resulting senescence improved the cells' adipogenic capacity and insulin sensitivity. This effect was mediated by the activation of AMP-activated-protein-kinase as revealed by its specific inhibition and activation. Overall, aging ASC-derived adipocytes presented impaired adipogenesis and insulin sensitivity. Targeting stress-induced senescence of ASCs with metformin may improve age-related adipose tissue dysfunction.
