Structural insights into the activation of human calcium-sensing receptor

  1. Xiaochen Chen
  2. Lu Wang
  3. Qianqian Cui
  4. Zhanyu Ding
  5. Li Han
  6. Yongjun Kou
  7. Wenqing Zhang
  8. Haonan Wang
  9. Xiaomin Jia
  10. Mei Dai
  11. Zhenzhong Shi
  12. Yuying Li
  13. Xiyang Li
  14. Yong Geng  Is a corresponding author
  1. The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, China
  2. University of Chinese Academy of Sciences, China
Research Article
  • Cited 2
  • Views 1,128
  • Annotations
Cite this article as: eLife 2021;10:e68578 doi: 10.7554/eLife.68578

Abstract

Human calcium-sensing receptor (CaSR) is a G-protein-coupled receptor that maintains Ca2+ homeostasis in serum. Here, we present the cryo-electron microscopy structures of the CaSR in the inactive and agonist+PAM bound states. Complemented with previously reported structures of CaSR, we show that in addition to the full inactive and active states, there are multiple intermediate states during the activation of CaSR. We used a negative allosteric nanobody to stabilize the CaSR in the fully inactive state and found a new binding site for Ca2+ ion that acts as a composite agonist with L-amino acid to stabilize the closure of active Venus flytraps. Our data show that agonist binding leads to compaction of the dimer, proximity of the cysteine-rich domains, large-scale transitions of seven-transmembrane domains, and inter- and intrasubunit conformational changes of seven-transmembrane domains to accommodate downstream transducers. Our results reveal the structural basis for activation mechanisms of CaSR and clarify the mode of action of Ca2+ ions and L-amino acid leading to the activation of the receptor.

Introduction

Extracellular calcium ions (Ca2+) are required for various kinds of biological processes in the human body. Human calcium-sensing receptor (CaSR) is a G-protein-coupled receptor (GPCR) that senses small fluctuations of extracellular levels of Ca2+ ions in the blood (Brown et al., 1993). It maintains Ca2+ homeostasis by the modulation of parathyroid hormone (PTH) secretion from parathyroid cells and the regulation of Ca2+ reabsorption by the kidney (Brown, 2013). Recently, it has been reported that CaSR is also a phosphate sensor that can sense moderate changes in extracellular phosphate concentration (Centeno et al., 2019; Chang et al., 2020; Geng et al., 2016). Dysfunctions of CaSR or mutations in its genes may lead to Ca2+ homeostatic disorders, such as familial hypocalciuric hypercalcemia, neonatal severe hyperparathyroidism, and autosomal dominant hypocalcemia (Hendy et al., 2009; Pollak et al., 1993; Ward et al., 2012).

CaSR belongs to the family C GPCR that includes gamma-aminobutyric acid B (GABAB) receptors, metabotropic glutamate receptors (mGluRs), taste receptors, GPRC6a, and several orphan receptors (Ellaithy et al., 2020; Hannan et al., 2018; Heaney and Kinney, 2016; Pin and Bettler, 2016). Like most class C GPCRs, CaSR functions as a disulphide-linked homodimer. Each subunit of CaSR is comprised of a large extracellular domain (ECD) that contains a ligand-binding Venus flytrap (VFT) domain and a cysteine rich domain (CRD), and a seven-transmembrane domain (7TMD) that connects to CRD to carry signals from VFT domain to downstream G proteins (Geng et al., 2016; Zhang et al., 2016).

CaSR can be activated or modulated by Ca2+ ions, amino acids (Geng et al., 2016; Liu et al., 2020; Zhang et al., 2016), L-1,2,3,4-tetrahydronorharman-3-carboxylic acid (TNCA), a tryptophan derivative ligand (Zhang et al., 2016), and several commercial calcium mimetic drugs, such as cinacalcet (Leach et al., 2016; Nemeth et al., 2004), etelcalcetide, and evocalcet (positive allosteric modulator, PAM, of CaSR) that are used for patients with end-stage kidney diseases undergoing dialysis (Alexander et al., 2015; Leach et al., 2016; Walter et al., 2013).

Recent groundbreaking structural studies of several full-length class C receptors, such as mGluR5 (Koehl et al., 2019) and GABAB receptors (Kim et al., 2020; Mao et al., 2020; Papasergi-Scott et al., 2020; Park et al., 2020; Shaye et al., 2020), by cryo-electron microscopy (cryo-EM) have provided a structural framework to unravel the activation mechanisms of class C GPCRs. The crystal structures of the resting and active conformations of CaSR ECD were solved by two different groups (Geng et al., 2016; Zhang et al., 2016). More recently, Ling et al. have solved the cryo-EM structures of full-length CaSR in active and inactive states; however, their inactive structures do not show the fully inactive state and exhibit some characteristics of the active conformation of crystal CaSR ECD (Ling et al., 2021; Geng et al., 2016). In their active structures, they proposed that Ca2+ ions and L-Trp work cooperatively to activate CaSR, leading to the closure of VFT domain.

In our study, we used cryo-EM to obtain the structures of full-length CaSR in inactive and agonist+PAM bound conformations. The fully inactive structure is stabilized by a negative allosteric nanobody. In the agonist+PAM bound structure, we identified a new calcium binding site at the interdomain cleft of VFT, with Ca2+ and TNCA constitute a composite agonist to stabilize the closure of the VFT, leading to the conformational changes of the 7TMDs to initiate signaling.

Results

Identification of camelid nanobodies stabilizing the inactive state of CaSR

For structural studies, we used nanobody to stabilize CaSR in the inactive conformation. Published structures of CaSR-ECD demonstrate that agonist binding induces conformational changes of VFT model of CaSR, whereby two separate LB2 domains approach each other, forming a novel interface in the active state (Geng et al., 2016). Based on these structural information, we introduced a potential N-linked glycosylation site on the contacting interface between LB2 domains in the active CaSR to block the interaction of LB2 domains and keep the CaSR in an inactive state. We made a double mutation R227N-E229S at the dimer interface of LB2 domain to introduce N-linked glycosylation at 227 residues site. We immunized two camels with the mutant of CaSR and generated nanobody phage display library. We performed two rounds of bio-panning on the mutant of CaSR and used enzyme-linked immunosorbent assay (ELISA) to verify the nanobodies that specifically bound to CaSR. We performed intracellular Ca2+ flux assay to determine whether screened nanobodies could stabilize CaSR in the inactive state. Of the several CaSR binders, NB-2D11 and NB88 significantly inhibited the activity of CaSR with IC50 of 41.7 nM and 167.1 nM, respectively (Figure 1A,B). Using surface plasmon resonance (SPR) to measure binding kinetics, both nanobodies NB-2D11 and NB88 demonstrated high-affinity binding to CaSR with KD of 0.24 nM and 3.9 nM, respectively (Figure 1C,D). We then selected NB-2D11, which has a greater binding affinity of the two nanobodies, for structural study.

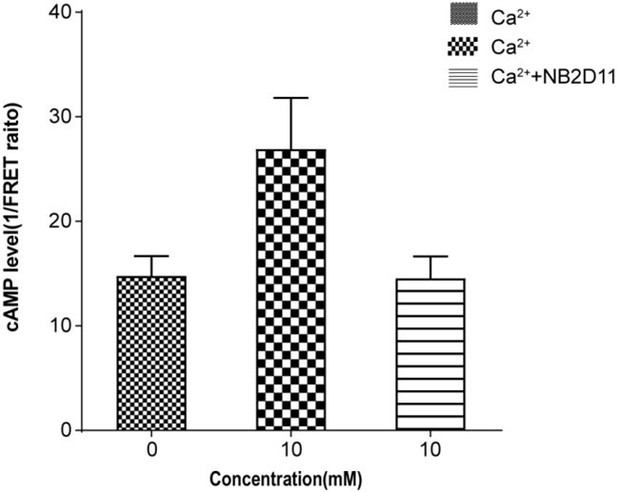

The function and binding affinity of NB-2D11 and NB88.

(A) Dose-dependent NB-2D11-inhibited intracellular Ca2+ mobilization in response to Ca2+ ions. N = 3, data represent mean ± SEM (Figure 1—source data 1). (B) Dose-dependent NB-88-inhibited intracellular Ca2+ mobilization in response to Ca2+ ions. N = 3, data represent mean ± SEM (Figure 1—source data 1). (C) SPR sensorgram showing that NB-2D11 bound to CaSR with 0.24 nM affinity (Figure 1—source data 2). (D) SPR sensorgram showing that NB88 bound to CaSR with 3.9 nM affinity (Figure 1—source data 2).

Figure 1—source data 1

Intracellular Ca2+ flux assay on CaSR-NB-2D11 and CaSR-NB88 complex.

https://cdn.elifesciences.org/articles/68578/elife-68578-fig1-data1-v2.xlsx
Figure 1—source data 2

SPR sensorgram of NB-2D11 and NB88 binding affinity.

https://cdn.elifesciences.org/articles/68578/elife-68578-fig1-data2-v2.xlsx

Determining the cryo-EM structures of full-length CaSR

To obtain the structure of the receptor in the agonist+PAM bound state, we collected a dataset of detergent solubilized full-length CaSR in the presence of PAM cinacalcet, 10 mM calcium and the compound TNCA. We have observed two active conformations with overall resolutions of 2.99 Å and 3.43 Å (Figure 2—figure supplement 1). We performed local refinement of ECDs and TMDs separately to obtain maps with resolutions of 3.07 Å and 4.3 Å, respectively, with quality density throughout (Figure 2—figure supplement 1A; Table 1). The high-quality density maps present well-solved features in the ECD, which allow the unambiguous assignment of calcium, TNCA, and most side chains of amino acids of the receptor (Figure 2A,C, Figure 2—figure supplement 2). Despite low local resolution of 7TMD, we were able to define the backbone of TM helices and even side chains of some amino acids (Figure 2C, Figure 2—figure supplement 3A).

Table 1
Cryo-EM data collection, refinement, and validation statistics.
CaSR#1 inactive(EMD-30997)(PDB 7E6U)#2 agonist+PAM(EMD-30996)(PDB 7E6T)
Data collection and processing
Magnification81,000×81,000×
Voltage (kV)300300
Electron exposure (e–/Å2)7070
Defocus range (μm)–1.5 to –2.5–1.5 to –2.5
Pixel size (Å)1.0711.071
Symmetry imposedC2C2
Initial particle images (no.)2,208,4021,546,992
Final particle images (no.)1,215,058560,366
Map resolution (Å)FSC threshold6.00.1433.30.143
Map resolution range (Å)3.2–7.02.5–6.5
Refinement
Initial model used (PDB code)5k5s, 6n515k5s, 6n51
Model resolution (Å)FSC threshold4.3/5.9/8.00/0.143/0.53.3/3.4/3.70/0.143/0.5
Model resolution range (Å)4.3–8.03.3–3.7
Map sharpening B factor (Å2)–217–115
Model composition
Non-hydrogen atoms14,21412,751
Protein residues17961592
Ligands0PO43-: 2
Ca2+: 6
NAG: 4
TNCA: 2
B factors (Å2)
Protein102.59/530.90/286.9161.44/302.84/157.67
LigandN/A91.52/151.96/105.80
R.m.s. deviations
Bond lengths (Å)0.0020.002
Bond angles (°)0.5590.602
Validation
MolProbity score2.51.49
Clashscore145
Poor rotamers (%)00
Ramachandran plot
Favored (%)9497
Allowed (%)63
Disallowed (%)00
Figure 2 with 5 supplements see all
Cryo-EM maps and models of full-length CaSR.

(A) Left panel shows the view of CaSR in the active conformation (purple) from front view, and the right panel shows the view after a 90° rotation as indicated. (B) Left panel shows the view of CaSR in the inactive conformation (cyan) bound to NB-2D11 (orange) from front view, and the right panel shows the view after a 90° rotation as indicated. (C) Model (Ribbon representation) of CaSR shows the structure of the active state (purple) bound to TNCA (red) and Ca2+ ion (green) viewed from the side. (D) Model (Ribbon representation) of CaSR shows the structure of the inactive state (cyan) bind with NB-2D11 (orange).

To stabilize the structure of CaSR in the inactive state, we collected a dataset of CaSR in glyco-diosgenin (GDN) formed micelles in the presence of NPS-2143 (a negative allosteric modulator, NAM) and the inhibitory nanobody (NB-2D11). Cryo-EM data present three conformations of inactive CaSR with an overall resolution of 5.79 Å, 6.88 Å, and 7.11 Å, respectively (Figure 2—figure supplement 4). The local refinement focusing on the ECDs and the 7TMDs was performed separately to improve the resolutions to 4.5 Å and 4.8 Å, respectively, with quality density throughout (Figure 2—figure supplement 4A; Table 1), which enabled us to confidently build the backbone of the inactive CaSR model (Figure 2D, Figure 2—figure supplement 3B).

The overall structures in the inactive and agonist+PAM bound states are homodimeric arrangement, in which two subunits almost parallelly interact in a side-by-side manner while facing opposite directions. For each subunit, the VFT domain is linked to the canonical 7TMD via CRD, which is almost perpendicular to the bilayer membranes (Figure 2B,D). The agonist+PAM bound structure of CaSR displays a substantial compaction compared to the inactive structure, including the reduction of length, height, and width. Moreover, their width changed most obviously because there are four interfaces with interaction between the two protomers at each of LB1 domain, LB2 domain, CRD, and 7TM domains (Figure 2), both VFT modules adopt closed–closed conformation, and the TNCA and Ca2+ ion composite is bound at the interdomain cleft between LB1 domain and LB2 domain (Figures 2C and 3A). The closure of the VFT is relayed to TMD through the interaction of the intersubunit CRD. The overall conformation of our agonist+PAM bound structure is consistent with the recently reported active conformation of the Ca2+/L-Trp-bound structure of CaSR (CaSRAcc) (Ling et al., 2021; Figure 2—figure supplement 5A–D).

In the inactive structure, there is only one interface at the apex of the receptor and the VFT module adopts an open conformation with the nanobody binding at the left lateral side of each LB2 domain (Figure 2B,D). The active state has the overall buried surface area of 3378 Å2, whereas it substantially decreases to 1346 Å2 in the inactive state (Figure 2—figure supplement 3C,D). Ling et al. recently published three different structures of CaSR in the inactive state, in which the VFT module adopted closed–closed, open–closed, and open–open conformations. However, due to low resolution, they only built the structure of CaSR in the inactive closed–closed conformation (CaSRIcc). Comparing our inactive open–open conformation (CaSRfully inactive) with their CaSRIcc revealed similar 7TM domains, but two totally different VFT module conformations, with their closed–closed conformation presenting similar characteristics to the active state (Figure 2—figure supplement 5). This indicates that the CaSR in the inactive state has conformational heterogeneity. In other words, this suggests that in addition to the full inactive state and the active state, there are multiple intermediate states in the process of activation.

Ca2+ and TNCA as a composite agonist activate the full-length CaSR dimer

The cryo-EM map of active state presents a distinct density at the ligand-binding cleft of each protomer, which enabled us to unambiguously model TNCA (Figure 3A,B). The binding details of TNCA were the same as previously reported data (Zhang et al., 2016). The interactions between TNCA and VFT are primarily mediated by hydrogen bonds (Figure 3B). The high-resolution density of active state map enabled us to identify three distinct Ca2+-binding sites within ECD of each protomer (Figure 3A). Two sites were previously reported (Geng et al., 2016; Ling et al., 2021), while a new Ca2+-binding site was found at the interdomain cleft of the VFT module that is close to the hinge loop and abuts the TNCA binding site, and interacts with both LB1 and LB2 domains to facilitate ECD closure (Figure 3A–D). The bound Ca2+ ion is primarily coordinated with side chains of D190 and E297, carbonyl oxygen atoms of P188 backbone, and hydroxyl groups of S170 and Y489. Residues P188, D190, and S170 are located in LB1 domain, while E297 and Y489 are in LB2 (Figure 3C,D). The main coordination residues (S170, D190, and E297) of the Ca2+ ion are consistent with those previously reported (Liu et al., 2020). The maps obtained by cryo-EM imaging are insufficient to confirm that the observed density corresponds to calcium. We assume that the density represents the presence of Ca2+ based on the following reasons. First, from its hexavalent coordination (coordinating residues P188, D190, S170 and E297, and Y489), this metal is most likely to be Ca2+, although another ion cannot be ruled out. Second, we prepared the CaSR sample in a purification buffer supplemented with 10 mM Ca2+ and without any other bivalent cation prior to cryo-EM imaging. Third, the main binding residues (S170, D190, and E297) of Ca2+ ion were previously reported (Liu et al., 2020), and that single mutation of these residues (D190K, S170K and E297K, and Y489F) significantly reduced the effect of Ca2+-stimulated intracellular Ca2+ mobilization in cells (Figure 3E). The cell surface expression levels of these mutants are all above 80% compared to the wild-type level (Figure 3—figure supplement 1). Finally, mutant of a residue that bind L-amino acid (S147A) also largely impaired the Ca2+ effect (Geng et al., 2016), indicating the presence of L-amino acid near Ca2+ ion and that Ca2+ activates CaSR through the L-amino acid.

Figure 3 with 1 supplement see all
Ca2+ and TNCA as a composite agonist activate the full-length CaSR dimer directly.

(A) Ribbon representation of the active CaSR (gray), showing the location of the Ca2+-binding sites (green sphere) and TNCA (red). (B) Specific contacts between CaSR (gray) and TNCA (red space-filling model), mesh represents the final density map contoured at 17σ surrounding. (C) Specific interactions between CaSR and newly identified Ca2+ ion (green sphere), the mesh represents the cryo-EM density map contoured at 6.0σ surrounding Ca2+. (D) Highlighting the newly identified Ca2+ and TNCA sharing two common binding residues S170 and E297 (cyan space-filling model). (E) Dose-dependent intracellular Ca2+ mobilization expressing WT (black dots), mutant S170K (red dots), E297K (cyan dots), and D190K (brown dots) of CaSR. The single mutations were designed based on Ca2+ binding sites. N = 4, data represent mean ± SEM (Figure 3—source data 1). (F) Dose-dependent intracellular Ca2+ mobilization expressing WT (black dots), mutant Y489K (red dots) of CaSR. The single mutation was designed based on Ca2+ binding sites. N = 4, data represent mean ± SEM (Figure 3—source data 1). (G) Dose-dependent TNCA-activated intracellular Ca2+ mobilization in response to 0.5 mM Ca2+ ions. N = 3, data represent mean ± SEM (Figure 3—source data 2).

Figure 3—source data 1

Intracellular Ca2+ flux assay on CaSR mutations.

https://cdn.elifesciences.org/articles/68578/elife-68578-fig3-data1-v2.xlsx
Figure 3—source data 2

Intracellular Ca2+ flux assay on CaSR-TNCA complex.

https://cdn.elifesciences.org/articles/68578/elife-68578-fig3-data2-v2.xlsx

The Ca2+ ion interaction with both the LB1 and LB2 domains implies that it also contributes to the closure of the VFT module. The mutation of residue Y489 on LB2 that is in contact with Ca2+, but not L-amino acid, significantly reduces the effect of Ca2+-stimulated intracellular Ca2+ mobilization in cells (Figure 3F). This indicates that Ca2+ on its own is very important for stabilizing the closure of VFT, consistent with findings by Liu et al., 2020. Ling et al. tried to determine the cryo-EM structures of CaSR in the presence of a high concentration of Ca2+ to address the question of whether Ca2+ ions alone can activate CaSR in the absence of L-Trp. However, they did not obtain the closed conformation of VFT that only contain the Ca2+ ion between the cleft. This result indicates that Ca2+ ion alone is insufficient to induce the closure of the VFT module even in the presence of a high concentration of Ca2+ ions (Ling et al., 2021).

Our structure shows that TNCA bind at the interdomain of VFT module (Figure 3D, Figure 2—figure supplement 2B), corresponding to the L-amino acid binding site in other class C GPCRs, such as mGluRs and GABAB receptors. However, it has been reported that Ca2+ ion can activate the receptor on its own in various functional assays (Jensen and Brauner-Osborne, 2007; Liu et al., 2020; Quinn et al., 2004; Saidak et al., 2009) and L-amino acids enhance the sensitivity of CaSR to Ca2+ ion (Conigrave et al., 2000; Liu et al., 2020). While L-amino acids and their analogies are generally considered PAMs but not agonists of CaSR, they are the endogenous agonists of other class C GPCRs. This is somewhat inconsistent from the perspective of GPCR classification and evolution.

Our CaSRagonist+PAM structure reveals that the interaction of TNCA with the LB1 and LB2 domains can promote the closure of VFT module, which is a crucial step of the activation for Class C GPCR. The single mutation of the TNCA or L-Trp binding residues (T145I, S147A, S170A, Y218S, E297K) largely impaired the function of the receptor (Figure 3E; Geng et al., 2016). This suggests that the TNCA or L-Trp plays an important role during the activation of CaSR. Using intracellular Ca2+ flux assays, we found that TNCA directly activated CaSR in the presence of 0.5 mM of Ca2+ ions and that the effect on CaSR was concentration-dependent with EC50 of 2.839 mM (Figure 3G), in agreement with previous reports that L-Trp directly stimulated intracellular Ca2+ mobilization in cells stably expressing CaSR using single-cell intracellular Ca2+ microfluorimetry (Geng et al., 2016; Rey et al., 2005; Young and Rozengurt, 2002).

It is interesting that our structure shows that the bound Ca2+ and TNCA share three common binding residues S170, D190, and E297 (Figure 3D). Our experiment has shown that each of single mutations S170A, D190K, and E297K abolishes Ca2+-dependent receptor response (Figure 3E), consistent with Liu et al., 2020. Previous studies have suggested that the extracellular Ca2+ increases L-Trp binding (Geng et al., 2016), and L-Trp also directly stimulates intracellular Ca2+ mobilization through CaSR (Conigrave et al., 2004; Rey et al., 2005; Young and Rozengurt, 2002) and the efficacy and potency of L-Trp increase with increase in Ca2+ concentration (Geng et al., 2016). As mentioned above, L-amino acids increase the effect of Ca2+ ions on the CaSR (Jensen and Brauner-Osborne, 2007; Liu et al., 2020; Quinn et al., 2004; Saidak et al., 2009), and TNCA potentiate the Ca2+ activity (Zhang et al., 2016). Altogether, we show that CaSR is synergistically activated by the composite agonist composed of TNCA and Ca2+ ions.

The conformational transition of the LB1 prepares for the ligand binding during the activation of CaSR

Both inactive and active structures reveal that the interface of LB1–LB1 dimer is predominantly a hydrophobic core, which is formed by the residues on two central helices (B and C) of each protomer, including V115, V149, as well as L156 for inactive structure and L112, L156, L159, and F160 for active crystal structure (Figure 4A, Figure 4—figure supplement 1A,B). On the dimer interfaces, The B–C helix angle has rotated approximately 28° from inactive state (117°) to active state (89°) (Figure 4A).

Figure 4 with 1 supplement see all
Comparisons of intersubunit LB1 domains interfaces in the inactive and active states of CaSR.

(A) Left panel: The Cα trace of VFT module of CaSRfully inactive cryo-EM structure (cyan). The B-C Helix angle is 117°. Right panel: The Cα trace of VFT module of CaSRagonist+PAM cryo-EM structure (purple). The B-Helix angle is 89°. (B) Left panel: The Cα trace of VFT module of crystal structure of CaSR-ECDIoo (yellow) (PDB:5K5T). The B-Helix angle is 89°. Right panel: The Cα trace of VFT module of CaSR-ECDactive crystal structure (red) (PDB:5K5S). The B-Helix angle is 89°. (C) Left panel: The Cα trace of VFT module of CaSRIcc cryo-EM structure (brown) (PDB:7DTW). The B-Helix angle is 79°. Right panel: The Cα trace of VFT module of CaSRAcc cryo-EM structure (lavender) (PDB:7DTV). The B-Helix angle is 80°.

Our result is in line with earlier reports of CaSR and other class C GPCRs activation. Liu et al. detected reorientation of LB1–LB1 dimer during activation using a FRET-based conformation CaSR sensor (Liu et al., 2020). mGluR5 receptor changes from active to apo state with an approximately 59° rotation of the B–C helix angle (Koehl et al., 2019; Figure 4—figure supplement 1C,D).

We then compared the B-C helix angles of previously reported CaSR structures, including CaSR-ECDIoo, CaSR-ECDactive, CaSRIcc, and CaSRAcc. No rotation of B–C helix was observed between inactive CaSR-ECDIoo and active CaSR-ECDactive crystal structures (Figure 4B; Geng et al., 2016), despite changing VFT conformation from closed–closed to open–open. Similarly, there was only a small rotation of 1° between CaSRIcc and CaSRAcc (Figure 4C; Ling et al., 2021). VFT module of the inactive CaSRIcc adopts a closure conformation, and L-amino acid binds at the interdomain of the VFT (Ling et al., 2021); both features are characteristics of an active state. The B–C Helix angle of all four reported structures (CaSR-ECDIoo, CaSR-ECDactive, CaSRIcc, CaSRAcc) resemble that of our active CaSRagonist+PAM structure (Figure 4A–C).

The B–C helix of the recently reported CaSR structure in the inactive states is same as that of our CaSRagonist+PAM, although the 7TMD is similar to that of the inactive state (Ling et al., 2021; Figure 4C). The VFT module of the reported CaSRIcc adopts the closure conformation; moreover, the L-amino acid binds at the interdomain of the VFT (Ling et al., 2021), which are features of the active state. The rotation of B–C helix is not observed in both the active crystal structures of CaSR ECDs with the closed–closed conformation of VFT module (PDB: 5K5S) and the inactive crystal structure with the open–open conformation of VFT module (PDB: 5K5T), In summary, we propose that these reported conformations should be considered intermediate states in the activation process of CaSR because they exhibit some characteristics of the active state. In our inactive cryo-EM structure, the B–C helix angle is similar to that of mGluRs in the inactive state, with the VFT domain adopting an open–open conformation (Figure 4A, Figure 4—figure supplement 1C,D). Therefore, our inactive cryo-EM structure represents the full inactive state. We hereby designate our inactive structure as CaSRfully inactive.

The LB1 domain plays a predominant role for anchoring ligands. Superimposition of LB1 domains of inactive (CaSRfully inactive), intermediate (CaSR-ECDIoo), and agonist+PAM bound (CaSRagonist+PAM) conformations, reveals that our inactive conformation has a significantly different LB1 structure compared to the intermediate conformation (Figure 4—figure supplement 1E), whereas the LB1 domains in the intermediate and agonist+PAM bound states are well superimposed with a backbone r.m.s.d. of 0.806 Å (Figure 4—figure supplement 1F). Thus, the conformational transition of the LB1 domain from inactive to intermediate state provides the structural basis for ligand binding.

Spontaneous proximity of LB2 domains during the activation

No significant difference of the overall LB2 conformations is observed among the superposition of inactive, intermediate (CaSR-ECDIoo), and agonist+PAM bound structures (Figure 5—figure supplement 1A,B). The cryo-EM structure of CaSR in inactive state displays a relatively large backbone separation distance of 56.26 Å between the C-terminal ends of N541 of each LB2 domain, while it reduces to 45.8 Å in the CaSRIoo state and 41.8 Å in the CaSRIcc state. A further reduction to 29 Å is observed upon activation in the active model (Figure 5). Thus, the two LB2 domains gradually approach each other until they interact, a process that is not induced by the agonists (Figure 5, Figure 5—figure supplement 1C–E).

Figure 5 with 1 supplement see all
The conformational changes of LB2 domains in three states.

(A) The CaSRfully inactive (cyan) conformation of VFT module. The distance between C termini of the two LB2 domains is 56.26 Å. (B) CaSR-ECDIoo (yellow) (PDB:5K5T) conformation of VFT module. The distance between C termini of the two LB2 domains is 45.8 Å. (C) CaSRIcc (brown) conformation of VFT module (PDB:7DTW). The distance between C termini of the two LB2 domains is 41.8 Å. (D) CaSRagonist+PAM (purple) conformation of VFT module. The distance between C termini of the two LB2 domains is 29 Å.

NB-2D11 blocks the interaction of LB2 domains to lock the CaSR in the full inactive conformation

The inactive structure reveals that NB-2D11 binds the left lateral of each LB2 domain from orthogonal view (Figure 6), with the hydrophilic interaction interface between the amino acids D53, D99, W102, R101, and E110 from CDR1 and CDR3 of the nanobody and the residues R220, S240, S244, Y246, S247, and E251 from Helix F and Strand I (Figure 6C). Superposition of the inactive and agonist+PAM bound LB2 domains shows that NB-D211 occupies the spatial position of the LB2 domain of the other protomer, which blocks the approach of another corresponding subunit LB2 (Figure 6D). Our results indicate that the interactions of both LB2 domains are required to activate CaSR, which is the explanation of the inhibitory function of NB-2D11.

The NB-2D11 blocks the interaction of LB2 domains.

(A) Structure of the inactive CaSR protomer (surface representation, cyan) with NB-2D11 (ribbon diagram, orange) from front view. (B) The NB-2D11 (orange) binds the left lateral of the LB2 (cyan) from the front view of the protomer. (C) NB-2D11 binds the LB2 domain through a series of polar interactions through CDR1 and CDR3 of the nanobody and the Helix F and Strand I of the CaSR. (D) Superposition of NB-2D11 (orange) binding inactive conformations (cyan) and active (purple) conformations based on the LB2 domain of VFT module, showing the whole NB-2D11 in the inactive state crashes with the LB2 domain of another VFT module in the active state.

The rotation of LB2 domain propagates to large-scale transitions of the 7TMDs from TM5-TM6-plane to TM6-driven interface

The closure of VFT displays an inward rotation of each LB2 followed by moving upward individually (Figure 5). Afterwards, two intersubunit interfaces are formed at the downstream of subunits, including the interaction between the LB2 linked CRDs, which is consistent with the reported crystal structure of CaSR ECD (Geng et al., 2016; Figure 7—figure supplement 1), and the intersubunit interaction between TMDs (Figure 7A–F).

Figure 7 with 2 supplements see all
The closure of VFT leading to the rearrangement of inter-7TMDs.

(A) Front view of CaSRfully inactive CRDs and 7TMDs (cyan). (B) Front view of CaSRagonist+PAM CRDs and 7TMDs (purple). (C) The alignment of the part of CRD and 7TMDs in both fully inactive and agonist+PAM bound CaSR. (D) The alignment of inactive and agonist+PAM bound 7TMDs from top view. (E–G) The 7TMDs interface in the fully inactive state of CaSR is mediated by TM5 and TM6 (cyan) from top view and that of the agonist+PAM state is driven by TM6 from top view. Superposition of 7TMD of the inactive (cyan) and agonist+PAM bound CaSR (purple) show the rotation of 7TMDs. (H–J) Dose-dependent intracellular Ca2+ mobilization expressing WT (black dots) and mutant (red dots) CaSR (Figure 7—source data 1). The single mutations of F789A (H), F792A (I), and P823R (J) were designed based on the inactive density map. For (H–J), N = 4, data represent mean ± SEM.

Figure 7—source data 1

Intracellular Ca2+ flux assay on various CaSR mutations.

https://cdn.elifesciences.org/articles/68578/elife-68578-fig7-data1-v2.xlsx

The alignment of individual 7TMD of both inactive and agonist+PAM bound states presents that the helices are well superposed (Figure 7D). Although NAM and PAM were added during the preparation of inactive and active samples, respectively, no density of them was observed on the maps due to low resolutions. The inactive structure reveals that TM5 and TM6 constitute a 7TMD plane–plane interface (Figure 7E). There are pairwise symmetrical undefined maps that link the extracellular and intracellular part of TM5 and TM6 in the 7TMD interface (Figure 7—figure supplement 2A). Our structure shows a TM5–TM6/TM5–TM6 interaction that it is slightly different from the TM4–TM5/TM4–TM5 plane–plane interaction in the 7TMD interface proposed by Liu et al., 2020. Our experiments show that each of the single mutations F789A or F792A attenuates Ca2+-induced receptor activity, indicating that this contact plays a role in the activation of CaSR (Figure 7H,I). The cell surface expression levels of these mutants are all over 100% compared to the wild-type level (Figure 3—figure supplement 1).

The agonist+PAM bound structure shows a TM6–TM6 interface, contacting at the apex of TM6 helices, which is a hallmark of GPCR activation (Koehl et al., 2019; Figure 7B,F). To further validate the role of this interface, mutation to P823 in TM6 markedly reduced Ca2+-induced receptor activity (Figure 7J), indicating that the TM6–TM6 interface is crucial to CaSR activation, consistent with previous studies. Liu et al. reported an interface mediated by TM6 in their active CaSR structure and showed that a cysteine cross-linking at residue A8246.56 in TM6 led to a constitutively active receptor (Liu et al., 2020). Similarly, active mGluR5 (Koehl et al., 2019) and GABAB receptors (Kim et al., 2020; Mao et al., 2020; Papasergi-Scott et al., 2020; Shaye et al., 2020) have the same TM6–TM6 interface (Figure 7F; Figure 7—figure supplement 2B,C). TM6 cross-linked mGluR5 and TM6-locked mGluR2 were activated continuously (Koehl et al., 2019; Xue et al., 2015).

Superposition of inactive and agonist+PAM structures shows a high degree of structural overlap in 7TM domains, with the exception of a bundle comprising of extracellular loop 2 (ECL2) and a stalk linking CRD and TM1 showing slight structural dissimilarity. CRD appears semi-rigid (Figure 7C). Therefore, a small rotation of LB2 domains could propagate to large-scale transitions of the TMDs through the CRDs, thereby reorientating the 7TMDs from the inactive plane–plane interface mediated by TM5 and TM6 to the active interface driven by TM6 (Figure 7E–G). The proximity of 7TMDs is observed during the activation, from a plane–plane distance of 24 Å in inactive state to 5.7 Å at P8236.55 in the active state (Figure 2—figure supplement 3A,B).

Upward movement of LB2 converted into the intra-7TM rearrangement through ECL2

Models of both inactive and active structures reveal that there is a bundle of structure in the junction region between extracellular and transmembrane domain, which is composed of C-terminal elongated peptide of CRD and the twisted hairpin loop of ECL2 (Figure 8A,B). Unlike mGluR5 and GABAB receptors (Kim et al., 2020; Koehl et al., 2019; Mao et al., 2020; Papasergi-Scott et al., 2020; Park et al., 2020; Shaye et al., 2020), which are formed by a twisted three-strand β-sheet, the junction of CaSR is more flexible than that of mGluR5 and GABAB receptors. The structure of the agonist+PAM bound state shows that the residues 759–763 fragment of ECL2 and the C-terminal residues of the CRD (601–604) form a new interface (Figure 8A), which presents a more compactible interaction in the agonist+PAM bound state (Figure 8B). In addition, there is another interface involving the residues E759 at the apical loop of ECL2 and the residues W590 at the bottom of the loop composed of residues 589–591 for agonist+PAM bound state. In the agonist+PAM bound state, the loop of ECL2 is pulled up by the interaction among E759, W590, and K601, leading to the movement of ECL2 (Figure 8), which would raise the reorientation of TM5 and TM6 domains during the activation of CaSR (Figure 7E,F). To confirm the importance of this interaction, deletion of residues D758 and E759 at the apex of ECL2 (Figure 8D), as well as single mutations of K601E and W590E (Figure 8E,F), disrupted these contacts and led to a significantly reduced Ca2+-induced receptor activity, Therefore, ECL2 plays a key role in relaying the conformational changes of VFT to the intrasubunit TM domain to rearrange the structure to adapt to downstream transducers, such as G proteins. The cell surface expression levels of Δ758–759 mutant was comparable to that of WT, while W590E and K601E mutants were expressed on the cell surface at approximately 40–50% of WT level (Figure 3—figure supplement 1).

Upward movement of LB2 is converted into the intra-7TM conformational rearrangement through ECL2.

(A) Model in CaSRagonist+PAM state (purple) and cryo-EM map (gray) showing the contact between the CRD and the ECL2 of the 7TMDs. Critical residues at this interface are shown as spheres at their Cα positions. (B) Superposition of the interface between the CRD and the ECL2 of the 7TMD between both fully inactive and agonist+PAM bound conformations. (C) Specific contacts between the loop of CR domain and the loop of ECL2 to shift the ECL2 up. (D–F) Deletion of residues D758 and E759 (D), the single mutation of K601E (E) and W590E (F) significantly reduced Ca2+-induced receptor activity. (WT in black dots and mutant in red dots). For (D–F), N = 4, data represent mean ± SEM (Figure 8—source data 1).

Figure 8—source data 1

Intracellular Ca2+ flux assay on CaSR mutations.

https://cdn.elifesciences.org/articles/68578/elife-68578-fig8-data1-v2.xlsx

Discussion

In this study, we have determined the cryo-EM structures of CaSR in the fully inactive and agonist+PAM bound states. During the preparation of our manuscript, several CaSR structures have been reported, including structures of closed–closed conformation in the inactive state (CaSRIcc and CaSRTrp) and closed–closed conformation of Ca2+/Trp bound state (CaSRAcc and CaSRCa). Open-closed and open–open conformations (CaSRIoc and CaSRIoo) have also been observed; however, they were not built due to low resolution (Ling et al., 2021). The overall conformation of our CaSRagonist+PAM structure is almost identical to that of CaSRAcc, while the open–open conformational VFT module in our inactive structure (CaSRfully inactive) is different from the closed–closed conformation in their reported inactive CaSRIcc structures. In addition, the main conformation changes of CaSR during activation were also described (Liu et al., 2020). Complemented with solved crystal structures of CaSR ECD and full-length cryo-EM structures of other class C GPCR, these recent findings allow us to understand the structural framework and essential events that occur during the activation of CaSR. The overall structures of CaSR resemble the recently published structures of mGluR5 and GABAB receptors, indicating that the structural mechanism of class C GPCRs is similar (Kim et al., 2020; Koehl et al., 2019; Mao et al., 2020; Papasergi-Scott et al., 2020; Park et al., 2020; Shaye et al., 2020).

Multiple structural and functional studies of class C GPCR have demonstrated that there are two typical conformational changes in the VFT domains during receptor activation. One is that the B–C helix angle at the interfaces of LB1–LB1 dimer sharply rotated from inactive to active state. This conformational transition of the LB1 domain is conducive to ligand binding, which is a prerequisite for receptor activation (Figure 5—figure supplement 1A,B). For example, increased glutamate affinity and occupancy in mGluR2 active conformation were observed by the mutations in B-Helix (Levitz et al., 2016). Another is that the conformation of VFT domain is converted from open to closed for the change of interdomain in one protomer, which is a landmark event during receptor activation.

We used an inhibitory nanobody to stabilize the conformation of CaSR in the inactive state. Our inactive structure shows that the B-C helix angle is about 117° and VFT domain adopts an open–open conformation (Figure 4A). The B–C helix angle has rotated approximately 28° from inactive to agonist+PAM bound state and the VFT domain rearranged from open–open configuration to closed–closed configuration during CaSR activation (Figures 4A and 5), consistent with other class C GPCR activation mechanism findings. In addition, Liu et al. developed a FRET-based conformation sensor for CaSR through fusion of SNAP-tag at its N-terminus of CaSR subunit to label with fluorophores. Their data showed that the CaSR dimer underwent a large conformational change of LB1–LB1 dimer during activation, in which the B–C helix angle rotated from inactive to active state as the fluorophores labeled the N-terminus of LB1 domain (Liu et al., 2020). We used nanobody NB-2D11 to block the proximity of LB2 domains, thus locking the CaSR in an inactivate state (Figure 6). Altogether, our structural and functional assay data suggest that our inactive cryo-EM structure represents the full inactive state of CaSR.

The rotation of LB1–LB1 domains is a watershed between inactive and intermediate states. We have reported that the crystal structure of CaSR-ECD in the open-open state (CaSRIoo) has the same B–C helix angle as that of the active state (CaSRagonist+PAM), with LB1 domain configuration that is ready for L-amino acid and Ca2+ binding, in contrast to our cryo-EM structures of the inactive state (Figure 5—figure supplement 1A,B). Similarly, the recently reported conformation CaSRIcc has the similar B–C helix angle as CaSRagonist+PAM, but adopts the closed–closed VFT conformation, which is a feature of the active state. It is likely that both CaSR-ECDIoo and CaSRIcc are different intermediate states during the activation of CaSR. We believe that the inhibition with NB-2D11 pushes the CaSR to a completely inactive state.

At present, the prevailing view is that the principal agonist of CaSR is extracellular Ca2+ (Hofer and Brown, 2003). L-amino acids, such as L-Trp, can enhance the sensitivity of CaSR toward Ca2+ ions (Conigrave et al., 2000), and are considered as PAMs of the receptor (Saidak et al., 2009). In line with this view, a recently reported FRET study showed that Ca2+ ions are sufficient to activate CaSR in the absence of L-amino acids, such that Ca2+ could be considered as an agonist of CaSR, whereas L-amino acids are pure PAMs of CaSR (Liu et al., 2020). However, it is interesting to note that L-amino acids or their analogs are endogenous agonists of other class C GPCRs, suggesting inconsistency from the perspective of GPCR classification and evolution.

In contrast, some studies have also shown that if Ca2+ concentration is higher than the threshold of 0.5 mM, L-amino acid can activate the receptor (Conigrave et al., 2004; Conigrave et al., 2000; Rey et al., 2005; Young and Rozengurt, 2002), indicating that Ca2+ and L-amino acid can act as co-agonists of the receptor. Using single-cell intracellular Ca2+ microfluorimetry, L-Trp has been shown to directly stimulate intracellular Ca2+ mobilization in cells stably expressing CaSR, with its efficacy and potency increase with increases in concentration of Ca2+ ions, hence providing direct evidence that L-amino acids are agonists of CaSR (Geng et al., 2016). However, this view has yet to be widely accepted because it is difficult to observe L-amino acids directly activating CaSR. The mode of action of Ca2+ ion and L-amino acids on CaSR remains controversial.

Our CaSRagonist+PAM structure shows that TNCA and a newly identified Ca2+ ion bind at the interdomain cleft of the VFT module, and they both interact with both LB1 and LB2 domains to facilitate ECD closure (Figure 3A), therefore forming the closed state of the ligand-binding domain required for CaSR activation. This indicates that both TNCA and the Ca2+ ion contribute to the activation of CaSR. TNCA and the bound Ca2+ share three common binding residues S170 and D190 of LB1 domain and E297 from LB2 domain (Figure 3E,F), which suggest that the CaSR is synergistically activated by TNCA and Ca2+ ions.

Our experiments have shown that TNCA directly stimulate intracellular Ca2+ mobilization in cells stably expressing CaSR (Figure 3G), suggesting that TNCA are agonists of CaSR. The structure of CaSR shows that TNCA binds at the cleft between LB1 and LB2 domains, which is the binding site for all class C GPCR agonists (Geng et al., 2013; Geng et al., 2016; Kunishima et al., 2000; Muto et al., 2007; Tsuchiya et al., 2002), and TNCA has a binding pattern similar to that of the endogenous agonists of mGluR and GABAB receptors (Figure 3D; Geng et al., 2016). The key coordination residues are very conserved, such as S147 and S170 (Geng et al., 2013; Geng et al., 2016; Kunishima et al., 2000; Zhang et al., 2016). Moreover, TNCA (or L-Trp) interact with residues from LB1 and LB2 to stabilize the closure of VFT, and the signal mutation of the contacting residues (T145I, S147A, S170A, Y218S, E297K) substantially reduce the function of the receptor, even if some of these residues (S147A, T145I, and Y218S) are not related to the coordinating residues of Ca2+, hence indicating that TNCA or L-Trp plays a key role in the activation of CaSR (Geng et al., 2016).

In addition, Ling et al. tried to determine the cryo-EM structures of CaSR in the presence of a high concentration of Ca2+ to address the question of whether Ca2+ ions alone can activate CaSR in the absence of L-Trp. Three different 3D models were obtained, in which the VFT adopted closed–closed, closed–open, and open–open conformations, and an undefined L-amino acid or its derivate was buried in the closed VFT module. However, they did not obtain the closed conformation of VFT containing only Ca2+ ion between the cleft (Ling et al., 2021). The results indicate that Ca2+ ion alone is not enough to induce the closure of the VFT module even in the presence of a high concentration of Ca2+ ion, and L-amino acid or its derivate is required to stabilize the closed conformation of VFT module. Altogether, L-amino acids are the endogenous agonists of CaSR, in agreement with that of other class C GPCRs.

It remains controversial whether Ca2+ act alone to activate CaSR in the absence of L-amino acid. Three different groups prepared CaSR samples without L-amino acids or derivatives for crystal or cryo-EM structural studies, but they all unexpectedly obtained the active structure of CaSR or CaSR ECD with closed–closed VFT conformation containing undefined ligands (Geng et al., 2016; Ling et al., 2021; Zhang et al., 2016). This ligand was subsequently identified as TNCA, which had a high affinity for CaSR, and potentiated Ca2+ activity (Zhang et al., 2016). As we all know, it takes a long time to purify CaSR in TNCA-free buffer for structural study; nevertheless, the endogenous TNCA would still bind to CaSR. This indicates that TNCA tightly binds to CaSR or that it is buried in closed VFT module such that it is difficult to be washed off.

Gentle washing is impossible to remove TNCA bound to CaSR in various function assays. In the absence of TNCA (or L-amino acid) and despite well-controlled assays, it is possible that endogenous TNCA would still bind to CaSR to stabilize the closed conformation of VFT. It would then appear that Ca2+ ions directly activate the CaSR alone as TNCA remains undetected.

In addition to the role of Ca2+ ion binding at the cleft of VFT module to stabilize the closed conformation of VFT, another role of the Ca2+ ions should be considered, in which Ca2+ ion is coordinated by D234, E231, and G557, and bridges the LB2 domain of one subunit and the CR domain of the second subunit. Ca2+ ion facilitates the formation of the active conformation of CaSR, which explain why L-amino acids (or TNCA) can activate CaSR in the presence of Ca2+ ion above the threshold concentration of 0.5 mM. We speculate that as endogenous TNCA exists, binds to CaSR with high affinity, and is difficult to be replaced by other added L-amino acids, it is challenging to observe whether L-amino acids can directly activate CaSR. Alternatively, the observed allosteric regulation is also a comprehensive result when we performed function assay. It needs the experience of the kinetics and dynamics of L-amino acid or TNCA binding with CaSR to confirm.

We observed that the LB2 domains approach each other during CaSR activation. Although we do not have a fully active conformation of the CaSR without agonist binding as evidence, crystal structures of a fully closed VFT modules of mGluR1 with or without agonist binding were previously reported (Kunishima et al., 2000) and have demonstrated that the proximity of both LB2 domains is an automatic process rather than an agonist-driven one. Here, we showed that NB-2D11 inhibited CaSR activation by blocking the proximity of both LB2 domains.

We analyzed how the closure of ligand bound VFT module is relayed to the signaling of 7TMDs through the CRDs. First, the rotation of LB2 domain is propagated to the large-scale transition of intersubunit 7TMDs, which leads to rearrangement of 7TMDs interface from TM5–TM6-plane/TM5–TM6-plane interface to TM6–TM6-mediated interface. Liu et al. used FRET sensor to investigate the 7TM interface rearrangement during the activation of the CaSR through a disulfide cross-linking approach. They observed a TM4–TM5-plane/TM4–TM5-plane interface in the inactive state, but a TM6–TM6 contact in the active state of the CaSR dimer (Liu et al., 2020). The conformational heterogeneity of the interface of 7TMDs in the inactive state indicates that there is a possible dynamic equilibrium between the TM4–TM5 and TM5–TM6 interfaces. TM6–TM6 contact in the active state is considered to be a hallmark of class C GPCR activation. For mGluR5 and GABAB receptors, the 7TMDs rearrange from TM5–TM5 interface in the inactive state to TM6–TM6 interface in the active state (Kim et al., 2020; Koehl et al., 2019; Mao et al., 2020; Papasergi-Scott et al., 2020; Park et al., 2020; Shaye et al., 2020). In addition, structures of GABAB receptor revealed some cholesterol molecules at the interface of 7TMDs (Kim et al., 2020; Mao et al., 2020; Papasergi-Scott et al., 2020; Park et al., 2020; Shaye et al., 2020). It is possible that the undefined maps between the 7TMD in our full inactive structure could be sterols that separate the dimer plane–plane interface and stabilize the inactive state (Figure 7—figure supplement 2A). In this study, we found that the conformation of ECL2 changed from the inactive to agonist+PAM state. However, the alignment of individual 7TM of both inactive and agonist+PAM states shows that the helices are well superposed, indicating that the change of ECL2 conformation is unable to drive the rearrangements of TM4 and TM5 helices and stabilize the active conformation in the TMDs (Koehl et al., 2019) This observation is consistent with findings that the active state of mGluR5 is stabilized by G proteins (Koehl et al., 2019; Manglik et al., 2015; Rosenbaum et al., 2011). It is required to determine the structure of G protein coupling CaSR to clarify the configuration of the 7TMD in the active state.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (Homo sapiens)CaSRNCBINM_000388.4
Strain, strain background (Escherichia coli)BL21(DE3)New England BiolabsCat#: C2527IE. coli strain for expression of the nanobody
Strain, strain background (Escherichia coli)TG1LucigenCat#: 60,502Electrocompetent cells
Strain, strain background (Escherichia coli)TOP10F'Huayueyang BiotechWXR15-100SE. coli strain for expression of the nanobody
Cell line (Homo sapiens)(HEK) 293 S GnTI- cellsATCCCat# CRL-3022RRID: CVCL_A785Mycoplasma negative
Cell line (Homo sapiens)HEK 293T/17ATCCCat# CRL-11268RRID: CVCL_1926Mycoplasma negative
AntibodyHA-Tag, (Mouse monoclonal)Yeasen30,701ES60Dilution: (1/2000)
AntibodyFlag-Tag (DYKDDDDK), (Mouse monoclonal)Yeasen30,503ES20Dilution: (1/2000)
antibodyPeroxidase AffiniPure Goat Anti-Mouse IgG (H + L)(Goat monoclonal)Yeasen33,201ES60Dilution: (1/2500)
Recombinant DNA reagentAxyPrep Plasmid Miniprep KitCORNING LIFE SCIENCESCat#:220
Recombinant DNA reagentpMECS vectorBioVector NTCCpMECSPhage display vector
Recombinant DNA reagentpEG BacMam vectorAddgeneCat#:160,451Vector
Recombinant DNA reagentpCMV-HAAddgeneCat#:631,604Vector
Recombinant DNA reagentpcDNA3.1AddgeneCat#:128,034Vector
Peptide, recombinant proteinFlag peptideGenscriptDYKDDDDK
Peptide, recombinant proteinNB88(camel nanobody)This studyIsolated from phage display library of immunized cammel with hCaSR
Peptide, recombinant proteinNB-2D11 (camel nanobody)This studyIsolated from phage display library of immunized cammel with hCaSR
Commercial assay or kitLuciferase assay kitPromegaE152AFor signaling assay
Commercial assay or kitSuperSignal ELISA Femto SubstrateThermo ScientificCat#: 37,075Protein Assays and Analysis
Commercial assay or kitFluo-4, AM, Cell PermeantYEASEN40,704ES50
Chemical compound, drugTNCAaladdin42438-90-4
Chemical compound, drugNPS-2143aladdin284035-33-2
Chemical compound, drugcinacalcetaladdin364782-34-3
Chemical compound, drugLauryl Maltose Neopentyl Glycol (LMNG)AnatraceNG310Membrane protein purification
Chemical compound, drugGlyco-Diosgenin (GDN)AnatraceGDN101Membrane protein purification
Chemical compound, drugCholesterol Hemisuccinate tris Salt (CHS)AnatraceCH210Membrane protein purification
Chemical compound, drugTMB substrateThermo Fisher Scientific34,021Protein Assays and Analysis
Software, algorithmcryoSPARChttps://cryosparc.comVersion 3.0.0RRID:SCR_016501Cryo-EM data processing
Software, algorithmPHENIXhttp://www.phenix-online.org/Version 1.19.2RRID:SCR_014224Structure refinement
Software, algorithmCootCoot (cam.ac.uk)Version 0.9.4 RRID:SCR_014222Structure refinement
Software, algorithmMolProbityDOI:10.1107/S0907444909042073RRID:SCR_014226Structure verification
Software, algorithmUCSF Chimerahttps://wwwcgl.ucsf.edu/chimera/
(PMID:15264254)
Version 1.15 RRID:SCR_004097Initial homology model docking
Software, algorithmPyMolSchrodingerVersion 2.5 RRID:SCR_000305Structural visualization/figure preparation
Software, algorithmGraphPad Prism 7GraphPadRRID:SCR_002798Analysis of signaling data
OtherLipofectamine 2000Invitrogen11668030Transfection reagent for signaling assay

Cell lines

Request a detailed protocol

(HEK) 293 S GnTI cells (human) were purchased from ATCC (Cat# CRL-3022 RRID:CVCL_A785), which were grown in FreeStyle 293 medium (Gibco) supplemented with 2% (v/v) FBS (Gibco) and 8% CO2 for maintenance. HEK293T/17 cells (ATCC, Cat# CRL-11268 RRID:CVCL_1926) were grown in Dulbecco’s modified eagle medium (DMEM, Gibco) supplemented with 10% (v/v) FBS and 5% CO2. All cell lines were grown at 37℃. All the cell lines tested negative for mycoplasma contamination.

Nanobody library generation

Request a detailed protocol

Camel immunizations and nanobody library generation were performed as described previously (Pardon et al., 2014). Animal work was conducted under the supervision of Shanghai Institute of Materia Medica, Chinese Academy of Sciences. In brief, two camels were immunized subcutaneously with approximately 1 mg human CaSR protein combined with equal volume of Gerbu FAMA adjuvant once a week for seven consecutive weeks. Three days after the last immunization, peripheral blood lymphocytes (PBLs) were isolated from the whole blood using Ficoll-Paque Plus according to manufacturer’s instructions. Total RNA from the PBLs was extracted and reverse transcribed into cDNA using a Super-Script III FIRST-Strand SUPERMIX Kit (Invitrogen). The VHH encoding sequences were amplified with two-step enriched-nested PCR using VHH-specific primers and cloned between PstI and BsteII sites of pMECS vector. Electro-competent E. coli TG1 cells (Lucigen) were transformed and the size of the constructed nanobody library was evaluated by counting the number of bacterial colonies. Colonies were harvested and stored at −80°C.

Nanobody identification by phage display

Request a detailed protocol

E. coli TG1 cells containing the VHH library were superinfected with M13KO7 helper phages to obtain a library of VHH-presenting phages. Phages presenting CaSR-specific VHHs were enriched after three rounds of biopanning. For each panning round, phages were dispensed into CaSR coated 96 wells (F96 Maxisorp, Nunc), incubated for 2 hr on a vibrating platform (700 r.p.m), and subsequently washed 10 times with PBST and five times with PBS. The retained phages were eluted with 0.25 mg ml–1 trypsin (Sigma-Aldrich). The collected phages were subsequently amplified in E. coli TG1 cell for consecutive rounds of panning. After the third rounds of biopanning, 200 positive clones were picked and infected with M13KO7 helper phages to obtain the VHH-presenting phages.

ELISA to select CaSR VHHs

Request a detailed protocol

The wells of ELISA plates were coated with 2 μg ml–1 neutravidin in PBS overnight at 4°C. Biotinylated CaSR (2 μg ml–1) was added into each well. Then the wells were blocked with 5 mg ml–1 non-fat milk powder in PBS. One hundred microliter supernatant of HA-tagged CaSR VHH was added into each well with 1 hr incubation at 4°C, followed by incubation with horseradish peroxidase (HRP)-conjugated anti-HA (Yeasen). TMB substrate (Thermo Fisher Scientific) was added, and the reactions were stopped by 2 M H2SO4. Measurement was performed at 450 nm.

Purification of NB-2D11

Request a detailed protocol

NB-2D11 was cloned into a pMECS vector (NTCC) that contains a PelB signal peptide and a hemagglutinin (HA) tag followed by a 6× histidine tag at the C-terminus. It was expressed in the periplasm of E. coli strain TOP10F' (Huayueyang Biotech) and grown to a density of OD600nm 0.6–0.8 at 37°C in 2YT media containing 100 μg/ml Ampicillin, 0.1% (w/v) glucose and 1 mM MgCl2, and then induced with 1 mM IPTG at 28°C for 12 hr. The bacteria were harvested by centrifugation and resuspended in a buffer containing 20 mM HEPES pH 7.5, 150 mM NaCl, 1 mM PMSF, and lysed by sonication, then centrifuged at 4000 r.p.m. to remove cell debris. The supernatant was loaded onto Ni-NTA resin and further eluted in elution buffer containing 20 mM HEPES pH 7.5, 150 mM NaCl, and 300 mM imidazole. The elution was purified by gel filtration chromatography using a HiLoad 16/600 Superdex 75 pg column in 150 mM NaCl with 20 mM HEPES pH7.5. Finally, NB-2D11 was flash-frozen in liquid nitrogen until further use.

Purification of inactive state CaSR bound to NPS-2143 and NB-2D11

Request a detailed protocol

Human CaSR (1-870) followed by a Flag epitope tag (DYKDDDD) at the C-terminus was cloned into a modified pEG BacMam vector (Goehring et al., 2014) for expression in baculovirus-infected mammalian cells. Human embryonic kidney (HEK) 293 GnTI- cells (ATCC) were infected with baculovirus at a density of 2.5 × 106 cells per ml at 37°C in 8 % CO2. Ten millimolar sodium butyrate was added 12–16 hr postinfection, then cells were grown for 48 hr at 30°C with gentle rotation.

The infected cells were harvested by centrifugation at 4000 g for 30 min, resuspended, and homogenized using a dounce tissue grinder (WHEATON) in hypotonic buffer (20 mM HEPES pH7.5, 10 mM NaCl, 1 mM CaCl2, 10% glycerol, 1× cocktail of protease inhibitor, and 1 μM NPS-2143). Cell membrane was collected by ultra-centrifugation at 40,000 r.p.m. in a Ti-45 rotor (Beckman Coulter) for 1 hr. Then the membrane was resuspended and solubilized in buffer containing 20 mM HEPES, 150 mM NaCl, 1 mM CaCl2, 10% glycerol, 1 μM NPS-2143, 1% (w/v) lauryl maltose neopentyl glycol (LMNG) (Anatrace), and 0.1% (w/v) cholesteryl hemisuccinate TRIS salt (CHS) (Anatrace) for 1 hr at 4°C with constant stirring. The supernatant was collected by ultra-centrifugation at 40,000 r.p.m. for 1 hr and applied to an anti-Flag M2 antibody affinity column (Sigma-Aldrich). After receptor binding to the M2 column, the resin was washed with 20 mM HEPES, 150 mM NaCl, 1 mM CaCl2, 10% glycerol, 1 μM NPS-2143, 0.1% LMNG, 0.01% CHS. The column was washed stepwise with decreasing proportion of LMNG and increasing concentration of GDN/CHS to 0.2%/0.02%. CaSR was then eluted with 20 mM HEPES, 150 mM NaCl, 1 mM CaCl2, 10% glycerol, 1 μM NPS-2143, 0.02% GDN, 0.002% CHS, and 0.2 mg ml–1 Flag peptide.

CaSR was further purified by ion-exchange chromatography using a Mono Q 5/50 GL column. Peak fractions were assembled and incubated with a 1.2 molar excess of NB-2D11 for 1 hr before injection on a Superose 6 Increase 10/300 GL column. Fractions of CaSR-NB-2D11 complex in buffer containing 20 mM HEPES, 150 mM NaCl, 1 mM CaCl2, 1 μM NPS-2143, 0.002% GDN, and 0.0002% CHS were pooled and concentrated to approximately 5 mg ml–1 for further cryo-EM sample preparation.

Purification of active state CaSR bound to cinacalcet and TNCA

Request a detailed protocol

Infected cells (described above) were collected and resuspended in hypotonic buffer (20 mM HEPES pH 7.5, 10 mM NaCl, 10 mM CaCl2, 10% glycerol, 1× cocktail of protease inhibitor, 1 μM cinacalcet, and 1 μM TNCA). Cell membrane was collected by ultra-centrifugation at 40,000 r.p.m. for 1 hr, resuspended, and solubilized in buffer containing 20 mM HEPES, 150 mM NaCl, 10 mM CaCl2, 10% glycerol, 1 μM cinacalcet, 1 μM TNCA, 1% LMNG, and 0.1% CHS for 1 hr at 4°C. The supernatant was collected by ultra-centrifugation and applied to an anti-Flag M2 antibody affinity column. After receptor binding to the M2 column, the resin was washed with 20 mM HEPES, 150 mM NaCl, 10 mM CaCl2, 10% glycerol, 1 μM cinacalcet, 1 μM TNCA, 0.1% LMNG, 0.01% CHS. LMNG was exchanged for GDN to a proportion of 0.2% in stepwise washing. CaSR was then eluted with 20 mM HEPES, 150 mM NaCl, 10 mM CaCl2, 10% glycerol, 1 μM cinacalcet, 1 μM TNCA, 0.02% GDN, 0.002% CHS, and 0.2 mg ml–1 Flag peptide.

CaSR was further purified by Mono Q 5/50 GL column. Peak fractions were assembled and injected to a Superose 6 Increase 10/300 GL column. Fractions of CaSR in buffer containing 20 mM HEPES, 150 mM NaCl, 10 mM CaCl2, 1 μM cinacalcet, 1 μM TNCA, 0.002% GDN, and 0.0002% CHS were pooled and concentrated to approximately 5 mg ml–1 for further cryo-EM sample preparation.

Cryo-EM sample preparation and data acquisition

Request a detailed protocol

Three microliters of inactive or active CaSR protein was applied to glow-discharged holey carbon 300 mesh grids (Quantifoil Au R1.2/1.3, Quantifoil MicroTools), respectively. The grids were blotted for 2 s and flash-frozen in liquid ethane using a Vitrobot Mark IV (Thermo Fisher Scientific) at 4°C and 100% humidity. Cryo-EM data was collected on a Titan Krios microscope (Thermo Fisher Scientific) at 300 kV accelerating voltage equipped with a Gatan K3 Summit direct election detector at a nominal magnification of 81,000× in counting mode at a pixel size of 1.071 Å. Each micrograph contains 36 movie frames with a total accumulated dose of 70 electrons per Å. The defocus range was set –1.5 to –2.5 μm. A total of 5706 and 4981 movies for active and inactive CaSR were collected for further data processing, respectively.

Data processing and 3D reconstruction

Request a detailed protocol

All images were aligned and summed using MotionCor2 (Zheng et al., 2017). Unless otherwise specified, single-particle analysis was mainly executed in RELION 3.1 (Zivanov et al., 2020). After CTF parameter determination using CTFFIND4 (Rohou and Grigorieff, 2015), particle auto-picking, manual particle checking, and reference-free 2D classification, 1,546,992 and 2,208,402 particles remained in the active and inactive datasets, respectively. The particles were extracted on a binned dataset with a pixel size of 4.42 Å and subjected to 3D classification, with the initial model generated by ab-initio reconstruction in cryoSPARC (Punjani et al., 2017).

For the CaSR active state dataset, 3D classification resulted in extraction of 36.6% good particles with a pixel size of 1.071 Å. The particles were subsequently subjected to an auto-refine procedure, yielding a 4.3-Å-resolution map. Afterwards, particles were polished, sorted by carrying out multiple rounds of 3D classifications, yielding a dataset with 560,366 particles, generating a 3.3-Å-resolution map. Another round of 3D classification focusing the alignment on the complex, resulted in two conformations with high-quality features. After refinement, the resolution levels of these two maps improved to 3.43 Å and 2.99 Å. Particle subtractions on the ECD and TM domains were also performed to further improve the map quality. After several rounds of 3D classifications, ECD map has a resolution of 3.07 Å with 493,869 particles, while that for TM is 4.3 Å with 389,105 particles.

For the CaSR inactive state dataset, 3D classification resulted in extraction of 55% good particles with a pixel size of 1.071 Å. The particles were subsequently subjected to an auto-refine procedure, yielding a 6.0-Å-resolution map. Afterwards, particles were further sorted with another round of 3D classification focusing the alignment on the TM domain, resulted in 37.7% particles with high-quality features. Further 3D classification on the whole complex separates three different orientations of ECD relative to TM domain. After refinement, the resolution levels of these three maps improved to 5.79 Å, 6.88 Å, and 7.11 Å. Particle subtractions on the ECD and TM domains were also performed to further improve the map quality. After several rounds of 3D classifications, ECD map has a resolution of 4.5 Å with 253,294 particles, while that for TM is 4.8 Å with 691,246 particles.

Model building and refinement

Request a detailed protocol

The crystal structures of CaSR ECD in apo and active forms (PDB Code: 5K5T, 5K5S) were used as initial templates for the ECD of the CaSR. The cryo-EM structures of mGluR5 in resting and active forms (PDB Code: 6N52, 6N51) were used as initial models for the TM domains of the receptor. The agonist TNCA was generated by COOT (Emsley and Cowtan, 2004) and PHENIX.eLBOW (Adams et al., 2010). The initial templates of ECDs and TMDs were docked into the cryo-EM maps of CaSR using UCSF Chimera (Goddard et al., 2018) to build the initial models of CaSR in inactive and active forms. Then the main chains and side chains of the initial models were manually rebuilt in COOT. The models were subsequently performed by real-time refinement in PHENIX.

Intracellular Ca2+ flux assay

Request a detailed protocol

HEK293T cells (ATCC) were transiently transfected with wild-type or mutant full-length CaSR plasmids. Five micrograms DNA plasmid was incubated with 15 μl lipofectimin in 500 μl OptiMEM for 10 min at room temperature and then added to the cells for overnight incubation at 37°C. The transfected cells were trypsinized and seeded in 96-well plates. On the day of assay, the cells were incubated with loading medium containing 20 mM HEPES, 125 mM NaCl, 4 mM KCl, 1.25 mM CaCl2, 1 mM MgSO4,1 mM Na2HPO4, 0.1% D-glucose, and 0.1% BSA at 37°C for 4 hr. Then the buffer was replaced with 100 μl of buffer containing Fluo-4 at 37°C for 1 hr incubation, and then placed into the FLIPR Tetra High Throughput Cellular Screening System. Data was analyzed by non-linear regression in Prism (GraphPad Software). Data points represent average ± SEM of quadruplicate measurements.

Surface plasmon resonance

Request a detailed protocol

SPR experiments were performed using a Biacore T200 instrument (GE Healthcare). The system was flushed with running buffer (20 mM HEPES pH 7.4, 150 mM NaCl, 0.05% Tween 20), and all steps were performed at 25°C chip temperature. The CaSR ECD flowed through the negatively charged chip at a concentration of 1 mg/ml and a flow rate of 10 μl/min for 1 min and was captured by amino-carboxyl coupling reaction. It was followed by nanobody NB-2D11 that went through the chip at a series of concentration (30 μl/min, association: 90 s, dissociation: 220 s). All Biacore kinetic experiment data were obtained using Biacore S200 Evaluation Software to calculate the KD, which is the ratio of kd/ka.

ELISA for cell-surface expression

Request a detailed protocol

ELISA was performed as a control to quantify cell surface expression of each CaSR mutant (Mos et al., 2019). In brief, HEK293T cells were transiently transfected with wild-type (WT) or mutant full-length CaSR plasmids. Five micrograms DNA plasmid was incubated with 15 μl lipofectimine (Invitrogen) in 500 μl OptiMEM (Gibco) for 10 min at room temperature and then added to the cells for overnight incubation at 37℃. The transfected cells were trypsinized and seeded in poly-D-lysine-coated 96-well plates (Greiner bio-one, cat# 655083). On the day of assay, cells were fixed with 4% paraformaldehyde in PBS for 20 min and washed twice. The cells were incubated with blocking buffer containing 3% skim milk in PBS followed by incubation for 1 hr with anti-Flag antibody (Yeasen) in blocking buffer. The cells were then incubated with horseradish peroxidase goat anti-mouse IgG (Yeasen) diluted 1:5000 in blocking solution for 1 hr. Chemiluminescence was measured on a Tecan plate reader immediately after addition of 10 μl/well SuperSignal ELISA Femto Substrate (Thermo Fisher Scientific). The results show that each CaSR mutant displays similar fluorescence intensity as that of wild type, which indicates that the elimination of the calcium response is not caused by misfolding or mis-trafficking of the receptor. All mutants were well-expressed on the cell surface compared to the WT receptor.

Data availability

All data is available in the main text or the supplementary materials. Cryo-EM maps of active CaSR in complex with TNCA and inactive CaSR in complex with NB-2D11 have been deposited in the Electron Microscopy Data Bank under accession codes: EMD-30997 (NB-2D11 bound CaSR), EMD-30996 (TNCA bound CaSR). Atomic coordinates for the CaSR in complex with TNCA or NB-2D11 have been deposited in the Protein Data Bank under accession codes: 7E6U (NB-2D11 bound CaSR), 7E6T (TNCA bound CaSR).

The following data sets were generated
    1. Geng Y
    2. Chen XC
    (2021) RCSB Protein Data Bank
    ID 7E6U. Cryo-EM structure of CaSR in complex with NB-2D11.
The following previously published data sets were used
    1. Koehl A
    2. Hu H
    3. Feng D
    4. Sun B
    5. Weis WI
    6. Skiniotis GS
    7. Mathiesen JM
    8. Kobilka BK
    (2019) RCSB Protein Data Bank
    ID 6N51. Metabotropic Glutamate Receptor 5 bound to L-quisqualate and Nb43.
    1. Mao C
    2. Shen C
    3. Li C
    4. Shen D
    5. Xu C
    6. Zhang S
    7. Zhou R
    8. Shen Q
    9. Chen L
    10. Jiang Z
    11. Liu J
    12. Zhang Y
    (2020) RCSB Protein Data Bank
    ID 7C7Q. Cryo-EM structure of the baclofen/BHFF-bound human GABA(B) receptor in active state.

References

    1. Emsley P
    2. Cowtan K
    (2004) Coot: model-building tools for molecular graphics
    Acta Crystallographica Section D, Biological Crystallography 60:2126–2132.
    https://doi.org/10.1107/S0907444904019158

Decision letter

  1. Randy B Stockbridge
    Reviewing Editor; University of Michigan, United States
  2. Kenton J Swartz
    Senior Editor; National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States
  3. Randy B Stockbridge
    Reviewer; University of Michigan, United States
  4. Jean-Philippe Pin
    Reviewer; CNRS, INSERM, Univ. Montpellier, France

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

This manuscript describes the cryo-EM structures of the human calcium-sensing receptor CaSR. Through the use of both agonists and negative allosteric modulators, these structures reveal conformational changes of the receptor that contribute to signaling. CaSR has unquestionable medical relevance, and the topic is of interest to structural biologists and in cell signaling.

Decision letter after peer review:

Thank you for submitting your article "Structural insights into the activation of human calcium- sensing receptor" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Randy B Stockbridge as Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Kenton Swartz as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Jean-Philippe Pin (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1. For the mutant analysis, it is essential to include a control for cell surface expression. Many of the mutants eliminate the calcium response, but this may be an indirect effect if the mutant causes misfolding of mis-trafficking of the receptor.

2. Additional quality metrics for the cryo-EM data and models should be reported. These include more extensive maps (for example, maps around excised regions of secondary structure to assess overall correspondence of maps and models, and maps of the sidechains in the ligand binding site), FSC curve and the distribution of viewing angles of the particles used in the reconstructions, and an analysis of model geometry. Please ensure that Figure 1—figure supplement 2 actually shows maps, and not a surface rendering.

3. The authors should revise the manuscript to engage more with the current literature on CaSR. Doing so is essential to support some of the structural observations. In particular:

– the authors should compare the current structures of CaSR with the recent structures of Ling et al., 2021 for the same receptor. The authors should elaborate on their rationale for arguing that the current structures are more representative of the inactive state than prior models. The authors should explain why the prior model of the inactive state is described as "controversial."

– The authors propose a Calcium binding site that corresponds to one proposed to be essential for CaSR activation by Liu et al., (PNAS 2020), based on models, mutagenesis, and the use of a conformational FRET-based sensor. This work must be cited. Although such a site is very likely to bind Ca ions, the maps provided by the cryo-EM images are far from being sufficient to guarantee that the density observed corresponds to a Ca ion, rather than to another ion. The authors must clearly indicate this and argue why they think this is probably a Ca ion.

– The relative movement of the 7TM domains observed in these structures also fully agree with what was proposed by Liu et al., (2020) through a Cys cross-linking approach and functional analysis of the cross-linked dimers. This study must be discussed and cited.

4. The authors should not refer to the agonist+PAM conformation as the active one, as this is very unlikely since the 7TM domain conformation is almost identical to that observed in the nanobody stabilized inactive state. Please refer to this state as the agonist+PAM bound state.

Reviewer #1 (Recommendations for the authors):

1. The conclusion that the Ca2+ and TCA site are cooperative is based on structural evidence. Have any experiments in the literature shown cooperativity between TCA and Ca2+?

2. The nanobody is an important part of this story. It would be helpful to provide more information on the selection of the nanobody. Was the inactive conformation the target of the nanobody selection? Was anything done during the screening to select for a nanobody against the inactive conformation? I suggest introducing the nanobody selection and activity assays earlier in the manuscript.

3. The authors should elaborate on their rationale for arguing that the current structures are more representative of the inactive state than prior models. Why is the prior model of the inactive state described as "controversial?"

4. The quality of the model (bonds, angles, C-β deviations, etc) should be evaluated using a web server like MolProbity to ensure that the model statistics are satisfactory. These should be reported.

Reviewer #2 (Recommendations for the authors):

1 – The authors propose a Calcium binding site that corresponds to one proposed to be essential for CaSR activation by Liu et al., (PNAS 2020), based on models, mutagenesis, and the use of a conformational FRET-based sensor. This work must be cited. Although such a site is very likely to bind Ca ions, the maps provided by the cryo-EM images are far from being sufficient to guarantee that the density observed corresponds to a Ca ion, rather than to another ion. The authors must clearly indicate this and argue why they think this is probably a Ca ion.

2 – The authors should not refer to the agonist+PAM conformation as the active one, as this is very unlikely since the 7TM domain conformation is almost identical to that observed in the nanobody stabilized inactive state. I recommend they refer to this state as the agonist+PAM bound state.

3 – Most of the inactive structures of the isolated CaSR VFT dimers are all in an orientation corresponding to the active one of the mGlu receptors, with both lobes 2 being in close contact. The recent full length structures revealed three possible inactive states, the VFT dimer in the resting closed closed (Rcc), Resting open closed (Rco) or resting open-open (Roo). Here, the authors report a conformation corresponding to the Roo state that corresponds to the inactive state of mGluR VFTs, but they do not provide a clear demonstration that this is indeed the case. One argument that can be used is based on the work by Liu et al., (2020) that show that the CaSR receptor VFT dimer undergoes a similar change in its orientation during activation, as that of the mGlu receptors. Another argument will be the analysis of the functional effect of the identified nanobody. It is shown to inhibit the receptor activity (Figure 5b), but can a constitutive activity of the CaSR receptor resulting from the other resting conformation be detected? If so, can it be inhibited by NB-2D11?

4 – The relative movement of the 7TM domains observed in these structures also fully agree with what was proposed by Liu et al., (2020) through a Cys cross-linking approach and functional analysis of the cross-linked dimers, with dimers cross-linked through TM6 being constitutively active, while Ca effect was dramatically reduced in TM4 or 5 cross-linked dimers. This study must be discussed and cited.

5 – The authors must also be clear on the relative role of TNCA (or other L-AA) and Ca ions on the activation of the receptor. Using a well-controlled assay, Liu et al., (2020) reported that Ca ions are sufficient to activate the CaSR, even in the absence of L-AA, such that Ca ion can be considered as the agonist of the CaSR. In contrast, any tested L-AA did not activate the receptor, but largely potentiated the Ca effect, such that these L-AA should be considered as PAMs of the CaSR. This must be clarified in the text.

6 – The intermediate state presented should be better explain in the text.

7 – Please be more specific in Figure 4 on how the distances between the C-termini of the VFTs were measured. Indicate which atom was used as a reference.

Reviewer #3 (Recommendations for the authors):

As discussed above, I believe the manuscript could be strengthened by better discussing the distinct aspects of the structures compared to the Ling et al., published paper.

Also I would recommend the authors to go through the manuscript again and to double check typos and grammatical errors. I have noted a few here:

L9: our data shows

L33: through which can be removed.

L44: the active structure has demonstrated a calcium…I would rather say the active structure presents a calcium…

This is actually the case several times in the manuscript (L57, 65…). When speaking about structural or map features, I would suggest to replace "has demonstrated" or "have demonstrated" or 'has shown' by "present" or similar.

L78: the sentence is not clear ans should be rewritten:

and the closed conformation of the VFT module has shown in the active state, which is stabilized by the TNCA binding at the VFT module and 3 distinct calcium binding sites within each ECD

L102: throughout the manuscript you wrote promoter instead of protomer.

L231: is consisted (consistent)

L240: contacting with the map does not make sense in the sentence.

L254: presents similar, except …similar what? This sentence should be written in a clearer way.

L290: There is a common interface constitute of residues 759-763 at ECL2 and residues 601-604 at the C-terminal of CRD (Figure 7A), and the interface in the active conformation is more compact than that of in the inactive conformation

This sentence should be written in a clearer way.

L301: relay should be relays. I would however write 'ECL2 seems to play a key role in relaying…..'

L322-325: This sentence should be rewritten, as it is not clear and it contains grammatical errors (allows).

L343-344: thirdly, the closure of VFT that stabilized by the agonist and Ca2+ ion is a landmark event during the CaSR activation.

You should add 'is' before satbilized.

L348-349: This sentence should be written in a clearer way.

L374: same error as before with consisted instead of consistent.

https://doi.org/10.7554/eLife.68578.sa1

Author response

Essential revisions:

1. For the mutant analysis, it is essential to include a control for cell surface expression. Many of the mutants eliminate the calcium response, but this may be an indirect effect if the mutant causes misfolding of mis-trafficking of the receptor.

We agree with the reviewer that it is essential to measure the cell surface expression levels of the mutants to analyze their effects on the receptor function. The cell-surface expression levels of the WT and mutant CaSR constructs were examined using ELISA as described previously (Mos et al., 2019). The cell surface expression levels of the mutants of the TNCA and calcium common binding sites (S170K, D190K, E297K and Y489F) were approximately 80-100% of the wild-type level. However, each of these mutants nearly abolished or reduced ca2+-dependent receptor response, indicating that their effects on TNCA and calcium binding and receptor function are not only due to the decrease in cell surface expression.

The expression of each mutant of F789A and F792A from TM5 on the cell surface were higher than that of the WT, however, both mutations still significantly attenuate Ca2+-induced receptor activity.

In order to verify the proximity of 7TMDs during the activation, we mutated P823R to disrupt the contact of TM6. The result demonstrated that the expression of P823R mutants was similar to that of the wild type, but after the mutation, the activity of the receptor was seriously affected. Our result shows that the P823R mutant interferes with the active interface driven by TM6, resulting in a decrease in the receptor function.

The structure reveals that the interaction between W590 and K601 of CRD and D758 and E759 of ECL2 relays the conformational changes of VFT to the TM domain. The cell surface expression level of ∆758-759 mutant was comparable to that of WT, while W590E and K601E mutants were expressed on the cell surface at approximately 40-50% of WT level. Each of these mutant leads to a largely decreased effect of Ca2+-stimulated intracellular Ca2+ mobilization in cells, which indicates that the contact formed by CRD and ECL2 plays an important role in converting the ligand binding domain conformational change into the intra-7TM rearrangement.

2. Additional quality metrics for the cryo-EM data and models should be reported. These include more extensive maps (for example, maps around excised regions of secondary structure to assess overall correspondence of maps and models, and maps of the sidechains in the ligand binding site), FSC curve and the distribution of viewing angles of the particles used in the reconstructions, and an analysis of model geometry. Please ensure that Figure 1—figure supplement 2 actually shows maps, and not a surface rendering.

We thank the reviewer for pointing out our negligence. We have added more extensive maps that contain more information of the receptors, including the regions of secondary structure of the maps and models, and the side chains of the ligand binding site, FSC curve and the distribution of viewing angles. We have replaced the surface rendering with the actual map in Figure 2—figure supplement 2.

3. The authors should revise the manuscript to engage more with the current literature on CaSR. Doing so is essential to support some of the structural observations. In particular:

– the authors should compare the current structures of CaSR with the recent structures of Ling et al. 2021 for the same receptor. The authors should elaborate on their rationale for arguing that the current structures are more representative of the inactive state than prior models. The authors should explain why the prior model of the inactive state is described as "controversial."

Following the reviewer’s suggestion, we have compared the recently reported structures of CaSR with our structure in the results and Discussion sections. Ling et al. determined structures of CaSR homodimer in distinct conformations and their findings help us understand the global and local conformational transitions during CaSR activation. They obtained three different structures of CaSR in the Ca2+-free sample, which were considered to represent CaSR in inactive states. Their three models showed similar architecture, but the VFT domains adopted three different conformations, including closed-closed, open-closed, and open-open conformations, designated as CaSRIcc, CaSRIoc, and CaSRIoo, respectively. They indicated that the CaSR in the inactive state had conformational heterogeneity. However, they only built the structure of CaSR in the Icc conformation due to the relatively lower resolution. They also determined the structure of the CaSR-L-Trp complex, designated as CaSRTrp, as the intermediate state of CaSR during activation. They compared the structures of CaSRTrp and CaSRIcc and found that both structures were identical. Moreover, they determined two structures of CaSR in the active state, one was bound with Ca2+ and L-Trp and designated as CaSRAcc, while another was obtained in the presence of a high concentration of Ca2+ ions and designated as CaSRCa. Structural comparison demonstrated that the structure of CaSRCa was almost identical to that of CaSRAcc. Except from the structure of CaSRCa in active state, the inactive conformation of CaSR (CaSRIoc and CaSRIoo) were captured in the high concentration of Ca2+ ions, unfortunately, they still were not resolved due to lower resolution. In conclusion, they determined two structures of CaSR (CaSRAcc and CaSRCa) in the active states and two structures of CaSR (CaSRIcc and CaSRTrp) in the inactive states (or intermediate state), and also observed two inactive conformations of CaSR (CaSRIoc and CaSRIoo, but their structures were not built). They reported that ca2+ induced a conformational transition of CaSR from CaSRIcc to CaSRAcc, as CaSRIcc and CaSRAcc had striking different overall architectures, especially, the CRDs and TMDs separated in the dimeric receptor, while their VFT domains had tiny changes. They also reported that the L-Trp binding induced the closed-closed conformation of the VFT domains, leading to conformational conversion from CaSRIoo to CaSRIcc.

Previous structural and functional studies have suggested a universal activation mechanism for class C GPCR. First, there are two typical conformational changes for the VFT domains in the dimeric receptor from the full inactive state to the full active state. One is that the conformation of VFT domain was converted from open to closed for the change of interdomain in one protomer, another is that the B-C helix angle on the interfaces of LB1-LB1 dimer sharply rotated from inactive state to active state. Second, the closure of VFT domain brings the CRD into close proximity which leads to rearrangement of the 7TMs and establishment of the active TM6-TM6 interface to initiate signaling.

In addition, Liu et al., developed a FRET-based conformation sensor for CaSR through fusion of SNAP-tag at its N terminus of CaSR subunit to label with fluorophores. Their data showed that the CaSR dimer underwent a large conformational change of LB1-LB1 dimer during activation, which indicated that the B-C helix angle rotated from inactive state to active state as the fluorophores was labeled at N-terminus of LB1 domain.

In our inactive structure, the B-C helix angle is about 117° and VFT domain adopts an open-open conformation (Figure 4A, B). The B-C helix angle has rotated approximately 28° from inactive state (117°) to agonist+PAM bound state (89°) and the VFT domain rearranged from open-open configuration to close-close configuration during CaSR activation, consistent with other class C GPCR activation mechanism reported. Therefore, our data suggest that our inactive structure represents the full inactive state. Comparing our inactive open-open conformation with the recently published inactive closed-closed conformation (CaSRIcc) revealed similar CR and 7TM domains, but two totally different VFT module conformations, with their closed-closed conformation presenting some characteristics of the active state. Combined with the observations that the B-C helix of CaSRIcc, CaSRIoc and CaSRIoo states are the same as that of the active state and that closed conformation of VFT is a feature of the active state, it is likely that the recently reported CaSRIcc, CaSRIoc and CaSRIoo states are several different intermediate states during activation.

We have reported that the crystal structure of CaSR-ECD in the open-open state has the same B-C helix angle as that of the active state. We designated this as an intermediate state (CaSR-ECDIoo) in the manuscript. It is possible that the full inactive state of CasR is in fact several populations which are difficult to capture. The inhibition with NB-2D11 captures the CaSR in its resting open-open state and inhibits the activity of CaSR, indicating that this conformation is a full inactive state of CaSR.

– The authors propose a Calcium binding site that corresponds to one proposed to be essential for CaSR activation by Liu et al., (PNAS 2020), based on models, mutagenesis, and the use of a conformational FRET-based sensor. This work must be cited. Although such a site is very likely to bind Ca ions, the maps provided by the cryo-EM images are far from being sufficient to guarantee that the density observed corresponds to a Ca ion, rather than to another ion. The authors must clearly indicate this and argue why they think this is probably a Ca ion.

We thank the reviewer for pointing out this negligence. We have discussed our newly found calcium binding site with the one that was proposed by Liu et al., (PNAS 2020) in the text.

Liu et al., modeled two functional calcium binding sites in L-amino acid binding cleft and verified that these two binding sites are important for the activation of CaSR using conformational FRET-based sensor and intracellular calcium release assays. Their calcium binding site 1 is composed of S170, D190, Q193, Y218, and E297. Our newly defined bound Ca2+ ion is primarily coordinated with the side chains of D190 and E297, the carbonyl oxygen atoms of P188 backbone, and the hydroxyl groups of S170 and Y489. Among them, P188, D190 and S170 are located at LB1 domain, while E297 and Y489 are presented at LB2 domain (Figure 3C, D). The main binding residues S170 and D190 from LB1 and E297 from LB2 are consistent with findings by Liu et al.

We agree with the reviewer that the maps provided by cryo-EM images are insufficient to ensure that the observed density corresponds to a Calcium. We assume that the density represents the presence of Ca2+ based on the following reasons. First, from its hexavalent coordination (the coordinating residues P188, D190, S170 and E297, and Y489), this metal is most likely to be Ca2+, although another ion cannot be ruled out. Second, we prepared the CaSR sample in a purification buffer supplemented with 10mM Ca2+ and without any other bivalent cation, and then applied it for cryo-EM data collection. Third, the mutation of the coordinating residues significantly reduced the effect of Ca2+-stimulated intracellular Ca2+ mobilization in cells. Fourth, the mutants of the residues (S147A) to bind L-amino acid also largely impaired the Ca2+ effect (Geng et al., 2016), which indicates that there should be a Ca2+ ion near the L-amino acid because Ca2+ ion activates CaSR through the L-amino acid. In addition, the data from Liu et al. suggested that S170, D190 and E297 bound with Ca2+.

– The relative movement of the 7TM domains observed in these structures also fully agree with what was proposed by Liu et al., (2020) through a Cys cross-linking approach and functional analysis of the cross-linked dimers. This study must be discussed and cited.

We apologize that we didn’t discuss and cite the observation of relative movement of the 7TM domains proposed by Liu et al., (2020). We have discussed and cited the proposition in our text.

Liu et al. used a FRET sensor to investigate the 7TM interface rearrangement during the activation of CaSR by a disulfide cross-linking approach and verified that both resting and active interfaces were cross-linked by blot analysis of the SNAP-CaSR subunits. Their result revealed that a relative rearrangement between the two 7TMs during activation, from TM4-TM5 of each subunit facing each other in the inactive state to TM6-TM6 contact in the active state of the dimer.

Our inactive structure reveals that TM5 and TM6 constitute a TM5-TM6/TM5- TM6 plane-plane interface (Figure 7E). The active structure shows a TM6-TM6 interface, contacting at the apex of TM6 helices. To further validate the role of this interface, we showed that mutant of P823R markedly reduce the Ca2+-induced receptor activity. The large-scale transition of intersubunit 7TMDs leads to rearrangement of 7TMDs interface from TM5-TM6-plane/TM5-TM6-plane interface to TM6-TM6 mediated interface during the activation of CaSR.

TM6-TM6 interface within our active structure is consistent with the observation of Liu et al. (2020). This contact is considered to be a hallmark of activation in class C GPCR. Our inactive structure shows the TM5-TM6/TM5-TM6 plane-plane interface, consistent of recently reported structure of CaSR in the inactive state (Ling et al., 2021), while Liu et al. showed that the 7TMDs interface formed TM4-TM5 conformation in the inactive state of CaSR. The conformational heterogeneity of the interface of 7TMDs in the inactive state indicates that there is a possible dynamic equilibrium between the TM4-TM5 and TM5-TM6 interfaces. For other class C GPCRs, such as the mGluR5 and GABAB receptors, their 7TMDs rearrange from TM5-TM5 interface in the inactive state to TM6-TM6 interface in the active state.

4. The authors should not refer to the agonist+PAM conformation as the active one, as this is very unlikely since the 7TM domain conformation is almost identical to that observed in the nanobody stabilized inactive state. Please refer to this state as the agonist+PAM bound state.

We agree with the reviewer. Following the reviewer’s suggestion, we have referred agonist+PAM conformation as agonist+PAM bound state in the manuscript.

Reviewer #1 (Recommendations for the authors):

1. The conclusion that the Ca2+ and TCA site are cooperative is based on structural evidence. Have any experiments in the literature shown cooperativity between TCA and Ca2+?

Thank you for reminding us. TNCA is a L-tryptophan derivative. Zhang et al. solved the crystal structure of human CaSR-ECD and unexpectedly found that TNCA occupied the orthosteric agonist-binding site at the interdomain cleft. Their experiment demonstrated that TNCA had a high affinity for CaSR and potentiated Ca2+ activity (Zhang et al., 2016).

We found that TNCA directly activated CaSR in the presence of 0.5mM of Ca2+ ions through intracellular Ca2+ flux measurement and that this effect on CaSR was concentration-dependent with EC50 of 2.839 mM, in agreement with previous reports that L-Trp directly stimulated intracellular Ca2+ mobilization in cells stably expressing CaSR using single-cell intracellular Ca2+ microfluorimetry (Conigrave et al., 2004; Conigrave et al., 2000; Geng et al., 2016; Rey et al., 2005; Young and Rozengurt, 2002)

Author response image 1
Does-response curves of TNCA-induced intracellular Ca2+ mobilization in presence of 0.

5mM extracellular Ca2+ ion.

2. The nanobody is an important part of this story. It would be helpful to provide more information on the selection of the nanobody. Was the inactive conformation the target of the nanobody selection? Was anything done during the screening to select for a nanobody against the inactive conformation? I suggest introducing the nanobody selection and activity assays earlier in the manuscript.

We appreciate the reviewer’s great suggestion. We have added a paragraph (Identification of camelid nanobodies stabilizing the inactive state of CaSR)

at the start of the Results section in our manuscript to describe the selection and activity assays of the nanobody.

For structural studies, we used nanobody to stabilize CaSR in the inactive conformation. Published structures of CaSR-ECD demonstrate that agonist binding induces conformational changes of VFT model of CaSR, whereby two separate LB2 domains approach each other, forming a novel interface in the active state (Geng et al., 2016). Based these structural information, we introduced a potential N-linked glycosylation site on the contacting interface between LB2 domains in the active CaSR to block the interaction of LB2 domains and keep the CaSR in an inactive state. We made a double mutation R227N-E229S at the dimer interface of LB2 domain to introduce N-linked glycosylation at 227 residues site. We immunized two camels with the mutant of CaSR and generated nanobody phage display library. We performed two rounds of bio-panning on the mutant of CaSR, and used enzyme-linked immunosorbent assay (ELISA) to verify the nanobodies that specifically bound to CaSR. We performed intracellular Ca2+ flux assay to determine whether screened nanobodies could stabilize CaSR in the inactive state. Out of several CaSR binders, NB-2D11 and NB88 significantly inhibited the activity of CaSR with IC50 of 41.7 nM and 167.1 nM, respectively (Figure 1A, B). Using Surface Plasmon Resonance (SPR) to measure binding kinetics, both nanobodies NB-2D11 and NB88 demonstrated high-affinity binding to CaSR with KD of 0.24 nM and 3.9 nM, respectively (Figure 1C, D). We then selected NB-2D11, which has a greater binding affinity of the two nanobodies, for structural study.

3. The authors should elaborate on their rationale for arguing that the current structures are more representative of the inactive state than prior models. Why is the prior model of the inactive state described as "controversial?"

We have addressed this concern in our earlier response. Please refer to Essential Revisions #3.

4. The quality of the model (bonds, angles, C-β deviations, etc) should be evaluated using a web server like MolProbity to ensure that the model statistics are satisfactory. These should be reported.

Thank you for your suggestion. The quality of the model has been evaluated using MolProbity. The data is reported as Table 1. Cryo-EM data collection, refinement and validation statistics.

Reviewer #2 (Recommendations for the authors):

1 – The authors propose a Calcium binding site that corresponds to one proposed to be essential for CaSR activation by Liu et al. (PNAS 2020), based on models, mutagenesis, and the use of a conformational FRET-based sensor. This work must be cited. Although such a site is very likely to bind Ca ions, the maps provided by the cryo-EM images are far from being sufficient to guarantee that the density observed corresponds to a Ca ion, rather than to another ion. The authors must clearly indicate this and argue why they think this is probably a Ca ion.

We have addressed this concern in our earlier response. Please refer to Essential Revisions #3.

2 – The authors should not refer to the agonist+PAM conformation as the active one, as this is very unlikely since the 7TM domain conformation is almost identical to that observed in the nanobody stabilized inactive state. I recommend they refer to this state as the agonist+PAM bound state.

We agree with the reviewer. Following the reviewers’s suggestion, we have referred agonist+PAM conformation as agonist+PAM bound state in the manuscript.

3 – Most of the inactive structures of the isolated CaSR VFT dimers are all in an orientation corresponding to the active one of the mGlu receptors, with both lobes 2 being in close contact. The recent full length structures revealed three possible inactive states, the VFT dimer in the resting closed closed (Rcc), Resting open closed (Rco) or resting open-open (Roo). Here, the authors report a conformation corresponding to the Roo state that corresponds to the inactive state of mGluR VFTs, but they do not provide a clear demonstration that this is indeed the case. One argument that can be used is based on the work by Liu et al., (2020) that show that the CaSR receptor VFT dimer undergoes a similar change in its orientation during activation, as that of the mGlu receptors. Another argument will be the analysis of the functional effect of the identified nanobody. It is shown to inhibit the receptor activity (Figure 5b), but can a constitutive activity of the CaSR receptor resulting from the other resting conformation be detected? If so, can it be inhibited by NB-2D11?

We have addressed most of this concern in our earlier response. Please refer to Essential Revisions #3.

Thanks for your interesting question regarding the functional effect of our identified nanobody. It is well known that the CaSR interacts with the Gq/11 and Gi/o. Our experiment shows that NB-2D11 can inhibit the Ca2+o-induced Ca2+i release through the Gq/11 mediated activity. We sought to investigate whether NB-2D11 could have the inhibitory effect on the Ca2+-induced activity of CaSR through the Gi/o pathway using cAMP accumulation assay. CaSR-dependent cAMP inhibition was measured using the cAMP Dynamic 2 Assay Kit purchased from Cisbio Bioassays. Our result showed the Ca2+-mediated decrease in cAMP accumulation was abrogated by the incubation with NB-2D11.

Author response image 2
Normalized cAMP accumulation upon stimulation with 10 mM ca2+ in the absence or presence of NB2D11.

4 – The relative movement of the 7TM domains observed in these structures also fully agree with what was proposed by Liu et al., (2020) through a Cys cross-linking approach and functional analysis of the cross-linked dimers, with dimers cross-linked through TM6 being constitutively active, while Ca effect was dramatically reduced in TM4 or 5 cross-linked dimers. This study must be discussed and cited.

We have addressed this concern in our earlier response. Please refer to Essential Revisions #3.

5 – The authors must also be clear on the relative role of TNCA (or other L-AA) and Ca ions on the activation of the receptor. Using a well-controlled assay, Liu et al. (2020) reported that Ca ions are sufficient to activate the CaSR, even in the absence of L-AA, such that Ca ion can be considered as the agonist of the CaSR. In contrast, any tested L-AA did not activate the receptor, but largely potentiated the Ca effect, such that these L-AA should be considered as PAMs of the CaSR. This must be clarified in the text.

The reviewer’s question is very important. It is also a problem that has puzzled me and made me think for several years.

Liu et al., (2020) reported that Ca2+ are sufficient to activate the CaSR using a well-controlled assay, even in the absence of L-AA, such that Ca2+ can be considered as the agonist of the CaSR.

At present, the prevailing view is that the principal agonist of CaSR is extracellular Ca2+ (Hofer and Brown, 2003). The L-amino acids, such as L-Trp, can enhance the sensitivity of CaSR toward Ca2+ ions (Conigrave et al., 2000), and are considered as positive allosteric modulators of the receptor (Saidak et al., 2009). However, as L-amino acids or their analogs are endogenous agonists of other class C GPCRs, this is somewhat inconsistent from the perspective of GPCR classification and evolution. Previous studies have also shown that if Ca2+ concentration is higher than the threshold of 0.5mM, L-amino acid can activate the receptor (Conigrave et al., 2004; Conigrave et al., 2000; Rey et al., 2005; Young and Rozengurt, 2002). Therefore, it suggested that Ca2+ and L-amino acid can act as co-agonists of the receptor (Conigrave et al., 2000; Young and Rozengurt, 2002). Using single-cell intracellular Ca2+ microfluorimetry, L-Trp has been shown to directly stimulate intracellular Ca2+ mobilization in cells stably expressing CaSR, with its efficacy and potency increase with increases in concentration of Ca2+ ions, hence providing direct evidence that L-amino acids are agonists of CaSR (Geng et al., 2016). However, this view has yet to be widely accepted because it is difficult to observe L-amino acids directly activating CaSR. The mode of action of Ca2+ ion and L-amino acids on CaSR remains controversial.

A few years ago, when we prepared human CaSR samples without L-amino acid for crystallization, we obtained crystal structure of CaSR ECD with a stretch of continuous density in the interdomain cleft. Unfortunately, we were not able to identify the structure of this ligand (Geng et al., 2016). Zhang et al., (2016) solved the crystal structure of human CaSR-ECD in absence of L-AA, and found density at the interdomain cleft, too. It was identified as TNCA. Moreover, they found that TNCA had a high affinity for CaSR and potentiated Ca2+ activity (Zhang et al., 2016). Ling et al., (2021) found a clear extra density in both VFT domain of both structures of CaSRIcc and CaSRCa in the absence of L-amino acid. It indicated that ambient L-amino acids (or L-amino acid derivative, such as TNCA) had bound to CaSR as an endogenous ligand (Ling et al., 2021). Our agonist +PAM bound structure shows that TNCA and a newly identified Ca2+ ion bind at the interdomain cleft of the VFT module, and they both interact with both LB1 and LB2 domains to facilitate extracellular domain closure (Figure 3A), therefore forming the closed state of the ligand binding domain required for CaSR activation. This indicates that both TNCA and the Ca2+ ion contribute to the activation of CaSR. TNCA and the bound Ca2+ share three common binding residues S170 and D190 of LB1 domain and E297 from LB2 domain (Figure 3E, F), which suggest that the CaSR is synergistically activated by TNCA and Ca2+ ions.

Our experiments have shown that TNCA directly stimulate intracellular Ca2+ mobilization in cells stably expressing CaSR (Figure 3G), suggesting that TNCA are agonists of CaSR. The structure of CaSR shows that TNCA binds at the cleft between LB1 and LB2 domains, which is the conserved ligand binding site for all class C GPCR agonists (Geng et al., 2013; Geng et al., 2016; Kunishima et al., 2000; Muto et al., 2007; Tsuchiya et al., 2002), and TNCA has a binding pattern similar to that of the endogenous agonists of mGluR and GABAB receptors (Figure 3D) (Geng et al., 2016). The key coordination residues are very conserved, such as S147 and S170 (Geng et al., 2013; Geng et al., 2016; Kunishima et al., 2000; Zhang et al., 2016). Moreover, TNCA (or L-Trp) interact with residues from LB1 and LB2 to stabilize the closure of VFT, and the signal mutation of the contacting residues (T145I, S147A, S170A, Y218S, E297K) substantially reduce the function of the receptor, even if some of these residues (S147A, T145I and Y218S) are not related to the coordinating residues of Ca2+, hence indicating that TNCA or L-Trp plays a key role in the activation of CaSR (Geng et al., 2016). In addition, Ling et al. (2021) tried to determine the cryo-EM structures of CaSR in the presence of a high concentration of Ca2+ to address the question of whether Ca2+ ions alone can activate CaSR in the absence of L-Trp. Three different 3D models were obtained, in which the VFT adopted closed-closed, closed-open and open-open conformations. They observed densities located at the interdomain crevice of the VFT module in the closed state. They suggested that L-amino acids or its derivate is bound to CaSR, because the densities were much larger than that of a Ca2+ ion. However, they did not obtain the closed conformation of VFT containing only Ca2+ ion between the cleft (Ling et al., 2021). The results indicate that Ca2+ ion alone is not enough to induce the closure of the VFT module even in the presence of a high concentration of Ca2+ ion, and L-amino acid or its derivate is required to stabilize the closed conformation of VFT module. Altogether, L-amino acids are the endogenous agonists of CaSR, in agreement with that of other class C GPCRs.

Three different groups prepared CaSR samples without L-amino acids or derivatives for crystal or cryo-EM structural study, but they all unexpectedly obtained the active structure of CaSR or CaSR ECD with the closed-closed conformation of VFT module containing undefined ligands (Geng et al., 2016; Ling et al., 2021; Zhang et al., 2016). The ligand was identified as TNCA, which had a high affinity for CaSR and potentiated Ca2+ activity (Zhang et al., 2016). As we all know, it takes a long time to purify CaSR in TNCA-free buffer for structural study, nevertheless, the endogenous TNCA would still bind to CaSR. This indicates that TNCA has a high affinity for CaSR or that it is buried in closed VFT module such that it is difficult to be washed off.

Gentle washing is impossible to remove TNCA bound to CaSR in various function assays. In the absence of TNCA (or L-amino acid), it is possible that TNCA would still bind to CaSR to stabilize the closed conformation of VFT, although the control assay is well done. Ca2+ ions seem to directly activate the CaSR alone.

We speculate that as the endogenous TNCA exists and is difficult to be replaced by other added L-amino acids, it is challenging to observe the direct activation of other L-amino acids, or the observed allosteric regulation is also a comprehensive result when we performed function assay. These highlight the need for further experiments investigating the kinetics and dynamics of L-amino acid or TNCA binding to CaSR to strengthen our findings, however, such the magnitude of the experiments involved are beyond the scope of the current paper.

In addition to the role of Ca2+ ion binding at the cleft of VFT module discussed above to stabilize the closed conformation of VFT, another role of the Ca2+ ions should be considered, in which Ca2+ ion is coordinated by D234, E231 and G557, and bridges the LB2 domain of one subunit and CR domain of the second domain. The Ca2+ ion facilitates the formation of the active conformation of CaSR, which is the reason that the L-amino acids (or TNCA) activate CaSR in the presence of Ca2+ ion above the threshold concentration of 0.5mM.

6 – The intermediate state presented should be better explain in the text.

Thank you for your suggestion. We have discussed and explained in detail the intermediate state in the Results section. Based on the rotation of the angles of B-C Helix during the activation of CaSR as discussed above (response to Essential Revisions #3), the orientation of the LB1-LB1 dimer interface of the open-open conformation of CaSRECD crystal structure is similar to that of agonist+PAM bound state, which is different from that of our full inactive state of CaSR, indicating that the open-open conformation of CaSRECD crystal structure presents some characteristics of the conformation of the active state. In addition, the superimposition of different state of VFT domain shows that the distances between C-termini of VFT domain of CaSR gradually decreases from the full active state to active state. The distance between C-termini of VFT domains of the open-open conformation of CaSRECD crystal structure is between full inactive and active states. Therefore, we defined the open-open conformation of CaSRECD crystal structure as one of the intermediate states that are ready for binding of L-AA and calcium ions.

7 – Please be more specific in Figure 4 on how the distances between the C-termini of the VFTs were measured. Indicate which atom was used as a reference.

Thank you for your question. We have measured the distances of Cα atom of N541 at the C-termini of the VFTs.

Reviewer #3 (Recommendations for the authors):

As discussed above, I believe the manuscript could be strengthened by better discussing the distinct aspects of the structures compared to the Ling et al., published paper.

We have addressed this concern in our earlier response. Please refer to Essential Revisions #3. In our study, we have determined the cryo-EM structures of CaSR in the inactive and the agonist+PAM bound states. The overall conformation of our agonist+PAM bound structure is almost identical to that of the structure of closed-closed conformation of Ca2+/Trp bound state (CaSRAcc and CaSRCa). We compare our inactive open-open conformation with the recently published inactive closed-closed conformation, which revealed a similar CR domain and 7TM domain that is separated in these inactive states, but the VFT module reveal the totally different conformation, the closed-closed conformation of their structure presents some characteristics of the active state. It indicates that the CaSR in the inactive state has conformational heterogeneity. In other words, it suggests that in addition to the full inactive state and the active state, there are multiple intermediate states in the process of activation.

Also I would recommend the authors to go through the manuscript again and to double check typos and grammatical errors. I have noted a few here:

L9: our data shows

L33: through which can be removed.

L44: the active structure has demonstrated a calcium…I would rather say the active structure presents a calcium…

This is actually the case several times in the manuscript (L57, 65…). When speaking about structural or map features, I would suggest to replace "has demonstrated" or "have demonstrated" or 'has shown' by "present" or similar.

L78: the sentence is not clear and should be rewritten:

and the closed conformation of the VFT module has shown in the active state, which is stabilized by the TNCA binding at the VFT module and 3 distinct calcium binding sites within each ECD

L102: throughout the mansucript you wrote promoter instead of protomer.

L231: is consisted (consistent)

L240: contacting with the map does not make sense in the sentence.

L254: presents similar, except …similar what? This sentence should be written in a clearer way.

L290: There is a common interface constitute of residues 759-763 at ECL2 and residues 601-604 at the C-terminal of CRD (Figure 7A), and the interface in the active conformation is more compact than that of in the inactive conformation

This sentence should be written in a clearer way.

L301: relay should be relays. I would however write 'ECL2 seems to play a key role in relaying…..'

L322-325: This sentence should be rewritten, as it is not clear and it contains grammatical errors (allows).

L343-344: thirdly, the closure of VFT that stabilized by the agonist and Ca2+ ion is a landmark event during the CaSR activation.

You should add 'is' before satbilized.

L348-349: This sentence should be written in a clearer way.

L374: same error as before with consisted instead of consistent.

We appreciate the referee for pointing out and correcting grammatical mistakes and typos. The above errors have been corrected in the manuscript.

References

Conigrave, A.D., Mun, H.C., Delbridge, L., Quinn, S.J., Wilkinson, M., and Brown, E.M. (2004). L-amino acids regulate parathyroid hormone secretion. J Biol Chem 279, 38151-38159.https://doi.org/10.1074/jbc.M406373200

Conigrave, A.D., Quinn, S.J., and Brown, E.M. (2000). L-amino acid sensing by the extracellular ca2+-sensing receptor. Proceedings of the National Academy of Sciences of the United States of America 97, 4814-4819.https://doi.org/10.1073/pnas.97.9.4814

Geng, Y., Bush, M., Mosyak, L., Wang, F., and Fan, Q.R. (2013). Structural mechanism of ligand activation in human GABA(B) receptor. Nature 504, 254-259.https://doi.org/10.1038/nature12725

Geng, Y., Mosyak, L., Kurinov, I., Zuo, H., Sturchler, E., Cheng, T.C., Subramanyam, P., Brown, A.P., Brennan, S.C., Mun, H.C., et al. (2016). Structural mechanism of ligand activation in human calcium-sensing receptor. eLife 5https://doi.org/10.7554/eLife.13662

Hofer, A.M., and Brown, E.M. (2003). Extracellular calcium sensing and signalling. Nat Rev Mol Cell Biol 4, 530-538.https://doi.org/10.1038/nrm1154

Kunishima, N., Shimada, Y., Tsuji, Y., Sato, T., Yamamoto, M., Kumasaka, T., Nakanishi, S., Jingami, H., and Morikawa, K. (2000). Structural basis of glutamate recognition by a dimeric metabotropic glutamate receptor. Nature 407, 971-977.https://doi.org/10.1038/35039564

Ling, S., Shi, P., Liu, S., Meng, X., Zhou, Y., Sun, W., Chang, S., Zhang, X., Zhang, L., Shi, C., et al. (2021). Structural mechanism of cooperative activation of the human calcium-sensing receptor by Ca(2+) ions and L-tryptophan. Cell researchhttps://doi.org/10.1038/s41422-021-00474-0

Mos, I., Jacobsen, S.E., Foster, S.R., and Brauner-Osborne, H. (2019). Calcium-Sensing Receptor Internalization Is β-Arrestin-Dependent and Modulated by Allosteric Ligands. Molecular pharmacology 96, 463-474.https://doi.org/10.1124/mol.119.116772

Muto, T., Tsuchiya, D., Morikawa, K., and Jingami, H. (2007). Structures of the extracellular regions of the group II/III metabotropic glutamate receptors. Proceedings of the National Academy of Sciences of the United States of America 104, 3759-3764.https://doi.org/10.1073/pnas.0611577104

Rey, O., Young, S.H., Yuan, J., Slice, L., and Rozengurt, E. (2005). Amino acid-stimulated ca2+ oscillations produced by the ca2+-sensing receptor are mediated by a phospholipase C/inositol 1,4,5-trisphosphate-independent pathway that requires G12, Rho, filamin-A, and the actin cytoskeleton. J Biol Chem 280, 22875-22882.https://doi.org/10.1074/jbc.M503455200

Saidak, Z., Boudot, C., Abdoune, R., Petit, L., Brazier, M., Mentaverri, R., and Kamel, S. (2009). Extracellular calcium promotes the migration of breast cancer cells through the activation of the calcium sensing receptor. Exp Cell Res 315, 2072-2080.https://doi.org/10.1016/j.yexcr.2009.03.003

Tsuchiya, D., Kunishima, N., Kamiya, N., Jingami, H., and Morikawa, K. (2002). Structural views of the ligand-binding cores of a metabotropic glutamate receptor complexed with an antagonist and both glutamate and Gd3+. Proceedings of the National Academy of Sciences of the United States of America 99, 2660-2665.https://doi.org/10.1073/pnas.052708599

Young, S.H., and Rozengurt, E. (2002). Amino acids and ca2+ stimulate different patterns of ca2+ oscillations through the ca2+-sensing receptor. Am J Physiol Cell Physiol 282, C1414-1422.https://doi.org/10.1152/ajpcell.00432.2001

Zhang, C., Zhang, T., Zou, J., Miller, C.L., Gorkhali, R., Yang, J.Y., Schilmiller, A., Wang, S., Huang, K., Brown, E.M., et al., (2016). Structural basis for regulation of human calcium-sensing receptor by magnesium ions and an unexpected tryptophan derivative co-agonist. Science advances 2, e1600241.https://doi.org/10.1126/sciadv.1600241

https://doi.org/10.7554/eLife.68578.sa2

Article and author information

Author details

  1. Xiaochen Chen

    The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Project administration, Validation, Visualization, Writing – original draft, Writing – review and editing
    Contributed equally with
    Lu Wang, Qianqian Cui and Zhanyu Ding
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0426-9547
  2. Lu Wang

    The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Data curation, Investigation, Validation, Writing – original draft, Writing – review and editing
    Contributed equally with
    Xiaochen Chen, Qianqian Cui and Zhanyu Ding
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6336-5806
  3. Qianqian Cui

    The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Investigation, Writing – review and editing
    Contributed equally with
    Xiaochen Chen, Lu Wang and Zhanyu Ding
    Competing interests
    none
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5962-9298
  4. Zhanyu Ding

    The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Data curation, Investigation, Validation, Writing – original draft
    Contributed equally with
    Xiaochen Chen, Lu Wang and Qianqian Cui
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8136-2243
  5. Li Han

    The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Investigation
    Competing interests
    None
  6. Yongjun Kou

    The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Investigation
    Competing interests
    None
  7. Wenqing Zhang

    The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Investigation
    Competing interests
    None
  8. Haonan Wang

    The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Investigation
    Competing interests
    None
  9. Xiaomin Jia

    The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Investigation
    Competing interests
    None
  10. Mei Dai

    The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Investigation
    Competing interests
    None
  11. Zhenzhong Shi

    The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Investigation
    Competing interests
    None
  12. Yuying Li

    The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Investigation
    Competing interests
    None
  13. Xiyang Li

    The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
    Contribution
    Investigation
    Competing interests
    None
  14. Yong Geng

    1. The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
    2. University of Chinese Academy of Sciences, Beijing, China
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Validation, Visualization, Writing – original draft
    For correspondence
    gengyong@simm.ac.cn
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7144-3878

Funding

National Natural Science Foundation of China (No. 31670743)

  • Yong Geng

Science and Technology Commission of Shanghai Municipality (No. 18JC1415400)

  • Yong Geng

Joint Research Fund for Overseas Chinese Scholars and Scholars in Hong Kong and Macao (No. 81628013)

  • Yong Geng

Natural Science Foundation of Shanghai (16ZR1442900)

  • Yong Geng

Shanghai Institute of Materia Medica, Chinese Academy of Sciences (CASIMM0120164013)

  • Yong Geng

Shanghai Institute of Materia Medica, Chinese Academy of Sciences (SIMM1606YZZ-06)

  • Yong Geng

Shanghai Institute of Materia Medica, Chinese Academy of Sciences (SIMM1601KF-06)

  • Yong Geng

Shanghai Institute of Materia Medica, Chinese Academy of Sciences (55201631121116101)

  • Yong Geng

Shanghai Institute of Materia Medica, Chinese Academy of Sciences (55201631121108000)

  • Yong Geng

Shanghai Institute of Materia Medica, Chinese Academy of Sciences (5112345601)

  • Yong Geng

Shanghai Institute of Materia Medica, Chinese Academy of Sciences (2015123456005)

  • Yong Geng

National Natural Science Foundation of China (118180359901)

  • Yong Geng

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The cryo-EM data were collected at the Cryo-Electron Microscopy Research Center, Shanghai Institute of Materia Medica, Chinese Academy of Sciences. This work is supported by National Natural Science Foundation of China (No. 31670743), Strategic Priority Research Program of the Chinese Academy of Sciences (No. XDA12040326), Science and Technology Commission of Shanghai Municipality (No. 18JC1415400), Joint Research Fund for Overseas, Hong Kong and Macao Scholars (No. 81628013), Natural Science Foundation of Shanghai (16ZR1442900), National Science Foundation for Young Scholar projects (118180359901), and grants from Shanghai Institute of Materia Medica, Chinese Academy of Sciences (CASIMM0120164013, SIMM1606YZZ-06, SIMM1601KF-06, 55201631121116101, 55201631121108000, 5112345601, 2015123456005).

Ethics

The animal work was approved and under the supervision of Shanghai Institute of Materia Medica, Chinese Academy of Sciences (Permit Number: SYXK 2015-0027).

Senior Editor

  1. Kenton J Swartz, National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States

Reviewing Editor

  1. Randy B Stockbridge, University of Michigan, United States

Reviewers

  1. Randy B Stockbridge, University of Michigan, United States
  2. Jean-Philippe Pin, CNRS, INSERM, Univ. Montpellier, France

Publication history

  1. Received: March 19, 2021
  2. Preprint posted: March 31, 2021 (view preprint)
  3. Accepted: August 31, 2021
  4. Accepted Manuscript published: September 1, 2021 (version 1)
  5. Version of Record published: September 27, 2021 (version 2)

Copyright

© 2021, Chen et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,128
    Page views
  • 243
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    2. Structural Biology and Molecular Biophysics
    Johannes Elferich et al.
    Research Article Updated

    Mechanosensory transduction (MT), the conversion of mechanical stimuli into electrical signals, underpins hearing and balance and is carried out within hair cells in the inner ear. Hair cells harbor actin-filled stereocilia, arranged in rows of descending heights, where the tips of stereocilia are connected to their taller neighbors by a filament composed of protocadherin 15 (PCDH15) and cadherin 23 (CDH23), deemed the ‘tip link.’ Tension exerted on the tip link opens an ion channel at the tip of the shorter stereocilia, thus converting mechanical force into an electrical signal. While biochemical and structural studies have provided insights into the molecular composition and structure of isolated portions of the tip link, the architecture, location, and conformational states of intact tip links, on stereocilia, remains unknown. Here, we report in situ cryo-electron microscopy imaging of the tip link in mouse stereocilia. We observe individual PCDH15 molecules at the tip and shaft of stereocilia and determine their stoichiometry, conformational heterogeneity, and their complexes with other filamentous proteins, perhaps including CDH23. The PCDH15 complexes occur in clusters, frequently with more than one copy of PCDH15 at the tip of stereocilia, suggesting that tip links might consist of more than one copy of PCDH15 complexes and, by extension, might include multiple MT complexes.

    1. Structural Biology and Molecular Biophysics
    Fatima El Alaoui et al.
    Research Article

    Clathrin-mediated endocytosis (CME) is a central trafficking pathway in eukaryotic cells regulated by phosphoinositides. The plasma membrane phosphatidylinositol-4,5-bisphosphate (PI(4,5)P2) plays an instrumental role in driving CME initiation. The F-BAR domain only protein 1 and 2 complex (FCHo1/2) is among the early proteins that reach the plasma membrane, but the exact mechanisms triggering its recruitment remain elusive. Here, we show the molecular dynamics of FCHo2 self-assembly on membranes by combining minimal reconstituted in vitro and cellular systems. Our results indicate that PI(4,5)P2 domains assist FCHo2 docking at specific membrane regions, where it self-assembles into ring-like shape protein patches. We show that the binding of FCHo2 on cellular membranes promotes PI(4,5)P2 clustering at the boundary of cargo receptors and that this accumulation enhances clathrin assembly. Thus, our results provide a mechanistic framework that could explain the recruitment of early PI(4,5)P2-interacting proteins at endocytic sites.
