Whole-organism 3D quantitative characterization of zebrafish melanin by silver deposition micro-CT

  1. Spencer R Katz  Is a corresponding author
  2. Maksim A Yakovlev
  3. Daniel J Vanselow
  4. Yifu Ding
  5. Alex Y Lin
  6. Dilworth Y Parkinson
  7. Yuxin Wang
  8. Victor A Canfield
  9. Khai C Ang
  10. Keith C Cheng  Is a corresponding author
  1. Division of Experimental Pathology, Department of Pathology, Pennsylvania State University College of Medicine, United States
  2. The Jake Gittlen Laboratories for Cancer Research, Penn State College of Medicine, United States
  3. Medical Scientist Training Program, Penn State College of Medicine, United States
  4. Advanced Light Source, Lawrence Berkeley National Labs, United States
  5. Mobile Imaging Innovations, Inc, United States
  6. Zebrafish Functional Genomics Core, Penn State College of Medicine, United States
https://doi.org/10.7554/eLife.68920
Share this article
Cite this article
  1. Spencer R Katz
  2. Maksim A Yakovlev
  3. Daniel J Vanselow
  4. Yifu Ding
  5. Alex Y Lin
  6. Dilworth Y Parkinson
  7. Yuxin Wang
  8. Victor A Canfield
  9. Khai C Ang
  10. Keith C Cheng
(2021)
Whole-organism 3D quantitative characterization of zebrafish melanin by silver deposition micro-CT
eLife 10:e68920.
https://doi.org/10.7554/eLife.68920
  2. Download BibTeX
  3. Download .RIS

Abstract

We previously described X-ray histotomography, a high-resolution, non-destructive form of X-ray microtomography (micro-CT) imaging customized for three-dimensional (3D), digital histology, allowing quantitative, volumetric tissue and organismal phenotyping (Ding et al., 2019). Here, we have combined micro-CT with a novel application of ionic silver staining to characterize melanin distribution in whole zebrafish larvae. The resulting images enabled whole-body, computational analyses of regional melanin content and morphology. Normalized micro-CT reconstructions of silver-stained fish consistently reproduced pigment patterns seen by light microscopy, and further allowed direct quantitative comparisons of melanin content across wild-type and mutant samples, including subtle phenotypes not previously noticed. Silver staining of melanin for micro-CT provides proof-of-principle for whole-body, 3D computational phenomic analysis of a specific cell type at cellular resolution, with potential applications in other model organisms and melanocytic neoplasms. Advances such as this in whole-organism, high-resolution phenotyping provide superior context for studying the phenotypic effects of genetic, disease, and environmental variables.

Introduction

The zebrafish (Danio rerio) is an important vertebrate model organism for developmental biology, functional genomics, and large-scale drug and toxicological screens due to its high fecundity, transparent, externally developing embryos, relatively low husbandry costs, and small size (Lieschke and Currie, 2007). One of the most readily observable phenotypes in the zebrafish is its distinctive pigmentation patterning, which, in wild-type adults, appears as alternating dark and light longitudinal stripes. The study of the cellular components of these stripes, including brown-black melanophores, silvery iridophores, and yellow xanthophores, has taught us a lot about the necessary cells, genes, and pathways required for normal pigmentation development and the evolution of complex color patterning (D’Agati et al., 2017; Frohnhöfer et al., 2013; Hultman and Johnson, 2010; Kelsh, 2004; Kelsh et al., 1996; Lister, 2002; Lister et al., 1999; Singh and Nüsslein-Volhard, 2015). Disruption of melanogenesis or localization of melanophores, iridophores, or xanthophores has been found in a plethora of mutant strains with unique pigmentation patterns, or even virtually no body pigment, that are useful for screening or imaging studies (Parichy, 2006). For example, the crystal (mitfaw2/w2; mpv17a9/a9; slc45a2b4/b4) strain, a compound mutant with defects in both melanogenesis and iridophore development, never develops pigment and is used for applications where transparent post-embryonic organisms are required, such as fluorescence imaging (Antinucci and Hindges, 2016). Another pigmentation mutant, golden (slc24a5b1/b1), is frequently used for mutagenesis screening or testing of gene editing technology because its single affected locus produces an early, dramatic reduction in eye and body melanin content that has been implicated in human skin color (Doyon et al., 2008; Ginger et al., 2008; Hoshijima et al., 2016; Lamason et al., 2005; Moore et al., 2006; Streisinger et al., 1981; Streisinger et al., 1989).

Melanin, the dark pigment produced in zebrafish melanophores, is a heterogeneous mix of cross-linked derivatives of the amino acid tyrosine. In humans, melanin is produced in skin melanocytes and transferred to keratinocytes which prevents UV-based DNA damage; this pigment is the major component of human skin and hair color with implications in human health and disease (Slominski et al., 2004). Dysfunction of human pigmentation is responsible for diseases such as albinism and vitiligo. Overgrowth of melanocytes can result in melanocytic nevi or malignant melanoma with darkly pigmented lesions. In addition, neuromelanin, produced as a byproduct of dopamine synthesis, stains the substantia nigra pars compacta in the basal ganglia, the region principally lost in Parkinson’s disease (Kumar et al., 2015).

Despite the importance of melanin patterning and distribution for developmental and functional studies, assessments of pigmentation patterns and cell morphology have been largely descriptive due to the challenges of melanin quantification at cellular resolution, particularly in whole animals. In zebrafish, pigmentation studies have generally relied on light microscopy and two-dimensional photography for phenotyping, with pigmentation interpreted as counts of pigmented/unpigmented cells in a particular region of the fish in a manner that is, at best, semi-quantitative (D’Agati et al., 2017; Frohnhöfer et al., 2013; Hultman and Johnson, 2010; Kelsh, 2004; Kelsh et al., 1996; Lister, 2002; Lister et al., 1999; Moore et al., 2006; Singh and Nüsslein-Volhard, 2015). Quantitative measurement of melanin content in the three-dimensional (3D), in situ context of a whole sample poses a number of unique challenges due to the light-absorbing properties of the pigment. Fluorescence techniques may readily tag melanophores, but fluorescence is quenched or blocked by the melanin itself and such techniques are limited in penetration due to the light-scattering properties of soft tissues (Antinucci and Hindges, 2016; Hultman and Johnson, 2010). Electron microscopy techniques, while exquisitely detailed, provide only a small field of view (FOV) of pigment cells and lack 3D context (Hirata et al., 2003; Hirata et al., 2005). Photoacoustic/optoacoustic microscopy has been used to produce 3D pigmentation patterns in whole zebrafish larvae over time, but while such images can have high lateral resolution, they are limited in axial resolution by the ultrasound wavelength (Kneipp et al., 2015). Other imaging techniques have taken advantage of melanin’s unique metal scavenging or binding properties, such as MRI or PET imaging, but these techniques do not provide the spatial resolution needed for detailed studies of pigment patterns (Cheng et al., 2011; Enochs et al., 1997; Ren et al., 2009).

X-ray microtomography (micro-CT) is a 3D imaging technique that uses a series of X-ray projections to reconstruct small samples at high, isotropic resolution without the need for sectioning. We previously reported an implementation of micro-CT optimized for cellular feature detection in whole zebrafish samples (histotomography) with soft tissue contrast enhancement through staining with phosphotungstic acid (Ding et al., 2019). We continue to develop staining procedures to selectively enhance particular microanatomical features to expand the potential of micro-CT imaging for screening and phenome projects (Cheng et al., 2011). Because reconstructed X-ray attenuation values are proportional to the amount of stained material in a sample, micro-CT images have been used for quantitative studies of development and gene expression, even in optically opaque samples (Metscher and Müller, 2011).

Here, we present a novel application of ionic silver staining for a micro-CT-based, 3D, quantitative assay for melanin in whole zebrafish samples. The procedure, based on the reduction of silver used for histological Fontana-Masson staining (Bancroft, 2008), appears highly specific to melanin and preserves native pigment distribution in whole specimens. To demonstrate the utility of this technique, we imaged wild-type zebrafish as well as mutant strains with unique pigmentation patterns, including golden and body pigment-deficient mutants (nacre/casper) (D’Agati et al., 2017; Lister et al., 1999; White et al., 2008), for visualization and quantitative analyses of zebrafish melanin.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Danio rerio)Wild-type TuZebrafish International Resource Center (ZIRC)RRID:ZIRC_ZL57 
Strain, strain background (Danio rerio)Wild-type WIKZebrafish International Resource Center (ZIRC)RRID:ZIRC_ZL84 
Strain, strain background (Danio rerio)golden (slc24a5b1/b1)Lamason et al., 2005RRID:ZFIN_ZDB-GENO-071214-1 
Strain, strain background (Danio rerio)nacre (mitfaw2/w2)Lister et al., 1999RRID:ZFIN_ZDB-GENO-990423-18 
Strain, strain background (Danio rerio)casper (mitfaw2/w2; mpv17a9/a9)D’Agati et al., 2017; White et al., 2008RRID:ZFIN_ZDB-GENO-160210-11 
Strain, strain background (Danio rerio)crystal (mitfaw2/w2; mpv17a9/a9; slc45a2b4/b4)Antinucci and Hindges, 2016RRID:ZFIN_ZDB-GENO-160927-1 
Commercial assay or kitFontana-Masson Staining KitSigma-AldrichCat#:HT200Included gold chloride not used
Chemical compound, drugTricaine-SSyndel USACat#:MS-222 
Chemical compound, drug10% Neutral buffered formalinFisher ScientificCat#:SF100 
Chemical compound, drugLR White resin, catalyzedElectron Microscopy SciencesCat#:14,383 
Software, algorithmTomoPyGürsoy et al., 2014RRID:SCR_021359 
Software, algorithmGridrecDowd et al., 1999; Rivers, 2012RRID:SCR_021358 
Software, algorithmFiji/ImageJ2Schindelin et al., 2012RRID:SCR_002285 
Software, algorithmAvizo 3D SoftwareThermo Fisher ScientificRRID:SCR_014431Versions 2020.1, 2020.2
Software, algorithmIBM SPSS StatisticsIBMRRID:SCR_019096Version 27.0.1.0
Software, algorithmThree.jshttps://threejs.org/RRID:SCR_021357For online viewer at http://3d.fish/stains/silver/
OtherPolyimide tubingSmall Parts, Inc Inner diameter 0.0403″

Animals

Zebrafish were housed in a recirculating system at an average temperature of 28°C on a 14 hr:10 hr light:dark cycle. Fish were fed three times a day a diet consisting of brine shrimp and flake food. Embryos and larvae were raised in darkness and staged according to a standard developmental staging series (Kimmel et al., 1995). Wild-type (a mixed Tu/WIK background) and golden (slc24a5b1/b1) zebrafish (Lamason et al., 2005) were bred and maintained as homozygotes. Other pigmentation variants were produced as follows: Compound mitfaw2/w2; mpv17a9/+; slc45a2b4/+ mutants (phenotypically nacre) were in-crossed to produce offspring that were separated by eye melanin phenotype prior to fixation/staining. Mitfaw2/w2 (nacre) and mitfaw2/w2; mpv17a9/a9 (casper) offspring possessed pigmented eyes while mitfaw2/w2; slc45a2b4/b4 and mitfaw2/w2; mpv17a9/a9; slc45a2b4/b4 (crystal) offspring lacked eye pigment; representatives from the pigmented eye population (mixed nacre and casper larvae) were analyzed for this study and are referred to by the mitfaw2/w2 background.

Sample preparation and silver staining

Request a detailed protocol

Wild-type and mutant zebrafish were each subjected to the same fixation protocol, as described previously (Lin et al., 2018). Briefly, 5 days post-fertilization (dpf) larvae were euthanized in pre-chilled Tricaine-S (MS-222, 200 mg/L) solution (Syndel USA, Ferndale, WA) buffered with 1% phosphate buffered saline (PBS) for at least 60 s and fixed overnight (>20 hr) in chilled 10% neutral buffered formalin (Fisher Scientific, Allentown, PA) in a flat-bottom glass container at room temperature with gentle agitation. Fixed specimens were washed three times in cold 1× PBS for 5 min each and stored in 1× PBS at 4°C until proceeding with staining.

All samples were stained at the same time under the same conditions using a modified Fontana-Masson Kit staining protocol (Sigma-Aldrich Procedure #HT200). Prior to staining, ammoniacal silver solution was produced in a chemical fume hood by adding concentrated ammonium hydroxide solution dropwise to a 2.5% silver nitrate solution until the resulting tan-brown precipitate dissolved, then left undisturbed overnight until the solution stayed clear. Also prior to staining, each individual fixed larva was mounted in 3% methylcellulose on a glass slide for photography of the top (35× and 100× zoom) and side (35×) of each sample on a ZEISS Axio Zoom.V16 microscope (Carl Zeiss Microscopy, LLC, White Plains, NY) for comparison with X-ray images. Individual larvae were washed three times for 5 min each in ddH2O and then stained for 18 hr in ammoniacal silver solution in flat-bottom glass containers with gentle agitation at room temperature. As a control, some larvae were incubated instead with ddH2O alone. Although the histological Fontana-Masson staining procedure typically includes a gold toning step (whereby a gold chloride wash replaces silver with gold), pilot experiments indicated that this step did not increase X-ray contrast and it was thus eliminated in subsequent procedures (data not shown). Following staining, larvae were washed three times with ddH2O and post-fixed in 5% sodium thiosulfate solution for 10 min, followed by a final three washes with ddH2O to prepare samples for embedding.

Micro-CT imaging

Request a detailed protocol

Samples were embedded for micro-CT imaging in a manner described previously (Lin et al., 2018). Briefly, stained samples were dehydrated through an alcohol series of 35% (20 min), 50% (20 min), 70% (30 min), 90% (30 min), 95% (30 min), and 100% (30 min, two times) ethanol solutions, and submerged overnight in a 1:1 solution of ethanol and LR White acrylic resin (Electron Microscopy Sciences, Hatfield, PA) with gentle agitation at room temperature. Samples were submerged in 100% LR White resin for 2 hr followed by fresh resin for 1 hr with gentle agitation at room temperature, and then embedded in polyimide tubing (Small Parts, Inc, Miami Lakes, FL; inner diameter 0.0403″) for 24 hr at 65°C.

Micro-CT imaging was performed on Beamline 8.3.2, Tomography (micro-CT), at the Advanced Light Source (ALS) at the Lawrence Berkeley National Laboratory (LBNL, Berkeley, CA). A double-multilayer monochromator was used to select an X-ray energy of 26 keV to optimize silver-based contrast (elemental silver K edge = 25.5 keV) (Hubbell and Seltzer, 2004). Acquisition was performed using a custom detector system based on a 6× objective lens with 0.6 numerical aperture and a 101 megapixel thermo-electrically cooled CMOS camera outputting a 11,648-pixel × 8742-pixel image (Vision Systems Technology, Vista, CA). Horizontal FOV was approximately 5 mm, but projections were cropped to cover the width of the sample tube as they were acquired. Whole 5 dpf larval zebrafish were imaged over two scans, covering head and tail regions, respectively. Each constant motion scan resulted in 1017 projections over 180° with an exposure time of 175 ms per projection. A sample to scintillator distance of 33 mm was chosen to optimize phase effect. Two flat field images were acquired per sample, one before the head segment and one after the tail segment, to be used for image normalization.

Reconstruction, post-processing, and analysis

Request a detailed protocol

Flat field correction, ring artifact reduction, and image reconstruction were performed using the open source TomoPy toolkit (Gürsoy et al., 2014). Flat field correction was performed using the flat field image taken either before or after sample scanning, depending on which produced the best contrast on test projections. Images were reconstructed using Gridrec (Dowd et al., 1999; Rivers, 2012) with ring artifact reduction (Miqueles et al., 2014; Münch et al., 2009) and a second-order Butterworth filter with a cutoff of 0.2 to reduce noise, resulting in a nominal isotropic voxel size of 0.52 µm, as estimated by the number of reconstructed voxels spanning the 1.03 mm outer diameter of the reconstructed polyimide sample tube.

Thirty-two-bit reconstructed images were further processed using Fiji (Schindelin et al., 2012). Reconstructions were cropped and rotated, and regions containing the zebrafish sample were segmented on a per slice basis to remove the plastic tube and any bubbles which had formed near the sample. This ‘cleaned up’ data was normalized to the LR White resin present in every sample to allow direct comparisons between scans as follows: An average attenuation coefficient for the resin in each reconstruction (µresin) was determined as the mean intensity value over all slices of a 100-pixel × 100-pixel square of empty resin, distant from the sample or sides of the tube. Subsequently, each reconstruction was processed using the formula

μnormalized= μ− μresinμresin

where µ is the attenuation value at any given pixel in a reconstruction and µnormalized is the normalized intensity. Normalized reconstructions were converted to 16-bit for visualization and analysis using the same minimum (–11) and maximum (155) µnormalized for all reconstructions.

3D rendering and analysis, including registration of head and tail segments, were performed using Avizo versions 2020.1 and 2020.2 (Thermo Fisher Scientific). A combination of thresholding and manual segmentation was used to assign voxels in merged datasets to established larval pigmented regions, including left and right retinal pigment epithelia (RPE), dorsal stripe, ventral stripe, yolk sac stripe, and left and right lateral stripes. Regions of staining intensity not associated with one of these regions were assigned to an ‘other pigment’ category. To clean up the segmentations by closing small holes and reducing noise, the morphological operator 3D Closing (size = 5 px), followed by 3D Opening by Reconstruction (size = 1 px), was used on the label file for each dataset. Intensity statistics and volume information for the pigmented regions described above were then extracted from the resulting segmentations. Statistical analysis was performed using IBM SPSS Statistics 27.0.1.0 (IBM).

Results and discussion

Ionic silver stains reproduce 3D pigmentation patterns in micro-CT images

To explore a 3D, quantitative assay for melanin, we developed a sample preparation and imaging strategy for micro-CT, an X-ray-based imaging technique, using silver. Activated silver ion solutions, such as Fontana-Masson, have been used for staining melanin in histology slides because the anionic melanin reduces the silver cations to solid silver, which appears dark on light microscopy (Bancroft, 2008) and attenuates X-rays. Because a silver deposition strategy has also been used for molecular imaging in micro-CT of chick embryos (Metscher and Müller, 2011), we reasoned that ionic silver staining could be adapted for in situ imaging of zebrafish pigmentation.

A general overview of our staining strategy is shown in Figure 1A. Silver nitrate was activated with ammonium hydroxide and the resulting ammoniacal silver solution was reacted with endogenous melanin to deposit solid silver; silver deposition was assumed to be proportional to the local concentration of melanin in a given sample. Staining times were increased from 30 min to 18 hr for whole-mount samples, as opposed to histology slides, to account for the diffusion time necessary to perfuse thick tissue; longer incubation times produced greater CT contrast with minimal background staining. Some non-specific silver deposition blackened the outside of stained samples, but this concentration of silver was not sufficient to be visible on micro-CT images. After sodium thiosulfate post-fixation to remove unreacted silver, samples were embedded in resin and imaged at the Tomography beamline 8.3.2 of the ALS synchrotron at LBNL with a beam energy optimized for silver at 26 keV. Elemental silver (K edge = 25.5 keV) (Hubbell and Seltzer, 2004) in the stained samples attenuated X-rays to provide contrast on the resulting micro-CT reconstructions. Under the same conditions, an unstained wild-type zebrafish exhibited negligible X-ray attenuation and no pigment pattern upon reconstruction (Figure 1—figure supplement 1).

Figure 1 with 1 supplement see all
Download asset Open asset

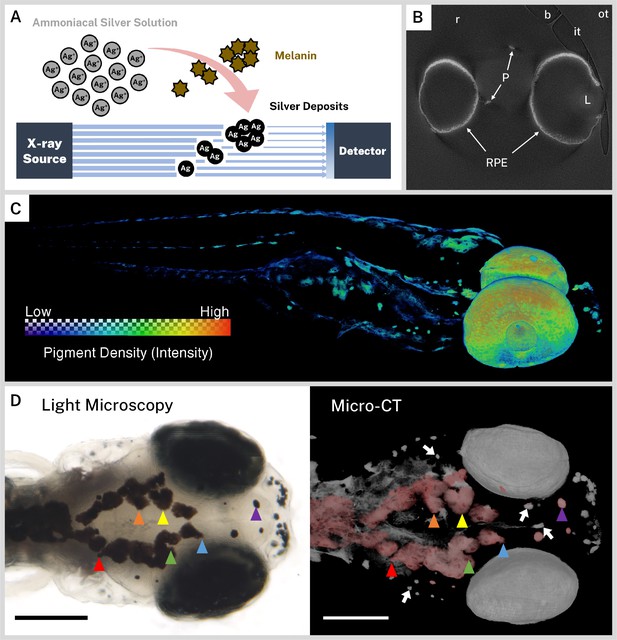

Ionic silver stains reproduce three-dimensional (3D) pigmentation patterns in X-ray microtomography (micro-CT) images.

(A) Schematic overview of staining procedure. Ammoniacal silver solution reacts with endogenous melanin to deposit solid silver, which attenuates X-rays in micro-CT imaging. (B) A representative cropped and rotated slice of a micro-CT reconstruction of a 5 days post-fertilization (dpf) wild-type zebrafish stained with silver. RPE = retinal pigment epithelium, P = body pigment, L = lens, r = resin, it = inner wall of sample tube, ot = outer wall of sample tube, b = air bubble. (C) 3D rendering of a 5 dpf wild-type zebrafish stained with silver with a heatmap to illustrate pigment density throughout the fish. (D) Corresponding light microscopy (left) and micro-CT (right) images exhibit the same pigmentation patterns. In the micro-CT image, a top-down 3D rendering of stained melanin is shown in grayscale with the dorsal-most melanin digitally colored red to aid comparison with the light micrograph. Some distinguishing shared features are highlighted with colored arrowheads. White arrows indicate deeper melanin obscured by soft tissue in the light micrograph that can be visualized by targeted 3D re-rendering. Scale bars = 200 µm. Unstained samples do not exhibit melanin-related attenuation (Figure 1—figure supplement 1).

We chose to scan 5 dpf larvae because, at this stage, the majority of wild-type larval pigment has developed, including the RPE and body melanophores (Hultman and Johnson, 2010). A single slice from a representative reconstruction of a 5 dpf wild-type larva that was rotated and cropped to the region of interest is presented in Figure 1B. Several key features of the reconstruction have been highlighted, including the high intensity regions of stained sample (RPE and body pigment), the resin embedding medium, and the inner and outer walls of the polyimide tubing used for embedding. By dividing the number of voxels spanning the polyimide tube by its outer diameter (1.03 mm), we estimated our reconstructed isotropic voxel resolution at 0.52 µm; isotropic resolution enabled rotation and re-slicing of the volume without distortion. We also noted that microscopic air bubbles formed in all samples at the tube-resin interface, sometimes close to the zebrafish sample, due to resin shrinkage during polymerization. We manually segmented and removed bubbles and the sample tube from reconstructions to eliminate their interference with visualization and analysis.

To cover the body length of the larval zebrafish within the synchrotron X-ray beam, we imaged each fish over two overlapping FOVs by vertically translating the sample between acquisitions. Each of the two resulting reconstructions were later registered and combined for subsequent visualization and analysis. A 3D rendering of a representative volume (Figure 1C) with a color heatmap suggests that ionic silver staining produces a 3D pigmentation map throughout the whole larvae with minimal background. To confirm the ability of the micro-CT images to faithfully reproduce larval pigmentation patterns, we compared 3D renderings of reconstructed volumes with light micrographs of the same fish taken prior to silver staining (Figure 1D, Video 1). The top of the head represents a unique ‘fingerprint’ pattern for each larva, and all the surface melanin features evident in the light micrograph were also observed in the micro-CT image. Pigment units lying deep in the fish that are obscured by soft tissue in light microscopy were readily discernable in micro-CT reconstructions, demonstrating the sensitivity of this new assay.

Video 1
Download asset
Wild-type zebrafish melanin.

This video shows an overview of melanin staining with silver by X-ray microtomography (micro-CT) imaging in a representative wild-type 5 days post-fertilization (dpf) zebrafish larva. The three-dimensional (3D) volume is generated from a series of 0.52 µm slices and reproduces pigmentation patterns seen by light microscopy (colored arrowheads). In a view of the top layer of the dorsal melanin stripe (false colored for clarity), ovoid transparencies are observed representing large organelles lacking melanin (circles). An isolated volume of the retinal pigment epithelia (RPE) exhibits the fused choroidal fissure and the optic nerve egress. Finally, a 360° view of the larval melanin, colored by anatomic region, is shown. Background music by DJ Vanselow.

Characterizing wild-type larval zebrafish melanin pigmentation in 3D

The wild-type larval zebrafish forms a stereotypical ontogenetic pigmentation pattern with pigment cell precursors starting from the neural crest at the dorsum and spreading ventrally, eventually forming four longitudinal ‘stripes’ of melanin by approximately 3 dpf: dorsal, lateral, ventral (above the air bladder), and yolk sac (below the yolk) (Kelsh, 2004; Kelsh et al., 1996). After this pattern is formed from direct-developing melanophores, pigment stem cells fill in gaps in the patterns or are responsible for pigment cell regeneration such that the majority of the larval pigment pattern has matured by 5 dpf (Hultman and Johnson, 2010). The longitudinal stripes of larval pigment were readily identifiable in our wild-type larvae (Figure 2A). To better examine the distribution of pigment throughout the fish, we used a combination of thresholding and segmentation on our micro-CT reconstructions to assign pigment to anatomical regions in our larvae. In 3D, we observed the dorsal, ventral, and yolk sac stripes as flattened sheets of pigment cells that often met in the midline of the fish and followed the curves of body structures (Figure 2B–C, Video 1). In contrast, the two lateral stripes were made up of intermittent thin, flat accumulations of melanin, one stripe on each side of the larva (Figure 2B–C).

Figure 2 with 1 supplement see all
Download asset Open asset
Silver-based X-ray microtomography (micro-CT) enables segmentation and visualization of melanin microanatomy in three dimensions (3D).

(A) A light micrograph of the side of a 5 days post-fertilization (dpf) wild-type larva indicating the major regions of melanin pigment: dorsal, lateral, ventral, and yolk sac stripes and the retinal pigment epithelium (RPE). (B) A 3D rendering with orthoslice (C) of micro-CT volumes segmented into anatomical regions shows the organization of larval pigment into layers. Red = dorsal stripe, yellow = ventral stripe, green = yolk sac stripe, cyan = lateral stripes, white = RPE, gray = other body melanin, purple = lens. (C) Single slice of micro-CT data with color overlay corresponding to the indicated region in B. (D) 200-slice maximum intensity projection of dorsal stripe melanin exhibits transparencies in the staining indicating the position of large organelles (arrows) including potentially binucleated cells (circles). A sample of these transparencies was measured to estimate average size (Figure 2—figure supplement 1, Figure 2—source data 1). (E) View from the top-down of a volume rendering showing rostral melanin in the nose forming globular, dendritic cells (arrowheads). RPE-L = left RPE, RPE-R = right RPE. (F) Isolated volume rendering of the right eye with a clipping plane showing the villous inner surface and smooth outer surface of the RPE. The rendering has been falsely colored by intensity to highlight certain anatomical features, including local pigment thickness variability throughout the RPE, the egress of the optic nerve (arrowhead), and the fused choroidal fissure (arrows). L = lens.

Figure 2—source data 1

Measurements of ovoid transparencies in melanin staining.

https://cdn.elifesciences.org/articles/68920/elife-68920-fig2-data1-v1.xlsx

Zebrafish can adapt their pigmentation to their environment for camouflage; larval zebrafish raised on white backgrounds aggregate melanin within melanophores while those raised on black backgrounds disperse melanin throughout the melanophores (Logan et al., 2006). Our larvae, reared in a closed, dark incubator, exhibited a dispersed staining phenotype on micro-CT with sheets of pigment and indistinct cell boundaries. Notably, the dorsal, ventral, and yolk sac stripes exhibited ovoid transparencies in the melanin staining that are approximately 9.29 µm in length (SD = ±1.23 µm, Figure 2D, Figure 2—figure supplement 1, and Video 1). We suspect that these transparencies represent large organelles, likely nuclei, which are devoid of melanin. This observation is consistent with high-resolution photographs of black background-adapted dorsal melanophores reported previously (Logan et al., 2006). Several of these transparencies were in close proximity (Figure 2D); zebrafish melanophores have been frequently shown to be multinucleated (Usui et al., 2018). In contrast to the flattened, diffuse melanin in the stripes, pigment units not associated with the four larval stripes tended to have a globular, condensed morphology. These cells, deeper in the soft tissue of the fish, were individually separated and dendritic, particularly in the anterior portion of the head (Figure 2E).

Another major structure visible in our silver-stained wild-type samples was the eye due to the melanin in the RPE. The RPE is one of the outermost layers of the retina, contacting the choroidal vasculature on its outer surface and the outer nuclear layer of the retina on its inner surface. It is a critical structure for vertebrate visual function. Unlike the neural crest-derived body melanophores, the RPE develops from the optic neuroepithelium and is closely associated with the photoreceptor cells of the developing retina (Antinucci and Hindges, 2016; Bharti et al., 2006; Gestri et al., 2012; Schmitt and Dowling, 1999). With its dense concentration of melanin, the RPE stained brightly in our wild-type samples. Digitally cutting through the zebrafish eye revealed the major morphological features of this layer, which has local thickness variability (Figure 2F, Video 1). The outer surface was relatively smooth and contiguous, except for a ridge where the choroidal fissure fused during development. The inner surface exhibited regular villous protrusions toward the center of the eye where the apical side of the RPE cells invaginate into the inner nuclear layer. A hole in the ventromedial portion of the RPE indicated the location of the optic nerve egress. Surrounding the back of the eye, it was also possible to see portions of the sclera, which has its own pigment derived from body melanophores (Gestri et al., 2012). Interestingly, despite not having melanin, the dense, fibrous lens stained weakly with silver and its center was partially visible in our reconstructions, providing consistent anatomical landmarks across all samples.

One of the advantages of micro-CT reconstructions is that they are inherently quantitative, with information at each voxel about the local concentration of stained material. Having established a qualitative visualization of wild-type larval melanin patterning, we sought quantitative characterization of melanin content in the anatomical regions described above. The wild-type 5 dpf larval siblings (n = 3) used in this study were stained and imaged under the same conditions, and reconstructed intensity values were normalized to the average intensity of the embedding resin for all of our samples. The resulting normalized intensity values, although arbitrary units, were assumed proportional to the local density of silver deposition, and therefore melanin concentration, throughout each sample and could be compared directly between individual stained fish.

We first compared the volumes of the pigmented regions of the wild-type fish, including the right and left RPE, dorsal, ventral, yolk sac, right and left lateral stripes, and other body melanin not attributable to the four main stripes (Table 1, Figure 3A). Total melanin-containing volume covered 4.87 × 106 µm3 (SD = ±3.78 × 105 µm3) of the average 5 dpf wild-type larva, much of which was distributed between the two eyes. The melanin-containing volumes of symmetrical structures (the RPE and lateral stripes) for each fish were similar, and standard deviation of the segmented regions, as percentage of the average melanin volumes between siblings, was on par with individual volume variation between brain regions of 5 dpf zebrafish (±11.9%) reported previously (Ding et al., 2019).

Figure 3
Download asset Open asset

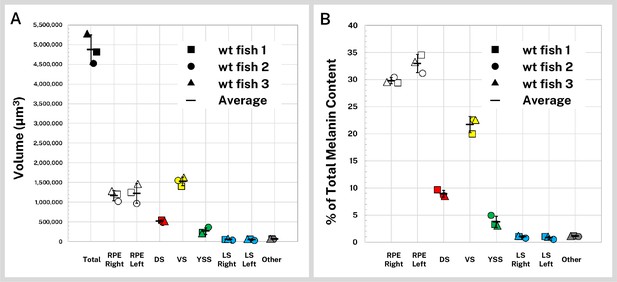

Quantification of silver-stained, X-ray microtomography (micro-CT)-scanned, and segmented larvae reveals wild-type melanin volume and content trends.

Wild-type (wt) 5 days post-fertilization (dpf) larvae (n = 3) were stained with silver and micro-CT imaged under the same conditions then segmented into major pigment regions as described in Figure 2: retinal pigment epithelium (RPE, right and left), dorsal stripe (DS), ventral stripe (VS), yolk sac stripe (YSS), lateral stripes (LS, right and left), and other melanin (other). (A) Volumes of the total pigmented regions and each segmented region are shown for the three fish. (B) Reconstructed stain intensity values are assumed to be proportional to melanin density; integrated intensity values for the segmented regions represents the melanin content of these regions. As proportions of total melanin content (summed across all segmented regions) the wt fish show high concordance between individual samples. Error bars = standard deviation from average.

Table 1
Quantification of volume and cumulative sum of intensity for wild-type samples for segmented pigment regions.
Wild-type specimen#1#2#3AverageSD
Pigment regionSegmented volume (µm3)
Total4.81 × 1064.52 × 1065.27 × 1064.87 × 106±3.78 × 105
RPE (right)1.20 × 1061.02 × 1061.28 × 1061.17 × 106±1.31 × 105
RPE (left)1.25 × 1069.65 × 1051.46 × 1061.23 × 106±2.49 × 105
Dorsal stripe5.45 × 1054.87 × 1055.11 × 1055.15 × 105±2.93 × 104
Ventral stripe1.41 × 1061.56 × 1061.62 × 1061.53 × 106±1.10 × 105
Yolk sac stripe2.29 × 1053.63 × 1052.06 × 1052.66 × 105±8.52 × 104
Lateral stripe (right)5.24 × 1044.10 × 1046.73 × 1045.36 × 104±1.32 × 104
Lateral stripe (left)5.91 × 1042.96 × 1046.16 × 1045.01 × 104±1.78 × 104
Other6.72 × 1045.89 × 1046.79 × 1046.47 × 104±5.02 × 103
Pigment regionCumulative sum of intensity (normalized units)
Total5.05 × 10114.71 × 10114.73 × 10114.83 × 1011±1.94 × 1010
RPE (right)1.48 × 10111.43 × 10111.40 × 10111.44 × 1011±4.45 × 109
RPE (left)1.74 × 10111.47 × 10111.57 × 10111.59 × 1011±1.39 × 1010
Dorsal stripe4.88 × 10104.02 × 10104.01 × 10104.30 × 1010±5.00 × 109
Ventral stripe1.01 × 10111.06 × 10111.06 × 10111.05 × 1011±3.20 × 109
Yolk sac stripe1.67 × 10102.33 × 10101.42 × 10101.81 × 1010±4.66 × 109
Lateral stripe (right)5.30 × 1093.64 × 1095.52 × 1094.82 × 109±1.03 × 109
Lateral stripe (left)5.14 × 1092.33 × 1094.58 × 1094.02 × 109±1.49 × 109
Other5.73 × 1094.91 × 1095.21 × 1095.28 × 109±4.17 × 108

  1. Raw data provided in Table 1—source data 1.

Table 1—source data 1

Source data for quantification of volume and cumulative sum of intensity for wild-type samples for segmented pigment regions.

https://cdn.elifesciences.org/articles/68920/elife-68920-table1-data1-v1.xlsx

Although volume segmentation involves thresholding and intensity-based selection of stained regions of the micro-CT reconstruction, melanin volume measurements are independent of intensity and as such do not inform about the actual melanin content of the samples, which is not distributed evenly throughout the fish. To characterize melanin content for the wild-type larvae, we calculated intensity statistics for our segmented regions. Reported in normalized units, the cumulative sum of the intensity of each voxel in a volume is proportional to the total concentration of melanin in the volume and can be used to compare melanin content between normalized samples and within anatomical regions (Table 1). In Figure 3B we report the melanin content of the wild-type larvae as percentages of total melanin; 62.8% (SD = ±1.1%) of the melanin in the average 5 dpf wild-type larva was contained in the RPE. Of the remaining body melanin, most of this pigment was contained within the ventral stripe, followed by the dorsal, yolk sac, and lateral stripes. Approximately 1.1% (SD = ±0.05%) of stained material was not associated with the eyes or four main stripes, mostly in the nose (Figure 2E). Distribution of melanin was highly concordant between the three scanned larvae.

Comparing wild-type and mutant pigmentation variants by silver staining micro-CT

Dozens of zebrafish lines with mutations affecting larval and adult pigmentation patterns have been identified. To test the utility of our silver staining procedure with micro-CT imaging to compare aberrant melanin pigmentation to wild-type patterns, we stained representative fish from several mutant lines exhibiting larval pigmentation phenotypes that are commonly used in zebrafish genetic screens and imaging studies. Because all samples were normalized to the same background material, the mutant fish were compared directly to wild-type fish using the same visualization settings and computational analyses.

The golden zebrafish line is a prototypical model of human skin color, with a mutation in the potassium-dependent sodium/calcium exchanger gene slc24a5 (slc24a5b1/b1). A mutation in the human homolog of this gene, SLC24A5, is a major contributor to the skin color differences between people of African and European ancestry. The slc24a5b1/b1 zebrafish line has a delay in larval pigmentation and a dramatic reduction in larval and adult melanin content throughout the body and eyes. At the electron microscope level, golden melanophores contain fewer melanosomes that are less densely pigmented and irregularly shaped (Lamason et al., 2005). This early pigment phenotype also makes the golden mutant popular for studies such as screens or genetic engineering (Doyon et al., 2008; Hoshijima et al., 2016; Moore et al., 2006). As opposed to wild-type reconstructions, which exhibited intense whole-body staining on micro-CT imaging (Figure 4A), the most striking characteristic of the silver-stained slc24a5b1/b1 larvae was a globally diminished intensity corresponding to the decreased melanin content in these mutants (Figure 4D, Video 2). In addition, while wild-type pigment reconstructions formed essentially contiguous sheets down the length of the larval body (Figure 4A–B), melanin staining in the golden mutant was discontinuous and fragmented throughout (Figure 4D–E). To compare the overall pigmentation patterns of the larvae, we segmented our mutant fish into the same anatomical regions as we did for the wild-type fish (Figures 2B and 4B). Although melanin was diminished throughout the body, the dorsal, lateral, ventral, and yolk sac stripes, as well as other melanin deposits in the nose and eyes, were all identified in the golden mutant in an organization similar to the pigmentation in wild-type larvae (Figure 4E, Video 2). Single slices of the micro-CT reconstructions through the middle of the eyes of wild-type (Figure 4C) and golden (Figure 4F) larvae indicated that in addition to less intense staining, the golden fish had thinner stained areas in the RPE.

Figure 4 with 1 supplement see all
Download asset Open asset
Silver staining and X-ray microtomography (micro-CT) of mutant zebrafish enables comparison of melanin content and organization with wild-type larvae.

Volume renderings (A, D, G), segmented volumes (B, E, H), and representative single slices of micro-CT reconstructions through the retinal pigment epithelium (RPE; C, F, I) of representative 5 days post-fertilization (dpf) wild-type (A–C), slc24a5b1/b1 (golden; D–E), and mitfaw2/w2 (nacre or casper; G–I) larvae. In the segmented volumes, red = dorsal stripe, yellow = ventral stripe, green = yolk sac stripe, cyan = lateral stripes, white = RPE, gray = other body melanin, purple = lens. As compared to wild-type larvae, slc24a5b1/b1 mutant larvae exhibit a reduction in staining throughout the body and eyes (D) but retain the overall organization of pigment layers (E). The RPE in slc24a5b1/b1 larvae (F) is thinner than the wild-type RPE (C) with less intense staining. The mitfaw2/w2 mutant lacks all body pigment; staining is observed only in the RPE and some argentaffin material posterior to the eyes (G–H, arrow). The RPE of the mitfaw2/w2 mutant (I) is of similar thickness and staining intensity as the wild-type RPE (C). For each comparison, visualization settings were kept constant for the wild-type and mutant fish. § = head segment only shown. All stained samples analyzed in this study are shown in Figure 4—figure supplement 1.

Video 2
Download asset
Wild-type vs. mutant melanin patterns.

This video shows a comparison between a representative wild-type 5 days post-fertilization (dpf) zebrafish larva and two representative pigmentation mutant 5 dpf larvae which have been stained with silver and X-ray microtomography (micro-CT) imaged. Visualization settings have been kept constant to facilitate direct comparisons between normalized samples. In volume renderings, the golden mutant (slc24a5b1/b1) shows markedly reduced melanin content throughout the body and eyes. The nacre mutant (mitfaw2/w2, head scan rendering only) shows essentially no body pigment but near-normal retinal pigment epithelia (RPE). Finally, stained volumes segmented by anatomic regions show the golden mutant exhibiting wild-type overall pigment organization while the nacre mutant (head scan rendering only) lacks the body stripes. Background music by DJ Vanselow.

We also sought to examine a zebrafish mutant that lacks body pigment since these lines are commonly used in imaging studies when a transparent sample is desired. The mitfaw2/w2 mutation results in the nacre zebrafish line, which lacks all body melanin but retains the optic neuroepithelium-derived RPE melanophores (Lister et al., 1999). An additional mutation in iridophore development gene mpv17 (mpv17a9/a9) produces the compound mutant line casper, notable for its transparent adult body useful for fluorescence imaging (D’Agati et al., 2017; White et al., 2008). To examine these mutants, we bred mitfaw2/w2; mpv17a9/+ larvae to produce a mix of both nacre and casper offspring, which are indistinguishable from each other in terms of melanin pigmentation at 5 dpf. Although it is possible to distinguish them using iridophore presence (nacre) or absence (casper) (White et al., 2008), larvae used in this study were only screened based on melanin and thus are referred to as mitfaw2/w2 background or nacre/casper fish throughout. As expected, larvae with the mitfaw2/w2 mutant background exhibited staining almost entirely in the RPE in our micro-CT scans, and as such we only used the head segment for visualization and analysis (Figure 4G, Video 2). Staining intensity, size, and shape of the eyes were similar to those of wild-type larvae, but body-stripe pigment or melanin deposits in the nose were completely absent. We segmented the mitfaw2/w2 larvae into component volumes consisting of the left and right RPE and any other stained material over a certain background intensity. A rendering of these segmented volumes (Figure 4H, Video 2) confirmed the absence of the dorsal, lateral, ventral, and yolk sac stripes, and also highlighted disorganized argentaffin material posterior to the eyes. Such material was also present in the wild-type and golden samples (included in the ‘other’ staining category), but was generally overshadowed by the intensely staining melanin. Single micro-CT slices through the eyes of the mitfaw2/w2 mutant revealed an RPE layer of similar thickness and intensity to the wild type (Figure 4I). All wild-type and mutant larvae analyzed for this study are shown in Figure 4—figure supplement 1.

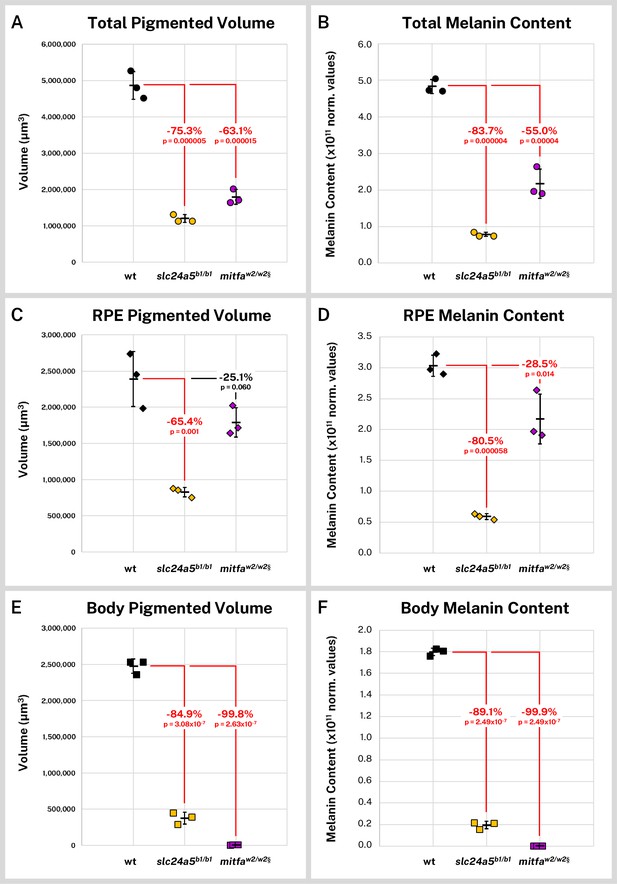

To quantify the differences observed between the wild-type and mutant larvae, we prepared and micro-CT imaged slc24a5b1/b1 (n = 3) and mitfaw2/w2 (n = 3) 5 dpf larvae and segmented them into pigment regions as described above for computational analysis of both melanin volume and content. Because the mitfaw2/w2 fish did not exhibit body pigment, only the head segments were used for the statistical analysis. For each pigment region, a statistically significant difference between the groups was found using a series of one-way ANOVAs (Table 2). While the melanin stripes were compared only between the wild-type and golden samples, total melanin, RPE melanin, and other melanin were compared between all three genotypes. For these regions, Tukey post hoc tests were used to determine which groups differed significantly from wild type (Tables 3 and 4).

Table 2
Statistical analysis of wild-type, slc24a5b1/b1, and mitfaw2/w2 samples for segmented pigment regions.
Pigment regionSegmented volume statistics
One-way ANOVA F-statisticp-Value
TotalF(2,6) = 178.430.000005
RPE (right)F(2,6) = 36.370.000442
RPE (left)F(2,6) = 21.770.002
RPE (total)F(2,6) = 29.640.001
Dorsal stripeF(1,4) = 145.980.000269
Ventral stripeF(1,4) = 376.020.000042
Yolk sac stripeF(1,4) = 22.040.009
Lateral stripe (right)F(1,4) = 39.010.003
Lateral stripe (left)F(1,4) = 17.480.014
OtherF(2,6) = 52.860.000155
Body (total)F(2,6) = 939.890.000000032209
Pigment regionCumulative sum of intensity statistics
One-way ANOVA F-statisticp-Value
TotalF(2,6) = 185.760.000004
RPE (right)F(2,6) = 54.690.000141
RPE (left)F(2,6) = 70.400.000068
RPE (total)F(2,6) = 70.500.000068
Dorsal stripeF(1,4) = 138.020.000300
Ventral stripeF(1,4) = 1770.940.000002
Yolk sac stripeF(1,4) = 35.300.004
Lateral stripe (right)F(1,4) = 56.790.002
Lateral stripe (left)F(1,4) = 17.620.014
OtherF(2,6) = 166.280.000006
Body (total)F(2,6) = 3690.790.00000000049447

  1. F-statistics for each comparison are reported as F(degrees of freedom between groups, degrees of freedom within groups)= F-statistic. p < 0.05 indicates a significant difference between groups. While the melanin stripes were compared between the wild-type and golden samples, total melanin, RPE melanin, and other melanin were compared between all three genotypes. For these regions, Tukey post hoc tests were used to determine which groups differed significantly from wild type.

Table 3
Quantification of volume and cumulative sum of intensity for slc24a5b1/b1 samples for segmented pigment regions.
slc24a5b1/b1 specimen#1#2#3AverageSD% Change from wtp-Value
Pigment regionSegmented volume (µm3)
Total1.14 × 1061.32 × 1061.14 × 1061.20 × 106± 1.06 x 105–75.30.000005*
RPE (right)3.45 × 1054.60 × 1054.49 × 1054.18 × 105± 6.38 x 104–64.20.000362*
RPE (left)4.08 × 1054.16 × 1054.05 × 1054.10 × 105± 5.45 x 103–66.60.002*
Dorsal stripe9.70 × 1041.74 × 1058.36 × 1041.18 × 105± 4.87 x 104–77.00.000269**
Ventral stripe2.33 × 1052.06 × 1051.44 × 1051.94 × 105± 4.56 x 104–87.30.000042**
Yolk sac stripe3.97 × 1043.93 × 1042.07 × 1043.32 × 104± 1.09 x 104–87.50.009**
Lateral stripe (right)4.80 × 1037.58 × 1034.53 × 1035.63 × 103± 1.69 x 103–89.50.003**
Lateral stripe (left)7.16 × 1039.09 × 1033.99 × 1036.75 × 103± 2.58 x 103–86.50.014**
Other6.83 × 1031.32 × 1043.01 × 1041.67 × 104± 1.20 x 104–74.20.001*
Pigment regionCumulative sum of intensity (normalized units)
Total7.54 × 10108.51 × 10107.50 × 10107.85 × 1010± 5.74 x 109–83.70.000004*
RPE (right)2.43 × 10103.17 × 10103.11 × 10102.90 × 1010± 4.07 x 109–79.80.000125*
RPE (left)2.98 × 10103.17 × 10102.84 × 10103.00 × 1010± 1.69 x 109–81.20.000056*
Dorsal stripe5.89 × 1098.87 × 1095.28 × 1096.68 × 109± 1.92 x 109–84.50.000300**
Ventral stripe1.16 × 10109.44 × 1097.10 × 1099.39 × 109± 2.26 x 109–91.00.000002**
Yolk sac stripe2.59 × 1091.84 × 1091.26 × 1091.90 × 109± 6.66 x 108–89.50.004**
Lateral stripe (right)3.11 × 1084.07 × 1082.75 × 1083.31 × 108± 6.85 x 107–93.10.002**
Lateral stripe (left)4.81 × 1084.52 × 1082.44 × 1083.92 × 108± 1.30 x 108–90.20.014**
Other4.21 × 1087.36 × 1081.37 × 1098.43 × 108± 4.84 x 108–84.00.000015*

  1. *p-Values determined by Tukey post hoc test following one-way ANOVA. **p-Values determined directly by one-way ANOVA. p-Values were considered significant <0.05. Raw data provided in Table 3—source data 1.

Table 3—source data 1

Source data for quantification of volume and cumulative sum of intensity for slc24a5b1/b1 samples for segmented pigment regions.

https://cdn.elifesciences.org/articles/68920/elife-68920-table3-data1-v1.xlsx
Table 4
Quantification of volume and cumulative sum of intensity for mitfaw2/w2 samples for segmented pigment regions.
mitfaw2/w2 specimen#1§#2§#3§AverageSD% Change from wtp-Value
Pigment regionSegmented volume (µm3)
Total1.64 × 1062.03 × 1061.72 × 1061.80 × 106± 2.04 x 105–63.10.000015*
RPE (right)7.99 × 1051.00 × 1067.93 × 1058.64 × 105± 1.18 x 105–26.00.032*
RPE (left)8.41 × 1051.02 × 1069.21 × 1059.28 × 105± 9.09 x 104–24.20.120*
Other4.22 × 1035.02 × 1035.29 × 1034.84 × 103± 5.57 x 102–92.50.000169*
Pigment regionCumulative sum of intensity (normalized units)
Total1.97 × 10112.64 × 10111.91 × 10112.17 × 1011± 4.05 x 1010–55.00.000040*
RPE (right)1.01 × 10111.33 × 10118.80 × 10101.07 × 1011± 2.30 x 1010–25.40.040*
RPE (left)9.54 × 10101.31 × 10111.03 × 10111.10 × 1011± 1.86 x 1010–31.20.010*
Other2.40 × 1082.70 × 1082.77 × 1082.62 × 108± 1.98 x 107–95.00.000007*

  1. *p-Values determined by Tukey post hoc test following one-way ANOVA. § = head segment only analyzed. p-Values were considered significant <0.05. Raw data provided in Table 4—source data 1.

Table 4—source data 1

Source data for quantification of volume and cumulative sum of intensity for mitfaw2/w2 samples for segmented pigment regions.

https://cdn.elifesciences.org/articles/68920/elife-68920-table4-data1-v1.xlsx

Overall, the slc24a5b1/b1 larvae exhibited a 75.3% decrease in mean segmented melanin volume (p = 0.000005) from wild-type while the mitfaw2/w2 fish exhibited a 63.1% decrease (p = 0.000015, Figure 5A). Total melanin content (the cumulative sum of intensity in the segmented regions) followed a similar trend with an 83.8% decrease in slc24a5b1/b1 larvae (p = 0.000004) and a 55.0% decrease in mitfaw2/w2 larvae (p = 0.000040, Figure 5B). We also compared the melanin volume and content for the combined right and left RPE (Figure 5C–D), which contained the majority of the pigment for all samples, and the non-eye body melanin (Figure 5E–F). The slc24a5b1/b1 RPE exhibited a 65.4% decrease in melanin volume (p = 0.001) and an 80.5% decrease in melanin content from wild-type RPE (p = 0.000058). Although the mitfaw2/w2 mutant is generally considered to have normal eye pigmentation, we found that it exhibited a 28.5% decrease in melanin content from the wild-type RPE (p = 0.014), potentially linked to an observed 25.1% decrease in RPE volume, which was not statistically significant (p = 0.06). Interestingly, because RPE melanin made up 99.9% (SD = ± 0.02%) of the observed staining in the mitfaw2/w2 larvae, this smaller decrease in eye melanin content still left the mitfaw2/w2 fish with more total melanin than the golden fish, which had consistently and dramatically diminished melanin throughout the body and eyes (Figure 5B, D, F).

Figure 5
Download asset Open asset
Silver-based X-ray microtomography (micro-CT) enables quantitative comparisons of wild-type and mutant pigmented samples.

Wild-type (wt, n = 3), slc24a5b1/b1 (n = 3), and mitfaw2/w2 (n = 3) 5 days post-fertilization (dpf) larvae were stained with silver and micro-CT imaged under the same conditions. Normalized reconstructed intensity values (norm. values) are assumed proportional to melanin density; integrated intensity values for the segmented regions represent the melanin content of these regions. Volume and melanin content from total pigmented regions (A–B), combined right and left retinal pigment epithelia (RPE) (C–D), and pigmented regions outside the eye (E–F) are shown for all samples with percent change of mean from wt indicated. p-Values were determined by Tukey post hoc test following one-way ANOVA and considered significant at p < 0.05 (shown in red). § = head segments only analyzed. Error bars = standard deviation from average.

Conclusions and future work

Vertebrate models such as zebrafish play a key role in understanding human health and disease by elucidating relationships between mutations or environmental exposures and observable phenotypic changes, including pigmentation-related disorders such as albinism and melanoma. Ideally, the quantitative study of individual cell types in the 3D context of the whole organism would inform such relationships. In this study, we investigated whole-animal melanin pigmentation in wild-type and mutant zebrafish through the novel application of ionic silver staining for micro-CT imaging. Using this method, we were able to not only faithfully reconstruct pigmentation patterns of the larval zebrafish but moreover segment these patterns into anatomical regions and calculate relative pigmentation statistics within and between samples. Silver staining for melanin micro-CT has applications for other model organisms, as well as human biopsies for diseases like melanoma, and represents a model for the 3D quantitative analysis of specific biological features using micro-CT.

Micro-CT imaging of silver-stained samples provides a number of benefits for the analysis of melanin. The silver staining technique described here appears to be highly specific for melanin. Micro-CT provides high-resolution 3D images which are inherently digital reconstructions of the scanned sample, directly enabling quantification of signal intensity (melanin content). A wide FOV and 3D registration of multiple scans allowed us to investigate the entire volumes of our 5 dpf wild-type and mutant larvae. Preliminary experiments have indicated that the technique is equally applicable to larger samples, which are more difficult to investigate with light-based microscopy techniques but are readily accessible using micro-CT.

Micro-CT imaging involves fixation and staining of samples and exposure to high flux X-rays. Therefore, future studies of melanin at different stages of development or during experimental time courses using this method will require multiple samples of different ages with enough individuals of each stage to account for normal variation in zebrafish pigmentation. It is also worth noting that the quantitative measurements described here are relative to each other. For our measurements, we assumed that silver deposition was stoichiometric with the local concentration of melanin such that the arbitrary units of reconstructed intensity were proportional to the amount of stained material in the original sample. By performing our staining under the same conditions and for the same amount of time for all of our samples, and normalizing our reconstructions to a common background material, we were able to compare our samples directly. Because of these potential variables, staining conditions should be controlled for each experiment and measurements interpreted solely within the context of individual experiments.

We anticipate many future applications for the quantitative measurement of melanin in its native 3D context, both for zebrafish and for other samples of similar scale. Silver staining and micro-CT imaging may more thoroughly describe zebrafish mutants that have already been identified with effects on larval, juvenile, and adult pigmentation (Parichy, 2006), and our work with the nacre/casper zebrafish highlights the potential to identify new mutants with subtler effects on pigment localization or concentration. Zebrafish are frequently used for studying complex animal pigmentation patterning, including computational models of pigment cell interactions (Owen et al., 2020) or studies of human skin color (Lamason et al., 2005). High-resolution, whole-animal 3D images of melanin could help experimentally confirm such studies.

In addition to its use in the study of pigmentation, zebrafish melanin is also studied in the context of models of melanoma. Darkly pigmented lesions in transgenic or transplanted zebrafish can be tracked and scored to investigate the genetic underpinnings of melanoma origin and spread (Ceol et al., 2011; Fazio et al., 2021); silver staining and micro-CT imaging could enable computational phenotyping and direct detailed morphological analysis of lesions in their native context. Melanin is also a common pigment in many mammals, including humans (Slominski et al., 2004). Human mm- to cm-scale melanocytic nevi or melanoma biopsy samples may be stained for micro-CT imaging as described in this study to enable quantitative morphological analyses of these samples. Silver staining may also be combined with other histotomography stains, such as phosphotungstic acid, to provide tissue context for melanin localization. Dual-energy CT may be used to deconvolute such multi-stained samples into component elemental materials (Liu et al., 2009).

While the work presented here is an example of quantitative analysis of a particular cellular target, it also represents a step toward the ideal of quantitative morphological analysis of any cell type in the context of a whole organism. Ideal morphological phenotyping is volumetric, because biological structures are 3D, and quantitative, to extend analysis from simple observation to automation, modeling, and prediction. Micro-CT images are inherently both quantitative and 3D, enabling computational analysis of large samples that may be opaque to optical microscopy techniques. The development of new staining protocols for micro-CT will expand the capabilities of this imaging modality, particularly for specific molecular or cellular targets. Notably, silver-based staining has been used previously for micro-CT imaging using antibody-mediated deposition for molecular targets in chick embryos (Metscher and Müller, 2011); our work suggests that melanin-mediated silver deposition may confound such a strategy in pigmented samples. However, silver staining of melanin also opens the possibility of targeted melanin deposition for micro-CT molecular imaging using, for example, the prophenoloxidase reporter system in Drosophila (True et al., 2001). The development of analytical pipelines with the potential for machine learning and automation is equally critical since manual segmentation projects like the one reported here will soon be overwhelmed by the amount of data generated by high-throughput, high-dimensional imaging.

One frequent criticism of micro-CT is the concern of access, both to imaging technology and to micro-CT data. Indeed, for this proof-of-concept study of silver staining, competitive synchrotron beamtime necessitated prioritization of limited sample sizes. Improved imaging resources, such as laboratory micro-CT setups that provide synchrotron-like imaging capabilities, and beamlines at established synchrotrons dedicated to wide-field, high-resolution micro-CT, would increase access and throughput. As more and larger samples are scanned through these resources, data storage and sharing bottlenecks will need to be addressed. The raw micro-CT reconstructions described in this study were on the order of 80–100 GB per scan, which can be challenging to work with for users with only standard computing resources or without familiarity with 3D image analysis. To make our 3D pigmentation renderings more generally accessible without requiring the user to download full volumes, we have expanded our online, open-source ViewTool (http://3D.fish) (Ding et al., 2019) to include a browser-based volumetric viewer (http://3D.fish/stains/silver) based on the open-source Three.js project (https://threejs.org). This volumetric viewer contains all of the wild-type and mutant samples described in this study, with customizable visualization options and toggles for viewing the segmented pigment region labels.

In summary, we used silver deposition micro-CT imaging to quantitatively characterize normal and mutant zebrafish melanin distribution and content in the 3D context of whole larvae. The method described herein may be applied to other samples of similar scale, including additional zebrafish models of pigment development or disease and human biopsy samples, and has implications for the future development of micro-CT staining for computational phenomics.

Data availability

Source Data files have been provided with the manuscript for each table and the measurements in Figure 2-figure supplement 1. Reconstructions, processed normalized reconstructions, source code, and Avizo project and source files necessary for reproducing the analyses in the manuscript are publicly available in the Dryad Digital Repository (https://doi.org/10.5061/dryad.wwpzgmsjn). To make our data more readily available for users without extensive imaging backgrounds or computing resources, our open-source online 3D viewer, ViewTool, is publicly available at http://3D.fish/stains/silver.

The following data sets were generated
    1. Katz SR
    2. Yakovlev MA
    3. Vanselow DJ
    4. Ding Y
    5. Lin AY
    6. Parkinson DY
    7. Wang Y
    8. Canfield VA
    9. Ang KC
    10. Cheng KC
    (2021) Dryad Digital Repository
    Data from: Whole-organism 3D quantitative characterization of zebrafish melanin by silver deposition micro-CT.
    https://doi.org/10.5061/dryad.wwpzgmsjn

References

  2. Book
    1. Bancroft JD
    (2008)
    Theory and Practice of Histological Techniques
    Elsevier Health Sciences.
  7. Conference
    1. Dowd BA
    2. Campbell GH
    3. Marr RB
    4. Nagarkar VV
    5. Tipnis SV
    6. Axe L
    7. Siddons DP
    (1999)
    In Developments in X-Ray Tomography II International Society for Optics and Photonics
    Developments in synchrotron x-ray computed microtomography at the National Synchrotron Light Source. pp. 224–236.
    1. Hubbell J
    2. Seltzer S
    (2004)
    X-Ray Mass Attenuation Coefficients
    NIST Stand. Ref. Database 126:20899.
  25. Book
    1. Kumar V
    2. Abbas AK
    3. Aster JC
    (2015)
    Robbins and Cotran Pathologic Basis of Disease
    Philadelphia, PA: Elsevier/Saunders.
    1. Schmitt EA
    2. Dowling JE
    (1999)
    Early retinal development in the zebrafish, Danio rerio: Light and electron microscopic analyses
    The Journal of Comparative Neurology 404:515–536.

Decision letter

  1. Richard M White
    Senior and Reviewing Editor; Memorial Sloan Kettering Cancer Center, United States
  2. Stephen C Ekker
    Reviewer; Mayo Clinic, United States
  3. Richard M White
    Reviewer; Memorial Sloan Kettering Cancer Center, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

In this article, Katz, Cheng and colleagues apply microCT to detect melanin in zebrafish. This is a very natural extension of the groundbreaking work they have done previously to use microCT as a means of "deep phenotyping" of zebrafish mutants. This type of phenotyping is important since conventional imaging likely misses important phenotypes that are otherwise important. Applying microCT to melanin is useful, since disorders of pigmentation are very common in zebrafish and the genes underlying this have been shown to have direct relevance to human conditions such as vitiligo and melanoma. They cleverly use silver staining, a common method in histology, to a whole animal, to detect patterns of melanin. This work will be immediately useful to those interested not only in pigmentation biology, but opens up avenues for other types of complex phenotyping using microCT.

Decision letter after peer review:

Thank you for submitting your article "Whole-organism 3D quantitative characterization of zebrafish melanin by silver deposition micro-CT" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, including Richard White as the Senior and Reviewing Editor and Reviewer #3. The following individual involved in review of your submission has agreed to reveal their identity: Stephen C Ekker (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Editor has drafted this to help you prepare a revised submission.

Essential revisions:

In this manuscript, Katz and colleagues apply their microCT method to detection of melanin. This is a very natural followup to their previous paper describing the use of microCT for whole animal phenotyping in zebrafish. What is clever about this new study is that they adopted the use of silver stain, a common way to stain melanin in histology slides, to whole animal use. Because silver has so reliably been used for decades, this gave them a high chance of it working in whole animals once they worked out the staining techniques. They show that this silver staining appropriately marks zebrafish stripes and eyes (the biggest melanin producing organs in the body) and that they could detect differences in the golden, nacre, and casper mutants. Overall, the results are convincing and exciting. While it is clear that microCT will remain, at least for the time being, a fairly specialized technique, the ability to apply it more broadly will be an exciting area for future development as both the hardware and software improve. Only a few items that they could address to make the study stronger. None of these are required or require new experiments, but only suggestions if you have the data:

1) Detection of melanin in internal organs

Although the RPE and skin stripes are the most obvious melanin containing organs, two other structures are known to have melanin: the substantia nigra (as you point out in the introduction) as well as the kidney (Kapp, et al., Nature. 2018 Jun; 558(7710): 445-448.). The kidney is especially interesting since melanin there is thought to have protective roles, and kidney melanin is absent in the casper mutants. In the images you have already taken, it would be useful to see if you could quantify the substantia nigra and kidney in the WT versus mutant lines (golden, casper, etc). This would lend further credence to the idea that microCT really offers advantages over conventional light or fluorescent microscopy, since you could image internal organs. We realize this may not be possible, and I do not consider this essential for publication, but any data using the images you already have would add to the manuscript.

2) Other ages

You mention future applications to different stages, but in reality it would be useful to know how you could apply this method to both younger fish (i.e. 24hpf) or much older fish (i.e. adults). Have you tried any imaging of melanin at any stages other than 5dpf. Again, I do not consider this essential, but would be helpful if you have such data.

3) Line 339-340, you state "To examine these mutants, we bred mitfaw2/w2; mpv17a9/+ larvae to produce a mix of both nacre and casper offspring, which are indistinguishable from each other at 5 dpf", but this is technically not true. From a melanocyte perspective they are indistinguishable , but they have a very clear difference in terms of the iridophore phenotype (casper is missing these, nacre is not). I would clarify this. This difference was noted in the original casper manuscript (White et al., Cell Stem Cell 2008) and this reference should be added to the paper. Throughout the manuscript please make sure you distinguish between nacre (just mitfa mutant) versus casper (mitfa/mpv17 mutant).

4) Why do you need microCT to be this quantitative? Why cannot optical imaging with color quantitation be used instead to solve this technical question (methods that are far more accessible than microCT)?

5) What are the throughput constraints? There are not very many individual quantitative data points, raising a question of longitudinal capacity.

6) Figure 1 D – right; why do we see body but no eye pigment silver staining?

https://doi.org/10.7554/eLife.68920.sa1

Author response

Essential revisions:

In this manuscript, Katz and colleagues apply their microCT method to detection of melanin. This is a very natural followup to their previous paper describing the use of microCT for whole animal phenotyping in zebrafish. What is clever about this new study is that they adopted the use of silver stain, a common way to stain melanin in histology slides, to whole animal use. Because silver has so reliably been used for decades, this gave them a high chance of it working in whole animals once they worked out the staining techniques. They show that this silver staining appropriately marks zebrafish stripes and eyes (the biggest melanin producing organs in the body) and that they could detect differences in the golden, nacre, and casper mutants. Overall, the results are convincing and exciting. While it is clear that microCT will remain, at least for the time being, a fairly specialized technique, the ability to apply it more broadly will be an exciting area for future development as both the hardware and software improve. Only a few items that they could address to make the study stronger. None of these are required or require new experiments, but only suggestions if you have the data:

1) Detection of melanin in internal organs

Although the RPE and skin stripes are the most obvious melanin containing organs, two other structures are known to have melanin: the substantia nigra (as you point out in the introduction) as well as the kidney (Kapp, et al., Nature. 2018 Jun; 558(7710): 445-448.). The kidney is especially interesting since melanin there is thought to have protective roles, and kidney melanin is absent in the casper mutants. In the images you have already taken, it would be useful to see if you could quantify the substantia nigra and kidney in the WT versus mutant lines (golden, casper, etc). This would lend further credence to the idea that microCT really offers advantages over conventional light or fluorescent microscopy, since you could image internal organs. We realize this may not be possible, and I do not consider this essential for publication, but any data using the images you already have would add to the manuscript.

We agree that a major advantage of micro-CT over conventional microscopy is the ability to image and quantify internal structures, including, in this case, internal melanin. We also share the goal of imaging melanin-containing organs besides the larval zebrafish stripes and eyes in future samples, including those in other organisms. For example, while zebrafish do have dopaminergic neurons in the adult hindbrain, there are far fewer cells than in the mammalian midbrain substantia nigra, and they do not appear to be associated with concentrated neuromelanin pigmentation. While outside the scope of the present paper, biopsies from substantia nigra of mice or rats would make excellent samples for testing the broader applicability of our silver staining protocol for micro-CT.

By comparing the larval figures in the Kapp, et al., 2018, paper with our silver-stained micro-CT images, we believe that the umbrella of protective melanin covering the pronephric kidney belongs to the ventral stripe, which continues on above the yolk and down toward the tail. This stripe is indeed absent in the nacre/casper samples. The Kapp paper also mentions that the adult zebrafish kidneys are “covered” with melanophores. While identifying kidney-associated melanin will be included in future imaging of older zebrafish samples (see below), we would like to point out that KCC has observed in unpublished work under a dissecting microscope that melanophores indeed exist around the kidney, but their appearance did not suggest any intimate relationship with tubules or glomeruli in the kidney parenchyma, as is the case around photoreceptors of the retina.

2) Other ages

You mention future applications to different stages, but in reality it would be useful to know how you could apply this method to both younger fish (i.e. 24hpf) or much older fish (i.e. adults). Have you tried any imaging of melanin at any stages other than 5dpf. Again, I do not consider this essential, but would be helpful if you have such data.

Expanding the applications of this staining technique to other stages of zebrafish development, and to other organisms, is an active area of research for our lab. In the initial development of the silver staining, we tested our technique on 3dpf zebrafish with similar efficacy as to the 5dpf fish, lending credence to the idea that zebrafish of similar size/stage (e.g., larval fish) can be handled essentially the same way for micro-CT preparation. We are especially interested in optimizing silver staining for whole adult samples, which can fit in our expanded field-of-view custom detector. Adult zebrafish tissue is optically opaque and therefore a poor candidate for traditional microscopic analysis. As of this writing, we have performed trial silver staining on a 96dpf wild-type adult zebrafish with micro-CT imaging and reconstruction of a single segment of the head. While initial reconstructions seem favorable for melanin staining, further work is needed to optimize silver staining, provide proper controls, image whole individuals, and perform quantitative analyses of adult melanin. Since the synchrotrons needed to image our samples have yet to reopen since COVID shutdown, we have not had opportunity to pursue these studies. It is therefore more appropriate to share/publish the adult data in a more complete form, in a subsequent manuscript.

3) Line 339-340, you state "To examine these mutants, we bred mitfaw2/w2; mpv17a9/+ larvae to produce a mix of both nacre and casper offspring, which are indistinguishable from each other at 5 dpf", but this is technically not true. From a melanocyte perspective they are indistinguishable , but they have a very clear difference in terms of the iridophore phenotype (casper is missing these, nacre is not). I would clarify this. This difference was noted in the original casper manuscript (White, et al., Cell Stem Cell 2008) and this reference should be added to the paper. Throughout the manuscript please make sure you distinguish between nacre (just mitfa mutant) versus casper (mitfa/mpv17 mutant).

Thank you for pointing out this missing reference. We have added it to the appropriate places in the manuscript. While we agree that nacre and casper larvae may be separated by the presence or absence of iridophores, the larvae used for this study were screened only by using melanophore phenotypes prior to staining, and we are unable to screen by iridophores after staining. Therefore, in the manuscript we refer to these fish by their mitfaw2/w2 background, or as nacre/casper fish. We have also updated the language both in the “Materials and methods” and the “Results” sections to clarify the references to these mutants throughout the manuscript.

4) Why do you need microCT to be this quantitative? Why cannot optical imaging with color quantitation be used instead to solve this technical question (methods that are far more accessible than microCT)?

One of the advantages of micro-CT imaging is that it is inherently quantitative, with digital data associated with a numerical value at each reconstructed voxel. This data is arranged in the three-dimensional context of the original sample. Quantitative measurements like the ones described here may eventually be used for modelling, machine learning, and automation that will enable comprehensive, high-dimensional phenotyping.

While we agree that color quantitation with optical imaging is currently more accessible for most labs, optical imaging is limited by melanin’s opacity to visible light, which is not the case for silver/melanin staining. While young zebrafish are generally considered transparent, optical imaging has limited ability to resolve deep tissue material, resulting in loss of resolution in deeper tissues (>~200 µm). Indeed, melanin itself is optically opaque and obscures underlying structures. As a result, surface imaging of zebrafish larvae misrepresent melanin content in overlapping melanophores or deep tissue melanin, and provides more limited information about the 3D architecture of the pigment. Older or larger samples in which thick soft tissue will scatter more light make optical imaging and quantitation even more challenging, while X-ray-based imaging like micro-CT can still provide full-thickness, quantitative imaging. Its value will admittedly require additional work from a variety of labs to realize its importance in answering questions we have yet to ask. Our work is but a first step.

We have added language to the “Conclusions and Future Work” section of the manuscript to emphasize this potential for quantitative micro-CT data.

5) What are the throughput constraints? There are not very many individual quantitative data points, raising a question of longitudinal capacity.

With competitive beamtime availability at national synchrotron resources, throughput for micro-CT imaging is currently a bottleneck. While this manuscript focused on proof-of-concept technique development for silver staining, for which a small number of diverse samples was prioritized, increasing imaging throughput is an area of active research for the lab. Current attempts to increase throughput include 1) creating dedicated synchrotron beamlines for biomedically-oriented micro-CT at beamlines like LBL (Lawrence Berkeley Laboratory) and ANL (Argonne National Laboratory), which a decade of work is beginning to yield results, 2) developing laboratory-based micro-CT technology with synchrotron-like resolution, 2) using pink beam (polychromatic X-rays) to decrease scan time, 3) multiplexing samples, 4) increasing field-of-view to cover more material per scan, 5) multi-resolution strategies whereby many samples can be screened at lower resolutions and select samples of interest that can subsequently be re-imaged and analyzed at higher resolutions.

We have expanded the “Conclusions and Future Work” section of the manuscript to acknowledge these limitations of access and throughput to micro-CT imaging, and discuss future considerations to realize its potential for larger-scale quantitative phenotyping. Indeed, this very publication will contribute towards greater awareness of what we think is the huge potential of derivatives of X-ray histotomography.

6) Figure 1 D – right; why do we see body but no eye pigment silver staining?

In this figure, we present 3D reconstructions of the silver staining in the wild-type fish, which includes both body and eye pigment. In Figure 1D (right), we show a top-down view of this reconstruction in a similar view to the light micrograph in Figure 1D (left); to make it easier to see the similar features in the dorsal melanin for both images, we added a red color to just the dorsal-most melanin in the micro-CT image. However, everything else in the image (in grayscale) still represents silver-stained material. We have updated the Figure 1 legend to clarify this view of the data.

https://doi.org/10.7554/eLife.68920.sa2

Article and author information

Author details

  1. Spencer R Katz

    1. Division of Experimental Pathology, Department of Pathology, Pennsylvania State University College of Medicine, Hershey, United States
    2. The Jake Gittlen Laboratories for Cancer Research, Penn State College of Medicine, Hershey, United States
    3. Medical Scientist Training Program, Penn State College of Medicine, Hershey, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Resources, Validation, Visualization, Writing – original draft, Project administration
    For correspondence
    skatz2@pennstatehealth.psu.edu
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5586-3562

  2. Maksim A Yakovlev

    1. Division of Experimental Pathology, Department of Pathology, Pennsylvania State University College of Medicine, Hershey, United States
    2. The Jake Gittlen Laboratories for Cancer Research, Penn State College of Medicine, Hershey, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Resources, Funding acquisition
    Competing interests
    none
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1846-3751

  3. Daniel J Vanselow

    1. Division of Experimental Pathology, Department of Pathology, Pennsylvania State University College of Medicine, Hershey, United States
    2. The Jake Gittlen Laboratories for Cancer Research, Penn State College of Medicine, Hershey, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Resources, Funding acquisition, Supervision, Visualization, Project administration
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9221-8634

  4. Yifu Ding

    1. Division of Experimental Pathology, Department of Pathology, Pennsylvania State University College of Medicine, Hershey, United States
    2. The Jake Gittlen Laboratories for Cancer Research, Penn State College of Medicine, Hershey, United States
    3. Medical Scientist Training Program, Penn State College of Medicine, Hershey, United States
    Contribution
    Methodology, Resources, Project administration
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4629-5858

  5. Alex Y Lin

    1. Division of Experimental Pathology, Department of Pathology, Pennsylvania State University College of Medicine, Hershey, United States
    2. The Jake Gittlen Laboratories for Cancer Research, Penn State College of Medicine, Hershey, United States
    Contribution
    Methodology, Resources, Project administration
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1653-4168

  6. Dilworth Y Parkinson

    Advanced Light Source, Lawrence Berkeley National Labs, Berkeley, United States
    Contribution
    Methodology, Project Administration: LBNL ALS, Writing – review and editing, Resources, Supervision
    Competing interests
    None

  7. Yuxin Wang

    Mobile Imaging Innovations, Inc, Palatine, United States
    Contribution
    Methodology, Resources, Supervision
    Competing interests
    Yuxin Wang is affiliated with Mobile Imaging Innovations, Inc. The author has no other competing interests to declare.

  8. Victor A Canfield

    1. Division of Experimental Pathology, Department of Pathology, Pennsylvania State University College of Medicine, Hershey, United States
    2. The Jake Gittlen Laboratories for Cancer Research, Penn State College of Medicine, Hershey, United States
    Contribution
    Supervision, Validation, Project administration
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4359-1790

  9. Khai C Ang

    1. Division of Experimental Pathology, Department of Pathology, Pennsylvania State University College of Medicine, Hershey, United States
    2. The Jake Gittlen Laboratories for Cancer Research, Penn State College of Medicine, Hershey, United States
    3. Zebrafish Functional Genomics Core, Penn State College of Medicine, Hershey, United States
    Contribution
    Investigation, Writing – review and editing, Resources, Supervision, Validation, Project administration
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7695-9953

  10. Keith C Cheng

    1. Division of Experimental Pathology, Department of Pathology, Pennsylvania State University College of Medicine, Hershey, United States
    2. The Jake Gittlen Laboratories for Cancer Research, Penn State College of Medicine, Hershey, United States
    3. Zebrafish Functional Genomics Core, Penn State College of Medicine, Hershey, United States
    Contribution
    Conceptualization, Software, Methodology, Writing – review and editing, Resources, Supervision, Validation, Writing – original draft, Project administration
    For correspondence
    kcheng76@gmail.com
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5350-5825

Funding

NIH Office of the Director (R24-OD018559)

  • Keith C Cheng

National Institutes of Health (R24-RR017441)

  • Keith C Cheng

Penn State College of Medicine (Jake Gittlen Laboratories for Cancer Research)

  • Keith C Cheng

Penn State College of Medicine (Zebrafish Functional Genomics Core)

  • Keith C Cheng

Huck Institutes of the Life Sciences

  • Keith C Cheng

Pennsylvania State University (Institute for Cyber Science)

  • Keith C Cheng

Pennsylvania Department of Health (Tobacco CURE Funds)

  • Keith C Cheng

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr Patrick La Rivière for helpful discussion about micro-CT analysis, and Margaret Hubley and Kathryn Early for assistance raising and preparing zebrafish for this work. Funding: This research was supported by the National Institutes of Health (PI: KCC, R24-RR017441, and PI: KCC, R24-OD018559), the Jake Gittlen Laboratories for Cancer Research, the Penn State College of Medicine Zebrafish Functional Genomics Core, the Huck Institutes of the Life Sciences and the Institute for Cyber Science, Penn State University, and the Pennsylvania Department of Health Tobacco CURE Funds. The Pennsylvania Department of Health specifically disclaims responsibility for any analysis, interpretations, or conclusions. This research used resources of the ALS, a U.S. DOE Office of Science User Facility under contract no. DE-AC02-05CH11231.

Ethics

All procedures on live animals were approved by the Institutional Animal Care and Use Committee (IACUC) at the Pennsylvania State University College of Medicine, ID: PROTO201800300, "Developing Tissue-, Cell-, and Protein-specific Staining for histo-tomography, a form of X-ray Microtomography (microCT)."

Senior and Reviewing Editor

  1. Richard M White, Memorial Sloan Kettering Cancer Center, United States

Reviewers

  1. Stephen C Ekker, Mayo Clinic, United States
  2. Richard M White, Memorial Sloan Kettering Cancer Center, United States

Publication history

  1. Preprint posted: March 12, 2021 (view preprint)
  2. Received: April 13, 2021
  3. Accepted: August 19, 2021
  4. Version of Record published: September 16, 2021 (version 1)

Copyright

© 2021, Katz et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,906
    Page views
  • 124
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Spencer R Katz
  2. Maksim A Yakovlev
  3. Daniel J Vanselow
  4. Yifu Ding
  5. Alex Y Lin
  6. Dilworth Y Parkinson
  7. Yuxin Wang
  8. Victor A Canfield
  9. Khai C Ang
  10. Keith C Cheng
(2021)
Whole-organism 3D quantitative characterization of zebrafish melanin by silver deposition micro-CT
eLife 10:e68920.
https://doi.org/10.7554/eLife.68920

Categories and tags

Research organism

Further reading

    1. Developmental Biology

    Computational 3D histological phenotyping of whole zebrafish by X-ray histotomography

    Yifu Ding, Daniel J Vanselow ... Keith C Cheng
    Tools and Resources Updated

    Organismal phenotypes frequently involve multiple organ systems. Histology is a powerful way to detect cellular and tissue phenotypes, but is largely descriptive and subjective. To determine how synchrotron-based X-ray micro-tomography (micro-CT) can yield 3-dimensional whole-organism images suitable for quantitative histological phenotyping, we scanned whole zebrafish, a small vertebrate model with diverse tissues, at ~1 micron voxel resolutions. Micro-CT optimized for cellular characterization (histotomography) allows brain nuclei to be computationally segmented and assigned to brain regions, and cell shapes and volumes to be computed for motor neurons and red blood cells. Striking individual phenotypic variation was apparent from color maps of computed densities of brain nuclei. Unlike histology, the histotomography also allows the study of 3-dimensional structures of millimeter scale that cross multiple tissue planes. We expect the computational and visual insights into 3D cell and tissue architecture provided by histotomography to be useful for reference atlases, hypothesis generation, comprehensive organismal screens, and diagnostics.

    1. Cell Biology

    Annexin A6 mediates calcium-dependent exosome secretion during plasma membrane repair

    Justin Krish Williams, Jordan Matthew Ngo ... Randy Schekman
    Research Article Updated

    Exosomes are an extracellular vesicle (EV) subtype that is secreted upon the fusion of multivesicular bodies (MVBs) with the plasma membrane. Exosomes may participate in intercellular communication and have utility as disease biomarkers; however, little is known regarding the physiological stimuli that induce their secretion. Ca2+ influx promotes exosome secretion, raising the possibility that exosomes are secreted during the Ca2+-dependent plasma membrane repair of tissues damaged by mechanical stress in vivo. To determine whether exosomes are secreted upon plasma membrane damage, we developed sensitive assays to measure exosome secretion in intact and permeabilized cells. Our results suggest that exosome secretion is coupled to Ca2+-dependent plasma membrane repair. We find that annexin A6 (ANXA6), a well-known plasma membrane repair protein, is recruited to MVBs in the presence of Ca2+ and required for Ca2+-dependent exosome secretion, both in intact and in permeabilized cells. ANXA6 depletion stalls MVBs at the cell periphery, and ANXA6 truncations localize to different membranes, suggesting that ANXA6 may serve to tether MVBs to the plasma membrane. We find that cells secrete exosomes and other EVs upon plasma membrane damage and propose that repair-induced secretion may contribute to the pool of EVs present within biological fluids.

    1. Cell Biology
    2. Neuroscience

    Interaction between Teneurin-2 and microtubules via EB proteins provides a platform for GABAA receptor exocytosis

    Sotaro Ichinose, Yoshihiro Susuki ... Hirohide Iwasaki
    Research Article

    Neurons form dense neural circuits by connecting to each other via synapses and exchange information through synaptic receptors to sustain brain activities. Excitatory postsynapses form and mature on spines composed predominantly of actin, while inhibitory synapses are formed directly on the shafts of dendrites where both actin and microtubules (MTs) are present. Thus, it is the accumulation of specific proteins that characterizes inhibitory synapses. In this study, we explored the mechanisms that enable efficient protein accumulation at inhibitory postsynapse. We found that some inhibitory synapses function to recruit the plus end of MTs. One of the synaptic organizers, Teneurin-2 (TEN2), tends to localize to such MT-rich synapses and recruits MTs to inhibitory postsynapses via interaction with MT plus-end tracking proteins EBs. This recruitment mechanism provides a platform for the exocytosis of GABAA receptors. These regulatory mechanisms could lead to a better understanding of the pathogenesis of disorders such as schizophrenia and autism, which are caused by excitatory/inhibitory (E/I) imbalances during synaptogenesis.
