The amyloid precursor protein is a conserved Wnt receptor

  1. Tengyuan Liu
  2. Tingting Zhang
  3. Maya Nicolas
  4. Lydie Boussicault
  5. Heather Rice
  6. Alessia Soldano
  7. Annelies Claeys
  8. Iveta Petrova
  9. Lee Fradkin
  10. Bart De Strooper
  11. Marie-Claude Potier
  12. Bassem A Hassan  Is a corresponding author
  1. Paris Brain Institute – Institut du Cerveau, Sorbonne Université, Inserm, CNRS, Hôpital Pitié-Salpêtrière, France
  2. Doctoral School of Biomedical Sciences, Belgium
  3. Center for Brain and Disease, Belgium
  4. Center for Human Genetics, University of Leuven School of Medicine, Belgium
  5. Laboratory of Developmental Neurobiology, Department of Molecular Cell Biology, Leiden University Medical Center, Netherlands
  6. UK Dementia Research institute at University College London, United Kingdom
Research Article
  • Cited 0
  • Views 964
  • Annotations
Cite this article as: eLife 2021;10:e69199 doi: 10.7554/eLife.69199

Abstract

The Amyloid Precursor Protein (APP) and its homologues are transmembrane proteins required for various aspects of neuronal development and activity, whose molecular function is unknown. Specifically, it is unclear whether APP acts as a receptor, and if so what its ligand(s) may be. We show that APP binds the Wnt ligands Wnt3a and Wnt5a and that this binding regulates APP protein levels. Wnt3a binding promotes full-length APP (flAPP) recycling and stability. In contrast, Wnt5a promotes APP targeting to lysosomal compartments and reduces flAPP levels. A conserved Cysteine-Rich Domain (CRD) in the extracellular portion of APP is required for Wnt binding, and deletion of the CRD abrogates the effects of Wnts on flAPP levels and trafficking. Finally, loss of APP results in increased axonal and reduced dendritic growth of mouse embryonic primary cortical neurons. This phenotype can be cell-autonomously rescued by full length, but not CRD-deleted, APP and regulated by Wnt ligands in a CRD-dependent manner.

Introduction

The Amyloid Precursor Protein (APP) is the precursor that generates the Aβ peptide, whose accumulation is associated with Alzheimer’s disease (AD; Selkoe and Hardy, 2016). As an ancient and highly conserved protein, APP and its homologs are found across animal species in both vertebrates and invertebrates (Shariati and De Strooper, 2013). As a result of the alternative splicing of the 18 exons coding for APP, there are three major isoforms expressed in different organs or tissues in mice and human (Panegyres and Atkins, 2011). APP695 is the major isoform expressed in the brain (Kang et al., 1987). The expression of APP is detected at early stage during development (Ott and Bullock, 2001; Sarasa et al., 2000). In the developing mouse cortex, App mRNA is expressed continuously starting at embryonic day 9.5 (E9.5) coinciding with the initiation of neurogenesis and neuronal differentiation (Salbaum and Ruddle, 1994).

Structurally, APP is a type I transmembrane protein, which possesses a large extracellular amino acids sequence, an α−helix transmembrane sequence and a relatively short intracellular C-terminal sequence (Müller and Zheng, 2012; Coburger et al., 2013). Based on the architecture of the ectodomain, APP has been proposed to be a putative receptor (Ninomiya et al., 1993; Pietrzik et al., 2004; Hoe et al., 2009; Chen et al., 2006; Deyts et al., 2016). APP trafficking and processing have been intensively studied ever since the protein was first cloned. The turnover of transmembrane full-length APP is rapid (Hunter and Brayne, 2012; El Ayadi et al., 2012), and internalised APP can be degraded in lysosome or processed by α-, β-, and γ-secretase in different subcellular compartments to produce corresponding segments of APP. (Haass et al., 2012; Yuksel and Tacal, 2019). Recently, effort has been put into researching the function of the proteolytic products of APP under normal physiological condition (Coronel et al., 2018), as this may provide new clues for AD research.

During Drosophila brain development the fly homolog of APP, called APPL, functions as key component of the neuronal Wnt-PCP signaling pathway and regulates the axonal outgrowth in fly mushroom body (Soldano et al., 2013). Both mammalian APP and fly APPL contain a Cysteine-Rich Domain (CRD) in the ectodomain of APP whose Cysteine distribution resembles that of the Wnt Tyrosine-protein kinase receptor Ror2 (Coburger et al., 2013; Oishi et al., 2003), suggesting the intriguing possibility that APP may itself be a receptor for Wnt family member.

Wnt signaling is an evolutionary conserved signal transduction pathway that regulates a large number of cellular processes. Three Wnt signaling pathway have been well described: the β-catenin-based canonical pathway, the planar cell polarity (PCP/Wnt) signaling pathway and the calcium pathway. Wnt signaling regulates various features during development such as cell proliferation, migration, and differentiation (Eisenmann, 2005). Recently, increasing evidence indicates that the Wnt signaling pathways are involved in the APP-related Aβ production (Sellers et al., 2018; Elliott et al., 2018), but the precise mode of interaction between APP and the various Wnt pathways remains unclear.

The presence of CRD in APP, the reported involvement of Wnt signaling in APP processing and the importance of Wnt signaling during development suggested to us that APP may be a novel class of Wnt receptor regulating neuronal development. We used Drosophila and mouse embryonic primary cortical neurons as models to explore the APP-Wnt interactions during development. We provide evidence that the CRD of APP is a conserved binding domain for both canonical and PCP Wnt ligands. Furthermore, APP trafficking and expression is regulated by Wnts through the CRD, which in turn is required for APP to regulate axonal and dendritic growth and branching.

Results

Drosophila APP like interacts genetically with Wnt5

Drosophila APPL has been implicated in neural development (Cassar and Kretzschmar, 2016; Nicolas and Hassan, 2014) and is required for learning and memory (Preat and Goguel, 2016). Drosophila APPL is a homologue of human APP and has been used as a model for understanding the physiological function of the APP family (Soldano and Hassan, 2014; van der Kant and Goldstein, 2015). We previously reported that appl genetically interacts with components of the Wnt-PCP pathway (Soldano et al., 2013) during mushroom body (MB) axon growth. The MBs are a bilateral neuronal structure in the fly brain required for learning and memory (Heisenberg, 2003). To understand the role of APPL in axonal PCP signaling, we first explored the specific nature of the genetic interaction between appl and the gene encoding the PCP protein Van Gough (Vang). In contrast to control MBs, 17% of male appl null mutant flies (appld/Y, henceforth Appl-/-) displayed a loss of the MBb-lobe (Figure 1A,A’). The PCP receptor Vang is also required for β-lobe growth (Shimizu et al., 2011); we observed that flies homozygous for the null allele vangstbm-6 exhibited 50% β-lobe loss. Whereas vangstbm-6 heterozygotes show no MB defects, the loss of one copy of vang in Appl-/- flies is comparable (43% β-lobe loss) to the complete loss of vang (Figure 1B). Therefore, in the absence of appl, vang is haploinsufficient. Next, we performed rescue experiments of Appl-/- mutant flies. Re-expression of APPL in the mutant MBs significantly rescued β-lobe loss. In contrast, the overexpression of Vang in Appl-/- null flies failed to do so. These loss and gain of function data suggest that Wnt-PCP signaling requires APPL to regulate axonal growth (Figure 1B).

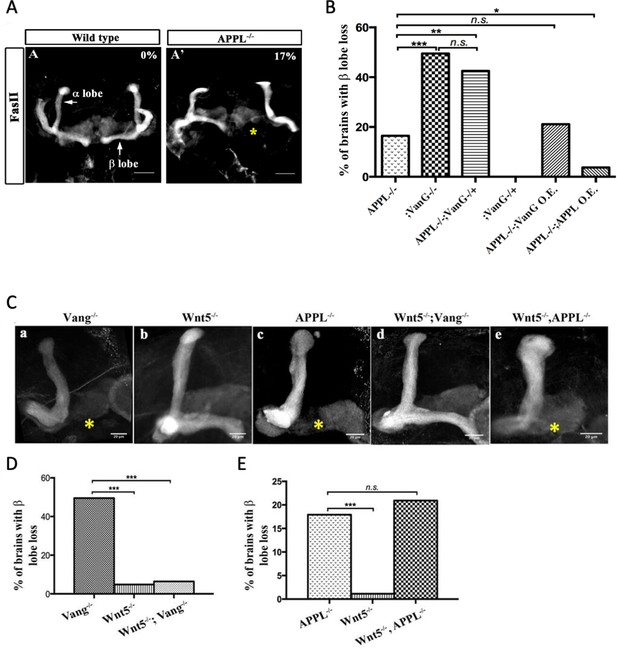

APPL mediates Wnt5a function in axonal growth.

(A–A’) Structure of the MB neurons in adult wild type and APPL-/- mutant flies. Immunofluorescence using anti-FascilinII (FasII) antibody that labels the axons of the MB. (A) In wild type brains, the axons of the MB project dorsally to form the α lobe and medially to form the β lobe. (A’) In APPL null mutant flies (APPLd/Y referred to as APPL-/-), there is axonal growth defect of the β lobe (as indicated by the asterisk) in 17% of the brains examined (n=97). Images are z-projections of confocal image stacks (scale bar, 50 μm). (B) APPL and VanG synergistically interact and APPL is necessary for VanG activity. The histogram shows the percentage of the β lobe defect in different genetic backgrounds. The loss of Vang induced a significantly higher penetrant phenotype up to 50%, (n=103) compared to APPL-/-; p value = 5.18−7 calculated with G-test. The loss of one copy of Vang in wild type background had no effect on axonal growth (n=30). However, the removal of one copy of Vang in APPL-/- background significantly increased the phenotype to 43% (n=47) compared to APPL-/-; p value = 0.001026. The penetrance of the latter phenotype was not significantly different from the one observed in Vang-/-; p value = 0.4304. While the overexpression of APPL rescued the APPL-/- phenotype (4%, n=54); p value = 0.01307, the overexpression of Vang failed to (21%, n=52); p value = 0.4901. * Indicates a p value<0.05. Data are shown as median ± whiskers. (Ca-e) Immunofluorescence analysis using anti-FasII antibody to show the structure of the MB axons in adult mutant flies of the following genotypes: (a) Vang-/-, (b) Wnt5-/Y referred to as Wnt5-/-, (c) APPL-/-, (d) Wnt5-/-,Vang-/-, and (e) Wnt5-/-,APPL-/-. Images are z-projections of confocal image stacks (scale bar, 20 μm). The asterisks correspond to the β lobe loss phenotype. (D) Wnt5 inhibits axonal growth, after branching, independently of Vang. The Histogram shows the percentage of the β lobe loss phenotype. Vang-/- flies exhibit a highly penetrant phenotype of 50% (n=104), while Wnt5-/- flies show a significantly less penetrant phenotype (5%, n=103); p value = 2.33−14 calculated with G-test. The loss of Wnt5 rescued Vang loss of function (6%, n=98); p value = 4.56−12. (E) Wnt5 inhibits axonal growth probably through APPL. Histogram showing the penetrance of the β lobe loss phenotype. In APPL-/- flies, 18% of the brains tested showed an axonal defect (n=106). This percentage did not significantly change in the absence of both Wnt5 in APPL-/- flies (21%, n=86); p value = 0.6027. *** indicates a p value< 1−5.

APPL and Vang are both transmembrane proteins that are part of the same receptor complex required for MB axonal growth (Soldano et al., 2013). We wondered if APPL interaction with the Wnt-PCP pathway involved a ligand and focused on Drosophila Wnt5 as a candidate. Wnt5 has been implicated in the regulation of MB axon growth (van der Kant and Goldstein, 2015; Grillenzoni et al., 2007), although the mechanism is unclear. We first examined the genetic interaction between Wnt5 and vang in β-lobe axon growth. Loss of vang caused a highly penetrant phenotype (50%), while Wnt5 nulls showed β-lobe loss only in 5% of the brains examined, suggesting that Wnt5 is largely dispensable for β-lobe growth. Surprisingly, Wnt5-/-; vang-/- double mutants showed an almost complete rescue of vang loss of function (Figure 1C a,b,d,D, Supplementary file 1). Therefore, in the absence of Vang, Wnt5 inhibits β-lobe growth, suggesting that Wnt5 interacts with another receptor and antagonizes its function in PCP-mediated axon growth. We therefore examined the genetic interaction between Wnt5 and appl. Loss of Wnt5 in Appl-/- flies resulted in a phenotype similar to Appl-/- flies alone (Figure 1C b,c,e, E). Thus, in the absence of APPL, Wnt5 no longer negatively impacts MB axon growth, suggesting that APPL may be a Wnt5 receptor.

APPL and human APP bind Wnt5 via the CRD

Wnt5 is a member of the large family of Wnt ligands, some of whose receptors and co-receptors harbor a conserved extracellular CRD thought to be important for Wnt binding (Dann et al., 2001; Oishi et al., 2003). Intriguingly, APP harbors a CRD-like domain (Bush et al., 1993) in its extracellular region that includes 12 cysteine residues conserved across APP paralogs and orthologs (Figure 2A). The distribution of the cysteine residues resembles those present in the CRDs of other PCP receptors such as Fz and Ror-2 (Figure 2—figure supplement 1). We asked whether the CRDs of APP and APPL are potential Wnt5a-binding domains. To test this, we generated forms of human APP (hAPP) and APPL lacking the CRD (hAPPΔCRD and APPLΔCRD). Next, we overexpressed a tagged form of Wnt5a together with hAPP, APPL, hAPPΔCRD, or APPLΔCRD in HEK293 cells and performed co-immunoprecipitation (IP) assays. Wnt5a immunoprecipitated full-length hAPP and APPL but not hAPPΔCRD or APPLΔCRD (Figure 2B). Reciprocally, full-length hAPP and APPL immunoprecipitated significant amounts of Wnt5a in contrast to hAPPΔCRD and APPLΔCRD (Figure 2B’). Similarly, APPL was found to precipitate Wnt5 from transfected Drosophila S2 cell lysates (Figure 2—figure supplement 2).

Figure 2 with 2 supplements see all

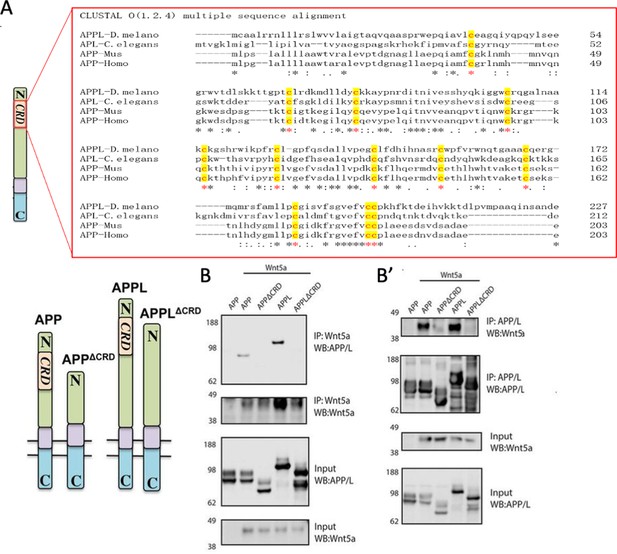

APPL and Wnt5 interact via the APP Cysteine-Rich Domain.

(A) APPL extracellular region contains a conserved CRD. The figure shows a CLUSTAL alignment of the CRD of different APP homologs. The 12 cysteine residues (as indicated by the red asterisks) are highly conserved across species. (B–B’) Wnt5a binds APPL and APP in a CRD-dependent manner. (B) Co-immunoprecipitation (co-IP) of the full-length proteins APP-flag and APPL-flag but not their truncated forms APPΔCRD-flag and APPLΔCRD-flag with Wnt5a-myc. (B’) Reciprocal co-IP showing that Wnt5a-myc is co-IPed with flAPP-flag and APPL-flag can but not when the CRDs are deleted.

Wnt5a treatment affects APP trafficking and expression in maturing mouse primary cortical neuron

The findings above suggest that the APP family may represent a new class of conserved Wnt receptors. We sought to investigate this further at a cell biological level using developing mouse embryonic primary cortical neurons as a model system. APP trafficking and processing have been intensively investigated in studies relating to AD, and according to early reports the half-life of APP is quite short, ranging from 1 hr to 4 hr (Hunter and Brayne, 2012; El Ayadi et al., 2012). In mouse embryonic (E16) primary neuron cultures, full-length mouse APP (fl-mAPP; henceforth we refer to mouse APP as mAPP and to human APP as hAPP) expression significantly dropped after 2 hr of treatment with translational inhibitor (Cycloheximide) (Figure 3—figure supplement 1), suggesting relatively rapid turnover of mAPP. To study the relation between mAPP and Wnts, we first verified that mAPP also binds Wnt5a through its CRD and found that fl-mAPP but not mAPPΔCRD co-IP’s with Wnt5a, similar to APPL and hAPP (Figure 3A). Next, we used immunofluorescence to localize mAPP with or without Wnt5a treatment in developing cortical neurons during axonal outgrowth (DIV7). mAPP is modified to maturation in the Trans Golgi Network (TGN) to be subsequently transferred to the plasma membrane where it can be internalized into early endosomes. From the early endosome, mAPP is either recycled back to the TGN through retromer-dependent sorting, or to the late endosome and then lysosome to be degraded (Haass et al., 2012; Vagnozzi and Praticò, 2019). We used markers for early endosomes (Rab5), recycling endosome (Rab11), TGN (Golgin97), and lysosomes (Lamp1) to trace mAPP trafficking after 2 hr and 4 hr Wnt5a treatment. The fraction of mAPP co-localized with early endosomes was not affected after 2 hr (Figure 3—figure supplement 2A) or 4 hr (Figure 3B,C) of Wnt5a treatment. Similarly, we observed no effects on co-localization with recycling endosomes (Figure 3—figure supplement 3A,D) indicating normal initial internalization and recycling of mAPP. However, we found a reduction of mAPP in the TGN, accompanied by an increase of mAPP in lysosomes both after 2 hr (Figure 3—figure supplement 2D,G) and 4 hr (Figure 3B,D,E) of Wnt5a treatment suggesting that Wnt5a regulates intracellular targeting of mAPP after internalization. Importantly, the levels of expression of these markers (Rab5, Golgin97, and Lamp1) are not affected by Wnt5a treatment (Figure 3—figure supplement 4). Next, we asked if this altered trafficking affected mAPP levels. We found that the level of fl-mAPP was significantly reduced after 4 hr of Wnt5a treatment, as shown by western blot (Figure 3F,G), with no effect on mApp mRNA levels (Figure 3H). The results of immunofluorescence (IF) and western blot (WB) suggest that the decrease of the mAPP upon Wnt5a treatment is caused by lysosomal degradation. To confirm this, we used Bafilomycin-A in combination with Wnt5a treatment. Bafilomycin-A treatment was performed 1 hr after Wnt5a addition as Wnt5a treatment already affected APP levels after 2 hr (Figure 3—figure supplement 5)- to inhibit the lysosome and found that this restored mAPP to control levels (Figure 3I–L). These data suggest that non-canonical Wnt5a-PCP signaling reduces mAPP stability.

Figure 3 with 5 supplements see all

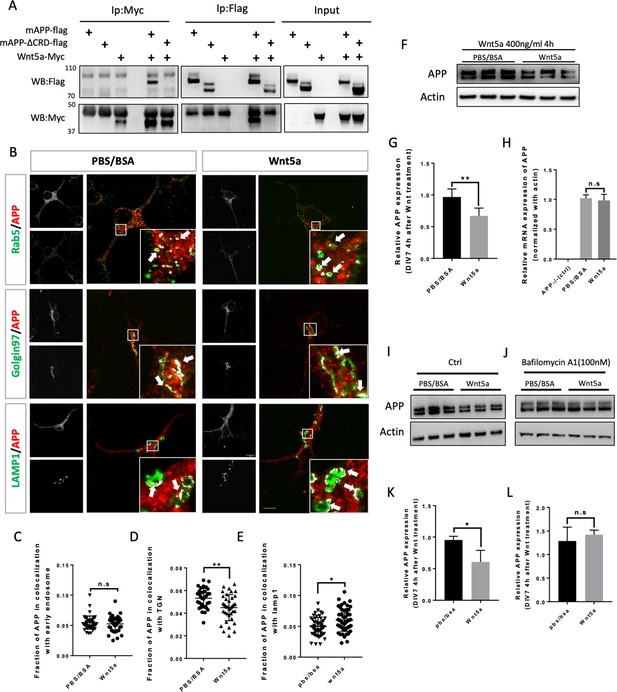

Wnt5a regulates APP expression through changing its intracellular trafficking.

(A) Co-immunoprecipitation (co-IP) of Wnt5a-Myc with full-length proteins mAPP-flag or mAPP-delatCRD-flag. The tagged proteins were co-expressed in HEK293T cells and immunoprecipitated with ant-flag and anti-Myc antibodies. Wild-type mAPP could pull down Wnt5a and vice versa, while mAPP lacking the CRD domain showed impaired ability to pull down Wnt5a, even with higher protein levels compared to wild-type mAPP in the input. (B) mAPP localization after 4 hr PBS/BSA or Wnt5a treatment. Immunofluorescence for APP (red), Rab5 (early endosome marker, green), Golgin97 (TGN marker, green), and Lamp1 (lysosome marker, green) revealed mAPP localization in different intracellular compartments. The inset showed zoomed in images of the area in the white box and arrows indicated the overlap of mAPP with respective cellular compartment markers. Scale bar = 10 µm. (C–E) Quantification of the overlap of mAPP with early endosome (C), TGN (D) or lysosome (E), respectively, after Wnt5a treatment. (n=33–55 cells, t-test). (F) Western blots of mAPP and Actin on the lysates of DIV7 primary cultured cortical neurons showed that mAPP protein expression level was altered after Wnt5a treatment. (G) Quantification of the western blots results for fig F. (n=three biological independent repeat, t-test). (H) qPCR results showed that mApp mRNA expression was not affected after Wnt5a treatment on DIV7. App-/- mice derived primary neurons were used as a negative control. (n=three biological independent repeat, one-way ANOVA). (I and J) Western blots for APP showed that the lysosome inhibitor Bafilomycin-A (J) could rescue Wnt5a-induced mAPP reduction compared with control groups (I). (K and L) Quantification of the western blots result for figure I and J. (n=three biological independent repeat, t-test). Bars represent the mean ± S.E.M. Samples collected from at least two independent experiments. *p<0.05, **p<0.01. .

Figure 3—source data 1

Co-immunoprecipitation (co-IP) of Wnt5a-Myc with full-length proteins mAPP-flag or mAPP-delatCRD-flag.

https://cdn.elifesciences.org/articles/69199/elife-69199-fig3-data1-v1.zip
Figure 3—source data 2

Western blots for mAPP and Actin after Wnt5a treatment on DIV7 primary cortical neurons.

https://cdn.elifesciences.org/articles/69199/elife-69199-fig3-data2-v1.zip
Figure 3—source data 3

Western blots for mAPP and Actin after Wnt5a treatment on DIV7 primary cortical neurons.

https://cdn.elifesciences.org/articles/69199/elife-69199-fig3-data3-v1.zip
Figure 3—source data 4

Western blots for mAPP and Actin after adding Bafilomycin followed by Wnt5a treatment on DIV7 primary cortical neurons.

https://cdn.elifesciences.org/articles/69199/elife-69199-fig3-data4-v1.zip

Wnt3a binds to and stabilizes APP via the CRD

We wondered whether mAPP can also bind other members of the Wnt family of ligands. Wnt3a is one of the 19 Wnt members in mouse and human. During development, Wnt3a usually induces β-catenin signaling pathway which plays an import role in gene expression, cell proliferation, and differentiation (Mulligan and Cheyette, 2012; Rosso and Inestrosa, 2013). Recent studies suggest that Wnt3a and beta-Catenin signaling may be involved in AD pathology (Parr et al., 2015; Tapia-Rojas et al., 2016). More interestingly, studies on mouse AD models showed that Wnt3a and Wnt5a interact competitively and antagonistically with regard to APP-mediated synapse loss (Sellers et al., 2018; Elliott et al., 2018). We therefore wondered whether, like Wnt5a, Wnt3a also binds to mAPP through the conserved CRD and regulates its levels. To test this, we performed IP experiments with Wnt3a. We found that fl-mAPP and Wnt3a co-IP in a CRD-dependent fashion (Figure 4A). We next tested the effects of Wnt3a treatment on APP trafficking. As shown in and Figure 3—figure supplement 2(A), The fraction of mAPP co-localized with early endosomes (Figure 4B,C) and recycling endosome (Figure 3—figure supplement 2A,D) was not affected after 2 hr and 4 hr of Wnt3a treatment. However, more mAPP was present in the TGN, with no effect on the lysosomal mAPP fraction after 2 hr (Figure 3—figure supplement 2D,G) and 4 hr (Figure 4B–E) of Wnt3a treatment. The expression levels of Rab5, Golgin97 and Lamp1 were not affected after Wnt3a treatment (Figure 3—figure supplement 4). Western blot analysis showed increased fl-mAPP upon Wnt3a treatment (Figure 4F,G), but no effect on mRNA levels (Figure 4H). There is evidence that mAPP is recycled back to the TGN from early endosomes through the retrograde pathway (Vagnozzi and Praticò, 2019). To test whether Wnt3a regulates mAPP retro trafficking to the TGN, we co-treated primary neurons with Wnt3a and a retromer inhibitor (LY294002), retromer inhibitor treatment was performed 1 hr after Wnt3a addition as Wnt3a treatment could affected APP protein expression clearly 2 hr later (Figure 3—figure supplement 5). This reversed the effect of Wnt3a on mAPP trafficking protein levels (Figure 4I–L). Then, we tested the effects of simultaneous treatment with Wnt3a and Wnt5a. This resulted in no change to APP protein levels compared to controls, suggesting that Wnt3a and Wnt5a neutralize each other’s effects on mAPP (Figure 4M,N), again with no effects on mRNA levels (Figure 4O). We and others have previously shown that APP is a key component in both Wnt canonical and non-canonical Wnt signaling (Elliott et al., 2018; Soldano et al., 2013). We confirmed this in our system and found that treatment with Wnt3a resulted in β-catenin accumulation in APP-WT, but not APP-KO, primary cortical neurons at DIV7 (Figure 4—figure supplement 1A–D). We also observed a tendency toward a decrease in β-catenin upon Wnt5a treatment, but this did not reach statistical significance.

Figure 4 with 2 supplements see all

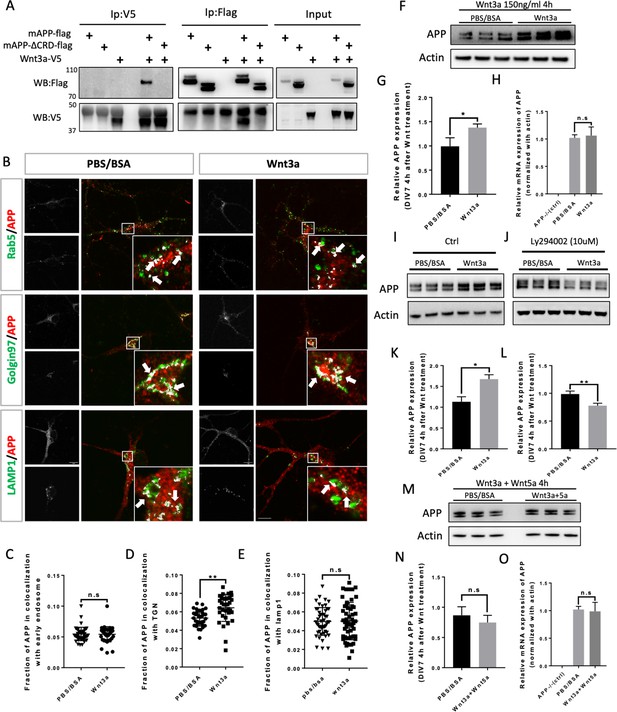

Wnt3a binds to and regulates APP expression through changing its intracellular trafficking.

(A) Co-immunoprecipitation (co-IP) of Wnt3a-V5 with full-length proteins mAPP-flag or mAPPLΔCRD. The tagged proteins were co-expressed in HEK293T cells and immunoprecipitated with ant-flag and anti-v5 antibodies. Wild-type mAPP could pull down Wnt3a and vice versa, while mAPP lacking the CRD domain showed impaired ability to pull down Wnt3a even with higher protein levels compared to wild type mAPP in the input. (B) mAPP localization after 4 hr PBS/BSA or Wnt3a treatment. Immunofluorescence for APP (red), Rab5 (green), Golgin97 (green), and Lamp1 (green) revealed mAPP localization in different intracellular compartments. The inset showed zoomed in images of the area in the white box and arrows indicated the overlap of mAPP with respective cellular compartment markers. Scale bar = 10 um. (C–E) Quantification of the overlap of mAPP with early endosome (C), TGN (D) or lysosome (E), respectively, after Wnt3a treatment. (n=33–54 cells, t-test). (F) Western blots of mAPP and Actin on the lysates of DIV7 primary cultured cortical neurons showed that mAPP protein expression level was altered after Wnt3a treatment. (G) Quantification of the western blots results for figure F. (n=three biological independent repeat, t-test). (H) qPCR results showed that mApp mRNA expression was not affected after Wnt3a treatment on DIV7. App-/- mice derived primary neurons were used as a negative control. (n=three biological independent repeat, one-way ANOVA). (I and J) Western blots for APP showed that the Retromer inhibitor Ly294002 (J) could rescue Wnt3a-induced mAPP increase compared with control groups (I). (K and L) Quantification of the western blots results for figure I and J. (n=three biological independent repeat, t-test). (M) Western blots for mAPP expression 4 hr after Wnt3a and Wnt5a treatment at the same time on DIV7. PBS/BSA group acted as control group. (N) Quantification of the western blots results for figure M. (n=three biological independent repeat, t-test). (O) qPCR results for mApp mRNA expression in mApp knockout neurons (negative control), PBS/BSA treated control group neurons and Wnt3a+Wnt5a-treated group neurons. (n=three biological independent repeat, one-way ANOVA). Bars represent the mean ± S.E.M. Samples collected from at least two independent experiments. *p<0.05, **p<0.01.

Figure 4—source data 1

Co-immunoprecipitation (co-IP) of Wnt3a-V5 with full-length proteins mAPP-flag or mAPPLΔCRD.

https://cdn.elifesciences.org/articles/69199/elife-69199-fig4-data1-v1.zip
Figure 4—source data 2

Western blots for mAPP and Actin after Wnt3a treatment on DIV7 primary cortical neurons.

https://cdn.elifesciences.org/articles/69199/elife-69199-fig4-data2-v1.zip
Figure 4—source data 3

Western blots for mAPP and Actin after Wnt3a treatment on DIV7 primary cortical neurons.

https://cdn.elifesciences.org/articles/69199/elife-69199-fig4-data3-v1.zip
Figure 4—source data 4

Western blots for mAPP and Actin after adding Ly294002 followed by Wnt3a treatment on DIV7 primary cortical neurons.

https://cdn.elifesciences.org/articles/69199/elife-69199-fig4-data4-v1.zip
Figure 4—source data 5

Western blots for mAPP and Actin after Wnt3a + Wnt5a treatment on DIV7 primary cortical neurons.

https://cdn.elifesciences.org/articles/69199/elife-69199-fig4-data5-v1.zip

Because Wnt treatment affects APP trafficking and expression, we tested Aβ40 and Aβ 42 production in primary cortical neurons at DIV7 after 4 hr treatment of with Wnt3a or Wnt5a. Our data show that a 4 hr Wnt3a/5a treatment has a long-lasting effect on Aβ40/42 production and that those effects are antagonistic. Consistent with Wnt3a favoring recycling of APP, we found that Wnt3a treatment significantly decrease Aβ40/42 production (Figure 4—figure supplement 2A,B). In contrast, Wnt5a treatment, which induces APP internalization into acidic compartments, resulted in an increase in Aβ40/42 production (Figure 4—figure supplement 2C,D). Importantly, these data are in accordance with other reports that Wnt/catenin pathway favors non-amyloidogenic APP processing while Wnt/PCP signaling does the opposite (Elliott et al., 2018).

Taken together, these data indicate that Wnt3a also binds to mAPP via the CRD and regulates mAPP trafficking and expression and that Wnt5a and Wnt3a act antagonistically to regulate APP protein homeostasis.

The CRD is required for Wnt-mediated regulation of APP trafficking and expression

Our data thus far show that APP interacts with Wnts through its CRD and that Wnts regulate APP intracellular trafficking and expression. We therefore asked whether the CRD is required for the effects of Wnts on mAPP. To address this question, we created two lentiviral vectors: pLv-pSyn1-mAPP-Flag-IRESeGFP (flag-tagged fl-mAPP) and pLv-pSyn1-mAPPΔCRD-Flag-IRESeGFP (flag-tagged mAPPΔCRD). Primary cortical neurons from App knockout mice were transduced with the fl-mAPP or mAPPΔCRD vectors, or a control GFP vector (pLv-pSyn1-IRESeGFP) exogenous APP/APPΔCRD was detectable using either anti-APP or anti-flag antibodies (Figure 5—figure supplement 1A–C). In neurons transduced with wild-type mAPP, we confirmed that mAPP expression could be increased and decreased by Wnt3a and Wnt5a treatments, respectively (Figure 5A,C). In contrast, in neurons transduced with mAPPΔCRD those effects were eliminated (Figure 5B,D). Finally, we performed IF to trace mAPP and mAPPΔCRD localization. Neurons transduced with wild type mAPP showed the same results as wild-type neurons with more mAPP in the TGN upon 4 hr of Wnt3a treatment and more mAPP in lysosomes upon 2 hr (Figure 3—figure supplement 2B,E,H) and 4 hr of Wnt5a treatment (Figure 5—figure supplement 2A–D). Similarly, there was no effect on colocalization with recycling endosome upon 2 or 4 hr of treatment (Figure 3—figure supplement 3, E). All these effects were abolished in neurons transduced with mAPPΔCRD (Figure 5E–H; Figure 3—figure supplement 3F; Figure 3—figure supplement 2C,F,I).

Figure 5 with 2 supplements see all

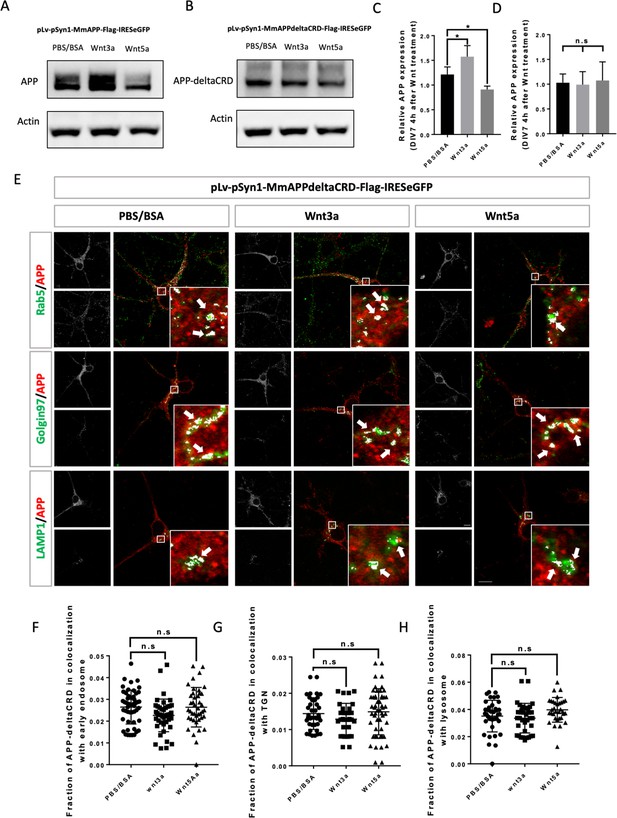

CRD is required for Wnt3a/5a to affect APP trafficking and expression.

(A and B) Western blots for the detection of exogenous APP expression 4 hr after PBS/BSA (control), Wnt3a or Wnt5a treatment at DIV7 in APP-KO primary cultured neurons which were transfected with pLv-pSyn1-mAPP-Flag-IRESeGFP (A) or pLv-pSyn1-mAPPΔCRD-Flag-IRESeGFP (B) lenti-virus. (C and D) Quantification of the western blots results for figure A and B, respectively. (n=three biological independent repeat, one-way ANOVA). (E) Localization of exogenous mAPP expression in APP–KO primary cultured cortical neurons 4 hr after Wnt3a or Wnt5a treatment. Immunofluorescence for APP (red), Rab5 (green), Golgin97 (green), and Lamp1 (green) revealed mAPP localization in different intracellular compartments. The inset showed zoomed in images of the area in the white box and arrows indicated the overlap of mAPP with respective cellular compartment markers. (F–H) Quantification of the overlap of mAPP with early endosome (F), TGN (G), or lysosome (H), respectively, after Wnt3a or Wnt5a treatment. (n=32–51 cells, one-way ANOVA). Bars represent the mean ± S.E.M. Samples collected from at least two independent experiments. *p<0.05.

Figure 5—source data 1

Western blots for APP and Actin after lenti-virus transduction followed by Wnt3a or Wnt5a treatment on DIV7 primary cortical neurons.

https://cdn.elifesciences.org/articles/69199/elife-69199-fig5-data1-v1.zip
Figure 5—source data 2

Western blots for APP-deltaCRD and Actin after lenti-virus transduction followed by Wnt3a or Wnt5a treatment on DIV7 primary cortical neurons.

https://cdn.elifesciences.org/articles/69199/elife-69199-fig5-data2-v1.zip

In summary, these data show that the CRD of mAPP is critical for Wnt3a/5a binding and mediates the effects of Wnts on mAPP trafficking and expression.

CRD is critical for APP to regulate neurite outgrowth and complexity

APP and its proteolytic products have been reported to affect neurite outgrowth during development (Billnitzer et al., 2013; Young-Pearse et al., 2008) in different systems. We used primary cortical neuron derived from E16.5 mice embryos to investigate if the CRD of mAPP is required for regulation of neurite outgrowth by mAPP. We examined axonal and dendritic outgrowth (Figure 6A) at three developmental stages in vitro: DIV2, DVI3, and DIV7 (Dotti et al., 1988).

Figure 6 with 2 supplements see all

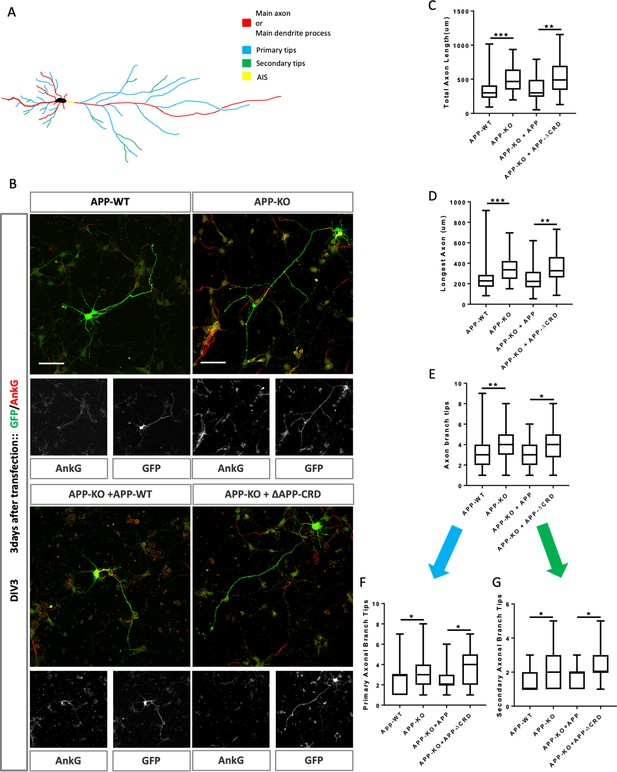

Cysteine-Rich Domain is critical for APP to regulate neurite outgrowth at DIV3.

(A) Schematic of a primary neuron. Colored lines indicate axonal or dendritic branch tips which were quantified. Yellow indicates the Axon Initial Segment (AIS) marked with Ankry G in experiments. (B) Representative confocal images for GFP (green) and AnkG (red) immunostaining at DIV3 on primary cultured cortical neurons of the four genotypes examined: mAPP wild type, mAPP–KO, and mAPP–KO rescued with mAPP or CRD-mutant mAPP. Transfected plasmids containing GFP alone, mAPP-flag-GFP or mAPPΔCRD-flag-GFP, which was performed at the onset of cell seeding. Scale bar = 50 µm. (C–E). Quantification of three parameters on these four genotypes at DIV3: the total axon length (the main axonal process and the branches deriving from the main process, C), the longest axonal length (D), the total axonal branch tips (E), primary branch tips (F) and secondary branch tips (G). (n=59–70 cells, one-way ANOVA). Bars represent the mean ± S.E.M. Samples collected from at least two independent experiments. *p<0.05, **p<0.01 ***p<0.001.

While we found no effect on initial outgrowth at DIV2 (Figure 6—figure supplement 1A–F), at DIV3 mAPP knockout neurons exhibit increased axonal outgrowth compared to controls reflected in three parameters: total axon length, longest axon length, and the number of branch tips (Figure 6B–E). In contrast, dendritic outgrowth was not different from controls (Figure 6—figure supplement 2A–C). We asked whether the CRD was required for mAPP function during neurite outgrowth. To this end, we transfected mAPP knockout neurons with either fl-mAPP or mAPPΔCRD. Increased axonal length and axonal branch tips were rescued by the fl-mAPP but not by the form lacking the CRD at DIV3 (Figure 6B–E). Next, we analyzed axonal branching in greater detail and found that loss of mAPP increased the numbers of both primary and secondary axonal branches at DIV3, an increase that was rescued by fl-mAPP but not by mAPPΔCRD (Figure 6F,G). Finally, we examined the Axon Complexity Index (ACI) (Wong et al., 2017), which measures the ratio of branches of different orders to total branch number, at DIV3. At this early stage, the ACI showed a tendency to increase in mAPP knockout neurons that was not significant (Figure 6—figure supplement 2D), likely because both primary and secondary branches show a similar level of increase. Together these data suggest an overall increase in axonal growth. In contrast to axonal growth, we found no significant alterations in dendritic length or branching (Figure 6—figure supplement 2E–G) consistent with the fact that the spur in dendritic outgrowth is largely initiated at DIV4 (Polleux and Snider, 2010; Barnes and Polleux, 2009).

To further analyze neurite outgrowth, we examined axonal and dendritic growth at DIV7. By this stage, mAPP knockout neurons showed an increased ACI (Figure 7A,B). In contrast, total axonal length, longest axon length, and the total number of branch tips was not significantly different (Figure 7C–E). The increase in axonal complexity in mAPP knockout neurons was due to a significant reduction in the number of primary branches and a significant increase in the number of secondary branches (Figure 7F,G). Once again, all phenotypes were rescued by fl-mAPP but not mAPPΔCRD.

Figure 7 with 1 supplement see all

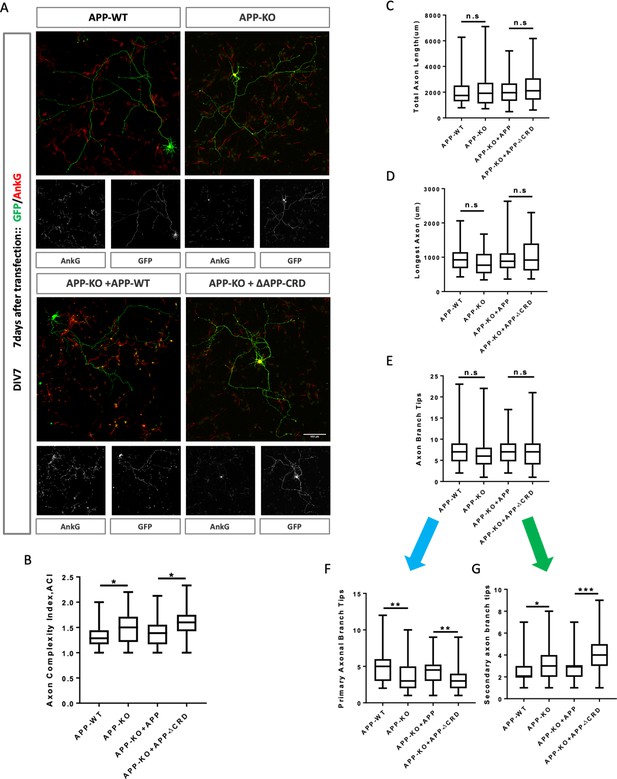

Cysteine-Rich Domain is critical for APP to regulate neurite outgrowth and complexity at DIV7.

(A) Representative confocal images for GFP (green) and AnkG (red) immunostaining at DIV7 on primary cultured cortical neurons of the four genotypes examined: mAPP wild type, mAPP- KO and mAPP-KO rescued with APP or CRD-mutant APP. Transfected plasmids containing GFP alone, mAPP-flag-GFP or mAPPΔCRD-flag-GFP, which was performed at the onset of cell seeding. Scale bar = 100 um. (B–G) Analysis of Axon complexity Index (ACI, B), the total axonal length (C), the longest axonal length (D), all axonal branch tips (E), the primary branch tips (F) and the secondary branch tips (G) at DIV7. (n=54 cells, one-way ANOVA). Bars represent the mean ± S.E.M. Samples collected from at least two independent experiments. *p<0.05, **p<0.01, ***p<0.001.

Finally, we examined dendritic growth at DIV7. We observed no difference in total dendrite length or the size of the longest dendrite (Figure 7—figure supplement 1A,B), but observed a significant decrease in the total number of dendritic processes in mAPP knockout neurons compared to controls (Figure 7—figure supplement 1C). This reduction was due to the presence of fewer main dendritic processes in mAPP knockout neurons but no effect was observed on the primary or secondary dendritic branches (Figure 7—figure supplement 1D–F). All phenotypes were rescued by fl-mAPP but not mAPPΔCRD. Taken together, our results show that the role of APP in neuronal maturation requires the CRD domain.

Wnts regulate neurite development in a CRD dependent manner

The Wnt pathway plays an important role in regulating neurite development, therefore we tested if the APP CRD is important for the interaction between APP and Wnt in regulating neurite outgrowth. To address this question, we analyzed neurite outgrowth in APP-KO primary cortical neurons rescued with APP-WT or APP-ΔCRD plasmids after Wnt3a/5a treatment. On DIV3 Wnt3a treatment significantly increased total axon length, the length of longest axon and axon branch tips in the presence of fl-APP but not APP-Δ-CRD (Figure 8A,B,C). These data suggest that APP mediates Wnt3a effects on axonal outgrowth. In contrast to Wnt3a, Wnt5a treatment had no effect in the presence of fl-APP but resulted in increased axonal length when the CRD domain was removed. These data show that APP normally protects axons from the effects of Wnt5a at this developmental stage and that the CRD is required for this (Figure 8B). Thus, APP promotes Wnt3a and antagonizes Wnt5a effects on neurons at DIV3 via the CRD domain. Similarly, on DIV7 we found a positive Wnt3a effect on axon complexity which was observed in the presence of fl-APP but not APP-Δ-CRD (Figure 8D). In contrast Wnt5a had no effect. Finally, we found that treatment with either Wnt3a or Wnt5a decreases the number of the main dendrites in the presence of fl-APP and the effect is absent or even reversed in the presence of APP-Δ-CRD (Figure 8E). Together, these data show that the CRD of APP is required for Wnt3a/5a to regulate neurite outgrowth in cortical primary neurons.

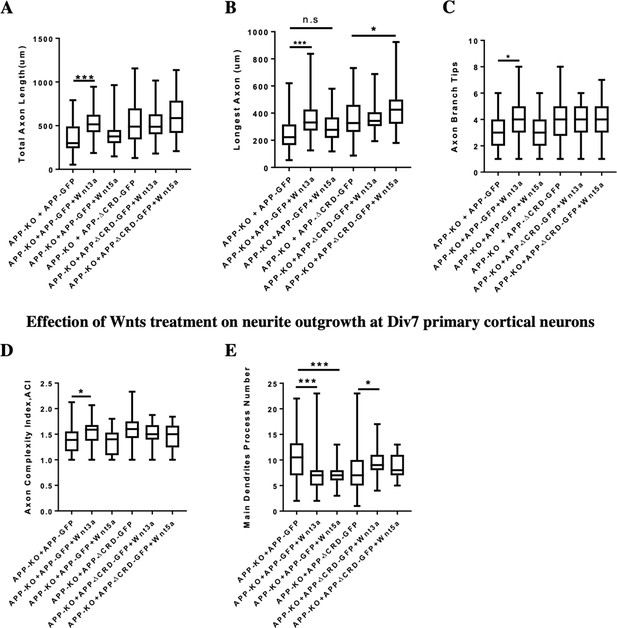

Neurite outgrowth analysis at DIV3 and DIV7 after Wnts treatment.

(A–C) Quantification of total axon length (A), the longest axon length (B), and axon branch tips (C) from DIV3 cultured APP-KO primary cortical neuron after Wnts treatment rescued with APP-WT or APP-ΔCRD, respectively. (n=46–63 cells, one-way ANOVA). (D and E) Analysis of axon complexity (D) and the main dendritic process number (E) from DIV7 cultured APP-KO primary cortical neuron after Wnts treatment rescued with APP-WT or APP-ΔCRD, respectively. (n=47–54 cells, one-way ANOVA). Bars represent the mean ± S.E.M. Samples collected from at least two independent experiments. *P<0.05, ***p<0.001.

Discussion

Here, we identify a previously unknown conserved Wnt receptor function for APP proteins. We show that APP binds both canonical and non-canonical Wnt ligands via a conserved CRD and that this binding regulates the levels of full-length APP by regulating its intracellular trafficking from early endosomes to the trans Golgi network versus the lysosome. Finally, we show that APP through the CRD regulates neurite growth and axon branching complexity in primary mouse cortical neurons.

A function for APP as a cell surface receptor has be proposed for quite a long time (Kang et al., 1987). The first strong evidence came from the structure of APP which shares similarity with type I transmembrane receptors. For example the growth factor like domain (GFLD) in the E1 region of APP could act as a ligand-binding site, and disulfide bridges within the same E1 area could further facilitate ligand-induced signal transduction by stabilizing the structure of APP ectodomain (Reinhard et al., 2005; Rossjohn et al., 1999; Stahl et al., 2014; Kaden et al., 2009). In addition, the site-specific proteolytic processing property of APP resembles several membrane receptors and constitute a second line of evidence. For instance, both APP and Notch are processed by γ-secretase and release the intracellular domain AICD and NICD, respectively, to induce transcriptional activity by nuclear transfer of the ICDs (Chang et al., 2006; Ables et al., 2011). Several putative ligands have been proposed including proteolytic products of APP itself. Interestingly, a conserved CRD within the E1 region of APP makes APP a putative Wnt receptor as the CRD is required for the binding between Wnt and its receptor and co-receptor like Frizzled Ror-2 and Musk (Niehrs, 2012), although the crystal structure of the APP CRD is different from that of classic Wnt receptors. In this study, using immunoprecipitation we have shown that mouse APP binds in a CRD-dependent manner to Wnt3a and Wnt5a the two well-known ligands for triggering canonical or non-canonical Wnt signaling pathways, respectively. Based on these data, we speculate that APP might act as a conserved Wnt receptor as its CRD is highly conserved across species, and that the binding may not be limited to Wnt3a or Wnt5a, but also apply to all other Wnt family members. As Wnt signaling is critical for development and tissue homeostasis, the role of APP as a component or putative receptor or co-receptor in Wnt signaling should be carefully studied. The difficulty to explore the exact role of APP may not only come from the complexity of Wnt signaling, but also from the structural properties of APP itself. For example, the extracellular domain of APP harbors several binding site for the molecules in the extracellular matrix (ECM), such as the Heparin binding domain (HBD) is not only exist in E1 area a second HBD has been found in the E2 region (Deyts et al., 2016). A recent study has shown that LRP6, the co-receptor of canonical Wnt signaling, could directly bind to APP (Elliott et al., 2018). Using peptide Mapping array this group further revealed several binding sites (20–70 amino acids in length) in the ectodomain of APP, and one of the sites (34 amino acids) is located within the APP CRD. Based on our IP results indicating a Wnt receptor function for APP, an obvious question arises as to whether LRP6 and APP compete for Wnt. Before trying to address this problem, several issues need to be resolved. First, as in our IP experiments the whole CRD (150 amino acids) was deleted it is not clear if specific sequences inside the CRD are critical for Wnt binding that may or may not overlap with the reported LRP6-binding site. A second important point is that the results of the peptide mapping array may not reflect the exact binging site for LRP6 as these short synthesized peptides may lack information embedded in the 3D structure like the disulfide bridges formed by Cysteines that may be critical for maintaining the stability of the APP extracellular domain (Rossjohn et al., 1999; Stahl et al., 2014). Significant further biophysical and biochemical analysis is required to understand the details of the interaction and various components of the Wnt receptor complex.

APP has been extensively reported to be involved in regulating neurite outgrowth (Billnitzer et al., 2013; Young-Pearse et al., 2008; Araki et al., 1991; Southam et al., 2019; Small et al., 1994; Perez et al., 1997), with conflicting conclusions as to whether APP promotes or inhibits neurite outgrowth. In our experiments, we found that while in Drosophila APPL loss reduced axonal growth, the comparison of axonal outgrowth and branching in primary cortical neuron derived from mAPP wild type or mAPP knock out mice at DIV2, DIV3 and DIV7 showed that loss of mAPP significantly accelerated axonal maturation. Specifically, we found that the initial phase of axonal growth at DIV2 is unaffected, but that APP mutant axons grow longer at DIV3 and then show increased axon complexity at DIV7. We therefore suggest that the conflicting data in the literature may arise from examining different types of neurons at different time points, where the requirement of APP may differ in a context-specific manner. We speculate that this context specificity may in part be due to the levels and types of Wnt ligands present in the environment.

Finally, our findings suggest that in addition to the well-described proteolytic processing of APP, the regulation of its recycling by Wnt ligands may be crucial for its function. It is important to note that, like proteolytic processing, Wnt ligands regulate APP stability post-translationally, as we found no effect on App mRNA levels upon Wnt treatment. With regard to the role of APP processing in Alzheimer’s disease, recently published work suggests that an imbalance between Wnt3a/canonical signaling pathway and the Wnt5a/PCP signaling pathway at the initial step of amyloid beta production could trigger a vicious cycle favoring the amyloidogenic processing of APP (Sellers et al., 2018; Elliott et al., 2018). Our findings that Wnt3a and Wnt5a have opposite effects on amyloid beta production provide a mechanistic framework for understanding how the normal physiological function of APP directly impacts the generation of a key marker of AD, and thus potentially links the normal activity of APP to its role in neurodegeneration. Whether and how the modulation of APP’s role in Wnt signaling may offer future therapeutic avenues for AD is an exciting venue for future research.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
AntibodyMouse monoclonal anti-FasII
(1D4)
Developmental Studies Hybridoma Bank (DSHB)AB_528235
RRID:AB_528235
IF (1:50)
AntibodyRabbit polyclonal anti-Wnt5aCell SignalingCat# 2392
RRID:AB_2304419
WB (1:1000)
AntibodyRabbit polyclonal anti-GFPInvitrogenCat# A-11122, RRID:AB_221569IF (1:500)
AntibodyRabbit polyclonal anti-APPSynaptic SystemsCat# 127 003
RRID:AB_2056967
IF (1:100)
WB (1:1000)
AntibodyMouse monoclonal anti-rab5Synaptic SystemsCat# 108 011
RRID:AB_887773
IF (1:100)
WB (1:1000)
AntibodyMouse monoclonal anti-rab11aSanta CruzCat# sc-166523, RRID:AB_2173466IF (1:20)
AntibodyMouse monoclonal anti- Golgin-97InvitrogenCat# A-21270, RRID:AB_221447IF (1:100)
WB (1:1000)
AntibodyRat monoclonal anti-Lamp1Santa CruzCat# sc-19992, RRID:AB_2134495IF (1:20)
WB (1:200)
AntibodyChicken polyclonal anti-GFPAbcamCat# ab13970, RRID:AB_300798IF (1:200)
AntibodyGuinea pig Polyclonal antiserum anti-Ankyrin GSynaptic SystemsCat# 386004
RRID:AB_2725774
IF (1:100)
AntibodyRabbit Polyclonal Anti-V5MilliporeCat# AB3792
RRID:AB_91591
IP (1:20)
WB (1:1000)
AntibodyRat Monoclonal Anti-DYKDDDDK Epitope TagNovusCat# NBP1-06712
RRID:AB_1625981
IP (1:20)
WB (1:1000)
AntibodyMouse Monoclonal Anti-c-MycSigma-AldrichCat# M4439
RRID:AB_439694
IP (1:20)
WB (1:1000)
AntibodyGoat anti-Chicken IgY (H+L), Alexa Fluor488InvitrogenCat# A-11039, RRID:AB_142924IF (1:500)
AntibodyGoat anti-Rabbit IgG (H+L), Alexa Fluor488InvitrogenCat# A-11008, RRID:AB_143165IF (1:500)
AntibodyGoat anti-Rat IgG (H+L), Alexa Fluor488InvitrogenCat# A-11006, RRID:AB_141373IF (1:500)
AntibodyGoat anti- Mouse IgG (H+L), Alexa Fluor488InvitrogenCat# A-11029, RRID:AB_138404IF (1:500)
AntibodyGoat anti-Rabbit IgG (H+L), Alexa Fluor555InvitrogenCat# A-11034, RRID:AB_2576217IF (1:500)
AntibodyGoat anti-Guinea Pig IgG (H+L), Alexa Fluor555InvitrogenCat# A-21435, RRID:AB_2535856IF (1:500)
AntibodyPeroxidase AffiniPure Donkey Anti-Mouse IgG (H+L)Jackson ImmunoResearch LabsCat# 715-035-150, RRID:AB_2340770WB (1:4000)
AntibodyPeroxidase AffiniPure Donkey Anti-Rabbit IgG (H+L)Jackson ImmunoResearch LabsCat# 711-035-152, RRID:AB_10015282WB (1:4000)
AntibodyPeroxidase AffiniPure Donkey Anti-Rat IgG (H+L)Jackson ImmunoResearch LabsCat# 712-035-153, RRID:AB_2340639WB (1:4000)
Chemical compound, drugTriton X-100SigmaCat#X100In PBS 0.1%
Chemical compound, drugTrizol ReagentInvitrogenCat#15596026
Chemical compound, drugL15 mediumGibco11415064Medium for embryo brain isolation on ice
Chemical compound, drugMounting MediumVector LaboratoriesCat#H-1000
Chemical compound, drug0.05% trypsin/EDTAGibco25300–054
Chemical compound, drugSVFInvitrogen10270106
Chemical compound, drugDNAseSerlaboLS002138
Chemical compound, drugNeurobasal mediumGibco21103049
Chemical compound, drugB27 supplementGibco17504–044
Chemical compound, drugL-glutamaxGibco35050–061
Chemical compound, drugWnt3aR and D Systems645-WN-010
Chemical compound, drugWnt5aR and D Systems1324-WNP-010
Chemical compound, drugBafilomycin A1invitrogen88899-55-2
Chemical compound, drugLY294002SigmaL9908
Chemical compound, drugLipofectamine 3000ThermofisherCat#L3000008
Chemical compound, drugDMEMGibcoCat#10566016
Chemical compound, drugPenicillin-StreptomycinGibcoCat#15140122
Biological sample
(M. musculus)
APP-KO mouseA gift from Bart De Strooper’s labN/A
Cell line (Homo-sapiens)Hek293A gift from Marie-Claude Potier’s labN/A
Sequence-based reagentmAPP_FThis paper
Ordered from IDT
PCR primersCATCCAGAACTGGTGCAAGCG
Sequence-based reagentmAPP_RThis paper
Ordered from IDT
PCR primersGACGGTGTGCCAGTGAAGATG
Sequence-based reagentβ-actin _FThis paper
Ordered from IDT er
PCR primersTCCATCATGAAGTGTGACGT
Sequence-based reagentβ-actin _RThis paper
Ordered from IDT r
PCR primersGAGCAATGATCTTGATCTTCAT
Transfected construct (M. musculus)pLv-pSyn1-mAPP-Flag-IRESeGFPICM-institute, Virus facilityN/ALentiviral construct to transfect and express the mAPP
Transfected construct (M. musculus)pLv-pSyn1-mAPPΔCRD-Flag-IRESeGFPICM-institute, Virus facilityN/ALentiviral construct to transfect and express the mAPP-ΔCRD
Transfected construct (M. musculus)pLv-pSyn1- eGFPICM-institute, Virus facilityN/ALentiviral construct to transfect and express the GFP
Transfected construct (M. musculus)pCDNA3-mApp-FLAG-IRES-eGFPThis paperN/Atransfected construct
Transfected construct (M. musculus)pCDNA3-mAPPΔCRD-FLAG-IRES-eGFPThis paperN/Atransfected construct
Transfected construct (M. musculus)pCDNA3-Wnt5a-mycThis paperN/Atransfected construct
Transfected construct (M. musculus)pCDNA-Wnt3A-V5This paperN/Atransfected construct
Transfected construct (human)pCDNA3-hApp-FLAG-IRES-eGFPThis paperN/Atransfected construct
Transfected construct (human)pCDNA3-hAPPΔCRD-FLAG-IRES-eGFPThis paperN/Atransfected construct
Commercial assay or kitQuantiTect Reverse Transcription KitQiagenCat# 205311
Commercial assay or kitLightCycler480 SYBR Green I MasterRocheCat# 04707516001
Commercial assay or kit4–12% polyacrylamide gels (SDS-PAGE)ThermoFisherNW04122BOX
Commercial assay or kitProtein G sepharose beadsThermoFisherRef.10612D
Lot.00644644
OtherNikonA1-R
OtherOlympusFV-1200
OtherDAPISigmaCat# D95641 ug/ml
Software, algorithmGraphPad Prism softwareGraphPad Prism (https://graphpad.com)RRID:SCR_015807
Software, algorithmImageJ softwareImageJ (http://imagej.nih.gov/ij/)RRID:SCR_003070

Drosophila stocks and maintenance

Request a detailed protocol

Flies were raised at 25°C, on standard cornmeal and molasses medium. The stocks used in this study are: w*, Appld; Vangstbm-6; w1118, Wnt5400; P247Gal4; w*, Appld, Wnt5400.

Cloning

Request a detailed protocol

All constructs were generated by PCR amplification and overlap extension PCR. PCR products were inserted into the respective vectors by classical restriction enzyme cloning. All constructs were sequence-verified. To generate transgenic flies, open-reading frames with epitope tags were cloned into the pUAST-attB fly expression vector and transgenes were inserted into the genome at the VK37 docking site (2L, 22A3) via PhiC31-mediated transgenesis.

Mushroom body analyses

Request a detailed protocol

Adult fly brains were dissected in phosphate buffered saline (PBS) and fixed in 3.7% formaldehyde in PBT (PBS+ 0.1% Triton100-X) for 15 min. Then, the brains were washed three times in PBT and blocked in PAX-DG for 1 hr at RT. The samples were later incubated with the primary antibody overnight at 4°C. After incubation, the brains were washed three times with PBT and incubated with an ALEXA Fluor secondary antibodies (Life technologies) for 2 hr at RT. After three times washes in PBT, the brains were mounted in Vectashield (Vector Labs, USA) mounting medium. The following antibodies were used: mouse anti-FasII (Developmental Studies Hybridoma Bank (DSHB), 1/50), rabbit anti-GFP (Invitrogen, 1/500). The mounted brains were imaged on a LEICA DM 6000 CS microscope coupled to a LEICA CTR 6500 confocal system and a Nikon A1-R confocal (Nikon) mounted on a Nikon inverted microscope (Nikon). The pictures were then processed using ImageJ.

Primary cortical neuron culture, virus transduction, and plasmids transfection

Request a detailed protocol

All experiments were done according to policies on the care and use of laboratory animals of European Communities Council Directive (2010/63). The protocols were approved by the French Research Ministry following evaluation by a specialized ethics committee (dossier number 4437). APP knock out mice were a gift from the De Strooper lab. Cortical primary neuron cultures were prepared from embryonic day 16.5 mice (APP wild or APP mutant), as described previously (Cheng et al., 2016).

Virus (pLv-pSyn1-mAPP-Flag-IRESeGFP, pLv-pSyn1-mAPPΔCRD-Flag-IRESeGFP, or pLv-pSyn1- eGFP) transduction was performed during seeding in 24-well plates (4x105cells/mL). Fifty µL (50 µL par well) of the adequate lentiviral dilution in the medium of interest must be ready in tubes. Seed 150 µL of the cell preparation to each well. Immediately add 50 µl of the diluted lentiviral preparation to each well (final MOI 2). Mix slowly the cells-lentivirus suspension by pipetting. Incubate 1 hr at 37°C. Finally add 800 µL of culture medium to each well and incubate for 3 additional days before any analysis.

Plasmids (pLv794_pTrip_PromSynaptin1_GFP_DeltaU3, pLv-pSyn1-MmApp-FLAG-IRES-eGFP, or pLv-pSyn1-mAPPΔCRD-FLAG-IRES-eGFP) transfection was performed at the onset of cell seeding (4x105cells/mL) in 24 wells plates with coverslip coated with PDL 24 hr before. All procedure follow the protocol from Lipofectamine 3000 transfection reagent (Thermofisher Catalog Number: L3000008) with little modified, each well transfection with 500 ng corresponding plasmid, medium was refreshed 5–6 hr after transfection.

Wnt and inhibitor treatment in primary neuron

Request a detailed protocol

Wnt5a (400 ng/ml) (645-WN-010, R and D Systems), Wnt3a (150 ng/ml) (1324-WNP-010, R and D Systems), and PBS/BSA (control) addition performed at DIV7. In all experiments related to inhibitor, cells will be treated with inhibitor 1 hr after Wnt addition (Bafilomycin A1, 100 nM, Invitrogen, 88899-55-2), LY294002 (10 µM, Sigma, L9908) and a DMSO (0.05%DMSO in culture medium) group will be set as control. Protein or RNA samples collected after 4 hr of Wnt treatment.

Aβ 40/42 detection

Request a detailed protocol

For the Aβ 40/42 detection, first, culture medium refreshed with Wnt3a (50 ng/ml or 150 ng/ml) or Wnt5a (100 ng/ml or 400 ng/ml) on DIV7 primary cortical neurons. Then, supernatant was collected after 4 hr Wnt3a/5a treatment for Aβ detection, and refreshed with medium without Wnt3a/5a. At last, the second round supernatant collection performed after additional 24 hr culture. The procedure of Aβ detection is based on the protocol from V-PLEX Plus Aβ Peptide Panel 1 (6E10) Kit (K15200G, MSD).

Amino acids sequence of deleted CRD

Amino acids with underscore are deleted in mouse, human APPΔCRD or APPLΔCRD.

hAPP695 (NCBI Reference Sequence: NP_958817.1)

Request a detailed protocol

MLPGLALLLLAAWTARALEVPTDGNAGLLAEPQIAMFCGRLNMHMNVQNGKWDSDPSGTKTCIDTKEGILQYCQEVYPELQITNVVEANQPVTIQNWCKRGRKQCKTHPHFVIPYRCLVGEFVSDALLVPDKCKFLHQERMDVCETHLHWHTVAKETCSEKSTNLHDYGMLLPCGIDKFRGVEFVCCPLAEESDNVDSADAEEDDSDVWWGGADTDYADGSEDKVVEVAEEEEVAEVEEEEADDDEDDEDGDEVEEEAEEPYEEATERTTSIATTTTTTTESVEEVVRVPTTAASTPDAVDKYLETPGDENEHAHFQKAKERLEAKHRERMSQVMREWEEAERQAKNLPKADKKAVIQHFQEKVESLEQEAANERQQLVETHMARVEAMLNDRRRLALENYITALQAVPPRPRHVFNMLKKYVRAEQKDRQHTLKHFEHVRMVDPKKAAQIRSQVMTHLRVIYERMNQSLSLLYNVPAVAEEIQDEVDELLQKEQNYSDDVLANMISEPRISYGNDALMPSLTETKTTVELLPVNGEFSLDDLQPWHSFGADSVPANTENEVEPVDARPAADRGLTTRPGSGLTNIKTEEISEVKMDAEFRHDSGYEVHHQKLVFFAEDVGSNKGAIIGLMVGGVVIATVIVITLVMLKKKQYTSIHHGVVEVDAAVTPEERHLSKMQQNGYENPTYKFFEQMQN.

MmApp (NCBI Reference Sequence: NP_031497.2)

Request a detailed protocol

MLPSLALLLLAAWTVRALEVPTDGNAGLLAEPQIAMFCGKLNMHMNVQNGKWESDPSGTKTCIGTKEGILQYCQEVYPELQITNVVEANQPVTIQNWCKRGRKQCKTHTHIVIPYRCLVGEFVSDALLVPDKCKFLHQERMDVCETHLHWHTVAKETCSEKSTNLHDYGMLLPCGIDKFRGVEFVCCPLAEESDSVDSADAEEDDSDVWWGGADTDYADGGEDKVVEVAEEEEVADVEEEEADDDEDVEDGDEVEEEAEEPYEEATERTTSTATTTTTTTESVEEVVRVPTTAASTPDAVDKYLETPGDENEHAHFQKAKERLEAKHRERMSQVMREWEEAERQAKNLPKADKKAVIQHFQEKVESLEQEAANERQQLVETHMARVEAMLNDRRRLALENYITALQAVPPRPHHVFNMLKKYVRAEQKDRQHTLKHFEHVRMVDPKKAAQIRSQVMTHLRVIYERMNQSLSLLYNVPAVAEEIQDEVDELLQKEQNYSDDVLANMISEPRISYGNDALMPSLTETKTTVELLPVNGEFSLDDLQPWHPFGVDSVPANTENEVEPVDARPAADRGLTTRPGSGLTNIKTEEISEVKMDAEFGHDSGFEVRHQKLVFFAEDVGSNKGAIIGLMVGGVVIATVIVITLVMLKKKQYTSIHHGVVEVDAAVTPEERHLSKMQQNGYENPTYKFFEQMQN.

appl (Drosophila melanogaster) (NCBI Reference Sequence: NP_001245451.1)

Request a detailed protocol

mcaalrrnlllrslwvvlaigtaqvqaasprwepqiavlceagqiyqpqylseegrwvtdlskkttgptclrdkmdlldyckkaypnrditnivesshyqkiggwcrqgalnaakckgshrwikpfrclgpfqsdallvpegclfdhihnasrcwpfvrwnqtgaaacqergmqmrsfamllpcgisvfsgvefvccpkhfktdeihvkktdlpvmpaaqinsandelvmndeddsndsnyskdaneddlddeddlmgddeeddmvadeaataggspntgssgdsnsgslddinaeydsgeegdnyeedgagseseaeveaswdqsggakvvslksdssspssapvapapekapvksesvtstpqlsasaaafvaansgnsgtgagappstaqptsdpyfthfdphyehqsykrleeshrekvtrvmkdwsdleekyqdmrladpkaaqsfkqrmtarfqtsvqaleeegnaekhqlaamhqqrvlahinqrkreamtcytqalteqppnahhvekclqkllralhkdrahalahyrhllnsggpggleaaaserprtlerlididravnqsmtmlkrypelsakiaqlmndyilalrskddipgsslgmseeaeagildkyrveierkvaekerlrlaekqrkeqraaereklreeklrleakkvddmlksqvaeqqsqptqsstqsqaqqqqqekslpgkelgpdaalvtaanpnlettksekdlsdteygeatvsstkvqtvlptvdddavqravedvaaavahqeaepqvqhfmthdlghressfslrrefaqhahaakegrnvyftlsfagialmaavfvgvavakwrtsrsphaqgfievdqnvtthhpivreekivpnmqingyenptykyfevke.

Quantitative real-time PCR (qRT-PCR)

Request a detailed protocol

Cells were lysed for RNA or protein extraction and then subjected to qRT-PCR or western blots as previously described (Liu et al., 2014). The detailed sequence of each primer used in the whole study for qRT-PCR were summarized below : β-actin, sense 5'- TCCATCATGAAGTGTGACGT-3' and anti-sense 5'- GAGCAATGATCTTGATCTTCAT −3', mAPP, sense 5'- CATCCAGAACTGGTGCAAGCG-3' and anti-sense 5'- GACGGTGTGCCAGTGAAGATG −3' GAPDH, sense 5'- GCTGCCAAGGCTGTGGGCAAG-3' and anti-sense 5'- GCCTGCTTCACCACCTTC −3'.

Western blots

Request a detailed protocol

Western blots were performed follow the user guide of Mini Gel Tank (ThermoFisher, A25977) with little modified. Briefly, Protein samples collected from total cell lysates with RIPA buffer, supernatant were collected after centrifugation, denatured samples were loaded separated on the 4–12% polyacrylamide gels (SDS-PAGE) (ThermoFisher, NW04122BOX) and then transferred to the 0.42 µm nitrocellulose membranes, blots visualization performed after primary and secondary antibody incubation.

Immunoprecipitation

Request a detailed protocol

Human embryonic kidney (HEK293) cells (provided from Dr. Marie-Claude Potier) were purchased from ATCC, regularly mycoplasma test performed by the CELIS core facility of ICM. For the immunoprecipitation experiments, HEK293in 10 cm dish (70% confluent) were transfected with pCDNA3-MmApp-FLAG-IRES-eGFP, pCDNA3-mAPPΔCRD-FLAG-IRES-eGFP, pCDNA3-Wnt5a-myc, pCDNA-Wnt3A-V5 or co-transfected APP or APPΔCRD with Wnt3a or Wnt5a. Three days after transfection, cells were collected with NP-40 lysis buffer, then sample supernatant was collected after >12000 rpm centrifugation for 20 min at 4°C, 450 µl supernatant was incubated with primary antibody overnight at 4°C, then Protein G sepharose beads (Thermo Fisher Scientific) were added to the sample to capture protein-antibody complex by rotating 2 hr at room temperature, then washed four times with the lysis buffer, and resuspended with loading buffer then denatured at 95 degree for 10 min, blots visualized after western blot procedure as described before.

Immunofluorescence

Request a detailed protocol

At DIV 7, cultured primary neurons in 24 wells were washed once with 1X PBS, then fixed in 4% paraformaldehyde (PFA) in PBS at room temperature (RT) for 10 min. After three times washing with 1X PBS, cells were blocked with 10% normal donkey or goat serum in 1 X PBS for 30 min at RT followed by three times washing in 1 X PBS. Thereafter, cells were incubated with primary antibodies diluted in 1 X PBS containing 1% normal donkey or goat serum for 2–3 hr at RT. three times washing with 1 X PBS, incubated with appropriate secondary antibodies conjugated with Alexa Fluor 488, Alexa Fluor 555, or Alexa Fluor 647 (1:500, Invitrogen) in 1 X PBS containing 1% normal donkey or goat serum for 1 hr at RT. Washed with 1 X PBS for three times, then counterstained the slides with DAPI (1:2000, Sigma) and mounted by using Vectashield (Vector) after rinsing. Primary antibodies used in this study were rabbit anti-APP (1:100, Synaptic Systems, 127 003), mouse anti-rab5 (1:100, Synaptic Systems, 108011), mouse anti-rab11a (1:20, Santa Cruz, sc-166523), mouse anti- Golgin-97 (1:100, Invitrogen, A-21270), rat anti-Lamp1 (1:20, Santa Cruz, sc-19992). After staining, images were obtained by using confocal microscope (Olympus FV-1200 or Leica SP8). The percentage of APP or APP-ΔCRD co-localizing with rab5, rab11, Golgin-97 and Lamp1 was calculated using JACOP (Bolte and Cordelières, 2006).

Statistical analyses

Request a detailed protocol

Statistical analyses were performed using GraphPad Prism software (GraphPad Software Inc, La Jolla, CA, USA). Differences between groups were compared using the Student’s t test, One-way ANOVA and Mann Whitney two-sample test (two-tail) as appropriate.

Data availability

No new datasets were generated in this study.

References

Decision letter

  1. Hugo J Bellen
    Reviewing Editor; Baylor College of Medicine, United States
  2. K VijayRaghavan
    Senior Editor; National Centre for Biological Sciences, Tata Institute of Fundamental Research, India

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

[Editors' note: this paper was reviewed by Review Commons.]

Acceptance summary:

Your manuscript documents interactions between APP and Wnt ligands. Interestingly, both the canonical Wnt ligand Wnt3a and noncanonical Wnt ligand Wnt5a are able to bind to a conserved Cysteine Rich Domain (CRD) in the extracellular portion of APP, Your work provides compelling evidence that the CRD is critical for APP to regulate proper neurite outgrowth and neurite complexity. Moreover, your data indicate that Wnt3a binds to APP and promotes APP recycling and stability. In contrast, Wnt5a binds to APP and negatively affects APP stability. Overall, this study is novel and will generate interest in the fly and AD community..

https://doi.org/10.7554/eLife.69199.sa1

Author response

Reviewer #1

Evidence, reproducibility and clarity:

In this manuscript, Liu et al. studied the interactions between APP and Wnt ligands. It was found that both canonical Wnt ligand Wnt3a and noncanonical Wnt ligand Wnt5a are able to bind to the conserved Cysteine Rich Domain (CRD) in the extracellular portion of APP, and that the CRD is critical for APP to regulate neurite outgrowth and complexity. While Wnt3a binds to APP and promotes APP recycling and stability, Wnt5a binds to APP and exhibits an opposite effect on APP stability. Overall, the study is novel and interesting.

We thank the reviewer for the positive comments on the novelty and interest of the work.

Major comments:

While the findings and conclusions in this manuscript are solid, the authors should perform additional experiments to characterize the interactions between Wnt ligands and APP and determine subsequent effects on Wnt signaling and Aβ production.

We thank the reviewer for the positive comments on the strength of the evidence and address their specific comets below.

1. It is unclear whether Wnt3a and Wnt5a have the same binding site or different binding sites within the CRD of APP, and whether Wnt3a and Wnt5a compete with one another for binding.

We note that our data suggest that Wnt3a and Wnt5a do compete for APP binding. This is because while Wnt3a increases APP levels and Wnt5a decreases it, treatment with both ligands at the same time restores APP protein back to control levels. Furthermore, CRD domain folding is thought to require disulfide bonds between the Cysteine residues, and it is therefore quite unlikely that further dissection of the CRD will yield meaningful results Generally, while we agree that determining the precise biochemical properties required for APP-Wnt interactions is interesting, we believe that going into such level of detail is beyond the scope of this work.

2. It is unclear whether the interactions between Wnt ligands and APP modulate Wnt signaling. Specifically, are the canonical and noncanonical Wnt pathways activated after Wnt3a binding and Wnt5a binding, respectively?

We and others have previously shown that APP is a key component in both Wnt canonical and non-canonical signaling groups [1,3] and these findings were the reason why we tested if APP might directly interact with Wnt ligands. We have now performed IF and WB with β-catenin, Dvll and Dvl2 antibodies. Unfortunately, only the Β-catenin antibody worked in WB experiments on primary neurons. We find that Wnt3a treatment increases levels of β-Catenin in control but not APP-KO primary neurons, consistent with previous findings in cell lines that APP enhances canonical Wnt signaling. These data are now presented in Figure 4—figure supplement 1 and on page 8 of the revised manuscript.

3. It has been demonstrated that canonical Wnt signaling inhibits neurite outgrowth. In Figure 6, it was shown that mAPP knockout neurons exhibited increased axonal outgrowth, which was rescued by the fl-mAPP but not by the form lacking the CRD at DIV3. Therefore, the authors should determine whether the APP effect on neurite outgrowth is associated with an activation of canonical Wnt signaling. Specifically, does the fl-mAPP facilitate activation of canonical Wnt signaling in neurons? If yes, does the APP lacking the CRD lost its ability on canonical Wnt signaling?

This is an excellent suggestion to disentangle the effects of each of the two pathways on APP-mediated neurite outgrowth. To address this issue we treated neurons expressing either fl-APP or APP-Δ-CRD with Wnt3a or Wnt5a and measured the effect on APP-dependent axon and dendrite growth on DIV3 and DIV7.

On DIV 3 we found that at DIV3 Wnt3a treatment significantly significant increased total axon length, the length of longest axon and axon branch tips in the presence of fl-APP but not APP-Δ-CRD (revision Figure 2 A, B, C). These data suggest that APP mediates Wnt3a effects on axonal outgrowth. In contrast to Wnt3a, Wnt5a treatment had no effect in the presence of fl-APP but resulted in increased axonal length when the CRD domain was removed. These data show that APP normally protects axons from the effects of Wnt5a at this developmental stage and that the CRD is also required for this. Thus, APP promotes Wnt3a and antagonizes Wnt5a effects on neurons at DIV 3 via the CRD domain.

Similarly, on DIV7 we found a positive Wnt3a effect on axon complexity which was observed in the presence of fl-APP but not APP-Δ-CRD. In contrast Wnt5a had no effect. Finally, we found that treatment with either Wnt3a or Wnt5a decreases the number of the main dendrites in the presence of fl-APP and the effect is absent or even reversed in the presence of APP-Δ-CRD.

Together, these data show that the CRD of APP is required for Wnt3a/5a to regulate neurite outgrowth in cortical primary neurons. We will add these data to the revised manuscript.

These data are now presented in Figure 8 and on pages 11-12 of the revised manuscript.

4. It is unclear whether the interactions between Wnt ligands and APP modulate Aβ production, and whether Wnt3a and Wnt5a have different effects on Aβ production after their binding to the CRD of APP.

We have tested Aβ40 and Aβ 42 production in primary cortical neurons after 4 hours treatment of Wnt3a or Wnt5a at DIV7. Briefly, after a 4-hour treatment with Wnt3a/5a, supernatant was collected at 4 hours and at 24hours for Aβ detection using MSD kit. Our data shows that a 4-hour Wnt3a/5a treatment has a long-lasting effect on Aβ40/42 production and that those effects are antagonistic. Consistent with Wnt3a favoring recycling of APP we found that Wnt3a treatment significantly decrease Aβ40/42 production. In contrast, Wnt5a treatment, which indices APP internalization into acidic compartments, resulted in an increase in Aβ40/42 producing. Importantly, these data are in accordance with other reports that Wnt/catenin pathway favors non-amyloidogenic APP processing while Wnt/PCP signaling does the opposite.

These data are now presented in Figure 4—figure supplement 2 and on pages 8-9 of the revised manuscript.

Minor comments:

1. The authors should provide detail information on the APP plasmid construct hAPPΔCRD. Specifically, which amino acid residues are removed from the extracellular portion of APP?

The exact amino acid sequence of APP/APP-ΔCRD within plasmids or virus we used in our experiments have been added to the revised manuscript in the Materials and methods section pages 18-20.

2. It has been reported that APP co-activates both the canonical and noncanonical Wnt pathways through physical interactions with Wnt co-receptors LRP6 and Vangl2, respectively (ref. 24). Interestingly, some LRP6-binding sites are also located in the CRD of APP. Therefore, more discussions are needed to address this relevance.

A discussion of this interesting point was added to the revised manuscript on pages 13-14.

Significance:

APP is central to the study of AD. It is also established that dysregulation of Wnt signaling contributes to AD pathogenesis. Therefore, the study on the interactions between APP and Wnt ligands is significant, and the finding of Wnt ligand-binding to APP described in this manuscript is novel and interesting. However, in Figure 3F and Figure 4F, the concentrations of Wnt5a and Wnt3a were 400 ng/ml and 150 ng/ml, respectively, for modulating APP level/stability in DIV7 primary cortical neurons. These are quite high concentrations and difficult to be reached at pathophysiological conditions (particularly for Wnt5a). Therefore, the pathophysiological significance of the interactions between Wnt ligands and APP is unclear.

We thank the reviewer for the positive comments. We note that the concentrations we used mirror (and are even less than in some cases) what is used in the literature which is why we used them. However, we have now tested different doses in the Aβ40/42 experiments and find similar effects for Wnt3a and the same trend for lower doses of Wnt5a.

These data are now presented in Figure 4—figure supplement 2 and on pages 8-9 of the revised manuscript.

Reviewer #2

Evidence, reproducibility and clarity:

The manuscript submitted by Liu and colleagues described an interesting observation that the amyloid precursor protein (APP) binds to Wnt ligands Wnt3a and Wnt5a; this binding regulates APP protein level and neuronal development in vivo and in vitro. Authors used multiple approaches to show that APP is a Wnt receptor for Wnt5a and Wnt3a, including the use of a Drosophila genetic model, APP KO, and a neuronal lentivirus-mediated transduction model. They found that Wnt-mediated function requires the region of extracellular Cysteine Rich Domain. Experiments in this study were well designed and the data were compelling. The conclusion is supported by the experimental results.

We thank the reviewer for the positive comments on the quality of the work.

Major Concerns:

The authors should perform dot blot, solid phase, and/or biolayer interferometry analysis experiments to measure the binding affinity of Wnts binds to APP.

Wnts are notoriously “sticky” proteins in vitro and we were not convinced that such experiments will yield easy to interpret results. Nonetheless, we did attempt solid-phase measurements using commercial ELISA kits. We performed the solid-phase experiment with pre-coated anti-flag ELISA plate (Genescript, Cat.No L00455C). First, we tested if the anti-flag plate work by detecting the APP-flag from cell lysate of HEK 293 transfected with APP-flag or GFP control plasmid and follow the official manual. Briefly, 100ul cell lysate (APP-flag or GFP) of gradient concentration (100%-0.78125%) was added to the wells and incubated for 2 hours at room temperature. After washing, anti-APP antibody was added for another 1hour, then incubated with secondary HRP antibody for 1 hour before adding the TMB substrate. Absorbance was read on a microplate reader at 370 nm. Results, shown in panel A of Author response image 1, indicate the plate works well as the absorbance of APP-flag increased following the increasing concentration but not that of the GFP control.

Then we tried to test the binding affinity between APP-flag and Wnt3a. Different concentrations of Wnt3a (100nM-0.046nM) were added to the wells for 2-3 hours after the incubation of APP-flag, GFP or APP-deltaCRD cell lysate, or PBT to control for binding of Wnt3a alone to the plate. Similarly, we used an “antibody only” test where no Wnt3a was added. This was followed by adding Wnt3a antibody and HRP-conjugated secondary antibody, absorbance was read at 370nm after TMB substrate incubation. As shown in panel B of Author response image 1 the Wnt3a only test shows the same absorbance trend compare with APP, GFP and APP-ΔCRD group. Those results indicate that Wnt3a shows string non-specific binding to the plate, precluding any further testing with this approach. We found exactly the same results with Wnt5a.

Author response image 1
APP-Wnt binding affinity test by solid-phase.

Significance:

This study reveals a new function of APP as a receptor for Wnt and may provide some pieces of evidence to explain why abnormal Wnt pathway regulates Aβ generation and accumulation in AD.

We agree with the reviewer that the physiological function of APP as a Wnt co-receptor is likely to be key to its role in AD and have now new data showing the effects of Wnts on Aβ production in neurons.

Reviewer #3

Evidence, reproducibility and clarity:

While amyloid-β (Aβ) cleaved from amyloid precursor protein (APP) is a key molecule in the pathogenesis of Alzheimer’s disease (AD), APP and its homologues have been shown to mediate various aspects of neuronal development and activity. In this manuscript, Authors have found that Wnt3a and Wnt5a bind to cysteine rich domain (CRD) of APP and differently regulates APP trafficking and levels, which influence axonal and dendritic growth of neurons. Although their finding is potentially important, they lack the impact because the links between APP and Wnt pathways have been reported. Also, there are several concerns as follow.

We thank the reviewer for the positive comments on the potential importance of the work. We note that both reviewers 1 and 2 described the work as significant and novel. While we agree that a link between APP and Wnt signaling has been described, and our group was one of the first to demonstrate this in vivo, we stress that the exact nature of this link has remained entirely unclear. Showing that APP directly interacts with Wnts ligands and examining why those ligands might have antagonistic effects on APP-dependent processes is a very significant step forward in providing a clear link between the physiological function of APP at the molecular and cellular levels and its potential role in AD. The lack of this link has hitherto been a source of major controversy in the field as to whether APP’s physiological function had any relevance to AD at all. Our data, as well as new experiments we performed provide very strong evidence that this is the case.

Major Concerns:

1. Although authors described that APPL mediates Wnt5a function in axonal growth through Figure 1, it is too conclusive because the effect of Wnt5 is not so evident in the figure. The results should be confirmed using Wnt5 overexpression approach in addition to knockout.

We do not agree that Wnt5 overexpression in Drosophila is a helpful experiment. The loss of Wnt5 causes little effects on mushroom body β lobe outgrowth, but completely rescues loss Of Vang, but not loss of Appl. These are very strong genetic epistasis data that allow clear conclusions that the effect of Wnt5 on the pathway absolutely requires APP.

2. It is insufficiently addressed how deletion of APP-CRD influence the β-catenin canonical pathway, the PCP signaling pathway and/or the calcium pathway in Wnt signaling.

We and others have previously shown that APP is a key component in both Wnt canonical and non-canonical signaling groups [1,3]. We have now performed IF and WB with β-catenin, Dvll and Dvl2 antibodies. Unfortunately, only the Β-catenin antibody worked in WB experiments on primary neurons. We find that Wnt3a treatment increases levels of β-Catenin in control but not APP-KO primary neurons, consistent with previous findings in cell lines that APP enhances canonical Wnt signaling. These data are now presented in Figure 4—figure supplement 1 and on page 8 of the revised manuscript.

3. Does Wnt induce the endocytosis of Frizzled and LRP5/6 or specific APP? Will be those Wnt receptors co-localized with APP after exposure to Wnt?

While we agree that it is per interesting to know whether Wnts regulate other receptors similarly or differently to APP, we do not feel that this is relevant to our work at this stage. There are many receptors and co-receptors for Wnts, including many members of the Frizzled and LRP families as well DRKs and Vang family members and so on. Studying how each of those responds to Wnt treatment in primary cortical neurons and whether that is correlated to APP dynamics is in and of itself an entire study that requires first establishing whether these receptors are expressed in these neurons, how they are normally localized and then if and how they interact with APP in the presence of absence of APP with or without the CRD domain. This would be very interesting as a future research avenue. We have data showing that in HEK cells Wnt5a addition changes the colocalization of Drosophila Vang and APPL in a CRD-dependent manner (Author response image 2) and can add them to the revised manuscript if the reviewer feels this is crucial, but prefer not add this dimension to the current work.

Author response image 2
Wnt5a regulates APPL-Vang co-localization.

4. To assess APP trafficking, only one time point is not sufficient. It is also unclear how much APP localizes in recycling endosomes after exposure to Wnt?

To address this question, we examined APP distribution in our 3 genetic conditions (APP-WT, APPKO rescued with APP and APPKO rescued APP-ΔCRD) at 2 hours after Wnt addition. We found that Wnt treatment induces re-localization of APP at already at 2 hours with the same pattern observed at 4 hours: Wnt3a caused re-loclaization of APP to the TGN in a CRD-depedent manner while Wnt5a treatment caused re-localization to the lysosome in a CDR-depdent manner. In terms of recycling endosomes, we used Rab11 as a marker (the Rab4 antibody did not work in our hands) We find that neither Wnt3a nor Wnt5a has an effect on the fraction of APP localized to Rab11+ recuclcing endosomes, either at 2 hours or at 4 hours.

These data are now presented in Figure 3—figure supplement 3 and on pages 7, 8, 9, 10 of the revised manuscript.

5. While Wnt may influence APP processing, there is no attempt to assess how deletion of APP-CRD influence APP processing

We are not quite sure what precise modification the reviewer is exactly referring to with the term APP “processing”. We assumed the reviewer is referring to Aβ production. We therefroe tested Aβ40 and Aβ 42 production in primary cortical neurons after 4 hours treatment of Wnt3a or Wnt5a at DIV7. Briefly, after a 4-hour treatment with Wnt3a/5a, supernatant was collected at 4 hours and at 24hours for Aβ detection using MSD kit. Our data shows that a 4-hour Wnt3a/5a treatment has a long-lasting effect on Aβ40/42 production and that those effects are antagonistic. Consistent with Wnt3a favoring recycling of APP we found that Wnt3a treatment significantly decrease Aβ40/42 production. In contrast, Wnt5a treatment, which indices APP internalization into acidic compartments, resulted in an increase in Aβ40/42 producing. Importantly, these data are in accordance with other reports that Wnt/catenin pathway favors non-amyloidogenic APP processing while Wnt/PCP signaling does the opposite.

These data are now presented in Figure 4—figure supplement 2 and on pages 8-9 of the revised manuscript.

To address a role for the CRD in this process, we attempted to restore Fl-APP or APP-ΔCRD expression to APP-KO neurons using viral transduction. This proved to be very difficult as levels of both proteins were significantly lower than what is normally present, especially that of APP-ΔCRD, which was expressed at much lower levels (Author response image 3) precluding normalized quantitative comparison between APP and APP-ΔCRD in terms of Aβ40 and Aβ 42 production. Thus, while it is clear that Wnt treatment alters APP proteolysis and Aβ40 and Aβ 42 production, we can surmise ths is due Wnt binding to the APP CRD but cannot be certain at this stage.

Author response image 3
APP and APP-ΔCRD protein expression after virus transduction at DIV7.

6. Because different concentrations of Wnt3a and Wnt5a are used at one dosage, it might be difficult to compare their effects properly.

Different concentrations (and even higher than those we use) of Wnt3a and Wnt5a are used in published literature on the topic [2,4–6]. However, we have now tested different doses in the Aβ40/42 experiments and find similar effects for Wnt3a and the same trend for lower doses of Wnt5a.

These data are now presented in Figure 4—figure supplement 2 and on pages 8-9 of the revised manuscript.

7. There is no evidence showing that endogenous levels of Wnt can directly bind to APP-CRD. Binding affinities of Wnt3a and Wnt5a to APP-CRD should be examined.

Wnts are notoriously “sticky” proteins in vitro and we were not convinced that such experiments will yield easy to interpret results. Nonetheless, we did attempt solid-phase measurements using commercial ELISA kits. We performed the solid-phase experiment with pre-coated anti-flag ELISA plate (Genescript, Cat.No L00455C). First, we tested if the anti-flag plate work by detecting the APP-flag from cell lysate of HEK 293 transfected with APP-flag or GFP control plasmid and follow the official manual. Briefly, 100ul cell lysate (APP-flag or GFP) of gradient concentration (100%-0.78125%) was added to the wells and incubated for 2 hours at room temperature. After washing, anti-APP antibody was added for another 1hour, then incubated with secondary HRP antibody for 1 hour before adding the TMB substrate. Absorbance was read on a microplate reader at 370 nm. Results, shown in panel A of Author response image 1, indicate the plate works well as the absorbance of APP-flag increased following the increasing concentration but not that of the GFP control.

Then we tried to test the binding affinity between APP-flag and Wnt3a. Different concentrations of Wnt3a (100nM-0.046nM) were added to the wells for 2-3 hours after the incubation of APP-flag, GFP or APP-deltaCRD cell lysate, or PBT to control for binding of Wnt3a alone to the plate. Similarly, we used an “antibody only” test where no Wnt3a was added. This was followed by adding Wnt3a antibody and HRP-conjugated secondary antibody, absorbance was read at 370nm after TMB substrate incubation. As shown in panel B of Author response image 1 the Wnt3a only test shows the same absorbance trend compare with APP, GFP and APP-ΔCRD group. Those results indicate that Wnt3a shows string non-specific binding to the plate, precluding any further testing with this approach. We found exactly the same results with Wnt5a.

8. Other molecules might interact with APP-CRD in addition to Wnt. Additional experiments are necessary to investigate whether Wnt-APP interaction mediates the phenotypes for neurite outgrowth in Figure 6 and 7.

This is an excellent suggestion to disentangle the effects of each of the two pathways on APP-mediated neurite outgrowth. To address this issue we treated neurons expressing either fl-APP or APP-Δ-CRD with Wnt3a or Wnt5a and measured the effect on APP-dependent axon and dendrite growth on DIV3 and DIV7.

On DIV 3 we found that at DIV3 Wnt3a treatment significantly significant increased total axon length, the length of longest axon and axon branch tips in the presence of fl-APP but not APP-Δ-CRD (revision Figure 2 A, B, C). These data suggest that APP mediates Wnt3a effects on axonal outgrowth. In contrast to Wnt3a, Wnt5a treatment had no effect in the presence of fl-APP but resulted in increased axonal length when the CRD domain was removed. These data show that APP normally protects axons from the effects of Wnt5a at this developmental stage and that the CRD is also required for this. Thus, APP promotes Wnt3a and antagonizes Wnt5a effects on neurons at DIV 3 via the CRD domain.

Similarly, on DIV7 we found a positive Wnt3a effect on axon complexity which was observed in the presence of fl-APP but not APP-Δ-CRD. In contrast Wnt5a had no effect. Finally, we found that treatment with either Wnt3a or Wnt5a decreases the number of the main dendrites in the presence of fl-APP and the effect is absent or even reversed in the presence of APP-Δ-CRD.

Together, these data show that the CRD of APP is required for Wnt3a/5a to regulate neurite outgrowth in cortical primary neurons. We will add these data to the revised manuscript.

These data are now presented in Figure 8 and on pages 11-12 of the revised manuscript.

9. It is more informative to assess how APP overexpression influences Wnt signaling.

We are not in full agreement with this comment. Overexpression is rarely, if ever, more informative than loss of function when trying to determine the physiological function of a protein. There is a very good reason why overexpression models of APP have so far failed to yield profound insight into its physiological activity or to properly model AD.

Significance:

It is significant to define physiological roles of APP. It is interesting if Wnt3a and Wnt5a differently mediate Wnt pathway through APP.

We thank the reviewer for this positive comment on the significance of our work.

References

1. Soldano, A., Okray, Z., Janovska, P., Tmejová, K., Reynaud, E., Claeys, A., Yan, J., Atak, Z.K., De Strooper, B., Dura, J.-M., et al. (2013). The Drosophila Homologue of the Amyloid Precursor Protein Is a Conserved Modulator of Wnt PCP Signaling. PLoS Biol. 11, e1001562. Available at: https://dx.plos.org/10.1371/journal.pbio.1001562 [Accessed April 5, 2021].

2. Paina, S., Garzotto, D., DeMarchis, S., Marino, M., Moiana, A., Conti, L., Cattaneo, E., Perera, M., Corte, G., Calautti, E., et al. (2011). Wnt5a is a transcriptional target of Dlx homeogenes and promotes differentiation of interneuron progenitors in vitro and in vivo. J. Neurosci. 31, 2675–2687. Available at: www.jneurosci.org [Accessed April 5, 2021].

3. Elliott, C., Rojo, A.I., Ribe, E., Broadstock, M., Xia, W., Morin, P., Semenov, M., Baillie, G., Cuadrado, A., Al-Shawi, R., et al. (2018). A role for APP in Wnt signalling links synapse loss with β-amyloid production. Transl. Psychiatry 8, 179. Available at: http://www.nature.com/articles/s41398-018-0231-6 [Accessed April 1, 2019].

4. Horigane, S.I., Ageta-Ishihara, N., Kamijo, S., Fujii, H., Okamura, M., Kinoshita, M., Takemoto-Kimura, S., and Bito, H. (2016). Facilitation of axon outgrowth via a Wnt5a-CaMKK-CaMKIα pathway during neuronal polarization. Mol. Brain 9, 8. Available at: https://molecularbrain.biomedcentral.com/articles/10.1186/s13041-016-0189-3 [Accessed April 5, 2021].

5. Clark, C.E.J., Richards, L.J., Stacker, S.A., and Cooper, H.M. (2014). Wnt5a induces Ryk-dependent and -independent effects on callosal axon and dendrite growth. Growth Factors 32, 11–17. Available at: http://www.tandfonline.com/doi/full/10.3109/08977194.2013.875544 [Accessed April 2, 2021].

6. Li, L., Fothergill, T., Hutchins, B.I., Dent, E.W., and Kalil, K. (2014). Wnt5a evokes cortical axon outgrowth and repulsive guidance by tau mediated reorganization of dynamic microtubules. Dev. Neurobiol. 74, 797–817. Available at: https://onlinelibrary.wiley.com/doi/10.1002/dneu.22102 [Accessed April 2, 2021].

https://doi.org/10.7554/eLife.69199.sa2

Article and author information

Author details

  1. Tengyuan Liu

    1. Paris Brain Institute – Institut du Cerveau, Sorbonne Université, Inserm, CNRS, Hôpital Pitié-Salpêtrière, Paris, France
    2. Doctoral School of Biomedical Sciences, Leuven, Belgium
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  2. Tingting Zhang

    1. Paris Brain Institute – Institut du Cerveau, Sorbonne Université, Inserm, CNRS, Hôpital Pitié-Salpêtrière, Paris, France
    2. Doctoral School of Biomedical Sciences, Leuven, Belgium
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Maya Nicolas

    1. Doctoral School of Biomedical Sciences, Leuven, Belgium
    2. Center for Brain and Disease, Leuven, Belgium
    3. Center for Human Genetics, University of Leuven School of Medicine, Leuven, Belgium
    Present address
    School of Sciences and Engineering, The American University in Cairo, Cairo, Egypt
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing - original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7148-6357
  4. Lydie Boussicault

    Paris Brain Institute – Institut du Cerveau, Sorbonne Université, Inserm, CNRS, Hôpital Pitié-Salpêtrière, Paris, France
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Heather Rice

    1. Center for Brain and Disease, Leuven, Belgium
    2. Center for Human Genetics, University of Leuven School of Medicine, Leuven, Belgium
    Present address
    Department of Biochemistry and Molecular Biology, Oklahoma Center for Geroscience and Heathy Brain Aging, University of Oklahoma Health Sciences Center, Oklahoma, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Alessia Soldano

    1. Center for Brain and Disease, Leuven, Belgium
    2. Center for Human Genetics, University of Leuven School of Medicine, Leuven, Belgium
    Present address
    Laboratory of Translational Genomics, Department of Cellular, Computational and Integrative Biology (CIBIO), University of Trento, Trento, Italy
    Contribution
    Conceptualization, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3120-9929
  7. Annelies Claeys

    1. Center for Brain and Disease, Leuven, Belgium
    2. Center for Human Genetics, University of Leuven School of Medicine, Leuven, Belgium
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  8. Iveta Petrova

    Laboratory of Developmental Neurobiology, Department of Molecular Cell Biology, Leiden University Medical Center, Leiden, Netherlands
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  9. Lee Fradkin

    Laboratory of Developmental Neurobiology, Department of Molecular Cell Biology, Leiden University Medical Center, Leiden, Netherlands
    Contribution
    Conceptualization, Supervision, Funding acquisition
    Competing interests
    No competing interests declared
  10. Bart De Strooper

    1. Center for Brain and Disease, Leuven, Belgium
    2. UK Dementia Research institute at University College London, London, United Kingdom
    Contribution
    Supervision, Funding acquisition
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5455-5819
  11. Marie-Claude Potier

    Paris Brain Institute – Institut du Cerveau, Sorbonne Université, Inserm, CNRS, Hôpital Pitié-Salpêtrière, Paris, France
    Contribution
    Supervision, Funding acquisition
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2462-7150
  12. Bassem A Hassan

    Paris Brain Institute – Institut du Cerveau, Sorbonne Université, Inserm, CNRS, Hôpital Pitié-Salpêtrière, Paris, France
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    bassem.hassan@icm-institute.org
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9533-4908

Funding

China Scholarship Council

  • Tengyuan Liu

Hersenstichting (HS 2011(1)-46)

  • Lee Fradkin

Lebanese National Council for Scientific Research

  • Maya Nicolas

Vlaams Instituut voor Biotechnologie

  • Bart De Strooper
  • Bassem A Hassan

Fondation Roger de Spoelberch (1911001IN)

  • Bassem A Hassan

Agence Nationale de la Recherche (ANR-10-IAIHU-06)

  • Marie-Claude Potier
  • Bassem A Hassan

Fonds Wetenschappelijk Onderzoek (G.0543.08)

  • Bassem A Hassan

Neuron-Glia Foundation (2003009NA)

  • Bassem A Hassan

KU Leuven (Methusalem)

  • Bart De Strooper
  • Bassem A Hassan

Nederlandse Organisatie voor Wetenschappelijk Onderzoek (40-00812-98-10058)

  • Lee Fradkin

Fonds Wetenschappelijk Onderzoek (G.0680.10)

  • Bassem A Hassan

Fonds Wetenschappelijk Onderzoek (G.0681.10)

  • Bassem A Hassan

Fonds Wetenschappelijk Onderzoek (G.0503.12)

  • Bassem A Hassan

Agence Nationale de la Recherche (ANR-11-INBS-0011-NeurATRIS)

  • Marie-Claude Potier
  • Bassem A Hassan

Agence Nationale de la Recherche (ANR-12-MALZ-0004)

  • Marie-Claude Potier
  • Bassem A Hassan

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr. Radoslaw Ejsmont for writing the co-localization macro, Natalia Danda for the construction of the plasmids used in this work, Drs. Ariane Ramaekers, Natalia Mora Garcia, Gerit Linneweber, Simon Weinberger and Guangda Liu for helpful discussions. We thank Drs. Zeynep Kalender Atak and Marina Naval Sanchez for support on the statistical analysis of the data and Dr. Jean-Maurice Dura for fly lines. Mouse breeding work was conducted at the PHENO-ICMice facility. The Core is supported by 2 Investissements d’Avenir grants (ANR-10- IAIHU-06 and ANR-11-INBS-0011-NeurATRIS) and the ‘Fondation pour la Recherche Médicale’. Primary neuron culture work was carried out at the CELIS core facility with support from Program Investissements d’Avenir (ANR-10-IAIHU-06). Light microscopy was carried out at the ICM.Quant facility. We thank all core technical staff involved. We thank Philippe Ravassard for providing the pSYN lentiviral vector backbone and Blandine Bonnamy and Clementine Ripoll from iVECTOR core facolity for technical assistance and production of the lentiviral vectors. This work was supported by Fonds Wetenschappelijke Onderzoeks (FWO) grants G.0543.08, G.0680.10, G.0681.10 and G.0503.12, the program ‘Investissements d’avenir’ ANR-10-IAIHU-06, the Einstein-BIH program, the Neuro-Glia Foundation, a Sorbonne Université Emergence grant, an Allen Distinguished Investigator Award and the Roger De Spoelberch Foundation Prize (to BAH), ANR-12-MALZ-0004 grant (to MCP), the Vlaams Instituut voor Biotechnologie and the Methusalem grants from KU Leuven (to BDS and BAH), the Nederlandse Organisatie voor Wetenschappelijk Onderzoek (NWO; ZonMw TOP grant 40-00812-98-10058) and the Hersenstichting Nederland [HS 2011(1)−46] (to LGF), a doctoral fellowship from the Centre National de Recherche Scientifique Libanais (to MN) and Chinese Scholarship Council fellowships (to TZ and TL). The authors declare no competing financial interests.

Ethics

Animal experimentation: All experiments were done according to policies on the care and use of laboratory animals of European Communities Council Directive (2010/63). The protocols were approved by the French Research Ministry following evaluation by a specialized ethics committee (dossier number 4437).

Senior Editor

  1. K VijayRaghavan, National Centre for Biological Sciences, Tata Institute of Fundamental Research, India

Reviewing Editor

  1. Hugo J Bellen, Baylor College of Medicine, United States

Publication history

  1. Received: April 9, 2021
  2. Accepted: September 1, 2021
  3. Version of Record published: September 9, 2021 (version 1)

Copyright

© 2021, Liu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 964
    Page views
  • 164
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Lisa M Strong et al.
    Research Article Updated

    Autophagy is a cellular process that degrades cytoplasmic cargo by engulfing it in a double-membrane vesicle, known as the autophagosome, and delivering it to the lysosome. The ATG12–5–16L1 complex is responsible for conjugating members of the ubiquitin-like ATG8 protein family to phosphatidylethanolamine in the growing autophagosomal membrane, known as the phagophore. ATG12–5–16L1 is recruited to the phagophore by a subset of the phosphatidylinositol 3-phosphate-binding seven-bladedß -propeller WIPI proteins. We determined the crystal structure of WIPI2d in complex with the WIPI2 interacting region (W2IR) of ATG16L1 comprising residues 207–230 at 1.85 Å resolution. The structure shows that the ATG16L1 W2IR adopts an alpha helical conformation and binds in an electropositive and hydrophobic groove between WIPI2 ß-propeller blades 2 and 3. Mutation of residues at the interface reduces or blocks the recruitment of ATG12–5–16 L1 and the conjugation of the ATG8 protein LC3B to synthetic membranes. Interface mutants show a decrease in starvation-induced autophagy. Comparisons across the four human WIPIs suggest that WIPI1 and 2 belong to a W2IR-binding subclass responsible for localizing ATG12–5–16 L1 and driving ATG8 lipidation, whilst WIPI3 and 4 belong to a second W34IR-binding subclass responsible for localizing ATG2, and so directing lipid supply to the nascent phagophore. The structure provides a framework for understanding the regulatory node connecting two central events in autophagy initiation, the action of the autophagic PI 3-kinase complex on the one hand and ATG8 lipidation on the other.

    1. Cell Biology
    Laura Le Pelletier et al.
    Research Article

    Aging is associated with central fat redistribution and insulin resistance. To identify age-related adipose features, we evaluated the senescence and adipogenic potential of adipose-derived-stromal cells (ASCs) from abdominal subcutaneous fat obtained from healthy normal-weight young (<25y) or older women (>60y). Increased cell passages of young-donor ASCs (in vitro aging), resulted in senescence but not oxidative stress. ASC-derived adipocytes presented impaired adipogenesis but no early mitochondrial dysfunction. Conversely, aged-donor ASCs at early passages displayed oxidative stress and mild senescence. ASC-derived adipocytes exhibited oxidative stress, and early mitochondrial dysfunction but adipogenesis was preserved. In vitro aging of aged-donor ASCs resulted in further increased senescence, mitochondrial dysfunction, oxidative stress and severe adipocyte dysfunction. When in vitro aged young-donor ASCs were treated with metformin, no alteration was alleviated. Conversely, metformin treatment of aged-donor ASCs decreased oxidative stress and mitochondrial dysfunction resulting in decreased senescence. Metformin's prevention of oxidative stress and of the resulting senescence improved the cells' adipogenic capacity and insulin sensitivity. This effect was mediated by the activation of AMP-activated-protein-kinase as revealed by its specific inhibition and activation. Overall, aging ASC-derived adipocytes presented impaired adipogenesis and insulin sensitivity. Targeting stress-induced senescence of ASCs with metformin may improve age-related adipose tissue dysfunction.
