A qnr-plasmid allows aminoglycosides to induce SOS in Escherichia coli

  1. Anamaria Babosan
  2. David Skurnik
  3. Anaëlle Muggeo
  4. Gerald B Pier
  5. Zeynep Baharoglu
  6. Thomas Jové
  7. Marie-Cécile Ploy
  8. Sophie Griveau
  9. Fethi Bedioui
  10. Sébastien Vergnolle
  11. Sophie Moussalih
  12. Christophe de Champs
  13. Didier Mazel
  14. Thomas Guillard  Is a corresponding author
  1. Inserm UMR-S 1250 P3Cell, SFR CAP-Santé, Université de Reims-Champagne-Ardenne, France
  2. Assistance Publique-Hôpitaux de Paris, Department of Clinical Microbiology, Necker-Enfants Malades University Hospital, Université de Paris, 75015 Paris, France. INSERM U1151-Equipe 1, Institut Necker-Enfants Malades, Université de Paris, 75015 Paris, France. Division of Infectious Diseases, Brigham and Women’s Hospital, Harvard Medical School, Boston, MA 02115, USA., United States
  3. Inserm UMR-S 1250 P3Cell, SFR CAP-Santé, Université de Reims-Champagne-Ardenne, Reims, France. Laboratoire de Bactériologie-Virologie-Hygiène Hospitalière-Parasitologie- Mycologie, CHU Reims, Hôpital Robert Debré, France
  4. Division of Infectious Diseases, Department of Medicine, Brigham and Women's Hospital, Harvard Medical School, United States
  5. Institut Pasteur, Unité Plasticité du Génome Bactérien, CNRS UMR3525, France
  6. Université de Limoges, Inserm, CHU Limoges, RESINFIT, UMR 1092, France
  7. Chimie ParisTech, PSL Research University, CNRS, Institute of Chemistry for Life and Health Sciences, France
  8. Laboratoire d’Hématologie, CH de Troyes, France

Abstract

The plasmid-mediated quinolone resistance (PMQR) genes have been shown to promote high-level bacterial resistance to fluoroquinolone antibiotics, potentially leading to clinical treatment failures. In Escherichia coli, sub-minimum inhibitory concentrations (sub-MICs) of the widely used fluoroquinolones are known to induce the SOS response. Interestingly, the expression of several PMQR qnr genes is controlled by the SOS master regulator, LexA. During the characterization of a small qnrD-plasmid carried in E. coli, we observed that the aminoglycosides become able to induce the SOS response in this species, thus leading to the elevated transcription of qnrD. Our findings show that the induction of the SOS response is due to nitric oxide (NO) accumulation in the presence of sub-MIC of aminoglycosides. We demonstrated that the NO accumulation is driven by two plasmid genes, ORF3 and ORF4, whose products act at two levels. ORF3 encodes a putative flavin adenine dinucleotide (FAD)-binding oxidoreductase which helps NO synthesis, while ORF4 codes for a putative fumarate and nitrate reductase (FNR)-type transcription factor, related to an O2-responsive regulator of hmp expression, able to repress the Hmp-mediated NO detoxification pathway of E. coli. Thus, this discovery, that other major classes of antibiotics may induce the SOS response could have worthwhile implications for antibiotic stewardship efforts in preventing the emergence of resistance.

Editor's evaluation

This manuscript describes how a small plasmid containing a quinolone resistance determinant changes the cellular response to sub-inhibitory concentrations of Tobramycin. The authors report that E. coli cells carrying this plasmid undergo nitrosative stress mediated by two previously uncharacterized genes, which results in induction of the SOS response. These findings are interesting and relevant for readers across microbiology and genetics fields.

https://doi.org/10.7554/eLife.69511.sa0

Introduction

Escherichia coli is a well-known commensal of the gastrointestinal tract of vertebrates, including humans (Tenaillon et al., 2010), but several strains can also cause enteric and extra-enteric diseases such as urinary tract infection or sepsis (Kaper et al., 2004). E. coli is in the fluoroquinolone’s spectrum of action, and these antibiotics are widely used to treat such infections (Lode, 2014; Rice, 2012). Historically, fluoroquinolone resistance was found to develop solely through chromosome-mediated mechanisms, but plasmid-mediated quinolone resistance (PMQR) genes are now being identified more and more frequently in clinical isolates (Strahilevitz et al., 2009). qnr genes are important PMQR determinants, with six families described so far (qnrA, qnrB, qnrC, qnrD, qnrS, and qnrVC) (Ruiz, 2019).

Among these qnr genes, qnrD was first described in Salmonella enterica isolates located on a 4270-bp long non-conjugative plasmid (p2007057), a very different context from that of the other qnr genes in terms of plasmid size (Cavaco et al., 2009). Soon after, we reported for the first time the presence of smaller qnrD-plasmids (∼2.7 kb, with pDIJ09-518a as the archetype) in several bacteria belonging to Morganellaceae and proposed, what is now considered as the likely scenario, that the origin of qnrD lies within an as-yet-unidentified progenitor from this family (Guillard et al., 2014; Ruiz, 2019). pDIJ09-518a is a 2683-bp long plasmid-harbouring four open reading frames (ORFs), including qnrD, and exhibits only 53% identity with the plasmid found in S. enterica (Guillard et al., 2012; Figure 1). No function has yet been found for ORF2, ORF3, or ORF4. qnrD-plasmids can be roughly divided into two categories: the pDIJ09-518a-like plasmids and the p2007047-like plasmids. The ORF3 and ORF4 can only be found in the pDIJ09-518a-like plasmids (Supplementary file 1). To date, among the 53 fully sequenced qnrD-plasmids, ∼81% are reported to be pDIJ09-518a-like plasmids and ∼19% to be p2007057-like plasmids (Figure 1).

qnrD genes are carried by small plasmids.

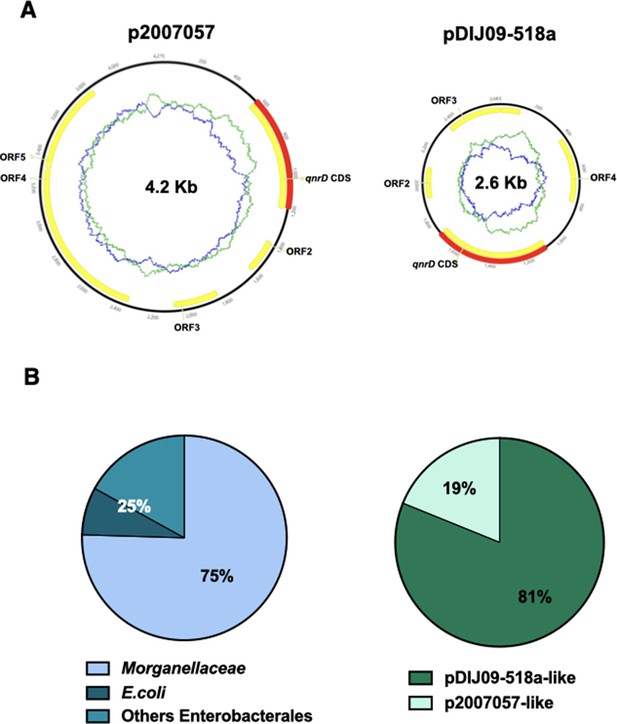

(A) The two qnrD-plasmid archetypes: p2007057 and pDIJ09-518a. (B) Distribution of the qnrD-plasmids among the 53 qnrD fully sequenced plasmids available in GenBank.

The SOS stress response is a key mechanism by which bacteria respond to DNA damage (Baharoglu and Mazel, 2014; Erill et al., 2007). Oxidative stress and sub-minimum inhibitory concentrations (MICs) of certain antibiotics can cause DNA damage, triggering the SOS response (Baharoglu et al., 2013; Baharoglu and Mazel, 2011; Kohanski et al., 2010). Once triggered, the SOS response favours bacterial survival in numerous ecological settings, including the likely emergence of antibiotic-resistant isolates in patients, when sub-MIC antibiotic concentrations occur at the infection site, through the transient increase of mutation rate accompanying the SOS response (Matic, 2019). Fluoroquinolones are known to induce the SOS response in E. coli (Baharoglu and Mazel, 2014; Recacha et al., 2017). In contrast, aminoglycosides are able to induce the SOS response in bacteria such as Vibrio cholerae but not in E. coli, which is better equipped to tackle oxidative stress (Baharoglu et al., 2014; Baharoglu et al., 2013; Baharoglu and Mazel, 2011). Two main mechanisms have been reported to explain why aminoglycoside-mediated oxidative stress in E. coli does not lead to SOS induction, and include: (1) the production of the general stress response sigma factor RpoS, which induces DNA polymerase IV, and (2) increased activity of the GO-repair system, which removes the mutagenic oxidized guanine (GO lesion) (Michaels and Miller, 1992), along with the base excision repair pathway (Baharoglu et al., 2013). Nitric oxide (NO), which can be converted to other reactive nitrogen species, can also cause DNA damage, inducing also the SOS response (Lobysheva et al., 1999; Nakano et al., 2005a). But, E. coli possesses the well-characterized Hmp flavohaemoprotein that detoxifies NO either by producing nitrate (NO3) under aerobic conditions, or by a O2 autoreduction to nitrous oxide (N2O) (Cruz-Ramos et al., 2002; Stevanin et al., 2007).

In this study, we show that in E. coli carrying pDIJ09-518a-like plasmids the SOS response can nonetheless be triggered by sub-MIC levels of aminoglycosides through NO accumulation. The latter is all at once due to higher NO formation and to the repression of the Hmp-mediated detoxification pathway driven by proteins encoded by this small qnrD-plasmid.

Results

qnrD expression is SOS regulated and triggered by aminoglycosides

Transcription of the qnrB and qnrD genes has been shown to be controlled by the LexA-mediated SOS response. LexA represses the SOS regulon genes by binding to its cognate LexA-box or SOS-box sequence on the promoter. Thus, the LexA proteolysis leads to de-repression of this regulon, comprised of about 40 genes in E. coli (Courcelle et al., 2001).

Unlike qnrB, the regulation of the most recently characterized PMQR gene, qnrD, by the SOS response has only been partially described, given that LexA dependence has not yet been evidenced (Briales et al., 2012; Da Re et al., 2009). In E. coli, nucleofilament of the SOS activator RecA induce the LexA repressor self-cleavage, therefore inducing the SOS global regulatory network (Baharoglu and Mazel, 2014). All the genes belonging to the SOS regulon carry a SOS-box in their promoter. The SOS-box, alternatively named LexA-box, is a 16-bp long sequence recognized by the LexA repressor. To fill the knowledge gaps regarding qnrD regulation, we conducted a multiple alignment analysis of all the 53 qnrD-plasmids, fully sequenced and available in GenBank (Supplementary file 1).

Among these plasmids, we found a highly conserved putative SOS-box upstream of the qnrD start codon (see the highlighted logo consensus sequence in Figure 2A). This sequence is similar (15/16 identical bases) to the one found in E. coli.

Figure 2 with 2 supplements see all

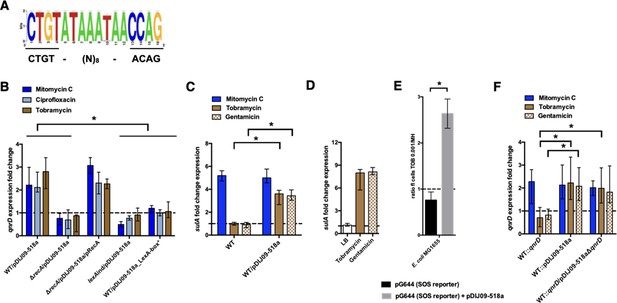

qnrD regulation is SOS-mediated and aminoglycosides induce the SOS in E. coli because of the qnrD-plasmid backbone.

(A) The qnrD SOS-box conservation by visualization of the consensus sequence logo generated from the 53 fully qnrD-plasmid sequences. The consensus sequence for E. coli is indicated below. (B) Relative expression of qnrD in E. coli MG1656 (WT) derived isogenic strains carrying pDIJ09-518a or pDIJ09-518a with a modified qnrD-SOS-box (LexA-box*), exposed to mitomycin C (dark blue), ciprofloxacin (blue), or tobramycin (brown) in comparison to expression in lysogeny broth (LB), normalized with dxs. (C) Relative expression of sulA in E. coli MG1656 (WT) with or without pDIJ09-518a, exposed to mitomycin C (dark blue), tobramycin (brown), or gentamicin (dotted brown) in comparison to expression in LB, normalized with dxs. (D) Relative expression of sulA in E. coli MG1656 (WT) with pDIJ09-518a, grown in LB, or either with tobramycin or with gentamicin, in comparison to the expression in E. coli MG1656, in the three culture conditions, and normalized with dxs. (E) Histogram bars show the ratio of green fluorescent protein (GFP) fluorescence in a E. coli MG1655 WT carrying or not the pDIJ09-518a plasmid in the presence of tobramycin (0.001 μg/ml) over fluorescence of the same strain grown in Mueller-Hinton (MH) reflecting induction of SOS. Black bars stand for strain with the SOS reporter vector and grey bars stand for strain carrying the qnrD-plasmid pDIJ09-518a and the SOS reporter vector. (F) Relative expression of qnrD in E. coli MG1656 with qnrD and its own promoter, or the native qnrD-plasmid inserted into the chromosome, or chromosomal qnrD complemented with pDIJ09-518aΔqnrD, exposed to mitomycin C (dark blue), tobramycin (brown), or gentamicin (dotted brown) in comparison to expression in LB, normalized with dxs. Data represent median values of six independent biological replicates, and error bars indicate upper/lower values. *p < 0.05. Wilcoxon matched-pairs signed-rank test.

Figure 2—source data 1

Relative expression of qnrD in E. coli MG1656 (WT) and isogenic strains.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig2-data1-v2.xlsx
Figure 2—source data 2

Relative expression of sulA in E. coli MG1656 (WT) and isogenic strains.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig2-data2-v2.xlsx
Figure 2—source data 3

Relative expression of sulA in E. coli/pDIJ09-518a.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig2-data3-v2.xlsx
Figure 2—source data 4

GFP fluorescence in a E. coli MG1655 WT.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig2-data4-v2.xlsx
Figure 2—source data 5

Relative expression of qnrD in E. coli MG1656 and isogenic strains with chormosomal complementation.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig2-data5-v2.xlsx

We demonstrated the functionality of this qnrD SOS-box in the pDIJ09-518a plasmid and its dependence on the RecA and LexA proteins, which are both essential for the SOS response. To do this, we quantified qnrD gene expression levels from the native qnrD-plasmid, pDIJ09-518a, in the presence of sub-MICs levels of mitomycin C and ciprofloxacin, two well-known SOS inducers (see Supplementary files 2–4). It has been previously established that aminoglycosides do not induce the SOS response in E. coli (Baharoglu et al., 2014; Baharoglu et al., 2013Baharoglu et al., 2013; Baharoglu and Mazel, 2011) and therefore the aminoglycoside tobramycin was used as a negative control in our qRT-PCR assays. Using E. coli MG1656/pDIJ09-518a grown in lysogeny broth (LB, MG1656 henceforth referred to as E. coli in the text and WT in the figures), we found a 2.18- and 2.02-fold increase in qnrD expression induced by mitomycin C and ciprofloxacin, respectively. Unexpectedly, upon tobramycin treatment, we found a 2.8-fold increase in qnrD expression (Figure 2B). To confirm the role of the SOS in induced qnrD transcription in the presence of these three drugs, qnrD RNA levels were assessed in isogenic E. coli / pDIJ09-518a derivatives where the SOS response was not effective due to (1) deletion of its activator (ΔrecA), (2) a mutation leading to a non-cleavable repressor (lexAind), or (3) inactivation of the qnrD SOS-box directly on pDIJ09-518a (LexA-box*: wild-type sequence: CTGTATAAATAACCAG; modified SOS-box: AGCTATAAATAACCAG) (Figure 2B). As expected, in strains where the SOS response was blocked, qnrD expression was not increased by ciprofloxacin or mitomycin C treatments, but this response was also blocked in the presence of tobramycin. To conclusively assert that RecA is needed to increase qnrD expression by SOS-dependent regulation, we showed that qnrD expression upon tobramycin exposure was increased in the recA mutant complemented strain, comparable to the levels detected in the E. coli/pDIJ09-518a strain (Figure 2B).

As shown in Figure 2—figure supplement 1A, by determining the growth of both E. coli and E. coli carrying the qnrD-plasmid, we showed that sub-MIC tobramycin treatment has no impact on the viability of E. coli/pDIJ09-518a. To assess the stability of pDIJ09-518a carriage in the absence of a fluoroquinolone selective pressure, we performed daily iterative subcultures onto fresh LB media for 30 days (Figure 2—figure supplement 1B, C), using agar plates with or without 0.06 μg/ml ciprofloxacin. We quantified bacterial viability over this period and confirmed the maintenance of the qnrD-plasmid by PCR, every 5 days (five individual colonies) and found no differences in these parameters over the 30-day period of observation.

To further explore our finding that the SOS response could be triggered by aminoglycosides in E. coli carrying pDIJ09-518a, we quantified the expression of sulA, a well-known SOS regulon-induced gene (Huisman and D’Ari, 1981), in the presence of aminoglycosides. As shown in Figure 2C, neither tobramycin nor gentamicin were able to increase sulA expression in E. coli. In cells harbouring pDIJ09-518a, however, a 3.13- and 3.71-fold change in sulA expression was measured in the presence of sub-MICs of tobramycin and gentamicin, respectively, confirming that aminoglycosides can induce the SOS response in qnrD-plasmid-bearing E. coli strains. We also confirmed that pDIJ09-518a did not induce the SOS response in the absence of aminoglycosides in E. coli (Figure 2D). As the pDIJ09-518a-like plasmids are found mostly in Morganellaceae, the sulA gene expression was quantified in the Providencia rettgeri harbouring the pDIJ09-518a. As shown in Figure 2—figure supplement 2A, tobramycin was not able to induce sulA expression, whereas the SOS induction was observed in cells exposed to mitomycin C. It seems that the burden presented by the qnrD-plasmid in E. coli is not present in Providencia spp. We conducted a protein sequence alignment of D4C4 × 8_PRORE (UniProt annotation of P. rettgeri Hmp protein) using BLASTp with the protein Hmp from E. coli. The results of alignments showed a 63,38% protein identity with E. coli (Figure 2—figure supplement 2B). The lack of SOS induction may result of Hmp from Providencia that could be not inhibited by ORF4 due to this incomplete identity, allowing then Hmp to play its role in NO detoxification. However, we cannot rule out another hypothesis with ORF3 inactive in Providencia spp. leading to less NO formation that in E. coli.

To corroborate SOS-mediated qnrD expression with exposure to aminoglycosides, we looked at SOS induction in E. coli (MG1655 for these experiments) using a previously published SOS reporter setup (Baharoglu et al., 2010). In this system, a GFP-encoding gene is put under the control of the well-characterized SOS-driven recN promoter (plasmid pG644, Supplementary file 3; Baharoglu et al., 2010), and GFP fluorescence, measured by flow cytometry, gives a readout of the SOS induction level. Using this, we confirmed that, in the presence of aminoglycosides, the SOS response was induced in E. coli MG1655 carrying pDIJ09-518a (2.6-fold higher), while no increase in fluorescence was observed in WT E. coli MG1655 (Figure 2E).

The plasmid backbone contributes to the increase of the qnrD gene expression upon aminoglycosides exposure

To determine which components of the pDIJ09-518a plasmid contributed to the SOS response induction in the presence of sub-MIC aminoglycoside treatments, we inserted into the chromosome of E. coli, in the cynX and lacA chromosome intergenic region, either the qnrD gene with its own promoter (WT::qnrD) alone or the entire plasmid (WT::pDIJ09-518a) (see Supplementary files 3 and 4). This intergenic region between cynX and lacA tolerates the insertion by homologous recombination in vitro and in vivo, and thus this locus is neutral for the fitness of the bacteria (Warr et al., 2019).

For both strains, qnrD expression was increased (2.27- and 2.13-fold) in response to treatment with mitomycin C, confirming that neither qnrD nor pDIJ09-518a insertion into the E. coli chromosome had a negative effect on the SOS induction pathway (Figure 2F). However, in the presence of sub-MICs levels of tobramycin and gentamicin, no change in qnrD transcripts was found in E. coli WT::qnrD, whereas when the entire plasmid was inserted into the chromosome, qnrD transcript levels were increased upon both tobramycin and gentamicin exposure (2.22- and 2.08-fold increase, respectively) (Figure 2F). Finally, in a WT::qnrD strain complemented with the qnrD-deleted-pDIJ09-518a plasmid (pDIJ09-518aΔqnrD), exposure to sub-MICs levels of tobramycin- or gentamicin-induced qnrD transcription from the chromosomal site to levels similar to those observed for the WT::pDIJ09-518a strain. Altogether, these results confirmed that in a qnrD-harbouring E. coli strain, the pDIJ09-518a plasmid backbone without the qnrD gene is sufficient to elicit an SOS response by aminoglycosides.

Small qnrD-plasmid promotes nitrosative stress in E. coli

In E. coli, reactive oxygen species (ROS) are well-known inducers of the SOS response, but as mentioned above, exposure to sub-MIC of aminoglycosides does not lead to ROS accumulation because of the high-level stability of the RpoS (Baharoglu et al., 2013). We hypothesized that carrying qnrD-plasmid pDIJ09-518a could affect this stability and therefore increase ROS, causing SOS induction. Thus, we tested the effect of tobramycin on oxidative stress in E. coli or E. coli/pDIJ09-518a (Figure 3—figure supplement 1). Dihydrorhodamine 123 (DHR) oxidation detects the presence of hydrogen peroxide (H2O2), resulting in the dismutation of the superoxide anion, which is reduced into hydroxyl radicals according to the Fenton reaction (Henderson and Chappell, 1993). Then, fluorescence is measured as an indicator of ROS generation. For this assay, ciprofloxacin was used as a positive inducer of ROS formation. We found no ROS formation induced by tobramycin in either E. coli or E. coli/pDIJ09-518a (Figure 3A, ratio ~1, brown bar). As previously reported by Machuca et al. for other PMQR determinants (Machuca et al., 2014), we did not find increased ROS formation in E. coli carrying the qnrD-plasmid upon exposure to sub-MIC of ciprofloxacin (Figure 3A, ratio ~1, blue bar). However, the underlying mechanism explaining these findings has yet to be identified.

Figure 3 with 1 supplement see all

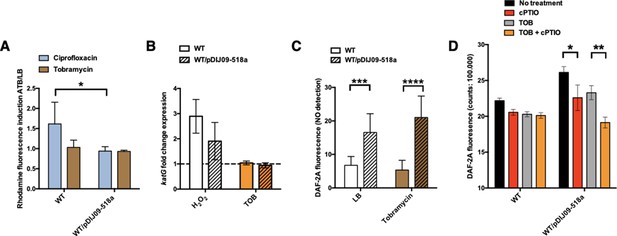

Small qnrD-plasmid promotes nitrosative stress in E.coli.

(A) Reactive oxygen species (ROS) formation for E. coli MG1656 (WT) and its derivative carrying pDIJ09-518a cultured in lysogeny broth (LB) or exposed to tobramycin. Production of ROS was calculated as the mean ratio of the dihydrorhodamine 123 (DHR-123) fluorescence of the treated samples to the control samples (n = 6). Data were analysed using a two-way analysis of variance (ANOVA) with an p value <0.05 for strains as a source of variation in the overall ANOVA. *p < 0,05 using Tukey’s multiple comparisons test. Mean difference for WT compared to WT/pDIJ09-518a exposed to ciprofloxacin was 0.6753; 95% confidence interval (CI) of difference [0.07565; 1.294]. Error bars represent the standard deviation (SD). (B) Relative expression of katG in E. coli MG1656 (WT) and in E. coli MG1656 carrying pDJJ09-518a, in comparison to expression in LB, normalized with dxs. Data represent median values of six independent biological replicates and error bars indicate upper/lower values. Wilcoxon matched-pairs signed-rank test. (C) Nitric oxide (NO) formation for E. coli MG1656 (WT) and its derivative carrying pDIJ09-518a culture in LB or exposed to tobramycin. Production of NO was calculated as the mean ratio of the DAF-2A fluorescence (n = 9). y-Axis represents arbitrary units of fluorescence. Data were analysed using a two-way ANOVA with a p value <0.0001 for strains as a source of variation in the overall ANOVA. ***p < 0.001 and ****p < 0.0001 using a Tukey’s multiple comparisons test. The mean difference for WT compared to WT/pDIJ09-518a grown in LB was −9.790 [95% CI, −15.75; −3.825]. The mean difference for WT compared to WT/pDIJ09-518a exposed to tobramycin was −15.66 [95% CI, −21.62; −9.695]. Error bars represent the SD. Data represent median values of four independent biological replicates, and error bars indicate upper/lower values. Wilcoxon matched-pairs signed-rank test. (D) Histogram bars show the DAF-2A fluorescence, in E. coli WT and WT/pDIJ09-518a as a measure of intracellular in NO obtained using a FACS-based approach, with or without NO scavenger (carboxy-PTIO, cPTIO). Data were analysed using a two-way ANOVA with a p value <0.0001 for treatment as a source of variation in the overall ANOVA. *p < 0.05 and **p < 0.01 using a Tukey’s multiple comparisons test. The mean difference for WT/pDIJ09-518a grown in LB compared to WT/pDIJ09-518a grown in LB and cPTIO was 3.545 [95% CI, 0.4866; 6.603]. The mean difference for WT/pDIJ09-518a grown with tobramycin (TOB) compared to WT/pDIJ09-518a grown with TOB and cPTIO was 4.160 [95% CI, 1.163; 7.157]. Error bars represent the SD. Data represent median values of three independent biological replicates, and error bars indicate upper/lower values.

Figure 3—source data 1

DHR-123 fluorescence for ROS formation in E. coli MG1656 (WT) and isogenic strains.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig3-data1-v2.xlsx
Figure 3—source data 2

Relative expression of katG in E. coli MG1656 (WT) and isogenic strains.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig3-data2-v2.xlsx
Figure 3—source data 3

DAF-2A fluorescence for NOS formation in E. coli MG1656 (WT) and isogenic strains.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig3-data3-v2.xlsx
Figure 3—source data 4

DAF-2A fluorescence obtained using a FACS-based approach, in E. coli WT and isogenic strains.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig3-data4-v2.xlsx

The catalase KatG is a key player in E. coli by scavenging H2O2 and thereby limits accumulation H2O2 (Triggs-Raine et al., 1988). We used katG expression as an H2O2 transcriptional reporter (Supplementary file 4) in order to confirm results from the ROS-detecting dye-based assay.

We found increased expression of katG-induced by H2O2 in both the WT strain or plasmid-bearing E. coli/pDIJ09-518a (Figure 3B, ratio ~3 and 2, white bars). But interestingly, we did not find any increased katG expression induced by tobramycin in either E. coli or E. coli/pDIJ09-518a (Figure 3B, ratio ~1, orange bars), confirming that SOS induction in E. coli carrying the qnrD-plasmid exposed to tobramycin is not due to increased intracellular ROS.

In an effort to find another SOS inducer, we measured the intracellular production of NO by determining 5,6-diaminofluorescein diacetate (DAF-2 DA) fluorescence (Figure 3—figure supplement 1; Kojima et al., 1998; Lobysheva et al., 1999). Strikingly, NO production was significantly elevated in the strains carrying the qnrD-plasmid in the absence of an aminoglycoside stimulus, and only increased slightly further when the antibiotic was added at sub-MIC levels (16.55 when strains were grown in LB and an increase of up to 21.01 in the presence of tobramycin) (Figure 3C). To confirm that the NO production quantified in E. coli/pDIJ09-518a was due to the plasmid carriage, we quantified NO production with the addition of a NO scavenger (carboxy-PTIO, cPTIO) (Figure 3D). NO levels were decreased in the presence of cPTIO. These results strongly suggest that the carriage of the qnrD-plasmid by itself induces a nitrosative stress in E. coli.

The GO-repair system is involved in the aminoglycoside-induced SOS response in E. coli carrying small qnrD-plasmid

Considering that the qnrD-plasmid-mediated NO and the aminoglycosides seem to be prerequisites to the SOS response induction in E. coli/pDIJ09-518a, we considered that the SOS response could results from the deleterious effects common to both these stimuli. Aminoglycosides, as well as NO and other reactive nitrogen species, such as dinitrogen trioxide (N2O3) and peroxynitrite (ONOO), form 8-oxo-G (7,8-dihydro-8-oxoguanine) (Baharoglu et al., 2013; Nakano et al., 2005a; Nakano et al., 2005b). It has been described that the incorporation of 8-oxo-G into DNA leads to A/G mismatch during replication (Grollman and Moriya, 1993; Michaels et al., 1992; Michaels and Miller, 1992). To prevent or repair these types of oxidative lesions, E. coli uses the GO-repair system, with MutT and MutY as two of the key players in this error-prevention system (Baharoglu et al., 2014; Boiteux et al., 2017; David et al., 2007; Foti et al., 2012; Grollman and Moriya, 1993; Maki and Sekiguchi, 1992; Michaels et al., 1992). Incomplete action of the GO-repair system leads to the formation of double strand DNA breaks (DSBs), which are lethal if unrepaired (Foti et al., 2012). MutT acts as a nucleotide pool sanitizer removing 8-oxo-G triphosphate, while MutY removes the adenine base from 8-oxo-G/A mispairing. We further hypothesized that the SOS response could rely on the deleterious effect of unremoved oxidized guanines due to the combined stress of NO and aminoglycosides.

To test the hypothesis that the SOS response induced by aminoglycosides is linked to the formations of 8-oxo-G-mediated DSBs because of their incomplete removal, we measured the SOS response in E. coli carrying pDIJ09-518a with or without overexpression of MutT (Supplementary files 3 and 4). As shown in Figure 4A, we found that the SOS response, measured through sulA transcription levels, was induced in the presence of aminoglycosides in E. coli/pDIJ09-519a carrying the empty vector used for MutT overexpression (3.15-fold increase), while it was not increased in E. coli/pDIJ09-518a overexpressing MutT (0.59-fold change).

<bold>Figure 4.</bold> with 1 supplement see all

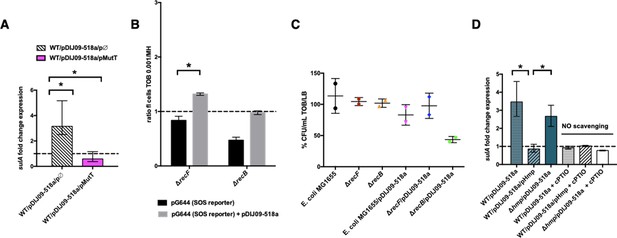

Aminoglycosides induce SOS in E. coli/pDIJ09-518a due to overwhelmed GO-repair pathway associated with inactivated Hmp.

(A, D) Relative expression of sulA in E. coli MG1656 (WT) isogenic strains carrying pDJJ09-518a, overexpressing the GO-repair system protein MutT and the hmp-deleted mutant, exposed to tobramycin, treated with the nitric oxide (NO) scavenger carboxy-PTIO (cPTIO) (for D), in comparison to expression in lysogeny broth (LB), normalized with dxs. Data represent median values of six independent biological replicates and error bars indicate upper/lower values. Wilcoxon matched-pairs signed-rank test. (B) Histogram bars show the ratio of GFP fluorescence in a E. coli MG1655 ΔrecB and ΔrecF in the presence of tobramycin (0.001 μg/ml) over fluorescence of the same strain grown in MH reflecting induction of SOS. Black bars stand for strain with the SOS reporter vector and grey bars stand for strain carrying the qnrD-plasmid pDIJ09-518a and the SOS reporter vector. (C) Impact of recB gene inactivation in E. coli harbouring the qnrD-plasmid on growth in sub-MIC tobramycin. Histogram bars represent the percentage of the ratio of colony-forming units (CFUs)/ml for each strain in tobramycin (0.001 µg/ml) over CFU/ml in LB. Data represent median values of two independent biological replicates, and error bars indicates the standard deviation (SD). Wilcoxon matched-pairs signed-rank test. *p < 0.05.

Figure 4—source data 1

Relative expression of sulA in E. coli MG1656/ pDJJ09-518a overexpressing MutT.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig4-data1-v2.xlsx
Figure 4—source data 2

GFP fluorescence in a E. coli MG1655 ΔrecB and ΔrecF.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig4-data2-v2.xlsx
Figure 4—source data 3

Ratio of colony-forming units.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig4-data3-v2.xlsx
Figure 4—source data 4

Relative expression of sulA in E. coli MG1656/pDJJ09-518a with deleted hmp.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig4-data4-v2.xlsx

To further determine if the incomplete action of the GO-repair system may lead to the accumulation of DSBs in E. coli/pDIJ09-518a exposed to aminoglycosides, we used two E. coli MG1655 strains wherein the SOS could either be induced or not activated in the presence of DSBs. The RecFOR pathway allows RecA nucleo-filament formation on single-stranded DNA breaks, whereas the RecBCD recruits RecA onto DSBs (Baharoglu and Mazel, 2014; Kuzminov, 1999). As shown in Figure 4B, SOS was not induced by aminoglycosides in the recB-deleted strain, whereas a slight induction of the SOS response was detected in the recF deletant (1.4-fold change compared to growth in LB). These results suggest that in E. coli carrying qnrD-plasmids, DSBs are produced upon aminoglycoside treatment inducing the SOS response necessary for bacterial survival. The deletion of recB in E. coli harbouring the plasmid causes loss of viability after exposure to tobramycin as compared to the wild-type E. coli MG1655 or the recF mutant (Figure 4C).

Role of the NO-detoxifying Hmp in the SOS induction upon exposure to sub-MIC of aminoglycosides

In E. coli, the Hmp flavohaemoprotein has been described as the key player in detoxifying NO under aerobic conditions (Poole et al., 1996). We therefore hypothesized that NO accumulation could be due to ineffective Hmp-mediated detoxification leading to the accumulation of 8-oxo-G and 8-nitro-G DNA lesions and thereby, an SOS response induction in E. coli exposed to aminoglycosides. To test this hypothesis, we overexpressed Hmp in E. coli/pDIJ09-518a (Supplementary files 3 and 4). As shown in Figure 4D, the sulA transcription increase observed in E. coli/pDIJ09-518a in the presence of aminoglycosides (3.14-fold increase over growth without aminoglycosides) was now abolished when Hmp was overexpressed (0.85-fold decrease compared to growth without aminoglycosides). To confirm this finding, we quantified the SOS induction in a qnrD-plasmid-harbouring E. coli strain where hmp had been deleted. In this strain, unable to detoxify NO, the carriage of the qnrD-plasmid increased the expression of sulA (~2.5-fold) when exposed to tobramycin (Figure 4D). We confirmed that neither deleting hmp nor carrying the empty vector used to overexpress Hmp, increased the expression of sulA in E. coli grown in LB medium without aminoglycosides (Figure 4—figure supplement 1A). Furthermore, the addition of tobramycin did not induce the SOS response in the hmp mutant (Figure 4—figure supplement 1B). After exposure to tobramycin, complementation of the hmp mutant carrying the qnrD-plasmid with pHmp (a plasmid expressing hmp), did not trigger the SOS response, whereas the SOS was induced in the same genetic context but no hmp complementation (Figure 4—figure supplement 1B). To confirm our hypothesis, we quantified SOS induction in the same derivative strains exposed to aminoglycosides using a NO scavenger (cPTIO) assay. It is noteworthy that in the case without any NO, the SOS response was not induced (Figure 4D).

Our results show that qnrD-plasmid-bearing E. coli undergoes nitrosative stress because of a much less effective Hmp-mediated detoxification that leads to SOS response induction when exposed to aminoglycosides. These findings underscore that both NO accumulation and tobramycin are needed for the induction of the SOS response in E. coli carrying pDIJ09-518a.

Small qnrD-plasmid genes promote NO formation and inhibit NO detoxification

Next, we tried to establish which pDIJ09-518a ORF(s) promoted the NO accumulation leading to the tobramycin-induced SOS response in E. coli. Among bacteria, NO synthesis by NO synthase has been seldomly reported, that is in Nocardia spp, though this bacterial enzyme is different from the mammalian version. In most other bacteria, however, the main sources of NO come from the activity of nitrite and nitrate reductases, which catalyse the reduction of nitrate (NO3) and/or nitrite (NO2) to NO (Crane et al., 2010). Querying the pBLAST/psiBLAST databases, we found that ORF3 encodes a putative flavin adenine dinucleotide (FAD)-binding oxidoreductase with a NAD(P)-binding Rossmann-fold (27% protein identity over 57% of the FAD-binding oxidoreductase domain from an Erythrobacter sp. H100200 accession name WP_067505159.1 and NCBI HMM evidence accession ID NF013714.2, E value 2e−03) that could be involved in NO production. We further found that the adjacent ORF4 encodes a putative cAMP-receptor protein (CRP)/fumarate and nitrate reduction regulatory protein (FNR)-type transcription factor (CRP/FNR; 24% protein identity over 71% of CRP/FNR from Pedobacter panaciterrae accession WP068888645.1 with the evidence accession ID 11429533 in NCBI SPARCLE, E value 5e−04), an O2-responsive regulator of hmp expression.

We hypothesized that ORF3 could be involved in the aminoglycoside-induced SOS response by promoting NO production, which was tested by the deletion of ORF3 from pDIJ09-518a (E. coli/pDIJ09-518aΔORF3) (Supplementary files 3 and 4). ORF3 deletion led to the loss of sulA induction in response to tobramycin (Figure 5A, brown bar). Complementation by ORF3 (E. coli/pDIJ09-518aΔORF3/pORF3) restored the SOS response (Figure 5A). It is likely that this response is lower (but statistically significant) in this complemented strain than in E. coli/pDIJ09-518a given the effect on the SOS response by the empty vector pΦ used for complementations (Figure 4—figure supplement 1A). In addition, we showed that the deletion of ORF3 decreased NO production compared to that measured in the presence of the native qnrD-plasmid in E. coli (Figure 5B).

Figure 5 with 1 supplement see all
Deletion of ORF3 decreases the SOS response induction, after tobramycin treatment and ORF4 regulates the Hmp nitric oxide detoxification pathway.

(A) Relative expression of sulA in E. coli MG1656 (WT) derived isogenic strains carrying pDIJ09-518a with ORF3 and/or ORF4 deleted and complemented, exposed to mitomycin C (dark blue) or tobramycin (brown) in comparison to expression in lysogeny broth (LB), normalized with dxs. Data represent median values of six independent biological replicates, and error bars indicate upper/lower values. *p < 0.05. Wilcoxon matched-pairs signed-rank test. (B) Nitric oxide (NO) formation for the isogenic strains (n = 6). Data were analysed using a Kruskal–Wallis test, with a p value <0.0001 for the overall analysis of variance (ANOVA). NO formation for each strain was analysed using Dunn’s multiple comparisons test. *p < 0.05, **p < 0.01, and ***p < 0.001. Bars represent mean values and SD. (C) Relative expression of hmp in E. coli MG1656 (WT) derivative isogenic strains carrying pDIJ09-518a with ORF3 and/or ORF4 deleted and complemented, or the empty vector, grown in LB, in comparison to expression in E. coli MG1656 (WT), normalized with dxs. Data represent median values of six independent biological replicates, and error bars indicate upper/lower values. Wilcoxon matched-pairs signed-rank test. *p < 0.05.

Figure 5—source data 1

Relative expression of sulA in E. coli MG1656 (WT) derived isogenic strains #1.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig5-data1-v2.xlsx
Figure 5—source data 2

Relative expression of sulA in E. coli MG1656 (WT) derived isogenic strains #2.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig5-data2-v2.xlsx
Figure 5—source data 3

Relative expression of sulA in E. coli MG1656 (WT) derived isogenic strains #3.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig5-data3-v2.xlsx
Figure 5—source data 4

DAF-2A fluorescence in E. coli MG1656 (WT) and complemented strains.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig5-data4-v2.xlsx
Figure 5—source data 5

Relative expression of hmp in E. coli MG1656 (WT) and isogenic strains.

https://cdn.elifesciences.org/articles/69511/elife-69511-fig5-data5-v2.xlsx

To determine the possible effect of the FNR-like O2-response regulator encoded by ORF4 in pDIJ09-518a, on hmp expression (Cruz-Ramos et al., 2002; Poole et al., 1996), we deleted and complemented this ORF in pDIJ09-518a (Supplementary files 3 and 4). We found that ORF4 did not completely abolish the SOS response after exposure to aminoglycoside sub-MICs, as measured by sulA expression (Figure 5A). However, we did find that ORF4 deletion decreased intracellular NO production (Figure 5B). We next found that ORF4 deletion increased the transcription of hmp (Figure 5C) while hmp transcription in E. coli/pDIJ09-518aΔORF4 complemented with ORF4 (E. coli/pDIJ09-518aΔORF4/pORF4) was similar to that in E. coli/pDIJ09-518a. All together our results confirmed that the carriage of the expression vector alone did not impact the transcription of hmp compared to the parental E. coli in LB (Figure 5C).

Finally, in the presence of a double deletion in pDIJ09-518a (ΔORF3ΔORF4) (Supplementary files 3 and 4), we found no SOS induction by tobramycin (Figure 5A), a slight decrease in NO formation (Figure 5B) and no hmp expression (Figure 5B), confirming that only ORF4 impacts the level of hmp expression. Notably, neither the deletion of ORF3 nor ORF4 alleviated the SOS response induced by mitomycin C (Figure 5A, dark blue bars). Significant experimental effort, beyond the scope of this initial report, will be required to biochemically and genetically characterized the activities of purified proteins encoded by the ORF3 and ORF4 genes and their possible role in NO formation and detoxification under aerobic conditions.

Aminoglycosides increased qnrD gene expression and promote high-level fluoroquinolone resistance

To investigate the influence of the aminoglycoside-mediated SOS induction of qnrD on the level of quinolone resistance, we determined the minimal inhibitory concentrations (MICs) of nalidixic acid, ciprofloxacin, ofloxacin, and levofloxacin for E. coli and E. coli/pDIJ09-518a exposed to sub-MICs of ciprofloxacin or tobramycin. Ciprofloxacin, a well-known inducer of the SOS response, was used as a control for the induction of quinolone resistance. As previously reported by Da Re et al., 2009, the isolates remained susceptible to quinolones but an increase in the MICs was noted. The MICs of levofloxacin, ofloxacin and ciprofloxacin were, respectively 1.3-, 1.5-, and 2-fold higher for E. coli/pDIJ09-518a exposed to a sub-MIC of ciprofloxacin in contrast to cells grown without antibiotic (Table 1).

Table 1
Minimal inhibitory concentration of quinolones.
Strain*MIC (μg/ml)
NALLVXOFXCIP
E. coli MG16563S0.023S0.006S0.004S
E. coli MG1656/pDIJ09-518a>256R0.19S0.25S0.094S
E. coli MG1656 + CIP2S0.023S0.006S0.004S
E. coli MG1656/pDIJ09-518a + CIP>256R0.25S×1.30.38Ix 1.50.19S×2
E. coli MG1656 + TOB2S0.032S0.006S0.006S
E. coli MG1656/pDIJ09-518a + TOB>256R0.38S×20.38Ix 1.50.25S×2.7
  1. *

    +CIP and +TOB stand for strains exposed to sub-MIC of ciprofloxacin and tobramycin, respectively, prior to MIC assessment.

  2. Susceptibility testing categories according to EUCAST clinical breakpoints. Nalidixic acid: R > 16 μg/ml. Levofloxacin: S ≤ 0.5 μg/m, R > 1 μg/ml. Ofloxacin: S ≤ 0.25 μg/ml, R > 0.5 μg/ml. Ciprofloxacin: S ≤ 0.25 μg/ml, R > 0.5 μg/ml. Fold-change increases of MIC are shown in comparison to the QnrD-producing WT strain.

  3. Similarly, the MICs increased for the qnrD-carrying E. coli exposed to sub-MIC of tobramycin as compared to growth in antibiotic-free medium (Table 1): 2-, 1.5-, and 2.7-fold higher for levofloxacin, ofloxacin and ciprofloxacin, respectively. These results showed that the aminoglycoside-induced SOS response increased quinolone (nalidixic acid and fluoroquinolones) MIC in line with the increased expression of qnrD in E. coli.

In Enterobacterales, high-level fluoroquinolone resistance is mainly due to the accumulation of mutations in the quinolone resistance-determining regions (QRDRs) of topoisomerase genes, the target of quinolones. As PMQRs lead only to low-level resistance, the emergence of clinically relevant fluoroquinolone resistance in strains harbouring PMQR has been attributed to the survival of a few isolates in the presence of fluoroquinolones that then develop QRDR mutations (Martínez-Martínez et al., 1998; Robicsek et al., 2006). However, in all these reports, the emergence of high-level fluoroquinolone resistance in enterobacterial isolates was directly linked to the specific selective pressure caused by the fluoroquinolones themselves.

To test the possibility that another class of antibiotics, the aminoglycosides (here, tobramycin), could allow the survival of E. coli isolates harbouring qnrD-plasmids, that further develop stepwise accumulation of QRDR mutations, we determined the mutant prevention concentrations (MPCs) of ciprofloxacin, levofloxacin and ofloxacin on a multi-susceptible clinical strain of E. coli, ATCC 25922, and its derivative harbouring pDIJ09-518a or pDIJ09-518aΔqnrD. E. coli ATCC 25922 is the reference strain for antibiotic susceptibility testing recommended by the European and American committees on antimicrobial susceptibility testing and allowed us to compare MIC increases with standards. The MPC is the concentration that prevents the emergence of first-step resistant mutants within a susceptible population. When treating a patient, if the antibiotic concentration is below the MPC, the resistant mutant subpopulation within the wild-type population can emerge and potentially lead to therapeutic failure (Cantón and Morosini, 2011). These determinations were made with and without tobramycin pre-treatment (Figure 6). The presence of the plasmid without qnrD had no effect on mutant recovery whether or not these strains were exposed to a sub-MIC of tobramycin. No surviving mutants grew at 0.125, 0.06, and 0.06 μg/ml concentrations of ciprofloxacin, levofloxacin, or ofloxacin, respectively. When pDIJ09-518a was present however, concentrations of ciprofloxacin, levofloxacin, and ofloxacin that were 8- to 15.5-fold higher (1, 0.5, and 1 μg/ml, respectively) led to the recovery of over 104, 106, or 109 E. coli/pDIJ09-518a colonies, respectively. Interestingly, it took concentrations as high as 2, 1, and 1.5 μg/ml of ciprofloxacin, levofloxacin, or ofloxacin, respectively, to abrogate the emergence of fluoroquinolone-resistant mutants in E. coli/pDIJ0-518a in the presence of tobramycin (Figure 6).

Aminoglycosides potentiate the selection of higher fluoroquinolone resistance in E.coli harbouring the small qnrD-plasmid.

Mutant prevention concentrations (MPCs) of isogenic E. coli ATCC25922 strains with or without exposure to sub-MIC of tobramycin. E. coli ATCC25922 (red circle), E. coli ATCC25922/pDIJ09-518a (green square), and E. coli ATCC25922/pDIJ09-518a∆qnrD (dark grey triangle).

To further characterize resistance against ciprofloxacin, one of the main fluoroquinolones in current clinical use, we isolated five distinct colonies from a ciprofloxacin-containing plate of E. coli ATCC 25922/pDIJ09-518a incubated with tobramycin prior to performing the MPC assay. We determined the MICs of quinolone and sequenced the QRDR of the four-topoisomerase subunit-encoding genes (gyrA, gyrB, parC, and parE). The surviving mutants were all resistant or non-susceptible to nalidixic acid, ciprofloxacin, ofloxacin, and levofloxacin, and carried multiple mutations in QRDR (Table 2).

Table 2
Quinolone resistance-determining region (QRDR) mutations and minimal inhibitory concentration of quinolones for surviving mutants obtained in the mutant prevention concentration (MPC) assay.
Strain*MutantMPC(μg/ml)QRDR mutationsMIC (μg/ml)
GyrAGyrBParCParENALCIPOFXLVX
E. coli ATCC25922/pDIJ09-518a#11S83L--->256R0.125S0.38I0.19S
#21S83W---24R0.25S0.5I0.38S
#31S83W--->256R0.38I0.75R0.38S
#41S83W---24R0.19S0.5I0.25S
#51S83W--->256R0.125S0.38I0.19S
E. coli ATCC25922/pDIJ09-518a + TOB#12S83W--->256R1R4R1I
#22S83W-G78D->256R0.38I2R0.75I
#32S83W-G78D->256R1.5R4R0.75I
#42S83W-G78D->256R1R6R1I
#52S83W--->256R1R4R1I
  1. *

    +TOB stands for strains exposed to sub-MIC of tobramycin prior to MPC assay.

  2. Susceptibility testing categories according to EUCAST clinical breakpoints. Nalidixic acid: R > 16 μg/ml. Levofloxacin: S ≤ 0.5 μg/ml, R > 1 μg/ml. Ofloxacin: S ≤ 0.25 μg/ml, R > 0.5 μg/ml. Ciprofloxacin: S ≤ 0.25 μg/ml, R > 0.5 μg/ml.

To bridge the gap between the aminoglycoside-induced SOS response and the increase of fluoroquinolones MPC of E. coli/pDIJ09-518a, we looked at the frequency of spontaneous mutations to rifampicin resistance for E. coli with or without pDIJ09-518a pre-exposed to sub-MIC of tobramycin (Figure 5—figure supplement 1). Upon pre-treatment to tobramycin, we found that the mutation frequency was 5.4-fold higher in E. coli/pDIJ09-518a compared to the plasmid-free E. coli. Overall, our results show that in E. coli, when carrying the qnrD-plasmid, sub-MICs of aminoglycosides potentiate the survival of E. coli isolates that would further develop QRDR mutations leading to higher fluoroquinolone resistance.

Discussion

It is known that, conversely to V. cholerae, sub-MICs of aminoglycosides do not induce the SOS response in E. coli. In this study, however, we identified and characterized for the first time that the SOS response is induced in E. coli carrying a qnrD-plasmid upon exposure to aminoglycosides at a very low concentration (1% of MIC). This unexpected aminoglycoside-induced SOS response turns to be subsequent to NO accumulation in combination with aminoglycosides that eventually increase 8-oxo-G incorporation into DNA. Thereby, DNA damage appears through DSBs leading to induction to the SOS.

We found that two ORFs of the qnrD-plasmid, ORF3 and ORF4, were responsible for this SOS response induction by aminoglycosides in E. coli. Indeed, ORF3, which encodes a putative FAD-binding oxidoreductase, leads to NO production while ORF4, which encodes a putative CRP/FNR-like protein, inhibits hmp expression and thereby hampers the detoxification of NO. Although we did not evidence directly the 8-oxo-G incorporation hampering us to identify which targets aminoglycosides interact with, it has been previously reported that aminoglycosides and nitrosative stress caused oxidation of guanine (Foti et al., 2012; Spek et al., 2001). Taking this into account, we propose a model (Figure 7) of the pathway by which aminoglycosides induce the SOS response in E. coli carrying the qnrD-plasmid. In the absence of aminoglycosides, E. coli can repair the DNA damage resulting from the carriage of the qnrD-plasmid, and the SOS response is not induced (Figure 7A). In this case, the GO-repair system sanitizes efficiently the 8-oxo-G produced by the qnrD-plasmid-mediated NO accumulation. However, in the presence of aminoglycoside (Figure 7B), the level of oxidized guanine may increase. The resultant DNA damage yields genotoxic concentrations of alternate nucleotides that the GO-repair system can no longer sanitize efficiently, leading to induction of the SOS response. It is noteworthy that the burden caused by this qnrD-plasmid in E. coli upon exposure to tobramycin was not observed for Providencia spp. since no SOS induction was observed. We speculate that such a plasmid is harmless for Providencia spp. when exposed to aminoglycosides. Thereby, it could be one of the reasons why qnrD-plasmids may rarely be found in E. coli.

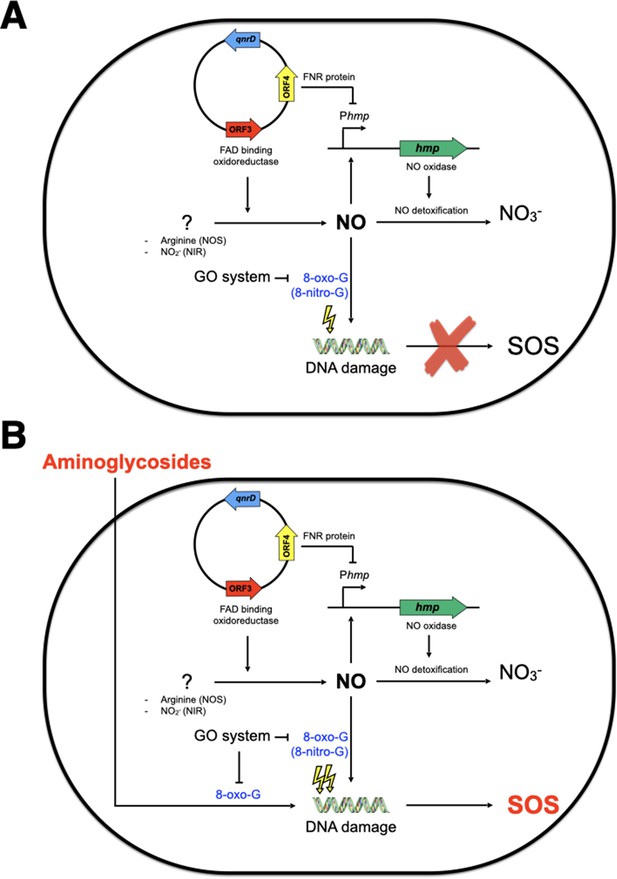

Model of SOS response induction by aminoglycosides in E. coli bearing the small qnrD-plasmid.

Schematic representation of the network leading to SOS induction in E. coli/pDIJ09-518a when not (A) or exposed (B) to sub-minimum inhibitory concentration (MIC) of aminoglycosides. NOS, nitric oxide species; NIR, nitrite reductase.

Our study shows that the widely accepted lack of SOS response induction in E. coli by aminoglycosides may not always be true. When strains bearing the qnrD-plasmid are exposed to sub-MICs of aminoglycosides, the SOS response does occur. This is a worrying issue, since we observed that the qnrD-plasmid is mobilizable (data not shown) and stable without antibiotic selective pressure. Selective pressures maintained by the overuse of antibiotics are the main drivers of resistance. In addition, sub-MICs of antibiotics can select for resistant bacteria and this occurs notably with fluoroquinolones (Andersson and Hughes, 2017). In this regard, expression of Qnr proteins and other PMQR normally confers only low levels of resistance to fluoroquinolones, but they were shown to significantly reduce the bactericidal activity of ciprofloxacin (Allou et al., 2009; Guillard et al., 2013) and to further facilitate selection for higher levels of resistance in Qnr-producing enterobacterial isolates exposed to fluoroquinolones, which can culminate in therapeutic failures (Allou et al., 2009; Guillard et al., 2013; Martínez-Martínez et al., 1998; Robicsek et al., 2006). In addition, it has also recently been shown that qnrB promotes DNA mutations and thereby fluoroquinolone-resistant mutants by triggering DNA replication stress (Li et al., 2019).

In this context, the SOS regulation of such PMQR genes have clinical implications, not only in terms of infectious disease treatments, but also to prevent the dissemination of resistance genes. It has been clearly demonstrated that the qnrB-mediated quinolone resistance is induced upon exposure to sub-MICs of fluoroquinolone (Da Re et al., 2009). Therefore, describing for the first-time aminoglycosides that induce the SOS response in E. coli carrying a low level of fluoroquinolone resistance determinant (qnrD-plasmid) could have worthwhile therapeutic implications by increasing the odds of mutations during the SOS induction, since each of these classes of antibiotics is commonly used as first- or second-line treatment.

Materials and methods

Bacterial strains, plasmids, primers, and growth conditions

Request a detailed protocol

The bacterial strains, plasmid constructs, and primers for PCR analysis used in this work are shown in Supplementary files 3 and 4 (Blattner et al., 1997; Mount et al., 1972). The E. coli Δhmp (KEIO collection) (Baba et al., 2006) was graciously provided by J.-M. Ghigo (Pasteur Institute, Paris). This allele was transduced in MG1656, using P1 phage and selected on agar plates with 50 µg kanamycin/ml. Experiments were performed in LB or in minimum medium at 37°C. For genetic selections, antibiotics were added to media at the following concentrations: 100 μg ampicillin/ml, 0.03 and 0.06 μg ciprofloxacin/ml, 50 μg kanamycin/ml, 50 µg streptomycin/ml, or 100 amoxicillin µg/ml. For each strain, the MIC of antibiotics was determined twice for each antimicrobial agent using E-test strips (bioMérieux, Marcy l’Etoile, France). The sub-MICs (e.g. 1% of MIC) of specified antibiotics were used to induce the SOS response, as follows (final concentrations [µg/ml]): ciprofloxacin (CIP) 0.06, gentamicin (GM) 0.00125, mitomycin C (MMC) 0.1, and tobramycin (TM) 0.001.

WT::qnrD and WT::pDIJ09-518a strains construction

Request a detailed protocol

DNA fragments were generated by PCR in order to amplify the qnrD gene with its own promoter or the pDIJ09-518a from the native plasmid and the chromosomal cynX and lacA intergenic region from the MG1656 genomic DNA. The three PCR fragments were digested with DpnI and purified with a Qiagen PCR Purification Kit (Qiagen). The three PCR products were assembled as one large fragment (5′ cynX – insert – lacA3′) by Gibson Assembly (New England Biolabs). The assembled DNA was transformed into electrocompetent WT E. coli where they were recombined into the E. coli WT genome. The transformed bacteria were selected using 0.06 µg ciprofloxacin/ml by incubation for 24 hr, at 37°C. The insertion was verified by colony PCR with four primers pairs: AB09/AB06 (qnrD), AB13/AB08 (plasmid), AB06/AB12 (qnrD), and AB07/AB16 (plasmid) (Supplementary file 4). The positive clones were verified by sequencing using AB09/AB12 and AB13/AB16.

Plasmid constructions

Request a detailed protocol

The recA, mutT, and hmp genes with their own promoters were amplified from the E. coli WT genome, with the corresponding Forward/Reverse primers shown in Supplementary file 4. The PCR products were purified and cloned into pCR2.1 TOPO, hereafter called pΦ (Thermo Fisher Scientific, France) to generate pRecA, pMutT, and pHmp, respectively, and selected on plates containing 50 µg kanamycin/ml. The same protocol was used for the complementation of the ORF3 and ORF4 genes to generate pORF3 and pORF4. However, these ORFs were amplified from E. coli/pDIJ09-518a.

pDIJ09-518aΔqnrD was obtained by PCR amplification of the native pDIJ09-518a plasmid as DNA template excluding the qnrD gene, using the primers described in Supplementary file 4. The primers were obtained using the NEBuilder Assembly Tool (New England Biolabs). After digestion by DpnI (New England Biolabs) and purification of PCR products (Qiagen), the fragment obtained was transformed into electrocompetent E. coli WT or WT::qnrD. Transformants were selected on agar plates containing 0.06 µg ciprofloxacin/ml and were analysed by PCR as described above. The same protocol was used to obtain pDIJ09-518aΔORF3, -ΔORF4, and -ΔORF3ΔORF4, using the indicated primers (Supplementary file 4).

pDIJ09-518a LexA-box* substitution of CGT to AGC, in the LexA-box or SOS-box-binding site, was obtained by using a modified Quick-Change II Site-Directed Mutagenesis kit (Agilent). Briefly, we used the primers containing the substitution (Supplementary file 4), as described by the manufacturer. The elongation temperature used for the amplification was modified to 68°C for 2 min. Eighteen cycles of amplification were sufficient to obtain a proper amount of modified DNA template. After digestion by DpnI and purification of PCR products, the fragment obtained was transformed into E. coli competent TOP10 cells (Thermo Fisher). Transformants were selected on agar plates containing 0.06 µg ciprofloxacin/ml and analysed by PCR as described above.

DNA manipulation and genetic techniques

Request a detailed protocol

Genomic DNA was extracted and purified using the Qiagen DNeasy purification kit (Qiagen, Courtaboeuf, France). Isolation of plasmid DNA was carried out using the QIAprep Spin Miniprep kit (Qiagen). Gel extractions and purifications of PCR products were performed using the QIAquick Gel Extraction kit (Qiagen) and QIAquick PCR Purification kit (Qiagen). PCR verifying experiments were performed with Go Taq Green Master Mix (Promega, Charbonnières les Bains, France), and PCRs requiring proofreading were performed with the Q5 High-Fidelity DNA Polymerase (New England BioLabs, Evry, France) as described by the manufacturers. Restriction endonucleases DpnI was used per the manufacturer’s specifications (New England BioLabs). All DNA manipulations were checked by DNA sequencing (GENEWIZ, Takeley, England).

RNA extraction and qRT-PCR

Request a detailed protocol

Strains were grown in LB at 37°C with shaking to exponential phase (OD600 = 0.5–0.7). Six biological replicates were prepared, if not specify otherwise in the legends. One percent of the MICs of indicated antibiotics was then been added to the culture for 30 min to allow for induction of the SOS response. One culture was kept as an antibiotic-free control. Five hundred microliters of exponentially growing cells were stabilized in 1 ml of RNAprotect Bacteria Reagent (Qiagen). After treatment of the culture pellet with lysozyme (Qiagen), subsequent RNA extractions were performed using the RNeasy Mini Kit (Qiagen). The genomic DNA contaminating the samples was removed with TURBO DNA-free Kit (Ambion, Thermo Fisher Scientifics) at 37°C, for 30 min. First-strand cDNA synthesis and quantitative real-time PCR were performed with KAPA SYBR FAST (CliniSciences, Nanterre, France) on the LightCycler 480 (Roche Diagnostics, Meylan, France) using the primers indicated in Supplementary file 4. Transcript levels of each gene were normalized to dxs as the reference gene control. Gene expression levels were determined using the 2−ΔΔCq method (Bustin et al., 2009; Livak and Schmittgen, 2001) in respect to the MIQE guidelines. Relative fold-difference was expressed either by reference to antibiotic-free culture or the WT strain in LB. All experiments were performed as six independent replicates (if not specify otherwise) with all samples tested in triplicate. Cq values of technical replicates were averaged for each biological replicate allowing us to obtain the ∆Cq. After exponential transformation of the ∆Cq for the studied and the normalized condition, medians and upper/lower values were determined.

Flow cytometry

Request a detailed protocol

Flow cytometry experiments were performed as described (Baharoglu et al., 2014; Baharoglu et al., 2013; Baharoglu et al., 2010) and repeated at least three times on overnight cultures in MH or MH+ sub-MIC tobramycin (0.001 µg/ml). Briefly, overnight cultures of E. coli MG1655 and E. coli MG1655/pDIJ09-518a and their derivatives were prepared in LB broth with or without sub-MIC of tobramycin and diluted 40-fold into (phosphate-buffered saline Invitrogen). The GFP fluorescence was measured using the Miltenyi MACSQuant device.

Detection of intracellular ROS by DHR-123 and NO by DAF-2-DA

Request a detailed protocol

Overnight cultures of E. coli WT and E. coli WT/pDIJ09-518a and its derivatives were diluted 100-fold in fresh LB broth. DHR-123 (Sigma) or DAF-2 DA (Sigma) were added to 5 ml LB to a final concentration of 2.5 × 10−3 or 10 µM, respectively. Sub-MICs of ciprofloxacin or tobramycin were added for 30 min to the cultures at OD600 0.5–0.7, and when stated, cPTIO (Enzo Life Sciences) used at the final concentration of 5 µM. Two hundred microliters of bacterial cultures were then added to 96-well black flat-bottom plates (Corning) in triplicate. The DHR-123 fluorescence was measured at 507/529 nm (excitation/emission wavelength) whereas the DAF-2 DA fluorescence was measured at 491/513 nm, on a SAFAS Xenius XC (Safas, Monaco). The values used were corrected by subtracting the values from the negative controls. Experiments were repeated at least three times in triplicates.

Detection of intracellular NO by flow cytrometry

Request a detailed protocol

Overnight cultures of E. coli MG1655 and E. coli MG1655/pDIJ09-518a were diluted 100-fold into fresh LB broth, and growth until an OD600nm of 0.2 was reached. The DAF-2A, the NO scavenger cPTIO (5 µM final concentration), and sub-MIC of tobramycin were then added for 30 min to the cultures. Flow cytometry experiments were performed as described (Baharoglu et al., 2010) and repeated at least five times. DAF-2A fluorescence was measured using the Miltenyi MACSQuant device.

MIC determination

Request a detailed protocol

MICs were determined by E-test (bioMérieux, Marcy l’Etoile, France) in accordance with EUCAST guidelines. Briefly, MICs of nalidixic acid, ciprofloxacin, levofloxacin, and ofloxacin were determined on MH agar inoculated with a 0.5 McFarland (~108 colony-forming unit [CFU/ml]) bacterial suspension. MICs were read after incubation for 18 hr at 37°C.

Growth curves

Request a detailed protocol

Overnight cultures of E. coli WT and E. coli WT/pDIJ09-518a were diluted 100-fold into LB broth. Growth curves were obtained using an automated turbidimetric system (Bioscreen C, LabSystem) at 37°C with shaking during 24 hr. Optical density measurements at 600 nm (OD600) were performed every 5 min with 10 s of shaking prior to reading. The OD600, corrected with values from the negative controls, and the corresponding Log10 CFU/ml, were used to fit the growth curves of each studied strain. For both strains, biological experiments were performed in triplicate.

Plasmid stability

Request a detailed protocol

E. coli carrying the pDIJ09-518a was inoculate in a LB non-selective medium at 37°C and 200 rpm, for 30 days. Every 24 hr of growing, an aliquot of 100 µl was inoculated in fresh LB non-selective medium. At days 5, 10, 15, 20, 25, and 30, an aliquot of 100 µl was spread on a LB agar non-selective plates (to measure the living cells) and another 100 µl on a LB agar selective medium plates (here CIP to measure those yet harbouring the plasmid) and incubate for 24 hr at 37°C before proceeding to a PCR colony of five independent colonies. Biological experiments were performed in triplicate.

Viability study after tobramycin treatment

Request a detailed protocol

Overnight cultures of WT or WT/pDIJ09-518a or their derivatives strains were diluted 100-fold into LB broth and LB broth supplemented with 0.001 µg/ml tobramycin and growth 37°C for 24 hr. Aliquots were plated on LB agar and incubated at 37°C for 24 hr. The CFUs/ml were counted. The bars represent the percentage of CFU counted after tobramycin treatment over LB. For all strains, biological experiments were performed in duplicate.

Spontaneous mutation frequency after treatment with sub-MIC of tobramycin

Request a detailed protocol

Twelve single colonies of each strain (for each strain, six colonies in two independent assays) were grown overnight in LB supplemented with sub-MIC of tobramycin (0.001 µg/ml). Appropriate dilutions were plated on LB, and 1 ml of culture was centrifuged and plated on 200 μg/ml rifampin plates. The frequencies of spontaneous mutations to rifampicin resistance correspond to the rifampin-resistant CFU count over the total number of CFUs.

Bioinformatic analysis and statistics

Request a detailed protocol

The prevalence and the dissemination of the small qnrD-plasmids into Enterobacterales were analysed on the National Centre for Biotechnology Information (NCBI) database. The small qnrD-plasmids were classified into three groups (Morganellaceae, E. coli, and others Enterobacterales) and into two classes, considering the length of known qnrD-plasmids (pDIJ09-581a or p2007057-like).

The LexA-box consensus sequence logo was established using WebLogo http://weblogo.berkeley.edu/logo.cgi (Crooks et al., 2004) taking into account the 16nt of SOS-box of all 53 fully sequenced qnrD-plasmids.

For qRT-PCR, a Wilcoxon matched-pairs signed-rank test was used to compare median of fold changes (Livak and Schmittgen, 2001; Schmittgen and Livak, 2008; Yuan et al., 2006).

For ROS and NO detection, a two-way ANOVA with ad hoc tests (Tukey’s multiple comparisons test or a Dunn’s multiple comparisons test) was used to compare the measured values between the different strains and conditions.

For spontaneous mutations rates, a Wilcoxon matched-pairs signed-rank test was used to compare median of Rif CFU/ml/total CFUs counted.

All the tests were performed using GraphPad Prism version 6. Degree of significance is indicated as follows: *p < 0.05; **p < 0.01; ***p < 0.001; ****p < 0.0001.

Data availability

Source data are provided as a Source Data file. Flow cytometry data have been deposited in FlowRepository as FR-FCM-Z3MR repository ID (http://flowrepository.org/id/RvFrzhOtiB4Hrd9yMMTEF2gAckZvYVa365phD9U0fVTabQb7ibCDqV8Gzbgb02dm).

The following data sets were generated

References

Decision letter

  1. Bavesh D Kana
    Senior and Reviewing Editor; University of the Witwatersrand, South Africa
  2. Xian-Zhi Li
    Reviewer; Health Canada, Canada

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "A qnr-plasmid allows aminoglycosides to induce SOS in Escherichia coli" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by Bavesh Kana as the Senior and Reviewing Editor. The following individual involved in review of your submission has agreed to reveal their identity: Xian-Zhi Li (Reviewer #1).

Essential revisions:

Main Concerns:

1. The major weakness of the work is that it does not assess whether the SOS induction by AGs leads to increased mutagenesis as speculated.

2. The qnrD plasmid containing ORFs 3 and 4 is not commonly found in E. coli (Table S3 and Figure S1). It is adequate that most of the work has been performed in this genetically tractable organism. Nevertheless, it would be important to assess whether the same AG-mediated SOS induction occurs in bacteria that usually carry this type of plasmid (P. mirabilis or other Morganellaceae). This is a simple qRT PCR experiment which could add a lot to the significance of the paper. Perhaps the nitrosative stress (which is obviously a deleterious effect) is particular to E. coli and that could be one of the reasons why this particular plasmid architecture occur rarely (or never?) in this species.

3. There is no direct evidence provided for increase in 8-oxo-G incorporation. Thus, discussion should carefully be worded (Line 425). Indeed, the target(s) (molecules) with which aminoglycoside interact with as inducers remain unknown, although the aminoglycoside effect is dependent on the GO repair system and indirectly results in DNA damage (Figure 3). It is difficult to extend this to the description that aminoglycosides and others form 8-oxo-G (in L280-282). If any, the aminoglycoside effect is indirect. Clarity is needed.

4. Further to the above, the qnrD expression was induced by aminoglycosides (L130). However, it remains unknown whether the elevated 2.8-fold increase in qnrD expression in the presence of tobramycin could produce an impact on fluoroquinolone resistance phenotype. First, an aminoglycoside at 1% MIC is expected to exhibit no antibacterial activity. Thus, a simple fluoroquinolone MIC testing can be done in the presence and the absence of very low levels of aminoglycosides that induce SOS response. A reduced fluoroquinolone susceptibility would argue in favor of author-suggested significance of SOS induction findings.

5. As indicated by authors (L414-415), the functional roles of ORF3 and ORF4 via biochemical studies were not directly measured. Instead, sfiA expression and fluorescence indicators were assessed. This represents a weakness of the study. Can the authors address this?

6. How do the experiments in figure S2 address plasmid stability during growth by measuring OD? Plasmid stability in the experimental conditions is an important issue.

7. Comparing Figures 3B and 1E, it can be observed that deletion of both recF and recB have significant effects on SOS induction by AG in cells carrying the qnrD plasmid. These results are very important for the model and a qRT measurement of sulA in recF and recB mutants would be an important confirmation for the results obtained with plasmid based assays, which could be influenced by the reporter plasmid copy number and stability in the different genotypes analyzed.

8. The complementation of ORF 3 and 4 mutants (Figures 4A and 4C) is incomplete, the same SOS induction level as observed in the wt is never reached. Could this be due to the deletion of one ORF influencing on the expression of the other? Additionally, a more appropriate comparison with cells carrying the empty expression vector may help to solve this issue.

9. In contrast with the detailed analysis described in the initial sections, the information provided on the products of ORF3 and ORF4 is scanty. This is unfortunate as these products and their activities are the main findings of the story. Hence, more detailed characterization of these putative proteins seems advisable to support the authors's model. Bioinformatic analysis should be shown in more detail, the existence of the predicted proteins should be proven and the putative DNA binding activity of the ORF4 product should be shown. Otherwise, the possibility of indirect effect will remain open.

Other Comments that should be addressed:

1. The study introduces two groups of qnrD plasmids (L77). Do the authors have information about their copy numbers? For example, what is the copy number of pDIJ09-518a? This information will assist in understanding the basal expression of qnrD and the other genes in the absence of an inducer, and thus the significance of aminoglycoside induction of SOS response.

2. BLAST was carried out to find homologs of ORF3 and ORF4 (L366-373). Please include gene/product access information for an Erythrobacter spp protein and an O2-responsive regulator from Pedobacter panaciterrae. Are there any reference(s) to support these proteins that are used for comparison?

3. L326. In the absence of RecB, the SOS response was somehow (1.4-fold change; but seems statistically significant [Figure 3B]) observed in the presence of tobramycin, suggesting the possible presence of a RecF-independent SOS response pathway. For comparison, the control for both recF and recB, the ratios are quite below 1, Hence, the actual changes are larger. Suggest additional discussion. (Additionally, "LB" is indicated in text while Figure 3B shows "MH" – please clarify.)

4. L65. Among 53 fully sequenced qnrD plasmids, do they share the same orf3 and orf4 reported in this manuscript? In other word, how often are these ORFs observed in qnrD plasmids?

5. L221. Is the description "However, the underlying mechanism explaining these findings has yet to be identified" simply due to QnrD protection of ciprofloxacin target?

6. L402-403. The description "We found that ORF4 did not alleviate the SOS response after exposure to aminoglycoside sub-MICs as measured by sfiA expression (Figure 4C)" is not reflective of Figure 4C because orf3 deletion reduced sifA expression (statistically significant per Figure 4C legend). Please verify. As well, obviously, the complementation with pORF4 did not work in Figure 4C.

7. L431. The proposed Model (should be Figure 5, not Figure 4) is considered to reflect the findings. However, the wording should be careful. For example, in L436, the description "the level of oxidized guanine increases" may be revised as "the level of oxidized guanine may increase" as no measurement for 8-oxo-G was done in this study.

8. In contrast with the detailed analysis described in the initial sections, the information provided on the products of ORF3 and ORF4 is scanty. This is unfortunate as these products and their activities are the main findings of the story. Hence, more detailed characterization of these putative proteins seems advisable to support the authors's model. Bioinformatic analysis should be shown in more detail, the existence of the predicted proteins should be proven and the putative DNA binding activity of the ORF4 product should be shown. Otherwise, the possibility of indirect effect will remain open.

9. Absolute numbers of β-gal activities should be provided when lac fusions are used. This would help the reader to assess the magnitude of the phenomena described in the manuscript.

10. Please revise the statement that you proved functionality of the SOS box in the qnr locus of the plasmid family under study. You did so in the archetypal plasmid pDIJ109-518a. The writing may however suggest that functionality was proven in the entire plasmid collection provided in Table S3.

Reviewer 2 (Recommendations for the authors):

1. Some of the data files (spreadsheets) have French words/phrases. If they are intended to be published alongside the paper, these terms should be translated to English.

2. Figure S1 and introduction. Are ORFs 3 and 4 from the "small" qnr plasmids studied in this work also present in the "large" qnr plasmid? This is not clear from the text or Figure S1. As an alternative, Table S3 could indicate if ORFs 3 and 4 homologues are present in each of the qnrD plasmids.

3. This is a matter of choice, but sulA is a more widely use gene name than sfiA, and should be used throughout the text. sfiA is the original name, but modern gene annotations in bacterial genomes use sulA.

4. Lines 118-119: Revise this information. In figure 1A, the consensus observed upstream to qnrD actually has 15 out of 16 bases identical to the E. coli consensus shown.

5. Lines 291 to 293. Phrasing is not good, suggest: the SOS response induction could result from the deleterious effects…

6. Lines 402-403: "We found that ORF4 did not alleviate the SOS response after exposure to aminoglycoside sub-MICs, as measured by sfiA expression". In my view the SOS response is attenuated, although not completely, after ORF4 deletion. Maybe a more precise statement would be: "We found that ORF4 deletion does not completely abolish SOS induction by aminoglycoside sub-MICs, as measured by sfiA expression".

7. There is an unnecessary repetition of results in Figures 4A, 4C and 4E (wt, wt/pDIJ09). All these results could be merged into a single graph.

8. Data from Figure 4B and the model depicted in Figure 5 implicate that ORF4 can act on its own (independently from ORF3 or stressors) as a negative regulator of hmp, contributing to nitrosative stress. Nevertheless, if this was the case, I would expect the following in qRT-PCR experiments shown in Figure 4D:

Wt/pDIJ09 – lower hmp levels than cells without plasmid, due to (ORF4) action.

Wt/pDIJ09 del ORF4 – same hmp levels as cells without plasmid. No negative regulator present in spite of the rest of plasmid.

Wt/pDIJ09 del ORF4/pORF4 – lower hmp levels than cells without plasmid, due to in trans negative regulator (ORF4) action.

Can the authors perhaps add some comment? Is it possible that there is another interpretation for these data?

9. Lines 622-623 mention a mutation rate analysis, but such experiments are not shown in the paper.

10. Viability after tobramycin treatment (lines 601-606): It is not clear for how long cells were exposed to the antimicrobial.

11. Material and Methods or Figure legends should be more clear regarding the concentration of antimicrobials used in each experiment. For example, when comparing E. coli cells carrying or not the qnrD plasmid, each strain was treated with different sub-MIC concentrations of cipro to account for their different resistance levels? In Materials and methods (lines 479-481), 1% of the MIC of Cipro (0.06 µg/mL) is indicated as the sub-MIC concentration used. However, Table S1 indicates a MIC of 0.004 µg/mL for the wt strain, and 0.094 µg/mL for the strain carrying the qnr plasmid. This information is confusing and should be revised.

12. Were experiments measuring SOS induction with the GFP reporter performed in LB or MH medium? Material and Methods (lines 559-561) is contradictory on this regard. Figure legends indicate LB, but the Y axis of figures 1E and 3B show MH.

13. Line 588 mention levofloxacin and ofloxacin, but these antimicrobials were not used in this work.

Reviewer 3 (Recommendations for the authors):

1. The authors use the term "aminoglycosides" in multiple sections of the manuscript, including the title, the abstract and the discussion. However, only one aminoglycoside (tobramycin) has been used throughout the study. Gentamicin was used at the beginning of the study but disappears at some point. Please clarify.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "A qnr-plasmid allows aminoglycosides to induce SOS in Escherichia coli" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by Bavesh Kana as the Senior and Reviewing Editor. The following individual involved in review of your submission has agreed to reveal their identity: Xian-Zhi Li (Reviewer #1).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

Whilst reviewers concurred that your manuscript has improved, significant concerns around complementation still remain. Please address these. Other points are indicated below.

1. The manuscript is somewhat confusing regarding Figure and supplemental figure names. It is often difficult to understand which figured is being commented in the text (Examples: line 228, line 283, line 372). Also, supplemental figures are not numbered in the final document, making it hard to follow the text.

2. Page 8 lines 187-191. This result deserves a better discussion in the paper. The burden presented by this plasmid for E. coli is not present in Providencia. Therefore, this may one of the reasons why qnrD plasmids are rarely found in E. coli. SOS induction per se is a symptom of a stressed cell in a disadvantageous situation. Therefore, lack of SOS induction for Providencia means that this species is not harmed by presence of the plasmid, whereas the opposite is true for E. coli.

3. The plasmid used for complementation in experiments shown in Figure 4A clearly affects SOS induction by Tobramycin in cells carrying pDIJ09 (second versus fourth brown bar in figure 4A). This complicates the interpretation of all complementation experiments and should be revisited and the discussion should carefully reflect this limitation. There is no reference for the pTOPO vector used for complementation. Does it carry kanamycin or another aminoglycoside resistance? Could some sort of low-level cross resistance conferred by the plasmid be interfering with the effects of Tobramycin? Perhaps complementation with a chromosomal integration of ORFs 3 and 4 as done in other parts of the paper would be better.

4. In figure 3D, why does deletion of hmp does not increase sulA induction after Tobra treatment? The result does not make sense when compared to the overexpression and should be discussed in further detail.

5. Lines 482 to 490 are very confusing and need re-writing. The MPC experiments need a detailed description in the methods section.

6. Mutagenesis data should ideally represent at least 3 experiments. Authors should also describe in more detail how these experiments were performed (initial inoculum, hours of growth in the presence of the drug, etc).

7. The titles of Tables 1 and 2 includes "fluoroquinolone", while nalidixic acid is not a fluoroquinolone. A footnote could be helpful. In Abstract, please write "encodes", not "encode" (L47) and write "codes", not "code" (L48).

8. As ORF3 and ORF4 have not been characterized, it should be made clear that the identities of the ORF3 and ORF4 products are putative.

Reviewer #1 (Recommendations for the authors):

This is a revised manuscript. The authors have conducted additional experiments to address the major concerns from the previous reviewers. The addition of Tables 1 and 2/Figure 5 has enhanced the manuscript. The authors' response is considered satisfactory. There are no major comments from this reviewer.

Reviewer #2 (Recommendations for the authors):

This version of the manuscript has addressed many of the previous points raised by the reviewers. The work is interesting, but there are still some issues that need to be addressed:

For some reason, this version of the paper is very confusing regarding Figure and supplemental figure names. It is often difficult to understand which figured is being commented in the text (Examples: line 228, line 283, line 372). Also, supplemental figures are not numbered in the final document, making it hard to follow the text.

Page 8 lines 187-191. In my opinion, this result deserves a better discussion in the paper. The burden presented by this plasmid for E. coli is not present in Providencia. Therefore, this may one of the reasons why qnrD plasmids are rarely found in E. coli. SOS induction per se is a symptom of a stressed cell in a disadvantageous situation. Therefore, lack of SOS induction for Providencia means that this species is not harmed by presence of the plasmid, whereas the opposite is true for E. coli.

The plasmid used for complementation in experiments shown in Figure 4A clearly affects SOS induction by Tobramycin in cells carrying pDIJ09 (second versus fourth brown bar in figure 4A). This complicates the interpretation of all complementation experiments and should be revisited. There is no reference for the pTOPO vector used for complementation. Does it carry kanamycin or another aminoglycoside resistance? Could some sort of low-level cross resistance conferred by the plasmid be interfering with the effects of Tobramycin? Perhaps complementation with a chromosomal integration of ORFs 3 and 4 as done in other parts of the paper would be better.

In figure 3D, why deletion of hmp does not increase sulA induction after Tobra treatment? The result does not make sense when compared to the overexpression and should be better discussed.

Lines 482 to 490 are very confusing and need re-writing. The MPC experiments need a detailed description in the methods section.

Mutagenesis data should ideally represent at least 3 experiments. Authors should also describe in more detail how these experiments were performed (initial inoculum, hours of growth in the presence of the drug, etc).

Reviewer #3 (Recommendations for the authors):

The authors have done a good job responding to the reviewers' suggestions. Relevant points have been clarified and risky statements have been toned down in the revised version. The story remains incomplete as ORF3 and ORF4 have not been characterized. As a consequence, a crucial point in the story (the mechanism that triggers NO accumulation) remains enigmatic. Despite this shortage, I agree with the authors that qnr-mediated induction of the SOS response by aminoglycosides is an interesting phenomenon. My only suggestion at this point is to modify the text wherever pertinent (e. g., lines 47-49 and 388-396) to make it clear that the identities of the ORF3 and ORF4 products are putative.

https://doi.org/10.7554/eLife.69511.sa1

Author response

Essential revisions:

1. The major weakness of the work is that it does not assess whether the SOS induction by AGs leads to increased mutagenesis as speculated.

In the revised manuscript, we added the results of the spontaneous mutation ratio we obtained upon pre-treatment with sub-MIC of tobramycin. These results are mentioned lines 503-510 and shown in Figure S6. We found that the mutation frequency was 5.4-fold higher in E. coli/pDIJ09-518a compared to the plasmid-free E. coli. These results and the new MIC and MPC data (MIC in table 1, and MPC in figure 5) we added lines 436-503 showed that sub-MICs of aminoglycosides (antibiotic 1) potentiate the survival of E. coli (when carrying the qnrD-plasmid) isolates that would further develop QRDR mutations leading to higher fluoroquinolone (antibiotic 2) resistance (see also answer to comment #4).

2. The qnrD plasmid containing ORFs 3 and 4 is not commonly found in E. coli (Table S3 and Figure S1). It is adequate that most of the work has been performed in this genetically tractable organism. Nevertheless, it would be important to assess whether the same AG-mediated SOS induction occurs in bacteria that usually carry this type of plasmid (P. mirabilis or other Morganellaceae). This is a simple qRT PCR experiment which could add a lot to the significance of the paper. Perhaps the nitrosative stress (which is obviously a deleterious effect) is particular to E. coli and that could be one of the reasons why this particular plasmid architecture occur rarely (or never?) in this species.

We agree that such a strategy is important for the significance of the paper. The experiments of qRT-PCR quantifying the sulA expression level in Providencia rettgeri carrying the pDIJ09-518a were performed. They have been included in the revised manuscript (lines 188-191) and shown in the figure S3. Our results showed that the SOS response induction is not increased in P. rettgeri/pDIJ09-518a upon sub-MIC of tobramycin, but induced in mitomycin. This confirm that the SOS response is functional in this strain and that AG-mediated SOS induction is specific for E. coli.

3. There is no direct evidence provided for increase in 8-oxo-G incorporation. Thus, discussion should carefully be worded (Line 425). Indeed, the target(s) (molecules) with which aminoglycoside interact with as inducers remain unknown, although the aminoglycoside effect is dependent on the GO repair system and indirectly results in DNA damage (Figure 3). It is difficult to extend this to the description that aminoglycosides and others form 8-oxo-G (in L280-282). If any, the aminoglycoside effect is indirect. Clarity is needed.

We agree that we did not evidence the increase of 8-oxo-G incorporation. As suggested we reworded the discussion (524-528) by stating that although we did not identify which target(s) aminoglycosides interact with, guanine oxidation upon aminoglycosides and nitrosative stress exposure has been reported in the literature (doi: 10.1128/jb.183.1.131-138.2001 and doi: 10.1126/science.1219192), leading us to propose our mechanism.

4. Further to the above, the qnrD expression was induced by aminoglycosides (L130). However, it remains unknown whether the elevated 2.8-fold increase in qnrD expression in the presence of tobramycin could produce an impact on fluoroquinolone resistance phenotype. First, an aminoglycoside at 1% MIC is expected to exhibit no antibacterial activity. Thus, a simple fluoroquinolone MIC testing can be done in the presence and the absence of very low levels of aminoglycosides that induce SOS response. A reduced fluoroquinolone susceptibility would argue in favor of author-suggested significance of SOS induction findings.

To investigate the influence of the aminoglycoside-mediated SOS induction of qnrD on the level of fluoroquinolone resistance, the minimal inhibitory concentrations (MIC) of nalidixic acid, ciprofloxacin, ofloxacin and levofloxacin have been determined for E. coli and E. coli/pDIJ09-518a exposed to sub-MICs of ciprofloxacin or tobramycin (Table 1). These results showed that the aminoglycoside-induced SOS response increased fluoroquinolone MIC in line with the increased expression of qnrD in E. coli. Moreover, to test the possibility that the tobramycin could allow the survival of E. coli harbouring qnrD plasmids, that further develop stepwise accumulation of QRDR mutations, we determined the mutant prevention concentrations (MPC) of ciprofloxacin, levofloxacin and ofloxacin on a multi-susceptible clinical strain of E. coli, ATCC 25922 (reference multi-susceptible strain for antibiotic susceptibility testing), and its derivative harbouring pDIJ09-518a or pDIJ09-518aΔqnrD. We added these findings in the revised manuscript (436-503) as well as in the figure 5. Altogether, our findings showed that aminoglycosides increased qnrD gene expression and promote high-level fluoroquinolone resistance.

5. As indicated by authors (L414-415), the functional roles of ORF3 and ORF4 via biochemical studies were not directly measured. Instead, sfiA expression and fluorescence indicators were assessed. This represents a weakness of the study. Can the authors address this?

We agree with that demonstrating the functional roles of ORF3 and ORF4 via biochemical studies is an important point that would have strengthened our study. However, as we mentioned initially, such experimental effort does not invalidate our results and does not reduce its significance. Considering all the reviewer’s recommendations, we choose the other experiments to be considered as top priority (for instance, qRT-PCR on P. rettgeri, MPC, MIC, spontaneous mutations). As a follow-up to this initial report, we are currently working on biochemically and genetically characterizing the activities of purified proteins.

6. How do the experiments in figure S2 address plasmid stability during growth by measuring OD? Plasmid stability in the experimental conditions is an important issue.

Initially, experiments were performed in order to assess the stability of pDIJ09-518a carriage in the absence of a fluoroquinolone selective pressure. The schematical figure of our experiment is included in the revised manuscript and showed in figure S2B. We performed colony PCR every 5 days on 5 different colonies, until day 30. The plasmid was still present in the E. coli WT strain (figure S2C). These results are mentioned lines 146-153.

7. Comparing Figures 3B and 1E, it can be observed that deletion of both recF and recB have significant effects on SOS induction by AG in cells carrying the qnrD plasmid. These results are very important for the model and a qRT measurement of sulA in recF and recB mutants would be an important confirmation for the results obtained with plasmid based assays, which could be influenced by the reporter plasmid copy number and stability in the different genotypes analyzed.

This approach based on the expression of another SOS regulon gene (recN) used to measure the SOS response induction have already been used widely in many studies (e.g. doi: 10.1371/journal.pgen.1001165, doi: 10.1371/journal.pgen.1003421, doi: 10.1093/nar/gkt1259). No influence of the reporter plasmid nor its stability were evidenced. The normalization of the method/apparel is made on the level of fluorescence of the WT strain in the MH medium without antibiotic. To avoid any confusion a sentence referencing this approach has been added to the manuscript (line 651).

8. The complementation of ORF 3 and 4 mutants (Figures 4A and 4C) is incomplete, the same SOS induction level as observed in the wt is never reached. Could this be due to the deletion of one ORF influencing on the expression of the other? Additionally, a more appropriate comparison with cells carrying the empty expression vector may help to solve this issue.

As recommended by the reviewers we modified the figure 4A and showed on the same figure the results for the strains carrying the empty expression vector. In the revised figure 4, we can see for the sulA expression:

– ORF3 mutant: the same level in WT with tobramycin

– ORF3 mutant: statistically significant in WT/pDIJ09-518a with tobramycin

– ORF3 complemented mutant: statistically significant in WT with tobramycin (same as WT/pDIJ09-518a vs WT with tobramycin).

– ORF4 mutant and complemented: same level quantified and difference statistically significant compared to WT with tobramycin. In these strains the ORF3 expression plays a role.

– ORF3ORF4 double mutant: points out that the plasmid backbone and tobramycin are both necessary for SOS response induction in E. coli, since we quantified the same level.

9. In contrast with the detailed analysis described in the initial sections, the information provided on the products of ORF3 and ORF4 is scanty. This is unfortunate as these products and their activities are the main findings of the story. Hence, more detailed characterization of these putative proteins seems advisable to support the authors's model. Bioinformatic analysis should be shown in more detail, the existence of the predicted proteins should be proven and the putative DNA binding activity of the ORF4 product should be shown. Otherwise, the possibility of indirect effect will remain open.

The main result of this work is the novelty of an increased MIC to one antibotics after exposure to another class of antibiotics SOS response, more than the full characterization of unknown ORFs. However, as requested by the reviewer, we added a more detailed Bioinformatics analysis of the products ORF3 and ORF4. In the revised manuscript, lines 385-392, we have included the name of the homologous protein as well as identification accession number for different NCBI data bases that support the existence of these proteins. In Author response image 1 you will see the MSA view of the Blastp/Blastpsi alignment based on the conservation of the amino acids between the query (ORF3 or ORF4) and the subject we have found.

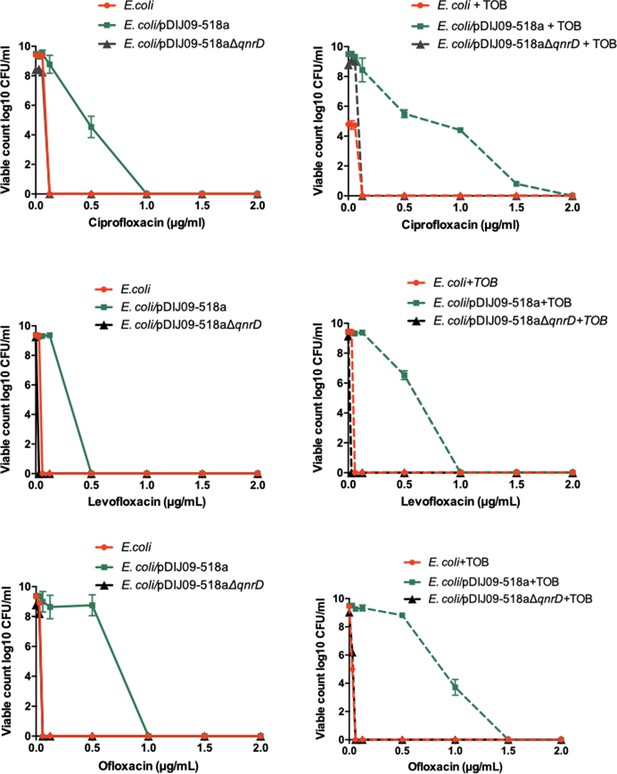

Author response image 1

Analysis of Author response image 1 shows how we came to present our results lines 385-392.

Other Comments that should be addressed:

1. The study introduces two groups of qnrD plasmids (L77). Do the authors have information about their copy numbers? For example, what is the copy number of pDIJ09-518a? This information will assist in understanding the basal expression of qnrD and the other genes in the absence of an inducer, and thus the significance of aminoglycoside induction of SOS response.

We carried out the plasmid copy number determination by absolute quantification in E. coli and P. rettgeri and found 230 copies in E. coli and 35 in P. rettgeri. Since we showed that the qnrD-plasmid alone does not induce the SOS response in E. coli (figure 1D), we have decided not to add these new results in the revised manuscript to focus on the main message.

2. BLAST was carried out to find homologs of ORF3 and ORF4 (L366-373). Please include gene/product access information for an Erythrobacter spp protein and an O2-responsive regulator from Pedobacter panaciterrae. Are there any reference(s) to support these proteins that are used for comparison?

See point 9 in the section ‘’main concerns’’. Done for the revised manuscript lines 385-392.

3. L326. In the absence of RecB, the SOS response was somehow (1.4-fold change; but seems statistically significant [Figure 3B]) observed in the presence of tobramycin, suggesting the possible presence of a RecF-independent SOS response pathway. For comparison, the control for both recF and recB, the ratios are quite below 1, Hence, the actual changes are larger. Suggest additional discussion. (Additionally, "LB" is indicated in text while Figure 3B shows "MH" – please clarify.)

Sorry for the typo. Results presented in figure 1E have been obtained from experiments performed in MH. We have modified this mistake lines 171 and 328. In order to avoid any misunderstanding, we would like to clarify that in figure 3B we showed a 1.4- fold change in the SOS response induction for the mutant ΔrecF and not for ΔrecB. For this latter, we did not find any induction of the SOS.

4. L65. Among 53 fully sequenced qnrD plasmids, do they share the same orf3 and orf4 reported in this manuscript? In other word, how often are these ORFs observed in qnrD plasmids?

The ORF3 and ORF4 are only found into the pDIJ09-518a type plasmids. These two ORFs are not present into the bigger-qnrD plasmid. We have included one sentence in the revised manuscript lines 77-78 as well as two columns showing the presence (+) of ORF3 and ORF4 in the Table S1.

5. L221. Is the description "However, the underlying mechanism explaining these findings has yet to be identified" simply due to QnrD protection of ciprofloxacin target?

We agree that these findings may be due to the simple protection by qnrD of FQ target, but to our knowledge there is no evidence whether it could be due to DNA topology issue or mutation rate.

6. L402-403. The description "We found that ORF4 did not alleviate the SOS response after exposure to aminoglycoside sub-MICs as measured by sfiA expression (Figure 4C)" is not reflective of Figure 4C because orf3 deletion reduced sifA expression (statistically significant per Figure 4C legend). Please verify. As well, obviously, the complementation with pORF4 did not work in Figure 4C.

Our results show that ORF4 did not alleviate the SOS response as our statistical test comparing the ORF4 mutant in tobramycin vs the WT in tobramycin is significant. This observation is not observed when we compared the ORF4 mutant in tobramycin vs the pDIJ09-518a in tobramycin. It is thus clear that ORF3 is still expressed in the ORF4 mutant as we observed a statistically significance between WT/pDIJ09-518a in tobramycin vs the double mutant, being statistically significant.

7. L431. The proposed Model (should be Figure 5, not Figure 4) is considered to reflect the findings. However, the wording should be careful. For example, in L436, the description "the level of oxidized guanine increases" may be revised as "the level of oxidized guanine may increase" as no measurement for 8-oxo-G was done in this study.

Done in the revised manuscript line 533.

8. In contrast with the detailed analysis described in the initial sections, the information provided on the products of ORF3 and ORF4 is scanty. This is unfortunate as these products and their activities are the main findings of the story. Hence, more detailed characterization of these putative proteins seems advisable to support the authors's model. Bioinformatic analysis should be shown in more detail, the existence of the predicted proteins should be proven and the putative DNA binding activity of the ORF4 product should be shown. Otherwise, the possibility of indirect effect will remain open.

See point 9 in the section ‘’main concerns’’. Done for the revised manuscript lines 385-392.

9. Absolute numbers of β-gal activities should be provided when lac fusions are used. This would help the reader to assess the magnitude of the phenomena described in the manuscript.

We did not perform fusion transcription with lacZ in this study, but we have used the MG1656 strain, in order to perform the further biochemically study on the proteins encoded by ORF3 and ORF4 genes.

10. Please revise the statement that you proved functionality of the SOS box in the qnr locus of the plasmid family under study. You did so in the archetypal plasmid pDIJ109-518a. The writing may however suggest that functionality was proven in the entire plasmid collection provided in Table S3.

We have modified the sentence in the revised manuscript line 124.

Reviewer 2 (Recommendations for the authors):

1. Some of the data files (spreadsheets) have French words/phrases. If they are intended to be published alongside the paper, these terms should be translated to English.

Done.

2. Figure S1 and introduction. Are ORFs 3 and 4 from the "small" qnr plasmids studied in this work also present in the "large" qnr plasmid? This is not clear from the text or Figure S1. As an alternative, Table S3 could indicate if ORFs 3 and 4 homologues are present in each of the qnrD plasmids.

Done. See our answer in ‘’others comments’’ point 4 for L65 and present in the revised manuscript.

3. This is a matter of choice, but sulA is a more widely use gene name than sfiA, and should be used throughout the text. sfiA is the original name, but modern gene annotations in bacterial genomes use sulA.

Done all over the revised manuscript.

4. Lines 118-119: Revise this information. In figure 1A, the consensus observed upstream to qnrD actually has 15 out of 16 bases identical to the E. coli consensus shown.

Done line 139 of the revised manuscript.

5. Lines 291 to 293. Phrasing is not good, suggest: the SOS response induction could result from the deleterious effects…

Done lines 294-295 of the revised manuscript.

6. Lines 402-403: "We found that ORF4 did not alleviate the SOS response after exposure to aminoglycoside sub-MICs, as measured by sfiA expression". In my view the SOS response is attenuated, although not completely, after ORF4 deletion. Maybe a more precise statement would be: "We found that ORF4 deletion does not completely abolish SOS induction by aminoglycoside sub-MICs, as measured by sfiA expression".

Done line 420 of the revised manuscript.

7. There is an unnecessary repetition of results in Figures 4A, 4C and 4E (wt, wt/pDIJ09). All these results could be merged into a single graph.

Done for Figure 4A

8. Data from Figure 4B and the model depicted in Figure 5 implicate that ORF4 can act on its own (independently from ORF3 or stressors) as a negative regulator of hmp, contributing to nitrosative stress. Nevertheless, if this was the case, I would expect the following in qRT-PCR experiments shown in Figure 4D:

Wt/pDIJ09 – lower hmp levels than cells without plasmid, due to (ORF4) action.

Wt/pDIJ09 del ORF4 – same hmp levels as cells without plasmid. No negative regulator present in spite of the rest of plasmid.

Wt/pDIJ09 del ORF4/pORF4 – lower hmp levels than cells without plasmid, due to in trans negative regulator (ORF4) action.

Can the authors perhaps add some comment? Is it possible that there is another interpretation for these data?

We tried to simplify and summarize the mechanism in the scheme of the figure 6. But, we agree that we did not evidence that ORF4 acts independently from ORF3 or stressors.

– The WT represents the baseline level of the expression of hmp needed for the regular detoxification of NO.

– In WT/pDIJ09-518a, hmp could have been expected to be less expressed because of the presence of ORF4. But, ORF3 is present in the plasmid backbone and thus increases NO (See figure 4D with pDIJ09-518a in red > WT in white). Therefore, ORF4 inhibits a higher rate of hmp expression than at the baseline. This compensation may explain that hmp levels are not lower than those in cells without plasmid.

– In ΔORF4, there is no inhibition of hmp by ORF4, and hmp is stimulated by NO generated by ORF3.

– In ΔORF4/pORF4 (orange histogram), over-expression of ORF4 can inhibit the hmp expression despite the presence of ORF3.

9. Lines 622-623 mention a mutation rate analysis, but such experiments are not shown in the paper.

Modified in the revised manuscript and shown in the Figure S5.

10. Viability after tobramycin treatment (lines 601-606): It is not clear for how long cells were exposed to the antimicrobial.

Modified in the revised manuscript (line 705).

11. Material and Methods or Figure legends should be more clear regarding the concentration of antimicrobials used in each experiment. For example, when comparing E. coli cells carrying or not the qnrD plasmid, each strain was treated with different sub-MIC concentrations of cipro to account for their different resistance levels? In Materials and methods (lines 479-481), 1% of the MIC of Cipro (0.06 µg/mL) is indicated as the sub-MIC concentration used. However, Table S1 indicates a MIC of 0.004 µg/mL for the wt strain, and 0.094 µg/mL for the strain carrying the qnr plasmid. This information is confusing and should be revised.

We have performed MIC testing E-tests. Conversely to the microdilution broth method, it is not a twofold dilutions test. Then results can be a little bit different. Pinpointing 0.094, the microdilution method would have provided results such as 0.125, 0.06 or 0.03 μg/ml. We double checked the MIC of E. coli WT and E. coli/pDIJ09-518a using the microdilution broth method (Sensititre broth microdilution, Thermo Scientific). For the MIC value 0.094 μg/ml, as expected, we found we found 0.06. Given this result, and that we performed previously all the MICs using E-test, we kept the E-test results (moreover well accepted in clinical microbiology laboratories for diagnosis).

12. Were experiments measuring SOS induction with the GFP reporter performed in LB or MH medium? Material and Methods (lines 559-561) is contradictory on this regard. Figure legends indicate LB, but the Y axis of figures 1E and 3B show MH.

Modified in the revised manuscript.

13. Line 588 mention levofloxacin and ofloxacin, but these antimicrobials were not used in this work.

It was a mistake. Since we have added new data with these antimicrobials, as recommended by reviewers, we kept the paragraph lines 680-683.

Reviewer 3 (Recommendations for the authors):

1. The authors use the term "aminoglycosides" in multiple sections of the manuscript, including the title, the abstract and the discussion. However, only one aminoglycoside (tobramycin) has been used throughout the study. Gentamicin was used at the beginning of the study but disappears at some point. Please clarify.

First, we demonstrated the SOS induction upon tobramycin and gentamicin treatment (figures 1C, 1D and 1F). Once this induction demonstrated, we aimed at deciphering the mechanism. For that purpose, we decided to use only a single aminoglycoside since both had been evidenced to induce the SOS.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Essential revisions:

Whilst reviewers concurred that your manuscript has improved, significant concerns around complementation still remain. Please address these. Other points are indicated below.

1. The manuscript is somewhat confusing regarding Figure and supplemental figure names. It is often difficult to understand which figured is being commented in the text (Examples: line 228, line 283, line 372). Also, supplemental figures are not numbered in the final document, making it hard to follow the text.

We agree with the reviewer that the supplemental figures were not numbered according to the modifications requested by the editorial office. We modified them. In addition, the former figure 1—figure supplement 1 with the pie-charts showing the distribution of qnrD-plasmids among Enterobacterales and Morganellaceae did not really match with the former figure 1. We guess it led to be somewhat confusing to read appropriately the manuscript. To avoid such a confusion, this figure has been added in the manuscript since it does not match with the former figure 1.

2. Page 8 lines 187-191. This result deserves a better discussion in the paper. The burden presented by this plasmid for E. coli is not present in Providencia. Therefore, this may one of the reasons why qnrD plasmids are rarely found in E. coli. SOS induction per se is a symptom of a stressed cell in a disadvantageous situation. Therefore, lack of SOS induction for Providencia means that this species is not harmed by presence of the plasmid, whereas the opposite is true for E. coli.

We agree with the reviewer that the lack of SOS induction in Providencia spp. upon aminoglycosides exposure turns to be due to the lack of burden caused by the qnrD-plasmid and observed in E. coli with tobramycin. qnrD-plasmids are mainly described in Proteeae.. In E. coli carrying the qnrD-plasmid, as well as in Providencia spp., no induction of the SOS response was found without exposing the cells to tobramycin. We agree that we can speculate that such a qnrD-plasmid is harmless for Providencia spp. conversely to E. coli and that may explain why these plasmids are rarely found in E. coli.

We have conducted a protein sequence alignment of D4C4X8_PRORE (UniProt annotation of Providencia rettgeri Hmp protein) using BLASTp with the protein Hmp from E. coli. The results of the alignment, in term of length of sequence showed a 63,38% protein identity with E. coli str. K-12 substr MG1655 (sequence identity NP_4170471.1). When analyzing deeper the Providencia rettgeri Hmp protein sequence using the MSA Viewer, we found differences between the two species in term of amino acids. This result has been added in the manuscript (lines 193-200) and in the figure 2—figure supplement 2 (panel B)

We did not find any references about the Proteeae hmp gene characterization in literature. To follow the lead provided by the reviewer in order to explain that the burden presented by the qnrD-plasmid in E. coli is not present in Providencia spp., we can consider two hypothesis: (i) Hmp is not inhibited by ORF4 in Providencia spp. due to only 63.4% of identity with E. coli Hmp, allowing then Hmp to play its role in NO detoxification and (ii) ORF3 is not active in Providencia spp. limiting the amount of NO production. This part has been added in the discussion lines 546-549.

3. The plasmid used for complementation in experiments shown in Figure 4A clearly affects SOS induction by Tobramycin in cells carrying pDIJ09 (second versus fourth brown bar in figure 4A). This complicates the interpretation of all complementation experiments and should be revisited and the discussion should carefully reflect this limitation.

We agree with the reviewer that there is a mistake on the figure 4 of the last revised manuscript (round 1). Last time, we modified the figure 4A as recommended by the reviewer. However, in order to generate the tobramycin results of figure 4A, we unfortunately made a mistake by copying-pasting the LB raw data for WT/pΦ and WT/pDIJ09-518A/pΦ (grey and black bar) from the former figure S4A rather than tobramycin raw data for WT/pDIJ09-518A/pΦ from S4B. This led to wrongly show that pΦ affects the SOS induction in cells carrying pDIJ09-518a. In the former figure S4, we had clearly shown that the sulA expression is increased in E. coli/pDIJ09-518a upon tobramycin exposure conversely to antibiotic-free LB wherein no induction of SOS was noticed for WT/pΦ and WT/pDIJ09-518a/pΦ. The raw data were available since the first submission to confirm we just made a mistake by copying-pasting data to generate the figure 4 in the last revised manuscript.

Taking account into this mistake, we modified the figure 4 (now figure 5 in the new revised manuscript). The pΦ empty vector co-carried with pDIJ09-518a seems to decrease the sulA expression without tobramycin treatment (grey bar, Figure 4—figure supplement 1). We did find any explanation for this observation but it may explain why the sulA expression upon tobramycin exposure is a bit lower for WT/pDIJ09-518a/pΦ than for WT/pDIJ09-518a (second and third brown bar of the new figure 5). Either way, such a result cannot call into question our results since we still observed an increase of sulA expression.

There is no reference for the pTOPO vector used for complementation. Does it carry kanamycin or another aminoglycoside resistance? Could some sort of low-level cross resistance conferred by the plasmid be interfering with the effects of Tobramycin? Perhaps complementation with a chromosomal integration of ORFs 3 and 4 as done in other parts of the paper would be better.

In figure 4 (formerly Figure 3) and figure 5 (formerly Figure 4) as well as in the table in supplementary file 3, pΦ stands for the pCR2.1. (from ThermoFisher Scientific) empty vector that we unfortunately called pTOPO in the material and methods. It has been modified in the revised manuscript (line 613). pCR2.1. carries a kanamycin resistance determinant. However, (1) this plasmid was not used to perform any MIC determination relative to level of fluoroquinolone resistance and (2) we showed that pΦ does not increase sulA expression not only in the wild-type E. coli strain but also the wild-type E. coli strain carrying pDIJ09-518a, without tobramycin (figure 4—figure supplement 1A). All together, we think that these experimental controls ruled out any interfering effect from the kanamycin resistance determinant encoded within pCR2.1. (pΦ).

4. In figure 3D, why does deletion of hmp does not increase sulA induction after Tobra treatment? The result does not make sense when compared to the overexpression and should be discussed in further detail.

It turns out there is a misunderstanding regarding the figure 4D (formerly 3D). In this latter, the SOS response induction was relatively quantified and we showed a statistically significant increase of sulA expression in the hmp mutant carrying the pDIJ09-518a (Δhmp/pDIJ09-518a) upon tobramycin exposure compared to ATB-free LB (third bar – green – in figure 4D). In the strain carrying the qnrD-plasmid pDIJ09-518a (WT/pDIJ09-518a/pHmp), overexpression of hmp (pHmp) abrogated the SOS response induction after tobramycin treatment (figure 4D, second bar). Moreover, after scavenging NO by cPTIO, we observed the same level of sulA expression for all the isogenic strains (white bars, 4th to 6th bar). As mentioned (lines 360-375) and discussed (531-545) lines in the manuscript, this pointed out that, in the strain carrying pDIJ09-518a in the presence of tobramycin, NO is accumulating and the NO-detoxifier Hmp is not functional.

5. Lines 482 to 490 are very confusing and need re-writing. The MPC experiments need a detailed description in the methods section.

In the revised manuscript, line 498, we have clearly mentioned that QDRD mutations have been assessed in E. coli ATCC 25922/pDIJ09-518a isolates harvested from the MPC assay. We think it will be less confusing for the reader when comparing the text with the table 2.

6. Mutagenesis data should ideally represent at least 3 experiments. Authors should also describe in more detail how these experiments were performed (initial inoculum, hours of growth in the presence of the drug, etc).

Lines 728-732, we have described how the experiments were performed: initial inoculum was made from single colony (total of 12 colonies for each strain: 6 colonies for each strain in 2 independent assays) and grown over night in LB in the presence or the absence of sub-minimum inhibitory concentration of tobramycin.

7. The titles of Tables 1 and 2 includes "fluoroquinolone", while nalidixic acid is not a fluoroquinolone. A footnote could be helpful. In Abstract, please write "encodes", not "encode" (L47) and write "codes", not "code" (L48).

We have done all the modifications all over the revised manuscript.

8. As ORF3 and ORF4 have not been characterized, it should be made clear that the identities of the ORF3 and ORF4 products are putative.

We have done all the modifications all over the revised manuscript.

Reviewer #2 (Recommendations for the authors):

This version of the manuscript has addressed many of the previous points raised by the reviewers. The work is interesting, but there are still some issues that need to be addressed:

For some reason, this version of the paper is very confusing regarding Figure and supplemental figure names. It is often difficult to understand which figured is being commented in the text (Examples: line 228, line 283, line 372). Also, supplemental figures are not numbered in the final document, making it hard to follow the text.

We agree with the reviewer that the supplemental figures were not numbered according to the modifications requested by the editorial office. We modified them. In addition, the former figure 1—figure supplement 1 with the pie-charts showing the distribution of qnrD-plasmids among Enterobacterales and Morganellaceae did not really match with the former figure 1. We guess it led to be somewhat confusing to read appropriately the manuscript. To avoid such a confusion, this figure has been added in the manuscript since it does not match with the former figure 1.

Page 8 lines 187-191. In my opinion, this result deserves a better discussion in the paper. The burden presented by this plasmid for E. coli is not present in Providencia. Therefore, this may one of the reasons why qnrD plasmids are rarely found in E. coli. SOS induction per se is a symptom of a stressed cell in a disadvantageous situation. Therefore, lack of SOS induction for Providencia means that this species is not harmed by presence of the plasmid, whereas the opposite is true for E. coli.

We agree with the reviewer that the lack of SOS induction in Providencia spp. upon aminoglycosides exposure turns to be due to the lack of burden caused by the qnrD-plasmid and observed in E. coli with tobramycin. qnrD-plasmids are mainly described in Proteeae.. In E. coli carrying the qnrD-plasmid, as well as in Providencia spp., no induction of the SOS response was found without exposing the cells to tobramycin. We agree that we can speculate that such a qnrD-plasmid is harmless for Providencia spp. conversely to E. coli and that may explain why these plasmids are rarely found in E. coli.

We have conducted a protein sequence alignment of D4C4X8_PRORE (UniProt annotation of Providencia rettgeri Hmp protein) using BLASTp with the protein Hmp from E. coli. The results of the alignment, in term of length of sequence showed a 63,38% protein identity with E. coli str. K-12 substr MG1655 (sequence identity NP_4170471.1). When analyzing deeper the Providencia rettgeri Hmp protein sequence using the MSA Viewer, we found differences between the two species in term of amino acids. This result has been added in the manuscript (lines 193-200) and in the figure 2—figure supplement 2 (panel B)

We did not find any references about the Proteeae hmp gene characterization in literature. To follow the lead provided by the reviewer in order to explain that the burden presented by the qnrD-plasmid in E. coli is not present in Providencia spp., we can consider two hypothesis: (i) Hmp is not inhibited by ORF4 in Providencia spp. due to only 63.4% of identity with E. coli Hmp, allowing then Hmp to play its role in NO detoxification and (ii) ORF3 is not active in Providencia spp. limiting the amount of NO production. This part has been added in the discussion lines 546-549.

The plasmid used for complementation in experiments shown in Figure 4A clearly affects SOS induction by Tobramycin in cells carrying pDIJ09 (second versus fourth brown bar in figure 4A). This complicates the interpretation of all complementation experiments and should be revisited. There is no reference for the pTOPO vector used for complementation. Does it carry kanamycin or another aminoglycoside resistance? Could some sort of low-level cross resistance conferred by the plasmid be interfering with the effects of Tobramycin? Perhaps complementation with a chromosomal integration of ORFs 3 and 4 as done in other parts of the paper would be better.

We agree with the reviewer that there is a mistake on the figure 4 of the last revised manuscript (round 1). Last time, we modified the figure 4A as recommended by the reviewer. However, in order to generate the tobramycin results of figure 4A, we unfortunately made a mistake by copying-pasting the LB raw data for WT/pΦ and WT/pDIJ09-518A/pΦ (grey and black bar) from the former figure S4A rather than tobramycin raw data for WT/pDIJ09-518A/pΦ from S4B. This led to wrongly show that pΦ affects the SOS induction in cells carrying pDIJ09-518a. In the former figure S4, we had clearly shown that the sulA expression is increased in E. coli/pDIJ09-518a upon tobramycin exposure conversely to antibiotic-free LB wherein no induction of SOS was noticed for WT/pΦ and WT/pDIJ09-518a/pΦ. The raw data were available since the first submission to confirm we just made a mistake by copying-pasting data to generate the figure 4 in the last revised manuscript.

Taking account into this mistake, we modified the figure 4 (now figure 5 in the new revised manuscript). The pΦ empty vector co-carried with pDIJ09-518a seems to decrease the sulA expression without tobramycin treatment (grey bar, Figure 4—figure supplement 1). We did find any explanation for this observation but it may explain why the sulA expression upon tobramycin exposure is a bit lower for WT/pDIJ09-518a/pΦ than for WT/pDIJ09-518a (second and third brown bar of the new figure 5). Either way, such a result cannot call into question our results since we still observed an increase of sulA expression.

In figure 4 (formerly Figure 3) and figure 5 (formerly Figure 4) as well as in the table in supplementary file 3, pΦ stands for the pCR2.1. (from ThermoFisher Scientific) empty vector that we unfortunately called pTOPO in the material and methods. It has been modified in the revised manuscript (lines 604-605). pCR2.1. carries a kanamycin resistance determinant. However, (1) this plasmid was not used to perform any MIC determination relative to level of fluoroquinolone resistance and (2) we showed that pΦ does not increase sulA expression not only in the wild-type E. coli strain but also the wild-type E. coli strain carrying pDIJ09-518a, without tobramycin (figure 4—figure supplement 1A). All together, we think that these experimental controls ruled out any interfering effect from the kanamycin resistance determinant encoded within pCR2.1. (pΦ).

In figure 3D, why deletion of hmp does not increase sulA induction after Tobra treatment? The result does not make sense when compared to the overexpression and should be better discussed.

It turns out there is a misunderstanding regarding the figure 4D (formerly 3D). In this latter, the SOS response induction was relatively quantified and we showed a statistically significant increase of sulA expression in the hmp mutant carrying the pDIJ09-518a (Δhmp/pDIJ09-518a) upon tobramycin exposure compared to ATB-free LB (third bar – green – in figure 4D). In the strain carrying the qnrD-plasmid pDIJ09-518a (WT/pDIJ09-518a/pHmp), overexpression of hmp (pHmp) abrogated the SOS response induction after tobramycin treatment (figure 4D, second bar). Moreover, after scavenging NO by cPTIO, we observed the same level of sulA expression for all the isogenic strains (white bars, 4th to 6th bar). As mentioned (lines 360-375) and discussed (531-545) lines in the manuscript, this pointed out that in the strain carrying pDIJ09-518a in the presence of tobramycin, NO is accumulating and the NO-detoxifier Hmp is not functional.

Lines 482 to 490 are very confusing and need re-writing. The MPC experiments need a detailed description in the methods section.

In the revised manuscript, line 498, we have clearly mentioned that QDRD mutations have been assessed in E. coli ATCC 25922/pDIJ09-518a isolates harvested from the MPC assay. We think it will be less confusing for the reader when comparing the text with the table 2.

Mutagenesis data should ideally represent at least 3 experiments. Authors should also describe in more detail how these experiments were performed (initial inoculum, hours of growth in the presence of the drug, etc).

Lines 728- 732, we have described how the experiments were performed: initial inoculum was made from single colony (total of 12 colonies for each strain: 6 colonies for each strain in 2 independent assays) and grown over night in LB in the presence or the absence of sub-minimum inhibitory concentration of tobramycin.

Reviewer #3 (Recommendations for the authors):

The authors have done a good job responding to the reviewers' suggestions. Relevant points have been clarified and risky statements have been toned down in the revised version. The story remains incomplete as ORF3 and ORF4 have not been characterized. As a consequence, a crucial point in the story (the mechanism that triggers NO accumulation) remains enigmatic. Despite this shortage, I agree with the authors that qnr-mediated induction of the SOS response by aminoglycosides is an interesting phenomenon. My only suggestion at this point is to modify the text wherever pertinent (e. g., lines 47-49 and 388-396) to make it clear that the identities of the ORF3 and ORF4 products are putative.

We have done all the modifications all over the revised manuscript.

https://doi.org/10.7554/eLife.69511.sa2

Article and author information

Author details

  1. Anamaria Babosan

    Inserm UMR-S 1250 P3Cell, SFR CAP-Santé, Université de Reims-Champagne-Ardenne, Reims, France
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Resources, Validation, Visualization, Writing - original draft, Writing – review and editing
    Competing interests
    No competing interests declared
  2. David Skurnik

    Assistance Publique-Hôpitaux de Paris, Department of Clinical Microbiology, Necker-Enfants Malades University Hospital, Université de Paris, 75015 Paris, France. INSERM U1151-Equipe 1, Institut Necker-Enfants Malades, Université de Paris, 75015 Paris, France. Division of Infectious Diseases, Brigham and Women’s Hospital, Harvard Medical School, Boston, MA 02115, USA., Boston, United States
    Contribution
    Conceptualization, Writing - original draft, Writing – review and editing
    Competing interests
    No competing interests declared
  3. Anaëlle Muggeo

    Inserm UMR-S 1250 P3Cell, SFR CAP-Santé, Université de Reims-Champagne-Ardenne, Reims, France. Laboratoire de Bactériologie-Virologie-Hygiène Hospitalière-Parasitologie- Mycologie, CHU Reims, Hôpital Robert Debré, Reims, France
    Contribution
    Investigation, Resources, Writing – review and editing
    Competing interests
    No competing interests declared
  4. Gerald B Pier

    Division of Infectious Diseases, Department of Medicine, Brigham and Women's Hospital, Harvard Medical School, Boston, United States
    Contribution
    Resources, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9112-2331
  5. Zeynep Baharoglu

    Institut Pasteur, Unité Plasticité du Génome Bactérien, CNRS UMR3525, Paris, France
    Contribution
    Investigation, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3477-2685
  6. Thomas Jové

    Université de Limoges, Inserm, CHU Limoges, RESINFIT, UMR 1092, Limoges, France
    Contribution
    Investigation, Resources, Validation
    Competing interests
    No competing interests declared
  7. Marie-Cécile Ploy

    Université de Limoges, Inserm, CHU Limoges, RESINFIT, UMR 1092, Limoges, France
    Contribution
    Resources, Writing – review and editing
    Competing interests
    No competing interests declared
  8. Sophie Griveau

    Chimie ParisTech, PSL Research University, CNRS, Institute of Chemistry for Life and Health Sciences, Paris, France
    Contribution
    Investigation, Writing – review and editing
    Competing interests
    No competing interests declared
  9. Fethi Bedioui

    Chimie ParisTech, PSL Research University, CNRS, Institute of Chemistry for Life and Health Sciences, Paris, France
    Contribution
    Investigation, Writing – review and editing
    Competing interests
    No competing interests declared
  10. Sébastien Vergnolle

    Laboratoire d’Hématologie, CH de Troyes, Troyes, France
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  11. Sophie Moussalih

    Inserm UMR-S 1250 P3Cell, SFR CAP-Santé, Université de Reims-Champagne-Ardenne, Reims, France
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  12. Christophe de Champs

    Inserm UMR-S 1250 P3Cell, SFR CAP-Santé, Université de Reims-Champagne-Ardenne, Reims, France. Laboratoire de Bactériologie-Virologie-Hygiène Hospitalière-Parasitologie- Mycologie, CHU Reims, Hôpital Robert Debré, Reims, France
    Contribution
    Conceptualization, Validation, Writing – review and editing
    Competing interests
    No competing interests declared
  13. Didier Mazel

    Institut Pasteur, Unité Plasticité du Génome Bactérien, CNRS UMR3525, Paris, France
    Contribution
    Conceptualization, Funding acquisition, Resources, Writing - original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6482-6002
  14. Thomas Guillard

    Inserm UMR-S 1250 P3Cell, SFR CAP-Santé, Université de Reims-Champagne-Ardenne, Reims, France. Laboratoire de Bactériologie-Virologie-Hygiène Hospitalière-Parasitologie- Mycologie, CHU Reims, Hôpital Robert Debré, Reims, France
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Methodology, Project administration, Resources, Supervision, Validation, Writing - original draft, Writing – review and editing
    For correspondence
    tguillard@chu-reims.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3795-0398

Funding

Université de Reims Champagne-Ardenne

  • Anamaria Babosan
  • Christophe de Champs
  • Thomas Guillard

Conseil Régional de Champagne-Ardenne

  • Anamaria Babosan
  • Christophe de Champs
  • Thomas Guillard

Association pour le Developpement de la Microbiologie et de l'Immunologie Rémoises

  • Anamaria Babosan

International Union of Biochemistry and Molecular Biology

  • Anamaria Babosan

Agence Nationale de la Recherche (ANR-10-LABX-62- IBEID)

  • Didier Mazel

Centre National de la Recherche Scientifique

  • Zeynep Baharoglu
  • Didier Mazel

Institut Pasteur

  • Zeynep Baharoglu
  • Didier Mazel

The funders had no role in study design, data collection, and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr Valerian Dormoy for his careful reading of the manuscript and scientific discussion of the results, Dr Christine Terryn of PICT-URCA platform for technical assistance in imaging core facilities, Dr Arnaud Bonnomet from Inserm UMR-S 1250 for their technical assistance, and Prof Grace Stockton-Bliard for proofreading the manuscript. Funding: This work was supported by the Université de Reims Champagne-Ardenne [to AB, TG, and CDC] and the Conseil Régional de Champagne-Ardenne, the Association pour le Développement de la Microbiologie et de l’Immunologie Rémoises, and the International Union of Biochemistry and Molecular Biology [to AB]. Work in the Mazel lab work was supported by the French Government’s Investissement d’Avenir program Laboratoire d’Excellence ‘Integrative Biology of Emerging Infectious Diseases’ [ANR-10-LABX-62- IBEID], by Institut Pasteur and by CNRS.

Senior and Reviewing Editor

  1. Bavesh D Kana, University of the Witwatersrand, South Africa

Reviewer

  1. Xian-Zhi Li, Health Canada, Canada

Publication history

  1. Received: April 17, 2021
  2. Preprint posted: April 30, 2021 (view preprint)
  3. Accepted: January 12, 2022
  4. Accepted Manuscript published: January 17, 2022 (version 1)
  5. Version of Record published: January 25, 2022 (version 2)

Copyright

© 2022, Babosan et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 482
    Page views
  • 84
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Anamaria Babosan
  2. David Skurnik
  3. Anaëlle Muggeo
  4. Gerald B Pier
  5. Zeynep Baharoglu
  6. Thomas Jové
  7. Marie-Cécile Ploy
  8. Sophie Griveau
  9. Fethi Bedioui
  10. Sébastien Vergnolle
  11. Sophie Moussalih
  12. Christophe de Champs
  13. Didier Mazel
  14. Thomas Guillard
(2022)
A qnr-plasmid allows aminoglycosides to induce SOS in Escherichia coli
eLife 11:e69511.
https://doi.org/10.7554/eLife.69511
  1. Further reading

Further reading

    1. Microbiology and Infectious Disease
    Josué Flores-Kim et al.
    Research Article

    Penicillin and related antibiotics disrupt cell wall synthesis in bacteria causing the downstream misactivation of cell wall hydrolases called autolysins to induce cell lysis. Despite the clinical importance of this phenomenon, little is known about the factors that control autolysins and how penicillins subvert this regulation to kill cells. In the pathogen Streptococcus pneumoniae (Sp), LytA is the major autolysin responsible for penicillin-induced bacteriolysis. We recently discovered that penicillin treatment of Sp causes a dramatic shift in surface polymer biogenesis in which cell wall-anchored teichoic acids (WTAs) increase in abundance at the expense of lipid-linked teichoic acids (LTAs). Because LytA binds to both species of teichoic acids, this change recruits the enzyme to its substrate where it cleaves the cell wall and elicits lysis. In this report, we identify WhyD (SPD_0880) as a new factor that controls the level of WTAs in Sp cells to prevent LytA misactivation during exponential growth and premature lysis. We show that WhyD is a WTA hydrolase that restricts the WTA content of the wall to areas adjacent to active PG synthesis. Our results support a model in which the WTA tailoring activity of WhyD during exponential growth directs PG remodeling activity required for proper cell elongation in addition to preventing autolysis by LytA.

    1. Evolutionary Biology
    2. Microbiology and Infectious Disease
    Maliheh Safari et al.
    Research Article Updated

    Overlapping coding regions balance selective forces between multiple genes. One possible division of nucleotide sequence is that the predominant selective force on a particular nucleotide can be attributed to just one gene. While this arrangement has been observed in regions in which one gene is structured and the other is disordered, we sought to explore how overlapping genes balance constraints when both protein products are structured over the same sequence. We use a combination of sequence analysis, functional assays, and selection experiments to examine an overlapped region in HIV-1 that encodes helical regions in both Env and Rev. We find that functional segregation occurs even in this overlap, with each protein spacing its functional residues in a manner that allows a mutable non-binding face of one helix to encode important functional residues on a charged face in the other helix. Additionally, our experiments reveal novel and critical functional residues in Env and have implications for the therapeutic targeting of HIV-1.
