Convergent and divergent brain structural and functional abnormalities associated with developmental dyslexia

  1. Xiaohui Yan
  2. Ke Jiang
  3. Hui Li
  4. Ziyi Wang
  5. Kyle Perkins
  6. Fan Cao  Is a corresponding author
  1. Department of Psychology, Sun Yat-Sen University, China
  2. Department of Preschool Education, Anyang Preschool Education College, China
  3. School of Foreign Language, Jining University, China
  4. Florida International University (Retired Professor), United States
Research Article
  • Cited 0
  • Views 299
  • Annotations
Cite this article as: eLife 2021;10:e69523 doi: 10.7554/eLife.69523

Abstract

Brain abnormalities in the reading network have been repeatedly reported in individuals with developmental dyslexia (DD); however, it is still not totally understood where the structural and functional abnormalities are consistent/inconsistent across languages. In the current multimodal meta-analysis, we found convergent structural and functional alterations in the left superior temporal gyrus across languages, suggesting a neural signature of DD. We found greater reduction in grey matter volume and brain activation in the left inferior frontal gyrus in morpho-syllabic languages (e.g. Chinese) than in alphabetic languages, and greater reduction in brain activation in the left middle temporal gyrus and fusiform gyrus in alphabetic languages than in morpho-syllabic languages. These language differences are explained as consequences of being DD while learning a specific language. In addition, we also found brain regions that showed increased grey matter volume and brain activation, presumably suggesting compensations and brain regions that showed inconsistent alterations in brain structure and function. Our study provides important insights about the etiology of DD from a cross-linguistic perspective with considerations of consistency/inconsistency between structural and functional alterations.

Introduction

Individuals with developmental dyslexia (DD) encounter difficulty in learning to read even with normal intelligence and adequate educational guidance (Peterson and Pennington, 2012). DD affects a large number of individuals across writing systems, and the prevalence is about 5–10% in alphabetic writing systems (e.g. English and German) (Döhla and Heim, 2015; Katusic et al., 2001; Shaywitz, 1996) and about 4–7% in morpho-syllabic writing systems (e.g. Chinese and Japanese Kanji) (Sun et al., 2013; Uno et al., 2009; Zhao et al., 2016). Multiple deficits have been identified to be associated with DD (Ring and Black, 2018), among which phonological deficit has been well-documented across languages (Gu and Bi, 2020; Snowling and Melby-Lervag, 2016). Individuals with DD show deficient phonological ability including phonological representation, manipulation, and retrieval even when compared to reading-level controls (Melby-Lervag et al., 2012; Parrila et al., 2020). However, the common phonological deficit may manifest differently in reading behavior depending on the specific requirements of the writing system. For example, phonological deficit in English is associated with lower accuracy in phonological decoding (Landerl et al., 1997; Ziegler et al., 2003), and it is associated with slower reading speed in transparent orthographies with relatively intact accuracy in phonological decoding (Wimmer and Schurz, 2010). In Chinese, phonological deficit is associated with a higher rate of semantic errors during character reading (Shu et al., 2005), because children with DD over-rely on the semantic cue in the character during reading due to the inability to use the phonological cue. According to research, 80% of Chinese characters have a semantic radical and a phonetic radical providing semantic cues and phonological cues of the character, respectively (Honorof and Feldman, 2006).

At the neurological level, the reading network in the left hemisphere has often been found to show alterations in individuals with DD (Pugh et al., 2000; Richlan, 2012; Richlan, 2014), including the temporoparietal cortex (TP), the occipitotemporal cortex (OT), and the inferior frontal cortex. The left TP area is further subdivided into the posterior superior temporal gyrus (STG), which is involved in fine phonological analysis (Petersen and Fiez, 1993; Richlan, 2012) and the inferior parietal lobule (IPL) which is associated with general attention control (Richlan, 2014). This TP region tends to show reduced brain activation in individuals with DD in alphabetic languages as demonstrated in a cross-linguistic study of English, Italian, and French (Paulesu et al., 2001) and several meta-analysis studies in alphabetic languages (Maisog et al., 2008; Martin et al., 2016; Paulesu et al., 2014; Richlan et al., 2009; Richlan et al., 2011). The left OT area, including the middle occipital gyrus (MOG), inferior temporal gyrus (ITG) and fusiform gyrus, has been consistently found to show reduced activation in individuals with DD across morpho-syllabic and alphabetic languages (Bolger et al., 2008; Cao et al., 2020; Centanni et al., 2019; Chyl et al., 2019; Paz-Alonso et al., 2018). This region is associated with visuo-orthographic processing during reading (Glezer et al., 2016; Glezer et al., 2019). The left inferior frontal cortex is further subdivided into the inferior frontal gyrus (IFG) and the precentral gyrus (Richlan, 2014). The precentral gyrus may relate to compensatory articulatory processes in dyslexia (Hancock et al., 2017), whereas the IFG has been known to be involved in phonological and semantic retrieval, lexical selection and integration (Booth et al., 2007a; Booth et al., 2007b; Costafreda et al., 2006; Szatkowska et al., 2000). However, the nature of dysfunction in the left IFG in individuals with DD remains controversial. Although reduced activation in the left IFG was confirmed by many fMRI studies and meta-analysis studies (Booth et al., 2007a; Cao et al., 2006; Richlan et al., 2010; Wimmer et al., 2010), increased activation in the left IFG was also reported in many fMRI studies (Grunling et al., 2004; Kronbichler et al., 2006; Waldie et al., 2013; Wimmer et al., 2010). The inconsistent results may be related to task and task difficulty (Waldie et al., 2013; Wimmer et al., 2010), orthographic transparency (Martin et al., 2016), and age of participants (Chyl et al., 2019).

There is a sparsity in research investigating whether the deficits associated with DD are language-universal. Paulesu et al., 2001 found that readers with DD in English, Italian, and French showed similar brain abnormality during an explicit word reading task and an implicit reading task. Hu et al., 2010 found that Chinese and English children with DD showed language-universal deficits. Feng et al., 2020 found that children with DD in both Chinese and French showed common reduction of brain activation in the left fusiform gyrus and STG. In summary, meta-analytic studies should make a greater contribution in such a topic by gathering studies from different languages and comparing them.

Even though language-universal deficits in the brain have been suggested in several studies (Feng et al., 2020; Hu et al., 2010; Paulesu et al., 2001), language specificity has been demonstrated as well (Martin et al., 2016; Siok et al., 2004). In a meta-analysis study (Martin et al., 2016), researchers directly compared brain deficits associated with DD between transparent and opaque orthographies and found that functional abnormalities in the brain vary with orthographic depth in alphabetic languages. Specifically, consistent reduction of brain activation was found in a left OT area regardless of orthographic depth, whereas greater reduction was found in the left fusiform gyrus, left TP and left IFG pars orbitalis in transparent orthographies than in opaque orthographies, and greater reduction in the bilateral intraparietal sulcus, left precuneus and left IFG pars triangularis was found in opaque orthographies than in transparent orthographies. In a recent study on Chinese-English bilingual children with DD, researchers also found both language-universal and language-specific deficits for Chinese and English (Cao et al., 2020). These findings suggest that there are both language-universal and language-specific deficits across languages. The language-universal deficits might be related to the causal risk of DD while the language-specific deficits tend to be interpreted as a result of interaction between DD and the specific language system that one studies.

Alphabetic and morpho-syllabic languages make a contrastive cross-linguistic comparison. As a representative morpho-syllabic language, Chinese character represents a morpheme and a syllable rather than a phoneme, even though a small percent of Chinese characters are logographic. Research on DD in Chinese has revealed different patterns of brain abnormalities from alphabetic languages. Significant alteration in the left middle frontal gyrus (MFG) or dorsal IFG has been consistently reported in different studies (Cao et al., 2017; Cao et al., 2020; Liu et al., 2012; Liu et al., 2013a; Siok et al., 2004; Siok et al., 2008), while the alteration in the left TP areas has been reported in only a few studies (Cao et al., 2017; Cao et al., 2018; Hu et al., 2010). This might be because the left dorsal IFG plays an essential role in Chinese. It has been found that the left dorsal IFG is more involved in Chinese reading than in English reading, while the left TP is more involved in English reading than in Chinese reading in typical readers (Bolger et al., 2005; Tan et al., 2005). Therefore, the greater deficit in the left dorsal IFG suggests a Chinese-specific deficit.

In addition to functional studies, there have also been a large number of studies with a focus on structural alterations associated with DD. Even though brain structural alterations may cause DD, it is equally possible that altered brain structure is a result of being DD, since learning experience shapes brain development. However, only one of these studies has taken language difference into account (Silani et al., 2005). Previous meta-analysis studies on alphabetic languages have found grey matter reduction in the left TP area (Linkersdörfer et al., 2012; McGrath and Stoodley, 2019; Richlan et al., 2013) as well as the left OT area (Linkersdörfer et al., 2012). These three meta-analytic studies echo findings from functional studies by showing abnormal brain structures within the classic reading network in alphabetic languages. In consistent, studies on morpho-syllabic languages have also found grey matter reduction within the classic reading network (Liu et al., 2013b; Siok et al., 2008; Wang et al., 2019; Xia et al., 2016). However, there are also studies that found abnormal brain structures outside the classic reading network, for example, in putamen, cerebellum, thalamus, and caudate etc. (Adrian-Ventura et al., 2020; Brambati et al., 2004; Brown et al., 2001; Jagger-Rickels et al., 2018; Jednorog et al., 2015; Wang et al., 2019), suggesting that these regions are also affected in this condition. Taken together, both classic reading regions and other regions have been found to show structural alterations in DD, and the previous inconsistent findings in brain structure might be due to the lack of differentiation in participants’ language. It is important to differentiate language-universal structural alterations as a core deficit which might be related to the cause of DD and language-specific structural alterations as a consequence of being DD in a specific language. Learning a specific language with DD may affect brain development in regions that are specifically important for that language and related functions (Mechelli et al., 2004).

DD is associated with altered brain structure and function, but very few studies have investigated whether brain structural and functional alterations are consistent or inconsistent. In a study by Siok et al., 2008, researchers examined both structural and functional alterations in Chinese children with DD, and found reduced GMV and brain activation in the left MFG, which underscores the association between the left MFG and DD in Chinese. Another study located a key region in the left IPL, which showed reduced GMV and activation in English-speaking readers with DD (Hoeft et al., 2007). A recent study, from a developmental perspective, found a dissociation between brain structural development and brain functional development in some brain regions (e.g. left fusiform gyrus) in the context of reading development (Siok et al., 2020), suggesting that learning experience may significantly shape brain function independent of brain structure. However, more research is sorely needed to examine whether there are brain regions that show increased GMV but decreased brain function or vice versa, and to understand the neurocognitive implications of such patterns. Simultaneously considering structural and functional abnormalities with a focus on cross-linguistic comparison would provide a comprehensive perspective to understand the neural mechanisms of DD.

In this meta-analysis study, we aimed to explore how structural and functional impairment of DD converge or diverge and whether this pattern is similar or different across writing systems. We expected to find brain regions that show decreased brain structure and function, indicating insufficient neuronal resources for certain cognitive computations. For regions that show increased brain structure and function, we believe they develop to an unusually high degree for compensation. For brain regions with increased structure but decreased function or decreased structure and increased function, it may be due to brain structures receiving inhibitory input from other regions. We also expected to find language-universal as well as language-specific neurological abnormalities. For language-universal deficits, we tend to believe that they are related to the cause of DD, while the language-specific deficits tend to be consequences of DD in different languages.

Results

Description of the included studies

For the functional studies, a total of 2728 participants (controls:1370, DD:1358) were included, and the mean age was 16.56 years for controls and 16.26 years for participants with DD. Specifically, there were 79 functional experiments in alphabetic languages, including 31 experiments on adults (N = 434, mean age = 26.12 for controls, N = 411, mean age = for 25.86 for DD), 36 experiments on children (N = 553, mean age = 10.59 for controls, N = 586, mean age = for 10.54 for DD), 7 experiments on adolescents (N = 131, mean age = 14.44 for controls, N = 108, mean age = for 14.30 for DD), and 5 studies of mixed ages. There were 12 functional experiments in morpho-syllabic languages (N = 164, mean age = 11.48 for controls, N = 162, mean age = for 11.45 for DD), including 11 experiments on children and 1 experiment on adolescents.

For the structural studies, there were 21 experiments in alphabetic languages, including 10 experiments on adults (N = 209, mean age = 26.68 for controls, N = 193, mean age = for 27.15 for DD), 8 experiments on children (N = 245, mean age = 10.17 for controls, N = 266, mean age = for 10.28 for DD), 1 experiment on adolescents and 2 studies of mixed ages. There were six structural experiments on children in morpho-syllabic languages (N = 89, mean age = 11.82 for controls, N = 94, mean age = for 11.74 for DD).

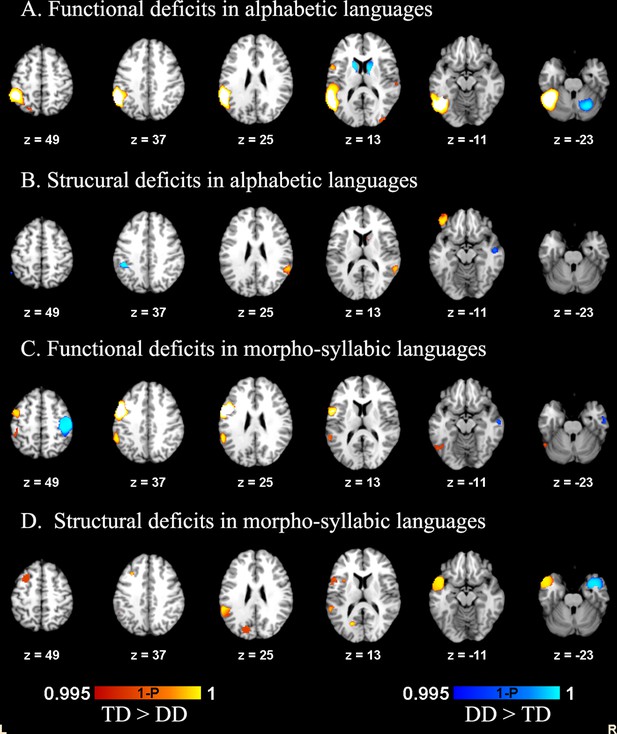

Meta-analysis results

Functional deficits in alphabetic languages and morpho-syllabic languages

In the meta-analysis of functional studies in alphabetic languages, hypoactivation in DD was found in a large cluster peaked at the left supramarginal gyrus which extended to the inferior frontal cortex, occipitotemporal cortex and cerebellum, a cluster peaked at the right MOG and a cluster peaked at right STG (Table 1 and Figure 1A). Hyperactivation in DD was found in the right cerebellum and bilateral caudate nucleus.

Table 1
Functional deficits in individuals with DD in alphabetic languages (JK represents the results of jack-knife sensitivity analysis).
RegionsMNI coordinateSDM-ZpVoxelsCluster breakdown (Voxels)JK
Hypoactivation in DD
Left supramarginal gyrus−56,–46,304.9190.000010,742Left IPL, BA 40 (986)Left MTG, BA 21 (719)Left MTG, BA 37 (634)Left ITG, BA 37 (601)Left fusiform gyrus, BA 37 (479)Left ITG, BA 20 (414)Left STG, BA 48 (377)Left supramarginal gyrus, BA 48 (329)Left angular gyrus, BA 39 (307)Left MTG, BA 22 (300)Left cerebellum, lobule VI, BA 37 (285)Left STG, BA 42 (281)Left rolandic operculum, BA 48 (261)Left arcuate network (255)Left cerebellum, crus I, BA 37 (210)Left STG, BA 22 (201)Left supramarginal gyrus, BA 40 (198)Left superior longitudinal fasciculus III (182)Left IPL, BA 2 (167)Left inferior occipital gyrus, BA 19 (156)79/79
Right MOG42,–86,62.2440.0002361Right MOG, BA19 (208)76/79
Right STG60,–16,41.9360.001135873/79
Hyperactivation in DD
Right cerebellum26,–60,–28–1.5260.00001,559Right cerebellum, lobule VI, BA 37 (352)Right cerebellum, lobule VI, BA 19 (233)Middle cerebellar peduncles (212)79/79
Left caudate nucleus–16,12,6–1.4590.0000611Left anterior thalamic projections (364)79/79
Right caudate nucleus10,2,14–1.3170.0001520Right anterior thalamic projections (185)Right caudate nucleus (184)79/79
Functional and structural deficits related to DD in alphabetic languages and morpho-syllabic languages.

In the meta-analysis of functional studies in morpho-syllabic languages, hypoactivation in DD was found in left IFG opercular part, left supramarginal gyrus and left ITG. Hyperactivation in DD was found in right precentral gyrus and right middle temporal gyrus (MTG) (Table 2, Table 3 and Figure 1C). The jack-knife sensitivity analysis showed that all results reported above were replicable (Table 1; Table 3).

Table 2
Structural deficits in individuals with DD in alphabetic languages (JK represents the results of jack-knife sensitivity analysis).
RegionsMNI coordinateSDM-ZpVoxelsCluster breakdown (Voxels)JK
Decreased GMV in DD
Left IFG orbital part−38,42,–162.3060.0001611Left IFG orbital part, BA 47 (217)20/21
Right STG56,–44,182.0240.0003560Right STG, BA 42 (156)20/21
Right caudate6,14,21.6950.002216621/21
Increased GMV in DD
Left IPL−42,–36,36–1.9760.0000237Left IPL, BA 40 (237)20/21
Right MTG50,–12,–14–1.0400.001417421/21
Table 3
Functional deficits in individuals with DD in morpho-syllabic languages (JK represents the results of jack-knife sensitivity analysis).
RegionsMNI coordinateSDM-ZpVoxelsCluster breakdown (Voxels)JK
Hypoactivation in DD
Left IFG opercular part–48,10,284.0710.00002527Left precentral gyrus, BA 6 (623)Left IFG opercular part, BA 44 (278)Left precentral gyrus, BA 44 (195)Corpus callosum (178)Left MFG, BA 44 (162)12/12
Left supramarginal gyrus−58,–42,262.1490.00011001Left IPL, BA 40 (271)Left STG, BA 42 (153)Left supramarginal gyrus, BA 48 (144)11/12
Left ITG−48,–56,–181.7610.0008326Left ITG, BA37 (166)9/12
Hyperactivation in DD
Right precentral gyrus52,–16,44–2.0350.00002201Right precentral gyrus, BA 6 (640)Right postcentral gyrus, BA 3 (447)Right precentral gyrus, BA 4 (350)Right postcentral gyrus, BA 4 (215)12/12
Right MTG56,–10,–18–1.4530.001329810/12

Structural deficits in alphabetic languages and morpho-syllabic languages

In the meta-analysis of structural studies in alphabetic languages, readers with DD showed a decrease in GMV in the left IFG orbital part, right STG and right caudate nucleus (Table 2 and Figure 1B). In contrast, readers with DD showed an increase in GMV in the left IPL and right MTG. In the meta-analysis of structural studies in morpho-syllabic languages, readers with DD showed a decrease in GMV in the left temporoparietal cortex, left calcarine cortex and left MFG. Readers with DD showed an increase in GMV in the right STG (Table 4 and Figure 1D). The jack-knife sensitivity analysis showed that all results reported were replicable (Table 2; Table 4).

Table 4
Structural deficits in individuals with DD in morpho-syllabic languages (JK represents the results of jack-knife sensitivity analysis).
RegionsMNI coordinateSDM-ZpVoxelsCluster breakdown (Voxels)JK
Decreased GMV in DD
Left STG−50,4,–42.4660.00002,948Left insula, BA 48 (539)Left STG, BA 38 (392)Left rolandic operculum, BA 48 (226)Left MTG, BA 21 (215)Left STG, BA 48 (186)6/6
Left temporoparietal cortex−56,–40,182.1020.0002900Left supramarginal gyrus, BA 48 (188)Left STG, BA 42 (171)6/6
Left calcarine cortex−20,–66,142.4470.0000449Corpus callosum (297)6/6
Left MFG–32,26,402.3190.00014386/6
Increased GMV in DD
Right STG34,6,–26–1.5720.00011,829Right STG, BA 38 (261)Right ITG, BA 20 (250)Right MTG, BA 20 (212)6/6
Right precuneus12,–52,42–1.2540.00141562/6

In the supplementary materials, we reported whether the structural and functional deficits found in the current study were reported in each study included in the meta-analysis (Supplementary file 1f-1i).

Comparison between alphabetic and morpho-syllabic languages

For the direct comparison between the morpho-syllabic and alphabetic groups in functional studies, we found greater reduction of brain activation in alphabetic languages than in morpho-syllabic languages in the left MTG, right STG and left fusiform gyrus. We found greater reduction of brain activation in morpho-syllabic languages than in alphabetic languages in the left IFG, opercular part and greater increase of brain activation in DD in morpho-syllabic languages than in alphabetic languages in the right precentral gyrus (Table 5, Figure 2A).

Table 5
Direct comparisons between alphabetic languages and morpho-syllabic languages in functional studies.
RegionsMNI coordinateSDM-ZpVoxelsCluster breakdown (Voxels)
Hypoactivation in DD
Alphabetic languages > Morpho-syllabic languages
Left MTG−54,–62,81.2030.00002,173Left MTG, BA 37 (453)Left MTG, BA 48 (294)Left MTG, BA 21 (293)Corpus callosum (184)
Right STG60,–18,41.0800.00002047Right STG, BA 22 (400)Corpus callosum (373)Right insula, BA 48 (278)Right STG, BA 48 (259)Right rolandic operculum, BA 48 (193)
Left fusiform gyrus−40,–42,–241.2790.0000924Left fusiform gyrus, BA 37 (198)Left ITG, BA 20 (198)
Morpho-syllabic languages > Alphabetic languages
Left IFG opercular part–48,8,30–3.9450.00002093Left precentral gyrus, BA 6 (512)Left IFG opercular part, BA 44 (274)Left precentral gyrus, BA 44 (191)Corpus callosum (161)Left IFG, triangular part, BA 48 (159)
Hyperactivation in DD
Morpho-syllabic languages > Alphabetic languages
------
Morpho-syllabic languages > Alphabetic languages
Right precentral gyrus40,–20,54–2.2620.00001,518Right precentral gyrus, BA 6 (525)Right precentral gyrus, BA 4 (306)Right postcentral gyrus, BA 3 (286)Right postcentral gyrus, BA 4 (171)

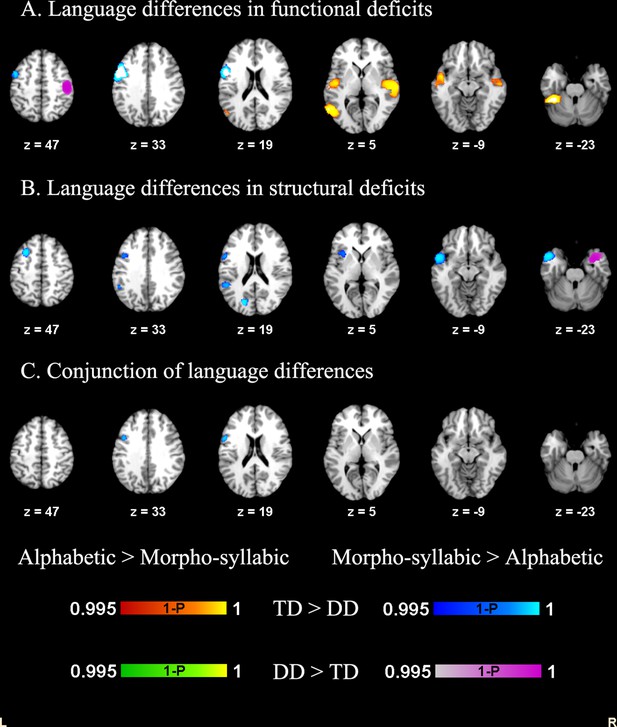

Figure 2 with 3 supplements see all
Direct comparisons between the alphabetic group and the morpho-syllabic group in structural and functional deficits.

Conjunction analysis showed greater reduction of both GMV and brain activation in the left dorsal IFG in morpho-syllabic languages than alphabetic languages.

For the direct comparison between the morpho-syllabic and alphabetic groups in structural studies, we found greater reduction of GMV in DD in morpho-syllabic languages than in alphabetic languages in the left STG, left IFG opercular part, left MFG, left supramarginal gyrus, left superior occipital gyrus (SOG) and left insula. We also found greater increase of GMV in DD in morpho-syllabic languages than in alphabetic languages in the right STG and left ITG (Table 6, Figure 2B). We found no regions that showed greater GMV alterations in alphabetic languages than in morpho-syllabic languages.

Table 6
Direct comparisons between alphabetic languages and morpho-syllabic languages in structural studies.
RegionsMNI coordinateSDM-ZPVoxelsCluster breakdown (Voxels)
Decreased GMV in DD
Alphabetic languages > Morpho-syllabic languages
------
Morpho-syllabic languages > Alphabetic languages
Left STG−50,10,–18–3.1390.00001,218Left STG, BA 38 (322)
Left IFG opercular part–52,10,24–2.2530.0008409
Left MFG–28,16,44–2.8880.0001346
Left supramarginal gyrus−48,–44,24–2.7610.0001344
Left SOG−20,–72,20–2.9110.0001277Corpus callosum (187)
Left insula–32,14,8–2.0460.0015179
Increased GMV in DD
Alphabetic languages > Morpho-syllabic languages
------
Morpho-syllabic languages > Alphabetic languages
Right STG34,6,–28–1.8930.00011,397Right STG, BA 38 (246)
Left ITG−54,–58,–16–1.1120.0018161

To identify the common language differences between the structural and functional studies, we conducted a conjunction analysis between the language differences in structural studies and functional studies. This produced an overlap of 377 voxels in the left IFG opercular part, with a peak at (–52, 10, 24), indicating greater reduction of both GMV and brain activation in morpho-syllabic languages than in alphabetic languages (Figure 2C).

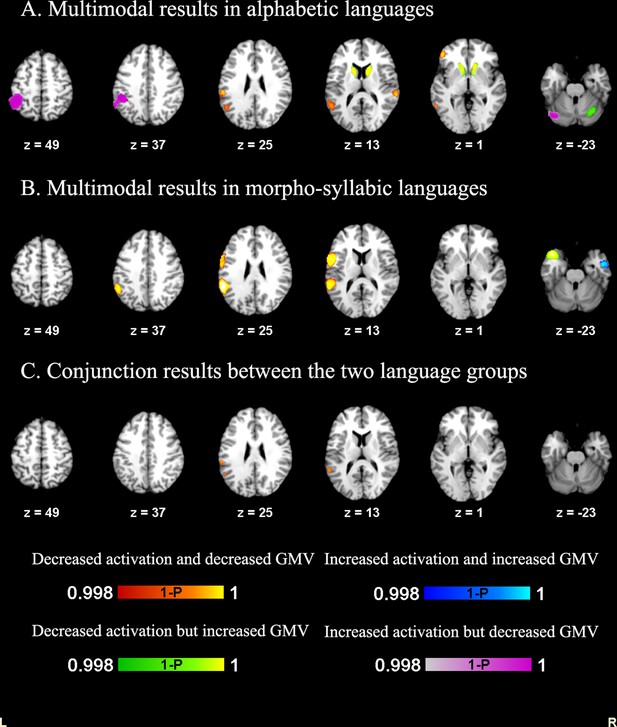

Multimodal analysis results in alphabetic and morpho-syllabic languages

Multimodal meta-analysis in alphabetic languages showed that decreased GMV and hypoactivation in DD were found in the bilateral STG and left IFG triangular part; no regions showed increased GMV and hyperactivation; increased GMV and hypoactivation in DD were found in left IPL and left cerebellum; decreased GMV and hyperactivation in DD were found in bilateral caudate and right cerebellum (Table 7, Figure 3A). Multimodal meta-analysis in morpho-syllabic languages showed that decreased GMV and hypoactivation in DD were found in the left STG and left IFG opercular part; increased GMV and hyperactivation in DD were found in the right MTG; decreased GMV and hyperactivation in DD were found in left STG; no regions showed increased GMV and hypoactivation (Table 8, Figure 3B).

Table 7
Multimodal structural and functional abnormalities in individuals with DD in alphabetic languages.
RegionsMNI coordinateVoxelsCluster breakdown (Voxels)
Decreases of GMV and hypoactivation in DD
Left STG−52,–30,201,099Left MTG, BA 21 (237)
Right STG62,–32,14322
Left IFG, triangular part–46,42,0219
Increases of GMV and hypoactivation in DD
Left IPL−46,–40,381,689Left IPL, BA 40 (941)
Left cerebellum−40,–70,–24446Left cerebellum, crus I, BA 19 (159)
Decreases of GMV and hyperactivation in DD
Right cerebellum28,–52,–341,286Right cerebellum, lobule VI, BA 37 (273)Middle cerebellar peduncles (267)Right cerebellum, lobule VI, BA 19 (204)
Right caudate8,8,12600Right anterior thalamic projections (214)Right caudate nucleus (189)
Left caudate–16,8,14595Left anterior thalamic projections (353)
Structural and functional deficits in DD for alphabetic languages and morpho-syllabic languages.

Decreased GMV and brain activation were found in both groups in the left STG.

Table 8
Multimodal structural and functional abnormalities in individuals with DD in morpho-syllabic languages.
RegionsMNI coordinateVoxelsCluster breakdown (Voxels)
Decreases of GMV and hypoactivation in DD
Left STG−58,–38,221,566Left supramarginal gyrus, BA 48 (254)Left STG, BA 42 (253)Left supramarginal gyrus, BA 40 (153)
Left IFG opercular part–56,2,101,052Left IFG opercular part, BA 44 (151)
Decreases of GMV and hyperactivation in DD
Left STG−44,16,–22854Left STG, BA 38 (394)
Increases of GMV and hyperactivation in DD
Right MTG48,–6,–26493Right MTG, BA 21 (178)

To identify the common multimodal deficits in alphabetic languages and morpho-syllabic languages, we conducted a conjunction analysis of the thresholded multimodal maps of the two types of writing systems. This procedure produced an overlap of 482 voxels in the left STG, which peaked at (−54,–34, 20), indicating shared reduction of GMV and hypoactivation in both types of writing systems (Figure 3C).

Confirmation analysis results

For the confirmation analysis on children only in the alphabetic group, when we compared children in alphabetic languages to children in morpho-syllabic languages, we found a conjunction of the language differences in the functional studies and the structural studies, which was greater reduction of brain activation and GMV in morpho-syllabic languages than in alphabetic languages in the left IFG opercular part (–54, 10, 20) with a cluster of 273 voxels (Figure 2—figure supplement 1C), which is consistent with the original result. Conjunction analysis of the functional alterations in the alphabetic group and the morpho-syllabic group revealed common reduction of brain activation in children with DD in the left ITG (−48,–56, –18) and the left TP area (−56,–44, 32) with a cluster size of 291 voxels and 778 voxels, respectively. The TP area overlapped with the original multimodal result at the left STG (−56,–48, 22) where both language groups showed reduced brain activation and GMV. Taken together, these results are consistent with the original results, suggesting that the language differences are not due to unmatched age range. For detailed results of the confirmation analysis, please see Supplementary file 1a-1d, Figure 2—figure supplement 1, Figure 2—figure supplement 2.

Furthermore, the other confirmation analysis on functional studies of two well-matched subgroups on age, task and number of studies also confirmed our original findings. Conjunction analysis between the original results and the current functional differences between English and Chinese showed consistent greater reduction of brain activation in DD in morpho-syllabic languages/Chinese than in alphabetic languages/English in the left dorsal IFG (–52, 6, 16) with a cluster size of 1966 voxels. There was consistent greater reduction of brain activation in DD in alphabetic languages/English than in morpho-syllabic languages/Chinese in the left MTG (−48,–68, 4) and left MOG (−51,–41, –24) with a cluster size of 166 voxels and 90 voxels, respectively. Consistent greater increase of brain activation in morpho-syllabic languages/Chinese than in alphabetic languages/English was also found in the right precentral gyrus (44, -22, 50), and the cluster size was 792 voxels (Figure 2—figure supplement 3C). For detailed results of this confirmation analysis, please see Supplementary file 1e, Figure 2—figure supplement 3.

Discussion

In this meta-analysis study, we examined the convergence and divergence between the brain structural and functional deficits associated with DD as well as whether the deficits are consistent across languages. We found that readers with DD showed both GMV reduction and functional hypoactivation in the left TP and ventral IFG in alphabetic languages, readers with DD showed both GMV reduction and functional hypoactivation in the left TP and dorsal IFG in morpho-syllabic languages, among which, the left STG was a shared impairment across all languages, and the dorsal left IFG showed a greater impairment in morpho-syllabic languages than in alphabetic languages, suggesting both language-universal and language-specific deficits in the brain. We also found GMV increase and functional hyperactivation in the right anterior MTG/ITG region in morpho-syllabic languages; however, conjunction analysis between morpho-syllabic languages and alphabetic languages did not reveal any overlap. In addition to the consistent structural and functional alterations, we also detected inconsistent structural and functional alterations. Individuals with DD showed increased GMV and hypoactivation in the left IPL and left cerebellum, and decreased GMV and hyperactivation in the bilateral caudate in alphabetic languages, but decreased GMV and hyperactivation in left STG in morpho-syllabic languages. However, conjunction analysis between morpho-syllabic languages and alphabetic languages did not reveal any overlap.

Convergent structural and functional impairment across writing systems

Across writing systems, convergent structural and functional deficit was found in the left STG due to reduced GMV and brain activation in both alphabetic languages and morpho-syllabic languages. Further confirmation analysis confirmed that this is a stable deficit across children and adults. This is consistent with previous meta-analysis studies (Maisog et al., 2008; McGrath and Stoodley, 2019; Paulesu et al., 2014; Richlan et al., 2013). The left STG is a very important component in the language network (Friederici, 2012; Hickok and Poeppel, 2007) as well a key region in the reading network (Pugh et al., 2000; Richlan, 2014). It is involved in phonological representation and phonological processing during both spoken language processing and reading (Bolger et al., 2005; Enge et al., 2020; Tan et al., 2005). Recent research has suggested that proficient reading is characterized by convergence between speech and print at this region regardless of languages, as multivariate brain activity patterns are similar for speech and print at this region (Chyl et al., 2021). Therefore, the reading network may develop based on the built-in language circuit, as reading is a skill that humans acquire too late in the course of human evolution to have a brain network dedicated to it. Recently, a growing number of studies have investigated early signs of dyslexia before the onset of reading and found that structural and functional deficits in the left TP area and left inferior frontal cortex appear before reading onset (Clark et al., 2014; Hosseini et al., 2013; Plewko et al., 2018; Raschle et al., 2012; Raschle et al., 2014; Vandermosten et al., 2019). It further suggests that DD might be due to early abnormality in the language network. Specifically, Skeide et al., 2018 found hypermyelination in the left auditory cortex in readers with DD using ultra-high-field MRI at 7T, and disrupted neural firing induced by hypermyelination in the layer IV of the auditory cortex, which may cause hypoactivation in the left STG. The left STG actually serves as an important hub in the language and reading network (Fernández et al., 2020), which connects the inferior frontal network and the OT network through a dorsal pathway and a ventral pathway (Brauer et al., 2013; Cummine et al., 2015). Disconnection with the left STG has been verified in task-related functional connectivity studies (Boets et al., 2013; Cao et al., 2017; Schurz et al., 2015) and a resting-state functional connectivity study (Schurz et al., 2015), as well as in a meta-analysis of DTI studies (Vandermosten et al., 2012). Our finding suggests that dyslexia is associated with structural and functional abnormalities of the left STG regardless of language. The evidence suggests that this is a neural signature of DD, which supports the phonological deficit hypothesis (Shaywitz et al., 1998).

However, we failed to find consistent structural and functional deficits in the OT area. The main reason was that there was no structural alteration but only functional reduction at this area. The OT area is a key region for orthographic recognition during visual word processing (Glezer et al., 2009; Glezer et al., 2016; Hirshorn et al., 2016; Nobre et al., 1994) and was reported to be impaired in individuals with DD (McCrory et al., 2005; Richlan et al., 2010; Wandell et al., 2012). The specialization of this region for orthographic processing is developed along with reading acquisition (Brem et al., 2010), and the dysfunction of the OT area in DD is possibly a result of reading failure (Pugh et al., 2000). A recent meta-analysis of VBM studies (McGrath and Stoodley, 2019) also failed to detect structural deficit in the OT area, which is consistent with our finding. Taken together, the lack of structural deficits with only hypoactivation at the OT area appears to suggest that the visuo-orthographic deficits at the OT might be a consequence of being DD. In contrast, the left STG which was discussed above, appears to be associated with the cause of DD. Our results provide further support for the phonological deficit hypothesis that phonological deficit is the primary deficit and other deficits may be a result of the phonological deficit (Pugh et al., 2000).

Language differences in structural and functional alterations

The left dorsal IFG which peaked at (–52, 10, 24) showed greater reduction in both GMV and brain activation in morpho-syllabic languages than in alphabetic languages, suggesting greater impairment in this region in morpho-syllabic languages than in alphabetic languages. This finding is also verified in the confirmation analyses. Previously, many Chinese studies have reported impairment at the dorsal left IFG, for example, reduced brain activation in an auditory rhyming judgment task in children with DD at (–44, 10, 26) (Cao et al., 2017), in a lexical decision task at (–44, 3, 29) (Siok et al., 2004), in a homophone judgment task at (–55, 5, 22) (Siok et al., 2008), and in a morphological task at (–36, 8, 26) (Liu et al., 2013a). This left dorsal IFG has been believed to be more involved in Chinese reading than in alphabetic languages, with a peak at the left MFG (–46, 18, 28) as reported in a previous meta-analysis study (Tan et al., 2005). The dorsal IFG was found to be involved in phonological processing in Chinese reading (Wu et al., 2012), and it is thought to be related to addressed phonology during Chinese character reading (Tan et al., 2005). Our study adds to the literature that by direct comparison, this region does show greater deficit in individuals with DD in morpho-syllabic languages than in alphabetic languages in terms of both brain activation and GMV. This might be due to the fact that healthy Chinese readers have increased GMV and brain activation in the left dorsal IFG than healthy alphabetic readers, because the features of Chinese require greater involvement of this region in reading than alphabetic languages due to the whole-character-to-whole-syllable mapping. Actually, two cross-linguistic studies have argued that different findings of DD in different languages are actually driven by the fact that control readers show language-specific brain activation patterns (Feng et al., 2020; Hu et al., 2010), and that brain activation in individuals with DD is actually the same across languages. For example, Hu et al., 2010 found that Chinese control readers showed greater activation in the left IFG, and English control readers showed greater activation in the left superior temporal sulcus; however, children with DD in Chinese and English showed similar brain activation in these two regions. Therefore, readers with DD fail to show language specialization due to their limited reading experience and skills. In summary, this language-specific deficit is believed to be a consequence of being DD in learning morpho-syllabic languages, indicating their inability to accommodate to their own writing system.

In the direct comparison between alphabetic and morpho-syllabic languages, we also found greater hypoactivation in DD in alphabetic languages than in morpho-syllabic languages in the left MTG, right STG and left fusiform gyrus, which was verified in the well-matched confirmation analysis, suggesting that the language difference should not be due to differences in age, tasks, and number of studies in the two language groups. Our finding is consistent with previous neuroimaging studies that revealed reduced activation associated with DD in the posterior reading network in alphabetic languages (Paulesu et al., 2001; Richlan et al., 2010; Vandermosten et al., 2019), suggesting deficient orthographic and phonological processing. However, the novelty of the current study is to demonstrate greater severity of deficit in these regions in alphabetic languages than in morpho-syllabic languages. In a previous meta-analysis study of alphabetic languages, it was found that there was greater hypoactivation in the left fusiform gyrus (−40,–42, –16) in shallow orthographies than in deep orthographies (Martin et al., 2016). The explanation is that this region is associated with bottom-up rapid processing of letters, because it was found that at a proximal region (−38,–50, –16), there was a word length effect for German nonwords in non-impaired readers (Schurz et al., 2010). Moreover, the left fusiform gyrus has been found to be more involved in English reading than in Chinese reading in typical mature readers with a peak of the effect at (−44,–56, –12) (Tan et al., 2005). Therefore, the left fusiform gyrus is important for letter-by-letter orthographic recognition in alphabetic languages, and this explains why we found greater deficit in this region in alphabetic languages than in morpho-syllabic languages. As for the right STG, the previous meta-analysis found greater hypoactivation in deep orthographies than shallow orthographies (Martin et al., 2016). Together with our finding, it suggests that the right STG might be associated with the inconsistent mapping between graphemes and phonemes in deep orthographic alphabetic languages. In summary, these greater deficits in alphabetic languages than in morpho-syllabic languages might be due to the inability to adapt to the special features of alphabetic languages in individuals with DD.

For the structural studies, we found greater GMV alterations in morpho-syllabic languages than in alphabetic languages, including greater GMV reduction in the left STG, left MFG, left supramarginal gyrus, left SOG and left insula, as well as greater GMV increase in the right STG and ITG. However, considering the limited number of studies included in the morpho-syllabic language group and inconsistent results with functional studies, the results should be interpreted with caution.

Increased GMV and hyperactivation

In the multi-modal meta-analysis, we found increased GMV and hyperactivation in participants with DD in the right MTG which was driven by the morpho-syllabic languages. For the functional studies, we also found greater hyperactivation in the right precentral gyrus in morpho-syllabic languages than in alphabetic languages. These alterations might be related to the compensation mechanism of the right hemisphere. As precentral gyri play an important role in articulation (Dronkers, 1996), overactivation in the precentral gyrus is interpreted as an articulation strategy used by individuals with DD to compensate for their deficient phonological processing (Cao et al., 2018; Shaywitz et al., 1998; Waldie et al., 2013). The compensation in the right MTG is developed in morpho-syllabic languages presumably due to the tight connection between orthography and semantics (Wang et al., 2015). Substantial evidence has shown that dyslexia was often accompanied by excessive activation of the right hemisphere (Cao et al., 2017; Cao et al., 2018; Kovelman et al., 2012; Kronschnabel et al., 2014; Yang and Tan, 2020) and reduced left lateralization of the language network (Altarelli et al., 2014; Bloom et al., 2013). Furthermore, training studies have also found increased activation in many regions in the right hemisphere in individuals with DD after reading intervention (Barquero et al., 2014; Meyler et al., 2008), suggesting the compensatory role of the right hemisphere when the left language/reading network is deficient (Coslett and Monsul, 1994; Weiller et al., 1995). However, according to the previous meta-analysis study, different regions showed overactivation in different writing systems (Martin et al., 2016). In particular, the left anterior insula showed greater overactivation in deep orthographies while the left precentral gyrus showed greater overactivation in shallow orthographies in individuals with DD. Taken together, it suggests that different compensatory mechanisms are developed depending on the characteristics of the writing system as well as learning experiences, and the compensation in the right MTG and right precentral gyrus appears to be particularly salient in morpho-syllabic languages. However, it is also possible that the increased GMV and hyperactivation in individuals with DD are due to some fundamental deficits rather than compensation. Further research is needed to understand the nature of these alterations by running brain-behavioral correlation and/or employing longitudinal designs.

Divergent structural and functional alterations in DD

In the multimodal analysis, we also found divergent structural and functional changes related to DD, including the left IPL and left cerebellum where there was increased GMV and hypoactivation and bilateral caudate where there was reduced GMV and hyperactivation in alphabetic languages; There was decreased GMV and hyperactivation in left STG in morpho-syllabic languages. This is in line with a recent study which found a dissociation between the developmental changes of brain structure and function (Siok et al., 2020), suggesting that learning experience may sometimes shape the brain function independent of the brain structure.

The left IPL

We found increased GMV and hypoactivation in DD in the left IPL in alphabetic languages. Consistent hypoactivation in the left IPL in DD has been documented in previous studies (Maisog et al., 2008; Martin et al., 2016). Furthermore, it was found that the deficit of the left IPL was greater in children than in adults with DD (Richlan et al., 2011), suggesting that the functional impairment of the left IPL may gradually recover with development. This may be related to the transfer of the reading circuit from the dorsal pathway to the ventral pathway over development (Younger et al., 2017). Control children activate the left IPL to a greater degree than control adults because they rely more on the dorsal pathway. Therefore, children with DD show a great reduction in the left IPL in comparison to adults with DD. Alternatively, the left IPL has been found to be deactivated during language tasks (Cao et al., 2008; Cao et al., 2017; Meyler et al., 2008; Schulz et al., 2009), and this is due to the nature of the default mode network (Laird et al., 2009), which is deactivated during active tasks. Therefore, it might be the case that the increased GMV in individuals with DD increases inhibitory inputs received by the IPL, which results in greater deactivation.

For structural studies involving the left IPL, the results are inconsistent. The GMV of the left supramarginal gyrus around the posterior part of perisylvian cortex was found to be reduced in individuals with DD (Linkersdörfer et al., 2012; McGrath and Stoodley, 2019) and it showed a positive correlation with reading accuracy only in normal readers (Jednorog et al., 2015). However, the GMV of the left inferior parietal cortex excluding the supramarginal and the angular was found to increase in individuals with DD (McGrath and Stoodley, 2019) and a study showed that the volume of the left inferior parietal cortex in control readers was negatively correlated with reading level (Houston et al., 2014). The IPL in the current study is outside the supramarginal and angular gyrus; therefore, it is consistent with the previous findings that there is increased GMV in individuals with DD.

The cerebella

Increased GMV and hypoactivation in DD were also found in the left cerebellum in alphabetic languages; however, in the right cerebellum, we found decreased GMV and hyperactivation. Previously, it was found that the right cerebellum is greater in size than the left cerebellum in healthy controls while the asymmetry is reduced in individuals with DD (Kibby et al., 2008; Rae et al., 2002). This is consistent with our finding of increased GMV in the left cerebellum and decreased GMV in the right cerebellum in individuals with DD, suggesting reduced asymmetry in cerebellum.

The cerebella have been found to play an important role in inner speech, automatization in reading and suppression of overt articulatory movement in silent reading (Ait Khelifa-Gallois et al., 2015). Functional abnormality of cerebellum in DD has been reported repeatedly; however, hyperactivation was reported more often in the right cerebellum (Feng et al., 2017; Hernandez et al., 2013; Kronschnabel et al., 2014; Richlan et al., 2010; Rumsey et al., 1997; van Ermingen-Marbach et al., 2013a), while hypoactivation was reported more often in the left cerebellum (Christodoulou et al., 2014; McCrory et al., 2000; Olulade et al., 2012; Reilhac et al., 2013; Siok et al., 2008). This is consistent with our finding of hyperactivation in the right cerebellum and hypoactivation in the left cerebellum. Different alteration patterns in the left and right cerebellum suggest that they may play different roles in reading and dyslexia. The right cerebellum has been found to be connected with the left frontal-parietal pathway for phonological processing and with the left frontal-temporal pathway for semantic processing (Alvarez and Fiez, 2018; Gatti et al., 2020). The left cerebellum, however, is involved in error monitoring during reading unfamiliar non-words (Ben-Yehudah and Fiez, 2008), as well as articulation related movement process, since it is activated in reading aloud but not in lexical decision (Carreiras et al., 2007). Richards et al., 2006 argued that the left cerebellum is involved in processing the morphology of word forms, and the right cerebellum is involved in phonological processing. Therefore, hyperactivation in the right cerebellum in readers with DD suggests that they may use it as a compensation for their deficient phonological processing, while hypoactivation in the left cerebellum may suggest reduced error monitoring in readers with DD. The finding of neurological alterations in the cerebellum is consistent with the previous findings of cerebellar deficit (Menghini et al., 2006; Yang et al., 2013) for which, some researchers argued that impaired articulatory motor control in the cerebellum leads to reading impairment (Nicolson et al., 2001; Stoodley and Stein, 2011). It also should be noticed that the cerebellum showed divergent patterns in structural studies and functional studies. Taken together, these results implicate the necessity of considering DD from a broader spectrum of developmental disorders.

It is still unclear why there is increased GMV but decreased activation in some brain regions. It may be due to the following reasons: (1) increased dendrites receiving more inhibitory input from other neurons; (2) abnormal neuronal migration deactivated the firing of neurons as a result of disrupted local microcircuits (Giraud and Ramus, 2013); (3) weaker input from other regions deactivated the target region and changed the structure of the region (Wang et al., 2019).

The caudate

We also found decreased GMV and hyperactivation in readers with DD in the bilateral caudate in alphabetic languages. Previous studies have observed decreased GMV (Brown et al., 2001; Jagger-Rickels et al., 2018; McGrath and Stoodley, 2019; Tamboer et al., 2015) and hyperactivation in bilateral caudate in individuals with DD (Martin et al., 2016; Olulade et al., 2012; Pekkola et al., 2006; Richlan et al., 2010; Richlan et al., 2011; Rumsey et al., 1997). However, there are also studies that observed different patterns (Cheema et al., 2018), such as decreased activation in caudate (Perrachione et al., 2016). Furthermore, the GMV volume of the caudate in individuals with DD was found to be positively correlated with reading performance (Pernet et al., 2009; Tamboer et al., 2015), and the left caudate’s activation was correlated with longer reaction time in word reading only in individuals with DD (Cheema et al., 2018). The caudate plays an important role in procedural learning and phonological processing (Grahn et al., 2008; Tettamanti et al., 2005; Ullman et al., 2020). Decreased GMV and increased activation at the bilateral caudate might be caused by reduced dendrites and reduced inhibitory inputs received in individuals with DD (Achal et al., 2016; Finn et al., 2014). It may also be due to pre-existing local structural deficit leading to compensatory hyperactivation of the remaining part of the caudate. GMV reduction in basal ganglia was found in many other neuropsychiatric disorders, such as attention-deficit hyperactivity disorder (Frodl and Skokauskas, 2012; Mous et al., 2015; Nakao et al., 2011), autism spectrum disorder (Nickl-Jockschat et al., 2012) and major depression disorder (Husain et al., 1991; Lu et al., 2016). Altered myelination and neurotransmitters may contribute to the structural and functional alterations related to basal ganglia (Nord et al., 2019; Wichmann and DeLong, 2012).

Conclusion

We found convergent functional and structural alterations in the left STG across different writing systems, suggesting a neural signature of DD, which might be associated with phonological deficit. We also found greater functional and structural alteration in the left dorsal IFG in morpho-syllabic languages than alphabetic languages, suggesting a language-specific effect of DD, which might be related to the special feature of whole-character-to-whole-syllable mapping in morpho-syllabic languages.

Limitation

In this meta-analysis, we found convergent and divergent functional and structural alterations across writing systems. However, due to the limitations of voxel-based neuroimaging meta-analysis, the peak coordinate only provides limited information, therefore, future image-based meta-analysis studies should be conducted with full statistical images of the original studies (Muller et al., 2018).

Materials and methods

Literature retrieval and data extraction

Request a detailed protocol

We searched in ‘PubMed’ (http://www.pubmed.org) and ‘Web of science’ for neuroimaging studies published from January 1986 to January 2020 using a combination of a condition term (i.e. dyslexia, reading disorder, reading impairment, reading difficulty or reading disability) and a technical term (i.e. fMRI, PET, voxel-based morphometry, VBM, or neuroimaging), for example, ‘dyslexia’ and ‘fMRI’. See the full list of key word combinations in the Supplementary file 2. Additionally, we manually added studies by checking the references of the selected papers that were missed in the search. The inclusion criteria were: (1) PET, fMRI, voxel-based morphometry (VBM) studies or structural studies using a volumetric FreeSurfer pipeline, (2) whole-brain results were reported, (3) direct group comparisons between readers with DD and age control readers were reported, (4) coordinates were reported in Talairach or MNI stereotactic space, and (5) studies on DD in the first language. The exclusion criteria were (1) studies with only ROI analysis, (2) resting-state studies, (3) studies that only included readers with DD or did not report group differences, (4) studies with direct group comparisons only between readers with DD and reading level control readers, (5) studies on children at risk for dyslexia, and (6) studies focused on non-linguistic tasks (Evans et al., 2014b; Margolis et al., 2020; Menghini et al., 2006; Yang et al., 2013). Finally, 119 experiments from 110 papers were included in this meta-analysis comprising 92 brain functional experiments (from 87 papers) and 27 brain structural experiments (from 23 papers) (see Table 9; Table 10 and Figure 4 for detail). From the original publications, we extracted peak coordinates, where there is a significant difference between controls and individuals with DD either in brain activation or regional GMV. We also extracted effect sizes and other information from the publications. In order to explore the language effect, we subdivided these studies into two groups according to the native language of the participants, namely, an alphabetic language group in which writing symbols represent phonemes, and a morpho-syllabic language group in which each writing symbol represents a morpheme with a syllable. This procedure resulted in 79 functional and 21 structural experiments for the alphabetic language group and 12 functional and six structural experiments for the morpho-syllabic language group.

Table 9
Functional studies included in the meta-analysis.
StudiesN(TD)N(DD)Age in monthsLanguageWriting systemSubject typeTasksThreshold
Voxel-wiseCluster-wise
Bach et al., 2010181499.6GermanAlphabeticChildrenCovert reading taskp < 0.00524 voxels*
Beneventi et al., 20091311160.4NorwegianAlphabeticChildrenSequential verbal working memory taskp < 0.00110 voxels
Beneventi et al., 2010a;1311160.4NorwegianAlphabeticChildrenn-back task (Letter)FDR p < 0.055 voxels
Beneventi et al., 2010b1412160.3NorwegianAlphabeticChildrenn-back task (Picture)FDR p < 0.05
Blau et al., 20091313301.8DutchAlphabeticAdultsLetter–speech-sound integration taskp < 0.001160 mm3*
Booth et al., 2007a1313126.0EnglishAlphabeticChildrenWord judgment taskp < 0.00115 voxels
Boros et al., 20161712129.7FrenchAlphabeticChildrenString detection and passive reading taskp < 0.001FDR p < 0.05
Brambati et al., 20061113368.5ItalianAlphabeticAdults and adolescentsWord reading and pseudoword readingp < 0.00120 voxels
Brunswick et al., 199966277.2EnglishAlphabeticAdultsExplicit reading taskp < 0.001
Brunswick et al., 199966294.0EnglishAlphabeticAdultsImplicit reading taskp < 0.001
Cao et al., 20081212148.2EnglishAlphabeticChildrenVisual word rhyming taskp < 0.00110 voxels
Cao et al., 20171317134.0ChineseMorpho-syllabicChildrenAuditory rhyming taskp < 0.001FDR p < 0.05
Cao et al., 20181923132.9ChineseMorpho-syllabicChildrenVisual spelling taskp < 0.001FDR p < 0.05
Cao et al., 20201716137.3ChineseMorpho-syllabicChildrenVisual rhyming taskp < 0.001FDR p < 0.05
Christodoulou et al., 20141212274.8EnglishAlphabeticAdultsSentence readingp < 0.001FDR corrected
Chyl et al., 20192424105.4PolishAlphabeticChildrenVisual word readingp < 0.00150 voxels*
Conway et al., 20081111420.0EnglishAlphabeticAdultsAuditory working memory taskp < 0.005150 mL
Cutting et al., 20131920147.02EnglishAlphabeticAdolescentsLexical decision taskp < 0.00534 voxels
Danelli et al., 20172320250.55ItalianAlphabeticAdultsPseudoword reading, auditory letter-name rhyming task, visual motion stimulation task and motor sequence learning taskp < 0.001FWE p < 0.05
Desroches et al., 20101212137.4EnglishAlphabeticChildrenAuditory rhyming taskp < 0.00115 voxels
Dufor et al., 20071614344.6FrenchAlphabeticAdultAuditory phoneme categorization taskp < 0.01
Eden et al., 20041919512.4EnglishAlphabeticAdultsWord repetition task and initial sound deletion taskp < 0.00180 voxels
Farris et al., 20161615112.2EnglishAlphabeticChildrenObject rhyming task p < 0.00110 voxels**
Feng et al., 20172014123.1ChineseMorpho-syllabicChildrenCharacter spelling task and character rhyming taskp < 0.00112 voxels*
Francisco et al., 20182021303.7DutchAlphabeticAdults1-back taskp < 0.001FWE p < 0.05
Gaab et al., 20072322127.8EnglishAlphabeticChildrenSound discrimination taskp < 0.0120 voxels
Georgiewa et al., 19991717168.0GermanAlphabeticChildrenLetter reading task, nonwords reading task, words reading task and phonological transformation taskp < 0.05p < 0.05
Grande et al., 20112520115.1GermanAlphabeticChildrenPicture naming task and words reading taskp < 0.001t10 voxels
Grunling et al., 20042117162.8GermanAlphabeticAdolescentsSlash patterns matching task, letters matching task, words matching task, pseudoword matching task and pseudoword rhyming taskp < 0.0110 voxels
Hancock et al., 20161116125.0EnglishAlphabeticChildrenWord rhyming taskp < 0.0150 voxels
Heim et al., 20102016113.9GermanAlphabeticChildrenFirst sound detection task, motion detection task, Posner attention task,auditory discrimination taskp < 0.001p < 0.05
Heim et al., 20131511435.4GermanAlphabeticAdultsOvert word readingp < 0.05
Heim et al., 20151033118.9GermanAlphabeticChildrenOvert word readingFWE p < 0.05100 voxels
Hernandez et al., 20131615252.7FrenchAlphabeticAdultsWord rhyming task and font matching taskp < 0.001*
Higuchi et al., 20201411172.7JapaneseMorpho-syllabicAdolescentsCharacter/picture passive viewing taskp < 0.00520 voxels
Hoeft et al., 20061010133.9EnglishAlphabeticChildrenVisual word rhyming taskp < 0.00110 voxels
Hoeft et al., 20071919172.8EnglishAlphabeticAdolescentsVisual word rhyming taskp < 0.00110 voxels
Horowitz-Kraus et al., 2016910120.5EnglishAlphabeticChildrenNarrative comprehension taskp < 0.001FWE corrected
Hu et al., 201088171.6ChineseMorpho-syllabicChildrenSematic match task, word/ picture naming taskp < 0.001*
Hu et al., 20101011164.5EnglishAlphabeticChildrenSematic match task, word/ picture naming taskp < 0.001*
Ingvar et al., 200299287.0SwedishAlphabeticAdultsWord reading task and nonword reading taskp < 0.001
Jaffe-Dax et al., 20181920302.2HebrewAlphabeticAdultsTone frequency discrimination taskp < 0.05 corrected
Kast et al., 20111312314.5GermanAlphabeticAdultsLexical decision taskp < 0.00130 voxels
Kovelman et al., 20121212108.4EnglishAlphabeticChildrenAuditory words rhyming task and auditory words matching taskp < 0.00125 voxels*
Kronbichler et al., 20061513187.9GermanAlphabeticAdolescentsSentence verification taskFDR p < 0.054 voxels
Kronschnabel et al., 20132213191.7GermanAlphabeticAdolescentsRapid serial visual stimulation detect taskp < 0.005160 voxels*
Kronschnabel et al., 20142213190.9GermanAlphabeticAdolescentsTarget detection taskp < 0.005160 voxels*
Landi et al., 20101313157.8EnglishAlphabeticAdolescentsRhyming task and semantic categorization taskFDR p < 0.0120 voxels
Langer et al., 20151515119.4EnglishAlphabeticChildrenSentence reading taskp < 0.00550 voxels
Liu et al., 20121111142.8ChineseMorpho-syllabicChildrenWord rhyming task and semantic judgment taskp < 0.000218 voxels*
Liu et al., 2013a1414141.8ChineseMorpho-syllabicChildrenLexical match task and character rhyming task p < 0.00110 voxels
Lobier et al., 20141212129.6FrenchAlphabeticAdultsvisual categorization of character taskp < 0.00120 voxels
MacSweeney et al., 200977343.5EnglishAlphabeticAdultsPicture rhyming taskp < 0.0120 voxels
Maurer et al., 20111611136.6GermanAlphabeticChildrenWord matching task, pseudoword matching task, picture matching taskp < 0.0130 voxels*
McCrory et al., 200068275.0EnglishAlphabeticAdultsWords and pseudowords productionp < 0.001,
McCrory et al., 2005108242.0EnglishAlphabeticAdultsWords reading and pictures namingp < 0.05 corrected
Meyler et al., 20081223129.6EnglishAlphabeticChildrenSentence comprehensionp < 0.00210 voxels
Monzalvo et al., 20122323130.0FrenchAlphabeticChildrenPassive picture/word viewing task and passive sentence listening taskp < 0.001p < 0.05 corrected
Olulade et al., 201296247.7EnglishAlphabeticAdultsWord rhyme task3-D spatial rotationsp < 0.00510 voxels
Olulade et al., 20151216120.5EnglishAlphabeticChildrenImplicit word readingp < 0.00120 voxels
Paulesu et al., 20013636286.4English, French, ItalianAlphabeticAdultsWord and non-word reading taskp< 0.001corrected
Paulesu et al., 199655314.5EnglishAlphabeticAdultsLetter rhyming and letter memoryp < 0.001
Pecini et al., 20111313276.0ItalianAlphabeticAdults and adolescentsRhyme-generation taskp < 0.05 corrected100 mm3
Pekkola et al., 20061010330.6FinnishAlphabeticAdultsAudio-visual speech perceptionz > 1.8p < 0.05 corrected
Perrachione et al., 20161919279.6EnglishAlphabeticAdultsSpeech perceptionp < 0.001p < 0.001 FDR
Perrachione et al., 20162423267.0EnglishAlphabeticAdultsSpoken words listening, Written words, objects, and faces viewingp < 0.001p < 0.001 FDR
Perrachione et al., 2016252695.4EnglishAlphabeticChildrenSpoken words listening, Written words, objects, and faces viewingp < 0.001p < 0.05 FDR
Peyrin et al., 20111212120.0FrenchAlphabeticChildrenCategorical matching taskp < 0.00115 voxels
Prasad et al., 20201516144.0HindiSyllabicChildren and adolescentsAuditory rhyming task, picture-naming task and semantic tasksp < 0.001
Reilhac et al., 20131212306.6FrenchAlphabeticAdultsPerceptual matching taskp < 0.00115 voxels
Richlan et al., 20101815215.8GermanAlphabeticAdults and adolescentsphonological decision taskp < 0.00520 voxels
Rimrodt et al., 20091514141.0EnglishAlphabeticChildrenSentence comprehension taskp < 0.00178 voxels*
Ruff et al., 2002116348.7FrenchAlphabeticAadultsPassive listening taskp < 0.0138 voxels
Rumsey et al., 19971417313.2EnglishAlphabeticAdultsPronunciation task and lexical decision taskp < 0.01
Schulz et al., 20082112137.7GermanAlphabeticChildrenSentence reading taskp < 0.001
Schulz et al., 20091515138.0GermanAlphabeticChildrenSentence reading taskp < 0.001
Siok et al., 200488132.0ChineseMorpho-syllabicChildrenHomophone judgement task and lexical decision taskp < 0.00120 voxels
Siok et al., 20081212131.5ChineseMorpho-syllabicChildrenCharacter rhyming taskp < 0.00510 voxels
Siok et al., 20091212131.5ChineseMorpho-syllabicChildrenFont size judgment taskp < 0.05 FDR corrected10 voxels
Steinbrink et al., 20121214223.7GermanAlphabeticAdults and adolescentsSyllable discriminationp < 0.05 FWE corrected
Temple et al., 2000108362.7EnglishAlphabeticAdultsPitch discrimination taskp < 0.001
Temple et al., 20011524127.5EnglishAlphabeticChildrenLetter rhyming task, letter matching taskp < 0.00120 voxels
van der Mark et al., 20092418136.1GermanAlphabeticChildrenPhonological lexical decision taskp < 0.00110 voxels
van Ermingen-Marbach et al., 2013a1317117.2GermanAlphabeticChildrenPhoneme detection taskp < 0.00110 voxels
van Ermingen-Marbach et al., 2013a1314116.4GermanAlphabeticChildrenPhoneme detection taskp < 0.00110 voxels
van Ermingen-Marbach et al., 2013b1032117.0GermanAlphabeticChildrenInitial phoneme deletion taskp < 0.0130 voxels
Vasic et al., 20081312219.6GermanAlphabeticAdultsVerbal working memory taskp < 0.005p < 0.05
Waldie et al., 20131612365.1EnglishAlphabeticAdultsGo/no-go lexical decision taskp < 0.001
Weiss et al., 20162221325.1HebrewAlphabeticAdultsWord reading taskp < 0.00150 voxels
Wimmer et al., 20101920247.6GermanAlphabeticAdults and adolescentsPhonological lexical decision taskp < 0.00510 voxels
Yang and Tan, 20201616123.5ChineseMorpho-syllabicChildrenHomophone judgments task and component judgments taskp < 0.00525 voxels*
Zuk et al., 20181311114.0EnglishAlphabeticChildrenFirst sound matching taskp < 0.00550 voxels
  1. *

    equivalent to p < 0.05 corrected; ** equivalent to p < 0.01 corrected.

Table 10
Structural studies included in the meta-analysis.
StudyN(TD)N(DD)Age in monthsLanguageWriting systemSubject typeThreshold
Voxel-wiseCluster-wise
Adrian-Ventura et al., 20201213146.2SpanishAlphabeticChildrenp < 0.05 FWE corrected750 voxels
Brambati et al., 20041110352.8ItalianAlphabeticAdults and adolescentsp < 0.05 corrected for small brain volume
Brown et al., 20011416288.0EnglishAlphabeticAdultsp < 0.05p < 0.05
Eckert et al., 20051313136.5EnglishAlphabeticChildrenp < 0.001
Evans et al., 2014a1414505.8EnglishAlphabeticAdultsPp< 0.001p < 0.05
Evans et al., 2014a1313371.4EnglishAlphabeticAdultsp < 0.001p< 0.05
Evans et al., 2014a1515107.4EnglishAlphabeticChildrenp < 0.001p < 0.05
Evans et al., 2014a1717115.2EnglishAlphabeticChildrenp < 0.001p < 0.05
Hoeft et al., 20071919172.8EnglishAlphabeticChildren and adolescentsp < 0.01p < 0.01
Jagger-Rickels et al., 20183217114.2EnglishAlphabeticChildrenp < 0.001
Jednorog et al., 20143546123.5PolishAlphabeticChildrenp < 0.001p < 0.05
Jednorog et al., 2015106130123.9French, German, PolishAlphabeticChildrenp < 0.001150 voxels*
Krafnick et al., 20141515118.2EnglishAlphabeticChildrenPp< 0.01p < 0.01 FWE corrected
Kronbichler et al., 20081513187.9GermanAlphabeticAdolescentsp < 0.005
Liu et al., 2013b1818141.4ChineseMorpho-syllabicCchildrenp < 0.001196 voxels
Menghini et al., 20081010489.0ItalianAlphabeticAdultp < 0.005p < 0.05 corrected
Moreau et al., 20191212352.2EnglishAlphabeticAdultp < 0.05 FWE corrected
Pernet et al., 20093938336.0FrenchAlphabeticAdultp< 0.05 FDR corrected
Silani et al., 20053232304.5Italian, French, EnglishAlphabeticAdults
Siok et al., 20081616132.0ChineseMorpho-syllabicChildrenp < 0.05 FWE corrected50 voxels
Steinbrink et al., 200888262.8GermanAlphabeticAdultsp < 0.05 FDR corrected
Tamboer et al., 20155737245.3DutchAlphabeticAdultsp < 0.05200 voxels
Vinckenbosch et al., 20051013282.0FrenchAlphabeticAdultsp < 0.01p < 0.05
Wang et al., 20191727134.0ChineseMorpho-syllabicChildrenp < 0.001p < 0.05 FWE corrected
Xia et al., 20161212132.0ChineseMorpho-syllabicChildrenp < 0.001
Xia et al., 20161212169.2ChineseMorpho-syllabicChildrenp < 0.001
Yang et al., 2016149149.0ChineseMorpho-syllabicChildrenp < 0.001111 voxels*
  1. *

    equivalent to 0.05 corrected; ** equivalent to 0.01 corrected.

PRISMA flowchart of the selection process for included articles.

Voxel-wise meta-analysis

Request a detailed protocol

After data acquisition, we conducted a voxel-wise meta-analysis using the anisotropic effect-size version of Signed Differential Mapping software (AES-SDM version 5.14, see http://www.sdmproject.com) separately for functional studies and structural studies in alphabetic languages and morpho-syllabic languages. Unlike other coordinate-based meta-analysis methods such as Activation likelihood estimation (ALE) or Multilevel peak Kernel density analysis (MKDA), AES-SDM combined the peak coordinates with the statistical parameter maps to increase the sensitivity of the analysis (Radua et al., 2012a). Data were first preprocessed with the statistical parameter maps and the peak coordinates were convolved with a fully anisotropy un-normalized Gaussian kernel (ɑ = 1) (full width at half maximum = 20 mm) to recreate the effect size map and the corresponding variance map for each study (Radua et al., 2012a; Radua et al., 2014). Then, a random-effect model was set up to calculate the differences between the DD group and the control group. Five hundred permutations were performed to ensure the stability of the analysis. Finally, the results of the standard meta-analysis were thresholded at peak height of the mean effect size SDM-Z = 1, uncorrected p = 0.005 at the voxel level and 150 voxels at the cluster level, which is stricter than the threshold suggested by Radua et al., 2012a (peak height SDM-Z = 1, uncorrected p = 0.005 at the voxel level and 10 voxels at the cluster level) in order to avoid false-positive results and gain enough sensitivity.

In order to identify differences between the two language groups, we conducted a direct comparison between the alphabetic language group and the morpho-syllabic language group for functional studies and structural studies separately, using SDM linear model function. The threshold was set at peak height SDM-Z = 1, voxel level uncorrected p = 0.005 and 150 voxels at the cluster level.

To find out the common language difference between the structural and functional studies, we conducted a conjunction minimum analysis (Friston et al., 1999; Nichols et al., 2005) using the image calculation function of SPM12 (https://www.fil.ion.ucl.ac.uk) between the language differences in the structural studies and the language differences in the functional studies.

To test the stability of the meta-analysis results, we conducted a whole-brain jack-knife sensitivity analysis. The standard meta-analysis was repeated n times (n = 79 for functional experiments in alphabetic languages, n = 12 for functional experiments in morpho-syllabic languages, n = 21 for structural experiments in alphabetic languages, n = 6 for structural experiments in morpho-syllabic languages) but leaving out one experiments each time, to determine whether the results remained significant.

Multimodal meta-analysis

Request a detailed protocol

Because we were interested in the convergence between functional deficits and structural deficits, a multimodal meta-analysis was conducted in alphabetic languages and morpho-syllabic languages separately, which provided an efficient way to combine two meta-analyses in different modalities. The union probabilities of the meta-analytical maps of functional studies and structural studies were estimated and then thresholded at the peak height p = 0.00025, with a voxel level uncorrected p = 0.0025 and 150 voxels at the cluster level, which was stricter than the one suggested by Radua et al., 2012b; Radua et al., 2013 (peak height p = 0.00025, with a voxel level uncorrected p = 0.0025 and 10 voxels at cluster level).

To find out the common multimodal deficits in the two language groups, we conducted a conjunction minimum analysis (Friston et al., 1999; Nichols et al., 2005) using the image calculation function of SPM12 (https://www.fil.ion.ucl.ac.uk) between the multimodal deficits in the alphabetic group and the morpho-syllabic group.

Confirmation study

Request a detailed protocol

Because there were studies on both adults and children in the alphabetic group, whereas most of the morpho-syllabic studies were on children, the language difference may be due to the unmatched age range in the two groups of studies. In order to eliminate the influence of the confound, we conducted a confirmation analysis with only studies on children in the alphabetic group (n = 36 for the functional studies and n = 8 for the structure studies). Then, we compared the alphabetic and morpho-syllabic groups for functional studies and structural studies separately.

We conducted another confirmation analysis with 10 English studies (Booth et al., 2007a; Cao et al., 2008; Farris et al., 2016; Hancock et al., 2016; Hu et al., 2010; Langer et al., 2015; Meyler et al., 2008; Olulade et al., 2015; Rimrodt et al., 2009; Temple et al., 2001) and 10 Chinese studies (Cao et al., 2018; Cao et al., 2020; Feng et al., 2017; Hu et al., 2010; Liu et al., 2012; Liu et al., 2013a; Siok et al., 2004; Siok et al., 2008; Siok et al., 2009; Yang and Tan, 2020), because different languages were included in the alphabetic language group and orthographic depth makes a difference as found in previous research (Martin et al., 2016). Therefore, we only included English studies in the alphabetic group in this confirmation analysis. The two subgroups were also matched on participants’ age (mean age = 10.95 years for English studies, mean age = 11.40 years for Chinese studies), number of studies and task (visual word tasks). Then, we conducted a direct comparison between the Chinese studies and English studies. The threshold was set at peak height SDM-Z = 1 and voxel level uncorrected p = 0.005 with 150 voxels at the cluster level.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Meta-analysis data is deposited to Dryad.

The following data sets were generated

References

  1. Book
    1. Cao F
    2. Yan X
    3. Yan X
    4. Zhou H
    5. Booth JR
    (2020)
    Reading Disability in Chinese Children Learning English as an L2
    Child Development.
    1. Gaab N
    2. Gabrieli JD
    3. Deutsch GK
    4. Tallal P
    5. Temple E
    (2007)
    Neural correlates of rapid auditory processing are disrupted in children with developmental dyslexia and ameliorated with training: An fMRI study
    Restorative Neurology and Neuroscience 25:295–310.
  2. Book
    1. Honorof D
    2. Feldman L
    (2006)
    The chinese character in psycholinguistic research: Form, structure, and the reader
    In: Li P, Tan LH, Bates E, Tzeng OJL, editors. The Handbook of East Asian Psycholinguistics. Cambridge University Press. pp. 195–208.
    1. Stoodley CJ
    2. Stein JF
    (2011) The cerebellum and dyslexia
    Cortex; a Journal Devoted to the Study of the Nervous System and Behavior 47:101–116.
    https://doi.org/10.1016/j.cortex.2009.10.005
    1. Szatkowska I
    2. Grabowska A
    3. Szymańska O
    (2000)
    Phonological and semantic fluencies are mediated by different regions of the prefrontal cortex
    Acta Neurobiol Exp 60:503–508.
    1. van Ermingen-Marbach M
    2. Pape-Neumann J
    3. Grande M
    4. Grabowska A
    5. Heim S
    (2013b)
    Distinct neural signatures of cognitive subtypes of dyslexia: Effects of lexicality during phonological processing
    Acta Neurobiologiae Experimentalis 73:404–416.
  3. Book
    1. Wichmann T
    2. DeLong MR
    (2012)
    Neurotransmitters and disorders of the basal ganglia
    In: Brady ST, Siegel GJ, Albers RW, Price DL, editors. Basic Neurochemistry. Academic Press. pp. 856–871.

Decision letter

  1. Ruth de Diego-Balaguer
    Reviewing Editor; Universitat de Barcelona, Spain
  2. Chris I Baker
    Senior Editor; National Institute of Mental Health, National Institutes of Health, United States
  3. Li Hai Tan
    Reviewer; Shenzhen University, China

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

This is a rigorously conducted meta-analytic study investigating the functional and structural abnormalities associated with developmental dyslexia across languages. Convergent and divergent functional and structural changes as well as language-universal and language-specific brain alternations related to dyslexia are reported. The identification of the universal and language-specific neural manifestations of dyslexia is valuable, and it can help diagnose individuals with dyslexia in the given language with higher accuracy and administer effective interventions.

Decision letter after peer review:

Thank you for submitting your article "Convergent and divergent structural and functional brain abnormalities associated with developmental dyslexia: a cross-linguistic meta-analysis of neuroimaging studies" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Chris Baker as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Li Hai Tan (Reviewer #1).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

Hereby are summarized the main essential revisions for the papers from the two reviewers. More detailed revisions and changes are included below in each review:

1) The meta-analysis pooling all studies/experiments together seem unnecessary and may even harm this study. Thus, Reviewer 2 suggests to carefully think it over.

2) As mentioned also in Reviewer 2 comments as well, they highly recommend considering the age effect and give a detailed discussion.

3) The LIFG is a big region. Reviewer 1 and myself consider It would be helpful to more precisely present the findings related to this region, for example, by using the dorsal IFG and the ventral IFG. This will help readers more quickly understand the universality and the specificity of cortical regions across languages.

4) There are several methodological details that need to be included in the manuscript as outlined in Reviewer 2 comments.

5) Some additional points need to be discussed in the manuscript or rephrased/removed as detailed in both reviewers' comments. In that sense, the authors should be careful since some statements are out of the scope of this study and can be misleading (see Reviewer 2 comments).

6) Reviewer 2 gives some suggestions to restructure the information included in the introduction and discussion in order to convey a clearer message since there is too much information included in the introduction.

Reviewer #1 (Recommendations for the authors):

1. For the meta-analysis results, it would be helpful to show the brain maps of functional and structural impairment associated with DD in the main text instead of in supplement. The same for brain regions that had normal structure but altered function. All these brain maps can be added in Figure 2.

2. The results showing divergent structural and functional alterations are very interesting. In addition to the reasons the authors mentioned in the paper, another possibility is that the brain changes slowly but the reading performance changes rapidly – the quick development of reading skills may lead to a dissociation of structure and function. A recent study by Siok et al., (Cerebral Cortex, 2020) showed this dissociation.

3. The model by Friederici (2012) is important; it seems to involve the ventral portion of the IFG, not the dorsal portion. The author should be more precise in the paper.

Reviewer #2 (Recommendations for the authors):

Title

1. It is unclear what the focus is-convergence and divergence between functional and structural abnormalities or between different languages, or both.

Introduction

2. General:

(a) Given that the main aim of the meta-analysis is to synthesize the previous finding, it is better to summarize the previous studies in the introduction and present detailed explanations in the discussion. In the current version, too many details are presented in the introduction. For example, discussion about the language-specific in neural impairments in dyslexia (p. 5-6, lines 96-128) and the difference between Chinese and alphabetic languages (p. 7-8, lines 129-153).

(b) There are meta-analysis studies that focus on different aspects, some of which are relevant to the authors' question in this study. Thus, these works should be mentioned, and key findings should be summarized.

3. p. 3-4, lines 43-59: The authors use phonological deficits as an example to explain the manifestation of the "common" impairments can be influenced by linguistic features. While it is a good example, it is also important to notice that nowadays a large body of evidence support a multi-deficit hypothesis (where the phonological deficit is one of the most common one) and the "neural abnormalities" could be associated with different cognitive deficits.

4. p. 4, line 60: Richlan updated the model in his 2014 Fronts Hum Neurosci paper.

5. p. 4, lines 75-77: In Richlan 2014, Fronts Hum Neurosci, the left IFG and preCG have been highlighted with distinct functions. Please also see Hancock et al., 2017, Neur Biobehav Rev.

6. p. 5, lines 86-87: It is not the number of studies finding language-universal deficits associated with dyslexia is few. In fact, the research investigating this topic is lacking, to which, in my opinion, meta-analysis can contribute.

7. p. 8, line 154: Before introducing structure MRI studies, it may be better to declare the significance of conducting structural imaging research.

8. p. 8-9, lines 163-170: First, it may be better to discuss studies in Chinese and alphabetic languages separately. Second, it is true that these regions do not belong to the "three most reported brain regions involved in reading processing." However, they may also be part of the network recruited for specific reading processes.

9. p. 9, lines 174-177: It is possible that a brain measure not associated with reading experiences can also manifest to be language-specific. For example, it could be correlated with cognitive processing required by reading in a specific language.

Methods

10. To deal with the problem caused by mixing alphabetic and morpho-syllabic languages, besides conducting analysis separately for each category of the writing system, another way is to treat writing system type as modality, i.e., conduct "multi-modal like" analysis.

11. As for the age effect, focusing on children in the primary analysis could be an option.

12. Explicitly and clearly list the combinations of the keywords. E.g., "dyslexia" and "fMRI"; "dyslexia" and "PET"; etc.

13. p. 11, line 212: Can the authors list studies adopting a "volumetric FreeSurfer pipeline"? To my knowledge, such a pipeline is commonly used in investigating subcortical structures.

14. The threshold for dealing with whole-brain multiple comparisons error. As mentioned by Muller et al., 2018 Neur Biobehav Rev, a formal threshold (e.g., p-voxel < 0.001, FWE corrected p-cluster < 0.05) is recommended even for ES-SDM/AES-SDM.

Results

15. p. 19, lines 363-367: Please present more details about the "conjunction" analysis?

16. p. 19, line 366: What does the peak mean, the center of gravity?

17. I suggest adding information about whether the specific deficit was observed in each included study.

Discussion

18. p. 22, line 417: It is convergence/divergence between functional and structural differences between dyslexia and control, rather than the "relationship." There is no evidence on whether these deficits are related to each other.

19. p. 23, lines 440-442: The authors mentioned, "The left STG and the dorsal IFG are two core regions in the language model proposed by Friederici (2012) and by Hickok and Poeppel (2007)". How about the reading models?

20. p. 28-29, lines 553-581: The authors interpret the increased GMV and hyper-activation in dyslexia as compensation. However, there might be other possibilities (e.g., it could be another type of deficits in dyslexia). In addition, the authors may discuss what analysis (e.g., brain-behavior correlation, longitudinal design, etc.) can be done further to examine these possibilities.

21. p. 32, lines 646-648: "… the finding of neurological alterations in the cerebellum supports thee cerebellar deficit hypothesis." Can the authors discuss what the cerebellar deficit hypothesis claims and how the current findings support them?

22. p. 33, lines 663: "…, which is consistent with our finding" This is what a meta-analysis does. A better approach could be listing studies that observed and did not observe such a pattern.

Limitations

23. Each technique has its strength and weakness, while they can all contribute to depicting the whole picture. The main aim of an fMRI/sMRI/PET meta-analysis is to synthesize existing evidence. Therefore, in my opinion, "the neurophysiology of changes in brain structure and function is unknown" is not a limitation of this study. In synthesizing the previous findings, the authors recreated the statistical maps, which can be more sensitive than other coordinate-based meta-analytic approaches. Even though, analysis with the original statistical maps will be beneficial. These maps can be acquired by requiring the authors of the original studies or downloading from neural data sharing platforms such as Neurovault (https://neurovault.org/). Second, as mentioned before, several factors (age, orthographic depth, fMRI task paradigm, etc.) are not considered in the current analysis. Third, diffusion MRI and resting-state fMRI are important parts of neuroimaging study on dyslexia. Given that these studies have their characteristics in terms of data analysis and result reports (e.g., fiber tracking), as well as a relatively limited number, it is hard to run mete-analysis. Nevertheless, it is informative to include these studies when discussing the current findings and future directions.

Table

24. Table 1: Multiple correction methods need to be included.

Figures

25. General:

(a) The appearance of each cluster looks more extensive on the standard brain given the size of the cluster. What the voxel size and the total number of the entire brain are?

(b) Please add legends to each figure, which can help readers understand the information conveyed well.

(c) Please add color bars if applicable.

26. Figure 1: Please add indicators (e.g., identification, screening, eligibility, included) for different portions.

27. Since there were also findings in the subcortical areas (e.g., the bilateral caudate nucleus in Figure S1), it will be helpful to include a slice view in relevant figures.

28. Figures S3-S6 are not mentioned in the main text.

https://doi.org/10.7554/eLife.69523.sa1

Author response

Essential revisions:

Hereby are summarized the main essential revisions for the papers from the two reviewers. More detailed revisions and changes are included below in each review:

1) The meta-analysis pooling all studies/experiments together seem unnecessary and may even harm this study. Thus, Reviewer 2 suggests to carefully think it over.

We agree with the reviewers. We deleted the meta-analysis on all studies/experiments. Now we only have analysis on each language group, and the direct comparisons as well as conjunctions between them.

2) As mentioned also in Reviewer 2 comments as well, they highly recommend considering the age effect and give a detailed discussion.

Following the reviewer’s suggestion, we conducted a confirmation analysis by comparing children in the alphabetic group and children in the morpho-syllabic group. Results are consistent with the original findings. We added discussion on page 21, 22.

3) The LIFG is a big region. Reviewer 1 and myself consider It would be helpful to more precisely present the findings related to this region, for example, by using the dorsal IFG and the ventral IFG. This will help readers more quickly understand the universality and the specificity of cortical regions across languages.

We differentiate IFG into orbital, triangular, and opercular parts in the manuscript now. The IFG where we found greater deficit in morpho-syllabic languages than alphabetic languages is more dorsal than and overlaps with the IFG opercular part.

4) There are several methodological details that need to be included in the manuscript as outlined in Reviewer 2 comments.

We added details in the method to address the reviewer’s comments.

5) Some additional points need to be discussed in the manuscript or rephrased/removed as detailed in both reviewers' comments. In that sense, the authors should be careful since some statements are out of the scope of this study and can be misleading (see Reviewer 2 comments).

We carefully addressed reviewer 2’s comments.

6) Reviewer 2 gives some suggestions to restructure the information included in the introduction and discussion in order to convey a clearer message since there is too much information included in the introduction.

We made the introduction more concise.

Reviewer #1 (Recommendations for the authors):

1. For the meta-analysis results, it would be helpful to show the brain maps of functional and structural impairment associated with DD in the main text instead of in supplement. The same for brain regions that had normal structure but altered function. All these brain maps can be added in Figure 2.

We added these maps in Figure 1.

2. The results showing divergent structural and functional alterations are very interesting. In addition to the reasons the authors mentioned in the paper, another possibility is that the brain changes slowly but the reading performance changes rapidly – the quick development of reading skills may lead to a dissociation of structure and function. A recent study by Siok et al., (Cerebral Cortex, 2020) showed this dissociation.

We appreciate the reviewer’s thoughtful suggestion. We added this argument and reference on page 8-9, 26.

3. The model by Friederici (2012) is important; it seems to involve the ventral portion of the IFG, not the dorsal portion. The author should be more precise in the paper.

We reorganized this paragraph in the discussion now with a focus on STG, since that is where the convergence between structural and functional findings across languages is. Please see page 19, 20.

Reviewer #2 (Recommendations for the authors):

Title

1. It is unclear what the focus is-convergence and divergence between functional and structural abnormalities or between different languages, or both.

It is both. We focused on the convergence and divergence between functional and structural brain alterations associated with dyslexia and whether the convergence/divergence pattern is the same or different in different languages. We changed the title to make it clearer.

Introduction

2. General:

(a) Given that the main aim of the meta-analysis is to synthesize the previous finding, it is better to summarize the previous studies in the introduction and present detailed explanations in the discussion. In the current version, too many details are presented in the introduction. For example, discussion about the language-specific in neural impairments in dyslexia (p. 5-6, lines 96-128) and the difference between Chinese and alphabetic languages (p. 7-8, lines 129-153).

We revised the introduction to make it more concise on page 5, 6, 7, 8.

(b) There are meta-analysis studies that focus on different aspects, some of which are relevant to the authors' question in this study. Thus, these works should be mentioned, and key findings should be summarized.

We added the meta-analysis studies related to our study on page 6, line 102-111, page 7, line 129-132, line 139-144.

3. p. 3-4, lines 43-59: The authors use phonological deficits as an example to explain the manifestation of the "common" impairments can be influenced by linguistic features. While it is a good example, it is also important to notice that nowadays a large body of evidence support a multi-deficit hypothesis (where the phonological deficit is one of the most common one) and the "neural abnormalities" could be associated with different cognitive deficits.

We reworded this part. Now we refer to the multi-deficit hypothesis, and added that phonological deficit is one of the deficits on page 3, line 42-45.

4. p. 4, line 60: Richlan updated the model in his 2014 Fronts Hum Neurosci paper.

We updated the model in our manuscript on page 4-5.

5. p. 4, lines 75-77: In Richlan 2014, Fronts Hum Neurosci, the left IFG and preCG have been highlighted with distinct functions. Please also see Hancock et al., 2017, Neur Biobehav Rev.

We now added the distinction between IFG and precentral gyrus on page 4-5.

6. p. 5, lines 86-87: It is not the number of studies finding language-universal deficits associated with dyslexia is few. In fact, the research investigating this topic is lacking, to which, in my opinion, meta-analysis can contribute.

We revised the sentence on page 5, line 91-92, 97-99.

7. p. 8, line 154: Before introducing structure MRI studies, it may be better to declare the significance of conducting structural imaging research.

We added the declaration on page 7, line 134-139.

8. p. 8-9, lines 163-170: First, it may be better to discuss studies in Chinese and alphabetic languages separately. Second, it is true that these regions do not belong to the "three most reported brain regions involved in reading processing." However, they may also be part of the network recruited for specific reading processes.

We revised this part. See page 7-8, line 139-153.

9. p. 9, lines 174-177: It is possible that a brain measure not associated with reading experiences can also manifest to be language-specific. For example, it could be correlated with cognitive processing required by reading in a specific language.

We reworded that sentence on page 8, line 156-158.

Methods

10. To deal with the problem caused by mixing alphabetic and morpho-syllabic languages, besides conducting analysis separately for each category of the writing system, another way is to treat writing system type as modality, i.e., conduct "multi-modal like" analysis.

We conducted analyses separately for each category and then examined their conjunction. The "multi-modal like" analysis is actually the same as conjunction analysis in unimodal studies.

11. As for the age effect, focusing on children in the primary analysis could be an option.

We conducted a confirmation analysis to only include studies on children in the alphabetic group and the results replicated the findings when all studies were included, suggesting that language differences should not be driven by different age ranges in the two language groups.

12. Explicitly and clearly list the combinations of the keywords. E.g., "dyslexia" and "fMRI"; "dyslexia" and "PET"; etc.

We reworded the criteria of combinations of key words on page 31-32, line 612-627. We listed all the combinations we used in the Supplementary file 2.

13. p. 11, line 212: Can the authors list studies adopting a "volumetric FreeSurfer pipeline"? To my knowledge, such a pipeline is commonly used in investigating subcortical structures.

We included "volumetric FreeSurfer pipeline" as one of selection criteria on page 32. However, we didn’t find studies on DD using this pipeline.

14. The threshold for dealing with whole-brain multiple comparisons error. As mentioned by Muller et al., 2018 Neur Biobehav Rev, a formal threshold (e.g., p-voxel < 0.001, FWE corrected p-cluster < 0.05) is recommended even for ES-SDM/AES-SDM.

We carefully read through the paper by Muller et al., (Muller et al., 2018), but the formal threshold (e.g., p-voxel < 0.001, FWE corrected p-cluster < 0.05) is recommended for ALE meta-analysis. For ES-SDM/AES-SDM, it says “For ES-SDM, a previous simulation showed that an uncorrected threshold of p=0.005 with a cluster extent of 10 voxels and SDM-Z>1 adequately controlled the probability of detecting an effect by chance, and it is thus recommended (Radua et al., 2012). However, this is again an informal control of the false positive rate and could be too conservative or too liberal in other datasets, it must be understood as an approximation to corrected results.” Therefore, it does not necessarily mean that a more conservative threshold should be used for ES-SDM. Moreover, several recent meta-analysis papers also used the threshold suggested by Radua, 2012 (Pico-Perez et al., 2020; Schurz et al., 2021).

Results

15. p. 19, lines 363-367: Please present more details about the "conjunction" analysis?

We added the details about the "conjunction analysis" on page 14 as well as in the methods section on page 35, 36.

16. p. 19, line 366: What does the peak mean, the center of gravity?

As we conducted a geometric average of the thresholded 1-p maps, the ‘peak’ means the maximum value of the averages.

17. I suggest adding information about whether the specific deficit was observed in each included study.

We added the information in the Supplementary file 1f-Supplementary file 1i. we also mentioned this information in the main text on page 12.

Discussion

18. p. 22, line 417: It is convergence/divergence between functional and structural differences between dyslexia and control, rather than the "relationship." There is no evidence on whether these deficits are related to each other.

We revised the sentence on page 18, line 323-325.

19. p. 23, lines 440-442: The authors mentioned, "The left STG and the dorsal IFG are two core regions in the language model proposed by Friederici (2012) and by Hickok and Poeppel (2007)". How about the reading models?

We added that they were also key regions in the reading network on page 19, line 348-350.

20. p. 28-29, lines 553-581: The authors interpret the increased GMV and hyper-activation in dyslexia as compensation. However, there might be other possibilities (e.g., it could be another type of deficits in dyslexia). In addition, the authors may discuss what analysis (e.g., brain-behavior correlation, longitudinal design, etc.) can be done further to examine these possibilities.

We revised this section on page 25 to include the points raised by the reviewer.

21. p. 32, lines 646-648: "… the finding of neurological alterations in the cerebellum supports thee cerebellar deficit hypothesis." Can the authors discuss what the cerebellar deficit hypothesis claims and how the current findings support them?

We reworded this sentence on page 29.

22. p. 33, lines 663: "…, which is consistent with our finding" This is what a meta-analysis does. A better approach could be listing studies that observed and did not observe such a pattern.

We revised this part on page 30.

Limitations

23. Each technique has its strength and weakness, while they can all contribute to depicting the whole picture. The main aim of an fMRI/sMRI/PET meta-analysis is to synthesize existing evidence. Therefore, in my opinion, "the neurophysiology of changes in brain structure and function is unknown" is not a limitation of this study. In synthesizing the previous findings, the authors recreated the statistical maps, which can be more sensitive than other coordinate-based meta-analytic approaches. Even though, analysis with the original statistical maps will be beneficial. These maps can be acquired by requiring the authors of the original studies or downloading from neural data sharing platforms such as Neurovault (https://neurovault.org/). Second, as mentioned before, several factors (age, orthographic depth, fMRI task paradigm, etc.) are not considered in the current analysis. Third, diffusion MRI and resting-state fMRI are important parts of neuroimaging study on dyslexia. Given that these studies have their characteristics in terms of data analysis and result reports (e.g., fiber tracking), as well as a relatively limited number, it is hard to run mete-analysis. Nevertheless, it is informative to include these studies when discussing the current findings and future directions.

We deleted “the neurophysiology of changes in brain structure and function is unknown” and added the lack of original statistical maps as a limitation on page 31. Second, we conducted confirmation analysis, and now these factors (age, task, orthographic depth) are taken into account when making conclusions. Third, we added findings from DTI and resting state studies to be more informative on page 20.

Table

24. Table 1: Multiple correction methods need to be included.

We added the information in Table 1 and Table 2. See page 55-62.

Figures

25. General:

(a) The appearance of each cluster looks more extensive on the standard brain given the size of the cluster. What the voxel size and the total number of the entire brain are?

We used the default gray matter mask of AES-SDM software in this analysis, the voxel size was 2×2×2 mm3, and the total number of the brain were 193768 voxels. The extensive appearance of the clusters may be due to the software we used, as it presents all results onto the surface of the brain. To avoid this bias, we now use a slice view for all figures.

(b) Please add legends to each figure, which can help readers understand the information conveyed well.

We added legends.

(c) Please add color bars if applicable.

We added color bars.

26. Figure 1: Please add indicators (e.g., identification, screening, eligibility, included) for different portions.

We added indicators in Figure4 on page 33.

27. Since there were also findings in the subcortical areas (e.g., the bilateral caudate nucleus in Figure S1), it will be helpful to include a slice view in relevant figures.

We use a slice view for all figures now in the revised manuscript.

28. Figures S3-S6 are not mentioned in the main text.

We now mention all Tables and Figures in the revised manuscript.

References

Martin, A., Kronbichler, M., and Richlan, F. (2016). Dyslexic brain activation abnormalities in deep and shallow orthographies: A meta-analysis of 28 functional neuroimaging studies. Human Brain Mapping, 37(7), 2676-2699. doi:10.1002/hbm.23202

Muller, V. I., Cieslik, E. C., Laird, A. R., Fox, P. T., Radua, J., Mataix-Cols, D., Tench, C. R., Yarkoni, T., Nichols, T. E., Turkeltaub, P. E., Wager, T. D., and Eickhoff, S. B. (2018). Ten simple rules for neuroimaging meta-analysis. Neurosci Biobehav Rev, 84, 151-161. doi:10.1016/j.neubiorev.2017.11.012

Pico-Perez, M., Moreira, P. S., de Melo Ferreira, V., Radua, J., Mataix-Cols, D., Sousa, N., Soriano-Mas, C., and Morgado, P. (2020). Modality-specific overlaps in brain structure and function in obsessive-compulsive disorder: Multimodal meta-analysis of case-control MRI studies. Neurosci Biobehav Rev, 112, 83-94. doi:10.1016/j.neubiorev.2020.01.033

Schurz, M., Radua, J., Tholen, M. G., Maliske, L., Margulies, D. S., Mars, R. B., Sallet, J., and Kanske, P. (2021). Toward a hierarchical model of social cognition: A neuroimaging meta-analysis and integrative review of empathy and theory of mind. Psychological Bulletin, 147(3), 293-327. doi:10.1037/bul0000303

https://doi.org/10.7554/eLife.69523.sa2

Article and author information

Author details

  1. Xiaohui Yan

    Department of Psychology, Sun Yat-Sen University, Guangzhou, China
    Contribution
    Data curation, Methodology, Visualization, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2801-3335
  2. Ke Jiang

    Department of Psychology, Sun Yat-Sen University, Guangzhou, China
    Contribution
    Writing – original draft, Data acquisition, Data acquisition, Data acquisition
    Competing interests
    No competing interests declared
  3. Hui Li

    Department of Preschool Education, Anyang Preschool Education College, Anyang, China
    Contribution
    Writing – original draft, Data acquisition, Data acquisition, Data acquisition
    Competing interests
    No competing interests declared
  4. Ziyi Wang

    School of Foreign Language, Jining University, Jining, China
    Contribution
    Writing – original draft, Data acquisition, Data acquisition, Data acquisition
    Competing interests
    No competing interests declared
  5. Kyle Perkins

    Florida International University (Retired Professor), Miami, United States
    Contribution
    Validation
    Competing interests
    No competing interests declared
  6. Fan Cao

    Department of Psychology, Sun Yat-Sen University, Guangzhou, China
    Contribution
    Conceptualization, Funding acquisition, Supervision, Validation, Writing – review and editing
    For correspondence
    caofan3@mail.sysu.edu.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3786-1600

Funding

Fundamental Research Funds for the Central Universities

  • Fan Cao

Guangdong Planning Office of Philosophy and Social Science (GD19CXL05)

  • Fan Cao

Science and Technology Program of Guangzhou, China, Key Area Research and Development Program (202007030011)

  • Fan Cao

The National Social Science Fund of China (21BYY204)

  • Fan Cao

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by the “Fundamental Research Funds for the Central Universities” awarded to Dr. Fan Cao, “Guangdong Planning Office of Philosophy and Social Science” (GD19CXL05) awarded to Dr. Fan Cao, “Science and Technology Program of Guangzhou, China, Key Area Research and Development Program (202007030011)”,and by “The national social science fund of China" (21BYY204) awarded to Dr. Fan Cao.

Senior Editor

  1. Chris I Baker, National Institute of Mental Health, National Institutes of Health, United States

Reviewing Editor

  1. Ruth de Diego-Balaguer, Universitat de Barcelona, Spain

Reviewer

  1. Li Hai Tan, Shenzhen University, China

Publication history

  1. Received: April 17, 2021
  2. Preprint posted: May 10, 2021 (view preprint)
  3. Accepted: September 24, 2021
  4. Accepted Manuscript published: September 27, 2021 (version 1)
  5. Version of Record published: October 7, 2021 (version 2)

Copyright

© 2021, Yan et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 299
    Page views
  • 54
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Neuroscience
    Zhong-Jiao Jiang et al.
    Research Article Updated

    Transient receptor potential melastatin 7 (TRPM7) contributes to a variety of physiological and pathological processes in many tissues and cells. With a widespread distribution in the nervous system, TRPM7 is involved in animal behaviors and neuronal death induced by ischemia. However, the physiological role of TRPM7 in central nervous system (CNS) neuron remains unclear. Here, we identify endocytic defects in neuroendocrine cells and neurons from TRPM7 knockout (KO) mice, indicating a role of TRPM7 in synaptic vesicle endocytosis. Our experiments further pinpoint the importance of TRPM7 as an ion channel in synaptic vesicle endocytosis. Ca2+ imaging detects a defect in presynaptic Ca2+ dynamics in TRPM7 KO neuron, suggesting an importance of Ca2+ influx via TRPM7 in synaptic vesicle endocytosis. Moreover, the short-term depression is enhanced in both excitatory and inhibitory synaptic transmissions from TRPM7 KO mice. Taken together, our data suggests that Ca2+ influx via TRPM7 may be critical for short-term plasticity of synaptic strength by regulating synaptic vesicle endocytosis in neurons.

    1. Neuroscience
    Renée S Koolschijn et al.
    Research Article Updated

    The brain has a remarkable capacity to acquire and store memories that can later be selectively recalled. These processes are supported by the hippocampus which is thought to index memory recall by reinstating information stored across distributed neocortical circuits. However, the mechanism that supports this interaction remains unclear. Here, in humans, we show that recall of a visual cue from a paired associate is accompanied by a transient increase in the ratio between glutamate and GABA in visual cortex. Moreover, these excitatory-inhibitory fluctuations are predicted by activity in the hippocampus. These data suggest the hippocampus gates memory recall by indexing information stored across neocortical circuits using a disinhibitory mechanism.
