Genetic depletion studies inform receptor usage by virulent hantaviruses in human endothelial cells

  1. Maria Eugenia Dieterle
  2. Carles Solà-Riera
  3. Chunyan Ye
  4. Samuel M Goodfellow
  5. Eva Mittler
  6. Ezgi Kasikci
  7. Steven B Bradfute
  8. Jonas Klingström
  9. Rohit K Jangra  Is a corresponding author
  10. Kartik Chandran  Is a corresponding author
  1. Department of Microbiology and Immunology, Albert Einstein College of Medicine, United States
  2. Center for Infectious Medicine, Department of Medicine Huddinge, Karolinska Institutet, Sweden
  3. University of New Mexico Health Science Center, Center for Global Health, Department of Internal Medicine, United States
Short Report
  • Cited 0
  • Views 343
  • Annotations
Cite this article as: eLife 2021;10:e69708 doi: 10.7554/eLife.69708

Abstract

Hantaviruses are RNA viruses with known epidemic threat and potential for emergence. Several rodent-borne hantaviruses cause zoonoses accompanied by severe illness and death. However, assessments of zoonotic risk and the development of countermeasures are challenged by our limited knowledge of the molecular mechanisms of hantavirus infection, including the identities of cell entry receptors and their roles in influencing viral host range and virulence. Despite the long-standing presumption that β3/β1-containing integrins are the major hantavirus entry receptors, rigorous genetic loss-of-function evidence supporting their requirement, and that of decay-accelerating factor (DAF), is lacking. Here, we used CRISPR/Cas9 engineering to knockout candidate hantavirus receptors, singly and in combination, in a human endothelial cell line that recapitulates the properties of primary microvascular endothelial cells, the major targets of viral infection in humans. The loss of β3 integrin, β1 integrin, and/or DAF had little or no effect on entry by a large panel of hantaviruses. By contrast, loss of protocadherin-1, a recently identified entry receptor for some hantaviruses, substantially reduced hantavirus entry and infection. We conclude that major host molecules necessary for endothelial cell entry by PCDH1-independent hantaviruses remain to be discovered.

Introduction

Hantaviruses are a large family of enveloped viruses with segmented negative-strand RNA genomes whose members infect a wide range of mammalian hosts (Elliott et al., 1991; Mittler et al., 2019; Vaheri et al., 2013). The zoonotic transmission of some rodent-borne hantaviruses is associated with two major diseases in humans, hemorrhagic fever with renal syndrome (HFRS), and hantavirus cardiopulmonary syndrome (HCPS), in endemic regions of Europe/Asia and North/South America, respectively (Peters et al., 1999). Zoonotic infections by some other hantaviruses (e.g., Seoul virus, SEOV) have a global distribution mirroring that of their rodent hosts. Most HFRS cases are associated with the ‘Old-World hantaviruses’ Hantaan virus (HTNV), SEOV, Dobrava-Belgrade virus (DOBV), and Puumala virus (PUUV) infections, whereas HCPS is primarily caused by the ‘New-World hantaviruses’ Andes virus (ANDV) and Sin Nombre virus (SNV) (Jiang et al., 2016; Macneil et al., 2011). Although humans are typically dead-end hosts for rodent-borne hantaviruses, several incidents of ANDV person-to-person transmission, including a recent superspreader event, have been documented, underscoring the epidemic threat posed by these agents (Martínez et al., 2020; Padula et al., 1998). Despite this strong potential for transmission from known and unknown host reservoirs and the significant burden of severe disease, no FDA-approved vaccines or specific therapeutics are available for hantaviruses (Mittler et al., 2019). Both assessments of viral zoonotic risk and the development of antiviral treatments are challenged by our limited understanding of the molecular mechanisms of hantavirus infection, including the identities, viral and host species specificities, and functional roles of cellular entry receptors.

Integrins (αVβ3, α5β1, αMβ2, and αXβ2) and components of the complement system (e.g., decay-accelerating factor [DAF]) have been previously proposed as candidate hantavirus receptors and/or entry factors, based largely on cDNA complementation experiments to rescue infection in nonpermissive cell lines, receptor-blocking studies in non-polarized and polarized endothelial cells and/or binding assays (Buranda et al., 2010; Gavrilovskaya et al., 1999; Gavrilovskaya et al., 1998; Krautkrämer and Zeier, 2008; Popugaeva et al., 2012; Raftery et al., 2014). β3- and β1-containing integrins have been presumed to be the major entry receptors for virulent and avirulent hantaviruses, respectively, for over two decades (Gavrilovskaya et al., 1999; Gavrilovskaya et al., 2002; Gavrilovskaya et al., 1998; Raymond et al., 2005). More recently, we identified protocadherin-1 (PCDH1) as a critical determinant of attachment, entry, and infection by New-World hantaviruses, but not their Old-World counterparts, in primary human microvascular endothelial cells (Jangra et al., 2018), which are major targets of hantavirus infection in vivo (Mackow and Gavrilovskaya, 2009). However, evidentiary support for each of the above putative receptors differs substantially. PCDH1 was identified in a comprehensive genetic screen for ANDV entry factors, and its genetic depletion in endothelial cells inhibited viral entry and infection. Further, genetic loss of PCDH1 reduced viral multiplication in Syrian hamsters and protected them from lethal HCPS-like disease (Jangra et al., 2018). By contrast, none of the other candidate receptors were observed as hits in two independently conducted, unbiased genetic screens for hantavirus host factors (Jangra et al., 2018; Kleinfelter et al., 2015; Petersen et al., 2014). Moreover, to our knowledge, they have not been rigorously evaluated for their genetic requirement in physiologically relevant in vitro and in vivo models. To date, therefore, the critical host determinants of hantavirus entry remain incompletely defined.

Here, we used a genetic depletion/complementation strategy to investigate the requirements for four hantavirus receptor candidates/entry host factors described in the literature – β3 integrin, β1 integrin, DAF, and PCDH1 – during glycoprotein-mediated entry and infection of human endothelial cells by divergent hantaviruses.

Results and discussion

We first selected a previously well-characterized human microvascular endothelial cell line, TIME, as a biologically faithful and genetically manipulable model for primary endothelial cells (Venetsanakos et al., 2002). We confirmed through cell staining and flow cytometry that this cell line resembled primary human umbilical vein endothelial cells (HUVEC) in expressing key endothelial markers – the platelet endothelial cell adhesion molecule-1 (PECAM-1/CD31) and the von Willebrand factor (vWF) – as well as the four candidate hantavirus receptors under investigation (Figure 1a). Furthermore, TIME cells were susceptible to hantavirus entry mediated by divergent Gn/Gc proteins (Figure 2). We concluded, therefore, that TIME cells were also suitable to study the virus–host interactions that drive hantavirus entry in endothelial cells.

Figure 1 with 1 supplement see all

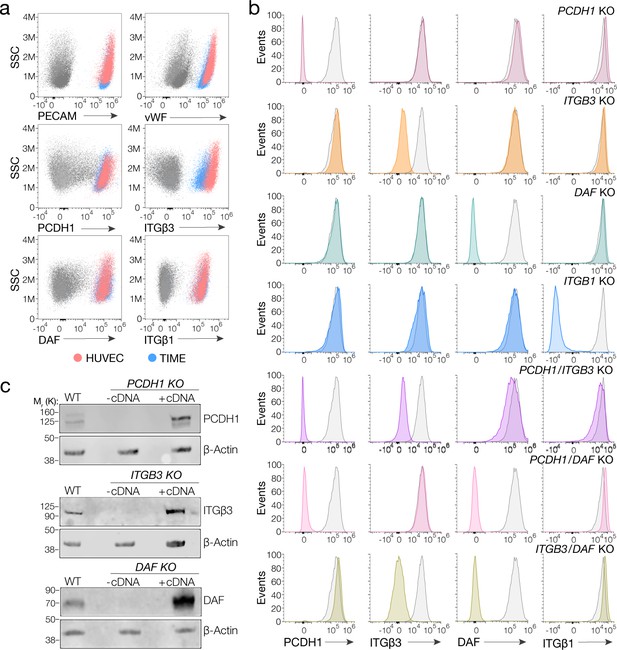

Suitability of TIME cells as a model to study hantavirus entry and the generation of knockout cells.

(a) Upper panels, total flow cytometry plots of HUVEC and TIME cells stained for endothelial cell markers PECAM and von Willebrand factor (vWF). Medium and lower panels, surface flow cytometry plots of HUVEC and TIME cells stained for PCDH1, β3 integrin, DAF, β1 integrin. (b) Surface flow cytometry of wild-type (WT) and knockout (KO) TIME cells stained as above. Histograms of WT cells are shown in gray; single- and double-KO cells are shown in color. (c) Western blot analysis of WT TIME cells and KO cells ± cDNA. β-Actin was used as a loading control.

Figure 1—source data 1

Original blot of WT TIME cells and KO cells ± cDNA.

https://cdn.elifesciences.org/articles/69708/elife-69708-fig1-data1-v1.zip
Figure 2 with 1 supplement see all

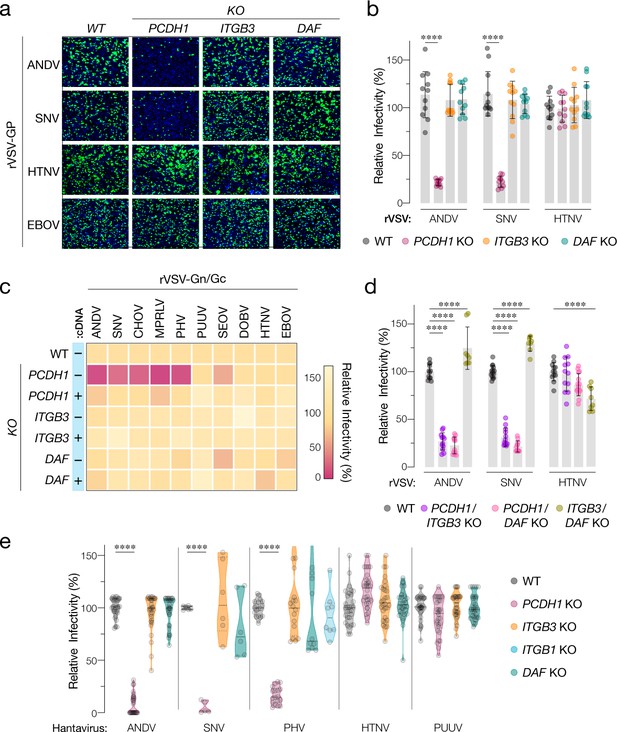

Hantavirus receptor requirement in endothelial cells.

(a) Representative images of eGFP-positive rVSV-infected wild-type (WT) and PCDH1, ITGB3, and DAF knockout (KO) TIME cells. Nuclei were stained with Hoechst (blue). (b) WT and KO cells were exposed to the indicated rVSV-Gn/Gc. n=11 for each cell line from three independent experiments. WT versus KO cells, two-way ANOVA with Dunnett’s test; ***p<0.0001. Other comparisons were not statistically significant (p>0.05). (c) WT and KO cells lacking (–cDNA) or expressing the corresponding cDNA (+cDNA) were exposed to rVSVs bearing the indicated hantavirus glycoproteins. Viral infectivities are shown in the heatmap. Averages are from three independent experiments (d) WT and double-KO cells were exposed to rVSV-Gn/Gc. PCDH1/ITGB3 KO, n = 12; PCDH1/DAF KO, n = 12; and ITGB3/DAF KO, n=9 from three independent experiments. WT versus KO cells, two-way ANOVA with Dunnett’s test; ****p<0.0001. Other comparisons were not statistically significant. (e) Cells were exposed to authentic hantaviruses and infected cells were manually enumerated by immunofluorescence microscopy for ANDV, HTNV, and PUUV (each point represents infectivity of the average of positive cells per field relative to WT). Data are from two independent experiments. PHV- and SNV-infected cells were detected and enumerated by automated imaging following immunofluorescence staining. For PHV: WT and PCDH1 KO n=18, ITGB3 KO n = 16 from four independent experiments; DAF KO, n=10, ITGB1 KO n=8, from three independent experiments. For SNV: WT, ITGB3 KO, DAF KO n=6; PCDH1 KO n = 5 from three independent experiments. Averages ± SD are shown. WT versus KO cells, two-way ANOVA with Tukey’s test; ***p<0.0001. Other comparisons were not statistically significant (p>0.05).

We used CRISPR/Cas9 genome engineering to knockout (KO) PCDH1, DAF, and the genes encoding β3 and β1 integrins (ITGB3 and ITGB1, respectively), in TIME cells. Subpopulations of CRISPR/Cas9-engineered, receptor-deficient cells were isolated by FACS following staining of live cells with protein-specific antibodies. Gene KO was verified by Sanger sequencing of PCR amplicons bearing the targeted genomic loci (Figure 1—figure supplement 1 ). Loss of protein expression at the cell surface and in cell extracts was verified by flow cytometry and western blotting, respectively (Figure 1b,c).

We next exposed WT and KO TIME cells to recombinant vesicular stomatitis viruses carrying the Gn/Gc glycoproteins of ANDV, SNV, and HTNV (rVSV-Gn/Gc) (Figure 2a,b). A similar surrogate virus bearing the Ebola virus glycoprotein (rVSV-EBOV GP) was used as a negative control. PCDH1 KO substantially diminished ANDV and SNV Gn/Gc-mediated infection, whereas it had no discernible effect on that by HTNV Gn/Gc. Unexpectedly, ITGB3 and DAF KOs did not inhibit endothelial cell entry mediated by these glycoproteins (Figure 2a,b). To examine the effect of candidate receptor loss on a larger panel of genetically divergent hantaviruses with varied levels of known virulence in humans, we extended these studies to rVSVs bearing Gn/Gc proteins from the New-World hantaviruses Choclo virus (CHOV), Maporal virus (MPRLV), Prospect Hill virus (PHV), and the Old-World hantaviruses PUUV, SEOV, and DOBV (Figure 2c). Loss of PCDH1 substantially reduced endothelial cell entry and infection mediated by the glycoproteins from the New-World viruses but not the Old-World viruses, in a manner that could be restored by complementation with PCDH1 cDNA. By contrast, and as observed above for ANDV, SNV, and HTNV, none of these viruses displayed a requirement for ITGB3 or DAF (Figures 1c2c). These findings confirm and extend the critical role played by PCDH1 in cell entry by New-World hantaviruses. They are also inconsistent with the hypotheses that β3 integrin and DAF are necessary for hantavirus cell entry in endothelial cells.

To account for potential receptor redundancy and cross-talk, we next generated and evaluated double-KO populations of TIME cells through CRISPR/Cas9 engineering (Figure 1b). PCDH1/ITGB3 and PCDH1/DAF1 KO cells resembled PCDH1 KO cells in susceptibility to rVSV-Gn/Gc infection (Figure 2d), indicating that the loss of PCDH1 did not unmask viral requirements for β3 integrin or DAF, or vice versa. Furthermore, ITGB3/DAF KO cells remained fully susceptible to viral entry (ANDV, SNV) or exhibited only a modest (~25%) reduction (HTNV) (Figure 2d), suggesting that the lack of viral entry phenotypes in the ITGB3 and DAF single-KO cells cannot be explained by the functional redundancy of these two proteins.

Finally, we evaluated the single-KO TIME cells in infections with authentic hantaviruses (Figure 2e). These experiments independently corroborated our results with rVSVs. Specifically, we observed a critical role for PCDH1 in endothelial cell infection by the New-World hantaviruses ANDV, SNV, and PHV, and no apparent roles for β3 integrin and DAF in entry by virulent New-World and Old-World hantaviruses. Concordantly, quantitative real-time PCR revealed a substantial reduction in the generation of SNV progeny genomes at 24 hr post-infection in cells deficient for PCDH1 (5 ± 2%) but not β3 integrin (108 ± 15%) or DAF (82 ± 13%; mean ± SEM, n=6 from two independent experiments for each cell line). Contrary to earlier hypotheses suggesting β1 integrin as receptors for avirulent hantaviruses (Gavrilovskaya et al., 1998), we also found no apparent role for β1 integrin in entry by both the rVSV and the authentic version of New-World hantavirus PHV (Figure 2e, Figure 2—figure supplement 1).

Endothelial cells are primary targets of the viral infection and subversion that is central to hantavirus disease in humans. Of the major receptor/entry host factor candidates proposed to date for hantaviruses (β3 integrin, β1 integrin, DAF, PCDH1), only the genetic loss of PCDH1 was associated with the reduction of viral infection in endothelial cells in this study, underscoring PCDH1’s critical role as an entry receptor for New-World hantaviruses, but not their Old-World counterparts in these cells. We conclude that the other previously described candidate receptors (β3 integrin, β1 integrin, DAF) are dispensable for viral entry in endothelial cells. We note that our results do not rule out that one or more of these proteins is involved in (1) hantavirus entry into other cell types not examined herein; (2) hantavirus entry into polarized cells, as proposed for DAF (Krautkrämer and Zeier, 2008); or (3) endothelial cell subversion post-viral entry, as shown previously (Gavrilovskaya et al., 1999; Gavrilovskaya et al., 1998; Krautkrämer and Zeier, 2008). The sum of the evidence does indicate, however, that the major host molecules necessary for entry and infection in endothelial cells by the PCDH1-independent, HFRS-causing Old-World hantaviruses remain to be discovered.

Materials and methods

Cells

HUVEC (C2517A-Lonza) and TIME cells (ATCC CRL4025) were cultured as described previously (Venetsanakos et al., 2002). HUVEC and TIME cells were cultured in EBM-2 Basal Medium (CC-3156 Lonza) and EGM-2 SingleQuotsTM Supplements (CC-4176-Lonza) supplemented with 5% heat-inactivated fetal bovine serum (FBS, Atlanta Biologicals), 1% penicillin/streptomycin (P/S, GIBCO), and 1% Gluta-MAX (GIBCO). Cells were passaged every 3–4 days using 0.05% Trypsin/EDTA solution (GIBCO). African vervet monkey kidney Vero cells were maintained in Dulbecco’s modified Eagle medium (DMEM) (high glucose) supplemented with 2% heat-inactivated FBS, 1% P/S, and 1% Gluta-MAX. 293T cells were cultured in DMEM (high glucose, GIBCO) supplemented with 10% heat-inactivated FBS (Atlanta Biologicals), 1% penicillin/streptomycin (P/S, GIBCO), and 1% Gluta-MAX (GIBCO). All cell lines used here were negative for mycoplasma. STR profiling was performed for TIME cell line ATCC CRL-4025 authentication (Genomics Core, Albert Einstein College of Medicine).

Surface and total flow cytometry

Request a detailed protocol

For surface staining, cells were kept at 4°C. Foxp3/Transcription Factor Staining Buffer Kit was used for intracellular staining following the manufacturer’s instructions (TNB-0607, KIT). Antibodies used were as follows: AF480-Rabbit-α–vWF (ab195028, Abcam), PeCy7-Mouse-α–PECAM (563651, BD), APC-Mouse-α–β1-Integrin (559883, BD), AF 647-Mouse-α–β3-Integrin (336407, Biolegends), PE-Mouse-α–DAF (555694, BD), and α–PCDH1 mAb 3305 (2)/AF488-α–Human (A-11013, Invitrogen). Zombie NIR Fixable Viability Kit (BioLegend) was used to assess live/dead status of the cells.

Western blotting

Request a detailed protocol

Performed as described (Jangra et al., 2018). Briefly, cells were lysed in radioimmunoprecipitation assay lysis buffer (RIPA) containing protease inhibitors (Sigma). Cell extracts were normalized by Bradford assay, and 40 µg of protein was added per lane. The extracted proteins were separated by 10% SDS–PAGE and transferred onto 0.22 µm nitrocellulose membranes (GE Healthcare Life Sciences). Blots were cut approximately in half for subsequent incubation with primary antibodies and aligned back together for imaging. Antibodies used were as follows: Mouse α–PCDH1 (sc-81816, Santa Cruz) 1:200; Rabbit-α–β3 Integrin (#4702, Cell Signaling) 1:300; Mouse-α–DAF (NaM16-4D3, Santa Cruz) 1:200; Mouse α–β-Actin (sc-4778, Santa Cruz) 1:300. IRDye 680LT Goat α-Rabbit IgG or IRDye 680LT Goat α-Mouse secondaries Abs (LI-COR) were used at a dilution of 1:10,000, and the final blot was then imaged using a LI-COR Fc fluorescent imager.

Generation of KO cell populations

Request a detailed protocol

A CRISPR sgRNA was designed to target, PCDH1 5′-GTTTGAGCGGCCCTCCTATGAGG-3′ (Jangra et al., 2018); ITGB3 5′-CCACGCGAGGTGTGAGCTCCTGC-3′; DAF 5′-CCCCCAGATGTACCTAATGCCCA-3′; and ITGB1 5′-AATGTAACCAACCGTAGCAAAGG-3′ (protospacer acceptor motif [PAM] is underlined). sgRNAs were cloned into lentiCRISPR v2 (Addgene plasmid # 52961), and CRISPR-Cas9 engineering was performed as described (Jangra et al., 2018). Receptor-negative subpopulations of TIME cells were isolated by FACS sorting. Double-KO cell populations were generated using a single-KO cell population and then CRISPR-Cas9 engineering with a different sgRNA as described before. Double-receptor-negative subpopulations of TIME cells were isolated by FACS sorting. The targeted genomic loci in genomic DNA isolated from these subpopulations were amplified by PCR, and the amplicons were TA-cloned into the pGEM-T vector. Fifteen to 20 clones for each KO cell population were subjected to Sanger sequencing. For each KO cell population, all sequenced clones showed an indel at the targeted site, resulting in a frameshift that brought one or more stop codons into frame.

Stable cell populations expressing PCDH1/ITGB3/DAF in KO cells

Request a detailed protocol

TIME KO cell populations ectopically expressing gene variants were generated by retroviral transduction. PCDH1 canonical isoform Q08174-1 (Uniprot), DAF canonical isoform P08174-1 (Uniprot), and ITGB3 canonical isoform P05106-1 (Uniprot) were codon optimized (humanized) and then cloned into pBABE-puro vector (Addgene plasmid # 1764). Retroviruses packaging the transgenes were produced by transfection in 293T cells (Kleinfelter et al., 2015), and target cells were exposed to sterile-filtered retrovirus supernatants in the presence of polybrene (8 μg/ml) at 36 hr and 60 hr post-transfection. Media was replaced 6 hr after each transduction with EBM-2 Basal Medium. Transgene expression was confirmed by FACS and western blot. Receptor-positive subpopulations of TIME cells were isolated by FACS sorting.

rVSVs and infections

Request a detailed protocol

rVSVs expressing eGFP and bearing Gn/Gc from ANDV, SNV, HTNV, SEOV, DOBV, MPRLV, EBOV, PHV, or mNeon green phosphoprotein P fusion protein (mNG-P) bearing Gn/Gc PUUV were described previously (Jangra et al., 2018; Kerkman et al., 2019; Kleinfelter et al., 2015; Slough et al., 2019; Wong et al., 2010). rVSV expressing mNeon Green fused to the VSV phosphoprotein and bearing Gn/Gc from CHOV (GenBank accession number KT983772.1) was generated by using a plasmid-based rescue system in 293T human embryonic kidney fibroblast cells as described before (Kleinfelter et al., 2015). Rescued virus was amplified on Vero cells and its identity was verified by sequencing of the Gn/Gc-encoding gene. Viral infectivity was measured at 14 hr post-infection by automated enumeration of eGFP- or mNeongreen-positive cells using a Cytation5 automated fluorescence microscope (BioTek) and analyzed using the Gen5 data analysis software (BioTek). 100% relative infectivity corresponds to 18–35% infected cells for ANDV, SNV, HTNV, EBOV, CHOV, MPRLV and 8–15% for SEOV, DOBV, PHV, PUUV.

Hantavirus and infections

Request a detailed protocol

ANDV isolate Chile-9717869, HTNV isolate 76–118, PUUV isolate Sotkamo, PHV, and SNV isolate SN77734 were used. TIME cells were seeded in 24-well plates (on glass coverslips) or 96-well plates and infected with a multiplicity of infection of 1. After 48 hr (24 hr for SNV), immunofluorescence was done as described before (Stoltz et al., 2007). Briefly, human polyclonal antibodies from convalescent patient serum plus anti-hantavirus nucleocapsid protein B5D9 monoclonal antibody (Progen) were used for HTNV, PUUV, ANDV. Rabbit polyclonal sera specific for HTNV nucleoprotein NR-12152 (BEI Resources) was used for PHV and SNV and incubated for an hour. For HTNV-, PUUV-, ANDV-infected cells, AF594-α–Human and α-Mouse IgG antibodies (Invitrogen) were used as secondaries. For SNV and PHV, AF488-α–Rabbit IgG was used (Invitrogen). Counterstaining of nuclei was done with DAPI (Thermo Fisher Scientific). Cells were imaged by fluorescence microscopy (Nikon, Eclipse TE300) with a 60× objective or by automated enumeration of eGFP-positive cells using a Cytation5 automated fluorescence microscope (BioTek) and analyzed using the Gen5 data analysis software (BioTek).

SNV RNA levels

Request a detailed protocol

WT and KO TIME cells were harvested before infection (negative control) or at 24 hr after infection. Degenerate primers and probe were adopted from Kramski et al., 2007 based on the S-segment of the SNV genome. Human β-actin primers with a VIC/TAMRA-dye probe (Applied Biosystems, Cat. # 4310881E) was used as an endogenous control. The qPCR were carried out by using TaqMan Fast Advanced Master Mix (Applied Biosystems, Thermo Fisher Scientific) according to the manufacturer's instructions. Relative gene fold change was calculated by normalizing SNV to β-actin in cells using ΔΔCt values. Averages ± SEM from two independent experiments are shown.

Statistics and reproducibility

Request a detailed protocol

The number of independent experiments and the measures of central tendency and dispersion used in each case are indicated in the figure legends. The testing level (alpha) was 0.05 for all statistical tests. Statistical comparisons were carried out by two-way ANOVA with a post hoc correction for family-wise error rate. All analyses were carried out in GraphPad Prism.

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (Homo sapiens)PCDH1GenBankGene ID: 5097
Gene (Homo sapiens)ITGB3GenBankGene ID: 3690
Gene (Homo sapiens)DAFGenBankGene ID: 1604
Gene (Homo sapiens)ITGB1GenBankGene ID: 3688
Strain, strain background (virus)rVSV eGFP ANDV Gn/GcKleinfelter et al., 2015
Strain, strain background (virus)rVSV eGFP SNV Gn/GcKleinfelter et al., 2015
Strain, strain background (virus)rVSV eGFP HTNV Gn/GcKleinfelter et al., 2015
Strain, strain background (virus)rVSV eGFP SEOV Gn/GcJangra et al., 2018
Strain, strain background (virus)rVSV eGFP DOBV Gn/GcSlough et al., 2019
Strain, strain background (virus)rVSV eGFP MPRLV Gn/GcJangra et al., 2018
Strain, strain background (virus)rVSV eGFP PHV Gn/GcJangra et al., 2018
Strain, strain background (virus)rVSV mNeongreen-P PUUV-Gn/GcKerkman et al., 2019, This studyLaboratory of K. Chandran
Strain, strain background (virus)rVSV mNeongreen-P CHOV Gn/GcThis studyGenBank # KT983772.1Laboratory of K. Chandran/VSV antigenome plasmid (Whelan et al., 1995), plasmids expressing T7
polymerase and VSV N, P, M, G, and L (Witko et al., 2006)
Strain, strain background (virus)rVSV-EBOV/Mayinga GP (EBOV/H.sap-tc/COD/76/
Yambuku-Mayinga)
Wong et al., 2010
Strain, strain background
(Hantavirus)
ANDV isolate Chile-9717869N/A
Strain, strain background (Hantavirus)HTNV isolate 76–118N/A
Strain, strain background (Hantavirus)PUUV isolate SotkamoN/A
Strain, strain background (Hantavirus)SNV isolate SN77734Botten et al., 2000
Strain, strain background (Hantavirus)PHVN/ALaboratory of K. Chandran
Cell line (H. sapiens)293TATCCCat. # CRL-3216
Cell line (H. sapiens)HUVECLonzaCat. # C2517APrimary cell
Cell line (H. sapiens)TIME (endothelial cell line)ATCCCat. # CRL-4025
Cell line (C. aethiops)VeroCCL-81Cat. # CCL-81
Genetic reagent (H. sapiens)TIME PCDH1 KO (endothelial cell line)This studyLaboratory of K. Chandran/Lentiviral transduction/lentiCRISPR v2-sgRNA PCDH1
Genetic reagent (H. sapiens)TIME ITGB3 KO (endothelial cell line)This studyLaboratory of K. Chandran/Lentiviral transduction/lentiCRISPR v2-sgRNA ITGB3
Genetic reagent (H. sapiens)TIME ITGB1 KO (endothelial cell line)This studyLaboratory of K. Chandran/Lentiviral transduction/lentiCRISPR v2-sgRNA ITGB3
Genetic reagent (H. sapiens)TIME DAF KO (endothelial cell line)This studyLaboratory of K. Chandran/Lentiviral transduction/lentiCRISPR v2-sgRNA DAF
Genetic reagent (H. sapiens)TIME PCDH1/ITGB3 KO (endothelial cell line)This studyLaboratory of K. Chandran/TIME PCDH1 KO + Lentiviral transduction/lentiCRISPR v2-sgRNA ITGB3
Genetic reagent (H. sapiens)TIME PCDH1/DAF KO (endothelial cell line)This studyLaboratory of K. Chandran / TIME PCDH1 KO + Lentiviral transduction/ lentiCRISPR v2-sgRNA DAF
Genetic reagent (H. sapiens)TIME ITGB3/DAF KO (endothelial cell line)This studyLaboratory of K. Chandran / TIME ITGB3 KO + Lentiviral transduction/ lentiCRISPR v2-sgRNA DAF
Genetic reagent (H. sapiens)TIME PCDH1 KO + PCDH1 (endothelial cell line)This studyCanonical isoform Q08174-1 (Uniprot)Laboratory of K. Chandran / Retroviral transduction/ pBabe-PCDH1
Genetic reagent (H. sapiens)TIME ITGB3 KO + ITGB3 (endothelial cell line)This studyCanonical isoform P05106-1 (Uniprot)Laboratory of K. Chandran / Retroviral transduction/ pBabe-ITGB3
Genetic reagent (H. sapiens)TIME DAF KO + DAF (endothelial cell line)This studyCanonical isoform P08174-1 (Uniprot)Laboratory of K. Chandran / Retroviral transduction/ pBabe-DAF
AntibodyAF480-α-Human-vWF (Rabbit monoclonal)AbcamCat. # ab195028Flow 1:250
AntibodyPeCy7-α-Human-PECAM (Mouse monoclonal)BDCat. # 563651Flow 1:1000
AntibodyAF 647-α-Human- β3-Integrin (Mouse monoclonal)BiolegendsCat. # 336407Flow 1:200
AntibodyPE-α-Human-DAF (Mouse monoclonal)BDCat. # 555694Flow 1:1600
AntibodyAPC-α-Human-β1-Integrin (Mouse monoclonal)BDCat. # 59883Flow 1:20
Antibodyα–Human-PCDH1 mAb 3305 (human monoclonal)Jangra et al., 2018Flow 1:200
AntibodyConvalescent serum (human polyclonal)Stoltz et al., 2007IF: 1:40
AntibodyAF488-α–-Human IgG (Goat polyclonal)InvitrogenCat. # A-11013Flow 1:200
AntibodyAF594-α–Human IgG (Goat polyclonal)InvitrogenCat. # A-11014IF 1:500
AntibodyAF594-α-Mouse IgG (Goat polyclonal)InvitrogenCat. # A32742IF 1:500
AntibodyAF488-α-Rabbit IgG (Goat polyclonal)InvitrogenCat. # A-11008IF 1:500
Antibodyα–Human PCDH1 (Mouse monoclonal)Santa CruzCat. # sc-81816WB 1:200
Antibodyα–Human β3 Integrin (Rabbit polyclonal)Cell SignalingCat. # 4702WB 1:300
Antibodyα–Human-DAF (Mouse monoclonal)Santa CruzCat. # NaM16-4D3WB 1:200
Antibodyα–Human β Actin (Mouse monoclonal)Santa CruzCat. # sc-47778WB 1:300
AntibodyIRDye 680LT α-Mouse (Goat polyclonal)LI-CORCat. # 926–68020WB 1:10,000
AntibodyIRDye 680LT Goat α-Rabbit IgG 680 (Goat polyclonal)LI-CORCat. # 926–68021WB 1:10,000
Antibodyα-hantavirus nucleocapsid B5D9 (Mouse monoclonal)ProgenCat. # B5D9-CIF 1:50
Antibodyα-HTNV nucleoprotein NR-12152 (Rabbit polyclonal)BEI resourcesCat. # NR-12152IF 1:500
Recombinant DNA reagentpBabe-puro (plasmid)Morgenstern and Land, 1990Addgene plasmid # 1764
Recombinant DNA reagentpBabe-PCDH1 (plasmid)Jangra et al., 2018
Recombinant DNA reagentpBabe-ITGB3 (plasmid)This studyLaboratory of K. Chandran
Recombinant DNA reagentpBabe-DAF
(plasmid)
This studyLaboratory of K. Chandran
Recombinant DNA reagentlentiCRISPR v2 (plasmid)Sanjana et al., 2014; Shalem et al., 2014
Recombinant DNA reagentlentiCRISPR v2-sgRNA PCDH1 (plasmid)Jangra et al., 2018Laboratory of K. Chandran/5′-GTTTGAGCGGCCCTCCTATGAGG-3′ /PAM sequence is underlined but not included in oligos
Recombinant DNA reagentlentiCRISPR v2-sgRNA DAF (plasmid)This studyLaboratory of K. Chandran / 5′-CCCCCAGATGTACCTAATGCCCA-3′ / PAM sequence is underlined but not included in oligos
Recombinant DNA reagentlentiCRISPR v2-sgRNA ITGB3 (plasmid)This studyLaboratory of K. Chandran / 5′-CCACGCGAGGTGTGAGCTCCTGC-3′ /PAM sequence is underlined but not included in oligos
Recombinant DNA reagentlentiCRISPR v2-sgRNA ITGB1 (plasmid)This studyLaboratory of K. Chandran/5′-AATGTAACCAACCGTAGCAAAGG-3′ /PAM sequence is underlined but not included in oligos
Sequence-based reagentSNV degenerate primersThis studyLaboratory of S. Bradfute/SNV F: CAgCTgTgTCTgCATTggAgAC
SNV R: TARAgYCCgATggATTTCCAATCA
Sequence-based reagentSNV probeThis studyLaboratory of S. Bradfute/ TMGB1: F-TCAAAACCTgTTgATCCA NFQ MGB
Commercial assay or kitpGEM-T VectorPromegaCat. # A3600
Commercial assay or kitVIC/TAMRA-dye probeApplied
Biosystems
Cat. # 4310881E
Commercial assay or kitTaqMan Fast Advanced Master MixApplied BiosystemsCat. # 4444556
Commercial assay or kitFoxp3/Transcription Factor StainingTonboCat. # TNB-0607-KIT
Commercial assay or kitZombie NIR Fixable Viability KitBioLegendCat. # 423105Flow 1:4000
Software, algorithmCytation 5 Cell Imaging Multi-Mode ReaderBiotek

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figure 1.

The following previously published data sets were used
    1. The UniProt Consortium
    (2021) UniParc
    ID www.uniprot.org/. UniProt: the universal protein knowledgebase in 2021.

References

Decision letter

  1. Sara L Sawyer
    Senior and Reviewing Editor; University of Colorado Boulder, United States
  2. Robert Orchard
    Reviewer

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Thank you for submitting your article "Genetic depletion studies inform receptor usage by virulent hantaviruses in human endothelial cells" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing/Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Robert Orchard (Reviewer #2).

The reviewers have discussed their reviews with one another, and I have drafted this to help you prepare a revised submission.

Essential revisions:

1) Both reviewers asked you to comment on whether these molecules may have a role in infection of polarized cells, which was the original observation in the literature. While you make a passing mention of this, it is an important point and would be consistent with other viruses (e.g., CVB).

2) Please update the methods to include information on how complementation was performed.

Additional experiments are suggested by the reviewers but will not be required in the revised submission.

Reviewer #1 (Recommendations for the authors):

This is an important study that provides insights into the differential effects of host factors on hantavirus infection of endothelial cells. The experiments are rigorously performed and the data directly support the author's conclusions. Appropriate controls are included and the authors are thoughtful in their conclusions.

My only suggestion to the authors would be to consider performing binding assays in the panel of cell lines to determine whether there are alterations at this stage of the viral life cycle by loss of candidate receptors/binding factors. As the authors correctly point out, some viruses utilize attachment factors (including DAF) in a cell-type specific manner and evidence of differential binding might resolve some of the seemingly discrepant data with previous studies.

Reviewer #2 (Recommendations for the authors):

Three suggestions for the authors:

1. The authors provide compelling genetic evidence that Integrins and DAF are not required for hantavirus infection of human endothelial cells. Testing if blocking antibodies to B3/B1 integrins and/or DAF alter infection dynamics, may also help clarify any potential role of these molecules to viral infection. This orthogonal assay would bolster the very high quality genetic evidence presented.

2. The authors cite, but do not explain, how Integrins and DAF came be presumed to be involved in hantavirus entry. Given that the assays utilized previously are likely to be quite different than the genetic approach taken by the authors, a brief mention is warranted. This may help put into context any role DAF/Integrin may have on hantavirus infections.

3. I was unable to find information on the complementation of the CRISPR knockout cell lines. Were these complemented using a lentivirus? Was the cDNA altered to prevent sgRNA recognition?

https://doi.org/10.7554/eLife.69708.sa1

Author response

Essential revisions:

1) Both reviewers asked you to comment on whether these molecules may have a role in infection of polarized cells, which was the original observation in the literature. While you make a passing mention of this, it is an important point and would be consistent with other viruses (e.g., CVB).

We have added language to the “Results and Discussion” indicating as an additional caveat that some of the previously proposed receptors could play roles in polarized cell layers, as indeed has been proposed for DAF (Krautkramer and Zeier, 2008).

2) Please update the methods to include information on how complementation was performed.

We thank the reviewer for spotting this omission. The revised manuscript now includes this information in “Materials and methods.”

Additional experiments are suggested by the reviewers but will not be required in the revised submission.

We have also added additional text to “Introduction” to provide context on the experimental approaches used to identify previously proposed receptors, as requested by Reviewer #2.

Reviewer #1 (Recommendations for the authors):

This is an important study that provides insights into the differential effects of host factors on hantavirus infection of endothelial cells. The experiments are rigorously performed and the data directly support the author's conclusions. Appropriate controls are included and the authors are thoughtful in their conclusions.

My only suggestion to the authors would be to consider performing binding assays in the panel of cell lines to determine whether there are alterations at this stage of the viral life cycle by loss of candidate receptors/binding factors. As the authors correctly point out, some viruses utilize attachment factors (including DAF) in a cell-type specific manner and evidence of differential binding might resolve some of the seemingly discrepant data with previous studies.

We agree that these binding experiments could be informative but chose to focus on the loss-of-function genetic approach for this short report. We are planning to perform such studies to address potential roles for other receptors in specialized settings (such as polarized cells) but note that a failure to demonstrate a direct protein-protein interaction would not preclude the involvement of a candidate molecule as an entry factor.

Reviewer #2 (Recommendations for the authors):

Three suggestions for the authors:

1. The authors provide compelling genetic evidence that Integrins and DAF are not required for hantavirus infection of human endothelial cells. Testing if blocking antibodies to B3/B1 integrins and/or DAF alter infection dynamics, may also help clarify any potential role of these molecules to viral infection. This orthogonal assay would bolster the very high quality genetic evidence presented.

We chose not to perform such experiments herein so as to focus on a genetic approach that has not been previously explored for these receptor candidates. We agree that blocking experiments would be complementary and help cover more complex scenarios, but these are beyond the scope of this brief report.

2. The authors cite, but do not explain, how Integrins and DAF came be presumed to be involved in hantavirus entry. Given that the assays utilized previously are likely to be quite different than the genetic approach taken by the authors, a brief mention is warranted. This may help put into context any role DAF/Integrin may have on hantavirus infections.

We have also added additional text to “Introduction” to provide context on the experimental approaches used to identify previously proposed receptors.

3. I was unable to find information on the complementation of the CRISPR knockout cell lines. Were these complemented using a lentivirus? Was the cDNA altered to prevent sgRNA recognition?

We thank the reviewer for spotting this omission. The revised manuscript now includes this information in “Materials and methods.” We used codon-optimized versions of the cDNAs for retrovirus-based complementation, which resulted in changes in the sgRNA target sequences (see Author response table 1). Moreover, we were able to demonstrate biochemical complementation of KO under these conditions (see Figure 1C, “+cDNA” lanes).

Author response table 1
gRNA target site locationModified sequence in pBabe- PCDH1/
ITGB3/ DAF
PCDH1GTTTGAGCGGCCCTCCTATGAGGaTTcGAGaGaCCtagtTATGAGG
ITGB3CCACGCGAGGTGTGAGCTCCTGCCtACtaGAGGcGTatcaagCTGt
DAFCCCCCAGATGTACCTAATGCCCACCgCCtGAcGTcCCaAAcGCgCA
https://doi.org/10.7554/eLife.69708.sa2

Article and author information

Author details

  1. Maria Eugenia Dieterle

    Department of Microbiology and Immunology, Albert Einstein College of Medicine, Bronx, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5257-7253
  2. Carles Solà-Riera

    Center for Infectious Medicine, Department of Medicine Huddinge, Karolinska Institutet, Stockholm, Sweden
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Chunyan Ye

    University of New Mexico Health Science Center, Center for Global Health, Department of Internal Medicine, Albuquerque, United States
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Samuel M Goodfellow

    University of New Mexico Health Science Center, Center for Global Health, Department of Internal Medicine, Albuquerque, United States
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Eva Mittler

    Department of Microbiology and Immunology, Albert Einstein College of Medicine, Bronx, United States
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Ezgi Kasikci

    Department of Microbiology and Immunology, Albert Einstein College of Medicine, Bronx, United States
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4570-3781
  7. Steven B Bradfute

    University of New Mexico Health Science Center, Center for Global Health, Department of Internal Medicine, Albuquerque, United States
    Contribution
    Supervision, Writing - review and editing
    Competing interests
    No competing interests declared
  8. Jonas Klingström

    Center for Infectious Medicine, Department of Medicine Huddinge, Karolinska Institutet, Stockholm, Sweden
    Contribution
    Supervision, Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9076-1441
  9. Rohit K Jangra

    Department of Microbiology and Immunology, Albert Einstein College of Medicine, Bronx, United States
    Contribution
    Conceptualization, Investigation, Writing - original draft, Writing - review and editing
    For correspondence
    rohit.jangra@einsteinmed.org
    Competing interests
    is named co-inventor on US patent 10,105,433 covering PCDH1 as a target for anti-hantavirus treatments.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3119-0869
  10. Kartik Chandran

    Department of Microbiology and Immunology, Albert Einstein College of Medicine, Bronx, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    kartik.chandran@einsteinmed.org
    Competing interests
    is named co-inventor on US patent 10,105,433 covering PCDH1 as a target for anti-hantavirus treatments. K.C. is a member of the scientific advisory boards of Integrum Scientific, LLC; Biovaxys Technology Corp; and the Pandemic Security Initiative of Celdara Medical, LLC.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0232-7077

Funding

National Institutes of Health (R01AI132633)

  • Kartik Chandran

Swedish Research Council (2018-02646)

  • Jonas Klingstrom

National Institutes of Health (T32AI007538)

  • Samuel M Goodfellow

Pew Charitable Trusts (Latin American Fellow in the Biomedical Sciences)

  • Maria Eugenia Dieterle

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Isabel Gutierrez, Estefania Valencia, Laura Polanco, and Sandra Diaz for laboratory management and technical support. This work was supported by NIH grant R01AI132633 (to KC), and Swedish Research Council grant 2018–02646 (to JK). MED was partially supported as a Latin American Fellow in the Biomedical Sciences of the Pew Charitable Trusts. SMG was partially supported by the UNM HSC Infectious Disease and Inflammation Program NIH training grant T32AI007538. The Einstein Flow Cytometry Core is partially supported by NIH grant P30CA013330.

Senior and Reviewing Editor

  1. Sara L Sawyer, University of Colorado Boulder, United States

Reviewer

  1. Robert Orchard

Publication history

  1. Received: April 23, 2021
  2. Accepted: June 28, 2021
  3. Version of Record published: July 6, 2021 (version 1)

Copyright

© 2021, Dieterle et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 343
    Page views
  • 37
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Microbiology and Infectious Disease
    Elisa De Crignis et al.
    Research Article

    The molecular events that drive Hepatitis B virus (HBV)-mediated transformation and tumorigenesis have remained largely unclear, due to the absence of a relevant primary model system. Here we propose the use of human liver organoids as a platform for modeling HBV infection and related tumorigenesis. We first describe a primary ex vivo HBV-infection model derived from healthy donor liver organoids after challenge with recombinant virus or HBV-infected patient serum. HBV infected organoids produced cccDNA, HBeAg, expressed intracellular HBV RNA and proteins, and produced infectious HBV. This ex vivo HBV infected primary differentiated hepatocyte organoid platform was amenable to drug screening for both anti-HBV activity as well as for drug-induced toxicity. We also studied HBV replication in transgenically modified organoids; liver organoids exogenously overexpressing the HBV receptor NTCP after lentiviral transduction were not more susceptible to HBV, suggesting the necessity for additional host factors for efficient infection. We also generated transgenic organoids harboring integrated HBV, representing a long-term culture system also suitable for viral production and the study of HBV transcription. Finally, we generated HBV-infected patient-derived liver organoids from non-tumor cirrhotic tissue of explants from liver transplant patients. Interestingly, transcriptomic analysis of patient-derived liver organoids indicated the presence of an aberrant early cancer gene signature, which clustered with the HCC cohort on the TCGA LIHC dataset and away from healthy liver tissue, and may provide invaluable novel biomarkers for the development of HCC and surveillance in HBV infected patients.

    1. Epidemiology and Global Health
    2. Microbiology and Infectious Disease
    Barbara H Stokes et al.
    Research Article Updated

    The emergence of mutant K13-mediated artemisinin (ART) resistance in Plasmodium falciparum malaria parasites has led to widespread treatment failures across Southeast Asia. In Africa, K13-propeller genotyping confirms the emergence of the R561H mutation in Rwanda and highlights the continuing dominance of wild-type K13 elsewhere. Using gene editing, we show that R561H, along with C580Y and M579I, confer elevated in vitro ART resistance in some African strains, contrasting with minimal changes in ART susceptibility in others. C580Y and M579I cause substantial fitness costs, which may slow their dissemination in high-transmission settings, in contrast with R561H that in African 3D7 parasites is fitness neutral. In Cambodia, K13 genotyping highlights the increasing spatio-temporal dominance of C580Y. Editing multiple K13 mutations into a panel of Southeast Asian strains reveals that only the R561H variant yields ART resistance comparable to C580Y. In Asian Dd2 parasites C580Y shows no fitness cost, in contrast with most other K13 mutations tested, including R561H. Editing of point mutations in ferredoxin or mdr2, earlier associated with resistance, has no impact on ART susceptibility or parasite fitness. These data underline the complex interplay between K13 mutations, parasite survival, growth and genetic background in contributing to the spread of ART resistance.
