Spatial transcriptomic and single-nucleus analysis reveals heterogeneity in a gigantic single-celled syncytium

  1. Tobias Gerber
  2. Cristina Loureiro
  3. Nico Schramma
  4. Siyu Chen
  5. Akanksha Jain
  6. Anne Weber
  7. Anne Weigert
  8. Malgorzata Santel
  9. Karen Alim  Is a corresponding author
  10. Barbara Treutlein  Is a corresponding author
  11. J Gray Camp  Is a corresponding author
  1. Max Planck Institute for Evolutionary Anthropology, Germany
  2. Department of Biosystems Science and Engineering, ETH Zürich, Switzerland
  3. Max Planck Institute for Dynamics and Self-Organization, Germany
  4. Physics Department, Technical University of Munich, Germany
  5. Roche Institute for Translational Bioengineering (ITB), Roche Pharma Research and Early Development, Roche Innovation Center, Switzerland
  6. University of Basel, Switzerland

Abstract

In multicellular organisms, the specification, coordination, and compartmentalization of cell types enable the formation of complex body plans. However, some eukaryotic protists such as slime molds generate diverse and complex structures while remaining in a multinucleate syncytial state. It is unknown if different regions of these giant syncytial cells have distinct transcriptional responses to environmental encounters and if nuclei within the cell diversify into heterogeneous states. Here, we performed spatial transcriptome analysis of the slime mold Physarum polycephalum in the plasmodium state under different environmental conditions and used single-nucleus RNA-sequencing to dissect gene expression heterogeneity among nuclei. Our data identifies transcriptome regionality in the organism that associates with proliferation, syncytial substructures, and localized environmental conditions. Further, we find that nuclei are heterogenous in their transcriptional profile and may process local signals within the plasmodium to coordinate cell growth, metabolism, and reproduction. To understand how nuclei variation within the syncytium compares to heterogeneity in single-nucleus cells, we analyzed states in single Physarum amoebal cells. We observed amoebal cell states at different stages of mitosis and meiosis, and identified cytokinetic features that are specific to nuclei divisions within the syncytium. Notably, we do not find evidence for predefined transcriptomic states in the amoebae that are observed in the syncytium. Our data shows that a single-celled slime mold can control its gene expression in a region-specific manner while lacking cellular compartmentalization and suggests that nuclei are mobile processors facilitating local specialized functions. More broadly, slime molds offer the extraordinary opportunity to explore how organisms can evolve regulatory mechanisms to divide labor, specialize, balance competition with cooperation, and perform other foundational principles that govern the logic of life.

Editor's evaluation

Single-celled organisms are assumed to be smaller, simpler, and less complex than multicellular organisms like animals. Here, the authors provide evidence for variation in gene expression in the syncytial (multinucleate) large amoeba Physarum polycephalum. This study is an elegant and interesting regarding heterogeneity of gene expression patterns and thus specialization of functions within a syncytial organism.

https://doi.org/10.7554/eLife.69745.sa0

Introduction

Animals and other multicellular organisms are composed of diverse, compartmentalized cell types that perform specialized functions. Coordinated behavior between cells has led to the evolution of complex body plans with specialized organs. Furthermore, intercellular interactions between cell types are required to maintain a balanced physiology in a dynamic environment. The need for coordinated behavior over large spatial domains led in some cases to the formation of multinucleate cells, also called syncytia. Examples are skeletal muscles of animals (reviewed in Abmayr and Pavlath, 2012), the developing endosperm in many plants (coenocytes) (Bennett et al., 1997), multinucleate hyphae in different fungi (Mela et al., 2020), or the plasmodia of many protists (Collins, 1969; Filosa and Dengler, 1972; Kerr, 1967; Guttes et al., 1961). The syncytium, a cytoplasmic mass containing numerous nuclei that store genetic material including deoxyribonucleic acid (DNA), originates either through merging of cells or through nuclear divisions lacking an accompanying cell division. An example for the latter mode of syncytia formation are the plasmodia of many slime molds, such as Physarum polycephalum. Interestingly, such acellular slime molds are able to generate complex and dynamic body structures covering tens of centimeters or more while lacking compartmentalization of nuclei into discrete cellular units. Yet, nuclei divisions can occur through synchronized waves (Howard, 1932) or as independent (asynchronous) events (Kerr, 1988) across the noncompartmentalized cytoplasm. In addition, acellular slime molds are unique model organisms that can autonomously switch between a mitotic whole-cell division and a nuclei division giving rise to the plasmodial syncytium. However, the underlying molecular processes that lead to syncytium formation and enable different subdomains to respond to dynamic environments are poorly understood.

Here, we study P. polycephalum, a slime mold with a multi-phasic life cycle where uninucleate haploid amoeba merge to form a diploid zygote that grows into a gigantic protoplasmic syncytium, called a plasmodium (Figure 1A; Dove et al., 2012). The plasmodium forms a network-like structure to span and connect various nutrient sources (Boddy et al., 2009; Figure 1B). The morphologically complex Physarum plasmodium can grow meters in area, exhibit diverse phenotypic behaviors, and dynamically respond to environmental conditions that it encounters (Dussutour et al., 2010). Striking examples of the diverse behavioral repertoire of this single-celled organism include that Physarum can solve the fastest way through a maze (Nakagaki et al., 2000a), anticipates periodic stimuli (Saigusa et al., 2008), or optimizes the cytoplasmic flow to more quickly escape unfavorable conditions (Bäuerle et al., 2020). Furthermore, the plasmodium’s network-like body plan consists of interlaced tubes of varying diameters, and it was recently shown that these tubes grow and shrink in diameter in response to a nutrient source, thereby functioning to imprint the nutrient’s location in the tube diameter hierarchy (Kramar and Alim, 2021). The syncytium is composed of tens to millions of nuclei depending on the plasmodium size, and the nuclei are thought to divide synchronously as it grows (Howard, 1932; Schiebel, 1973). Studies have described that nuclei can be mobile and flow dynamically within cytoplasmic spaces, moving throughout the plasmodium (Earnshaw and Steer, 1983; Boussard et al., 2021) with up to 1.3 mm/s, which is among the fastest cytoplasmic flows ever measured (S Mogre et al., 2020; Kamiya, 1950). It is not known if nuclei diversify into heterogeneous states, if nuclei divisions are controlled locally or systemically, if there are gene expression modules that guide the formation of the complex morphological structures, and if such modules enable local response to environmental stimuli.

Figure 1 with 1 supplement see all

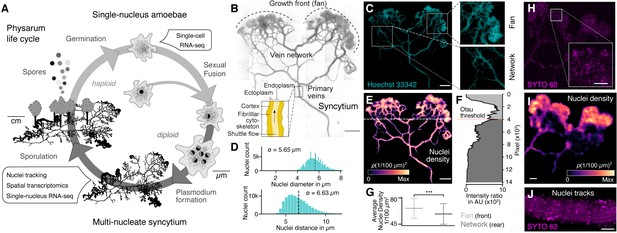

The slime mold Physarum polycephalum forms a multinucleate syncytium with mobile nuclei.

(A) Simplified life cycle of P. polycephalum indicating which experiments were performed in this study. (B) Plasmodium of P. polycephalum grows as a hierarchical network composed of contractile veins and a microstructured growth front. Tiled brightfield image of a fixed plasmodium is shown as reference. Scale bar: 1000 µm. (C) Hoechst-stained nuclei across the syncytium from (B) a growth front (top right) and a primary vein (bottom right). Scale bar: 1000 µm. (D) Histograms of nuclei diameter (top) and density (bottom) estimates are shown. Mean values are provided as insets. (E) Density map of nuclei after StarDist segmentation and kernel density estimation shows inhomogeneously distributed nuclei (see Materials and methods for further details). Scale bar: 1000 µm. (F) Averaged relative density estimates across the x-axis of the plasmodium are visualized along the y-axis of the plasmodium. A threshold by Otsu, 1979 was estimated to unbiasedly find a change in the density distribution separating the plasmodium in a network and a fan region. (G) Boxplots visualize the average nuclei density for the fan or network region identified in (F). p-value<0.001: *** (independent t-test, p=3.51 × 10–10). (H) Tiled life image of a plasmodium stained with SYTO 62 and a magnified fan region (inset). Scale bar: 500 µm. (I) Density map of nuclei shows that nuclei are not distributed homogeneously. Scale bar: 500 µm. (J) Maximum intensity projection over a period of 5 s of nuclei motion visualized by streamlines. See Video 1. Scale bar: 100 µm.

To begin to address these outstanding questions, we performed spatially resolved RNA-seq on slime mold plasmodia under different growth conditions and single-nucleus RNA-seq on a slime mold plasmodium under different growth conditions at two time points (see Supplementary file 1 for sample overview). Sequencing reads were mapped against the Physarum transcriptome reference (Glöckner and Marwan, 2017; Schaap et al., 2015) with the data enabling localization of gene expression profiles to different structures within the plasmodium and exploration of local transcriptome responses, which correlated with nuclei heterogeneity. Taken together, our data suggests that nuclei within Physarum are mobile and can integrate local signals to coordinate a transcriptional response to dynamic environmental conditions, which enables the syncytium to locally change behavior and morphology.

Results

Nuclei are distributed throughout the slime mold syncytium and can be mobile

We pursued several whole-plasmodium imaging experiments on fixed and live plasmodial cultures to better understand nuclei size, location, and dynamics within different substructures of the syncytium (Figure 1B, Figure 1—figure supplement 1). We first grew plasmodial cultures on Phytagel plates, fixed the plasmodium with paraformaldehyde, and stained nuclei with Hoechst 33342. We observed tens of thousands of nuclei distributed across all structures of the plasmodia (Figure 1C). We found that the nuclei have an estimated mean size of 5.65 μm and a mean inter-nuclei distance of 6.63 μm (Figure 1D). In particular, the maximum distance between two nearest nuclei is 33.9 µm, but 99.9% of the nuclei are within a distance of 12 µm apart from each other. We used a convolutional neural network to segment nuclei (Weigert et al., 2020), which revealed a heterogeneous distribution of nuclei across the plasmodium (Figure 1E). The mass differences across the plasmodium were used to unbiasedly separate the plasmodium broadly into a growing front region (top) and a primary vein/network part (bottom) by estimating the Otsu threshold (Figure 1F; Otsu, 1979), and we observed that the growing front region shows significantly increased nuclei densities compared to network veins (Figure 1G).

To explore nuclei dynamics in the syncytium, we stained live plasmodia using a fluorescent dye (SYTO62) and imaged vein networks and fan regions in the syncytium over 100 s (Figure 1H). Nuclei segmentation (Weigert et al., 2020) confirmed a heterogeneous distribution of nuclei, with an increased nuclei density within the growth front of the slime mold similar to what was observed in the fixed plasmodium (Figure 1I). Within the same imaging field, we observed immobile and mobile nuclei in close proximity. Mobile nuclei are advected by the local shuttle flow in veins of the network (Figure 1J, Video 1) and the foraging front (see Video 2). Strikingly, advected and immobile nuclei coexist in the syncytium and can get trapped in the ectoplasm – consistent of cross-linked actomyosin fibrils allowing periodic contractions, or be released into the peristaltic flow of the endoplasm that comprises the continuously shuttled part of the cytoplasm (see also Figure 1B; Kamiya, 1950; Wolf and Sauer, 1982). Altogether, these data show that nuclei are distributed throughout the plasmodial syncytium, and that they are maneuvered as structures form and grow.

Video 1
Nuclei shuttle flow in a primary vein of a network region.

Live recording of SYTO62-stained nuclei in a primary vein of a network region of a Physarum plasmodium. Nuclei shuttle within the cytoplasmic flow. While some nuclei get trapped in the ectoplasm, others are released from the ectoplasm into the cytoplasmic flow. Differences in nuclei sizes originate from the single imaging plane of the three-dimensional tubes of the plasmodium and rarely by contamination of the autofluorescence of larger vesicles.

Video 2
Nuclei shuttle flow across a fan region.

Live recording of SYTO62-stained nuclei in a fan region of a Physarum plasmodium over one period of cytoplasmic shuttle streaming. Differences in nuclei sizes originate from the single imaging plane of the three-dimensional tubes of the plasmodium and rarely by contamination of the autofluorescence of larger vesicles.

Spatial RNA-seq uncovers morphology- and region-specific gene expression profiles in the slime mold syncytium

To determine if there is transcriptional heterogeneity in different domains and structures within the slime mold, we performed spatial RNA-seq measurements across individual slime mold plasmodia (SM1−4, Figure 2A, Figure 2—figure supplement 1A; see Figure 2—figure supplement 2 for additional experiments). All slime molds (SM1−4) originated from the same micro-plasmodium culture and were washed with nutrient-free medium to ensure similar starting conditions prior to growth on standard 384-well plate covers coated with a thin agar layer. SM1 and SM2 were collected after 20 hr of growth, whereas for SM3 and SM4, one oat flake was placed 2 cm away from the initiating plasmodium. After an additional 3 hr of culture, growth fronts in both SM3 and SM4 were in close proximity to the oat flake (Figure 2—figure supplement 1A). At this point, SM3 was collected for spatial RNA-seq, whereas SM4 was allowed to cover and assimilate the oat and grow for an additional 4 hr prior to collection for spatial RNA-seq (Figure 2—figure supplement 1A). Spatially restricted plasmodium sampling was achieved by placing slime molds onto a 384-well plate reservoir followed by centrifugation such that position information was preserved in 4 mm square grids (Figure 2—figure supplement 1B). Bulk transcriptome libraries were generated using the SMART-SEQ2 protocol (Picelli et al., 2013) with small modifications (see Materials and methods), barcoded, and sequenced, and expression profiles were analyzed and mapped back to grids overlaying the original plasmodial structure (see Supplementary files 2-6 for details). Spatially registered data from all slime molds were combined and a nonlinear dimensionality reduction by Uniform Manifold Approximation and Projection (UMAP) was performed (Figure 2B). Grid clustering revealed distinct expression profiles from each slime mold (Supplementary file 7) by identifying cluster-specific genes between slime mold clusters (Figure 2C), which did not change when using also unannotated transcripts for the analysis (Figure 2—figure supplement 1H). The SM3 grids showed the strongest difference in gene expression compared to the other plasmodia (Figure 2—figure supplement 1C). This difference was driven by the expression of genes involved in signal transduction (DHKL) (Parikh et al., 2010) and chemotaxis (GEFA) (Charest et al., 2010) inferred from studies in the cellular slime mold Dictyostelium, and cell shape polarity studied in yeast (TEA1) (Snaith and Sawin, 2003; Figure 2C). In line with the potential function of these marker genes, Gene Ontology (GO) enrichments for ‘regulation of signal transduction’ and ‘neuropeptide signaling pathway signal transduction’ were only observed for SM3 (Figure 2—figure supplement 3 and Supplementary file 7). As noted above, a SM3 growth front was actively extending toward the oat flake at the moment of sampling (Figure 2D), suggesting that the transcriptomic differences observed in this slime mold are linked to the chemotactic stimulus absent for the other slime molds. Further experiments are needed to understand whether the stimulus is the cause or the consequence of the change in gene expression associated with chemotaxis in SM3. However, shared gene expression profiles for the biological replicates SM1 and SM2 support that similar growth conditions can likely drive similar gene expression programs (Figure 2—figure supplement 1D). In addition, batch correction identified genes that were shared across plasmodia, such as RAC1 that is expressed in SM1, SM3, and SM4 or COAA that is expressed in SM1, SM2, and SM4 (Figure 2—figure supplement 1E–G). We observed that growth front regions can be identified by a common set of fan-specific genes for each plasmodia (Figure 2—figure supplement 1I) and that fans also cluster together on the transcriptome level with only SM3 being distinct (Figure 2—figure supplement 1J). In contrast, all grids of SM1 were enriched in cell cycle-related genes (BUB1, MKI67, KIF3B), and we detect a unique cluster of the GO terms ‘Intraciliary transport,’ ‘Spindle assembly,’ ‘Cell wall biogenesis,’ ‘Centromere complex assembly,’ and ‘Chromosome segregation’ only in SM1, suggesting that SM1 was in the process of nuclei division (Figure 2C; see also Figure 2—figure supplement 2D, Figure 2—figure supplement 3, and Supplementary file 7). Altogether, these data comparing four slime molds suggest that transcriptome variation can be detected between slime molds grown from the same parent culture, but experiencing different conditions.

Figure 2 with 3 supplements see all

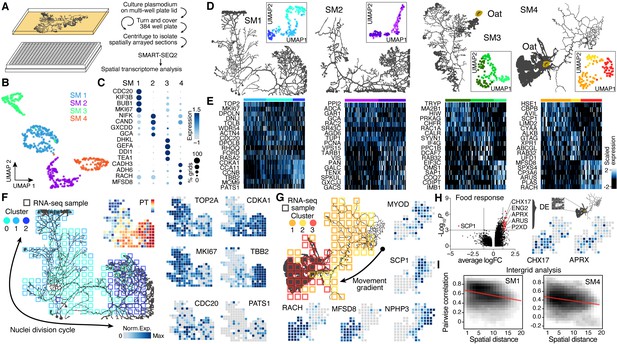

Spatial transcriptomics reveals region-specific gene expression in the plasmodial slime mold syncytia.

(A) Schematic of experimental setup. (B) Four slime mold plasmodia were grown overnight from a microplasmodia culture. Uniform Manifold Approximation and Projection (UMAP) embedding reveals general differences between slime molds. (C) Dotplot visualizes scaled gene expression intensity (dot color) and frequency (dot size) for top slime mold-specific marker genes, respectively. (D) Morphology overview of slime mold plasmodia investigated. SM1 and 2 were directly investigated after grown from microplasmodia culture, whereas oat flakes were supplied to SM3 and 4 and experiments were performed either just before the slime mold reached the food (SM3) or 4 hr after it reached the oat flake and had started re-expanding (SM4). UMAP embeddings next to each plasmodium reveal gene expression differences across grids for individual slime molds. (E) Heatmap representations of gene expression intensities for cluster markers (rows) across all grids (columns). Grids are ordered by cluster identity shown in (D). (F) Sampling grid on the 384-well plate overlaid by the plasmodium of SM1 at the time when sampled (left). Different colors represent the clustering result from (D). Right: marker genes from (E) are visualized as feature plots onto the sampling grid. (G) Sampling grid on the 384-well plate overlaid by the plasmodium of SM4 at the time when sampled (top left). Different colors represent the clustering result from (D). Bottom: marker genes from (E) are visualized as feature plots onto the sampling grid. (H) Volcano plot (left) reveals differentially expressed (DE) genes specific to grids where the plasmodium was in direct contact with a food source (oat flake). Feature plots (right) visualize the spatial arrangement for two of the DE genes of the volcano plot. (I) Density plots visualize the relation between the pairwise distance against the pairwise Pearson’s correlation across all samples of the grid of SM1 (left) and SM4 (right), respectively. Statistically significant negative correlations are identified and marked by a red line.

We next analyzed whether transcriptome heterogeneity also exists within individual slime mold syncytia. We performed dimensionality reduction for each individual slime mold spatial RNA-seq data and visualized grid heterogeneity using UMAP (Figure 2D, Figure 2—figure supplement 1K and L). These analyses revealed substantial intra-syncytium heterogeneity, and we identified genes that were specifically expressed in each cluster (Figure 2E and Supplementary file 7). Strikingly, we observed gene expression patterns that suggested coordinated intra-syncytial behaviors. For example, in SM1 a major source of heterogeneity was determined by differences in mitosis dynamics as certain clusters expressed G2/M phase markers (TOP2A, MKI67), whereas other clusters expressed markers for other phases of the cell cycle. Mapping these transcriptomic profiles onto the respective grids of SM1 revealed a wave of molecular features evidencing nuclei division orchestration across the plasmodium (Figure 2F; see also Figure 2—figure supplement 2E and F), a phenomenon that was first observed in the beginning of the 20th century but has not been molecularly described (Howard, 1932; Schiebel, 1973). Portions of the plasmodium show genes associated with G2M transitioning phase (TOP2A, MKI67) (Tirosh et al., 2016), whereas the center of the slime mold is characterized by the anaphase promoting gene CDC20 (Fang et al., 1998), and the bottom-right portion by spindle and cytokinesis marker genes (CCNB, TBB2, AURAA) (Roghi et al., 1998; Figure 2F), suggesting that the wave of nuclei divisions initiated in the bottom-right part of the slime mold (cluster 2). Interestingly, the GO terms ‘Chromosome segregation’ and ‘Spindle assembly’ follow this wave and are separated by cluster identity in which these terms were enriched (Figure 2—figure supplement 3B).

Similarly, when mapping heterogeneity observed in SM4 onto the spatial grids, we found that clusters distinguish morphological structures in the slime mold. For example, grid cluster 3 is associated with a growth front, whereas other clusters overlap the network (Figure 2G). We note that certain genes that generally distinguish SM4 from SM1-3, such as alcohol dehydrogenases ADH6 and CADH3 (Arabidopsis thaliana orthologs), are frequently and most highly expressed throughout this particular mold and may be involved in metabolizing oat compounds (Figure 2C). In agreement with this assumption, the terms ‘Glycogen synthetic pathway’ and ‘Glycolysis’ (lumped in Figure 2—figure supplement 3H) are only found in SM4 of the four plasmodia tested. Strikingly, there are genes such as a sarcoplasmic calcium-binding protein (SCP1) that are found mostly in invertebrate muscles (Hermann and Cox, 1995) or MYOD that is thought to stabilize and even retract cortical structures in Dictyostelium (Jung et al., 1996) enriched in the SM4 network region, highlighting the role of the network to generate cytoplasmic flows across the plasmodium (Figure 2G; Alim et al., 2013). The fan region, in contrast, is characterized by the gene racH, which regulates actin filament polymerization in Dictyostelium (Somesh et al., 2006). The expression of racH is linked with the coexpression of the major facilitator superfamily domain-containing protein 8 (MFSD8), which is a transmembrane carrier that transports solutes by using chemiosmotic ion gradients and plays a role in TORC1 signal transduction that controls the growth rate in yeast (Kunkel et al., 2019).

Another interesting aspect of SM4 is that it had recently assimilated an oat flake allowing us to test whether slime mold structures in direct contact with a nutrient source acquire a distinct gene expression profile. We selected a region of 4 × 4 grids covering the oat flake and performed a differential gene expression analysis against all other grids. Intriguingly, this analysis revealed genes with physiological links to nutrient uptake (Figure 2H). For example, the putative K+/H+ exchanger CHX17 known to be expressed in A. thaliana roots is involved in maintaining pH homeostasis (Cellier et al., 2004). Similarly, the extracellular alkaline metalloprotease APRX (Kodama et al., 2007) involved in casein degradation by Pseudomonas species and other psychrotolerant bacteria (Maier et al., 2020) is enriched in the region covering the oat flake. This finding is supported by enrichments for the GO terms ‘Glycogen synthetic pathway’ and ‘Glycolysis’ in SM4-specific cluster markers (Figure 2—figure supplement 3H).

Overall, for SM1, SM2, and SM4, there was a clear trend where the closer grids are in space, the more correlated they are in their transcriptome (Figure 2I, Figure 2—figure supplement 1M and N). Altogether, this data demonstrates that the Physarum syncytium is able to generate localized gene expression patterns that are associated with structures, growth states, and environmental stimuli, and patterns are globally coordinated throughout the noncompartmentalized syncytia.

Single-nucleus RNA-sequencing uncovers nuclei heterogeneity that correlates with spatial transcriptome dynamics and structure specialization

We next sought to determine if the spatial transcriptome differences observed in the syncytium are apparent at the level of single nuclei. We isolated nuclei from two plasmodia and performed single-nucleus RNA-sequencing (snRNA-seq) using a droplet-based single-cell genomics platform (10x Genomics) (Figure 3A). The same plasmodium was sampled twice, first directly after an overnight plasmodium formation from a micro-plasmodium liquid culture (primary) and second after 1 week of culture with oat flakes (secondary, see Materials and methods and Supplementary file 1). Additionally, the 1-week secondary plasmodium was separated prior to nuclei isolation into a growth front-enriched (fan) and a network-enriched (network) sample (Figure 3—figure supplement 1A). Syncytial nuclei are small with a diameter of around 5.6 µm (Figure 1D), and we therefore detected on average 591 transcripts (UMIs) per nucleus with a homogenous distribution of transcript counts across nuclei subpopulations (Figure 3—figure supplement 1B). Unsupervised nuclei transcriptome clustering and visualization of heterogeneity in an UMAP embedding revealed gradients of nuclei diversity rather than clearly distinct states in line with the lack of compartmentalization in the syncytium (Figure 3B–E, Figure 3—figure supplement 1C–E; Supplementary file 7) with unannotated transcripts having only a minor influence on gradient formation (Figure 3—figure supplement 1F). In the primary sample, we observed signatures suggesting a wave of nuclei division was in progress at the time of plasmodium sampling (Figure 3B) strengthened by the finding that the GO term ‘Chromosome segregation’ is only found in the cycling plasmodium SM1 and in the primary plasmodium sample. In addition, we noticed a nuclei cluster that specifically expressed racH, a gene we identified to be growth front-specific in the spatially resolved bulk dataset (Figure 2G). We extracted two clusters with strong mitosis signatures and ordered these nuclei along a cell cycle pseudotime (Figure 3C, Figure 3—figure supplement 1C). Comparison of this nuclei pseudotemporal trajectory with a pseudospatial ordering of grids from SM1 revealed strong concordance in wave-like mitotic gene expression signatures (Figure 3D). This data supports that spatial gene expression heterogeneity can be observed at the level of single nuclei.

Figure 3 with 1 supplement see all

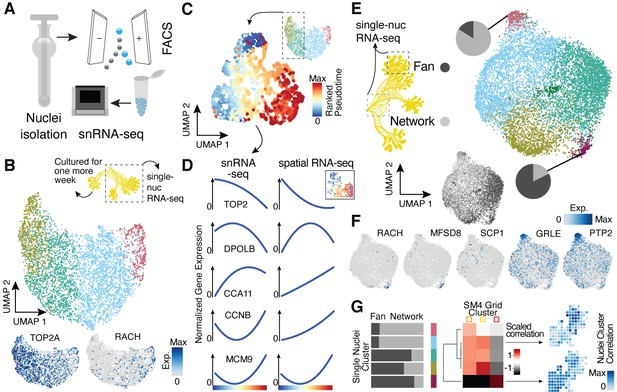

Single-nucleus RNA-sequencing uncovers nuclei diversification within the syncytia.

(A) Nuclei extraction using a douncer with subsequent nuclei enrichment through FACS was performed prior to single-nucleus experiments. (B) Uniform Manifold Approximation and Projection (UMAP) embedding visualizes nuclei heterogeneity of a freshly grown plasmodium. Cluster-specific marker genes are visualized as features on the embedding. (C) Pseudotemporal ordering of nuclei extracted from clusters with high TOP2A expression in (B). Extracted nuclei were re-embedded by UMAP with pseudotime ranks shown on the embedding. (D) Gene expression changes of cluster marker (see Figure 2F) genes across pseudotime are shown for snRNA-seq (left) and spatially resolved grid RNA-seq data (right). (E) UMAP embedding reveals nuclei heterogeneity of a 1-week-old slime mold plasmodium with nuclei originating from different parts of the plasmodium. Pie charts reveal different nuclei proportions of two exemplary clusters. The UMAP inset encodes the origin of each nucleus by color. (F) Cluster marker genes for (E) are presented as feature plots on the embedding. (G) From left to right: bar chart representing proportions of nuclei origin per cluster shown in (E). Heatmap representation of scaled correlation values between the pseudobulk gene expression per cluster of the plasmodium in (E) and the pseudobulk gene expression per cluster for SM4 (Figure 2G). Arrows indicate for which clusters correlations against individual grids of SM4 were estimated with the result being presented as a feature on the grid embedding.

The growth front and network samplings from the secondary plasmodium exhibited slightly more nuclei heterogeneity compared to the primary plasmodium (Figure 3E; see also Figure 3—figure supplement 1D), which was again unaffected by the mode of input transcripts (all versus annotated, Figure 3—figure supplement 1G). We observed unequal mixing of nuclei with certain clusters dominated by nuclei from either the growth front or the network region. Strikingly, the cluster dominated by growth front nuclei is marked by racH, whereas the network-dominated cluster is marked by SCP1 (Figure 3F), in line with the spatial transcriptome data. Interestingly, there is nuclei cluster 3 that expresses a glutamate receptor (GRLE) and a tyrosine-protein phosphatase (PTP2) both known to be involved in aggregation during fruiting body (sorocarp) development in the cellular slime mold Dictyostelium (Taniura et al., 2006; Ramalingam et al., 1993; Figure 3F). However, we observed neither morphological signs of fruiting body formation nor an enrichment in previously identified sporulation-related genes (Glöckner and Marwan, 2017) in this cluster (Figure 3—figure supplement 1E). Instead, we find the GO term ‘Glycogen synthetic pathway’ to be enriched in cluster 3 (Figure 3—figure supplement 1) – a term also enriched in the oat-associated plasmodium SM4 (Figure 2—figure supplement 3H) and here for the secondary plasmodium in the region in direct contact with oat flakes in our experiment (Figure 3—figure supplement 1A). These nuclei may be in a precursor state prior to induction of sporulation or sclerotium formation but clearly show a transcriptomic response to the direct contact to a nutrient recourse.

Motivated by our finding that we observed overlaps of GO terms and exemplary genes between our nuclei data and the spatially-resolved data, we next determined if nuclei populations can be projected to spatial locations. We averaged expression values across single-nuclei clusters and across spatial transcriptome clusters from SM4 (see Figure 2G). We calculate correlations between nuclei and spatial clusters, which allowed us to associate nuclei with different regions of the spatially segmented syncytium (Figure 3G). Strikingly, the fan-specific cluster 3 in SM4 has the highest correlation with the nuclei cluster 4 that is strongly enriched with nuclei from the fan sample (Figure 3E), allowing us to draw a direct link between the nuclei and the spatially resolved data. This result highlights that it is possible to infer the potential location of the nuclei in the plasmodium without knowing its spatial organization based on their transcriptomic state.

Altogether, this data suggests that nuclei within the syncytium are transcriptionally heterogeneous, and that the particular transcriptome state associates with the location within the plasmodium (growth front vs. network). Whether the plasmodium behavior, the environment, intrinsic cues, or a mixture of these components lead to the diversification of nuclei states and vice versa needs to be further explored.

Single-nucleus amoeba are heterogeneous and express genes distinct from nuclei within the single-celled syncytium

We next wanted to understand if the different nuclei states detected in the plasmodial syncytia are also observed in the single-nucleus Physarum amoeba stage and whether there are transcriptomic differences originating from the different nucleic division cycles (Figure 4A and B). Toward this goal, we characterized haploid Physarum amoeba cells using single-cell RNA-seq (Figure 4A). We detected on average 14,525 mRNA molecules per cell (Figure 4C), which is a higher value than for the snRNA-seq data because of the mRNA-rich cytoplasm not sampled in snRNA-seq experiments. However, we neither detect a greater diversity nor more unique genes for the amoeba compared to the snRNA-seq plasmodium data (Figure 4D); instead, we see that the diversity is increased for the grid bulk RNA-seq samples with a larger overlap with the plasmodium snRNA-seq data than the amoeba data. The same proportions are found when using all transcripts of the transcriptome for the same comparison (Figure 4—figure supplement 1A). This shows that amoeba do not use a large set of unique genes, whereas the plasmodium uses an increased repertoire of genes from its genome. We next explored the diversity of amoeba states and observed substantial variation in amoeba transcriptome states, identifying at least six distinct clusters at this resolution, with most of the heterogeneity being linked to cell cycle kinetics and subsequent G1 phases (Noegel et al., 1999; Figure 4E; Supplementary file 7), which is different to the plasmodium data with all nuclei being in roughly the same G1 phase due to the synchronous nuclei division. Using all genes and not only annotated transcripts did not have a major impact on the assessment of amoeba cellular diversity (Figure 4—figure supplement 1B). Interestingly, one cell cluster was marked by a topoisomerase family six member (TOP6A) (see Figure 4—figure supplement 1C for other markers), a gene family playing a major role in eukaryotic meiosis (Ramesh et al., 2005; Dee, 1966). These data illuminate amoeba cell states and reveal that substantial variation in cell states coexists within a Physarum single-cell culture.

Figure 4 with 1 supplement see all

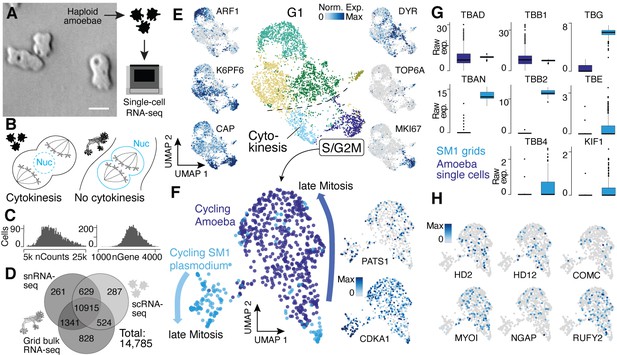

Single-nucleus amoebae are heterogeneous and differentially regulate cytokinetic programs compared with syncytial nuclei.

(A) Brightfield image of amoebae (single frame from Video 3). Scale bar: 10 µm. (B) Schematic illustrating mechanistic differences during mitosis in amoebae (left) and plasmodia (right). (C) Histograms reveal the distribution of the raw transcript counts per gene (left) and the number of different genes per cell detected (right) for amoeba scRNA-seq data. (D) Venn diagram shows the number of genes detected per experimental setup and their overlap. A 10% quantile cutoff was applied to remove sparsely expressed genes for the comparison. (E) Uniform Manifold Approximation and Projection (UMAP) embedding of single haploid amoeba cells (center). Cell cycle stages are indicated and gene expression intensities are visualized as features on the embedding (left/right). (F) UMAP embedding of single amoeba cells in G2M phase and samples of a cycling plasmodium (SM1). RNA-seq samples were integrated using Seurat’s built-in CCA ‘anchoring’ (Stuart et al., 2019) to allow a comparison between single-cell (10x Genomics) and bulk RNA-seq (SmartSeq2) data. Feature plots of PATS1 and CDKA1 reveal cell/nuclei cycle directionality for samples. Drawn arrows reveal directionality. (G) Cell cycle-related marker gene expression identified through cluster-specific gene expression analysis between amoeba cells and plasmodium grids in (F) is visualized as a boxplot for plasmodium and amoeba samples, respectively. TBAD and TBB1 are shown as reference for non-DE genes. (H) Amoeba-specific genes are visualized as feature plots on the UMAP embedding in (F).

Video 3
Living amoeba.

Brightfield live recording of haploid single-nucleus Physarum amoebae.

An interesting feature of the multinucleate syncytia is that the mitotic spindle forms within the nucleus to segregate chromosomes into two daughter nuclei, which is common among syncytial fungi (‘closed mitosis,’ Figure 4B; Solnica-Krezel et al., 1991; Tanaka, 1973; Heath, 1980). In contrast, P. polycephalum amoebae anchor the mitotic spindle through centrosomes at the opposing poles of cells (‘open/astral mitosis’) as occurs during typical eukaryotic cell divisions (Figure 4B; Solnica-Krezel et al., 1991; Havercroft and Gull, 1983). We therefore integrated spatial transcriptomes from the cycling syncytium (SM1) and transcriptomes from amoeba mitotic cells and explored the expression similarities and differences. We observed genes that increase expression toward late mitotic phases in both Physarum states (Figure 4F), for example, CDKA1 and PATS1, which are involved in cytoskeleton dynamics during cytokinesis (Sofroni et al., 2020; Abysalh et al., 2003). However, we observed striking differences in other gene expression profiles. For example, certain tubulins and one kinesin – major components of the spindle assembly pathway – are differentially expressed between the plasmodium and amoebae (Figure 4G). We find that alpha tubulin 1a (TBAD) and beta tubulin 1 (TBB1) are spindle markers expressed in both states, whereas alpha tubulin 1b (TBAN) and beta tubulin 2 and 4 (TBB2, TBB4) are only detected at high levels in the plasmodium, consistent with previous reports (Burland et al., 1988; Burland et al., 1983). Also, the epsilon and gamma tubulin chains (TBE, TBG) involved in centrosome duplication and spindle formation and the spindle-associated kinesin KIF1 are detected at much higher levels in the plasmodium. Other spindle components such as dyneins do not show a state-specific expression. These data suggest that the differential usage of tubulins orchestrates a change from an open mitosis with cytokinesis in amoeba, to a closed mitosis with nuclei division in the plasmodia, resulting in a syncytia.

In line with this finding, we note that all cell cycle-related genes detected in the amoeba are also expressed in the plasmodial stage, suggesting that the open mitosis in Physarum amoeba is accomplished by the same proteins also active in the plasmodium state but that the mechanisms could be different. Instead, we observe a specific expression of genes related to the amoeba lifestyle (Figure 4H) with some genes being well studied in the amoeboid cellular slime mold Dictyostelium such as MYLI involved in phagocytosis and filopodia assembly (Tuxworth et al., 2001; Titus, 1999), COMC, a gene important for intercellular communication (Kibler et al., 2003), or the RAS GTPase activating gene NGAP, which is involved in chemotaxis in Dictyostelium (Xu et al., 2017). In addition, multiple transcription factor-like genes (HD2, HD12, RUFY2) were identified. Together, these data reveal similarities and differences in transcriptome state regulation in amoebal and plasmodial phases of the Physarum life cycle. Nevertheless, additional validations and experiments are needed to fully understand the interplay of differential usage of genes and the potential rearrangements of shared proteins between amoeba and plasmodia that leads to a switch in mitotic states when a plasmodium forms.

Discussion

Multicellular organisms achieve an amazing complexity of forms and functions through the compartmentalization and specialization of different parts of the organism. However, the slime mold P. polycephalum is an extraordinary example of an ostensibly unicellular organism that exhibits specialized morphologies and behaviors across its life cycle. The Physarum genome encodes instructions to generate and maintain both single-nucleus amoeboid cells as well as the gigantic single syncytial cell that develops complex structures and exhibits intricate behaviors. Indeed, P. polycephalum can be translated as the ‘many-headed’ slime, which describes the remarkable ability of Physarum to develop multiple foraging growth fronts to sample the environment and seek out new terrain. This structural and behavioral complexity raises the questions around how such specialization and coordination can be generated, maintained, and quickly adapted to changing environmental conditions?

Our results suggest that Physarum’s dynamic structure formation and response to local environmental conditions are coordinated in part through localized gene regulation. We observed striking spatial differences in gene expression profiles within individual syncytial cells. These patterns appeared to distinguish different structural components of the plasmodium and also correlated with environmental stimuli (e.g., nutrient source) at individual growth fronts. Our view is that genomic DNA partitioned into nuclei are distributed throughout the syncytium and serve as local processing units that receive local and systemic input signals to coordinate encoded outputs. Nuclei can be locally fixed in the ectoplasm and remain in the same position for extended time periods of at least several minutes (extrapolation inferred from Videos 1 and 2), or they can be advected over short or long distances through the endoplasmic shuttle flow as the plasmodium pulsates and grows. This system enables the syncytium to establish complex behavioral responses that can vary in distant parts of the slime mold.

Intriguingly, we find that there is transcriptome heterogeneity among nuclei within the same plasmodium. Single-nuclei analysis revealed different proportions of nuclear transcriptome states in the growth front and fan regions. We hypothesize that it could be beneficial to maintain different nuclei states for rapid access to different transcriptional programs at any time. These data suggest that one mechanism for rapid and diverse response might occur through the co-maintenance of multiple specialized or randomized epigenetic states. We do not have evidence that the syncytium is an assembly of intrinsically specialized nuclei that exist prior to plasmodium formations as we do not find clear evidence of linked specialized states within Physarum amoebae. However, a future area of research will be to understand if transcriptome states are propagated through nuclei divisions such that outputs can be maintained rapidly in the local growth front or network microenvironment. In addition, consistent with previous reports (Earnshaw and Steer, 1983), we observed many intact nuclei within the endoplasm. These nuclei shuttle at rapid speeds of up to 1.3 m/s (Kamiya, 1950) throughout the plasmodium within a few contraction periods (Alim et al., 2013; Nakagaki et al., 2000b). Yet, it is unclear whether such a shuttle system could be used to ‘seed’ nuclei states into particular locations within the mold. Interestingly, the effective dispersion coefficient is four times smaller in the fan region as compared to the core network (Marbach et al., 2016) with the highly branched fan region hindering effective long-distance transports (comparing Videos 1 and 2). As a consequence, once nuclei are shuttled to a fan region their local dwelling time is relatively extended and the nuclei are thus more likely to get trapped within the foraging front. This suggests that nuclei from other plasmodial locations (e.g., close to a specific food resource) when transported to the new foraging front have the potential to ‘seed’ more quickly an adequate gene expression module when needed in the newly explored environment. That stated, our data strongly support nuclear adaptation to local and temporally variable environmental stimuli but further tests are needed to prove our hypothesis that shuttled nuclei can ‘seed’ nuclei states at new locations.

Our comparative analysis of single-nucleus amoeba and syncytial cell states reveals that mechanisms for different types of nuclei division are encoded in the Physarum genome. Interestingly, plasmodium-specific gene sets are additionally used to accomplish the nuclei division in the syncytium, whereas a shared core set of mitotic genes is expressed in amoebae and the plasmodium. This suggests that the switch in mitotic behavior is partly achieved through an activation of an additional genetic program in the plasmodium that most likely results in a mechanistic change of how the core set of mitotic gene products is organized. Understanding how this switch is triggered and how the reorganization is mechanistically achieved must be the basis of future research.

The resulting wave of synchronized nuclei divisions in the plasmodium is of particular interest as it is orchestrated across a gigantic syncytium, which makes it a unique model organism for studying syncytial behavior including the mode of endoreplication compared to other syncytial types as observed in fungi hyphae or fly development. Even within plasmodial slime molds, different modes of endoreplication, that is, synchronous or asynchronous (Kerr, 1988), exist, but the underlying process is still poorly understood. Notably mitotic synchronicity breaks down once networks exceed a critical size (Guttes et al., 1961) or after approximately five generations of mitosis (Mohberg, 1974), or when cytoplasmic flows are interrupted (Wolf et al., 1979; Wolf and Sauer, 1982), suggesting a tight, yet unknown connection between network structure and mitosis.

Generally, the syncytial strategy as is observed in the plasmodial state may be advantageous in certain scenarios, also for cell types within multicellular organisms including humans (Gandarillas et al., 2018). Endoreplication supports rapid cellular and organismal growth and studies in plants suggest that multinucleation and the syncytial strategy may enhance plasticity in response to environmental stress (Cookson et al., 2006). Our data adds to this view by revealing that individual nuclei can process local environmental signals under variable environmental conditions while being shuttled, and that maintaining a pool of nuclei states at all locations could provide rapid and stochastic access to genetic programs at any location within the syncytium.

Our work is not without certain limitations. Though powerful, the Physarum genome and transcriptome have not yet been curated and annotated to the extent of some other highly used model systems. In our analyses, we opted to focus only on the transcripts that have been annotated through comparisons with likely orthologs in other species. Therefore, there are many hundreds of transcripts/proteins that we did not consider here in our analyses of spatial and nuclei heterogeneity. There could be new and exciting biology in the proteins and other functional elements of the DNA that lack homology-based annotation in the Physarum genome and transcriptome. In some cases, we rely on very distantly related organisms, such as yeasts, to interpret the markers of heterogeneity in selected ortholog comparisons or in gene ontology enrichments. For example, translating yeast GO annotations (e.g., GO categories chromosome segregation or spindle assembly) to Physarum is based on the assumption that many of these genes are involved in the same processes in both species. Similarly, we suggest that there could be meiotic amoebae based on the expression of TOP6A, which is a meiosis marker in other eukaryotic organisms. However, many of these observations are currently speculative and require further research. Genomic and functional comparisons between closely and distantly related species can in the future help to clarify the relationships that we interpret in this study.

Our spatial transcriptomes were generated from four slime molds growing under variable conditions. Unharmonized analysis of the spatial transcriptomic data showed separation of the individual slime molds, which we relate to particular growth features within each individual. However, we highlight that some of this separation is likely due to technical variation. Integration using Harmony and Seurat anchoring indeed harmonizes the grids derived from the different individuals, which also uncovered interesting spatial heterogeneity shared across the specimens. In the future, our spatial profiling methods could be used to explore many Physarum individuals grown under different conditions to further assess the influence of the environment on plasmodia. Finally, we associate transcriptome states to plasmodial structure or behavior, which are correlative and do not prove causation. Genetic tools to manipulate plasmodial genes or experiments to physically translocate regions or otherwise modify inputs within the same syncytium could help with interpreting transcriptional changes. Higher resolution in situ spatial transcriptome techniques might be applied to Physarum to better localize nuclei states and also determine if there are quiescent and transcriptionally inactive nuclei in the plasmodium.

Altogether, our work reveals that slime molds such as Physarum offer the extraordinary opportunity to explore how organisms can evolve regulatory mechanisms to divide labor, switch between different modes of mitosis, specialize, balance competition with cooperation, and perform other foundational principles that govern the logic of life.

Materials and methods

Growth and culture of P. polycephalum

Request a detailed protocol

P. polycephalum was cultured as microplasmodia in 100 ml liquid culture of 50% semi-defined medium (SDM) and 50% balanced salt solution (BSS), together with hemin, streptomycin, and penicillin, while shaking at 180 rpm in a 25°C incubator (Bäuerle et al., 2017). Change of medium was carried out three times a week.

Axenic Physarum amoeba culture was grown in 50 ml liquid shaking culture of SDM at 150 rpm and 30°C. Subculturing happens three times a week to reach a seeding density of 0.2 × 106 cells/ml (Nickoloff, 1995).

Sample preparation for fluorescence imaging

Request a detailed protocol

For fluorescence imaging, a less autofluorescent substrate, 1.2% w/v of non-nutritious Phytagel, was used and distributed in Petri dishes (Ø = 100 mm). Small amounts of microplasmodia (1 ml) were inoculated onto Petri dishes and incubated over 16–24 hr in order to grow small 0.5–1.0-cm-sized plasmodial networks.

For live imaging, nuclei staining was performed by immersing the specimen with 5 μM SYTO 62 (Thermo Fisher S11344) dye for 30 min and washing with BSS solution. The excitation and emission spectrum (649/680) of this dye is far from the autofluorescence spectrum (ex/em 300-450/400-550).

To test the performance of SYTO dyes, a colocalization experiment on fixed samples was carried out (Figure 1—figure supplement 1A and B). Slime molds were first grown with the described procedure. For fixation, 2 ml of 4% PFA solution was added on top of the plasmodium with an incubation time of 15 min. The molds were washed two times with autoclaved BSS solution and immersed in a solution of 2.5 μM Hoechst 33342 (Thermo Fisher 62249) and 0.5 μM SYTOX Deep Red (Thermo Fisher S11380) for 30 min. The ex/em ranges of the dyes are 361/497 and 660/682, respectively.

To map the nuclei density of whole plasmodia, Physarum was grown from microplasmodia between a thin Phytagel sheet and the Petri dish bottom. This is to limit and homogenize the height of the plasmodia for better comparison of nuclei densities. A blade was used to run along the perimeter of the Phytagel overlay to release the thin sheet from the bottom, before placing the microplasmodia under it. To ensure the immersion of fixation solution and dye will reach the specimen, the staining protocol was also adjusted. PFA solution (4%, 2 ml) was placed on top of the Phytagel, and the Petri dish was shaked on a tilting bed (Polymax 1040, Heidolph Instruments) at 2 rpm for 45 min, before washing it three times with BSS solution. For fluorescent labeling, approximately 200 µl of 2.5 µM Hoechst 33342 was used. The stained specimen was first placed on the tilting bed for 30 min at room temperature and subsequently stored in the incubator at 25°C overnight. Finally, the slime mold was washed twice with BSS.

DAPI sample preparation

Request a detailed protocol

Slime molds were grown on regular agar plates as described above. 4% of PFA solution was added on top of the plasmodium with an incubation time of 30 min. The molds were washed two times with autoclaved distilled water, and DAPI (Thermo Fisher D1306) (300 nM) was added on top. The molds were incubated for 10 min with the staining solution. The solution was then removed, and the molds were washed 2–3 times with autoclaved distilled water.

Fluorescence imaging

Request a detailed protocol

Microscopy images were acquired with the Zeiss Axio Zoom V16 stereo microscope with a Zeiss Plan Neofluar Z 2.3×/0.57 objective, an HXP 120C fluorescence lamp and a Hamamatsu Orca Flash 4.0 V2 complementary metal-oxide semiconductor (CMOS) camera. We used ZEN Blue Edition (Zeiss) to control the microscope. To image Hoechst and red SYTO dyes, filter cubes 02 (BP 365/FT 395/LP 420) and 50 (BP 640/FT 660/BP 690) were used, respectively. For reference autofluorescence imaging, filter cube 38HE (BP 470/FT 495/BF 525) was used. To improve z-resolution, we use the Zeiss ApoTome.

3D micrographs of whole living and fixed cells were acquired directly after staining by scanning over the organism using a motorized xy stage. For every tile of the micrograph, a bottom-to-top z scan was performed over the fluorescent and autofluorescent channels, with a z-step of 2–5 µm and a magnification of 65–258×.

DAPI imaging

Request a detailed protocol

Images were acquired on a Leica TCS SP5 with the following settings: laser power at 29.08, 10.0 × 0.30 DRY HC PL FLUOTAR objective with a numerical aperture (NA) of 0.3 and UV lens FW 20×/0.70.

Images were generated directly after DAPI staining and were acquired from the bottom through microscopy slide and agar layer. DAPI was excited at 405 nm and measured with the filter set Leica/DAPI 430/550. The scan speed was at 200 ms, the pinhole at 7.07 × 10–5, and the pinhole airy at 0.99. The zoom-in was performed by increasing the dbl zoom property from 1 to 3 at plasmodial regions of interest.

Image processing

Request a detailed protocol

A custom written Fiji macro was used to deconvolve the z-stack of the SYTO channel for each tile of the micrograph using the Fiji plugin deconvolutionlab2 (Sage et al., 2017) and a generated point-spread-function using PSF-Generator (Kirshner et al., 2013). After deconvolving the z-stacks, we maximum-intensity projected the images and used a convolutional neural network-based StarDist-model (Weigert et al., 2020) to predict the position and shape of nuclei within the micrographs. Accuracy of the model was tested using a ground-truth dataset training of a Weka-classifier (Arganda-Carreras et al., 2017) with subsequent curation of the segmentation. We find an overall precision (TP/(TP + FP)) of 94% and accuracy of 81% (TP/(TP + FP + FN)), indicating a slight underestimation of particle number.

Using the Microscopy Image Stitching Tool (MIST) (Chalfoun et al., 2017), we stitched the tiles of the autofluorescence micrograph together, which serves as a reference stitching scheme for the fluorescence micrographs and the segmented images.

The resulting label image of the fluorescent spots was analyszd for the object area, eccentricity, and diameter. Furthermore, we used the detected spot positions to analyze internuclear distance using a Ball-Tree algorithm and perform a kernel density estimation (KDE). The resulting probability density function was integrated over small regions to measure the nuclei density within the slime mold (Figure 1—figure supplement 1C).

Growth and preparation of the plasmodium for sequencing

Request a detailed protocol

The slime molds used for sequencing were all provided by the lab of Karen Alim at the Max Planck Institute for Dynamics and Self-Organization (Göttingen, Germany). All slime mold plasmodia originated from microplasmodia liquid cultures as described recently (Bäuerle et al., 2017). Briefly, plates had a small cavity in the agar where a small volume of microplasmodia culture was dispensed. In most of the cases, the microsplasmodia needed around 1 day to generate a network structure and expanding as plasmodia outside of the cavity. Oat flakes were added to the plates 1 or 2 days after if the experimental design required it.

Preparation of nuclei and cell suspensions for 10x Genomics experiments

Request a detailed protocol

Samples were kept on ice during all steps of the nuclei preparation. Slime molds were incubated in 2 ml homogenization buffer (10 mM CaCl2, 0.1% Nonidet P-40, 10 mM Tris-HCl, pH 8, 0.25 M sucrose) for 5 min. In addition, the suspension was pipetted up and down a few times to help dissociating the tissue. Afterward, samples were transferred to a douncer and 15 strokes with pestle A and another 15 strokes using pestle B were applied. A 100 μm strainer was used to filter the suspension and was afterward flushed with 2 ml HBSS to collect the remaining nuclei. Nuclei were spun at 300 × g for 5 min. After removing the supernatant, nuclei were resuspended in 500 μl HBSS and filtered through a 20 μm strainer. Another 500 μl HBSS was used to wash off the remaining nuclei from the filter membrane. DAPI (1:1000) was added to the nuclei suspension, and FACS (85 μm nozzle) was performed to isolate single nuclei. 85,000 single nuclei were collected in a well of a 96-cell-culture plate and the concentration of the nuclei, ranging between 200 and 300 nuclei/μl, was estimated using a hemocytometer. FACS of nuclei extracted from amoeba was not possible due to the sensitivity of the nuclei, and the single-cell suspension of amoeba was therefore directly used for 10x Genomics experiments. Cells or nuclei were loaded onto the 10× cartridge (Chip B) at various concentrations, with loading the maximum volume possible for nuclei suspensions or targeting 6000 cells for the amoeba suspensions. Cell encapsulation, cDNA generation, and preamplification as well as library preparation were performed by using the Chromium Single Cell 3′ v3 reagent kit according to the kit protocol.

Spatial transcriptomics of plasmodia

Request a detailed protocol

100 µl of microplasmodia were plated on a lid of a Corning 384-well Clear Bottom Polystyrene Microplates after spreading a thin layer of agar across the inner side of the lid. The inner side of the lid was covered with parafilm and incubated at room temperature in the dark for 20 hr. On the next day, the 384-well plate was prepared by adding 20 μl lysis solution (6 M guanidine hydrochloride, 1% Triton X-100) in each well (adapted from Wollny et al., 2016). Lids with plasmodia spanning a large area of the lid were placed on the 384-well plate, and samples were collected by spinning the plate at 4000 × g for 2 min. After sample collection, the plate was placed on dry ice until further processed or frozen at –80°. Note that the collection of slime mold pieces for the initial test experiments (Figure 2—figure supplement 2) happened manually by sampling individual 2 × 2 mm grids of three different plasmodia one after another (Figure 2—figure supplement 2B). A 96-well PCR plate (Eppendorf) was prepared by adding 13 µl of Agencourt RNA XP SPRI beads to as many wells as needed. RNA was extracted from the lysis mix by transferring 5 µl of lysis mix from the 384-well plate to the 96-well plate prepared with RNA XP SPRI beads (bead to sample ratio of 2.6×; vol:vol) (see Supplementary files 2-6). The suspension was incubated for 5 min at room temperature. After binding beads at the tube walls using a magnetic rack, the supernatant was removed. After two rounds of washing with 80% ethanol, RNA was released from the beads by resuspending them in 10 μl EB buffer. Drying the beads was not needed, and the purified RNA suspension was transferred to a fresh 96-well plate and stored at –80° until further processed. 2 μl of this bulk RNA was used as input for SmartSeq2 (Picelli et al., 2013). Generation of cDNA followed SmartSeq2 instructions with 16× PCR cycles for cDNA amplification. A high-throughput electrophoresis-based fragment analyzer (Fragment Analyzer, Advanced Analytical Technologies) was used to assess the cDNA fragment size distribution and its concentration of exemplary samples. Illumina libraries were constructed by using the Illumina Nextera XT DNA sample preparation kit according to the protocol. Up to 192 libraries were pooled (3 μl each) and purified with Agencourt SPRI select beads (see Supplementary files 2-6).

Sequencing

Request a detailed protocol

Library concentration and size distribution were assessed on an Agilent Bioanalyzer and with Qubit double-stranded DNA high-sensitivity assay kits and a Qubit 2.0 fluorometer for all sequencing libraries. 10x Genomics sequencing libraries were sequenced following the 10x Genomics protocol to a depth of 50,000–100,000 reads per nucleus or cell. Base calling and demultiplexing of single nuclei or cells were performed by using 10x Genomics Cell Ranger 3.1 software. SmartSeq2 libraries were paired-end sequenced (100 base reads) on an Illumina HiSeq 2500 aiming for a depth of ~200,000 reads per sample, base calling was performed using Bustard (Kao et al., 2009), and adaptor trimming and demultiplexing were performed as described previously (Renaud et al., 2015).

Data overview

Spatial transcriptomics

Request a detailed protocol

In total, seven slime mold plasmodia were analyzed acting as biological replicates. In addition, each plasmodium was sampled multiple times (100–200 per plasmodium, total 739 independent measures) with each grid representing individual biological replicates of each plasmodium, respectively.

snRNA-seq data

Request a detailed protocol

The same slime mold plasmodium was sampled twice on different days (primary/secondary). Each nucleus per plasmodium (primary: 5292/ secondary: 10330) represents an independent measure providing many biological replicates per plasmodium, respectively. In addition, the transcriptomic data for the primary plasmodium comprises two technical replicates as the same nuclei suspension was processed in two reactions in parallel throughout data generation.

scRNA-seq amoeba

Request a detailed protocol

One amoeba culture was processed with two technical replicates where the same cell suspension was run in two reactions in parallel and with each cell representing a biological replicate of the amoeba culture.

Data analysis

All sequenced datasets were aligned to the latest version of Physarum’s transcriptome (Glöckner and Marwan, 2017). All raw reads were aligned using STAR (Dobin et al., 2013). Mapping of reads of the 10x Genomics datasets was performed using Cell Ranger 3.1 implemented in the 10x Genomics analysis software, generating absolute transcript counts based on unique molecular identifiers (UMIs). Reads obtained for the SmartSeq2 datasets were mapped with a local installation of STAR, and TPM values were estimated using custom Perl and Bash scripts. Customized RStudio scripts (https://rstudio.com) were used for final preprocessing steps and to run all data analyses. The R packages ‘Seurat’ v3 (Stuart et al., 2019) and ‘ggplot’ were used for almost all analyses and visualizations unless stated differently. For all feature plots created by Seurat, feature-specific contrast levels based on quantiles of nonzero expression were calculated (q10/q90 cutoff).

Spatially resolved bulk RNA-seq analysis

Request a detailed protocol

SmartSeq2 RNA-seq grid datasets were first merged per plasmodium, and log2 TPM values were calculated by transforming all values with TPM > 1 and setting all values with TPM < 1–0. Grids with small read coverage (paired reads SM1 < 200k, SM2−4 < 100k) or no clear overlap with the underlying plasmodium network were removed. Only transcripts with a UniProt annotation or at least a gene description in the annotation file (Supplementary file 1 in Glöckner and Marwan, 2017) were kept for further analyses while removing all other genes from the grid/gene matrices. This filtering left us with 15,120 of the predicted 28,139 transcripts/genes in the transcriptome that was used for mapping (Glöckner and Marwan, 2017). When unannotated transcripts are not removed 27,781 transcripts remained for the analysis. The following analysis descriptions focus on the ‘only annotated transcript’ objects if not stated differently. Each dataset was then loaded and processed separately using Seurat (Seurat’s default normalization was omitted), and data scaling was performed with nGene and nRead regression. Dimensionality reduction consisted of a principal components analysis (PCA) and UMAP with the first 5–15 (SM1:15, SM2:5, SM3:5, SM4:15, T1:10, T2:10, T3:5) principal components (PCs). Louvain clustering (Seurat default) was performed for the same number of input PCs with a resolution of 0.1–0.6 (SM1:0.4, SM2:0.1, SM3:0.3, SM4:0.2, allT:0.6). For plasmodium SM3, SM4 and T1, Louvain clustering gave no convincing results, and we therefore hierarchical clustered grids using hclust’s Ward method with distances estimated by Pearson’s correlation and the same input gene sets as described above. Differential gene expression (DE) analysis was performed using the Wilcoxon Rank Sum test (Seurat default) on identified clusters or on a selected region for SM4 (Figure 2H). The DE genes identified for the oat flake-covered grids were visualized as volcano plot using the R package ‘EnhancedVolcano’ (https://github.com/kevinblighe/EnhancedVolcano; Blighe et al., 2021). In addition, fan scores were calculated for SM1 to SM4 (Figure 2—figure supplement 1E), respectively, by scoring each individual grid against the top six marker genes for cluster 3 in SM4 (see Figure 2E). Top 10 scoring grids per slime mold were extracted, and a PCA was performed on those 40 grids and afterward embedded in a UMAP by using the first five PCs as input. Grids were hierarchical clustered as described above (Figure 2—figure supplement 1F).

For the density plots of grid distance against transcriptome correlation, we selected the top 200 variable genes per individual plasmodium and extracted the scaled matrix (genes/grids) using these genes from each plasmodium. The scaled values were converted into purely positive values by adding the absolute minimum of a gene to the scaled values across all grids for a given gene, respectively. The obtained matrix was then correlated against itself by ignoring diagonal grid correlations. Distances between grids were calculated within the Cartesian scatter by using the R package ‘raster.’ The density plots were generated using R’s smoothScatter() function by plotting grid’s densities against transcriptome correlations. The regression line was calculated as a linear model.

Seurat objects were afterward merged to obtain a combined dataset, and dimensionality reduction was performed as described above with five input PCs for the UMAP embedding and Louvain clustering with a resolution of 0.2 (Figure 2B). Differential gene expression analysis was performed using the Wilcoxon Rank Sum test (Seurat default) on all versus all clusters identified roughly representing the different slime molds (Supplementary file 7). The same procedure was applied to the Seurat object containing all transcripts, and cluster information was transferred from the ‘only annotated’ object to allow a comparison of marker genes identified (Supplementary file 7 and Figure 2—figure supplement 1H). Cluster-specific markers are visualized as dotplot (Figure 2C) by running Seurat’s dotplot function. Another set of differentially expressed genes was obtained by comparing the biological replicates SM1 and SM2 against the two plasmodia (SM3–4) where an oat flake was added to the culture (see Supplementary file 7 and Figure 2—figure supplement 1D). In addition, we used Harmony (Korsunsky et al., 2019) and CCA anchoring (Stuart et al., 2019) to integrate the data and remove potential batch effects. The first 20 PCs were used as input for both methods and also to generate the UMAP and clusters with standard Seurat functions after data integration (Figure 2—figure supplement 1E). The methods resulted in different clusters (Figure 2—figure supplement 1F) with Harmony outputting better pan slime mold cluster markers as revealed as features on the UMAP embedding (Figure 2—figure supplement 1G).

Analysis of snRNA-seq plasmodium data

Request a detailed protocol

Only transcripts with a UniProt annotation or at least a gene description in the UniProt annotation file by Glöckner and Marwan, 2017 were kept for further analyses while removing all other genes from the nuclei/gene matrix. 14,055 of the predicted 28,139 transcripts/genes in the transcriptome remained for the primary plasmodium and 14,483 for the secondary plasmodium. When unannotated transcripts are not removed, 24,592 transcripts remained for the primary and 25,815 for the secondary plasmodium. The following analysis descriptions focus on the ‘only annotated transcript’ objects if not stated differently. Afterward, single-nuclei transcriptome information was loaded into RStudio using Seurat. Datasets corresponding to the primary plasmodium were merged, and nuclei with less than 3000 detected counts were used for further analyses using the Seurat package. The same process was accomplished for the datasets corresponding to the secondary plasmodium. The datasets were log normalized using the Seurat function (scale factor of 10,000). Neither feature selection nor mitochondrial gene removal was performed, and the data was directly standardized by regressing out differences in UMI and gene detection counts (Seurat package). Technical variation between runs within the same experiment was identified to be negligible. The dimensionality reduction process consisted of a PCA and UMAP with the first 15 PCs. Louvain clustering (Seurat default) was performed for the top 15 PCs with a resolution of 0.3. For the primary plasmodium, we identified cluster 3 as purely driven by low nUMI and nGene counts, and we therefore removed this cluster from the dataset. Afterward we re-clustered and re-embedded the dataset using only the top 7 PCs and a resolution of 0.4. All steps mentioned above were performed using the functions from the Seurat package. Differential gene expression analysis was performed using the Wilcoxon Rank Sum test (Seurat default) on identified clusters. Transcripts and cluster markers were queried to the UniProt annotation file obtained from Glöckner and Marwan, 2017 and are listed in Supplementary file 7. The same procedure was applied to the Seurat objects containing all transcripts, and cluster information was transferred from the ‘only annotated’ objects, respectively, to allow a comparison of marker genes identified (Supplementary file 7 and Figure 3—figure supplement 1F and G).

Cycling nuclei were extracted by cluster (1 and 2), and only marker genes identified for the three clusters of the spatial transcriptomic dataset of SM1 were used as input for PCA. Afterward the top 5 PC components were used for UMAP embedding and Louvain clustering. Pseudotemporal ordering of the cycling nuclei was performed using a diffusion map algorithm of the R package destiny (Haghverdi et al., 2016). Raw ordering results were separately obtained depending on the UMAP location ([c4],[c0/c2/c3],[c1]) and afterward sorted and ranked. Gene expression is visualized as a smoothed LOESS function (span = 10) against the pseudotemporal ordering.

Pseudobulk estimates were obtained for each cluster by averaging each gene’s normalized expression value across the nuclei of the respective clusters. The same was done for the grid-based RNA-seq clusters of SM4. The pseudobulk matrix of the nuclei data was afterward correlated against the pseudobulk matrix of the grid-based spatial data using Spearman’s correlation including only the top 50 cluster marker genes identified in the spatial RNA-seq dataset of SM4. Correlation values were scaled first by column and then by row, and values were cut to 1 or –1 when being either larger or smaller, respectively. Correlation values were used to hierarchical cluster the nuclei clusters using the Ward method after calculating distances with Pearson’s correlation. Afterward we selected two clusters (c0 and c4) and correlated the nuclei pseudobulk data against individual grids of SM4 using Spearman’s correlation and the same gene set as used above. Raw correlation values were visualized as features on the grids and can be interpreted as either fan or network scores.

GO term analysis

Request a detailed protocol

GO terms associated with cluster-specific marker genes (see Supplementary file 7) for SM1−4 and the primary and secondary plasmodium, respectively, were subjected to the R package GOseq (Young et al., 2010) to identify significantly (p<0.05) enriched GO terms per cluster. The enriched terms belonging to the category ‘biological process’ (BP) were loaded into the web browser tool Revigo (Supek et al., 2011) and were visualized with automatically lumping similar terms per plasmodium (Figure 2—figure supplement 3, Figure 3—figure supplement 1H and I).

Analysis of scRNA-seq amoeba data

Request a detailed protocol

Again, only transcripts with a UniProt annotation or at least a gene description in the UniProt annotation file by Glöckner and Marwan, 2017 were kept for further analyses while removing all other genes from the cell/gene matrices. There were 13,802 of the predicted 28,139 transcripts/genes in the transcriptome left for analysis. When unannotated transcripts are not removed, 22,905 transcripts remained for the analysis. The following analysis descriptions focus on the ‘only annotated transcript’ objects if not stated differently. Datasets of the two sequencing lanes were merged using Seurat, and cells with detected UMI counts ranging from 6000 to 25,000 were extracted for downstream analyses. Normalization and standardization steps were performed identically as described above. Neither feature selection nor mitochondrial gene removal was done. PCA was followed by UMAP and Louvain clustering with the first 25 PCs and a resolution of 0.6. Differential gene expression analysis was performed using the Wilcoxon Rank Sum test (Seurat default) on identified clusters (Supplementary file 7). The same procedure was applied to the Seurat object containing all transcripts, and cluster information was transferred from the ‘only annotated’ object to allow a comparison of marker genes identified (Supplementary file 7 and Figure 4—figure supplement 1).

Cycling amoebae were extracted by cluster identity (cluster 3) and afterward merged with the Seurat object containing the spatially resolved transcriptomes of SM1. Data integration was performed using Seurat’s built-in function for ‘anchoring’ data of different experiments to remove the effect of single-cell platforms used during data generation (Stuart et al., 2019). We used all genes for finding anchors between the datasets and afterward 20 PCs for the integration with the identified anchors. The UMAP embedding and Louvain clustering were then performed on the integrated data using the top 10 PCs and with a resolution of 0.4 for clustering.

Data availability

Sequencing data have been deposited in GEO under accession code GSE173809.

The following data sets were generated
    1. Treutlein, et al
    (2022) NCBI Gene Expression Omnibus
    ID GSE173809. Spatial transcriptomic and single-nucleus analysis reveals heterogeneity in a gigantic single-celled syncytium.

References

    1. Bennett M
    2. Smith J
    3. Barclay I
    (1997) Early seed development in the Triticeae
    Philosophical Transactions of the Royal Society of London. B, Biological Sciences 272:199–227.
    https://doi.org/10.1098/rstb.1975.0083
  1. Book
    1. Earnshaw JC
    2. Steer MW
    (1983) The Application of Laser Light Scattering to the Study of Biological Motion
    In: Earnshaw JC, editors. Dynamic Cellular Phenomena in Physarum Possibly Accessible to Laser Techniques. Plenum Press. pp. 1–13.
    https://doi.org/10.1007/978-1-4684-4487-2
    1. Havercroft JC
    2. Gull K
    (1983)
    Demonstration of different patterns of microtubule organization in Physarum polycephalum myxamoebae and plasmodia using immunofluorescence microscopy
    European Journal of Cell Biology 32:67–74.
    1. Hermann A
    2. Cox JA
    (1995) Sarcoplasmic calcium-binding protein
    Comparative Biochemistry and Physiology. Part B, Biochemistry & Molecular Biology 111:337–345.
    https://doi.org/10.1016/0305-0491(94)00218-j
    1. Mohberg J
    (1974)
    The nucleus of the plasmodial slime molds
    Cell Nucl 1:187–218.
    1. Schiebel W
    (1973)
    The Cell Cycle of Physarum polycephalum
    Berichte Der Deutschen Botanischen Gesellschaft 86:11–38.
  2. Book
    1. Wolf R
    2. Wick R
    3. Sauer H
    (1979)
    Mitosis in Physarum Polycephalum: Analysis of Time-Lapse Films and DNA Replication of Normal and Heat-Shocked Macroplasmodia
    European journal of cell biology.
  3. Book
    1. Wolf R
    2. Sauer HW
    (1982)
    Time-Lapse Analysis of Mitosis in Vivo in Macroplasmodia of Physarum Polycephalum
    Cell biology of Physarum and Didymium.

Decision letter

  1. Marianne E Bronner
    Senior and Reviewing Editor; California Institute of Technology, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Nuclei are mobile processors enabling specialization in a gigantic single- celled syncytium" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Marianne Bronner as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission. There is great enthusiasm about the problem and the system but also substantial technical concerns and over-interpretation of the data.

Essential revisions:

1) Data analysis: the existing data sets need to be more clearly explained in terms of controls, repetitions, and more explicitly discussing results. There are specific suggestions for data analysis that are raised in the reviews and each of these must be addressed.

2) Rationalize why certain genes were "cherry-picked" and use the sequencing data to provide a more thorough analysis and description of different classes of nuclear states.

3) Rewrite discussion so as to be less speculative and over-interpretative and instead directly address the main findings and implications. Suggestions for improving this are found in the specific comments below.

Reviewer #1 (Recommendations for the authors):

While primarily descriptive work, the authors are pushing a more provocative mechanistic interpretation of the scRNAseq results which is not supported in the current form of the manuscript. Other claims – such as the differential gene expression between nuclei within a syncytium are noteworthy and supported given the caveats below:

1. Lack of clarification of sampling regime and reps and controls

Throughout it is hard to determine how many replicate samples or conditions or type of samples (vein network, primary vein, growth front or fan – Figure 1B circles both network and fan region for example),. The introduction mentions "multiple reps" and conditions – apparent four total syncytia although really one biological sample for SM3 vs. SM4. Were all transcriptomes compared by all? A more detailed outline or table of samples and conditions (and rationales for DGE and data presentations) would help with interpretation of the DGE results and conditions compared.

What are cutoffs and why are different genes presented for DGE used for heat maps (Figures 2 -4)?

How were these marker genes chosen to be represented in spatial maps? The reasoning for the choice of these are unclear as is why they are different between samples. Using the same markers across replicates, and mor measuring different timepoints of chemotaxis to the oat engulfment would have been a clearer picture of what was happening transcriptionally in that experiment.

2. Issues with both interpreting and discussing differential gene expression (DGE)

DGE is always comparing one condition to another condition and thus is a comparison of datasets. "Up-" or "down-regulated" is thus relative and contextual. Throughout the manuscript (in heat maps and discussions) it remains unclear what is being compared that results in "up" v. "down" regulation. Thus Figures (1-4), Figure legends, Results and interpretations in the discussion need to reflect the direction of these comparisons and controls, otherwise it is both confusing and or misleading.

For 2B – clearly all samples are different, yet isn't what is being compared (or interesting) is how the regions are same/different not only within syncytia but between samples (not just SM4)? Indeed, "polycephalum" means literally multiple "heads" and thus comparisons between syncytial regions (even just the "heads") between and within samples (SM1-4) would provide a better understanding for how reproducible the scRNAseq results are.

What is "pseudotime" ordering? What are the criteria for this and why used? I think this could be dropped in lieu of actual data presentation that defines mitotic profiles and correlations with transcriptional regions with those profiles.

3. Conflation of Correlation vs. causation?

The primary claim of the manuscript is that "nuclei are 'mobile' processors facilitating specialized functions" see introduction and in Discussion "dynamic structure formation and response to local environmental conditions is coordinated in part through local gene regulation". The contention is that nuclei "adapt" to local and temporal stimuli and that transcriptional program is maintained long enough to be quantified. How long to nuclei stay within any given region (L398)? What is the cytological evidence for this?

This implies that transcriptional changes in nuclei facilitate developmental or specialized functions (fanning) of the syncytium. Yet given snapshot evidence differential gene expression within the syncytia – is this DGE a "cause" or "consequence" of spatial separation or other environmental cues such as those proposed for SM3? Clearly the oat grain results in DGE – likely sensory or chemotactic response. Thus, DGE could associated with growth front vs. network spatially and/or signal transduction/chemotaxis/or behavior could have multiple and complex causes and consequences. Concluding that the transcriptome state "associates" with behavior or location preserves rather than rectifies this ambiguity (e.g., lines 313-314) as the "behavior" could be defining the morphology (or vice versa). Even physically translocating a region of the syncytium in proximity to another region or modifying inputs could within the same syncytium could help with interpreting transcriptional changes.

First – the spatial separation resulting from the growing syncytium and reportioning of nuclei causes a transcriptional response within different nuclei. Alternatively, the transcriptional responses within different nuclei causes different developmental responses within the syncytium resulting in its differentiation. Or alternatively, the changes in length of the network and changes in the surface area of the fan region that result during growth responses also cause in transcriptional changes in syncytial nuclei. The snap-shot approaches used here do not allow the authors to distinguish between the alternative explanations, which ultimately would require some sort of temporal scanning combined with spatial scanning of transcriptional responses.

4. Sole inferences of cellular function based only on differences in gene expression.

Based on the upregulation of genes associated with SM1, the authors claim nuclei are actively dividing. This could easily be confirmed in the literature or by alternative methods that quantify protein expression or localization (immunostaining, Western blot etc.). Are cell cycle genes mitotic or G2/M phase markers transcriptionally upregulated? Further the conclusions regarding tubulin gene regulation are also a bit overstated as gene expression does not necessarily reflect protein levels, pools, or localization. Thus, while increased cell division based on DGE alone is consistent with the conclusions provided, these results along are not conclusive. Thus, the use of alternative approaches to vet the claims of mitosis and cytokinesis would greatly strengthen the manuscript and these conclusions.

5. Issues of heterogeneity in single amoebae to the variation observed in syncytia (Figure 4).

Why is this the case? How does this heterogeneity get homogenized in syncytia? It seems that the apt experiment would be to look at the developmental transition between single amoebae and the syncytium – otherwise this result kind of sticks out without much context to the rest of the manuscript or the mechanisms proposed as seen in the lack of clarification in lines 374-376.

6. Unsupported evolutionary arguments in Discussion

Comparisons are probably more apt to other syncytial cell types in multicellular organisms or in other Amoebozoa (L426). The discussion of evolution of multicellularity or viruses in the eukaryotic common ancestor are highly speculative and seem out of context. Syncytial types could be derived from tissue compartmentalization rather than a progenitor of such. These are intriguing points but come off as non sequiturs compare to the principles of spatially segregated (and likely temporally) segregated transcription within nuclei.

Reviewer #2 (Recommendations for the authors):

Review of "Nuclei are mobile processors enabling specialization in a gigantic single- celled syncytium". Physarum polycephalum is a member of Myxogastria, within the Amoebozoa, which is a sister clade to Opisthokonta, which includes animals and fungi. P. polycephalum grows as a multinucleate syncytial plasmodium, while other members of Amoebozoa grow as single nucleate cells (Dictyostelium). In this study, the authors use a clever method to isolate sections of a diploid plasmodium of P. polycephalum by growing a single plasmodium over a 384 well grid and isolating RNA from each colonized grids by centrifuging the 384 well plate. A total of 4 genetically identical plasmodia were assayed, two of which were grown in a uniform environment and two of which were exposed to oat flakes. The authors show variability in gene expression patterns across a plasmodium, with clustering of gene expression patterns in certain areas of the plasmodium, for example the growth front (fan) versus the vein network. Additionally, each of the four plasmodia also showed a unique expression patterns. Single nuclear RNAseq was also performed to assess expression patterns differences between nuclei within the syncytium and again, clustering of expression profiles was observed. Expression patterns in syncytial plasmodia was also compared to expression profiles obtained from single celled haploid amoeba. As between plasmodia, expression patterns differences were observed between individual amoebae, particularly in cell cycle functions, in addition to the expression of amoebae specific genes. This study is quite elegant and the data supports heterogeneity of gene expression patterns and thus specialization within a syncytial multinucleate plasmodium.

Some information regarding the genome and predicted genes in the P. polycephalum is needed in the introduction, strengths and deficiencies as a model and perhaps a discussion on previous work on this organism (mazes comes to mind). This would be useful for those readers not familiar with this organism. In particular, for the plasmodium section, it is unclear how many unique transcripts were detected across the entire 4 plasmodia and also within each cluster. The expression of how many of the predicted genes in the genome (~48,000) were detected in the clusters? The authors indicate that transcripts without predicted functional annotation were removed from analyses. "Only transcripts with a UniProt annotation or at least a gene description in the UniProt annotation file were kept for further analyses while removing all other genes from the grid/gene matrices."

How many were left for analyses? How was functional prediction of this group evaluated? Did any of these throw away genes show clustering with genes of predicted function? Some information on this aspect is needed.

The functions of different parts of the plasmodium were often extrapolated based on expression of marker genes whose function has been presumably characterized in other organisms. This aspect should be made clear-what is known is P. polycephalum and what is being extrapolated from distant relatives (humans, yeast, Dictyostelium). How were marker genes selected? How sure are the authors that these marker genes actually encode orthologs? What is the justification for selecting these particular genes to highlight, other than their potentially predicted role based on studies in other organisms. Similarity/conservation? Within an expression cluster, were particular functional categories enriched (such as cell cycle)? If so, add statistics to the manuscript text. The extrapolation of plasmodial function based on expression of a few marker genes without statistical support is speculative and is an issue throughout the manuscript.

Section starting at Line 316: Is there any enrichment for any functional categories of the single cell data? This section picks out particular transcripts without justification or statistical support other than their predicted function in other organisms.

In Videos 1 and 2, the nuclei show very different sizes and morphologies. Meaning??

Why is the number of reads from the single nucleus RNAseq (on average 591 transcripts (UMIs) per nucleus (Figure S4B)) in the plasmodium so much lower than single cell amoeba (14,525 transcripts per cell (Figure 4C))? Could this be biologically relevant? Does this invoke technical aspects associated with comparisons?

Within the plasmodium, using single nucleus RNAseq, did the number of reads per nucleus vary in the plasmodium? Could some nuclei be quiescent and transcriptionally inactive (for example, those that are moving) versus others that are anchored, as in Video 1?

For the supplemental datasets, the first two sheets are informative, and the total number of reads is ok (third sheet), but information regarding genes (particularly those with annotation, but also without annotation, but with gene ID) and expression levels within the various clusters in the plasmodium would be much more informative. As it is, these spreadsheets do not add a whole lot of understanding of the data generated in this study. It would be useful to have detailed information about the expression levels of genes in each cluster, along with the UniProt prediction and gene ID in Physarum. Otherwise, readers will have to re-analyze the deposited RNAseq data to derive this information and to verify the results presented in the article.

The discussion needs more evaluation of methods and results of data presented, for example, what does it mean that each plasmodium (in an identical environmental condition) shows dramatic differences in expression patterns, including different areas of the plasmodium? Two of the slime molds (SM1 And SM2) were in identical conditions and yet there was little overlap in expression patterns. A similar observation was also reported for the amoebae results. Some interpretation and discussion are needed.

In the discussion and data in Figure S4F is highlighted indicating "plasmodial specific expression of virus-related genes (RAP = Retroviral aspartyl protease domain)" and in the discussion. Was there enrichment for expression of virus-related genes? A discussion of these data should be included in the results and not the Discussion section. If this is the only "virus-related" gene and its function is unknown in Physarum, the inclusion of the discussion that it might play a role in syncytial formation is highly speculative.

Reviewer #3 (Recommendations for the authors):

I think the work stands for itself and could be published without major changes to the data for the most part. But really, the biggest improvement to the work seems that it would be to try to focus the presentation on more exciting biology uncovered by the data set. While the cell cycle is an easy signal to find, it doesn't seem to all that exciting? And in the end, I didn't understand how to put the pieces together: how do these different nuclear programs relate to the spatial gene expression and different nuclear behavior? In the end, I was left with the impression that this was mostly of interest to Physarum researchers, rather than a broader audience, given that it was not clear that it had revealed new biological principles.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Spatial transcriptomic and single-nucleus analysis reveals heterogeneity in a gigantic single-celled syncytium" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Marianne Bronner as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission. The manuscript is much improved but there are still some outstanding points that need to be addressed by further revisions to the text. In particular, some important points that are presented as explanations in the rebuttal that should be incorporated the text.

Essential revisions:

1. From Rev #2 – the apt and fair question "how many genes were left for the analyses after dropping non-annotated genes?" needs to be addressed in the text as described in the author's response:

"We hope that the reviewer understands that adding the unannotated transcripts as the reviewer is asking for would cause a rework of all panels, which is not possible in the current state of the paper. We, however, encourage the reviewer and the slime mold community to download the raw data in order to check the influence of unannotated transcripts or to assign annotations based on co-expression with annotated genes in specific clusters."

This point is not only not addressed – it's punted to the reviewer to figure it out. It's not really a reviewer's role to reanalyze the data, rather more to evaluate claims and the evidence used to support those claims. This is an important point, as such "unannotated transcripts" are just those that lack homologs in organisms for which GO was developed – and the choice to drop them doesn't really have a specific reason other than to reduce the analyses. At least some specific information added to the text could account for the overall "spirit" of this comment – which is that a lot of new biology could be lurking in proteins that lack homology-based annotation. This point should be clearer in the analyses and the Discussion.

2. In response to the comment that the "discussion needs more evaluation of methods and results of data presented" the non-substantiated answer in the rebuttal was provided that "we also think that there are real differences between the individual slime molds and have therefore opted to keep the original plots in the main figures". The comment was provided to ask the reviewers to explain their logic – not double down on their point of view. It's a fair comment to ask that logic be explained when to the reader this is unclear. This logic would still need to be incorporated into the discussion.

3. Further GO enrichment analyses include a lot of functional assumptions that might not translate from say yeast protein function to Physarum protein function for the same homolog. The big assumption is that functional mitotic or chromosome annotation of genes in the Amoebozoan Physarum (e.g, Chromosome segregation or Spindle Assembly) are actually specific to those processes in Physarum. At minimum the limitations of relying on this sole method to assess functions of transcripts should be addressed in the Discussion.

4. Inclusion of the explanatory points made in the rebuttal that either "close" a question or point to the fact that a key point remains "open" and rectification of alternative explanations can yet be supported by this study should be included in the final version.

https://doi.org/10.7554/eLife.69745.sa1

Author response

Reviewer #1 (Recommendations for the authors):

While primarily descriptive work, the authors are pushing a more provocative mechanistic interpretation of the scRNAseq results which is not supported in the current form of the manuscript. Other claims – such as the differential gene expression between nuclei within a syncytium are noteworthy and supported given the caveats below:

1. Lack of clarification of sampling regime and reps and controls

Throughout it is hard to determine how many replicate samples or conditions or type of samples (vein network, primary vein, growth front or fan – Figure 1B circles both network and fan region for example),. The introduction mentions "multiple reps" and conditions – apparent four total syncytia although really one biological sample for SM3 vs. SM4. Were all transcriptomes compared by all? A more detailed outline or table of samples and conditions (and rationales for DGE and data presentations) would help with interpretation of the DGE results and conditions compared.

We thank the reviewer for this comment and added Supplementary File 1 providing an overview of the sample regime and the sample composition in order to clarify which stages and parts have been sampled and how many replicates exist. Furthermore, we rephrased parts of the main text in order to be more precise where needed or broader when we are referring to slime mold parts for the imaging data in line 109-111.

What are cutoffs and why are different genes presented for DGE used for heat maps (Figures 2 -4)?

In order to make it more clear and transparent about which genes were used for visualizing which DGE result, we added a new table (Supplementary File 7) that summarizes all the genes found to be specific to clusters identified across the different experiments. We selected genes for visualization in heatmaps based on statistical tests implemented through the Seurat package, and tried to highlight convincing and interesting markers within these DEG lists in the heatmap visualizations.

How were these marker genes chosen to be represented in spatial maps? The reasoning for the choice of these are unclear as is why they are different between samples. Using the same markers across replicates, and mor measuring different timepoints of chemotaxis to the oat engulfment would have been a clearer picture of what was happening transcriptionally in that experiment.

Thank you for bringing up this point. In this experiment, we were primarily interested in determining if there was intra-plasmodial transcriptome heterogeneity, rather than consistency across plasmodia. We therefore performed a DGE analysis on the clusters identified for each plasmodium individually in order to assess and understand the heterogeneity within each individual plasmodium (Figure 2C-D) which is independent of the DGE analysis we performed on the combined data set in Figure 2B. We agree that more experiments in the future will be fun to shed light on plasmodia gene regulatory networks controlling specific and reproducible behaviours such as chemotaxis.

2. Issues with both interpreting and discussing differential gene expression (DGE)

DGE is always comparing one condition to another condition and thus is a comparison of datasets. "Up-" or "down-regulated" is thus relative and contextual. Throughout the manuscript (in heat maps and discussions) it remains unclear what is being compared that results in "up" v. "down" regulation. Thus Figures (1-4), Figure legends, Results and interpretations in the discussion need to reflect the direction of these comparisons and controls, otherwise it is both confusing and or misleading.

We thank the reviewer for pointing us to this imprecise description and we have updated the text and figures accordingly. Briefly, DGE was always performed on nuclei/cell/grid clusters by determining which genes are specifically upregulated in a certain cluster compared to other clusters. We therefore changed the term ‘differentially expressed genes’ to ‘cluster specific gene expression’ throughout the manuscript, and provided explanations in the methods starting at line 803 and following paragraphs. In addition, we added Supplementary File 7 to provide additional clarity of which markers were selected.

For 2B – clearly all samples are different, yet isn't what is being compared (or interesting) is how the regions are same/different not only within syncytia but between samples (not just SM4)? Indeed, "polycephalum" means literally multiple "heads" and thus comparisons between syncytial regions (even just the "heads") between and within samples (SM1-4) would provide a better understanding for how reproducible the scRNAseq results are.

We are thankful for providing such great input. In our previous manuscript, we indeed highlighted what was variable within an individual syncytia, as we also think this is a very interesting question. However, we agree with the reviewer in that it is also interesting what is consistent between samples. We now emphasize and show in our revised manuscript also similarities between the fan structures across plasmodia (Figure 2- Figure supp. 1H-I) and also between the biological replicates SM1 and SM2 (Figure 2- Figure supp. 1D). In addition, we now integrate the different plasmodia grids by two methods, respectively, (Figure 2- Figure supp. 1E) allowing to regress out the batch effects in single-cell data. The two methods gave contradictive results (Figure 2- Figure supp. 1F) and we also believe that the integration process likely masks actual biological differences between the plasmodia sampled. However, one of the integrated data sets allowed us to identify further examples of gene expression signatures shared between plasmodium samples (Figure 2- Figure supp. 1G). Taken together, there are many similarities between the structures and replicates tested revealing new insights into molecular biological processes in Physarum, but also highlighting the robustness of our approach.

What is "pseudotime" ordering? What are the criteria for this and why used? I think this could be dropped in lieu of actual data presentation that defines mitotic profiles and correlations with transcriptional regions with those profiles.

We thank the reviewer for this comment. Because states along a temporal trajectory (e.g. mitosis) are present in one sample and we are able to sample the continuum of states through our methods, we are able to order the nuclei/cells/grid based on a continuum of expression profiles. This computation-based ordering is often referred to as “pseudotime”. We used the ‘pseudotime’ ordering to align the nuclei data of the primary plasmodium without spatial resolution to the grid data of SM1 with spatial resolution to compare mitotic ‘pseudotime’. We feel that this comparison is valid and shows that one can assign the nuclei data to the grid data depending on the different mitotic progression states. We adjusted the text in line 281-287 to explain more detailed the rationale of our method choice.

3. Conflation of Correlation vs. causation?

The primary claim of the manuscript is that "nuclei are 'mobile' processors facilitating specialized functions" see introduction and in Discussion "dynamic structure formation and response to local environmental conditions is coordinated in part through local gene regulation". The contention is that nuclei "adapt" to local and temporal stimuli and that transcriptional program is maintained long enough to be quantified. How long to nuclei stay within any given region (L398)? What is the cytological evidence for this?

We are thankful for bringing up this point. Based on feedback from reviewers we have adjusted the title of the manuscript to “Spatial transcriptomic and single-nucleus analysis reveals heterogeneity in a gigantic single-celled syncytium” to better reflect the results and interpretations in the manuscript. The major observations we present are that nuclei can move, that different parts of the syncytium express different genes, and that single-nuclei express different genes that correlate with different parts of the syncytium. To us this is super interesting, and supports the idea that nuclei can be mobile, information encoding processors that facilitate localized responses Extrapolations based on our videos suggest that nuclei can reside for at least a few minutes (line 434) in one location. Moreover, we also added a section in the discussion in line 439-463 where we discuss that the average dwelling time in the highly branched fan region is 4 times longer suggesting that nuclei reaching the fan region are on average longer in contact with growing front specific signaling events to either adapt or even ‘seed’ a gene expression response. Our data strongly suggests that the local dwelling time might be the driving force for local gene expression differences. It will be exciting to follow up on this research to understand how local transcriptomes are regulated.

This implies that transcriptional changes in nuclei facilitate developmental or specialized functions (fanning) of the syncytium. Yet given snapshot evidence differential gene expression within the syncytia – is this DGE a "cause" or "consequence" of spatial separation or other environmental cues such as those proposed for SM3? Clearly the oat grain results in DGE – likely sensory or chemotactic response. Thus, DGE could associated with growth front vs. network spatially and/or signal transduction/chemotaxis/or behavior could have multiple and complex causes and consequences. Concluding that the transcriptome state "associates" with behavior or location preserves rather than rectifies this ambiguity (e.g., lines 313-314) as the "behavior" could be defining the morphology (or vice versa).

Yes, this is a very interesting point. We are not currently able to address cause or consequence, however we think that based on the types of genes and GO categories that associate with the spatial and environmental cues, we think it is reasonable to propose that the transcriptional profiles facilitate specialized functions. We have tried to take the reviewers point into account and rephrased portions of the manuscript (e.g. line 173-176 and lines 331-335) to highlight that we can not yet definitively rectify this ambiguity between cause and consequence.

Even physically translocating a region of the syncytium in proximity to another region or modifying inputs could within the same syncytium could help with interpreting transcriptional changes.

This is a fantastic suggestion for future experiments and we believe that our manuscript highlights that Physarum could be an exciting model system for exploring how we syncytia can coordinate responses to dynamic environmental conditions. Unfortunately, we are at the moment not able to translocate tissue and analyze translocated nuclei afterwards. The translocation of plasmodium parts leads to an immediate fusion of the translocated and original structures, thereby, releasing translocated nuclei into the shuttle flow which makes these nuclei inaccessible for comparative RNA-seq readouts.

First – the spatial separation resulting from the growing syncytium and reportioning of nuclei causes a transcriptional response within different nuclei. Alternatively, the transcriptional responses within different nuclei causes different developmental responses within the syncytium resulting in its differentiation. Or alternatively, the changes in length of the network and changes in the surface area of the fan region that result during growth responses also cause in transcriptional changes in syncytial nuclei. The snap-shot approaches used here do not allow the authors to distinguish between the alternative explanations, which ultimately would require some sort of temporal scanning combined with spatial scanning of transcriptional responses.

We thank the reviewer for these critical points and addressed this clear uncertainty of correlation versus causation by toning down the claims we make regarding nuclei as mobile processors. We mark this claim now as hypothesis that needs to be evaluated further and also removed the phrase from the title. We believe that our data allows to speculate on this aspect as we see indirect evidence that nuclei could potentially seed transcriptomic states in other regions where they are shuttled to as now more explicitly discussed in a reworked paragraph (lines 443-467).

Furthermore, we are thankful for the excellent ideas for future experiments and agree that more research needs to be done to prove our hypothesis and to clarify what causes what.

4. Sole inferences of cellular function based only on differences in gene expression.

Based on the upregulation of genes associated with SM1, the authors claim nuclei are actively dividing. This could easily be confirmed in the literature or by alternative methods that quantify protein expression or localization (immunostaining, Western blot etc.). Are cell cycle genes mitotic or G2/M phase markers transcriptionally upregulated? Further the conclusions regarding tubulin gene regulation are also a bit overstated as gene expression does not necessarily reflect protein levels, pools, or localization. Thus, while increased cell division based on DGE alone is consistent with the conclusions provided, these results along are not conclusive. Thus, the use of alternative approaches to vet the claims of mitosis and cytokinesis would greatly strengthen the manuscript and these conclusions.

We thank the reviewer for raising this point and we agree that more validations and experiments are needed to fully characterize and understand the molecular processes underlying the mitotic wave across the syncytium. We and others in the field have not yet been able to establish immunostainings for cell cycle regulators in Physarum. However, the particular genes that we identify as differentially expressed have been used in multiple other studies revealing variation in cell cycle. In addition we have strengthened our claims by performing a GO enrichment analysis (Figure 2- Figure supp. 3 and Figure 3- Figure supp. 1F-G) and the term ‘Chromosome Segregation’ is enriched in a separate cluster than the term ‘Spindle assembly’ highlighting the temporal progression differences across the plasmodium.

5. Issues of heterogeneity in single amoebae to the variation observed in syncytia (Figure 4).

Why is this the case? How does this heterogeneity get homogenized in syncytia? It seems that the apt experiment would be to look at the developmental transition between single amoebae and the syncytium – otherwise this result kind of sticks out without much context to the rest of the manuscript or the mechanisms proposed as seen in the lack of clarification in lines 374-376.

Thank you for pointing out this point, and we realize the integration of the single amoebae and the syncytium was not fully smooth. Our primary goal for this manuscript was to explore nuclei heterogeneity in the slime mold syncytium, and we felt that a comparison to heterogeneity in free-living amoebae could help us better interpret syncytium data. We fully agree with the reviewer, it would definitely be interesting to reconstruct the transition from amoebae to syncytium, however we did not focus on this aspect. In our hands, for Phyasrum it is technically challenging to recapitulate these transition events and survey the transition steps using snRNA-seq. Hopefully, we can manage this reconstruction in a future manuscript. In our revised manuscript we have tried to better integrate and explain the rationale for the single amoebae experiments. In our revised manuscript, we studied in more detail the gene sets that are expressed in amoeba compared to the plasmodia and found that the plasmodia express many additional genes, and also that there are intriguing differences in cell cycle regulation. We agree that our work focuses on the outcome of the molecular switch from amoeboid cell divisions to nuclei divisions within the plasmodium rather than the switch itself. However, we also hope that we can attract with our work mitosis experts to the Physarum community focusing on the outstanding phenomenon of cell cycle switching (open vs closed mitosis) between the amoeba and plasmodium state in Physarum with state-of-the-art techniques.

6.Unsupported evolutionary arguments in Discussion

Comparisons are probably more apt to other syncytial cell types in multicellular organisms or in other Amoebozoa (L426). The discussion of evolution of multicellularity or viruses in the eukaryotic common ancestor are highly speculative and seem out of context. Syncytial types could be derived from tissue compartmentalization rather than a progenitor of such. These are intriguing points but come off as non sequiturs compare to the principles of spatially segregated (and likely temporally) segregated transcription within nuclei.

We thank the reviewer for this critical point and agree that the data support for inferring evolutionary processes is highly speculative and we therefore decided to remove these paragraphs, sentences and figure panels from the manuscript.

Reviewer #2 (Recommendations for the authors):

Review of "Nuclei are mobile processors enabling specialization in a gigantic single- celled syncytium". Physarum polycephalum is a member of Myxogastria, within the Amoebozoa, which is a sister clade to Opisthokonta, which includes animals and fungi. P. polycephalum grows as a multinucleate syncytial plasmodium, while other members of Amoebozoa grow as single nucleate cells (Dictyostelium). In this study, the authors use a clever method to isolate sections of a diploid plasmodium of P. polycephalum by growing a single plasmodium over a 384 well grid and isolating RNA from each colonized grids by centrifuging the 384 well plate. A total of 4 genetically identical plasmodia were assayed, two of which were grown in a uniform environment and two of which were exposed to oat flakes. The authors show variability in gene expression patterns across a plasmodium, with clustering of gene expression patterns in certain areas of the plasmodium, for example the growth front (fan) versus the vein network. Additionally, each of the four plasmodia also showed a unique expression patterns. Single nuclear RNAseq was also performed to assess expression patterns differences between nuclei within the syncytium and again, clustering of expression profiles was observed. Expression patterns in syncytial plasmodia was also compared to expression profiles obtained from single celled haploid amoeba. As between plasmodia, expression patterns differences were observed between individual amoebae, particularly in cell cycle functions, in addition to the expression of amoebae specific genes. This study is quite elegant and the data supports heterogeneity of gene expression patterns and thus specialization within a syncytial multinucleate plasmodium.

We are pleased to hear that the reviewer finds our experimental set up clever and the study elegant and we hope that we could adequately address all the points the reviewer raised in the following paragraphs.

Some information regarding the genome and predicted genes in the P. polycephalum is needed in the introduction, strengths and deficiencies as a model and perhaps a discussion on previous work on this organism (mazes comes to mind). This would be useful for those readers not familiar with this organism.

We thank the reviewer for this point and we added more examples which studies have been performed with Physarum to the introduction in lines 67-86 and mention the genome publication in line 90. In addition, we extended the introduction by providing more information on the nuclei division states in slime molds in lines 61-66. We hope to now strengthen the point that Physarum is an intriguing model organism to study syncytial dynamics, environmental response, mitotic mechanisms and how different nuclei states can be maintained while being exposed to the same cytoplasm.

We want to point out that the genome was not used for mapping (see point below) due to relatively low quality mapping statistics. Instead, we directly used the transcriptome for expression quantification, which has been slightly reworked in 2017 by Glockner and Marwan. This improved assembly and annotation greatly enhanced the interpretability of the data. We are happy to share more information on the mapping statistics if the reviewer is interested.

In particular, for the plasmodium section, it is unclear how many unique transcripts were detected across the entire 4 plasmodia and also within each cluster. The expression of how many of the predicted genes in the genome (~48,000) were detected in the clusters? The authors indicate that transcripts without predicted functional annotation were removed from analyses. "Only transcripts with a UniProt annotation or at least a gene description in the UniProt annotation file were kept for further analyses while removing all other genes from the grid/gene matrices."

How many were left for analyses? How was functional prediction of this group evaluated? Did any of these throw away genes show clustering with genes of predicted function? Some information on this aspect is needed.

We thank the reviewer for bringing these gaps to our attention, and we agree that there is important information lacking regarding the transcriptome used and the gene filtering applied. We now indicate more clearly that we used the transcriptome for mapping in line 89 and we added to the methods section a more thorough description of the reference used. We state in line 808 that 15,197 of the predicted 28,139 transcripts in the transcriptome of Glockner and Marwan remained for the analysis after filtering for annotation and that we did not further explore aspects of the transcripts without annotations in the methods section. Furthermore, we added a panel in Figure 4D that shows that across all the samples we detect 14,785 transcripts of the 15,197 transcripts to be expressed at least in one of the sample types at a 10% quantile cutoff to exclude very lowly expressed genes. We hope that the reviewer understands that adding the unannotated transcripts as the reviewer is asking for would cause a rework of all panels, which is not possible in the current state of the paper. We, however, encourage the reviewer and the slime mold community to download the raw data in order to check the influence of unannotated transcripts or to assign annotations based on co-expression with annotated genes in specific clusters.

The functions of different parts of the plasmodium were often extrapolated based on expression of marker genes whose function has been presumably characterized in other organisms. This aspect should be made clear-what is known is P. polycephalum and what is being extrapolated from distant relatives (humans, yeast, Dictyostelium). How were marker genes selected? How sure are the authors that these marker genes actually encode orthologs? What is the justification for selecting these particular genes to highlight, other than their potentially predicted role based on studies in other organisms. Similarity/conservation? Within an expression cluster, were particular functional categories enriched (such as cell cycle)? If so, add statistics to the manuscript text. The extrapolation of plasmodial function based on expression of a few marker genes without statistical support is speculative and is an issue throughout the manuscript.

We thank the reviewer for raising this point, and we have tried to make it more clear in the revised manuscript what information was known from P. polycephalum and what is extrapolated from other species. There is very little known about protein function that has been learned in P. polycephalum and hence much of the interpretations come from orthology to other species, and we highlight this caveat in the revised manuscript. Whenever possible we tried to use genes annotated from Dictyostelium for which a wealth of molecular work has been collected over the last years while being a rather close relative to Physarum. We also performed a GO enrichment analysis to account for the lack of statistical testing and non-transparent gene selection (See also point below). We find a clear overlap of enriched GO terms and the inferred function of genes based on other organisms for the different slime molds as shown in multiple new panels (Figure 2- Figure supp. 3 and Figure 3- Figure supp. 1F-G). To be as transparent as possible we added Supplementary File 7 including all results for cluster specific genes and GO enrichments in order to allow for tracing back which genes and GO terms were selected and for easily exploring the data set for other genes of interest for the community.

Section starting at Line 316: Is there any enrichment for any functional categories of the single cell data? This section picks out particular transcripts without justification or statistical support other than their predicted function in other organisms.

We thank the reviewer for asking for functional categories which were indeed missing in the previous version of the manuscript. We performed a GO enrichment analysis for spatial transcriptomic samples SM1-4, respectively, and the plasmodia used for snRNA-seq experiments using the R package GOseq. The results were visualized by the R package Revigo which allows to lump highly similar GO term categories. The resulting dot plots of ‘biological processes’ are added as Figure 2- Figure supp. 3 and as panels in Figure 3- Figure supp. 1F-G. There are multiple interesting enrichments, and we find that there is a clear overlap of gene function inferred from other organisms and the slime mold specific GO enrichments.

In Videos 1 and 2, the nuclei show very different sizes and morphologies. Meaning??

We agree with the reviewer that there is an explanation of the different nuclei sizes needed and we added this information to the captions of the supplementary videos. The different sizes are predominantly a technical artefact which arise from the single imaging plane applied to the three-dimensional plasmodium tubes. However, we accounted for this technical issue (see Methods section) when imaging and segmenting nuclei in fixed plasmodia samples shown in Figure 1 in order to get a clean size distribution of nuclei. Nevertheless, there is some autofluorescence of presumably digestive vacuoles or other unknown aggregates occasionally visible in the shuttle flow (especially in Video 1) adding even more variation to the size distribution compared to fixed samples where no autofluorescence was detected.

Why is the number of reads from the single nucleus RNAseq (on average 591 transcripts (UMIs) per nucleus (Figure S4B)) in the plasmodium so much lower than single cell amoeba (14,525) transcripts per cell (Figure 4C)? Could this be biologically relevant? Does this invoke technical aspects associated with comparisons?

These are good questions and we are happy that we can clarify this point. We changed the term ‘nUMI’ to ‘nCounts’ in the figures accordingly and added a better explanation to the captions and the text. We used counts as a quantitative measure that describe the absolute transcript counts measured per nucleus/cell and are therefore reflecting the difference in absolute mRNA content between low mRNA content nuclei and the mRNA-rich whole-cell data. In contrast, we used nGene to describe the qualitative difference regarding the transcript diversity which is relatively as well as absolutely higher in the nuclei data. We are thankful for bringing up this point and added a new panel (Figure 4D) and discuss these findings in line 351-356.

Within the plasmodium, using single nucleus RNAseq, did the number of reads per nucleus vary in the plasmodium? Could some nuclei be quiescent and transcriptionally inactive (for example, those that are moving) versus others that are anchored, as in Video 1?

We thank the reviewer for this interesting point. It is a difficult question to answer. We did look at the distribution of reads per nucleus, and see a typical distribution similar to what we have observed in other snRNA-seq experiments. It would be difficult to distinguish between a poor quality nucleus from technical issues in the snRNA-seq protocol and something biologically interesting in vivo. In typical sn/scRNA-seq workflows, and in our data analyses, we filter out low expressing nuclei. As a consequence, we don’t see strong differences in transcript counts across the different clusters. A next step would be to find ways how to specifically label, track and isolate moving/stuck nuclei in order to understand if nuclei retain a memory of their current state or to evaluate the impact of dwelling time at a certain place in the plasmodium, or to explore this question more thoroughly using in situ imaging/sequencing. There is a lot of autofluorescence in the plasmodium which makes it difficult for image-based approaches. Unfortunately, we have not yet established the methods available that would allow yet to satisfactorily answer the reviewers question.

Author response image 1
Transcript counts per nucleus for snRNA-seq data for the primary plasmodium (left) and the secondary plasmodium (right).

For the supplemental datasets, the first two sheets are informative, and the total number of reads is ok (third sheet), but information regarding genes (particularly those with annotation, but also without annotation, but with gene ID) and expression levels within the various clusters in the plasmodium would be much more informative. As it is, these spreadsheets do not add a whole lot of understanding of the data generated in this study. It would be useful to have detailed information about the expression levels of genes in each cluster, along with the UniProt prediction and gene ID in Physarum. Otherwise, readers will have to re-analyze the deposited RNAseq data to derive this information and to verify the results presented in the article.

We thank the reviewer for this point and agree that some information in the previous supplementary tables were only relevant when reanalyzing the raw data of our study. As mentioned earlier, we added a new Supplementary File 7 that contains marker genes with predicted annotations per cluster for all the embeddings shown in the figures of the manuscript. In addition, the table contains the GO enrichments for the clusters. We hope that the table allows an easy exploration of the data for other researchers.

The discussion needs more evaluation of methods and results of data presented, for example, what does it mean that each plasmodium (in an identical environmental condition) shows dramatic differences in expression patterns, including different areas of the plasmodium? Two of the slime molds (SM1 And SM2) were in identical conditions and yet there was little overlap in expression patterns. A similar observation was also reported for the amoebae results. Some interpretation and discussion are needed.

We are thankful for bringing this up, and we agree with the reviewer that it is difficult to distinguish between differences between slime molds and technical issues associated with batch. In our revised manuscript, we have also provide an integrated view of spatial heterogeneity across the slime molds (Figure 2- Figure supp. 1D-F) which integrates the datasets (by definition of the algorithm), and highlights the similarities between replicates and similar structures (e.g. fan regions across different slime molds). This analysis emphasizes that the data is not only explained by differences. However, we also think that there are real differences between the individual slime molds, and have therefore opted to keep the original plots in the main figures. We have provided more details in the methods section.

In the discussion and data in Figure S4F is highlighted indicating "plasmodial specific expression of virus-related genes (RAP = Retroviral aspartyl protease domain)" and in the discussion. Was there enrichment for expression of virus-related genes? A discussion of these data should be included in the results and not the Discussion section. If this is the only "virus-related" gene and its function is unknown in Physarum, the inclusion of the discussion that it might play a role in syncytial formation is highly speculative.

We thank the reviewer for this critical point and agree that the data support for inferring virus driven evolutionary processes is highly speculative. Based on comments from multiple reviewers, we therefore decided to remove this paragraph from the manuscript while still being intrigued by this idea.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Essential revisions:

1. From Rev #2 – the apt and fair question "how many genes were left for the analyses after dropping non-annotated genes?" needs to be addressed in the text as described in the author's response:

"We hope that the reviewer understands that adding the unannotated transcripts as the reviewer is asking for would cause a rework of all panels, which is not possible in the current state of the paper. We, however, encourage the reviewer and the slime mold community to download the raw data in order to check the influence of unannotated transcripts or to assign annotations based on co-expression with annotated genes in specific clusters."

This point is not only not addressed – it's punted to the reviewer to figure it out. It's not really a reviewer's role to reanalyze the data, rather more to evaluate claims and the evidence used to support those claims. This is an important point, as such "unannotated transcripts" are just those that lack homologs in organisms for which GO was developed – and the choice to drop them doesn't really have a specific reason other than to reduce the analyses. At least some specific information added to the text could account for the overall "spirit" of this comment – which is that a lot of new biology could be lurking in proteins that lack homology-based annotation. This point should be clearer in the analyses and the Discussion.

We fully agree on these points. We have added a new section to the Discussion that explains the limitations of our analyses, as well as the limitation to the current Physarum genome and transcriptome annotations. We are hoping that one outcome of our manuscript is to stimulate a renewed and vigorous interest in Physarum genomics. We do want to explain to the reviewers and editor that we made the decision to focus only on annotated transcripts because of the relatively poor quality of the Physarum genome and transcriptome. In addition, we felt that we could only interpret heterogeneity on the basis of annotated features. Nevertheless, we repeated a number of analyses including all transcripts and found that the input gene selection has no major impact on the overall clustering outcome. We discuss this at the respective positions in the revised manuscripts (Figure 2 —figure supplement 1H; Figure 3 —figure supplement 1F and G; Figure 4 —figure supplement 1A). We also provide all cluster marker information that includes unannotated features for the new panels as separate Excel sheets to Supplementary File 7.

2. In response to the comment that the "discussion needs more evaluation of methods and results of data presented" the non-substantiated answer in the rebuttal was provided that "we also think that there are real differences between the individual slime molds and have therefore opted to keep the original plots in the main figures". The comment was provided to ask the reviewers to explain their logic – not double down on their point of view. It's a fair comment to ask that logic be explained when to the reader this is unclear. This logic would still need to be incorporated into the discussion.

We fully agree on these points. We have added a new section to the Discussion that explains the limitations of our analyses, and explains our logic.

3. Further GO enrichment analyses include a lot of functional assumptions that might not translate from say yeast protein function to Physarum protein function for the same homolog. The big assumption is that functional mitotic or chromosome annotation of genes in the Amoebozoan Physarum (e.g, Chromosome segregation or Spindle Assembly) are actually specific to those processes in Physarum. At minimum the limitations of relying on this sole method to assess functions of transcripts should be addressed in the Discussion.

As mentioned above, we added a new paragraph explaining the limitations of our analyses including the interpretation of inferred transcript functions in Physarum.

4. Inclusion of the explanatory points made in the rebuttal that either "close" a question or point to the fact that a key point remains "open" and rectification of alternative explanations can yet be supported by this study should be included in the final version.

We went through the previous rebuttal and included the explanatory points into the manuscript at various positions. Briefly, we added the previous rebuttal figure on UMI count distributions across single-nuclei clusters to panel B in Figure 3—figure supplement 1 to visualize the homogenous distribution of transcript counts across nuclei subpopulations detected and describe this finding in line 285. We addressed all of the open points in the new Discussion sections.

https://doi.org/10.7554/eLife.69745.sa2

Article and author information

Author details

  1. Tobias Gerber

    Max Planck Institute for Evolutionary Anthropology, Leipzig, Germany
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Visualization, Writing – original draft, Writing – review and editing
    Contributed equally with
    Cristina Loureiro and Nico Schramma
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8456-5495
  2. Cristina Loureiro

    Department of Biosystems Science and Engineering, ETH Zürich, Basel, Switzerland
    Contribution
    Formal analysis, Investigation, Methodology, Writing – original draft, Writing – review and editing
    Contributed equally with
    Tobias Gerber and Nico Schramma
    Competing interests
    No competing interests declared
  3. Nico Schramma

    Max Planck Institute for Dynamics and Self-Organization, Göttingen, Germany
    Contribution
    Formal analysis, Investigation, Methodology, Visualization, Writing – original draft, Writing – review and editing
    Contributed equally with
    Tobias Gerber and Cristina Loureiro
    Competing interests
    No competing interests declared
  4. Siyu Chen

    1. Max Planck Institute for Dynamics and Self-Organization, Göttingen, Germany
    2. Physics Department, Technical University of Munich, München, Germany
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Akanksha Jain

    Department of Biosystems Science and Engineering, ETH Zürich, Basel, Switzerland
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Anne Weber

    Max Planck Institute for Dynamics and Self-Organization, Göttingen, Germany
    Contribution
    Resources
    Competing interests
    No competing interests declared
  7. Anne Weigert

    Max Planck Institute for Evolutionary Anthropology, Leipzig, Germany
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  8. Malgorzata Santel

    Department of Biosystems Science and Engineering, ETH Zürich, Basel, Switzerland
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  9. Karen Alim

    1. Max Planck Institute for Dynamics and Self-Organization, Göttingen, Germany
    2. Physics Department, Technical University of Munich, München, Germany
    Contribution
    Conceptualization, Funding acquisition, Project administration, Supervision, Writing – original draft, Writing – review and editing
    For correspondence
    k.alim@tum.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2527-5831
  10. Barbara Treutlein

    1. Max Planck Institute for Evolutionary Anthropology, Leipzig, Germany
    2. Department of Biosystems Science and Engineering, ETH Zürich, Basel, Switzerland
    Contribution
    Conceptualization, Funding acquisition, Project administration, Supervision, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    barbara.treutlein@bsse.ethz.ch
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3299-5597
  11. J Gray Camp

    1. Max Planck Institute for Evolutionary Anthropology, Leipzig, Germany
    2. Roche Institute for Translational Bioengineering (ITB), Roche Pharma Research and Early Development, Roche Innovation Center, Basel, Switzerland
    3. University of Basel, Basel, Switzerland
    Contribution
    Conceptualization, Funding acquisition, Project administration, Supervision, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    jarrettgrayson.camp@unibas.ch
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3295-1225

Funding

Chan Zuckerberg Initiative (CZF2019-002440)

  • Barbara Treutlein

H2020 European Research Council (Anthropoid-803441)

  • J Gray Camp

H2020 European Research Council (Organomics-758877)

  • Barbara Treutlein

H2020 European Research Council (Braintime-874606)

  • Barbara Treutlein

Swiss National Science Foundation (Project Grant-310030_192604)

  • Barbara Treutlein

Swiss National Science Foundation (Project Grant-310030_84795)

  • J Gray Camp

Max Planck Institute for Dynamics and Self Organization

  • Nico Schramma
  • Siyu Chen
  • Karen Alim

Max Planck Institute for Evolutionary Anthropology

  • Tobias Gerber

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank all lab members of the Treutlein, Alim, and Camp labs for helpful discussions and feedback. In particular, we thank Damian Wollny for comments on the RNA extraction procedure. We are grateful for the help of Noah Ziethen and Björn Kscheschinski with sample collection and for the advice of Christian Westendorf on microscopy. We thank Antje Weihmann and Barbara Schellbach for performing sequencing runs and the Single Cell Facility (SCF) at D-BSSE for insights in dyes and imaging approaches. We are thankful for the interesting discussions with Oskar Camp that helped to initiate this research project. JGC and BT were supported by grant number CZF2019-002440 from the Chan Zuckerberg Initiative DAF, an advised fund of the Silicon Valley Community Foundation. JGC was supported by the European Research Council (Anthropoid-803441) and the Swiss National Science Foundation (Project Grant-310030_84795). BT was supported by the European Research Council (Organomics-758877, Braintime-874606), the Swiss National Science Foundation (Project Grant-310030_192604), and the National Center of Competence in Research Molecular Systems Engineering. TG, NS, SC, and KA received funding from the Max Planck Society.

Senior and Reviewing Editor

  1. Marianne E Bronner, California Institute of Technology, United States

Publication history

  1. Received: April 24, 2021
  2. Preprint posted: April 30, 2021 (view preprint)
  3. Accepted: February 7, 2022
  4. Version of Record published: February 23, 2022 (version 1)

Copyright

© 2022, Gerber et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,801
    Page views
  • 158
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Tobias Gerber
  2. Cristina Loureiro
  3. Nico Schramma
  4. Siyu Chen
  5. Akanksha Jain
  6. Anne Weber
  7. Anne Weigert
  8. Malgorzata Santel
  9. Karen Alim
  10. Barbara Treutlein
  11. J Gray Camp
(2022)
Spatial transcriptomic and single-nucleus analysis reveals heterogeneity in a gigantic single-celled syncytium
eLife 11:e69745.
https://doi.org/10.7554/eLife.69745

Further reading

    1. Cell Biology
    Desiree Schatton et al.
    Research Article

    Proliferating cells undergo metabolic changes in synchrony with cell cycle progression and cell division. Mitochondria provide fuel, metabolites, and ATP during different phases of the cell cycle, however it is not completely understood how mitochondrial function and the cell cycle are coordinated. CLUH is a post-transcriptional regulator of mRNAs encoding mitochondrial proteins involved in oxidative phosphorylation and several metabolic pathways. Here, we show a role of CLUH in regulating the expression of astrin, which is involved in metaphase to anaphase progression, centrosome integrity, and mTORC1 inhibition. We find that CLUH binds both the SPAG5 mRNA and its product astrin, and controls the synthesis and the stability of the full-length astrin-1 isoform. We show that CLUH interacts with astrin-1 specifically during interphase. Astrin-depleted cells show mTORC1 hyperactivation and enhanced anabolism. On the other hand, cells lacking CLUH show decreased astrin levels and increased mTORC1 signaling, but cannot sustain anaplerotic and anabolic pathways. In absence of CLUH, cells fail to grow during G1, and progress faster through the cell cycle, indicating dysregulated matching of growth, metabolism and cell cycling. Our data reveal a role of CLUH in coupling growth signaling pathways and mitochondrial metabolism with cell cycle progression.

    1. Cell Biology
    Dillon Jevon et al.
    Research Article

    A developing understanding suggests that spatial compartmentalisation in pancreatic β cells is critical in controlling insulin secretion. To investigate the mechanisms, we have developed live-cell sub-cellular imaging methods using the mouse organotypic pancreatic slice. We demonstrate that the organotypic pancreatic slice, when compared with isolated islets, preserves intact β cell structure, and enhances glucose dependent Ca2+ responses and insulin secretion. Using the slice technique, we have discovered the essential role of local activation of integrins and the downstream component, focal adhesion kinase, in regulating β cells. Integrins and focal adhesion kinase are exclusively activated at the β cell capillary interface and using in situ and in vitro models we show their activation both positions presynaptic scaffold proteins, like ELKS and liprin, and regulates glucose dependent Ca2+ responses and insulin secretion. We conclude that focal adhesion kinase orchestrates the final steps of glucose dependent insulin secretion within the restricted domain where β cells contact the islet capillaries.
