3′HS1 CTCF binding site in human β-globin locus regulates fetal hemoglobin expression

  1. Pamela Himadewi
  2. Xue Qing David Wang
  3. Fan Feng
  4. Haley Gore
  5. Yushuai Liu
  6. Lei Yu
  7. Ryo Kurita
  8. Yukio Nakamura
  9. Gerd P Pfeifer
  10. Jie Liu  Is a corresponding author
  11. Xiaotian Zhang  Is a corresponding author
  1. Center for Epigenetics, Van Andel Research Institute, United States
  2. Department of Computational Medicine and Bioinformatics, University of Michigan, United States
  3. Cell and Development Biology, University of Michigan, United States
  4. Department of Research and Development, Central Blood Institute, Japanese Red Cross Society, Japan
  5. Cell Engineering Division, RIKEN BioResource Research Center, Japan
  6. Faculty of Medicine, University of Tsukuba, Japan
Short Report
  • Cited 0
  • Views 703
  • Annotations
Cite this article as: eLife 2021;10:e70557 doi: 10.7554/eLife.70557

Abstract

Mutations in the adult β-globin gene can lead to a variety of hemoglobinopathies, including sickle cell disease and β-thalassemia. An increase in fetal hemoglobin expression throughout adulthood, a condition named hereditary persistence of fetal hemoglobin (HPFH), has been found to ameliorate hemoglobinopathies. Deletional HPFH occurs through the excision of a significant portion of the 3′ end of the β-globin locus, including a CTCF binding site termed 3′HS1. Here, we show that the deletion of this CTCF site alone induces fetal hemoglobin expression in both adult CD34+ hematopoietic stem and progenitor cells and HUDEP-2 erythroid progenitor cells. This induction is driven by the ectopic access of a previously postulated distal enhancer located in the OR52A1 gene downstream of the locus, which can also be insulated by the inversion of the 3′HS1 CTCF site. This suggests that genetic editing of this binding site can have therapeutic implications to treat hemoglobinopathies.

Introduction

The human β-globin locus consists of five globin genes embedded in the olfactory receptor cluster. During early development, these globin genes undergo gene switching from embryonic ε-globin (HBE) to fetal γ-globin (HBG1/2) and finally to adult β-globin (HBB). Inherited mutations in the HBB gene lead to dysfunction of the adult β-globin protein, causing hemoglobinopathies (Bauer et al., 2012). The symptoms of these disorders, including sickle cell disease and β-thalassemia, can be alleviated by persistent expression of fetal hemoglobin (hereditary persistence of fetal hemoglobin [HPFH]) throughout adulthood, which compensates for the mutant adult β-globin (Bank, 2006; Hassell, 2010). As such, multiple genome-editing strategies have been proposed to mimic HPFH as a treatment for hemoglobinopathies (Bauer et al., 2012; Breda et al., 2016; Sankaran et al., 2008; Sankaran et al., 2011; Sankaran et al., 2009; Traxler et al., 2016; Xu et al., 2011; Ye et al., 2016; Zeng et al., 2020). Two types of HPFH have been identified based on patient genetics. First is the non-deletional HPFH caused by point mutations in the BCL11A binding site at the HBG1/2 promoters, and disruption of this transcriptional repressor binding leads to the activation of these genes (Forget, 1998; Liu et al., 2018; Martyn et al., 2018; Traxler et al., 2016). Second is the deletional HPFH that consists of the excision of a large genomic region within the β-globin locus, frequently including HBB and HBD (Forget, 1998; Ye et al., 2016). These deletions can vary in length, and it remains unclear as to how they lead to the expression of fetal globin in adulthood (Ye et al., 2016).

Results

The human β-globin gene locus is flanked by five CTCF binding sites (CBSs), which form the anchors for six chromosomal loops (Huang et al., 2017). Two convergent CBSs, designated as 3′HS1 and HS5, are located at the borders of the globin gene cluster. These two CBSs are nested between a downstream CBS (referred to as 3'-OR52A5-CBS) and two closely spaced upstream CBSs (referred together as 5'-OR51B5-CBSs). The HPFH deletions frequently cover the 3′HS1 CBS (Figure 1A). Therefore, we hypothesized that 3′HS1 may play a role in regulating β-globin cluster gene expression. To explore this, we first deleted the 3′HS1 using CRISPR/Cas9 genome-editing technology in K562 myelogenous leukemia cells, which express high levels of hemoglobin (Figure 1—figure supplement 1A). At the same time, we also deleted HS5 as a control in K562 cells. We observed that deletion of the HS5 CTCF site resulted in the upregulation of the 3′ genes including HBB and HBG1/2. Interestingly, the disruption of 3′HS1 CBS led solely to the upregulation of HBG1/2 (Figure 1—figure supplement 1B and C, Figure 1—figure supplement 1—source data 1). These results show that altering the CTCF binding profile across the locus can significantly change the expression of the β-globin genes.

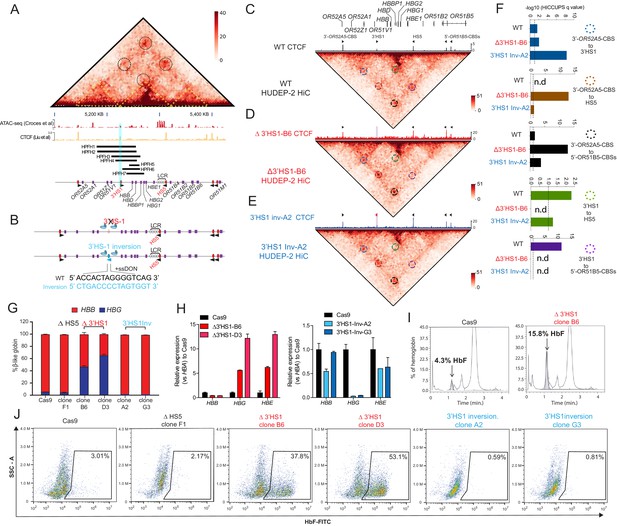

Figure 1 with 3 supplements see all
3′HS1 modulates the hemoglobin gene expression in β-globin gene cluster.

(A) Genome-wide Hi-C interaction map and regulatory landscape around β-globin gene cluster in human HUDEP2 cells. ATAC-seq and CTCF track of HUDEP2 cells (Liu et al., 2018) is shown in the lower panel. Black cycle indicates the position of loops previously identified (Huang et al., 2017). Yellow dotted line indicates the three sub-TAD domains identified previously (Huang et al., 2017). HPFH1-7 deletion is illustrated and 3′HS1 is marked in blue shade. (B). The scheme of CTCF binding motif orientation engineering in HUDEP-2 cells. (C–E) In situ Hi-C contact map around β-globin gene cluster in HUDEP-2 cells of wild type (C), 3′HS1 deletion (D), and 3′HS1 inversion (E). CTCF CUT&RUN tracks of WT (Liu et al., 2018), 3′HS1 deletion and 3′HS1 inversion HUDEP-2 cells are shown on the top of corresponding Hi-C plots. All loops that called in the HUDEP2 cells of three genotypes are marked with circles of different colors. (F) The HiCCUPS quantification of loops interaction strength by q value in β-globin locus. Dotted line annotates q = 0.1. n.d.: not detected by HiCCUPS (q value > 0.1). (G) The composition of β-like globin HUDEP-2 cells with 3′HS1 deletion. qPCR measurement of β-like globin HUDEP-2 in two clones (B6 and D3) of Δ3′HS1 HUDEP-2 cells is shown. Mean ± SD is displayed, n = 3. (H) Left panel: relative expression of HBE, HBG (probe measures both HBG1 and HBG2), and HBB in the 3′HS1 deleted HUDEP-2 clone B6. Mean ± SD is displayed, n = 3. Right panel: relative expression of HBE, HBG (probe measures both HBG1 and HBG2), and HBB in the 3′HS1 inverted HUDEP-2 clone A2. Mean ± SD is displayed, n = 3. (I) The right panel shows the High-performance liquid chromatography (HPLC) for globin composition in Cas9-treated HUDEP-2 control and 3′HS1 deletion clone B6. (J) Flow cytometry plot of HbF in HUDEP-2 cell clones with 3′HS1 deletion (B6 and D3), 3′HS1 inversion (A2 and G3), and ΔHS5 clone.

As HPFH deletions frequently cover the 3′HS1 CBS, we hypothesized that this site may contribute to the regulation of HBG1/2. To investigate further, we utilized the HUDEP-2 erythroid progenitor cell model, which predominantly express adult β-globin. We performed CRISPR/Cas9 editing to delete and invert the orientation of the 3′HS1 CBS to observe their respective impact on the expression of HBG1/2 (Figure 1B). In bulk edited cells, we found that HS5 deletion did not alter globin gene expression significantly, yet 3′HS1 disruption did increase γ-globin gene expression as observed in K562 cells with low deletion percentage and low editing efficiency (Figure 1—figure supplement 1D and E). Subsequently, we generated two 3′HS1 CBS deletion clones (referred to as B6 and D3) and two 3′HS1 inversion clones (A2 and G3), whose genomic sequences were verified by Sanger sequencing and CTCF binding evaluated by CUT&RUN (Figure 1D and E, Figure 1—figure supplement 1F). To elucidate whether the genetic editing at 3′HS1 caused changes to gene expression, we differentiated the HUDEP-2 clones to activate β-globin expression.

We performed Hi-C and capture Hi-C to examine the changes to 3D chromatin organization at the β-globin locus following alterations to the CBSs (Figure 1—figure supplement 2A, Figure 1C–E). In situ Hi-C data was generated with high resolution at 5 kb. A total of 15,207–16,529 loops could be detected in the HUDEP-2 clones used for in situ Hi-C using Mustache (Figure 1—figure supplement 2A; Roayaei Ardakany et al., 2020). The CTCF bound around the β-globin locus form four chromosomal loops and separate the cluster into three distinct domains (Figure 1A and C, Figure 1—figure supplement 2B). Of notice, we could detect the enhancer to target gene interaction between the LCR and the HBB gene (Figure 1—figure supplement 2B). We also tested the copy number variance (CNV) in the three particular HUDEP-2 clones, we could verify all clones have chromosome number 49–50,XY, which is of normal range in unmodified HUDEP-2 cells (Figure 1—figure supplement 2C; Moir-Meyer et al., 2018; Vinjamur and Bauer, 2018). Next, we tested if the chromosomal loops were altered by the 3′HS1 editing. We applied the HiCCUPS method to call the significant chromosomal loops in the β-globin locus, four loops were identified with q value less than 0.1 (Figure 1C and F). We then use the q value of the called loops by HiCCUPS to quantify the strength of loop interactions between CBSs. Of the convergent CTCF interactions, 3′HS1 to 5′-OR51B5-CBSs was not called as loop with q value over 0.25. One loop was called between the two forward CTCF CBSs – 3′HS1 and 3′-OR52A5 CBS (Figure 1D and F). In the 3′HS1 deletion clone, the loss of CTCF at 3′HS1 resulted in the total loss of loops between 3′HS1 and HS5 as well as loops between 3′HS1 and 5′-OR51B5-CBSs (not called as loop). Concomitantly, a strong increase in the interaction between HS5 and 3′-OR51A5-CBS was observed (Figure 1D and F, Figure 1—figure supplement 2A). This reveals how the loss of a CTCF anchor drastically alters the 3D chromatin organization in the β-globin locus. The inversion of the 3′HS1 CTCF caused a significant increase in the interaction between 3′HS1 and 3′-OR52A5 CBS. Meanwhile, 3′HS1 upstream interactions with HS5 and 5′-OR51B5-CBSs were decreased (Figure 1E and F, Figure 1—figure supplement 2A). This revealed that the inversion of 3′HS1 CTCF drove the formation of chromosomal loops between the convergent CBSs, which may lead to stronger insulation of regulatory elements.

Next, we evaluated the expression of the β-globin genes and found that the HBG1/2 and HBE genes upregulated 2.5- to 8-fold in the Δ3′HS1 clones (Figure 1G and H). In contrast, the inversion of 3′HS1 resulted in a >50% reduction of HBE and near-complete depletion of HBG1/2 (Figure 1H). Most notably, the increase in HBG1/2 upon deletion of the 3′HS1 CTCF site leads to a significant increase in fetal hemoglobin HbF (Figure 1I). Consequently, we evaluated the clones for HbF+ cells by flow cytometry. Consistent with transcription level, we observed an increase in HbF+ cells from 4.3% in the Cas9 control clone to 37.8% and 53.1% in Δ3′HS1 B6 and D3 clones, respectively (Figure 1J). Meanwhile, inversion of 3′HS1 resulted in a decrease of HbF+ cells to below 1%. In contrast, deletion of the upstream HS5 CBS did not induce nor abrogate the quantity of HbF+ cells (Figure 1J). All these clones are well differentiated at the same stage when HbF is measured by flow cytometry (Figure 1—figure supplement 3).

We then performed ATAC-seq and H3K27ac ChIP-seq in the Δ3′HS1 and 3′HS1 inversion clones to examine the regulatory landscape of the β-globin gene cluster. Following 3′HS1 CBS deletion, we observed significant open chromatin at the HBG1/2, BGLT3, and HBBP1 genes (Figure 2—figure supplement 1A). There was also a significant increase in activating H3K27ac in the HBG2 gene body. Interestingly, these epigenetic changes upon deletion of 3′HS1 CBS do not occur at the promoter of HBG2, which suggests that this 3′HS1-dependent regulation is independent from BCL11A transcriptional regulation (Figure 2—figure supplement 1A).

To determine if other regulatory pathways, such as the transcriptional repressor BCL11A, are involved in the upregulation of γ-globin expression in Δ3′HS1 and 3′HS1 inversion clones, we performed RNA-seq to identify differentially expressed genes in these clones. We found 161 upregulated and 153 downregulated genes in the Δ3′HS1 clones with HBG1/2 genes being the most significantly upregulated as well as β-globin cluster genes HBE1, HBBP, and BGLT3 (Figure 2A and C). In the 3′HS1 inversion clones, we identified only 3 upregulated genes and 51 downregulated genes (Figure 2B). In these clones, we observed downregulation of HBG2 and upregulation of the nearby OR52A5 gene; however, we did not observe any change in the expression of known γ-globin regulators (BCL11A, ZBTB7A (LRF), ELF2AK1 (HRI), ATF4, ZNF410, and NFIX) (Figure 2B and D, Supplementary file 1; Grevet et al., 2018; Masuda et al., 2016). We further verified BCL11A protein level by immunoblotting and observed no significant reduction in Δ3′HS1 clones (Figure 2, Figure 2—source data 1). Taken together, we concluded that BCL11A does not contribute to the induction of HbF in the edited HUDEP-2 cells. To further elucidate the role of BCL11A in the regulation of HBG1/2, we performed targeted disruption of a known BCL11A gene enhancer in both WT and Δ3′HS1 HUDEP-2 clones (Figure 2—figure supplement 1B, Figure 2—figure supplement 1—source data 1; Bauer et al., 2013). This mutation resulted in a significantly lower BCL11A expression, and we observed further increase of HBG1/2 expression level and HbF+ cells (Figure 2F, Figure 2—figure supplement 1C and F). Pomalidomide was found to boost the level of HbF in adult erythroblasts by destabilizing the BCL11A protein in cells (Grevet et al., 2018). Therefore, we treated HUDEP-2 3′HS1 deletion clones with pomalidomide and observed a significant reduction in BCL11A protein. This led to further increase in expression of fetal globin (Figure 2—figure supplement 2A and D, Figure 2—figure supplement 2—source data 1). These results show that genetic editing of the regulatory cis-element (3′HS1 CBS) accentuates with depletion of the transcriptional repressor BCL11A. This further indicates that the γ-globin activation in 3′HS1 deletion HUDEP-2 cells was not driven by the BCL11A-associated pathways. The double disruption of BCL11A and 3′HS1 also led to similar level of γ-globin activation as the disruption of BCL11A alone (Figure 2F). This data suggests that 3′HS1-regulated γ-globin repression might be hypostatic to the BCL11A-mediated γ-globin repression.

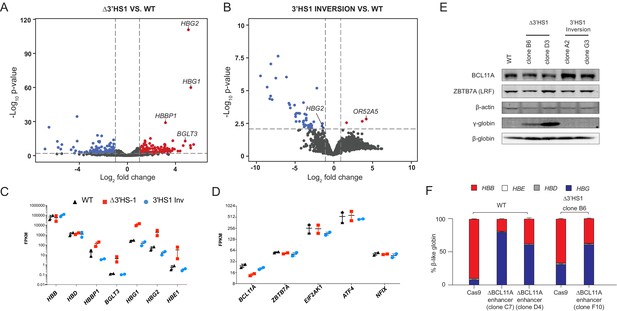

Figure 2 with 2 supplements see all
The induction of HbF in Δ3′HS1 cells is BCL11A independent.

(A) Volcano plot of differentially expressed genes in two Δ3′HS1 clones (B6 and D3) vs. two wild-type HUDEP-2 biological duplicates. Differentially expressed globin and olfactory receptor genes are labeled. (B) The volcano plot of differentially expressed genes in two 3′HS1 inversion clones (A2 and G3) vs. two wild-type HUDEP-2 biological duplicates. Differentially expressed globin and olfactory receptor genes are labeled. (C) Expression level of β-globin genes in Δ3′HS1 clones, 3′HS1 inversion clones, and wild-type HUDEP-2 cells. (D) Expression level of known fetal hemoglobin repressor genes in Δ3′HS1 clones, 3′HS1 inversion clones, and wild-type HUDEP-2 cells. (E) Western blot shows the level of BCL11A and ZBTB7A (LRF) in Δ3′HS1 clones, 3′HS1 inversion clones, Δ3′HS-5 clones, and wild-type HUDEP-2 cells. Refer to Figure 2—source data 1 for original blot picture. (F) The composition of β-like hemoglobin genes in the WT HDUEP-2 cells with BCL11A + 58 enhancer deleted with CRISPR/Cas9 and Δ3′HS1 HDUEP-2 cells with BCL11A + 58 enhancer deleted with CRISPR/Cas9.

Figure 2—source data 1

The immunoblot data of BCL11A, ZBTB7A, β-actin, β-globin, and γ-globin of clones displayed in Figure 2.

https://cdn.elifesciences.org/articles/70557/elife-70557-fig2-data1-v2.zip

Deletional HPFH has been proposed to be the result of distal enhancer juxtaposition in the region downstream of 3′HS1, and several HPFH enhancers have been identified (Forget, 1998). The reduction of HbF in the 3′HS1 inversion HUDEP-2 clones suggests that potential enhancers may be located between 3′HS1 and 3′-OR52A5-CBS. These enhancers may be insulated by the loop formed between 3′HS1 to 3′-OR52A5-CBS in the inversion clones. With no significant change in chromatin interaction observed between the LCR and HBG1/2 genes (Figure 1—figure supplement 2C and D), it suggests that the HBG1/2 expression increase is controlled by a cis-element other than the LCR. We then analyzed the ATAC-seq, GATA1 ChIP-seq data together to search for potential cis-regulatory elements. We found the OR52A1 region bound by the GATA1 transcriptional activator in the erythroid lineages (Corces et al., 2016; Feingold and Forget; Liu et al., 2018; Figure 3A). Importantly, the mapping of a previously described HPFH enhancer encompassed both OR52A1 gene and GATA1 binding site (Elder et al., 1990; Feingold and Forget, 1989). We proceeded to delete the GATA1 binding site within the HPFH enhancer site and the entire HPFH enhancer marked by ATAC-seq in Δ3′HS1 clones (Figure 3B). We found that both deletions reduced the HBG1/2 expression and HbF+ cell percentage in these cells, suggesting that the HPFH enhancer contributes to the activation of HBG1/2 (Figure 3C–E). We further evaluated whether there were direct interactions between HBG1/2 and HPFH enhancer after the deletion of 3′HS1 by virtual 4C (v4C) in our Hi-C dataset. We observed mildly increased v4C signal in HBG2 promoter region of Δ3′HS1 cells compared with WT and 3′HS1 inversion clones when HPFH enhancer region acts as viewpoint (Figure 3—figure supplement 1A). Vice versa, we also observed mildly increased v4C signal in HPFH enhancer region of Δ3′HS1 cells compared with WT and 3′HS1 inversion clones when HBG2 promoter region acts as viewpoint (Figure 3—figure supplement 1A). These data suggest that the deletion of 3′HS1 might have induced more frequent interaction between HPFH enhancer and HBG2 promoter regions.

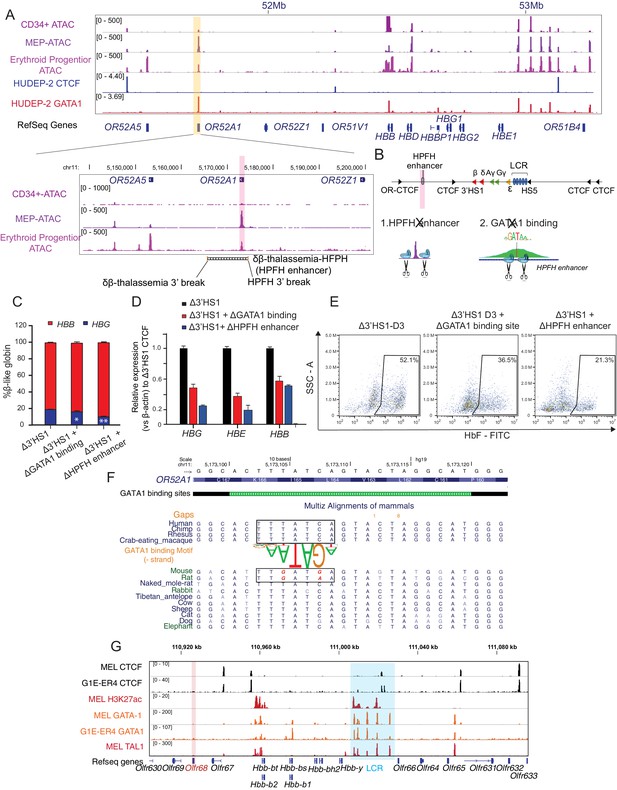

Figure 3 with 1 supplement see all
The induction of HbF in Δ3′HS1 cells is modulated by HPFH enhancer.

(A) Upper panel: IGV view of ATAC-seq in primary human blood cells followed by GATA1 and CTCF ChIP-seq in HUDEP-2 cells around the β-globin locus. Lower panel: ATAC-seq of CD34+ hematopoietic stem and progenitor cell (HSPC), megakaryocyte–erythroid progenitor (MEP), and erythroblast is shown in the zoomed view for the OR52A1 region. Red-shaded area indicates the locus of OR52A1. HPFH 3' beak and δβ-thalassemia 3' break is annotated (Feingold and Forget, 1989). (B) The experimental scheme of hereditary persistence of fetal hemoglobin (HPFH) deletion in the 3'HS1 deletion background. (C) The composition of β-like globin Δ3′HS1 (clone B6) HUDEP-2 cells with GATA1 binding site and HPFH region deletion. Mean ± SD is displayed, n = 3. (D) Relative expression of HBE, HBG (probe measures both HBG1 and HBG2), and HBB in the Δ3’HS1 (clone B6) HUDEP-2 cells with GATA1 binding site and HPFH enhancer region deletion. Mean ± SD is displayed, n = 3. (E) The representative HbF flow plot of Δ3’HS1 (clone B6) HUDEP-2 cells with GATA1 binding site and HPFH enhancer region deletion. (F) Evolution conservation of OR52A1 GATA1 binding site in vertebrates. GATA1 binding motif is shown in the middle. The site in mouse and rat associated with human GATA1 binding is boxed out. (G) Chromatin landscape of mouse β-globin gene cluster in mouse erythroid cells MEL and G1-ER4. CTCF, GATA1, and TAL1 ChIP-seq is shown. Orange stripe highlights the mouse homolog of human OR52A1–Olfr68.

Previously, mouse and human β-globin locus and its surrounding regions have been shown to be evolutionally conserved (Bulger et al., 2003). More interestingly, previous report showed that the disruption of 3′HS1 site in mouse did not result in any change in the β-like globin gene expression (Bender et al., 2006). We hypothesized that the alteration of HPFH enhancer sequence might contribute to the different outcome of 3′HS1 deletion in mouse and human. Therefore, we evaluated the evolutionary conservation of OR52A1 in mammals and found mouse and rat homolog of human OR52A1–Olfr68 bears two single-nucleotide substitutions right at the core binding site of GATA1 (Figure 3F). When we further checked the GATA1 ChIP-seq in mouse erythroid cells, we also found the absence of binding in the OR52A1’s homolog Olfr68 and its surrounding region (Figure 3G). This data suggests that the mouse olfactory receptor region 3′ to β-globin genes no longer bears GATA1 binding sites and enhancer activity. Overall, the loss of GATA1 binding in mouse clearly explains the difference between mouse and human on the effect of 3′HS1 deletion on globin gene expression.

Previously, it has been proposed that the juxtaposition of HPFH enhancer results in the activation of γ-globin. We wonder if the chromosomal distance between HPFH enhancer and globin genes also contributes to the regulation of globin gene expression. We used paired guide RNA to delete a 48 kb region between HPFH enhancer and 3′HS1, to access the effect of distance between enhancer and target genes in the presence of chromosomal insulators (Figure 3—figure supplement 1B). We obtained a heterozygous clone bearing this 48 kb deletion (Figure 3—figure supplement 1B). We found that moving the HPFH enhancer to the proximity of globin locus mildly increases the HBG1/2 gene expression by threefold with increase of HBE1 gene and reduction of HBB gene (Figure 3—figure supplement 1C and D). Overall, the data suggests that both chromosomal distance and insulator contribute to the low expression of HBG1/2, but chromosomal insulators are dominant to insulate HPFH enhancer to access the globin genes.

To assess the therapeutic potential of 3′HS1 deletion in primary HSPCs, we performed the 3′HS1 and HS5 CBS deletions in adult mobilized peripheral blood CD34+ HSPC from three different donors (Figure 4A). We achieved high deletion percentage of both CBSs in these primary cells (Figure 4B, Figure 4—source data 1). Upon differentiation, we observed a robust increase in HbF+ cells across all three donors with 3′HS1 deletion but not with HS5 deletion (Figure 4C and D). The normal erythroid differentiation was not affected by either CBS deletion (Figure 4—figure supplement 1A and B). While the disruption of the 3'HS1 CBS in primary patient cells did not yield as great of an effect on HbF+ cells as in HUDEP-2 cells, the results do support the involvement of a downstream cis-acting regulatory element on the HBG1/2 genes.

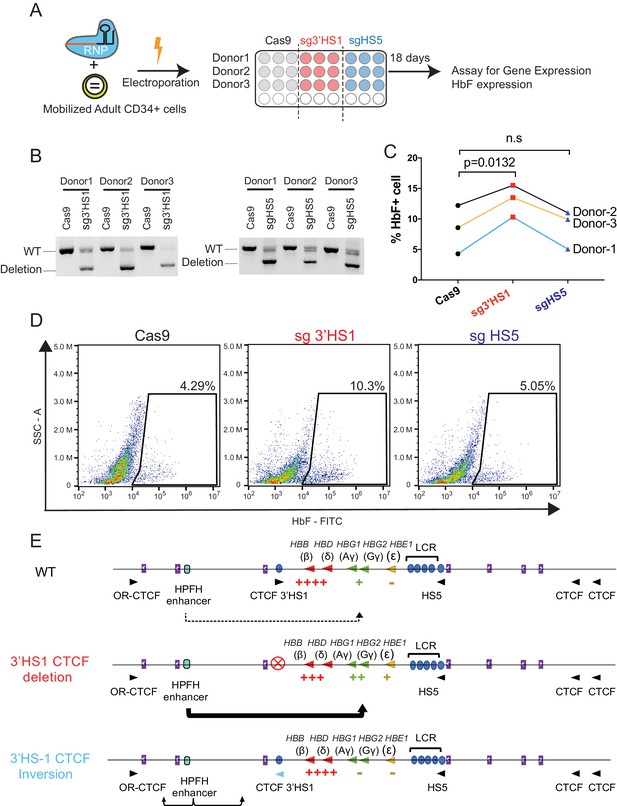

Figure 4 with 1 supplement see all
Deletion of 3′HS1 induces HbF in primary adult HSPC.

(A) The experimental scheme for primary HSPC editing. (B) The deletion of 3′HS1 and HS5 in three CD34+ peripheral blood mononuclear cell (PBMC) HSPCs from three individual adult donors. Refer to Figure 4—source data 1 for original gel picture. (C) The HbF+ cell percentage at day 21 in three HSPCs from three individual adult donors after 3′HS1 and HS5 deletion. p-Value is calculated by one-tailed paired t-test. n.s., not significant, p=0.3659 in HS5 deletion vs. Cas9 by one-tailed paired t-test. (D) The reprehensive flow plot for HbF+ cells at day 21 in 3′HS1-deleted and HS5-deleted PBMC HSPC. The data is from donor #1. (E) The model of fetal hemoglobin regulation through 3′HS1.

Figure 4—source data 1

The gel picture of paired guide deletion for HS5 and 3′HS1 in HSPC.

https://cdn.elifesciences.org/articles/70557/elife-70557-fig4-data1-v2.zip

Finally, based on our data, we propose a model where the 3′HS1 CBS modulates the HPFH enhancer’s access to the HBG1/2 genes (Figure 4E).

Discussion

Here, we show that the deletion of a CBS – 3′HS1– in the human β-globin locus can phenocopy HPFH. This condition is driven by alteration of the 3D genomic organization around the β-globin locus, which allows the long-range interaction of a distal enhancer in the OR52A1 gene to drive the expression of HBG1/2. We further show that inversion of 3′HS1 insulates the enhancer element and further suppresses HBG1/2. Previously, induced LCR to HBG1/2 interaction showed the importance of high-order chromatin structure in the regulation of globin gene expression (Breda et al., 2016; Deng et al., 2014). However, the role of CTCF protein bound around the gene cluster was not clear. Our study reveals how CTCF binding at this locus modulates the accessibility of the fetal HBG1/2 genes to a downstream enhancer. In the HPFH enhancer scenario, 3′HS1 limits the HPFH enhancer access to HBG1/2 by forming the sub-TAD with 5′HS (Figure 4E; Oudelaar et al., 2021). When the 3′HS1 CBS is deleted, the HPFH enhancer gains access to HBG1/2 without the hinder of 3′HS1–HS5 loop. When the 3′HS1 CBS motif is inverted, the HPFH enhancer is further restricted by the pairing of 3′-OR52A5-CBS to the inverted 3′HS1 CBS, which results in the strong chromosomal loop formation between the two CBSs. This insulation leads to the reduced HBG1/2 expression and upregulation of OR52A5 (Figures 2B and 4E).

Furthermore, we have elucidated the function of long speculated HPFH enhancer in the induction of HbF with our Δ3′HS1 cells. However, we suspect that other regulatory elements also exist between 3′HS1 and 3′-OR52A5-CBS since we only get a partial decrease of HBG1/2 expression with HPFH enhancer deletion in Δ3′HS1 cells. This may suggest that other previously identified HPFH enhancers also contribute to HbF induction in the Δ3′HS1 cells (Feingold and Forget, 1989; Forget, 1998). Indeed, other GATA1 binding sites can be observed between OR52A1 and OR52A5 genes of erythroid progenitor cells. Overall, these observations suggest that GATA1 binding across the locus works collectively to activate HBG1/2 expression with or without direct promoter-enhancer interactions. Interestingly, despite the evolution conservation of OR52A1 gene in mammals, TF binding disrupting nucleotide substitutions occur at the GATA1 binding site in HPFH enhancer in some mammal species that do not express distinct form of fetal hemoglobin (mouse and rat) (Figure 3F and G). This evolutionary alteration in the TF binding site suggests that HPFH enhancer may also play a role in regulating globin expression in other developmental stages. The consistent binding of GATA1 in high HBE/HBG-expressing K562 cells and high HBB-expressing HUDEP-2 cells suggests that the potential function of HPFH enhancer may still need the modulation of 3D genomic reorganization.

Despite our data suggesting that deletion of 3′HS1 is sufficient to induce the γ-globin activation, yet, the upregulation does not completely phenocopy the HPFH condition, in which the HbF is expressed at pancellular level. The deletion of 3′HS1 only induces a portion of cells to be F+ cells, with an interesting differentiation block phenotype in a large portion of clones we have selected (Figure 1J). Although HUDEP-2 is known to be heterogenous in clonal level, the F+ cell phenotype of 3′HS1-deleted cells suggests that the full HPFH phenotype may require the deletion of HBB and HBD genes to erase the strong enhancer-promoter interaction between LCR and HBB. Furthermore, our results indicate that the distance between HPFH enhancer and the globin locus could also play a role in regulating γ-globin gene expression. This data hints that the deletion of both 3′HS1 and the flanking region between 3′HS1 and HPFH enhancer may activate the fetal hemoglobin to an even higher level. Larger deletions will result in the reorganization of chromosomal loop interactions as well as the decrease of physical distance from HPFH enhancer to globin locus. The enhancers have to locate at certain range of distance from the target gene promoters to exert the maximal activation effect (Jessica Zuin et al., 2021). Therefore, a method that can create large deletion that disrupts 3′HS1 and reduces enhancer-promoter distance simultaneously could be a potential gene therapy to effectively activate the γ-globin expression in hemoglobinopathies.

The differentiation stage of HUDEP-2 cell clones used in Figure 1 was profiled by flow cytometry of CD71 and CD235a (Figure 2—figure supplement 1—source data 1). The immunoblot data of BCL11A, ZBTB7A, β-actin, β-globin, and γ-globin of clones is displayed in Figure 2—figure supplement 2.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifierAdditional Information
AntibodyCTCF(rabbit polyclonal)AbcamAB70303WB(1:1000)
AntibodyBCL11A(rabbit polyclonal)AbcamAB191401WB(1:1000)
Antibodyβ-Actin(rabbit polyclonal)Proteintech20536-1-APWB(1:2000)
Antibodyβ-Globin(mouse monoclonal)Santa Cruz BiotechnologySC-21757WB(1:2000)
Antibodyγ-Globin(mouse monoclonal)Santa Cruz BiotechnologySC-21756WB(1:500)
AntibodyZBTB7A(mouse monoclonal)R&D systemsMAB3496WB(1:1000)
AntibodyHuman HbF-FITC(recombinant)Miltenyl Biotec130-108-241FC(1:100)
AntibodyHuman CD71-PE(mouse monoclonal)BioLegend334105FC(1:100)
AntibodyHuman CD235a-APC(mouse monoclonal)BD Biosciences561775FC(1:100)
AntibodyStarbright B700-conjugated goat α-rabbit IgG(goat polyclonal)Bio-Rad12004161WB(1:2000-1:5000)
AntibodyDyLight 800 goat α-mouse IgG(goat polyclonal)Bio-RadSTAR117D800GAWB(1:2000-1:10,000)
AntibodyAcetyl-histone H3 (Lys27)(rabbit polyclonal)Cell Signaling8173S2 µg per ChIP
Peptide, recombinant proteinSCFPeprotech300-07
Peptide, recombinant proteinFLT3LPeprotech300-19
Peptide, recombinant proteinTPOPeprotech300-18
Peptide, recombinant proteinEPOAmgenEPOGEN
Peptide, recombinant proteinIL-3Peprotech200-03
OtherSFEM IISTEMCELL Technologies09655
Chemical compound, drugDexamethasoneSigmaD2915
Chemical compound, drugDoxycyclineSigmaD9891
Peptide, recombinant proteinRecombinant human insulinSigmaI2643
Peptide, recombinant proteinHolo-transferrinSigmaT4132
Chemical compound, drugHeparinSigmaH3393
OtherHuman AB serumSigmaH6914
Peptide, recombinant proteinCas9 ProteinIDT1081058
Commercial assay or kitConcanavalin A BeadsBangs Laboratories, IncBP531
Peptide, recombinant proteinpA-MNaseGift from Steven Henikoff
Commercial assay or kitDynabeads protein AThermo Fisher Scientific1002D
Commercial assay or kitDynabeads MyOne Streptavidin T1Thermo Fisher Scientific65601
Chemical compound, drugProtease Inhibitor CocktailGenDEPOT50-101-5486
Cell line (Homo sapiens)HUDEP-2 cellsRiken Cell BankRCB4557
Cell line (Homo sapiens)K562 cellsATCCCCL-243
Biological sample (primary cells Homo sapiens)Human peripheral blood CD34+ HSPCsSTEMCELL Technologies70060.1CD34+ HSPC isolated from
individual donor. Sex is mixed.
Commercial assay or kitRapid RNA library kitSwift BiosciencesR2096
Commercial assay or kitNextera XT library preparation kitIlluminaFC-131-1024
Commercial assay or kitMinElute PCR purification kitQiagen28004
Commercial assay or kitAccel-NGS 2S Plus DNA library kitSwift Biosciences21096
Commercial assay or kit2S Combinatorial Dual Indexing KitSwift Biosciences28096
Commercial assay or kitHiC Next Generation Sequencing KitArima Genomics
Commercial assay or kitKAPA library quantification kitKAPA BiosystemsKK4844
Commercial assay or kitRNA clean & concentratorZymo ResearchR1013
OtherRaw and processed NGS sequencing dataThis paperGSE160425Raw and processed data
could be obtained from
the link :
https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE160425
OtherHUDEP-2 GATA1 CUT&RUNGEO: GSE104676GSM2805376
OtherHUDEP-2 CTCF ChIP-seqGEO: GSE104676GSM3671075
OtherHUDEP-2 BCL11A ChIP-seqGEO: GSE103445GSM2771529
OtherHematopoietic cells differentiation ATAC-seqCorces et al., 2016GSE74912
Sequence-based reagentsg3’HS1-3′SynthegoSynthesized guide RNAGAGUCUUGGGAUGGCUGAAG
Sequence-based reagentsg3’HS1-5′SynthegoSynthesized guide RNAGUCCAAGGCAGGACAUGUGU
Sequence-based reagentsgHS5-5′SynthegoSynthesized guide RNAGGCACCCACCUUCAAUCAAA
Sequence-based reagentsgHS5-3'SynthegoSynthesized guide RNAAGUCCUGCCAGAUAUAGGUC
Sequence-based reagentsgOR52A1-GATA1-5′SynthegoSynthesized guide RNAAUGUCUUAGUGGAUAACAGA
Sequence-based reagentsgOR52A1-GATA1-3′SynthegoSynthesized guide RNACAUAUGCUCACAGUAGGAGU
Sequence-based reagentsgHPFH-enhancer-5′SynthegoSynthesized guide RNAGGGCAUGUAGACUGUGAUGU
Sequence-based reagentsgHPFH-enhancer-3′:SynthegoSynthesized guide RNACAUAUGCUCACAGUAGGAGU
Sequence-based reagentsgBCL11A- + 58-5′:SynthegoSynthesized guide RNAGGACUGGCAGACCUCUCCAU
Sequence-based reagentsgBCL11A- + 58-3’:SynthegoSynthesized guide RNACUCUUACUUAUGCACACCUG
Sequence-based reagent3'HS1-deletion-genotyping forwardEurofins GenomicsPCR primerTCCCTGTGTGATTACTTGCTTAC
Sequence-based reagent3'HS1-deletion-genotyping reverseEurofins GenomicsPCR primerAGGTCATAACCATTCAGGTAAACT
Sequence-based reagent3'HS1-inversion-genotyping forwardEurofins GenomicsPCR primerTCCCTGTGTGATTACTTGCTTAC
Sequence-based reagent3'HS1-inversion-genotyping reverseEurofins GenomicsPCR primerGATGAACTACTTACCACTAGGGGTC
Sequence-based reagent3'HS1-WT-genotyping forwardEurofins GenomicsPCR primerTCCCTGTGTGATTACTTGCTTAC
Sequence-based reagent3'HS1-WT-genotyping reverseEurofins GenomicsPCR primerCTTCTGACCCCTAGTGGTGTC
Sequence-based reagentHPFH enhancer-deletion-genotyping forwardEurofins GenomicsPCR primerACAATGGCCATATGCTCACA
Sequence-based reagentHPFH enhancer-deletion-genotyping reverseEurofins GenomicsPCR primerGTCCAGGTGATTTTGCTGGT
Sequence-based reagentBCL11A_58 enhancer-deletion forwardEurofins GenomicsPCR primerGAACAGAGACCACTACTGGCAAT
Sequence-based reagentBCL11A_58 enhancer-deletion forwardEurofins GenomicsPCR primerCTCAGAAAAATGACAGCACCA
Sequence-based reagentHBB-qPCR forwardEurofins GenomicsPCR primerCTGAGGAGAAGTCTGCCGTTA
Sequence-based reagentHBB-qPCR reverseEurofins GenomicsPCR primerAGCATCAGGAGTGGACAGAT
Sequence-based reagentHBD-qPCR forwardEurofins GenomicsPCR primerGAGGAGAAGACTGCTGTCAATG
Sequence-based reagentHBD-qPCR reverseEurofins GenomicsPCR primerAGGGTAGACCACCAGTAATCTG
Sequence-based reagentHBE-qPCR forwardEurofins GenomicsPCR primerGCAAGAAGGTGCTGACTTC
Sequence-based reagentHBE-qPCR reverseEurofins GenomicsPCR primerACCATCACGTTACCCAGGAG
Sequence-based reagentHBG1/2-qPCR forwardEurofins GenomicsPCR primerTGGATGATCTCAAGGGCAC
Sequence-based reagentHBG1/2-qPCR reverseEurofins GenomicsPCR primerTCAGTGGTATCTGGAGGACA
Sequence-based reagentActB-qPCR forwardEurofins GenomicsPCR primerCCTGGCACCCAGCACAATGAAG
Sequence-based reagentActB-qPCR reverseEurofins GenomicsPCR primerAAGTCATAGTCCGCCTAGAAGC
Sequence-based reagentBCL11A-qPCR forwardEurofins GenomicsPCR primerAACCCCAGCACTTAAGCAAA
Sequence-based reagentBCL11A-qPCR reverseEurofins GenomicsPCR primerGGAGGTCATGATCCCCTTCT
Sequence-based reagent3'HS1 HDR templateGene UniversalCRISPR/Cas9 knock-in HDR templateAGACATAGAGAAAGTATATT
GTGTTTAAAAGACAGCTTC
TTTATAATTCTATAGAACTAA
AACATTCCTATTTGCCAAGG
CAGTGGAGTTTTTGCTGTT
CTTAGAACATAATTACTGAA
AGACACGCACACATGTCCT
GCCTTGGACAAAAAATTGT
ATGTCCATCCTTTAAAGGT
CATTCCTTTAATGGTCTTTT
CTGGACCTGACCCCTAGTG
GTAAGTAGTTCATCAAACTT
TCTTCCCTCCCTACTTCAGT
GATGCATAAGGCAGATCTG
CTTTAGTGTAAGCGAGGTC
AGGCCCTCAAGAGTCTTG
GGATGGCTGAAGATGTAA
GAACATTCTATAAGACTTG
TCCAAAGAACTGACTGTT
TAATGATTCTGAATATGCT
AGTTCAGAGAGAATCTAT
TTACCACAAACCTGAAG
Software, algorithmHiC-ProServant et al., 2015https://github.com/nservant/HiC-Pro
Software, algorithmJuicerDurand et al., 2016bhttps://github.com/theaidenlab/juicer/wiki
Software, algorithmJuiceboxDurand et al., 2016a; Durand et al., 2016bhttp://aidenlab.org/juicebox/
Software, algorithmHiNTWang et al., 2020https://github.com/parklab/HiNT
Software, algorithmSTARDobin et al., 2013https://github.com/alexdobin/STAR
Software, algorithmedgeRRobinson et al., 2010https://bioconductor.org/packages/edgeR/
Software, algorithmBowtie2Langmead and Salzberg, 2012http://bowtie-bio.sourceforge.net/bowtie2/index.shtml
Software, algorithmBWA-MEMBauer et al., 2013http://bio-bwa.sourceforge.net/
Software, algorithmSAMtoolsSankaran et al., 2009http://samtools.sourceforge.net/
Software, algorithmPicard Toolshttp://broadinstitute.github.io/picard/
Software, algorithmdeepToolsRamírez et al., 2014https://deeptools.readthedocs.io/en/develop/
Software, algorithmTrim Galorehttp://www.bioinformatics.babraham.ac.uk/projects/trim_galore/
Software, algorithmTrimmomaticBolger et al., 2014http://www.usadellab.org/cms/?page=trimmomatic

Tissue culture of cell lines

Request a detailed protocol

Our HUDEP-2 cell lines were directly obtained from the cell bank of Riken Institute, Japan, The provider validates the cell line before shipment. Additionally, the cell line has been validated by HiC sequencing on the chromosome copy number (Figure 1—figure supplement 2C). We also validate that all cell lines used in the study are free from mycoplasma contamination. We routinely test the mycoplasma contamination status by PCR. K562 cells were maintained in RPMI medium with 10% FBS. HUDEP clone 2 (HUDEP-2) cells were cultured as previously described (Kurita et al., 2013). Cells were expanded in StemSpan serum-free expansion medium supplemented with 1 μM dexamethasone (D2915, Sigma), 1 μg/mL doxycycline (D9891, Sigma), 50 ng/mL human SCF, 3 units/mL EPO, and 1% penicillin/streptomycin. HUDEP-2 cells were differentiated in a two-phase differentiation protocol consisting of IMDM supplemented with 5% human AB serum, 10 μg/mL recombinant human insulin, 330 μg/mL holo-transferrin, 3 units/mL EPO, 1 μg/mL doxycycline, 2 units/mL heparin, and 1% penicillin/streptomycin. 50 ng/mL human SCF was included in phase 1 of the culture (days 1–3) and withdrawn in phase 2 of the culture (days 4 and beyond). Samples were collected on day 5 for flow cytometry, RNA extraction, immunoblot, HiC, ATAC-seq, and HPLC analyses.

CRISPR/Cas9-mediated deletion and homologous recombination

Request a detailed protocol

Cas9 nuclease (1081058, IDT) were mixed with synthetically modified sgRNAs (synthesized by Synthego) at a 1:3 molar ratio in resuspension buffer T and incubated at 37°C for 10 min to form ribonucleoprotein complexes (RNPs). For the CTCF inversion clones, homology-directed repair (HDR) approach was used by adding 2 μg of dsDNA homology repair template (synthesized by Gene Universal) to the RNP complexes. dsDNA repair templates were designed to have 90–130 bp of homology arms distal and proximal to the PAM sequence.

For CD34+ cells, about 2.5 × 105 cells were harvested 24 hr after thawing, washed in HBSS (Gibco, 14170112), resuspended in RNP complexes, and electroporated at 1600 V and 3 pulses of 10 ms using the Neon Transfection system (Thermo Fisher Scientific). For HUDEP-2 cells, 2 × 105 were harvested, resuspended in RNP complexes, and electroporated at 1300 V and 1 pulse of 20 ms using the Neon Transfection system. 24 hr after electroporation, cells were harvested to assay for deletion or inversion. Genomic DNA was extracted using DirectPCR lysis reagent (102T, Viagen) followed by proteinase K treatment at 55°C. PCR was performed using the EconoTaq PLUS 2X master mix (30033-2, Lucigen) with the following cycling conditions: 95°C for 2 min; 45 cycles of 95°C for 30 s, 55°C for 30 s, 72°C for 40 s; 72°C for 5 min. Amplicons were purified using the Zymoclean Gel DNA recovery kit and Sanger sequenced.

The sequence of guide RNA and other oligo sequence used to generate guideRNA, genotyping deletion, and HDR template is listed in Key resources table.

CD34+ cell ex vivo culture and differentiation

Request a detailed protocol

G-CSF mobilized human peripheral blood CD34+ HSPCs were purchased from STEMCELL Technologies. Cells were thawed on day 0 into StemSpan serum-free expansion medium (09655, STEMCELL Technologies) supplemented with 100 ng/mL Flt3L (Peprotech), 50 ng/mL human stem cell factor (SCF; 300-07, Peprotech), 100 ng/mL TPO (Peprotech), and 1% penicillin/streptomycin (Gibco). Electroporation of RNP complexes was done on days 1 and 2 of the culture. Differentiation of CD34+ CD38 into erythroid progenitors was done in four phases of erythroid differentiation medium (EDM) consist of Iscove’s modified Dulbecco’s medium (IMDM; Gibco) supplemented with 5% human AB serum (H6914, Sigma), 10 μg/mL recombinant human insulin (I2643, Sigma), 2 units/mL heparin (H3393, Sigma), 3 units/mL Epogen (EPO, Amgen), 330 μg/mL holo-transferrin (T4132, Sigma), and 1% penicillin/streptomycin. EDM was further supplemented with 25 ng/mL human SCF and 1 ng/mL human IL-3 (Peprotech) in phase 1 of the culture (days 4–7). IL-3 was withdrawn and human SCF is decreased to 10 ng/mL in phase 2 of the culture (days 7–11). Human SCF is further decreased to 2 ng/mL in phase 3 of the culture (days 12–16). Human SCF was withdrawn and holo-transferrin is increased to 1 mg/mL (day 17 and beyond). Cells were collected on day 21 for flow cytometry, RNA extraction, and Giemsa stain.

Flow cytometry analysis of fetal hemoglobin protein expression

Request a detailed protocol

Upon differentiation, the expression of fetal hemoglobin was analyzed by intracellular flow cytometry staining. Briefly, 50,000 cells were fixed and permeabilized in CytoFast Fix/Perm buffer set (426803, BioLegend), and incubated with FITC-conjugated anti-Human Fetal hemoglobin antibody (Miltenyl Biotec, clone # REA533) in the dark at room temperature for 15 min. In addition, phenotypic characterization of cells upon differentiation was done by cell-surface antigens staining with PE anti-human CD71 (334105, BioLegend) and APC anti-human CD235a (561775, BD Biosciences) monoclonal antibodies for 30 min at 4°C. For CD34+ cells, FITC anti-human CD233 (130-119-780, Miltenyi Biotec) was also used to assess differentiation. Cells were analyzed using CytoFLEX S flow cytometer, and FlowJo cytometry software was used for data visualization.

RNA isolation and quantitative PCR with reverse transcription (RT-qPCR)

Request a detailed protocol

RNA was extracted from 1 to 2 million cells using TRIzol (Invitrogen) followed by phenol-chloroform extraction. Reverse transcription reactions were performed with random hexamers using iScript (Bio-Rad). BCL11A, HBB, HBD, HBG1/2, and HBE mRNAs were quantified by SsoAdvanced Universal SYBR Green Supermix (1725272, Bio-Rad) and run on a CFX96 Touch Real-Time PCR Detection System (Bio-Rad). The sequence of oligos is listed in key resources table.

Immunoblot

Request a detailed protocol

Protein samples were denatured in 2X Laemmli buffer (161-0737, Bio-Rad) and boiled for 10 min. They were resolved on Novex Tris-Glycine gel (Invitrogen) and transferred onto 0.45 μM PVDF membrane (Immobilon-FL PVDF) using Invitrogen Mini Blot Module. Immunoblotting was performed with the following antibodies: BCL11A (ab191401, Abcam), beta-actin (20536-1-AP, Proteintech), β-globin (sc-21757, Santa Cruz Biotechnology), γ-globin (sc-21756, Santa Cruz Biotechnology), and ZTB7A (mab3496, R&D Systems). Starbright B700-conjugated goat α-rabbit IgG (12004161, Bio-Rad) and DyLight 800 goat α-mouse IgG (STAR117D800GA, Bio-Rad) secondary antibodies were purchased from Bio-Rad. Signals were visualized on ChemiDoc MP imaging system (Bio-Rad).

Hemoglobin HPLC

Request a detailed protocol

1 million HUDEP-2 cells were harvested and washed with PBS two times. After the harvest of the cells, cells were snap frozen at –80°. Frozen cell pellets were collected for HPLC at the University of Michigan Hospital.

RNA-sequencing

Request a detailed protocol

Total RNA from HUDEP-2 cells upon 5 days of differentiation were isolated using TRIzol followed by phenol-chloroform extraction. Sequencing libraries were prepared from 500 ng of total RNA using Swift Biosciences rapid RNA library kit following the manufacturer’s protocol. Libraries were sequenced in the Illumina HiSeq 4000 platform to generate paired-end reads of 2 × 150 bp.

Paired-end reads were trimmed with trim galore and aligned to hg19 genome with STAR (v2.7.0f) using the default parameters with the following modifications:(1) sjdbOverhang was set to sequence length – 1 as recommended in the STAR manual, (2) twopassMode was set to Basic, (3) outReadsUnmapped was set to None, (4) outSAMtype was set to BAM SortedByCoordinate, and (5) quantMode was set to GeneCounts. Gene expression was quantified using STAR’s built-in and counts were imported into R (v4.0) using readDGE function to produce DGE list object (Dobin et al., 2013; Robinson et al., 2010).

Differential expression (DE) analysis was performed in R with the edgeR package (v3.30.3). A paired DE analysis was performed to assess changes between groups (3′HS1 deletion or inversion versus WT). Normalization factors and effective library size were applied. Dispersion was estimated using the "estimateDisp" function, with the design matrix as: ~ replicate + group, where "replicate" refers to biological replicates of each sample and "group" refers to the individual clones of deletion or inversion of 3′HS1 and WT. Likelihood ratio test was performed for differential expression with the "glmFit" and "glmLRT" functions. The list of DE genes was further filtered by setting p-value < 0.01 and absolute value of log2 fold-change >1.

ATAC-sequencing

Request a detailed protocol

ATAC-seq was performed with Illumina Nextera XT library preparation kit (FC-131-1024, Illumina) as previously described (Buenrostro et al., 2015). Upon 5 days of HUDEP-2 differentiation, 50,000 cells were harvested and permeabilized in 50 μL of cold lysis buffer (10 mM Tris-HCl, pH 7.4, 10 mM NaCl, 3 mM MgCl2, 0.1% IGEPAL CA-630). The transposition reaction was carried out at 37°C for 30 min with agitation in 50 μL volume containing 25 μL of 2× TD buffer and 2.5 μL of Nextera Tn5 transposase. DNA was purified with Qiagen MinElute PCR purification kit. Library amplification was done with KAPA HiFi HotStart ReadyMix PCR kit, and the resulting libraries were purified with Qiagen MinElute PCR Purification Kit. Libraries were sequenced in the Illumina HiSeq 4000 platform to generate paired-end reads of 2 × 150 bp.

Paired-end reads were trimmed using Trim Galore (version 0.6.1) and aligned to hg19 using Burrows-Wheeler Aligner (bwa-mem, version 0.7.17). The resulting alignments were sorted, indexed using SAMtools (version 1.9), and marked for duplicates with samblaster (version 0.1.24). Reads were then normalized using deeptools bamCoverage with RPGC parameter and visualized with IGV.

CUT&RUN

Request a detailed protocol

CTCF CUT&RUN was performed according to published protocol (Meers et al., 2019). Briefly, upon 5 days of differentiation, 500,000 HUDEP2 cells were immobilized with BioMag Plus Concanavalin A (BangsLabs, Inc). Cells were permeabilized and incubated with CTCF antibody (ab70303, Abcam) overnight. After washing away unbound antibody, pA-MNase (a gift from Dr. Steven Henikoff) was then added to the cells and incubated for 5 min in a metal block on ice. The MNase reaction was stopped, chromatin was released by diffusion at 37°C for 30 min, and DNA was extracted. Swift Biosciences Accel-NGS 2S Plus DNA library kit was used to construct NGS libraries. Libraries were sequenced on the Illumina HiSeq 4000 platform to generate paired-end reads of 2 × 150 bp.

Paired-end sequencing reads were trimmed using Trimmomatic (version 0.36) and aligned to hg19 genome assembly using Bowtie2 (version 2.3.5) with the parameter "--dovetail --phred33". The resulting alignments were indexed, sorted, and marked for duplicates with Picard "MarkDuplicates" function. Reads were then normalized using deeptools bamCoverage with RPGC parameter and visualized with IGV.

Chromatin immunoprecipitation

Request a detailed protocol

About 2 million HUDEP-2 cells upon 5 days of differentiation were harvested and fixed with 1% formaldehyde for 10 min at room temperature. Fixation was quenched with 0.125 M glycine. Cells were washed twice with ice-cold PBS, lysed in 0.13 mL of lysis buffer (10 mM Tris pH 8.0, 0.25% SDS, 2 mM EDTA, 1X protease inhibitors), and sonicated in a Covaris microtube with Covaris ultrasonicator (E220, Covaris). Sonicated chromatin was diluted with 0.2 mL of equilibration buffer (10 mM Tris pH 8.0, 233 mM NaCl, 1.66% Triton X-100, 0.166% sodium deoxycholate, 1 mM EDTA, 1X protease inhibitors) and spun down to pellet insoluble materials. Supernatant was mixed with 2 µg of antibody (H3K27ac, D5E4, Cell Signaling) and incubated at 4°C overnight. 10 µL of Dynabeads protein A (Thermo Fisher Scientific) were washed twice with 0.1% BSA/PBS and incubated overnight alongside the chromatin. After overnight rotating, beads were transferred to the tube containing chromatin and incubated for 2 hr. Beads were washed twice with RIPA-LS (10 mM Tris pH 8.0, 140 mM NaCl, 1 mM EDTA, 0.1% SDS, 0.1% sodium deoxycholate, 1% Triton X-100), twice with RIPA-HS (10 mM Tris pH 8.0, 500 mM NaCl, 1 mM EDTA, 0.1% SDS, 0.1 % sodium deoxycholate, 1% Triton X-100), twice with RIPA-LiCl (10 mM Tris pH 8.0, 250 mM LiCl, 1 mM EDTA, 0.5% NP-40, 0.5% sodium deoxycholate), and once with 10 mM Tris pH 8.0. After washing, 48 μL of elution buffer (10 mM Tris pH 8.0, 5 mM EDTA, 300 mM NaCl, 0.4% SDS) with 2 μL of 20 mg/mL of proteinase K (Viagen) were added to the beads and incubated for 1 hr at 55°C followed by overnight incubation at 65°C to decrosslink. Beads were magnetized and supernatant was purified with phenol-chloroform. DNA was precipitated with ice-cold absolute ethanol, washed with 75% ethanol, and eluted with 20 μL of 10 mM of Tris pH 8.0. Accel-NGS 2S Plus DNA library kit (21096, Swift Bioscience) was used to construct the libraries with the 2S combinatorial dual indexing kit (28096, Swift Bioscience). Libraries were sequenced on the HiSeq 4000 platform to generate paired-end reads sequencing 2 × 150 bp.

Reads were aligned to the human genome (hg19) using Bowtie2 (version 2.3.5). The resulting alignments bam files were indexed, sorted with SAMtools, and marked for duplicates with Picard "MarkDuplicates" function. Reads were then normalized using deeptools bamCoverage with RPGC parameter and visualized with IGV.

Chromatin conformation capture (HiC and capture HiC)

Hi-C library preparation

Request a detailed protocol

Approximately 2 million cells of each HUDEP-2 clone were differentiated for 5 days and fixed in 1% formaldehyde. Hi-C libraries were generated using the Arima-HiC kit, according to the manufacturer’s protocols. Libraries were prepared using the Accel-NGS 2S Plus kit (Swift Biosciences, 21096), with single indexing kit 2S Set A (Swift Biosciences, 26148). The final amplification cycle numbers for each library were determined by qPCR in the QC2 step of the Arima protocol. Quantification of the libraries was performed with KAPA Library Quantification Kit (Roche, KK4824). The libraries were then pooled for sequencing on NovaSeq S4 to get between 300 and 400 million reads each.

Probe design

Request a detailed protocol

The capture probes were designed as previously described (Sanborn et al., 2015). 3822 oligos of probe sequence covering Chr11:4665299–5954156 with adaptor sequence on both end as follows: ATCGCACCAGCGTGT N120 CACTGCGGCTCCTCA was synthesized by GeneScripts. The biotinylated RNA probes specific to the β-globin locus were made as described. Briefly, the desired sequences were amplified out of the pool with primer sequences complementary to both ends using KAPA HiFi HotStart MasterMix for 12 cycles. The oligonucleotides were then prepared for in vitro transcription by adding a T7 promoter to the forward primer and amplifying for a further 15 cycles. In vitro transcription with Biotin-16-UTP was performed with NEB HiScribe T7 for 2 hr at 37°C. The template DNA was degraded by adding 1 μL DNase and incubating at 37°C for a further 15 min, and then stopping the reaction by adding 1 μL 0.5 M EDTA. The RNA was then purified using Zymo RNA Clean & Concentrator columns, eluting in 15 μL elution buffer. We then added 1 U/μL RNase Inhibitor (NEB, M0314), aliquoted, and stored at –80°C until needed for the capture.

Capture

Request a detailed protocol

150–500 ng of the previously created Hi-C libraries were diluted to 25 μL and mixed with 2.5 μg Cot-1 DNA and 10 μg salmon sperm DNA and heated to 95°C for 5 min, then held at 65°C for at least 5 min. 33 μL of prewarmed (to 65°C) hybridization buffer (10× SSPE, 10× Denhardt’s buffer, 10 mM EDTA, and 0.2% SDS), along with 6 μL of RNA probe mixture (500 ng biotinylated-RNA probes and 20 U RNase inhibitor) were added to the DNA mixture and hybridized for 24 hr at 65°C. After the hybridization incubation was complete, 50 μL of Streptavidin T1 beads (Dynabeads, Life Technologies) were washed in Bind-and-Wash buffer (1 M NaCl, 10 mM Tris-HCl, pH 7.5, and 1 mM EDTA), resuspended in 134 μL of the same buffer, and then added to the hybridization mixture. The beads were allowed to bind to the biotinylated, hybridized DNA and RNA mixture for 30 min at room temperature before separating and discarding the supernatant. The bead-bound DNA was then washed once with low-stringency wash buffer (1× SSC, 0.1% SDS), for 15 min at room temperature, and three times with high-stringency wash (0.1× SSC, 0.1% SDS) for 10 min at 65°C, separating the beads on a magnet each time before discarding the supernatant. After the last wash, the beads were resuspended in 21 μL nuclease-free water. 1 μL was diluted 1:1000 and had qPCR performed as for QC2 of the Arima protocol to determine the number of cycles to amplify the enriched libraries.

Virtual 4C

Request a detailed protocol

Virtual 4C track was generated by using Juicebox. Horizontal and vertical 1D track of the 5 kb (chr11:5,165,001–5,170,000) × 5 kb (chr11:5,275,001–5,280,000) pixel was generated with Juicebox ‘generate 1D track’ function.

Data availability

Sequencing data have been deposited in GEO under accession codes GSE160425.

The following data sets were generated
    1. Zhang X
    2. Himadewi P
    3. Gore H
    (2020) NCBI Gene Expression Omnibus
    ID GSE160425. Chromosomal loop engineering in human beta globin locus.
The following previously published data sets were used
    1. Zhu Q
    2. Liu N
    3. Hargreaves V
    4. Orkin S
    (2017) NCBI Gene Expression Omnibus
    ID GSE104676. Direct Promoter Repression by BCL11A Controls the Fetal to Adult Hemoglobin Switch.
    1. Martyn GE
    2. Wienert B
    3. Yang L
    4. Shah M
    5. Norton LJ
    6. Burdach J
    7. Kurita R
    8. Nakamura Y
    9. Pearson RC
    10. Funnell AP
    11. Quinlan KG
    12. Crossley M
    (2017) NCBI Gene Expression Omnibus
    ID GSE103445. Natural regulatory mutations elevate fetal globin via disruption of BCL11A or ZBTB7A binding.

References

Decision letter

  1. Michael D Bulger
    Reviewing Editor; University of Rochester, United States
  2. Jessica K Tyler
    Senior Editor; Weill Cornell Medicine, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

This study provides insight into specifics of the organization and regulation of the human β-globin gene locus, and in particular of the contribution of a CTCF binding site located immediately downstream of the cluster. In addition to clarifying and expanding upon prior studies related to deletional hereditary persistence of fetal hemoglobin (HPFH), this work provides an interesting example of changes to gene expression and locus-specific chromatin organization upon manipulation of a CTCF binding site.

Decision letter after peer review:

Thank you for submitting your article "3'HS1 CTCF binding site in human β-globin locus regulates fetal hemoglobin expression" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Jessica Tyler as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) Present expression data for the genes within the β-globin cluster in different backgrounds as requested by the reviewers, including HBB expression in the 48 kb deletion and in the 3'HS1 deletion performed in the primary cell background.

2) Address the concerns of both reviewers concerning the clarity of the presentation of the Hi-C data and the interpretation of the ATAC- and H3K27ac ChIP-seqs, as well as the relative effects of the enhancer deletion on different genes.

3) Address or rebut the concern of reviewer #1 regarding the number of DEGs observed upon deletion of 3'HS1.

Reviewer #1 (Recommendations for the authors):

1. (Lines 86-87, Figure 1) It is somewhat confusing for the authors to jump into Hi-C results immediately after introducing the derivation of single cell-derived HUDEP-2 subclones. Having shown expression of β-globin genes in CRISPR/Cas9-manipulated HUDEP-2 bulk populations (which is of limited utility here and might productively be omitted), one expects similar analysis of the subclones first. Instead, this is practically an afterthought in Figures G-H. The presentation in these panels is also odd, in that 2 3'HS1-deleted subclones are presented as relative HBB/HBG expression in G, and then a different one is presented as normalized expression of HBE/G/B in H. Why not show all 3 subclones in a clearer fashion? Also, while normalized expression certainly gives an idea of the magnitude of changes upon 3'HS1 deletion, given the authors' speculations regarding potential therapeutic ramifications of increased HBG expression here, it would be worth at least a supplemental panel showing the absolute levels of expression of each of these genes.

2. (Lines 124-129) Although it seems likely that the authors' statement is accurate thatincreased accessibility, as indicated by ATAC-seq, and increased H3K27Ac, occur over the bodies of the HBG genes upon 3'HS1 deletion (Figure S4A), the figure appears to show increases in accessibility at the HBB/D genes as well, and increases in H3K27Ac peaks both at the genes and across the LCR.

3. (Lines 128-129) "…and the region with significant peak increase is not associated with BCL11A 129 binding at the HBG1/2 promoter region." This is confusingly worded. What the authors mean here is that the regions over the HBG genes associated with increased reads in the ATAC-seq and H3K27Ac ChIP-seqs do not map to the regions associated with BCL11A binding. In addition, however, this is an odd observation, which the authors do not attempt to clarify – that is, how is HBG expression increasing without any noticeable changes in accessibility at the promoter region? Is it just that the absolute levels of HBG expression are so low, and/or occurring in such a small proportion of cells, that such changes aren't being detected?

4. (Lines 133-135) Is it surprising to find so many DEGs upon deletion of 3'HS1? It seems odd to observe more than 300 DEGs after deletion of a single CTCF binding site within the β-globin locus. None of the nearby genes are known transcriptional regulators that might be expected to exert significant downstream effects on multiple additional genes, and based on the current literature one does not expect loss of a single CTCF binding site to exert such widespread effects beyond its specific location in the genome. What are these DEGs – is there any significance that emerges upon pathway analysis? Where are they located in the genome?

5. (Line 146) There is no Figure 2G; the authors are likely referring to Figure 2F here.

6. (Line 151) I'm not sure that "synergizes" is an accurate term here. The results suggest that 3'HS1 deletion results in upregulation of HBG expression via a mechanism unrelated to BCL11A-mediated transcriptional repression, though.

7. (Lines 173-180, Figures 3C-D) The GATA-1/enhancer deletions appear to affect HBE and HBB to the same or nearly the same degree as HBG.

8. (Lines 199-201) What is the effect of the 48 kb deletion on HBB?

9. (Line 227) This is likely not a proper TAD – TADs are generally much larger than the regions the authors describe here. "Sub-TAD" (as per terminology commonly used by the Higgs group with relation to locus organization at the α-globin locus) might be more appropriate.

10. (Lines 236-239) Where might the additional enhancers the authors refer to here actually be? There is nothing in Figure 3A that might suggest the presence of such enhancers. Can the authors clarify this further?

Reviewer #2 (Recommendations for the authors):

The authors analyzed the functional role of a CTCF binding site in the β-globin gene locus in Hudep-2 and differentiating CD34+ cells. Previous studies have shown that CTCF sites flanking the globin gene locus interact and form chromosomal loops. The authors found that deleting 3'HS1 specifically increased expression of the γ-globin gene and reduced expression of the β-globin gene. This seems independent from the levels of the known γ-globin repressor BCL11a. Through analysis of ATAC seq. and GATA1-ChIP-seq. data, they identified an enhancer that upon deletion reduced activation of globin in the 3'HS1 deficient cells. Deletion of a GATA1 site within this enhancer also reduced globin expression.

This is an interesting manuscript that provides functional insight into regulatory DNA elements located downstream of the β-globin gene cluster. This study is also significant with respect to potentially improving therapeutic fetal globin production. Overall, the experiments include appropriate controls and statistics.

The following issues should be address:

1. It is somewhat difficult to follow the authors interpretation of the Hi-C data in Figure 1 C-E. It appears that upon deletion of 3'HS1 a domain is formed between the most 3' CTCF site (OR52A5-CBS) and a sequence upstream of 3'HS1. This domain appears to contain the adult β-globin gene and there are more frequent interactions within this domain in 3'HS1 deleted cells, compared to WT cells. Could this in part explain why this deletion increases γ-globin and not β-globin. Likewise, the green-dotted circle seems to highlight interactions of OR52A5-CBS with a region upstream of HS5, but not with HS5.

2. The authors show that deletion or inversion of 3'HS1 does not affect expression of BCL11A. However, the western blot data in Figure 2E suggest that there is more BCL11A in the 3'HS1 inverted clones. This may explain why there is less γ-globin expressed in these cells.

3. Does deletion of 3'HS1 affect expression of β-globin in differentiating CD34+ cells.

https://doi.org/10.7554/eLife.70557.sa1

Author response

Essential revisions:

1) Present expression data for the genes within the β-globin cluster in different backgrounds as requested by the reviewers, including HBB expression in the 48 kb deletion and in the 3'HS1 deletion performed in the primary cell background.

We have now added these data in the Figure 1H, Supplemental Figure 6 and Figure 4.

2) Address the concerns of both reviewers concerning the clarity of the presentation of the Hi-C data and the interpretation of the ATAC- and H3K27ac ChIP-seqs, as well as the relative effects of the enhancer deletion on different genes.

We have updated the HiC presentation and clarify the interpretation of ATAC-seq and ChIP-seq data.

3) Address or rebut the concern of reviewer #1 regarding the number of DEGs observed upon deletion of 3'HS1.

We have responded the concern of reviewer #1 with GO term analysis of DEGs upon the deletion of 3’HS1.

Reviewer #1 (Recommendations for the authors):

1. (Lines 86-87, Figure 1) It is somewhat confusing for the authors to jump into Hi-C results immediately after introducing the derivation of single cell-derived HUDEP-2 subclones. Having shown expression of β-globin genes in CRISPR/Cas9-manipulated HUDEP-2 bulk populations (which is of limited utility here and might productively be omitted), one expects similar analysis of the subclones first. Instead, this is practically an afterthought in Figures G-H. The presentation in these panels is also odd, in that 2 3'HS1-deleted subclones are presented as relative HBB/HBG expression in G, and then a different one is presented as normalized expression of HBE/G/B in H. Why not show all 3 subclones in a clearer fashion? Also, while normalized expression certainly gives an idea of the magnitude of changes upon 3'HS1 deletion, given the authors' speculations regarding potential therapeutic ramifications of increased HBG expression here, it would be worth at least a supplemental panel showing the absolute levels of expression of each of these genes.

We appreciate the reviewer’s suggestion on the reorganization of the panels in Figure 1. We wish to first emphasize how the alteration of CTCF leads to changes in 3D genomic

structure. We have now presented the absolute expression data of HBB/HBG/HBE from individual clones in Figure 1H.

2. (Lines 124-129) Although it seems likely that the authors' statement is accurate thatincreased accessibility, as indicated by ATAC-seq, and increased H3K27Ac, occur over the bodies of the HBG genes upon 3'HS1 deletion (Figure S4A), the figure appears to show increases in accessibility at the HBB/D genes as well, and increases in H3K27Ac peaks both at the genes and across the LCR.

We appreciate the reviewer’s comment on the ATAC and H3K27ac level in the 3’HS1 deletion and inversion clones. In the H3K27ac comparison, the signal at the HBB locus in WT is saturated and thus the signal is actually higher in WT than 3’HS1 deletion. So, with some variability, we believe that these subtle changes in ATAC and H3K27ac data is likely due to the clonal variation seen in HUDEP-2 cells before, and it is not necessarily an indicative of the functional gene expression alteration.

3. (Lines 128-129) "…and the region with significant peak increase is not associated with BCL11A 129 binding at the HBG1/2 promoter region." This is confusingly worded. What the authors mean here is that the regions over the HBG genes associated with increased reads in the ATAC-seq and H3K27Ac ChIP-seqs do not map to the regions associated with BCL11A binding. In addition, however, this is an odd observation, which the authors do not attempt to clarify – that is, how is HBG expression increasing without any noticeable changes in accessibility at the promoter region? Is it just that the absolute levels of HBG expression are so low, and/or occurring in such a small proportion of cells, that such changes aren't being detected?

We apologize for the confusion caused by the sentence. We have rephrased this sentence “There was also a significant increase in activating H3K27ac in the HBG2 gene body, and the region with significant peak increase is not associated with BCL11A binding at the HBG1/2 promoter region” into “There was also a significant increase in activating H3K27ac in the HBG2 gene body. Interestingly, these epigenetic changes upon deletion of 3’HS1 CBS does not occur at the promoter of HBG2 which suggests that this CTCF-derived regulation is independent from BCL11A transcriptional regulation.” to clarify the statement.

4. (Lines 133-135) Is it surprising to find so many DEGs upon deletion of 3'HS1? It seems odd to observe more than 300 DEGs after deletion of a single CTCF binding site within the β-globin locus. None of the nearby genes are known transcriptional regulators that might be expected to exert significant downstream effects on multiple additional genes, and based on the current literature one does not expect loss of a single CTCF binding site to exert such widespread effects beyond its specific location in the genome. What are these DEGs – is there any significance that emerges upon pathway analysis? Where are they located in the genome?

We appreciate the reviewer’s constructive comments. We performed gene ontology analysis on these genes and no significant enriched pathway (FDR <0.1). The top enriched pathway in upregulated genes is associated with hemoglobin genes (shown in Author response image 1). These genes are randomly distributed on the genome without enrichment in particular chromosome (shown in Author response image 1). In summary, we believe that the differential expressed genes may be associated with clone-to-clone variation.

Author response image 1

5. (Line 146) There is no Figure 2G; the authors are likely referring to Figure 2F here.

We apologize for the mistake. It is referring to Figure 2F here. This has been fixed.

6. (Line 151) I'm not sure that "synergizes" is an accurate term here. The results suggest that 3'HS1 deletion results in upregulation of HBG expression via a mechanism unrelated to BCL11A-mediated transcriptional repression, though.

We have rephrased the word “synergizes” with “accentuates.”

7. (Lines 173-180, Figures 3C-D) The GATA-1/enhancer deletions appear to affect HBE and HBB to the same or nearly the same degree as HBG.

We appreciate the reviewer’s comment on this data. Indeed, in comparison with WT, we observed 60% decrease in HBB expression with HPFH enhancer deletion in comparison to Δ3’HS1 cells. We believe that upon the deletion of 3’HS1, HPFH enhancer is incorporated into the regulation hub of β-globin cluster. As a result, its activity might have contributed to the HBB expression. We also believe that further dissection of HPFH enhancer regulation will require systematic investigation using high resolution 3D genomic technology like Micro-C, which is outside the scope of this paper.

8. (Lines 199-201) What is the effect of the 48 kb deletion on HBB?

It appears that the 48 kb deletion results in the reduction of HBB expression to about 50% in comparison to WT. This may be due to the compensation effect of HBG and HBE upregulation. We have now added the HBB expression in the Supplemental Figure S6 panel C.

9. (Line 227) This is likely not a proper TAD – TADs are generally much larger than the regions the authors describe here. "Sub-TAD" (as per terminology commonly used by the Higgs group with relation to locus organization at the α-globin locus) might be more appropriate.

We appreciate the reviewer’s comment, as a relatively new concept, TAD and sub-TAD definitions are still debated on many occasions. We have changed the TAD to sub-TAD and cite the reference accordingly as suggested by reviewer #1.

10. (Lines 236-239) Where might the additional enhancers the authors refer to here actually be? There is nothing in Figure 3A that might suggest the presence of such enhancers. Can the authors clarify this further?

We apologize for the confusion. Based on the GATA1 binding and ATAC-seq data in mature erythroid cells, we observed GATA1 binding site which co-occurs together with ATAC-seq peaks (Author response image 2). The active chromatin landscape in the regions between OR52A1 and OR52A5 CTCFs suggests that these sites may acts as potential cis regulator elements (CRE) for globin gene expression. Yet we have not validated the function of these potential CREs as bona fide enhancers through comprehensive gene editing.

Author response image 2

Reviewer #2 (Recommendations for the authors):

The authors analyzed the functional role of a CTCF binding site in the β-globin gene locus in Hudep-2 and differentiating CD34+ cells. Previous studies have shown that CTCF sites flanking the globin gene locus interact and form chromosomal loops. The authors found that deleting 3'HS1 specifically increased expression of the γ-globin gene and reduced expression of the β-globin gene. This seems independent from the levels of the known γ-globin repressor BCL11a. Through analysis of ATAC seq. and GATA1-ChIP-seq. data, they identified an enhancer that upon deletion reduced activation of globin in the 3'HS1 deficient cells. Deletion of a GATA1 site within this enhancer also reduced globin expression.

This is an interesting manuscript that provides functional insight into regulatory DNA elements located downstream of the β-globin gene cluster. This study is also significant with respect to potentially improving therapeutic fetal globin production. Overall, the experiments include appropriate controls and statistics.

We appreciate the reviewer for the comments on our manuscript.

The following issues should be address:

1. It is somewhat difficult to follow the authors interpretation of the Hi-C data in Figure 1 C-E. It appears that upon deletion of 3'HS1 a domain is formed between the most 3' CTCF site (OR52A5-CBS) and a sequence upstream of 3'HS1. This domain appears to contain the adult β-globin gene and there are more frequent interactions within this domain in 3'HS1 deleted cells, compared to WT cells. Could this in part explain why this deletion increases γ-globin and not β-globin. Likewise, the green-dotted circle seems to highlight interactions of OR52A5-CBS with a region upstream of HS5, but not with HS5.

We apologize for the lack of clarity in our interpretation of the data. We have now realigned the regions in Figure 1C-E.

2. The authors show that deletion or inversion of 3'HS1 does not affect expression of BCL11A. However, the western blot data in Figure 2E suggest that there is more BCL11A in the 3'HS1 inverted clones. This may explain why there is less γ-globin expressed in these cells.

We appreciate the reviewer’s comments on BCL11A level in the western blot. We performed density quantification on the western blot bands. The 3’HS1 inversion clone has slightly higher BCL11A protein level with 10-20% increase in density. We believe that this slight increase of BCL11A protein level would not have a substantial impact on the globin gene expression (Author response image 3) .

Author response image 3

3. Does deletion of 3'HS1 affect expression of β-globin in differentiating CD34+ cells.

The effect of the 3’HS1 deletion on β-globin is heterogenous in CD34+ cells between individual donors. We observed both increase and decrease of β-globin expression across different samples as shown in (Author response image 4) .

Author response image 4
https://doi.org/10.7554/eLife.70557.sa2

Article and author information

Author details

  1. Pamela Himadewi

    Center for Epigenetics, Van Andel Research Institute, Grand Rapids, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Validation, Visualization, Writing – original draft
    Contributed equally with
    Xue Qing David Wang and Fan Feng
    Competing interests
    No competing interests declared
  2. Xue Qing David Wang

    Center for Epigenetics, Van Andel Research Institute, Grand Rapids, United States
    Contribution
    Investigation, Writing – original draft
    Contributed equally with
    Pamela Himadewi and Fan Feng
    Competing interests
    No competing interests declared
  3. Fan Feng

    Department of Computational Medicine and Bioinformatics, University of Michigan, Ann Arbor, United States
    Contribution
    Data curation, Formal analysis, Software, Writing – original draft, Writing - review and editing
    Contributed equally with
    Pamela Himadewi and Xue Qing David Wang
    Competing interests
    No competing interests declared
  4. Haley Gore

    Center for Epigenetics, Van Andel Research Institute, Grand Rapids, United States
    Contribution
    Methodology, Writing – original draft
    Competing interests
    No competing interests declared
  5. Yushuai Liu

    Center for Epigenetics, Van Andel Research Institute, Grand Rapids, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  6. Lei Yu

    Cell and Development Biology, University of Michigan, Ann Arbor, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  7. Ryo Kurita

    Department of Research and Development, Central Blood Institute, Japanese Red Cross Society, Tokyo, Japan
    Contribution
    providing material
    Competing interests
    No competing interests declared
  8. Yukio Nakamura

    1. Cell Engineering Division, RIKEN BioResource Research Center, Tsukuba, Japan
    2. Faculty of Medicine, University of Tsukuba, Tsukuba, Japan
    Contribution
    provide research material
    Competing interests
    No competing interests declared
  9. Gerd P Pfeifer

    Center for Epigenetics, Van Andel Research Institute, Grand Rapids, United States
    Contribution
    Conceptualization, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5080-9604
  10. Jie Liu

    Department of Computational Medicine and Bioinformatics, University of Michigan, Ann Arbor, United States
    Contribution
    Conceptualization, Writing - review and editing
    For correspondence
    drjieliu@umich.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9504-0587
  11. Xiaotian Zhang

    Center for Epigenetics, Van Andel Research Institute, Grand Rapids, United States
    Present address
    Department of Pathology, University of Michigan, Ann Arbor, United States
    Contribution
    Funding acquisition, Data curation, Formal analysis, Project administration, Investigation, Methodology, Supervision, Conceptualization
    For correspondence
    xiaozhan@umich.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9533-4761

Funding

National Human Genome Research Institute (1R35HG011279-01)

  • Jie Liu

Van Andel Research Institute (Fellow program)

  • Xiaotian Zhang

American Society of Hematology (Scholar Program)

  • Xiaotian Zhang

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr. James Engel for valuable discussions and technical expertise on the HUDEP-2 cell culture and differentiation. XZ was supported by the VARI fellowship. XZ was supported by the ASH scholar award and is an EvansMDS Young Investigator.

Senior Editor

  1. Jessica K Tyler, Weill Cornell Medicine, United States

Reviewing Editor

  1. Michael D Bulger, University of Rochester, United States

Publication history

  1. Preprint posted: May 18, 2021 (view preprint)
  2. Received: May 21, 2021
  3. Accepted: September 22, 2021
  4. Accepted Manuscript published: September 29, 2021 (version 1)
  5. Version of Record published: October 8, 2021 (version 2)

Copyright

© 2021, Himadewi et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 703
    Page views
  • 127
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Chromosomes and Gene Expression
    Gemma LM Fisher et al.
    Research Article Updated

    Structural Maintenance of Chromosomes (SMC) complexes have ubiquitous roles in compacting DNA linearly, thereby promoting chromosome organization-segregation. Interaction between the Escherichia coli SMC complex, MukBEF, and matS-bound MatP in the chromosome replication termination region, ter, results in depletion of MukBEF from ter, a process essential for efficient daughter chromosome individualization and for preferential association of MukBEF with the replication origin region. Chromosome-associated MukBEF complexes also interact with topoisomerase IV (ParC2E2), so that their chromosome distribution mirrors that of MukBEF. We demonstrate that MatP and ParC have an overlapping binding interface on the MukB hinge, leading to their mutually exclusive binding, which occurs with the same dimer to dimer stoichiometry. Furthermore, we show that matS DNA competes with the MukB hinge for MatP binding. Cells expressing MukBEF complexes that are mutated at the ParC/MatP binding interface are impaired in ParC binding and have a mild defect in MukBEF function. These data highlight competitive binding as a means of globally regulating MukBEF-topoisomerase IV activity in space and time.

    1. Chromosomes and Gene Expression
    2. Developmental Biology
    Benoit Roch et al.
    Research Article Updated

    We developed an Xrcc4M61R separation of function mouse line to overcome the embryonic lethality of Xrcc4-deficient mice. XRCC4M61R protein does not interact with Xlf, thus obliterating XRCC4-Xlf filament formation while preserving the ability to stabilize DNA ligase IV. X4M61R mice, which are DNA repair deficient, phenocopy the Nhej1-/- (known as Xlf -/-) setting with a minor impact on the development of the adaptive immune system. The core non-homologous end-joining (NHEJ) DNA repair factor XRCC4 is therefore not mandatory for V(D)J recombination aside from its role in stabilizing DNA ligase IV. In contrast, Xrcc4M61R mice crossed on Paxx-/-, Nhej1-/-, or Atm-/- backgrounds are severely immunocompromised, owing to aborted V(D)J recombination as in Xlf-Paxx and Xlf-Atm double Knock Out (DKO) settings. Furthermore, massive apoptosis of post-mitotic neurons causes embryonic lethality of Xrcc4M61R -Nhej1-/- double mutants. These in vivo results reveal new functional interplays between XRCC4 and PAXX, ATM and Xlf in mouse development and provide new insights into the understanding of the clinical manifestations of human XRCC4-deficient condition, in particular its absence of immune deficiency.
