Piezo1 ion channels inherently function as independent mechanotransducers

  1. Amanda H Lewis
  2. Jörg Grandl  Is a corresponding author
  1. Department of Neurobiology, Duke University Medical Center, United States
Research Article
  • Cited 1
  • Views 495
  • Annotations
Cite this article as: eLife 2021;10:e70988 doi: 10.7554/eLife.70988

Abstract

Piezo1 is a mechanically activated ion channel involved in sensing forces in various cell types and tissues. Cryo-electron microscopy has revealed that the Piezo1 structure is bowl-shaped and capable of inducing membrane curvature via its extended footprint, which indirectly suggests that Piezo1 ion channels may bias each other’s spatial distribution and interact functionally. Here, we use cell-attached patch-clamp electrophysiology and pressure-clamp stimulation to functionally examine large numbers of membrane patches from cells expressing Piezo1 endogenously at low levels and cells overexpressing Piezo1 at high levels. Our data, together with stochastic simulations of Piezo1 spatial distributions, show that both at endogenous densities (1–2 channels/μm2), and at non-physiological densities (10–100 channels/μm2) predicted to cause substantial footprint overlap, Piezo1 density has no effect on its pressure sensitivity or open probability in the nominal absence of membrane tension. The results suggest that Piezo channels, at densities likely to be physiologically relevant, inherently behave as independent mechanotransducers. We propose that this property is essential for cells to transduce forces homogeneously across the entire cell membrane.

eLife digest

Cells can sense a range of mechanical forces both inside and outside the body, such as the stroke of a fingertip or the filling of a lung. Pores on the surface of the cell called Piezo channels open up in response to this pressure. This allows ions to flood in to the cell and trigger a series of biochemical reactions that alter the cell’s behavior.

Piezo channels have a unique bowl-like structure that transforms the shape of the cell surface around them, potentially affecting how nearby proteins behave. Previous research had suggested that these channels might be unevenly distributed across the cell surface, and were predicted to modify each other’s behaviors when tightly packed together. This cooperative response would have a significant impact on how cells sense mechanical force.

To investigate if this was the case, Lewis and Grandl studied a mouse cell called Neuro2A which naturally produces Piezo ion channels. In the experiment, pressure was applied to different parts of the cell and the electric current generated by ions moving across the surface was recorded: the higher the electrical activity, the more ion channels present. This showed that Piezo channels are randomly distributed across the cell surface and do not tend to cluster together. The same Neuro2A cells were then engineered to produce up to one hundred times more Piezo proteins. Despite the channels being more densely packed together, how they responded to mechanical force remained the same.

These results suggest that Piezo channels act independently and are not influenced by close proximity to one another. Lewis and Grandl propose that this property may ensure that all parts of the cell surface react to mechanical force in the same way. Further work is needed to see if this finding applies to other cell types that produce Piezo proteins.

Introduction

Cells are constantly exposed to mechanical forces and have evolved diverse molecular mechanisms that enable force detection. The rapid sensing of mechanical forces that occurs in milliseconds is achieved by force-gated ion channels that convert mechanical energy into electrochemical signals (Kefauver et al., 2020). For example, Piezo1 is a mechanically gated cation channel that directly senses membrane tension (T) with high sensitivity (Coste et al., 2010; Cox et al., 2016; Lewis and Grandl, 2015; Syeda et al., 2016). Therefore, theoretically, any mechanical disturbance of the cell membrane may lead to changes in Piezo1 channel open probability (Po). However, the propagation of membrane tension away from its source has been shown to be relatively slow (D ~ 0.024 µm2/s), poising Piezo channels with the ability to efficiently and rapidly transduce only mechanical forces that are nearby (Shi et al., 2018).

The degree to which forces are transduced homogeneously across the cell membrane likely depends not only on the dynamics of membrane tension propagation, but also on (i) the spatial distribution of force-gated ion channels, and (ii) on their functional independence.

Any substantial deviation from a uniform distribution of force-gated ion channels will result in domains that fail to detect forces (where there are no ion channels) as well as domains that transduce forces disproportionately (where many ion channels are nearby). Functional interactions and/or cooperativity between force-gated ion channels may further skew transduction efficiency or kinetics in a manner that depends on local channel density, effectively creating a patchwork of blind spots and sensitized areas. Indeed, there is recent experimental evidence suggesting that Piezo1 channels may be non-uniformly distributed. TIRF imaging of Piezo1 channels revealed their free diffusion over the surface of live neural stem/progenitor cells, indirectly suggesting channels are not tethered to other static structures and that random membrane distribution may be possible. However, in the same cells, Piezo1-related activity was spatially enriched, which could arise from non-uniform distribution of Piezo1 channels, variable membrane tension, or both (Ellefsen et al., 2019). STORM imaging of HEK293 cells stably expressing GFP-tagged Piezo1 also suggested a non-homogenous spatial distribution, but at channel densities that are likely not physiological (Ridone et al., 2020). Additional studies have proposed the existence of clusters with varying numbers of channels (Jiang et al., 2021), and that Piezo1 may be concentrated at focal adhesions (Mingxi Yao et al., 2020) and at wound edges in keratinocytes (Holt et al., 2021).

A compelling theoretical framework predicting spatial and functional interactions between nearby Piezo channels has been constructed based on cryo-electron microscopy structures of Piezo1, which revealed its large and extremely curved dome-shaped structure (Guo and MacKinnon, 2017; Haselwandter and MacKinnon, 2018; Saotome et al., 2018). Theoretical calculations based on these structures suggest that Piezo1 can both sense and curve the proximal membrane with a characteristic decay length extending ~14 nm beyond the channel. The energetic cost of this membrane curvature implies that Piezo1 channels that are within ~3 decay lengths (a ‘footprint’ of ~50 nm; see Materials and methods) may influence each other via multiple mechanisms: opposing curvature may cause nearby Piezo1 channels to repel each other, as well as influence each other’s gating properties (Haselwandter and MacKinnon, 2018). Indeed, imaging of vesicles containing reconstituted Piezo1 has demonstrated the ability of Piezo1 to curve the membrane locally and suggested that flattening of the channel dome may directly couple to channel opening, but the precise effects of membrane energetics on gating have yet to be explored experimentally (Jiang et al., 2021; Lin et al., 2019).

Here, we set out to quantify the spatial distribution and potential functional interactions of Piezo1 ion channels across multiple orders of channel densities. Specifically, we use electrophysiology and large numbers of independent measurements to simultaneously quantify channel number and function, including single-channel current, open probability, and pressure sensitivity. Collectively, our electrophysiological data, together with stochastic simulations show that Piezo1 ion channels, at densities likely to be physiologically relevant, inherently function as independent mechanotransducers. We propose that this property enables cells to transduce forces with high spatial homogeneity across the entire cell membrane.

Results

Piezo1 function at low channel densities

To simultaneously measure and thus directly correlate Piezo1 channel density with its gating properties, we performed cell-attached patch-clamp electrophysiology on Neuro2A cells, which natively express Piezo1 (Coste et al., 2010). We chose Neuro2A cells over human umbilical vein endothelial cells (HUVECs; Figure 1—figure supplement 1) and other cell lines because they have among the highest endogenous levels of Piezo1 expression, thus offering the highest likelihood for observing any potential functional effects of local channel density on function. We then designed a novel stimulation protocol that we optimized to assess Piezo1 single-channel conductance (i), pressure sensitivity (P50), and number of channels (n) in each patch with high accuracy. Since Piezo1 inactivation precludes a precise measurement of maximal current (Imax) at negative potentials, we recorded currents at +60 mV, where inactivation during short pressure steps is minimal (Coste et al., 2010; Wu et al., 2017). However, traditional step protocols are well known to induce irreversible changes in patch geometry owing to membrane creep, particularly at positive voltages (Lewis and Grandl, 2015; Suchyna et al., 2009). Indeed, a direct step to a saturating pressure (–60 mmHg) caused small, but measurable changes in current due to leak and/or capacitance even in patches that were later classified to have zero channels (see below; mean ± SD: 2.6 ± 1.3 pA; n=33 patches; Figure 1—figure supplement 2A-B). Consistent with this idea, the same pressure step caused a similarly small current in patches from Neuro2A-Piezo1ko cells, which have been CRISPR-engineered to lack Piezo1 channels (mean ± SD: 3.8 ± 1.5 pA, n=15 patches; Figure 1—figure supplement 2C). Consequently, a step protocol consistently overestimates current by 2–3 pA, and thus channel numbers accordingly (Figure 1—figure supplement 2B).

To overcome this limitation, we instead designed a protocol in which the pressure was decreased incrementally in 1 mmHg steps from 0 mmHg to –60 mmHg in 50 ms intervals, thus approximating a ramp (Figure 1A–D, top). The total duration of this ramp is short enough to minimize membrane creep (3 s), but each step is long enough (50 ms) to allow pressure equilibration, which occurs within ~7 ms (Lewis et al., 2017). Similar to the step protocol, the ramp protocol elicited small background changes in current amplitude in all patches. However, instead of the square-like current increases evoked by the step protocol, here the current changed more steadily, allowing us to perform linear background subtractions for each individual patch (Figure 1A–D, middle) and ultimately achieve a more reliable detection of channel gating events, which were easily discerned as nearly instantaneous changes in current amplitude (Figure 1A–D, top, arrows). We are confident that these slow changes in current are unrelated to Piezo gating, as currents clearly saturated after leak subtraction (Figure 1A–D, bottom). Additionally, we never observed channel openings during the ramp phase of the protocol in 15 patches from Neuro2A-Piezo1ko cells (data not shown). Ultimately, we decided to combine the ramp stimulus protocol with a subsequent brief (200 ms) saturating pressure step to –60 mmHg. Importantly, the step pulse allowed us to confirm post hoc that inactivation of Piezo1 at this voltage is minimal (step pulse: mean current at 200 ms = 96.5±7.4% of peak; n=281 patches; Figure 1—figure supplement 2A,D).

Figure 1 with 2 supplements see all
Low levels of Piezo1 expression in Neuro2A cells do not influence pressure sensitivity.

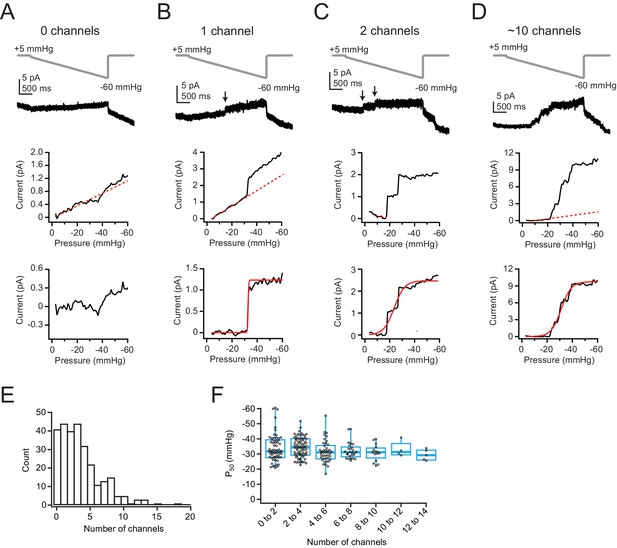

(A) Top, Pressure protocol (gray) and current (black) from a cell-attached patch from Neuro2A cells with zero channels. Holding potential was +60 mV. Middle, Current-pressure relationship for the same patch. Mean current was calculated for each step, in 1 mmHg increments, and plotted as a function of pressure. Note the linear relationship between current and pressure during the step, despite no channel activity in this patch (inferred from the lack of discrete channel opening events). This is likely due to small changes in seal quality and/or capacitance. The linear portion of the current-pressure relationship was fitted with a line (red dashes). Bottom, Current as a function of pressure after subtraction of the current corresponding to the fitted line. (B) As in (A), for a patch with one channel. Arrow indicates discrete channel opening event. Bottom, current was fitted with a Boltzmann equation (see Materials and methods). From the fit (red line), Imax, which corresponds to single-channel current, was 1.2 pA and P50 was –32.8 mmHg. (C) As in (A, B), for a patch with two channels. From the fit (red line), Imax was 2.5 pA and P50 was –23.6 mmHg. (D) As in (A–C), for a patch with many channels. From the fit (red line), Imax was 9.8 pA and P50 was –31.2 mmHg. (E) Histogram of channel number in each patch. n=281 patches. (F) P50 values, measured from sigmoidal fits to currents in (A–D), as a function of channel number. Bin width is two channels. n=281 patches.

Figure 1—source data 1

Low levels of Piezo1 expression in Neuro2A cells do not influence pressure sensitivity.

https://cdn.elifesciences.org/articles/70988/elife-70988-fig1-data1-v1.xlsx

Next, we focused on titrating the sizes of our patch pipettes such that a substantial fraction of patches had zero channels (Figure 1—figure supplement 2E; see Materials and methods for details). We limited our pipettes to 3–6.5 MΩ, reasoning that this choice maximizes our ability to detect potential channel clusters and thus resolve the overall spatial distribution of channels. Also, to address the possibility that Piezo1 cellular distribution could be altered by the cell-substrate interface, which we reasoned may trap Piezo1 channels and deplete them from cell-attached patch-recordings on the cell roof, we performed day-matched experiments of Neuro2A cells that had either been seeded to adhere overnight or were acutely replated <1 hr before recording, therefore allowing limited time for channel redistribution (see Materials and methods). Importantly, we found that the mean channel number and distributions in these two data sets were identical (mean ± SEM: overnight=2.4±0.4 channels, n=28 patches; acute=2.7±0.4 channels, n=26 patches, p=0.6, Student’s t-test; Figure 1—figure supplement 2F), which argues against an effect of channel redistribution to the cell-substrate interface. Finally, in order to obtain good representations of the spatial distribution and function of Piezo1 channels, we executed this protocol on patches from a very large number of individual Neuro2A cells (n=281).

After linear leak subtraction, we could easily recognize in most patches (248/281) discrete, nearly instantaneous increases in current amplitude that are reflective of individual channel openings, as well as clearly identify a plateau phase of the current (Figure 1B, middle). The remaining patches (33/281) were classified as having zero channels (e.g., Figure 1A). We next used the mean single-channel current from all patches with one channel (i=0.98±0.04 pA, n=35 patches; Figure 1—figure supplement 2G) to calculate the precise number of channels (n=Imax/i) in all other patches. Ultimately, we obtained a continuous, bell-shaped distribution of Piezo1 channel numbers per patch (Figure 1E). The distribution average was 3.5±3.1 channels per patch, which given our small pipette sizes is consistent with previously reported levels of expression in Neuro2A cells (Coste et al., 2010). We also applied each protocol twice per patch and then performed pairwise comparison of current amplitudes (Figure 1—figure supplement 2H-I). This analysis revealed an extremely low variability (ratio of 2nd/1st recording=1.1±0.4; n=261), supporting that the assessment of channel numbers is highly accurate. We estimated the dome size of membrane patches inside patch pipettes from imaging experiments to be 2 µm (see Materials and methods) and used this value to calculate the average density of Piezo1 channels to be 1–2 channels/µm2.

Next, we used two different approaches to assess if the density of Piezo1 channels affects their sensitivity to membrane tension: First, we calculated P50 values, measured from sigmoidal fits to the ramp phase of the current, and plotted them as a function of channel number (Figure 1F). Although P50 measurements varied widely in individual patches, especially for those with <5 channels, because of the stochastic nature of channel gating (e.g., Figure 1C), this variance is partially overcome by the large number of measurements we obtained (n=248). Importantly, while there was some variability between two protocols executed on the same patch, there was only a slight systematic shift in P50 values toward smaller pressures in the second protocol, likely due to creep and corresponding increase in patch radius (mean ± SD first=–33.1±7.2 mmHg, second=–31.1±7.7 mmHg; ΔP50=+2.0±8.2 mmHg; p<0.05, paired t-test; Figure 1—figure supplement 2J), providing further evidence that our protocol allowed for highly reproducible measurements. Altogether, the results show that, for patches containing 1–14 channels, average P50 values do not vary substantially with channel number (Figure 1F).

Still, to measure P50 values in patches with few channels more precisely, we also performed a different analysis: Specifically, we idealized recordings with ≦5 channels by identifying discrete openings (Figure 2A–E; see Materials and methods) and then averaged all idealized traces with equal channel numbers in order to obtain mean pressure-response curves (Figure 2B). Visual inspection as well as fits with sigmoidal functions show that P50 and slope (k) values are virtually identical for patches containing 1, 2, 3, 4, or 5 channels (1 channel: P50=–23.2 mmHg, k=–3.3 mmHg; 5 channels: P50=–23.7 mmHg, k=–4.2 mmHg). We therefore conclude from both analyses that at densities of up to 2 channels/µm2, Piezo1 channels do not influence each other’s mechanosensitivity.

P50 and slope values are identical for Neuro2A patches with 1–5 Piezo1 channels.

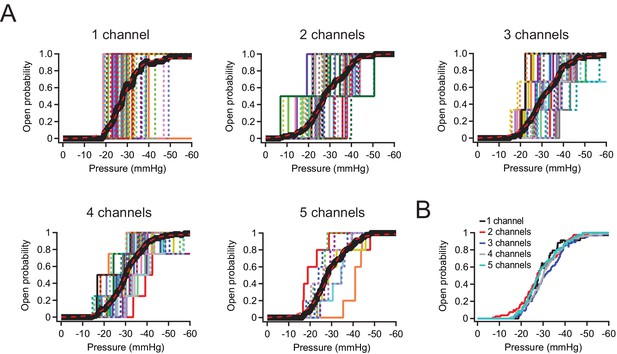

(A) Idealized current-pressure relationship for all patches with precisely 1–5 channels. Each patch is a different color/weight; thick black line is the mean open probability for all patches (see Materials and methods). Mean open probability was fit with a sigmoidal relationship (dashed red lines): 1 channel: P50=–23.2 mmHg, k=–3.3 mmHg, n=35 patches. 2 channels: P50=–23.6 mmHg, k=–5.1 mmHg, n=40 patches. 3 channels: P50=–25.9 mmHg, k=–4.5 print mmHg, n=33 patches. 4 channels: P50=–24.9 mmHg, k=–4.0 mmHg, n=27 patches. 5 channels: P50=–23.7 mmHg, k=–4.2 mmHg, n=9 patches. (B) Overlaid mean open probability as a function of pressure for patches with precisely 1, 2, 3, 4, or 5 channels.

Figure 2—source data 1

P50 and slope values are identical for Neuro2A patches with 1–5 Piezo1 channels.

https://cdn.elifesciences.org/articles/70988/elife-70988-fig2-data1-v1.xlsx

Spatial distribution of Piezo1

Multiple mechanisms may explain our above result that Piezo1 pressure sensitivity does not vary with channel density. First, Piezo1 channels may be randomly distributed and therefore spatially too distant to functionally interact via their membrane footprints. Alternatively, Piezo1 channels may indeed tend to localize in close spatial proximity (i.e., groups of 2–3 channels), but this localization may have no effect on their pressure sensitivity. To begin distinguishing among these possibilities, we built a statistical model for spatial localization, based on a Thomas point process (see Materials and methods for details). First, we simulated a distribution of randomly dispersed Piezo1 channels. Then we randomly sampled from this population, accounting for variability of pipette sizes and single-channel currents by using our experimental mean values and standard deviations of pipette size and single-channel conductance (Figure 1—figure supplement 2E,G). The resulting distribution fits the experimental data reasonably well, indicating that in Neuro2A cells, Piezo1 channels may be homogenously distributed across the cell surface, rather than being spatially localized in close proximity (Figure 3A–F).

Piezo1 distribution in Neuro2a cells is best explained by little or no clustering of channels.

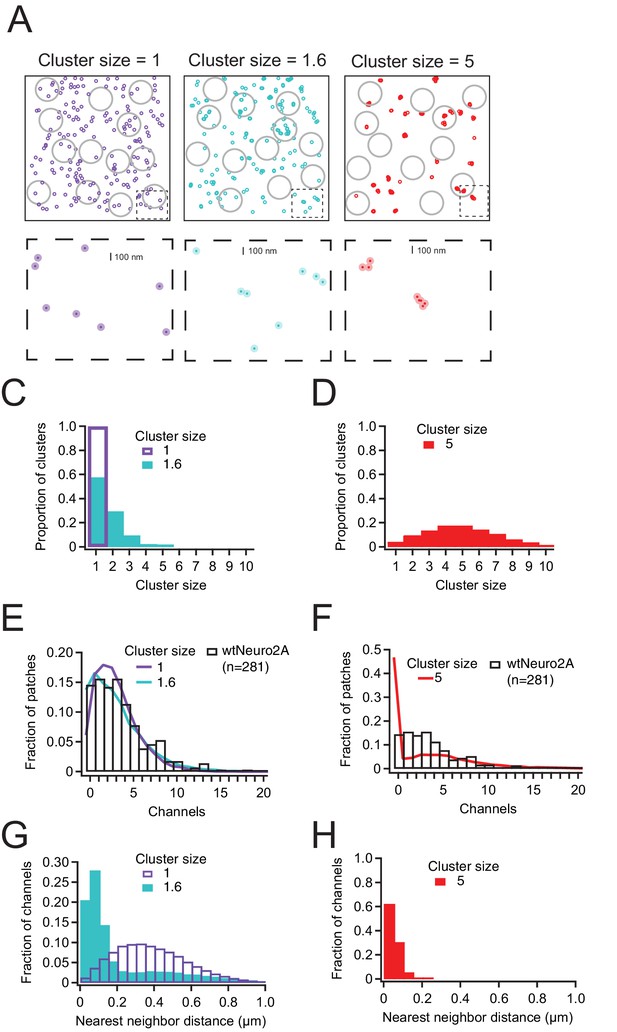

(A) Representative channel distributions generated using a Thomas point process with overall densities equivalent to that of wild-type Neuro2A cells (~1.75 channels/µm2); in each condition, daughter ‘channels’ are assigned to a center ‘parent’disc, with a mean distance of 50 nm (~1 Piezo footprint) from the center of the disc. Three separate degrees of clustering (cluster size) were introduced; one in which every cluster has precisely one channel, one with a mean of 1.6 channels per cluster, and one with a mean of 5 channels per cluster. Gray circles represent model patch domes used to sample the distributions, with a mean radius of 0.8 µm. Below, insets (dashed boxes) of each distribution; dark circles are the projected area of the Piezo footprint to scale; light circles are ~3× the membrane footprint for each channel (radius=50 nm). (C, D) Distributions of channels per cluster for mean cluster sizes of 1 and 1.6 (C) and 5 (D). (E, F) Normalized histogram of channels per patch for wild-type Neuro2A cells for mean cluster sizes of 1 and 1.6 (E) and 5 (F). (G, H) Histogram of nearest-neighbor distances for mean cluster sizes of 1 and 1.6 (G) and 5 (H).

Figure 3—source data 1

Piezo1 distribution in Neuro2a cells is best explained by little or no clustering of channels.

https://cdn.elifesciences.org/articles/70988/elife-70988-fig3-data1-v1.xlsx

In order to challenge this interpretation, we next simulated a random distribution of Piezo1 clusters in which individual Piezo channels are distributed across a 2D-Gaussian distribution with a standard deviation of 50 nm, which is the estimated size of the Piezo channel footprint (Haselwandter and MacKinnon, 2018; see Materials and methods), all while holding the overall channel density constant. Strikingly, a distribution in which on average 1.6 Piezo1 channels (drawn from a Poisson distribution centered at 1; see Materials and methods) interact over 50 nm also describes the experimental data well. However, simulating larger channel clusters (n ~ 5) fails to reproduce the experimental distribution, specifically the probability of capturing patches without any channels (Figure 3A–F). Thus, our experimental data are most parsimoniously explained by either a random spatial distribution or a weak propensity for Piezo channels to spatially localize in groups of 2–3. Interestingly, the two distributions differ significantly in the predicted fraction of channels that are within one footprint of at least one other channel: in a truly random distribution, the mean nearest-neighbor distance is ~390 nm, and only ~5% of channels are within 100 nm of another channel, whereas if channels tend to cluster in groups of 2–3, the mean nearest-neighbor distance is reduced to 225 nm and almost 50% of channels are within 100 nm of another channel (Figure 3G–H). However, our functional data support the idea that if the latter spatial localization indeed occurs, it does not have a substantial effect on Piezo1 pressure sensitivity (Figures 1 and 2).

Piezo1 function at high channel densities

Our above results do not answer if, in principle, Piezo1 channels have the ability to functionally interact. We therefore decided next to examine Piezo1 function using a heterologous overexpression system, in which channel densities are much higher. For these experiments, we chose Neuro2A-Piezo1ko cells, in order to retain the same cellular background, but avoid heterogeneity from endogenous and overexpressed Piezo1, especially given that there are known splice variants of Piezo1 (Geng et al., 2020). In pilot experiments, we found that transfection with Lipofectamine 2000 maximizes channel density 42–48 hr post-transfection (data not shown). We first repeated our previous ramp protocol, but found that while overexpression yields peak currents that are much larger, these currents inactivate to a larger extent even at +60 mV, such that a ramp protocol substantially underestimates the total number of channels in the patch (Figure 4—figure supplement 1; current at 200 ms=53.3±18.1% of peak, n=138 patches). Therefore, we instead chose to use a classic pressure-step protocol to best measure both peak current (Imax) and pressure sensitivity (P50 and k) (Figure 4A–B). While the step protocol still produces a 2–3 pA background current at high pressures, owing to changes in leak and/or capacitance, here, this error is very minor compared to the large Piezo-mediated currents (generally 20–200 pA), especially for patches with many channels. To reduce bias from resting membrane tension, each pressure step was preceded by a 5 s +5 mmHg prepulse, the first 4 s of which was applied at –80 mV to minimize the cumulative effects of positive voltage on membrane creep (Suchyna et al., 2009). We used a pressure increment (ΔP) of –5 mmHg, so that we could better resolve small changes in pressure sensitivity, but limited the duration of each step to 250 ms to again minimize membrane creep (Figure 4A and B).

Figure 4 with 4 supplements see all
Density of overexpressed Piezo1 channels does not affect resting open probability or pressure sensitivity.

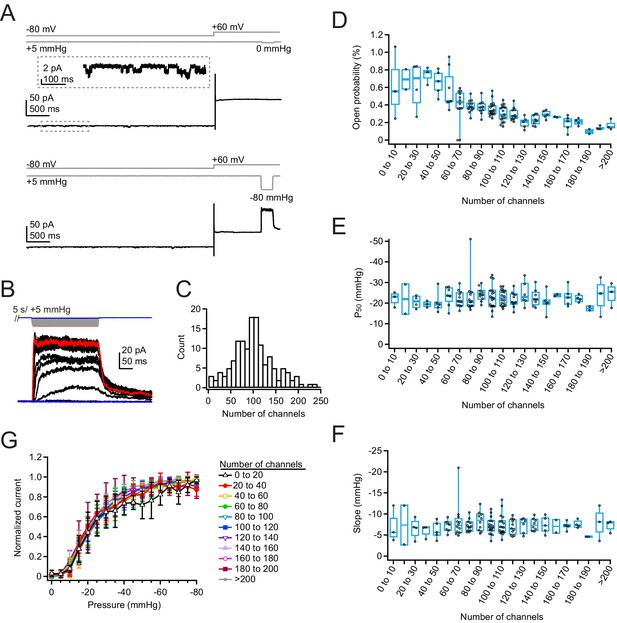

(A) Pressure protocol (gray) and current from a cell-attached patch from a Neuro2A-p1ko cell overexpressing mouse Piezo1. Pressure steps to 0 mmHg (top) and –80 mmHg (bottom) were preceded by a 5 s prepulse to +5 mmHg to relieve resting membrane tension. Top inset shows spontaneous single-channel activity at –80 mV during the prepulse, used to calculate open probability in the nominal absence of tension. (B) Full pressure-response protocol and currents for the cell in (A). Pressure steps were from 0 to –80 mmHg in –5 mmHg increments. (C) Histogram of channel counts, obtained by dividing the peak current elicited during the protocol in (A) by the single-channel current measured from unitary events (see also Figure S5). n=144 patches. (D) Open probability during the +5 mmHg prepulse as a function of number of channels. n=2–18 patches. (E) P50 values measured from sigmoidal fits to current-pressure relationships from the protocol in (B) as a function of number of channels. (F) Slope (k) values measured from sigmoidal fits to current-pressure relationships from the protocol in (B) as a function of the number of channels. (G) Mean pressure-response curves, generated by first normalizing each patch to its maximal current, binning by number of channels, then averaging normalized currents at each pressure. n=2–18 patches.

Figure 4—source data 1

Density of overexpressed Piezo1 channels does not affect resting open probability or pressure sensitivity.

https://cdn.elifesciences.org/articles/70988/elife-70988-fig4-data1-v1.xlsx

The low channel activity during the prepulse allowed us to measure the single-channel current of each individual patch at both –80and +60 mV (Figure 4—figure supplement 2B,C) and therefore to precisely calculate the minimal number of channels (n=Imax/i). This is particularly important in a cell-attached configuration, where even in a high K+ solution, there can be slight variance in the resting membrane potential and correspondingly variance in the single-channel current in each cell that introduces an additional source of error. Importantly, there was no correlation between number of channels and single-channel current, suggesting that unitary conductance of Piezo1 is not modulated by channel density (Figure 4—figure supplement 2E,F). As before, we restricted our pipettes to 3–6.5 MΩ, a range in which peak current amplitudes do not vary substantially (Figure 4—figure supplement 3A). We again repeated this measurement for many individual patches (n=144 patches) in order to capture an accurate representation of channel densities and functional interactions.

The number of channels per patch was well described by a Gaussian distribution with 89.2±49.8 channels per patch (Figure 4C), which we estimate corresponds to a Piezo1 density of ~45 channels/µm2 (see Materials and methods). The most extreme current amplitude we observed (–190 pA, or ~200 channels) corresponds to a maximal density of ~100 channels/µm2. At this maximal density, if Piezo channels were randomly distributed in the membrane, their mean next-neighbor distance would be ~50 nm (Figure 4—figure supplement 4). This calculation suggests that we have reached densities in which Piezos are likely in close enough proximity to influence each other’s function. Moreover, this calculation likely represents a slight underestimate of the true channel density, as residual inactivation at positive potentials may lead to a population of ‘silent’ channels that do not manifest themselves functionally.

Two groups had previously predicted that nearby Piezo1 channels may influence each other’s gating, even in the absence of membrane tension (Haselwandter and MacKinnon, 2018; Jiang et al., 2021). We therefore chose first to analyze the activity during the prepulse, which is designed to minimize resting membrane tension. We found that open probability was generally small (<1%), which was consistent with previous work in our lab (Wu et al., 2016). Most notably however, we found that Piezo1 open probability did not increase with channel density; rather, open probability slightly decreased, from 0.6±0.4% for patches with 1–10 channels (mean ± SD; n=3 patches) to 0.2±0.1% for patches with >200 channels (n=3 patches) (Figure 4D). There was no change in open probability with pipette resistance, indicating that variability in the ability of the prepulse to minimize resting tension with pipette size does not account for this trend in open probability with channel number (Figure 4—figure supplement 3B).

As an alternative test, we measured the effect of channel number on pressure sensitivity. Both slope and P50 values were unaffected by channel number (Figure 4E–F), and these values were also unaffected by pipette size (Figure 4—figure supplement 3C-D). However, patches with small ensembles of channels (<20) yielded imprecise estimates of P50 and slope values for two reasons: First, for patches with few channels, the stochastic nature of channel gating generates highly variable individual pressure-response curves. Second, the relatively few patches we obtained with low channel numbers resulted in large errors in mean value estimates. Therefore, we also analyzed the data in a separate way: we normalized each patch to its maximal current, binned patches according to their number of channels, and then averaged pressure-response curves (Figure 4G). The results again show that pressure-response curves and sensitivity (slope) are independent of channel numbers (for 0–20 channels, P50=–21.5 mmHg, k=–8.0 mmHg, n=5; for >200 channels, P50=–21.0 mmHg, k=–6.8 mmHg, n=3).

Finally, we combined our electrophysiological pressure-step protocol with differential interference contrast (DIC) imaging to directly measure the relationship between channel density and membrane tension (Lewis and Grandl, 2015; Figure 5A–C). In these experiments, we were able to independently calculate channel density for each individual patch by dividing the number of channels in each patch by its visualized surface area at 0 mmHg (see Materials and methods; Figure 5—figure supplement 1). This more detailed approach also allowed us to rule out that deviations in pipette size create a systematic bias on P50 values, as radius, and therefore tension, is measured for each individual patch and applied pressure. Importantly, we found no correlation between either the tension of half-maximal activation (T50) or the slope (k) and channel density in the range of 10–70 channels/µm2 (Figure 5D–F), again supporting that Piezo1 channels do not influence each other’s tension sensitivity. Altogether, we conclude that at low and high densities, Piezo1 channels show no positive cooperativity in the presence or in the nominal absence of membrane tension.

Figure 5 with 1 supplement see all
Density of overexpressed Piezo1 channels does not affect tension sensitivity.

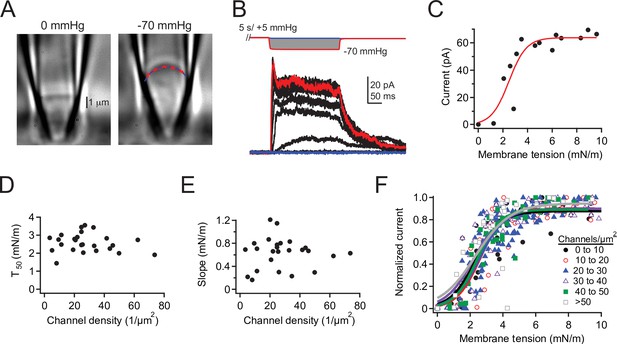

(A) DIC image of a cell-attached patch from a Neuro2A-p1ko cell expressing mouse Piezo1 at 0 mmHg (left) and –70 mmHg (right). Red dashed line represents a circle fit to the membrane outline in blue and was used to calculate patch radius (see Materials and methods). (B) Full pressure-response protocol and currents from the patch in (A). Pressure steps were from 0 to –70 mmHg in –5 mmHg increments. (C) Peak current during the pressure step as a function of tension for the patch in (A), calculated from patch radius using Laplace’s law (see Materials and methods). Red line is a sigmoidal fit used to calculate half-maximal tension for activation (T50)and slope (k) using the equation.I=Imax1+eT50-Tk(D, E) T50 and slope values (k) as a function of channel density. n=25 patches. (F) Mean tension-response curves, generated by first normalizing each patch to its maximal current, binning by channel density, then fitting all data as a function of tension. 0–10 channels: T50=2.3±0.2 mN/m, k=0.8±0.1 mN/m; 10–20 channels: T50=2.6± 0.2 mN/m, k=0.7±0.2 mN/m; 20–30 channels: T50=2.6 ± 0.1 mN/m, k=0.8 ± 0.1 mN/m; 30–40 channels: T50=2.2±0.2 mN/m, k=0.9 ± 0.2 mN/m; 40–50 channels: T50=2.4 ± 0.1 mN/m, k=0.7 ± 0.1 mN/m; >50 channels: T50=2.3±0.4 mN/m, k=1.1±0.4 mN/m. n=2–9 patches. DIC, differential interference contrast.

Figure 5—source data 1

Density of overexpressed Piezo1 channels does not affect tension sensitivity.

https://cdn.elifesciences.org/articles/70988/elife-70988-fig5-data1-v1.xlsx

Discussion

We sought to characterize the inherent ability of Piezo channels to spatially localize and modulate each other’s function. We chose cell-attached patch-clamp electrophysiology as a method for investigation, which has several inherent limitations that need to be considered.

First, our spatial resolution is naturally limited by the size of the patch pipette. Consequently, our statistical approach of counting channels within membrane patches works best when the spatial distance between Piezo1 channels is comparable to the size of the membrane dome inside the patch pipette. The fact that ~15% of patches in wild-type Neuro2A cells contained no Piezo1 channels (Figure 1E) is therefore an extremely important quality benchmark for adequate spatial resolution. Our modeling does not allow us to rule out the possibility of moderate clustering (2–3 Piezo1 channels), but we find no evidence for clusters of larger sizes (~5 channels), which we would have been able to detect (Figure 3).

Next, our measurement of endogenous Piezo1 density in Neuro2A cells (1.75 channels/µm2) has several sources of error: first, while we have modest control over the pipette shape during its fabrication and a precise measure of its resistance, without simultaneous DIC imaging, the exact surface of each individual membrane dome is not known. In order to minimize this size variability, we therefore limited the majority of our analyses to measurements from a narrow range of pipette resistances and incorporated this size variability of patch pipettes into our statistical model of Piezo1 spatial distribution (Figure 1—figure supplement 2D). Additionally, we performed a smaller subset of experiments combining simultaneous DIC imaging with electrophysiology (Figure 5).

Certainly, when overexpressing Piezo1 the variability in Piezo1 membrane levels is high, in part due to variable expression levels among cells. Assessing Piezo1 expression levels is also subject to error due to the presence of inactivation, which prevents reaching a Po=1. Specifically, channels inactivating during the rising phase of the current, as well as the presence of ‘silent’ channels that fail to respond to the stimulus entirely, contribute to this error. However, none of the above statistical errors, or others we did not consider and that skew channel number distributions, affect our ability to correlate Piezo1 channel number with its function.

The weaknesses of cell-attached patch-clamp electrophysiology are balanced by two clear strengths: the method has relatively high throughput so that large numbers of independent measurements yield good population averages, and it has unmatched precision: channel density and function, including single-channel current, open probability, and pressure sensitivity can be extracted over 2 orders of magnitude (1–100 channels/µm2) with high accuracy. For example, repeated execution of pressure ramps on each patch revealed that channel number (n) is measured with only 24% variability, demonstrating that this assessment is extremely accurate.

Neither endogenous Piezo1 in Neuro2A cells or overexpression of Piezo1 in Neuro2A-P1ko cells are perfect model systems for investigating how Piezo1 channels function when they are directly contacting each other: experimental channel densities do not reach the theoretical limit of a tightly packed 2D hexagonal lattice. However, the maximal densities we obtained are certainly sufficient for Piezo1 membrane footprints to geometrically overlap: for example, at the highest density we measured (~100 channels/µm2), the centers of randomly spaced Piezo1 domes are on average 50 nm from their nearest-neighbor, which results in a substantial number of channels having overlapping membrane footprints (Figure 4—figure supplement 4; Haselwandter and MacKinnon, 2018). In any case, two distinct analyses show that at densities of 1–2 channels/µm2 (Figures 12) and 10–100 channels/µm2 (Figures 45), Piezo1 pressure and tension sensitivity are not modulated by channel numbers. A mechanistic explanation for this result at low densities is directly provided by our data and statistical model of spatial distributions, which suggest that in Neuro2A cells, Piezo1 channels are either randomly distributed or have at best a very low probability of aggregating. This is consistent with Haselwandter and MacKinnon’s prediction that the Piezo structure favors channels to repel each other. However, the result does not mean that Piezo1 channels in close proximity can never be found. At native expression levels, a mild tendency for clustering predicts 20% of all Piezo1 channels will be within 50 nm of each other (cluster size=1.6; Figure 3G), which is fully consistent with studies that have captured images of neighboring Piezo1 channels (Ridone et al., 2020), but 80% of all Piezo1 channels are outside this range. In other words, in wild-type Neuro2A cells, most Piezo1 channels are too far apart to ‘feel’ each other. As a consequence, they behave as functionally independent mechanotransducers. This result is important, because it shows that Piezo1 channels have no strong intrinsic tendency to spatially concentrate and functionally modulate each other’s mechanical sensitivity. Both of these properties are ideal for a cell in order to transduce mechanical forces homogeneously.

Still, does the Piezo1 membrane footprint allow for the possibility of cooperativity among nearby channels? Our experiments at high channel densities (up to 100 channels/µm2) reveal no change in Piezo1 pressure sensitivity with increasing channel numbers. Surprisingly, our data do suggest that in the nominal absence of membrane tension Piezo1 open probability is slightly (~0.5%) reduced with channel number but overall, very low (<1%) at all channel densities we probed. This is notable, because the opposite result was recently obtained by simulations of Piezo1 that are in extreme proximity to each other (1–3 nm dome-dome distance; Jiang et al., 2021). The reasons for this discrepancy may be technical limitations in the modeling, which was performed with a partial Piezo1 structure, or our own experiments, which cannot generate the extreme channel densities probed in the simulation. Moreover, any cooperativity need not arise via membrane footprint interactions: for example, calcium permeating through Piezo1 may influence the resting open probability of nearby channels. Indeed, calcium-induced cooperativity is a well-known phenomenon in other ion channels, such as TRPA1 (Wang et al., 2008). Our experiments cannot directly rule out this explanation.

Altogether, our conclusions may be applicable to other cell types that express Piezos at levels similar or lower to that of Neuro2A cells. However, we fully expect that specific cell types may concentrate Piezo channels into locations that are dedicated to detecting forces. For example, it is plausible that in sensory neurons Piezo2 channels may be highly concentrated in free nerve endings as compared to the cell soma. However, our work directly predicts that if such a clustering was indeed observed, it would require a dedicated mechanism that is not Piezo-intrinsic, such as a still elusive tethering molecule.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Cell line (Mus musculus)Neuro2AATCC#CCL-131
Cell line (M. musculus)Neuro2A-p1koGift of Gary Lewin; Moroni et al., 2018
Cell line (Homo sapiens)HUVECS, pooledClonetics CC-2519
Transfected construct (M. musculus)Piezo1-IRES-GFPGift of Ardem Patapoutian; Coste et al., 2010

Cell culture

Request a detailed protocol

Wild-type Neuro2A cells (ATCC #CCL-131) and Neuro2A-p1ko cells (a gift of Gary Lewin) were cultured at 37°C and 5% CO2 in Minimum Essential Medium (Thermo Fisher Scientific) supplemented with 0.1 mM non-essential amino acids, 1 mM pyruvate, 10% fetal bovine serum (Clontech), 50 U/ml penicillin, and 50 mg/ml streptomycin (Life Technologies). Both cell lines were STR authenticated by ATCC and tested in-house for mycoplasma via PCR (ATCC #30-1012K). HUVECs (Clonetics CC-2519, pooled) were cultured in EGM-1. For experiments without transfection, cells were directly plated on poly-L-lysine and laminin-coated coverslips 16–24 hr before recording. For overexpression experiments, cells were transiently transfected with 4 µg mouse Piezo1-pIRES-EGFP in pcDNA3.1(+) or 4 µg YFP 40–48 hr before recording in six-well plates using Lipofectamine 2000 (Thermo Fisher Scientific) according to the manufacturer’s protocol. Transfected cells were reseeded onto poly-L-lysine and laminin-coated coverslips or glass-bottomed dishes (for imaging; MatTek Corporation P50G-0-30F) 16–24 hr before recording. Only one patch was made from each cell; in some cases, two protocols were run on each patch (as noted). For acute plating experiments, cells were reseeded onto poly-L-lysine and laminin-coated coverslips, allowed to settle for 45 min, and then recorded for up to one additional hour.

Electrophysiology

Request a detailed protocol

Electrophysiological recordings were performed at room temperature using an EPC10 amplifier and Patchmaster software (HEKA Elektronik, Lambrecht, Germany). Data were sampled at 5 kHz (wild-type Neuro2A) or 10 kHz (Neuro2a-p1ko + mPiezo1) and filtered at 2.9 kHz. The cell-attached bath solution used to zero the membrane potential was (in mM): 140 KCl, 10 HEPES, 1 MgCl2, 10 glucose, and pH 7.3 with KOH. Borosilicate glass pipettes (1.5 OD, 0.85 ID, Sutter Instrument Company, Novato, CA) were filled with pipette buffer solution (in mM): 130 NaCl, 5 KCl, 10 HEPES, 10 TEACl, 1 CaCl2, 1 MgCl2, and pH 7.3 with NaOH. In a small dataset obtained with pipettes with a resistance of less than 3 MΩ, peak current was strongly correlated with pipette size and few patches had zero channels (Figure 1—figure supplement 2E); we therefore restricted our final data set to pipettes between 3 and 6.5 MΩ. Negative pressure was applied through the patch pipette with an amplifier-controlled high-speed pressure clamp system (HSPC-1; ALA Scientific Instruments, Farmingdale, NY). All pressure protocols were preceded by a +5 mmHg prepulse (ramp protocol, 2 s at +60 mV; step protocol, 4 s at –80 mV, and 1 s at +60 mV) to remove resting tension due to the gigaseal (Lewis and Grandl, 2015).

Imaging

Request a detailed protocol

Imaging was performed as described (Lewis and Grandl, 2015). Briefly, images were captured at a rate of ~13 frames/s at a resolution of 61.5 pixels/µm using a Plan Apo (100×) DIC oil objective coupled with a Coolsnap ES camera and 4× relay lens (Nikon Instruments). Images were analyzed in Igor Pro 8.02 (WaveMetrics) using custom scripts available in our Github repository (github.com/GrandlLab). The membrane was identified by performing a line scan parallel to the pipette walls and localizing the minimum pixel intensity over a rolling average of 5–9 pixels and fitting the output with a circle to obtain radius (R). Tension (T) was then calculated for each pressure step (p) using Laplace’s law: T=R*p/2. The surface area of each patch (Figure 5—figure supplement 1) was calculated from the radius at 0 mmHg by fitting the patch dome as a spherical cap and manually estimating the contact points between the membrane and the pipette walls.

Quantification and statistical analysis

Request a detailed protocol

All data were analyzed and final plots were generated using Igor Pro 8.02 (WaveMetrics).

For currents measured during ramp protocols, current was binned for each pressure (1 mmHg increments) and any linear changes in current prior to the first channel opening were manually identified, attributed to capacitive and/or leak changes, and subtracted off prior to further analysis. Current-pressure curves were fit with a Boltzmann function

I=Imin+Imax1+e(P50Pk)

where Imax is the maximal current, P is pressure, P50 is the pressure of half-maximal activation, and k is the slope factor. The number of channels in each patch was calculated by dividing Imax by the mean single-channel current from all patches with precisely one channel (i.e., Imax during the ramp phase for patches with only one visually identified discrete opening, Figure 1) or from single-channel openings during the +60 mV prepulse (step recordings with overexpressed channels, Figures 4 and 5). In some recordings, no unitary events were observed at +60 mV during the +5 mmHg prepulse, and pressure was manually adjusted in 1 mmHg increments until single-channel openings were elicited.

Single-channel currents during the +5 mmHg prepulse were filtered offline (1 kHz) using Fitmaster v2 × 90.2 and baseline-subtracted using QuB online software (Nicolai and Sachs, 2014). Single-channel amplitudes during the prepulse were measured by generating all-points histograms with binning calculated using the Freedman-Diaconis method and an optimal bin width of 2*IQR(x)/N1/3, where IQR is the interquartile distance, N is the number of observations, and the bins are evenly distributed between the minimum and maximum values. Binned data were then fit with a double-Gaussian equation of the form

y=y0+A1*e-x-x1w12+A2*e-x-x2w22

where y0 is the baseline current, A1 and A2 are the peak amplitudes, x1 and x2 are the centers of the fits, and w1 and w2 are their respective widths. The difference between x1 and x2 reflects the difference between the mean current in the open and closed state and was used to calculate single-channel current i.

Open probability during the prepulse was calculated as the mean current (i*n*Po) divided by the maximum current elicited for that patch at saturating pressures, assumed to be Po=1 (i*n). For currents measured during step protocols, to reduce artifacts from noise, the peak was measured from a 0.5 ms rolling average around the true peak and the steady-state current was calculated as the mean current during the last 10 ms of the step. To generate idealized currents (Figure 2), the number of channels (n) in each patch, as well as the time of openings, were manually identified. The open probability at a given time was taken as the fraction of total channels in the patch that were open. Owing to the lack of inactivation of endogenous currents at +60 mV, as well as the continually increasing pressure, channel closings were rare. Patches with larger numbers of channels (3–5) are underrepresented due to the increased difficulty in identifying discrete openings. Data are reported as mean ± SD unless otherwise indicated. For box and whisker plots, boxes represent median and first and third quartiles.

Thomas clustering model

Request a detailed protocol

A model for spatial distribution of Piezo1 ion channels was built using a Thomas point process in IGOR Pro 8.02 (WaveMetrics) using custom scripts available in our Github repository (https://github.com/GrandlLab/PiezoClusteringModel copy archived at swh:1:rev:c4463867f753c41d4a92ff25a03ceb6131bfbc22, Baddeley, 2015, Grandl, 2021). Parent discs were randomly distributed in a 50 µm × 50 µm arena. Each parent disc was then randomly assigned a varying number of daughter points. For a truly random distribution (mean cluster=1) every parent disc was assigned precisely one daughter point. To introduce a slight propensity for channels to cluster, the number of daughter points were drawn from a Poisson distribution centered at 1, such that the mean cluster size (for populated clusters) was 1.6. To introduce a stronger propensity to cluster, the number of daughter points was drawn from a Poisson distribution centered around 5 (mean cluster=5); Figure 3A. The densities of parent discs and daughter points were adjusted such that their product, and thus the final number of daughter points in the arena, was equivalent to that of the wild-type Neuro2A data set (1.75 channels/µm2). Daughter points were then distributed in each parental disc according to a Gaussian distribution with an average distance of sigma=50 nm from the center of the disc, or roughly the distance of three Piezo footprint decay lengths. The arena was then sampled with 1000 circles whose centers were uniformly distributed within the arena. To replicate variability in pipette size/patch dome size as source of noise, the mean radius of all circles was 0.8 µm (see below) with a standard deviation of 0.15 μm, which corresponds to our mean pipette size of 4.35 MΩ and standard deviation of 0.8 MΩ (Figure 5—figure supplement 1). Finally, the number of daughter points (channel counts) within each circle was then counted. To further account for variability in transmembrane potentials as a source of noise, we translated channel counts into current amplitudes using our experimentally obtained normal distribution of single-channel currents, which yielded a mean single-channel current of 0.98 pA and standard deviation of 0.22 pA (Figure 1—figure supplement 2G). Current amplitudes were then reverted into channel counts and used to generate a channel count histogram. Nearest-neighbor distributions were obtained from the same simulated distributions as above, by calculating a distance matrix between all channel centers and taking the minimal distance for each row.

Calculation of channel footprint and density

Request a detailed protocol

The characteristic decay length (λ) of membrane deformation induced by the large curved dome of Piezo1 is estimated to be 14 nm (Haselwandter and MacKinnon, 2018). We put upper bounds of possible Piezo energetic interactions due to membrane curvature beyond the dome itself as 3× this decay length; when adding this to the radius of the channel dome, this yields an approximate total membrane footprint of (10 nm +3*14 nm ~ 50 nm).

From our imaging data (Figure 5 and Figure 5—figure supplement 1), we estimated that patch domes from pipettes 3 to 6 MΩ have an approximate surface area of 2 µm2. If the patch dome is approximated as a flat circle, this corresponds to a pipette radius of 0.8 µm, which was used for simulation of Piezo1 spatial distribution in the Thomas point process model. For native expression in Neuro2A cells, our average channel count was 3.5 channels, which corresponds to an average density of 1.75 channels/µm2. For overexpression of Piezo1 in Neuro2A-p1ko cells, our average channel count was ~100 channels, which corresponds to an average density of 50 channels/µm2. For the maximal channel number we observed (~200 channels), with an estimated in-plane area of 400 nm2 (Wang et al., 2019), an estimated footprint of 7800 nm2 (calculated from a footprint of 50 nm; Haselwandter and MacKinnon, 2018) and a patch dome surface area of 2 µm2, approximately 4% of the membrane surface would be covered by Piezo channels and 78% of the surface covered by Piezos + corresponding footprints if channels were evenly distributed (with no overlap of footprints).

Data availability

Source data files have been provided with the numerical data for each figure.

References

  1. Book
    1. Baddeley A
    (2015)
    Spatial Point Patterns: Methodology and Applications with R
    Chapman and Hall/CRC.

Decision letter

  1. Merritt Maduke
    Reviewing Editor; Stanford University School of Medicine, United States
  2. Richard W Aldrich
    Senior Editor; The University of Texas at Austin, United States

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

The work provides important mechanistic detail on how Piezo channels, which are widespread and versatile mechanoreceptor molecules, functionally interact in the plane of the plasma membrane. It will be of interest to the field of mechanobiology and sensory mechanotransduction.

Decision letter after peer review:

Thank you for submitting your article "Piezo1 ion channels inherently function as independent mechanotransducers" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Richard Aldrich as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

Lewis and Grandl propose that Piezo1 channels density does not have an effect on pressure sensitivity and that these channels do not cooperate in the nominal absence of membrane tension. To arrive at this conclusion the authors combined single channel measurements along with stochastic simulations of Piezo1 spatial distributions. An important element of this study is the use of two types of cells, one with intrinsically low level of Piezo1, and another with overexpressed channel. An interesting technical aspect is the use of a ramp pressure protocol, which overcomes the drawbacks of the standard step pressure method and help better estimate mechanosensitivity.

The topic of this manuscript is timely and relevant as the study of this family of ion channels is still very new and the details of their gating mechanism are unknown, and the central conclusion is important for understanding the physiological role of Piezo1 is various types of mechanically sensitive cells.

Although the manuscript is a tour de force, there are some concerns that should be addressed to validate the conclusions.

1) Patch imaging to validate conclusions. We note that the authors departed from their previous strategy of patch visualization and direct tension determination (Lewis and Grandl, eLife 2015). We do understand how tedious these experiments are, but the use of this approach in some of the trials would make this particularly study cleaner and more conclusive. The authors never mention tension as the parameter driving gating, and they work exclusively in the units of pressure. They postulated that their pipettes ranging between 3 and 6 MOhm in resistance provide 'standard' patches of given size and curvature. In fact, this range of resistances is large and roughly translates into a 1.4-fold difference in pipette diameters. If we look at Supplemental Figure 2D, we see that the largest pipettes (2-2.5 MOhm) produce 5 times the current recorded by 4-5 MOhm pipettes. These patches are unquestionably larger and no one can expect that the midpoint of channel activation by pressure is the same. The authors stated that only pipettes > 3MOhms were included into analysis, but this does not exclude actual size variation among patches. Figure 4F,G clearly shows that patches containing 0-20 channels have higher P50. It is very likely that these patches are smaller and therefore will require higher pressure for activation. We expect that imaging can help here. The authors do not need to cover the entire range of densities; only two sets of measurements with low (native) and high (overexpression) densities would be sufficient. We suggest that you choose reasonably large pipettes (2.5-3 MOhm) so you can reliably image cell-attached patches. Two sets of tension-Po curves, their tension midpoints and slope factors, recorded from HEK cells transfected at low and high expression levels will provide a clinching result.

2) Inactivated and silent channels. Because Piezo1 channels inactivate and require the removal of the stimulus to be reactivated, the presence of basal tension in the patch will render some Piezo1 inactivated. Given that the basal pressure differs between electrodes, different patches will always contain some number of 'silent' channels, which are physically present in the membrane, but do not manifest themselves functionally. This makes the estimation of a true number of channels in the patch virtually impossible using electrophysiology alone. The reviewers discussed this point at length. It was agreed that a few additional experiments (outlined below) would be ideal for mitigating all concerns on this issue. However, it was also agreed that the patch-imaging experiments requested above should be sufficient for supporting the paper's main conclusions, and therefore the experiments suggested below are suggested but not required. If the suggested experiments are not performed, we request that the authors mention / discuss the 'silent channel' point and indicate that their experiment provide a good estimation of the total number of channels, rather than the exact number.

Suggested experiments:

a) The authors claim that their novel stimulation protocol for single channel analysis allows them to measure the number of channels in each patch with high accuracy. The pressure ramps, used in this manuscript,¬ last about 3,000 ms at + 60mV. However, according to the same group (Wu et al., 2017, Cell Reports) Piezo1 inactivates within 90-100 ms at +60 mV. Hence, it is quite possible that in those patches the authors are underestimating the number of channels. It is not clear why the authors did not measure macroscopic currents using similar conditions as the ones used for single channel measurements. Particularly, macroscopic currents should be measured at positive potentials (to slow down inactivation), instead of at -80 mV, where Piezo1 tends to inactivate more rapidly than at positive potentials.

b) The authors should consider perfusing Yoda1 (Piezo1 specific agonist) at the end of the pressure ramp experiments to reveal that there are indeed no more channels in the patch membrane than those visible ones with pressure.

c) The representative traces on Figure 1B and 1D suggest that -60 mmHg does not saturate the response of Piezo1. The authors should add a control square pulse at the end of the experiment (equal to or larger than -60 mmHg) to ensure the currents are saturated.

3) Figure 2. The analysis performed on Figure 2 is confusing as is it is not clear how the mean open probabilities (black traces) as a function of pressure were calculated. Mean open and closed times need to be determined. Authors should elaborate when explaining these types of analyses and provide details on how good and/or significant these fits are.

4) Figure 4. It appears you have plotted the wrong data when reporting the slopes obtained by adjusting sigmoidal fits to their macroscopic data. The slopes don't have units, and instead they presented mmHg ranging from 0 to -25. Showing the sigmoidal fits and the slopes obtained from them might help driving the point.

5) Introduction. In the introduction, the authors propose that due to short-scale tension propagation in the membrane, the mechanosensors should be evenly distributed and be functionally independent. "Any substantial deviation from a uniform distribution of force-gated ion channels will result in domains that fall short to detect forces (where there are no ion channels) as well as domains that transduce forces disproportionately (where many ion channels are nearby)." In fact, the non-uniform distribution of Piezo channels has been shown by the Martinac group (Ridone et al., 2020). Additionally, Piezo1 recruitment to focal adhesions has been strongly suggested (Yao et al., https://www.biorxiv.org/content/10.1101/2020.03.09.972307). We suggest that you present a more balanced view on the potential sensitivity tuning of the 'receptive field' by channel clustering, and then ask whether it is the case.

6) We advise against insisting that the midpoint tension for Piezo1 is 1.4 mN/m. The fact that the patches bulge into the pipette at zero clamped pressure indicates that the actual pressure gradient is non-zero. It can be easily accounted for by the osmotic (oncotic) pressure difference between the cell interior and patch pipette buffer. The authors found that a positive pressure of 5 mm Hg flattens the patch and thus compensates for the existing pressure bias. The flat patch, like a drumskin, experiences the minimal (resting, seal-generated) tension. When the authors pre-condition the patch with +5 mm Hg and then stimulate with -20 mm Hg, the actual stimulus amplitude is -25 mm Hg. For this reason, the previously reported midpoint of ~5 mN/m for inside-out patches (less osmotic/hydrostatic gradients) might be more realistic. It is also more consistent with the work of other groups (Cox et al., 2016, 7:10366 | DOI: 10.1038/ncomms10366)

7) Why does the pressure go back to +5 mmHg the current goes beyond the baseline? This could indicate that channels were open before the ramp, suggesting the estimation might not be accurate.

https://doi.org/10.7554/eLife.70988.sa1

Author response

Essential revisions:

Although the manuscript is a tour de force, there are some concerns that should be addressed to validate the conclusions.

1) Patch imaging to validate conclusions. We note that the authors departed from their previous strategy of patch visualization and direct tension determination (Lewis and Grandl, eLife 2015). We do understand how tedious these experiments are, but the use of this approach in some of the trials would make this particularly study cleaner and more conclusive. The authors never mention tension as the parameter driving gating, and they work exclusively in the units of pressure. They postulated that their pipettes ranging between 3 and 6 MOhm in resistance provide 'standard' patches of given size and curvature. In fact, this range of resistances is large and roughly translates into a 1.4-fold difference in pipette diameters. If we look at Supplemental Figure 2D, we see that the largest pipettes (2-2.5 MOhm) produce 5 times the current recorded by 4-5 MOhm pipettes. These patches are unquestionably larger and no one can expect that the midpoint of channel activation by pressure is the same. The authors stated that only pipettes > 3MOhms were included into analysis, but this does not exclude actual size variation among patches. Figure 4F,G clearly shows that patches containing 0-20 channels have higher P50. It is very likely that these patches are smaller and therefore will require higher pressure for activation. We expect that imaging can help here. The authors do not need to cover the entire range of densities; only two sets of measurements with low (native) and high (overexpression) densities would be sufficient. We suggest that you choose reasonably large pipettes (2.5-3 MOhm) so you can reliably image cell-attached patches. Two sets of tension-Po curves, their tension midpoints and slope factors, recorded from HEK cells transfected at low and high expression levels will provide a clinching result.

We thank the reviewers for this excellent suggestion! We performed this exact experiment and incorporated the new data, which all further strengthened the main conclusion.

Specifically, we combine our step electrophysiological protocol with DIC imaging in Neuro2a-p1ko cells overexpressing mouse Piezo1. In this dataset, we now independently measured radius for each pressure step, calculated membrane tension, and correlated this with Piezo1 open probability. We find that for channel densities ranging from 10-70 channels/mm2, there is no effect of channel density on tension midpoint (T50) or slope factor (k).

The experiments are illustrated in new Figure 5. As expected, this experiment also improved our estimates of surface density in these pipette resistance ranges (updated Figure 5—figure supplement 1). Associated text regarding these experiments is found in the updated Methods (lines 399-410), updated Results (lines 253-265), and updated Discussion (lines 311-313).

2) Inactivated and silent channels. Because Piezo1 channels inactivate and require the removal of the stimulus to be reactivated, the presence of basal tension in the patch will render some Piezo1 inactivated. Given that the basal pressure differs between electrodes, different patches will always contain some number of 'silent' channels, which are physically present in the membrane, but do not manifest themselves functionally. This makes the estimation of a true number of channels in the patch virtually impossible using electrophysiology alone. The reviewers discussed this point at length. It was agreed that a few additional experiments (outlined below) would be ideal for mitigating all concerns on this issue. However, it was also agreed that the patch-imaging experiments requested above should be sufficient for supporting the paper's main conclusions, and therefore the experiments suggested below are suggested but not required. If the suggested experiments are not performed, we request that the authors mention / discuss the 'silent channel' point and indicate that their experiment provide a good estimation of the total number of channels, rather than the exact number.

Suggested experiments:

a) The authors claim that their novel stimulation protocol for single channel analysis allows them to measure the number of channels in each patch with high accuracy. The pressure ramps, used in this manuscript,¬ last about 3,000 ms at + 60mV. However, according to the same group (Wu et al., 2017, Cell Reports) Piezo1 inactivates within 90-100 ms at +60 mV. Hence, it is quite possible that in those patches the authors are underestimating the number of channels. It is not clear why the authors did not measure macroscopic currents using similar conditions as the ones used for single channel measurements. Particularly, macroscopic currents should be measured at positive potentials (to slow down inactivation), instead of at -80 mV, where Piezo1 tends to inactivate more rapidly than at positive potentials.

b) The authors should consider perfusing Yoda1 (Piezo1 specific agonist) at the end of the pressure ramp experiments to reveal that there are indeed no more channels in the patch membrane than those visible ones with pressure.

c) The representative traces on Figure 1B and 1D suggest that -60 mmHg does not saturate the response of Piezo1. The authors should add a control square pulse at the end of the experiment (equal to or larger than -60 mmHg) to ensure the currents are saturated.

Again, we sincerely thank the reviewers for bringing up this important point, and agree that silent channels are likely present in patches. We have addressed this point with extensive additional experiments, quantifications, and text discussion:

First, in our original dataset assaying endogenous expression in Neuro2A cells (Figure 1), we had already included a control square pulse at the end of each experiment (as originally shown in Figure S2A), but recognize that we did not clearly explain the protocol, as well as the lack of inactivation for endogenous currents at +60 mV. To improve this, we have modified and/or added the following text:

Lines 77-78: “Consequently, a step protocol consistently overestimates current by 2-3 pA, and thus channel numbers accordingly.”

Lines 89-96: “We are confident that these slow changes in current are unrelated to Piezo gating, as currents clearly saturated after leak subtraction (Figure 1A-D, bottom). Additionally, we never observed channel openings during the ramp phase of the protocol in 15 patches from Neuro2A-Piezo1ko cells (data not shown). Ultimately, we decided to combine the ramp stimulus protocol with a subsequent brief (200 ms) saturating pressure step to -60 mmHg. Importantly, the step pulse allowed us to confirm post-hoc that inactivation of Piezo1 at this voltage is minimal (step pulse: mean current at 200 ms = 96.5±7.4% of peak; n = 281 patches; Figure 1 —figure supplement 2 A,D).”

Second, we agree with the reviewers that the overexpression experiments are better done at +60 mV. Consequently, we performed a completely new experiment at this positive voltage.

We find in this new, extensive dataset (144 patches) that there remains no correlation between P50 and channel density. We also find that on average, our estimates of channel density have roughly doubled (from a mean of 40 channels/mm2 when measured at -80 mV to 90 channels/mm2 when measured at +60 mV). This is consistent with the reviewers’ intuition that silent channels are present. Importantly, this new experiment also confirms that we have covered an even higher range of Piezo1 channel densities than we previously estimated, giving us further confidence that if there were a cooperative effect of channel density on gating properties, we would have observed it.

The experiments are described in new Figure 4, and updated Figure 4 —figure supplement 1 and Figure 4—figure supplement 4. Updated text associated with this experiment is found in the updated Result (lines 194-252). We have also better highlighted the contribution of silent channels in several places in the text:

Lines 228-230: “Moreover, this calculation likely represents a slight underestimate of the true channel density, as residual inactivation at positive potentials may lead to a population of “silent” channels that do not manifest themselves functionally.”

Lines 289-292: “Assessing Piezo1 expression levels is also subject to error due to the presence of inactivation, which prevents reaching a Po = 1. Specifically, channels inactivating during the rising phase of the current, as well as the presence of “silent” channels that fail to respond to the stimulus entirely, contribute to this error.”

3) Figure 2. The analysis performed on Figure 2 is confusing as is it is not clear how the mean open probabilities (black traces) as a function of pressure were calculated. Mean open and closed times need to be determined. Authors should elaborate when explaining these types of analyses and provide details on how good and/or significant these fits are.

We have modified/added associated text:

Lines 443-447: “To generate idealized currents (Figure 2), the number of channels (n) in each patch, as well as the time of openings, were manually identified. The open probability at a given time was taken as the fraction of total channels in the patch that were open. Owing to the lack of inactivation of endogenous currents at +60 mV, as well as the continually increasing pressure, channel closings were rare.”

Additionally, we added overlays of fits to the mean data (red dashed lines) in updated Figure 2.

4) Figure 4. It appears you have plotted the wrong data when reporting the slopes obtained by adjusting sigmoidal fits to their macroscopic data. The slopes don't have units, and instead they presented mmHg ranging from 0 to -25. Showing the sigmoidal fits and the slopes obtained from them might help driving the point

The sigmoidal fit function we use has slope on the bottom of the exponential (P50 – P)/k, such that its units are in mmHg. We now detail this in the updated Methods (lines 417-420):

“Current-pressure curves were fit with a Boltzmann function

I= Imin+ Imax1+e(P50Pk)

where Imax is the maximal current, P is pressure, P50 is pressure of half-maximal activation, and k is the slope factor.”

5) Introduction. In the introduction, the authors propose that due to short-scale tension propagation in the membrane, the mechanosensors should be evenly distributed and be functionally independent. "Any substantial deviation from a uniform distribution of force-gated ion channels will result in domains that fall short to detect forces (where there are no ion channels) as well as domains that transduce forces disproportionately (where many ion channels are nearby)." In fact, the non-uniform distribution of Piezo channels has been shown by the Martinac group (Ridone et al., 2020). Additionally, Piezo1 recruitment to focal adhesions has been strongly suggested (Yao et al., https://www.biorxiv.org/content/10.1101/2020.03.09.972307). We suggest that you present a more balanced view on the potential sensitivity tuning of the 'receptive field' by channel clustering, and then ask whether it is the case.

To achieve this we included the suggested references and updated the Introduction as follows:

Lines 12-14: “The degree to which forces are transduced homogeneously across the cell membrane likely depends not only on the dynamics of membrane tension propagation, but also on (i) the spatial distribution of force-gated ion channels, and (ii) on their functional independence.”

Line 20: “Indeed, there is recent experimental evidence suggesting that Piezo1 channels may be non-uniformly distributed… Additional studies have proposed the existence of clusters with varying numbers of channels (Jiang et al., 2021), and that Piezo1 may be concentrated at focal adhesions (Mingxi Yao, 2020).”

6) We advise against insisting that the midpoint tension for Piezo1 is 1.4 mN/m. The fact that the patches bulge into the pipette at zero clamped pressure indicates that the actual pressure gradient is non-zero. It can be easily accounted for by the osmotic (oncotic) pressure difference between the cell interior and patch pipette buffer. The authors found that a positive pressure of 5 mm Hg flattens the patch and thus compensates for the existing pressure bias. The flat patch, like a drumskin, experiences the minimal (resting, seal-generated) tension. When the authors pre-condition the patch with +5 mm Hg and then stimulate with -20 mm Hg, the actual stimulus amplitude is -25 mm Hg. For this reason, the previously reported midpoint of ~5 mN/m for inside-out patches (less osmotic/hydrostatic gradients) might be more realistic. It is also more consistent with the work of other groups (Cox et al., 2016, 7:10366 | DOI: 10.1038/ncomms10366)

We removed the exact value for tension from the text (lines 5-7):

“For example, Piezo1 is a mechanically gated cation channel that directly senses membrane tension (T) with high sensitivity (Coste et al., 2010; Cox et al., 2016; Lewis and Grandl, 2015; Syeda et al., 2016).”

7) Why does the pressure go back to +5 mmHg the current goes beyond the baseline? This could indicate that channels were open before the ramp, suggesting the estimation might not be accurate.

We believe this change in baseline current is related to changes in leak, owing to recording at positive potentials, because in these solutions we frequently notice that the leak continuously improves at +60 mV, such that after the pressure step, the baseline current is less than before. This is true even for patches with zero channels (Figure 1A) and unrelated to Piezo1 gating as the effect can be observed to the same extent in N2A-P1ko cells.

https://doi.org/10.7554/eLife.70988.sa2

Article and author information

Author details

  1. Amanda H Lewis

    Department of Neurobiology, Duke University Medical Center, Durham, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Software, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7316-9729
  2. Jörg Grandl

    Department of Neurobiology, Duke University Medical Center, Durham, United States
    Contribution
    Conceptualization, Funding acquisition, Methodology, Project administration, Supervision, Writing – original draft, Writing – review and editing
    For correspondence
    grandl@neuro.duke.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7179-7609

Funding

National Institute of Neurological Disorders and Stroke (5R01NS110552)

  • Jorg Grandl

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This study was supported by NIH 5R01NS110552 (AHL and JG) and Duke University. The authors thank Gary Lewin for generously providing Neuro2A-P1ko cells, and all members of the Grandl Lab for thoughtful comments on the study.

Senior Editor

  1. Richard W Aldrich, The University of Texas at Austin, United States

Reviewing Editor

  1. Merritt Maduke, Stanford University School of Medicine, United States

Publication history

  1. Preprint posted: June 3, 2021 (view preprint)
  2. Received: June 4, 2021
  3. Accepted: October 7, 2021
  4. Version of Record published: October 29, 2021 (version 1)

Copyright

© 2021, Lewis and Grandl

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 495
    Page views
  • 94
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Rawan AlSubaie et al.
    Research Article Updated

    Projections from the basal amygdala (BA) to the ventral hippocampus (vH) are proposed to provide information about the rewarding or threatening nature of learned associations to support appropriate goal-directed and anxiety-like behaviour. Such behaviour occurs via the differential activity of multiple, parallel populations of pyramidal neurons in vH that project to distinct downstream targets, but the nature of BA input and how it connects with these populations is unclear. Using channelrhodopsin-2-assisted circuit mapping in mice, we show that BA input to vH consists of both excitatory and inhibitory projections. Excitatory input specifically targets BA- and nucleus accumbens-projecting vH neurons and avoids prefrontal cortex-projecting vH neurons, while inhibitory input preferentially targets BA-projecting neurons. Through this specific connectivity, BA inhibitory projections gate place-value associations by controlling the activity of nucleus accumbens-projecting vH neurons. Our results define a parallel excitatory and inhibitory projection from BA to vH that can support goal-directed behaviour.

    1. Cell Biology
    2. Neuroscience
    Angela Kim et al.
    Research Article Updated

    Insulin-induced hypoglycemia is a major treatment barrier in type-1 diabetes (T1D). Accordingly, it is important that we understand the mechanisms regulating the circulating levels of glucagon. Varying glucose over the range of concentrations that occur physiologically between the fed and fuel-deprived states (8 to 4 mM) has no significant effect on glucagon secretion in the perfused mouse pancreas or in isolated mouse islets (in vitro), and yet associates with dramatic increases in plasma glucagon. The identity of the systemic factor(s) that elevates circulating glucagon remains unknown. Here, we show that arginine-vasopressin (AVP), secreted from the posterior pituitary, stimulates glucagon secretion. Alpha-cells express high levels of the vasopressin 1b receptor (V1bR) gene (Avpr1b). Activation of AVP neurons in vivo increased circulating copeptin (the C-terminal segment of the AVP precursor peptide) and increased blood glucose; effects blocked by pharmacological antagonism of either the glucagon receptor or V1bR. AVP also mediates the stimulatory effects of hypoglycemia produced by exogenous insulin and 2-deoxy-D-glucose on glucagon secretion. We show that the A1/C1 neurons of the medulla oblongata drive AVP neuron activation in response to insulin-induced hypoglycemia. AVP injection increased cytoplasmic Ca2+ in alpha-cells (implanted into the anterior chamber of the eye) and glucagon release. Hypoglycemia also increases circulating levels of AVP/copeptin in humans and this hormone stimulates glucagon secretion from human islets. In patients with T1D, hypoglycemia failed to increase both copeptin and glucagon. These findings suggest that AVP is a physiological systemic regulator of glucagon secretion and that this mechanism becomes impaired in T1D.
