1. Structural Biology and Molecular Biophysics

Analysis of the mechanosensor channel functionality of TACAN

  1. Yiming Niu
  2. Xiao Tao
  3. George Vaisey
  4. Paul Dominic B Olinares
  5. Hanan Alwaseem
  6. Brian T Chait
  7. Roderick MacKinnon  Is a corresponding author
  1. Laboratory of Molecular Neurobiology and Biophysics, Rockefeller University, United States
  2. Howard Hughes Medical Institute, United States
  3. Laboratory of Mass Spectrometry and Gaseous Ion Chemistry, Rockefeller University, United States
  4. Proteomics Resource Center, Rockefeller University, United States
https://doi.org/10.7554/eLife.71188
Share this article
Cite this article
  1. Yiming Niu
  2. Xiao Tao
  3. George Vaisey
  4. Paul Dominic B Olinares
  5. Hanan Alwaseem
  6. Brian T Chait
  7. Roderick MacKinnon
(2021)
Analysis of the mechanosensor channel functionality of TACAN
eLife 10:e71188.
https://doi.org/10.7554/eLife.71188
  2. Download BibTeX
  3. Download .RIS

Abstract

Mechanosensitive ion channels mediate transmembrane ion currents activated by mechanical forces. A mechanosensitive ion channel called TACAN was recently reported. We began to study TACAN with the intent to understand how it senses mechanical forces and functions as an ion channel. Using cellular patch-recording methods, we failed to identify mechanosensitive ion channel activity. Using membrane reconstitution methods, we found that TACAN, at high protein concentrations, produces heterogeneous conduction levels that are not mechanosensitive and are most consistent with disruptions of the lipid bilayer. We determined the structure of TACAN using single-particle cryo-electron microscopy and observed that it is a symmetrical dimeric transmembrane protein. Each protomer contains an intracellular-facing cleft with a coenzyme A cofactor, confirmed by mass spectrometry. The TACAN protomer is related in three-dimensional structure to a fatty acid elongase, ELOVL7. Whilst its physiological function remains unclear, we anticipate that TACAN is not a mechanosensitive ion channel.

Introduction

Mechanosensitive ion channels (MSCs) open in response to mechanical forces (Guharay and Sachs, 1984; Guharay and Sachs, 1985; Kung, 2005; Sachs, 2010). When the channels open, ions flow across the cell membrane, triggering subsequent biochemical processes that ultimately represent a cellular response to the applied mechanical force. This coupling of transmembrane (TM) ion flow to mechanical forces underlies some forms of osmoregulation, cell and organ growth, blood pressure regulation, touch, and hearing (Chalfie, 2009; Coste et al., 2010; Pan et al., 2013; Peyronnet et al., 2012; Woo et al., 2015). Several MSCs have been discovered and characterized (Kefauver et al., 2020). Recently, a new MSC in mammals called TACAN was reported and proposed to mediate mechanical pain (Beaulieu-Laroche et al., 2020). TACAN, originally identified in a proteomics screen and called TMEM120A, was categorized as a nuclear envelope protein (NET29) that participates in lipid metabolism (Batrakou et al., 2015; Byerly et al., 2010; Haakonsson et al., 2013; Lee et al., 2005; Rosell et al., 2014). Adipocyte-specific TMEM120A knockout mice exhibited a lipodystrophy syndrome similar to human familial partial lipodystrophy FPLD2 (Czapiewski et al., 2021).

As our laboratory studies the biophysical mechanisms by which MSCs transduce mechanical forces and conduct ions across membranes, we were intrigued by TACAN’s potential role as an MSC and set out to examine this function and report our findings here.

Results

Functional analysis in cells and reconstituted membranes

We sought to reproduce the mechanically evoked currents reported when TACAN is expressed in cells (Beaulieu-Laroche et al., 2020). Using CHO cells, similar to those used in the original study, we did not observe pressure-evoked currents in excised membrane patches (Figure 1A,B). Background channels that were not sensitive to the pressure steps were observed in CHO cells expressing either TACAN or the M2 muscarinic receptor as a control. Similarly, TACAN expressed in a Piezo1 knockout HEK cell line did not elicit pressure-activated channels (Figure 1C,D). Purified TACAN protein reconstituted into giant unilamellar vesicles (GUVs) of soy L-α-phosphatidylcholine (soy-PC) also did not yield pressure-activated channels in membrane patches isolated from the GUVs (Figure 1E). We note that previously we have successfully recorded mechanosensitive TRAAK channels in GUVs using the identical approach (Brohawn et al., 2014).

Figure 1
Download asset Open asset

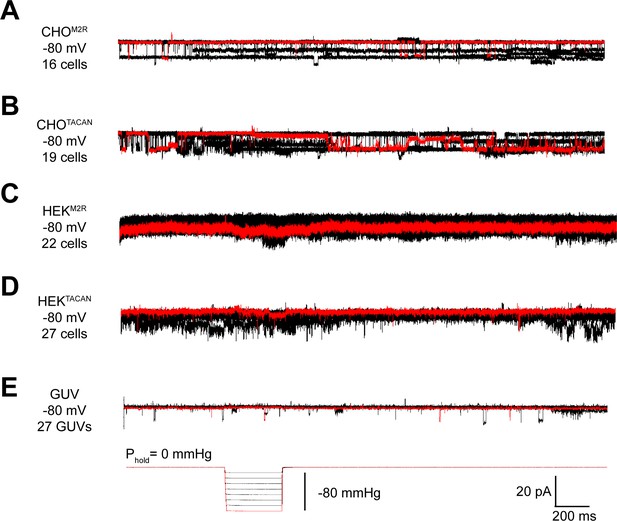

TACAN does not produce mechanically evoked currents.

(A, B) Representative excised inside-out patch recordings of M2 muscarinic receptor (M2R, A) and TACAN (B) transfected into CHO-K1 cells. (C, D) Representative excised inside-out patch recordings of M2R (C) and TACAN (D) transfected into piezo-1 knockout HEK-293T cells. (E) Representative excised inside-out patch recording of TACAN reconstituted in giant unilamellar vesicles (GUVs). All recordings were performed with identical pipette and bath solution containing 10 mM HEPES pH 7.4, 140 mM KCl, and 1 mM MgCl2 (~300 Osm/L). Traces were obtained holding at –80 mV with a pressure pulse protocol shown at the bottom: 0 to –80 mmHg with 10 mmHg step. Traces colored in red represent the observed currents with –80 mmHg pressure pulse.

When TACAN was expressed, purified, and reconstituted into both GUVs and planar lipid bilayers at high protein-to-lipid ratios (≥1:100, m:m), transient currents were observed, as shown in Figure 2. These currents were insensitive to pressure applied to patches isolated from the GUVs (Figure 1E) and heterogeneous in amplitude (Figure 2A–C). These properties do not resemble aspects of currents from known ion channels but might suggest that TACAN renders the membrane transiently leaky when reconstituted at high protein concentrations.

Figure 2
Download asset Open asset

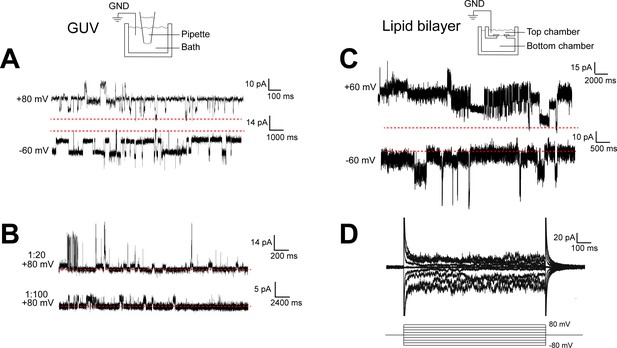

TACAN produces heterogenous currents in reconstituted systems.

(A, B) Representative recordings of TACAN from excised giant unilamellar vesicle (GUV) patches. Symmetrical buffers (10 mM HEPES pH 7.4, 140 mM KCl, 1 mM MgCl2) were used in pipette and bath. The dashed red lines indicate the baseline currents. (A) Traces from GUVs at 1:20 protein-to-lipid ratio (w/w) holding at +80 mV and –60 mV. (B) Traces from GUVs at 1:20 and 1:100 protein-to-lipid ratio (w/w) holding at +80 mV. (C, D) Representative traces of TACAN reconstituted in a lipid bilayer. Symmetrical buffers (10 mM HEPES pH 7.4, 150 mM KCl) were used in top and bottom chambers. The dashed red lines indicate the baseline currents. (C) Traces while holding at +60 mV and –60 mV. (D) Traces recorded during a voltage family from –80 to +80 mV in 20 mV increment.

Structural analysis of TACAN

Alongside the functional characterization, we analyzed the structure of TACAN determined at 3.5 Å resolution using single-particle cryo-EM. Details of the structure determination are given in Materials and methods and Table 1 (Figure 3—figure supplements 1 and 2). TACAN is an α-helical TM protein that forms a symmetric dimer (Figure 3A). The orientation of the protein with respect to the cytoplasm is unknown; however, the charge distribution on TACAN (von Heijne, 1986) as well as the possible presence of an enzyme active site exposed to the cytoplasm (discussed below) suggests the orientation shown (Figure 3B). Each protomer consists of six TM helices (S1–S6), which form a barrel surrounding a tunnel open to the cytoplasm (Figure 3C). Non-continuous density was observed inside the tunnel, suggesting the presence of a small, non-protein molecule (Figure 3—figure supplement 3A). The two protomers of the TACAN dimer bury an extensive surface area of 3049 Å2, mediated through the TM domain as well as two long N-terminal helices that form a coiled coil (Figure 3A, Figure 3—figure supplement 3B).

Table 1
Cryo-EM data collection and refinement statistics, related to Figures 3 and 4.
TACANWTTACANH196A H197A
EMDB IDEMD-24107EMD-24108
PDB ID7N0K7N0L
Data collection
MicroscopeTitan Krios
DetectorK2 summitK3 summit
Voltage (kV)300300
Pixel size (Å)1.030.515
Total electron exposure(e-/Å2)75.456.6
Defocus range (μm)0.7–2.10.8–2.2
Micrographs collected2,07110,541
Reconstruction
Final particle images110,090155,946
Pixel size (Å)1.031.03
Box size (pixels)256256
Resolution (Å)(FSC = 0.143)3.52.8
Map sharpening B-factor (Å2)–20–3.4
Model composition
Non-hydrogen atoms5,1565,272
Protein residues626626
Ligands02
Metals00
Refinement
Model-to-map CC (mask)0.770.80
Model-to-map CC (volume)0.730.81
R.m.s deviations
Bond length (Å)0.0030.003
Bond angles (°)0.540.52
Validation
MolProbity score2.092.22
Clash score7.869.10
Ramachandran plot
Outliers (%)00
Allowed (%)0.981.95
Favored (%)99.0298.05
Rotamer outliers (%)7.469.23
C-beta deviations (%)00

  1. FSC: Fourier shell correlation.

Figure 3 with 3 supplements see all
Download asset Open asset

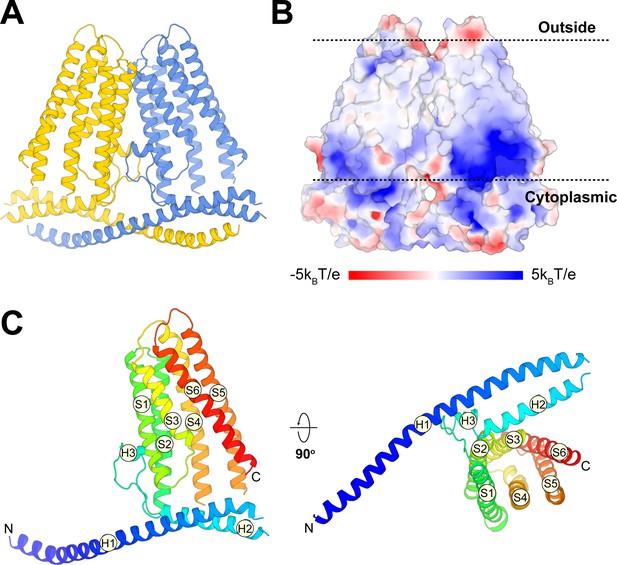

Overall structure of TACAN.

(A) Cartoon representation of the TACAN dimer with each protomer colored uniquely. (B) Surface charge distribution and the possible orientation of TACAN, blue and red representing the positive and negative charges, respectively. The membrane is demarcated by dashed lines. (C) Tertiary structure of TACAN protomer viewed from the side and the cytoplasmic side. The protein is colored rainbow from N-terminus (blue) to C-terminus (red). The six transmembrane helices (S1–S6), two horizontal helices (H1 and H2), as well as a short helix (H3) in between are labeled.

The DALI three-dimensional structure comparison server (Holm and Rosenström, 2010) identified a homologous protein called ELOVL7, a long-chain fatty acid (FA) elongase (Figure 4; Nie et al., 2021). This enzyme catalyzes the first step in the FA elongation cycle by transferring an acetyl group from malonyl-CoA onto long-chain FA-CoA (Naganuma et al., 2011). As shown in Figure 4A, the TM domain in TACAN is indeed similar to ELOVL7. The tunnel in ELOVL7 is lined by catalytically important histidine residues and contains a covalently linked eicosanoyl-CoA molecule (Figure 4B,C). TACAN conserves two of the four histidine residues (Figure 4B,D). To determine the identity of the small molecule implied by the broken density in the tunnel of TACAN (Figure 4E and Figure 3—figure supplement 3A), we determined the structure of TACAN with His196 and His197 mutated to alanine at 2.8 Å resolution (Table 1, Figure 4—figure supplement 1). Our rationale was that if the His residues are catalytically important – by analogy to ELOVL7 – then their mutation might influence the occupancy of a potential cofactor. The map showed clearer density consistent with a coenzyme A molecule (CoASH) (Figure 4F). Native mass spectrometry (nMS) was used to confirm the identity as CoASH (Figure 5). As shown in Figure 5B, the purified TACANH196A H197A sample contains a mixture of the 83,237 Da, +767 Da, and +1535 Da mass species, corresponding to an apo form, one and two CoASH bound forms, respectively. After incubation with CoASH, some fraction of the apo form shifts to one and two CoASH bound forms. Additionally, the +767 Da and +1535 Da species are replaced by +795 Da and +1591 Da or +811 Da and +1622 Da species after incubation with the two CoASH analogues S-ethyl-CoA or Acetyl-CoA, corresponding to the CoASH analogue bound forms. In the purified TACANWT sample, the apo form is dominant and incubation with S-ethyl-CoA shifts it to one and two analogue bound forms (Figure 5A). Together, these data are consistent with our cryo-EM results and indicate that TACAN is co-purified with endogenous coenzyme A.

Figure 4 with 1 supplement see all
Download asset Open asset

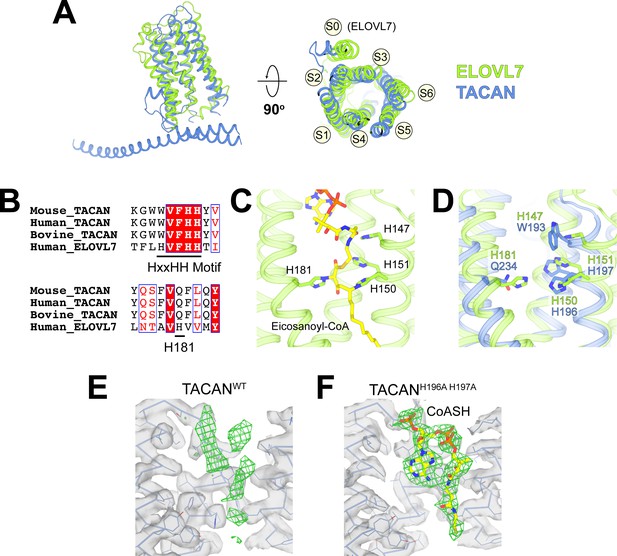

TACAN shares structural homology to the fatty acid elongase ELOVL7.

(A) Superposition between TACAN (blue) and ELOVL7 (green) protomers. Transmembrane helices are labeled to correspond with the topology of TACAN. The extra transmembrane helix in ELOVL7 is labeled as S0. (B) Sequence alignment of TACAN from different species and human ELOVL7 with conserved residues highlighted. The catalytically important HxxHH motif (His147, His150, and His151) and His181 in ELOVL7 are underlined. (C) Structure details of the interactions between the HxxHH motif, His181 (sidechains shown as sticks), and eicosanoyl-CoA (shown as sticks) in ELOVL7 (PDB: 6Y7F). His150 and His181 are covalently linked to eicosanoyl-CoA. (D) Zoom-in view of the ELOVL7 (green) catalytic center with TACAN (blue) superimposed. (E, F) The non-protein density (green mesh) in the narrow tunnel of wild-type (E) and His196Ala, His197Ala mutant of TACAN (F). Protein density is represented as transparent surface (gray) with protein shown as lines and ribbons. The two maps are shown at the same contour level. CoASH in mutant TACAN is shown as sticks and colored according to atom type.

Figure 5 with 1 supplement see all
Download asset Open asset

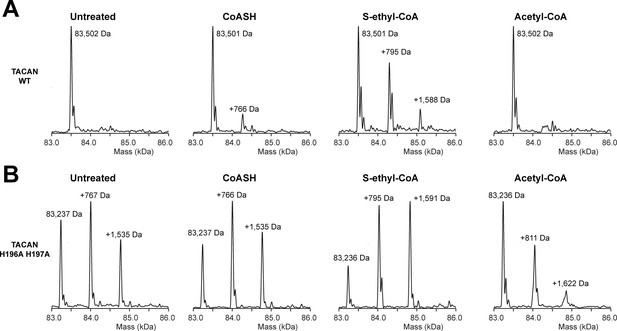

Native mass spectrometry indicates the presence of coenzyme A in the mutant TACAN sample.

(A, B) Mass species detected in purified wild-type (A) and His196Ala, His197Ala mutant (B) TACAN protein without treatment (“untreated”), or incubated with CoASH (MW = 767.5 Da), S-ethyl-CoA (MW = 795.6 Da), or acetyl-CoA (MW = 809.6 Da).

It is noteworthy that CoASH binds with different conformations in TACAN from ELOVL7 (Figure 5—figure supplement 1A,B; Nie et al., 2021). In addition, no enzymatic activity was observed for TACAN using a free-CoA detection assay (for details, see Materials and methods), which demonstrated robust activity for ELOVL7 (Figure 5—figure supplement 1C), thus TACAN does not appear to catalyze the same reaction as ELOVL7. If TACAN is a coenzyme A-dependent enzyme, its substrate is unknown.

Discussion

We undertook this study to understand how TACAN functions as an MSC, but have been unable to replicate evidence of MSC activity. We observe no channel activity in the plasma membrane of cells expressing TACAN and the heterogeneous-in-amplitude currents (without mechanosensitive properties) that we observe when we reconstitute TACAN at high protein concentrations are not consistent with other native biological channels that we have studied.

Structurally, TACAN is related to coenzyme A-dependent FA elongases; however, without further data we cannot conclude that TACAN itself functions as an enzyme. It also remains to be determined which membranes in a cell express TACAN.

In conclusion, we do not find evidence that TACAN is a mechanosensitive ion channel. The strength of this conclusion is in the electrophysiological interrogation. The structure, because it looks like a known enzyme, is compatible with the ‘not a channel’ conclusion, but the structure alone would not make a strong argument. A number of ion channels, including CLC channels (Dutzler et al., 2002; Dutzler et al., 2003; Feng et al., 2012; Park et al., 2017; Park and MacKinnon, 2018), TMEM16 (Dang et al., 2017; Paulino et al., 2017), and CFTR (Liu et al., 2017; Zhang et al., 2017; Zhang et al., 2018), are not obviously ion channels based on their structures and indeed each are fairly indistinguishable from proteins exhibiting non-channel functions.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (Mus musculus TMEM120A)M. musculus TACANSyntheticSynthesized at GeneWiz.
Gene (Homo sapiens TMEM120A)H. sapiens TACANSyntheticSynthesized at GeneWiz.
Gene (Homo sapiens ELOVL7)H. sapiens ELOVL7SyntheticSynthesized at GeneWiz.
Strain, strain background (Escherichia coli)DH10BacThermo Fisher Scientific10361012 
Recombinant DNA reagentTACAN-eGFP BacMamThis study 
Recombinant DNA reagentELOVL7-eGFP BacMamThis study 
Recombinant DNA reagentHalo-M2R-eGFP BacMamThis study 
Cell line (Spodoptera frugiperda)Sf9ATCCCRL-1711Cells purchased from ATCC, and we have confirmed there is no mycoplasma contamination
Cell line (Chinese hamster)CHO-K1ATCCCRL-9618Cells purchased from ATCC, and we have confirmed there is no mycoplasma contamination
Cell line (Homo sapiens)HEK293S GnTI-ATCCCRL-3022Cells purchased from ATCC, and we have confirmed there is no mycoplasma contamination
Cell line (Homo sapiens)Piezo1 knockout HEK293Thttps://digitalcommons.rockefeller.edu/cgi/viewcontent.cgi?article=1422&context=student_theses_and_dissertationsWe have confirmed there is no mycoplasma contamination
Chemical compound, drugSF-900 II SFM mediumGibco11330-032 
Chemical compound, drugL-Glutamine (100×)Gibco25030-081 
Chemical compound, drugPen StrepGibco15140-122 
Chemical compound, drugGrace’s insect mediumGibco11605-094 
Chemical compound, drugFreestyle 293 mediumGibco12338-018 
Chemical compound, drugDMEM/F-12 mediumGibco11605-094 
Chemical compound, drugDMEMGibco11965-118 
Chemical compound, drugFetal bovine serumGibco16000-044 
Chemical compound, drugCellfectin II reagentInvitrogen10362100 
Chemical compound, drugFuGENE HD transfection reagentPromegaE2312 
Chemical compound, drugCholesteryl hemisuccinate (CHS)AnatraceCH210 
Chemical compound, drugn-Decyl-β-D-maltopyranoside (DM)AnatraceD322S 
Chemical compound, drugLauryl maltose neopentyl glycol (LMNG)AnatraceNG310 
Chemical compound, drugDigitoninMillipore Sigma300410 
Chemical compound, drugCoenzyme A trilithium salt (CoASH)Sigma-AldrichC3019 
Chemical compound, drugAcetyl coenzyme A sodium salt (acetyl-CoA)Sigma-AldrichA2056 
Chemical compound, drugS-Ethyl-coenzyme A sodium salt (S-ethyl-CoA)Jena-BiosciencesNU-1168 
Chemical compound, drugMalonyl coenzyme A lithium salt (malonyl-CoA)Sigma-AldrichM4263 
Chemical compound, drugStearoyl coenzyme A lithium salt (stearoyl-CoA)Sigma-AldrichS0802 
Chemical compound, drug(1H, 1H, 2H, 2H-Perfluorooctyl)phosphocholine (FFC8)AnatraceF300F 
Commercial assay or kitCNBr-activated Sepharose beadsGE Healthcare17-0430-01 
Commercial assay or kitSuperdex 200 Increase 10/300 GLGE Healthcare Life Sciences28990944 
Commercial assay or kitR1.2/1.3 400 mesh Au holey carbon gridsQuantifoil1210627 
Commercial assay or kitCoenzyme A (CoA) Assay KitSigma-AldrichMAK034 
Software, algorithmRELION 3.0https://doi.org/10.7554/eLife.42166.001http://www2.mrc-lmb.cam.ac.uk/relion 
Software, algorithmRELION 3.1https://doi.org/10.1101/798066http://www2.mrc-lmb.cam.ac.uk/relion 
Software, algorithmMotionCor2https://doi.org/10.1038/nmeth.4193http://msg.ucsf.edu/em/software/motioncor2.html 
Software, algorithmGctf 1.0.6https://doi.org/10.1016/j.jsb.2015.11.003https://www.mrc-lmb.cam.ac.uk/kzhang/Gctf/ 
Software, algorithmCtfFind4.1.8https://doi.org/10.1016/j.jsb.2015.08.008http://grigoriefflab.janelia.org/ctffind4 
Software, algorithmCryoSPARC 2.9.0https://doi.org/10.7554/eLife.46057.001https://cryosparc.com/ 
Software, algorithmCOOThttps://doi.org/10.1107/S0907444910007493http://www2.mrc-lmb.cam.ac.uk/personal/pemsley/coot 
Software, algorithmPHENIXhttps://doi.org/10.1107/S0907444909052925https://www.phenix-online.org 
Software, algorithmAdobe Photoshop version 16.0.0 (for figure preparation)Adobe Systems, Inc. 
Software, algorithmGraphPad Prism version 8.0GraphPad Software 
Software, algorithmMacPyMOL: PyMOL v2.0 Enhanced for Mac OS XSchrodinger LLChttps://pymol.org/edu/?q=educational/ 
Software, algorithmChimerahttps://doi.org/10.1002/jcc.20084https://www.cgl.ucsf.edu/chimera/download.html 
Software, algorithmSerial EMhttps://doi.org/10.1016/j.jsb.2005.07.007http://bio3d.colorado.edu/SerialEM 
Software, algorithmpClampAxon Instruments, Inc 
Software, algorithmThermo Xcalibur Qual Browser (v. 4.2.47)Thermo Fisher Scientific 
Software, algorithmUniDec v. 4.2.0Marty et al., 2015; Reid et al., 2018https://github.com/michaelmarty/UniDec/releases 

Protein expression and purification

Request a detailed protocol

Homo sapiens or Mus musculus full-length TMEM120A (TACAN, residues 1–343) were cloned into pEG BacMam (Goehring et al., 2014). The C-terminus of the TACAN construct contains a PreScission protease cleavage site and an enhanced green fluorescent protein (eGFP) for purification (TACAN-eGFP). Briefly, bacmid carrying TACAN was generated by transforming Escherichia coli DH10Bac cells with the corresponding pEG BacMam construct according to the manufacturer’s instructions (Bac-to-Bac; Invitrogen). Baculoviruses were produced by transfecting Spodoptera frugiperda Sf9 cells with the bacmid using Cellfectin II (Invitrogen). Baculoviruses, after two rounds of amplifications, were used for cell transduction. HEK293S GnTl- cells (ATCC, CRL-3022) grown in suspension at a density of ~3 × 106 cells/mL were transduced with P3 BacMam virus of TACAN-eGFP, and inoculated at 37°C. 8–12 hr post-transduction, 10  mM sodium butyrate was added to the culture and cells were further inoculated for 40–48 hr at 30°C. Cells were then harvested by centrifugation, frozen in liquid N2, and stored at –80°C until needed.

Frozen cells (from 1 L cell cultures) were resuspended in 200 mL hypotonic lysis buffer containing 50 mM Tris-HCl pH 8.0, 3 mM dithiothreitol (DTT), 1 mM ethylenediaminetetraacetic acid (EDTA), 0.1 mg/mL DNase I, and a protease inhibitor cocktail (1  mM PMSF, 0.1 mg/mL trypsin inhibitor, 1 µg/mL pepstatin, 1 µg/mL leupeptin, and 1  mM benzamidine) for 30 min and centrifuged at 37,500 g for 30 min. The pellets were then homogenized in 20  mM Tris-HCl pH 8.0, 300  mM NaCl, 0.1 mg/mL DNase I, a protease inhibitor cocktail followed by addition of 10 mM lauryl maltose neopentyl glycol (LMNG), 2 mM cholesteryl hemisuccinate (CHS) (for cryo-EM samples), or 1% n-decyl-β-D-maltopyranoside (DM), 0.2% CHS (w/v) (for reconstitution and mass spectrometry samples) to solubilize for 2 hr. The suspension was then centrifuged at 37,500 g for 30 min and the supernatant incubated with 5 mL GFP nanobody-coupled CNBr-activated Sepharose resin (GE Healthcare) for 2 hr (Kubala et al., 2010). The resin was subsequently washed with 10 column volumes of wash buffer containing 20 mM HEPES pH 7.4, 250 mM NaCl, and 0.06% digitonin (w/v) (for cryo-EM samples) or 0.25% DM, 0.05% CHS (w/v) (for reconstitution and mass spectrometry samples). The washed resin was incubated overnight with PreScission protease at a protein to protease ratio of 40:1 (w:w) to cleave off GFP and release the protein from the resin. The protein was eluted with wash buffer, concentrated using an Amicon Ultra centrifugal filter (MWCO 100 kDa), and then injected onto a Superdex 200 increase 10/300 GL column (GE Healthcare) equilibrated with the wash buffer. Peak fractions corresponding to the TACAN dimer were pooled. For cryo-EM study, the pooled fractions were concentrated to 6–7 mg/mL using an Amicon Ultra centrifugal filter (MWCO 100 kDa). All the purification steps were carried out at 4°C.

H. sapiens full-length ELOVL7 (residues 1–281) was cloned into the same vector, expressed, and purified with the same protocol as TACAN in DM/CHS. The final protein concentration was ~2 mg/mL.

Proteoliposome reconstitution

Request a detailed protocol

Dialysis-mediated reconstitution of H. sapiens TACAN and ELOVL7 into liposome was accomplished according to published protocols with minor modifications (Brohawn et al., 2012; Heginbotham et al., 1999; Long et al., 2007; Tao and MacKinnon, 2008; Wang et al., 2014). Briefly, 20 mg of soy L-α-phosphatidylcholine (soy-PC) was dissolved in 1 mL chloroform in a glass vial and dried to a thin film under argon, rehydrated in reconstitution buffer (10 mM HEPES pH 7.4, 450 mM NaCl, and 2 mM DTT) to 20 mg/mL by rotating for 20 min at room temperature, followed by sonication with a bath sonicator until translucent. 1% DM was then added, and the lipid detergent mixture was rotated for 30 min and sonicated again until clear. Purified TACAN (~3 mg/mL) or ELOVL7 (~2 mg/mL) in DM/CHS and DM-solubilized lipids (20 mg/mL) were mixed at protein-to-lipid (w:w) ratios of 1:20, 1:50, and 1:100, incubated for 2 hr, and then dialyzed against 4 L reconstitution buffer for 4 days with daily exchange at 4°C. Biobeads (Bio-Rad) were added to the reconstitution buffer for the last 12 hr. The resulting proteoliposomes were flash frozen in liquid N2 and stored at −80°C.

GUV formation

Request a detailed protocol

The dehydration/rehydration-mediated blister formation technique was used for generation of GUVs as previously reported (Brohawn et al., 2014). In brief, an aliquot of reconstituted H. sapiens TACAN proteoliposome was thawed at room temperature and spotted onto the 14 mm glass coverslip inside a 35 mm glass-bottomed Petri dish (Mattek; P35G-1.5-14C) as 4–6 similar-sized drops. Spotted proteoliposomes were then dried under vacuum at 4°C for 6 hr followed by rehydration with ~20 μL rehydration buffer (10 mM HEPES pH 7.4, 140 mM KCl). The rehydration was done by sitting the 35 mm Petri dish inside a 15 cm Petri dish lined with wet filter paper overnight at 4°C (~16 hr). 3 mL bath solution (10 mM HEPES pH 7.4, 140 mM KCl, 1 mM MgCl2) was then added to the 35 mm dish before recording. Blisters were visible after ~10 min and were competent to form high-resistance seals for at least 2 hrs.

Cell culture and transfection for patch recordings

Request a detailed protocol

CHO-K1 cells (ATCC) and piezo-1 knockout HEK-293T cells (established in this lab) were used for electrophysiology experiments because they have low endogenous mechanosensitive currents (Brohawn et al., 2014; del Marmol, 2016).

Cells were cultured in DMEM-F12 (Gibco) (CHO cells) or DMEM (Gibco) (HEK-293T cells) supplemented with 10% FBS, 2 mM L-glutamine, 100 units/mL penicillin, and 100 μg/mL streptomycin. Cells were plated in 35 mm plastic dishes and grown to ~50–60% confluency at 37°C. Right before transfection, culture media was replaced by DMEM-F12 or DMEM with 10% FBS and 2 mM L-glutamine. 1 μg of H. sapiens TACAN-eGFP or the M2 muscarinic receptor (Halo-M2R-eGFP) plasmid (previously established in this lab) was transfected into the cells using FugeneHD (Promega) following the manufacturer’s protocol. Cells were transferred to 30°C after transfection and recordings were carried out 16–18 hr post-transfection. Immediately before recording, media were replaced by the bath solution (10 mM HEPES pH 7.4, 140 mM KCl, 1 mM MgCl2).

Excised inside-out patch recordings

Request a detailed protocol

Pipettes of borosilicate glass (Sutter Instruments; BF150-86-10) were pulled to ~2–6 MΩ resistance with a micropipette puller (Sutter Instruments; P-97) and polished with a microforge (Narishige; MF-83). Recordings were obtained with an Axopatch 200B amplifier (Molecular Devices) using excised inside-out patch techniques. Recordings were filtered at 1 kHz and digitized at 10 kHz (Digidata 1440A; Molecular Devices). Pressure application through patch pipettes was performed with a high-speed pressure clamp (ALA Scientific) controlled through the Clampex software. Pressure application velocity was set to the maximum rate of 8.3 mmHg/ms. All recordings were performed at room temperature. Pipette and bath solutions were identical unless otherwise stated: 10 mM HEPES pH 7.4, 140 mM KCl, and 1 mM MgCl2 (~300 Osm/L).

Planar lipid bilayer recordings

Request a detailed protocol

The bilayer experiments were performed as previously described with minor modifications (Ruta et al., 2003; Wang et al., 2014). A piece of polyethylene terephthalate transparency film separated the two chambers of a polyoxymethylene block, filled with symmetrical buffer containing 10 mM HEPES pH 7.4, 150 mM KCl unless otherwise stated. A lipid mixture of DPhPC (1,2-diphytanoyl-sn-glycero-3-phosphocholine, Avanti, Cat# 850356):POPA (1-palmitoyl-2-oleoyl-sn-glycero-3-phosphate, Avanti, Cat# 840857) (3:1, w:w) dissolved in decane (20 mg/mL) was pre-painted over an ∼100 μm hole on the transparency film. Voltage was controlled with an Axopatch 200B amplifier in whole-cell mode. The analog current signal was low-pass filtered at 1 kHz (Bessel) and digitized at 10 kHz with a Digidata 1550A digitizer (Molecular Devices). Digitized data were recorded on a computer using the software pClamp (Molecular Devices, Sunnyvale, CA). Experiments were performed at room temperature.

Cell lines

Request a detailed protocol

All the cell lines except for Piezo1 knockout HEK-293T, which was previously generated in the lab, were purchased from ATCC, and we have confirmed there is no mycoplasma contamination for all of them.

Cryo-EM sample preparation and data collection

Request a detailed protocol

For both the WT and His196Ala, His197Ala mutant of M. musculus TACAN, purified protein at a concentration of 6–7 mg/mL was mixed with 2.9 mM Fluorinated Fos-Choline-8 (FFC8; Anatrace) immediately prior to grid preparation. 3.5 μL of the mixture was applied onto a glow-discharged Quantifoil R1.2/1.3 400 mesh Au grid (Quantifoil), blotted for 4 s at room temperature (RT) with a blotting force of 2–4 and humidity of 100%, and plunge-frozen in liquid ethane using a Vitrobot Mark IV (FEI).

Cryo-EM data were collected on a 300-kV Titan Krios electron microscope (Thermo Fisher Scientific) equipped with a K2 Summit (TACANWT), or a K3 Summit (TACANH196A H197A) direct electron detector and a GIF Quantum energy filter set to a slit width of 20  eV. Images were automatically collected using SerialEM in super-resolution mode. After binning over 2 × 2 pixels, the calibrated pixel size was 1.03 Å with a preset defocus range from 0.7 to 2.1 μm (TACANWT), or 0.515 Å with a preset defocus range from 0.8 to 2.2 μm (TACANH196A H197A), respectively. Each image was acquired as either a 10 s movie stack of 50 frames with a dose rate of 7.54 e/Å2/s, resulting in a total dose of about 75.4 e−/Å2 (TACANWT), or a 1.5 s movie stack of 38 frames with a dose rate of 37.7 e/Å2/s, resulting in a total dose of about 56.6 e/Å2 (TACANH196A H197A).

Image processing

Request a detailed protocol

For TACANWT, the image processing workflow is illustrated in Figure 3—figure supplement 1D. A total of 2,071 super-resolution movie stacks were collected. Motion-correction, twofold binning to a pixel size of 1.03  Å, and dose weighting were performed using MotionCor2 (Zheng et al., 2017). Contrast transfer function (CTF) parameters were estimated with Gctf (Zhang, 2016). Micrographs with ice contamination were removed manually, resulting in 1,982 micrographs for further processing. A total of 583,766 particles were auto-picked using Relion 3.1 (Scheres, 2020; Scheres, 2012; Zivanov et al., 2018; Zivanov et al., 2020) and windowed into 256  ×  256-pixel images. Reference-free 2D classification was performed to remove contaminants, yielding 383,719 particles. These particles were subjected to ab initio reconstruction in cryoSPARC-2.9.0 (Punjani et al., 2017), specifying four output classes. The best class with 245,031 particles was selected, then subjected to a resolution-based classification workflow similar to a previous study (Kang et al., 2020). In brief, 40 iterations of global search 3D classification (K = 1) in Relion 3.1 with an angular sampling step of 7.5° was performed to determine the initial alignment parameters using the initial model generated from cryoSPARC. For each of the last five iterations of the global search, a K  =  6 multi-reference local angular search 3D classification was performed with an angular sampling step of 3.75° and a search range of 30°. The multi-reference models were generated using reconstruction at the last iteration from global search 3D classification low-pass filtered to 8, 15, 25, 35, 45, and 55  Å, respectively. The classes that showed obvious secondary structure features were selected and combined. Duplicated particles were removed, yielding 130,491 particles in total. These particles were subsequently subjected to non-uniform refinement with C2 symmetry in cryoSPARC, which resulted in a map with a resolution of 4.5 Å. Iterative cycles of non-uniform refinement in cryoSPARC with C2 symmetry and Bayesian polishing in Relion 3.1 with new training parameters were performed until no further improvement, resulting in a 3.7 Å map. The refined particles were further cleaned up with one round of ab initio reconstruction (K = 4) in cryoSPARC and 110,090 particles remained. Finally, these particles were subjected to the non-uniform refinement with C2 symmetry in cryoSPARC, which yielded the final map at 3.5 Å resolution.

For TACANH196A H197A, 10,541 super-resolution movie stacks were collected. Motion-correction, twofold binning to a pixel size of 0.515 Å, and dose weighting were performed using MotionCor2 (Zheng et al., 2017). CTF parameters were estimated with CTFFind4 (Rohou and Grigorieff, 2015). Micrographs with ice contamination were removed manually, resulting in 9,600 micrographs for further processing. A total of 1,474,917 particles were auto-picked using Relion 3.1 and windowed into 400  ×  400-pixel images, then binned two times and subjected to 2D classification, yielding 975,636 particles. The following image processing workflow is identical to TACANWT sample. Briefly, these particles were subjected to ab initio reconstruction in cryoSPARC-2.9.0 (Punjani et al., 2017), specifying four output classes. The best class with 607,159 particles was selected, then subjected to the resolution-based classification, yielding 391,137 particles. Subsequent non-uniform refinement with C2 symmetry in cryoSPARC was performed, resulting in a map with a resolution of 3.8 Å and the resolution was further improved to 3.3 Å by iterative Bayesian polishing and non-uniform refinement cycles. Particles were further cleaned up with one round of ab initio reconstruction with 155,946 particles remaining. Finally, these particles were subjected to the non-uniform refinement with C2 symmetry in cryoSPARC, which yielded the final map at 2.8 Å resolution.

The mask-corrected Fourier shell correlation (FSC) curves were calculated in cryoSPARC 2.9.0, and reported resolutions were based on the 0.143 criterion. Local resolutions of the final maps were estimated by Relion 3.1 (Scheres, 2020; Zivanov et al., 2020). A summary of reconstructions is shown in Table 1 and Figure 3—figure supplement 1E,F, Figure 3—figure supplement 2A,B, Figure 4—figure supplement 1B–E.

Model building and refinement

Request a detailed protocol

For TACANWT, the 3.5 Å resolution map was subjected to Buccaneer in the CCP-EM suite (Burnley et al., 2017; Wood et al., 2015) to generate the de novo model. This initial model was further improved using phenix.sequence_from_map in Phenix (Adams et al., 2010). Several iterative cycles of refinement using the phenix.real_space_refine with secondary structure and NCS restraints and manual adjustments in COOT yielded the final model for the TACANWT containing residues 9–72, 76-250 and 262–335 (Adams et al., 2010; Emsley et al., 2010).

For TACANH196A H197A, model of TACANWT was placed into the 2.8 Å map using UCSF Chimera (Pettersen et al., 2004) and manually adjusted in COOT Emsley et al., 2010 followed by iterative refinement cycles using the phenix.real_space_refine in Phenix with secondary structure and NCS restraints and manual adjustments in COOT. The final model for TACANH196A H197A contained residues 9–72, 76–250 and 262–335 as well as 2 CoASH molecules bound.

Refinement statistics are summarized in Table 1. Structural model validation was done using Phenix and MolProbity based on the FSC = 0.5 criterion (Chen et al., 2010). Figures were prepared using PyMOL (https://pymol.org/2/) and UCSF Chimera (Pettersen et al., 2004). Representative densities of TACANWT and TACANH196A H197A are shown in Figure 3—figure supplement 2C and Figure 4—figure supplement 1F, respectively.

Native MS analysis

Request a detailed protocol

The purified wild-type and mutant M. musculus TACAN samples were incubated with excess (0.7–0.9 mM) ligand (CoASH, S-ethyl-CoA, or acetyl-CoA) for 1 hr on ice. The incubated samples were then buffer exchanged into 200 mM ammonium acetate, 0.002% LMNG (2 CMC) using a Zeba microspin desalting column with a 40 kDa MWCO (Thermo Fisher Scientific). For nMS analysis, a 2–3 µL aliquot of each buffer-exchanged sample was loaded into a gold-coated quartz capillary tip that was prepared in-house and then electrosprayed into an Exactive Plus with extended mass range (EMR) instrument (Thermo Fisher Scientific) using a modified static direct infusion nanospray source (Olinares and Chait, 2020). The MS parameters used include spray voltage, 1.22–1.25 kV; capillary temperature, 125–200 °C; in-source dissociation, 125–150 V; S-lens RF level, 200; resolving power, 8,750 or 17,500 at m/z of 200; AGC target, 1 × 106; maximum injection time, 200 ms; number of microscans, 5; injection flatapole, 8 V; interflatapole, 7 V; bent flatapole, 5 V; high-energy collision dissociation (HCD), 200 V; ultrahigh vacuum pressure, 6–7 × 10−10 mbar; and total number of scans, at least 100. The instrument was mass calibrated in positive EMR mode using cesium iodide.

For data processing, the acquired MS spectra were visualized using Thermo Xcalibur Qual Browser (v. 4.2.47). MS spectra deconvolution was performed either manually or with UniDec v. 4.2.0 (Marty et al., 2015; Reid et al., 2018). The UniDec parameters used included m/z range, 1500–5000; mass range, 20,000–100,000 Da; peak shape function, Gaussian; and smooth charge state distribution, on.

From their primary sequences, the expected masses for the proteins are TACANWT monomer: 41,770 Da, TACANWT dimer: 83,539 Da, TACANH196A H197A monomer: 41,637 Da, and TACANH196A H197A dimer: 83,275 Da. Experimental masses were determined as the average mass± standard deviation (SD) across all the calculated mass values in the relevant peak series (n ≥ 5 charge states) with typical SDs of ±1 Da.

Enzymatic activity assay to measure coenzyme A release

Request a detailed protocol

Coenzyme A releasing activity was measured using a fluorescence-based coupled-enzyme assay (Sigma-Aldrich, Cat. MAK034) in a 96-well microplate (Costar) at 37°C. The reaction was monitored with an Infinite-M1000 spectrofluorometer (Tecan) with 535 nm excitation and 587 nm emission. The reconstituted proteoliposomes of ELOVL7 and TACAN at 1:50 protein-to-lipid ratio were used (10 µg total protein), supplemented with 100 µM malonyl-CoA (Sigma-Aldrich, Cat. M4263) and 50 µM stearoyl-CoA (Sigma-Aldrich, Cat. S0802). Reaction mixtures were incubated at 37°C for 0, 0.5, 1, 2, 4, 8, 24, and 48 hr, frozen in liquid N2, and stored at –80°C. The mixtures were then centrifuged at 20,817 g for 10 min, and supernatants were used to perform the enzymatic assay following the manufacturer’s protocol.

Data availability

The B-factor sharpened 3D cryo-EM density map and atomic coordinates of wild-type TACAN have been deposited in Worldwide Protein Data Bank (wwPDB) under accession codes 7N0K and EMD-24107. The B-factor sharpened 3D cryo-EM density map and atomic coordinates of His196Ala, His197Ala mutant TACAN have been deposited in Worldwide Protein Data Bank (wwPDB) under accession codes 7N0L and EMD-24108.

The following data sets were generated
    1. Niu Y
    2. Tao X
    3. MacKinnon R
    (2021) RCSB Protein Data Bank
    ID 7N0K. Cryo-EM structure of TACAN in the apo form (TMEM120A).
    https://www.rcsb.org/structure/unreleased/7N0K
    1. Niu Y
    2. Tao X
    3. MacKinnon R
    (2021) Electron Microscopy Data Bank
    ID EMD-24107. Cryo-EM structure of TACAN in the apo form (TMEM120A).
    https://www.ebi.ac.uk/pdbe/entry/emdb/EMD-24107
    1. Niu Y
    2. Tao X
    3. MacKinnon R
    (2021) RCSB Protein Data Bank
    ID 7N0L. Cryo-EM structure of TACAN in the H196A H197A mutant form (TMEM120A).
    https://www.rcsb.org/structure/unreleased/7N0L
    1. Niu Y
    2. Tao X
    3. MacKinnon R
    (2021) Electron Microscopy Data Bank
    ID EMD-24108. Cryo-EM structure of TACAN in the H196A H197A mutant form (TMEM120A).
    https://www.ebi.ac.uk/pdbe/entry/emdb/EMD-24108

References

  13. Thesis
    1. del Marmol JI
    (2016) Molecular basis of mechanosensitivity
    Student Theses and Dissertations, The Rockefeller University.
    https://digitalcommons.rockefeller.edu/student_theses_and_dissertations/418/
    1. Emsley P
    2. Lohkamp B
    3. Scott WG
    4. Cowtan K
    (2010) Features and development of Coot
    Acta Crystallographica Section D: Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493
    1. von Heijne G
    (1986)
    The distribution of positively charged residues in bacterial inner membrane proteins correlates with the trans-membrane topology
    The EMBO Journal 5:3021–3027.

Article and author information

Author details

  1. Yiming Niu

    Laboratory of Molecular Neurobiology and Biophysics, Rockefeller University, New York, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Software, Writing – review and editing, Writing – review and editing
    Competing interests
    none
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5683-1781

  2. Xiao Tao

    1. Laboratory of Molecular Neurobiology and Biophysics, Rockefeller University, New York, United States
    2. Howard Hughes Medical Institute, New York, United States
    Contribution
    Data curation, Investigation, Methodology, Funding acquisition, Software, Writing – review and editing, Writing – review and editing
    Competing interests
    none
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9381-7903

  3. George Vaisey

    1. Laboratory of Molecular Neurobiology and Biophysics, Rockefeller University, New York, United States
    2. Howard Hughes Medical Institute, New York, United States
    Contribution
    Data curation, Investigation, Methodology, Software, Writing – review and editing, Writing – review and editing
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8359-1314

  4. Paul Dominic B Olinares

    Laboratory of Mass Spectrometry and Gaseous Ion Chemistry, Rockefeller University, New York, United States
    Contribution
    Data curation, Investigation, Methodology, Writing – review and editing
    Competing interests
    none
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3429-6618

  5. Hanan Alwaseem

    Proteomics Resource Center, Rockefeller University, New York, United States
    Contribution
    Data curation, Formal analysis, Methodology, Writing – review and editing
    Competing interests
    none
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4946-1436

  6. Brian T Chait

    Laboratory of Mass Spectrometry and Gaseous Ion Chemistry, Rockefeller University, New York, United States
    Contribution
    Project administration, Investigation, Supervision, Funding acquisition, Validation, Writing – review and editing, Resources
    Competing interests
    none

  7. Roderick MacKinnon

    1. Laboratory of Molecular Neurobiology and Biophysics, Rockefeller University, New York, United States
    2. Howard Hughes Medical Institute, New York, United States
    Contribution
    Project administration, Supervision, Validation, Resources, Writing – review and editing, Supervision, Investigation, Funding acquisition, Writing – review and editing
    For correspondence
    mackinn@mail.rockefeller.edu
    Competing interests
    none
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7605-4679

Funding

National Institutes of Health (GM43949)

  • Roderick MacKinnon

National Institutes of Health (GM109824)

  • Brian Chait

National Institutes of Health (GM103314)

  • Brian Chait

Howard Hughes Medical Institute

  • Roderick MacKinnon

Rockefeller University

  • Hanan Alwaseem

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Mark Ebrahim, Johanna Sotiris, and Honkit Ng at the Evelyn Gruss Lipper Cryo-EM Resource Center at Rockefeller University for assistance in data collection; Dr. Chia-Hsueh Lee (St. Jude Children’s Research Hospital) for critical reading of the manuscript and suggestions for image analysis; Dr. Yixiao Zhang (Interdisciplinary Research Center on Biology and Chemistry) for advice and help on data collection; and members of the MacKinnon lab and Chen lab (Rockefeller University) for assistance. This work was supported in part by GM43949 (to RM) and GM109824 and GM103314 (to BTC). RM is an investigator in the Howard Hughes Medical Institute.

Copyright

© 2021, Niu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,707
    views
  • 379
    downloads
  • 28
    citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Yiming Niu
  2. Xiao Tao
  3. George Vaisey
  4. Paul Dominic B Olinares
  5. Hanan Alwaseem
  6. Brian T Chait
  7. Roderick MacKinnon
(2021)
Analysis of the mechanosensor channel functionality of TACAN
eLife 10:e71188.
https://doi.org/10.7554/eLife.71188

Share this article

https://doi.org/10.7554/eLife.71188

Categories and tags

Research organisms

Further reading

    1. Structural Biology and Molecular Biophysics

    TMEM120A is a coenzyme A-binding membrane protein with structural similarities to ELOVL fatty acid elongase

    Jing Xue, Yan Han ... Youxing Jiang
    Research Article Updated

    TMEM120A, also named as TACAN, is a novel membrane protein highly conserved in vertebrates and was recently proposed to be a mechanosensitive channel involved in sensing mechanical pain. Here we present the single-particle cryogenic electron microscopy (cryo-EM) structure of human TMEM120A, which forms a tightly packed dimer with extensive interactions mediated by the N-terminal coiled coil domain (CCD), the C-terminal transmembrane domain (TMD), and the re-entrant loop between the two domains. The TMD of each TMEM120A subunit contains six transmembrane helices (TMs) and has no clear structural feature of a channel protein. Instead, the six TMs form an α-barrel with a deep pocket where a coenzyme A (CoA) molecule is bound. Intriguingly, some structural features of TMEM120A resemble those of elongase for very long-chain fatty acids (ELOVL) despite the low sequence homology between them, pointing to the possibility that TMEM120A may function as an enzyme for fatty acid metabolism, rather than a mechanosensitive channel.

    1. Structural Biology and Molecular Biophysics

    Ligand-coupled conformational changes in a cyclic nucleotide-gated ion channel revealed by time-resolved transition metal ion FRET

    Pierce Eggan, Sharona E Gordon, William N Zagotta
    Research Article

    Cyclic nucleotide-binding domain (CNBD) ion channels play crucial roles in cellular-signaling and excitability and are regulated by the direct binding of cyclic adenosine- or guanosine-monophosphate (cAMP, cGMP). However, the precise allosteric mechanism governing channel activation upon ligand binding, particularly the energetic changes within domains, remains poorly understood. The prokaryotic CNBD channel SthK offers a valuable model for investigating this allosteric mechanism. In this study, we investigated the conformational dynamics and energetics of the SthK C-terminal region using a combination of steady-state and time-resolved transition metal ion Förster resonance energy transfer (tmFRET) experiments. We engineered donor-acceptor pairs at specific sites within a SthK C-terminal fragment by incorporating a fluorescent noncanonical amino acid donor and metal ion acceptors. Measuring tmFRET with fluorescence lifetimes, we determined intramolecular distance distributions in the absence and presence of cAMP or cGMP. The probability distributions between conformational states without and with ligand were used to calculate the changes in free energy (ΔG) and differences in free energy change (ΔΔG) in the context of a simple four-state model. Our findings reveal that cAMP binding produces large structural changes, with a very favorable ΔΔG. In contrast to cAMP, cGMP behaved as a partial agonist and only weakly promoted the active state. Furthermore, we assessed the impact of protein oligomerization and ionic strength on the structure and energetics of the conformational states. This study demonstrates the effectiveness of time-resolved tmFRET in determining the conformational states and the ligand-dependent energetics of the SthK C-terminal region.

    1. Structural Biology and Molecular Biophysics

    A cryo-electron tomography study of ciliary rootlet organization

    Chris van Hoorn, Andrew P Carter
    Research Article

    Ciliary rootlets are striated bundles of filaments that connect the base of cilia to internal cellular structures. Rootlets are critical for the sensory and motile functions of cilia. However, the mechanisms underlying these functions remain unknown, in part due to a lack of structural information of rootlet organization. In this study, we obtain 3D reconstructions of membrane-associated and purified rootlets from mouse retina using cryo-electron tomography. We show that flexible protrusions on the rootlet surface, which emanate from the cross-striations, connect to intracellular membranes. In purified rootlets, the striations were classified into amorphous (A)-bands, associated with accumulations on the rootlet surface, and discrete (D)-bands corresponding to punctate lines of density that run through the rootlet. These striations connect a flexible network of longitudinal filaments. Subtomogram averaging suggests the filaments consist of two intertwined coiled coils. The rootlet’s filamentous architecture, with frequent membrane-connecting cross-striations, lends itself well for anchoring large membranes in the cell.
