The role of action potential changes in depolarization-induced failure of excitation contraction coupling in mouse skeletal muscle

  1. Xueyong Wang
  2. Murad Nawaz
  3. Chris DuPont
  4. Jessica H Myers
  5. Steve RA Burke
  6. Roger A Bannister
  7. Brent D Foy
  8. Andrew A Voss
  9. Mark M Rich  Is a corresponding author
  1. Wright State University, Department of Neuroscience, Cell Biology, and Physiology, United States
  2. Wright State University, Department of Biological Sciences, United States
  3. University of Maryland School of Medicine, Departments of Pathology/Biochemistry & Molecular Biology, United States
  4. Wright State University, Department of Physics, United States
https://doi.org/10.7554/eLife.71588
Share this article
Cite this article
  1. Xueyong Wang
  2. Murad Nawaz
  3. Chris DuPont
  4. Jessica H Myers
  5. Steve RA Burke
  6. Roger A Bannister
  7. Brent D Foy
  8. Andrew A Voss
  9. Mark M Rich
(2022)
The role of action potential changes in depolarization-induced failure of excitation contraction coupling in mouse skeletal muscle
eLife 11:e71588.
https://doi.org/10.7554/eLife.71588
  2. Download BibTeX
  3. Download .RIS

Abstract

Excitation-contraction coupling (ECC) is the process by which electrical excitation of muscle is converted into force generation. Depolarization of skeletal muscle resting potential contributes to failure of ECC in diseases such as periodic paralysis, intensive care unit acquired weakness and possibly fatigue of muscle during vigorous exercise. When extracellular K+ is raised to depolarize the resting potential, failure of ECC occurs suddenly, over a narrow range of resting potentials. Simultaneous imaging of Ca2+ transients and recording of action potentials (APs) demonstrated failure to generate Ca2+ transients when APs peaked at potentials more negative than –30mV. An AP property that closely correlated with failure of the Ca2+ transient was the integral of AP voltage with respect to time. Simultaneous recording of Ca2+ transients and APs with electrodes separated by 1.6mm revealed AP conduction fails when APs peak below –21mV. We hypothesize propagation of APs and generation of Ca2+ transients are governed by distinct AP properties: AP conduction is governed by AP peak, whereas Ca2+ release from the sarcoplasmic reticulum is governed by AP integral. The reason distinct AP properties may govern distinct steps of ECC is the kinetics of the ion channels involved. Na channels, which govern propagation, have rapid kinetics and are insensitive to AP width (and thus AP integral) whereas Ca2+ release is governed by gating charge movement of Cav1.1 channels, which have slower kinetics such that Ca2+ release is sensitive to AP integral. The quantitative relationships established between resting potential, AP properties, AP conduction and Ca2+ transients provide the foundation for future studies of failure of ECC induced by depolarization of the resting potential.

Editor's evaluation

This is a rigorous electrophysiological paper that investigates relationships between resting potential, action potential properties and conduction and Ca2+ transients. It makes an investigation of excitation contraction coupling failure associated with depolarization of the resting potential.

https://doi.org/10.7554/eLife.71588.sa0

Introduction

The process by which electrical excitation of muscle is converted into force generation is known as excitation-contraction coupling (ECC). Successful ECC involves propagation of action potentials (APs) from the neuromuscular junction (NMJ) along the length of the fiber as well as into a network of membrane invaginations in muscle known as the transverse tubules (t-tubules) (Adrian et al., 1969). Depolarization in the t-tubules activates Cav1.1 channels, which triggers opening of ryanodine receptors, Ca2+ exit from the sarcoplasmic reticulum (SR), and force production (Melzer et al., 1995; Dulhunty, 2006; Bannister and Beam, 2013; Hernández-Ochoa and Schneider, 2018).

Depolarization of the resting membrane potential of skeletal muscle, when severe enough, causes failure of ECC in diseases such as periodic paralysis and intensive care unit (ICU)-acquired weakness (Lehmann-Horn et al., 2008; Cannon, 2015; Friedrich et al., 2015) as well as potentially contributing to fatigue during intense exercise (Allen et al., 2008). Studies of depolarization-induced failure of ECC in frog and mammalian skeletal muscle reveal that whole muscle force is generally stable or slightly increased with mild depolarization of the resting potential, followed by a steep decline with further depolarization by only a few mV (Holmberg and Waldeck, 1980; Renaud and Light, 1992; Cairns et al., 1997; Yensen et al., 2002; Cairns et al., 2011; Pedersen et al., 2019). The decrease in force is paralleled by a decrease in the Ca2+ transient with depolarization of the resting potential beyond –60 mV (Quiñonez et al., 2010).

The mechanism underlying failure of ECC in the setting of depolarization of the resting potential remains unknown. The simplest possibility is that failure of ECC with depolarization is due to failure to generate or conduct APs. Consistent with this possibility, the decline in force is paralleled by reduction in extracellular recordings of compound muscle APs (Overgaard et al., 1999; Overgaard and Nielsen, 2001; Pedersen et al., 2003). One possible explanation for this correlation is graded failure of excitation with depolarization of the resting potential, which manifests as either a gradual reduction in AP peak or as APs with variable amplitude that increase with increased current injection (Rich and Pinter, 2001; Rich and Pinter, 2003; Quiñonez et al., 2010; Ammar et al., 2015; Miranda et al., 2020; Uwera et al., 2020). Two studies have suggested that reduction in AP peak can cause reduction in force generation (Cairns et al., 2003; Gong et al., 2003). These studies suggest that partial failure of ECC can occur despite the continued generation of APs.

To determine the mechanism underlying the failure of ECC, we measured generation and conduction of APs as well as the ΔF/F of a genetically encoded Ca2+ indicator in muscle fibers in which the resting potential was depolarized by elevation of extracellular K+. The AP parameter that most closely correlated with elevation of intracellular Ca2+ was the area of the AP above –30 mV. We further determined that failure of AP propagation occurs when APs peak below –21 mV. Identification of the AP properties governing conduction and Ca2+ release along the length of the fiber provides a basis for future studies of depolarization-induced failure of ECC.

Results

Failure of force generation correlates with failure of the Ca2+ transient

To confirm the K+ concentration dependence of force generation previously reported (Cairns et al., 1997; Yensen et al., 2002; Pedersen et al., 2019), we perfused solution containing elevated concentrations of K+ and measured force. Measurement of twitch force in the mouse extensor digitorum longus (EDL) following elevation of extracellular K+ revealed an initial increase in force (Figure 1A, n = 3 muscles for each K+ concentration), which was followed by a decline that became faster with higher levels of extracellular K+ (Figure 1A). With return to solution containing normal K+, force recovered rapidly. The K+ concentration dependence of force 40 min after K+ infusion was steep: between 10 and 14 mM, force went from near normal to almost 0 (Figure 1A). These findings agree well with previous studies (Cairns et al., 1997; Yensen et al., 2002; Pedersen et al., 2019).

Figure 1
Download asset Open asset

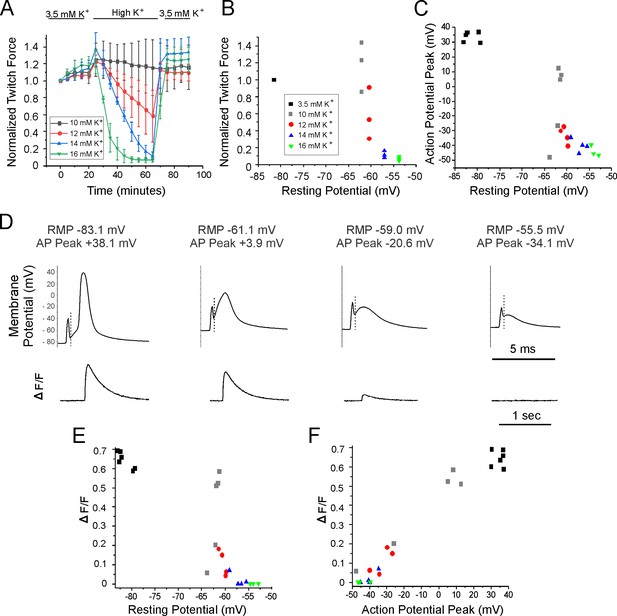

Relationships between resting potential, action potential (AP) peak, ΔF/F, and force generation.

(A) A plot of extensor digitorum longus (EDL) twitch force versus time following infusion of various concentrations of external K+ (n = 3 muscles for each K+ concentration, error bars = SD). Force for each muscle was normalized to the initial force. (B) Individual muscle forces after 40 min in high K+ (same experiments used to generate data in A) normalized to baseline force in 3.5 mM K+ for the same muscle, plotted versus mean resting membrane potential recorded in a separate set of experiments 20–40 min following infusion of high K+ solution (for resting potential measurements n is the following: 3.5 mM K+: 6 muscles, 49 fibers, 10 mM K+: 5 muscles, 50 fibers, 12 mM K+: 4 muscles, 36 fibers, 14 mM K+: 4 muscles, 32 fibers, 16 mM K+: 3 muscles, 32 fibers). The external K+ concentration is indicated by the symbol used for each muscle. (C) Plot of mean AP peak for individual muscles versus mean resting potential for the same muscle at K+ concentrations ranging from 3.5 mM to 16 mM. The plot was generated using the same muscles studied to generate the mean resting potential plotted in (B). (D) The APs and the corresponding change in fluorescence signal (ΔF/F) for fibers with various resting potentials. A dotted vertical line has been drawn on each voltage trace to mark the end of the stimulus artifact. Note the difference in time scales for the AP and ΔF/F traces. (E) Plot of mean ΔF/F versus mean resting potential for each muscle studied. (F) Plot of mean ΔF/F versus mean AP peak for each of the muscle studied.

To determine the dependence of force on resting potential, a separate set of experiments were done on a different set of muscles in which intracellular recording was performed 20–60 min following infusion of high K+. The difference in resting potential between the various concentrations of K+ was modest: in 10 mM K+, where force was near normal, Rm averaged –62.3 ± 1.0 mV (n = 5 mice, 50 fibers) and in 14 mM K+, where force had largely failed it averaged –57.1 ± 1.5 mV (n = 4 mice, 32 fibers). These data suggest that a steep reduction of force is caused by depolarization over a narrow range of resting potentials (Figure 1B), similar to what has been reported previously (Cairns et al., 1997).

To determine the mechanism underlying depolarization-induced failure of force generation, APs were recorded. AP amplitude decreased as the resting potential became more depolarized with elevation of extracellular K+ (Figure 1C and D). What was somewhat surprising was that small APs could still be triggered in many fibers at K+ concentrations (14 and 16 mM) at which force production was near 0. These data suggest that failure of force production is not due to failure to initiate APs.

To examine whether failure of force could be explained by failure of Ca2+ transients, we simultaneously recorded APs while imaging Ca2+ in mice expressing GCAMP6f in skeletal muscle. These experiments were performed on the same muscles used to measure resting potential and AP properties following infusion of solutions containing elevated concentrations of K+. GCAMP6f is a high-affinity Ca2+ indicator with a Kd near 600 nM in cardiomyocytes such that it can detect changes in Ca2+ ranging from 100 nM to 5 µM (Shang et al., 2014). The relatively high affinity makes it possible to measure changes in signal (ΔF/F) during low release flux events. However, due to the high affinity of GCAMP6f it is not possible to study kinetics of the underlying Ca2+ signal (Chen et al., 2013; Shang et al., 2014).

APs were triggered by 0.2 ms injections of current in various concentrations of K+ (Figure 1D), and the ΔF/F triggered by the AP was recorded (Figure 1D). ΔF/F in each fiber was normalized to the maximal ΔF/F for that fiber to allow determination of how effective the AP was at triggering Ca2+ release. The maximal ΔF/F for each fiber was obtained using a 20 ms injection of current, which depolarized the fiber to 0 mV or more locally. 0 mV was chosen as depolarization during APs to above 0 mV triggers minimal further increases in ΔF/F (Figure 1F).

In normal extracellular K+, single APs generated a robust signal ΔF/F (Figure 3—video 1 associated with this submission). The normalized ΔF/F in 10 mM K+ was highly variable, both between fibers and muscles. In 3/5 muscles, ΔF/F was similar to ΔF/F at a resting potential of –85 mV in 3.5 mM K, but in two muscles it was lower. The plot of ΔF/F versus resting potential was similar to the plot obtained for muscle force versus resting potential (Figure 1E). These data suggest that sudden failure to trigger Ca2+ release from the SR is the mechanism underlying the sudden depolarization-induced failure of ECC.

We next examined whether failure to generate APs was the mechanism underlying failure to trigger Ca2+ release from the SR. When extracellular K+ was 3.5 mM, AP peak averaged +30 to + 40 mV. With elevation of K+ to 10, 12, 14, and 16 mM, AP peaks ranged from near +10 mV to –40 mV (Figure 1C and D). When APs peak between –20 and –30 mV, small ΔF/F signals could be detected and when APs peak below –30 mV, ΔF/F was 0 (Figure 1D and F). These data suggest that failure of the Ca2+ transient and force generation occurs prior to failure to initiate APs.

Failure of ECC in individual fibers

To obtain a more detailed understanding of the relationships between resting potential, AP peak, and ΔF/F, we recorded from individual fibers for 7 min during infusion of solution containing 16 mM K+. When extracellular K+ was kept at 3.5 mM, the ΔF/F was stable over time, with a slight trend towards increasing (Figure 2A and B, 1.16 at 7 min vs. initial value normalized to 1, p=0.07, n = 5 fibers).

Figure 2
Download asset Open asset

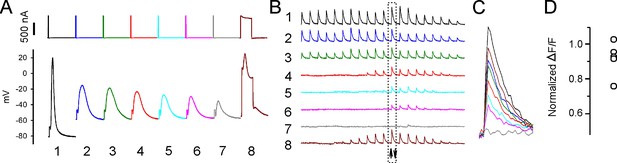

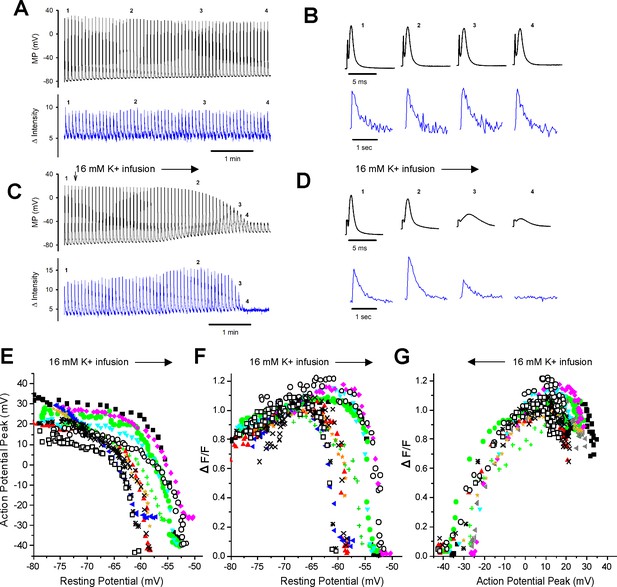

Failure of the intracellular Ca2+ transient in individual fibers during depolarization of the resting potential.

(A) The action potentials (APs) and ΔF/Fs during a 7 min recording for a fiber expressing GCAMP6f in 3.5 mM K+. The stimulus artifact in the AP traces has been eliminated for clarity. The trace shown is not continuous. A 5 ms block of time is shown for each AP, and a 1 s block of time is shown for each ΔF/F. The time base indicated is for the time between APs and ΔF/F. (B) The APs and corresponding ΔF/F for the four time points indicated in (A) on an expanded time scale. (C) APs and ΔF/F for a fiber during infusion of solution containing 16 mM K+ (indicated by the vertical and horizontal arrows). (D) The APs and corresponding ΔF/F for the four time points indicated in (C) on an expanded time scale. (E) Plot of AP peak versus resting potential during infusion of 16 mM K+ for 12 fibers. (F) Plot of ΔF/F versus resting potential for the 12 fibers shown in (E). The ΔF/F present at a resting potential of –70 mV was normalized to a value of 1 for each fiber. (G) Plot of normalized ΔF/F versus AP peak for the 12 fibers studied.

With infusion of 16 mM K+, depolarization of the resting membrane potential was accompanied by graded reduction in the AP peak from a maximum ranging from +15 to + 35 mV down to –25 to –45 mV (Figure 2C, D and E). Between resting potentials of –65 to –52 mV, there was rapid reduction of the peak with further depolarization. To quantitate the relationship between depolarization of the resting potential and reduction in AP peak, we fit the data for individual fibers with Boltzmann equations. For these fits, the HV limit, which represents the minimal AP peak when resting potential was elevated, was constrained to be between –30 mV and –50 mV. The V50 for the resting potential at which AP peak was half maximal was –58.2 ± 3.3 mV, the slope factor k was 1.8 ± 0.6 mV, and the average value of the half-maximal AP peak at the V50 value was –15.5 ± 4.9 mV (n = 12 fibers from six mice).

With depolarization during infusion of 16 mM K+, there was an initial increase in the ΔF/F from a mean normalized value of 0.81 ± 0.10 to the normalized maximum of 1 (p<0.0001 paired t-test, n = 12, Figure 2D and F). This increase is similar to what has been reported previously (Quiñonez et al., 2010; Pedersen et al., 2019) and occurred despite reduction in AP peak (Figure 2C and E). As depolarization progressed, there was rapid, complete loss of ΔF/F (Figure 2C, D and F). To quantitate the relationship between depolarization and failure of the Ca2+ transient, we fit the data for the decrease in ΔF/F with depolarization of the resting potential beyond –70 mV with a Boltzmann equation (Equation 1). For these fits, the LV limit, which represents the ΔF/F when resting potential was –70 mV, was fixed to 1, and the HV limit was constrained to be between 0 and 0.1. The resting potential at which ΔF/F was half maximal was –57.5 ± 3.4 mV with a slope factor of 0.4 ± 0.2 mV (Figure 2F), which was significantly steeper than the slope for reduction in AP peak (p<1 × 10–5, paired t-test, n = 12 fibers from five mice).

We plotted the reduction in ΔF/F versus AP peak (Figure 2G) and fit the data with a Boltzmann equation (Equation 1). For these fits, the HV was fixed to 1 and the LV was fixed to 0. The ΔF/F was half maximal at an AP peak of –21.0 ± 4.0 mV with a slope factor of 5.9 ± 1.7 mV. This relationship between peak voltage and Ca2+ transient was within the range of values obtained from voltage-clamp studies of mouse muscle fibers (Wang et al., 1999; Ferreira Gregorio et al., 2017). These data suggest that APs peaking below –30 mV trigger little to no elevation of intracellular Ca2+ and hence generate little to no force.

AP integral correlates with the Ca2+ transient

To identify properties of APs that would allow for accurate prediction of ΔF/F, the correlation between normalized AP amplitude and ΔF/F was examined. A loss of 11.6 ± 1.7 mV of resting potential was required to reduce AP amplitude from 90% to 10% of maximum. In contrast, ΔF/F was reduced from 90% to 10% of maximum with a loss of only 4.1 ± 2.4 mV of resting potential (p<1 × 10–6 vs. APs, n = 12, paired Student’s t-test). This difference led us to look for another AP parameter that more closely correlated with the reduction in ΔF/F.

As shown in Figure 2G, an AP peak above –30 mV is required to consistently trigger ΔF/F. We thus set AP peaks of –30 mV or below to 0 and normalized AP amplitude. At mildly depolarized resting potentials, drops in AP peaks were accompanied by increases in the ΔF/F (Figure 2D and F; Quiñonez et al., 2010; Pedersen et al., 2019). At more depolarized resting potentials, the drop in AP peak correlated with the drop in ΔF/F (Figure 2G); the mean R2 was 0.65 ± 0.14. While this indicated a reasonable linear correlation between AP peak and ΔF/F, we wished to identify a parameter that more closely correlated with ΔF/F.

To include changes in both AP half width and peak, the integral of AP voltage with respect to time was measured. The integral above –30 mV was used to account for the lack of ΔF/F when APs peaked below –30 mV. AP integral closely paralleled ΔF/F during depolarization of the resting potential (Figure 3A and B). When the normalized ΔF/F was plotted against normalized AP area, the mean R2 value was 0.86 ± 0.11 (Figure 3C, p<0.001 vs. the R2 value for ΔF/F vs. AP peak, n = 12 fibers, paired t-test). The R2 value was larger for AP area vs. ΔF/F because AP area more closely mimicked the rapid decrease in ΔF/F (Figure 3B).

Figure 3 with 1 supplement see all
Download asset Open asset

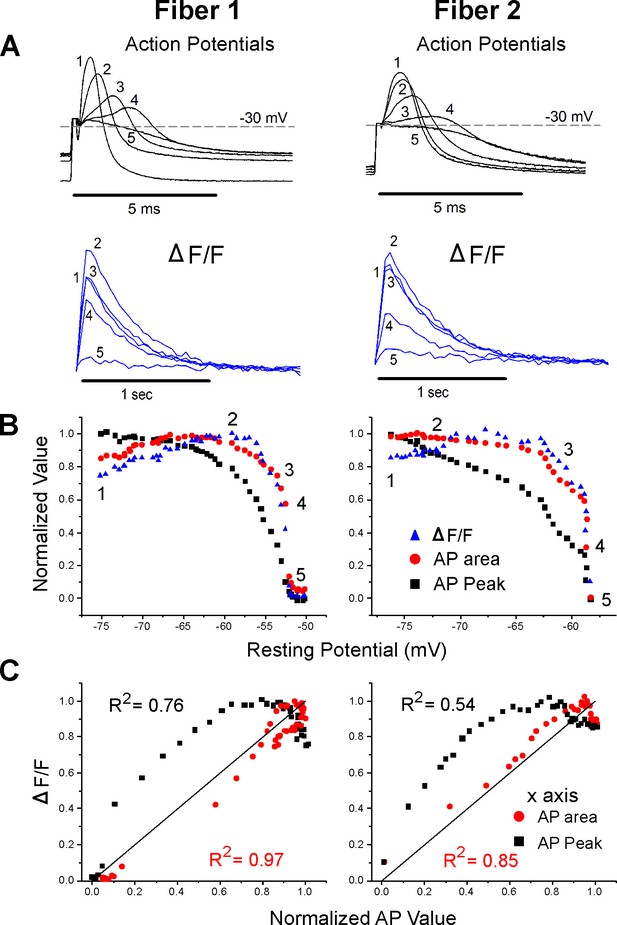

Correlation between ΔF/F and action potential (AP) area.

(A) The AP traces and ΔF/F recorded from two muscle fibers during infusion of 16 mM K+. A horizontal line at –30 mV represents the cutoff for measurement of AP area and normalized AP peak. APs peaking below –30 mV had peaks and areas set to 0. Below the AP, traces are the corresponding ΔF/F. The stimulus artifact has been truncated in the AP traces for clarity. (B) Plots of normalized AP peak, normalized AP area, and normalized ΔF/F versus resting potential for two fibers. The numbers 1–5 on each plot represent the points corresponding to the five AP and ΔF/F traces shown in (A). (C) Plots of the normalized ΔF/F versus either AP area or AP peak for the two fibers in (A) and (B). The line of identity is drawn on each plot as a reference. The R2 value for each relationship is shown on the graph.

Failure of AP propagation in individual fibers

The correlation between Ca2+ transient and integrated AP peak above a threshold suggests a mechanism by which force generation can fail even in the presence of APs. Another possibility is that small APs triggered by depolarization may fail to propagate. To measure AP propagation, fibers were imaged with a ×5 objective and the current injecting and membrane potential measuring electrodes were separated by 1.6 mm. Impalement of the same fiber was achieved using the fluorescent signal generated by fibers expressing GCAMP6f (Figure 4A). The length constant of mouse EDL fibers is close to 0.5 mm (Riisager et al., 2014) such that depolarization due to passive spread of current from the current injecting electrode would be expected to be a minor contributor to depolarization of the membrane potential at the recording electrode. We confirmed that the 0.2 ms current injection used to trigger APs did not spread to the recording electrode: injection of 1000 nA of hyperpolarizing current for 0.2 ms caused no detectable voltage deflection (data not shown).

Figure 4
Download asset Open asset
Failure of action potential (AP) conduction contributes to depolarization-induced failure of excitation-contraction coupling (ECC).

(A) A fiber expressing GCAMP6f at 5×. The top image is the fiber at rest. The middle image shows the signal along the length of the fiber triggered by an AP. The bottom image shows the regions of interest (ROIs) placed along the length of the fiber. The up arrow indicates the position of the stimulating electrode, and the down arrow indicates the position of the recording electrode. (B) Plot of AP peak 1.6 mm from the stimulating electrode versus resting potential during infusion of 16 mM K+ for eight representative fibers from eight different muscles. (C) Eight superimposed APs from a fiber during infusion of 16 mM K+. (D) The ΔF/F at the 20 ROIs along the length of the fiber in (C) for each of the eight APs shown in (C). The upward-pointing arrow indicates the position of the stimulating electrode, the downward-pointing arrow indicates the position of the recording electrode. The dashed boxes indicate the ΔF/F at the ROI of the recording electrode. At the right are shown the eight superimposed ΔF/Fs for the ROI at the recording electrode. In the example shown, in stimulations 1–3 ECC was judged to have succeeded, in stimulations 4 and 5 it was indeterminate, and in stimulations 6–8 it failed. (E, F) APs and the corresponding ΔF/F for a second fiber. In (F), it was judged that in stimulations 1–4 ECC was successful, in 5 and 6 it was indeterminate, and 7 and 8 it failed. (G) Plots of muscle means from eight mice for parameters when ECC succeeded versus when ECC failed. Each point represents an average of 2–6 muscle fibers from a muscle. For plots of ΔF/F, ROI far was located at the recording electrode and ROI near was located at the stimulating electrode.

With electrodes separated by 1.6 mm, we observed two patterns of AP failure. In some fibers, there was all or none failure, with sudden drops in AP peak of 30–60 mV (Figure 4B and E). In others, reduction of AP peak was continuous (Figure 4B and C). Regardless of whether reduction in AP peak was sudden or continuous, it was steeply dependent on resting potential; with a >40 mV reduction in peak occurring over 1–2 mV of resting potential (Figure 4B). This is in contrast to the more gradual reduction in AP peak seen with depolarization when the electrodes were close together (Figure 2C and E).

To determine the characteristics of APs necessary for successful ECC along the length of fibers, regions of interest (ROIs) were used to track Ca2+ release at various distances from the stimulating electrode during infusion of 16 mM K+. At ×5 magnification, intensity of illumination was not uniform across the muscle (Figure 4A). Despite the variation in illumination, the signal-to-noise ratio at each ROI allowed for analysis of ΔF/F along the length of fibers. APs at the recording electrode (1.6 mm from the stimulating electrode) and ΔF/F at 20 ROIs along the length of individual fibers were followed (Figure 4C–F). The ΔF/F at each ROI was normalized to the value when the resting potential was –70 mV to account for the gradient in brightness. ECC was considered to have been successful if ΔF/F of the ROI at the recording electrode was ≥75% of the ΔF/F for that ROI at a resting potential of –70 mV. ECC was considered to have failed when ΔF/F of the ROI at the recording electrode fell to ≤25% of the ΔF/F at –70 mV. When ΔF/F was between 75 and 25% of the value at a resting potential of –70 mV, success of ECC was considered indeterminate, and the data were not analyzed (Figure 4C–F).

The last AP to trigger successful ECC was associated with a ΔF/F at the ROI 1.6 mm from the stimulating electrode of 87% ± 7% of the ΔF/F value for the ROI at a resting potential of –70 mV, and this fell to 16% ± 4% by the first AP that failed to trigger successful ECC (Figure 4G, n = 8 muscles). The difference in resting potential between the last successful ECC and the first failed ECC was 0.8 ± 0.5 mV (Figure 4G, n = 8 muscles). The AP peak of the last successful ECC averaged –12.8 ± 3.9 mV and by the first failed ECC it had dropped to –38.5 ± 6.3 mV (Figure 4G, n = 8 muscles). The normalized integral of the last AP to successfully trigger ECC averaged 0.67 ± 0.12, and this fell to 0.03 ± 0.03 for the first failed ECC. The normalized integrals of APs that triggered successful ECC along the length of the fiber ranged from 0.43 to 0.81 (Figure 4G). The peaks of the last APs to trigger successful ECC along the length of the fiber ranged from –9.2 to –21.2 mV (Figure 4G). Neither measure has any overlap in values between successful and failed ECC. These data suggest that AP peak is as good as AP integral at predicting failure of conduction.

At the time of failure of AP conduction, ΔF/F near the stimulating electrode still averaged 96% ± 15% of the ΔF/F at that ROI at a resting potential of –70 mV (Figure 4G). This resulted in a gradient of ΔF/F along the length of the fiber (Figure 4D and F). These data suggest that local APs, which fail to conduct along the length of fibers, can be large enough to locally invade t-tubules, trigger gating of Cav1.1 channels and Ca2+ release from the SR.

To confirm that APs generated at the current injecting electrode sometimes failed to conduct, fibers were imaged at 5× and the stimulating and recording electrodes were placed within 100 µm of each other. APs and ΔF/F along the lengths of fibers were followed during infusion of 16 mM K+ (Figure 5A–D). It was assumed that APs had successfully conducted if ΔF/F at the ROI at the edge of the image was >0.75 of its value at a resting potential of –70 mV. Similar to recordings with the electrodes far apart, the average depolarization of resting potential between successful and failed AP conduction was only 0.5 ± 0.2 mV (n = 10 muscles with 2–5 fibers, Figure 5E). The peaks of APs that conducted ranged from –11.9 to –20.4 mV (Figure 5E). This range is similar to the range of AP peaks recorded with electrodes far apart. Normalized AP integral of successfully propagating APs ranged from 0.38 to 0.83 (Figure 5E). We conclude that, just like with electrodes far apart, AP peak is as good a predictor of AP conduction as AP integral. If APs peak above –21 mV, they conduct along the length of the fiber without decrement. APs peaking below –21 mV can trigger local Ca2+ release, but fail to conduct.

Figure 5
Download asset Open asset
Properties of action potentials (APs) near the stimulating electrode that predict successful excitation-contraction coupling (ECC).

(A, C) Eight superimposed, selected APs from two fibers during infusion of 16 mM K+. (B, D) The ΔF/F at the 20 regions of interest (ROIs) along the length of the fibers for each of the eight APs shown in (A, C). The upward-pointing arrow indicates the position of the stimulating electrode, the downward-pointing arrow indicates the position of the recording electrode. The dashed boxes indicate the ΔF/F furthest from the stimulating electrode. At the right are shown the eight superimposed ΔF/Fs for the ROI furthest from the stimulating electrode. In both (B) and (D), ECC was judged to have succeeded in stimulations 1–6, there were no indeterminate stimulations, and ECC was judged to have failed in stimulations 7 and 8. (E) Plots of muscle means from 10 mice for parameters when EEC succeeded versus when ECC failed. Each point represents an average of 2–5 muscle fibers from a muscle.

The role of Nav1.4 and Cav1.1 inactivation in depolarization-induced failure of ECC

When severe enough, depolarization of the resting membrane potential triggers both inactivation of Nav1.4 channels and inactivation of Ca2+ release from the SR (Ferreira Gregorio et al., 2017; Cannon, 2018; Hernández-Ochoa and Schneider, 2018). The trigger for Ca2+ release from the SR is gating charge movement of Cav1.1 channels, which has a midpoint of inactivation of –57 mV (Ferreira Gregorio et al., 2017); a membrane potential at which ΔF/F sharply decreases.

To determine whether inactivation of Nav1.4 channels and/or inactivation of SR Ca2+ release is the primary mechanism underlying depolarization-induced failure of ECC, we examined whether SR Ca2+ release could still be triggered after ECC had failed. For these experiments, recordings were continued during infusion of 16 mM K+ until AP amplitude in the region of the current injecting electrode was below –30 mV such that there was a >90% reduction of the localized ΔF/F near the current injecting electrode (Figure 6A and B). Following failure of ECC, the duration of current injection was increased to 5 ms to provide an artificial ‘action potential.’ Current injected was increased until it was sufficient to depolarize fibers to between +10 and +35 mV (Figure 6A). This range of voltages was selected as it is the range of AP peaks observed when the resting potential is near –80 mV (Figure 2E).

Figure 6
Download asset Open asset
Sarcoplasmic reticulum (SR) Ca2+ release can be evoked after depolarization-induced failure of excitation-contraction coupling (ECC).

(A) Shown are eight current injections and the corresponding action potentials (APs) in a fiber during infusion of 16 mM K+. Following >90% reduction in ΔF/F at the site of current injection, the duration of the current injection was increased to 5 ms to trigger an artificial ‘AP’ in stimulation #8. The ‘AP’ peak triggered is similar to the peak of the AP in that fiber prior to infusion of 16 mM K+ (stimulation #1). (B) The ΔF/F at the 20 regions of interest (ROIs) along the length of the fiber for each of the eight APs shown in (A). The upward-pointing arrow indicates the position of the stimulating electrode, the downward-pointing arrow indicates the position of the recording electrode. The dashed boxes indicate the ΔF/F closest to the stimulating electrode. (C) Eight superimposed ΔF/Fs for the ROI closest to the stimulating electrode. In the example shown, the 5 ms injection of current triggered a ΔF/F that was 87% of that triggered by an AP in that fiber at a resting potential of –70 mV. (D) Plot of muscle means from five muscles for ΔF/F triggered by a 5 ms current injection normalized to ΔF/F for APs from the same fibers at a resting potential of –70 mV.

When the duration of current injection was increased to 5 ms, a 10–20 mV depolarization caused by opening of Na channels was superimposed on the depolarization caused current injection (Figure 6A). The ΔF/F triggered by the artificial ‘AP’ was normalized to the ΔF/F in that fiber triggered by an AP when resting potential was –70 mV. The mean ‘AP’ peak triggered by 5 ms current injection was 26.2 ± 6.3 mV (n = 13 fibers from five muscles) and was triggered at a mean resting potential of –51.6 ± 4.6 mV. The ΔF/F triggered by the ‘AP’ averaged 92% ± 10% of the ΔF/F triggered by APs from the same fiber at a resting potential of –70 mV (Figure 6C and D). While these data do not rule out partial inactivation of SR Ca2+ release, they suggest that following depolarization of the resting potential to –52 mV there is, at most, modest inactivation of SR Ca2+ release. We conclude that inactivation of Nav1.4, and the resultant failure of APs to sufficiently depolarize the fiber, is the primary mechanism underlying depolarization-induced failure of ECC.

Discussion

While the steps underlying ECC in skeletal muscle have been well studied, the properties of APs necessary for successful ECC have not been determined. Elevation of extracellular K+ causes AP peaks to vary by 70 mV in amplitude, ranging from +30 to –40 mV. We combined intracellular recordings of APs at different distances from the stimulating electrode with Ca2+ imaging to determine the AP characteristics necessary for successful conduction and ECC. Ours is the first study to determine quantitative relationships between resting potential, APs, AP propagation, and the Ca2+ transients that trigger contraction during ECC in skeletal muscle. Understanding these relationships provides the foundation for future studies of depolarization-induced failure of ECC in various disease states such as periodic paralysis, ICU-acquired weakness, and perhaps fatigue during strenuous exercise.

APs peaking above –21 mV propagate

Several studies have suggested that failure of AP conduction can be an important contributor to failure of ECC in certain situations. Conduction velocity of mouse EDL muscle fibers has previously been measured using a three-electrode intracellular recording set up and by using a Ca2+ indicator dye (Riisager et al., 2014; Banks et al., 2018). Declines in AP peak and AP area and the resultant failure to conduct along the length of muscle fibers were found during prolonged repetitive stimulation of fibers (Riisager et al., 2014). Nonpropagating Ca2+ release triggered by depolarization at the end of fibers during bipolar extracellular stimulation has also previously been demonstrated (Hernández-Ochoa et al., 2016; Banks et al., 2018). However, as the findings were qualitative in nature, they did not make possible use of AP characteristics to predict success or failure of ECC.

We combined imaging of ΔF/F with recordings of APs to gauge the success or failure of AP conduction and generation of a Ca2+ transient over a distance of 1.6 mm (approximately threefold the length constant) along the length of mouse EDL muscle fibers (Riisager et al., 2014). APs peaking above –21 mV conducted and successfully triggered Ca2+ release along the length of the fiber. The finding that APs peaking at –21 mV can still conduct was unexpected. However, the voltage dependence of Na channels is such that in retrospect this finding makes sense. Our previous loose patch voltage-clamp study in rat EDL revealed that by –20 mV ~ 90% of all non-inactivated Na+ channels are activated (Rich and Pinter, 2003). Below –20 mV, there is a steep decline in the percentage of Na+ channels activated. We hypothesize that once APs peak below –21 mV any decrement in the peak as they conduct along the fiber lessens activation of Na+ channels and further reduces AP peak. This feedback loop leads to failure of propagation. Once APs peak above –21 mV, almost all available Na+ channels are activated such that AP peak does not decline along the length of the fiber and conduction is successful. We conclude that AP peaks above –21 mV serve as a safety factor for ECC similar to the safety factor for synaptic transmission at the NMJ (Rich, 2006).

It has been suggested that failure of APs to propagate into t-tubules can contribute to reduction of Ca2+ release from the SR (Rassier and Minozzo, 2016). We propose that conduction of APs along the length of fibers fails prior to failure of APs to conduct into t-tubules. This hypothesis is based on our finding that APs can be generated that trigger a local Ca2+ signal in the region of the stimulating electrode. For this to occur, the AP must propagate into t-tubules near the stimulating electrode, but not along the length of the fiber. However, to definitively determine whether failure of APs to propagate into t-tubules is an early event in depolarization-induced failure of ECC, it would be necessary to directly measure t-tubule propagation.

The integral of AP voltage predicts the local Ca2+ transient

Our study and previous work suggest that Ca2+ release from the SR begins to be triggered at voltages of –30 to –20 mV and becomes maximal at voltages above +10 mV (Wang et al., 1999; Braubach et al., 2014). Because APs peaking below –30 mV do not trigger elevation of Ca2+, we set –30 mV as 0 and normalized AP peaks. Following normalization, the relationship between AP peak and the local Ca2+ transient was good, but we wished to determine whether a closer relationship could be identified. It has previously been reported that depolarization of the resting potential triggers widening of APs (Yensen et al., 2002), and a recent computer simulation study suggested that widening of APs contributes to the increase in Ca2+ signal that occurs following modest depolarization of the resting potential (Senneff and Lowery, 2021; see, however, Yensen et al., 2002). A previous study measured the area of the AP above –20 mV to estimate effects of changes in APs during repetitive stimulation on contractility (Riisager et al., 2014). To incorporate consideration of both peak voltage and AP width, we took the integral of AP voltage with respect to time. This measure of APs closely correlated with the decrease in local Ca2+ transient. AP integral did not correlate with the increase in Ca2+ transient occurring with mild depolarization of the resting potential. One contributor to this discrepancy may be the elevation in resting Ca2+ following depolarization of the resting potential (Pedersen et al., 2019).

Distinct AP properties controlling conduction and Ca2+ release

We propose that the AP parameter responsible for propagation is the peak voltage, whereas the AP property responsible for Ca2+ release in each region of the fiber is the integral of AP peak with respect to time. This hypothesis is based on the physiology of the channels involved in each of these steps in ECC. Propagation of APs along the length of fibers is governed by Na+ channels, which have rapid kinetics (Mantegazza et al., 2021). Because Na+ channels activate rapidly, the duration of even narrow APs in one section of the fiber is more than sufficient to trigger opening of Na+ channels in the adjacent region. Thus, widening of APs with depolarization of the resting potential would not be expected to enhance propagation. Our data is consistent with AP peak being the AP parameter responsible for successful conduction.

Release of Ca2+ from the SR is governed by gating of Cav1.1 channels in the t-tubules (Kovács et al., 1979; Rios and Brum, 1987; García et al., 1994). Although movement of the Cav1.1 gating charges responsible for triggering opening of RyR1 and Ca2+ release from the SR is faster than opening of Cav1.1 channels, the movement of the gating charges in CaV1.1 is relatively slow compared to the upstroke of the AP (Schneider and Chandler, 1973; Banks et al., 2021; Savalli et al., 2021; Banks et al., 2022) such that the wider the AP, the greater the charge movement until saturation is reached. Indeed, only ~65% of the total intramembrane charge is moved during an AP (Banks et al., 2021; Banks et al., 2022). Thus, the integral is the AP parameter responsible for local Ca2+ release.

Despite being controlled by different aspects of the AP, depolarization-induced failure of conduction and failure to trigger Ca2+ release occur almost simultaneously. While a localized Ca2+ transient was often present at the time of failure of AP propagation, minimal additional depolarization of the resting potential caused failure of the local Ca2+ transient as well. This is because widening of the AP can only compensate so much for reduction in AP peak. Once the AP peak is <–30 mV, no Ca2+ release is triggered regardless of increases in AP width. Very little additional depolarization of the resting membrane potential is needed to reduce AP peaks from –20 mV to –30 mV.

Inactivation of Nav1.4 rather than inactivation of SR Ca2+ release appears to cause depolarization-induced failure of ECC

Recording in individual fibers during infusion of 16 mM K+ resulted in higher AP peaks and thus larger Ca2+ transients at a given resting potential than were obtained from sampling fibers from muscles perfused with different concentrations of K+ (Figure 1C vs. Figure 2E and Figure 1E vs. Figure 2F). One potential explanation of this difference is the speed of depolarization. In recordings from individual fibers, infusion of 16 mM K+ triggered an ~30 mV depolarization over several minutes. When sampling fibers from muscles in solutions with varying K+ concentrations, muscles were incubated in each solution for 20 min prior to recording of APs. The prolonged depolarization allows for greater slow inactivation of Na+ channels (Ruff, 1996; Ruff, 1999; Rich and Pinter, 2003), such that AP peak decreased at more negative resting potentials. In rat EDL muscle fibers, slow inactivation occurs at resting potentials more negative than fast inactivation (Ruff, 1999; Rich and Pinter, 2003). Thus, in situations where muscle fibers are chronically depolarized, slow inactivation plays a critical role in reducing excitability.

One factor that might contribute to failure of the Ca2+ transient is inactivation of SR Ca2+ release (Ferreira Gregorio et al., 2017; Hernández-Ochoa and Schneider, 2018). However, when 5 ms injections of current were used to trigger depolarization of inexcitable fibers with a mean resting potential of –52 mV, the average ΔF/F was ~90% as large as the maximal ΔF/F triggered by APs in the same fibers. While not definitive, these data suggest that inactivation of SR Ca2+ release is a minor contributor to failure of ECC triggered by depolarization of the resting potential. We hypothesize that inactivation of Nav1.4 and the resultant reduction in AP peak is the primary factor responsible for depolarization-induced failure of ECC.

Limitations

We used a voltage cutoff for the AP integral of –30 mV. This may not be the correct cutoff for all fibers. As shown in Figure 2G, there was a 15 mV range of AP peaks in different fibers at which there began to be a Ca2+ transient. The use of the AP integral as described in this work is a simplification of the underlying processes. Both the magnitude and time course of gating charge movement in response to membrane potential changes are complex and nonlinear (Ferreira Gregorio et al., 2017). The Ca2+ indicator used has slow kinetics and is high affinity. Saturation cannot be ruled out such that further work will need to be performed with dyes with more rapid kinetics and lower affinity to confirm conclusions regarding the relationship between AP properties and SR Ca2+ release.

Summary

Ours is the first study of excitation contraction coupling to establish quantitative relationships between resting potential, generation of APs, conduction of APs, and generation of Ca2+ transients in individual fibers. Understanding these relationships provides the foundation for studies of failure of ECC triggered by depolarization of the resting potential.

Methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background
(Mus musculus)		GCAMP6f miceJackson LabsStock: cat #028865 crossed with cat# 030218
Chemical compound,
drug		N-benzyl-p-toluenesulfonamide (BTS)TCI AmericaProd. #: B30820.05 mM
Software, algorithmSpike2http://ced.co.uk/downloads/latestsoftwareVersion 8

Mice

All animal procedures were performed in accordance with the policies of the Animal Care and Use Committee of Wright State University and were conducted in accordance with the United States Public Health Service’s Policy on Humane Care and Use of Laboratory Animals.

Mice expressing GCAMP6f (Chen et al., 2013) in skeletal muscle were generated by crossing floxed GCAMP6f mice (Jackson Labs, B6J.Cg-Gt(ROSA)26Sortm95.1(CAG-GCaMP6f)Hze/MwarJ, cat #028865) with mice expressing parvalbumin promoter-driven Cre (Jackson Labs, B6.129P2-Pvalbtm1(cre)Arbr/J, cat# 030218). Mice were sacrificed using CO2 or isoflurane inhalation followed by cervical dislocation.

Solutions and temperature

All experiments were performed at 21–23°C within 4 hr of sacrifice. The same solutions were used for both force experiments and intracellular recording performed on EDL muscle fibers. The control solution contained (in mM) 118 NaCl, 3.5 KCl, 1.5 CaCl2, 0.7 MgSO4, 26.2 NaHCO3, 1.7 NaH2PO4, and 5.5 glucose and maintained at pH 7.3–7.4 by aeration with 95% O2 and 5% CO2. Solutions containing elevated concentrations of KCl (3.5, 10, 12, 14, and 16 mM) had corresponding reduction in NaCl (118, 111.5, 109.5, and 105.5 mM respectively).

Ex vivo force measurements

The EDL muscle was dissected, and the proximal tendon was tied with a 6-0 caliber silk suture to a bar attached to a custom recording chamber. The distal tendon was tied to a hook and attached to the force transducer (Aurora Scientific). The EDL was stimulated with two platinum electrodes placed parallel to the muscle in the bath. The force transducer was controlled by a 305C two-channel controller (Aurora Scientific) and digitized by a Digidata 1550B digitizer (Molecular Devices). A S-900 pulse generator (Dagan) was used to generate 1 ms 100 V pulse. The pulse generator was triggered using pCLAMP 11 data acquisition and analysis software with a sampling frequency of 10 kHz. No filtering was applied to the signal. Optimal length was determined by adjusting the tension of the muscle until maximal twitch force was achieved. During force recordings, the muscle was exposed to normal K+ solution for 20 min, followed by high K+ solution (10–16 mM) for 45 min, and then washed again with normal K+ solution for 25 min to follow recovery. The EDL was stimulated with a twitch pulse every 5 min, and force was recorded.

Ex vivo recordings of APs

To prevent contraction, muscles were loaded with 50 μM BTS (N-benzyl-p-toluenesulfonamide, Tokyo Chemical Industry, Tokyo, Japan, Cat#B3082) dissolved in DMSO for 45 min prior to recording. Muscle was stained with 10 µM 4-(4-diethylaminostyrl)-N-methylpyridinium iodide (Molecular Probes, discontinued). Muscle fibers were impaled with two sharp microelectrodes filled with 2 M potassium acetate solution containing 1 mM sulforhodamine 101 (Sigma-Aldrich, Cat#S7635) to allow for visualization. Resistances were between 15 and 30 MΩ, and capacitance compensation was optimized prior to recording. APs were evoked by a 0.2 ms injection of current ranging from 100 to 1000 nA. For recordings of APs during infusion of 16 mM K+, after threshold was determined current injection was increased to 150% of threshold and perfusion of 16 mM K+ was initiated. In studies of Ca2+ release following failure of ECC, depolarization was achieved by increasing the duration of current injection to 5 ms. Fibers with resting potentials more depolarized than –74 mV in solution containing 3.5 mM KCl were discarded. Sampling frequency was 10 kHz with a 5 kHz-low pass filter.

Imaging of ΔF/F

Muscle expressing GCAMP6f was imaged without staining (LeiCa2+ I3 cube, band pass 450–490, long pass 515). Imaging was synchronized with triggering of APs using a Master-8 pulse generator (A.M.P.I., Jerusalem). Frames were acquired at 30 frames per second with a sCMOS camera (CS2100M-USB) using ThorCam software (Thorlab Inc, NJ). During infusion of solution containing high K+, APs were triggered every 5 s. Each AP was synchronized with capture of 48 frames at 30 frames/s. Images were analyzed using ImageJ (NIH).

To confirm that the sampling rate of 30 Hz was not missing an early peak in Ca2+ signal, we imaged a subset of fibers using a photomultiplier tube (Thorlab Inc) with a sampling rate of 5 kHz. The mean time to peak of the ΔF/F signal of APs in 3.5 mM Ca2+ was 44.3 ± 3.2 ms (n = 9 muscles). This was slower than the time to peak of muscle twitch tension (22.3 ± 3.2 ms, n = 5 muscles), suggesting a slow rate of binding of Ca2+ to GCAMP6f. The fluorescence signal 33 ms after triggering the AP averaged 96.2% ± 0.8% of the peak signal. These data suggest that the sampling frequency of 30 Hz introduced a slight underestimation of the peak ΔF/F.

For studies of the dependence of the Ca2+ transient on AP properties, fibers were imaged using a ×40 objective and a single ROI 50–100 μm from the current injecting electrode was analyzed. For studies of conduction of APs along the length of the fiber, fibers were imaged using a ×5 objective. Placement of both electrodes in the same fiber was accomplished using the fluorescence signal triggered along the length of the fibers expressing GCAMP6f after triggering of an AP. ROIs were selected at regular lengths along the length of the muscle fiber being stimulated. The signal between stimuli in each ROI was used to record background, which was subtracted from peak signal detected after stimulation.

Fitting of data with Boltzmann equations

Data for AP peak vs. resting potential, Ca2+ image intensity vs. AP, and Ca2+ image intensity vs. resting potential were all fit to a Boltzmann equation:

(1) Out=LV+HV-LV1+eV50-Vk

where Out represents the dependent variable (either AP peak or Ca2+ image intensity), V is the independent voltage variable (either resting potential or AP peak), LV is the limiting value when V is very low (toward more negative), HV is the limiting value when V is very high (toward more positive), V50 is the value of V at which Out is halfway between HV and LV, and k is the slope factor. All voltages and the variable k are expressed in mV, and Ca2+ image intensity is in arbitrary units between 1 for maximum intensity for each experiment and 0.

Statistics

Two types of statistical comparisons were made. For recordings at a single time point, repeated ANOVA with n as the number of mice was used. For comparisons within individual fibers followed over time during infusion of 16 mM K+ and control fibers followed over time in 3.5 mM K+, the paired Student’s t-test was used with n as the number of fibers. The 12 fibers recorded from over time during infusion of 16 mM K+ came from five different mice, and the 5 control fibers maintained in 3.5 mM K+ came from three different mice. The numbers of animals and fibers for comparisons are described in the corresponding figure legends and text. All data are presented as mean ± SD. p<0.05 was considered to be significant.

Data availability

All data generated during this study have been submitted to Dryad.

The following data sets were generated
    1. Rich MM
    (2021) Dryad Digital Repository
    Effect of depolarization on action potentials and calcium transients in mouse skeletal muscle.
    https://doi.org/10.5061/dryad.sqv9s4n49

References

  13. Book
    1. Cannon SC
    (2018) Sodium Channelopathies of Skeletal Muscle
    In: Binder CJ, editors. Handbook of Experimental Pharmacology. Springer. pp. 309–330.
    https://doi.org/10.1007/164_2017_52
    1. Lehmann-Horn F
    2. Jurkat-Rott K
    3. Rüdel R
    4. Ulm Muscle Centre
    (2008)
    Diagnostics and therapy of muscle channelopathies--Guidelines of the Ulm Muscle Centre
    Acta Myologica 27:98–113.

Decision letter

  1. Christopher L-H Huang
    Reviewing Editor; University of Cambridge, United Kingdom
  2. Mone Zaidi
    Senior Editor; Icahn School of Medicine at Mount Sinai, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "The Role of Action Potential Waveform in Failure of Excitation Contraction Coupling" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Mone Zaidi as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

All three reviewers responded positively to the study but had serious issues to raise concerning interpretation of the findings, the need for some further experiments, with a consequent large number of issues being raised as enumerated in the comments to follow. The reviewers have also indicated their reservations in broad terms as follows:

1) Reviewer 1 regards the observations as empirically helpful, but is very concerned about the further interpretation that need to address in particular (a) whether there is a possible tubular action potential conduction failure despite persistent surface membrane excitation and (b) the relative inactivation properties of Na channel function and of excitation contraction coupling.

2) To Reviewer 2 a large negative aspect of the manuscript in its current form was over-interpretation and the discussion about how these findings challenge fundamental aspect of our understanding of action potentials.

3) Although Reviewer 3 was enthusiastic about the study and the new finding (except for Figure 1) but made extensive and important comments. In particular they also felt that the conclusions are not fully justified. In particular there was a lack of information regarding the calcium indicator, commenting that due to the limitation of the calcium indicator that has been used, at least one other calcium indicator must be tested to confirm the conclusions.

4) Note that all three reviewers had independently raised such queries concerning the possibility of action potential failure, and interpretation of the all or none concept.

Despite the rather extensive changes that these points entail, the three reviewers felt they wished to give the authors the opportunity for further work and revisions, whilst clearly on the understanding that a revised version of the work would be subject to careful scrutiny in relationship to the recommendations that were made.

Reviewer #1 (Recommendations for the authors):

A) These are well conducted and elegant experiments, both in their electrical recordings and in their determinations of ca2+ transients. The findings provide a helpful and constructive empiric demonstration showing the point at which the processes of action potential activation and triggering of the ca2+ transient fail.

B) My problem is their taking this interpretation further, as their present experimental design does not consider:

1) The possibility of a persistent surface action potential generation despite a tubular action potential conduction failure. This will give the appearance of persistent regeneration Na channel activity reflecting the surface action potential wave, combined with an excitation contraction coupling failure. I wonder if changes of this kind are evidenced in the late component waveform changes as illustrated in Figure 1C.

2) If it is possible to resolve (1), the authors also need to draw attention to the presence of inactivation properties in both the Na channel mediating the action potential, and the excitation contraction coupling process, as evidence in inactivation properties of its underlying charge movement. Both these relationships are steep, and fall over similar voltage ranges.

3) Is it possible to obtain potentiometric optical records of tubular action potential propagation or its possible failure to demonstrate a persistence of a tubular action potential in the face of a failure in ca2+ transient activation?

4) Having addressed (3), one then needs to distinguish the inactivation properties and its voltage dependence respectively of Na channel inactivation [1] and the inactivation of excitation contraction coupling. The latter should be considered in terms of the corresponding inactivation properties of tension generation, the ca2+ transientand its underlying triggering intramembrane charge movement [2-3].

C) If it is possible to resolve the point (B) above, the outcome of this paper indeed distinguishes between action potential failure and excitation contraction coupling failure. If it is not possible to resolve this point, then it remains possible to report an empiric finding relating resting potential modification and skeletal muscle function.

References:

[1] Adrian RH, Marshall MW. Sodium currents in mammalian muscle (nih.gov)

[2] The effects of calcium deprivation upon mechanical and electrophysiological parameters in skeletal muscle fibres of the frog. – Lüttgau – 1979 – The Journal of Physiology – Wiley Online Library

[3] Analysis of 'off' tails of intramembrane charge movements in skeletal muscle of Rana temporaria. – Huang – 1984 – The Journal of Physiology – Wiley Online Library

Reviewer #2 (Recommendations for the authors):

The objective of this study is to further understand the mechanism by which increases in extracellular [K+] affect twitch force. On the one hand, Figure 1, which is about twitch force and action potential, brings nothing new because it has been shown many times. On the other hand, the data on the relationships between resting potential, action potential and ca2+ transient are new and very interesting. However, it must be expanded; and, at the present time there are serious major concerns that must be dealt with.

1. The ‘all or none’ concept. The authors are first basing this concept from a 1917 study, a concept that has been modified since then. They also claim that studies from the Renaud and Cairns groups described their K+ effects from an all or none perspective, which is not true. It is clear that K+-induced force depression involves graded decreases in both action potential peak, twitch and tetanic force, albeit the graded decreases are very steep but not in a all or none way.

In regard to action potential, the ‘all or none’ concept means that regardless of the stimulation strength, once threshold has been reached the action potential shape is always the same. However, this is true for a given physiological condition. When there is a change in the physiological condition, e.g., change in [Na+] or [K+], then the action potential shape will change according to how the kinetics of the Na+ channels are affected by the changes in ion concentration and/or membrane potential. However, in the new physiological condition, the ‘all or none’ concept remains.

So, the concept of all or none for the K+ effects must be entirely removed as it never existed and was never discussed in this way. Also remove the discussion about the definition of AP. The following definition is well accepted and data from this study and previous ones does not affect that definition: "An AP is a transient voltage change involving a depolarization phase followed by a repolarization phase. APs are all or none events within a given physiological definition, but can change shape when physiological conditions change.

2. Figure 1. The data in this figure has been shown in many past studies and absolutely provide no new information. Only Figure 1D is important to combine with Figure 2D and 3G. See more details in comments #7. All other data must be removed.

3. Another issue with Figure 1 and the entire studies is the experimental temperature of 25{degree sign}C when muscle temperatures during exercise exceed 37degC. Data at 25{degree sign}C are completely and physiologically irrelevant because the K+-induced force depression is highly temperature dependent, most studies showing a shift in the force-[K+] relationship shifted to higher [K+] as temperature is raised. Furthermore, the K+-induced twitch potentiation is much greater at 37{degree sign}C (Yensen study) than at 25{degree sign}C (Cairns study). In other words, no one can use the data in this study to understand the role of the K+ effects during fatigue. It is now possible to carry out experiments at higher temperature.

4. Ca2+ indicator. There are major differences between various ca2+ indicators providing µM to mM changes in intracellular [ca2+] during contraction, and the biggest problem is to estimate how ca2+ transient occurs during twitches. In this study GCAMP6f is used as a ca2+ indicator with its own limitations, but for which little is given and discussed, albeit references are provided. This is the most important and interesting part of the study and correlation between action potential and ca2+ transients have never been demonstrated. Here, the section need major strengthening as follows:

– The indicator is a protein being expressed in muscles. Where is the indicator mainly located? Indicators with nM affinity only measured [ca2+] in sarcomere, ca2+ values being in the µM range. However, indicators with very low affinity for ca2+ provide [ca2+] values close to mM. Why the differences? Most likely because [ca2+] near the releasing site must be very high to provide fast ca2+ diffusion into sarcomere and such concentration can only be measured with low ca2+ affinity indicator because those with nM affinity are saturated and tend to provide [ca2+] within the sarcomere. So to be relevant, one needs information about its location in the sarcoplasm.

– The authors mention on line 420 that the indicator has a high affinity but gives no values. To properly judge the possibility of saturation as raised by the authors one needs to know what is the affinity. For the results to be of any significance, that value must be provided as well as the conditions in which it was measured as test tube versus in fiber values are often different because of differences in solutions and myoplasm.

– It is obvious that GCAMP6f has a fast on-rate and a very slow off rate. These raises two questions. First, how long does it takes to reach the peak? Action potential overshoot occurs within 1 msec and time to twitch peak force of EDL is about 5-7 msec (37{degree sign}C). So, is the peak value of the ca2+ indicator occurring before or after the twitch time to peak?

– To strengthen the study, it would help if similar experiments were carried out with at least one other ca2+ indicator, perhaps one with very high affinity like Indo-1 and one with very low affinity to see what happens near the ca2+ releasing site as mentioned above.

All of these points should be discussed at the beginning of the discussion. The idea is not to dismiss the data. It is a first attempt and as long as the limitations are acceptable, the data are valuable. Also, in the Methods you should explain why pictures are taken every 33 msec (30 frames/sec). When one reads this, the reaction is that one cannot measured the ca2+ transient during a twitch in EDL that is shorter than 33 msec!

5. Why is a neighboring fiber is used for resting [ca2+]? Why not take a picture or two before fibers are stimulated to get the resting [ca2+]?

6. Fiber damage, lines 225-231. Why are the changes in resting EM and AP overshoot consider to be due to fiber damage? This question is raised because muscle movement during stimulation was blocked by BTS, so microelectrode damage is not expected. Another possibility is a leak around the microelectrodes. If this was the case, one would not get resting EM and overshoot as measured. The last thing is a continuous depolarization following microelectrode penetration. This is a major issue with KCl filled microelectrodes because K+ and Cl- diffuses out of the microelectrodes while Cl- leaves the fiber faster than K+ because of the huge Cl- conductance of mammalian skeletal muscle fiber vs. that of K+. However, in this case the microelectrodes were filled with K+-acetate. Thus, the slow depolarization and overshoot decrease is more likely due to normal physiological changes associated with repetitive AP as it has been shown for example during a 2 sec 50 Hz tetanic stimulation of soleus muscle (Cairn study), which was stretched to reduce muscle movement during contraction. Regardless of the cause, what is important is to show what happens when [K+] is increased to 16 mM and demonstrate that the effects are much greater.

7. Slow inactivation. Another important aspect of the data presented in this study is the difference in AP overshoot-resting EM. In the discussion the authors raised the issue that for a given resting EM, AP overshoot is greater when measured at 16 mM K+ over a few minutes (Figure 2C) vs. after 45 min at elevated [K+] (Figure 1). I agree with the authors that the difference involved the slow inactivation process that takes several min to complete. Unfortunately, they raised the issue only in the discussion and are forcing us to discern the differences from different figures. I suggest that a figure is added to clearly show the overshoot-resting EM relationship in the same figure. This is clearly an important issue because we often look at a potential role of K+ in muscle fatigue during a 3-5 min fatigue period with the K+ effect over a 45 min period. Showing the differences in how depolarization and time affect overshoot is critical.

8. It is unfortunate that the authors did not think about measuring [ca2+] when they measured AP after inducing membrane depolarizations at high [K+]. There is evidence for slow inactivation of the ca2+ release mechanism involving both CaV1.1 and RyR1. So, it would be interesting to see if prolonged K+-induced membrane depolarization also affects over time the ca2+ transient; i.e., different [ca2+]-resting EM or AP relationships. This would really increase the interest for this study.

9. Statistics. The greater the number of paired t-test the lower the overall significance; i.e., each test may be with P < 0.05, but too many t-tests and the overall probability becomes greater than 0.05. ANOVA are much stronger and must be used. An n=3 such as in line 174 is a poor sample size for statistics.

10. How were resting EM and overshoot values averaged? One cannot take an average from all tested fibers from different muscles. One must average the values from fibers from the same muscles and then calculated the final mean from the muscle averages. Sample size should then be number of muscles/number of fibers. Statistics should also use the muscle averages unless a repeated ANOVA is used.

11. Lines 175-177: this is an example of discussion in the Results section. Remove all of them and keep them for the Discussion section.

12. Figure 1C: Stimulation artifacts are quite large and AP starts before EM is back to pre-stimulation. Consequently, overshoots are overestimated. Greater distances are necessary between the injecting current microelectrode and EM recording microelectrode. Also, if current was injected to trigger APs, why is the artifacts so large?

13. It would also be interesting to compare the AP overshoot-resting EM with steady state fast and slow inactivation curve of NaV1.4 channels to further emphasize the similarity and the physiological relevance of these inactivation curves.

14. Pedersen and others often explain the increase in twitch [ca2+] with repetitive stimulation by an increase in [ca2+] between contractions because it means that more ca2+ remains bound to ca2+ binding proteins so when ca2+ is released more remains in the fee state. You do have an increase in resting [ca2+] in Figure 3C and this possibility must be discussed in the Discussion because it can be a reason as to why there is a portion of the ca2+ transient – overshoot that cannot be explained by the overshoot decrease.

15. Lines 394. A non-linear relationship does not imply a poor correlation. You have in fact obtained excellent relationships, they are simply not linear. For such relationships you must fit the data for nonlinear relations and you will still get excellent correlation coefficient. What you are looking for is a linear relationship. Correct the discussion.

Reviewer #3 (Recommendations for the authors):

This manuscript is a very interesting piece of work, and it leads to a very important conclusion regarding SR ca2+ release. It shows that the release is not as binary as it is often portrayed in textbooks and by colleagues in our field. Rather this work demonstrates that the SR ca2+ release is highly dependent on the waveform of the activating action potential. This finding may be relevant for fatigue and for muscle weakness in some paralytic disorders.

The experimental approach is interesting, and experiments are well performed. Moreover, the authors are aware of some of the limitations and these limitations are mentioned. They are, however, not really taken into consideration when the data is interpretated. In the mind of the reviewer this leads to some degree of over-interpretation of the data. Two particular elements of concern exist that should be modified/addressed:

First, the discussion of whether the signals are all-or-none is misguided by the fact that the two electrodes are close to each other. While not mentioned in the methods (please correct this) the electrodes appear to be inserted at very close proximity and the ca2+ signals are (presumably) recorded within the same region where the electrodes are impaled. This means that it is not possible to exclude that the compromised action potentials at high K+ did not propagate along the fiber. It is therefore hard to exclude that some of the loss of force at elevated K+ is caused by all-or-none behavior due to failing propagation. It is recommended that statements like in L195-199 are modified because how do you know that the signals propagated? If they did not propagate the all-or-none is more accurate description perhaps. Please also re-consider that the signals recorded at the excitation zone naturally will depend on the size of the passive response to the action potential trigger current and hence the recorded signals with the voltage electrode will depend on both the regenerative action potential signals and the triggering current. In propagating signals, only the true action potential will remain and the passive response to the action potential triggering current would disappear.

The paper is interesting due to the data and in the mind of the reviewer the whole narrative about these findings leading to new definition of an action potential and the challenge of the all-or-none theory is not really needed. Frankly, it takes away the focus of the nice scientific data that demonstrates that SR ca2+ release is strongly dependent of the waveform of the action potential. This is new and sufficiently novel to justify the work.

Second, the imaging of ca2+ is with a high affinity reporting system and with low sampling frequency. These two experimental design characteristics means that the peak of the ca2+ transients could have been missed, and it is therefore difficult to know how the transient peaks were affected when the action potential peaks declined. The conclusion that the waveform integral above -30 mV is the best predictor for ca2+ release is likely correct, but again the conclusions are rather dogmatic and should be more balanced taking into consideration the limitations of the method.

https://doi.org/10.7554/eLife.71588.sa1

Author response

Essential revisions:

Reviewer #1 (Recommendations for the authors):

A) These are well conducted and elegant experiments, both in their electrical recordings and in their determinations of ca2+ transients. The findings provide a helpful and constructive empiric demonstration showing the point at which the processes of action potential activation and triggering of the ca2+ transient fail.

B) My problem is their taking this interpretation further, as their present experimental design does not consider:

1) The possibility of a persistent surface action potential generation despite a tubular action potential conduction failure. This will give the appearance of persistent regeneration Na channel activity reflecting the surface action potential wave, combined with an excitation contraction coupling failure. I wonder if changes of this kind are evidenced in the late component waveform changes as illustrated in Figure 1C.

This is a very insightful comment and caused us to perform additional experiments to determine whether failure of AP conduction along the length of fibers might contribute to failure of ECC. We have added 2 new figures showing these data. Our new data suggest failure of conduction along the length of the fiber rather than failure of AP conduction into t-tubules is the cause of failure of ECC.

2) If it is possible to resolve (1), the authors also need to draw attention to the presence of inactivation properties in both the Na channel mediating the action potential, and the excitation contraction coupling process, as evidence in inactivation properties of its underlying charge movement. Both these relationships are steep, and fall over similar voltage ranges.

We performed additional experiments to determine whether inactivation of Na channels or inactivation of SR Ca release is the limiting factor in depolarization-induced failure of ECC. Our data suggests inactivation of Na channels and failure of APs to trigger ca2+ release occurs prior to inactivation of SR ca2+ release. These data are presented in a new figure.

3) Is it possible to obtain potentiometric optical records of tubular action potential propagation or its possible failure to demonstrate a persistence of a tubular action potential in the face of a failure in ca2+ transient activation?

We believe the new data presented make this possibility less likely, so we opted not to perform experiments with potentiometric dyes.

4) Having addressed (3), one then needs to distinguish the inactivation properties and its voltage dependence respectively of Na channel inactivation [1] and the inactivation of excitation contraction coupling. The latter should be considered in terms of the corresponding inactivation properties of tension generation, the ca2+ transientand its underlying triggering intramembrane charge movement [2-3].

New experiments have been performed and a new figure has been generated. Inactivation of Na channels appears to be responsible for failure of ECC.

C) If it is possible to resolve the point (B) above, the outcome of this paper indeed distinguishes between action potential failure and excitation contraction coupling failure. If it is not possible to resolve this point, then it remains possible to report an empiric finding relating resting potential modification and skeletal muscle function.

We believe the new experiments performed have greatly strengthened our study and support our conclusion that depolarization-induced failure of ECC is due to failure of AP generation/conduction rather than inactivation of SR Ca release.

Reviewer #2 (Recommendations for the authors):

The objective of this study is to further understand the mechanism by which increases in extracellular [K+] affect twitch force. On the one hand, Figure 1, which is about twitch force and action potential, brings nothing new because it has been shown many times. On the other hand, the data on the relationships between resting potential, action potential and ca2+ transient are new and very interesting. However, it must be expanded; and, at the present time there are serious major concerns that must be dealt with.

1. The ‘all or none’ concept. The authors are first basing this concept from a 1917 study, a concept that has been modified since then. They also claim that studies from the Renaud and Cairns groups described their K+ effects from an all or none perspective, which is not true. It is clear that K+-induced force depression involves graded decreases in both action potential peak, twitch and tetanic force, albeit the graded decreases are very steep but not in a all or none way.

In regard to action potential, the ‘all or none’ concept means that regardless of the stimulation strength, once threshold has been reached the action potential shape is always the same. However, this is true for a given physiological condition. When there is a change in the physiological condition, e.g., change in [Na+] or [K+], then the action potential shape will change according to how the kinetics of the Na+ channels are affected by the changes in ion concentration and/or membrane potential. However, in the new physiological condition, the ‘all or none’ concept remains.

So, the concept of all or none for the K+ effects must be entirely removed as it never existed and was never discussed in this way. Also remove the discussion about the definition of AP. The following definition is well accepted and data from this study and previous ones does not affect that definition: "An AP is a transient voltage change involving a depolarization phase followed by a repolarization phase. APs are all or none events within a given physiological definition, but can change shape when physiological conditions change.

The all or none concept has been removed and the discussion of what is an AP has been removed.

2. Figure 1. The data in this figure has been shown in many past studies and absolutely provide no new information. Only Figure 1D is important to combine with Figure 2D and 3G. See more details in comments #7. All other data must be removed.

We agree with the reviewer that the force data confirm previous results. We left the animal numbers for force experiments at 3 as they are confirmatory. We have redone all the intracellular recordings with higher n and with simultaneous Ca imaging. We hope the reviewer will agree that the new Figure 1 substantially moves the field forward.

3. Another issue with Figure 1 and the entire studies is the experimental temperature of 25{degree sign}C when muscle temperatures during exercise exceed 37degC. Data at 25{degree sign}C are completely and physiologically irrelevant because the K+-induced force depression is highly temperature dependent, most studies showing a shift in the force-[K+] relationship shifted to higher [K+] as temperature is raised. Furthermore, the K+-induced twitch potentiation is much greater at 37{degree sign}C (Yensen study) than at 25{degree sign}C (Cairns study). In other words, no one can use the data in this study to understand the role of the K+ effects during fatigue. It is now possible to carry out experiments at higher temperature.

We agree and plan to perform these experiments in the future. We are working to modify our set up, and hope within the next year to begin experiments closer to physiologic temperature.

4. Ca2+ indicator. There are major differences between various ca2+ indicators providing µM to mM changes in intracellular [ca2+] during contraction, and the biggest problem is to estimate how ca2+ transient occurs during twitches. In this study GCAMP6f is used as a ca2+ indicator with its own limitations, but for which little is given and discussed, albeit references are provided. This is the most important and interesting part of the study and correlation between action potential and ca2+ transients have never been demonstrated. Here, the section need major strengthening as follows:

– The indicator is a protein being expressed in muscles. Where is the indicator mainly located? Indicators with nM affinity only measured [ca2+] in sarcomere, ca2+ values being in the µM range. However, indicators with very low affinity for ca2+ provide [ca2+] values close to mM. Why the differences? Most likely because [ca2+] near the releasing site must be very high to provide fast ca2+ diffusion into sarcomere and such concentration can only be measured with low ca2+ affinity indicator because those with nM affinity are saturated and tend to provide [ca2+] within the sarcomere. So to be relevant, one needs information about its location in the sarcoplasm.

We are not attempting to determine the ca2+ concentration in muscle fibers. We cannot rule out that GCAMP6F might be saturating. We have added a limitations section to the discussion where we discuss limitations of the ca2+ dye.

– The authors mention on line 420 that the indicator has a high affinity but gives no values. To properly judge the possibility of saturation as raised by the authors one needs to know what is the affinity. For the results to be of any significance, that value must be provided as well as the conditions in which it was measured as test tube versus in fiber values are often different because of differences in solutions and myoplasm.

We have added the value. It was derived in situ in cardiomyocytes.

– It is obvious that GCAMP6f has a fast on-rate and a very slow off rate. These raises two questions. First, how long does it takes to reach the peak? Action potential overshoot occurs within 1 msec and time to twitch peak force of EDL is about 5-7 msec (37{degree sign}C). So, is the peak value of the ca2+ indicator occurring before or after the twitch time to peak?

We now include data on time to peak of the GCAMP6f signal and found it is near 40 ms. We measured the time to peak of force measurements at 22C and found that for the EDL it was close to 22 ms. These data suggest that GCAMP6f has a slow on rate as well as having a slow off rate and we conclude the peak of the fluorescence signal is occurring after the twitch time to peak. These data are now included in the methods section.

– To strengthen the study, it would help if similar experiments were carried out with at least one other ca2+ indicator, perhaps one with very high affinity like Indo-1 and one with very low affinity to see what happens near the ca2+ releasing site as mentioned above.

We plan to do this in a follow up study, but given the extensive additional experiments performed, we believe this is beyond the scope of the current manuscript.

All of these points should be discussed at the beginning of the discussion. The idea is not to dismiss the data. It is a first attempt and as long as the limitations are acceptable, the data are valuable. Also, in the Methods you should explain why pictures are taken every 33 msec (30 frames/sec). When one reads this, the reaction is that one cannot measured the ca2+ transient during a twitch in EDL that is shorter than 33 msec!

We performed some experiments using a PMT tube at a sampling rate of 5 kHZ. We now include data on time to peak and the small error introduced by our 30 Hz sample rate with the camera in the methods section. The reason for the 30 Hz sampling rate is that this is the fastest rate at which we can take pictures with our camera.

5. Why is a neighboring fiber is used for resting [ca2+]? Why not take a picture or two before fibers are stimulated to get the resting [ca2+]?

We have corrected this and now use the same fiber for background. This did not change results.

6. Fiber damage, lines 225-231. Why are the changes in resting EM and AP overshoot consider to be due to fiber damage? This question is raised because muscle movement during stimulation was blocked by BTS, so microelectrode damage is not expected. Another possibility is a leak around the microelectrodes. If this was the case, one would not get resting EM and overshoot as measured. The last thing is a continuous depolarization following microelectrode penetration. This is a major issue with KCl filled microelectrodes because K+ and Cl- diffuses out of the microelectrodes while Cl- leaves the fiber faster than K+ because of the huge Cl- conductance of mammalian skeletal muscle fiber vs. that of K+. However, in this case the microelectrodes were filled with K+-acetate. Thus, the slow depolarization and overshoot decrease is more likely due to normal physiological changes associated with repetitive AP as it has been shown for example during a 2 sec 50 Hz tetanic stimulation of soleus muscle (Cairn study), which was stretched to reduce muscle movement during contraction. Regardless of the cause, what is important is to show what happens when [K+] is increased to 16 mM and demonstrate that the effects are much greater.

We agree with the reviewer that it is not critical for our study whether depolarization is induced by damage or high K+. We have shortened discussion of damage-induced depolarization and have removed it from the figure.

7. Slow inactivation. Another important aspect of the data presented in this study is the difference in AP overshoot-resting EM. In the discussion the authors raised the issue that for a given resting EM, AP overshoot is greater when measured at 16 mM K+ over a few minutes (Figure 2C) vs. after 45 min at elevated [K+] (Figure 1). I agree with the authors that the difference involved the slow inactivation process that takes several min to complete. Unfortunately, they raised the issue only in the discussion and are forcing us to discern the differences from different figures. I suggest that a figure is added to clearly show the overshoot-resting EM relationship in the same figure. This is clearly an important issue because we often look at a potential role of K+ in muscle fatigue during a 3-5 min fatigue period with the K+ effect over a 45 min period. Showing the differences in how depolarization and time affect overshoot is critical.

We agree with the reviewer that this is a critical issue. However, we have opted not to put the data in the same figure as we could not figure out how to do so without disrupting the flow of the manuscript. We hope that pointing the difference in the discussion will suffice.

8. It is unfortunate that the authors did not think about measuring [ca2+] when they measured AP after inducing membrane depolarizations at high [K+]. There is evidence for slow inactivation of the ca2+ release mechanism involving both CaV1.1 and RyR1. So, it would be interesting to see if prolonged K+-induced membrane depolarization also affects over time the ca2+ transient; i.e., different [ca2+]-resting EM or AP relationships. This would really increase the interest for this study.

We re-did all of the 20-40 minutes depolarization experiments in muscle expressing GCAMP6f. We present these new data in a new version of Figure 1 that includes ca2+ imaging.

9. Statistics. The greater the number of paired t-test the lower the overall significance; i.e., each test may be with P < 0.05, but too many t-tests and the overall probability becomes greater than 0.05. ANOVA are much stronger and must be used. An n=3 such as in line 174 is a poor sample size for statistics.

We use n of 3 mice for the force experiments as they are confirmatory of previous excellent studies and are not meant to stand alone. Rather than eliminate these confirmatory data we have made their presentation as brief as possible. For most other statistics we have at least 5 mice as the n as used nested analysis of variance. In 14 and 16 mM K+ where there is no evidence of muscle contraction n was less than 5 mice.

10. How were resting EM and overshoot values averaged? One cannot take an average from all tested fibers from different muscles. One must average the values from fibers from the same muscles and then calculated the final mean from the muscle averages. Sample size should then be number of muscles/number of fibers. Statistics should also use the muscle averages unless a repeated ANOVA is used.

We use the number of muscles as sample size for comparisons between muscles and average the values from muscles to get the final average. We used a repeated ANOVA as described in the methods. We have now clarified this. We have lengthened the statistics section to more clearly state how the different types of data were analyzed.

11. Lines 175-177: this is an example of discussion in the Results section. Remove all of them and keep them for the Discussion section.

We have tried to keep discussion topics in the discussion.

12. Figure 1C: Stimulation artifacts are quite large and AP starts before EM is back to pre-stimulation. Consequently, overshoots are overestimated. Greater distances are necessary between the injecting current microelectrode and EM recording microelectrode. Also, if current was injected to trigger APs, why is the artifacts so large?

We have added new experiments with the electrodes far apart. These data are part of 2 new figures.

13. It would also be interesting to compare the AP overshoot-resting EM with steady state fast and slow inactivation curve of NaV1.4 channels to further emphasize the similarity and the physiological relevance of these inactivation curves.

Given the large number of new experiments performed we did not also measure the voltage dependence of fast and slow inactivation of Na+ channels in the mouse EDL for this study. We have previously measured the voltage dependence of fast and slow inactivation in the rat EDL muscle using the loose patch clamp technique. The reference for these studies is now included.

14. Pedersen and others often explain the increase in twitch [ca2+] with repetitive stimulation by an increase in [ca2+] between contractions because it means that more ca2+ remains bound to ca2+ binding proteins so when ca2+ is released more remains in the fee state. You do have an increase in resting [ca2+] in Figure 3C and this possibility must be discussed in the Discussion because it can be a reason as to why there is a portion of the ca2+ transient – overshoot that cannot be explained by the overshoot decrease.

We now include mention of a recent modeling study, which suggests the increase in ca2+ signal is due to widening of the AP. We also mention the possibility that an increase in resting ca2+ is the cause.

15. Lines 394. A non-linear relationship does not imply a poor correlation. You have in fact obtained excellent relationships, they are simply not linear. For such relationships you must fit the data for nonlinear relations and you will still get excellent correlation coefficient.

What you are looking for is a linear relationship. Correct the discussion.

Done.

Reviewer #3 (Recommendations for the authors):

This manuscript is a very interesting piece of work, and it leads to a very important conclusion regarding SR ca2+ release. It shows that the release is not as binary as it is often portrayed in textbooks and by colleagues in our field. Rather this work demonstrates that the SR ca2+ release is highly dependent on the waveform of the activating action potential. This finding may be relevant for fatigue and for muscle weakness in some paralytic disorders.

The experimental approach is interesting, and experiments are well performed. Moreover, the authors are aware of some of the limitations and these limitations are mentioned. They are, however, not really taken into consideration when the data is interpretated. In the mind of the reviewer this leads to some degree of over-interpretation of the data. Two particular elements of concern exist that should be modified/addressed:

First, the discussion of whether the signals are all-or-none is misguided by the fact that the two electrodes are close to each other. While not mentioned in the methods (please correct this) the electrodes appear to be inserted at very close proximity and the ca2+ signals are (presumably) recorded within the same region where the electrodes are impaled. This means that it is not possible to exclude that the compromised action potentials at high K+ did not propagate along the fiber. It is therefore hard to exclude that some of the loss of force at elevated K+ is caused by all-or-none behavior due to failing propagation. It is recommended that statements like in L195-199 are modified because how do you know that the signals propagated? If they did not propagate the all-or-none is more accurate description perhaps. Please also re-consider that the signals recorded at the excitation zone naturally will depend on the size of the passive response to the action potential trigger current and hence the recorded signals with the voltage electrode will depend on both the regenerative action potential signals and the triggering current. In propagating signals, only the true action potential will remain and the passive response to the action potential triggering current would disappear.

The paper is interesting due to the data and in the mind of the reviewer the whole narrative about these findings leading to new definition of an action potential and the challenge of the all-or-none theory is not really needed. Frankly, it takes away the focus of the nice scientific data that demonstrates that SR ca2+ release is strongly dependent of the waveform of the action potential. This is new and sufficiently novel to justify the work.

These are excellent comments that we took to heart. We have performed new experiments examining conduction along the length of the fiber. This has led to the addition of 2 new figures. We have also removed discussion of all-or-none APs.

Second, the imaging of ca2+ is with a high affinity reporting system and with low sampling frequency. These two experimental design characteristics means that the peak of the ca2+ transients could have been missed, and it is therefore difficult to know how the transient peaks were affected when the action potential peaks declined. The conclusion that the waveform integral above -30 mV is the best predictor for ca2+ release is likely correct, but again the conclusions are rather dogmatic and should be more balanced taking into consideration the limitations of the method.

We have performed new experiments using a PMT tube, which provides for a 5 kHz sampling rate. These experiments confirmed that errors introduced by our slow sampling rate with the camera are modest. We have added a section to the discussion where we mention some of the limitations of our ca2+ imaging technique.
