Invariant representation of physical stability in the human brain

  1. RT Pramod  Is a corresponding author
  2. Michael A Cohen
  3. Joshua B Tenenbaum
  4. Nancy Kanwisher
  1. Center for Brains, Minds and Machines, Massachusetts Institute of Technology, United States
  2. Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, United States
  3. Amherst College, United States

Abstract

Successful engagement with the world requires the ability to predict what will happen next. Here, we investigate how the brain makes a fundamental prediction about the physical world: whether the situation in front of us is stable, and hence likely to stay the same, or unstable, and hence likely to change in the immediate future. Specifically, we ask if judgments of stability can be supported by the kinds of representations that have proven to be highly effective at visual object recognition in both machines and brains, or instead if the ability to determine the physical stability of natural scenes may require generative algorithms that simulate the physics of the world. To find out, we measured responses in both convolutional neural networks (CNNs) and the brain (using fMRI) to natural images of physically stable versus unstable scenarios. We find no evidence for generalizable representations of physical stability in either standard CNNs trained on visual object and scene classification (ImageNet), or in the human ventral visual pathway, which has long been implicated in the same process. However, in frontoparietal regions previously implicated in intuitive physical reasoning we find both scenario-invariant representations of physical stability, and higher univariate responses to unstable than stable scenes. These results demonstrate abstract representations of physical stability in the dorsal but not ventral pathway, consistent with the hypothesis that the computations underlying stability entail not just pattern classification but forward physical simulation.

Editor's evaluation

This is an intriguing study using cleverly designed stimuli to investigate the representation of physical stability in the human brain. This paper will be of interest to readers wondering when human cognition uses pattern matching similar to that used by machine learning algorithms, and when it relies on more specialised processes evolved for specific tasks. The well-crafted experiments provide convincing support for the authors' claim that the human brain computes an abstract representation of the physical stability of visual scenes.

https://doi.org/10.7554/eLife.71736.sa0

Introduction

Visual percepts are imbued with possibility. We see not just a dog pointing motionless at a rabbit, but a dog about to give chase; not just a wineglass near the edge of a table but a wineglass about to smash on the floor; not just a cup filled to the brim with coffee, but a cup at risk of staining the white tablecloth beneath. This ability to see not only the current situation in front of us, but what might happen next, is essential for planning any action. Although some of our predictions concern other people and what they will think and do, many of our predictions concern the physical world around us. A fundamental prediction we make about the physical world is whether it is stable, and hence unlikely to change in the near future, or unstable, and likely to change. Here, we ask whether the brain computes physical stability via simple pattern classification, such as that thought to be conducted in the ventral visual pathway, or whether instead we determine stability by running a kind of simulation in our head to determine what, if anything, will happen next.

What kind of representations might be required for determining the physical stability of a scene? Computational work has shown that convolutional neural networks (CNNs) trained on ImageNet learn powerful representations that support not only object recognition, but multiple other tasks like object detection, segmentation, and retrieval (Liu et al., 2015; Golub et al., 2020; Babenko et al., 2014; Razavian et al., 2014). Indeed, several studies have claimed that these networks can accurately predict scene stability (Lerer et al., 2016; Conwell et al., 2019; Li et al., 2016). But CNNs have so far been tested only within very narrow domains (e.g., block towers with several cubes of different colors, in Figure 1A, left column) and it is not clear they would successfully predict future states of complex natural images (e.g., Figure 1A, middle two columns). A general ability to predict what will happen next in physical scenarios may instead require a richer representational of the physical properties of the scene that support forward simulations like those in the physics engines of video games (Battaglia et al., 2013; Ullman et al., 2017). Behavioral evidence from humans is conflicting here. On the one hand, human observers can perceive the stability extremely rapidly and preattentively (Firestone and Scholl, 2017; Yang and Wolfe, 2020), and these findings have been taken to argue for a simple feedforward rather than a simulation process. On the other hand, human judgments of the stability of a tower of blocks are well modeled by approximate probabilistic simulation in game-style physics engines (Battaglia et al., 2013; Ullman et al., 2017; Zhang et al., 2016; Gerstenberg et al., 2017), which better fit the human pattern of errors than CNNs do (Zhang et al., 2016). Perhaps most importantly, humans can easily judge the physical stability of a wide variety of novel real-world images, which is likely to require a more abstract and generalizable representation of physical properties of the scene. Here, we test whether representations that support fast feedforward visual object and scene recognition in machines (i.e., CNNs trained on ImageNet) and brains (i.e., the ventral visual pathway) can support discrimination of the physical stability of complex natural scenes, or whether different kinds of computations – in particular, those that explicitly model dynamic physical properties of the scene, perhaps through a kind of simulation mechanism – may be required to determine physical stability in both machines and brains.

Design of studies conducted on machines and brains.

(A) Image sets depicting (1) unstable versus stable block towers (left), (2) objects in unstable versus stable configurations (middle left, the Physical-Objects set), (3) people in physically unstable versus stable situations (middle right, the Physical-People set), and (4) people in perilous (‘unstable’) versus relatively safe (‘stable’) situations with respect to animals (right, the Animals-People set). Note that by ‘physically unstable’ we refer to situations that are currently unchanging, but that would likely change dramatically after a small perturbation like a nudge or a puff of wind. The former three scenarios were used to study the generalizability of feature representations in a deep convolutional neural network (CNN) and the latter three scenarios were used in the human fMRI experiment. (B) Accuracy of a linear support vector machine (SVM) classifier trained to distinguish between CNN feature patterns for unstable versus stable conditions, as a function of Test Set. Accuracy within a scenario (i.e., train and test on the same scenario) was computed using a fourfold cross-validation procedure. (C) A functional localizer task contrasted physical versus nonphysical judgments on visually identical movie stimuli (adapted from Figure 2A from Fischer et al., 2016). During the localizer task, subjects viewed movies of block towers from a camera viewpoint that panned 360° around the tower, and either answered ‘where will it fall?’ (physical) or ‘does the tower have more blue or yellow blocks?’ (nonphysical).

To investigate this question, we first curated a set of natural images depicting real-world scenarios of objects in physically stable versus unstable configurations (the ‘Physical-Objects’ set, Figure 1A), as well as a generalization set of images of people in physically stable versus unstable situations (the ‘Physical-People’ set, Figure 1A). We then presented these stimuli to CNNs pretrained on ImageNet classification and asked if the resulting representations are sufficient to discriminate the physical stability of the scene in a fashion that generalizes across image sets. Next, we presented the same to human participants being scanned with fMRI and asked the same question of the resulting neural responses in two key brain regions. One such region is the ventral visual pathway, which is widely thought to conduct the core computations underlying visual object recognition, and which is well modeled by CNNs trained on ImageNet (Yamins et al., 2014; Khaligh-Razavi and Kriegeskorte, 2014). Thus, if representations optimized for object recognition suffice for determining the physical stability of novel scenes, we would expect to find this ability in the ventral visual pathway. However, an alternative hypothesis is that this information will be found instead in a set of parietal and frontal regions that have been shown to be engaged when people predict what will happen next in physical (more than social) scenarios (Fischer et al., 2016), and hold information about physical variables such as mass, invariant to the scenario that revealed that mass (Schwettmann et al., 2019). We have hypothesized (Fischer et al., 2016) that these regions (referred to here as the ‘Physics Network’) may contain a generative model of dynamic physical scenes capable of forward simulation, which can be used for prediction, planning, and many other tasks. Thus, if determining the stability of a scene requires an abstract representation of the physical properties of the scene and the ability run forward simulations on those representations, then the Physics Network would be a more likely locus of these representations than the ventral visual pathway.

Finally, we further conjectured that if perception of physical stability is determined by the operation of a forward simulation mechanism akin to a generative physics engine, then we might find higher neural activity in the Physics Network for physically unstable than stable situations because there is more to simulate in an unstable situation. That is, simulations of unstable scenes where objects are expected to move require the construction and updating of dynamic representations that unfold over time, whereas simulations of stable scenes, where objects are expected to remain stationary, do not require such dynamically updated representations. Thus, a higher univariate response to unstable than stable scenes would provide preliminary (albeit not definitive) evidence for forward simulation. Importantly, participants were never asked to judge or think about the physical stability of the scenario they were viewing, which enabled us to ask whether this information is extracted even when not required by the task (Firestone and Scholl, 2016).

Results

Feedforward CNNs trained on ImageNet do not have a generalizable representation of physical stability

Previous studies have shown that visual features extracted by feedforward deep CNNs (like AlexNet, Ferrari et al., 2018; VGG, Li et al., 2016; and ResNet, Lerer et al., 2016; Conwell et al., 2019) can distinguish between stable and unstable towers. Although these features produced above chance classification performance within a scenario (i.e., train on towers with two blocks and test on towers with four blocks), they have not been tested on very different scenarios and hence their ability to represent an abstract and generalizable notion of physical stability remains unknown. Significant generalizability of these features to novel image sets would provide some evidence that physical stability can be inferred from a simpler mechanism of visual feature extraction in pattern classification systems rather than running forward simulations of the kind used in game physics engines.

To test this question, we extracted features for our stable and unstable images from the final fully connected layer (fc1000, the layer immediately preceding the SoftMax probability layer) of ResNet-50 – a feedforward deep CNN trained on ImageNet dataset for object recognition (He et al., 2016). A shallower variant of this network has been previously used for stability classification (Lerer et al., 2016; Conwell et al., 2019). In addition to the complex real-world scenarios (‘Physical-Objects’ and ‘Physical-People’), we also chose Block Towers to replicate previous findings. Within each scenario (Block Towers, Physical-Objects, and Physical-People, Figure 1A), we trained a linear support vector machine (SVM) classifier to distinguish between feature patterns for stable and unstable images and tested it on held-out images using fourfold cross-validation. These analyses replicated previous results by showing above chance classification accuracy within the Block Towers scenario and further found higher classification performance within our two new natural image sets (60.1%, 75%, and 71.4% for Block Towers, Physical-Objects, and Physical-People scenarios, respectively; diagonal cells in Figure 1B, p < 0.05 for a bootstrap test with n = 10,000). However, this performance did not generalize across scenarios: accuracy was near chance for all cross-validation tests in which the SVM classifier was trained on one scenario and tested on a different scenario (i.e., off-diagonal cells in Figure 1B, p > 0.15 for a bootstrap test with n = 10,000). Thus, visual features from this feedforward deep CNN do not carry abstract and generalizable information about physical stability. We also found similar results with a VGG-16 network trained on ImageNet. The fact that these CNN features can distinguish stability within a scenario but not across scenarios suggests that the discriminative features underlying this discrimination might be related to incidental properties that are indicative of stability only within a particular scenario (e.g., the displacement of each block from the centroid of the block below).

These results indicate that the ImageNet-trained CNNs previously claimed to support judgments of stability cannot do so in a fashion that generalizes to novel image sets. This result further suggests that brain regions thought to be optimized (through development and/or evolution) for similar tasks (ventral temporal cortex) might similarly fail to contain scenario-invariant information about physical stability, and that the human ability to perform this task may result from different kinds of representations elsewhere in the brain, such as the frontoparietal cortical regions previously implicated in physical inference. We test these hypotheses next.

A generalizable representation of physical stability in cortical regions previously implicated in intuitive physical inference, but not in the ventral temporal cortex

We first identified functional regions of interest (fROI) in each participant individually, including ventral temporal cortex (VTC) and the candidate Physics Network in the frontal and parietal lobes, by intersecting anatomical constraint parcels for these regions with the relevant functional activations (see Figure 2A and Methods). All participants had significant voxels within both VTC and physics parcels (number of voxels per participant, mean ± standard error of the mean [SEM] =350.5 ± 68.7 for VTC ROIs and mean ± SEM =311.3 ± 69.8 for physics ROIs). We further collected fMRI responses in these regions to stable and unstable photos of real-world scenarios (Physical-Objects and Physical-People) as well as an additional scenario type, ‘Animals-People’, depicting people in either perilous (‘unstable’) or nonperilous (‘stable’) conditions due to an animal rather than a physical object. We used the Animals-People scenarios as a control for potential confounds of peril, arousal or attention. Specifically, we predicted that representations of physical stability to be generalizable across Physical-Objects and Physical-People scenarios but not to Animals-People scenario.

Figure 2 with 1 supplement see all

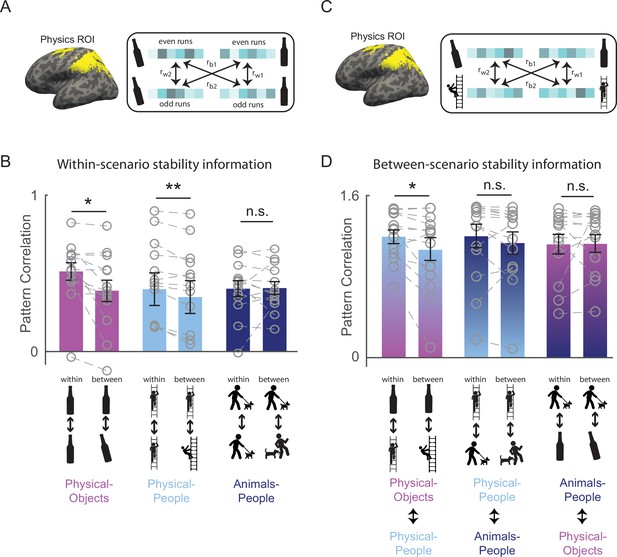

Generalizable representation of physical stability in the human brain.

(A) Functionally defined regions of interest implicated in intuitive physical inference (the Physics Network) were defined in each participant individually by intersecting the activation from a localizer task with anatomical constraint parcels in the frontal and parietal lobes shown in yellow (see Methods). Patterns of activity across voxels in these functional regions of interest (fROIs) were extracted separately in each participant for each combination of even and odd runs, unstable and stable conditions, and scenario (Physical-Objects, Physical-People, and Animals-People). Following standard practice (Haxby et al., 2001), correlations between even and odd runs in the pattern of response across voxels were computed both within stability conditions (rw1 = stable even to stable odd and rw2 = unstable even to unstable odd), and between stability conditions (rb1 = stable even to unstable odd and rb2 = unstable even to stable odd), for each of the three scenario types. (B) Bar plot showing average pattern correlations within and between conditions with paired t-tests done after Fisher transformation, for each scenario type. (C) is similar to (A) but the within and between stability pattern correlations were computed across scenario types (rw1 and rw2 indicate pattern correlations computed within stable or within unstable conditions across scenario, and rb1 and rb2 indicate pattern correlations computed between stable and unstable conditions across scenario). (D) is same as in (B) but for pattern correlations computed across scenarios. Note that the across scenario correlations in (D) are overall higher than within-scenario correlations in (C) because the data were not split into odd and even runs for the across scenario case. Gray circles and the corresponding connecting lines denote individual subject’s data. Error bars indicate standard error of mean across subjects. ** and * indicate statistically significant effect at p ≤ 0.005 and p ≤ 0.05, respectively, and n.s. indicates no statistically significant effect.

Within-scenario stability information

To test whether VTC and Physics Network contain information about physical stability, we measured the fMRI response of each voxel of the fROI in each participant, separately for odd and even runs in each of the six stimulus conditions of the main experiment. We then used multivoxel pattern analysis (Haxby et al., 2001) to test whether physical stability could be decoded in each fROI. Specifically, across all voxels in each fROI we computed the correlation between the response patterns within stability conditions (stable even to stable odd, and unstable even to unstable odd) and between stability conditions (stable even to unstable odd, and stable odd to unstable even) for each of the scenarios separately (see Figure 2A and Methods). For VTC, we found that the within condition pattern correlations were significantly higher than the between condition pattern correlations for both Physical-Object and Physical-People scenarios (see Figure 3 and Figure 2—figure supplement 1A), indicating the presence of information about stability for each scenario type. However, pattern information did not distinguish perilous (or ‘unstable’) from nonperilous (‘stable’) situations in the Animals-People scenarios (see Figure 3 for stats). Further, this difference in stability information across scenario types was itself significant, as revealed by a significant interaction between-scenario type and within versus between correlations in an analysis of variance (ANOVA) (F1,12 = 72.2, p = 0.000002). The Physics Network showed the same pattern of results (Figures 2B and 3), with significantly higher correlations within than between stability for both the Physical-Object and Physical-People scenarios but not the Animals-People scenarios, and a significant ANOVA interaction between-scenario type and within versus between correlations (F1,12 = 22.9, p = 0.0004). Thus, both VTC and the Physics Network contain information about physical (but not animate) stability when analyzed within scenarios.

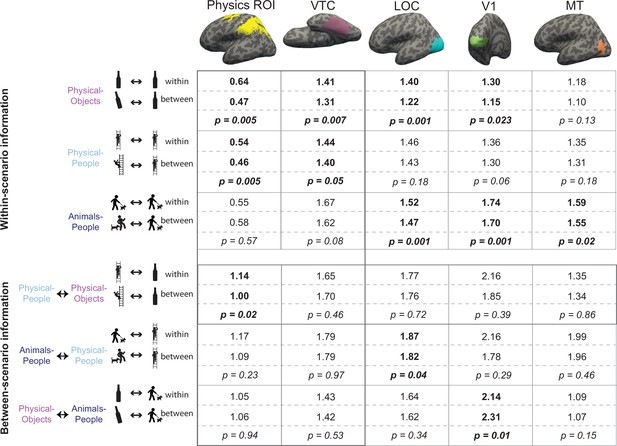

Multivoxel pattern correlation analysis in all regions of interest (ROIs).

Each cell shows the average Fisher transformed correlation within and between stability conditions, along with the p value for a paired t-test comparing the two sets of values. Each column includes the results from one functional regions of interest (fROI). The top three rows contain results for the analyses within-scenario type and the bottom three rows show results for the pattern correlation analysis across scenarios. Significantly higher correlations for within than between conditions are highlighted in bold. The row depicting the crucial cross-decoding result with significant generalization only in the Physics Network ROI is highlighted with a darker bounding box.

Between-scenario stability information

However, our strong prediction was that any brain region that represents abstract physical information should show patterns of response that generalize across physical scenarios (Physical-Objects and Physical-People). To test this, we again used multivoxel pattern correlation analysis to compute within-condition (unstable–unstable and stable–stable) and between-condition (unstable–stable and vice versa) correlations, but this time across scenario types (Figure 2C). Indeed, we found that in the Physics Network (and not in VTC – see Figure 2—figure supplement 1B), the within condition pattern correlations are significantly higher than between condition pattern correlations only across Physical-Objects and Physical-People scenarios, but not across Physical and Animate scenarios (Figures 2D and 3). Further, we found a significant interaction between fROI (physics vs. VTC) and between-scenario stability information (within vs. between correlations), indicating stronger generalization across scenarios in the Physics Network compared to the VTC fROI (F1,12 = 6.29, p = 0.027). Thus, the Physics Network (and not VTC) holds information about physical stability that generalizes from scenarios with only inanimate objects to scenarios in which people are in physically unstable situations, but not to scenarios in which people are in peril from animals.

Eye movement and attention controls

Could these findings in the Physics Network simply be due to differential eye movements across different experimental conditions (despite the instructions to fixate), or differential attention? To explore these possibilities, we quantified eye movements collected in the scanner during the main experiment in a subset of participants (n = 6) for each of the six stimulus conditions by extracting the average x and y coordinates of eye position, as well as the number, duration, and amplitude of eye movements. None of these quantities showed a significant difference between stable and unstable conditions in any of the scenarios except for saccade amplitude in the ‘Physical-People’ scenario (p = 0.028, Supplementary file 1). However, we found no significant interaction of stability with scenario type for any of the eye movement quantities using separate ANOVAs (p > 0.1). Thus, the observed differences in brain activations for our stimulus conditions are unlikely to be explained by differences in retinal input patterns due to eye movements. Second, analysis of subjective ratings by a separate set of subjects (see Methods) of ‘interestingness’ of our stimuli (which we used as a proxy for how attention-grabbing the stimuli were) revealed significantly higher ratings for unstable over stable conditions in all three scenarios (p < 0.001 for a paired t-test on average ratings across subjects; Supplementary file 1, last column). However, we found no interaction between stability and scenario type in the ANOVA (p = 0.23), implying that the difference in ratings between stability conditions did not vary between physical and animate scenarios.

Further, to confirm that these results are not due to systematic differences in the ease of understanding of the images, we ran a behavioral task (see Supplementary file 6 on Stability Detection Behavioral Experiment) where subjects were asked to categorize the stability of images. We found that reaction times differed significantly between stable and unstable conditions within each scenario (p < 0.05), but the direction of the effect was not consistent across scenarios. Most importantly, the overall pattern of reaction time and accuracy was not consistent with an account of our fMRI results in terms of difficulty (see Supplementary file 4 for reaction time and Supplementary file 5 for accuracy data).

Thus, the distinctive and generalizable representation of physical stability we found in the Physics Network are unlikely to be due to differential eye movements, attention, or difficulty confounds.

Analysis of subregions of the physics fROIs

The Physics Network considered here includes regions in both the parietal and frontal lobes in both hemispheres. Evidence that the scenario-invariant representation of physical stability reported above is not restricted to a subset of these regions comes from separate analyses of the left parietal, left frontal, right parietal, and right frontal fROIs in each participant. An ANOVA analyzing the generalization of stability information (between vs. within condition pattern correlations across Physical-Objects and Physical-People; F1,12 = 6.11, p = 0.03 for the main effect) did not find a significant interaction of stability information with either hemisphere (left vs. right; F1,12 = 2.75, p = 0.12) or lobe (parietal vs. frontal; F1,12 = 0.24, p = 0.63; Supplementary file 2). However, the stability information was stronger in the parietal compared with frontal lobe (Supplementary file 2).

Other visual regions do not have a generalizable representation of physical stability

In the previous section, we showed that the Physics Network in the frontoparietal cortices, but not VTC, has a representation of physical stability that generalizes across scenario. Is this abstract representation also found in other visual regions? We functionally defined two other visual regions: V1 and lateral occipital complex (LOC) (see Methods) and performed multivoxel pattern correlation analyses as before. In both regions, we found significant decoding of stability only in Physical-Objects scenario but no cross-decoding of stability across physical scenarios (Figure 3). In addition, the interaction of this cross-decoding effect with fROI was significant in separate ANOVAs contrasting the Physics Network with V1 (F1,12 = 6.31, p = 0.027) and LOC (F1,12 = 5.63, p = 0.035). Thus, a generalizable representation of physical stability is apparently a distinctive property of the Physics Network in the parietal and frontal lobes and is not a widespread property of visual cortex.

The only other significant generalization we observed was for the Animals-People and Physical-People scenarios in LOC. This effect was not predicted, and could reflect either similar shape information being present across the two scenarios, or an abstract representation of peril/risk to people.

Higher mean responses to physically unstable than stable scenes in physics fROI

Previous studies have proposed that human intuitive physical reasoning, including inferences about physical stability, can be explained by a model that performs probabilistic simulations of the future states of the physical world (Battaglia et al., 2013; Zhang et al., 2016). Do the candidate physics regions in our brain perform this forward simulation of what will happen next? Some evidence for this idea comes from the higher response of these regions during physical prediction than color-judgment tasks used in our localizer and in the original fMRI study that used this task (Fischer et al., 2016). However, neural activity in that contrast could simply reflect the process of building a mental model of the physical scene (including object properties and relationships), not predicting or simulating what would happen next. Here, we reasoned that if the candidate physics regions are engaged automatically in simulating what will happen next, they should show a higher mean response when viewing physically unstable scenes (because there is more to simulate) than stable scenes (where nothing is predicted to happen).

We tested this prediction by comparing the average fMRI response for unstable and stable conditions in each of the three scenario types, in the Physics Network (defined in the same way as in the previous analysis). As predicted, the physically unstable condition showed a significantly greater response compared to the physically stable condition in both ‘Physical-Objects’ (p = 0.02 for a paired t-test on average response across subjects) and ‘Physical-People’ scenarios (p = 0.04 for a paired t-test on average response across subjects; Figures 4 and 5, left column), but not the ‘Animals-People’ scenario (p = 0.66 for a paired t-test on average response across subjects; Figures 4 and 5). As before, we also checked whether this trend is largely driven by voxels in one of the hemispheres (right/left) or one of the lobes (parietal/frontal) by performing an ANOVA. We found a significant interaction between stability (unstable vs. stable) and lobe (F1,12 = 8.28, p = 0.014) but not hemisphere (F1,12 = 3.04, p = 0.11) for the ‘Physical-Objects’ scenarios, and the same pattern for the ‘Physical-People’ scenario (stability × lobe: F1,12 = 8.53, p = 0.013; stability × hemisphere: F1,12 = 0.34, p = 0.57). Post hoc analysis revealed that this interaction effect was largely driven by the univariate difference in the parietal but not frontal lobe (Supplementary file 3).

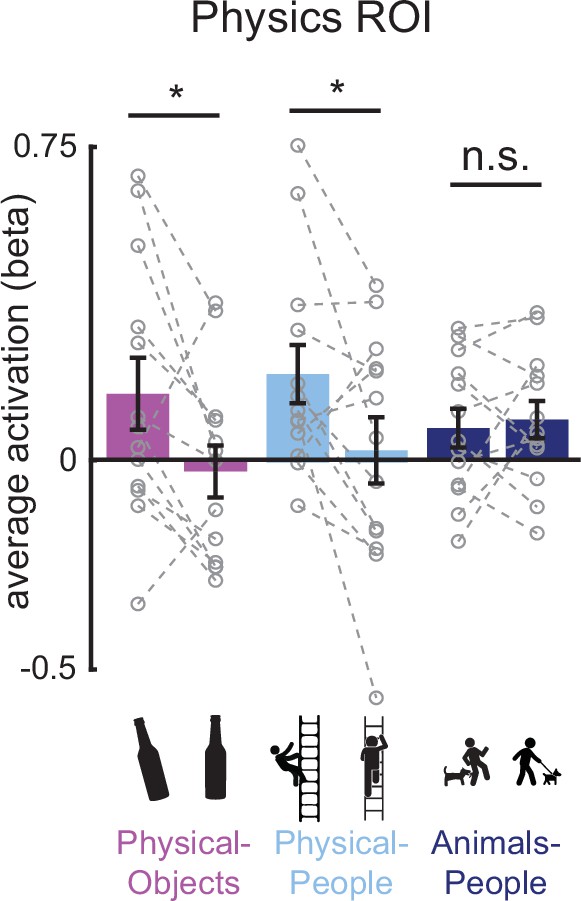

Bar plot showing the average activation (GLM beta estimates) in the physics functional regions of interest (fROI) for both stable and unstable conditions in each of the three scenario types (Physical-Objects, Physical-People, and Animals-People).

Gray circles and the corresponding connecting lines indicate individual subject’s data. Error bars indicate standard error of mean across subjects. * indicates significant effect at p < 0.05 and n.s. indicates no statistically significant effect.

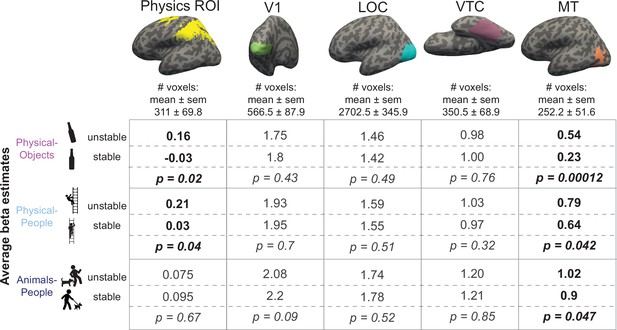

Average beta values for unstable and stable conditions in each of the scenarios.

Columns represent different functional regions of interest (fROIs). Each cell shows average GLM estimated beta values for unstable and stable conditions along with the p value for a paired t-test comparing the two sets of values. Scenarios showing significantly higher response to unstable scenes compared to stable scenes are highlighted in bold in each column.

According to our hypothesis, it is the automatic simulation occurring in the Physics Network that leads to the higher response for unstable than stable conditions. As such we predicted that we would not see this same effect in VTC and other visual regions (V1 and LOC) that are not engaged in physical simulation. Indeed, as shown in Figure 5, we did not. Furthermore, we found a significant interaction of stability with region (physics fROI vs. visual fROI) for the ‘Physical-Objects’ (F1,12 = 13.04, p = 0.0035 for V1; F1,12 = 8.27, p = 0.014 for VTC) and the ‘Physical-People’ scenarios (F1,12 = 11.14, p = 0.0059 for V1; F1,12 = 7.83, p = 0.016 for LOC).

Thus, physically unstable scenes evoke stronger responses than stable scenes in the frontoparietal Physics Network, but not elsewhere, consistent with the hypothesis that these regions are engaged in running forward simulations of what will happen next.

Higher responses to any instability in visual motion area MT

Finally, we predicted that visual motion area MT might show higher responses for all three forms of instability, whether physical (with objects or people), or animate. Our rationale was that because MT is implicated in motion processing in general, any forward simulation involving motion, whether physical or animate, could activate this region. Indeed, that is exactly what we saw. As shown in Figures 3 and 5 (last column), we found significantly higher responses in MT for unstable/perilous than stable/safe scenes for all three types of scenarios without any significant stability information in the pattern activations. This increased response to conditions with predicted motion is reminiscent of previous reports showing greater response in MT for static images with implied motion (Kourtzi and Kanwisher, 2000). The critical difference, however, is that whereas the earlier study reported higher responses in MT for static images depicting motion events happening at the moment the photograph was taken (implied motion) the current study shows activation of MT for motion that is only predicted (in the Physical-Objects and Physical-People scenarios). Most importantly, the lack of this univariate difference for the Animals-People scenario in the Physics ROI suggests that the Physics Network is not merely responding to general ‘likeliness to change’ or predicted motion.

Discussion

Here, we report that frontoparietal cortical regions previously implicated in intuitive physical inference contain abstract information about physical stability, but representations in the ventral visual object recognition pathway, and those in feedforward CNNs trained on object recognition, do not. Our results indicate that representations in systems that are highly effective at invariant object recognition do not automatically support the general ability to distinguish physically stable from unstable scenes. Instead, this ability in humans is supported by a different system in the dorsal visual pathway that has been previously implicated in intuitive physical inference. This Physics Network (but not the ventral pathway) further shows a higher univariate response to unstable than stable scenes, as predicted if it performs forward simulations of what will happen next. Control analyses confirmed that neither pattern nor univariate information about physical stability in the Physics Network can be straightforwardly accounted for by low-level visual features, differential eye movements or attention. Taken together, these results suggest that the human brain represents the physical world not via simple pattern classification but instead by building a model of the physical world that supports prediction via forward simulation.

Our study builds upon earlier work that has implicated regions in the parietal and frontal lobes in intuitive physical inference. Across multiple studies, similar frontoparietal regions have been shown to (1) respond more during physics-based tasks compared to color-based or social prediction tasks (Fischer et al., 2016), (2) represent physical concepts in verbal stimuli (Mason and Just, 2016), and (3) contain scenario-invariant representations of object mass (Schwettmann et al., 2019). Intriguingly, the regions activated during physical inference overlap with regions shown previously to be engaged during visually guided action (Goodale and Westwood, 2004) and tool use (Gallivan et al., 2013; Valyear et al., 2007; Mruczek et al., 2013), perhaps because these tasks also require a representation of the physical world. Indeed physical simulation has been proposed as a crucial component in models for human-like robotic action planning (Toussaint et al., 2018; Toussaint et al., 2020; Mordatch et al., 2012) and flexible tool use (Allen et al., 2020; Osiurak and Badets, 2016; Osiurak et al., 2020); plausibly the same brain mechanisms could have arisen or adapted to support all of these computations. Note however that these same regions also overlap with the ‘multiple demand’ system (Fischer et al., 2016), and are unlikely to be selectively engaged in only physical inference. In the present study, we strengthen evidence that these regions are engaged in intuitive physical inference by showing that they carry a new kind of physical information: the dynamic physical stability of objects and people in a scene. Interestingly, this information is present when participants simply view images of physical scenes, even though they are not asked to judge stability.

More importantly, our work speaks not only to which brain regions are implicated in intuitive physical inference, but what kinds of computations these inferences entail in both minds and machines. In particular, it is a matter of active current debate in AI whether features extracted by feedforward computations in networks trained on visual object classification will suffice for physical inference, or whether richer internal models that support forward simulation are required. Some work has shown that CNNs can learn from extensive labeled datasets to infer the stability of block towers (Lerer et al., 2016; Conwell et al., 2019) and predict future outcomes (Lerer et al., 2016; Conwell et al., 2019; Li et al., 2016). But these CNNs have so far been tested only on specific tasks and stimuli, and we show here that they do not generalize across scenarios for the task of determining physical stability. Instead, it has been proposed that a general ability to predict what will happen next in physical scenarios will require a more structured representation of the physical world that will support forward simulation (Battaglia et al., 2013; Ullman et al., 2017). A parallel debate is raging in cognitive science (Lerer et al., 2016; Conwell et al., 2019; Battaglia et al., 2013; Firestone and Scholl, 2017; Firestone and Scholl, 2016; Ludwin-Peery et al., 2019; Davis and Marcus, 2015; Chater and Oaksford, 2017; Davis et al., 2017; Ludwin-Peery et al., 2020), between those who argue that because human physical inferences occur rapidly (Firestone and Scholl, 2017) and preattentively (Firestone and Scholl, 2017) they are computed by something like a pattern recognition process, versus those who argue that human and primate physical inference behavior is best accounted for by mental simulation (Battaglia et al., 2013; Ullman et al., 2017; Zhang et al., 2016; Gerstenberg et al., 2017; Rajalingham et al., 2021). Three lines of evidence from the present study indicate that pattern recognition alone – as instantiated in feedforward CNNs and the ventral visual pathway – is unlikely to explain physical inference in humans, at least for the case of physical stability. First, we find generalizable representations of physical stability in the brain that we do not find in CNNs. Second, these abstract representations of stability are not found in the ventral visual pathway, which is thought to conduct pattern classification and is well modeled by CNNs, but rather in the dorsal pathway, previously implicated in intuitive physical inference. Third, we find a higher univariate response in this Physics Network for unstable scenes, where there is more to simulate, than the stable scenes, where nothing is predicted to happen next. However, note that our hypothesis pertains only to feedforward CNNs trained on object recognition (on ImageNet dataset); It remains an open question whether a feedforward CNN extensively trained on naturalistic images of stability may learn generalizable representations of physical stability.

We therefore hypothesize that visual information represented in the ventral visual cortex is used by the Physics Network for efficient inference of physical properties (see Almeida et al., 2013; Kravitz et al., 2011 for the cases of tool processing and visuospatial reasoning), and this representation is in turn used for forward simulation of what will happen next. This idea has been recently proposed as an integrated computational model that uses visual representations from a deep-learning-based inverse graphics model to initialize simulations in a physics-engine-based generative model of object dynamics, which then can be used to perceive, predict, reason about, and plan with physical objects (Yildirim et al., 2019; Wu et al., 2015; Wu et al., 2017). This class of models with flexible, object-centric representations and the ability to learn from realistic visual inputs (Bear, 2020; Mrowca, 2018) should be able to make predictions of physical stability on the realistic stimuli used in our experiment and also form the basis for neurally mappable encoding models of the candidate physics regions. The question of how such a model is instantiated, if at all, in the brain remains unanswered and provides a fertile avenue for future exploration.

Many questions remain. First, physical stability is just one of many aspects of physical scene understanding. Future investigations can explore whether the Physics Network also represents other physical properties of objects (like friction and elasticity), relational attributes (like support, containment, attachment), and physical forces and events. Second, if indeed the Physics Network is conducting forward simulations, when exactly does it run and how detailed are its simulations? According to one hypothesis, our mental physics engine compresses the rich details in our visual world into a relatively small number of individual objects and associated events in order to efficiently generate a reasonable approximation of the scene at the spatial and temporal scales relevant to human perception and action (Ullman et al., 2017). These abstractions may also enable us to run simulations faster than real time with compressed timescales (like hippocampal replay, Lee and Wilson, 2002), enabling us to make rapid and accurate predictions of the consequences of multiple actions under consideration, including our ability to make fast and automatic physical inference (Firestone and Scholl, 2017; Firestone and Scholl, 2016). Third, is the same neural machinery underlying simulation of the external physical world also recruited when we consider the consequences of our own actions? Answering this question would help elucidate how action planning and tool use are related to the neural system for physical inference, given that much of the Physics Network lies adjacent to or overlaps with brain regions engaged in action planning and tool use (Gallivan et al., 2013; Valyear et al., 2007; Mruczek et al., 2013; Gallivan et al., 2011; Gallivan and Culham, 2015).

Materials and methods

Participants

Thirteen subjects (ages 21–34; 6 females and 7 males) participated in the experiment which was cut short due to COVID-19 pandemic. All participants were right handed and had normal or corrected-to-normal vision. Before participating in the experiment, all subjects gave informed consent to the experimental protocol approved by the Massachusetts Institute of Technology (MIT) Committee on the Use of Humans as Experimental Subjects (#0403000096). The study was conducted in compliance with all the relevant ethical guidelines and regulations for work with human participants.

Stimuli

All images were chosen to belong to six different experimental conditions divided into three scenarios with two conditions each (see Figure 1B for examples): objects in stable or unstable conditions (‘Physical-Objects’); people in physically stable or unstable conditions (‘Physical-People’); and, people with animals in perilous (unstable) or relatively safe (stable) conditions (‘Animals-People’). The stimulus set included 14 images for each condition in each scenario. All images were scaled so that the longer dimension measured 8° on the projector screen places ~136 cm from the participant.

Screening using deep neural networks

Request a detailed protocol

We chose images from each of these six experimental conditions such that stability decoding accuracy was close to chance both within the scenario and also across scenarios on features extracted from the initial layers of a deep CNN. The main goal of this selection process was to screen images to minimize potential confounds of low-level visual features on stability decoding. First, we rescaled and padded each image with pixels of zero brightness to obtain images measuring 224 × 224 pixels. Then, we extracted features from the first pooling layer (‘pool_1’) of a feedforward convolutional network, VGG-16, trained on ImageNet object classification task. We then trained separate linear SVM classifiers with fourfold cross-validation for each scenario separately to distinguish between stable and unstable images. The classification accuracies were close to chance (=50%) for all three scenarios (% accuracy: 42.9%, 53.6%, and 42.9% for Physical-Objects, Physical-People, and Animals-People scenarios, respectively). We then tested each classifier on the remaining two scenarios to quantify cross-decoding of stability across scenarios. Here also, we found close to chance (=50%) cross-decoding performance (average % accuracy = 51.8% for Physical-Objects vs. Physical-People, 44.6% for Physical-Objects vs. Animals-People, and 41.1% for Physical-People vs. Animals-People).

Interestingness ratings

Request a detailed protocol

In order to minimize the influence of differential attention or interest on our results, we set out to quantify how interesting or attention-grabbing our stimuli are. We ran a behavioral experiment on 11 subjects (9 of them had previously participated in the fMRI part of this study) where we asked them to rate how interesting they found an image to be on a scale of 1–5 (1 – least interesting and 5 – most interesting). To validate this measure, we also included high and low arousal images (n = 14 each) from IAPS (Lang et al., 1997) and obtained higher interestingness ratings for high arousal images compared to low arousal IAPS images (avg interestingness rating: high arousal images = 3.5 and low arousal images = 1.5; p < 0.000005). Further, as expected, subjects found unstable condition to be more interesting than stable condition across scenarios (Supplementary file 1, last column). However, we found that this difference did not significantly interact with scenario using an ANOVA (p = 0.23).

Experimental design

Physics ROI localizer

Request a detailed protocol

Each participant performed two runs of an ‘intuitive physics’ fMRI localizer task previously used to functionally define the frontoparietal physics engine in the brain (Fischer et al., 2016; Schwettmann et al., 2019). In this task, subjects viewed short movies (~6 s) depicting unstable towers made of blue, yellow and white blocks (see Figure 1A) created using Blender 2.70 (Blender Foundation). The tower was centered on a floor that was colored green on one half and red on the other half such that it would topple toward one of the halves if gravity were to take effect. Throughout the movie, the tower remained stationary while the camera panned 360° to reveal different views of the tower. Subjects viewed these movies and were instructed to report whether more blocks would come to rest on the red or green half of the floor (‘physics’ task), or whether there are more blue or yellow blocks in the tower (‘color’ task).

Each run of this localizer task consisted of 23 18 s blocks: 3 fixation-only blocks, 10 blocks each of the physics and the color task. Each 6 s movie was preceded by a text instruction displayed on the screen for 1 s which read either ‘where will it fall?’ (‘physics’ task) or ‘more blue or yellow?’ (‘color’ task) and was followed by a 2-s response period with a blank screen. This sequence was repeated twice within a block with the same task cue but different movies. The subjects responded by pressing one of two buttons on a response box for each alternative in a task. The mapping of the buttons to the response was switched for the second run to rule out the effects of specific motor responses on the observed neural activations. We used a physics task > color task contrast to functionally identify the frontoparietal physics regions in each subject individually.

Stability experiment

Request a detailed protocol

In addition to the physics ROI localizer, each participant also performed four runs of the main experiment. In this experiment, subjects viewed a sequence of images while maintaining fixation on a red dot at the center of the image and performed a 1-back task.

Each run of this experiment contained 3 rest/fixation blocks and 12 20-s stimulus blocks (2 blocks for each of the 6 experimental conditions). Each run began with a fixation-only block followed by a random ordering of the blocks corresponding to the six experimental conditions. This was followed by another fixation-only block and the six experimental condition blocks shown in the reverse order. Each run ended with another fixation-only block. Each image block contained 10 trials including 2 1-back trials. In each trial, an image was shown for 1.8 s followed by 0.2 s of fixation-only interval. Subjects were instructed to maintain fixation (confirmed using eye-tracker for 6 out of the 13 subjects) and respond by pressing a button on the response box whenever the same image repeated one after the other in the sequence.

CNN analysis

Request a detailed protocol

Activations from the fc1000 layer (fully connected layer just preceding the softmax layer) of a Resnet-50 model trained on ImageNet object recognition challenge were extracted for both stable and unstable conditions across Block Towers, Physical-Objects, and Physical-People scenarios. The Physical-Objects and Physical-People scenarios are exactly the same as in the fMRI experiment, and the Block Towers set (n = 258 each for stable and unstable conditions) was used to replicate and extend earlier findings. A linear Support Vector Classifier (SVM) was trained to distinguish between stable and unstable conditions within each scenario using fourfold cross-validation. To test the generalizability of the learned classifier to other scenarios, the SVM classifier was tested on stability detection in the remaining two scenarios. We replicated the results using fc8 layer activations in an ImageNet pretrained VGG-16 network. The statistical significance of classification accuracy was estimated by comparing it to a null distribution of accuracies computed by randomly shuffling the training labels 10,000 times and measuring the test accuracy each time.

Data acquisition

Request a detailed protocol

All imaging was performed on a Siemens 3T MAGNETOM Tim Trio scanner with a 32-channel head coil at the Athinoula A. Martinos Imaging Center at MIT. For each subject, a high-resolution T1-weighted anatomical image (MPRAGE: TR = 2.53 s; TE = 1.64, 3.44, 5.24, 7.04 ms; α = 7°; FOV = 220 mm; matrix = 220 × 220; slice thickness = 1 mm; 176 slices; acceleration factor = 3; 32 reference lines) was collected in addition to whole-brain functional data using a T2*-weighted echo planar imaging pulse sequence (TR = 2 s; TE = 30 ms; α = 90°; FOV = 216 mm; matrix = 108 × 108; slice thickness = 2 mm; voxel size = 2 × 2 mm in-plane; slice gap = 0 mm; 69 slices).

Eye movement recordings

Eye movement data were recorded from 6 of the 13 subjects during both the physics ROI localizer task and the stability experiment using the EyeLink 1,000 Eye-Tracker (SR Research) inside the scanner. We could not collect eye movement data from other subjects due to technical difficulties. Eye tracking data were preprocessed and analyzed to confirm that eye movements could not explain differences in BOLD activity for various experimental conditions. For each trial in both the localizer and stability tasks, we computed the average abscissa and ordinate of the eye position, the number of saccades, average duration, and amplitude of saccades for the duration of the trial. We then performed t-tests to compare the average values of the aforementioned eye movement variables for stable and unstable conditions in each scenario across subjects.

fMRI data preprocessing

Request a detailed protocol

Preprocessing was done using FreeSurfer (https://freesurfer.net/). All other analyses were performed in MATLAB 2015B (The Mathworks). fMRI data preprocessing included motion correction, slice time correction, linear fit to detrend the time series, and spatial smoothing with a Gaussian kernel (FWHM = 5 mm). Before smoothing the functional data, all functional runs were coregistered to the subject’s T1-weighted anatomical image. All analyses were performed in each subject’s native volume and in some cases the results were plotted on the subject’s native inflated cortical surface only for better visualization (using FreeSurfer’s mri_vol2surf function). The general linear model included the experimental conditions and 6 nuisance regressors based on the motion estimates (x, y, and z translation; roll, pitch, and yaw of rotation).

Group-level physics parcel

Request a detailed protocol

We derived group-level physics parcels from the localizer data (Schwettmann et al., 2019) in 27 subjects using the Group-constrained Subject-Specific method described previously (Julian et al., 2012). Briefly, individual subjects’ binary activation maps (p < 0.005 uncorrected) were overlaid on top of each other in MNI space. This overlap map was spatially smoothed with a Gaussian filter (FWHM = 8 mm) and then thresholded so that the map contained only those voxels with at least 10% overlap across subjects. Then, the overlap map was divided into group-level parcels using a water-shed image segmentation algorithm (watershed function in MATLAB). Finally, we selected a subset of parcels in which at least 16 out of the 27 (~60%) subjects show some activated voxels. This resulted in seven group-level parcels spanning frontal, parietal, and occipital lobes. We rejected two of the seven parcels in the occipital cortex since they were shown to respond to both physical and social stimuli (Fischer et al., 2016). The remaining parcels correspond coarsely to previously described physics regions (Fischer et al., 2016; Schwettmann et al., 2019), however, we believe that the new parcels are probably more stable because they are derived from a larger subject pool. These five parcels were then combined to get one group-level parcel each in left and right hemispheres. We will make the parcels publicly available.

fROI definition

Request a detailed protocol

We defined fROI in each individual subject as the intersection of subject-specific localizer contrast map and group-level (or anatomical) parcels. Specifically, we used the physics localizer to identify brain regions in each individual subject that responded more to the physics task compared to the color task (uncorrected p value <0.001 for the physics > color contrast). This contrast map was then intersected with the group-level physics parcels created from the physics localizer data collected in a previous study (Schwettmann et al., 2019). Thus, the individual subject fROI contained only those voxels that showed significantly stronger activations for the physics task compared to the color task and fell within the group-level physics parcel. This allowed the fROI locations and sizes to vary across subjects but restricted them to a common general region across subjects. In addition to the physics fROI, we also defined fROIs for the primary visual cortex (V1), LOC, and VTC in each subject. As before, we used data from the physics localizer to identify brain regions that responded to visual stimuli compared to fixation (uncorrected p value <0.001 for physics + color > fixation contrast). We then intersected this contrast map with masks derived from anatomical parcellation and considered only those significant voxels from the contrast map lying within the anatomical mask for further analyses. In addition, we also localized area MT using a standard localizer (coherent vs. random dot motion contrast) (Tootell et al., 1995) and included significant voxels within an anatomically defined mask (taken from Destrieux atlas in FreeSurfer).

Multivoxel pattern correlation analysis

Within category separability

Request a detailed protocol

To assess if the candidate physics fROI holds information about physical stability, we used the multivoxel pattern correlation analysis (Haxby et al., 2001). In an fROI, we computed within condition pattern correlations (correlation between voxel activation patterns for even and odd runs, computed separately for unstable and stable conditions within a scenario) and between conditions pattern correlations (correlation between voxel activation patterns for even runs of unstable condition and odd runs of stable condition within a scenario, and vice versa). We computed the within and between condition pattern correlations for each scenario in each hemisphere in each subject and compared the magnitudes of correlations using appropriate statistical tests after transforming the correlations using Fisher transform (atanh function in MATLAB). A significantly higher within condition pattern correlation compared to between condition pattern correlation indicates that unstable and stable conditions evoke distinctive voxel activation patterns in a given fROI. Note that by always comparing data across even and odd runs we avoid obscuring pattern information from temporal pattern drifts (Alink et al., 2015).

Across category similarity

Request a detailed protocol

To explore the generalizability of neural representation of physical stability in a given fROI, we computed multivoxel pattern correlations computed across scenarios. Specifically, in a given fROI, we extracted activation patterns for unstable and stable conditions from the two scenarios under consideration (say, ‘Physical-Objects’ and 'Physical-People’ scenarios). We then computed pattern correlations between unstable (or stable) conditions across scenarios (within condition), and pattern correlations between unstable and stable conditions across scenarios (between condition). In this way, we computed the four pairwise pattern correlations for each pair of categories within a given fROI in each hemisphere of each individual subject and transformed them using Fisher transformation. We compared the magnitudes of within and between condition correlations for each pair of categories across subjects using a paired t-test.

Data availability

All data generated and analyzed during this study will be made available at https://osf.io/xc3t8/.

The following data sets were generated
    1. Cohen M
    2. Tenenbaum J
    3. Kanwisher N
    (2022) OSF
    Data from: Invariant Representation of Physical Stability in the Human Brain.
    https://doi.org/10.17605/OSF.IO/XC3T8

References

    1. Babenko A
    2. Slesarev A
    3. Chigorin A
    4. Lempitsky V
    (2014)
    Neural codes for image retrieval
    Lect. Notes Comput. Sci. (Including Subser. Lect. Notes Artif. Intell. Lect. Notes Bioinformatics) 8689 LNCS:584–599.
  1. Conference
    1. Gerstenberg T
    2. Zhou L
    3. Smith KA
    4. Tenenbaum JB
    (2017)
    Faulty Towers: A hypothetical simulation model of physical support
    Proc. 39th Annu. Meet. Cogn. Sci. Soc.
  2. Conference
    1. He K
    2. Zhang X
    3. Ren S
    4. Sun J
    (2016) Deep Residual Learning for Image Recognition
    2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR. pp. 770–778.
    https://doi.org/10.1109/CVPR.2016.90
    1. Lang PJ
    2. Bradley MM
    3. Cuthbert BN
    (1997)
    International affective picture system (IAPS): Technical manual and affective ratings
    NIMH Cent. Study Emot. Atten 1:39–58.
    1. Lerer A
    2. Gross S
    3. Fergus R
    (2016)
    Learning physical intuition of block towers by example
    ICML 1:648–656.
  3. Conference
    1. Mrowca D
    (2018)
    Flexible neural representation for physics prediction
    Advances in Neural Information Processing Systems. pp. 8799–8810.
    1. Tootell RB
    2. Reppas JB
    3. Kwong KK
    4. Malach R
    5. Born RT
    6. Brady TJ
    7. Rosen BR
    8. Belliveau JW
    (1995)
    Functional analysis of human MT and related visual cortical areas using magnetic resonance imaging
    The Journal of Neuroscience 15:3215–3230.
    1. Wu J
    2. Yildirim I
    3. Lim JJ
    4. Freeman B
    5. Tenenbaum JG
    (2015)
    Perceiving Physical Object Properties by Integrating a Physics Engine with Deep Learning
    Advances in Neural Information Processing Systems 28:127–135.
  4. Conference
    1. Wu J
    2. Lu E
    3. Kohli P
    4. Freeman WT
    5. Tenenbaum JB
    (2017)
    In Advances in Neural Information Processing Systems
    Learning to See Physics via Visual De-animation.
  5. Conference
    1. Zhang R
    2. Wu J
    3. Zhang C
    4. Freeman WT
    5. Tenenbaum JB
    (2016)
    A Comparative Evaluation of Approximate Probabilistic Simulation and Deep Neural Networks as Accounts of Human Physical Scene Understanding
    In Proceedings of the 38th Annual Meeting of the Cognitive Science Society. pp. 1–6.

Decision letter

  1. Peter Kok
    Reviewing Editor; University College London, United Kingdom
  2. Floris P de Lange
    Senior Editor; Radboud University, Netherlands
  3. Peter Kok
    Reviewer; University College London, United Kingdom
  4. Jaqueline Snow
    Reviewer; University of Nevada Reno, United States

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Invariant representation of physical stability in the human brain" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Peter Kok as Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Floris de Lange as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Jaqueline Snow (Reviewer #3).

The reviewers have discussed their reviews with one another, and agreed that the study is of interest, but they had serious concerns about the interpretation of the main results. Several alternative explanations of the results will need to be ruled out conclusively, likely requiring new (behavioural) data, in order for the paper to be suitable for publication in eLife. Note that given the seriousness of the concerns, simply acknowledging them will not be sufficient. The reviewing editor has drafted this letter to help you prepare a revised submission, should you feel that you are able to resolve these issues.

Essential revisions:

1. One major concern with the interpretation of the findings is that while the stimuli in the Animals-People condition seem to be relatively straightforward to understand whether they are "unstable" or "stable" scenes, the stimuli in the Physical-People condition seem more difficult to comprehend when they are "unstable" versus "stable", perhaps due to their unusual scene composition. For instance, it can take a moment to understand what is going on in the scene depicting a man precariously perched atop a ladder, with the ladder balanced on one leg over a stairwell (Figure 2A). This leaves open the possibility that the elevated activity observed in the fronto-parietal areas may not reflect forward simulation of unstable (over stable) scenes involving physical objects and people, but instead, the requirements of parsing difficult-to-comprehend scenes (which happen to be unstable and physical) over straightforward scenes (which are either stable or involve animals). Put simply, the fMRI responses recorded in fronto-parietal cortex may have more to do with scene comprehension than with physical stability. This confound will need to be ruled out conclusively. This will likely require collecting and analysing new data. For instance, the authors could collect behavioral questionnaire data to gauge for each stimulus ease of comprehension, as well as anticipated motion and likelihood of change (see point 2). The behavioral data could then be correlated with the fMRI responses, and it can be tested whether fMRI results are explained better by physical stability or one or more of these other factors. Of course, the authors may have a different approach in mind, which is perfectly fine, as long as the confounds are resolved convincingly.

2. Can the effects of physical stability reported here be dissociated from effects of implied motion, or likeliness-to-change? In the current study, a higher response to unstable vs stable scenes in reported in motion area MT, which the authors describe in terms of implied motion. It therefore seems possible to describe the results in the "Physics Network" in terms of implied motion, rather than physical stability, as well. As for the first point, this alternative explanation will need to be ruled out conclusively.

3. The perilous-vs-non-perilous (Animals-People) condition is a crucial control for attention. However, it seems the relevant interaction, i.e. more generalization for stable-to-stable than stable-to-perilous, is not statistically tested. This test seems crucial to demonstrate that generalization is specific to physical stability.

4. The current study, and its findings, should be situated more deeply in the context of what has been done before. Fischer et al., (2016) showed that specific regions of frontal and parietal cortex responded more strongly when observers performed a physical reasoning task about which direction a tower of blocks would fall (versus a control task). Schwettmann et al., (2019) examined how object mass is represented in these same dorsal areas, and in the ventral visual pathway. The differential pattern of results, including the finding of generalizability across scenarios, was the same as with the present findings, but for object mass, rather than scene stability. Yet Schwettmann et al., (2019) is only briefly mentioned despite its many methodological and conceptual similarities to the present study. The authors should more effectively situate the present findings relative to their previous work (in the Introduction), as well as explain what is novel and surprising about these most recent findings (in the Discussion).

5. Can the authors clarify why they used block towers, Physical-People scenes, and Physical-Objects scenes with the CNN, but used Physical-People scenes, Physical-Objects scenes, and Animals-People scenes with the human observers? Because the comparison of the CNN to human observers is central to the paper, it is worth explaining why different stimulus sets were used between the two.

6. It seems that the CNNs simply didn’t do a great job classifying physical stability in the first place (60% classification accuracy). In that case, how generalisable should we expect their representations to be anyway? It could be that a CNN that does achieve high accuracy on physical stability judgments (90%?) would actually show this kind of general transfer; but we don’t know that from the data presented here, because it’s possible that the lack of generality arises from poor performance to begin with.

7. The Animals-People results in Table 1, third row, seem quite puzzling. Is it right that there is a far higher between- than within-correlation in all ROIs, especially the visual ones? How can this be explained?

8. Overall, the generalization effects reported in Table 1 seem quite subtle, and there are of course many statistical tests reported in this Table; have these been corrected for multiple comparisons?

9. Could the authors explain why they chose to split even and odd runs in the within-scenario analysis but not in the between-scenario analysis. As acknowledged in the caption for Figure 2, this prevents direct comparison of the correlation values between the two analyses, so the justification for the difference should be made explicit.

10. The brief discussion of the generalization effect (Animals-People to Physical-People) in LOC is not very satisfactory. For instance, what kind of similar shape information could be driving this effect that is not present in the other generalization effects? Also, from Table 1 there seems to be a significantly negative generalization effect in V1 for Physical-Objects to Animals-People, but this is not discussed at all.

11. “We reasoned that if the candidate physics regions are engaged automatically in simulating what will happen next, they should show a higher mean response when viewing physically unstable scenes (because there is more to simulate) than stable scenes (where nothing is predicted to happen).” It seems true enough that, once one knows that a scene is stable, one doesn’t then need a dynamically updated representation of its unfolding. But the question that this paper is about is how we determine, in the first place, that a scene is stable or not. The simulations at issue are simulations one runs before one knows their outcome. Stable scenes may well have a lot to simulate, even if we determine after those hefty simulations that the scene is stable after all. And of course unstable scenes might well have very little to simulate, if the scene is simple and the instability is straightforwardly evident. Can the authors say more about why it’s easier to determine that a stable scene is stable than that an unstable scene is unstable?

12. “Interestingness” ratings seem like a not-quite-adequate approach for evaluating how attention-grabbing the towers were. Why not a measure like how much they distract from another task? The authors could add a new measure of attention-grabbing-ness with a sounder basis in the visual psychophysics literature, or a stronger justification for why “interestingness” ratings are up for the job.

13. More examples of the stimuli used in each scenario should be provided, either as a supplemental figure or in a hyperlink, to help readers evaluate the stimuli.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled “Invariant representation of physical stability in the human brain” for further consideration by eLife. Your revised article has been evaluated by Floris de Lange (Senior Editor) and a Reviewing Editor.

The reviewers agree that the manuscript has been significantly improved. There are a couple of remaining issues to be addressed before the paper can be accepted, as outlined below:

1. The response to previous point 6, regarding the generalization of the CNN classification, is not completely satisfactory. It’s still a worry that the paper is conflating (1) whether CNNs can learn to discriminate stable from unstable with (2) whether whatever it is CNNs do learn is generalizable. The issue raised earlier was that CNN performance was so low that, for all we know, better performance would have revealed that the CNNs’ generalizability wasn’t so bad after all. To say that the poor performance “reinforces our point that pattern recognition systems are not very good at discerning physical stability” still feels a bit off-target. There are multiple ways to not be good at something, and the authors here are claiming that one of those ways is a lack of generalizability per se. But our previous point was that we can’t tell the difference between bad generalizability and bad overall performance. If the authors themselves are making this distinction (and they are in the paper), it seems crucial to separate those claims and support them independently. If they cannot be supported directly from the data, it would be appropriate to discuss this as a limitation of the study.

2. The response to previous point 3, regarding the specificity of decoding of representations in the Physics network, did not fully address the issue raised. The authors infer specificity from a null effect in ‘decoding’ stability/peril in the Animal-People condition, but of course a null effect is not evidence for absence. It would be more appropriate to test whether the decoding in the Physical-Object and Physical-People conditions is statistically better than in the Animal-People condition. E.g. in an ANOVA with two factors: Physical stability vs Animate stability and Within vs. Between. In other words, in their reply the authors cited two findings, (a) a null effect in the Animals-People condition and (b) a significant effect in the Physics condition, but to support their claims it would be useful to test whether b is significantly larger than a. Otherwise, the findings could for instance be due to the Animals-People null effect being based on very noisy measurements, i.e. a non-informative null effect, which does not constitute evidence for the specificity of the physical stability effects.

https://doi.org/10.7554/eLife.71736.sa1

Author response

Essential revisions:

1. One major concern with the interpretation of the findings is that while the stimuli in the Animals-People condition seem to be relatively straightforward to understand whether they are “unstable” or “stable” scenes, the stimuli in the Physical-People condition seem more difficult to comprehend when they are “unstable” versus “stable”, perhaps due to their unusual scene composition. For instance, it can take a moment to understand what is going on in the scene depicting a man precariously perched atop a ladder, with the ladder balanced on one leg over a stairwell (Figure 2A). This leaves open the possibility that the elevated activity observed in the fronto-parietal areas may not reflect forward simulation of unstable (over stable) scenes involving physical objects and people, but instead, the requirements of parsing difficult-to-comprehend scenes (which happen to be unstable and physical) over straightforward scenes (which are either stable or involve animals). Put simply, the fMRI responses recorded in fronto-parietal cortex may have more to do with scene comprehension than with physical stability. This confound will need to be ruled out conclusively. This will likely require collecting and analysing new data. For instance, the authors could collect behavioral questionnaire data to gauge for each stimulus ease of comprehension, as well as anticipated motion and likelihood of change (see point 2). The behavioral data could then be correlated with the fMRI responses, and it can be tested whether fMRI results are explained better by physical stability or one or more of these other factors. Of course, the authors may have a different approach in mind, which is perfectly fine, as long as the confounds are resolved convincingly.

Thank you for raising this important point. To test whether images in the three scenarios systematically differed in ease of understanding, we ran a behavioral task where we asked subjects (n = 16) to categorize the stability of each image (unstable/peril vs stable/non-peril). We found that reaction times differed significantly between stable and unstable conditions within each scenario, but the direction of the effect was not consistent across the scenarios (see Author response table 1) and – most importantly – the overall pattern of RT and accuracy is not consistent with an account of our fMRI findings in terms of difficulty. Specifically, although the reviewer is correct that the Animals-People condition was easier overall than the Physical-People condition both in terms of accuracy (p = 0.047 for signrank test on avg accuracy across subjects) and reaction time (p = 0.004 for signrank test on avg RT across subjects), it is the difference in difficulty between the unstable/perilous conditions versus the stable/nonperilous conditions that is important because it is this comparison that our fMRI results are based on. And here, we find that in fact subjects were faster (p = 0.002) and more accurate (p = 0.08; tending towards significance) on the unstable than stable conditions in the Physical-People scenarios, an effect that goes in the opposite direction from the difficulty hypothesis. Further, although participants did take more time to categorize the unstable than stable stimuli in the Physical-Objects condition (p = 0.05), this effect was smaller in magnitude than that found for the Animals-People control scenario (p = 0.033 for interaction between scenario and stability in an ANOVA) where we did not find similarly higher activations for unstable/perilous than stable/nonperilous conditions. Thus, our behavioral data are not consistent with the hypothesis that any of our important fMRI findings (either univariate or multivariate) reflect difficulty confounds.

Author response table 1
Physical-ObjectsPhysical-PeopleAnimals-People
StableUnstableStableUnstableNon-PerilPeril
% Accuracy (mean ± std across subjects)94.4 ± 1.993.1 ± 1.988.5 ± 3.395.7 ± 1.493.5 ± 1.499.5 ± 0.4
p-value (signrank test on avg. accuracy across subjects)p = 0.67p = 0.008p = 0.002
Author response table 2
Physical-ObjectsPhysical-PeopleAnimals-People
StableUnstableStableUnstableNon-PerilPeril
Reaction Time, ms
(mean ± std)
862.1 ± 43.8943.2 ± 45.21088.2 ± 48.8958.1 ± 46.81003.2 ± 60.8881.5 ± 29.9
p-value
(signrank test on avg. RTs across subjects)
p = 0.05p = 0.002p = 0.008
Average RT, ms902.71023.2942.3
RT difference, ms
(unstable – stable)
81.2-130.1-121.7

For a discussion of anticipated motion and likelihood of change as potential confounds, please see responses to point 2 below.

2. Can the effects of physical stability reported here be dissociated from effects of implied motion, or likeliness-to-change? In the current study, a higher response to unstable vs stable scenes in reported in motion area MT, which the authors describe in terms of implied motion. It therefore seems possible to describe the results in the “Physics Network” in terms of implied motion, rather than physical stability, as well. As for the first point, this alternative explanation will need to be ruled out conclusively.

We do indeed show higher responses to unstable (or perilous) scenes compared to stable (or non-perilous) scenes in area MT for all three scenario types, which we interpret as probably reflecting the encoding of ‘implied’ or ‘predicted’ motion. Importantly, however, processing of implied or predicted motion cannot explain results in the Physics Network because our key control condition (Animals-People) does not show higher activations for unstable/perilous compared to stable/nonperilous stimuli. Thus, although the unstable/perilous conditions in all three scenario types activate MT, presumably reflecting implied motion, the Animals-People scenario does not activate the “Physics Network”, and hence the activation of the Physics Network cannot be explained by implied motion alone.

3. The perilous-vs-non-perilous (Animals-People) condition is a crucial control for attention. However, it seems the relevant interaction, i.e. more generalization for stable-to-stable than stable-to-perilous, is not statistically tested. This test seems crucial to demonstrate that generalization is specific to physical stability.

We did report the stats requested here in Figure 2:

a) The two rightmost bars in Figure 2B show that we cannot decode stability/peril from the Animals-People conditions: the correlation of patterns within stability is no higher than the correlation of patterns between stability.

b) Further, the between-scenario comparisons in Figure 2D show that within-stability correlations are significantly greater than between-stability correlations only when generalizing across the Physical-Object and Physical-People scenarios, not when generalizing between either of the Physical conditions and the Animal condition, exactly as predicted by our hypothesis.

These analyses show that representations in the “Physics network” concern physical stability, not animate stability/peril.

If there is another analysis the reviewer would like to see let us know.

4. The current study, and its findings, should be situated more deeply in the context of what has been done before. Fischer et al., (2016) showed that specific regions of frontal and parietal cortex responded more strongly when observers performed a physical reasoning task about which direction a tower of blocks would fall (versus a control task). Schwettmann et al., (2019) examined how object mass is represented in these same dorsal areas, and in the ventral visual pathway. The differential pattern of results, including the finding of generalizability across scenarios, was the same as with the present findings, but for object mass, rather than scene stability. Yet Schwettmann et al., (2019) is only briefly mentioned despite its many methodological and conceptual similarities to the present study. The authors should more effectively situate the present findings relative to their previous work (in the Introduction), as well as explain what is novel and surprising about these most recent findings (in the Discussion).

There are many contexts that the present study can be situated in. Certainly, the prior work from our lab by Fischer et al., (2016) and Schwettmann et al., (2019) is highly relevant and these studies are accordingly cited in the introduction, and in detail in the Discussion. We could have framed this study as primarily a question about the “Physics Network” that was investigated in those studies, in which case they would have figured more prominently in the introduction. However, we felt the broader and more interesting theoretical framing of this work was not simply to functionally characterize a region of the brain, but to ask more fundamentally about the computations that in principle could, and that in practice actually do, enable humans to reason about the physical world. To this end we start our introduction with the importance to human survival of discerning whether the current situation is stable and hence likely to remain the same, or unstable and hence likely to change in the near future, and the question of whether this information can be extracted via pattern classification systems or requires simulations in a model of the world. We then conduct a preliminary test of that idea using CNN modeling, which leads to our predictions about where we will find this information in the brain. We think this framework is deeper and more interesting than beginning with an extensive review of our own prior fMRI studies.

We do however prominently discuss the relevant prior fMRI work in detail in the second paragraph of the discussion:

“Our study builds upon earlier work that has implicated regions in the parietal and frontal lobes in intuitive physical inference. Across multiple studies, similar fronto-parietal regions have been shown to (a) respond more during physics-based tasks compared to color-based or social prediction tasks16, (b) represent physical concepts in verbal stimul23, and (c) contain scenario-invariant representations of object mass17. Intriguingly, the regions activated during physical inference overlap with regions shown previously to be engaged during visually-guided action24 and tool use25–27, perhaps because these tasks also require a representation of the physical world. Indeed physical simulation has been proposed as a crucial component in models for human-like robotic action planning28–30 and flexible tool use31–33; plausibly the same brain mechanisms could have arisen or adapted to support all of these computations. Note however that these same regions also overlap with the “multiple demand” system16, and are unlikely to be selectively engaged in only physical inference.”

And we then go on to say exactly what our study contributes, that goes beyond that earlier work:

“In the present study, we strengthen evidence that these regions are engaged in intuitive physical inference by showing that they carry a new kind of physical information: the dynamic physical stability of objects and people in a scene… our work speaks not only to which brain regions are implicated in intuitive physical inference, but what kinds of computations these inferences entail in both minds and machines. In particular, it is a matter of active current debate in AI whether features extracted by feedforward computations in networks trained on visual object classification will suffice for physical inference, or whether richer internal models that support forward simulation are required. … Three lines of evidence from the present study indicate that pattern recognition alone – as instantiated in feedforward CNNs and the ventral visual pathway – is unlikely to explain physical inference in humans, at least for the case of physical stability. First, we find generalizable representations of physical stability in the brain that we do not find in CNNs. Second, these abstract representations of stability are not found in the ventral visual pathway, which is thought to conduct pattern classification and is well modeled by CNNs, but rather in the dorsal pathway, previously implicated in intuitive physical inference. Third, we find a higher univariate response in this Physics Network for unstable scenes, where there is more to simulate, than the stable scenes, where nothing is predicted to happen next.”

We think this is the strongest framing for our work, that it does justice to the prior fMRI work, and that it explains how our findings go beyond the earlier work. However, we welcome suggestions from the reviewer if they think we have left out important information.

5. Can the authors clarify why they used block towers, Physical-People scenes, and Physical-Objects scenes with the CNN, but used Physical-People scenes, Physical-Objects scenes, and Animals-People scenes with the human observers? Because the comparison of the CNN to human observers is central to the paper, it is worth explaining why different stimulus sets were used between the two.

Block towers have been used in previous computational modeling studies, and hence we also included them in our CNN studies here. However stable and unstable block towers usually differ in their low-level visual properties (stable towers are short and wide whereas unstable towers are narrow and tall, and they can be decoded from early layers of a pre-trained CNN), which is a confound we wanted to avoid in the fMRI experiment.

6. It seems that the CNNs simply didn't do a great job classifying physical stability in the first place (60% classification accuracy). In that case, how generalisable should we expect their representations to be anyway? It could be that a CNN that does achieve high accuracy on physical stability judgments (90%?) would actually show this kind of general transfer; but we don't know that from the data presented here, because it's possible that the lack of generality arises from poor performance to begin with.

You are correct in noting that CNNs don’t do a great job in classifying physical stability, which reinforces our point that pattern recognition systems are not very good at discerning physical stability. In fact, the classification accuracy that we have reported is close to the baseline performance in literature (Lerer et al., 2016). Interestingly, training on the block tower dataset itself could only bring up the stability classification accuracy to 68.8% on the real-world block tower images. While this is true of the current best model of stability detection, we think that CNNs trained on large-scale datasets of stability under varying scenarios may in future be able to potentially generalize to other natural scenarios. However, to our knowledge no such datasets exist.

7. The Animals-People results in Table 1, third row, seem quite puzzling. Is it right that there is a far higher between- than within-correlation in all ROIs, especially the visual ones? How can this be explained?

Thank you for noticing this issue! We should have noticed it ourselves, since the much higher correlations for between than within made no sense. Upon further checking the analysis code, we discovered that only the variable for within condition correlations in the Animals-People scenario was not being updated after computing the fisher z-transform. We have now fixed this issue and updated the corresponding table and figure, and the nonsensical finding is gone.

8. Overall, the generalization effects reported in Table 1 seem quite subtle, and there are of course many statistical tests reported in this Table; have these been corrected for multiple comparisons?

The generalization effects are indeed quite subtle in effect size, as is typical for MVPA analyses, but they are statistically robust. Correction for multiple comparisons would be required if we were performing multiple statistical tests for a hypothesis and a significant effect on any one of those tests would be considered as evidence for the hypothesis. However, in our case, our primary hypothesis is concerned with the Physics ROI and this hypothesis is accepted only if all six statistical tests came out as they did. That is, our hypothesis would not be accepted if only one of those tests came out significant. Thus, correcting for multiple comparisons is not required in this case. Moreover, the outcome of statistical tests in other ROIs have no bearing on our primary hypothesis about the Physics ROI, so they do not count as multiple comparisons for the tests performed on the Physics ROI.

9. Could the authors explain why they chose to split even and odd runs in the within-scenario analysis but not in the between-scenario analysis. As acknowledged in the caption for Figure 2, this prevents direct comparison of the correlation values between the two analyses, so the justification for the difference should be made explicit.

The correlation-based decoding approach that we have used rests on the idea that if a brain region carries information about the two experimental conditions under consideration, then it should produce repeatable responses within condition, and repeatably different responses between conditions. To test this within a scenario, we must inevitably divide the data into even and odd runs to check for repeatability. However, for comparisons across scenarios, we are checking if similar conditions evoke similar response patterns and hence, we do not have to split the data into even and odd runs. Our hypothesis makes no prediction about the average magnitude of the correlations in the within-scenario (Figure 2B) versus between-scenario (Figure 2D) conditions. Thus, in both cases, we used the available data in a way that gave us maximum statistical power to make our inferences.

10. The brief discussion of the generalization effect (Animals-People to Physical-People) in LOC is not very satisfactory. For instance, what kind of similar shape information could be driving this effect that is not present in the other generalization effects? Also, from Table 1 there seems to be a significantly negative generalization effect in V1 for Physical-Objects to Animals-People, but this is not discussed at all.

The pattern of responses correlations in LOC is not crazy and might reflect shape features shared between the two scenarios and/or a general representation of peril. Because the particular features that apparently support this generalization are not critical for any of the hypotheses in this paper, and the effect was not predicted and is only marginally significant, we prefer not to speculate further about them.

On the other hand, the higher correlation for between than within stability in V1 across Physical Objects to the Animals people condition simply makes no sense on any story. We have shown results for all comparisons in all ROIs in the Table, and with 30 such comparisons it is not that surprising that one of them would be a fluke.

11. "We reasoned that if the candidate physics regions are engaged automatically in simulating what will happen next, they should show a higher mean response when viewing physically unstable scenes (because there is more to simulate) than stable scenes (where nothing is predicted to happen)." It seems true enough that, once one knows that a scene is stable, one doesn't then need a dynamically updated representation of its unfolding. But the question that this paper is about is how we determine, in the first place, that a scene is stable or not. The simulations at issue are simulations one runs before one knows their outcome. Stable scenes may well have a lot to simulate, even if we determine after those hefty simulations that the scene is stable after all. And of course unstable scenes might well have very little to simulate, if the scene is simple and the instability is straightforwardly evident. Can the authors say more about why it's easier to determine that a stable scene is stable than that an unstable scene is unstable?

The idea here is that forward simulation happens in all cases but stops if no change has occurred since the last frame. That stopping, both represents the stability of the configuration and produces less activity. This idea is akin to the “sleep state” used for nonmoving objects in a physics engine: they do not need to be re-simulated or re-rendered if they have not moved since the last frame (Ullman et al., 2017 TICS).

12. "Interestingness" ratings seem like a not-quite-adequate approach for evaluating how attention-grabbing the towers were. Why not a measure like how much they distract from another task? The authors could add a new measure of attention-grabbing-ness with a sounder basis in the visual psychophysics literature, or a stronger justification for why "interestingness" ratings are up for the job.

We agreed that it would be useful to obtain such measures, so we spent considerable time and effort to devise a paradigm to measure the distracting effect of attentionally engaging natural images on another task. For these efforts we used the high-arousal and low arousal stimuli from the well validated emotionally arousing “IAPS” stimulus set. None of the many paradigms we tried showed any difference in reaction time when high arousal versus low arousal stimuli were presented during the (orthogonal) main task. We tried placing the task stimuli (Landolt Cs, letters, etc) overlapping on top of the IAPS stimuli, or in the periphery with the IAPS stimuli at the fovea. None of it produced an effect. In looking into the literature, we were unable to find any paradigms that measure effects of the interest level of naturalistic images on secondary tasks. We assume others have tried this before, so the apparent absence of such reports in the literature suggests it simply does not work, presumably because it requires some degree of attention to the stimulus to process its valence.

We note however that we believe our interestingness ratings because they show the predicted ratings for high arousal and low arousal images from IAPS images (which serve as a positive control for these ratings). Thus, we are confident that our interestingness rating paradigm can capture the degree of arousal/attentiveness elicited by images in our dataset.

13. More examples of the stimuli used in each scenario should be provided, either as a supplemental figure or in a hyperlink, to help readers evaluate the stimuli.

Thanks for the suggestion. All stimuli will be shared publicly along with the fMRI data.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

1. The response to previous point 6, regarding the generalization of the CNN classification, is not completely satisfactory. It's still a worry that the paper is conflating (1) whether CNNs can learn to discriminate stable from unstable with (2) whether whatever it is CNNs do learn is generalizable. The issue raised earlier was that CNN performance was so low that, for all we know, better performance would have revealed that the CNNs' generalizability wasn't so bad after all. To say that the poor performance "reinforces our point that pattern recognition systems are not very good at discerning physical stability" still feels a bit off-target. There are multiple ways to not be good at something, and the authors here are claiming that one of those ways is a lack of generalizability per se. But our previous point was that we can't tell the difference between bad generalizability and bad overall performance. If the authors themselves are making this distinction (and they are in the paper), it seems crucial to separate those claims and support them independently. If they cannot be supported directly from the data, it would be appropriate to discuss this as a limitation of the study.

Our hypothesis was not that no CNN could discriminate stable from unstable stimuli, but rather that CNNs trained specifically on object recognition (using ImageNet) could not do this. To test that hypothesis, we asked whether CNN representations that are useful for object recognition can also support discrimination of physical stability in natural scenes. We found low performance both within a scenario type, and a lack of generalizable representation of physical stability in these CNNs. This indicated to us that regions in the brain that are ‘optimized’ for object recognition (i.e., the ventral visual pathway) may also fail to represent physical stability in a generalizable manner. We then tested this hypothesis using fMRI.

We tried to make it clear in multiple places in the manuscript (detailed next) that our hypothesis concerns representations supporting feedforward visual object recognition both in machines (CNNs trained on ImageNet) and brains (ventral visual pathway). But if the reviewer would like to advise us where the confusion arose, we would be happy to try to make it yet clearer.

– [Introduction] “Here we test whether representations that support fast feedforward visual object and scene recognition in machines (i.e., CNNs trained on ImageNet) and brains (i.e., the ventral visual pathway) can support discrimination of the physical stability of complex natural scenes,…”

– [Discussion] “Here we report that fronto-parietal cortical regions previously implicated in intuitive physical inference contain abstract information about physical stability, but representations in the ventral visual object recognition pathway, and those in feedforward convolutional neural networks trained on object recognition, do not. These results indicate that representations in systems that are highly effective at invariant object recognition do not automatically support the general ability to distinguish physically stable from unstable scenes.”

As we now note in the manuscript (Discussion), we do not address here the question of whether a feedforward CNN extensively trained on naturalistic images of stability may learn representations that could discriminate physical stability across multiple scenarios. This is an important question but one we cannot satisfactorily test currently due to lack of large-scale naturalistic datasets of physical stability.

2. The response to previous point 3, regarding the specificity of decoding of representations in the Physics network, did not fully address the issue raised. The authors infer specificity from a null effect in 'decoding' stability/peril in the Animal-People condition, but of course a null effect is not evidence for absence. It would be more appropriate to test whether the decoding in the Physical-Object and Physical-People conditions is statistically better than in the Animal-People condition. E.g. in an ANOVA with two factors: Physical stability vs Animate stability and Within vs. Between. In other words, in their reply the authors cited two findings, (a) a null effect in the Animals-People condition and (b) a significant effect in the Physics condition, but to support their claims it would be useful to test whether b is significantly larger than a. Otherwise, the findings could for instance be due to the Animals-People null effect being based on very noisy measurements, i.e. a non-informative null effect, which does not constitute evidence for the specificity of the physical stability effects.

Thanks for the clarification. We did in fact report the suggested ANOVA results –

“The Physics Network showed the same pattern of results (Figure 2B and Table 1), with significantly higher correlations within than between stability for both the Physical-Object and Physical-People scenarios but not the Animals-People scenarios, and a significant ANOVA interaction between scenario type and within versus between correlations (F1,12 = 22.9, p = 0.0004).”

https://doi.org/10.7554/eLife.71736.sa2

Article and author information

Author details

  1. RT Pramod

    1. Center for Brains, Minds and Machines, Massachusetts Institute of Technology, Cambridge, United States
    2. Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Writing – original draft, Writing – review and editing
    For correspondence
    pramodrt@mit.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5933-7893
  2. Michael A Cohen

    1. Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    2. Amherst College, Amherst, United States
    Contribution
    Conceptualization, Writing – review and editing
    Competing interests
    No competing interests declared
  3. Joshua B Tenenbaum

    1. Center for Brains, Minds and Machines, Massachusetts Institute of Technology, Cambridge, United States
    2. Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Conceptualization, Funding acquisition, Supervision, Writing – review and editing
    Competing interests
    No competing interests declared
  4. Nancy Kanwisher

    1. Center for Brains, Minds and Machines, Massachusetts Institute of Technology, Cambridge, United States
    2. Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Conceptualization, Funding acquisition, Resources, Supervision, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3853-7885

Funding

National Institutes of Health (DP1HD091947)

  • Nancy Kanwisher

Office of Naval Research (MURI)

  • Joshua B Tenenbaum
  • Nancy Kanwisher

National Science Foundation (CCF-1231216)

  • Joshua B Tenenbaum
  • Nancy Kanwisher

The funders had no role in study design, data collection, and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by NIH grant DP1HD091947 to N.K., a US/UK ONR MURI project (Understanding Scenes and Events through Joint Parsing, Cognitive Reasoning and Lifelong Learning), and National Science Foundation Science and Technology Center for Brains, Minds, and Machines Grant CCF-1231216. The Athinoula A Martinos Imaging Center at MIT is supported by the NIH Shared instrumentation grant #S10OD021569. We thank Kirsten Lydic for helping with data collection, David Beeler for helping with fMRI data preprocessing, and Ilker Yildirim, Kevin Smith, and members of the Kanwisher Lab for helpful discussions.

Ethics

All subjects gave informed consent to the experimental protocol approved by the Massachusetts Institute of Technology (MIT) Committee on the Use of Humans as Experimental Subjects (#0403000096). The study was conducted in compliance with all the relevant ethical guidelines and regulations for work with human participants.

Senior Editor

  1. Floris P de Lange, Radboud University, Netherlands

Reviewing Editor

  1. Peter Kok, University College London, United Kingdom

Reviewers

  1. Peter Kok, University College London, United Kingdom
  2. Jaqueline Snow, University of Nevada Reno, United States

Publication history

  1. Preprint posted: March 19, 2021 (view preprint)
  2. Received: June 28, 2021
  3. Accepted: May 10, 2022
  4. Version of Record published: May 30, 2022 (version 1)

Copyright

© 2022, Pramod et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 782
    Page views
  • 185
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. RT Pramod
  2. Michael A Cohen
  3. Joshua B Tenenbaum
  4. Nancy Kanwisher
(2022)
Invariant representation of physical stability in the human brain
eLife 11:e71736.
https://doi.org/10.7554/eLife.71736
  1. Further reading

Further reading

    1. Neuroscience
    Maria Cecilia Martinez, Camila Lidia Zold ... Mariano Andrés Belluscio
    Research Article

    The automatic initiation of actions can be highly functional. But occasionally these actions cannot be withheld and are released at inappropriate times, impulsively. Striatal activity has been shown to participate in the timing of action sequence initiation and it has been linked to impulsivity. Using a self-initiated task, we trained adult male rats to withhold a rewarded action sequence until a waiting time interval has elapsed. By analyzing neuronal activity we show that the striatal response preceding the initiation of the learned sequence is strongly modulated by the time subjects wait before eliciting the sequence. Interestingly, the modulation is steeper in adolescent rats, which show a strong prevalence of impulsive responses compared to adults. We hypothesize this anticipatory striatal activity reflects the animals’ subjective reward expectation, based on the elapsed waiting time, while the steeper waiting modulation in adolescence reflects age-related differences in temporal discounting, internal urgency states, or explore–exploit balance.

    1. Computational and Systems Biology
    2. Neuroscience
    Sergio Oscar Verduzco-Flores, Erik De Schutter
    Research Article Updated

    How dynamic interactions between nervous system regions in mammals performs online motor control remains an unsolved problem. In this paper, we show that feedback control is a simple, yet powerful way to understand the neural dynamics of sensorimotor control. We make our case using a minimal model comprising spinal cord, sensory and motor cortex, coupled by long connections that are plastic. It succeeds in learning how to perform reaching movements of a planar arm with 6 muscles in several directions from scratch. The model satisfies biological plausibility constraints, like neural implementation, transmission delays, local synaptic learning and continuous online learning. Using differential Hebbian plasticity the model can go from motor babbling to reaching arbitrary targets in less than 10 min of in silico time. Moreover, independently of the learning mechanism, properly configured feedback control has many emergent properties: neural populations in motor cortex show directional tuning and oscillatory dynamics, the spinal cord creates convergent force fields that add linearly, and movements are ataxic (as in a motor system without a cerebellum).
