Remodeling of dermal adipose tissue alleviates cutaneous toxicity induced by anti-EGFR therapy

  1. Leying Chen
  2. Qing You
  3. Min Liu
  4. Shuaihu Li
  5. Zhaoyu Wu
  6. Jiajun Hu
  7. Yurui Ma
  8. Liangyong Xia
  9. Ying Zhou
  10. Nan Xu  Is a corresponding author
  11. Shiyi Zhang  Is a corresponding author
  1. School of Biomedical Engineering, Shanghai Jiao Tong University, China
  2. Department of Dermatology, Shanghai East Hospital, Tongji University, China

Abstract

Anti-epidermal growth factor receptor (EGFR) therapy–associated cutaneous toxicity is a syndrome characterized by papulopustular rash, local inflammation, folliculitis, and microbial infection, resulting in a decrease in quality of life and dose interruption. However, no effective clinical intervention is available for this adverse effect. Here, we report the atrophy of dermal white adipose tissue (dWAT), a highly plastic adipose tissue with various skin-specific functions, correlates with rash occurrence and exacerbation in a murine model of EGFR inhibitor-induced rash. The reduction in dWAT is due to the inhibition of adipogenic differentiation by defects in peroxisome proliferator-activated receptor γ (PPARγ) signaling, and increased lipolysis by the induced expression of the lipolytic cytokine IL6. The activation of PPARγ by rosiglitazone maintains adipogenic differentiation and represses the transcription of IL6, eventually improving skin functions and ameliorating the severity of rash without altering the antitumor effects. Thus, activation of PPARγ represents a promising approach to ameliorate cutaneous toxicity in patients with cancer who receive anti-EGFR therapy.

Editor's evaluation

This paper will be of interest to oncologists and dermatologists, and has high clinical relevance. It reveals a novel mechanism of EGFR inhibitor-induced rash which be may closely related to atrophy of dermal white adipose tissue (dWAT). A series of experimental manipulations dissect the mechanism with a murine model, supporting the major claims of the paper.

https://doi.org/10.7554/eLife.72443.sa0

Introduction

Epidermal growth factor receptor (EGFR) is a canonical therapeutic target for non-small cell lung cancer, breast cancer, and colorectal cancer. Cutaneous toxicity induced by EGFR inhibitors (EGFRIs) is an inflammatory disorder characterized by papulopustular rash, folliculitis, microbial infection and pruritus. Most commonly, rash is observed in 70–90% of patients receiving anti-EGFR therapy (Cappuzzo et al., 2010; Wu et al., 2017; Sequist et al., 2013), resulting in a decrease in quality of life. Except for the empiric use of corticosteroids and antibiotics, no effective clinical treatment is currently available for these adverse effects, which is responsible for 8–17% of dose modifications and interruptions (Lacouture, 2006). Therefore, new therapeutic targets for EGFRI-specific skin toxicity urgently need to be discovered.

Dysfunction of the epidermal barrier, retardation of hair follicle growth and various dermal inflammatory responses have been proposed as causative factors for EGFRI-induced rash, but therapeutic agents that interfere with these mechanisms have limited effectiveness (Lichtenberger et al., 2013; Mascia et al., 2013). An analysis of biopsies from rodents with the genetic ablation of EGFR or pharmacological EGFR inhibitors both showed a dramatic loss of dermal adipose tissue (Murillas et al., 1995; Sibilia and Wagner, 1995; Sugawara et al., 2010; Surguladze et al., 2009), a newly recognized adipose layer termed dermal white adipose tissue (dWAT). Compared to other conventional fat depots, dWAT has more skin-specific functions and a high plasticity to expand or contract in response to different stimuli (Chen et al., 2019). For example, local infection (Zhang et al., 2015), a high-fat diet (HFD) and peroxisome proliferator-activated receptor γ (PPARγ) agonists (Zhang et al., 2019a) induce dWAT expansion. Recent studies have revealed unique roles for dWAT in skin fibrosis and scarring (Marangoni et al., 2015; Varga and Marangoni, 2017; Zhang et al., 2019b), wound healing (Plikus et al., 2017; Schmidt and Horsley, 2013; Shook et al., 2020), immune modulation (Dokoshi et al., 2018; Schmid et al., 2017; Zhang et al., 2015), and regeneration of hair follicles (Donati et al., 2014; Festa et al., 2011). During the hair cycle, dermal adipose tissue expands in the anagen phase and regresses in catagen phase, providing vital signals to regulate hair growth (Zhang et al., 2019b). In addition, the reduction in dWAT in transgenic and pharmacologically treated mice results in a scaly skin phenotype with delayed hair coat formation, poorly developed pilosebaceous structures and epidermal barrier function (Chen et al., 2002; Herrmann et al., 2003), and these phenomena resembled the abnormalities in skin observed upon EGFR inhibition. A similar synchronized pattern was also observed in wound healing. Dermal adipocytes surrounding the site of skin injury undergo lipolysis and dedifferentiation, transition to myofibroblasts and attract macrophages to stimulate re-epithelialization and revascularization (Shook et al., 2020). Additionally, new adipocytes regenerating from myofibroblasts were also observed in healed wounds (Plikus et al., 2017). The importance of dWAT in host defense is the promotion of cathelicidin antimicrobial peptide (Camp) release during adipogenic differentiation (Zhang et al., 2015). The production of Camp defends against Staphylococcus aureus (S. aureus) infection, which often develops along with EGFRI skin toxicities (Lichtenberger et al., 2013).

Since the multiple functions of dWAT are closely related to EGFRI-induced skin toxicities and a reduction in dermal fat has been observed in EGFR-depleted mice, we investigated whether dWAT plays a central role in EGFRI-induced rash. Here, using an EGFRI-induced rash model and dermal fibroblast (dFB) differentiation assays, we showed that atrophy of dWAT occurs during rash development and has a strong causality with rash severity. The differentiation of dFBs was obviously inhibited and lipolysis of mature adipocytes was increased upon EGFR inhibition. Notably, stimulating dermal adipocyte expansion with a high-fat diet (HFD) or the pharmacological PPARγ agonist rosiglitazone (Rosi) ameliorated the severity of rash.

Results

A reduction in dWAT is a hallmark of the pathophysiology of rash

EGFRI therapy in patients is consistently associated with specific skin toxicities, such as papulopustular rash. Additionally, weight loss and decreased appetite accompany these changes (Supplementary file 1). Recent reports have shown a strong, positive correlation between body weight and dWAT thickness (Kasza et al., 2016). To investigate whether dWAT responses to EGFR inhibition, we established a rat rash model by repeated oral gavage of Afatinib (Afa), an EGFR inhibitor with a high occurrence of skin toxicity (Sequist et al., 2013). Rats continued losing weight and exhibited reduced food intake throughout the Afa intervention, and at the end of the treatment, they had lost up to 27.9% and 23.1% of their initial body weight and food intake, respectively (Figure 1—figure supplement 1A, B). After 3 days of treatment, few rats began to occur the skin lesions, until day 7, almost all rats developed rash with 23.08% of them were grade two and above. Grade three rash happened at day eight and increased in the next two days (Figure 1—figure supplement 1C). The rat model recapitulated all skin features of patients receiving EGFRIs, including erythema, pustules and itching, and the pustules conflated to lakes of pus that dried and formed yellow crusts when rash developed to a higher grade (Figure 1A). Administrations by other EGFRIs, such as Erlotinib, Gefitinib, Osimertinib, had similar phenotypes (Figure 1—figure supplement 1D). Immunohistochemical analysis revealed a dense inflammatory infiltrate with a marked clustering of CD68+ macrophages, CD3+ T cells, CD11b+ immune cells, and mast cells in the dermis (Figure 1—figure supplement 1E,F). The cytokine expression file showed a similar tendency with human biopsies and mouse models (Lichtenberger et al., 2013; Mascia et al., 2013), Afa dramatically increased the expression of proinflammatory chemokines such as Ccl2, Ccl5, Cxcl1, Cxcl2, and Cxcl3 (Figure 1—figure supplement 1G).

Figure 1 with 4 supplements see all

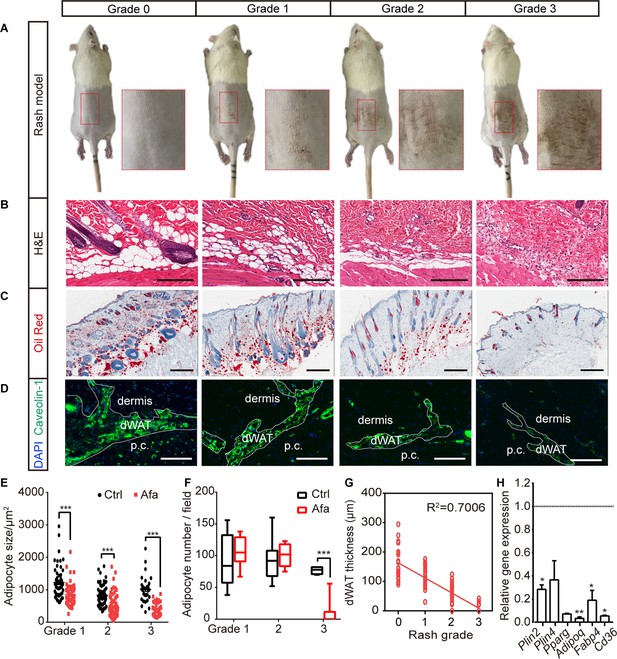

The response of dWAT to EGFR inhibition.

(A) Representative images of the rat rash model. (B–D) H&E (B), Oil Red (C), and Caveolin-1 (D) staining of skin from control and Afa-treated rats. Scale bars: 200 μm, 500 μm and 130 μm (top to bottom). p.c. refers to panniculus carnosus. (E and F) Quantification of the dWAT size (E), and adipocyte number (F) in rats with different rash grades compared with the control (Ctrl). n = 3–5 per group. (G) Relationship between dWAT thickness and rash grade. The square values of the Pearson’s correlation coefficients are shown. (H) RT-PCR measurements of mRNA levels of adipogenic genes in skin tissues from control and Afa-treated rats. n = 4–5 per group. Data are presented as the means ± SEM. *p < 0.05, **p < 0.01, and ***p < 0.001 using two-tailed unpaired Student’s t test.

To analyze the response of dWAT during rash process, skin biopsies were obtained according to the rash process at different grades (Figure 1—figure supplement 1H). The thickness of the dWAT layer decreased with an increase in the rash grade, and skin lipid levels also decreased (Figure 1B and C). A significant decrease in the number of cells stained with the adipocyte surface protein Caveolin-1 was also observed (Figure 1D). A recent study described the importance of hair eruption on rash occurrence (Klufa et al., 2019). In our rat model, there was a similar situation that the skin rash occurred earlier and was more severe on shaved back skin than on the unshaved area (Figure 1—figure supplement 2A, B). This result indicates that shaving-induced hair eruption has an important impact on rash progress during the EGFR inhibitor treatment. The unshaved area still developed abnormal erythema (Figure 1—figure supplement 2A), and showed dWAT reduction after long-term Afa treatment (Figure 1—figure supplement 2C, D).

Changes in dWAT were examined by performing a detailed morphometric analysis. The attenuation of intradermal adipocytes was due to a decrease in both size and number, and time-course studies revealed that the size change occurred prior to the change in adipocyte number (Figure 1E, F). Consistent with our hypothesis, a positive correlation existed between dWAT thickness and rash grade throughout Afa treatment (Figure 1G). This correlation suggests that changes in the dWAT layer in response to a process associated with EGFRI affected skin function. In addition to the dermal adipose layer, skin-associated adipose tissue also includes back subcutaneous adipocytes (sWAT), inguinal adipocytes (iWAT) and brown adipocytes (BAT), which are all adjacent to the back skin. Although clear evidence of anatomically and functionally distinct skin adipose depots in rodents has been reported, for example, the dWAT layer was separated by a distinct muscle layer known as the panniculus carnosus and verified to develop independently of sWAT, these two layers are not quite physically and functionally demarcated in humans (Chen et al., 2019; Wojciechowicz et al., 2013). Thus, we also monitored the weight change of sWAT and other skin adipose depots, and found that iWAT and BAT also showed a decreasing trend at late time points (Figure 1—figure supplement 3A), whereas sWAT represented a more similar response to dWAT during rash occurrence (Figure 1—figure supplement 3B–D).

The reduction in the size and number of adipocytes in the dWAT layer at the rash site suggested that adipocytes may be modulated by the inhibition of differentiation and an increase in lipolysis. To examine whether the differentiation of dermal adipocyte was affected, we first compared the expression of differentiation-associated genes in Afa-treated skin with that in vehicle-treated skin using quantitative PCR. The expressions of general adipocyte marker genes were significantly decreased at the end of the treatment (Figure 1H). Reduced expression of PPARγ and Perilinpin-2 were also detected in skin samples from rats (Figure 1—figure supplement 4A, B). Taken together, these data suggest that the loss of dermal adipocytes is a characteristic hallmark of EGFRI-induced skin toxicity, and this process might be modulated by PPAR-mediated differentiation.

EGFRI stimulation induces the dedifferentiation of dWAT

A loss of dWAT was also reported to be a prominent feature of systemic sclerosis in humans, a disease with disturbed skin homeostasis and dermal fibrosis. The adipocyte–myofibroblast transition is the primary event in the pathogenesis of cutaneous fibrosis (Varga and Marangoni, 2017). Additionally, dermal adipocyte dedifferentiation and subsequent conversion to myofibroblasts have been verified in skin injury and are necessary for efficient tissue repair (Shook et al., 2020). To characterize dermal adipocyte differentiation, we first performed Masson’s trichrome staining for collagen to characterize dermal adipocyte differentiation. Rats receiving daily Afa treatments showed a time-dependent progressive decrease in dWAT thickness associated with a slightly thicker dermis and collagen deposition in the early stage of rash (Figure 2A and B). We next analyzed the expression of fibrotic genes in dWAT before and after rash to evaluate the adipocyte to fibroblast transdifferentiation process. However, dermal adipocytes isolated from the back skin of Afa-treated rats only exhibited slight fibrotic potential in the early stage that diminished quickly (Figure 2C), whereas the expression of general adipocyte markers represented a continuous and obvious decrease (Figure 2D). The same trend was also observed in sWAT (Figure 2—figure supplement 1A, B). These data suggest that collagen deposition and myofibroblast transition occur in the early phases of EGFRI-related skin changes and are sustained for only a short period.

Figure 2 with 1 supplement see all

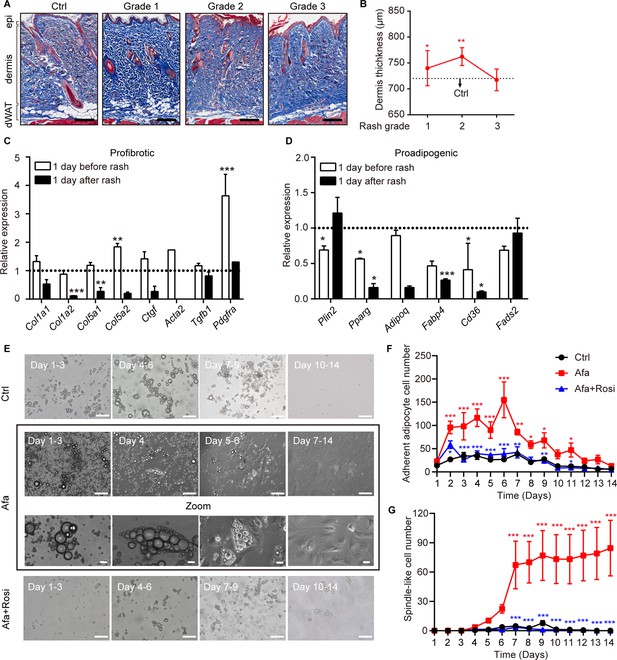

Dedifferentiation of mature dermal adipocytes upon EGFR inhibition.

(A) Masson’s trichrome staining of skin sections from rats at the indicated times. n = 3–5 per group. epi refers to epidermis. Scale bars: 500 μm. (B) Changes in the thickness of the dermis in Ctrl- and Afa-treated rats. n = 3–5 per group. (C and D) RT-PCR measurements of profibrotic genes (C), and proadipogenic genes (D) in isolated dermal adipocytes at the indicated times, n = 3–4 per group. Data was normalized to Ctrl. Dotted line represented the mean gene expression of the Ctrl group. (E) Morphological changes at different time points of Afa (100 nM) or Rosi (5 μM) treatment revealed a transition from mature dermal adipocytes to dedifferentiated adipocytes. Scale bars: 100 μm and 50 μm for zoom pictures. (F) Quantification of adherent adipocyte cells. (G) Quantification of dedifferentiated, spindle-like cells per field. Data are presented as the means ± SEM (Afa/Rosi group vs Ctrl group and Afa +Rosi group vs Afa group). *p < 0.05, **p < 0.01, ***p < 0.001 using two-tailed unpaired Student’s t test and one-way ANOVA.

To determine whether dedifferentiation exists, ceiling culture was performed using dWAT cells isolated from normal rat back skin. Upon EGFRI stimulation, we found that attached adipocytes began to decrease the size of lipid droplets and the cells formed spindle-like shapes on day four after Afa treatment. Then, they gradually elongated, lost intracellular lipids and proliferated as fully dedifferentiated PDGFRα + fibrocytes (Figure 2E; Figure 2—figure supplement 1C). In comparison, adipocytes cultured under control experimental conditions attached much fewer and still retained lipid droplets (Figure 2E–G). Based on our evidence, the expression of genes related to the function of mature adipocytes, such as Pparg, Adipoq, and Fabp4, was downregulated after EGFRI treatment (Figure 1H; Figure 2D). The gene enrichment analysis highlighted the significance of PPAR signaling in the pathology of EGFRI-induced skin toxicity. The blockade of PPARγ produces defective adipocytes and exerts a negative effect on skin wound healing (Schmidt and Horsley, 2013). In contrast, rosiglitazone (Rosi), a PPARγ agonist, abrogates bleomycin-induced scleroderma and blocks profibrotic responses (Bi et al., 2016; Wu et al., 2009). Thus, we hypothesized that PPARγ activation might reverse adipocyte dedifferentiation in response to EGFR inhibition through a compensatory mechanism. We evaluated the effect of Rosi on Afa-treated dermal adipocytes to directly test this hypothesis. Application of Rosi reversed the dedifferentiation of dermal adipocytes induced by Afa, and cells cultured in the presence of Rosi displayed little attachment until 14 days (Figure 2E–G). Correspondingly, the transcriptional level of Pparg was downregulated by Afa and upregulated by Rosi (Figure 2—figure supplement 1D). In summary, these results suggest that an EGFR signaling deficiency, caused by treatment with EGFRI, triggers the dermal adipocyte-myofibroblast transition at an early stage and significant dedifferentiation, and the PPARγ agonist Rosi effectively rescues this phenomenon.

Differentiation of adipocyte precursors are suppressed during EGFR inhibition

Dermal adipocyte precursor cells (APs) were recently identified in the skin Festa et al., 2011; moreover, recent genetic and molecular research revealed that the activation of APs depends on the PDGFRA-PI3K-AKT pathway (Rivera-Gonzalez et al., 2016). The AKT pathway is a key downstream target of EGFR kinase, which also modulates proliferation and survival. To determine whether the loss of mature dWAT cells was caused by EGFR inhibition on APs, we isolated dFBs from the skin dermis and treated them with Afa for 3, 6 and 9 days during adipogenic differentiation in vitro. Consistent with our hypothesis, the differentiation of dFBs in the presence of Afa was inhibited (Figure 3A and B), and the concentration of Afa used in this experiment had little antiproliferative effect (Figure 3—figure supplement 1A). Notably, the addition of Rosi circumvented the inhibition of adipogenic differentiation (Figure 3A). Next, we aimed to define the molecular pathways affected by EGFR inhibition in dermal adipogenic cells. The gene signature induced by Afa in APs (Figure 3C) was similar to the changes in gene expression observed in mature adipocytes (Figure 2D). Adipocytes have been shown to express a variety of pattern recognition receptors and cytokine receptors, including TLR1-9, NOD1-2, TNFR, IL4R, and IL6R (Chen et al., 2019; Deiuliis et al., 2011; Sindhu et al., 2015). Interestingly, the expression levels of many of these receptors were increased during Afa treatment (Figure 3—figure supplement 1B), indicating the proinflammatory potential of adipocytes upon EGFR inhibition. Additionally, we analyzed the levels of PDGFRα and phosphorylated AKT. Significantly increased levels of PDGFRα were detected on days 6 and 9, indicating a retardation of AP differentiation. Phospho-AKT1 and phospho-AKT2 levels were also affected by Afa (Figure 3D and E). Cotreatment with the PPARγ agonist Rosi and the EGFR inhibitor Afa completely abrogated the inhibition of APs differentiation. Notably, the addition of Rosi significantly activated both AKT1 and AKT2 (Figure 3D and E). We next examined the number of APs in EGFRI-treated rats. Using FACS, we found that APs (CD31-, CD45-, CD34+, CD29+) were absent after EGFR inhibition (Figure 3F and G). Together, these data indicate that the loss of mature dermal adipocytes induced by an EGFRI correlates with loss of APs and inhibition of their activation.

Figure 3 with 1 supplement see all

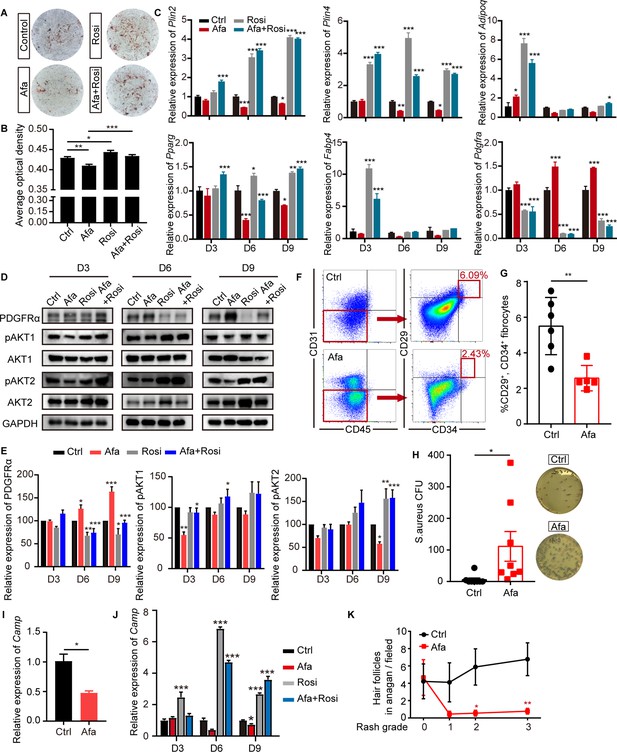

EGFR inhibition blocks adipocyte progenitor differentiation.

(A) dFB cells were isolated from P1 rat skin and then cultured with adipocyte differentiation medium for 9 days in the presence or absence of Afa (10 nM) or Rosi (5 μM). Lipid production was detected using Oil Red staining. (B) Quantification of Oil Red staining. (C) Relative mRNA expression of adipogenic genes at the indicated time points during differentiation. n = 3 per group. (D) Western blot analysis of differentiating dFB cells. (E) Quantification of expression level of PDGFRα, pAKT1 and pAKT2 relative to Ctrl. (F) FACS analysis of adipocyte progenitors in dFB from Ctrl- and Afa-treated rats. (G) The percentage of CD31-, CD45-, CD34+, and CD29+ fibrocytes was quantified. n = 5–6 per group. (H) S. aureus growth in media containing skin homogenates from Ctrl- or Afa-treated rats. n = 8 per group. (I) Relative mRNA expression of Camp from isolated-dWAT at Day 3. n = 5 per group. (J) Relative mRNA expression of Camp at the indicated time points during dFB differentiation. n = 5 per group. (K) Numbers of hair follicles in anagen phase during Afa treatment. n = 3 per group. Data are presented as the means ± SEM. *p < 0.05, **p < 0.01, and ***p < 0.001 (Afa/Rosi group vs Ctrl group and Afa +Rosi group vs Afa group) using two-tailed unpaired Student’s t test and one-way ANOVA.

Since recent reports have shown that dermal adipocytes have the capacity to inhibit invasive bacterial skin infection and support hair regeneration (Festa et al., 2011; ), we determined whether the reduction and inhibition of APs contribute to the loss of these functions. As expected, treatment of Afa resulted in increased S. aureus infection (Figure 3H). To verify the relationship between Afa-induced dWAT reduction and S. aureus infection, we performed transcriptional experiments of dermal adipocyte cells. Correspondingly, the transcriptional level of Camp both in isolated dWAT (Figure 3I) and differentiated dFB (Figure 3J) were decreased by Afa, and Rosi significantly upregulated the expression level (Figure 3J). In addition, the number of hair follicles in anagen phase decreased with an increasing rash grade (Figure 3K), and rats treated with the EGFRI showed hair follicles with abnormal growth (Figure 1B). The levels of phospho-EGFR and ERK in dWAT and the outer sheath of hair follicles were significantly decreased (Figure 3—figure supplement 1C). Consequently, the number of proliferative cells characterized by Ki67 immunostaining was reduced, and the number of apoptotic cells detected using TUNEL immunofluorescence staining was increased (Figure 3—figure supplement 1D, E). Therefore, our results showed that a lack of APs and mature dWAT might contribute to impairing the maintenance of the host defense and hair growth in the skin.

EGFR inhibition induces lipolysis through epidermal keratinocytes

In addition to differentiation, the reduction in dermal adipocyte size also suggested that adipocytes might alter their lipid content through lipolysis. To examine whether lipolysis occurs after EGFR inhibition, isolated dermal adipocytes were assessed using transmission electron microscopy, and the expression of lipolysis-activated markers, the rate-limiting enzyme ATGL and phosphorylated hormone-sensitive lipase (pHSL) were detected. We observed increased levels of ATGL and pHSL in dWAT (Figure 4A and B). Consistent with these changes, multiple smaller droplets adjacent to large lipid droplets were detected in Afa-treated rats, whereas only large, unilocular lipids were retained in the control group (Figure 4C). However, in sWAT, lipolysis-induced glycerol production was not increase in either sWAT isolated from Afa-treated rats or Afa stimulation of sWAT from Ctrl-treated rats (Figure 4—figure supplement 1A). We performed lipidomics on isolated dermal adipocytes from Ctrl- or Afa-treated rats to characterize the composition of fatty acids (FAs). The fatty acid composition of adipocytes from Afa- or Ctrl-treated rats did not show any significant differences, and the only significantly changed medium-chain FA was decanoic acid (10:0) (Figure 4—figure supplement 1B, C). Notably, the most abundant FAs were mainly C18 fatty acids, including methyl oleate (18:1), methyl elaidate (18:1T), methyl linoleate (18:2) and methyl linoelaidate (18:2T) (Figure 4—figure supplement 1C), indicating the extensive release of these types of FAs to the cell matrix during lipolysis. Correspondingly, the free fatty acid (FFA) in the skin homogenates showed an enrichment in Afa-treated rats (Figure 4—figure supplement 1D). Experimental studies support the hypothesis that lipolysis-induced lipid accumulation drives macrophage infiltration (Kosteli et al., 2010; Shi et al., 2006). Lipolysis and a decrease in adipocyte size corresponded with the infiltration of macrophages when rash occurred (Figure 4D and E). We hypothesized that individual FA components might promote the migration of macrophages. Monocytes have been well known migrated to local inflammatory sites and differentiated to macrophages. Thus, we treated human monocyte THP-1 cells with one significantly changed FA, decanoic acid (10:0), or the other four most abundant C18 FAs to verify this hypothesis. In particular, we observed that the number of migrated monocytes was increased in the 18:2-treated wells (Figure 4—figure supplement 1E, F).

Figure 4 with 1 supplement see all

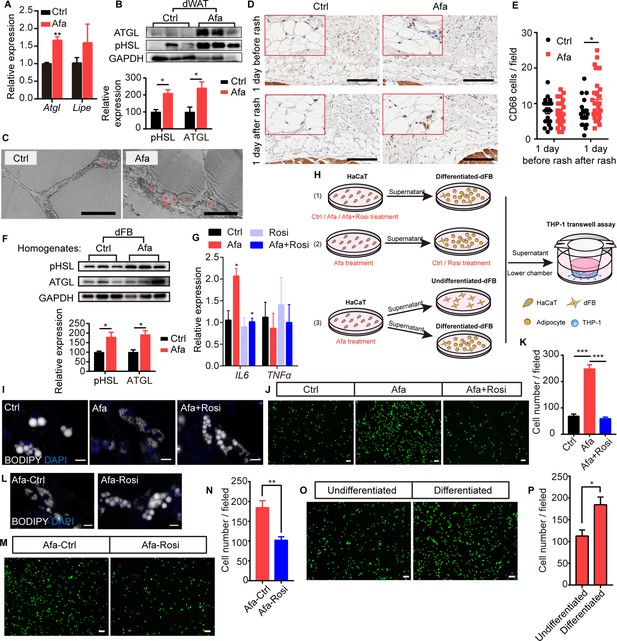

Rosiglitazone alleviates lipolysis and inflammatory response.

(A) Relative expression of the Atgl and Lipe (Hsl) mRNAs in isolated dWAT on day 5. n = 3 per group. (B) Western blot images and quantifications of lipase level from isolated dWAT cells at Grade 1. n = 3. (C) Transmission electron microscopy images of dermal adipocytes from Ctrl- and Afa-treated rat skin on day 5. Asterisks show small lipid droplets. Scale bars: 5 μm. (D and E) Representative images of CD68 immunostaining (D) and quantification (E) in skin from Ctrl- and Afa-treated rats at indicated times. Scale bars: 200 μm. (F) Western blot images and quantifications showing lipase levels in dFB-derived adipocytes stimulated by rat skin homogenates. n = 3 per group. (G) Relative expression of the IL6 and TNFα mRNAs in HaCaT cells after 4 hr of treatment with 100 nM Afa. n = 3 per group. (H) Schematic diagram of the experimental setup used to evaluate the roles of Rosi and adipocytes. HaCaT cells were treated with drugs for 24 h, then the supernatants were transferred directly to dFBs for another 24 hr incubation. For transwell assay, the supernatants of dFBs were added to the low chamber. (I) Confocal microscopic images of differentiated-dFBs after treatments of HaCaT supernatants from Ctrl, Afa and Afa +Rosi. Lipids were stained with BODIPY 493/503. Scale bars: 50 μm. (J and K) Representative images (J) and quantification (K) of migrated THP-1 cells stimulated with culture media from HaCaT supernatants (Ctrl, Afa, Afa +Rosi)-treated dFB cells. (L) Confocal microscopic images of HaCaT supernatant (Afa)-treated dFBs after treatment with Ctrl or Rosi. Scale bars: 50 μm. (M and N) Representative images (M) and quantification (N) of migrated THP-1 cells stimulated with culture media from HaCaT supernatant (Afa)-treated dFB cells. Then, 5 μM Rosi or vehicle was added to dFBs. (O and P) Representative images (O) and quantification (P) of migrated THP-1 cells stimulated with culture media from HaCaT supernatant (Afa)-treated undifferentiated or differentiated dFB cells. Data are presented as the means ± SEM. *p < 0.05, **p < 0.01, and ***p < 0.001 (Afa/Rosi group vs Ctrl group and Afa +Rosi group vs Afa group) using two-tailed unpaired Student’s t test and one-way ANOVA.

To further study how EGFR inhibition promotes adipocyte lipolysis, we performed a direct EGFRI treatment on dFB-derived adipocytes. Unexpectedly, direct treatment of adipocytes with Afa did not increase lipase expression or lipolysis-induced glycerol production (Figure 4—figure supplement 1G, H). In addition, we detected a multitude of small lipid droplets that were newly formed in the isoproterenol group as a positive control, whereas no differences were detected between the Afa-treated and BSA-treated basal groups (Figure 4—figure supplement 1I). Many studies have reported that the high levels of inflammatory cytokines released during inflammatory diseases increase lipolysis to support the immune response (Feingold et al., 1992). In individuals with EGFRI-induced skin toxicities, the levels of various inflammatory cytokines are increased, including IL6, TNFα, and CCL2 (Lichtenberger et al., 2013; Mascia et al., 2013). TNFα and IL6 are known to increase lipolysis in adipocytes (Feingold et al., 1992; Pedersen et al., 2003). In contrast, we did not observe differences in the expression of these genes in dWAT cells isolated from the skin of Ctrl- and Afa-treated rats (Figure 4—figure supplement 1J). However, treatment of adipocytes by homogenates from rat skin revealed obvious upregulation of lipase activity (Figure 4F), thus indicating that cytokines secreted by other skin cells might contribute to lipolysis. According to recent studies, EGFR-inhibited or EGFR-depleted skin epidermal keratinocytes,regulate key factors involved in skin inflammation (Lichtenberger et al., 2013; Mascia et al., 2013). We doubted whether epidermal HaCaT cells regulated adipose lipolysis by releasing inflammatory cytokines. Consistent with previous findings, Afa-stimulated HaCaT cells exhibited higher expression levels of IL6, but not TNFα (Figure 4G). Notably, the addition of Rosi exerted an obvious inhibitory effect on the transcription of IL6 (Figure 4G). We designed several coculture experiments to characterize the roles of Afa and Rosi on adipocytes in inflammation and lipolysis (Figure 4H). First, we added Afa to epidermal HaCaT cells to stimulate IL6 transcription, then treated differentiated-dFBs with the supernatants from HaCaT cells, and finally collected dFB supernatants for monocyte chemotactic assays. Multiple small lipid droplets formed in the Afa-treated dFB, while larger lipids maintained in the Ctrl group (Figure 4I). The number of migrated monocytes was also significantly increased in the Afa group (Figure 4J and K). Notably, addition of Rosi simultaneously with Afa suppressed both the lipolysis and monocyte migration (Figure 4I–K), indicating that the production of inflammatory cytokines was inhibited by Rosi at the initial stage. Consistent with the transcriptional level, secreted IL6 was increased after Afa treatment both in rat skin homogenates and HaCaT supernatants, and decreased with the addition of Rosi (Figure 4—figure supplement 1K, L). We next performed the stimulation of IL6 on differentiated-dFB, the lipolysis enhanced by increased level of lipase (Figure 4—figure supplement 1M), suggesting that the IL6 secreted by keratinocytes induced lipolysis of adipocytes.

Activation of PPARγ was reported to stimulate lipid reabsorption, reduce FFA secretion and improve lipid homeostasis (Guan et al., 2002; Sun et al., 2012). To evaluate the direct effect of Rosi on adipocytes during lipolysis, we treated adipocytes with Rosi in the presence of supernatant from Afa-treated HaCaT cells. The lipid stability was improved with the existence of Rosi (Figure 4L). Although not as significant as the results shown in Figure 4J and K, the elevated chemotaxis of monocytes was also attenuated by Rosi (Figure 4M and N). Given the importance of lipolysis in inflammation, we then dissected whether the participation of adipocytes amplified the inflammatory response. Compared with stimulation of undifferentiated dFBs, the induction of inflammation was remarkable in differentiated dFBs (Figure 4O and P). Collectively, these data suggest that the EGFRI induced dermal adipocyte lipolysis, whereas the production of lipolytic cytokines was not induced by the direct stimulation of adipocytes but occurred in keratinocytes. The increased levels of FAs, especially 18:2, are likely to induce monocyte migration. Rosi treatment alleviated lipolysis and the inflammatory response by acting on both the epidermis and adipocytes.

Expansion and ablation of dWAT reveal its important roles in the rash process

To directly examine the roles of dermal adipocytes in skin rash during EGFR inhibition while avoiding systemic obese phenotypes or loss of other adipocytes, we established a short-term HFD-induced dWAT expansion model and a pharmacological dWAT ablation model.

Recent reports described the substantial expansion of the dWAT layer in HFD-fed obese mice Kasza et al., 2016; additionally, increased proliferation of total stromal vascular fraction cells in WAT after long-term HFD feeding and activation of APs at the onset of obesity have been reported (Jeffery et al., 2015). To weaken the metabolic disorders in the obese state, we administered a short-term HFD diet and subsequent EGFRI treatment. Rats fed an HFD for 5 weeks showed an expansion of the dermal adipose layer and a significant increase in the adipocyte size (Figure 5A–C), while no differences were observed in other adipose depots (Figure 5D), body weight changes (Figure 5E) or systemic serum lipid levels (Figure 5—figure supplement 1A). We analyzed the expression of general adipogenic genes and AKT signaling in the dFB of rats after 5 weeks of HFD feeding to examine whether AP activation was increased. Significant increases in adipogenesis and AKT phosphorylation were observed (Figure 5F and G), verifying an increase in adipogenic ability stimulated by the HFD. Notably, the HFD group showed a reduced occurrence and exacerbation of rash (Figure 5H and I; Figure 5—figure supplement 1B). This result is consistent with a thicker dermal adipose layer and abundant lipid staining (Figure 5J). In addition, rats fed an HFD displayed lower white blood cell, granulocyte and lymphocyte percentages (Supplementary file 2), the skin infiltration of various immune cells, including mast cell, macrophage, T cell, and monocyte were also decreased (Figure 5—figure supplement 1C). The expression of inflammatory receptors and their ligands were also lower than that in Ctrl-treated rats, suggesting a reduced inflammatory response (Figure 5—figure supplement 1D, E).

Figure 5 with 2 supplements see all

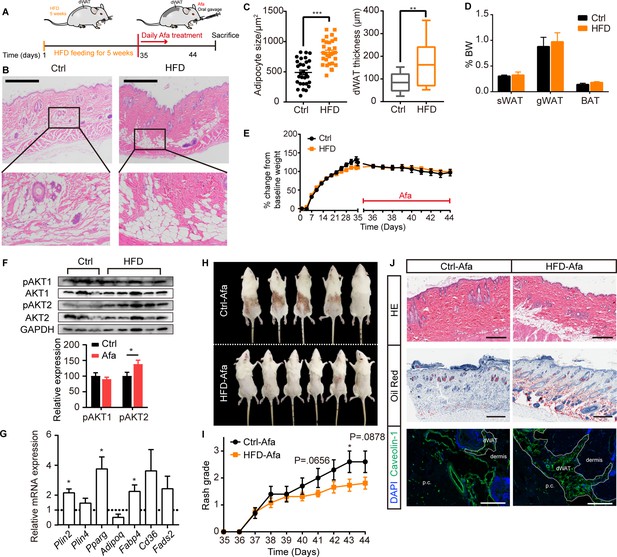

HFD-induced dWAT expansion ameliorates rash phenotypes.

(A) Schematic of the strategy used to expand dWAT by the short-term administration of a HFD. (B) H&E staining of skin from normal diet- and HFD-fed rats. Scale bars: 600 μm. (C) Size and thickness of dermal adipocytes. (D) Percentage of sWAT, gWAT and BAT relative to BW. (E) Body weight change. (F) Western blot analysis and quantifications of isolated-dWAT cells. n = 3–5 per group. (G) Relative mRNA expression of adipogenic genes of isolated-dWAT cells. n = 5 per group. (H) Photos of the rash at 44 days. (I) Changes in the rash grade after Afa treatment. (J) H&E, Oil Red and Caveolin-1 staining of skin biopsies from Ctrl and HFD rats. Scale bars: 300, 500 and 130 μm (top to bottom). Data are presented as the means ± SEM. *p < 0.05, **p < 0.01, and ***p < 0.001 (HFD group vs Ctrl group) using two-tailed unpaired Student’s t test.

Deoxycholic acid (DCA) injection is a cytolytic agent approved by the FDA to reduce subcutaneous fat (FDA, 1988). The active ingredient DCA is structurally identical to endogenous deoxycholate, which serves to solubilize dietary diet; therefore, DCA is designed to disrupt the lipid bilayer of cell membranes and induce cell death (Schuller-Petrovic et al., 2008). Based on the function of DCA, we established a dWAT ablation model by administering an intradermal DCA injection. Using female SD rats, we analyzed the effect of DCA after nine total repeated intradermal injections (Figure 5—figure supplement 2A). Although the thickness of dWAT did not decrease (Figure 5—figure supplement 2B, C), the size of adipocytes was obviously reduced (Figure 5—figure supplement 2B, D). In addition, other skin-related adipocyte depots, such as sWAT, iWAT, and BAT, remained unchanged (Figure 5—figure supplement 2E). After dWAT ablation, we examined the skin rash process induced by Afa oral gavage in control and DCA rats. The ablation of dWAT didn’t affect body weight or food intake (Figure 5—figure supplement 2F, G), but resulted in a moderate deterioration in rash severity after 8 days (Figure 5—figure supplement 2H-J). A routine analysis of white blood cells also showed an elevation in the DCA group (Supplementary file 3). Taken together, we conclude that dermal adipocytes exert potent protective effects on maintaining skin homoeostasis during EGFR inhibition, and the expansion of dWAT is an effective intervention to attenuate skin toxicities. Considering the superficial location of dWAT, a reasonable speculation is that topical application of Rosi would induce the expansion of dWAT, promote AP differentiation and suppress inflammatory cytokine transcription, therefore relieving the skin toxicities of EGFRIs.

Rosiglitazone application improves the skin phenotype

We topically applied a Rosi gel and its vehicle gel on shaved backs of rats daily after Afa gavage to assess the prophylactic effect of Rosi on skin toxicity during Afa treatment. Modulating dWAT by the topical application of Rosi gel caused obvious improvements in skin phenotypes (Figure 6A), with a delayed process and low occurrence of rash (Figure 6B and C), and improvements in body weight changes (Figure 6D). The architecture of Rosi-treated skin showed fewer neutrophil microcysts, less vascular dilatation and congestion, and more parallel growing hair follicles in anagen phase (Figure 6E–G). Specifically, the dermal adipocyte layer was still retained in the Rosi group (Figure 6E and H). The adipogenic ability recovered (Figure 6I; Figure 6—figure supplement 1A), and lipolysis decreased after Rosi treatment (Figure 6—figure supplement 1B). Consistent with our previous investigations, the number of APs increased after Rosi treatment (Figure 6—figure supplement 1C, D), accompanied by an increased ability to defend against S. aureus (Figure 6J). Additionally, the application of Rosi also improved serum lipid levels (Figure 6—figure supplement 1E). The increased expression level of inflammatory cytokines was downregulated (Figure 6—figure supplement 1F), and the immune infiltration was attenuated obviously in Rosi-treated group (Figure 6—figure supplement 1G, H). To further verify Rosi’s efficacy under therapeutic treatment setting, we applied Vehicle or Rosi gel after rats developed Grade one rash, the rash severity and body weight lose were both significantly alleviated by therapeutic treatment of Rosi (Figure 6—figure supplement 2) compared with vehicle treatment.

Figure 6 with 3 supplements see all

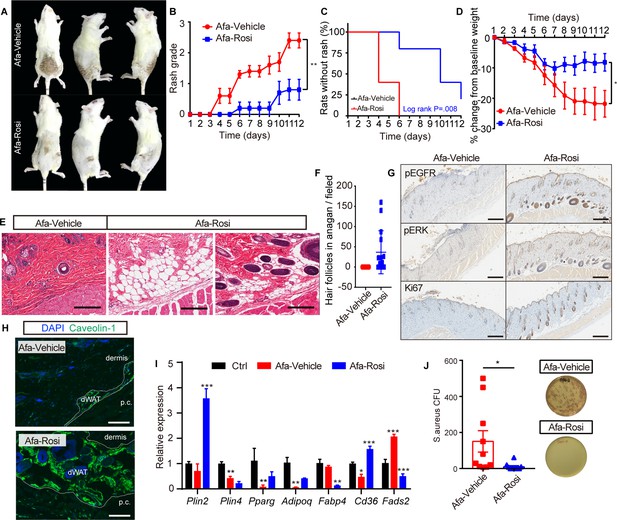

Prophylactic application of Rosi prevents skin toxicities.

(A) Representative photos of rash from Vehicle- and Rosi-treated rats. (B) Rash grade. (C) Rash occurrence. (D) Body weight change. (E) H&E staining of skin biopsies. Scale bars: 200 μm. (F) Number of hair follicles in anagen phase. (G) Immunostaining for pEGFR, pERK, and Ki67 in skin biopsies from Vehicle- and Rosi-treated rats. n = 3 per group. Scale bars: 500 μm. (H) Immunostaining for Caveolin-1. Scale bars: 130 μm. (I) Relative expression of adipogenic genes in isolated dWAT cells after Vehicle or Rosi treatment. n = 3. (J) S. aureus growth in media supplemented with skin homogenates from Vehicle- or Rosi-treated rats. n = 5 per group. Data are presented as the means ± SEM. *p < 0.05, **p < 0.01, and ***p < 0.001 (Rosi group vs Vehicle group) using two-tailed unpaired Student’s t test.

Encouraged by the prophylactic and therapeutic efficacy of Rosi in ameliorating Afa-induced skin toxicity, we next evaluated whether Rosi interferes with the antitumor efficacy of the EGFRI. We topically applied Rosi gel to nude mice subcutaneously receiving PC9 lung carcinoma cells, for which EGFR inhibitors are approved for first-line treatment. After the gavage of Afa, tumor volumes decreased significantly in both the vehicle gel and Rosi gel groups, and the tumor inhibition rates showed no change between vehicle and Rosi groups; in contrast, control mice treated with vehicle displayed rapid tumor growth (Figure 6—figure supplement 3A-D). Intriguingly, Rosi improved body weight and tolerance to Afa (Figure 6—figure supplement 3E), and mortality occurred in the Ctrl and Afa groups, with six mice in each group. Taken together, these results clearly show that Rosi regulates dWAT to ameliorate EGFRI-associated cutaneous toxicity without interfering with the antitumor effect.

Discussion

Cutaneous toxicities induced by anti-EGFR therapy, in particular rash, are the most frequent adverse effects observed in patients with EGFR-mutant cancers, including non-small cell lung cancer, breast cancer and colorectal cancer. The severity of rash is commonly considered a factor associated with a better prognosis (Peréz-Soler and Saltz, 2005). The pathogenesis of rash is multifactorial. Recent clinical and experimental findings have described EGFRI-induced rash as an inflammatory disease. Several epidermis-targeted genetic mouse models have revealed the relationship of epidermal EGFR with local immune cell activation, keratinocyte differentiation, hair eruption and microbiota outgrowth (Klufa et al., 2019; Lichtenberger et al., 2013; Mascia et al., 2013; Satoh et al., 2020). Mice lacking EGFR in the epidermis developed the same phenotypes of skin lesions as patients treated with EGFRIs: neutrophilic pustules, initial infiltration of macrophages and mast cells, subsequent T cell infiltration, hair follicle destruction, keratin plugs and bacterial invasion (Mascia et al., 2013). In humans and mice, the recruitment of inflammatory cells is attributed to the production of proinflammatory chemokines such as CCL5 and CCL2 (Lichtenberger et al., 2013; Mascia et al., 2013). However, crossing EGFRΔep mice with CCR2-/-, MyD88-/-, TNFR-/- or NOS2-/- mice did not ameliorate the skin phenotype, while the depletion of macrophages or mast cells only slightly improved the skin phenotype (Lichtenberger et al., 2013; Mascia et al., 2013). These results reveal the complexity of the inflammatory response and various cell-cell interactions following EGFR blockade. The interference of a single-cell type or a particular signaling pathway may not be sufficient to explain the abnormal skin phenotypes, which include hair follicles, sebaceous glands, dermal immune cells, and blood vessels. Current reports described dermal adipose tissue as a composite tissue maintaining skin functions. dWAT participates in hair cycling, wound healing, thermogenesis, fibrosis and scarring, and immune modulation. Notably, we first noticed that the dWAT layer was diminished in animal models with either genetic EGFR ablation or pharmacological inhibition, and hair follicles were arrested in catagen phase and located far away from the dWAT layer. However, researchers have not determined how dermal adipocytes respond to EGFR inhibition. Moreover, the effect of modulating dWAT on this pathological condition requires further investigation.

Here, we show that a reduction in dermal adipocytes is an early response to EGFR inhibition and leads to the disorder of cutaneous homeostasis (Figure 7). Impaired adipogenesis decreased the skin defense against S. aureus, as well as the signaling interactions with hair follicles. In addition, increased migration of monocytes was associated with lipolysis in adipocytes characterized by increased lipase activity. Activation of lipolysis in dermal fat occurs as a response to skin wound repair (Schmidt and Horsley, 2013; Shook et al., 2020). Although macrophages recruited during wound healing by lipolysis were reported to promote revascularization and re-epithelialization (Shook et al., 2020), increased macrophage numbers and free fatty acid contents may also stimulate inflammatory responses via various pattern recognition receptors and cytokine receptors in adipocytes, subsequently inducing cytokine expression and increasing chemoattractant activity (Shi et al., 2006; Wang et al., 2009; Zeng et al., 2018). The infiltration of macrophages in adipose tissue coincided with circulating FFA concentrations and adipose lipolysis, and pharmacologically induced lipolysis by a β3-adrenergic agonist increased macrophage accumulation (Kosteli et al., 2010). Correspondingly, our data also showed a causal relationship among macrophage infiltration, FFA secretion and lipolysis following EGFRI treatment (Figure 4C and D; Figure 4—figure supplement 1B, C), and the lipids released by disrupting adipocyte cell membranes in the DCA model indicated an accumulation of macrophages (Figure 5—figure supplement 2J). Notably, we showed that dermal adipocytes amplified inflammatory responses from epithelial cells primed with EGFRI treatment. Although epithelial keratinocytes alone secreted chemokines and induced inflammatory infiltration, the participation of dermal fat enhanced this process (Figure 4M and N). The ability of dermal lipids to costimulate keratinocyte-generated cellular responses represents a novel pathway for the amplification of innate immunity and inflammation. Based on these data, local lipid fluxes are central regulators of the inflammatory response in EGFRI-affected dermal adipose tissue. In this study, we also found a distinction between dermal and subcutaneous white adipose tissue. Although both of these tissues respond early and decrease in size after EGFR inhibition, the expression of adipogenic and fibrotic genes shows different trends; additionally, lipolysis does not occur in subcutaneous fat. These results indicate that the dermal adipose layer is distinct from subcutaneous adipocytes and has a unique role in skin modulation.

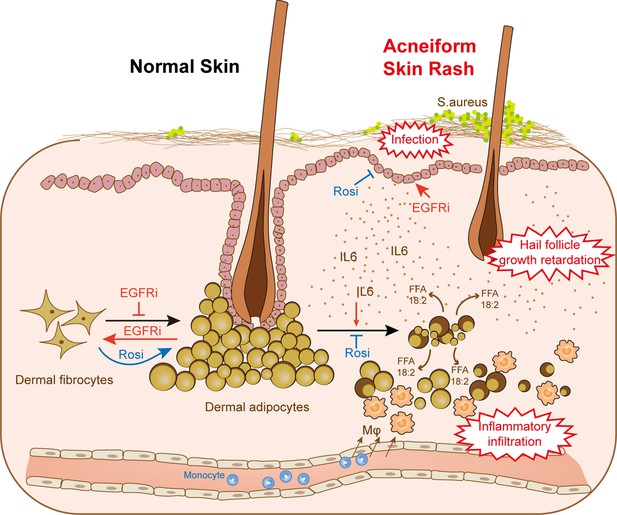

dWAT contributes to skin homeostasis during anti-EGFR therapy.

Reduction of dWAT is a hallmark of EGFRi-induced cutaneous toxicity. EGFR inhibition blocks adipocyte progenitor differentiation and induces dedifferentiation of mature dermal adipocytes. In addition, lipolysis is activated by the up-regulation of the lipolytic cytokine IL6 through epidermal keratinocytes, leading to the infiltration of monocyte-derived macrophages. Lack of dWAT also impairs skin host defense and hair follicle growth. Activation of PPARγ by Rosi could both alleviate the block of differentiation and suppress the increased lipolysis through transcription inhibition of IL6, thus relieving the abnormal skin phenotypes in vivo.

Innate immunity of dermal adipose tissue mediated by the release of antimicrobial peptides protects many organs from bacterial infection, such as the skin, peritoneum, endocardium and colon (Dokoshi et al., 2018; Schmid et al., 2017; Zhang et al., 2015). Impaired adipogenesis induced by the PPARγ inhibitors GW9662 and BADGE results in an increased bacterial infection in the skin and colon (Dokoshi et al., 2018; Zhang et al., 2015). Moreover, a recent study observed that retinoids enhance and sustain Camp levels in developing preadipocytes (Liggins et al., 2019). Interestingly, retinoids are therapeutically useful against acne, a disorder driven partly by bacteria (Chivot, 2005). This correlation might also be beneficial to treat acneiform lesions in patients with EGFRI-associated skin disorders. Another skin-related disorder called scarring alopecia is caused by a specific Pparg depletion in hair follicle stem cells, and immunohistochemical staining showed proinflammatory lipid and cell accumulation (Karnik et al., 2009). The interplay between dWAT and hair follicles also involves the modulation of the stem cell niche. Follicular stem cell activation was verified to be associated with dermal adipocytes, and hair follicles of mice treated with BADGE or GW9662 did not enter anagen phase and were blocked in telogen phase (Rivera-Gonzalez et al., 2016).

PPARγ acts directly to negatively regulate the expression of inflammatory genes in a ligand-dependent manner by antagonizing the activities of transcription factors, such as members of the NF-κB and AP-1 families. PPARγ stimulation in rodents has been shown to ameliorate several inflammatory diseases, such as atopic dermatitis, psoriasis and acne vulgaris (Ramot et al., 2015). However, previous studies did not obtain evidence of the effect of PPARγ modulation on epidermal functions perturbed by an EGFRI. Here, we show that dWAT plays a critical role in the pathogenesis of cutaneous toxicities induced by EGFR inhibition. Experiments with HFD feeding and DCA injection have shown that dWAT is required to maintain skin homeostasis during EGFR inhibition. Indeed, topical application of rosiglitazone to EGFRI-treated rats prevents the onset of rash and ameliorates the symptoms. Additionally, based on the results obtained from the tumor-bearing nude mice, topical application of rosiglitazone gel did not alter the antitumor effect of afatinib. Therefore, PPARγ agonists may represent a promising new therapeutic strategy in the treatment of EGFRI-related skin disorders.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Cell line (Homo sapiens)HaCaTCell ResearchCat. #: ZQ0044
Cell line (Homo sapiens)PC-9Cell Bank of Chinese Academy of SciencesCat. #: SCSP-5085CSTR:19375.09.3101HUMSCSP5085
Cell line (Homo sapiens)THP-1Cell Bank of Chinese Academy of SciencesCat. #: TCHu 57CSTR:19375.09.3101HUMTCHu57
AntibodyRabbit monoclonal anti-ATGLAbcamCat. #: ab109251WB (1:1000)
AntibodyRabbit monoclonal anti-caveolin-1CSTCat. #: 3,267WB (1:1000)
AntibodyRabbit monoclonal anti-phoso-AKT1CSTCat. #: 5,012WB (1:1000)
AntibodyRabbit monoclonal anti-phoso-AKT2CSTCat. #: 8,599WB (1:1000)
AntibodyRabbit polyclonal anti- phospho-HSLAbsinCat. #: abs139855WB (1:1000)
AntibodyPE Mouse Monoclonal Anti-rat CD31BD PharmingenCat. #: 555,027RRID: AB_395657FACS(0.25 µg per million cells in 100 µl volume)
AntibodyFITC Mouse Monoclonal anti-rat CD45BioLegendCat. #: 202,205RRIS: AB_314005FACS(0.25 µg per million cells in 100 µl volume)
AntibodyPerCP/Cyanine5.5 Armenian Hamster Monoclonal Anti-mouse/rat CD29BioLegendCat. #: 102,227RRIS: AB_2572078FACS(0.25 µg per million cells in 100 µl volume)
AntibodyPe-Cy7 Mouse Monoclonal Anti-mouse/rat/human CD34Santa Cruz BiotechnologyCat. #: sc-7324RRIS: AB_2572078FACS(1 µg per million cells in 100 µl volume)
Peptide, recombinant proteinRecombinant human insulinSigmaCat. #: 407,709
Commercial assay or kitNEFA LabAssayWako DiagnosticsCat. #: 294–63601
Chemical compound, drugLiberase TLRocheCat. #: 05401020001
Chemical compound, drugDexamethasoneSigmaCat. #: D4902
Chemical compound, drugIndomethacinSigmaCat. #: I8280
Chemical compound, drug3-isobutyl-1-methylxanthine (IBMX)SigmaCat. #: I7018
Chemical compound, drugBODIPY 493/503ThermoFisherCat. #: D3922
Software, algorithmAperio ImageScopeLeica

Animal models and treatment

Request a detailed protocol

Female 6–8 weeks SD rats and neonatal rats were obtained from Jihui, Shanghai, China. Female 3 week SD rats were purchased from Charles River, Beijing, China. Six week BALB/c nude mice were from Jihui, Shanghai, China. Rash model was generated by daily p.o. of Afatinib at a dose of 40 mg/kg for about 10 consecutive days, the back hair was gently shaved for observation. According to our statistical data (Figure 1—figure supplement 1C), the mean time for rash occurrence is day 4, so we sacrificed rats one day before rash at day 3, and 1 day after rash at day 5.

For HFD experiment, 3 week rats were fed with an HFD diet for 5 weeks to induce the expansion of the dWAT layer, then followed with Afatinib treatment to construct rash model. For rosiglitazone application experiment, vehicle gel or rosiglitazone gel (made of propylene glycol, transcutol, PEG400, water, carbopol 980% and 1% rosiglitazone) was applied topically on the shaved back of rat, the rats were fixed in a cylindrical holder for four hours during the application, and then the residual gel was removed. The back skin changes were visually inspected every day.

For dWAT ablation experiment, deoxycholic acid (vehicle: 0.9% benzyl alcohol in PBS) was intradermal injected in rat back skin every 3 days, each rat received 2.5 mg/cm2 deoxycholic acid for nine times.

For prophylactic and therapeutic Rosi treatment, Afatinib was administered p.o. once daily at dose level of 40 mg/kg, Vehicle or Rosi gel was applied topically when the Afatinib treatment started or after Grade one rash occurred. The rats were fixed in a cylindrical holder for 4 hr during the application of the gel, and then the residual gel was removed. The changes of back skin were visually inspected every day.

To develop xenograft tumor transplanting mice model, a single-cell suspension of 5 × 106 PC9 cells was inoculated subcutaneously into each nude mouse. After 3 weeks, oral gavage of 30 mg/kg Afatinib and topical application of vehicle or rosiglitazone gel were started when tumor volume reached 100 mm3.

Reagents

Afatinib, erlotinib, gefitinib, osimertinib, and rosiglitazone were purchased from Goyic, China. Propylene glycol was from ER-KANG, China. Transcutol was from GATTEFOSSé, French. Carbopol 980 was from 2Y-Chem, China. PEG400 was from YIPUSHENG, China. Dexamethasone (D4902), indomethacin (I8280), recombinant human insulin (407709) and 3-isobutyl-1-methylxanthine (IBMX) (I7018), Isoproterenol (1351005) were from Sigma. Deoxycholic acid (D2510) was obtained from Sigma. The anti-PDGFR alpha (ab203491) and anti-ATGL (ab109251) antibodies were from Abcam. The anti-caveolin-1 (3267), anti-phospho-AKT1 (5012), anti-AKT1 (2938), anti-phospho-AKT2 (8599), anti-AKT2 (3063) antibodies were from Cell Signaling Technology. The anti-phospho-HSL (abs139855) was from Absin. The anti-HSL antibody (NB110-37253) was from Novus. The GAPDH antibody (60004–1-lg) was from Proteintech. The anti-IL6 (GB11117), anti-TNFα (GB11188), anti-CD3 (GB11014), anti-CD11b (GB11058), anti-CD68 (GB113109) antibodies were from Servicebio. The anti-PPAR Gamma (16643–1-AP), anti-Perilipin-2 (15294–1-AP), anti-Mcp1(66272–1-lg) antibodies were from Proteintech. The secondary antibodies used were from Beyotime. BODIPY 493/503 (D3922) was purchased from ThermoFisher. Deoxycholic acid (D2510) was obtained from Sigma. Human IL6 (200–06) was from PeproTech.

Cell culture

Request a detailed protocol

HaCaT (Cell Research; Cat. #: ZQ0044) and PC-9 (Cell Bank of Chinese Academy of Sciences; Cat. #: SCSP-5085) cells were cultured in DMEM/high glucose medium, THP-1(Cell Bank of Chinese Academy of Sciences; Cat. #: TCHu 57) cells were cultured in 1640 complete medium, all supplemented with 10% fetal bovine serum (FBS) and 1% penicillin-streptomycin in an incubator under a humidified atmosphere of 5% CO2 at 37 °C. All cells were tested for microplasma contamination and authenticated by STR profiling.

Rash grade evaluation

Request a detailed protocol

Grade 0-normal; Grade 1-papules and/or pustules covering <10% surface area of shaved-back skin; Grade 2-papules and/or pustules covering 10–30% surface area of shaved-back skin; Grade 3-papules and/or pustules covering >30% surface area of shaved-back skin.

Histology, immunohistochemistry (IHC), and immunofluorescence (IF)

Request a detailed protocol

Rat skin was embedded by paraffin or OCT and sectioned for staining. H&E staining was performed using paraffin sections. Oil red and Ki67 were directly stained using OCT sections. For IHC and IF, paraffin or OCT sections were fixed and blocked, then stained with CD68 or caveolin-1 primary antibody followed by secondary antibodies. Nuclei were counter-stained with DAPI. All images were scanned with a digital pathology scanning system (NANOZOOMER S360, Leica) or Upright-Reverse Fluorecent Microscopy (Revolve, Echo). The size of adipocyte was measured from HE staining by Aperio ImageScope software. After scanning slides, the pen button allowed users to click and drag a free-form shape to enclose an area to analyze, and the annotation window will show the size of the area. The number of adipocytes was mounted in the same zoom window in Aperio ImageScope.

Dermal adipocytes and primary dermal fibroblasts isolation and culture

Request a detailed protocol

Neonatal (P1) and adult rat back skin was cut into small pieces then digested with Liberase TL (Roche) for 1 hr at 37 °C with constant shaking. Cells mixture was first filtered through 70 μm filter to discard tissue pieces, floating dWAT was collected by centrifuging and followed by washing. Cell suspension was then treated with red blood cell lysis and washed with PBS. dFB suspension was obtained by filtering through 40 μm filter. Isolated dFB was cultured in DMEM supplemented with 10% FBS in a humidified incubator at 5% CO2 and 37 °C. Fresh medium was changed daily and only one passage was used for experiment. To induce adipocyte differentiation, post-confluent dFB was switched to adipocyte differentiation medium containing 2 μM Dexamethasone, 250 μM IBMX, 200 μM Indomethacin and 10 μg/mL recombinant human insulin for 9 days. 10 nM Afa or 5 μM Rosi was added in differentiation medium and changed with fresh differentiation medium at day 3, 6, and 9.

dWAT dedifferentiation was demonstrated using ceiling culture. Briefly, isolated dWAT was transferred to an inverted 25 cm2 cell culture flask, completely filled with DMEM supplemented with 20% fetal bovine serum and Afa or Rosi. Adipocytes were monitored daily for cell attachment. After sufficient attachment and occurrence of dedifferentiated adipocytes, medium was removed, replaced with fresh medium and the flask was reinverted.

For confocal microscopy, dFB cells were cultured, differentiated, and treated with HaCaT supernatants in 12-well cell culture slides. Lipids were stainted with BODIPY 493/503. Cell nucleus were stained with stained with DAPI Fluoromount-G (Yeasen). Microscopy was performed on Leica TCS SP8.

Cell proliferation assay

Request a detailed protocol

Cells were cultured in 96-well plate and treated with different agents. Twenty-four hours after treatments, cells were counted using Cell Counting Kit-8 (Yeasen).

Flow cytometry and analysis (FACS)

Request a detailed protocol

Freshly isolated dFB from rat skin was stained with zombie violet viability dye (Biolegend, 423114) to stain dead cells. Cells were then stained with an antibody cocktails containing PE-CD31 (BD, 555027), FITC-CD45 (BioLegend, 202205), PerCP/Cy5.5-CD29 (BioLegend, 102227), and PE-Cy7-CD34 (SantaCruze, sc-7324). FACS analysis for protein expression of each cell marker was performed by the BD FACSCanto RUO machine and analyzed by FlowJo V10 software.

Transmission electron microscopy (TEM)

Request a detailed protocol

TEM was performed in the Instrumental Analysis Center of SJTU. Vehicle and Afa rats were anesthetized after 5 day oral gavaged and immediately transcardially perfused using PBS, then 50 ml of cold 4% PFA. The vehicle control and Afa-induced rash back skin were dissected and cut into small pieces, approximately 1 mm3 in volume. Tissue pieces were fixed in 2.5% glutaraldehyde for 30 min at RT and 1.5 hr at 4 °C, and then rinsed in PBS three times. Samples were postfixed in 1% osmium tetroxide for 1 hr, rinsed and enbloc stained in aqueous 2% uranyl acetate for 1 hr followed by rinsing, dehydrating in an ethanol and acetone series, infiltrating with resin and baking 48 hr at 60 °C. Hardened blocks were cut using an ultramicrotome (Leica EM UC7). Ultrathin 100 nm sections were collected and stained using lead citrate for transmission microscopy. Carbon-coated grids were viewed on a transmission electron microscope (Talos L120C G2) at 120kV.

Lipolysis assay

Request a detailed protocol

For ex vivo lipolysis assay, sWAT explants were collected and cultured in 12-well plate, for in vitro lipolysis assay, differentiated adipocytes were cultured in 24-well plate, cells and explants were cultured in serum-free DMEM containing 2% fatty acid-free BSA. 10 μM Isoproterenol was added to induce lipolysis, cells and explants were treated with Afa. Glycerol was measured after different hours stimulation at 37 °C with shaking. The glycerol assay (Sigma) or NEFA assay (Wako Diagnostics) was used to measure lipolysis, as per manufacturer’s instructions.

Lipid profiling

Request a detailed protocol

For quantitative lipid mass spectrometry of adipocyte lipid stores, dWAT of vehicle control and Afa was digested with Liberase TL as described above. Isolated dWAT was washed with HBSS and 106 cells were counted for each sample, total lipids were extracted and FA profiles were quantified by GC/MS.

S. aureus assay

Request a detailed protocol

Skin biopsies were homogenized in PBS by Precellys Evolution homogenizer (Bertin; 2 × 30 s at 6000 rpm followed by 30 s on ice after each cycle). A total of 100 μL homogenized skin samples were plated onto S. aureus color culture medium (Comagal, France) and counted after 24 hr culture at 37 °C.

Migration assay

Request a detailed protocol

THP-1 migration assay was performed using transwell chamber with 8 μm pore size (Falcon) for 24-well plates. 500 μL of dFB-derived supernatant was loaded in the lower chamber. 200 μL Calcein-AM (Yeasen) –labelled cell suspension was added to the upper chamber. The chamber was incubated at 37 °C for 3 hr in a CO2 incubator. After incubation, THP-1 cells that migrated to the lower chamber were counted under a microscope.

Western blot

Request a detailed protocol

Cells were lysed using RIPA lysis buffer. Proteins were separated on 7.5–10% SDS-PAGE gel and transferred to PVDF membrane. The membranes were blocked for 1 hr in TBST containing 5%BSA, and then incubated with primary antibodies overnight. The membranes were then washed with TBST for 10 min x three times, and incubated in secondary antibodies for 1 hr. Membranes was washed again with TBST for 20 min x three times and revealed using the Super Signal West Pico kit (Thermo Scientific).

Quantitative PCR

Request a detailed protocol

RNA was extracted from rat skin and indicated cells using the TRIzol Reagent (Invitrogen). cDNA was generated from total RNA using a ReverTra Ace qPCR RT Master Mix (FSQ-201, TOYOBO) according to the manufacturer’s instructions. Quantitative real-time PCR was performed with the ABI ViiA7 or ABI 7500 Realtime PCR system using SYBR Green Master Mix (YEASEN). The primers used for amplification of specific genes were synthesized by Sangon (Supplementary file 4).

Enzyme-linked immunosorbent assay

Request a detailed protocol

Quantification of Human IL6 protein concentrations in HaCaT culture supernatants, and Rat IL6 from rat skin homogenates were performed by enzyme-linked immunosorbent assay (ELISA) according to the Human/Rat IL6 ELISA kit protocol (Boster).

Blood biochemistry test

Request a detailed protocol

Blood samples were collected into the EDTA-K2 anticoagulative tubes to measure blood routine examination by SYSMEX POCH100IVD. For lipid level examination, blood samples were centrifuged at 3000 g for 10 min to separate serum, the serum lipid were detected by Adicon, Ltd.

Statistical

Request a detailed protocol

Statistical analysis was performed using unpaired Student’s t test or one-way analysis ANOVA. Differences were considered significant when p was less than 0.05: *p < 0.05; **p < 0.01; ***p < 0.001.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting file; Source data are provided with this paper. Data has been uploaded to Dryad.

The following data sets were generated
    1. Zhang S
    (2021) Dryad Digital Repository
    Data From: Remodeling of dermal adipose tissue alleviates cutaneous toxicity induced by anti-EGFR therapy.
    https://doi.org/10.5061/dryad.41ns1rndv

References

    1. FDA
    (1988)
    Center for Drug Evaluation and Pharmacology Review: Secukinumab
    Rev Lit Arts Am 9:22–250.

Decision letter

  1. Mohammad Athar
    Reviewing Editor; University of Alabama at Birmingham, United States
  2. Mone Zaidi
    Senior Editor; Icahn School of Medicine at Mount Sinai, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Remodeling of dermal adipose tissue alleviates cutaneous toxicity induced by anti-EGFR therapy" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Mone Zaidi as the Senior Editor. The reviewers have opted to remain anonymous.

The Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

Figure 1: A timeline of the development of rash after Afa treatment is missing at the beginning. What is the percentage of rats developing rash grade 1, 2 or 3? Are there any other side effects of Afa treatment (diarrhea, lethality)?

Figure 1: The authors need to better describe their skin inflammation model. Is the rash hair follicle bound? What is the composition and location of the immune cell infiltrate and which cytokines and chemokines are dominant in the skin? Does the rash occur also with an specific EGFR inhibitor instead of the broad ErbB family inhibitor Afa (e.g. Erlotinib). Moreover, does the rash develop only in shaved areas or also in unshaved areas of the back skin? This should be clarified as a recent study associated EGFRi-mediated skin rash development with hair regrowth (Klufa et.)

Figure 1G: The authors show a correlation between rash grade and dWAT thickness. Is there a correlation to body weight? Rats show reduced food intake after Afa treatment (Suppl. Figure 1B). Could this be the cause for the reduction in dWAT? How does dWAT in rats react to fasting?

Does shaving have any effect on Afa induced dWAT reduction? Are similar changes observed in unshaved skin?

Figure 1 E,F, Suppl. Figure 1C,-R: In these figures the labelling is unclear. The authors are labelling the columns Grade 0-3. Have all these animals been harvested on day 10 as mentioned in the methods section? Does grade 0 mean "before" Afa? What do the "control" samples then correspond to, since they also are assigned to rash grades?

Figure 1H-J: PPARγ is strongly downregulated in the skin of Afa treated rats, but the KEGG Pparg signaling pathway is among the top 10 enriched pathways. How do the authors explain this discrepancy? It would be helpful to show all gene changes of the pathway and verify some gene changes on the protein level (e.g.: IHC). Where are these data from? No explanation or citation to a previous study can be found in the manuscript.

Figure 2C and D: How do the authors take samples one day before the rash during the 10 day Afa treatment? How long have the rats been treated with Afa at the 1 day after rash timepoint?

Figure 2E: Authors should show the full timeline of the pictures (also the controls) and provide a quantification of adipocytes from each timepoint.

Figure 3A: These experiments need to be quantified in addition to the representative pictures.

Figure 3C: How often has this experiment been repeated? Some changes are difficult to see. All the Western Blots throughout the manuscript should be quantified to be able to interpret these results: e.g. the claimed reduction of pAkt is not really visible and is also seen in the controls at day 9.

Figure 3D: The population of adipocyte progenitors is not very well demarcated. It has been shown that among the CD34+CD29+ cells in the skin only a subpopulation is adipogenic, and this proportion is also depending on the hair cycle (Festa et al.,). The authors should stain also for CD24 and/or Sca1 to more precisely specify the proportion of adipogenic cells. The same accounts for Figure S7 B, D. (Figure S7D: it does not make sense to depict cells that are not there as MFI = 0):

Figure 3F: The authors claim that S. aureus outgrowth is because of impaired adipogenesis (text line 418). This is however an overstatement since a large number of cells (especially keratinocytes) in the skin have been shown to be able to produce antimicrobial factors that might cause this result. S. aureus outgrowth is a hallmark of EGFR-I induced skin inflammation and atopic dermatitis in general. The authors have no mechanistic claim that adipocytes are influencing the bacterial superinfection in this setting. The results are merely a correlation and a comparison of rodents with skin inflammation and without.

Figure 3G: Same as with Figure 3F: This represents a correlation with the general skin inflammation rather than a mechanistic explanation involving the adipocytes. Both statements (Figure 3G and H) should be ideally checked using a adipocyte specific cre line in a mouse model. Furthermore EGFR deletion in keratinocytes alone using K5-cre was enough to induce a dramatic S. aureus mediated dysbiosis and hair loss in mice (Klufa et al.,). The loss of adipocytes might still contribute to these effects but are not necessary.

Figure 3H: here EGFR, pEGFR and ERK staining of adipocytes and their respective reduction after Afa treatment should also be shown.

Figure 3I: the quantification is missing. how many HFs have been counted to be able to make this statement?

Figure S4C: In the text (line 444) the authors claim that there is a correlation between high levels of C18 FAs and increased lipolysis without showing any difference in the levels of this FA. This statement should be corrected. The same accounts for the statement in lines 526-7.

Figure 4H-K: Here the authors show in a complex in vitro series of assays that supernatants of Afa treated HaCat cells induce activation of dFB and their supernatant then induces monocyte migration. These results support the main hypothesis of the authors. However, an important information is missing about how this experiment has been performed. Have the supernatants been transferred directly or diluted? Would the supernatant of HaCat cells be able to induce migration directly?

Figure 5: In this figure the authors show that pre-treatment with HFD can rescue rats from the weight loss phenotype and partially rescue from the rash phenotype of Afa induced dWAT loss. The authors show here that this also results in changes in the immune cell composition in blood. To confirm the hypothesis of the authors, analysis of the immune cell infiltrate of the skin should be performed by FACS and IHC. This also accounts for Figure S6. In addition to cytokine receptors a cytokine and chemokine profile would give more information about rash severity.

The labelling of Figure 5 in the text and figure legend is not in correctly assigned

Figure 6: Here the authors show that prophylactic treatment of rats with Rosi can partially rescue from skin rash. These data are very promising. However, a more specific analysis of the parameters that have been shown before to be relevant for the skin rash such as IL-6 or monocyte infiltrate is missing. A therapeutic rather than prophylactic approach would also be an interesting and clinically relevant addition to this figure.

Figure S8: To show whether changes in rash severity would correspond to alterations in the anti-tumor response the authors treated nude mice bearing s.c. tumors with Afa or Afa + Rosi, could however detect no difference. However, the authors do not show, whether there was any induction of rash in this model, they only show weight loss. It has been published that EGFRi does not induce rash in adult mice. Therefore a similar experiment should be performed in rats.

https://doi.org/10.7554/eLife.72443.sa1

Author response

Essential revisions:

Figure 1: A timeline of the development of rash after Afa treatment is missing at the beginning. What is the percentage of rats developing rash grade 1, 2 or 3? Are there any other side effects of Afa treatment (diarrhea, lethality)?

We thank the reviewer for pointing this out. In the revised manuscript, we added the development process and rash grade percentages in Figure 1—figure supplement 1C based on seven experiments. The total number of rats was 39. According to our data, rats began to develop rash at day 3, while 28.21% of rats had grade 1 rash at day 4. Until day 7, almost all rats developed rash, 23.08% of which were grade 2. Grade 3 rash started to come out at day 8 and became more prevalent in the next two days.

Diarrhea is very common in Afa-treated rats (100%), corresponding to the high incidence rate in clinical patients (70%-95%) (Park et al., 2016; Sequist et al., 2013; Soria et al., 2015; Wu et al., 2014). According to our statistical data, the incidence rate of lethality was only 2.56% (1 out of 39).

Figure 1: The authors need to better describe their skin inflammation model. Is the rash hair follicle bound? What is the composition and location of the immune cell infiltrate and which cytokines and chemokines are dominant in the skin? Does the rash occur also with an specific EGFR inhibitor instead of the broad ErbB family inhibitor Afa (e.g. Erlotinib). Moreover, does the rash develop only in shaved areas or also in unshaved areas of the back skin? This should be clarified as a recent study associated EGFRi-mediated skin rash development with hair regrowth (Klufa et.)

We appreciate the reviewer for suggesting this important issue. We have conducted additional experiments to better describe the skin rash model, especially the hair eruption effect.

In the revised manuscript, we provided IHC results of several immune cells reported playing important roles in EGFRi-induced skin inflammation, including macrophage, mast cell, monocyte, and T cell. Consistent with the phenotypes in human skin biopsies and EGFR knockout mice models (Lichtenberger et al., 2013; Mascia et al., 2013), the rats’ skin showed enrichment of multiple inflammatory cells in the dermis (Figure 1—figure supplement 1E, F). The cytokine expression file also showed a similar tendency with human biopsies and mouse models (Lichtenberger et al., 2013; Mascia et al., 2013). As shown in Figure 1—figure supplement 1G, Afa dramatically increased the expression of proinflammatory chemokines such as Ccl2, Ccl5, Cxcl1, Cxcl2, and Cxcl3.

The rash can also be induced by many specific Erbb1 inhibitors. All three generations of EGFR inhibitors in the clinic have very high incidence rates of cutaneous toxicity (Supplementary file 1). In the revised version, we provided rash models induced by both first-generation EGFRi, Erlotinib, Gefitinib, and the third-generation EGFRi, Osimertinib. As shown in Figure 1—figure supplement 1D, the rash caused by Erlotinib, Gefitinib, and Osimertinib had the same phenotypes with Afatinib-induced rash.

In a recent study focusing on the effect of hair eruption on rash occurrence (Klufa et al., 2019), hair eruption-caused barrier defects have an important role in inducing rash phenotypes. Using waxing and tape stripping to remove the hair of mice could immediately induce de novo hair eruption. Mice with hair-removing had abnormal phenotypes of rash, including hair growth retardation and increased cytokine expression, whereas normal adult mice couldn’t show any barrier defects and inflammation during Erlotinib treatment. We conducted additional experiments (Figure 1—figure supplement 2). In our rat model, there was a similar situation. Shaving also had a significant impact on rash progress that the skin rash occurred earlier and the skin rash was more severe on shaved back skin than on the unshaved area (Figure 2—figure supplement 2). Nevertheless, the unshaved area still developed abnormal erythema (Figure 1—figure supplement 2A) upon the Afatinib administration. These results show that the rat model shares the similar symptoms and disease development time course with rash in humans and other rodent models, which provided a feasible model to study EGFRi-induced cutaneous toxicity.

Figure 1G: The authors show a correlation between rash grade and dWAT thickness. Is there a correlation to body weight? Rats show reduced food intake after Afa treatment (Suppl. Figure 1B). Could this be the cause for the reduction in dWAT? How does dWAT in rats react to fasting?

Does shaving have any effect on Afa induced dWAT reduction? Are similar changes observed in unshaved skin?

Accumulation of dWAT paralleled with the increase of body weight in response to high-fat feeding (Kasza et al., 2016). However, there is no research focusing on the effect of fasting/weight loss treatment on dWAT. One research studied the effect of fasting on perigonadal adipose tissue found that fasting-induced lipolysis and decreased the adipocyte size (Kosteli et al., 2010). Decreased body weight and appetite could accompany with EGFRi therapy (supplementary file 1) (Park et al., 2016; Sequist et al., 2013; Soria et al., 2015; Wu et al., 2014). It could be a systematic effect caused by EGFRi or a result of multiple side effects including rash, diarrhea, vomiting, and stomatitis, etc. In addition, epidermal knockout EGFR mice showed a congenital dWAT reduction (Mascia et al., 2013). Thus, we think it is reasonable to hypothesize that body weight/food intake change had effects on dWAT, but it is inadequate to establish a direct and clear connection in the setting of EGFRi treatment.

There is evidence that dWAT plays an important role in maintaining thermal homeostasis. Mice housed at 31°C for 5 days displaced thinner dWAT layers compared to mice housed at constant temperature (21°C), while the cold stress imposed by housing at 4°C did not increase the dWAT layer (Kasza et al., 2014). In the revised manuscript, we provided additional experiments. We conducted histopathological examinations to investigate the effect of shaving on dWAT. In the unshaved areas, it seemed like their dWAT was a bit thinner at the initial time but without significant difference compared to the shaved areas (Figure 1—figure supplement 2C, D). This result might be due to the shaving-induced cold stress. In addition, the cold stress simultaneously began with the Afa treatment. We noted that dWAT in the unshaved areas also showed a similar decrease trend under long-term Afa treatment (Figure 1—figure supplement 2C, D).

Figure 1 E,F, Suppl. Figure 1C,-R: In these figures the labelling is unclear. The authors are labelling the columns Grade 0-3. Have all these animals been harvested on day 10 as mentioned in the methods section? Does grade 0 mean "before" Afa? What do the "control" samples then correspond to, since they also are assigned to rash grades?

We thank the reviewer for pointing out the labelling issue. To make it clearer, we supplemented a treatment scheme (Figure 1—figure supplement 1H). All animals received Afa treatment on Day 1, three rats were harvested at each rash grade time point. The time points of different rash grades were confirmed by statistical data from seven separate experiments (Figure 1—figure supplement 1C). In this figure, rats in grade 0 mean the control rats, they were harvested at day 0 without Afa treatment.

Figure 1H-J: PPARγ is strongly downregulated in the skin of Afa treated rats, but the KEGG Pparg signaling pathway is among the top 10 enriched pathways. How do the authors explain this discrepancy? It would be helpful to show all gene changes of the pathway and verify some gene changes on the protein level (e.g.: IHC). Where are these data from? No explanation or citation to a previous study can be found in the manuscript.

The KEGG enrichment represents the most significant changed 10 pathways. It doesn’t distinguish whether one pathway is upregulated or downregulated. To support the transcriptome data, we also conducted IHC staining of two important genes in PPAR signaling. The results showed that the protein level of PPARγ and Perilipin-2 agreed with the gene changes (Figure 1—figure supplement 4). The transcriptome data is from a previous study which is still under review, so it cannot be cited yet. Thus, we decided to remove Figure 1I and 1J.

Figure 2C and D: How do the authors take samples one day before the rash during the 10 day Afa treatment? How long have the rats been treated with Afa at the 1 day after rash timepoint?

We thank the reviewer for pointing out the lack of experimental details. We added the method at line 614. We harvested the rats according to our statistical data (Figure 1—figure supplement 1C). The mean time for rash occurrence is day 4, so we sacrificed rats one day before rash at day 3, and one day after rash at day 5 (Figure 1—figure supplement 1H). All rats received a 10-day treatment except rats that have been sacrificed previously.

Figure 2E: Authors should show the full timeline of the pictures (also the controls) and provide a quantification of adipocytes from each timepoint.

We thank the reviewer for this advice. In the revised manuscript, we provided the full timeline for all three groups (Ctrl, Afa, Afa+Rosi) and the quantification of both attached and dedifferentiated cells (Figure 2E to 2G).

Figure 3A: These experiments need to be quantified in addition to the representative pictures.

We appreciate the reviewer for reminding us about the quantification. In the revised version, we supplemented the area quantification of oil red (Figure 3B).

Figure 3C: How often has this experiment been repeated? Some changes are difficult to see. All the Western Blots throughout the manuscript should be quantified to be able to interpret these results: e.g. the claimed reduction of pAkt is not really visible and is also seen in the controls at day 9.

We thank the reviewer for pointing this out. We repeated this experiment five to eight times, replaced the previous data with obvious blots, and quantified the western blots. The inhibition and activation effects of Afa and Rosi on pAKT1 and pAKT2 were not synchronal with each other (Figure 3D and 3E).

Figure 3D: The population of adipocyte progenitors is not very well demarcated. It has been shown that among the CD34+CD29+ cells in the skin only a subpopulation is adipogenic, and this proportion is also depending on the hair cycle (Festa et al.,). The authors should stain also for CD24 and/or Sca1 to more precisely specify the proportion of adipogenic cells. The same accounts for Figure S7 B, D. (Figure S7D: it does not make sense to depict cells that are not there as MFI = 0):

We agree with the reviewer that among CD34+CD29+ cells there is only a subpopulation that is adipogenic. But there are no applicable FACS antibodies of Sca1 and CD24 for rats, and no research about dWAT has been reported on rats yet. However, there was a research using CD34+CD45-CD31- profile to identify the adipocyte precursor cells from retroperitoneal AT of rats (Spinedi and Giovambattista, 2016). Therefore, we had to use the CD31- CD45- CD34+ CD29+ subgroup to roughly evaluate the APs. For MFI evaluation, we thank the reviewer for pointing out that MFI=0 is not appropriate to describe cells without any fluorescence signals, so we deleted this figure.

Figure 3F: The authors claim that S. aureus outgrowth is because of impaired adipogenesis (text line 418). This is however an overstatement since a large number of cells (especially keratinocytes) in the skin have been shown to be able to produce antimicrobial factors that might cause this result. S. aureus outgrowth is a hallmark of EGFR-I induced skin inflammation and atopic dermatitis in general. The authors have no mechanistic claim that adipocytes are influencing the bacterial superinfection in this setting. The results are merely a correlation and a comparison of rodents with skin inflammation and without.

We appreciate the reviewer for pointing this important point out. We tried to establish the relationship between S. aureus infection and EGFRi-induced rash based on a well-accepted study from Lingjuan Zhang (Zhang et al., 2015). They reported that adipose precursor cells secret antimicrobial peptide cathelicidin during differentiation to against S. aureus infection. Mice with impaired adipogenesis were more susceptible to S. aureus infection. This conclusion gave us some insights into the relationship between S. aureus infection and EGFRi-induced skin inflammation. Unfortunately, the anti-CAMP antibody was made by the author’s lab and there are no mature products that can recognize CAMP in rats. To provide more mechanistic evidences, we conducted qPCR experiments to study the transcriptional level of the Camp gene both in dWAT and dFB cells isolated from rat skin (Figure 3I and 3J). dWAT in Afa group showed a lower expression level of Camp compared with control group. In addition, in different differentiation stages of dFB in vitro, transcriptional levels of Camp were decreased by Afa treatment while increased by Rosi. In summary, the data we collected depending on the currently available technologies could justify the causal relationship between EGFRi-induced dWAT reduction and S. aureus infection to some extent. However, we agree with the reviewer that this conclusion needs more direct evidence. Thus, in the revised manuscript, we have edited our writing to make the statement not that strong (line 281).

Figure 3G: Same as with Figure 3F: This represents a correlation with the general skin inflammation rather than a mechanistic explanation involving the adipocytes. Both statements (Figure 3G and H) should be ideally checked using a adipocyte specific cre line in a mouse model. Furthermore EGFR deletion in keratinocytes alone using K5-cre was enough to induce a dramatic S. aureus mediated dysbiosis and hair loss in mice (Klufa et al.,). The loss of adipocytes might still contribute to these effects but are not necessary.

We agree with the reviewer’s comment that adipocyte-specific knockout mouse model will be more appropriate to study the role of adipocytes. The results and conclusions of S. aureus infection and hair follicles were mostly based on previous research. These results need more specific and direct experiments to verify the causality with EGFR inhibition. We are seeking the opportunity for cooperation to build a dermal adipocyte knockout mouse model platform and hope to investigate the specific roles of dermal adipocytes in the future.

As for the epidermal EGFR deleted mice models, they represented similar cutaneous phenotypes with EGFRi-induced skin toxicity. There were hair follicles growth retardation, neutrophilic pustules, keratin plugs, microbiome outgrowth, etc. But the disadvantages of this mice model are the immense abnormal symptoms and high lethality. Most EGFR△ep mutant mice died shortly after birth, and only less than 10% lived longer than 3 weeks (Lichtenberger et al., 2013). In addition, from the histopathological examination, we noticed that KO mice also showed a decrease of dWAT layer (Mascia et al., 2013). Combined with our finding that the inflammatory epidermis can promote lipolysis of dWAT. Therefore, we think that skin disease caused by EGFRi is a multifactorial condition, both keratinocytes and adipocytes contribute to its process, and maybe a mutual connection between these two cell types also plays an important role.

Figure 3H: here EGFR, pEGFR and ERK staining of adipocytes and their respective reduction after Afa treatment should also be shown.

We thank the reviewer for pointing this out. In the revised manuscript, we provided the pEGFR and pERK staining of adipocytes in Figure 3—figure supplement 1C.

Figure 3I: the quantification is missing. how many HFs have been counted to be able to make this statement?

We supplemented the quantification for apoptosis and proliferation of HFs (Figure 3—figure supplement 1D, E), n=6.

Figure S4C: In the text (line 444) the authors claim that there is a correlation between high levels of C18 FAs and increased lipolysis without showing any difference in the levels of this FA. This statement should be corrected. The same accounts for the statement in lines 526-7.

We agree with the reviewer that more evidences are needed to prove the correlation. We performed a mass spectrometry analysis of skin tissues from Ctrl and Afa groups after 3-day treatment to confirm the releasing of C18 FFAs. The result showed an increased tendency of C18:2 and other FFAs in the Afa group (Author response image 1). However, this increase had no significant statistic difference. This might due to the interference of sebaceous gland and dermal adipocytes. Therefore, we also adjusted the descriptions in the revised manuscript to make this statement not that strong (line 395).

Author response image 1
C18 concentrations in skin tissues from Ctrl and Afa groups after 3-day treatment.

n=3.

Figure 4H-K: Here the authors show in a complex in vitro series of assays that supernatants of Afa treated HaCat cells induce activation of dFB and their supernatant then induces monocyte migration. These results support the main hypothesis of the authors. However, an important information is missing about how this experiment has been performed. Have the supernatants been transferred directly or diluted? Would the supernatant of HaCat cells be able to induce migration directly?

Thanks for pointing this out. In the revised submission, we added more details of this experiment (Figure 4 legend, lines 324-326). The supernatants were transferred directly to the dFB-cultured wells. To ensure the nutrients for cell growth, we replaced a new culture medium of HaCaT cells before adding drugs. After 24 h treatment, the medium was transferred to dFB for another 24 h incubation. Thus, the total time for this culture medium was 48 h. In addition, the media used for HaCaT and dFB cell culture were both DMEM/high glucose, so it could be directly transferred. The supernatant of HaCat cells was able to induce migration directly. We performed the migration experiment treated directly by supernatants of Afa-treated HaCaT cells, it increased the monocyte migration. Nevertheless, we also used the undifferentiated-dFB to make a comparison with differentiated-dFB, the undifferentiated-dFB could approximately represent the effect of HaCaT alone. Compared with undifferentiated dFBs, the induction of migration was remarkable in differentiated dFBs (Figure 4O and 4P).

Figure 5: In this figure the authors show that pre-treatment with HFD can rescue rats from the weight loss phenotype and partially rescue from the rash phenotype of Afa induced dWAT loss. The authors show here that this also results in changes in the immune cell composition in blood. To confirm the hypothesis of the authors, analysis of the immune cell infiltrate of the skin should be performed by FACS and IHC. This also accounts for Figure S6. In addition to cytokine receptors a cytokine and chemokine profile would give more information about rash severity.

For the revised manuscript, we performed additional immune cell and cytokine IHC for both HFD and DCA experiments. The results have been incorporated into the revised manuscript. As shown in Figure 5—figure supplement 1C, the infiltration of macrophages, mast cells, monocytes, and T cells was decreased in HFD-fed rats. The expression of some inflammatory cytokines, such as IL6 and CCL2 showed a lower level in HFD-treated rats (Figure 5—figure supplement 1E). In the DCA experiment, infiltration of macrophages and monocytes showed a significant increase in DCA group, while the difference of T cells and mastocytes between vehicle and DCA was not very obvious (Figure 5—figure supplement 2J).

The labelling of Figure 5 in the text and figure legend is not in correctly assigned

We thank the reviewer for pointing this out. In the revised manuscript, we corrected this kind of mistakes.

Figure 6: Here the authors show that prophylactic treatment of rats with Rosi can partially rescue from skin rash. These data are very promising. However, a more specific analysis of the parameters that have been shown before to be relevant for the skin rash such as IL-6 or monocyte infiltrate is missing. A therapeutic rather than prophylactic approach would also be an interesting and clinically relevant addition to this figure.

We thank the reviewer for the advice. We conducted additional experiments, including the T cell infiltration, mastocyte cell infiltration, and IL6 infiltration. As shown in Figure 6—figure supplement 1G, Rosi could significantly reduce the inflammatory infiltration. We also performed a transcriptional experiment of inflammatory cytokines, Rosi showed obvious transcription inhibition on these genes (Figure 6—figure supplement 1F).

We agree with the reviewer that the therapeutic treatment has very promising application potential in the clinic. Therefore, we performed a therapeutic experiment in the revised version. After rats developed grade 1 rash, Rosi or Vehicle gel began to apply to the back skin of the rats. After nine-day treatment, rats that received Rosi had lower grade rash and higher body weight than the Vehicle group (Figure 6—figure supplement 2).

Figure S8: To show whether changes in rash severity would correspond to alterations in the anti-tumor response the authors treated nude mice bearing s.c. tumors with Afa or Afa + Rosi, could however detect no difference. However, the authors do not show, whether there was any induction of rash in this model, they only show weight loss. It has been published that EGFRi does not induce rash in adult mice. Therefore a similar experiment should be performed in rats.

The tumor study was performed in immunodeficient hosts and the immune-mediated process is important to induce cutaneous toxicity. Thus, the effect of Rosi on blocking rash could not be assessed. In addition, there are no suitable immune-deficient rat species, and normal rat species need rat-derived tumor cells to develop tumors, which is also very challenging to access. Considering the purpose of this study is to directly investigate the effect on the tumor, we applied Afa and Rosi treatment on nude mice.

References

Kasza I, Hernando D, Roldán-Alzate A, Alexander CM, Reeder SB. 2016. Thermogenic profiling using magnetic resonance imaging of dermal and other adipose tissues. JCI Insight 1:0–13. doi:10.1172/jci.insight.87146

Kasza I, Suh Y, Wollny D, Clark RJ, Roopra A, Colman RJ, MacDougald OA, Shedd TA, Nelson DW, Yen MI, Yen CLE, Alexander CM. 2014. Syndecan-1 Is Required to Maintain Intradermal Fat and Prevent Cold Stress. PLoS Genet 10. doi:10.1371/journal.pgen.1004514

Klufa J, Bauer T, Hanson B, Herbold C, Starkl P, Lichtenberger B, Srutkova D, Schulz D, Vujic I, Mohr T, Rappersberger K, Bodenmiller B, Kozakova H, Knapp S, Loy A, Sibilia M. 2019. Hair eruption initiates and commensal skin microbiota aggravate adverse events of anti-EGFR therapy. Sci Transl Med 11:1–18. doi:10.1126/scitranslmed.aax2693

Kosteli A, Sugaru E, Haemmerle G, Martin JF, Lei J, Zechner R, Ferrante AW. 2010. Weight loss and lipolysis promote a dynamic immune response in murine adipose tissue. J Clin Invest 120:3466–3479. doi:10.1172/JCI42845

Lichtenberger BM, Gerber PA, Holcmann M, Buhren BA, Amberg N, Smolle V, Schrumpf H, Boelke E, Ansari P, Mackenzie C, Wollenberg A, Kislat A, Fischer JW, Röck K, Harder J, Schröder JM, Homey B, Sibilia M. 2013. Epidermal EGFR controls cutaneous host defense and prevents inflammation. Sci Transl Med 5. doi:10.1126/scitranslmed.3005886

Mascia F, Lam G, Keith C, Garber C, Steinberg SM, Kohn E, Yuspa SH. 2013. Genetic ablation of epidermal EGFR reveals the dynamic origin of adverse effects of anti-EGFR therapy. Sci Transl Med 5. doi:10.1126/scitranslmed.3005773

Park K, Tan EH, O’Byrne K, Zhang L, Boyer M, Mok T, Hirsh V, Yang JCH, Lee KH, Lu S, Shi Y, Kim SW, Laskin J, Kim DW, Arvis CD, Kölbeck K, Laurie SA, Tsai CM, Shahidi M, Kim M, Massey D, Zazulina V, Paz-Ares L. 2016. Afatinib versus gefitinib as first-line treatment of patients with EGFR mutation-positive non-small-cell lung cancer (LUX-Lung 7): A phase 2B, open-label, randomised controlled trial. Lancet Oncol 17:577–589. doi:10.1016/S1470-2045(16)30033-X

Sequist L V., Yang JCH, Yamamoto N, O’Byrne K, Hirsh V, Mok T, Geater SL, Orlov S, Tsai CM, Boyer M, Su WC, Bennouna J, Kato T, Gorbunova V, Lee KH, Shah R, Massey D, Zazulina V, Shahidi M, Schuler M. 2013. Phase III study of afatinib or cisplatin plus pemetrexed in patients with metastatic lung adenocarcinoma with EGFR mutations. J Clin Oncol 31:3327–3334. doi:10.1200/JCO.2012.44.2806

Soria JC, Felip E, Cobo M, Lu S, Syrigos K, Lee KH, Göker E, Georgoulias V, Li W, Isla D, Guclu SZ, Morabito A, Min YJ, Ardizzoni A, Gadgeel SM, Wang B, Chand VK, Goss GD. 2015. Afatinib versus erlotinib as second-line treatment of patients with advanced squamous cell carcinoma of the lung (LUX-Lung 8): An open-label randomised controlled phase 3 trial. Lancet Oncol 16:897–907. doi:10.1016/S1470-2045(15)00006-6

Spinedi E, Giovambattista A. 2016. Long-Term Fructose Intake Increases Adipogenic Adipocyte Precursor Cells. doi:10.3390/nu8040198

Wu YL, Zhou C, Hu CP, Feng J, Lu S, Huang Y, Li W, Hou M, Shi JH, Lee KY, Xu CR, Massey D, Kim M, Shi Y, Geater SL. 2014. Afatinib versus cisplatin plus gemcitabine for first-line treatment of Asian patients with advanced non-small-cell lung cancer harbouring EGFR mutations (LUX-Lung 6): An open-label, randomised phase 3 trial. Lancet Oncol 15:213–222. doi:10.1016/S1470-2045(13)70604-1

Zhang L, Guerrero-juarez CF, Hata T, Bapat SP, Ramos R, Plikus M V, Gallo RL. 2015. Dermal adipocytes protect against invasive Staphylococcus aureus skin infection. Science (80- ) 347:67–72.

https://doi.org/10.7554/eLife.72443.sa2

Article and author information

Author details

  1. Leying Chen

    School of Biomedical Engineering, Shanghai Jiao Tong University, Shanghai, China
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Project administration, Visualization, Writing - original draft
    Contributed equally with
    Qing You
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6448-4177
  2. Qing You

    School of Biomedical Engineering, Shanghai Jiao Tong University, Shanghai, China
    Contribution
    Conceptualization, Data curation, Investigation, Methodology, Project administration
    Contributed equally with
    Leying Chen
    Competing interests
    No competing interests declared
  3. Min Liu

    School of Biomedical Engineering, Shanghai Jiao Tong University, Shanghai, China
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Project administration
    Competing interests
    No competing interests declared
  4. Shuaihu Li

    School of Biomedical Engineering, Shanghai Jiao Tong University, Shanghai, China
    Contribution
    Data curation, Formal analysis, Investigation, Project administration
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2049-7304
  5. Zhaoyu Wu

    School of Biomedical Engineering, Shanghai Jiao Tong University, Shanghai, China
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
  6. Jiajun Hu

    School of Biomedical Engineering, Shanghai Jiao Tong University, Shanghai, China
    Contribution
    Data curation, Formal analysis, Project administration
    Competing interests
    No competing interests declared
  7. Yurui Ma

    School of Biomedical Engineering, Shanghai Jiao Tong University, Shanghai, China
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  8. Liangyong Xia

    School of Biomedical Engineering, Shanghai Jiao Tong University, Shanghai, China
    Contribution
    Formal analysis, Software
    Competing interests
    No competing interests declared
  9. Ying Zhou

    School of Biomedical Engineering, Shanghai Jiao Tong University, Shanghai, China
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared
  10. Nan Xu

    Department of Dermatology, Shanghai East Hospital, Tongji University, Shanghai, China
    Contribution
    Funding acquisition, Investigation, Project administration, Supervision, Validation, Writing – review and editing
    For correspondence
    xnhrb@aliyun.com
    Competing interests
    No competing interests declared
  11. Shiyi Zhang

    School of Biomedical Engineering, Shanghai Jiao Tong University, Shanghai, China
    Contribution
    Conceptualization, Funding acquisition, Investigation, Project administration, Resources, Supervision, Validation, Writing – review and editing
    For correspondence
    zhangshiyi@sjtu.edu.cn
    Competing interests
    is the co-founder of OnQuality Pharmaceuticals. The author has no other competing interests to declare
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9375-5992

Funding

National Natural Science Foundation of China (17Z127060041、19Z127060001、19Z127010003)

  • Shiyi Zhang

Shanghai Jiao Tong University (WF220408211)

  • Shiyi Zhang

Shanghai Jiao Tong University (YG2017MS18)

  • Shiyi Zhang

State Key Laboratory of Onco- genes and Related Genes (90-17-02)

  • Shiyi Zhang

National Natural Science Foundation of China (81773347)

  • Nan Xu

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful to Professor Ling-juan Zhang (School of Pharmaceutical Sciences, Xiamen University, China) for her fruitful discussion. This work was, in part, supported by the Youth Thousand Talents Program of China, start-up grants from the Shanghai Jiao Tong University (WF220408211). This work was also supported by the grants from the State Key Laboratory of Onco- genes and Related Genes (90-17-02) and from the Interdisciplinary Program of Shanghai Jiao Tong University (YG2017MS18). This work was partially supported by the National Natural Science Foundation of China (Grant No. 81773347).

Ethics

The Institutional Animal Care and Use Committee of the Shanghai Jiao Tong University (A2017039) and East China Normal University (R20190601) approved all animal experiments.

Senior Editor

  1. Mone Zaidi, Icahn School of Medicine at Mount Sinai, United States

Reviewing Editor

  1. Mohammad Athar, University of Alabama at Birmingham, United States

Publication history

  1. Received: July 23, 2021
  2. Preprint posted: November 19, 2021 (view preprint)
  3. Accepted: March 14, 2022
  4. Version of Record published: March 24, 2022 (version 1)

Copyright

© 2022, Chen et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 511
    Page views
  • 93
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Leying Chen
  2. Qing You
  3. Min Liu
  4. Shuaihu Li
  5. Zhaoyu Wu
  6. Jiajun Hu
  7. Yurui Ma
  8. Liangyong Xia
  9. Ying Zhou
  10. Nan Xu
  11. Shiyi Zhang
(2022)
Remodeling of dermal adipose tissue alleviates cutaneous toxicity induced by anti-EGFR therapy
eLife 11:e72443.
https://doi.org/10.7554/eLife.72443

Further reading

    1. Cancer Biology
    Ning Yang, Xuebo Lu ... Kangdong Liu
    Research Article Updated

    Human esophageal cancer has a global impact on human health due to its high incidence and mortality. Therefore, there is an urgent need to develop new drugs to treat or prevent the prominent pathological subtype of esophageal cancer, esophageal squamous cell carcinoma (ESCC). Based upon the screening of drugs approved by the Food and Drug Administration, we discovered that Arbidol could effectively inhibit the proliferation of human ESCC in vitro. Next, we conducted a series of cell-based assays and found that Arbidol treatment inhibited the proliferation and colony formation ability of ESCC cells and promoted G1-phase cell cycle arrest. Phosphoproteomics experiments, in vitro kinase assays and pull-down assays were subsequently performed in order to identify the underlying growth inhibitory mechanism. We verified that Arbidol is a potential ataxia telangiectasia and Rad3-related (ATR) inhibitor via binding to ATR kinase to reduce the phosphorylation and activation of minichromosome maintenance protein 2 at Ser108. Finally, we demonstrated Arbidol had the inhibitory effect of ESCC in vivo by a patient-derived xenograft model. All together, Arbidol inhibits the proliferation of ESCC in vitro and in vivo through the DNA replication pathway and is associated with the cell cycle.

    1. Cancer Biology
    2. Computational and Systems Biology
    Pan Cheng, Xin Zhao ... Teresa Davoli
    Research Article

    How cells control gene expression is a fundamental question. The relative contribution of protein-level and RNA-level regulation to this process remains unclear. Here, we perform a proteogenomic analysis of tumors and untransformed cells containing somatic copy number alterations (SCNAs). By revealing how cells regulate RNA and protein abundances of genes with SCNAs, we provide insights into the rules of gene regulation. Protein complex genes have a strong protein-level regulation while non-complex genes have a strong RNA-level regulation. Notable exceptions are plasma membrane protein complex genes, which show a weak protein-level regulation and a stronger RNA-level regulation. Strikingly, we find a strong negative association between the degree of RNA-level and protein-level regulation across genes and cellular pathways. Moreover, genes participating in the same pathway show a similar degree of RNA- and protein-level regulation. Pathways including translation, splicing, RNA processing, and mitochondrial function show a stronger protein-level regulation while cell adhesion and migration pathways show a stronger RNA-level regulation. These results suggest that the evolution of gene regulation is shaped by functional constraints and that many cellular pathways tend to evolve one predominant mechanism of gene regulation at the protein level or at the RNA level.
