Nucleoporin107 mediates female sexual differentiation via Dsx
Abstract
We recently identified a missense mutation in Nucleoporin107 (Nup107; D447N) underlying XX-ovarian-dysgenesis, a rare disorder characterized by underdeveloped and dysfunctional ovaries. Modeling of the human mutation in Drosophila or specific knockdown of Nup107 in the gonadal soma resulted in ovarian-dysgenesis-like phenotypes. Transcriptomic analysis identified the somatic sex-determination gene doublesex (dsx) as a target of Nup107. Establishing Dsx as a primary relevant target of Nup107, either loss or gain of Dsx in the gonadal soma is sufficient to mimic or rescue the phenotypes induced by Nup107 loss. Importantly, the aberrant phenotypes induced by compromising either Nup107 or dsx are reminiscent of bone morphogenetic protein (BMP signaling hyperactivation). Remarkably, in this context, the metalloprotease AdamTS-A, a transcriptional target of both Dsx and Nup107, is necessary for the calibration of BMP signaling. As modulation of BMP signaling is a conserved critical determinant of soma–germline interaction, the sex- and tissue-specific deployment of Dsx-F by Nup107 seems crucial for the maintenance of the homeostatic balance between the germ cells and somatic gonadal cells.
Editor's evaluation
This study uses Drosophila as a model to study a specific mutant in a gene encoding a nuclear pore protein, whose counterpart in human leads to a rare disease called XX-ovarian-dysgenesis. Intriguingly, the fly mutants mimic the syndromes identified in human patients, such as failures in ovary development and function. The authors use fly ovary as a model to study the reasons underlying the phenotypes, which should provide insight to our understanding of this disease.
https://doi.org/10.7554/eLife.72632.sa0Introduction
Germline–soma communication lies at the heart of proper gonad development, and thus is essential for formation and coalescence of the primitive embryonic gonad until generation of the adult gonad (Van Doren, 2006; Staab et al., 1996; Wawersik et al., 2005). Gonadogenesis also relies upon coordination between cell autonomous and nonautonomous mechanisms that direct correct specification, patterning, and subsequent morphogenesis (DeFalco et al., 2008; Nöthiger et al., 1989). Furthermore, the developmental program culminating in proper gonad formation must integrate both nonsex-specific ‘housekeeping’ functions and sex-specific signals to establish and maintain sexually dimorphic traits. Therefore, functional aberrations that affect individual molecular components, either sex- or nonsex-specific, result in various clinical disorders and infertility.
XX-ovarian-dysgenesis (XX-OD) is a rare, genetically heterogeneous disorder that is characterized by underdeveloped, dysfunctional ovaries, with a subsequent lack of spontaneous pubertal development, primary amenorrhea, uterine hypoplasia, and hypergonadotropic hypogonadism (Hughes, 2008). We recently identified a recessive missense mutation in the nucleoporin107 (Nup107) gene (c.1339G > A, p.D447N) as the causative mutation for isolated XX-OD (without other developmental deficits) in five female cousins from a consanguineous family (Weinberg-Shukron et al., 2015). All men in the family had normal pubertal development and those married have multiple children, indicating a female-specific nature of the functional consequences induced by the specific point mutation.
Nup107 is an essential component of the nuclear pore complex, enabling both active and passive transport in every nucleated cell (Walther et al., 2003). In light of this ubiquitous and vital function, the sex-specific and tissue-restricted nature of the Nup107 XX-OD phenotype is highly intriguing. Of note, Nup107 and other NPC proteins were recently shown to have nuclear transport-independent activities including genome organization and tissue-specific regulation of gene expression (Guglielmi et al., 2020; Gomar-Alba and Mendoza, 2019; Kuhn and Capelson, 2019; Pascual-Garcia and Capelson, 2021; Raices and D’Angelo, 2017; D’Angelo, 2018; Gozalo et al., 2020). Taking into account the high conservation of the aspartic acid residue altered by the mutation, we used a Drosophila model to assess Nup107 function in human female gonadal development. Our previous studies demonstrated that RNAi-mediated knockdown (KD) of Nup107 in somatic gonadal cells led to female-specific sterility due to defective oogenesis, while male flies developed normally and remained fertile (Weinberg-Shukron et al., 2015). Furthermore, generating a Drosophila model of the human mutation by introducing an RFP-Nup107WT transgene in Nup107-null flies rescued both lethality and fertility of female flies. Intriguingly, however, introduction of an RFP-Nup107D364N transgene essentially recapitulated the familial XX-OD mutation. While it rescued lethality, the mutation resulted in severely reduced female fertility, ovariole disintegration, and extensive apoptosis (Weinberg-Shukron et al., 2015).
A second mutation in Nup107 (c.1063C > T, p.R355C) has since been independently identified as a cause of XX-OD (Ren et al., 2018). Notably, our analysis had predicted salt bridge interactions between the altered Aspartic Acid 447 in our study and the Arginine 355 altered in the second family, strengthening the notion that Nup107 performs an essential and conserved ovary-specific function during female gonadogenesis. Here, to uncover the molecular underpinnings of Nup107’s function, we analyzed the ‘loss of function’ phenotypes of Nup107 at both the cellular and transcriptional levels.
Results
Nup107 mutant ovaries display an ovarian-dysgenesis-like phenotype
A closer inspection of Nup107D364N adult ovaries revealed that the female gonads displayed phenotypic traits closely resembling human ovarian dysgenesis. Specifically, the phenotypes ranged from rudimentary, small ovaries with fewer ovarioles to bilateral dysgenesis where both ovaries were completely absent (Figure 1B–D). Approximately 33% of Nup107D364N ovaries were either under- or nondeveloped, in comparison to milder defects in only 6% and 5% in Nup107WT and yw control flies, respectively (Figure 1A, G). We found similar ovarian defects when inserting the Nup107 mutation (1090G > A, p.D447N) into the Drosophila genome using CRISPR (Levi et al., 2020).

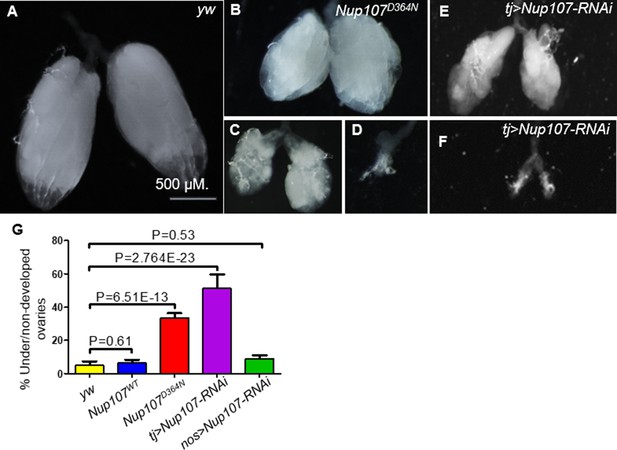

Phenotypic characterization of the ovaries compromised for Nup107.
(A) yw control Drosophila ovaries. In contrast, Nup107D364N ovarian samples display a variety of aberrations, including (B) small or (C) shriveled ovaries, and (D) bilateral dysgenesis. Knockdown of Nup107 using tj-Gal4 driver recapitulated the same phenotypes as Nup107D364N, with flies exhibiting (E) underdeveloped or (F) nondeveloped ovaries. (G) The percentages of under/nondeveloped ovaries in yw (n = 196), Nup107WT (n = 504), Nup107D364N (n = 890), tj > Nup107 (n = 316), and nos > Nup107 (n = 64) flies. Scale bar in A applies to all panels.
To discern if Nup107 is necessary in the somatic or germline component of the gonad, or in both, we selectively inactivated Nup107 function using UAS-Nup107-RNAi in combination with either a somatic gonadal specific driver traffic jam–Gal4 (tj-Gal4) or a germ cell-specific driver nanos-Gal4 (nos-Gal4). Interestingly, only soma-specific KD of Nup107 recapitulated the mutant phenotype, where 51% of adult ovaries were ‘dysgenic’ or underdeveloped (Figure 1E–G). Supporting the conclusion that in this functional context Nup107 is required primarily in the soma, germline-specific inactivation of Nup107 did not lead to significant phenotypic abnormalities compared to the control (9%, Figure 1G) (see Figure 1—figure supplement 1 for validation of RNAi KD).
Soma–germline homeostasis in the larval gonad requires Nup107
To trace back the phenotypic consequences of Nup107 loss to the earlier stages of gonad development, we sought to analyze the third instar larval stage (LL3) gonads. At this stage, the Drosophila larval gonad consists of a somatically derived stem cell niche and primordial germ cells (PGCs) adjacent to it (Figure 2A). Interspersed among the PGCs are their somatic support cells, known as intermingled cells (ICs). Dissection of yw, Nup107WT, and Nup107D364N larvae showed that their gonads were equally present and readily identifiable in all three genotypes (Figure 2—figure supplement 1A).

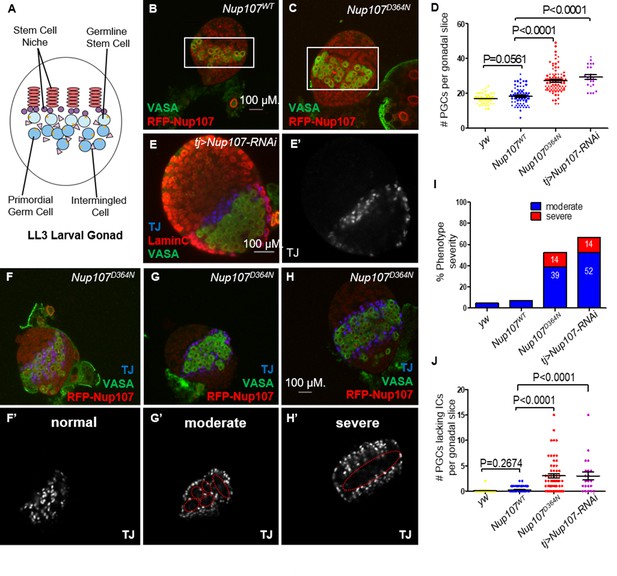

Nup107D364N larval gonads display aberrant cellular number and arrangement.
(A) Schematic representation of the LL3 larval gonad with its different cell types. (B) Confocal section of Nup107WT gonad containing on average 18 primordial germ cells (PGCs; VASA, green), compared to (C) 27 in Nup107D364N gonads. (D) Quantitation of the total PGCs per confocal section in each gonad, in yw, Nup107WT, Nup107D364N, and Nup107 KD (n = 42, 71, 88, 22). (E) Nup107 KD larval gonads contain excess PGCs (VASA, green) and abnormally dispersed intermingled cells (ICs; TJ, blue). Nup107D364N larval gonads exhibit a range of IC dispersion patterns from (F) normal to (G) moderate to (H) severe. (I) The percentage of each IC phenotype found in yw, Nup107WT, Nup107D364N, and Nup107 KD gonads (n = 22, 61, 58, 21). (J) Representation of the number of PGCs per gonad missing an immediately adjacent IC, due to abnormal dispersion.
To assess if the somatic and germline components of the larval gonad are specified and patterned correctly in a Nup107 compromised background, we stained larval gonads from both Nup107D364N flies and those with somatic KD of Nup107 (hereafter tj > Nup107 KD), using antibodies which specifically mark the PGCs (VASA) and ICs (TJ). Confocal imaging of these larval gonads revealed that both cell types are present at this developmental stage, however their spatial organization appeared to be disrupted. Moreover, both Nup107D364N and tj > Nup107 KD larval gonads contained excess numbers of PGCs (Figure 2C–E) which formed large clusters devoid of ICs (Figure 2E’1, J). While the total number of mutant ICs was unaffected (Figure 2—figure supplement 1B), these cells failed to intermingle with the PGCs and often remained clustered at the periphery of the gonadal tissue (Figure 2E–H). Staining with antibodies against an adducin-like molecule (1B1) which marks the fusome, a subcellular organelle, revealed elevated numbers of cells with spherical fusomes, normally characteristic of germline stem cells (GSCs, Figure 2—figure supplement 1C–E). Proper soma–germline communication is necessary for the maintenance of the homeostatic balance required for adequate proliferation and differentiation of both cell types. Altogether these data show that loss of Nup107 in the somatic gonadal precursors affects the soma–germline communication, adversely affecting the total PGC count and relative positioning of the ICs.
Nup107 mutant ovaries display increased bone morphogenetic protein signaling activity away from the GSCs niche
We previously found that Nup107 mutant female flies with normal-sized ovaries suffered from infertility due to defective oogenesis. To understand the functional underpinnings of the adult ovarian phenotypes induced by the D364N mutation we sought to analyze the Nup107 mutant ovaries carefully. The Drosophila ovary is made up of 16–20 ovarioles that function individually as egg production lines. The germarium, situated at the anterior tip of the ovariole, contains the somatic stem cell niche and adjacent GSCs (King, 1970; Spradling, 1993). Typically, a GSC divides asymmetrically to generate another stem cell and a cystoblast. Cystoblasts divide and differentiate to form 16 interconnected cystocytes, with the dynamically expanding fusome acting as the connecting link. Fusome morphology can be assessed by using antibodies against Huli-tai-shao, 1B1 (de Cuevas and Spradling, 1998, Lin and Spradling, 1995). Thus, GSCs and their undifferentiated cystoblasts can be readily identified by the presence of a round fusome, whereas their differentiated daughter cells display extended, branched fusomes (Figure 3A). Ovary staining revealed that unlike yw and Nup107WT germaria, which contained two to three spherical fusomes, Nup107D364N germaria contained an average of six spherical fusomes per germarium (7% of Nup107WT vs. 34% of Nup107D364N; Figure 3B–D). Similar results were seen in tj > Nup107 KD (Figure 3B, E) germaria. Thus, Nup107 compromised germaria contain elevated numbers of cells with spherical fusomes, characteristic of both GSCs and undifferentiated cystoblasts. Interestingly, an increase in the total number of undifferentiated germ cells is reminiscent of hyperactivation of the bone morphogenetic protein (BMP) signaling pathway (Zhu and Xie, 2003).

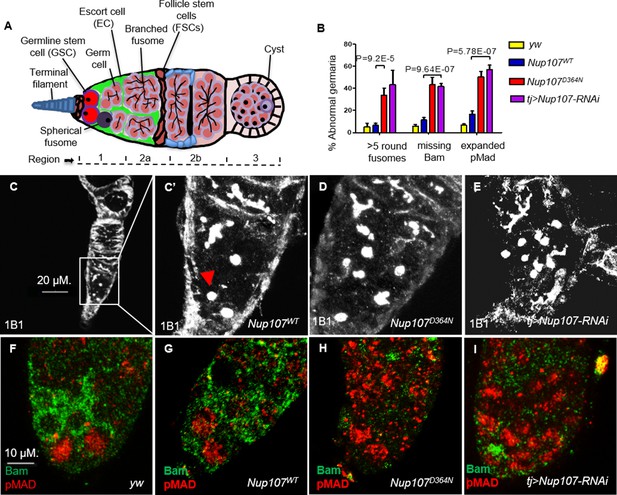

Nup107D364N adult ovaries demonstrate increased germline stem cell (GSC) number.
(A) A scheme of the Drosophila germarium. In region 1, GSCs divide four times to form a 16-cell cyst. Region 2a is identified by the presence of 16-cell cystocytes which are adjoining the follicle stem cell border. (B) Quantification of spherical fusomes (n = 57, 74, 100, 27), Bam (n = 127, 137, 139, 64), and pMad (n = 122, 121, 225, 48) phenotypes in yw, Nup107WT, Nup107D364N, and Nup107 KD, respectively. (C) Nup107WT germaria contain two to three cells with spherical fusomes, indicated by arrowhead, while (D) Nup107D364N and (E) tj > Nup107 germaria contain an average of six cells with spherical fusomes. (F) yw and (G) Nup107WT germaria show normal pMad (blue) and Bam (green) expression compared to (H) Nup107D364N and (I) tj > Nup107 germaria which show reduced Bam levels and expanded pMad expression.
We thus wondered if inappropriately expanded BMP signaling is responsible for the failure in GSC differentiation. The somatic terminal filament (TF) and Cap cells (CCs), which together constitute the GSC niche, normally secrete a BMP ligand, Decapenataplegic (Dpp) (Xie and Spradling, 1998; Xie and Spradling, 2000). Binding of Dpp to its cognate receptor Thickveins (Tkv), expressed in GSCs, triggers a signal transduction cascade, which ultimately represses the expression of the master differentiation gene bag of marbles (bam) in the GSC region (McKearin and Ohlstein, 1995). As GSC daughter cells move away from the niche, BMP signaling is progressively weakened, resulting in the induction of Bam expression. We found that Bam expression was continuously repressed and completely absent in 43% of Nup107D364N and 42% of tj > Nup107 KD regions 1 and 2a germaria, compared to 6% and 11% in yw and Nup107WT flies, respectively (Figure 3B, F–I). As phenotypic consequences resulting from Nup107 loss seemed analogous to those induced by excess BMP signaling, we therefore sought to analyze the downstream components of the BMP pathway.
The transcriptional response to the BMP signal that emanates from the stem cell niche is mediated by phosphorylation of MAD (pMad) which translocates to the nucleus and with its binding partner, Medea, regulates pathway targets (McKearin and Ohlstein, 1995; Feng and Derynck, 2005; Schmierer and Hill, 2007). pMad represses bam and thus allows for maintenance of the undifferentiated state and self-renewal of GSCs (Song et al., 2004). We found that pMad levels in Nup107 compromised germaria are abnormally elevated in regions distant from the GSC niche. Specifically, 50% of Nup107D364N and 57% of Nup107 KD germaria show high expression of pMad, compared to 7% of yw and 17% of Nup107WT germaria (Figure 3B, F–I). Taken together, these findings support the notion that compromising Nup107 activity leads to hyperactivation of BMP/Dpp signaling away from the GSC niche and suggest that Nup107 restricts the range and/or strength of Dpp signaling required for proper differentiation of the GSCs.
Impairment of the GSC progeny differentiation niche in Nup107 mutant ovaries
Escort cells (ECs) and their cellular processes, which encapsulate the GSC daughter cells that leave the stem cell niche, together constitute a distinct niche responsible for controlling germ cell differentiation (Kirilly et al., 2011; Wang et al., 2011). This is thought to be achieved, in part, by restricting BMP signaling (Kirilly et al., 2011; Wang et al., 2011). ECs employ Hh, Wnt, EGFR, and Jak-Stat signaling to prevent BMP signaling in GSC progeny (Wang and Page-McCaw, 2018; Tseng et al., 2018; Lu et al., 2015; Huang et al., 2017; Mottier-Pavie et al., 2016; Wang et al., 2015; Luo et al., 2015; Hamada-Kawaguchi et al., 2014; Upadhyay et al., 2016; Maimon et al., 2014). Most, if not all of these signals, act to sustain the cytoskeletal structure of the processes that emerge from the ECs. The accumulation of undifferentiated GSCs and the expanded range of BMP signaling observed in Nup107 compromised germaria could result from the failure of the EC differentiation niche function. We reasoned that such a failure may be reflected in the ability of the cellular extensions to emerge from the ECs. To test this idea, ovaries were costained with anti-Traffic Jam (TJ) and anti-Coracle (Cora). Cora is a structural protein that is highly expressed in the cellular extensions of ECs (Maimon et al., 2014; Fairchild et al., 2015) whereas TJ is a transcription factor expressed in the nuclei of ECs, CCs, and follicle stem cells in the germarium (Li et al., 2003; Jin et al., 2013; Weaver et al., 2020). The cellular extensions of the ECs in yw and Nup107WT germaria were readily detected (Figure 4A, B). In contrast, these cellular extensions were either dramatically reduced or completely lost in over 36% and 48% of the Nup107D364N and tj > Nup107 KD germaria, respectively (Figure 4C, D, G). Furthermore, the reduction in cellular extensions was unlikely to be due to loss of ECs as they were readily visible, when labeled with anti-Traffic jam, in both WT and Nup107 compromised germaria (Figure 4A–D).

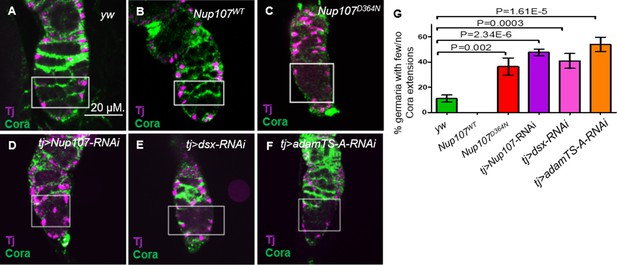

Adult ovaries demonstrate missing escort cell (EC) extensions.
In germaria taken from (A) yw and (B) Nup107WT, the ECs extensions were easy to note. In contrast, ECs extensions from (C) Nup107D364N, (D) tj > Nup107 KD, (E) tj > dsx KD, and (F) tj > AdamTS-A KD germaria were dramatically reduced or lost. (G) Quantitation of Coracle extensions from yw (n = 88), Nup107WT (n = 32), Nup107D364N (n = 25), tj > Nup107 KD (n = 65), tj > dsx KD (n = 60), and tj > AdamTS-A KD (n = 54). Anti-Cora and anti-TJ staining are shown in green and magenta, respectively.
To extend these data we used another driver, c587-Gal4. The expression pattern of c587-Gal4 driver is similar to tj-Gal4 in the adult germarial areas, except that it is not active in CCs and adult follicle cells (Jin et al., 2013; Weaver et al., 2020). KD of Nup107 using the c587-Gal4 driver also resulted in considerable reduction in the cellular extensions arising from the ECs, expanded pMad expression and accumulation of undifferentiated germ cells (Figure 4—figure supplement 1). Together these observations suggested that Nup107 activity is primarily required in the ECs. Notably, ECs were readily detected, as assessed by the presence of GFP-positive cells, in both WT and Nup107 KD germaria. These data further indicated that in our experimental setup, viability of ECs is unaffected due to loss of Nup107.
To directly assess the role of the cellular extensions derived from the ECs in restricting BMP signaling, we sought ways to inhibit their formation without directly interfering with the intracellular signaling with in the ECs. To this end, we knocked down coracle in ECs using the c587-Gal4. Concomitant with the loss of the protrusions arising from the ECs (Figure 4—figure supplement 2), the resulting germaria exhibited accumulation of germ cells with round fusomes and expanded pMad expression away from the TF/CCs niche (Figure 4—figure supplement 3). These aberrant phenotypes were not due to an absence of ECs in the affected area, as similar number of ECs were visible (Green Fluorescent Protein (GFP)-positive cells), in the control as well as coracle compromised germaria (Figure 4—figure supplement 2). Together, these data strongly suggest that compromising Nup107 impairs the formation of the extensions emanating from the ECs, which are required for restricting the BMP signal in the GSC differentiation niche.
Nup107 activity is continuously required in ECs for the formation of cellular extensions and regulation of GSCs differentiation
Data described thus far showed that loss of Nup107 impairs the differentiation of the ECs. Consequently, ECs compromised for Nup107 activity lost the cellular extensions possibly diminishing their ability to establish a productive communication with the GSCs in the vicinity and promote their differentiation. The adult ovarian ECs are the descendants of the larval ovarian ICs (Reilein et al., 2021). Collectively, our results are consistent with the model that Nup107 activity is required in the larval gonad for the specification of the ICs, whereas the adult ovarian phenotypes reflect a secondary consequence of compromising Nup107 activity in the EC progenitors. Our data, however, do not rule out the possibility that Nup107 activity is continuously required in the adult germarium for the proper functioning of the ECs. To distinguish between these two possibilities, we engineered a strategy involving a temporal KD of Nup107 using a combination of tj-Gal4 and a temperature sensitive form of the Gal4 repressor, Gal80ts (hereafter tjts). We allowed for normal ovarian development until hatching and only then knocked down Nup107 in adult somatic gonadal cells. Subsequent dissection of 4- to 5-day-old female flies showed that the resulting ovaries were similar in size to their WT counterparts. Staining for Cora, however, revealed loss of ECs’ cellular extensions and expansion of pMad expression (Figure 5), similar to the phenotypes observed when Nup107 was compromised continuously from early larval stages. Thus, we concluded that Nup107 activity enables the formation of cellular extensions arising from the ECs, which are essential for their proper function during GSC differentiation.

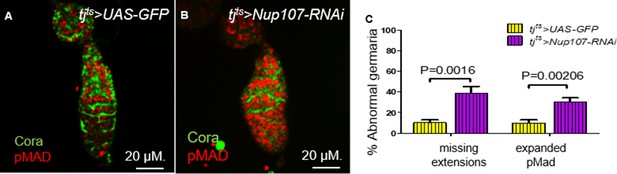

Knockdown of Nup107 specifically at the adult stage resulted in loss of escort cell (EC) extensions.
In germaria taken from (A) tjts > GFP flies, both the two to three germline stem cells (GSCs; pMad, red) and EC extensions (Cora, green) were easy to distinguish. (B) In contrast, pMad expression was expanded, and ECs extensions were absent in tjts > Nup107 RNAi germaria. (C) Quantification of abnormal germaria with missing EC extensions or expanded pMad expression in tjts > GFP (n = 69) and tjts > Nup107 RNAi (n = 74) flies. Bars represent mean + standard error of the mean (SEM). p values are from a two-tailed t-test.
Sex-determination gene Dsx is a target of Nup107
To better understand Nup107 function in the ovary, we sought to explore if the Nup107 D364N mutation influences transcription in the female larval gonads and if so, whether the possible changes in the transcriptional profile could be correlated with the developmental defects observed in Nup107 mutant ovaries. To assess the genome-wide transcriptional changes in the Nup107 mutant ovaries, we performed an unbiased transcriptome analysis on yw, Nup107WT, and Nup107D364N LL3 larval female gonads, in triplicates, using RNA-seq (GEO accession number GSE141094). We identified 82 candidate genes Supplementary files 1 and 2) which displayed significant changes in mRNA expression in the larval gonad upon compromising Nup107. Among these candidates, we were particularly intrigued by the decreased expression of the DMRT transcription factor family member doublesex (dsx), which is critical for sex-specific differentiation (Matson and Zarkower, 2012; Hildreth, 1965; Baker and Ridge, 1980). We confirmed that dsx is a target of Nup107 using quantitative real-time PCR (qRT-PCR; (Figure 6—figure supplement 1).
dsx is expressed in both sexes, but is regulated via sex-specific alternative splicing, which results in the generation of either female (dsxF)- or male (dsxM)-specific isoforms (Baker and Wolfner, 1988; Burtis and Baker, 1989; Burtis et al., 1991). Supporting the conclusion that both DsxF and DsxM are determinants of proper sexual development, either loss of individual Dsx function or simultaneous gain of both dsxF and dsxM results in an intersexual phenotype (Clough et al., 2014). Interestingly, despite its crucial role in establishing and maintaining sexually dimorphic differentiation and behavior, dsx is expressed in only a select subset of tissues (Sanders and Arbeitman, 2008; Yang et al., 2008). Establishing the biological relevance of the localized expression, inactivation of dsx using dsx-Gal4 resulted in reduction in the size of the ovaries (Clough et al., 2014). As dsx expression was adversely influenced upon ovary specific loss of Nup107, we sought to test if Dsx plays an important role in female differentiation downstream of Nup107.
To assess this possibility, we first tested if compromising dsx in the somatic component of the gonad can mimic the Nup107D364N phenotypes. Indeed, KD of dsx expression using somatic driver tj-Gal4, resulted in ovarian defects including either partial or complete dysgenesis (in 52% of adult ovaries; Figure 6A–D). Importantly, compromising dsx using nos-Gal4, a germline-specific driver, did not yield similar phenotypes. Furthermore, dsx KD using a tj-Gal4 driver also led to excess numbers of PGCs as well as a significant number of larval gonads with aberrant IC distribution (Figure 6E–H). Analysis of germaria compromised for DsxF function in the ovarian soma largely mimicked the loss of Nup107 with respect to excess GSCs (distinguishable by the elevated number of spherical fusomes; Figure 6I, K) and loss of the cellular extensions of the ECs (Figure 4E, G). Importantly, as in the case of Nup107, loss of dsxF in the ovarian soma correlated with aberrant BMP signaling, as reflected in the accumulation of excess nuclear pMad accompanied by the loss of Bam in region 2a of the germaria (Figure 6J, K).

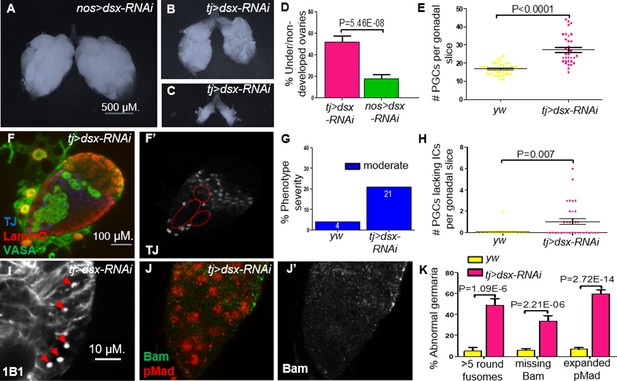

Knockdown (KD) of dsx in the gonadal soma recapitulates Nup107D364N phenotypes.
(A) dsx KD in the germline (nos-Gal4) results in negligible effects, compared to KD in somatic cells (tj-Gal4), which results in both (B) underdeveloped and (C) nondeveloped ovaries. (D) The percentages of under/nondeveloped ovaries in tj-Gal4 dsx KD (n = 74) vs. nos-Gal4 dsx KD (n = 100). (E) Representation of the number of primordial germ cells (PGCs) per confocal section of each individual gonad in yw (n = 42) and dsx KD (n = 34) larvae. (F) Larval gonads where dsx is KD using tj-Gal4 contain excess PGCs and abnormally dispersed intermingled cells (ICs). (G) The percentage of IC severity phenotypes found in yw (n = 22) and dsx KD (n = 16) larval gonads. (H) Quantitation of the number of PGCs per gonad lacking an immediately adjacent IC, as a result of abnormal IC dispersion in yw (n = 22) and dsx KD (n = 34) larval gonads. (I) tj-driven dsx KD results in excess spherical fusomes, as well as (J) excess pMad (red) expression and missing Bam (green). (K) Quantitation of dsx KD germaria aberrant phenotypes (n = 53, 119, and 63, respectively).
Dsx overexpression rescues the phenotypes induced by Nup107 loss
The similarity between the Nup107 mutant and dsx KD ovarian phenotypes prompted us to test whether Dsx is a critical target of Nup107. If so, overexpression of dsxF alone should mitigate the phenotypes induced by the loss of Nup107. We therefore knocked down Nup107 and concomitantly overexpressed dsxF, utilizing GFP overexpression as a control in the KD lines. Analysis of the resulting ovarian samples revealed that the proportion of underdeveloped ovaries was substantially diminished as compared to both Nup107D364N- and tj-Gal4-driven Nup107 KD flies (Figure 7A–C). The gonads rescued upon simultaneous overexpression of dsxF appeared morphologically normal (Figure 7B), resembling those of control yw females. Furthermore, normal patterns and levels of both pMad and Bam expression were restored in regions 1 and 2a of the germaria (Figure 7D, E). Importantly, immunostaining of apoptotic marker caspase revealed that the dsx-rescued ovaries no longer demonstrated any abnormal cell death (Figure 7F, G), as shown in our previous findings (Weinberg-Shukron et al., 2015). Taken together these data strongly suggested that Dsx is a key component acting downstream of Nup107 and loss of DsxF could account for the stage- and sex-specific phenotypes associated with compromised Nup107 activity.

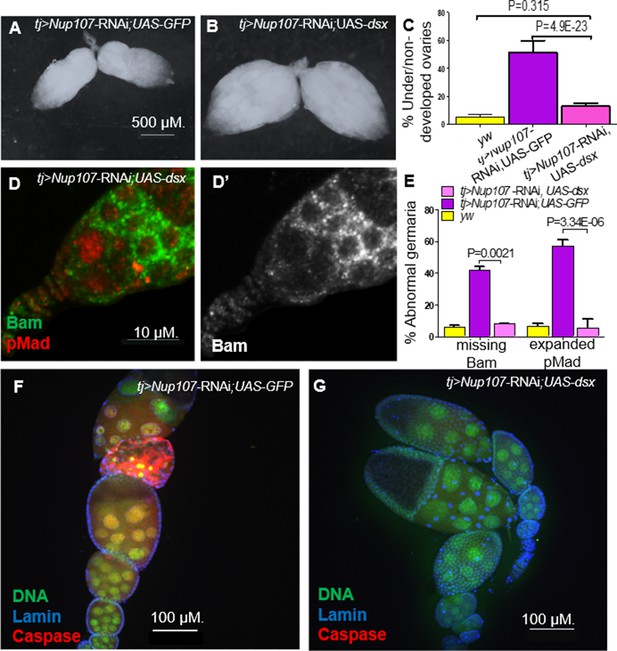

Overexpression of Dsx rescues Nup107 KD ovarian phenotypes.
(A) RNAi-KD of Nup107 using tj-Gal4 driver results in small, underdeveloped ovaries. (B) Coexpression of dsx with RNAi-KD of Nup107 rescues the underdeveloped phenotype, resulting in normal, robust ovaries. (C) Quantitation of under/nondeveloped ovaries in yw (196), Nup107-KD; UAS-GFP (n = 316) and Nup107 KD; dsx overexpression flies (n = 250). (D) tj-Gal4-driven Nup107 KD, dsx overexpression germarium contains normal pMad (red) expression and (D’) normal Bam expression. (E) Quantitation of Bam and pMad expression in yw (n = 127, 122), Nup107 KD; UAS-GFP (n = 64, 48), and Nup107 KD; dsx overexpression (n = 25, 33) germaria. (F) 55% of tj-Gal4-driven Nup107 KD; UAS-GFP ovarioles (n = 20) showed apoptosis, marked by anti-Caspase3 (red) compared to (G) zero Nup107 KD, dsx overexpression ovarioles (n = 15).
The nearly complete rescue observed by the introduction of dsxF transgene also implied that the two determinants could share important targets. We tested the notion by comparing the 82 genes, identified as Nup107 targets, with previously reported DsxF targets (Clough et al., 2014). Indeed, the comparison revealed that 47 out of the 82 Nup107 targets (57%, p < 4.5E−11) were also identified as targets of Dsx (Supplementary file 2 ). In addition to several transcription factors, included in this list are known modulators of BMP signaling as well as multiple components of the extracellular matrix (ECM). The substantial overlap between the two lists thus provides the key to the nearly complete rescue. Importantly these data have begun to elucidate how germline–soma communication engineered by the DsxF can contribute to the establishment of female germline identity.
The extracellular metalloprotease AdamTS-A acts downstream of Nup107 and Dsx
Our data demonstrate that DsxF regulates the range and/or the strength of BMP signaling from the niche. We were intrigued by AdamTS-A, another candidate we identified, a secreted metalloprotease required for normal germ cell development (Ismat et al., 2013) that controls ECM assembly. Interestingly, human ovarian disorders including polycystic ovary syndrome and primary ovarian insufficiency have been correlated with compromised AdamTS-A activity (Ozler et al., 2017; Russell et al., 2015; Knauff et al., 2009). Using qPCR analysis, we confirmed that AdamTS-A expression is appreciably reduced in adult female ovaries compromised for Nup107 activity as compared to the wild type (Figure 8G, Figure 6—figure supplement 1). We questioned if the downregulation of AdamTS-A, downstream of Nup107, is mediated by DsxF as it was previously reported to be a target of Dsx (Clough et al., 2014). Supporting the conclusion that transcription of AdamTS-A is positively regulated by DsxF, we observed a significant decrease in the levels of AdamTS-A transcripts following KD of dsx (Figure 8G).

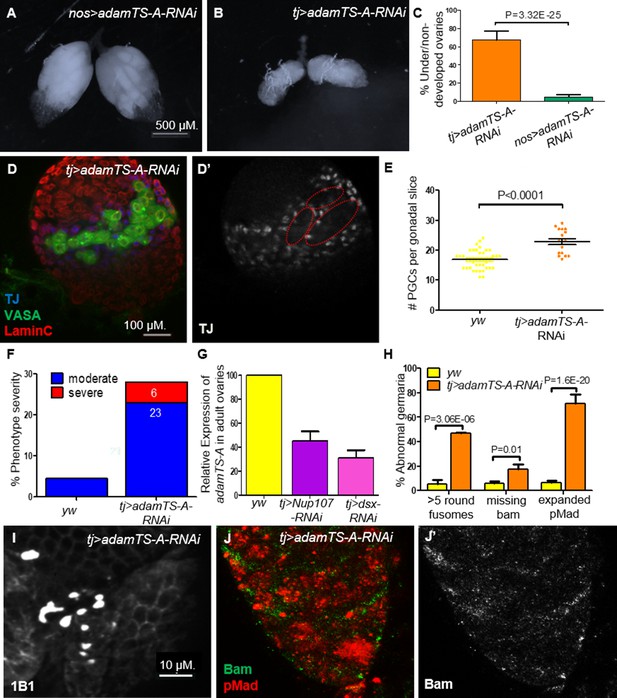

AdamTS-A KD larval and adult ovaries show aberrant phenotypes.
(A) Germline KD of AdamTS-A (nos-Gal4) results in negligible effects, compared to somatic KD (tj-Gal4), which results in (B) severely underdeveloped ovaries. (C) Quantitation of under/nondeveloped ovaries in tj- vs. nos-Gal4-driven AdamTS-A KD (n = 126, 108) flies. (D) Somatic KD (tj-Gal4) of AdamTS-A results in larval gonads containing excess numbers of primordial germ cells (PGCs; VASA, green) and abnormally dispersed intermingled cells (ICs; TJ, blue). (E) Quantitation of the total number of PGCs per confocal section in each individual gonad in yw (n = 42) and AdamTS-A KD (n = 17) larvae. (F) The percentage of IC severity phenotypes found in yw (n = 22) and AdamTS-A KD (n = 17) larval gonads. (G) Relative expression of AdamTS-A measured by RT-qPCR. (H) Quantification of cells with round fusomes (n = 57), Bam expression (n = 145, green), and pMad expression (n = 73, red) in yw and AdamTS-A KD ovaries. tj-Gal4-driven AdamTS-A KD results in (I) excess number of cells with spherical fusomes (anti-1B1), (J) expanded pMad (red), and (J’) reduced Bam expression.
Further, we sought to test if downregulation of AdamTS-A is an important determinant of ovarian development downstream of Nup107 and/or DsxF. KD of AdamTS-A in the somatic gonadal cells had severe effects on ovarian development including partial ovarian dysgenesis (Figure 8B, C), defective distribution of ICs and increased number of PGCs (Figure 8D–F) and GSCs (Figure 8H1) in the larval and adult female gonads, respectively, with expanded levels of pMad and loss of Bam expression as well as loss of ECs’ extensions in the germarium (Figures 8H, J, 4F, G, respectively). In contrast, germline-specific KD or disruption of its activity using other tissue-specific drivers (wing, eye, etc.) resulted in negligible effects (Figure 8A, C, and data not shown). This finding confirmed AdamTS-A as a biologically relevant component that likely acts downstream of both Nup107 and Dsx in this context.
We next examined whether overexpression of AdamTS-A can mitigate the phenotypes induced by the loss of either Nup107 or dsxF. To that end, we knocked-down either Nup107 or dsx and concomitantly overexpressed AdamTS-A, again using GFP overexpression as a control. Analysis of the resulting ovarian samples revealed a high proportion of underdeveloped ovaries, similar to flies compromised for either Nup107 or dsx. This suggests that while important, AdamTS-A cannot be the sole player downstream of the Nup107–Dsx axis and there must be other targets which contribute to its function(s).
Discussion
Nup107 activity is required in ICs and ECs during ovarian development and oogenesis
We have shown that Nup107 activity in the somatic component of the gonad is necessary for the proper development and function of the ovaries. In which somatic cell type, the activity of Nup107 is necessary? The fact that KD of Nup107 using the tj-Gal4 driver resulted in larval and adult aberrant phenotypes indistinguishable from those induced by the Nup107 loss of function mutation, indicates that the ovarian function of Nup107 is primarily required in the Tj-expressing cells. Notably, the tj-Gal4 driver is not expressed in TF cells either at larval or adult stages. TF cells together with the CCs constitute the ovarian stem cell niche. During larval ovarian development, Tj is expressed in the ICs, CCs, and FSC progenitors (Knauff et al., 2009). CCs, which are derived from the ICs (D’Angelo, 2018, Wang et al., 2011), are formed at the base of fully formed TFs at the transition from the third larval instar to prepupal stage (Ren et al., 2018, Levi et al., 2020). Therefore, the aberrant PGCs and ICs observed in the larval gonads are not due to impairment of Nup107 or Dsx activities in CCs. Likewise, FSC progenitors are also not the candidate cells for the site of action of Nup107 activity as they reside posterior to ICs with a minimal physical contact with only a few posteriorly located PGCs (Slaidina et al., 2020). Together these data imply that Nup107 acts specifically in ICs enabling them to effectively interact with the PGCs. Consistent with this notion, loss of Nup107 affected the behavior of ICs such that these cells showed varying degrees of failure to mingle with the PGCs. A severe failure of ICs and PGCs to interact in the larval gonad is expected to cause an ovarian-dysgenesis-like phenotype as it is essential for the germarium development and ovariole formation. Likewise, a milder failure of intermingling in the larval gonad would allow for the formation of adult ovaries. However, in the adult ovary Nup107 activity is further required in ECs for the formation of their cellular extensions and regulation of differentiation of the GSCs. Thus, it will be important to determine in future studies the functional relationship between Nup107 and the signaling pathways which previously were shown to regulate the formation of these cellular extensions.
How does Nup107 execute its ovarian function?
Our studies have revealed that Nup107, a ubiquitously expressed nuclear envelope protein, is a crucial player during female gonad formation. How does an essential housekeeping protein critical for nuclear transport, perform such a sex- and tissue-specific function(s)? We envisage two possible scenarios, not necessarily mutually exclusive, to explain how the specific mutation in Nup107 results in ovary-specific aberrant phenotypes. In the first scenario, Nup107 would specifically mediate nucleocytoplasmic translocation of factor(s) or downstream effector(s) required for ovarian development. Indeed, recent studies have demonstrated that Nup107 is involved in translocation of specific factors. For instance, in the event of DNA damage, Nup107 directly interacts with the apoptotic protease activating factor 1 (Apaf-1 also known as Drosophila ARK) and mediates its transport into the nucleus to elicit cell-cycle arrest (Jagot-Lacoussiere et al., 2015). Furthermore, it has been shown in tissue culture that specific Nucleoporins, including Nup107, are required for nuclear translocation of SMAD1, an important downstream effector of the Dpp/BMP pathway (Chen and Xu, 2010).
Alternatively, accumulating evidence has documented that in addition to their primary function in regulating the exchange of molecules between the nucleus and cytoplasm, NPC components may contribute to genome organization and tissue-specific regulation of gene expression (Raices and D’Angelo, 2017; D’Angelo, 2018) in a nuclear transport-independent manner. Consequently, such moonlighting activities may not be confined to the nuclear envelope which is the primary native location of these proteins. For instance, mammalian Nup107–160 complex (a subcomplex of the NPC of which Nup107 is a key component) has recently been shown to shuttle in and out of GLFG nuclear bodies containing Nup98, a nucleoporin that regulates multiple aspects of gene regulation (Morchoisne-Bolhy et al., 2015). Consistently, Nup107 was shown to regulate levels of specific RNAs through gene imprinting (Sachani et al., 2018). Furthermore, using an RNAi-based assay, Nup107 was identified as a positive regulator of OCT4 and NANOG expression in human ESCs (Onal et al., 2012). In this regard, it is noteworthy that the recently published chromatin-binding profile of Nup107 suggested that Nup107 specifically targets active genes (Gozalo et al., 2020). Altogether these data support the possibility that Nup107 affects transcription of specific target genes in a tissue- and sex-specific manner either directly or indirectly.
Master regulator Dsx acts downstream of housekeeping gene Nup107
In Drosophila melanogaster, Sex-lethal (Sxl) is the master determinant of somatic sexual identity, regulating a splicing dependent regulatory cascade resulting in the presence of alternatively spliced sex-specific isoforms of Dsx protein, Dsx-F and Dsx-M, in females and males, respectively. Subsequent dimorphic sexual development including sex-specific gonad morphogenesis is under the control of these Dsx isoforms. Consistently, Dsx proteins deploy components of the housekeeping machinery to achieve sex-specific development of the gonads. Thus, such ‘maintenance’ factors are unlikely to be involved in any regulatory capacity. Our data challenge this notion and demonstrate the presence of sexually dimorphic circuitry downstream of a ‘housekeeping’ nuclear envelope protein, Nup107, which regulates the expression the female form of dsx.
The similar sex-specific and ovary-restricted phenotype associated with compromised Nup107 activity in both humans and flies implies common underlying molecular mechanisms. We have identified Dsx as the primary target acting downstream of Nup107 in Drosophila ovarian development. The mammalian homologues of Dsx, the Dmrt family of transcription factors, also function during sex-specific gonad development. However, in mammals the main function of Dmrt genes in the gonad is to promote male-specific differentiation. While detailed functional analysis is not available, it is plausible that in mammals, another key female-specific transcription factor, like Foxl2 (female-specific forkhead box L2) may act downstream of Nup107 to substitute for DsxF in flies.
Dsx is essential for proper ovarian development
An interesting study by Van Doren et al. showed that the key components of the stem cell niche, that is the hub in males and the TFs in the case of females, are still formed in the absence of dsx, but this happens in a stochastic manner in both XX and XY dsx null mutant individuals (Camara et al., 2019). These results indicate that in the context of the developing stem cell niche, Dsx may not act in an instructive manner, but is instead required to ensure that the proper program (male or female) is selected, which does not require Dsx activity for the execution of subsequent sex-specific development. Nevertheless, their findings clearly demonstrated that the resulting adult ovaries and testes are improperly formed, consist of aberrant structures, arguing that Dsx activity, is critical for proper gonad development outside of the stem cell niche. Our observations are consistent with this suggestion. Moreover, our experimental strategies and results differ in two important ways. First, our experiments have relied on reduction of only the female form of dsx that is dsx-F which allowed for sex determination and thus we did not observe ‘male’ structures or cellular identity transformations. Second, in our experiments we use tj-Gal4 driver which is not expressed in the stem cell niche (TF cells) but in other somatic gonadal cells. This experimental design enabled us to uncover a novel developmental function of Dsx-F in ICs and their adult descendants, ECs. Supporting this notion Van Doren and Oliver labs showed that RNAi KD of dsx also resulted in small ovaries (Clough et al., 2014).
AdamTS-A modulates BMP signaling via regulation of EC extensions
We have found that the secreted metalloprotease AdamTS-A is an important downstream component in the Nup107–Dsx axis, as KD of AdamTS-A results in phenotypes similar to those elicited by loss of either Nup107 or dsx. In the adult ovary, these aberrant phenotypes include loss of EC membrane protrusions and expanded BMP signaling. This raised the question of how AdamTS-A regulates the range of BMP signaling. The ECM, which is produced and secreted by cells, has the structure of a complex fibrillar meshwork and provides structural support and tissue integrity, playing an active role in regulating cell behavior (Rozario and DeSimone, 2010; Brown, 2011; Wolf and Friedl, 2011). ECM proteoglycans sequester and modulate chemical signals, including growth factors and guidance molecules. Furthermore, type IV collagens, major components of the ECM, were shown to restrict Dpp signaling in the ovary (Wang et al., 2008). This is particularly intriguing, since in C. elegans Gon-1, the homolog of AdamTS-A, was shown to genetically interact with a type IV collagen (EMB-9) in the regulation of gonadogenesis (Kubota et al., 2012). This raised the possibility that AdamTS-A, secreted by ECs, restricts Dpp movement in the germarium through cleavage of ECM components. However, by knocking down coracle in ECs, we have shown that disruption of their cellular protrusions, which encapsulate the germ cells, leads to expansion of BMP signaling. This implies that the activity provided by these cellular extensions is necessary and sufficient for restricting the BMP signal.
Thus, Nup107, Dsx, and AdamTS-A all function in ECs and are necessary for the formation and maintenance of the cellular protrusions which are required for restricting the BMP signal emanating from the GSC’s niche. Further, it appears that Adam-TS-A activity in the ECM is required for the formation and/or maintenance of these cellular protrusions. Our results indicate that in this context AdamTS-A regulates BMP signal distribution indirectly via regulation of the cellular protrusion maintenance. It is also possible that AdamTS-A utilizes these cellular extensions in order to reach the ECM away from the ECs in the GSC region, where it acts to restrict Dpp trafficking.
Conclusions
Overall, our results support a model where Nup107 regulates the expression of dsx, either directly or indirectly, while Dsx directly regulates the transcription of multiple target genes including AdamTS-A. Our observations have also uncovered that DsxF controls somatic niche function by calibrating the range and/or strength of Dpp/BMP signaling, possibly via modulation of the level and/or activity of the ECM components. Thus, it will be critical to elucidate how activities of nonsex-specific components such as Nup107 are coordinated with sex-specific regulation to achieve the precise specification and patterning underlying gonad development. This is of particular significance since modulation of BMP signaling circuitry is inextricably linked with the establishment and maintenance of stem cell fate. Importantly, as in the case of Nup107, BMP signaling is also required in a nonsex-specific manner in a variety of developmental contexts.These observations therefore open new avenues toward the critical examination of how a productive molecular dialog is established between nonsex-specific housekeeping machinery and versatile intersecting developmental pathways, in order to ultimately achieve proper sex-specific gonadogenesis crucial for fertility, and transmission of genetic information.
Materials and methods
Fly strains
Request a detailed protocolFlies were raised and maintained at 25°C on cornmeal yeast extract media (6 g methyl paraben, 24 g bactoagar, 3200 ml water, 78 g Brewer’s yeast, 224 g cornflour, 75 g sugar, 165 ml molasses, 48 ml propionic acid). yw was used as a wild-type strain. The generation of RFP-Nup107WT and RFP-Nup107D364N transgenic flies was previously described in Weinberg-Shukron et al., 2015. nanos-Gal4 and tj-Gal4 were gifted by Lilach Gilboa’s lab (Weizmann Institute of Science, IL). Nup107 RNAi and AdamTS-A RNAi lines were provided by the Vienna Drosophila Research Center (VDRC, Vienna, Austria #108,047 and #110,157). dsx RNAi and dsx UAS, Cora RNAi provided by Bloomington Drosophila Stock Center (BDSC; Indiana University; USA; #35,645, #41,864 #44,223, #51,845, and #3500). tub-Gal80ts was gifted by Estee Kurant’s lab (Department of Human Biology Faculty of Natural Sciences University of Haifa, IL), c587-Gal4; UAS-GFP was gifted by Hila Toledano’s lab (Department of Human Biology, University of Haifa, IL), UAS -AdamTS-A was gifted by Deborah J Andrew’s lab (Department of Cell Biology, The Johns Hopkins University School of Medicine, Baltimore, USA).
The lines' complete genotypes:
yw: y1w*;;
RFP-Nup107WT: y1w*; Nup107E8/Nup107E8; RFP-Nup107WT
RFP-Nup107D364N: y1w*; Nup107E8/Nup107E8; RFP-Nup107D364N
nanos-Gal4: w*;; nos-GAL4::VP16
tj-Gal4: w*; tj-Gal4/Cyo;
Nup107 RNAi: y1 w*; UAS-Nup107-RNAi;
AdamTS-A RNAi: w*; UAS-AdamTS-A RNAi;
dsx RNAi: y1; UAS-dsx-RNAi/Cyo; or y1;; UAS-dsx-RNAi
UAS dsx: y1 w*;; UAS-dsx;
UAS AdamTS-A: y1 w*;; UAS-AdamTS-A;
c587-Gal4; UAS-GFP
tub-Gal80ts: Sco/Cyo; tub-Gal80ts/ =
The crosses genotype
Request a detailed protocoltj-Gal4 > Nup107 RNAi:; tj-Gal4/UAS-Nup107-RNAi;
nanos-Gal4 > Nup107 RNAi:; UAS-Nup107-RNAi; nos-GAL4::VP16
tj-Gal4 > AdamTS A RNAi:; tj-Gal4/UAS-AdamTS-A RNAi;
tj-Gal4 > dsx RNAi:; tj-Gal4/UAS dsx-RNAi; or w; tj-Gal4; UAS-dsx-RNAi
tj-Gal4 > Nup107 RNAi, UAS dsx:; tj-Gal4/UAS-Nup107-RNAi; UAS dsx
tj-Gal4 > Nup107 RNAi, UAS AdamTS-A:; tj-Gal4/UAS-Nup107-RNAi; UAS AdamTS-A
c587-GFP: c587-Gal4; UAS-GFP/+;
c587-Gal4 > Nup107 RNAi: c587-Gal4; UAS-GFP/UAS-Nup107-RNAi;
c587-Gal4 > Cora RNAi1: c587-Gal4; UAS-GFP/UAS-Cora-RNAi;
c587-Gal4 > Cora RNAi2: c587-Gal4; UAS-GFP/+; +/Cora-RNAi
tjts: tj-Gal4/Cyo; tub-Gal80ts
Adult and larval gonad dissections
Request a detailed protocolStage LL3 larvae were collected and subsequently dissected for their gonads according to Maimon and Gilboa, 2011. Adult ovaries were dissected from 3- to 5-day-old females placed on yeast for 24–36 hr in the company of males. All experiments were performed at 25°C, and all were independently repeated at least twice. Dissection was performed in Ringer’s solution (130 mM NaCl, 5 mM KCl, 2 mM CaCl2, 50 mM Na2HPO4, pH 7).
Immunostaining and imaging
Request a detailed protocolFixation and immunostaining of larval gonads or adult ovaries were carried as previously described by Maimon and Gilboa, 2011 or by Preall et al., 2012. In brief, gonads or ovaries were fixed in freshly prepared 5% paraformaldehyde (Electron Microscopy Sciences; Cat# 15714) for 30 min at room temperature. Blocking was carried out in wash buffer supplemented with 1% bovine serum albumin (BSA; MP Biomedicals; Cat. #160069). Primary antibodies were diluted and incubated overnight at 4°C in wash buffer supplemented with 0.3% BSA. The following primary antibodies were used: guinea-pig anti-Tj (1:10,000; gifted by Dorothea Godt’s lab at the University of Toronto, Toronto, Canada), rat IgM anti-VASA (1:100; Developmental Studies Hybridoma Bank [DSHB, Iowa City, IA, USA]), mouse anti-Hts (1B1; 1:20; DSHB), mouse anti-Bam (1:50; DSHB), mouse anti-Cora (C566.9; 1:100; DSHB), rabbit anti-smad3 (1:100; abcam, Cambridge, MA, USA; #ab52903), rabbit anti-cleaved caspase3 (1:200; Cell Signaling Technology, CST, Danvers, MA, USA; #9661), and mouse anti Lamin (1:20; gifted by Yosef Gruenbaum’s lab at the Hebrew University of Jerusalem, IL). Secondary antibodies (1:400) were conjugated to either Cy2, Cy3, or Cy5 (Jackson Immuno Research Laboratories; West Grove, PA, USA). Ovaries were mounted in Vectashield (Vector Laboratories; Burlingame, CA, USAVE-H-1000). Images were taken on a TE2000-E confocal microscope (Nikon) using ×20 or ×60 objectives, occasionally with an additional ×1.5 zoom. Figures were edited using Adobe Photoshop CC 2017.
qRT-PCR analysis
Request a detailed protocolTotal RNA was isolated from larval gonads at stage LL3 (add symbol 80 per sample) of yw, Nup107WT, and Nup107D364N using the RNeasy mini kit (Qiagen Valencia, CA, USA; #74104). Briefly, wandering third instar larvae were collected, females were selected and dissected into tubes in liquid nitrogen and lysis buffer was added. Total RNA was extracted as per the manufacturer’s instructions. cDNA was made using the high-capacity cDNA reverse transcription kit (Applied Biosystems, Foster City, CA, USA) using an equal amount of total RNA from each sample. Real-time q-PCR analyses were carried out using the Powersyber Green PCR Master Mix and QuantStudio 12 k flex (Applied Biosystems). Rsp17 and TBP2 served as reference genes using the comparative Ct method. Each sample was analyzed in triplicate; results were confirmed by at least two independent experiments. Primer sequences (from HyLabs, Israel, LTD) used for qPCR were: dm_Nup107_F, 5′- GCCAAGCAAACCATCGAACTC-3′; dm_ Nup107_R, 5′- GCAGTAGGCGATGATCCCAG-3′; dm_doublesex_F, 5′-TTGCCGATCTCAGTTTCCGT-3′; dm_doublesex_R, 5′- GCTCCCAAGGATAGCGGAAT-3′; dm_AdamTS-A_F, 5′- GGGAATGAGCCGAACAAGAC-3′; dm_AdamTS-A_R, 5′- AAGTTCTGGTCGGGATAGCC-3′.
Statistical analysis
Request a detailed protocolThe number of under/nondeveloped adult ovaries in wild-type and mutant flies, the varied expression of 1B1, Bam, Cora, as well as the number of spherical fusomes in germaria were compared pairwise using Fisher’s Exact Test for 2 × 2 tables. The raw two-tail p values were adjusted for the multiple comparisons using either the Bonferroni correction or Holm’s modification (Holm, 1979) thereof, as appropriate. p values of less than 0.05 were considered significant.
The number of PGCs, ICs, and fusomes in groups of larval gonads was compared using a Kruskal–Wallis test (Kruskal-Wallis, 2013). In experiments where the differences among the groups were found to be significant (K–W p value <0.05), pairwise comparisons were carried out using Conover’s post hoc test (Conover, 1999).
The statistical significance of the observed overlap between our Nup107 target genes list and the previously reported Dsx targets was calculated using the hypergeometric test (https://systems.crump.ucla.edu/hypergeometric/index.php). The specific parameters were as follows: number of successes k = 47; sample size s = 82; number of successes in the population M = 3717; population size N = 15,835. The results obtained were: expected number of successes = 19.2481212503947. The results are enriched 2.44-fold compared to expectations hypergeometric p value = 4.4742336544062e−11.
RNA-seq
Request a detailed protocolTotal RNA was isolated from yw, RFP-Nup107WT, and RFP-Nup107D364N Drosophila larval gonads following dissection at stage LL3 using the RNeasy Kit (Qiagen) according to the manufacturer’s protocol. RNA purity and concentration were determined by T-042 NanoDrop Spectrophotometer (Thermo Fisher Scientific Inc, Waltham, MA, USA) and integrity by 2100 Bio-analyzer (Agilent Technologies, CA, USA). Total RNA was reverse transcribed to cDNA using SENSE Total RNA-Seq Library Prep Kit for Illumina (Lexogen, Vienna, Austria), according to the manufacturer’s protocol, with poly-A selection. Libraries were multiplexed and sequenced on Illumina’s NextSeq 500 machine, with a configuration of 75 cycles, single read. Raw reads were processed to remove low quality, error prone, and adapter sequences, according to Lexogen’s SENSE libraries recommendations. High-quality reads were aligned to the fly genome, assembly BDGP6, that was supplemented with the sequences of GFP and the RFP-Nup107 constructs. Alignment was performed with TopHat, allowing for up to 5 mismatches per read. Differential expression analysis, for all genes from release 84 of the Ensembl database, was performed with the DESeq2 package, using default parameters, including the threshold for significance that was padj <0.1. Significant genes were further filtered to include only genes whose up- or downregulation was greater in the mut/yw comparison than in the wt/yw one. For that end, a difference of at least 0.1 between the absolute log2FoldChange (mut/yw) and absolute log2FoldChange (wt/yw) was used as the filtering threshold. All raw data, as well as software versions and parameters, have been deposited in NCBI’s Gene Expression Omnibus (Edgar et al., 2002) and are accessible through GEO Series accession number GSE141094.
Data availability
All raw RNA-seq data, as well as software versions and parameters, have been deposited in NCBI's Gene Expression Omnibus and are accessible through GEO Series accession number GSE141094.
-
NCBI Gene Expression OmnibusID GSE141094. Nucleoproin 107 Mediates Femae Sexual Differentiation via Doublesex.
References
-
Extracellular matrix in development: insights from mechanisms conserved between invertebrates and vertebratesCold Spring Harbor Perspectives in Biology 3:a005082.https://doi.org/10.1101/cshperspect.a005082
-
Doublesex controls specification and maintenance of the gonad stem cell niches in DrosophilaDevelopment (Cambridge, England) 146:dev170001.https://doi.org/10.1242/dev.170001
-
Specific nucleoporin requirement for Smad nuclear translocationMolecular and Cellular Biology 30:4022–4034.https://doi.org/10.1128/MCB.00124-10
-
Morphogenesis of the Drosophila fusome and its implications for oocyte specificationDevelopment (Cambridge, England) 125:2781–2789.https://doi.org/10.1242/dev.125.15.2781
-
Nuclear pore complexes as hubs for gene regulationNucleus (Austin, Tex.) 9:142–148.https://doi.org/10.1080/19491034.2017.1395542
-
Gene Expression Omnibus: NCBI gene expression and hybridization array data repositoryNucleic Acids Research 30:207–210.https://doi.org/10.1093/nar/30.1.207
-
A somatic permeability barrier around the germline is essential for Drosophila spermatogenesisDevelopment (Cambridge, England) 142:268–281.https://doi.org/10.1242/dev.114967
-
Specificity and versatility in tgf-beta signaling through SmadsAnnual Review of Cell and Developmental Biology 21:659–693.https://doi.org/10.1146/annurev.cellbio.21.022404.142018
-
Modulation of Cell Identity by Modification of Nuclear Pore ComplexesFrontiers in Genetics 10:1301.https://doi.org/10.3389/fgene.2019.01301
-
Nuclear pore complexes in development and tissue homeostasisDevelopment (Cambridge, England) 147:dev183442.https://doi.org/10.1242/dev.183442
-
Btk29A promotes Wnt4 signaling in the niche to terminate germ cell proliferation in DrosophilaScience (New York, N.Y.) 343:294–297.https://doi.org/10.1126/science.1244512
-
A Simple Sequentially Rejective Multiple Test ProcedureScandinavian Journal of Statistics 6:65–70.
-
Yorkie and Hedgehog independently restrict BMP production in escort cells to permit germline differentiation in theDevelopment (Cambridge, England) 144:2584–2594.https://doi.org/10.1242/dev.147702
-
Disorders of sex development: a new definition and classificationBest Practice & Research. Clinical Endocrinology & Metabolism 22:119–134.https://doi.org/10.1016/j.beem.2007.11.001
-
The secreted AdamTS-A metalloprotease is required for collective cell migrationDevelopment (Cambridge, England) 140:1981–1993.https://doi.org/10.1242/dev.087908
-
DNA damage-induced nuclear translocation of Apaf-1 is mediated by nucleoporin Nup107Cell Cycle (Georgetown, Tex.) 14:1242–1251.https://doi.org/10.1080/15384101.2015.1014148
-
Self-maintained escort cells form a germline stem cell differentiation nicheDevelopment (Cambridge, England) 138:5087–5097.https://doi.org/10.1242/dev.067850
-
Genome-wide association study in premature ovarian failure patients suggests ADAMTS19 as a possible candidate geneHuman Reproduction (Oxford, England) 24:2372–2378.https://doi.org/10.1093/humrep/dep197
-
Efficient In Vivo Introduction of Point Mutations Using ssODN and a Co-CRISPR ApproachBiological Procedures Online 22:14.https://doi.org/10.1186/s12575-020-00123-7
-
The large Maf factor Traffic Jam controls gonad morphogenesis in DrosophilaNature Cell Biology 5:994–1000.https://doi.org/10.1038/ncb1058
-
Fusome asymmetry and oocyte determination in DrosophilaDevelopmental Genetics 16:6–12.https://doi.org/10.1002/dvg.1020160104
-
COP9-Hedgehog axis regulates the function of the germline stem cell progeny differentiation niche in the Drosophila ovaryDevelopment (Cambridge, England) 142:4242–4252.https://doi.org/10.1242/dev.124768
-
Wnt ligands regulate Tkv expression to constrain Dpp activity in the Drosophila ovarian stem cell nicheThe Journal of Cell Biology 209:595–608.https://doi.org/10.1083/jcb.201409142
-
Dissection and staining of Drosophila larval ovariesJournal of Visualized Experiments 51:2537.https://doi.org/10.3791/2537
-
Without children is required for Stat-mediated zfh1 transcription and for germline stem cell differentiationDevelopment (Cambridge, England) 141:2602–2610.https://doi.org/10.1242/dev.109611
-
Sex and the singular DM domain: insights into sexual regulation, evolution and plasticityNature Reviews. Genetics 13:163–174.https://doi.org/10.1038/nrg3161
-
A role for the Drosophila bag-of-marbles protein in the differentiation of cystoblasts from germline stem cellsDevelopment (Cambridge, England) 121:2937–2947.https://doi.org/10.1242/dev.121.9.2937
-
Intranuclear dynamics of the Nup107-160 complexMolecular Biology of the Cell 26:2343–2356.https://doi.org/10.1091/mbc.E15-02-0060
-
Sex determination in the germ line of Drosophila depends on genetic signals and inductive somatic factorsDevelopment (Cambridge, England) 107:505–518.https://doi.org/10.1242/dev.107.3.505
-
Role of Versican and ADAMTS-1 in Polycystic Ovary SyndromeJournal of Clinical Research in Pediatric Endocrinology 9:24–30.https://doi.org/10.4274/jcrpe.3414
-
The nuclear pore complex and the genome: organizing and regulatory principlesCurrent Opinion in Genetics & Development 67:142–150.https://doi.org/10.1016/j.gde.2021.01.005
-
Hannon, shutdown is a component of the Drosophila piRNA biogenesis machineryRNA (New York, N.Y.) 18:1446–1457.https://doi.org/10.1261/rna.034405.112
-
Nuclear pore complexes and regulation of gene expressionCurrent Opinion in Cell Biology 46:26–32.https://doi.org/10.1016/j.ceb.2016.12.006
-
Functional study of a novel missense single-nucleotide variant of NUP107 in two daughters of Mexican origin with premature ovarian insufficiencyMolecular Genetics & Genomic Medicine 6:276–281.https://doi.org/10.1002/mgg3.345
-
The extracellular matrix in development and morphogenesis: a dynamic viewDevelopmental Biology 341:126–140.https://doi.org/10.1016/j.ydbio.2009.10.026
-
ADAMTS proteases in fertilityMatrix Biology 44–46:54–63.https://doi.org/10.1016/j.matbio.2015.03.007
-
TGFbeta-SMAD signal transduction: molecular specificity and functional flexibilityNature Reviews. Molecular Cell Biology 8:970–982.https://doi.org/10.1038/nrm2297
-
BookDevelopmental Genetics of Oogenesis: The Development of Drosophila MelanogasterCold Spring Harbor Lab Press.
-
Somatic sex-determining signals act on XX germ cells in Drosophila embryosDevelopment (Cambridge, England) 122:4065–4071.https://doi.org/10.1242/dev.122.12.4065
-
BookDevelopment of the Somatic Gonad and Fat BodiesIn: Sink H, editors. Muscle Development in Drosophila. Springer. pp. 51–61.https://doi.org/10.1007/0-387-32963-3_5
-
Wnt6 maintains anterior escort cells as an integral component of the germline stem cell nicheDevelopment (Cambridge, England) 145:dev158527.https://doi.org/10.1242/dev.158527
-
Analysis of Gal4 Expression Patterns in Adult Drosophila FemalesG3: Genes, Genomes, Genetics 10:4147–4158.https://doi.org/10.1534/g3.120.401676
-
A mutation in the nucleoporin-107 gene causes XX gonadal dysgenesisThe Journal of Clinical Investigation 125:4295–4304.https://doi.org/10.1172/JCI83553
-
Extracellular matrix determinants of proteolytic and non-proteolytic cell migrationTrends in Cell Biology 21:736–744.https://doi.org/10.1016/j.tcb.2011.09.006
-
A niche maintaining germ line stem cells in the Drosophila ovaryScience (New York, N.Y.) 290:328–330.https://doi.org/10.1126/science.290.5490.328
-
Doublesex and the regulation of sexual dimorphism in Drosophila melanogaster: structure, function, and mutagenesis of a female-specific domainThe Journal of Biological Chemistry 283:7280–7292.https://doi.org/10.1074/jbc.M708742200
-
Clonal expansion of ovarian germline stem cells during niche formation in DrosophilaDevelopment (Cambridge, England) 130:2579–2588.https://doi.org/10.1242/dev.00499
Decision letter
-
Xin ChenReviewing Editor; Johns Hopkins University, United States
-
Utpal BanerjeeSenior Editor; University of California, Los Angeles, United States
-
Yukiko M YamashitaReviewer; Whitehead Institute/MIT, United States
Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.
Decision letter after peer review:
Thank you for submitting your article "Nucleoporin107 mediates female sexual differentiation via Dsx" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Utpal Banerjee as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Yukiko M Yamashita (Reviewer #3).
The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.
This manuscript uses genetics, cell biology and genomics tools to study the loss-of-function phenotypes of the Nucleoporin107 (Nup107) gene. This work showed that Nup107 acts in the somatic gonadal cells to regulate BMP signaling and proper germline differentiation in Drosophila ovaries. Interestingly, these phenotypes resemble the syndromes in human XX-ovarian-dysgenesis patients. Using RNA-seq, the authors identified targets genes whose transcript levels changes in the nup107 mutants. Among them, two are considered as key targets, including dsx and AdamTS-A. Genetics analyses demonstrate similar phenotypes when compromising dsx or AdamTS-A in somatic gonadal cells; and for dsx, overexpression of it can rescue Nup107 knockdown phenotypes. Overall, these results should be of interest to researchers in germ cell biology and developmental biology fields. The presented results are well done and the data analyses are proper. However, at several places in order to reach the conclusions, more rigorous experiments should be performed (see revision details). This study, at the current format, is short of mechanistic insight how Nup107 function in the ovaries. In addition, the reviewers noticed inconsistent results in this work compared to previous published studies, such as the roles of Dsx and the consequences caused by high BMP signaling in the ovaries. In conclusion, this work has the potential but requires essential additional data to support the central claims.
Essential revisions:
Shore et al. studied nup107 mutant and somatic knockdown phenotypes in the Drosophila ovaries. Most of the data of this manuscript are presented in a clear and logic manner. The major concerns include:
1. The major concern is the lack of mechanistic insight of Nup107. For example, how does Nup107 regulates dsx and AdamTS-A transcription? Is this role related to being part of the nuclear pore complex or in an unconventional manner?
2. Another major concern is the inconsistency with published studies for Dsx, where dsx mutant or knockdown show sex determination defects with intersexual phenotypes vs. in this paper no such phenotype was detected (Figure 5).
3. Some of the presented results are confusing: for example, data shown in Figure 6F indicate quite normal egg chambers therefore little differentiation defects, which are in contrary with their previous conclusion that Nup107 is required for proper female GSC differentiation. All these places need further clarifications.
4. Most of the phenotypes use RNAi, however, more controls are needed to show the efficiency of the RNAi. For example, in the germline, the authors should show nanos-Gal4 driven RNAi does knockdown target gene expression. In the somatic cells, the authors should add the temporal control of the knockdown experiments to understand the developmental stage when Nup107 is needed.
5. Similarly, for the rescuing experiments, which are critical for drawing quite a few critical conclusions for this paper, proper control to avoid interpretation caveats should be included.
6. The reviewers also noticed quite some critical literatures regarding female gonadal development are missing.
Reviewer #1 (Recommendations for the authors):
Overall the studies were well done and the analyses are rigorous, here are some suggestions that will hopefully improve this study and make some conclusions more solid:
General suggestions:
1. For the cell type specificity for Nup107, I think in addition to the cell type-specific RNAi experiments, it would be more complete to add the cell type-specific rescuing experiments and results. For example, expression of Nup107 in Tj-positive somatic gonadal cells in the nup107 mutant background.
2. In several figures, nos-Gal4 driving RNAi does not yield to significant phenotype but tj-Gal4 does, I think it is important to show that the germline RNAi does lead to reduced levels of the target genes in germ cells.
3. It has not been mentioned about the basic cellular mechanism of the functions of Nup107. For example, which cell type is Nup107 expressed and what is its subcellular localization? Does these patterns change in the mutant background? In the Discussion, it was mentioned that Nup107 is a "ubiquitously expressed nuclear envelope protein", but please show the results.
Specific suggestions on results and data analyses:
4. Figure 1, Nup107 RNAi, need to quantify the KD efficiency. Also, in Figure 1G, what do the average and deviation stand for as the Y-axis is for the percentage, is it from a number of independent experiments? Also, in the figure legend, need to clarify what statistical method was used for the P values. Scale bars are also needed for panel B, C, D, E, and F.
5. Regarding this statement "Thus, GSCs can be readily identified by the presence of a round fusome, whereas their differentiated daughter cells display extended, branched fusomes." In fact, both GSCs and CBs have a round spectrosome, while more differentiated cystocytes have branched fusomes.
6. Given both GSCs and CBs have spectrosomes and each ovariole contains 2-3 GSCs and probably around 2-3 CBs, I wonder whether for this statement: "Ovary staining revealed that unlike yw and Nup107WT germaria, which contained 2-3 spherical fusomes", the number would be a big larger than 2-3, and if this is true, then "an average of 6 spherical fusomes per germarium" may not be a phenotype?
7. Figure 3G quantifies germaria with few/no Cora extensions, as few is kind of subjective, it would be clearer to clarify the threshold for calling "few" in the figure legend. The same comments apply for Figure 5D quantification.
8. Please add more statistical analyses for panel 4D and 4J.
9. For RNA-seq, please show more analyses including biological replicates of the three different genotypes. Also, the authors mentioned that they used "LL3 larval gonads" for RNA-seq, I assume they mean larval ovaries but please specify it in the Results.
10. Regarding the experiments to show "Dsx overexpression rescues the phenotypes induced by Nup107 loss", I think it is better to rescue driving DsxF using tj-Gal4 at the nup107 mutant background. The co-expression of both DsxF and nup107 RNAi using the same tj-Gal4 driver could result in a "rescue" due to competition for the same driver. Therefore, either rescue using the nup107 mutant background or for the rescue using tj> DsxF + nup107 RNAi, provide the control with tj> lacZ (or another non-specific UAS-transgene) + nup107 RNAi.
11. Regarding "AdamTS-A acts downstream of Nup107 and Dsx", does overexpression of AdamTS-A also rescue nup107 mutant phenotypes?
Reviewer #2 (Recommendations for the authors):
1. The authors perform somatic cell manipulation using tj-Gal4 for a large majority of their experiments and observe defects in 3-to-5-day old females. Therefore, defects that are observed in the ovary could be due to transgene expression during adulthood (which the authors acknowledge in lines 388-392) of the manuscript. A simple test would be to combine tj-Gal4 with tubPGal80ts (a temperature-sensitive allele of Gal80) and perform the Nup107 knockdown and determine whether there are ectopic GSCs similar as without the temporal control.
2. It was previously shown that loss of Tkv in the developing soma results in ectopic GSCs in the adult ovary (Tseng et al., 2018), similar to results observed with loss of Nup107, dsx, and AdamTS-A (this study). Is BMP signaling in the developing gonad also disrupted?
3. The authors propose that Nup107 is required for proper differentiation of escort cells. How is that determined when there were similar numbers of escort cells in tj-Gal4 > Nup107 RNAi compared to control. Loss of escort cell protrusions may not directly impact differentiation as there are many additional factors that can influence escort cell protrusions such as defects in EGFR signaling and changes in diet.
4. The authors show images for cleaved caspase (Figure 6F-G), but there is not any explanation in the text. Are the authors proposing an additional requirement for Nup107 in older egg chambers?
5. The conclusion that AdamTS-A is a direct target of Nup107 and dsx would be greater strengthened by rescue analysis (overexpression of AdamTS-A in a tj-Gal4 > Nup107 or dsx RNAi).
6. The authors should indicate how region 2a in the germarium is being determined.
7. The 1B1 staining in Figure 2E is hard to see. Is there a better representative image that could be used?
8. It should be indicated throughout the text that BMP signaling and other defects observed in the adult germaria and ovary could be due to either developmental defects or adult-specific defects.
9. What are "high" spherical fusomes (line 276)?
10. There isn't a "standard cornmeal yeast extract media" (see Lesperance and Broderick, 2020). Please provide the ingredients and recipe used for food. Also, please indicate whether standard food was supplemented with wet yeast paste.
Reviewer #3 (Recommendations for the authors):
– Nup107 and Dsx mutants show degenerated ovary, and they show that this is likely due to differentiation block (with high pMad in many germ cells). However, as can be seen in Figure 2, the ovarioles seem to have normal-looking assembly lines of egg chamber, and I wonder what is the exact cause of ovary degeneration. Can you please add a bit more details of exactly how stem cell differentiation defects lead to ovary degeneration in Nup107 or Dsx depletion?
– One cannot call Dsx as a 'target' of Nup107. What is the mechanism by which Dsx expression is changed in nup107 mutant?
– Is RNAi efficiency validated for all RNAi lines?
– What I am most confused about is the apparent inconsistency of the Dsx mutant phenotype described in this study vs. previous studies (Erika Bach, Mark van Doren and Erika Matunis' lab). Perhaps the data are not inconsistent, but previous work focused on sex transformation, and I am puzzled why the ovary of Dsx mutant described here looks quite normal in terms of sex identity. And it would be extremely helpful if the authors can place their data in the context of the previous work.
https://doi.org/10.7554/eLife.72632.sa1Author response
Essential revisions:
Shore et al. studied nup107 mutant and somatic knockdown phenotypes in the Drosophila ovaries. Most of the data of this manuscript are presented in a clear and logic manner. The major concerns include:
1. The major concern is the lack of mechanistic insight of Nup107. For example, how does Nup107 regulates dsx and AdamTS-A transcription? Is this role related to being part of the nuclear pore complex or in an unconventional manner?
This is an important point and we thank the editors and reviewers for highlighting this issue concerning mechanism. It is important to remember that our studies have identified Dsx-F as an important and biologically relevant target/mediator of a nuclear envelope protein Nup107 which is part of the housekeeping machinery primarily required for nuclear transport. Recent studies have also ascribed a non-canonical role in transcriptional regulation to some of the members of this family of proteins including Nup-107. And thus, it will be of great interest to elucidate the precise function of Nup107 in regulating transcription and understand the possible direct as well as indirect ways it may employ to influence transcription of different genes including Dsx-F. As the reviewers correctly pointed out, we have not yet uncovered the specific molecular/biochemical activity that enables Nup107 to execute this function. However, we have identified Dsx-F as a critical, and sex-specific mediator of Nup107 function. We believe that this is an important and novel point of general significance and future experiments should focus on elucidation of precise mechanism underlying this regulatory activity of Nup107. These efforts will hopefully also shed light on ‘direct’ vs. ‘indirect’ nature of its function, Accordingly, we have elaborated on some of these possibilities in the discussion.
In sum, while our data do not describe the mechanistic underpinnings of this transcriptional regulation, we have uncovered the genetic network which explains how Nup107 executes its ovarian function/activity via Dsx and other related ‘targets’ discovered in our analysis including adamTS-A.
2. Another major concern is the inconsistency with published studies for Dsx, where dsx mutant or knockdown show sex determination defects with intersexual phenotypes vs. in this paper no such phenotype was detected (Figure 5).
This is another important concern expressed by both the editor and the reviewers. In our view, these differences in the outcomes are most likely a result of design of the individual experiments. In this regard, it is critical to consider the pleiotropic and complex requirement of ‘master’ switch genes such as Dsx. Consequently, compromising the activity of such regulators in a tissue-cell type specific manner can result in superficially inconsistent, and at times, even contradictory consequences. In the following we will consider a few scenarios previously reported in the literature that appear to be disparate (and were referred to by the reviewers). It should be noted that this description is somewhat anecdotal and not exhaustive but we hope that the explanation should suffice to alleviate the important concern regarding the discrepancies that confounded the reviewers and editor alike.
Camara et al. demonstrated that Dsx is required at the cellular level i.e. in a cell autonomous manner to prevent random switching of the sexual identity of the individual stem cell niches. Consistently, loss of dsx-F resulted in inappropriate specification/conversion of “male” cells in female ovaries. Reciprocally, compromising dsx-M led to switching of sexual identity in the male gonads (Camara et al., 2019).
However, their findings demonstrated that Dsx is critical for proper gonad development since dsx mutant adult ovaries (of either XX or XY flies) are clearly defective and underdeveloped (please see figure 1 C, E, H and I in their paper).
Altogether, their findings clearly demonstrated that the resulting gonads are improperly formed i.e. adult ovaries and testes consist of cells of mixed sexual identity arguing that both dsx-F and dsx-M activities are critical for proper gonad development in both sexes, a finding that is broadly consistent with our data.
Our results, however, differ in two aspects. First, Camara et al. used the dsx1 allele, an amorphic/null allele, which completely removes the function of Dsx. In contrast, compromised Nup107 or KD of dsx only reduced the levels of Dsx, thus allowing for sex determination and this is likely the reason that we observe no “male” structures or cellular identity transformation.
Second, in our experiments we have employed tj-Gal4 driver which is not expressed in the stem cell niche (TF cells) but is able to drive transcription in other subtypes within somatic gonads. This specific manipulation allowed us to uncover a cell type specific developmental function of Dsx in the intermingled cells and their adult descendants. Supporting this notion studies from the Van Doren and Oliver labs showed that RNAi KD of dsx using dsx-Gal4 results in small ovaries. These data are cited in our manuscript (Clough E. et al., Dev Cell. 2014).
By contrast, the results regarding chinmo obtained by the Matunis lab, (Ma et al., Dev Cell. 2014) are not especially relevant to our studies (see below). This is in part due to the fact that loss of chinmo leads to generation of female splice isoform of tra (tra-F) which in turn leads to production of dsx-F and elimination of dsx-M, resulting in sex reversal, as shown by Bac lab (Grmai L. et al., PLoS Genet 2018).
Ma et al. engineered RNAi KD of dsx only in adult males in the Cyst stem cells (CySC) of the testes (Figure S3). They found that after knocking down dsx-F expression for two weeks, the morphologically normal looking testes contained over-proliferating early germ cells which were arrested as early spermatogonia. In addition, these testes contained abnormal aggregates of FasIII positive cells at the periphery that resemble follicle cells in this regard. So unlike loss of chinmo, loss of dsx-F in CySC did not lead to sex transformation of adult stem cells, i.e, feminization of CySC cells and their descendants. It is also noteworthy that the changes they observed were in the ‘male to female’ direction. Our studies differ in fundamental ways compared to these observations. First, we have analyzed and reported consequences of dsx knock down only in females. Also we did not observe any male-like sex transformations or structural alterations and thus we did not probe this issue further by specifically examining for male-specific molecular or protein markers. Rather, our study explores the roles of Nup107 and Dsx-F in female ovarian development and deployment of BMP signaling, thus in our opinion the issue of maintenance of sexual identity in adult testes is not pertinent.
3. Some of the presented results are confusing: for example, data shown in Figure 6F indicate quite normal egg chambers therefore little differentiation defects, which are in contrary with their previous conclusion that Nup107 is required for proper female GSC differentiation. All these places need further clarifications.
The effect of loss of Nup107 activity on the ovarian morphology and function is complex and it leads to highly variable phenotypic consequences. We still don’t fully understand why this is the case and more in-depth analysis will be necessary to explain the variable penetrance and/or expressivity. Supporting this conclusion, we have presented a detailed quantitative analysis of different phenotypes induced by the loss of Nup107 function (Figure 1). These include a variety of ovarian abnormalities ranging from severe dysgenesis (up to 50%) to normal sized ovaries (mild infertility) likely due to defective oogenesis.
However, it should be noted that the relatively normal looking ovaries still consist of several defects which is revealed upon closer examination. Consistently, in our previous publication we showed that the ovarioles from such infertile females with relatively normal sized ovaries are in fact full of aberrant egg chambers. As a result, such ovaries exhibit extensive disintegration of the individual egg chambers, unlike the wild type controls. The other phenotypes seen include condensation of DNA in the nurse cells which is accompanied by apoptotic cell death (Weinberg-Shukron et al., “A mutation in the nucleoporin-107 gene causes XX gonadal dysgenesis.” J Clin Invest. 2015).
In figure 7F we show an example of excess apoptosis in Nup107 KD ovarioles and in figure 7G we show how Dsx overexpression rescues this phenotype.
4. Most of the phenotypes use RNAi, however, more controls are needed to show the efficiency of the RNAi. For example, in the germline, the authors should show nanos-Gal4 driven RNAi does knockdown target gene expression. In the somatic cells, the authors should add the temporal control of the knockdown experiments to understand the developmental stage when Nup107 is needed.
This was a useful suggestion and all the reviewers wanted us to confirm this. We have now demonstrated the efficiency of target genes KD using qRT-PCR (see new Figure 1—figure supplement 1).
In addition, in order to identify the developmental stage where Nup107 activity is required, we performed temporal knockdown of Nup107 using a combination of tj-Gal4 and a temperature sensitive form of the Gal4 repressor, Gal80ts: We allowed for normal ovarian development until hatching, at a non-permissive temperature, and only then knocked down Nup107 in ECs. Subsequent analysis of 4-5 days old female flies was performed. See new addition to manuscript, “Nup107 activity is continuously required in ECs for the formation of cellular extensions and regulation of GSCs differentiation” and new Figure 5 (line number 271).
5. Similarly, for the rescuing experiments, which are critical for drawing quite a few critical conclusions for this paper, proper control to avoid interpretation caveats should be included.
We agree and in our rescue experiments, we have provided the control with UAS-GFP. This is now clarified in figure legend 7 (line number 389). We therefore knocked-down Nup107 and concomitantly overexpressed DsxF, utilizing GFP overexpression as a control in the KD lines.
6. The reviewers also noticed quite some critical literatures regarding female gonadal development are missing.
We apologize for these inadvertent omissions and we have updated the list of references in the revised version. We have tried to include additional citations wherever necessary and will be happy to include more as per reviewer’s suggestions.
Reviewer #1 (Recommendations for the authors):
Overall the studies were well done and the analyses are rigorous, here are some suggestions that will hopefully improve this study and make some conclusions more solid:
General suggestions:
1. For the cell type specificity for Nup107, I think in addition to the cell type-specific RNAi experiments, it would be more complete to add the cell type-specific rescuing experiments and results. For example, expression of Nup107 in Tj-positive somatic gonadal cells in the nup107 mutant background.
This is very complicated and cumbersome since we don’t have UAS-Nup107 flies, and in our mutant fly model, chromosomes 2 and 3 are occupied.
2. In several figures, nos-Gal4 driving RNAi does not yield to significant phenotype but tj-Gal4 does, I think it is important to show that the germline RNAi does lead to reduced levels of the target genes in germ cells.
As suggested by the reviewer we have now performed this experiment and have verified, using qRT-PCR, the efficiency of the germline KD using nos-Gal4 (Figure 1—figure supplement 1).
3. It has not been mentioned about the basic cellular mechanism of the functions of Nup107. For example, which cell type is Nup107 expressed and what is its subcellular localization? Does these patterns change in the mutant background? In the Discussion, it was mentioned that Nup107 is a "ubiquitously expressed nuclear envelope protein", but please show the results.
We explain in the introduction that “Nup107 is an essential component of the nuclear pore complex, enabling both active and passive transport in every nucleated cell” (line number 61).
In addition, in our previous paper we showed the ubiquitous expression of WT RFP-Nup107 and that the mutation does not affect this expression. (Weinberg-Shukron et al., 2015)
Specific suggestions on results and data analyses:
4. Figure 1, Nup107 RNAi, need to quantify the KD efficiency. Also, in Figure 1G, what do the average and deviation stand for as the Y-axis is for the percentage, is it from a number of independent experiments? Also, in the figure legend, need to clarify what statistical method was used for the P values. Scale bars are also needed for panel B, C, D, E, and F.
As suggested, we have quantified the efficiency of the Nup107 KD in Figure 1—figure supplement 1. Average and deviation represent multiple independent experiments (>3). The statistical methods are detailed in the Materials and methods in the Statistical Analysis section (line number 697).
The scale bar in 1A applies to all of the panels which is now included in the legend (line number 114).
5. Regarding this statement "Thus, GSCs can be readily identified by the presence of a round fusome, whereas their differentiated daughter cells display extended, branched fusomes." In fact, both GSCs and CBs have a round spectrosome, while more differentiated cystocytes have branched fusomes.
We thank the reviewer for pointing this out and have corrected the manuscript as follow: “Thus, GSCs and their undifferentiated cystoblasts can be readily identified by the presence of a round fusome, whereas their differentiated daughter cells display extended, branched fusomes (line number 168).
6. Given both GSCs and CBs have spectrosomes and each ovariole contains 2-3 GSCs and probably around 2-3 CBs, I wonder whether for this statement: "Ovary staining revealed that unlike yw and Nup107WT germaria, which contained 2-3 spherical fusomes", the number would be a big larger than 2-3, and if this is true, then "an average of 6 spherical fusomes per germarium" may not be a phenotype?
Based on our observations, normal germaria contain <milestone-start />3<milestone-end />-<milestone-start />4<milestone-end /> spherical fusomes which include the GSCs and the CBs. Therefore, an average of 6 spherical fusomes per germarium is an aberrant phenotype. Our findings are in agreement with previous studies. See for example (Casanueva and Ferguson, 2004) who report “…we found that wild-type ovarioles have an average of 2.3±0.9 putative GSCs, and 1.2±0.8 putative CBs”. We are fully aware of other studies that report of 5.5 spectrosome containing cells per germarium (see for example: (Kirilly et al., 2011)). It is also possible that differences in diet or rearing conditions cause the observed differences.
7. Figure 3G quantifies germaria with few/no Cora extensions, as few is kind of subjective, it would be clearer to clarify the threshold for calling "few" in the figure legend. The same comments apply for Figure 5D quantification.
In the main text, we write: " In contrast, these cellular extensions were either dramatically reduced or completely lost". While we agree that the word "few" is subjective, in our case the majority of germaria are missing the extensions completely. Additionally, the comparison between those defined as having "few" and the amount in the controls is unequivocal: The difference between the two is obvious. Regardless, to resolve this issue, we have changed the figure legend to read: "Adult ovaries demonstrate missing EC extensions" (line number 241).
8. Please add more statistical analyses for panel 4D and 4J.
Figure 4 is renamed Figure 2. Performed as suggested (line number 145)
9. For RNA-seq, please show more analyses including biological replicates of the three different genotypes. Also, the authors mentioned that they used "LL3 larval gonads" for RNA-seq, I assume they mean larval ovaries but please specify it in the Results.
As per the reviewer insight, we have changed the wording to “LL3 female larval gonads” (line number 310). We have also clarified in the text that the RNA-Seq was performed in triplicates (line number 311).
10. Regarding the experiments to show "Dsx overexpression rescues the phenotypes induced by Nup107 loss", I think it is better to rescue driving DsxF using tj-Gal4 at the nup107 mutant background. The co-expression of both DsxF and nup107 RNAi using the same tj-Gal4 driver could result in a "rescue" due to competition for the same driver. Therefore, either rescue using the nup107 mutant background or for the rescue using tj> DsxF + nup107 RNAi, provide the control with tj> lacZ (or another non-specific UAS-transgene) + nup107 RNAi.
As mentioned above, this is very complicated since in our mutant fly model chromosomes 2 and 3 are occupied.
We have provided the control requested using UAS-GFP, which is now clarified in figure legend 7 (line number 389).
11. Regarding "AdamTS-A acts downstream of Nup107 and Dsx", does overexpression of AdamTS-A also rescue nup107 mutant phenotypes?
This was a very useful suggestion. We have now tested this and discovered that, unlike dsx-F, overexpression of AdamTS-A is insufficient to rescue the phenotypes induced by Nup107 (or even Dsx) loss. This result corroborates the central conclusion of our manuscript regarding dsx-F being a crucial downstream effector of Nup-107 function. This information has been included in the manuscript (line number 428).
Reviewer #2 (Recommendations for the authors):
1. The authors perform somatic cell manipulation using tj-Gal4 for a large majority of their experiments and observe defects in 3-to-5-day old females. Therefore, defects that are observed in the ovary could be due to transgene expression during adulthood (which the authors acknowledge in lines 388-392) of the manuscript. A simple test would be to combine tj-Gal4 with tubPGal80ts (a temperature-sensitive allele of Gal80) and perform the Nup107 knockdown and determine whether there are ectopic GSCs similar as without the temporal control.
We thank the reviewer for this excellent suggestion. We have performed this experiment and have included the data in the revised version. Specifically, in order to identify the developmental stage where Nup107 activity is required, we performed temporal knockdown of Nup107 using a combination of tj-Gal4 and a temperature sensitive form of the Gal4 repressor, Gal80ts: We allowed for normal ovarian development until hatching, at a non-permissive temperature, and only then knocked down Nup107 in ECs. Subsequent analysis of 4-5 days old female flies was performed. See new addition to manuscript, “Nup107 activity is continuously required in ECs for the formation of cellular extensions and regulation of GSCs differentiation” (line number 271).
2. It was previously shown that loss of Tkv in the developing soma results in ectopic GSCs in the adult ovary (Tseng et al., 2018), similar to results observed with loss of Nup107, dsx, and AdamTS-A (this study). Is BMP signaling in the developing gonad also disrupted?
This issue is very important that deserves a separate study. As such we believe that it is outside the scope of this particular manuscript however, we plan to address it in the future and thank the reviewer for this useful suggestion.
3. The authors propose that Nup107 is required for proper differentiation of escort cells. How is that determined when there were similar numbers of escort cells in tj-Gal4 > Nup107 RNAi compared to control. Loss of escort cell protrusions may not directly impact differentiation as there are many additional factors that can influence escort cell protrusions such as defects in EGFR signaling and changes in diet.
This was also an insightful suggestion. We have considered all these possibilities to the extent possible while revising the manuscript. We found that knockdown of Nup107 in ECs, with either tj-Gal4 or c587-Gal4, in fact, did not affect their visibility/presence compared to control (Figure 4A-D; line number 240, and Figure 4—figure supplement 1; line number 983), implying that the observed effects are not due to cell loss.
By knocking down Nup107 in ECs, we show that the resulting ECs are defective in their ability to form the cellular extensions. Importantly, we also performed new experiments, where we knocked down coracle expression using the c587-Gal4 driver, showing that indeed loss of ECs protrusions per se is sufficient to cause dysregulation of BMP signaling and impairment of germline differentiation (Figure 4—figure supplement 2; line numbers 993 and Figure 4—figure supplement 3 and line number 1004).
It should be noted that we did not manipulate the diet or compromised other signaling pathway such as EGFR. More studies will have to be conducted to assess if Nup107 also affects EGFR pathway directly.
4. The authors show images for cleaved caspase (Figure 6F-G), but there is not any explanation in the text. Are the authors proposing an additional requirement for Nup107 in older egg chambers?
We apologize for not explaining this adequately in the previous version. In fact, this experiment was conducted as a follow up to our previous published findings, which showed abnormal cell death in egg chambers upon Nup107 loss (Weinberg-Shukron et al., 2015). Here, we show that dsx overexpression is able to rescue that phenotype as well. We have now clarified this point in the revised version (line numbers 370-373).
5. The conclusion that AdamTS-A is a direct target of Nup107 and dsx would be greater strengthened by rescue analysis (overexpression of AdamTS-A in a tj-Gal4 > Nup107 or dsx RNAi).
This was an excellent suggestion. As recommended, we have now performed this experiment and found that overexpression of AdamTS-A is, in fact, insufficient to rescue the phenotypes induced by either Nup107 or Dsx loss, suggesting that other critical targets are also regulated by the Nup107-Dsx axis. We have incorporated these results into the manuscript (line numbers 428-435). Importantly, the negative outcome of this experiment establish that dsx-F is likely mediating effects of Nup-107 in this context and thus is a major mediator of this function. It is also consistent with the fact that both Nup-107 and Dsx-F share significant number of transcriptional targets and AdamTS-A is one such example.
Consistently, transcription factor Dsx has been previously shown to bind to AdamTS-A locus (Clough et al., 2014). As suggested by their findings, we found that loss of Dsx leads to a significant reduction in adamTS-A expression (Figure 8G). Taken together, these results indicate that Dsx regulates AdamTS-A directly. Overall, our results support a model where Nup107 regulates the expression of Dsx, either directly or indirectly, while Dsx directly regulates the transcription of multiple target genes including AdamTS-A. This important detail is now clarified in the revised manuscript (line number 586).
6. The authors should indicate how region 2a in the germarium is being determined.
We explain this in figure legend 3: “Region 2a is identified by the presence of 16-cell cystocytes which are adjoining the follicle stem cell border” (line number 210).
7. The 1B1 staining in Figure 2E is hard to see. Is there a better representative image that could be used?
Thanks for pointing this out. We have changed the picture as requested and the staining pattern is now more obvious in the revised figure, now Figure 3E.
8. It should be indicated throughout the text that BMP signaling and other defects observed in the adult germaria and ovary could be due to either developmental defects or adult-specific defects.
To avoid this, we have now performed stage dependent KD experiments which demonstrate that the observed BMP signaling defects in the adult ovaries are due to requirement of Nup107 activity at the adult stage. See new addition to manuscript, “Nup107 activity is continuously required in ECs for the formation of cellular extensions and regulation of GSCs differentiation” (line number 271) and new Figure 5.
9. What are "high" spherical fusomes (line 276)?
Thanks for pointing out the incorrect usage. We have changed this to “elevated number of spherical fusomes” (line number 339)
10. There isn't a "standard cornmeal yeast extract media" (see Lesperance and Broderick, 2020). Please provide the ingredients and recipe used for food. Also, please indicate whether standard food was supplemented with wet yeast paste.
We agree and have provided the information in the methods as suggested by the reviewer (line number 607).
Reviewer #3 (Recommendations for the authors):
– Nup107 and Dsx mutants show degenerated ovary, and they show that this is likely due to differentiation block (with high pMad in many germ cells). However, as can be seen in Figure 2, the ovarioles seem to have normal-looking assembly lines of egg chamber, and I wonder what is the exact cause of ovary degeneration. Can you please add a bit more details of exactly how stem cell differentiation defects lead to ovary degeneration in Nup107 or Dsx depletion?
We appreciate this thoughtful remark by the referee. To clarify this point further, we have added the to the discussion the following explanation.
“… Together these data imply that Nup107 acts specifically in ICs enabling them to effectively interact with the PGCs. Consistent with this notion, loss of Nup107 affected the behavior of ICs such that these cells showed varying degrees of failure to mingle with the PGCs. A severe failure of ICs and PGCs to interact in the larval gonad is expected to cause an ovarian dysgenesis-like phenotype as it is essential for the germarium development and ovariole formation. Likewise, a milder failure of intermingling in the larval gonad would allow for the formation of adult ovaries. However, in the adult ovary Nup107 activity is further required in ECs for the formation of their cellular extensions and regulation of differentiation of the GSCs”
– One cannot call Dsx as a 'target' of Nup107. What is the mechanism by which Dsx expression is changed in nup107 mutant?
If we understand correctly reviewer is questioning the use of the term ‘target’ because we have not uncovered the mechanism underlying regulation of dxx-F transcription by Nup107. However, we employed the term target to indicate two related findings.
A); Nup107 is required for the regulation of dsx expression.
B): biological effects of Nup107 are mediated by dsx-F in large part as indicated by the efficient rescue of Nup107 mutant phenotype by expression of dxx-F, supporting the claim that it is a functional target of Nup107.
But if the reviewer insists, we will be happy to rephrase and will refer to dsx-F as a ‘downstream mediator’ of Nup107.
– Is RNAi efficiency validated for all RNAi lines?
This was already done for several RNAi lines used in our study and as suggested by the reviewers, we have subsequently validated the efficacy of all the relevant RNAi lines using qRT-PCR assay (Figure 1—figure supplement 1), (line number 967).
– What I am most confused about is the apparent inconsistency of the Dsx mutant phenotype described in this study vs. previous studies (Erika Bach, Mark van Doren and Erika Matunis' lab). Perhaps the data are not inconsistent, but previous work focused on sex transformation, and I am puzzled why the ovary of Dsx mutant described here looks quite normal in terms of sex identity. And it would be extremely helpful if the authors can place their data in the context of the previous work.
This apparent discrepancy was pointed out by all the reviewers and we have dealt with this question in detail. Please refer to our answer to the second point of the editor.
References:
Camara, N., Whitworth, C., Dove, A., and Van Doren, M. (2019). Doublesex controls specification and maintenance of the gonad stem cell niches in Drosophila. Development 146, dev170001. 10.1242/dev.170001.
Casanueva, M.O., and Ferguson, E.L. (2004). Germline stem cell number in the Drosophila ovary is regulated by redundant mechanisms that control Dpp signaling. Development 131, 1881-1890. 10.1242/dev.01076.
Clough, E., Jimenez, E., Kim, Y.A., Whitworth, C., Neville, M.C., Hempel, L.U., Pavlou, H.J., Chen, Z.X., Sturgill, D., Dale, R.K., et al. (2014). Sex- and tissue-specific functions of Drosophila doublesex transcription factor target genes. Dev Cell 31, 761-773. 10.1016/j.devcel.2014.11.021.
Grmai, L., Hudry, B., Miguel-Aliaga, I., and Bach, E.A. (2018). Chinmo prevents transformer alternative splicing to maintain male sex identity. PLoS Genet 14, e1007203. 10.1371/journal.pgen.1007203.
Kirilly, D., Wang, S., and Xie, T. (2011). Self-maintained escort cells form a germline stem cell differentiation niche. Development 138, 5087-5097. 10.1242/dev.067850.
Ma, Q., Wawersik, M., and Matunis, E.L. (2014). The Jak-STAT target Chinmo prevents sex transformation of adult stem cells in the Drosophila testis niche. Developmental cell 31, 474-486. 10.1016/j.devcel.2014.10.004.
Tseng, C.Y., Su, Y.H., Yang, S.M., Lin, K.Y., Lai, C.M., Rastegari, E., Amartuvshin, O., Cho, Y., Cai, Y., and Hsu, H.J. (2018). Smad-Independent BMP Signaling in Somatic Cells Limits the Size of the Germline Stem Cell Pool. Stem Cell Reports 11, 811-827. 10.1016/j.stemcr.2018.07.008.
Weinberg-Shukron, A., Renbaum, P., Kalifa, R., Zeligson, S., Ben-Neriah, Z., Dreifuss, A., Abu-Rayyan, A., Maatuk, N., Fardian, N., Rekler, D., et al. (2015). A mutation in the nucleoporin-107 gene causes XX gonadal dysgenesis. J Clin Invest 125, 4295-4304. 10.1172/JCI83553.
https://doi.org/10.7554/eLife.72632.sa2Article and author information
Author details
Funding
Israel Science Foundation (1788/15)
- David Zangen
- Offer Gerlitz
Israel Science Foundation (2295/19)
- David Zangen
- Offer Gerlitz
National Institutes of Health (093913)
- Girish Deshpande
Ministry of Science and Technology
- Tgst Levi
Ministry of Aliyah and Integration
- Tgst Levi
The funders had no role in study design, data collection, and interpretation, or the decision to submit the work for publication.
Acknowledgements
We thank L Gilboa, E Kurant, H Toledano, D J Andrew, D Godt, Y Gruenbaum, the Developmental Studies Hybridoma Bank, the Vienna Drosophila RNAi Center, and the Bloomington Drosophila Stock Center for reagents and fly stocks. We thank Z Paroush for critical reading and comments on the manuscript. We thank N Grover for assistance with statistical analysis. We also thank M Korner, M Bronstein, and T Schnitzer-Perlman at the Center for Genomic Technologies at the Hebrew University of Jerusalem for their assistance and expertise in RNA-seq. Funding: This study was supported by the Legacy Heritage Biomedical Program of the Israel Science Foundation (grant 1788/15 to O Gerlitz and D Zangen), by the Israel Science Foundation (grant 1814/19 to O Gerlitz, grant 2295/19 D Zangen). G Deshpande was supported by the National Institute of Health grant awarded to P Schedl and G Deshpande (NICHD:093913). Tgst Levi’s work was also supported by stipends from the Ministry of Science & Technology, Israel, and by the Ministry of Aliyah & Integration, Israel.
Senior Editor
- Utpal Banerjee, University of California, Los Angeles, United States
Reviewing Editor
- Xin Chen, Johns Hopkins University, United States
Reviewer
- Yukiko M Yamashita, Whitehead Institute/MIT, United States
Publication history
- Received: July 29, 2021
- Preprint posted: August 16, 2021 (view preprint)
- Accepted: March 17, 2022
- Accepted Manuscript published: March 21, 2022 (version 1)
- Accepted Manuscript updated: March 21, 2022 (version 2)
- Accepted Manuscript updated: March 22, 2022 (version 3)
- Version of Record published: April 1, 2022 (version 4)
Copyright
© 2022, Shore et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 772
- Page views
-
- 106
- Downloads
-
- 0
- Citations
Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.
Download links
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Further reading
-
- Developmental Biology
- Computational and Systems Biology
Many developmental processes depend on precise temporal control of gene expression. We have previously established a theoretical framework for regulatory strategies that can govern such high temporal precision, but experimental validation of these predictions was still lacking. Here, we use the time-dependent expression of a Wnt receptor that controls neuroblast migration in Caenorhabditis elegans as a tractable system to study a robust, cell-intrinsic timing mechanism in vivo. Single-molecule mRNA quantification showed that the expression of the receptor increases non-linearly, a dynamic that is predicted to enhance timing precision over an unregulated, linear increase in timekeeper abundance. We show that this upregulation depends on transcriptional activation, providing in vivo evidence for a model in which the timing of receptor expression is regulated through an accumulating activator that triggers expression when a specific threshold is reached. This timing mechanism acts across a cell division that occurs in the neuroblast lineage and is influenced by the asymmetry of the division. Finally, we show that positive feedback of receptor expression through the canonical Wnt pathway enhances temporal precision. We conclude that robust cell-intrinsic timing can be achieved by combining regulation and feedback of the timekeeper gene.
-
- Developmental Biology
- Stem Cells and Regenerative Medicine
During mammalian development, the left and right ventricles arise from early populations of cardiac progenitors known as the first and second heart fields, respectively. While these populations have been extensively studied in non-human model systems, their identification and study in vivo human tissues have been limited due to the ethical and technical limitations of accessing gastrulation stage human embryos. Human induced pluripotent stem cells (hiPSCs) present an exciting alternative for modeling early human embryogenesis due to their well-established ability to differentiate into all embryonic germ layers. Here, we describe the development of a TBX5/MYL2 lineage tracing reporter system that allows for the identification of FHF- progenitors and their descendants including left ventricular cardiomyocytes. Furthermore, using single cell RNA sequencing (scRNA-seq) with oligonucleotide-based sample multiplexing, we extensively profiled differentiating hiPSCs across 12 timepoints in two independent iPSC lines. Surprisingly, our reporter system and scRNA-seq analysis revealed a predominance of FHF differentiation using the small molecule Wnt-based 2D differentiation protocol. We compared this data with existing murine and 3D cardiac organoid scRNA-seq data and confirmed the dominance of left ventricular cardiomyocytes (>90%) in our hiPSC-derived progeny. Together, our work provides the scientific community with a powerful new genetic lineage tracing approach as well as a single cell transcriptomic atlas of hiPSCs undergoing cardiac differentiation.
