HIF1α stabilization in hypoxia is not oxidant-initiated

  1. Amit Kumar
  2. Manisha Vaish
  3. Saravanan S Karuppagounder
  4. Irina Gazaryan
  5. John W Cave
  6. Anatoly A Starkov
  7. Elizabeth T Anderson
  8. Sheng Zhang
  9. John T Pinto
  10. Austin M Rountree
  11. Wang Wang
  12. Ian R Sweet
  13. Rajiv R Ratan  Is a corresponding author
  1. Burke Neurological Institute, White Plains, United States
  2. Brain and Mind Research Institute, Weill Medical College of Cornell University, United States
  3. Department of Neurology, Weill Medical College of Cornell University, United States
  4. Pandemic Response Lab, United States
  5. Department of Anatomy and Cell Biology, New York Medical College, United States
  6. Institute for Biotechnology, Cornell University, United States
  7. Department of Biochemistry and Molecular Biology, New York Medical College, United States
  8. Department of Medicine, University of Washington, United States
  9. Department of Pain and Anesthesiology, University of Washington, United States
Research Article
  • Cited 2
  • Views 1,808
  • Annotations
Cite this article as: eLife 2021;10:e72873 doi: 10.7554/eLife.72873

Abstract

Hypoxic adaptation mediated by HIF transcription factors requires mitochondria, which have been implicated in regulating HIF1α stability in hypoxia by distinct models that involve consuming oxygen or alternatively converting oxygen into the second messenger peroxide. Here, we use a ratiometric, peroxide reporter, HyPer to evaluate the role of peroxide in regulating HIF1α stability. We show that antioxidant enzymes are neither homeostatically induced nor are peroxide levels increased in hypoxia. Additionally, forced expression of diverse antioxidant enzymes, all of which diminish peroxide, had disparate effects on HIF1α protein stability. Moreover, decrease in lipid peroxides by glutathione peroxidase-4 or superoxide by mitochondrial SOD, failed to influence HIF1α protein stability. These data show that mitochondrial, cytosolic or lipid ROS were not necessary for HIF1α stability, and favor a model where mitochondria contribute to hypoxic adaptation as oxygen consumers.

Introduction

Over the past decade, our ability to monitor and manipulate reactive oxygen species (ROS) has grown enormously. These technological advances provide a novel view on how ROS interact with cells to modulate function. Specifically, ROS such as peroxide can act as cellular messengers. Messenger functions for ROS reflect their tight spatial control within cells. The tight spatial control of ROS has enabled their critical roles in growth factor signaling, inflammation, and regeneration (Jain et al., 2013; Lei and Kazlauskas, 2014; Hameed et al., 2015). Specific signaling roles for ROS are facilitated by the existence of motifs in proteins such as phosphatases that render these proteins specifically susceptible to redox modulation (Bae et al., 1997; Lee et al., 1998; Salmeen et al., 2003).

An important area of biology where ROS signaling has been highly investigated but where no consensus has emerged is hypoxic adaptation. Seminal work from Semenza, Kaelin, and Ratcliffe demonstrated that when oxygen tension falls below a critical threshold, that a family of enzymes dependent on oxygen, iron and 2-oxoglutarate known as the HIF Prolyl Hydroxylases (HIF PHDs) decrease their activity, leading to diminished hydroxylation of the alpha subunit of HIF transcription factors (Semenza and Wang, 1992; Wang and Semenza, 1993; Wang et al., 1995; Maxwell et al., 1999; Epstein et al., 2001; Ivan et al., 2001; Ivan et al., 2002). Diminished HIF1α hydroxylation decreases recruitment of a key E3 Ubiquitin ligase, the von Hippel Lindau (VHL) protein, which allows HIF1α to avoid proteasomal degradation. Stabilized HIF1α dimerizes with its constitutively active partner to bind to hypoxia response elements in a coordinate gene cassette that leads to hypoxic adaptation at a cellular, local, and systemic level (Wang et al., 1995; Wood et al., 1996; Jiang et al., 1996).

Since the mitochondrial electron transport chain (ETC) generates reactive oxygen species via electrons that leak from ETC components, bind to oxygen to produce superoxide anions, mitochondrial ROS production is tightly linked with availability of oxygen. Previous studies have shown that increasing levels of HIF1α stability in response to progressively lower oxygen concentrations required other factors besides oxygen to regulate HIF PHD activity (Chandel et al., 2000; Brunelle et al., 2005; Mansfield et al., 2005; Bell et al., 2007). Using then state of the art tools to monitor ROS, it was shown that during hypoxia, ROS were increasing and that pharmacological tools that nullified this increase in ROS diminished HIF1α stability (Chandel et al., 2000). A compelling model emerged that hypoxia increases the flux of electrons via Rieske Iron Sulfur cluster proteins in complex III and this leads to an increase in mitochondrial ROS generation via the ubiquinone binding site near the outer aspect of the inner mitochondrial membrane (the Qo site) (Bell et al., 2007). Peroxide generated at this site could then diffuse through the outer mitochondrial membrane to inhibit HIF PHDs via either direct redox modulation of HIF PHDs (Bell et al., 2007) or activation of established redox sensitive p38 MAP kinase signaling (Emerling et al., 2005) .

Since its inception, the role of mitochondria established by Chandel and Schumacker in HIF signaling has been validated (Agani et al., 2000; Mansfield et al., 2005; Taylor, 2008). However, an alternate ROS-independent view of how mitochondria regulate HIF1α stability in hypoxia has also been advanced. Pharmacological inhibition of ETC complexes or genetic knockdown of Rieske Fe/S proteins or cytochrome c not only inhibits mitochondrial ROS production (Brunelle et al., 2005; Chandel et al., 2000; Mansfield et al., 2005; Bell et al., 2007), it also inhibits oxygen consumption. In this distinct scheme, inhibition of ETC function would alter the kinetics of availability of cytosolic oxygen levels. Indeed, several groups have provided data supporting the importance of respiratory chain driven mitochondrial oxygen consumption in dictating cellular oxygen gradients. These gradients have been hypothesized to decrease oxygen concentrations to levels required to inhibit enzymatic activity of oxygen dependent HIF PHDs-the key upstream regulator of HIF1α stability (Doege et al., 2005; Hagen et al., 2003; Chua et al., 2010). There are a number of pathological conditions such as cerebral ischemia, acute kidney disease, ischemic heart disease, neonatal hypoxia-ischemic brain injury, cancer, and pulmonary arterial hypertension where both HIF1α and ROS have been reported to be important players (Chen et al., 2011; Chen et al., 2012; Weidemann et al., 2008; Tomsa et al., 2019; Semenza, 2014; Kibel et al., 2020; Sheldon et al., 2014; Qin et al., 2019; Semenza, 2012; Sosa et al., 2013; Bryant et al., 2016; Demarco et al., 2010). However, the molecular interplay between ROS and HIF1α is still poorly defined. For instance, in ischemic stroke , ischemia-reperfusion injury leads to an increase in both ROS and HIF1α. While HIF PHD inhibitors, which stabilize HIF1α and activate its downstream pathway, have shown significant benefit in providing neuroprotection, decreasing ROS levels with antioxidants (which would decrease HIF1α signaling if we consider ROS as an upstream regulator of HIF1α stability) has also shown benefits from cerebral ischemia (Green and Shuaib, 2006). Thus, understanding the role of ROS in HIF1α-mediated adaptation could guide more precise ways to manipulate this pathway for therapeutic benefit (Weidemann et al., 2008; Conde et al., 2012; Semenza, 2014; Sheldon et al., 2014; Semenza, 2012; Bryant et al., 2016).

In this manuscript, we leverage a host of complementary approaches that support the conclusion that peroxide is dispensable in regulated HIF1α stability in hypoxia. Unexpectedly, our results suggest that HIF1α stability in hypoxia is not oxidant-initiated.

Results

Mitochondria are involved in hypoxic HIF1α stabilization in SH-SY5Y human neuroblastoma cells

In the current study, we leveraged a HIF-luciferase reporter as a more quantitative biomarker of oxygen-dependent changes in endogenous HIF1α protein stabilization in hypoxia. We first established the sensitivity and dynamic range of HIF-luciferase reporter. The HIF-luciferase reporter contains the oxygen dependent domain (ODD) of HIF1α fused to luciferase (ODD-luciferase). We have previously demonstrated that this reporter behaves like endogenous HIF but does not influence endogenous HIF activity (Smirnova et al., 2010; Karuppagounder et al., 2013). Here, we validated the reporter using adaptaquin (AQ), which we have previously established as a specific HIF PHD inhibitor (Karuppagounder et al., 2016). We found that endogenous HIF1α protein levels could be monitored dynamically across a wide range of AQ concentrations (Figure 1A and B). As an independent measure, we also assayed the activity of HIF1α-luciferase reporter by measuring luciferase activity. These assays showed that the HIF1α-luciferase reporter measured by photometric luciferase activity possesses a high dynamic range and low coefficient of variation (Figure 1C). Moreover, we also assessed change in endogenous HIF transcriptional activity by measuring changes in the mRNA levels of HIF target genes, Bnip3 and Eno2. We found dose dependent dynamic changes in the mRNA levels of HIF target genes, Bnip3 and Eno2 in response to increasing concentrations of AQ (Figure 1D and E). Indeed, changes in HIF1α-luciferase activity measurements with increasing doses of AQ showed a strong correlation with quantitative changes in endogenous HIF1α protein levels measured by quantitative immunoblotting (Figure 1F) as well as quantitative changes in endogenous mRNA levels of HIF target genes, Bnip3 and Eno2 (Figure 1G and H). These findings confirmed exogenous ODD-luciferase activity as a sensitive and specific reporter of endogenous HIF1α.

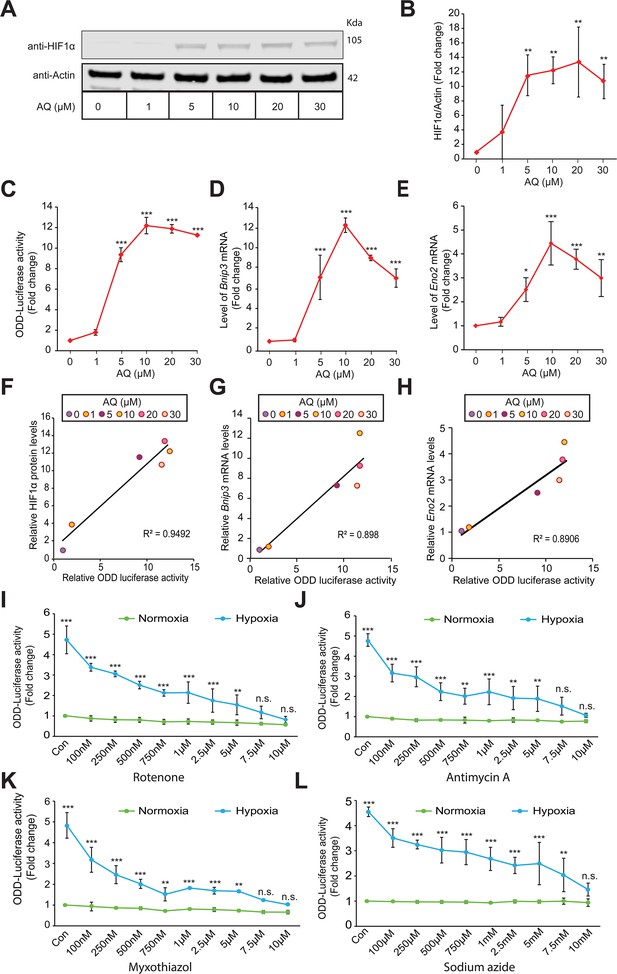

Mitochondrial electron transport chain is involved in hypoxic HIF1α stabilization in human neuroblastoma cells.

Experiments A - H establish specificity and sensitivity of HIF-reporter activity (i.e. ODD-Luciferase activity) while experiments I-L establish involvement of mitochondrial ETC in the hypoxic HIF1α stabilization. SH-SY5Y ODD-Luc. cells that stably overexpressed ODD (HIF Oxygen Dependent Domain-luciferase fusion) were treated with increasing concentrations of adaptaquin (AQ, 1 µM – 30 µM) for 4 hr and were, thereafter, processed for assessment of either changes in HIF protein level via immunoblotting (A, B) or changes in HIF reporter luciferase activity (i.e. ODD-luciferase activity) (C) or changes in expression of HIF1α target genes, Eno2 and Bnip3 (D, E). (F) Correlation between relative changes in HIF reporter luciferase activity (i.e. ODD-luciferase activity) and relative changes in HIF1α protein. (G, H) Correlation between relative changes in HIF reporter luciferase activity (i.e. ODD-luciferase activity) and relative changes in HIF1α target genes, Eno2 and Bnip3. (I–L) SH-SY5Y ODD-Luc. cells were treated with increasing concentrations of rotenone (Complex I inhibitor), antimycin A (Complex III inhibitor), myxothiazol (Complex III inhibitor), and sodium azide (Complex IV inhibitor) and then were exposed to either normoxia or hypoxia for 4 hr. Thereafter, HIF reporter luciferase activity was measured in cell lysates. All experiments were performed in three independent sets. The statistical analyses were performed using One way ANOVA with Dunnett post-test (B–E) and Student’s t test (J–L). (B–E) (n.s.), (*), (**), and (***) indicate non-significant difference and the statistical differences of p < 0.05, p < 0.01, and p < 0.001 with respect to normoxia control. Two-way ANOVA with Bonferroni’s post-test was used for all statistical analyses (I–L). (n.s.), (**), and (***) indicate non-significant difference or statistical differences of p < 0.01 and p < 0.001 with respect to respective control or treatment concentration under normoxia.

Mitochondria have been previously shown to be involved in hypoxic HIF1α stabilization in different cell lines (Chandel et al., 2000; Chua et al., 2010; Yang et al., 2012). We wanted to verify the necessity of mitochondria in SH-SY5Y human neuroblastoma cells. To this end, we treated SH-SY5Y cells with different mitochondrial electron transport chain (ETC) inhibitors such as rotenone (ETC complex I inhibitor), myxothiazol (ETC complex III inhibitor), antimycin A (ETC complex III inhibitor), and sodium azide (ETC complex IV inhibitor) and exposed cells, in parallel, to normoxia or hypoxia for 4 hr and, thereafter, assessed ODD-luciferase activity in cell lysates. We found a dose-dependent decrease in ODD-luciferase activity in response to increasing concentrations of all of the ETC complex inhibitors in hypoxic cells (Figure 1I–L). These findings confirmed mitochondrial involvement in hypoxic HIF1α stabilization in SH-SY5Y cells.

Antioxidant enzymes are not homeostatically induced in hypoxia

Increases in ROS that are sufficient for signaling or toxicity can trigger homeostatic transcriptional increases in antioxidant enzymes (Christman et al., 1989). To assess whether hypoxia results in similar homeostatic increases in antioxidant protein expression, we exposed human neuroblastoma (SH-SY5Y) cells to hypoxia for 8 hours and measured protein expression levels of peroxisomal, cytosolic and mitochondrial antioxidant enzymes including catalase, glutathione peroxidase-1 (GPX1), glutathione peroxidase-4 (GPX4), MnSOD, and Peroxiredoxin-3 (PRDX3) (Figure 2A). The 8 hr time point was chosen to monitor homeostatic changes in antioxidant enzymes because this would be 6 hr following observable HIF1α stability in hypoxia in SH-SY5Y cells, which should provide adequate time for homeostatic increases to initiate transcriptional or post-transcriptional adaptations. At the 8- hr time point, the protein level of the peroxisomal antioxidant catalase, and antioxidants present in both cytosol and mitochondria, such as GPX1 and GPX4, showed no change protein levels in response to hypoxia (Figure 2B and C). However, since hypoxia induces HIF1α-dependent mitophagy (Aminova et al., 2008; Zhang et al., 2008), mitochondrial mass is decreased with increasing duration of hypoxia, including decreases in mitochondrial DNA and proteins. Accordingly, we normalized distinct mitochondrially targeted antioxidant enzymes to the level of citrate synthase, a mitochondrial protein. When normalized to citrate synthase, the expression levels of mitochondrial antioxidants such as MnSOD and PRDX3 also did not change in hypoxia (Figure 2D and E). To establish whether these findings apply to non-transformed cells, we studied expression levels of antioxidant enzymes in hypoxia in primary neurons. Similar to neuroblastoma cells, antioxidant enzyme levels did not change in hypoxia in post-mitotic neurons (Figure 2F–I). Although 8 hr hypoxic exposure did not show changes in various antioxidants, it is possible that levels of antioxidants might have changed before 8 h time point. In order to explore this possibility, we assessed changes in above mentioned antioxidants for different time points such as 2, 4, and 8 hr in SH-SY5Y ODD-Luc cells. However, we did not see changes in the protein levels of these antioxidants at any time point (Figure 2—figure supplement 1). Alternative possibilities for not observing changes in antioxidant levels could be not looking at right antioxidant enzymes or that changes in ROS levels are too small to induce detectable homeostatic changes in these antioxidant enzymes. Together, these indirect measures suggest that possible increase in ROS levels during hypoxia are less likely. To further confirm if ROS levels increase in hypoxia or not, we directly measured real time changes in ROS levels in hypoxia by using a sensitive ROS marker, HyPer.

Figure 2 with 2 supplements see all

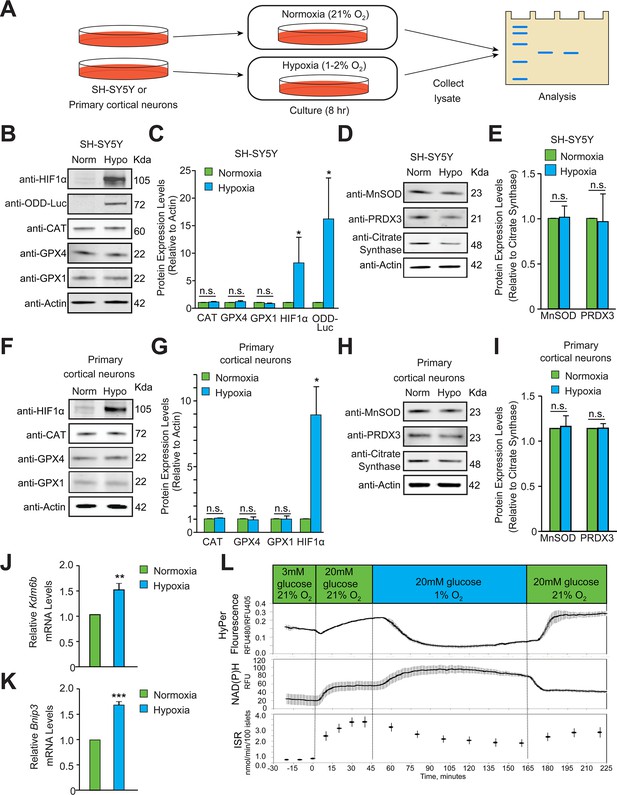

Hypoxia does not induce homeostatic increases in antioxidant enzymes or increase peroxide levels.

(A) Experimental approach employed to examine changes in the protein levels of endogenous antioxidant enzymes in hypoxia. Immunoblots or densitometric analyses of catalase (peroxisome), GPX1 and GPX4 (cytosol and mitochondria) or MnSOD and PRDX3 (mitochondria) in SH-SY5Y ODD Luc. cells that stably overexpressed ODD (HIF Oxygen Dependent Domain-luciferase fusion) (B–E) or PCNs (F-I) exposed to normoxia or hypoxia for 8 hr. The protein levels of catalase, GPX4, and GPX1 were normalized to actin while those of MnSOD and PRDX3 were normalized to the mitochondrial protein, citrate synthase. A monoclonal antibody to luciferase (indicated as anti-ODD-Luc. in the figure) was used to detect changes in ODD-luciferase protein levels in SH-SY5Y ODD-Luc. cells. (J–K) Pancreatic islets were exposed to hypoxia for 2 hr and then were lysed and processed for mRNA expression analysis of HIF1α target genes, Kdm6b and Bnip3. The densitometric data and gene expression data were pooled from three independent experiments in the form of mean ± SD. The statistical analyses of densitometric data and gene expression data were done using Student’s t test (B–K). (n.s.) indicates non-significant difference, (**) indicates p < 0.01 and (***) indicates p < 0.001 with respect to respective normoxia controls. (L) Hypoxia leads to large decrease in H2O2 levels (top), increased NAD(P)H (middle), and decreased insulin secretion (bottom). Glucose stimulation by 20 mM glucose was added as reference, and oxygen levels were changed using an artificial gas equilibration device placed inline in the flow system. All three experiments were carried out separately but using the same flow culture system.

Peroxide levels do not increase during hypoxia

HyPer is a fusion protein composed of the peroxide-sensitive domain of the prokaryotic transcription factor, OxyR, and yellow fluorescent protein that is a reporter for cellular peroxide (Belousov et al., 2006). This reporter is not only sensitive and specific, but its activity is also ratiometric, which factors out differences in fluorescence due to cell geometry, path length, and reporter concentration. We have previously shown that enhanced pH buffering of the extracellular medium alleviates the putative effects of acidic pH during hypoxia on the reporter, and that fluorescent ratios can be calibrated in cells to known peroxide concentrations (Neal et al., 2016).

To monitor changes in the level of hydrogen peroxide (H2O2), we used real-time imaging of rat pancreatic islet cells in hypoxia with strong pH buffering. Pancreatic islet cells, rather than neurons or neuron-like cells, were used for initial analysis because mitochondrial peroxide in pancreatic islet cells increases in response in extracellular glucose levels, as measured using HyPer imaging. Elevated glucose, therefore, can be used as a positive control for mitochondrial peroxide increases. Additionally, elevated glucose increases insulin release in beta islet cells, which enables insulin release assays to establish cell viability if there is an absence of peroxide changes during hypoxia. Similar real-time measures of cell function are not readily available in primary neurons or SH-SY5Y neuroblastoma cells. Prior studies have also established that glucose-induced peroxide formation is derived from the mitochondria. Specifically, increased expression of mitochondrial catalase decreased glucose-induced HyPer signals (catalase scavenges peroxide), as did decreased expression of mitochondrial SOD (MnSOD; the enzyme that converts superoxide to peroxide) (Neal et al., 2016). Finally, signaling levels of peroxide measured by HyPer are 1/20th those of peroxide levels required for toxicity (Neal et al., 2016), which demonstrates the sensitivity of peroxide measurements using HyPer in this cell type. Before assaying peroxide in hypoxia, we verified that 2 hr of hypoxia induced the established HIF1α target genes Kdm6b and Bnip3 in islet cells in our flow culture system (Figure 2J and K; Choudhry and Harris, 2018). This time point was selected to evaluate the role of peroxide in mediating the earliest changes in HIF1α stability in hypoxia because it is well before mitochondrial autophagy is induced (Figure 2).

Accordingly, based on the sensitivity and specificity of the reporter assay, we were confident that mitochondrial peroxide was measurable in islet cells if it were increased in hypoxia. H2O2, NAD(P)H, and insulin secretion rates were measured simultaneously as a function of glucose concentration for 2 hr under hypoxic conditions (1% O2) (Figure 2L). Increasing glucose concentration from 3 mM to 20mM elicited expected increases in peroxide, NADPH levels, and insulin secretion rates under normoxia. When islet cells under the same glucose concentrations (20mM) were exposed to 1% oxygen, H2O2 decreased by more than 80%. This reduction occurred in the midst of increased NAD(P)H levels. NADP(H) likely increased due to diminished utilization by the mitochondrial electron transport chain. Glucose-stimulated insulin secretion decreased by about 50% in response to hypoxia, but remained well above unstimulated rates, indicating that islets remained functional throughout the study. Indeed, restoring steady state O2 levels (20%) resulted in expected increases in peroxide and insulin secretion with concomitant decreases in NAD(P)H, which indicates hypoxia delivered under the conditions of our experiments is not toxic to islet cells (Figure 2L).

To establish the generalizability of these findings to other cell types, we measured HyPer reporter fluorescence ratios in hypoxic conditions in SH-SY5Y and Hep3B human hepatocellular carcinoma cells. Ratiometric imaging of both cell types showed no change in peroxide levels following 2 hr of hypoxia (Figure 2—figure supplement 2C and F), which was sufficient time to activate HIF1α-dependent gene expression (Figure 2—figure supplement 2A and B, 2D, and 2E). This absence of changes in peroxide levels during hypoxia could not be attributed to a lack of HyPer reporter responsiveness to peroxide in these cell types since exogenous addition of peroxide (Figure 2—figure supplement 2G) following the hypoxic exposure led to expected, significant increases in reporter activity. Together with our antioxidant protein expression results, these data suggest that mitochondrial peroxide either decreases or is unchanged by hypoxia in primary (pancreatic beta islets) and transformed cell types (SH-SY5Y, Hep3B), respectively.

HIF1α stabilization is not oxidant-initiated in hypoxia

Prior studies showed that decreasing ROS by forced expression of individual antioxidant enzymes can decrease HIF1α protein levels (Brunelle et al., 2005; Chandel et al., 2000). To confirm these findings with our HIF1α-luciferase reporter, we forced expression of either catalase (a peroxide scavenger), GPX1 (a peroxide scavenger), or MnSOD (a superoxide scavenger and peroxide generator) (Figure 3A). SH-SY5Y cells expressing ODD-Luc were transduced with individual antioxidant enzymes encoded in distinct adenoviral constructs or an adenovirus encoding GFP only as a protein control. Seventy-two hours following infection, GFP expression was observed in nearly 90% of SH-SY5Y cells (Figure 3—figure supplement 1). Accordingly, cells were tested for specific enzyme activities of MnSOD, Catalase or GPX1. These studies showed seven-, eleven-, and threefold increase in specific activity over GFP controls for MnSOD-, Catalase-, and GPX1-expressing cells, respectively (Figure 3—figure supplement 2A and C). Moreover, using a cell death assay with DNA binding Sytox blue dye (dead cell stain), we also confirmed the activities of these antioxidants under normoxia and hypoxia by indirectly assessing the protection conferred by these antioxidants from increasing concentrations of exogenous H2O2 treatment. As expected, MnSOD did not improve protection as compared to GFP control while catalase and GPX1 overexpression significantly enhanced protection under both normoxia and hypoxia (Figure 3—figure supplement 2D and F).

Figure 3 with 6 supplements see all

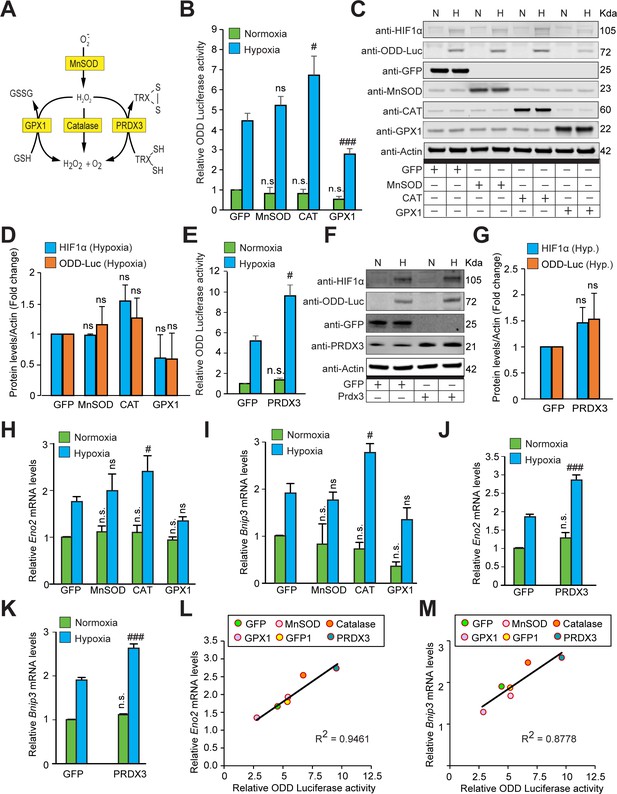

The stabilization of HIF1α and its transcriptional activity are not oxidant-initiated in hypoxia.

(A) A schematic diagram showing known mechanisms of H2O2 detoxification by peroxisomal, cytosolic and mitochondrial antioxidants. (B–K) SH-SY5Y cells stably expressing ODD-luciferase were transduced with adenoviruses encoding distinct antioxidant enzymes for 72 hr and then exposed to normoxia or hypoxia in parallel and were either processed for luciferase activity assay (A measure of quantitative changes in ODD) (B and E) or immunoblot analysis (A measure of quantitative changes in protein levels of ODD and HIF1α) (C, D, F, and G) or gene expression analyses of HIF1α target genes, Eno2 and Bnip3 (H–K). (L, M) Correlation between relative changes in either Eno2 or Bnip3 and relative ODD-luciferase activities. Two-way ANOVA with Bonferroni post-test was used for comparisons in B, E, H, I, J, and K. One-way ANOVA with Dunnett post-test was used in the statistical analysis in D while Student t test in was used in G. (n.s.) indicates non-significant difference with respect to GFP control under normoxia while (ns), (#) and (###) indicate non-significant difference and the statistical differences of p < 0.05, and p < 0.001, respectively, with respect to GFP control in hypoxia. All experiments were performed as three independent sets and a representative blot or an average of three independent sets was shown in the figure. “N” stands for normoxia and “H” stands for hypoxia.

As a final test of whether overexpression of these adenoviral constructs of antioxidants decrease oxidant production in SH-SY5Y cells or not, we measured 5, 6 carboxydichlorofluorescein fluorescence (a non-selective redox sensitive reporter) using flow cytometry. These experiments confirmed the ability of GPX1, PRDX3, and catalase to decrease steady state DCF oxidation, presumably resulting from oxidants generated physiologically (Figure 3—figure supplement 3A and B). However, there was no significant change in peroxide level in response to MnSOD expression despite a significant increase in the MnSOD enzyme activity and protein level. This was unexpected and could reflect compensatory activation of other antioxidants such as GPX1, GPX4, or Prdx3 in response to increased MnSOD activity. We verified that DCF loading and corresponding antioxidant effects were not different from normoxic or hypoxic cells, arguing against the possibility that our redox reporter or the antioxidant enzymes are behaving differently in normoxia and hypoxia (Figure 3—figure supplement 3C and D). Importantly, Chandel and other groups had added DCF before exposing cells to hypoxia. But there was a concern that if changes in DCF signal are because of differential accumulation of DCF in hypoxic cells as compared to normoxic cells or because of an increased oxidant signaling. To minimize the possibility of increased DCF accumulation during hypoxic exposure, we added DCF after exposing cells to normoxia/hypoxia. With this protocol, we found decrease in DCF signal in control GFP expressing cells with hypoxic exposure compared to control GFP expressing cells with normoxic exposure. Additionally, we did not find an increase in DCF signaling with H2O2 treatment in cells, which were exposed to hypoxia. This could be because of either decrease in ROS level during hypoxia, which likely increased with H2O2 to the level of GFP control under normoxia but didn’t go further up or because of increased scavenging capacity of SH-SY5Y cells under hypoxia.

Having verified increases in individual antioxidant activities (MnSOD, GPX1, and Catalase) of overexpression antioxidant constructs, we examined the effect of these manipulations on HIF1α stability. The mitochondrial peroxide model of HIF regulation predicts that MnSOD should increase HIF1α stability in hypoxia, whereas GPX1 and catalase should diminish HIF1α stability. In contrast to these predictions, we found that MnSOD had no effect on HIF1α luciferase reporter activity, while Catalase increased reporter activity, and GPX1 decreased it (Figure 3B). To verify that our HIF1α luciferase reporter accurately reflected endogenous HIF1α levels, we performed quantitative fluorescence immunoblotting. These assays showed changes in endogenous HIF1α protein are similar to those identified with the HIF1α reporter (Figure 3C and D). From these findings, we conclude that HIF1α levels are not correlated with mitochondrial peroxide production. Since catalase is a peroxisomal enzyme and GPX1 localizes to the cytosol and mitochondria, our results could not formally exclude the possibility that GPX1 localization to the mitochondria allowed it to decrease HIF1α levels, while Catalase’s inability to penetrate this compartment did not allow it to decrease HIF1α levels. To address this possibility, we forced expression of PRDX3, a member of the peroxiredoxin family of antioxidant enzymes that functions as a thioredoxin-dependent peroxide reductase in the mitochondria. Contrary to GPX1, PRDX3 increased levels of HIF1α in hypoxia as measured by either HIF1α luciferase reporter activity (Figure 3E) or quantitative fluorescence immunoblotting (Figure 3F and G). We also confirmed these findings in primary neurons (Figure 3—figure supplement 4C-F), where Figure 3—figure supplement 4 adenoviral constructs also effectively increased expression of the antioxidant enzymes (Figure 3—figure supplement 4A and B).

Since HIF1α is a transcription factor, we next asked if peroxides play indispensable role in HIF-dependent transcription by examining Eno2 and Bnip3 mRNA expression levels, which are two established HIF1α target genes (Aminova et al., 2005; Poitz et al., 2014), in neuroblastoma SH-SY5Y cells. As expected, catalase and PRDX3 overexpression led to significant increase in the expression of both Eno2 and Bnip3 mRNA levels while GPX1 overexpression decreased the expression of both genes and MnSOD overexpression did not significantly change the expression of either of these genes (Figure 3H–K). Moreover, strong correlation observed between changes in HIF dependent transcription as assessed by changes in both HIF1α target genes and HIF1α protein levels as assessed by HIF1α luciferase reporter levels (Figure 3L and M) further confirmed that peroxides are dispensable for both hypoxic HIF1α protein stability and its transcriptional activity.

Our findings did not exclude the possibility that antioxidants alter HIF1α protein levels by differentially regulating either Hif1a mRNA synthesis or Hif1a mRNA stability. Accordingly, we monitored Hif1a mRNA levels in the cells overexpressing Catalase, GPX1, and PRDX3. Quantitative PCR revealed that Hif1a mRNA levels were not changed in a manner that would contradict the observed ROS-independent changes in HIF1α stability (Figure 4A and B). To confirm that changes observed in HIF1α protein stability are related to changes in its half-life, we examined the stability of HIF1α protein in the presence of cycloheximide, which suppresses de novo protein synthesis in cells pre-treated either with or without MG132. As expected, we found that Catalase and PRDX3, which increase HIF1α protein levels, also increased HIF1α half-life (Figure 4C, D and E). By contrast, GPX1, which diminished HIF1α protein levels, decreased HIF1α half-life (Figure 4D). Moreover, MG132 treatment significantly enhanced Hif-1α half-life in all cases showing that the antioxidant led changes in hypoxic Hif-1α stabilization were the results of alterations in proteasomal degradation.

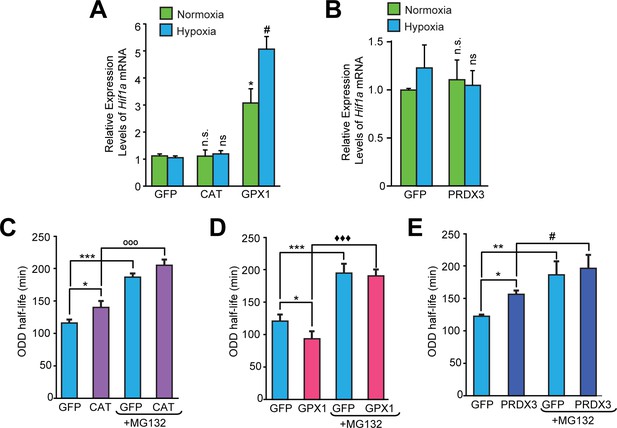

Divergent changes in HIF1α protein levels induced by antioxidant enzymes capable of scavenging peroxide cannot be attributed to differential changes in Hif1a mRNA synthesis or stability.

(A, B) Relative changes in Hif1a mRNA in SH-SY5Y cells in response to forced expression of various antioxidant enzymes. Data were pooled from three independent experiments in the form of mean ± SD. One-way ANOVA with Dunnett’s post-test was used for comparing cells expressing catalase or GPX1 with respect to cells expressing GFP and Student’s t test was used for comparing cells expressing PRDX3 with respect to GFP. (n.s.) indicates non-significant difference with respect to respective GFP controls under normoxia while (ns) and (#) indicate non-significant difference and the statistical difference of p < 0.05, respectively, with respect to GFP control in hypoxia. (C, D, E) Changes in half-life of HIF1α in SH-SY5Y ODD-Luc cells expressing catalase or GPX1 or PRDX3 with respect to that of respective GFP controls in hypoxia. ODD Half-life was assessed by performing a pulse chase experiment by adding 35 µM cycloheximide at every 20 min for a total of 4 hr using luciferase activity assay in SH-SY5Y cells expressing these antioxidants pre-treated either with or without 10 µM MG132. Data were pooled from three independent experiments in the form of mean ± SD. Two-way ANOVA with Bonferroni’s post-test was used for statistical analysis. (*), (**), and (***) indicate statistical differences of p < 0.05, p < 0.01, and p < 0.001 with respect to respective GFP controls in hypoxia. (°°°), (♦♦♦) and (#) represent statistical differences of p < 0.001w.r.t CAT, p < 0.001 w.r.t GPX1 and p < 0.05 w.r.t PRDX3, respectively.

To establish whether our findings in primary neurons and neuroblastoma cells can be extended to non-neural cell types, we examined the ability of antioxidant enzymes capable of modulating peroxide levels to modulate HIF1α stability in hypoxic Hep3B hepatocarcinoma cells and hypoxic HeLa cervical cancer cells. Forced expression of Catalase, GPX1, or PRDX3 using adenoviral vectors significantly increased in protein levels of each of the antioxidant enzymes in HeLa or Hep3B cells (Figure 3—figure supplements 5 and 6). Similar to primary neurons or neuroblastoma cells, we did not observe a uniform reduction in HIF1α stability in hypoxia by enzymes whose common activity is to decrease peroxide in these non-neural cell types (Figure 3—figure supplements 5 and 6). Altogether, our findings suggest that peroxide levels are uncoupled from HIF1α stability in neural and non-neural cells.

Neither reactive oxygen species nor reactive lipid species regulate HIF-1α stability in hypoxia

Previous compelling evidence showed that reactive lipid species (RLS) are sufficient to drive HIF-dependent transcription via their effects on FIH inhibition without affecting HIF1α stability (Masson et al., 2012). Accordingly, we forced expression of GPX4, a selenoprotein that neutralizes RLS (Figure 5A). To manipulate steady-state levels, we used GPX4 protein fused to an optimized destabilization domain (dd) from the prokaryotic dihydrofolate reductase gene. The dd domain destabilizes GPX4 protein unless trimethoprim (TMP, 10 μM) is present (Figure 5B). TMP enhanced GPX4 levels in neuroblastoma cells expressing ddGPX4 but increasing GPX4 levels had no effect on hypoxia-induced HIF1α stability (Figure 5C–E) or HIF1α-dependent transcription (Figure 5F, G). We verified that GPX4 diminished RLS (Figure 5—figure supplement 1) and neutralized ferroptosis induced by glutamate, a form of cell death mediated by reactive lipid species that is abrogated by GPX4 (Figure 5H and I; Tan et al., 1998). Altogether, these findings argue against a central role for hydrogen peroxide or lipid peroxides in mediating HIF1α stabilization in hypoxia.

Figure 5 with 1 supplement see all

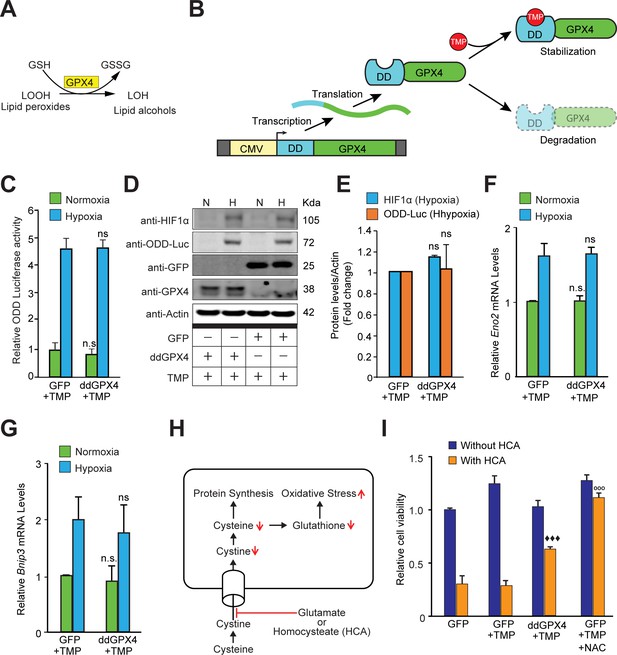

Reactive lipid species do not regulate HIF1α stabilization or its transcriptional activity in hypoxia.

(A) A schematic diagram showing that GPX4 converts lipid hydroperoxides into lipid alcohols using GSH as a cofactor. (B) A schematic showing regulated protein expression of GPX4 fusion containing an optimized destabilization domain when exposed to the antibiotic, Trimethoprim (TMP). Reversible stability of GPX4 protein was conferred by fusing its coding sequence to a destabilization domain sequence (mutants of E. coli dihydrofolate reductase). Accordingly, GPX4 protein possessing the destabilization domain is degraded resulting in low steady levels of GPX4. Trimethoprim binds to and neutralizes the destabilization domain stabilizing GPX4 protein in a dose-dependent manner. (C–E) SH-SY5Y ODD-Luc cells were transduced with adenoviral vectors encoding a destabilized form of GPX4 (ddGPX4) or GFP and then exposed to normoxia/hypoxia and were either processed for luciferase activity assay (C) or immunoblotting (D) and densitometric quantitation of three independent western blots of HIF1α and ODD-Luc protein were shown in (E). 10 µM TMP was added to ddGPX4 expressing cells after 60 h of adenoviral incubation for 12 hr to achieve stabilized GPX4 expression. (F, G) Relative changes in mRNA levels of HIF1α target genes, Eno2 and Bnip3 in SH-SY5Y cells. (H) A schematic diagram depicting the glutathione depletion model of oxidative stress. (I) PCNs were transduced with GFP/GPX4 for 24 hr and then treated with 5 mM HCA. Cells were simultaneously treated with 10 µM TMP. Then, cells were incubated for 24 hr to induce oxidative stress. Thereafter, viability of cells was measured via the MTT assay. 100 µM NAC was used as positive control. The final values were pooled as mean ± S.D. of three independent experiments. Two-way ANOVA with Bonferroni’s post-test was used for statistical analyses. One-way ANOVA with Dunnett’s post-test was used for comparing DCF fluorescence and viability. (n.s.), (*) and (***) indicate non-significant difference, and the statistical differences of p < 0.05, and p < 0.001, respectively, with respect to GFP control under normoxia while (ns), (#) and (###) indicate non-significant difference, and the statistical differences of p < 0.05, and p < 0.001, respectively, with respect to GFP control in hypoxia. (°°°) indicates statistical difference of p < 0.001 with respect to GFP treated with HCA only while (♦♦♦) indicates statistical difference of p < 0.001 with respect to GFP treated with both TMP and HCA.

Discussion

Seminal studies have supported the notion that mitochondria are essential regulators of hypoxic adaptation possibly acting via their ability to generate peroxide (Agani et al., 2000; Chandel et al., 1998). In this paper, we show that HIF1α stability mediated by HIF PHDs during hypoxia does not require peroxide. These data include our inability to detect an increase in peroxide during hypoxia (Figure 2L); the lack of homeostatic changes in antioxidant protein expression during hypoxia (Figure 2B and Figure 2—figure supplement 1I); and the failure of forced expression of antioxidant enzymes (Catalase, GPX1, and PRDX3) with the common ability to diminish cellular peroxide to influence HIF1α stability and transcription in the same direction (Figure 3). Our findings agree with prior studies that showed: (1) that HIF PHDs are not inhibited by exogenously added peroxide (Chua et al., 2010), and (2) that forced expression of an alternative oxidase which directly transfers electrons from coenzyme Q to oxygen to form water maintains HIF1α stability in hypoxia, despite reducing superoxide generation at Complex III (Chua et al., 2010). Our results cannot be attributed to differences in mitochondrial ROS generation by transformed versus primary cells, or to differences in neuron-like versus non-neural cells, as SH-SY5Y neuroblastoma cells and primary cortical neurons showed similar effects, as did Hep3B hepatocellular carcinoma cells and HeLa cervical cancer cells. While we cannot exclude the possibility that culture conditions such as serum lots could reconcile our results with prior studies, in aggregate, the findings favor a role for mitochondria in modulating HIF1α stability via their effects as oxygen consumers not as peroxide second messenger generators.

Peroxide scavengers have distinct effects on hypoxic HIF1α stability

Prior studies have shown that in some cell types, ROS generation in hypoxia could be related to increased oxidant production or decreased defenses (Naranjo-Suarez et al., 2012). In order to address that the imbalance of oxidants and antioxidants plays the regulatory role in mediating hypoxia signaling, we forced expression of distinct antioxidant enzymes known to either decrease (GPX1, Catalase, and PRDX3) or enhance peroxide levels (MnSOD). Despite evidence for increased activity of the antioxidant enzymes studied using multiple experimental approaches, we found that HIF1α stability and transcription did not correlate with effects on peroxide levels in neuroblastoma cells and primary neurons (Figure 3 and Figure 3—figure supplement 4). Similar uncoupling was observed in non-neural cell types as well (Figure 3—figure supplements 5 and 6). The results uncouple peroxide generation in the mitochondria from HIF1α stability via the HIF PHDs. It is likely that the GPX1, catalase, and PRDX3 influenced HIF1α stability either via indirect but distinct effects on oxygen consumption, or alternatively via differential but direct effects on proteins that influence HIF1α regulation.

HIF1α stability under hypoxia is not regulated by reactive lipid species (RLS)

Recent studies have highlighted the potential role that RLS could play in regulating HIF transcription rather than HIF1α stability. Accordingly, we forced expression of GPX4, a selenoprotein with known ability to neutralize reactive lipid species. Despite being active in combating RLS-mediated ferroptotic death in transformed cells (Figure 5I), GPX4 had no effect on HIF1α stability in hypoxia (Figure 5C–E) or HIF-dependent transcription (Figure 5F and G). These data suggest that while some RLS (e.g. tert-butyl hydroperoxide) are sufficient to activate HIF transcription, they are not necessary to stabilize HIF1α or drive HIF1α-dependent transcription in hypoxia.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
AntibodyAnti-GFP(Rabbit polyclonal)Cell Signaling TechnologyCat#2555; RRID:AB_390710WB (1:1000)
AntibodyAnti-MnSOD(Rabbit polyclonal)Sigma-AldrichCat#HPA001814; RRID:AB_1080134WB(1:10000)
AntibodyAnti-Catalase(Mouse monoclonal)Sigma-AldrichCat#C0979; RRID:AB_258720WB(1:1000)
AntibodyAnti-GPX1(Rabbit monoclonal)Cell Signaling TechnologyCat#3,286 S; RRID:AB_2067572WB(1:1000)
AntibodyAnti-GPX1(Rabbit polyclonal)Novus BiologicalsCat#NBP1-33620; RRID:AB_10004091WB(1:2000)
AntibodyAnti-GPX4(Rabbit polyclonal)LSBioCat#LS B1596WB(1:1000)
AntibodyAnti-PRDX3(Rabbit polyclonal)Novus BiologicalsCat#NBP2-19777WB(1:2000)
AntibodyAnti-Luciferase(Mouse monoclonal)Santa Cruz BiotechnologyCat#sc-74548; RRID: AB_1125118WB(1:1000)
AntibodyAnti-HIF1α(Rabbit polyclonal)Novus BiologicalsCat#NB100-479; RRID:AB_10000633WB(1:1000)
AntibodyAnti-HIF1α(Mouse monoclonal)Novus BiologicalsCat#NB100-105; RRID:AB_10001154WB(1:500)
AntibodyAnti-Citrate synthase(Rabbit monoclonal)Cell Signaling TechnologyCat#14,309 S; RRID:AB_2665545WB(1:3000)
AntibodyAnti-β-actin(Rabbit polyclonal)Sigma-AldrichCat#A2066; RRID:AB_476693WB(1:10000)
AntibodyAnti-β-actin(Mouse monoclonal)Sigma-AldrichCat#A5316; RRID:AB_476743WB(1:10000)
OtherAd-GFPViraQuest, Inc (North liberty, IA)MSRN: 22,576Adenoviral construct
OtherAd-ddGPX4ViraQuest, Inc (North liberty, IA)MSRN: 22,665Adenoviral construct
OtherAd5CMV-GFPUniv. of Iowa, Viral Vector Core FacilityAdenoviral construct
OtherAd5CMV-MnSODUniv. of Iowa, Viral Vector Core FacilityAdenoviral construct
OtherAd5CMV-CATUniv. of Iowa, Viral Vector Core FacilityAdenoviral construct
OtherAd5CMV-GPX1Univ. of Iowa, Viral Vector Core FacilityAdenoviral construct
OtherAd-CMV-GFPVector BiolabsAdenoviral construct
OtherAd-h-PRDX3Vector BiolabsADV-219772Adenoviral construct
OtherAd-h-GRX1Vector BiolabsADV-209995Adenoviral construct
OtherAd-HyPer-cyto vectorVector BiolabsAdenoviral construct
Biological sample (Rattus norvegicus)Islets from Sprague–Dawley male ratsCharles River
Biological sample(Mus musculus)Primary cortical neurons from CD-1 strain miceCharles River
Chemical compound, drugAdaptaquinTocris Bioscience5953; CAS Number 385786-48-1
Chemical compound, drugRotenoneSigma-AldrichR8875; CAS Number 83-79-4
Chemical compound, drugAntimycin ASigma-AldrichA8674; CAS Number 1397-94-0
Chemical compound, drugMyxothiazolSigma-AldrichT5580; CAS Number 76706-55-3
Chemical compound, drugSodium azideSigma-AldrichS2002; CAS Number 26628-22-8
Chemical compound, drugPotassium cyanide (KCN)Sigma-Aldrich207810; CAS Number 151-50-8
Chemical compound, drugFCCPSigma-AldrichC2920; CAS Number 370-86-5
Chemical compound, drugTrimethoprim (TMP)Sigma-AldrichT7883; CAS Number 738-70-5
Chemical compound, drugL-Homocysteic acid (HCA)Sigma-AldrichH9633; CAS Number 14857-77-3
Chemical compound, drugN-acetyl-L-cysteine (NAC)Sigma-AldrichA7250; CAS Number 616-91-1
Chemical compound, drugHydrogen peroxide solution, 30% w/wSigma-AldrichH1009; CAS Number 7722-84-1
Commercial Assay or kitRat Insulin Radioimmunoassay (RIA)Millipore-SigmaRI-13K
Commercial Assay or kitDCFDA-Cellular Reactive Oxygen Species Detection Assay KitAbcamab113851
Commercial Assay or kitDC Protein Assay Kit 1Bio-Rad5000111
Commercial Assay or kitLuciferase Assay SystemPromegaE1501
Commercial Assay or kitMTT assay (CellTiter 96 Non-Radioactive Cell Proliferation Assay)PromegaG4100 (G4101+ G4102)
OtherSytox blue nucleic acid stainThermoFisher ScientificSS11348
Cell line (Homo sapiens)SH-SY5YATCCCRL-2266; RRID:CVCL_0019
Cell line(Homo sapiens)HeLaATCCATCC CCL-2; RRID:CVCL_0058
Cell line(Homo sapiens)Hep3BATCCATCC HB-8064; RRID:CVCL_0326
Sequence-based reagentFAM labeled Enolase2 (Taqman probe)ThermoFisher ScientificHs00157360_m1
Sequence-based reagentFAM labeled Bnip3 (Taqman probe)ThermoFisher ScientificHs00969291_m1
Sequence-based reagentFAM labeled Hif1α (Taqman probe)ThermoFisher ScientificHs00153153_m1
Sequence-based reagentVIC labeled human β actin (Taqman probe)ThermoFisher Scientific4326315E
Sequence-based reagentFAM labeled RNA28S5 (Taqman probe)ThermoFisher ScientificHs03654441_s1
Sequence-based reagentVIC labelled RNA28S5 (Taqman probe)ThermoFisher ScientificHs03654441_s1
Sequence-based reagentFAM labeled Bnip3 (Taqman probe)ThermoFisher ScientificRn00821446_g1
Sequence-based reagentFAM labeled Kdm6b (Taqman probe)ThermoFisher ScientificRn01471506_m1
Sequence-based reagentVIC labeled rat β actin (Taqman probe)ThermoFisher Scientific4352340E
Software, algorithmGraphpad PrismRRID:SCR_002798
Software, algorithmAdobe IllustratorRRID:SCR_010279
Software, algorithmAdobe PhotoshopRRID:SCR_014199

Cell lines and in vitro tissue culture studies

Request a detailed protocol

Immature primary cortical neurons were isolated from CD1 mice embryos (embryonic day 15 [E15]) as previously described (Ratan et al., 1994) by following the protocol approved by IACUC at Weill Cornell Medicine. SH-SY5Y human neuroblastoma cells (purchased from ATCC) were cultured in DMEM/F-12 plus GlutaMAX medium added with 10% fetal bovine serum (Invitrogen) and 1% penicillin/streptomycin (Invitrogen). HeLa cells and Hep3B cells (purchased from ATCC) were cultured in EMEM medium added with 10 % fetal bovine serum (Invitrogen) and 1% penicillin/streptomycin (Invitrogen). All cell lines were pre-authenticated by ATCC using STR profiling and were reported mycoplasma negative.

Islets were harvested from Sprague–Dawley male rats (∼250 g, Envigo, Huntingdon, Cambridgeshire, United Kingdom) anesthetized by an intraperitoneal injection of sodium pentobarbital (35 mg/230 g rat). All procedures were approved by the University of Washington Institutional Animal Care and Use Committee. Islets were prepared and purified as previously described (Sweet et al., 2004) and then cultured at 37°C in RPMI Media 1640 (Gibco, Grand Island, NY) supplemented with 10% heat-inactivated fetal bovine serum (Atlanta Biologicals, Lawrenceville, GA) for specified times with the adenovirus coding the H2O2-sensitive dye (HyPer).

Adenoviral transduction and normoxia / hypoxia exposure

Request a detailed protocol

Adenoviral constructs of MnSOD, catalase, GPX1 and respective GFP control were purchased from University of Iowa, Viral Vector Core Facility. Adenoviral construct of ddGPX4 (GPX4 with destabilization domain) and the respective GFP control were obtained from ViraQuest, Inc (North liberty, IA) and adenoviral constructs of PRDX3, GRX1 and respective GFP control were obtained from Vector Biolabs. For GPX4 construct, we took leverage of a novel technique recently developed by Thomas Wandless group (Iwamoto et al., 2010) to deliberately regulate the level of expression of a protein of interest. Adenoviral construct of ddGPX4 had an E. coli dihydrofolate reductase (ecDHFR) mutant (it was called as degradation domain) fused to its CMV promoter which displays Trimethoprim (TMP) dependent stability. Because of the fusion of degradation domain to the GPX4 promoter, GPX4 also displayed TMP dependent stability. Without TMP, GPX4 was rapidly degraded completely through proteasome but with increase in dose of TMP, GPX4 stability increases. Treatment of ddGPX4 expressing cells with 10 µM TMP for 12 hr stabilized ddGPX4 very well. SH-SY5Y cells, HeLa cells or Hep3B cells were transduced with different adenoviral constructs at 500 MOI (Multiplicity of infection) incubated for 72 h and primary immature cortical neurons (PCNs) were transduced with different adenoviral constructs at 100 MOI (Multiplicity of infection) for 48 h. The maximal expression of these constructs was determined by expressing adenoviral construct of GFP at 500 MOI for 72 hr in SH-SY5Y cells and 100 MOI for 48 hr in PCNs, respectively, on slides and staining them with GFP antibody (Abcam, ab6556). Ten µM TMP was added to ddGPX4 expressing cells and their respective control GFP expressing cells after 60 hr of adenoviral incubation for 12 hr to get stabilized GPX4 expression. Parallel sets without transduction of adenoviral constructs but probed with same GFP antibody were used as respective negative controls in each in-vitro models. Thereafter, one set was kept in normoxia (21% oxygen) and a parallel set in hypoxia (1% oxygen) for 4 hr. For the study of changes in endogenous antioxidants, SH-SY5Y cells and primary cortical neurons were exposed to normoxia/hypoxia for a relatively longer time period, 8 hr so that we could visualize compensatory changes in antioxidants under normoxic and hypoxic conditions.

In order to study real time changes in hydrogen peroxide in hypoxia condition, the adenovirus containing the cytosolic H2O2 sensor, pHyPer-cyto vector (FP942, Evrogen, Moscow, Russia) (Belousov et al., 2006) was generated by Vector Biolabs (Malvern, PA) as previously described (Karamanlidis et al., 2013). The H2O2 sensor was transduced in intact islets during incubation in RPMI media supplemented with 10 % heat-inactivated fetal bovine serum and the adenoviruses at 100 MOI for 3 days at 37°C as previously optimized (Neal et al., 2016). SH-SY5Y cells and Hep3B cells were also transduced with the H2O2 sensor at 100 MOI in a similar manner.

Real-time epifluorescent imaging of intracellular H2O2

Request a detailed protocol

Real-time imaging experiments were carried out while islets were perifused using a commercially available temperature-controlled Bioptechs FCS2, a closed system, parallel plate flow chamber (Butler, PA) as previously described (Neal et al., 2016). After the islets were loaded into the perifusion chambers, the chamber was sealed and mounted onto the stage of a Nikon Eclipse TE-200 inverted microscope. KRB was pumped through the perifusion chamber at flow rates of 120 μl/min using a Masterflex L/S peristaltic pump (Cole-Parmer, Vernon Hills, IL). Use of an artificial gas exchanger positioned on the inflow side of the perifusion chamber enabled rapid changes in the concentrations of dissolved oxygen by switching the source tank of gas between tanks containing 21% and 1% oxygen (balance 5% carbon dioxide and nitrogen) (Sweet et al., 2002). The HyPer signal was generated by dual fluorescence excitation via a xenon arc lamp (Lambda LS-1620, Sutter Instrument Company, Novato, CA) through either a 405/30 nm or a 480/40 nm bandpass filter and detected at 510 nm through a longpass dichroic mirror with a cutoff below 500 nm. The images were taken using a digital camera (Photometrics Cool Snap HQ2 CCD camera, Tucson, AZ) through a 40 X Super Fluor Nikon objective (DIC H/N2). Data were expressed ratiometrically, where the excitation intensities at 480 nm were divided by those obtained during excitation at 405 nm. Similar procedure was used for real time monitoring of H2O2 in SH-SY5Y cells and Hep3B cells. In order to further confirm the specificity of HyPer signals, we treated Hep3B cells with the bacterial Streptolysin-O (which creates pores in the cell membranes) to selectively permeabilize the plasma membrane followed by their exposure to increasing concentrations of exogenous H2O2. Real time measurement of changes in the HyPer signals in response to exogenous addition of H2O2 confirmed the specificity of HyPer signal with regard to H2O2.

Real-time epifluorescent imaging of intracellular NAD(P)H

Request a detailed protocol

NAD(P)H autofluorescence was measured similarly to H2O2, except there was no need for loading with dye, and the excitation and emission wavelengths were 360 and 460 nm, respectively (as previously described [Gilbert et al., 2008]). To calibrate the relative fluorescence units (RFU), at the end of experiments, the steady state RFU in the presence of potassium cyanide (KCN) and, subsequently, FCCP was measured. The normalized fluorescence of NAD(P)H was then calculated as follows,

(1) %ReducedNAD(P)H=100(RFUtestRFUFCCP)/(RFUKCNRFUFCCP)

where RFUFCCP and RFUKCN equals the average of the final 10 time points during which each agent was present.

Real-time measurement of insulin secretion rate

Request a detailed protocol

Outflow fractions from the flow system containing islets were collected in a fraction collection for subsequent measurement of insulin (described previously Sweet et al., 2004; Sweet et al., 2002). Insulin secretion rate was calculated as the flow rate (80 µl/min) times the insulin concentration in the outflow Fractions, over the number of islets in the chamber (typically 50 Sweet and Gilbert, 2006). Insulin was measured by radioimmunoassay (RI-13K, EMD Millipore, Darmstadt, Germany) as per the manufacturer instructions.

ODD-luciferase activity assay

Request a detailed protocol

The ODD-luciferase construct with pcDNA3.1 plasmid vector was constructed as previously described (Safran et al., 2006). The proline p402 and p564 present within the oxygen degradation domain (ODD) of HIF1α, when hydroxylated by HIF-PHDs, allow its binding to the VHL protein that target it for proteasomal degradation. In this way, the stabilization of ODD can be used as a marker of HIF1α stability (Safran et al., 2006; Smirnova et al., 2010). Because of the luciferase tagged with ODD, the increase in ODD stability leads to a proportional increase in the luciferase activity and this provides a very good way of measuring the HIF1α stability in a quantitative manner with a wide dynamic range. To this end, we used SH-SY5Y cells stably expressing ODD-luciferase. These cells were made by co-transfecting ODD-luciferase plasmid along with a puromycin resistance plasmid in SH-SY5Y cells and stably transfected cells were positively selected in presence of 4 μg/ml of puromycin. Luciferase activity was measured by luciferase assay kit (promega) using an LMaxII microplate luminometer (molecular Devices). ODD-luciferase activity was normalized to the protein content of each well measured by Bio-Rad DC protein assay kit.

Gene expression study

Request a detailed protocol

Total RNA was prepared from SH-SY5Y cells using the Nucleospin RNA kit (MACHEREY-NAGEL) and following their protocol. Real-time PCRs were performed as a duplex reaction using FAM labeled Enolase2 (Human - Hs00157360_m1), Bnip3 (Human - Hs00969291_m1), and Hif1a (Human - Hs00153153_m1) gene expression assays (Thermo Fisher Scientific) and VIC-labeled human β actin endogenous control probe (Human - 4326315E) or RNA28S5 (Human - Hs03654441_s1) (Thermo Fisher Scientific) so that amplified mRNA can be normalized to β actin or RNA28S5. These experiments were performed using a 7500 Real-time PCR system (Applied Biosystems) using standard PCR protocol and amplification conditions.

In order to measure gene expression in pancreatic islets exposed to normoxia or hypoxia, islets were first placed in incubators containing either 21% or 1% oxygen for 2 hr. At the end of this time, islets were lysed and total RNA was purified using RNeasy Mini Kit (Qiagen, Hilden Germany). Bnip3, Kdm6b and rat Actin B mRNA were measured by quantitative PCR using FAM-labeled Bnip3 (Rat - Rn00821446_g1), Kdm6b (Rat - Rn01471506_m1) gene expression assays and VIC-labeled rat β actin endogenous control probe (Rat - 4352340E), all purchased from Thermo Fisher Scientific. These experiments were performed on Mx3005P Multiplex QPCR System (Stratagene, La Jolla, CA) with samples loaded in triplicate using ∼ 100 ng of total RNA.

Enzyme activity assay

Request a detailed protocol

For GPX1, catalase, and MnSOD activity assay, cells in each sample expressing respective adenoviral constructs were collected, lysed and used for respective enzyme activity assay following the protocols of GPX1, catalase, and SOD assay kit from Biovision. Total protein was measured using the Bio-Rad DC protein assay kit. The enzyme activity was normalized to the protein concentration for each sample.

Cell viability assay

Request a detailed protocol

In order to test the functional activity of GPX4, immature primary cortical neurons (E15) were isolated from mice embryos and plated at 106 cells/ml in 96-well plate. The next day, cells were transduced with GPX4 adenoviral constructs at 100 MOI. After 24 hr incubation, cells were treated with glutamate analog, homocysteic acid (HCA) (5 mM) which inhibits Xc- transporter, thereby inhibiting cysteine uptake which leads to glutathione depletion and increase in intracellular oxidative stress. Cells were also treated with 10 µM TMP at the same time to stabilize GPX4 protein. The next day, cell viability was assessed by the MTT assay (Promega) to understand whether ddGPX4 is functionally active to show its protective effect by decreasing oxidants under oxidative stress.

Cell death assay

Request a detailed protocol

SH-SY5Y ODD-luc cells overexpressing different adenoviral constructs of antioxidants were treated with increasing concentrations of H2O2 (1mM – 10mM) and then were exposed to normoxia or hypoxia in parallel for 4 hr and then plates were taken out and media was removed gently and 1xPBS containing 10 μM Sytox blue dye (Nucleic acid stain that easily penetrates cells with compromised membranes and binds to DNA) was added in each well and incubated at room temperature for 15 min and then fluorescence was measured using fluorescence plate reader with excitation/emission maxima at 440/480 nm.

ROS measurement through DCF flow cytometry

Request a detailed protocol

To measure changes in ROS levels, molecular probe DCFDA (2’, 7’ – dichlorofluorescin diacetate) was used. After exposing parallel sets of SH-SY5Y ODD-Luc cells to either normoxia or hypoxia for 4 hr, media was removed, cells were washed with 1xPBS once, and then 1xPBS with 20 μM DCFDA was added in each well. Additional parallel sets of cells from both conditions were also treated with 5 mM H2O2 at the same time and were used as positive controls. Plates from both normoxia and hypoxia were then incubated at room temperature for 30 min in normoxic condition. DCFDA diffuses through the cell membrane and is deacetylated by intracellular esterases to a non-fluorescent form which is later oxidized by ROS into 2’, 7’ – dichlorofluorescein (DCF) which is a highly fluorescent compound. After incubation, fluorescence was measured through flow cytometry at the wavelength of excitation, 485 nm and emission, 535 nm, respectively. Production of ROS was measured as mean fluorescence index multiplied by respective cell counts and was expressed as fold change with respect to control.

Immunoblotting

Request a detailed protocol

Protein extracts were prepared using 1% triton buffer containing protease inhibitor cocktail, MG132, PMSF, and DTT and were separated by SDS-PAGE, transferred onto nitrocellulose membrane and probed with antibodies against GFP (Cell Signaling Technology; 2555), MnSOD (Sigma-Aldrich; HPA001814), catalase (Sigma-Aldrich; C0979), GPX1 (Cell Signaling Technology; 3,286 S and Novus Biologicals; NBP1-33620), GPX4 (LSBio; LS B1596), PRDX3 (Novus Biologicals; NBP2-19777), Luciferase (Santa Cruz Biotechnology; sc-74548), HIF1α (Novus Biologicals; NB100-479 and NB100-105), Citrate synthase (Cell Signaling Technology; 14,309 S) antibodies were used for immunoblotting. Nuclear-cytoplasmic fractionation was done using NE-PER Nuclear and Cytoplasmic Extraction kit (ThermoFisher Scientific, Catalog number: 78835) and nuclear fraction was used for the immunoblotting of HIF1α using the monoclonal antibody (NB100-105) while the whole cell extract was used for the immunoblotting of HIF1α using polyclonal antibody (NB100-479) and all other immunoblots.

Quantification and statistical analysis

Request a detailed protocol

All experiments were performed as at least three independent sets and data were displayed as means ± standard deviation (SD). Statistical significances were assessed in GraphPad Prism using either Student’s t tests to compare values between two specific groups or one-way ANOVA followed by Dunnett’s post-hoc test/Tukey’s Post-hoc test to compare the values of more than two groups or two-way ANOVA followed by Bonferroni’s post-hoc test to compare the values of two groups under two different conditions at a given time. Statistical details for each figure can be found in their respective figure legends. The p value of 0.05 or less was considered statistically significant in all statistical analyses.

Online supplemental material

Request a detailed protocol

Figure 2—figure supplement 1 shows that hypoxic exposure of SH-SY5Y cells for different time periods such as 2, 4, and 8 hr do not induce homeostatic increase in antioxidant enzymes. Figure 2—figure supplement 2 provides additional evidence in SH-SY5Y cells or Hep3B cells that hypoxia does not increase peroxide levels. Figure 3—figure supplement 1 shows a validation of the degree of expression of transduced transgenes encoded within adenoviral vectors in SH-SY5Y cell and primary cortical neurons (PCNs) using adenoviral particles encoding GFP. Figure 3—figure supplement 2 shows the validation of the enzyme activities of various antioxidants in normoxia and hypoxia. Figure 3—figure supplement 3 shows the validation of the functional activity of antioxidants to decrease reactive oxygen species. Figure 3—figure supplement 4 provides the additional evidence in primary neurons that the stabilization of HIF1α is not oxidant-initiated in hypoxia. Figure 3—figure supplement 5 provides additional evidence in HELA cells that the stabilization of HIF1α is not oxidant-initiated in hypoxia. Figure 3—figure supplement 6 provides another additional evidence in Hep3B cells that the stabilization of HIF1α is not oxidant-initiated in hypoxia. Figure 5—figure supplement 1 shows the validation of the functional activity of GPX4 to reduce reactive lipid species.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting file.

References

    1. Bae YS
    2. Kang SW
    3. Seo MS
    4. Baines IC
    5. Tekle E
    6. Chock PB
    7. Rhee SG
    (1997)
    Epidermal growth factor (EGF)-induced generation of hydrogen peroxide. Role in EGF receptor-mediated tyrosine phosphorylation
    The Journal of Biological Chemistry 272:217–221.

Decision letter

  1. Thilo Hagen
    Reviewing Editor; National University of Singapore, Singapore, Singapore
  2. Gisela Storz
    Senior Editor; National Institute of Child Health and Human Development, United States
  3. Thilo Hagen
    Reviewer
  4. Paul S Brookes
    Reviewer; University of Rochester Medical Center, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

All reviewers agreed that the manuscript addresses an important question that is of interest and uses fresh approaches and new methodologies to make a significant contribution to resolve this controversial issue of hypoxic signaling. The reviewers also commend the authors for revising their manuscript with additional data and changes in the manuscript text in response to their comments. The reviewers agree that after the revision there are no further concerns.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "Oxidants are dispensable for HIF1α stability in hypoxia" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Thilo Hagen as the Reviewing Editor and Reviewer #2, and the evaluation has been overseen by a Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Paul S Brookes (Reviewer #3).

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered for publication in eLife in its current form.

All reviewers agreed that the manuscript addresses an important question that is of interest. The reviewers acknowledge that the study is generally very thorough and uses fresh approaches and new methodologies to make a significant contribution to resolve this controversial issue of hypoxic signaling. However, there are a number of general criticisms, including a tendency to over-interpret the results and over-state conclusions. As pointed out in the specific comments, there are various instances where the presentation and interpretation of the data is inappropriate and these need to be addressed. The reviewers also made a number of suggestions for additional experiments to support the conclusions of the study or extend the study further. If the authors decide to resubmit their manuscript to eLife, all reviewer comments should be seriously considered. It is necessary that the authors respond to each of the reviewers comments in detail.

Reviewer #1:

It has long been known that mitochondria are involved in regulating the cellular response to hypoxia, either through increased O2 consumption, through the generation of reactive oxygen species (ROS), or other mechanisms. But there has been controversy over the requirement of ROS in contributing to hypoxia inducible factor -1alpha (HIF-1alpha) in hypoxia, partly due to methodological differences, and different cell systems used from group to group. Previous studies have used antioxidant agents to assess HIF-1alpha stability in hypoxia, and have shown differing effects. This is an interesting area of research, but there are fundamental and major concerns with the approaches taken.

Figure 1. The authors show expression of antioxidant proteins by western and measurement of peroxide levels. 21%O2 (atmospheric) and 1-2% O2 are used.

What is needed are time courses and different O2 levels, especially physiological levels of O2 (5-10%). Also, proteomic analyses would be far more 'state-of-the-art' than a simple western, especially given that no difference are shown on the westerns.

Figure 2. The authors use DFO, and measure activity of an exogenous ODD-luc reporter (as an indirect measurement of HIF). Although DFO, an iron chelator will stabilize HIF1a in cells, but it is highly toxic and non-specific. There are many other 'targeted' PHD inhibitors available (see Nat Rev Nephrol, 2016;12(3):157-68) and should be used here. Activity of exogenously overexpression of antioxidant enzymes by adenovirus shown -is this normoxia only? What activity in about hypoxia?

Figure 3. SH-SY5Y cells stably expressing ODD-luciferase were transduced with adenoviruses encoding distinct antioxidant enzymes for 72h. Catalase (CAT) increases and GPX1 decreased ODD-luc promoter activity in hypoxia. While the ODD-HIF-1a protein levels tally with this finding (3B), the endogenous HIF-1a does not -increased with CAT but does not decrease with GPX1. These data suggest the ODD-luc does not function like the endogenous protein. Can the authors explain this discrepancy?

Figure 4. Authors only show ODD-luc data, but they should show half-life of the endogenous HIF-1a protein, also HIF2a should be shown.

Figure 5. It is not clear how FIH relates to these data, as suggested in the results text (line 301). To properly test the role of FIH, the authors should use FIH KO cells.

Figure 6. The authors show no effect of exogenously expressed GPX4 on HIF1a. The authors should assess HIF2a (see Zho et al. Nat Comm 2019, 10 (1617)).

Reviewer #2:

In their study, Kumar et al. characterized the role of mitochondria in hypoxic signaling. This is an important topic, as both mitochondrial function and hypoxic signaling are frequently altered in various pathological conditions. For instance, tumors are commonly hypoxic and activation of the cellular hypoxic response is often critical for tumor cell survival or even promotion of tumorigenesis. At the same time, as a result of induction of the Warburg effect, mitochondrial function is frequently downregulated in cancer cells. In ischemic diseases, the induction of the cellular hypoxic response has an important protective role, while mitochondria derived ROS, especially during reperfusion, are an important contributor to cell and tissue injury. Hence, understanding the link between the cellular hypoxic response and mitochondrial (dys)function is of great interest.

The mechanism through which mitochondria regulate the hypoxic response has been a long standing controversy. On the one hand, it has been proposed that hypoxia causes an increase in mitochondria derived ROS, which promotes the induction of the HIF1alpha transcription factor. On the other hand, mitochondrial activity regulates the intracellular oxygen concentration, which may have implications of hypoxic signaling and other cellular oxygen dependent processes (e.g. histone demethylation and ER protein folding).

What is special about the current study is how rigorous and in depth the authors addressed the question of how mitochondrial function affects the hypoxic response, specifically whether mitochondria-derived ROS are involved. The authors used relevant models and included extensive controls. Examples include the use of non-transformed primary cells as well as rat pancreatic islet cells, which display physiological mitochondria-dependent H2O2 increases in response to elevated glucose. The authors took into account changes in mitochondrial mass when assessing changes in expression levels, used positive controls to validate assays, validated of transfection efficiencies and functional expression levels, and confirmed their results in multiple cell lines and using multiple assays. As such, the study provides a very in depth analysis, which allows to draw firm conclusions.

Furthermore, throughout the study, the authors produced high quality data and went out of their way to show that the experimental settings worked and rule out alternative explanations. In fact, I have rarely reviewed a study that us so well planned, conducted and presented. In summary, the significance of the manuscript does not lie in the novelty, but in the fact that the study addresses an important problem and provides high quality data, which makes the study very conclusive.

I have the following specific comments:

1. My major concern is that the authors did not confirm that mitochondria indeed regulate HIF1α stability in the used cellular system.

2. Results (first paragraph, line 138):

The following sentence implies causality that has not really been shown by the authors.

"… since hypoxia induces HIF1α-dependent mitophagy (Aminova, Siddiq, & Ratan, 2008; Zhang et al., 2008), mitochondrial mass is decreased with increasing duration of hypoxia and includes decreases in mitochondrial DNA and proteins."

3. line 187: Should this say "increases in NADPH levels"?:

"Increasing the glucose concentration from 3 mM to 20 mM elicited the expected increases in peroxide, decreases in NADPH levels and insulin secretion rates under normoxia."

Reviewer #3:

In this work, the authors attempt to address a long-standing controversy in the cell signaling literature, namely the role of reactive oxygen species (ROS) in hypoxic cell signaling. Previous claims that ROS are required for the activation of hypoxia inducible factor (HIF) have not been reconciled with the requirement of molecular oxygen as a substrate for ROS generation (i.e. how can there be more ROS in hypoxia when there is less substrate to make it?) A further critique of previous work is that the genetic manipulations applied to alter ROS (namely, knocking out components of the respiratory chain) would also be expected to alter oxygen consumption and thus intra-cellular oxygen gradients. Herein, contemporary approaches are used, including manipulation of several enzymes that degrade ROS, to show that ROS are not required for HIF activation.

In general the work is technically sound, using multiple different cell systems, and often several overlapping methods to achieve the same ends. Much of the reasoning used in drawing conclusions is iterative, and while this is mostly sound, it is somewhat stretched in places. For example, a key observation is that antioxidant enzymes (catalase, GPXs, MnSOD) are not induced by hypoxia, and this is used to argue that ROS are not increased – because if ROS were up then antioxidants should be up too. There are several alternative explanations: (i) Maybe they didn't choose the right time point. (ii) Maybe they didn't look at the right antioxidants. (iii) Maybe antioxidants didn't change because the ROS signal was too small. In general, I feel that the paper errs toward drawing one conclusion without adequate consideration of alternative explanations.

The use of the HyPer probe for H2O2 is a great approach, although one must question the use of the original HyPer from 2006, with its pH sensitivity problems (the authors do address this experimentally, although again the approach is somewhat dated). Newer more sensitive generations of this probe are available (HyPer3 since 2013), so the use of the older probe cannot be termed "state-of-the-art".

The results in Figure S1C are very puzzling. It is widely reported in the literature that cyanide (KCN) does not lead to an increase in mitochondrial ROS. This is because when cytochrome c oxidation is prevented, feedback inhibition occurs into the C1 and Fe-S subunits of complex III. If the Qo site of complex III cannot give up its first electron to the upper pathway, then the semiquinone radical is not generated and so ROS from this site is suppressed. This was the strategy used by Chandel and others to prove the role for the Qo site as the source of ROS – knocking out the Fe-S protein prevents ROS generation. Here, the HyPer signal increases with KCN. A simple (but unfair) interpretation would be that the probe does not measure ROS. But, even if it does, the effect of KCN is still puzzling when compared to that of hypoxia – both of these interventions inhibit complex IV and so should have the same effect, but herein only KCN impacts the probe signal. A more likely explanation here is that KCN may have off target effects in cells – it is known to inhibit peroxidases and catalase, and so likely the increase in probe signal seen with KCN is due to prevention of ROS scavenging by such enzymes.

A key concern is raised with Figure S3A and S3B, in which the authors used the non-specific redox probe DCF to measure oxidants. Notably, they saw no increase in DCF signal in hypoxia. This experiment therefore fails to replicate the fundamental findings of the Chandel/Schumacker lab that started this whole field (namely hypoxia gives rise to an increase in DCF signal). While obtaining different results using a different probe (HyPer) is reasonable and even to be expected, not being able to repeat the fundamental result from the other lab (and many other labs) is somewhat problematic.

Furthermore, the last set of bars on the right in these experiments (Figure S3A/B) clearly show that while addition of H2O2 led to an increase in DCF signal under normoxic conditions, no increase was seen in hypoxia. This seems like an important difference between the cells. One possible explanation is that hypoxic cells had increased H2O2 scavenging ability.

The results in Figure 4, showing that alterations in the half-life of HIF induced by antioxidants expression was due to impacts on proteasomal degradation, are quite important, and buried deep in the paper. Likewise Figure 5 data supporting this HIF stability finding. I feel more could be made of this part of the story.

Overall, while the results are sound, the interpretation of some key experiments is lacking in places. Collectively, the results do point toward the idea that oxidants do not play a major role in HIF activation during hypoxia, and this will be of interest to the field.

Several suggestions to improve the manuscript.

The western blots provided are not up to contemporary standards for publication. The blots are presented as letter-boxed slices without molecular weight markers. In some cases (e.g. Figure 2A) the blots are washed out so there is no background, thus not providing any features to anchor the bands to the gel. It is requested to show original full-height blots with markers in supplemental information.

Some places the western blots used as confirmatory evidence for the reporter assays are presented as N=1. It would be good to add some quantitation to these blots, assuming they were representative of multiple experimental replicates.

A major place for improvement would be to consider and discuss alternative explanations for the results, as outlined above in the public review.

It is a little misleading to label the signal for the HyPer probe "H2O2" (as is the case with all such probes). What is measured is the steady-state of a redox sensitive disulfide bond, which will be somewhat sensitive to H2O2 flux but also other factors such as the counteracting flux of reductants. It is a little unfair to refer to this as an H2O2 probe, and to DCF as a non-specific oxidant probe. While there is no such thing as a perfect ROS probe, and in general genetically encoded sensors offer a number of advantages, caution still needs to be exercised in interpreting results.

If I were to recommend another experiment (at the discretion of the editors and authors due to covid restrictions), it would be to measure NAD(P)H levels in the cells where antioxidants have been manipulated. Since many of these enzymes use NADPH as a substrate, changing their expression could impact the pools of these nucleotides, which could in turn impact redox sensitive processes. For example in Figure 3, the NADPH dependent GPX1 has an effect, but non-NADPH dependent antioxidants (MnSOD, CAT, PRDX3) do not.

Line 188 – text says NADPH decreases upon glucose ramp, but the signal in the figure (panel 1L) increases at this point.

Line 200 – "in" appears twice.

Line 266 – use of the term "reduce" to mean lower/decrease, should be rethought (same on line 298).

The logic flow of the second paragraph of the paper (lines 70-88) is not strong. It starts out saying that one area where ROS signaling has been investigated is hypoxia. Then some information about the nuts and bolts of HIF signaling, and then something about diseases. Then the concluding line "understanding the role of ROS in HIF mediated adaptation has clinical implications". While yes, studying HIF is clinically relevant, the paragraph does not make a convincing case that studying ROS in the context of HIF signaling is relevant. Nothing in the middle makes a convincing case that any of the diseases associated with HIF are actually related to ROS. Some information on how ROS interplay with the HIF system is necessary, along with some details on how HIF is impacted at the molecular level in these diseases.

https://doi.org/10.7554/eLife.72873.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

Reviewer #1:

It has long been known that mitochondria are involved in regulating the cellular response to hypoxia, either through increased O2 consumption, through the generation of reactive oxygen species (ROS), or other mechanisms. But there has been controversy over the requirement of ROS in contributing to hypoxia inducible factor -1alpha (HIF-1alpha) in hypoxia, partly due to methodological differences, and different cell systems used from group to group. Previous studies have used antioxidant agents to assess HIF-1alpha stability in hypoxia, and have shown differing effects. This is an interesting area of research, but there are fundamental and major concerns with the approaches taken.

Figure 1. The authors show expression of antioxidant proteins by western and measurement of peroxide levels. 21%O2 (atmospheric) and 1-2% O2 are used.

What is needed are time courses and different O2 levels, especially physiological levels of O2 (5-10%). Also, proteomic analyses would be far more 'state-of-the-art' than a simple western, especially given that no difference are shown on the westerns.

We would like to thank the reviewer for this valuable suggestion. As suggested, we performed a time course to see if there is a temporal change in endogenous antioxidant protein levels under hypoxia (1% O2), but despite looking at multiple time points, we didn’t detect any change in endogenous antioxidant protein levels under hypoxia (Figure 2-figure supplement 1).

We did not assess higher oxygen tensions (5-10% O2) because in past studies a number of groups have transitioned from 21 % O2 to 1% O2, as we did, to assess the role of ROS in hypoxic HIF stabilization. Also, the reviewer’s suggestion about performing “proteomic analyses” is an important suggestion but since we have already assessed antioxidant enzymes, which have not only different cellular localizations and also work differently as ROS scavengers (Author response image 1), we believe that the compensatory response to changes in hypoxic ROS levels should be reflected by changes in at-least one of these antioxidant enzymes. Therefore, we depended on quantitative changes reflected by immunoblotting of these antioxidant enzymes rather than doing proteomic analyses which can be difficult to quantitate.

We formally concede that there is still a possibility that we might have missed the right antioxidant to examine. However, that was the main reason that we went ahead with direct assessment of changes in ROS levels using real time imaging in HyPer fluorescence. Finally, we would like to point out that no single set of experiments allowed us to reach the conclusion that HIF stability is independent of ROS or RLS. It was the aggregate of multiple approaches that led to the same conclusion.

Author response image 1
Sub-cellular localization of various antioxidants.

Figure 2. The authors use DFO, and measure activity of an exogenous ODD-luc reporter (as an indirect measurement of HIF). Although DFO, an iron chelator will stabilize HIF1a in cells, but it is highly toxic and non-specific. There are many other 'targeted' PHD inhibitors available (see Nat Rev Nephrol, 2016;12(3):157-68) and should be used here. Activity of exogenously overexpression of antioxidant enzymes by adenovirus shown -is this normoxia only? What activity in about hypoxia?

We apologize for the confusion. We had previously used DFO only to examine if the dose-dependant dynamic changes seen in endogenous HIF1α protein level correlate well with dose-dependent dynamic changes seen in exogenous ODD-Luciferase activity in response to increasing concentrations of DFO. As per the reviewer’s suggestion, now, we have used a selective HIF-PhD inhibitor, adaptaquin, which we had identified in an unbiased screen of an 85,000 Rockefeller library compounds and had characterized in collaboration with Dr. Schofield, University of Oxford as a selective HIFPhD inhibitor (Figure 3; Karuppagounder et al., Sci. Transl. Med., 2016). We again treated SH-SY5Y neuroblast cells with increasing concentrations of adaptaquin for 4 hr and assessed dose-dependent changes in either endogenous HIF1α protein level or exogenous ODD-Luciferase activity or expression of endogenous HIF target genes, Bnip3 and Eno2. We, again, not only found a strong correlation between dose-dependent dynamic changes in endogenous HIF1α protein level with dose-dependent dynamic changes seen in exogenous ODD-Luciferase activity but also between endogenous HIF target genes (Bnip3 and Eno2) and exogenous ODD-Luciferase activity (Figure 1). Importantly, the coefficient of variation for HIF1α protein level (assessed through western blot) between one set to another set was much higher compared to ODD-Luc activity. This provided us more confidence in using ODD-Luc activity as a surrogate assessment for quantitative measurement of changes in endogenous level of HIF1α protein.

The reviewer’s question about the enzyme activity assay was a valid question but a technically challenging one to address as once we take samples out of hypoxic chamber, enzymatic activities of antioxidants may change due redox changes introduced by normoxia. We, therefore, used an alternative approach to address this issue. We treated SHSY- 5Y neuroblast cells with increasing concentrations of H2O2 and then exposed one set to the normoxia and other set to the hypoxia (1% O2) for four hours and thereafter assessed cell death using a nuclear dye Sytox blue. As expected, MnSOD overexpression, which should increase peroxide did not protect cells from H2O2 led cell death. Of note, the pattern of death was similar in both normoxia and hypoxia indicating that hypoxia itself did not affect the enzyme activity of MnSOD. Importantly, catalase and GPX1 overexpression protected these cells both in normoxia and hypoxia indicating that hypoxia itself did not affect the enzyme activities of these overexpressing antioxidant constructs (Figure 3-figure supplement 2).

Figure 3. SH-SY5Y cells stably expressing ODD-luciferase were transduced with adenoviruses encoding distinct antioxidant enzymes for 72h. Catalase (CAT) increases and GPX1 decreased ODD-luc promoter activity in hypoxia. While the ODD-HIF-1a protein levels tally with this finding (3B), the endogenous HIF-1a does not -increased with CAT but does not decrease with GPX1. These data suggest the ODD-luc does not function like the endogenous protein. Can the authors explain this discrepancy?

Thank you for pointing this out. We ran the western blot of endogenous HIF1α again in three sets using another monoclonal HIF1α antibody (Novus Biologicals, Catalog number: NB 100-105) (Author response image 2). We agree that the particular representative blot shown earlier in that Figure 3 was confusing. However, the densitometric analysis of an average of three new sets showed expected decreases in HIF1α prote in levels in response to GPX1 overexpression, which we did not include earlier. Now, we have included the new representative HIF1α western blot in Figure 3. We have now also included densitometric analyses of the western blots from all three sets to avoid this confusion. Due to a high coefficient of variation between different sets of HIF1α western blots, changes in HIF1α protein levels in response to catalase or GPX1 were not statistically significant as compared to that of GFP. However, similar changes reflected in ODD-Luc activity and HIF target genes, Trib3 and Eno2, were statistically significant as compared to that of GFP, which we have now moved from Figure 5 to Figure 3 to show the correlation between changes in ODD and HIF1α protein with the transcriptional activity of HIF1α.

Author response image 2
Relative changes in HIF1α protein level in response to overexpression of MnSOD, catalase or GPX1 under normoxia and hypoxia.

Figure 4. Authors only show ODD-luc data, but they should show half-life of the endogenous HIF-1a protein, also HIF2a should be shown.

Since we have not only found a strong correlation between ODD-Luciferase activity and HIF1α protein level but also with the transcriptional activity of HIF1α (Figure 1), we preferred to depend on the findings from half-life of ODD-Luciferase activity rather than examining the half-life of HIF1α.

Also, the suggestion to examine changes in HIF2α is a great one but since the focus of our study is to understand if ROS regulate hypoxic HIF1α stability or not, we preferred to focus mainly on HIF1α rather than HIF2α in order to avoid confusing readers. We are planning to examine HIF2α in a detailed fashion as a follow up project.

Figure 5. It is not clear how FIH relates to these data, as suggested in the results text (line 301). To properly test the role of FIH, the authors should use FIH KO cells.

We did not pursue the FIH knockout studies as suggested by the reviewer for several reasons. First, in all of our manipulations, we always saw a good correlation between HIF-1alpha levels and transcriptional activity suggesting that protein stability via the HIF PHDs and activity of FIH were highly correlated. Second, since forced expression of enzymes that neutralized ROS or RLS did not inhibit transcriptional activity in the setting of increased HIF-1 stability, these results argue against FIH as a target for ROS or RLS neutralized by GPX4. Since we did not pursue detailed FIH knockout studies, we have now avoided the focus on FIH in the manuscript.

Figure 6. The authors show no effect of exogenously expressed GPX4 on HIF1a. The authors should assess HIF2a (see Zho et al. Nat Comm 2019, 10 (1617)).

Thank you for bringing our attention to the Zho et al. (Nat Comm 2019, 10 (1617)) where authors have found that HIF2α enriches cells with polyunsaturated fatty acids (PUFA) and thereby, sensitizes cells to ferroptosis. Notably, Zho et al. did not shown that Lipids or GPX4 (which neutralizes reactive lipids) regulates hypoxic HIF2α stability. It would be interesting to examine if GPX4 regulates the hypoxic HIF2α stability but as the focus of the current study is to understand the regulation of hypoxic HIF1α stability, we plan to undertake this interesting question in another a follow-up project heavily focused on hypoxic HIF2α stability.

Importantly, we would refer the reviewer to a paper published by our group in 2004 in JBC entitled ,”Prosurvival and prodeath effects of hypoxia-inducible factor-1 α Stabilization in a murine cell line” (Aminova et al. 2005). In that manuscript, we showed that forced expression of a HIF-1alpha VP-16 fusion protein potentiates ferroptosis; conversely reducing HIF-1alpha via shRNA rescued ferroptotic death. Although it was not labeled ferroptosis in 2004, cell death induced by glutamate and potentiated by HIF-1 expression is the result primarily of Xc- transport inhibition, the same target inhibited by erastin, the canonical Xc- transport inhibitor. Of note, ferroptosis does not induce HIF-1 stability on its own (Zaman et al., 1999).

Reviewer #2:

In their study, Kumar et al. characterized the role of mitochondria in hypoxic signaling. This is an important topic, as both mitochondrial function and hypoxic signaling are frequently altered in various pathological conditions. For instance, tumors are commonly hypoxic and activation of the cellular hypoxic response is often critical for tumor cell survival or even promotion of tumorigenesis. At the same time, as a result of induction of the Warburg effect, mitochondrial function is frequently downregulated in cancer cells. In ischemic diseases, the induction of the cellular hypoxic response has an important protective role, while mitochondria derived ROS, especially during reperfusion, are an important contributor to cell and tissue injury. Hence, understanding the link between the cellular hypoxic response and mitochondrial (dys)function is of great interest.

The mechanism through which mitochondria regulate the hypoxic response has been a long standing controversy. On the one hand, it has been proposed that hypoxia causes an increase in mitochondria derived ROS, which promotes the induction of the HIF1alpha transcription factor. On the other hand, mitochondrial activity regulates the intracellular oxygen concentration, which may have implications of hypoxic signaling and other cellular oxygen dependent processes (e.g. histone demethylation and ER protein folding).

What is special about the current study is how rigorous and in depth the authors addressed the question of how mitochondrial function affects the hypoxic response, specifically whether mitochondria-derived ROS are involved. The authors used relevant models and included extensive controls. Examples include the use of non-transformed primary cells as well as rat pancreatic islet cells, which display physiological mitochondria-dependent H2O2 increases in response to elevated glucose. The authors took into account changes in mitochondrial mass when assessing changes in expression levels, used positive controls to validate assays, validated of transfection efficiencies and functional expression levels, and confirmed their results in multiple cell lines and using multiple assays. As such, the study provides a very in depth analysis, which allows to draw firm conclusions.

Furthermore, throughout the study, the authors produced high quality data and went out of their way to show that the experimental settings worked and rule out alternative explanations. In fact, I have rarely reviewed a study that us so well planned, conducted and presented. In summary, the significance of the manuscript does not lie in the novelty, but in the fact that the study addresses an important problem and provides high quality data, which makes the study very conclusive.

I have the following specific comments:

1. My major concern is that the authors did not confirm that mitochondria indeed regulate HIF1α stability in the used cellular system.

We would like to thank the reviewer for this important question. As suggested, we tested the involvement of mitochondria in hypoxic HIF1α stability in SH-SY5Y ODD-Luc cells using mitochondrial electron transport chain complex inhibitors such as rotenone (complex I inhibitor), myxothiazol (complex III inhibitor), antimycin A (complex III inhibitor), and sodium azide (complex IV inhibitor). We were able to see that these inhibitors blocked the hypoxic HIF1α stability in a dose dependent manner indicating that mitochondria are involved in mediating the hypoxic HIF1α stability in SH-SY5Y neuroblast cell line (Figure 1).

2. Results (first paragraph, line 138):

The following sentence implies causality that has not really been shown by the authors.

"… since hypoxia induces HIF1α-dependent mitophagy (Aminova, Siddiq, & Ratan, 2008; Zhang et al., 2008), mitochondrial mass is decreased with increasing duration of hypoxia and includes decreases in mitochondrial DNA and proteins."

Thank you for the question. We apologize for the confusion. The goal behind citing the above prior findings from our group and other groups was to emphasize that we have chosen earlier time points following hypoxia rather than later time points in our studies to avoid the mitophagy process as it will also likely change ROS production and/oxygen consumption. The additional changes in mitochondrial proteins due to mitophagy will complicate the interpretation of our results. Moreover, the goal behind mentioning above sentence was not to prove causality of HIF1α in HIF1α-dependent mitophagy, which has been already shown in other studies. Rather, we preferred not to pursue issues related to HIF1α-dependent mitophagy directly but rather added experimental data related to its occurrence.

3. line 187: Should this say "increases in NADPH levels"?:

"Increasing the glucose concentration from 3 mM to 20 mM elicited the expected increases in peroxide, decreases in NADPH levels and insulin secretion rates under normoxia."

Thank you for pointing this out. We apologize for this typing mistake. We have now corrected the sentence in the manuscript as “Increasing the glucose concentration from 3 mM to 20 mM elicited the expected increases in peroxide, NADPH levels and insulin secretion rates under normoxia."

Reviewer #3:

In this work, the authors attempt to address a long-standing controversy in the cell signaling literature, namely the role of reactive oxygen species (ROS) in hypoxic cell signaling. Previous claims that ROS are required for the activation of hypoxia inducible factor (HIF) have not been reconciled with the requirement of molecular oxygen as a substrate for ROS generation (i.e. how can there be more ROS in hypoxia when there is less substrate to make it?) A further critique of previous work is that the genetic manipulations applied to alter ROS (namely, knocking out components of the respiratory chain) would also be expected to alter oxygen consumption and thus intra-cellular oxygen gradients. Herein, contemporary approaches are used, including manipulation of several enzymes that degrade ROS, to show that ROS are not required for HIF activation.

In general the work is technically sound, using multiple different cell systems, and often several overlapping methods to achieve the same ends. Much of the reasoning used in drawing conclusions is iterative, and while this is mostly sound, it is somewhat stretched in places. For example, a key observation is that antioxidant enzymes (catalase, GPXs, MnSOD) are not induced by hypoxia, and this is used to argue that ROS are not increased – because if ROS were up then antioxidants should be up too. There are several alternative explanations: (i) Maybe they didn't choose the right time point. (ii) Maybe they didn't look at the right antioxidants. (iii) Maybe antioxidants didn't change because the ROS signal was too small. In general, I feel that the paper errs toward drawing one conclusion without adequate consideration of alternative explanations.

Thank you for providing this important logical feedback. Now, we have corrected the interpretation of our results by including alternate possibilities in the manuscript as suggested. We have also performed a more extensive time course of antioxidant enzyme activities. We want to emphasize that no single set of experiments in our manuscript can drive the conclusion that ROS are likely not important. Rather, the combination of a lack of change in antioxidant enzymes; the inability to detect a change in ROS using a selective, ratiometric reporter; and the lack of consistent effect of antioxidant enzyme manipulation on HIF stability together argue that ROS are not likely important for HIF stability

The use of the HyPer probe for H2O2 is a great approach, although one must question the use of the original HyPer from 2006, with its pH sensitivity problems (the authors do address this experimentally, although again the approach is somewhat dated). Newer more sensitive generations of this probe are available (HyPer3 since 2013), so the use of the older probe cannot be termed "state-of-the-art".

We concede that this newer probe is reported to be more sensitive and also have quicker dynamics (although there is no mention in the 2013 paper of not having the same pH dependency). We have now removed the term “state-of-the-art” from the main text as suggested. We utilized the current version of Hyper because it was extensively validated in a prior manuscript by one of our groups (Neal et al. 2016).

The results in Figure S1C are very puzzling. It is widely reported in the literature that cyanide (KCN) does not lead to an increase in mitochondrial ROS. This is because when cytochrome c oxidation is prevented, feedback inhibition occurs into the C1 and Fe-S subunits of complex III. If the Qo site of complex III cannot give up its first electron to the upper pathway, then the semiquinone radical is not generated and so ROS from this site is suppressed. This was the strategy used by Chandel and others to prove the role for the Qo site as the source of ROS – knocking out the Fe-S protein prevents ROS generation. Here, the HyPer signal increases with KCN. A simple (but unfair) interpretation would be that the probe does not measure ROS. But, even if it does, the effect of KCN is still puzzling when compared to that of hypoxia – both of these interventions inhibit complex IV and so should have the same effect, but herein only KCN impacts the probe signal. A more likely explanation here is that KCN may have off target effects in cells – it is known to inhibit peroxidases and catalase, and so likely the increase in probe signal seen with KCN is due to prevention of ROS scavenging by such enzymes.

Thank you for this logical comment. This explanation is plausible, and our data cannot distinguish between an increase in H2O2 being mediated by an increase production rate, or a decrease in rate of destruction. It is likely that (1) KCN inhibits peroxidases and catalases and leads to an increase in ROS or (2) hypoxia decreases the rate of H2O2 formation due to a lack of O2, and KCN increases the rate of H2O2 due to increased transfer of electron from highly reduced ETC proteins to plentiful O2 in normoxia. This scenario is supported by the increase in NAD(P)H and our past studies on hypoxia and reductive state of cytochromes [Sweet IR et al., Diabetes Tech. Ther., 2002. (Figure 7); Sweet IR et al., Diabetes 2004 (Figure 3)]. Since we cannot rule out the scenario 1 and we have measured cytosolic H2O2 using cyto-HyPer and not mitochondrial H2O2, we preferred to remove the HyPer data in response to KCN treatment from figures S2C and S2G. However, since it is a positive control, the mechanism is not as important as the fact that it increases ROS and that this can be detected by the reporter.

A key concern is raised with Figure S3A and S3B, in which the authors used the non-specific redox probe DCF to measure oxidants. Notably, they saw no increase in DCF signal in hypoxia. This experiment therefore fails to replicate the fundamental findings of the Chandel/Schumacker lab that started this whole field (namely hypoxia gives rise to an increase in DCF signal). While obtaining different results using a different probe (HyPer) is reasonable and even to be expected, not being able to repeat the fundamental result from the other lab (and many other labs) is somewhat problematic.

Furthermore, the last set of bars on the right in these experiments (Figure S3A/B) clearly show that while addition of H2O2 led to an increase in DCF signal under normoxic conditions, no increase was seen in hypoxia. This seems like an important difference between the cells. One possible explanation is that hypoxic cells had increased H2O2 scavenging ability.

Thank you for pointing this out. A possible reason behind not seeing an increase in DCF signal under hypoxia as compared to normoxia is the way we have assessed the DCF signal. The way we have used DCF to assess oxidants was different from the method used by Dr. Chandel and others. Others had added DCF in the media before exposing cells to Normoxia/hypoxia and had kept it onboard during the exposure whereas we first exposed cells to Normoxia/hypoxia for 4 hours and then removed the media and washed cells once with 1X PBS and then added 100 microliters of 1X PBS containing 20μM DCF in each well. The reason we have done this way is that when we add DCF before the exposure and keep it onboard during the exposure, we are not sure if the increase in DCF is because of an increase in oxidant signaling or because of an increased accumulation of DCF in hypoxic cells as compared to normoxic cells. However, when we add DCF after completing the exposure of cells to normoxia/hypoxia and incubate these normoxic/hypoxic cells in the same environment for 30 min, we minimize the possibility of differential accumulation of DCF by these cells. We used simultaneous H2O2 treatment for 30 min as a positive control. Thereafter, we measured DCF through flow cytometry to get population measurement of change in mean fluorescence intensity. In our findings, we did not find an increase in DCF signaling in cells which were exposed to hypoxia for four hours as compared to those from normoxia. Additionally, as pointed out by the reviewer, we did not find an increase in DCF signaling with H2O2 in cells, which were exposed to hypoxia. This could be because of either decrease in ROS level during hypoxia (as can be seen with control GFP hypoxia compared with control GFP normoxia), which likely increased with H2O2 treatment to the level of GFP control under normoxia but didn’t go further up or because of increased scavenging capacity of SH-SY5Y cells under hypoxia as mentioned by the distinguished reviewer. We have now discussed these possibilities in the Results section of the manuscript to make results clearer.

Importantly, we did find an increase in DCF signal under hypoxia as Dr. Chandel and other groups have reported before by following their method i.e. by adding DCF before exposing cells to normoxia/hypoxia and keeping it onboard during the exposure but as you know DCF integrates oxidation so it is difficult to establish whether changes in signal are due to changes in excretion, cell geometry, or dye concentrations. That is why, we had chosen to add DCF after exposing cells to normoxia/hypoxia for a brief period of time and use flow cytometry.

We understand that there are limitations associated with using DCF for assessing changes in ROS level, hence our use of Hyper. But based on the above mentioned rationale, we preferred to confirm functional activities of antioxidants using DCF using a method that would diminish effects unrelated to ROS sensing. We know that this is the reason behind not seeing an increase in DCF signaling in hypoxia. We tried to be as careful as possible to avoid the non-specific measurements associated with DCF.

The results in Figure 4, showing that alterations in the half-life of HIF induced by antioxidants expression was due to impacts on proteasomal degradation, are quite important, and buried deep in the paper. Likewise Figure 5 data supporting this HIF stability finding. I feel more could be made of this part of the story.

Thank you for making this important comment. We have now tried to make the story more coherent and clear based on reviewer’s important comments. Now, we have merged the gene expression data of HIF1α target genes, Bnip3 and Eno2 from Figure 5 to Figure 3 to show it next to ODD-Luciferase activity and HIF1α immunoblots in order to consolidate these important findings together.

Overall, while the results are sound, the interpretation of some key experiments is lacking in places. Collectively, the results do point toward the idea that oxidants do not play a major role in HIF activation during hypoxia, and this will be of interest to the field.

Thank you again for this important comment. We have now revised and clarified the interpretation of our experiments in a number of places. We hope this will convince the reviewer that our results are sound.

Several suggestions to improve the manuscript…

The western blots provided are not up to contemporary standards for publication. The blots are presented as letter-boxed slices without molecular weight markers. In some cases (e.g. Figure 2A) the blots are washed out so there is no background, thus not providing any features to anchor the bands to the gel. It is requested to show original full-height blots with markers in supplemental information.

Thank you for this important comment. We have also replaced the washed out blots with original cropped blots without any change in intensity of the blots in all figures. We have now also included the original full-height blots of all representative blots with molecular weight markers in the supplementary information as suggested.

Some places the western blots used as confirmatory evidence for the reporter assays are presented as N=1. It would be good to add some quantitation to these blots, assuming they were representative of multiple experimental replicates.

Thank you. We have added densitometry quantitation of all western blots along with the statistical analyses to make it clear that all of the experiments were done as three independent sets and one set was presented as a representative blot in each case.

A major place for improvement would be to consider and discuss alternative explanations for the results, as outlined above in the public review.

Thank you for this important suggestion. We have now added alternative explanations of our results as suggested above.

It is a little misleading to label the signal for the HyPer probe "H2O2" (as is the case with all such probes). What is measured is the steady-state of a redox sensitive disulfide bond, which will be somewhat sensitive to H2O2 flux but also other factors such as the counteracting flux of reductants. It is a little unfair to refer to this as an H2O2 probe, and to DCF as a non-specific oxidant probe. While there is no such thing as a perfect ROS probe, and in general genetically encoded sensors offer a number of advantages, caution still needs to be exercised in interpreting results.

Thank you for this important suggestion. Now, we have changed the wordings from “H2O2 to HyPer fluorescence” in Figure 2 and Figure 2-figure supplement 2.

If I were to recommend another experiment (at the discretion of the editors and authors due to covid restrictions), it would be to measure NAD(P)H levels in the cells where antioxidants have been manipulated. Since many of these enzymes use NADPH as a substrate, changing their expression could impact the pools of these nucleotides, which could in turn impact redox sensitive processes. For example in Figure 3, the NADPH dependent GPX1 has an effect, but non-NADPH dependent antioxidants (MnSOD, CAT, PRDX3) do not.

Thank you for this important suggestion. Since we do not see any change in the hypoxic HIF1α stability or its transcriptional activity with the overexpression of another NAD(P)H dependent enzyme, GPX4, it did not provide us a strong rationale for NAD(P)H to be a critical mediator of the hypoxic HIF1α stability. Additionally, Non-NADPH dependent antioxidants such as catalase and PRDX3 led to an increase in the hypoxic HIF1α stability and its transcriptional activity while at the same time another Non-NADPH dependent antioxidant, MnSOD, did not have any effect on hypoxic HIF1α stability or its transcriptional activity. Overall, the effects of various antioxidants on the hypoxic HIF1α stability and/ or its transcriptional activity did not seem to be NAD(P)H dependent. We, therefore, could not think of measuring NAD(P)H levels in cells in response to antioxidant overexpression as a valuable set of critical experiment. We apologize for not doing this experiment.

Line 188 – text says NADPH decreases upon glucose ramp, but the signal in the figure (panel 1L) increases at this point.

Thank you for pointing this out. We have now corrected it.

Line 200 – "in" appears twice.

Thank you for pointing this out. We have now corrected it.

Line 266 – use of the term "reduce" to mean lower/decrease, should be rethought (same on line 298).

Thank you for this important suggestion. We have now replaced the word “reduced” with “decreased” throughout the manuscript.

The logic flow of the second paragraph of the paper (lines 70-88) is not strong. It starts out saying that one area where ROS signaling has been investigated is hypoxia. Then some information about the nuts and bolts of HIF signaling, and then something about diseases. Then the concluding line "understanding the role of ROS in HIF mediated adaptation has clinical implications". While yes, studying HIF is clinically relevant, the paragraph does not make a convincing case that studying ROS in the context of HIF signaling is relevant. Nothing in the middle makes a convincing case that any of the diseases associated with HIF are actually related to ROS. Some information on how ROS interplay with the HIF system is necessary, along with some details on how HIF is impacted at the molecular level in these diseases.

Thank you for this important suggestion. We have now improved the above mentioned paragraph in the manuscript as suggested.

https://doi.org/10.7554/eLife.72873.sa2

Article and author information

Author details

  1. Amit Kumar

    1. Burke Neurological Institute, White Plains, New York, United States
    2. Brain and Mind Research Institute, Weill Medical College of Cornell University, New York, United States
    3. Department of Neurology, Weill Medical College of Cornell University, New York, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Validation, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5017-9887
  2. Manisha Vaish

    1. Burke Neurological Institute, White Plains, New York, United States
    2. Pandemic Response Lab, New York, United States
    Contribution
    Conceptualization, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Saravanan S Karuppagounder

    1. Burke Neurological Institute, White Plains, New York, United States
    2. Brain and Mind Research Institute, Weill Medical College of Cornell University, New York, United States
    3. Department of Neurology, Weill Medical College of Cornell University, New York, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Irina Gazaryan

    Department of Anatomy and Cell Biology, New York Medical College, New York, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  5. John W Cave

    1. Burke Neurological Institute, White Plains, New York, United States
    2. Brain and Mind Research Institute, Weill Medical College of Cornell University, New York, United States
    3. Department of Neurology, Weill Medical College of Cornell University, New York, United States
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  6. Anatoly A Starkov

    1. Brain and Mind Research Institute, Weill Medical College of Cornell University, New York, United States
    2. Department of Neurology, Weill Medical College of Cornell University, New York, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  7. Elizabeth T Anderson

    Institute for Biotechnology, Cornell University, Ithaca, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  8. Sheng Zhang

    Institute for Biotechnology, Cornell University, Ithaca, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8206-1007
  9. John T Pinto

    Department of Biochemistry and Molecular Biology, New York Medical College, Valhalla, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  10. Austin M Rountree

    Department of Medicine, University of Washington, Seattle, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  11. Wang Wang

    Department of Pain and Anesthesiology, University of Washington, Seattle, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  12. Ian R Sweet

    Department of Medicine, University of Washington, Seattle, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7565-1663
  13. Rajiv R Ratan

    1. Burke Neurological Institute, White Plains, New York, United States
    2. Brain and Mind Research Institute, Weill Medical College of Cornell University, New York, United States
    3. Department of Neurology, Weill Medical College of Cornell University, New York, United States
    Contribution
    Conceptualization, Funding acquisition, Project administration, Resources, Writing - original draft, Writing - review and editing
    For correspondence
    rrr2001@med.cornell.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9081-2701

Funding

Dr. Miriam & Sheldon G. Adelson Medical Research Foundation

  • Rajiv R Ratan

National Institutes of Health (P01 AG14930-15A1)

  • Rajiv R Ratan

Goldsmith Fellowship

  • Amit Kumar

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by the National Institute of Health (Grant P01 AG14930-15A1, Project one to RRR), by Dr. Miriam and Sheldon G Adelson Medical Research Foundation grant to RRR, by a Goldsmith Fellowship to Amit Kumar for transition to independence, by Diabetes Research Center Cell Function Analysis Core (P30 DK17047; University of Washington) to Ian Sweet. We also want to thank Sunghee Cho and Jiwon Yang for their help in data acquisition through flow cytometry. We acknowledge critical comments and suggestions from Drs. Ratcliffe, Schofield, Semenza, Silva and Ciechanover. The authors declare no competing financial interests.

Ethics

All procedures involving animals were approved by the Institutional Animal Care and Use Committee of the Weill Cornell Medical College (Animal protocol number: 2013-0121) and the University of Washington Institutional Animal Care and Use Committee (Animal protocol number: 4091-01) and were in accordance with the guidelines established by the National Institutes of Health (NIH) and ARRIVE (Animal Research Reporting of In Vivo Experiments).

Senior Editor

  1. Gisela Storz, National Institute of Child Health and Human Development, United States

Reviewing Editor

  1. Thilo Hagen, National University of Singapore, Singapore, Singapore

Reviewers

  1. Thilo Hagen
  2. Paul S Brookes, University of Rochester Medical Center, United States

Publication history

  1. Received: August 6, 2021
  2. Accepted: September 19, 2021
  3. Accepted Manuscript published: October 1, 2021 (version 1)
  4. Version of Record published: October 21, 2021 (version 2)

Copyright

© 2021, Kumar et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,808
    Page views
  • 189
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Dillon Jevon et al.
    Research Article

    A developing understanding suggests that spatial compartmentalisation in pancreatic β cells is critical in controlling insulin secretion. To investigate the mechanisms, we have developed live-cell sub-cellular imaging methods using the mouse organotypic pancreatic slice. We demonstrate that the organotypic pancreatic slice, when compared with isolated islets, preserves intact β cell structure, and enhances glucose dependent Ca2+ responses and insulin secretion. Using the slice technique, we have discovered the essential role of local activation of integrins and the downstream component, focal adhesion kinase, in regulating β cells. Integrins and focal adhesion kinase are exclusively activated at the β cell capillary interface and using in situ and in vitro models we show their activation both positions presynaptic scaffold proteins, like ELKS and liprin, and regulates glucose dependent Ca2+ responses and insulin secretion. We conclude that focal adhesion kinase orchestrates the final steps of glucose dependent insulin secretion within the restricted domain where β cells contact the islet capillaries.

    1. Cell Biology
    2. Physics of Living Systems
    Sohyeon Park et al.
    Research Article Updated

    In addition to diffusive signals, cells in tissue also communicate via long, thin cellular protrusions, such as airinemes in zebrafish. Before establishing communication, cellular protrusions must find their target cell. Here, we demonstrate that the shapes of airinemes in zebrafish are consistent with a finite persistent random walk model. The probability of contacting the target cell is maximized for a balance between ballistic search (straight) and diffusive search (highly curved, random). We find that the curvature of airinemes in zebrafish, extracted from live-cell microscopy, is approximately the same value as the optimum in the simple persistent random walk model. We also explore the ability of the target cell to infer direction of the airineme’s source, finding that there is a theoretical trade-off between search optimality and directional information. This provides a framework to characterize the shape, and performance objectives, of non-canonical cellular protrusions in general.
