A genetic compensatory mechanism regulated by Jun and Mef2d modulates the expression of distinct class IIa Hdacs to ensure peripheral nerve myelination and repair
Abstract
The class IIa histone deacetylases (HDACs) have pivotal roles in the development of different tissues. Of this family, Schwann cells express Hdac4, 5, and 7 but not Hdac9. Here, we show that a transcription factor regulated genetic compensatory mechanism within this family of proteins, blocks negative regulators of myelination ensuring peripheral nerve developmental myelination and remyelination after injury. Thus, when Hdac4 and 5 are knocked-out from Schwann cells in mice, a JUN-dependent mechanism induces the compensatory overexpression of Hdac7 permitting, although with a delay, the formation of the myelin sheath. When Hdac4, 5, and 7 are simultaneously removed, the myocyte-specific enhancer-factor d (MEF2D) binds to the promoter and induces the de novo expression of Hdac9, and although several melanocytic lineage genes are misexpressed and Remak bundle structure is disrupted, myelination proceeds after a long delay. Thus, our data unveil a finely tuned compensatory mechanism within the class IIa Hdac family, coordinated by distinct transcription factors, that guarantees the ability of Schwann cells to myelinate during development and remyelinate after nerve injury.
Editor's evaluation
Analyzing Schwann cells which make myelin in the mammalian peripheral nervous system, the authors unravel how transcription factors can functionally substitute each other in the development of single/double/ and triple mutant mice. Functional redundancy and compensation is seen in many developmental systems, but has rarely been studied at that level of detail. The paper is thus of interest also to scientists beyond the field of glial cell biology.
https://doi.org/10.7554/eLife.72917.sa0Introduction
During the postnatal development of the peripheral nervous system (PNS), immature Schwann cells ensheath large caliber axons of sensory and motor neurons and differentiate, forming myelin, a highly specialized plasma membrane that increases nerve impulse velocity by allowing saltatory conduction (Jessen and Mirsky, 2005). Immature Schwann cells downregulate the transcription factor Jun (which negatively regulates myelination) and upregulate the expression of transcriptional regulators of myelination such as Krox-20 and Yy1 (Fazal et al., 2017; Monk et al., 2015; Parkinson et al., 2008). Jun is strongly reexpressed after nerve injury enabling trans-differentiation of Schwann cells into a repair phenotype that promotes axon regeneration and functional nerve repair (Arthur-Farraj et al., 2012; Gomez-Sanchez et al., 2015). After axon regeneration Schwann cells reestablish contact with them and downregulate Jun. This allows reexpression of Krox-20 and the consequent reactivation of a gene expression program aimed at remyelination of axons and reestablishment of nerve function (Stassart and Woodhoo, 2021). Activation of Gpr126, a G-protein-coupled receptor that increases intracellular levels of cAMP, is required for Schwann cell myelination and remyelination (Monk et al., 2009; Monk et al., 2011). We have recently shown that the prodifferentiating activity of cAMP is in part mediated by its ability to shuttle HDAC4 into the nucleus of Schwann cells (Gomis-Coloma et al., 2018). Nuclear HDAC4 recruits the complex NcoR1/HDAC3 and deacetylates histone three on the promoter of Jun, repressing its expression. At the same time HDAC4 promotes Krox-20 expression and activation of the myelination program (Velasco-Aviles et al., 2018). In vivo, Hdac5 is able to partially compensate for the loss of Hdac4 expression in Schwann cells and only the removal of both Hdac4 and Hdac5 from Schwann cells leads to an obvious myelination delay. Surprisingly by postnatal day 8, myelination in Hdac4/5 double knockout mice proceeds at the same pace as in wild-type nerves, suggesting that there is an additional compensatory mechanism permitting nerve myelination (Gomis-Coloma et al., 2018). Here, we show that the in vivo elimination of Hdac4 and Hdac5 from Schwann cells induces the overexpression of Hdac7 through a mechanism mediated by the transcription factor JUN. Notably, the removal of Hdac7 from Schwann cells in the absence of Hdac4 and Hdac5 produces a much longer delay in myelin development. This demonstrates that overexpressed Hdac7 can partially compensate for the absence of both Hdac4 and Hdac5 in myelinating Schwann cells. Interestingly, nonmyelin-forming Schwann cells in these triple knock-outs (KOs) misexpress melanocytic lineage genes and fail to properly segregate small caliber axons in the Remak bundles. We show that genetic compensation also plays a pivotal role during remyelination after nerve injury. Thus, and akin to what happens during development, remyelination is delayed when Hdac4 and Hdac5 are removed from Schwann cells. This delay is longer when Hdac7 is also removed, which has a profound impact on nerve impulse conduction during nerve regeneration. Importantly, remyelination in the Hdac4/5/7 triple KO also catches up, supporting the idea that an additional mechanism compensates for the absence of class IIa Hdacs. Strikingly, Hdac9, the only class IIa Hdac that is not normally expressed by Schwann cells, is de novo expressed in the nerves of the Hdac4/5/7 triple KO mice, induced by the transcription factor MEF2D. These genetic compensatory mechanisms, centering around transcription factors, allow Schwann cells to retain a class IIa Hdac gene dosage high enough to permit eventual myelination during development and remyelination after injury.
Results

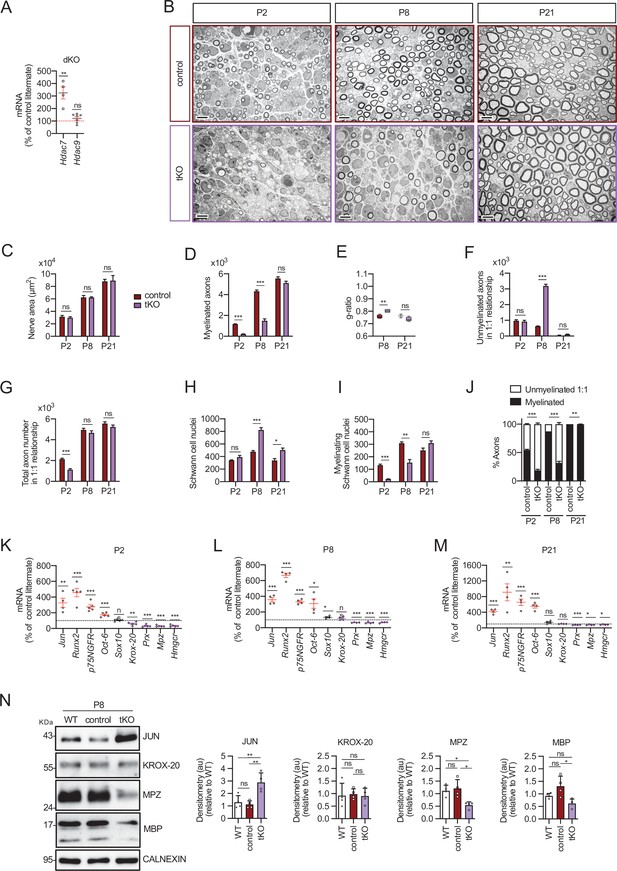

Upregulation of Hdac7 permits developmental myelination in the absence of Hdac4 and Hdac5
We have previously shown that Hdac4 and Hdac5 redundantly contribute to activate the myelin transcriptional program in Schwann cells in vivo. However, although during postnatal development Jun levels remain high in the PNS of the Hdac4/5 double conditional knock out mice (Mpz-Cre+/−; Hdac4flx/flx;Hdac5−/−, hereafter called dKO), myelination proceeds normally after P8 and adult nerves are morphologically and functionally indistinguishable from those of wild-type mice (Gomis-Coloma et al., 2018). In muscle development class IIa Hdacs can compensate for each other (Potthoff et al., 2007b). In addition to Hdac4 and Hdac5, Schwann cells also express Hdac7 (Gomis-Coloma et al., 2018). To test if it can functionally compensate for the absence of Hdac4 and Hdac5, we measured the expression levels of Hdac7 in the nerves of dKO. As shown in Figure 1A, the expression of Hdac7 was substantially induced in the sciatic nerve of the dKO mice at P60 (325.1 ± 48.1%; p = 0.0034, n = 4), while Hdac9 expression remained residual. This is specific for the dKO, as minor or no changes at all were found in the single KOs (Figure 1—figure supplement 1A, B). Importantly, Hdac7 overexpression can be detected early during development (Figure 1—figure supplement 1C). These results suggest that the simultaneous elimination of Hdac4 and Hdac5 from Schwann cells activates a mechanism aimed to compensate for the drop in the gene dose of class IIa Hdacs that upregulates threefold the expression of Hdac7. To test whether Hdac7 can functionally compensate to allow myelination in the absence of Hdac4/5, we generated a Hdac4/5/7 triple Schwann cell-specific conditional KO (genotype Mpz-Cre+/−; Hdac4flx/flx;Hdac5−/−; Hdac7flx/flx, hereafter called tKO; Figure 1—figure supplement 1D—F). To study myelin development in these mice we evaluated a number of morphological parameters of sciatic nerves at P2, P8, and P21 using transmission electron microscopy (TEM) images. We also quantified the mRNA and protein levels for a number of negative and positive regulators of myelination. We previously separately analyzed Schwann cell gene expression in sciatic nerves of Hdac4 conditional KO mice (genotype Mpz-Cre+/−; Hdac4flx/flx, referred to as cKO4) mice and global Hdac5 KO mice (referred to as KO5) (Gomis-Coloma et al., 2018). As additional controls, here we also performed a detailed morphological analysis of developing nerves in cKO4, KO5, dKO, and Hdac7 Schwann cell-specific conditional KO mice (Mpz-Cre+/−; Hdac7flx/flx referred to as cKO7) (Figure 1—figure supplements 2–5). As is shown in Figure 1—figure supplements 2–4, morphological quantification showed that within the single mutants, only cKO4 showed a subtle, but consistent, delay in myelin development. In line with our previous results (Gomis-Coloma et al., 2018), the simultaneous elimination of Hdac4 and Hdac5 from Schwann cells produced a greater decrease in the percentage of myelinated axons at P2 that was almost normalized by P8 (Figure 1—figure supplement 5). Strikingly, the simultaneous elimination of Hdac4, 5, and 7 from Schwann cells produced a much more pronounced delay in myelin development (Figure 1B–J). Interestingly, expression of the negative regulators of myelination (including Jun) was notably increased from P2 to P21, which can explain the delay in the expression of myelin genes (Figure 1K–M) and in morphological parameters of myelin development in the tKO mice. Thus, our data demonstrate that Hdac7 upregulation can compensate for the absence of Hdac4 and Hdac5 allowing myelination to proceed, although with some delay. Interestingly, and although the coordinated removal of Hdac4, Hdac5, and Hdac7 produces a long delay in myelination, myelin is finally formed and adult tKO nerves show almost normal myelination parameters (Figure 2A–D).
Defects in Remak Schwann cell differentiation in the tKO

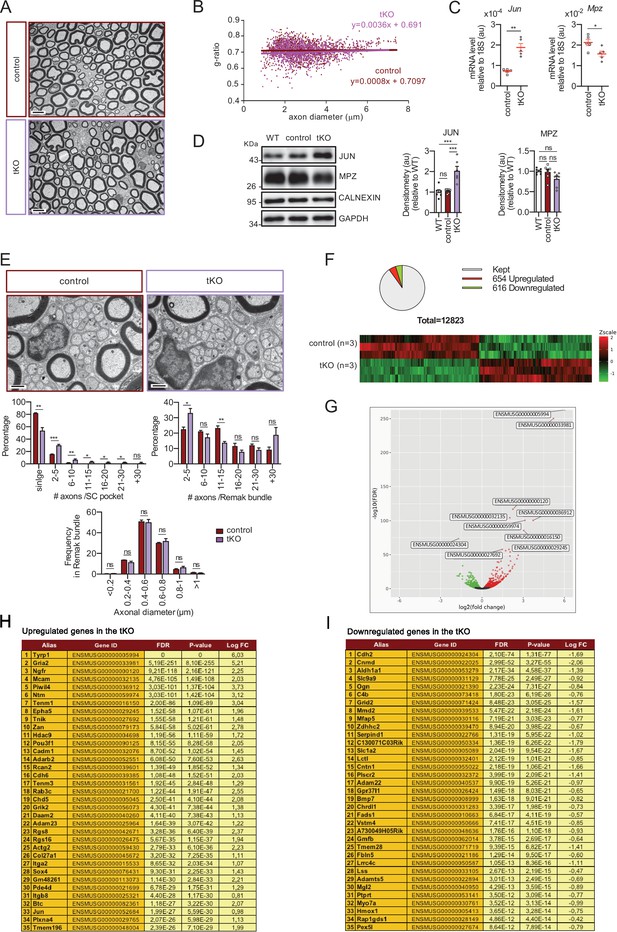

Despite PNS myelination looks normal in the adult (p60) tKO mice, we found the Remak bundles profoundly altered in these nerves, with many axons not properly segregated (Figure 2E). Thus, there is a significant increase in the number of pockets with two to five axons and, although it is very rare to find pockets with more than five axons in the control (2.3%), an important number of axons are grouped together in packs of more than five in the tKO (16.5%), with some of them being in pockets of more than 30 axons. These defects are specific of the tKO, as no major changes were observed in the single neither the dKO nerves (Figure 2—figure supplement 1A).
Whole genome-wide transcriptome analysis showed 654 upregulated and 616 downregulated genes in the nerves of adult tKO (Figure 2F and source data file two online [RNA-seq source data]). Volcano plot shows that genes tended toward being more strongly upregulated than downregulated. Surprisingly, the most robustly upregulated gene is the tyrosinase-related protein one encoding gene (Tyrp1; Log FC = 6.03; FDR = 0), a melanocyte lineage-specific gene (Figure 2G, H). Additionally, the melanoma cell adhesion molecule Mcam and Ngfr genes are also highly induced in the sciatic nerves of the tKO. RT-qPCR confirmed the strong induction of Tyrp1 and Mcam in the sciatic nerves of the tKO (P60), but not in the single KOs neither dKO nerves (Figure 3A, B). Interestingly we also found increased the expression of Microphthalmia-associated transcription factor (Mitf) and the Endothelin B receptor (Ednrb), two other genes of the melanocytic lineage (Figure 3C, D). Importantly, the expression of all these genes increased from early in postnatal development (Figure 2—figure supplement 1B, C). Western blot analysis (Figure 3E, F) and confocal microscopy confirmed these findings and showed that the misexpression of melanocytic lineage markers is confined to the nonmyelin-forming Schwann cells of the Remak bundles (Figure 3G–K). Thus, our data suggest that class IIa HDACs are necessary to allow Schwann cell precursors (SCPs) to differentiate into Remak Schwann cells and properly segregate small size axons.
Remyelination kinetics after nerve injury depends on class IIa Hdac gene dose
The molecular mechanisms of Schwann cell remyelination share similarities to myelination during development, however there are also notable differences (Stassart and Woodhoo, 2021). Given the role of class IIa HDACs in myelination during development we asked whether they are also involved in remyelination after nerve injury. To address this, we first performed crush experiments in the sciatic nerves of 8-week-old cKO4 mice. As controls, we used Mpz-Cre−/−;Hdac4flx/flx littermates (Figure 4—figure supplement 1A—K). At 10 days postinjury (dpi), we found a small decrease in the percentage of myelinated axons, with an increase in the number of unmyelinated axons with a diameter >1.5 μm in a 1:1 relationship with the Schwann cells (Figure 4—figure supplement 1F—K). A small increase in the number of Schwann cell nuclei was also found at 20 and 30 dpi (Figure 4—figure supplement 1I). Also, subtle but significant changes in myelin protein gene expression were found in the cKO4 nerves (Figure 4—figure supplement 1L–N). Notably, myelin clearance was normal ruling out this as the cause of remyelination delay (Figure 4—figure supplement 1O). Thus, Hdac4 removal has as small impact on remyelination that is compensated for after 10 dpi.
Morphological analysis of remyelination in KO5 mice and wild-type littermates (Hdac5+/+) showed no differences (Figure 4—figure supplement 2). Also, no notable differences in myelin protein gene expression (Figure 4—figure supplement 1L–N and Figure 4—figure supplement 2L–M) nor myelin clearance were found between both genotypes (Figure 4—figure supplement 1O and Figure 4—figure supplement 2N).
To explore whether there is also genetic compensation within class Iia Hdacs in Schwann cells after injury, we analyzed remyelination in the dKO crushed nerve. In this case, the percentage of myelinated axons at 10 days after crush (10 dpi) was notably decreased (15.5 ± 2.3% in the dKO versus 60.4 ± 4.8% in the control; p ≤ 0.0001) (Figure 4A, K). Total axon counts were similar between genotypes suggesting that this difference was not due to an axon regeneration defect (Figure 4G). At 20 dpi the difference between both genotypes was reduced and normalized at 30 dpi. A notable increase in the number of unmyelinated axons with a diameter >1.5 μm in a 1:1 relationship with the Schwann cells was found at 10 and 20 dpi that almost normalized at 30 dpi (Figure 4F). Furthermore, g ratio was increased at 10 and 20 dpi but showed no difference between control and dKO nerves at 30 dpi (Figure 4D). Quantifying gene expression at 10 dpi demonstrated that mRNA for Jun remains higher in the dKO injured nerves, as does Gdnf (Figure 4L). In the same line, we found a significant decrease in the mRNA for Krox-20, Periaxin, Mpz, and Mbp. We did not find changes in the expression of Runx2 or Pou3f1 (Figure 4L, M). To substantiate these results, we looked at protein levels, and found JUN protein remained higher in the dKO at 10 dpi and was unchanged at 21 dpi. Though there was no difference in KROX-20, MPZ protein levels were decreased at 21 dpi. Together, our data support the view that the simultaneous removal of Hdac4 and Hdac5 from Schwann cells produces a more pronounced delay in remyelination after nerve injury.
This remyelination delay could be caused by an intrinsic problem in the capacity of Schwann cells to reactivate the myelination program, but could also be secondary to a failure in the ability of myelinating Schwann cells to acquire the repair phenotype and clear myelin debris in the distal stump. However, we did not favor the second explanation because markers of the Schwann cell repair phenotype, such as Bdnf and Olig1, in addition to Jun, are highly expressed in the dKO at 10 dpi (Figure 4L, N). Furthermore, we did not find any change in the number of intact myelin sheaths at 4 days after cut in the dKO, or in clearance of MPZ protein, suggesting no effect on the rate of demyelination (Figure 4—figure supplement 3A–B). Finally, repair program genes were normally upregulated in the dKO (Figure 4—figure supplement 3C). Together, our data show that the delay in remyelination of the dKO is due to an intrinsic defect of Schwann cells to activate the myelin transcriptional program and not a consequence of an altered reprograming capacity to the repair phenotype or to delayed myelin clearance.
Since remyelination is only moderately delayed in the dKO, we asked whether Hdac7 was able to functionally compensate in a similar way as in development (previously, we established that cKO7 mice have no defects in myelin clearance, injury-induced gene expression or remyelination after an injury [Figure 5—figure supplement 1]). First, we found that tKO Schwann cells upregulate repair program genes after a cut injury (Figure 5—figure supplement 2) and interestingly some of them (Olig1 and Shh) appear to be overexpressed at some time points (Figure 5—figure supplement 2B, C), suggesting that the class IIa HDACs act as a brake on the initial induction of the Schwann cell repair phenotype. In line with this observation, myelin was more rapidly cleared in these mutants (Figure 5A–C). Surprisingly, we could not find changes in autophagy markers neither macrophages numbers (Figure 5—figure supplement 2G–I), suggesting these mechanisms are not responsible of the observed increased myelin clearance.

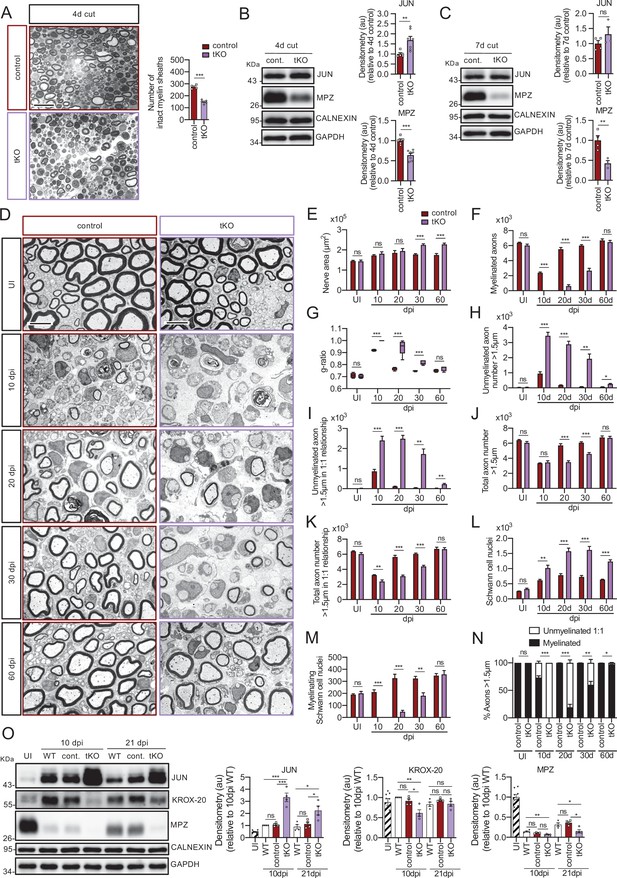

On assessment of tKO nerves after a crush injury (Figure 5D–N), strikingly, we could not find any myelinated axon profile in the four tKO sciatic nerves analyzed at 10 dpi. This is in contrast to the controls which showed myelin profiles in 73 ± 3.1% of axons (p ≤ 0.0001) (Figure 5N). At 20 dpi, the tKO still had only 19.2 ± 5.5% of the axons myelinated, whereas almost all large caliber axons were myelinated in the control (98.1 ± 0.2%; p = 0.0001). Moreover, at 30 dpi only 60.3 ± 6.1% of the axons were myelinated (P = 0,0031) in the tKO mice. At 60 dpi, myelination was only slightly delayed in the tKO (Figure 5N). Differences in g ratios followed the same pattern (Figure 5G). In the same line, we found a notable increase in the number of unmyelinated axons >1.5 μm at 10 dpi, that decreases slowly but progressively up to 60 dpi, when it approaches a similar number to the control (Figure 5H). Interestingly, most of these unmyelinated axons are in a 1:1 relationship with Schwann cells (Figure 5I), suggesting that the delay is in the transition from the promyelinating to the myelinating Schwann cell stage. We also found a notable increase in the number of Schwann cells per nerve section that was maintained after 60 dpi (Figure 5L), and an increase in the nerve area (Figure 5E). The increased number of Schwann cells is probably consequence of over-proliferation, as suggested by Ki67 staining (Figure 5—figure supplement 3). We also observed a decrease in the number of axons >1.5 μm at 20 and 30 dpi (Figure 5J), probably because the smaller diameter of the unmyelinated axons. Finally, the delay in remyelination was substantiated by Western blot. As shown in Figure 5O, JUN protein is clearly more abundant in the nerves of the tKO than in either control littermates or wild-types, both at 10 and 21 dpi. Conversely, the amount of MPZ protein is lower at 10 and 21 dpi. KROX-20 is also lower at 10 dpi in the tKO, but levels had recovered by 21 dpi.

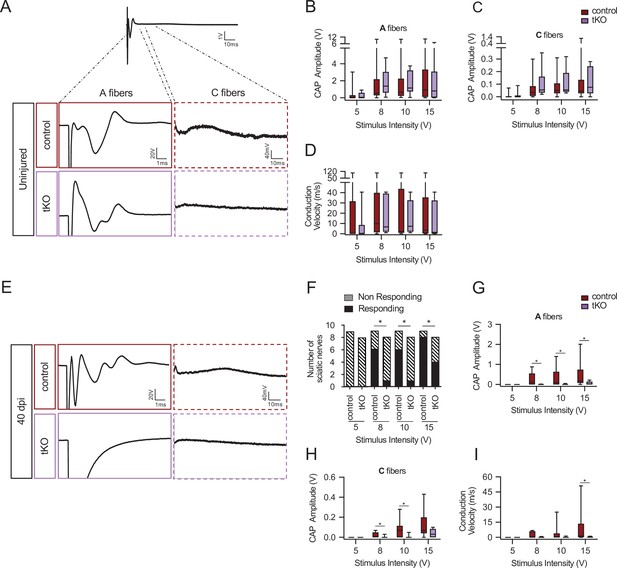

To gain insight into the functional consequences of the remyelination delay in the tKO we performed nerve impulse conduction studies of the sciatic nerves after crush injury (see Material and methods). In uninjured nerves, we found no differences in voltage amplitude or nerve conduction velocity (NCV) between tKO and controls (Figure 6A–D) (curiously we observed a smaller amplitude and slower NCV for all genotypes when compared with wild-type nerves (Figure 6—figure supplement 1), probably due to the absence of Hdac5 in neurons). By contrast, at 40 dpi, whereas six of nine sciatic nerves of control mice showed a response when electrically stimulated at 8 V, only one of eight tKO responded (Figure 6E, F). The same distribution was found at 10 V. At 15 V, eight of nine control mice responded while only four of eight tKO responded. In the same line, the amplitude of the A-fiber component of the compound action potential (CAP) was decreased for 8, 10, and 15 V stimuli (Figure 6G). Regarding the component corresponding to C fibers, amplitude was also decreased for 8 and 10 V stimulation (Figure 6H). Moreover, NCV showed a statistically significant decrease when using 15 V stimuli (Figure 6I).
All together our data demonstrate that the kinetics of remyelination after nerve injury is directly correlated with class IIa Hdac gene dose.
Targets of class IIa HDACs in Schwann cells
To try to identify the genes regulated by class IIa HDACs we first performed a genome-wide transcriptomic analysis of the tKO remyelinating sciatic nerves after a crush injury and control littermates (source data file two online [RNA-seq source data]). At 1 dpi, 395 genes were upregulated and 274 downregulated in the tKO (Figure 5—figure supplement 4A and Figure 5—figure supplement 5A). Similar to the uninjured nerve analysis, the 10 most robustly changed genes were all upregulated. Interestingly, Tyrp1 and Mcam were also among the most upregulated genes. At 10 dpi, the number of dysregulated genes was notably increased, with 1227 transcripts upregulated and 1550 downregulated (Figure 5—figure supplement 4B and Figure 5—figure supplement 5A). Among the most robustly upregulated genes were the repair cell marker Bdnf (Arthur-Farraj et al., 2017; Jessen and Mirsky, 2019), possibly reflecting impairment of the tKO repair Schwann cells to fully redifferentiate into myelin and nonmyelin-forming Schwann cells. Interestingly, in contrast with previous time points, 8 of the 10 most robustly changed genes were downregulated, including many myelin-related genes (Mal, Prx, Mag, Ncmap, Pmp22, Mbp, and Mpz), which is expected given the dramatic delay in myelin sheath development in the tKO at 10 dpi (Figure 5N). At 20 dpi, we identified 1895 transcripts upregulated and 2450 downregulated in the tKO (Figure 5—figure supplement 4C and Figure 5—figure supplement 5A). As before, the 10 most robustly changed genes were upregulated and among them we found again Tyrp1, Mcam, and Ednrb (Figure 5—figure supplement 4C). The negative regulator of myelination Jun was upregulated in the tKO from 1 dpi and remained increased up to 20 dpi (Figure 5—figure supplement 5B). A similar profile was shown for Runx2, Gdnf, Ngfr, and Sox2 (Figure 5—figure supplement 5C–F). Pou3f1 was induced up to 10 dpi in both control and tKO nerves, to later (20 dpi) be downregulated in the control (20 dpi) but not in the tKO nerves (Figure 5—figure supplement 5G). By contrast, the master transcriptional regulator of myelination Krox-20 was downregulated at 10 and 20 dpi in the tKO, when remyelination was highly active in the controls (Figure 5—figure supplement 5H). Probably as a consequence, early myelin genes such as Drp2 and Prx were downregulated (Figure 5—figure supplement 5I, J). Other myelin protein genes that are expressed later, such as Mpz, Mbp, Mag, Pmp22, and Plp1 were also consistently downregulated (Figure 5—figure supplement 5K–O). Myelin is a specialized plasma membrane with a distinctive lipid composition particularly rich in cholesterol (Poitelon et al., 2020). During remyelination of the tKO nerves we found several genes of the sterol branch of the mevalonate pathway downregulated (Hmgcs, Lss, and Dhcr24) (Figure 5—figure supplement 5P–R). We also found downregulated genes encoding for enzymes involved in the elongation (Elovl1), transport (Pmp2) and insertion of double bonds (Scd2 and Fads1) into fatty acids (Figure 5—figure supplement 5S–V). Interestingly, Cers2 and Ugt8a were also downregulated. These genes are involved in the synthesis of sphingomyelin and galactosyl-ceramide, respectively (Figure 5—figure supplement 5W, X), both abundant lipids in myelin (Poitelon et al., 2020). Together our data show that class IIa HDACs are necessary to block negative regulators of myelination and induce the expression of genes encoding for myelin proteins and key enzymes for the biosynthesis of myelin lipids.

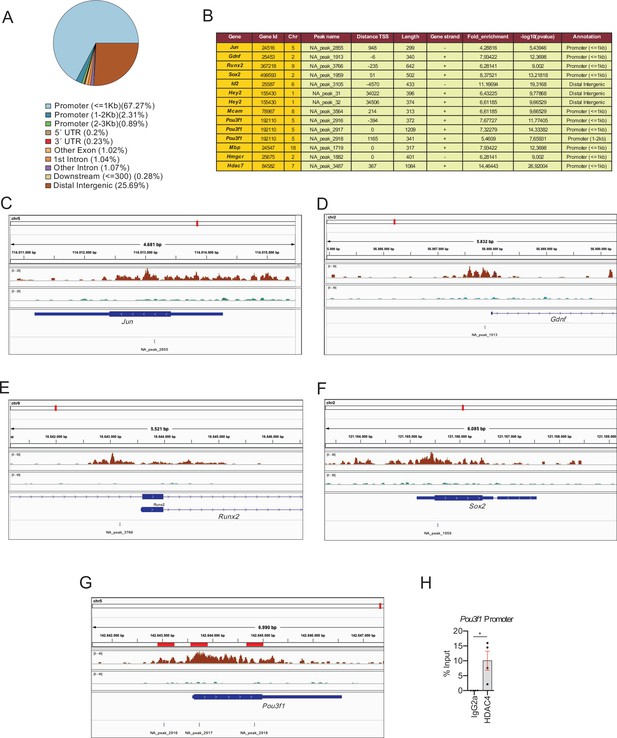

To learn which genes are direct targets of class IIa HDACs and which are regulated indirectly, we performed a chromatin immunoprecipitation assay with anti-HDAC4 coupled to massive sequencing (ChIP-Seq) in dbcAMP differentiated Schwann cells. We found 3.932 peaks, 67.27% of which were located in the proximal promoter regions of genes (≤1 kb from the transcription start site [TSS]) (Figure 7A). The localization of these peaks in the rat genome is shown in the source data file three online (ChIP-Seq peaks source data). Importantly, ChIP-Seq analysis confirmed our previous results (Gomis-Coloma et al., 2018) showing that HDAC4 binds to the promoters of Jun, Gdnf, and Runx2 (Figure 7B–E). Interestingly, HDAC4 also binds to the promoter region of Sox2 (Figure 7B, F), another negative regulator of myelination. We found also peaks for Id2 and Hey2 (Figure 7B) and source data file three online (ChIP-Seq peaks source data).

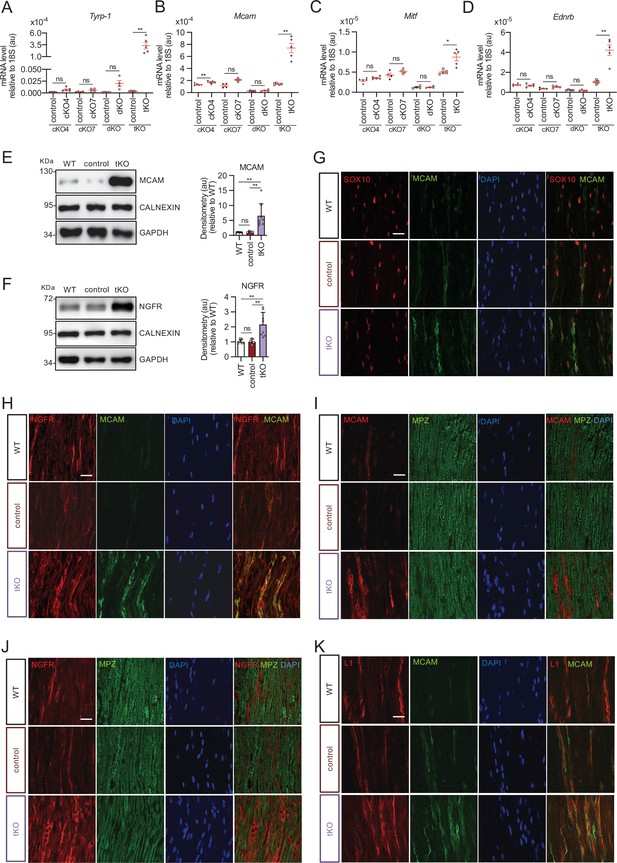

Here, we show that Pou3f1 is overexpressed in the PNS of the tKO during development (Figure 1K–M), and that it is not properly downregulated during remyelination (Figure 5—figure supplement 5G). Interestingly, we found three peaks of HDAC4 bound near the TSS of Pou3f1 (Figure 7B–G), a result that was confirmed by ChIP-qPCR (Figure 7H).
Regarding the melanocyte lineage, we found a clear peak of HDAC4 close the TSS of Mcam (Figure 7B), however, we did not detect peaks in Tyrp1 and Ednrb, suggesting that, while HDAC4 directly represses the expression of Mcam it likely indirectly leads to Tyrp1 and Ednrb repression. However, an alternative explanation is that it achieves repression of these genes by using alternative promoters or enhancers.
Surprisingly, we also found peaks in the promoter regions of Mbp and Hmgcr (Figure 7B), two genes highly expressed during myelination. Although it could seem contradictory as HDACs have mainly been described as transcriptional repressors, HDACs have been shown to be bound to the promoter regions of highly expressed genes in other tissues (Wang et al., 2009).
JUN binds to the promoter and induces the expression of Hdac7 gene in the PNS
As we have shown, the simultaneous elimination of Hdac4 and Hdac5 activates a mechanism to compensate for the drop in class IIa Hdac gene dose in Schwann cells. This mechanism multiplies by threefold the expression of Hdac7, the other member of this family expressed in these cells (Figure 1A). But what mechanism is involved? We have shown before that Jun is highly expressed in the developing PNS of the dKO mice (Gomis-Coloma et al., 2018). Here, we show that Jun expression remains high during remyelination in the dKO sciatic nerves (Figure 4L, N and Figure 5—figure supplement 5B). Interestingly, we found in ENCODE (https://www.encodeproject.org/) that JUN binds to the promoter region of Hdac7 in A549 cells. Thus, the increased JUN might bind to the promoter of Hdac7 inducing its compensatory overexpression in the dKO nerves. To test this, we used ChIP-qPCR and found that, indeed, in cultured Schwann cells JUN binds to the Hdac7 promoter (Figure 8A).

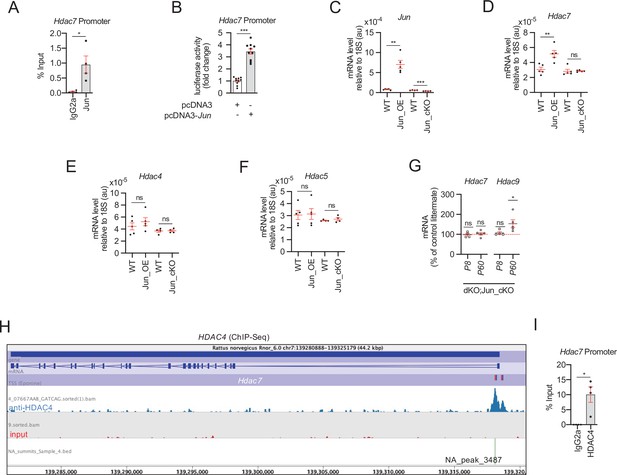

We then identified an evolutionarily conserved JUN consensus binding motif in the proximal promoter region of the mouse Hdac7 gene (Figure 8—figure supplement 1). To test it functionally, a fragment of 1.189 bp containing this region was amplified by PCR and cloned into the pGL3-luciferase reporter vector (see Materials and methods). The 1.189-promoter-Hdac7-pGL3 luciferase construct was transfected into HEK293 cells together with a pcDNA3 plasmid encoding for Jun, and luciferase activity measured 12 hr post-transfection. As shown in Figure 8B, this promoter fragment responded to JUN by increasing the luciferase activity by 3.4-fold over the control, which supports the idea that Hdac7 expression is regulated by JUN.
To further test this hypothesis in vivo, we utilized mouse transgenic lines (Mpz-Cre+/−/Rosa26flox-stop-Jun/+ mice) that either overexpresses Jun in Schwann cells, referred to as Jun_OE mice (Fazal et al., 2017) or lack Jun expression in Schwann cells (Mpz-Cre+/−/Junflox/flox mice, referred to as Jun_cKO mice; Parkinson et al., 2008; Figure 8C). Jun overexpression in Schwann cells induced Hdac7 expression by almost twofold (Figure 8D). This was a specific effect as no changes were found for Hdac4 and Hdac5 mRNA (Figure 8E, F). By contrast, Jun removal produced no changes in the expression of any class IIa Hdacs, suggesting it is not necessary for the basal expression of these Hdacs (Figure 8D–F). Thus, our data clearly show that JUN induces the expression of Hdac7 by Schwann cells in vivo. Further supporting this tenet, we found that Hdac7 is not overexpressed in the nerves of the dKO that lack Jun in Schwann cells (dKO;Jun_cKO) (Figure 8G).
Interestingly, we detected a peak of HDAC4 bound to the promoter of Hdac7 (Figures 7B and 8H) in the ChIP-Seq experiment, a result that we confirmed by ChIP-qPCR (Figure 8I). This suggests that, in differentiated Schwann cells, other class IIa HDACs contribute to maintaining Hdac7 expression at the basal level. The simultaneous loss of Hdac4 and Hdac5 allows the expression of Jun, which can bind to the promoter of Hdac7, now free of the repression by class IIa HDACs, increasing the transcription of this deacetylase.
Hdac9 is expressed de novo in the sciatic nerve of the tKO

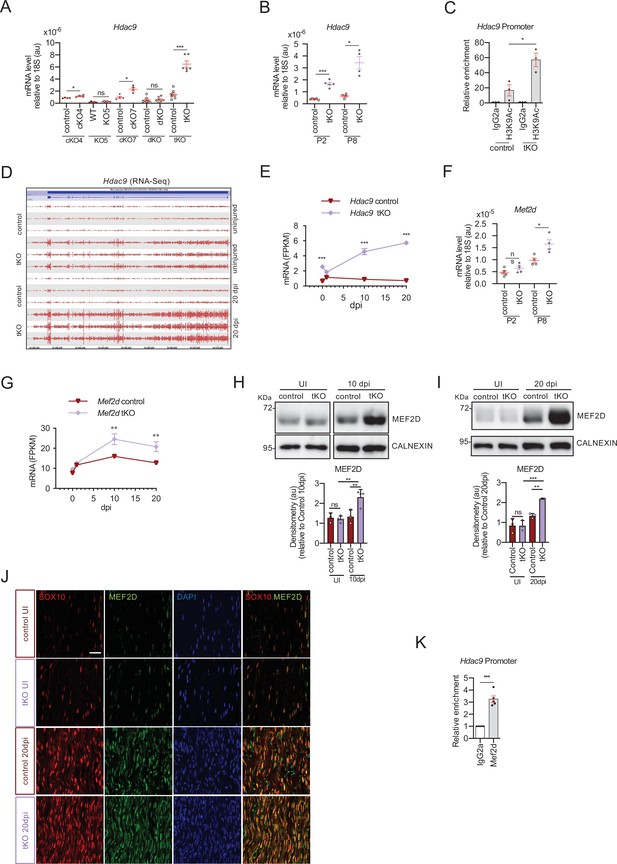

Despite substantial delay, Schwann cells in tKO nerves are still able to eventually myelinate axons in development and during nerve repair. One possible explanation is that Hdac9, the remaining class IIa Hdac left, could compensate for the loss of the other three class IIa Hdacs in Schwann cells. However, we have consistently found extremely low or undetectable levels of the mRNA for this protein in the C57BL/6 mouse sciatic nerves and cultured rat Schwann cells (Gomis-Coloma et al., 2018), a result that has been recently confirmed in the Sciatic Nerve ATlas (SNAT, https://www.snat.ethz.ch) (Gerber et al., 2021). Surprisingly, we found Hdac9 among the most robustly upregulated genes by the tKO nerves in the RNA-seq analysis (Figure 2H). To confirm this result, we measured the mRNA for this gene in the sciatic nerves of the tKO and control adult mice (P60) by RT-qPCR. As is shown in Figure 9A, the mRNA for Hdac9 was increased by 4.4-fold in the tKO mice (p < 0.0001). This increase was not found in the dKO and was smaller in the cKO7 (2.4-fold; p = 0.0057) and cKO4 (1.3-fold; p = 0.01) mice. These results suggest that Hdac9 is strongly expressed in the sciatic nerves of the tKO mice to compensate for the absence of other class IIa HDACs. Indeed, we found that Hdac9 is already induced early in development in the tKO (P2) whereas it was practically undetectable in the nerves of control animals (Figure 9B). At this time, myelin sheaths are present, although sparse, in mutant nerves (Figure 1B–J). At P8, Hdac9 expression remains extremely low in control nerves, but it is robustly expressed in the tKO mice (an increase of 5.3-fold; p = 0.0117), correlating with an increase in the number of myelinated axons (Figure 1B–J). Robust Hdac9 gene expression is maintained in the sciatic nerve of the tKO at P60 (Figure 9A). Interestingly, we found that in the tKO nerves, the lysine 9 of histone three associated to the Hdac9 promoter is more acetylated (Figure 9C), suggesting that the absence of class IIa HDACs allows the expression of this gene. Importantly, Hdac9 gene is furtherly upregulated in the injured sciatic nerves of tKO mice, as is shown in Figure 9D, where we show the alignment of the reads of the RNA-seq from three individual sciatic nerves from control and tKO mice UI and at 20 dpi, and in Figure 9E, where we followed the mRNA levels of Hdac9 (as Fragments Per Kilobase Million, FPKMs) at 0, 1, 10, and 20 days post crush in the RNA-seq experiment. Thus far, our data suggested that in the absence of class IIa Hdacs, repression is lost and Schwann cells start to express de novo Hdac9.
To investigate which transcription factor is responsible of Hdac9 expression in the tKO we again looked at JUN. However, we could not detect JUN bound to the promoter region of Hdac9 in A549 cells in the ENCODE database. Also, Hdac9 mRNA levels were not increased in the sciatic nerves of the Jun_OE mice (Figure 9—figure supplement 1).
Interestingly, it has been described that MEF2D binds to the promoter and regulates the expression of Hdac9 during muscle differentiation, and in leiomyosarcoma cells (Di Giorgio et al., 2020; Haberland et al., 2007). We therefore reasoned that Mef2d might be involved in the upregulation of Hdac9 in Schwann cells. Indeed, we have previously shown that Mef2 family members are expressed in cultured Schwann cells and adult sciatic nerves (Gomis-Coloma et al., 2018). Importantly, RT-qPCR shows that Mef2d mRNA is induced in the nerves of the tKO during development (Figure 9F). Also, RNA-seq data showed that Mef2d is upregulated in the sciatic nerves of the tKO mice at 10 and 20 dpi (Figure 9G). Western blot supported this idea (Figure 9H, I) and immunofluorescence studies (Figure 9J) showed that Mef2d is expressed by Schwann cells (SOX10+). Importantly, we detected MEF2D bound to the promoter of Hdac9 in the tKO nerves at 20 dpi (Figure 9K).
Altogether our data support the view that in the tKO nerve, Mef2d is induced to activate the de novo expression of Hdac9 and maintain a sufficient class IIa Hdac gene dose to allow myelin formation during development and after nerve injury.
Discussion
Functional redundancies, the consequence of gene duplications, are found in most genomes, and are postulated to give robustness to organisms against mutations. However, it has been also predicted that redundancies are evolutionarily unstable and have only a transient lifetime. Despite of this, numerous examples exist of gene redundancies that have been conserved throughout dilated evolutionary periods (Kafri et al., 2006; Peng, 2019).
Fluctuations in gene expression (noise) are a well-known phenomenon that has been described from bacteria to mammalian cells, and may have dramatic effects on fitness if they persist long enough (Raser, 2010). It has been suggested that some gene redundancies have been evolutionarily selected because they can reduce the harmful effects of gene expression noise (Kafri et al., 2006). Thus, the deleterious effect of the eventual decrease in the expression of a noisy gene pivotal for a determined biological process (such as differentiation) can theoretically be buffered by the expression of a redundant gene controlled by a different promoter.
Redundancies have been shown to be particularly relevant during development. One example is the couple Myod/Myf-5, which are master regulators of skeletal muscle development (Sabourin and Rudnicki, 2000). Similar to what happens with other redundant couples, Myf-5 expression has a linear response that strictly dependents on the Myod gene expression dosage, and can likely contribute to reduce gene expression noise allowing skeletal muscle differentiation (Kafri et al., 2006).
It has been shown that slow oxidative fiber gene expression in skeletal muscles depends on gene redundancy between class IIa Hdacs (Potthoff et al., 2007c). Here, we show that the activation of the myelin gene expression program by Schwann cells is also ensured by class IIa Hdacs gene redundancy. Although the physiological role of genetic compensation within this family of proteins remains unknown, it is tempting to speculate that it could avoid potential fluctuations in class IIa Hdac gene dose ensuring Schwann cell differentiation and the proper myelination of the PNS.
But how is gene compensation regulated? Despite being documented many times in different organisms, our understanding of the underlying molecular mechanisms that control this process still remains limited (El-Brolosy and Stainier, 2017). Thus, genetic compensation of class I Hdacs has been previously described during myelin development (Jacob et al., 2011), although the mechanisms regulating this process have not been investigated. Here, we show that removal of Hdac4 and Hdac5 upregulates the compensatory overexpression of Hdac7 in Schwann cells allowing, although with delay, myelin formation both during development and after nerve injury. Our data strongly suggest that this compensatory overexpression is regulated by the transcription factor JUN. In support of this tenet, we show that JUN binds to and induces the overexpression of Hdac7 both in vitro and in vivo. Moreover, we also show Hdac7 is not overexpressed in the nerves of dKO mice that lack Jun expression in Schwann cells. Interestingly, we found that HDAC4 binds to the promoter of Hdac7 in differentiated Schwann cells, suggesting that other class IIa Hdacs contribute to maintain the expression of this gene at basal levels in normal nerves. In this scenario, the absence of Hdac4 and Hdac5 in the dKO nerves might allow JUN to bind and stimulate the compensatory expression of Hdac7 in Schwann cells (Figure 10).
We show that although Hdac9 is normally not expressed by Schwann cells it is robustly upregulated in the nerves of the tKO. Hdac9 is also upregulated, although much less, in the cKO7 and cKO4 mice. This support the idea that Hdac9 gene is de novo expressed in response to the drop of class IIa Hdacs gene dose to allow myelination. Interestingly, Hdac9 is also induced in the nerves dKO;Jun_cKO (Figure 8G), probably as a response to the drop of class IIa Hdacs in Schwann cells that cannot overexpress Hdac7 because of the absence of Jun.
To investigate the mechanisms that activate the expression of Hdac9 in the tKO nerves we focused our attention in the MEF2 family of transcription factors, as they regulate Hdac9 expression in other tissues (Di Giorgio et al., 2020; Haberland et al., 2007). Interestingly, we found MEF2D overexpressed and bound to the HDCA9 promoter in the tKO nerves.
It has been shown that MEF2 transcriptional activity is blocked by class IIa HDACs (Haberland et al., 2007). Thus, other class IIa HDACs can theoretically block the expression of Hdac9 in control nerves. However, in the tKO, no class IIa Hdac is expressed in Schwann cells and a free of repression MEF2D might be able to induce Hdac9 gene expression. Supporting this view, we found much more H3K9Ac associated with the Hdac9 promoter in the tKO nerves.

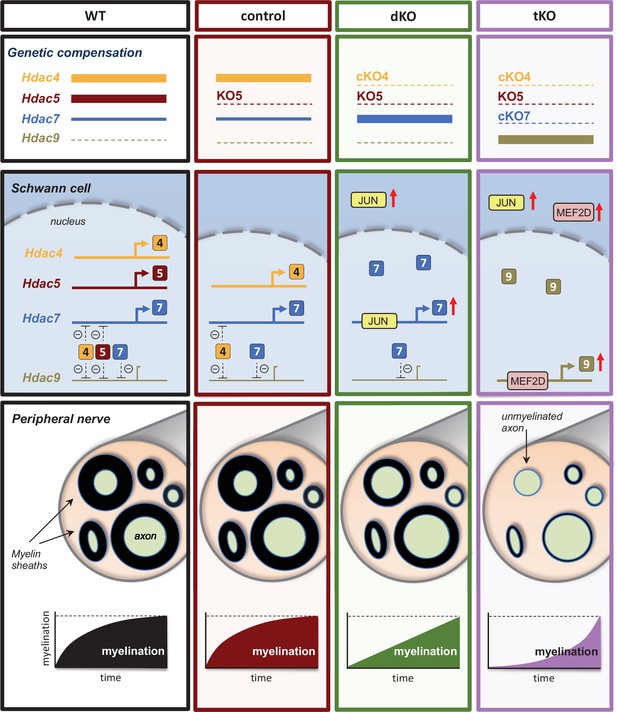

Taken together, our data suggest that, the overexpressed and unrepressed promoter-bound MEF2D transcription factor, induces the de novo expression of Hdac9 in the Schwann cells of the tKO mice (Figure 10).
Although adult tKO nerves have morphologically normal myelin, RNA-seq analysis showed 1270 genes differently expressed, the most robustly changed genes being upregulated. This suggests a predominantly gene repressive function for class IIa HADCs in Schwann cells, as is the case for other cell types (Parra, 2015; Parra and Verdin, 2010). The most robustly upregulated gene in these mice was Tyrp1, a gene involved in the stabilization of tyrosinase and the synthesis of melanin. Strikingly, we did not find expression of the tyrosinase gene in these nerves, suggesting a different role for Tyrp1. In fact, our data show that Tyrp1 mRNA is not translated into protein (Figure 2—figure supplement 1D). It has been shown that Tyrp1 mRNA indirectly promotes melanoma cell proliferation by sequestering miR-16 (Gautron et al., 2021; Gilot et al., 2017). Whether Tyrp1 mRNA is also responsible for the increased cell proliferation of Schwann cells in the tKO nerve is something that needs to be clarified in the future.
It has been previously shown that a subgroup of melanocytes are formed from Schwann cell precursor cells (Adameyko et al., 2009). Because Mpz-Cre is already expressed by SCPs, our data points toward a role for class IIa HDACs in the repression of genes of the melanocytic lineage in these cells. Interestingly, it has been previously suggested that axonal derived signals repress SCP from going into the melanocytic lineage (Graham, 2009). Thus, our data suggest that these signals are not properly interpreted by tKO Schwann cells, precluding them to repress several melanocytic lineage genes. Notably, we found that melanocyte lineage genes are still expressed by the Remak Schwann cells of the adult tKO nerves. This misexpression could be in the origin of the alterations in the segregation of small size axons at the Remak bundles, a defect that remains during the whole life of the animal.
We also show that class IIa Hdacs removal delays remyelination after a nerve crush injury. Importantly, tKO Schwann cells are efficiently reprogramed into the repair phenotype and myelin clearance is even more efficient than in control nerves, ruling out a problem in debris removal as the cause of remyelination delay. Although we do not know why myelin clearance is accelerated, it is worthy to mention that no increased autophagy markers neither macrophage numbers could be found in the tKO nerves. If myelin clearance is accelerated because changes in the rate axon degeneration or in ovoid formation is something that needs to be clarified in future experiments.
Genome-wide transcriptomic analysis of the injured tKO nerves showed that the number of differentially expressed genes increases after crush, and is maximum at 20 dpi. Many genes are robustly upregulated, particularly at 1 and 20 dpi, supporting further the idea that the main role of class IIa HDACs in Schwann cells is to repress gene expression. This agrees with the role of this family of deacetylases in other contexts (Chang et al., 2004; Chang et al., 2006; Parra and Verdin, 2010) where they work mainly as corepressors of transcription factors such as MEF2 and RUNX2 (Bialek et al., 2004; Potthoff et al., 2007b; Vega et al., 2004). Importantly, among the upregulated genes in the tKO injured nerves we found Jun, Runx2, Gdnf, Ngfr, and Sox2, all expressed by nonmyelinating and repair Schwann cells. We also found Pou3f1 overexpressed in the tKO nerves. It has been shown that Pou3f1 overexpression delays PNS myelination (Ryu et al., 2007). Thus, Pou3f1 misexpression may also contribute to the delayed myelination of the tKO nerve both during development and after injury.
In a simplistic model, the failure of class IIa HDACs to downregulate Jun could indirectly induce the expression of other negative regulators of myelination controlled by this transcription factor. However, class IIa HDACs could also directly repress the expression of other negative regulators of myelination. To explore this idea, we performed a genome-wide mapping of genes that are direct targets of HDAC4. Importantly, we confirmed our previous results showing that HDAC4 binds to the promoters of Jun, Runx2, and Gdnf in Schwann cells (Gomis-Coloma et al., 2018). We found that HDAC4 also binds to the promoters of many other genes including other negative regulators of myelination such as Sox2, Id2, and Hey2. Interestingly, HDAC4 also binds to the promoter of Pou3f1. Thus, the direct repressive effect of class IIa HDACs is not circumscribed to Jun but is much wider, supporting the view that they work as a cAMP-regulated blocking hub for repressors of myelination.
Surprisingly, we found that HDAC4 is also bound to the promoter of Mbp and Hmgcr, two genes that are actively expressed during myelination. HDACs are usually bound to repressed genes and replaced by histone acetyl transferases (HATs) upon gene activation. However, it has been shown that class I HDACs are also bound, together with HAT, to the promoter regions of actively transcribed genes (Wang et al., 2009). Interestingly, the histones associated with these promoters are heavily acetylated, what makes these authors to propose that one function of HDACs is to remove the acetyl groups added by HATs in active genes to reset chromatin modification after gene activation. Although class IIa HDACs have no deacetylase activity, they recruit class I HDACs by forming a complex with NCOR1 and SMRT. Thus, the possibility exists that class IIa and class I HADCs have a similar role when bound to the promoter of highly active genes in myelinating Schwann cells.
In summary, the data presented in this manuscript unveil responsive backup circuits mediated by the transcription factors JUN and MEF2D, that coordinate genetic compensatory mechanisms within class IIa Hdacs, aimed at repressing the expression of negative regulators of myelination to ensure differentiation of Schwann cells in response to cAMP, and the generation of the myelin sheath during development and after nerve injury.
Materials and methods
Animal studies
Request a detailed protocolAll animal work was conducted according to European Union guidelines and with protocols approved by the Comité de Bioética y Bioseguridad del Instituto de Neurociencias de Alicante, Universidad Miguel Hernández de Elche and Consejo Superior de Investigaciones Científicas (http://in.umh-csic.es/). Reference number for the approved protocol was 2017/VSC/PEA/00022 tipo 2.
To avoid suffering, animals were sacrificed by cervical dislocation. The Mpz-cre mouse line is described in Feltri et al., 1999. Mpz-cre−/− littermates were used as controls. Hdac4 floxed mice are described in Lehmann et al., 2018 and Potthoff and Olson, 2007a. The Hdac5 KO mouse line is described in Chang et al., 2004. Hdac7 floxed mice are described in Chang et al., 2006. The Jun_OE and Jun_cKO mouse lines are described in Fazal et al., 2017 and Parkinson et al., 2008. MGI ID can be found online (Key Resources Table). Experiments used mice of either sex on the C57BL/6 background.
Plasmids
The luciferase reporter plasmid was generated by cloning the mouse Hdac7 promoter into the NheI site of pGL4 Luciferase reporter plasmid (Promega). The mouse Hdac7 promoter was amplified using Platinum SuperFi II DNA Polymerase (12361010, Thermo Fisher Scientific) and primers described online (Key Resources Table). The plasmid pCMV-Jun was a gift of Dr Marta Giralt (Universitat de Barcelona).
Reporter activity assays
Request a detailed protocolHEK293 cells were transfected with the indicated constructs and then lysed. Their luciferase activity was determined with the Luciferase Assay System (Promega) using the manufacturer’s recommendations.
Cell cultures
Request a detailed protocolSchwann cells were cultured from sciatic nerves of neonatal rats as described previously (Brockes et al., 1979) with minor modifications. We used P3–P4 Wistar rat pups. The sciatic nerves were cut out from just below the dorsal root ganglia and at the knee area. During the extraction and cleaning, the nerves were introduced into a 35-mm cell culture dish containing 2 ml of cold Leibovitz’s F-15 medium (Gibco) placed on ice. The nerves were cleaned, desheathed, and placed in a new 35-mm cell culture dish containing Dulbecco's Modified Eagle Medium (DMEM) with GlutaMAX and 4.5 g/l glucose (Gibco), with 1 mg/ml of collagenase A (Roche). Subsequently, they were cut into very small pieces using a scalpel and left in the incubator for 2 hr. Nerve pieces were homogenized using a 1-ml pipette, digestion reaction stopped with complete medium, and the homogenate poured through a 40 μm Falcon Cell Strainer (Thermo Fisher Scientific). We then centrifuged the homogenate at 210 × g for 10 min at room temperature and resuspended the pellet in complete medium supplemented with 10 μM of cytosine- β-D-arabinofuranoside (Sigma-Aldrich) to prevent fibroblast growth. The resuspended cells were then introduced into the poly-L-lysine-coated 35-mm cell culture dishes. After 72 hr, the medium was removed and cell cultures expanded in DMEM supplemented with 3% fetal bovine serum, 5 μM forskolin, and 10 ng/ml recombinant NRG1 (R&D Systems). Where indicated, cells were incubated in SATO medium (composed of a 1:1 mixture of DMEM and Ham’s F12 medium [Gibco] supplemented with ITS [1:100; Gibco]), 0.1 mM putrescine, and 20 nM of progesterone (Bottenstein and Sato, 1979). HEK 293 cells were obtained from Sigma-Aldrich (Cat# 85120602). The cells were grown in noncoated flasks with DMEM GlutaMAX, 4.5 g/l glucose (Gibco) supplemented with 100 U/ml penicillin, 100 U/ml streptomycin, and 10% bovine fetal serum. Cells were transfected with plasmid DNA using Lipofectamine 2000 (Thermo Fisher Scientific) following the manufacturer’s recommendations.
Nerve injury
Request a detailed protocolMice were anesthetized with 2% isoflurane. To study nerve regeneration and remyelination (axonal regrowth inside the distal stump) we performed a nerve crush injury model. Briefly, the sciatic nerve was exposed at the sciatic notch and crushed three times for 15 s with three different rotation angles using angled forceps. To study the repair Schwann cell phenotype activation and myelin clearance, we performed a nerve cut to avoid nerve regeneration inside the distal stump. In this case, the sciatic nerve was exposed and cut at the sciatic notch using scissors. The wound was closed using veterinary autoclips (AutoClip System). The nerve distal to the cut or crush was excised for analysis at various time points after euthanasia. Contralateral uninjured sciatic nerves were used as controls. For Western blotting and mRNA extraction we used the first 8 mm of the distal stump of crush injured nerves, and 1 or 3 cm of the control nerve, respectively. For electron microscopy we used the first 5.5 mm of the distal stump of crush or cut injured nerves.
Myelin clearance
Request a detailed protocolIntact myelin sheaths were counted using transverse toluidine blue stained semithin sections (2 μm) of sciatic nerve at 5 mm from the nerve cut injury site. Whole nerve merged images were taken with a ×63 objective using a Leica Thunder Tissue Imager and quantified with ImageJ software.
mRNA detection and quantification by RT-qPCR
Request a detailed protocolTotal mRNA from uninjured or injured sciatic nerves was extracted using used TRI reagent/chloroform (Sigma-Aldrich) and the mRNA was purified using a NucleoSpin RNA mini kit (Macherey-Nagel), following the manufacturer’s recommendations. RNA quality and concentration were determined using a nanodrop 2000 machine (Thermo). Genomic DNA was removed by incubation with RNase free DNase I (Thermo Fisher Scientific), and 500 ng RNA was primed with random hexamers (Invitrogen) and retrotranscribed to cDNA with Super Script II Reverse transcriptase (Invitrogen). Control reactions were performed omitting retrotranscriptase. qPCR was performed using an Applied Biosystems QuantStudio 3 Real Time PCR System and 5× PyroTaq EvaGreen qPCR Mix Plus (CMB). To avoid genomic amplification, PCR primers were designed to fall into separate exons flanking a large intron wherever possible. A list of the primers used can be found online (Key Resources Table). Reactions were performed in duplicates of three different dilutions, and threshold cycle values were normalized to the housekeeping gene 18S. The specificity of the products was determined by melting curve analysis. The ratio of the relative expression for each gene to 18S was calculated by using the 2−ΔΔCT formula. Amplicons were of similar size (≈100 bp) and melting points (≈85°C). Amplification efficiency for each product was confirmed by using duplicates of three dilutions for each sample.
RNA sequencing analysis
Request a detailed protocolTotal RNA was isolated using the NucleoSpin RNA, Mini kit for RNA purification (Macherey-Nagel). The purified mRNA was fragmented and primed with random hexamers. Strand-specific first-strand cDNA was generated using reverse transcriptase in the presence of actinomycin D. The second cDNA strand was synthesized using dUTP in place of dTTP to mark the second strand. The resultant cDNA was then ‘A-tailed’ at the 3-end to prevent self-ligation and adapter dimerization. Truncated adaptors containing a T overhang were ligated to the A-tailed cDNA. Successfully ligated cDNA molecules were then enriched with limited cycle PCR (10–14 cycles). Libraries to be multiplexed in the same run were pooled in equimolar quantities. Samples were sequenced on the NextSeq 500 instrument (Illumina). Run data were demultiplexed and converted to fastq files using Illumina’s bcl2fastq Conversion Software version 2.18 on BaseSpace. Fastq files were aligned to the reference genome (Mouse [GRCm38/Ensembl release 95] and analyzed with Artificial Intelligence RNA-SEQ [A.I.R.] software from Sequentia Biotech [https://www.sequentiabiotech.com/]).
Antibodies
Immunofluorescence antibodies: JUN (Cell Signaling Technology, rabbit 1:800), Ki67 (Abcam, rabbit 1:100), L1 (Chemicon International, rat 1:50), MCAM (Origene, rabbit 1:200), MPZ (AvesLab, chicken 1:1000), NGFR (Thermo Fisher Scientific, mouse 1:100), SOX10 (R and D Systems, goat 1:100), donkey anti-goat IgG (H + L) Alexa Fluor 555 conjugate (Molecular Probes, 1:1000), donkey anti-rabbit IgG (H + L) Alexa Fluor 488 conjugate (Molecular Probes, 1:1000), donkey anti-chicken IgG (H + L) Alexa Fluor 488 conjugate (Jackson ImmunoResearch Labs, 1:1000), goat anti-rat IgG (H + L) Alexa Fluor 555 conjugate (Molecular Probes, 1:1000), Cy3 donkey anti-mouse IgG (H + L) (Jackson Immunoresearch, 1:500), and Cy3 donkey anti-rabbit IgG (H + L) (Jackson Immunoresearch, 1:500).
Antibodies used for Western blotting: CALNEXIN (Enzo Life Sciences, rabbit 1:1000), JUN (Cell Signaling Technology, rabbit 1:1000), GAPDH (Sigma-Aldrich, rabbit 1:5000), HDAC5 (Santa Cruz, mouse 1:500), KROX-20 (Millipore, rabbit 1:500), MCAM (Origene, rabbit 1:1000), MPZ (AvesLab, chicken 1:1000), NGFR (Covance, rabbit 1:1000), TYRP1 (Sigma-Aldrich, rabbit 1:1000), IgY anti-chicken HRP-linked (Sigma-Aldrich, 1:2000), IgG anti-mouse and IgG anti-rabbit HRP-linked (Cell Signaling Technology, 1:2000). A list of the antibodies used can be found online (Key Resources Table).
Immunofluorescence
Request a detailed protocolFor immunofluorescence, mice were sacrificed by cervical dislocation and fresh frozen tissue was embedded in OCT (Sakura, 4583). Cryosections were cut at 10 μm on Superfrost Plus slides (Thermo Scientific, J1800AMNZ). Sections were thawed and fixed with 4% paraformaldehyde (PFA) for 5 min at room temperature. Then, samples were washed 3× in phosphate-buffered saline (PBS) 1× and immersed in 50% acetone, 100% acetone and 50% acetone for 2 min each. Then samples were washed 3× in PBS 1× and blocked in 5% donkey serum 0.1% bovine serum albumin (BSA) in PBS for 1 hr. Samples were incubated with the appropriate primary antibodies diluted in blocking solution overnight at room temperature. A list of the antibodies used can be found online (Key Resources Table). Samples were washed and incubated with secondary antibodies and DAPI in blocking solution for 1 hr at room temperature. Samples were mounted in Fluoromont G. Images were obtained at room temperature using a confocal ultraspectral microscope (Vertical Confocal Microscope Leica SPEII) with a ×63 Leica objective and using Leica LAS X software. Images were analyzed with ImageJ software.
EM studies
Request a detailed protocolMice were sacrificed by cervical dislocation and sciatic nerve were exposed and fixed by adding fixative solution (2% PFA [15710, Electron Microscopy Sciences], 2.5% glutaraldehyde [16220, Electron Microscopy Sciences]), 0.1 M cacodylate buffer, pH = 7.3 (12300, Electron Microscopy Sciences) for 15 min. Afterwards, the nerve was removed and placed in same fixative solution overnight at 4°C. Then, the nerve was washed in 0.1 M cacodylate buffer 3× for 15 min each. Then, the nerve was osmicated by adding 1% osmium tetroxide, 0.1 M cacodylate buffer, pH = 7.3 for one and half hour at 4°C. Then, the nerve was washed 2× with dd H2O for 15 min each. Samples were dehydrated by washing progressively in: 25% ethanol for 5 min, 50% ethanol for 5 min, 70% ethanol for 5 min, 90% ethanol for 10 min, 100% ethanol for 10 min (×4), propylene oxide for 10 min (×3). They were then changed into a 50:50 mixture of Agar 100 resin:propylene oxide for 1 hr at RT. The final change was into a 75:25 mixture of Agar 100 resin:propylene for 2 hr at RT. Nerves were blocked in resin and left shaking O/N at RT. These nerves were re-blocked the following day with fresh resin for 2 hr at RT. The nerves were finally embedded in fresh resin and left in the oven for 24 hr at 65°C. Transverse ultrathin sections from nerves were taken 5 mm from the sciatic notch and mounted on film (no grid bars). Images were taken using a Jeol 1010 electron microscope with a Gatan camera analyzed with ImageJ software.
Sodium dodecyl sulfate–polyacrylamide gel electrophoresis and immunoblotting
Request a detailed protocolSciatic nerves were homogenized at 4°C in RIPA buffer (PBS, 1% Nonidet P-40, 0.5% sodium deoxycholate, 0.1% sodium dodecyl sulfate SDS, and 5 mM EGTA) containing protease inhibitors (Mini Protease Inhibitor Cocktail; Sigma-Aldrich) and phosphatase inhibitors (Phosphatase Inhibitor Mini Tablets; Fisher Scientific). We homogenized the tissue using Bullet Blender Homogenizer BBX24-CE (Next Advance) and then sonicated for 4 min (30 s on/off) using a Biorruptor Pico (Diagenode). Protein concentrations were determined by the BCA method (Thermo Scientific). 10 μg of total protein was subjected to SDS–polyacrylamide gel electrophoresis (SDS–PAGE) and blotted on to Protran nitrocellulose membrane (Amersham Biosciences). Membranes were blocked using 5% milk (Sigma-Aldrich) in TBS 1% and incubated for 16 hr at 4°C with the indicated primary antibody, washed and incubated with secondary antibodies, and developed with ECL Prime (Amersham). Antibodies used can be found online (Key Resources Table). We used an Amersham Imager 680 machine (Amersham) for visualization. Measurements from the proteins of interest were normalized to loading control GAPDH and/or CALNEXIN. When normalized to both loading controls, a mean between the normalization with GAPDH and the normalization with CALNEXIN was used for analysis. The whole membrane Western blot images are shown in source data file four online.
ChIP assays
Request a detailed protocolChIP: The ChIP assay was a modification of the method described by Jang et al., 2006. Schwann cell cultures were incubated in PBS/1% PFA for 10 min at room temperature, harvested by centrifugation (1000 × g, 5 min, 4°C) and washed with PBS. The pellet was resuspended in 1 ml of buffer A (50 mM HEPES–KOH, pH 8.1, 1 mM EDTA, 0.5 mM EGTA, 140 mM NaCl, 10% glycerol, 0.5% NP40, 0.25% Triton X-100, and protease inhibitors), homogenized, and sonicated (15 pulses of 30 s separated) in a Biorruptor Pico (diagenode). Chromatin was clarified by centrifugation at 17,000 × g for 3 min at room temperature. Protein concentration in the supernatant was quantified by the BCA method (Thermo Scientific). An aliquot was saved as input. The volume corresponding to 60–100 μg of protein was incubated with the corresponding antibody and Dynabeads Protein G (Life Technologies) overnight at 4°C to form immunocomplexes. For in vivo ChIP, freshly dissected uninjured and injured nerves were incubated in PBS/1% PFA for 10 min at room temperature and then quenched for 5 min with glycine 0.125 M. Nerves were washed in PBS for 10 min at 4°C and then lysed in 200 µl of buffer A, using Bullet Blender Homogenizer BBX24-CE (Next Advance). Nuclei were harvested by centrifugation (10,000 × g, 5 min, 4°C) and washed with 1 ml of buffer B (10 mM Tris-HCl, pH 8.0, 1 mM EDTA, 0.5 mM EGTA, 200 mM NaCl and protease inhibitors), and sonicated (15 pulses of 30 s separated) in a Biorruptor Pico (diagenode). Chromatin was clarified by centrifugation at 17,000 × g for 3 min at room temperature. Protein concentration in the supernatant was quantified by the BCA method (Thermo Scientific). AlAn aliquot was saved as input. The volume corresponding to 200–300 μg of protein was incubated with the corresponding antibody and Dynabeads Protein G (Life Technologies) overnight at 4°C to form immunocomplexes. In both cases, immune complexes were centrifuged (500 × g, 3 min) and washed twice with 1 ml of ‘low-salt buffer’ (0.1% SDS, 1% Triton X-100, 2 mM EDTA, 20 mM Tris, pH 8.1, 150 mM NaCl, and protease inhibitors; Roche), and then washed once with 1 ml of ‘high-salt buffer’ (the same but with 500 mM NaCl) and washed three times with 1 ml of LiCl buffer (0.25 M LiCl, 1% IGEPAL, 1% sodium deoxycholate, 1 mM EDTA, 10 mM Tris, pH 8.1, and protease inhibitors). Chromatin from immunocomplexes and input was eluted with 200 μl of 1% SDS, 0.1 M NaHCO3, and 200 mM NaCl and incubated at 65°C for 6 hr (to break the DNA–protein complexes). DNA was purified using a column purification kit (GE Healthcare) and submitted to 5× PyroTaq EvaGreen qPCR Mix Plus (CMB) qPCR with the indicated primers.
The ChIP-Seq experiment was performed following a single-end sequencing strategy. High-quality reads were aligned against the reference genome (Rattus norvegicus (Rnor_6.0)) with Minimap2 (https://github.com/lh3/minimap2, version Minimap2-2.17 [r941]; RRID:SCR_018550). Read duplicates from the PCR amplification step in the sequencing process were removed with Picard tools (https://broadinstitute.github.io/picard/, version 2.23.8; RRID:SCR_006525) and only uniquely mapped reads were kept in the alignments. The uniquely mapped reads were obtained with SAMtools (http://www.htslib.org/) filtering by mapping quality ≥30. MACS2 (https://github.com/macs3-project/MACS, version 1.11; RRID:SCR_013291) was used for peak calling and the results were filtered by −log10 FDR > 3. To enable a more informative functional interpretation of experimental data, we identified genes close to or having ChIP-Seq tags on their sequence. ChIPseeker (http://bioconductor.org/packages/release/bioc/html/ChIPseeker.html) was used for this step. Rattus norvegicus (Rnor_6.0) was selected as annotation database (https://bioconductor.org/packages/release/data/annotation/html/TxDb.Rnorvegicus.UCSC.rn6.refGene.html).
In vivo recording of CAP from mouse sciatic nerves
Request a detailed protocolMice were deeply anesthetized by intraperitoneal injection of 40 mg/kg ketamine and 30 mg/kg xylazine. The whole length of the right sciatic nerve was then exposed from its proximal projection into the L4 spinal cord to its distal branches innervating gastrocnemius muscles: tibial, sural, and common peroneal. Extracellular recording of CAPs was carried out by placing the proximal part of the sciatic nerve on an Ag/AgCl recording electrode with respect to a reference electrode (Ag/AgCl) placed inside the contralateral paw of the animal. For electrical stimulation, another electrode was placed in the distal part of the sciatic nerve just before its trifurcation. To avoid nerve desiccation and the consequent axonal death, the nerve was continuously lubricated with paraffin oil (Panreac). To selectively activate Aβ-, Aδ-, and C-fibers, we recorded CAPs evoked by graded electrical stimulations (5, 8, 10, and 15 V intensity, 0.03-ms pulse duration, Grass Instruments S88, A-M Systems) using both normal and inverse polarity. CAPs were amplified (×1000) and filtered (high pass 0.1 Hz, low pass 10 kHz) with an AC amplifier (DAM 50, World Precision Instruments) and digitalized and stored at 25 kHz in a computer using a CED micro-1401 interface and Spike2 v.7.01 software (both from Cambridge Electronic Design). In the CAPs, different waveform components corresponding to A- (β and δ) and C-fiber activation were easily distinguished by latency. The amplitude of the different components and the mean NCV were measured. The amplitude of each component was measured from the maximum negative to the maximum positive deflection (Sdrulla et al., 2015). For NCV measurement, we divided the distance between the stimulating and recording electrodes by the latency to the CAP component with the biggest amplitude (Vleggeert-Lankamp et al., 2004). The distance between the stimulating and recording electrodes was measured for each experiment using an 8/0 suture thread.
Statistics
Values are given as means ± standard error (SE). Statistical significance was estimated with the Student’s t-test with or without Welch’s correction, one-way analysis of variance ANOVA with Tukey’s multiple comparisons test, mixed ANOVA with Bonferroni’s multiple comparisons test, chi-squared test and the Mann–Whitney U-test. A p value <0.05 was considered statistically significant. For the parametric tests (t-test and ANOVA), data distribution was assumed to be normal (Gaussian), but this was not formally tested. Analysis was performed using GraphPad software (version 6.0). Statistics for each experiment are described in more detail in the legends to figures.
Appendix 1
Data availability
All data generated or analysed during this study are included in the manuscript and supporting file.
References
-
A twist code determines the onset of osteoblast differentiationDevelopmental Cell 6:423–435.https://doi.org/10.1016/s1534-5807(04)00058-9
-
P0-Cre Transgenic Mice for Inactivation of Adhesion Molecules in Schwann CellsAnnals of the New York Academy of Sciences 883:116–123.https://doi.org/10.1111/j.1749-6632.1999.tb08574.x
-
c-Jun in Schwann cells promotes axonal regeneration and motoneuron survival via paracrine signalingThe Journal of Cell Biology 198:127–141.https://doi.org/10.1083/jcb.201205025
-
Human TYRP1: Two functions for a single gene?Pigment Cell & Melanoma Research 34:836–852.https://doi.org/10.1111/pcmr.12951
-
A non-coding function of TYRP1 mRNA promotes melanoma growthNature Cell Biology 19:1348–1357.https://doi.org/10.1038/ncb3623
-
Sustained Axon–Glial Signaling Induces Schwann Cell Hyperproliferation, Remak Bundle Myelination, and TumorigenesisJournal of Neuroscience 29:11304–11315.
-
Schwann cell autophagy, myelinophagy, initiates myelin clearance from injured nervesThe Journal of Cell Biology 210:153–168.https://doi.org/10.1083/jcb.201503019
-
Class IIa histone deacetylases link cAMP signaling to the myelin transcriptional program of Schwann cellsThe Journal of Cell Biology 217:1249–1268.https://doi.org/10.1083/jcb.201611150
-
Melanocyte production: dark side of the Schwann cellCurrent Biology 19:R1116–R1117.https://doi.org/10.1016/j.cub.2009.10.063
-
In vivo detection of Egr2 binding to target genes during peripheral nerve myelinationJournal of Neurochemistry 98:1678–1687.https://doi.org/10.1111/j.1471-4159.2006.04069.x
-
The origin and development of glial cells in peripheral nervesNature Reviews. Neuroscience 6:671–682.https://doi.org/10.1038/nrn1746
-
The Success and Failure of the Schwann Cell Response to Nerve InjuryFrontiers in Cellular Neuroscience 13:1–14.https://doi.org/10.3389/fncel.2019.00033
-
Epigenomic Regulation of Schwann Cell Reprogramming in Peripheral Nerve InjuryThe Journal of Neuroscience 36:9135–9147.https://doi.org/10.1523/JNEUROSCI.1370-16.2016
-
A G protein-coupled receptor is essential for Schwann cells to initiate myelinationScience (New York, N.Y.) 325:1402–1405.https://doi.org/10.1126/science.1173474
-
Gpr126 is essential for peripheral nerve development and myelination in mammalsDevelopment (Cambridge, England) 138:2673–2680.https://doi.org/10.1242/dev.062224
-
c-Jun is a negative regulator of myelinationThe Journal of Cell Biology 181:625–637.https://doi.org/10.1083/jcb.200803013
-
Regulatory signal transduction pathways for class IIa histone deacetylasesCurrent Opinion in Pharmacology 10:454–460.https://doi.org/10.1016/j.coph.2010.04.004
-
Class IIa HDACs - new insights into their functions in physiology and pathologyThe FEBS Journal 282:1736–1744.https://doi.org/10.1111/febs.13061
-
Gene redundancy and gene compensation: An updated viewJournal of Genetics and Genomics = Yi Chuan Xue Bao 46:329–333.https://doi.org/10.1016/j.jgg.2019.07.001
-
MEF2: a central regulator of diverse developmental programsDevelopment (Cambridge, England) 134:4131–4140.https://doi.org/10.1242/dev.008367
-
Skeletal muscle remodelingCurrent Opinion in Rheumatology 19:542–549.https://doi.org/10.1097/BOR.0b013e3282efb761
-
Histone deacetylase degradation and MEF2 activation promote the formation of slow-twitch myofibersThe Journal of Clinical Investigation 117:2459–2467.https://doi.org/10.1172/JCI31960
-
Zeb2 is essential for Schwann cell differentiation, myelination and nerve repairNature Neuroscience 19:1050–1059.https://doi.org/10.1038/nn.4321
-
Noise in Gene Expression: ScienceScience (New York, N.Y.) 2010:2010–2014.https://doi.org/10.1126/science.1105891
-
Misexpression of Pou3f1 results in peripheral nerve hypomyelination and axonal lossThe Journal of Neuroscience 27:11552–11559.https://doi.org/10.1523/JNEUROSCI.5497-06.2007
-
Axo-glial interaction in the injured PNSDevelopmental Neurobiology 81:490–506.https://doi.org/10.1002/dneu.22771
