Inositol polyphosphate multikinase physically binds to the SWI/SNF complex and modulates BRG1 occupancy in mouse embryonic stem cells

  1. Jiyoon Beon
  2. Sungwook Han
  3. Hyeokjun Yang
  4. Seung Eun Park
  5. Kwangbeom Hyun
  6. Song-Yi Lee
  7. Hyun-Woo Rhee
  8. Jeong Kon Seo
  9. Jaehoon Kim
  10. Seyun Kim  Is a corresponding author
  11. Daeyoup Lee  Is a corresponding author
  1. Department of Biological Sciences, Korea Advanced Institute of Science and Technology (KAIST), Republic of Korea
  2. Department of Chemistry, Seoul National University, Republic of Korea
  3. UNIST Central Research Facilities (UCRF), Ulsan National Institute of Science and Technology (UNIST), Republic of Korea
  4. KAIST Stem Cell Center, KAIST, Republic of Korea
  5. KAIST Institute for the BioCentury, KAIST, Republic of Korea

Abstract

Inositol polyphosphate multikinase (IPMK), a key enzyme in inositol polyphosphate (IP) metabolism, is a pleiotropic signaling factor involved in major biological events, including transcriptional control. In the yeast, IPMK and its IP products promote the activity of the chromatin remodeling complex SWI/SNF, which plays a critical role in gene expression by regulating chromatin accessibility. However, the direct link between IPMK and chromatin remodelers remains unclear, raising the question of how IPMK contributes to transcriptional regulation in mammals. By employing unbiased screening approaches and in vivo/in vitro immunoprecipitation, here we demonstrate that mammalian IPMK physically interacts with the SWI/SNF complex by directly binding to SMARCB1, BRG1, and SMARCC1. Furthermore, we identified the specific domains required for IPMK-SMARCB1 binding. Notably, using CUT&RUN and ATAC-seq assays, we discovered that IPMK co-localizes with BRG1 and regulates BRG1 localization as well as BRG1-mediated chromatin accessibility in a genome-wide manner in mouse embryonic stem cells. Together, these findings show that IPMK regulates the promoter targeting of the SWI/SNF complex, thereby contributing to SWI/SNF-meditated chromatin accessibility, transcription, and differentiation in mouse embryonic stem cells.

Editor's evaluation

This study describes a physical interaction between the Inositol polyphosphate multikinase enzyme (IPMK) and the SWI/SNF chromatin-remodeling complex. IPMK modulates SWI/SNF chromatin binding in mouse embryonic stem cells in particular at the transcription start sites of promoters with bivalent chromatin modifications. Loss of IPMK function led to defective activation of endodermal genes upon cell differentiation. This study identifies IPMK as a novel regulator of chromatin remodeling by SWI/SNF and gene expression in embryonic stem cells.

https://doi.org/10.7554/eLife.73523.sa0

Introduction

Inositol polyphosphates (IPs) are a class of signaling messengers that mediate diverse biological events, such as cellular growth, proliferation, and metabolic homeostasis. Inositol polyphosphate multikinase (IPMK) is an essential enzyme for the synthesis of IPs, including inositol tetrakisphosphates [IP4, both Ins(1,3,4,5)P4 and Ins(1,4,5,6)P4] and pentakisphosphates [IP5, Ins(1,3,4,5,6)P5] (Chakraborty et al., 2011; Hatch and York, 2010; Saiardi et al., 1999). In addition to its role as a phosphatidylinositol 3-kinase [thereby producing phosphatidylinositol 3,4,5-trisphosphate (PIP3)], IPMK also non-catalytically controls the activity of various signaling factors, including mTOR, AMPK, and TRAF6 (Bang et al., 2012; Kim et al., 2017a; Kim et al., 2017b; Kim et al., 2011; Maag et al., 2011; Resnick et al., 2005). These findings suggest that IPMK plays a critical role in coordinating major biological events.

Increasing evidence strongly indicates that nuclear IPMK acts as a key factor in the regulation of gene expression. The gene encoding IPMK was originally cloned from yeast as a gene required for the regulation of arginine metabolism and named Arg82 (yeast Ipmk) (Bechet et al., 1970; Dubois et al., 1987; Odom et al., 2000). The physical interaction between Arg82 and yeast transcription factor MCM1, a yeast homolog of mammalian SRF, is crucial for transcriptional control in yeast (Bercy et al., 1987; Christ and Tye, 1991; Messenguy and Dubois, 1993; Odom et al., 2000). In mammals, IPMK-SRF binding is a critical event for the SRF-dependent induction of gene expression (Kim et al., 2013). Other functions of nuclear IPMK are mediated by its diverse interactions with, for example, p53, steroidogenic factor 1, and CBP/p300 (Blind, 2014; Blind et al., 2014; Malabanan and Blind, 2016; Xu et al., 2013a; Xu et al., 2013c; Xu and Snyder, 2013b).

Chromatin remodeling is essential for efficient transcription of eukaryotic genes (Kouzarides, 2007; Trotter and Archer, 2007; Vignali et al., 2000). In particular, SWI/SNF is a large family of ATP-dependent chromatin remodeling complexes characterized as transcriptional regulators. These complexes enable the transcription machinery or other transcription factors to access target genes (Arnaud et al., 2018; Hargreaves and Crabtree, 2011). In mammalian cells, the canonical SWI/SNF complex contains one of the two mutually exclusive ATPases, BRM (SMARCA2) or BRG1 (SMARCA4), in addition to a core set of subunits consisting of BAF155 (BRG1-associated factor or SMARCC1), SMARCB1 (hSNF5 or INI1), and BAF170 (SMARCC2), as well as four to eight accessory subunits (Khavari et al., 1993; Wang et al., 1996a; Wang et al., 1996b). Importantly, the SWI/SNF complex mediates modifications on the nucleosome structure and regulates nucleosome positioning in an ATP-dependent manner, thereby modulating the accessibility of regulatory proteins. Therefore, this chromatin remodeling complex is critical for various biological processes, including gene transcription, cell-cycle regulation, and cell differentiation (Ho et al., 2009; Ho et al., 2009; Hodges et al., 2016; Kim and Roberts, 2014; Tolstorukov et al., 2013; Wang et al., 2014).

Despite the importance of both IP function and chromatin remodeling in transcriptional regulation, only a few studies have addressed the link between IPs and chromatin remodeling. A previous study in yeast demonstrated that IPs can regulate the nucleosome-sliding activity of chromatin remodeling complexes in vitro (Shen et al., 2003). Specifically, IP4 and IP5 stimulate the activity of the SWI/SNF complex, whereas inositol hexakisphosphate (IP6) inhibits the activity of the NURF, ISW2, and INO80 complexes. Another study in yeast illustrated that mutation in the yeast IPMK homolog Arg82 impairs IP4 and IP5 production and causes inefficient recruitment of the SWI/SNF complex and impaired chromatin remodeling at the promoter of the phosphate-responsive gene PHO5 (Steger et al., 2003). In mammals, inositol hexakisphosphate kinase 1 (IP6K1) directly interacts with histone demethylase JMJD2C. IP6K1 and its product 5-IP7 appear to mediate the expression of JMJDC2 target genes in mammalian cells by regulating the chromatin association of JMJDC2 and the levels of trimethyl-histone H3 lysine 9 (Burton et al., 2013). Taken together, these findings suggest that IPs and relevant enzymes play important roles in chromatin remodeling and transcription. However, a direct link between IPMK (which produces IPs) and the chromatin remodeling complex SWI/SNF has not been reported, and whether IPMK contributes to transcriptional regulation in mammals is unclear.

To address these points, we performed unbiased screening assays and elucidated that the core subunits of the SWI/SNF complex, including SMARCB1 and BRG1, physically interact with IPMK. The physical association between IPMK and the SWI/SNF complex was confirmed via in vitro and in vivo immunoprecipitation assays. The specific binding sites between IPMK and SMARCB1 were also mapped in detail. To investigate the biological role of the interaction between IPMK and the SWI/SNF complex, we performed next-generation sequencing. We also examined the co-localization of IPMK and BRG1, finding that they co-localize at the chromatin, especially at the promoter-transcriptional start site (TSS) and enhancers. Surprisingly, IPMK depletion significantly reduces the genomic occupancy of BRG1 and BRG1-mediated chromatin accessibility, especially at bivalent promoters. IPMK depletion also affects gene transcription, with reduced BRG1 occupancy and chromatin accessibility at the promoter-TSS. Finally, we demonstrate that IPMK depletion significantly impacts endodermal gene expression during differentiation. Taken together, our findings indicate direct linkage between IPMK and the SWI/SNF complex via physical interactions, as well as a crucial role of IPMK in regulating the genomic occupancy of BRG1 and BRG1-associated chromatin accessibility, transcription, and stem cell differentiation.

Results

Identification of IPMK-binding/interacting proteins

To identify IPMK targets, we performed yeast two-hybrid screening with IPMK as the bait and a human brain cDNA library as the prey. The co-transformants of GAL4-DB fusion plasmid pGBKT7-IPMK (prey) and GAL4-AD fusion plasmid pACT2-SMARCB1 (bait) activated expression of the reporter gene, demonstrating cell growth on selective media, unlike the co-transformants of pGBKT-7 and pACT2-SMARCB1 (Figure 1A). Approximately 23–36 proteins were identified as potential interactors with IPMK (Supplementary file 1). Among these putative targets, only SMARCB1 was present in the results for both duplicates of the yeast two-hybrid screening (Supplementary file 1). These results indicate SMARCB1, a core subunit of the SWI/SNF chromatin remodeler, as a potential IPMK-binding protein.

Figure 1 with 1 supplement see all

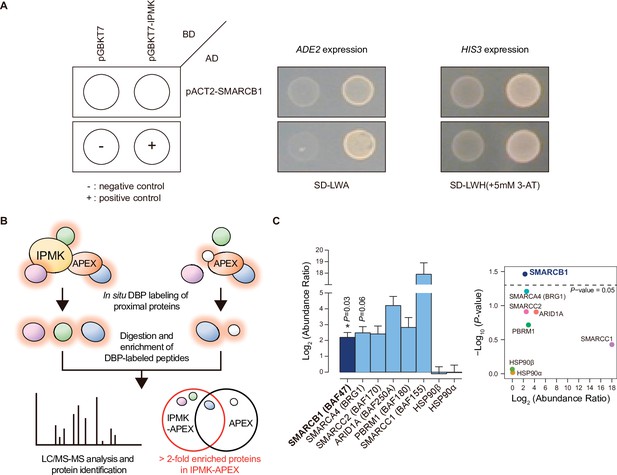

Identification of SMARCB1 as an IPMK-interacting protein via unbiased screening assays.

(A) IPMK and SMARCB1 interaction test in yeast strain AH109 containing two reporter genes (ADE2 and HIS3). Yeast cells were co-transformed with either the GAL4-BD fusion plasmid pGBKT7 or pGBKT7-IPMK, and the GAL4-AD fusion plasmid pACT2-SMARCB1. The yeast cells were spread on a selection medium lacking leucine and tryptophan (SD-LW) to select co-transformants of bait and prey vectors. Specific interactions between bait and prey proteins were monitored via cell growth on selection medium lacking leucine, tryptophan, and adenine (SD-LWA), or a selection medium lacking leucine, tryptophan, and histidine (SD-LWH). 3-Amino-1,2,4-triazole (3-AT) was used to suppress leaky HIS3 expression in transformants to obtain an accurate phenotype. Polypyrimidine tract binding protein (PTB) gene fused with the GAL4 DNA binding domain (BD-PTB) and PTB gene fused with the GAL4 activation domain (AD-PTB) were used as positive controls of bait and prey vectors, respectively. The negative control is cells transformed with the parental bait vector (pGBKT7) and prey vector (pACT2). (B) Schematic diagram displaying the identification strategy of IPMK-proximal/interacting proteins, which are biotinylated by APEX-tagged IPMK. (C) Bar graphs showing the relative abundance of biotinylated proteins related to the SWI/SNF complex and two negative controls (left). Target proteins were arranged according to their significance (left, significant; right, not significant). The volcano plot shows the relative abundance and significance (P-value) of biotinylated proteins related to the SWI/SNF complex and two negative controls (right). A dotted line within the volcano plot indicates p = 0.05. The relative abundance (abundance ratio) was derived by comparing the fold enrichment of target proteins in IPMK-APEX2-expressing vs. APEX2-expressing HEK293 cells. P-values were calculated using the Student’s t-test, and error bars denote the standard error of the mean obtained from three biological replicates.

To further identify potential target proteins that interact with IPMK in mammalian cells, we employed an in vivo proximity-labeling approach using an engineered variant of ascorbate peroxidase (APEX2) fused to IPMK (APEX2-mediated proximity labeling) in human embryonic kidney (HEK)–293 cells. The proteins in the vicinity of the IPMK-APEX2 fusion protein or those of APEX2 alone were biotinylated, enriched using streptavidin beads, and identified via mass spectrometry (Figure 1B). A total of 455 IPMK-associated candidate proteins were identified by comparing the proteins in the vicinity of APEX2-IPMK to those of APEX2 alone (background, used as a negative control) based on twofold differences in the enrichment score. Interestingly, ConsensusPathDB (Herwig et al., 2016) using the IPMK-associated candidates identified the enriched protein complex-based sets related to BRG1-, BAF-, or SWI/SNF complex-associated complexes (Supplementary file 2). Among these candidates, we detected factors associated with the SWI/SNF complex, including SMARCB1 (BAF47), BRG1 (SMARCA4), SMARCC2 (BAF170), ARID1A (BAF250A), PBRM1 (BAF180), and SMARCC1 (BAF155), as IPMK interactors (Figure 1C). Furthermore, among these SWI/SNF complex subunits, SMARCB1 had the most significant interaction with IPMK or was positioned very proximal to IPMK (Figure 1C), consistent with the yeast two-hybrid screening results (Figure 1A). We also detected core histones (histones H2B, H3.1, and H4) as IPMK interactors (Figure 1—figure supplement 1), supporting that IPMK interacts with the SWI/SNF complex, which binds to nucleosomes in vivo. Collectively, these results from two unbiased screening experiments strongly indicate that IPMK physically interacts with the SWI/SNF complex.

Physical interaction between IPMK and the core subunits of the SWI/SNF complex

To validate the physical interaction between IPMK and SMARCB1, we performed an in vitro binding assay using recombinant IPMK and SMARCB1 proteins. We detected a direct protein-protein interaction between IPMK and SMARCB1 (Figure 2A, see lane 2 and lane 4). To confirm the physical association between IPMK and the core subunits of the SWI/SNF (BAF) complex, we performed binary protein-interaction assays with baculovirus-mediated expression. We co-infected Sf9 insect cells with baculoviruses expressing FLAG-IPMK and individual subunits of the SWI/SNF complex, including SMARCB1, BRG1, BAF155 (SMARCC1), and BAF170 (SMARCC2). Next, we performed FLAG M2 agarose immunoprecipitation followed by immunoblotting. We detected direct interaction of IPMK with each of the SMARCB1, BRG1, and BAF155 proteins, but not with BAF170 (Figure 2B, see lane 7 and lane 8). Taken together, these results indicate that IPMK can bind to SMARCB1, BRG1, or BAF155 in vitro.

Figure 2 with 1 supplement see all

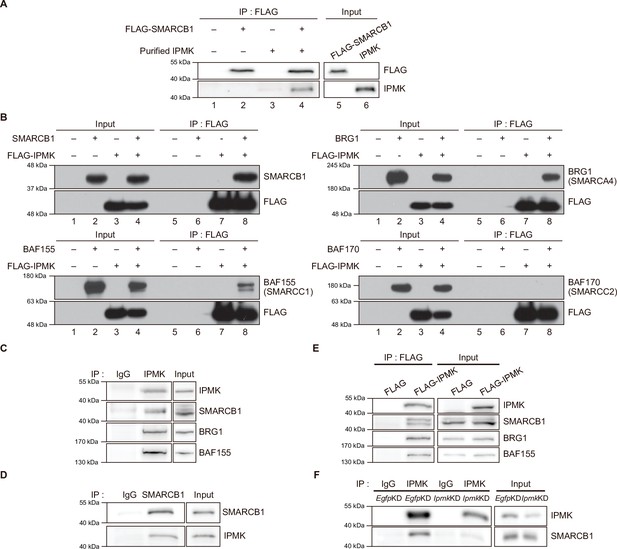

IPMK binds to SMARCB1 and other components of the SWI/SNF complex.

(A) Purified IPMK and in vitro translated FLAG-SMARCB1 were co-incubated, immunoprecipitated with an anti-FLAG antibody, and then subjected to immunoblotting. (B) Sf9 insect cells were co-infected with baculoviruses expressing FLAG-IPMK and individual subunits of the SWI/SNF complex (SMARCB1, BRG1, BAF155, and BAF170), followed by FLAG M2 agarose immunoprecipitation and immunoblotting. (C) IPMK and IgG were immunoprecipitated from E14Tg2a cells and subjected to immunoblotting. (D) SMARCB1 and IgG were immunoprecipitated from E14Tg2a cells and subjected to immunoblotting. (E) E14Tg2a cells were transfected with FLAG-IPMK or FLAG (a control vector), followed by FLAG immunoprecipitation and immunoblotting. (F) E14Tg2a cells were transfected with siRNA against Egfp (EgfpKD) and Ipmk (IpmkKD), immunoprecipitated with IPMK and IgG, and then subjected to immunoblotting.

Figure 2—source data 1

Full and unedited blots corresponding to panel A.

https://cdn.elifesciences.org/articles/73523/elife-73523-fig2-data1-v2.zip
Figure 2—source data 2

Full and unedited blots corresponding to panel B.

https://cdn.elifesciences.org/articles/73523/elife-73523-fig2-data2-v2.zip
Figure 2—source data 3

Full and unedited blots corresponding to panel C.

https://cdn.elifesciences.org/articles/73523/elife-73523-fig2-data3-v2.zip
Figure 2—source data 4

Full and unedited blots corresponding to panel D.

https://cdn.elifesciences.org/articles/73523/elife-73523-fig2-data4-v2.zip
Figure 2—source data 5

Full and unedited blots corresponding to panel E.

https://cdn.elifesciences.org/articles/73523/elife-73523-fig2-data5-v2.zip
Figure 2—source data 6

Full and unedited blots corresponding to panel F.

https://cdn.elifesciences.org/articles/73523/elife-73523-fig2-data6-v2.zip

To investigate whether the interactions we observed also occur in vivo, we performed co-immunoprecipitation experiments with mammalian cells. We detected a direct association between endogenous IPMK and SMARCB1 in mouse embryonic stem cells (mESCs; Figure 2C and D) and in mouse embryonic fibroblasts (MEFs; Figure 2—figure supplement 1A-C). Consistent with our in vitro binding assays (Figure 2A and B), SMARCB1, BRG1, and BAF155 co-immunoprecipitated with endogenous IPMK (Figure 2C) and overexpressed FLAG-IPMK (Figure 2E) in mESC extracts. Intriguingly, we detected SMARCB1, BRG1, and BAF170 in the IPMK immunoprecipitates from MEF extracts (Figure 2—figure supplement 1A, B). To determine the specificity of the physical interaction between IPMK and SMARCB1, Ipmk and Smarcb1 were knocked down (IpmkKD and Smarcb1KD, respectively) in mESCs and MEFs. We confirmed the successful knockdown by quantifying the proteins (Figure 2F, Figure 2—figure supplement 1D, E). We observed that IpmkKD did not affect the protein levels of the SWI/SNF complex subunits and Smarcb1KD did not affect the IPMK protein levels in mESCs or MEFs (Figure 2—figure supplement 1D). Importantly, a significant reduction in SMARCB1 signals was observed in the IPMK immunoprecipitate from IpmkKD mESCs compared to control (EgfpKD) mESCs (Figure 2F). We also found that the SMARCB1 and BRG1 signals in IPMK immunoprecipitate from SmarcbKD MEFs were significantly decreased compared to signals in the control (EgfpKD) MEFs (Figure 2—figure supplement 1E). Furthermore, in SMARCB1 immunoprecipitate, we detected a significant reduction in IPMK signals in IPMK-null MEFs (Figure 2—figure supplement 1C). Taken together, these results indicate that IPMK directly associates with the core subunits of the SWI/SNF complex in vivo: IPMK-SMARCB1/BRG1/BAF155 in mESCs, IPMK-SMARCB1/BRG1/BAF170 in MEFs, and IPMK-SMARCB1 binding is specific and observed in both mESCs and MEFs.

Considering the above results, it is highly plausible that IPMK physically interacts with the SWI/SNF complex. To confirm this, we performed a co-immunoprecipitation assay by co-expressing IPMK and SMARCB1 in HEK293T cells. Consistent with the above results, we observed a physical interaction between IPMK and SMARCB1 (Figure 2—figure supplement 1F). Next, we performed GST pull-down assays by overexpressing GST-IPMK or GST alone (negative control) in HEK293T cells. Notably, the core subunits of the SWI/SNF (BAF)/PBAF complexes, namely SMARCB1, BAF155, BAF170, PBRM1, BAF250A, and BRM, were pulled down alongside GST-IPMK (Figure 2—figure supplement 1G), which was not seen in the negative control. Lastly, we purified endogenous SWI/SNF (BAF) complexes from cells expressing FLAG-DPF2 (Figure 2—figure supplement 1H). We co-incubated the purified SWI/SNF complexes with purified GST-IPMK or GST alone and performed GST pull-down assays. As expected, we detected the core subunits of the SWI/SNF complex (SMARCB1, BRG1, BAF155, and BAF170) in GST-IPMK pull-downs (Figure 2—figure supplement 1I). Collectively, our results strongly imply that IPMK physically interacts with the mammalian SWI/SNF complex by directly binding to SMARCB1, BRG1, and BAF155 (SMARCC1).

Mapping the binding sites between IPMK and SMARCB1

Among the three IPMK-binding proteins (SMARCB1, BRG1, and BAF155), SMARCB1 exhibited the most robust interaction with IPMK (Figures 1 and 2). Therefore, we conducted yeast two-hybrid assays to identify the domains of SMARCB1 that are required for the interaction with IPMK. We constructed various prey vectors encoding different SMARCB1 domains for the two-hybrid analyses. Interestingly, the prey vectors expressing amino acids 99–245, 99–319, and full-length SMARCB1 resulted in positive signals in the two-hybrid system (Figure 3—figure supplement 1A), indicating that the Rpt1 and Rpt2 domains of SMARCB1 participate in the protein-protein interactions between SMARCB1 and IPMK.

To further dissect the reciprocal binding sites required for SMARCB1-IPMK binding, various SMARCB1 deletion constructs were designed and overexpressed in HEK293T cells. First, based on the domain map of SMARCB1 (Figure 3A, top), we deleted the C-terminus (Figure 3A, middle). We confirmed that the Rpt1 domain of SMARCB1 is essential for the IPMK interaction by immunoprecipitating the overexpressed deletion constructs (Figure 3B, compare lane 3 with lanes 2, 4, and 5). Next, we generated additional N-terminal deleted SMARCB1 constructs (Figure 3A, bottom). Consistent with the results of the yeast two-hybrid assays (Figure 3—figure supplement 1A), we observed that the constructs containing the Rpt1 or Rpt2 domains interact with IPMK (Figure 3C, lanes 2, 3, 4, and 5 show positive signals). By independently overexpressing each SMARCB1 domain, we found that both the Rpt1 and Rpt2 domains of SMARCB1 could bind to IPMK (Figure 3D and E, see lanes 3, 4, and 6). We also dissected Rpt1 and Rpt2 domains into β-sheets and α-helices based on their structures. In Rpt1, two β-sheets and two α-helices are required for IPMK binding (Figure 3—figure supplement 1B, compare lane 4 with lanes 2 and 3). In Rpt2, only two β-sheets and no α-helices were bound to IPMK (Figure 3—figure supplement 1C, compare lane 2 with lane 3). These observations both sheets and helices of Rpt1 and/or only sheets of Rpt2 are required for IPMK binding were supported by overexpressing combinations of Rpt1 and Rpt2 domains (Figure 3—figure supplement 1D, lanes 3 and 4 show positive signals). This was further confirmed by the SMARCB1 lacking Rpt1 and Rpt2 not being able to bind IPMK (Figure 3—figure supplement 1E, compare lane 2 with lane 3, and F). Thus, we concluded that the sheets/helices of Rpt1 and sheets of Rpt2 are the major IPMK-interacting sites in SMARCB1.

Figure 3 with 1 supplement see all
Identification of the distinct domains required for IPMK-SMARCB1 interactions.

(A) Schematic diagram showing the human SMARCB1 fragments used for the binding studies (B and C). The IPMK-binding sites (Rpt1 and Rpt2) are highlighted in red. (B) HEK293T cells were co-transfected with GST-IPMK and FLAG (a control vector) or FLAG-SMARCB1 fragments, followed by immunoprecipitation with an anti-FLAG antibody, and then subjected to immunoblotting. (C and D) HEK293T cells were co-transfected with FLAG-IPMK and GST (a control vector) or GST-SMARCB1 fragments, followed by immunoprecipitation with an anti-FLAG antibody, and then subjected to immunoblotting. The specific IPMK-binding SMARCB1 fragments are in bold. (E) Schematic diagram showing the domains of human SMARCB1. SMARCB1 fragments used for the binding studies in (D) are indicated below with the numbers of amino acid sequences. The specific IPMK-binding SMARCB1 fragments (Rpt1 and Rpt2) are highlighted in red. (F) HEK293T cells were co-transfected with FLAG-SMARCB1 and GST (a control vector) or GST-IPMK fragments, followed by immunoprecipitation with an anti-FLAG antibody, and then subjected to immunoblotting. (G) Schematic diagram showing the domains of human IPMK. IPMK fragments used for the binding studies in (F) are indicated below with the numbers of amino acid sequences. Key domains for inositol binding (IP), kinase activity (SSLL and IDF), and the nuclear localization signal (NLS) are depicted. The specific SMARCB1-binding IPMK fragments (exons 3, 4, and 6) are highlighted in blue.

Figure 3—source data 1

Full and unedited blots corresponding to panel B.

https://cdn.elifesciences.org/articles/73523/elife-73523-fig3-data1-v2.zip
Figure 3—source data 2

Full and unedited blots corresponding to panel C.

https://cdn.elifesciences.org/articles/73523/elife-73523-fig3-data2-v2.zip
Figure 3—source data 3

Full and unedited blots corresponding to panel D.

https://cdn.elifesciences.org/articles/73523/elife-73523-fig3-data3-v2.zip
Figure 3—source data 4

Full and unedited blots corresponding to panel F.

https://cdn.elifesciences.org/articles/73523/elife-73523-fig3-data4-v2.zip

Reciprocally, to identify which IPMK domains are required for SMARCB1 binding, we designed several GST-tagged deletion constructs of IPMK (Figure 3G) and conducted immunoprecipitation experiments. IPMK-SMARCB1 binding was primarily mediated by three IPMK regions, including exon 3, exon 4, and exon 6 (Figure 3F, lanes 4, 5, 7, and 8 show positive signals, and Figure 3G), which comprise the inositol binding site and the kinase domain. Taken together, our results elucidated the specific reciprocal biding sites between IPMK and SMARCB1.

Co-localization of IPMK and BRG1 on the genome

Our results demonstrated that IPMK binds directly to the core subunits of the mammalian SWI/SNF complex (SMARCB1, BRG1, and BAF155) and, thus, physically interacts with the SWI/SNF complex. Accordingly, we speculate that IPMK plays an important role in chromatin regulation. However, the cellular region where this IPMK-SWI/SNF interaction occurs in vivo and the detailed localization and role of IPMK in the chromatin remains elusive. Therefore, we conducted a chromatin fractionation assay using mESCs and MEFs. IPMK was evenly distributed in all the three subcellular fractions (cytoplasm, nucleoplasm, and chromatin), whereas SMARCB1 and BRG1 were primarily found in the chromatin fraction for both mESCs and MEFs (Figure 4—figure supplement 1A-D). To further investigate whether the expression of IPMK and SMARCB1 affects the distribution of the other, we conducted RNAi-mediated IpmkKD and Smarcb1KD before the chromatin fractionation assay. We observed that the distribution of SMARCB1 was unaffected by IpmkKD (Figure 4—figure supplement 1B), and the distribution of IPMK was unaffected by Smarcb1KD (Figure 4—figure supplement 1D). Taken together, these results indicate that IPMK, BRG1, and SMARCB1 reside together on the chromatin.

Next, we sought to determine where the IPMK, BRG1, and SMARCB1 localization takes place within the chromatin. To investigate the localization of BRG1 and IPMK within the chromatin, we performed cleavage under targets and release using nuclease (CUT&RUN) assays (Skene and Henikoff, 2017) in mESCs. In accordance with our results showing the physical association of IPMK and the SWI/SNF complex, we found that IPMK co-localizes with BRG1 on the genome (Figure 4B). Next, we performed peak annotation to analyze the genomic regions (e.g. promoters or intergenic regions) enriched with CUT&RUN peaks. Given that BRG1, a catalytic subunit of the SWI/SNF complex, is known to localize at the promoter-TSS (de Dieuleveult et al., 2016), we confirmed that BRG1 is significantly enriched at promoters in the mouse genome (Figure 4E and F). Notably, IPMK was also significantly enriched at promoters (Figure 4E and F). As the above peak annotation analysis did not specify the enhancers, which show a strong BRG1 enrichment (de Dieuleveult et al., 2016; Laurette et al., 2015; Nakayama et al., 2017), we employed the previously determined enhancer lists from mESCs (Whyte et al., 2013) and aligned them with BRG1 peaks. Consistent with previous findings, highly enriched BRG1 chromatin immunoprecipitation sequencing (ChIP-seq) peaks from the previous study (Figure 4—figure supplement 1E) and highly enriched BRG1 CUT&RUN peaks from our study (Figure 4B and D, and Figure 4—figure supplement 1F) mostly localized at enhancers (upper part of the heatmap). Furthermore, both BRG1 peaks (ChIP-seq peaks from the previous study and our CUT&RUN peaks) showed similar enrichment patterns in promoters and enhancers (Figure 4—figure supplement 1G), validating our CUT&RUN experiments. Notably, we found that highly enriched IPMK also localized at enhancers (Figure 4B).

Figure 4 with 2 supplements see all

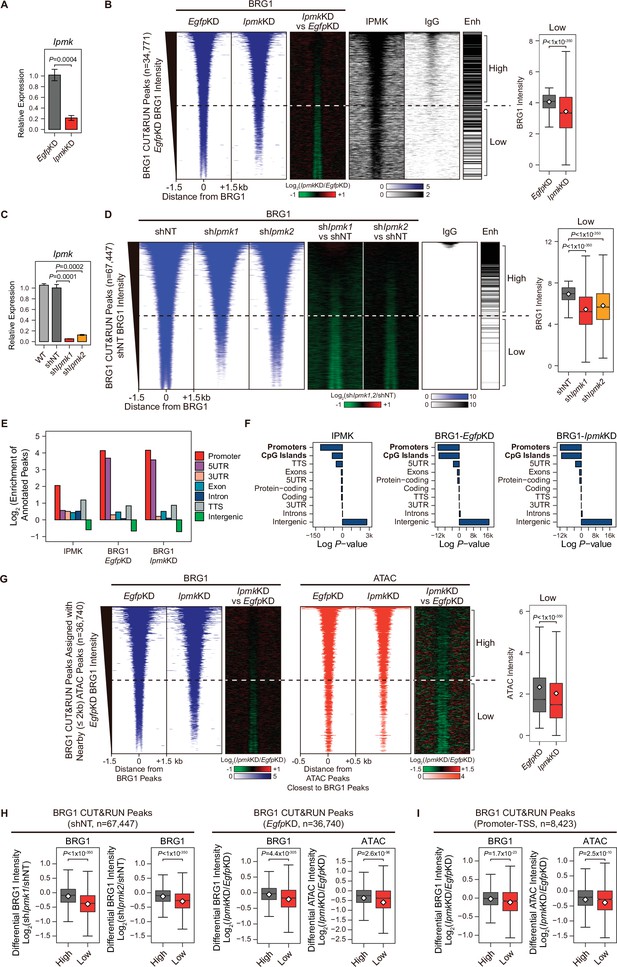

IPMK-BRG1 co-localize at promoters-TSSs/enhancers, and IPMK regulates the genomic localization of BRG1.

(A) RT-qPCR analysis of Ipmk expression after siRNA treatment. Error bars denote the standard error of the mean obtained from four biological replicates. The expression levels were normalized to the expression of β-actin. P-values were calculated using the Student’s t-test. (B) Heatmaps representing CUT&RUN results for BRG1 (EgfpKD, IpmkKD, and their comparison), IPMK, and IgG, and enhancer (Enh) distribution at BRG1 CUT&RUN peaks (EgfpKD cells) as indicated at the top (left). All heatmaps were aligned at 34,771 BRG1 CUT&RUN peaks (rows) and sorted in descending order by the BRG1 intensity of EgfpKD cells. High and Low groups were divided equally (n = 17,385 and 17,386, respectively) according to the BRG1 intensity of EgfpKD cells. Box plots show the BRG1 intensity at Low BRG1 CUT&RUN peaks (right). (C) RT-qPCR analysis of Ipmk expression in wild-type mESCs (WT) and after shRNA-mediated Ipmk silencing. Error bars denote the standard error of the mean obtained from four biological replicates. The expression levels were normalized to the expression of β-actin. P-values were calculated using the Student’s t-test. (D) Heatmaps representing CUT&RUN results for BRG1 (shNT, shIpmk1, shIpmk2, and their comparison) and IgG, and enhancer (Enh) distribution at BRG1 CUT&RUN peaks (shNT cells) as indicated at the top (left). All heatmaps were aligned at 67,447 BRG1 CUT&RUN peaks (rows) and sorted in descending order by the BRG1 intensity of shNT cells. High and Low groups were divided equally (n = 33,723 and 33,724, respectively) according to the BRG1 intensity of shNT cells. Box plots show the BRG1 intensity at the Low BRG1 CUT&RUN peaks (right). (E) Bar graphs showing the Log2 enrichment of CUT&RUN peaks (IPMK and BRG1-EgfpKD, -IpmkKD) annotated with various regions of the mouse genome. (F) Bar graphs showing the significance (Log P-value) of CUT&RUN peaks (IPMK and BRG1-EgfpKD, -IpmkKD) annotated with various regions of the mouse genome. For each CUT&RUN peak, genome annotations (e.g., promoters or CpG islands) are sorted in descending order according to their significance (P-values, decreasing significance from the top toward the bottom). (G) Heatmaps representing BRG1 CUT&RUN (EgfpKD, IpmkKD, and their comparison) at BRG1 CUT&RUN peaks (EgfpKD cells) assigned with nearby (within 2 kb) ATAC-seq peaks (left). BRG1 peaks without nearby ATAC-seq peaks were excluded. To match the arrangement with ATAC-seq peaks (right), a BRG1 peak containing multiple ATAC-seq peaks was included without deduplication. Heatmaps representing ATAC-seq signals (EgfpKD, IpmkKD, and their comparison) at ATAC-seq peaks assigned with the closest BRG1 CUT&RUN peaks that were used for heatmaps on the left (right). All heatmaps were aligned at 36,740 BRG1 CUT&RUN peaks (left) or 36,740 ATAC-seq peaks (right) and sorted in descending order by the BRG1 intensity of EgfpKD cells. High and Low groups were divided equally (n = 18,370 and 18,370, respectively) according to the BRG1 intensity of EgfpKD cells. Box plots show the BRG1 intensity at the Low BRG1 CUT&RUN peaks (right). (H) Box plots showing the differential BRG1 and ATAC intensity upon IPMK depletion at the High (grey) and Low (red) BRG1 CUT&RUN peaks and corresponding (closest) ATAC-seq peaks. High and Low groups were divided according to the BRG1 intensity of shNT (left) or EgfpKD (right) cells. (I) Box plots showing the differential BRG1 (left) and ATAC (right) intensity upon IpmkKD at the High (grey) and Low (red) BRG1 CUT&RUN peaks localized at promoters-TSSs (left) and corresponding (closest) ATAC-seq peaks (right). High and Low groups (n = 5640 and 2783, respectively) were derived from (G). (B, D, G, H and I) P-values were calculated using the Wilcoxon rank sum test.

Collectively, these results strongly indicate that IPMK and BRG1 co-localize at the chromatin, particularly in the promoter and enhancer regions, which further supports our previous results of a physical association between IPMK and the SWI/SNF complex.

IPMK regulates the genomic occupancy of BRG1 and BRG1-mediated chromatin accessibility

To further elucidate the role of IPMK in BRG1 localization, we performed BRG1 CUT&RUN assays upon IpmkKD (Figure 4A) and compared them to EgfpKD (control) in mESCs. Interestingly, we detected a significant reduction in genome-wide BRG1 intensity upon IpmkKD at BRG1 CUT&RUN peaks, with low BRG1 enrichment in EgfpKD mESCs (bottom half of the heatmaps, termed as Low; Figure 4B and Figure 4—figure supplement 2A). To confirm this reduction in BRG1, we established constitutive IPMK-depleted mESCs by shRNA-mediated Ipmk silencing (Figure 4C and Figure 4—figure supplement 2C) and performed BRG1 CUT&RUN assays upon IPMK depletion (shIpmk1 and shIpmk2), comparing them to shNT (a non-target control). Consistent with the decreased BRG1 intensity shown in siRNA-mediated Ipmk silencing (Figure 4B), we detected a significant reduction in genome-wide BRG1 intensity upon shRNA-mediated Ipmk silencing at BRG1 CUT&RUN peaks with low BRG1 enrichment in shNT mESCs (bottom half of the heatmaps, termed as Low; Figure 4D). Although some differences exist (number of BRG1 peaks and their positions) between BRG1 CUT&RUN of siRNA- and shRNA-mediated Ipmk silencing, we confirmed the reduced BRG1 intensity upon IPMK depletion at the Low BRG1 CUT&RUN merged peaks (merged peaks derived by merging BRG1 CUT&RUN peaks of EgfpKD and shNT mESCs) in both siRNA and shRNA experiments (Figure 4—figure supplement 2D and E). The observed reduction in BRG1 intensity at Low BRG1 peaks was not derived from any changes in the expression of BRG1 or other subunits of the SWI/SNF complex (Figure 2—figure supplement 1DFigure 4—figure supplement 1B, Figure 4—figure supplement 2B and C), excluding the possibility that IPMK depletion results in reduced expression of BRG1 or another SWI/SNF complex subunit that leads to reduced BRG1 occupancy. In addition, the genomic distribution of BRG1 CUT&RUN peaks was unaffected by IpmkKD (Figure 4E and F), suggesting that IPMK depletion does not affect the global distribution (changes in peak positions) of BRG1, but impacts the global occupancy of BRG1, especially at the low-enriched BRG1 peaks (Low), which do not correlate with enhancers (Figure 4B and D).

To address whether the enzymatic activity of IPMK is required for regulation of BRG1 occupancy, we performed rescue experiments by transfecting DNA constructs of wild-type (WT) IPMK (+WT) or catalytically dead IPMK (+SA) in IpmkKD mESCs. We confirmed the stable expression of WT and catalytically dead IPMK (Figure 4—figure supplement 2F) and then performed BRG1 CUT&RUN assays. Consistent with our previous results (Figure 4B and D), we observed significantly reduced BRG1 intensity at Low BRG1 peaks upon IpmkKD (Figure 4—figure supplement 2G and H). Although +WT transfection did not fully restore the BRG1 intensity, we observed a significantly increased BRG1 intensity in IpmkKD +WT compared to IpmkKD mESCs (Figure 4—figure supplement 2G and H). Interestingly, +SA transfection also exhibited significantly increased BRG1 intensity compared to IpmkKD mESCs and did not show a large difference in BRG1 intensity compared to IpmkKD +WT mESCs (Figure 4—figure supplement 2G and H). These results indicate that the enzymatic activity of IPMK is not required for the regulation of BRG1 occupancy in mESCs.

BRG1 was previously shown to regulate chromatin accessibility at nucleosome free regions (NFRs) of TSS in mESCs (de Dieuleveult et al., 2016). To investigate the effect of the IpmkKD-induced decrease in BRG1 occupancy on chromatin accessibility, we performed an assay for transposase-accessible chromatin using sequencing (ATAC-seq) upon IpmkKD and compared the results to EgfpKD (control) in mESCs. To precisely assess the effect of an IpmkKD-induced decrease in BRG1 occupancy on chromatin accessibility, we assigned ATAC peaks to the nearby (within 2 kb) BRG1 peaks and selected these BRG1 peaks for further analysis; we excluded BRG1 peaks without nearby ATAC peaks (Figure 4G). In addition, BRG1 peaks containing or assigned multiple ATAC peaks were included without de-duplication to match the same ordering as ATAC peaks (the same alignment of heatmap rows was applied for BRG1 and ATAC peaks in Figure 4G). As expected, we observed that the global BRG1 occupancy was reduced upon IpmkKD at BRG1 peaks with low BRG1 intensity (Low; Figure 4G), consistent with our previous observations (Figure 4B). Importantly, at Low BRG1 peaks, both BRG1 occupancy and BRG1-mediated chromatin accessibility (ATAC-seq signals closest to the BRG1 CUT&RUN peaks) were significantly reduced upon IpmkKD in a genome-wide manner (Figure 4G and Figure 4—figure supplement 2I). Notably, when comparing the highly enriched (High) and lowly enriched (Low) BRG1 peaks, IPMK depletion greatly reduced the BRG1 and ATAC-seq intensity, especially at Low BRG1 peaks (Figure 4H). Reduced BRG1 and BRG1-associated chromatin accessibility (ATAC-seq) upon IpmkKD were also detected Low BRG1 peaks residing at promoter-TSS regions (Figure 4I), consistent with the previous study in which BRG1 primarily maintained chromatin accessibility at promoter-TSS regions (de Dieuleveult et al., 2016). Taken together, these results indicate that IPMK regulates the global BRG1 occupancy and corresponding BRG1-mediated chromatin accessibility in mESCs.

IPMK affects BRG1 localization and chromatin accessibility at promoter-TSSs

As IPMK depletion greatly affects the BRG1 occupancy and ATAC-seq intensity at Low BRG1 peaks (Figure 4G–I), where enhancers are sparse (Figure 4B and D), we focused on the promoter-TSS regions, where BRG1 and IPMK were significantly enriched (Figure 4E and F). To examine the promoter-TSSs that are affected by the IpmkKD-driven global loss of BRG1 occupancy, we initially plotted BRG1, nucleosome, and ATAC-seq signals at the TSS by analyzing BRG1 CUT&RUN, MNase-seq (chromatin digestion with micrococcal nuclease combined with sequencing), and ATAC-seq in EgfpKD mESCs. We confirmed that BRG1 is abundant near TSSs and observed two major BRG1 peaks, which were divided by the TSS and coincided with the –1 and +1 nucleosomes (Figure 5A, left). Furthermore, we observed the nucleosome-depleted/chromatin accessible regions, known as NFRs, which is a hallmark of the TSS (Figure 5A, left). To quantitatively assess the BRG1 and ATAC-seq signals, we defined three genomic regions and used them for subsequent analysis: Upstream and Downstream regions that coincided with the two major BRG1 peaks and Center regions that coincided with the ATAC-seq peaks (which also coincided with NFRs; Figure 5A). Next, using the signal intensity of ChIP-seq against histone H3K4me3 and H3K27me3, we classified promoters into three types: H3K4me3-Low, H3K4me3-Only (high H3K4me3, low H3K27me3), and bivalent (high H3K4me3, high H3K27me3). Consistent with the previous study (de Dieuleveult et al., 2016), both BRG1 intensity and chromatin accessibility were at high levels in H3K4me3-Only, moderate levels in bivalent, and low levels in H3K4me3-Low promoters (Figure 5A, right), confirming our promoter classification method. To dissect 9,042 TSSs with decreased BRG1 occupancy upon IpmkKD (1.5-fold changes in BRG1 occupancy compared to EgfpKD), we categorized them into the three promoter types (Figure 5B) and five clusters based on the combinatorial changes in BRG1 levels upon IpmkKD at the previously defined Up and Downstream regions (Figure 5C). We excluded the H3K4me3-Low promoters, which exhibited extremely low BRG1 signals (Figure 5A, top right). H3K4me3-Only promoters (Figure 5B and C) and Cluster2/3 (Figure 5C) occupied a large proportion of promoter-TSSs with decreased BRG1 levels upon IpmkKD. Notably, BRG1 occupancy was reduced upon IpmkKD at both promoters and five distinctive clusters in accordance with our predefined classification (Figure 5D and E).

Figure 5 with 1 supplement see all

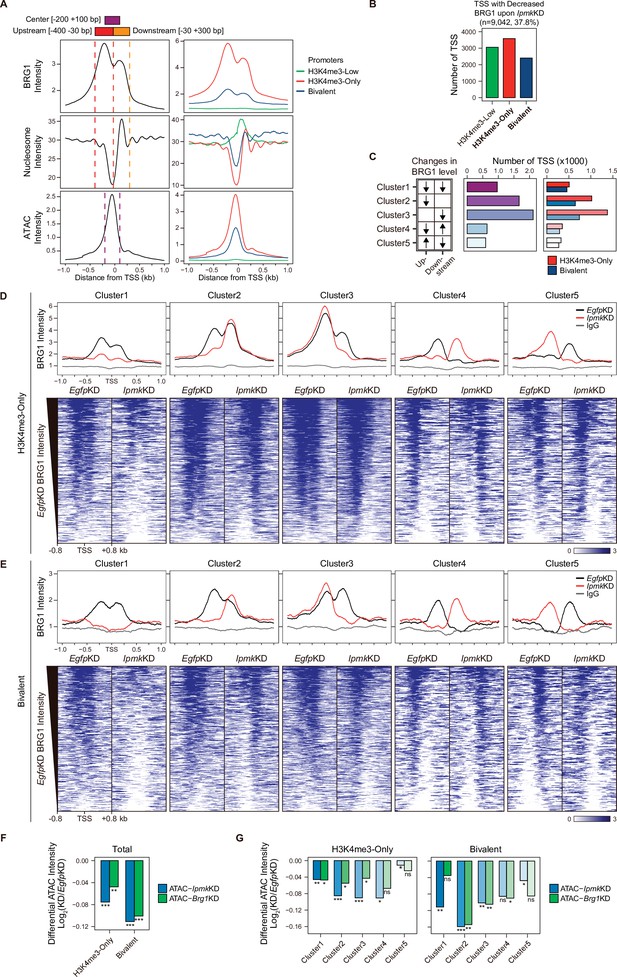

IPMK affects chromatin accessibility at promoter-TSS by regulating BRG1 localization.

(A) Line plots showing the average enrichment of BRG1, nucleosome (MNase-seq, GSM5253962, and GSM5253963), and ATAC-seq signals (ATAC) at the TSSs of total genes (left) and TSSs of three promoter types (right). Three genomic regions, indicated at the top (see also dotted lines on the left), were defined according to the relative position of enriched ATAC-seq intensity (Center, purple) and enriched BRG1 intensity (Upstream and Downstream, red and orange, respectively). Green, red, and blue lines on the right indicate H3K4me3-Low, H3K4me3-Only, and bivalent promoters, respectively. (B) Bar graphs showing the number of TSSs exhibiting decreased BRG1 intensity upon IpmkKD with different promoter types. (C) A diagram displaying five clusters of TSSs classified by changes in the BRG1 level at Up/Downstream regions defined in (A) upon IpmkKD (left). Downward and upward arrows indicate decreased and increased BRG1 levels upon IpmkKD, respectively. Bar graphs showing the number of five TSS clusters (middle) with different promoter types (right). (D) Line plots showing the average enrichment of BRG1 (EgfpKD and IpmkKD) and IgG at five TSS clusters with H3K4me3-Only promoters (top). Heatmaps representing BRG1 intensity (EgfpKD and IpmkKD) at five TSS clusters as indicated at the top (bottom). (E) Line plots showing the average enrichment of BRG1 (EgfpKD and IpmkKD) and IgG at five TSS clusters with bivalent promoters (top). Heatmaps representing BRG1 intensity (EgfpKD and IpmkKD) at five TSS clusters as indicated at the top (bottom). (D and E) Black, red, and gray lines indicate BRG1 intensity with EgfpKD, IpmkKD, and IgG intensity, respectively. All heatmaps are shown in descending order by the BRG1 intensity of EgfpKD cells. (F) Bar graphs showing the average differential ATAC-seq intensity (Log2 KD/EgfpKD) upon IpmkKD (blue) and Brg1KD (green) at the TSSs of two promoter types. (G) Bar graphs showing the average differential ATAC-seq intensity (Log2 KD/EgfpKD) upon IpmkKD (blue) and Brg1KD (green) at five TSS clusters with H3K4me3-Only (left) and bivalent promoters (right). (F and G) *p < 0.01, **p < 1 × 10–4, ***p < 1 × 10–10; ns, not significant; Wilcoxon signed rank test.

Previously, BRG1 was reported to differentially regulate chromatin accessibility depending on the promoter types and where it localizes near TSSs in mESCs; BRG1 localized at the –1 nucleosome in a wide NFR (median length 808 bp) of H3K4me3-Only/bivalent promoters positively regulates the chromatin accessibility at the NFR, whereas BRG1 localized at the +1 nucleosome in a narrow NFR (median length 28 bp) of H3K4me3-Only promoters tends to inhibit chromatin accessibility at the NFR (de Dieuleveult et al., 2016). To elucidate the effect of an IpmkKD-induced decrease in BRG1 occupancy on chromatin accessibility at two promoter types and five clusters, we analyzed two ATAC-seq data sets: ours (IpmkKD) and one that was publicly released (Brg1KD, GSE64825). We calculated the differential ATAC-seq signals (KD vs. controls) at predefined Center regions. Consistent with our previous genome-wide results (Figure 4G–I), ATAC-seq signals were significantly reduced upon IpmkKD at both promoter types (Figure 5F, Total of all clusters) and most clusters (Figure 5G). Notably, the ATAC-seq signals decreased similarly upon IpmkKD and Brg1KD at two promoter types (Figure 5F) and five clusters (Figure 5G). As the reduced BRG1 occupancy upon IpmkKD partially mimics Brg1KD, the similar result upon IpmkKD and Brg1KD further supports IPMK playing a vital role in chromatin accessibility at the promoter-TSS by regulating the BRG1 occupancy. Intriguingly, we found that the ATAC-seq signals at bivalent promoters were reduced more upon IpmkKD than those at H3K4me3-Only promoters (Figure 5F and G). Supporting this, we found that shRNA-mediated Ipmk silencing significantly reduced the BRG1 intensity only at bivalent promoters (Figure 5—figure supplement 1A) and observed a close association between a reduced BRG1 level upon IPMK depletion and decreased ATAC-seq signals upon IpmkKD and Brg1KD at specific loci of bivalent promoters (Figure 5—figure supplement 1B). However, why IpmkKD shows differential effects on chromatin accessibility at two promoter types is unclear; for example, although IPMK depletion reduced BRG1 occupancy at both promoters in Cluster1, why does it impact the chromatin accessibility of the bivalent promoters more than H3K4me3-Only promoters? To examine this, we compared the BRG1 occupancy in IpmkKD cells (Figure 5D and E, red lines) at Cluster1 in two promoter types. H3K4me3-Only promoters contained more BRG1 occupancy than bivalent promoters (Figure 5D and E). In other words, although Cluster1 exhibited total BRG1 loss in IpmkKD cells, some degree of BRG1 occupancy at H3K4me3-Only promoters remained, with higher levels than bivalent promoters (Figure 5D and E). For direct comparisons, we plotted BRG1 in IpmkKD cells at two promoter types. H3K4me3-Only promoters had higher BRG1 occupancy compared to bivalent promoters at all clusters (Figure 5—figure supplement 1C). Thus, the remaining BRG1 at H3K4me3-Only promoters may maintain the chromatin accessibility, causing the differential effect between two promoter types. (de Dieuleveult et al., 2016) previously reported that the majority of chromatin remodelers (BRG1, CHD1, CHD2, CHD4, CHD6, CHD8, CHD9, and EP400) exhibit higher enrichment at H3K4me3-Only promoters compared to bivalent promoters. To test this in our study, we plotted various chromatin remodelers at two promoter types in five clusters using the publicly released data sets (GSE64825). Consistently, we detected higher occupancy at H3K4me3-Only promoters compared to bivalent promoters for all of the chromatin remodelers (CHD1, CHD2, CHD4, CHD6, CHD8, CHD9, and EP400; Figure 5—figure supplement 1D). Thus, these highly enriched chromatin remodelers at H3K4me3-Only promoters may compensate for the loss of BRG1 upon IPMK depletion, thereby maintaining the chromatin accessibility. BRG1 depletion has also been reported to reduce the ATAC-seq (chromatin accessibility) signals at bivalent promoters in mESCs (de Dieuleveult et al., 2016); Brg1 depletion, which would cause total BRG1 loss at H3K4me3-Only and bivalent promoters similar to Cluster1 in our study, presented a greater reduction in ATAC-seq signals at bivalent promoters than H3K4me3-Only promoters, consistent with our results. Taken together, these results support differential chromatin accessibility at two promoter types in terms of an IpmkKD-driven reduction in BRG1 occupancy.

The ATAC-seq signals at Cluster2 of bivalent promoters were reduced more than other clusters upon IpmkKD (Figure 5G), which is consistent with the fact that, in bivalent promoters, BRG1 is localized at the –1 nucleosome and maintains chromatin accessibility (de Dieuleveult et al., 2016). Although H3K4me3-Only promoters also contain Cluster2, we did not detect a robust decrease in ATAC-seq signals at Cluster2 of H3K4me3-Only promoters (Figure 5G). This discrepancy between bivalent and H3K4me3-Only promoters may be due to the remaining BRG1 at H3K4me3-Only promoters (Figure 5—figure supplement 1C) or high enrichment of various chromatin remodelers at H3K4me3-Only promoters (Figure 5—figure supplement 1D). In addition, the different BRG1 occupancy in Upstream (–1 nucleosome) and Downstream ( + 1 nucleosome) regions of Cluster2 in EgfpKD mESCs may cause this discrepancy; BRG1 is highly enriched at Upstream regions compared to Downstream regions in bivalent promoters (Figure 5E, Cluster2, black line), whereas BRG1 levels are relatively similar at both Upstream and Downstream regions in H3K4me3-Only promoters (Figure 5D, Cluster2, black line). Interestingly, although we applied the same criteria when categorizing the five clusters, H3K4me3-Only and bivalent promoters exhibited different BRG1 localizations in EgfpKD mESCs at Cluster2 and Cluster3 (Figure 5D and E), indicating that BRG1 has distinct localization in these two promoter types in mESCs. Taken together, these results suggest that IPMK plays a pivotal role in maintaining the chromatin accessibility of bivalent promoters, particularly by safeguarding BRG1 occupancy at the –1 nucleosome.

Collectively, these findings indicate that IPMK regulates BRG1 occupancy and BRG1-mediated chromatin accessibility at promoter-TSS regions and suggest that IPMK depletion causes the most severe impacts on chromatin accessibility at bivalent promoters, which are strongly associated with the IpmkKD-induced decrease in BRG1 occupancy at –1 nucleosomes.

Loss of IPMK partially affects transcription by disrupting BRG1 localization and chromatin accessibility at promoter-TSSs

To investigate the effect of IpmkKD-driven disruption of BRG1 occupancy and chromatin accessibility on transcription, we performed high-throughput mRNA sequencing (mRNA-seq) using mESCs with IpmkKD. We calculated the differential mRNA expression (IpmkKD vs. EgfpKD) of genes having promoters with decreased BRG1/ATAC-seq intensity upon IpmkKD (Figure 5D–F, Total). The mRNA levels of genes with either promoter type were down-regulated upon IpmkKD (Figure 5—figure supplement 1E). Intriguingly, we detected significant down-regulation of the mRNA levels of genes with bivalent promoters upon IpmkKD compared to H3K4me3-Only promoters (Figure 5—figure supplement 1E). This discrepancy may arise from the greater impact of IpmkKD on bivalent promoter-TSS chromatin accessibility than that of H3K4me3-Only promoters (Figure 5F and G, and Figure 5—figure supplement 1A and B). To check the decreased BRG1/ATAC-seq-associated down-regulation of gene expression upon IpmkKD, we performed reverse transcription–quantitative polymerase chain reaction (RT-qPCR), a conventional method for checking the gene expression. We confirmed that mRNA levels of genes exhibiting decreased BRG1 occupancy upon IpmkKD and reduced ATAC-seq signals upon IpmkKD/Brg1KD at bivalent (Figure 6A and B) and H3K4me3-Only promoters (Figure 6—figure supplement 1A) were significantly down-regulated upon IpmkKD (Figure 6A and B, and Figure 6—figure supplement 1A). To examine this in a genome-wide manner, we identified differentially expressed genes (DEGs) by comparing the gene expression in IpmkKD cells to the expression in control (EgfpKD) cells and identified 300 DEGs that were down-regulated (Figure 6C). Notably, we observed that BRG1 occupancy and BRG1-mediated chromatin accessibility (ATAC-seq signals) were both significantly reduced near the TSSs of these down-regulated genes (Figure 6D). We confirmed this finding by monitoring the specific gene loci, including Phactr3, Lrrc61, and Arhgap44 (Figure 6B, E and F). Thus, in mESCs, IPMK maintains the expression of a subset of genes by safeguarding the appropriate BRG1 occupancy and BRG1-mediated chromatin accessibility at the corresponding promoter-TSSs.

Figure 6 with 1 supplement see all
Alterations in BRG1/ATAC upon IpmkKD affect gene expression.

(A and B) Examples of BRG1 (EgfpKD and IpmkKD), IPMK CUT&RUN, and ATAC-seq (EgfpKD, IpmkKD, Control, and Brg1KD) assays at the TSSs of Rasl12 (A) and Phactr3 (B). The TSSs are marked with red boxes (bottom) and dotted lines. The graphs indicate RT-qPCR analysis of Rasl12 (A) and Phactr3 (B) expression after siRNA treatment. Error bars denote the standard error of the mean obtained from four biological replicates. The expression levels were normalized to the expression of β-actin. P-values were calculated using the Student’s t-test. (C) Volcano plots showing the differentially expressed genes (DEGs) upon IpmkKD based on the mRNA-seq data. Red and blue dots indicate significant up- and down-regulation, respectively (p ≤ 0.05 and fold change ≥1.5). (D) Bar graphs showing the average differential BRG1 (red) and ATAC-seq (blue) intensity upon IpmkKD at BRG1 CUT&RUN peaks (for BRG1 intensity) and ATAC-seq peaks (for ATAC intensity) that are closest (within 2 kb for BRG1 peaks and within 500 bp for ATAC-seq peaks) to the TSSs of the down-regulated DEGs. **p < 1 × 10–5, ***p < 1 × 10–10, Wilcoxon signed rank test. (E) mRNA-seq analysis of Phactr3 expression after siRNA treatment. P-values were calculated using the Student’s t-test. (F) Examples of BRG1 (EgfpKD and IpmkKD), IPMK CUT&RUN, and ATAC-seq (EgfpKD, IpmkKD, Control, and Brg1KD) assays at the TSSs of Lrrc61 (left) and Arhgap44 (right). The BRG1 CUT&RUN peaks (EgfpKD cells) and ATAC-seq peaks are marked at the top with blue and green boxes, respectively. TSSs are marked with red boxes (bottom) and dotted lines. mRNA-seq analysis of Lrrc61 (left) and Arhgap44 (right) expression after siRNA treatment. P-values were calculated using the Student’s t-test.

IPMK regulates the expression of endodermal marker genes

To investigate the significance of IPMK function in mESC biology, we employed stable shRNA-mediated IPMK depletion and measured the differentiation kinetics by aggregating mESCs into embryoid bodies (EBs), which are in vitro cell clumps that recapitulate the early events of embryogenesis. We harvested the mESCs at various time points during EB formation and analyzed the RNA expression of key marker genes related to pluripotency and three germ layers (ectoderm, mesoderm, and endoderm). As EB formation progressed, the expression of pluripotency markers (Esrrb, Nanog, Pou5f1, and Zfp42) decreased in both shNT and shIpmk (shIpmk1 in Figure 4) EBs, with a marginal difference (Figure 7A), validating that mESCs successfully differentiated and lost self-renewal capacity. Notably, we detected significantly decreased levels of all endodermal markers (Foxa1, Foxa2, Gata6, and Sox17) upon IPMK depletion in undifferentiated EBs at day 0, and these decreased levels were maintained throughout the differentiation process (Figure 7B). The ectodermal marker Fgf5 showed decreased expression upon IPMK depletion after day 4, whereas other ectodermal markers (Otx2 and Zic1) remained unchanged upon IPMK depletion (Figure 7—figure supplement 1A). Furthermore, the majority of mesodermal markers (Brachyury, Cd34, Gata2, and Runx1) exhibited slightly decreased or unchanged expression upon IPMK depletion during EB formation (Figure 7—figure supplement 1B). By integrating the expression profiles of three types of marker genes, we found that IPMK depletion caused the most severe impacts on the endodermal marker genes by reducing their expression (Figure 7—figure supplement 1C). To understand why endodermal marker genes fail to be properly induced upon IPMK depletion during EB formation, we examined the BRG1 occupancy at their promoters in mESCs. All the reduced endodermal markers (Foxa1, Foxa2, Gata6, and Sox17) in shIpmk EBs had bivalent promoters in mESCs. Notably, all the endodermal markers (Foxa2, Gata6, and Sox17) except Foxa1 exhibited decreased BRG1 occupancy at their promoters upon IPMK depletion; Foxa2 and Gata6 were included in Cluster2, whereas Sox17 was included in Cluster3 (Figure 5E). Foxa1 had unchanged BRG1 occupancy upon IPMK depletion. These results indicate that the IpmkKD-driven reduction in BRG1 occupancy at the bivalent promoters of endodermal markers in mESCs may result in their failure to be appropriately induced in EBs. Lastly, we observed that, similar to IPMK depletion, BRG1 depletion decreased the expression of Phactr3 (bivalent promoters) and endodermal marker genes in mESCs (Figure 7C), suggesting that IPMK may regulate these genes through BRG1. Collectively, these data show that IPMK may function as a regulator of the proper expression of germ layers in the early stage of mESC differentiation, especially in the development of endodermal lineages.

Figure 7 with 1 supplement see all

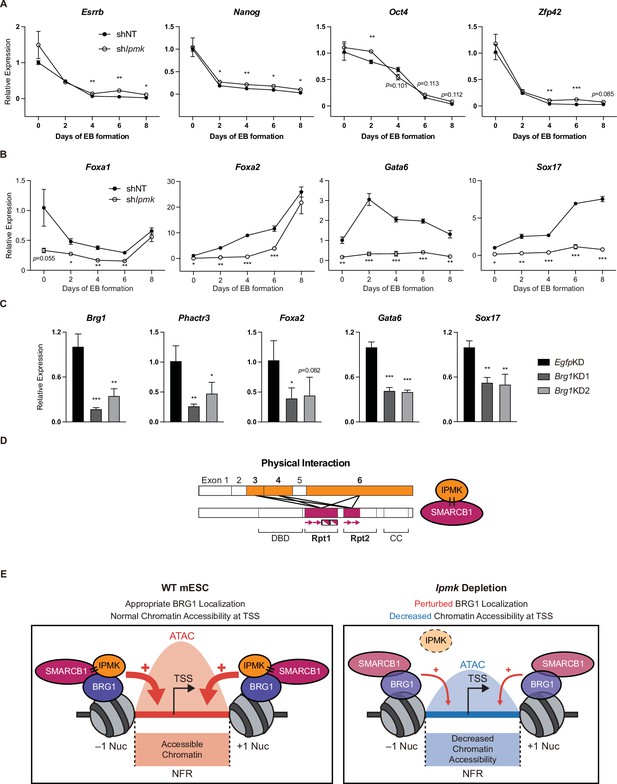

Effect of IPMK on the expression of endodermal marker genes and our proposed model depicting the function of IPMK.

(A and B) RT-qPCR analysis of the expression of pluripotency (A) and endodermal (B) marker genes after shRNA-mediated Ipmk silencing at the indicated time points during embryoid body (EB) formation. Data are representative of at least three independent experiments and error bars denote the standard error of the mean obtained from three biological replicates. The expression levels were normalized to the expression of Arbp. (C) RT-qPCR analysis of Brg1, Phactr3, and endodermal marker gene expression after siRNA treatment (two different siRNAs against Brg1). Error bars denote the standard error of the mean obtained from four biological replicates. The expression levels were normalized to the expression of β-actin. (A–C) *p < 0.05, **p < 0.01, ***p < 0.001, Student’s t-test. (D) A model displaying the physical interactions between IPMK and SMARCB1 (left). For these physical interactions, exons 3, 4, and 6 of IPMK (orange boxes) and the Rpt1 and Rpt2 (particularly N-terminal β sheets) domains of SMARCB1 (red boxes) are required. An additional model showing our speculation of the position of IPMK directly interacting with SMARCB1, BRG1, and BAF155 (right) within the SWI/SNF complex. (E) In wild-type mESCs (left), IPMK regulates appropriate BRG1 localization (probably via physical interaction with various subunits of the SWI/SNF complex) and chromatin accessibility at the nucleosome free region (NFR) of the TSS. Upon Ipmk depletion (right), BRG1 localization is perturbed, resulting in decreased chromatin accessibility at the NFR of TSSs.

Discussion

Using two unbiased screening approaches (yeast two-hybrid and APEX2 proximity labeling), we identified SMARCB1 and other core subunits of the mammalian SWI/SNF complex (BRG1, BAF155, BAF170, ARID1A, and PBRM1) as IPMK-proximal/binding targets. Notably, our binary protein interaction assays showed that IPMK can directly and independently bind to the SMARCB1, BRG1, and BAF155 proteins. Furthermore, in vivo and in vitro immunoprecipitation assays confirmed that IPMK physically interacts with the SWI/SNF complex. Detailed mapping studies revealed reciprocal interactions between the Rpt domains (N-terminal β-sheets and C-terminal α-helices of Rpt1 and N-terminal β-sheets of Rpt2) of SMARCB1 and the IP kinase domain (exons 3, 4, and 6) of IPMK (Figure 7D). In accordance with a physical association between IPMK and the SWI/SNF complex, our CUT&RUN analysis showed that IPMK co-localizes with BRG1 globally. Surprisingly, by performing CUT&RUN and ATAC-seq, we discovered that the depletion of IPMK severely perturbed (decreased) the genome-wide BRG1 localization pattern and corresponding BRG1-mediated chromatin accessibility (ATAC-seq signals). By categorizing the promoter-TSS, we found that IPMK depletion significantly affected chromatin accessibility at bivalent promoters, which was associated with disrupted BRG1 occupancy, especially at the –1 nucleosome (Cluster2). Using RT-qPCR and mRNA-seq, we found that the IPMK loss also affects the transcription of genes exhibiting disrupted BRG1/ATAC-seq levels at their promoter-TSS. Moreover, our EB assays revealed that IPMK depletion significantly impacts endodermal gene expression during differentiation. The altered endodermal gene expression was associated with disrupted BRG1 occupancy at bivalent promoters in mESCs, suggesting that this IpmkKD-driven reduction in BRG1 occupancy may cause inappropriate induction of endodermal genes in EBs. Despite our findings, the mechanism whereby IPMK modulates the localization of BRG1 (or the SWI/SNF complex) remains unclear. We think that the physical association between IPMK and the SWI/SNF complex is strongly connected with BRG1 localization, but the detailed mechanism is still elusive. IPMK may facilitate recruitment of subunits of the SWI/SNF complex from the cytoplasm to the chromatin. However, our chromatin fractionation assays indicated that IPMK depletion did not affect BRG1 or SMARCB1 occupancy in the cytoplasm or chromatin fractions (Figure 4—figure supplement 1B and D), excluding the above possibility. Alternatively, it is plausible that IPMK may aid the appropriate conformation of specific subsets of the SWI/SNF complex via physical binding, but further experiments are required to prove this hypothesis. Although IPMK depletion reduced the global BRG1 occupancy, our CUT&RUN results indicated that IPMK depletion has a greater impact at the CUT&RUN peaks with low enrichment of BRG1 in Egfp KD (WT-like) mESCs compared to highly enriched BRG1 peaks (Figure 4B, D, G–I). Importantly, our ATAC-seq results also corresponded to the region-specific (BRG1 Low) changes in BRG1 occupancy upon IpmkKD (Figure 4B, D, G–I). Supporting this, IPMK depletion exhibited a greater impact on the chromatin accessibility and transcription of bivalent promoters harboring relatively low BRG1 than on H3K4me3-Only promoters, which harbor high BRG1 levels (Figures 5 and 6). Taken together, these results indicate that IPMK primarily regulates the BRG1 occupancy, which resembles the SWI/SNF-nucleosome interactions, and its downstream effects (i.e., chromatin accessibility and transcription) at the region where the BRG1 level is originally low in mESCs but does not affect the regions with high BRG1 levels. This contextual discrepancy in IPMK-dependent or IPMK-independent BRG1 occupancy may provide key clues to the mechanism whereby IPMK modulates BRG1 localization, but further experiments/analyses are required.

Our study is the first to elucidate the physical association between IPMK and core subunits of the SWI/SNF complex and the first to define the molecular function of IPMK in coordinating BRG1 localization and BRG1-associated chromatin accessibility in mESCs. Based on our findings, we propose a model in which IPMK physically binds the core subunits of the SWI/SNF complex (SMARCB1, BRG1, and BAF155), maintaining appropriate BRG1 occupancy and BRG1-mediated chromatin accessibility at promoter-TSSs and thereby regulating gene expression in mESCs (Figure 7E). Thus, when IPMK is depleted, BRG1 localization is perturbed and chromatin accessibility decreased. Therefore, these results elucidate a critical role of IPMK in regulating BRG1 localization and BRG1-mediated chromatin accessibility through the physical association of IPMK and the core subunits of the SWI/SNF complex. We think that these novel findings will play a pivotal role in future studies on IPMK and in our understanding of the molecular mechanisms of mammalian SWI/SNF complexes, especially by providing additional clues about SWI/SNF-mediated generation of NFRs at TSSs.

Materials and methods

Yeast two-hybrid screening

Request a detailed protocol

Panbionet (Pohang, South Korea) conducted the yeast two-hybrid screening (http://panbionet.com). The full IPMK coding region (416 amino acids) was amplified by PCR. The PCR product was cloned into the pGBKT7 vector, which contains the DNA-binding domain (BD) of GAL4. Saccharomyces cerevisiae strain AH109 (Clontech) was co-transformed with GAL4 DNA-BD-fused IPMK and a human brain cDNA activation domain (AD) library (Clontech). Two different reporter genes (HIS3 and ADE2) were used as selection markers. Yeast transformants were spread on a selection medium lacking leucine, tryptophan, and adenine or histidine (SD−LWA and SD-LWH, respectively). To confirm the interactions, the candidate prey genes were amplified by PCR or Escherichia coli transformation and reintroduced into the AH109 yeast strain with the IPMK bait plasmid.

Generation of stable cell lines for APEX2-mediated proximity labeling

Request a detailed protocol

V5-APEX2 was PCR-amplified from the pcDNA5-Mito-V5-APEX2 plasmid, which was kindly provided by Dr. Hyun-Woo Rhee (Seoul National University). V5-APEX2 alone or IPMK-V5-APEX2 were cloned into the pcDNA5/FRT/TO plasmid (Invitrogen). Flp-In T-REx–293 (Invitrogen) cells were seeded in six-well culture plates to 70% confluency, and then co-transfected with 0.25 µg of pcDNA5/FRT/TO and 2.25 µg of pOG44 Flp recombinase expression plasmid (Invitrogen) using Lipofectamine LTX with Plus Reagent (Invitrogen). After 48 hr, the cells were transferred to 90 mm culture dishes for negative selection with 50 µg/ml Hygromycin B (Gibco) until all non-transfected cells were dead. Surviving cells were seeded at low confluency to generate cellular clones on culture plates, after which each clone was individually screened for APEX2 construct expression with or without doxycycline (Sigma Aldrich) to search for optimal cell populations with minimal uncontrolled APEX2 expression and maximal APEX2 expression under stimulation. Selected clones were then expanded and stored in liquid nitrogen for downstream experiments.

APEX2-mediated proximity labeling

Request a detailed protocol

Approximately 1.4 × 107 APEX2-expressing cells were seeded in T75 culture flasks. Sixteen hours after seeding, the culture medium was exchanged for complete medium supplemented with doxycycline (100 ng/ml) for APEX2 expression. After 24 hr of induction, the cells were incubated in fresh medium containing 250 µM desthiobiotin-phenol (DBP) for 30 min in a CO2 incubator at 37 °C. The cells were then moved to room temperature and hydrogen peroxide (diluted in DPBS to 1 mM; Sigma Aldrich) was added to initiate the APEX2-driven biotinylation reaction. The reaction was quenched by adding a 2 X quenching solution (20 M sodium ascorbate, 10 mM Trolox, and 20 mM sodium azide in DPBS). The cells were washed with 1 X quencher solution three times, collected by centrifugation, snap-frozen, and stored at –80 °C until lysis. DBP was synthesized as described in a previous report (Lee et al., 2017).

Preparation of DBP-labeled peptides for LC-MS/MS

Request a detailed protocol

DBP-labeled peptides were prepared from frozen cell pellets as described previously (Kwak et al., 2020). Briefly, cells were lysed in lysis buffer (2% SDS, 1 X protease inhibitor cocktail [Roche], and 1 mM sodium azide in 1 X TBS) and excess DBP was eliminated through repeated acetone precipitation. The resulting protein precipitates were solubilized in 50 mM ammonium bicarbonate and quantified. A total of 4 mg of cellular protein was then denatured, reduced, alkylated, and digested by trypsin into peptides. The tryptic DBP-labeled peptides were bound to streptavidin beads (Pierce) and collected with elution buffer (80% acetonitrile, 0.2% trifluoroacetic acid, 0.1% formic acid in MS-grade water). Solvents were completely evaporated on a SpeedVac for 3 hr, and the resulting peptides were stored at –20 °C until required for LC-MS/MS analysis.

LC-MS/MS

Request a detailed protocol

The tryptic peptides were analyzed by LC-MS/MS. All mass analyses were performed on a Q Exactive Plus orbitrap mass spectrometer (Thermo Fisher Scientific) equipped with a nanoelectrospray ion source. To separate the peptide mixture, we used a C18 reverse-phase HPLC column (500 mm ×75 μm ID) using an acetonitrile/0.1% formic acid gradient from 3.2% to 26% for 120 min at a flow rate of 300 nl/min. For MS/MS analysis, the precursor ion scan MS spectra (m/z 400~2000) were acquired in the Orbitrap at a resolution of 70,000 at m/z 400 with an internal lock mass. The 15 most intensive ions were isolated and fragmented by high-energy collision-induced dissociation (HCD).

LC-MS/MS data processing

Request a detailed protocol

All MS/MS samples were analyzed using the Sequest Sorcerer platform (Sage-N Research, San Jose, CA), which was set up to search the Homo sapiens protein sequence database [20,675 entries, UniProt (http://www.uniprot.org/)]. This database includes frequently observed contaminants assuming the digestion enzyme is trypsin. Sequest was searched with a fragment ion mass tolerance of 1.00 Da and a parent ion tolerance of 10.0 ppm. Carbamidomethylation of cysteine was specified as a fixed modification. Oxidation of methionine and acetylation of the N-terminus, biotinylation of lysine, and DBP of tyrosine were specified in Sequest as variable modifications. Scaffold (Version 4.11.0, Proteome Software Inc, Portland, OR) was used to validate the MS/MS-based peptide and protein identifications. Peptide identifications were accepted if they could be established at > 93.0% probability to achieve a false discovery rate (FDR) < 1.0% by the Scaffold Local FDR algorithm. Protein identifications were accepted if they could be established at > 92.0% probability to achieve an FDR < 1.0% and contained at least two identified peptides. Protein probabilities were assigned by the Protein Prophet algorithm (Nesvizhskii et al., 2003). Proteins that contained similar peptides and could not be differentiated based on MS/MS analysis alone were grouped to satisfy the principles of parsimony. Proteins were annotated with GO terms from NCBI (downloaded November 23, 2019) (Ashburner et al., 2000).

Plasmids

The cDNAs for human IPMK (NCBI Gene ID 253430) and human SMARCB1 (NCBI Gene ID 6598) were obtained from Open Biosystems and Bioneer (Daejeon, South Korea), respectively. IPMK and SMARCB1 cDNA constructs were amplified by PCR and the products were cloned into pCMV-GST and pcDNA3.1-FLAG vectors. Every construct was confirmed by DNA sequencing.

In vitro binding assay

Request a detailed protocol

Recombinant human IPMK was purified as described previously (Lee et al., 2020). Briefly, human IPMK was expressed in Sf9 insect cells using a baculovirus system and harvested with lysis buffer (300 mM NaCl, 50 mM Tris [pH 8.0], 5% glycerol, and 1 mM phenylmethylsulfonylfluoride [PMSF]). The freeze-thaw lysis method with liquid nitrogen was applied to the cells and the supernatants were collected after centrifugation at 18,000 rpm for 90 min. Ni-NTA agarose (Qiagen) was applied with 20 mM imidazole and incubated for 2 hr. The protein was eluted with 100 mM imidazole and the N-terminal HIS-tag was removed with TEV protease, followed by further purification with HiTrap and Superdex columns (GE Healthcare). Human SMARCB1 was translated in vitro using the TNT Quick Coupled Transcription/Translation System (L1170, Promega). pcDNA3.1-FLAG-SMARCB1 (1 µg) was incubated at 30 °C for 90 min with 20 µM methionine and TNT T7 Quick Master Mix. Translated FLAG-SMARCB1 was incubated with anti-FLAG M2 affinity gel (A2220, Sigma Aldrich), and then IPMK protein was added and incubated with rotation at 4 °C.

Recombinant IPMK protein purification

Request a detailed protocol

For GST-tagged protein, human IPMK cDNA was subcloned into pGEX4T plasmid (Sigma Aldrich), expressed in E. coli, and purified on Glutathione Sepharose 4B beads (GE Healthcare) as described previously (Kim and Roeder, 2011). For FLAG-tagged proteins, IPMK cDNAs were subcloned into pFASTBAC1 plasmid (Thermo Fisher Scientific) with an N-terminal FLAG epitope and baculoviruses were generated according to the manufacturer’s instructions. Proteins were expressed in Sf9 insect cells and purified on M2 agarose (Sigma Aldrich) as described previously (Kim and Roeder, 2011).

BAF complex purification

Request a detailed protocol

The FLAG-DPF2 cell line was selected from HEK293T cells transfected with a FLAG-DPF2-pCAG-IP plasmid. Derived nuclear extracts (Dignam et al., 1983) were incubated with M2 agarose in binding buffer (20 mM Tris-HCl [pH 7.3], 300 mM KCl, 0.2 mM EDTA, 25% glycerol, 1.5 mM MgCl2, 10 mM 2-mercaptoethanol. and 0.2 mM PMSF) at 4 °C for 4 hr. After extensive washing with wash buffer (20 mM Tris-HCl [pH 7.9], 150 mM NaCl, 0.2 mM EDTA, 5% glycerol, 2 mM MgCl2, 10 mM 2-mercaptoethanol, 0.2 mM PMSF, and 0.1% NP-40), complexes were eluted with wash buffer containing 0.25 mg/ml FLAG peptide. Eluted complexes were fractionated by a 10%–30% glycerol gradient and the fractions containing intact BAF complex were combined and concentrated using Amicon Ultra-4 centrifugal filter (Millipore).

Protein interaction assays

Request a detailed protocol

For GST pull-down assays, 2 µg of GST or GST-tagged IPMK immobilized on Glutathione Sepharose 4B beads was incubated with 200 ng of purified BAF complex in binding buffer (20 mM Tris-HCl [pH 7.9], 150 mM KCl, 0.2 mM EDTA, 20% glycerol, 0.05% NP-40, and 0.2 mg/ml BSA) at 4 °C for 3 hr. Beads were extensively washed with binding buffer without BSA and bound proteins were analyzed by immunoblotting. For binary protein interaction assays following baculovirus-mediated expression, Sf9 cells were infected with baculoviruses expressing FLAG-IPMK and untagged BAF complex subunit. After 2 days, total cell extracts were prepared by sonication in lysis buffer (20 mM Tris-HCl [pH 7.9], 300 mM NaCl, 0.2 mM EDTA, 15% glycerol, 2 mM MgCl2, 1 mM DTT, 1 mM PMSF, and protease inhibitor cocktail [Roche]). Following clarification by centrifugation, cell extracts were incubated with M2 agarose at 4 °C for 3 hr and, after extensive washing with wash buffer (20 mM Tris-HCl [pH 7.9], 150 mM NaCl, 0.2 mM EDTA, 15% glycerol, 2 mM MgCl2, 1 mM DTT, 1 mM PMSF, and 0.1% NP-40), bound proteins were analyzed by immunoblotting.

Immunoblotting, immunoprecipitation, and GST pull-down

Request a detailed protocol

For immunoblot analyses, cells were washed twice with PBS and lysed in lysis buffer (1% Triton X-100, 120 mM NaCl, 40 mM Tris-HCl [pH 7.4], 1.5 mM sodium orthovanadate, 50 mM sodium fluoride, 10 mM sodium pyrophosphate, 1 mM EDTA, and protease inhibitor cocktail [Roche]). Cell lysates were incubated at 4 °C for 10 min and the supernatants were collected by centrifugation at 13,000 rpm for 10 min. Protein concentrations were determined by the Bradford protein assay (Bio-Rad) or bicinchoninic acid (BCA) assay (Thermo Fisher Scientific). Protein lysates (20 µg) were separated by size, transferred to nitrocellulose membranes, and blotted with primary antibodies and secondary antibodies. The horseradish peroxidase (HRP) signals were visualized using the Clarity ECL substrate (Bio-Rad) and SuperSignal West Femto Maximum Sensitivity Substrate (Thermo Fisher Scientific) and measured by a ChemiDoc imaging system (Bio-Rad). For immunoprecipitation, 2 mg of total protein was incubated with 5 µg of primary antibodies for 16 hr with rotation at 4 °C. TrueBlot beads (10 µl; Rockland Immunochemicals) were added and incubated for an additional hour. The samples were washed three times with lysis buffer and prepared for immunoblotting. For GST pull-down assays, 10 µl of glutathione agarose beads (Incospharm) were added to 2 mg of total cell lysate and incubated for 16 hr with rotation at 4 °C. The samples were then washed three times with lysis buffer and prepared for immunoblotting.

Cell culture and cell line production

Request a detailed protocol

E14Tg2a mESCs were maintained under feeder-free conditions. Briefly, the cells were cultured on gelatin-coated cell culture dishes in an mESC culture medium consisting of Glasgow’s minimum essential medium (GMEM) containing 10% knockout serum replacement, 1% non-essential amino acids, 1% sodium pyruvate, 0.1 mM β-mercaptoethanol (all from Gibco), 1% FBS, 0.5% antibiotic-antimycotic (both from Hyclone), and 1,000 units/ml LIF (ESG1106, Millipore). The mESCs were maintained at 37 °C in humidified air with 5% CO2. NIH3T3 cells, MEFs, and HEK293T cells were grown in high-glucose DMEM supplemented with 10% FBS, 2 mM L-glutamine, and penicillin/streptomycin (100 mg/ml), and maintained at 37 °C in a humid atmosphere with 5% CO2. To generate tamoxifen-inducible IPMK knockout mice, Ipmkfl/fl mice were mated with UBC-Cre-ERT2 mice (The Jackson Laboratory). The MEFs were immortalized by transfection with an SV40 large T-antigen plasmid, and IPMK depletion was achieved by adding 1 µM 4-hydroxytamoxifen for 48 hr. FLAG epitope-tagged mESCs were generated as described previously (Savic et al., 2015). Briefly, the 3xFlag-P2A-Puromycin epitope tagging donor construct (pFETCh-Donor), CRISPR guide RNAs (gRNAs), and Cas9-expressing plasmids were manufactured by ToolGen (Seoul, Korea). The mESCs were transfected using FUGENE HD (E2311, Promega), selected using puromycin (A11138-03, Gibco), and expanded. MEFs were transfected with the donor construct containing the neomycin resistance gene using Turbofect (R0533, Thermo Fisher Scientific) and selected using G418 (11811023, Gibco). The pLKO.1-TRC cloning vector (Addgene) was used as a backbone for the expression of genes of interest. The shRNA targeting Ipmk was purchased from Sigma Aldrich. Lentiviruses were generated in HEK293T cells by transfecting the lentiviral plasmids together with packaging plasmid (psPAX2) and envelope-expressing plasmid (pMD2.G). Lentiviruses were added to mESCs after 48 hr and incubated for 8 hr. After 40 hr, mESCs with stable gene expression were selected by growing cells in mESC medium supplemented with Hygromycin B (Invitrogen).

RNA interference

Request a detailed protocol

Control siRNA (scRNA) and siRNAs against Egfp (sense: 5’-GUUCAGCGUGUCCGGCGAG-3’, antisense: 5’-CUCGCCGGACACGCUGAAC-3’), Ipmk (sense: 5′-CAGAGAGGUCCUAGUUAAUUUCA-3′, antisense: 5′-AGUGAAAUUAACUAGGACCUCUCUGUU-3′), and Brg1 (Brg1KD1 sense: 5’- GUCAGACAGUAAUAAAUUAAAGCAA-3’, antisense: 5’- UUGCUUUAAUUUAUUACUGUCUGAC-3’; Brg1KD2 sense: 5’- CCGUGCAACGAACCAUAAA-3’, antisense: 5’- UUUAUGGUUCGUUGCACGG-3’) were synthesized and annealed by Bioneer (Daejeon, Korea), and siRNA against Smarcb1 was purchased from Sigma Aldrich. The mESCs and MEFs were transfected with 50 nM of the corresponding siRNA using DharmaFECT I (T-2001–03, Dharmacon) according to the manufacturer’s instructions. Briefly, the cells were seeded in six-well plates. One day later, 50 nM of siRNA and DharmaFECT reagent were diluted in Opti-MEM (Gibco), incubated separately at 25 °C for 5 min, and then mixed together. The mixtures were incubated at 25 °C for 20 min and added to the cell cultures. The culture medium was replaced after 24 hr and the transfected cells were harvested at 48 hr after transfection.

Chromatin fractionation

Request a detailed protocol

Chromatin acid extraction was performed as described previously (Zhong et al., 2013). The mESCs or MEFs were collected and washed with PBS and resuspended with lysis buffer (10 mM HEPES [pH 7.4], 10 mM KCl, 0.05% NP-40, 1 mM sodium orthovanadate, and protease inhibitor cocktail [Roche]). The cell lysates were incubated for 20 min on ice and centrifuged at 13,000 rpm. The supernatant contained the cytoplasmic proteins, and the pellet with nuclei was washed once with lysis buffer and centrifuged at 13,000 rpm for 10 min. The nuclei were resuspended in low-salt buffer (10 mM Tris-HCl [pH 7.4], 0.2 mM MgCl2, 1% Triton-X 100, 1 mM sodium orthovanadate, and protease inhibitor cocktail) and incubated on ice for 15 min. After 10 min of centrifugation, the supernatant contained the nucleoplasmic proteins and the pellet contained the chromatin. The chromatin was then resuspended in 0.2 N HCl for 20 min on ice, centrifuged at 13,000 rpm for 10 min, and neutralized with 1 M Tris-HCl (pH 8.0). Protein concentrations were determined and the proteins were subjected to immunoblotting.

CUT&RUN

Request a detailed protocol

CUT&RUN assays were performed as described previously (Meers et al., 2019; Skene and Henikoff, 2017), with minor modifications. Briefly, 4 million mESCs were harvested and washed three times with 1.5 ml wash buffer (20 mM HEPES [pH 7.5], 150 mM NaCl, 0.5 mM Spermidine). Cells were bound to activated concanavalin A-coated magnetic beads at 25 °C for 10 min on a nutator, and then permeabilized with antibody buffer (wash buffer containing 0.05% digitonin and 4 mM EDTA). The bead-cell slurry was incubated with 3 μl of relevant antibody (see below) in a 150 μl volume at 25 °C for 2 hr on a nutator. After two washes in 1 ml Dig-wash buffer (wash buffer containing 0.05% digitonin), the beads were resuspended in 150 μl pAG/MNase and incubated at 4 °C for 1 hr on a nutator. After two washes in 1 ml Dig-wash buffer, the beads were gently vortexed with 100 μl Dig-wash buffer. Tubes were chilled to 0 °C for 5 min and ice-cold 2.2 mM CaCl2 was added while gently vortexing. Tubes were immediately placed on ice and incubated at 4 °C for 1 hr on a nutator, followed by the addition of 100 μl 2xSTOP buffer (340 mM NaCl, 20 mM EDTA, 4 mM EGTA, 0.05% digitonin, 0.1 mg/ml RNase A, 50 μg/ml glycogen) and incubated at 37 °C for 30 min on a nutator. Beads were placed on a magnet stand, the liquid was removed to a fresh tube, and 2 μl 10% SDS and 2.5 μl proteinase K (20 mg/ml) were added before incubation at 50 °C for 1 hr. DNA was extracted using phenol chloroform as described at https://www.protocols.io/view/cut-amp-run-targeted-in-situ-genome-wide-profiling-zcpf2vn. CUT&RUN libraries were prepared using a NEXTflex ChIP-seq Library kit (5143–02, Bioo Scientific) according to the manufacturer’s guidelines. The libraries were then sequenced using an Illumina Novaseq 6000 platform. Libraries were generated from two sets of biological replicates.

Antibodies

Antibodies against FLAG (F1804, Sigma Aldrich), IPMK (custom rabbit polyclonal antibody, raised against a mouse IPMK peptide corresponding to amino acids 295–311 [SKAYSTHTKLYAKKHQS; Covance]; Kim et al., 2011), SMARCB1 (A301-087, Bethyl), BRG1 (ab110641, Abcam), BAF155 (11956, Cell Signaling Technology), BAF170 (12760, Cell Signaling Technology), BAF250A (12354, Cell Signaling Technology), BRM (11966, Cell Signaling Technology), PBAF/PBRM (A301-591A, Bethyl), a-TUBULIN (T5169, Sigma Aldrich), GST (2622, Cell Signaling Technology), LaminB1 (sc-365214, Santa Cruz Biotech), histone H3 (05–499, Sigma Aldrich), GAPDH (sc-32233, Santa Cruz Biotech), anti-DPF2 (ab128149, Abcam), anti-SMARCE1 (ab137081, Abcam), anti-SS18L1 (ab227535, Abcam), anti-ACTL6A (sc-137062, Santa Cruz Biotech), anti-SMARCD1 (sc-135843, Santa Cruz Biotech), anti-BCL7A (HPA019762, Atlas Antibodies), and anti-ACTB (TA811000, Origene) were used for immunoblotting. Antibodies against IPMK (homemade), SMARCB1 (A301-087, Bethyl), and rabbit IgG isotype control (02–6102, Invitrogen) and anti-FLAG M2 affinity gel (A2220, Sigma Aldrich) were used for immunoprecipitation, and GST (2622, Cell Signaling Technology) was used for pull-down assays. Antibodies against FLAG (F7425, Sigma Aldrich), BRG1 (ab110641, Abcam), and IgG (homemade) were used for CUT&RUN assays.

ATAC-seq

Request a detailed protocol

ATAC-seq libraries were prepared as described previously (Buenrostro et al., 2013; Buenrostro et al., 2015), with minor modifications. Briefly, 50,000 mESCs were harvested, washed with cold PBS, lysed with cold lysis buffer, and immediately centrifuged. The nuclear pellets were resuspended in 25 μl of 2 X tagmentation reaction buffer (10 mM Tris [pH 8.0], 5 mM MgCl2, 10% dimethylformamide), 23 μl of nuclease-free water, and 2 μl of Tn5 transposase (generated in-house), and incubated at 37 °C for 30 min. The samples were immediately purified using a QIAquick PCR purification kit (28106, Qiagen). The libraries were pre-enriched for five cycles using the KAPA HiFi Hotstart ready mix (KK2601, Kapa Biosystems), and the threshold cycle (Ct) was monitored using qPCR to determine the additional enrichment cycles, which were then applied. The final libraries were purified again using a QIAquick PCR purification kit and sequenced using an Illumina Novaseq 6,000 platform. The libraries were generated from two sets of biological replicates.

H3K4me3-Only and bivalent promoter-TSSs

Request a detailed protocol

The list of 47,382 mouse genes was obtained from the UCSC Genome Browser [Table browser, mm10, group: Genes and Gene Prediction, track: NCBI RefSeq, table: UCSC RefSeq (refGene), region: genome]. Among these genes, we selected protein-coding genes (gene name starting with NM_) that are longer than 2 kb. To classify the promoter-TSS regions precisely, we removed redundancies by merging the genes with the exact same TSSs into the same group. By doing this, we obtained 23,927 mouse promoter-TSS regions. To categorize the promoter-TSS regions according to their histone modifications status, we calculated the H3K4me3 (accession number: GSM254000 and GSM254001) and H3K27me3 (accession number: GSM254004 and GSM254005) ChIP-seq intensity in a −500/ + 1000 bp window around the promoter-TSS regions. The −500/ + 1000 bp window range was also applied in a previous study (de Dieuleveult et al., 2016). Next, we divided the promoter-TSSs into two groups based on the first quartile (Q1) value of the H3K4me3 ChIP-seq intensity in the whole promoter-TSS regions: H3K4me3-Low and H3K4me3-High. Next, we divided the H3K4me3-High promoter-TSSs into two groups based on the third quartile (Q3) value of the H3K27me3 ChIP-seq intensity in the whole promoter-TSS regions: H3K4me3-Only and bivalent. Thus, we categorized three types of promoter-TSSs: 5,982 H3K4me3-Low, 12,305 H3K4me3-Only (high H3K4me3 and low H3K27me3), and 5,640 bivalent (high H3K4me3 and high H3K27me3). We obtained similar results when using the publicly released H3K4me3 and H3K27me3 ChIP-seq data (ENCODE, Ross Hardison, ENCSR212KGS and ENCSR059MBO). We confirmed that the percentages of three promoter-TSS types are similar to the results obtained in a previous study (de Dieuleveult et al., 2016).

mRNA purification, mRNA-seq, and rt-qPCR

Request a detailed protocol

Total RNA was purified from mESCs using TRIzol reagent (Invitrogen) according to the manufacturer’s instructions. Briefly, mESCs cultured in six-well plates were harvested and homogenized with 1 ml of TRIzol reagent. Chloroform (200 μl/sample) was added and the samples vigorously mixed by hand for 15 s and incubated at 25 °C for 2 min. The mixtures were centrifuged at 12,000 rpm for 15 min at 4 °C, and 500 μl of each aqueous phase was transferred to a new Eppendorf tube and mixed with equal volumes of isopropanol. The mixtures were incubated at 25 °C for 10 min to precipitate the total RNA samples. The samples were then centrifuged at 12,000 rpm for 10 min at 4 °C, washed with 75% ethanol, and centrifuged again at 10,000 rpm for 5 min at 4 °C. The RNA pellets were dried and dissolved in RNase-free water. For mRNA-seq library preparation, mRNA was isolated from total RNA using a Magnetic mRNA Isolation Kit (S1550S, NEB), and libraries were prepared using a NEXTflex Rapid Directional RNA-seq Kit (5138–08, Bioo Scientific). The libraries were sequenced using an Illumina HiSeq 2,500 system. The libraries were generated from two sets of biological replicates. First-strand complementary DNA was synthesized from total RNA using reverse transcriptase (Enzynomics). RT-qPCR analyses was performed using SYBR Green Master Mix (Toyobo) and the StepOnePlus Real-Time PCR System (Applied Biosystems). The expression levels of genes of interest were normalized to those of a housekeeping gene and are presented as fold changes over baseline using the ∆∆Ct method.

Embryoid body formation

Request a detailed protocol

To induce EB formation, E14Tg2a cells were detached, pelleted by centrifugation, and resuspended in mESC medium in the absence of LIF and β-mercaptoethanol. Cell drops (2500 cells/25 µl) were hanging cultured on the lids of the dishes. After 2 days, the drops were collected and transferred to gelatin-coated dishes. EBs were maintained in mESC medium without LIF and β-mercaptoethanol for 8 days. The medium was changed every 2 days and aggregate growth was monitored under a microscope. The resulting EBs were harvested at the indicated time points.

Data processing and analysis

Request a detailed protocol

For CUT&RUN analysis, raw reads were aligned to the mouse genome (mm10) using Bowtie2 (version 2.2.9) (Langmead and Salzberg, 2012) with the following parameter according to the previous study (GSM2247138): --trim3 125 --local --very-sensitive-local --no-unal --no-mixed --no-discordant -q --phred33 -I 10 X 700. For ATAC-seq analysis, raw reads were aligned to the mouse genome (mm10) using Bowtie2 (version 2.2.9) with the following parameter: --very-sensitive -X 100 –local. For mRNA-seq analysis, raw reads were aligned to the mouse genome (mm10) using STAR (version 2.5.2 a) with default parameters (Dobin et al., 2013). Generally, we used MACS2 (Zhang et al., 2008) to convert the aligned BAM files into bedGraph files and normalized the data with respect to the total read counts. We used bedGraphToBigWig (Kent et al., 2010) to convert the bedGraph files into bigWig files. The bigWig files were used as input files for bwtool (matrix and aggregate option) to quantify the intensity (e.g. heatmaps or average line plots) of the relevant sequencing data (Pohl and Beato, 2014). All of our raw data (fastq files) were confirmed to be of good quality using FastQC (http://www.bioinformatics.babraham.ac.uk/projects/fastqc/). For our CUT&RUN analysis, we used MACS2 (callpeak option, p < 0.005) to identify the peaks (or binding sites) of proteins of interest using IgG as background. The CUT&RUN data were also subjected to HOMER annotatPeaks.pl (Heinz et al., 2010) to elucidate the genomic content within BRG1/IPMK-binding sites. For our mRNA-seq analyses, we used Cufflinks (Cuffdiff option, fr-firststrand) to assess the expression levels and identify DEGs (Trapnell et al., 2010). Box plots, volcano plots, and other plots were drawn with R (ggplot2) (Wickham, 2009), and heatmaps were drawn with Java TreeView (Saldanha, 2004). The examples of our genome-wide data were visualized using the Integrative Genomics Viewer (IGV) (Robinson et al., 2011).

Public data acquisition

Request a detailed protocol

Publicly released ChIP-seq data were downloaded from the NCBI GEO DataSets database as sra or fastq files. The sra files were converted to fastq files using the SRA Toolkit (https://trace.ncbi.nlm.nih.gov/Traces/sra/sra.cgi?view=software). Both the public datasets and our data were then analyzed using the same methods.

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (Homo-sapiens)IPMKOpen BiosystemsNCBI Gene ID 253430
Gene (Homo-sapiens)SMARCB1BioneerNCBI Gene ID 6598
Strain, strain background (Escherichia coli)DH5αEnzynomicsCat# CP010
Cell line (Saccharomyces cerevisiae)AH109ClontechSee Materials and methods.
Cell line maintained in Panbionet.
Cell line (M. musculus)E14Tg2aATCCCat#
CRL-1821
Cell line (M. musculus)MEFThis paperSee Materials and methods.
Cell line maintained in S. Kim lab.
Cell line (M. musculus)NIH3T3ATCCCat#
CRL-1658
Cell line (Homo-sapiens)HEK293TATCCCat#
CRL-3216
Cell line (Homo-sapiens)Flp-In T-REx–293InvitrogenCat# R78007
Cell line (Spodoptera frgiperda)Sf9InvitrogenCat# 11496015
Transfected construct (M. musculus)siRNA to EgfpBioneertransfected construct (mouse)
Transfected construct (M. musculus)siRNA to IpmkBioneertransfected construct (mouse)
Transfected construct (M. musculus)siRNA to Smarcb1Dharmacon/Thermo Fisher ScientificCat# 4390771transfected construct (mouse)
Transfected construct (M. musculus)siRNA to Brg1Bioneertransfected construct (mouse)
Antibodyanti-FLAG (Mouse monoclonal)Sigma AldrichCat# F1804WB (1:1000)
Antibodyanti-SMARCB1
(Rabbit polyclonal)
BethylCat# A301-087WB (1:1000)
IP (3 ug)
Antibodyanti-BRG1
(Rabbit monoclonal)
AbcamCat# Ab110641WB (1:1000)
Antibodyanti-BAF155 (Rabbit monoclonal)Cell Signaling TechnologyCat# 11,956WB (1:1000)
Antibodyanti-BAF170 (Rabbit monoclonal)Cell Signaling TechnologyCat# 12,760WB (1:1000)
Antibodyanti-BAF250A (Rabbit monoclonal)Cell Signaling TechnologyCat# 12,354WB (1:1000)
Antibodyanti-PBAF/PBRM (Rabbit polyclonal)BethylCat# A301-591AWB (1:1000)
Antibodyanti-
α-Tubulin (Mouse monoclonal)
Sigma AldrichCat# T5169WB (1:3000)
Antibodyanti-IPMK (Rabbit polyclonal)custom rabbit polyclonalDOI: 10.1126/sciadv.1602296WB (1:1000)
IP (3 ug)
Antibodyanti-GST (Rabbit polyclonal)Cell Signaling TechnologyCat# 2,622WB (1:1000)
Antibodyanti-Histone H3 (mouse monoclonal)Sigma Aldrich05–499WB (1:3000)
Antibodyanti-GAPDH (mouse monoclonal)Santa Cruz BiotechCat# sc-32233WB (1:3000)
Antibodyanti-LaminB1 (mouse monoclonal)Santa Cruz BiotechCat# sc-365214WB (1:1000)
Antibodyanti-DPF2 (rabbit polyclonal)AbcamCat# ab128149WB (1:1000)
Antibodyanti-SMARCE1
(rabbit monoclonal)
AbcamCat# ab137081WB (1:1000)
Antibodyanti-SS18L1
(rabbit polyclonal)
AbcamCat# ab227535WB (1:1000)
Antibodyanti-ACTL6a (mouse monoclonal)Santa Cruz BiotechCat# sc-137062WB (1:1000)
Antibodyanti-SMARCD1 (mouse monoclonal)Santa Cruz BiotechCat# sc-135843WB (1:1000)
Antibodyanti-BCL7A (rabbit polyclonal)Atlas AntibodiesCat# HPA019762WB (1:1000)
Antibodyanti-ACTB (mouse monoclonal)OrigeneCat# TA811000WB (1:1000)
Antibodyrabbit IgG isotype control (rabbit isotype control)Invitrogen02–6102IP (3 ug)
Recombinant DNA reagentpGBKT7-GAL4-DNA-BD-fused IPMK
(plasmid)
This paperSee Materials and methods.
IPMK cloned into BD-containing
pGBKT7 vector.
Recombinant DNA reagenthuman brain cDNA activation domain (AD) libraryClontechCat# 630,486
Recombinant DNA reagentpLKO.1-hygro (plasmid)AddgeneCat# 24,150
Recombinant DNA reagentpcDNA5-Mito -V5-APEX2 (plasmid)This paperSee Materials and methods.
Kindly provided by H. Rhee lab.
Recombinant DNA reagentpcDNA5/FRT/TO vector (plasmid)InvitrogenCat# V652020
Recombinant DNA reagentpOG44 Flp recombinase expression vector (plasmid)InvitrogenCat# V600520
Recombinant DNA reagentpCMV-GST (plasmid)This paperDOI: 10.1126/sciadv.1602296See Materials and Methods.
Recombinant DNA reagentpcDNA3.1-FLAG (plasmid)This paperDOI: 10.1126/sciadv.1602296See Materials and methods
Recombinant DNA reagentpGEX4T (plasmid)Sigma AldrichCat#
GE28-9545-52
Recombinant DNA reagentpFASTBAC1 (plasmid)Thermo Fisher ScientificCat#
10359016
Recombinant DNA reagentFLAG-DPF2-pCAG-IP (plasmid)This paperSee Materials and methods.
Kindly provided by J. Kim lab.
Sequence-based reagentIpmk shRNA #1Sigma AldrichTRC Clone ID TRCN0000360808.
Sequence-based reagentIpmk shRNA #2Sigma AldrichTRC Clone ID TRCN0000360733
Sequence-based reagentshNT_FThis paperOligo sequence used for cloning pLKO.1 shNT (negative control)CCGGTCCTAAG
GTTAAGTCGCCCTCG
CTCGAGCGAG
GGCGACTTAA
CCTTAGGTTTTTG
Sequence-based reagentshNT_RThis paperOligo sequence used for cloning pLKO.1 shNT (negative control)AATTCAAAAACCT
AAGGTTAAGTCGC
CCTCGCTCGAG
CGAGGGCG
ACTTAACCTTAGGA
Peptide,
recombinant
protein
StreptavidinThermo FisherCat# 434,302
Commercial assay or kitBradford protein assayBio-radCat# 5000006
Commercial assay or kitBCA assayThermo Fisher ScientificCat# 23,225
Commercial assay or kitTNT Quick Coupled Transcription/Translation SystemPromegaCat# L1170
Commercial assay or kitNEXTflex ChIP-seq Library kitBioo ScientificCat# 5143–02
Commercial assay or kitMagnetic mRNA isolation kitNEBCat# S1550S
Commercial assay or kitNEXTflex Rapid directional RNA-seq kitBioo ScientificCat# 5138–08
Chemical compound, drugDoxycyclineSigma AldrichCat# D9891
Chemical compound, drugHygromycin BGibcoCat#
10687010
Chemical compound, drugpuromycinGibcoCat#
A11138-03
Chemical compound, drugG418GibcoCat#
11811023
Chemical compound, drugDharmaFECT 1Thermo Fisher ScientificCat#
T-2001–03
Chemical compound, drugFUGENE HDPromegaCat# E2311
Chemical compound, drugLipofectamine LTX with Plus ReagentInvitrogenCat# 15338100
Chemical compound, drugTurbofectThermo Fisher ScientificCat# R0533
Software, algorithmSequest Sorcerer platformSage-N ResearchHomo sapiens protein sequence database (20,675 entries, UniProt)
Software, algorithmScaffoldProteome Software Inc.Version 4.11.0
Software, algorithmProtein Prophet algorithmProtein Prophet algorithmDOI: 10.1021/ac0341261

Data availability

Sequencing data have been deposited in GEO under accession codes GSE158525.

The following data sets were generated
    1. Han S
    2. Beon J
    3. Park SE
    4. Hyun K
    5. Lee S
    6. Rhee H
    7. Seo JK
    8. Kim J
    9. Kim S
    10. Lee D
    (2020) NCBI Gene Expression Omnibus
    ID GSE158525. IPMK physically binds to the SWI/SNF complex and modulates BRG1 occupancy.
The following previously published data sets were used
    1. Han S
    2. Lee H
    3. Lee AJ
    4. Kim S
    5. Jung I
    6. Koh GY
    7. Kim T
    8. Lee D
    (2021) NCBI Gene Expression Omnibus
    ID GSE172392. Chd4 regulates intra-chromatin looping by concealing CTCF sites from B2 SINEs in mESCs.
    1. Hmitou I
    2. de Dieuleveult M
    3. Depaux A
    4. Chantalat S
    5. Yen K
    6. Pugh BF
    7. Gérard M
    (2015) NCBI Gene Expression Omnibus
    ID GSE64825. Genome-wide distribution and function of ATP-dependent chromatin remodelers in embryonic stem cells.

References

    1. Wang W
    2. Côté J
    3. Xue Y
    4. Zhou S
    5. Khavari PA
    6. Biggar SR
    7. Muchardt C
    8. Kalpana GV
    9. Goff SP
    10. Yaniv M
    11. Workman JL
    12. Crabtree GR
    (1996a)
    Purification and biochemical heterogeneity of the mammalian SWI-SNF complex
    The EMBO Journal 15:5370–5382.
  1. Software
    1. Wickham H
    (2009)
    Elegant Graphics for Data Analysis
    Springer-Verlag, New York, NY.

Decision letter

  1. Irwin Davidson
    Reviewing Editor; Institut de Génétique et de Biologie Moléculaire et Cellulaire, France
  2. Jessica K Tyler
    Senior Editor; Weill Cornell Medicine, United States
  3. Irwin Davidson
    Reviewer; Institut de Génétique et de Biologie Moléculaire et Cellulaire, France

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "IPMK physically binds to the SWI/SNF complex and modulates BRG1 occupancy" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Irwin Davidson as Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Jessica Tyler as the Senior Editor.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

As you can see from the comments below the referees raised several major issues that have to addressed in any revised version.

1). The referees were concerned that effects are seen only at sites with low BRG1 occupancy. To be sure that this is meaningful the referees propose in their comments below a series of further analyses of the data that should be performed.

2). SiRNA IPMK depletion is of limited efficiency with several blots showing an incomplete knockdown. This may lead to an under estimation of the possible impact IPMK has on BRG1 function. The authors should perform a full IPMK KO using CRISPR and re-assess the effects on BRG1 occupancy and gene expression. Alternatively, at the very least the authors should use a constitutive shRNA-mediated IPMK silencing to achieve a better reduction in its expression.

3). A major issue is the lack of a real functional readout on IPMK knockdown in terms of the biology of the ES cells. If as claimed genes regulated by bivalent promoters are the preferred targets this should translate into altered ES cell differentiation. The authors should investigate in detail the impact of IPMK silencing or knockout on ES cell biology to go beyond the analyses of gene expression.

Any revised version must also address the other issues raised by the referees.

Reviewer #1 (Recommendations for the authors):

Several issues should be addressed.

The authors describe the effect of IPMK depletion at transcriptional start sites of bivalent and H3K4me3 only promoters. Can the authors perform the same analyses at enhancers? According to their model, enhancers show higher BRG1 occupancy, and therefore should not be affected by IPMK depletion. However, this may not be true for all enhancers, there may be a subset with lower occupancy where IPMK depletion would have a comparable effect to that seen at the TSS. The authors must also take into account that the siRNA mediated depletion is of limited efficiency, several blots showing an incomplete knockdown. Perhaps if a full IPMK KO was made using CRISPR, even sites with stronger BRG1 occupancy would now be affected. Is this possible? See below.

As IPMK depletion affects sites with lower BRG1 occupancy, it is important to exclude the possibility that IPMK depletion results in reduced expression of BRG1 or another limiting subunit leading to reduced SWI/SNF levels.

The authors show that IPMK depletion leads to a more pronounced effect on expression of genes with bivalent promoters compared to H3K4me3 only promoters. As bivalent promoters are those that are destined to be activated or repressed upon ES differentiation, this would suggest that IPMK depletion should impact ES differentiation. The authors should test this idea and ask whether IPMK depletion by siRNA or, even better shRNA to achieve stable depletion, affects ES cell differentiation. Also, the authors make no comments on how IPMK siRNA and de-regulation of around 500 genes affects ES cell physiology or proliferation. This is relevant if a CRISPR KO was to be made, are the ES cells viable or not. If yes, a KO would be a useful complement as mentioned above to assess the full effect of IPMK on SWI/SNF function and subsequent ES differentiation. These data would strongly strengthen the paper and provide a functional readout for the how IPMK affects SWI/SNF beyond gene expression assays.

Can the authors address whether the IPMK effects on SWI/SNF genome occupancy and gene expression require its enzymatic activity or whether the effects are independent of enzymatic activity?

The manuscript requires thorough re-writing and proofing by a native English speaker as the text is often difficult to follow. The study could be written in a much clearer manner.

Reviewer #2 (Recommendations for the authors):

1. There is only one concern about the immunoprecipitations. The BAF155 co-IP in Figure 2C is not very convincing. There is a band in the IgG control that is stronger than the band in the IP lane.

2. Details on analysis of peaks for cut and run and ATAC-seq are missing. How were the changes in peak height quantified and determined to be statistically significant.

3. The rationale and method for defining clusters and then re-clustering should be clarified.

4. RNA-seq profiles with IPMK knockdown showed that some genes occupied by BRG1 and regulated at the chromatin level are also regulated by IPMK. However, there is no information about whether the effects of IPMK depletion on gene expression results from suppression of BRG1 occupancy. Experiments to address whether BRG1 depletion affects the expression of Phactr3, Nmra1l or any of the IPMK-regulated genes determined by RNA-seq should be conducted.

5. The manuscript loses focus by conducting RNA-seq in cells with Smarcb1 depletion. These data should be integrated with the data on BRG1 occupancy and chromatin accessibility. A key question to address is whether any of the overlapping Smarcb1/IPMK regulated genes can be associated with changes in BRG1 occupancy and chromatin accessibility upon IPMK and BRG1 knockdown.

Reviewer #3 (Recommendations for the authors):

To test the quality of the BRG1 CUT&RUN experiments, the authors could use the lists of typical enhancers and super-enhancers published in Whyte et al., 2013 (http://dx.doi.org/10.1016/j.cell.2013.03.035) and generate heat maps of BRG1 distribution showing separately each replicate of BRG1 CUT&RUN, as well as the non-specific IgG CUT&RUN control. For the comparison, they could use the previously validated GSM1581286 BRG1 ChIP-seq data.

To verify that their interpretation of low amplitude changes in ChIP-seq or CUT&RUN signal is correct, the authors should generate heat-maps as in Figure 4C and 4G showing individual replicates of both BRG1 CUT&RUN and ATAC-seq.

Similarly, the authors should also produce heat-maps of the five clusters of promoters shown in figure 5D, showing each BRG1 CUT&RUN replicate experiment, as well as non-specific IgG CUT&RUN control.

These figures will be determinant to test the validity of the differences in BRG1 enrichment observed in IPMK-depleted cells.

The description of the results of the ATAC-seq experiments at promoter elements is difficult to follow: multiple analysis are presented using different series of clusters of TSS. The authors should try to simplify this part of manuscript.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Inositol polyphosphate multikinase physically binds to the SWI/SNF complex and modulates BRG1 occupancy in mouse embryonic stem cells" for further consideration by eLife. Your revised article has been evaluated by Jessica Tyler (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

In this revised version, the authors have performed a number of important experiments to address previous concerns. These new data have strengthened the study and the conclusions. Specifically, they have used stable shRNA-mediated IPMK knockdown in addition to the siRNA and observed analogous effects on BRG1 occupancy. They have performed rescue experiments that show that the enzymatic activity of IPMK is not required for BRG1 occupancy and they have differentiated the shIPMK cells as embryoid bodies and provide evidence for downregulated expression of several endodermal markers. They have incorporated in their analyses BRG1 occupancy at previous lists of mESC enhancers. This new data addressed many of the major issues raised in the previous version.

Nevertheless, the authors should perform some additional revisions as several sections of the manuscript are rather difficult to follow.

1). As previously suggested, the authors should remove the data on siSMARCB1 in Figure 6 and Figure 6-supplement. This data interrupts the flow of the paper and dilutes the message. There are no analyses of how siSMARCB1 affects BRG1 or IPMK occupancy or chromatin accessibility by ATAC-seq and therefore these results cannot be properly interpreted. Also, there is no relevance in this paper for 3T3 cells. Removing this data does not affect the major conclusions of the paper and will make the paper easier to read.

2). The description of the data in Figure 5 and the Figure 5 supplements is extremely difficult to follow. All of this section needs careful attention and should be rewritten. For example, it is difficult to understand why total BRG1 loss at cluster 1 has a differential effect at bivalent and K4me3-only promoters. Why does it not impact the accessibility of the K4me3-only promoters. Figures 5F and G are particularly difficult to understand. Can this data be represented in another manner, or at least the description in the text should be improved?

3). The new experiments show reduced expression of endodermal markers in embryoid bodies generated from the shIPMK cells. The authors should comment on whether the genes that are not properly induced in the embryoid bodies displayed bivalent promoters in the ESCs and if yes, did they belong to a specific cluster as defined in Figure 5. In other words is there a relationship between altered BRG1 occupancy at the promoters in ESCs and failure to be properly induced in embryoid bodies.

4). In the discussion, the authors should avoid unnecessary speculation about how IPMK may affect SWI/SNF structure (lines 510-550). The discussion should be simplified and shortened to specifically address the results of this study (see lines 574-605).

5). Figure 4 supplement 2D should be brightened.

6). I would suggest that Figure 7B be transferred to the Figure supplement and that panels A and D of the Figure 7 supplement be transferred to the main Figure 7.

7). In general, the manuscript still requires a thorough revision by a native speaker as there are still many errors with many difficult to understand sentences.

https://doi.org/10.7554/eLife.73523.sa1

Author response

1). The referees were concerned that effects are seen only at sites with low BRG1 occupancy. To be sure that this is meaningful the referees propose in their comments below a series of further analyses of the data that should be performed.

We agree with the fact that IPMK depletion decreased the BRG1 intensity majorly at the lowly-enriched BRG1 peaks but had no significant effect at the highly-enriched BRG1 peaks (Figure 4B). To prove that this effect is meaningful, we performed a series of further analyses suggested by the reviewers. Most importantly, we established two types of stable IPMK-depleted mESCs via shRNA-mediated Ipmk silencing (Figure 4C and Figure 4—figure supplement 2C, shIpmk1 and shIpmk2) and performed BRG1 CUT&RUN assays. Consistent with the results from the siRNA-mediated Ipmk silencing (Figure 4B), shRNA-mediated Ipmk silencing significantly reduced the BRG1 intensity at the lowly-enriched BRG1 peaks but had no effect at the highly-enriched BRG1 peaks (Figure 4D). The reproducible results observed both in siRNA-mediated and shRNA-mediated silencing indicate that the decrease in the BRG1 intensity majorly at low BRG1 occupancy upon IPMK depletion is not an artifact. Instead, IPMK has a significant role in modulating BRG1 occupancy particularly for lowly-enriched BRG1 peaks.

2). SiRNA IPMK depletion is of limited efficiency with several blots showing an incomplete knockdown. This may lead to an under estimation of the possible impact IPMK has on BRG1 function. The authors should perform a full IPMK KO using CRISPR and re-assess the effects on BRG1 occupancy and gene expression. Alternatively, at the very least the authors should use a constitutive shRNA-mediated IPMK silencing to achieve a better reduction in its expression.

As mentioned above, we established two types of constitutive IPMK-depleted mESCs via shRNA-mediated Ipmk silencing (Figure 4C and Figure 4—figure supplement 2C, shIpmk1 and shIpmk2). Compared with the efficiency of the siRNA-mediated Ipmk silencing (IpmkKD), we observed that the shRNA-mediated knockdown efficiency was higher (compare Figure 4A-siRNA vs. Figure 4C-shRNA, and also compare Figure 2F and Figure 2—figure supplement 1D -siRNA vs. Figure 4—figure supplement 2C -shRNA). We re-assessed the IPMK depletion effects on BRG1 occupancy and gene expression by using the newly generated cell lines.

3). A major issue is the lack of a real functional readout on IPMK knockdown in terms of the biology of the ES cells. If as claimed genes regulated by bivalent promoters are the preferred targets this should translate into altered ES cell differentiation. The authors should investigate in detail the impact of IPMK silencing or knockout on ES cell biology to go beyond the analyses of gene expression.

To identify the function of IPMK depletion in terms of ESC biology, we performed embryoid body (EB, in vitro cell clumps recapitulating the early events of embryogenesis) formation and assessed the expression of differentiation markers (Figures 7A, B, and Figure 7—figure supplement 1A-C).

Any revised version must also address the other issues raised by the referees.

Reviewer #1 (Recommendations for the authors):

Several issues should be addressed.

The authors describe the effect of IPMK depletion at transcriptional start sites of bivalent and H3K4me3 only promoters. Can the authors perform the same analyses at enhancers? According to their model, enhancers show higher BRG1 occupancy, and therefore should not be affected by IPMK depletion. However, this may not be true for all enhancers, there may be a subset with lower occupancy where IPMK depletion would have a comparable effect to that seen at the TSS. The authors must also take into account that the siRNA mediated depletion is of limited efficiency, several blots showing an incomplete knockdown. Perhaps if a full IPMK KO was made using CRISPR, even sites with stronger BRG1 occupancy would now be affected. Is this possible? See below.

To address this issue, we employed the previously determined mESC enhancer lists as reviewer #3 suggested (Whyte et al., 2013, http://dx.doi.org/10.1016/j.cell.2013.03.035) and aligned them with previously published BRG1 ChIP-seq peaks (GSE64825) and our BRG1 CUT&RUN peaks. As expected, highly-enriched BRG1 peaks (both ChIP-seq and CUT&RUN peaks) were primarily localized at enhancers (Figures 4B, D, and Figure 4—figure supplement 1E, upper part of the heatmap termed as “High”). Notably, IPMK depletion (both siRNA- and shRNA-mediated silencing) did not exhibit significant changes in BRG1 occupancy at these BRG1-enriched enhancers (Figures 4B, D, and Figure 4—figure supplement 1F).

As IPMK depletion affects sites with lower BRG1 occupancy, it is important to exclude the possibility that IPMK depletion results in reduced expression of BRG1 or another limiting subunit leading to reduced SWI/SNF levels.

The observed reduction in BRG1 intensity at the low BRG1 peaks (Figures 4B and D, bottom part of the heatmap termed as “Low”) were not derived from any changes in the expression of BRG1 or other subunits of the SWI/SNF complex (Figure 2—figure supplement 1D, Figure 4—figure supplement 1B, 2B and C), excluding the possibility that IPMK depletion results in reduced expression of BRG1 or another SWI/SNF complex subunit leading to the reduced BRG1 occupancy at the low BRG1 peaks.

The authors show that IPMK depletion leads to a more pronounced effect on expression of genes with bivalent promoters compared to H3K4me3 only promoters. As bivalent promoters are those that are destined to be activated or repressed upon ES differentiation, this would suggest that IPMK depletion should impact ES differentiation. The authors should test this idea and ask whether IPMK depletion by siRNA or, even better shRNA to achieve stable depletion, affects ES cell differentiation. Also, the authors make no comments on how IPMK siRNA and de-regulation of around 500 genes affects ES cell physiology or proliferation. This is relevant if a CRISPR KO was to be made, are the ES cells viable or not. If yes, a KO would be a useful complement as mentioned above to assess the full effect of IPMK on SWI/SNF function and subsequent ES differentiation. These data would strongly strengthen the paper and provide a functional readout for the how IPMK affects SWI/SNF beyond gene expression assays.

To address these comments, we employed shRNA-mediated Ipmk silencing.

1) We first confirmed that shRNA-mediated IPMK depletion significantly reduced the BRG1 intensity at bivalent promoters (Figure 5—figure supplement 1A and B), consistent with the results from the siRNA-mediated Ipmk silencing. These results support that IPMK depletion causes more pronounced effects on bivalent promoters (compared to H3K4me3-ONLY promoters).

2) To investigate whether IPMK depletion (which impacts the BRG1 occupancy and chromatin accessibility at bivalent promoters) impacts ES differentiation, we measured the RNA levels of key marker genes related to pluripotency and three germ layers (ectoderm, mesoderm, and endoderm) at various time points during embryoid body (EBs) formation. Notably, endodermal marker genes were dramatically downregulated in IPMK-depleted EBs (Figure 7A). By integrating the expression profiles of three types of marker genes, we found that IPMK depletion caused the most severe impact on the endodermal marker genes by reducing their expression levels (Figure 7B). Collectively, these data show that IPMK depletion impacts ES differentiation (especially affecting endodermal marker gene expression), thereby validating the above comments of reviewer #1.

3) Lastly, we observed no significant difference in morphology, proliferation rate, or viability between shNT and shIpmk mESCs.

Can the authors address whether the IPMK effects on SWI/SNF genome occupancy and gene expression require its enzymatic activity or whether the effects are independent of enzymatic activity?

To address whether the enzymatic activity of IPMK is required for regulating BRG1 occupancy, we performed rescue experiments by transfecting IpmkKD mESCs with DNA constructs of wild-type IPMK (+WT) or catalytically dead IPMK (+SA). We first confirmed the stable expression of the constructs (Figure 4—figure supplement 2F) and then performed BRG1 CUT&RUN assays. Consistent with our previous results (Figures 4B and D), we observed significantly reduced BRG1 intensity at low BRG1 peaks upon IpmkKD (Figure 4—figure supplement 2G and H). Although transfection of WT IPMK (+WT) did not fully restore the BRG1 intensity, we observed significantly increased BRG1 intensity in the IpmkKD+WT mESCs compared with the intensity in the IpmkKD mESCs (Figure 4—figure supplement 2G and H). Interestingly, transfection of catalytically dead IPMK (IpmkKD+SA) also exhibited significantly increased BRG1 intensity compared with the intensity in the IpmkKD mESCs and did not show a large difference in BRG1 intensity compared with that in the IpmkKD+WT mESCs (Figure 4—figure supplement 2G and H). These results indicate that the enzymatic activity of IPMK is not required for regulating BRG1 occupancy in mESCs. Thus, the physical interaction between IPMK and BRG1 is presumably crucial for appropriate BRG1 occupancy (see also the Discussion).

The manuscript requires thorough re-writing and proofing by a native English speaker as the text is often difficult to follow. The study could be written in a much clearer manner.

Thank you for your suggestion, we will proceed accordingly. We hope the revised manuscript will meet the requirements.

Reviewer #2 (Recommendations for the authors):

1. There is only one concern about the immunoprecipitations. The BAF155 co-IP in Figure 2C is not very convincing. There is a band in the IgG control that is stronger than the band in the IP lane.

To resolve this issue, we performed additional BAF155 co-IP experiments and reassessed the representative data in Figure 2C. As shown in the current, updated Figure 2C, the results have become even more convincing that IPMK binds to BAFF155 (with less background signal in the IP lane relative to the IgG control than that in the original analysis).

2. Details on analysis of peaks for cut and run and ATAC-seq are missing. How were the changes in peak height quantified and determined to be statistically significant.

For the CUT&RUN peak analysis, we used MACS2 (Zhang et al., 2008) (callpeak option, P-value < 0.005) to identify the peaks of proteins of interest (-t option) by using IgG as the background (-c option). For the ATAC-seq peak analysis, we used the same condition as in the CUT&RUN analysis but without the background (-c) option (since there is no factor to use as a background in ATAC-seq). The intensities at the peaks (or defined regions) were calculated using bwtool (Pohl and Beato, 2014) (matrix 1:1:1 option) with the relevant sequencing data (bigwig files) as the input, and the statistical significance of the genome-wide difference between the samples was assessed using the Wilcoxon rank sum test (see also Figures 4B, D, and G). We also discussed this part both in Materials and methods and figure legends.

3. The rationale and method for defining clusters and then re-clustering should be clarified.

IBRG1 has been reported to differentially regulate chromatin accessibility depending on its binding positions; BRG1 localized at -1 nucleosome in wide NFR (median length 808 bp) of H3K4me3-Only and bivalent promoters enhances the chromatin accessibility of NFR, whereas BRG1 localized at +1 nucleosome in narrow NFR (median length 28 bp) of H3K4me3-only promoters tends to inhibit the chromatin accessibility of NFR in mESCs (de Dieuleveult et al., 2016). Accordingly, we defined the upstream (-400 to -30 bp from the TSS) and downstream (-30 to +300 bp from the TSS) regions, which correspond to -1 and +1 nucleosome, respectively (Figure 5A), and clustered the TSSs into five clusters depending on the differential BRG1 intensity at the up/downstream regions upon IPMK depletion (Figures 5C–E). We removed the re-clustering (previous Figure 5— figure supplement 1) section to clarify our message.

4. RNA-seq profiles with IPMK knockdown showed that some genes occupied by BRG1 and regulated at the chromatin level are also regulated by IPMK. However, there is no information about whether the effects of IPMK depletion on gene expression results from suppression of BRG1 occupancy. Experiments to address whether BRG1 depletion affects the expression of Phactr3, Nmra1l or any of the IPMK-regulated genes determined by RNA-seq should be conducted.

To address this issue, we first designed two siRNAs targeting different regions of Brg1 and confirmed the successful knockdown of Brg1 expression (Figure 7—figure supplement 1D, left). Notably, we observed that IPMK or BRG1 depletion down-regulated Phactr3 (bivalent promoters) and endodermal marker genes (Foxa2, Gata6, and Sox17) in mESCs (Figure 7—figure supplement 1D), suggesting that IPMK regulates the expression of these genes through BRG1. In support, we detected that ATAC-seq signals (chromatin accessibility) were decreased similarly upon IpmkKD and Brg1KD at two promoters (Figures 5F and G). Since the reduced BRG1 occupancy upon IpmkKD partially mimics the Brg1KD, the similar result upon IpmkKD or Brg1KD further supports that IPMK plays a vital role in chromatin accessibility at promoters-TSSs by regulating the BRG1 occupancy.

5. The manuscript loses focus by conducting RNA-seq in cells with Smarcb1 depletion. These data should be integrated with the data on BRG1 occupancy and chromatin accessibility. A key question to address is whether any of the overlapping Smarcb1/IPMK regulated genes can be associated with changes in BRG1 occupancy and chromatin accessibility upon IPMK and BRG1 knockdown.

We agree with the reviewer. Due to the low number of overlapping Smarcb1/IPMK-regulated genes, it is challenging to present “significant” changes in BRG1 occupancy and chromatin accessibility upon IPMK or BRG1 knockdown in a genome-wide manner. Despite these difficulties, most of our representative genes (Figures 6A, B, E, and F) are indeed members of overlapping Smarcb1/IPMK down-regulated genes (Figure 6H-Clusters 5 and 6J) (also see the Author response image 1 and Author response table 1 that were extracted from the mRNA-seq analysis-cufflinks). These representative genes are shown to be 1) decreased in BRG1 occupancy at their TSS upon IPMK knockdown and 2) decreased in ATAC-seq intensity at their TSS upon IPMK or BRG1 knockdown in the same manner (Figures 6A, B, E, and F). Since the reduced BRG1 occupancy upon IPMK knockdown partially mimics BRG1 knockdown, the similar ATAC-seq reduction upon IPMK or BRG1 knockdown further supports that IPMK plays a vital role in regulating the expression of overlapping Smarcb1/IPMK down-regulated genes by maintaining BRG1-mediated chromatin accessibility at promoters-TSSs.

Author response table 1
Table shows the actual values and calculated significance corresponding to Author response image 1.
GenesFigure 6Relative ExpressionLog2 (vs EgfpKD)P-value (vs EgfpKD)
EgfpKDlpmkKDSmarcb1KDlpmkKDSmarcb1KDlpmkKDSmarcb1KD
Rasl12A10.2724765470.538887496-1.8758-0.8919470.001450.08695
Phactr3B and E10.5820573480.480741151-0.780767-1.056670.052650.0278
Lrrc61F10.4909010760.604801519-1.0265-0.7254630.002150.01485
Arhgap44F10.6022658710.491195499-0.731528-1.025630.030350.04435
Author response image 1

Reviewer #3 (Recommendations for the authors):

To test the quality of the BRG1 CUT&RUN experiments, the authors could use the lists of typical enhancers and super-enhancers published in Whyte et al., 2013 (http://dx.doi.org/10.1016/j.cell.2013.03.035) and generate heat maps of BRG1 distribution showing separately each replicate of BRG1 CUT&RUN, as well as the non-specific IgG CUT&RUN control. For the comparison, they could use the previously validated GSM1581286 BRG1 ChIP-seq data.

We agree with the reviewer and understand their concerns. The major reason that our BRG1 CUT&RUN peak annotation did not detect enhancers was that enhancers were not specified in the peak annotation program (instead, enhancers were just included as intergenic regions). Since the peak enrichment (Figure 4E) and significance (Figure 4F) both depend on the length of genomic annotation (and the intergenic sites are in total much longer than the promoter-TSSs), these may be the reason why intergenic sites (enhancers) showed the lowest and the most insignificance in BRG1 CUT&RUN peaks (Figure 4E and F).

To resolve this issue, we followed the comments of the reviewer as below:

Since the peak annotation analysis (Figures 4E and F) did not specify the enhancers, which show a strong BRG1 enrichment (de Dieuleveult et al., 2016; Laurette et al., 2015; Nakayama et al., 2017), we used the previously determined enhancer lists of mESCs (Whyte et al., 2013) and aligned with the BRG1 peaks. Consistent with the previous findings, highly enriched BRG1 ChIP-seq peaks from the previous study (Figure 4—figure supplement 1E; these data are equivalent to the GSE64825 or GSM1581286 BRG1 ChIP-seq data that reviewer #3 suggested) and highly enriched BRG1 CUT&RUN peaks from our study (Figures 4B, D, and Figure 4—figure supplement 1F) were mostly localized at enhancers (upper part of the heatmap). Furthermore, both BRG1 peaks (ChIP-seq peaks from the previous study and our CUT&RUN peaks) showed similar enrichment patterns in promoters and enhancers (Figure 4—figure supplement 1G), validating our CUT&RUN experiments. Notably, we observed that IPMK was highly enriched at enhancers (Figure 4B).

To verify that their interpretation of low amplitude changes in ChIP-seq or CUT&RUN signal is correct, the authors should generate heat-maps as in Figure 4C and 4G showing individual replicates of both BRG1 CUT&RUN and ATAC-seq.

Following the comment of the reviewer, we generated heatmaps as in Figure 4D and 4G showing individual replicates of both BRG1 CUT&RUN (Figure 4—figure supplement 2A) and ATAC-seq (Figure 4—figure supplement 2I).

Similarly, the authors should also produce heat-maps of the five clusters of promoters shown in figure 5D, showing each BRG1 CUT&RUN replicate experiment, as well as non-specific IgG CUT&RUN control.

These figures will be determinant to test the validity of the differences in BRG1 enrichment observed in IPMK-depleted cells.

Following the comment of the reviewer, we generated BRG1 CUT&RUN heatmaps of the five TSS clusters in H3K4me3-ONLY and bivalent promoters (Figures 5D and E). Due to the limited space, we could not add the BRG1 CUT&RUN replicates and non-specific IgG CUT&RUN controls in main figures (instead, BRG1 CUT&RUN replicates are shown in Figure 4—figure supplement 2A and IgG CUT&RUN controls are shown in average line plots in Figures 5D and E).

The description of the results of the ATAC-seq experiments at promoter elements is difficult to follow: multiple analysis are presented using different series of clusters of TSS. The authors should try to simplify this part of manuscript.

We agree with the reviewer. We have removed the additional analysis (previous Figure 5—figure supplement 1) section to clarify our message.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

1). As previously suggested, the authors should remove the data on siSMARCB1 in Figure 6 and Figure 6-supplement. This data interrupts the flow of the paper and dilutes the message. There are no analyses of how siSMARCB1 affects BRG1 or IPMK occupancy or chromatin accessibility by ATAC-seq and therefore these results cannot be properly interpreted. Also, there is no relevance in this paper for 3T3 cells. Removing this data does not affect the major conclusions of the paper and will make the paper easier to read.

As suggested, we removed the data on siSmarcb1 and NIH3T3 cells in Figure 6G-J and Figure 6—figure supplement 1B-F. We also removed the corresponding parts in the manuscript (lines 417-462 in the original manuscript).

2). The description of the data in Figure 5 and the Figure 5 supplements is extremely difficult to follow. All of this section needs careful attention and should be rewritten. For example, it is difficult to understand why total BRG1 loss at cluster 1 has a differential effect at bivalent and K4me3-only promoters. Why does it not impact the accessibility of the K4me3-only promoters. Figures 5F and G are particularly difficult to understand. Can this data be represented in another manner, or at least the description in the text should be improved?

We improved the description in our revised manuscript. Regarding the reviewer’s question (although IPMK depletion reduced BRG1 occupancy at both promoters, why does it impact the chromatin accessibility of the bivalent promoters more than the H3K4me3-Only promoters?), there are three possible answers.

A) Consistent with our results, de Dieuleveult et al., (2016, http://dx.doi.org/10.1038/nature16505) showed that Brg1 depletion reduces the ATAC-seq (chromatin accessibility) signals at bivalent promoters in mouse embryonic stem cells (mESCs). The line plots are Extended Data Figure 8 from the previous study (de Dieuleveult et al., 2016). Comparing the ATAC-seq signals between H3K4me3-Only (top-left) and bivalent (bottom-left) promoters, Brg1 depletion (which would cause total BRG1 loss at both promoters, just like Cluster1 in our study) impacts the ATAC-seq signals more at bivalent promoters than H3K4me3-Only promoters.

B) When comparing the BRG1 occupancy in IpmkKD cells (Figure 5D and E, red lines) at Cluster1 in two promoter types, we observed that H3K4me3-Only promoters contain more BRG1 occupancy than bivalent promoters. In other words, although Cluster1 exhibits total BRG1 loss in IpmkKD cells, there remains some degree of BRG1 occupancy at H3K4me3-Only promoters, which exhibit higher levels than the bivalent promoters (Figure 5D and E). For direct comparisons, we drew line plots comparing the BRG1 occupancy in IpmkKD cells at two promoter types and found that H3K4me3-Only promoters contain higher BRG1 occupancy than bivalent promoters at all clusters (Figure 5—figure supplement 1C). Thus, the remaining BRG1 at H3K4me3-Only promoters may maintain the chromatin accessibility, causing the differential effect between the two promoter types.

C) Lastly, de Dieuleveult et al., (2016, http://dx.doi.org/10.1038/nature16505) previously showed that the majority of chromatin remodelers (BRG1, CHD1, CHD2, CHD4, CHD6, CHD8, CHD9, and EP400) exhibit higher enrichment at H3K4me3-Only promoters than bivalent promoters (Extended Data Figure 3 and 5 in de Dieuleveult et al., 2016). To test this in our study, we drew line plots comparing the chromatin remodeler occupancy at two promoter types in five clusters using the data sets from the previous study (GSE64825, de Dieuleveult et al., 2016). Consistent with the previous findings, all of the chromatin remodelers (CHD1, CHD2, CHD4, CHD6, CHD8, CHD9, and EP400) exhibited higher occupancy at H3K4me3-Only promoters than bivalent promoters (Figure 5—figure supplement 1D). Thus, at H3K4me3-Only promoters, these highly enriched chromatin remodelers may compensate for the loss of BRG1 upon IPMK depletion, thereby maintaining the chromatin accessibility.

Taken together, these three possibilities support the differential chromatin accessibility at two promoter types in terms of IpmkKD-driven reduced BRG1 occupancy. We added the figures and descriptions to our revised manuscript (lines 309-400).

3). The new experiments show reduced expression of endodermal markers in embryoid bodies generated from the shIPMK cells. The authors should comment on whether the genes that are not properly induced in the embryoid bodies displayed bivalent promoters in the ESCs and if yes, did they belong to a specific cluster as defined in Figure 5. In other words is there a relationship between altered BRG1 occupancy at the promoters in ESCs and failure to be properly induced in embryoid bodies.

All of the reduced endodermal markers (Foxa1, Foxa2, Gata6, and Sox17) in shIpmk embryoid bodies (EBs) displayed bivalent promoters in the mESCs. Foxa2, Gata6, and Sox17, but not Foxa1, exhibited decreased BRG1 occupancy at their promoters upon IPMK depletion; Foxa2 and Gata6 were included in Cluster2, whereas Sox17 was included in Cluster3 (Figure 5E). Foxa1 did not exhibit changes in BRG1 occupancy upon IPMK depletion. Taken together, these results indicate that the IpmkKD-driven reduction in BRG1 occupancy at the bivalent promoters of endodermal markers in mESCs may result in their failure to be appropriately induced in EBs. We added this comment in our revised manuscript (lines 445-457).

4). In the discussion, the authors should avoid unnecessary speculation about how IPMK may affect SWI/SNF structure (lines 510-550). The discussion should be simplified and shortened to specifically address the results of this study (see lines 574-605).

We removed the speculation (lines 510-550 and 574-605) from the discussion and the corresponding data (model on the right in Figure 7C and Figure 7—figure supplement 1E). Overall, we simplified and shortened the discussion in the revised manuscript (lines 459-511).

5). Figure 4 supplement 2D should be brightened.

As suggested, we brightened Figure 4—figure supplement 2D by changing the Log2(Ipmk depletion/Control) threshold from (-1, +1) to (-0.8, +0.8).

6). I would suggest that Figure 7B be transferred to the Figure supplement and that panels A and D of the Figure 7 supplement be transferred to the main Figure 7.

As suggested, we moved Figure 7B to Figure 7—figure supplement 1C and moved Figure 7—figure supplement 1A and D to Figure 7A and C, respectively.

7). In general, the manuscript still requires a thorough revision by a native speaker as there are still many errors with many difficult to understand sentences.

As suggested by the reviewer, the manuscript was revised by a native English speaker.

https://doi.org/10.7554/eLife.73523.sa2

Article and author information

Author details

  1. Jiyoon Beon

    Department of Biological Sciences, Korea Advanced Institute of Science and Technology (KAIST), Daejeon, Republic of Korea
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Validation, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Sungwook Han
    Competing interests
    The authors have no potential conflicts of interest to disclose
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6347-9122
  2. Sungwook Han

    Department of Biological Sciences, Korea Advanced Institute of Science and Technology (KAIST), Daejeon, Republic of Korea
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Validation, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Jiyoon Beon
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3944-3266
  3. Hyeokjun Yang

    Department of Biological Sciences, Korea Advanced Institute of Science and Technology (KAIST), Daejeon, Republic of Korea
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Seung Eun Park

    Department of Biological Sciences, Korea Advanced Institute of Science and Technology (KAIST), Daejeon, Republic of Korea
    Contribution
    Formal analysis, Investigation, Methodology, Performed and analyzed APEX2-proximity labeling
    Competing interests
    No competing interests declared
  5. Kwangbeom Hyun

    Department of Biological Sciences, Korea Advanced Institute of Science and Technology (KAIST), Daejeon, Republic of Korea
    Contribution
    Formal analysis, Investigation, Methodology, Performed experiments for figure 2B and Figure 2-figure supplement 1H and I
    Competing interests
    No competing interests declared
  6. Song-Yi Lee

    Department of Chemistry, Seoul National University, Seoul, Republic of Korea
    Contribution
    Methodology
    Competing interests
    The authors have no potential conflicts of interest to disclose
  7. Hyun-Woo Rhee

    Department of Chemistry, Seoul National University, Seoul, Republic of Korea
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  8. Jeong Kon Seo

    UNIST Central Research Facilities (UCRF), Ulsan National Institute of Science and Technology (UNIST), Ulsan, Republic of Korea
    Contribution
    Investigation, Methodology, Performed mass spectrometry
    Competing interests
    No competing interests declared
  9. Jaehoon Kim

    Department of Biological Sciences, Korea Advanced Institute of Science and Technology (KAIST), Daejeon, Republic of Korea
    Contribution
    Methodology, Resources
    Competing interests
    The authors have no potential conflicts of interest to disclose
  10. Seyun Kim

    1. Department of Biological Sciences, Korea Advanced Institute of Science and Technology (KAIST), Daejeon, Republic of Korea
    2. KAIST Stem Cell Center, KAIST, Daejeon, Republic of Korea
    3. KAIST Institute for the BioCentury, KAIST, Daejeon, Republic of Korea
    Contribution
    Conceptualization, Funding acquisition, Project administration
    For correspondence
    seyunkim@kaist.ac.kr
    Competing interests
    The authors have no potential conflicts of interest to disclose
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0110-9414
  11. Daeyoup Lee

    Department of Biological Sciences, Korea Advanced Institute of Science and Technology (KAIST), Daejeon, Republic of Korea
    Contribution
    Conceptualization, Funding acquisition, Project administration, Supervision, Writing - review and editing
    For correspondence
    daeyoup@kaist.ac.kr
    Competing interests
    The authors have no potential conflicts of interest to disclose
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2006-1823

Funding

National Research Foundation of Korea (NRF-2020R1A2C3005765)

  • Seyun Kim

National Research Foundation of Korea (NRF-2018R1A5A1024261)

  • Seyun Kim
  • Daeyoup Lee

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank members of the S.K. and D.L. laboratory for their helpful discussions.

Senior Editor

  1. Jessica K Tyler, Weill Cornell Medicine, United States

Reviewing Editor

  1. Irwin Davidson, Institut de Génétique et de Biologie Moléculaire et Cellulaire, France

Reviewer

  1. Irwin Davidson, Institut de Génétique et de Biologie Moléculaire et Cellulaire, France

Publication history

  1. Received: September 1, 2021
  2. Preprint posted: September 15, 2021 (view preprint)
  3. Accepted: April 26, 2022
  4. Version of Record published: May 12, 2022 (version 1)
  5. Version of Record updated: May 17, 2022 (version 2)

Copyright

© 2022, Beon et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 176
    Page views
  • 38
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Jiyoon Beon
  2. Sungwook Han
  3. Hyeokjun Yang
  4. Seung Eun Park
  5. Kwangbeom Hyun
  6. Song-Yi Lee
  7. Hyun-Woo Rhee
  8. Jeong Kon Seo
  9. Jaehoon Kim
  10. Seyun Kim
  11. Daeyoup Lee
(2022)
Inositol polyphosphate multikinase physically binds to the SWI/SNF complex and modulates BRG1 occupancy in mouse embryonic stem cells
eLife 11:e73523.
https://doi.org/10.7554/eLife.73523

Further reading

    1. Chromosomes and Gene Expression
    2. Microbiology and Infectious Disease
    Bretta Hixson et al.
    Tools and Resources Updated

    Mosquitoes transmit numerous pathogens, but large gaps remain in our understanding of their physiology. To facilitate explorations of mosquito biology, we have created Aegypti-Atlas (http://aegyptiatlas.buchonlab.com/), an online resource hosting RNAseq profiles of Ae. aegypti body parts (head, thorax, abdomen, gut, Malpighian tubules, ovaries), gut regions (crop, proventriculus, anterior and posterior midgut, hindgut), and a gut time course of blood meal digestion. Using Aegypti-Atlas, we provide insights into regionalization of gut function, blood feeding response, and immune defenses. We find that the anterior and posterior midgut possess digestive specializations which are preserved in the blood-fed state. Blood feeding initiates the sequential induction and repression/depletion of multiple cohorts of peptidases. With respect to defense, immune signaling components, but not recognition or effector molecules, show enrichment in ovaries. Basal expression of antimicrobial peptides is dominated by holotricin and gambicin, which are expressed in carcass and digestive tissues, respectively, in a mutually exclusive manner. In the midgut, gambicin and other effectors are almost exclusively expressed in the anterior regions, while the posterior midgut exhibits hallmarks of immune tolerance. Finally, in a cross-species comparison between Ae. aegypti and Anopheles gambiae midguts, we observe that regional digestive and immune specializations are conserved, indicating that our dataset may be broadly relevant to multiple mosquito species. We demonstrate that the expression of orthologous genes is highly correlated, with the exception of a ‘species signature’ comprising a few highly/disparately expressed genes. With this work, we show the potential of Aegypti-Atlas to unlock a more complete understanding of mosquito biology.

    1. Chromosomes and Gene Expression
    2. Genetics and Genomics
    Bethany Sump et al.
    Research Article

    For some inducible genes, the rate and molecular mechanism of transcriptional activation depends on the prior experiences of the cell. This phenomenon, called epigenetic transcriptional memory, accelerates reactivation and requires both changes in chromatin structure and recruitment of poised RNA Polymerase II (RNAPII) to the promoter. Memory of inositol starvation in budding yeast involves a positive feedback loop between transcription factor-dependent interaction with the nuclear pore complex and histone H3 lysine 4 dimethylation (H3K4me2). While H3K4me2 is essential for recruitment of RNAPII and faster reactivation, RNAPII is not required for H3K4me2. Unlike RNAPII-dependent H3K4me2 associated with transcription, RNAPII-independent H3K4me2 requires Nup100, SET3C, the Leo1 subunit of the Paf1 complex and, upon degradation of an essential transcription factor, is inherited through multiple cell cycles. The writer of this mark (COMPASS) physically interacts with the potential reader (SET3C), suggesting a molecular mechanism for the spreading and re-incorporation of H3K4me2 following DNA replication.
