Notch-dependent and -independent transcription are modulated by tissue movements at gastrulation

  1. Julia Falo-Sanjuan
  2. Sarah Bray  Is a corresponding author
  1. Department of Physiology, Development and Neuroscience, University of Cambridge, United Kingdom

Abstract

Cells sense and integrate external information from diverse sources that include mechanical cues. Shaping of tissues during development may thus require coordination between mechanical forces from morphogenesis and cell-cell signalling to confer appropriate changes in gene expression. By live-imaging Notch-induced transcription in real time, we have discovered that morphogenetic movements during Drosophila gastrulation bring about an increase in activity-levels of a Notch-responsive enhancer. Mutations that disrupt the timing of gastrulation resulted in concomitant delays in transcription up-regulation that correlated with the start of mesoderm invagination. As a similar gastrulation-induced effect was detected when transcription was elicited by the intracellular domain NICD, it cannot be attributed to forces exerted on Notch receptor activation. A Notch-independent vnd enhancer also exhibited a modest gastrulation-induced activity increase in the same stripe of cells. Together, these observations argue that gastrulation-associated forces act on the nucleus to modulate transcription levels. This regulation was uncoupled when the complex linking the nucleoskeleton and cytoskeleton (LINC) was disrupted, indicating a likely conduit. We propose that the coupling between tissue-level mechanics, arising from gastrulation, and enhancer activity represents a general mechanism for ensuring correct tissue specification during development and that Notch-dependent enhancers are highly sensitive to this regulation.

Editor's evaluation

In this manuscript, Falo-Sanjuan and Bray provide an elegant set of experiments investigating how cell movements modulate Notch transcriptional activity during Drosophila gastrulation. Through a detailed and convincing analysis of live transcriptional reporters and gastrulation-defective mutants, they report a clear example of tissue movements affecting enhancer activity. The idea that morphogenetic movements can regulate the genome through mechanical changes in the nucleus is intriguing and important and is of broad interest to cell and developmental biologists.

https://doi.org/10.7554/eLife.73656.sa0

Introduction

Cells continuously sense and respond to their environment. This occurs via signaling pathways that detect and respond to external stimuli, such as morphogen gradients or direct cell-surface ligands. During development, information routed through these pathways feeds into networks of transcription factors that coordinate cell fates to pattern and regulate differentiation. At the same time, cells are exposed to mechanical forces from changes in tissue movements, deformations, and stiffness. In order for tissues to develop and function correctly, there must be mechanisms that couple cell signaling with the mechanical environment. Indeed, there is evidence that changes in cell morphology can impact on gene expression (Alam et al., 2016; Guilluy et al., 2014), but this has been little explored in the context of developmental signaling.

Notch is a key developmental signaling pathway that transmits information between cells in contact. Prior to ligand binding, the ADAM10 cleavage site in Notch is hidden by the negative regulatory region (NRR). To reveal this site, ligand binding exerts a force on the receptor, leading to a displacement of the NRR (Gordon et al., 2007; Gordon et al., 2015). A second cleavage by γ-secretase then releases the intracellular domain, NICD, which forms a complex with a DNA-binding transcription factor and a co-activator to regulate transcription of target genes. In many developmental processes, Notch activation occurs contemporaneously with morphological changes which could modulate pathway activity so that signaling and tissue rearrangements are coordinated (Paolini et al., 2021; Han et al., 2021; Engel-Pizcueta and Pujades, 2021; Lloyd-Lewis et al., 2019). For example, cell shape or tension changes in the neighboring cells could impact on the forces exerted on the receptor to alter the amount of cleavage (Shaya et al., 2017). Alternatively, mechanical forces could alter the transcriptional output from Notch activation, by changing transport through nuclear pores or altering chromatin compaction (Boumendil et al., 2019; Gozalo et al., 2020).

To distinguish whether morphological events exert an influence on signaling, it is important to monitor the outputs in real-time when the changes are occurring. We have been investigating the onset of Notch activity in the Drosophila embryo using the MS2-MCP system to monitor the transcriptional response live. Notch activity initiates in a stripe of cells flanking the mesoderm, the mesectoderm (MSE), in the last cycle prior to gastrulation (nuclear cycle 14, nc14), and remains active throughout gastrulation. These cells divide after gastrulation, change their polarity and form a boundary that separates the flanking neuroectoderm (Yu et al., 2021). They subsequently form the midline of the central nervous system, giving rise to specific neuronal and glial progeny (Wheeler et al., 2008) under the control of the Notch regulated single-minded gene, which is essential for cell division after gastrulation, acquisition of their midline fate and proper axonal connectivity (Nambu et al., 1990; Nambu et al., 1991; Hummel et al., 1999). Defects in the establishment of the mesectoderm boundary result in mixing of the left and right neuroectoderm as well as later effects on midline development (Yu et al., 2021). A notable feature of the transcriptional profiles from two Notch-responsive enhancers, sim and m5/m8, is that they undergo a transition approximately 50 min into nc14, when transcription levels increase approximately twofold (Falo-Sanjuan et al., 2019). This transition occurs as the embryo undergoes gastrulation, making it plausible that mechanical forces or tissue reorganization at this stage are responsible for the increase in transcription, and may contribute to the integrity of boundary formation (Nambu et al., 1990; Yu et al., 2021).

Gastrulation initiates toward the end of nc14, approximately 3 hr post fertilization. During this process, the apical surface of the most ventral subset of mesoderm (ME) cells constricts and cells shorten along their apico-basal axis (Leptin and Grunewald, 1990; Sweeton et al., 1991). This occurs in response to apical re-localization of Myosin II (MyoII), which is controlled by a GPCR (G-protein coupled receptor) cascade (Sweeton et al., 1991; Manning et al., 2013; Parks and Wieschaus, 1991; Barrett et al., 1997; Kölsch et al., 2007; Dawes-Hoang et al., 2005). As a consequence, the ‘ventral furrow’ is formed, which invaginates bringing the remainder of the mesoderm cells with it (Leptin and Grunewald, 1990; Sweeton et al., 1991). Studies of the forces generated indicate that, although the force to invaginate the furrow is produced autonomously in the mesoderm by pulses of acto-myosin contractions (Martin et al., 2009), the mechanical properties of tissues adjacent to it, such as the MSE and neuroectoderm (NE), also change and may be important to allow invagination to occur (Rauzi et al., 2015).

We set out to investigate whether there is a causal relationship between morphological events occurring at gastrulation and the change in levels of Notch-dependent transcription, using live imaging. Strikingly, we found a strong correlation between the start of mesoderm invagination and the time at which transcription levels increased. This change in transcription was delayed or absent when gastrulation was perturbed using different genetic mutations and manipulations. A Notch-independent enhancer exhibited similar albeit more modest effect, suggesting that the mechanism involves a more general feature. Furthermore, the Notch intracellular fragment, NICD, was also subject to similar regulation. The results indicate therefore that the mechanical context has a significant impact on the transcriptional outcome of Notch signaling but argue that this operates downstream of receptor activation and also affects other developmental enhancer(s). This type of coordination between tissue forces, developmental signaling and nuclear activity is thus likely to be of general importance for shaping tissues and organs as they form.

Results

Notch-dependent transcription increases at gastrulation

During early Drosophila embryogenesis, Notch is active in the mesectoderm (MSE), a stripe of cells that border the mesoderm (Nambu et al., 1990; Morel and Schweisguth, 2000; Morel et al., 2003). Activity commences midway through nc14 and continues during gastrulation, persisting in most MSE cells until they divide to form the precursors of the midline (Martín-Bermudo et al., 1995; Cowden and Levine, 2002; Falo-Sanjuan et al., 2019). Measuring transcription live, using the MS2 system, reveals that there is a striking increase in the mean levels of transcription produced by Notch-responsive enhancers during gastrulation. This increase occurs approximately 20 min after transcription initiates, which corresponds to 50 min after the start of nuclear cycle 14 (nc14). At this point, the transcription levels from two distinct Notch-responsive mesectodermal enhancers, m5/m8 and sim (Zinzen et al., 2006; Hong et al., 2013), almost double in magnitude (Figure 1AB, Falo-Sanjuan et al., 2019). The change in magnitude occurs with different promoter combinations and with reporters inserted into different genomic positions (Figure 1—figure supplement 1AC, Falo-Sanjuan et al., 2019), arguing it is a feature of the transcriptional response driven by the Notch-responsive enhancers. However, there was no coordinated transition in levels when the profiles from all cells were aligned by activity onset in the MSE (Figure 1—figure supplement 2B), arguing that the increase is not dependent on the length of time that the enhancers have been active and thus may be related to a specific developmental event/time.

Figure 1 with 2 supplements see all

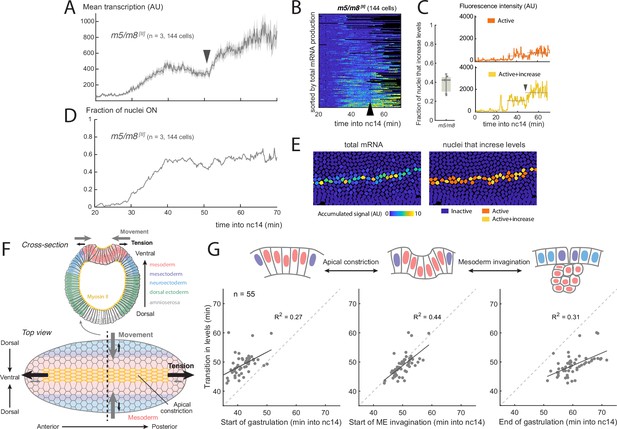

Increase in Notch-dependent transcription occurs at gastrulation.

(A) Mean profile of activity of the Notch-responsive m5/m8 [II] enhancer during nc14. (B) Heatmap showing m5/m8 [II] activity in all MSE cells over time, arrowhead indicates the transition point. (C) Proportion of active cells in each embryo that increase levels of m5/m8 [II] transcription at gastrulation (left; median, Q1/Q3 and SD shown) and examples of individual m5/m8 [II] transcription traces with ∼2x increase (yellow) or inflection only (orange). Dotted lines indicate mean transcription levels in the 15 min before and after gastrulation. (D) Fraction of tracked nuclei that are actively transcribing during nc14. (E) Still frame showing tracked nuclei color-coded for the total transcription produced by each nuclei (left) and by whether they exhibit a ∼2x increase in levels (right). (F) Schematic drawing of the forces generated during gastrulation. A cross-section with the different regions along the dorso-ventral axis (top) and top view from the ventral side (bottom) are shown. The most ventral part of the mesoderm (red-shaded) localizes Myosin II (yellow) apically, which generates apical constrictions and leads to tension generated towards the anterior and posterior ends of the embryo, producing ventral movement from the mesoderm, mesectoderm and neuroectoderm cells. (G) Correlation between the time at which mean levels of transcription increase in an embryo and the timing of three events during gastrulation. Each dot indicates an embryo from a collection of different Notch-responsive enhancers, promoters and landing sites (n=55 videos). Panels A-G were obtained by re-analyzing data from Falo-Sanjuan et al., 2019. Panel F has been adapted from Figure 6B from Martin, 2020 and Figure 1 from Leptin, 1999.

The observed increase in the mean transcriptional activity was not due to an increase in the number of active cells (Figure 1D), but rather to a change in the profiles within individual nuclei. This differed in magnitude from nucleus to nucleus (Figure 1—figure supplement 2) . Thus, when m5/m8 transcription profiles from individual nuclei were analyzed, a clear, circa twofold, transition in levels was detected in 30–45% of the MSE nuclei (Figure 1C). Others did not show such a major increase in levels, but several still manifest an inflection in the bursting at the equivalent time (Figure 1C).

The transition in levels occurs whilst the embryo undergoes gastrulation (Video 1), a process that starts midway through nc14 and lasts approximately 20 min. Gastrulation begins when the most ventral mesodermal cells constrict their apical surface to initiate ME invagination and results in the convergence of the two MSE stripes at the midline (Figure 1GF, Leptin and Grunewald, 1990; Sweeton et al., 1991). Given the large scale morphogenetic movements involved, it is possible that these influence the transcriptional activity. We therefore asked whether any of the changes that take place at gastrulation are correlated with the transition in transcription from the Notch-responsive enhancers, by analyzing all the time-course data previously obtained from Notch-responsive reporters (combining different enhancers, promoters and landing sites, n=55 videos, Falo-Sanjuan et al., 2019). On an embryo-by-embryo basis, we examined the relationship between the transcription transition-point and three different features during gastrulation: start of apical constriction, start of mesoderm invagination (defined as when mesectoderm cells first start to move ventrally) and the end of gastrulation (when all mesoderm cells have invaginated). Of the three, the highest correlation (both in terms of R2 and both events occurring at similar timepoints) was with the start of mesoderm invagination (Figure 1G). This increase was not due to changes in the Z position of the nuclei that occurred during this period. The extent of nuclear movement with respect to the plane of imaging depends on the precise orientation of the embryo. Taking advantage of this variation between embryos, we measured the change in Z position for each in relation to the fold increase in transcription levels and found no correlation (R2 coefficient of 0, Figure 1—figure supplement 1E). Nevertheless, because there is a temporal correlation with gastrulation, a plausible model is that the tissue level morphogenetic movements from gastrulation are responsible for the increase in transcription levels.

Video 1
Activity of m5/m8 during gastrulation.

Video showing His2Av-RFP channel (orthogonal view, left ; and maximum intensity projection, center) and MCP-GFP channel with transcription directed by m5/m8 [II] (maximum intensity projection, right) in control embryos. The top row shows orthogonal view in the His2Av-RFP channel and maximum Y projection in the MCP-GFP channel. 0.36 µm/px XY resolution, 29x1µm slices and time resolution of 15s/frame. Anterior to the left; embryo imaged from the ventral side. Time indicates minutes from the beginning of nc14. Bottom plot shows mean transcription produced by m5/m8 [II] in this embryo, synchronized with the video to show the increase in activity occurs as the embryo undergoes gastrulation.

Events at gastrulation modulate Notch-dependent transcription

To investigate whether morphological changes at gastrulation bring about the transition in Notch-dependent transcription, we used a combination of approaches to disrupt gastrulation while live-imaging transcription from m5/m8 [II], an insertion of the reporter on the second chromosome that responds robustly to Notch activity (Falo-Sanjuan et al., 2019). Gastrulation is coordinated by a signaling cascade that controls Myosin contractility, which in turn produces apical constriction of mesoderm cells to drive invagination (Figure 2A; Dawes-Hoang et al., 2005; Kölsch et al., 2007). First, we performed germline RNAi knockdowns (KD) to eliminate maternally encoded proteins that act in the signaling cascade, namely α-Catenin (α-Cat), a key component of Adherens Junctions (AJ), Concertina (Cta), and RhoGEF2, which are the Gα and GEF (Guanine nucleotide Exchange Factor) of the signaling cascade (Parks and Wieschaus, 1991; Barrett et al., 1997; Figure 2A). Apical relocalization of Armadillo (an AJ component) and RhoGEF2 is required for gastrulation (Kölsch et al., 2007) and Armadillo is required for apical myosin relocalization (Dawes-Hoang et al., 2005). We used α-Cat RNAi rather than Arm RNAi because it produced a much stronger KD. RNAi depletion produced morphological phenotypes consistent with those previously described, except in the case of RhoGEF2 (Parks and Wieschaus, 1991; Barrett et al., 1997; Dawes-Hoang et al., 2005), where the depleted embryos were viable and lacked obvious gross morphological defects, such as extra folds, suggesting a lower knock-down efficiency (Figure 2—figure supplement 1A).

Figure 2 with 4 supplements see all

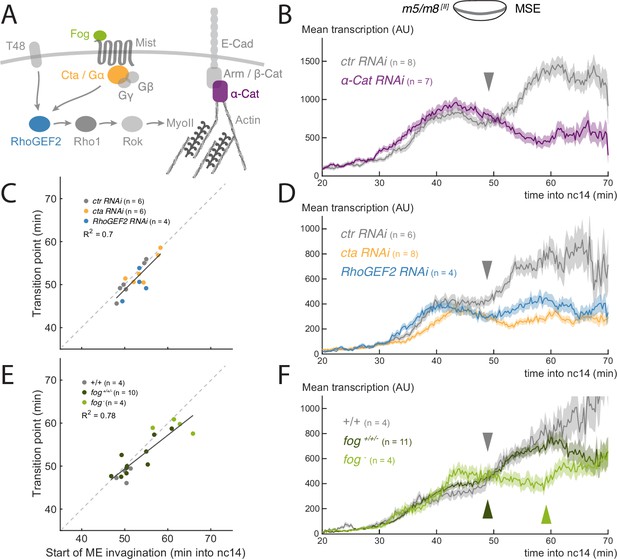

Disruption of gastrulation correlates with changes in the transition in Notch-dependent transcription.

(A) Simplified scheme of the signaling cascade that controls MyoII contractility during Drosophila gastrulation. (B) Mean profile of m5/m8 [II] activity in α-Cat RNAi embryos compared to control embryos. (C) Correlation between the start of invagination and transition in levels of transcription in each embryo, in cta, RhoGEF2 and control RNAi embryos. (D) Mean profile of m5/m8 [II] activity in cta, RhoGEF2 and control RNAi embryos. (E) Correlation between the start of invagination and transition in levels of transcription in each embryo, in fog mutant embryos compared to control embryos and other non-fog hemizygous embryos obtained from the same cross. (F) Mean profile of m5/m8 activity in fog mutant embryos compared to control embryos and other non-fog hemizygous embryos obtained from the same cross. The transition in levels is delayed approximately 10 min in fog mutants (arrowheads). Mean transcription profiles show mean and SEM (shaded area) of MS2 fluorescent traces from all cells combined from multiple embryos (n embryo numbers indicated in each). R2 coefficients are calculated after pooling all points shown in the same plot together. The transition point was only considered when a clear change in mean levels of transcription in an individual embryo could be observed, therefore the number of points in C and E could be smaller than the total number of embryos collected for each condition.

Of the three tested, α-Cat KD led to the most severe disruption of gastrulation; mesoderm cells failed to invaginate and divided externally (Figure 2—figure supplement 1A-C, Video 2). Strikingly, no increase in m5/m8 [II]-directed transcription occurred in these embryos. Instead, the mean levels decreased after the initial activation, at the time when the increase in levels normally occurs, and then plateaued at a lower level (Figure 2B, Figure 2—figure supplement 2B). This was because few individual nuclei exhibited any increase in levels in these embryos (Figure 2—figure supplement 2A). Other reporters that also exhibited increased levels during gastrulation, namely sim [II] and m5/m8 [III], were similarly affected by α-Cat depletion (Figure 2—figure supplement 3). We note the mean levels of transcription from the m5/m8 [II] reporter were not significantly reduced prior to gastrulation by α-Cat depletion, unlike those from m5/m8 [III] and the endogenous E(spl)m8-HLH gene that both showed decreased levels also during cellularization (Falo-Sanjuan and Bray, 2021). The difference likely arises because this m5/m8 [II] insertion achieves maximal transcription at lower levels of Notch activity, based on its response in different contexts, and that α-Cat depletion reduces, but does not fully compromise, Notch activity (Falo-Sanjuan and Bray, 2021).

Video 2
Effects on gastrulation of α-Cat RNAi and fog mutant background.

Videos showing His2Av-RFP channel (orthogonal view, left; and maximum intensity projection, center) and MCP-GFP channel with transcription directed by m5/m8 [II] (maximum intensity projection, right) in α-Cat RNAi (top) and fog- (bottom) embryos. 0.36 µm/px XY resolution, 27x1µm (α-Cat RNAi) and 29 × 1µm (fog-) slices and time resolution of 15 s/frame. Anterior to the left; embryo imaged from the ventral side. Time indicates minutes from the beginning of nc14.

Depletion of either Cta or RhoGEF2 resulted in a slowing of gastrulation. Cta depletion also caused variable delays in the start of mesoderm invagination (Figure 2—figure supplement 2BC; Video 3). In neither genotype was there a normal increase in transcription at the time of gastrulation. The mean levels remained similar to those prior to gastrulation and, on an individual nucleus basis, very few exhibited any marked change in levels (Figure 2D, Figure 2—figure supplement 2CD). Although there was no clear increase detected, the profiles retained an inflection point, when there was a transition between the early ‘peak’ levels and the later activity, manifest as a small dip in levels between the two phases. To assess whether this transition point was related to gastrulation events, the time when the transition occurred was plotted against the mile-stones for each embryo individually. The strongest correlation was with the start of mesoderm invagination (coefficient of R2 = 0.7, Figure 2C), as it was for the increase in levels that occurs in wild-type embryos.

Video 3
Effects on gastrulation of cta and RhoGEF2 RNAi.

Videos showing His2Av-RFP channel (orthogonal view, left ; and maximum intensity projection, center) and MCP-GFP channel with transcription directed by m5/m8 [II] (maximum intensity projection, right) in cta (top) and RhoGEF2 RNAi (bottom) embryos. 0.36 µm/px XY resolution, 29x1µm slices and time resolution of 15s/frame. Anterior to the left; embryo imaged from the ventral side. Time indicates minutes from the beginning of nc14.

We next evaluated the consequences from mutations affecting the zygotically required gene folded gastrulation (fog), which encodes the ligand for the GPCR in the cascade regulating gastrulation (Costa et al., 1994; Dawes-Hoang et al., 2005). fog- hemizygous embryos exhibited a delayed start of mesoderm invagination and slowed gastrulation overall (Figure 2—figure supplement 1BC Video 2). In these embryos, levels of transcription increased, although less than in normal embryos (Figure 2F, Figure 2—figure supplement 2EF). Notably, there was a significant 10 min delay in the time at which levels increased, from approximately 50 min to 60 min into nc14 (Figure 2F) . This time-point also correlated well (R2=0.78) with the start of mesoderm invagination when analyzed on an embryo-by embryo basis (Figure 2E) , similar to the transition-point in the RNAi depleted embryos.

We note other genetic manipulations that do not affect gastrulation do not alter the increase of m5/m8 [II] activity at the time of gastrulation (Figure 2—figure supplement 4), although some affect other features of the response, such as an overall reduction in mean levels. This further supports that the observed effects are specific to gastrulation and not an indirect consequence of the manipulations performed.

Based on these genetic experiments, the increase in Notch-dependent transcription levels is perturbed or delayed in conditions where gastrulation is blocked or slowed down. We hypothesize therefore that normal ‘fast’ gastrulation is required for the increase in levels and, since we observe a consistent correlation between the start of mesoderm invagination and the transition in transcription levels, it is likely that this is the causal step.

Gastrulation also modulates Notch-independent transcription

There are several different types of mechanisms that could explain a causal link between gastrulation and Notch-dependent transcription levels. As Notch activation involves a pulling force from Delta in adjacent cells (Gordon et al., 2015), one model is that increased cell surface tensions from the morphogenetic movements at gastrulation lead to increased Notch cleavage and NICD release. An alternative model is that the forces bring about a change in nuclear properties that consequently impact on transcription. For example, these could include changes in nuclear import, chromatin reorganization or chromatin mobility.

To distinguish these possibilities we took two approaches. First, we generated a transcriptional reporter using a Notch-independent enhancer from the ventral nervous system defective (vnd) gene. Unlike many of the other embryonic enhancers studied to date, the vnd early embryonic enhancer (vndEEE) is reported to be active throughout nc14 and to drive expression in a band of cells that overlap the MSE (Stathopoulos et al., 2002). As predicted, a new MS2 reporter containing this enhancer, referred to here as vnd, was active from the beginning of nc14 throughout gastrulation and recapitulated the spatial pattern of vnd (Video 4). After a peak of transcription at the start of nc14, mean levels of vnd transcription from all active nuclei exhibited no increase in levels at gastrulation. Indeed, the overall mean decreased at this time. However, when nuclei were separated according to their expression domain, an increase in mean levels was detectable specifically in MSE nuclei at around 50 min into nc14, similar to the m5/m8 enhancer (Figure 3A) . No increase was detected in the other, NE domain (Figure 3B) . The proportion of nuclei that exhibited a clear increase in levels when considered individually was, however, considerably lower than for m5/m8 (16% of MSE nuclei and 2% of NE nuclei, Figure 3C). These results suggest that the activity of Notch-independent as well as Notch-dependent enhancers are affected at the time of gastrulation, albeit the effect is more modest for Notch-independent activity, and that this property is limited to the mesectodermal cells.

Video 4
Expression of vnd in control embryos.

Videos showing His2Av-RFP channel (orthogonal view, left ; and maximum intensity projection, center) and MCP-GFP channel with transcription directed by vnd (maximum intensity projection, right) in control embryos. 0.36 µm/px XY resolution, 29x1µm slices and time resolution of 15s/frame. Anterior to the left; embryo imaged from the ventral side. Time indicates minutes from the beginning of nc14.

Figure 3 with 1 supplement see all

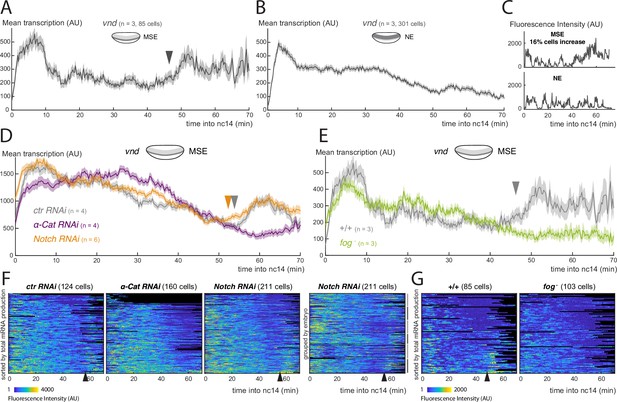

Activity of the Notch-independent vnd enhancer is modulated by gastrulation.

(A) Mean profile of transcription from vnd in MSE nuclei. (B) Mean profile of transcription of vnd in NE nuclei. (C) Examples of vnd transcription traces from MSE and NE, with (upper) and without (lower) a marked increase at the time of gastrulation. (D) Mean profile of transcription from vnd in MSE nuclei in α-Cat and Notch RNAi compared to control embryos. (E) Mean profile of transcription from vnd in MSE nuclei in fog mutant embryos compared to control embryos. (F) Heatmaps showing vnd activity in all MSE cells over time in α-Cat, Notch and control RNAi embryos, sorted by total mRNA production (first 3 plots) and Notch RNAi grouped by embryo. (G) Heatmaps showing vnd activity in all MSE cells over time in fog- embryos compared to controls, sorted by total mRNA production. Mean transcription profiles show mean and SEM (shaded area) of MS2 fluorescent traces from all cells combined from multiple embryos (n embryo numbers indicated in each). Arrowheads indicate increase in the mean levels of transcription.

We next investigated whether the increase in vnd activity in MSE nuclei was also linked to gastrulation, by measuring transcription in α-Cat depleted and fog mutant embryos. Neither genotype showed an increase in transcription in MSE cells (Figure 3D-G), instead the levels remained at a plateau similar to that in the NE nuclei (Figure 3B) . Thus, it appears that vnd transcription in MSE nuclei is also augmented due to gastrulation, in a similar manner to m5/m8-directed transcription. As there is no evidence that vnd is regulated by Notch (Markstein et al., 2004), this implies that gastrulation exerts effects on transcription independent of any effects on Notch activation. To verify that the modulation of vnd is not Notch dependent, we used an RNAi line to deplete Notch levels. As predicted, this treatment greatly reduced transcription from m5/m8 [II] (Figure 3—figure supplement 1A,B). In contrast, there was no change in the timing of either the transition or the increase in levels from the vnd enhancer in any of the Notch RNAi embryos ( Figure 3DF). Together the results indicate that gastrulation also modulates the activity of a Notch-independent vnd enhancer, suggesting that a general, rather than a Notch-specific, mechanism is involved.

Regulation of Notch-dependent transcription by gastrulation occurs downstream of pathway activation

The results with the vnd enhancer suggest that the gastrulation-induced changes in m5/m8 transcription do not arise from increased Notch cleavage. As a second approach to investigate at which level of the pathway this modulation occurs, we examined whether gastrulation exerted any effects on transcription levels when the intracellular fragment NICD was expressed ectopically. To do so, we used an eve2 transgene to direct expression of NICD in an orthogonal stripe overlapping the MSE, which is sufficient to drive ectopic transcription from m5/m8 (Kosman and Small, 1997; Cowden and Levine, 2002; Falo-Sanjuan et al., 2019). The mean profile of m5/m8 [II] transcription in MSE nuclei that were exposed to NICD had two peaks, the first shortly after the onset of NICD expression and the second during gastrulation. The transition between the two, the ‘trough’, slightly preceded the onset of mesoderm invagination. Thus, the second ‘peak’ was initiated at the start of mesoderm invagination, characteristic of the gastrulation-induced increase in transcription in normal conditions. As MSE nuclei will be exposed to endogenous Notch signaling as well as the ectopic NICD, we also examined the profiles in the bordering NE nuclei. These exhibited a similar trough in levels prior to gastrulation, although the subsequent activity did not achieve the same levels as in the MSE nuclei (Figure 4—figure supplement 1B) . Together, these data support the model that gastrulation has an effect on m5/m8 transcription that is independent of any influence on Notch cleavage.

To further verify that gastrulation-dependent changes occur independent from Notch cleavage, we monitored the transition in transcription levels elicited by NICD in embryos where the endogenous Notch was depleted by RNAi. No transcription was detected outside the domain of the eve2 stripe (Figure 4—figure supplement 1A, Video 5), confirming that Notch depletion was successful. Strikingly, MSE nuclei within the stripe where NICD was expressed exhibited the same profile of activity in Notch RNAi depleted embryos to those from control embryos with intact Notch. In particular, the levels of transcription increased at the time of gastrulation and to the same degree (Figure 4AC). Thus, the transition in transcription levels at gastrulation occurs even in the absence of full-length Notch, arguing the effects are downstream of receptor cleavage.

Video 5
Expression of m5/m8 [II] upon eve2-NICD expression in control, Notch and α-Cat RNAi embryos.

Videos showing His2Av-RFP channel (orthogonal view, left ; and maximum intensity projection, center) and MCP-GFP channel with transcription directed by m5/m8 [II] (maximum intensity projection, right) in control (top), Notch (middle) and α-Cat RNAi (bottom) embryos. 0.36 µm/px XY resolution, 32x1µm slices and time resolution of 20s/frame. Anterior to the left; embryo imaged from the ventral side. Time indicates minutes from the beginning of nc14.

Figure 4 with 1 supplement see all

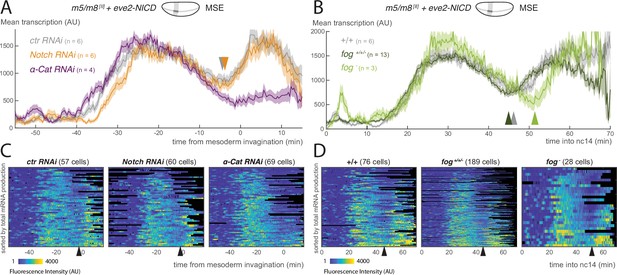

Modulation of Notch-dependent transcription occurs downstream of pathway activation.

(A) Mean profile of transcription from m5/m8 [II] in MSE nuclei, aligned by the time of ME invagination, in α-Cat and Notch RNAi compared to control embryos in the presence of ectopic NICD (produced by eve2-NICD). (B) Mean profile of m5/m8 [II] transcription in MSE nuclei with ectopic NICD in homozygous fog mutants compared to control or heterozygous embryos from the same cross (fog+/+/-). (C) Heatmaps showing m5/m8 [II] activity in MSE cells within eve2-NICD domain, aligned by the time of ME invagination, in α-Cat, Notch and control RNAi embryos. (D) Heatmaps showing m5/m8 [II] activity in MSE cells within eve2-NICD domain over time in fog- embryos compared to control or heterozygous embryos obtained from the same cross (fog+/+/-). Mean transcription profiles show mean and SEM (shaded area) of MS2 fluorescent traces from all cells combined from multiple embryos (n embryo numbers indicated in each). Arrowheads indicate an increase in the mean levels of transcription.

To investigate whether the transition in transcription that occurs in the presence of NICD is directly related to gastrulation, we examined it in embryos where gastrulation was disrupted by α-Cat depletion or the fog allele, as above. In the α-Cat depleted embryos, where gastrulation was completely disrupted, there was no second ‘peak’ of transcription from m5/m8 [II]. Instead the levels remained at low levels from the time when mesoderm invagination would normally occur (Figure 4AC). fog mutant embryos, in which gastrulation was delayed and slowed down, retained a second peak of m5/m8 [II] transcription, but its onset was delayed in both MSE and NE nuclei (Figure 4BD, Figure 4—figure supplement 1BC) . Notably, on an embryo by embryo basis, the delayed transition-point in the MSE correlated with the start of mesoderm invagination (R2 coefficient of 0.62) (Figure 4—figure supplement 1D) .

Altogether, the results suggest that the mechanics of gastrulation have an input into transcription in the MSE, that brings about an increase in the levels of mRNA produced. Because the effects on the m5/m8 enhancer are more marked than those on vnd, Notch-dependent processes may be more sensitive. Furthermore, the consequences are strongest in MSE cells, suggesting that gastrulation exerts differential impacts across the ectoderm, which might be related to the gradients of forces and cell deformation that have been measured (Fuse et al., 2013; Rauzi et al., 2015). Indeed, only a subset of mesectoderm cells exhibit a marked increase in transcription levels, suggesting there may be specific properties that are involved. We therefore re-analyzed videos from embryos expressing the cell membrane marker Gap43-mCherry and m5/m8 [II] transcription (Falo-Sanjuan and Bray, 2021), to track cell membranes over time and measure their properties (Figure 5—figure supplement 1A, Video 6). We found no difference in the area of mesectodem cells that exhibited increased m5/m8 [II] transcription compared to their neighbors where there was no marked increase (Figure 5—figure supplement 2B) nor in the eccentricity or length of their contact with mesoderm cells. A feed-forward loop between mechanical forces and Fog has been previously described, which involves inhibition of Fog endocytosis and could also be affecting Notch signaling by regulation of endocytosis (Pouille et al., 2009). However, as the step-change in transcription is affected by the loss of Fog and α-Cat, and also affects vnd and NICD-dependent transcription, the mechanism appears to involve a step subsequent to the alteration of endocytosis.

Video 6
Analysis of cellular shape in relation to m5/m8 activity.

From left to right, video showing: (i) membranes using the marker Gap43-mCherry (maximum intensity projection of 3 µm after surface correction), (ii) transcription from m5/m8-MS2 [II] (maximum intensity projection of the whole stack after surface correction), (iii) overlaid Gap43-mCherry (magenta) and MCP-GFP (grey) signal, (iv) tracked video showing cell boundaries (grey), cells classified as mesoderm (purple), mesectoderm cells that increase MS2 signal during gastrulation (yellow) and mesectoderm cells that do not increase (orange). 0.36 µm/px XY resolution, 36x1µm slices and time resolution of 20 s/frame. Anterior to the left; embryo imaged from the ventral side. Time indicates minutes from the beginning of nc14.

Disruption of LINC complex alters the profile of m5/m8 transcription

Amongst mechanisms that could be responsible for the gastrulation-related increase in transcriptional activity in MSE nuclei, one hypothesis is that forces from cell rearrangements are transmitted through the cytoskeleton to the nucleus via the Linker of Nucleoskeleton and Cytoskeleton (LINC) complex (Figure 5A, Crisp et al., 2006). In several other contexts, LINC is integral for transducing nuclear mechanical signals to confer changes in both gene expression and chromatin organization (Hamouda et al., 2020). We therefore set out to test the impact from disrupting components of the LINC complex on the transcription profile of m5/m8 [II]. Of the three conditions tested, only maternal knockdown of klarsicht (klar), which encodes a KASH protein, was successful, producing embryos with strongly reduced klar mRNA (Figure 5—figure supplement 2A) . Depletion of mRNA encoding SUN protein Klaroid (Koi) was unsuccessful and Lamin C mRNA knockdown produced no viable embryos. We therefore focused on the effects produced by klar mRNA depletion. Klar is known to influence lipid bodies in the embryo and klar mutant embryos are more transparent than controls (Supatto et al., 2009). Consistently, klar RNAi embryos exhibited higher fluorescent intensity signals (control embryos had 15.8% lower RFP and 11% lower GFP signals, Figure 5—figure supplement 2DE). We thus compensated the quantified MS2 signal in klar RNAi embryos for increased clearing by 11% (Figure 5—figure supplement 2F) .

Figure 5 with 2 supplements see all

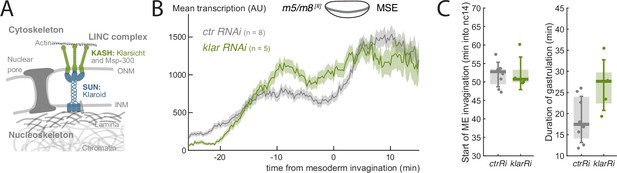

LINC complex disruption decouples gastrulation progression and changes in transcription.

(A) Scheme depicting LINC complex that connects cytoskeleton and nucleoskeleton, Drosophila KASH and SUN proteins Klarsicht and Klaroid are highlighted. (B) Mean profile of transcription from m5/m8 [II] in klar RNAi compared to control embryos. (C) Onset of ME invagination (left) and duration of gastrulation in klar and control RNAi embryos. Boxplots show median, Q1/Q3 quartiles and SD. Control embryos are the same as shown in Figure 2 and Figure 2—figure supplement 1B.

If the LINC complex was involved in transcription modulation, we would expect its disruption to result in similar flat transcription levels to those seen when gastrulation is perturbed. Indeed, Klar disruption did yield flatter levels of m5/m8 [II] transcription. The early phase of transcription was slightly elevated and there was no subsequent transition or reduction in the late phase (Figure 5B, Figure 5—figure supplement 2B) . As there was no distinct transition at the time of mesoderm invagination, this suggests there is an uncoupling of the transcription profiles from the gastrulation movements caused by LINC complex disruption. However, as these embryos exhibited longer and less robust gastrulation (Figure 5C, Figure 5—figure supplement 2C) it is not possible to fully rule out that the lack of a normal increase in transcription are the result of these indirect effects on gastrulation. Nevertheless, given the key role played by Klar in linking the cytoskeleton to the nucleus, it is highly plausible that the change in profile from the klar mRNA knock-down occurs because the gastrulation movements have become uncoupled from transcription.

Changes in nuclear properties at gastrulation

We set out to explore mechanisms to explain how gastrulation alters transcription, via the LINC complex. We considered two possibilities. One is that it brings about a change in nuclear import properties, as has previously been reported (Uzer et al., 2018; Jahed et al., 2016). This could involve a general change in nuclear import or a specific change in nuclear levels of key transcription factors including Twist, which is required for activity of both m5/m8 and vnd. Indeed, levels of Twist are regulated by mechanical forces in some contexts (Farge, 2003; Desprat et al., 2008). A second possibility is that the force on the nucleus results in changes in chromatin compaction or accessibility, rendering the target loci more accessible to NICD complexes or to transcription machinery.

We first investigated whether there were any general changes in the nuclear import properties by analyzing the nuclear levels, and nuclear exclusion, of fluorescently-tagged molecules of different dimensions, including fluorescently-tagged dextrans of two molecular weights (70 kDa and 40 kDa), as well as several tagged variants of GFP, with and without a nuclear localization signal (nls). None of these exhibited any change in nuclear levels at the time of gastrulation, (Figure 6—figure supplement 1AB), including 70kDa-FITC dextran which exhibited the highest nuclear exclusion (Figure 6—figure supplement 1A), consistent with previous data (Hampoelz et al., 2016). Likewise, there were no gastrulation-related changes in nuclear levels of several core transcriptional regulators, including subunits of Mediator complex (Med4, Med17, Skd, Figure 6—figure supplement 1C) and the histone acetylase CBP/P300 (Nejire) (Figure 6—figure supplement 1D) . These results argue that there is not a general change in the permeability of nuclear pores that can account for the increase in transcription at gastrulation.

We next investigated whether nuclear levels of Twist change at the time of gastrulation. To do so, we used a Twist-LlamaTag fusion (Bothma et al., 2018), so that nuclear levels of newly encoded Twist could be detected via a ubiquitously expressed mCherry, without the delay from protein folding that occurs when visualizing fluorescent proteins directly (Figure 6C) . The measurements showed that Twist levels increase in the mesoderm throughout nc14. However, no clear change or additional increase in nuclear levels occurred in mesectoderm cells at the time of gastrulation (Figure 6AB, Video 7). These results argue that changes in Twist import/levels are not responsible for the observed effects of gastrulation on transcription and are consistent with our previous observation that mutating all Twist binding sites in m5/m8 [II] does not prevent the increase (Falo-Sanjuan et al., 2019). We note also that nuclear levels of Su(H)-GFP increased continuously throughout nc14 in a similar manner to Twist, with no step-wise change at the time of gastrulation, while H-GFP remained constant (Figure 6—figure supplement 1D) . Overall, these observations suggest that changes in nuclear import, either general or of specific transcription factors, are not responsible for the increased transcriptional activity occurring during gastrulation.

Figure 6 with 3 supplements see all
Nuclear levels of Twist and chromatin properties during gastrulation.

(A) Still images from a video of an embryo expressing endogenous Twist fused to LlamaTag, which binds mCherry and allows to visualize nuclear levels of zygotically produced Twist (see C). Arrowhead indicates the position of the mesectoderm, note that Twist levels remain lower in these nuclei than in the central mesoderm. (B) Quantification of nuclear levels of Twist in mesoderm and mesectoderm during gastrulation. (C) LlamaTag approach: Twist is fused to an anti-mCherry nanobody (LlamaTag) that binds free and already fluorescent mCherry that has been maternally loaded in the embryo. (D) Still of the start of mesoderm invagination from a video of an embryo expressing the nuclear membrane marker Nup107-RFP (cyan) and MCP-GFP (grey) to quantify m5/m8 [II] transcription and mark mesectoderm nuclei (left) and segmented nuclei color-coded based on the different cell populations defined from MS2 signal (ME: mesoderm, MSE: mesectoderm, NE: neuroectoderm). Center panel shows view from the top and right panel shows lateral view. (E) Quantification of average His2Av-RFP intensity around the MS2 spot, as a proxy of chromatin compaction, over time in control and α-Cat RNAi embryos. (F) Quantification of the average MS2 spot movement (distance moved relative to the nucleus centroid / time) over time in control and α-Cat RNAi embryos. B, E and F show mean and SEM (shaded area) from all cells combined from multiple embryos (n embryo numbers indicated in each). In F, values were smoothed over time using a median filter of 8 frames (2 min).

Video 7
Levels of nuclear Twist during nc14.

Video of an embryo expressing endogenous Twist fused to a LlamaTag (anti-mCherry nanobody) that binds maternally provided and fluorescenty matured mCherry. Inverted maximum intensity projection shown. 0.36 µm/px XY resolution, 34x1µm slices and time resolution of 45s/frame. Anterior to the left; embryo imaged from the ventral side. Time indicates minutes from the beginning of nc14.

Mesectoderm cells tilt and change shape during gastrulation (Leptin, 1999; Rauzi et al., 2015). To investigate the possibility that cellular deformation induced by gastrulation leads to changes in the nucleus we first imaged a nuclear membrane marker (Nup107-RFP) while monitoring transcription with MS2 system and quantified morphological properties of the nucleus. We found that, during gastrulation, mesoderm nuclei decrease the longest axis and increase the second (i.e. they become shorter and wider) and mesectoderm nuclei do so to a greater extent than those in the neuroectoderm but less than those in the mesoderm (Figure 6D, Figure 6—figure supplement 2). The shape-changes could explain the increased sensitivity of the mesectoderm nuclei to gastrulation, because changes in nuclear shape can bring about changes in chromatin organization or accessibility (Guilluy et al., 2014; Versaevel et al., 2012). It is challenging to quantify chromatin organization and accessibility of a small cell population in living embryos in a time-resolved manner but we used two different quantifications to probe this question. As a proxy for chromatin compaction, we measured the levels of His2Av-RFP at the site of transcription indicated by the MS2 spot. We were unable to detect any change in intensity at the time of gastrulation or across conditions (Figure 6E, Figure 6—figure supplement 3A) , suggesting there is no large scale change in chromatin density. Similarly, we used the movement of the MS2 spots to quantify relative mobility of the transcribing locus over time, because chromatin mobility is thought to be associated with its accessibility and activity (Gu et al., 2018). We observed that there was increased movement of the MS2 transcription puncta during gastrulation (Figure 6F, Figure 6—figure supplement 3B) , suggesting that there is an increase in the local accessibility. However, it was difficult to resolve whether this change was a key factor in the gastrulation mediated effects on transcription as the movements became highly erratic in the conditions that impacted gastrulation.

Discussion

Morphogenetic processes integrate with programs of transcriptional regulation during animal development, but little is known about crosstalk between mechanics and transcription, particularly in a native in vivo context. Here we have investigated a role of gastrulation in modulating transcription levels in Drosophila embryos, where it could help to form a straight midline boundary. Using the MS2 system to quantitatively image transcription live, a clear transition in the mean levels of transcription from the Notch-responsive m5/m8 enhancer could be detected, and to a lesser degree from the Twist and Dorsal responsive vnd enhancer. This transition correlated with the start of mesoderm invagination and was delayed or absent in embryos where gastrulation was perturbed by different manipulations. In conditions where there was a delay, such as in fog mutants, the transition in levels was correlated with a delay in mesoderm invagination. We propose that the coupling of the gastrulation movements to the transcription of key targets in the mesectoderm is important to co-ordinate the establishment of a robust and straight boundary at the midline of the embryo.

A plausible link between mechanics and Notch activity, to explain the increase in expression of Notch-regulated enhancers, would be that force is required for Notch cleavage (Gordon et al., 2015). By increasing membrane tension or cell contacts, the morphogenetic movements associated with gastrulation could enhance the levels of NICD released. Two observations make this scenario an unlikely explanation for the effects on transcription at mesoderm invagination. First, bypassing the need for force-mediated activation by ectopically expressing NICD in embryos depleted of full length Notch did not prevent the gastrulation-dependent transition in levels. Indeed, it appears that the elevated transcription at gastrulation may be able to overcome any intrinsic attenuation mechanism that switches off NICD induced transcription (Viswanathan et al., 2021). Second, an unrelated enhancer, vnd, also exhibited an increase in levels at the time of gastrulation that was correspondingly perturbed in fog mutants or α-Cat depleted embryos. Altogether, our results argue in favor of a model where the cell movements associated with gastrulation have a direct impact on transcription in the nucleus, rather than altering the levels of Notch activation per se.

A common feature of both m5/m8 and vnd enhancers is that their activity in MSE cells is more profoundly influenced by gastrulation than elsewhere in the embryo. This could be due to differences in the context of transcription factors and other regulators present in the MSE cells, that make them more sensitive, or to variations in the magnitude of the mechanical forces exerted by gastrulation. In favor of the latter, ectoderm cells are thought to have different mechanical properties to the mesoderm and the lateral cells, which contribute to the normal progression of gastrulation (Rauzi et al., 2015). We therefore hypothesize that transcription levels can be modulated by the forces exerted on cells, and that this effect may be specific to certain classes of enhancers. Here we have found that although both m5/m8 and vnd enhancers show characteristics of such regulation, the Notch-dependent m5/m8 appears the more sensitive. We propose that mechanisms acting at the level of the nucleus will be responsible for transmitting this force-mediated regulation.

To exert effects on nuclear functions, the mechanical changes induced by gastrulation need to be transmitted to the nucleus. The mechanotransduction cascade is thought to involve the cytoskeleton and the LINC complex (Chang et al., 2015). Along with myosin, the LINC complex is proposed to transmit information about substrate stiffness to the transcriptional machinery (Alam et al., 2016). A similar mechanism could be involved in the gastrulating embryo to transduce mechanical information at the cell level to changes in transcription, based on the fact that coupling between transcription and gastrulation was no longer evident when the LINC complex was depleted. Although the fact that there are also changes in gastrulation under these conditions make it difficult to conclude that there is a direct effect of the LINC complex, the results are nevertheless consistent with the model. We explored two downstream mechanisms that could ultimately be responsible for increased transcriptional activity. The first was a change in nuclear import, either a general increase in permeability of nuclear factors or a more specific effect on key transcription factors such as Twist. No change in general nuclear import properties were detected and, although a gradual increase in Twist was detected, there was no step change at gastrulation that could account for the sharp increase in transcription. The second was a change in chromatin accessibility. We used some simple methods to probe chromatin compaction and mobility, which indicated that the chromatin becomes more mobile at gastrulation. Higher resolution approaches at the single cell level would be needed to ascertain whether these changes are indeed influenced by gastrulation. Finally, it is also possible that subtle changes in several different of these processes are required to bring about the step-change in transcription, and that each alone makes only a minor contribution.

There is increasing evidence that substrate stiffness and mechanical forces can influence cell fate decisions (Alam et al., 2016; Wei et al., 2015; Roy et al., 2018; Muncie et al., 2020). Our data showing a connection between gastrulation and transcription levels support the suggestion that there are mechanisms connecting the mechanical properties experienced by cells with the transcriptional output. In the mesectoderm, these effects may be important to ensure that a robust and straight boundary is positioned at the midline. Such a connectivity, between forces and transcription levels, is likely to be of major significance in building tissues and organs, to ensure that the correct structure and shape are adopted in the context of the developing organism.

Materials and methods

Fly strains and genetics

The MS2 reporter m5/m8 [II] (m5/m8-peve-24xMS2-lacZ-SV40[25C]), inserted in the landing site attP40-25C in the second chromosome (Bischof et al., 2013), other reporters used in (Figure 1) and the eve2-FRT-STOP-FRT-NICD[51D] construct used to ectopically express NICD have been previously described (Falo-Sanjuan et al., 2019). vnd-MS2 (vndEEE-peve-24xMS2-lacZ-SV40) was generated by replacing m5/m8 for the vndEEE enhancer, as defined by Stathopoulos et al., 2002, using primers GGGAAGCTTGGGTAAGCACAAGGATTCC and GGGACCGGTCGAATAAGCTGCAAGGAGATC with HindIII and AgeI sites. The resulting plasmid was inserted in the same attP landing site (attP40-25C) as m5/m8 by ΦC31 mediated recombination (Bischof et al., 2013). Full genotypes of used lines are detailed in Table 1.

Table 1
Full genotypes and sources of used Drosophila lines.
Name (Chr)Full genotypeSource
His2Av::RFP (III)w[*];P{w[+mC]=His2Av-mRFP1}III.1BDSC #23650
His2Av::RFP; nos-MCP::GFPy[1] w[*]; P{w[+mC]=His2Av-mRFP1}II.2; P{w[+mC]=nos MCP.EGFP}2BDSC #60340
His2Av::iRFP, nos-MCP::mCherry (II)yw; nos-MCP-NoNLS-mCherry, Histone-iRFPEck et al., 2020; Liu et al., 2021
nos-MCP::mCherry (III)yw;; nos-MCP-NoNLS-mCherryLiu et al., 2021
vasa-mCherry (III)yw; pCasper-vasa-mCherryYJ. Kim, J. Zhao, HG. Garcia, unpublished results
Gap43::mCherry (I)Pw[+mC]=sqhp-Gap43::mCherryIzquierdo et al., 2018
Nup107::RFP (III)w[*]; wg[Sp-1]/CyO; P{w[+mC]=mRFP-Nup107.K}7.1BDSC #35517
αTub-Gal4::VP16 (II)w[*]; P{w[+mC]=matalpha4-GAL-VP16}V2HBDSC #7062
ovo-FLP (I)P{w[+mC]=ovo FLP.R}M1A, w[*]BDSC #8727
betaTub85D-FLP (I)P{ry[+t7.2]=betaTub85D-FLP}1; ry[506]BDSC #7196
m5/m8-MS2 (II)w; P{w[+mC]=m5/m8-peve-24xMS2-lacZ-SV40}attP40Falo-Sanjuan et al., 2019
vnd-MS2 (II)w; P{w[+mC]=vndEEE-peve-24xMS2-lacZ-SV40}attP40This study
eve2-NICD (II)w; P{w[+mC]=2xeve2*-FRT-STOP-FRT-NICD-eve3’UTR}attP51DFalo-Sanjuan et al., 2019
Twi-RedLlamaTag (II)y[1] w[1,118]; Twi-JB10 /CyO;Bothma et al., 2018
fog[S4] (I)y[1]() fog[S4]/FM7cBDSC #2100
w RNAi Valium22 (III)y[1] sc[*] v[1]; P{y[+t7.7] v[+t1.8]=TRiP .GL00094}attP2BDSC #35573
α-Cat RNAi Valium20 (III)y[1] sc[*] v[1] sev[21](); P{y[+t7.7] v[+t1.8]=TRiP.HMS00317}attP2BDSC #33430
cta RNAi Valium20 (II)y[1]() sc[*] v[1]; P{y[+t7.7] v[+t1.8]=TRiP.HMC03421}attP40BDSC #51848
RhoGEF2 RNAi Valium20 (III)y[1] sc[*] v[1]; P{y[+t7.7] v[+t1.8]=TRiP.HMS01118}attP2BDSC #34643
Notch RNAi Valium20 (III)y[1] v[1]; P{y[+t7.7] v[+t1.8]=TRiP.HMS00009}attP2BDSC #33616
zld RNAi Valium20 (II)y[1] sc[*] v[1]; P{y[+t7.7] v[+t1.8]=TRiP.HMS02441}attP40BDSC #42016
grh RNAi Valium22 (III)y[1] sc[*] v[1]; P{y[+t7.7] v[+t1.8]=TRiP .GL01069}attP2BDSC #36890
klar RNAi Valium20 (III)y[1] sc[*] v[1] sev[21]; P{y[+t7.7] v[+t1.8]=TRiP.HMS01612}attP2BDSC #36721
koi RNAi Valium20 (II)y[1] sc[*] v[1] sev[21]; P{y[+t7.7] v[+t1.8]=TRiP.HMS02172}attP40BDSC #40924
lamC RNAi Valium20 (II)y[1] sc[*] v[1] sev[21]; P{y[+t7.7] v[+t1.8]=TRiP.HMC04816}attP40BDSC #57501
zld::GFP (III)w[1,118]; PBac{y[+mDint2] w[+mC]=zld GFP.FPTB}VK00033 /TM3, Sb[1]BDSC #51350
Su(H)::GFP (III)M{Su(H).WT.EGFP}attP86FGomez-Lamarca et al., 2018
H::GFP (II)M{H.WT.EGFP}51DGomez-Lamarca et al., 2018
nej::venusw[1,118] PBac{602 .P.SVS-1}nejCPTI000727Kyoto #115119
Med4::GFPPBac{fTRG00975.sfGFP-TVPTBF}VK00002VDRC #v318702
Med17:GFPPBac{fTRG00979.sfGFP-TVPTBF}VK00002VDRC #v318704
skd::venusw[1,118]; PBac{681 .P.FSVS-1}skdCPTI001170Kyoto #115130
vasa-eGFP (III)yw; pCasper-vasa-eGFPKim et al., 2021
hs-FLP;; ubi-nls::GFP, FRT80EPry[+t7.2]=hsFLP22, y[1] w[*]; Kr[If-1]/CyO; Pw[+mC]=Ubi-GFP(S65T)nls3L PBacw[+mC]=WHND-MLRQ[f00651]BDSC #76329
nos-nls::PCP::GFPCourtesy from Tim Weil and Liz Gavis

fog mutant background

Request a detailed protocol

To test expression from m5/m8 and vnd in the fog mutant background, third chromosome recombinants His2av-RFP, nos-MCP-GFP (Falo-Sanjuan et al., 2019) were combined with a fog null allele (fog[S4], BDSC #2100). Control embryos were obtained by crossing His2av-RFP, nos-MCP-GFP females with m5/m8 or vnd males. Hemizygous fog mutant embryos were obtained by crossing fog[S4] / FM6;; His2av-RFP, nos-MCP-GFP with m5/m8 or vnd males and they were recognized by the presence of ectopic folds after gastrulation and embryonic lethality. Other embryos obtained from the same cross were grouped together and labeled fog+/+/-. To combine the fog background with ectopic NICD produced by eve2-NICD, fog[S4] was combined with eve2-FRT-STOP-FRT-NICD and crossed with ovo-FLP;; His2av-RFP, nos-MCP-GFP. F1 females containing all transgenes were crossed with m5/m8-MS2 males; and induce removal of the FRT-STOP-FRT cassette in the germline so that NICD is produced in the eve2 pattern in F2 embryos. Controls for this experiment were obtained by crossing eve2-FRT-STOP-FRT-NICD with ovo-FLP;; His2av-RFP, nos-MCP-GFP and F1 females with m5/m8-MS2 males.

Maternal KD

Request a detailed protocol

The maternal driver αTub-Gal4::VP16 (BDSC # 7062) was combined with His2av-RFP, nos-MCP-GFP to generate αTub-Gal4::VP16; His2Av-RFP, nos-MCP-GFP. To knock down genes from the maternal germline, this was crossed with with UASp-RNAi lines detailed in Table 1 or UASp-w-RNAi as control (BDSC #35573). Females αTub-Gal4::VP16 / +; His2Av-RFP, nos-MCP-GFP / UASp-RNAi or αTub-Gal4::VP16 /UASp RNAi; His2Av-RFP, nos-MCP-GFP /+were crossed with m5/m8-MS2 or vnd-MS2 to obtain the experimental embryos. To combine this with ectopic NICD, m5/m8, eve2-FRT-STOP-FRT-NICD recombinants (Falo-Sanjuan et al., 2019) had been previously crossed with βTub-FLP and males βTub-FLP / Y; m5/m8,eve2-FRT-STOP-FRT-NICD / +, which induce FRT-STOP-FRT removal in the germline, crossed with females in which germline KD occurs. In this way, the resulting embryos express both MS2 and eve2-NICD, and candidate genes have been maternally knocked down. To quantify the degree of maternal Klar and Koi KD, αTub-Gal4::VP16 was crossed with the same lines and F2 embryos were collected for RT-qPCR. Levels of Zld KD were checked using a Zld-GFP line. Other RNAi lines have been previously used (Falo-Sanjuan and Bray, 2021; Garcia De Las Bayonas et al., 2019; Wingen et al., 2017; Zraly et al., 2020) or produced a very strong phenotype. Crosses performed for each experiment are detailed in Table 2.

Table 2
Crosses to obtain embryos used in each experiment.
CrossFigure
His2Av::RFP; nos-MCP::GFP x ♂ m5/m8-peve-MS2-lacZ-SV40[attP40,II] Falo-Sanjuan et al., 2019(Figure 1, Figure 1—figure supplement 1)
His2Av::RFP; nos-MCP::GFP x ♂ m5/m8-peve-MS2-lacZ-SV40[attP2,III] Falo-Sanjuan et al., 2019Figure 1—figure supplement 1
His2Av::RFP; nos-MCP::GFP x ♂ sim-peve-MS2-lacZ-SV40[attP40,II] Falo-Sanjuan et al., 2019Figure 1—figure supplement 1
His2Av::RFP; nos-MCP::GFP x ♂ m5/m8-pm7-MS2-lacZ-SV40[attP40,II] Falo-Sanjuan et al., 2019Figure 1—figure supplement 1
His2Av::RFP; nos-MCP::GFP x ♂ m5/m8-psimE-MS2-lacZ-SV40[attP40,II] Falo-Sanjuan et al., 2019Figure 1—figure supplement 1
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-w RNAim5/m8-peve-MS2-lacZ-SV40[attP40,II]Figures 2; 5; 6, Figure 2—figure supplements 1; 2; 4, Figure 3—figure supplement 1, Figure 5—figure supplement 2, Figure 6—figure supplement 3
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-α-Cat RNAim5/m8-peve-MS2-lacZ-SV40[attP40,II]Figures 2; 6, Figure 2—figure supplements 1; 2
His2Av::RFP, nos-MCP::GFP (III) x ♂ m5/m8-peve-MS2-lacZ-SV40[attP40,II]Figure 2, Figure 2—figure supplements 1; 2, Figure 6—figure supplement 3
fog[S4] / FM6;; His2Av::RFP, nos-MCP::GFP x ♂ m5/m8-peve-MS2-lacZ-SV40[attP40,II]Figure 2, Figure 2—figure supplements 1; 2, Figure 6—figure supplement 3
αTub-Gal4::VP16 / UASpcta RNAi; His2Av::RFP, nos-MCP::GFP / + ♂ m5/m8-peve-MS2-lacZ-SV40[attP40,II]Figure 2, (Figure 2—figure supplements 1; 2) , Figure 6—figure supplement 3
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-RhoGEF2 RNAim5/m8-peve-MS2-lacZ-SV40[attP40,II]Figure 2, (Figure 2—figure supplements 1; 2) , Figure 6—figure supplement 3
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-w RNAim5/m8-peve-MS2-lacZ-SV40[attP2,III] Falo-Sanjuan and Bray, 2021Figure 2—figure supplement 3
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-α-Cat RNAim5/m8-peve-MS2-lacZ-SV40[attP2,III] Falo-Sanjuan and Bray, 2021Figure 2—figure supplement 3
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-w RNAisim-peve-MS2-lacZ-SV40[attP40,II]Figure 2—figure supplement 3
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-α-Cat RNAisim-peve-MS2-lacZ-SV40[attP40,II]Figure 2—figure supplement 3
αTub-Gal4::VP16 / UASpzld RNAi; His2Av::RFP, nos-MCP::GFP / + ♂ m5/m8-peve-MS2-lacZ-SV40[attP40,II]Figure 2—figure supplement 4
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-grh RNAim5/m8-peve-MS2-lacZ-SV40[attP40,II]Figure 2—figure supplement 4
♀ x ♂ αTub-Gal4::VP16 / +; zld::GFP / UASp-w RNAiFigure 2—figure supplement 4
♀ x ♂ αTub-Gal4::VP16 / UASpzld RNAi; zld::GFP / +Figure 2—figure supplement 4
His2Av::RFP, nos-MCP::GFP (III) x ♂ vndEEE-peve-MS2-lacZ-SV40[attP40,II]Figure 3, Figure 3—figure supplement 1
αTub-Gal4::VP16 /+; His2Av::RFP, nos-MCP::GFP / UASp-w RNAivndEEE-peve-MS2-lacZ-SV40[attP40,II]Figure 3, Figure 3—figure supplement 1
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-α-Cat RNAivndEEE-peve-MS2-lacZ-SV40[attP40,II]Figure 3, Figure 3—figure supplement 1
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-Notch RNAi ♂ m5/m8-peve-MS2-lacZ-SV40[attP40,II]Figure 3—figure supplement 1
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-Notch RNAivndEEE-peve-MS2-lacZ-SV40[attP40,II]Figure 3, Figure 3—figure supplement 1
fog[S4] / FM6 ;; His2Av::RFP, nos-MCP::GFP x ♂ vndEEE-peve-MS2-lacZ-SV40[attP40,II]Figure 3, Figure 3—figure supplement 1
ovo-FLP / +; eve2-FRT-STOP-FRT-NICD / +; His2Av::RFP, nos-MCP::GFP / + ♂ m5/m8-peve-MS2-lacZ-SV40[attP40,II]Figure 4, Figure 4—figure supplement 1
ovo-FLP / fog[S4]; eve2-FRT-STOP-FRT-NICD / +; His2Av::RFP, nos-MCP::GFP / + ♂ m5/m8-peve-MS2-lacZ-SV40[attP40,II]Figure 4, Figure 4—figure supplement 1
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-w RNAiβTub85D-FLP; m5/m8-peve-MS2-lacZ-SV40, eve2-FRT-STOP-FRT-NICD / +Figure 4, Figure 4—figure supplement 1
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-Notch RNAiβTub85D-FLP; m5/m8-peve-MS2-lacZ-SV40, eve2-FRT-STOP-FRT-NICD / +Figure 4, Figure 4—figure supplement 1
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-α-Cat RNAiβTub85D-FLP; m5/m8-peve-MS2-lacZ-SV40, eve2-FRT-STOP-FRT-NICD / +Figure 4, Figure 4—figure supplement 1
αTub-Gal4::VP16 / +; His2Av::RFP, nos-MCP::GFP / UASp-klar RNAim5/m8-peve-MS2-lacZ-SV40[attP40,II]Figure 5
♀ x ♂ αTub-Gal4::VP16 / +; UASp-w RNAi / + (for qPCR)Figure 5—figure supplement 2
♀ x ♂ αTub-Gal4::VP16 / UASpkoi RNAi; +/+ (for qPCR)Figure 5—figure supplement 2
♀ x ♂ αTub-Gal4::VP16 / +; UASp-klar RNAi / + (for qPCR)Figure 5—figure supplement 2
Gap43::mCherry; nos-MCP::GFP x ♂ m5/m8-peve-MS2-lacZ-SV40[attP40,II] Falo-Sanjuan and Bray, 2021Figure 5—figure supplement 1
♀ x ♂ His2Av::iRFP, nos-MCP::mCherry / CyO; nos-MCP::mCherry, vasa-eGFPFigure 6—figure supplement 1
♀ x ♂ ubi-nls::GFP, FRT80EFigure 6—figure supplement 1
♀ x ♂ nos-nls::PCP::GFPFigure 6—figure supplement 1
♀ x ♂ His2Av::RFP / + (dextran injected)Figure 6—figure supplement 1
♀ x ♂ med4-GFPFigure 6—figure supplement 1
♀ x ♂ med30-GFPFigure 6—figure supplement 1
♀ x ♂ skd-venusFigure 6—figure supplement 1
His2Av::iRFP, nos-MCP::mCherry / CyO; nos-MCP::mCherry, Su(H)::GFPm5/m8-peve-MS2-lacZ-SV40[attP40,II]Figure 6—figure supplement 1
♀ x ♂ H::GFP; His2Av::RFPFigure 6—figure supplement 1
♀ x ♂ nej-venusFigure 6—figure supplement 1
Vasa-mCherry (III) x ♂ Twi-JB10/CyOFigure 6
Nup107::RFP, nos-MCP::GFP x ♂ m5/m8-peve-MS2-lacZ-SV40[attP40,II]Figure 6, Figure 6—figure supplement 2

Live imaging

Request a detailed protocol

Embryos were collected on apple juice agar plates with yeast paste, dechorionated in bleach and mounted in Voltalef medium (Samaro) between a semi-permeable membrane and a coverslip. The ventral side of the embryo was facing the coverslip. Videos were acquired in a Leica SP8 confocal using a 40 x apochromatic 1.3 objective, zoom x2 and 400 × 400 px size (providing an XY resolution of 0.36 µm/px), 12 bit depth, 400 Hz image acquisition frequency and pinhole of 4 airy units. 27, 29 or 32 × 1 µm slices were collected, with total acquisition time of 15–20 s per frame, depending on the experiment. Different genetic conditions are only compared in the same plot if the same microscope and settings were used. To image embryos in which nuclear levels of different factors were going to be quantified, multiple embryos were acquired at once using the multi-position setting in the microscope and a final time resolution of 1 or 1.5 min, which also helped reduce bleaching. Depending on the condition only GFP or GFP and His2Av-RFP were imaged.

Dextrans injection

Request a detailed protocol

Embryos obtained from crossing His2Av-RFP /+ females and males were dechorionated, glued with heptane glue to a coverslip, and covered with Voltalef medium (Samaro). Injections were performed only on pre-nc10 embryos using pulled glass needles and dextrans diluted in injection buffer (0.1 mM sodium phosphate buffer, 5 mM KCl, Sharrock et al., 2021) at a concentration of 0.125 mg/ml for Dextran-40kDa-FITC (Sigma-Aldrich FD40S) and 0.25 mg/ml for Dextran-70kDa-FITC (Sigma-Aldrich 46945).

mRNA extraction and qPCR

Request a detailed protocol

RT-qPCR quantification of maternal KD was performed as previously described (Falo-Sanjuan and Bray, 2021). Embryos were dechorionated in bleach and early embryos (pre-nc10) / eggs were selected in Voltalef medium. Pools of 15–20 embryos of each genotype were transferred to eppendorf tubes and dissociated in TRI Reagent (Sigma) with a plastic pestle. mRNA was extracted by adding chloroform, 10 min centrifugation at 4°C and let to precipitate with isopropanol overnight. DNA was then pelleted by 10 min centrifugation at 4°C, washed in 70% ethanol, dried and resuspended in DEPC-treated water. Approximately 2 µg of RNA from each sample were DNAse treated with the DNA-free DNA Removal Kit (Invitrogen) in the presence of RiboLock RNase Inhibitor (Thermo Scientific). 1 µg of DNA-free RNA was then used for reverse transcription using M-MLV Reverse Transcriptase (Promega) in the presence of RiboLock. RT-qPCR was performed using SYBR Green Mastermix (Sigma) and primers detailed in Table 3.

Table 3
Primers used for qPCR.
PrimerSequence
klar FWD 1GTCTTGCCAAGACATGGATG
klar REV 1GGCTGGTCGACTGAATCTTG
koi FWD 1AGCTGGAGACCACACAAAAC
koi REV 1CGTCTTGGGAGTTTTGTTCC
koi FWD 2GGAACAAAACTCCCAAGACG
koi REV 2TCTGCTGGACCATGTAGTTG
RpII215 FWDGACTCGACTGGAATTGCACC
RpII215 FWDTCTTCATCGGGATACTCGCC

Image analysis

Tracking nuclei and MS2 quantification

Request a detailed protocol

Videos were analyzed using custom MATLAB (MATLAB R2020a, MathWorks) scripts that have been previously described (Falo-Sanjuan et al., 2019; Falo-Sanjuan and Bray, 2021). Briefly, the His2Av-RFP signal was used to segment and track the nuclei in 3D. Each 3D stack was first filtered using a 3D median filter of 3 and increasing the contrast based on the intensity profile of each frame to account for bleaching. This was followed by Fourier transform log filter to enhance round objects (Garcia et al., 2013), and segmentation by applying a fixed intensity threshold, which was empirically determined. Filters to fill holes in objects, exclusion based on size and 3D watershed accounting for anisotropic voxel sizes (Mishchenko, 2013) were used to remove miss-segmented nuclei and split merged nuclei. The final segmented stack was obtained by filtering by size again and thickening each object. Lastly, each nuclei in the segmented stack was labeled and the position of each centroid (in X, Y and Z) was calculated for tracking. Nuclei were tracked in 3D by finding the nearest object (minimum Euclidean distance between two centroids in space) in the previous 2 frames which was closer than 6 µm. If no object was found, that nucleus was kept with a new label. If more than one object was ‘matched’ with the same one in one of the previous 2 frames, both were kept with new labels. After tracking, the positions of all pixels from each nucleus in each frame were used to measure the maximum fluorescence value in the GFP channel, which was used as a proxy of the spot fluorescence. Note that when a spot cannot be detected by eye this method detects only background, but the signal:background ratio is high enough that the subsequent analysis allows to classify confidently when the maximum value is really representing a spot.

Tracking cell membranes and quantification of cell properties

Request a detailed protocol

Videos from embryos expressing the membrane marker Gap43-mCherry (Izquierdo et al., 2018) combined with the MS2 system to measure m5/m8 [II] transcription from Falo-Sanjuan and Bray, 2021 were reanalyzed to correlate cell properties with transcription. First, videos were locally-projected to corrected for the curvature of the embryo using the Fiji plugin LocalZProjector (Herbert et al., 2021). All slices from the MCP-GFP channel were used to obtain a maximum projection whereas 3 medial-apical slices (4 µm) from the Gap43-mCherry were used to obtain a maximum intensity projection. Membranes were segmented using TissueAnalyzer (Aigouy et al., 2016) and MS2 spots were segmented using the Weka Segmentation Tool (Arganda-Carreras et al., 2017), both in Fiji. The following analysis was carried out in Matlab, where cells and spots were independently tracked and then spots were assigned to cells based on what cell each spot most commonly overlapped with. Cells assigned to MS2 spots were used to define the mesectoderm stripes and cells located in between them were labeled as mesoderm. Mesectoderm cells were then classified as ‘active’ or ‘active +increasing’ based on their transcription profiles and the corresponding properties for the cells assigned to them extracted and plotted. Length of contact with ME cells was calculated by adding the number of pixels intersected between each cell thickened by 1 pixel with all the ME cells also thickened by 1 pixel.

Tracking and quantification of nuclear concentrations

Request a detailed protocol

Depending on which factor was being analyzed, some videos expressed only the fluorescently-tagged factor of interest (if the nuclear levels were high enough to use for nuclear segmentation) or in combination with His2Av-RFP or His2Av-iRFP. In the first case (nls-GFP, nls-PCP-GFP, Med4-GFP, Med30-GFP, Skd-venus, Nej-venus and Twist-LlamaTag), nuclei were directly segmented from the channel in which nuclear levels were going to be quantified and the average nuclear intensity quantified over time. In the other cases (GFP, dextran injections, Su(H)-GFP and H-GFP), nuclei were segmented and tracked based on the His2Av signal and the average GFP/FITC intensity quantified in each nucleus. We note that because in most cases all cells in the embryo contained these factors, the signal could not be normalized to another region to account for bleaching, and therefore the fluorescent profiles might have been reduced over time due to bleaching.

Nuclear membrane segmentation and quantification of morphological parameters

Request a detailed protocol

Nuclear membranes tagged with Nup107-RFP (Katsani et al., 2008) were segmented in Imaris (Oxford Instruments) using the cell segmentation tool and manual correction. Cells were then classified as ME, MSE or NE by marking the overlap with MS2 signal (MSE) and cells dorsal and ventral to them. Morphological properties of the cell surfaces were extracted from Imaris and plotted in Matlab for each cell population.

Data processing and statistical analysis

MS2 data processing

Request a detailed protocol

Processing of MS2 data (definition of active nuclei and normalization for bleaching) has been carried out as described in our previous work (Falo-Sanjuan et al., 2019). After the fluorescent trace of each nucleus over time was obtained, only nuclei tracked for more than 10 frames were retained. Then, nuclei were classified as inactive or active. To do so, the average of all nuclei (active and inactive) was calculated over time and fitted to a straight line. A median filter of 3 (i.e. over a period of 45–60”) was applied to each nucleus over time to smooth the trace and ON periods were considered when fluorescent values were 1.2 times the baseline at each time point. This produced an initial segregation of active (nuclei ON for at least 5 frames, i.e. 1.25–1.6 min) and inactive nuclei. These parameters were determined empirically on the basis that the filters retained nuclei with spots close to background levels and excluded false positives from bright background pixels, which were validated by overlaying nuclei defined by the pipeline as actively transcribing with the MS2 signal, and confirming that the two were concordant. The mean fluorescence from MCP-GFP in the inactive nuclei was then used to define the background baseline and active nuclei were segregated again in the same manner. The final fluorescence values in the active nuclei were calculated by removing the fitted baseline from the maximum intensity value for each, and normalizing for the percentage that the MCP-GFP fluorescence in inactive nuclei decreased over time to account for the loss of fluorescence due to bleaching. Nuclei active in cycles before nc14 were discarded based on the timing of their activation.

In all videos, time into nc14 was considered from the end of the 13th syncytial division. To avoid early stochastic activity, transcription was considered from 15 min into nc14 in most experiments, except for expression in the presence of maternal Gal4, in which it was considered from 30 min to exclude earlier stochastic activity induced by Gal4VP16. For vnd, transcription was considered all throughout nc14. The total mRNA output (in AU) was obtained by adding all the normalized transcription values for each cell in a defined time period. In plots were cells were classified as ‘active’ or ‘active +increasing’, nuclei which increase in levels were defined if the average intensity from 15 min of the start of ME invagination was higher than the average of all active nuclei at that point and at least 1.7 times higher than the average intensity in the 15 min prior to ME invagination. Using these values, most nuclei were classified in a way that matched what could be observed by looking directly at the transcription traces.

Quantifying gastrulation progression and changes in transcription levels

Request a detailed protocol

Start of apical constriction, start of mesoderm invagination and end of gastrulation were manually defined for each embryo from plots showing the movement of MSE cells. Transcribing nuclei in each region were selected and the average movement of their centroids in the Y axis, corresponding to the DV axis in the embryo, was calculated. This produces a plot with one or two peaks of movement. A large peak of movement is produced during ME invagination, as MSE cells move ventrally. If the embryo is mounted completely ventrally, only this peak of movement is observed. If the orientation of the embryo is tilted, the whole embryo rolls inside the vitelline membrane during apical constriction, which is detected as an earlier peak of movement of cells dorsally. After that, the second peak of movement corresponds with mesoderm invagination. The transition between the two movements, corresponds to and was used to define the start of ME invagination. Similarly, transition point in mean transcription levels was manually defined from each plot showing the mean fluorescence of selected cells, by selecting the inflection point between two different levels of transcription. Only embryos that showed a clear transition in levels were used in the correlation plots, although we note that only in most cases all embryos from each genetic condition were included.

Quantifying histone intensity and MS2 spot movement

Request a detailed protocol

To quantify average histone intensity around the MS2 spot, spots were segmented using the Differential-of-Gaussians approach previously described (Garcia et al., 2013). A 5 × 5 pixel window surrounding the MS2 spot was then extracted from the His2Av-RFP channel and the average intensity calculated.

Statistical analysis

Request a detailed protocol

In figures and figure legends, n number indicates number of embryos imaged for each biological condition. Where appropriate, n number next to heatmaps indicates total number of cells combining all embryos for each biological condition. Plots showing mean levels of transcription and SEM (standard error of the mean) combine all traces from multiple embryos from the same biological condition.

Reagents and software availability

Request a detailed protocol

The MATLAB app to track nuclei, quantify MS2 traces and define properties of gastrulation can be obtained at https://github.com/BrayLab/LiveTrx (Falo-Sanjuan, 2021; copy archived at swh:1:rev:564d8ac59d4dcf2cd5167960e5ae97d4e8932647).

Data availability

Source data files are provided for each plot in each figure. Code used for data analysis is available on GitHub: https://github.com/BrayLab/LiveTrx (copy archived at swh:1:rev:564d8ac59d4dcf2cd5167960e5ae97d4e8932647). Raw movies and analysis files have been deposited in two FigShare repositories: https://doi.org/10.6084/m9.figshare.16619773.v45, https://doi.org/10.6084/m9.figshare.19697413.v2. Datasets Generated: MS2 data from "Notch-dependent and -independent transcription are modulated by tissue movements at gastrulation": Falo Sanjuan J, Bray, SJ, 2022, https://doi.org/10.6084/m9.figshare.16619773.v45, figshare, https://doi.org/10.6084/m9.figshare.16619773.v45. Other data from "Notch-dependent and -independent transcription are modulated by tissue movements at gastrulation": Falo Sanjuan , Bray S, 2022, https://doi.org/10.6084/m9.figshare.19697413.v2, figshare, https://doi.org/10.6084/m9.figshare.19697413.v2.

The following data sets were generated
    1. Falo-Sanjuan J
    2. Bray SJ
    (2022) figshare
    MS2 data from "Notch-dependent and -independent transcription are modulated by tissue movements at gastrulation".
    https://doi.org/10.6084/m9.figshare.16619773.v45
    1. Falo-Sanjuan J
    2. Bray SJ
    (2022) figshare
    Other data from "Notch-dependent and -independent transcription are modulated by tissue movements at gastrulation".
    https://doi.org/10.6084/m9.figshare.19697413.v2

References

    1. Morel V
    2. Schweisguth F
    (2000)
    Repression by suppressor of hairless and activation by Notch are required to define a single row of single-minded expressing cells in the Drosophila embryo
    Genes & Development 14:377–388.

Decision letter

  1. Danelle Devenport
    Reviewing Editor; Princeton University, United States
  2. Claude Desplan
    Senior Editor; New York University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting the paper "Levels of Notch-regulated transcription are modulated by tissue movements at gastrulation" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Senior Editor. The reviewers have opted to remain anonymous.

Comments to the Authors:

We are sorry to say that, after consultation with the reviewers, we have decided that this work in its current form will not be considered further for publication by eLife.

As you will see from their comments, all three reviewers found the subject matter interesting and timely, and considered the data documenting enhancer dynamics to be very high quality. However, the reviewers felt that the observed changes in enhancer activity correlated with cell movements were, on their own, insufficient to warrant publication in eLife. Further experimental data connecting enhancer upregulation to mechanical changes on the nucleus are needed. Currently the role of LINC complex, specifically Klar in regulating tension-dependent transcriptional activity at gastrulation, is unclear and the data are at odds with the predictions. Thus, the role of nuclear deformation and Klar’s contribution remain difficult to understand in relation to the proposed model.

Thus, the reviewers felt that the work has potential, but would need extensive additional work. Please note that eLife aims to publish articles with a single round of revision that can be accomplished within two months. If you feel that all of the reviewer’s concerns can be addressed in a timely manner we would be open to reviewing a revised submission, but we do not want to delay publication elsewhere, if that is the preferred course of action.

Reviewer #1:

This paper describes the intriguing observation that transcriptional activity of a Notch dependent enhancer depends on gastrulation movements in the Drosophila embryo. Using the MS2 system to report on live transcriptional dynamics, it is convincingly shown that a burst of transcriptional activity from the Notch-dependent enhancer in cells neighboring the ventral furrow coincides temporally with gastrulation movements, and that such movements are necessary for the transcriptional burst. This gastrulation-dependent upregulation is also observed by NICD-induced transcription, suggesting the mechanism lies downstream of Notch receptor, likely in the nucleus. The idea that morphogenetic movements can affect genome regulation through mechanical changes on the nucleus is intriguing and important, and this paper represents a clear example in the context of embryonic development.

Overall, the data are high quality and are presented in a clear and convincing manner. The data for the most part support the authors conclusions. Specifically, the conclusion that gastrulation movements are required for transcriptional upregulation of Notch-dependent enhancers is well supported by the data, and the use of three different genetic alterations to impair gastrulation is a strength. However, to further demonstrate a causal link between tissue mechanics and transcriptional output, it would be beneficial to also show that ectopic tissue folding or stretch is sufficient to generate an increase in enhancer activity. Currently there is only data showing a loss-of-transcriptional upregulation when tissue folding is impaired, and it is possible that some of the mutants used to block gastrulation have broader pleiotropic effects that could impact Notch signaling. Further, data connecting the observed changes in enhancer activity to mechanical changes on the nucleus are not well supported by the current data.

1. To further demonstrate a causal link between tissue mechanics and transcriptional output, it would be beneficial to also show that ectopic tissue folding or stretch is sufficient to generate an increase transcription. Currently there is only data showing a loss-of-transcriptional upregulation when tissue folding is impaired, and it is possible that some of the mutants used to block gastrulation have broader pleiotropic effects that could impact Notch signaling.

2. A discussion of the possible functional consequences of tissue movements on Notch-dependent transcription at this stage of embryogenesis would be helpful for the non-expert.

3. Data connecting the LINC complex to m5/m8 activity are rather weak, and I'm not sure these data in their current form add much to the paper.

Reviewer #2:

In the study presented in this manuscript, Falo-Sanjuan and Bray explore the connection between mechanical forces and transcription during gastrulation, a process involving extensive cell movement, rearrangement as well as tension sensing and specification of different cell lineages. The overall hypothesis and ideas are interesting and valid, the experiments are well designed and data are carefully analyzed. The study starts by explaining how the tension between cells can affect Notch signaling in the mesoectoderm through monitoring MS2 transcriptional activity from the m5/m8 enhancer in control and mutant embryos in which mesoderm invagination fails due to defects in cell-cell adhesion (α-catenin) or actomyosin regulation (RhoGEF2, concertina and fog). These results support the view that cortical cytoskeletal tension is causing an increase in Notch-dependent transcription. Then, somewhat abruptly the working model is revised when full-length Notch is shown not to be required for this increase (eve2-NICD in Notch RNAi); they hypothesize that if Notch signaling does not respond to tension at the cell membrane through ligand-receptor binding, the tension-sensing/gene upregulation at mesoderm invagination must relate to LINC complex function at the nuclear membrane. The transition to study of LINC complex function seems to be a bit jarring and needs more supportive evidence to better explain why alternative explanations were disregarded. Lastly, the title may be a bit misleading as the data support the view that "cell movements associated with gastrulation have a direct impact on transcription in the nucleus"… and that Notch-responses are not the only ones that are affected.

The reviewer had specific concerns (detailed below) that relate to (i) quantitative analyses; (ii) there is an apparent contradiction between title and the fact that Notch appears dispensable for the observed phenotype; (iii) klar RNAi gives the opposite phenotype as expected (but somehow still stated as supporting their model) – this merits more explanation or investigation; and (iv) lack of attention is given to other explanations including possible connection between NICD-Twist-mechanotransduction.

This is a very interesting study but the title, flow of the main text and its figures are somewhat misleading/hard to follow. In particular, the transition to study of LINC complex function seems to be a bit jarring and needs more supportive evidence to better explain why alternative explanations are disregarded. Also, the role of LINC complex, specifically klar in regulating tension-dependent transcriptional activity at gastrulation is unclear, more experiments need to be done to show how it interacts with NICD.

1) MS2 spot calling and signal quantification. The reviewer realizes that the MS2 quantification has been published before but for the current focus on levels of expression, the spot analysis should be revisited. Instead of identifying the MS2 spot, the authors appear to be using the maximum intensity within a nucleus. This ignores the shape of a spot and assumes that the maximum intensity sufficiently represents the spot. A better method of spot detection would include either gaussian fitting or thresholding. Since a key point of the paper is to study an increase in signal that is correlated to gastrulation, additional attention to quantification is necessary.

2) Along these lines, the authors need to provide more information about the number of cells scored for graphs that show "fraction of nuclei…".

3) In Figure 2C,E, only embryos that show a clear change in mean levels of transcription are displayed. What is the total number of embryos collected for each condition? How was a "clear change in mean levels" defined?

4) Figure 2, the control profiles of m5/m8 transcription activity in B, D, F appear to be very different, especially for fog mutants, is there a specific reason?

5) The authors used a vnd enhancer to show that mechanical forces have a general effect on transcription at gastrulation. However, there is no further attempt to explore or discuss how vndEEE might be regulated, through another tension-sensing transcription factor or maybe also by changes in nuclear property/LINC complex? Twist seems likely (see pt 8 below).

6) Figure S4, if m5/m8 is Notch-dependent, what causes the increase at time 0 in the mean profile of Notch RNAi?

7) It is interesting that the ectopic expression of eve2-NICD in Notch RNAi background rescues m5/m8 transcription activity within the eve stripe (Figure 4), but how much of this increase relates NICD versus other tension activated factors (e.g., twist)? Is twist upregulated in the domain of eve2-NICD expression in Notch RNAi embryos? How does this study/timing of m5/m8 upregulation at invagination relate to the mechanical signals discussed in Pouille et al., Sci Signal 2009 (which should be cited).

8) The conclusion that LINC complex/Klar plays a role in tension-regulated Notch signaling activity is poorly supported. Figure 5B shows that there is an early increase in m5/m8 activity, which is, as the authors point out, opposite from the expected result. Therefore, it is necessary to better define the relationship between NICD and nuclear properties modified/influenced by LINC. How does loss of function klar (or other LINC protein) impact intracellular Notch signaling and other tension-related processes, including localization of α-catenin at the AJs, RhoGEF2 at the apical membrane, actomyosin pulsing, expression of cta and fog, etc. Depending on whether twist is found to be upregulated by eve2-NICD (see point 7 above), it might also be worth looking to see how twist expression (upregulation by NICD?) is affected by klar.

9) Unlike m5/m8 enhancer which requires Notch signaling input directly to help activate gene expression, Notch input at the sim enhancer acts to 'derepress' expression by eliminating Su(H) repressor input and allowing output to be responsive to Dorsal and Twist (Zinzen et al., Dev Cell 2006; Morel & Schweisguth, Genes Dev 2000). Therefore, the roles of Notch in m5/m8 and sim enhancers differ. In the current study, the focus is m5/m8 with little done to analyze sim enhancer properties. Interestingly, in Morel & Schweisguth, when Su(H) sites are mutated in a sim enhancer (sim.mut), reporter expression remains in N mutant embryos. It is likely that the sim.mut enhancer would also show upregulated gene expression at mesoderm invagination if tested; and if so may be a better test case for tracking the input that relates to mechanotransduction with subsequent mutagenesis. Possibly this input is Twist.

10) Farge 2003 already showed that Twist increases residency in the nucleus downstream of mechanical induction. Relating to comments above (e.g. point 7 and 9), it is likely that the NICD-effect could be indirect, working to upregulate Twist. If so, this study is still interesting, but are the current results novel?

11) The title is confusing as the data support the view that "cell movements associated with gastrulation have a direct impact on transcription in the nucleus"… and that Notch-responses are not the only ones that are affected.Reviewer #3:

This manuscript is of broad interest to readers in the fields of Cell and Developmental Biology. The authors provide an elegant set of experimental evidence demonstrating that Notch transcriptional activity is modulated during Drosophila mesoderm movements. The data are of very good quality. The authors could boost their conclusions by better replacing them in the context of their previous studies regarding the role of adherens junctions in Notch transcriptional regulation or turnover (Falo-Sanjuan and Bray, Development 2021). The findings on Klar mutant conditions are highly relevant but more difficult to unit with the interplay between Notch transcriptional control and mesoderm invagination.

The major strength of the manuscript is the quantitative and original analyses of Notch (N) transcriptional levels in conjunction with morphogenetic movements in multiple genetic backgrounds. The authors could improve their manuscript by addressing the following points:

1. In Figure S1, the authors have also quantified N activity with two other reporters of N transcriptional activity. Both reporters show an increase at 50 mins as described in the main text, but both reporters also show a decrease at 55 mins. This decrease is not observed for the line (II) used through the manuscript. One could therefore argue that this drop is also a relevant characteristic of Notch activation during mesoderm invagination. This data should therefore be placed in the main figure and the decrease should be mentioned in the main text. In addition, it will be important that the authors performed the some loss of function analyses (for example RhoGEF2, Fog and Notch mutant conditions) using these two other reporters to further validate their findings.

2. Page 7: The following statement is confusing. "We note the mean levels of transcription from this reporter were not significantly reduced prior to gastrulation, unlike those from another reporter insertion and the endogenous genes that showed decreased levels also during cellularization (Falo-Sanjuan and Bray 2021). The difference likely arises because this m5/m8 [II] insertion achieves maximal transcription at lower levels of Notch activity." In the cited previous paper, the authors have shown that a-cat affects Notch transcription during cellularization. It is unclear why a difference in reporter strengths will lead to distinct conclusions. This needs to be further experimentally explored and explained.

3. Page 12: "As predicted, this treatment greatly reduced transcription from m5/m8 [II] (Figure S4AB).". The reduction is 2-fold. How these fold changes compare with the ones observed in RhoGEF2 and Fog mutant conditions? The Notch mutant conditions should be shown in figure 1. Furthermore, one could argue that a large part of the increase in reporter expression does not reflect an increase in Notch activity. Please discuss.

4. Figure 4. It will be important that the authors plot on the same plot with the same units the endogenous Notch activity in both wt and NotchRNAi.

5. As stated by the authors, Notch transcription findings in Klar mutant conditions are distinct from the authors' prediction since transcription increases prior to mesoderm invagination. The role of nucleus deformation and the Klar contribution remain difficult to understand and insert in the authors proposed model.

6. Statistics: Could the authors propose statistical tests to further support their findings regarding temporal changes in reporter levels and differences between distinct mutant backgrounds?

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Notch-dependent and -independent transcription are modulated by tissue movements at gastrulation" for further consideration by eLife. Your revised article has been evaluated by Claude Desplan (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

Essential revisions:

Overall, the manuscript is much improved and the authors have addressed most of the reviewers' major concerns. There are two remaining issues that require clarification and additional technical information related to imaging conditions and corrections for nuclear depth over the course of gastrulation, and a previously reported increase in transparency of klar embryos.

1) Please provide additional information about the imaging pipeline – specifically whether any corrections are being made for spatially-dependent changes in signal due to movement of cells in the z-direction. See reviewer 2 comments for details.

2) The klar mutant background is associated with a clearing of embryos, at least in older embryos at stage 8 (Supatto et al. Nature Protocols 2009). Please provide information regarding whether there is an increase in transparency of klar embryos at NC14 that may result in the GFP signal appearing brighter that wild type controls.

Reviewer #2:

The manuscript is improved. In particular, the data are more clearly presented and the authors have added more experiments, namely testing whether levels of Twist, chromatin import, chromatin compaction and/or accessibility relates to the increase in mesectoderm gene expression identified at the time of mesoderm invagination.

The author's testing of Twist addresses one of the reviewer's major concerns. While it is still possible that post translational modification of Twist acts to increase its activity at invagination, their dismissal of Twist for the purpose of this study is reasonable based on the data presented.

Another major concern was that the use of maximum intensity may lead to noise in the spot calling numbers. The authors state that using the maximum intensity is an accurate method because of tests they have done, however they do not elaborate on what these tests are or how they have verified this beyond the limited use of the alternate method from Garcia 2013. While using the method in Garcia 2013 does show the same general trend, the error is much larger using this method and this doesn't completely support the claim that this method proves the simpler method is correct. The fundamental concern is that single, bright pixels that occur outside of the actual MS2 spot could be skewing the data. An easy way of dealing with this is to apply a median filter, which will remove "salt and pepper" noise to the images. The authors note that they apply this filter across time to smooth the data, however this is would be selecting for nuclei that tend to be on continuously. Another approach would be to manually confirm that the maximum pixel occurs within a spot, but this would be tedious. In the methods section it is stated that "subsequent analysis allows to classify confidently when the maximum value is really representing a spot," however it is unclear how the subsequent analysis alleviates this concern. At minimum, this section of the methods needs to be expanded and made clearer so that the reader can evaluate the method being used.

I do still have a worry that their imaging pipeline is not properly correcting for spatially-dependent changes in signal due to movement of cells in the z-direction. Because they have a H2A-RFP associated with the MCP-GFP MS2 movies, they should use the RFP signal to background correct (not the MCP-GFP signal associated with inactive nuclei). The H2A-RFP signal can vary in space in time due to position of nuclei. The authors are imaging the MS2 signal in a tissue that moves, however they don't provide a correction for this movement or rule out whether this movement is changing intensity of the signal. Specifically, when signal is lower, the MS2 is in a more dorsal location than compared to after invagination where the signal is at the ventral most point. Did the authors correct for any difference in intensity that could be occurring from differences in the position of the tissue? It is conceivable that signal from the ventral most point will be more optically accessible than from points located more dorsally, due to the curvature of the embryo and possibly the diffraction of light as it moves through tissue to reach the objective. An easy way to correct for this would be to use the signal of the H2A signal that was used to segment and track the nuclei, as any positional effects should also affect the H2A signal, and the H2A signal is already mapped to its corresponding spot.

In addition, the klar mutant background is associated with a clearing of embryos such that the GFP signal may appear brighter because embryos are more transparent; this has been shown for older embryos at stage 8 (Supatto et al. Nature Protocols 2009) but it is unclear if this is the case at nuclear cycle 14. If klar mutant embryos at these earlier stages are more transparent, could this account for the apparent increase in GFP signal associated with the klar mutant background (Figure 5B)? Might the H2A-RFP signal serve to normalize the ctr RNAi vs klar RNAi data? Is the H2A-RFP signal also increasing in the klar RNAi? If that is the case, and the klar data is more similar to wildtype – the early phase of transcription may need to be offset vertically (allowing it to align with wildtype). In this alternative scenario, it would appear then that there is a transition late in the klar mutant background. Might the clearing of lipids affect timing of mesoderm invagination and/or when it is recognized/called?

The reviewer appreciates the premise of this study but the authors would be wise to do a bit more controls/investigating to ensure that the observed upregulation in signal associated with mesoderm invagination is not an imaging artifact: (i) might positional effects on MS2 signal be responsible for the increase in GFP observed when cells invaginate/are more directly illuminated; and (ii) to determine whether klar mutants are more transparent and if so use methods to normalize signals obtained in klar in comparison with wildtype.

Reviewer #3:

The authors have improved their manuscript and addressed my points. They have added a lot of data related to the dynamics of the nucleus and chromatin mobility. Most of these results are negative but they contribute to the detailed characterization of the process. Overall, the findings support the authors' conclusions.

Nevertheless, the role of Klar remains difficult to fit in the authors' proposed model, since Klar loss of function phenotype is distinct from the ones observed in mutants affecting the mechanical forces associated with gastrulation (α-cat, RhoGEF2 and Fog). I therefore doubt that Klar would be part of the mechanisms by which gastrulation associated forces modulate Notch-dependent and -independent transcriptional regulation.

https://doi.org/10.7554/eLife.73656.sa1

Author response

[Editors’ note: The authors appealed the original decision. What follows is the authors’ response to the first round of review.]

Reviewer #1:

This paper describes the intriguing observation that transcriptional activity of a Notch dependent enhancer depends on gastrulation movements in the Drosophila embryo. Using the MS2 system to report on live transcriptional dynamics, it is convincingly shown that a burst of transcriptional activity from the Notch-dependent enhancer in cells neighboring the ventral furrow coincides temporally with gastrulation movements, and that such movements are necessary for the transcriptional burst. This gastrulation-dependent upregulation is also observed by NICD-induced transcription, suggesting the mechanism lies downstream of Notch receptor, likely in the nucleus. The idea that morphogenetic movements can affect genome regulation through mechanical changes on the nucleus is intriguing and important, and this paper represents a clear example in the context of embryonic development.

Overall, the data are high quality and are presented in a clear and convincing manner. The data for the most part support the authors conclusions. Specifically, the conclusion that gastrulation movements are required for transcriptional upregulation of Notch-dependent enhancers is well supported by the data, and the use of three different genetic alterations to impair gastrulation is a strength. However, to further demonstrate a causal link between tissue mechanics and transcriptional output, it would be beneficial to also show that ectopic tissue folding or stretch is sufficient to generate an increase in enhancer activity. Currently there is only data showing a loss-of-transcriptional upregulation when tissue folding is impaired, and it is possible that some of the mutants used to block gastrulation have broader pleiotropic effects that could impact Notch signaling. Further, data connecting the observed changes in enhancer activity to mechanical changes on the nucleus are not well supported by the current data.

We are glad that the reviewer considers the results to be intriguing and important and the data to be of high quality. We appreciate the concerns, which we have addressed below.

1. To further demonstrate a causal link between tissue mechanics and transcriptional output, it would be beneficial to also show that ectopic tissue folding or stretch is sufficient to generate an increase transcription. Currently there is only data showing a loss-of-transcriptional upregulation when tissue folding is impaired, and it is possible that some of the mutants used to block gastrulation have broader pleiotropic effects that could impact Notch signaling.

We appreciate the concerns of the reviewer. However, because we have used a range of different methods to interfere with gastrulation, including mutations in the gastrulation specific Fog ligand, it is unlikely that these would all have the same pleiotropic effects. We have also tested a range of other mutations/disruptions including some that have quite pleiotropic effects but do not impact gastrulation, such as Zelda, and found that these do not alter the transcription profile. We have added information from some of the other genotypes tested (new Figure 2 – supplement 4).

We also agree that the converse experiment, testing the consequences of inducing ectopic folds, would be an excellent one. However, because we can only measure the read-out in the stripe of cells where Notch is active, this makes the experiment challenging- it’s difficult to know a relevant site for the ectopic folds and to induce them in the short timescale (aprox 10 min) needed to compare transcription levels before and after the fold and before gastrulation occurs. Nevertheless, we have made extensive efforts to carry out experiments along these lines over the past 2 years. Despite many attempts, we have not been able to induce ectopic invaginations, either earlier or in the relevant places, with the tools available in our experimental set-up. We have attempted to do this again during the review period but have not been able to do so successfully.

2. A discussion of the possible functional consequences of tissue movements on Notch-dependent transcription at this stage of embryogenesis would be helpful for the non-expert.

Consequences of perturbing the force-augmented transcription will likely be a less precise mesectoderm boundary, which has an important role in separating the flanking neurectoderm from either side as well as in forming the midline of the CNS. We have included a comment about the possible consequences from perturbing Notch target genes at this stage.

3. Data connecting the LINC complex to m5/m8 activity are rather weak, and I'm not sure these data in their current form add much to the paper.

The perturbation of the LINC complex has a robust effect on m5/m8 transcription. This result was very striking because we had tested other possible intermediates, such as the Lamin related Kugelkern and the pioneer factor, Zelda, and had seen no change in transcription. We had omitted these negative data for simplicity, but these have now been added to the manuscript to give more context and illustrate that the result with LINC is noteworthy (new Figure 2 – supplement 4).

We have also included a description of the change in nuclear morphology and an analysis of the chromatin mobility during mesoderm invagination, in relation to gastrulation and the transcriptional changes (new Figure 6). The results show that there are substantial changes in nuclear morphology and that the chromatin becomes more mobile, a feature that is thought to be indicative of increased accessibility.

Reviewer #2:

In the study presented in this manuscript, Falo-Sanjuan and Bray explore the connection between mechanical forces and transcription during gastrulation, a process involving extensive cell movement, rearrangement as well as tension sensing and specification of different cell lineages. The overall hypothesis and ideas are interesting and valid, the experiments are well designed and data are carefully analyzed. The study starts by explaining how the tension between cells can affect Notch signaling in the mesoectoderm through monitoring MS2 transcriptional activity from the m5/m8 enhancer in control and mutant embryos in which mesoderm invagination fails due to defects in cell-cell adhesion (α-catenin) or actomyosin regulation (RhoGEF2, concertina and fog). These results support the view that cortical cytoskeletal tension is causing an increase in Notch-dependent transcription. Then, somewhat abruptly the working model is revised when full-length Notch is shown not to be required for this increase (eve2-NICD in Notch RNAi); they hypothesize that if Notch signaling does not respond to tension at the cell membrane through ligand-receptor binding, the tension-sensing/gene upregulation at mesoderm invagination must relate to LINC complex function at the nuclear membrane. The transition to study of LINC complex function seems to be a bit jarring and needs more supportive evidence to better explain why alternative explanations were disregarded. Lastly, the title may be a bit misleading as the data support the view that "cell movements associated with gastrulation have a direct impact on transcription in the nucleus"… and that Notch-responses are not the only ones that are affected.

We are glad that the reviewer considers the hypothesis and ideas interesting and the experiments well designed. We have addressed the queries about the alternate models below and can add substantial data to address these.

The reviewer had specific concerns (detailed below) that relate to (i) quantitative analyses; (ii) there is an apparent contradiction between title and the fact that Notch appears dispensable for the observed phenotype; (iii) klar RNAi gives the opposite phenotype as expected (but somehow still stated as supporting their model) – this merits more explanation or investigation; and (iv) lack of attention is given to other explanations including possible connection between NICD-Twist-mechanotransduction.

This is a very interesting study but the title, flow of the main text and its figures are somewhat misleading/hard to follow. In particular, the transition to study of LINC complex function seems to be a bit jarring and needs more supportive evidence to better explain why alternative explanations are disregarded. Also, the role of LINC complex, specifically klar in regulating tension-dependent transcriptional activity at gastrulation is unclear, more experiments need to be done to show how it interacts with NICD.

We have addressed the concerns below.

1) MS2 spot calling and signal quantification. The reviewer realizes that the MS2 quantification has been published before but for the current focus on levels of expression, the spot analysis should be revisited. Instead of identifying the MS2 spot, the authors appear to be using the maximum intensity within a nucleus. This ignores the shape of a spot and assumes that the maximum intensity sufficiently represents the spot. A better method of spot detection would include either gaussian fitting or thresholding. Since a key point of the paper is to study an increase in signal that is correlated to gastrulation, additional attention to quantification is necessary.

We appreciate the reviewer’s concerns. However, our analysis indicates that, at this stage in embryogenesis, the method used is very applicable way to capture the spot because there is little background or extraneous spots. To verify this, we have run the alternate analysis based on differential-of-gaussian filtering that integrates the fluorescence from the whole spot (Garcia et. al 2013) on several movies and obtained the same outcome, as illustrated in Author response image 1 for the cta and RhoGEF knockdown experiments. Because of the time needed to analyze all of the genetic conditions with the alternate approach (which is very computationally heavy), we have opted to use this simpler method, which we are confident gives a good proxy based on all the tests we have done.

Author response image 1

2) Along these lines, the authors need to provide more information about the number of cells scored for graphs that show "fraction of nuclei…".

This information was provided in another panel but has now been added more explicitly in the relevant panels of each figure.

3) In Figure 2C,E, only embryos that show a clear change in mean levels of transcription are displayed. What is the total number of embryos collected for each condition? How was a "clear change in mean levels" defined?

This information has now been added to all plots that show correlations. We note that in most cases all embryos collected in each condition have been included (total n number is shown in the mean transcription plots). We had explained how a clear change in mean levels is defined in the methods, but we appreciate it may have been quite brief. We have now expanded on the definition and included a figure for clarity.

4) Figure 2, the control profiles of m5/m8 transcription activity in B, D, F appear to be very different, especially for fog mutants, is there a specific reason?

There is some variability caused by the genetic background, especially those that have a Gal4 present. Author response image 2 is a plot illustrating that, although there is a small amount of variability in the early phase, they subsequently all overlap throughout the period of MSE invagination, (45-60 mins), which is our focus here.

Author response image 2

5) The authors used a vnd enhancer to show that mechanical forces have a general effect on transcription at gastrulation. However, there is no further attempt to explore or discuss how vndEEE might be regulated, through another tension-sensing transcription factor or maybe also by changes in nuclear property/LINC complex? Twist seems likely (see pt 8 below).

Our hypothesis is that the same mechanisms are involved for vndEEE, as this would be the most parsimonious explanation. We agree that it could be valuable to test vndEEE in other mutants, but have not done so, we focussed on demonstrating that the mechanism is not via Notch and hence points to a more general mechanism. We agree also that Twist was a prime candidate, but as discussed below, our evidence does not support that.

6) Figure S4, if m5/m8 is Notch-dependent, what causes the increase at time 0 in the mean profile of Notch RNAi?

We have previously shown that m5/m8 expression is compromised when Notch activity is perturbed by a range of different mutations (Falo Sanjuan et al., 2019). Notably, in neuralized mutants there is no expression of m5/m8 remaining. In order to carry out the experiments here, we used NotchRNAi to perturb Notch activity, as it was the most genetically tractable for the experiments (e.g. neuralized mutants could not have been genetically combined with the MS2 system and ectopic NICD production). Unfortunately, RNAi is not always fully penetrant and some embryos retained residual activity. As evident from the plots in Figure 3 – supplement 1B, expression is completely or almost completely abolished in 6/8 embryos. We have opted to include all of the data for transparency, but include now also a plot from those embryos where we are confident the knock-down is effective.

7) It is interesting that the ectopic expression of eve2-NICD in Notch RNAi background rescues m5/m8 transcription activity within the eve stripe (Figure 4), but how much of this increase relates NICD versus other tension activated factors (e.g., twist)? Is twist upregulated in the domain of eve2-NICD expression in Notch RNAi embryos? How does this study/timing of m5/m8 upregulation at invagination relate to the mechanical signals discussed in Pouille et al., Sci Signal 2009 (which should be cited).

We have previously shown that m5/m8 transcription is dependent on Notch and that Twist is involved in priming so that the enhancer response in a sustained and robust way. Like the reviewer, we wondered whether Twist might be involved in directing the enhanced expression at gastrulation, in part based on the report that Twist is sensitive to mechanical force in other parts of the embryo, in other work from the Farge group. We have invested a large amount of time to follow up on this model but can find no evidence that Twist is at the nexus. For example, we carefully quantified Twist levels throughout nuclear cycle 14, and there is no increase at the time of mesoderm invagination. These data have now been added to the manuscript as new Figure 6. Furthermore, a mutant version of the m5/m8 enhancer that lacks Twist motifs is still upregulated at the time of mesoderm invagination. This point has been made more explicit in the text (see page 18).

The mechanical signal described in Pouille et al. would be upstream of the events we are investigating as it altered endocytosis of Fog, the ligand that initiates mesoderm invagination. We have made this point more explicit and included the reference as requested (see Page 16).

8) The conclusion that LINC complex/Klar plays a role in tension-regulated Notch signaling activity is poorly supported. Figure 5B shows that there is an early increase in m5/m8 activity, which is, as the authors point out, opposite from the expected result. Therefore, it is necessary to better define the relationship between NICD and nuclear properties modified/influenced by LINC. How does loss of function klar (or other LINC protein) impact intracellular Notch signaling and other tension-related processes, including localization of α-catenin at the AJs, RhoGEF2 at the apical membrane, actomyosin pulsing, expression of cta and fog, etc. Depending on whether twist is found to be upregulated by eve2-NICD (see point 7 above), it might also be worth looking to see how twist expression (upregulation by NICD?) is affected by klar.

We argue that LINC is required to transmit the consequences from tension regulated forces, generated by Fog and actinomyosin changes, onto the nucleus. There is no evidence that Klar would alter any of these upstream steps in the mechanotransduction. In contrast there is growing evidence that LINC is important in transducing forces to the chromatin. We have thus focussed on potential downstream changes in the nuclear properties.

These additional results are reported in a new section “Changes in nuclear properties at gastrulation”. First, we have measured nuclear entry of different transcription factors, including Twist. We not find any changes in nuclear levels that can provide an explanation as shown by the new data that we have added (new Figures 6, Figure 6 – supplement 1). Second, we have quantified additional features such as nuclear morphology and chromatin motility. Both these properties change at gastrulation and could contribute to the effects seen (new Figures 6, Figure 6 – supplement 2 and Figure 6 – supplement 3).

9) Unlike m5/m8 enhancer which requires Notch signaling input directly to help activate gene expression, Notch input at the sim enhancer acts to 'derepress' expression by eliminating Su(H) repressor input and allowing output to be responsive to Dorsal and Twist (Zinzen et al., Dev Cell 2006; Morel & Schweisguth, Genes Dev 2000). Therefore, the roles of Notch in m5/m8 and sim enhancers differ. In the current study, the focus is m5/m8 with little done to analyze sim enhancer properties. Interestingly, in Morel & Schweisguth, when Su(H) sites are mutated in a sim enhancer (sim.mut), reporter expression remains in N mutant embryos. It is likely that the sim.mut enhancer would also show upregulated gene expression at mesoderm invagination if tested; and if so may be a better test case for tracking the input that relates to mechanotransduction with subsequent mutagenesis. Possibly this input is Twist.

Our evidence suggests that NICD also has a positive effect on sim enhancer, as well as alleviating repression. We note that, although there is some expression remaining in the absence of Notch, this is very variable and weak in comparison to the wild-type. In addition, the sim enhancer shows a very similar upregulation to m5/m8 at the time of mesoderm invagination, which is lost in embryos where α-Catenin is depleted. We have added these additional data with the sim enhancer to the manuscript (new Figure 2 – supplement 3). As discussed above, we do not find evidence to support the hypothesis that Twist is the primary transducer.

10) Farge 2003 already showed that Twist increases residency in the nucleus downstream of mechanical induction. Relating to comments above (e.g. point 7 and 9), it is likely that the NICD-effect could be indirect, working to upregulate Twist. If so, this study is still interesting, but are the current results novel?

As discussed above, we also thought Twist would be a good candidate based on Farge 2003 and have investigated this possibility quite extensively. We do not find any evidence for a change in the levels of nuclear Twist at this stage, having used a nano-body to measure the levels throughout nuclear cycle 14 (see above and new Figure 6). Furthermore, an m5/m8 enhancer in which all of the Twist motifs have been mutated (which exhibits much lower levels of expression) still undergoes a marked increase in activity at the time of gastrulation (Falo-Sanjuan et al. 2019). This point has been emphasised more clearly in the text (page 18).

11) The title is confusing as the data support the view that "cell movements associated with gastrulation have a direct impact on transcription in the nucleus"… and that Notch-responses are not the only ones that are affected.

We have modified the title to take on board the concerns and we think this better describes the results obtained.

Reviewer #3:

This manuscript is of broad interest to readers in the fields of Cell and Developmental Biology. The authors provide an elegant set of experimental evidence demonstrating that Notch transcriptional activity is modulated during Drosophila mesoderm movements. The data are of very good quality. The authors could boost their conclusions by better replacing them in the context of their previous studies regarding the role of adherens junctions in Notch transcriptional regulation or turnover (Falo-Sanjuan and Bray, Development 2021). The findings on Klar mutant conditions are highly relevant but more difficult to unit with the interplay between Notch transcriptional control and mesoderm invagination.

The major strength of the manuscript is the quantitative and original analyses of Notch (N) transcriptional levels in conjunction with morphogenetic movements in multiple genetic backgrounds. The authors could improve their manuscript by addressing the following points:

1. In Figure S1, the authors have also quantified N activity with two other reporters of N transcriptional activity. Both reporters show an increase at 50 mins as described in the main text, but both reporters also show a decrease at 55 mins. This decrease is not observed for the line (II) used through the manuscript. One could therefore argue that this drop is also a relevant characteristic of Notch activation during mesoderm invagination. This data should therefore be placed in the main figure and the decrease should be mentioned in the main text. In addition, it will be important that the authors performed the some loss of function analyses (for example RhoGEF2, Fog and Notch mutant conditions) using these two other reporters to further validate their findings.

The decrease noted by the referee occurs after gastrulation is completed when the midline stripes come together and the cells in the mesectoderm divide. Our evidence suggests that Notch signalling ceases around that time and that the time it takes to complete this is more variable across embryos from the same genetic condition. It is also the time when there are extensive movements and sometimes the tracking is lost. This leads to considerable variability between movies, especially in genetic conditions where gastrulation is a bit delayed or stuck. We can confirm that both the other reporters have been examined in Notch loss of function conditions, where their expression is lost. We have also tested their behaviour in embryos where α-Catenin is depleted and both show similar loss of upregulation to the main reporter used in the paper. We have added these data to the manuscript (see new Figure 2 – supplement 3).

2. Page 7: The following statement is confusing. "We note the mean levels of transcription from this reporter were not significantly reduced prior to gastrulation, unlike those from another reporter insertion and the endogenous genes that showed decreased levels also during cellularization (Falo-Sanjuan and Bray 2021). The difference likely arises because this m5/m8 [II] insertion achieves maximal transcription at lower levels of Notch activity." In the cited previous paper, the authors have shown that a-cat affects Notch transcription during cellularization. It is unclear why a difference in reporter strengths will lead to distinct conclusions. This needs to be further experimentally explored and explained.

In all the experiments we have done, the second chromosome m5/m8 reporter gives a more robust response. We too have been perplexed by the reasons for this, although it is well known that different genomic insertion sites of the same reporter frequently yield slightly different responses. We have recently generated a new CRISPR line where the endogenous gene has been tagged with MS2 loops and verified that it shows the same transcription profile. We also find that the other enhancers yield similar results after gastrulation, making us confident that the effects are not enhancer specific, albeit sometimes the magnitude of the effect may vary. We have explained this more clearly in the text (see pages 7-8) and have added the additional data for the other enhancers (new Figure 2 – supplement 3).

3. Page 12: "As predicted, this treatment greatly reduced transcription from m5/m8 [II] (Figure S4AB).". The reduction is 2-fold. How these fold changes compare with the ones observed in RhoGEF2 and Fog mutant conditions? The Notch mutant conditions should be shown in figure 1. Furthermore, one could argue that a large part of the increase in reporter expression does not reflect an increase in Notch activity. Please discuss.

Here we are a victim of the variability from RNAi knock-down experiments. We have previously used several different mutations to compromise Notch activity, including neuralized, where there was no residual expression from the reporters (as previously published, Falo Sanjuan et al., 2019). Here we used NotchRNAi to perturb Notch activity, as it was the most genetically tractable for the experiments. Unfortunately, RNAi is not always fully penetrant and some embryos retained residual activity. As evident from the plots in Figure 3 – supplement 1B, expression is completely or almost completely abolished in 6/8 embryos. We have opted to include all of the data for transparency, which is why some residual expression is seen in the mean plots, as noted by the referee. We have now included a plot from those embryos where we are confident the knock-down is effective to illustrate that very little transcription remains (Figure 3 – supplement 1A, new panel) The fold changes are very different from other knock down experiments, where there is transcription remaining in a significant proportion of the cells in all the embryos, as is evident in the heatmaps. We hope this clarifies the point.

4. Figure 4. It will be important that the authors plot on the same plot with the same units the endogenous Notch activity in both wt and NotchRNAi.

We are unclear what the reviewer is requesting here, and what the concerns are. In each experiment we compare with a wild type control from embryos imaged under the same conditions. For all of the Notch RNAi experiments there is a plot of the equivalent control, with control RNAi, from the same experiments. If comparing between very different experiments (e.g WT and Notch ICD overexpression), the time and imaging conditions may not be identical. For example, some experiments were conducted pre-Covid closure and others after, with changes in the microscopes between. A laser burned out at one point and some experiments were performed on a different microscope. However, where these changes have occurred, controls were always imaged in parallel. This is why there are sometimes slight differences between the control plots.

5. As stated by the authors, Notch transcription findings in Klar mutant conditions are distinct from the authors' prediction since transcription increases prior to mesoderm invagination. The role of nucleus deformation and the Klar contribution remain difficult to understand and insert in the authors proposed model.

We agree that the results are not 100% straightforward. However the data argue (1) that integrity of LINC complex is important for the normal levels of gene expression and (2) that the levels of transcription are no longer sensitive to the forces from gastrulation. As we have tested other factors and not found any other that prevents the gastrulation related increase, without compromising transcription overall, we therefore consider this to be a substantial result.

6. Statistics: Could the authors propose statistical tests to further support their findings regarding temporal changes in reporter levels and differences between distinct mutant backgrounds?

We have done this for the correlation plots and provided the results in the R-value. The mean plots are significantly different from one another, as is evident from the error bars. As discussed we always include all the data in the plots, to show the variability within a given genotype. This has been the standard approach in the current literature.

[Editors’ note: what follows is the authors’ response to the second round of review.]

Essential revisions:

Overall, the manuscript is much improved and the authors have addressed most of the reviewers' major concerns. There are two remaining issues that require clarification and additional technical information related to imaging conditions and corrections for nuclear depth over the course of gastrulation, and a previously reported increase in transparency of klar embryos.

1) Please provide additional information about the imaging pipeline – specifically whether any corrections are being made for spatially-dependent changes in signal due to movement of cells in the z-direction. See reviewer 2 comments for details.

We appreciate the comments of the reviewer, because the potential for the movement of the nuclei to be a confounding factor was one that concerned us at the outset. All the movies were carefully evaluated to ascertain whether there was any relationship between the nuclear positions and the change in MS2/MCP signal intensity. We found no correlation. We have now added the graph showing this lack of correlation to the supplementary data (new figure 1S1E ). We note, as discussed in more detail below, that the strategy proposed by the reviewer, to normalize using the histones, is not feasible due to variable changes in the levels and the chromatin density etc, that complicate any such quantifications. We hope that the additional information provided addresses the concerns.

2) The klar mutant background is associated with a clearing of embryos, at least in older embryos at stage 8 (Supatto et al. Nature Protocols 2009). Please provide information regarding whether there is an increase in transparency of klar embryos at NC14 that may result in the GFP signal appearing brighter that wild type controls.

We are grateful to the reviewer for highlighting this possibility. Indeed we have now checked and there is an increase in GFP detection in the Klar mutant embryos. We have carefully quantified this difference, and corrected for it. However, the effect is a small one with a very minor impact on the overall levels that does not alter the results (it makes a small adjustment in our favour).

Reviewer #2:

The manuscript is improved. In particular, the data are more clearly presented and the authors have added more experiments, namely testing whether levels of Twist, chromatin import, chromatin compaction and/or accessibility relates to the increase in mesectoderm gene expression identified at the time of mesoderm invagination.

We are glad the reviewer appreciates the additional experiments testing the role of Twist.

The author's testing of Twist addresses one of the reviewer's major concerns. While it is still possible that post translational modification of Twist acts to increase its activity at invagination, their dismissal of Twist for the purpose of this study is reasonable based on the data presented.

Another major concern was that the use of maximum intensity may lead to noise in the spot calling numbers. The authors state that using the maximum intensity is an accurate method because of tests they have done, however they do not elaborate on what these tests are or how they have verified this beyond the limited use of the alternate method from Garcia 2013. While using the method in Garcia 2013 does show the same general trend, the error is much larger using this method and this doesn't completely support the claim that this method proves the simpler method is correct. The fundamental concern is that single, bright pixels that occur outside of the actual MS2 spot could be skewing the data. An easy way of dealing with this is to apply a median filter, which will remove "salt and pepper" noise to the images. The authors note that they apply this filter across time to smooth the data, however this is would be selecting for nuclei that tend to be on continuously. Another approach would be to manually confirm that the maximum pixel occurs within a spot, but this would be tedious. In the methods section it is stated that "subsequent analysis allows to classify confidently when the maximum value is really representing a spot," however it is unclear how the subsequent analysis alleviates this concern. At minimum, this section of the methods needs to be expanded and made clearer so that the reader can evaluate the method being used.

We apologize if the details of the methodology were not sufficiently clear. As the reviewer notes, we have applied a median filter to remove noise from background pixels that are not coming from an MS2 spot (“salt and pepper”). The wording we used was perhaps misleading because the filter is only applied over 3 frames, i.e. over a period of 45-60”. Thus, it is not selecting for “continuously active spots”. The time-window was chosen because, based on transcription rates and minimum signal needed from MS2 loops, bursts shorter than 1 min would probably not be detectable so any bright pixels present for such a duration have a high probability to be background. Conversely, the “subsequent analysis” involved applying background subtraction, median filtering and selecting spots classified as ON for 5 frames (1.25-1.6 min) to identify active sites of transcription. These parameters were validated by overlaying nuclei defined by the pipeline as actively transcribing with the MS2 signal, and confirming that the two were concordant. These aspects of the analysis have been explained more clearly in the Methods (page 34).

I do still have a worry that their imaging pipeline is not properly correcting for spatially-dependent changes in signal due to movement of cells in the z-direction. Because they have a H2A-RFP associated with the MCP-GFP MS2 movies, they should use the RFP signal to background correct (not the MCP-GFP signal associated with inactive nuclei). The H2A-RFP signal can vary in space in time due to position of nuclei. The authors are imaging the MS2 signal in a tissue that moves, however they don't provide a correction for this movement or rule out whether this movement is changing intensity of the signal. Specifically, when signal is lower, the MS2 is in a more dorsal location than compared to after invagination where the signal is at the ventral most point. Did the authors correct for any difference in intensity that could be occurring from differences in the position of the tissue? It is conceivable that signal from the ventral most point will be more optically accessible than from points located more dorsally, due to the curvature of the embryo and possibly the diffraction of light as it moves through tissue to reach the objective. An easy way to correct for this would be to use the signal of the H2A signal that was used to segment and track the nuclei, as any positional effects should also affect the H2A signal, and the H2A signal is already mapped to its corresponding spot.

We acknowledge that tissue depth and position of the MS2 spot in Z might affect the intensity being detected, however we had carefully evaluated the data and had ruled out the possibility that the transition in levels is due to changes in nuclear position. We have added data to the supplementary (new figure 1S1E) to illustrate this point.

We have been able to analyze the relationship between MSE nuclear depth/curvature and the MS2/MCP signal because individual embryos are mounted with slightly different positions so that each has differing changes in Z. In most cases, the embryos are not mounted completely ventrally, which means that the MSE is very close to the coverslip before as well as after gastrulation. As the embryo gastrulates, it does so within the vitelline membrane so that the MSE is captured in a similar Z position throughout time. This means that, in these cases, the signal detection is not very affected by curvature of the embryo and the depth of imaging. In other cases where the embryo is mounted more ventrally the difference in Z positions is only 5μm on average. By comparing the data from each embryo, there is no correlation between how far the position of the MS2 spots differed in Z before and after gastrulation and how much levels increased. We initially made this analysis for all the original movies (used for Figure 1G) and have now performed the same analysis for the new movies we generated for the gastrulation studies (Author response image 3) . In neither case is there any correlation between the change in Z position and the change in levels. We have also explored these parameters carefully on an embryo by embryo basis and are confident there is no confounding effect from the nuclear depth. We have now added the left hand graph to supplementary Figure (Figure 1S1E) and commented on this point in the text (page 6).

Author response image 3

We also note that in other genetic conditions, such as RhoGEF2 depletion, where tissues move from the same positions in DV and Z as wild type embryos, (only slower), we do not detect any increase in levels. If the increase was due to differences in Z positions, a similar increase would still be manifest in these embryos, which it is not.We appreciate the suggestion from the reviewer to utilize the His2Av-RFP intensity as a way to normalize from any changes in depth. However, in our experience this would not be a good method for several reasons. First, its levels vary over time, independently of Z position, because as nuclei increase volume the His2Av signal becomes dimmer. Second, heterochromatin begins forming during nc14, giving rise to a much more heterogeneous signal that includes differences along apical/basal polarity. Thus while His2Av is very valuable for segmenting the nuclei, its variability during nc14 makes it unsuitable for correcting on a nucleus-by-nucleus basis for the subtle changes in intensity due to changes in Z position.

In addition, the klar mutant background is associated with a clearing of embryos such that the GFP signal may appear brighter because embryos are more transparent; this has been shown for older embryos at stage 8 (Supatto et al. Nature Protocols 2009) but it is unclear if this is the case at nuclear cycle 14. If klar mutant embryos at these earlier stages are more transparent, could this account for the apparent increase in GFP signal associated with the klar mutant background (Figure 5B)? Might the H2A-RFP signal serve to normalize the ctr RNAi vs klar RNAi data? Is the H2A-RFP signal also increasing in the klar RNAi? If that is the case, and the klar data is more similar to wildtype – the early phase of transcription may need to be offset vertically (allowing it to align with wildtype). In this alternative scenario, it would appear then that there is a transition late in the klar mutant background. Might the clearing of lipids affect timing of mesoderm invagination and/or when it is recognized/called?

We thank the reviewer for bringing this reference to our attention. Klar RNAi embryos indeed exhibited higher GFP and RFP signals. We quantified this difference by measuring the average His2Av-RFP signal (15.8 % lower in control embryos) and average MCP-GFP signal in nuclei that never show MS2 activity (11% lower in control embryos). We have as a consequence corrected the MS2 signal for the “clearing effect” by reducing the signal in Klar RNAi by 11%. This correction has a very modest impact which doesn’t change the overall result. These data are now included in supplementary Figure 5S2 and commented on page 17.

The reviewer appreciates the premise of this study but the authors would be wise to do a bit more controls/investigating to ensure that the observed upregulation in signal associated with mesoderm invagination is not an imaging artifact: (i) might positional effects on MS2 signal be responsible for the increase in GFP observed when cells invaginate/are more directly illuminated; and (ii) to determine whether klar mutants are more transparent and if so use methods to normalize signals obtained in klar in comparison with wildtype.

We have addressed these points in detail in the two sections above.

Reviewer #3:

The authors have improved their manuscript and addressed my points. They have added a lot of data related to the dynamics of the nucleus and chromatin mobility. Most of these results are negative but they contribute to the detailed characterization of the process. Overall, the findings support the authors' conclusions.

We are glad that the reviewer appreciates the additional data and that these have addressed many of the points they raised.

Nevertheless, the role of Klar remains difficult to fit in the authors' proposed model, since Klar loss of function phenotype is distinct from the ones observed in mutants affecting the mechanical forces associated with gastrulation (α-cat, RhoGEF2 and Fog). I therefore doubt that Klar would be part of the mechanisms by which gastrulation associated forces modulate Notch-dependent and -independent transcriptional regulation.

We appreciate the reservations of the reviewer, but we disagree with the premise that a difference in phenotypes a priori rules out a role in the mechanism. The Klar mutants share a key element of the phenotype from α -Cat, RhoGEF2 which is to depress the increase in transcription. Klar exhibits additional changes which would suggest it has other roles besides transducing the mechanical signal.

https://doi.org/10.7554/eLife.73656.sa2

Article and author information

Author details

  1. Julia Falo-Sanjuan

    Department of Physiology, Development and Neuroscience, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Conceptualization, Investigation, Methodology, Software, Validation, Visualization, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3563-4789
  2. Sarah Bray

    Department of Physiology, Development and Neuroscience, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Conceptualization, Funding acquisition, Project administration, Supervision, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    sjb32@cam.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1642-599X

Funding

Wellcome Trust (212207/Z/18/Z)

  • Sarah Bray

Medical Research Council (MR/T014156/1)

  • Sarah Bray

Wellcome Trust (109144/Z/15/Z)

  • Julia Falo-Sanjuan

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication. For the purpose of Open Access, the authors have applied a CC BY public copyright license to any Author Accepted Manuscript version arising from this submission.

Acknowledgements

We thank members of the Bray Lab for helpful discussions. Thanks to Yang Joon Kim, Jiaxi (Jake) Zhao for sharing unpublished flies, Tom Sharrock for advice on embryo injections, members of the Sanson, Weil and Garcia labs for providing flies and advice and to Kat Millen and the Genetics Fly Facility for injections. We acknowledge the Cambridge Advanced Imaging Centre for their support, assistance in this work and use of their microscopes. This work was supported by a Wellcome Trust Investigator Award (212207/Z/18/Z) and a Medical Research Council Programme grant (MR/T014156/1) and by a PhD studentship to JF-S from the Wellcome Trust (109144/Z/15/Z).

Senior Editor

  1. Claude Desplan, New York University, United States

Reviewing Editor

  1. Danelle Devenport, Princeton University, United States

Publication history

  1. Received: September 6, 2021
  2. Preprint posted: September 16, 2021 (view preprint)
  3. Accepted: April 27, 2022
  4. Accepted Manuscript published: May 18, 2022 (version 1)
  5. Version of Record published: June 9, 2022 (version 2)

Copyright

© 2022, Falo-Sanjuan and Bray

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 611
    Page views
  • 258
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Julia Falo-Sanjuan
  2. Sarah Bray
(2022)
Notch-dependent and -independent transcription are modulated by tissue movements at gastrulation
eLife 11:e73656.
https://doi.org/10.7554/eLife.73656

Further reading

    1. Cell Biology
    2. Developmental Biology
    Ivonne Margarete Sehring et al.
    Research Article

    Successful regeneration requires the coordinated execution of multiple cellular responses to injury. In amputated zebrafish fins, mature osteoblasts dedifferentiate, migrate towards the injury and form proliferative osteogenic blastema cells. We show that osteoblast migration is preceded by cell elongation and alignment along the proximodistal axis, which require actomyosin, but not microtubule turnover. Surprisingly, osteoblast dedifferentiation and migration can be uncoupled. Using pharmacological and genetic interventions, we found that NF-ĸB and retinoic acid signalling regulate dedifferentiation without affecting migration, while the complement system and actomyosin dynamics affect migration but not dedifferentiation. Furthermore, by removing bone at two locations within a fin ray, we established an injury model containing two injury sites. We found that osteoblasts dedifferentiate at and migrate towards both sites, while accumulation of osteogenic progenitor cells and regenerative bone formation only occur at the distal-facing injury. Together, these data indicate that osteoblast dedifferentiation and migration represent generic injury responses that are differentially regulated and can occur independently of each other and of regenerative growth. We conclude that successful fin bone regeneration appears to involve the coordinated execution of generic and regeneration-specific responses of osteoblasts to injury.

    1. Developmental Biology
    2. Neuroscience
    Ashtyn T Wiltbank et al.
    Research Article

    Efficient neurotransmission is essential for organism survival and is enhanced by myelination. However, the genes that regulate myelin and myelinating glial cell development have not been fully characterized. Data from our lab and others demonstrates that cd59, which encodes for a small GPI-anchored glycoprotein, is highly expressed in developing zebrafish, rodent, and human oligodendrocytes (OLs) and Schwann cells (SCs), and that patients with CD59 dysfunction develop neurological dysfunction during early childhood. Yet, the function of Cd59 in the developing nervous system is currently undefined. In this study, we demonstrate that cd59 is expressed in a subset of developing SCs. Using cd59 mutant zebrafish, we show that developing SCs proliferate excessively and nerves may have reduced myelin volume, altered myelin ultrastructure, and perturbed node of Ranvier assembly. Finally, we demonstrate that complement activity is elevated in cd59 mutants and that inhibiting inflammation restores SC proliferation, myelin volume, and nodes of Ranvier to wildtype levels. Together, this work identifies Cd59 and developmental inflammation as key players in myelinating glial cell development, highlighting the collaboration between glia and the innate immune system to ensure normal neural development.
