Single-cell atlas of early chick development reveals gradual segregation of neural crest lineage from the neural plate border during neurulation

  1. Ruth M Williams
  2. Martyna Lukoseviciute
  3. Tatjana Sauka-Spengler
  4. Marianne E Bronner  Is a corresponding author
  1. California Institute of Technology, Division of Biology and Biological engineering, United States
  2. University of Oxford, MRC Weatherall Institute of Molecular Medicine, Radcliffe Department of Medicine, United Kingdom

Abstract

The epiblast of vertebrate embryos is comprised of neural and non-neural ectoderm, with the border territory at their intersection harboring neural crest and cranial placode progenitors. Here, we a generate single-cell atlas of the developing chick epiblast from late gastrulation through early neurulation stages to define transcriptional changes in the emerging ‘neural plate border’ as well as other regions of the epiblast. Focusing on the border territory, the results reveal gradual establishment of heterogeneous neural plate border signatures, including novel genes that we validate by fluorescent in situ hybridization. Developmental trajectory analysis infers that segregation of neural plate border lineages only commences at early neurulation, rather than at gastrulation as previously predicted. We find that cells expressing the prospective neural crest marker Pax7 contribute to multiple lineages, and a subset of premigratory neural crest cells shares a transcriptional signature with their border precursors. Together, our results suggest that cells at the neural plate border remain heterogeneous until early neurulation, at which time progenitors become progressively allocated toward defined neural crest and placode lineages. The data also can be mined to reveal changes throughout the developing epiblast.

Introduction

During gastrulation, the ectoderm layer of the chordate embryo becomes segregated into the neural plate and the surrounding non-neural ectoderm. The neural plate ultimately generates the central nervous system (CNS), whereas the surrounding non-neural ectoderm forms the epidermis of the skin as well as the epithelial lining of the mouth and nasal cavities. At the interface of these tissues is a territory referred to as the ‘neural plate border’ which in vertebrates contains precursors of neural crest, neural, and placodal lineages (Ezin et al., 2009; Streit, 2002). Neural crest and ectodermal placodes share numerous common features including the ability to migrate or invaginate and form multiple cell types. During neurulation, neural crest cells come to reside within the dorsal neural tube where they undergo an epithelial-to-mesenchymal transition (EMT). Subsequently, they delaminate and migrate throughout the embryo, settle at their final destinations and differentiate into numerous derivatives including neurons and glia of the peripheral nervous system as well as cartilage, bone, and connective tissues elements of the head and face. Like neural crest cells, cranial placode cells become internalized, and then differentiate into sensory neurons and sense organs (nose, ears, lens) of the head. Aberrant neural crest or placode development causes a number of developmental disorders affecting craniofacial structures (Siismets and Hatch, 2020; Vega-Lopez et al., 2018), the enteric nervous system (e.g. Hirschsprung’s disease) (Butler Tjaden and Trainor, 2013), and the heart (e.g. Persistent Truncus Arteriosus; CHARGE syndrome) (Pauli et al., 2017; Gandhi et al., 2020). Furthermore, a number of malignancies, including melanoma, neuroblastoma. and glioma, are known to arise from neural crest derivatives (Tomolonis et al., 2018).

An ongoing question is whether individual neural plate border cells are specified toward a particular lineage (i.e. neural crest, placode, or CNS) or if they have the potential to become any cell type that arises from the border. It has been suggested that progenitors of these different lineages may be regionalized within the neural plate border, with the more lateral cells contributing to the placodes and the more medial region giving rise to neural and neural crest cells (Schlosser, 2008). Such segregation has been proposed to result from the influence of graded expression of signalling factors emanating from surrounding tissues, for example Wnts and FGFs, on multipotent neural plate border cells (Schille and Schambony, 2017). Alternatively, individual neural plate border cells predetermined toward a particular lineage may be intermingled within the border. A recent study in the chick (Roellig et al., 2017) showed that while medial and lateral regions of the border can be discerned by lineage markers, there is significant co-expression of markers characteristic of multiple lineages (neural crest, neural plate, and placodal) across the epiblast. Moreover, this overlap of lineage markers within the neural plate border is maintained from gastrulation through neurulation suggesting that these cells may maintain plasticity through neurulation stages. Thus, while some neural plate border cells may be predisposed toward a particular fate, others retain the ability to generate multiple lineages. However, the timing at which neural plate border cells emerge and become distinguishable from neural and non-neural ectoderm has not been conclusively characterized, complicating the assessment of cell heterogeneity within the neural plate border territory. Here, we provide single-cell transcriptomes of the developing chick epiblast from late gastrulation through early neurulation, allowing us to annotate the neural plate border region and explore heterogeneity therein. The results expand knowledge of transcriptional changes in the border as a function of time, revealing the full complexity of co-expressed genes in this multipotent tissue. Moreover, by using whole epiblast tissue, we have generated the first single-cell atlas of early chicken development enabling a contextual view of neural plate border emergence from surrounding tissues.

One study using an ex ovo culturing method of explants from the chicken embryos proposed that a pre-neural plate border region is established as early as stage Hamburger and Hamilton (HH) 3 (Prasad et al., 2020). In addition, an in vitro model to derive neural crest cells from human embryonic stem cells shows that pre-border genes can be induced by Wnt signaling (Leung et al., 2016). However, these observations have not been thoroughly addressed in vivo. Therefore, the questions of how and when neural plate border cells establish/retain multipotency and the comprehensive gene dynamics underlying these processes remain open.

Single-cell RNA-sequencing (scRNA-seq) provides a unique platform to address the intriguing question of when a neural plate border transcriptional signature arises in an in vivo context. To this end, we examined single-cell transcriptomes from the epiblast of gastrulating to neurulating chick embryos to determine the time course of emergence of the neural plate border. The chick represents an ideal system for these studies since avian embryos develop as a flat blastodisc at the selected time points, highly reminiscent of human development at comparable stages. Interestingly, our results show that the border is not transcriptionally distinct until the beginning of neurulation (HH7), when neural plate border markers define a discrete subcluster of the ectoderm. Furthermore, RNA velocity measurements imply that segregation of the neural plate border commences at HH6, but is more profoundly underway at HH7, with definitive neural crest clusters only emerging in the elevating neural folds. Velocity analysis also suggests that Pax7+ cells are not restricted to a neural crest fate but rather are capable of giving rise to all derivatives of the neural plate border. The data also reveal numerous novel factors dynamically expressed across the developing epiblast as well as indicating putative drivers of neural plate border trajectories. Taken together, the data reveal dynamic changes in an emerging neural plate border that becomes progressively segregated into defined lineages, that is complete only late in neurulation. Furthermore, the data can be further interrogated to examine transcriptional changes in other regions emerging from the epiblast.

Results

Single-cell analysis of the avian epiblast during gastrulation (HH4 – 5)

To resolve the transcriptional signatures of individual neural plate border cells in the context of the developing embryo, we first performed single-cell RNA-seq analysis of the epiblast of gastrulating chick embryos at stages HH4-5 (Hamburger and Hamilton, 1951). We used the Chromium 10X platform in order to recover a large number of cells, thus profiling the majority of neural plate border cells. As a reference for emergence of the neural plate border, we used Pax7 and Tfap2A transcription factors, both of which are well-established early markers of the neural plate border (Basch et al., 2006; de Crozé et al., 2011). Tfap2A demarcates the lateral aspect of the neural plate border from HH4 and is also expressed in the non-neural ectoderm (Figure 1A). Pax7 is progressively enriched in the medial border region from HH5 (Figure 1D).

Figure 1 with 2 supplements see all

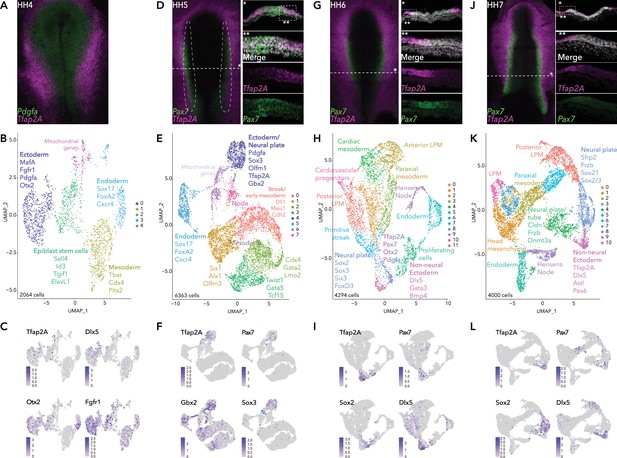

Single-cell RNA-seq of avian epiblast from HH4 through HH7.

(A) Tfap2A expression at HH4, detected by HCR. (B) UMAP plot depicting five clusters resolved from 2064 epiblast cells at HH4. (C) Feature plots of selected genes in HH4 clusters. (D) Pax7 and Tfap2A expression at HH5 detected by HCR. (E) UMAP plot depicting eight clusters resolved from 6363 cells from dissected neural plate border regions at HH5, black dotted region in (D). (F) Feature plots of selected genes in HH5 clusters. (G) Pax7 and Tfap2A expression at HH6 detected by HCR. (H) UMAP plot depicting 12 clusters resolved from 4294 epiblast cells at HH6. (I) Feature plots of selected genes in HH6 clusters. (J) Pax7 and Tfap2A expression at HH7 detected by HCR. (K) UMAP plot depicting 11 clusters resolved from 4000 epiblast cells at HH7. (L) Feature plots of selected genes in HH7 clusters.

At HH4 (Figure 1A), we recovered 2398 cells from eight embryos. Five distinct clusters (2064 cells) were resolved after quality control processing (Figure 1B, Figure 1—figure supplement 1) and annotated by marker genes identified by single-cell differential expression (SCDE) analysis (Figure 1—figure supplement 1). Focusing on the future neural plate border, two ectoderm clusters were recovered (HH4-Cl0, HH4-Cl2), identified by the enrichment in Cldn1 expression (Figure 1—figure supplement 1). HH4-Cl0 was enriched for neural plate markers (Otx2 and Fgfr1), and featured low levels of Tfap2A and Dlx5 (Figure 1C). Signaling molecules including Sfrp2, and Pdgfa were also enriched in HH4-Cl0. Sfrp2 and Fgfr1 are expressed across the neural plate, extending to the neural plate border (Chapman et al., 2004; Lunn et al., 2007) and Pdgfa was expressed in the posterior epiblast (Yang et al., 2008). bHLH transcription factor MafA, more commonly associated with pancreatic beta-cell differentiation (Hang and Stein, 2011), but also reported in the developing chick neural plate (Lecoin et al., 2004), was another marker enriched in HH4-Cl0 (Figure 1—figure supplement 1). HH4-Cl2 was less distinctive but enriched in genes associated with pluripotency, such as Sall4, Tgif1, ElavL1 (Lee et al., 2015; Ye and Blelloch, 2014; Zhang et al., 2006), (Figure 1—figure supplement 1) suggesting these may represent residual epiblast stem cells. Other clusters at HH4 were readily identified as mesoderm (HH4-Cl1) or endoderm (HH4-Cl3) as characterized by the expression of Cdx4 and Pitx2 for mesoderm and Sox17, FoxA2, and Cxcr4 for endoderm (Figure 1B, Figure 1—figure supplement 1). HH4-Cl2 was enriched for genes associated with pluripotency including Sall4, Tgif1, ElavL1 (Lee et al., 2015; Ye and Blelloch, 2014; Zhang et al., 2006; Figure 1—figure supplement 1). Mitochondrial genes and cell migration factors (Cxcl12, Itgb1, Tgfbr1) were enriched in HH4-Cl4 (Figure 1B, Figure 1—figure supplement 1).

To refine our analysis of the prospective neural plate border, we next performed 10X single-cell RNA-seq on dissected neural plate border regions from HH5 embryos (eight dissections) (Figure 1D) yielding 6363 cells and six clusters (Figure 1E, Figure 1—figure supplement 1). Prospective neural plate border cells were confined to cluster HH5-Cl4, enriched for Pax7 and Tfap2A expression, but also featuring a neural marker Sox3, and transcription factor Gbx2, which has a known role in neural crest induction in Xenopus (Li et al., 2009; Figure 1F). While neural plate border markers were enriched in HH5-Cl4 cells, co-expression of neural and non-neural ectoderm factors here (Figure 1—figure supplement 1) suggests this intermediate region is not yet distinguishable as a unique entity.

Single-cell analysis of the avian epiblast during neurulation (HH6 - 7)

During the process of neurulation in amniote embryos, the neural plate gradually folds inwards on itself, the border edges elevate forming the neural folds which, as neurulation progresses, fuse at the dorsal midline to form the neural tube. In the chicken embryo, this process is completed by HH8. Therefore, we performed single-cell analysis at HH6 and HH7 to capture changes in the neural plate border as a function of time. While expression of Pax7 was detectable but low during gastrulation stages (HH4/5), its expression is strongly enhanced by HH6/7 (Figure 1G/J), when this transcription factor marks more medial neural plate border cells.

Single-cell analysis at HH6 showed increased complexity revealing 12 distinct clusters from 4294 cells, 12 embryos (Figure 1H, Figure 1—figure supplement 2). A neural plate cluster (HH6-Cl8) was characterized by neural genes including Sox2/3, Six3, Hes5, and Otx2 (Figure 1I, Figure 1—figure supplement 2) as well as neural crest regulators FoxD3, Ednrb, PdgfA, and Gbx2 (Figure 1—figure supplement 2), whereas Tfap2A, Dlx5, and Gata3 were enriched in the cluster HH6-Cl10. Pax7 and other neural plate border genes Bmp4 and Msx1 were heterogeneously detected at the interface of HH6-Cl8 and HH6-Cl10 (Figure 1I, Figure 1—figure supplement 2), indicating both these clusters harbor neural plate border cells. At HH6 mesodermal cells were found in several clusters: anterior lateral plate mesoderm (HH6-Cl2; Pitx2, Alx1 OlfmL3, Six1, Twist1); posterior lateral neural plate (HH6-Cl0; Gata2, HoxB5, Cdx4). Cardiac mesoderm markers were enriched in HH6-Cl4 (Tcf21 and Gata5) and HH6-Cl11 (Lmo2, Ets1, Kdr). HH6-Cl1 and HH6-Cl3 represented paraxial mesoderm (Msgn1, Mesp1, Meox1). Endoderm cells formed HH6-Cl6 (Sox17, FoxA2). Hensen’s node and primitive streak markers (Dll1, Fgf8, Noto, Chrd) were identified in HH6-Cl7 and HH6-Cl9, respectively. We also detected a cluster of cells (HH6-Cl5) with high levels of mitochondrial genes (Cox1/3), this cluster was also enriched for factors associated with highly proliferative cells (Pdia3, Igf1r) (Figure 1—figure supplement 2).

At HH7 (Figure 1J), we identified 11 clusters from 4000 cells, 8 embryos (Figure 1K, Figure 1—figure supplement 2). Cells of the neural plate appeared in HH7-Cl3 and were distinct from the non-neural ectoderm cells found in HH7-Cl9 (Figure 1K/L). At the interface of these clusters the neural plate border was emerging as depicted by an overlap of Pax7, Tfap2A, Dlx5, Bmp4, and Msx1 (Figure 1L and Figure 1—figure supplement 2). Expression of early neural crest genes (Draxin, Tfap2B) also emerged in these cells (Figure 1—figure supplement 2). In addition to neural markers detected at earlier stages (Otx2, Sox2, Sox3), other neural/neural crest genes featured in HH7-Cl3, including Zeb2 and Zic2 (Figure 1—figure supplement 2). Additional factors, such as Pax6, a crucial regulator of eye development (Liu et al., 2006) featured in the cluster HH7-Cl9 (Figure 1—figure supplement 2). Zfhx4 (Figure 1—figure supplement 2), a zinc finger transcription factor previously observed at later stages in the neural crest and neural tube (Williams et al., 2019) featured across HH7-Cl3 and HH7-Cl9 clusters. Aspects of the mesoderm were discernible across several clusters (HH7-Cl0, 1, 2, 6, 7, 10). Including the posterior mesoderm (HH7-Cl0), likely containing neuromesodermal precursors (NMPs) as suggested by the enrichment in Cdx2/4, Tbxt, and Sox2 expression (Figure 1—figure supplement 2). HH7-Cl5 was defined by endoderm markers and HH7-Cl8 represented Hensen’s node and the primitive streak (Figure 1—figure supplement 2).

Overall, across the stages analyzed, we observed a progressive refinement of transcriptional signatures in individual ectoderm clusters reflecting neural versus non-neural lineages. While we identified markers of the neural plate border within multiple clusters, the border itself, surprisingly, is not distinguishable as a unique entity. Highlighting the heterogeneity of cells within the neural plate border, defined by combinatorial gene signatures shared with the surrounding neural plate and non-neural ectoderm.

Subclustering reveals progressive transcriptional segregation of ectoderm cells

As the chick embryo undergoes gastrulation, ectodermal cells that will become neural, neural plate border, placode, or epidermis remain in the upper layer of the embryo (epiblast), while mesoendodermal cells ingress and internalize at the primitive streak and Hensen’s node. To further resolve the transcriptional complexity of the developing neural plate border, we extracted and subclustered the ectodermal clusters at stages HH5, HH6, and HH7. These are designated HH5-Cl4, HH6-Cl8/10, and HH7-Cl3/9 (Figure 1E, H and K).

HH5-Cl4 resolved into three closely related clusters (Figure 2A). Neural plate (Sox2, Otx2, Sox21, Six3) subcluster (HH5-sub-1) versus the non-neural ectoderm (Tfap2A, Dlx5) subcluster (HH5-sub-2) (Figure 2B, Figure 2—figure supplement 1) were clearly delineated. The third subcluster, HH5-sub-0, contained cells expressing caudal neural plate (Msx1, Pdgfa, Wnt8A, Pou5f3) and caudal epiblast genes (Tbxt, Cdx2/4, Meis1/2; Figure 2—figure supplement 1). Pax7+ cells were most prominent in HH5-sub-0 (caudal) but a small portion of HH5-sub-2 (non-neural ectoderm) cells also expressed Pax7 (Figure 2B). HH5-sub-0 cells co-expressed other neural plate border genes Tfap2A, Dlx5, Msx1 and Bmp4 with Pax7, these genes were also present in other clusters (Figure 2B).

Figure 2 with 1 supplement see all

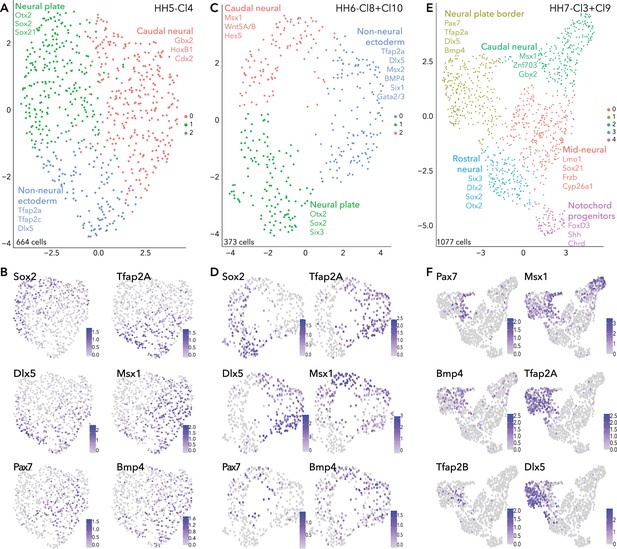

Subclustering ectoderm clusters extracted from whole epiblast data.

(A) UMAP plot depicting three clusters resolved from HH5-Cl4. (B) Feature plots of selected genes in HH5 subclusters. (C) UMAP plot depicting three clusters resolved from HH6-Cl8 and HH6-Cl10. (D) Feature plots of selected genes in HH6 subclusters. (E) UMAP plot depicting five clusters resolved from HH7-Cl3 and HH7-Cl9. (F) Feature plots of selected genes in HH7 subclusters.

Similar signatures were found at HH6 (Figure 2C/D) but with increasing transcriptional segregation. Here, the neural plate was represented by HH6-sub-1 (Sox2, Otx2, Six3; Figure 2D, Figure 2—figure supplement 1). Non-neural ectoderm markers (Tfap2A, Dlx5) were enriched in HH6-sub-0 (Figure 2D). Pax7+ cells clustered within the HH6-sub-2 (Figure 2D), together with caudal epiblast markers (Tbxt, Cdx2/4) (Figure 2—figure supplement 1); however, Pax7 expression also featured in HH6-sub-0 and HH6-sub-1, with Pax7+ cells positioned at the interface of the three subclusters (Figure 2D). These Pax7+ cells at the clusters’ interface also expressed Tfap2A, Msx1, Dlx5, and Bmp4 which were enriched in other clusters, as observed at HH5. This demonstrates that the neural plate border cluster is not yet distinct and indicates that neural plate border cells share signatures with other tissues at this stage (Figure 2D).

Further transcriptional refinements occurred between the HH5 and HH6 ectoderm subclusters. Irf6 which was broadly present across HH5 subclusters, was now enriched in HH6-sub-0 (non-neural ectoderm), along with Grhl3 which was present in a small portion of HH5-sub-2 (non-neural ectoderm; Figure 2—figure supplement 1). FoxD3 expression was barely detectable in cells of HH5-sub-1 (neural) but was clearly enriched in HH6-sub-1 (neural) (Figure 2—figure supplement 1). Gbx2 was broadly expressed across caudal epiblast and non-neural ectoderm subclusters (HH5-sub-0, HH5-sub-2 and HH6-sub-0, HH6-sub-2), while Znf703 was restricted to more caudal epiblast cells (HH5-sub-0 and HH6-sub-2) (Figure 2—figure supplement 1). Gata2 and Gata3 were found in a portion of HH5-sub-2 cells but their expression was expanded across HH6-sub-0 (Figure 2—figure supplement 1). The placode marker Six1 was found at low levels across all subclusters at HH5, but at HH6, Six1 was restricted to only a portion of HH6-sub-0, potentially to cells within a placode progenitor niche (Figure 2—figure supplement 1).

At HH7, ectodermal cells formed five discrete clusters (Figure 2E), suggesting lineage segregation was ongoing at this stage. Here neural plate border markers Pax7, Msx1 and Bmp4 were found in a niche of cells within HH7-sub-1, which broadly expressed Tfap2A and other non-neural ectoderm markers (Figure 2F, Figure 2—figure supplement 1). Neural crest genes (Tfap2B, Draxin, Snai2) were arising in the Pax7+ domain (Figure 2F, Figure 2—figure supplement 1). HH7-sub-3 subcluster was characterized by neural markers; Six3, Otx2, Sox21, and Sox2 (Figure 2—figure supplement 1). Some HH7-sub-1 cells also expressed placode markers (Dlx5, Pax6, Six1/3) but these cells did not co-express Pax7 (Figure 2F; Figure 2—figure supplement 1). Importantly, this reflects segregation of the neural plate border into medial (Pax7+) and lateral (Tfap2A+) regions, as well as highlighting the overlap and combination of genes co-expressed across these regions. HH7-sub-1 also featured Irf6 expression, and Grhl3 was present in a subset of cells which co-expressed Irf6 and Tfap2A (Figure 2—figure supplement 1). Another subset of HH7-sub-1 cells expressed Pax6, possibly already delineating prospective lens placode at this stage (Figure 2—figure supplement 1), as these cells co-expressed Six3, known to activate Pax6 by repressing Wnt signaling (Liu et al., 2006). HH7-sub-0 and HH7-sub-2 were also characterized as neural plate subclusters and could be resolved by axial markers, whereby mid-neural plate markers Lmo1 and Nkx6.2 were found in HH7-sub-0 and more caudally expressed genes Cdx2/4, Hes5, Znf703 were found in HH7-sub-2 (Figure 2—figure supplement 1). Cells in HH7-sub-4 were enriched for Shh, Chrd, and FoxD3, suggesting they were notochord progenitors (Figure 2—figure supplement 1).

In summary, analysis of our single cell HH5 and HH6 transcriptomes did not identify a distinct cell cluster marked by known neural plate border genes; rather cells expressing these markers were distributed across neural and non-neural clusters. Our analysis reveals the complex heterogeneity of the developing neural plate border and shows neural plate border cells are not distinct as a transcriptionally separate group of cells until HH7 when they also begin to segregate into presumptive medial and lateral territories. Moreover, many factors are shared between the neural plate border and other ectodermal cells as the neural plate border is progressively established from the neural plate and non-neural ectoderm.

Validation of gene expression using hybridization chain reaction reveals dynamic in vivo expression patterns of novel neural plate border genes

We validated the in vivo expression pattern of intriguing genes identified in our single-cell datasets, using fluorescent in situ hybridization (Hybridization Chain Reaction, HCR) (Choi et al., 2018), which enables simultaneous expression analysis of multiple transcripts. We used neural plate border markers (Tfap2A, Pax7, Msx1) to observe co-expression in this region. Embryos from HH4 through HH10 were screened to glean the time course of gene expression.

We identified several new genes in the ectoderm, many of which persisted into neural or non-neural tissues. At HH4 the chromatin remodeler, Ing5, Astacin-like metalloendopeptidase, Astl, and neuronal navigator 2, Nav2 were enriched in the ectoderm cluster (HH4-Cl0) (Figure 3A, Figure 3—figure supplement 1). At stages HH4-HH6 Ing5 was expressed across the neural plate border, whereas Astl expression was predominantly detected in the posterior neural plate border (Figure 3B, Figure 3—figure supplement 1). While both genes overlapped with Tfap2A, Ing5 expression spread into the neural plate whereas Astl expression extended more laterally into the non-neural ectoderm (Figure 3B’). At HH8- Astl expression continued in the developing neural plate border and surrounding non-neural ectoderm, and also the neural plate (Figure 3C and C’). Ing5 was also detected in the neural plate border and in the neural folds (Figure 3C). By HH8, Astl expression was prominent in the neural folds, most strongly in the posterior hindbrain (Figure 3D and D’). Ing5 was detected along the neural tube at HH8 (Figure 3D and D’); however, by HH10 Ing5 transcripts were no longer detectable. Astl expression was also broadly decreased at HH10, where activity was restricted to a small region of the neural tube in the hindbrain and the emerging otic placodes (Figure 3—figure supplement 1). Consistent with these observations Astl and Ing5 were detected in HH5-Cl4 and HH6-Cl10 (Astl)/HH6-Cl8 (Ing5). Astl was seen in HH7-Cl9, Ing5 was not differentially expressed at this stage but was present in HH7-Cl3 (Figure 3—figure supplement 1).

Figure 3 with 1 supplement see all

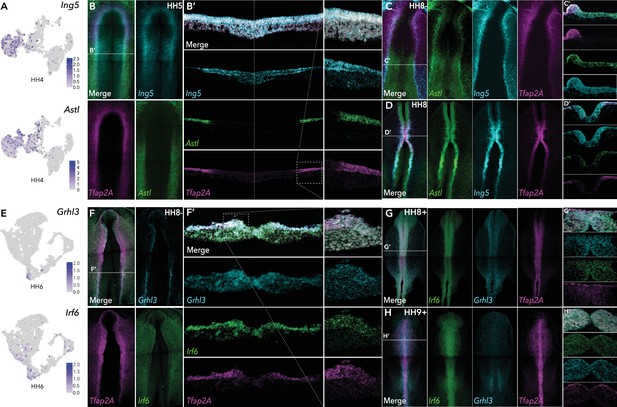

HCR validation of novel genes identified from whole epiblast data.

(A) Feature plots of Ing5 and Astl in HH4 data. (B) Whole mount HCR shows co-expression of Ing5 and Astl with neural plate border marker Tfap2A at HH5. (B’) Transverse cryosection of (B) (dashed line). Dashed boxed region shown at high magnification in right panel. (C–D) Whole mount HCR shows co-expression of Ing5 and Astl with neural plate border marker Tfap2A at HH8- (C) and HH8 (D). (C’-D’) Transverse cryosections of (C) and (D), respectively. (E) Feature plots of Grhl3 and Irf6 in HH6 data. (F) Whole mount HCR shows co-expression of Grhl3 and Irf6 with neural plate border marker Tfap2A at HH8-. (F’) Transverse cryosection of (F) (dashed line). Dashed boxed region shown at high magnification in right panel. (G–H) Whole mount HCR shows co-expression of Grhl3 and Irf6 with neural plate border marker Tfap2A at HH8+ (G) and HH9+ (H). (G’-H’) Transverse cryosections of (G) and (H), respectively.

Nav2, detected in ectoderm clusters HH4-Cl0, HH5-Cl4, HH6-Cl10, and HH7-Cl9 was expressed across the ectoderm and neural plate at HH5–HH7, where it over-lapped with the neural marker Sox21 (Figure 3—figure supplement 1), continuing into the neural folds at HH8 where Nav2 was particularly prominent in the hindbrain (Figure 3—figure supplement 1). At HH9 Nav2 expression was restricted to rhombomeres 2 and 4, whereas Sox21 was more broadly expressed along the neural tube axis (Figure 3—figure supplement 1).

We identified a number of transcription factors in HH6-Cl8 (neural) and HH6-Cl10 (non-neural ectoderm). The latter was characterized by Tfap2A enrichment and also harbored Grhl3 and Irf6 (Figure 3E). In situ analysis showed Grhl3 was specifically expressed in the neural plate border, most strongly in the posterior region at HH6 and HH8- (Figure 3F, Figure 3—figure supplement 1). Irf6 was expressed in the neural plate border as well as the surrounding non-neural ectoderm at HH6 and HH8- (Figure 3F, Figure 3—figure supplement 1). Furthermore, we observed significant cellular co-expression of all three factors in the neural plate border (Figure 3F’). At HH8+, Irf6 was restricted to the dorsal neural tube including premigratory neural crest cells, Grhl3 was also detected here albeit at lower observable levels but was present in the emerging otic placode (Figure 3G). By HH9+ Grhl3 levels were broadly diminished but remained in the developing otic placode. Irf6 was maintained in the neural tube during neural crest delamination and also enriched in the otic placode (Figure 3H).

In the ectodermal subclusters, we identified a number of Wnt pathway genes. In HH6-sub-2, for example, we identified enrichment of Wnt signaling ligands Wnt5A, Wnt5B, Wnt8A (Figure 2—figure supplement 1) as well as Wnt processing factors Sp5 and Sp8 (Figure 4A/E). Conversely Wnt antagonists Sfrp1, Sfrp2, and Frzb were enriched in HH6-sub-1 (Figure 2—figure supplement 1). Sp8 was identified in HH6-sub-2 (caudal neural), in vivo we found Sp8 expression commenced from HH7 in the neural plate border, partially overlapping with Tfap2A (Figure 4B). The homeobox transcription factor, Dlx6, was present in HH7-sub-1, (neural plate) (Figure 4A) and was expressed predominantly in the anterior neural plate border or pre-placodal region (Figure 4B) as previously shown (Anderson et al., 2016). This expression pattern of both Sp8 and Dlx6 continued at HH8- (Figure 4C). Sp8 expression was restricted to the dorsal neural tube, whereas Dlx6 spread more laterally (Figure 4C’). At HH9, Sp8 was detected predominantly in the anterior neural tube but was also found in premigratory neural crest cells in the mid-brain region (Figure 4D and D’) but largely absent from the hindbrain region, though some expression was seen in the trunk premigratory neural crest (Figure 4D). Dlx6 was also present in premigratory neural crest cells at HH9 (Figure 4D’), as well as in the lateral non-neural ectoderm (Figure 4D).

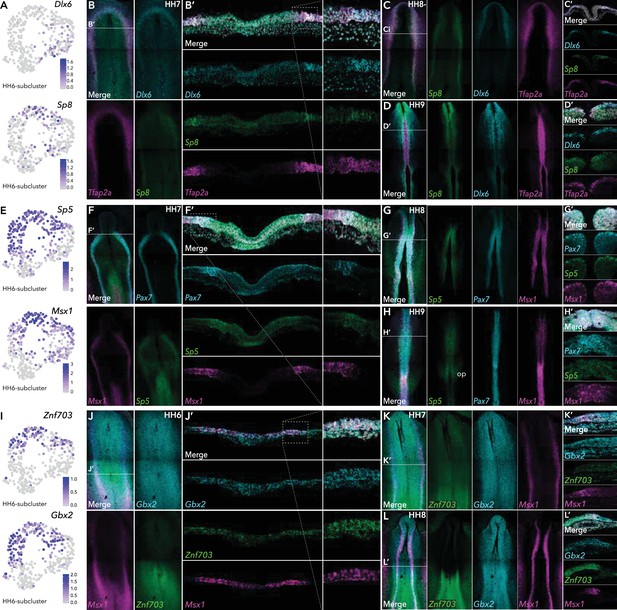

HCR validation of novel genes identified from extracted ectoderm clusters.

(A) Feature plots of Dlx6 and Sp8 in HH6 subclusters. (B) Whole mount HCR shows co-expression of Dlx6 and Sp8 with neural plate border marker Tfap2A at HH7. (B’) Transverse cryosection of (B) (dashed line). Dashed boxed region shown at high magnification in right panel. (C–D) Whole mount HCR shows co-expression of Dlx6 and Sp8 with neural plate border marker Tfap2A at HH8- (C) and HH9 (D). (C’-D’) Transverse cryosections of (C) and (D), respectively. (E) Feature plots of Sp5 and Msx1 in HH6 subclusters. (F) Whole mount HCR shows co-expression of Sp5 with neural plate border markers Msx1 and Pax7 at HH7. (F’) Transverse cryosection of (E) (dashed line). Dashed boxed region shown at high magnification in right panel. (G–H) Whole mount HCR shows co-expression of Sp5 with neural plate border markers Msx1 and Pax7 at HH8 (G) and HH9 (H). (G’-H’) Transverse cryosections of (G) and (H) respectively. (I) Feature plots of Znf703 and Gbx2 in HH6 subclusters. (J) Whole mount HCR shows co-expression of Znf703 and Gbx2 with neural plate border marker Msx1 at HH6. (J’) Transverse cryosection of (J) (dashed line). Dashed boxed region shown at high magnification in right panel. (K–L) Whole mount HCR shows co-expression of Znf703 and Gbx2 with neural plate border marker Msx1 at HH7 (K) and HH8 (L). (K’-L’) Transverse cryosections of (K) and (L) respectively. Op; otic placode.

Sp5 was enriched in HH6-sub-2 (Figure 4E) and HH7-sub-2 (Figure 2—figure supplement 1). Sp5 was detected in the anterior neural plate border where it overlapped with Pax7 and Msx1, and in the posterior primitive streak/early mesoderm at HH7 (Figure 4F/F’). Later, (HH8-HH9) Sp5 transcripts were restricted to the neural tube (Figure 4G/H) including premigratory neural crest cells (Figure 4G’/H’). At HH9 we also saw the onset of expression in the developing otic placodes (Figure 4H).

At HH6, HH6-Cl8 and HH6-Cl10 harbored Znf703 and Gbx2, both of which were enriched in HH6-sub-2 (Figure 4I). Znf703 has recently been demonstrated as RAR responsive factor important for neural crest development in Xenopus (Hong and Saint-Jeannet, 2017; Janesick et al., 2019). Consistent with this, we found Znf703 expression in the posterior neural plate extending into the neural plate border from HH6 (Figure 4J/K). At HH8, Znf703 transcripts also populated the posterior neural folds (Figure 4L) and partially colocalized with Msx1 in premigratory neural crest cells (Figure 4L’). We found Gbx2 broadly expressed across the epiblast from HH6 (Figure 4J/K) consistent with previous reports (Paxton et al., 2010; Shamim and Mason, 1998), becoming more enriched in the neural folds by HH8 (Figure 4L). While both Znf703 and Gbx2 partially localized with Msx1, Znf703 expression continued medially into the neural plate whereas Gbx2 transcripts extended laterally into the non-neural ectoderm (Figure 4L’).

Neural clusters contained numerous transcription factors including Sox21 which was which was present in HH7-sub-0 and HH7-sub-3 (Figure 2—figure supplement 1). Fezf2 together with Otx2 and Sox2 were also enriched in neural subclusters HH7-sub-3 (Figure 2—figure supplement 1). Fezf2 has previously been shown to regulate Xenopus neurogenesis by inhibiting Lhx2/9 mediated Wnt signaling (Zhang et al., 2014) Accordingly, in vivo, Fezf2 was expressed in the anterior neural folds at HH7 where it overlapped with Otx2, and in the neural tube at later stages (Figure 3—figure supplement 1). Lmo1 was also found in HH7-sub-0 (Figure 2—figure supplement 1) and was expressed across the neural plate at HH6 through HH8, where it was also seen in the neural folds (Figure 3—figure supplement 1).

scVelo infers developmental trajectories from presumptive ectoderm to premigratory neural crest cells

The precise time at which the neural plate border segregates into the neural crest, placode and neural lineages has not been previously ascertained. To address this question, we used scVelo (Bergen et al., 2020) to resolve gene-specific transcriptional dynamics of these embryonic populations across time. This method is derived from RNA velocity (La Manno et al., 2018), which measures the ratio of spliced and unspliced transcripts and uses this information to predict future cell states, incorporating a critical notion of latent time that allows reconstruction of the temporal sequence of transcriptional steps. By generalizing the RNA velocities through dynamic modelling, this method is ideally suited to our analysis, as it reflects transitions in progressing, non-stationary embryonic populations such as neural crest, placode and neural plate progenitors under study here.

To assess the progression of ectodermal progenitors across time-points from epiblast to onset of neural crest emigration, we first integrated the ectoderm clusters from each stage namely; HH5-Cl4, HH6-Cl3 + 9 and HH7-Cl8 + 10. Here, we also included 10 X scRNA-seq data obtained from premigratory neural crest cells (HH8+) (Williams et al., 2019), such that we could trace trajectories from the neural plate border to the neural crest. As well as identifying bona fide neural crest cells (FoxD3, Tfap2B, Sox10), this work also defined distinct clusters of neural crest cells characterized by marker genes representing their likely potential; neural-neural crest (Sox3, Pax6, Cdh2) and mesenchymal-neural crest (Pitx2, Twist1, Sema5B).

Combining these datasets revealed that the non-neural ectoderm from both HH6 and HH7 grouped together, as did the neural plate clusters from the same stages (Figure 5A, Figure 5—figure supplement 1). This suggests successful inter-sample incorporation into a single reference with no resultant batch bias. Ectoderm cells from HH5 were spread amongst the neural plate and the non-neural ectoderm clusters from HH6 and HH7. The neural crest clusters were more discrete, with the bona fide neural crest cluster clearly segregated from neural and mesenchymal neural crest clusters as previously described (Williams et al., 2019). The HH8+ dataset also included a neuroepithelial-like cluster, characterized by Cdh1, Epcam, and FoxG1 expression. Interestingly these cells grouped with the non-neural ectoderm clusters from HH6 and HH7, including neural plate border cells (Pax7, Tfap2A; Figure 5A/B), suggesting early neural crest cells retain properties of their predecessors. scVelo predicted that non-neural ectoderm cells from HH6/HH7 were split between two trajectories (Figure 5A). Placodal markers (Dlx5/6, Six3, and Pax6) defined one distinct trajectory, whereas the other trajectory was less well defined but could be distinguished by posterior epiblast markers (HoxB1, Cdx4) (Figure 5—figure supplement 1). The neuroepithelial-like cells from HH8+ were emerging between these trajectories where they were joined by other cells from HH6/HH7 non-neural ectoderm clusters. These cells were enriched for Pax7 and other neural plate border markers Tfap2A, Msx1, Bmp4 (Figure 5B). Early neural crest genes including Tfap2B and Draxin were also emerging here (Figure 5B). While these cells had less defined trajectories, they were generally directed toward the neural-neural crest lineage (Figure 5A). Neural plate border and neural crest markers also extended into a heterogeneous region of cells, where a significant portion of the neural-neural crest and neural plate cells were highly integrated, suggesting some cells from these populations shared transcriptional signatures. This region was further defined by Zfhx4 and Zic1 (Figure 5B) which are expressed in the neural plate border, neural plate and premigratory neural crest cells (Khudyakov and Bronner-Fraser, 2009; Williams et al., 2019). Some neural-neural crest cells within this region appeared to be directly derived from the neural plate.

Figure 5 with 2 supplements see all

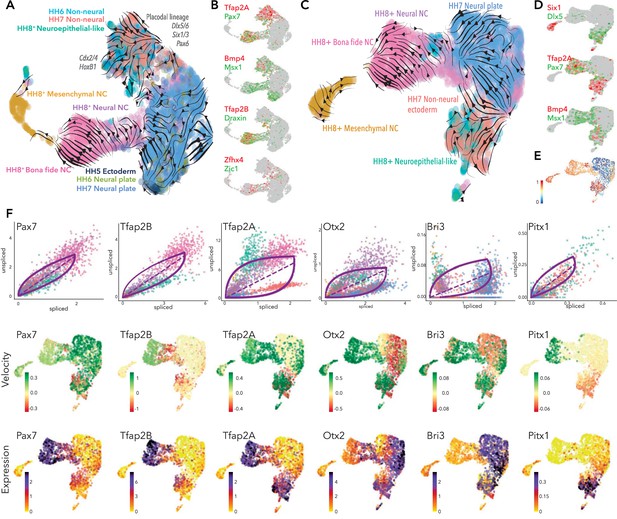

Developmental trajectory predictions from the neural plate border to premigratory neural crest.

(A) UMAP embedding of ectoderm clusters combined with premigratory neural crest data showing predicted trajectories. (B) Colocalization of selected genes across the combined data set. (C) UMAP embedding of HH7 ectoderm clusters combined with premigratory neural crest data showing predicted trajectories. (D) Colocalization of selected genes across HH7/premigratory neural crest combined data set. (E) Latent time data from HH7/premigratory neural crest combined data-set. Scale represents oldest (0, blue) to newest cells (1, red). (F) Phase portraits (top row) colors correlate with those in A/C, velocity plots (middle row) and expression plots (bottom row) of selected genes across the HH7/ premigratory neural crest combined data sets. NC; neural crest.

Since we did not see evidence of neural crest lineages until HH7, we assessed the developmental trajectories from HH7 ectoderm clusters directly to bona fide neural crest cells (HH8). To this end, we extracted the ectoderm clusters (HH7-Cl3+ Cl9) and combined these cells with the premigratory neural crest data set from HH8+ embryos (Figure 5—figure supplement 1) and used scVelo to predict the trajectories across these cells/stages. Analysis of the pooled dataset yielded clearly defined putative developmental trajectories splitting from the HH7 ectoderm clusters, whereby the non-neural ectoderm cells (HH7-Cl9) appeared to give rise to the neuroepithelial-like cells from the HH8+ dataset, and the neural plate (HH7-Cl3) cells were contributing directly to the neural-neural crest (Figure 5C). Non-neural ectoderm cells were also initiating a separate trajectory, likely representing placodal lineages as indicated by Six1, Dlx5 (Figure 5D). While Tfap2A was expressed across the non-neural ectoderm cluster, Pax7 was found in just a subset of non-neural ectoderm cells and in neuroepithelial-like cells, where Tfap2A was also found. Both factors were also enriched in bona fide neural crest, though Pax7 was also detected in the neural-neural crest (Figure 5D). Other neural plate border markers (Bmp4, Msx1) were found in the non-neural ectoderm and some neuroepithelial-like cells, as well as extending into the interface of neural plate and neural-neural crest populations (Figure 5D).

Taken together, combining our 10X data-sets from all stages reinforced the notion that the neural plate border territory is not specified to a neural crest fate until HH7 since scVelo analysis on the entire dataset (including HH5 and HH6 data) generated ambiguous and non-contiguous developmental trajectories (Figure 5A). While neural crest trajectories were not clearly defined until HH7, placodal trajectories could be discerned from HH6. Latent time analysis supported these observations, indicating the progression of transcriptional maturity and corresponding differentiation status across the HH7 non-neural ectoderm cells into the neuroepithelial-like cells and, similarly, from the neural plate cells into the neural-neural crest and canonical neural crest populations (Figure 5E). Furthermore, the data showed a sub-population of premigratory neural crest cells shared transcriptional signatures with their progenitor cells.

scVelo analysis infers developmental trajectories across the epiblast

We also examined predicted trajectories across the whole embryo data from individual time points (Figure 5—figure supplement 2). At HH4 we observed segregation of the germ layers with all ectoderm cells (HH4-Cl0) aligning along the same trajectory. Epiblast stem cells (HH4-Cl2) were contributing to all other clusters. At HH5, the majority of ectoderm cells (HH5-Cl4) still followed the same trajectory. A clear split in the ectoderm populations was first observed at HH6 with neural plate (HH6-Cl8) and non-neural ectoderm (HH6-Cl10) initiating separate trajectories. This divergence continued at HH7 with the neural plate (HH7-Cl3) and non-neural ectoderm (HH7-Cl9) cells following separate trajectories (Figure 5—figure supplement 2). However, there was also some convergent trajectories between these clusters where neural plate border, ectodermal ,and placode genes (Pax7, Bmp4, Tfap2A, Msx1, Dlx5, and Six3) were co-expressed (Figure 5—figure supplement 2), suggesting that some cells are not yet lineage-restricted but, rather, remain an intermingled heterogeneous progenitor population. Meanwhile, other cells from HH7-Cl3 and HH7-Cl9 were linking to the neural plate/tube trajectories (HH7-Cl4). We observed a portion of neural plate (HH7-Cl3) cells joining the posterior mesoderm cluster (HH7-Cl0), likely containing neuromesodermal precursors (NMPs) as suggested by the enrichment in Tbxt and Sox2 expression (Figure 5—figure supplement 2).

Neural plate border lineages emerge progressively from the ectoderm over time

To further resolve the ectodermal trajectories, the extracted ectoderm clusters were modelled using scVelo. At HH5, each population (HH5-sub-0, caudal epiblast; HH5-sub-1, neural plate; HH5-sub-2, non-neural ectoderm) initiated a separate trajectory. However, cells located centrally, including neural plate border cells, contributed to all three subclusters (Figure 5—figure supplement 2).

At HH6 the trajectories were more distinct. Caudal epiblast cells (HH6-sub-2) contributed to both neural plate and non-neural ectoderm populations. Within the neural plate cluster (HH6-sub-1) some cells were directed toward the non-neural ectoderm and others followed a separate trajectory. Likewise, the non-neural ectoderm cluster was subdivided between two parallel pathways with some mutual cross-over. Neural plate border cells found across all three clusters and at their interface largely joined the non-neural ectoderm clusters (Figure 5—figure supplement 2).

HH7 trajectory map was more complex (Figure 5—figure supplement 2). Here Pax7+ neural plate border cells (HH7-sub-1, Figure 2F) appeared to be contributing to both putative placode and neural crest progenitors, emerging within HH7-sub-Cl1, as well as projecting toward neural clusters (HH7-sub-0). Some neural plate border cells/neural crest progenitors appeared to be derived from the neural plate (HH7-sub-0/3). This suggests that Pax7+ cells are capable of giving rise to multiple lineages and highlights heterogeneous combinations of factors at the neural plate border reflect multipotency. The remainder of HH7-sub-1 cells (Pax7-) were engaged in a separate trajectory; these cells were enriched for Dlx5 (Figure 2F), Six1, Pax6, and Gata3 (Figure 2—figure supplement 1), suggesting a placodal fate. Overall, at HH7 scVelo analysis showed the neural plate border was beginning to segregate according to progenitor populations.

Analysis of dynamic transcriptional trajectories during lineage restriction reveals putative lineage-specific drivers

We next sought to identify candidate genes putatively driving the observed developmental trajectories in the context of neural crest specification from the neural plate border. Dynamical modeling of transcriptional states within the HH7/8 combined data-set revealed a number of highly ranked dynamic genes including Pax7 and Tfap2B. Pax7 splicing increased progressively from the non-neural ectoderm cells to the neuroepithelial-like cells and lower splicing was observed in neural crest cells where the transcripts stabilized such that increased expression was observed (Figure 5F). Splicing of Pax7 transcripts was also increased in the putative placodal lineage from the non-neural ectoderm (Figure 5F). Tfap2B splicing was not evident in the HH7 data, but was increased in the neuroepithelial-like cells and stabilized in neural crest populations (Figure 5F). Tfap2A showed more complex velocities, whereby high levels of spliced transcripts were detected in non-neural ectoderm cells from HH7 likely driving these cells toward the placode trajectory (Figure 5F). We also observed a progressive increase in Tfap2A splicing across the neuroepithelial-like cells to the bona fide neural crest. This suggested that by HH8, Tfap2A transcripts are stable in the neuroepithelial-like population but upregulated in the bona fide neural crest, consistent with the observed expression dynamics (Figure 5F). Another neural plate border gene, Bmp4, was dynamically regulated in non-neural ectoderm but downregulated in the neural plate (Figure 5—figure supplement 1).

We also identified a number of more novel factors putatively involved in ectoderm lineage progression. Otx2 was driving neural plate cells toward the neural-neural crest cluster, consistent with previous findings from functional perturbation studies (Williams et al., 2019). However, Otx2 also seemed to be driving non-neural ectoderm cells toward the neuroepithelial-like population (Figure 5F). Lmo1 was also driving the neural plate cells toward the neural-neural crest; however, unlike Otx2, Lmo1 expression was not maintained in the neural crest populations (Figure 5—figure supplement 1). Bri3 was identified as a highly ranked dynamic gene and was upregulated in neural plate cells and some non-neural ectoderm cells. Down-regulation of Bri3 in neural crest cells suggested an early role in ectoderm lineage trajectories for this novel factor (Figure 5F). Nav2 and Sox11 were both highly expressed in the neural plate and downregulated in the non-neural ectoderm. Sox11 was also expressed in the mesenchymal neural crest cluster where it was highly spliced, potentially representing a dual segregated role for this factor in both neural plate and mesenchymal crest lineages (Figure 5—figure supplement 1). Nav2 velocities increased progressively from the non-neural ectoderm to the neural plate; consistently, a subset of non-neural ectoderm cells joined a trajectory with the neural plate cells (Figure 5F) where Nav2 splicing was highest (Figure 5—figure supplement 1). We found Pitx1 and Dlx6 to be dynamically active across the merged HH7/8 data-set, potentially driving non-neural ectoderm to the neuroepithelial-like population (Figure 5F, Figure 5—figure supplement 1).

This analysis provides insight into potential candidates driving lineage specific circuits underlying the progressive segregation of the early ectoderm into neural and non-neural ectoderm and concomitantly initiating the emergence of early neural crest and placode progenitors.

Discussion

Here, we use single-cell RNA-sequencing of chick embryos from late gastrula through early neurula to characterize the development of the neural plate border and its derivatives, the neural crest and cranial placode precursors. Our data show that the neural plate border, as defined by co-expression of Tfap2A and Pax7 first emerges at HH5, but is not fully transcriptionally defined until HH7. Previous work has pointed to the presence of a pre-border region at blastula stages harboring neural crest progenitors demarcated by Pax7 expression (Basch et al., 2006; Prasad et al., 2020). However, this was observed in explanted cultures. In contrast, we do not detect significant Pax7 expression until HH5. This suggests that cells within the explants may not have been fully specified at the time of explantation but cell interactions coupled with autonomous programming enabled the cells to continue their specification program. This highlights the importance of examining tissue dynamics within their endogenous context.

We identified numerous genes in our dataset that have not previously been shown to be expressed the in developing neural plate border, several of which can be further placed in the broader neural crest gene regulatory network. Using the ShinyApp associated with early neural crest RNA-seq data (Williams et al., 2019) we found Astl expression correlated with neural crest specifier genes including Msx1 and Snai2 (WGCNA cluster-i). Whereas Ing5 expression correlated with Pitx1 (WGCNA cluster-x), which we identified here as a putative driver of neuro-epithelial neural crest lineage. Another example is Irf6 which has previously been described in craniofacial development (Fakhouri et al., 2017; Ingraham et al., 2006; Wang et al., 2003) but has yet to be explored at earlier stages of development. Irf6 has been suggested to activate Grhl3 in the zebrafish periderm (de la Garza et al., 2013) and mutations in Irf6 or Grhl3 are associated with neural crest defects (cleft-lip/palate) characteristic of Van der Woude syndrome (Peyrard-Janvid et al., 2014). Furthermore, Grhl3 has been suggested to work in a module with Tfap2A and Irf6 during neurulation (Kousa et al., 2019). We found Grhl3 putatively regulates Tfap2A/B, Gli2/3, and Sox10, but is itself downregulated by FoxD3 in early neural crest development (Williams et al., 2019), consistent with our HCR analysis where Grhl3 expression is decreased in the premigratory neural crest. In addition, Wnt signaling pathway genes like Sp5 and Sp8 were prominent in our data-sets. Wnt signaling has a well-established role in neural plate border specification (Pla and Monsoro-Burq, 2018; Schille and Schambony, 2017); for example, Wnt signals are required to activate the earliest neural crest genes Tfap2A, Gbx2 and Msx1 (de Crozé et al., 2011; Li et al., 2009). Sp8 is proposed to play a role in processing Wnt signals during limb development (Haro et al., 2014; Kawakami et al., 2004), but has also been described in neural patterning and craniofacial development (Sahara et al., 2007; Zembrzycki et al., 2007), whereby loss of Sp8 in mice caused severe craniofacial defects due to increased apoptosis and decreased proliferation of neural crest cells (Kasberg et al., 2013). However, an early role for Sp8 has not been explored. Sp5 has recently been implicated in the neural crest gene regulatory network, where it was found to negatively regulate Axud1 to help maintain neural crest cells in a naive state (Azambuja and Simoes-Costa, 2021). Therefore, Sp5 and Sp8 may represent hitherto unknown components of Wnt mediated induction of neural plate border lineages. Gbx2 was recently reported as the earliest Wnt induced neural crest induction factor in Xenopus. Perturbation of Gbx2 inhibited neural crest development while the placodal population was expanded (Li et al., 2009). Interestingly, our analysis reveals distinct heterogeneity of Wnt signaling factors, suggesting differential cellular responses to Wnt signaling within the developing neural plate border, which may contribute to driving different lineage trajectories.

While these datasets reveal a number of intriguing genes, many were not exclusively expressed in the neural plate border. This demonstrates that the neural plate border is not distinguishable by a unique set of genes, but rather it is the combination of genes shared across this region and surrounding tissues that endows its unique multipotency. This is consistent with and expands upon previous results revealing colocalization of markers characteristic of multiple lineages in the neural plate border (Roellig et al., 2017). Moreover, we find that factors associated with neural plate border derivatives are also expressed in the emerging neural plate border, raising the intriguing possibility that these factors may have a role in establishing neural plate border lineages.

We used scVelo analysis of transcriptional and splicing dynamics across clustered and aligned single-cell transcriptomes to predict the dynamics of developmental trajectories during ectoderm lineage segregation. This enabled us to follow the transcriptional velocity of individual genes and resolve their dynamics at the single-cell level. Significantly this provides a high-resolution temporal dimension to our understanding of the changing ontology of the neural plate border and its derivatives. The results suggest that the ectoderm is initiating the division of trajectories between neural and non-neural progenitors at HH5, but the neural plate border is not yet transcriptionally distinct. At HH6 and HH7, the neural plate border population is emerging at the interface of these tissues, from which multiple lineages manifest by HH7. This analysis also shows neural-neural crest cells are the first to surface from the neural plate border and neural plate. From these, the bona fide neural crest emerges followed by mesenchymal neural crest. Furthermore, this analysis shows a subset of premigratory neural crest cells share signatures with their precursors from neural plate border cells from HH6 and HH7, demonstrating that some early neural crest cells are not yet restricted to a particular lineage.

Taken together our data show that cells of the emerging neural plate border are not characterized by unique transcriptional signatures, but share features with cells of the surrounding ectoderm. This highlights the heterogeneity of the neural plate border whereby Pax7+ cells are integrated with other ectoderm populations. While Pax7 is the predominant factor in the neural plate border and has been suggested to label neural crest precursors as early as HH5 (Basch et al., 2006), the complexity and co-expression signatures are what endow neural plate border cells with their unique multipotency compared to neural plate and ectoderm cells. Interestingly, we note that neural plate border signatures are not apparent until HH7, later than previously suggested. By contrast, placodal trajectories were discernible from HH6. Moreover, we uncover the possibility that Pax7+ cells give rise to all neural plate border lineages, but lose multipotency signatures at the onset of lineage specific trajectories. Our analysis provides important insights into genes underlying the progressive segregation of the emergence of early neural crest and placode progenitors at the neural plate border. By revealing lineage trajectories over developmental time, this resolves the timing of neural plate border lineage segregation whilst also informing on dynamics of multipotency programmes.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (Gallus gallus)Fertilized hens eggsSunstate Ranch Sylmar CA
Commercial assay or kitChromium Single Cell 3’ v3 Library10 X GenomicsCat. #1000075
Software, algorithmSeurat v3CellRanger v3.1.0Stuart et al., 2019 Doi:10.1016/j.cell.2019.05.031Zheng et al., 2017 DOI: 10.1038/ncomms14049

Chick embryos

Request a detailed protocol

Fertilized chicken eggs, obtained from Sunstate Ranch Sylmar CA, were incubated at 37°C with approximately 40% humidity. Embryos were staged according to Hamburger and Hamilton, 1951.

Preparing embryos for FAC-sorting

Request a detailed protocol

Appropriately staged embryos were extracted using the filter paper based ‘easy-culture’ method. Eggs were opened after desired incubation period, albumin was removed and embryos were lifted from the yolk using punctured filter paper, this procedure is described in detail elsewhere (Williams and Sauka-Spengler, 2021b). Embryos were kept in Ringers solution and dissected to remove all extra-embryonic material. Embryos were then dissociated for fluorescence activated cell sorting (FACS) as previously described (Williams and Sauka-Spengler, 2021a). Embryos were processed by FACS using 7-AAD as a live/dead stain such that healthy individual cells were obtained with a reliable cell count.

10X single-cell RNA-Seq library preparation and sequencing

Request a detailed protocol

Approximately 10,000 cells/stage were collected by FACS into 2 µl Hanks buffer then loaded onto the 10 X Genomics Chromium platform. Single-cell RNA-seq libraries were generated using the Chromium Single Cell 3’ Library and Gel Bead Kit v3 (10 X Genomics, Cat. #1000075) (HH4 data was obtained using v2 chemistry) as per the manufacturers protocol. Libraries were quantified using Qubit (Life Tech Qubit high sensitivity DNA kit Cat. #Q32854) and Kapa (Kapa Biosystems, KAPA Library Quantification Kit, Cat. #KK4835). scRNA-seq libraries were sequenced on Illumina HiSeq2500 platform in rapid run mode with on-board clustering and sequencing depth of 300 million reads. The run type was: paired end 28(read1)–8(index)–91(read2). HH4 10 X scRNA-seq library was sequenced on Illumina NextSeq500 platform using high output v2.5 150-cycle kit in 26 × 8 x 0 x 98 mode.

10X single-cell RNA-Seq data analysis

Request a detailed protocol

Fastq files were generated using cellranger v3.1.0 mkfastq (Zheng et al., 2017). Cellranger was also used for base calling, demultiplexing and mapping to the galgal6 genome assembly. A custom galgal6 genome was constructed using the mkref function whereby selected 3’UTRs were extended according to manually annotation.

From HH4 embryos 2398 cells were recovered with 144,605 mean reads/cell, 1836 median genes/cell, 6,180 median UMI counts/cell and 15,370 total genes. From HH5 embryos 6723 cells were recovered with 44,343 mean reads/cell, 3,659 median genes/cell, 14,229 median UMI counts/cell and 18,916 total genes. From HH6 embryos 4553 cells were recovered with 30,466 mean reads/cell, 3396 median genes/cell, 13,309 median UMI counts/cell and 17,828 total genes. From HH7 embryos 6585 cells were recovered with 20,044 mean reads/cell, 2696 median genes/cell, 8821 median UMI counts/cell and 17,873 total genes. Count matrices were generated using the cellranger count function and exported to R-studio for downstream analysis using Seurat-v3 (Stuart et al., 2019). Matrices were filtered to remove barcodes with fewer than 500 genes and more than 3500–5500 genes (Figure S1/S2) and high mitochondrial content ( > 0.5%). UMI counts were normalized and following principal component analysis linear dimension reduction was conducted (HH4; resolution 0.2, dims 1:20, HH5; resolution 0.4, dims 1:15, HH6; 0.6, dims 1:20, HH7; resolution 0.4, dims 1:20). Clustered cells were visualized on a UMAP plot and differentially expressed genes were identified. Ectoderm clusters were extracted and re-clustered using the ‘subset’ command, analysis was performed as for whole embryo data. scVelo analysis: scVelo dynamical modelling was performed in python (Bergen et al., 2020). Loom files containing spliced/unspliced transcript expression matrices were generated using velocyto.py pipeline (La Manno et al., 2018). “Loom cell” names were renamed to match Seurat object cell names and only Seurat-filtered cells were selected for trajectory analysis. Seurat generated UMAP coordinates, clusters and cluster colors were added to the filtered ‘loom cells’.

Hybridization chain reaction

Request a detailed protocol

Fluorescent in situ hybridization chain reaction was performed using the v3 protocol (Choi et al., 2018). Briefly, embryos were fixed in 4% paraformaldehyde (PFA) for 1 hr at room temperature, dehydrated in a methanol series and stored at –20 °C at least overnight. Following rehydration embryos were treated with Proteinase-K (20 mg/mL) for 1–2.5 min depending on stage (1 min HH4-6, 2.5 min for older embryos) at room temperature and post-fixed with 4% PFA for 20 min at room temperature. Embryos were washed in PBST for 2 × 5 min on ice, then 50% PBST / 50% 5 X SSCT (5 X sodium chloride sodium citrate, 0.1% Tween-20) for 5 min on ice and 5 X SSCT alone on ice for 5 min. Embryos were then pre-hybridized in hybridization buffer for 5 min on ice, then for 30 min at 37 °C in fresh hybridization buffer. Probes were prepared at 4 pmol/mL (in hybridization buffer), pre-hybridization buffer was replaced with probe mixture and embryos were incubated overnight at 37 °C with gentle nutation. Excess probes were removed with probe wash buffer for 4 × 15 min at 37 °C. Embryos were pre-amplified in amplification buffer for 5 min at room temperature. Hairpins were prepared by snap-cooling 30 pmol (10 ml of 3 mM stock hairpin) individually at 95 °C for 90 s and cooled to room temperature for minimum 30 min, protected from light. Cooled hairpins were added to 500 µl amplification buffer. Pre-amplification buffer was removed from embryos and hairpin solution was added overnight at room temperature, protected from light. Excess hairpins were removed by washing in 5 X SSCT 2 × 5 min, 2 × 30 min and 1 × 5 min at room temperature. Embryos were mounted on slides and imaged using Zeiss LSM 880 Upright confocal microscope. Images were processed using Zeiss Zen software, Z-stacks scans were collected at 6 µm intervals across approximately 70–100 µm, maximum intensity projections of embryo z-stacks are presented. Tile scanning was used (2 × 3) and stitched using bidirectional stitching mode, with overlap of 10%. For sectioned samples, images were obtained on a Zeiss LSM 880 Upright confocal with 20 X and 40 X oil immersion objectives, single z-slices are shown.

Cryosectioning

Request a detailed protocol

Following HCR and whole mount imaging, selected embryos were prepared for cyrosectioning Embryos were placed in a 15% sucrose solution at 4 °C overnight then 15% sucrose / 7.5% Gelatin overnight at 37 °C. Embryos were transferred to 20% gelatin and incubated at 37 °C for 4 hr then mounted in 20% gelatin, snap frozen in liquid nitrogen and stored at –80 °C. Sections were taken at 10 µm intervals.

Data availability

Sequencing data have been deposited in GEO under accession codes GSE181577.

The following data sets were generated
    1. Williams RM
    2. Lukoseviciute M
    3. Sauka-Spengler T
    4. Bronner M
    (2021) NCBI Gene Expression Omnibus
    ID GSE181577. Segregation of neural crest specific lineage trajectories from a heterogeneous neural plate border territory only emerges at neurulation.
The following previously published data sets were used

References

    1. Pauli S
    2. Bajpai R
    3. Borchers A
    (2017) CHARGEd with neural crest defects
    American Journal of Medical Genetics. Part C, Seminars in Medical Genetics 175:478–486.
    https://doi.org/10.1002/ajmg.c.31584

Decision letter

  1. Patrick PL Tam
    Reviewing Editor; CMRI, The University of Sydney, Australia
  2. Kathryn Song Eng Cheah
    Senior Editor; The University of Hong Kong, Hong Kong

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting the paper "Segregation of neural crest specific lineage trajectories from a heterogeneous neural plate border territory only emerges at neurulation" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. The reviewers have opted to remain anonymous.

We are sorry to say that, after consideration of the reviewers' feedback and following further consultation with the reviewers, we have decided that this work will not be considered for publication by eLife. While this manuscript has not reached the benchmark of a Research Article, on noting the potential value of the dataset for future study of the development of the neuroectoderm, the neural crest cells and the ectodermal placode, we are keen to provide the opportunity for publishing this paper as Resource Article. Resubmission of a new manuscript would require addressing the critiques raised by the reviewers in this round of review, which are paraphrased below and outlined in the three reviewer reports.

The reviewers recognised that this study has collated a potentially useful dataset of the stage-resolved single-cell transcriptome of chick epiblast/ectoderm cells that may inform the development of the epiblast to neural folds and the molecular characteristics of the neural plate border cell population from which neuroepithelium, ectodermal neural placode and neural crest cells emerge. The findings reiterate the concept of lateral neural plate border harbours a heterogenous population of ectoderm cells and members of this population are precursors of the neural crest cell lineage during neurulation. The new knowledge gleaned from the transcriptome data is that the neural plate border cells are specified (and acquire the neural border signature, which includes novel marker genes identified in this study) progressively/dynamically during neurulation, but no insight is provided on how the neural border cells establish multipotency (e.g., re-gaining pluripotency factor activity). The data further showed that the segregation of the neural crest cell lineage and the placodal ectoderm lineage from the neural plate borders cells may occur at early neurulation, which is later than previously anticipated. Mining the transcriptome data of the emerging cell lineages has inferred the putative molecular drivers of the trajectory of neural plate border cells to neural crest cell lineage and placodal ectoderm lineage. There is no follow-up verification of the functional attributes of these drivers or the molecular network in the development of these two lineages. The merit of this study would be enhanced if functional analysis has been undertaken to identify which are the key drivers and their functional role in the segregation of the two divergent neural border cell lineages and the early steps of differentiation of the neural crest cells.

Re-submission as a resource report will require provision of the missing detail of the experimental design of the single-cell transcriptome analysis and the data analytics pipeline, improving the style of presentation to allow a better comprehension of the important novel findings of data mining. addressing the utility and limitation of the transcriptome dataset to gains knowledge that enables the formulation of testable hypothesis on the molecular activity driving neural plate development. emergence of the neural plate border cell lineages.

Reviewer #1:

The work by Williams et al. represents a significant effort to understand the lineages that emerge from the epiblast, which is the layer of cells that will give rise to the chick embryo, during the period from gastrulation through neurulation. Previously published work has addressed the question of when and where cells in the epiblast at the neural plate border become specified, but the authors strive to refine such data further and more precisely by using single-cell RNA-sequencing to characterize the signatures of these lineages in vivo. The authors focus on identifying cells that generate the placodes, neural crest, and neural tissues. Studying these populations of cells is well justified because of their relevance to human disease phenotypes particularly in the craniofacial complex, heart, gut, and malignancies more broadly. Another important contribution of the work is the descriptions of novel markers, which may ultimately result in identifying new genes associated with human disease.

A strength is that the manuscript is concise, clear, and well-written. Additionally, the figures are nicely organized and easy to follow. The images of embryonic gene expression (both known markers and validation of novel genes) are excellent in terms of tissue quality and confocal microscopy, and they provide robust support for the conclusions. The strategies employed for single-cell RNA-seq analysis represent a technical advance, and the results generated by this study will be of broad interest to the community. The use Hybridization Chain Reaction (HCR) with multiplexed probes to validate the RNA-seq dataset adds significant depth to the analysis.

A weakness is that the study is primarily descriptive with no experimental test of a hypothesis. For example, the work could benefit from some loss-of-function analyses for any of the novel genes identified. On this point, the authors have an excellent track record using high-throughput screening with chick embryos and morpholinos either in terms of characterizing gene regulatory networks (GRNs) or assaying for developmental phenotypes related to the neural crest. Moreover, work from the Bronner and Sauka-Spengler labs has previously contributed much in the way of our understanding of the GRNs that direct the delineation of the neural and non-neural lineages in the ectoderm. A discussion of how the current results fit into the larger framework of GRNs (both for known and novel genes) would provide a more complete context for the work. A schematic figure that maps these genes onto a GRN could be quite informative and clarifying.

Nonetheless, the results are significant in that they advance our understanding of the spatial and temporal expression of genes that are associated with cell specification and lineage restriction during the embryonic time course from gastrulation to neurulation. The conclusions are further supported by a modified RNA velocity analysis that reconstructs the temporal sequence of transcriptional steps and resolves gene-specific transcriptional dynamics over time. Importantly, based on this analysis, the authors find that cells from the emerging neural plate border are more heterogeneous than previously believed and they do not see the emergence of neural crest cells as a distinct lineage until later than what has been suggested by other studies.

Overall, the authors could do more in both the Introduction and the Discussion to emphasize exactly how their current study advances the field beyond simply describing the timing of specification and lineage restriction. This would be especially helpful since the authors cite earlier work from the Bronner lab (Roellig et al. 2017), which demonstrates that significant co-expression of neural crest, placode, and CNS markers persists in the neural plate border from gastrulation through neurulation. In fact, this earlier work has a similar conclusion that cells at the neural plate border contribute to multiple ectodermal lineages throughout neurulation and even after neural tube closure.

The sample sizes of embryos and numbers of cells collected are unclear. For example, the authors state that they isolate 2398 cells from 8 embryos (i.e., epiblasts?) at stage HH4. Does this total number consist of approximately 300 cells per embryo? The authors should explain why this number is sufficient as a representative and unbiased sample size in light of some reports that estimate up to 50,000 epithelial cells in the epiblast at this stage (see for example: Serrano Nájera G, Weijer CJ. Cellular processes driving gastrulation in the avian embryo. Mech Dev. 2020;163:103624). In the Methods section they state that "approximately 10,000 cells/stage were collected" and so it is hard to make sense of the sample sizes, etc. The authors should include the total number of embryos (n) for each RNA-seq analysis performed along with the number of cells (e.g., p. 15, lines 468-472).

Moreover, how can the authors claim with certainty that they are "profiling the majority of neural plate border cells" (p. 2, line 62)? Could there be other cells in the neural plate border that do not express Pax7 and Tfap2A? For each experiment, the authors should try to estimate how many cells (or what percentage) are not included in their analyses and discuss what the implications are for the interpretation of their results. A supplemental data table with total number of cells collected for each embryo at each stage in each experiment, would be helpful.

Given that HCR is also a quantitative technique and given that the authors use words like "stronger" or "decreased" to describe spatial and temporal changes in gene expression, the authors should try to measure levels (i.e., fold-differences) of expression among these markers and novel genes either relative to one another and/or over time.

Although the authors generate an intriguing list of genes that are co-expressed at the right time and place, they should refrain from equating "expression" with "function" (e.g., p. 13, line 371) given that the authors have not tested a role for any of the new genes that they have identified in their dataset. Also, the authors spend much of the Discussion describing previous experimental work for some of the genes included in their dataset. Here too, the authors should temper and contextualize their conclusions taking into account the fact that the presence of a specific transcript does not always correspond to actual gene function and protein activity, especially since there are numerous examples of post-transcriptional (and post-translational) regulation for many of these genes.

Reviewer #2:

This study performs single-cell transcriptome analysis of chicken embryos from gastrulation to neurulation stages (HH4-HH7) with the goal of understanding the emergence and transition of the neural plate border domain to placodal and neural crest lineages. The main impact of the study is the first detailed single-cell analysis of early chick embryos, which should complement similar studies in human, mouse, and other vertebrates. Major cell types are described at each stage, and this is coupled with in situ hybridization for a set of known and novel genes, as well as RNA velocity to deduce cell trajectories (based on the ratio of old cytoplasmic to new nuclear transcripts). Based on the absence of a distinct Pax7/Tfap2a cluster during gastrulation stages, the authors make an argument that the neural plate border and placode/neural crest does not emerge until later stages (i.e. neurulation), later than previously reported. However, the study largely falls short of making significant new insights into the timing and lineage trajectories of placodes and neural crest. The manuscript is very dense with descriptive data of gene expression in numerous clusters, which makes it difficult to extract big picture messages about lineage emergence. There are also numerous typos and figure errors that make the reading difficult. The RNA velocity analysis is not particularly convincing as to lineage emergence, and there are numerous overstatements about the ability of such single-cell genomics approaches to define in vivo lineages in the absence of experimental confirmation. While some new genes with neural plate border expression are presented, others are already well known or are shown to have very broad expression, thus limiting their utility in defining domains. There is a feeling that this work is quite preliminary in terms of its analysis of neural plate border lineages, though it is clearly an important resource for the chick embryology community.

1. Several statements are made as to lineage analysis, e.g. with relation to Pax7+ cells. Single-cell analysis can only make predictions about lineages, which need to be experimentally confirmed. These statements should therefore be removed or more carefully explained. For example, lines 51-52 (and also lines 276-277 and line 407) : "We further demonstrate that Pax7+ cells are not restricted to a neural crest fate and are capable of giving rise to all derivatives of the neural plate border."

2. In the Intro, it stated that the study identifies numerous novel factors, but the in situs presented show a combination of novel factors and many known factors (e.g. Dlx6, Msx1, Gbx2), with several of the "novel" genes (e.g. Ing5) being much broader than just prospective NPB territory. Similarly in Figure 4, many of the in situ markers are quite broad and therefore it is hard to determine their utility in defining specific domains (e.g. Gbx2 and Znf703). It is also an overstatement to say the study has identified key drivers of NPB trajectories in the absence of functional assays.

3. The known roles of Irf6 and Grhl3 in driving periderm fate should be better integrated in the single-cell analysis. The in situs confirm that these are expressed quite broadly and mainly in the overlying periderm.

4. The scVelo in Figure 5 is not particularly informative. From the various arrows and UMAPs shown, its hard to distill a clear theme of cell transitions. For example in panel F, how does the data specifically inform bifurcation of placodal and neural crest ectoderm?

5. What is "neural-neural crest"?

6. There appears to be an error in Figure 6A preventing the top left of the plot from being visualized. An image from panel D seems to be pasted by mistake. In general, there are many typos/errors in the manuscript that further make it difficult to follow.

7. It is unclear what the colors mean in Figure 6E,F. Figure S5I – the legend is similarly insufficient to understand the panels, e.g. no description of what colors means.

8. What is the evidence that mitochondrial genes at HH4 indicative of highly active migrating cells?

9. HH6-Cl2 is stated to be anterior lateral plate mesoderm, but Pitx2 and Alx1 are also markers of frontonasal neural crest mesenchyme. How do the authors distinguish between these possibilities?

10. In Figure S1B, ElalL1 and Tgfi1 are used as epiblast stem cell markers but appear to be very broadly expressed. Also in Figure S1F, the genes used to define the Node are not very specific.

11. The in situ in Figure S4D is not described in legend or annotated in actual panel.

Reviewer #3:

In this study, Williams and colleagues use single cell transcriptomics to describe the cell fates and lineages in the dorsal ectoderm of chick embryos taken from gastrula to early neurula stage. Specifically, they provide an atlas of whole embryo epiblast at stages 4,HH, 5HH, 6HH and 7H. They further subcluster the ectoderm cells and use cVelo algorithm (based on velocity of RNA splicing) to infer trajectories and lineages in this dataset.

Description of each stage and each cluster of cells is carefully done and retrieves the canonical markers for each territory. The neural plate border is found expressing pax7 early on, as previously described in chick embryos (Basch et al., 2006) but a specific clustering of these cells is not found, suggesting that the identity of the neural plate border is rather the overlap of gene signatures from adjacent tissues and that the neural crest and the placode signatures arise at the early neurula stage, in the elevating neural folds of the embryo.

From previous lineage tracing studies done at the gastrula stage, it was shown that the border between the prospective neural plate and the future non-neural ectoderm gives rise to four main cell fates: dorsal neural tube cells, neural crest cells, posterior placodal cells and non-neural ectoderm cells (e.g. Steventon et al., 2009). Genetically, this territory has previously been defined by the overlap between gene expressions defining the non-neural ectoderm and the neural ectoderm (e.g. De Crozé et al., 2011, Grooves and Labonne 2014)

Previous transcriptomic studies have pointed out the high similarity of the neural plate border territory compared to adjacent ectoderm regions, the failure of "classical" biostatistics tools to evidence a specific signature and the need for tailored strategies to do so (Plouhinec et al., 2017). Using those, the neural plate border could be defined from gastrula stage by its expression of pax3/pax7 ortholog and a couple of other genes, then by a more extended signature at neurulation stage.

In conclusion, although this study explores the same question with the latest tools of single cell transcriptomics, it is mostly descriptive and brings little novel insight into the biology of neural and neural plate border induction. However, it highlights a series of additional genes that could be of interest for further functional study.

In order to increase the impact of this study, functional analysis of some key genes should be added. Previous works from the same authors have elegantly shown how various regulators influence cell fates in the neural crest gene regulatory network.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Segregation of neural crest specific lineage trajectories from a heterogeneous neural plate border territory only emerges at neurulation" for further consideration by eLife. Your revised article has been evaluated by Kathryn Cheah (Senior Editor) and a Reviewing Editor.

The feedback of the reviewers indicate that the revision addresses most of original concerns and now fits better as a Resources paper. While the manuscript has been improved, there are some remaining issues that need to be addressed, as outlined below:

Consider modifying the title and summary to broaden the coverage of subject beyond the neural plate border cell population

Take into consideration of that the inference of molecular trajectory of cell population and the transcriptional network/s driving lineage development are hypothetical in the context of the origin of the neural crest cells at this juncture and tune the Discussion accordingly.

Address the critique of the data presented in Figures 5 and 6:

The computational results on the developmental trajectory (Figure 5) purportedly showed the connectivity of cell types at four developmental stages separately. As these are snapshots of the "transcriptome proximity" between cell types (whole epiblast/extracted ectoderm sub-clusters) at a single timepoint, it is not biological meaningful for inferring a developmental trajectory of cell population in time. These results (and the accompanying description of the data in Results) may be provided as supplementary information.

Enhance the visibility of the findings of scRNA velocity (Figure 6): The RNA velocity measurement across the four stages may be more appropriate for inferring the developmental trajectory of cell types across HH6-HH7. For more clarity, it may be helpful to highlight the predominant velocity vectors between the cell types, as some individual vectors appeared to be outliers (i.e. deviating from the global vectorial direction).

Please provide information on the development of the web portal and its state of accessibility. If possible, provide user feedback on a trial run to evaluate the utility and effectiveness of the web interface, which may be presented as supplementary information of revised manuscript.

https://doi.org/10.7554/eLife.74464.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

[…] There is no follow-up verification of the functional attributes of these drivers or the molecular network in the development of these two lineages. The merit of this study would be enhanced if functional analysis has been undertaken to identify which are the key drivers and their functional role in the segregation of the two divergent neural border cell lineages and the early steps of differentiation of the neural crest cells.

Thank you for the useful comments. We agree that functional experiments would be very valuable and we have initiated some of these, but we also feel that given the myriad of new genes, finding the essential drivers will not be an easy task and would likely take an enormous amount of time execute in a controlled and validated fashion. Given the pandemic, we feel that these experiments would not be feasible in a reasonable amount of time. Moreover, the present manuscript is already overly long. We have endeavoured to make it clearer and more concise in the revised version. Therefore, we agree with the idea presented by the Senior Editor that the present dataset would make a very valuable Resource paper without adding functional data.

Re-submission as a resource report will require provision of the missing detail of the experimental design of the single-cell transcriptome analysis and the data analytics pipeline, improving the style of presentation to allow a better comprehension of the important novel findings of data mining. addressing the utility and limitation of the transcriptome dataset to gains knowledge that enables the formulation of testable hypothesis on the molecular activity driving neural plate development. emergence of the neural plate border cell lineages.

We thank the editor and reviewers for giving us the option to resubmit the paper as a Resource. Accordingly, we have amended the manuscript to address the very useful comments of the reviewers as described below. We are also in the process of uploading all our data sets to a web-based user interface such that readers can explore the data in its entirety.

Reviewer #1:

[…] A discussion of how the current results fit into the larger framework of GRNs (both for known and novel genes) would provide a more complete context for the work. A schematic figure that maps these genes onto a GRN could be quite informative and clarifying.

We thank the reviewer for this insightful comment. To address this, we have added discussion of how some of the genes identified here fit into the broader neural crest gene regulatory network using previously published data (Williams et al., 2019) (lines 384-386 and 392-394). While the idea of putting some of the novel genes described here into a GRN is very attractive, it is premature in the absence of functional data since it is not possible to construct a GRN on expression data alone; this would require epistatic/regulatory data which is outside the scope of the current work.

Overall, the authors could do more in both the Introduction and the Discussion to emphasize exactly how their current study advances the field beyond simply describing the timing of specification and lineage restriction. This would be especially helpful since the authors cite earlier work from the Bronner lab (Roellig et al. 2017), which demonstrates that significant co-expression of neural crest, placode, and CNS markers persists in the neural plate border from gastrulation through neurulation. In fact, this earlier work has a similar conclusion that cells at the neural plate border contribute to multiple ectodermal lineages throughout neurulation and even after neural tube closure.

Thank you for noting this lack of information. To address this point, we have amended parts of the introduction and discussion as suggested. In particular we emphasize how our analysis expands on previous work (lines 38-41) and how our whole epiblast sc-RNA-seq data sets provide a contextual environment for understanding how the neural plate border emerges during early neurulation and diverges from the surrounding neural and non-neural ectoderm (line 381). We also further discuss how the genes identified here might fit into the broader neural crest GRN (lines 382-394) and we highlight the notion that neural plate border cells are not a unique population characterized by an exclusive gene expression signature, but rather that they share features with the surrounding tissues (lines 409-415).

The sample sizes of embryos and numbers of cells collected are unclear. For example, the authors state that they isolate 2398 cells from 8 embryos (i.e., epiblasts?) at stage HH4. Does this total number consist of approximately 300 cells per embryo? The authors should explain why this number is sufficient as a representative and unbiased sample size in light of some reports that estimate up to 50,000 epithelial cells in the epiblast at this stage (see for example: Serrano Nájera G, Weijer CJ. Cellular processes driving gastrulation in the avian embryo. Mech Dev. 2020;163:103624). In the Methods section they state that "approximately 10,000 cells/stage were collected" and so it is hard to make sense of the sample sizes, etc. The authors should include the total number of embryos (n) for each RNA-seq analysis performed along with the number of cells (e.g., p. 15, lines 468-472).

Moreover, how can the authors claim with certainty that they are "profiling the majority of neural plate border cells" (p. 2, line 62)? Could there be other cells in the neural plate border that do not express Pax7 and Tfap2A? For each experiment, the authors should try to estimate how many cells (or what percentage) are not included in their analyses and discuss what the implications are for the interpretation of their results.

We apologize for this lack of clarity. We have now added the number of embryos and cells used in the analysis to the text (lines 71, 84, 97 and 102) and also provide a supplemental table detailing the number of embryos/cells used at each stage. Along with the CellRanger output.

It is likely that the epiblast contains up to 50,000 cells; however approximately 50% of cells may be lost during the dissociation/FACS process. Furthermore, the 10X Chromium platform has limited loading capacity (46.6ul), and as it is not advisable to spin down cells and resuspend in a smaller volume, the number cells loaded is restricted. Moreover, the 10X Chromium platform can only recover up to 10,000 cells, so overloading is not advantageous. The percentage of cells we recover is largely within the 10X guidelines of 45-60%, the exception was HH4 (30%) however this was performed with v2 10X chemistry.

Given that we resolve numerous clusters that clearly represent each germ layer and sub-divisions thereof, we believe these are sufficient numbers of cells to construct an unbiased single-cell atlas at each stage. Moreover, we record high quality gene expression metrics indicating the cells were of good quality (see supplemental table). We have now clarified these points in the text and apologize that this was not clearer in the first version of the manuscript.

A supplemental data table with total number of cells collected for each embryo at each stage in each experiment, would be helpful.

Thank you for this excellent suggestion. This is now provided in the supplemental section.

Given that HCR is also a quantitative technique and given that the authors use words like "stronger" or "decreased" to describe spatial and temporal changes in gene expression, the authors should try to measure levels (i.e., fold-differences) of expression among these markers and novel genes either relative to one another and/or over time.

We appreciate the reviewers point here. While HCR can be quantitative if performed at nonsaturating levels, embryos must be processed concomitantly and under exactly the same conditions to make accurate comparisons. As we did not prepare the whole mount embryos in this way, it would be no trivial undertaking to repeat all the HCR’s, imaging and quantification. Furthermore, in the broader context of this work, the HCR analysis was done to provide validation of novel genes identified in the sc-RNA-seq data sets, and to uncover putative candidates for further investigation. However, we recognize the need for quantification here, as such we now provide the fold change values where applicable from the sc-RNA-seq data for genes shown in HCR. This information has been added on the relevant feature plots in figures 3 and 4. We have also altered our wording accordingly such that our description refers to qualitative rather than quantitative changes in gene expression levels (lines 181, 183, 198, 200, 208, 225).

Although the authors generate an intriguing list of genes that are co-expressed at the right time and place, they should refrain from equating "expression" with "function" (e.g., p. 13, line 371) given that the authors have not tested a role for any of the new genes that they have identified in their dataset. Also, the authors spend much of the Discussion describing previous experimental work for some of the genes included in their dataset. Here too, the authors should temper and contextualize their conclusions taking into account the fact that the presence of a specific transcript does not always correspond to actual gene function and protein activity, especially since there are numerous examples of post-transcriptional (and post-translational) regulation for many of these genes.

We thank the reviewer for raising this concern. We have now modified the text (line 58, 382, 387, 389-391, 397) to be more circumspect. We have also added references here to support our discussion of previous work (lines 207, 225, 389-391, 395-397).

Reviewer #2:

[…]

1. Several statements are made as to lineage analysis, e.g. with relation to Pax7+ cells. Single-cell analysis can only make predictions about lineages, which need to be experimentally confirmed. These statements should therefore be removed or more carefully explained. For example, lines 51-52 (and also lines 276-277 and line 407) : "We further demonstrate that Pax7+ cells are not restricted to a neural crest fate and are capable of giving rise to all derivatives of the neural plate border."

We thank the reviewer for this comment and agree that it is important to distinguish between gene expression and lineage relationships. Accordingly, we have adjusted the text to dampen down these claims (lines 56-57, 280-281, 284, and 435). Indeed, this was a most interesting finding which we intend to follow up experimentally and include in future publications.

2. In the Intro, it stated that the study identifies numerous novel factors, but the in situs presented show a combination of novel factors and many known factors (e.g. Dlx6, Msx1, Gbx2), with several of the "novel" genes (e.g. Ing5) being much broader than just prospective NPB territory. Similarly in Figure 4, many of the in situ markers are quite broad and therefore it is hard to determine their utility in defining specific domains (e.g. Gbx2 and Znf703). It is also an overstatement to say the study has identified key drivers of NPB trajectories in the absence of functional assays.

The reviewer raises an interesting point. Indeed, we believe it is a combination of transcription and signaling factors (both novel and known), that are involved in refinement of the neural plate border. For our in situ analysis, we combined probes to known neural plate border genes (Tfap2A, Pax7, Msx1) genes together with novel genes to observe co-expression in this region. We have now added this information in the text (line 170-171). We appreciate that the expression pattern of some of the genes shown here have previously been described, but not in the context of neural plate border development. We have attenuated the text accordingly and added citations (line 207 and 225).

Indeed, many of the genes explored in this study are expressed more broadly than the neural plate border, in keeping with the notion that the neural plate border is not defined by an exclusive set of genes. Rather, it is the combination of genes co-expressed across this region that are differentially shared with surrounding tissues. We have reinforced this point in the text line (lines 409-415). We have also toned down the text regarding key drivers of specific trajectories (lines 58, 340-341).

3. The known roles of Irf6 and Grhl3 in driving periderm fate should be better integrated in the single-cell analysis. The in situs confirm that these are expressed quite broadly and mainly in the overlying periderm.

We now mention the roles of Irf6 and Grhl3 in periderm formation and indeed Van der Woude syndrome. We thank the reviewer for bringing this information to our attention (lines 388-391).

4. The scVelo in Figure 5 is not particularly informative. From the various arrows and UMAPs shown, its hard to distill a clear theme of cell transitions. For example in panel F, how does the data specifically inform bifurcation of placodal and neural crest ectoderm?

Thank you for pointing out that this was not sufficiently clear. We have attempted to improve the visualisation of scVelo analysis by showing alternative plots in Figures 5 and 6. In these the arrows represent an average velocity across given clusters such that fewer but bolder arrows are shown. We have also removed the shading around the Pax7+ zone in Figure 5F as Pax7 expression is demonstrated in the feature plots shown alongside (Figure 5G). We hope this makes this point clearer. We have also further clarified this in the text (lines 279-281).

5. What is "neural-neural crest"?

We apologise for not making this description clear. The split in neural crest cells between neural potential and mesenchymal potential has previously been described in this way (Williams et al. 2019) and we now clarify this in the text (line 293-296).

6. There appears to be an error in Figure 6A preventing the top left of the plot from being visualized. An image from panel D seems to be pasted by mistake. In general, there are many typos/errors in the manuscript that further make it difficult to follow.

We apologise for this problem which we failed to notice in the previous submission. Similarly, we have endeavoured to identify and correct other typos and figure errors. We thank the reviewer for pointing out this problem.

7. It is unclear what the colors mean in Figure 6E,F. Figure S5I – the legend is similarly insufficient to understand the panels, e.g. no description of what colors means.

Thank you for pointing out this lack of clarity here. We now describe this better and define the meaning of the colors in the figure legends. We have also added scale bars on the figures and describe the color correlation in the figure legends.

8. What is the evidence that mitochondrial genes at HH4 indicative of highly active migrating cells?

The reviewer raises a good point. There is no evidence that mitochondrial genes indicate active migration, but since we also detected cell migration genes in the same cluster, we thought the high levels of mitochondrial activity may represent highly active migrating cells. However, we recognize this is an over-interpretation and have removed this statement (line 445-446).

9. HH6-Cl2 is stated to be anterior lateral plate mesoderm, but Pitx2 and Alx1 are also markers of frontonasal neural crest mesenchyme. How do the authors distinguish between these possibilities?

Interesting point. We now clarify that HH6-Cl2 is also enriched for other lateral plate mesoderm (LPM) genes, including; ShisA2, Sfrp1, OlfmL3, Six1 and Twist1. While some of these genes are indeed expressed in other tissues, collectively their shared expression is most dominant in the LPM. We have now added these examples to the text in the supplementary Results section (line 450). If the reviewers and editor so desire, we could add HCR of Pitx2 and Alx1 to clarify their location at HH6.

10. In Figure S1B, ElalL1 and Tgfi1 are used as epiblast stem cell markers but appear to be very broadly expressed. Also in Figure S1F, the genes used to define the Node are not very specific.

We agree that Elav1 and Tgif are broadly expressed, but they are enriched 0.479 and 0.472 average fold change, respectively, in HH4-Cl2. We now include this information on the feature plots in Figure. S1B. We had difficultly annotating HH5-Cl7 (Figure S1F) and we agree the genes shown on the heatmap are not indicative of the node. We originally assigned this cluster as node based on less enriched genes not shown here. We have now relabeled this cluster as ‘Miscellaneous’ since the top enriched genes represent a myriad of cellular processes.

11. The in situ in Figure S4D is not described in legend or annotated in actual panel.

We thank the reviewer for noting this over sight. We have now annotated the in situ image and describe it in the legend.

Reviewer #3:

[…]

In order to increase the impact of this study, functional analysis of some key genes should be added. Previous works from the same authors have elegantly shown how various regulators influence cell fates in the neural crest gene regulatory network.

We thank the reviewer for their comments and appreciate the fact that it would be ideal to include functional experiments. That said, the manuscript is already overly long. More importantly, it would take us +1 year to test the new transcription factors described here and assemble them into a meaningful gene regulatory network. Thus, we would prefer to publish the paper as a Resource (as suggested) and follow-up with detailed functional analysis at a later time.

References

Williams, R. M., Candido-Ferreira, I., Repapi, E., Gavriouchkina, D., Senanayake, U., Ling, I. T. C., Telenius, J., Taylor, S., Hughes, J. and Sauka-Spengler, T. 2019. Reconstruction of the Global Neural Crest Gene Regulatory Network in vivo. Dev Cell, 51, 255-276 e7.

[Editors’ note: what follows is the authors’ response to the second round of review.]

The feedback of the reviewers indicate that the revision addresses most of original concerns and now fits better as a Resources paper. While the manuscript has been improved, there are some remaining issues that need to be addressed, as outlined below:

Consider modifying the title and summary to broaden the coverage of subject beyond the neural plate border cell population

We have now changed the title and edited the text in the abstract and introduction to describe this study more broadly.

Take into consideration of that the inference of molecular trajectory of cell population and the transcriptional network/s driving lineage development are hypothetical in the context of the origin of the neural crest cells at this juncture and tune the Discussion accordingly.

We have adjusted the text accordingly to reflect the hypothetical nature of lineage trajectory analysis.

Address the critique of the data presented in Figures 5 and 6:

The computational results on the developmental trajectory (Figure 5) purportedly showed the connectivity of cell types at four developmental stages separately. As these are snapshots of the "transcriptome proximity" between cell types (whole epiblast/extracted ectoderm sub-clusters) at a single timepoint, it is not biological meaningful for inferring a developmental trajectory of cell population in time. These results (and the accompanying description of the data in Results) may be provided as supplementary information.

We have now moved this data and accompanying text to the supplemental section, this now makes supplemental figure 6. The main manuscript is now 5 figures and we have adjusted the figure citations throughout.

Enhance the visibility of the findings of scRNA velocity (Figure 6): The RNA velocity measurement across the four stages may be more appropriate for inferring the developmental trajectory of cell types across HH6-HH7.

We have included scVelo data from stages HH5/6/7/8. We did not find that including HH4 and excluding HH8 was useful.

For more clarity, it may be helpful to highlight the predominant velocity vectors between the cell types, as some individual vectors appeared to be outliers (i.e. deviating from the global vectorial direction).

We appreciate the reviewers remark however, having already changed the velocity plots here (now figure 5) to the big, bold, averaged arrows to be clearer, we feel adding any more annotation will only further complicate the results as there is already lots of colour and arrows we don’t feel more annotation would help.

Please provide information on the development of the web portal and its state of accessibility. If possible, provide user feedback on a trial run to evaluate the utility and effectiveness of the web interface, which may be presented as supplementary information of revised manuscript.

All the data from this study is now available on the Single Cell Portal. This has been trialed by colleagues and corrected accordingly. This will be made publicly available once the paper is formally accepted.

https://doi.org/10.7554/eLife.74464.sa2

Article and author information

Author details

  1. Ruth M Williams

    1. California Institute of Technology, Division of Biology and Biological engineering, Pasadena, United States
    2. University of Oxford, MRC Weatherall Institute of Molecular Medicine, Radcliffe Department of Medicine, Oxford, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Validation, Visualization, Writing – original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2628-7834
  2. Martyna Lukoseviciute

    University of Oxford, MRC Weatherall Institute of Molecular Medicine, Radcliffe Department of Medicine, Oxford, United Kingdom
    Present address
    Department of Cell and Molecular Biology, Karolinska Institutet, Stockholm, Sweden
    Contribution
    Formal analysis, Writing – review and editing
    Competing interests
    No competing interests declared
  3. Tatjana Sauka-Spengler

    University of Oxford, MRC Weatherall Institute of Molecular Medicine, Radcliffe Department of Medicine, Oxford, United Kingdom
    Contribution
    Formal analysis, Funding acquisition, Supervision, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9289-0263
  4. Marianne E Bronner

    California Institute of Technology, Division of Biology and Biological engineering, Pasadena, United States
    Contribution
    Conceptualization, Funding acquisition, Project administration, Resources, Supervision, Writing – review and editing
    For correspondence
    mbronner@caltech.edu
    Competing interests
    Senior editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4274-1862

Funding

National Institutes of Health (R01DE027538)

  • Marianne E Bronner
  • Ruth M Williams

Wellcome Trust (215615/Z/19/Z)

  • Tatjana Sauka-Spengler
  • Ruth M Williams

Radcliffe Department of Medicine Scholarship

  • Martyna Lukoseviciute

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Fluorescence activated cell sorting was performed at California Institute of Technology Flow Cytometry Facility using BD Biosciences FACSAria Cell Sorter with Patrick Cannon. 10 X libraries were prepared in the Thomson lab at California Institute of Technology with assistance from Jeff Park. Illumina sequencing was performed at the Millard and Muriel Jacob at California Institute of Technology with Igor Antoshechkin. HH4 10 X library was constructed at MRC Weatherall Institute of Molecular Medicine, University of Oxford with assistance from Kevin Clark (FACS facility), Dr Neil Ashley (single-cell facility) and Tim Rostron (NGS sequencing facility). Confocal microscopy was performed within the Biological Imaging Facility at the Beckman Institute, California Institute of Technology with assistance from Dr Giada Spigolon. We thank members of the Bronner and Sauka-Spengler labs for their support and helpful discussions. This work was funded by NIH R01DE027538 to MEB/RMW, Wellcome Trust Senior Research Fellowship (215615/Z/19/Z) to TSS/RMW and Radcliffe Department of Medicine Scholarship and MRC DTP Supplementary Funding to ML.

Senior Editor

  1. Kathryn Song Eng Cheah, The University of Hong Kong, Hong Kong

Reviewing Editor

  1. Patrick PL Tam, CMRI, The University of Sydney, Australia

Publication history

  1. Preprint posted: August 8, 2021 (view preprint)
  2. Received: October 5, 2021
  3. Accepted: December 1, 2021
  4. Version of Record published: January 28, 2022 (version 1)

Copyright

© 2022, Williams et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,744
    Page views
  • 252
    Downloads
  • 5
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Ruth M Williams
  2. Martyna Lukoseviciute
  3. Tatjana Sauka-Spengler
  4. Marianne E Bronner
(2022)
Single-cell atlas of early chick development reveals gradual segregation of neural crest lineage from the neural plate border during neurulation
eLife 11:e74464.
https://doi.org/10.7554/eLife.74464
  1. Further reading

Further reading

    1. Developmental Biology
    2. Neuroscience
    Anadika R Prasad, Inês Lago-Baldaia ... Vilaiwan M Fernandes
    Research Article Updated

    Neural circuit formation and function require that diverse neurons are specified in appropriate numbers. Known strategies for controlling neuronal numbers involve regulating either cell proliferation or survival. We used the Drosophila visual system to probe how neuronal numbers are set. Photoreceptors from the eye-disc induce their target field, the lamina, such that for every unit eye there is a corresponding lamina unit (column). Although each column initially contains ~6 post-mitotic lamina precursors, only 5 differentiate into neurons, called L1-L5; the ‘extra’ precursor, which is invariantly positioned above the L5 neuron in each column, undergoes apoptosis. Here, we showed that a glial population called the outer chiasm giant glia (xgO), which resides below the lamina, secretes multiple ligands to induce L5 differentiation in response to epidermal growth factor (EGF) from photoreceptors. By forcing neuronal differentiation in the lamina, we uncovered that though fated to die, the ‘extra’ precursor is specified as an L5. Therefore, two precursors are specified as L5s but only one differentiates during normal development. We found that the row of precursors nearest to xgO differentiate into L5s and, in turn, antagonise differentiation signalling to prevent the ‘extra’ precursors from differentiating, resulting in their death. Thus, an intricate interplay of glial signals and feedback from differentiating neurons defines an invariant and stereotyped pattern of neuronal differentiation and programmed cell death to ensure that lamina columns each contain exactly one L5 neuron.

    1. Developmental Biology
    Hannes Preiß, Anna C Kögler ... Patrick Müller
    Research Article

    During vertebrate embryogenesis, the germ layers are patterned by secreted Nodal signals. In the classical model, Nodals elicit signaling by binding to a complex comprising Type I/II Activin receptors (Acvr) and the co-receptor Tdgf1. However, it is currently unclear whether receptor binding can also affect the distribution of Nodals themselves through the embryo, and it is unknown which of the putative Acvr paralogs mediate Nodal signaling in zebrafish. Here, we characterize three Type I (Acvr1) and four Type II (Acvr2) homologs and show that - except for Acvr1c - all receptor-encoding transcripts are maternally deposited and present during zebrafish embryogenesis. We generated mutants and used them together with combinatorial morpholino knockdown and CRISPR F0 knockout (KO) approaches to assess compound loss-of-function phenotypes. We discovered that the Acvr2 homologs function partly redundantly and partially independently of Nodal to pattern the early zebrafish embryo, whereas the Type I receptors Acvr1b-a and Acvr1b-b redundantly act as major mediators of Nodal signaling. By combining quantitative analyses with expression manipulations, we found that feedback-regulated Type I receptors and co-receptors can directly influence the diffusion and distribution of Nodals, providing a mechanism for the spatial restriction of Nodal signaling during germ layer patterning.
