Hematopoietic stem and progenitor cells improve survival from sepsis by boosting immunomodulatory cells

  1. Daniel E Morales-Mantilla
  2. Bailee Kain
  3. Duy Le
  4. Anthony R Flores
  5. Silke Paust
  6. Katherine Y King  Is a corresponding author
  1. Graduate Program in Immunology, Baylor College of Medicine, United States
  2. Department of Pediatrics, Division of Infectious Diseases, Baylor College of Medicine, United States
  3. Graduate Program in Translational Biology and Molecular Medicine, Baylor College of Medicine, United States
  4. Division of Infectious Diseases, Department of Pediatrics, UTHSC/McGovern Medical School, United States
  5. The Scripps Research Institute, Department of Immunology and Microbiology, United States

Abstract

New therapeutic strategies to reduce sepsis-related mortality are urgently needed, as sepsis accounts for one in five deaths worldwide. Since hematopoietic stem and progenitor cells (HSPCs) are responsible for producing blood and immune cells, including in response to immunological stress, we explored their potential for treating sepsis. In a mouse model of Group A Streptococcus (GAS)-induced sepsis, severe immunological stress was associated with significant depletion of bone marrow HSPCs and mortality within approximately 5–7 days. We hypothesized that the inflammatory environment of GAS infection drives rapid HSPC differentiation and depletion that can be rescued by infusion of donor HSPCs. Indeed, infusion of 10,000 naïve HSPCs into GAS-infected mice resulted in rapid myelopoiesis and a 50–60% increase in overall survival. Surprisingly, mice receiving donor HSPCs displayed a similar pathogen load compared to untreated mice. Flow cytometric analysis revealed a significantly increased number of myeloid-derived suppressor cells in HSPC-infused mice, which correlated with reduced inflammatory cytokine levels and restored HSPC levels. These findings suggest that HSPCs play an essential immunomodulatory role that may translate into new therapeutic strategies for sepsis.

Editor's evaluation

This preclinical study reports on a novel strategy for sepsis. Sepsis induced by Group A Streptococcus (GAS) in mice leads to depletion of bone marrow HSPCs and mortality and infusion of naive donor HSPCs lower mortality but has no effect on bacterial burden. This supports that HSPCs infusion might attenuate the detrimental immune response in sepsis warranting further investigation of this novel concept.

https://doi.org/10.7554/eLife.74561.sa0

Introduction

Sepsis accounts for one in five deaths worldwide and is a common final pathway for many disease processes such as cancer, diabetes, and cardiovascular disease (Rhee et al., 2019). Sepsis is an inflammatory syndrome largely driven by the activation of immune cells by pathogen associated molecular patterns (PAMPs) and damage-associated molecular patterns (DAMPs) (van der Poll et al., 2017; Deutschman and Tracey, 2014). After recognizing these molecules via pattern recognition receptors, immune cells become activated and produce proinflammatory cytokines, notably interleukins IL-1, IL-6, interferons (IFNs), and tumor necrosis factor (TNF) that contribute to fever, vasodilation, and multiorgan dysfunction (Deutschman and Tracey, 2014; Yu et al., 2011; Huang et al., 2005; Wang et al., 2008). For patients that progress to septic shock, mortality rates remain as high as 40% (Napolitano, 2018).

Leukopenia is a feature of severe sepsis that arises from apoptosis of peripheral immune cells and is an independent risk factor for death. To counteract the adverse effects of leukopenia, investigators have used immunotherapies such as GM-CSF (Krebs et al., 2019) or granulocyte infusions in an attempt to restore leukocyte numbers and improve survival. These strategies have produced mixed results (Estcourt et al., 2016; Li et al., 2019; Mathias et al., 2015). The benefits of granulocyte infusions in cancer patients with fever and neutropenia are limited by the difficulty of obtaining sufficient cells and the short-lived nature of those cells (Hidalgo et al., 2019; Robinson and Marks, 2004).

Recent work from our group and others indicates that hematopoietic stem and progenitor cells (HSPCs) express surface receptors for cytokines, chemokines, and PAMPs (Karpova et al., 2017; Burberry et al., 2014; Nagai et al., 2006; Schürch et al., 2014; Matatall et al., 2014; Baldridge et al., 2011; Pietras et al., 2016; Takizawa et al., 2017) and respond rapidly upon direct and indirect stimulation by these signals. HSPCs, the progenitors of all blood and immune cells, are comprised of five subgroups of hematopoietic cells: hematopoietic stem cells (HSCs), which have long-term self-renewal capacity, and four types of multipotent progenitors (MPPs 1–4), which are defined by lower self-renewal capacity and myeloid or lymphoid differentiation biases (Wang et al., 2008; Morales-Mantilla and King, 2018; Chambers et al., 2007; Sun et al., 2014; Rodriguez-Fraticelli et al., 2018; Cabezas-Wallscheid et al., 2014). Immune responses induce HSPCs in the bone marrow (BM) to produce effector immune cells via a process called emergency hematopoiesis (Matatall et al., 2014; Pietras et al., 2016; Takizawa et al., 2017; Morales-Mantilla and King, 2018; MacNamara et al., 2011; Matatall et al., 2016). The capacity of HSPCs to directly detect pathogen-derived molecules, cytokines, and chemokines suggests that emergency granulopoiesis can be mobilized from even the most primitive hematopoietic progenitors and that HSPCs have an active role in fighting infections. However, the extent and mechanism by which HSPC responses contribute to immunity in the acute setting remain poorly defined.

We recently showed that chronic inflammatory stress impairs HSPC quiescence and self-renewal while promoting their activation and terminal differentiation (Matatall et al., 2016). Upon direct sensing of inflammatory cytokines such as interferon-gamma (IFNγ), HSCs are dislodged from their normal position near quiescence-enforcing CXCL12-abundant reticular cells in the niche. Inflammatory signaling induces transcription factors such as Pu.1, CEBPb, and BATF2 (Matatall et al., 2014; Pietras et al., 2016; Matatall et al., 2016; Sato et al., 2020) to promote myeloid differentiation, leading to the expansion of granulocyte and monocyte populations. Disruption of the homeostatic balance of self-renewal and differentiation eventually leads to depletion of the progenitor compartment (Pietras et al., 2016; Morales-Mantilla and King, 2018; Matatall et al., 2016). Collectively, these studies point toward a direct role for HSPCs in supplying the myeloid cells critical to the immune response against infection.

To test their contribution to immune responses during acute infection, we examined the role of HSPCs in a mouse model of Streptococcus pyogenes infection, also known as Group A Streptococcus (GAS). GAS is a common and clinically relevant pathogen that causes a plethora of diseases, from mild skin infections to life-threatening necrotizing fasciitis and sepsis (Wang et al., 2008; Efstratiou and Lamagni, 2016; Emgård et al., 2019; Walker et al., 2014). GAS infections can infiltrate the bloodstream and other organs, causing high systemic levels of inflammatory cytokines including IFNγ, TNF, IL-1, and IL-6. As HSPCs have been shown to activate and differentiate in response to these cytokines (Burberry et al., 2014; Matatall et al., 2014; Pietras et al., 2016; Takizawa et al., 2017; Morales-Mantilla and King, 2018; Gong et al., 2020; Esplin et al., 2011; Chou et al., 2012), in this study we sought to determine the role of HSPCs in immune responses against infections.

Here, we found that GAS infection significantly depletes HSPCs in the bone marrow (BM). We tested the idea of infusing HSPCs to restore the hematopoietic progenitor pool. Mice treated with HSPCs showed restored HSPC numbers in the BM, increased myeloid cell production, and significantly improved overall survival. Surprisingly, HSPC infusion did not reduce pathogen burden. Instead, HSPC infusion correlated with a significant increase in the abundance of myeloid-derived suppressor cells (MDSCs) and a dampening of overall systemic inflammation. In summary, our studies indicate that HSPCs contribute to survival from sepsis by supporting the production of immunosuppressive MDSCs.

Results

GAS infection induces trafficking of myeloid cells from the BM into circulation

To characterize the impact of acute infections on the hematopoietic system, we inoculated mice by intramuscular injection of the hind leg with 2 × 106 colony forming units (CFU) of the model pathogen S. pyogenes strain MGAS315. To characterize differentiated hematopoietic populations during infection, we performed flow cytometric analysis of BM and peripheral blood (PB) lineage cells 24 hr after GAS infection (Figure 1A) and collected serum for cytokine analyses. BM characterization of lineage cells showed a significant decrease in BM monocytes (Figure 1C) and granulocytes (Figure 1D) with no change in BM B or T cells (Figure 1E and F). In contrast, PB lineage composition was significantly skewed toward myeloid cells with significantly higher circulating monocytes and granulocytes (Figure 1G and H) and lower lymphoid cells (Figure 1I and J). Serum cytokine characterization showed a significant increase in monocyte chemoattractant protein-1 (MCP-1; also known as CCL2) (Figure 1B). These results suggest that myeloid cells exit the BM into circulation following an MCP-1 gradient, consistent with prior studies showing MCP-1-driven mobilization during inflammation (Tsou et al., 2007; Schultze et al., 2019).

Figure 1 with 1 supplement see all

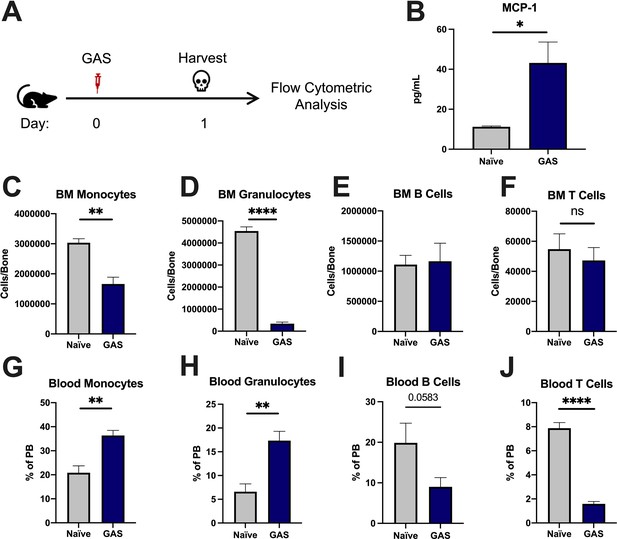

Group A Streptococcus (GAS) infection promotes a rapid myeloid cell response.

(A) Experimental time frame of GAS infection and bone marrow (BM) analysis. (B) Serum levels of monocyte chemoattractant protein-1 (MCP-1) of naïve and GAS-infected mice. Absolute number of (C) monocytes, (D) granulocytes, (E) B cells, and (F) F cells in the BM of naïve and infected mice. Relative abundance of (G) monocytes, (H) granulocytes, (I) B cells, and (J) T cells in the blood. (B–J) Data is representative of three independent experiments; n = 3–5 mice/group; statistical comparison done using unpaired t-test; *p < 0.05, **p < 0.01, ****p < 0.0001. Outliers were identified using the ROUT method (Q = 5%).

Figure 1—source data 1

BM and PB populations of lineage cells and serum MCP-1 levels.

https://cdn.elifesciences.org/articles/74561/elife-74561-fig1-data1-v1.xlsx

GAS infection depletes bone marrow HSPCs without evidence of extramedullary hematopoiesis

After 24 hr of infection, the state of HSPCs in the infected mice were analyzed by flow cytometry of BM and spleen (Figure 2A) (see Table 1 for surface markers). BM cells were not gated for the common stem cell marker SCA1 (Figure 2B), since it has been previously described to be non-specifically expressed during inflammatory stress (Baldridge et al., 2011). The total number of HSPCs dropped significantly in just 24 hrs in GAS-infected mice (Figure 2C). More specifically, HSPC subpopulations including HSCs, multipotent progenitor 3 (MPP3s), and MPP4s were significantly lower in GAS-infected mice (Figure 2D, E, and F).

Figure 2 with 1 supplement see all

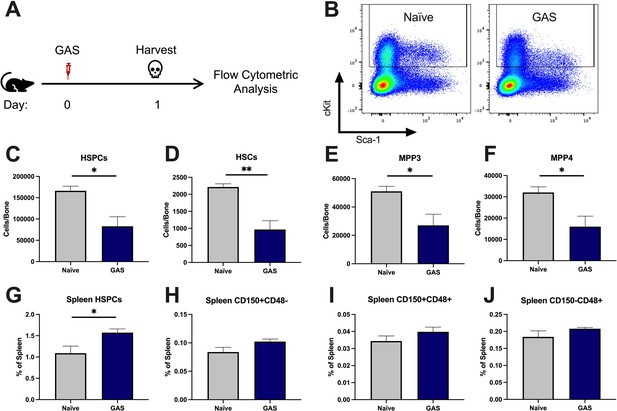

Group A Streptococcus (GAS) infection depletes bone marrow (BM) hematopoietic stem and progenitor cells (HSPCs) 24 hr post infection.

(A) Experimental time frame of GAS infection and BM analysis. (B) Flow plot of HSPC gating and representation of different surface expression of cKit and Sca-1 during infection. Plots are gated from lineage negative BM cells. (C–F) Absolute number of HSPCs, hematopoietic stem cells (HSCs), multipotent progenitors (MPP) 3, and MPP4 in the BM of naïve and GAS-infected mice. Spleen populations of (G) HSPCs, (H) HSC/MPP1, (I) MPP2, and (J) MMP3/4 identified by differential expression of CD150 and CD48. (C–J) Data is representative of three independent experiments; n = 4–5 mice/group; statistical comparison done using unpaired t-test; *p < 0.05, **p < 0.01. Outliers were identified using the ROUT method (Q = 5%).

Figure 2—source data 1

BM counts of HSPC populations of naïve and infected mice and spleen HSPC populations.

https://cdn.elifesciences.org/articles/74561/elife-74561-fig2-data1-v1.xlsx
Table 1
Surface markers for flow cytometry.

Hematopoietic cell populations identified by flow cytometry were characterized using the listed surface markers. Lineage (Lin) markers include Gr1, CD11b, B220, CD4, CD8, and Ter119.

PopulationMarkers
HSCLin- ckit+ CD150+ CD48- CD34- Flk2-
CD41+ HSCsLin- ckit+ CD150+ CD48- CD34- Flk2- CD41+
Donor HSPCsLin- ckit+ Sca1+
HSPCsLin- ckit+
MPP1Lin- ckit+ CD150+ CD48 CD34+ Flk2-
MPP2Lin- ckit+ CD150+ CD48+ Flk2-
MPP3Lin- ckit+ CD150 CD48+ CD34+ Flk2-
MPP4Lin- ckit+ CD150 CD48+ CD34+ Flk2+
GMPLin- ckit+ CD41- CD150- CD16/32+
MkPLin- ckit+ CD150+ CD41+
Myeloid cellsGr1+ Mac1+ B220- CD4- CD8-
B cellsGr1- Mac1- B220+ CD4- CD8-
T cellsGr1- Mac1- B220- CD4+ CD8 or Gr1- Mac1- B220- CD4- CD8+
GranulocytesGr1+ Mac1+ B220- CD4- CD8- SSC-mid F4/80-
EosinophilsGr1- Mac1+ B220- CD4- CD8- SSCHi
MacrophagesGr1+ Mac1+ B220- CD4- CD8- SSClow F4/80+
MonocytesMac1+ B220- CD4- CD8- SSClow
PMN-MDSCCD11b + Ly6G + Ly6ClowCD244+
M-MDSCCD11b + Ly6G- Ly6Chi

Extramedullary hematopoiesis is the proliferation and differentiation of HSCs in tissues other than the BM, the canonical stem cell niche. The spleen is one of the most common sites of extramedullary hematopoiesis during infections (Yang et al., 2020). To assess whether a reciprocal increase in extramedullary hematopoiesis accompanied the loss of HSPCs in the BM, we analyzed spleen tissue by flow cytometry. While there was a slight increase in total HSPCs in the spleen (Figure 2G), there was no significant change in spleen populations that include HSCs/MPP1, MPP2s, or MPP3/4 (Figure 2H-J). These findings suggest that the loss of BM HSPC populations is not principally a result of migration from the BM into the spleen, and other mechanisms such as terminal differentiation (Matatall et al., 2016) also likely contribute to the noted HSPC depletion, as observed in other studies.

GAS infection induces HSC myeloid differentiation

Activation of HSPCs by PAMPs or cytokines promotes their proliferation and differentiation (Nagai et al., 2006; Matatall et al., 2014; Pietras et al., 2016; Takizawa et al., 2017; Morales-Mantilla and King, 2018; Baldridge et al., 2010). To determine the lineage fate of endogenous HSPCs following GAS infection, we performed lineage tracing experiments using the tamoxifen-inducible KRT18-CreERT2: Rosa26-lox-STOP-lox-TdTomato mouse system (Figure 3A). Within the BM, Krt18 is almost exclusively expressed in HSCs (Chapple et al., 2018) and these mice do not have any immunological impairment that would change the severity of our infection model. Tamoxifen induction activates the CreERT2 protein in Krt18-expressing HSCs, resulting in irreversible TdTomato expression in HSCs and their newly formed progeny (Figure 3B).

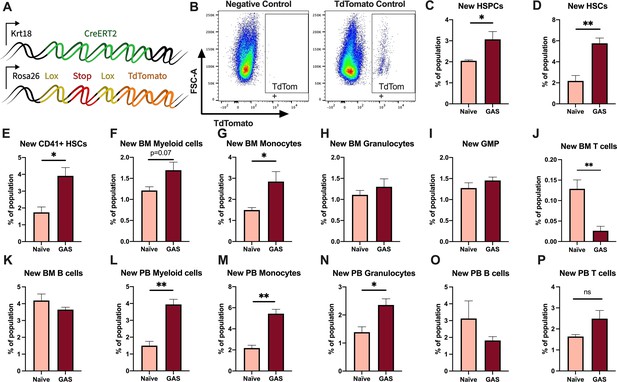

Krt18 lineage tracing of naïve and Group A Streptococcus (GAS)-infected hematopoietic stem cells (HSCs).

(A) Genetic model of KRT18-CreERT2:Rosa26-lox-STOP-lox-TdTomato mouse system. (B) Representative gating of TdTomato expression in negative control (left: Genotype: Krt18-CreERT2+) and tamoxifen-induced positive control (right: Genotype: KRT18-CreERT2+: Rosa26-lox-STOP-lox-TdTomato+/-). Percent of bone marrow (BM) (C) hematopoietic stem and progenitor cell (HSPC), (D) HSC, (E) CD41+ HSC, and (F) myeloid populations that are TdTomato+. Percent of BM (G) total monocytes, (H) granulocytes, (I) granulocyte/monocyte progenitor (GMP), (J) BM T cells, and (K) BM B cells that are TdTomato+. Percent of peripheral blood (PB) (L) total myeloid cells, (M) monocytes, (N) granulocytes, (O) T cells, and (P) B cells that are TdTomato+. Data representative of three independent experiments; (C–N) n = 5–7 mice/group. Statistical comparison done using unpaired t-tests; *p < 0.05, **p < 0.01.

Figure 3—source data 1

Levels of newly generated cells in response to GAS infection.

https://cdn.elifesciences.org/articles/74561/elife-74561-fig3-data1-v1.xlsx

After 5 days of intraperitoneal injections of tamoxifen, mice were inoculated with GAS or saline. Since the average mammalian cell cycle takes 24 hr, we decided to trace the lineage of hematopoiesis 72 hr post GAS infection. After these 72 hr, BM and PB was harvested for flow cytometric analysis. Analysis of the BM showed that GAS infection induced the production of new HSPCs, which includes short-term HSCs and MPPs (Figure 3C-D). In addition, there was significant labeling of CD41+ HSCs, a myeloid-biased and proinflammatory subset of HSCs (Figure 3E; Gekas and Graf, 2013), and new cells of the myeloid lineage (Figure 3F-H). While we found a significant increase in new BM monocytes (Figure 3G), there was no significant change in the frequency of TdTomato-labeled granulocyte/monocyte progenitors (GMPs) (Figure 3I), which may simply reflect a rapid flow through this compartment to terminally differentiated populations. We also saw no statistically significant increase in BM granulocytes (Figure 3H); however, PB analysis showed a significant increase in new myeloid cells in both monocytic and granulocytic branches (Figure 3L-N). While there was a significant decrease in the production of new BM T cells (Figure 3J), there was no change in BM B cells (Figure 3K) nor PB T or B cells (Figure 3O–P). These data suggest that endogenous HSCs undergo rapid emergency myelopoiesis during GAS infection.

HSPC infusion promotes survival in GAS-infected mice

Given that HSPCs are activated to divide and differentiate into immune effector cells upon inflammatory stimulation and we observed an acute loss of HSPCs in GAS-infected mice, we hypothesized that infusion of naïve HSPCs (Lin- Sca-1+ c-Kit+) into GAS-infected mice could improve pathogen clearance, reduce tissue damage, and prolong survival. To test this hypothesis, we infected mice with 2 × 106 CFU MGAS315 and then infused 10,000 FACS-purified HSPCs 24 hr later, when endogenous HSPCs are significantly decreased (Figure 4A). This HSPC dose, equivalent to approximately 1.7 × 107 cells per m2 body surface area, is significantly lower than the dose used for granulocyte infusions, typically between 108 and 1010 cells per m2 (Price et al., 2015). On day 3 post infection, we harvested BM, limb tissue, and spleen to characterize BM populations and pathogen load (Figure 4B).

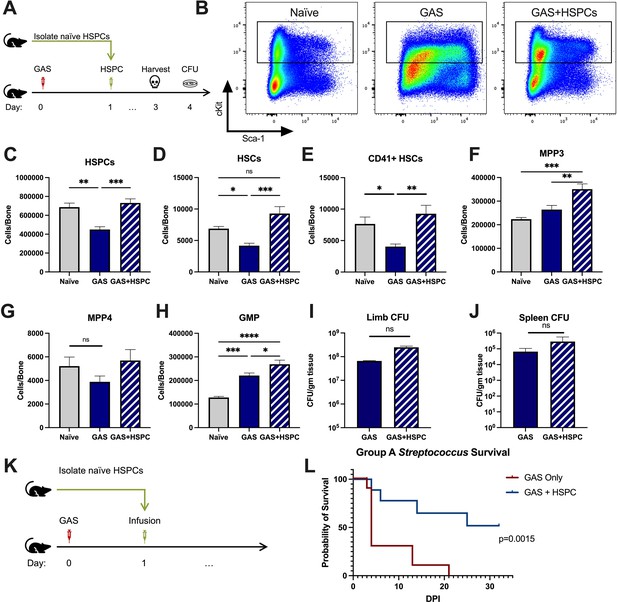

Hematopoietic stem and progenitor cell (HSPC) infusion in Group A Streptococcus (GAS)-infected mice promotes survival and increases progenitor populations in the bone marrow (BM).

(A) Experimental design of BM analysis and colony forming unit (CFU) count after HSPC infusion. (B) Flow plot of HSPC gating and representation of different surface expression of cKit and Sca-1 during infection. Plots are gated from lineage negative BM cells. (C–H) Absolute numbers of HSPCs, hematopoietic stem cells (HSCs), and downstream progenitors in the BM of naïve, GAS-infected mice, and GAS-infected mice rescued with HSPCs. Quantified bacterial load in the (I) limb and (J) spleen of infected mice. (K) Experimental design of the survival study. (J) Survival curve of GAS-infected mice with or without HSPC infusion. Data representative of three independent experiments; (C–H) n = 5–7 mice/group, (I and J) n = 8–10 mice/group, (L) n = 9–10 mice/group. Statistical comparison done using (C–H) one-way ANOVA with Tukey’s correction for multiple comparisons or (I and J) unpaired t-tests. ns = not significant, *p < 0.05, **p < 0.01, ***p < 0.001, *****p < 0.0001. Comparison of (L) survival was done using Log-rank (Mantel-Cox) test.

BM characterization showed that HSPC infusion restored the relative abundance of HSPCs, HSCs, and myeloid-biased progenitors, such as MPP3s and GMPs, in the BM (Figure 4C-H). We observed that GAS-infected mice that received HSPCs showed lower morbidity than non-rescued mice, with improved overall body score and activity level. To assess survival, we performed Kaplan-Meier survival studies of GAS-infected mice in the absence or presence of HSPC rescue (Figure 4K). GAS-infected mice infused with HSPCs had significantly higher survival than non-rescued mice (Figure 4L). However, to our surprise, HSPC infusion did not significantly affect the pathogen burden in the infected muscle (Figure 4I) or pathogen spread to other tissues (Figure 4J). Overall, these findings suggest that HSPC infusion is beneficial during GAS infections and promotes survival by a mechanism other than pathogen clearance.

Superinfection further depletes HSPCs in mice

To determine the extent of the protective potential of HSPC infusion during infections, we tested the efficacy of HSPC rescue in a mouse model of influenza and GAS superinfection. Here, we used a model of influenza and S. pyogenes (strain MGAS315) bacterial superinfection. Mice were infected with influenza (strain H1N1 PR8) by intranasal injection of 150 plaque-forming units (PFU). On day 3 post influenza virus infection, which represents peak viral replication for humans and mice (Baccam et al., 2006; Smith and Perelson, 2011), we injected mice with 2 × 106 CFU MGAS315 by IM inoculation (Figure 2—figure supplement 1A). On day 4 (24 hr post GAS infection), we analyzed BM and PB. Lin- cells in the BM showed phenotypical differences in surface expression of Sca-1 and c-Kit proteins depending on the pathogen combination (Baldridge et al., 2011; Figure 2—figure supplement 1B). In addition, superinfection caused a severe decrease in HSPCs and their subpopulations (Figure 2—figure supplement 1C–1H). Most notably, the absolute number of HSCs was reduced to 20–30% of a healthy mouse (Figure 2—figure supplement 1D).

We also analyzed BM and PB lineage populations of superinfected mice (Figure 1—figure supplement 1A). Similar to GAS-infected mice, superinfection led to an increase in serum levels of MCP-1 (Figure 1—figure supplement 1B) that resulted in the exit of BM monocytes and BM granulocytes (Figure 1—figure supplement 1C, G) into circulation (Figure 1—figure supplement 1D, H). BM B cell and T cell numbers did not change (Figure 1—figure supplement 1E, I), while the abundance of circulating B and T cells was reduced in GAS-infected and superinfected mice (Figure 1—figure supplement 1F, J).

HSPC infusion promotes survival in superinfected mice and increases levels of HSPCs and myeloid progenitors in the BM

The loss of HSPCs and HSCs was very prominent in superinfected mice, more so than in mice infected with GAS alone. Therefore, we hypothesized that an infusion of 10,000 HSPCs would also benefit mice in this model of superinfection (Figure 5A). As expected, HSPC infusion significantly increased HSPCs and myeloid-biased progenitors in superinfected mice (Figure 5B-G). As seen in GAS-infected mice, HSPC infusion did not promote bacterial (Figure 5H) or viral (Figure 5I) clearance in superinfected mice. The spread of bacteria to the spleen was also unaffected by HSPC infusion (Figure 5J).

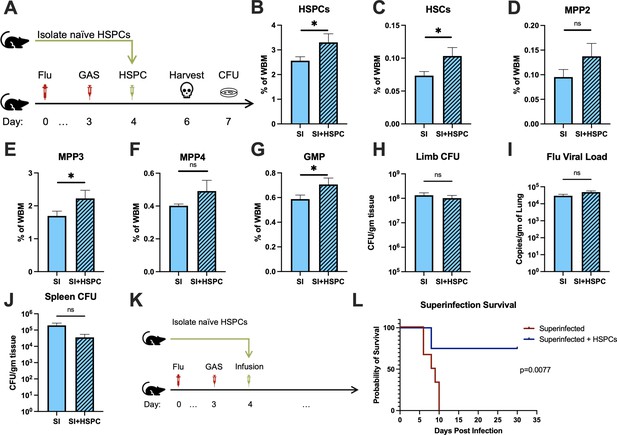

Hematopoietic stem and progenitor cell (HSPC) infusion in superinfected mice promotes survival without changing pathogen clearance.

(A) Experimental design of bone marrow (BM) analysis and colony forming unit (CFU) count post HSPC infusion in superinfected mice. (B–G) BM populations of HSPCs and downstream progenitors after HSPC infusion. Bacterial load in the (H) limb and (J) spleen of infected mice. (I) Viral load of mice with or without HSPC infusion. (K) Experimental design of the survival studies on superinfected mice. (L) Survival curve after HSPC infusion. Experiments are representative of three independent experiments. (B–J) Comparison done with unpaired t-test or Welch’s t-test. (B–G) n = 5, (H–J) n = 9–11, and (L) n = 9–10 mice per group. Comparison of (L) survival was done using Log-rank (Mantel-Cox) test. ns = not significant, *p < 0.05.

Figure 5—source data 1

HSPC levels in superinfected mice after infusion and survival data.

https://cdn.elifesciences.org/articles/74561/elife-74561-fig5-data1-v1.xlsx

Despite the severity of the infection, superinfected mice that received an HSPC infusion (Figure 5K) had significantly improved survival compared to non-rescued mice (Figure 5L). This finding suggests that the protective properties of HSPC infusion are effective even in this very severe model of infection.

HSPC infusion increases immunomodulatory MDSCs and prevents sepsis-induced cytokine exacerbation

Production of proinflammatory cues including IL1, IL6, IL8, TNF, and MIP1a is a key driver of morbidity during sepsis. Together, these cues contribute to systemic inflammatory response syndrome (SIRS), including fever, tachypnea, vasodilation, and circulatory collapse (Huang et al., 2005; Jaffer et al., 2010). These cytokines are independently associated with poor outcomes and death from sepsis in humans. Since we observed improved survival in mice receiving HSPC infusion without any changes in pathogen load, we hypothesized that HSPCs could impact immunomodulatory cell composition and the inflammatory response to severe infection. Upon analysis of PB and BM populations 3 days after infection and 2 days after HSPC infusion (Figure 6A), there were no changes in BM or PB T lymphocytes that could indicate a Treg-related activity (Figure 6—figure supplement 1A and 1B). However, we found that HSPC infusion significantly increased PB polymorphonuclear MDSCs (PMN-MDSCs) (Figure 6B) and restored PB monocytic-MDSCs (M-MDSCs) levels (Figure 6C) 3 days post infection and 2 days post HSPC infusion. Similarly, HSPC infusion restored BM PMN-MDSCs and M-MDSCs populations in GAS-infected mice (Figure 6D and E). These cells were functionally validated (Figure 6—figure supplement 1C) as immunosuppressive cells by their ability to reduce activated T cell proliferation in culture (Figure 6—figure supplement 1D). Strikingly, cytokine profiling 72 hr after GAS infection showed reduced overall levels of proinflammatory cytokines in GAS-infected mice that received HSPC infusion (Figure 6F). These findings suggest that HSPC infusion supports the production of MDSC populations sufficient to dampen maladaptive proinflammatory cues during sepsis.

Figure 6 with 1 supplement see all

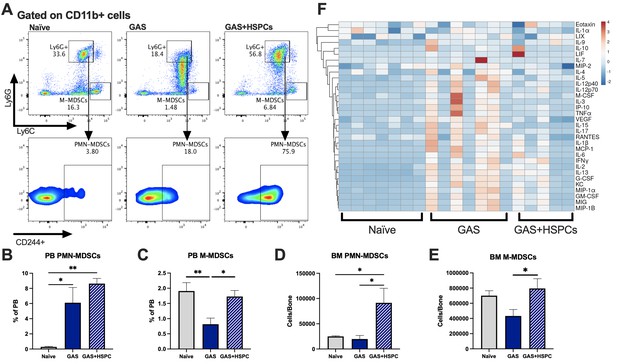

Hematopoietic stem and progenitor cell (HSPC) infusion increases and restores myeloid-derived suppressor cell (MDSC) populations and dampens inflammation after Group A Streptococcus (GAS).

(A) Representative gating of MDSCs by their surface expression of Ly6G and Ly6C at day 3 post infection. Gated on CD11b + cells. Peripheral blood (PB) populations of (B) polymorphonuclear MDSCs (PMN-MDSCs) and (C) monocytic-MDSCs (M-MDSCs) of naïve, GAS-infected, and GAS-infected mice infused with HSPCs. Bone marrow (BM) populations of (D) PMN-MDSCs and (E) M-MDSCs of naïve, GAS-infected, and GAS-infected mice infused with HSPCs. (F) Heatmap of serum cytokine levels using ClustVis web tool (Metsalu and Vilo, 2015). Data representative of two (A–E) or four (F) independent experiments. (B–E) Statistical comparison done using one-way ANOVA with Tukey’s correction for multiple comparisons; n = 7 mice per group; *p < 0.05, **p < 0.01. Outliers were identified using the ROUT method (Q = 5%).

Figure 6—source data 1

BM and PB levels of MDSC populations and cytokine levels raw data.

https://cdn.elifesciences.org/articles/74561/elife-74561-fig6-data1-v1.xlsx

Infused HSPCs do not engraft but produce myeloid cells including MDSCs

In order to determine whether HSPCs infused in an infected mouse directly differentiate into MDSCs, we performed lineage tracing experiments using expression of the CD45.1 variant to distinguish infused HSPCs from endogenous CD45.2 cells. Mice were infected with GAS and then rescued with HSPCs 24 hr after GAS inoculation. Thirty days after infection, mice still showed signs of inflammation on the leg, indicating the inflammatory cues that drive HSPC activation and differentiation were still present. At 30 days after infection, the CD45.1+ cell compartment showed no HSCs but a low number of MPP1 and myeloid-biased MPP3s in the BM (Figure 7A). Lineage analysis in the BM showed that these cells gave rise to more myeloid cells compared to lymphoid. Furthermore, a fraction of the cells became new monocytic-MDSCs (M-MDSCs) and polymorphonuclear-MDSCs (PMN-MDSCs) (Figure 7B). Upon examination of the PB, circulating CD45.1 were primarily myeloid cells, with a small fraction identified as M-MDSCs and PMN-MDSCs (Figure 7C). Collectively, these data show that infused cells differentiate toward the myeloid lineage with no sign of stem cell engraftment. Whereas MDSCs did arise directly from infused cells, their numbers were not sufficient to account for the large increase in MDSCs observed in the HSPC-rescued mice. These data suggest that HSPC infusion contributes to MDSC expansion via both direct and indirect mechanisms.

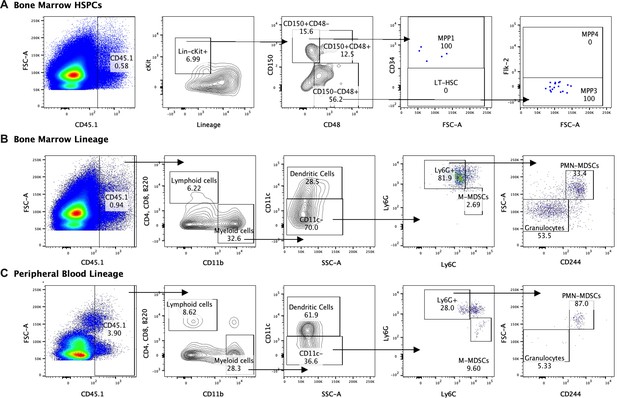

Lineage fate of infused hematopoietic stem and progenitor cells (HSPCs) in Group A Streptococcus (GAS)-infected mice skews myeloid without signs of stem cell engraftment.

Gating representation of the lineage fate of (A) bone marrow (BM) HSPCs, (B) BM lineage cells, and (C) peripheral blood (PB) lineage cells 30 days after GAS infection. Data is representative of three independent experiments.

Discussion

Here, we show HSPC infusion holds therapeutic potential for bacterial sepsis. Our studies demonstrate that GAS infection induces a robust myeloid response just 24 hr after infection and significantly depletes HSPC populations in the BM. After infection, endogenous HSPCs are driven to differentiate toward the myeloid lineage. However, this response is insufficient to prevent disease progression and pathogen dissemination, resulting in mortality in 5–7 days. While sepsis has been described to cause mobilization of HSPCs (Skirecki et al., 2019), we did not find any evidence of HSC or MPP mobilization to the spleen. Strikingly, we found infusing just 10,000 HSPCs improved survival in GAS-infected mice and mice with GAS and influenza superinfection. This infusion was capable of increasing PB and BM hematopoietic populations of infected mice. Specifically, HSPC infusion restored BM HSPCs and both PB and BM MDSC populations. Importantly, HSPC infusion did not reduce pathogen burden, but contributed to survival via the generation of immunoregulatory cells that dampened maladaptive inflammatory signaling in infected mice.

The hematopoietic and immune systems are comprised of immune cells with antimicrobial killing capacity as well as various types of immunomodulatory cells such as MDSCs, regulatory B cells (Bregs), and regulatory T cells (Tregs) (Maizels and Smith, 2011; Rosser and Mauri, 2015; Schrijver et al., 2019). In the short time frame of acute sepsis, myeloid cells such as neutrophils, monocytes, and macrophages are of critical importance in rapidly recognizing and killing invading bacteria. Our data demonstrate that these cells and even the progenitors that produce them in the BM can be rapidly depleted during a severe acute infection. Furthermore, lineage tracing experiments provide the first direct evidence that terminally differentiated myeloid cells are rapidly produced from the level of the HSC during an acute infection. Initially we hypothesized that replacement of HSPCs may improve outcomes from acute bacterial infection by boosting the availability of myeloid cells to kill bacteria. While myeloid cell populations were somewhat restored after HSPC infusion, this was insufficient to reduce pathogen burden.

Dysregulated inflammation is one of the main drivers of morbidity and mortality during infections (Huang et al., 2005; Frank and Paust, 2020; Karki et al., 2021; Fajgenbaum and June, 2020). For example, excessive inflammatory responses are a common result of seasonal influenza (Yu et al., 2011; Frank and Paust, 2020) and SARS-CoV-2 infection (Karki et al., 2021). Seasonal influenza increases the susceptibility of patients to secondary bacterial infections or superinfection (Rynda-Apple et al., 2015). Superinfections exacerbate the proinflammatory environment of common viral infections and are associated with increased morbidity and mortality (Rynda-Apple et al., 2015; Paget and Trottein, 2019). To our surprise, HSPC infusion was protective in a model of influenza and GAS superinfection, suggesting that its protective effects are robust even in the setting of severe inflammation. In our mouse models, infection dramatically increased cytokine levels within just 3 days of infection. Interestingly, HSPC infusion was accompanied by an overall decrease in serum cytokine levels and a specific dampening of cytokines involved in ‘cytokine storm’ (Huang et al., 2005; Karki et al., 2021; Fajgenbaum and June, 2020). HSPCs have been described to produce cytokines, indicating that they have the capacity to direct immune function (Chen et al., 2016). However, whether the cytokines produced by HSPCs themselves contribute to the regulation of the immune response has heretofore been unknown. Our data point toward an immunomodulatory role of HSPC infusion that could prevent immune dysregulation during sepsis.

Immunoregulatory cells in the hematopoietic system include Tregs, Bregs, and MDSCs (Maizels and Smith, 2011; Schrijver et al., 2019; Uhel et al., 2017). Perhaps the most recognized immunomodulatory cell known is the Treg. While Tregs have essential roles regulating immune responses to pathogens (Maizels and Smith, 2011), we did not see differences in any lymphocyte population, including T cells, that would suggest a Treg-mediated anti-inflammatory mechanism after HSPC infusion. MDSCs are immature myeloid cells that have strong anti-inflammatory roles by suppressing the responses of T-helper cells that contribute to the development of sepsis (Schrijver et al., 2019; Köstlin et al., 2017; Delano et al., 2007). PMN-MDSCs and M-MDSCs have strong anti-inflammatory functions that can be beneficial or detrimental depending on the setting. In fact, some studies have shown that MDSCs contribute to clinical worsening during sepsis (Schrijver et al., 2019). For almost three decades, increased circulating immature myeloid cells have been a clinical marker of SIRS (Bone et al., 1992). Interestingly, increased MDSCs during sepsis have also been associated with increased development of nosocomial infections (Uhel et al., 2017). However, in our GAS model of accelerated infection, the increase in MDSC populations after HSPC infusion was accompanied by lower overall cytokine levels and increased survival, suggesting that the immunomodulatory functions of MDSCs are beneficial during the early stages of systemic inflammation and could prevent sepsis-related mortality (Chang et al., 2018).

An important limitation of our study is that the lineage fate and the tissue or organ destination of the infused HSPCs at the early stages of infusion remain unknown. The small number of cells infused makes it challenging to identify them in the pool of endogenous cells of the recipient mice. While our data suggest that infused HSPCs directly and indirectly boost MDSC production by endogenous cells, further work will be required to determine the mechanisms by which HSPCs contribute to MDSC expansion. In addition, further analysis of HSPC subpopulations will be required to determine if long-term HSCs or short-lived MPPs confer the greatest therapeutic potential. Identifying a short-lived hematopoietic progenitor that can signal endogenous cells to restore MDSC populations could represent a promising alternative therapeutic avenue (Hidalgo et al., 2019; Karpova et al., 2017; Nagai et al., 2006) to treat sepsis while avoiding concern of possible graft versus host disease complications (Batsali et al., 2020; Tijaro-Ovalle et al., 2019).

Currently, G-CSF, GM-CSF, and granulocyte transfusion (Robinson and Marks, 2004; Price et al., 2015; Klein and Castillo, 2017) are used to prevent or treat sepsis in oncology patients with chemotherapy-induced fever and neutropenia. However, the clinical efficacy of granulocyte transfusion is poor (Price et al., 2015; Klein and Castillo, 2017). Here, we have shown infusing HSPCs is a promising alternative to granulocyte transfusion. Current granulocyte doses in humans are around 1 × 1010 cells per m2 body surface area given daily or every other day (Price et al., 2015; Teofili et al., 2016). Our infusion model only uses a single dose of 1.7 × 107 cells per m2 body surface area (or 10,000 HSPCs in a mouse). It is important to emphasize that 10,000 HSPCs is a relatively small number of cells to infuse into a mouse as it represents less than 0.01% of the nucleated BM cells in a mouse. Collectively, the single low HSPC dose compared to multiple larger granulocyte transfusions suggests that HSPCs are more effective than granulocytes, cell for cell, in the treatment of sepsis. While the path to a clinical application can be long, our findings could lead to the future development of a new therapeutic approach that could succeed where granulocyte infusions have fallen short.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
AntibodyAmerican Hamster monoclonal Anti-mouse CD3eBiolegendClone 145–2C11 (Cat. No. 100301)(2 µg/mL) RRID:AB_312666
AntibodySyrian Hamster monoclonal anti-mouse CD28BiolegendClone 37.51 (Cat. No. 102101)(2 µg/mL)RRID:AB_312866
AntibodyRat Monoclonal anti-mouse Gr1-PECy5eBioscienceClone RB6-8C5 (Cat. No. 15-5931-82)(1:100)RRID:AB_468813
AntibodyRat Monoclonal Anti-Mouse CD11b PE-Cyanine5eBioscienceClone M1/70 (Cat. No. 15-0112-82)(1:100)RRID:AB_468714
AntibodyRat MonoclonalAnti-Human/Mouse CD45R (B220) PE-Cyanine5eBioscienceClone RA3-6B2 (Cat. No. 15-0452-82)(1:100)RRID:AB_468755
AntibodyRat Monoclonal ANTI-MOUSE CD4 PE-Cy5eBioscienceClone GK1.5 (Cat. No. 15-0041-82)(1:100)RRID:AB_469532
AntibodyRat Monoclonal Anti-Mouse CD8a PE-Cyanine5eBioscienceClone 53–6.7 (Cat. No. 15-0081-82)(1:100)RRID:AB_468706
AntibodyRat Monoclonal Anti-Mouse TER-119 PE-Cyanine5eBioscienceClone TER119 (Cat. No. 15-5921-82)(1:100)RRID:AB_468810
AntibodyRat monoclonal anti-mouse Sca-1 Pacific BlueBiolegendClone D7 (Cat. No. 108120)(1:100)RRID:AB_493273
AntibodyRat monoclonal anti-mouse Ly-6GBiolegendClone 1A8 (Cat. No. 127605)(1:100)RRID:AB_1236488
AntibodyMouse monoclonalAnti-Mouse CD45.1 PEBiolegendClone A20 (Cat. No.110707)(1:100)RRID:AB_313496
AntibodyRat Monoclonal anti-mouse CD117 (c-Kit) APC-eFluor 780eBioscienceClone 2B8 (CaT. No. 47-1171-82)(1:100)RRID:AB_1272177
AntibodyRat MonoclonalAnti-Mouse CD150 PECy7BiolegendClone TC15-12F12.2 (Cat. No. 115914)(1:100)RRID:AB_439797
AntibodyAmerican Hamster Monoclonal Anti-mouse CD48 APCeBioscienceClone HM48-1 (Cat. No. 17-0481-82)(1:100)RRID:AB_469408
AntibodyRat Monoclonal Anti-Mouse CD34 FITCeBioscienceClone RAM34 (11-0341-82)(1:50)RRID:AB_465021
AntibodyRat Monoclonal Anti-Mouse CD135 DyLight680NovusClone A2F10 (Cat. No. NBP1-43352FR)(1:50)RRID:AB_2904163
AntibodyRat Monoclonal Anti-Mouse CD16/32 BV605BDClone 2.4G2 (93) (Cat. No. 563006)(1:100)RRID:AB_2737947
AntibodyRat Monoclonal Anti Mouse CD41 BV480BDClone MWReg30 (Cat. No. 746554)(1:100)RRID:AB_2743844
AntibodyRat Monoclonal Anti-mouse Ly-6C APCBiolegendClone HK1.4 (Cat. No. 128016)(1:100)RRID:AB_1732076
AntibodyRat Monoclonal Anti-mouse CD244 PECy7eBioscienceClone eBio244F4 (Cat. No. 25-2441-82)(1:100)RRID:AB_2573432
AntibodyRat Monoclonal Anti-Mouse F4/80 Pacific BlueThermoFisherClone BM8 (Cat. No. MF48028)(1:100)RRID:AB_1500083
Chemical compound, drugPenicillin-StreptomycinInvitrogen(Cat. No. 15140122)
Chemical compound, drugHanks' Balanced Salt SolutionGibco/ThermofisherHBSS (Cat. No. 14170161)
Chemical compound, drugHEPES (1M)Gibco/ThermofisherCat. No. 15630080
Chemical compound, drugTamoxifenSigma(Cat. No. 10540-29-1)
Commercial assay or kitCD117 MicrobeadsMiltenyi-Biotec(Cat. No. 130-091-224)
Commercial assay or kitCD3e Microbead Kit, MouseMiltenyi-Biotec(Cat. No. 130-094-973)
Commercial assay or kitInvitrogen SuperScript IV First-Strand Synthesis SystemInvitrogen(Cat. No. 18091050)
Commercial assay or kitiTaq Universal SYBR Green Supermix; BioRadBio Rad(Cat. No. 172–5121)
Peptide, recombinant proteinRecombinant Mouse IL-2Biolegend(Cat. No. 575404)
Sequence-based reagentNucleoprotein (NP) Forward primerIDTNP F15'-GGGTGAGAATGGACGAAAAAC-3'
Sequence-based reagentNucleoprotein (NP) Reverse primerIDTNP R15'-GATCCATCATTGCTTTTTGTGCA-3'
Software, algorithmClustVisMetsalu and Vilo, 2015ClustVisRRID:SCR_017133
Strain, strain background (Mus musculus)KRT18-CreERT2: Rosa26-lox-STOP-lox-TdTomatoThis paperTamoxifen-inducible Cre system
Strain, strain background (Mus musculus)C57Bl/6JThe Jackson LaboratoryStrain #000664Wildtype mouse line – CD45.2RRID:IMSR_JAX:000664
Strain, strain background (Mus musculus)B6.SJL-Ptprca Pepcb/BoyJThe Jackson LaboratoryStrain #002014C57Bl/6J congenic strain - CD45.1RRID:IMSR_JAX:002014
Strain, strain background (Streptococcus pyogenes)Group A Streptococcusclinical isolateMGAS315, emm3 genotype, Serotype M3
Strain, strain background (Orthomyxoviridae, influenza virus A)Influenza A virusATCCPR8 H1N1
Commercial assay or kitCellTrace Violet Cell Proliferation Kit, for flow cytometryInvitrogen(Cat. No. C34571)

Mice

We used WT C57Bl/6 (CD45.2) (RRID:IMSR_JAX:000664) and C57Bl/6.SJL (CD45.1) (RRID:IMSR_JAX:002014) mice 8–10 weeks of age. Lineage tracing using KRT18-CreERT2: Rosa26-lox-STOP-lox-TdTomato we made by crossing KRT18-CreERT2 mice obtained from Dr Daisuke Nakada (Baylor College of Medicine) and Rosa26-lox-STOP-lox-TdTomato mice (stock # 007914) obtained from Jackson Laboratories (Bar Harbor, ME, https://www.jax.org). All mice genotypes were confirmed by polymerase chain reaction (PCR) prior to the start of the experiments. Mice were assigned to each experimental group at random. Both male and female mice were used for all the experiments except for the superinfection survival studies as it has been shown that female mice have long-lasting hyperresponsiveness to respiratory infections (Larcombe et al., 2011). Therefore, only male mice were used in the superinfection experiments. Individual mice were assigned to groups randomly and were age and sex-matched for each independent experiment.

Pathogen inoculation and quantification

Request a detailed protocol

Mice were infected with S. pyogenes strain MGAS315 by intramuscular injection on the hind limb with 2 × 106 CFU. To determine the bacterial load, limb, spleen, and blood were collected from infected mice. Limb and spleen tissue were homogenized, serially diluted, and plated on blood agar plates (BAP) (BD, Franklyn Lake, NJ, https://www.bd.com). Blood was serially diluted and plated on BAP. Limb and spleen bacterial load was normalized to the grams of tissue that was homogenized.

Influenza A H1N1 PR8 strain infections were done by intranasal inoculation with 150 PFU. Viral load was quantified by collecting viral particles from lung lavage fluid using Amicon Ultra 0.5 mL (Millipore Sigma, Burlington, MA, https://www.emdmillipore.com), and RNA was purified using the TRIZOL method followed by the quantification of viral particles by real-time PCR of virus-specific nucleoprotein gene. The exact quantity was calculated using a standard curve of purified viral particles with known concentration and normalized by the amount of lung tissue collected.

HSPC isolation and purification

Request a detailed protocol

Six bones were collected from naïve donor mice (two tibias, two femurs, and two hip bones). Bones were then carefully crushed in HBSS media with 1% penicillin/streptomycin and HEPES. Filtered BM was RBC lysed using 5 min RBC lysis buffer (Biolegend, San Diego, CA, https://www.biolegend.com). Lysis buffer was washed out and cells were stained with anti-CD117 magnetic beads (eBiosciences, San Diego, CA, https://www.thermofischer.com) using the manufacturer’s protocol. CD117+ cells were positively selected using the AutoMACS instrument (Miltenyi). CD117+ cells were washed and stained for Lineage markers (Table 1) and Sca-1. After staining, HSPCs were purified by cell sorting.

Flow cytometry and cell sorting

Request a detailed protocol

Flow cytometry analyses were done using LSR II and BD Fortessa instruments. Cells were identified by the differential expression of markers listed in Table 1. Our cocktail of Lineage (Lin) markers include Gr1, CD11b, B220, CD4, CD8, and Ter119.

Cell sorting of HSPCs and their subpopulations were done using the SONY SH800 sorter and the BD FACS Aria Fusion using the markers listed in Table 1. Post-sort purity test showed that sorted cells were 95–98% pure.

Cre induction

Request a detailed protocol

Cre activation in KRT18-CreERT2: Rosa26-lox-STOP-lox-TdTomato was induced with tamoxifen. Each mouse was administered tamoxifen by intraperitoneal injection at a dose of 100 mg/kg body weight for 5 consecutive days prior to the start of the lineage tracing experiments.

Cell infusion

Request a detailed protocol

All infusions were done intravenously by retroorbital injection. Rescued mice received cells resuspended in saline solution while the control mice were injected with saline solution alone.

Cytokine profiling

Request a detailed protocol

Serum was collected using a BD Microtainer blood collection tube (San Jose, CA, https://www.bdbiosciences.com). Serum levels of cytokines were analyzed through Eve Technologies company (Calgary, AB, Canada, https://www.evetechnologies.com).

T cell suppression assay

Request a detailed protocol

T cells were isolated from the spleen using anti-CD3 magnetic beads from Miltenyi Biotec (Bergisch Gladbach, Germany, https://www.miltenyibiotec.com) and MDSCs were sorted using the SONY SH800 sorter and the BD FACS Aria Fusion as described above. T cell were activated with anti-CD3 and anti-CD28 coated plates and supplemented with IL-2 to support proliferation and then cultured alone of with M-MDSCs or PMN-MDSCs. T cells were stained with CellTrace Violet and proliferation was measured by dye dilution using flow cytometry.

Statistical tests

Request a detailed protocol

Normality was assessed using the Shapiro-Wilk test and variances were compared using F-tests. Comparisons between two groups were made done using unpaired t-test for parametric data, Welch’s t-test for parametric data without equal variances, and Mann-Whitney test for non-parametric data. Tests involving three or more comparisons were done using one-way ANOVA with Tukey’s correction for multiple comparisons or Kruskal-Wallis test with Dunn’s correction for multiple comparisons. Comparisons of survival curves were done using Mantel-Cox tests. Outliers were identified using the ROUT method (Q = 5%). Graphs are shown as mean ± SEM. Sample size of each experiment was calculated based on pilot experiments and using an alpha = 0.05 and power = 0.80. Each specific statistical test used as well as group size and independent experiments are described on each figure legend.

Study approval

Request a detailed protocol

Mice are housed in AAALAC-accredited, specific-pathogen-free animal facilities at Baylor College of Medicine and Texas Children’s Hospital. All experiments are approved and follow the guidelines stated in our protocol approved by the Institutional Animal Care and Use Committee (IACUC) and by the Baylor College of Medicine institutional review board.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting file.

References

    1. Fajgenbaum DC
    2. June CH
    (2020) Cytokine Storm
    The New England Journal of Medicine 383:2255–2273.
    https://doi.org/10.1056/NEJMra2026131
    1. Jaffer U
    2. Wade RG
    3. Gourlay T
    (2010)
    Cytokines in the systemic inflammatory response syndrome: a review
    HSR Proceedings 2:161–175.
    1. Klein K
    2. Castillo B
    (2017)
    Historical Perspectives, Current Status, and Ethical Issues in Granulocyte Transfusion
    Annals of Clinical and Laboratory Science 47:501–507.

Decision letter

  1. Frank L van de Veerdonk
    Reviewing Editor; Radboudumc Center for Infectious Diseases, Netherlands
  2. Jos W Van der Meer
    Senior Editor; Radboud University Medical Centre, Netherlands

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Hematopoietic stem and progenitor cells improve survival from sepsis by boosting immunomodulatory cells" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Jos Van der Meer as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

General comments:

The reviewers comment that the authors are a bit too optimistic in stating "Our findings could lead to the development of an efficacious new therapeutic approach that could succeed where granulocyte infusions have fallen short". There are so many steps and hurdles that need to be taken before this kind of intervention could be translated to the clinic.

In addition, the data presented in figure 7 is of little value, as these were obtained in non-inflamed/infected mice. Therefore, conclusions such as "Whereas MDSCs did arise directly from infused cells, their numbers were not sufficient to account for the large increase in MDSCs observed in the HSPC-rescued mice. These data suggest that HSPC infusion contributes to MDSC expansion via both direct and indirect mechanisms." are not justified.

Please adjust this conclusion and soften the statements regarding the translation to the clinical setting throughout the manuscript.

More specific comments that need to be addressed:

1) Can the authors explain why MPP4 is also depleted following GAS (Figure 2F), as this is a lymphoid progenitor rather than a myeloid one. This appears not to be congruent with the lack of depletion of BM T- and B-cells (Figure 1E-F).

2) In Figure 2, why were different gating/markers for MPP2/3/4 used in the BM compared with the spleen?

3) The authors state: "This finding suggests that the loss of BM HSPC populations is not simply a result of migration from the BM into the spleen" However, there is a significant increase in HSPCs in the spleen (Figure 2G), so why discard this possibility? How can these number/proportions be directly compared?

4) Spleen subpopulations in Figure 2 are expressed as % of total spleen cells, but there is no data showing whether or not there was there a change in total spleen cells?

5) What is shown in figure 4B? Which organ?

6) At what timepoint were samples taken for the analyses presented in Figure 6A-E?

7) The authors need to explain why they used the specific model of sepsis with Streptococcus pyogenes instead of the classical models of LPS injection or whole bacteria injection or cecal ligation and puncture. They also need to provide evidence that the studied model was accompanied by organ failure through the measurement of dry to wet lung ratio, serum creatinine and serum aminotransferases.

8) A detailed methodology on the isolation of progenitor cells is needed. The authors need also to explain if they used an autograph or allograph approach.

9) How did the authors adjust for any graft versus host reaction?

10) Where other bacterial species isolated from the liver? Why were not kidney and lung cultures being performed?

https://doi.org/10.7554/eLife.74561.sa1

Author response

Essential revisions:

General comments:

The reviewers comment that the authors are a bit too optimistic in stating "Our findings could lead to the development of an efficacious new therapeutic approach that could succeed where granulocyte infusions have fallen short". There are so many steps and hurdles that need to be taken before this kind of intervention could be translated to the clinic.

We appreciate the help in making this part of the conclusions clearer. We are aware of the multitude of steps needed before a clinical application and we have rephrased our conclusion as:

“While the path to a clinical application can be long, our findings could lead to the future development of a new therapeutic approach that could succeed where granulocyte infusions have fallen short.”

In addition, the data presented in figure 7 is of little value, as these were obtained in non-inflamed/infected mice. Therefore, conclusions such as "Whereas MDSCs did arise directly from infused cells, their numbers were not sufficient to account for the large increase in MDSCs observed in the HSPC-rescued mice. These data suggest that HSPC infusion contributes to MDSC expansion via both direct and indirect mechanisms." are not justified.

Please adjust this conclusion and soften the statements regarding the translation to the clinical setting throughout the manuscript.

We thank the reviewer for this comment. With regards to figure 7, these mice were in fact infected and showed clear signs of inflammation (swelling, redness, abscess). They were infected at day 0, infused with HSPCs at day 1, and analyzed at day 30 for BM and peripheral blood phenotypes. Even at day 30, the mice had a residual abscess and thus the data reflect an inflamed/infected environment.

In order to clarify this point, we have included a more detailed timeline and treatment description of the mice in the Results section of the manuscript as follows:

“In order to determine whether HSPCs infused in an infected mouse directly differentiate into MDSCs, we performed lineage tracing experiments using expression of the CD45.1 variant to distinguish infused HSPCs from endogenous CD45.2 cells. Mice were infected with GAS and then rescued with HSPCs 24h after GAS inoculation. Thirty days after infection, mice still showed signs of inflammation on the leg, indicating the inflammatory cues that drive HSPC activation and differentiation were still present. At thirty days after infection, the CD45.1+ cell compartment showed no HSCs but a low number of MPP1 and myeloid biased MPP3s in the BM (Figure 7A).”

More specific comments that need to be addressed:

1) Can the authors explain why MPP4 is also depleted following GAS (Figure 2F), as this is a lymphoid progenitor rather than a myeloid one. This appears not to be congruent with the lack of depletion of BM T- and B-cells (Figure 1E-F).

We thank the reviewer for this observation. While MPP4s are certainly lymphoid biased, they are known to have plasticity in their differentiation pathways. Furthermore, the lymphoid compartment (T and B cells) tends to be much longer-lived than myeloid cells such as neutrophils and monocytes. In addition, myeloid cells are massively mobilized during an acute infection whereas the shifts in lymphoid cells are more limited. For all of these reasons, an acute depletion of lymphoid progenitors does not necessarily result in an immediate loss of T and B cells.

2) In Figure 2, why were different gating/markers for MPP2/3/4 used in the BM compared with the spleen?

These MPPs are extremely rare in the spleen. Using BM markers would obviate the detection of any cells in the spleen. Thus, we decided to include a broader population in the spleen to detect these populations. Other groups studying spleen hematopoietic cells have also used these markers to describe spleen HSPCs and HSCs (Oda et al., Scientific Reports, 2018; Burberry et al., Cell Host and Microbe, 2014).

3) The authors state: "This finding suggests that the loss of BM HSPC populations is not simply a result of migration from the BM into the spleen" However, there is a significant increase in HSPCs in the spleen (Figure 2G), so why discard this possibility? How can these number/proportions be directly compared?

We agree with the reviewer that this possibility should not be discarded. However, that magnitude of BM depletion and the small or no changes in the corresponding spleen populations suggests that this is not solely by migration. We appreciate the reviewers pointing this out and have amended the manuscript to read:

“These findings suggest that the loss of BM HSPC populations is not principally a result of migration from the BM into the spleen, and other mechanisms such as terminal differentiation also likely contribute to the noted HSPC depletion, as observed in other studies.”

4) Spleen subpopulations in Figure 2 are expressed as % of total spleen cells, but there is no data showing whether or not there was there a change in total spleen cells?

Absolute numbers in the spleen are not available. However, we did measure total spleen size to determine whether there was a change in cellularity of the spleen.

Author response image 1 shows spleen sizes of naïve and GAS-infected mice 72hrs post-infection. We did not detect any difference in spleen size or weight 24-72 hours after GAS infection, therefore it is reasonable to conclude that a change in % of total spleen cells does reflect a corresponding change in absolute number.

Author response image 1

5) What is shown in figure 4B? Which organ?

As stated in the figure legend, the figure shows a “Flow plot of HSPC gating and representation of different surface expressions of cKit and Sca-1 during infection. Plots are gated from lineage negative BM cells.” The organ of origin of these cells is the bone marrow (BM).

6) At what timepoint were samples taken for the analyses presented in Figure 6A-E?

This data was collected 3 days post-infection and 2 days after HSPC infusion. We have stated this more clearly in the manuscript as follows:

“Upon analysis of PB and BM populations 3 days after infection and 2 days after HSPC infusion…”

7) The authors need to explain why they used the specific model of sepsis with Streptococcus pyogenes instead of the classical models of LPS injection or whole bacteria injection or cecal ligation and puncture. They also need to provide evidence that the studied model was accompanied by organ failure through the measurement of dry to wet lung ratio, serum creatinine and serum aminotransferases.

We appreciate this observation. We mention in the introduction that GAS is a clinically relevant strain that causes a significant disease burden (Gonzalez-Abad and Sanz, Anales de Pediatría, 2020; Terao and Kawabata, Tanpakushitsu Kakusan Koso, 2009; Beres et al., mBio, 2016; Flores and Shelburne, Clinical Infectious Diseases, 2019). It also induces an IFN-mediated immune response, which, in light of prior studies, led us to hypothesize that HSPCs might have a role to play in the response to GAS (Baldridge et al., Trends in Immunology, 2011; Hormaechea-Agulla et al., Cell Stem Cell, 2021; Matatall et al., Stem Cells, 2014; Matatall et al., Cell Reports, 2016).

We did carefully examine the impact of GAS infection on various organs. While at 3 days post-infection, we did not see a significant difference in serum creatinine and aminotransferases, we did see a significant drop in the albumin-globulin ratio (AGR). Low AGR has been described to be a biomarker of sepsis (Lu et al., Translational Andrology and Urology, 2020). Systemic inflammation (Figure 6F) and pathogen dissemination (Figure 4J) are also signs of sepsis.

Author response image 2

8) A detailed methodology on the isolation of progenitor cells is needed. The authors need also to explain if they used an autograph or allograph approach.

We have expanded on our strategy for HSPC isolation in the methods section subtitled “HSPC isolation and purification” in order to provide a thorough description of the methods. The infused HSPCs are from naïve donor mice, thus, this is an allogeneic infusion.

9) How did the authors adjust for any graft versus host reaction?

The congenic bone marrow transplant model used in our studies are a well-established system developed over 30 years ago which relies on a variant of a blood epitope that is not immunogenic and therefore does not cause GVHD (Brochu S. Blood 1994 84(9):3221-8). In the setting of GVHD, the immune response of the “graft” against the host can be evidenced by increased inflammation and organ failure if left unattended. However, in our model, we see an overall decrease in inflammation and increased survival of mice for over a month, which also supports the well-established concept that there is no immune response from the infused cells against host cells.

10) Where other bacterial species isolated from the liver? Why were not kidney and lung cultures being performed?

We cultured limb tissue to determine bacterial load as this is the initial site of infection. We cultured the spleen as this is the most likely site of pathogen dissemination during a systemic infection. Spleen data suggests that there is in fact dissemination of GAS to other organs. Note that bacterial culture on nonselective media did not show other bacterial species in the spleen, therefore we would not suspect other bacterial species in the liver. Furthermore, histology did not show other bacterial species in the liver.

https://doi.org/10.7554/eLife.74561.sa2

Article and author information

Author details

  1. Daniel E Morales-Mantilla

    1. Graduate Program in Immunology, Baylor College of Medicine, Houston, United States
    2. Department of Pediatrics, Division of Infectious Diseases, Baylor College of Medicine, Houston, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3459-6231
  2. Bailee Kain

    1. Department of Pediatrics, Division of Infectious Diseases, Baylor College of Medicine, Houston, United States
    2. Graduate Program in Translational Biology and Molecular Medicine, Baylor College of Medicine, Houston, United States
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Duy Le

    1. Graduate Program in Immunology, Baylor College of Medicine, Houston, United States
    2. Department of Pediatrics, Division of Infectious Diseases, Baylor College of Medicine, Houston, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Anthony R Flores

    Division of Infectious Diseases, Department of Pediatrics, UTHSC/McGovern Medical School, Houston, United States
    Contribution
    Conceptualization, Resources
    Competing interests
    No competing interests declared
  5. Silke Paust

    The Scripps Research Institute, Department of Immunology and Microbiology, La Jolla, United States
    Contribution
    Conceptualization, Resources
    Competing interests
    No competing interests declared
  6. Katherine Y King

    1. Graduate Program in Immunology, Baylor College of Medicine, Houston, United States
    2. Department of Pediatrics, Division of Infectious Diseases, Baylor College of Medicine, Houston, United States
    3. Graduate Program in Translational Biology and Molecular Medicine, Baylor College of Medicine, Houston, United States
    Contribution
    Conceptualization, Funding acquisition, Project administration, Supervision, Writing - original draft, Writing - review and editing
    For correspondence
    kyk@bcm.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5093-6005

Funding

National Institutes of Health (R01HL136333)

  • Katherine Y King

National Institutes of Health (R01HL134880)

  • Katherine Y King

National Institutes of Health (R35HL155672)

  • Katherine Y King

Howard Hughes Medical Institute (Gilliam Fellowship)

  • Daniel E Morales-Mantilla

Cancer Prevention and Research Institute of Texas (CPRIT-RP180672)

  • Katherine Y King

National Institutes of Health (CA125123)

  • Katherine Y King

National Institutes of Health (RR024574)

  • Katherine Y King

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors would like to thank Catherine Gillespie, Maksim Mamonkin, Meghan Kisiel, Olumide Ayeni, and members of the King lab for their input into the study. DEMM and KYK were supported by the NIH grants R01HL136333, R01HL134880, and R35HL155672 (KYK). DEMM was also supported by the Howard Hughes Medical Institute (HHMI) Gilliam Fellowship for Advanced Study. This project was supported by the Cytometry and Cell Sorting Core at Baylor College of Medicine with funding from the CPRIT Core Facility Support Award (CPRIT-RP180672), the NIH (CA125123 and RR024574), and the assistance of Joel M Sederstrom. This project was also assisted by the Dan L Duncan Cancer Center and the William T Shearer Center for Human Immunobiology.

Ethics

This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocol (#4802) of Baylor College of Medicine.

Senior Editor

  1. Jos W Van der Meer, Radboud University Medical Centre, Netherlands

Reviewing Editor

  1. Frank L van de Veerdonk, Radboudumc Center for Infectious Diseases, Netherlands

Publication history

  1. Received: October 8, 2021
  2. Preprint posted: October 28, 2021 (view preprint)
  3. Accepted: January 31, 2022
  4. Version of Record published: February 15, 2022 (version 1)

Copyright

© 2022, Morales-Mantilla et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,706
    Page views
  • 227
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Daniel E Morales-Mantilla
  2. Bailee Kain
  3. Duy Le
  4. Anthony R Flores
  5. Silke Paust
  6. Katherine Y King
(2022)
Hematopoietic stem and progenitor cells improve survival from sepsis by boosting immunomodulatory cells
eLife 11:e74561.
https://doi.org/10.7554/eLife.74561

Further reading

    1. Immunology and Inflammation
    Shojiro Haji, Taiki Ito ... Sho Yamasaki
    Research Article

    C-type lectin receptors (CLRs) elicit immune responses upon recognition of glycoconjugates present on pathogens and self-components. While Dectin-1 is the best-characterized CLR recognizing b-glucan on pathogens, the endogenous targets of Dectin-1 are not fully understood. Herein, we report that human Dectin-1 is a ligand for CLEC-2, another CLR expressed on platelets. Biochemical analyses revealed that Dectin-1 is a mucin-like protein as its stalk region is highly O-glycosylated. A sialylated core 1 glycan attached to the EDxxT motif of human Dectin-1, which is absent in mouse Dectin-1, provides a ligand moiety for CLEC-2. Strikingly, the expression of human Dectin-1 in mice rescued the lethality and lymphatic defect resulting from a deficiency of Podoplanin, a known CLEC-2 ligand. This finding is the first example of an innate immune receptor also functioning as a physiological ligand to regulate ontogeny upon glycosylation.

    1. Immunology and Inflammation
    Angelo Ferreira Chora, Dora Pedroso ... Luis F Moita
    Research Article

    Anthracyclines are among the most used and effective anticancer drugs. Their activity has been attributed to DNA double-strand breaks resulting from topoisomerase II poisoning and to eviction of histones from select sites in the genome. Here we show that the extensively used anthracyclines Doxorubicin, Daunorubicin and Epirubicin decrease the transcription of nuclear factor kappa B (NF-κB)-dependent gene targets, but not interferon responsive genes in primary mouse (Mus musculus) macrophages. Using an NMR-based structural approach, we demonstrate that anthracyclines disturb the complexes formed between the NF-kB subunit RelA and its DNA binding sites. The anthracycline variants Aclarubicin, Doxorubicinone and the newly developed Dimethyl-doxorubicin, which share anticancer properties with the other anthracyclines but do not induce DNA damage, also suppressed inflammation, thus uncoupling DNA damage from the effects on inflammation. These findings have implications for anticancer therapy and for the development of novel anti-inflammatory drugs with limited side effects for life-threatening conditions such as sepsis.
