Ndc1 drives nuclear pore complex assembly independent of membrane biogenesis to promote nuclear formation and growth

  1. Michael Sean Mauro
  2. Gunta Celma
  3. Vitaly Zimyanin
  4. Magdalena M Magaj
  5. Kimberley H Gibson
  6. Stefanie Redemann
  7. Shirin Bahmanyar  Is a corresponding author
  1. Department of Molecular, Cellular and Developmental Biology, Yale University, United States
  2. Center for Membrane and Cell Physiology, University of Virginia, United States
  3. Department of Molecular Physiology and Biological Physics, University of Virginia, School of Medicine, United States
  4. Center for Cellular and Molecular Imaging: Electron Microscopy, Department of Cell Biology, Yale School of Medicine, United States
  5. Department of Cell Biology, University of Virginia, United States

Abstract

The nuclear envelope (NE) assembles and grows from bilayer lipids produced at the endoplasmic reticulum (ER). How ER membrane incorporation coordinates with assembly of nuclear pore complexes (NPCs) to generate a functional NE is not well understood. Here, we use the stereotypical first division of the early C. elegans embryo to test the role of the membrane-associated nucleoporin Ndc1 in coupling NPC assembly to NE formation and growth. 3D-EM tomography of reforming and expanded NEs establishes that Ndc1 determines NPC density. Loss of ndc1 results in faster turnover of the outer scaffold nucleoporin Nup160 at the NE, providing an explanation for how Ndc1 controls NPC number. NE formation fails in the absence of both Ndc1 and the inner ring component Nup53, suggesting partially redundant roles in NPC assembly. Importantly, upregulation of membrane synthesis restored the slow rate of nuclear growth resulting from loss of ndc1 but not from loss of nup53. Thus, membrane biogenesis can be decoupled from Ndc1-mediated NPC assembly to promote nuclear growth. Together, our data suggest that Ndc1 functions in parallel with Nup53 and membrane biogenesis to control NPC density and nuclear size.

Editor's evaluation

The authors elegant studies help understand how the process by which membranes needed for growth of nuclear envelop is coordinated with nuclear pore assembly during nuclear envelop assembly. This coordination is mediated by a transmembrane nucleoporin Ndc1.

https://doi.org/10.7554/eLife.75513.sa0

Introduction

The nuclear envelope (NE) is a large double-membrane sheet that partitions the contents of the nucleus from the cytoplasm. The NE is continuous with the endoplasmic reticulum (ER), which produces the bilayer lipids from which the NE forms and expands (Barger et al., 2022). Nuclear pore complexes (NPCs), large multiprotein channels that control the bidirectional traffic of macromolecules across the NE, are embedded at fusion points between the inner and outer nuclear membranes (also known as the pore membrane; Hetzer, 2010). NPCs are composed of ~30 different proteins (nucleoporins or Nups) that assemble in multiple copies to total ~1000 polypeptides (Hampoelz et al., 2019a; Hampoelz and Baumbach, 2022; Lin and Hoelz, 2019). Multiple NPC subcomplexes assemble into an eightfold symmetric core scaffold (the outer ring Nup107-160 complex and the inner ring Nup93 complex) (Kosinski et al., 2016; Lin et al., 2016) that surrounds the central channel and is attached to the cytoplasmic filaments and the nuclear basket, which are asymmetrically distributed (Figure 1A). A subset of integral membrane nucleoporins anchor NPCs to the pore membrane (Hampoelz et al., 2019a; Lin and Hoelz, 2019). Recent advances in EM approaches provide an unprecedented view of the architecture of this massive protein structure in human cells (Schuller et al., 2021; Zila et al., 2021) as well as its distinct assembly states at different cell cycle stages (Otsuka and Ellenberg, 2018; Otsuka et al., 2018). Intriguingly, membrane shape is not symmetric across the pore, raising questions about membrane sculpting activities by Nups for NPC function and assembly (Lusk and King, 2021).

Figure 1 with 2 supplements see all

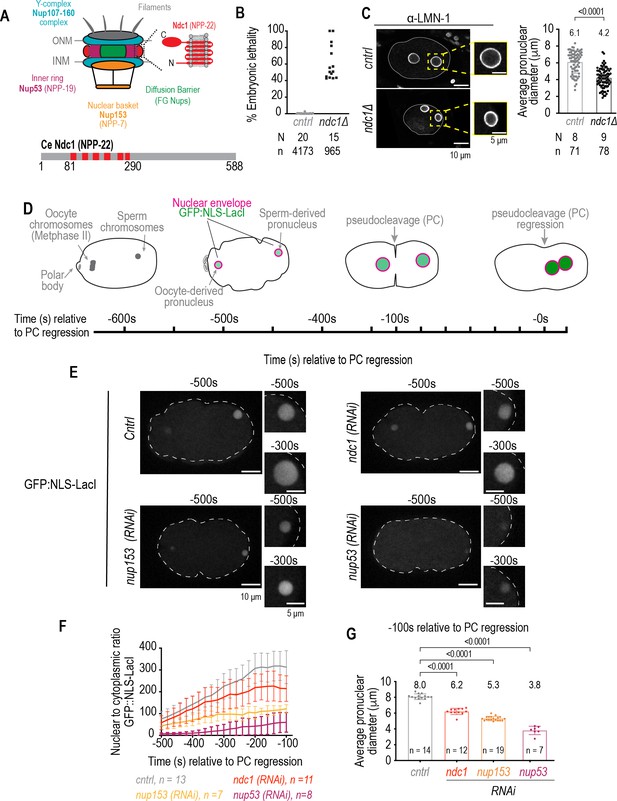

Smaller pronuclear size resulting from loss of Ndc1 corresponds to reduced nuclear import.

(A) Schematic of a nuclear pore complex (left). Schematic and domain organization of Ce Ndc1 (right, bottom). (B) Plot of percentage embryonic lethality for indicated conditions. N = # of worms. n = # of embryos. (C) Left: fixed overview and magnified images of C. elegans embryos immunostained for lamin for indicated conditions. Scale bars, 10 μm and 5 μm for magnified images. Right: plot of nuclear size for indicated conditions. Mean ± S.D. N = # of slides, n = # of nuclei. (D) Schematic of stereotypical nuclear events relative to nuclear import in the C. elegans zygote, with pseudocleavage (PC) regression used as a reference time point. Time is in seconds. (E) Confocal overview and magnified images of embryo from a time lapse series of GFP:NLS-LacI in indicated conditions. Scale bars, 10 μm for overview image and 5 μm for magnified images. (F) Plot of nuclear to cytoplasmic ratio of GFP:NLS-LacI for indicated conditions. n = # of embryos. Average ± S.D. is shown. (G) Pronuclear diameter for indicated conditions at indicated time point. Average ± S.D. is shown. n = # of embryos. A two-way ANOVA was used to determine statistical significance between control and each RNAi condition. p-Values all <0.0001.

Figure 1—source data 1

Excel file containing individual data points related to Figure 1.

https://cdn.elifesciences.org/articles/75513/elife-75513-fig1-data1-v1.xlsx

In metazoans, the NE breaks down and reforms every cell division cycle (Kutay et al., 2021). NPCs disassemble into subcomplexes that then rapidly assemble onto segregated chromosomes as ER-derived membranes form the nuclear rim (Hetzer, 2010; Kutay et al., 2021). Nascent nuclear membranes initially cover the outer edges of chromatin where spindle microtubules (MTs) are less concentrated (‘non-core’; Liu and Pellman, 2020; Otsuka and Ellenberg, 2018). The majority of NPCs assemble at the ‘non-core’ region of reforming NEs. NPC assembly is less pronounced in the ‘core’ region where the NE adaptor for the endosomal sorting complex required for transport (ESCRT), LEMD2/LEM-2, and the ESCRT II-III related protein CHMP-7 accumulates to facilitate severing of spindle MTs with sealing of remaining holes (Gatta and Carlton, 2019; Kutay et al., 2021; Lusk and Ader, 2020; Zhen et al., 2021). Once nuclear transport is established, nuclear import and recruitment of additional membranes promote nuclear growth (Chen and Levy, 2022). How NPC assembly is coupled to membrane recruitment is unclear; however, membrane-associated nucleoporins likely play a role (De Magistris and Antonin, 2018; Kutay et al., 2021; Otsuka and Ellenberg, 2018; Ungricht and Kutay, 2017).

There are three transmembrane-containing nucleoporins in metazoans: gp210 (Gerace et al., 1982), Ndc1 (Mansfeld et al., 2006; Stavru et al., 2006), and Pom121 (Hallberg et al., 1993) as well as several peripheral membrane binding Nups (Hamed and Antonin, 2021). gp210 is not ubiquitously expressed and is important for mammalian muscle differentiation (D’Angelo et al., 2012; Raices et al., 2017) and breakdown of the NE (Galy et al., 2008). In mammalian cells, Ndc1 and Pom121 are necessary for NPC biogenesis, possibly through redundant roles in membrane recruitment and NPC anchoring (Mansfeld et al., 2006). Pom121 has been also shown to be necessary for the interphase pathway of NPC assembly, which requires insertion of NPCs into an intact NE (Doucet et al., 2010).

After open mitosis, the chromatin-associated protein Elys initiates NPC assembly by recruitment of the outer ring scaffold (also known as Y-complex or Nup107/160 complex) onto chromatin (Doucet et al., 2010; Franz et al., 2007; Rasala et al., 2006). The recruitment and assembly of the Nup107/160 complex is an early, essential step in NPC assembly (Walther et al., 2003). In in vitro nuclear assembly reactions in Xenopus egg extracts, ER vesicles containing Ndc1 and Pom121 establish connections between reforming nuclear membranes and the Y-complex (Rasala et al., 2008). The recruitment of the inner ring component Nup53 (also referred to as Nup35) that is part of the Nup93 complex (Lin and Hoelz, 2019) initiates the assembly of the inner ring complex (Eisenhardt et al., 2014; Vollmer et al., 2012). Nup53 recruits Nup155, which assembles proximal to the pore membrane (Dultz et al., 2008; De Magistris et al., 2018; Eisenhardt et al., 2014; Franz et al., 2005; Hampoelz et al., 2019a; Lin and Hoelz, 2019; Vollmer et al., 2012). Nup155 and Nup53 interact with Pom121 and Ndc1 and also contain amphipathic helices that insert into membranes (Hamed and Antonin, 2021; Mitchell et al., 2010; von Appen et al., 2015). The interaction between Ndc1 and Nup53 is conserved in budding yeast (Onischenko et al., 2009); however, only the interphase pathway of NPC assembly exists in fungi because they undergo a closed mitosis (Kutay et al., 2021). Some evidence suggests a functional interaction between Ndc1 and Pom121 and members of the Nup107/160 complex (Mitchell et al., 2010), which also include Nups that directly bind to bilayer lipids (Drin et al., 2007; Hamed and Antonin, 2021). Thus, there are multiple connections that link the NPC to the pore membrane, yet their precise roles in NPC assembly remain poorly understood.

In addition to assembly of NPCs on chromatin through ELYS, recruitment of ER membranes with preassembled nucleoporins would effectively couple NPC assembly with nuclear formation and/or expansion (Hampoelz and Baumbach, 2022; Kutay et al., 2021). Recent evidence in mammalian cells showed that mitotic ER membranes contain partially preassembled nuclear pores that initiate NPC assembly after chromosome segregation (Chou et al., 2021). In support of this, ultrastructural work showed that the NE forms from highly fenestrated ER membrane sheets (Otsuka et al., 2018) that could contain some nucleoporins. In Drosophila oocytes, nucleoporin condensates in the cytoplasm form the nuclear pore scaffold in a specialized ER domain called annulate lamellae (Hampoelz et al., 2019b). These annulate lamellae feed NE expansion facilitating NPC insertion with rapid nuclear growth (Hampoelz et al., 2016). The molecular link between preassembled nucleoporins and ER membranes is not known but may involve transmembrane-containing Nups.

Here, we use the stereotypical first division of C. elegans embryos to understand the role of Ndc1 in coupling NPC biogenesis with ER membrane recruitment during nuclear formation and expansion. The stereotypical nuclear events in the first embryonic division make the early C. elegans embryo an ideal system to study the direct effects of Ndc1 depletion on the first attempt at nuclear formation and expansion. Furthermore, Pom121 is not present in C. elegans providing the opportunity to understand the specific contribution of Ndc1 in NPC biogenesis independent of Pom121. Prior work has shown that Ndc1 is only partially essential in C. elegans and impacts NPCs, yet the focus on late-stage embryos made it difficult to parse out direct versus accumulated effects due to multiple rounds of division (Stavru et al., 2006).

We show that loss of Ndc1 results in small nuclei with reduced NPCs and nuclear import rates in early C. elegans embryos. We use a mutant strain in cnep-1, a negative regulator of ER and nuclear membrane biogenesis (Bahmanyar et al., 2014; Bahmanyar and Schlieker, 2020), to show that increased membrane biogenesis results in faster NE expansion. Increased membrane biogenesis partially suppressed the slow rate of nuclear expansion, but not reduced nuclear import and NPC density, that results from loss of ndc1. Importantly, upregulated membrane biogenesis did not restore the small size of nuclei resulting from loss of nup53 or nup153 suggesting that membrane production requires these nucleoporins but does not require Ndc1 to drive nuclear expansion. We show that Ndc1 controls NPC density by promoting stable incorporation of outer ring scaffold components. Genetic analyses reveal that nup53 and ndc1 play parallel roles in NPC assembly, possibly through Nup155, an essential linker of the NPC scaffold (Lin and Hoelz, 2019; von Appen et al., 2015). Together, our data suggest that Ndc1-mediated NPC assembly functions in parallel to Nup53 and membrane biogenesis to control NPC density and nuclear size.

Results

Nuclear size correlates with nuclear import rates in early C. elegans embryos

A genome-wide RNAi screen in C. elegans embryos revealed that RNAi depletion of the transmembrane nucleoporin NPP-22 (hereafter Ndc1; Figure 1A; for a detailed list of C. elegans nucleoporins and their human homologs see Galy et al., 2003) results in small pronuclei prompting us to test if deletion of the entire ndc1 gene locus by CRISPR-Cas9 gene editing to eliminate ndc1 mRNA expression would cause a more severe nuclear phenotype (Figure 1—figure supplement 1A and Figure 1—figure supplement 1B; ndc1Δ; Sönnichsen et al., 2005). Embryos produced from homozygous ndc1Δ worms had a range of lethality (40–100%, average ± S.D.=61 ± 21%, Figure 1B) that was similar but more severe than embryonic lethality caused by a mutation in ndc1 (ndc1tm1845) in which 50% of the ndc1 gene coding region is deleted (range 10–80%, average ± S.D.=48 ± 25%, Figure 1—figure supplement 1D and Figure 1—figure supplement 1E; Stavru et al., 2006). The length of a subset of ndc1Δ embryos, but not ndc1 RNAi-depleted embryos, was on average smaller (44% 0.75 times average control embryo length, N=9 slides n=78 embryos) suggesting a potential defect in germline development that may explain the embryonic lethality that was not observed by RNAi depletion of ndc1 (Figure 1C, Figure 1—figure supplement 1C, and Figure 1—figure supplement 1F). ndc1Δ embryos contained small pronuclei (Figure 1C) that were similar in size to those RNAi-depleted for ndc1 (Figure 1—figure supplement 1C) suggesting that Ndc1 determines nuclear size in early embryos.

Nuclear size is correlated with nuclear import rates (Levy and Heald, 2010; Levy and Heald, 2012). We quantitatively monitored nuclear import in C. elegans embryos from the onset of nuclear formation after fertilization until mitotic entry (Figure 1D; Penfield et al., 2020). Fertilization of the oocyte by haploid sperm initiates two rounds of meiotic chromosome segregation. The sperm chromatin is devoid of a NE at the time of fertilization. After anaphase of meiosis II, components in the oocyte cytoplasm are recruited to the sperm-derived pronucleus to form a functional NE (Figure 1D), a process analogous to NE reformation after mitosis. Transport competent pronuclei then expand ~30-fold in volume prior to the onset of nuclear permeabilization in mitosis, which occurs after pronuclear meeting and regression of the pseudocleavage (hereafter known as PC regression), thus providing an assay for measuring nuclear import rates directly following the first attempt at NE formation (Figure 1D; Oegema and Hyman, 2006).

Nuclear import monitored by a GFP reporter fused to a nuclear localization signal (GFP:NLS-LacI, hereafter referred to as GFP:NLS) shows nuclear accumulation of GFP fluorescence throughout the time course of nuclear expansion (Figure 1D-F and Figure 1—figure supplement 1G). RNAi depletion of Ndc1 results in lower levels of nuclear accumulation of the GFP:NLS reporter (Figure 1E-F, Figure 1—video 1). Nuclear import is more severely impaired in embryos depleted of the nuclear basket component Nup153 (npp-7, Figure 1A) and the essential inner ring component Nup53 (npp-19; Figure 1A, E and F, and Figure 1—video 1; Galy et al., 2003; Lin and Hoelz, 2019). The average diameter of pronuclei is ~8 μm ~ –100 s relative to PC regression in control embryos (Figure 1G), and the diameter of pronuclei at the same time point in each RNAi condition scales with the degree of severity in defective nuclear import for that condition (6.2 μm for ndc1 [RNAi] versus 5.3 μm for nup153 [RNAi] and 3.8 μm for nup53 [RNAi]; Figure 1F and G). Thus, loss of distinct components of NPCs results in nuclear size defects that scale with nuclear import rates.

Delayed onset of nuclear import results from loss of ndc1

Slower nuclear import rates may arise from defects in NPC assembly during nuclear formation and/or expansion. We found that Ndc1 fused to mNeonGreen at its C-terminus using CRISPR-Cas9 gene editing (Ndc1en:mNG, Figure 2—figure supplement 1A; Figure 2—figure supplement 1B; Figure 2—video 1) appears to accumulate at non-core regions of the reforming NE after mitosis with similar kinetics as the inner NE protein LEM-2, which enriches at the core regions (Figure 2A and B, and Figure 2—video 2), as has been described in mammalian cells (Liu and Pellman, 2020), and coincident with the appearance of signal from the fluorescent ER maker SP12:mCh around segregated chromosomes (Figure 2—figure supplement 1D). Ndc1:mNG also localizes to punctate structures throughout the cytoplasm that mostly disperse into the ER upon entry into mitosis (Figure 2—figure supplement 1C). The early recruitment of Ndc1 to the reforming NE suggested a potential role for Ndc1 in post-mitotic nuclear assembly to establish nuclear import.

Figure 2 with 4 supplements see all

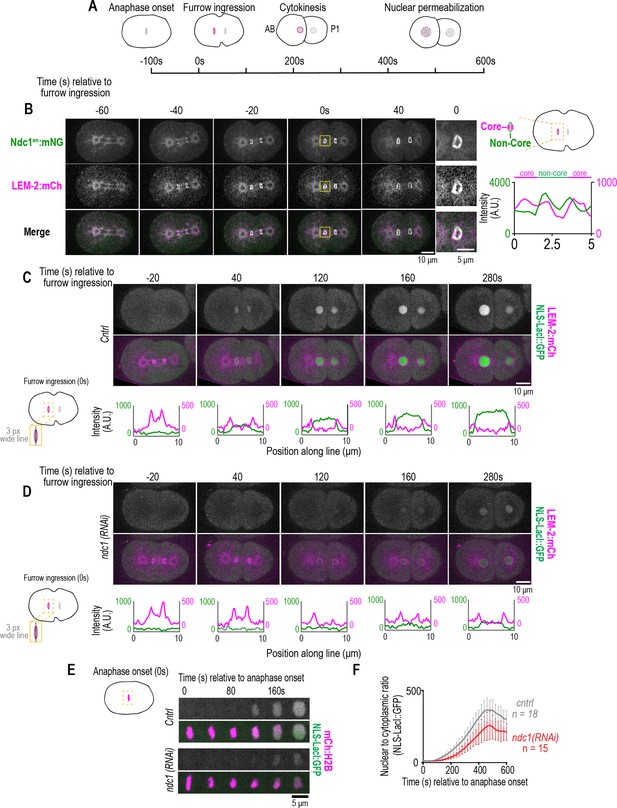

Ndc1 is necessary for timely formation of a transport competent nucleus after mitosis.

(A) Schematic of the first mitotic division in C. elegans embryos relative to anaphase onset and initiation of furrow ingression. All measurements of one- to two-cell stage embryos are done on the AB cell/nucleus (nuclear envelope [NE] of the AB nucleus is highlighted in magenta). (B) (Left) Confocal images from time series of mitotic nuclear formation relative to furrow ingression with indicated markers. (Right) Three-pixel wide line scan for the ‘core’ and ‘non-core’ region of the NE. Scale bars, 10 μm for overview image and 5 μm for magnified images. (C–D) (Above) Confocal images from time series mitotic nuclear formation with indicated markers for indicated conditions. (Below) Line scans measuring background-corrected fluorescence intensities as indicated in schematic for each time point and fluorescent marker (LEM-2:mCH is magenta and NLS-LacI:GFP is green). Scale bars, 10 μm and 5 μm for magnified images. (E) Confocal images of chromosome region from time series relative to anaphase onset with indicated markers and in indicated conditions. Scale bar, 5 μm. (F) Plot of nuclear to cytoplasmic ratio of GFP:NLS-LacI for indicated conditions. n = # of embryos. Average ± S.D. is shown.

Figure 2—source data 1

Excel file containing individual data points related to Figure 2.

https://cdn.elifesciences.org/articles/75513/elife-75513-fig2-data1-v1.xlsx

We analyzed the kinetics of NE formation relative to the establishment of nuclear import directly after anaphase onset in the nucleus of the larger daughter cell (also cell known as the ‘AB’ cell based on the C. elegans lineage map). The NE rapidly forms around daughter nuclei ~100 s after anaphase onset, coincident with the ingression of the cytokinetic furrow and followed by expansion of daughter nuclei (Figure 2A and C). In control embryos, the GFP:NLS fluorescence signal appears in the nucleus ~40 s following initiation of furrow ingression, which is ~60–80 s following the initial presence of a complete nuclear rim marked by LEM-2:mCh (–20 s, Figure 2C). GFP:NLS continues to accumulate in the nucleus as nuclei expand (Figure 2C). In the absence of ndc1, LEM-2:mCh forms a nuclear rim with normal timing (approximately 20–40 s prior to cleavage furrow ingression); however, the GFP:NLS fluorescence signal is detectable appreciably later in daughter nuclei relative to cleavage furrow ingression compared to control (control: average ± S.D.=3.1 s±10.7 s, n=13 embryos; ndc1 RNAi-depleted embryos: average ± S.D.=82 s±47 s, n=15 embryos; Figure 2D). The nuclear to cytoplasmic ratio of GFP:NLS fluorescence signal in nuclei marked by mCh:Histone2B was quantified after anaphase onset and indicated a delay and reduction in GFP:NLS accumulation in ndc1 RNAi-depleted embryos, which was followed by a decrease in signal at mitotic-entry-induced nuclear permeabilization in both control and ndc1 RNAi-depleted embryos (Figure 2E and F; Figure 2—video 3). Normalization of the traces and plotting the difference of the average normalized values between each time point further revealed a shift in the onset of nuclear accumulation of GFP:NLS in ndc1 RNAi-depleted embryos (Figure 2—figure supplement 1E and Figure 2—figure supplement 1F). Together, these data show that Ndc1 is necessary for the timely establishment of nuclear import, but not for the bulk recruitment of membranes, during nuclear reformation.

Ndc1 mutants contain fewer nuclear pores upon nuclear reformation and in expanded nuclei

We predicted that Ndc1 is necessary for timely nuclear accumulation of the GFP:NLS reporter by promoting NPC assembly. We analyzed serial sections from electron tomograms of NE formation in a control and ndc1Δ embryo processed at the initiation of furrow ingression (Figure 3A and B; Figure 3—videos 13). We focused on nascent nuclear membranes wrapped around the outer edges of chromatin or ‘non-core’ region (Liu and Pellman, 2020). 3D analysis of the reforming NE revealed small and large gaps at this time point and those <100 nm were marked as potential NPCs (Figure 3A and B; Figure 3—videos 4; 5; Otsuka et al., 2018). The NE in the ndc1Δ embryo was mostly continuous and contained an average of 11 ‘NPC’ holes per μm2 (N=1 nuclei, n=4 areas) (Figure 3B, Figure 3—figure supplement 1B and Figure 3—video 5). In contrast, the NE in a control embryo contained an average of 55 ‘NPC’ holes per μm2 (N=1 nuclei, n=4 areas) and was more discontinuous (Figure 3A and C; Figure 3—video 4). Thus, when ndc1 is absent, nascent NEs of the ‘non-core’ region are more continuous and on average contain ~4.8-fold fewer holes that fit the dimensions of nascent NPCs (Otsuka et al., 2018).

Figure 3 with 10 supplements see all

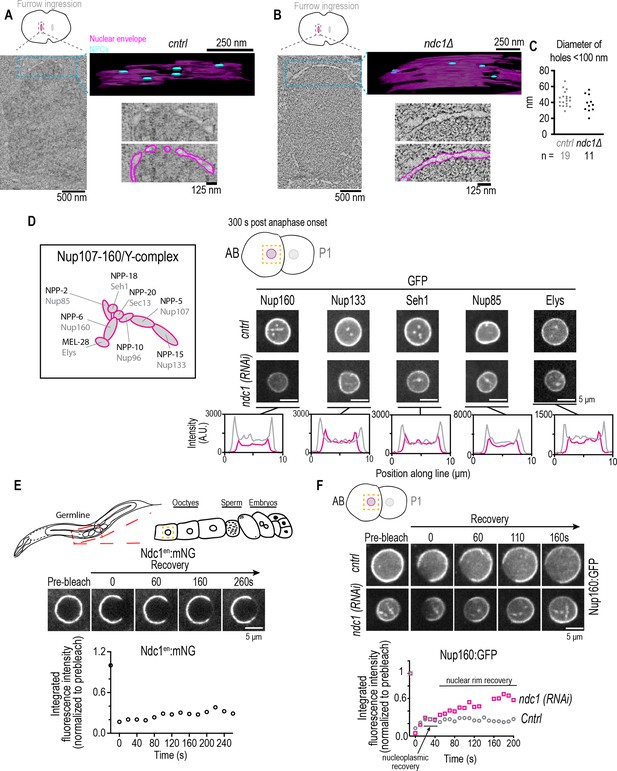

Fewer nuclear pore complexes (NPCs) assembled on nascent nuclear envelopes (NEs) and a higher mobile pool of Nup160:GFP result from loss of ndc1.

(A, B) Overview images: z-slice from electron tomogram of nuclear formation timed relative to initiation of furrow ingression. 3D model: traced membranes (magenta) and NE holes <100 nm (blue) for region shown as single z-slice in overview image. Magnified representative z-slice traced and untraced from electron tomogram is shown. To calculate the density of ‘NPC’ holes during NE reformation, we segmented and quantified four areas from a single control embryo (0.14 μm2, 0.08 μm2, 0.05 μm2, and 0.04 μm2) and four areas from a single ndc1Δ embryo (0.22 μm2, 0.19 μm2, 0.18 μm2, and 0.17 μm2). Scale bars indicated in figure. (C) Plot of diameters of NE holes <100 nm. n = # of ‘NPC’ holes analyzed. (D) Schematic of Y-complex (also known as Nup107/160 complex) with vertebrate (gray) and C. elegans (black) names shown, adapted from Figure 1B in Hattersley et al., 2016 (note that NPP-23/Nup43 not included). Representative magnified images of AB nucleus from confocal series for each indicated marker (above) and line scans measuring background-corrected fluorescence intensities (below) for each condition. Scale bars, 5 μm. (E) (Top) Schematic of C. elegans gonad and oocytes. (Middle) Confocal images from time lapse series of fluorescence recovery after photobleaching (FRAP) of Ndc1en:mNG the NE of an oocyte is shown. (Bottom) Representative plot of fluorescence intensities of bleached region over time normalized to the prebleach intensity for each condition is shown. Scale bars, 5 μm. (F) Confocal images from time lapse series of FRAP of Nup160:GFP at the NE of an embryo for indicated conditions are shown (above). Representative plot of fluorescence intensity of bleached region over time normalized to the prebleach intensity for each condition is shown (below). Scale bars, 5 μm.

Figure 3—source data 1

Excel file containing individual data points related to Figure 3.

https://cdn.elifesciences.org/articles/75513/elife-75513-fig3-data1-v1.xlsx

Fully formed NEs in two- to four-cell stage embryos contained half the normal density of NPCs in ndc1Δ mutants. Control nuclei on average contained 51 ‘NPC’ holes per μm2 (N=2 nuclei, n=6 areas), while ndc1Δ nuclei contained 26 ‘NPC’ holes per μm2 (N=3 nuclei, n=9 areas) (Figure 3—figure supplement 1A and Figure 3—figure supplement 1B, Figure 3—video 6). Thus, in both fully formed and reforming NEs in ndc1Δ embryos the density of NPCs is reduced.

We reasoned that if ndc1 RNAi depletion results in fewer nuclear pores in the NE, this should be reflected in the fluorescence intensity of members of the Nup107-160 complex, also known as the Y-complex (Figure 3D; Hampoelz et al., 2019a; Lin and Hoelz, 2019), as well as other components of mature NPCs. In early C. elegans embryos, the Y-complex component Nup160:GFP localizes to kinetochores and to the nuclear rim (Hattersley et al., 2016). Nup160:GFP also localizes to puncta throughout the cytoplasm that occasionally co-localize with ER-associated Ndc1 puncta and disperse upon entry into mitosis (Figure 3—figure supplement 1C and Figure 3—figure supplement 1D). ndc1 RNAi-depleted embryos contained lower levels of Nup160:GFP at the nuclear rim (Figure 3D) and very few puncta formed in the cytoplasm (Figure 3—figure supplement 1D). The fact that they co-localize with Ndc1 and do not form in ndc1 RNAi embryos, which also have lower levels of Nup160:GFP at the nuclear rim, suggested that Ndc1 may play a role in stabilizing the outer scaffold components both in these cytoplasmic structures and in the NE.

The reduced nuclear rim signal of Nup160:GFP resulting from loss of ndc1 likely reflects the lower density of NPCs in the NE. In addition to Nup160:GFP, line profiles of fluorescence intensities of GFP fusions to other members of the Y-complex (Nup133, Seh1, Nup85, and Elys; Hattersley et al., 2016) revealed that the peak fluorescence signal of each in ndc1 RNAi-depleted nuclei is approximately half that of control (Figure 3D). Immunostaining with antibodies that recognize Nup107 and Elys confirmed lower endogenous levels of Y-complex nucleoporins at the nuclear rim in ndc1Δ early embryos (Figure 3—figure supplement 1E and Figure 3—figure supplement 1F; Galy et al., 2006; Ródenas et al., 2012). The total protein levels of Nup107 in ndc1Δ worms were similar to control worms (Figure 3—figure supplement 1G). Deletion of ndc1 also results in lower levels of the endogenous inner ring component Nup53 at the nuclear rim (Figure 3—figure supplement 2A) but not its global protein levels (Figure 3—figure supplement 2B). Immunostaining of control and ndc1 mutant worms with mAB414, a monoclonal antibody that recognizes FG-nucleoporins, also showed a reduction in fluorescence signal at the nuclear rim (Figure 3—figure supplement 2C), as has been shown for late-stage C. elegans embryos (Stavru et al., 2006) and in vertebrate cells (Mansfeld et al., 2006). Total protein levels of mAB414 epitope-containing nucleoporins as well as Nup96 and Importin α3, which are expressed in both the germline and somatic cells in C. elegans (Geles and Adam, 2001), were unchanged (Figure 3—figure supplement 2D, Figure 3—figure supplement 2E and Figure 3—figure supplement 2F). Together, these results provide evidence confirming our EM tomography data that loss of Ndc1 reduces NPC density.

Ndc1 is necessary for immobilization of the outer ring scaffold in the NE

It has been proposed that transmembrane nucleoporins serve as an anchor to immobilize the NPC in the NE. In nuclei that were expanding, fluorescence recovery after photobleaching (FRAP) revealed that Ndc1en:mNG is highly mobile in the NE (Figure 3—figure supplement 2G; average mobile fraction ± S.D.=0.59 ±- 0.09, n=7 embryos). This suggests that Ndc1en:mNG may dynamically associate with nascent NPCs. However, growth of nuclei could result in recovery of Ndc1en:mNG through feeding of a new pool of membrane-associated Ndc1 and so we tested the turnover of Ndc1en:mNG in the fully expanded nuclei of oocytes. Ndc1en:mNG turnover was slow in oocyte NEs indicating that Ndc1en:mNG was immobile in mature NPCs (Figure 3E; average mobile fraction ± S.D.=0.22 ±- 0.2, n=9 embryos). Thus, NDC1 may serve an anchoring role for mature NPCs.

We reasoned that if Ndc1 is an anchor to nuclear pores, then the lower signal of Nup107/160 in ndc1 RNAi-depleted embryos may result from increased turnover of the Nup107/160 complex in the NE. FRAP revealed that ~80% of the Nup160:GFP pool in the NE is immobile in control embryos (Figure 3F and Figure 3—video 7; average mobile fraction ± S.D.=0.20±0.06, n=8 nuclei), similar to what has been shown in mammalian cells (Rabut et al., 2004). In ndc1 RNAi-depleted embryos, there was a greater than twofold increase in the mobile fraction of Nup160:GFP in the NE indicating that Nup160:GFP is less stably incorporated without Ndc1 (Figure 3F and Figure 3—video 7; Figure 3—video 8 average mobile fraction ± S.D.=0.47±0.12, n=8 nuclei). We conclude that Ndc1 is necessary to immobilize the outer ring scaffold to promote stable NPC assembly during nuclear formation and growth.

Increasing lipid synthesis in ndc1 mutants restores nuclear growth but not reduced Nup160 levels in the NE or nuclear import rates

We next tested if increasing ER/NE membrane biogenesis was sufficient to restore nuclear formation and nuclear growth rates of ndc1 mutants despite the decrease in nuclear pore biogenesis and nuclear import. We focused on the growth phase of nuclei in one and one- to two-cell stage embryos because of the stereotypic and reproducible rates of nuclear expansion. We first confirmed the spherical shape of pronuclei in C. elegans embryos as they expand by isotropic fluorescence light sheet imaging (Figure 4A and Figure 4—video 1). We then used semi-automated diameter measurements of the central section of nuclei during the expansion phase to extrapolate the rate of expansion of nuclear volume in control and ndc1 mutant embryos (Figure 4A-D, Figure 4—figure supplement 1A-C). A significantly slower rate of expansion of nuclear volume reflected the smaller nuclear size of ndc1 mutant embryos (see also Figure 1).

Figure 4 with 2 supplements see all
Increasing membrane biogenesis restores the slow rate of nuclear expansion and small nuclear size resulting from loss of ndc1.

(A) Dual-view inverted light sheet microscopy 3D projection of wild-type one-cell stage embryo. Scale bar, 10 μm. (B) Theoretical and calculated pronuclear volume for indicated time points. Each color represents a distinct embryo. (C) Magnified images of AB nucleus from confocal series for mCh:H2B for indicated conditions. Scale bar, 5 μm. (D) AB nuclear volume for indicated conditions at indicated time points. Average ± S.D. is shown. (E) Magnified images of AB nucleus from confocal series for mCh:H2B for indicated conditions. Scale bar, 5 μm. (F) AB nuclear volume for indicated conditions at indicated time points. Average ± S.D. is shown. (G) Confocal images of chromosome region from time series relative to anaphase onset with indicated markers and in indicated conditions. Scale bar, 5 μm. (H) Plot of nuclear to cytoplasmic ratio of GFP:NLS-LacI for indicated conditions. n = # of embryos. Average ± S.D. is shown. (I) Magnified images of AB nucleus from confocal series for Nup160:GFP (above) and line scans measuring background-corrected fluorescence intensities (below) for each condition. Scale bar, 5 μm. (J) (Left) Magnified images of paternal pronucleus at –100 s relative to pseudocleavage (PC) regression expressing Nup160:GFP under indicated conditions. Scale bar, 5 μm. (Right) Plot of average pronuclear volume for indicated conditions at –100 s relative to PC regression. n = # of embryos.

Figure 4—source data 1

Excel file containing individual data points related to Figure 4.

https://cdn.elifesciences.org/articles/75513/elife-75513-fig4-data1-v1.xlsx

Deletion of cnep-1, a negative regulator of ER membrane biogenesis in C. elegans (Bahmanyar et al., 2014; Penfield et al., 2020), resulted in a faster rate of isotropic nuclear growth even with lower levels of the NLS reporter retained in the nucleus, which we had previously showed was due defective NE closure (Penfield et al., 2020; Figure 4C, D and H and Figure 4—figure supplement 1B, Figure 4—figure supplement 1C). Increasing membrane biogenesis in ndc1 RNAi-depleted embryos deleted of cnep-1 partially restored the rate of nuclear growth to closer to wild-type levels (Figure 4E and F, Figure 4—figure supplement 1D, and Figure 4—figure supplement 1E). Deletion of cnep-1 did not restore the decreased fluorescence signal of Nup160:GFP in the NE (Figure 4I) nor the absence of cytoplasmic Nup160:GFP puncta (Figure 4—figure supplement 1F and Figure 4—figure supplement 1G) resulting from loss of ndc1. Interestingly, cnep-1 deletion did not restore the small nuclear size resulting from loss of nup53 or nup153 (Figure 4J). Thus, membrane-mediated nuclear expansion can be decoupled from Ndc1-dependent nuclear pore biogenesis.

Regulation of lipid synthesis along with NE-specific ESCRT-membrane remodeling machinery promotes closure of NE holes and restricts incoming membranes to the chromatin surface (Penfield et al., 2020). Thus, the additive delay in nuclear formation may reflect the independent requirements for CNEP-1 and Ndc1 to establish timely transport competence through closure of NE holes and NPC biogenesis, respectively. In support of this, deletion of the ESCRT-III adaptor chmp-7 in ndc1 RNAi-depleted embryos also resulted in a delay in nuclear import (Figure 4—figure supplement 1H).

Ndc1 supports nuclear formation and growth through a pathway that is in parallel to Nup53

Ndc1 binds directly to Nup53, and both bind to Nup155 (Eisenhardt et al., 2014; Mitchell et al., 2010; Vollmer et al., 2012) and have a role in assembly of the inner ring scaffold (Mansfeld et al., 2006; Vollmer et al., 2012; Figure 5—figure supplement 1A). We utilized a C. elegans strain carrying a partially functional mutant allele of Nup53 (nup53tm2886) that is missing a central region (Δaa 217–286), which would be predicted to disrupt its dimerization, membrane binding, and association to Nup155 (Figure 5—figure supplement 1B; De Magistris et al., 2018; Eisenhardt et al., 2014; Ródenas et al., 2009; Vollmer et al., 2012), to determine if Ndc1 and Nup53 are in the same pathway to promote post-mitotic NPC assembly in vivo. The Nup53tm2886 mutant protein is expressed at lower levels compared to wild-type Nup53 (Figure 3—figure supplement 2B; Ródenas et al., 2009), and on average, ~50% of embryos produced from homozygous nup53tm2886 worms can survive to hatching, as has been shown previously (Figure 5B; Ródenas et al., 2009). Live imaging of nup53tm2886 one-cell stage embryos revealed that sperm pronuclei nuclear import and nuclear size are similar to nup53 RNAi-depleted nuclei but reduced compared to control and ndc1 RNAi-depleted embryos (Figure 1E-G and Figure 5C–E). RNAi-depletion of ndc1 strongly enhanced embryonic lethality in the nup53tm2886 strain (Figure 5B) - these embryos completely failed to assemble an NE around sperm chromatin (Figure 5C and D). Sperm chromatin in nup53tm2886 mutant embryos depleted of ndc1 remains compacted, and nuclear import is never established (n=7 embryos), even at –100 s relative to PC regression when GFP:NLS accumulates to detectable levels in the sperm-derived pronucleus of nup53tm2886 embryos (Figure 5C and E).

Figure 5 with 1 supplement see all

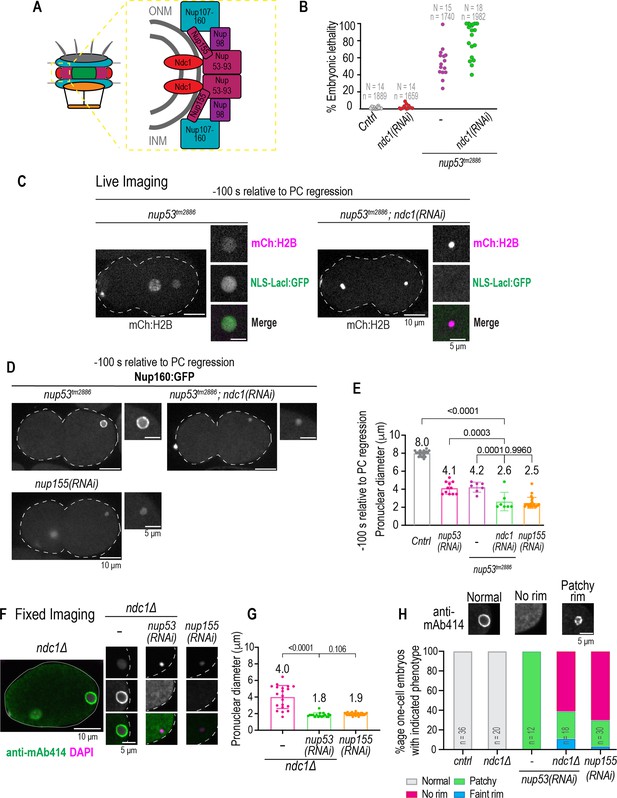

Parallel functions for Ndc1 and Nup53 in nuclear assembly.

(A) Schematic of nuclear pore complex (NPC) (left) and NPC subcomplex organization (right) is shown. (B) Plot of percentage embryonic lethality for indicated conditions. N = # of worms. n = # of embryos. (C) Confocal overview and magnified images of embryo from a time lapse series of indicated markers for indicated conditions. Scale bars, 10 μm for overview image and 5 μm for magnified images. (D) Confocal overview and magnified images of embryo from a time lapse series of Nup160:GFP for indicated conditions. Scale bars, 10 μm for overview image and 5 μm for magnified images. (E) Plot of pronuclear diameter for indicated conditions at indicated time point. Average ± S.D. is shown. n = # of embryos. cntrl n=9, nup53(RNAi) n=11, nup53tm2886 n=7, and nup53tm2886;ndc1(RNAi) n=7. (F) Fixed overview and magnified images of C. elegans embryos immunostained for mAb414 and DAPI in indicated conditions. Scale bars, 10 μm for overview image and 5 μm for magnified images. (G) Plot of pronuclear diameter for indicated conditions at indicated time point. Average ± S.D. is shown. n = # of embryos. ndc1Δ n=20, ndc1Δ;nup53(RNAi) n=18, and nup155(RNAi) n=30. (H) Magnified images of paternal pronucleus from fixed one-cell stage embryos immunostained with mAb414 for indicated conditions (top). Scale bar, 5 μm. Plot of mAb414 appearance surrounding chromatin under indicated conditions (bottom). A two-way ANOVA was used to determine statistical significance between indicated conditions. n = # of embryos. Scale bars, 10 μm for overview image and 5 μm for magnified images.

Figure 5—source data 1

Excel file containing individual data points related to Figure 5.

https://cdn.elifesciences.org/articles/75513/elife-75513-fig5-data1-v1.xlsx

In nup53tm2886 mutant and nup53 RNAi-depleted embryos, both Nup160:GFP and mAb414 appear patchy at the nuclear rim in 100% of the nuclei indicating an abnormal distribution of NPCs (Figure 5D, see also Figures 3D and 5H, Figure 5—figure supplement 1C, and Figure 5—figure supplement 1D). In contrast, in nup53tm2886 embryos RNAi depleted of ndc1, the Nup160:GFP signal persisted on chromatin (Figure 5D), and the nuclear diameter at –100 s prior to PC regression was significantly smaller (Figure 5E; average diameter of 2.6 μm versus ~4 μm in nup53tm2886 or nup53 [RNAi] only conditions, see also Figure 1D and G for ndc1[RNAi]) indicating a failure in assembly of an NE. Thus, Ndc1 is necessary for the recruitment of Nup160:GFP to the nuclear rim and for assembly of nuclei, albeit in a defective manner, when Nup53 dimerization and membrane binding functions are compromised.

Failure to assemble an NE was also observed in fixed ndc1Δ embryos RNAi depleted for nup53 (Figure 5F-H). The mAB414 signal around chromatin was normal in ndc1Δ embryos and patchy in 100% of fixed one-cell stage embryos RNAi depleted for nup53 alone (Figure 5H and Figure 5—figure supplement 1C). The patchy Nup160:GFP (Figure 5—figure supplement 1D) and mAB414 (Figure 5H and Figure 5—figure supplement 1C) signal resulting from RNAi depletion of Nup53 suggest aberrant assembly of NPCs. These NEs still support some nuclear import and expansion (Figure 5E and Figure 1E-G). In contrast, one-cell stage ndc1Δ embryos RNAi depleted for nup53 contained highly compacted sperm chromatin (Figure 5F and G) with little to no mAB414 signal surrounding the chromatin mass (Figure 5F and H). Together, these data show that Ndc1 and Nup53 function, at least in part, in parallel pathways to drive NE assembly in early C. elegans embryos.

We hypothesized that the redundant function for Ndc1 and Nup53 may be through Nup155, which has been shown to cause severe defects in nuclear formation in C. elegans (Franz et al., 2005). Indeed, RNAi depletion of Nup155 resulted in complete NE assembly failure that phenocopied loss of both ndc1 and nup53 (Figure 5D–H). These results suggest that when Ndc1 is absent, Nup53 association with Nup155 is sufficient for NPCs to assemble albeit at a less reduced level.

Discussion

Our data suggest a model in which Ndc1 functions early during NPC growth to couple incorporation of membranes to stable assembly of the nuclear pore scaffold (Figure 6A). In the absence of Ndc1, NPC assembly coupled to membrane incorporation can occur through a parallel pathway that requires Nup53 (Figure 6A, middle). In line with this, Nup53 binding to Ndc1 is dispensable for post-mitotic NPC assembly in vitro (Vollmer et al., 2012). In addition, Nup53 binds directly to membranes and its overexpression causes membrane proliferation (Eisenhardt et al., 2014; Marelli et al., 2001; Vollmer et al., 2012). Furthermore, in Drosophila fat body cells, overexpression of CTDNEP1/CNEP-1 affects the localization of NE-associated Nup53 possibly through disruption of lipid composition at the NE (Jacquemyn et al., 2021) also supporting the idea that Nup53 is sensitive to lipid content.

Independent requirements for Ndc1 and lipid synthesis in nuclear formation and expansion.

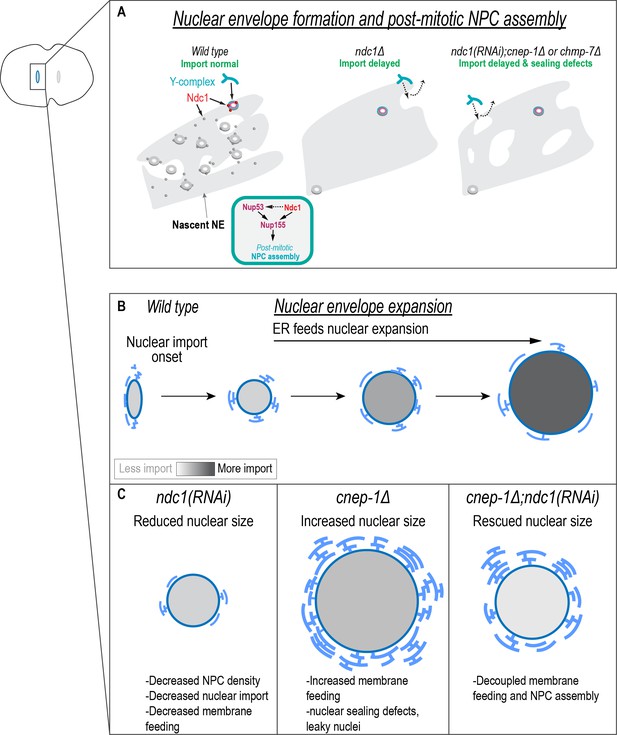

(A) In the absence of Ndc1, the nuclear envelope (NE) is more continuous, and outer ring scaffold components in the NE are highly dynamic. Some NPCs still assemble and so nuclear transport is eventually established. Ndc1 functions at least in part redundantly to Nup53 in post-mitotic NPC assembly. Both Ndc1 and Nup53 may function through the shared factor Nup155. Loss of Ndc1 in combination with either cnep-1 or chmp-7 leads to additional sealing defects (represented by holes in the NE) that further delay nuclear formation. (B) Endoplasmic reticulum (ER) membranes feed surface area expansion and nuclear import accumulates macromolecules inside the nucleus to increase nuclear volume. (C) Independent requirements for Ndc1 and membrane biogenesis promote nuclear growth.

Distinct roles for Ndc1 and Nup53 in membrane incorporation could explain why excess membranes feed nuclear growth in the absence of Ndc1, but not Nup53 (Figure 6B and C). One possibility is that Ndc1 contributes to feeding of ER membranes containing preassembled NPC subcomplexes, whereas Nup53 is necessary for coupling membrane biogenesis to NPCs assembling directly on chromatin and/or in an intact NE. Indeed, the co-localized puncta of Ndc1 and Nup160 that exist in the cytoplasm of C. elegans embryos may represent annulate lamellae, which form from reserves of precursor NPC condensates to feed nuclear growth as shown in early Drosophila embryos (Hampoelz et al., 2016; Hampoelz et al., 2019a; Hampoelz et al., 2019b). The fact that loss of Ndc1 in C. elegans embryos also reduces Nup160 localization to cytoplasmic punctate structures suggests that Ndc1 is required for their stability/formation. Interestingly, NPC subcomplexes associate with mitotic ER membranes in mammalian cells to template the formation of mature pores in the reforming NE (Chou et al., 2021). Furthermore, annulate lamella also contribute to the rapid repopulation of NPCs in mammalian cells (Ren et al., 2019). Thus, there may be a conserved role for Ndc1 in a post-mitotic NPC assembly pathway that involves preassembled NPCs on ER membranes. Future work on the distribution, dynamics, and identity of these Ndc1 containing cytoplasmic puncta in C. elegans early embryos and during development will help to define their role in NPC assembly.

Successful NE formation requires Nup155, which assembles proximal to the membrane and links the outer and inner nuclear pore scaffold (Franz et al., 2005; Hampoelz et al., 2019a; von Appen et al., 2015). Although Nup155 can itself bind to membranes (von Appen et al., 2015), we found that loss of Nup155 phenocopies loss of both Ndc1 and Nup53. This suggests Nup155 may require that either Ndc1 or Nup53 is present for its recruitment/assembly at the NE (Figure 6, top). Stable incorporation of Nup160 also requires Ndc1, and so one possibility is that Ndc1 promotes the self-assembly of the nuclear pore scaffold through Nup155 to drive formation of NPCs. Ndc1 may help to recruit partially assembled nucleoporins that then oligomerize into stable assemblies (see above). Our data showing that Ndc1 is dynamic in growing NEs supports recent data using metabolic labeling in budding yeast showed that Ndc1, unlike other transmembrane nucleoporins, is readily exchanged in the NPC (Hakhverdyan et al., 2021; Onischenko et al., 2020). However, we also found Ndc1 is highly stable in fully formed nuclei suggesting it serves as an anchor to mature NPCs. Future work is required to determine the mechanism by which Ndc1 drives NPC assembly.

In mammalian cells, Ndc1 slightly delays the onset of nuclear import and nuclear rim formation, consistent with a role in membrane recruitment and post-mitotic NPC assembly, but does not effect GFP:NLS accumulation (Anderson et al., 2009). A redundant role for Pom121, which is not present in C. elegans, in NPC assembly may account for the differences in nuclear accumulation of GFP:NLS after mitosis in these systems (Anderson et al., 2009; Mansfeld et al., 2006). We did not detect a delay in bulk membrane recruitment during nuclear formation in C. elegans embryos, which could be explained by difficulties in detecting slight delays in membrane recruitment due to the fast speed of nuclear formation as well as limits in the resolution of confocal microscopy to detect defects in membrane incorporation directly at NPC assembly sites.

Deletion of cnep-1 or chmp-7 in the absence of Ndc1 further exacerbates the delayed onset of nuclear import resulting from loss of Ndc1 (Figure 6A, right). Our prior work in C. elegans embryos showed that regulation of the phosphatidic acid phosphatase lipin by CNEP-1 contributes to effective NE sealing by restricting membranes to the surface of chromatin (Penfield et al., 2020). Interestingly, in budding yeast, CHMP7 is recruited to phosphatidic acid rich membranes at nuclear membrane herniations suggesting a role for lipid composition in recruiting CHMP7 to the NE (Thaller et al., 2021). Together, our data suggest that the onset of nuclear cargo accumulation is likely limited by the number of assembled NPCs and the presence of holes that allow passive diffusion between the nucleoplasm and cytoplasm, which require closure through restricting lipid synthesis and ESCRT-mediated mechanisms (Figure 6).

Membrane biogenesis coupled to NPC biogenesis has been proposed to drive faster NE expansion by both maintaining nuclear transport rates and supporting faster surface area expansion (Kume et al., 2019; Kume et al., 2017). In budding yeast, nuclear extrusions resulting from increased nuclear membrane biogenesis through deletion of nem1 (cnep-1/CTDNEP1 in yeast) or its binding partner spo7 contain NPCs suggesting that NPC assembly is coupled to membrane biogenesis under these conditions (Jaspersen and Ghosh, 2012; Santos-Rosa et al., 2005; Siniossoglou, 2013; Siniossoglou et al., 1998). Our data show that faster rates of nuclear expansion driven by excess membrane biogenesis do not require NPC assembly via Ndc1 nor maintenance of normal rates of nuclear import (Figure 6C). Why then is the rate of nuclear surface area expansion limited when the ER normally contains a large pool of available membranes? The amount of peripheral ER membranes determines the size of the nucleus in early sea urchin embryos (Hara and Merten, 2015; Mukherjee et al., 2019). cnep-1 mutants contain excess ER membranes sheets proximal to the NE (Bahmanyar et al., 2014) supporting the possibility that a specific ER membrane pool controlled by CNEP-1 more readily feeds nuclear expansion (Figure 6C). Additionally, CNEP-1/CTDNEP1 is enriched at the NE, and so membrane biogenesis may occur locally at the NE and couple to NPC assembly via a pathway that involves Nup53 (Bahmanyar et al., 2014; Jacquemyn et al., 2021). Finally, local lipid composition may also be regulated by this pathway to direct membrane flow and NPC assembly.

Lipid synthesis is a universal mechanism that controls nuclear size and shape (Barger et al., 2022; Grillet et al., 2016; Kume et al., 2017; Merta et al., 2021; Santos-Rosa et al., 2005), and future work is needed to understand the direct and indirect relationships between ER/NE membrane biogenesis, NPC assembly pathways, and nuclear transport rates to regulate NPC density, nuclear expansion, and nuclear size.

Resource availability

Lead contact

Further information and requests for reagents or resources should be directed to Shirin Bahmanyar (shirin.bahmanyar@yale.edu).

Materials availability

C. elegans strains and plasmids from this study are available from the Lead Contact upon request.

Experimental model and subject details

Strain maintenance and generation

The C. elegans strains used in this study are listed in the key resource table. Strains were maintained on nematode growth media plates that were seeded with OP-50 Escherichia coli. Strains were grown at three possible temperatures: 15, 20, and 25°C.

CRISPR-Cas9 deletion strain

The deletion for ndc1 (B0240.4) was generated using two CRISPR guides ‘crRNA’, which were obtained using IDT’s custom CRISPR guide algorithm (see Figure 1—figure supplement 1A and key resource table for sequences). 1 μl of the purified crRNAs were annealed to 1 μl of trans-activating crRNA by incubating RNAs at 95° C for 2 min in individual PCR tubes. A co-CRISPR crRNA was used for dpy-10. An injection mix with the following components and concentrations was set up and spun down for 30 min at 4°C: ndc1 guide 1 (11.7 μM), ndc1 guide 2 (11.7 μM), purified Cas9 protein (qb3 Berkeley, 14.7 μM), dpy-10 guide (3.7 μM), and a dpy-10 repair template (29 ng/mL) (Arribere et al., 2014; Paix et al., 2015).

The RNA-protein mix was then injected into the gonads of N2 adult worms, which were then allowed to recover for 3 days. After this recovery, F1 progeny was screened for a roller phenotype, and 10–20 F1s were singled out to individual plates. These roller worms were allowed to produce progeny, which were then genotyped by PCR to detect the presence of the npp-22/ndc1 deletion allele. The deletion strain was outcrossed four times to N2 (ancestral strain) worms before use and characterization.

CRISPR-Cas9 with SEC repair template for endogenous tagging

To endogenously tag ndc1 with mNeonGreen and mRuby, a self-excising cassette (SEC) repair template approach was utilized. 950 bp homology arms from the five- and three-prime end of ndc1’s stop codon were cloned into an SEC vector. This plasmid was co-injected with a Cas9+ndc1 guide plasmid into the gonads of adult N2 worms. Worms were rescued to individual plates and allowed to recover for 3 days at 20°C. Plates were screened for roller worms and positive plates were treated with approximately 200–300 μl of hygromycin B (20 mg/mL) and were allowed to recover for 4–5 days. Plates that had surviving rolling worms were screened for mNeonGreen or mRuby signal by microscopy. Finally, worms were outcrossed four times to N2 worms before crossing to other fluorescent markers.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Antibodymouse monoclonal α-alpha-tubulinMillipore SigmaCat#05–829; RRID: AB_3100351 μg/mL
Antibodymouse monoclonal mAb414BiolegendCat# 902907; RRID: AB_2734672WB: 1 μg/mL IF:2.5 μg/mL
Antibodymouse monoclonal mAb414Millipore-SigmaMABS1267WB: 1 μg/mL IF: 2.5 μg/mL
Antibodyrabbit polyclonal α-NPP-5/Nup107Ródenas et al., 2009N/AWB: 1:300 IF: 1:300
Antibodyrabbit polyclonal α-NPP-10N/Nup98Ródenas et al., 2009N/AWB: 1:500
Antibodyrabbit polyclonal α-NPP-10C/Nup96Ródenas et al., 2009N/AWB: 1:500
Antibodyrabbit polyclonal α-NPP-19/Nup53Ródenas et al., 2009N/AWB: 1:1,000 IF: 1:300
Antibodyrabbit polyclonal α-MEL-28/ElysRódenas et al., 2009N/AIF: 1:500
Antibodyrabbit polyclonal α-IMA-3Geles and Adam, 2001N/AWB: 1:400
Antibodyrabbit polyclonal α-LMN1Penfield et al., 2018N/AIF: 1 μg/mL
AntibodyRhodamine RedX donkey polyclonal α rabbit IgGJackson ImmunoCat#711-295-152; RRID: AB_2340613IF: 1:200
AntibodyFITC goat polyclonal α mouse IgGJackson ImmunoCat#115-095-146; RRID: AB_2338599IF: 1:200
Antibodygoat polyclonal α mouse IgG-HRPThermo FisherCat#31430; RRID: AB_228307WB: 1:7,000
Antibodygoat polyclonal α rabbit IgG-HRPThermo FisherCat#31460; RRID: AB_228341WB: 1:5,000
Commercial assay or kitClarity Max Western ECL SubstrateBIO-Rad1705060 S
Commercial assay or kitMEGAscript T3 Transcription KitInvitrogenCat# AM1338
Commercial assay or kitMEGAscript T7 Transcription KitInvitrogenCat# AM1334
Strain and strain background (Caenorhabditis elegans)C. elegans: Strain N2: wildtype (ancestral)Caenorhabditis Genetics CenterN2
Strain and strain background (C. elegans)C. elegans: Strain OD997: unc-119(ed3)III; ltSi231[pNH16; Pmel-28∷GFP-mel-28; cb-unc- 119(+)]II;; ltIs37[pAA64; pie-1/mCherry::his-58; unc-119 (+)] IVHattersley et al., 2016OD997
Strain and strain background (C. elegans)C. elegans: Strain OD999: unc-119(ed3)III; ltSi245[pNH42; Pnpp-18::GFP-npp-18; cb-unc- 119(+)]II; ltIs37[pAA64; pie-1/mCherry::his-58; unc-119 (+)] IVHattersley et al., 2016OD999
Strain and strain background (C. elegans)C. elegans: Strain OD1496: unc-119(ed3)III; ltSi464[pNH103; Pmex-5::npp-6::GFP::tbb-2:3'UTR; cbunc-119(+)]I; ltIs37[pAA64; pie-1/mCherry::his-58; unc- 119 (+)] IVHattersley et al., 2016OD1496
Strain and strain background (C. elegans)C. elegans: Strain OD1498: unc-119(ed3)III; ltSi465[pNH104; Pmex-5::npp-15::GFP::tbb-2:3'UTR; cb-unc-119(+)]I; ltIs37[pAA64; pie-1/mCherry::his-58; unc-119 (+)] IVHattersley et al., 2016OD1498
Strain and strain background (C. elegans)C. elegans: Strain OD1499: unc-119(ed3)III; ltSi463[pNH102; Pmex-5::npp2::GFP::tbb-2:3'UTR; cb- unc-119(+)]I; ltIs37[pAA64; pie-1/mCherry::his-58; unc-119 (+)] IVHattersley et al., 2016OD1499
Strain and strain background (C. elegans)C. elegans: Strain OD2400: ltSi896[pNH152; Pgsp-2::GSP-2::GFP; cb-unc-119(+)]I; ltIs37[pAA64; pie-1/mCherry::his-58; unc-119 (+)] IVHattersley et al., 2016OD2400
Strain and strain background (C. elegans)C. elegans: Strain SBW32: unc-119(ed3) III; ltIs24 [pAZ132; pie-1/GFP::tba-2; unc-119 (+)]; ltIs37 [(pAA64) pie-1p::mCherry::his-58+unc-119(+)] IVPenfield et al., 2018SBW32
Strain and strain background (C. elegans)C. elegans: Strain SBW47:unc-119(ed3) III; ltIs37 [pie-1/mCherry::his-58; unc-119 (+)] IV; ltIs75 [Ppie-1/GFP::TEV-Stag::LacI +unc-119(+)].Penfield et al., 2020SBW47
Strain and strain background (C. elegans)C. elegans: Strain SBW56: npp-22(ndc1) (tm1845/nT1) V 7 x outcrossedThis studySBW56Related to Figure 1—figure supplement 1D and E
Strain and strain background (C. elegans)C. elegans: Strain SBW65: scpl-2(tm4369)II;unc-119(ed3) III; ltIs37 [pAA64; pie-1/mCHERRY::his-58; unc-119 (+)] IV;ltIs75 [(pSK5) pie-1::GFP::TEV-STag::LacI +unc-119(+)].Penfield et al., 2020SBW65
Strain and strain background (C. elegans)C. elegans: Strain SBW79: chmp-7 (T24B8.2) deletion II; unc-119(ed3) III; ltIs37 [pAA64; pie-1/mCHERRY::his-58; unc-119 (+)] IV;ltIs75 [(pSK5) pie-1::GFP::TEV-STag::LacI +unc-119(+)].Penfield et al., 2020SBW79
Strain and strain background (C. elegans)C. elegans: Strain SBW83: npp-22(ndc1) (sbw4) V, 4 x outcrossedThis studySBW83Related to 
Figure 1B and C, 
Figure 1—figure supplement 1A-B
Strain and strain background (C. elegans)C. elegans: Strain SBW84: unc-119(ed3) III; bqSi242 [lem-2p::lem-2::mCherry +unc-119(+)] IV; ltIs75 [(pSK5) pie-1::GFP::TEV-STag::LacI +unc-119(+)].This studySBW84Related to Figure 2C and D
Strain and strain background (C. elegans)C. elegans: Strain SBW191: npp-19(tm2886) 6× outcrossedThis studySBW191Related to Figure 5B, Figure 5—figure supplement 1B
Strain and strain background (C. elegans)C. elegans: Strain SBW244: ndc1::mNeonGreen (sbw8)–4× outcrossedThis studySBW244Related to Figure 3E and Figure 3—figure supplement 1G
Strain and strain background (C. elegans)C. elegans: Strain SBW245: unc-119(ed3) III; ltIs37 [pAA64; pie-1/mCHERRY::his-58; unc-119 (+)] IV; ndc1::mNEON (sbw8)–4× outcrossedThis studySBW245Related to Figure 2—figure supplement 1B
Strain and strain background (C. elegans)C. elegans: Strain SBW252: unc-119(ed3) III; ltIs 76 [pAA178; pie-1/mCherry:SP-12; unc-119 (+)]; ndc1::mNEON (sbw8)–4× outcrossedThis studySBW252Related to Figure 2—figure supplement 1C
Strain and strain background (C. elegans)C. elegans: Strain SBW254:bqSi242 [lem-2p::lem-2::mCherry +unc-119(+)] IV.; ndc1::mNeonGreen (sbw8)–4× outcrossedThis studySBW254Related to Figure 2B
Strain and strain background (C. elegans)C. elegans: Strain SBW260: npp-19(tm2886) outcross 6 x; (unc-119(ed3)III; ltSi464[pNH103; Pmex-5::npp6::GFP::tbb-2:3'UTR; cb-unc-119(+)]I)This StudySBW260Related to Figure 5D
Strain and strain background (C. elegans)C. elegans: Strain SBW266: npp-19(tm2886) outcross 6 x; unc-119(ed3) III; ltIs37 [pAA64; pie-1/mCHERRY::his-58; unc-119 (+)] IV; ltIs75 [(pSK5) pie-1::GFP::TEV-STag::LacI +unc-119(+)].This StudySBW266Related to Figure 5C
Strain and strain background (C. elegans)C. elegans: Strain SBW293: (unc-119(ed3)III; ltSi464[pNH103; Pmex-5::npp6::GFP::tbb-2 3'UTR; cb-unc-119(+)]I) V; ndc1::mRuby (sbw14)–4 x outcrossedThis studySBW293Related to Figure 3—figure supplement 1C
Sequence-based reagentT3 primer for dsRNA targeting npp-22(ndc1) Forward: AATTAACCCTCACTAAAGGCCCGCCTCCATATACAGTTCThis StudyN/AUsed to generate dsRNA for RNAi knock down of ndc1
Sequence-based reagentT7 primer for dsRNA targeting npp-22(ndc1) Reverse: TAATACGACTCACTATAGGTGTCAATGGCTGCAATGAGTThis StudyN/AUsed to generate dsRNA for RNAi knock down of ndc1
Sequence-based reagentT3 primer for dsRNA targeting npp-7 (nup153) Forward: AATTAACCCTCACTAAAGGGTTCCTGCCACAATTCCAGTThis StudyN/AUsed to generate dsRNA for RNAi knock down of npp-7/nup153
Sequence-based reagentT7 primer for dsRNA targeting npp-7 (nup153) Reverse: TAATACGACTCACTATAGGCTTGTAGACGATGCAGCACCThis StudyN/AUsed to generate dsRNA for RNAi knock down of npp-7/nup153
Sequence-based reagentT3 primer for dsRNA targeting npp-19 (nup53) Forward: AATTAACCCTCACTAAAGGCACCACCTCTTCGATCTCTTCThis StudyN/AUsed to generate dsRNA for RNAi knock down of npp-19/nup53
Sequence-based reagentT7 primer for dsRNA targeting npp-19 (nup53) Reverse: TAATACGACTCACTATAGGTTTGTGCACTGAACGACTCCThis StudyN/AUsed to generate dsRNA for RNAi knock down of npp-19/nup53
Sequence-based reagentT7 primer for dsRNA targeting npp-8 (nup155) Forward: TAATACGACTCACTATAGGGATTTGGCGTTTTTCGACTCThis StudyN/AUsed to generate dsRNA for RNAi knock down of npp-8/nup155
Sequence-based reagentT7 primer for dsRNA targeting npp-8 (nup155) Reverse: TAATACGACTCACTATAGGCACGAAATCAAAGACCGGATThis StudyN/AUsed to generate dsRNA for RNAi knock down of npp-8/nup155
Sequence-based reagentT7 primer for dsRNA targeting npp-10 (nup96/98) Forward: TAATACGACTCACTATAGGAGTTCATTGTTCGGTGGAGGThis StudyN/AUsed to generate dsRNA for RNAi knock down of npp-10/nup96/98
Sequence-based reagentT7 primer for dsRNA targeting npp-10 (nup96/98) Reverse: TAATACGACTCACTATAGGATTGGAACCAAAAATGCTGCThis StudyN/AUsed to generate dsRNA for RNAi knock down of npp-10/nup96/98
Sequence-based reagentnpp-22/ndc1 (B0240.4) start of gene CRISPR guide: AGTGAATTAGAGTTCCAAACThis StudyN/ARelated to Figure 1—figure supplement 1A
Sequence-based reagentnpp-22/ndc1 (B0240.4) end of gene CRISPR guide: AGGAACACTCACGAACCATTThis StudyN/ARelated to Figure 1—figure supplement 1A
Sequence-based reagentnpp-22/ndc1 quantitative PCR (qPCR) primer forward: AGCTGTTTCCTTGCCTTGTGThis StudyN/ARelated to Figure 1—figure supplement 1B
Sequence-based reagentnpp-22/ndc1 qPCR primer reverse: TCTTGGCATCAGGAGAGCATThis StudyN/ARelated to Figure 1—figure supplement 1B
Sequence-based reagentpmp-3 (house-keeping gene) qPCR primer forward: GGTCATCGGTATTCGCTGAAChauve et al., 2021N/A
Sequence-based reagentpmp-3 (house-keeping gene) qPCR primer reverse: GAGGCTGTGTCAATGTCGTGChauve et al., 2021N/A
Recombinant DNA reagentPlasmid: PDD122, CRISPR-Cas9Hastie et al., 2019N/A
Recombinant DNA reagentPlasmid: pSB446; CRISPR npp-22/ndc1 guide inserted using gibson-assemblyThis StudyN/ARelated to Figure 2—figure supplement 1A
Recombinant DNA reagentPlasmid: pBS-LL-mNGHastie et al., 2019N/A
Recombinant DNA reagentPlasmid: pSB448; 1 kb homology arms of npp-22/ndc1 C-term inserted into pBS-LL-mNG using gibson-assemblyThis StudyN/ARelated to Figure 2—figure supplement 1A
Recombinant DNA reagentPlasmid: LL-mRubyThis StudyN/A Related to Figure 2—figure supplement 1A
Recombinant DNA reagentPlasmid: pSB603; 1 kb homology arms of npp-22/ndc1 C-term inserted into LL-mRuby using gibson-assemblyThis StudyN/ARelated to Figure 2—figure supplement 1A
Software and algorithmFIJI (ImageJ)NIHhttps://imagej.net/Fiji RRID: SCR_002285
Software and algorithmIMOD Version 4.11University of Coloradohttps://bio3d.colorado.edu/imod/
Software and algorithmGraphPad Prism 8/9GraphPadN/A
Software and algorithmR Studio Version 1.2.5033R Studio, INChttps://www.rstudio.com
Software and algorithmMATLABMathWorks, INChttps://www.mathworks.com/products/matlab.html
Software and algorithmCytoShowCytoShowhttp://www.cytoshow.org/

RNA interference

Request a detailed protocol

Primers were designed to amplify a 200–1000 bp region within a gene of interest, see key resource table for list of primers used. Primers were designed to amplify from within a single exon whenever possible. N2 gDNA or cDNA was used as a template for PCR, which in turn was purified and used in T3/T7 reverse transcription reactions (MEGAscript, Life Technologies). The synthesized RNAs were purified using phenol-chloroform and resuspended in 1× soaking buffer (32.7 mM Na2HPO4, 16.5 mM KH2PO4, 6.3 mM NaCl, and 14.2 mM NH4Cl). RNA reactions were annealed at 68°C for 10 min followed by 37°C for 30 min. dsRNAs were brought to a final concentration of ~2000 ng/μl whenever possible, and 2 μl aliquots of the dsRNA were stored until use at –80°C. For each experiment, prior to injection, a fresh aliquot was diluted to ~1000 ng/μl and centrifuged at 13,000 rpm for 30 min at 4°C. 0.35 μl of the diluted dsRNA was loaded into the back of hand pulled capillary needles and injected into the gut of L4 worms. Worms were rescued to plates seeded with OP-50 and allowed to recover for ~24 hr prior to imaging or lethality analysis.

Lethality quantifications

Request a detailed protocol

L4 worms were injected with indicated dsRNA and allowed to recover for 24 hr at 20°C. 24 hr post-injection worms were then singled out and allowed to self-fertilize for an additional 24 hr. Worms were transferred to another plate for a final 24 hr, then disposed of. Plates corresponding to 24–48 hr and 48–72 hr post-injection were then scored for hatched larvae and unhatched embryos. Prior to counting, embryos were given 24 hr to hatch. The total number of embryos and larvae were combined for each time window to calculate embryonic lethality and brood size. A similar approach was used for non-injected control worms and worms containing deletion alleles.

Immunoblots

Generation of whole worm lysate

Request a detailed protocol

For a given condition, a microcentrifuge tube was filled with 30 μl of M9 Buffer, and the fill line was marked with a black marker. For each condition, 35 adult worms were then placed in the microcentrifuge tube and washed three times with M9+0.1% Triton. After the final wash, tubes were brought up to a final volume of 30 μl. Then, 10 μl of 4× sample buffer was added and the tubes were mixed. The samples were then sonicated at 70°C for 15 min, followed by incubation for 5 min at 95°C. Samples were re-sonicated at 70°C for an additional 15 min. Worm lysates were stored at –20°C until they were run on an SDS-PAGE protein gel.

Protein gel electrophoresis and antibody probing

Request a detailed protocol

For all protein gels, homemade 8–10% SDS-PAGE were used (blot in Figure 3—figure supplement 2D was a 3–8% Bio-Rad Tris-Acetate gel). Worm lysates were re-boiled at 95°C for 5 min, and then 20 μl (~17.5 worms) were loaded into each lane. The protein gel was then run at 80 V for 15 min to fully collapse samples. The protein gel was then run at 120 V for approximately 90 min, or until the sample buffer reached the bottom of the gel. Protein samples were then transferred overnight (16 hr at 4°C) to an nitrocellulose membrane at 100 mA. Membranes were blocked in fresh 5% milk in TBST for 1 hr at room temperature; membranes were then cut based on size and incubated overnight with the following primary antibodies: 1 μg/mL mouse α-alpha-tubulin (EMD Millipore), 1 μg/mL mouse mAb414 (Biolegend), rabbit α-NPP-5/Nup107 (1:300), rabbit α-NPP-10N/Nup98 (1:500), rabbit α-NPP-10C/Nup96 (1:500), and rabbit α-NPP-19/Nup53 (1:1000) rabbit α-Ima-3 (1:400).

Membranes were then rinsed three times quickly with TBST followed by four 5-min washes. Membranes were then incubated with appropriate secondary antibodies for 1 hr at room temperature. Secondary antibodies were diluted 1:5000 for horseradish peroxidase (HRP)-conjugated goat-anti-rabbit and 1:7000 for HRP-conjugated goat-anti-mouse (Thermo Fischer Scientific). Membranes were rinsed and washed as described above. Prior to image acquisition, membranes were incubated with Clarity Max Western ECL Substrate (BIO-RAD) for 4 min and then excess reagent was removed.

Immunofluorescence

Slide preparation

Request a detailed protocol

Microscope slides (Fisher Scientific Premium Microscope Slides Superfrost) were coated with 0.1% polylysine and dried on a low temperature heat block. Slides were then baked at 95°C for 30 min. Slides were used the same day that they were baked.

Fixation and primary antibody incubation

Request a detailed protocol

A range of 15–20 adult worms were picked into a 4 μl drop of ddH2O and covered with a standard 18 × 18 mm coverslip. Embryos were pushed out of the adult worms by pressing down on the corners of the coverslip with a pipet tip. To crack the eggshell and permeabilize the embryos, slides were placed in liquid nitrogen for ~5 min. Coverslips were quickly removed by using a razor blade to pop off the coverslip. Slides were then fixed in pre-chilled 100% methanol at –20°C for 20 min. Following fixation slides were washed two times in 1× PBS + 0.2% Tween 20 (PBST) at room temperature for 10 min each. After the second wash, samples were blocked with 50 µl of 1% BSA in PBST per slide in a humid chamber for 1 hr at 20°C. Slides were then incubated overnight at 4°C with primary antibodies diluted in PBST (45 μl per slide; rabbit α-LMN1, 1 μg/mL, mouse mAb414 2.5 μg/mL, rabbit α-NPP-5/Nup107 [1:300], rabbit α-NPP-19/Nup53 [1:300], and rabbit α-MEL-28/Elys [1:500]). For the immunofluorescence experiment in Figure 3—figure supplement 2C (mAb414 in control and ndc1Δ embryos) the above fixation protocol was amended to include a 15 min fixation at room temperature with 4% paraformaldehyde prior to the methanol fixation.

Secondary antibody incubation and DAPI +Hoechst staining

Request a detailed protocol

After overnight primary antibody incubation, slides were washed two times in (50 μl per slide) PBST at room temperature for 10 min each. Following the second wash, slides were incubated at 20°C for 1 hr in the dark with secondary antibodies diluted in PBST (45 μl per slide, anti-rabbit Cy3/Rhodamine, 1:200; anti-mouse FITC, 1:200; [Jackson Immunoresearch]). Slides were again washed two times in (50 μl per slide) PBST at room temperature for 10 min each in the dark. Samples were stained with 1 µg/mL Hoechst (diluted from a 1 mg/mL stock in H2O). Slides were washed two final times in (50 μl per slide) PBST at room temperature for 10 min each in the dark. Finally, mounting media (Molecular Probes ProLong Gold Antifade Reagent with DAPI) was added to each sample. Coverslips were gently placed onto the slides and adhered with clear nail polish. Slides were allowed to dry at 20°C and then stored at –20°C until they were imaged.

Image acquisition

Live microscopy

Request a detailed protocol

First, 2% agarose imaging pads were made using molten agarose (95°C) on a glass slide. Adult hermaphrodites were then dissected on glass slides, and the embryos were transferred to 2% agarose imaging pads using a mouth pipette at 20°C. Embryos were organized using an eyelash tool to group similar stage embryos. Images were acquired every 20 s. Five z-slices were taken for each time point with 2 μm steps. Images were acquired on an inverted Nikon Ti microscope equipped with a confocal scanner unit (CSU-XI, Yokogawa). Two solid state lasers (100 mW 488 nm and 50 mW 561 nm) were used in conjunction with a 60× objective lens (Å~1.4 NA Plan Apo). Images were recorded with a high-resolution ORCA R-3 Digital CCD Camera (Hamamatsu).

Fluorescence recovery after photobleaching

Request a detailed protocol

First, 2% agarose imaging pads were made using molten agarose (95°C) on a glass slide. Adult hermaphrodites were then dissected on glass slides, and two-cell stage embryos were transferred to 2% agarose imaging pads using a mouth pipette at 20°C. Embryos were organized using an eyelash tool to group similar stage embryos. A stimulation ROI was then drawn on a region of the NE of an AB nucleus (two-cell stage embryo). Three images were taken prior to stimulation/bleaching of the ROI by a 100 mW, 405 nm laser. Images were then acquired for the remainder of the cell cycle, until NE breakdown. Images were taken every 10 s with one z-slice taken per time point.

Fixed microscopy

Request a detailed protocol

Immunofluorescent images were acquired on an inverted Nikon Ti Eclipse microscope. This microscope was equipped with solid state 100 mW 405, 488, 514, 594, 561, 594, and 640 nm lasers, a Yokogawa CSU-W1 confocal scanner unit, a 60 × 1.4 NA Plan Apo objective lens, and a prime BSI sCMOS camera.

Microdevice imaging

Request a detailed protocol

Fabricated microdevices were initially cleaned with ddH2O and then filled with 0.75× egg salts (Carvalho et al., 2011). Three worms were placed in the microdevice and dissected to release early embryos. One-cell stage embryos were pushed into the imaging wells using an eyelash tool. Embryos floated to the bottom of the well and then were imaged every 10 s with 11 slices taken at 2 μm steps. Related to Figure 5A–E.

diSPIM imaging

Request a detailed protocol

Data related to Figure 4A and B and Figure 4—video 1 were collected using dual-view inverted light sheet microscopy (diSPIM; Kumar et al., 2014). Embryos were imaged in 0.75× egg salts and images were acquired every 20 s with a Z step of.5 μm. Two 40×, 0.8 NA, water dipping objectives were used in conjunction with a 50 mW, 488 nm laser (Newport, PC14584) and a Hamamatsu Flash 4.0 sCMOS camera. The two image stacks were deconvolved using CytoShow (CytoSHOW can be downloaded from http://www.cytoshow.org/) and yielded images with isotropic resolution (0.1625 μm in X, Y, and Z).

Quantitative PCR (qPCR)

Request a detailed protocol

For each strain (10–15 medium plates) unsynchronized populations of adult worms were washed with 1× M9 buffer into 15 mL conical tubes. Worms were washed with 5 mL of M9, three times. After the final wash, the buffer was removed from the worm pellet and the samples were frozen at –80°C. Next an approximate 100 µl worm pellet was ground using a motorized micro pestle. 1 mL of Trizol was then added to the ground worm pellet, and the mixture was vortexed for 15 min at room temperature. Following vortexing, 200 µl of chloroform was added to the sample. The trizol-chloroform mixture was then briefly vortexed (15 s) followed by an incubation at room temperature for 5 min. Next the solution was spun for 15 min at 4°C (12,000 rpm). To extract the total RNA, the upper aqueous layer was removed (approximately 500 µl) and transferred to a new microcentrifuge tube. 500 µl of isopropanol was added to the tube, and it was inverted six times.

To precipitate the RNA, the solution was incubated at room temperature for 10 min followed by a 10 min spin 4°C (12,000 rpm). The supernatant was discarded, and the pellet was washed in 1 mL of 75% ethanol by inverting once and vortexing for 10 s. To pellet the RNA, the solution was spun for 5 min at 4°C (7500 rpm), the supernatant was removed, and the pellet was air-dried at room temperature for 5 min. The pellet was resuspended in 87 µl of RNase-free water and incubated at 37°C for 15 min. After incubation, the isolated RNA was mixed with 10 µl NEB Buffer 4, 1 µl of 50 µM CaCl2, and 2 µl Ambion Turbo DNase and incubated at room temperature for 15 min. The RNA/DNase reaction was cleaned with a phenol-chloroform extraction and eluted in 20 µl of RNase-free water. 500 ng of total RNA was reverse transcribed using Invitrogen Super-Script II Reverse Transcriptase kit. The cDNA was stored at –20°C.

For qPCR reactions, cDNA (~1200 ng/μl) was diluted fivefold and prepared for amplification using a BioRad SYBR Green Supermix Kit with the primers for nucleoporin genes listed in key resource table as well as pmp-3 primers from Chauve et al., 2021. For each biological replicate (two wild type and two ndc1Δ), four technical replicates were performed. Reactions were loaded into a 384-well plate for amplification. The reactions were amplified, and Ct values were measured using a BioRad CFX 384 qPCR machine. An annealing temperature of 55°C was used for all genes. After amplification, Ct values for each nucleoporin gene were normalized to hxk-2, and the fold change relative to the control was calculated using the 2–(ΔΔCt) method (BioRad).

Transmission electron microscopy

Sample preparation

Request a detailed protocol

Wild-type N2 and SBW83 C. elegans hermaphrodites were dissected in M9 buffer, and single embryos early in mitosis were selected and transferred to cellulose capillary tubes (Leica Microsystems, Vienna, Austria) with an inner diameter of 200 μm. The embryos were observed with a stereomicroscope until cleavage furrow ingression in late anaphase and then immediately cryo-immobilized using a LEICA ICE high-pressure freezer (Leica Microsystems, Vienna, Austria). Freeze substitution was performed over 3 days at –90°C in anhydrous acetone containing 1% OsO4 and 0.1% uranyl acetate using an automatic freeze substitution machine (EM AFS, Leica Microsystems, Vienna, Austria). Epon/Araldite infiltrated samples were flat embedded in a thin layer of resin, polymerized for 2 days at 60°C, and selected by light microscopy for re-mounting on dummy blocks. Serial semi-thick sections (200 nm) were cut using an Leica Ultracut S Microtome (Leica Microsystems, Vienna, Austria). Sections were collected on Pioloform-coated copper slot grids and post-stained with 2% uranyl acetate in 70% methanol followed by Reynold’s lead citrate.

Data acquisition by electron tomography

Request a detailed protocol

Colloidal gold particles (15 nm; Sigma-Aldrich) were attached to both sides of semi-thick sections collected on copper slot grids to serve as fiducial markers for subsequent image alignment. For dual-axis electron tomography, series of tilted views were recorded using an F20 electron microscopy (Thermo-Fisher, formerly FEI) operating at 200 kV at magnifications ranging from 5000× to 6500× and recorded on a Gatan US4000 (4000 px × 4000 px) CCD or a Teitz TVIPS XF416 camera. Images were captured every 1.0° over a ±60° range.

3D reconstruction and automatic segmentation of MTs

Request a detailed protocol

We used the IMOD software package (http://bio3d.colourado.edu/imod), which contains all of the programs needed for calculating electron tomograms. For image processing the tilted views were aligned using the positions of the colloidal gold particles as fiducial markers. Tomograms were computed for each tilt axis using the R-weighted back-projection algorithm.

NE and NPC segmentation and measurement

Request a detailed protocol

The IMOD software package was used to segment the NE and NPCs in control and ndc1Δ tomograms. Regions of continuous nuclear membranes were traced in the ‘non-core’ region of the reforming NE. Three criteria were used to distinguish nascent NPCs from simple NE holes: (1) the gaps between the two membrane edges were less than 100 nm, (2) the two membrane edges tapered to a point suggesting there was fusion of the inner and outer NE, and (3) there were stretches of continuous membranes above and below the gap. To calculate the density of ‘NPC’ holes during NE reformation, we segmented and quantified four areas from a single control embryo (0.14 μm2, 0.08 μm2, 0.05 μm2, and 0.04 μm2) and four areas from a single ndc1Δ embryo (0.22 μm2, 0.19 μm2, 0.18 μm2, and 0.17 μm2). To calculate the density of ‘NPC’ holes during interphase, we segmented and quantified six regions (1.52 μm2,1.20 μm2, 0.99 μm2, 0.95 μm2, 0.31 μm2, and 0.19 μm2) from two different control nuclei and nine regions (1.03 μm2, 1.02 μm2, 0.87 μm2, 0.65 μm2, 0.58 μm2, 0.55 μm2, 0.52 μm2, 0.41 μm2, and 0.23 μm2) from ndc1Δ nuclei.

Quantification and statistical analysis

Image analysis

Request a detailed protocol
Nuclear import analysis
Request a detailed protocol

To determine the fluorescence intensity of NLS-LacI::GFP inside the nucleus of one- and two-cell stage embryos, the chromatin was traced with either the freehand or circle tool in FIJI. Camera background was determined by drawing a 50 × 50 pixel box in vacant areas of the video. Average cytoplasmic values were determined by drawing a 20 × 20 pixel box inside the embryo. The nuclear to cytoplasmic ratio was determined by subtracting the average camera background from each value and then the nuclear value was divided by the cytoplasmic value. To account for differences in nuclear size, this ratio was then multiplied by the nuclear area. This process was repeated for each time point and condition.

Line scan analysis of two-cell stage embryos
Request a detailed protocol

A three-pixel wide by 10 micron long line was drawn and centered on the nucleus to determine the fluorescence intensity. The line was then redrawn perpendicular to the first and a second measurement was taken. The values from these two lines were then averaged to give the fluorescence intensity of the NE. The average value of the first and last two points of each line was used to subtract background from the rest of the line. These values were then plotted against the relative position along the line.

Line scan analysis of immunofluorescent images
Request a detailed protocol

A three-pixel wide by five-micron long line was drawn and centered on the NE. The line was then redrawn perpendicular to the first and a second measurement was taken. The values from these two lines were then averaged to give the fluorescence intensity of the NE. The same line scan was relocated to a clear area of the video to get the average intensity for camera background. Finally, to account for wide differences in fluorescence intensity, the data was normalized by dividing each value by the maximum fluorescence intensity. The final fluorescence intensities were then plotted against the relative position along the line. Additionally, the normalized value at the NE was divided by the first five values on the line to determine the NE:cytoplasmic ratio or by the last five values to determine the NE:nucleoplasmic ratio.

Quantification of Nup160:GFP puncta and colocalization with Ndc1:mRuby
Request a detailed protocol

To determine the number of NPPGFP puncta/aggregates in the cytoplasm of one-cell stage embryos, maximum projections were generated using FIJI. The puncta were then tracked using the TrackMate plugin in FIJI (Tinevez et al., 2017). This process was repeated to determine the number of puncta in ndc1 and npp-7 RNAi-depleted embryos. To determine the colocalization between the Nup160:GFP puncta and Ndc1:mRuby puncta, three-pixel wide line scans were drawn in each channel and plots were overlayed.

FRAP analysis
Request a detailed protocol

To evaluate the amount of recovery for Nup160:GFP and Ndc1:mNG, a rectangular ROI was used to measure the average fluorescence intensity of the NE before and after photobleaching. These values were normalized to the pre-bleach frame and graphed relative to bleaching. To calculate the mobile/immobile fraction as well as the T1/2, the data was fit to the exponential equation f(t)=A×(1−exp[−tau×time]). To obtain the best fit, the parameters were fitted to the data using non-linear least squares in R-studio.

Pronuclear diameter measurement using MATLAB
Request a detailed protocol

Images captured on the Nikon spinning disc confocal microscope were converted into maximum projections with FIJI. Videos were saved as image sequences (.jpg) and read by the MATLAB script. Paternal pronuclei were segmented using a fluorescent threshold to transform the images into binary. Nuclear diameter was calculated using the MALTAB function ‘regionprops’ for each time frame. The surface area (formula) and volume (4/3×pi×r^3) were calculated using the radius for the paternal pronucleus.

Pronuclear volume calculation using MATLAB
Request a detailed protocol

Images captured on the diSPIM microscope were deconvolved using CytoShow to generate videos with isotropic resolution. The paternal pronucleus were then cropped in a 75 × 75 pixel box. For each time point and z-slice, the nuclear rim was tracked using the jFilament plugin in FIJI, and the coordinates of the ROI snake were saved. A folder containing the relevant data was read by MATLAB. For each nuclear slice, the geometric coordinates were used to calculate the polygonal area, which was then multiplied by 0.1625 μm (thickness of z-slice). The sum of these slices corresponded to the volume of the paternal pronucleus. For each time point, the widest slice of the nucleus was used to calculate the theoretical nuclear volume. This theoretical volume was then compared to the calculated volume to determine how spherical the pronuclei were. This analysis was performed for wild-type and cnep-1Δ embryos, and in both cases, the calculated values fell within 10% of the theoretical volume.

Statistical analysis

Request a detailed protocol

All data points are reported in graphs and error bar types are noted in figure legends. Statistical analysis was performed on datasets with multiple samples and independent biological repeats. The type of test used, sample sizes, and p values are reported in figure legends or in text (p<0.05 defined as significant). Statistical tests were performed using GraphPad Prism.

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files. Source data files have been included for all plots that contained multiple data points. EM tomograms have been submitted to Dryad https://doi.org/10.5061/dryad.kprr4xh6h.

The following data sets were generated

References

    1. Hetzer MW
    (2010) The nuclear envelope
    Cold Spring Harbor Perspectives in Biology 2:a000539.
    https://doi.org/10.1101/cshperspect.a000539
    1. Oegema K
    2. Hyman AA
    (2006) Cell division
    WormBook: The Online Review of C. Elegans Biology 1:1–40.
    https://doi.org/10.1895/wormbook.1.72.1

Decision letter

  1. Vivek Malhotra
    Senior and Reviewing Editor; The Barcelona Institute of Science and Technology, Spain

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

[Editors' note: this paper was reviewed by Review Commons.]

https://doi.org/10.7554/eLife.75513.sa1

Author response

Reviewer 1:

Overall, this manuscript presents interesting and high quality data. However, there are several issues that the authors need to address prior to publication. Most importantly, some of the data presented appear contradictory, namely the decrease of different Nups at the NE upon Ndc1 RNAi and the unchanged mAb414 signal are not in line with the observed decrease in pore number. This should be discussed/studied in more detail. In addition, some important quantifications and controls are missing as specified below.

Specific comments:

1. Lines 111 and 121 and 179 and 200: better say "import" instead of "transport" (since export has not been formally addressed).

We have now changed the text throughout to indicate import rather than transport.

2. Line 130: "ndc1delta embryos contained small pronuclei (Figure 1B) there were similar in size to those RNAi-depleted for ndc1 (FigureS1C)". Quantifications are missing. Only the ndc1 RNAi pronuclei diameter is measured (Figure 1G), it would be good to have the size of the ndc1delta as well since this C. elegans strain is used throughout the paper and considered together with the Ndc1 RNAi embryo results to draw conclusions.

Analysis of the paternal pronuclear size of fixed one-cell stage embryos for control and ndc1 deleted embryos is now shown in new panel in Figure 1—figure supplement 1C. Note that this analysis had to be done on fixed one-cell stage embryos and so they represent a range of pronuclear diameters as compared to nuclear diameter measurements at a single time point in living embryos in Figure 1G. Overall, this analysis shows that pronuclei in both ndc1D and ndc1 RNAi-depletion are significantly smaller than pronuclei in control embryos.

3. Line 136: there are no quantifications of the difference in embryo sizes of Ndc1delta worms, and they do not always appear smaller throughout the figures of the paper (although the authors claim this in figure 1).

The reviewer is correct that the size of one-cell stage embryos is variable in the ndc1D worms. We now include measurements in fixed control and ndc1D one-cell stage embryos to provide a clearer representation of the range of embryo lengths we observe (see new lines #147-148).

4. Line 150: "pseudocleavage" à PC acronym is missing, which is used throughout the paper

We thank the reviewer for catching this omission and we have fixed the manuscript text. We have now indicated the acronym after the first use of the word “pseudocleavage” (new line #165) and use PC regression throughout to be consistent with the rest of the text.

5. The videos play back fast and slower speed would help.

Where appropriate, we have slowed the videos (see new Videos 1-4, 10, and 11), as suggested by the reviewer.

6. Line 165: "suggesting a role for Ndc1 is establishment of nuclear transport after mitosis (Anderson et al. 2009)." Typo.

We have omitted this sentence.

7. Figure 1F: Nice that the author show it so clearly but it is redundant and could go to supplementary material.

We have moved this Figure panel to new Figure 1-supplement 1H.

8. Line 172: "Ndc1en:mNG also localizes to the ER as well as punctate structures throughout the cytoplasm". These structures seem asymmetrically distributed. Are they coming from the mother cell, as it was shown for RanBP2 granules in Drosophila embryos (Hampoelz et al. 2019)? Do these Ndc1 granules colocalize with RanBP2 or other Nups? While this would add to the manuscript, in our opinion it is not strictly required for publication.

While we do agree that pursuing this line of research would likely yield interesting results, this would require the generation of strains and so we prefer to address these questions in a future study. We do provide some more direct interpretations of these puncta in relation to the role of Ndc1 in NPC assembly in the Discussion line #380-392.

9. Figure 2E: why does it decrease at the end?

We now clarify that the decrease signal in the nuclear NLS:GFP reporter at the end of this time course is because the embryo has entered mitosis, which triggers permeabilization of the nuclear envelope resulting in equilibration of the nuclear and cytoplasmic components. See new line #204-206.

10. Figure 2G: redundant information to Figure 2E, could be moved to supplementary material.

This panel has been moved to the supplement as the reviewer has suggested (see new Figure 2—figure supplement 1F). To avoid further redundancy, we also removed part of the previous Figure S2E, which showed the individual normalized traces for the entire time course, and only show the first 300s of the graph that represent the shift in onset of nuclear import.

11. The authors state that it was previously shown that Ndc1 delays NE reformation thus delaying the nuclear import at the end of mitosis (Anderson et al. 2009). But this is not the case here, since NE reformation seems to occur at the same time as in the control. This should be commented on and the differences should be discussed.

We have added these comments and the differences in the new Discussion pg. 17, lines 407-415. Additionally, we did not detect a difference in ER recruitment between wildtype and ndc1 RNAi-depleted embryos during NE formation (see Author response image 1).

Author response image 1

12. Is the decrease in NPC density in ndc1delta embryos maintained beyond telophase? The authors could measure it in later time points by electron tomograms (or better by super resolution microscopy) and count the number of NPCs per square micrometer. A decrease is expected given that the export delays persist in later time points. Furthermore, analyzing NPC density will be important to support the tomography data that suggest a decreased number of NPCs but given the unchanged mAb414 signal.

We have now resolved the issue of the unchanged mAB414 signal in new Figure 3-figure supplment 2C (see also Response to Editor#1 and Reviewer1 #18 and #19). Importantly, we performed EM tomography on fully formed nuclei from multiple prepared samples of both control and ndc1D embryos at later time points (see new Figure 3—figure supplement 1A and B and new Results text lines #2227-231).

13. Figure 2D: color code explanation is missing. Some statistics are necessary, not only measurements of single cells

We have now added a clear color code to the figure legend to clarify the analysis (see new line #485). We also provide average value and standard deviation for when GFP:NLS are first observed in the nucleus in ndc1 RNAi-depleted embryos as well as the sample size to the text (see Results lines #201).

14. Lines 227-230: "The fact that they colocalize with Ndc1 and do not form in ndc1 RNAi embryos, which also have lower levels of p160:GFP at the nuclear rim, suggested that Ndc1 may play a role in stabilizing scaffold components both in these cytoplasmic structures and in the NE." ALs have been suggested to play a role in the postmitotic NPC assembly and to contribute to the rapid repopulation of NEs with NPCs (Ren et al. 2019). Since the cytoplasmic Nup60 granules do not form in the absence of ndc1, it could be that a defect in this pathway contributes to the decrease in NPCs in late mitosis. Please discuss or address

Thank you for this reference and suggestion. We now address this in the new Discussion on pg. 16, lines 380-392.

15. Line 234: the authors claim that "each component is approximately 50% less enriched at the nuclear rim in the absence of Ndc1 (Figure 3D)". Unfortunately, it is not explained how this 50% is calculated. This should be properly quantified

We have updated the text as to provide an explanation for how the 50% lower fluorescence signal at the nuclear rim was quantified in the absence of Ndc1. (See new line #245-250).

16. Figure 3D and 3G: ndc1delta embryo does not seem to be smaller than the ctrl in contradiction to the claim in the line 136 as discussed above.

Please see Reviewer1 #3.

17. Figure S3H: since the authors claim that Ndc1 regulates NPC assembly (and does not regulate Nup protein levels) it would be important to check that Nup levels are not decreased, especially for the member of the Y complex ELYS (to make sure that postmitotic assembly is not being indirectly affected by Ndc1 through ELYS). Checking an importin would also be a nice control, to show that the effect on import is indeed due to decrease in NPC number

We would like to thank the reviewer for these suggestions. We now show that NPC number is lower in both the reforming nuclei (Figure 3A and 3B) and at later time points in fully formed nuclei (see new Figure 3—figure supplement 1A and B and new Results text line #227-231) indicating defects in NPC assembly result from loss of Ndc1. We now also show a reduction in mAB414-epitope containing nucleoporins signal in ndc1D embryos but overall levels are unchanged (see new Figure 3—figure supplement 2C and Reviewer1 #18 and #19) corroborating our results that there is a defect in NPC biogenesis without Ndc1. Based on the Reviewer’s suggestion, we added new data in new Figure 3—figure supplement 2F showing that the total protein levels of the main importin expressed in early embryos IMA-3 are unchanged between control and ndc1D worms further suggesting that the delay and reduced nuclear import is not due to reduced transport machinery. We were unable to reliably detect a band specifically corresponding to Elys after several attempts of using an endogenous antibody generously provided by Arshad Desai’s lab (Hattersley et al. 2016) as well as a GFP antibody in a strain expressing ELYS:GFP.

18. The quality of the mAb414 WB on FigureS4D is not good. We expect to see 4 bands (corresponding to C.e. Nup358, Nup214, Nup153 and Nup62). Please repeat WB with tris acetate gel and wet transfer to see high molecular size proteins and check levels.

We purchased a new mAB414 antibody from a different company that clarified these discrepancies. Using this new antibody, we address the issues raised by this Reviewer in several ways.

1. As suggested by the Reviewer, we used a 3 – 8% Tris-Acetate gel with wet transfer to run lysate prepared from C. elegans (see new Figure 3—figure supplement 2D) and mammalian cells (see Author response image 2). In lysates prepared from mammalian cells, we detected 4 prominent bands recognized by mAB414 antibodies at the predicted molecular weights for Nup358 (Ce npp-4), Nup214 (Ce npp-14), Nup153 (Ce npp-7) and Nup62 (Ce npp-11), which are 95 kDa, 148 kDa, 124 KDa, and 77 kDa, respectively, for the C. elegans proteins (see Author response image 2A). However, mAB414 antibodies recognized 3 protein species between 75 kDa and ~120 kDa in lysates prepared from C. elegans (see new Figure 3—figure supplement 2D and Author response image 2B and C). Thus, mAB414 detects distinct protein species in C. elegans, as has also been shown in Galy et al. 2003.

Author response image 2

2. Based on Galy et al. 2003, one of the C. elegans proteins recognized by mAB414 antibodies is Ce Nup98. We also show that the disappearance of the Nup98 protein species following RNAi-depletion and immunoblotting of worm lysates (see new Figure 3—figure supplement 2D) indicating that the mAB414 antibody is specific for at least Nup98 and likely other nucleoporins in C. elegans.

19. Line 241-243: "Immunostaining of control and ndc1 mutant worms with mAB414, a monoclonal antibody that recognizes FG-nucleoporins, did not show a consistent difference in fluorescence signal at the nuclear rim in early stage ndc1 mutant embryos (Figure S4C)". How do the authors explain this? If there are fewer NPCs, mAb414 signal should also be affected. It is critical that the authors address this point. Furthermore, figure S4C shows embryos in different (more advanced?) stages than the ones imaged throughout the rest of the paper. Would this potentially explain the mAb414 levels? Are the decreased in earlier time points? NPC density quantifications at later time points would be useful.

We have fixed this technical issue by using a new fixation protocol and the new mAB414 antibody (see Response to Editor #1 and Response to Reviewer1#18). We now show that the fluorescence signal of mAB414-epitope containing nucleoporins at the NE is reduced in ndc1D worms (see new Figure 3—figure supplement 2C). This result together with our results using EM tomography, antibodies against other nucleoporins, and fluorescent fusion proteins (see Figure 3, Figure 3—figure supplement 1 and 2) corroborates our overall conclusion that loss of ndc1 results in reduced NPCs at the nuclear rim.

20. Figure 3E: SUN1 has been shown to be associated with NPCs upon assembly during the interphasic pathway. Maybe worth to check if Ndc1 helps to stabilize NPC dynamics through interaction with the LINC complex? Maybe SUN1 recruitment to NE could be analyzed in presence and absence of Ndc1.

This is a very interesting idea, however, we believe this experiment is out of the scope of this manuscript because of the lack of characterization of the interphase NPC assembly pathway in early C. elegans embryos.

21. Line 275: "Live imaging of nup53tm2886 one-cell embryos revealed that sperm pronuclei expand and establish import (Figure 4C), similar to nup53 RNAi-depleted nuclei (Figure 1E-1G) but to a lesser extent than control and ndc1 RNAi-depleted embryos (Figure 1E-1G)". Not precisely correct, it should rather be: Live imaging of nup53tm2886 one-cell embryos revealed that sperm pronuclei establish import (Figure 4C), and pronuclear expansion is similar to nup53 RNAi-depleted nuclei and ndc1delta (Figure 1E-1G) but less than control and ndc1 RNAi-depleted embryos (Figure 1E-1G).

The text has been changed to clarify as the reviewer requested on new line #324.

22. Figure 4E and G: Why is the graph inverted graph compared to figure 1G. This is confusing.

We changed the graphs (see new Figure 5E and G).

23. Line 325: "The cytoplasmic puncta we observed with Ndc1 may represent annulate lamellae, specialized membranes in the ER that are prominent in embryos and serve to couple NPC assembly with NE formation (Hampoelz et al. 2016), or the holes in the ER containing pre-assembled nuclear pore scaffold components that serve to template post-mitotic NPC assembly (Chou et al. 2021)." Or cytoplasmic Nup condensates maternally given prior to AL formation (Hampoelz et al. 2019). Please include a discussion on the asymmetry of the granules and refer to the Hampoelz paper

We have now reference to the Hampoelz et al. 2019 paper in this context. See line #s 109-114 and in the Discussion line #374-385.

24. Line 337: Please add data and comment on the relevance if this NPC density defect is transitory or persists during the cell cycle and/or development.

We have re-written the Discussion in a way that incorporates our new data showing the lower NPC numbers persist throughout the cell cycle (see new Discussion pp. 16-17). See also Response to Reviewer1 #12 and Response to Reviewer 2 #2

Reviewer 2 Major Comments:

1. The observation that recruitment of the NUP107-NUP160 complex is strongly impaired in NDC1-depleted embryos is unexpected based on the Mansfeld study mentioned above ("The NE association of Nup107, a component of the Nup107-160 subcomplex essential for NPC biogenesis was slightly reduced"; Mansfeld et al., 2006). One explanation could be that the depletion of NDC1 is more efficient in C. elegans (known for its potent RNAi machinery). Alternatively, although many metazoans have three integral membrane nuclear pore proteins (NUP210, POM121, NDC1; as stated in line 69), POM121 seems to be absent in C. elegans. The Mansfeld study reported that cells co-depleted for POM121 and NDC1 had more severe phenotypes than the single depletions. Perhaps C. elegans NDC1 carry out the functions of both vertebrate proteins (POM121 and NDC1) and thus the depletion produces a stronger effect. Although this is speculative, I suggest the authors to discuss this – or at least mention in line 69 that POM121 is not detected in C. elegans.

We thank the reviewer for bringing this point to our attention. We agree that it is important to provide more information on POM121 and the fact that it is not detected in C. elegans may account for the differences we observe in these systems. We have now added new text to address this point in the new Introduction on p. 2-3, pg. 5 lines #118-123 and in the new Discussion on pp. 17 line #407-415.

2. The use of electron tomograms to evaluate NE formation is exciting. This is a powerful technique that to my knowledge has not been used before for this purpose in C. elegans embryos. However, more details on the analysis and more observations are needed. For instance, how big are the areas that were quantified? Are the areas (2) in control; 3 areas in ndc1(0) from a single embryo? Even if 2 control and 3 ndc1(0) embryos were used, these are very low numbers and carry a potential risk that the embryos are not perfectly staged. NE and NPC reformation is an extremely fast process in C. elegans embryos and small variations in fixation time could introduce a bias in the number of NPCs/holes in the tomograms.

We appreciate the reviewer seeing the novelty of this approach to evaluate NPC assembly upon nuclear reformation. Below we address your comments/suggestions:

i. How big are the areas that were quantified? Are the areas (2) in control; 3 areas in ndc1(0) from a single embryo? We quantified 4 areas from a single control embryo (0.14 mm2, 0.08 mm2, 0.05 mm2, and 0.04 mm2) and 4 areas from a single ndc1D embryo (0.22 mm2, 0.19 mm2, 0.18 mm2, and 0.17 mm2). We now clarify this in the main text and both in the Figure legend pg. 26 and in the Materials and methods pg. 49.

ii. We agree with the Reviewer’s concern regarding staging of embryos. We now provide data collected from tomographs of nuclei in two cell stage embryos increasing our sample size and the number of nuclei that we analyzed (see new text in Results line #227-231, new Figure 3—figure supplement 1A and B, and new Materials Methods pp. 49). These data reveal a consistent decrease in NPC density in fully formed nuclei corroborating our immunofluorescence and live imaging data (see Figure 3D, Figure 3—figure supplement 1E and F, Figure 3—figure supplement 2A and C) as well as the FRAP analysis of Nup160:GFP (see Figure 3F), reduced import rates and smaller nuclear size measurements (see Figure 1F and new Figure 4 and Figure 4—figure supplement 1). The addition of these data together with the addition of new Figure 4 provides evidence for a role for Ndc1 in NPC assembly during nuclear formation and expansion.

3. I'm concerned regarding the conclusion on Ndc1 mobility based on the FRAP assays presented. The nucleus in Figure 3G seems to grow in size during the course of the FRAP experiment. This growth presumably involves incorporation of ER membranes that might bring in new NPP-22 (not necessarily into NPCs; hence the difference with Nup106 in Figure 3E). The FRAP should be performed on fully grown nuclei although this will leave less time before the next cell division. Potentially could be performed in non-dividing cells. Because the authors state several times – including in the title – that Ndc1 is a dynamic protein, this is a critical point.

We thank this Reviewer for bringing up this critical point. The Reviewer is correct that the incorporation of new Ndc1::mNG-associated membrane could affect the dynamics of Ndc1 recovery that we report. The dynamics of Ndc1 no longer serves as a major point with the new addition of new Figure 4 and Figure 4—figure supplement 1 that focuses on membrane addition and NPC assembly via Ndc1. Nevertheless, we performed FRAP on oocyte nuclei and found that Ndc1:mNG is immobile in these NEs (see new Figure 3E). Thus, we removed the conclusion that Ndc1 is dynamic at the NE from the manuscript title and throughout the manuscript. We also moved the original data to the supplement (see new Figure 3—figure supplement 2G), and changed the Results text to read:

“It has been proposed that transmembrane nucleoporins serve as an anchor to immobilize the NPC in the NE. In nuclei that were expanding, we found that Ndc1en:mNG was highly mobile in the NE (Figure 3—figure supplement 2G and Video 12; average mobile fraction ± SD = 0.59 ±- 0.09, n = 7 embryos). This suggests that Ndc1en:mNG may dynamically associate with nascent NPCs. However, growth of nuclei could result in recovery of Ndc1en:mNG through feeding of a new pool of membrane-associated Ndc1 and so we tested the turnover of Ndc1en:mNG in the fully expanded nuclei of oocytes. Ndc1en:mNG turnover was slow in oocyte NEs indicating that Ndc1en:mNG was immobile in mature NPCs (Figure 3E; average mobile fraction ± SD = 0.22 ±- 0.2, n = 9 embryos). Thus, NDC1 may serve an anchoring role for mature NPCs.” (Results lines # 266-275)

We also address this in the Discussion lines #401-406, which now reads:

“Our data showing that Ndc1 may be dynamic in growing NEs supports recent data using metabolic labeling in budding yeast showed that Ndc1, unlike other transmembrane nucleoporins, is readily exchanged in the NPC (Hakhverdyan et al., 2021; Onischenko et al., 2020).. However, we also found Ndc1 is highly stable in fully formed nuclei suggesting it serves as an anchor to mature NPCs. Future mechanistic work is required to determine the mechanism by which Ndc1 drives NPC assembly.”

Minor comments:

4. Gene and protein names are not used consistently. For instance, in line 233, C. elegans protein names are added in superscript (Nup133NPP-15, etc.) but not when Nup160 is introduced the first time. In lines 156-157, C. elegans gene names are instead given in brackets. In Similarly, in the Key Resources table, the "official" WormBase name npp-22 is used, whereas ndc-1 is used several times in the text.

The text has been changed throughout the manuscript and in the key resource table.

5. Lines 44-45: "The NE compartmentalizes the genome…" Probably more correct to say that the NE compartmentalizes the cell.

We changed this sentence.

6. Line 264: "the Nup96/98 complex". Which complex(es) are the authors referring to? NUP96 is part of the Nup107-NUP160 complex but NUP98 isn't.

The reviewer is correct and this was our mistake. The text has been changed accordingly throughout.

Reviewer 3:

Major comments

The key conclusions are convincing and the experimental data of high quality. From my side no additional experiments are suggested. The experiments are sufficiently replicated and statistical analysis is adequate. The text and figures are clear and accurate and the story is easy to follow.

Minor comments:

1. Line 72: "there is relatively little is known" – please correct.

We thank the Reviewer for catching this textual typo. The text has been fixed.

2. Line 72: Given the amount of work done on NDC1, POM121, and NDC1 in metazoan the statement that relatively little is known about their organization and function: NDC1 and POM121 are involved in NPC assembly, GP210 in NPC breakdown and muscle differentiation, POM121 in prostate cancer progression to name just a few. It would be fair to mention at least some of the work done.

We agree with the reviewer and have significantly added to the introduction and Discussion to address this point. Please new Introduction on p. 2-3, pg. 5 lines #118-123 and in the new Discussion on pp. 17 line #409-415. Also see Response to Reviewer2 #1.

3. Line 84: Otsuka et al. do not show that Y-complex and IRC components associate with fenestrations in the ER during mitosis.

We thank the reviewer for catching this mistake. We have fixed this (see new lines # 107-108).

4. Line 85: I don't understand the flow of arguments. Why do the authors refer here to AL in Drosophila? How does this connect to the next sentence?

We now added a new topic sentence to this paragraph to help the logical flow (see new line #103).

5. Line 102f: "Prior work using…": the Sentence could be split to be grammatically correct.

We fixed this.

6. Line 112: "In line with these findings…": I find this result surprising (as the authors) but do not understand why this "in line with these findings".

We fixed this.

7. Line 120: The sentence is an overstatement: NDC1 could regulate establishment of nuclear transport also by other means, e.g. assembly of the IRC, which would be crucial for central channel FG-repeat nucleoporin assembly.

We agree with the Reviewer that Ndc1 could be acting through directly assembly of the IRC. However, although we do not understand the mechanistic connection, our FRAP analysis shows higher mobile fraction of GFP:Nup160 in the NE results from loss of Ndc1. Thus, we argue that our data shows a role for Ndc1 in stable incorporation of the outer ring scaffold. We have changed the sentence to read:

“Our data suggest that Ndc1 controls NPC density by promoting stable incorporation of outer ring scaffold components.”

8. Line 227 and line 327: Would be good to mention here that the Hampoelz et al. refer to Drosophila embryos.

We removed this sentence and reference Drosophila embryos in the context of Hampoelz paper.

9. Line 254: wrong citation , do you refer to Rabut et al. (PMID: 15502822)?

We thank the reviewer for catching the mistaken citation. We have now altered the text to correct the citation. See new line #280.

10. Line 264: I don't know a Nup96/98 complex. Do you mean Nup93?

This was a typo. We have changed this sentence completely and define the inner ring Nup93 complex in the first paragraph of the introduction.

11. Line 306: "We go on show" – please correct.

We removed this sentence.

12. Line 327: In my eyes, the cited work shows rather that ALs contribute to NE expansion, not formation.

We agree with the reviewer that the cited work most accurately reflects a role of AL’s in nuclear expansion not formation. We have changed the text throughout to reflect this change.

13. Figure Legend 4 E and G: error bars are SD?

We thank the reviewer for catching this omission. The reviewer is correct, the error bars are in fact standard deviation (SD). The text has been fixed in the figure legend to clarify that the error bars are SD.

Referee Cross-commenting

Reviewer 3: Reviewer 2 raises a very valid point about the FRAP analysis: As the mobility of NDC1 is a novel and in my eyes most interesting aspect of the manuscript it would be good to confirm these in non-dividing cells.

We found that Ndc1::mNG is indeed immobile in fully grown oocyte nuclei that are non-dividing (see new Figure 3E). We cannot exclude the possibility that the higher mobility pool of Ndc1::mNG in NEs of embryos is faster than at mature NPCs and so we removed the original data from the main figure and discuss the caveats of the experiment, as pointed out by Reviewer 2 (see also Response to Reviewer2 #3). We also have removed this point from the title, abstract and discussion.

As agreed to by the editors at eLife, we include a new Figure 4 and new Figure 4—figure supplement 1 that addresses the role of Ndc1-mediated NPC assembly and regulation of membrane biogenesis in nuclear reformation and size control. We believe that the addition of these data and the reframing of the manuscript with these new data increases the significance and impact of the manuscript’s findings.

Reviewer 3: Regarding the point raised by Reviewer 4, the connection between NPC numbers and nuclear size: In tissue culture cells, RNAi against nucleoporins often reduces nuclear sizes but I am not sure whether this has been systematically analyzed.

We now show that upregulated membrane biogenesis restores the small nuclear size resulting from loss of Ndc1, but does not restore NPCs or import rates (see new Figure 4 Figure 4—figure supplement 1, and Video 13). Furthermore, excess membranes do not restore small nuclear size resulting from loss of Nup53 or Nup153. These data suggest a potentially distinct role for Ndc1 in coupling NPC assembly to membrane incorporation and provide insight into the connection between NPC numbers and nuclear size.

Reviewer 4: Generally, the C. elegans NPC is not well-studied in the field, however, the surprising non-essential phenotype of the C. elegans NDC1 partial knock-out strain (tm1845) has been previously established by the Goerlich laboratory (Stavru et al. JCB 2006). Using primarily fluorescence microscopy experiments and various genetically modified C. elegans strains that build on these previous results, the authors confirm the previous non-lethal phenotype of the tm1845 strain and by electron microscopy analysis confirm the previous conclusion that the partial NDC1 knock-out yields nuclear envelopes with vastly reduced NPC numbers. Using CRISPR/CAS9, the authors generated a complete knock-out of the NDC1 coding region, demonstrating a more severe but still viable phenotype. I am unaware whether the reported small nuclei phenotype has been observed previously in other organisms, but I find the proposed NPC number to nuclear size connection interesting, but unfortunately this aspect of the manuscript is not well developed.

We have added new data (see new Figure 4, Figure 4—figure supplement 1, Video 13) in the revised manuscript demonstrating that the smaller nuclear size of ndc1 RNAi-depleted embryos can be rescued to near wild type levels by increasing membrane biogenesis. Importantly, increased membrane biogenesis restores nuclear size, but not reduced NPC levels or nuclear import rates resulting from loss of ndc1. Furthermore, increased membrane biogenesis does not rescue nuclear size in nup53 or nup153 RNAi-depleted embryos (new Figure 4J) suggesting that there is a distinct relationship between membrane incorporation and NPC assembly via Ndc1. Together, our data suggests that Ndc1 functions in parallel to Nup53 and membrane biogenesis to determine NPC density and nuclear size. This work goes well beyond the Stavru et al. paper on Ndc1 in C. elegans and provides an explanation for why Ndc1 is non-essential in worms.

Reviewer 4: The NPC schematics in Figure 4A does not represent the current state of knowledge. The authors should modify the location of the various analyzed proteins as reported in the cited reviews (Lin and Hoelz, Annu Rev Biochem 2019, Hampoelz, Andres-Pons, Kastritis, Beck, Annu Rev Biophysics, 2019). It would be useful for a reader outside of the field to show the location of all analyzed nups in this schematic and perhaps would be best included in Figure 1 (Y complex nucleoporins, Nup53, Nup153, and Ndc1).

We thank the reviewer for pointing out this error. We have altered the schematic to address this issue (see new Figure 5A).

https://doi.org/10.7554/eLife.75513.sa2

Article and author information

Author details

  1. Michael Sean Mauro

    Department of Molecular, Cellular and Developmental Biology, Yale University, New Haven, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7013-6139
  2. Gunta Celma

    Department of Molecular, Cellular and Developmental Biology, Yale University, New Haven, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  3. Vitaly Zimyanin

    1. Center for Membrane and Cell Physiology, University of Virginia, Charlottesville, United States
    2. Department of Molecular Physiology and Biological Physics, University of Virginia, School of Medicine, Charlottesville, United States
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  4. Magdalena M Magaj

    1. Center for Membrane and Cell Physiology, University of Virginia, Charlottesville, United States
    2. Department of Molecular Physiology and Biological Physics, University of Virginia, School of Medicine, Charlottesville, United States
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  5. Kimberley H Gibson

    Center for Cellular and Molecular Imaging: Electron Microscopy, Department of Cell Biology, Yale School of Medicine, New Haven, United States
    Contribution
    Data curation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8881-1411
  6. Stefanie Redemann

    1. Center for Membrane and Cell Physiology, University of Virginia, Charlottesville, United States
    2. Department of Molecular Physiology and Biological Physics, University of Virginia, School of Medicine, Charlottesville, United States
    3. Department of Cell Biology, University of Virginia, Charlottesville, United States
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2334-7309
  7. Shirin Bahmanyar

    Department of Molecular, Cellular and Developmental Biology, Yale University, New Haven, United States
    Contribution
    Conceptualization, Funding acquisition, Methodology, Project administration, Resources, Supervision, Writing - original draft, Writing - review and editing
    For correspondence
    shirin.bahmanyar@yale.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6583-5055

Funding

National Science Foundation (1846010)

  • Michael Sean Mauro
  • Gunta Celma
  • Shirin Bahmanyar

National Institutes of Health (T32GM007223-S1)

  • Michael Sean Mauro

National Institutes of Health (GM131004)

  • Shirin Bahmanyar

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Sarah Barger, Patrick Lusk, and Shoken Lee for helpful feedback on the manuscript and members of the Bahmanyar lab for helpful discussion. We thank Eric Hastie and Sarah Barger for help with cloning, the MBL Embryology course for insights into strain construction, and Jackson Gordon for help with FRAP analysis. We would like to thank Mark Moyle and Daniel Colón-Ramos (Yale School of Medicine) for help with the diSPIM imaging and 3D projections. We thank Peter Askjaer (Andalusian Center for Developmental Biology), Arshad Desai (Ludwig Institute for Cancer Research/UCSD), and Stephen Adam (Northwestern Feinberg School of Medicine) for generously sharing reagents and the Caenorhabditis Genetics Center and the Japanese knockout (KO) consortium for strains utilized in this study. This work was supported by an NSF CAREER Award to Shirin Bahmanyar (NSF CAREER 1846010), and NIH CMB Training Grant: T32GM007223-S1 to Michael Mauro.

Senior and Reviewing Editor

  1. Vivek Malhotra, The Barcelona Institute of Science and Technology, Spain

Version history

  1. Preprint posted: July 18, 2021 (view preprint)
  2. Received: November 13, 2021
  3. Accepted: June 15, 2022
  4. Version of Record published: July 19, 2022 (version 1)

Copyright

© 2022, Mauro et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,352
    Page views
  • 207
    Downloads
  • 8
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Michael Sean Mauro
  2. Gunta Celma
  3. Vitaly Zimyanin
  4. Magdalena M Magaj
  5. Kimberley H Gibson
  6. Stefanie Redemann
  7. Shirin Bahmanyar
(2022)
Ndc1 drives nuclear pore complex assembly independent of membrane biogenesis to promote nuclear formation and growth
eLife 11:e75513.
https://doi.org/10.7554/eLife.75513

Further reading

    1. Cell Biology
    2. Microbiology and Infectious Disease
    Juan Xiang, Chaoyang Fan ... Pei Xu
    Research Article Updated

    The relative positions of viral DNA genomes to the host intranuclear environment play critical roles in determining virus fate. Recent advances in the application of chromosome conformation capture-based sequencing analysis (3 C technologies) have revealed valuable aspects of the spatiotemporal interplay of viral genomes with host chromosomes. However, to elucidate the causal relationship between the subnuclear localization of viral genomes and the pathogenic outcome of an infection, manipulative tools are needed. Rapid repositioning of viral DNAs to specific subnuclear compartments amid infection is a powerful approach to synchronize and interrogate this dynamically changing process in space and time. Herein, we report an inducible CRISPR-based two-component platform that relocates extrachromosomal DNA pieces (5 kb to 170 kb) to the nuclear periphery in minutes (CRISPR-nuPin). Based on this strategy, investigations of herpes simplex virus 1 (HSV-1), a prototypical member of the human herpesvirus family, revealed unprecedently reported insights into the early intranuclear life of the pathogen: (I) Viral genomes tethered to the nuclear periphery upon entry, compared with those freely infecting the nucleus, were wrapped around histones with increased suppressive modifications and subjected to stronger transcriptional silencing and prominent growth inhibition. (II) Relocating HSV-1 genomes at 1 hr post infection significantly promoted the transcription of viral genes, termed an ‘Escaping’ effect. (III) Early accumulation of ICP0 was a sufficient but not necessary condition for ‘Escaping’. (IV) Subnuclear localization was only critical during early infection. Importantly, the CRISPR-nuPin tactic, in principle, is applicable to many other DNA viruses.

    1. Cell Biology
    Enrico Radaelli, Charles-Antoine Assenmacher ... Marco Spinazzi
    Research Article Updated

    Impaired spermatogenesis and male infertility are common manifestations associated with mitochondrial diseases, yet the underlying mechanisms linking these conditions remain elusive. In this study, we demonstrate that mice deficient for the mitochondrial intra-membrane rhomboid protease PARL, a recently reported model of the mitochondrial encephalopathy Leigh syndrome, develop early testicular atrophy caused by a complete arrest of spermatogenesis during meiotic prophase I, followed by degeneration and death of arrested spermatocytes. This process is independent of neurodegeneration. Interestingly, genetic modifications of PINK1, PGAM5, and TTC19 – three major substrates of PARL with important roles in mitochondrial homeostasis – fail to reproduce or modify this severe phenotype, indicating that the spermatogenic arrest arises from distinct molecular pathways. We further observed severe abnormalities in mitochondrial ultrastructure in PARL-deficient spermatocytes, along with prominent electron transfer chain defects, disrupted coenzyme Q (CoQ) biosynthesis, and metabolic rewiring. These mitochondrial defects are associated with a germ cell-specific decrease in GPX4 expression leading arrested spermatocytes to ferroptosis – a regulated cell death modality characterized by uncontrolled lipid peroxidation. Our results suggest that mitochondrial defects induced by PARL depletion act as an initiating trigger for ferroptosis in primary spermatocytes through simultaneous effects on GPX4 and CoQ – two major inhibitors of ferroptosis. These findings shed new light on the potential role of ferroptosis in the pathogenesis of mitochondrial diseases and male infertility warranting further investigation.
