Full spectrum flow cytometry reveals mesenchymal heterogeneity in first trimester placentae and phenotypic convergence in culture, providing insight into the origins of placental mesenchymal stromal cells

  1. Anna Leabourn Boss  Is a corresponding author
  2. Tanvi Damani
  3. Tayla J Wickman
  4. Larry W Chamley
  5. Joanna L James
  6. Anna ES Brooks
  1. Department of Obstetrics and Gynaecology, Faculty of Medical and Health Sciences, University of Auckland, New Zealand
  2. School of Biological Sciences, University of Auckland, New Zealand
  3. Maurice Wilkins Centre, University of Auckland, New Zealand

Abstract

Single-cell technologies (RNA-sequencing, flow cytometry) are critical tools to reveal how cell heterogeneity impacts developmental pathways. The placenta is a fetal exchange organ, containing a heterogeneous mix of mesenchymal cells (fibroblasts, myofibroblasts, perivascular, and progenitor cells). Placental mesenchymal stromal cells (pMSC) are also routinely isolated, for therapeutic and research purposes. However, our understanding of the diverse phenotypes of placental mesenchymal lineages, and their relationships remain unclear. We designed a 23-colour flow cytometry panel to assess mesenchymal heterogeneity in first-trimester human placentae. Four distinct mesenchymal subsets were identified; CD73+CD90+ mesenchymal cells, CD146+CD271+ perivascular cells, podoplanin+CD36+ stromal cells, and CD26+CD90+ myofibroblasts. CD73+CD90+ and podoplanin + CD36+ cells expressed markers consistent with cultured pMSCs, and were explored further. Despite their distinct ex-vivo phenotype, in culture CD73+CD90+ cells and podoplanin+CD36+ cells underwent phenotypic convergence, losing CD271 or CD36 expression respectively, and homogenously exhibiting a basic MSC phenotype (CD73+CD90+CD31-CD144-CD45-). However, some markers (CD26, CD146) were not impacted, or differentially impacted by culture in different populations. Comparisons of cultured phenotypes to pMSCs further suggested cultured pMSCs originate from podoplanin+CD36+ cells. This highlights the importance of detailed cell phenotyping to optimise therapeutic capacity, and ensure use of relevant cells in functional assays.

Editor's evaluation

Placental mesenchymal stromal cells (pMSCs) are of interest in therapeutic applications. These cells are typically generated by culturing cells isolated from the villous core of the placenta. However, the villous core is comprised of multiple cell types and the heterogeneity of these cells is often not considered. Consequently, the origin of pMSCs under commonly used culture conditions remains unclear. In the present study the authors have used sophisticated flow cytometry analysis to characterize the heterogeneity of subtypes in the placental villus core in the first trimester of gestation and present convincing data that a specific subpopulation identified likely corresponds to pMSCs in culture generated using standard isolation protocols. This study will be valuable to scientists investigating the use of placental mesenchymal stromal cells in a therapeutic context.

https://doi.org/10.7554/eLife.76622.sa0

Introduction

Mesenchymal stromal cells (MSCs) are a heterogeneous population of cells with secretory, immunomodulatory, and homing properties (Viswanathan et al., 2019). This population encompasses fibroblasts, myofibroblasts, pericytes, and tissue-specific progenitor populations. Traditionally researchers defined in vitro expanded MSCs by (1) plastic adherence, (2) expression of CD73, CD90, and CD105, lack of hematopoietic and endothelial marker expression (CD31, CD34, CD45, HLA-DR), and (3) the capacity to differentiate into adipocyte, chondrocyte and osteoblast lineages in vitro (Dominici et al., 2006). However, despite MSCs from different tissue sources (i.e. bone-marrow, adipose, umbilical cord, placenta) sharing expression of the minimal criteria antigens after in vitro culture, they functionally differ in a tissue-specific manner (Du et al., 2016b; Kozlowska et al., 2019). This has been more recently acknowledged in a refined ISCT position statement that requires the tissue origin of MSCs to be provided along with evidence for their in vitro and in vivo functionality (Viswanathan et al., 2019).

It has become clear that in vitro culture may have significant impact on MSC phenotype, meaning that cultured MSCs may have a different phenotype from their in vivo/freshly isolated counterparts. For example, prior to culture adipose-derived MSCs are CD34+, whilst in vitro culture induces the loss of CD34 expression (Lin et al., 2012). The MSC-associated marker CD271 is also lost with plastic culture (Brooks et al., 2020), and MSC αSMA expression can be heavily impacted by culture media (Boss et al., 2020). Thus, the culture conditions used to expand MSCs can mask their true in vivo phenotype and heterogeneity. Furthermore, in any set of culture conditions the most competitive stromal cells will thrive and take over the culture, whilst other functionally diverse cells may be diluted out or lost. Understanding the true in vivo phenotype, and optimising culture conditions to minimize phenotypic ‘drift’ in vitro may enable researchers to better take advantage of the tissue specific properties of MSCs, and enable more accurate study of their roles in vivo.

Placental MSCs (pMSCs) are routinely isolated from the core of placental villi and propagated in culture (Abumaree et al., 2013; Castrechini et al., 2010; Kusuma et al., 2018). The placenta is a highly vascularised organ that develops rapidly over gestation in order to act as the conduit for nutrient and gas exchange between mother and fetus. pMSCs have been reported to reside in a perivascular niche where they can influence vascular development and function (Castrechini et al., 2010). In line with this, cultured pMSCs have well established angiogenic and haematopoietic paracrine effects in vitro and in vivo (Chen et al., 2009; Du et al., 2016a). pMSCs are typically isolated by gross tissue culture methods (explant outgrowths or enzymatic digestion followed by plastic adherence), rather than by expression of specific cell surface markers (Abumaree et al., 2013; Pelekanos et al., 2016). However, using gross digestion techniques it is impossible to determine the niche in which pMSCs reside. Previous work has assumed that in vitro pMSC expression of CD146, a marker with established perivascular expression in vivo, provides evidence of perivascular origins (Castrechini et al., 2010). However, work with bone marrow MSCs suggest CD146 expression is a tissue culture artefact (Blocki et al., 2013), and chipcytometry has localised in vitro MSC markers CD73, CD105 and CD90 outside of the perivascular niche in term placentae (Consentius et al., 2018). Together this sheds doubt on the perivascular origins of pMSCs, and highlights the need to better characterise their ex vivo phenotype in order to understand their functional role in vivo.

Our understanding of mesenchymal heterogeneity is expanding exponentially, and advances in single-cell technologies have uncovered a wide spectrum of mesenchymal and endothelial phenotypes with specific functions and spatial distributions (Suryawanshi et al., 2018; Takeda et al., 2019; Vijay et al., 2019). Mesenchymal heterogeneity can be used to spatially localise cells, identify cells involved in morphogenesis, angiogenesis or quiescence, and characterise inflammatory, anti-inflammatory, or invasive phenotypes (Cimini and Kishore, 2021; Mezawa et al., 2019; Mezheyeuski et al., 2020; Nazari et al., 2016; Quintanilla et al., 2019). Dramatic advances in flow cytometry over the past few decades have enabled the simultaneous quantification of upwards of 30 antigens, allowing detection of in depth cell heterogeneity. Whilst initiated in the haematopoietic field, the wealth of data produced using multicolour flow cytometry has driven the use of this technique for analysis of other cell types, including the mesenchymal lineages. To date the largest panel used to assess mesenchymal cells (16-colours) was designed for analysis with conventional flow cytometry (Brooks et al., 2020). However, spectral flow cytometry has significant potential to further improve analysis of mesenchymal cells. The ability of spectral flow cytometry to measure a larger portion of the spectral signature of each fluorophore, and thus enable small differences between fluorophores to be discriminated, combined with the ability to remove autofluorescence (a prominent feature of mesenchymal cells) paves the way for assessing cells previously regarded as challenging for multicolour flow cytometry.

Here, we developed what to our knowledge is the largest multicolour spectral flow cytometry panel employed to date, in order to characterise the mesenchymal heterogeneity in first trimester placental tissue, and to ascertain the impact of in vitro MSC culture conditions on the subsequent phenotype of these populations.

Results

Design of a 23-colour flow cytometry panel to characterise the placental villous core

In order to investigate mesenchymal populations of the placental core a 23-colour flow cytometry panel (Panel One) was developed by starting from a 16-colour panel designed to investigate adipose-derived stromal vascular fraction on a conventional flow cytometer (BD FACS Aria II) (Brooks et al., 2020). The antigens included in this panel are based on the current literature surrounding the placenta, pMSCs, stromal/mesenchymal populations, endothelial progenitors and haematopoietic cells (Table 1).

Table 1
Antigens included in Panel One and their functional roles with respect to the villous core.

Antigens are grouped by cell type (grey and white boxes).

AntigenFull name/sFunctional capacity/relevanceReferences
ITGβ4/CD104β4 integrinCell adhesion molecule that uniquely identifies cytotrophoblasts in the placenta.James et al., 2015
CD45Protein tyrosine phosphatase, receptor type, C. lymphocyte common antigenExpressed on all nucleated haematopoietic cells.Hermiston et al., 2003
HLA-DRHuman Leukocyte Antigen – DR isotypeExpressed by antigen presenting cells i.e. macrophages, MHC class II cell surface receptor, involved in antigen presentation and adaptive immunity,Cruz-Tapias et al., 2013
CD235a/GPAGlycophorin ARed blood cell marker, identifies early emerging RBCs/erythroblasts from haemogenic endotheliumGarcia-Alegria et al., 2018; Mao et al., 2016
CD41Integrin alpha-IIbPlatelet marker. Expressed by earliest emerging haematopoietic cells from haemogenic endotheliumGarcia-Alegria et al., 2018; Li et al., 2005
CD117/cKITMast/stem cell growth factor receptorReceptor expressed on haematopoietic stem cells and involved in their differentiationRönnstrand, 2004
CD144 /VE-cadherinVascular endothelial cadherinEndothelial cell-cell adherens junctional marker, stabilises vessels, inhibits vascular growth, regulates vascular permeability.Giannotta et al., 2013
CD34Haematopoietic Progenitor Cell AntigenExpressed by haematopoietic and vascular progenitors and adipose-derived MSCs. Transmembrane phosphoglycoprotein, thought to identify early placental progenitorsBrooks et al., 2020; Sidney et al., 2014; Yoder, 2009
CD31/PECAM1Platelet endothelial cell adhesion moleculeExpressed by endothelial cells, platelets, macrophages and Kupffer cells, granulocytes, lymphocytes, megakaryocytes. Adhesion molecule found at endothelial intercellular junctions.Marelli-Berg et al., 2013
VEGFR2/KDRVascular Endothelial Growth Factor Receptor 2/Kinase Insert Domain ReceptorExpressed by endothelial cells and thought to identify placental core progenitors. Receptor for angiogenic VEGF, involved in vasculogenesis and angiogenesis.Demir et al., 2007
CD54/ICAM1Intercellular Adhesion Molecule 1Expressed at low levels on endothelial cells, monocytes and lymphocytes. Increased expression in response to inflammatory cytokines.Hubbard and Rothlein, 2000
CD36/FATPlatelet glycoprotein 4/fatty acid translocaseExpressed by microvascular endothelial cells, and fibroblasts. Has an anti-angiogenic effect via binding Thrombospondin 1. Involved in fatty acid uptake.Dye et al., 2001; Heinzelmann et al., 2018; Silverstein and Febbraio, 2009
CD90 /Thy-1Thymocyte differentiation antigen 1Expressed by MSCs, haematopoietic stem cells, fibroblasts, myofibroblasts.Viswanathan et al., 2019
CD73 /NT5E Ecto-5′-nucleotidaseExpressed by MSCs and endothelial cells. Works with CD39 to convert extracellular ATP to adenosine to create immunosuppressive effect.Roh et al., 2020; Viswanathan et al., 2019
CD39 /NTPDaseEctonucleoside triphosphate diphosphohydrolase-1Upregulated by MSCs to suppress lymphocyte activation. Immunosuppressive actions via the conversion of extracellular ATP (inflammatory) into adenosine (anti-inflammatory)Saldanha-Araujo et al., 2011; Zhao et al., 2017
CD55/DAFDecay-accelerating factorExpressed by MSCs. Complement regulatory protein, inhibits C3 convertases thereby creating a threshold for complement activation, increased expression correlated with evasion of innate immune systemRuiz-Argüelles and Llorente, 2007; Soland et al., 2013
CD271 /NGFR / p75NTRLow-affinity Nerve Growth Factor ReceptorUsed in MSC and pericyte identification. Hypothesised to identify “stem-cell” or progenitor populations with superior differentiation and colony forming capacity.Barilani et al., 2018; Kumar et al., 2017
CD146/MCAMMelanoma cell adhesion moleculeAdhesion molecule expressed by pericytes, endothelial cells and smooth muscle cells. Involved in the regulation of angiogenesis and vessel permeability.Crisan et al., 2009; Leroyer et al., 2019
CD248Endosialin/ tumor endothelial marker 1Pericyte and stromal cell marker. Involved in cell–cell adhesion, and host defence.Lax et al., 2010; Tomkowicz et al., 2010
CD142/TFTissue Factor/ thromboplastinExpression correlated with pericytes, smooth muscle and fibroblasts. Activates blood clotting after injury, located outside the vasculature,Abe et al., 1999; Morrissey, 2004
CD26/DDP4Dipeptidyl peptidase-4, adenosine deaminase complexing protein 2Expressed by many tissues; T-cells, epithelial cells, ESCs, progenitor cells, placental myofibroblasts. Serine protease that cleaves a range of chemokines. Downregulation is correlated with increased stromal/myofibroblast proliferation.Kohnen et al., 1996; Mezawa et al., 2019; Ou et al., 2013
PDPNPodoplaninLymphatic vascular marker. Expression is correlated with increased fibroblast migration. Binds to CLEC-2 receptor on platelets.Astarita et al., 2012; Suchanski et al., 2017

Placental explants were dissected from the villous tissue and enzymatically digested to obtain a single cell suspension for flow cytometry (Figure 6). To enable us to focus on the mesenchymal core cells of interest, we needed to exclude trophoblasts (epithelial cells found in a bilayer on the outer edge of placental villi), endothelial cells, and hematopoietic cells. Whilst the initial enzymatic digestion removed the outer syncytiotrophoblast layer, inclusion of the cytotrophoblast maker β4 integrin in Panel One ensured any potential contaminating cytotrophoblasts directly beneath this were also excluded from analysis (Table 1, Figure 1B and C). Endothelial cells were identified by expression of CD31 and CD144, specific expression of which is seen in blood vessels and early endothelial cell cords in first trimester placental villi (Figure 1E). The hematopoietic marker CD45 was used to exclude all cells of this lineage, while CD235a was used to identify and exclude red blood cells (Table 1). All remaining cells were considered to constitute the stromal fraction that makes up the mesenchymal core of the villi.

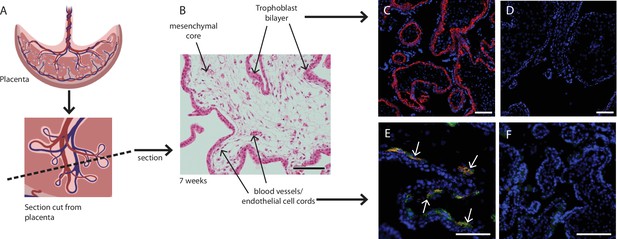

Placental villus structure and specificity of markers used to exclude unwanted cell populations.

(A) Placental villous morphology and plane of section, (B) haematoxylin and eosin staining of a thin section though a placental villus (7.1 weeks), localisation of (C) β4 integrin (red) to cytotrophoblasts and (E) CD144 (red) and CD31 (green) to blood vessels (white arrows) in placental villus sections confirmed antibody specificity. No fluorescence is seen in negative IgG controls (D, F) run simultaneously. Nuclei are counterstained with DAPI (blue). Scale bar = 100 µm. Rendered images in (A) have been acquired from Biorender.com.

Full spectrum flow cytometry uncovers heterogeneous mesenchymal populations in the core of first trimester placental villi

First trimester placental villous explants were enzymatically digested to obtain a single-cell suspension that was stained with a master mix for Panel One and analysed on a Cytek Aurora. Due to the complexity of data obtained from a 23 colour panel, unbiased high-dimensional clustering of the data was undertaken using viSNE (Cytobank). viSNE enables visualization of high-dimensional single-cell data and is based on the t-Distributed Stochastic Neighbour Embedding (t-SNE) algorithm (Amir et al., 2013). To run the algorithm, debris, doublets, dead cells, β4 integrin +cytotrophoblasts and CD45+/CD235a hematopoietic cells were excluded by manual gating, then an equal number of cells from each villous core digest was selected using down-sampling (n=5) (Figure 2). Combining viSNE with known population marker expression, five distinct subsets were uncovered (Figure 2). Endothelial cells co-expressed CD31 and CD34 (Subset One) and made up 3.9% ± 2.5% of villous core cells (Figure 3C and D). CD73+CD90+ mesenchymal cells (Subset Two) made up 6.8% ± 9.7% of villous core cells on average, but decreased in abundance with increasing gestational age within the first trimester (Figure 2C). This gestational difference was confirmed by the inclusion of data from 22 additional first trimester villous core digests, analysed using a smaller panel targeted at cell sorting but containing the markers required to identify this population (Figure 2D). Together this data showed that at <10 weeks of gestation CD73+CD90+ cells constituted 14.02+8.84% of villous core cells, but significantly decreased to 0.77+0.83% of villous core cells at ≥10 weeks of gestation (P<0.001, n=27, placentae = 7–13.1 weeks of gestation) (Figure 3C). Perivascular cells (Subset Three) were identified by their expression of CD146+CD271+, and constituted 10.3% ± 4.7% of villous core cells (Figure 3C). Subset Four made up the largest proportion of mesenchymal cells in the core (47.8+17.0%) and were identified by co-expression of podoplanin+CD36+ (Figure 3C). The remaining cells, expressing only the myofibroblast-associated markers CD26+CD90+, were classified as Subset Five and constituted 31.3% ± 12.6% of villous core cells. Subset Five were negative for all other markers investigated, suggesting they are more differentiated myofibroblast-like cells (Figure 3C).

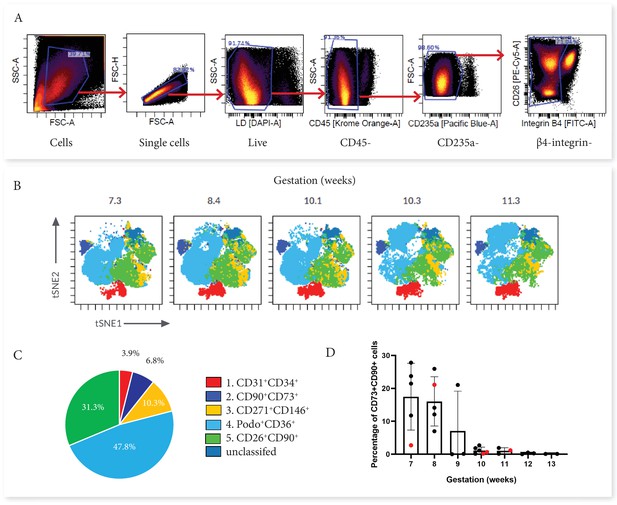

Categorisation of placental villus core subsets using Panel One markers.

(A) Samples were gated to exclude debris, doublets, dead cells, hematopoietic cells (CD45+ and CD235a+), and cytotrophoblasts (β4 integrin). (B) Marker expression was used to categorise five subsets that were overlaid onto viSNE plots generated in Cytobank. (C) The average percentage contribution of each subset is presented as a pie chart. (D) A scatter plot with bars depicting the mean percentage of CD73+CD90+ cells from villous core cells across first trimester analysed on an Aria II (n=24, black) or an Aurora spectral analyser (n=5, red). Error bars represent the standard deviation of the mean.

Phenotypic characterisation of villous core subsets.

(A) The gating strategy used to identify subsets (CD31+CD34+, CD73+CD90+, perivascular cells, podoplanin+CD36+ and CD26+CD90+), and (B) heat maps comparing the expression of specific antigens between subsets (n=5).

Mesenchymal subsets have distinct phenotypes indicating functionally diverse roles in the villus core

In order to consider what the different subsets functionally represent within the core of placental villi, we further interrogated their phenotype and proportional contribution to the villus core, with consideration to which subset phenotypes pMSCs may originate from. CD73+CD90+ cells (Subset Two) were the only villous population to co-express CD90 and CD73, both MSC-associated markers. This subset also expressed podoplanin (correlated with increased migratory capacity), low levels of CD142 (involved in blood coagulation [Morrissey, 2004]), and had heterogeneous expression of CD146 and CD271 (perivascular associated markers) (Figure 3B). A lack of CD26 (associated with myofibroblasts and cell proliferation) made this population distinct from the other perivascular and mesenchymal cell populations identified in the villous core using Panel One.

Perivascular cells (Subset Three), identified by expression of CD271 or CD146, did not co-express CD73, CD142 or podoplanin. However, they did express CD26 and CD90, and in line with this they co-localised with Subset Five (also CD26+CD90+) on the viSNE plot (Figure 3B). The phenotype of CD271+CD146+ cells was relatively conserved between placentae with some inter-placental variance in CD271, CD36 and CD90 expression (Figure 3B).

Subset Four was identified by expression of podoplanin and CD36, and co-expressed CD26, CD90, and CD142, but was negative for the MSC-associated marker CD73 (Figure 3B). As the largest population within the villous core and expressing proliferative/migratory associated markers (CD26, podoplanin [Suchanski et al., 2017]) this subset was considered the most likely in vivo candidate to contribute to pMSCs that are derived in explant derived cultures.

Phenotypically divergent mesenchymal stromal cell populations converge after in vitro culture

In order to investigate the origins of in vitro cultured pMSCs in relation to the subsets identified with Panel One we used fluorescence activated cell sorting (FACS) to isolate subsets of interest from first trimester villous digests and assessed their phenotype in relation to cultured pMSCs obtained using an explant outgrowth method. Here we focussed on two ex vivo cell populations; CD73+CD90+ cells (Subset Two) as the only population to phenotypically align with the ISCT marker criteria for MSCs (Dominici et al., 2006), and podoplanin+CD36+ cells (Subset Four), which expressed markers of proliferative/migratory cells (characteristics associated with pMSCs). Following sorting, cells were cultured for 7 days in EGM-2 previously demonstrated to sustain fetal-derived pMSCs (Boss et al., 2020; Figure 4). In culture, both populations underwent phenotypic convergence, forming cells with a mesenchymal-like morphology, that were CD90+CD73+CD142+CD271-CD36- at day 7 of culture (Figure 4B and C and Figure 4—figure supplement 1).

Figure 4 with 2 supplements see all

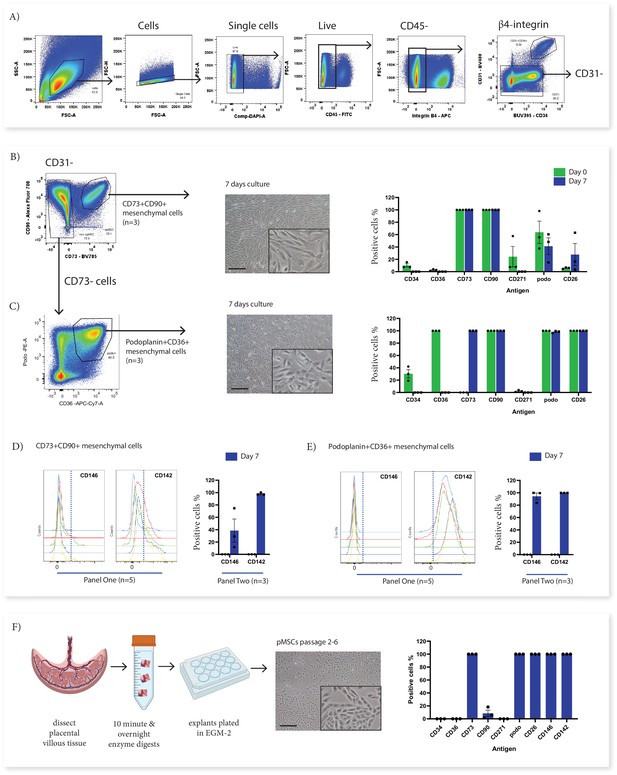

In vitro culture of CD73+CD90+ and podoplanin+CD36+ cells.

(A) FACS sorting was used to isolate CD73+CD90+ and podoplanin+CD36+ cells from placental villous core cells (n=3). (B) Morphology and phenotype of CD73+CD90+ cells after 7 days in culture. (C) Phenotype of podoplanin+CD36+ cells after 7 days in culture. (D) CD146 and CD142 expression on CD73+CD90+ analysed with Panel One (day 0, n=5) or at 7 days after culture (n=3). (E) CD146 and CD142 expression on podoplanin+CD36+ cells analysed with Panel One (day 0, n=5) or at 7 days after culture (n=3). (F) Isolation of explant-derived pMSCs, and morphology and phenotype of passaged pMSCs (n=3). Error bars = standard error of the mean and scale bar = 100 µm.

Despite this overall convergence, differences between the two populations did remain. The proliferation/myofibroblast associated marker CD26 was only expressed by a small proportion of CD73+CD90+ cells at the time of isolation and although the percentage of CD26+ cells increased over time in culture, most cells remained negative suggesting this marker was not upregulated with the culture conditions used here. Conversely, all podoplanin+CD36+ cells were CD26+ at isolation and remained CD26+ after culture. Although CD146, was used to identify perivascular cells in the placenta (Castrechini et al., 2010), was not assessed on cells during isolation (this marker was not contained in Panel Two), phenotyping experiments with Panel One demonstrated that a subpopulation of CD73+CD90+ cells expressed CD146 (5.89+5.82%) and therefore, could be perivascular. Whereas, podoplanin+CD36+ cells were negative for CD146. After 7 days culture this CD146+ subpopulation was still present in CD73+CD90+ cells (15.55+6.87%). However, all podoplanin+CD36+ cells expressed CD146 after seven days in culture, demonstrating differential response of these subsets to the in vitro culture conditions (Figure 4D and E, and Figure 4—figure supplements 1 and 2).

In order to determine whether cultured pMSCs are likely to be made up of CD73+CD90+ or podoplanin+CD36+ populations, we simultaneously characterised explant isolated pMSCs that had been generated and cultured in the same medium (EGM-2) (n=3, p2-6). This demonstrated that pMSCs were CD90low/negCD73+CD26+CD142+CD146+podo+CD34-CD271-CD36-(Figure 4F and Figure 4—figure supplements 1 and 2), more closely aligning with the phenotype of cultured podoplanin+CD36+ cells (Subset Four).

In previous work we have demonstrated that pMSCs upregulate the contractile markers αSMA and calponin when transferred from EGM-2 to standard MSC medium (advanced-DMEM/F12) (Boss et al., 2020). In order to investigate whether CD73+CD90+ cells (Subset Two) or podoplanin+CD36+ cells (Subset Four) could similarly upregulate contractile markers, after 7 days in EGM-2 the medium was changed to advanced-DMEM/F12. Whilst in EGM-2 very few cells in either population expressed αSMA and no cells expressed calponin, in advanced-DMEM/F12, both populations upregulated both of these markers (Figure 5). Expression of the more mature smooth muscle marker MYH-11 was not observed in either CD73+CD90+ or podoplanin+CD36+ cells cultured in either EGM-2 or advanced DMEM/F12 (Figure 5).

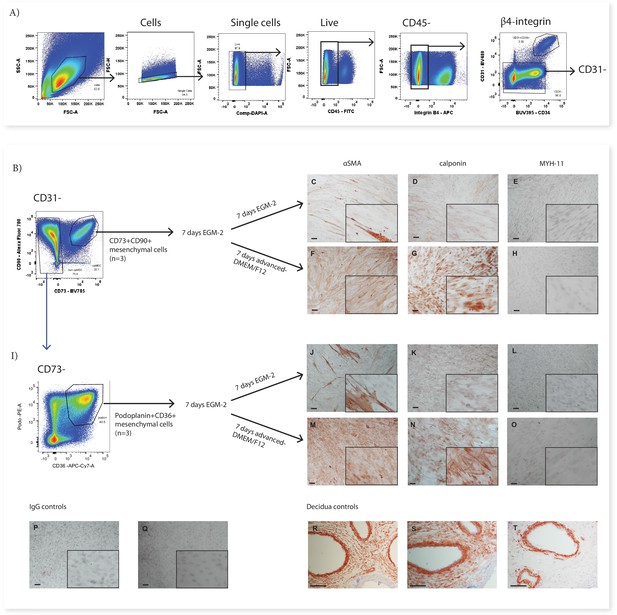

CD73+CD90+ and podoplanin+CD36+ cells upregulate markers consistent with contractile cells.

(A) FACS sorting was used to isolate CD73+CD90+ and podoplanin+CD36+ cells from placental villous core digests (n=3). CD73+CD90+ (B) and podoplanin+CD36+ (I) cell expression of αSMA (C, F, J, M), calponin (D, G, K, H) or MYH-11 (E, H, L, O) following 7 days of culture in advanced-DMEM/F12 or EGM-2. Irrelevant mouse IgG (P) and rabbit IgG (Q) were used as negative controls. Decidual sections containing spiral arteries with intact smooth muscle layers were used as positive controls for staining (R–T). Scale bar = 100 µm.

Discussion

Common sources of MSCs used in clinical trials include; uncharacterised adipose, bone-marrow, and placental stroma. Identifying functionally different mesenchymal cells and defining the origins for tissue-specific MSCs could improve these applications. Here, we used a high-dimensional flow cytometry panel to uncover at least four different mesenchymal populations with distinct expression profiles in the villous core of first trimester placentae, indicating the presence of functionally specialised cells. This mesenchymal heterogeneity could translate to different physiological capabilities important for clinical therapies and aid understanding of the role of these cells in vivo.

Characterising the villous core populations allows us to better understand how the placenta functions and develops, and enables targeting of populations for functional analysis. From the four mesenchymal populations classified in this work three populations, perivascular cells (Subset Three), podoplanin+CD36+ cells (Subset Four), and CD26+CD90+ myofibroblasts (Subset Five) all closely aligned with populations described in prior single-cell RNA sequencing data from first trimester placentae (Suryawanshi et al., 2018). However, this single-cell RNA sequencing dataset did not report a population that aligned with CD73+CD90+ cells (Subset Two), instead reporting that only endothelial cells expressed CD73 in the placental core. The ability to assess larger cell numbers by flow cytometry in our work, and the low abundance of CD73+CD90+ cells after 9 weeks of gestation, means that this population may not have been detected as a distinct population by single cell RNA-seq. Furthermore, RNA expression does not always accurately reflect protein expression (Reimegård et al., 2021). This highlights the importance of protein level characterisation of cells from fresh tissue, and the ability of multicolour flow cytometry to undertake this at single cell resolution complements and builds on single cell gene expression datasets.

The first major aspect of this work to consider is what each subset could represent and what its phenotype reflects. CD73+CD90+ cells were unique from the other mesenchymal populations and could be identified by their expression of CD73, which was shared only with endothelial cells. The abundance of this population at <10 weeks of gestation hints at their involvement in processes that occur early in gestation such as vasculogenesis or haematopoiesis. CD73+CD90+ cells co-expressed podoplanin, but were distinct from other mesenchymal subsets in that they did not express CD26. This combined expression pattern alludes to two potential functional roles of these cells in the placenta. First, expression of podoplanin and low expression of CD26 are both associated with a migratory/invasive phenotype (Mezawa et al., 2019; Ward et al., 2019). As the decline in abundance of these cells after 9 weeks of gestation corresponds to the regression of villi and blood vessels from the distal side of the gestational sac (Burton and Jauniaux, 2018), this raises the possibility that CD73+CD90+ cells could be involved in this regression of the villi, or they arise transiently as the result of an early endothelial to mesenchymal transition in the placenta whereby, endothelial cells involved in vascular regression lose their junctional markers and gain a mesenchymal/migratory phenotype (Pinto et al., 2016). Secondly, expression of podoplanin and a lack of CD26 expression on CD73+CD90+ cells indicates potential roles in haematopoiesis. Several studies have demonstrated that inhibiting CD26 enhances homing, engraftment and differentiation of hematopoietic stem cells (Christopherson et al., 2004; Kawai et al., 2007), and thus a lack of CD26 expression on CD73+CD90+ cells could suggest they are involved in blood lineage migration/differentiation as both Hofbauer cells (placental macrophages) and nucleated red blood cells are found in the villous stroma in the first trimester (Van Handel et al., 2007). Furthermore, podoplanin identifies connective stroma in lymphoid organs that produces a network of collagen-rich fibres to enable movement of lymphocytes via interactions with leukocyte CLEC-2 receptors (Link et al., 2011; Nazari et al., 2016; Onak Kandemir et al., 2019; Wang et al., 2011). The stroma of early placental villi is poorly vascularised therefore podoplanin+ cells could enable blood lineage cells (including Hofbauer cells) to migrate throughout the villous core (Ingman et al., 2010). Indeed, Hofbauer cells have been co-localised with podoplanin expressing stroma in term placentae (Onak Kandemir et al., 2019). Together this suggests CD73+CD90+ cells may represent a functionally divergent population, that is abundant in the early first trimester placenta which is specialised to facilitate/promote hematopoietic migration and differentiation, and morphogenesis of the placenta during regression of the distal villi.

The largest subset identified, podoplanin+CD36+ cells (Subset Four) was hypothesised to constitute the majority of connective villous stroma and play an important role in villous stroma expansion. Similar to CD73+CD90+ cells, the expression of podoplanin in this population suggests they may play a role in facilitating hematopoietic transport throughout the poorly vascularised first trimester stroma, and may have a migratory phenotype. However, podoplanin+CD36+ cells had a high expression of CD26 which identifies fibroblasts involved in wound healing/fibrosis and the associated extracellular matrix deposition (Soare et al., 2020; Worthen et al., 2020) suggesting an alternative or additional role in villous expansion and growth. The corresponding podoplanin+CD36+ population observed in the prior single cell RNA-seq dataset, expressed genes associated with angiogenesis (IL6, ANGPTL-4, TNFAIP6), suggesting they may also provide a paracrine stimulus for placental vascular development which is undergoing vasculogenesis and angiogenesis over first trimester (Chang et al., 2012; Hato et al., 2008; Suryawanshi et al., 2018).

Perivascular cells (Subset Three) were identified by their expression of either CD271 or CD146, both markers that localise in a perivascular niche (Castrechini et al., 2010; Lv et al., 2014). CD26+CD90+ myofibroblasts (Subset Five) were negative for all other markers in Panel One and therefore, were hypothesised to represent contractile/less proliferative myofibroblasts. Indeed, prior single-cell RNA sequencing work identified that populations aligning with perivascular cells and CD26+CD90+ myofibroblasts reported here had a respectively low or high expression of markers associated with contractile myofibroblasts and mature perivascular cells (ACTA2 (αSMA) and CNN1 (calponin)) (Kumar et al., 2017; Suryawanshi et al., 2018). The lower expression of contractile markers in perivascular cells in comparison to CD26+CD90+ myofibroblasts may initially appear unexpected, but as the first trimester placental vasculature is relatively immature it would not necessarily be expected that perivascular cells had high expression of contractile markers at this stage of gestation (Zhang et al., 2002). Interestingly, our in vitro experiments demonstrated that both CD73+CD90+ cells (Subset Two) and podoplanin+CD36+ cells (Subset Four) upregulated αSMA and calponin when transferred from EGM-2 to advanced-DMEM/F12, paralleling the upregulation observed in explant-isolated first trimester pMSCs when cultured in this medium (Boss et al., 2020). The in vivo niche that CD73+CD90+ cells and podoplanin+CD36+ cells reside in could determine whether differentiated cells contribute to perivascular or myofibroblast contractile cells and more specific markers may be required to tease apart these differences. Indeed, in term placentae contractile perivascular cells express both αSMA and calponin, but extravascular αSMA+ cells are also present and thought to allow stem villi to contract and expand in volume (Dellschaft et al., 2020; Farley et al., 2004).

Cultured MSCs are often described as homogeneous. However, there is strong evidence that MSCs upregulate/downregulate markers in response to in vitro culture conditions, and underlying functional and phenotypic heterogeneity could be missed (Blocki et al., 2013; Boss et al., 2020; da Silva Meirelles et al., 2015). In the MSC field, CD73 is thought to be ubiquitously expressed by MSCs (Dominici et al., 2006). However, that podoplanin+CD36+ cells upregulate CD73 expression after culture demonstrates expression of this marker may also be a culture artefact. The phenotypic convergence of different mesenchymal populations was further demonstrated by the loss of CD36 and CD271 expression, from podoplanin+CD36+ and CD73+CD90+ cells respectively, additional markers that made these populations distinct ex vivo. However, expression of CD26 was unaffected by culture, and CD146 was differentiability affected by culture in the two populations. This demonstrates that the nuances of culture adaptation are cell-specific as much as they may be media-specific.

Changes to “MSC” phenotype do not necessarily reflect gain/loss in function. For example bone-marrow MSCs isolated by their expression of CD146 stabilize endothelial tube formation in vitro, whereas, CD146- MSCs, that subsequently upregulate CD146 in vitro, are unable to stablise tube formation (Blocki et al., 2013). Thus, ex vivo phenotype may be a more accurate indicator of a cells’ functional capacity and highlights the importance of characterizing mesenchymal cells prior to culture. The four placental mesenchymal populations identified here are likely to play different roles in the placenta, and therefore have different functional and therapeutic capacities. pMSCs are often acquired by macerating the villous tissue in order to obtain a single cell suspension that is plated in plastic tissue culture flasks (Papait et al., 2020; Pelekanos et al., 2016). Thus all of the populations identified in this work could be present within such single cell suspensions. However, the population/s with a competitive advantage in culture, either as a result of the culture conditions employed, or as a result of the isolation process itself (enzymes involved, explant-based, plated suspension, enriched for expression of a marker), are likely to outcompete and become the dominant cell in culture. Indeed, our group has demonstrated that under different media conditions fetal pMSCs rather than maternal cells are enriched in culture in EGM-2 (Boss et al., 2020). Characterising the explant isolated pMSCs in more depth in this work demonstrated they express podoplanin, CD26, and CD142, making their origins more likely to be podoplanin+CD36+ (Subset Four) rather than CD73+CD90+ cells (Subset Two), perivascular cells (Subset Three) or CD26+CD90+ myofibroblasts (Subset Five). The heterogeneity identified in this work creates an opportunity to select subsets of these mesenchymal cells more suited to specific uses i.e. with anti-inflammatory/immunomodulatory or angiogenic capacity, and to target media conditions that maintain or transform their in vivo phenotype and desired properties. Furthermore, separately culturing these different subsets will allow us to better to understand their functional contributions to placental development, and whether in vitro culture conditions that promote surface marker convergence also result in functional convergence.

Finally, it is important to consider potential limitations of the use of the cell types identified in therapeutic applications, for example the potential pro-coagulant role of cell surface expression of CD142 (Subset Four) (Moll et al., 2020), or the prior association of CD36 expression (seen on Subset Four) with adipose progenitors, raising the possibility that these cells could be prone to differentiating down this pathway in vivo (Gao et al., 2017; Hanschkow et al., 2022). Conversely, the expression of podoplanin (Subset Two and Four), may indicate an increased migratory capacity, which could potentially enhance migration to sites of therapeutic interest when administered in vivo (Ward et al., 2019). Future work to understand the in vivo and ex vivo functional capacity of each subset identified will help elucidate both their role in placental physiology, and inform potential downstream applications of these cells or their counterparts that may be present in term placentae (a more accessible source of placental cells for therapeutic applications).

In conclusion, this work has demonstrated how simplistic post-culture MSC phenotyping will fail to detect the abundant mesenchymal heterogeneity that exists within the placenta. The phenotypic heterogeneity uncovered in first trimester placental mesenchymal cells indicates their potentially diverse functional roles and highlights the crucial need to thoroughly characterise mesenchymal cells that are used in functional assays or in a therapeutic capacity. The success of this multicolour flow cytometry panel in uncovering mesenchymal cell heterogeneity paves the way for other panels assessing mesenchymal and vascularised tissues. Panels like this could be used to assess cellular dysfunction in pathologies such as cancer, cardiovascular disease and infection, as well as to interrogate different tissues in order to better understand cell function. Identifying the pathological phenotype of mesenchymal/vascular cells in pathologies could lead to therapeutic targets. Indeed, in the context of pregnancy, emerging data has suggested that MSC function is altered in the pregnancy complication fetal growth restriction, with potential impacts on placental vascular function (Boss et al., 2021; Gillmore et al., 2022). Thus, this flow cytometry antibody panel, optimised for placental cells, combined with assessment of different stromal subsets identified in this work, could provide an important tool to better understand normal and abnormal placental development and function across gestation.

Materials and methods

Immunohistochemistry

Request a detailed protocol

All placentae used in this work were collected following informed consent with approval from the Northern X Health and Disability Ethics Committee (NTX/12/06/057/AM09). First trimester placental villous tissue (7–10 weeks of gestation) was snap-frozen in OCT compound (VWR) and 5 µm cryosections of tissue were cut and fixed in ice-cold acetone for 5 minutes. Sections were blocked with Fc Blocking Reagent (Miltenyi Biotech) for 30 minutes, then incubated with primary antibodies for 1 hour (Table 2). β4 integrin and CD31 were visualised by their directly conjugated fluorophores (Table 2). CD144-BV421 was visualised by the addition of Biotin-SP AffiniPure Goat Anti-Mouse IgG (1 µg/mL) (Jackson Lab, JI115065166) for 1 hr, washing in PBS-tween, and then the addition of Streptavidin Alexa Fluor 594 (0.5µg/mL, Invitrogen) for 30 minutes. Nuclei were visualised by counterstaining with DAPI (2 µg/ml) for 5 minutes. Sections were mounted using Citifluor AF1 (Agar Scientific), and imaged on an inverted Zeiss Axioplan 2 fluorescent microscope (Zeiss).

Table 2
Primary conjugated antibodies used to confirm specificity of cytotrophoblast or endothelial markers.
AntigenFluorophoreCloneDilutionSupplier
β4 integrinFITC/APC450-9D1:200Thermofisher
CD144BV42155–7 H11:200BD
CD31BV480WM591:200BD

Isolation of placental villous core cells for ex vivo phenotyping

Request a detailed protocol

In order to assess placental villous core cells we modified the protocol developed by Pelekanos et al., 2016; Figure 6. In brief, villous tissue was carefully dissected away from the fetal membranes and washed thoroughly in PBS to remove maternal blood and debris. Placental explants (~1 cm2) were denuded of trophoblasts (the epithelial cells that are present around the outside of placental villi) by digestion in 10 mL/1 g tissue of Enzyme Digest Solution (1 mg/mL Dispase II, 0.5 mg/mL Collagenase A and 1.5 mg/mL DNAse l (Sigma-Aldrich, USA)) in advanced-DMEM/F12 (Thermofisher) for ten minutes at 37 °C as previously described (Boss et al., 2020). Explants were then washed repeatedly (at least 10 times) in PBS, until cellular material is no longer released. Washed explants were then placed in a 90 mm Falcon petri dish (Corning, US) and finely macerated with two sterile disposable scalpels (Swann Morton No.20, England). The tissue was transferred to a 50 mL Falcon tube (Corning, China) with 10 mL of Enzyme Digest Solution. The Falcon tube was briefly vortexed and then placed onto a rocker at room temperature overnight. The next morning the Falcon tube containing the digested villous tissue and enzyme solution was diluted with 40 mL PBS and filtered through a 70 µm filter. The filtrate containing villous core cells was centrifuged at 220xg for five minutes, and the supernatant was removed. 10 mL of 1 x RBC Lysis Buffer (Biolegend, USA) was incubated with the cell suspension for ten minutes to remove unwanted RBCs. Remaining cells were centrifuged at 220xg for five minutes and supernatant removed prior to flow cytometry.

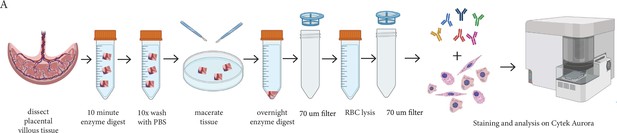

Schematic diagram demonstrating the enzymatic digestion process used to obtain a single-cell suspension of placental villous core cells for flow cytometry analysis.

Large amounts of syncytiotrophoblast fragments are released during the washing stages of the first digest, and based on our experience with similar villous digest protocols (James et al., 2015) it is likely that the majority of the syncytiotrophoblast is removed at this stage. Remaining large fragments of syncytiotrophoblast would be removed by the 70 µm cell strainers during the digestion process, whilst smaller syncytiotrophoblast fragments would not have an intact cell membrane, and thus nuclei would stain positive for DAPI and be gated out from analysis and/or downstream cell sorting. Whilst the villous core digest protocol would also be expected to remove the vast majority of extravillous trophoblasts, to quantify the degree of potential contamination of this cell type we stained villous core cells with the extravillous trophoblast marker HLA-G (MEM-G/9)-FITC 5 μg/ml (SAB4700315, Sigma-Aldrich, NZ). A mean of 0.95% ± 0.91% of the total live cells were HLAG + extravillous trophoblasts (Figure 7), and are thus unlikely to impact on downstream stromal analyses. FCS files relating to quantifying extravillous trophoblasts (HLA-G + cells) contamination in villous digests can be found on FlowRepository ID FR-FCM-Z5FV.

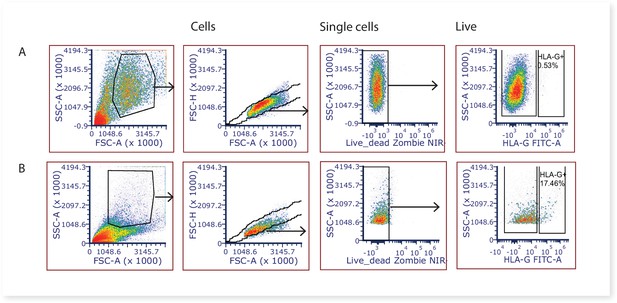

Representative 2-dimensional flow cytometry plots displaying the gating strategy used to assess the proportion of extravillous trophoblasts (HLAG +cells) in villous core digests.

(A) Villous core cells and, (B) cells from the first digest washing steps known to contain extravillous trophoblasts were used as a positive control.

Multicolour panel design and optimisation

Request a detailed protocol

Panel One was designed for analysis on a three laser Cytek Aurora and aimed to characterise mesenchymal lineages but with specific design considerations for first trimester placental villous core cells (Table 3). First, antigens specific for cytotrophoblasts (an epithelial cell that is present around the outside of placental villi, identified by β4 integrin) or haematopoietic cells (CD235a, CD45) were incorporated to allow their exclusion from analysis. Then endothelial, mesenchymal, myofibroblast, and progenitor antigens were selected based on reported literature in the placental and mesenchymal fields, or included in an exploratory role based on reported antigen expression in other tissues or stem cell models (Table 1 and Table 3).

Table 3
Panel One designed to assess villous core cells on a 3 L Cytek Aurora.
AntibodyFluorophoreCloneFlow cytometry Dose (μL)Reference controlSupplier
CD55BB515IA100.6Villous core cellsBeckman Coulter
β4 integrinFITC450-9D0.6Villous core cellsThermofisher
CD34PerCP5810.3Villous core cellsBD
CD36PerCpVio700REA7600.6Villous core cellsMiltenyi Biotec
VEGFR2PE7D4-60.6Villous core cellsBiolegend
CD271PE-CF594C40-14570.6Stromal vascular fractionBiolegend
CD142BB700HTF-11.25Villous core cellsBD
CD26PE/Cy5BA5b0.15Villous core cellsBD
PDPNPE/Cy7NC-080.3Villous core cellsBD
CD248Alexa Fluor 647B1/350.6Stromal vascular fractionBD
CD41APCHIP80.3BeadsBD
CD90Alexa7005E100.6Villous core cellsBiolegend
CD39BUV737TU661.25BeadsBD
ICAM1APC/Fire750HA582.5Stromal vascular fractionBiolegend
CD144BV42155–7 H11.25Villous core cellsBD
CD235aPacific BlueH12640.3Villous core cellsBD
CD31BV480WM590.3Villous core cellsBD
CD45Krome-OrangeB618400.3Villous core cellsBeckman Coulter
CD146BV605PIH120.3Villous core cellsBD
CD117BV650104D20.3BeadsBD
HLADRBV750L2430.3Villous core cellsBD
CD73BV785AD20.3Villous core cellsBD
Table 3—source data 1

All antibodies used in Panel One were titrated on placental villous core digest cells.

https://cdn.elifesciences.org/articles/76622/elife-76622-table3-data1-v2.pdf
Table 3—source data 2

Titration of additional antibodies, not contained in Panel One, required for the FACS sorting with Panel Two.

https://cdn.elifesciences.org/articles/76622/elife-76622-table3-data2-v2.pdf
Table 3—source data 3

Representative images depicting how forward scatter (FSC) (A) or addition of cell-specific antibodies improved detection of appropriate doses for specific placental populations.

(B) β4 integrin+ cells were negative for podoplanin but demonstrated an unspecific shift in expression at higher doses. (C) Removal of β4 integrin+ improved detection of the optimal podoplanin dose.

https://cdn.elifesciences.org/articles/76622/elife-76622-table3-data3-v2.pdf

The online Cytek Full Spectrum Viewer was used to identify fluorophores with distinct signatures that could be included in each panel. The panel was designed to spectrally spread out antigens with high density expression in order to prevent spectral overlap or interference. Where possible the brightest fluorophores were combined with the weakest antigens or where antigen was of special interest (ie PE) (Ferrer-Font et al., 2020). Conversely, where the targets of the antigen were highly expressed dim fluorophores were selected (ie CD34 PerCP).

Each antibody was titrated on first trimester placental villous core cells (Table 3—source data 1 and Table 3—source data 2). For some antibodies the optimal dose was difficult to detect due to the different autofluorescence and size of cells. Therefore, forward scatter was often employed to look at different sized cells, or CD45/β4 integrin were used to exclude hematopoietic and cytotrophoblast cells that interfered with detection of optimal antibody concentration in cell populations of interest (Table 3—source data 3). Where required the specificity of the antibody was confirmed using immunofluorescence (Figure 1). Biological controls included stromal vascular fraction and peripheral blood mononuclear cells, as have been previously characterised (Boss et al., 2020).

Spectral flow cytometry

Request a detailed protocol

Freshly isolated cells were blocked with 5 μL of Human TruStain FcX (Biolegend, USA) and 5 μL of True-Stain Monocyte Blocker (Biolegend, USA) on ice for 30 minutes. An antibody master mix containing antibodies listed in Table 3 was prepared in 5 μl of Brilliant Stain Buffer (Biosciences, US) in order to block BD Horizon Brilliant fluorescent polymer dyes from interacting with each other. The master mix was added to the cells in blocking solution to make a final volume of 50 μl and incubated on ice for 30 minutes in the dark. Stained cells were washed with 1 mL of ice cold FACS buffer (PBS, 2 mM EDTA (Thermofisher, US) and 1% FBS (Thermofisher, NZ)) and centrifuged at 220xg for five minutes at 4 °C. The supernatant was decanted and the wash was repeated. Cells were then resuspended in 100 μl of FACS buffer and kept at 4 °C. DAPI (1:5000, Akoya Biosciences) was spiked into FACS tubes directly prior to analysis on a Cytek Aurora in order to detect live/dead cells. Spectral data was processed using the Cytek SpectroFlo Software Package.

Fluorescence minus one (FMO) experiments were performed to accurately gate cell populations and to assess fluorophore spreading error where required. This was completed by creating a master mix containing all the antibodies in the panel minus the antibody of interest. The FMO was then compared to the full panel stain to identify whether the expression detected by that antibody is only present in the full stain, and therefore represents true positive expression. FCS files relating to the characterisation of primary cells can be found on FlowRepository ID FR-FCM-Z4TJ.

Data analysis

Request a detailed protocol

Spectrally unmixed FCS files were exported from SpectroFlo and either manually analysed using 2 dimensional dot plots with FCS Express (v7) or uploaded onto Cytobank, a platform enabling datasets to be analysed by algorithms designed to assess high dimensional flow cytometry datasets https://cytobank.org/ (Kotecha et al., 2010). In Cytobank, debris, doublets, and dead cells were excluded by manual gating then equal sampling (200,000 villous cells from each placentae were selected, n=5). ViSNE enables visualisation of high dimensional data in two dimensions, each cell is displayed as a point on a scatter-like plot where cells with similar antigen expression will group closely and dissimilar cells will be further apart.

For further analysis of subsets of core populations, cytotrophoblasts (identified by their expression of β4 integrin) and hematopoietic cells (identified by their expression of CD45 or CD235a) were excluded by gating. Villus core subsets were then interrogated using expression heatmaps (Cytobank) and flow cytometry plots (FCS Express7). The gating strategy employed to identify populations is displayed in Figure 3.

FACS sorting and in vitro culture of mesenchymal populations

Request a detailed protocol

In order to determine in vitro characteristics of Subset Two (CD73+CD90+) and Subset Four (podoplanin+CD36+) these populations were isolated using FACS for in vitro culture. To do this, placental villous core cells were isolated and stained with Panel Two master mix (Table 4) using the same methods as above. Cells were resuspended in 500 µL of Sort Buffer (10% FBS, 2 mM EDTA in PBS) and incubated on ice until immediately prior to sorting. Subset Two (CD73+CD90+) and Subset Four (podoplanin+CD36+) were sorted into 5 mL FACS tubes containing endothelial basal media (EGM-2 medium without supplements added, Lonza, USA) supplemented with 10% FBS at 4 °C degrees. To sort cells of interest, the gating strategy displayed in Figure 3 was used to exclude debris, doublets, dead cells, trophoblasts, and endothelial cells, before gating the populations of interest. For each population 3000 cells/cm2 were seeded onto 24-well plates in EGM-2. After 7 days, the in vitro phenotype of cells was determined using Panel Three (Table 5). In brief, TryPLE express was used to detach cells from flasks. Cells were blocked and then stained with a master mix for Panel Three (Table 5) as described above. Placental MSCs were isolated in EGM-2 using an explant method as described in our previous work (Boss et al., 2020) were assessed in parallel by flow cytometry. FCS files relating to the cultured experiments can be found on FlowRepository ID FR-FCM-Z4TL.

Table 4
Composition of Panel Two.

This panel was developed to sort CD73 + CD90 + and podoplanin + CD36 + cells from placental villous core using a BD FACS Aria II.

AntibodyFluorophoreCloneDose (μL)Supplier
CD45FITCHI300.3BD
PDPNPENC-080.3Biolegend
CD26PE/Cy7BA5b0.6BD
CD271PE/Dazzle 594C40-14570.6BD
CD144PerCP-5.555–7 H10.6BD
CD90Alexa7005E100.6Biolegend
CD36APC-Cy75–2710.6Biolegend
β4 integrinAPC450-9D0.6Thermofisher
CD31BV480WM590.3BD
CD73BV785AD20.3BD
CD34BUV3955811.25BD
Table 5
Composition of Panel Three.

This panel was designed to assess the phenotype of placental populations after culture in vitro using a three laser Cytek Aurora.

AntibodyFluorophoreCloneDoseSupplier
CD34PerCP5810.3BD
CD36PerCpVio700REA7600.6Miltenyi Biotec
VEGFR2PE7D4-60.6Biolegend
CD271PE/Dazzle 594C40-14570.6Biolegend
CD142BB700HTF-11.25BD
CD26PE/Cy5BA5b0.15BD
PDPNPE/Cy7NC-080.3BD
CD90Alexa7005E100.6Biolegend
CD144BV42155–7 H11.25BD
CD31BV480WM590.3BD
CD45Krome-OrangeB618400.3Beckman Coulter
CD146BV605PIH120.3BD
HLADRBV750L2430.3BD
CD73BV785AD20.3BD

Immunocytochemistry

Request a detailed protocol

In order to determine the capacity of Subset Two (CD73+CD90+) and Subset Four (podoplanin+CD36+) to upregulate contractile markers, in a similar way to pMSCs (Boss et al., 2020), cells were FACS sorted (as above) and seeded into 96 well plates at 2000 cells/cm2 in EGM-2, with medium replaced every 2–3 days. At day 7 medium was switched to advanced-DMEM/F12 or kept as EGM-2 for a further 7 days. At day 14 of culture, cells were fixed with methanol for 10 min, washed in PBS, then incubated in 10% normal goat serum in PBS-tween for 1 h at room temperature. Cells were incubated with primary antibodies either 5 μg/ml of anti-Calponin (Abcam-ab216651), 1 μg/ml anti-α-smooth muscle actin (αSMA) (Thermofisher Scientific, 14-9760-82) or 1 μg/ml anti-smooth muscle heavy chain 11 (Abcam-ab53219) or the relevant control antibodies rabbit IgG (Abacus, JI111036144) or mouse IgG (Abacus, JI115036146), for 1 h at room temperature. Endogenous peroxidase activity was quenched by addition of 3% H2O2 in methanol for 5 minutes. A Histostain Plus Bulk Kit (Invitrogen) with AEC chromogen (Invitrogen) was used as per the manufacturer’s instructions to visualise antibody binding. Nuclei were counterstained with Gills II Haematoxylin (Sigma-Aldrich).

Data availability

FCS data files have been provided for flow cytometry presented in Figures 2-3 following the link: http://flowrepository.org/public_experiment_representations/FR-FCM-Z4TJ Figure 4: http://flowrepository.org/public_experiment_representations/FR-FCM-Z4TL Figure 7: http://flowrepository.org/public_experiment_representations/FR-FCM-Z5FV.

References

  1. Report
    1. Cruz-Tapias P
    2. Castiblanco J
    3. Anaya JM
    (2013)
    Major histocompatibility complex: Antigen processing and presentation
    Autoimmunity.
    1. Farley AE
    2. Graham CH
    3. Smith GN
    (2004) Contractile properties of human placental anchoring villi
    American Journal of Physiology. Regulatory, Integrative and Comparative Physiology 287:R680–R685.
    https://doi.org/10.1152/ajpregu.00222.2004

Decision letter

  1. Fredrick Rosario Joseph
    Reviewing Editor; University of Colorado Anschutz Medical Campus, United States
  2. Ricardo Azziz
    Senior Editor; University at Albany, SUNY, United States
  3. Fredrick Rosario Joseph
    Reviewer; University of Colorado Anschutz Medical Campus, United States
  4. Balaji M Rao
    Reviewer; North Carolina State University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for resubmitting your work entitled "The origins of placental mesenchymal stromal cells: Full spectrum flow cytometry reveals mesenchymal heterogeneity in first trimester placentae, and phenotypic convergence in culture" for further consideration by eLife. Your revised article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Ricardo Azziz (Senior Editor).

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

Reviewer #1 (Recommendations for the authors):

The authors need to characterize what is in the isolated suspension, and the supporting experiments and pieces of evidence, authors excluded the trophoblast population in the culture. For example, hCG secretion and syncytin expression in the culture population.

How the various PMS are derived in the culture is not clear, more importantly, the functional characterization of each population of subsets is missing in the manuscript.

The limitations of using this phenotype in the therapeutic application need to be emphasized in the manuscript,

Is there any paracrine communication that exists between PMSC and cyto's needs to be addressed? What are the defects arises in terms of this PMSC and various pregnancy complications that need to be addressed?

This manuscript is well written, and the authors well executed the experiments.

Reviewer #2 (Recommendations for the authors):

Well written manuscript.

Reviewer #3 (Recommendations for the authors):

Placental mesenchymal stromal cells (pMSCs) are of interest in therapeutic applications. These cells are typically generated by culturing cells isolated from the villous core of the placenta. However, the villous core is comprised of multiple cell types. Consequently, the origin of pMSCs under commonly used culture conditions remains unclear. In this paper, Boss et al., used flow cytometry analysis using an extensive panel of 23 cell surface markers to characterize the heterogeneity of cell types in the villous core of the first trimester placenta. They uncovered four cell populations of interest: (1) CD31+ CD34+ (2) CD73+ CD90+ (3) CD146+ CD271+ and (4) podoplanin+ CD36+. They chose to focus on two cell populations – (2) CD73+ CD90+ because these are the only cell types that express the generally accepted marker criteria for MSCs, and (4) podoplanin+ CD36+ because these express markers of proliferative/migratory cells that are associated with pMSCs.

Subsequently, the two selected cell subpopulations were cultured in pMSC medium and compared with pMSCs obtained using standard protocols (i.e. without accounting for heterogeneity of the input cells). Interestingly, the two selected subpopulations converged to an extent in terms of marker expression. Nevertheless, careful comparison revealed that pMSCs derived using standard conditions are closer to podoplanin+ CD36+ (4) cells.

Strengths:

Currently, the specific cell population(s) from primary tissue that get expanded or stabilized pMSC cell culture remain unknown or poorly characterized. Uncertainty arises from (i) heterogeneity in the source cells that are used to originate the pMSC culture and (ii) the change in cell phenotype that occurs upon culture, dependent on specific medium composition used. This paper is arguably one of the few – if not the only one – that characterizes the heterogeneity of cells used to originate pMSC cultures. In this context, the results presented in the paper are an important contribution to the literature. The methods employed by the authors are rigorous and the conclusions drawn are largely consistent with experimental results reported.

Weaknesses:

The authors use flow cytometry to characterize biomarker expression in the cells of the villous core. However, while highly relevant, such characterization is one dimensional. Not including data on characterization of the functional differences of the two subpopulations focused on in terms of differentiation potential or transcriptome differences (using bulk RNAseq) between the subpopulations is a significant missed opportunity.

Figure 4 can perhaps be presented in a way as to capture the rich information present in the dataset. For instance, perhaps fluorescence intensities can be included as violin plots rather than just using percent positive cells. Similarly, maybe alternative data visualization can be used to comprehensively depict overlap or differences between the two subpopulations at day 0 and day 7 and pMSCs from explant cultures.

The primary data for flow cytometry should be made available.

https://doi.org/10.7554/eLife.76622.sa1

Author response

Reviewer #1 (Recommendations for the authors):

The authors need to characterize what is in the isolated suspension, and the supporting experiments and pieces of evidence, authors excluded the trophoblast population in the culture. For example, hCG secretion and syncytin expression in the culture population.

The reviewer raises a valid point that it is important to know what is not in the isolated suspension, and in particular to ensure that extravillous trophoblasts and syncytiotrophoblast are removed. The initial digest step in the methods used in this work was modified from that used by James et al., (PMID 26248480) to isolate pure populations of extravillous trophoblast (and subsequently cytotrophoblast). The first digestion step in both protocols involves enzymatic digestion, followed by extensive washing in PBS which releases both syncytiotrophoblast fragments and HLA-G+ extravillous trophoblasts. Therefore, we did not expect significant extravillous trophoblast contamination of our samples. However, in response to the reviewers comment we have now used the extravillous trophoblast marker HLA-G to quantify any extravillous trophoblast contamination within our villous core digests. This demonstrated that <2% of cells are extravillous trophoblasts. Furthermore, prior data has also demonstrated that extravillous trophoblasts do not express mesenchymal markers (CD90, CD36, CD271, CD26 or PDPN) used to gate populations of interest in this manuscript (Suryawanshi et al., 2018). Thus, together we are confident that this low level of contamination would not impact the data.

As the syncytiotrophoblast is a large single multinucleated cell, fragments can vary widely in size, and ensuring the syncytiotrophoblast was adequately removed was as such important in developing these methods as larger multinucleated cells had the potential to block the cell sorter. In this work large fragments are removed via the use of 70um cell strainers throughout the digestion process, whilst smaller syncytiotrophoblast fragments would not have an intact cell membrane, and thus nuclei would stain positive for DAPI and gated out of the analysis and/or downstream cell sorting.

We have now added to the methods section of the manuscript the new experimental data quantifying HLA-G+ extravillous trophoblast contamination in placental villous samples (Figure 7) and outlined why syncytiotrophoblast fragments would be excluded from analysis (lines 446-453).

How the various PMS are derived in the culture is not clear, more importantly, the functional characterization of each population of subsets is missing in the manuscript.

We agree that functional experiments are an important future downstream step from this work and have now further discussed this at line 380-383. The work in the current manuscript focussed on characterising mesenchymal phenotypic heterogeneity prior to culture and how culturing in standard medium could influence this, and in doing so has provided a comprehensive analysis with novel insight. Whist the degree to which the phenotypic convergence of distinct in vivo stromal populations in culture results in their functional convergence remains unclear, in order to assess this properly (or to gain better insight into their in vivo function) it would first be important to identify specific culture conditions that can maintain the distinct in vivo phenotypes of each stromal population. Such functional assays would also be dependent on the specific downstream context for use of the cells, and as such the experiments required would be substantial and we believe that this is beyond the scope of this paper.

The limitations of using this phenotype in the therapeutic application need to be emphasized in the manuscript,

At line 366-369 we discuss the concept that different subsets identified in this work may be better suited for different applications. Furthermore, we have provided several examples of the potential therapeutic consequences of using the different subsets identified in this work 373-377. Whilst ideal for identifying novel early progenitor populations and understanding the role of progenitors in early placental development, a key limitation in the therapeutic use of these cells is their derivation from first trimester tissue, and we have now acknowledged this and the need for future work to examine the presence of counterparts in term placentae at line 381-383.

Is there any paracrine communication that exists between PMSC and cyto's needs to be addressed?

Yes, there is evidence of paracrine relationships between trophoblasts and mesenchymal populations in the placenta, and this is an interesting topic that we have covered as part of a recently accepted review (James et al., 2022, Cellular and Molecular Life Sciences, In Press). However, this is largely thought to work in the direction of the mesenchyme influencing cytotrophoblast function and extravillous trophoblast differentiation, rather than the other way around, and is not directly relevant to this manuscript.

What are the defects arises in terms of this PMSC and various pregnancy complications that need to be addressed?

Despite gross anatomical differences in the placental stroma and vasculature, it has only been very recently that differences in pMSCs in pregnancy complications have been assessed by ourselves and others. We have now included reference to the potential role of MSCs in pregnancy pathologies, and highlighted the potential future use of this panels to better understand these disorders at line 393-397.

Reviewer #3 (Recommendations for the authors):

Placental mesenchymal stromal cells (pMSCs) are of interest in therapeutic applications. These cells are typically generated by culturing cells isolated from the villous core of the placenta. However, the villous core is comprised of multiple cell types. Consequently, the origin of pMSCs under commonly used culture conditions remains unclear. In this paper, Boss et al., used flow cytometry analysis using an extensive panel of 23 cell surface markers to characterize the heterogeneity of cell types in the villous core of the first trimester placenta. They uncovered four cell populations of interest: (1) CD31+ CD34+ (2) CD73+ CD90+ (3) CD146+ CD271+ and (4) podoplanin+ CD36+. They chose to focus on two cell populations – (2) CD73+ CD90+ because these are the only cell types that express the generally accepted marker criteria for MSCs, and (4) podoplanin+ CD36+ because these express markers of proliferative/migratory cells that are associated with pMSCs.

Subsequently, the two selected cell subpopulations were cultured in pMSC medium and compared with pMSCs obtained using standard protocols (i.e. without accounting for heterogeneity of the input cells). Interestingly, the two selected subpopulations converged to an extent in terms of marker expression. Nevertheless, careful comparison revealed that pMSCs derived using standard conditions are closer to podoplanin+ CD36+ (4) cells.

Strengths:

Currently, the specific cell population(s) from primary tissue that get expanded or stabilized pMSC cell culture remain unknown or poorly characterized. Uncertainty arises from (i) heterogeneity in the source cells that are used to originate the pMSC culture and (ii) the change in cell phenotype that occurs upon culture, dependent on specific medium composition used. This paper is arguably one of the few – if not the only one – that characterizes the heterogeneity of cells used to originate pMSC cultures. In this context, the results presented in the paper are an important contribution to the literature. The methods employed by the authors are rigorous and the conclusions drawn are largely consistent with experimental results reported.

Weaknesses:

The authors use flow cytometry to characterize biomarker expression in the cells of the villous core. However, while highly relevant, such characterization is one dimensional. Not including data on characterization of the functional differences of the two subpopulations focused on in terms of differentiation potential or transcriptome differences (using bulk RNAseq) between the subpopulations is a significant missed opportunity.

We agree that using RNAseq to better understand the stromal subsets identified in this work could generate a wealth of data, but do not currently have the funding available to undertake this. However, we have included discussion of a recent manuscript that interrogated first trimester placental tissue using single-cell RNAseq and found mesenchymal heterogeneity that aligns with our hypothesised mesenchymal populations (lines 265, 315, 323). Our work using a high-dimensional flow cytometry panel is novel in that it can be used to select and sort cells (as done in this work), and measures protein expression which can vary from RNA and is likely more relevant to cell functionality (Buccitelli and Selbach, 2020, PMID: 32709985).

Figure 4 can perhaps be presented in a way as to capture the rich information present in the dataset. For instance, perhaps fluorescence intensities can be included as violin plots rather than just using percent positive cells. Similarly, maybe alternative data visualization can be used to comprehensively depict overlap or differences between the two subpopulations at day 0 and day 7 and pMSCs from explant cultures.

We have amended the graphs in figure 4 so that each sample can be visualised rather than creating violin plots that demonstrate intensity levels. We are identifying switching on or off of marker expression. Small shifts in fluorescence intensity of these markers might not represent functional differences. Due to the inherent dramatic changes in cellular characteristics (e.g. autofluorescence) with culturing cells it is difficult to compare primary (day 0) with cultured (day 7) cells and this is why we have not directly compared populations between timepoints. However, we have created figure 4- supplement figure 1 and 2 (previously supplementary figure 4 and 5) in order to allow easier comparison of marker expression between populations at day 7. The cultured mesenchymal cells demonstrate a relatively homogenous phenotype therefore this was not displayed as 2-dimensional flow cytometry plots in the main manuscript as these were not informative. However, we have now included representative 2-dimensional flow cytometry plots, post culture, of CD36+podoplanin+ cells, CD73+CD90+ cells and explant pMSCs (Figure 4- Supplement Figure 1).

The primary data for flow cytometry should be made available.

Primary data has been uploaded onto FlowRepository. The reference IDs for this data have been added to the methods lines 434, 491 and 522.

https://doi.org/10.7554/eLife.76622.sa2

Article and author information

Author details

  1. Anna Leabourn Boss

    1. Department of Obstetrics and Gynaecology, Faculty of Medical and Health Sciences, University of Auckland, Auckland, New Zealand
    2. School of Biological Sciences, University of Auckland, Auckland, New Zealand
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft
    For correspondence
    a.boss@auckland.ac.nz
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1943-4162
  2. Tanvi Damani

    School of Biological Sciences, University of Auckland, Auckland, New Zealand
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  3. Tayla J Wickman

    Department of Obstetrics and Gynaecology, Faculty of Medical and Health Sciences, University of Auckland, Auckland, New Zealand
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
  4. Larry W Chamley

    Department of Obstetrics and Gynaecology, Faculty of Medical and Health Sciences, University of Auckland, Auckland, New Zealand
    Contribution
    Writing – review and editing
    Competing interests
    No competing interests declared
  5. Joanna L James

    Department of Obstetrics and Gynaecology, Faculty of Medical and Health Sciences, University of Auckland, Auckland, New Zealand
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Methodology, Project administration, Writing – review and editing
    Contributed equally with
    Anna ES Brooks
    Competing interests
    No competing interests declared
  6. Anna ES Brooks

    1. School of Biological Sciences, University of Auckland, Auckland, New Zealand
    2. Maurice Wilkins Centre, University of Auckland, Auckland, New Zealand
    Contribution
    Conceptualization, Resources, Software, Supervision, Funding acquisition, Methodology, Writing – review and editing
    Contributed equally with
    Joanna L James
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3551-6982

Funding

Health Research Council of New Zealand (16/043)

  • Joanna L James

University of Auckland (Doctoral Scholarship)

  • Anna Leabourn Boss

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors would like to thank all the donors of placental tissue, and staff of Epsom Day Unit, Greenlane Clinical Centre and Auckland Medical Aid Centre for their assistance in recruiting patients to the study. This work was supported by a Health Research Council of New Zealand Sir Charles Hercus Research Fellowship (J James, 16/043). A Boss was supported by a University of Auckland Doctoral Scholarship and a University of Auckland Faculty of Science PhD output award.

Ethics

Human subjects: Placentae were collected following informed consent with approval from the Northern X Health and Disability Ethics Committee (NTX/12/06/057/AM09).

Senior Editor

  1. Ricardo Azziz, University at Albany, SUNY, United States

Reviewing Editor

  1. Fredrick Rosario Joseph, University of Colorado Anschutz Medical Campus, United States

Reviewers

  1. Fredrick Rosario Joseph, University of Colorado Anschutz Medical Campus, United States
  2. Balaji M Rao, North Carolina State University, United States

Publication history

  1. Preprint posted: December 23, 2021 (view preprint)
  2. Received: December 23, 2021
  3. Accepted: August 1, 2022
  4. Accepted Manuscript published: August 3, 2022 (version 1)
  5. Version of Record published: August 11, 2022 (version 2)

Copyright

© 2022, Boss et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 437
    Page views
  • 142
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Anna Leabourn Boss
  2. Tanvi Damani
  3. Tayla J Wickman
  4. Larry W Chamley
  5. Joanna L James
  6. Anna ES Brooks
(2022)
Full spectrum flow cytometry reveals mesenchymal heterogeneity in first trimester placentae and phenotypic convergence in culture, providing insight into the origins of placental mesenchymal stromal cells
eLife 11:e76622.
https://doi.org/10.7554/eLife.76622
  1. Further reading

Further reading

    1. Cell Biology
    Benjamin Barsi-Rhyne, Aashish Manglik, Mark von Zastrow
    Research Article Updated

    β-Arrestins are master regulators of cellular signaling that operate by desensitizing ligand-activated G-protein-coupled receptors (GPCRs) at the plasma membrane and promoting their subsequent endocytosis. The endocytic activity of β-arrestins is ligand dependent, triggered by GPCR binding, and increasingly recognized to have a multitude of downstream signaling and trafficking consequences that are specifically programmed by the bound GPCR. However, only one biochemical ‘mode’ for GPCR-mediated triggering of the endocytic activity is presently known – displacement of the β-arrestin C-terminus (CT) to expose clathrin-coated pit-binding determinants that are masked in the inactive state. Here, we revise this view by uncovering a second mode of GPCR-triggered endocytic activity that is independent of the β-arrestin CT and, instead, requires the cytosolic base of the β-arrestin C-lobe (CLB). We further show each of the discrete endocytic modes is triggered in a receptor-specific manner, with GPCRs that bind β-arrestin transiently (‘class A’) primarily triggering the CLB-dependent mode and GPCRs that bind more stably (‘class B’) triggering both the CT and CLB-dependent modes in combination. Moreover, we show that different modes have opposing effects on the net signaling output of receptors – with the CLB-dependent mode promoting rapid signal desensitization and the CT-dependent mode enabling prolonged signaling. Together, these results fundamentally revise understanding of how β-arrestins operate as efficient endocytic adaptors while facilitating diversity and flexibility in the control of cell signaling.

    1. Cell Biology
    2. Structural Biology and Molecular Biophysics
    Jie Li, Jiayi Wu ... Eunhee Choi
    Research Article

    The insulin receptor (IR) and insulin-like growth factor 1 receptor (IGF1R) control metabolic homeostasis and cell growth and proliferation. The IR and IGF1R form similar disulfide bonds linked homodimers in the apo-state; however, their ligand binding properties and the structures in the active state differ substantially. It has been proposed that the disulfide-linked C-terminal segment of α-chain (αCTs) of the IR and IGF1R control the cooperativity of ligand binding and regulate the receptor activation. Nevertheless, the molecular basis for the roles of disulfide-linked αCTs in IR and IGF1R activation are still unclear. Here, we report the cryo-EM structures of full-length mouse IGF1R/IGF1 and IR/insulin complexes with modified αCTs that have increased flexibility. Unlike the Γ-shaped asymmetric IGF1R dimer with a single IGF1 bound, the IGF1R with the enhanced flexibility of αCTs can form a T-shaped symmetric dimer with two IGF1s bound. Meanwhile, the IR with non-covalently linked αCTs predominantly adopts an asymmetric conformation with four insulins bound, which is distinct from the T-shaped symmetric IR. Using cell-based experiments, we further showed that both IGF1R and IR with the modified αCTs cannot activate the downstream signaling potently. Collectively, our studies demonstrate that the certain structural rigidity of disulfide-linked αCTs is critical for optimal IR and IGF1R signaling activation.
