Associative learning drives longitudinally graded presynaptic plasticity of neurotransmitter release along axonal compartments

  1. Aaron Stahl
  2. Nathaniel C Noyes
  3. Tamara Boto
  4. Valentina Botero
  5. Connor N Broyles
  6. Miao Jing
  7. Jianzhi Zeng
  8. Lanikea B King
  9. Yulong Li
  10. Ronald L Davis
  11. Seth M Tomchik  Is a corresponding author
  1. Department of Neuroscience, The Scripps Research Institute, United States
  2. Chinese Institute for Brain Research, China
  3. Peking-Tsinghua Center for Life Sciences, Peking University, China
  4. State Key Laboratory of Membrane Biology, Peking University School of Life Sciences, China
  5. PKU IDG/McGovern Institute for Brain Research, China

Abstract

Anatomical and physiological compartmentalization of neurons is a mechanism to increase the computational capacity of a circuit, and a major question is what role axonal compartmentalization plays. Axonal compartmentalization may enable localized, presynaptic plasticity to alter neuronal output in a flexible, experience-dependent manner. Here, we show that olfactory learning generates compartmentalized, bidirectional plasticity of acetylcholine release that varies across the longitudinal compartments of Drosophila mushroom body (MB) axons. The directionality of the learning-induced plasticity depends on the valence of the learning event (aversive vs. appetitive), varies linearly across proximal to distal compartments following appetitive conditioning, and correlates with learning-induced changes in downstream mushroom body output neurons (MBONs) that modulate behavioral action selection. Potentiation of acetylcholine release was dependent on the CaV2.1 calcium channel subunit cacophony. In addition, contrast between the positive conditioned stimulus and other odors required the inositol triphosphate receptor, which maintained responsivity to odors upon repeated presentations, preventing adaptation. Downstream from the MB, a set of MBONs that receive their input from the γ3 MB compartment were required for normal appetitive learning, suggesting that they represent a key node through which reward learning influences decision-making. These data demonstrate that learning drives valence-correlated, compartmentalized, bidirectional potentiation, and depression of synaptic neurotransmitter release, which rely on distinct mechanisms and are distributed across axonal compartments in a learning circuit.

Editor's evaluation

This manuscript will be of interest to scientists working on learning and memory and synaptic plasticity. The study mostly uses an acetylcholine sensor in the fly brain to image activity, which is novel and helps to tie together previous studies reporting memory-induced changes in calcium transients. In particular, the study highlights the compartmentalised plasticity along Kenyon cell axon terminals, the main cell type of the insect mushroom body.

https://doi.org/10.7554/eLife.76712.sa0

Introduction

Neuronal dendrites carry out computations through compartmentalized signaling, while axons have long been considered to carry signals to their terminal fields relatively uniformly following spike initiation. However, anatomical and physiological compartmentalization of axons has been recently documented in neurons from worms through mammals (Boto et al., 2014; Cohn et al., 2015; Hendricks et al., 2012; Rowan et al., 2016). How axonal compartmentalization influences information flow across neuronal circuits and modulates behavioral outcomes is not understood. One functional role for axonal compartmentalization may be to enable localized, presynaptic plasticity to alter output from select axon compartments in a flexible, experience-dependent manner. This would vastly enhance the neuron’s flexibility and computational capabilities. A potential function of such compartmentalization would allow independent modulation of axonal segments and/or synaptic release sites by biologically salient events, such as sensory stimuli that drive learning.

The anatomical organization of the Drosophila mushroom body (MB) makes it an exemplary test bed to study how sensory information is processed during learning and rerouted to alter behavioral outcomes. The MB encodes odor in sparse representations across the intrinsic MB neurons, Kenyon cells (KCs), which are arranged in several parallel sets. They project axons in fasciculated bundles into several anatomically distinct, but spatially adjacent lobes (α/β, α′/β′, and γ) (Crittenden et al., 1998). KC axons are longitudinally subdivided into discrete tiled compartments (Aso et al., 2014a). Each compartment receives afferent neuromodulatory input from unique dopaminergic neurons (Aso et al., 2014a; Mao and Davis, 2009), and innervates unique efferent mushroom body output neurons (MBONs) (Aso et al., 2014a). Each set of dopaminergic neurons plays an individual role in learning, with some modulating aversive learning (Mao and Davis, 2009; Schroll et al., 2006; Schwaerzel et al., 2003), others modulating reward learning (Liu et al., 2012; Yamagata et al., 2015), and a third class modulating memory strength without driving behavioral valence (Boto et al., 2019). Similarly, each MBON has a unique effect on behavioral approach and avoidance, with some biasing the animal to approach, others biasing the animal to avoidance, and some having no known effect (Aso et al., 2014b; Perisse et al., 2016; Plaçais et al., 2013; Séjourné et al., 2011).

A major question in learning and memory is how presynaptic plasticity contributes to reweighting the flow of sensory signals across each of the downstream ‘approach’ or ‘avoidance’ circuits, altering action selection and memory retrieval. In naïve conditions, Drosophila dopaminergic circuits modulate cAMP in a compartmentalized fashion along the MB axons (Boto et al., 2014). This compartmentalized dopaminergic signaling can independently modulate Ca2+ responses in each compartment, as well as the responses of the downstream valence-coding MBONs (Cohn et al., 2015). Presynaptic plasticity within each KC compartment likely contributes to the changes in downstream MBON activity that guide learned behavioral responses (Zhang et al., 2019). However, manipulation of the ‘aversive’ protocerebral posterior lateral 1 (PPL1) dopaminergic neurons does not detectably alter Ca2+ signals in KCs (Boto et al., 2019; Hige et al., 2015a). Furthermore, Ca2+ responses in KCs are uniformly potentiated across compartments with appetitive classical conditioning protocols and unaltered in KCs following aversive protocols (Louis et al., 2018). This raises the question of how local, compartmentalized synaptic plasticity in KCs drives coherent changes across the array of downstream MBONs to modulate action selection during memory retrieval. Learning/dopamine-induced plasticity has been demonstrated in the MBONs (Berry et al., 2018; Hige et al., 2015a; Hige et al., 2015b; Owald et al., 2015), with dopamine also acting directly on them (Takemura et al., 2017) (in addition to KCs). Feedforward inhibition among MBONs that drive opposing behavioral outcomes provides a mechanism explaining how bidirectional valence coding in MBONs could be generated, with or without bidirectional presynaptic plasticity (Perisse et al., 2016). The compartmentalized, dopamine-dependent plasticity in KCs and the necessity for dopamine receptors and downstream signaling molecules in the intrinsic KCs points to a potential presynaptic contribution (Kim et al., 2007; McGuire et al., 2003; Zars et al., 2000). Thus, compartmentalized presynaptic plasticity could contribute to reweighting the flow of olfactory information to downstream circuits.

Here, we describe how learning alters the flow of information through the MB via alteration of synaptic release of the KC neurotransmitter acetylcholine (ACh) (Barnstedt et al., 2016), using a genetically encoded indicator of ACh neurotransmission. The data reveal that appetitive and aversive learning alter compartmentalized acetylcholine release in distinct spatial patterns, with differing molecular mechanisms, coherently reweighting the flow of olfactory information across the ensemble of downstream neurons that mediate action selection.

Results

Associative learning modulates neurotransmitter release in a spatially distinct manner across longitudinal axonal compartments

Synapses within each MB compartment transmit olfactory information from KCs to compartment-specific MBONs (Figure 1, Figure 5 A, Figure 5-figuresupplement 1A ; Aso et al., 2014a; Tanaka et al., 2008). The MBONs exert distinct and often-opposing effects on behavior, with some innately promoting approach and others promoting avoidance (Aso et al., 2014b; Berry et al., 2018; Ichinose et al., 2015; Owald et al., 2015; Perisse et al., 2016; Plaçais et al., 2013; Sayin et al., 2019; Séjourné et al., 2011). Synaptic depression has been observed (postsynaptically) at KC-MBON synapses following pairing of odor with stimulation of PPL1 neurons that are critical for aversive learning (Hige et al., 2015a), suggesting that depression could be the primary learning rule implemented at these synapses. While some MBONs exhibit bidirectional responses to conditioning, the major described mechanism involves a sign change that occurs postsynaptic to the KCs (polysynaptic feedforward inhibition) (Owald et al., 2015; Perisse et al., 2016) and the presynaptic contributions remain unknown. To test for the presence, directionality, and variation of presynaptic plasticity across MB axonal compartments, we expressed a synaptic ACh sensor to monitor neurotransmitter release from KCs in vivo (Zhang et al., 2019). The genetically encoded ACh reporter, GPCR-Activation–Based-ACh sensor (GRAB-ACh) (Figure 1A; Jing et al., 2020; Jing et al., 2018; Zhang et al., 2019), was expressed in KCs using the broad KC driver 238Y-Gal4. Appetitive conditioning was carried out, monitoring ACh release from the γ lobe compartments evoked by the olfactory conditioned stimuli (CS+ and CS-) before and after pairing the CS+ with a sucrose unconditioned stimulus (US) (Figure 1—figure supplement 1). Responses were compared to those in odor-only control cohorts to determine whether any learning-induced changes resulted from potentiation or depression. We quantified several parameters (Figure 1—figure supplement 1), starting with how the response to each odor changed after conditioning (e.g. Figure 1D and F). This was collapsed to a single value, the within-treatment Δ(post/pre), for comparison across conditions. The Δ(post/pre) of the CS+ and CS- was compared to determine how each changed relative to the other, and then each was compared to its respective odor-only control to quantify whether it was potentiated or depressed, accounting for any non-associative olfactory adaptation (Figure 1G-K, Figure 1—figure supplement 2).

Figure 1 with 2 supplements see all

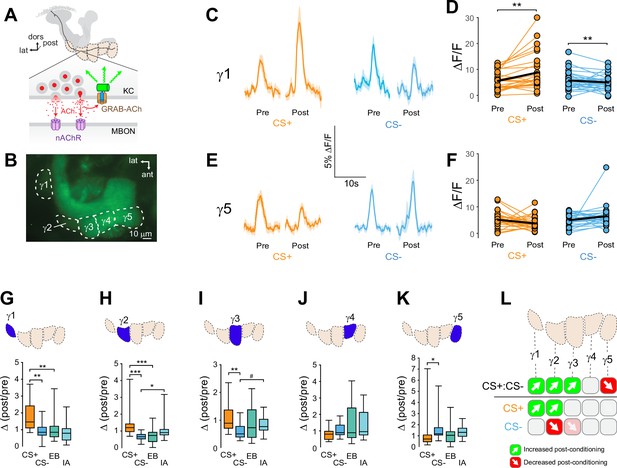

Compartment-specific alterations of acetylcholine (ACh) release in the mushroom body (MB) following appetitive conditioning.

(A) Diagram of the GRAB-ACh reporter expressed in presynaptic terminals of a Kenyon cell (KC), viewed from a frontal plane. nAChR: nicotinic ACh receptor; dors: dorsal; lat: lateral, post: posterior; MBON: mushroom body output neuron. (B) Confocal image of GRAB-ACh driven in KCs with the 238Y-Gal4 driver. ant: anterior. (C) Time series traces of odor-evoked GRAB-ACh responses in the γ1 compartment, pre- and post-conditioning, for the CS+ (ethyl butyrate: EB) and CS- (isoamyl acetate: IA) odor. The line and shading represent the mean ± SEM. (D) Quantification of the pre- and post-conditioning responses to the CS+ and CS- from the γ1 compartment from individual animals, with the mean graphed as a black line. **p<0.01; n = 27 (Wilcoxon rank-sum test). (E) Time series traces imaged from the γ5 compartment, graphed as in panel C. (F) Quantification of peak responses from the γ5 compartment, graphed as in panel D. (G–K) Change in odor-evoked ACh release (Δ(post/pre) responses) following conditioning for the CS+, CS-, and odor-only controls (EB and IA). *p<0.05, **p <0.01, ***p<0.001; n = 27 (Kruskal–Wallis/Dunn). (G) γ1 compartment. (H) γ2 compartment. (I) γ3 compartment. #p = 0.099. (J) γ4 compartment. (K) γ5 compartment. (L) Summary of plasticity in ACh release across γ lobe compartments. Green up arrows indicate increases in the CS+:CS- (first row) or potentiation of the CS+ response relative to odor-only controls (second row), while red down arrows indicate decreases in the CS+:CS- (first row) or depression of the CS- relative to odor-only controls (third row).

Appetitive conditioning produced plasticity in ACh release that varied across the axonal compartments of the MB γ lobe in several key ways (Figure 1). Conditioning significantly increased CS+ responses relative to the CS- responses in the three most proximal γ lobe compartments: γ1, γ2, and γ3 (Figure 1C, D–; Figure 1—figure supplement 2). In each of these compartments, this was due to different underlying dynamics. In the γ1 compartment, the CS+response was potentiated: following appetitive conditioning, the Δ(post/pre) CS+ response was significantly larger than the respective odor-only control (ethyl butyrate: EB), while the CS- did not differ from its odor-only control (isoamyl acetate: IA) (Figure 1G, Figure 1—figure supplement 2). In γ1, the CS+ response significantly increased following conditioning (Figure 1D). While the CS- response decreased following conditioning (Figure 1D), this decrease was indistinguishable from the rate of adaptation among odor-only controls in that compartment (Figure 1G). This suggests that the main effect in the γ1 compartment was potentiation of the CS+ response, and highlights the value of normalizing for non-associative olfactory adaptation. In the γ2 compartment, both the CS+ was potentiated and the CS- depressed relative to the odor-only controls (Figure 1H, Figure 1—figure supplement 2). In the γ3 compartment, while the CS+ and CS- differed, neither was significantly altered relative to odor-only controls. However, there was a trend toward depression in the CS- group (P = 0.099) (Figure 1I), as well as a significant decrease in the post-conditioning CS- response (Figure 1—figure supplement 2). Overall, these data reveal a spatial gradient of relative CS+ enhancement in the proximal γ compartments, shifting from CS+ potentiation in γ1 toward CS- depression in γ3, with the spatially intermediate γ2 exhibiting both (Figure 1L). This gradient of CS+:CS- plasticity suggests that both the CS+ and CS- contribute to learning by modulating compartmentalized KC (and downstream MBON) output, with different forms of plasticity in each compartment.

Moving further down the distal length of the KC axons, the plasticity produced by appetitive conditioning shifted from relative CS+ potentiation (↑CS+:CS-) to depression. In the most distal γ5 compartment, the CS+ response was reduced relative to the CS- following appetitive conditioning (Figure 1E, F, K, Figure 1—figure supplement 2). The effect could not be unambiguously assigned to CS+ depression, though there was no evidence of CS- potentiation (Figure 1K, Figure 1—figure supplement 2). In addition, control flies for RNAi experiments (discussed further below) exhibited a trend toward a reduction in the CS+:CS- response in the γ5 compartment following appetitive conditioning (Figure 3), accompanied by a significant decrease in CS+ response (Figure 3—figure supplement 1D). These lines of evidence point to a depression in CS+ evoked ACh release from the distal γ5 compartment. Overall, appetitive conditioning increased relative CS+responsivity in γ1–γ3 compartments, which was derived from a proximal-to-distal gradient of CS+ potentiation to CS- depression, and reduction of relative CS+ responsivity in the γ5 compartment (Figure 1L). Thus, the plasticity was bidirectional between the proximal and distal axonal compartments. This likely contributes to approach behavior by simultaneously enhancing the conditioned odor-evoked activation of downstream ‘approach’ circuits and inhibiting ‘avoidance’ MBON circuits.

Aversive conditioning drives ACh release in the opposite direction across MB compartments

The above data suggested that appetitive conditioning potentiated ACh synaptic release from the proximal γ lobe compartments. Yet synaptic depression is the main described plasticity mechanism at the KC-MBON synapses following olfactory conditioning (Barnstedt et al., 2016; Modi et al., 2020; Owald et al., 2015; Perisse et al., 2016; Séjourné et al., 2011; Zhang and Roman, 2013; Zhang et al., 2019). In the γ1 compartment, where it has been examined in detail with electrophysiology, aversive reinforcement via dopaminergic neuron stimulation produces synaptic depression (Hige et al., 2015a). Since many of the prior studies involved aversive reinforcement, we reasoned that appetitive and aversive conditioning may produce bidirectional plasticity of ACh release within each compartment, with the sign/directionality matching the postsynaptic MBON valence. To test this, we examined whether aversive conditioning produced the opposite effect in the same compartments as appetitive conditioning did. ACh release from KCs was imaged with GRAB-ACh and flies were trained with an aversive odor-shock conditioning protocol (Figure 2A and B). In these experiments, we focused on the γ2–γ5 compartments, as the fly was mounted at a higher angle, making the GRAB-ACh signal difficult to simultaneously visualize from γ1 along with that of the other compartments. Following aversive conditioning, there was a reduction in the CS+ response relative to the CS- in the γ2 and γ3 compartments (Figure 2C-H, Figure 2—figure supplement 1). This was due to depression in the CS+ response, as the Δ(post/pre) of the CS+ was significantly lower than the odor-only controls in each compartment (Figure 2G and H). The γ4 and γ5 compartments exhibited no significant change in ACh release (Figure 2I, J and Figure 2—figure supplement 1). When compared to appetitive conditioning, aversive conditioning produced plasticity in the opposite direction in the γ2 and γ3 compartments (Figures 1L and 2K). Thus, appetitive and aversive conditioning produced bidirectional plasticity within multiple compartments, which likely represents a presynaptic contribution to learning-induced changes in odor responsivity among postsynaptic MBONs following conditioning (Berry et al., 2018; Hige et al., 2015a; Owald et al., 2015; Zhang et al., 2019).

Figure 2 with 1 supplement see all

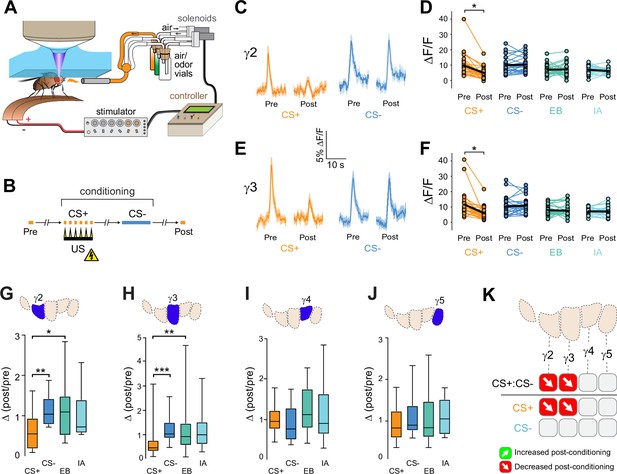

Compartment-specific alterations of acetylcholine (ACh) release in the mushroom body (MB) following aversive conditioning.

(A) Diagram of the aversive conditioning apparatus. (B) Aversive conditioning experimental protocol, pairing an odor (the CS+) with an electric shock unconditioned stimulus (US) (six shocks, 60 V). A second odor, the CS-, was presented 5 min after pairing the CS+ and US. One odor was imaged before (Pre) and after (Post) conditioning per animal (CS+ diagrammed here). (C) Time series traces showing odor-evoked GRAB-ACh responses pre- and post-conditioning in the γ2 compartment. Responses were imaged to both the CS+ (ethyl butyrate: EB) and CS- (isoamyl acetate: IA) odor, and the line and shading represent the mean ± SEM. (D) Quantification of the peak pre- and post-conditioning responses to the CS+ (EB) and CS- (IA) from the γ2 compartment of individual animals, with the mean graphed as a black line. *p<0.05; n = 27 (Wilcoxon rank-sum test). (E) Time series traces imaged from the γ3 compartment, graphed as in panel C. (F) Quantification of peak responses from the γ3 compartment, graphed as in panel D. (G–J) Change in odor-evoked responses (D(post/pre) responses), following conditioning (CS+ and CS-) or odor-only presentation (EB and IA). *p<0.05, **p<0.01, ***p<0.001; n = 27 (Kruskal–Wallis/Dunn). (G) γ2 compartment. (H) γ3 compartment. (I) γ4 compartment. (J) γ5 compartment. (K) Summary of plasticity in ACh release across γ lobe compartments. Red down arrows indicate decreases in the CS+:CS- (first row) or depression of the CS+ relative to odor-only controls (second row).

Presynaptic potentiation relies on the acophony CaV2.1 Ca2+ channel

Associative learning alters Ca2+ transients in MB γ neurons (Louis et al., 2018), which could influence neurotransmitter release. Major sources of stimulus-evoked intracellular Ca2+ include influx through voltage-sensitive CaV2 channels, which are involved in presynaptic short-term and homeostatic plasticity (Frank et al., 2006; Inchauspe et al., 2004; Ishikawa et al., 2005; Müller and Davis, 2012). To probe the Ca2+-dependent molecular mechanisms underlying presynaptic plasticity, we first knocked down the α subunit of the CaV2 Ca2+ channel encoded by cacophony (Cac). Cac was knocked down conditionally in adult MBs with RNAi using the strong, KC-selective R13F02-Gal4 driver, combined with the ubiquitous temperature-sensitive tub-Gal80ts repressor (McGuire et al., 2003) to reduce the potential for developmental effects (Figure 3A). The RNAi line was selected to moderately reduce, but not eliminate, Cac expression (Brusich et al., 2015). Quantitative reverse transcription polymerase chain reaction (RT-qPCR) analysis of Cac knockdown (driven ubiquitously with tubulin-Gal4) showed that conditional expression with this induction protocol reduced Cac levels ~29% (Figure 3—figure supplement 1C). For imaging experiments, RNAi expression was induced in the MB with R13F02-Gal4 following eclosion, and ACh release from KCs was imaged with GRAB-ACh (Jing et al., 2020; Jing et al., 2018; Zhang et al., 2019). Control flies (containing R13F02-Gal4, UAS-GRAB-ACh, and tub-Gal80ts, but lacking a UAS-RNAi) exhibited plasticity across the γ lobe in similar spatial patterns as observed in wild-type animals (↑CS+:CS- in γ1–3 and ↓CS+:CS- in γ5): there was a robust increase in the CS+:CS- and CS+ potentiation in γ1, with a strong trend toward an increase in CS+:CS- in γ2 (p = 0.052), an increase in the CS+ response in γ3, and a trend toward a CS+ decrease in γ5 (p = 0.120) (Figure 3C, E, F, Figure 3—figure supplement 1). When Cac was knocked down conditionally, odor-evoked ACh release was still observed, demonstrating that synaptic exocytosis remained intact. Yet the CS+ potentiation was lost across the γ1–γ3 compartments (Figure 3D, E, G, Figure 3—figure supplement 1). This demonstrates that the presynaptic CaV2.1 channel is necessary for potentiation of ACh release induced by learning. Further, this CaV-dependent potentiation may underlie behavioral learning, a possibility we explore below.

Figure 3 with 1 supplement see all

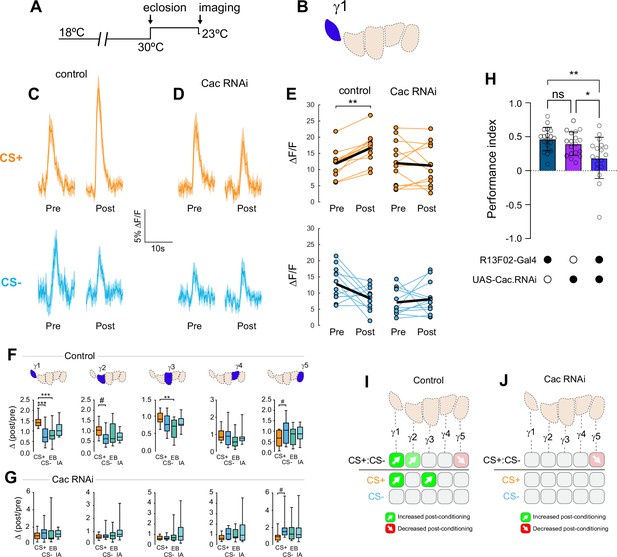

Conditional knockdown of the CaV2 channel Cac in KCs impairs potentiation of ACh release from the MB following appetitive conditioning.

(A) Diagram of the temperature shifts employed for conditional knockdown of Cac with tub-Gal80ts. (B) Diagram of the MB compartments, highlighting the γ1 compartment that was imaged for the data shown in panels C-E. (C) Pre- and post-conditioning CS+ (orange; top) and CS- (blue; bottom) odor-evoked ACh release from the γ1 compartment before and after appetitive conditioning, imaged in control animals (w;UAS-GRAB-ACh/+; R13F02-Gal4/UAS-tub-Gal80ts). Time series trace with line and shading representing mean ± SEM. (D) Effect of conditional Cac knockdown on odor-evoked ACh responses in the γ1 compartment following appetitive conditioning, graphed as in panel C (genotype: w;UAS-GRAB-ACh/UAS-Cac-RNAi; R13F02-Gal4/UAS-tub-Gal80ts). (E) Pre- and post-conditioning ΔF/F CS+ and CS- responses in control and Cac knockdown animals. **p<0.01; n = 12 (Wilcoxon rank-sum test). (F) Change in odor-evoked ACh release (Δ(post/pre)) following appetitive conditioning for the CS+, CS-, and odor-only controls (EB and IA) in control animals across the five MB γ lobe compartments: γ1-γ5 (left to right). **p<0.01, ***p<0.001, γ2 compartment #p=0.052, γ5 compartment #p=0.120; n = 12 (Kruskal–Wallis/Dunn). (G) Effect of conditional knockdown of Cac on odor-evoked ACh responses across compartments, graphed as in panel F. γ5 compartment #p=0.077; n = 12 (Kruskal–Wallis/Dunn). (H) Behavioral appetitive conditioning following conditioning knockdown of Cac. *p<0.05, **p<0.01; n = 12 (ANOVA/Sidak). (I) Summary of plasticity in ACh release across γ lobe compartments in control (uninduced) animals. (J) Summary of plasticity in ACh release (as in I) in animals with conditional Cac knockdown.

Data from the appetitive conditioning experiments suggested that potentiation of the CS+ response was dependent on the voltage-sensitive CaV2 Ca2+ channel Cac. Interestingly, the trend toward CS+ depression in the most distal γ5 compartment remained intact when Cac was knocked down (Figure 3G and J). This suggests that while presynaptic potentiation requires Cac across the MB compartments, depression may not. To directly test whether depression of the CS+ was affected, we turned to aversive conditioning, which generates robust CS+ depression in the proximal γ compartments (Figure 2). Cac was knocked down using the same conditional RNAi strategy as above. Control flies for conditional Cac knockdown experiments exhibited similar CS+ depression in the proximal γ2 and γ3 compartments following aversive conditioning (Figure 4A-C, Figure 4—figure supplement 1). Knockdown of Cac did not appreciably impair depression of CS+ responses (Figure 4D-F, Figure 4—figure supplement 1). There was a significant depression in γ2, both in terms of the drop in CS+ following conditioning (Figure 4D, Figure 4—figure supplement 1) and when comparing the Δ(post/pre) of the CS+ to either the CS- or the odor-only control (EB) (Figure 4E, Figure 4—figure supplement 1). In the γ1 compartment, there was a trend toward a decrease in the CS+ response compared to the CS- that matched the controls (Figure 4—figure supplement 1). In γ3, the difference between the CS+ and CS- (or CS+ vs odor-only control) did not reach significance; yet there was a trend in the same direction as the controls and the CS+ response significantly depressed following conditioning (Figure 4—figure supplement 1). Overall, these data suggest that moderate knockdown of Cac does not affect learning-induced depression of ACh release (in contrast to potentiation).

Figure 4 with 3 supplements see all

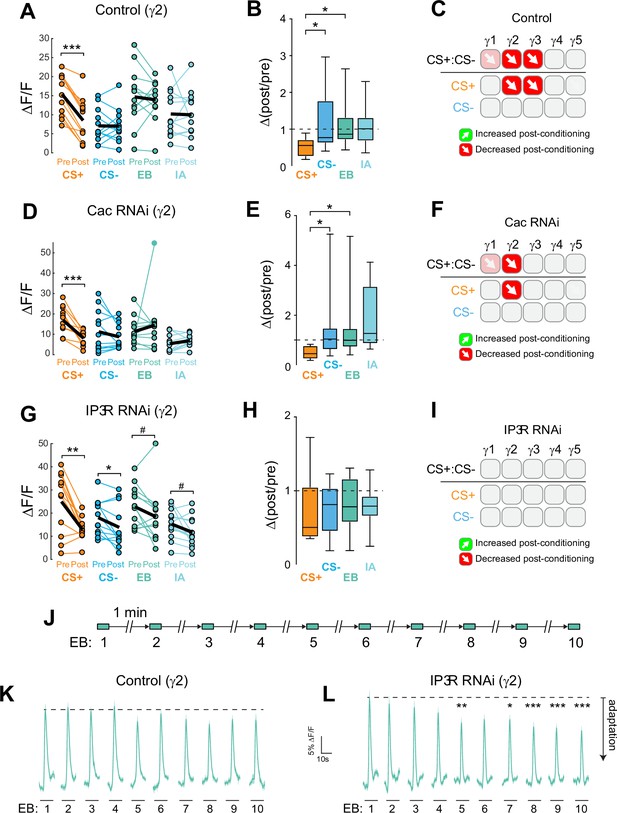

Cac and IP3 R exert distinct effects on synaptic plasticity and maintenance of olfactory responses in the γ2 compartment following aversive conditioning.

(A,D,G) Quantification of odor-evoked responses in control, Cac RNAi, and IP3 R RNAi animals, respectively. *p<0.05, **p<0.01, ***p<0.001; n = 12 (Wilcoxon rank-sum test). IP3 R RNAi: EB #p=0.092, IA #p=0.064. (B,E,H) Change in odor-evoked ACh release (Δ(post/pre) responses) following conditioning for the CS+, CS-, and odor-only controls (EB and IA). *p<0.05; n = 12 (Kruskal–Wallis/Dunn). (C,F,I) Summary of plasticity in ACh release across γ lobe compartments in control, Cac RNAi, and IP3 R RNAi animals, respectively. Red down arrows indicate decreases in the CS+:CS- (first row) or depression of the CS + relative to odor-only controls (second row). (J) Olfactory adaptation protocol. (K) Odor-evoked ACh release (ΔF/F time series traces) measured across repeated odor presentations in control flies. (L) Odor-evoked ACh release (ΔF/F time series traces) measured across repeated odor presentations in IP3 R knockdown flies. *p<0.05, **p<0.01, ***p<0.001; n = 27 (two-way ANOVA/Sidak).

Reduction of Cac in KCs impairs behavioral reward learning

Reducing Cac levels in KCs altered the pattern of plasticity in ACh release across MB compartments following conditioning, impairing potentiation following appetitive conditioning. This represents a potential physiological mechanism underlying reward learning. To test whether reduction in Cac levels impaired reward learning, we carried out behavioral olfactory appetitive conditioning experiments. Cac was knocked down in KCs using the same conditional expression strategy as above, reducing Cac level ~29% (Figure 3—figure supplement 1). Flies were trained with a conditioning paradigm in which a CS+ (EB or IA) was paired with sucrose, the other odor was presented as the CS-, and the flies were allowed to choose between the two odors in a T-maze. Conditional Cac knockdown impaired behavioral performance (Figure 3H), reminiscent of its previously reported role in aversive conditioning (Hidalgo et al., 2021). Odor avoidance was unaffected by Cac knockdown (Figure 3—figure supplement 1A,B), demonstrating that the effect was not due to loss of olfactory acuity. Overall, these findings suggest that the learning-induced facilitation of neurotransmitter release in the proximal γ compartments contributes to behavioral action selection in reward learning.

Post-conditioning odor contrast and maintenance of odor responses are dependent on IP3 Signaling

Ca2+ release from the endoplasmic reticulum (ER) is a major source of stimulus-evoked Ca2+ in neurons, including KCs, and modulates various forms of synaptic/homeostatic plasticity (Handler et al., 2019; James et al., 2019; Taufiq et al., 2005). Therefore, we reasoned that inositol triphosphate receptor (IP3R) mediated Ca2+ release may contribute to presynaptic plasticity across MB compartments. To test this, we conditionally knocked down the IP3R in the adult MB with RNAi. GRAB-ACh was expressed in the MB (as above), while conditionally knocking down IP3R (Figure 4, Figure 4—figure supplement 1, Figure 4—figure supplement 2). For these experiments, flies were aversively conditioned (IP3R knockdown impairs feeding under the microscope, precluding appetitive conditioning). Knockdown of IP3R eliminated the post-conditioning contrast between the CS+ and CS- (i.e. the difference between the CS+ and CS-) (Figure 4G-I, Figure 4—figure supplement 1). However, this was not due to a loss of depression in the CS+ groups, rather it was due to the appearance of olfactory adaptation in the other groups. This was seen as a decrease in the post-treatment odor responses in the CS- and odor-only controls (Figure 4G, Figure 4—figure supplement 1C), with concomitant Δ(post/pre) values < 1 (Figure 4H, Figure 4—figure supplement 1D). As there was no US presented in the odor-only control groups, this reduction in olfactory response represents adaptation, rather than a conditioned, associative change. Therefore, in normal conditions, release of Ca2+ from the ER via IP3R is necessary to maintain odor responsivity upon repeated odor presentations. Loss of IP3R renders the KCs more susceptible to adaptation at this time point (Figure 1—figure supplement 1, Figure 4H), reducing the contrast between the CS+ (which exhibits depression following aversive learning) and the other odor(s).

IP3R maintains neurotransmitter release during repeated odor exposure

To directly test how adaptation to odors was impacted by the loss of IP3R, as suggested by analysis of pre/post odor responses in the conditioning experiments above, we carried out an olfactory adaptation assay. Flies were presented an odor 10 times over the course of 10 min while imaging the GRAB-ACh responses. To test for olfactory adaptation at each time point, the ΔF/F was compared to the initial naïve odor presentation (Figure 4J, Figure 4—figure supplement 1). Control animals exhibited no significant olfactory adaptation across the 10 trials in any compartment (Figure 4K, Figure 4—figure supplement 1). In contrast, knocking down IP3R in KCs produced significant olfactory adaptation in the γ2 and γ3 compartments (Figure 4L, Figure 4—figure supplement 1). In γ2, following the fourth-odor presentation, there was a significant depression in odor-evoked ACh release at all-time points save one (Figure 4L, Figure 4—figure supplement 1). A similar effect was observed in the γ3, where following the third-odor presentation, a significant depression in release occurred (Figure 4—figure supplement 2). The γ1 compartment showed no evidence of adaptation, suggesting that IP3R may support plasticity in this compartment via another mechanism (Figure 4—figure supplement 2). The γ4 and γ5 compartments exhibited no significant adaptation (Figure 4—figure supplement 2). Overall, these data suggest that IP3R-dependent Ca2+ release from the ER may contribute to maintenance of synaptic strength, preventing adaptation during repeated stimuli. Further, loss of IP3R leads to alterations in neurotransmitter release that particularly impact compartments dominated by CS+depression.

To confirm the site of ACh release, we blocked neurotransmitter release from KCs by expressing the temperature-sensitive dynamin mutant Shibirets with R13F02-Gal4 (Kitamoto, 2001; McGuire et al., 2001). Odor-evoked GRAB-ACh transients were imaged across MB compartments, as above, before, and after shifting flies from the permissive (20°C) to the restrictive (30°C) temperature. Blocking synaptic transmission from KCs inhibited the GRAB-ACh responses across compartments (Figure 4—figure supplement 3). There was some residual response at the restrictive temperature (particularly in γ1), which we reasoned may emanate from KCs that were not labeled by the R13F02-Gal4 driver. To quantify the coverage of this driver, we counted GRAB-ACh labeled neurons (immunostained with an anti-GFP antibody), finding that R13F02-Gal4 labeled 745 ± 47 neurons (Figure 4—figure supplement 3) out of ~2000 total KCs (Aso et al., 2009). Inhibiting this relatively small subset of KCs significantly reduced the GRAB-ACh response from the MB compartments, demonstrating that KCs are the major ACh source, though cholinergic MBONs could also contribute to the signal (Scheffer et al., 2020).

Compartmentalized plasticity propagates into downstream mushroom body output neurons

Since ACh release from each compartment provides input to unique postsynaptic MBONs, the presynaptic plasticity observed in each compartment should be mirrored in the respective postsynaptic MBON(s) innervating that compartment. To test this, we imaged Ca2+ responses in MBONs with GCaMP and examined the effect of appetitive conditioning. Four sets of MBONs were tested, each innervating and receiving cholinergic input from a distinct MB γ lobe compartment: γ1pedc>α/β, γ2α′1, γ3/γ3β′1, and γ5β′2a (Figure 5A). Within the γ lobe, these neurons innervate the γ1, γ2, γ3, and γ5 compartments, respectively (Figure 5B–F). We focused our analysis on the γ2α′1 and γ3/γ3β′1 MBONs, which have not been studied intensively in the context of appetitive conditioning. The γ2α′1 MBON exhibited an increase in the relative CS+ responses following conditioning (Figure 5D). The plasticity could not be unambiguously attributed to purely CS+ potentiation or CS- depression. The γ3/γ3β′1 MBONs exhibited an increase in the relative CS+ responses (Figure 5F). In this case, it was due to potentiation of the CS+ response (Figure 5F). Note that this pair of MBONs is not parsed with available drivers and they were imaged together. One of them (γ3β′1) receives major input from the β′1 lobe/compartment in addition to γ3. Presynaptically, the γ3 compartment exhibited a depression in the CS- response, suggesting that the potentiation in the γ3/γ3β′1 CS+ response may emanate from potentiated β′1 inputs. The γ1pedc>α/β and γ5β′2 a MBONs have been reported to exhibit bidirectional plasticity following aversive and appetitive conditioning (Owald et al., 2015; Perisse et al., 2016); we examined the plasticity in these MBONs (and others) using the same odors/conditions that were used to probe presynaptic plasticity in KCs. Following appetitive conditioning, the γ1pedc>α/β MBON exhibited a significant elevation of the CS+ response relative to the CS- (Figure 5—figure supplement 1). This was due to a potentiation of the CS+ response, as the post-conditioning CS+ response was significantly larger than the corresponding odor-only control. Finally, appetitive conditioning produced plasticity in the opposite direction in the γ5β′2 a MBON; this neuron exhibited a decrease in the CS+ response relative to the CS- (Figure 5—figure supplement 1). Overall, the directionality of the plasticity in MBONs matched that observed in ACh responses in the presynaptic compartment. Thus, compartmentalized, presynaptic plasticity in neurotransmitter release from the MB compartments likely plays a role in modulating the MBON responses following learning.

Figure 5 with 1 supplement see all

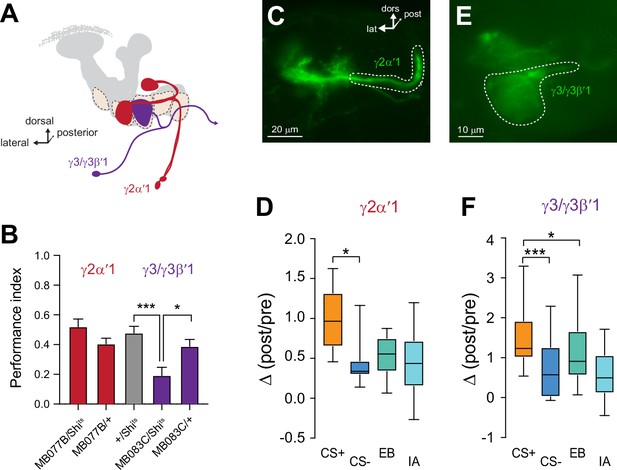

Plasticity in MBON Ca2+ responses mirrors compartmental plasticity in the mushroom body (MB) neurons.

(A) Diagram of MBONs innervating specific γ lobe compartments, viewed from a frontal plane. Each MBON is bilaterally paired, though only one is drawn here for visual clarity. (B) Behavioral appetitive conditioning when synaptic output from the γ2α′1 and γ3 MBONs was blocked with Shibirets (Shits), driven with the MB077B and MB083C split Gal4 drivers, respectively. *p<0.05; ***p<0.001; n = 16 (ANOVA/Sidak). (C,E) Representative confocal images of the γ2α′1 and γ3 MBONs, respectively. The region of interest circumscribed for quantification is drawn with a dotted white line. lat: lateral, dors: dorsal, post: posterior. (D,F) Change in odor-evoked responses (Δ(post/pre responses)) in the γ2α′one and γ3 MBONs, respectively, following appetitive conditioning. *p<0.05; ***p<0.001; n = 12 (Kruskal–Wallis/Dunn).

Synaptic activity from the γ3-innervating MBONs mediates reward learning

The unique role of the γ2 and γ3 compartments in encoding CS- plasticity, as well as their strong plasticity following both appetitive and aversive conditioning, led us to question the behavioral roles of the MBONs that receive input from these compartments (Figures 1 and 5A). In particular, the involvement of these MBONs in appetitive memory is unclear. To test whether the MBONs innervating the γ2 and γ3 compartments mediate short-term appetitive memory, we carried out behavioral appetitive classical conditioning, blocking synaptic transmission from MBONs with Shibirets (Shits) (Kitamoto, 2001; McGuire et al., 2001; Figure 5A and B). Blocking the γ2α′1 MBON did not significantly impair performance in appetitive conditioning (Figure 5B). Therefore, while activation of the γ2α′1 MBON drives approach behavior (Aso et al., 2014b) and the neuron is necessary for aversive memory (Berry et al., 2018), it is not crucial for appetitive short-term memory in the otherwise intact nervous system. In contrast, blocking synaptic transmission from the γ3/γ3β′1 MBONs significantly impaired appetitive conditioning performance (Figure 5B). This demonstrates that the output of the γ3/γ3β′1 MBONs is not only sufficient for protein synthesis-dependent appetitive long-term memory (Wu et al., 2017) but also serves a key role for normal appetitive short-term memory. These neurons convey the output of the MB γ3 compartment to the crepine and superior medial protocerebrum (where they innervate interneurons that project to the fan-shaped body and lateral accessory lobe further downstream), as well as provide direct contralateral MB feedback and form polysynaptic feedback loops via MB-innervating PAM dopaminergic neurons and other MBONs (Scaplen et al., 2021; Xu et al., 2020). The γ3 PAM dopaminergic neuron is also bidirectionally modulated through sucrose-activated allatostatin A neurons (Yamagata et al., 2016). These multi-layered connections provide several routes through which they could modulate behavioral output following learning. Overall, the present data suggest that the γ3/γ3β′1 MBONs receive input from an MB compartment with unique physiology and represent a key node through which discriminative effects influence sucrose-activated appetitive memory and decision-making.

Discussion

Compartmentalized plasticity in neurotransmitter release expands the potential computational capacity of learning circuits. It allows a set of odor-coding MB neurons to bifurcate their output to different downstream approach- and avoidance-driving downstream output neurons, independently modulating the synaptic connections to alter action selection based on the conditioned value of olfactory stimuli. The KCs modify the encoded value of olfactory stimuli through bidirectional plasticity in odor responses, which vary in a compartment-specific manner along the length of the axons. These changes were observed following pairing an olfactory CS with gustatory/somatosensory US (sucrose feeding or electric shock) in vivo. The CS+ and CS- drive unique patterns of plasticity in each compartment, demonstrating that olfactory stimuli are reweighted differently across compartments following learning, depending on the temporal associations of the stimuli. Different molecular mechanisms govern the potentiation of trained odor responses (CaV2/Cac) and maintenance of responsivity over time (IP3R). Finally, one set of γ output neurons, γ3/γ3β′1, is important for appetitive short-term memory.

Learning-induced plasticity of ACh release in the MB was bidirectional within the compartment, depending on the valence of the US, and was coherent with the valence of the MBON downstream of the compartment. Notably, the γ2 and γ3 MB compartments, which relay information to approach-promoting MBONs (Aso et al., 2014b), exhibited plasticity that was coherent with promoting behavioral approach following appetitive conditioning and avoidance after aversive conditioning. There was an increase in the relative CS+:CS- ACh responses after appetitive conditioning, and conversely reduced CS+:CS- ACh responses following aversive conditioning. For this study, we focused on the time point 5 min following conditioning, which is consistent with behavioral short-term memory. Aversive conditioning was previously reported to decrease neurotransmitter release from KCs (Zhang and Roman, 2013; Zhang et al., 2019). Indirect evidence, via Ca2+ imaging in presynaptic KCs, suggested that increases in presynaptic neurotransmission could also be associated with learning. Pairing odor with stimulation of appetitive PAM dopaminergic neurons potentiates odor-evoked cytosolic Ca2+ transients across the KC compartments (Boto et al., 2014). Appetitive conditioning increases odor-evoked Ca2+ transients across KC compartments (Louis et al., 2018). Stimulation of dopaminergic circuits associated with reward learning potentiate MB γ4 connections with the respective γ4 MBON (Handler et al., 2019). We did not detect a statistically significant effect in γ4 with appetitive or aversive classical conditioning, though the CS+ and CS- trended in the same direction as the adjacent γ5 compartment following conditioning. Overall, the present data demonstrate that there are bidirectional changes in neurotransmitter (ACh) release from MB compartments following appetitive vs aversive learning and provide a window into the spatial patterns of plasticity across compartments following associative learning.

Behavioral alterations following conditioning involve changes in responses among the MBONs. As the KCs provide presynaptic olfactory input to the MBONs, it was a logical a priori assumption that presynaptic plasticity in the KCs could be altered in a compartmental manner and contribute to the changes in MBON responses after conditioning. Yet data from previous Ca2+ imaging experiments have not completely supported this model. Compartmentalized effects have been observed in KCs with non-associative learning protocols (Cohn et al., 2015) and within the γ4 compartment following associative learning (Handler et al., 2019). In contrast, classical conditioning produces no compartmentalized differences in odor-evoked Ca2+ responses. Appetitive conditioning with odor + sucrose pairing increases odor-evoked cytosolic Ca2+ transients in KCs across the γ lobe compartments (Louis et al., 2018). Aversive conditioning produces no net change across the compartments (Louis et al., 2018), but alters synapse-specific Ca2+ responses at the individual bouton level (Bilz et al., 2020). If the compartmental effects of conditioning (observed with Ca2+ imaging) in KCs drove a proportional change in neurotransmitter release, both the approach- and avoidance-promoting MBONs would be simultaneously potentiated. Extracellular influx of Ca2+ through voltage-gated calcium channels is a primary driver of neurotransmitter release; however, there are multiple sources of Ca2+ in the cytosol that could contribute to the GCaMP signals (Grienberger and Konnerth, 2012). A major conclusion of the present study is that learning drives compartmentalized plasticity in neurotransmitter release that is coherent with the behavioral valence of the corresponding MBON.

At least two major molecular mechanisms govern the spatial patterns of plasticity across the MB compartments: a Cac-dependent CS+ potentiation and an IP3R-dependent maintenance of sensory responses over trials/time. This suggests that different sources of Ca2+ play different roles in regulating KC synaptic responses. Cac is the pore-forming subunit of the voltage-sensitive, presynaptic CaV2 Ca2+ channel in Drosophila. CaV2 channels regulate several forms of synaptic plasticity, including paired-pulse facilitation, homeostatic plasticity, and long-term potentiation (Frank et al., 2006; Inchauspe et al., 2004; Nanou et al., 2016). Our data suggest that these channels regulate the spatial patterns of learning-induced plasticity in the MB unidirectionally (from baseline), with Cac underlying potentiation but not depression. CaV2 channel activity is modulated by presynaptic calcium and G protein-coupled receptor activity (Zamponi and Currie, 2013), and channel localization in the active zone dynamically regulates synaptic strength (Gratz et al., 2019; Lübbert et al., 2019). Thus, Cac insertion into, or increased clustering within, the active zones may underlie learning-induced potentiation (e.g. in the γ1-γ2 compartments following appetitive conditioning). Conditional knockdown of Cac, which reduced Cac levels by ~29%, impaired this potentiation, likely by decreasing the number of available channels for modulation. Baseline stimulus-evoked neurotransmitter release was maintained during Cac knockdown, mediated either by the significant residual Cac expression or compensation by other intracellular Ca2+ channels/sources. In contrast to the Cac effect on potentiation, IP3R was necessary to maintain normal odor responsivity when odors were presented repeatedly across multiple trials (whether those were pre/post trials in the conditioning protocol or 10× odor presentations in the adaptation protocol). This is broadly consistent with the temporal role of IP3R in maintenance of presynaptic homeostatic potentiation at the neuromuscular junction (James et al., 2019). In addition, dopaminergic circuits associated with reward learning drive release of Ca2+ from the endoplasmic reticulum when activated with KCs in a backward pairing paradigm ex vivo, potentiating MB γ4 connections with the respective γ4 MBON (Handler et al., 2019). This is consistent with a role for ER calcium in positively regulating synaptic strength.

We observed potentiation and depression of ACh release across multiple MB compartments following conditioning, providing a presynaptic mechanism that potentially contributes to shaping conditioned MBON responses. Importantly, by comparing the CS+ and CS- responses to those of untrained odors, we ascribed plasticity to potentiation or depression (accounting for any non-associative olfactory adaptation) within each compartment. This is relevant for modeling efforts, where it has been unclear whether to include potentiation (along with depression) in the learning rule(s) at KC-MBON synapses (Abdelrahman et al., 2021; Bennett et al., 2021; Jiang and Litwin-Kumar, 2021; Springer and Nawrot, 2021). In addition, the experiments revealed an additional layer of spatial regulation in the γ1–γ3 compartments: a gradient of CS+ potentiation to CS- depression following appetitive conditioning. Specifically, the CS+/CS- relationship changed in a linear gradient down the γ1–γ3 compartments following appetitive conditioning. Appetitive conditioning increased CS+ responses in the γ1 compartment, while decreasing the CS- responses in the γ3 compartment. The γ2 compartment yielded a mix of these responses. These patterns of plasticity have the net effect of increasing the relative response to the CS+ odor (↑CS+:CS-). Since the MBONs postsynaptic to these compartments drive behavioral approach (Aso et al., 2014b), this would bias the animal to approach the CS+ if it encountered both odors simultaneously. Such a situation occurs at the choice point of a T-maze during retrieval in a classical conditioning assay. The CS+ and CS- produce different patterns of plasticity at different loci (e.g. γ1 vs γ3), which presumably coordinate to regulate behavior via temporal integration of the odor and US cues (Berry et al., 2018; Handler et al., 2019; Jacob and Waddell, 2020; König et al., 2018; Tanimoto et al., 2004; Tully and Quinn, 1985). The CS+ is temporally contiguous with the US, while the CS- is nonoverlapping. Therefore, the timing of CS/US pairing drives plasticity differently in each compartment. These patterns of plasticity presumably coordinate to regulate memory formation and action selection during retrieval. For instance, while the γ1–γ3 compartments exhibited ↑CS+:CS- following appetitive conditioning, the γ5 compartment exhibited plasticity in the opposite direction: decreasing the relative response to the CS+ odor (↓CS+:CS-). As the γ5 compartment is presynaptic to an avoidance-promoting MBON, this plasticity pattern would coherently contribute to biasing the animal toward CS+ approach (reducing CS+ avoidance). Thus, it would work in concert with the plasticity in γ1–γ3 to bias the animal toward behavioral approach. Overall, plasticity is regulated in each MB compartment individually by the timing of events and the valence of the US, with the changes coordinated across multiple compartments to coherently drive behavior.

Behaviorally, MBONs innervating the γ lobe variably drive behavioral approach or avoidance when stimulated (Aso et al., 2014b). Despite the approach-promoting valence of the γ2α′one and γ3/γ3β′1 MBONs, among them, only the γ3/γ3β′1 MBONs produced a loss-of-function phenotype in behavioral appetitive conditioning. This suggests that redundancy and/or different weighting across approach promoting MBONs renders the system resilient to silencing some of them. A previous study found effects of blocking the γ2α′1 MBONs, though not γ3/γ3β′1 MBONs, when blocking individual steps of memory processing (acquisition, retention, and/or retrieval) with a 1 hr appetitive memory protocol (Ichinose et al., 2021). This suggests that the different MBONs have differing roles across time, with some redundancy in appetitive processing. Blocking synaptic output of γ3/γ3β′1 MBONs reduced appetitive conditioning performance in our experiments immediately following conditioning, suggesting that these neurons play a specific role in appetitive short-term memory.

The present and previous studies suggest that alterations of MBON activity following learning are the product of both presynaptic and postsynaptic plasticity at the KC-MBON synapses, as well as feedforward inhibition (Hige et al., 2015a; Perisse et al., 2016; Pribbenow et al., 2021). Blocking synaptic output from KCs impairs the acquisition of appetitive memories (30–60 min after conditioning), suggesting a role for postsynaptic plasticity (Pribbenow et al., 2021; Schwaerzel et al., 2003). However, this does not rule out presynaptic plasticity, as blocking KC output (with R13F02) leaves signaling from reinforcing dopaminergic neurons partially intact (Cervantes-Sandoval et al., 2017), which likely shapes the presynaptic KC responses via heterosynaptic plasticity. At the circuit level, polysynaptic inhibition can convert depression from select MB compartments into potentiation in MBONs following learning; in one established example, reduction of odor-evoked responses in the GABAergic γ1pedc MBON following aversive conditioning disinhibits the downstream γ5β′2 a MBON (Owald et al., 2015; Perisse et al., 2016).

KC-MBON synapses represent one node of learning-related plasticity, which is distributed across multiple sites during learning. Short-term memory-related plasticity has been observed in multiple olfactory neurons, such as the antennal lobes (Yu et al., 2004) and KCs (Louis et al., 2018; Wang et al., 2008). In addition, connectomics studies have revealed complex connectivity within and beyond the MB, which is a multi-layered network including circuit motifs that influence the propagation of information and generation of plasticity during learning. Such connections include recurrent feedback (Aso et al., 2014a; Ichinose et al., 2015; Li et al., 2020; Otto et al., 2020; Scaplen et al., 2021; Takemura et al., 2017; Zhao et al., 2018). Some of these recurrent connections are from cholinergic MBONs that synapse within the MB, which could have contributed to the ACh signals we observed in this study. For instance, the γ2α′1 MBON is a cholinergic MBON that sends ~6% of its output back to the γ lobe (Scheffer et al., 2020). Some of the recurrent connections are formed by dopaminergic neurons, such as the PAM γ4<γ1/y2 (Aso et al., 2014a; Li et al., 2020). In addition, reciprocal connections between KCs and dopaminergic neurons in the vertical lobes are necessary for memory retrieval (Cervantes-Sandoval et al., 2017). This adds another layer of recurrent circuitry that may participate in reinforcement during associative learning (Aso et al., 2014b; Ichinose et al., 2015; Ichinose et al., 2021). Across these circuits, some neurons corelease several neurotransmitters and act on an array of postsynaptic receptors, which contribute to plasticity distributed across multiple sites (Aso et al., 2019; Barnstedt et al., 2016; Berry et al., 2012; Bielopolski et al., 2019; Cohn et al., 2015; Handler et al., 2019; Haynes et al., 2015; Keene et al., 2004; Kim et al., 2007; Liu and Davis, 2009; Pribbenow et al., 2021; Schroll et al., 2006; Séjourné et al., 2011; Silva et al., 2015; Wu et al., 2013; Zhou et al., 2019).

Overall, plasticity between KCs and MBONs may guide behavior through biasing network activation to alter action selection in a probabilistic manner. Appetitive conditioning drives compartmentalized, presynaptic plasticity in KCs that correlates with postsynaptic changes in MBONs that guide learned behaviors. Prior studies documented only depression at these synapses at short time points following conditioning (Hige et al., 2015a; Zhang and Roman, 2013; Zhang et al., 2019). Here, we observed both potentiation and depression in ACh release in the MB, suggesting that bidirectional presynaptic plasticity modulates learned behaviors. These bidirectional changes likely integrate with plasticity at downstream circuit nodes that also undergo learning-induced plasticity to produce network-level alterations in odor responses across the olfactory pathway following salient events. Thus, plasticity in ACh release from KCs functions to modulate responsivity to olfactory stimuli features across graded plasticity maps down the MB axons.

Materials and methods

Fly strains

Request a detailed protocol

Flies were fed and maintained on a standard cornmeal agar food mixture on a 12:12 light:dark cycle. The 238Y-Gal4 driver was selected for maximal KC coverage (Aso et al., 2009) and high expression levels (Louis et al., 2018). The R13F02-Gal4 driver was selected for greater specificity in KCs (Jenett et al., 2012). MBON drivers were selected from the FlyLight and split-Gal4 collections (R12G04, MB077b, and MB083c) (Jenett et al., 2012; Pfeiffer et al., 2010). The γ5β′2 a LexA MBON driver was generated by Krystyna Keleman (Zhao et al., 2018). RNAi lines were obtained from the VDRC (Cac: 101478) (Dietzl et al., 2007) and TRiP collections (IP3R: 25937) (Perkins et al., 2015) and crossed into flies expressing R13F02-Gal4 and tub-Gal80ts (McGuire et al., 2003). Final experimental genotypes were: Cac (w;UAS-GRAB-ACh/UAS-Cac-RNAi;R13F02-Gal4/UAS-tub-Gal80ts) and IP3R (w;UAS-GRAB-ACh/UAS-tub-Gal80ts;R13F02-Gal4/UAS-IP3R-RNAi), compared to genetic controls (w;UAS-GRAB-ACh/+;R13F02-Gal4/UAS-tub-Gal80ts). For quantitative analysis of Cac knockdown, flies of the experimental genotype (w;UAS-Cac-RNAi/UAS-tub-Gal80ts;tub-Gal4/+) were compared to genetic controls (w;UAS-tub-Gal80ts/VIE-260B;tub-Gal4/+).

Fly preparation for in vivo imaging

Request a detailed protocol

Flies were briefly anesthetized, placed in a polycarbonate imaging chamber (Tomchik, 2013), and fixed with myristic acid (Sigma-Aldrich). The proboscis was fixed in the retracted position, except for appetitive conditioning experiments (as noted below). A cuticle window was opened, and the fat and tracheal air sacs were carefully removed to allow optical access to the brain. The top of the chamber was filled with saline solution (103 mM NaCl, 3 mM MBl, 5 mM HEPES, 1.5 mM CaCl2, 4 mM MgCl2·6H2O, 26 mM NaHCO3, 1 mM NaH2PO4·H2O, 10 mM trehalose, 7 mM sucrose, and 10 mM glucose), which was perfused over the dorsal head/brain at 2 ml/min via a peristaltic pump.

In vivo imaging

Request a detailed protocol

GRAB-ACh (Jing et al., 2020; Jing et al., 2018; Zhang et al., 2019) was driven in the KCs, using the 238Y or R13F02 driver. Within the KCs, ROIs were drawn around five γ lobe compartments (γ1–5) within a single imaging plane for appetitive, and (γ2–5) for aversive. Imaging was performed with a Leica TCS SP8 confocal microscope utilizing appropriate laser lines and emission filter settings. Odors were delivered with an airstream for 1 s (60 ml/min flow rate) by directing the air flow with solenoid valves between an empty vial (air) to another containing 1 μl odorant spotted on filter paper. Odor-evoked responses were calculated as the baseline normalized change in fluorescence (ΔF/F), using the maximum ΔF/F within a 4 s window after odor delivery. In experiments with RNAi, flies containing the R13F02-Gal4, GRAB-ACh, a UAS-RNAi line, and tub-Gal80ts were constructed; flies were raised at 18°C until eclosion, then transferred to 32°C for 4–10 days prior to the experiment. Experiments were carried out at room temperature (23°C) for ACh imaging/conditioning. For Ca2+ imaging experiments, GCaMP6f was expressed in the MBONs using the R12G04 (γ1pedc), MB077b (γ2α′1), MB083c (γ3) Gal4/split-Gal4 drivers, or the VT014702-LexA (γ5β′2) driver. Regions of interest were selected in accordance with prior studies (Berry et al., 2018; Jacob and Waddell, 2020; Zhao et al., 2018). Experiments were carried out the same way as ACh imaging, except presenting a 3 s odor delivery.

Appetitive conditioning and imaging

Request a detailed protocol

Appetitive conditioning was carried out as previously described (Louis et al., 2018). Flies were starved for a period of 18–24 hr prior to conditioning. One odor (the CS+; ethyl butyrate) was presented in conjunction with a paired sucrose (1 M, containing green food coloring) US, and a second odor (the CS-; isoamyl acetate) was presented 30 s later. Six 1 s odor pulses were presented during conditioning over a 30 s period, with a 5 s inter-pulse interval, to prevent desensitization of the reporter. In odor-only control cohorts, the sucrose US was omitted. During conditioning, the US was presented continuously for 30 s. Pre/post odor-evoked responses were imaged prior to and after the imaging protocol, using a 1 s (ACh imaging) or 3 s (Ca2+ imaging) odor pulse. During odor-evoked response imaging, proboscis extension was blocked utilizing a thin metal loop attached to a custom motorized micromanipulator. During conditioning, the proboscis was released, and the flies were presented sucrose through a metal pipette fed by a syringe pump controlled via a micro-controller (Arduino). To assess feeding, flies were monitored using a digital microscope (Vividia); sucrose ingestion was visually confirmed by the presence of green food coloring in the abdomen.

Aversive conditioning and imaging

Request a detailed protocol

Flies were mounted in a polycarbonate imaging chamber such that the brain could be imaged while odors were delivered to the antennae and electric shocks delivered to the legs via a shock grid below the fly. Conditioning was carried out by pairing a CS+ odor with electric shocks as follows: 6 × 1 s odor pulses, with a 5 s inter-pulse interval, paired with 6 × 90 V electric shocks. This was followed 30 s later by presentation of 6 × 1 s pulses of the CS- odor with 5 s inter-pulse interval. Pre- and post-conditioning odor-evoked GRAB-ACh responses were imaged using a 1 s odor pulse. In each animal, either the CS+ or CS- odor was tested pre- and post-conditioning.

Olfactory adaptation protocol

Request a detailed protocol

Flies were mounted in the imaging chamber and the proboscis was fixed in place with myristic acid to minimize brain movement. Odors were presented for a 1 s period in 1 min intervals for 10 min. Odor-evoked ACh responses were imaged, the peak ΔF/F of each response quantified, and the response at each time point was compared to the initial naïve response.

Behavioral appetitive conditioning

Request a detailed protocol

Adult flies, 2–5 day old, were trained under dim red light at 75% relative humidity. Appetitive conditioning experiments were performed in animals starved 16–20 hr. Groups of ~60 flies were exposed for 2 min to an odor (the CS-), followed by 30 s of air and 2 min of another odor, the (the CS+), paired with a 2 M sucrose solution dried on filter paper, at 32°C for Shibirets blockade. The odors were ethyl butyrate and isoamyl acetate, adjusted so that naïve flies equally avoided the two odors (0.05–0.1%). Memory was tested by inserting the trained flies into a T-maze, in which they chose between an arm containing the CS+ odor and an arm containing the CS- odor. Odors were bubbled at 500 ml/min air flow rate. Flies were allowed to distribute for a 2 min choice period. The Performance Index (P.I.) was calculated as (flies in the CS- arm)-(flies in the CS+ arm)/(total flies in both arms). Odor avoidance was tested by putting groups of ~60 flies in a T-maze in which they chose between an arm containing an odor and an arm containing air; an Avoidance Index was calculated as above for the P.I.

Immunohistochemistry

Request a detailed protocol

About 5–7-day old adult flies were dissected in 1% paraformaldehyde in S2 medium and processed as previously described (Jenett et al., 2012). Brains were incubated with primary antibodies for 3 hr at room temperature, followed by secondary antibodies for 3 hr at room temperature and 4 days at 4°C. Incubations were performed in blocking serum (3% normal goat serum). Brains were then stained with NeuroTrace 530/615 Red Fluorescent Nissl Stain (1:100, Invitrogen) and incubated at 4°C overnight, followed by mounting in Vectashield (Vector Laboratories) for imaging. The following antibodies were used: rabbit anti-GFP (1:1000, Invitrogen), mouse anti-brp (nc82) (1:50, DSHB), goat anti-rabbit IgG, and goat anti-mouse IgG (1:800, Alexa 488 or Alexa 633, respectively, Invitrogen). KCs were imaged using Leica TCS SP8 confocal microscope and LAS X software. Cells were counted using the point tool on Fiji 2.3.

Quantitative PCR

Request a detailed protocol

Phenol-chloroform RNA extraction was performed with TRIzol (Ambion), and genomic DNA eliminated via DNase I (NEB). cDNA was generated using TaqMan RT Reagents (Applied Biosciences). RT-qPCR was performed using PowerUp SYBR Green Master Mix (Applied Biosciences) and an Applied Biosystems 7900HT Fast Real-Time PCR System. Samples were run in quadruplicate and raw Ct values extracted and averaged. Values for ΔCt were exported to Prism/GraphPad for significance testing. Knockdown efficiency was calculated from ΔΔCT values representing the fold change relative to the housekeeping gene. The following primers were used: Cacophony: 5′-GCAAGGCGAAGCTGAGTTAC-3′ (Forward), 5′-AGGCGTTGACACCACAATTC-3′ (Reverse) and Rps20: 5′-TGTGGTGAGGGTTCCAAGAC-3′ (Forward), 5′-GACGATCTCAGAGGGCGAGT-3′ (Reverse).

Quantification and statistical analysis

Request a detailed protocol

Data were compared using Wilcoxon rank-sum tests (two groups, nonparametric), ANOVA/Sidak (multiple comparisons, parametric) or Kruskal–Wallis/Dunn (multiple comparisons, nonparametric) tests. Box plots show graph the median as a line, the 1st and 3rd quartile enclosed in the box, and whiskers extending from the 10th to the 90th percentile.

Data availability

Raw data have been deposited to Dryad under https://doi.org/10.5061/dryad.dfn2z353h.

The following data sets were generated
    1. Tomchik SM
    (2022) Dryad Digital Repository
    Data from: Associative learning drives longitudinally-graded presynaptic plasticity of neurotransmitter release along axonal compartments.
    https://doi.org/10.5061/dryad.dfn2z353h

References

    1. Crittenden JR
    2. Skoulakis EM
    3. Han KA
    4. Kalderon D
    5. Davis RL
    (1998)
    Tripartite mushroom body architecture revealed by antigenic markers
    Learning & Memory (Cold Spring Harbor, N.Y.) 5:38–51.
    1. Schwaerzel M
    2. Monastirioti M
    3. Scholz H
    4. Friggi-Grelin F
    5. Birman S
    6. Heisenberg M
    (2003)
    Dopamine and octopamine differentiate between aversive and appetitive olfactory memories in Drosophila
    The Journal of Neuroscience 23:10495–10502.
    1. Tully T
    2. Quinn WG
    (1985) Classical conditioning and retention in normal and mutant Drosophila melanogaster
    Journal of Comparative Physiology. A, Sensory, Neural, and Behavioral Physiology 157:263–277.
    https://doi.org/10.1007/BF01350033

Decision letter

  1. Ilona C Grunwald Kadow
    Reviewing Editor; University of Bonn, Germany
  2. Gary L Westbrook
    Senior Editor; Oregon Health and Science University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting the paper "Associative learning drives longitudinally-graded presynaptic plasticity of neurotransmitter release along axonal compartments" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. The reviewers have opted to remain anonymous.

Comments to the Authors:

We are sorry to say that, after consultation with the reviewers, we have decided to reject the current manuscript because of several substantial issues that were raised by the reviewers. Although we believe that these issues can be addressed experimentally and through text changes, we do not think that this substantial amount of work can be carried out within 2 months, the time eLife allows for revisions. As you will see, the reviewers were generally supportive of publication, but identified several key points such as (1) lack of behavioral experiments for the Cac knock-down experiments, (2) specific controls for some of the imaging experiments, (3) consideration of the role of dopaminergic neurons and (4) a lack of acknowledgment of the complexity of the mushroom body circuit and the literature that has addressed this previously. If the authors decide to address these issues, we are willing to consider a future manuscript, but it would be considered as a new submission.

Reviewer #1:

The paper aims to understand if and how axonal compartmentalization functions in the MB γ lobe in the context of olfactory learning. Further the authors focus on these process and find distinct molecular mechanisms underlying appetitive and aversive learning (cac and IP3). Lastly the authors focus on how this compartmentalization influences the downstream MBON function.

The paper is written well and straightforward in its approach and implications. The neuroanatomy, experimental details are clearly presented and I would rate this paper very high on a readability scale. The imaging and behavioral approaches are appropriate for the research question and address the limitations from a technical perspective. Results are presented well, but authors don't dwell on the results much before transitioning into another part of the question they seek to ask. This undermines the complexity of the MB circuits and an effort should be made to address dynamics of other lobes that underlie these behaviors. One issue is that even though the experiments work well together in supporting the results they fail to incorporate more complex dynamics of other lobes or consider the EM connectivity which might complicate the simplistic interpretations. The role of dopamine in this compartmental logic has not been directly addressed which potentially plays into this circuit.

This is impactful work as it addresses the pre-synaptic dynamics of MB with a focus on ACh release across compartments and how they differ between two forms of learning. The use of Grab Ach is a big highlight of the paper as this question could not have been asked without this tool. The authors also address the regulation of Ca2+ responses in the compartments that result in altered responses in valence-coding MBONs. Its also interesting to see the switch in γ2 and γ3 dynamics between appetitive and aversive learning. Lastly the match of Ca2+ responses in MBONs with the Ach compartmentalization highlights the behavioral relevance of axonal compartmentalization.

I like this paper as the experiments, results are clear and authors are very careful about interpreting the results. On a few occasions I feel that interpretations are over simplified and a focus on elaborating the complexities will be more helpful for the field.

Below are a few suggestions:

1) The use of Gal4 lines seems to be inconsistent between figures. The rationale for choosing a specific targeting tool should be made explicit.

2) The olfactory learning literature has many odor pairs and the one used here (ethyl butyrate and IAA) is not the most common pair. Do learning scores, neuroanatomy involved differ based on chosen odor pairs. Are learning rules generalizable across odor pairs.

3) Figure 1: Having some images from the rig set up would help in seeing how authors chose ROI's for the different compartments. The schematics are great but dont give a good sense for the real imaging resolution.

4) Figure 3: A schematic here like figure 1K would be great to align the reader. Also the n's here are half of figure 1. Is there a specific reason for that? How was power determined for these experiments.

5) Figure 4: It is not clear why γ2 is the only compartment shown here.

6) The compartmentalized pre-synaptic plasticity mapping/mirroring the MBON Ca++ response is a great result but without knocking down Ach receptor in these MBONs I am not sure a direct link between Ach release and MBON Ca2+ response cannot be made.

7) The above concern is somewhat addressed for γ3 as they mediate timing and MBON from γ3 are required for appetitive learning but is not addressed for other compartments and MBONs.

8) While, PAM and PPL1 neurons have been briefly discussed their role in modulating KC and MBON plasticity is not addressed experimentally which goes against what is know about this circuit. A more elaborate discussion would be beneficial. How do dopaminergic circuits associated with γ4 interact with this circuit?

Overall I find that Ach compartmentalization is well justified but the downstream circuit connectivity and plasticity seems unclear. Without addressing the role of Ach receptors it is difficult to see the causal relationship between KC Ach release and MBON activity.

Reviewer #2:

Stahl et al. investigate presynaptic Kenyon cell plasticity in the context of appetitive and aversive memories, using a genetically-encoded acetylcholine receptor-based sensor as primary read-out (instead of calcium indicators used in several previous studies). Therefore, the authors investigate one step downstream of the classically conducted calcium (or cAMP, etc.) imaging experiments – the level of neurotransmitter release. Likewise, this is one step upstream of the other widely-used readout of the postsynaptic MBON activity (or dopaminergic neurons). The authors investigate contributions of CS+ and/or CS- plasticity throughout the compartments of the γ lobe. All in all, this manuscript confirms several previous studies that investigated individual compartment plasticity (often plasticity is measured at the level of the MBONs and therefore in single compartments), and taken together with other recent publications, this study can be seen as a valuable compendium (as it addresses appetitive and aversive short-term memory protocols in the context of several compartments). As the authors address an important step between presynaptic and postsynaptic calcium transients, their work actually confirms that conclusions deduced from changed calcium transients correlate to neurotransmitter release, as expected. This study also addresses differential effects on the CS+ and the CS-, which is important, as previous studies often concentrated (partially for technical reasons) on either the CS+ specifically, or the relative changes of CS+ to CS- only. The authors further investigate the role of the active zone-localized voltage gated calcium channel cacophony in memory-related plasticity – this part needs to be strengthened by additional controls.

1. As it stands, I am not sure what to read from the Cac knock-down experiments for several reasons. First, it is entirely unclear how efficient the knock-down works. Would the amount of Cac molecules be reduced from e.g., 20 to 15 per active zone, or less, or more (the authors should quantify cacophony following knock-down)? Second, if baseline transmission is not affected (which is remarkable to a certain degree – the authors do mention potential 'residual' Cac expression in the discussion), what about e.g., high frequency odor puff protocols (again the authors mention plasticity protocols in the discussion that may help tying the observed effects to Cac). Can the authors perform additional manipulations that should phenocopy the reduction of Cac (e.g., reduction of Brp via RNAi)? Can the phenotype be modulated by titrating extracellular calcium concentrations? Would basal neurotransmission be affected when extending the time at 32{degree sign}C (the range of 4-10 days could also be quite large, depending on the turnover time for cacophony). Third, can the authors exclude that the observed effects were due to dendritic functions of Cac?

The authors need to perform additional experiments in order to manifest this important claim.

2. What is the behavioral consequence of Cac or IP3R knock-down in Kenyon cells? Is memory impaired?

3. The authors actually do not demonstrate that the acetylcholine measured is released from MB neurons (Kenyon cells) and do not exclude the possibility that the measured acetylcholine could derive from an unknown other source. The authors could address this issue by Kenyon cell-specific knock-down of VAChT or ChaT. Alternatively, acute or chronic block of KCs, while measuring sensor activation, could be an option. I am puzzled by the wording in line 80: is 'putative' meant as 'generally accepted' or 'likely'? I would strongly recommend using a less ambiguous word in this context. If not generally accepted (if so, please do explain to the reader why), this would somewhat compromise the basis of this study.

4. Figure 1 and others: Why are only the means compared statistically? The pre to post in C and E should be analysed using paired statistics – as in Figure 3E/F or S4 for example. In Figure 1: are any changes detected within flies? Figure S1 suggest that this is not the case – the change would only become apparent between conditions? Although the authors have already done a good job in illustrating their protocols, data display should be more uniform potential discrepancies should be spelt out, and claims should be adjusted accordingly (e.g., summary in K).

5. Line 189: why a trend towards decrease? Figure S4 suggests a statistically significant change.

6. Absolute conditioning protocols: Is the comparison of the 'no CS-' and 'no CS+' really suited to claim that 'no CS-' leads to decreased acetylcholine release? It appears that this would only be consistent if the 'no CS-' group was significantly different from the 'no US' group. Please clarify putative discrepancies. In this context, please also discuss the results in S5 in more detail.

7. Figure S4 shows

a. gamma1: CS+ potentiation (not seen in Figure S1?), not apparent in Cac RNAi

b. gamma2: no potentiation for the CS+ (unlike what is reported in Figure 1), yet, consistently a depression for the CS-

c. gamma3: no potentiation of CS+, yet a depression of CS-, both inconsistent with Figure 1

d. Several forms of plasticity, also to the non-trained odor in controls and Cac RNAi

Please clarify and discuss the individual findings.

8. Line 467: It is first stated that odor was presented continuously for 30s. In the next sentence the authors write that six 1-s odor pulses with a 5s inter-pulse interval were given. Please clarify. Also, the odor responses appear to typically last for about 5-6s. Obviously, this is in parts based on the kinetics of the reporter. However, would the authors not expect that continuous odor application will lead to desensitization at the level of the olfactory receptor neurons?

9. Apart from showing that postsynaptic calcium signals are altered in MBONs the authors should consider showing whether the observed effects seen with the acetylcholine indicator can also be seen when expressed in MBONs or DANs (and exclude the possibility that the potentiation/depression could be specific to KC-DAN or KC-KC synapses).

Reviewer #3:

This study shows learning-induced compartmentalized plasticity in Kenyon cells (KCs) of the mushroom body γ lobe using a genetically encoded acetylcholine sensor. The authors made several major discoveries that the plasticity is bidirectional and depends on memory valence. Interestingly, the compartments along the axon terminals of the KCs undergo spatial 'gradient' of plasticity. Knock-down of the genes that differentially regulate intracellular calcium induced distinct effects on learning-induced plasticity. These results explain, at least partly, that learning-induced plasticity at KC-MBON synapses takes place on the presynaptic side. The experiments and analysis are overall thorough, and conclusions are generally supported by the results. In the following, I list some flaws to be addressed that concern necessary controls, more careful interpretation of the statistics and results, and the choice of the cac RNAi strain.

- Odor-only control is imperfect to formally distinguish if the plasticity arises from CS+ and/or CS- changes. The effect of sugar or shock presentation per se must be measured to make this distinction. Alternatively, the authors can examine how much of the 'plasticity' is explained by unpaired presentations of CS and US.

- Conditioning effects at some compartments are on the edge of statistical significance and look inconsistent among different experimental series (e.g. Figure 1F-J vs. Figure 3F). The authors need to be cautious to interpret these statistical results. For example, knock-down of cac impaired CS- depression in y2 and y3 as well (cf. Figure 1G, H, and K), and this is contradictory to their conclusion that cac is required only for potentiation. Similarly, itpr seem to globally affect presynaptic activities.

- Some of the major findings here have been consistent with previous papers with different measurements (e.g. Bilz et al. 2020 for Figure 2). On the other hand, this study presents results not coherent with existing studies. For example, previous papers of the authors found rather homogeneous calcium increase (Boto 2014, Louis 2018), while plasticity in this study is graded along the y lobe axons and opposite in appetitive and aversive conditioning (Figure 1, 2). MBON-y3 has been reported to be dispensable (Aso 2014 and Ichinose 2021) unlike the results in Figure 6E. The authors need to provide discussion that explain the coherence/apparent inconsistencies.

- The choice of this particular cac RNAi strain is not clear, besides no control experiment for off-target effects. This is technically important, since voltage-gated calcium channels must be required more than learning-dependent potentiation. Therefore, it is blunt to conclude:

"synaptic exocytosis remained intact (L191)" upon cac knock-down;

"presynaptic potentiation, but not depression, requires the voltage-sensitive CaV2 Ca2+ channel cacophony across the MB compartments (L198)";

"Overall, these data demonstrate that Cac is not required for learning-induced depression of ACh release (L207)".

These conclusions need to be moderated.

Also in this context, mentioning a recent paper by Hidalgo et al. (Neurobiology of Disease, 2021) that analyzed the effect of cac-KD in KCs on aversive learning would be complementary to the physiological finding of this study.

- Compartmentalized and bidirectional plasticity in the MBONs has been repeatedly reported (e.g. Cohn, 2015; Owald, 2015). What is the intention to revisit this (Figure 5)? Also, this is essentially a detour from their main argument about the presynaptic mechanism. Consider revising the Figure or moving it to the figure supplement for readability. Similarly, it's not clear to me what Figure 6 adds to the overall conclusion.

- (Figure 6E) Did the authors examine MBON blocking in discriminative training? This needs to be clearly described. If the authors claim that the y3 compartment is important in discriminative training, they would need to show no defects in single-odor conditioning as in Figure 6A.

- Selection of ROIs for different MBONs in Figure 5 need stronger rationale. Why do the authors choose neurites for some compartments and not for others? I guess there is transformation of calcium signals in different parts of MBONs.

- Describe how the authors defined compartments in the g-KCs?

- I'm not totally sure how the results in Figure 6 support "temporal comparison (L275)". Either elaborate this conclusion more or provide an alternative interpretation.

- The quantified compartment for Figure 4A-D should be clearly stated in the text and legend, instead of simply showing y2 in 4E and let us guess.

- Is "post-conditioning odor contrast" appropriate for explaining itpr effects given the CS+ depression is seemingly exaggerated (Figure 4)?

- L256 Sentence and/or figure citation are somewhat inconsistent.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Associative learning drives longitudinally-graded presynaptic plasticity of neurotransmitter release along axonal compartments" for further consideration by eLife. Your revised article has been evaluated by Gary Westbrook (Senior Editor) and a Reviewing Editor. The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

The reviewers were overall happy with the revisions, but both raised a few points that need to be addressed before a final decision can be reached. Please pay attention in particular to the points 1. and 2. raised by reviewer 2. We believe these can be addressed by editing the text and toning down relevant statements.

Reviewer #1:

The authors have done a good job with this revised manuscript. They have addressed my previous concerns either by adding new experiments or clarifying passages in the text. Especially the role of Cac in appetitive learning and the more clear description of their analysis pipeline are convincing. Some experiments suggested, were technical not achievable with the presented techniques, and pursuing alternate methods would exceed the scope of this study.

Reviewer #2:

I've read the revised manuscript, and found it much improved. However, some of my concerns were not addressed. The authors need to clarify the following points before publication.

1. The odor-only control accounts for the effect of non-associative olfactory adaptation. But only that. The authors should be aware that other types of non-associative plasticity taking place during learning; e.g. reduced odor acuity by the previous exposure to electric shock (Preat, J Neurosci, 1998). Thus, inclusion of the US-only and/or unpaired training controls is mandatory to formally determine the absolute plasticity effect (e.g. potentiation of CS+ or depression CS- are indistinguishable; Figures 1L and 2K). Otherwise, they should moderate these claims, and focus only on the relative effects (i.e. "CS+:CS-" in the same figures)..

2. As demonstrated by the authors, Cac-KD reduces only ~29% of total Cac RNA level, suggesting that large body of Cac expression is unaffected. It is quite questionable that Cac is not required for learning-induced depression of Ach release (P10, L234) based on this partial down-regulation.

3. Somehow related to the previous point. Is it reasonable to conclude that Cac is required for learning-dependent potentiation? There is potentiation of CS- odor response in the γ 5 compartment after appetitive learning (Figure 3- sup1E)?

https://doi.org/10.7554/eLife.76712.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

Reviewer #1:

[…]

I like this paper as the experiments, results are clear and authors are very careful about interpreting the results. On a few occasions I feel that interpretations are over simplified and a focus on elaborating the complexities will be more helpful for the field.

Thank you for the constructive feedback – we attempted to balance a clean focus on the results at hand with discussion of the many other impressive recent studies illuminating structural and functional aspects of the MB & associated circuitry. As suggested, in the present version, we have further elaborated on the complexities of these circuits to provide the readers with a more comprehensive picture. This is woven throughout the manuscript, particularly the discussion (e.g., pages 22‐23).

Below are a few suggestions:

1) The use of Gal4 lines seems to be inconsistent between figures. The rationale for choosing a specific targeting tool should be made explicit.

It has now been made explicit in the manuscript text (in the Methods, page 24, and main text, pages 5,9). We used two Gal4 lines that express in KCs (including γ KCs): R13F02 and 238Y. Initial ACh imaging experiments were carried out using 238Y to drive GRAB‐ACh expression; this provides maximal KC coverage, labeling 1898/~2000 KCs (Aso et al., 2009, J Neurogenet 23:156‐72). However, 238Y also labels a relatively large number of other cell types outside the MB (ibid). We often observe lethality when driving various RNAi lines with this driver, likely due to the non‐KC expression in the driver. In addition, the driver produces developmental defects when expressing various RNAi lines throughout development, reinforcing the well‐known potential for such issues when expression is not restricted to adulthood. Therefore, to mitigate these risks the molecular experiments, we switched to a more KC‐selective driver, R13F02‐Gal4, and restricted the expression of the RNAi (and GRAB‐ACh) to adulthood via Gal80ts. The number of KCs labeled by R13F02‐Gal4 had not been documented (to our knowledge). As this is a relevant parameter for the comparison of results across drivers, we labeled and counted them, finding that the driver labels 745 ± 47 KCs; this is now included in the manuscript. Overall, the use of these two drivers/strategies provides complementary data sets, with 238Y providing insight into the plasticity across KCs and compartments, with the broadest possible KC coverage, and R13F02 providing more selective KC manipulations in the molecular experiments.

2) The olfactory learning literature has many odor pairs and the one used here (ethyl butyrate and IAA) is not the most common pair. Do learning scores, neuroanatomy involved differ based on chosen odor pairs. Are learning rules generalizable across odor pairs.

Indeed, many odor pairs have been used successfully, including various pairs and binary mixtures of 3octanol, 4‐methylcyclohexanol (Mch), benzaldehyde, 1‐octen‐3‐ol (Oct), pentyl acetate, butyl acetate, ethyl butyrate (EB), and isoamyl acetate (IA) (e.g., Barth et al., 2014 J Neurosci 34: 1819‐1837). We have previously used EB and IA as an odor pair for behavior olfactory associative conditioning (Boto et al., 2019 Cell Rep 27: 2014–2021) and for olfactory stimuli in imaging experiments (Boto et al., 2014 24: 822‐831; Louis et al., 2018 PNAS 115: E448‐E457). Performance indexes in behavioral conditioning experiments are equivalent to another odor pair (Mch vs. Oct) (Boto et al., 2019), and we see no substantive difference in odor‐evoked responses across KCs. Learning rules generalize across odors. Thus, by all available evidence, this odor pair is equally representative of odor space to any other.

3) Figure 1: Having some images from the rig set up would help in seeing how authors chose ROI's for the different compartments. The schematics are great but dont give a good sense for the real imaging resolution.

Agreed – an image is now included (Figure 1B).

4) Figure 3: A schematic here like figure 1K would be great to align the reader.

We appreciate the suggestion ‐ a schematic diagram is now included for figure 3, as well as figures 2 and 4.

Also the n's here are half of figure 1. Is there a specific reason for that? How was power determined for these experiments.

Sample sizes for aversive conditioning were based on prior published studies that detected positive effects (e.g., Louis et al., 2018). For appetitive conditioning/imaging experiments, we ran a priori power analysis to determine appropriate sample sizes using G*Power 3.1, with the following criteria: two‐tailed, α = 0.05, Power (1‐β) = 0.8, moderate effect size (α = 0.5), arriving at a total n ≥ 26 (we treated this as the minimum and ran 27).

5) Figure 4: It is not clear why γ2 is the only compartment shown here.

In figure 4, we focused on one compartment (in the main figure) to cleanly convey the conclusions in a representative compartment. Comparing Cac and IP3 RNAi, showing pre/post quantifications for CS+, CS‐, EB, and IA and box plots for one compartment introduces a relatively large number of conditions for the reader to track. Multiplying this five times over made for an unwieldy figure (we tried in earlier draft versions). For that level of detail, we direct the readers to Figure 4 – Supplement 1, which includes all compartments (stretching to 30 panels). Supplemental Figures appear side‐by‐side with a single click to toggle the view on the eLife web site upon publication, so the readers will be able to readily view all of the data. Nonetheless, to add spatial detail to the main Figure 4, we have now included a diagram of the plasticity effects across compartments (Figure 4, panels C,F,I).

6) The compartmentalized pre-synaptic plasticity mapping/mirroring the MBON Ca++ response is a great result but without knocking down Ach receptor in these MBONs I am not sure a direct link between Ach release and MBON Ca2+ response cannot be made.

These experiments verify that plasticity drives responses in MBONs in the same direction as the KCs. Plasticity in MBONs likely reflects both pre‐ and post‐synaptic processes (e.g., Pribbenow et al., 2021, bioRxiv doi: 10.1101/2021.07.01.450776) (we now discuss this aspect further in the manuscript). Knockdown of the postsynaptic ACh receptors in this context would remove the input to MBONs but not isolate the effects of ACh release. The best way to do so is to monitor ACh release and manipulate presynaptic processes (e.g., presynaptic Cac Cav2 channels), which is the approach we selected. We have now further enhance the rigor of these experiments by blocking synaptic release from the KCs with Shibirets (Figure 4 – Supplement 3), which significantly inhibited the odor‐evoked ACh signal.

7) The above concern is somewhat addressed for γ3 as they mediate timing and MBON from γ3 are required for appetitive learning but is not addressed for other compartments and MBONs.

We focused on the γ3 MBONs due to their novelty in terms of [presynaptic] CS‐ effects and the relative paucity of studies examining their roles in behavioral conditioning. In this updated manuscript, we have removed the timing experiments, focusing on the fundamental requirement for the γ3 MBONs in appetitive conditioning (γ2α’1 MBONs were also tested behaviorally).

8) While, PAM and PPL1 neurons have been briefly discussed their role in modulating KC and MBON plasticity is not addressed experimentally which goes against what is know about this circuit. A more elaborate discussion would be beneficial. How do dopaminergic circuits associated with γ4 interact with this circuit?

We have incorporated more discussion of these neurons in bidirectional plasticity in the discussion.

Overall I find that Ach compartmentalization is well justified but the downstream circuit connectivity and plasticity seems unclear. Without addressing the role of Ach receptors it is difficult to see the causal relationship between KC Ach release and MBON activity.

Our focus in this manuscript is on presynaptic plasticity in ACh release in KCs. As the reviewer notes, there is plasticity across multiple loci, including the MBONs. We added citations to additional studies to incorporate this point. In addition, we have now bolstered the experiments testing the presynaptic release mechanisms in several ways. We note that postsynaptic plasticity is being addressed in a complementary study from another group (Pribbenow et al., 2021).

Reviewer #2:

Stahl et al. investigate presynaptic Kenyon cell plasticity in the context of appetitive and aversive memories, using a genetically-encoded acetylcholine receptor-based sensor as primary read-out (instead of calcium indicators used in several previous studies). Therefore, the authors investigate one step downstream of the classically conducted calcium (or cAMP, etc.) imaging experiments – the level of neurotransmitter release. Likewise, this is one step upstream of the other widely-used readout of the postsynaptic MBON activity (or dopaminergic neurons). The authors investigate contributions of CS+ and/or CS- plasticity throughout the compartments of the γ lobe. All in all, this manuscript confirms several previous studies that investigated individual compartment plasticity (often plasticity is measured at the level of the MBONs and therefore in single compartments), and taken together with other recent publications, this study can be seen as a valuable compendium (as it addresses appetitive and aversive short-term memory protocols in the context of several compartments). As the authors address an important step between presynaptic and postsynaptic calcium transients, their work actually confirms that conclusions deduced from changed calcium transients correlate to neurotransmitter release, as expected. This study also addresses differential effects on the CS+ and the CS-, which is important, as previous studies often concentrated (partially for technical reasons) on either the CS+ specifically, or the relative changes of CS+ to CS- only. The authors further investigate the role of the active zone-localized voltage gated calcium channel cacophony in memory-related plasticity – this part needs to be strengthened by additional controls.

1. As it stands, I am not sure what to read from the Cac knock-down experiments for several reasons. First, it is entirely unclear how efficient the knock-down works. Would the amount of Cac molecules be reduced from e.g., 20 to 15 per active zone, or less, or more (the authors should quantify cacophony following knock-down)? Second, if baseline transmission is not affected (which is remarkable to a certain degree – the authors do mention potential 'residual' Cac expression in the discussion), what about e.g., high frequency odor puff protocols (again the authors mention plasticity protocols in the discussion that may help tying the observed effects to Cac).

The reviewer raises valid points about the need for more detail on the RNAi strategy and further characterization of the knockdown. The goal was to knock down Cac enough to test its role in plasticity, but not completely disrupt synaptic transmission. This is similar in approach to experiments previously carried out at the neuromuscular junction (Frank et al., 2006, Neuron 52:663‐77; Muller et al., 2012, Curr Biol 22:1102‐8). We chose an RNAi line that drives moderate knockdown (Brusich et al., 2015, Front. Cell. Neurosci 9:107) and expressed it conditionally under Gal80ts control. These details are now discussed more clearly in the manuscript. In addition, as requested, we quantified efficiency of the knockdown with quantitative PCR, expressing the RNAi pan‐neuronally and using the same Gal80ts/induction protocol. This revealed a ~29% reduction in Cac mRNA levels. Further details about the strategy and new experiment have been added to the manuscript in the main text and Methods.

Overall, the data demonstrate that Cac is necessary for the potentiation in proximal γ lobe compartments, identifying a key mechanism of learning‐induced presynaptic plasticity in the KCs. This is consistent with the role that Cac plays at the neuromuscular junction, where Cac levels are positively correlated with synaptic potentiation (Gratz et al., 2019; J Neurosci). Furthermore, presynaptic homeostatic potentiation at the neuromuscular junction is dependent on Cac and Ca2+ levels (Frank et al., 2006, Neuron 52:663‐77; Muller et al., 2012, Curr Biol 22:1102‐8). Finally, CaV2.1 levels at the active zone are dynamically regulated and positively drive synaptic strength in mammals as well (Lubbert et al., 2018, Neuron 101:260‐273).

Can the authors perform additional manipulations that should phenocopy the reduction of Cac (e.g., reduction of Brp via RNAi)?

We have not attempted Brp knockdown in this study, as it would likely impair synaptic transmission across multiple compartments in a non‐valence‐specific manner. In addition, it would not provide direct insight into plasticity mechanisms and does not have (to our knowledge) a validated RNAi line allowing mild knockdown.

Can the phenotype be modulated by titrating extracellular calcium concentrations?

This is a conceptually interesting idea, but would not be feasible in vivo, where olfactory responses must be allowed to propagate unperturbed across multiple neurons/synapses to reach the KCs (from olfactory receptor neurons to projection neurons to KCs).

Would basal neurotransmission be affected when extending the time at 32{degree sign}C (the range of 4-10 days could also be quite large, depending on the turnover time for cacophony).

Basal neurotransmission could be affected if we were to increase the expression level of the RNAi (through various means), though doing so would be counterproductive for our experimental purpose.

Third, can the authors exclude that the observed effects were due to dendritic functions of Cac?

The axonal localization of Cac function is supported by its [axon] compartment‐specific effects on potentiation. Dendritic effects propagating into the axons would be distributed across multiple compartments (e.g., Boto et al., 2019, Cell Rep 27: 2014‐2021).

The authors need to perform additional experiments in order to manifest this important claim.

Multiple new experiments have added to the depth and rigor of the analysis. Overall, these experiments succeeded in allowing us to pinpoint Cac as a molecule that is important for regulating presynaptic plasticity and provided a molecular mechanism to manipulate/differentiate the plasticity occurring across the spatial compartments. The data demonstrated that Cac is necessary for the potentiation in proximal γ lobe compartments, identifying a key mechanism of learning‐induced presynaptic plasticity in the mushroom body. This is consistent with the role that Cac plays at the neuromuscular junction, where Cac levels are positively correlated with synaptic potentiation (Gratz et al., 2019; J Neurosci). Furthermore, presynaptic homeostatic potentiation at the neuromuscular junction is dependent on Cac and Ca2+ levels (Frank et al., 2006, Neuron 52:663‐77; Muller et al., 2012, Curr Biol 22:1102‐8). Finally, CaV2.1 levels at the active zone are also dynamically regulated and positively drive synaptic strength in mammals (Lubbert et al., 2018, Neuron 101:260‐273).

2. What is the behavioral consequence of Cac or IP3R knock-down in Kenyon cells? Is memory impaired?

To test this, we knocked down Cac and carried out appetitive conditioning, finding that short‐term memory was indeed impaired (Figure 3H).

3. The authors actually do not demonstrate that the acetylcholine measured is released from MB neurons (Kenyon cells) and do not exclude the possibility that the measured acetylcholine could derive from an unknown other source. The authors could address this issue by Kenyon cell-specific knock-down of VAChT or ChaT. Alternatively, acute or chronic block of KCs, while measuring sensor activation, could be an option.

We have now addressed this with the latter experiment that the reviewer suggested – blocking KC output while monitoring ACh release with GRAB‐ACh. The ACh signal was inhibited (Figure 4 – Supplement 3). Some signal was still observed, which likely emanates from the KCs that are not labeled by the driver and continue to respond to odors and release ACh (R13F02 labels ~746/2000 KCs). While the ACh signal imaged in the MB is clearly dominated by KCs, we do not exclude that there could be some contribution from non‐KCs, and added that caveat to the discussion.

I am puzzled by the wording in line 80: is 'putative' meant as 'generally accepted' or 'likely'? I would strongly recommend using a less ambiguous word in this context. If not generally accepted (if so, please do explain to the reader why), this would somewhat compromise the basis of this study.

Agreed – ACh is the described neurotransmitter from KCs. We were trying to convey that, without ruling out that some hypothetical future study could report cotransmission of some other neurotransmitter(s) (as has occurred in some other cell types), but the language was inaccurate on its face. This has been clarified. The sentence now reads “…synaptic release of the KC neurotransmitter…”.

4. Figure 1 and others: Why are only the means compared statistically? The pre to post in C and E should be analysed using paired statistics – as in Figure 3E/F or S4 for example. In Figure 1: are any changes detected within flies? Figure S1 suggest that this is not the case – the change would only become apparent between conditions? Although the authors have already done a good job in illustrating their protocols, data display should be more uniform potential discrepancies should be spelt out, and claims should be adjusted accordingly (e.g., summary in K).

We run all these comparisons on all data sets (Figure 1 – Supplement 1 and others). The key metric to detect potential/depression is the comparison of the Δ(post/pre) between each experimental group and its respective odor‐only control group (e.g., CS+ vs. EB). This is because olfactory conditioning generates some alteration/adaptation of the olfactory responses simply as a function of exposing the animal to the odor. The post vs. pre comparison sometimes accurately reveals such differences, particularly if they are large (e.g., in Ca2+ imaging experiments at the whole‐cell level, and, as the reviewer notes, in our subcellular data as well, in places). However, considering only the post vs. pre comparison would produce false negatives in some compartments that potentiate, as well as false positives in some compartments that do not. Therefore, we rely on the comparison of Δ(post/pre) between each experimental group and its respective odor‐only control as the primary metric. As noted above, we also ran the post vs. pre comparisons and report significant differences where they were found (and trends where they are important and informative).

5. Line 189: why a trend towards decrease? Figure S4 suggests a statistically significant change.

Following the rationale above, we only counted a change as significant if it differed from the odor-only control in terms of Δ(post/pre). The reviewer is correct – it is conservative here. This is often the case, as it requires that there be both a difference in Δ(post/pre) and that the difference be larger than any Δ(post/pre) in the odor‐only control.

6. Absolute conditioning protocols: Is the comparison of the 'no CS-' and 'no CS+' really suited to claim that 'no CS-' leads to decreased acetylcholine release? It appears that this would only be consistent if the 'no CS-' group was significantly different from the 'no US' group. Please clarify putative discrepancies. In this context, please also discuss the results in S5 in more detail.

Upon consideration of the reviewers’ comments and the overall theme/flow of the manuscript, we have removed this experiment from the manuscript. We intend to follow up on this result more thoroughly in a future study. For now, we focus on the conclusion that the γ3 compartment exhibits alterations in ACh release, and that its downstream MBONs are required for appetitive conditioning.

7. Figure S4 shows

a. gamma1: CS+ potentiation (not seen in Figure S1?), not apparent in Cac RNAi

b. gamma2: no potentiation for the CS+ (unlike what is reported in Figure 1), yet, consistently a depression for the CS-

c. gamma3: no potentiation of CS+, yet a depression of CS-, both inconsistent with Figure 1

d. Several forms of plasticity, also to the non-trained odor in controls and Cac RNAi

Please clarify and discuss the individual findings.

There are several differences between the genotypes in these experiments: (1) Gal4 driver (238Y vs. [sparser] R13F02), (2) inclusion of Gal80ts, (3) temperature shifts for Gal80ts induction. One or more of these differences may have slightly altered the plasticity effects in controls, though the overall conclusions are consistent: appetitive conditioning potentiated the relative CS+/CS‐ responses in the proximal γ compartments, while generating a trend toward decreasing responses in the distal compartments. This is now discussed in more detail in the manuscript.

8. Line 467: It is first stated that odor was presented continuously for 30s. In the next sentence the authors write that six 1-s odor pulses with a 5s inter-pulse interval were given. Please clarify. Also, the odor responses appear to typically last for about 5-6s. Obviously, this is in parts based on the kinetics of the reporter. However, would the authors not expect that continuous odor application will lead to desensitization at the level of the olfactory receptor neurons?

This was an error in the protocol description that has been corrected. For ACh imaging experiments, short odor pulses were used to avoid desensitization of the GRAB‐ACh sensor. The reviewer is correct, the responses last longer than the odor pulse, likely due to the kinetics of the reporter. Continuous odor application was used only in behavioral experiments, where this is a standard approach (calibration of the odor concentrations in the T‐maze to balance the naïve distribution accounts for any imbalance in desensitization between odors).

9. Apart from showing that postsynaptic calcium signals are altered in MBONs the authors should consider showing whether the observed effects seen with the acetylcholine indicator can also be seen when expressed in MBONs or DANs (and exclude the possibility that the potentiation/depression could be specific to KC-DAN or KC-KC synapses).

Expression levels of the GRAB‐ACh reporter are too low when expressed postsynaptically in the MBONs that we have tested so far.

Reviewer #3:

This study shows learning-induced compartmentalized plasticity in Kenyon cells (KCs) of the mushroom body γ lobe using a genetically encoded acetylcholine sensor. The authors made several major discoveries that the plasticity is bidirectional and depends on memory valence. Interestingly, the compartments along the axon terminals of the KCs undergo spatial 'gradient' of plasticity. Knock-down of the genes that differentially regulate intracellular calcium induced distinct effects on learning-induced plasticity. These results explain, at least partly, that learning-induced plasticity at KC-MBON synapses takes place on the presynaptic side. The experiments and analysis are overall thorough, and conclusions are generally supported by the results. In the following, I list some flaws to be addressed that concern necessary controls, more careful interpretation of the statistics and results, and the choice of the cac RNAi strain.

- Odor-only control is imperfect to formally distinguish if the plasticity arises from CS+ and/or CS- changes. The effect of sugar or shock presentation per se must be measured to make this distinction. Alternatively, the authors can examine how much of the 'plasticity' is explained by unpaired presentations of CS and US.

The odor‐only control accounts for the effect of non‐associative olfactory adaptation. Comparison of the CS+ and CS‐ in experimental groups reveal the associative changes in ACh release.

- Conditioning effects at some compartments are on the edge of statistical significance and look inconsistent among different experimental series (e.g. Figure 1F-J vs. Figure 3F). The authors need to be cautious to interpret these statistical results. For example, knock-down of cac impaired CS- depression in y2 and y3 as well (cf. Figure 1G, H, and K), and this is contradictory to their conclusion that cac is required only for potentiation. Similarly, itpr seem to globally affect presynaptic activities.

Cac knockdown did not affect CS‐ depression: CS‐ depression was not observed in controls for this experiment. There are several differences between the control genotypes in these experiments: (1) Gal4 driver (238Y vs. [sparser] R13F02), (2) inclusion of Gal80ts, (3) temperature shifts for Gal80ts induction. One or more of these differences may have slightly altered the plasticity effects in controls, though the overall conclusions are consistent: appetitive conditioning potentiated the relative CS+/CS‐ responses in the proximal γ compartments, while generating a trend toward decreasing responses in the distal compartments.

- Some of the major findings here have been consistent with previous papers with different measurements (e.g. Bilz et al. 2020 for Figure 2). On the other hand, this study presents results not coherent with existing studies. For example, previous papers of the authors found rather homogeneous calcium increase (Boto 2014, Louis 2018), while plasticity in this study is graded along the y lobe axons and opposite in appetitive and aversive conditioning (Figure 1, 2).

Indeed, this is an important finding here – Ca2+ in the presynaptic terminal is often, but not always, correlated with the directionality and magnitude of plasticity in ACh release across compartments. One inspiration for the present study was the independent lines of evidence suggesting presynaptic localization of plasticity associated with aversive learning (e.g., requirement for cAMP signaling molecules in KCs [e.g., Zars et al., 2000]) combined with our previous studies suggesting no net changes in odor‐evoked Ca2+ responses across MB γ compartments following aversive conditioning (at short‐term time points). This is discussed in the Introduction (lines 63‐67). These observations are not discrepancies, but rather reflect the different approaches used across the prior studies; the present data represent a step toward resolving these apparent discrepancies.

MBON-y3 has been reported to be dispensable (Aso 2014 and Ichinose 2021) unlike the results in Figure 6E. The authors need to provide discussion that explain the coherence/apparent inconsistencies.

Aso et al. 2014 tested 2hr appetitive memory (not STM), while silencing a subset of MBONs, which did not include the γ3 MBONs (their Figure 7B). Among the candidate GABAergic MBONs listed in the figure legend, they only tested the γ1pedc MBON in this particular assay. Ichinose et al. 2021 blocked MBONs in individual phases and tested at 1 hr, while we blocked across all phases and examined immediate memory. One of the major conclusions of their study was that multiple MBONs are involved in modulating reward memory. Given the differences in the approaches between the studies, we do not interpret the present results as necessarily inconsistent. Nonetheless, the paragraph describing the γ3 MBON behavioral data in the discussion has been edited to discuss these points.

- The choice of this particular cac RNAi strain is not clear, besides no control experiment for off-target effects. This is technically important, since voltage-gated calcium channels must be required more than learning-dependent potentiation. Therefore, it is blunt to conclude:

"synaptic exocytosis remained intact (L191)" upon cac knock-down;

"presynaptic potentiation, but not depression, requires the voltage-sensitive CaV2 Ca2+ channel cacophony across the MB compartments (L198)";

"Overall, these data demonstrate that Cac is not required for learning-induced depression of ACh release (L207)".

These conclusions need to be moderated.

The Cac line was chosen due to its moderate knockdown when driven without dcr‐2 (Brusich et al., 2015, Front. Cell. Neurosci 9:107). We have now included quantitative PCR demonstrating the efficacy of the RNAi line and confirming that we achieved the intended moderate knockdown effect. While we cannot rule out off‐target effects, we have confirmed that the manipulation produced the intended on‐target effect at the approximate desired level. Therefore, these statements represent conclusions that are supported by the data.

Also in this context, mentioning a recent paper by Hidalgo et al. (Neurobiology of Disease, 2021) that analyzed the effect of cac-KD in KCs on aversive learning would be complementary to the physiological finding of this study.

Agreed. We have now cited the Hidalgo et al. paper and run complementary behavioral tests using appetitive conditioning. Our results are consistent with the interpretation that Cac knockdown in KCs impacts appetitive learning, and the inclusion of these new data bolster the findings of the study.

- Compartmentalized and bidirectional plasticity in the MBONs has been repeatedly reported (e.g. Cohn, 2015; Owald, 2015). What is the intention to revisit this (Figure 5)? Also, this is essentially a detour from their main argument about the presynaptic mechanism. Consider revising the Figure or moving it to the figure supplement for readability.

The present experiments perform several functions: (1) demonstrating that plasticity is observed on the opposite side of the synapse with the same set of conditions that we used to test presynaptic plasticity, (2) testing plasticity following appetitive conditioning at the same time points we measured ACh release, (3) testing the role of the γ2α’1 and γ3 MBONs, which have not been well studied in the context of appetitive conditioning. Without these data, readers would be left to integrate conclusions across studies, assume that conditions were similar enough to compare across studies/labs, and extrapolate across multiple MBONs. While these are reasonable assumptions, they should be tested experimentally. To highlight the more novel findings, we moved the data from the γ1pedc and γ5β’2a MBONs to the supplement.

Similarly, it's not clear to me what Figure 6 adds to the overall conclusion.

In response to the reviewer’s inquiry, we reconsidered this data set and largely agree. We retained the experiment showing the requirement for the γ3 MBONs for normal appetitive short‐term conditioning (which shed light on the potential importance of plasticity in ACh release in the γ3 compartment), while eliminating the more tangential single‐odor temporal analyses.

- (Figure 6E) Did the authors examine MBON blocking in discriminative training? This needs to be clearly described. If the authors claim that the y3 compartment is important in discriminative training, they would need to show no defects in single-odor conditioning as in Figure 6A.

As above, upon consideration of the reviewers’ comments and the overall theme/flow of the manuscript, we have removed the discriminative training experiment from the manuscript. We intend to follow up on this result more thoroughly in a future study. For now, we focus on the conclusion that the γ3 compartment exhibits alterations in ACh release, and that its downstream MBONs are required for appetitive conditioning.

- Selection of ROIs for different MBONs in Figure 5 need stronger rationale. Why do the authors choose neurites for some compartments and not for others? I guess there is transformation of calcium signals in different parts of MBONs.

We selected ROIs consistently with previous studies (e.g., Berry et al., 2018; Jacob and Waddell, 2020; Zhao et al., 2018), which allowed us to reliably image the Ca2+ responses in these neurons. This is now noted in the Methods.

- Describe how the authors defined compartments in the g-KCs?

Based on the criteria of Aso et al., 2014 (anatomical landmarks; see also Figure 1B).

- I'm not totally sure how the results in Figure 6 support "temporal comparison (L275)". Either elaborate this conclusion more or provide an alternative interpretation.

As noted above, we removed this experiment. It deserves a more thorough treatment in a follow‐up study.

- The quantified compartment for Figure 4A-D should be clearly stated in the text and legend, instead of simply showing y2 in 4E and let us guess.

Indeed, this oversight has been corrected – the caption now indicates the compartment.

- Is "post-conditioning odor contrast" appropriate for explaining itpr effects given the CS+ depression is seemingly exaggerated (Figure 4)?

It wasn’t – the time series traces are plotted as mean values, which are strongly influenced by large values (i.e., outliers). The CS+ was significantly different in both controls and IP3R RNAi groups (and the IP3R RNAi p value was in fact less significant). The most important data are the ΔF/F values, not the mean time series traces. The main effect is the presence of adaptation in the CS‐ group and the odor‐only groups when knocking down IP3R/itpr. We reworked the figure to include more data and focus on the important points (in this case, the pre and post ΔF/F values across all conditions).

Nonetheless, this raises an important related point ‐ the previous version of the manuscript left the role of IP3R/itpr somewhat unclear. To further bolster this aspect of the study, we carried out additional experiments and clarified our interpretations. Loss of the IP3R results in a reduction in adaptation to odors, which was noted in the initial manuscript as a reduction in odor‐evoked responses at the “post” time point across both experimental groups (CS+ and CS‐) and odor‐only controls. To explicitly test whether IP3R knockdown increased the rate of olfactory adaptation, we tested a second protocol: presenting and imaging the odor‐evoked ACh release from KCs in response to a 1‐s odor pulse, delivered once per minute for 10 minutes. This protocol revealed increased adaptation in the IP3R knockdown group relative to (uninduced) controls (Figure 4 K,L, Figure 4 – Supplement 2), demonstrating that IP3R is required for maintenance of olfactory responses over time.

- L256 Sentence and/or figure citation are somewhat inconsistent.

The reviewer is correct (the figure was cited erroneously). To address other concerns, this section has now been removed, as noted above.

[Editors’ note: what follows is the authors’ response to the second round of review.]

Reviewer #2:

I've read the revised manuscript, and found it much improved. However, some of my concerns were not addressed. The authors need to clarify the following points before publication.

1. The odor-only control accounts for the effect of non-associative olfactory adaptation. But only that. The authors should be aware that other types of non-associative plasticity taking place during learning; e.g. reduced odor acuity by the previous exposure to electric shock (Preat, J Neurosci, 1998). Thus, inclusion of the US-only and/or unpaired training controls is mandatory to formally determine the absolute plasticity effect (e.g. potentiation of CS+ or depression CS- are indistinguishable; Figures 1L and 2K). Otherwise, they should moderate these claims, and focus only on the relative effects (i.e. "CS+:CS-" in the same figures)..

We have clarified and moderated the interpretation of the findings, noting that the comparison normalizes for non‐associative olfactory adaptation, as the reviewer notes. This is done in multiple places, such as on page 5, which now reads: “The Δ(post/pre) of the CS+ and CS‐ was compared to determine how each changed relative to the other, and then each was compared to its respective odor‐only control to quantify whether it was potentiated or depressed, accounting for any nonassociative olfactory adaptation (Figure 1 G‐K, Figure 1 – Supplement 2).”

2. As demonstrated by the authors, Cac-KD reduces only ~29% of total Cac RNA level, suggesting that large body of Cac expression is unaffected. It is quite questionable that Cac is not required for learning-induced depression of Ach release (P10, L234) based on this partial down-regulation.

This is a valid point; we adjusted the language accordingly. It now reads: “Overall, these data suggest that moderate knockdown of Cac does not affect learning‐induced depression of ACh release (in contrast to potentiation).”

3. Somehow related to the previous point. Is it reasonable to conclude that Cac is required for learning-dependent potentiation? There is potentiation of CS- odor response in the γ 5 compartment after appetitive learning (Figure 3- sup1E)?

There is no statistically significant difference between the CS‐ and the odor‐only control. Therefore, while we are intrigued by the quantitative increase in the CS‐ response in this group (as the reviewer is), we are unable to ascribe it to an associative effect of conditioning.

https://doi.org/10.7554/eLife.76712.sa2

Article and author information

Author details

  1. Aaron Stahl

    Department of Neuroscience, The Scripps Research Institute, Jupiter, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Validation, Visualization, Writing - original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3170-1101
  2. Nathaniel C Noyes

    Department of Neuroscience, The Scripps Research Institute, Jupiter, United States
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  3. Tamara Boto

    Department of Neuroscience, The Scripps Research Institute, Jupiter, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9974-3714
  4. Valentina Botero

    Department of Neuroscience, The Scripps Research Institute, Jupiter, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9744-3929
  5. Connor N Broyles

    Department of Neuroscience, The Scripps Research Institute, Jupiter, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2930-7343
  6. Miao Jing

    Chinese Institute for Brain Research, Beijing, China
    Contribution
    Methodology, Resources
    Competing interests
    No competing interests declared
  7. Jianzhi Zeng

    1. Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    2. State Key Laboratory of Membrane Biology, Peking University School of Life Sciences, Beijing, China
    3. PKU IDG/McGovern Institute for Brain Research, Beijing, China
    Contribution
    Methodology, Resources
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5380-6281
  8. Lanikea B King

    Department of Neuroscience, The Scripps Research Institute, Jupiter, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  9. Yulong Li

    1. Chinese Institute for Brain Research, Beijing, China
    2. Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    3. State Key Laboratory of Membrane Biology, Peking University School of Life Sciences, Beijing, China
    4. PKU IDG/McGovern Institute for Brain Research, Beijing, China
    Contribution
    Funding acquisition, Methodology, Resources, Writing – review and editing
    Competing interests
    No competing interests declared
  10. Ronald L Davis

    Department of Neuroscience, The Scripps Research Institute, Jupiter, United States
    Contribution
    Data curation, Funding acquisition, Methodology, Project administration, Resources, Supervision, Validation, Writing – review and editing
    Competing interests
    No competing interests declared
  11. Seth M Tomchik

    Department of Neuroscience, The Scripps Research Institute, Jupiter, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Methodology, Project administration, Resources, Software, Supervision, Validation, Visualization, Writing - original draft
    For correspondence
    STomchik@scripps.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5686-0833

Funding

National Institutes of Health (R01NS097237)

  • Seth M Tomchik

National Institutes of Health (R01NS114403)

  • Seth M Tomchik

National Institutes of Health (R00MH092294)

  • Seth M Tomchik

Whitehall Foundation (2014-12-31)

  • Seth M Tomchik

National Institutes of Health (R35NS097224)

  • Ronald L Davis

Beijing Municipal Science & Technology Commission (Z181100001318002)

  • Yulong Li

Beijing Brain Initiative of Beijing Municipal Science & Technology Commission (Z181100001518004)

  • Yulong Li

Guangdong Grant "Key Technologies for Treatment of Brain Disorders" (2018B030332001)

  • Yulong Li

General Program of National Natural Science Foundation of China Projects (31671118)

  • Yulong Li

National Institutes of Health (NS103558)

  • Yulong Li

General Program of National Natural Science Foundation of China Projects (31925017)

  • Yulong Li

General Program of National Natural Science Foundation of China Projects (31871087)

  • Yulong Li

The funders had no role in study design, data collection, and interpretation, or the decision to submit the work for publication.

Acknowledgements

Fly stocks obtained from Krystyna Keleman and the Bloomington Drosophila Stock Center (NIH P40OD018537) were used in this study. The authors thank Yuexuan Li for the help in the development of the GRAB-ACh sensor, Brock Grill for helpful discussions, and Melissa Benilous for administrative assistance. Research support was provided by NIH R00MH092294 (S.M.T.), R01 NS097237 (S.M.T.), R01 NS114403 (S.M.T.), the Whitehall Foundation (S.M.T.), NIH R35NS097224 (R.L.D.), the Beijing Municipal Science & Technology Commission Z181100001318002 (Y.L.), the Beijing Brain Initiative of Beijing Municipal Science & Technology Commission Z181100001518004 (Y.L.), Guangdong Grant “Key Technologies for Treatment of Brain Disorders” 2018B030332001 (Y.L.), the General Program of National Natural Science Foundation of China projects 31671118, 31871087, and 31925017 (Y.L.), the NIH BRAIN Initiative NS103558 (Y.L.), grants from the Peking-Tsinghua Center for Life Sciences (Y.L.) and the State Key Laboratory of Membrane Biology at Peking University School of Life Sciences (Y.L.).

Senior Editor

  1. Gary L Westbrook, Oregon Health and Science University, United States

Reviewing Editor

  1. Ilona C Grunwald Kadow, University of Bonn, Germany

Publication history

  1. Preprint posted: June 10, 2021 (view preprint)
  2. Received: December 30, 2021
  3. Accepted: March 11, 2022
  4. Accepted Manuscript published: March 14, 2022 (version 1)
  5. Version of Record published: March 25, 2022 (version 2)

Copyright

© 2022, Stahl et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,263
    Page views
  • 235
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Aaron Stahl
  2. Nathaniel C Noyes
  3. Tamara Boto
  4. Valentina Botero
  5. Connor N Broyles
  6. Miao Jing
  7. Jianzhi Zeng
  8. Lanikea B King
  9. Yulong Li
  10. Ronald L Davis
  11. Seth M Tomchik
(2022)
Associative learning drives longitudinally graded presynaptic plasticity of neurotransmitter release along axonal compartments
eLife 11:e76712.
https://doi.org/10.7554/eLife.76712

Further reading

    1. Neuroscience
    James N McGregor, Abigail L Grassler ... Samuel J Sober
    Research Article Updated

    Songbirds and humans share the ability to adaptively modify their vocalizations based on sensory feedback. Prior studies have focused primarily on the role that auditory feedback plays in shaping vocal output throughout life. In contrast, it is unclear how non-auditory information drives vocal plasticity. Here, we first used a reinforcement learning paradigm to establish that somatosensory feedback (cutaneous electrical stimulation) can drive vocal learning in adult songbirds. We then assessed the role of a songbird basal ganglia thalamocortical pathway critical to auditory vocal learning in this novel form of vocal plasticity. We found that both this circuit and its dopaminergic inputs are necessary for non-auditory vocal learning, demonstrating that this pathway is critical for guiding adaptive vocal changes based on both auditory and somatosensory signals. The ability of this circuit to use both auditory and somatosensory information to guide vocal learning may reflect a general principle for the neural systems that support vocal plasticity across species.

    1. Neuroscience
    2. Structural Biology and Molecular Biophysics
    Tianzhi Li, Qiqi Cheng ... Cong Ma
    Research Article

    Exocytosis of secretory vesicles requires the soluble N-ethylmaleimide-sensitive factor attachment protein receptor (SNARE) proteins and small GTPase Rabs. As a Rab3/Rab27 effector protein on secretory vesicles, Rabphilin 3A was implicated to interact with SNAP-25 to regulate vesicle exocytosis in neurons and neuroendocrine cells, yet the underlying mechanism remains unclear. In this study, we have characterized the physiologically relevant binding sites between Rabphilin 3A and SNAP-25. We found that an intramolecular interplay between the N-terminal Rab-binding domain and C-terminal C2AB domain enables Rabphilin 3A to strongly bind the SNAP-25 N-peptide region via its C2B bottom α-helix. Disruption of this interaction significantly impaired docking and fusion of vesicles with the plasma membrane in rat PC12 cells. In addition, we found that this interaction allows Rabphilin 3A to accelerate SNARE complex assembly. Furthermore, we revealed that this interaction accelerates SNARE complex assembly via inducing a conformational switch from random coils to α-helical structure in the SNAP-25 SNARE motif. Altogether, our data suggest that the promotion of SNARE complex assembly by binding the C2B bottom α-helix of Rabphilin 3A to the N-peptide of SNAP-25 underlies a pre-fusion function of Rabphilin 3A in vesicle exocytosis.
