Inner membrane complex proteomics reveals a palmitoylation regulation critical for intraerythrocytic development of malaria parasite
Abstract
Malaria is caused by infection of the erythrocytes by the parasites Plasmodium. Inside the erythrocytes, the parasites multiply via schizogony, an unconventional cell division mode. The inner membrane complex (IMC), an organelle located beneath the parasite plasma membrane, serving as the platform for protein anchorage, is essential for schizogony. So far, the complete repertoire of IMC proteins and their localization determinants remain unclear. Here we used biotin ligase (TurboID)-based proximity labeling to compile the proteome of the schizont IMC of the rodent malaria parasite Plasmodium yoelii. In total, 300 TurboID-interacting proteins were identified. 18 of 21 selected candidates were confirmed to localize in the IMC, indicating good reliability. In light of the existing palmitome of Plasmodium falciparum, 83 proteins of the P. yoelii IMC proteome are potentially palmitoylated. We further identified DHHC2 as the major resident palmitoyl-acyl-transferase of the IMC. Depletion of DHHC2 led to defective schizont segmentation and growth arrest both in vitro and in vivo. DHHC2 was found to palmitoylate two critical IMC proteins CDPK1 and GAP45 for their IMC localization. In summary, this study reports an inventory of new IMC proteins and demonstrates a central role of DHHC2 in governing the IMC localization of proteins during the schizont development.
Editor's evaluation
Apicomplexan parasites, including the malaria parasite Plasmodium, possess a characteristic inner membrane complex (IMC), which plays an essential role in maintaining the parasite shape and regulating motility. In this study, the authors used proximity labeling to determine the IMC proteome of erythrocytic stages in the rodent malaria parasite Plasmodium yoelii. They identify the palmitoyl-acyl-transferase DHHC2 as a key enzyme that regulates the localization of IMC proteins through palmitoylation. This work provides new insights into the function of the IMC in the erythrocytic stages of the malaria parasite.
https://doi.org/10.7554/eLife.77447.sa0Introduction
Malaria, a human scourge caused by the protozoans of the genus Plasmodium, affects more than 200 million people and is responsible for approximately half a million deaths in 2019 (World Health Organization, 2019). The symptoms of malaria are caused by the intraerythrocytic proliferation of the parasites. After erythrocyte invasion, the parasites replicate via schizogony to produce up to 32 invasive daughter cells called the merozoites. Following their release from the host cell, these merozoites invade other erythrocytes and continue the intraerythrocytic life cycle.
A defining feature of apicomplexan parasites, including the Plasmodium, is the organelle inner membrane complex (IMC) which are flattened membranous vesicles beneath the plasma membrane (PM). In Plasmodium, the IMC is present in the invasive or motile stages such as the merozoites, ookinetes, and sporozoites of all Plasmodium, as well as in the male gametocytes of human pathogen P. falciparum (Morrissette and Sibley, 2002; Kono et al., 2012). In the asexual cycle of the Plasmodium, the biogenesis of the IMC begins at the early schizont stage after organelle duplication in the cytoplasm and several rounds of genome replication within the intact nucleus (Matthews et al., 2018). Allocation and packaging of nuclei and organelles into daughter cells are achieved by cytokinesis, in which the PM and the extending IMC coordinately invaginate and surround each daughter haploid merozoite (Ferreira et al., 2020). As a result, the pellicle of merozoite is composed of a single membrane of PM, closely aligned double membranes of the IMC, and 2–3 subpellicular microtubules (SPMT) associated with the IMC (Kono et al., 2016). After invasion into a new erythrocyte, the IMC dissembles at the early ring stage (Ferreira et al., 2020). The IMC is best recognized as the platform for attaching the actomyosin motor complex-glideosome (occupying the space between PM and IMC) responsible for parasite invasion and motility (Harding and Frischknecht, 2020; Frénal and Soldati-Favre, 2013). It also serves to maintain the cell shape and rigidity of the merozoite (Frénal et al., 2017). The cytoplasmic side of IMC is associated with a rigid meshwork composed of several families of proteins, including alveolins (Gould et al., 2008), which is important for IMC-SPMT interconnection.
To understand the role(s) of the IMC in the parasite development, obtaining the complete list of protein components of the IMC is important. However, systematic proteomic analyses on the IMC protein composition have not been reported due to the difficulty in separating the IMC from other membranes, such as the PM. So far, a limited number of IMC and IMC-associated proteins have been identified, by either candidate gene strategy or isolating the interactors of IMC protein. Known IMC proteins include glideosome-associated protein 45 (GAP45) (Perrin et al., 2018), GAP40 (Frénal et al., 2010), GAP50 (Bosch et al., 2012), myosin A tail domain interacting protein (MTIP) (Bergman et al., 2003), MyoA (Bergman et al., 2003), ECL1 (Green et al., 2017), GAP with multiple-membrane spans 1 (GAPM1), GAPM2, GAPM3 (Bullen et al., 2009), ISP1, and ISP3 (Wang et al., 2020) as well as the alveolin proteins IMCp, IMC1c, IMC1e, IMC1f, and IMC1g (Kono et al., 2012). In addition, calcium-dependent kinase 1 (CDPK1) and photosensitized INA-labeled protein 1 (PhIL1) were also reported to reside in the IMC of schizonts (Kumar et al., 2017; Saini et al., 2017). BCP1, MORN1, and CINCH, components of the basal complex, a subcompartment of the IMC at the posterior extending edge, were also recently identified (Morano and Dvorin, 2021). Remarkably, most of the known IMC proteins were refractory to gene deletion, suggesting an essential function in the development of asexual blood stage (Ferreira et al., 2020). Among the IMC proteins, GAP45 and CDPK1 have been studied extensively. CDPK1 plays a key role in early schizont development as its depletion or inhibition causes parasite arrest at the early schizonts (; Kumar et al., 2017; Azevedo et al., 2013). On the other hand, GAP45 is essential for merozoite invasion (Perrin et al., 2018). Despite great efforts in IMC research, many questions still remain regarding the IMC components and their function in schizogony. How many proteins are there in IMC? What determines IMC protein localization?
Enzyme-catalyzed proximity labeling (PL) coupled with mass spectrometry (MS) offers an alternative approach for proteome discovery (Kim and Roux, 2016). BioID is an engineered bacterial biotin ligase adapted for proximity-based biotinylation of proteins in living cells (Roux et al., 2012). The proteins covalently labeled with biotin can be isolated by streptavidin-biotin affinity purification followed by MS analysis. BioID has been used to identify the protein components of complexes and organelles in different model organisms (Qin et al., 2021). In Plasmodium, BioID-based PL has also generated organelle- and vesicle-specific proteins or proteomes, including those of the gametocyte-specific osmiophilic bodies of P. berghei, the blood stage parasitophorous vacuolar membrane of P. berghei and P. falciparum, the apicoplast of P. falciparum, and the IMC and apical annuli proteins of P. falciparum (Geiger et al., 2020; Boucher et al., 2018; Schnider et al., 2018; Khosh-Naucke et al., 2018; Kehrer et al., 2016; Wichers et al., 2021). These analyses have led to the functional discovery of previously undescribed proteins, providing new insights in the organelle biology of malaria parasites. However, BioID requires parasite exposure to biotin over a long period (18–24 hr), which is not ideal or feasible for certain developmental stages with a short life span. In addition, BioID does not work well at temperatures below 37°C (May et al., 2020; Bosch et al., 2021), rendering its application to the mosquito stages of Plasmodium unsuitable. Recently, a new biotin ligase, TurboID, was developed by directed evolution (Branon et al., 2018). Compared to BioID, TurboID is faster and can work under a broader range of temperatures (Branon et al., 2018). So far, the application of TurboID in the Plasmodium has not been reported.
In this study, we applied TurboID-PL and quantitative MS to obtain a proteome of the IMC in the schizonts of rodent malaria parasite P. yoelii. IMC targeting was achieved by fusing TurboID with the N-terminal 20 residues of ISP1, a known IMC resident protein. A collection of 300 proteins were identified as candidate IMC and IMC-associated proteins, of which 83 are potentially palmitoylated. We further demonstrated DHHC2 as a master IMC palmitoyl-acyl-transferase which plays a critical role in schizont segmentation and merozoite invasion by regulating the IMC localization of CDPK1 and GAP45 via palmitoylation.
Results
Biotin-labeling of Plasmodium proteins by TurboID ligase
To test the activity of the TurboID ligase relative to the BioID ligase for PL of malaria parasites, we fused a hemagglutinin (HA) tag to the N-terminus of each ligase (Figure 1—figure supplement 1A). These ligases were episomally expressed in the asexual blood stages of P. yoelii under the promoter of the isp3 gene (Figure 1—figure supplement 1A), a gene that is highly transcribed in the schizonts (Otto et al., 2014). Immunoblot detected comparable BioID and TurboID expressions in the asexual blood stages (Figure 1—figure supplement 1B). Different from an automatous rupture of mature schizonts of the in vitro cultured P. falciparum, the P. yoelii schizonts displayed an arrest in rupture after maturation in the in vitro condition, which permits PL of mature schizonts. The schizonts expressing each ligase were incubated with 100 µM biotin at 37°C for different times (0.25, 1, 3, and 18 hr). Immunoblot using streptavidin-HRP detected robust protein biotinylation in the cell extracts of TurboID-parasites as early as 0.25 hr after biotin incubation (Figure 1—figure supplement 1C). In contrast, protein biotinylation in the BioID-parasites appeared at a low level at 3 hr and reached a high level at 18 hr (Figure 1—figure supplement 1C). To confirm these results, dot blot experiments were performed using streptavidin-HRP and similar results were observed (Figure 1—figure supplement 1D). Next, we tested the temperature compatibility of the two ligases for PL in the parasites. BioID- and TurboID-schizonts were incubated for 18 and 3 hr, respectively, with 100 µM biotin at different temperatures (4, 22, 30, and 37°C). Biotin-incubated parasites stained with fluorescently conjugated streptavidin revealed that both ligases had similar labeling activity at 30 and 37°C (Figure 1—figure supplement 1E,F). Notably, only TurboID retained its activity at 22°C (Figure 1—figure supplement 1E,F). We further performed dot blots using streptavidin-HRP and obtained similar results (Figure 1—figure supplement 1G). These results indicate that TurboID is active at temperatures lower than 37°C, a temperature required for BioID to be fully functional. We also tested TurboID-mediated PL in the ookinetes, a mosquito stage of parasites with a preferential living temperature at 22°C. Cultured ookinetes from the BioID- and TurboID-parasites were incubated for 18 and 3 hr, respectively, with 100 µM biotin at 22°C. Costaining with the fluorescently conjugated streptavidin and anti-HA antibody detected cytosolic and nuclear protein biotinylation only in the TurboID-ookinetes when exogenous biotin was added (Figure 1—figure supplement 1H). Compared with BioID, TurboID allowed more robust PL of proteins in the living parasites with a shorter biotin incubation time and is less temperature sensitive.
Detection of IMC proteins using TurboID labeling and quantitative mass spectrometry
Next, we applied TurboID for PL of the IMC to identify new IMC proteins in the schizonts. The HA-tagged TurboID was fused with an IMC targeting peptide, the N-terminal 20 residues of ISP1 (Tb-IMC) (Wang et al., 2020; Wetzel et al., 2015; Figure 1—figure supplement 2A). The HA-tagged TurboID alone (Tb-cyto) served as a control to indicate non-specific biotinylation (Figure 1A and Figure 1—figure supplement 2A), permitting specific identification of IMC and IMC-associated proteins. Both ligases (Tb-IMC and Tb-cyto) were driven by the promoter of gene isp3 and episomally expressed in the asexual blood stages (Figure 1—figure supplement 2B). As expected, the Tb-IMC ligase dominantly colocalized with the IMC protein GAP45 in the IMC (Figure 1—figure supplement 2C). The schizonts expressing Tb-IMC, Tb-cyto, or empty vector (EV: construct without ligase gene) were purified and treated with 100 µM biotin at 37°C for 3 hr. Both immunoblot and dot blot assays using streptavidin-HRP detected increased biotinylation in cell extracts in the presence of biotin from the Tb-IMC and Tb-cyto schizonts but not from the EV group (Figure 1B and Figure 1—figure supplement 2D). Furthermore, parasites stained with fluorescent-conjugated streptavidin (SA-488) and anti-HA antibody exhibited an IMC distribution (surrounding daughter merozoites) of biotinylated proteins, which colocalized with ligase in Tb-IMC schizonts. The biotinylated proteins and the ligase displayed cytosolic and nuclear distribution in the Tb-cyto schizonts, while scarce signal was detected in the EV schizonts (Figure 1C and Figure 1—figure supplement 2E). Therefore, the Tb-IMC enables the PL of IMC in the living schizonts.

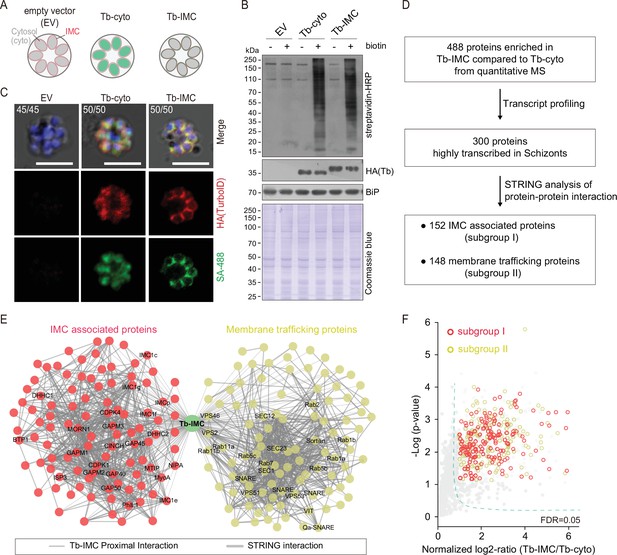

Proteomic of P. yoelii schizont IMC by TurboID and quantitative mass spectrometry.
(A) Schematic of schizonts with TurboID ligase localizing in the cytoplasm (Tb-cyto) and IMC (Tb-IMC). EV indicates the schizonts expressing empty vector (EV). See the detailed information of Tb-IMC and Tb-cyto in Figure 1—figure supplement 2. (B) Immunoblot and streptavidin blot of total lysate from the schizonts expressing the EV, Tb-cyto and Tb-IMC. Tagged ligase was detected by anti-HA antibody while biotinylated proteins were detected by streptavidin-conjugated horseradish peroxidase (streptavidin-HRP). Comparable loaded lysate was indicated by BiP control and Coomassie blue stain. (C) Costaining of TurboID ligase and biotinylated proteins in the schizonts expressing the ligase of the EV, Tb-cyto, and Tb-IMC. The schizonts incubated with or without 100 µM biotin were costained with the SA-488 and anti-HA antibody. x/y in the figure is the number of cells displaying signal/the number of cells analyzed. Scale bar = 5 μm. (D) Workflow for filtering the Tb-IMC interacting proteins (proximal interactors). 488 biotinylated proteins that were at least two times more abundant in Tb-IMC than that in Tb-cyto control among three replicates and with an adjusted p-value<0.05, were significantly enriched. Detailed information in Figure 1—figure supplement 2. (E) Interaction network of 300 Tb-IMC interacting proteins (STRING, p-value <1.0e-16, bold lines). Two subgroups (I: left, II: right) were functionally clustered. Many known inner membrane complex (IMC) or IMC-associated proteins were clustered into the subgroup I while many annotated ER/Golgi secretory or vesicle trafficking proteins were clustered into the subgroup II. (F) Volcano plots showing the 300 Tb-IMC interacting proteins. Relative biotinylation of each protein was calculated by quantifying protein intensity in Tb-IMC relative to Tb-cyto schizonts (n=3). Proteins in the subgroup I (red circle) and subgroup II (yellow circle) are indicated. MS: mass spectrometry; HA: hemagglutinin.
-
Figure 1—source data 1
(related to Figure 1B) Immunoblot and streptavidin blot of total lysate from the schizonts expressing the EV, Tb-cyto and Tb-IMC.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig1-data1-v3.xls
To further confirm that the IMC or IMC-associated proteins were the primary targets of biotin labeling in the Tb-IMC schizonts, the protein extracts were subjected to streptavidin pull-down, followed by immunoblot assays. As expected, cis-biotinylation of the Tb-IMC ligase was detected and the IMC protein GAP45 was enriched in the pull-down fraction (Figure 1—figure supplement 2F). In contrast, the proteins of other organelles, including the MSP1 (PM), Erd2 (Golgi marker), BiP (ER marker), and histone H3 (nucleus) were not detected (Figure 1—figure supplement 2F). Three biological replicates were prepared from the Tb-IMC and Tb-cyto schizonts, and the streptavidin-affinity purified proteins from cell extracts were subjected to proteomic analyses by SWATH-MS, a data-independent acquisition based quantitative MS method (Gillet et al., 2012; Li et al., 2015). The numbers of identified proteins with at least two independent peptides were comparable between the Tb-IMC (replicate 1:1964 hits, replicate 2:1995 hits, and replicate 3:1986 hits) and Tb-cyto schizonts (replicate 1:1970 hits, replicate 2:1946 hits, and replicate 3:1948 hits). Correlation analyses of changes in protein abundance demonstrated good reproducibility among biological replicates (Figure 1—figure supplement 2G). Quantitative MS yielded 488 enriched proteins with high confidence (an adjusted p-value<0.05) in the Tb-IMC compared to the Tb-cyto schizonts (Figure 1D and Figure 1—figure supplement 2H).
Genes coding for IMC proteins display transcription peak at late schizont and merozoite during P. falciparum asexual replication cycle (Hu et al., 2010). To further filter potential IMC proteins, we discriminated the 488 Tb-IMC interacting proteins by comparative analyses of their transcription pattern based on a P. berghei transcriptome dataset (Otto et al., 2014). After filtering out 188 proteins not showing transcription peak at schizont, we narrowed the candidates to 300 proteins (Figure 1D, Figure 1—figure supplement 2H, Supplementary file 1, and Supplementary file 2). These 300 Tb-IMC proximal interactors included many known IMC or IMC-associated proteins, including GAP40, GAP45, GAP50, MTIP, MyoA, ELC, GAPM1, GAPM2, GAPM3, IMCp, IMC1c, IMC1e, IMC1f, IMC1g, ISP3, BCP1, MORN1, CINCH, CDPK1, PhIL1, DHHC1, and DHHC2 (Figure 1E and F). The homologs of these proteins have displayed an IMC or IMC-like localization in the Plasmodium, or have been shown to interact or associate with IMC protein baits using immunoprecipitation assay in previous studies (Bullen et al., 2009; Kumar et al., 2017; Hodson et al., 2015; Dearnley et al., 2012; Parkyn Schneider et al., 2017; Yeoman et al., 2011; Vaid et al., 2008;). Therefore, the IMC and IMC-associated proteins were enriched in the list of 300 Tb-IMC interacting proteins, suggesting reliable data quality generated by TurboID and quantitative MS.
Predicted functional profile of Tb-IMC interacting proteins
To further gain functional insights into the 300 Tb-IMC interacting proteins, we cross-referenced these proteins with other Plasmodium datasets. First, the Tb-IMC proximal interactors were significantly enriched for interactions using Search Tool for Retrieval of Interacting Genes/Proteins (STRING) (Szklarczyk et al., 2019), a database of known and predicted physical and functional protein-protein interactions. Notably, these proteins were segregated into two distinct subgroups (I and II) (Figure 1E and F). The subgroup I contained 152 proteins while the subgroup II contained 148 proteins. Most of known IMC or IMC-associated proteins were clustered into the subgroup I. In contrast, many annotated ER/Golgi secretory- or vesicle trafficking-related proteins were clustered into the subgroup II (Figure 1E and F). Second, gene ontology (GO) analysis was performed to further discriminate the proteins in subgroup I and II (Figure 1—figure supplement 3). Interestingly, the subgroup II was highly enriched with the GO terms, including the vesicle-mediated transport (40 proteins), vesicle fusion (11 proteins), ER to Golgi vesicle-mediated transport (13 proteins), Golgi vesicle transport (20 proteins) (Figure 1—figure supplement 3, biological process panel), and SNARE complex (14 proteins), endosome membrane (9 proteins), late endosome (7 proteins), and endocytic vesicle (16 proteins) (cellular component panel), while the subgroup I was mainly assigned with the GO terms, like the inner membrane pellicle complex (22 proteins) (cellular component panel), protein lipidation (10 proteins) (biological process panel), and palmitoyltransferase activity (6 proteins) (molecular function panel). The IMC arises de novo from ER/Golgi-derived material via vesicular trafficking and membrane fusion in the schizonts of each replication cycle of the parasite (Gordon et al., 2008; Yeoman et al., 2011; Pieperhoff et al., 2013; Bannister et al., 2000). Detection of the subgroup II enriched with vesicular trafficking and membrane fusion effectors agrees with the notion of the ER/Golgi-derived IMC biogenesis. In addition, subgroup I and II within the Tb-IMC interacting proteins may reflect the tight and dynamic association between IMC organelle and endomembrane system in schizont development.
Validation of the candidate IMC proteins
To assess whether the identified proteins are indeed localized in the IMC, 21 candidates were selected among the 300 Tb-IMC interacting proteins for subcellular localization analysis (Figure 2A). These hits showed various levels at the enrichment ratio in the PL experiments. Among these proteins, the orthologues of 9 proteins including PY17X_ 0314700 (CDPK1), PY17X_0617900 (CDPK4), PY17X_1440500 (PKAr), PY17X_0839000 (PKAc), PY17X_1420600 (Rab11A), PY17X_1462100 (MTIP), PY17X_0206000 (PhIL1), PY17X_0525300 (GAPM2), and PY17X_1411000 (PIC5) have been experimentally validated to be IMC-residing or association in the schizonts of P. berghei or P. falciparum (Patil et al., 2020; Bullen et al., 2009; Kumar et al., 2017; Saini et al., 2017; Parkyn Schneider et al., 2017; Fang et al., 2018; Green et al., 2006; Wilde et al., 2019), while IMC localization or association of the 12 other candidates (PY17X_0207400, PY17X_0312400, PY17X_0417300, PY17X_0418000, PY17X_0917100, PY17X_1131200, PY17X_1139700, PY17X_1220300, PY17X_1348200, PY17X_1359500, PY17X_1441500, and PY17X_1453100) (Figure 2B) have not been well characterized in the Plasmodium. Among the 21 candidates, 6 out of them were endogenously tagged with a 6 HA at the C-terminus (Figure 2—figure supplement 1A,B), while others were tagged with a 6 HA at the N- or C-terminus and driven by the promoter of gene isp3 for episomal expression in the asexual blood stages. Immunoblot assays were used to detect each protein, all displaying a band fitting their expected molecular weight (Figure 2—figure supplement 2A). As expected, immunofluorescence assays (IFA) showed clear colocalization of the 9 known proteins (CDPK1, CDPK4, PKAr, PKAc, Rab11A, MTIP, PhIL1, GAPM2, and PIC5) with the IMC marker GAP45 (Figure 2—figure supplement 2B). Additionally, we performed the ultrastructural expansion microscopy (U-ExM) and immune-EM to analyze the localization of CDPK1 in the cdpk1::6 HA schizonts and both methods detected the IMC localization of CDPK1 (Figure 2—figure supplement 3A,B). Among the 12 newly characterized candidates, 9 of them (PY17X_0312400, PY17X_0418000, PY17X_1131200, PY17X_1139700, PY17X_1220300, PY17X_1348200, PY17X_1359500, PY17X_1441500, and PY17X_1453100) displayed the IMC or IMC-like pellicle localization (Figure 2C), while 3 other candidates (PY17X_0207400, PY17X_0417300, and PY17X_0917100) did not. Collectively, we confirmed the IMC or IMC-like localization of 18 proteins from the 21 candidates in the P. yoelii schizonts.

Validation of 9 new IMC proteins by localization analysis.
(A) 21 candidates selected from the Tb-IMC interacting proteins for subcellular localization analysis in the P. yoelii. The orthologues of 9 proteins (blue dot) have been experimentally validated to be IMC-residing or -associated in the schizonts of P. berghei or P. falciparum, while subcellular localization of other 12 proteins (red dot) have not been well-characterized in Plasmodium species.(B) Information and subcellular localization summary of the 12 newly tested Tb-IMC interacting proteins shown in A. (C) Immunofluorescence assays (IFA) analysis of 12 Tb-IMC interacting proteins in the P. yoelii schizonts. Each protein was tagged with a 6 HA at the N- or C-terminus and episomally expressed in the schizonts. The schizonts were costained with antibodies against GAP45 and HA. Nuclei were stained with Hoechst 33342. Scale bar = 5 μm.
Palmitoylation of IMC proteins and regulation of localization
While a growing number of IMC proteins were discovered, their localization determinants remain incompletely known. Protein palmitoylation is a reversible lipid modification that facilitates protein attachment to the plasma and organelle membranes (Fukata and Fukata, 2010). Previous studies have shown that palmitoylation is important for the binding or targeting of proteins to IMC in the Plasmodium (Wang et al., 2020; Wetzel et al., 2015). We speculated that certain IMC proteins use lipid moieties for IMC membrane attachment. Interestingly, we observed a significant enrichment of the biological-process term of protein lipidation (GO: 0006497) in the Tb-IMC interacting proteins (Figure 3A and Figure 1—figure supplement 3). Three palmitoyl-S-acyl-transferases (PAT) including DHHC1, DHHC2, and DHHC7 were enriched (Figure 3A), implying a role of these PATs for palmitoylation of the IMC proteins.

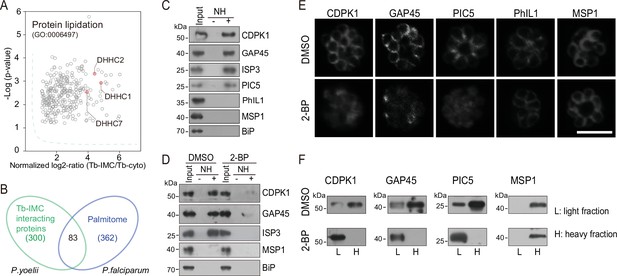

Palmitoylation regulates IMC protein localization.
(A) Enrichment of enzymes for protein lipidation in the Tb-IMC interacting proteins shown in Figure 1F, including three palmitoyl-S-acyl-transferases DHHC2, DHHC1, and DHHC7. (B) Venn diagram showing overlap between Tb-IMC interactors (green) identified in this study and the orthologs within the P. falciparum palmitome (blue). 83 Tb-IMC interactors (overlap, 28%) were considered to be potentially palmitoylated. Numbers indicate the number of proteins identified. (C) Acyl-RAC method detecting palmitoylation of CDPK1, GAP45, ISP3, and PIC5, but not PhIL1 in schizonts. NH: NH2OH. MSP1 and BiP served as loading controls. Total proteins were treated with MMTs to block the thiol side chain in free cysteine. Proteins with palmitoylated cysteine were re-exposed the thiol side chain with removal of palmitic acid by NH2OH, purified via Thiopropyl Sepharose, and eluted by DTT for immunoblot. Representative of two independent replicates. (D) Palmitoylation analysis of CDPK1, GAP45, and ISP3 in schizonts treated with 2-BP. NH: NH2OH. MSP1 and BiP served as loading controls. Representative of two independent replicates. (E) Immunofluorescence assays (IFA) analysis of CDPK1, GAP45, PIC5, PhIL1, and MSP1 in schizonts treated with 2-BP and DMSO, respectively. Purified mature schizonts were treated with 2-BP for 12 hr. Scale bar = 5 μm. (F) Fractionation analysis of CDPK1, GAP45, PIC5, and MSP1 in schizonts treated with 2-BP and DMSO, respectively. Light fraction includes cytosolic proteins while heavy fraction includes membrane proteins and cytoskeleton proteins. Representative of two independent replicates.
-
Figure 3—source data 1
(related to Figure 3C) Acyl-RAC method detecting palmitoylation of CDPK1, GAP45, ISP3, and PIC5, but not PhIL1 in schizonts.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig3-data1-v3.xls
-
Figure 3—source data 2
(related to Figure 3D) Palmitoylation analysis of CDPK1, GAP45, and ISP3 in schizonts treated with 2-BP.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig3-data2-v3.xls
-
Figure 3—source data 3
(related to Figure 3F) Fractionation analysis of CDPK1, GAP45, PIC5, and MSP1 in schizonts treated with 2-BP and DMSO, respectively.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig3-data3-v3.xls
To identify IMC proteins with palmitoylation, we examined a collection of 494 palmitoylated proteins previously detected in the schizonts of P. falciparum (Jones et al., 2012). Among the 300 P. yoelii Tb-IMC interacting proteins identified in this study, 83 proteins (28%) have orthologs that are palmitoylated in P. falciparum (Figure 3B and Supplementary file 1). Importantly, these 83 proteins includes GAP45 and ISP3, whose palmitoylations have been experimentally validated (Wang et al., 2020; Jones et al., 2012), and CDPK1, GAP50, IMC1g, and IMC1c, which are predicted to be palmitoylated. Out of these 83 proteins, we assessed 4 (CDPK1, GAP45, ISP3, and a newly identified IMC protein PIC5) for their palmitoylation using the resin-assisted capture of acylated proteins (Acyl-RAC) method (Forrester et al., 2011). Palmitoylation was confirmed in these 4 proteins in P. yoelii schizonts (Figure 3C), while PhIL1, an IMC protein not in the list of 83 proteins, did not display palmitoylation (Figure 3C). To further confirm palmitoylation, mature schizonts was treated with 100 μΜ 2-bromopalmitate (2-BP), an inhibitor of protein palmitoylation. We observed markedly reduced palmitoylation of CDPK1, GAP45, and ISP3 in the 2-BP treated schizonts (Figure 3D). Notably, CDPK1, GAP45, and PIC5 lost their IMC localization and were found in the cytosol or nucleus after 2-BP treatment (Figure 3E). Lower fluorescence signal of GAP45 and CDPK1 after 2-BP treatment may be due to loss of protein concentration at the IMC. As control, the IMC localization of PhIL1 and the PM localization of merozoite surface protein MSP1 were unaffected. Fractionation of schizont protein extracts (Figure 3F) revealed that CDPK1, GAP45, and PIC5 were mainly present in the heavy fraction, in agreement with the IMC membrane association of these proteins. However, these proteins were mostly detected in the light fraction after 2-BP treatment, suggesting their distribution alterations after losing the palmitoylation. Together, these results suggest that palmitoylation may exist in a relatively high proportion of the IMC proteins and that it is important for subcellular localization of certain IMC proteins including CDPK1, GAP45, and PIC5.
DHHC2 is an IMC-residing palmitoyl-S-acyl-transferase in schizonts
Next, we searched for the PATs that catalyze the palmitoylation of IMC residing proteins in the schizonts. 11 putative PATs (named DHHC1–11) were predicted in the genomes of rodent malaria parasites (Hodson et al., 2015). Quantitative reverse transcription-PCR (qRT-PCR) analysis revealed that the P. yoelii dhhc2 displayed the highest mRNA level in the schizonts (Figure 4A). The mRNA levels of these P. yoelii dhhc genes were positively correlated (R2=0.94) with the transcription profiles of their orthologs in P. berghei determined via RNA-seq (Otto et al., 2014; Figure 4A). Furthermore, we analyzed the localization of the 11 P. yoelii endogenous PATs individually in the schizonts of transgenic strains previously generated (Wang et al., 2020). Out of the 11 PATs, only DHHC1 and DHHC2 displayed clear IMC localization in the schizonts with a stronger IFA signal for DHHC2 (Figure 4B and Figure 4—figure supplement 1A). Immunoblot analysis of protein extracts from the same number of schizonts of the endogenously tagged dhhc2::6 HA and dhhc1::6 HA parasites revealed approximately fivefold higher level of DHHC2 than DHHC1 (Figure 4C). Interestingly, DHHC2 but not DHHC1 displayed an interrelation with several IMC proteins, including CDPK1 and GAP45, in a STRING analysis which predicts the likelihood of protein-protein interaction (Figure 4—figure supplement 1B). The IMC localization of DHHC2 was confirmed in two independent strains 6 HA::dhhc2 and dhhc2::4Myc, whose endogenous DHHC2 was tagged with an N-terminal 6 HA and C-terminal 4Myc tag, respectively (Figure 4D). Immunoblot analyses of the membrane and cytoplasmic fractions of schizont lysates also revealed that DHHC2 was mainly detected in the membrane fraction (Figure 4E). As a control, merozoite PM protein MSP1 was detected in the membrane fraction while the cytosolic protein GAPDH was in the cytoplasmic fraction (Figure 4E).

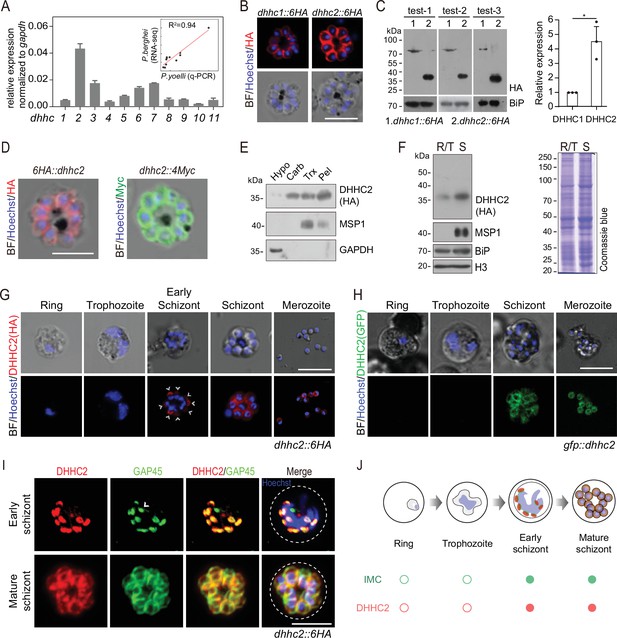

DHHC2 is an IMC-residing palmitoyl-S-acyl-transferase in schizonts.
(A) RT-qPCR of transcripts for 11 dhhc (dhhc1- dhhc11) in schizonts. Gene expression was normalized to the gapdh transcript. The inlet indicates positive correlation between mRNA levels of these P. yoelii dhhc genes and mRNA levels of their dhhc orthologs in P. berghei determined via RNA-seq. Values are means ± SD (n=3). (B) Immunofluorescence assays (IFA) analysis of DHHC1 and DHHC2 in schizonts from two tagged parasite strains dhhc1::6 HA and dhhc2::6 HA. Scale bar = 5 μm. (C) Immunoblot of DHHC1 and DHHC2 from the cell lysate of similar number of schizonts from the dhhc1::6 HA and dhhc2::6 HA parasite, respectively. Right panel: the quantification of band intensity. Values are means ± SEM (n=3 biological replicates), two-tailed t-test, *p<0.05. (D) IFA analysis of DHHC2 in schizonts of another two tagged parasite strains 6 HA::dhhc2 and dhhc2::4Myc. Scale bar = 5 μm. (E) Solubility assay detected membrane association of DHHC2 in schizonts using different detergents. Cytosolic soluble proteins are in hypotonic buffer (Hypo), peripheral membrane proteins in carbonate buffer (Carb), integral membrane proteins in Triton X-100 buffer (Trx), and insoluble proteins in pellet (Pel). DHHC2 is in the membrane-associated fractions as IMC protein GAP45 and PM protein MSP1, while cytoplasm protein GAPDH is in the soluble fraction. Representative of two independent replicates. (F) Immunoblot of DHHC2 from early stages containing ring and trophozoite (R/T) and late stages containing schizont (S) of the dhhc2::6 HA parasites. Merozoite surface protein MSP1 was mainly expressed in the schizonts. BiP, histone H3, and Coomassie blue staining of total lysate were used as loading control. Representative of two independent replicates. (G) DHHC2 expression dynamics in different asexual blood stages (ring, trophozoite, schizont, and merozoite) of the parasite dhhc2::6 HA by IFA. Scale bar = 5 μm. (H) Fluorescent microscopy of GFP::DHHC2 in different asexual blood stages of the parasites gfp::dhhc2. Scale bar = 5 μm. (I) Maximum intensity projections of super-resolution immunofluorescence microscopy (Airyscan) of early and mature dhhc2::6 HA schizonts stained with anti-HA and anti-GAP45 antibodies. Arrow in the graph indicated a ‘GAP45-only spot’, which likely resulted from the difference in protein stain efficiency for DHHC2 and GAP45. Scale bar = 5 μm. (J) Model showing the IMC-associated localization of DHHC2 in the schizonts.
-
Figure 4—source data 1
(related to Figure 4A) RT-qPCR of transcripts for 11 dhhc (dhhc1- dhhc11) in schizonts.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig4-data1-v3.xls
-
Figure 4—source data 2
(related to Figure 4C) Immunoblot of DHHC1 and DHHC2 from the cell lysate of similar number of schizonts from the dhhc1::6 HA and dhhc2::6 HA parasite, respectively.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig4-data2-v3.xls
-
Figure 4—source data 3
(related to Figure 4C) Quantification of DHHC1 and DHHC2 intensity in immunoblot.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig4-data3-v3.xls
-
Figure 4—source data 4
(related to Figure 4E) Solubility assay detected membrane association of DHHC2 in schizonts using different detergents.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig4-data4-v3.xls
-
Figure 4—source data 5
(related to Figure 4F) Immunoblot of DHHC2 from early stages containing ring and trophozoite (R/T) and late stages containing schizont (S) of the dhhc2::6 HA parasites.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig4-data5-v3.xls
To investigate the expression dynamics of DHHC2 during parasite development, early and later stages of intraerythrocytic dhhc2::6 HA parasites were isolated using the Nycodenz gradient centrifugation. Immunoblot showed that DHHC2 is highly expressed in the late trophozoites and schizonts, but not in the rings or early trophozoites (Figure 4F). IFA also revealed DHHC2 signal in the early and mature schizonts and free merozoites (Figure 4G). These observations were independently confirmed in another strain gfp::dhhc2, in which endogenous DHHC2 was tagged with an N-terminal GFP (Figure 4H and Figure 4—figure supplement 1C,D). The expression dynamics of DHHC2 is consistent with the IMC biogenesis in the schizonts. Using the Airyscan microscopy, we observed clear colocalization between DHHC2 and GAP45 in both early and mature schizonts (Figure 4I). Interestingly, both proteins were found as separate dots that colocalize at the periphery of the intact nucleus in the early schizonts (Figure 4I), suggesting that IMC arises de novo at multiple points at or close to the nucleus. Together, these results indicate that DHHC2, as an IMC-residing PAT, is expressed throughout the IMC biogenesis in the schizonts of P. yoelii (Figure 4J).
DHHC2 is essential for the asexual blood stage development in mice
DHHC2 has been suggested to play an essential role in the asexual blood stage development of the parasites since no viable mutant clone was obtained using either the conventional or Cas9-based knockout strategies in the P. yoelii and P. berghei (Wang et al., 2020; Santos et al., 2015). To explore the functions of DHHC2, we applied an Auxin-inducible degron (AID)-based protein degradation system in the P. yoelii transgenic strain Tir1 (Liu et al., 2020), which allows depletion of the target protein fused to a miniAID (mAID) motif with the aid of the plant hormone auxin (Indole-3-acetic acid, IAA). The N-terminus of the endogenous dhhc2 locus was tagged with the sequence encoding mAID::2 HA in the Tir1 strain, generating the mAID::dhhc2 clone (Figure 5—figure supplement 1A). This parasite displayed normal proliferation during asexual blood stages and the fusion protein mAID::DHHC2 exhibited IMC localization in the schizonts (Figure 5—figure supplement 1B), indicating no detrimental effect of mAID tagging on DHHC2 localization and function. IAA treatment (1 mM for 3 hr) of the mAID::dhhc2 schizonts efficiently depleted the mAID::DHHC2 protein (Figure 5—figure supplement 1C). To determine whether IAA itself affects parasites development in vivo, mice infected with the 17XNL parasite were injected intraperitoneally with 200 mg/kg/day IAA or vehicle (DMSO) for 3 consecutive days. The in vivo parasitemia increased at an indistinguishable rate in both groups (Figure 5—figure supplement 1D), indicating no notable effect of IAA on parasite proliferation in mice. Next, we tested whether the parasite mAID::DHHC2 protein could be depleted in mice. The mice with ~10% parasitemia of the mAID::dhhc2 parasite were injected intraperitoneally with IAA once and the parasite-infected red blood cells were collected for immunoblot at 1 and 3 hr after IAA injection (Figure 5—figure supplement 1E). The mAID::DHHC2 protein was significantly reduced in the parasites from IAA-treated mice, indicating successful mAID::DHHC2 degradation by IAA (Figure 5—figure supplement 1E). As a control, the IAA treatment had little effect on the 6 HA::DHHC2 protein in the 6 HA::dhhc2 parasite (Figure 5—figure supplement 1E).
To dissect the DHHC2 function in vivo, mice were infected with the Tir1 or mAID::dhhc2 schizonts which were pretreated with IAA or vehicle for 3 hr in vitro to deplete DHHC2 (Figure 5A). From 12 hr postinfection, the parasitemia in mice infected with Tir1 and mAID::dhhc2 was monitored in parallel every 12 hr. The parasitemia of Tir1 increased at an equal rate after either IAA or vehicle pretreatment (Figure 5B, left panel). However, the IAA-pretreated mAID::dhhc2 parasite displayed delayed proliferation compared to the parasite pretreated with vehicle (Figure 5B, right panel). The parasite with IAA-pretreatment emerged in the mouse blood at 96 hr postinfection while the parasite with vehicle-pretreatment emerged at 36 hr. Notably, continuation of DHHC2 depletion by another IAA injection (IAA+) at time of parasite infection resulted in complete suppression of mAID::dhhc2 in mice (Figure 5B, right panel), while this treatment had no effect on the proliferation of Tir1 (Figure 5B, left panel). These results provided a direct evidence that DHHC2 is essential for the asexual blood stage development in mice.

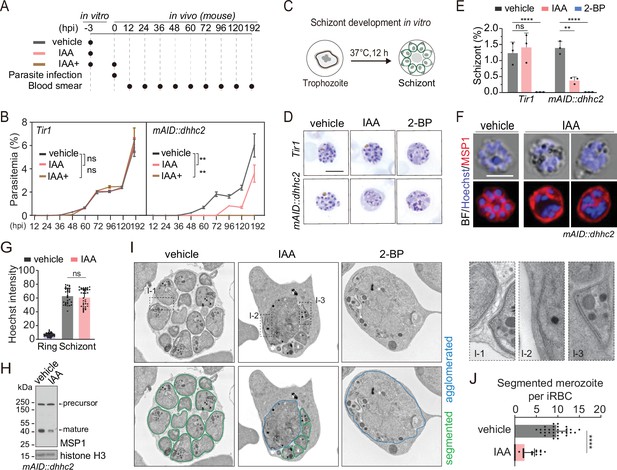

DHHC2 is essential for parasite proliferation in mice and regulates schizont segmentation and merozoite invasion.
(A) Experimental design of in vivo test of DHHC2 essentiality using AID. Parasites of Tir1 and mAID::dhhc2 were pretreated with vehicle or indole-3-acetic acid (IAA) for 3 hr in vitro, then intravenously injected to C57BL/6 mice. In the IAA+ treatment group, another IAA injection (200 mg/kg, ip) at time of parasite infection was applied for further DHHC2 depletion in vivo. From 12–192 hr postinfection, the parasitemia in mice infected with Tir1 and mAID::dhhc2 was monitored by blood smear every 12 hr. (B) Tir1 and mAID::dhhc2 parasite proliferation in mice (n=3 per group) at each treatment group in (A), two-tailed t-test, **p<0.01, ns, not significant. (C) Schematic of the schizont development from trophozoite in vitro. Purified early stage parasites including ring and trophozoite were cultured with vehicle, IAA, or 2-BP for 12 hr for schizont development. (D) Giemsa staining of the schizonts developed from Tir1 and mAID::dhhc2 parasites treated with vehicle, IAA, or 2-BP illustrated in (C). Scale bar = 5 μm. (E) Quantification of mature schizonts in (D). Purified early stage parasites including ring and trophozoite were treated with IAA or 2-BP for 12 hr. Values are means ± SEM (n=3 biological replicates), two-tailed t-test, **p<0.01, ***p<0.001. (F) Costaining of the mAID::dhhc2 schizonts in (C) with antibody against merozoite surface protein MSP1 and Hoechst 33342. Scale bar = 5 μm. (G) Quantification of Hoechst signal in schizonts indicating nuclear DNA contents in (F). More than 30 schizonts were analyzed in each group. Signal in ring stage parasites serves as a control. Values were means ± SD, Mann–Whitney U test applied, ns, not significant. (H) Immunoblot of MSP1 in the schizonts developed from the mAID::dhhc2 parasites treated with vehicle and IAA. Precursor form (~200 kD) and mature form (~42 kD) of MSP1 were shown. Histone H3 used as a loading control. (I) Representative images of transmission electron microscopy (TEM) of schizonts developed from the mAID::dhhc2 parasites treated with vehicle, IAA, or 2-BP. Purified early stage parasites including ring and trophozoite were treated with IAA or 2-BP for 12 hr. Right panels indicate three examples of representative daughter cell pellicle including plasma membrane (PM) and inner membrane complex (IMC). (J) Quantification of fully segmented merozoites in schizonts in (I). More than 30 schizonts were analyzed in each group. Values were shown as means ± SD, Mann–Whitney U test, ****p<0.0001.
-
Figure 5—source data 1
(related to Figure 5B) Tir1 and mAID-dhhc2 parasite proliferation in mice.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig5-data1-v3.xls
-
Figure 5—source data 2
(related to Figure 5E) Quantification of mature schizonts.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig5-data2-v3.xls
-
Figure 5—source data 3
(related to Figure 5G) Quantification of Hoechst signal in schizonts.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig5-data3-v3.xls
-
Figure 5—source data 4
(related to Figure 5H) Immunoblot of MSP1 in the schizonts developed from the mAID::dhhc2 parasites treated with vehicle and IAA.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig5-data4-v3.xls
-
Figure 5—source data 5
(related to Figure 5J) Quantification of fully segmented merozoites in schizonts.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig5-data5-v3.xls
DHHC2 regulates schizont segmentation
Because DHHC2 is specifically expressed in the schizonts, we speculated that DHHC2 regulates schizont development. A mixture of early stage parasites (rings and early trophozoites) was purified using Nycodenz centrifugation and cultured for 12 hr to mature schizonts using an in vitro culture method (Janse et al., 2006; Figure 5C). We evaluated the effect of DHHC2 depletion on schizont development by counting the mature schizonts using Giemsa staining. The IAA-treated Tir1 parasite developed to mature schizonts at a similar level as the vehicle-treated Tir1 parasite, indicating no effect of IAA alone on the schizont development (Figure 5D and E). However, IAA treatment severely decreased the formation of mature schizonts in the mAID::dhhc2 parasite (Figure 5D and E). Importantly, the treated mAID::dhhc2 parasite had apparent nuclear replication but failed to segregate into individual merozoites. This result suggests arrest of schizont cytokinesis or segmentation after nuclear multiplication. In addition, treatment with the PAT inhibitor 2-BP resulted in no formation of mature schizonts in either Tir1 or mAID::dhhc2 parasites (Figure 5D and E), which is in agreement with the previous reports (Jones et al., 2012).
To further examine the defects within the schizonts, the mAID::dhhc2 parasite was costained with the nuclear dye and an antibody against the merozoite surface protein MSP1, which coats the parasite PM of newly formed daughter merozoites after segmentation (Blackman et al., 1994). Hoechst signals in the schizonts showed no notable difference between the IAA- and vehicle-treated groups (Figure 5F and G), indicating normal nuclear DNA multiplication in the DHHC2-deficient (IAA-treated) parasites. However, MSP1 staining revealed that the schizonts of DHHC2-deficient group had agglomerates of daughter cells that failed to separate (Figure 5F) while the schizonts of the vehicle control group exhibited normal morphology (Figure 5F). Expression and cleavage (from ~200 to 42 kD) of full length MSP1 have been used to indicate schizont maturation and merozoite ready-to-egress from erythrocytes (Silmon de Monerri et al., 2011; Child et al., 2010). Consistent with an impaired schizont development, an immunoblot of the IAA-treated parasite showed reduced MSP1 expression and processing compared to the vehicle control (Figure 5H).
Next, using transmission electron microscopy (TEM), we examined the ultrastructure of the mAID::dhhc2 schizonts produced after the 12 hr in vitro maturation in the presence of the vehicle, IAA, or 2-BP. The daughter cells were normally segmented in the schizonts of the vehicle-treated group, forming fully separated daughter merozoites (Figure 5I). However, severe morphological defects occurred in the DHHC2-deficient parasites. Large daughter cell agglomerates were observed in the center of most schizonts although a few mononucleated daughter merozoites were formed (Figure 5I). This segmentation arrest resulted in significant fewer daughter merozoites in the DHHC2-deficient schizonts compared to the control (Figure 5J). Interestingly, we observed the incomplete IMC beneath the PM in some daughter merozoites and the agglomerates within the DHHC2-deficient schizonts (Figure 5I), suggesting no remarkable effect of DHHC2 depletion in the initial biogenesis of the IMC. In addition, the organelles including possible rhoptries or micronemes were observed in the large agglomerates of the DHHC2-deficient schizonts, suggesting normal biogenesis and development of these organelles but a defect in allocation of daughter merozoites during schizont segmentation. As a control, the 2BP treatment completely blocked schizont segmentation (Figure 5I).
DHHC2 also controls merozoite invasion
Upon schizont maturation, merozoites egress from the erythrocyte to invade new erythrocytes. To investigate DHHC2 function in merozoite invasion, we collected the merozoites released from the mechanically disrupted mature schizonts, which undergo natural rupture in an extremely low efficacy under the in vitro condition for the P. yoelii. Released merozoites were capable of invading the erythrocytes in mice, indicative of merozoite’s viability and activity. The merozoites collected from the IAA- or vehicle-treated schizonts were injected intravenously into mice and the number of the ring stage parasites indicative of successful invasion was counted by flow cytometry and light microscopy (Figure 5—figure supplement 2A). At 20 min postinjection, the number of newly developed rings was significantly lower in the IAA-treated group compared with the vehicle-treated group (Figure 5—figure supplement 2B,C). As a control, the IAA treatment had no effect on merozoite invasion of the Tir1 parasite (Figure 5—figure supplement 2B,C). Taking all the results together, DHHC2 has an important function in both schizont segmentation and merozoite invasion, two processes during which the parasites possess IMC.
DHHC2 palmitoylates GAP45 and CDPK1
GAP45 and CDPK1 are essential for the asexual blood stage development of P. falciparum (Perrin et al., 2018; Kumar et al., 2017; Azevedo et al., 2013). Additionally, palmitoylation regulates IMC targeting of these proteins in the schizonts and merozoites (Figure 3E). We speculated that DHHC2 exerts its function via palmitoylating GAP45 and CDPK1. To test this hypothesis, the palmitoylation and localization of GAP45 and CDPK1 were examined in the DHHC2-deficient schizonts after pretreating with IAA at 1 mM for 12 hr. The palmitoylation level of GAP45 and CDPK1 was significantly reduced in the DHHC2-deficient schizonts compared to the vehicle control (Figure 6A). Notably, both GAP45 and CDPK1 lost their typical IMC localization in both the schizonts and the released merozoites of the DHHC2-deficient parasite (Figure 6C and D). In contrast, PhIL1 retained the IMC localization in the DHHC2-deficient parasite (Figure 6C and Figure 6—figure supplement 1A,B), consistent with the fact that PhIL1 is not palmitoylated (Figure 3C). The distribution of MSP1 in the DHHC2-deficient schizonts was also unaffected (Figure 6C). In agreement with the changes in subcellular distribution of proteins by IFA, the detergent extraction-based protein solubility assay also revealed that GAP45 and CDPK1 lost their membrane association upon the depletion of DHHC2 by IAA (Figure 6E).

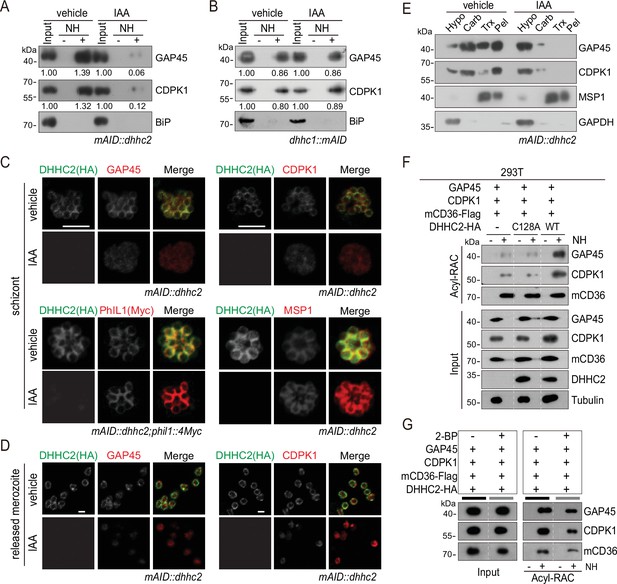

DHHC2 palmitoylates GAP45 and CDPK1 in the schizonts.
(A) Acyl-RAC method detecting palmitoylation of GAP45 and CDPK1 in the mAID::dhhc2 schizonts treated with vehicle or indole-3-acetic acid (IAA). BiP served as a loading control. Representative of two independent replicates. (B) Acyl-RAC method detecting palmitoylation of GAP45 and CDPK1 in the dhhc1::mAID schizonts treated with vehicle or IAA. BiP served as a loading control. Representative of two independent replicates. (C) Immunofluorescence assays (IFA) analysis of GAP45, CDPK1, PhIL1, and MSP1 expression in schizonts treated with vehicle or IAA. Purified mature schizonts were treated with IAA for 12 hr. Parasites mAID::dhhc2 and mAID::dhhc2;phil1::4Myc used are indicated. PhIL1 is an inner membrane complex (IMC) protein without palmitoylation. MSP1 is a plasma membrane protein. Scale bar = 5 μm. (D) IFA analysis of GAP45 and CDPK1 in released mAID::dhhc2 merozoites treated with vehicle or IAA. Scale bar = 5 μm. (E) Solubility assay detected membrane association of GAP45, CDPK1, and MSP1 in the mAID::dhhc2 schizonts treated with vehicle or IAA. PM protein MSP1 and cytoplasmic protein GAPDH are set as control. Representative of two independent replicates. (F) Palmitoylation analysis of GAP45 and CDPK1 ectopically expressed in human cells. Human embryonic kidney 293T cells were cotransfected with plasmids coding for the HA-tagged and human codon-optimized DHHC2 (WT) or its catalytic-deficient mutant (C128A), along with the GAP45 and CDPK1. Flag-tagged mouse CD36 (mCD36-Flag) was also cotransfected and serves as a control of evidenced palmitoylated protein. Tubulin served as a loading control. Representative of two independent replicates. (G) Palmitoylation analysis of GAP45 and CDPK1 ectopically expressed in human HEK293T cells treated with or without 2-BP. The cells were cotransfected with a HA-tagged and human codon-optimized DHHC2 and a flag-tagged mouse CD36 (mCD36-Flag). Representative of two independent replicates.
-
Figure 6—source data 1
(related to Figure 6A) Acyl-RAC method detecting palmitoylation of GAP45 and CDPK1 in the mAID::dhhc2 schizonts treated with vehicle or IAA.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig6-data1-v3.xls
-
Figure 6—source data 2
(related to Figure 6B) Acyl-RAC method detecting palmitoylation of GAP45 and CDPK1 in the dhhc1::mAID schizonts treated with vehicle or IAA.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig6-data2-v3.xls
-
Figure 6—source data 3
(related to Figure 6E) Solubility assay detected membrane association of GAP45, CDPK1, and MSP1 in the mAID::dhhc2 schizonts treated with vehicle or IAA.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig6-data3-v3.xls
-
Figure 6—source data 4
(related to Figure 6F) Palmitoylation analysis of GAP45 and CDPK1 ectopically expressed in human cells.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig6-data4-v3.xls
-
Figure 6—source data 5
(related to Figure 6G) Palmitoylation analysis of GAP45 and CDPK1 ectopically expressed in human HEK293T cells treated with or without 2BP.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig6-data5-v3.xls
Besides DHHC2, DHHC1 also displayed IMC localization in the schizonts although it is expressed at lower abundance (Figure 4B and C). To investigate whether DHHC1 also contributes to the palmitoylation of GAP45 and CDPK1, we generated the dhhc1::mAID parasite clone in which the C-terminus of endogenous DHHC1 was tagged with the mAID::HA module in the Tir1 strain (Figure 6—figure supplement 1A,B). IAA treatment depleted the DHHC1::mAID protein in the dhhc1::mAID schizonts (Figure 6—figure supplement 1C), but had little impact on the palmitoylation level of GAP45 and CDPK1 (Figure 6B). These results indicated that DHHC2, but not DHHC1, contributes to the palmitoylation of GAP45 and CDPK1 in the schizonts.
To further confirm DHHC2 as the enzyme capable of palmitoylating GAP45 and CDPK1, we transfected constructs encoding HA-tagged human codon optimized DHHC2 (DHHC2-HA), GAP45 and CDPK1 into the human HEK293T cells. Indeed, the ectopically expressed GAP45 and CDPK1 could be palmitoylated by cotransfected DHHC2-HA, while the PAT catalytic-deficient mutant protein DHHC2/C128A-HA failed to palmitoylate GAP45 and CDPK1 (Figure 6F). As a control, the palmitoylation of cotransfected mouse CD36 protein, which was reported to be constitutively palmitoylated in HEK293T (Tao et al., 1996), was independent of Plasmodium DHHC2 (Figure 6F). The palmitoylation of GAP45 and CDPK1 was also significantly reduced in HEK293T culture treated with inhibitor 2-BP (Figure 6G). These results in human cells replicate the observations of DHHC2 activity in the Plasmodium schizonts and demonstrate the ability of DHHC2 to palmitoylate GAP45 and CDPK1.
Residues for palmitoylation in GAP45 and CDPK1
To identify the residue(s) of palmitoylation in GAP45, we used an online software CSS-Palm (csspalm.biocuckoo.org) for prediction, which generated six candidate cysteines (C5, C140, C156, C158, C169, and C172) (Figure 7A). To test them, we initially generated four constructs expressing HA-tagged GAP45, each with a single or double cysteine-to-alanine mutations (C5A, C140A, C156A/C158A, and C169A/C172A) (Figure 7A, Figure 7—figure supplement 1A,B). These constructs were episomally expressed in the schizonts. Only the C140A mutant displayed the IMC localization similar to wildtype (WT) GAP45; other mutants (C5A, C156A/C158A, and C169A/C172A) lost the IMC localization (Figure 7B). We also tested the GAP45 C-terminal fragment (30–184 aa) which displayed an IMC localization when fused with a N-terminal GFP (Figure 7A, Figure 7—figure supplement 2A and B). Substitution of C156A/C158A or C169A/C172A impaired the IMC localization of this fragment while C140A did not (Figure 7A and Figure 7—figure supplement 2A,B), consistent with the localization for HA-tagged GAP45 in Figure 7B. These results suggest that these cysteines (C5, C156 and/or C158, C169 and/or C172) are critical for IMC targeting of GAP45 and might be the residues for modification. Indeed, the Acyl-RAC assay detected significantly decreased palmitoylation of GAP45 in the C5A, C156A/C158A, and C169A/C172A mutants, but not the C140A mutant. Thus, for GAP45, there is an association between IMC localization and palmitoylation. Additionally, the degree of palmitoylation was further reduced in the triple cysteine mutants (C5A/C156A/C158A and C5A/C169A/C172A) relative to the single and double mutants (Figure 7C).

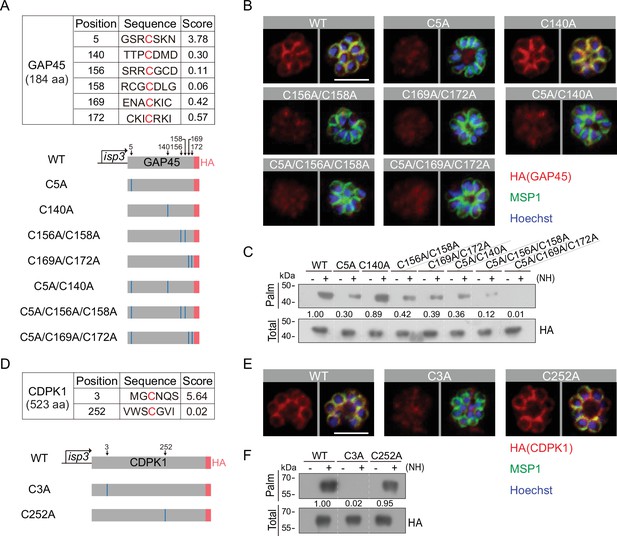

Residues for palmitoylation in GAP45 and CDPK1.
(A) Six cysteine predicated for palmitoylation in GAP45 (upper panel). The score of the predicted palmitoylation sites was provided by the CSS-Palm software. Lower panels indicate schematic of constructs expressing HA-tagged GAP45, each with a cysteine to alanine replacement in single, double, or triple residues (C5A, C140A, C156A/C158A, C169A/C172A, C5A/C140A, C5A/C156A/C158A, and C5A/C169A/C172A). These constructs were episomally expressed in the schizonts. (B) Immunofluorescence assays (IFA) of GAP45::HA and seven mutant proteins episomally expressed in schizonts. Scale bar = 5 μm. Representative of three independent repeats. (C) Palmitoylation analysis of GAP45::HA and seven mutant proteins episomally expressed in schizonts. Representative of two independent repeats. (D) Two cysteine predicated for palmitoylation in CDPK1 (upper panel). The score of the predicted palmitoylation sites was provided by the CSS-Palm software. Lower panels indicate schematic of constructs expressing HA-tagged CDPK1, each with a cysteine to alanine replacement in single residue (C3A and C252A). These constructs were episomally expressed in the schizonts. (E) IFA of CDPK1::HA and two mutant proteins episomally expressed in schizonts. Scale bar = 5 μm. Representative of three independent repeats. (F) Palmitoylation analysis of CDPK1::HA and two mutant proteins episomally expressed in schizonts. Representative of two independent repeats. HA: hemagglutinin;WT: wild type.
-
Figure 7—source data 1
(related to Figure 7C) Palmitoylation analysis of GAP45::HA and seven mutant proteins episomally expressed in schizonts.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig7-data1-v3.xls
-
Figure 7—source data 2
(related to Figure 7F) Palmitoylation analysis of CDPK1::HA and two mutant proteins episomally expressed in schizonts.
- https://cdn.elifesciences.org/articles/77447/elife-77447-fig7-data2-v3.xls
In CDPK1, two cysteines (C3 and C252) were predicted as the potential residues for palmitoylation (Figure 7D and Figure 7—figure supplement 1C,D). Using the same approach, we found that only the C3A mutation caused a complete loss in both protein palmitoylation and IMC targeting of CDPK1 in the schizonts while the C252A mutation had no effect (Figure 7E–F), suggesting C3 as the critical residue for protein palmitoylation and IMC targeting of CDPK1 in schizonts. Interestingly, the cysteine residues C5, C156, C158, C169, and C172 of GAP45 and C3 of CDPK1 are evolutionarily conserved among different Plasmodium species (Figure 7—figure supplement 1A,C). Together, these results suggest that C5, C156, C158, C169, and C172 of GAP45 and C3 of CDPK1 are residues for palmitoylation which direct IMC targeting of the proteins in schizonts.
Palmitoylation in GAP45 and CDPK1 is essential for parasite viability
Lastly, we asked whether the palmitoylation in GAP45 and CDPK1 is essential for protein function and thus parasite viability. The above cysteine to alanine mutation experiments indicated that the palmitoylation of the N-terminal cysteine (C5 in GAP45 and C3 in CDPK1) is required for the correct IMC targeting of proteins. We attempted to replace the C5 with alanine in the endogenous GAP45 of 17XNL parasite using the CRISPR-Cas9 method. A 742 bp DNA donor template containing the nucleotide substitution was used for homologous replacement. Seven sgRNAs were designed for guiding the Cas9 complex to the target DNA. After three independent transfections with each of these seven Cas9/sgRNA plasmids, we failed to obtain the GAP45 C5A mutant parasites. In contrast, a control mutant parasite clone GAP45 C5C was generated with a silent mutation still encoding C5 (Figure 7—figure supplement 1E). Using the same approach, we attempted to replace the C3 with alanine in the endogenous CDPK1 of 17XNL parasite. Similarly, only mutant parasite clones with CDPK1 C3C, but not CDPK1 C3A, were generated (Figure 7—figure supplement 1F). Together, these results suggest that palmitoylation of C5 in GAP45 and C3 in CDPK1 is essential for protein function and parasite viability in the asexual blood stage development.
Discussion
In this study, we attempted a proteome analysis of IMC in the schizonts using the biotin ligase TurboID-mediated PL. Besides abundant proteins relatively easily detected by conventional immunoprecipitation, PL enables detection of proteins with weak or transient interactions. TurboID achieved satisfactory biotinylation in 1 hr, which is much shorter than the 18 hr needed by the BioID. To our knowledge, this is the first application of TurboID-based PL in the Plasmodium. We obtained a list of 300 Tb-IMC interacting proteins in the schizonts of P. yoelii. Among these proteins, 297 have orthologs in P. falciparum (Supplementary file 1), suggesting a conserved protein composition of IMC in the schizonts of rodent and human malaria parasites. Although the collection of 300 proteins may contain some false positives, two lines of evidence suggest good reliability of this IMC proteome. Firstly, about 50 IMC or IMC-associated proteins have been identified in Plasmodium to date (Ferreira et al., 2020; Wichers et al., 2021). Among these, 30 proteins (60%) have orthologs included in the Tb-IMC interacting proteins (Supplementary file 1). The absence of certain known IMC or IMC-associated proteins in the collection of Tb-IMC interacting proteins may attribute to the following reasons: restricted labeling radius of TurboID, lack of lysines for biotinylation, sterically inaccessibility of proteins by TurboID, or protein expression in other parasite stages (Sanchez et al., 2021). Secondly, subcellular localization analysis of 22 candidates confirmed the IMC localization of 8 known and 11 previously undescribed proteins. The localization results strongly suggest a predominantly IMC localization of the proteins tested, although the precise localization at the parasite PM or SPMT cannot be differentiated because of close proximity between IMC and these structures. The exact localization of these proteins at the parasite pellicle needs to be determined in the future using other methods, such as super resolution imaging, immunoelectron microscopy, or split green fluorescent protein. We noted that Wichers et al., recently explored an IMC proteome in asexual blood stages of P. falciparum with BioID using PhIL1 as the bait (Wichers et al., 2021). Of the 225 PhIL1-interacting protein candidates, the orthologs of 37 proteins are listed among the 300 Tb-IMC interacting proteins in our study (Supplementary file 1). We speculate that the differences in protein quantity and depth by PL are probably attributed to the species of biotin ligase, expression abundance of ligase, and the bait strategy.
PL experiments could produce a considerable number of false positives if proper controls are not included for ratiometric or statistical analysis (Qin et al., 2021). In a rational design, the PL enzyme is fused to the protein bait of interest while the PL enzyme alone works as a reference control (Qin et al., 2021). To achieve the PL of IMC, the TurboID ligase is fused to an IMC targeting peptide (N-terminal 20 aa of ISP1) (Wang et al., 2020), directing the IMC targeting of ligase (Tb-IMC) through the ER/Golgi secretary pathway. It is worth noting that the cytoplasm-facing feature of Tb-IMC ligase may prevent the detection of proteins in the IMC lumen. Background levels of ligase activity are set by a ligase not fused to the IMC targeting peptide. This ligase (Tb-cyto), as a spatial reference control, would not enter the ER/Golgi secretory pathway but instead stays in the cytosol or nucleus. Therefore, the Tb-IMC likely measures both interactions with the IMC proteins and interactions with the secretory pathway. Indeed, the 300 Tb-IMC interacting proteins were segregated into two distinct subgroups based on interaction network (Figure 1E). Most of known IMC or IMC-associated proteins were clustered into the subgroup I. In contrast, the subgroup II included many ER/Golgi secretory pathway-related proteins. The major role of the subgroup I proteins is likely in IMC function, while the major role of the subgroup II proteins is likely in the secretory pathway. It is possible that some Tb-IMC interacting proteins may have roles in both the IMC and secretory pathway. Detection of the subgroup II proteins in this study provided another independent evidence supporting the IMC formation from the ER/Golgi-derived secretory system. In addition, concomitant capture of subgroup I and II as the Tb-IMC interacting proteins may reflect the tight and dynamic association between the IMC organelle and the endomembrane system in schizont development.
The list of increased IMC proteins allowed us to investigate the localization determinant(s) of IMC proteins which had remained unclear. Several mechanisms underlying IMC targeting have been proposed, including vesicle-mediated transporting of proteins containing a signal peptide, IMC membrane trapping of proteins with lipid modification, protein motif (alveolin repeats)-mediated IMC localization, and protein-protein interaction for IMC targeting (Kono et al., 2012). Palmitoylation is a post-translation modification in which a cysteine residue undergoes a reversible lipid modification, regulating localization and function of target proteins (Bijlmakers and Marsh, 2003). Previous studies have implied that palmitoylation mediates the binding or trafficking of proteins to the IMC (Wang et al., 2020; Wetzel et al., 2015). In T. gondii, many glideosome-associated proteins were also palmitoylated (Foe et al., 2015). Interestingly, out of the 300 P. yoelii Tb-IMC interacting proteins, 83 (28%) have orthologs of the P. falciparum palmitoylated proteins in the schizonts (Jones et al., 2012). These 83 proteins include GAP45 and ISP3 with validated palmitoylation and CDPK1, GAP50, IMC1g, and IMC1c with predicted palmitoylation. These results imply that a high proportion of IMC proteins are palmitoylated. Palmitoylation of these proteins may be critical for their localization and function. Interaction of these palmitoylated IMC proteins with other non-palmitoylated proteins may also mediate the IMC localization of the latter.
11 putative PATs (DHHC1–11) are encoded in the genomes of rodent malaria parasites while there are 12 PATs (DHHC1-12) in P. falciparum (Hodson et al., 2015). So far, viable mutant clones were obtained for only DHHC3, DHHC5, DHHC9, and DHHC10 in previous knockout attempts (Santos et al., 2016; Tay et al., 2016; Hopp et al., 2016), suggesting other PATs (DHHC1, DHHC2, DHHC4, DHHC6, DHHC7, DHHC8, DHHC11, and DHHC12) may be essential for the asexual blood stage development. However, the association of these PATs with IMC has not been investigated in the schizonts. In this study, DHHC2 and DHHC1 are among the 300 Tb-IMC interacting proteins and both displayed clear IMC localization in the schizonts. Protein abundance assays and STRING analysis suggested that DHHC2 is likely the main mediator of palmitoylation of the IMC proteins in the schizonts. To determine if DHHC2 contributes to parasite development in vivo, we developed a method for investigating its function in the infected mice. Induced depletion of DHHC2 resulted in a complete growth arrest of the engineered strain mAID::dhhc2 in mice in an IAA dosage-dependent manner, confirming the essentiality of DHHC2 in the asexual blood stage. In in vitro culture, we observed a significant decrease, but not complete ablation of mature schizont formation in DHHC2-depleted parasites. Most parasites were arrested at a stage earlier than the mature schizont due to defective segmentation or cytokinesis. The defect in asexual blood stage development in vivo and in vitro caused by the loss of DHHC2 was associated with impairment of IMC localization of certain IMC proteins. Indeed, among the 83 potentially palmitoylated IMC proteins, our analysis validated CDPK1 and GAP45 as substrates of DHHC2, but not DHHC1. Aside from CDPK1 and GAP45, other IMC protein substrates palmitoylated by DHHC2 remain to be validated. We previously reported that DHHC2 is critical for parasite development during the zygote-to-ookinete morphogenesis in the mosquito, and DHHC2 palmitoylates ISP1 and ISP3 for their attachment to the IMC to facilitate connection between the IMC and the SPMT (Wang et al., 2020). Therefore, DHHC2 plays critical roles in IMC targeting of many proteins at multiple developmental stages.
Compared to the reduction in the mAID::dhhc2 schizonts caused by IAA treatment, the treatment with 2-BP, a broad-spectrum inhibitor of protein palmitoylation, resulted in no formation of mature mAID::dhhc2 schizonts (Figure 6D and E). The effects of IAA are specific to the mAID-fused DHHC2 in the mAID::dhhc2 schizonts, whereas 2-BP could inhibit protein palmitoylation mediated by DHHC2 and other PATs, including DHHC1. We suspect that the IMC-residing DHHC1 is also essential for schizont development, but its precise roles and substrate proteins also awaits investigation in the future.
Besides the PATs DHHC2 and DHHC1, several kinases including CDPK1, CDPK4, and PKA, were also found among the Tb-IMC interacting proteins. CDPK1, CDPK4, and PKA were further validated to localize at the IMC of P. yoelii, in accordance with their orthologs’ localization in P. falciparum (Kumar et al., 2017; Fang et al., 2018; Wilde et al., 2019). CDPK1 has been reported to be essential for schizont development. Both conditional knockdown and inhibition of CDPK1 can arrest P. falciparum schizont development (Kumar et al., 2017; Azevedo et al., 2013), mimicking the phenotypes of the DHHC2-depleted parasites in this study. Interestingly, phosphoproteomic analysis revealed that the conditional knockdown of CDPK1 led to the hypophosphorylation of several IMC and glideosome proteins, including GAP45, MTIP, and PKA regulatory subunit (PKAr) (; Kumar et al., 2017; Wilde et al., 2019; Green et al., 2008; Ridzuan et al., 2012). In this study, we found that DHHC2-mediated palmitoylation is required for CDPK1 localization at IMC. Thus, palmitoylation and IMC localization are the prerequisites for CDPK1-mediated phosphorylation of IMC proteins. Based on all available data, we speculated that once the IMC biogenesis is initiated in early schizonts, DHHC2 is recruited to the nascent IMC, possibly by an auto-palmitoylation mechanism (Wang et al., 2020). However, DHHC2 seems inessential for IMC biogenesis because the IMC seemed morphologically normal despite DHHC2 depletion (Figure 5I). In contrast, DHHC2 palmitoylates certain important proteins for their IMC localization in the developing schizonts and mature merozoites. It has critical function in schizont cytokinesis and erythrocyte invasion.
Materials and methods
Plasmid construction and parasite transfection
Request a detailed protocolCRISPR-Cas9 plasmid pYCm was used for parasite genomic modification (Leung et al., 2017; Zhang et al., 2014). To construct the plasmids for gene deletion, the N- or C-terminal segments (400–600 bp) of the coding regions were PCR-amplified as the left or right homologous arm or 400–600 bp from 5-UTR or 3-UTR following the translation stop codon as left or right arm, respectively. To construct the plasmids for gene tagging, the DNA fragment (encoding 6 HA, 4Myc, GFP, or mAID-2HA) was inserted between the left and right arms in frame with the gene of interest. For each gene tagging, two sgRNAs were designed to target sites close to the N- or C-terminal part of the coding region. To construct the plasmid for amino acid substitution, the donor template (700–800 bp) for homologous recombination was introduced with the targeted mutations for amino acid substitution and extra shield mutations via mutagenesis. These shield mutations in or adjacent to the protospacer-adjacent motif (PAM) were used to prevent the recognition and cleavage of the replaced locus by the gRNA/Cas9 complex. Seven sgRNAs were designed to target sites close to the desired mutation sites. The PCR primers and DNA oligonucleotides used are listed in Supplementary file 3. Blood with 15–25% parasitemia was collected from infected mice and cultured in RPMI-1640 (Gibco, cat#11,879,020) supplied with 20% FBS (Gibco, cat#10,099) at 37°C for 3 hr for schizont development. After washing two times with RPMI-1640, the parasite were electroporated with 5–10 μg purified circular plasmid DNA using Lonza Nucleotector. Transfected parasites were immediately intravenously injected into a naïve mouse and applied to pyrimethamine pressure (provided in drinking water at concentration 7 mg/ml) from 24 hr post-transfection. Parasites with transfected plasmids usually appear about 5–7 days after drug selection. Genomic DNA of parasites were extracted for genotyping PCR analysis. Parasite clones with correct modification were obtained using the limiting dilution method.
Genotypic analysis of transgenic parasites
Request a detailed protocolAll transgenic parasites were generated from the P. yoelii 17XNL or Tir1 strains. Infected blood samples from transfected mice were collected from the tail of mice and lysed by 1% saponin in PBS. Parasite genomic DNAs were extracted using DNeasy Blood Kits (Qiagen). For each genetic modification, both 5’ and 3’ homologous recombination were detected by PCR to confirm successful integration of homologous arms. The PCR primers used for genotyping are listed in Supplementary file 3. Positive clones with correct modifications were obtained after limiting dilution. The PCR-genotyping results confirming the genetic modified parasites were shown in the corresponding supplementary figure.
Parasite negative selection with 5-fluorouracil
Request a detailed protocolModified parasites subjected for sequential modification were negatively selected to remove pYCm plasmid. 5-fluorouracil (5-FC, Sigma-Aldrich, cat#F6627) was prepared in drinking water at a final concentration of 2.0 mg/ml. A naïve mouse receiving parasites with residual plasmid was subjected to 5-FC selection for 6–8 days. Diagnostic PCR was performed to confirm the complete removal of plasmid in the parasites. The PCR primers used are listed in the Supplementary file 3.
DNA mutagenesis for amino acid replacement
Request a detailed protocolFor the amino acid replacement in the proteins of interest, the WT gene cDNAs were cloned into NheI and NcoI sites in the pL0019-HA/Myc vector (isp3 gene promoter for parasite asexual blood stages) or pcDNA3.1-HA/Myc vector (CMV promoter for mammalian cell). A PCR-based protocol with mutagenic oligonucleotides was used to generate the gene mutants. The primers used are listed in Supplementary file 3.
Protein transient expression in asexual blood stage parasites
Request a detailed protocolFor protein transient expression, the coding sequence of target genes was tagged N- or C-terminally with an epitope tag and driven by the regulatory regions of the isp3 gene (1.5 kb of the 5’-UTR and 1 kb of the 3’-UTR). Gene expression cassettes were inserted into the pL0019-derived vector containing a human dhfr marker for pyrimethamine selection. Blood stage parasites were electroporated with 10 μg vector plasmid DNA and selected with pyrimethamine (70 μg/ml) for 7 days. Parasites appearing after pyrimethamine selection were used for further experiments.
Antibodies and antiserum
Request a detailed protocolThe primary antibodies used included: rabbit anti-HA (Western blot, 1:1000, IFA, 1:1000, 3724 S, Cell Signaling Technology [CST]), mouse anti-HA (IFA, 1:500, sc-57,592, Santa Cruz Biotechnology), rabbit anti-Myc (Western blot, 1:1000, 2276 S, CST), mouse anti-Myc (IFA, 1:500, sc-40, Santa Cruz Biotechnology) and rabbit anti-Histone H3 (Western blot, 1:2000, 9715, CST). The secondary antibodies used included: goat anti-rabbit IgG HRP-conjugated and goat anti-mouse IgG HRP-conjugated secondary antibody (1:5000, Abcam), Alexa Fluor 555 goat anti-rabbit IgG (1:1000, Thermo Fisher Scientific), Alexa Fluor 488 goat anti-rabbit IgG (1:1000, Thermo Fisher Scientific), Alexa Fluor 555 goat anti-mouse IgG (1:1000, Thermo Fisher Scientific), Alexa Fluor 488 goat anti-mouse IgG (1:1000, Thermo Fisher Scientific), and Alexa Fluor 488 conjugated streptavidin (1:1000, Invitrogen, S32354). Antiserums, including rabbit anti-GAP45 (Western blot, 1:1000, IFA, 1:1000), mouse anti-GAP45 (IFA, 1:1000), and rabbit anti-BiP (Western blot, 1:1000) were described in previous studies (Wang et al., 2020). Other antiserums, including rabbit anti-CDPK1 (Western blot, 1:1000, IFA, 1:500), rabbit anti-Erd2 (Western blot, 1:1000), and rabbit anti-MSP1 (Western blot, 1:2000, IFA, 1:1000) were prepared by immunization of rabbit or mouse with recombinant protein as antigens: for CDPK1 (D11VRGNK…CDNKPF523), for Erd2 (E38LYLIV…PFNGEV221), and for MSP1 (V1413YTKRL…GVFCSS1752).
Immunofluorescence assays
Request a detailed protocolCells were fixed with 4% paraformaldehyde for 15 min and rinsed with PBS three times. The cells were then permeabilized with 0.1% Triton X-100 for 10 min, rinsed with PBS twice, and incubated with 5% BSA for 1 hr. They were incubated with the primary antibodies overnight at 4℃, rinsed with PBS three times, and incubated with fluorescent conjugated secondary antibodies for 1 hr in the dark. After washing with PBS, the cells were stained with DNA dye Hoechst 33342 for 10 min and mounted on glass slides using the mounting medium. Images were captured using identical settings under Zeiss LSM 880 confocal microscope.
Live cell imaging
Request a detailed protocolParasites expressing GFP-fused proteins were collected in 200 μl PBS, washed twice with PBS and stained with Hoechst 33342 at room temperature for 10 min. After centrifugation at 300 g for 5 min, the parasites pellets were resuspended in 100 μl of 3% low melting agarose, spread evenly on the bottom of 35 mm plate, and followed by cooling at RT for 15 min. The parasites were imaged by a Zeiss 880 confocal microscope with the 63×/1.40 oil objective.
Ultrastructure expansion microscopy (U-ExM)
Request a detailed protocolPurified schizonts were sedimented on a 15 mm round poly-D-lysine (Sigma-Aldrich, cat#A-003-M) coated coverslips for 10 min. To add anchors to proteins, coverslips were incubated for 5 hr in 0.7% formaldehyde (FA, Sigma-Aldrich, cat#F8775)/1% acrylamide (AA, Sigma-Aldrich, cat#146,072) at 37°C. Next, gelation was performed in ammonium persulfate (APS, Sigma-Aldrich, cat#A7460)/N,N,N′,N′-tetramethyl ethylenediamine (Temed, Sigma-Aldrich, cat#110-18-9)/monomer solution (23% sodium acrylate (SA, Sigma-Aldrich, cat#408,220); 10% AA; 0.1% N,N′-methylenebisacrylamide (BIS-AA, Sigma-Aldrich, cat#M7279) in PBS) for 1 hr at 37°C. Sample denaturation was performed for 60 min at 95°C. Gels were incubated in bulk ddH2O at room temperature overnight for the first expansion. In the following day, gel samples were washed with PBS twice for 30 min each to remove excess of ddH2O. Gels were cut into square pieces (~1 cm×1 cm), incubated with primary antibodies at 37°C for 3 hr, and washed with 0.1% PBS-Tween (PBS-T) three times for 10 min each. Incubation with the secondary antibodies was performed for 3 hr at 37°C followed by three times washes with 0.1% PBS-T for 10 min each. Nuclear was stained by Hoechst 33342. After the final staining, gels were washed with 0.1% PBS-T three times for 15 min each and expanded overnight by incubating in bulk ddH2O at room temperature. After the second round of expansion, gels were cut into square pieces (~0.5 cm×0.5 cm) and mounted by a coverslip in a fixed position for image acquiring.
Airyscan super-resolution microscopy
Request a detailed protocolParasites were imaged using a 100×/1.46 NA oil immersion objective on a Zeiss LSM880 fitted with an Airyscan detector. Super-resolution reconstructions of multi-labeled dhhc2::6 HA schizonts were acquired, sequentially in three channels, as follows: channel 1=561 nm laser (HA), channel 2=488 nm laser (GAP45), channel 3=405 nm laser (Hoechst 33342). Images were acquired using a defined region of interest (ROI) with an average of two, with 2048×2048 pixels of image size and 8-bit image depth. Every part of each image remains fully within the dynamic range of pixel intensity. Three-dimensional (3D) Z-stacks were acquired at 0.25 μm intervals in Z axis using piezo drive prior to being Airyscan processed in 3D using batch mode in ZEN Black (Zeiss). Maximum intensity projections of super-resolution images were output with the default setting.
Protein extraction and immunoblot
Request a detailed protocolParasite total proteins from asexual blood stages were extracted with RIPA Lysis Buffer (50 mM pH 7.4 Tris, 150 mM NaCl, 1% Triton X-100, 1% sodium deoxycholate, 0.1% SDS, 1 mM EDTA) containing protease inhibitor cocktail and PMSF. After ultra-sonication, the lysates were incubated on ice for 30 min before centrifugation at 12,000 g for 10 min at 4℃. The supernatant was then lysed in Laemmli sample buffer, stored at 4℃ for immunoblot. Protein samples were separated in SDS-PAGE, transferred to PVDF membrane that was blocked by 5% skim milk in TBST, and then incubated with primary antibodies. After incubation, the membrane was washed three times with TBST and incubated with HRP-conjugated secondary antibodies. The membrane was washed four times in TBST before the enhanced chemiluminescence detection.
Dot blot detecting biotinylated proteins
Request a detailed protocolDot blot assay of the biotinylated proteins was performed as described previously (Magi and Liberatori, 2005). Freshly extracted proteins were quantified using the Pierce BCA Protein Assay kit (Thermo Scientific, cat#23,227). PVDF membrane preactivated by methanol was prepared. Equal amounts of total proteins (~2 μg) from each sample were loaded onto the PVDF membrane surface. After protein absorbing and air-dry, the PVDF membrane was blocked by 5% skim milk in TBST and incubated with HRP-conjugated streptavidin (GenScript, M00091) for the enhanced chemiluminescence detection. MSP1 protein was used as the loading control.
Protein solubility assay
Request a detailed protocolPurified schizonts (1×106) from each sample were used for protein solubility assay. Parasites were lysed in 100 μl of hypotonic buffer (10 mM Hepes, 10 mM KCl, pH 7.4) and frozen and thawed (–80 to 37°C) twice for cell lysis. The lysates were centrifuged at 12,000 g for 5 min at 4°C, and the supernatants containing cytosolic soluble proteins were collected as ‘Hypo’ fraction. The pellet was then rinsed with 1 ml of ice-cold PBS, resuspended in 100 μl of freshly prepared carbonate buffer (0.1 M Na2CO3), kept on ice for 30 min, and then centrifuged at 12,000 g for 5 min at 4°C. The supernatants containing peripheral membrane proteins were collected as ‘Carb’ fraction. The pellet was rinsed with 1 ml of ice-cold PBS, resuspended in 100 μl of freshly prepared Triton X-100 buffer (1% Triton X-100), kept on ice for another 30 min, and centrifuged at 12,000 g for 5 min at 4°C. The supernatants containing integral membrane proteins were collected as ‘Trx’ fraction. The final pellet including insoluble proteins and non-protein materials was solubilized in 1×Laemmli sample buffer as ‘pellet’ fraction. All fractions were boiled at 95°C for 10 min and centrifuged at 12,000 g for 5 min. Equal volume of supernatants from each sample was used for immunoblot. For detecting the change in IMC localization of palmitoylated proteins, Hypo fractions were referred to ‘light fraction’, while Hypo-insoluble fractions were referred to ‘heavy fraction’. All buffers used in this assay contain the protease inhibitor cocktail (MedChemExpress, cat#HY-K0010).
Purification of schizont and ring/trophozoite stage parasites
Request a detailed protocolThe asexual blood stage parasites with 15–25% parasitemia were cultured in RPMI-1640 medium supplied with 20% fetal bovine serum (FBS) and 100 IU penicillin, 100 mg/ml streptomycin at 37°C for 3 hr for increasing schizont production. The schizonts were purified using the Nycodenz density gradient centrifugation. Briefly, the schizonts were suspended in RPMI-1640 and 7 ml of the schizont culture was loaded on the top of a 2 ml of the 60% Nycodenz solution in a 15 ml centrifugation tube. After centrifugation at 300 g for 30 min and removing the supernatants, top layer containing the schizonts were collected. Rings and early trophozoites were collected at the bottom with uninfected erythrocytes.
TurboID-based proximity-labeling and pull-down
Request a detailed protocolThe schizonts expressing the biotin ligase TurboID or BioID were purified using the methods described above. After incubating with 100 μM biotin (Sigma-Aldrich, cat#B4639) at 37℃ for 3 hr, the schizonts were lysed with 0.01% saponin and stored at –80℃. For pull-down, parasites were lysed in RIPA buffer (50 mM Tris-HCl pH 7.4, 150 mM NaCl, 1% NP40, 0.1% SDS, 1% sodium deoxycholate, 1% TritonX-100, 1 mM EDTA) containing protease inhibitor cocktail and PMSF. 10 mg of cell lysates were collected as a biological replicate and incubated with 100 μl of streptavidin sepharose (Thermal Scientific, cat#SA10004). After incubation overnight at 4°C, streptavidin beads were then washed with the following procedures: twice with RIPA lysis buffer, once with 2 M urea in 10 mM Tris-HCl, pH 8.0, and two more times with 50 mM Tris-HCl (pH 8.5). The washed beads were resuspended in 200 µl 50 mM Tris-HCl (pH 8.5) before further trypsin digestion of the biotinylated proteins.
Protein digestion and peptide desalting
Request a detailed protocolThe enriched biotinylated proteins were digested on-bead by rolling with 1 µg of trypsin for 16 hr at 37°C followed by a second digest with 0.5 µg trypsin for 2 hr. For digested peptide samples, StageTips packed with SDB-RPS (2241, 3 M) material (made in-house) were used for desalting. Brifely, about 1% trifluoroacetic acid (TFA; Sigma-Aldrich, cat#T6508) was added into the reactions to stop digestion. The SDB-RPS StageTips were conditioned with 100 μl 100% acetonitrile (ACN) (Sigma-Aldrich, cat#3485). The peptides were loaded into StageTips, followed by centrifugation at 4000 g for 5 min. StageTips were washed twice with 100 μl 1% TFA/isopropyl alcohol (Sigma-Aldrich, cat#I9030), and then washed with 100 μl 0.2% TFA. Elution of peptides was performed using 80% ACN/5% ammonia water. All eluted materials were collected in glass vials (A3511040; CNW Technologies) and dried at 45°C using a SpeedVac centrifuge (Eppendorf Concentrator Plus; 5305).
Mass spectrometry
Request a detailed protocolDigested peptides were dissolved in 0.1% formic acid (Sigma-Aldrich, cat#06,440) containing independent retention time (iRT) peptides and analyzed by Sequential Window Acquisition of All Theoretical Mass Spectra (SWATH-MS) on TripleTOF 5600. For SWATH-MS, an MS1 scan records a 350–1250 m/z range for 250ms, and a 100–1800 m/z range was recorded for 33.3ms in the high-sensitivity mode MS2 scan. One MS1 scan was followed by 100 MS2 scans, which covered a precursor m/z range from 400 to 1200. SWATH-MS wiff files were converted to centroid mzXML files using MSConvert (version 3.0.19311), which were then subjected to DIA-Umpire software (version 2.1.6) for analysis. Signal-extraction module of DIA-Umpire was used to generate pseudo-DDA mgf files. These mgf files were converted to mzML files, which are subjected to database search using MSFragger (version 2.3) through the FragPipe interface (https://fragpipe.nesvilab.org/). The search parameters were set as followed: precursor monoisotopic mass tolerance ‘50 ppm’ fragment mass tolerance ‘0.1 Da’, modification ‘57.021464@C’, potential modification mass ‘15.994915@M’, cleavage ‘semi’ and maximum missed cleavage sites ‘1’. PeptideProphet, ProteinProphet and FDR filtering were performed by Philosopher software (version 3.2.2) (https://github.com/Nesvilab/philosopher; Qian, 2022) through the FragPipe interface (https://fragpipe.nesvilab.org/) (da Veiga Leprevost et al., 2020). The pep.xml search results were validated and scored using PeptideProphet followed by analysis with ProteinProphet. The precursor ions and proteins were filtered at 1% FDR. The spectral library was generated by using EasyPQP tool (version 0.1.12) which is integrated in the FragPipe software. SWATH-MS files were converted to profile mzXML files. The spectral library based targeted analysis of SWATH-MS was performed using the QuantPipe tool based on the OpenSWATH-PyProphet-Tric workflow (Rosenberger et al., 2017; Wang et al., 2021). The results were filtered at 1% global protein FDR. Statistical analysis by Perseus software (version 1.6.10.43) were performed as previously reported (Tyanova et al., 2016). Parasite protein intensities were imported into Perseus. Protein abundances were normalized with total intensities of all proteins per run and then log2 transformed. The Pearson correlation analysis, hierarchical clustering, and volcano plots were performed with default settings.
Chemical treatment of parasite
Request a detailed protocolTo evaluate the effects of 2-BP on parasite protein palmitoylation and localization, 2-BP (Sigma-Aldrich, cat#21,604) was added to parasite culture at a final concentration of 100 μM at 37℃ for the time indicated in each experiment. To deplete the target parasite proteins in vitro by auxin-induced protein degradation, the parasite culture was added with a final concentration of 1 mM IAA (Sigma-Aldrich, cat#I2886) or vehicle (DMSO 1:1000) at 37℃ for 3–12 hr with ambient ~5% CO2 levels. To deplete the target parasite proteins in mice, mice were administered with either IAA or vehicle intraperitoneally. Each mouse was injected with 0.2 ml of PBS containing IAA (20 mg/ml IAA, 3 mM NaOH, pH 7.4) or vehicle (similar solution without IAA). The usage of this dosage of IAA in mice was referred to a previous study (Tupper et al., 2010).
Quantitative real-time PCR
Request a detailed protocolPurified parasites were prepared for extraction of total RNAs. Following isolation with TRIzol (Invitrogen), total RNA was purified with the RNAeasy Mini Kit (QIAGEN, cat#74,106). cDNA was then obtained with the TransScript Two-Step RT-PCR SuperMix (TransGen Biotech, cat#AT401-01) and checked afterwards for gDNA contaminations via RT-PCR. The Real-time quantitative PCR was performed using SYBR Green Supermix (Bio-Rad, cat#1708882) in the Bio-Rad iCycler iQ system (Bio-Rad, USA). The primers used are listed in Supplementary file 3. All runs under the following conditions: 95°C for 20 s followed by 40 cycles of 95°C for 3 s; 60°C for 30 s. The samples were run in triplicate and normalized to gapdh using a ΔΔ cycle threshold-based algorithm, to provide arbitrary units representing relative expression levels. Graphpad 8 was used for statistical analysis.
Flow cytometry analysis
Request a detailed protocolParasite-infected erythrocytes were collected from mice via tail vein or in vitro culture, washed twice with PBS, and suspended in PBS with Hoechst 33342 (Thermo Fisher Scientific, cat#62,249) for nuclei staining. The parasites were analyzed by flow cytometry in a BD LSR Fortessa flow cytometer. Parasite-infected erythrocytes were gated using the fluorescence signal of 405 nm (Hoechst 33342), while uninfected erythrocytes were used as a control. All data were processed by FlowJo software.
In vitro trophozoite to schizont development
Request a detailed protocolPurified rings and early trophozoites via Nycodenz centrifugation were incubated with vehicle or IAA and cultured for 12 hr at 37℃ at ambient CO2 (~5%). Mature schizonts developed from the early trophozoites were counted by thin blood smears with Giemsa staining.
Erythrocyte invasion of merozoite
Request a detailed protocolDifferent from an automatous rupture of mature schizonts of the in vitro cultured P. falciparum, the P. yoelii schizonts displayed an arrest in rupture after maturation in the in vitro condition. 1.0×108 purified schizonts were incubated with vehicle and IAA, respectively, at 37℃ for 3 hr to deplete the DHHC2 protein. After this, the schizonts were mechanically disrupted by vibrating for 1 hr. Under these conditions, merozoite release occurs in about 50% of mature schizonts with both vehicle and IAA treatment. Similar number of merozoites were injected intravenously into each mouse with three to four naïve mice in each group. Mouse blood was collected for blood smears at 20 min after injection and the parasitemia of ring stage was quantified by Giemsa solution staining and flow cytometry.
Mammalian cell culture and transient transfection
Request a detailed protocolHEK293T cells were maintained in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% FBS, 100 IU penicillin, 100 mg/ml streptomycin at 37℃ in a humidified incubator containing 5% CO2. TurboFect transfection reagent (Thermo Fisher Scientific, cat#R0532) was used for cell transfection. Total DNA for each plate was adjusted to the same amount by using a relevant empty vector. Transfected cells were harvested at 48 hr after transfection for further analysis.
Detection of protein palmitoylation
Request a detailed protocolProtein palmitoylation was detected using the Acyl-RAC assay described previously (Wang et al., 2020). Schizonts were lysed in DHHC Buffer B (2.5% SDS, 1 mM EDTA, 100 mM HEPES, pH 7.5) containing protease inhibitor cocktail and PMSF and incubated on ice for 30 min. After centrifugation at 12,000 g for 10 min, supernatant was collected and treated with 0.1% methyl methanethiosulfonate (MMTS) at 42 °C for 15 min. MMTS was removed by acetone precipitation followed by washing with 70% acetone three times. Protein samples were solubilized in DHHC Buffer C (1% SDS, 1 mM EDTA, 100 mM HEPES, pH 7.5) and were captured on thiopropyl sepharose 6B (GE Healthcare, 17-0402-01) in the presence of 2 M hydroxylamine or 2 M NaCl (negative control) by agitating for 3 hr at room temperature. Loading controls (Input) were collected before addition of thiopropyl sepharose 6B beads. After five times washing with urea DHHC Buffer (1% SDS, 1 mM EDTA, 100 mM HEPES, 8 M urea, pH 7.5), the captured proteins were eluted from thiopropyl sepharose 6B beads in 60 µl DHHC Buffer C supplemented with 50 mM DTT, and mixed with Laemmli sample buffer for further Western blot analysis.
Immunoelectron microscopy (Immuno-EM)
Request a detailed protocolPurified schizonts were fixed in 0.1 M phosphate buffer (pH 7.4) containing 2% paraformaldehyde and 0.1% glutaraldehyde. Samples were dehydrated in ethanol and embedded in LR Gold resin (cat#14,381-UC, Electron Microscopy Sciences). Ultrathin sections were blocked with 1% BSA for 10 min at room temperature, incubated with the anti-HA antibody at 4℃ overnight, and then incubated with goat anti-rabbit IgG conjugated to gold particles of 15 nm diameter (cat#AB-0295G-Gold, Leading Biology) diluted in 1% BSA. Finally, the sections were fixed with 2.5% glutaraldehyde for 10 min and stained with 1% uranyl acetate. The samples were examined and imaged in a Hitachi HT-7800 electron microscope.
Transmission electron microscopy
Request a detailed protocolFor TEM, purified parasites were prefixed with 2.5% glutaraldehyde in 0.1 M phosphate buffer at 4℃ overnight, rinsed three times with PBS, then fixed with 1% osmium acid for 2 hr, and rinsed three times with PBS. Fixed samples were dehydrated with concentration gradient acetone. After embedding and slicing, thin sections were stained with uranyl acetate and lead citrate. All samples were imaged using the HT-7800 electron microscope.
Bioinformatic analysis and tools
Request a detailed protocolThe genomic DNA sequences of target genes were downloaded from PlasmoDB database (Aurrecoechea et al., 2009). The sgRNAs of a target gene were designed using EuPaGDT (Aurrecoechea et al., 2017). Amino acid sequence alignment was analyzed using MEGA5.0 (Stecher et al., 2014). The palmitoylation sites in protein were predicted using CSS-Palm 4.0 (Ren et al., 2008). Protein interaction among the Tb-IMC interacting proteins was analyzed with the STRING database (https://string-db.org) (von Mering et al., 2003), which includes known and predicted interactions stemming from computational prediction, knowledge transfer between organisms, and interactions aggregated from other databases. Subgroups were divided by k-means clustering option and number of clusters was set to 2. Graph-based clustering of the entire interactome network was generated and visualized in Cytoscape (Shannon et al., 2003), and pruned by removing the unconnected nodes in each subgroup. Gene ontology analysis were performed on the PlasmoDB database (Aurrecoechea et al., 2009).
Quantification and statistical analysis
Request a detailed protocolFor quantification of protein expression in Western blot, protein band intensity was quantified using Fiji software from three independent experiments. The signals of target proteins were normalized with that of control proteins. For quantification of protein expression in IFA, confocal fluorescence microscopy images were acquired under identical parameters. Fluorescent signals were quantified using Fiji software. More than 30 cells were analyzed in each group. Protein relative expression was calculated as the signal intensity compared to that of control group. Statistical analysis was performed using GraphPad Software 5.0. Two-tailed Student’s t-test or Whiney Mann test was used to compare differences between treated groups and their paired controls. n represents the number of parasite cells tested in each group, or experimental replication. The exact value of n was indicated within the figures. p-value in each statistical analysis was also indicated within the figures.
Data availability
The Mass spectrometry proteomic data have been deposited to the ProteomeXchange Consortium via the PRIDE partner repository with the data identifier PXD028193. All other relevant data in this study are submitted as supplementary source files.
-
ProteomeXchangeID PXD028193. Inner membrane complex proteomics reveals a palmitoylation regulation critical for intraerythrocytic development of malaria parasite.
References
-
PlasmoDB: a functional genomic database for malaria parasitesNucleic Acids Research 37:D539–D543.https://doi.org/10.1093/nar/gkn814
-
EuPathDB: the eukaryotic pathogen genomics database resourceNucleic Acids Research 45:D581–D591.https://doi.org/10.1093/nar/gkw1105
-
The on-off story of protein palmitoylationTrends in Cell Biology 13:32–42.https://doi.org/10.1016/s0962-8924(02)00008-9
-
Antibodies inhibit the protease-mediated processing of a malaria merozoite surface proteinThe Journal of Experimental Medicine 180:389–393.https://doi.org/10.1084/jem.180.1.389
-
Proximity-dependent labeling methods for proteomic profiling in living cells: An updateWiley Interdisciplinary Reviews. Developmental Biology 10:e392.https://doi.org/10.1002/wdev.392
-
Efficient proximity labeling in living cells and organisms with TurboIDNature Biotechnology 36:880–887.https://doi.org/10.1038/nbt.4201
-
A novel family of Apicomplexan glideosome-associated proteins with an inner membrane-anchoring roleThe Journal of Biological Chemistry 284:25353–25363.https://doi.org/10.1074/jbc.M109.036772
-
Origin, composition, organization and function of the inner membrane complex of Plasmodium falciparum gametocytesJournal of Cell Science 125:2053–2063.https://doi.org/10.1242/jcs.099002
-
The dynamic roles of the inner membrane complex in the multiple stages of the malaria parasiteFrontiers in Cellular and Infection Microbiology 10:611801.https://doi.org/10.3389/fcimb.2020.611801
-
Global analysis of palmitoylated proteins in Toxoplasma gondiiCell Host & Microbe 18:501–511.https://doi.org/10.1016/j.chom.2015.09.006
-
Site-specific analysis of protein S-acylation by resin-assisted captureJournal of Lipid Research 52:393–398.https://doi.org/10.1194/jlr.D011106
-
Gliding motility powers invasion and egress in ApicomplexaNature Reviews. Microbiology 15:645–660.https://doi.org/10.1038/nrmicro.2017.86
-
Protein palmitoylation in neuronal development and synaptic plasticityNature Reviews. Neuroscience 11:161–175.https://doi.org/10.1038/nrn2788
-
Structural insights into pfaro and characterization of its interaction with PfAIPJournal of Molecular Biology 432:878–896.https://doi.org/10.1016/j.jmb.2019.12.024
-
Alveolins, a new family of cortical proteins that define the protist infrakingdom AlveolataMolecular Biology and Evolution 25:1219–1230.https://doi.org/10.1093/molbev/msn070
-
The MTIP-myosin A complex in blood stage malaria parasitesJournal of Molecular Biology 355:933–941.https://doi.org/10.1016/j.jmb.2005.11.027
-
The motor complex of Plasmodium falciparum: phosphorylation by a calcium-dependent protein kinaseThe Journal of Biological Chemistry 283:30980–30989.https://doi.org/10.1074/jbc.M803129200
-
Compositional and expression analyses of the glideosome during the Plasmodium life cycle reveal an additional myosin light chain required for maximum motilityThe Journal of Biological Chemistry 292:17857–17875.https://doi.org/10.1074/jbc.M117.802769
-
The riveting cellular structures of apicomplexan parasitesTrends in Parasitology 36:979–991.https://doi.org/10.1016/j.pt.2020.09.001
-
Palmitoylation and palmitoyl-transferases in Plasmodium parasitesBiochemical Society Transactions 43:240–245.https://doi.org/10.1042/BST20140289
-
Identification of novel parasitophorous vacuole proteins in P. falciparum parasites using BioIDInternational Journal of Medical Microbiology 308:13–24.https://doi.org/10.1016/j.ijmm.2017.07.007
-
Filling the void: Proximity-based labeling of proteins in living cellsTrends in Cell Biology 26:804–817.https://doi.org/10.1016/j.tcb.2016.09.004
-
Evolution and architecture of the inner membrane complex in asexual and sexual stages of the malaria parasiteMolecular Biology and Evolution 29:2113–2132.https://doi.org/10.1093/molbev/mss081
-
Pellicle formation in the malaria parasiteJournal of Cell Science 129:673–680.https://doi.org/10.1242/jcs.181230
-
Stability and function of a putative microtubule-organizing center in the human parasite Toxoplasma gondiiMolecular Biology of the Cell 28:1361–1378.https://doi.org/10.1091/mbc.E17-01-0045
-
Generation of Plasmodium yoelii malaria parasite for conditional degradation of proteinsMolecular and Biochemical Parasitology 241:111346.https://doi.org/10.1016/j.molbiopara.2020.111346
-
Immunoblotting techniquesMethods in Molecular Biology 295:227–254.https://doi.org/10.1385/1-59259-873-0:227
-
The ringleaders: Understanding the apicomplexan basal complex through comparison to established contractile ring systemsFrontiers in Cellular and Infection Microbiology 11:656976.https://doi.org/10.3389/fcimb.2021.656976
-
Cytoskeleton of apicomplexan parasitesMicrobiology and Molecular Biology Reviews 66:21–38.https://doi.org/10.1128/MMBR.66.1.21-38.2002
-
Deciphering molecular interactions by proximity labelingNature Methods 18:133–143.https://doi.org/10.1038/s41592-020-01010-5
-
CSS-Palm 2.0: an updated software for palmitoylation sites predictionProtein Engineering, Design & Selection 21:639–644.https://doi.org/10.1093/protein/gzn039
-
A promiscuous biotin ligase fusion protein identifies proximal and interacting proteins in mammalian cellsThe Journal of Cell Biology 196:801–810.https://doi.org/10.1083/jcb.201112098
-
CD36 is palmitoylated on both N- and C-terminal cytoplasmic tailsThe Journal of Biological Chemistry 271:22315–22320.https://doi.org/10.1074/jbc.271.37.22315
-
Role of Ca2+/calmodulin-PfPKB signaling pathway in erythrocyte invasion by Plasmodium falciparumThe Journal of Biological Chemistry 283:5589–5597.https://doi.org/10.1074/jbc.M708465200
-
STRING: a database of predicted functional associations between proteinsNucleic Acids Research 31:258–261.https://doi.org/10.1093/nar/gkg034
-
Quantpipe: A user-friendly pipeline software tool for dia data analysis based on the openswath-pyprophet-tric workflowJournal of Proteome Research 20:1096–1102.https://doi.org/10.1021/acs.jproteome.0c00704
-
The role of palmitoylation for protein recruitment to the inner membrane complex of the malaria parasiteThe Journal of Biological Chemistry 290:1712–1728.https://doi.org/10.1074/jbc.M114.598094
Decision letter
-
Olivier SilvieReviewing Editor; Sorbonne Université, UPMC Univ Paris 06, INSERM, CNRS, France
-
Vivek MalhotraSenior Editor; The Barcelona Institute of Science and Technology, Spain
Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.
Decision letter after peer review:
Thank you for submitting your article "Inner membrane complex proteomics reveals a palmitoylation cascade regulating intraerythrocytic development of malaria parasite" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen Vivek Malhotra as the Senior Editor. The reviewers have opted to remain anonymous.
The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.
All three reviewers agree that this is an interesting and important study and that the work is robust. However, they also raised a number of points, as detailed in their recommendations to the authors, which need to be addressed to clarify some aspects of the work and revise some of the conclusions.
Specifically, the following points must be addressed:
1) Clarify the strategy to select candidates from the TurboID screen.
2) Clarify the localization of CDPK1 (including by improving imaging).
3) Revise the conclusions on the role of DHHC2-mediated palmitoylation of GAP45 and CDPK1 (including by providing additional control of IMC integrity).
4) Address discrepancies in the analysis of DHHC2-deficient or 2-BP treated schizonts (especially regarding MSP1 labelling).
The reviewers also noted that the title is not appropriate and should be modified.
Reviewer #1 (Recommendations for the authors):
The study identifies a large number of putative IMC proteins, with only partial overlap with other studies performed in P. falciparum. This suggests a potentially high rate of false positives, although 11 out of 14 new proteins were confirmed to be localized in the IMC. The authors should explain how they selected the 14 candidate proteins. This is important to ensure the absence of bias. Do these proteins correspond to the 22 proteins with assigned GO term IMC (line 219)? It is likely that many of the identified proteins correspond to trafficking-related proteins, as discussed in the text, or plasma membrane proteins (such as PMP1) or cytosolic proteins (since the ligase is exposed on the cytosolic face of the IMC). Did the authors consider using purified merozoites instead of schizonts to apply the TurboID proximity labelling? This might allow a more stringent identification of IMC resident proteins.
In addition, the study missed some known IMC proteins, which should be mentioned in the text and discussed further (line 544). For example, how do the authors explain that ISP1 (which was used to target TurboID to the IMC) was not identified in the screen?
In their initial mass spectrometry results the authors identified 488 proteins but discarded 188 based on gene expression profiling. What are these 188 proteins?
The authors should revise the table in Figure 2B.
– PMP1 has been described as a plasma membrane protein in P. berghei (PMID 28851956).
– pPK1 has been shown to be apically localized in P. yoelii merozoites, not in the IMC (PMID 31953169). How do the authors explain this discrepancy?
– PY17X_1139700 is annotated as TMCO1 in PlasmoDB.
– PY17X_1411000 is annotated as PhIL1-interacting candidate 5 (PIC5) and has been shown to be an IMC protein and should be counted with the known IMC proteins (PMID 33830607 and 34324609).
The data in Figure 3 show that 2BP has a marked effect on palmitoylation and IMC localization of 3 proteins (CDPK1, GAP45 and 1411000). However, it is important to control that 2BP does not completely disrupt IMC integrity, for example using PhIL1 as a marker.
In Figure 6C, why is the GAP45 and CDPK1 signal so low after IAA treatment, although input in western blot looks similar to the vehicle control (Figure 6A)?
Same comment in figure 7B and 7E, where it is not clear whether it is the localization of GAP45/CDPK1 that is affected rather than their level of expression.
What is the effect of DHHC1 depletion on parasite growth and schizont segmentation (line 460-468)?
Reviewer #2 (Recommendations for the authors):
1. The proximity labelling experiments using the TurboID are properly controlled and analyzed. Out of 14 candidates selected for further localization assay, 11 were found at the periphery of the parasites confirming a good enrichment of the samples. 8 known proteins of the pellicle were also localized, including CDPK1.
For PY17X_1411000 (Figure 2C), a staining around the residual body is visible from which GAP45 is absent. Would it be possible that this protein is localized at the plasma membrane (PM) rather than the IMC? In Green et al., 2008 and Ridzuan et al., 2012, the authors can distinguish between the IMC and PM localization of their proteins of interest in Plasmodium falciparum, PfCDPK1, PfGAP45 and PfMTIP, by observing the signal around the residual body. Would it be also valid in Plasmodium yoelii? They actually used that specificity of signal to claim that PfCDPK1 is at the PM while PfMTIP and PfGAP45 are at the IMC.
2. The palmitoylation of GAP45, CDPK1 and PY17X_1411000 in Figure 3 is convincing. However, I wonder why the staining of MSP1 in parasites treated with 2-BP looks normal while in Figure 5E and 5I, the 2-BP impairs schizont development and segmentation. Are the pictures taken after different timing of exposure to the drug?
3. The data concerning the DHHC2-iKD characterization (Figure 5) convincingly demonstrate the essentiality of this enzyme for parasite survival in vivo due to its role during the development and segmentation of the schizonts.
GAP45 and CDPK1 appear clearly cytosolic in merozoites in Figure 6D but the localization of these proteins is difficult to interpret in schizonts. The immunofluorescence presented for the IAA condition in Figure 6C are too weak; the brightness should be increased. Also, it is puzzling to see again that the development of schizonts looks normal in presence of IAA (PhIL1 and MSP1 staining) in contrast to Figure 5F while the treatment is the same (12 hr from the text). The authors should explain why, in this experiment, the "distribution of MSP1 in the DHHC2-deficient schizonts was also unaffected" (line 455, p15).
4. Identification of the palmitoylation sites in GAP45 and CDPK1.
– In Figure 7A and 7D, it would be of interest to have the score of the predicted palmitoylation sites according to CSS-Palm.
– The choice of these proteins for assessing their targeting to the IMC via palmitoylation needs to be further discussed.
Along the text, the authors assume that CDPK1 is at the IMC although all the literature cited mentioned that it is at the PM (Green et al., 2008; Sebastian et al., 2012) like its orthologue TgCDPK3 (McCoy et al., 2012). This point is important for CDPK1 to be a direct substrate of DHHC2. The palmitoylation of CDPK1 at residue C3 and not C252 is clean and convincing but the authors should discuss and maybe revisit the localization of CDPK1 in Plasmodium yoelii, especially in the sentence line 508-510.
GAP45 is known to spend the space between the PM and the IMC being anchored to the PM via its N-terminal acylation (myristoylation on G2 and palmitoylation on C5) and to the IMC via its C-terminus; a topology conserved between Toxoplasma (Frénal et al., 2010) and Plasmodium falciparum (Ridzuan et al., 2012) and likely in Plasmodium yoelii. Therefore the C5 site described here is likely at the PM and not at the IMC. However, the investigation of the other sites is very interesting and undoubtedly dependent of DHHC2 but the episomal construct used here is likely not relevant since the C-terminal tag likely already impacts the IMC localization has shown in T. gondii. That might explain why the C5A mutant becomes cytosolic, being not anchored in any membrane of the pellicle. A GFP-C-GAP45(aa30-204) construct, as used in Ridzuan et al., 2012, should solve this problem and determine the residues palmitoylated by DHHC2.
Reviewer #3 (Recommendations for the authors):
1. While the paper contains a substantial amount of data, it feels like two independent stories that are not as well connected as they could be. The proximity labelling identifies a number of new IMC proteins, many of which are likely palmitoylated. But then rather than probing these deeper, the authors switch to focus on DHHC2 and its role in the trafficking and function of two well-known IMC protein targets. However, this is still a strong paper and an important contribution to the field.
2. Line 22. The authors claim that "19 of the 22 selected targets were confirmed to localize to the IMC". This is somewhat disingenuous as 8 of these were already known IMC proteins. Of the remaining 14 that were chosen for verification (lines 248-252) – were they randomly selected or were certain criteria applied in the selection process? (e.g. predicted palmitoylation, IMC in T. gondii [Rab11B], etc). This should be clarified.
3. Regarding cytosolic localization for the control TurboID.
a) Line 141 – ookinetes – "detected cytosolic protein biotinylation". The staining appears both cytoplasmic and nuclear. This would make sense because the mass of the fusion protein is less than the nuclear pore cutoff (~50kDa) and thus it is likely to freely diffuse into the nucleus.
b) Line 163 – this comment also applies to the Tb-cyto – is it cytoplasmic and nuclear or somehow nuclear excluded in the parasites? (Figure 1C and S2E).
4. Figure S4. Regarding N vs C terminal tagging – I am presuming that the N-terminally tagged Rab11A, Rab11B (1359500) were tagged in this fashion to not disrupt C-terminal cysteines. This would be worth mentioning. Also, why is 1359500 not designated Rab11B? (which has previously been shown to be IMC localized in T. gondii)
5. Line 330, Figure 4I – Clarify that this is referring to the multiple spots that colocalize. In addition, there appears to be a separate GAP45 spot? This should be discussed and some arrows would be helpful here.
6. Line 505-510 – The authors note that the key palmitoyated sites are conserved among the Plasmodia. Are these sites conserved in T. gondii?
7. Figure 6C, line 451 – It is unclear how the loss of IMC localization occurs upon DHHC2 knockdown as there is no control for the IMC in these images.
8. Figure 1E – A more detailed description of precisely how the data was separated into groups I vs II would be helpful.
9. Figure 1D. Line 190. Were any known IMC proteins excluded from transcriptional profiling which reduced the dataset from 488-300 proteins?
10. Figure S1F – the individual points suggest that this is one of the 3 replicate experiments. It would be better to show a bar graph with the mean of 3 replicate experiments, as done for Figure 4C or 5E.
11. Figure S5A – 7 of the 11 immunofluorescence images appear to show no signal? Are many of the DHHCs unable to be tagged? Perhaps confirm tagging by better imaging, western or PCR. (or at least discuss)
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Thank you for resubmitting your work entitled "Inner membrane complex proteomics reveals a palmitoylation regulation critical for intraerythrocytic development of malaria parasite" for further consideration by eLife. Your revised article has been evaluated by Vivek Malhotra (Senior Editor) and a Reviewing Editor.
The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:
The authors fully addressed the reviewers comments in their rebuttal but not in the revised manuscript. Many elements provided in the rebuttal could be included in the manuscript to strengthen the conclusions and clarify some points.
Specifically:
1) line 308: "Notably, CDPK1, GAP45, and PIC5 lost their IMC localization and were found in the cytosol or nucleus after 2-BP treatment (Figure 3E)". The signal is too weak to ascertain the cytosol or nucleus localization of the proteins. In addition, in Fig3E, PhIL1 is barely visible. The authors should optimize the brightness/contrast of the images. Alternatively, they may consider using black on white display, which provides better contrast. The authors should mention in the manuscript their interpretation for the lower signal of GAP45/CDPK1, which is due to loss of protein concentration at the IMC.
2) line 480-481: the text indicates treatment with IAA for 12h, which should prevent schizont formation. This is inconsistent with figure 6 where segmented schizonts are visible. This is also not consistent with the rebuttal, where the authors explain that 2BP treatment was applied to schizonts. This must be clarified and timing of treatment should be specified for each experiment shown. The authors should add the timing of 2-BP treatment in the figure legends for Fig3E, Figure 5E and 5I, and Figure 6C.
3) Figure 6C-D: the authors should optimize the brightness/contrast of the images. Alternatively, they may consider using black on white display, which provides better contrast.
4) The authors state in their rebuttal that "For better understanding, we added the information of ISP1 stage expression at the legend of Figure 2A in the revised manuscript." Please check that this information is included in the text.
5) Figure 1 supplt 2 panel A still refers to ISP1 "signal peptide".
6) The supplemental table with primers should be labelled S3 not S2
7) The U-ExM and immune-EM data strengthen the conclusion that CDPK1 is localized at the IMC and should be included in the manuscript. The authors convincingly show that CDKP1 is likely at the IMC rather that at the plasma membrane (PM) using both immuno-EM and U-ExM. These data are a strong addition to the paper since all the previous literature claim that CDPK1 is at the PM and therefore not at a place where it can be palmitoylated by the IMC-embedded DHHC2. The authors should add the immuno-EM and U-ExM data as a supplementary figure.
8) The GFP N-terminal tagging experiments provide important controls and strengthen the conclusion that C156, C158, C169 and C172 are involved in IMC localization via palmitoylation. These data should be included in the manuscript (as a supplemental figure).
9) The arrowhead pointing at the "only GAP45" dot is barely visible in figure 4I.
https://doi.org/10.7554/eLife.77447.sa1Author response
Reviewer #1 (Recommendations for the authors):
The study identifies a large number of putative IMC proteins, with only partial overlap with other studies performed in P. falciparum. This suggests a potentially high rate of false positives, although 11 out of 14 new proteins were confirmed to be localized in the IMC. The authors should explain how they selected the 14 candidate proteins. This is important to ensure the absence of bias. Do these proteins correspond to the 22 proteins with assigned GO term IMC (line 219)? It is likely that many of the identified proteins correspond to trafficking-related proteins, as discussed in the text, or plasma membrane proteins (such as PMP1) or cytosolic proteins (since the ligase is exposed on the cytosolic face of the IMC).
In the initial manuscript of this study, we chosen 22 hits for their protein subcellular localization test. There are 8 protein hits previously validated localizing at IMC in other Plasmodium species and 14 hit candidates whose localization at IMC have not been validated in the Plasmodium. These 22 hits were chosen basically in a random manner, but they showed various (high, middle, and low) levels in the enrichment ratio detected by the TurboID-mediated proximity labeling (Figure 2A).
Did the authors consider using purified merozoites instead of schizonts to apply the TurboID proximity labelling? This might allow a more stringent identification of IMC resident proteins.
In this study, we used the purified schizont for the proximity labelling (PL) experiments. We agree with the reviewer’s suggestion that using purified merozoites for PL experiments might allow a more stringent identification of IMC proteins. But in our practice, the P. yoelii mature schizonts undergo natural rupture in an extremely low efficacy (1-3%) in the in vitro condition. Currently, it is technically difficult to obtain purified merozoites sample without schizont contamination when using the P. yoelii parasite model.
In addition, the study missed some known IMC proteins, which should be mentioned in the text and discussed further (line 544). For example, how do the authors explain that ISP1 (which was used to target TurboID to the IMC) was not identified in the screen?
In the section of Discussion, we discussed several possible reasons that some known IMC proteins failed to be detected in our proteomic (line 561-565).
Previous studies have shown that the endogenous ISP1 is not expressed or in a quite low expression level at the asexual blood stage (EMBO J. 2020, PMID: 32395856; Biol Open. 2013, PMID: 24244852). In this study, only the N-terminal 20 residues of ISP1, as an IMC targeting peptide, was used to direct the TurboID ligase localizing at the schizont IMC for PL of IMC proteins. Therefore, it is reasonable that ISP1 could not be identified in the PL. For better understanding, we added the information of ISP1 stage expression at the legend of Figure 2A in the revised manuscript. In contrast, ISP3, the paralogous protein of ISP1 in Plasmodium and expressed at the schizont IMC, has been expectedly detected in the Tb-IMC interacting proteins in this study.
In their initial mass spectrometry results the authors identified 488 proteins but discarded 188 based on gene expression profiling. What are these 188 proteins?
For anyone who may be interested in the 188 proteins discarded, we listed them in a new Supplementary Table S2.
The authors should revise the table in Figure 2B.
– PMP1 has been described as a plasma membrane protein in P. berghei (PMID 28851956).
Thank the reviewer for correcting this error in our text. We have removed PMP1 in the Figure 2B, and re-claimed the conclusion “9 out of 12 new proteins were confirmed to be localized in the IMC” instead of “11 out of 14 new proteins were confirmed to be localized in the IMC” in the revised manuscript” (line 260-263).
– pPK1 has been shown to be apically localized in P. yoelii merozoites, not in the IMC (PMID 31953169). How do the authors explain this discrepancy?
We revisited the results of pPK1 localization from Ishizaki et al. (Parasitol Int, 2020, PMID 31953169). In their study, Myc-tagged pPK1 was shown to be partially co-localized with all three markers tested, including microneme marker AMA1, IMC marker MTIP, and dense granule marker EBL. Moreover, it is unusual that MTIP did not display a typical IMC-localization in the schizonts (see Figure 2D of their publication).
– PY17X_1139700 is annotated as TMCO1 in PlasmoDB.
Changed in the revised Figure 2.
– PY17X_1411000 is annotated as PhIL1-interacting candidate 5 (PIC5) and has been shown to be an IMC protein and should be counted with the known IMC proteins (PMID 33830607 and 34324609).
We agreed with the reviewer’s comment that the P. falciparum orthologous (PF1310700/PIC5) of the PY17X_1411000 had been validated to be localizing at IMC of schizonts in a recent study (Wichers et al., Cell Microbiol. 2021. PMID: 33830607), therefore we listed the PY17X_1411000 as the known IMC protein (line 243-245).
The data in Figure 3 show that 2BP has a marked effect on palmitoylation and IMC localization of 3 proteins (CDPK1, GAP45 and 1411000). However, it is important to control that 2BP does not completely disrupt IMC integrity, for example using PhIL1 as a marker.
Thanks for reviewer’s suggestion. We performed experiments and added the PhIL1 as a control showing the IMC integrity under 2-BP treatment in the revised Figure 3E.
In Figure 6C, why is the GAP45 and CDPK1 signal so low after IAA treatment, although input in western blot looks similar to the vehicle control (Figure 6A)?
The GAP45 and CDPK1 proteins were dispersed through cytoplasm and nucleoplasm when detached from the IMC membranes after IAA treatment. These could be the reason that both two proteins looked weaker in IFA signal when compared to the proteins concentrating at IMC in the vehicle control.
Same comment in figure 7B and 7E, where it is not clear whether it is the localization of GAP45/CDPK1 that is affected rather than their level of expression.
GAP45 and CDPK1 were dispersed through cytoplasm and nucleoplasm when detached from the IMC membranes due to loss of or reduced protein palmitoylation. These could be the reason that both two proteins looked weaker in IFA signal when compared to the proteins concentrating at IMC in the control.
What is the effect of DHHC1 depletion on parasite growth and schizont segmentation (line 460-468)?
Our preliminary data showed that DHHC1 is also important for parasite growth in the P. yoelii. We are currently working on the detailed defective phenotype analysis in another project.
Reviewer #2 (Recommendations for the authors):
1. The proximity labelling experiments using the TurboID are properly controlled and analyzed. Out of 14 candidates selected for further localization assay, 11 were found at the periphery of the parasites confirming a good enrichment of the samples. 8 known proteins of the pellicle were also localized, including CDPK1.
For PY17X_1411000 (Figure 2C), a staining around the residual body is visible from which GAP45 is absent. Would it be possible that this protein is localized at the plasma membrane (PM) rather than the IMC? In Green et al., 2008 and Ridzuan et al., 2012, the authors can distinguish between the IMC and PM localization of their proteins of interest in Plasmodium falciparum, PfCDPK1, PfGAP45 and PfMTIP, by observing the signal around the residual body. Would it be also valid in Plasmodium yoelii? They actually used that specificity of signal to claim that PfCDPK1 is at the PM while PfMTIP and PfGAP45 are at the IMC.
Two recent studies investigated the P. falciparum orthologous (PF1310700/PIC5) of the PY17X_1411000. Wichers et al. revealed that the P. falciparum PF1310700 was localizing at IMC of schizonts by confocal microscopy (Wichers et al., Cell Microbiol. 2021. PMID: 33830607). In another unpublished work of “Discovery of novel proteins within the Plasmodium falciparum inner membrane complex” by Prof. Jeffrey Dvorin’s lab in the Page 56 of abstract book of the Molecular Parasitology Meeting 2020 (see the screenshot below), they performed a co-IP using the IMC protein PfIMC1g (PF3D7_0525800) as bait followed by unbiased mass spectrometry to identify IMC1g-binding partners. The protein of PF3D7_1310700 was identified among the top hits and was further validated to localize to IMC by confocal microscopy. A reciprocal IP using the PF3D7_1310700 protein as bait followed by an immunoblot also confirmed that PfIMC1g interacts with PF3D7_1310700 protein.
These results from ours and others, strongly indicate PY17X_1411000 is an IMC protein. Since this (PY17X_1411000/PIC5) is a validated IMC protein in the Plasmodium, we updated our conclusion “9 out of 12 new proteins were confirmed to be localized in the IMC” instead of “11 out of 14 new proteins were confirmed to be localized in the IMC” in the revised manuscript” (line 260-263).
In the studies of Green et al. (2008, JBC, PMID:18768477) and Ridzuan et al. (2012, PLoS One, PMID:22479457), they indeed showed that PfCDPK1 localizes at cell periphery in schizonts and merozoites by staining with anti-CDPK1 antibody, and that PfCDPK1 is membrane-associated by extraction with different detergents. However, it is hard to distinguish precise localization of PfCDPK1 between plasma membrane (PM) or IMC because of resolution limit based on the evidences presented in those studies. Interestingly, Green et al. (2008, JBC, PMID:18768477) provided additional evidences showing that the IMC proteins PfGAP45 and PfMTIP are substrates of PfCDPK1. In addition, Kumar et al. (2017, Nat Commun, PMID: 28680058) also revealed that PfCDPK1 interacts and phosphorylates the IMC proteins PfGAP45 and PfIMC1g. Combining the fact of spatial space (approximately 25-30 nm distance) between PM and IMC, we prefer to believe that CDPK1 is an IMC-associated kinase capable of directly phosphorylating GAP45 and MTIP.
To further address reviewer’s concern about IMC localization of CDPK1, additional experiments were performed using two different methods U-ExM and immune-EM. First, we tried the U-ExM method. The physically expanded merozoites of P. yoelii were stained with antibodies targeting MSP1 (PM protein, red) and CDPK1 (green) respectively and observed under the Airy-scan model of confocal microscopy. The results showed that most of CDPK1 signals were localized in the inner side of MSP1 signals.
We also tried the immune-EM method. In these tests, we optimized the conditions for immune-EM. Both the wildtype and cdpk1::6HA schizonts were stained with the 15 nm gold colloidal-labelled antibody. The results showed that CDPK1 (white triangle) was primarily localized in the inner layer, but not the out layer of parasite periphery of the cdpk1::6HA schizonts.
Both the results from U-ExM and immune-EM suggested localization of CDPK1 at IMC. However, it is still not easy to conclude the IMC localization of CDPK1 because of the microscopy resolution limit in both experiments.
2. The palmitoylation of GAP45, CDPK1 and PY17X_1411000 in Figure 3 is convincing. However, I wonder why the staining of MSP1 in parasites treated with 2-BP looks normal while in Figure 5E and 5I, the 2-BP impairs schizont development and segmentation. Are the pictures taken after different timing of exposure to the drug?
In Figure 3E, we evaluated the effect of 2-BP treatment on the localization of IMC proteins in the schizont. In these experiments, it is the mature schizont parasites which were treated with 2-BP. 2-BP treatment seems to have little effect on IMC structure integrity, but affects the localization of the IMC palmitoylated proteins.
In the Figure 5E and 5I, we evaluated the effect of 2-BP treatment on the parasite development from trophozoite to schizont. In these experiments, it is the ring and trophozoite mixed parasites which were treated with 2-BP. 2-BP treatment completely impairs the trophozoite to schizont development with no mature schizont formation.
3. The data concerning the DHHC2-iKD characterization (Figure 5) convincingly demonstrate the essentiality of this enzyme for parasite survival in vivo due to its role during the development and segmentation of the schizonts.
GAP45 and CDPK1 appear clearly cytosolic in merozoites in Figure 6D but the localization of these proteins is difficult to interpret in schizonts. The immunofluorescence presented for the IAA condition in Figure 6C are too weak; the brightness should be increased.
The GAP45 and CDPK1 proteins were dispersed through cytoplasm and nucleoplasm when detached from the IMC membranes after IAA treatment. These could be the reason that both proteins looked weaker in IFA signal when compared to the proteins concentrating at IMC in the vehicle control. Since it is not appropriate to increase the brightness of the pictures, we prefer to keep them unchanged.
Also, it is puzzling to see again that the development of schizonts looks normal in presence of IAA (PhIL1 and MSP1 staining) in contrast to Figure 5F while the treatment is the same (12 hr from the text). The authors should explain why, in this experiment, the "distribution of MSP1 in the DHHC2-deficient schizonts was also unaffected" (line 455, p15).
In Figure 6C, we evaluated the effect of DHHC2 depletion by IAA on the localization of IMC proteins in the schizont. In these experiments, it is the mature schizont parasites which were treated with IAA. As expected, IAA treatment impaired the localization of the palmitoylated IMC proteins GAP45 and CDPK1, but had little effect on the non-palmitoylated IMC protein PhIL1 or the PM protein MSP1.
4. Identification of the palmitoylation sites in GAP45 and CDPK1.
– In Figure 7A and 7D, it would be of interest to have the score of the predicted palmitoylation sites according to CSS-Palm.
Thanks for reviewer’s suggestion. We added the score in the revised Figure 7A and 7D.
– The choice of these proteins for assessing their targeting to the IMC via palmitoylation needs to be further discussed.
Along the text, the authors assume that CDPK1 is at the IMC although all the literature cited mentioned that it is at the PM (Green et al., 2008; Sebastian et al., 2012) like its orthologue TgCDPK3 (McCoy et al., 2012). This point is important for CDPK1 to be a direct substrate of DHHC2. The palmitoylation of CDPK1 at residue C3 and not C252 is clean and convincing but the authors should discuss and maybe revisit the localization of CDPK1 in Plasmodium yoelii, especially in the sentence line 508-510.
We revisited the results of CDPK1 localization from Green et al. (2008, JBC, PMID:18768477). Green et al. attempted to distinguish CDPK1 localization at PM or IMC by co-staining with MTIP and MSP1. The results showed that CDPK1 co-localized with MTIP and MSP1 (see Figure 2B of their publication). It’s hard to conclude precise localization of CDPK1 at PM or IMC based on the images presented in their studies because of resolution limit.
We also revisited the results of Sebastian et al. (2012. Cell Host & Microbe, PMID: 22817984). Sebastian et al. tagged the endogenous CDPK1 and found that CDPK1 was localized in the peripheral of the schizont and ookinete (see Figure 1C of their publication). However, no precise localization of CDPK1 at PM or IMC was investigated in their studies.
GAP45 is known to spend the space between the PM and the IMC being anchored to the PM via its N-terminal acylation (myristoylation on G2 and palmitoylation on C5) and to the IMC via its C-terminus; a topology conserved between Toxoplasma (Frénal et al., 2010) and Plasmodium falciparum (Ridzuan et al., 2012) and likely in Plasmodium yoelii. Therefore the C5 site described here is likely at the PM and not at the IMC. However, the investigation of the other sites is very interesting and undoubtedly dependent of DHHC2 but the episomal construct used here is likely not relevant since the C-terminal tag likely already impacts the IMC localization has shown in T. gondii. That might explain why the C5A mutant becomes cytosolic, being not anchored in any membrane of the pellicle. A GFP-C-GAP45(aa30-204) construct, as used in Ridzuan et al., 2012, should solve this problem and determine the residues palmitoylated by DHHC2.
In the reviewer’s concern, the C-terminal tag may likely impact the IMC localization of GAP45 according to the observation in T. gondii. In Figure 7B,both GAP45-WT and GAP45-C140A were tagged with a HA epitope, similarly as GAP45-C5A and other mutants. GAP45-WT and GAP45-C140A displayed IMC localization while GAP45-C5A and other mutants were in the cytosol under same condition. These results partially exclude the deleterious effect of the C-terminal HA tag on the IMC localization of GAP45 in the schizonts of P. yoelii.
To further address reviewer’s concern, we followed the reviewer’ suggestion and analyzed the GAP45(aa30-184) tagged with an N-terminal GFP. Note the protein length of GAP45 is 184 aa in P. yoelii and 204 aa in P. falciparum. Again, we observed the IMC localization of GFP-GAP45(30-184). Furthermore, the C140A mutation seemed to have little effect on the IMC localization of GFP-GAP45(30-184) while either C156A/C158A or C169A/C172A mutation impaired the IMC localization of GFP-GAP45(30-184), which are consistent with the results of the HA-tagged GAP45 mutants shown in the Figure 7B. Author response image 1 shows the results (not included in the revised manuscript).
Reviewer #3 (Recommendations for the authors):
1. While the paper contains a substantial amount of data, it feels like two independent stories that are not as well connected as they could be. The proximity labelling identifies a number of new IMC proteins, many of which are likely palmitoylated. But then rather than probing these deeper, the authors switch to focus on DHHC2 and its role in the trafficking and function of two well-known IMC protein targets. However, this is still a strong paper and an important contribution to the field.
Thanks for the reviewer’s nice comments.
2. Line 22. The authors claim that "19 of the 22 selected targets were confirmed to localize to the IMC". This is somewhat disingenuous as 8 of these were already known IMC proteins. Of the remaining 14 that were chosen for verification (lines 248-252) – were they randomly selected or were certain criteria applied in the selection process? (e.g. predicted palmitoylation, IMC in T. gondii [Rab11B], etc). This should be clarified.
In the initial manuscript, we chosen 22 hits for their protein subcellular localization test. There are 8 protein hits previously validated localizing at IMC in other Plasmodium species and 14 hit candidates whose localization at IMC have not been validated in the Plasmodium. These hits were chosen basically in a random manner, but they showed various (high, middle, and low) levels at the enrichment ratio in the PL experiments (Figure 2A). We added these descriptions in the revised manuscript.
3. Regarding cytosolic localization for the control TurboID.
a) Line 141 – ookinetes – "detected cytosolic protein biotinylation". The staining appears both cytoplasmic and nuclear. This would make sense because the mass of the fusion protein is less than the nuclear pore cutoff (~50kDa) and thus it is likely to freely diffuse into the nucleus.
Thanks reviewer for pointing it out. We changed the “cytosolic protein biotinylation in the TurboID-ookinetes” to “cytosolic and nuclear protein biotinylation in the TurboID-ookinetes”.
b) Line 163 – this comment also applies to the Tb-cyto – is it cytoplasmic and nuclear or somehow nuclear excluded in the parasites? (Figure 1C and S2E).
We changed the “The biotinylated proteins and the ligase displayed cytosolic distribution in the Tb-cyto schizonts” to “The biotinylated proteins and the ligase displayed cytosolic and nuclear distribution in the Tb-cyto schizonts”.
4. Figure S4. Regarding N vs C terminal tagging – I am presuming that the N-terminally tagged Rab11A, Rab11B (1359500) were tagged in this fashion to not disrupt C-terminal cysteines. This would be worth mentioning. Also, why is 1359500 not designated Rab11B? (which has previously been shown to be IMC localized in T. gondii)
We updated the PY17X_1359500 with Rab11b, and have added the information of N-terminal tagging for the Rab11a and Rab11b (PY17X_1359500) in the figure legend of Figure S4 of the revised manuscript.
5. Line 330, Figure 4I – Clarify that this is referring to the multiple spots that colocalize. In addition, there appears to be a separate GAP45 spot? This should be discussed and some arrows would be helpful here.
We changed the “both proteins were found as separate dots at the periphery of the intact nucleus in the early schizonts” to “both proteins were found as separate dots that co-localize at the periphery of the intact nucleus in the early schizonts” (line 343-344). In the revised Figure 4I, we labeled an arrow for the sporadic “separate GAP45 spot”. This “only-GAP45” dot could be attributed by the difference in protein stain efficiency for DHHC2 and GAP45. In Figure 4I legend, we added this notion. To further address the reviewer’s concern, Author response image 2 presents images of two other early schizonts, which also showed various stain of DHHC2 and GAP45 (not included in the revised manuscript).
6. Line 505-510 – The authors note that the key palmitoyated sites are conserved among the Plasmodia. Are these sites conserved in T. gondii?
We performed the protein sequence alignment (see Author response image 3) and found that the 6 cysteine sites in GAP45 are conserved among the Plasmodian and T. gondii. Only the C3 in CDPK1 is conserved among the Plasmodian and T. gondii.
7. Figure 6C, line 451 – It is unclear how the loss of IMC localization occurs upon DHHC2 knockdown as there is no control for the IMC in these images.
In this experiment, the PhIL1, an IMC protein without palmitoylation modification, was used as a negative control for tracking the IMC in both vehicle and IAA-treated groups. We have added this information in the figure legend of Figure 6C.
8. Figure 1E – A more detailed description of precisely how the data was separated into groups I vs II would be helpful.
Thanks for reviewer’s suggestion. We added the detailed information in the section of Material and Method (line 1,252-1,259).
9. Figure 1D. Line 190. Were any known IMC proteins excluded from transcriptional profiling which reduced the dataset from 488-300 proteins?
None of the known IMC proteins was excluded by the transcriptional profiling. All the known IMC proteins were included in the Group I representing the IMC or IMC-associated proteins.
10. Figure S1F – the individual points suggest that this is one of the 3 replicate experiments. It would be better to show a bar graph with the mean of 3 replicate experiments, as done for Figure 4C or 5E.
We changed the spot graph to a bar graph with the mean of three replicate experiments in the revised Figure S1F.
11. Figure S5A – 7 of the 11 immunofluorescence images appear to show no signal? Are many of the DHHCs unable to be tagged? Perhaps confirm tagging by better imaging, western or PCR. (or at least discuss)
In our previous work (EMBO J. 2020, PMID: 24244852), we tagged each of the 11 P. yoelii endogenous DHHCs (DHHC1-11) with 6HA and successfully obtained the modified strains using the CRISPR-Cas9 method. We had the genotyping evidences confirming correct modification of these strains in that paper. In the Figure S5A, only DHHC1, DHHC2, DHHC7, and DHHC8 were expressed in asexual blood stages while other DHHC proteins were not detected or showed quite low expression level under same condition.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:
The authors fully addressed the reviewers comments in their rebuttal but not in the revised manuscript. Many elements provided in the rebuttal could be included in the manuscript to strengthen the conclusions and clarify some points.
Specifically:
1) line 308: "Notably, CDPK1, GAP45, and PIC5 lost their IMC localization and were found in the cytosol or nucleus after 2-BP treatment (Figure 3E)". The signal is too weak to ascertain the cytosol or nucleus localization of the proteins. In addition, in Fig3E, PhIL1 is barely visible. The authors should optimize the brightness/contrast of the images. Alternatively, they may consider using black on white display, which provides better contrast. The authors should mention in the manuscript their interpretation for the lower signal of GAP45/CDPK1, which is due to loss of protein concentration at the IMC.
Thanks for reviewer’s suggestion. We have changed accordingly in Figure 3E and used the black on white display. In addition, we added the interpretation for lower signal in the revised manuscript (lines 300-301)
2) line 480-481: the text indicates treatment with IAA for 12h, which should prevent schizont formation. This is inconsistent with figure 6 where segmented schizonts are visible. This is also not consistent with the rebuttal, where the authors explain that 2BP treatment was applied to schizonts. This must be clarified and timing of treatment should be specified for each experiment shown. The authors should add the timing of 2-BP treatment in the figure legends for Fig3E, Figure 5E and 5I, and Figure 6C.
We have added the information about timing for 2-BP treatment in the legends for Fig3E, Figure 5E and 5I, and Figure 6C in the revised manuscript.
3) Figure 6C-D: the authors should optimize the brightness/contrast of the images. Alternatively, they may consider using black on white display, which provides better contrast.
Thanks for reviewer’s suggestion. We have changed accordingly in Figure 6C-D and used the black on white display.
4) The authors state in their rebuttal that "For better understanding, we added the information of ISP1 stage expression at the legend of Figure 2A in the revised manuscript." Please check that this information is included in the text.
The information of ISP1 stage expression was provided in Figure 1—figure supplement 2.
5) Figure 1 supplt 2 panel A still refers to ISP1 "signal peptide".
Thanks for pointing it out. We changed the “signal peptide” to the “IMC targeting peptide” in Figure 1—figure supplement 2A.
6) The supplemental table with primers should be labelled S3 not S2
Changed.
7) The U-ExM and immune-EM data strengthen the conclusion that CDPK1 is localized at the IMC and should be included in the manuscript. The authors convincingly show that CDKP1 is likely at the IMC rather that at the plasma membrane (PM) using both immuno-EM and U-ExM. These data are a strong addition to the paper since all the previous literature claim that CDPK1 is at the PM and therefore not at a place where it can be palmitoylated by the IMC-embedded DHHC2. The authors should add the immuno-EM and U-ExM data as a supplementary figure.
Thanks for reviewer’s suggestions. We added both the immuno-EM and U-ExM results in the revised manuscript (lines 260-262) and in the new Figure 2—figure supplement 3A and B.
8) The GFP N-terminal tagging experiments provide important controls and strengthen the conclusion that C156, C158, C169 and C172 are involved in IMC localization via palmitoylation. These data should be included in the manuscript (as a supplemental figure).
Thanks for reviewer’s suggestions. We added these results in the revised manuscript (lines 514-519) and in the new Figure 7—figure supplement 2A and B.
9) The arrowhead pointing at the "only GAP45" dot is barely visible in figure 4I.
We changed arrowhead in size and color in Figure 4I.
https://doi.org/10.7554/eLife.77447.sa2Article and author information
Author details
Funding
National Natural Science Foundation of China (32170427)
- Jing Yuan
National Natural Science Foundation of China (31970387)
- Jing Yuan
National Natural Science Foundation of China (31872214)
- Jing Yuan
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
This work was supported by the National Natural Science Foundation of China (32170427, 31970387, 31872214), the Natural Science Foundation of Fujian Province (2021J01028, 2019J05010), and the 111 Project sponsored by the State Bureau of Foreign Experts and Ministry of Education of China (BP2018017).
Ethics
All mouse experiments were performed by approved protocols (XMULAC20140004) by the Committee for Care and Use of Laboratory Animals of Xiamen University. The ICR mice (female, 5 to 6 weeks old) were purchased from the Animal Care Center of Xiamen University.
Senior Editor
- Vivek Malhotra, The Barcelona Institute of Science and Technology, Spain
Reviewing Editor
- Olivier Silvie, Sorbonne Université, UPMC Univ Paris 06, INSERM, CNRS, France
Version history
- Preprint posted: January 29, 2022 (view preprint)
- Received: January 29, 2022
- Accepted: June 24, 2022
- Accepted Manuscript published: July 1, 2022 (version 1)
- Accepted Manuscript updated: July 4, 2022 (version 2)
- Version of Record published: July 18, 2022 (version 3)
Copyright
© 2022, Qian, Wang, Zhong et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 1,231
- Page views
-
- 404
- Downloads
-
- 4
- Citations
Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.
Download links
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Further reading
-
- Cell Biology
- Microbiology and Infectious Disease
Neutrophils are essential for host defense against Staphylococcus aureus (S. aureus). The neuro-repellent, SLIT2, potently inhibits neutrophil chemotaxis, and might, therefore, be expected to impair antibacterial responses. We report here that, unexpectedly, neutrophils exposed to the N-terminal SLIT2 (N-SLIT2) fragment kill extracellular S. aureus more efficiently. N-SLIT2 amplifies reactive oxygen species production in response to the bacteria by activating p38 mitogen-activated protein kinase that in turn phosphorylates NCF1, an essential subunit of the NADPH oxidase complex. N-SLIT2 also enhances the exocytosis of neutrophil secondary granules. In a murine model of S. aureus skin and soft tissue infection (SSTI), local SLIT2 levels fall initially but increase subsequently, peaking at 3 days after infection. Of note, the neutralization of endogenous SLIT2 worsens SSTI. Temporal fluctuations in local SLIT2 levels may promote neutrophil recruitment and retention at the infection site and hasten bacterial clearance by augmenting neutrophil oxidative burst and degranulation. Collectively, these actions of SLIT2 coordinate innate immune responses to limit susceptibility to S. aureus.
-
- Biochemistry and Chemical Biology
- Microbiology and Infectious Disease
Diverse chemical modifications fine-tune the function and metabolism of tRNA. Although tRNA modification is universal in all kingdoms of life, profiles of modifications, their functions, and physiological roles have not been elucidated in most organisms including the human pathogen, Mycobacterium tuberculosis (Mtb), the causative agent of tuberculosis. To identify physiologically important modifications, we surveyed the tRNA of Mtb, using tRNA sequencing (tRNA-seq) and genome-mining. Homology searches identified 23 candidate tRNA modifying enzymes that are predicted to create 16 tRNA modifications across all tRNA species. Reverse transcription-derived error signatures in tRNA-seq predicted the sites and presence of nine modifications. Several chemical treatments prior to tRNA-seq expanded the number of predictable modifications. Deletion of Mtb genes encoding two modifying enzymes, TruB and MnmA, eliminated their respective tRNA modifications, validating the presence of modified sites in tRNA species. Furthermore, the absence of mnmA attenuated Mtb growth in macrophages, suggesting that MnmA-dependent tRNA uridine sulfation contributes to Mtb intracellular growth. Our results lay the foundation for unveiling the roles of tRNA modifications in Mtb pathogenesis and developing new therapeutics against tuberculosis.
