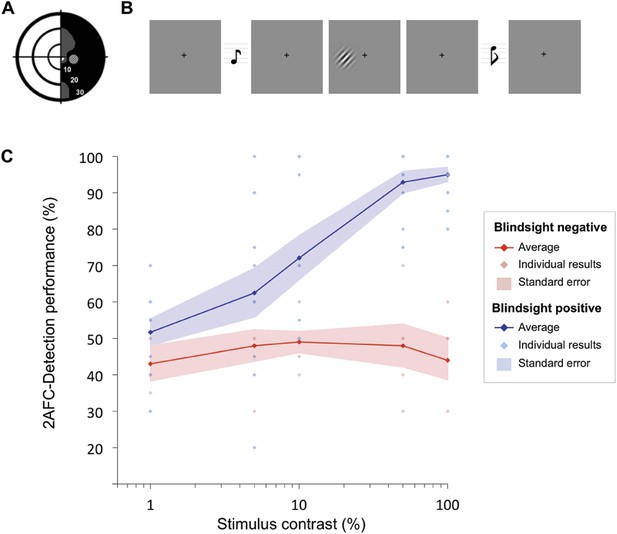

Blindsight was determined according to performance on a high salience 2-AFC temporal detection paradigm presented within the blind region of the visual field (Figure 1A). Patients detected the interval in which the target appeared (Figure 1B) and were classified as ‘blindsight positive’ if average performance or performance for stimuli of 100% contrast was significantly above chance (Figure 1C; Ajina et al., 2015b). Based on these criteria, 12 were classified as ‘blindsight positive’ and this relatively sensitive binary measure allowed us to be confident that patients labelled as ‘blindsight negative’ (n = 5) showed no residual visual function. No patients could describe the stimulus in their blind field, although the degree of awareness varied from a complete absence of awareness to an appreciation of motion at times in the minority of cases.

Figure 1

Download asset Open asset

Classification of participants as either ‘blindsight positive’ or ‘blindsight negative’ was further validated using cross-validation. Two different classification algorithms were applied to participants' performance across all contrast levels and they were compared to classification based only on performance at 100% contrast. The first algorithm was k-nearest-neighbours: it classified participants based on the labels (‘blindsight positive’ or ‘blindsight negative’) assigned to the majority of the 5 participants with behavior most similar to theirs, based only on the performance of these 5 participants at 100% contrast. The second algorithm was a Gaussian mixture model classification: centroids of two Gaussian distributions were used to fit the data without labels (i.e. with no knowledge of whether any of the participants were classified as ‘blindsight positive’ or ‘blindsight negative’ based on performance at 100% contrast). Each participant was then assigned to one of the two classes based on their similarity to the centroid of each of these distributions. Both classification algorithms agree with the distinction based on performance in 100% contrast in all cases.

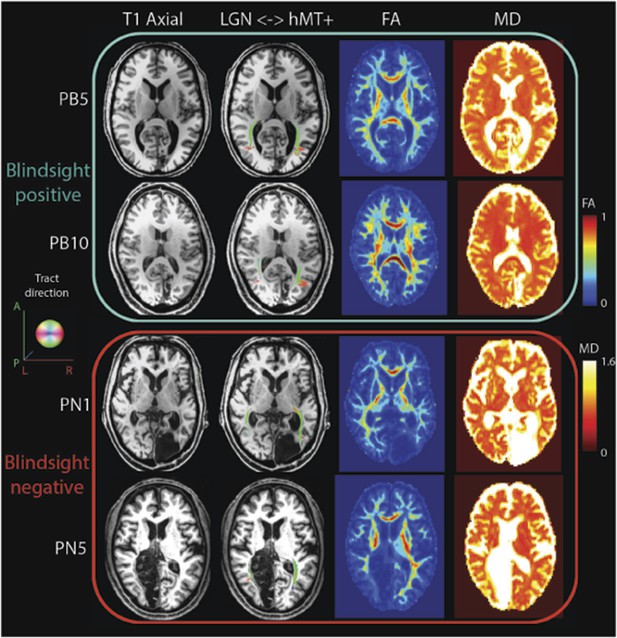

All 12 blindsight positive patients and the 9 age-matched controls were found to have ipsilateral, uncrossed tracts between the LGN and hMT+. We combined High-Angular Resolution Diffusion-weighted magnetic resonance Imaging (HARDI; 60 diffusion directions, b-value = 1500) and modern probabilistic tractography (Tournier et al., 2012; see ‘Materials and methods’ for more details) to track between different pairs of regions of interest (ROIs) with a fixed number of fascicles, or steamlines (target 10,000, max generated 1,000,000). We counted the number of fascicles between each of several ROI pairs in each brain. The precise number of fascicles is an arbitrary value, dependent on many interacting tracking parameters and properties of the measured diffusion data (see Pestilli et al., 2014 and ‘Discussion’ for more details). Here, we used fascicle count as an indirect measure of the difficulty of tracking a white matter pathway. To further standardise the measure, we used an anatomical standardisation method to eliminate outlier fascicles from counts while constraining the number to a conservative lower bound within each individual brain. This was achieved by removing outlier fascicles defined as those more than about 2.5 standard deviations away from or longer than each core tract (2.6 and 2.8 SD respectively; see Allen et al., 2015; Pestilli et al., 2014; Yeatman et al., 2012 and ‘Materials and methods’ for details). This process generated a core tract-bundle containing a conservative 25% ± 8% of the original number of fascicles in each subject (see Supplementary file 2 for original numbers).

The number of fascicles measured was of similar magnitude in control and blindsight positive individuals. All tracts were reliably measured in both hemispheres, including the hemisphere with V1 damage in blindsight positive patients (see Table 1). As expected (Jones et al., 2013; Pestilli et al., 2014), even after cleaning, there was considerable variation in fascicle numbers between participants and, in some cases, between hemispheres although this variability was similar for controls (range = 19–653) and patients (range = 17–635). In blindsight negative patients it was possible to track a pathway between the LGN and hMT+ in the damaged hemisphere of 4/5 patients (we failed to identify the tract in PN4), with a similar number of fascicles to blindsight positive patients (Figure 2A, Table 1). However, all of these patients showed considerable abnormality in the microstructure of these tracts compared to their intact hemisphere or control participants, highlighting the importance of considering white matter microstructure in patient tractography studies. Figure 2A shows examples of the anatomical trajectory of these identified pathways for participants from the three groups.

Figure 2

Download asset Open asset

Fractional anisotropy (FA) and mean diffusivity (MD) are commonly used diffusion MRI indices, representing tissue microstructure in situations of neuronal damage (Werring et al., 2000; Jones et al., 2013). These measures are quite sensitive to a number of tissue properties, such as axonal ordering, axonal packing density, degree of myelination, membrane permeability, without being very specific to any one of them. This can result in difficulties related to interpretation. FA is derived from the relationship between the amounts of free water anisotropic diffusion in a single (principal) direction, relative to all other directions (Basser, 1995; Jones et al., 2013). Decreases in FA have been associated with impaired tissue microstructure. MD is a measure of the total mean diffusion magnitude in all directions in a voxel, and its value also reflects a complex relationship with tissue microstructure. In general, white matter tissue damage has been associated with an increase in MD (Jones et al., 2013). We used an advanced tract-anatomy informed analysis (Allen et al., 2015; Yeatman et al., 2012; see ‘Materials and methods’ for more details) and measured FA and MD along the length of each individual tract. We then computed the mean FA and MD measures along each tract using the core portion of the pathway to eliminate artifactual measurements due to potential partial voluming with grey matter and scar tissue. Mean FA and MD for each core tract were averaged for each participant to generate separate measures for the ipsilesional and intact hemispheres. Mean FA, calculated across all blindsight positive patients and collapsed along the whole geniculate-hMT+ pathway, was 0.43 ± 0.05 (mean ± s.d.) in the damaged hemisphere and 0.49 ± 0.05 in the intact hemisphere, corresponding to a laterality of 13.7% (see Figure 2B and ‘Materials and methods’ for details). Laterality, representing the relative difference in diffusivity for equivalent tracts in opposite hemispheres, was slightly more prominent over the early-mid portions of the pathway. In blindsight negative patients (Figure 2B, middle column), the microstructure of ipsilesional tracts was particularly abnormal. Mean FA was 0.35 ± 0.1 (mean ± s.d.) on the ipsilesional side, vs 0.47 ± 0.03 in the intact hemisphere (laterality = 34.7%). In comparison, control participants (Figure 2B, right column) show a left-right laterality of 3.3% for FA (range = 0.3–0.66. Mean FA = 0.51 ± 0.03 left, 0.49 ± 0.03 right hemisphere) and 1.6% for MD (range = 0.56 x 10⁻³–0.91 x 10⁻³, Mean MD = 0.73 x 10⁻³ ± 0.03 x 10⁻³ left, 0.72 x 10⁻³ ± 0.03 x 10⁻³ right hemisphere).

White matter tract MD in patients was consistent with the findings for FA. In blindsight positive cases, mean MD was 0.81 x 10⁻³ ±0.07 x 10⁻³ in the damaged hemisphere, and 0.73 x 10⁻³ ±0.05 x 10⁻³ in the intact hemisphere (laterality = 9.6%). Conversely, blindsight negative patients had a mean MD of 1.05 x 10⁻³ ±0.22 x 10⁻³ in the damaged hemisphere, compared to 0.77 x 10⁻³ ± 0.05 x 10⁻³ on the intact side, representing a laterality of 27.0%.

The differences between blindsight patients and lesion side can be illustrated using a two-way ANOVA of the FA values within the geniculate-hMT+ tract. While there was no significant effect of blindsight status (positive or negative; F = 2.6, p = 0.13), there was a highly significant effect of lesion side (ipsilateral or contralateral; F = 35.7; p < 0.00005) and interaction, suggesting a differential effect of the lesion in the two patient groups (F = 5.1; p = 0.04). This effect was even stronger for MD: significant effect of blindsight status (F = 9.2; p < 0.01), significant effect of lesion side (F = 35.7; p < 0.00005) and interaction (F = 12.4; p < 0.005).

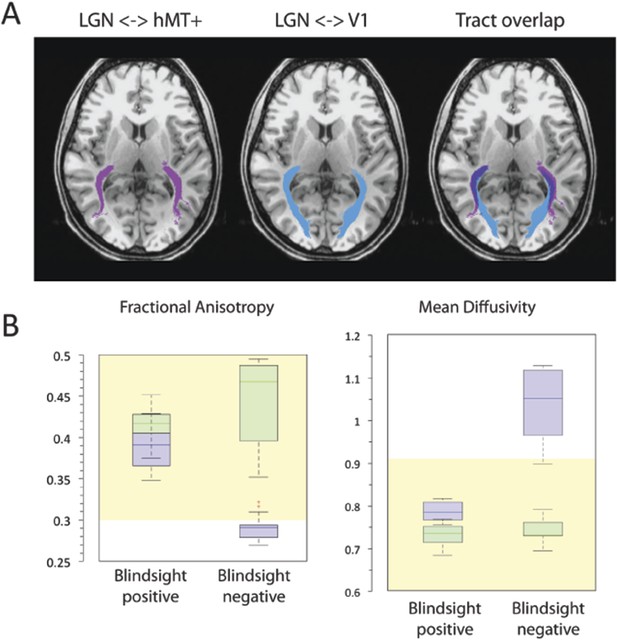

Since estimates of distinct pathways frequently overlapped (Figure 3A), the slight laterality in patients may, at least in part, be driven by an overlap with degenerated optic radiations supplying damaged V1. Figure 3A shows how this overlap can occur in the early-mid portions of the geniculate- hMT+ pathway. In the central nervous system, anterograde (Wallerian) or retrograde neuronal degeneration can occur following axonal injury. Consequently, the integrity of optic radiation fibres innervating damaged V1 would be abnormal throughout their course (similar to Danek et al., 1990). Where overlap with such fibres occurs, the dMRI measurements would not distinguish between separate axonal bundles due to limitations in spatial resolution (restricted here to 2 mm isotropic voxel size). Thus measures of the geniculate-hMT+ tract could become contaminated with overlapping degenerated optic radiation fibres. It may therefore be useful to measure the diffusivity spanning only the distal portion of the geniculate-hMT+ tract, which has branched away from the large geniculate-V1 radiation bundle. This may represent a purer measure of the pathway, removing artefacts due to overlapping tracts. If the pathway to hMT+ were actually damaged, one would still expect this measure to reflect the damage.

Figure 3

Download asset Open asset

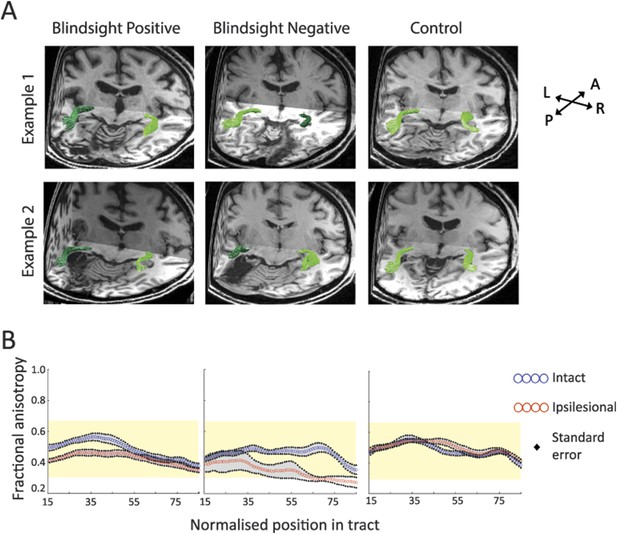

Figure 3B shows the microstructure of just the distal portions of the geniculate-hMT+ pathway (region between 60% and 85% of the total tract length from the LGN). Mean FA in blindsight positive patients was 0.39 ± 0.06 in the damaged hemisphere and 0.42 ± 0.04 in the intact hemisphere, corresponding to a laterality of only 7.7% (mean MD = 0.79 x 10⁻³ ± 0.06 x 10⁻³ vs 0.73 x 10⁻³ ± 0.06 x 10⁻³, laterality = 7.6%). Individual data also confirmed that the FA or MD standard deviation in each blindsight positive patient overlapped with the opposite hemisphere. Overall, this implies a less pronounced impairment to the white matter than suggested by the entire extent of the tract.

In blindsight negative patients, mean FA in the distal portion of this tract was 0.29 ± 0.07, compared to 0.44 ± 0.05 in the intact hemisphere (laterality = 51.7%), mean MD = 1.04 x 10⁻³ ± 0.23 x 10⁻³ vs 0.74 x 10⁻³ ± 0.07 x 10⁻³, (laterality = 28.8%). Therefore, unlike the blindsight positive group, blindsight negative patients still showed a relatively marked and significant drop in FA and increase in MD throughout this purer geniculate-hMT+ tract ROI when compared to the intact hemisphere. Although the effect of blindsight status on mean FA within this distal portion was not significant (F = 0.7; p = 0.42), both the effect of lesion side (F = 48.6; p < 0.00001) and the interaction (F = 15.6; p < 0.0005) were highly significant. The effect of blindsight status on mean MD was significant (F = 7.9; p = 0.01), as were the effect of lesion side (F = 31.4; p < 0.0001) and the interaction (F = 15.6; p = 0.001). This difference can also be appreciated in brain images by inspecting the tracts in the white matter, and their corresponding FA and MD maps (Figure 4). Only the blindsight negative patients (Figure 4, lower portion) possess tracts in the damaged hemisphere that appear to traverse a region of white matter displaying very abnormal FA and MD levels. Thus, although fascicles successfully propagated through this region, they passed through regions of profoundly abnormal, damaged tissue (see also Figure 4—figure supplement 1 for greater detail).

Figure 4 with 1 supplement see all

Download asset Open asset

To ensure that any differences in tract microstructure between blindsight positive and negative patients were not driven by differences in grey matter volume in hMT+, the volume was directly compared both between hemispheres and groups. In the blindsight positive patients the mean grey matter volume was 159 mm³ ± 59 in the ipsilesional hemisphere and 167 mm³ ± 55 in the intact hemisphere. In blindsight negative patients the equivalent numbers were 135 mm³ ± 71 and 169 mm³ ± 83. There was no significant effect of blindsight status (F = 0.1; p = 0.8), lesion side (F = 1.7; p = 0.2) or interaction (F = 1.0; p = 0.3), indicating that differences in grey matter volume within hMT+ are unlikely to have affected the results significantly.

So far we have observed a difference in geniculate-hMT+ tract properties between blindsight positive and negative patients, indicating that this pathway might be a candidate for blindsight. Visual motion information could, however, travel via other pathways such as a transcallosal tract connecting left and right hMT+ (Figure 5A–C), or a pathway connecting the superior colliculus and hMT+ (Figure 5D–F). Next we tested whether these alternate tracts could account for blindsight.

Figure 5

Download asset Open asset

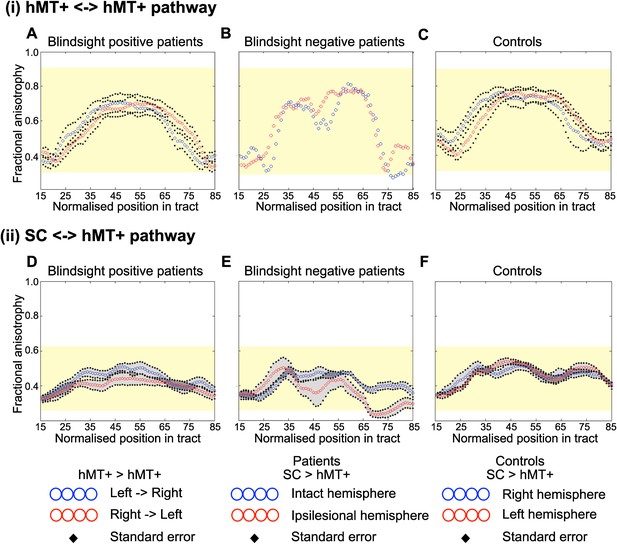

Interestingly, in a number of blindsight positive patients it was not possible to identify either a pathway between hMT+ and the superior colliculus, between hMT+ in the two hemispheres, or both. Similarly, intact pathways between these regions were present in blindsight negative cases. Overall both pathways generated approximately 10-fold fewer fascicles than the geniculate-hMT+ pathway (mean 18.9/18.7 vs 202.8 in controls, and mean 15.6/15.0 vs 122.7 in blindsight positive patients). Furthermore, the collicular-hMT+ tracts appeared less consistent in shape and trajectory between individuals.

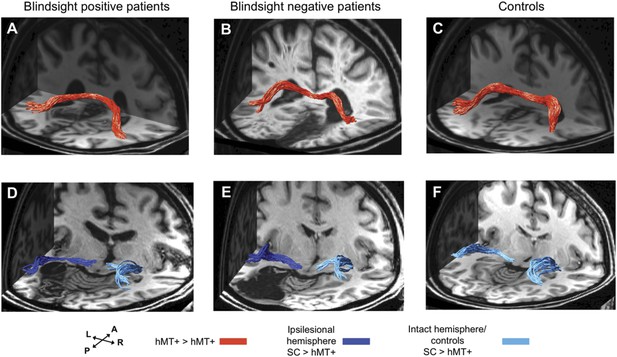

Crossing tracts between hMT+ bilaterally were identified in only 6/12 patients with blindsight and 6/9 controls (Table 1, columns 3–4). As expected, pathways always crossed to the opposite hemisphere via the corpus callosum (Figure 5A–C). Where present, tracts also appeared to possess normal FA and MD. In blindsight positive cases, mean FA was 0.64 ± 0.07 (mean ± s.d.) and mean MD 0.70 x 10⁻³ ±0.03 x 10⁻³, averaged along the entire tract for both directions (left to right, and right to left), and across participants (Figure 6A). These values were similar to controls (Figure 6C, mean FA = 0.64 ± 0.07, mean MD = 0.67 x 10⁻³ ±0.05 x 10⁻³).

Figure 6

Download asset Open asset

Only a single blindsight negative patient showed an interhemispheric connection between hMT+ bilaterally (PN2; Table 1, Figure 5B), and in this case, the tract appeared to be largely intact and remained within the control FA range (0.28–0.91), with mean FA = 0.59 and MD = 0.73 x 10⁻³ (see Figure 6B for FA plots along this path).

Similarly, the collicular-hMT+ pathway, could not be tracked in all patients with blindsight, and was demonstrable in some blindsight negative individuals. Specifically, these pathways were tracked in the damaged hemisphere of 8/12 blindsight positive patients (Figure 5D). The same proportion of patients had tracts in their intact hemisphere, although not necessarily in the same cases (Table 1, columns 5–6). In comparison, this pathway was present in 3/5 blindsight negative patients (Figure 5E). Control participants showed these pathways in all nine cases on the left, and 7/9 on the right (Figure 5F). Of the patients demonstrating this pathway, mean FA was 0.40 ± 0.05 in the damaged hemisphere of blindsight positive cases, vs 0.46 ± 0.03 on the intact side, with some regions of overlap along their trajectory (laterality of 13.9%, see Figure 6D for FA plots). Mean MD was 0.78 x 10⁻³ ± 0.08 x 10⁻³ vs 0.69 x 10⁻³ ±0.04 x 10⁻³ (laterality = 10.8%).

In blindsight negative patients (Figure 6E), the pattern of FA was more variable along its trajectory compared to other tract profiles (i.e. Figures 2B, and 6A–C). Collapsed along the pathway, mean FA was 0.37 ± 0.05 vs 0.42 ± 0.03 on the intact side (laterality = 14.0%), and MD was 0.83 x 10⁻³ x 10⁻³ ±0.13 vs 0.77 x 10⁻³ ±0.07 x 10⁻³ (laterality = 7.5%). In fact, this laterality and distal drop in FA was strongly influenced by data from one patient (PN1). The other two patients (PN2 and PN3) showed a similar microstructure in the distal portion of their collicular tracts in both hemispheres (t = 1.7, p = 0.2, mean FA = 0.32 vs 0.37) despite a significant laterality in their geniculate-hMT+ pathway (t = 12.2, p = 0.01, mean FA = 0.34 vs 0.48). This implies that intact tracts from the superior colliculus can occur in blindsight negative patients. However, it is worth noting that the FA in one of these two patients (PN2) does drop below the control range despite a normal laterality, reaching an FA of 0.22 between nodes 69 and 79 (control range = 0.26–0.62, see Figure 6E).

Statistical comparison of these values is complicated because only 5/12 of the blindsight positive and 3/5 blindsight negative patients had tracts in both hemispheres. This makes the comparison between the ipsi- and contra-lesional hemispheres problematic. However, a comparison of FA and MD in just the ipsilesional hemisphere indicated no significant difference in either measure between the two groups (FA: t = 0.9; p = 0.4; d.f. = 9; MD: t = 0.8; p = 0.45; d.f. = 9).

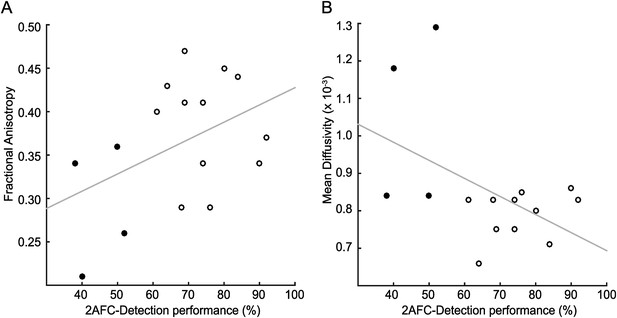

The analyses thus far have addressed group differences by division of patients into blindsight positive and negative groups. However, even within the blindsight positive group, there is considerable variability in performance. Therefore, the percentage of correct responses in the blindsight task was correlated with the measures of mean FA and MD extracted from the three tracts of interest. In the geniculate-hMT+ tract, 16 patients were included as one blindsight negative patient did not have an identifiable tract, and for this tract only the distal portion was used. Figure 7A shows the correlation for FA and MD from this distal portion of the tract across all patients, with blindsight negative indicated by the open symbols and blindsight positive indicated by the filled symbols. Although both correlations were in the predicted direction, positive for FA and negative for MD, neither was significant (r = 0.44; p = 0.09 for FA; r = −0.48; p = 0.06 for MD). Since age can be a confounding factor in tract microstructural properties, the partial correlation coefficients, accounting for age were also calculated, but did not differ from the full correlations. Neither the collicular-hMT+ (r = −0.03; p = 0.93 for FA; r = −0.10; p = 0.77 for MD) nor the interhemispheric hMT+ (r = −0.33; p = 0.39 for FA; r = 0.26; p = 0.50 for MD) tracts showed any correlation with behaviour.

Figure 7

Download asset Open asset

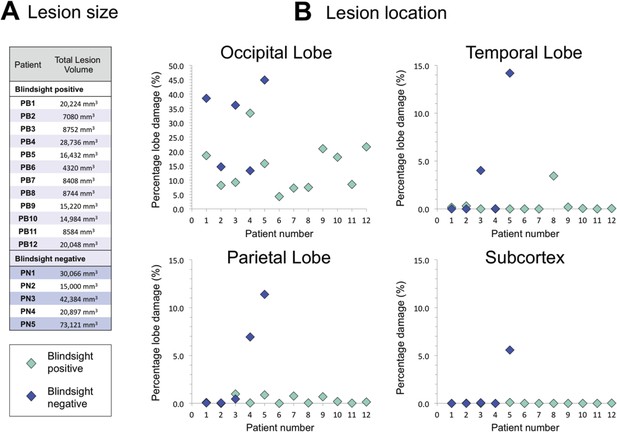

In addition to performing tractography between pre-defined regions of interest, a useful and unbiased approach to understand why certain patients have blindsight and others do not is to quantify lesion extent and location from the T1-weighted anatomical image. This is particularly valuable in larger patient cohorts given the heterogeneity of damage in such groups. Figure 8 shows the total lesion volume and distribution of damage across all patients. Average lesion volume in the blindsight positive group was 13,461 mm³ ± 7101 mm³ s.d., compared to 36,923 mm³ ± 23,035 s.d. in the blindsight negative group. On average, blindsight negative patients had lesions approximately 2.5 times larger than the blindsight positive group, although Figure 8B shows the overlap of occipital lobe damage between patients. There was a significant association between the extent of occipital lobe damage and the microstructural measures of ipsilesional geniculate-hMT+ pathways across all patients (FA: r = −0.59, p = 0.015; MD: r = 0.63, p = 0.01). This reinforces the likelihood that reduced FA and increased MD in blindsight negative individuals reflects an involvement of surrounding white matter pathways in occipital lesions.

Figure 8

Download asset Open asset

There was no clear association between blindsight function and the presence of additional, non-occipital damage. As seen in Figure 8B, the damage in some patients extended to other regions, including the temporal (PB8, PN3, and PN5) or parietal lobe (PN4 and PN5). However, the pattern of such damage was not associated with a particular group. Furthermore, only one participant showed evidence of significant subcortical pathology (PN5), seen to extend to a region including the ipsilesional LGN and pulvinar, although the superior colliculi appeared intact.

At least three patients with blindsight showed complete destruction of calcarine cortex or its underlying white matter (PB1, PB4, PB10). Similarly there were blindsight negative cases with small regions of V1 apparently intact (PN2, PN4). The majority of cases with lesions affecting less than 20% of the occipital lobe had some small area of V1 sparing, which usually corresponded to the occipital pole, or the anterior tip of the calcarine sulcus.

The principal finding was that all patients with blindsight function showed intact, undamaged tracts between the LGN and hMT+ in the hemisphere with V1 damage. This is consistent with our recent fMRI report of motion processing after V1 damage (Ajina et al., 2015a). A similar direct geniculate pathway was identified in all age-matched controls, and is consistent with neuroanatomical investigation in the macaque (Sincich et al., 2004). This was not the case in blindsight negative patients, where such geniculo-extrastriate tracts were either absent or demonstrated significant impairment in mean diffusivity and fractional anisotropy. This has two important implications that support geniculate-extrastriate connections in blindsight. (1) It is possible that intact connections between the LGN and hMT+ are sufficient for blindsight, since no patients with blindsight function demonstrated an absence or impairment in these pathways. (2) Intact connections between the LGN and hMT+ may also be necessary for blindsight function. This is supported by the results in blindsight negative patients, as none of the patients without blindsight function possessed normal, intact connections in this pathway. However, since the current study only investigated a limited number of potential pathways, it is possible that other, unexplored, pathways could also underlie blindsight function in these patients.

Unlike direct geniculate connections, there were examples of patients with blindsight function who had absent or impaired collicular and interhemispheric pathways. Similarly, there were blindsight negative cases with apparently undamaged connections between these regions. These results suggest that neither of these other putative blindsight pathways have a major role in blindsight function, but support the argument that in blindsight positive cases, another pathway must have facilitated visual performance. However, these pathways may still contribute to blindsight in some circumstances.

Only the geniculate-hMT+ tract showed a marginal correlation of behavioural performance with MD and FA that was in the correct direction: improved performance correlated positively with FA and negatively with MD. However, neither of these correlations was significant. Although the current study provides the largest participant group reported to date, the considerable variability in values for tract microstructure means that there may not be sufficient power to find differences, particularly for smaller tracts.

Here we have selected three pathways with very distinct trajectories to investigate. There are, however, other potential pathways by which blindsight information could be processed, the most prominent of which is the one from the medial portion of the inferior pulvinar to MT identified in multiple primate species (Maunsell and van Essen, 1983; Warner et al., 2012). There is some debate as to the relative strength of the connections to hMT+ from LGN or the inferior pulvinar (Sincich et al., 2004; Warner et al., 2010), although there is evidence that the pulvinar connection is stronger during early development (Warner et al., 2015).

There are several practical reasons why the pulvinar connection with hMT+ has not been quantified in the current study. Firstly, the most commonly described pathway is a di-synaptic pathway from colliculus to hMT+ via the inferior pulvinar (Lyon et al., 2010). Thus, this corresponds to the collicular-hMT+ pathway examined here that was both difficult to track, but also showed reduced microstructure in a number of blindsight positive patients. A direct, retinorecipient pathway from the inferior pulvinar has been described in the marmoset (Warner et al., 2010), suggesting that it would also be worth considering only a connection between inferior pulvinar and hMT+. A recent human tractography study considered tracts from both LGN and pulvinar to hMT+ as part of an investigation into the visual pathways in amblyopia (Allen et al., 2015). Quantification of the tract microstructure found that they were very similar with almost identical values for both FA and MD. Thus, at the current resolution of 2 mm isotropic voxels, dissecting apart these two tracts may be impossible, due to the proximity of the thalamic structures. In future studies, higher spatial resolution may help to disentangle these two important pathways. Thus, we cannot completely rule out the presence of an intact direct pathway from the retina to hMT+ via the pulvinar.

All three of the pathways studied here have been previously investigated in case studies, although they have never been compared in the same patients. Two studies investigated the pathways underlying motion (Bridge et al., 2008) or affective blindsight (Tamietto et al., 2012) in blindsight patient GY. The motion study reported a direct ipsilateral connection between LGN and hMT+ in the damaged hemisphere, similar to the results for blindsight positive patients here. However, GY also showed unusual patterns of connectivity that may be indicative of plasticity. These included a cortico-cortical callosal connection between hMT+ bilaterally (tested here, but absent in 6/12 blindsight positive patients) and a crossing pathway between LGN in the undamaged hemisphere and ipsilesional hMT+. In both cases these unusual pathways were largely demonstrable in controls, although GY showed a considerably greater number of fascicles (Bridge et al., 2008).

The only study to investigate collicular pathways was in patients following hemispherectomy, two of whom had attentional blindsight (Leh et al., 2006). Only patients with blindsight showed crossing tracts between the superior colliculus in the damaged hemisphere and regions of the intact hemisphere, as well as strong ipsilateral connections in the damaged hemisphere. These crossing tracts were seen in some control participants, although were arguably less prominent and were therefore also taken as a possible indicator of plasticity.

The current study found no evidence to support such plasticity in adult-onset V1 damage and blindsight. Furthermore, additional evidence against a necessary transcallosal connection comes from cases of bilateral cortical damage with significant fMRI hMT+ activity and blindsight (Bridge et al., 2010). Where occipital damage is bilateral, the corpus callosum undergoes profound degeneration and is unlikely to provide useful visual information (de Gelder et al., 2008).

One possible explanation for some of these differences is the age of brain injury onset, since damage acquired in childhood may lead to greater plastic changes (Anderson et al., 2011; Tinelli et al., 2013). GY sustained his brain injury aged 8 years, and the hemispherectomy patients sustained severe structural brain damage at birth or in early childhood, despite undergoing resective surgery later in life. Both studies identified increased interhemispheric connectivity in blindsight, unlike the cases of cortical blindness and patients in the current study, all of whom sustained damage in adulthood. This could be consistent with an increased propensity for plasticity in the corpus callosum, which continues to grow in cross-sectional area until early adulthood (Keshavan et al., 2002).

The other factor to consider is how blindsight is assessed, and the type of blindsight present. It has been argued in the past that different forms of blindsight may be mediated by distinct anatomical pathways or structures (Danckert and Rossetti, 2005). For example, collicular processing may be involved in ‘action’ or ‘attention’ blindsight, whilst the LGN is implicated in perceptual characteristics, described as ‘agnosopsia’ (Zeki and Ffytche, 1998). The definition of blindsight differs considerably between tractography studies, ranging from comparable 2-AFC testing (Bridge et al., 2010) to navigational tests (de Gelder et al., 2008) and indirect or ‘attentional’ blindsight (Leh et al., 2006). In particular, patients with extensive cortical damage beyond V1 appear to lack any awareness or direct response to blind field stimulation (Tomaiuolo et al., 1997; Leh et al., 2006; de Gelder et al., 2008). Indirect blindsight assessments may be more sensitive than the 2-AFC tests used here, and may rely on different structures. The only way to tackle this would be to improve consistency amongst experiments, and to include multiple methods of assessing blindsight in future work.

A significant concern highlighted from the current study is that it was possible to track robust fascicles in patients traversing regions of extremely impaired FA and MD. Indeed, it may even be the case that fascicles are biased towards narrow regions of white matter running alongside a lesion boundary. Patient PN1, for example, showed almost ten times more fascicles in the geniculate-hMT+ pathway of his damaged hemisphere compared to his intact side, even though tracts quite clearly passed through a region of abnormal (damaged) tissue (Figure 4). These tracts are unlikely to be functional, as indicated by the negative psychophysical performance.

Emphasis on fascicle numbers without considering the underlying microstructure and pathway viability is therefore problematic. Indeed, there are many reasons why fascicle numbers provide unreliable measures of true axonal projections and function (Jones et al., 2013; Pestilli et al., 2014). Even if the ‘true’ fibre count is uniform, the number of reconstructed fascicles may differ due to the length, curvature, and degree of branching present (Jones and Cercignani, 2010). Such variability was apparent here, as even control participants showed notable differences in fascicle numbers between hemispheres and individuals. Two of the key early papers on blindsight have focused on this measure (Leh et al., 2006; Bridge et al., 2008), interpreting a quantitative difference in fascicles as suggestive of plasticity. Whilst this may be correct, any tractography algorithm with a bias for peri-lesional pathways could contribute to such findings.

One of the more controversial uses of MRI diffusion tractography is to comment on the existence or absence of a specific pathway, with false positive connections particularly problematic (Sherbondy et al., 2008; Gao et al., 2013). This is not surprising if one considers that the success or failure of fascicle propagation in tractography algorithms is subject to the same limitations as the fascicle count.

In the current study, an important source of variation was the process of ‘cleaning’ to isolate robust and consistent tracts. If a less stringent cut-off had been used, interhemispheric hMT+ connections would be identified in 100% of controls, thus necessitating care in their interpretation. Although the interhemispheric and geniculate pathways in patients would remain unaffected, a less stringent cut-off would suggest collicular tracts were present in all blindsight positive patients. However, when visualized, these pathways containing fewer than 5 fascicles appear largely implausible, reinforcing the need for a cleaning process to improve data reliability and reduce false positives. A novel mechanism to address this in the future may be to estimate the accuracy of an estimated connectome and tract, such as using Linear Fascicle Evaluation (Pestilli et al., 2014).

In summary this work provides strong evidence to support a direct geniculate connection to extrastriate cortex as being important for blindsight function in adult-onset V1 damage. Although alternate interhemispheric and collicular pathways were also demonstrable in a number of patients, these connections were unable to account for all blindsight cases and were often found to be intact in patients with absent blindsight performance. The results also highlight the importance of considering white matter microstructure when performing tractography in patients, which is applicable to anyone working with clinical diffusion data. Finally, appreciation of the important tracts may help to direct attempts to boost residual function through rehabilitative strategies in hemianopia.

Seventeen patients (five female) took part in this study, of which 15 had sustained posterior circulation stroke and two had undergone benign tumour resection, see Supplementary file 1 for details. All patients had sustained unilateral damage to V1, causing homonymous visual field loss recorded by Humphrey perimetry. Average age at the time of participation was 54.9years ± 14.4, average time after pathology onset 45 months (range 6–252 months). Nine healthy participants (54.9 ± 11.7 years old, three female) served as controls. Written consent was obtained from all participants. Control participants and patients were matched by age and sex at the time of testing. Controls all had normal or corrected-to-normal visual acuity and no history of neurological disease. Ethical approval was provided by the Oxfordshire Research Ethics Committee (Ref B 08/H0605/156). Testing was performed at the John Radcliffe Hospital, Oxford.

Psychophysical testing was conducted outside the MRI scanner, with a 60Hz CRT monitor at a distance of 68 cm. Visual stimuli consisted of a drifting achromatic Gabor patch of 5^o or 8^o diameter, displayed on a uniform grey background; temporal frequency 10Hz, spatial frequency 1.3 cycles/^o. Five contrast levels were used: 1%, 5%, 10%, 50%, and 100%, with stimulus location restricted to the scotoma and its corresponding location in the sighted hemifield in patients, a minimum of 3° from fixation (see Figure 1A for schematic representation of stimulus location).

Participants were asked to indicate whether a stimulus appeared in the first or second time-interval (Figure 1B). If they saw nothing, they were instructed to guess. Onset of each interval was indicated by a 500ms auditory tone, 300Hz marking onset of the first interval, and 1200Hz for the second. Visual stimuli appeared for 500 ms with jittered onset while the participant fixated on a central black cross. Stimulus contrast was altered parametrically between the five levels at random, with 20 trials per condition. The allocated interval (first or second) was also generated at random. Participants additionally performed a run of control testing, with stimuli presented to the equivalent location in their sighted visual field. Fixation was recorded throughout with an Eyelink 1000 eye tracker (SR Research Limited, Ontario, Canada), and any trials in which eye position exceeded 1° from fixation were excluded from analysis. Participants were reminded to maintain fixation, with the investigator observing this in real-time. Anyone making even a small eye movement into their damaged hemifield was given specific instruction not to do so, and it was explained that these data would have to be discarded.

The presence or absence of blindsight, or residual visual function was determined for each patient. This was defined as achieving either an average score, or a score for stimuli of 100% contrast that was significantly above chance, using a statistical threshold of p < 0.01 and a cumulative binomial distribution. This criterion led to the allocation of 12 patients as ‘blindsight positive’ (PB1-PB12) and five as ‘blindsight negative’ (PN1-PN5), see Figure 1C and Table 1 for details. Classification of patients into these two groups (‘blindsight positive’ and ‘blindsight negative’) was therefore further validated using cross-validation with two other cross-validation strategies:

1. K-nearest neighbours: in each iteration one of the participants was held out and was blindly labelled (as ‘blindsight negative’ or ‘blindsight positive’) according to the label previously assigned to the majority of their k-nearest neighbours (using only performance at 100% contrast). Neighbourhood distance between the currently labelled individual and other individuals was measured in terms of their performance in all contrast levels (k was set to 5, but other values of k were also tested and results were found to be robust to choice of k).

2. A Gaussian mixture model was fit to behavioural performance data across all contrast level. Fitting was ‘blind’. That is, no class labels (‘blindsight positive’ or ‘blindsight negative’) were used in fitting the multi-dimensional Gaussian distributions. Each participant was then classified into one of two groups according to their distance from the centroids of the two Gaussian distributions.

Both algorithms were implemented in scikit-learn (Pedregosa et al., 2011). Accuracy of the classification was evaluated relative to the labels (‘blindsight positive’ or ‘blindsight negative’) derived from the classification based only on performance at 100% contrast (also used in Ajina et al., 2015b).

Behavioural testing of control participants and the sighted hemisphere of patients was not possible, since the contrast task is too easy, resulting in 100% detection of even the 1% contrast stimulus.
