EPHA4 signaling dysregulation links abnormal locomotion and the development of idiopathic scoliosis
eLife 13:RP95324.
https://doi.org/10.7554/eLife.95324.3
  2. Download BibTeX
  3. Download .RIS

eLife Assessment

Genetic variants have been strongly implicated in idiopathic scoliosis (IS), however, the list of variants that are causative of IS is not complete and the cellular and molecular mechanisms that underlie IS are poorly understood. These authors combined human genetic analysis with zebrafish experiments to produce valuable evidence that alleles that impair function of EPHA4 cause IS, thereby extending our understanding of the basis of IS. The human genetic data are quite convincing but the zebrafish work lacks some validations and details.

https://doi.org/10.7554/eLife.95324.3.sa0

Abstract

Idiopathic scoliosis (IS) is the most common form of spinal deformity with unclear pathogenesis. In this study, we first reanalyzed the loci associated with IS, drawing upon previous studies. Subsequently, we mapped these loci to candidate genes using either location-based or function-based strategies. To further substantiate our findings, we verified the enrichment of variants within these candidate genes across several large IS cohorts encompassing Chinese, East Asian, and European populations. Consequently, we identified variants in the EPHA4 gene as compelling candidates for IS. To confirm their pathogenicity, we generated zebrafish mutants of epha4a. Remarkably, the zebrafish epha4a mutants exhibited pronounced scoliosis during later stages of development, effectively recapitulating the IS phenotype. We observed that the epha4a mutants displayed defects in left-right coordination during locomotion, which arose from disorganized neural activation in these mutants. Our subsequent experiments indicated that the disruption of the central pattern generator (CPG) network, characterized by abnormal axon guidance of spinal cord interneurons, contributed to the disorganization observed in the mutants. Moreover, when knocked down efnb3b, the ligand for Epha4a, we observed similar CPG defects and disrupted left-right locomotion. These findings suggested that ephrin B3-Epha4 signaling is vital for the proper functioning of CPGs, and defects in this pathway could lead to scoliosis in zebrafish. Furthermore, we identified two cases of IS in NGEF, a downstream molecule in the EPHA4 pathway. Collectively, our data provide compelling evidence that neural patterning impairments and disruptions in CPGs may underlie the pathogenesis of IS.

Introduction

Idiopathic scoliosis (IS) is the most common form of spinal deformity, affecting about 2.5% of the global population (Hresko, 2013; Luk et al., 2010). IS may have long-term physical and mental health consequences, such as cosmetic deformity, cardiopulmonary impairment, and even disability (Weinstein et al., 2003). All these consequences can severely reduce the quality of life. Early intervention with conservative treatments, such as braces, can control scoliosis progression and reduce the need for surgical intervention (Weinstein et al., 2013). However, IS often remains undiagnosed until malformation is evident, emphasizing the importance of risk-prediction measurements in medical management.

Genetic factors are thought to play a significant role in the development of IS, while only a few genes have been associated with the condition to date (Cheng et al., 2015; Miller, 2007). Several single-nucleotide polymorphisms (SNPs) associated with susceptibility to IS have been identified through genome-wide association studies (GWASs), including SNPs linked to genes such as LBX1, GPR126, and BNC2. Notably, knockdown or overexpression of zebrafish homologs of these IS-associated genes has yielded body axis defects (Guo et al., 2016; Kou et al., 2019; Kou et al., 2013; Ogura et al., 2015; Zhu et al., 2015). In addition to common SNPs, rare variants with larger effect sizes or causing rare Mendelian disease traits also contribute to IS. Rare variants in FBN1, FBN2, and other extracellular matrix genes are associated with severe IS (Buchan et al., 2014; Haller et al., 2016). Linkage analysis of familial IS suggests that it follows autosomal dominant (AD), X-linked dominant, and multifactorial patterns of inheritance (Miller et al., 2005). Variants in CHD7 and AKAP2 are also implicated in the pathogenesis of Mendelian forms of IS (Gao et al., 2007; Liebeskind et al., 2016). Finally, centriolar protein POC5 and planar cell polarity protein Vang-like protein 1 (VANGL1) were also shown to be associated with IS. Notably, all these genes participate in a wide range of biological processes, and the mechanisms underlying IS progression still require further investigation. Consequently, there is currently no consensus on the etiology of IS (Tang et al., 2021).

In this study, we developed a novel pipeline that combines SNP-to-gene mapping and rare variant association analysis. Using this approach, we analyzed a large Chinese population with IS and further validated our findings in East Asian and European populations. Through these analyses, we identified EPHA4 as a novel gene associated with IS. To confirm the pathogenicity of this gene, we used a zebrafish model and found that impaired EPHA4 pathway components and resulting defects in central pattern generators (CPGs) were associated with asymmetric spinal locomotion, which may serve as a contributory factor in the development of IS. Additionally, we searched for candidate genes related to EPHA4 signaling pathways and identified mutations in the NGEF among IS patients. Overall, our data suggest that the impairment of the EPHA4 pathway and CPGs plays a previously unknown role in the development and progression of IS.

Results

Enrichment analysis of rare variants in IS candidate genes

To identify candidate genes associated with IS, we conducted a comprehensive literature review of SNPs that are linked to IS from 14 published GWASs. This led us to obtain 41 SNPs that showed genome-wide significance (p<5 × 10−8) as detailed in Supplementary file 1. We then employed positional mapping, expression quantitative trait locus (eQTL) mapping, or chromatin interaction mapping to identify 156 candidate genes that could be potentially linked to these SNPs. Further analysis of rare variants for the 156 candidate genes using exome data from 411 Chinese probands and 3800 unrelated Chinese controls identified EPHA4 as the only significant gene (p=0.045, OR = 4.09) (Supplementary file 2). EPHA4 is a member of the Eph family of receptor tyrosine kinases which play a vital role in the development of the nervous system (Kania and Klein, 2016). We identified three rare variants in EPHA4 from three IS patients, including one splicing-donor variant and two missense variants (Supplementary file 2). The flowchart of the entire pipeline is shown in Figure 1—figure supplement 1.

Inheritance pattern and functional analyses of variants in EPHA4

We characterized the inheritance pattern of variants in EPHA4 using either trio sequencing data or Sanger sequencing for the parents. None of the parents being tested had scoliosis based on a clinical screening test. Of the three rare variants in EPHA4, two (NM_004438.3: c.1443+1G>C and c.2546G>A [p.Cys849Tyr]) arose de novo (Figure 1A and Table 1). The heterozygous splicing variant (c.1443+1G>C) was identified in a 15-year-old female IS patient (SCO2003P0846) (Figure 1B). Scoliosis in this patient was diagnosed at 13 years of age, with a main curve Cobb angle of 60°. The in vitro minigene assay showed that the c.1443+1G>C variant introduced a new splicing site, resulting in a 36 bp in-frame deletion in exon 6 (Figure 1G and I, Figure 1—figure supplement 2A). The EPHA4 heterozygous missense variant (c.2546G>A, p.Cys849Tyr), identified in a 13-year-old female IS patient (SCO2003P2146) (Figure 1C), is located in the protein tyrosine kinase domain of EPHA4 protein (Figure 1A). The onset of scoliosis in this patient was at 11 years of age with a 70° main curve Cobb angle. Given the critical role of EPHA4 in phosphorylating CDK5, which in turn activates downstream signaling pathways (Fu et al., 2007), a western blot analysis of the EPHA4-c.2546G>A variant was conducted to investigate the protein expression levels of EPHA4 and CDK5 and the amount of phosphorylated CDK5 (pCDK5) in HEK293T cells transfected with EPHA4-mutant or EPHA4-WT plasmid. Our results revealed that the missense variant resulted in a decreased phosphorylation level of CDK5 (p=0.015), suggesting a partial loss-of-function (LoF) of EPHA4 (Figure 1F).

Figure 1 with 2 supplements see all
Download asset Open asset

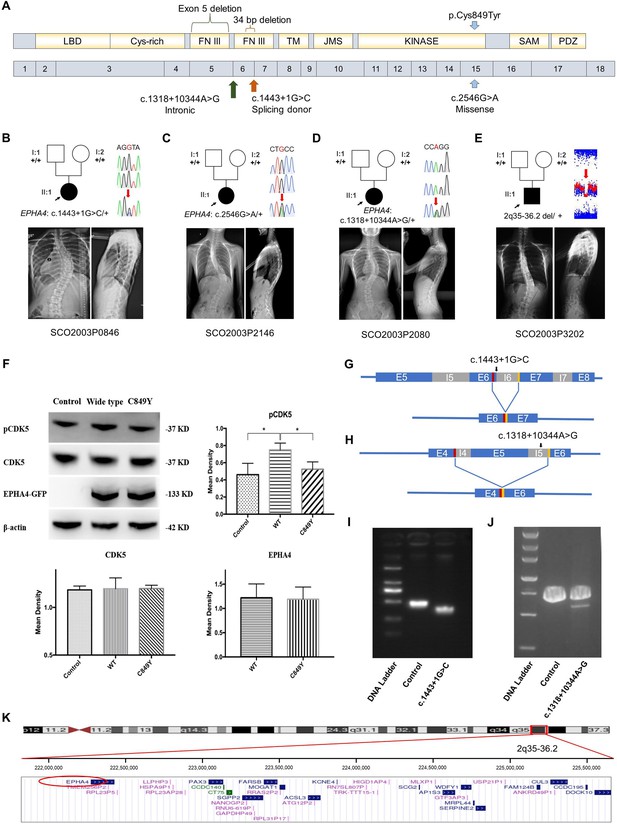

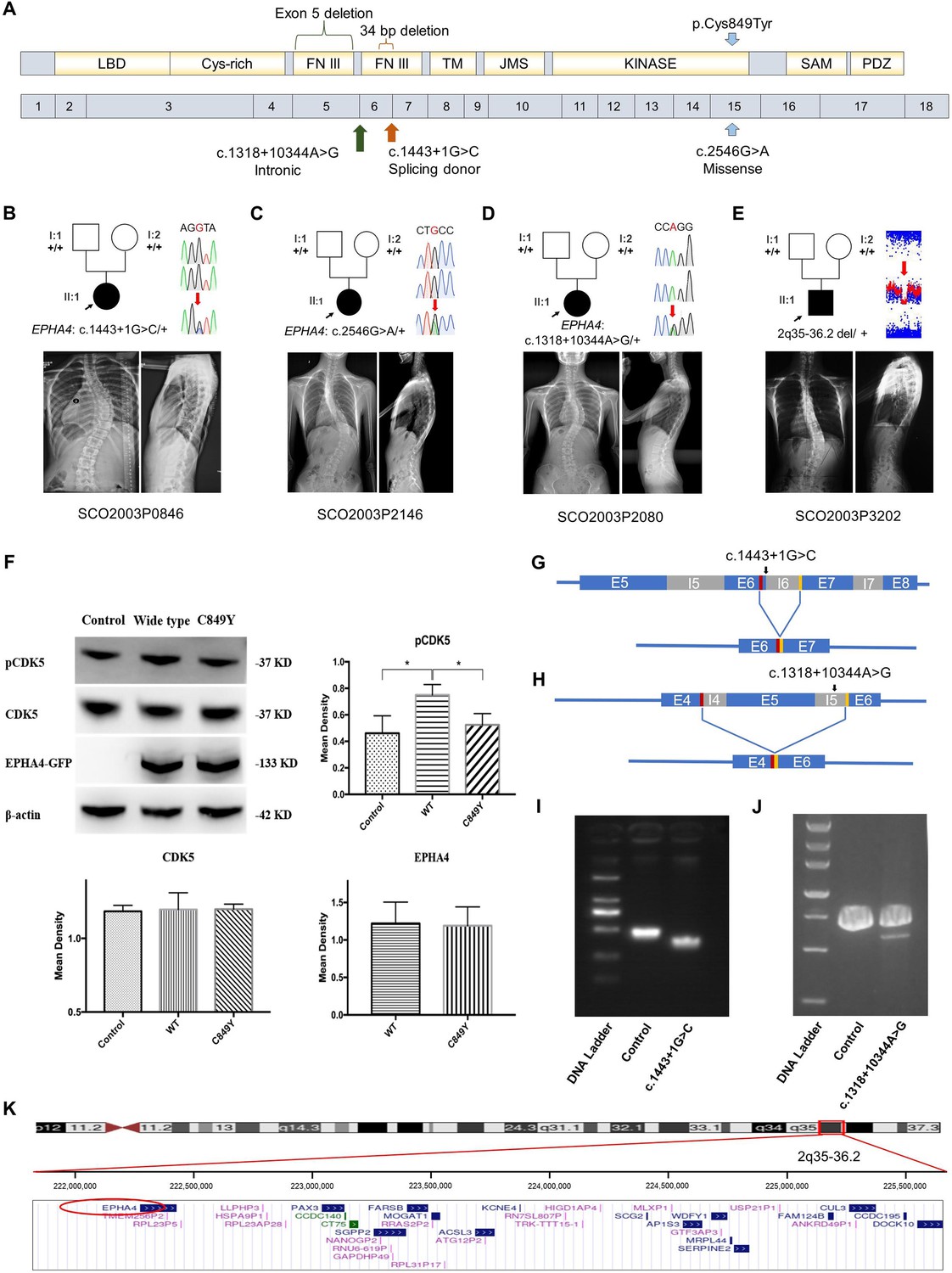

Clinical and genetic information on idiopathic scoliosis (IS) patients and functional effect of EPHA4 variants.

(A) Locations of three EPHA4 single-nucleotide variants relative to the protein domains (top panel) and exons 1–18 (bottom panel). (B-E) Pedigrees and spinal radiographs of four probands with dominant gene variants. Sanger sequencing confirmed the variants. The arrows indicate the probands. The term +/+ denotes the wild-type, and cDNA change/+ denotes the heterozygous variant. (F) Western blot analysis of EPHA4-c.2546G>A variant showing the protein expression levels of EPHA4 and CDK5 and the amount of phosphorylated CDK5 (pCDK5) in HEK293T cells transfected with EPHA4-mutant or EPHA4-WT plasmid. WT: wild-type. Data represent three independent experiments. Error bars show mean ± SD. P<0.05 was considered statistically significant. (G) Schematic representation of the effect of the EPHA4-c.1443+1G>C mutation on the splicing process. This variant induced a new splicing site (red box). The yellow box indicates the splicing acceptor. (H) Schematic representation of the effect of the EPHA4-c.1318+10344A>G mutation on the splicing process. This variant induced a new splicing site (red box). The yellow box indicates the splicing acceptor. (I) The minigene assay result showed that the c.1443+1G>C variant introduced a new splicing site, resulting in a 36 bp in-frame deletion in exon 6. (J) The nested PCR showed that the c.1318+10344A>G variant induced exon 5 skipping, resulting in a 339 bp in-frame deletion. (K) NCBI RefSeq genes included in 2q35-q36.2 from UCSC Genome Browser. EPHA4 is shown by the red oval.

Figure 1—source data 1

Original western blots for Figure 1F.

https://cdn.elifesciences.org/articles/95324/elife-95324-fig1-data1-v1.docx
Table 1
Dominantly inherited variants identified in EPHA4 and NGEF.

Abbreviations: Chr: chromosomal localization; AA: amino acid; AD: autosomal dominant; CNV: copy number variant; ExAC PLI: probability of being loss-of-function intolerant from Exome Aggregation Consortium; CADD: Combined Annotation Dependent Depletion score; gnomAD: Genome Aggregation Database; NA: not applicable.

Patient IDChrGeneEthnicityInheritance patterncDNA changeAA changeVariant typeExAC PLICADDGnomAD frequencyIn-house frequency
SCO2003P08462EPHA4ChineseDe novoc.1443+1G>CNASplice donor121.400
SCO2003P21462EPHA4ChineseDe novoc.2546G>Ap.Cys849TyrMissense128.200
SCO2003P20802EPHA4ChineseDe novoc.1318+10344A>GNAIntronic1NA00
SCO2003P32022EPHA4ChineseDe novo2q35-36.2
4.6Mb deletion		NACNVNANA00
SCO2003P33322NGEFChineseDe novoc.1A>Gp.Met1?Start lost0.9512.800
TSRHC012NGEFNon-Hispanic WhiteADc.857C>Tp.Ala286ValMissense0.9529.60.000020

We next investigated de novo noncoding variants of EPHA4 via whole-genome sequencing (WGS) in 116 trio families with IS. A de novo heterozygous EPHA4 intronic variant (c.1318+10344A>G) was identified in a 16-year-old female patient (SCO2003P2080) (Figure 1D and Table 1). She developed scoliosis at 11 years of age with a 70° main curve Cobb angle. This variant is predicted to affect the branch point of the fifth intron of EPHA4 (Figure 1—figure supplement 2B). We performed nested PCR to show that this variant induced exon 5 skipping, resulting in a 339 bp in-frame deletion (Figure 1H and J).

Next, we employed an in-house gene matching approach under the framework of the DISCO study, which identified a 6-year-old patient (SCO2003P3202) who had been previously diagnosed with Waardenburg syndrome caused by a 4.46 Mb de novo deletion at 2q35-q36.2 (Li et al., 2015; Table 1). Intriguingly, the patient also presented mild scoliosis (Figure 1E). The deletion included the entire PAX3 gene, which was responsible for the Waardenburg syndrome phenotype, and 36 neighboring genes, including EPHA4 (Figure 1K). As scoliosis is not typically associated with Waardenburg syndrome caused solely by PAX3 pathogenic variants (Tassabehji et al., 1993), we hypothesize that the deletion of EPHA4 may be responsible for the IS phenotype in this patient.

Notably, the GWAS signal which we mapped to EPHA4 (rs13398147) (Zhu et al., 2015) represents a significant eQTL in esophagus and colon tissues, with the T allele associated with decreased expression of EPHA4. In our East Asian GWAS cohort of 6449 adolescent IS patients and 158,068 controls, we identified another two eQTLs in EPHA4 associated with decreased expression of EPHA4 in brain tissue (Supplementary file 3). In the same GWAS cohort, common SNPs in EPHA4, after aggregation, also showed significant enrichment (p=0.023) in IS patients vs controls. Taken together, the convergence between rare and common variants of EPHA4 that lead to LoF or hypomorphic effects highlights the pivotal role of EPHA4 in the pathogenesis of IS.

IS-like phenotypes in zebrafish epha4 mutants

To investigate the role of EPHA4 in scoliosis, we utilized zebrafish as a model system due to its versatile nature in modeling adolescent IS (Bagnat and Gray, 2020; Boswell and Ciruna, 2017; Grimes et al., 2016; Xie et al., 2022). Zebrafish have two homologs of EPHA4, epha4a and epha4b. Using CRISPR-Cas9, we established a stable epha4a zebrafish mutant line with a 63 bp deletion in exon 3, which introduced a stop codon and resulted in a truncated protein (Figure 2A and B). The homozygous epha4a mutant larvae had no apparent defects in either notochord or body axis development (Figure 2—figure supplement 1A). Consistent with previous reports, the hindbrain rhombomeric boundaries were found to be defective in both the epha4a homozygous mutants and morphants (Figure 2—figure supplement 1B; Cayuso et al., 2019; Cooke et al., 2005). Interestingly, more than 75% adult mutants showed mild scoliosis (88 of 116), and some mutants exhibited severe scoliotic phenotype (4 of 116) (Figure 2C and D, Videos 1 and 2). Remarkably, some heterozygous adult mutants also developed mild scoliosis (14 of 95), whereas none of the wild-type fish showed any signs of scoliosis (0 of 76) (Figure 2C and D). Similarly, we further generated the epha4b mutants with a 25 bp deletion in exon 3, which resulted in a frameshift mutation (Figure 2—figure supplement 2A). The epha4b zebrafish mutants also developed mild scoliosis (28 of 43) (Figure 2—figure supplement 2B and C). Intriguingly, both epha4a and epha4b mutants exhibited early onset scoliosis starting from around 20 days post-fertilization (Figure 2—figure supplement 2D), a stage similar to that of IS patients. Collectively, these data suggest that mutations in Epha4 proteins are linked to the scoliotic phenotype in zebrafish.

Figure 2 with 2 supplements see all
Download asset Open asset

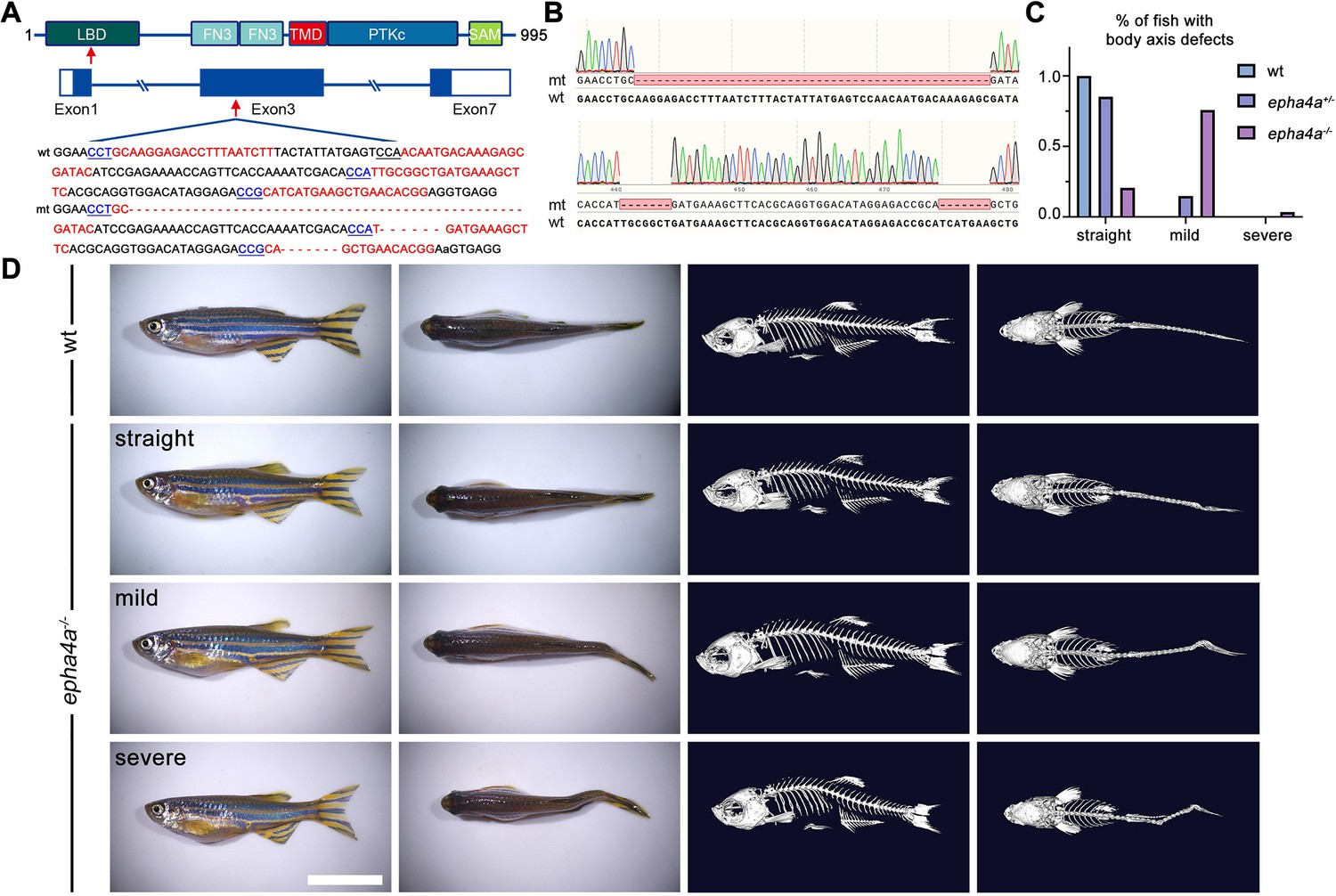

Scoliosis in zebrafish epha4a mutants.

(A) Diagram of the protein domains, genomic structures, and sequences of wild-type and corresponding epha4a mutants. Red arrows indicate mutation sites. Blue boxes indicate open reading frames. Underlined sequences indicate the protospacer adjacent motif (PAM) region, and red fonts indicate Cas9 binding sites. LBD: ligand binding domain; FN3: fibronectin type 3 domain; TMD: transmembrane domain; PTKc: catalytic domain of the protein tyrosine kinases; SAM: sterile alpha motif. (B) Sanger sequencing results confirmed the deletion of the target region in epha4a mutant transcripts. (C) Bar graph showing the percentages of adult zebrafish with normal, mild, or severe body axis defects in wild-type (n=76), epha4a heterozygote (n=95), or epha4a homozygous (n=116). (D) Representative images of wild-type and homozygous epha4a mutants. Micro CT images are shown on the right. Lateral and dorsal views are shown. Scale bar: 1 cm.

Video 1
Download asset
Video showing the swimming of three wild-type fish.
Video 2
Download asset
Video showing the swimming of three epha4a mutants with severe or mild scoliosis.

Abnormal left-right swimming pattern in the absence of Epha4a

While the epha4a mutants seemed to be grossly normal during the larvae stages, they developed spinal curvature gradually during later development. We decided to investigate whether these mutants exhibited any abnormalities in their behavior at the larvae stages using EthoVision XT software. By monitoring the swimming behavior of 8 days post-fertilization (dpf) zebrafish larvae, we found the motion distance and swimming velocity were significantly decreased in epha4a mutants (Figure 3A and B). In addition, we observed a remarkable difference in the relative turning angle and angular velocity between these two groups. The wild-type group changed their swimming direction randomly, showing a relative angle around 0° (Figure 3C and D). In contrast, the epha4a mutants favored turning to one side of their directions (a positive angle reflects a leftward turn) (Figure 3C and D). Moreover, the absolute turn angles and turning speed (angular velocity) were significantly higher in these mutants (Figure 3E and F). To rule out potential off-target effects, we injected epha4a mRNA into epha4a mutants, which significantly restored the swimming coordination defects (Figure 3—figure supplement 1).

Figure 3 with 1 supplement see all
Download asset Open asset

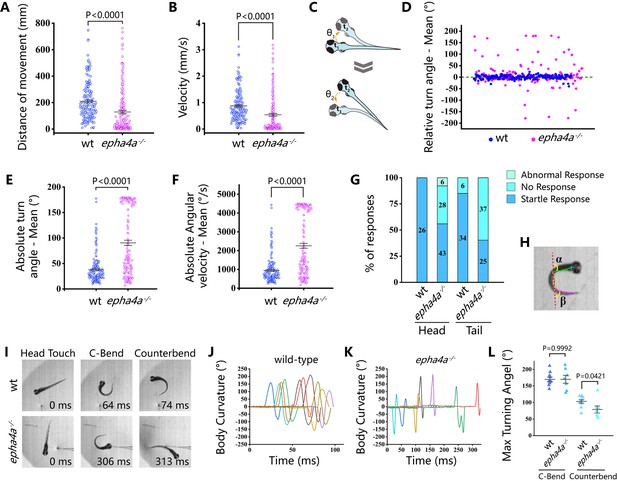

Abnormal left-right swimming pattern in the absence of Epha4a.

(A) Dot plots showing the swimming distance of each 8 days post-fertilization (dpf) larva at a duration of 4 min (N=54 for wild-type and N=60 for epha4a mutants). (B) Dot plots showing the swimming velocity of wild-type and mutant larvae as indicated. (C) Diagram showing the turning angle (θ) of the larvae during swimming. (D) Scatter plot showing the relative turning angle of wild-type and mutant larvae. The relative angles were calculated by the sum of turning angles during fish swimming with left (positive) or right (negative) turns. The epha4a mutants favored turning to one side of their directions compared with those of wild-type larvae. (E) Dot plots showing the average absolute turning angle of wild-type and mutant larvae as indicated. (F) Dot plots showing the average absolute angular velocity of wild-type and mutant larvae as indicated. (G) Bar graph showing the percentages of 5 dpf zebrafish larvae with different reactions after tactile stimulation. N=10 for each group; the numbers of tactile stimulations are indicated in each column. (H) Representative images of the total body curvature measurements in zebrafish larvae, with values as the sum of α and β angles shown in the figure. (I) Representative time-series images of 5 dpf wild-type and epha4a mutant zebrafish larvae after tactile stimulation to the head. Each panel represents the points of maximal body curvature for the C-bend and counterbend after the tactile startle response. (J, K) A plot of body curvature angles as measured in panel (H) during swimming in response to tactile head stimulation in 5 dpf wild-type (panel J, N=5 larvae, n=10 stimuli) and epha4a mutants (panel K, N=5 larvae, n=7 stimuli). Each colored curve represents an independent experiment showing the response of a single larva to a stimulus. The positive angle means turning right. (L) The maximum curvature angles during the first C-bend and counterbend after tactile stimulation in wild-type and epha4a mutant larvae.

Next, we compared the swimming behavior after startle response between wild-type and epha4a mutants. We used a needle to touch the head or the tail of 5 dpf zebrafish larvae to stimulate swimming behavior. In sibling controls, the larvae responded to the tactile stimulation and swam away quickly (Video 3). Conversely, the epha4a mutants failed to respond to the initial stimulation, and the swimming pattern was defective with an abnormal bending pattern (37 of 62 from tail-stimulation group and 34 of 77 from head-stimulation group) (Figure 3G, Video 4). We further performed a more comprehensive analysis by high-speed video microscopy. After tactile stimulation, wild-type larvae displayed a high-speed C-bend turn followed by a weaker counterbend turn after several milliseconds (Figure 3H and I). This rhythmic left/right swimming pattern ensures that the fish swim away from the frightening stimulus. The turning angles of the control larvae after stimulation changed with a sinusoidal wave pattern (Figure 3J). In contrast, this pattern was dramatically different in epha4a mutants (Figure 3I and K). Of note, although the C-bend turning angles were similar between epha4a mutants and control siblings, the turning angles of the counterbend decreased significantly (Figure 3L), implying a left/right coordination defect. Taken together, both regular swimming and tactile stimulation analyses suggested that the left-right coordination swimming pattern is compromised in the absence of Epha4a.

Video 3
Download asset
High-speed video showing the startle response in a wild-type larva at 5 days post-fertilization (dpf) triggered by head tactile stimulation.

Time units: ms.

Video 4
Download asset
High-speed video showing the abnormal startle response of an epha4a mutant larva at 5 days post-fertilization (dpf) triggered by head tactile stimulation.

Time units: ms.

Defects of left-right coordination due to abnormal CPG in the absence of Epha4a

The coordinated left-right locomotion of zebrafish larvae relies on the synchronized contraction of muscle fibers, a process regulated by motor neurons situated on each side of the fish. To explore this intricate mechanism, we utilized a Tg(elavl3:GAL4; UAS: GCaMP) double transgene, allowing the expression of a genetically encoded calcium sensor in all neurons. We observed the rhythmic activation of calcium signaling in motor neurons located within the spinal cord (Figure 4A, Figure 4—figure supplement 1A, Videos 5 and 6). In wild-type larvae, the calcium signals exhibited an alternating pattern between the left and right sides of the body, whereas this coordinated pattern was disrupted in both epha4a mutants and morphants (Figure 4A–B vs A’–B’, Figure 4—figure supplement 1A–B vs A’–B’, Videos 7 and 8). Additionally, we found that the activation frequency of motor neurons on the left and right sides was comparable in wild-type larvae, but significantly different in the absence of Epha4a (Figure 4C and D, Figure 4—figure supplement 1C and D).

Figure 4 with 1 supplement see all
Download asset Open asset

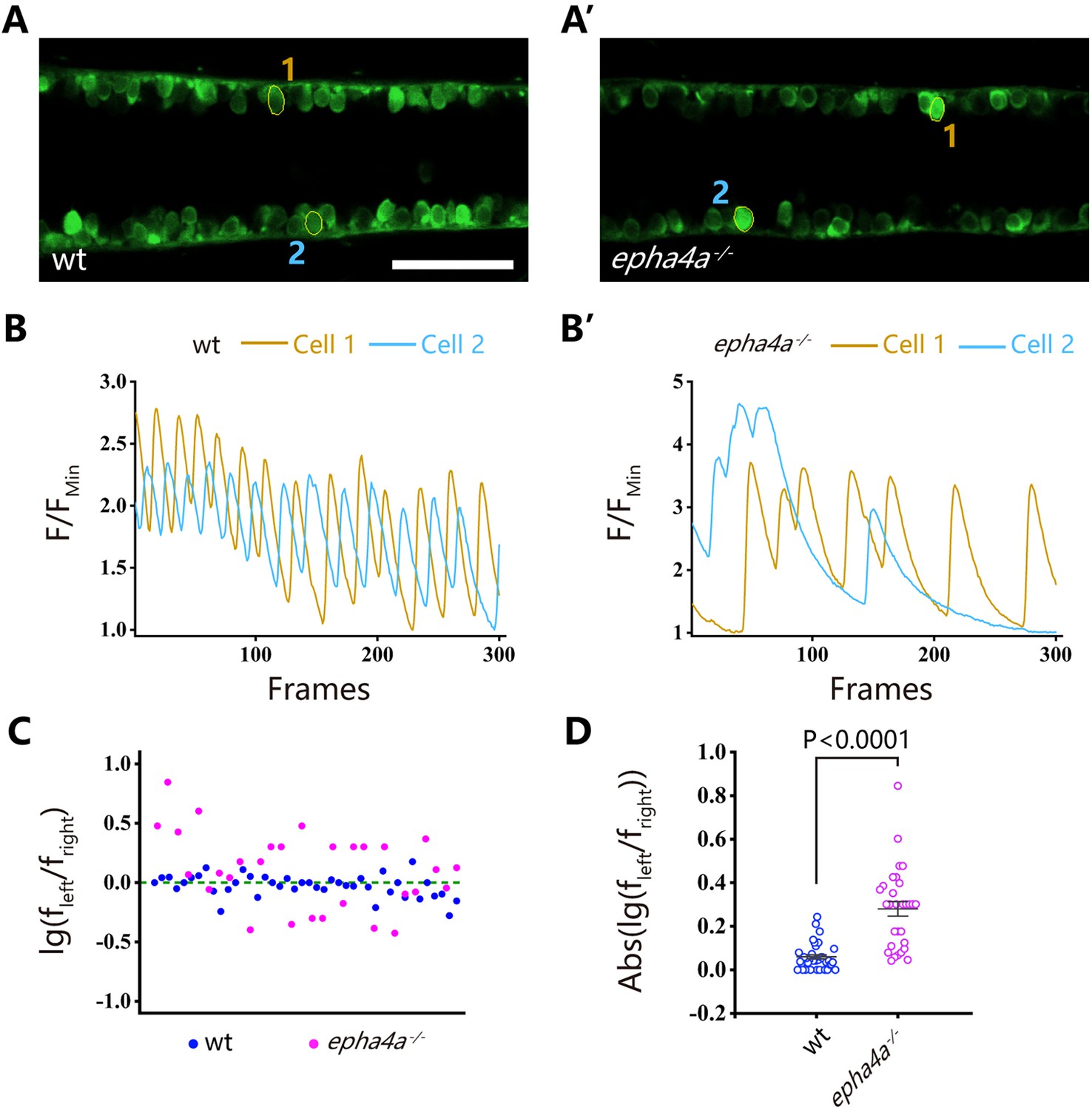

Uncoordinated left-right activation of spinal cord neurons in epha4a mutants.

(A, A’) Fluorescent images showing the dorsal view of 24 hr post-fertilization (hpf) Tg(elavl3:GAL4; UAS:GCaMP) double transgenic larvae. The corresponding movies are shown in Videos 5 and 6. (B, B’) Line charts showing the quantification of fluorescence changes of the region of interests (ROIs, circled in A, A’) in wild-type larvae and epha4a mutants. (C) Scatter plot showing the distribution trend of the ratio of the calcium signal frequency between left and right in wild-type (N=14 larvae, n=42 experiments) and epha4a mutants (N=10 larvae, n=30 experiments). (D) Statistical graph of the ratio of the calcium signal frequency between left and right in wild-type larvae and epha4a mutants. Scale bars: 50 μm in panels (A, A’).

Video 5
Download asset
Alternated activation of calcium signaling in motor neurons of 24 hr post-fertilization (hpf) wild-type Tg(elavl3:GAL4; UAS: GCaMP) transgenic larva.
Video 6
Download asset
Alternated activation of calcium signaling in motor neurons of 24 hr post-fertilization (hpf) wild-type Tg(elavl3:GAL4; UAS: GCaMP) transgenic larva injected with control MO.
Video 7
Download asset
Abnormal activation of calcium signaling in motor neurons of 24 hr post-fertilization (hpf) Tg(elavl3:GAL4; UAS: GCaMP) transgenic larva with homozygous epha4a mutant background.
Video 8
Download asset
Abnormal activation of calcium signaling in motor neurons of 24 hr post-fertilization (hpf) Tg(elavl3:GAL4; UAS: GCaMP) transgenic larva injected with epha4a MO.

One well-established concept regarding left-right coordination involves the presence of CPGs, which are regulated by interneuron circuitry within the spinal cord. We further examined the axon guidance of interneurons in epha4a mutants. First, we investigated the commissural trajectories of reticulospinal (RS) interneurons. In control larvae, the large Mauthner neurons, along with other RS neurons, were symmetrically positioned on each side of the midline and projected their axons to the contralateral sides (Figure 5A). These bilaterally projected axons typically crossed at the midline and subsequently synapsed on motoneurons of the opposite sides, contributing to the generation of spinal cord neural circuits (Hale et al., 2016). However, in epha4a mutant larvae, we observed an abnormal pattern in axonal projections. Specifically, the mutant axons failed to traverse the midline and instead extended ipsilaterally (Figure 5A). In addition, the distance between Mauthner neurons (rhombomere 4) and rhombomere 7 was significantly decreased, and rhombomere 5 was scarcely visible in the mutant larvae (Figure 5A and B). Furthermore, the sites of axon crossing between two Mauthner neurons tended to deviate to one side of the midline in the mutants (Figure 5C–D’).

Figure 5
Download asset Open asset

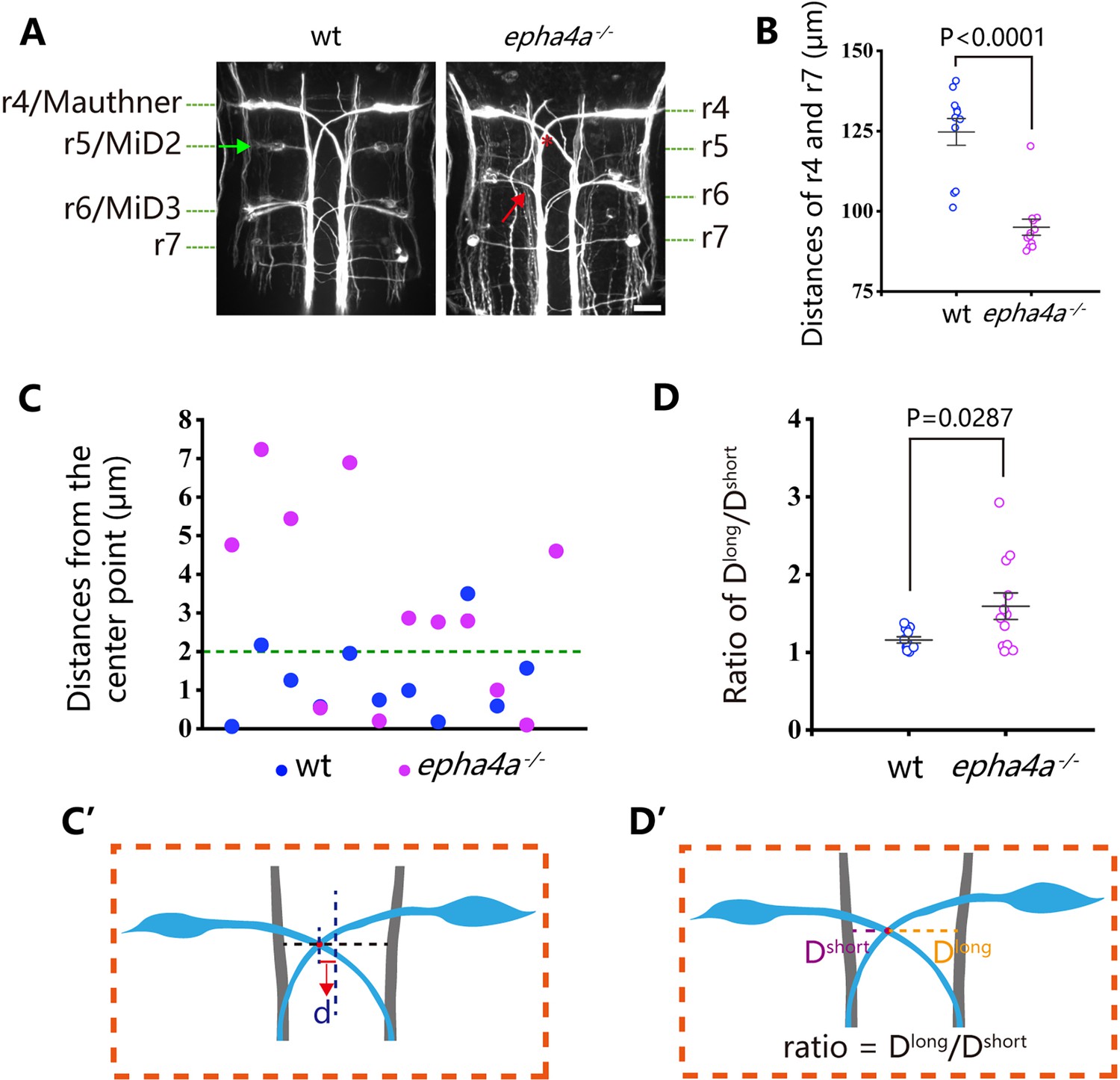

Disorganized neural patterning in epha4a mutants.

(A) Confocal images showing reticulospinal neuronal axons in 48 hr post-fertilization (hpf) wild-type and epha4a mutant larvae visualized with anti-neurofilament antibody RMO44. Asterisks indicate the cross sites of Mauthner axons. The green arrow indicates the cell body of the r5/MiD2 neuron in a wild-type larva. The red arrow points to the ipsilaterally projected axon of r6/MiD3 in the mutant larva, which is normally projected to the other side in wild-type fish. (B) Statistical chart showing the distance between r4 and r7 of 48 hpf wild-type and epha4a mutants. (C) Scatter plot showing the distance (d) between the center line and the intersection site of Mauthner axons as indicated in panel C′. (D) The ratio of the distance between the intersection site of Mauthner axons and bilateral axon bundles in 48 hpf wild-type (N=11 larvae) and epha4a mutants (N=12 larvae). The ratios were calculated as in panel D′. Scale bars: 20 µm in panel (A).

Cerebrospinal fluid-contacting neurons (CSF-cNs) represent a unique type of interneuron responsible for modulating the V0 and V2a interneurons, which are integral components of locomotor CPGs (Fidelin et al., 2015; Talpalar et al., 2013; Wu et al., 2021). In wild-type larvae, we observed that the ascending axons of these neurons projected either to the right or left side from the midline, as visualized using Tg(pkd2l1:GAL4;UAS:Kaede) double transgenic larvae (Figure 6A). However, in the absence of Epha4a, the projection of these neurons exhibited notable disorganization, with numerous axons crossing the midline from one side of the trunk. This disorganized pattern was observed in both heterozygotic and homozygotic mutants (Figure 6A and B). Additionally, we employed an optogenetic approach to activate these CSF-cNs, utilizing the Tg(Gal4s1020t; UAS:ChR2) double transgene. Following optical stimulation, we observed robust tail oscillations as previously described (Wyart et al., 2009). In wild-type larvae, these tail oscillations exhibited a symmetrical left-right beating pattern (Figure 6C and D, Video 9). However, a striking disruption of this symmetry was observed in epha4a morphants, as they consistently beat toward one side of the trunk following optical stimulation (a positive angle reflects a rightward turn; Figure 6C’–D’ and E, Video 10). Collectively, these findings demonstrate that the left-right coordination deficiencies observed in epha4a mutants arise from abnormal neural circuit formation, which consequently disrupts the integrity of the CPGs.

Figure 6
Download asset Open asset

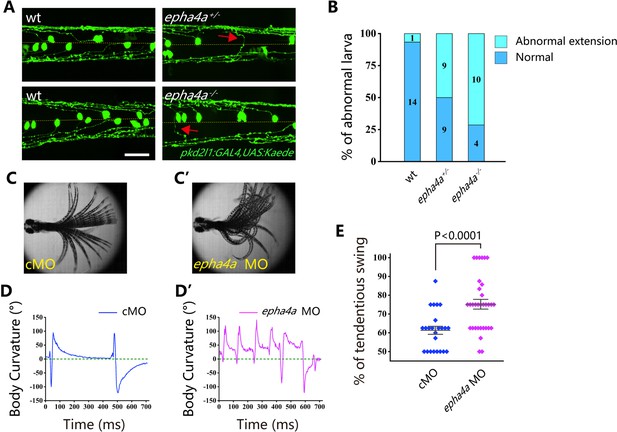

Aberrant swimming as a result of abnormal extension of cerebrospinal fluid-contacting neurons (CSF-cNs) axons.

(A) Fluorescent images showing the distribution of ascending axons of CSF-cNs marked by Tg(pkd2l1:GAL4,UAS:Kaede) in 2 days post-fertilization (dpf) epha4a mutant larvae. Yellow line indicates the midline, and the red arrows indicate aberrantly extended axons in epha4a+/- and epha4a-/- larvae. (B) Bar graph showing the percentages of abnormal extension of CSF-cNs axons in 2 dpf wild-type, epha4a heterozygote, and epha4a homozygous. The numbers of larvae are indicated in each column. (C, C’) Superimposed frames of tail oscillations in 5 dpf control and epha4a morphants. (D, D’) A plot of body curvature angles in panels (C) and (C’). The positive angle means turning right. (E) Percentages of tendentious swing in control (N=8 larvae, n=24 experiments) and epha4a morphants (N=11 larvae, n=33 experiments). The percentages were calculated by the ratio of tendentious tail oscillation during the first eight swings. Scale bars: 50 µm in panel (A).

Video 9
Download asset
Tail oscillation after light activation of 5 days post-fertilization (dpf) Tg(Gal4s1020t; UAS:ChR2) double transgene larva.
Video 10
Download asset
Tail oscillation after light activation of 5 days post-fertilization (dpf) Tg(Gal4s1020t; UAS:ChR2) double transgene larva injected with epha4a MO.

Ephrin B3-Epha4 signaling regulates interneuron axon extension

To further explore the role of Epha4a during interneuron axon extension, we examined the expression of epha4a during early zebrafish embryonic development. Whole-mount in situ hybridization results showed that both epha4a and epha4b were abundantly expressed in the zebrafish spinal cord (Figure 7—figure supplement 1A). We plotted the expression of these two genes using two published single-cell transcriptome data, which showed that epha4a and epha4b were both expressed in interneurons, suggesting a role for epha4 in interneuron function (Figure 7—figure supplement 1B; Cavone et al., 2021; Scott et al., 2021). Notably, the expression of efnb3b, encoding the ligand of Epha4, was highly enriched in the midline floor plate cells (Figure 7—figure supplement 1B).

Ephrins, through interacting with Eph receptors, play a critical role in repulsive axon guidance during neural development (Egea and Klein, 2007; Flanagan and Vanderhaeghen, 1998). We further analyzed axon guidance in efnb3b morphants. Similar to those of epha4a mutants, the efnb3b morphants also displayed axon guidance defects, as well as uncoordinated calcium activation (Figure 7A–C). In addition, morphants larvae also displayed left-right oscillation defects after optogenetic stimulation (a positive angle reflects a rightward turn) (Figure 7D and E).

Figure 7 with 1 supplement see all
Download asset Open asset

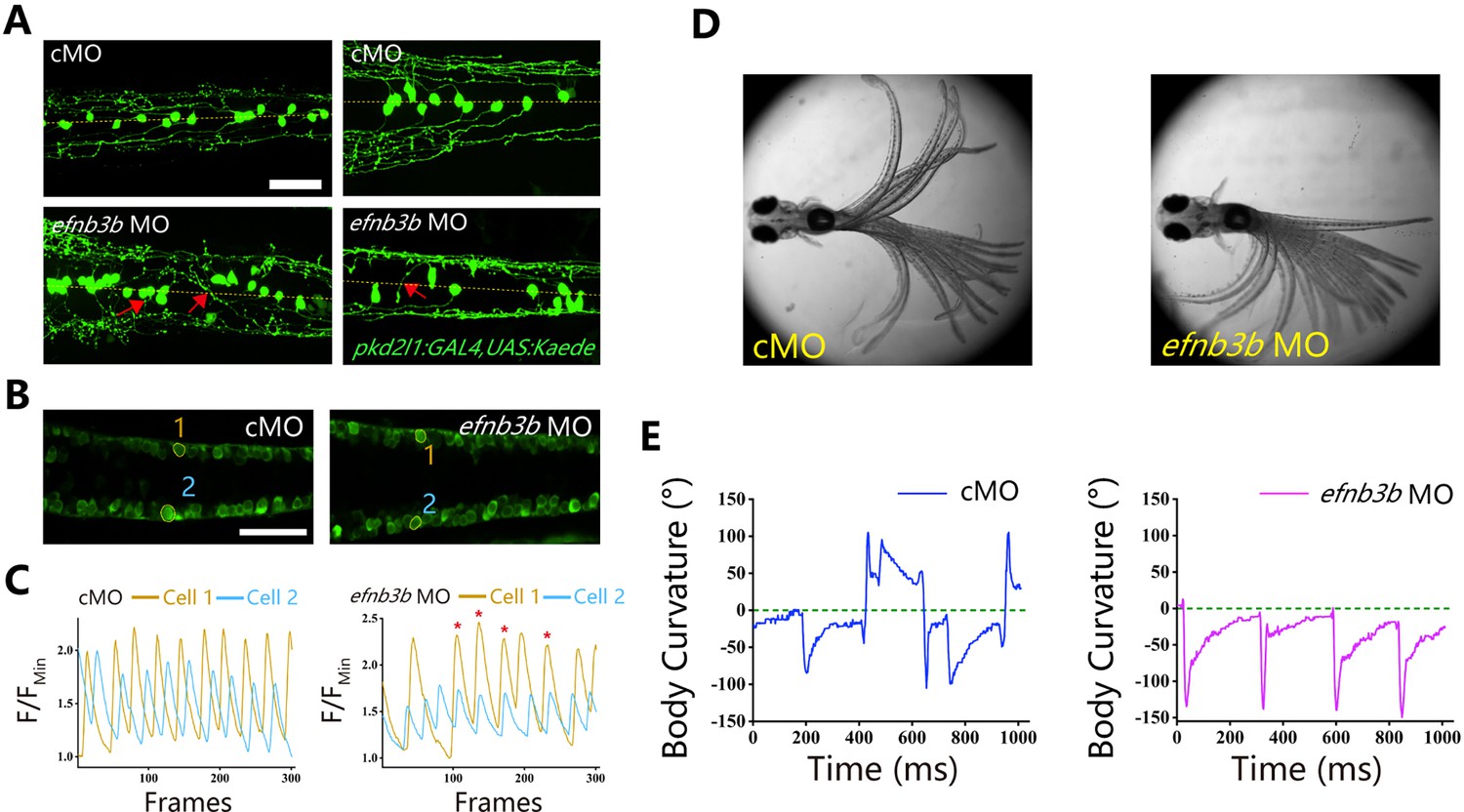

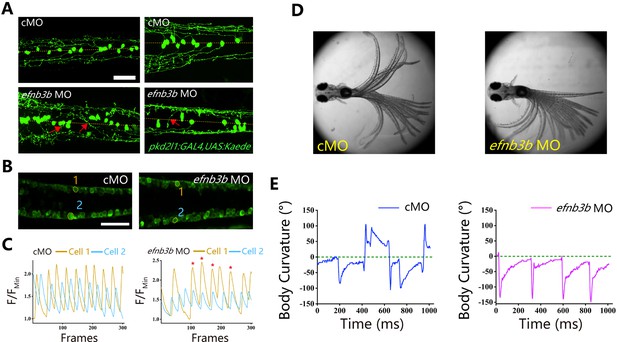

Left-right coordination defects in efnb3b morphants.

(A) Fluorescent images showing the distribution of ascending axons of cerebrospinal fluid-contacting neurons (CSF-cNs) marked by Tg(pkd2l1:GAL4,UAS:Kaede) in 2 days post-fertilization (dpf) efnb3b morphants. The red arrows indicate aberrantly extended axons in efnb3b morphants. (B) Fluorescent images showing the dorsal view of 24 hr post-fertilization (hpf) Tg(elavl3:GAL4; UAS:GCaMP) transgenic larvae. (C) The line chart showing the quantification of fluorescence changes of the region of interests (ROIs) in control morphants and efnb3b morphants as indicated in panel B. (D) Superimposed frames of tail oscillations in 5 dpf control and efnb3b morphants. (E) A plot of body curvature angles in panel (D). The positive angle means turning right. Scale bars: 50 μm in panels (A, B).

Candidate variants in the EPHA4-related genes

Our zebrafish studies suggested that EPHA4 signaling is crucial for interneuron axon guidance, hence the formation of functional CPGs. Next, we further asked whether mutation of other components of the EPHA4 signaling can result in IS in humans. By searching for rare variants in EPHA4-related genes (Figure 8—figure supplement 1; Szklarczyk et al., 2019), we identified a heterozygous de novo start-loss variant (c.1A>G, p.Met1?) in NGEF in a 17-year-old male (SCO2003P3332) (Figure 8A and B, Table 1), whose scoliosis was diagnosed at 15 years of age with a main curve Cobb angle of 60°. NGEF encodes the neuronal guanine nucleotide exchange factor Ephexin that differentially affects the activity of GTPases RHOA, RAC1, and CDC42. The activation of Ephexin is triggered by ephrin through EPHA4 (Shamah et al., 2001).

Figure 8 with 1 supplement see all
Download asset Open asset

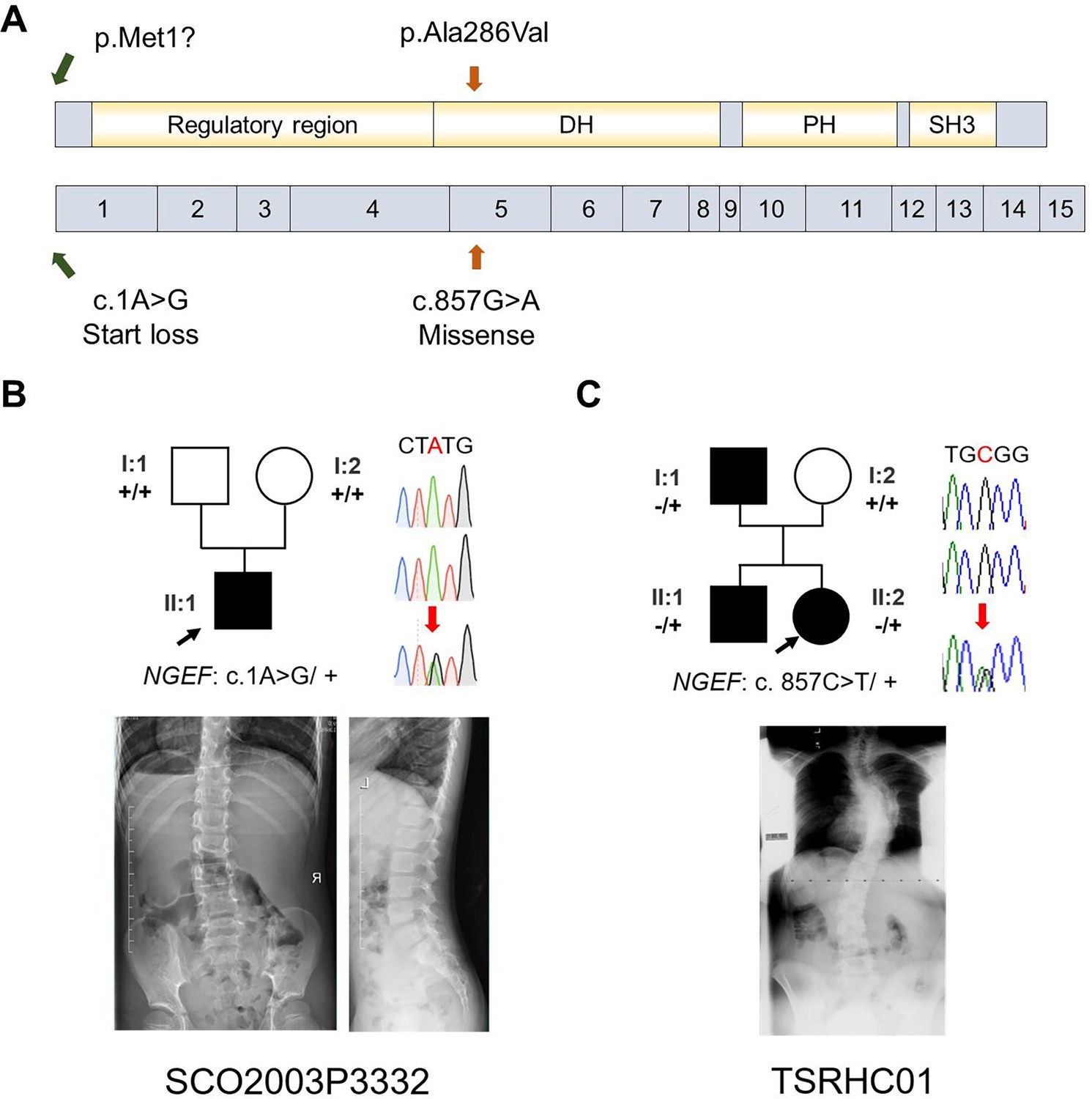

Idiopathic scoliosis (IS) patients with potential NGEF variants.

(A) Protein structure of NGEF protein with the position of potential variants. (B, C) Pedigrees and spinal radiographs of two probands with dominant gene variants. Sanger sequencing results are shown on the right.

Strikingly, in a European-ancestry IS cohort, we further identified a dominant missense variant (c.857G>A, p.Ala286Val) in NGEF in a quad family with three affected members (Figure 8C, Table 1). The proband (II:2, TSRHC01) with onset of scoliosis at 14 years of age has a 58° main curve Cobb angle. This variant, which is located in the RhoGEF domain of Ephexin, is predicted to be highly deleterious (CADD = 29.6).

Altogether, our results suggest that defects of the CPGs owing to abnormal EPHA4 signaling maybe one of the crucial factors responsible for IS.

Discussion

IS is a disease with diverse causes, and the underlying mechanisms can vary even among patients with similar scoliotic phenotypes. Previous genetic studies have highlighted the significance of the extracellular matrix (ECM) in maintaining the balance of axial bone and supporting soft tissues in the spine, thus playing a crucial role in IS development (Haller et al., 2016). For example, the top SNP associated with IS maps to LBX1, an essential molecule for ECM maintenance and bone homeostasis (Takahashi et al., 2011). Additionally, genetic loci in muscle development-related genes have also been associated with the onset of scoliosis, emphasizing the intricate interaction between bones and muscles (Ogura et al., 2015). However, it is worth noting that the variants in these genes explain only a small fraction of the overall heritability of IS. Consequently, it is imperative to establish connections between the extensive genetic findings and biological mechanisms that can elucidate the etiological landscape of IS.

In this study, we mapped 41 significant genome-wide loci to functional genes through positional mapping and functional mapping such as eQTL. Then, we determined the enrichment in patient cohorts of rare variants in these genes, which may have greater impacts compared with common SNPs. This approach revealed the convergence of SNPs and rare variants in EPHA4 that are enriched in patients with IS. We also identified additional high-impact variants in NGEF, which is involved in the EPHA4 pathway.

Our studies using zebrafish have revealed that deficiency of Epha4 can lead to the development of scoliosis. Interestingly, we observed that even heterozygotic epha4a zebrafish mutants displayed mild scoliosis (Figure 2C), which is consistent with the occurrence of this condition in scoliosis patients. Further analysis involving behavior and imaging demonstrated that the absence of Epha4a resulted in defective left-right coordination. This coordination is crucially governed by CPGs, which generate rhythmic patterns of neural activity to coordinate limb movements on both sides of the body (Kiehn, 2006; Marder and Bucher, 2001; Talpalar et al., 2013). Previous studies have reported the involvement of ephrin and its receptors in axon guidance during the maturation of neural circuits, including CPGs (Andersson et al., 2012; Borgius et al., 2014; Iwasato et al., 2007). Ephrin B3, present in radial glial cells at the dorsal midline, serves as a repulsive barrier to axons expressing Epha4 (Imondi et al., 2000). Axon guidance is disrupted when this repulsive pathway is inactivated, leading to midline invasion (Butt et al., 2005; Kullander et al., 2001; Paixão et al., 2013). In Epha4 and Efnb3 knockout mice, a ‘hopping’ gait is observed, which is attributed to the aberrant crossing of motor neurons expressing Epha4 (Kullander et al., 2003). Consistent with these observations, we observed disrupted axon guidance in the interneurons, which are integral components of CPGs, in both epha4a mutants and efnb3b morphants. This finding suggests that CPG malfunction may be a significant contributing factor to the scoliosis phenotype observed in these genetic backgrounds. It is highly likely that the lack of coordinated left-right locomotion generates imbalanced mechanical forces on the spine, gradually leading to spinal curvature during later stages of development (Figure 9).

Figure 9
Download asset Open asset

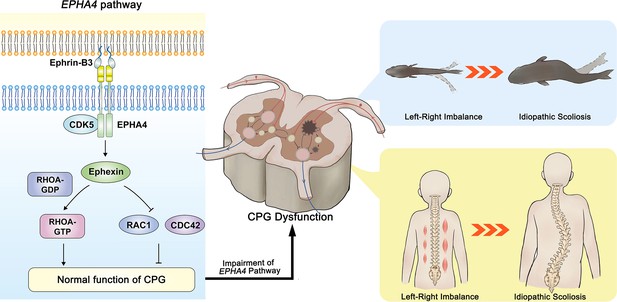

The proposed mechanism of idiopathic scoliosis (IS) mediated by EPHA4 dysfunction.

In healthy individuals, EphrinB3-activated EPHA4 phosphorylates CDK5, leading to the phosphorylation of Ephexin, a protein encoded by NGEF. Phosphorylated Ephexin can regulate axon guidance through either activating RHOA or suppressing CDC42 and RAC1 signaling. These processes are critical in maintaining the normal function of the central pattern generator (CPG), the local neural network that provides coordinated bilateral muscle control. Impairment of the EPHA4 pathway and CPG may cause an imbalance of the motor drive from the spinal cord during development, thus causing the uncoordinated left/right swimming behavior in zebrafish larvae and the asymmetry of the bilateral muscular pull in a young child. Although the appearance is normal in early childhood, the dysfunction produces a scoliotic curve during the growth spurt.

Thus, our data provided a novel biological mechanism of IS, i.e., the impairment of neural patterning and CPG. Previous studies have provided clues on the role of CPGs in IS. Patients with adolescent IS showed asymmetric trunk movement during gait, as characterized by increased relative forward rotation of the right upper body in relation to the pelvis (Kramers-de Quervain et al., 2004; Nishida et al., 2017). An electromyography (EMG) study also showed asymmetric activation of paraspinal muscles between the convex and concave sides at the scoliosis curve apex (Shimode et al., 2003). In a child with a strong family history of IS, asymmetric hyperactivity was observed by EMG months before scoliosis was evident (Valentino et al., 1985). These left-right locomotor coordination abnormalities indicated the maldevelopment of CPGs as a potential cause of IS. The CPG asymmetry may induce an imbalance in trunk muscle strength, resulting in asymmetric rib drooping. This leads to an abnormal vertebral rotation and then the onset of IS. Moreover, in a companion study, Wang et al. identified a number of rare variants in SLC6A9, which encodes glycine transporter 1 (GLYT1), in familial and sporadic adolescent IS cases. The slc6a9 mutant zebrafish also exhibited discoordination of spinal neural activities with pronounced lateral spinal curvature, recapitulating the human IS phenotype (Wang et al., 2024). Taken together, we propose that the dysfunction of CPGs would cause an imbalance in the motor drive from the spinal cord and the asymmetric transversospinalis muscle pull, eventually producing a scoliotic curve (Figure 9).

In summary, our study demonstrates that both common and rare variants within the EPHA4 pathway contribute to the genetic architecture of IS. EPHA4 pathway dysfunction causes axon pathfinding defects, resulting in impaired coordinated left-right locomotion by disrupting neural patterning and the function of CPGs, thereby potentially leading to IS.

Materials and methods

Mapping of candidate genes utilizing previous association studies

Request a detailed protocol

Through a systematic literature review, we identified IS-associated SNPs reported in GWASs and meta-analyses of GWAS. The literature search was carried out using MEDLINE (via https://pubmed.ncbi.nlm.nih.gov/) and Web of Science (via Clarivate Analytics) and was limited to English-language articles published from January 1980 to October 2020. The following keywords were combined to perform the search: ‘idiopathic scoliosis’ AND ‘GWAS’ OR ‘SNP’ OR ‘single nucleotide polymorphism’ OR ‘variant’ (Supplementary file 4). The inclusion/exclusion criteria of abstracts are provided in Supplementary file 5. After screening the titles and abstracts, we obtained from the full-text articles the rsID, chromosome, and position for SNPs with a threshold for genome-wide significance of p<5.0 × 10−8. For SNPs identified in multiple studies, we recorded the lowest p-value.

SNPs reported in previous studies were first pruned using Functional Mapping and Annotation (FUMA, v1.4.1, https://fuma.ctglab.nl/; Watanabe et al., 2017). Significant SNPs were considered independent at r2<0.6. All known SNPs (available in the 1000 Genomes reference panel, https://www.internationalgenome.org/) were included for further gene mapping if they were in a linkage disequilibrium (LD) block (r2≥0.6) with a significant independent SNP. Three SNP-to-gene strategies were used:

  1. For positional mapping of significant independent SNPs, we used annotations obtained from ANNOVAR (http://annovar.openbioinformatics.org). A 10 kb maximum distance was applied for intergenic SNPs.

  2. For the eQTL mapping, we mapped significant independent SNPs and SNPs in an LD block to eQTLs across 44 GTEx tissue types (release v8) (Aguet et al., 2020). SNP-gene pairs with a false discovery rate (FDR)≤0.05 were considered significant.

  3. For chromatin interaction mapping, we overlapped the significant independent SNPs and those in LD blocks with one end of significantly interacting regions across various tissue and cell types. Information on the interacting regions was derived from Hi-C datasets of 21 tissues and cell types provided by GSE87112. The significance of interactions for Hi-C datasets was computed by Fit-Hi-C, with an FDR≤10–6 considered significant. Genes were mapped if their promoter regions overlapped with another end of the significant interactions. The promoter region was defined as the region from −250 bp to +500 bp relative to the transcription start site.

Cohort description

Request a detailed protocol

The Peking Union Medical College Hospital (PUMCH) cohort: The PUMCH cohort comprised 411 unrelated Chinese patients with severe IS (Cobb angle≥40°) who underwent spinal surgery in the PUMCH between October 2017 and March 2022 as part of the Deciphering disorders Involving Scoliosis and COmorbidities (DISCO) study (http://www.discostudy.org/). The clinical diagnosis was confirmed using standing full-spine radiographs, three-dimensional computed tomography, and magnetic resonance imaging. These patients did not show any congenital or neuromuscular defect at the time of recruitment. The control cohort consisted of 3800 individuals without observable scoliosis and with exome sequencing or genome sequencing performed at PUMCH for clinical or research purposes. Individuals with vertebrae malformation or congenital developmental defects were excluded. A patient with a 2q35-36.2 deletion, including the EPHA4 gene, was also recruited through in-house gene matching of the DISCO study (Li et al., 2015). This patient was subsequently evaluated for scoliosis by examination and radiography.

The East Asian cohort: The East Asian cohort includes totally 6449 IS patients and 158,068 controls from four independent datasets (Japanese dataset 1, Kou et al., 2013; Takahashi et al., 2011): 1261 cases, 15,019 controls; Japanese dataset 2 (Ogura et al., 2015): 878 cases, 21,334 controls; Japanese dataset 3 (Kou et al., 2019): 3333 cases, 119,630 controls; Hong Kong dataset: 977 cases, 2085 controls. The inclusion criteria for IS subjects were the same as our previous studies (Fan et al., 2012; Kou et al., 2019).

The Texas Scottish Rite Hospital for Children (TSRHC) cohort: We used a replication cohort of European-ancestry patients with IS from the TSRHC. Cases considered for inclusion in the study met criteria for a positive diagnosis of IS: lateral deviation from the midline greater than 15° as measured by the Cobb angle method from standing spinal radiographs, axial rotation toward the side of the deviation, and exclusion of relevant coexisting diagnoses.

Blood sample collection

Request a detailed protocol

In the PUMCH cohort, genomic DNA samples were extracted from peripheral blood leukocytes of each subject using a QIAamp DNA Blood Mini Kit (QIAGEN, Hilden, Germany), according to the manufacturer’s protocol. Purified DNA was qualified by NanoDrop 2000 (Thermo Fisher Scientific, Waltham, MA, USA) and quantified by Qubit 3.0 using the dsDNA HS Assay Kit (Life Technologies, Carlsbad, CA, USA). DNA samples were stored at 4°C until used.

In the East Asian and TSRHC cohort, genomic DNA was extracted from peripheral blood or saliva using a standard protocol.

DNA sequencing and variant calling

Request a detailed protocol

In the PUMCH cohort, whole exome sequencing or WGS was performed on peripheral blood DNA from all individuals and available family members (Supplementary file 6). A SureSelect Human All Exon V6+UTR r2 core design (91 Mb, Agilent) was used for exon capture. The exomes were then sequenced on an Illumina HiSeq 4000 (Illumina, San Diego, CA, USA) according to the manufacturer’s instructions. For WGS, sequencing libraries were prepared using the KAPA Hyper Prep kit (KAPA Biosystems, Kusatsu, Japan) with an optimized manufacturer’s protocol. We performed multiplex sequencing using an Illumina HiSeq X-Ten sequencer (Illumina, San Diego, CA, USA). Variant calling and annotation were done in-house using the Peking Union Medical College Hospital Pipeline (PUMP) as described previously (Chen et al., 2021; Zhao et al., 2021).

In the TSRHC cohort, subjects in 162 adolescent IS families were sequenced as part of the Gabriella Miller Kids First Pediatric Research Consortium (GMKF) at The HudsonAlpha Institute for Biotechnology (Huntsville, AL, USA). In summary, DNA was normalized, sheared, and then ligated to Illumina paired-end adaptors. The purified ligated DNA was amplified, and exome sequencing was performed on the Illumina HiSeq X platform. The sample’s sequences were aligned into GRCh38, and genotypes were joint-called per each family by the GMKF’s Data Resource Center (DRC) at Children’s Hospital of Philadelphia following GATK best practices as detailed here (Mukhopadhyay et al., 2020). GMKF DRC’s alignment and joint genotyping pipelines are open source and made available to the public via GitHub (https://github.com/kids-first/kf-alignment-workflow copy archived at Miller, 2025a, and https://github.com/kids-first/kf-jointgenotyping-workflow copy archived at Miller, 2025b).

Rare variant association analysis of the candidate genes

Request a detailed protocol

To determine the contribution of rare variants in GWAS candidate genes to IS, we analyzed the gene-based mutational burden for 156 candidate genes. Only ultra-rare variants with a gnomAD population-max allele frequency ≤0.01% and a cohort allele count ≤3 were analyzed. Each variant was assigned a weight, and the mutational burden of a given gene was defined as the maximum weight value among all ultra-rare variants carried by the individual. The SAIGE-GENE+ package was used to determine the weighted mutational burden test for each gene (Zhou et al., 2022).

Weighting criteria for the weighted burden analysis were developed according to the variant types and in silico results. The LoF variants (canonical splicing variants, nonsense variants, or variants that cause frameshift, stop-gain, or start-loss) were calculated together with the protein-altering variants, including missense variants and in-frame indels. Each variant was assigned a weight range from 0 to 1, and the mutational burden for a given gene was defined as the maximum weight value among all ultra-rare variants carried by the individual. The LoF variants annotated as ‘high confidence’ by the loss-of-function transcript effect estimator (LOFTEE) (Karczewski et al., 2020) were assigned a weight value of 1.0. The LoF variants annotated as ‘low confidence’ or unlabeled by LOFTEE, the noncanonical splicing variants with a SpliceAI score >0.5, and the missense variants with a rare exome variant ensemble learner (REVEL) (Ioannidis et al., 2016) score of 0.8 were assigned a weight value of 0.8. The in-frame insertions/deletions (indels) with a Combined Annotation Dependent Depletion (CADD) (Kircher et al., 2014) score >20 and the missense variants with a REVEL score >0.6 and ≤0.8 were assigned a weight value of 0.6. The in-frame indels with a CADD score >10 and ≤20 and the missense variants with a REVEL score >0.4 and ≤0.6 were assigned a weight value of 0.4. The in-frame indels and the missense variants with a REVEL score >0.2 and ≤0.4 were assigned a weight value of 0.2. The remaining missense variants were assigned a weight value of 0.

Sanger sequencing of familial participants

Request a detailed protocol

Sanger sequencing of familial participants was performed to determine the origin of variants in EPHA4 and NGEF. All LoF variants and protein-altering variants identified in familial participants were validated. Variant-encoding gene regions were amplified by PCR from genomic DNA obtained from probands, as well as from parents for trios, to determine the origin of the variants. The amplicons were purified using an Axygen AP-GX-50 kit (Corning, NY, USA) and sequenced by Sanger sequencing on an ABI 3730xl instrument (Thermo Fisher Scientific, Waltham, MA, USA).

Minigene assay

Request a detailed protocol

The splicing variant (EPHA4: c.1443+1G>C) was characterized by a minigene assay. Genomic DNA from the heterozygous patient was amplified by PCR using a high-fidelity DNA polymerase. Amplicons included exon 6, intron 6, exon 7, intron 7, and exon 8 of the EPHA4 gene. PCR products were cloned into the vector via the restriction sites BamHI and MluI for pCAS2, which is based on the pcDNA3.1 plasmid (Thermo Fisher Scientific, Waltham, MA, USA). Clones with wild-type or mutant genomic inserts were selected and verified by sequencing the cloned DNA fragments. The recombinant plasmids were transfected into 293T cells using Lipofectamine 3000 reagent (Thermo Fisher Scientific, Waltham, MA, USA). For RT-qPCR, total RNA was isolated from the transfected cells using Trizol reagent (Thermo Fisher Scientific, Waltham, MA, USA), and reverse transcription was performed using the GoScript Reverse Transcription System (Promega, Madison, MI, USA). PCR amplification was performed using the pCAS2-RT-F and pCAS2-RT-R primers, and the products were sequenced using pCAS2-RT-F.

Primers sequences for the minigene assay were as follows:

  • pCAS2-RT-F: 5′-CTGACCCTGCTGACCCTCCT-3′

  • pCAS2-RT-R: 5′-TTGCTGAGAAGGCGTGGTAGAG-3′

Nested PCR

Request a detailed protocol

The splicing variant (EPHA4: c.1318+10344A>G) was characterized by nested PCR. RNA was extracted from the whole blood of the patient using the TRIzon Reagent (CWBIO, Hangzhou, China) according to the manufacturer’s guidelines. The cDNA was synthesized using HiScript II 1st Strand cDNA Synthesis Kit with a gDNA wiper (Vazyme, Nanjing, China) according to the manufacturer’s guidelines. Nested PCR was performed as described previously (Yao and Tavis, 2005). Nested PCRs in 50 μl included 2 μl cDNA from the reverse transcription reaction as the template for the first round of PCR or 2 μl of first-round PCR product as the template for the second PCR, 1.5 μl 10 μM sense primer, 1.5 μl 10 μM anti-sense primer, 5 μl nucleotide mix (2 mM each dNTP), 5 μl 10× KOD Buffer, 1 μl 1 unit/μl Kod-Plus-Neo polymerase, 3 μl 25 mM MgSO4 and 31 μl ddH2O. The PCR program was (94°C for 2 min, 98°C for 10 s, 55°C for 30 s, 68°C for 60 s)×20 cycles and then (94°C for 2 min, 98°C for 10 s, 57°C for 30 s, 68°C for 60 s)×30 cycles. Primers sequences:

For the first round:

  • F: 5′-GGCTCCTGTGTCAACAACTC-3′

  • R: 5′-GTTGGGATCTTCGTACGTAA-3′

For the second round:

  • F: 5′-AACTGCCTATGCAACGCTGG-3′

  • R: 5′-AGCTGCAATGAGAATTACC-3′

Western blots

Request a detailed protocol

This study utilized the HEK293T cell line, which was obtained from the Pricella Biotechnology Co. (catalog number CL-0005). The cell line was authenticated by short tandem repeat profiling. Mycoplasma testing confirmed that the HEK293T were free from contamination. HEK293T was selected for its high transfection efficiency to assess the impact of EPHA4 missense variant on protein expression. First, HEK293T cells were transfected with EPHA4-C1-pEGFP plasmid or the corresponding wild-type vector to detect the missense variant in EPHA4 (c.2546G>A, p.Cys849Tyr). Cells were cultured in six-well plates and transfected with DNA (2 mg/well) using Lipofectamine 3000 reagent (Thermo Fisher Scientific, Waltham, MA, USA). After 48 hr, cells were harvested, and protein extracts were prepared as described (Ding et al., 2017). The mutant proteins and wild-type proteins were fused to GFP. The expression of the two proteins was compared by western blots with a GFP antibody using the ECL detection system. The GFP antibody was purchased from Cell Signaling Technology (Cell Signaling, Danvers, MA, USA). The CDK5 antibody was purchased from Santa Cruz Biotechnology (Santa Cruz, CA, USA). A phospho-specific antibody against CDK5 phosphorylated at Tyr (GeneTex, Irvine, CA, USA) was purchased from GeneTex. Western blot experiments were repeated twice with similar results for the replicates.

Genotyping and imputation of GWAS

Request a detailed protocol

In the East Asian Japanese cohort, genotyping was performed by Illumina Human610 Genotyping BeadChip, Illumina HumanOmniExpressExome, and HumanOmniExpress as our previous GWASs (Kou et al., 2019; Kou et al., 2013; Ogura et al., 2015; Takahashi et al., 2011). For quality control (QC), subjects with a call rate < 0.98, high-degree relatedness with other subjects, and outliers of East Asian ethnicity were excluded. For variants QC, the exclusion criteria of variants were as follows: call rate < 0.99, p-value for Hardy-Weinberg equilibrium < 1.0  ×  10−6, and minor allele count <10. The reference panel for imputation, namely JEWEL7K, was composed of 1000 Genomes Project phase 3 (v5) (Auton et al., 2015) and Japanese whole-genome sequence data (Das et al., 2016) with 3256 high-depth subjects (≥30 read counts) and 4216 low-depth subjects (≤15 read counts). Using EAGLE 2.4.1 (https://alkesgroup.broadinstitute.org/Eagle/) to determine the haplotypes, pre-phasing was conducted. Genotypes were imputed using Minimac4 (v1.0.0) (Das et al., 2016). After imputation, we excluded variants with minor allele frequency (MAF) <0.005 and low imputation quality (R2 < 0.3).

In the East Asian Hong Kong cohort, samples were genotyped with Illumina Human Omni ZhongHua-8 Beadchips. Illumina Genome Studio v2.0 was used to convert raw data into PLINK format. The QC steps of samples and variants were described in a previous study (Marees et al., 2018). Genotype phasing and imputing were executed using SHAPEIT v2.r900 (Delaneau et al., 2012) and IMPUTE2 (Marchini et al., 2007). The imputed data was filtered using the following parameters: INFO >0.6, Certainty >0.8, and MAF >0.01. Association analysis was performed using PLINK v1.9 logistic regression with covariates: sex, age, and top 20 principal components of the variance-standardized relationship matrix.

East Asian GWAS meta-analysis for IS

Request a detailed protocol

For the meta-analysis of the four datasets (three Japanese datasets and one Hong Kong dataset), an inverse-variance-based method was performed by METAL (v2011-03-25) (Willer et al., 2010). SNPs in three or more of the four cohorts were used in subsequent analyses.

Gene-based common variant analysis and eQTL analysis

Request a detailed protocol

SNPs in EPHA4 or within 20 kb flanking EPHA4 with a significant association with IS were retrieved. SNPs were matched to potential eQTLs according to the GTEx database (v8, https://gtexportal.org). Gene-based common variant analyses were performed using Multi-marker Analysis of GenoMic Annotation (MAGMA) (de Leeuw et al., 2015) and FUMA (Watanabe et al., 2017) using default settings with LD information from the 1000 Genomes Project East Asian population (1KGP EAS) as a reference. SNPs located within 2 kb upstream and 1 kb downstream from EPHA4 were included in the gene-based analysis.

Zebrafish strains, mutants, and morphants

Request a detailed protocol

Zebrafish Tuebingen (TU) strains were maintained at 28°C on a 14 hr/10 hr light/dark cycle. Embryos were raised at 28.5°C in E3 medium (5 mM NaCl, 0.17 mM KCl, 0.39 mM CaCl2, 0.67 mM MgSO4) following standard protocols. Zebrafish have two homologs of EPHA4, epha4a and epha4b. The CRISPR/Cas9 system was used to generate zebrafish epha4a and epha4b mutants. To increase efficiency, we injected Cas9 mRNA together with multiple single guide RNAs (sgRNAs) for each gene. The sgRNA sequences for epha4a and epha4b are listed in Supplementary file 7. Morpholino sequences for epha4a and efnb3b knockdown analysis are also listed in Supplementary file 7.

Micro CT imaging

Request a detailed protocol

Adult zebrafish epha4a mutants or wild-type siblings were euthanized with tricaine methanesulfonate and fixed in 4% paraformaldehyde. Micro CT images were captured using a PerkinElmer Quantum GX2. Planar images acquired over 360° of rotation were reconstructed using QuantumGX. Three-dimensional renders of the skeleton were made with Analyze 12.0 software (AnalyzeDirect).

Behavioral recordings and analysis

Request a detailed protocol

For behavior analysis, individual zebrafish larvae were transferred into a 24-well plate with fresh E3 medium at 8 dpf. Then, the plate was placed inside the Daniovision (Noldus) observation chamber for further behavior analysis. Video tracking of swimming activity and further statistical analysis were performed using the EthoVision XT10 software. Behavioral data were shown as total swim distance (mm), average velocity (mm/s), average relative turn angle (°), average absolute turn angle (degree), and average absolute angular velocity (°/s) at a duration for 4 min. A positive angle reflects a leftward turn.

For tactile stimulation, zebrafish larvae were placed in a concave slide, and tactile stimulation was performed with glass capillaries to the head or tail sides. Larval startle responses were recorded using a high-speed video camera (Mikrotron, EoSens Mini1) at 1000 fps. Automated analysis of larval movement was performed using the FLOTE software package (Jain et al., 2014).

For optogenetic studies, the Tg(Gal4s1020t; UAS:ChR2) transgenic embryos were injected with control, epha4a or efnb3b morpholinos at one cell stage. At 5 dpf, the head of injected larva was mounted in 1% low melting point agarose (Sigma), and the body was exposed in glass-bottom dishes (WPI). Leica M165FC fluorescence microscope was used to irradiate with a blue laser at 488 nm wavelength. Larval responses were recorded using a high-speed video camera (Mikrotron, EoSens Mini1) at 500 fps. Body curvature analysis of larval movement was performed using the FLOTE software package.

Whole-mount in situ hybridization and immunofluorescence

Request a detailed protocol

The primer sequences used to amplify epha4a, epha4b, and rfng genes were listed in Supplementary file 7. Probe synthesis and whole-mount in situ hybridization were performed according to standard protocols. For RS neurons immunostaining, embryos were fixed in 2% trichloroacetic acid at 48 hpf for 3–4 hr, washed twice in 0.5% Triton X-100 in PBS and blocked in 0.5% Triton X-100, 10% normal goat serum, 0.1% bovine serum albumin (Solarbio) in PBS for 1 hr. The embryos were stained by monoclonal anti-neurofilament 160 antibody (Sigma-Aldrich) overnight at 4°C, then stained by goat anti-mouse Alexa Fluor 488 (Invitrogen) after washing.

Analysis of neuronal calcium signals activity

Request a detailed protocol

Control, epha4a or efnb3b morpholinos were injected into Tg(elavl3:GAL4; UAS:GCaMP) transgenic embryos at one cell stage. At 24 hpf, embryos were paralyzed with 0.5 mg/ml α-bungarotoxin (Alomone Labs), then mounted in 1% low melting point agarose (Sigma) in glass-bottom dishes (WPI). Neuronal calcium signal images were collected with IXON-L-888 EMCCD camera equipped on Dragonfly 200 Spinning Disk Confocal Microscope using a ×20/0.55 objective within 1 min at a frame rate of 10 fps.

Images were analyzed with ImageJ software. To quantify the change in fluorescence intensity, a region of interest was defined, and the fluorescence intensity Ft of different frames was normalized to Ft/Fmin based on the minimum fluorescence intensity Fmin in all frames. To compare the left-right alternation pattern of neuronal calcium signals, the ratio of the left-side calcium signals frequency (fleft) to the right-side calcium signals frequency (fright) was logarithmically transformed (log-transformed).

Quantification and statistical analysis

Request a detailed protocol

Statistical analyses were performed in SPSS (v15.0). Unpaired Student’s t-test, Welch one-way ANOVA, or two-way ANOVA followed by Tukey’s multiple comparison test was applied when appropriate. All experiments were replicated at least three times independently. p<0.05 was considered statistically significant.

Data availability

The raw whole exome/genome sequencing data from this study have been uploaded in the Genome Sequence Archive in BIG Data Center (https://bigd.big.ac.cn/), Beijing Institute of Genomics (BIG), Chinese Academy of Sciences (Accession Number: HRA011763, HRA006052). Other datasets used and/or analyzed during the current study are described in supplementary files, figure supplements, and the section of "Materials and Methods".

The following data sets were generated
    1. Wu N
    2. Zhang J
    3. Wu Z
    (2025) National Genomics Data center
    ID HRA011763. EPHA4 signaling dysregulation links abnormal locomotion and the development of idiopathic scoliosis.
    https://ngdc.cncb.ac.cn/gsa-human/browse/HRA011763

References

    1. Aguet F
    2. Anand S
    3. Ardlie KG
    4. Gabriel S
    5. Getz GA
    6. Graubert A
    7. Hadley K
    8. Handsaker RE
    9. Huang KH
    10. Kashin S
    11. Li X
    12. MacArthur DG
    13. Meier SR
    14. Nedzel JL
    15. Nguyen DT
    16. Segrè AV
    17. Todres E
    18. Balliu B
    19. Barbeira AN
    20. Battle A
    21. Bonazzola R
    22. Brown A
    23. Brown CD
    24. Castel SE
    25. Conrad DF
    26. Cotter DJ
    27. Cox N
    28. Das S
    29. de Goede OM
    30. Dermitzakis ET
    31. Einson J
    32. Engelhardt BE
    33. Eskin E
    34. Eulalio TY
    35. Ferraro NM
    36. Flynn ED
    37. Fresard L
    38. Gamazon ER
    39. Garrido-Martín D
    40. Gay NR
    41. Gloudemans MJ
    42. Guigó R
    43. Hame AR
    44. He Y
    45. Hoffman PJ
    46. Hormozdiari F
    47. Hou L
    48. Im HK
    49. Jo B
    50. Kasela S
    51. Kellis M
    52. Kim-Hellmuth S
    53. Kwong A
    54. Lappalainen T
    55. Li X
    56. Liang Y
    57. Mangul S
    58. Mohammadi P
    59. Montgomery SB
    60. Muñoz-Aguirre M
    61. Nachun DC
    62. Nobel AB
    63. Oliva M
    64. Park Y
    65. Park Y
    66. Parsana P
    67. Rao AS
    68. Reverter F
    69. Rouhana JM
    70. Sabatti C
    71. Saha A
    72. Stephens M
    73. Stranger BE
    74. Strober BJ
    75. Teran NA
    76. Viñuela A
    77. Wang G
    78. Wen X
    79. Wright F
    80. Wucher V
    81. Zou Y
    82. Ferreira PG
    83. Li G
    84. Melé M
    85. Yeger-Lotem E
    86. Barcus ME
    87. Bradbury D
    88. Krubit T
    89. McLean JA
    90. Qi L
    91. Robinson K
    92. Roche NV
    93. Smith AM
    94. Sobin L
    95. Tabor DE
    96. Undale A
    97. Bridge J
    98. Brigham LE
    99. Foster BA
    100. Gillard BM
    101. Hasz R
    102. Hunter M
    103. Johns C
    104. Johnson M
    105. Karasik E
    106. Kopen G
    107. Leinweber WF
    108. McDonald A
    109. Moser MT
    110. Myer K
    111. Ramsey KD
    112. Roe B
    113. Shad S
    114. Thomas JA
    115. Walters G
    116. Washington M
    117. Wheeler J
    118. Jewell SD
    119. Rohrer DC
    120. Valley DR
    121. Davis DA
    122. Mash DC
    123. Branton PA
    124. Barker LK
    125. Gardiner HM
    126. Mosavel M
    127. Siminoff LA
    128. Flicek P
    129. Haeussler M
    130. Juettemann T
    131. Kent WJ
    132. Lee CM
    133. Powell CC
    134. Rosenbloom KR
    135. Ruffier M
    136. Sheppard D
    137. Taylor K
    138. Trevanion SJ
    139. Zerbino DR
    140. Abell NS
    141. Akey J
    142. Chen L
    143. Demanelis K
    144. Doherty JA
    145. Feinberg AP
    146. Hansen KD
    147. Hickey PF
    148. Jasmine F
    149. Jiang L
    150. Kaul R
    151. Kibriya MG
    152. Li JB
    153. Li Q
    154. Lin S
    155. Linder SE
    156. Pierce BL
    157. Rizzardi LF
    158. Skol AD
    159. Smith KS
    160. Snyder M
    161. Stamatoyannopoulos J
    162. Tang H
    163. Wang M
    164. Carithers LJ
    165. Guan P
    166. Koester SE
    167. Little AR
    168. Moore HM
    169. Nierras CR
    170. Rao AK
    171. Vaught JB
    172. Volpi S
    (2020) The GTEx Consortium atlas of genetic regulatory effects across human tissues
    Science 369:1318–1330.
    https://doi.org/10.1126/science.aaz1776
    1. Karczewski KJ
    2. Francioli LC
    3. Tiao G
    4. Cummings BB
    5. Alföldi J
    6. Wang Q
    7. Collins RL
    8. Laricchia KM
    9. Ganna A
    10. Birnbaum DP
    11. Gauthier LD
    12. Brand H
    13. Solomonson M
    14. Watts NA
    15. Rhodes D
    16. Singer-Berk M
    17. England EM
    18. Seaby EG
    19. Kosmicki JA
    20. Walters RK
    21. Tashman K
    22. Farjoun Y
    23. Banks E
    24. Poterba T
    25. Wang A
    26. Seed C
    27. Whiffin N
    28. Chong JX
    29. Samocha KE
    30. Pierce-Hoffman E
    31. Zappala Z
    32. O’Donnell-Luria AH
    33. Minikel EV
    34. Weisburd B
    35. Lek M
    36. Ware JS
    37. Vittal C
    38. Armean IM
    39. Bergelson L
    40. Cibulskis K
    41. Connolly KM
    42. Covarrubias M
    43. Donnelly S
    44. Ferriera S
    45. Gabriel S
    46. Gentry J
    47. Gupta N
    48. Jeandet T
    49. Kaplan D
    50. Llanwarne C
    51. Munshi R
    52. Novod S
    53. Petrillo N
    54. Roazen D
    55. Ruano-Rubio V
    56. Saltzman A
    57. Schleicher M
    58. Soto J
    59. Tibbetts K
    60. Tolonen C
    61. Wade G
    62. Talkowski ME
    63. Aguilar Salinas CA
    64. Ahmad T
    65. Albert CM
    66. Ardissino D
    67. Atzmon G
    68. Barnard J
    69. Beaugerie L
    70. Benjamin EJ
    71. Boehnke M
    72. Bonnycastle LL
    73. Bottinger EP
    74. Bowden DW
    75. Bown MJ
    76. Chambers JC
    77. Chan JC
    78. Chasman D
    79. Cho J
    80. Chung MK
    81. Cohen B
    82. Correa A
    83. Dabelea D
    84. Daly MJ
    85. Darbar D
    86. Duggirala R
    87. Dupuis J
    88. Ellinor PT
    89. Elosua R
    90. Erdmann J
    91. Esko T
    92. Färkkilä M
    93. Florez J
    94. Franke A
    95. Getz G
    96. Glaser B
    97. Glatt SJ
    98. Goldstein D
    99. Gonzalez C
    100. Groop L
    101. Haiman C
    102. Hanis C
    103. Harms M
    104. Hiltunen M
    105. Holi MM
    106. Hultman CM
    107. Kallela M
    108. Kaprio J
    109. Kathiresan S
    110. Kim B-J
    111. Kim YJ
    112. Kirov G
    113. Kooner J
    114. Koskinen S
    115. Krumholz HM
    116. Kugathasan S
    117. Kwak SH
    118. Laakso M
    119. Lehtimäki T
    120. Loos RJF
    121. Lubitz SA
    122. Ma RCW
    123. MacArthur DG
    124. Marrugat J
    125. Mattila KM
    126. McCarroll S
    127. McCarthy MI
    128. McGovern D
    129. McPherson R
    130. Meigs JB
    131. Melander O
    132. Metspalu A
    133. Neale BM
    134. Nilsson PM
    135. O’Donovan MC
    136. Ongur D
    137. Orozco L
    138. Owen MJ
    139. Palmer CNA
    140. Palotie A
    141. Park KS
    142. Pato C
    143. Pulver AE
    144. Rahman N
    145. Remes AM
    146. Rioux JD
    147. Ripatti S
    148. Roden DM
    149. Saleheen D
    150. Salomaa V
    151. Samani NJ
    152. Scharf J
    153. Schunkert H
    154. Shoemaker MB
    155. Sklar P
    156. Soininen H
    157. Sokol H
    158. Spector T
    159. Sullivan PF
    160. Suvisaari J
    161. Tai ES
    162. Teo YY
    163. Tiinamaija T
    164. Tsuang M
    165. Turner D
    166. Tusie-Luna T
    167. Vartiainen E
    168. Vawter MP
    169. Ware JS
    170. Watkins H
    171. Weersma RK
    172. Wessman M
    173. Wilson JG
    174. Xavier RJ
    175. Neale BM
    176. Daly MJ
    177. MacArthur DG
    178. Genome Aggregation Database Consortium
    (2020) The mutational constraint spectrum quantified from variation in 141,456 humans
    Nature 581:434–443.
    https://doi.org/10.1038/s41586-020-2308-7

Article and author information

Author details

  1. Lianlei Wang

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Key Laboratory of Big Data for Spinal Deformities, Chinese Academy of Medical Sciences, Beijing, China
    4. Department of Orthopaedic Surgery, Qilu Hospital of Shandong University, Cheeloo College of Medicine, Shandong University, Jinan, China
    Contribution
    Conceptualization, Resources, Data curation, Funding acquisition, Investigation, Methodology, Writing – original draft, Project administration
    Contributed equally with
    Xinyu Yang, Sen Zhao and Pengfei Zheng
    Competing interests
    No competing interests declared

  2. Xinyu Yang

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Department of Orthopaedic Surgery, Qilu Hospital of Shandong University, Cheeloo College of Medicine, Shandong University, Jinan, China
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Validation, Investigation, Methodology, Writing – original draft, Writing – review and editing
    Contributed equally with
    Lianlei Wang, Sen Zhao and Pengfei Zheng
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0009-0002-6706-9857

  3. Sen Zhao

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Supervision, Investigation, Visualization, Methodology, Writing – original draft, Project administration
    Contributed equally with
    Lianlei Wang, Xinyu Yang and Pengfei Zheng
    Competing interests
    No competing interests declared

  4. Pengfei Zheng

    Institute of Evolution & Marine Biodiversity, College of Marine Life Science, Ocean University of China, Qingdao, China
    Contribution
    Software, Formal analysis, Methodology, Writing – original draft
    Contributed equally with
    Lianlei Wang, Xinyu Yang and Sen Zhao
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8729-0850

  5. Wen Wen

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Key Laboratory of Big Data for Spinal Deformities, Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Data curation, Software, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4858-8037

  6. Kexin Xu

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Key Laboratory of Big Data for Spinal Deformities, Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Data curation, Methodology, Writing – original draft
    Competing interests
    No competing interests declared

  7. Xi Cheng

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Key Laboratory of Big Data for Spinal Deformities, Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Data curation, Software, Formal analysis
    Competing interests
    No competing interests declared

  8. Qing Li

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Key Laboratory of Big Data for Spinal Deformities, Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Data curation, Software, Methodology
    Competing interests
    No competing interests declared

  9. Anas M Khanshour

    Center for Pediatric Bone Biology and Translational Research, Scottish Rite for Children, Dallas, United States
    Contribution
    Resources, Data curation
    Competing interests
    No competing interests declared

  10. Yoshinao Koike

    1. Laboratory for Statistical and Translational Genetics, RIKEN Center for Integrative Medical Sciences, Yokohama, Japan
    2. Laboratory for Bone and Joint Diseases, RIKEN Center for Integrative Medical Sciences, Yokohama, Japan
    Contribution
    Resources, Data curation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5431-5572

  11. Junjun Liu

    Institute of Evolution & Marine Biodiversity, College of Marine Life Science, Ocean University of China, Qingdao, China
    Contribution
    Resources, Software
    Competing interests
    No competing interests declared

  12. Xin Fan

    Department of Pediatric Endocrine and Metabolism, Maternal and Child Health Hospital of Guangxi Zhuang Autonomous Region, Nanning, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  13. Nao Otomo

    1. Laboratory for Statistical and Translational Genetics, RIKEN Center for Integrative Medical Sciences, Yokohama, Japan
    2. Laboratory for Bone and Joint Diseases, RIKEN Center for Integrative Medical Sciences, Yokohama, Japan
    Contribution
    Data curation, Software
    Competing interests
    No competing interests declared

  14. Zefu Chen

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Key Laboratory of Big Data for Spinal Deformities, Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Resources, Data curation, Formal analysis, Methodology
    Competing interests
    No competing interests declared

  15. Yaqi Li

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Key Laboratory of Big Data for Spinal Deformities, Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Data curation
    Competing interests
    No competing interests declared

  16. Lulu Li

    Department of Newborn Screening Center, Beijing Obstetrics and Gynecology Hospital, Capital Medical University, Beijing Maternal and Child Health Care Hospital, Beijing, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  17. Haibo Xie

    Institute of Evolution & Marine Biodiversity, College of Marine Life Science, Ocean University of China, Qingdao, China
    Contribution
    Conceptualization, Formal analysis, Supervision
    Competing interests
    No competing interests declared

  18. Panpan Zhu

    Institute of Evolution & Marine Biodiversity, College of Marine Life Science, Ocean University of China, Qingdao, China
    Contribution
    Software, Investigation
    Competing interests
    No competing interests declared

  19. Xiaoxin Li

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Department of Central Laboratory, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Resources, Investigation
    Competing interests
    No competing interests declared

  20. Yuchen Niu

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Department of Central Laboratory, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Supervision, Project administration
    Competing interests
    No competing interests declared

  21. Shengru Wang

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Key Laboratory of Big Data for Spinal Deformities, Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Supervision, Funding acquisition, Project administration
    Competing interests
    No competing interests declared

  22. Sen Liu

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Key Laboratory of Big Data for Spinal Deformities, Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Resources, Project administration
    Competing interests
    No competing interests declared

  23. Suomao Yuan

    Department of Orthopaedic Surgery, Qilu Hospital of Shandong University, Cheeloo College of Medicine, Shandong University, Jinan, China
    Contribution
    Resources, Supervision
    Competing interests
    No competing interests declared

  24. Chikashi Terao

    Laboratory for Statistical and Translational Genetics, RIKEN Center for Integrative Medical Sciences, Yokohama, Japan
    Contribution
    Supervision, Methodology, Project administration
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6452-4095

  25. Ziquan Li

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Key Laboratory of Big Data for Spinal Deformities, Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Resources
    Competing interests
    No competing interests declared

  26. Shaoke Chen

    Department of Pediatric Endocrine and Metabolism, Maternal and Child Health Hospital of Guangxi Zhuang Autonomous Region, Nanning, China
    Contribution
    Resources, Supervision, Project administration
    Competing interests
    No competing interests declared

  27. Xiuli Zhao

    Department of Medical Genetics, Institute of Basic Medical Sciences, Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing, China
    Contribution
    Resources, Project administration
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8238-6311

  28. Pengfei Liu

    1. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Baylor Genetics, Houston, United States
    Contribution
    Data curation, Supervision, Methodology, Project administration
    Competing interests
    affiliated to Baylor Genetics, Houston

  29. Jennifer E Posey

    Baylor Genetics, Houston, United States
    Contribution
    Resources
    Competing interests
    affiliated to Baylor Genetics, Houston

  30. Zhihong Wu

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Key Laboratory of Big Data for Spinal Deformities, Chinese Academy of Medical Sciences, Beijing, China
    4. Department of Central Laboratory, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Conceptualization, Resources
    Competing interests
    No competing interests declared

  31. Guixing Qiu

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Key Laboratory of Big Data for Spinal Deformities, Chinese Academy of Medical Sciences, Beijing, China
    4. Department of Central Laboratory, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Supervision, Project administration
    Competing interests
    No competing interests declared

  32. DISCO study group (Deciphering Disorders Involving Scoliosis & COmorbidities)

    Contribution
    Methodology, Project administration, Resources
    Competing interests
    No competing interests declared

  33. Shiro Ikegawa

    Laboratory for Bone and Joint Diseases, RIKEN Center for Integrative Medical Sciences, Yokohama, Japan
    Contribution
    Supervision, Project administration
    Competing interests
    J.R.L has stock ownership in 23andMe, is a paid consultant for Regeneron Pharmaceuticals and Novartis, and is a co-inventor on multiple United States and European patents related to molecular diagnostics for inherited neuropathies, eye diseases and bacterial genomic fingerprinting

  34. James R Lupski

    1. Departments of Pediatrics, Texas Children’s Hospital and Baylor College of Medicine, Houston, United States
    2. Texas Children’s Hospital, Houston, United States
    3. Human Genome Sequencing Center, Baylor College of Medicine, Houston, United States
    Contribution
    Resources, Supervision, Methodology, Project administration
    Competing interests
    No competing interests declared

  35. Jonathan J Rios

    1. Center for Pediatric Bone Biology and Translational Research, Scottish Rite for Children, Dallas, United States
    2. Department of Orthopaedics, University of Texas Southwestern Medical Center, Dallas, United States
    3. McDermott Center for Human Growth and Development, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Supervision, Funding acquisition, Project administration
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0969-2184

  36. Carol A Wise

    1. Center for Pediatric Bone Biology and Translational Research, Scottish Rite for Children, Dallas, United States
    2. Department of Orthopaedics, University of Texas Southwestern Medical Center, Dallas, United States
    3. McDermott Center for Human Growth and Development, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Resources, Project administration
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6790-2194

  37. Jianguo T Zhang

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Key Laboratory of Big Data for Spinal Deformities, Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Resources, Supervision, Funding acquisition, Validation, Visualization, Writing – original draft, Project administration, Writing – review and editing
    For correspondence
    jgzhang_pumch@yahoo.com
    Competing interests
    No competing interests declared

  38. Chengtian Zhao

    Institute of Evolution & Marine Biodiversity, College of Marine Life Science, Ocean University of China, Qingdao, China
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Validation, Visualization, Writing – original draft, Project administration, Writing – review and editing
    For correspondence
    chengtian_zhao@ouc.edu.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1236-914X

  39. Nan Wu

    1. Department of Orthopedic Surgery, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing, China
    2. Beijing Key Laboratory of Big Data Innovation and Application for Skeletal Health Medical Care, Beijing, China
    3. Key Laboratory of Big Data for Spinal Deformities, Chinese Academy of Medical Sciences, Beijing, China
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Validation, Visualization, Methodology, Writing – original draft, Project administration, Writing – review and editing
    For correspondence
    dr.wunan@pumch.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9429-2889

Funding

National Key Research and Development Program of China (2023YFC2509700)

  • Lianlei Wang

National Natural Science Foundation of China (81822030)

  • Nan Wu

National Natural Science Foundation of China (82102522)

  • Lianlei Wang

National Natural Science Foundation of China (31991194 & 32125015)

  • Chengtian Zhao

National Natural Science Foundation of China (82172382)

  • Jianguo T Zhang

Chinese Academy of Medical Sciences Initiative for Innovative Medicine (2021-I2M-1-051)

  • Nan Wu

Chinese Academy of Medical Sciences Initiative for Innovative Medicine (2021-I2M-1-052)

  • Zhihong Wu

Chinese Academy of Medical Sciences Initiative for Innovative Medicine (2020-I2M-C&T-B-030)

  • Jianguo T Zhang

Natural Science Foundation of Beijing Municipality (7222133)

  • Shengru Wang

Non-profit Central Research Institute Fund of Chinese Academy of Medical Sciences (No. 2019PT320025)

  • Nan Wu

National High Level Hospital Clinical Research Funding (2022-PUMCH-D-004)

  • Jianguo T Zhang

National High Level Hospital Clinical Research Funding (2022-PUMCH-C-033)

  • Nan Wu

Natural Science Foundation of Shandong Province (ZR202102210113)

  • Lianlei Wang

Taishan Scholar Project of Shandong Province

  • Lianlei Wang

Gabriella Miller Kids First Program grant (X01 HL132375-01A1)

  • Jonathan J Rios

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We appreciate all the patients, their families, and clinical research coordinators, including physicians who participated in this project. The authors also acknowledge the Texas Advanced Computing Center (TACC) at The University of Texas at Austin for providing computing resources that have contributed to the results related to the TSRHC cohort. URL: http://www.tacc.utexas.edu. The Department of Molecular and Human Genetics at Baylor College of Medicine derives revenue from the chromosomal microarray analysis (CMA by aCGH and/or SNP arrays), clinical exome sequencing (cES), and whole-genome sequencing (WGS) offered in the Baylor Genetics (BG) Laboratory (http://bmgl.com).

Ethics

Human subjects: Approval for the study was obtained from the ethics committee at the Peking Union Medical College Hospital (JS-098, JS-2364), the medical ethics committee of the Keio University Hospital (No. 20080129), the ethical committee of RIKEN Yokohama Institute (No. H20-17(8)), and the Institutional Review Board of the University Texas Southwestern Medical Center (protocol STU 112010‐150). Written informed consent was obtained from each participating individuals and families in the three cohorts. For the control group, the protocols were approved by the ethics committee at Peking Union Medical College Hospital.

Animal experimentation: All zebrafish studies were approved by the Animal Care Committee of the Ocean University of China (Animal protocol number: OUC2012316).

Version history

  1. Sent for peer review:
  2. Preprint posted:
  3. Reviewed Preprint version 1:
  4. Reviewed Preprint version 2:
  5. Version of Record published:

Cite all versions

You can cite all versions using the DOI https://doi.org/10.7554/eLife.95324. This DOI represents all versions, and will always resolve to the latest one.

Copyright

© 2024, Wang, Yang, Zhao et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 780
    views
  • 105
    downloads
  • 0
    citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Lianlei Wang
  2. Xinyu Yang
  3. Sen Zhao
  4. Pengfei Zheng
  5. Wen Wen
  6. Kexin Xu
  7. Xi Cheng
  8. Qing Li
  9. Anas M Khanshour
  10. Yoshinao Koike
  11. Junjun Liu
  12. Xin Fan
  13. Nao Otomo
  14. Zefu Chen
  15. Yaqi Li
  16. Lulu Li
  17. Haibo Xie
  18. Panpan Zhu
  19. Xiaoxin Li
  20. Yuchen Niu
  21. Shengru Wang
  22. Sen Liu
  23. Suomao Yuan
  24. Chikashi Terao
  25. Ziquan Li
  26. Shaoke Chen
  27. Xiuli Zhao
  28. Pengfei Liu
  29. Jennifer E Posey
  30. Zhihong Wu
  31. Guixing Qiu
  32. DISCO study group (Deciphering Disorders Involving Scoliosis & COmorbidities)
  33. Shiro Ikegawa
  34. James R Lupski
  35. Jonathan J Rios
  36. Carol A Wise
  37. Jianguo T Zhang
  38. Chengtian Zhao
  39. Nan Wu
(2025)
EPHA4 signaling dysregulation links abnormal locomotion and the development of idiopathic scoliosis
eLife 13:RP95324.
https://doi.org/10.7554/eLife.95324.3

Share this article

https://doi.org/10.7554/eLife.95324

Categories and tags

Research organisms
