The secretory pathway of eukaryotic cells packages cargo proteins into COPII-coated vesicles for transport from the endoplasmic reticulum (ER) to the Golgi. We now report that complete genetic deficiency for the COPII component SEC24A is compatible with normal survival and development in the mouse, despite the fundamental role of SEC24 in COPII vesicle formation and cargo recruitment. However, these animals exhibit markedly reduced plasma cholesterol, with mutations in Apoe and Ldlr epistatic to Sec24a, suggesting a receptor-mediated lipoprotein clearance mechanism. Consistent with these data, hepatic LDLR levels are up-regulated in SEC24A-deficient cells as a consequence of specific dependence of PCSK9, a negative regulator of LDLR, on SEC24A for efficient exit from the ER. Our findings also identify partial overlap in cargo selectivity between SEC24A and SEC24B, suggesting a previously unappreciated heterogeneity in the recruitment of secretory proteins to the COPII vesicles that extends to soluble as well as trans-membrane cargoes.https://doi.org/10.7554/eLife.00444.001
The endoplasmic reticulum (ER) is a structure that performs a variety of functions within eukaryotic cells. It can be divided into two regions: the surface of the rough ER is coated with ribosomes that manufacture various proteins, while the smooth ER is involved in activities such as lipid synthesis and carbohydrate metabolism. Proteins synthesized by the ribosomes attached to the rough ER are generally transferred to another structure within the cell, the Golgi apparatus, where they undergo further processing and packaging before being secreted or transported to another location within the cell.
Proteins are shuttled from the ER to the Golgi apparatus by vesicles covered with coat protein complex II (COPII). This complex is composed of an inner and outer coat, each of which is assembled primarily with two different SEC proteins: the SEC23/SEC24 protein heterodimer forms the inner coat of the COPII vesicle, and plays a key role in recruiting the appropriate protein cargos to the transport vesicle, while the SEC13/SEC31 protein heterotetramer forms the outer coat and is generally responsible for regulating vesicle size and rigidity.
Previous work found that mammals, including humans and mice, harbor multiple copies of several SEC protein genes, including two copies of SEC23 and four copies of SEC24. Both copies of SEC23 are derived from the same ancestral gene, and all four copies of SEC24 are derived from a different ancestral gene, and the availability of these copies potentially expands the range of properties that the vesicles can have. Insight into the roles of each SEC protein has come from work with SEC mutants. For example, a mutation in SEC23A was found to cause skeletal abnormalities in humans.
Here, Chen et al. report the results of experiments which showed that mice with an inactive Sec24a gene could develop normally. However, these mice experienced a 45% reduction in their plasma cholesterol levels because they were not able to recruit and transport a secretory protein called PCSK9, which is a critical regulator of blood cholesterol levels.
The work of Chen et al. reveals a previously unappreciated complexity in the recruitment of secretory proteins to the COPII vesicle and suggests that the various combinations of SEC proteins influence the proteins selected for transport to the Golgi apparatus. The work also identifies Sec24a as a potential therapeutic target for the reduction of plasma cholesterol, a finding that could be of interest to researchers working on heart disease and other conditions exacerbated by high cholesterol.https://doi.org/10.7554/eLife.00444.002
One-third of the vertebrate genome is predicted to encode proteins that are sorted into the secretory pathway en route to intracellular organelles, the cell surface, or the extracellular space (Palade, 1975; Bonifacino and Glick, 2004). Following synthesis in the endoplasmic reticulum, trans-membrane and soluble proteins co-translationally inserted into the ER are packaged into transport vesicles coated with COPII (coat protein complex II) for export from the ER and delivery to the Golgi for further processing (Lee et al., 2004). The assembly of the COPII coat is initiated at ER exit sites upon activation of the GTPase SAR1, which recruits the inner-coat heterodimer SEC23/SEC24, followed by the assembly of the outer-coat heterotetramer SEC13/SEC31 to generate carrier vesicles destined for the Golgi (Lee et al., 2004; Gurkan et al., 2006).
A key sorting event in ER-Golgi transport relies on recognition of specific signals within cargo molecules by the SEC24 subunit of the COPII complex (Miller et al., 2002, 2003; Lee et al., 2004), though SEC23 may also contribute to cargo selection in some cases (Kim et al., 2012). The SEC31/SEC13 outer-coat regulates the size and rigidity of COPII coats to package specialized cargos (Copic et al., 2012; Jin et al., 2012). Mammals express multiple paralogous forms of COPII, including two SAR1 GTPases (SAR1A/B), two SEC23s (SEC23A/B), four SEC24s (SEC24A-D), as well as two SEC31s (SEC31A/B), thus expanding the repertoire of potential COPII coat structures (Wendeler et al., 2007; Zanetti et al., 2011). Biochemical and structural studies of the COPII complex have identified multiple cargo recognition sites on SEC24 (Bi et al., 2002; Miller et al., 2003; Bickford et al., 2004; Gurkan et al., 2006; Mancias and Goldberg, 2008). The four mammalian SEC24 paralogs can be divided into two subfamilies, SEC24A/B and SEC24C/D, sharing ∼60% sequence identity within but only ∼25% identity across subfamilies (Mancias and Goldberg, 2008; Zanetti et al., 2011). Mammalian SEC24A/B exhibit ∼30% sequence identity to yeast SEC24p, compared to ∼25% for SEC24C/D. The latter share ∼30% identity with LST1p or ISS1p, the non-essential SEC24 paralogs in yeast (Roberg et al., 1999; Peng et al., 2000; Shimoni et al., 2000).
Although deletions of SAR1, SEC23, or SEC24 are all lethal in yeast (Lee et al., 2004), consistent with the broad function of ER-Golgi transport, mutations in the genes encoding several mammalian COPII components have been associated with remarkably limited phenotypes, often restricted to a specific cell type or tissue. Mutations in human SAR1B result in chylomicron retention disease (Anderson Disease), a distinct defect in fat absorption due to reduced chylomicron assembly and secretion by intestinal enterocytes (Jones et al., 2003; Annesi et al., 2007). In contrast, missense mutations in human SEC23A result in a characteristic syndrome of malformations restricted to the craniofacial skeleton (Boyadjiev et al., 2006, 2010), with similar skeletal abnormalities observed in SEC23A-deficient zebrafish (Lang et al., 2006). Mutations in human SEC23B result in the autosomal recessive disorder congenital dyserythropoietic anemia type II, with abnormalities restricted to the hematopoietic erythroid compartment (Bianchi et al., 2009; Schwarz et al., 2009). Surprisingly, although red blood cells appear grossly normal in SEC23B-deficient mice, these animals die at birth due to dramatic destruction of the pancreas (Tao et al., 2012).
Though human deficiency has not yet been reported for any of the four SEC24 paralogs, SEC24B deficiency in mice leads to failure in neural tube closure resulting from missorting of the signaling molecule VANGL2 (Merte et al., 2010). In contrast, murine SEC24D deficiency results in very early embryonic lethality (Baines et al., In press). Here, we report that complete deficiency of SEC24A is compatible with normal development and survival in mice. However, these animals exhibit markedly reduced plasma cholesterol due to selective blockade in the secretion of PCSK9, a circulating factor that negatively regulates cell surface LDL receptor expression.

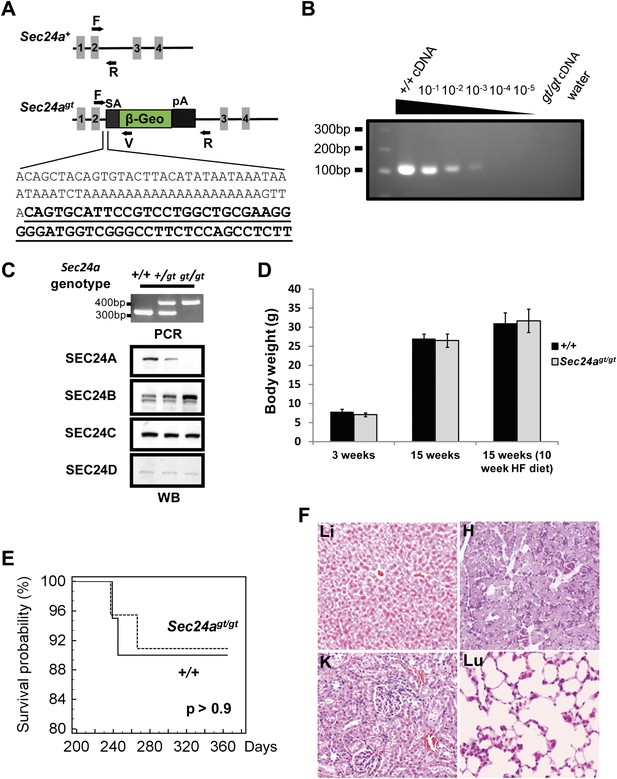

SEC24A-deficient mice were generated from an ES cell line carrying a gene trap insertion into intron two of Sec24a (Figure 1A). The gene trap allele (Sec24agt) is predicted to direct expression of a hybrid mRNA fusing Sec24a exons 1 and 2 with the gene trap cassette, resulting in a chimeric protein missing the C-terminal ∼85% of SEC24A (encoded by exons 3–23). An intercross between Sec24a+/gt heterozygous mice produced offspring of all three genotypes at the expected Mendelian ratios (Table 1). RT-PCR analysis of liver RNA prepared from Sec24agt/gt mice showed a >1000 fold reduction in normal splicing from Sec24a exon 2 to exon 3 across the gene trap, compared to control wild type mice (Figure 1B). Immunoblotting detected an ∼50% reduction in SEC24A protein in whole brain protein extracts from heterozygous Sec24a+/gt mice compared to wild type littermates, with no SEC24A detected in extracts from Sec24agt/gt mice (Figure 1C). Of note, SEC24B protein levels were increased in brain lysates from Sec24agt/gt mice, with a potential slight increase in Sec24a+/gt heterozygous mice, though no differences were observed for SEC24C or SEC24D (Figure 1C).
Sec24agt/gt mice were grossly indistinguishable from their wild type littermates and developed normally to adulthood with no difference in body weight on a normal or high fat diet (Figure 1D). Kaplan-Meier analysis showed no difference in the survival of wild type and Sec24agt/gt mice up to 12 months of age (Figure 1E). Sec24agt/gt male and female mice both exhibited normal fertility at ∼8 weeks of age with normal litter size (7.7 ± 1.4, n = 6, compared to 7.1 ± 1.0, n = 10 for congenic C57BL6/J controls, p>0.35). Gross and routine microscopic survey of multiple tissues failed to identify any obvious morphologic abnormalities in adult Sec24agt/gt mice (Figure 1F). Complete blood count (CBC) surveys were essentially normal in Sec24agt/gt mice compared to wild type controls, except for an ∼4% increase in mean corpuscular volume (MCV) and mean corpuscular hemoglobin (MCH) and a compensatory ∼6% decrease in red blood cell (RBC) number (Table 2).

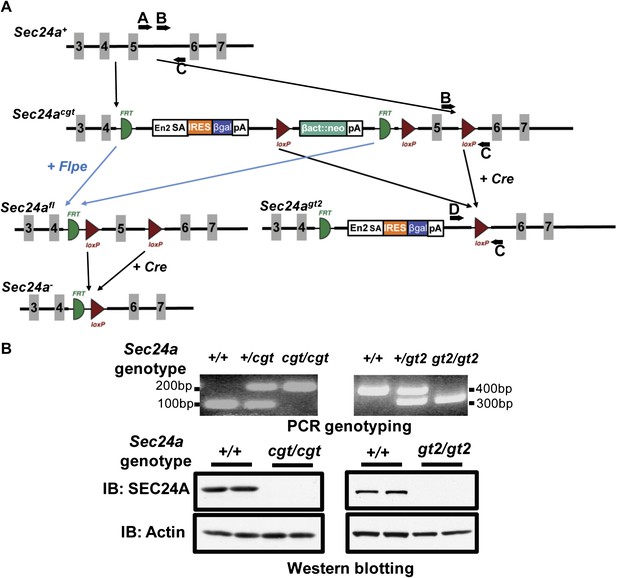

To exclude a contribution from residual function of the Sec24agt allele or a potential ‘passenger' gene mutation as a result of gene targeting (Westrick et al., 2010), we generated an additional series of Sec24a deficient mice from a second, independent Sec24a targeted allele (Figure 2A). The parental allele (Sec24acgt) contains a conditional gene trap insertion in Sec24a intron 4. Excision of the LoxP-flanked selection cassette and Sec24a exon 5 by Cre recombinase generated the Sec24agt2 allele, which results in a frame shift after the deleted exon 5 in addition to the gene trap. Removal of the FRT-flanked gene trap and selection cassette by Flpe recombinase generated the Sec24afl allele, which can be converted to the null Sec24a- allele by Cre recombinase. Sec24a+/cgt or Sec24a+/gt2 intercrosses both produced offspring with all three genotypes at the expected Mendelian ratios (Table 1). No SEC24A protein was detected in brain protein extracts from either Sec24acgt/cgt or Sec24agt2/gt2 mice (Figure 2B). Taken together, these data demonstrated that SEC24A is not required for survival, development, or fertility in the mouse.

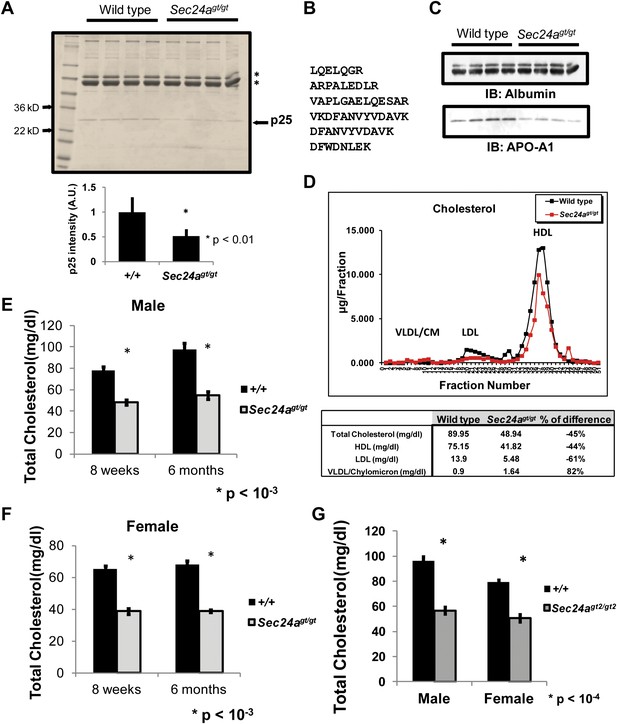

SDS-PAGE analysis of non-reduced plasma samples from Sec24agt/gt mice and their wild type littermates demonstrated no changes in several abundant plasma proteins, including albumin and transferrin (Figure 3A asterisks). However, a protein migrating at ∼25 kD consistently appeared under-represented by ∼50% in plasma samples from Sec24agt/gt mice (Figure 3A arrow, p25). Mass spectrometry identified this protein as apolipoprotein A-I (APO-A1) (Figure 3B), and quantification by spectral counts or mean peak area confirmed an ∼30–70% reduction of APO-A1 in Sec24agt/gt plasma compared to wild type. Immunoblotting confirmed an ∼40% decrease in APO-A1 levels in Sec24agt/gt plasma (Figure 3C).
APO-A1 is a core protein component of high-density cholesterol-containing lipoprotein particles and is also found in some other lipoprotein particle species in the circulation (Hoofnagle and Heinecke, 2009). For this reason, pooled plasma samples from overnight-fasted adult male Sec24agt/gt mice and their wild type littermates were fractionated by FPLC and cholesterol levels in each fraction were measured (Figure 3D). Total cholesterol and High Density Lipoprotein (HDL) cholesterol were reduced by ∼40% in Sec24agt/gt plasma compared to wild type, and Low Density Lipoprotein (LDL) cholesterol by ∼60%. Similarly reduced plasma cholesterol levels were observed in both male and female SEC24A-deficient mice at different ages (Figure 3E,F). The low cholesterol phenotype was also confirmed in mice harboring the second SEC24A-deficient allele, Sec24agt2/gt2 (Figure 3G).

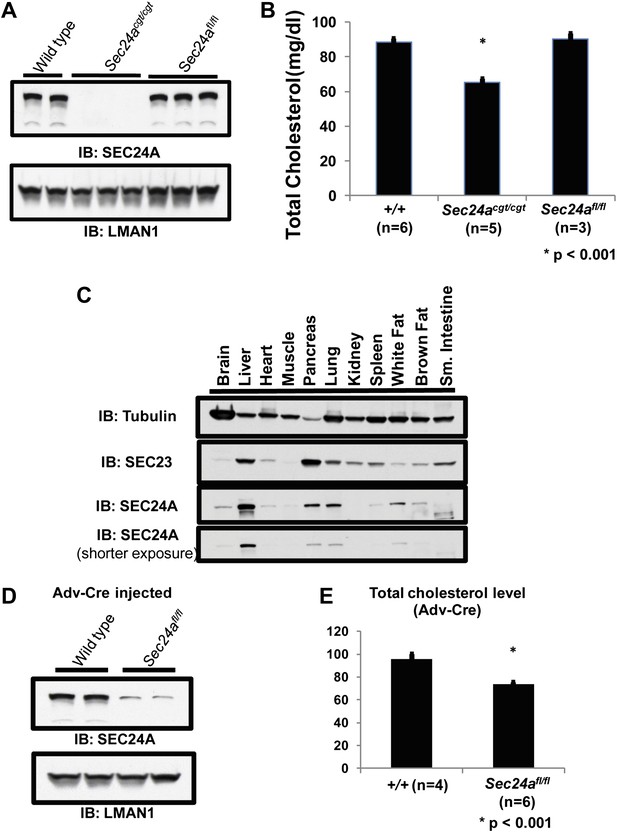

To further exclude a potential contribution from a passenger gene to the hypocholesterolemia phenotype (Westrick et al., 2010), we removed the conditional gene trap cassette from the Sec24acgt allele by germline Flpe-mediated excision (see Experimental procedures) to generate the Sec24afl allele. Sec24afl/fl mice exhibited full restoration of SEC24A expression in liver lysates (Figure 4A), as well as normalization of total plasma cholesterol levels (Figure 4B).
Analysis of public mRNA expression data revealed that Sec24a is ubiquitously expressed in multiple tissues (Rosenbloom et al., 2012). Immunoblotting confirmed that SEC24A was present in all tissues tested, although it was relatively enriched in the liver (Figure 4C). Hepatic Sec24a was selectively inactivated in Sec24afl/fl mice by injection of a Cre recombinase-expressing Adenovirus (Adv-Cre). Expression of SEC24A was reduced by 70–80% in the liver of Adv-Cre-treated Sec24afl/fl mice (Figure 4D), resulting in an ∼25% decrease in total cholesterol levels compared to wild type control mice receiving the same adenovirus (Figure 4E). Although this reduction in plasma cholesterol was less than observed in Sec24agt/gt mice, considering the incomplete deletion of hepatic Sec24a by Adv-Cre, these data suggest that loss of hepatic Sec24a expression is sufficient to explain the hypocholesterolemia observed in SEC24A-deficient mice.
The SREBP1/2 transcription factors, key determinants of cholesterol metabolism (Brown and Goldstein, 1997, 2009), undergo cleavage-dependent activation at the Golgi apparatus regulated by COPII-mediated transport from the ER through the chaperone protein SCAP (Sun et al., 2005, 2007; Brown and Goldstein, 2009). Thus, specific dependence of SREBP/SCAP on SEC24A for ER-Golgi transport could potentially account for the aberrant cholesterol metabolism in SEC24A-deficient mice. To test this hypothesis, we performed mRNA-Seq (Mortazavi et al., 2008) to examine the hepatic transcriptome in Sec24agt/gt mice (Figure 5A, Supplementary file 1). No significant differences were observed in the expression levels of the 20 most abundant hepatic transcripts between wild type and Sec24agt/gt mice (<1.2 fold, False Discovery Rate [FDR] > 0.4, Figure 5B). Among the ∼20,000 identified transcripts, only ∼30 showed significant down-regulation (>2 fold, FDR < 0.05, RPKM > 0.2), with Sec24a as the most significantly down-regulated mRNA in Sec24agt/gt liver (Figure 5C). Gene-ontology enrichment analysis failed to identify a consistent pattern in the changes in transcript levels, though modest shifts were noted in a few metabolic genes (Supplementary file 2). There was no significant correlation between the gene expression profile for Sec24agt/gt mice and previously reported profiles from mice with altered expression of SCAP or SREBP1/2 (Horton et al., 2003). Specifically, transcripts for direct SREBP1/2 targets, including the Low Density Lipoprotein Receptor (LDLR), HMG-CoA reductase, and PCSK9, remained unchanged by mRNA-seq and qPCR, though SCD1 was decreased by ∼50% in Sec24agt/gt mice (Figure 5D), as observed by mRNA-seq (FDR < 3 × 10−13). In addition, no detectable difference in the extent of SREBP1/2 cleavage was observed by immunoblotting of liver lysates from Sec24agt/gt mice and their wild type littermates (Figure 5E).
Of note, RNA-seq detected expression of all four SEC24 paralogs in normal liver, with the number of transcripts for Sec24c and Sec24d–twofold greater than Sec24a and 5–10 fold greater than Sec24b (Figure 5F). Quantitative immunoblotting using RFP-tagged SEC24A and SEC24C/D as references confirmed the presence of SEC24C/D proteins at similar levels to SEC24A in wild type liver, and no change in SEC24C/D levels in Sec24agt/gt liver (Figure 5G).

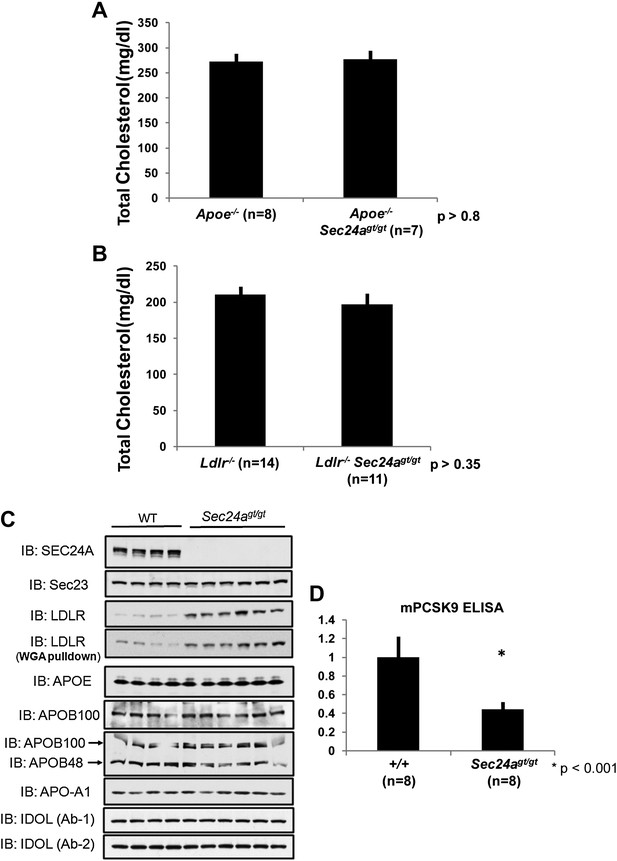

The reduction in circulating cholesterol in Sec24agt/gt mice could result from decreased hepatic output or increased clearance by the liver. To distinguish these two mechanisms, we crossed Sec24agt/gt mice with Apoe null mice, in which receptor-mediated clearance of cholesterol-rich lipoprotein remnant particles from the plasma is inhibited due to loss of the critical lipoprotein particle component APOE. Consistent with previous reports (Piedrahita et al., 1992; Zhang et al., 1992), Apoe-/- mice showed markedly elevated cholesterol levels (272 ± 13 mg/dl, n = 8). However, in contrast to the ∼45% reduction in plasma cholesterol observed in mice singly deficient for Sec24a (Figure 3D), the plasma cholesterol levels in Apoe-/-Sec24agt/gt mice (277 ± 14 mg/dl, n = 7) were indistinguishable (p>0.8) from singly Apoe-/- littermates (Figure 6A). Thus, Apoe is epistatic to Sec24a, suggesting that SEC24A may regulate cholesterol metabolism via the receptor-mediated clearance pathway. To further test this hypothesis, we also crossed Sec24agt/gt mice into the Ldlr null background. Consistent with previous reports (Ishibashi et al., 1993), Ldlr-/- mice exhibited markedly elevated plasma cholesterol levels (211 ± 9 mg/dl, n = 14). Doubly deficient Ldlr-/-Sec24agt/gt mice also displayed similarly elevated plasma cholesterol levels (197 ± 12 mg/dl, n = 11), indistinguishable (p>0.35) from their Ldlr-/- littermates (Figure 6B). Taken together, these data suggest that reduction in plasma cholesterol in SEC24A-deficient mice could result from increased clearance of cholesterol-rich lipoproteins by the LDLR. Consistent with this hypothesis, immunoblotting demonstrated elevated LDLR levels in liver protein extracts or in proteins bound to a wheat germ agglutinin (WGA) matrix from Sec24agt/gt mice compared to littermate controls, whereas other proteins including APOE, APOB48/100, or APO-A1 showed little alteration in the liver (Figure 6C). Since hepatic Ldlr transcripts remained unaltered in Sec24agt/gt by both mRNA-Seq and qPCR (Figure 5D), these data indicate that the reduction in LDLR protein levels in SEC24A-deficient mice was mediated via a translational or post-translational mechanism.
LDLR levels are regulated by intracellular factors such as the E3 ligase IDOL (Zelcer et al., 2009) and circulating PCSK9. The latter is secreted into the plasma primarily by hepatocytes, binding to LDLR and promoting its endocytosis and degradation (Costet et al., 2008; Horton et al., 2009). No difference in the level of IDOL was observed in immunoblotting of liver lysates prepared from SEC24A-deficient mice compared to their wild type littermates (Figure 6C). To assess a potential role for PCSK9 in the low plasma cholesterol phenotype of SEC24A-deficient mice, we measured circulating PCSK9 levels by ELISA. An ∼55% reduction of plasma PCSK9 was observed in Sec24agt/gt mice (Figure 6D), suggesting that SEC24A-deficiency may lower plasma cholesterol via reduced secretion of PCSK9.

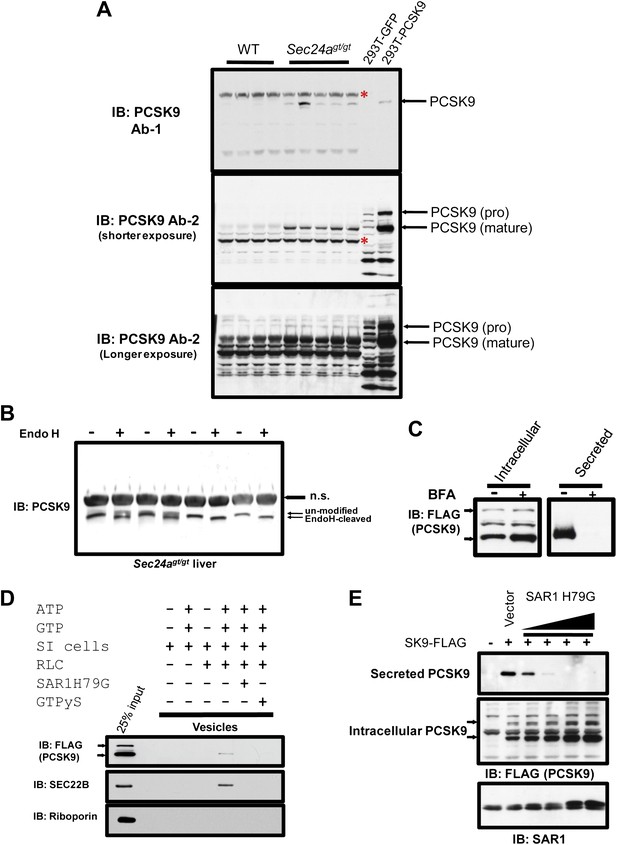

No change in PCSK9 hepatic mRNA was observed between SEC24agt/gt mice and their wild type littermates by mRNA-seq or qPCR (Figure 5D), suggesting a translational or post-translational mechanism for the reduction of circulating PCSK9 in SEC24A-deficient mice. Analysis of liver protein extracts by immunoblotting demonstrated significant accumulation of both mature and pro-PCSK9 in the liver of Sec24agt/gt mice compared to littermate controls (Figure 7A). To determine the site of PCSK9 intracellular accumulation, we treated liver lysates with endoglycosidase H (EndoH). Nearly all of the intracellularly-accumulated PCSK9 in Sec24agt/gt liver exhibited sensitivity to EndoH with faster eletrophoresis mobility (Figure 7B), suggesting that SEC24A deficiency leads to accumulation of PCSK9 in the ER.
These data suggest that COPII-dependent ER-Golgi transport plays a critical role in PCSK9 secretion from the cell. Belfeldin A (BFA) disrupts the Golgi apparatus and consequently the delivery of ER-derived COPII vesicles along the secretory pathway. When BFA was applied to a 293T cell line stably expressing PCSK9 fused with a C-terminal FLAG tag (PCSK9-FLAG), PCSK9 secretion into the medium was abolished and the protein accumulated intracellularly (Figure 7C). To directly test whether the COPII machinery plays a role in ER exiting of PCSK9, we employed permeabilized 293T cells stably expressing PCSK9-FLAG in an in vitro COPII vesicle budding assay. In the presence of rat liver cytosol supplying COPII components, along with ATP and GTP, PCSK9 was packaged into COPII vesicles that sedimented in a high-speed pellet fraction, together with the classic COPII cargo SEC22B, but not the ER resident protein roboporin (Figure 7D). ER budding of PCSK9 and SEC22B-containing vesicles were inhibited by GTPyS as well as constitutively active SAR1 (SAR1A H79G), both of which prevent GTP hydrolysis and subsequently COPII vesicle budding from the ER membrane (Figure 7D). Inhibition of COPII vesicle formation in cells by SAR1B H79G also prevented secretion of PCSK9 into the medium, with corresponding intracellular accumulation of the protein (Figure 7E). These data demonstrate that PCSK9 secretion is dependent on ER exiting in COPII-coated vesicles.

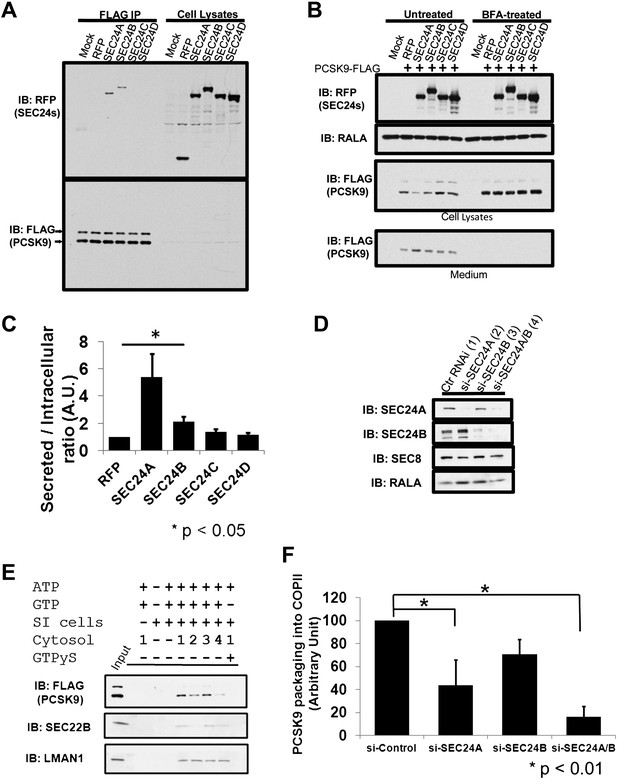

SEC24 plays a central role in the recruitment of cargos to the COPII vesicle (Miller et al., 2002, 2003), with different paralogs thought to provide specificity in cargo selection (Mancias and Goldberg, 2008; Zanetti et al., 2011). To test whether SEC24 paralogs provide specificity in transporting PCSK9, we introduced RFP-tagged SEC24A-D paired with GFP-tagged SEC23A into 293T cells stably expressing PCSK9-FLAG. SEC24A and SEC24B, but not SEC24C or SEC24D, associated with PCSK9 precipitated by anti-FLAG antibody in CHAPS-based buffer (Figure 8A), suggesting that SEC24A and SEC24B may selectively mediate PCSK9 ER exiting and secretion. To directly test this hypothesis, we introduced RFP-tagged SEC24A-D paired with GFP-tagged SEC23A together with PCSK9-FLAG into 293T cells. Expression of SEC24A paired with SEC23A (5.4 ± 1.7 fold compared to RFP control, p<0.05), and to a lesser extent SEC24B/SEC23A (2.1 ± 0.4 fold compared to RFP control, p<0.05), reduced intracellular levels of PCSK9 and led to increased secretion of the protein into the medium, while SEC24C or SEC24D in complex with SEC23A had little effect (Figure 8B,C). This effect was absent when ER-Golgi transport was blocked by BFA treatment, further suggesting that SEC24A, and to a lesser extent SEC24B, selectively mediate COPII-dependent secretion of PCSK9.
To more directly examine the dependence of PCSK9 on SEC24A for efficient exit from the ER, the in vitro COPII vesicle budding assay was performed using cytosols from rat hepatoma McA-RH777 cells treated with control siRNA, or siRNAs against SEC24A, SEC24B, or both proteins. Depletion of SEC24A/B was confirmed by immunoblotting (Figure 8D). Compared to control siRNA treatment, PCSK9 packaging into COPII vesicles was reduced upon depletion of SEC24A (Figure 8E,F), and to a greater extent with depletion of both SEC24A and SEC24B. Similar reduction in COPII vesicle packing was observed for SEC22B, consistent with the previous report of its selectivity as a cargo for SEC24A/B (Mancias and Goldberg, 2007). In contrast, packaging of the non-selective cargo, LMAN1, was not significantly altered by depletion of SEC24A, SEC24B, or both, consistent with previous reports (Mancias and Goldberg, 2007; Wendeler et al., 2007).

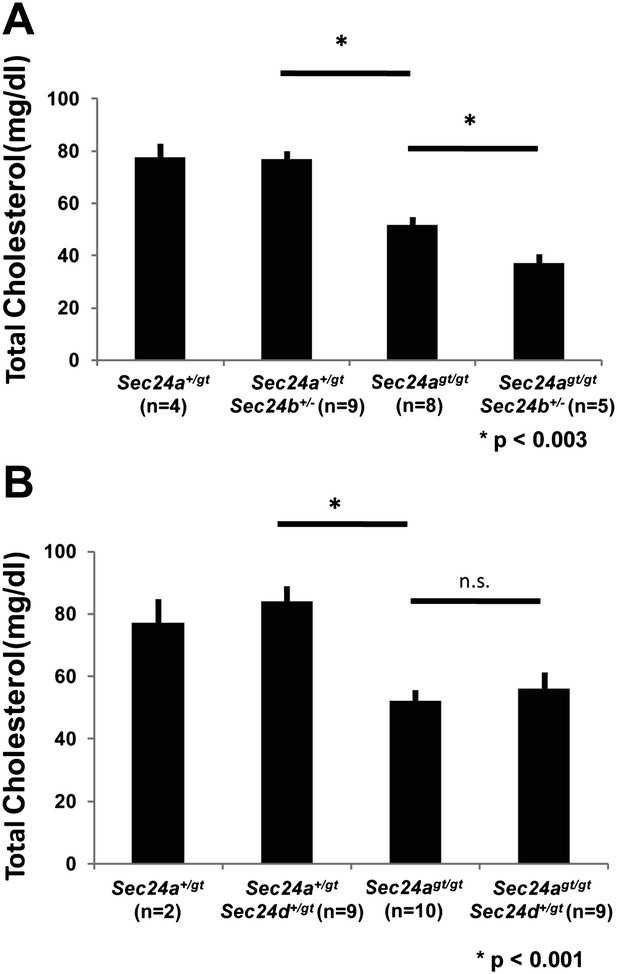

To test the selectivity of SEC24 paralogs in vivo, we performed crosses between SEC24B- and SEC24A-deficient mice (Table 1). Haplo-deficiency for both Sec24a and Sec24b resulted in no discernible phenotype and normal plasma cholesterol levels (Figure 9A). However, Sec24agt/gt mice that were also haplo-deficient for Sec24b exhibited a further ∼25% reduction in plasma cholesterol compared to Sec24agt/gt littermates (Figure 9A), although they appeared otherwise normal. These data suggest a partial overlap in function between SEC24A and SEC24B.
The possibility of genetic interaction between Sec24a and Sec24d was also examined (Table 1). As for SEC24B above, Sec24a+/gtSec24d+/gt compound heterozygous mice also exhibited no discernible phenotype and had normal plasma cholesterol (Figure 9B). Although SEC24D deficiency in mice results in early embryonic lethality (Baines et al., In press), Sec24agt/gtSec24d+/gt mice were also viable (Table 1) and displayed no further reduction in plasma cholesterol compared to Sec24agt/gt littermates (Figure 9B), indicating distinct functions between SEC24D and SEC24A/B.
The finding that complete deficiency of the COPII subunit SEC24A is compatible with normal survival and development in the mouse is surprising, in light of its ubiquitous expression and presumed fundamental function in the secretory pathway. However, examination of these animals uncovered an unexpected reduction in plasma cholesterol due to a specific block in the secretion of PCSK9, a circulating regulator of cell surface LDL receptor (Costet et al., 2008; Horton et al., 2009). Genetic crosses demonstrate that both Apoe and Ldlr are epistatic to Sec24a, suggesting that SEC24A primarily affects receptor-mediated cholesterol clearance of cholesterol-rich lipoproteins. Consistent with these genetic data, hepatic LDLR levels are up-regulated in SEC24A deficient mice as a consequence of a specific dependence of PCSK9 on SEC24A for efficient exit from the ER. Our findings also identify a partial overlap in cargo selectivity between SEC24A and B, and suggest a previously unappreciated heterogeneity in the recruitment of secretory proteins to the COPII vesicles that extends to soluble as well as trans-membrane cargos.
Yeast SEC24p play a central role in the recruitment of cargo proteins into COPII vesicles to enter the secretory pathway (Miller et al., 2002, 2003), and the non-essential SEC24 homologs LST1p and ISS1p may co-operate with SEC24p for efficient sorting of a specialized set of cargos (Roberg et al., 1999; Peng et al., 2000; Shimoni et al., 2000). The expansion of the SEC24 family in vertebrates may have facilitated the accommodation of a wider range of cargo proteins (Jensen and Schekman, 2011; Zanetti et al., 2011). This notion is supported by the diverse phenotypes observed in vertebrates with selective deficiency of a single SEC24 paralog. The mammalian subfamily of SEC24A/B exhibits greater sequence identity than SEC24C/D to the essential yeast gene product SEC24p, with SEC24C/D closer to the non essential yeast gene products LST1p and ISS1p (Peng et al., 2000; Mancias and Goldberg, 2008; Zanetti et al., 2011). However, SEC24A-deficient mice are remarkably normal, aside from reduced plasma cholesterol. Even the more severe neural tube closure defect in SEC24B-deficient mice (Merte et al., 2010) stands in stark contrast to the very early embryonic lethality in SEC24D-deficient mice (Baines et al., In press).
This wide range of SEC24-deficient phenotypes in vertebrates could be explained by either (1) paralog-specific sorting selectivity encoded by intrinsic cargo selectivity or (2) tissue/cell-type-specific differences in relative abundance. Our data, together with those of Merte et al. (Merte et al., 2010), suggest that intrinsic cargo selectivity among SEC24 paralogs is a key determinant of SEC24 function. The latter authors demonstrated specific dependence of VANGL2, a key component of the planar cell polarity signaling pathway, on the SEC24B paralog for ER exiting (Merte et al., 2010). Our findings identify PCSK9 as a specific SEC24A-dependent COPII cargo. Although all four SEC24 paralogs are expressed in the liver, loss of SEC24A disrupts PCSK9 secretion without affecting other COPII-dependent processes such as SREBP activation. SEC24B exhibits limited compensation for SEC24A, with combined genetic deficiencies providing no evidence for functional overlap with SEC24D. These data suggest overlapping cargo specificities between the members of the SEC24A/B subfamily, yet distinct from SEC24C/D. Furthermore, steady state levels of SEC24B, but not SEC24C/D, are increased in the absence of SEC24A (Figure 1C), although SEC24B mRNA levels remain constant. These data imply that SEC24A/B are balanced in a cytoplasmic pool distinct from SEC24C/D. Taken together, our data raise the possibility of extensive heterogeneity among COPII vesicles and their function in cargo selection and export, determined at least in part by SEC24 paralog composition.
Intrinsic selectivity of cargos by SEC24s presumably relies on specific protein-protein interactions (Lee et al., 2004; Zanetti et al., 2011). Trans-membrane proteins including SEC22, Syntaxin 5, APP1, and VANGL2, could preferentially interact with some but not all SEC24 paralogs for differential recruitment to the COPII vesicle (Mossessova et al., 2003; Kim et al., 2007; Mancias and Goldberg, 2008; Merte et al., 2010). In contrast, the cargo receptor LMAN1 interacts equally with all four SEC24 paralogs (Mancias and Goldberg, 2007; Wendeler et al., 2007). Structural studies have revealed distinct cargo binding sites among SEC24 paralogs that recognize different sorting signals in specific trans-membrane cargos (Mancias and Goldberg, 2008). Nevertheless, whether and how soluble cargos are selectively transported via COPII vesicles remain to be fully defined (Warren and Mellman, 1999; Lee et al., 2004; Jensen and Schekman, 2011).
The ‘bulk flow' model proposes that soluble cargos exit the ER by default without selection (Wieland et al., 1987; Martinez-Menarguez et al., 1999; Warren and Mellman, 1999; Thor et al., 2009), and would therefore predict that alterations of overall SEC24 abundance would proportionally affect secretion of all soluble cargos. The selective dependence of PCSK9 on SEC24A (and to a lesser extent on SEC24B), is inconsistent with this model. Indeed, PCSK9 represents the first example of a soluble vertebrate cargo that is differentially regulated by specific interaction with selective components of the COPII machinery. This specificity might be conferred by a cargo receptor that recruits PCSK9 into COPII vesicles for efficient secretion, in contrast to the bulk flow of more abundant soluble secretory proteins (Martinez-Menarguez et al., 1999; Warren and Mellman, 1999).
Yeast α-factor is recruited to COPII vesicles and interacts with SEC24 (Kuehn et al., 1998; Shimoni et al., 2000), likely through the cargo receptor ERV29p (Malkus et al., 2002). Genetic and biochemical studies have identified the LMAN1/MCFD2 complex as the cargo receptor for the soluble coagulation factors V and VIII in mammals (Nichols et al., 1998; Zhang et al., 2003, 2005; Khoriaty et al., 2012). Additionally, TANGO1 localized to ER exit sites facilitates loading of bulky cargos such as collagen VII (Saito et al., 2009, 2011). The existence of a PCSK9 ER cargo receptor has been proposed (Nassoury et al., 2007), but its identity has been unclear. Alternatively, COPII vesicles coated by SEC24C/D might exclude selected soluble cargos such as PCSK9. Additional cytosolic factor may also contribute to the selectivity among SEC24 paralogs as observed in the case of VANGL2 sorting (Merte et al., 2010). Taken together with the broad range of specific phenotypes observed for human and murine mutations in the genes for individual COPII components, our findings suggest the potential for considerable heterogeneity in the COPII machinery, enabling the accommodation of diverse cargos.
Although complete deficiency for SEC24B or SEC24A in mice is compatible with embryonic development or survival to adulthood, respectively, no human patients have yet been identified with genetic deficiencies in any of the four SEC24 paralogous genes. The SEC24A-deficient phenotype suggests a potential role for genetic variation at the SEC24A locus in the control of plasma cholesterol in humans, a key determinant of risk for myocardial infarction and stroke. Although genome-wide association studies for plasma lipid phenotypes have not identified a significant contribution from common genetic variants in the SEC24A gene (Teslovich et al., 2010), a role for rare alleles at this locus cannot be excluded. Complete deficiency of SEC24A, even in the presence of haplo-insufficiency of SEC24B, is compatible with survival and normal development in the mouse, suggesting that pharmacologic inhibition of hepatic SEC24A expression/function to achieve reduction in plasma cholesterol may be well tolerated as a potential approach to inhibit PCSK9 scretion.
ES cell clone XE182 (129 genetic background) with a gene-trap insertion into intron 2 of the Sec24a gene, was obtained from the International Gene Trap Consortium (IGTC). The XE182 ES cell clone was expanded and then injected into C57BL/6J blastocysts at the University of Michigan Transgenic Mouse Core. Germ-line transmission was achieved by mating chimeric founders with 129/SvImJ mice, and the resulting germ-line transmitted gene-trap allele was continuously backcrossed to C57BL/6J mice for at least seven generations prior to experimentation. Mice carrying a conditional Sec24a gene-trap allele in the C57BL6/J background were obtained from the Knockout Mouse Project (KOMP). Sec24b and Sec24d mutant mice have been described previously (Baines et al., In press; Merte et al., 2010). Genotyping was performed with mouse tail clip DNA using Go-Taq Green Master MIX (Promega, Madison, WI), and the resulting PCR products were resolved by 2% agarose gel electrophoresis. Primer sequences are listed under ‘Primer sequences'. Apoe (stock no. 002052), Apob (stock no. 007682), Ldlr (stock no. 002207), and Pcsk9 (stock no. 005993) mutant mice were obtained from The Jackson Laboratory. Transgenic mice (C57/BL6 background) carrying Flpe recombinase driven by an actin promoter (stock no. 005703) or Cre recombinase driven by an EIIA promoter (stock no. 003724) were obtained from the University of Michigan Transgenic Animal Core. Complete Blood Counts (CBC) were measured in an Advia120 whole blood analyzer (Bayer), according to the manufacturer's instructions. High fat diet (45% of Calories as fat) was purchased from Research Diets. Chow diet (TD 7001) supplemented with 60 mg/kg atorvastatin (Lipitor) was purchased from Harlan Teklad.
Animals were housed according to the guidelines of the University of Michigan Unit of Laboratory Animal Medicine (ULAM). Blood was collected using heparin-coated collection tubes (Fisher, Pittsburgh, PA) by retro-oribtal bleeding from mice anaesthetized with isoflurane. Fractionation of plasma samples and quantification of cholesterol were performed at the University of Cincinnati Mouse Metabolic Phenotyping Center. Adenovirus encoding Cre recombinase was purified and injected intravenously through mouse tail veins as previously described (Li et al., 2008). Plasma samples were then collected by centrifugation of heparinized blood samples at 3,000 g for 5 min at 4°C. Plasma cholesterol levels were measured with a colorimetric assay using the LiquiColor Cholesterol test kit (Stanbio, Boerne, TX). Plasma PCSK9 levels were determined using the mPCSK9 ELISA kit (Circulex, Woburn, MA), according to the manufacturer's instructions.
cDNAs of mouse Sec24 a/b/c/d were obtained from ATCC and sub-cloned into the pRFP-C1 vector (Chen et al., 2007) or the peGFP-C1 vector (Clontech, Mountain View, CA). Mouse Sec23a cDNA in the peGFP-C1 vector has been described previously (Tao et al., 2012). Mouse Pcsk9 cDNA was purchased from the ATCC and subcloned into the pLenti vector (Chen et al., 2007), with or without a FLAG epitope fused at the C-terminus of PCSK9. A mammalian expression construct of Sar1 H79G was kindly provided by B. Ye (University of Michigan). Other constructs have been described previously (Tao et al., 2012). All constructs were confirmed by complete DNA sequencing at the University of Michigan DNA Sequencing Core.
Ten µl plasma samples were first diluted with 90 µl Phosphate Buffer Saline (PBS; GIBCO, Grand Island, NY), and then mixed 1:1 with 2× SDS-PAGE sample buffer (Invitrogen, Grand Island, NY) without any reducing agent. 10 µl of each sample (equal to 0.5 µl plasma) was separated by 4–20% Tris-Glycine SDS-PAGE (Invitrogen) with the Seeblue Plus 2 protein size marker (Invitrogen). Gels were first rinsed with de-ionized water for 10 min, and fixed with 20% methanol + 10% acetic acid for 30 min. Fixed gels were stained with 1% coomassie brilliant blue (Sigma-Aldrich, St Louis, MO) in 25% methanol for 60 min before de staining with 15% methanol for 15 min (3 times). HPLC-ESI-MS/MS was performed as described previously (Yi et al., 2006; Chao et al., 2012) with instrument specific modifications. Briefly, the gel portions containing APOA1 were excised, destained, dehydrated, and subjected to trypsin digestion overnight. The resulting peptides were desalted and analyzed by on-line HPLC on a Linear Trap Quadrupole-Orbitrap Elite (LTQ-Orbitrap Elite).
An anti-SEC24A antibody was generated against a synthetic peptide (NTYDEIEGGGFLATPQL-C) in rabbits (Pacific Immunology, Ramona, CA). Purification of the rabbit serum was performed with an affinity column conjugated with the antigenic peptide as previously described (Chen et al., 2011a). Rabbit anti-FLAG antibody, mouse anti-actin antibody, and rabbit anti-SEC23 antibody were purchased from Sigma-Aldrich. Rabbit anti-PCSK9 (Ab-1) and rabbit anti-SREBP1 antibody were purchased from Santa Cruz Biotechnology. A second rabbit anti-PCSK9 antibody (Ab-2) was kindly provided by J Horton (UT Southwestern). Rabbit anti-APO-A1 antibody and rabbit anti-LMAN1 antibodies were purchased from Stressgen. Goat anti-albumin antibody, rabbit anti-SREBP2 antibody, rabbit anti-LDLR antibody, rabbit anti-Idol (Mylip) antibody, and HRP-conjugated anti-RFP antibody were purchased from Abcam (Eugene, OR). A second rabbit anti-Idol (Mylip) antibody was purchased from Protein Tech Group. Mouse anti-RALA antibody was purchased from BD Biosciences (Mountain View, CA). Preparation of anti-SAR1, anti-riboporin, anti-SEC24B, and anti-SEC22B antibodies, and purification of recombinant COPII proteins have been described previously (Kim et al., 2007).
Tissues were dissected from euthanized animals in cold PBS and immediately transferred to RNAlater (Ambion, Grand Island, NY) for storage. Total RNA was isolated using an RNeasy Kit (Qiagen). Whole transcriptome cDNA libraries were generated using TruSeq Stranded mRNA Sample Prep Kit (Illumina), sequenced on a Genome Analyzer II (Illumina, San Diego, CA), and sequencing data were mapped to the mouse reference genome mm9 using Bowtie (Langmead et al., 2009). Using ERANGE software (Mortazavi et al., 2008) (http://woldlab.caltech.edu/gitweb), the unique reads falling on the gene models and splice reads derived from splice junctions of genes were recorded. Following the author's recommendation, the unique reads were also re-evaluated by assessing a first-pass reads per KB per millions reads (RPKM), and the unique reads were subsequently re-calculated with weights computed during the first pass. All candidate regions that were within a 20 kb radius of a gene, a default parameter recommend by the script author, were reported. Final exonic read density (final RPKM) was determined according to the expanded exonic read density. Differential expression analysis was performed to compare wild type vs Sec24agt/gt. To obtain robust variance estimates, we empirically estimated the gene variance levels as a function of the average normalized read count per gene. Specifically, the gene-wise variance levels were estimated by calculating the differences in expression between samples for each gene, using local regression to predict the absolute value of the log-difference based on log2-read counts, and then estimating the variance using the standard sample variance formula and Fisher's Z distribution as in the methods of the eBayes function in the limma R package and in the IBMT method (Smyth, 2004; Sartor et al., 2006). This results in a moderated variance test that accounts for the dependence of variance on gene length and expression level. The variance estimates are expected to be slightly conservative, due to the assumption that relatively few genes are truly differentially expressed. Given the variance estimates, z-scores and p-values were calculated for each gene. Fold changes on the read counts (normalized per million bp) were calculated, and the p-values were adjusted for multiple testing using the Benjamini-Hochberg False Discovery Rate (FDR) approach (Benjamini et al., 2001). FDR < 0.05 and a fold change > 2 cut-off were used to select final up- and down-regulated gene lists. In addition to the gene level analysis, read counts and fold changes were also calculated using ERANGE for individual exons. Based on the counts of reads of individual exons and samples for each gene, Fisher's exact tests were performed to identify significant changes in expression ratios across exons, indicating differential splicing between the samples. Fisher's exact p-values were also adjusted for multiple testing using the Benjamini-Hochberg FDR approach. Reverse transcription was performed with the Superscript II cDNA Synthesis Kit (Invitrogen). The iQ SYBR Green Supermix (ABI) was used for quantitative RT-PCR as previously described (Li et al., 2008). PCR primers are listed under ‘Primer sequences.'
293T and rat hepatoma McA-RH777 cells were grown in Dulbecco's Modified Eagle Medium (DMEM, GIBCO) containing 10% FBS (Sigma-Aldrich) and 1% Pen-Strip (GIBCO) at 37°C in the presence of 5% CO2. 293T cells were transfected with Lipofectamine 2000 (Invitrogen) according to the manufacturer's instruction. McA-RH777 cells grown in six wells were first transfected with 100 nM siRNA pools (equal mixture of four different siRNAs; sequences are listed in ‘Primer Sequences') at ∼50% confluence. Cells were split 48 hr later to 60 mm dishes to ∼50% confluency for another round of siRNA treatment. Cytosol was prepared 48 hr after the third round of siRNA treatment. Production of lentivirus was carried out in 293T cells essentially as described (Chen et al., 2011a). Infection was performed by spinning viral particles onto cells at 1000 g for 45 min at room temperature in the presence of 8 μg/ml polybrene.
For experiments involving conditioned medium collection, cells were washed once with serum free DMEM medium and then maintained in serum free DMEM for 4 hr before harvest. Conditioned medium was then centrifuged at 3,000 g for 5 min at 4°C to sediment floating cells or debris. Brefeldin A was purchased from Cell Signaling and dissolved in ethanol and used at a final concentration of 1 µg/ml.
In vitro budding experiments using permeabilized cells were performed as previously described (Kim et al., 2007) with slight modification. Three plates of 293T cells stably expressing PCSK9-FLAG grown to ∼80–90% confluency were collected by trypsinization and sedimented at 750 g for 5 min at 4°C. Cells were resuspended in 6 ml of B88 buffer (20 mM HEPES pH 7.2, 250 mM sorbitol, and 150 mM KOAc) and permeabilized with 40 µg/ml digitonin on ice for 5 min. Permeabilization was stopped by adding ice-cold 8 ml of B88 buffer and permeabilized cells were sedimented at 750 g for 5 min at 4°C. After washing twice with 6 ml B88 buffer at 4°C, permeabilized cells were resuspended in 1 ml B88 buffer and centrifuged at 10,000 g for 1 min at 4°C. Permeabilized cells were then resuspended in 1 ml B88 buffer supplemented with 1 M MgCl2 for 10 min on ice to wash off cytosolic protein associated with cellular membranes. Permeabilized cells were then washed three times with 1 ml B88 buffer after being centrifuged at 10,000 g for 20 s, and finally resuspended in 0.2–0.3 ml B88 buffer. Budding reactions (100 µl) were assembled in non-stick eppendorf tubes on ice with 20 µl (OD600 = 0.1–0.2) semi-inact cells as donor membranes, 10 µl of 10× ATP regeneration system (10 mM ATP, 400 mM creatine phosphate, 2 mg/ml creatine phosphokinase, and 5 mM MgOAc in B88 buffer), 1.5 µl of 10 mM GTP, and rat liver cytosol at 4 mg/ml final concentration. For budding experiments with cytosols from McA-RH777 cells, the final concentration of cytosols was 2 mg/ml. Reactions were performed at 30°C for 60 min and stopped by centrifuging at 10,000 g for 10 min at 4°C. 75 µl supernatant was centrifuged in a TLA100 rotor at 100,000 g for 10 min at 4°C. The supernatants were discarded by pipetting with gel loading tips, and the high speed pellet fractions (include COPII vesicles) were thoroughly resuspended in 20 µl of 1× SDS sample buffer (Invitrogen) supplemented with 5% β-mercaptoethanol (β-ME) and heated at 55°C for 20 min before SDS-PAGE.
Proteins were extracted from tissues or cells at 4°C for 60 min with buffer A (100 mM Tris pH 7.5, 1% NP-40, 10% glycerol, 130 mM sodium chloride, 5 mM magnesium chroride, 1 mM sodium vanadate, 1 mM sodium fluoride, and 1 mM EDTA) supplemented with protease inhibitor tablets (Roche), according to the manufacturer's instructions. Supernatants were collected after spinning at 13,000 g at 4°C for 10 min, and mixed 1:1 with 2× SDS sample buffer (Invitrogen) with 10% β-ME (Sigma-Aldrich). For endoglycosidase H (Endo H) treatment, 20 µg of protein in 1× SDS sample buffer was incubated with 10U of Endo H (NEB) at 37°C for 2 hr. The enzyme was inactivated by heating at 70°C for 20 min. 10–20 µg of protein was loaded on 4–12% Tris-Glycine SDS-PAGE for separation. Protein extracts were incubated with 20 µl wheat germ agglutinin (WGA) beads (EY Laboratories, San Mateo, CA) for 4 hr at 4°C before washing four times with buffer A. Protein bound to WGA beads were solubilized with 1× SDS-PAGE sample buffer (Invitrogen) with 5% β-ME, and separated with 4–12% Tris-glycine SDS-PAGE (Invitrogen). Immunoprecipitation was carried out with cellular proteins extracted at 4°C for 30 min with CHAPS based buffer B (Kim et al., 2002) (100 mM Tris pH 7.5, 0.5% CHAPS, 10% glycerol, 130 mM sodium chloride, 10 mM sodium pyrophosphate, 5 mM magnesium chloride, 1 mM sodium fluoride, and 1 mM EDTA) supplemented with protease inhibitor tablets (Roche). Cell lysates were then incubated with 10 µl M2 agarose (Sigma-Aldrich) for 4 hr at 4°C before washing four times with buffer B. Immune-complexes were then solubilized with 1X SDS-PAGE sample buffer (Invitrogen) with 5% β-ME, and separated with 4–12% Tris-glycine SDS-PAGE (Invitrogen). Following SDS-PAGE, proteins were transferred onto nitrocellulose membranes (Bio-rad) and immunoblotting was performed as previously described (Chen et al., 2011b).
Sec24a-Exon3 (5′-AGCTGAGTTAAATGAAGGTGGGG) Hmgcr (5′-ATGTTCACCGGCAACAACAA, 5′-GCGATGCACCGCGTTATC) Ldlr (5′-CATCCGAGCCATTTTCACAGTC, 5′-CTGACTTGTCCTTGCAGTCTGC) Scd1 (5′-GCTGGAGTACGTCTGGAGGAA, 5′-TCCCGAAGAGGCAGGTGTAG) Mttp (5′-AGGCCGTCCAGAGCTTCCTG, 5′-GAGTCTGAGCAGAGGTGACG) Apob (5′-GAGTTCCAGATGGTGTCTCCAAG, 5′-CTTGGAGTCTGACAAAGCTTAGC) Apoe (5′-CAGACGCTGTCTGACCAGGTC, 5′-GTGTCTCCTCCGCCACTGGAC) Pcsk9 (5′-AGTTGCCCCATGTGGAGTACA, 5′-TCTGGGCGAAGACAAAGGAGT)
Stealth RNAi against rat Sec24a/b sense sequences:
Mammalian SEC24D deficiency leads to embryonic lethalityIn press, (In press), PLOS One.
Controlling the false discovery rate in behavior genetics researchBehav Brain Res 125:279–284.
The mechanisms of vesicle budding and fusionCell 116:153–166.
The SREBP pathway: regulation of cholesterol metabolism by proteolysis of a membrane-bound transcription factorCell 89:331–340.
Exocyst function is regulated by effector phosphorylationNat Cell Biol 13:580–588.https://doi.org/10.1038/ncb2226
PCSK9 and LDL cholesterol: unravelling the target to design the bulletTrends Biochem Sci 33:426–434.https://doi.org/10.1016/j.tibs.2008.06.005
The COPII cage: unifying principles of vesicle coat assemblyNat Rev Mol Cell Biol 7:727–738.https://doi.org/10.1038/nrm2025
PCSK9: a convertase that coordinates LDL catabolismJ Lipid Res 50:S172–S177.https://doi.org/10.1194/jlr.R800091-JLR200
mTOR interacts with raptor to form a nutrient-sensitive complex that signals to the cell growth machineryCell 110:163–175.
Bi-directional protein transport between the ER and GolgiAnnu Rev Cell Dev Biol 20:87–123.https://doi.org/10.1146/annurev.cellbio.20.010403.105307
Cargo selection into COPII vesicles is driven by the Sec24p subunitEmbo J 21:6105–6113.
Multiple cargo binding sites on the COPII subunit Sec24p ensure capture of diverse membrane proteins into transport vesiclesCell 114:497–509.
SNARE selectivity of the COPII coatCell 114:483–495.
Mutations in the ER-Golgi intermediate compartment protein ERGIC-53 cause combined deficiency of coagulation factors V and VIIICell 93:61–70.
Intracellular aspects of the process of protein synthesisScience 189:347–358.
Evidence for overlapping and distinct functions in protein transport of coat protein Sec24p family membersJ Biol Chem 275:11521–11528.
Generation of mice carrying a mutant apolipoprotein E gene inactivated by gene targeting in embryonic stem cellsProc Natl Acad Sci USA 89:4471–4475.
LST1 is a SEC24 homologue used for selective export of the plasma membrane ATPase from the endoplasmic reticulumJ Cell Biol 145:659–672.
ENCODE whole-genome data in the UCSC Genome Browser: update 2012Nucleic Acids Res 40:D912–D917.https://doi.org/10.1093/nar/gkr1012
Intensity-based hierarchical Bayes method improves testing for differentially expressed genes in microarray experimentsBMC Bioinformatics 7:538.
Lst1p and Sec24p cooperate in sorting of the plasma membrane ATPase into COPII vesicles in Saccharomyces cerevisiaeJ Cell Biol 151:973–984.
Linear models and empirical Bayes methods for assessing differential expression in microarray experimentsStat Appl Genet Mol Biol, 3, Article3, 10.2202/1544-6115.1027.
SEC23B is required for the maintenance of murine professional secretory tissuesProc Natl Acad Sci USA 109:E2001–E2009.https://doi.org/10.1073/pnas.1209207109
Bulk flow redux?Cell 98:125–127.
Spontaneous Irs1 passenger mutation linked to a gene-targeted SerpinB2 alleleProc Natl Acad Sci USA 107:16904–16909.https://doi.org/10.1073/pnas.1012050107
The rate of bulk flow from the endoplasmic reticulum to the cell surfaceCell 50:289–300.
Quantification of phosphorylation of insulin receptor substrate-1 by HPLC-ESI-MS/MSJ Am Soc Mass Spectrom 17:562–567.https://doi.org/10.1016/j.jasms.2005.12.010
COPII and the regulation of protein sorting in mammalsNat Cell Biol 14:20–28.https://doi.org/10.1038/ncb2390
Spontaneous hypercholesterolemia and arterial lesions in mice lacking apolipoprotein EScience 258:468–471.
Helen HobbsReviewing Editor; University of Texas Southwestern Medical School, United States
eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.
Thank you for choosing to send your work entitled “SEC24A Deficiency Lowers Plasma Cholesterol through Reduced PCSK9 Secretion” for consideration at eLife. Your article has been favorably evaluated by a Senior editor and 3 reviewers, one of whom, Helen Hobbs, is a member of our Board of Reviewing Editors.
The Reviewing editor and the other two reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission:
All three reviewers consider your paper suitable for publication in eLife after appropriate revisions have been made. The paper is of general interest to those in the secretory and lipoprotein metabolism fields. A summary of the reviewers' comments follows, which includes the experiments that need to be done for the paper to be accepted. Other comments and suggestions are provided that you may want to address, but these are not required for acceptance. We do not anticipate that the paper will be sent out for re-review.
The authors show that inactivation of Sec24a in mice using two different targeting constructs has no apparent effect on viability or development (up to 12 months), but results in a strikingly restricted phenotype, hypocholesterolemia. The authors provide evidence that this surprising result is caused by a reduction in secretion of PCSK9, a protein that binds the extracellular domain of the LDL receptor and promotes receptor degradation. The authors demonstrate convincingly that the knockout mice have reduced levels of circulating PCSK9 coupled with increased levels of both the ER-form of PCSK9 and of the LDLR in the liver. This is all consistent with the hypocholesterolemia in the Sec24a-/- mice being due to a deficiency in PCSK9 secretion, as hypothesized by the authors.
In vitro biochemical analyses reveal that SEC24A, but not other SEC24 isoforms, co-precipitate PCSK9 when the proteins are overexpressed in 293 cells and that overexpression of SEC24A enhances secretion of overexpressed PCSK9. These studies, combined with studies of other SEC24 isoform knockout mice, demonstrate differential requirements for COPII subunits in cargo selection at the ER. The relative selectivity of SEC24A for protein secretion is remarkable and of general interest. Since PCSK9 is a soluble cargo molecule, these data suggest that a PCSK9 cargo receptor may exist.
Substantive concerns to be addressed during revision

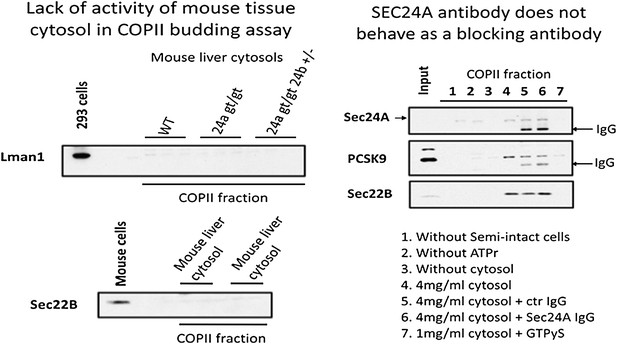

1) Although evidence is provided that PCSK9 is packaged in COPII vesicles using an in vitro COPII vesicle budding assay, the authors need to show a direct mechanistic link between SEC24A deficiency and PCSK9 secretion. This could be shown by knocking down SEC24A in the cells used in the COPII vesicle budding assay to determine if there is a selective reduction in PCSK9 trafficking. A more direct test would be to perform budding assay using mouse liver cytosol from WT versus Sec24a-/- mice.
Other mechanisms affecting LDLR levels should be ruled out. For example, are levels of the LDLR E3 ligase Idol altered in Sec24A knockout mice?
2) The quality of the PCSK9 blots on liver tissue do not permit assessment of the relative amounts of the full length versus cleaved PCSK9 (for example, see S Rashid et al. PNAS 2005). Even in the 293 cells stably expressing PCSK9, the mature form of the protein is not visible on immunoblotting due to the presence of a cross-reactive band. This problem could be avoided by using another anti-PCSK9 Ab.
3) The therapeutic potential of inactivating SEC24A should be de-emphasized. The suggestion that SEC24A may be a target for LDL lowering is premature, especially given the fact that there are phenotypic effects of inactivating Sec24A that are not due to a deficiency of PCSK9, including mild increases in RBC MCV and MCHC, and a >50% reduction in SCD1 mRNA. There are likely to be others.https://doi.org/10.7554/eLife.00444.016
