Phosphorylation-mediated PTEN conformational closure and deactivation revealed with protein semisynthesis

  1. David Bolduc
  2. Meghdad Rahdar
  3. Becky Tu-Sekine
  4. Sindhu Carmen Sivakumaren
  5. Daniel Raben
  6. L Mario Amzel
  7. Peter Devreotes
  8. Sandra B Gabelli  Is a corresponding author
  9. Philip Cole  Is a corresponding author
  1. Johns Hopkins University School of Medicine, United States
  2. University of California, San Diego, United States
Research Article
  • Cited 44
  • Views 1,800
  • Annotations
Cite this article as: eLife 2013;2:e00691 doi: 10.7554/eLife.00691

Abstract

The tumor suppressor PIP3 phosphatase PTEN is phosphorylated on four clustered Ser/Thr on its C-terminal tail (aa 380–385) and these phosphorylations are proposed to induce a reduction in PTEN’s plasma membrane recruitment. How these phosphorylations affect the structure and enzymatic function of PTEN is poorly understood. To gain insight into the mechanistic basis of PTEN regulation by phosphorylation, we generated semisynthetic site-specifically tetra-phosphorylated PTEN using expressed protein ligation. By employing a combination of biophysical and enzymatic approaches, we have found that purified tail-phosphorylated PTEN relative to its unphosphorylated counterpart shows reduced catalytic activity and membrane affinity and undergoes conformational compaction likely involving an intramolecular interaction between its C-tail and the C2 domain. Our results suggest that there is a competition between membrane phospholipids and PTEN phospho-tail for binding to the C2 domain. These findings reveal a key aspect of PTEN’s regulation and suggest pharmacologic approaches for direct PTEN activation.

https://doi.org/10.7554/eLife.00691.001

eLife digest

PTEN is an enzyme that is found in almost every tissue in the body, and its job is to stop cells dividing. If it fails to perform this job, the uncontrolled proliferation of cells can lead to the growth of tumors. PTEN stops cells dividing by localizing at the plasma membrane of a cell and removing a phosphate group from a lipid called PIP3: this sends a signal, via the PI3K pathway, that suppresses the replication and survival of cells.

Three regions of PTEN are thought to be central to its biological functions: one of these regions, the phosphatase domain, is directly responsible for removing a phosphate group from the lipid PIP3; a second region, called the C2 domain, is known to be critical for PTEN binding to the cell membrane; however, the role of third region, called the C-terminal domain, is poorly understood.

Many proteins are regulated by the addition and removal of phosphate groups, and PTEN is no exception. In particular, it seems as if the addition of phosphate groups to four amino acid residues in the C-terminal domain can switch off the activity of PTEN, but the details of this process have been elusive.

Now, Bolduc et al. have employed a variety of biochemical and biophysical techniques to explore this process, finding that the addition of the phosphate groups reduced PTEN’s affinity for the plasma membrane. At the same time, interactions between the C-terminal and C2 domains of the PTEN cause the shape of the enzyme to change in a way that ‘buries’ the residues to which the phosphate groups have been added.

In addition to offering new insights into PTEN, the work of Bolduc et al. could help efforts to identify compounds with clinical anti-cancer potential.

https://doi.org/10.7554/eLife.00691.002

Introduction

PTEN (phosphatase and tensin homolog deleted on chromosome 10) suppresses cell proliferation, migration and survival by dephosphorylating the lipid second messenger phosphatidyl inositol 3,4,5-triphosphate (PIP3), thereby opposing phosphatidyl inositol-3 kinase (PI3K) signaling and preventing AKT protein kinase activation (Maehama and Dixon, 1998; Myers et al., 1998; Sun et al., 1999; Iijima and Devreotes, 2002). PTEN is one of the most frequently mutated genes in cancer, with inactivating mutations found in many solid tumor types (Li et al., 1997; Steck et al., 1997). The PTEN gene has been shown to be inactivated through somatic and germline mutations as well as transcriptionally suppressed through epigenetic mechanisms (Salvesen et al., 2001; Meng et al., 2007; Hollander et al., 2011). Homozygous deletion of PTEN is embryonically lethal in mice while heterozygous mice are predisposed to developing tumors (Suzuki et al., 1998; Di Cristofano et al., 1999; Podsypanina et al., 1999). Germline mutations in PTEN predispose people to spontaneous tumor formation as seen in Cowden syndrome (Nelen et al., 1997).

PTEN is a 47 kDa (403 aa) protein composed of a ‘dual-specificity’ phosphatase domain, a C2 domain that mediates membrane association, and a 52 aa C-terminal tail (Figure 1A). An X-ray structure of PTEN, lacking the apparently flexible N-terminus (aa 1–13), internal D-loop (aa 286–309) and C-tail (aa 353–403), shows tight-knit interactions between the catalytic and C2 domains (Lee et al., 1999). The PTEN protein is believed to be regulated by a variety of mechanisms including post-translational modifications, protein–protein interactions, and protein–lipid interactions (Campbell et al., 2003; Iijima et al., 2004; Walker et al., 2004; Vazquez et al., 2006; Denning et al., 2007; Chagpar et al., 2009; Shenoy et al., 2012; Song et al., 2012). Previously mapped PTEN post-translational modifications include phosphorylation (Vazquez et al., 2000; Torres and Pulido, 2001; Miller et al., 2002; Al-Kouri et al., 2005; Cordier et al., 2012), acetylation (Okumura et al., 2006), ubiquitylation (Wang et al., 2007), and sumoylation (Huang et al., 2012). Phosphorylation of a cluster of Ser/Thr residues (Ser380, Thr382, Thr383, and Ser385) on PTEN’s C-terminal tail have received considerable attention in studies on PTEN regulation and appears to be a major modification (Wu et al., 2000; Vazquez et al., 2001; Odriozola et al., 2007; Rahdar et al., 2009). Reported to be catalyzed by the protein kinases CK2 and/or GSK3β (Torres and Pulido, 2001; Al-Khouri et al., 2005), this phospho-cluster is mutationally sensitive in cell assays, with replacements by Ala driving PTEN to the plasma membrane (Rahdar et al., 2009). While the molecular mechanism of how this is achieved is uncertain, altered protein–protein interactions (Wu et al., 2000; Vazquez et al., 2001; Sumitomo et al., 2004; Takahashi et al., 2006; van Diepen et al., 2009; Huang et al., 2012) as well as conformational changes (Odriozola et al., 2007; Rahdar et al., 2009) in PTEN have been suggested to be induced by phosphorylation. It has been unclear if phosphorylation of PTEN has a direct effect on membrane association or is indirectly mediated through other macromolecular interactions. Most PTEN phosphorylation analyses have relied on cellular transfection experiments in which replacement of the Ser and Thr residues with Ala have been indirect indicators of phosphorylation function. However, Ser and Thr have different properties from Ala and such mutations may be misleading in deducing the action of a phosphoSer/phosphoThr (Vazquez et al., 2000; Torres and Pulido, 2001; Al-Khouri et al., 2005). What has been lacking thus far is a biochemical analysis of purified phosphorylated PTEN in which the phosphorylation sites are well-defined in position and stoichiometry. Inherent challenges in obtaining this material include the difficulty in using kinases for introducing phosphates site-specifically into PTEN and the proposed potential for PTEN autodephosphorylation (Zhang et al., 2012). To circumvent these issues, we employ here expressed protein ligation, a method for protein semisynthesis (Schwarzer and Cole, 2005), for generating 380,382,383,385-tetraphosphorylated-PTEN (4p-PTEN). Expressed protein ligation involves the production of a recombinant protein carrying a C-terminal thioester by exploiting the action of an intein, and its chemoselective ligation to an N-Cys containing synthetic peptide (Muir et al., 1998; Vila-Perelló and Muir, 2010). Within the synthetic peptide, phosphoSer/phosphoThr can be installed using standard chemical techniques at specific locations. We show here that, relative to the unphosphorylated form, 4p-PTEN adopts a more compact conformation in which the C-tail appears to interact with the C2 domain in a fashion that reduces its affinity for lipid membranes and diminishes its catalytic activity.

Figure 1 with 3 supplements see all

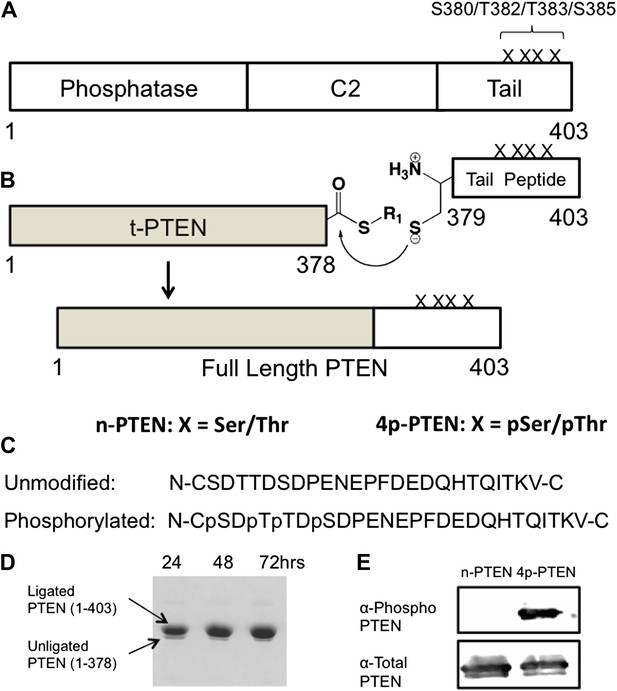

Generation of semisynthetic PTEN proteins.

(A) PTEN is composed of phosphatase domain, a C2 domain, and a C-terminal tail that is phosphorylated multiple times within a cluster of Ser and Thr residues (S380/T382/T383/S385). (B) C-terminally truncated PTEN containing an intein generated thioester at its C-terminus is ligated to a synthetic PTEN tail peptide with or without phosphorylation at the S380/T382/T383/S385 cluster. The final product is full length PTEN in the phosphorylated (4p-PTEN) or unphosphorylated (n-PTEN) form. (C) C-terminal tail peptides were synthesized in the unphosphorylated form or phosphorylated at S380/T382/T383/S385. Note that the N-Cys replaces a natural Tyr in PTEN. (D) The ligation reaction precedes smoothly over 72 hr. (E) Western blot with an anti-phospho PTEN antibody reveals 4p-PTEN but not n-PTEN is phosphorylated.

https://doi.org/10.7554/eLife.00691.003

Results

Semisynthesis of tetraphosphorylated and unphosphorylated PTEN (4p-PTEN and n-PTEN)

A requirement for expressed protein ligation is the correct positioning of a Cys for the native chemical ligation reaction (Muir et al., 1998; Schwarzer and Cole, 2005; Vila-Perelló and Muir, 2010). Initial attempts at generating semisynthetic PTEN focused on an Escherichia coli expression system. In this way, we showed that PTEN-intein fusion proteins allowed for generation of catalytically active recombinant PTEN thioester fragments (data not shown). We also determined using GST-PTEN that Cys was well-tolerated at the position needed for ligation, showing no change in catalytic activity induced by Y379C mutation (Figure 1—figure supplement 3D). However, expression in E. coli of the intein-fusion protein suffered from low yields of soluble PTEN protein expression (<0.1 mg/l culture) which was insufficient for our needs.

We thus subcloned aa 1–378 of PTEN (t-PTEN) into a baculovirus plasmid for insect cell expression. Ligation with a tetraphosphorylated (and unphosphorylated as a control) N-Cys synthetic peptide aa 379–403 (Figure 1C) proceeded smoothly over 72 hr, providing 8–10 mg/l of culture purified semisynthteic PTEN protein (Figure 1B,D). Tetraphosphorylated (4p-PTEN), unphosphorylated (n-PTEN) and C-terminally truncated PTEN (t-PTEN) were generated in this way (Figure 1—figure supplement 1). Semisynthetic proteins were >90% pure using Coomassie staining and their structural integrity confirmed by mass spectrometry (Figure 1—figure supplement 2C and D). Western blot with commercial anti-phospho-PTEN Ab showed that 4p-PTEN, and not n-PTEN, was appropriately phosphorylated (Figure 1E). It should also be noted that baculovirus systems have rarely been used for intein expression vectors (Pradhan et al., 1999), possibly in part because of the expression of chitinase in these hosts which interferes with the standard chitin affinity purification scheme. Nevertheless, we found the presence of chitinase to be a surmountable issue by a chromatographic pre-clearing step with a bed of fibrous cellulose. We also found that High Five insect cells rather than the more typical SF9 insect cells were critical for robust expression. Despite the theoretical concern about autodephosphorylation (Zhang et al., 2012), 4p-PTEN prepared in the presence of a PTEN phosphatase vanadate-based inhibitor was equally phosphorylated to that prepared in its absence (Figure 1—figure supplement 3E). Further experiments showed that 4p-PTEN did not undergo spontaneous pSer/pThr hydrolysis over 24 hr as monitored by western blot (Figure 1—figure supplement 3F).

Enzymatic characterization of 4p-PTEN

Initial analysis of 4p-PTEN catalytic activity was carried out with a soluble PIP3 substrate containing hexanoyl rather than the more physiological palmitoyl chains using a phosphate release detection assay with malachite green (Van Veldhoven and Mannaert, 1987). These studies revealed a ∼sixfold reduction in catalytic efficiency (kcat/Km) conferred by C-terminal phosphorylation in which 4p-PTEN shows a significantly higher soluble PIP3 Km (Figure 2A). To determine the enzymatic activity with a more physiologically relevant substrate, we analyzed 4p-PTEN’s dephosphorylation of vesicle-incorporated PIP3 (containing palmitoyl chains) (McConnachie et al., 2003). 3′-[32P] PIP3 was prepared by PI3-kinase and incorporated into vesicles containing unlabeled PIP3 and phosphatidylcholine (PC) (McConnachie et al., 2003). For interfacial enzymes such as PTEN, the bulk concentration as well as the surface concentration of the substrate in the lipid bilayer needs to be considered (Deems et al., 1975; Hendrickson and Dennis, 1984; McConnachie et al., 2003). We thus explored the rate of hydrolysis of PIP3 under conditions where the surface concentration of PIP3 was held constant while varying the bulk concentration of PIP3 and carrier lipid (phosphatidylcholine, PC) proportionately (bulk dilution). In addition, we measured PTEN activity under conditions where the surface concentration of PIP3 was varied while its bulk concentration was held constant by varying the carrier lipid PC (surface dilution). As described in the ‘Materials and methods’ section, apparent Vmax and apparent Km values obtained from these experiments were fit to the equations in the ‘Materials and methods’ section associated with the equation below:

V0=(Vmax*Xs*[S0])/(iKm*Ks+iKm*[S0]+Xs*[S0])

(McConnachie et al., 2003) in which XS is the surface concentration (mol fraction) of the substrate PIP3, S0 is the bulk concentration of PIP3, iKm is the interfacial Michaelis constant (mol%) and KS is the membrane dissociation constant for PTEN interaction with vesicles. Bulk dilution experiments yielded a rectangular hyperbola (Figure 2B), while surface dilution experiments showed apparent substrate inhibition at higher surface concentrations of PIP3 (Figure 2C). Using the lower substrate concentrations where substrate inhibition was minimal, the interfacial kinetic analysis revealed that n-PTEN and 4p-PTEN have similar iKm values with minor differences in kcat values (Figure 2E and Figure 2—figure supplement 1C). However, at 1% PIP3, the Ks value of 4p-PTEN showed a ∼threefold increase compared to that of n-PTEN, suggesting a decrease in binding affinity for the vesicle membrane when PTEN is phosphorylated (Figure 2E). n-PTEN Ks and iKm values were similar to those of t-PTEN (Figure 2—figure supplement 2), indicating that the unphosphorylated tail extension does not hinder membrane interactions. Our data suggest that at low (<1 mol%) PIP3 concentrations which are physiologic, the rate differential between n-PTEN and 4p-PTEN is significant (Figure 2D).

Figure 2 with 3 supplements see all

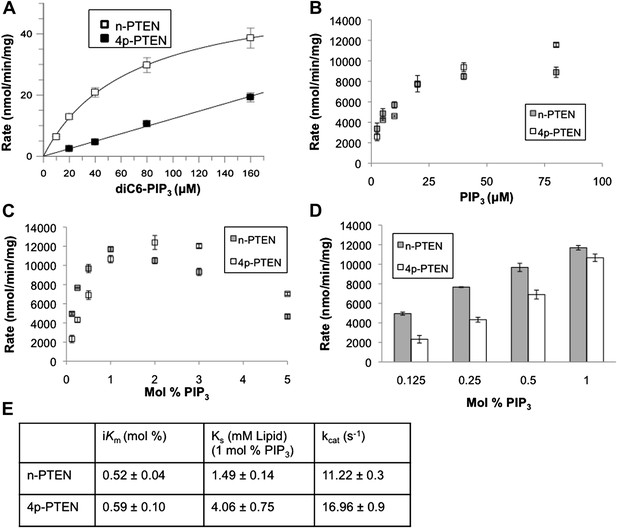

Soluble substrate activity and Interfacial kinetic analysis of semisynthetic PTEN.

(A) PTEN activity to a soluble substrate, diC6-PIP3. (n-PTEN: kcat = 2.6 ± 0.1 min−1, Km = 67 ± 4.2 μM, kcat/Km = 0.038 ± 0.001 min−1μM−1; 4p-PTEN: kcat/Km = 0.005 ± 0.0002 min−1μM−1) (B and C) PTEN activity to palmitoyl PIP3 incorporated into phosphatidylcholine vesicles. In the bulk dilution experiment (B) enzymatic activity for n-PTEN and 4p-PTEN was measured at a fixed surface concentration of 1% PIP3 while the bulk concentration was varied. In the surface dilution experiment (C) activity was measured at a fixed bulk concentration of 50 μM PIP3 while the surface concentration was varied. (D) 4p-PTEN has lower activity than n-PTEN only at low PIP3 concentrations. (E) Summary of the interfacial kinetic analysis of n-PTEN and 4p-PTEN. Data are reported as the mean ± the SEM from three experiments performed in duplicate. Apparent Vmax values were obtained from the best fit curves from the first four points of the surface dilution experiments.

https://doi.org/10.7554/eLife.00691.007

Anionic lipid vesicle 4p–PTEN-interactions

To further analyze the apparent membrane affinity loss conferred by PTEN tail phosphorylation, we explored the binding interactions of semisynthetic PTENs with vesicles containing anionic phospholipids. As reported previously for unphosphorylated PTEN produced in E. coli (McConnachie et al., 2003), we found that increasing levels of both phosphatidylserine (PS) and PIP2 in vesicles positively influence PIP3 dephosphorylation by both n-PTEN and 4p-PTEN (Figure 2—figure Supplement 3). We next carried out a series of PTEN-vesicle binding assays using PIP2 and PS as membrane targeting lipids by measuring differential sedimentation fractionation. These experiments demonstrated markedly reduced membrane binding for 4p-PTEN vs n-PTEN under all conditions tested (Figure 3A,B and Figure 3—figure supplement 1). Both n-PTEN and 4p-PTEN show proportionally greater binding to vesicles as concentrations of PIP2 and PS are increased, but 4p-PTEN compared with n-PTEN requires a significantly higher concentration of anionic lipid to achieve a similar level of membrane sedimentation. For example, 7 mol% PIP2 sedimented about one-fifth of 4p-PTEN, which was comparable to the amount of n-PTEN sedimented by 3 mol% PIP2 (Figure 3A). With 5 mol% PS, the ratio of n-PTEN:4p-PTEN sedimented was about 10:1 (Figure 3B). These results corroborate the PTEN affinity differences observed in the phosphatase assays where C-tail phosphorylation of PTEN inhibited membrane binding.

Figure 3 with 1 supplement see all

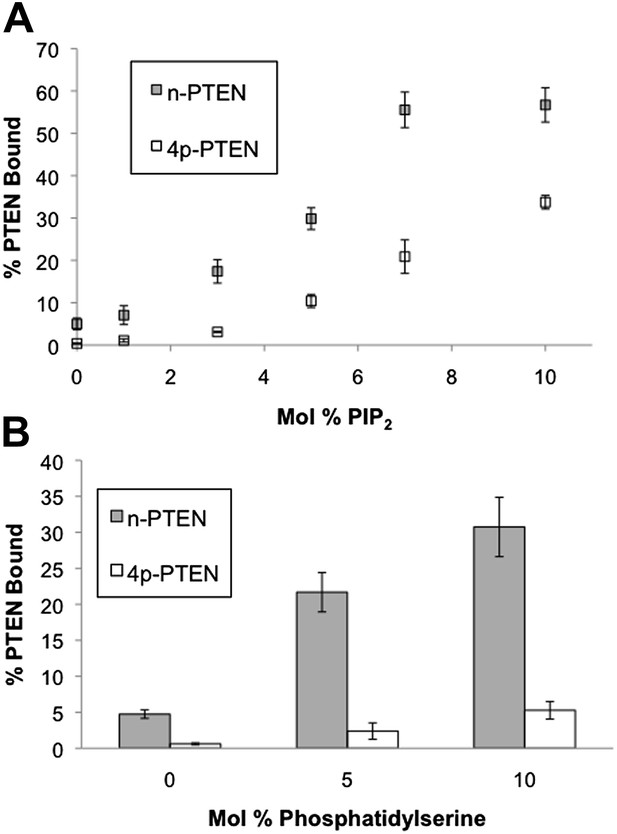

n-PTEN and 4p-PTEN binding to large multilamellar vesicles (LMVs).

The percent of n-PTEN and 4p-PTEN bound to sedimented phosphatidylcholine LMVs incorporated with (A) PIP2 or (B) phosphatidylserine was determined by quantification of western blot bands. Data are reported as the mean ± the SEM of three separate experiments.

https://doi.org/10.7554/eLife.00691.011

Conformational analysis of 4p-PTEN using ion exchange chromatography, limited proteolysis, and alkaline phosphatase sensitivity

It has been proposed that C-terminal phosphorylation of PTEN may alter its conformation (Odriozola et al., 2007; Rahdar et al., 2009). In the course of purification of our semisynthetic PTENs by anion exchange chromatography, we made the paradoxical observation that the tetraphosphorylated PTEN reproducibly eluted at an earlier elution volume (∼70 ml and lower salt concentration, 90 mM NaCl) and more sharply relative to the unphosphorylated protein (∼100 ml, 140 mM NaCl) (Figure 4A). Elution of n-PTEN as one large peak followed by multiple small peaks was attributed to minor heterogeneous insect cell-mediated phosphorylation in the recombinant tail moiety on and near Thr366 and Ser370 as detected with a site-specific Ab (Figure 4—figure supplement 1B). A similar elution pattern was observed with t-PTEN (Figure 4—figure supplement 1A). This heterogeneity is presumably collapsed under one peak in 4p-PTEN. Since 4p-PTEN has a nominal eight negative charge increase relative to n-PTEN, we were surprised that 4p-PTEN showed decreased affinity to cationic resin. One explanation for this result is that, relative to n-PTEN, 4p-PTEN undergoes a conformational change which buries its negatively charged C-tail, reducing its availability for interacting with cationic resin. The fact that clusters of charges can be more important than overall charge for protein–ion exchange resin interactions has been discussed previously (Chung et al., 1989; Hou et al., 2010).

Figure 4 with 2 supplements see all

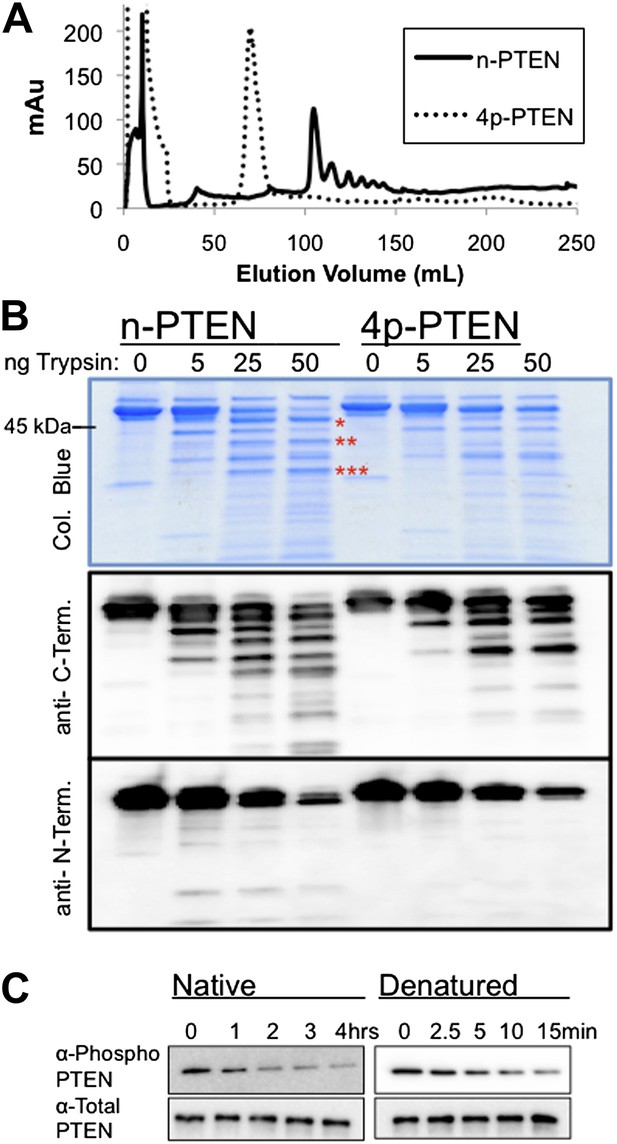

Conformational changes associated with PTEN phosphorylation.

(A) With a gradient of 0–50% NaCl over 250 ml on an anion exchange column, 4p-PTEN elutes at ∼70 ml while n-PTEN elutes at ∼100 ml. (B) 2 μg of n-PTEN and 4p-PTEN were digested with varying amounts of trypsin then visualized by colloidal blue staining or by western blot with an antibody to the N- or C-terminus of PTEN. Asterisks denote bands that are in higher abundance in the digestion of n-PTEN compared to 4p-PTEN. N-terminal sequencing of these bands identifies the cleavage sites as (*) R15, (**) R84 and (***) R161. (C) Denatured 4p-PTEN treated with 0.5 μM alkaline phosphatase is significantly more sensitive to dephosphorylation of the tail phosphocluster compared to the native form of 4p-PTEN treated with 1 μM alkaline phosphatase.

https://doi.org/10.7554/eLife.00691.013

To further explore the conformation of 4p-PTEN, we compared its susceptibility to trypsin proteolysis relative to n-PTEN. 4p-PTEN appeared more protease resistant vs its unphosphorylated counterpart as seen most clearly at 25 and 50 ng trypsin (Figure 4B). Based on western blots with N-terminal and C-terminal PTEN Abs, several large metastable fragments still containing C-terminal epitopes were observed in n-PTEN, indicative of enhanced protease sensitivity in the catalytic domain in the unphosphorylated protein. N-terminal sequencing identified several of these cleavage positions (Figure 4B).

Alkaline phosphatase sensitivity and western blotting was used to assess the exposure of the C-terminal 380–385 phospho cluster in 4p-PTEN (Wang et al., 2002). The half-life of alkaline phosphatase-mediated dephosphorylation of 4p-PTEN under the conditions used was found to be ∼60 min (Figure 4C and Figure 4—figure supplement 2A). Serendipitously, we found that freeze-thawing dilute 4p-PTEN led to apparent denaturation of the protein since it was much more susceptible to alkaline phosphatase catalyzed dephosphorylation of the tail phosphate cluster. Under the same conditions, near complete dephosphorylation was observed within 7.5 min. To more precisely determine this rate, we cut in half the concentration of alkaline phosphatase, and assumed that this process follows a pseudo-first-order kinetic mechanism. In this way, we estimate that native 4p-PTEN vs denatured 4p-PTEN shows a 25-fold reduced rate of alkaline phosphatase-catalyzed dephosphorylation of the tail phospho cluster (Figure 4C and Figure 4—figure supplement 2B). We infer that this rate-differential suggests a closed:open 4p-PTEN conformational equilibrium of 25:1 under the conditions of this experiment.

Small angle X-ray scattering (SAXS) analysis of semisynthetic PTENs

To gain more information on the structural changes induced by PTEN tail phosphorylation, we performed small angle X-ray scattering (SAXS) analysis of t-PTEN, n-PTEN, and 4p-PTEN. The scattering plots are shown in Figure 5A for each protein. The shape of the pair distance distribution function p(r) plot for n-PTEN reveals a single hump with a large shoulder region at higher r values (Figure 5B). The shoulder region is indicative of a protein with an elongated shape (Putnam et al., 2007; Jacques and Trewhella, 2012), possibly due to the presence of the extended tail. The shoulder is reduced for t-PTEN and 4p-PTEN, suggesting the tail is no longer in an extended position (Figure 5B). The radius of gyration (Rg) and maximum dimension (Dmax) of the PTEN particles can be used as measurements of protein size. Rg values calculated from the Guinier and p(r) plots are in agreement for each respective protein. Obtained from the p(r) plot, the Rg for n-PTEN (31.91 +/− 0.054 Å) is larger than it is for 4p-PTEN (27.16 +/− 0.019 Å) and t-PTEN (27.82 +/− 0.083 Å). Dmax is also larger for n-PTEN (96.5 Å) than it is for 4p-PTEN (82.5 Å) and t-PTEN (82.5 Å) (Figure 5D).

Figure 5 with 1 supplement see all

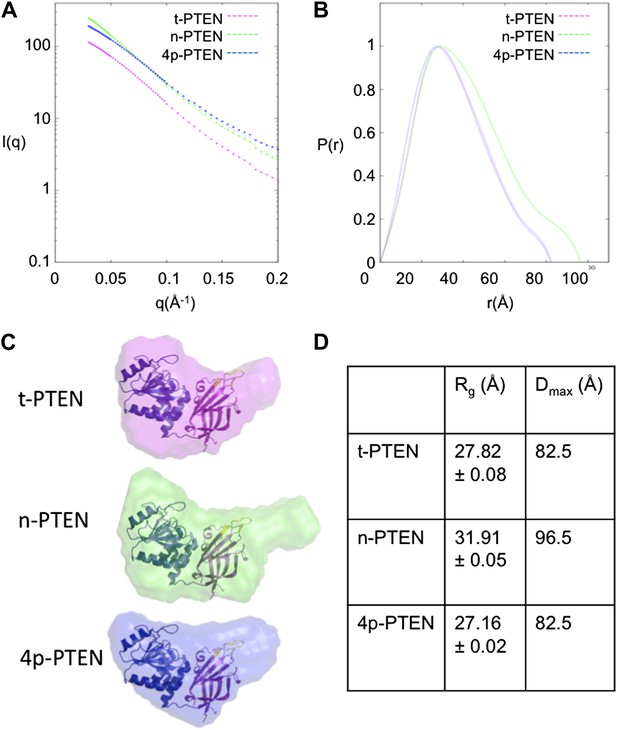

SAXS analysis for t-PTEN, n-PTEN and 4p-PTEN.

(A) Scattering diagrams and (B) pair distribution function (Pofr) plots for t-PTEN, n-PTEN, and 4p-PTEN. (C) The molecular envelopes for t-PTEN, n-PTEN, and 4p-PTEN overlaid with the tailless crystal structure containing the phosphatase domain (blue), C2 domain (magenta), and CBRIII loop (yellow). (D) Summary of Rg and Dmax values for t-PTEN, n-PTEN, and 4p-PTEN.

https://doi.org/10.7554/eLife.00691.016

Molecular envelopes of t-PTEN, n-PTEN and 4p-PTEN were generated from the scattering data using the ab initio modeling program DAMMIN (Putnam et al., 2007; Franke and Svergun, 2009; Jacques and Trewhella, 2012). Outputs from 10 DAMMIN runs, averaged for each protein using DAMAVER, are shown overlaid with the tailless crystal structure in Figure 5C (Figure 5—figure Supplement 1). The tailless crystal structure containing the phosphatase and C2 domains fits nicely into the two-lobed globular portion of each envelope. The molecular envelope for n-PTEN reveals an elongated extension proximal to the C2 domain (Figure 5C). The molecular envelope for t-PTEN, which contains half of the 52 residue tail, shows a small extension, similar in length to that of 4p-PTEN, but perhaps not as wide. Interestingly, the 4p-PTEN phosphatase domain appears to undergo a modest change in shape relative to t-PTEN and n-PTEN (Figure 5C and Figure 5—figure supplement 1).

Mutagenesis analysis of semisynthetic PTENs

Based on prior models as well as the proteolysis and SAXS experiments, we constructed several mutant semisynthetic PTENs to investigate possible PTEN residues that contribute to the closed conformation of 4p-PTEN (Figure 6—figure supplement 1). Semisynthetic phospho- and unphosphorylated PTEN containing four mutations K13A, R14A, R15A, and R161A (‘N-mutant’) was constructed to test the possibility that these basic residues in the N-terminus, co-localized in the crystal structure and implicated in phospholipid binding, might be critical in stabilizing the closed 4p-PTEN conformation. We also generated the penta-mutant unphosphorylated and phosphorylated PTENs containing K260A/K263A/K266A/K267A/K269A (‘A5-mutant’) and K260D/K263D/K266D/K267D/K269D (‘D5-mutant’) as neutral and charge inverted forms that probe the importance of the CBRIII loop in the C2 domain to conformational constriction. A fourth construct of semisynthetic PTEN that included deletions in the N-terminus (aa 1–6), D-loop (aa 286–309), and C-terminus (aa 395–403, and also contained T366A/S370A), (‘X-mutant’) was prepared to facilitate comparisons to the crystallized form of PTEN which possessed the same N-terminal and ‘D-loop’ deletions (Lee et al., 1999). These semisynthetic PTEN mutants were generated analogously to that of n-PTEN and 4p-PTEN. Anion exchange chromatography showed the same paradoxical behavior for the phosphorylated forms of the N-mutant, A5-mutant, and X-mutant PTENs with faster than expected elution of these semisynthetic proteins. Of note, elution of the unligated X-mutant PTEN on anion exchange chromatography sharpened to a single peak compared to the broader distribution of unligated wt PTEN (t-PTEN), presumably because mutation of Thr366/Ser370 abolishes the phosphorylation events that lead to heterogeneity (Figure 6—figure supplement 2). Moreover, N-mutant, A5-mutant, and X-mutant 4p-PTEN proteins showed nearly identical rates of dephosphorylation by alkaline phosphatase relative to wt 4p-PTEN indicating that they are each in the same ∼25:1 equilibrium favoring the closed conformation (Figure 6A and Figure 6—figure supplement 3).

Figure 6 with 5 supplements see all

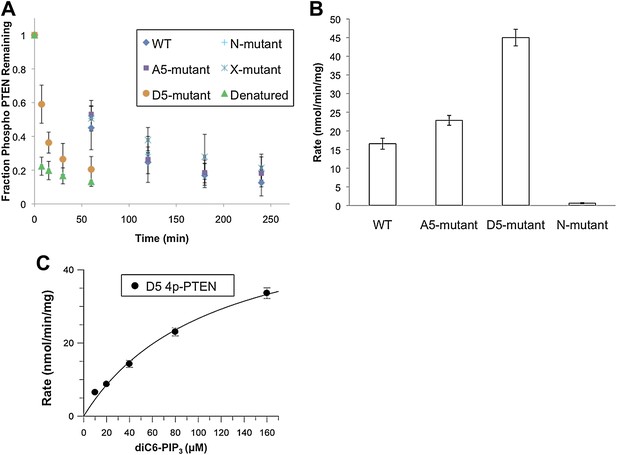

Phosphatase sensitivity and activity of 4p-PTEN and its mutants.

(A) The rate of dephosphorylation of 4p-PTEN and its mutants was measured by quantification of bands from western blot analysis after treatment of the PTEN protein with 1 μM alkaline phosphatase. Data points are shown as the mean ± the SEM of three experiments. (B) PTEN activity was measured against 160 μM diC6-PIP3 substrate. (C) Km curve of D5 4p-PTEN mutant (kcat = 3.0 ± 0.3 min−1, Km = 112 ± 22 μM, kcat/Km = 0.027 ± 0.003 min−1μM−1). Data points are shown as the mean ± the SEM of three experiments performed in duplicate.

https://doi.org/10.7554/eLife.00691.018

In contrast, the D5 mutant 4p-PTEN showed a distinctive biochemical behavior. With respect to anion exchange chromatography, D5 mutant 4p-PTEN eluted broadly with much of the protein eluting at higher NaCl concentrations than the unphosphorylated D5 mutant (Figure 6—figure supplement 4). Later elution is the expected profile for a typical phosphorylated protein relative to an unphosphorylated protein compared with the paradoxical pattern for n- and 4p- semisynthetic PTENs. In addition, D5 mutant 4p-PTEN was dephosphorylated about eightfold faster than the native wt 4p-PTEN and only threefold slower than denatured wt 4p-PTEN, implying that the tail phosphate cluster is dramatically more exposed in the D5 mutant (Figure 6A and Figure 6—figure Supplement 3). We considered the possibility that Asp substitutions of the Lys residues in the D5 mutant led to overall protein destabilization and denaturation. However, D5- mutant 4p-PTEN readily processed soluble PIP3 substrate, ∼threefold faster than wt and A5-mutant 4p-PTENs (Figure 6B). Moreover, the D5-mutant 4p-PTEN phosphatase activity showed saturation with soluble PIP3 (Figure 6C), with catalytic parameters approaching those of n-PTEN, consistent with a more open conformation than that of wt 4p-PTEN. Taken together, these results make clear that the penta-Asp substitutions in the CBRIII loop are non-denaturing but can significantly disrupt the closed conformation of 4p-PTEN, presumably by electrostatic repulsion of the anionic tail. As reported previously (Campbell et al., 2003), the activity of the N-mutant which contains mutations of K13, R14, and R15 to alanine, is reduced compared to wt (Figure 6B and Figure 6—figure supplement 5).

Intermolecular interactions between t-PTEN and C-tail phosphopeptide

We investigated the possibility that the synthetic C-tail tetraphosphorylated peptide (aa 379–403, 4p-25mer) used in ligation could modulate the activity of truncated (t-PTEN, aa 1–378) in an intermolecular fashion using the soluble PIP3 substrate phosphatase assay. In this assay, t-PTEN showed similar behavior to n-PTEN, with saturable kinetics as a function of soluble PIP3 (compare Figures 7B and 2A). Of note, the C-tail phosphopeptide 4p-25mer, but not the unphosphorylated peptide n-25mer, was a potent inhibitor of t-PTEN soluble PIP3 phosphatase activity with an IC50 ∼ 1 μM (Figure 7A). In the presence of 1 μM 4p-25mer, the t-PTEN phosphatase activity showed an increase in Km for soluble PIP3 (Figure 7B), mimicking the behavior of 4p-PTEN. Strikingly, the D5 mutant form of t-PTEN was resistant to the inhibition by 4p-25mer at concentrations up to 10 μM of the peptide (Figure 7C). Analogous to its effects on t-PTEN phosphatase activity, 4p-25mer but not n-25mer inhibited t-PTEN binding to PIP2 vesicles, although less potently presumably because of competition for binding surfaces on the body of PTEN between the vesicle lipids and the 4p-25mer tail peptide (Figure 7D). Taken together, these experiments reveal that the intermolecular effects of the C-tail phosphopeptide on the PTEN body resemble those proposed for the intramolecular conformational change in 4p-PTEN.

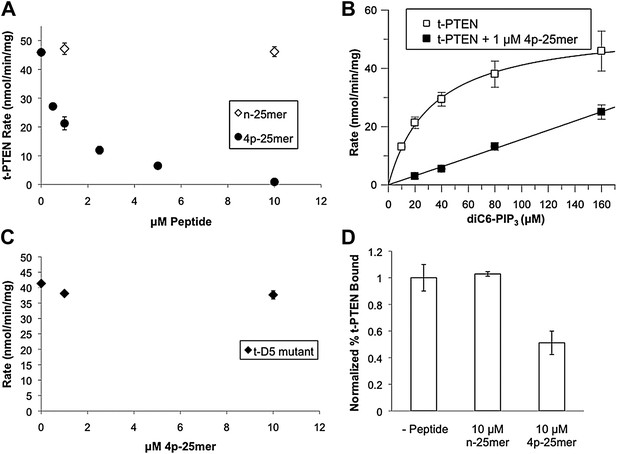

In trans peptide inhibition and binding of PTEN.

(A) Tail peptide inhibition of t-PTEN with either n-25mer or 4p-25mer. (B) Km curve of t-PTEN in the absence (kcat = 2.9 ± 0.1 min−1; Km = 33 ± 2.1 μM, kcat/Km = 0.088 ± 0.004 min−1μM−1) or presence (kcat/Km = 0.006 ± 0.0003 min−1μM−1) of 1 μM 4p-25mer phosphopeptide. (C) Reduced inhibition of D5 t-PTEN mutant in the presence of 4p-25mer peptide. (D) Vesicle sedimentation of t-PTEN in absence and presence of 10 μM tail peptides. Data points are shown as the mean ± the SEM of three experiments performed in duplicate.

https://doi.org/10.7554/eLife.00691.024

Discussion

The evidence developed here points to a straightforward model for how phosphorylation regulates PTEN structure and function. Upon phosphorylation on the 380–385 Ser/Thr cluster, the PTEN C-terminal modified tail clamps down intramolecularly on the C2 domain in the vicinity of the CBRIII loop, preventing PTEN from binding the plasma membrane and reducing its catalytic action toward PIP3 (Figure 8). The combined structural data including ion exchange chromatographic behavior, trypsin protease susceptibility, alkaline phosphatase sensitivity, and SAXS analysis point to a more compact 4p-PTEN relative to n-PTEN in which the phosphates on the tail are concealed.

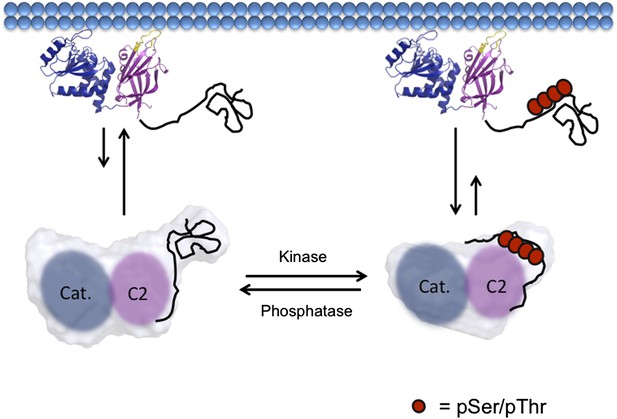

Model of PTEN regulation by phosphorylation.

Upon phosphorylation, PTEN adopts a more compact conformation with the phosphorylated tail condensing around the CBRIII loop and membrane binding surface of the C2 domain, preventing it from binding to the plasma membrane. When dephosphorylated, the tail of PTEN is no longer bound tightly to the C2 domain, allowing for the open PTEN protein to bind efficiently to the plasma membrane. Both phosphorylated and unphosphorylated PTEN are in the same open conformation when bound to the plasma membrane.

https://doi.org/10.7554/eLife.00691.025

While it is formally possible that the phospho-tail of PTEN could cause indirect effects on the C2 domain by binding elsewhere on the PTEN body, the accumulated evidence argues for a direct phospho-tail–C2 interaction. The SAXS results suggest that phospho-tail is in close proximity to the C2 domain. Replacement of the PTEN Lys cluster of the CBRIII loop with Asp residues (5D mutant) but not Ala residues (5A mutant) in 4p-PTEN renders the phospho-tail more susceptible to alkaline phosphatase hydrolysis, presumably because the anionic phosphate tail clashes with the Asp carboxylate negative charges. The intermolecular effects of the 4p-25mer C-tail on the t-PTEN body and their reduced sensitivity conferred by CBRIII loop mutation further corroborate the phospho-tail–C2 interaction. Prior studies suggest that the five clustered Lys residues of the CBRIII loop are found on the membrane binding surface of the C2 domain, and their mutation decreases PTEN binding to lipid vesicles in vitro and plasma membranes in cell transfection experiments (Lee et al., 1999; McConnachie et al., 2003).

It is within the realm of possibility that 4p-PTEN can bind to membrane in its closed conformation, albeit with significantly reduced affinity. Our best evidence against the possibility that conformationally closed 4p-PTEN binds membrane is that the interfacial Kms (iKms) for 4p-PTEN, n-PTEN, and t-PTEN are all the same, within error, in dephosphorylating vesicle-bound PIP3 (Figure 2). Since the Kms for soluble PIP3 dephosphorylation are different for 4p-PTEN and n-PTEN (Figure 2), it would be surprising that the iKms would be the same if the conformation of 4p-PTEN were closed when bound to vesicle. It is plausible, however, that some closed 4p-PTEN with reduced membrane affinity is interacting with vesicle while in a catalytically impaired state, which would contribute only in a minor way to the iKm. Nevertheless, we also know how important the CBRIII loop is for membrane binding which, as discussed above, is likely abutting the phospho-tail in the closed conformation. Thus, the information available strongly supports the model in Figure 8.

We observed here that C-terminal phosphorylation of PTEN significantly reduces the enzyme’s lipid bilayer affinity and also its catalytic efficiency with soluble PIP3 substrate and at low (<1 mol%) PIP3 surface concentrations in vesicles. Since physiologic membrane surface concentrations of PIP3 are in the range of 0.001 mol% or less, C-terminal phosphorylation of PTEN should confer an important reduction in enzymatic activity in vivo (Rahdar et al., 2009). It is interesting that the soluble PIP3 Km for 4p-PTEN vs n-PTEN is elevated whereas the interfacial Km (iKm) with vesicles containing PIP3 is the same for both enzyme forms. Both the trypsin protease pattern and SAXS analysis of 4p-PTEN vs n-PTEN reveal apparent structural/dynamic changes within the catalytic domain upon phosphorylation that may account for the altered phosphatase properties. Such conformational changes in the catalytic domain upon phosphorylation may come from direct interactions with the tail, though they could also be transmitted allosterically through tail-C2 binding since the C2 domain makes intimate contacts with the catalytic domain. It should be noted that the CBRIII loop, while critical for vesicle interaction, is dispensable for soluble PIP3 substrate processing, as shown here and previously (McConnachie et al., 2003). Thus, there are at least some differences between interactions of PTEN with soluble PIP3 and membrane-embedded PIP3.

Results from previous experiments involving co-immunoprecipitation of the co-transfected PTEN tail and body as separate pieces hinted at the potential of a conformational change induced by phosphorylation (Rahdar et al., 2009). However, in contrast to the findings here, the co-immunoprecipitation of the PTEN tail and body was disrupted by the altered residues in the N-mutant and A5-mutant PTENs. Since the N-mutant and A5-mutant 4p-PTENs showed the same apparent closed equilibrium constant as wt 4p-PTEN, this suggests that there may be differences in this trans interaction identified in mammalian cell extracts vs the closed conformation of the intact 4p-PTEN molecule analyzed in the current study. Indeed, we found higher than expected apparent affinity between the 4p-25mer and the t-PTEN body (IC50 1 μM) and more complete inhibition (>95%) of the lipid phosphatase activity of t-PTEN by the 4p-25mer with soluble PIP3 substrate than would be predicted based on results with 4p-PTEN (4p-PTEN:n-PTEN activity was ∼6:1). The ∼25:1 equilibrium favoring the closed conformation of 4p-PTEN based on alkaline phosphatase susceptibility seems relatively small compared with an apparent Kd of ∼1 μM for the 4p-25mer-t-PTEN intermolecular interaction. Such results may suggest structural differences in the intermolecular complex vs the intramolecular conformational change. While there are several plausible explanations for this, one interesting possibility is that there may be energetic strain associated with achieving conformational closure in the intramolecular case of 4p-PTEN not associated with a phospho-tail–t-PTEN intermolecular interaction.

Long-range intramolecular protein conformational switching induced by phosphorylation has been observed in several well-established cases including CrkL, Src, and SHP-1/2 (Lu et al., 2001; Rosen et al., 1995; Sicheri et al., 1997; Xu et al., 1997; Zhang et al., 2003). Each of these examples involves an SH2 domain interacting with a phosphotyrosine. We propose a Src-like model for PTEN, in which a cluster of pSer/pThr drives an apparently long distance intramolecular binding interaction to deactivate the enzyme. How 4p-PTEN may be reactivated in vivo remains an important question. There are presumably cellular phosphatase enzymes that can dephosphorylate phospho-PTEN or ligands which can bind allosterically to phospho-PTEN that may promote conformational opening. In contrast to prior suggestions based on trans experiments, we see no evidence of the autodephosphorylation of 4p-PTEN (Zhang et al., 2012). As we are reliant on western blots with an antibody that may recognize states of depleted phosphorylation of the tail, partial autodephosphorylation cannot be completely ruled out by our experiments. However, the stability of the closed conformation of 4p-PTEN over the dozens of hours of expressed protein ligation points to resistance of the tail phosphates to PTEN enzymatic removal. Because of the structural concealment of the 380–5 phosphoSer/Thr residues in the closed 4p-PTEN conformation, such autodephosphorylation may be especially disfavored.

There are several biomedical implications of the findings here. Altered protein–protein interactions or efficiency of ubiquitylation may be influenced by phosphorylation-mediated conformational closure of phospho-PTEN. While PTEN is a tumor suppressor and can be mutated in cancer, it is often wild type but expressed at low levels. Direct stimulation of cellular phospho-PTEN by pharmacologic agents could prove to be effective as an anti-cancer therapy. A related approach has been explored to activate the tumor suppressor p53 (Foster et al., 1999) and the apoptotic protein procaspase (Gray et al., 2010). It may be possible to find small molecules that bind specifically to the phospho-tail and prevent its intramolecular engagement with the C2 domain or bind somewhere on the PTEN body and stabilize the open PTEN conformation allosterically. The soluble PIP3 substrate dephosphorylation assay with 4p-PTEN should provide a means for screening for such activators. Alternatively, inhibitors of CK2 and/or GSK3β protein kinase, the enzymes responsible for PTEN C-tail phosphorylation, may be effective in targeting PIP3/Akt-driven tumors.

This investigation also highlights the use of intein-mediated protein thioester formation in an insect cell expression system for investigation of post-translational modifications. Multi-site phosphorylation has been elegantly studied in the TGFβ signaling axis using protein semisynthesis previously (Huse et al., 2001; Wu et al., 2001), but these experiments did not require insect cell expression of an intein-fusion protein. Our efforts here suggest that baculovirus expression systems are an attractive option, rather than a last resort, for expressed protein ligation with challenging eukaryotic proteins.

Materials and methods

Reagents

All lipids were from Avanti Polar Lipids (Alabaster, AL). Antibodies were from Santa Cruz Biotechnology (Dallas, TX) (SC-6818) and Novus Biological (Littleton, CO) (NBP1-4136 and NBP1-44,412). MESNA was from Sigma (St. Louis, MO). All Fmoc-amino acids were from EMD (Billerica, MA).

Peptide synthesis

All peptides were synthesized on a PS3 peptide synthesizer from Protein Technologies (Tuscon, AZ) or by hand using Fmoc based standard solid phase peptide synthesis.

Generation and purification of semisynthetic PTEN

PTEN C-terminally truncated at residue 378 was first subcloned into the pTXB1 vector from NEB which contains the GyrA intein from the organism Mycobacterium xenopi. Tyr 379 was mutated to a Cys to facilitate the intein mediated cleavage reaction. The PTEN-intein-cbd DNA sequence was then subcloned into the pFastBac1 baculovirus entry vector and the subsequent baculovirus was generated. The PTEN-intein-cbd fusion protein was expressed in HighFive insect cells.

The fusion protein in 40 ml of cell lysate from 1 l of cell culture was first passed over a 10 ml bed of fibrous cellulose (Whatman) to remove viral chitinase, then bound to a 6 ml bed of chitin beads from NEB in a gravity flow chromatography column from Bio-Rad (2.5 cm diameter). The chitin bead column with fusion protein bound was then washed with 250 ml of washing buffer (50 mM HEPES pH 7.6, 250 mM NaCl, 0.1% Triton X-100). C-terminally truncated PTEN (t-PTEN) was generated by DTT cleavage of the fusion protein, producing t-PTEN at yields of ∼8–10 mg per liter of cell culture. Full length semisynthetic PTEN was then generated on the chitin column by adding 400 mM MESNA and 2 mM of C-terminal peptide buffered with 3 ml of 50 mM HEPES (pH 7.2), 150 mM NaCl. Based on the post ligation yield of PTEN protein it is estimated that there is a maximum PTEN-thioester concentration of ∼80 μM in the ligation reaction. The ligation reactions were carried out for 48–72 hr at room temperature and monitored by SDS PAGE. Upon completion of the ligation reaction the ligation mixture was eluted from the chromatography column with 15 ml of dialysis buffer (50 mM Tris pH 8.0, 150 mM NaCl, 10 mM DTT) and subsequently dialyzed into 4 l of dialysis buffer for a period of 48 hr with multiple buffer exchanges in a dialysis cassette (Slidealyzer) with a 12K MWCO in order to remove excess unreacted peptide. Proteins were then concentrated following dialysis to >5 mg/ml (>100 μM). We estimate that there is <10 μM of residual unligated peptides at this stage. Due to large dilutions (>1000-fold) of the semisynthetic enzyme for enzymatic and other biochemical assays, small amounts of residual contaminating peptide remaining after dialysis would not be expected to interfere with any assays. Semisynthetic PTEN proteins produced in this way yields 8–10 mg of protein per liter of insect cell culture with the desired modifications on the C-terminus at purities of >90% based on Coomassie stained SDSPAGE. The semisynthetic protein was further purified for SAXS and soluble substrate assays by anion exchange chromatography (monoQ) using an AKTA FPLC from GE Healthcare. Proteins were purified with a gradient of 0–50% Buffer B over 250 ml at a flow rate of 1.0 ml/min (Buffer A: 50 mM Tris pH 8.0, 10 mM DTT; Buffer B: 50 mM Tris pH 8.0, 1.0 M NaCl, 10 mM DTT). After FPLC purification by anion exchange chromatography and concentration the final yield of semisynthetic PTEN protein was 2–3 mg per liter of cell culture with estimated purity >95% by coomassie stained SDS-PAGE. Size-exclusion chromatography was carried out with a Superdex 200 column in the following buffer: 50 mM Tris pH8.0, 150 mM NaCl, 10 mM DTT.

Generation of radiolabed PIP3

Radiolabeled PIP3 was generated as previously described (McConnache et al., 2003). Briefly, PIP3 labeled with 32Pi at the three position of the inositol ring was generated by incubating PI3K (Echleon) and PIP2:PS (1:1) vesicles in the presence of 250 mCi 32P-ATP, 1 mM ATP and 2.5 mM MgCl2 in PI3K assay buffer (25 mM HEPES pH 7.6, 120 mM NaCl and 1 mM EGTA). After a Bligh-Dyer extraction of PIP3, thin-layer chromatography (TLC) showed radiolabeled PIP3 to be the major product (Figure 2—figure supplement 3). TLC solvent conditions: (CHCl3:Acetone:MeOH;Acetic Acid:H20); (70:20:50:20:20).

Vesicle based phosphatase assays

Lipid phosphatase assays were modified from those already described in the literature (McConnachie et al., 2003). 32P radiolabeled PIP3 was incorporated into vesicles containing unlabeled PIP3, phosphatidylcholine (PC), and/or phosphatidylserine (PS) and/or PIP2 by sonication of dried lipids hydrated in the presence of PTEN assay buffer (50 mM Tris pH 8.0, 150 mM NaCl, 10 mM DTT, 1 mM EGTA). Lipids were sonicated in 100 μl volumes in glass test tubes at room temperature until the solution clarified. Vesicles made in this way are 30–50 nm in diameter. Vesicles were used in assays within 15 min of being made. In assay reactions, the ratio of the number of vesicles to the number of PTEN molecules was maintained at 4:1 or greater. Ovalbumin (0.05 mg/ml) was used to stabilize the PTEN protein in the assays. 25 μl reactions were initiated by the addition of vesicle substrate and incubated at 30°C for 3 min. The reaction was quenched with 3 M perchloric acid. Hydrolyzed 32Pi was then separated from 32P-PIP3 by a Bligh–Dyer extraction. The aqueous phase was then treated with 1% ammonium molybdate and the resulting phosphate–molybdate complex was extracted with toluene:isobutanol (1:1). This organic phase was then counted using a Beckman scintillation counter.

Interfacial kinetic analysis

Analysis of the kinetic parameters of the semisynthetic PTEN proteins were determined in accordance with the procedures pioneered by Dennis and coworkers and previously performed for recombinant PTEN produced in E. coli (Deems et al., 1975; Hendrickson and Dennis, 1984; McConnachie et al., 2003). With this type of analysis, the initial velocity of an interfacial enzyme follows the equation below:

V0=(Vmax*Xs*[S0])/(iKm*Ks+iKm*[S0]+Xs*[S0])

Two types of experiments were performed, bulk dilution (BD) and surface dilution (SD). In BD experiments, the surface concentration of PIP3 was held constant and bulk concentration of PIP3 was varied by varying the concentration of PIP3 and the carrier lipid PC proportionately. In SD experiments, the bulk concentration of PIP3 was held constant and the surface concentration was varied by varying the amount of PC. In both types of experiments rectangular hyperbolas were obtained with apparent Vmax and apparent Km values. Apparent Vmax and apparent Km values were then fit to the equations below to determine the kinetic variables for each PTEN protein.

ikm=(Vmax SD/Vmax BD1)XsKs=Km BD(Xs/iKm+1)kcat=Vmax SD*[ET]

Vesicle pulldowns

Large Multilamillar Vesicles (LMVs) containing various amounts of PC, PS and/or PIP2 were generated by vigorously vortexing dried lipids that were hydrated in the presence of PTEN buffer for 5 min in 1 ml volumes. The LMVs were then incubated with different forms of PTEN protein for 30 min at 25⁰C. The vesicles and bound protein in 50 μl volumes were then pelleted at 180,000g using a Beckman ultracentrifuge for 2 hr. The supernatant was removed from the vesicle pellet, the pellet washed with buffer, then boiled in 10% SDS loading dye and run on SDS-PAGE. The amount of PTEN protein that bound to the LMVs was then visualized by western blot using an anti-PTEN antibody from Santa Cruz Biotechnologies (SC-6818). The amount bound was quantified using Carestream Media image quantification software. For tail peptide competition assays the amount of tail peptide used was 10 μM.

Trypsin digests

2 μg of semisynthetic PTEN in 20 μl reactions volumes was digested with varying amounts of trypsin (Promega, V511A) for 10 min at 37°C in PTEN assay buffer. Reactions then were quenched with SDS loading dye and run on SDS-PAGE. The digestion fragments were visualized by Colloidal Blue stain from Invitrogen (LC6025) or by western blot (antibodies SC-6818 or NBP1-44,412).

Sequencing of trypsin digest fragments

Trypsin digestion products were run on a 10% SDS-PAGE gel and transferred to a PVDF membrane. The membrane was then stained with Coomassie stain. The bands of interest were cut out of the membrane and analyzed by N-terminal Edman degradation sequencing at the JHMI Synthesis and Sequencing Facility.

Phosphatase sensitivity assay

50 ng of semisynthetic phosphorylated PTEN and its mutants were dephosphorylated in the presence of 1 μM alkaline phosphatase from NEB (CIP) for varying periods of time in phosphatase assay buffer (50 mM Tris pH 8.0, 20 mM NaCl, 25 μM MgCl2 and 10 mM DTT) at room temperature in 20 μl. Dephosphorylation of PTEN was monitored by western blot with an antibody to the phospho-tail cluster (NBP1-4136). The fraction of phospho-PTEN remaining was determined using Carestream Media image quantification software.

Soluble substrate activity assay

PTEN activity to a water soluble substrate (diC6 PIP3) was determined by measuring the release of inorganic phosphate with a malachite green (Van Veldhoven and Mannaert, 1987) detection kit from R and D Biosystems. 25 μl reactions were allowed to proceed for 5–10 minutes at 30°C in assay buffer (50 mM Tris pH 8.0, 10 mM BME) before being quenched by malachite green reagent. Amounts of PTEN used per data point ranged from 0.5 to 20 μg. Reactions were shown to be linear with respect to time and enzyme concentration in the ranges used. For in trans peptide inhibition assays, the amount of tail peptide used (quantified by amino acid analysis) is indicated in the figure legend. It is unlikely that any peptide ligated to t-PTEN given the low concentrations of peptide used, short reaction times and the low reactivity of the DTT-thioester toward native chemical ligation. In fact, with the vesicle pulldowns that used 10 μM phosphopeptide and t-PTEN, there is no evidence of ligation observed by western blot.

Small-angle X-ray scattering (SAXS)

SAXS experiments were performed at Brookhaven National Laboratories at the National Synchrotron Light Source (NSLS), beamline X9 using a MarCCD detector, located 3.4 m from the sample. Data for each protein sample was collected in triplicate. All samples were in PTEN assay buffer. 20 μl of each sample was continuously passed through a capillary tube exposed to a 400 × 200 μm X-ray beam and data recorded for 30s. Normalization for beamline intensity, buffer subtraction and merging of data were carried out using proc.py software developed by the beamline staff (Allaire and Yang, 2011).

SAXS data analysis was carried out using software from the ATSAS program suite. The radius of gyration (Rg) was calculated using a Guinier approximation with the program PRIMUS (Konarev et al., 2003). The pair distribution function P(r) and the maximum particle dimension (Dmax) were determined using GNOM (Svergun et al., 1992). Ten ab initio models were generated for each protein using DAMMIN, then averaged using DAMAVER (Volkov and Svergun, 2003; Putnam et al., 2007; Franke and Svergun, 2009). The resulting molecular envelopes were fit with the tailless crystal structure in PyMOL. Figures of the models were made using PyMOL.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
    Kinetic analysis of phospholipase A2 activity toward mixed micelles and its implications for the study of lipolytic enzymes
    1. RA Deems
    2. BR Eaton
    3. EA Dennis
    (1975)
    J Biol Chem 250:9013–9020.
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
    Analysis of the kinetics of phospholipid activation of cobra venom phospholipase A2
    1. HS Hendrickson
    2. EA Dennis
    (1984)
    J Biol Chem 259:5740–5744.
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65

Decision letter

  1. Barbara Imperiali
    Reviewing Editor; Massachusetts Institute of Technology, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

[Editors' note: this article was originally rejected after peer review but a revision was invited after the concerns of the reviewers were addressed with new experimental data.]

Thank you for choosing to send your work entitled “Phosphorylation-mediated PTEN Conformational Closure and Deactivation Revealed with Protein Semisynthesis” for consideration at eLife. Your article has now been peer reviewed and we regret to inform you that the current submission will not be considered further for publication at this time. Your submission has been evaluated by 3 reviewers, one of whom is a member of our Board of Reviewing Editors, and a Senior editor, and the decision was reached after discussions between the reviewers.

As you will see below, all three reviewers were enthusiastic about the application of protein semisynthesis towards studies on the role of phosphorylation in the regulation of PTEN structure and localization. However, specific concerns were raised in two of the reviews that make the manuscript unsuitable for publication in eLife at the current time. We believe that the reviewers’ comments and the post-review discussion with Reviewer 3 provide useful information as to how the manuscript could be revised to address the concerns that have been raised and we would invite you to consider whether it would be possible for you to revise the manuscript to address these comments in a reasonable period of time.

Reviewer #1:

This manuscript presents studies that seek to gain insight into the mechanistic basis of phosphorylation-mediated PTEN regulation. The approach centers on the development and biochemical and biophysical analysis of a semisynthetic PTEN variant that is uniformly and uniquely modified with four phosphorylated serine and threonine residues in the C-terminal tail.

I find this to be a significant contribution for the following reasons:

1) The research specifically addresses the physical basis for the effects of PTEN phosphorylation with respect to whether the modifications directly alter the membrane association properties of the protein or whether they cause a change in inter- or intramolecular interactions, which result in changes membrane association.

2) The uniquely phosphorylated proteins provide information that is not readily accessible via mutational analysis with encoded amino acids or via enzyme-catalyzed phosphorylation since one cannot readily achieve uniquely phosphorylated materials.

3) Multiple lines of evidence are presented for a model (Figure 7) in which the tail-phosphorylated PTEN (4p-PTEN) more favorably adopts a compact structure, which may feature the negatively-charged tail in a buried state that reduces plasma-membrane binding. In contrast the non-phosphorylated n-PTEN is preferentially in a more open state making the membrane-associating face of PTEN more available for binding to membrane.

Concerns:

1) The authors should include the protein concentration in the ligation reaction – the yields are impressive so it is useful to know this detail.

2) It is noted in the methods that the PTEN-intein-cbd is produced in HighFive insect cells at a concentration of 10 mg/L culture – and then further noted that the final ligated semisynthetic proteins are produced in yields of ∼ 10 mg/L insect cell culture (at >90% purity). It is not clear how this is possible what with the loss of mass from intein-cbd cleavage and the subsequent manipulations related to the thioester exchange, ligation, and purification. This needs to be clarified as it speaks to the next issue that concerns the purity of the semisynthetic protein products. Additionally, there is no detail provided on how the semisynthetic material is purified after the ligation and how are the unligated protein and excess peptide removed?

3) It is noted that western blot analysis with the “anti-phospho-PTEN” Ab confirms that the final material is appropriately phosphorylated. Is it certain that this anti-P Ab only recognizes the fully tetra-phosphorylated C-terminus? One might imagine that constructs with reduced phosphorylation might also be recognized. This question also comes up in the context of studies on auto-dephosphorylation. Perhaps, some erosion of the total phosphorylation is acceptable – but the authors should definitely comment here.

4) The authors should state on the yield after anion exchange chromatography that affords extra pure material for SAXS. This would provide information on the purity of the material directly from the ligation reaction. This issue is particularly important when considering and comparing the catalytic parameters and vesicle binding of 4p-PTEN.

5) It would be useful to contrast the current work with the Muir study on the type I TGF-beta receptor soluble domain wherein a hyperphosphorylated N-terminal tail is attached to the protein via semisynthesis and Smad2 activation is studied. The authors do cite reviews in which theses studies are highlighted, but it would be appropriate to highlight these particular examples wherein hyperphosphorylated sequences are incorporated into proteins to study structure and function.

Reviewer #2:

This is a superb study of the biophysical properties of the protein phosphatase PTEN. I really could find no issues with the report.

Reviewer #3:

The protein ligation technique is very useful for studies on site specific phosphorylation, and the Cole lab has used this method cleverly to interrogate the function of PTEN phosphorylation. The methods used are appropriate and described thoroughly and the data collection is sound.

1) The main weakness is that while phosphorylation leads to protein compaction, reduced catalysis and reduced lipid affinity, the study lacks evidence that the inhibitory effects on activity and/or binding are necessarily caused by the conformational changes reflected by SAXS and proteolysis. Without this evidence, the autoinhibitory model shown in Figure 7 is speculative, which reduces the impact of the study.

2) Figure 2A suggests that 4p-PTEN might reduce kcat, as well as kcat/Km. More evidence is needed proving that the effect of phosphorylation on catalysis can be explained only by reduced phospholipid binding. If possible, kcat should be measured with less error (e.g., using alternative substrates), in order to eliminate the possibility that phosphorylation affects turnover rate as well as binding constants, which would indicate mechanisms beyond simple steric interference with the active site.

Additional comments from Reviewer 3 based on the discussion between the reviewers:

Discussion on comment 1: With respect to the presented “autoinhibitory model” it would be possible for the authors to indicate that the model that is put forward in the paper is one of many possibilities, and perhaps present hypotheses for alternate models that might be consistent with their observations.

Discussion on comment 2: The additional work that would be needed to demonstrate autoinhibition would require (1) showing similar kinetic parameters between t-PTEN and n-PTEN, and (2) showing that the phosphorylated C-terminal peptide inhibits t-PTEN in trans down to an activity comparable to 4p-PTEN. In order to argue that autoinhibition works by interfering with lipid binding, evidence would be needed showing that (3) the phospho-C-terminal peptide interacts with the lipid-binding interface, and (4) that conservative mutations at the lipid-binding interface interfere with peptide binding and relieve autoinhibition of 4p-PTEN. Other strategies might also be suitable, but these are among the experiments that I believe were used to demonstrate autoinhibition in Src kinases.

The question about kcat could readily be addressed using p-nitrophenylphosphate or perhaps another short chain acyl PI3,4,5P3 (e.g., C2, C3, C4) with greater solubility in aqueous solution.

https://doi.org/10.7554/eLife.00691.026

Author response

Although we were heartened by the positive statements, we appreciate the seriousness of the critiques that necessitated our revisions to better explain and bolster the evidence for the linkage of structural and functional change in our phospho-PTEN model of old Figure 7 (now Figure 8 in the revised manuscript). We understood that the major missing piece from the reviewers’ perspective relates to whether the C-tail phosphopeptide of PTEN can act in trans to impact the lipid phosphatase activity of the body of PTEN (t-PTEN). We have now performed the key experiments that address this concern. In brief, the results are fully consistent with the (new) Figure 8 model. We have found that t-PTEN shows similar enzymatic activity to n-PTEN with the soluble PIP3 substrate. C-tail phosphopeptide potently inhibited t-PTEN lipid phosphatase activity with soluble PIP3 and t-PTEN binding activity to PIP2 containing-lipid vesicles, whereas the unphosphorylated C-tail had no effect in the same concentration range. Moreover, the C2 domain mutant form of t-PTEN (D5 t-PTEN, which contains mutations on the membrane binding CBRIII loop) was resistant to the catalytic inhibition effects of C-tail phosphopeptide, consistent with the model that a principal functional interaction between the body and phospho-tail involves the lipid binding interface of the C2 domain. In addition, we have also performed a more complete analysis of the substrate concentration dependence of the 5D mutant of 4p-PTEN lipid phosphatase activity, and these results fortify the interpretation of the regulatory implications of this mutant. These data and a related discussion are now added to the revised manuscript (new Figure 6C and new Figure 7). We think the inclusion of these results significantly strengthens the manuscript and establishes a modular structural interaction for phospho-PTEN. Below we delineate our point-by-point responses to the reviewers’ comments and describe the accompanying changes in the revised manuscript.

Reviewer #1:

1) The authors should include the protein concentration in the ligation reaction – the yields are impressive so it is useful to know this detail.

The expressed protein ligation reaction was carried out in a one-pot procedure in which the cell extracts were loaded on to a chitin-resin affinity column, and washed to remove impurities. This resin-bound PTEN-intein-CBD fusion protein was ligated with 2 mM N-Cys peptide and the solution phase protein contents were separated from the chitin-resin. We have added to the revised methods the approximate ratio of resin volume used to cell lysate volume as well as the reaction vessel that was employed. We never isolate the thioester species in this procedure, to minimize manipulations and to reduce losses from thioester hydrolysis, so we do not know the precise PTEN thioester fragment protein concentration present at the moment of ligation. We can, however, estimate that there is a maximum of 80 μM of protein thioester in the reaction mixture based on the recovered product.

2) It is noted in the methods that the PTEN-intein-cbd is produced in HighFive insect cells at a concentration of 10 mg/L culture – and then further noted that the final ligated semisynthetic proteins are produced in yields of ∼ 10 mg/L insect cell culture (at >90% purity). It is not clear how this is possible what with the loss of mass from intein-cbd cleavage and the subsequent manipulations related to the thioester exchange, ligation, and purification. This needs to be clarified as it speaks to the next issue that concerns the purity of the semisynthetic protein products. Additionally, there is no detail provided on how the semisynthetic material is purified after the ligation and how are the unligated protein and excess peptide removed?

We regret that the discussion of yield was presented in a confusing fashion. As noted above, we never isolate/characterize the PTEN-intein-CBD fusion protein (CBD-chitin binding domain) or quantify its yield. The 10 mg/L of PTEN protein from HighFive cell culture is based on DTT cleavage from this resin to liberate the thioester protein, but is somewhat variable from run to run so we have changed the revised text to reflect that the yield is in the range of 8–10 mg/L. The protein purity of semisynthetic PTEN is routinely greater than 90% based on SDSPAGE after dialysis and concentration by ultrafiltration. Excess synthetic peptide (MW 3 kDa) was removed by extensive dialysis (1:400 vol:vol) over 24–48 hours with at least 3 buffer exchanges using 12 kDa MW cutoff pre- moistened dialysis membrane (Slidealyzer), as well as during concentration with a 10 kDa MW cutoff concentrator to >5 mg/ml (>100 μM) semisynthetic PTEN.

We estimate based on these procedures and appearance of SDSPAGE that less than 10 μM peptide remained in stored semisynthetic PTEN protein samples. Since vesicle binding and interfacial enzymatic assays were routinely carried out with >1000-fold dilution of the stock concentration of semisynthetic PTEN, possible impact of contaminating trace peptide is assumed to be negligible. As discussed below, the IC50 of phosphopeptide with t-PTEN is ∼1 μM and the contaminating phosphopeptide final concentration in 4p-PTEN- containing assays is estimated to be less than 10 nM. For both SAXS and soluble PIP3 phosphatase assays where concentrations of semisynthetic PTENs were greater than 500 nM, anion exchange chromatography was also used to further purify the protein and eliminate trace unligated peptide. Further details are added to the revised manuscript to include this information.

3) It is noted that western blot analysis with the “anti-phospho-PTEN” Ab confirms that the final material is appropriately phosphorylated. Is it certain that this anti-P Ab only recognizes the fully tetra-phosphorylated C-terminus? One might imagine that constructs with reduced phosphorylation might also be recognized. This question also comes up in the context of studies on auto-dephosphorylation. Perhaps, some erosion of the total phosphorylation is acceptable – but the authors should definitely comment here.

These are astute points. As Reviewer 1 suspects, the anti-phospho-PTEN Ab is unlikely to be specific for the tetraphosphate form, although this has not been systematically investigated. The antibody was raised against phospho S380/T382/T383. It certainly appears to recognize tetraphosphorylated PTEN. It is unknown if it will recognize phosphorylation states less than the three it was generated against. We have revised the manuscript to include this point, and also now state that we cannot rule out that some auto-dephosphorylation of the tail is formally possible because of the limitations of the western blot method.

However, it should be emphasized that the conformation of 4p-PTEN appears stable over dozens of hours (during ligation at room temperature) so that partial auto-dephosphorylation, if it is occurring, is non-disruptive. Furthermore, as noted in the manuscript, mass spectra of the intact 4p-PTEN and n-PTEN are consistent with a full complement of four phosphates in the former, based on the mass increase of 320 Da in 4p-PTEN relative to n-PTEN, although admittedly this is only semi-quantitative. However, in our experience phosphorylation of a peptide or protein tends to suppress MALDI ionization so that reduced phosphorylation state impurities would typically give larger mass spec signals.

4) The authors should state on the yield after anion exchange chromatography that affords extra pure material for SAXS? This would provide information on the purity of the material directly from the ligation reaction. This issue is particularly important when considering and comparing the catalytic parameters and vesicle binding of 4p-PTEN.

We estimate that the purity of the semisynthetic PTEN protein after ligation is >90% and after anion exchange chromatography is >95%. The yield after anion exchange chromatography from 1 L of cell culture is estimated to be 2–3 mg/mL. We have made this clarification in the revised manuscript.

5) It would be useful to contrast the current work with the Muir study on the type I TGF-beta receptor soluble domain wherein a hyperphosphorylated N-terminal tail is attached to the protein via semisynthesis and Smad2 activation is studied. The authors do cite reviews in which theses studies are highlighted, but it would be appropriate to highlight these particular examples wherein hyperphosphorylated sequences are incorporated into proteins to study structure and function.

We agree that the prior elegant work from Tom Muir’s group on TGF-beta kinase and Smad2 merits explicit discussion and citation in our manuscript, and we have added this to the Discussion in the revised manuscript. As Reviewer 1 notes, both the enzyme (TGF-beta kinase) and substrate (Smad2) were prepared in multi-phosphorylated forms using semisynthesis methods. One key technical difference between the TGF-beta/Smad2 studies and the current PTEN work is that insect cell expression with a fused intein was not required in the Muir experiments.

Reviewer #3:

1) The main weakness is that while phosphorylation leads to protein compaction, reduced catalysis and reduced lipid affinity, the study lacks evidence that the inhibitory effects on activity and/or binding are necessarily caused by the conformational changes reflected by SAXS and proteolysis. Without this evidence, the autoinhibitory model shown in Figure 7 is speculative, which reduces the impact of the study.

To summarize how we arrived at the (new) Figure 8 model in the manuscript, we delineate the key points here. 1) By comparing n-PTEN and 4p‐PTEN, we found that tail phosphorylation of PTEN reduces catalytic efficiency with a soluble PIP3 substrate, at least in part by elevating the Km; 2) n-PTEN, 4p‐PTEN (and t-PTEN) show similar interfacial Km values (iKms) with vesicle embedded PIP3 substrate (suggesting similar conformations among these three forms of PTEN when bound to membrane) but 4p-PTEN shows relatively diminished vesicle affinity as judged by enzyme kinetic analysis as well as sedimentation experiments; 3) Relative to n-PTEN, 4p-PTEN shows a paradoxical weakened affinity for anionic chromatography resin, resistance to proteolysis, and more compact SAXS structure; 4) 4p-PTEN C-terminal phosphates are concealed in the native state based on susceptibility to alkaline phosphatase; 5) Relative to wt 4p-PTEN, the D5 (five clustered Lys residues of the membrane binding CBRIII loop replaced by Asp residues) 4p-PTEN mutant is conformationally partially open based on its enhanced susceptibility to alkaline phosphatase and more normal mobility in anion exchange chromatography; 6) The lipid phosphatase activity of the D5 4p-PTEN mutant with soluble PIP3 substrate is elevated relative to wt 4p-PTEN and is similar to the activity of wt n-PTEN, which has an open conformation (by SAXS, proteolysis, anion exchange chromatography); 7) The SAXS molecular envelopes calculated for 4p-PTEN, n-PTEN, and t-PTEN show the largest differences among the three proteins in the vicinity of the C2 domain; 8) Prior studies suggest that mutation of the five clustered Lys residues of the CBRIII loop (found on the membrane binding surface of the C2 domain) decreases lipid binding in in vitro vesicle binding and activity assays and signaling activity in cell transfection experiments (Lee et al. 1999, McConnachie et al. 2003). We believe that points 5,6, 7, and 8 are particularly compelling in defining the Figure 8 model as they indicate that the properties of a mutant that pops the 4p-PTEN open (based on alkaline phosphatase susceptibility and anion exchange chromatography mobility) also confer enzymatic activity with soluble substrate that is characteristic of the unphosphorylated n-PTEN. Since these CBRIII loop Lys residues mutated in the D5 4p-PTEN mutant are crucial for membrane binding, it seems likely that the structure and functional changes by mutation and phosphorylation are linked, as depicted in Figure 8.

To be clear, we agree that our data do not completely eliminate alternative, indirect mechanisms, such as the phosphorylated tail communicating less directly to the C2 domain by the phospho-tail binding elsewhere on the body of PTEN. In the absence of a high resolution X-ray structure, we think this remains a viable (though unlikely) hypothetical model that we have added to the Discussion. Such an indirect model would provide a rather convoluted explanation for points 1–8 above.

Moreover, it would not easily account for why the A5 (five clustered Lys residues of the CBRIII loop replaced by Ala residues) 4p-PTEN mutant remains in the closed conformation as discussed in the manuscript. It is simple to imagine that the D5 mutant Asp residues could show electrostatic repulsion with the highly negatively charged phospho-tail whereas the 5A mutant would lack this effect. If the phospho-tail were binding elsewhere on PTEN, we would not expect the A5 and D5 clustered mutations to induce distinct conformational effects that would result in differential alkaline phosphatase susceptibility of the tail phosphates.

Moreover, in contrast to the Figure 8 model, it is within the realm of possibility that 4p-PTEN can bind to membrane in the closed conformation, albeit with significantly reduced affinity. There is no simple biophysical approach that can easily rule this out. Our best evidence against the possibility that conformationally closed 4p-PTEN binds membrane is that the interfacial Kms (iKms) for 4p-PTEN, n-PTEN, and t-PTEN are all the same, within error, in dephosphorylating vesicle-bound PIP3. Since the Kms for soluble PIP3 dephosphorylation are different for 4p-PTEN and n-PTEN, it would be surprising that the iKms would be the same if the conformation of 4p-PTEN were closed when bound to vesicle. It is plausible, however, that some closed 4p-PTEN with reduced membrane affinity is interacting with vesicle while in a catalytically impaired state, which would contribute only in a minor way to the iKm. On the other hand, we also know how important the CBRIII loop is for membrane binding which, as discussed above (and below), is likely abutting the phospho-tail in the closed conformation. Thus, the information available strongly supports the model in Figure 8. We discuss the alternate possibilities, and why they are disfavored in our opinion, in greater depth and clarity in the revised manuscript.

2) Figure 2A suggests that 4p-PTEN might reduce kcat, as well as kcat/Km. More evidence is needed proving that the effect of phosphorylation on catalysis can be explained only by reduced phospholipid binding. If possible, kcat should be measured with less error (e.g., using alternative substrates), in order to eliminate the possibility that phosphorylation affects turnover rate as well as binding constants, which would indicate mechanisms beyond simple steric interference with the active site.

Regarding the issue of Figure 2A not ruling out a kcat effect, we agree. However, we do not think that this is a key issue to the main conclusions of our manuscript or the (new) Figure 8 model. Figure 2A involves the soluble PIP3 substrate, rather than the more physiologic, vesicle embedded PIP3 form. As discussed previously, the critical micellar concentration (CMC) of diC6 PIP3 is greater than 1 mM, significantly higher than the concentrations used in this study (Campbell et al. 2003). The mechanism of PTEN interaction with soluble substrate is at least somewhat distinct from the way PTEN interacts with vesicles, since the Lys residues of the C2 domain CBRIII loop are dispensable for efficient catalysis with soluble substrate, as first shown by Peter Downes and colleagues (McConnachie et al. 2003), but they are important for vesicle binding and tumor suppressive ability (Lee et al. 1999, McConnachie et al. 2003, Shenoy et al. 2012, Shenoy et al. 2013). Thus, whether tail-phosphorylation of PTEN induces a pure Km effect or a mixed kcat and Km effect with soluble PIP3 substrate does not impact our understanding of the mechanism by which 4p-PTEN relative to n-PTEN binds vesicles more weakly, as demonstrated in both the interfacial kinetics and the sedimentation studies. Thus, we do not see a large benefit in trying to saturate the 4p-PTEN velocity versus soluble substrate concentration plot in Figure 2A. We do think that Figure 2A and soluble substrate assays add value to the manuscript because they: 1) show that the catalytic domain of PTEN is at least subtly altered in the closed conformation of 4p-PTEN relative to n-PTEN; 2) suggest that when 4p-PTEN binds vesicles, it opens, since the iKm of 4p-PTEN matches that of n-PTEN and t-PTEN; 3) provide a convenient method for distinguishing open and closed forms that help substantiate the more open state of the D5 4p-PTEN; 4) could ultimately be used for high throughput screening for allosteric activators of 4p-PTEN.

We have also carried out an additional experiment with D5 mutant 4p-PTEN in which we analyze the concentration dependence of soluble PIP3 on its activity (new Figure 6C). The model would suggest an intermediate Km value between that measured for wild-type 4p-PTEN and n-PTEN, since 4p-PTEN is closed and n-PTEN is open, and 5D 4p-PTEN is believed to be partially open. This value, which shows an apparent soluble PIP3 Km of 110 μM for D5 mutant 4p-PTEN, is about 2-fold greater than that of wild-type n-PTEN but less than 4p-PTEN (Km >>160 μM). Thus, this new data further corroborates the model of Figure 8, and we add these results and a brief discussion on these points to the revised manuscript.

Additional comments from Reviewer 3 based on the discussion between the reviewers: Discussion on comment 1: With respect to the presented “autoinhibitory model” it would be possible for the authors to indicate that the model that is put forward in the paper is one of many possibilities, and perhaps present hypotheses for alternate models that might be consistent with their observations.

We have broadened this discussion as noted above.

Discussion on comment 2: The additional work that would be needed to demonstrate autoinhibition would require (1) showing similar kinetic parameters between t-PTEN and n-PTEN, and (2) showing that the phosphorylated C-terminal peptide inhibits t-PTEN in trans down to an activity comparable to 4p-PTEN. In order to argue that autoinhibition works by interfering with lipid binding, evidence would be needed showing that (3) the phospho-C-terminal peptide interacts with the lipid-binding interface, and (4) that conservative mutations at the lipid-binding interface interfere with peptide binding and relieve autoinhibition of 4p-PTEN. Other strategies might also be suitable, but these are among the experiments that I believe were used to demonstrate autoinhibition in Src kinases.

During the course of these studies we were somewhat reticent about pursuing the intermolecular line of investigation. We were concerned that, by disconnecting the tail from the body, there can be unnatural interactions that may not be seen with the intact molecule, where the physical attachment may help to define the orientation and energetics of the tail binding to the body. Nevertheless, the reviewers’ comments helped persuade us of the value of this complementary approach in illuminating whether the tail works as an autonomous module in regulating the body. Thus we have performed this series of experiments (i–v) as suggested and have shown: i) the lipid phosphatase kinetics with soluble PIP3 substrate t-PTEN are very similar to those of n-PTEN, ii) the C-tail phosphopeptide of PTEN potently inhibits t-PTEN lipid phosphatase activity with an IC50 of 1 μM, iii) the C-tail unphosphorylated peptide of PTEN has minimal effect on the enzymatic activity of t-PTEN, establishing the key role of the phosphate modifications, iv) the enzymatic activity of the D5 mutant of t-PTEN loses sensitivity to C-tail phosphopeptide, suggesting that the lipid-binding interface of the C2 domain is crucial to phosphopeptide interaction, v) addition of the C-tail phosphopeptide reduces t-PTEN binding to lipid vesicles. This additional set of experiments (shown as new Figure 7) is fully consistent with, and helps support the connection between a phosphotail-C2 interaction and the functional inhibition of enzymatic activity and lipid binding as posited in the Figure 8 model. Beyond helping to confirm the model in Figure 8, these trans tail–body experiments revealed some unexpected but interesting new aspects of the molecular recognition in phospho-PTEN. We did not anticipate the high apparent affinity of phosphopeptide tail binding to the PTEN body (ca. Kd 1 μM) based on the estimated 25:1 closed:open equilibrium measured in the alkaline phosphatase experiments with the intact 4p-PTEN. While there are several potential explanations for this high apparent affinity, one intriguing possibility is that adoption of the closed conformation of 4p-PTEN may be associated with energetic strain, a cost not incurred in the intermolecular system. Another unexpected finding was the nearly complete inhibition (>95%) of t-PTEN enzymatic activity with 10 μM phosphopeptide, exceeding the apparent rate differential (6-fold) measured with 4p-PTEN vs. n-PTEN. There may be multiple reasons for this, but it is possible that the intermolecular binding event with 4p-PTEN pieces could result from structural interactions that are not thermodynamically accessible in the intramolecular case. Regardless, these additional findings should provide us and others with important topics for future investigation.

The question about kcat could readily be addressed using p-nitrophenylphosphate or perhaps another short chain acyl PI3,4,5P3 (e.g., C2, C3, C4) with greater solubility in aqueous solution.

It is possible that saturation with 4p-PTEN and a PIP3 surrogate could be achieved. But, as mentioned above, we do not think this is central to the main conclusions of the manuscript, or the model in Figure 8. While understanding how phosphorylation of PTEN affects the specific binding interaction of a soluble substrate to the PTEN active site may have some value, it is likely at least somewhat different from how the enzyme interacts with vesicle embedded phospholipid substrate. We believe that our original results and additional findings in the revised manuscript clearly demonstrate that the Km for soluble PIP3 is increased by phosphorylation (and intramolecular conformational change) of PTEN, and this result is noteworthy regardless of whether kcat is also affected.

https://doi.org/10.7554/eLife.00691.027

Article and author information

Author details

  1. David Bolduc

    Department of Pharmacology and Molecular Sciences, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    DB, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  2. Meghdad Rahdar

    Department of Pharmacology, University of California, San Diego, San Diego, United States
    Contribution
    MR, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  3. Becky Tu-Sekine

    Department of Biological Chemistry, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    BT-S, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  4. Sindhu Carmen Sivakumaren

    Department of Pharmacology and Molecular Sciences, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    SCS, Acquisition of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    No competing interests declared.
  5. Daniel Raben

    Department of Biological Chemistry, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    DR, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  6. L Mario Amzel

    Department of Biophysics and Biophysical Chemistry, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    LMA, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  7. Peter Devreotes

    Department of Cell Biology, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    PD, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  8. Sandra B Gabelli

    1. Department of Biophysics and Biophysical Chemistry, Johns Hopkins University School of Medicine, Baltimore, United States
    2. Departments of Medicine and Oncology, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    SBG, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    gabelli@jhmi.edu
    Competing interests
    No competing interests declared.
  9. Philip Cole

    Department of Pharmacology and Molecular Sciences, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    PC, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    pcole@jhmi.edu
    Competing interests
    PC: Reviewing editor, eLife.

Funding

National Institutes of Health

  • Philip Cole
  • Peter Devreotes

National Institutes of Health (4R37CA043460)

  • Sandra B Gabelli
  • L Mario Amzel

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank T Woolf, MK Tarrant, and M Allaire for assistance and helpful advice. We are grateful to the NIH for support.

Reviewing Editor

  1. Barbara Imperiali, Massachusetts Institute of Technology, United States

Publication history

  1. Received: February 28, 2013
  2. Accepted: June 7, 2013
  3. Version of Record published: July 9, 2013 (version 1)

Copyright

© 2013, Bolduc et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,800
    Page views
  • 286
    Downloads
  • 44
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Charles B Phillips et al.
    Research Article
    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Alexandria N Miller et al.
    Research Article
