Spatial self-organization favors heterotypic cooperation over cheating

  1. Babak Momeni  Is a corresponding author
  2. Adam James Waite
  3. Wenying Shou  Is a corresponding author
  1. Fred Hutchinson Cancer Research Center, United States
Research Article
  • Cited 67
  • Views 2,063
  • Annotations
Cite this article as: eLife 2013;2:e00960 doi: 10.7554/eLife.00960

Abstract

Heterotypic cooperation—two populations exchanging distinct benefits that are costly to produce—is widespread. Cheaters, exploiting benefits while evading contribution, can undermine cooperation. Two mechanisms can stabilize heterotypic cooperation. In ‘partner choice’, cooperators recognize and choose cooperating over cheating partners; in ‘partner fidelity feedback’, fitness-feedback from repeated interactions ensures that aiding your partner helps yourself. How might a spatial environment, which facilitates repeated interactions, promote fitness-feedback? We examined this process through mathematical models and engineered Saccharomyces cerevisiae strains incapable of recognition. Here, cooperators and their heterotypic cooperative partners (partners) exchanged distinct essential metabolites. Cheaters exploited partner-produced metabolites without reciprocating, and were competitively superior to cooperators. Despite initially random spatial distributions, cooperators gained more partner neighbors than cheaters did. The less a cheater contributed, the more it was excluded and disfavored. This self-organization, driven by asymmetric fitness effects of cooperators and cheaters on partners during cell growth into open space, achieves assortment.

https://doi.org/10.7554/eLife.00960.001

eLife digest

Cooperation between individuals of the same species, and also between different species, is known to be important in evolution. Large fish, for example, rely on small cleaner fish to remove parasites, while the small fish benefit from the nutrients in these parasites. However, cooperation can be undermined by other individuals or species who “cheat” by taking advantage of those who cooperate, without providing any benefits in return. For example, some cleaner fish cheat by biting off healthy tissue from their host, in addition to parasites.

Genetically-related individuals who cooperate by sharing identical benefits can combat cheaters by giving preferential treatment to their relatives (a process known as kin discrimination) or by staying close to the relatives to form clusters (kin fidelity). However, two genetically-unrelated populations that mutually cooperate by sharing different benefits cannot employ these methods to overcome cheaters. Instead they rely on either partner choice or partner fidelity feedback.

Partner choice – the approach adopted by cleaner fish and their hosts – relies on one population recognizing a signal from the other population and responding accordingly: for example, large fish observe cleaner fish and approach those that cooperate with their current host and avoid those that cheat. Partner fidelity feedback, on the other hand, relies on repeated interactions between the two populations providing an advantage in terms of evolutionary fitness to both: for example, organelles called mitochondria and chloroplasts live inside cells, helping the cells to harvest energy and providing energy for themselves and the host cells in the process. In some cases – such as the cooperation between figs and fig wasps, or between certain plants and the bacteria that fix nitrogen in their roots – researchers cannot agree if the populations are relying on partner choice or partner fidelity feedback.

Now Momeni et al. have used a combination of experiments on yeast and mathematical modeling to explore partner fidelity feedback in greater detail. They started by using genetic engineering techniques to produce two species of yeast that mutually cooperate, each providing a metabolite that is essential to the other, but are not able to recognize each other: this means that these populations cannot rely on partner choice to combat cheaters. Momeni et al. then observed how these two species interacted with each other and a third species of yeast that cheated by consuming one of the metabolites without releasing any metabolite of its own.

Momeni et al. found that as long as there was space for the yeast cells to grow into, the two species that cooperated self-organized into mixed clusters, with the cheating species being excluded from these clusters. The self-organization was driven by a positive feedback loop involving the two species that cooperated, with each species helping to increase the fitness of the other. The results of Momeni et al. demonstrate that it is possible for two genetically unrelated populations to cooperate and combat cheaters without the use of partner choice.

https://doi.org/10.7554/eLife.00960.002

Introduction

Cooperation, providing a benefit available to others at a cost to self, has been postulated to drive major transitions in evolution (Maynard Smith and Szathmary, 1998). Cooperation may take place between similar individuals contributing and sharing identical benefits (homotypic cooperation) or between two populations exchanging distinct benefits such as in some forms of mutualism (heterotypic cooperation). Both homotypic and heterotypic cooperation are vulnerable to cheaters (Turner and Chao, 1999; Strassmann et al., 2000; Bronstein, 2001; Rainey and Rainey, 2003; Travisano and Velicer, 2004). Cheaters exploit cooperative benefits without contributing their fair share and are therefore competitively superior to their cooperating counterparts. How might cooperation avoid being taken over by cheaters? The answer lies in ‘positive assortment’ (Fletcher and Doebeli, 2009), in which benefit-supplying individuals interact more with other benefit-supplying individuals than with cheaters.

In homotypic cooperation that involves genetic relatives, positive assortment can be realized through ‘kin discrimination’, which is based on the active recognition and preferential treatment of more closely related individuals over distantly related ones (Sachs et al., 2004). Positive assortment can also be realized through ‘kin fidelity’ (Sachs et al., 2004). For example, restricted migration in a spatial environment causes homotypic cooperators and cheaters to cluster with their respective progeny. This clustering allows cooperators to preferentially interact with each other (Figure 1A, top). Both mechanisms of positive assortment can favor cooperation (Hamilton, 1964a; Hamilton, 1964b; Maynard Smith, 1964; Chao and Levin, 1981; Nowak and May, 1992; Fletcher and Doebeli, 2006; Kerr et al., 2006; MacLean and Gudelj, 2006; West et al., 2006; Lion and Baalen, 2008; Wild et al., 2009; West and Gardner, 2010). A spatial environment may also impede homotypic cooperation by intensifying competition among cooperators (Taylor, 1992; Wilson et al., 1992; West et al., 2002) and in certain cases, by potentially encouraging cheating strategies (Hauert and Doebeli, 2004).

Figure 1 with 2 supplements see all

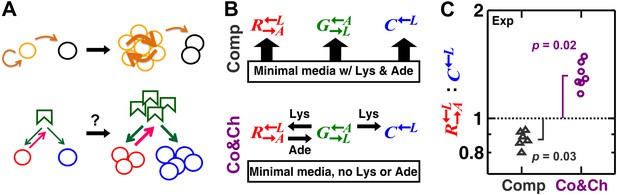

A spatial environment favors heterotypic cooperation over cheating.

(A) Top: clustering with self-type can favor homotypic cooperators (yellow) over cheaters (black). Bottom: clustering with self-type should not favor heterotypic cooperation since cooperator clusters (red) and competitively superior cheater clusters (blue) should have equivalent access to the heterotypic cooperative partner (green). (B) We engineered three yeast strains: a red-fluorescent RAL strain requiring lysine and releasing adenine; a green-fluorescent GLA strain requiring adenine and releasing lysine; and a cyan-fluorescent CL strain requiring lysine and not releasing adenine. The three strains purely competed (‘Comp’) or additionally cooperated and cheated (‘Co&Ch’), depending on whether the medium contained or lacked adenine (‘Ade’) and lysine (‘Lys’), respectively. (C) In competitive communities, RAL:CL dropped below the initial value of 1 (dotted line) during community growth due to the fitness advantage of CL over RAL. In contrast, RAL:CL rose above 1 when the strains engaged in cooperation and cheating. Population ratios in experiments were measured using flow cytometry. All communities started from an initial density of 3000 total cells/mm2 with the three strains at a 1:1:1 ratio on top of an agarose column (Figure 1—figure supplement 1A) and were analyzed after approximately six to eight generations (Figure 1—figure supplement 2). p Values are from the Wilcoxon signed rank test, comparing the median with 1.

https://doi.org/10.7554/eLife.00960.003

Heterotypic cooperation can occur between populations that are genetically related but phenotypically differentiated, such as between different cell types in a multicellular organism. Alternatively, heterotypic cooperation can involve two genetically unrelated populations (e.g., species) exchanging distinct benefits that are costly to produce. For example, legume plants supply organic carbon and other essential nutrients to rhizobia, and rhizobia reciprocate with fixed nitrogen (Udvardi and Poole, 2013). Positive assortment in heterotypic cooperation can be achieved through ‘partner choice’ and ‘partner fidelity feedback’ (Bull and Rice, 1991; Sachs et al., 2004; Foster and Wenseleers, 2006; Weyl et al., 2010). In partner choice, active mechanisms (disruptable through for example mutational or pharmacological means) enable an individual to differentially reward cooperative instead of non-cooperative partners based on a signal. Thus, discrimination mediated by partner choice can occur in advance of exploitation (Bull and Rice, 1991). For instance, in the mutualism between client fish and cleaner fish in which cleaner fish obtain food from removing client parasites, client fish recognize and avoid cheating cleaners that also bite healthy tissues (Bshary, 2002). In partner fidelity feedback, fitness-feedback from repeated interactions ensures that aiding the partner helps self. Examples of partner fidelity feedback can be found in mutualism between hosts and their vertically transmitted symbionts, for example, between eukaryotes and their endosymbioic mitochondria and chloroplasts (Sachs et al., 2011).

Natural heterotypic cooperative systems often benefit from a combination of partner choice and partner fidelity feedback. Often, for a particular system, it is challenging to determine which mechanism is mainly responsible for fending off cheaters. For instance, the mutualism between fig and fig wasp and between legume and rhizobia have been thought to employ partner choice by some investigators (Kiers et al., 2003; Sachs et al., 2004; Foster and Wenseleers, 2006; Jandér and Herre, 2010) and partner fidelity feedback by others (Weyl et al., 2010).

In this study, using engineered yeast strains and mathematical models devoid of possibilities for partner choice, we examined how through partner fidelity feedback heterotypic cooperation between microbes may be protected against cheaters. Spatial environment, which facilitates repeated interactions between neighboring individuals, has been shown to promote heterotypic cooperation (Boucher et al., 1982; Doebeli and Knowlton, 1998; Yamamura et al., 2004; West et al., 2007; Harcombe, 2010; Mitri et al., 2011). However, the mechanism for how partner fidelity feedback unfolds in a spatial environment is not well understood. Specifically, how might spatial correlation in the tendency to contribute arise between genetically unrelated heterotypic cooperators when such correlation was initially absent (Frank, 1994)? If population viscosity was the sole driving force, then clusters of cooperators and clusters of competitively superior cheaters would be expected to have equivalent access to clusters of heterotypic cooperative partners. This would seem to favor cheaters (Figure 1A, bottom). Instead, we show that in a spatial environment, asymmetric fitness effects of cooperators and cheaters on partners during cell growth into open space drives assortment. This emergence of non-random patterns from initially random spatial distributions, known as self-organization, automatically grants cooperators instead of cheaters more access to heterotypic cooperative partners, disfavoring cheaters. Thus, partner fidelity feedback through self-organization excludes cheaters without evolving recognition mechanisms.

Results

Environment-dependent engineered heterotypic cooperation and cheating

To examine how partner fidelity feedback unfolds in a spatial environment, we started with an engineered experimental system incapable of partner recognition (Shou et al., 2007; Waite and Shou, 2012). This system consisted of three reproductively isolated Saccharomyces cerevisiae strains: a green-fluorescent strain requiring adenine and releasing lysine (GLA), a red-fluorescent strain requiring lysine and releasing adenine (RAL), and a cyan-fluorescent strain requiring lysine and not releasing adenine (CL). Release of lysine or adenine was caused by metabolite overproduction due to a mutation that made the first enzyme of the biosynthetic pathway (Lys21 and Ade4, respectively) insensitive to end-product inhibition (Armitt and Woods, 1970; Feller et al., 1999). CL still produced adenine for itself at the wild-type level, but without the overproduction mutation, the adenine produced by CL was not sufficient to support the growth of GLA (Figure supplement 6 in Shou et al., 2007).

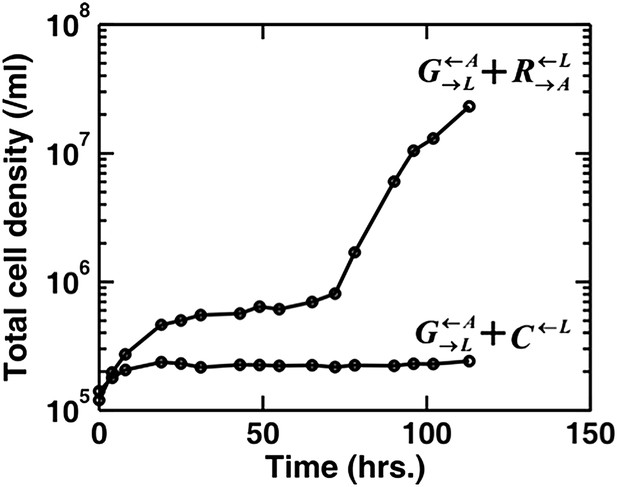

These strains engaged in different types of interactions depending on the environment. In minimal medium supplemented with abundant adenine and lysine, they competed for nutrients required by all three strains (e.g., glucose and nitrogen) and limited space (Figure 1B, ‘Comp’). In minimal medium without supplements, in addition to competition, GLA and RAL exchanged essential metabolites lysine and adenine (Shou et al., 2007), while CL consumed lysine without releasing adenine. Not overproducing adenine, CL showed a ∼2% growth rate advantage over RAL when lysine was abundant (competition assay in Figure 1 of Waite and Shou, 2012). In the absence of lysine, there was no significant difference in the death rates of RAL and CL (Figure S1 in Waite and Shou, 2012). Finally, in media lacking lysine and adenine, binary cocultures of RAL and GLA could grow from low to high cell densities (Figure 1 in Shou et al., 2007), whereas cocultures of CL and GLA failed to grow (Figure supplement 6 in Shou et al., 2007). These results collectively suggest that CL acts as a cheater variant of RAL (Waite and Shou, 2012). In other words, in the absence of supplements, cooperator RAL and the competitively superior cheater CL competed for the lysine supplied by the heterotypic cooperative partner (partner) GLA (Figure 1B, ‘Co&Ch’). Cooperator RAL ‘reciprocated’ by releasing adenine, which is essential for partner GLA, but cheater CL did not release adenine.

A spatial environment can stabilize heterotypic cooperation against cheaters

We first verified that a spatial environment could stabilize heterotypic cooperation against a competitively superior cheater in our system. We initiated experimental communities from randomly distributed equal proportions of the three cell populations on agarose pads (Figure 1—figure supplement 1A). During pure competition in the presence of supplemented adenine and lysine, the RAL:CL ratio dropped below the original value of 1 after approximately six to eight generations (Figure 1C), consistent with the known 2% growth advantage of CL over RAL (Waite and Shou, 2012). In contrast, during cooperation and cheating in the absence of adenine and lysine supplements, cooperating RAL was favored over cheating CL (Figure 1C, time course in Figure 1—figure supplement 2).

If the spatial aspect of the environment is disrupted, either by periodically mixing a community or by growing it as a well-mixed liquid coculture, partner fidelity feedback should not operate and cheaters are expected to be favored over cooperators. However, the ratio of cooperators RAL to cheaters CL in periodically mixed replicate communities varied dramatically (Figure 2—figure supplement 1). This was because the lysine-limited environment strongly selected for adaptive mutants in CL and RAL (Waite and Shou, 2012). Thus, CL and RAL engaged in an ‘adaptive race’ (Waite and Shou, 2012) akin to clonal interference: if CL had the best mutation to grow under lysine limitation, then the coculture was quickly destroyed by cheaters; if RAL had the best adaptive mutation, then the coculture quickly purged cheaters. As a result, CL outcompeted RAL or RAL outcompeted CL depending on which population had a better mutation, not because of social interactions. This kind of phenomenon has also been observed for non-engineered cooperating and cheating microbes (Morgan et al., 2012). We chose two evolving cocultures in which the CL populations were increasing in frequency, When we grew these two cocultures in well-mixed and in periodically perturbed spatial environments, CL was favored (Figure 2—figure supplement 2; ‘Materials and methods’). However, in a spatial environment, RAL was favored (Figure 2—figure supplement 2), consistent with previous experiments on a different microbial system (Harcombe, 2010). Our experiments involved non-clonal and non-isogenic populations. In nature, cheaters can be of different species (such as the non-pollinating wasps of fig) and therefore not isogenic with their cooperating counterpart. Additionally, upon environmental stresses, originally isogenic cooperators and cheaters can quickly acquire different mutations and become nonisogenic (Morgan et al., 2012; Waite and Shou, 2012). Regardless, we resorted to mathematical models to eliminate the confounding influence of adaptive mutations.

We extended a three-dimensional individual-based model of community growth (previously described as the ‘diffusion model’ in Momeni et al., 2013) to include cooperators, cheaters, and heterotypic partners. The main assumptions of this model were: (1) that the growth of individual cells depended on consumption of the limiting metabolite, and the consumption rate in turn depended on the local concentration of the limiting metabolite according to Michaelis–Menten kinetics; (2) that spatial distribution of metabolites was governed by release, diffusion, and consumption; and (3) that cells rearranged when necessary to accommodate new cells as per experimental observations (‘Materials and methods’). Parameters of this model (such as the rates of growth, death, and metabolite consumption and release) were experimentally determined (Momeni et al., 2013), mostly through characterizing properties of monocultures (Figure 2—source data 1). CL was assumed to have a constant intrinsic fitness advantage over RAL at all lysine concentrations, as modeled by a higher maximum uptake rate (vm,C>vm,R in ‘The diffusion model’ in ‘Materials and methods’). In the absence of adaptations, simulation results confirmed that a spatial environment favored cooperators over cheaters and that disrupting the spatial aspect of the environment gave cheaters an advantage over cooperators (Figure 2).

Figure 2 with 2 supplements see all

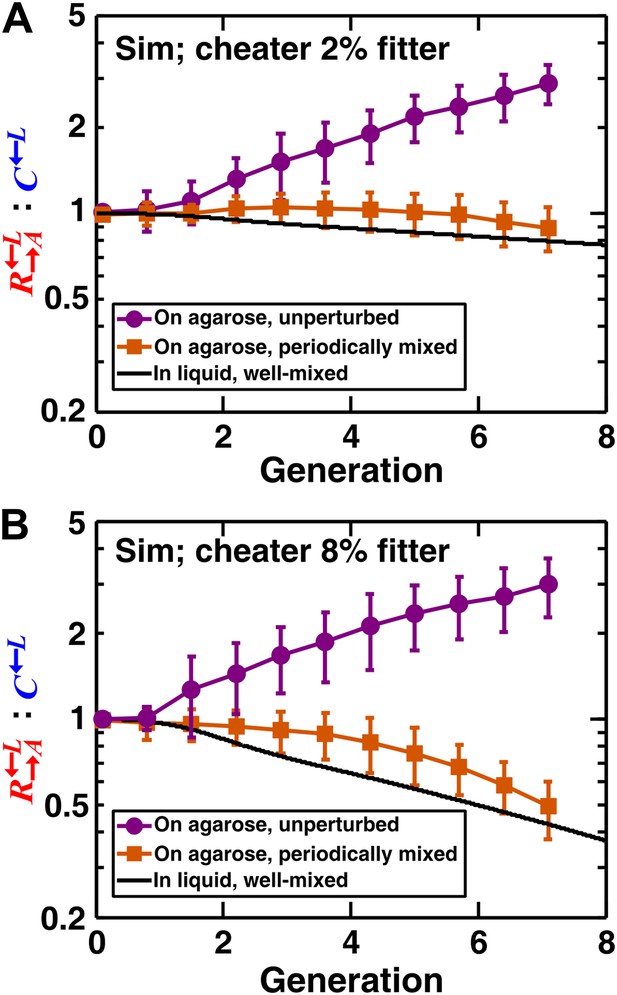

In simulated communities, a spatial environment is required to promote heterotypic cooperation.

The RAL:CL ratios of simulated (‘Sim’) spatial cooperating and cheating communities were grown either unperturbed (purple circles) or periodically mixed (orange squares). To simulate periodic mixing, the arrangement of cells was completely randomized every 12 hr. In each mixing event, the concentration of adenine and lysine throughout the community was assigned to be the average value over the entire community. Error bars show the standard deviation of ratios in six independent communities. The solid black line shows the ratio in a simulated well-mixed liquid coculture using the same parameters as simulated communities on agarose (Figure 2—source data 1). The fitness advantage of cheater over cooperator was either 2% (top panel) or 8% (bottom panel).

https://doi.org/10.7554/eLife.00960.006

During spatial growth of the yeast community, ancestral RAL and CL should also engage in an adaptive race to adapt to the lysine-limited environment. However, unlike in the liquid environment, mutants in RAL and CL were spatially restricted to the neighborhood of their origins, and thus these mutants could not sweep through the entire community. Consequently, population dynamics from different replicates were highly reproducible (Figure 1—figure supplement 2). Thus, we used ancestral RAL and CL for all other experiments.

Differential spatial association with partner favors heterotypic cooperation over cheating

How might a spatial environment promote heterotypic cooperation? The relative positioning of cells in a community, the ‘spatial pattern’ of a community, can develop differently based on the fitness effects of cell–cell interactions (Momeni et al., 2013). Due to the inability of confocal or two-photon microscopy to yield three-dimensional patterns of cells in yeast communities, we only had access to the top-views (xy) and vertical cross-sections (z), with the latter being obtained through cryosectioning (Momeni and Shou, 2012). In vertical cross-sections, we have previously shown that in the absence of adenine and lysine supplements, RAL and GLA as a strongly cooperative pair (i.e., there is a large fitness gain from interacting with the other population) are expected to spatially mix (Momeni et al., 2013). In contrast, RAL and CL, a competing pair, should form segregated columns, with each column consisting primarily of a single cell type (Momeni et al., 2013). Finally, for the commensal pair GLA and CL in which each GLA cell can support the local growth of multiple CL cells, CL is expected to grow over GLA (Momeni et al., 2013). However, it is unclear what patterns would form when the three strains grow together in a community and how the patterns might impact cooperators and cheaters differently.

To examine how cooperation and cheating might affect community patterns, we compared communities grown in a spatial environment under conditions of competition (‘Comp’) or cooperation and cheating (‘Co&Ch’) (Figure 1B). Specifically, equal proportions of RAL, GLA, and CL cells were randomly distributed on top of an agarose surface and allowed to grow. Top-views of experimental (‘Exp’) communities grown in the presence of adenine and lysine supplements revealed that RAL, GLA, and CL, when engaged in pure competition, were evenly distributed in the horizontal xy plane (Figure 3A, top panel). This pattern was caused by the initial cells growing into microcolonies which, after running into each other, were forced to grow upward (Figure 3—figure supplement 1A) (Momeni et al., 2013). Indeed, vertical cross-sections exhibited patterns consistent with our expectations that competitive populations should form segregated columns (Momeni et al., 2013) (Figure 3A, bottom panel).

Figure 3 with 2 supplements see all

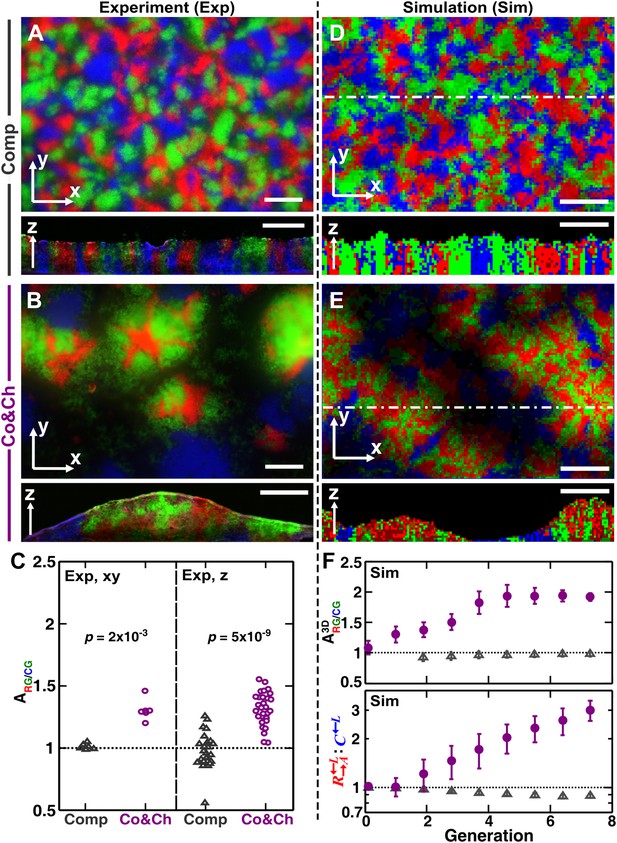

Growing cells self-organize to exclude cheaters from heterotypic cooperators.

(A and B) Experimentally, as the initially randomly distributed cells grew, different patterns emerged depending on whether the medium contained or lacked adenine and lysine supplements and consequently whether the dominant cell-cell interaction was respectively competition (‘Comp’) or cooperation and cheating (‘Co&Ch’). Top-views: ‘xy’; vertical sections: ‘z’. (C) Compared to CL, RAL had a higher level of association with GLA during cooperation and cheating (ARG/CG> 1) but not during competition. In (C), the communities were analyzed after approximately six to eight generations. (D, E and F) We observed similar results in the simulated communities. In simulated top-views, higher color intensity indicates a greater number of cells of the corresponding fluorescent color stacked at that position. In simulated vertical cross-sections, low and high color intensity represent dead and live cells, respectively. Scale bar: 100 μm. In C and F, grey: competition; magenta: cooperation and cheating. p Values are from the Mann–Whitney U-test. All communities started from an initial density of 3000 total cells/mm2 (Figure 1—figure supplement 1A).

https://doi.org/10.7554/eLife.00960.010

In the absence of adenine and lysine supplements, the three populations engaged in heterotypic cooperation and cheating in addition to competition for shared resources. Top-views of these experimental communities showed patterns distinct from those of purely competitive communities. Regions dominated by a mixture of the cooperating pair RAL and GLA appeared isolated from regions dominated by the cheater CL (Figure 3B, top panel and Figure 3—figure supplement 1B). Vertical cross-sections of these communities revealed that cooperating RAL and GLA intermixed and formed tall ‘pods’. In contrast, cheating CL was relegated to the periphery of these pods and grew relatively poorly (Figure 3B, bottom panel).

To quantify differential partner association, the result of partner fidelity feedback, we define ‘partner association index’ ARG/CG: for those RAL and CL cells bordering at least one other cell type (‘Materials and methods’), ARG/CG is the ratio of the average number of GLA in the immediate neighborhood of RAL to the average number of GLA in the immediate neighborhood of CL. A partner association index ARG/CG> 1 indicates more GLA neighbors surrounding RAL than surrounding CL. Using a two-dimensional neighborhood to quantify ARG/CG in top-views and vertical cross-sections, we found that ARG/CG significantly exceeded 1 during cooperation and cheating but not during competition (Figure 3C). This self-organization—the formation of non-random patterns from initially randomly distributed individuals purely driven by internal local interactions (Camazine et al., 2003; Solé and Bascompte, 2006)—automatically makes GLA partner more accessible to cooperating RAL than to cheating CL.

Similar to the experiments, top-views and vertical cross-sections in the communities simulated through the diffusion model (‘Sim’) also showed that cooperating RAL and GLA preferentially associated with each other and formed tall pods, while cheating CL was isolated (Figure 3E). Such self-organization was absent in pure competition (Figure 3D). We quantified the partner association index of simulated communities using a three-dimensional neighborhood averaged across the entire community (ARG/CG3D), which turned out to be much less variable than analyzing two-dimensional slices (Figure 3—figure supplement 2). During cooperation and cheating, ARG/CG3D increased from an initial value of 1 to a steady level greater than 1 (Figure 3F, top). This greater-than-1 ARG/CG3D favored cooperating RAL over cheating CL, as the ratio RAL:CL continued to increase even after ARG/CG3D had leveled off (Figure 3F, bottom). In contrast, during pure competition, ARG/CG3D was close to 1 and CL was favored over RAL (Figure 3F).

Self-organization can in theory discriminate among cooperators of varying quality

In addition to generating information difficult to obtain from experimental communities (such as the detailed time course of ARG/CG3D described above), simulations enabled us to explore a broader class of cooperator–cheater communities. Simulations showed that self-organization also allowed discrimination among cooperators of varying quality (Figure 4). Specifically, we initiated diffusion-model simulations using three populations: GLA, RAL, and RA,dL. The adenine release rate of RA,dL was a fraction d (< 1) of that of RAL, and like CL, RA,dL had a constant growth rate advantage over RAL at all lysine concentrations. When grown in the absence of supplements, RA,dL were isolated and outcompeted by RAL. This effect was quantitative, as a lower d value resulted in a larger ARG/RdG (i.e., the less RA,dL released, the more it was excluded; Figure 4A,B), and a greater advantage of RAL over RA,dL (Figure 4C,D). In contrast, ARG/RdG was not highly sensitive to the intrinsic growth rate advantage of RA,dL over RAL (Figure 4—figure supplement 1). RA,dL was still strongly disfavored even when it had relatively large (50%) intrinsic growth rate advantage over RAL (Figure 4—figure supplement 1). Taken together, self-organization favors cooperators that supply the most benefits.

Figure 4 with 3 supplements see all

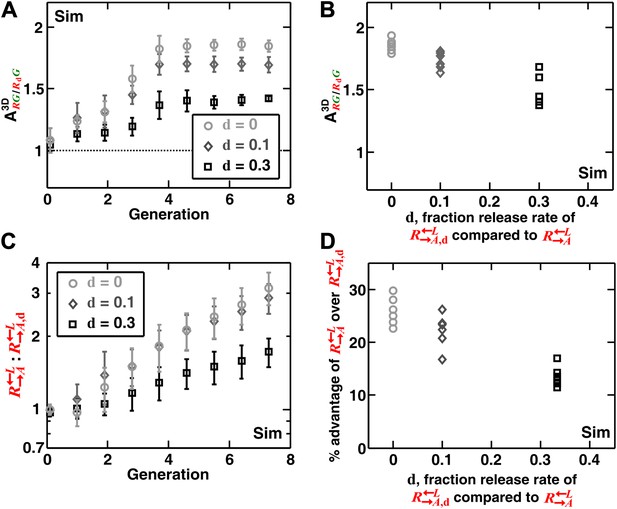

Self-organization leads the most giving cooperator to associate most with the heterotypic cooperative partner, allowing discrimination of cooperators of varying quality.

In diffusion model simulations, RA,dL produced adenine at a rate d-fold (0 ≤ d < 1) of the release rate of RAL. RA,dL had a 5% fitness advantage over RAL at all lysine concentrations. RA,dL that released less (smaller values of d) were isolated more in spatial patterns (A, steady-state values summarized in B) and disfavored more as the community grew (C and D). In (D), the fitness advantage of RAL over RA,dL was calculated from the rate of changes in the ratio RAL:RA,dL between generations 2 and 6 in (C). In (B) and (D), data from six replicates were plotted. The communities were initiated at 3000 total cells/mm2. Sim: simulation.

https://doi.org/10.7554/eLife.00960.013

Heterogeneity in the initial spatial distribution of cells facilitates but is not required for self-organization

One might hypothesize that among the initially randomly distributed cell populations, the occasional fortuitous proximity of a cooperator cell to a partner cell is necessary for self-organization. To examine this hypothesis, we simulated communities starting from a periodic and symmetric initial distribution of cells (Figure 5A). In the absence of initial spatial asymmetry, other stochastic effects such as the initial metabolite-storage state of the cell, cell rearrangement, and death events broke the symmetry and self-organization still emerged (Figure 5B). Even though the final partner association index from random initial distribution was greater than that from periodic distribution, the latter was still significantly greater than 1 (Figure 5C). Consequently, cooperators still outperformed cheaters in periodic initial distribution, even though the degree of outperformance was greater in random initial distribution (Figure 5D). These simulation results suggest that the heterogeneity in the initial spatial distribution of cells promoted but was not required for self-organization.

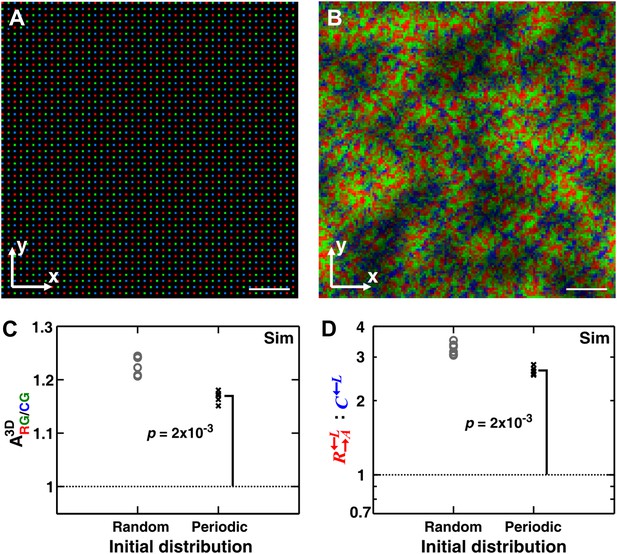

Heterogeneity in the initial spatial distribution of cells facilitates but is not required for cheater isolation.

Starting from a symmetric and periodic distribution in which all cooperators RAL and cheaters CL had an equal access to the partner GLA (A), heterotypic cooperators self-organized (B and C) and were favored (D). (BD) corresponded to generation 6. Break of symmetry from the initial symmetric spatial distribution can be due to stochastic effects such as differences in the initial amounts of metabolites cells possessed, death of cells, or the random direction of cell division. Compared to a random initial distribution, communities with a periodic initial distribution showed smaller mean ARG/CG; nonetheless, ARG/CG significantly exceeded 1 (Wilcoxon signed rank test). In these simulations, the growth rate advantage of CL over RAL was assumed to be 10% at all concentrations of lysine. The communities were initiated at 4400 total cells/mm2. Scale bar: 100 μm. In simulated top-views, higher color intensity indicates a greater number of cells of the corresponding color stacked at that position. Sim: simulation.

https://doi.org/10.7554/eLife.00960.017

Asymmetric fitness effects of cooperators and cheaters on partners drives self-organization

What drives differential partner association during self-organization? Since self-organization was only observed during cooperation and cheating but not during competition, the very acts of cooperation and cheating are required. When the fitness effects of interactions are the major driving force of patterning, interacting populations are expected to intermix if both supply spatially localized large fitness benefit to the other (Momeni et al., 2013). In contrast, lack of benefit to either population causes population segregation (Momeni et al., 2013). Thus, we reason that the asymmetry between cooperators and cheaters in their capacity to reciprocate partner’s benefits drives self-organization.

To examine how this asymmetry leads to self-organization, we simulated a community in which a center stripe of partners was initially bordered by a stripe of cooperators on one side and cheaters on the other (Figure 6). This simulation configuration allowed us to examine the process of self-organization from the simplest form of initial symmetry. Near the cooperator side, partners intermixed with cooperators due to the spatially localized large benefits to both (Momeni et al., 2013; red and green in Figure 6). In contrast, near the cheater side, the lack of benefits to partners caused minimal intermixing between cheaters and partners (Momeni et al., 2013; blue and green in Figure 6). This isolation of cheaters allowed cooperators to increase in frequency despite the intrinsic fitness advantage of cheaters over cooperators.

Figure 6 with 1 supplement see all
Asymmetric fitness effects of cooperators and cheaters on partners drive self-organization.

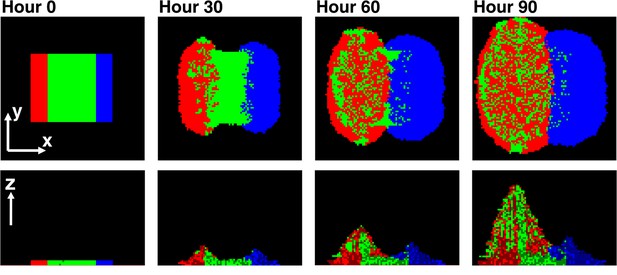

Time progression of self-organization in a simulated community as observed in top-views (top) and vertical cross-sections (bottom). Heterotypic cooperative partners (green) supply large benefits to both cooperators (red) and cheaters (blue). Since the benefit is spatially localized, only cooperators and cheaters that are close to partners will grow. Given that cells dividing toward partners will on average have more access to benefits than those dividing away from partners, both cooperators and cheaters pile over partners. Cooperators reciprocate by supplying a large, but different, localized benefit to the partner, while cheaters do not. Thus, partners grow and pile over cooperators but not cheaters. Consequently, further growth of cooperators is facilitated, while cheaters become isolated and disfavored. In this simulation, cheaters have an 8% fitness advantage over cooperators. To mimic the top-view from microscopy, the top-view in this simulation represents the top-most layer of cells instead of the total intensity integrated over z at each pixel.

https://doi.org/10.7554/eLife.00960.018

Cell growth into open space is required for self-organization

If the cell densities in the initial inoculum were so high that all cell types were forced to be each other’s immediate neighbor, then the degree of self-organization might be limited. To test whether access to open space is required for self-organization, we initiated communities at high initial cell densities such that two cell layers covered the inoculation spot. We then allowed communities to grow unperturbed in a spatial environment (Figure 1—figure supplement 1B). Compared to the center, the expanding front where open space offered opportunities for self-organization showed a significantly higher partner association index (Figure 7, Figure 7—figure supplement 1). In the community center, cooperators were not favored over cheaters. In contrast, RAL:CL increased progressively above the initial value of 1 as the community grew into open space away from the inoculum (Figure 7). Thus, similar to what has been observed for homotypic cooperation (Datta et al., 2013; Van Dyken et al., 2013), growth into open space during range expansion also favors heterotypic cooperation over cheating.

Figure 7 with 1 supplement see all

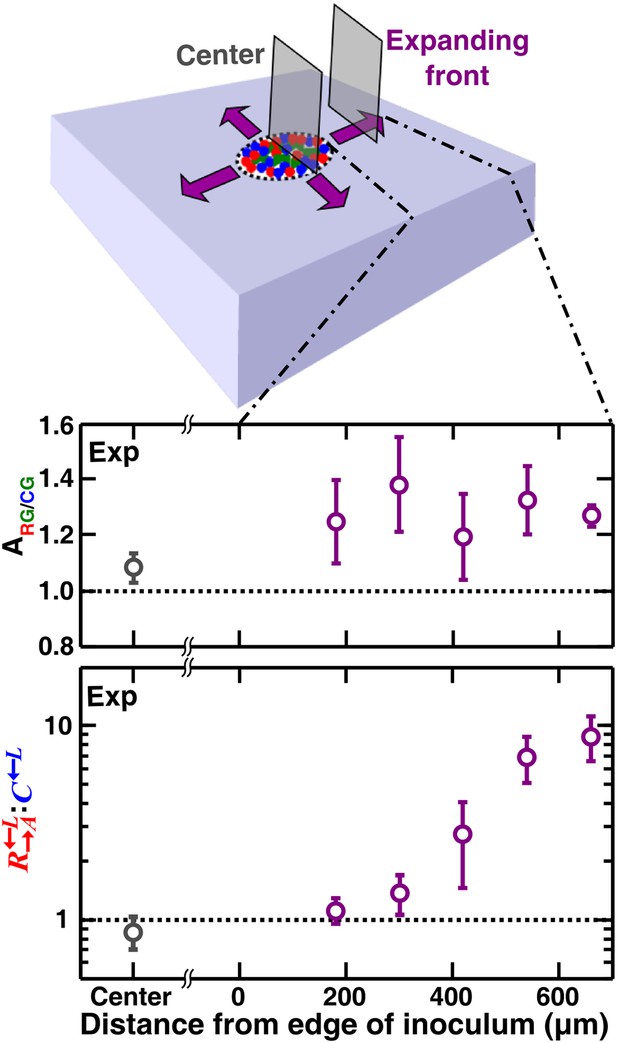

Cell growth into open space is required for self-organization and cheater isolation.

In an unperturbed spatial environment, a community starting from a high-density (∼105 total cells/mm2) confluent inoculum expanded to new territories (purple). Compared to ‘Center’, self-organization was significantly more in ‘Expanding front’. Consequently, the initially 1:1 RAL:CL ratio changed in favor of cooperators as the community expanded outward but not in ‘Center’. Sections were collected from three independent communities. Using the Mann–Whitney U-test, the association indexes of the ‘Center’ and of the ‘Expanding front’ were significantly different (p = 4 × 10−4). Exp: experiment.

https://doi.org/10.7554/eLife.00960.020

Discussion

Using an engineered yeast community and a mathematical model devoid of partner recognition, we examined how partner-fidelity feedback unfolds in a spatial environment at the individual cell level. In our system, partner cells released essential metabolites for cooperators and cheaters, and cooperators reciprocated with a different essential metabolite while cheaters did not. We found that despite an initially random or periodic spatial distribution, cells ‘self-organized’ into a non-random and non-symmetric pattern: cooperators had more partner neighbors than cheaters did. The level of differential partner association, as quantified by the partner association index, is correlated with how much cooperators outperform cheaters despite the intrinsic fitness advantage of cheaters over cooperators.

What is required for self-organization? Self-organization is driven by the asymmetry between cooperators and cheaters in the amount of spatially localized benefits they supply to the heterotypic partner during cell growth into open space. Our previous work has shown that if two distinct populations receive spatially localized large fitness benefits from each other, then the two populations are expected to intermix (Momeni et al., 2013). In contrast, when the fitness benefit to at least one population is small, then cell types are not expected to intermix (Momeni et al., 2013). Consequently, partners intermix with cooperators but not cheaters (Figures 3–7). This difference in the tendency to intermix causes differential partner association, which facilitates the growth of cooperators and isolates and disfavors cheaters. Indeed in simulations, if intermixing was prevented through delocalizing benefits (Momeni et al., 2013; Allen et al., 2013), or if intermixing was imposed on all cells through high initial cell densities, self-organization and cooperator advantage over cheaters diminished (Figure 6—figure supplement 1, Figure 7). Similar trends are observed in recent works which mathematically examined diffusion of public good in homotypic cooperation (Allen et al., 2013; Borenstein et al., 2013).

Simulations showed that spatial self-organization could discriminate among cooperators that supply different levels of benefits (Figure 4). When cooperative benefits were limiting, the most ‘helpful’ cooperator ended up with the highest number of partners and was most favored. In our mathematical model, we could be sure that this was not due to partner recognition. Thus, in theory, self-organization through partner fidelity feedback is capable of achieving finer levels of discrimination without requiring sophisticated cognition and memory. Without knowing the molecular mechanisms of interactions, one could easily confuse partner fidelity feedback with partner recognition, because both are capable of discriminating partners of varying cooperative qualities. Our work suggests that any argument on partner recognition in a system that is intrinsically spatial (such as legume and rhizobia and fig and colonizing fig wasp) will require identifying variants that fail to distinguish cooperators from cheaters. Otherwise, interpreting cheater discrimination as ‘partner choice’ can be misleading.

Spatial self-organization can fend off cheaters with large fitness advantages over cooperators (Figure 4D). However, if (non-isogenic) cheaters are much better than cooperators at taking up low concentrations of benefits, then cheaters will destroy heterotypic cooperation even in a spatial environment (experimental results in Figure 4—figure supplement 2). In byproduct mutualism (benefit production incurs no cost and thus non-producers have no fitness advantage over producers), non-producers are excluded and disfavored in a spatial environment (Figure 4—figure supplement 3). Furthermore, high levels of non-producers can still destroy byproduct mutualism in a spatial environment (simulation results in Figure 4—figure supplement 3). This is because non-producers compete with producers for benefits from the partner. If the initial level of non-producers is too high, producers receive few benefits and suffer, which in turn negatively impacts the partner.

Conceptually, spatial self-organization favoring heterotypic cooperation can be considered as an example of niche construction or environmental feedback (Lehmann, 2007; Pepper, 2007). Cooperators construct favorable niches and cheaters construct unfavorable niches for partners. Through differential partner association, partners construct better niches for cooperators than for cheaters. Niche construction not only affects the growth of current cells, but also that of the future progeny. This reciprocal niche construction favors heterotypic cooperation over cheating.

In summary, spatial self-organization is the mechanism for partner fidelity feedback. Not requiring the evolution of partner recognition (Travisano and Velicer, 2004; Foster and Wenseleers, 2006), spatial self-organization offers a simple and fundamental mechanism solely driven by acts of strong cooperation and cheating during cell growth into open space. Even in natural heterotypic cooperative systems with long evolutionary histories, self-organization may act either alone or in synergy with potential recognition mechanisms (Weyl et al., 2010) to exclude cheaters.

Materials and methods

Engineered yeast strains

RAL, GLA, and CL were respectively WS950 (MATa ste3::kanMX4 lys2Δ0 ade4::ADE4(PUR6) ADHp-DsRed.T4), WS954 (MATa ste3::kanMX4 ade8Δ0 lys21::LYS21(fbr) ADHp-venus-YFP), and WS962 (MATa ste3::kanMX4 lys2Δ0 ADHp-CFP).

Community growth and measurements

To grow yeast communities, agarose columns were prepared by pouring 2× concentrated SD minimal medium (Guthrie and Fink, 1991) with 2% low melting temperature agarose either into flat-bottom 96-well plates (Figure 1—figure supplement 1A) or into rectangular petri dishes (Figure 1—figure supplement 1B). Agarose in the rectangular petri dishes was subsequently cut into 24 mm × 24 mm × 4 mm pads. For competition experiments, 2× SD was supplemented with lysine and adenine (650 μM and 430 μM final concentrations, respectively). The communities on agarose were inoculated either from a uniform distribution of all cells (Figure 1—figure supplement 1A at 3000 or 10,000 total cells/mm2) or a high-density inoculum of ∼2 mm diameter (Figure 1—figure supplement 1B at ∼8 × 104 total cells/mm2), as specified. We grew well-mixed liquid cocultures in 3 ml of 1× SD without supplementing adenine or lysine, with initially 5 × 105 total cells/ml. In all cases, cultures were initiated from equal proportions of RAL, GLA, and CL populations. Flow cytometry was used to measure population sizes of different types in a community (Momeni et al., 2013). Fluorescent imaging equipment and procedures are described in Momeni et al. (2013). Cryosectioning to obtain vertical cross-sections of yeast communities followed Momeni and Shou (2012).

Quantification of partner association

We quantified the relative association of cooperators and cheaters with the heterotypic partner by dividing the average number of immediate GLA neighbors per focal RAL cell by the average number of immediate GLA neighbors per focal CL cell when a focal cell neighbored at least one different population (ARG/CG, partner association index). We chose to count the immediate GLA neighbors because nearest neighbors presumably had the greatest impact on the growth of the focal cell due to spatially localized benefits. We chose to analyze focal cells neighboring at least one different population because cells surrounded by their own types do not contribute as much to population growth as cells surrounded by partners.

In simulations, a three-dimensional neighborhood around each cell was used to quantify the association index (ARG/CG3D), whereas in experiments, a two-dimensional neighborhood was used in two-dimensional top-views or cross-sections of the community. Based on fluorescence intensities in the DsRed, YFP, and CFP channels, cell types were assigned to each pixel in fluorescent images. Pixels having fluorescence intensities less than 30% above the background in all fluorescence channels were defined as ‘no signal’. Otherwise, fluorescence intensities in each channel were normalized to their respective image-wide 90th percentile values and pixel identity was assigned to be the same as the fluorescence channel with the highest normalized intensity. For cross-sections taken from the center of communities in Figure 7, the top crown of cross-sections appeared very bright, whereas the middle and lower regions appeared dim (Figure 7—figure supplement 1). This large dynamic range caused artifacts in cell identification. The intensity thresholds in these sections were therefore manually adjusted to increase the accuracy of cell identification. Eliminating manual adjustments did not alter the conclusions.

The diffusion model

To simulate the growth of three-dimensional yeast communities, we used the agent-based diffusion model (Momeni et al., 2013). In this model, metabolites are released by cooperators and partners, diffuse throughout the community and agarose, and are consumed by cells that need the metabolite. Most parameters were measured experimentally (Figure 2—source data 1). We provide a summary of the most relevant features of the model below, without repeating the implementation details that can be found in Momeni et al. (2013).

Cells take up their required metabolites depending on the local concentration of the metabolite according to the Michaelis–Menten equation:

vi(Si)=vm,iSiSi+Ki,

where, i = RAL, GLA, or CL corresponding to each cell type, Si is the concentration of the required metabolite for each cell type (Si = SL, lysine concentration for RAL and CL, and Si = SA, adenine concentration for GLA), vm,i is the maximum uptake rate when metabolites are abundant, and Ki is assumed to be equal to the Monod constant (the concentration of limiting nutrient at which half maximal growth rate is achieved) for each cell type. RAL and CL cells require αL fmole of lysine and GLA cells require αA fmole of adenine to produce a new daughter cell.

The distribution of metabolites is modeled using the diffusion equation, with uptake and release as sinks and sources. Using simplified notations of SA=SA(t) and SL=SL(t) at time t, the metabolite distributions after a time step tu are calculated as

SA(t+tu)=SA+tu[(DSA)vm,GSASA+KAnG+γAnR],

and

SL(t+tu)=SL+tu[(DSL)vm,RSLSL+KMM,RnRvm,CSLSL+KMM,CnC+βLtunG].

Here, nR, nC, and nG are, respectively, the densities of live RAL, CL, and GLA cells in a focal community grid. =xx^+yy^+zz^ is the vector differential operator. nG is the density of GLA cells that die (which is distributed as binomial (nG, p) where p = tu·dG, with dG being the death rate of GLA ) and release lysine in the time step tu. D is a spatially varying function representing the diffusion coefficient in the environment (the value of D was 360 μm2/s inside agarose, 20 μm2/s inside yeast communities, and 0 μm2/s in the surrounding air, according to experimental measurements). Considering D as a spatially varying function simplifies the numerical calculations by automatically incorporating the boundary conditions at the community–air interface. vm,i, the maximum uptake rate of the limiting nutrient per cell, relates to the maximum growth rate rm,i through vm,i=αirm,i/ln2, where αi is the amount of limiting nutrient required to produce a new cell (αR=αC=αL and αG=αA). CL has a fixed intrinsic fitness advantage over RAL at all lysine concentrations. This advantage was modeled as a higher uptake rate for the limiting nutrient. For example, a 2% fitness advantage of cheaters means vm,C=1.02vm,R or equivalently rm,C=1.02rm,R. βL is the amount of lysine released upon the death of a GLA cell, and γA is the release rate of adenine per RAL cell. CL cheaters do not release any adenine. For other types of cheaters that release adenine with a lower rate compared to cooperators (e.g., in Figure 4), a corresponding release term is included in the equation.

To solve this diffusion equation, we follow the above finite difference time-domain equations over time. The diffusion equation is solved over two separate spatial domains (Momeni et al., 2013), one containing the agarose (with a 60 μm grid size), and the other containing the community and the air above it (with a 15 μm grid size). These grid sizes accommodated different diffusion coefficients in agarose and in community and represented the average distance nutrient molecules diffuse in 3.5 s. When we used the same diffusion coefficient (360 μm2/s and one grid size of 50 μm) for agarose and community, similar results were obtained. No-flow (Si/z=0) boundary conditions are applied to the top and bottom surfaces of the simulation domain and periodic boundary conditions are applied to the four vertical sides of the domain.

To incorporate the effects of competition for other shared resources, the growth of all cells also depended on, in addition to adenine or lysine, a shared resource (for instance, glucose) that was initially supplied in the medium (Figure 2—source data 1). In such simulations, diffusion and uptake of glucose were also simulated in a way similar to the above equations. Each cell divided only after acquiring enough glucose, in addition to adenine or lysine. Once a cell had accumulated one metabolite sufficient for one cell division, it stopped consuming that metabolite and continued to acquire the second metabolite until a sufficient amount had been acquired to trigger the birth of a daughter cell.

In simulations, RAL, CL, and GLA cells are initially randomly distributed on the surface of solid medium. The cells start from random initial storage of their required metabolites. In each tu time step, each live cell takes up its required metabolites according to the Michaelis–Menten equation shown above. Each cell type is assumed to require its limiting metabolite and a shared metabolite (αL lysine for RAL and CL, αA adenine for GLA, and αG for the shared glucose for all cell types, all listed in Figure 2—source data 1) to divide. The state of cells is examined at every τ time interval (τ = 6 min, which contains several diffusion tu time steps, but is still much shorter than the minimum cell doubling time of ∼2 hr). The cells that have acquired the required amount of limiting metabolites divide.

Cell divisions in a three-dimensional community often required cell rearrangement. Assumptions concerning cell rearrangement were derived from experimental observations (Momeni et al., 2013). Time-lapse images of the growth of a single fluorescent cell into a microcolony showed that the center of the microcolony became brighter due to multiple cell layers when the microcolony grew to larger than a five-cell radius (Momeni et al., 2013). Thus, we assumed that each cell initially budded in the horizontal plane and pushed others in its immediate neighborhood to the side along the shortest path to empty space. Once a cell was completely surrounded on each side by roughly five cells, it either budded directly upward with a probability of 70% or randomly budded to one of the sides at the same level, pushing up the displaced cell and all the cells above. The probability of 0.7 (instead of 1) of dividing directly upward is estimated from experimental observations: when individual green-fluorescent cells were surrounded by many equally fit competing red-fluorescent cells, vertical cross-sections showed that as z increased, the progeny of the green-fluorescent cell ‘diffused’ laterally (instead of remaining a vertical line) (Figure 3—figure supplement 1F in Momeni et al., 2013). Since we cannot experimentally track all possible outcomes of cell rearrangement, this assumption is a simplification of reality. This simplification could have contributed to the discrepancy between experimental and simulation patterns, although our conclusions from experiments and simulations are similar.

The cells also die stochastically corresponding to their fixed death rates (dR, dG, or dC as listed in Figure 2—source data 1). After each cell state update (τ), the diffusion coefficient is updated: the diffusion coefficient in each community diffusion grid (15 μm × 15 μm × 15 μm, maximally containing 3 × 3 × 3 = 27 cells of size 5 μm × 5 μm × 5 μm) is assumed to be proportional to the occupancy of that grid, changing from 0 to 20 μm2/s. In this three-dimensional agent-based model of community growth, the initial conditions of cells, cell death, random direction of growth, and cell rearrangement are the only sources of stochasticity; metabolite uptake and diffusion of metabolites in the environment are modeled as deterministic phenomena.

Most of the parameters used for the simulations (Figure 2—source data 1) are measured experimentally. More details of the implementation and assumptions can be found in Momeni et al. (2013). An example of the implementation of this model as a MATLAB code is included in additional files (Source code 1).

Yeast strains adapted to low-nutrient conditions

When the ancestral RAL, GLA, and CL were periodically mixed on an agarose pad lacking adenine and lysine, the final RAL:CL ratios were stochastic, either in favor of cheaters or cooperators (Figure 2—figure supplement 1). This is consistent with previous experiments in liquid cocultures (Waite and Shou, 2012) that also yielded stochastic cheater outcomes due to an adaptive race between RAL and CL. During the adaptive race, both RAL and CL sampled from the same set of mutations that enhanced cell fitness in the lysine-limited cooperative environment. The population with the fittest mutant rapidly dominated the coculture (Figure 2—figure supplement 1; Waite and Shou, 2012).

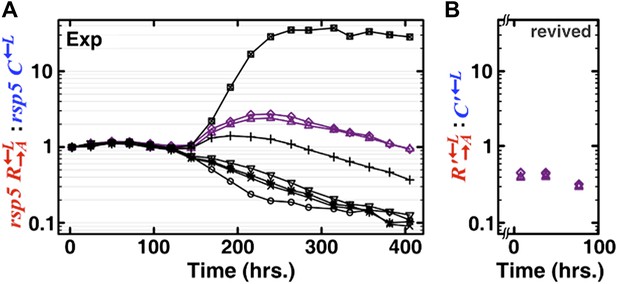

To mitigate the confounding effect of adaptive race, we used RAL and CL populations preadapted to the cooperative environment. First, RAL containing a mutation in RSP5 (CT8, see Table 1 in Waite and Shou, 2012), known to significantly improve the fitness of lysine-requiring cells under lysine-limitation (Waite and Shou, 2012), was crossed to the ancestral CL to produce a diploid (WS1421). Sporulation of the diploid yielded a cyan-fluorescent cooperator (WS1447) and a red-fluorescent cheater (WS1448), both harboring the rsp5 mutation. The temperature sensitivity of this rsp5 allele allowed its easy selection at 37°C. To avoid confusion, we indicate these cooperators and cheaters as rsp5 RAL and rsp5 CL, respectively. Several well-mixed cocultures consisting of rsp5 RAL, rsp5 CL, and the ancestral partner GLA (WS954) were initiated at a ratio of 1:1:1. The initial stochastic phase in population dynamics was indicative of additional rounds of adaptive races (Waite and Shou, 2012) between rsp5 RAL and rsp5 CL (Figure 2—figure supplement 2A). After 250 hr, the RAL:CL ratios showed steady trends, suggesting the absence of further rapid adaptive races (Figure 2—figure supplement 2A). After ∼500 hr, two of the lines (brown) that displayed a steady change of the rsp5 RAL:rsp5 CL ratio in favor of cheaters and a final ratio close to 1:1 were frozen down. After reviving these preadapted cocultures (hereafter marked as “ ”), RAL:CL continued to decline steadily (Figure 2—figure supplement 2B). Propagating well-mixed liquid cocultures from these lines for an additional 400 hr, we observed that the RAL:CL ratio exhibited a steady decline (Figure 2—figure supplement 2C, ‘In liquid, well-mixed’), suggesting a cheater CL fitness advantage of around 8% (7.5 ± 0.8% SD) over RAL. It should be noted that since RAL and CL are not isogenic, the fitness advantage of CL over RAL is likely not solely due to the lack of adenine overproduction by CL. Nevertheless, this case models an advantage for the cheating type over the cooperating type, similar to what might be observed in nature if cheaters and cooperators are of different species (Côté and Cheney, 2005; Jandér and Herre, 2010).

References

  1. 1
    Spatial dilemmas of diffusible public goods
    1. B Allen
    2. J Gore
    3. MA Nowak
    (2013)
    eLife In press.
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
    Self-organization in biological systems
    1. S Camazine
    2. J-L Deneubourg
    3. NR Franks
    4. J Sneyd
    5. G Theraula
    6. E Bonabeau
    (2003)
    Princeton: Princeton University Press.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
    Guide to yeast genetics and molecular biology
    1. C Guthrie
    2. GR Fink
    (1991)
    San Diego: Academic Press.
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
    The major transitions in evolution
    1. J Maynard Smith
    2. E Szathmary
    (1998)
    New York: Oxford University Press.
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
    Self-organization in complex ecosystems
    1. RV Solé
    2. J Bascompte
    (2006)
    Princeton: Princeton University Press.
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56

Decision letter

  1. Diethard Tautz
    Reviewing Editor; Max Planck Institute for Evolutionary Biology, Germany

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Spatial Self-organization Favors Heterotypic Cooperation over Cheating” for consideration at eLife. Your article has been evaluated by a Senior editor and 3 reviewers, one of whom is a member of our Board of Reviewing Editors.

The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

The study is based on a previously developed system of two yeast strains that can enter cooperative interactions. The authors have already published an eLife paper (http://dx.doi.org/10.7554/eLife.00230) describing a spatial patterning model in conjunction with a series of experiments that aimed to study inter-population cooperation. The present paper deals with the question of how cooperating patterns could emerge in the presence of a cheater. They use a similar technological approach as in their first paper and show that self-organization occurs among the cooperators, to the exclusion of the cheater. They validate their findings through modeling.

While the referees consider the topic of potential interest for eLife, there are two major concerns that need to be clarified before a final decision can be taken. One of these requires additional experiments and the conceptual scope of this paper will depend on the outcome of these experiments. Thus it is currently not possible to state that the paper can be accepted once the experiments are done, but the authors are welcome to resubmit the revised version for new assessment.

The first concern relates to the use of the term “heterotypic cooperation” rather than “mutualism”, which is not simply a semantic question, but has direct relevance for the conceptual framing and the experimental approach to be taken. Due to the current interest in social interactions in microbes, this is a crucial issue for the paper. To qualify for cooperation, you need to show that:

(i) In isolation, cooperators grow faster than cheaters. Here, one probably has to show that R outcompetes C in the presence of G. This crucial point does not seem to be addressed, so the system could simply be a case of negative frequency dependent selection. Even in this case, one could have a case of cooperation, but it still remains to be shown that pure cooperator populations maximize fitness (see e.g., MacLean et al, PLoS Biology, http://dx.doi.org/10.1371/journal.pbio.1000486; please check also definitions of ““cooperator” in Nowack, Science 314, 1560 and Doebeli & Hauert, Ecology Letters 8, 748).

(ii) In any mixture, defectors outcompete co-operators. Probably this is what you refer to when you write that “C had a growth advantage over R”, but this crucial point remains unclear. Instead, you turn off the interaction by providing lysine and adenine in the medium, but this is not the same.

With respect to mutualism, referee 2 sees a need to revisit and properly discuss previous concepts. Currently you posit partner choice/recognition as a possible mechanism favouring mutualism and contrast a spatial environment as an alternative explanation. You state however that the “mechanism is unclear” and that there is a “paradox” in terms of the effect of space. In fact this is an example of “partner fidelity feedback”, a mechanism that is well known in the mutualism literature, so there is no paradox. The essence of partner fidelity feedback is that increasing the fitness of a mutualistic partner itself leads to increased fitness for the other partner. The results can thus be easily explained within this framework: cooperators increase the local fitness of their mutualist partners, thus receiving more cooperation themselves. Empty space is required for cooperators and their partners to grow into in order to self-organise.

To clarify these issues, it will be necessary to repeat the experiments (in both supplemented and un-supplemented media) with monocultures of both the cooperator and cheater strains, showing that growth rate is higher for the cheaters when supplemented, but lower when un-supplemented. Ideally you should be able to show that cheaters should also outcompete cooperators. However, it is acknowledged that this relies on an unstructured environment, so you would need to add a non-spatial treatment. If this is feasible it would be great, but other approaches to solve this issue might also be acceptable.

The second concern is about the details of the modeling. The reason for performing simulations are obscure. Do you indeed imply that simulation results “ensure that no biological mechanism beyond cell growth [...] where required for spatial self organisation”? It seems that modeling efforts would only help to arrive at such statements, but would not be sufficient to “ensure” this. Even more problematic is the fact that the model description is far from sufficient to repeat the simulations. In the equation, D is treated as a spatially varying function, but then referred to as a constant. With two different constant values, there are two different equations, but the position of D in a later equation suggests an unnecessary complication. The text suggests that this equation is solved numerically, but no details are given except the boundary conditions. Instead, you give many simulation results as figures, but it is completely unclear how randomness emerges in the deterministic equations. Is this based on some stochastic initial condition (although you speak of densities)? Or do you use a stochastic algorithm to numerically solve a deterministic equation? In the supplement, you list many parameters (enough to fit all kinds of things), but there is no information on how exactly these enter. The only equation in the paper seems to be almost decoration.

The figures combining simulations and experiments are impressive, but it remains unclear how the various parameters of the model where chosen to generate this similarity (which appears to be difficult to quantify). Moreover, a closer inspection of cluster size and form does suggest that there is some qualitative difference between simulations and experiments. Note that it would not be enough to only clarify the source of parameters – so far the model is not described in a way that one could repeat this study. Please describe it in a way that anyone who reads the paper should be able to come up with his or her own numerical code that leads to the same results.

Finally, the current version of the manuscript is unnecessarily condensed, i.e., Results and Discussion are combined and much important information is relegated to the supplementary material. Given that there are no space constraints, an extended version of the manuscript should be envisaged, including all figures that document results and use supplementary files primarily for additional documentation that would in it self not be required for understanding the work.

[Editors’ note: before acceptance, the following revisions were also requested.]

Thank you for resubmitting your work entitled “Spatial Self-organization Favors Heterotypic Cooperation over Cheating” for further consideration at eLife. Your revised article has been favorably evaluated by a Senior editor and a member of the Board of Reviewing Editors. The manuscript has been improved but there are remaining issues that need to be addressed before acceptance, as outlined below.

The comments of referees 2 and 3 are included below. In addition, there was a consultation session with the referees that came to the following conclusion:

The presentation at the places referee 3 has pointed to is a big issue. Taking the perspective of someone reading the paper for the first time, they would quite likely be left confused on many points. A significant improvement in presentation, and addressing the use of non-isogenic lines are the main things the authors need to address.

Reviewer #2:

I have major reservations about the experiments presented in Figure 2 of the revised manuscript, which I feel must be addressed before I can suggest acceptance of the manuscript.

In attempting to demonstrate that a cooperative dilemma occurs the authors pre-adapted both cooperators and cheaters to a lysine-limited environment in order to attempt to remove the confounding effect of adaptation to this environment. While I appreciate that the “adaptive race” could be a large confounding effect, I feel the potential biases introduced are not acceptable. As the strains have been pre-adapted they are likely to no longer be isogenic. As such, all fitness effects observed thereafter could be owing to differing mutations between cooperators and cheaters that have different effects depending on the environment. While much early research on social behaviour in microbes used similarly non-isogenic lines, this has resulted in reduced impact of this work in molecular microbiology. The gold standard now is clearly to use isogenic lines, and I do not feel that I can recommend publication of results using non-isogenic lines in a journal with the aspirations of eLife.

The obvious solution to this problem for me would be to remove the experiments presented in Figure 2 from the paper and simply point to the evidence from Shou et al. 2007 and Waite & Shou 2012 supporting the existence of a cooperative dilemma. Alternatively, if the authors could analyse co-cultures on a short enough timescale so that the adaptive race is not a problem this would be preferable, but I don’t know whether this is possible. Regardless I don’t think inclusion of experiments with non-isogenic lines is acceptable for a journal of eLife’s standing.

Reviewer #3:

After reading the manuscript carefully, I still do have several concerns. Most importantly, the results are presented in a way that is confusing and most probably not beneficial to the community. For example:

- I have checked with several colleagues and the terms “homotypic cooperation” and “heterotypic cooperation” are not at all familiar terms. From the authors reply, I have not understood why they phrase their work in their own terms.

- “Kin selection can achieve positive assortment” makes no sense.

- “Can increase in frequency if it leads to more offspring that are genetically related to the original co-operator” seems to hold for anything that evolves - this statement seems to be empty unless you indicate that the “more offspring” is not produced by the focal individual.

- “Spatial environment, which allows repeated interactions” is a weird formulation. Usually, these two are treated separately, as repeated interactions allow for sophisticated behaviour conditioned on the past, whereas spatial structure per se does not.

- “Can act as a cheater of the system” is a weird formulation. C cheats G by not providing A, but does it cheat R?

- “break of symmetry from the initial symmetric distribution can be due to stochastic effects such as differences in the initial state of cells” - this seems to be self-contradictory.

- “cells attached to the glass rod” - are you sure all cells equally attach? Is this some biased sample?

I am still not convinced that Figure 3 shows a good agreement between experiment and simulations beyond “red-green domains grow, whereas blue regions remain constrained”. Simulations suggest a more complex micro-structure, which is absent ion the experiment. Figure 3 C and F suggests a much stronger association in the Co&Ch treatment than the experiment. I was also wondering why the authors look at frequencies of the two strains throughout – are absolute population sizes not relevant for the interaction? Why?

In the new, slightly improved model section, the notation should be streamlined and made readable. E.g. K always has two indices, but MM is always the same. This is unusual and not necessary. The nabla operator is not defined and nothing is mentioned on its (probably) discrete spatial version. The metabolite model is basically a time discrete version of a stochastic partial differential equation, is there a reason to use a first order algorithm? Why use two separate grid sizes?

All this suggests a high level of sophistication in terms of numerically formulating the model, but it is not clear that the model results are robust. The dynamics of yeast cells is of course individual based, but some formulations suggest that many choices in this model have been made that are not explicitly described in the text. Thus, the model cannot be understood in detail without looking into the source code, which must be commented in a way that it could be read more easily.

While I find the experimental system and the experimental results interesting, it seems that they follow in a straightforward way from the interactions in the system. Partners and co-operators can coexist and grow to high densities, whereas partners and cheaters cannot, which isolates cheaters.

In summary, while this paper has improved in the revision and while I find the basic results of interest, it is not written in a way that makes it easily accessible. I feel that these results could be presented in a much nicer, less confusing way.

https://doi.org/10.7554/eLife.00960.023

Author response

“In isolation, cooperators grow faster than cheaters.

Do you wonder whether pure cooperators do better than pure cheaters in the presence of the partner? If so, then our answer is yes, pure cooperators indeed do better than pure cheaters. In the absence of adenine and lysine supplements, a coculture of RAL and GLA can grow to high density, but a coculture of CL and GLA fails to grow (Author response image 1, adapted from Shou et al. 2007). We have made this point more explicitly in the main text.

Author response image 1
Adapted from Figures 1 and 6 in (Shou et al. 2007): When partner GLA was paired with the cooperator RAL, the coculture grew from low to high densities. No persistent growth was observed when partner GLA was paired with the cheater CL.

“Here, one probably has to show that R outcompetes C in the presence of G.

Do you mean CL outcompetes RAL in the presence of GLA ? Performing this experiment in a well-mixed environment is not straightforward. The lysine-limited coculture environment strongly selects for adaptive mutants in CL and RAL. Thus, CL and RAL engage in an “adaptive race” (Waite & Shou 2012): if CL gets the best mutation to grow under lysine limitation, then the coculture is quickly destroyed by cheaters; if RAL gets the best adaptive mutation, then the coculture quickly purges cheaters. In this case, CL outcompetes RAL or RAL outcompetes CL depending on which population gets a better mutation, not because of the social interactions. This kind of phenomenon has also been observed for non-engineered cooperating and cheating microbes (Morgan et al. 2012).

In our original manuscript as well as other published work, we have used two approaches to confirm the fitness advantage of CL over RAL while being mindful of the complication introduced by the adaptive race. First, we measured fitness differences between RAL and CL under conditions where adaptive race is minimized. In the presence of abundant lysine to minimize selective pressure, CL has a 2% fitness advantage over RAL in both well-mixed environment (see Figure 1B in (Waite & Shou 2012)) and spatial environment (Figure 1C in the original and revised manuscript). In the absence of lysine so that any adaptive mutants, even if preexisting, could not grow and increase in abundance, RAL showed no disadvantage compared to cheaters (Waite & Shou 2012). Thus, CL has an overall advantage over RAL.

Second, we took advantage of an rsp5 mutation previously found to be highly adaptive for the lysine-requiring cells in a lysine-limited environment (Waite & Shou 2012). When we grew replicate cocultures of rsp5 RAL, rsp5 CL, and GLA in well-mixed liquid environment, we again observed stochastic outcomes with some cocultures dominated by cooperators and other succumbing to cheaters (Figure 1–figure supplement 4 in the original manuscript, now Figure 2 A and B in the revised manuscript). This is indicative of additional rounds of adaptive races between rsp5 RAL and rsp5 CL toward better adaptation to the lysine-limited coculture environment. We revived from frozen stocks two of these cocultures that exhibited declining RAL :CL (purple). RAL :CL in these revived cocultures continued to decline steadily, suggesting that evolved CL continued to be more fit than evolved RAL by ∼8% (Author response image 2B). Even though the additional fitness advantage of CL over RAL may not be solely due to adenine overproduction, previous work has used mutations unrelated to social interactions to augment the “cost of cooperation” (Chuang et al. 2010; Gore et al. 2009). We have used these pre-adapted cocultures to show that in a well-mixed liquid environment and in a periodically mixed spatial environment in which spatial self-organization was disrupted, the ratio of cooperator RAL to cheater CL consistently declined (now Figure 2C of the revised manuscript). If we did not perturb the spatial environment, cooperators were favored over cheaters (Figure 2–figure supplement 2, purple).

Author response image 2
Well-mixed evolved cocultures of heterotypic cooperators and cheaters showed a steady change in the RAL :CL ratio. (A) To pre-adapt cooperators and cheaters in the lysine-limited coculture environment so that no new mutations of large fitness benefits could quickly arise, we started eight well-mixed replicates (marked by different symbols) consisting of rsp5 RAL, rsp5 CL, and the ancestral GLA (Materials and methods). The rsp5 mutation was previously found to be highly adaptive for the lysine-requiring cells in a lysine-limited environment (Waite & Shou 2012). The initial stochastic phase at 150 hours is indicative of additional rounds of adaptive races21 between rsp5 RAL and rsp5 CL. After 250 hours, the RAL :CL ratios showed steady trends, suggesting no additional rapid adaptive races. Two of these cultures (purple) were revived from frozen stocks. (B) In the two revived cocultures where the evolved populations were denoted with a “ ʹ ”, RAL :CL continued to decline steadily before being used for experiments in Figure 2–figure supplement 2. Broken axis indicates the period of time elapsed during which a small revived inoculum (30 μl into 200 μl minimal medium and then expanded to 2 ml minimal medium) grew to detectable densities.

In a spatial environment, the same selective pressure of lysine-limitation on RAL and CL cells also exists, but the best mutants are restricted to their original birth locations and thus could not take over the coculture. Hence, deterministic rather than stochastic outcomes were observed when RAL, CL, and GLA were grown on a spatial environment either in the absence or the presence of lysine and adenine supplements (Figure 1C in the original and revised manuscript). We have transferred these explanations from supplemental files into the main text.

“…so the system could simply be a case of negative frequency dependent selection. Even in this case, one could have a case of cooperation, but it still remains to be shown that pure cooperator populations maximize fitness (see e.g., MacLean et al, PLoS Biology, http://dx.doi.org/10.1371/journal.pbio.1000486; please check also definitions of ““cooperator” in Nowack, Science 314, 1560 and Doebeli & Hauert, Ecology Letters 8, 748).

(ii) In any mixture, defectors outcompete co-operators. Probably this is what you refer to when you write that “C had a growth advantage over R”, but this crucial point remains unclear. Instead, you turn off the interaction by providing lysine and adenine in the medium, but this is not the same.

The MacLean et al. work used the yeast invertase system, which is known to show negative frequency-dependent selection (i.e., cooperators have an advantage over cheaters when cooperators are rare). In this case, “common goods” – glucose and fructose generated from invertase produced and released from cooperators and not cheaters – are “privatized” to a certain extent so that cooperators have preferential access to the common goods they produced (Gore et al. 2009). Thus, when cooperators are rare, cheaters at high abundance do not have much access to scarce common goods while cooperators do. This advantage of cooperator over cheater when cooperators are rare contributes to the coexistence of cooperators and cheaters. We do not believe that there is negative frequency-dependent selection in our experimental system, for two reasons. First, in a heterotypic cooperative system, an individual needs the common goods supplied by its partner, and therefore privatization of common goods produced by self is futile. Second, as discussed above, we see no signs of negative frequency-dependent selection in our pre-adapted cocultures (Figure 2–figure supplement 2, no trend of stable coexistence of RAL and CL in a well-mixed environment).

Importantly, in our mathematical model, we assumed a fixed cheater advantage over cooperator under all conditions. Experiments and modeling yielded similar results: spatial self-organization favors heterotypic cooperation. Thus, we conclude that negative frequency dependent selection is not a pre-requisite of our conclusions on spatial self-organization favoring heterotypic cooperation over cheating.

“To clarify these issues, it will be necessary to repeat the experiments (in both supplemented and un-supplemented media) with monocultures of both the cooperator and cheater strains, showing that growth rate is higher for the cheaters when supplemented…

As discussed above, we have competed CL over RAL in a well-mixed environment, and we observed an advantage of CL over RAL when lysine is abundant and no disadvantage of CL over RAL when lysine is absent (Waite & Shou 2012). Since in abundant lysine, the fitness advantage of CL over RAL was ∼2%, we cannot simply measure monoculture growth rates. This is because, for example, small differences in growth temperature can give rise to growth rate difference greater than 2%. A competition assay with both RAL and CL ensures that the two competing strains experience the same environment and go through the same amount of dilutions during propagation.

“but [the growth rate of the cheaters] is lower when un-supplemented.

We have also shown that RAL + GLA but not CL + GLA can grow to high density (Author response image 1).

“However, it is acknowledged that this relies on an unstructured environment, so you would need to add a non-spatial treatment. If this is feasible it would be great, but other approaches to solve this issue might also be acceptable.

Using pre-adapted cocultures of RAL, CL, and GLA in which CL was steadily favored over RAL in unstructured (well-mixed or periodically disrupted spatial) environments, we have shown that a spatial environment favors RAL over CL (Figure 2 in the revised manuscript).

“With respect to mutualism, referee 2 sees a need to revisit and properly discuss previous concepts. Currently you posit partner choice/recognition as a possible mechanism favouring mutualism and contrast a spatial environment as an alternative explanation. You state however that the “mechanism is unclear” and that there is a “paradox” in terms of the effect of space. In fact this is an example of “partner fidelity feedback”, a mechanism that is well known in the mutualism literature, so there is no paradox. The essence of partner fidelity feedback is that increasing the fitness of a mutualistic partner itself leads to increased fitness for the other partner. The results can thus be easily explained within this framework: cooperators increase the local fitness of their mutualist partners, thus receiving more cooperation themselves. Empty space is required for cooperators and their partners to grow into in order to self-organise.

We have modified our text to link self-organization to partner fidelity feedback.

“The reason for performing simulations given in line 122 are obscure. Do you indeed imply that simulation results “ensure that no biological mechanism beyond cell growth [...] where required for spatial self organisation”? It seems that modeling efforts would only help to arrive at such statements, but would not be sufficient to “ensure” this.

We have changed our text to “We also eliminated the confounding influence of adaptive mutations using mathematical simulations.” Thus, no more use of language such as “ensure.” The original intention was to state that we could use a mathematical model to verify whether a certain set of assumptions is sufficient to generate experimental outcomes.

“Even more problematic is the fact that the model description is far from sufficient to repeat the simulations. In the equation, D is treated as a spatially varying function, but then referred to as a constant. With two different constant values, there are two different equations, but the position of D in the equation in line 235 suggests an unnecessary complication. The text suggests that this equation is solved numerically, but no details are given except the boundary conditions. Instead, you give many simulation results as figures, but it is e.g. completely unclear how randomness emerges in the deterministic equations. Is this based on some stochastic initial condition (although you speak of densities)? Or do you use a stochastic algorithm to numerically solve a deterministic equation? In the supplement, you list many parameters (enough to fit all kinds of things), but there is no information on how exactly these enter. The only equation in the paper seems to be almost decoration.

We have rewritten the modeling aspect of our paper. We have changed diffusion “constant” to diffusion “coefficient” to avoid confusion.

We have added substantially more details on modeling in the main text and in “The diffusion model” section of Materials and methods. In addition, we are enclosing our source code. We also added a sentence addressing stochasticity and determinism All parameters have been experimentally measured except for the three parameters on the carrying-capacity-determining metabolite (such as glucose) required by all three strains (aG, KG, and SG). The equation section has also been expanded to be comprehensive.

“The figures combining simulations and experiments are impressive, but it remains unclear how the various parameters of the model where chosen to generate this similarity (which appears to be difficult to quantify).

Most parameters for simulations were experimentally measured, and presumably this is the reason why experiments and simulations shared the same trend. We have added a supplementary figure (Figure 6–figure supplement 1). In this figure, we varied the benefit supply amount and diffusion coefficient in simulations to show that spatial localization of benefits is required to generate results that are similar to experiments.

“Moreover, a closer inspection of cluster size and form does suggest that there is some qualitative difference between simulations and experiments. Note that it would not be enough to only clarify the source of parameters - so far, the model is not described in a way that one could repeat this study. Please describe it in a way that anyone who reads the paper should be able to come up with his own numerical code that leads to the same results.

The difference between simulations and experiments could be due to a variety of reasons. First, our assumption on how cells rearrange to accommodate new cells is clearly simplified. We assumed that with a probability of 0.7, a confined cell will send its new daughter cell straight up and with a probability of 0.3, the new daughter displaces a neighbor cell, causing the displaced neighbor cell and all cells above it to “bulge” up. In reality, the new daughter cell could divide diagonally up. So far, we don’t have ways to experimentally track all possible ways of cell rearrangement and thus our assumption is a simplification of experimental reality. We have now discussed this in Materials and methods. Second, genetically identical cells in the same environment may behave very differently. For example, cells in the top crown of a community are always much brighter than cells down below, even though many cells down below retain the ability to divide (i.e., they are live). We don’t know how these physiological differences may impact nutrient consumption and growth.

“Finally, the current version of the manuscript is unnecessarily condensed, i.e. Results and Discussion are combined and much important information is relegated to the supplementary material. Given that there are no space constraints, an extended version of the manuscript should be envisaged, including all figures that document results and use supplementary files primarily for additional documentation that would in it self not be required for understanding the work.

We have rewritten introduction and added a separate discussion. We have also moved some originally supplemental figures into the main text.

[Editors’ note: before acceptance, the following revisions were also requested.]

“The presentation at the places referee 3 has pointed to is a big issue. Taking the perspective of someone reading the paper for the first time, they would quite likely be left confused on many points. A significant improvement in presentation, and addressing the use of non-isogenic lines are the main things the authors need to address.

“Reviewer #2:

I have major reservations about the experiments presented in Figure 2 of the revised manuscript, which I feel must be addressed before I can suggest acceptance of the manuscript.

In attempting to demonstrate that a cooperative dilemma occurs the authors pre-adapted both cooperators and cheaters to a lysine-limited environment in order to attempt to remove the confounding effect of adaptation to this environment. While I appreciate that the “adaptive race” could be a large confounding effect, I feel the potential biases introduced are not acceptable. As the strains have been pre-adapted they are likely to no longer be isogenic. As such, all fitness effects observed thereafter could be owing to differing mutations between cooperators and cheaters that have different effects depending on the environment. While much early research on social behaviour in microbes used similarly non-isogenic lines, this has resulted in reduced impact of this work in molecular microbiology. The gold standard now is clearly to use isogenic lines, and I do not feel that I can recommend publication of results using non-isogenic lines in a journal with the aspirations of eLife.

The obvious solution to this problem for me would be to remove the experiments presented in Figure 2 from the paper and simply point to the evidence from Shou et al. 2007 and Waite & Shou 2012 supporting the existence of a cooperative dilemma. Alternatively, if the authors could analyse co-cultures on a short enough timescale so that the adaptive race is not a problem this would be preferable, but I don’t know whether this is possible. Regardless I don’t think inclusion of experiments with non-isogenic lines is acceptable for a journal of eLife’s standing.

The cooperating and cheating populations resulting from the pre-adaptation process are not clonal, let alone isogenic. Nonetheless, the growth rate of well-mixed cultures decreased as the ratio of cheaters to cooperators increased, suggesting that cheaters remained cheaters. Top-views of the communities were similar to results from isogenic strains: spatial association of cooperators with the partner and isolation of cheaters. These, and the fact that in nature, cooperators have to face cheaters some of which are of different species and therefore non-isogenic (such as the non-pollinating wasps of fig), and most importantly, the need to show that perturbation of spatial environment causes cheaters to rise in abundance, originally made us to include the experimental result in Figure 2. However, we understand the reviewer’s concern about possible confounding factors due to the usage of non-clonal, non-isogenic populations. We have replaced Figure 2 with simulation data, showing that disruption of spatial organization favors cheaters, which is a very important point we would not want to miss. We have moved the original Figure 2 to supplementary information, and modified the text.

“Reviewer #3:

After reading the manuscript carefully, I still do have several concerns. Most importantly, the results are presented in a way that is confusing and most probably not beneficial to the community. For example:

- I have checked with several colleagues and the terms “homotypic cooperation” and “heterotypic cooperation” are not at all familiar terms. From the authors reply, I have not understood why they phrase their work in their own terms.

In the literature, mutually beneficial interactions between two species have been referred to as “mutualism” (Foster & Wenseleers 2006), “cooperation” (Harcombe 2010), or “interspecific cooperation” (Sachs et al. 2004). We opted to use “cooperation” rather than “mutualism” to emphasize that the act of helping the partner confers a cost to self. This leads to the social dilemma where cheaters that do not help the partner have fitness advantage over their cooperating counterparts. We believe that using just the term “cooperation” is not adequate, because we want to emphasize that in our system, cooperation involves exchange of distinct benefits between two distinct populations rather than cooperation involving exchanging of identical benefits between identical individuals which the majority of the field has been studying. The term “interspecific cooperation” implies that cooperators are between different species. Even though our yeast strains can be regarded as different “species” because they do not mate with each other, they can also be considered the same species if one uses the divergence in ribosomal RNA sequences to define species (a field standard)! Most importantly, heterotypic cooperation can apply to cooperation between phenotypically differentiated subpopulations, such as between different cell types in a multicellular organism. We have thus chosen to use “homotypic cooperation” and “heterotypic cooperation” to most precisely represent the context of our work. We feel that using precisely defined terms, even if they are unfamiliar, is less confusing than using familiar terms that are not quite appropriate.

“ “Kin selection can achieve positive assortment” makes no sense.

We have modified the paragraph to: “In homotypic cooperation that involves genetic relatives, positive assortment can be achieved through “kin selection”…”

“ “Can increase in frequency if it leads to more offspring that are genetically related to the original co-operator” seems to hold for anything that evolves - this statement seems to be empty unless you indicate that the “more offspring” is not produced by the focal individual.

This sentence, which turned out to be unnecessary, has been deleted.

“ “Spatial environment, which allows repeated interactions” is a weird formulation. Usually, these two are treated separately, as repeated interactions allow for sophisticated behaviour conditioned on the past, whereas spatial structure per se does not.

In a spatial environment, it is more likely (compared to a well-mixed environment) that two neighboring individuals remain neighbors. We have modified the sentence to read: “Spatial environment, which facilitates repeated interactions because two neighboring individuals are likely to remain neighbors, has been shown to promote heterotypic cooperation.”

“ “Can act as a cheater of the system” is a weird formulation. C cheats G by not providing A, but does it cheat R?

For more clarity, we have changed the sentence to:

“These results collectively suggest that CL acts as a cheater variant of RAL.”

“ “break of symmetry from the initial symmetric distribution can be due to stochastic effects such as differences in the initial state of cells” - this seems to be self-contradictory.

We have changed the sentence to:

“Break of symmetry from the initial symmetric spatial distribution can be due to stochastic effects such as differences in the initial amounts of metabolites cells possessed, death of cells, or the random direction of cell division.”

“ “cells attached to the glass rod” - are you sure all cells equally attach? Is this some biased sample?

In pilot experiments, the results were similar when we compared the ratios of samples obtained using the glass rod with the ratios measured for the rest of the sampled community. Thus, based on the pilot experiment and the estimates of ratios from top-view images, we think the sampling bias, even if present, will not affect our conclusions.

“I am still not convinced that Figure 3 shows a good agreement between experiment and simulations beyond “red-green domains grow, whereas blue regions remain constrained”. Simulations suggest a more complex micro-structure, which is absent ion the experiment. Figure 3 C and F suggests a much stronger association in the Co&Ch treatment than the experiment. I was also wondering why the authors look at frequencies of the two strains throughout - are absolute population sizes not relevant for the interaction? Why?

There are differences in the details of patterns even between replicates of simulated or experimental communities. However, the feature that we are focusing on, i.e., more association of cooperators compared to cheaters with the partner, is consistent in all cases. This is the aspect that we are focusing on as self-organization, and it is supported by both simulations and experiments. The microstructure in simulated results that the reviewer is referring to is likely caused by the cell rearrangement assumption in the model. Each new daughter cell in simulations can divide in a random direction, and each division event independently causes rearrangement of some cells in the community. In contrast, in experimental communities, presumably cells rearrange according to the collective pressure exerted by all growing cells. As such, some artifacts, including finer structure at the individual cell level, is expected in the simulation results, which would explain larger values of association index compared to the experiment. Alternatively, some of the finer spatial features in the experimental cross-sections may have been lost in fixing and cryosectioning processes, leading to smaller association indexes when compared to the simulations. Nevertheless, when compared with the competition control, both simulations and experiments clearly show self-organization, which is the main message of our paper.

Since we are focusing on whether cooperator or cheater is favored, we have chosen to focus on the ratio of the two. When cheater frequency is high, population growth is reduced (in blue-dominated region, growth is restricted – see Figure 3 vertical cross-sections). In a strict sense, population size matters. For example, when the total population size and/or density are too low, the community fails to grow even in absence of cheater because the released metabolites are so diluted that cells could not take them up fast enough to remain viable. However, our experiments never used such low population sizes.

“In the new, slightly improved model section, the notation should be streamlined and made readable. E.g. K always has two indices, but MM is always the same. This is unusual and not necessary. The nabla operator is not defined and nothing is mentioned on its (probably) discrete spatial version. The metabolite model is basically a time discrete version of a stochastic partial differential equation, is there a reason to use a first order algorithm? Why use two separate grid sizes? All this suggests a high level of sophistication in terms of numerically formulating the model, but it is not clear that the model results are robust. The dynamics of yeast cells is of course individual based, but some formulations suggest that many choices in this model have been made that are not explicitly described in the text. Thus, the model cannot be understood in detail without looking into the source code, which must be commented in a way that it could be read more easily.

We have deleted the MM. =xx^+yy^+zz^ is the standard vector differential operator.

The following sentence is added:

=xx^+yy^+zz^ is the vector differential operator.”

We explained why we are using two separate spatial domains:

“These grid sizes accommodated different diffusion coefficients in agarose and in community and represented the average distance nutrient molecules diffuse in 3.5 sec.”

Using a first-order algorithm seems to work, since we did not see numerical instability (such as metabolite concentrations going negative). Also, the simulation results qualitatively matched experimental results. For example, growth rates of simulated communities are similar to those of experimental communities.

With regard to the robustness of model results, we have tried altered assumptions and obtained similar results. For example, in Figure 3–figure supplement 1, “Sim w/ delay” incorporated a 60-hour delay in the death of GLA and in the consequent release of lysine according to experimental observations. This simulation generated qualitatively similar results as simulations without incorporating the delay. We have also tried to use the same diffusion coefficient for agarose and community, and obtained the same result. We have added:

“When we used the same diffusion coefficient (360 μm2/sec and grid size of 50 μm) for agarose and community, similar results were obtained.”

With regard to cell rearrangement, we have added:

“Time-lapse images of the growth of a single fluorescent cell into a microcolony showed that the center of the microcolony became brighter due to multiple cell layers when the microcolony grew to larger than 5-cell radius.”

The details of the diffusion model, including the choice of the discrete version to solve for the diffusion of metabolites, the use of two separate grids, and the details of the rearrangement scheme are discussed thoroughly in our previous eLife publication (Momeni et al., 2013). We have added a sentence in the description of the model (Materials and Methods) to make this point clear:

“We provide a summary of the most relevant features of the model below, without repeating the implementation details that can be found in (Momeni et al., 2013).”

We have also added more comments to the source code, and partitioned the code to different sections for improved readability.

“While I find the experimental system and the experimental results interesting, it seems that they follow in a straightforward way from the interactions in the system. Partners and co-operators can coexist and grow to high densities, whereas partners and cheaters cannot, which isolates cheaters.

Many papers, theoretical and experimental, have been devoted to demonstrating that spatial environment stabilizes homotypic cooperation, which seems very straightforward: cooperators cluster with their cooperative offspring and cheaters with their cheating offspring, so of course this favors cooperation, especially if other resources are non-limiting. This straightforwardness did not prevent those reports from having a high impact on how we think, because scientific demonstration rests on different standards from intuition (which is also very important).

One of the most important aspects of our work is perhaps to make the field more aware of how tricky it can be to distinguish partner choice from partner fidelity feedback in natural systems. Our community is a bona-fide partner fidelity feedback system devoid of any possibility for partner recognition, and it looks very much like the situation between legume and cooperating and cheater rhizobia: exclusion of cheaters. Thus, in the absence of direct evidence of recognition, interpreting an “apparent” discrimination of cheaters as “partner choice” can be flawed. We have added this sentence to the Discussion:

“Our work suggests that any argument on partner recognition in a system that is intrinsically spatial…”
