The transcriptional regulator BZR1 mediates trade-off between plant innate immunity and growth

  1. Rosa Lozano-Durán
  2. Alberto P Macho
  3. Freddy Boutrot
  4. Cécile Segonzac
  5. Imre E Somssich
  6. Cyril Zipfel  Is a corresponding author
  1. The Sainsbury Laboratory, United Kingdom
  2. Max Planck Institute for Plant Breeding Research, Germany

Abstract

The molecular mechanisms underlying the trade-off between plant innate immunity and steroid-mediated growth are controversial. Here, we report that activation of the transcription factor BZR1 is required and sufficient for suppression of immune signaling by brassinosteroids (BR). BZR1 induces the expression of several WRKY transcription factors that negatively control early immune responses. In addition, BZR1 associates with WRKY40 to mediate the antagonism between BR and immune signaling. We reveal that BZR1-mediated inhibition of immunity is particularly relevant when plant fast growth is required, such as during etiolation. Thus, BZR1 acts as an important regulator mediating the trade-off between growth and immunity upon integration of environmental cues.

https://doi.org/10.7554/eLife.00983.001

eLife digest

Like all organisms, plants must perform a careful balancing act with their resources. Investing in the growth of new roots or leaves can allow a plant to better exploit its environment—but it must not be at the expense of leaving the plant vulnerable to attack by pests and pathogens. As such, there is an obvious trade-off between allocating resources to growth or defense against disease. This trade-off must be finely balanced, and must also be responsive to different cues in the environment that would favor either growth or defense.

The plant’s immune system is able to detect invading microbes, and trigger a defensive response against them. At the surface of plant cells, proteins called pattern recognition receptors are able to recognize specific molecules that are the tell-tale signs of microbes and pathogens—such as the proteins in the molecular tails that bacteria use to move around.

For many pattern recognition receptors, signaling that they have recognized a potential invading microbe requires the actions of a co-receptor called BAK1. Interestingly, BAK1 also interacts with the receptor that identifies brassinosteroids—hormones that stimulate plant growth. Since growth and a functioning immune system are both reliant on BAK1, it was hypothesized that competition for this co-receptor could have a role in the trade-off between the two processes in plants. However, this explanation was controversial and the mechanisms underlying the trade-off still required clarification.

Now, Lozano-Durán et al. have debunked the idea that competition for BAK1 is directly responsible for the trade-off between growth and immunity. By examining how BAK1 interacts with immune receptors in the plant model species Arabidopsis thaliana, the trade-off was actually shown to be independent of BAK1. Instead, it was discovered that activation of a protein, called BZR1, reprogramed gene expression to ‘switch off’ immune signaling in response to brassinosteroids.

Lozano-Durán et al. also show that BZR1 allows the balance of the trade-off between growth and immunity to be shifted in response to cues from the environment. The suppression of the immune system by BZR1 was particularly pronounced when the conditions required fast plant growth—for example, when they mimicked the conditions experienced by seedlings before they emerge from the soil, and must grow swiftly to reach the light before they starve.

https://doi.org/10.7554/eLife.00983.002

Introduction

The trade-off between plant growth and immunity needs to be finely regulated to ensure proper allocation of resources in an efficient and timely manner upon effective integration of environmental cues (Pieterse et al., 2012). A key aspect of plant immunity is the perception of pathogen-associated molecular patterns (PAMPs) by surface-localized pattern-recognition receptors (PRRs), leading to PAMP-triggered immunity (PTI) (Dodds and Rathjen, 2010). PRRs of the leucine-rich repeat receptor kinases (LRR-RKs) class rely on the regulatory LRR-RK BAK1 (BRASSINOSTEROID INSENSITIVE 1-ASSOCIATED KINASE 1) for signaling (Monaghan and Zipfel, 2012); that is the case of FLS2 (FLAGELLIN SENSITIVE 2) and EFR (EF-TU RECEPTOR), which perceive bacterial flagellin (or the active peptide flg22) and EF-Tu (or the active peptide elf18) respectively. BAK1 also interacts with the LRR-RK BRI1 (BRASSINOSTEROID INSENSITIVE 1), the main receptor for the growth-promoting steroid hormones brassinosteroids (BR), and is a positive regulator of BR-mediated growth (Kim and Wang, 2010). Hence, a crosstalk between the BR- and PAMP-triggered signaling pathways resulting from competition for BAK1 was hypothesized. While a unidirectional antagonism between BR and PTI signaling has been recently described in Arabidopsis (Albrecht et al., 2012; Belkhadir et al., 2012), the exact underlying mechanisms are still controversial. Activation of the BR signaling pathway via either transgenic overexpression of BRI1 or the BR biosynthetic gene DWF4 or expression of the activated BRI1 allele BRI1sud suppresses PTI outputs (Belkhadir et al., 2012). One such output, the PAMP-triggered callose deposition, could be restored by over-expression of BAK1-HA, suggesting that BAK1 is a limiting factor (Belkhadir et al., 2012). However, exogenous BR treatment of wild-type plants does not affect the FLS2-BAK1 complex formation upon FLS2 activation, while it results in decreased PTI responses (Albrecht et al., 2012).

Results and discussion

In order to clarify the role of BAK1 in the BR-PTI crosstalk, we investigated FLS2-BAK1 complex formation in the transgenic Arabidopsis lines overexpressing BRI1 or DWF4 or expressing BRI1sud (Belkhadir et al., 2012). Upon treatment with flg22, FLS2 associated normally with BAK1 in these transgenic plants, and neither FLS2 nor BAK1 accumulation was altered (Figure 1—figure supplement 1A). Moreover, these plants displayed a weaker reactive oxygen species (ROS) burst in response to chitin (Figure 1—figure supplement 1B), whose signaling pathway is BAK1-independent (Shan et al., 2008; Ranf et al., 2011). This result is consistent with the previous finding that exogenous BR treatment can also inhibit the chitin-induced ROS burst (Albrecht et al., 2012). BAK1-HA is not fully functional in BR signaling and exerts a dominant-negative effect on the endogenous BAK1 (Figure 1—figure supplement 1C), which may explain that introduction of the BAK1-HA transgene can override the suppression of immunity triggered by overexpression of BRI1 (Belkhadir et al., 2012); BAK1-HA does not exert such a dominant negative effect, however, on PTI signaling (Figure 1—figure supplement 1D). Taken together, these results indicate that the BR-mediated suppression of PTI is triggered independently of a competition between BRI1 and PRRs for BAK1.

We sought to determine at which level of the BR signaling pathway the antagonism initiates. After BR perception by BRI1 and activation of the BRI1-BAK1 complex, the BR signal transduction cascade includes inactivation of BIN2 (BR INSENSITIVE 2) and BIN2-like kinases, a family of GSK3-like kinases acting as negative regulators of the pathway (Vert and Chory, 2006). This leads to dephosphorylation of BZR1 (BRASSINAZOLE RESISTANT 1) and BES1/BZR2 (BRI1-EMS-SUPPRESSOR 1/BRASSINAZOLE RESISTANT 2), two bHLH transcription factors acting as major regulators of BR-induced transcriptional changes, which then become active (Wang et al., 2002; Yin et al., 2002). Treatment with the chemicals LiCl and bikinin, which inhibit GSK3-like kinases (De Rybel et al., 2009; Yan et al., 2009), resulted in impaired flg22-triggered ROS burst (Figure 1A,B), as observed upon genetic or ligand-induced activation of the BR pathway. Furthermore, a triple mutant in BIN2 and the two closest related GSK3-like kinases, BIL1 (BIN2-LIKE 1) and BIL2 (triple GSK3 mutant; Vert and Chory, 2006), shows a similar impairment in response to either flg22 or chitin (Figure 1C). Interestingly, in spite of regulating MAPKs involved in stomata development (Kim et al., 2012; Khan et al., 2013), neither BR treatment nor loss of function of BIN2 affect flg22-triggered MAPK activation (Figure 1—figure supplement 2), contrary to what has been recently suggested (Choudhary et al., 2012; Zhu et al., 2013). These results indicate that the BR-PTI crosstalk occurs downstream of BIN2.

Figure 1 with 3 supplements see all

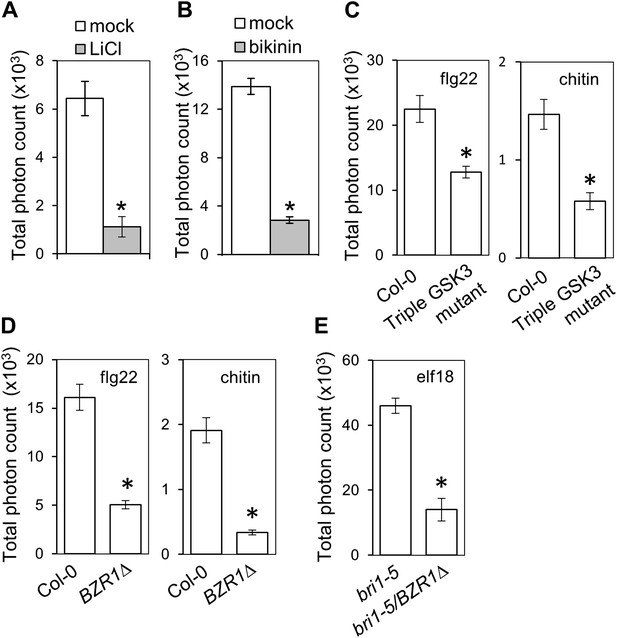

Activation of BZR1 is sufficient to inhibit the PAMP-triggered ROS burst.

(A) and (B) Flg22-triggered ROS burst after LiCl (A) or bikinin (B) treatment. Leaf discs were pre-treated with a 10 mM LiCl solution for 5 hr or with a 50 μM bikinin solution for 16 hr. (C) Flg22- or chitin-triggered ROS burst in Col-0 and the triple GSK3 mutant plants. (D) Flg22- or chitin-induced ROS burst in Col-0 and BZR1Δ plants. (E) Elf18-triggered ROS burst in bri1-5 and bri1-5/BZR1Δ plants. In all cases, bars represent SE of n = 28 rosette leaf discs. Asterisks indicate a statistically significant difference compared to the corresponding control (mock treatment [A and B], Col-0 [C and D] or bri1-5 [E]), according to a Student’s t-test (p<0.05). Leaf discs of four- to five-week-old Arabidopsis plants were used in these assays. Flg22 and elf18 were used at a concentration of 50 nM; chitin was used at a concentration of 1 mg/ml. Total photon counts were integrated between minutes two and 40 after PAMP treatment. All experiments were repeated at least three times with similar results.

https://doi.org/10.7554/eLife.00983.003

Transgenic expression of two different constitutively active versions of BZR1, BZR1Δ (Gampala et al., 2007) and BZR1S173A (Ryu et al., 2007), results in impaired flg22- or chitin-triggered ROS burst (Figure 1D, Figure 1—figure supplement 3A). Consistent with previous results (Albrecht et al., 2012; Figure 1—figure supplements 1A and 2), plants expressing BZR1Δ or BZR1S173A display normal FLS2-BAK1 complex formation and MAPK activation upon flg22 treatment (Figure 2A,B, Figure 2—figure supplement 1A,B), but are impaired in PAMP-triggered marker gene expression, seedling growth inhibition (SGI) (Figure 2C–E) and induced resistance to P. syringae pv. tomato (Pto) DC3000 (Figure 2F, Figure 2—figure supplement 1C), and are more susceptible to the non-host strain Pseudomonas syringae pv. cilantro (Pci) 0788-9 (Lewis et al., 2010) (Figure 2G). Notably, transgenic expression of a constitutively active form of BES1, BES1S171A (Gampala et al., 2007), does not impact the flg22-triggered ROS burst (Figure 1—figure supplement 3B). We then tested if activation of BZR1 is sufficient to inhibit PTI signaling. Induction of BR signaling by bikinin treatment still represses elf18-induced ROS burst in the BRI1 mutant bri1-5 (we used elf18 in this experiment because bri1-5 is in the Ws-2 background, which is a natural fls2 mutant) (Figure 1—figure supplement 3C). bri1-5/BZR1Δ plants (Gampala et al., 2007) still exhibited reduced PAMP-triggered ROS burst (Figure 1E), and treatment with the BR biosynthetic inhibitor brassinazole (BRZ) did not affect the BZR1Δ effect (Figure 1—figure supplement 3D). Interestingly, BRZ treatment of wild-type Col-0 plants results in increased ROS production (Figure 1—figure supplement 3D), which is consistent with the fact that BR inhibits PTI responses and suggests that endogenous concentrations of the hormone exert this effect. These results demonstrate that activation of BZR1 affects PTI signaling independently of BR perception or synthesis.

Figure 2 with 1 supplement see all

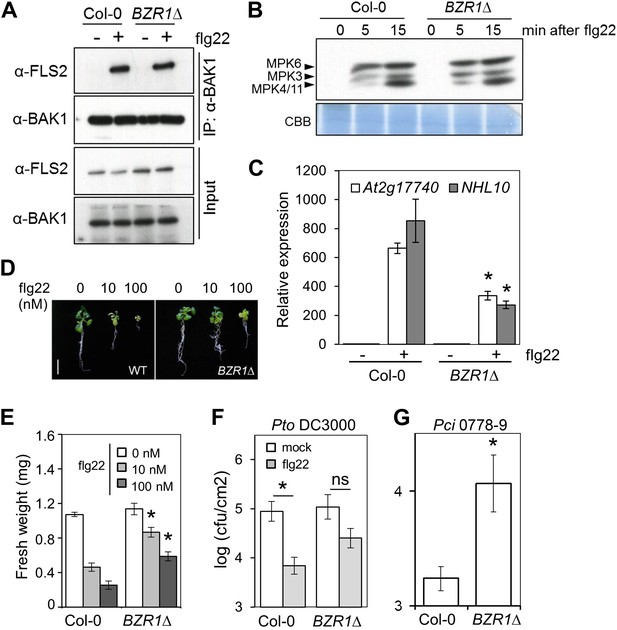

Activation of BZR1 results in the suppression of specific PTI outputs.

(A) Co-immunoprecipitation (Co-IP) of BAK1 and FLS2 in Col-0 and BZR1Δ seedlings after 10 min mock (−) or 1 μM flg22 (+) treatment. Proteins were separated in a 10% acrylamide gel and transferred to PVDF membranes. Membranes were blotted with anti-FLS2 or anti-BAK1 antibodies. (B) MAPK activation in Col-0 and BZR1Δ seedlings upon 1 μM flg22 treatment. Proteins were separated in a 10% acrylamide gel and transferred to PVDF membranes. Membranes were blotted with phospho-p44/42 MAPK (Erk1/2; Thr202/Tyr204) rabbit monoclonal antibodies. CBB: Coomassie brilliant blue. (C) Marker gene (At2g17700 and NHL10) expression in Col-0 and BZR1Δ seedlings after 1 hr mock (−) or 1 μM flg22 (+) treatment, as determined by qPCR. Bars represent SE of n = 3. (D) and (E) Seedling growth inhibition of 10-day-old Col-0 or BZR1Δ seedlings induced by increasing concentrations of flg22, as indicated. Scale bar (D), 1 cm. Bars (E) represent SE of 8 ≤ n ≤ 16. (F) Flg22-induced resistance to P. syringae pv. tomato DC3000 in Col-0 and BZR1Δ plants. Plants were pre-treated with 1 μM flg22 or water 24 hr prior to bacterial infiltration. Bars represent SE of n = 4. This experiment was repeated seven times with similar results. (G) Susceptibility of Col-0 and BZR1Δ plants to P. syringae pv. cilantro 0788-9. Bars represent SE of n = 4. Asterisks indicate a statistically significant difference compared to Col-0 according to a Student’s t-test (p<0.05); ns = not significant. All experiments were repeated at least twice with similar results unless otherwise stated.

https://doi.org/10.7554/eLife.00983.007

To understand how BZR1 mediates the BR-PTI crosstalk, we performed meta-analysis of microarray and ChIP-chip data containing BR-regulated and BZR1 or BES1 target genes (Sun et al., 2010; Yu et al., 2011). Functional enrichment of BR-regulated genes unveiled a statistically significant over-representation of defense-related GO terms of the Biological Process ontology (Table 1), indicating that BR signaling regulates the expression of defense-related genes. Independent analysis of BR-regulated BZR1 or BES1 targets confirmed BZR1 as the main transcription factor involved in the regulation of defense gene expression (Table 1). Two out of four over-represented GO terms of the Molecular Function ontology among the BR-regulated BZR1 targets are transcription factor and transcription repressor activity (Table 2). Interestingly, several defense-related GO terms are also over-represented in the subset of BR-regulated BZR1-targeted transcription factors (Table 3), pointing at a BZR1-mediated secondary transcriptional wave of defense-related genes.

Table 1

Defense-related Gene Ontology terms (Biological Process ontology) over-represented among all BR-regulated genes, BR-regulated BZR1 targets and BR-regulated BES1 targets

https://doi.org/10.7554/eLife.00983.009
Defense-related GO termObserved frequency (%)Expected frequency (%)p-value
BR-Regulated genes
 response to bacterium2.213.31 × 10−08
 defense response to bacterium1.90.83.31 × 10−08
 response to chitin1.40.51.78 × 10−07
 defense response4.733.32 × 10−07
 response to fungus1.50.73.4 × 10−06
 response to nematode0.70.20.000532
 defense response to fungus10.50.0035
BR-regulated BZR1 targets
 response to chitin2.60.59.13 × 10−13
 response to bacterium2.310.00112
 defense response to bacterium1.90.80.00154
 response to fungus1.60.70.00495
BR-regulated BES1 targets
 response to chitin2.40.50.00439
Table 2

Gene Ontology terms (Molecular Function ontology) over-represented among all BR-regulated BZR1 targets

https://doi.org/10.7554/eLife.00983.010
Over-represented GO termObserved frequency (%)Expected frequency (%)p value
BR-regulated BZR1 targets
 nucleic acid binding transcription factor activity14.810.20.000223
 transferase activity21.616.80.00333
 kinase activity11.68.10.00702
 transcription repressor activity1.10.30.01
Table 3

Defense-related Gene Ontology terms (Biological Process ontology) over-represented among the BZR1-target BR-regulated transcription factors

https://doi.org/10.7554/eLife.00983.011
Defense-related GO TermObserved frequency (%)Expected frequency (%)p value
BZR1-target BR-regulated TFs
 response to chitin16.60.51.36 × 10−26
 defense response to bacterium7.60.84.71 × 10−07
 response to bacterium7.614.51 × 10−06
 regulation of defense response to virus by host1.400.000964
 regulation of immune effector process1.400.00151
 regulation of defense response to virus1.400.00151
 regulation of defense response2.80.30.00484
 defense response8.330.00603
 response to fungus3.40.70.01
 defense response to fungus2.80.50.02

To identify BZR1-regulated transcription factors with a prominent role in defense, we performed promoter enrichment analysis on the subset of defense-related BR-regulated genes, and found the W-box motif as the only significantly over-represented motif (Table 4). The W-box motif is the binding site for the WRKY family of transcription factors (Rushton et al., 2010), and several members of this family are BR-regulated BZR1-targets (Table 5). We hypothesized that WRKYs that are BR-induced and BZR1 targets may be involved in PTI signaling. Notably, wrky11, wrky15, wrky18 and wrky70 mutants displayed enhanced PAMP-triggered ROS (Figure 3A), suggesting that these transcription factors act as negative regulators of early PTI signaling. This is in accordance with their role as negative regulators of immunity (Figure 3—figure supplement 1A; Journot-Catalino et al., 2006). Therefore, the BZR1-mediated inhibition of PTI might be partially explained by the up-regulation of genes encoding WRKY transcription factors that negatively control the expression of genes involved in early PTI signaling.

Table 4

Over-represented cis-acting promoter elements among the defense-related BR-regulated genes according to Athena (http://www.bioinformatics2.wsu.edu/cgi-bin/Athena/cgi/home.pl)

https://doi.org/10.7554/eLife.00983.012
Enriched TF site% promotersp value
Defense-related BR-regulated genes
 W-box72.4<10−6
Table 5

BR-regulated BZR1-target WRKY genes

https://doi.org/10.7554/eLife.00983.013
AGI numberWRKY TF
BR-Induced BZR1 targets
 AT4G31800WRKY18
 AT4G31550WRKY11
 AT4G23810WRKY53
 AT3G56400WRKY70
 AT5G49520WRKY48
 AT5G52830WRKY27
 AT1G69310WRKY57
 AT2G23320WRKY15 (Yu et al., 2011)
BR-repressed BZR1 targets
 AT4G01250WRKY22
 AT1G80840WRKY40
 AT2G24570WRKY17
 AT2G23320WRKY15 (Sun et al., 2010)
 AT2G30590WRKY21
Figure 3 with 1 supplement see all

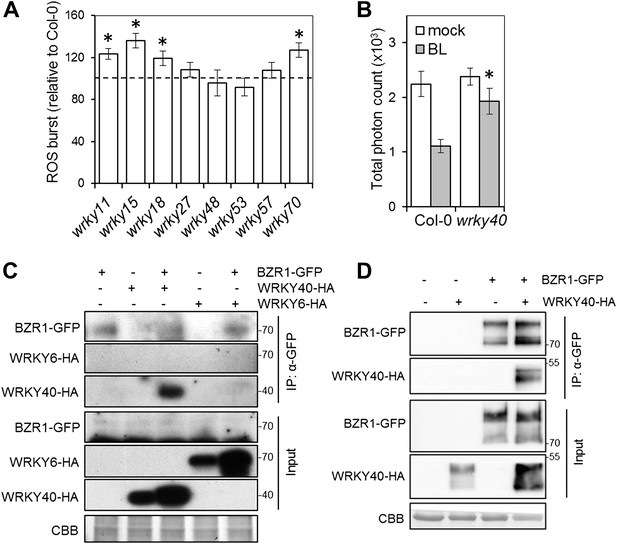

WRKY transcription factors play a dual role on the BR-mediated regulation of PTI signaling.

(A) Flg22-triggered ROS burst in mutants in each BR-induced BZR1-targeted WRKY. Leaf discs of four- to five-week-old Arabidopsis plants were used in these assays. Flg22 was used at a concentration of 50 nM. Total photon counts were integrated between minutes two and 40 after PAMP treatment. Bars represent SE of n = 28. Asterisks indicate a statistically significant difference compared to Col-0 according to a Student’s t-test (p<0.05). (B) Flg22-triggered ROS burst in epiBL (BL)- or mock- pre-treated wrky40 mutant or wild-type plants. Leaf discs of four- to five-week-old plants were pre-treated with a 1 μM BL solution or mock solution for 8 hr. Flg22 was used at a concentration of 50 nM. Total photon counts were integrated between minutes two and 40 after PAMP treatment. Bars represent SE of n = 21. Asterisks indicate a statistically significant difference compared to Col-0 according to a Student’s t-test (p<0.05). (C) Co-IP of BZR1-GFP transiently expressed in N. benthamiana, alone or together with WRKY40-HA or WRKY6-HA. BZR1-GFP was immunoprecipitated with an anti-GFP antibody. Immuniprecipitated or total proteins were separated in a 10% acrylamide gel and transferred to PVDF membranes. Membranes were blotted with anti-HA or anti-GFP antibodies. CBB: Coomassie brilliant blue. (D) Co-IP of BZR1-GFP transiently expressed in Arabidopsis protoplasts, alone or together with WRKY40-HA. BZR1-GFP was immunoprecipitated with an anti-GFP antibody. Immuniprecipitated or total proteins were separated in a 10% acrylamide gel and transferred to PVDF membranes. Membranes were blotted with anti-HA or anti-GFP antibodies. CBB: Coomassie brilliant blue. All experiments were repeated at least twice with similar results.

https://doi.org/10.7554/eLife.00983.014

One of the WRKY genes targeted by BZR1 is WRKY40 (Sun et al., 2010). Interestingly, all described targets of WRKY40 (Pandey et al., 2010) are also targets of BZR1 (Sun et al., 2010) (Table 6). The over-representation of the W-box motif among BZR1 targets (Table 7) suggests that BZR1 may interact with WRKY transcription factors (such as WRKY40) to cooperatively regulate transcription. WRKY40 has been described as a negative regulator of defense against biotrophic pathogens and insects (Xu et al., 2006; Pandey et al., 2010; Brotman et al., 2013; Schon et al., 2013; Schweizer et al., 2013). In agreement with this, we found that a null wrky40 mutant is more resistant to Pto DC3000 (Figure 3—figure supplement 1B). Strikingly, wrky40 plants are partially impaired in the BR-mediated suppression of PAMP-triggered ROS (Figure 3B), suggesting that WRKY40 may act coordinately with BZR1 to suppress immunity. Indeed, we found that BZR1 associates with WRKY40, but not WRKY6, in co-immunoprecipitation experiments when transiently co-expressed in Nicotiana benthamiana leaves (Figure 3C) or Arabidopsis protoplasts (Figure 3D). Collectively, these results indicate that BZR1 and WRKY40 form a protein complex that may participate in the transcriptional inhibition of PTI signaling.

Table 6

Overlap between the targets of WRKY40 and BZR1

https://doi.org/10.7554/eLife.00983.016
Known targets of WRKY40 (Pandey et al., 2010)Targets of BZR1 (Sun et al., 2010)
Confirmed by ChIP
EDS1Yes
RRTF1Yes
JAZ8Yes
Putative (according to expression analyses)
LOX2Yes
AOSYes
JAZ7Yes
JAZ10Yes
Table 7

Representation of the W-box motif among the BR-regulated BZR1 targets according to Athena (http://www.bioinformatics2.wsu.edu/cgi-bin/Athena/cgi/home.pl)

https://doi.org/10.7554/eLife.00983.017
BZR1 targets% of promoters with W-box motif(s)p value
BR-induced66<10−10
BR-repressed72<10−4

BZR1, together with DELLAs and PIF4, is part of a core transcription module that integrates hormonal (gibberellin [GA] and BR) and environmental (light) signals (Gallego-Bartolome et al., 2012; Li et al., 2012; Oh et al., 2012; Bai et al., 2012b). In the dark, BZR1 is activated by endogenous BR and GA to promote growth, partially through the synergistic interaction with PIF4 (Jaillais and Vert, 2012). Because etiolation requires rapid growth, we hypothesized that plants may prioritize growth over immunity in dark conditions. In fact, we found that PAMP-triggered SGI was partially impaired in dark-grown seedlings (Figure 4A–D). This impairment was abolished in the BR-insensitive mutants bri1-301 and bin2-1 (Figure 4A, Figure 4—figure supplement 2A), indicating that BR signaling is responsible for the dark-induced suppression of this PTI response. Activation of BZR1 in the BZR1Δ line mimicked the dark-induced suppression of SGI in both light and dark (Figure 4B). However, activation of BES1 in the BES1S171A line did not impact SGI (Figure 4—figure supplement 3A). Consistent with the previous results, exogenous BR treatment suppressed SGI in both light and dark (Figure 4C, Figure 4—figure supplement 2B,C). While treatment with GA alone did not have a dramatic effect on SGI, co-treatment with BL and GA resulted in an enhancement of the BR-mediated suppression of SGI (Figure 4C, Figure 4—figure supplement 2B), indicating an additive effect of these two hormones when applied together. Moreover, treatment with the GA synthesis inhibitors paclobutrazol (PAC) or uniconazole (Uni) abolished the effect of BL on SGI (Figure 4—figure supplement 1A,B and Figure 4—figure supplement 2B,C), and this effect was reduced in the GA biosynthetic mutant ga1-3 (Figure 4—figure supplement 1C). Taken together, these results demonstrate that BR suppress at least one PTI output, SGI, in the dark in a GA-dependent manner, most likely through activation of BZR1. Notably, although the wrky40 mutant undergoes etiolation normally (Figure 4—figure supplement 2D), it shows a diminished suppression of SGI in the dark (Figure 4D, Figure 4—figure supplement 2D), supporting the idea that WRKY40 is required for the BZR1-mediated inhibition of PTI.

Figure 4 with 3 supplements see all

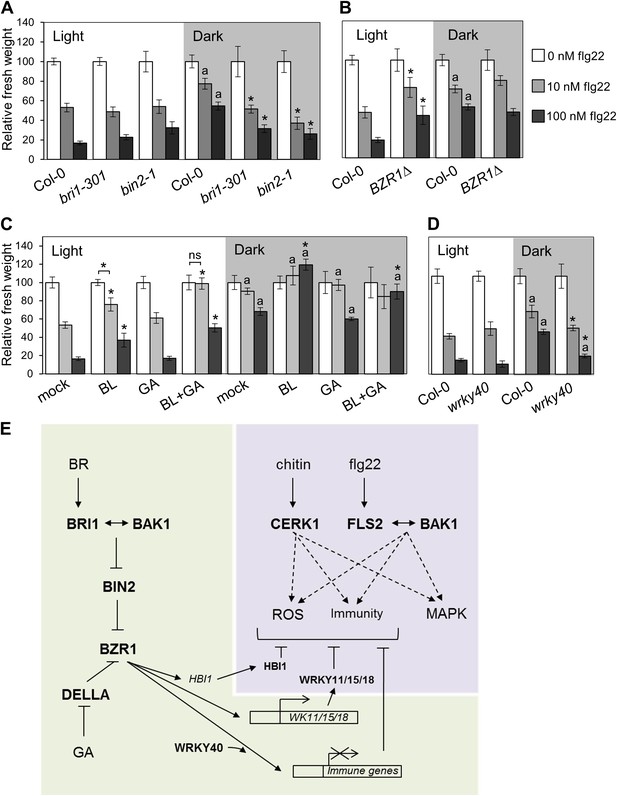

Activation of BR signaling and BZR1 prioritizes growth over immunity in the dark.

(A) and (B) Relative seedling growth inhibition of 10-day-old (A) Col-0, bri1-301 and bin2-1 or (B) Col-0 and BZR1Δ seedlings induced by increasing concentrations of flg22 in either light or dark. (C) Relative seedling growth inhibition of 10-day-old Col-0 seedlings grown on medium supplemented or not with BL (1 μM), GA (1 μM), BL+GA (1 μM + 1 μM) or mock solution in light or dark. (D) Relative seedling growth inhibition of Col-0 or wrky40 seedlings induced by increasing concentrations of flg22 in either light or dark. Bars represent SE of n = 16 (A, B and D) or n = 8 (C) Asterisks indicate a statistically significant difference compared to Col-0 in the same condition (light or dark and same concentration of flg22), according to a Student’s t-test (p<0.05); ‘a’ indicates a statistically significant difference compared to the same genotype/treatment and concentration of flg22 in light, according to a Student’s t-test (p<0.05). All experiments were repeated at least three times with similar results. Values are relative to Col-0 (A, B and D) or mock-treated seedlings (C) (set to 100). Absolute values of these experiments are shown in Figure 4—figure supplement 3. (E) Schematic model depicting the BZR1-mediated inhibition of PTI. Upon BR- and DELLA-dependent activation, BZR1 induces the expression of negative regulators of PTI, such as WRKY11, WRKY15, WRKY18, or HBI1. In addition, BZR1 also inhibits the expression of immune genes, acting cooperatively with WRKY40 and possibly other WRKYs. Ultimately, the BZR1-mediated changes in transcription would lead to the suppression of PTI signaling. The PTI signaling pathway is shadowed in violet; the BR signaling pathway is shadowed in green.

https://doi.org/10.7554/eLife.00983.018

Previously, a unidirectional negative crosstalk between the growth-promoting hormone BR and PTI had been described (Albrecht et al., 2012; Belkhadir et al., 2012). In this work, we show that activation of one of two major BR-activated transcription factors, BZR1, is sufficient to suppress PTI, measured as PAMP-triggered ROS production, PAMP-triggered gene expression, SGI or induced resistance (Figures 1 and 2, Figure 1—figure supplement 3, Figure 2—figure supplement 1). Of note, another PTI output, MAPK activation, is not affected by activation of the BR pathway (Figure 2B, Figure 1—figure supplement 2, Figure 2—figure supplement 1B). BR treatment results in BZR1-dependent changes in the expression of defense-related genes, among which several members of the WRKY family of transcription factors can be found. Because the promoters of BR-regulated defense-related genes are enriched in the W-box motif (Table 4), BZR1-targeted WRKY transcription factors could be responsible for a secondary wave of transcription, ultimately leading to the suppression of PTI. In agreement with this idea, a subset of WRKYs induced by BR (WRKY11, WRKY15 and WRKY18) (Figure 3A) act as negative regulators of PAMP-triggered ROS, potentially by controlling the steady-state expression of genes encoding components required for this response. The over-representation of the W-box motif among the BZR1 targets (Table 7) raises the possibility that, additionally, WRKY transcription factors could also act together with BZR1 to cooperatively regulate gene expression. We found that WRKY40 associates with BZR1 directly or indirectly in planta (Figure 3C,D); in the absence of WRKY40, the BR-mediated suppression of PAMP-triggered ROS burst is partially impaired (Figure 3B). Therefore, WRKYs may play a dual role in the BZR1-mediated suppression of defense, as both co- and secondary regulators of defense gene expression. Given that the loss of BR-mediated suppression of PAMP-triggered ROS burst in the wrky40 mutant is only partial, BZR1 may interact with other members of the WRKY family, such as WRKY18 or WRKY60, to repress immunity.

Furthermore, we recently described that the bHLH transcription factor HBI1, which is a BRZ1 target (Sun et al., 2010; Bai et al., 2012a), negatively regulates PTI (Malinovsky et al., under revision). All together, these results illustrate that BZR1 controls the expression of transcription factors (e.g. WRKY11, WRKY15, WRKY18 and HBI1), which themselves might control the expression of PTI components (see model in Figure 4E) whose identities remain to be identified.

Plants need to finely regulate allocation of resources upon integration of environmental cues, both biotic and abiotic, in order to rapidly and readily adapt to changing conditions and ensure survival in a cost-efficient manner. Dark conditions impose an energetic limitation due to lack of photo-assimilates; in this situation, the restoration of normal photosynthesis by reaching light is an essential requirement to guarantee perpetuation, and as such must be given priority (Casal, 2013). We hypothesize that when plants face conditions that require rapid growth, such as when germinating in soil or when under a canopy, limited resources are invested in this developmental process at the expense of immunity in what must be a quantitative choice. Indeed, we show that etiolated seedlings do not arrest their growth in response to PAMPs as light-grown seedlings do, as measured by total fresh weight (Figure 4A–D). In addition, BR signaling, acting cooperatively with GA signaling, is required for the dark-induced suppression of this PTI response (Figure 4C, Figure 4—figure supplement 1), and activation of BZR1 is sufficient to exert this effect regardless of light conditions (Figure 4B). Although seedlings were used in these experiments due to technical reasons, BR also regulate growth at later developmental stages, so this phenomenon may be more general. Based on these findings, we propose a model in which BZR1 regulates the expression of defense genes, assisted by WRKY40 (and potentially other WRKYs), ultimately resulting in a quantitative suppression of immunity (Figure 4E). Because the activation status of BZR1 depends on BR, GA and light signaling, BZR1 would act as a molecular integrator of these inputs to effectively regulate the trade-off between growth and immunity.

Materials and methods

Plant materials and growth conditions

Request a detailed protocol

Col-0 plants were used as control. The transgenic lines BZR1Δ, bri1-5/BZR1Δ and BES1S171A (Gampala et al., 2007), BZR1S173A and BZR1-CFP (Ryu et al., 2007), 35S:BRI1-cit, BRI1p:BRI1sud-cit, 35S:DWF4 and BAK1-HA (Belkhadir et al., 2012) are published. The mutant lines Triple GSK3 mutant (Vert and Chory, 2006), bri1-5 (Noguchi et al., 1999), bri1-301 (Xu et al., 2008), bin2-1 (Peng et al., 2008), wrky11 (Journot-Catalino et al., 2006), wrky18, wrky53 and wrky70 (Wang et al., 2006) wrky27 (Mukhtar et al., 2008), wrky40 (Pandey et al., 2010) and ga1-3 (Navarro et al., 2008) are published. wrky15 mutant was identified in the ZIGIA population (Wisman et al., 1998a, 1998b); wrky48 and wrky57 are from the SALK collection (Alonso et al., 2003).

Arabidopsis plants and seedlings were grown as described in Albrecht et al. (2012).

Chemicals

Flg22 and elf18 peptides were purchased from Peptron, and chitin oligosaccharide from Yaizu Suisankagaku. epiBL was purchased from Xiamen Topusing Chemical. LiCl, bikinin, brassinazole and GA were purchased from Sigma (St Louis, MO, USA). Paclobutrazol was purchased from Duchefa (Haarlem, NL). Uniconazole was purchased from Sigma.

ROS assays

Request a detailed protocol

The measurement of ROS generation was performed as described in Albrecht et al. (2012). Leaf discs from five-week-old Arabidopsis plants were used in each experiment, as indicated in the figure legends. Total photon counts were measured over 40 min by using a high-resolution photon counting system (HRPCS218) (Photek, St Leonards on Sea, UK) coupled to an aspherical wide lens (Sigma Imaging, Welwyn Garden City, UK).

Protein extraction and IP experiments

Request a detailed protocol

Protein extraction and immunoprecipitation of Arabidopsis was performed as described in Schwessinger et al. (2011). Arabidopsis mesophyll protoplasts were prepared from 4 to 5-week-old plants, transfected with the indicated constructs and incubated for 16 hr prior to BL treatment. Protein extraction of N. benthamiana was performed as described in Schwessinger et al. (2011); immunoprecipitations were performed using the μMACS GFP Isolation Kit (Miltenyi Biotec, Church Lane Bisley, UK), following the manufacturer’s instructions. In N. benthamiana, BZR1-GFP was expressed from the pUb-cYFP-Dest vector (Grefen et al., 2010); WRKY40-HA and WRKY6-HA were expressed from the pAM-PAT vector (AY436765; GeneBank). In protoplasts, WRKY40-HA was expressed from the pGWB414 vector (Nakagawa et al., 2007); the construct to express BZR1-GFP has been described elsewhere (Ryu et al., 2007). In both cases, samples were treated with 1 μM epiBL solution for 1 hr prior to protein extraction.

MAP kinase activation assays

Request a detailed protocol

MAP kinase activation assays were performed as described in Schwessinger et al. (2011). Phospho-p44/42 MAPK (Erk1/2; Thr202/Tyr204) rabbit monoclonal antibodies (Cell Signaling Technologies, Hitchin, UK) were used according to the manufacturer’s protocol.

RNA isolation and qPCR assays

Request a detailed protocol

RNA isolation was performed from ten-day-old seedling following the protocol described in Onate-Sanchez and Vicente-Carbajosa (2008). First-strand cDNA synthesis was performed with the SuperScript III RNA transcriptase (Invitrogen, Paisley, UK) and oligo(dT) primer, according to the manufacturer’s instructions. For qPCR reactions, the reaction mixture consisted of cDNA first-strand template, primers (5 nmol each) and SYBR Green JumpStart Taq ReadyMix (Sigma). qPCR was performed in a BioRad CFX96 real-time system. UBQ10 was used as the internal control; expression in mock-treated Col-0 seedlings was used as the calibrator, with the expression level set to one. Relative expression was determined using the comparative Ct method (2-ΔΔCt). Each data point is the mean value of three experimental replicate determinations. Primers for At2g17740 are described in Albrecht et al. (2012); for NHL10 are described in Boudsocq et al. (2010); for LOX2 are described in Pandey et al. (2010); for UBQ10 (U-box) are described in Albrecht et al. (2012).

Seedling growth inhibition assay

Request a detailed protocol

Seedling growth inhibition assays were performed as described in Nekrasov et al. (2009). In brief, four-day-old Arabidopsis seedlings were grown in liquid Murashige–Skoog medium containing 1% sucrose supplemented with flg22 and the appropriate chemicals. Seedlings were weighed between 6 and 10 days after treatment.

Bacterial infections

Request a detailed protocol

Induced resistance assays were performed as described previously (Zipfel et al., 2004). In brief, water or a 1 μM flg22 solution were infiltrated with a needleless syringe into leaves of four-week-old Arabidopsis plants 24 hr prior to bacterial inoculation (Pto DC3000, 105 cfu/ml). Bacterial growth was determined 2 days after inoculation by plating serial dilutions of leaf extracts.

Spray inoculation of P. syringae pv. cilantro (Pci) 0788-9 was performed as described in Schwessinger et al. (2011). In brief, bacteria were grown in an overnight culture in LB medium, cells were harvested by centrifugation, and pellets were re-suspended to OD600 = 0.02 in 10 mM MgCl2 with 0.04% Silwet L-77. Bacterial suspensions were sprayed onto leaf surfaces and plants were kept uncovered. Bacterial growth was determined 3 days after inoculation by plating serial dilutions of leaf extracts.

Meta-analysis

Request a detailed protocol

Functional enrichment analyses of the Biological Process ontology were performed using VirtualPlant (Katari et al., 2010). Functional enrichment analysis of the Molecular Function ontology was performed using the Classification SuperViewer tool of the Bio-Array Resource for Arabidopsis Functional Genomics, BAR (Toufighi et al., 2005). Promoter analyses were performed using Athena (O’Connor et al., 2005).
