Abstract

Spontaneous DNA breaks instigate genomic changes that fuel cancer and evolution, yet direct quantification of double-strand breaks (DSBs) has been limited. Predominant sources of spontaneous DSBs remain elusive. We report synthetic technology for quantifying DSBs using fluorescent-protein fusions of double-strand DNA end-binding protein, Gam of bacteriophage Mu. In Escherichia coli GamGFP forms foci at chromosomal DSBs and pinpoints their subgenomic locations. Spontaneous DSBs occur mostly one per cell, and correspond with generations, supporting replicative models for spontaneous breakage, and providing the first true breakage rates. In mammalian cells GamGFP—labels laser-induced DSBs antagonized by end-binding protein Ku; co-localizes incompletely with DSB marker 53BP1 suggesting superior DSB-specificity; blocks resection; and demonstrates DNA breakage via APOBEC3A cytosine deaminase. We demonstrate directly that some spontaneous DSBs occur outside of S phase. The data illuminate spontaneous DNA breakage in E. coli and human cells and illustrate the versatility of fluorescent-Gam for interrogation of DSBs in living cells.

https://doi.org/10.7554/eLife.01222.001

eLife digest

Cells have developed a variety of mechanisms for repairing DNA molecules when breaks occur in one or both of the DNA strands. However, we know relatively little about the causes of these breaks, which often occur naturally, or even about how common they are. Learning more about the most common forms of DNA breakage is important because the genomic changes caused by these breaks are driving forces behind both cancer and evolution, including the evolution of drug resistance in bacteria.

Shee et al. have developed a new method for detecting double-strand breaks in both bacterial and mammalian cells. The method involved combining a natural virus protein called Gam with a fluorescent protein called GFP (short for green fluorescent protein) to make a fusion protein called GamGFP. Gam was chosen because it binds only to double-strand breaks, traps double-strand breaks, and does not bind to any proteins. Genetic engineering techniques were used to introduce GamGFP into cells, with DNA breaks in these cells showing up as fluorescent spots when viewed under a microscope.

Shee et al. used this approach to detect double-strand breaks in both Escherichia coli cells and mammalian cells, and to measure the rate of spontaneous DNA breakage in E. coli. The number of double-strand breaks in E. coli was proportional to the number of times the cells had divided, which provides support for DNA replication-dependent models of spontaneous DNA breakage.

The GamGFP method also provided various insights into DNA breaks in mouse and human cells. In particular, Shee et al. found evidence for a mechanism of DNA breakage that appears to be specific to primates. This mechanism involves an enzyme that is only found in the innate immune system of primates removing an amine group from a cytosine. In future, this approach might allow the trapping, mapping and quantification of DNA breaks in all kinds of cells, and the highly specific way GamGFP binds to breaks could make it the preferred tool for studying DNA breakage in mammalian cells.

https://doi.org/10.7554/eLife.01222.002

Introduction

DNA double-strand breaks (DSBs) are the most genome-destabilizing DNA damage (Jackson and Bartek, 2009). ‘DSBs’ is used here as a collective term that includes two-ended structures (DSBs, e.g., as caused by double-strand endonucleases or ionizing radiation) and single double-stranded ends of DNA (DSEs, or one-ended DSBs), such as are caused by replication-fork collapses (Kuzminov, 2001). We use ‘DSE’ to refer to each single DSE in a two-ended DSB and to the sole DSE in a one-ended DSB. DSBs (one- and two-ended) promote deletions, genome rearrangements (Hastings et al., 2009), chromosome loss (Paques and Haber, 1999), and point mutations (Harris et al., 1994; Rosenberg et al., 1994; Strathern et al., 1995). DSB-induced genomic instability promotes cancer (Negrini et al., 2010) and genetic diseases (O’Driscoll and Jeggo, 2006), evolution of antibiotic resistance (Cirz et al., 2005) and of pathogenic bacteria (Prieto et al., 2006) including in biofilms (Boles and Singh, 2008). The latter reflect the role of DSBs in inducing mutagenesis and genome rearrangement under stress, which may accelerate evolution of bacteria (Al Mamun et al., 2012; Rosenberg et al., 2012), and human cancer cells (Bindra et al., 2007). DSBs are implicated in mutation hotspots in cancer genomes (Nik-Zainal et al., 2012; Roberts et al., 2012). Breaks induced by ionizing radiation and alkylating drugs are used as anti-cancer therapy, and conversely DSBs are likely to foretell genomic instability that drives malignancy (Negrini et al., 2010). Despite the importance of DSBs to many biological processes, quantification of DSBs has been limited. Moreover, although some mechanisms of DSB formation are being explicated (Merrikh et al., 2012), the main mechanisms underlying spontaneous DNA breakage in bacterial (Pennington and Rosenberg, 2007) and human cells (Vilenchik and Knudson, 2003; Kongruttanachok et al., 2010) remain elusive.

DSBs have been quantified via neutral sucrose gradients (e.g., Bonura and Smith, 1977), or pulse-field gels (PFGE) (Michel et al., 1997), neither of which routinely detects DSBs present in fewer than ∼10% of a population of molecules, far above DSB levels that occur in cells spontaneously (Pennington and Rosenberg, 2007). The standard single-cell gel electrophoresis (‘comet’) assay (Olive et al., 1990) detects single-strand (ss) DNA nicks and DSBs, and thus is not specific to DSBs, whereas the neutral comet assay (Wojewodzka et al., 2002) is DSB-specific, but lacks sensitivity. The terminal transferase dUTP nick end-labeling (TUNEL) assay detects free ends of DNA, and so (nonspecifically) labels both ssDNA nicks and DSBs (Gavrieli et al., 1992).

Cytological assays for foci of DSB-repair proteins identify locations of DSBs in situ via surrogate markers γ-H2AX (Rogakou et al., 1999), Mre11, Rad50 (Maser et al., 1997), Rad51 (Haaf et al., 1995), Rad52 (Liu et al., 1999), BRAC1 (Scully et al., 1997), Ku80/70 (Koike et al., 2011), and 53BP1 (Rappold et al., 2001) in eukaryotes, and RecA (Renzette et al., 2005), RecFON (Kidane et al., 2004), and bacterial Ku (Kobayashi et al., 2008) in bacteria. Only some of these may be DSB-specific. γ-H2AX and 53BP1, the most commonly used DSB markers in mammalian cells, are indirect markers. Antibodies to γ-H2AX and 53BP1 detect a modified histone and a DNA repair protein respectively, rather than DNA ends, and are likely to label sites not currently possessing a DSB. γ-H2AX is a histone variant phosphorylated at sites of DNA damage during DNA damage signaling. γ-H2AX spreads over up to ∼2-Mbp regions that comprise 500 to 8000 γ-H2AX molecules, so does not pinpoint DSB sites (Rogakou et al., 1999). Numbers of γ-H2AX foci induced by DNA damage may not represent true numbers of DSBs (Bouquet et al., 2006), and γ-H2AX focus formation is variable and can occur at non-DSB sites (Han et al., 2006). Thus, γ-H2AX may not always signify a physical break. 53BP1 is a non-homologous end-joining (NHEJ) protein and forms nuclear foci upon ionizing radiation (IR) treatment, dependently on several histone modifications including γ-H2AX, H2A/X ubiquitylation and H4K20 methylation (Lukas et al., 2011b; Fradet-Turcotte et al., 2013). Because these histone modifications do not exist equally throughout the genome, the efficiency and DSB-specificity of 53BP1 are not known. Moreover, γ-H2AX, and all histological markers provide ‘snapshots’ of fixed cells and do not allow the possibility of measuring accrual of DSBs over time. Although Ku is likely to be most specific for DSBs via its function in NHEJ (Taccioli et al., 1994), Ku also functions at telomeres (Gravel et al., 1998) and appears to interact with RNA polymerase II (Dynan and Yoo, 1998), raising questions about its specificity. Ku also binds ssDNA nicks, gaps, and regions of transition between single- and double-stranded structures, supporting concerns about its specificity (Paillard and Strauss, 1991; Blier et al., 1993).

In bacteria, RecA binds ssDNA assisted by RecF. Neither is specific for DSEs of DNA. Bacterial Ku has also been used to visualize DNA damage (Kobayashi et al., 2008). Quantification of DSBs in living E. coli was achieved by measuring the RecB-dependent (DSB-specific) induction of the SOS response in individual cells by flow cytometry (Pennington and Rosenberg, 2007). Although this assay allowed quantification of rates of formation of living cells with DSBs (Pennington and Rosenberg, 2007), it could not determine the numbers of DSBs per cell. Thus, to date, neither precise rates of spontaneous DNA breakage in living cells nor the mechanisms that underlie most spontaneous DNA breakage are known, even in E. coli.

DSBs can arise by several different mechanisms, many involving DNA replication. Replication-fork collapse at ssDNA nicks creates one-ended DSBs (Kuzminov, 2001) (illustrated below). Collisions of the replisome with transcription complexes (Merrikh et al., 2012) and other proteins (Gupta et al., 2013) cause DNA breakage. In stationary-phase (non-replicating) cells, RNA/DNA hybrids left by transcription (R-loops) promote DNA breakage apparently by priming replication forks that then collapse at ssDNA nicks (Wimberly et al., 2013). Though replication can generate DSBs, whether it is the principle generator of DSBs spontaneously, in cells/sites not specifically engineered to maximize collisions, has not been addressed. Similarly, spontaneous 53BP1 foci can be detected in G1 (non-replicating) human cells (Lukas et al., 2011a). Given the uncertainly of the DSB-specificity of 53BP1, whether these reflect genuine DSBs formed outside of S phase, when most replication occurs, is unclear.

Additional processes may generate DSBs in human cells. Most humans express up to nine primate-specific ssDNA deaminases, AID, APOBEC1, and seven distinct APOBEC3s, all of which convert DNA cytosines to uracils (Conticello et al., 2007). In human, uracils in DNA can be processed by UNG2 into abasic sites and subsequently into ssDNA nicks by APEX. Such nicks could potentially produce DSBs via opposing strand nicks or replication-fork collapses, as occurs with uracil excision from DNA in E. coli (Kuzminova and Kuzminov, 2008). Although DSBs have been inferred and associated with AID for Ig translocations in some B-cell cancers (Robbiani and Nussenzweig, 2013), DSBs have yet to be identified directly. DSBs have also been inferred as intermediates in the generation of strand-biased cytosine mutation clusters in many cancers (Nik-Zainal et al., 2012; Roberts et al., 2012; Burns et al., 2013b). This inference is further supported by the demonstration of similar-sized mutation hotspots targeted to DSBs created by I-SceI endonucleolytic cleavage in E. coli (Shee et al., 2012), and by similar mutation clustering in yeast cells exposed to alkylating agents or engineered to express various human DNA deaminases (Roberts et al., 2012; Taylor et al., 2013).

In this study, we develop engineered proteins for specific detection of DSBs in bacterial and mammalian cells, and use them to illuminate spontaneous DNA breakage in both. We created fluorescent-protein fusions of the highly DSE-specific (Williams and Radding, 1981; Akroyd and Symonds, 1986; Abraham and Symonds, 1990) Gam protein of phage Mu for detection of DSBs as foci upon its expression from the E. coli chromosome, or from vectors in mammalian cells. Gam is the ortholog of eukaryotic and bacterial Ku (d’Adda di Fagagna et al., 2003), but, unlike Ku proteins, does not perform DNA repair reactions nor bind any other known protein. During phage infection, Gam binds and protects ends of linear phage DNA, preventing degradation by host exonucleases (Akroyd and Symonds, 1986). Biochemically, Mu Gam is a highly specific DSE-binding protein (Williams and Radding, 1981; Abraham and Symonds, 1990). We demonstrate the utility of regulatable GamGFP fusion proteins for detecting DSBs in E. coli and in mammalian cells and use them to determine the rates of spontaneous DNA breakage in E. coli. Moreover, we track the origins of spontaneous DSBs in live, proliferating E. coli. We find precise correlation of DSBs with the numbers of divisions, implying that replication-dependent mechanism(s) underlie most spontaneous DNA breakage. In human and mouse cells, we show that GamGFP labels DSBs and we provide evidence that—(i) GamGFP competes with Ku for DSBs; (ii) 53BP1 appears less specific for DSBs than GamGFP; (iii) GamGFP inhibits end resection at DSBs; (iv) DNA cytosine deamination produces DSBs in human cells, identifying a potentially primate-specific mechanism of DNA breakage; and (iv) G1 cells show multiple clustered foci, implying that some spontaneous DNA breakage occurs outside of S phase when most replication takes place.

Results

Production of functional GamGFP from the E. coli chromosome

We constructed a regulatable chromosomal expression cassette of Mu gam and a Mu gam-gfp fusion gene in the E. coli chromosome, controlled by the doxycyline/tetracycline-inducible PN25tetO promoter (‘Materials and methods’, Figure 1A). Promoter-only and GFP-only controls were also constructed. Production of GFP, Gam, and GamGFP were verified by SDS-PAGE and western analyses (Figure 1—figure supplement 1). gam-gfp and a derivative gam-EmGFP fusion gene were sub-cloned into a mammalian expression system using the E. coli chromosomal construct as a template.

Figure 1 with 2 supplements see all
Download asset Open asset

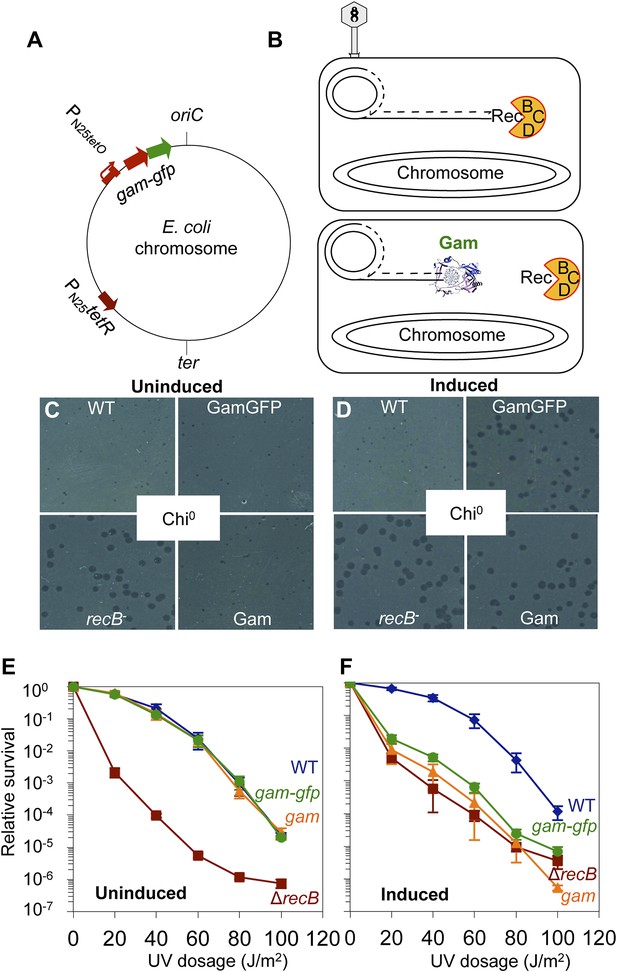

GamGFP production mimics recB double-strand-exonuclease defect.

(A) Doxycycline-inducible gam-gfp fusion construct in the E. coli chromosome. Constitutively produced TetR protein represses the PN25tetO promoter, which produces GamGFP upon doxycycline induction. oriC, origin of replication; ter, replication terminus; arrows, directions of transcription. (B) Phage λ assay for end-blocking activity by Mu Gam and GamGFP. Rolling-circle replication of phage λred gam is inhibited by E. coli RecBCD, which causes small plaques of λred gam on wild-type E. coli (Smith, 1983). Mu Gam protein binds and protects DNA ends from RecBCD exonuclease activity (Akroyd and Symonds, 1986) and so is expected to allow rolling-circle replication of λred gam and therefore allow formation of large plaques. (C) λred gam plaques are small on recB+ (WT) and large on recB-deficient cells (recB-). Plaques produced on WT cells carrying gam and gam-gfp are small when Gam and GamGFP proteins are not produced (Uninduced). (D) λred gam produce large plaques on WT cells if Gam or GamGFP are produced (Induced). (E) UV sensitivity of E. coli recB-null mutant compared with recB+(WT), and uninduced gam and gam-gfp carrying cells. WT (), recB− (), WT GamGFP, (); WT Gam, (). (F) Induction of Gam or GamGFP with 200 ng/ml doxycycline causes UV sensitivity similar to that of recB-null mutant cells, indicating that Gam or GamGFP block RecBCD action on double-stranded DNA ends. WT, SMR14327; recB, SMR8350; WT GamGFP, SMR14334; WT Gam, SMR14333. Representative experiment performed three times with comparable results.

https://doi.org/10.7554/eLife.01222.003

We show that chromosomally encoded Gam and GamGFP are functional in E. coli by demonstrating that their production blocks the action of RecBCD, a highly DSE-specific dsDNA exonuclease, in two assays.

First, phage lambda (λ) lacking its own Gam protein (which, unlike Mu Gam, is a RecBCD-binding protein) and Red recombination proteins forms small plaques because RecBCD DSE-dependent exonuclease prevents λ rolling-circle replication (Smith, 1983) (Figure 1C). By contrast, λred− gam− forms large plaques on recB- (or recC or recD)-defective E. coli because rolling-circle replication occurs (Smith, 1983) (Figure 1C,D). We show that wild-type E. coli producing either Mu Gam or GamGFP allow large plaque formation by λred− gam−, equivalent to those seen on recB-null-mutant E. coli (Figure 1D). We conclude that chromosomally encoded Mu Gam and GamGFP block RecBCD exonuclease activity, implying that they are functional for the Mu Gam DSE-binding activity (Williams and Radding, 1981; Akroyd and Symonds, 1986; Abraham and Symonds, 1990).

Second, recB-null cells are highly sensitive to ultraviolet (UV) light (Willetts and Clark, 1969) because they are DSB-repair deficient, and UV-induced damage can lead to DSBs (Bonura and Smith, 1975), which are lethal if not repaired (Figure 1E). We find that induction of Gam or GamGFP in wild-type E. coli creates a phenocopy of the recB UV sensitivity that is almost identical to that of recB− cells (Figure 1F). These data, and those from the λ assay, show that Gam or GamGFP blocks RecBCD DSE-dependent exonuclease/DSB-repair activity, implying that chromosomally produced GamGFP binds DSEs of DNA in living E. coli.

Additionally, we also show that long-term Gam or GamGFP production confers poor viability, expected for DSB-repair-deficient cells, supporting a complete block to DSB repair (Figure 1—figure supplement 2). recBC null-mutant cells show severe loss of viability, with only about 30% of cells present in liquid cultures being viable and able to produce colonies (e.g., Miranda and Kuzminov, 2003). This results, presumably, from reduced repair of spontaneous DSBs. In Figure 1—figure supplement 2, we show that long-term Gam production causes a similar low viability of 32 ± 9% viable cells relative to uninduced or wild type (WT) cells. GamGFP shows even further reduced viability (0.5% ± 0.06%), even though GFP production alone causes no reduction in viability. As discussed (Figure 1—figure supplement 2A legend), the data imply that GamGFP is a better blocker of DSB repair than Gam, and that it blocks RecBC-dependent and also one or more RecBC-independent, residual DSB-repair pathways.

GamGFP forms foci at two-ended DSBs

We used the chromosomal regulatable I-SceI double-strand endonuclease (Gumbiner-Russo et al., 2001; Ponder et al., 2005) and chromosomal I-SceI cutsites (I-sites) (Shee et al., 2012) to make site-specific DSBs in the E. coli chromosome and show that GamGFP forms foci at DSBs in living cells (Figure 2A–C). First, when GamGFP is produced for 3 hr in cells without I-SceI endonuclease, spontaneous foci (presumably reflecting spontaneous DSBs, validated below) are visible in ∼7.5% of cells, a number higher than the 2.1% of cells with DSBs reported in a previous assay (Pennington and Rosenberg, 2007). This discrepancy, we show below, reflects different growth medium (which affects growth rate and the number of chromosomes per cell) from that of the previous assay. Second, GamGFP forms foci in almost all cells when I-SceI is induced in cells carrying an I-SceI cutsite (Figure 2B,C), and not in cells expressing only the enzyme (no cutsite, not shown), or carrying the cutsite but no enzyme (Figure 2C, “spontaneous”). These data imply that DSBs underlie foci. Third, we varied the number of DSBs per cell by using rapidly growing cells with the I-site either near the replication origin (ori) (more DNA copies, so more DSBs upon I-SceI induction) or near the replication terminus (fewer DNA/I-site copies, so fewer DSBs, Figure 2A). qPCR showed ∼2–3 times more ori- than ter-proximal DNA copies under these conditions (Figure 2—figure supplement 1). We find that although the number of cells with foci is the same with the I-site near ori as ter, the number of foci per cell is significantly greater when cleavage is near ori than when it is near ter (Figure 2B,C). Whereas the cells with an ori-proximal I-site had 57 ± 2% of cells with >1 focus, those with the ter-proximal I-site had a significantly lower 14 ± 3% of cells with >1 focus (p=0.0001, Student’s t test). The data show that foci form proportionately to the number of DSBs per cell and imply that foci form at the DSB sites (supported independently below).

Figure 2 with 2 supplements see all
Download asset Open asset

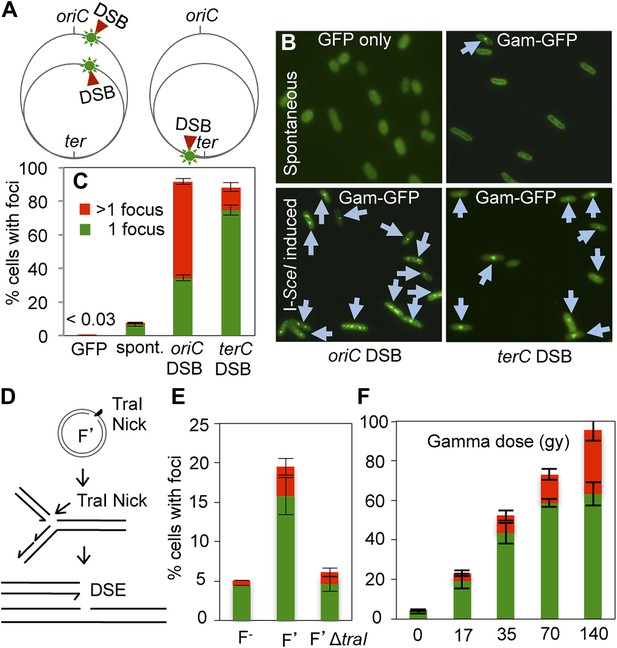

GamGFP foci at DSBs in living E. coli.

(A) Strategy. In log-phase replicating E. coli, cells have more copies of origin (oriC)-proximal than terminus (ter)-proximal DNA and so will have more DSBs per cell when cleaved by chromosomally encoded I-SceI (Ponder et al., 2005) at a cutsite (red arrow/green flash) near ori than near ter. (B) Representative data (arrows indicate foci). (C) Quantification from multiple experiments shows correlation of GamGFP foci with numbers of DSBs per cell. Cells have >1 focus when cleaved by I-SceI near ori, usually 1 focus per cell when cleaved by I-SceI near ter, far fewer cells with foci when only spontaneous DSBs are present (no I-SceI cleavage), and <0.03% of cells with foci when GFP alone is produced. E. coli strains: GFP only, SMR14332; GamGFP, SMR14350; oriC DSB, SMR14354; ter DSB, SMR14362. Error bars, ± SEM. (D) Strategy: a site-specific ssDNA nick made by TraI ssDNA endonuclease at oriT in the F plasmid becomes a one-ended DSB upon replication by fork collapse (Kuzminov, 2001). (E) TraI-dependent GamGFP foci imply that GamGFP detects one-ended DSBs. Cells with no F plasmid (F−), an F′ plasmid encoding TraI (F′), or an isogenic traI-deleted F′ (F′ΔtraI): strains SMR14015, SMR16387, and SMR16475. (F) GamGFP foci are correlated with dose of DSB-producing γ-radiation. Figure 2—figure supplement 2A shows linear correlation of foci with dose. Strain, SMR14350. Cells with 1 focus, green; >1 focus, red.

https://doi.org/10.7554/eLife.01222.006

These data also imply that a single focus occurs at each I-SceI-induced DSB: one focus for each of the two DSEs present in the DSB. Because two foci per cell can be detected when more than one chromosome has a DSB (Figure 2A–C,E,F), we infer that there is not an inherent limit by which only one focus can form in a cell. Rather the two DSEs present in a single DSB appear to be kept close enough to each other, either by GamGFP or perhaps by an E. coli DNA-repair or other protein(s), that only a single focus is visible.

GamGFP detects one-ended DSBs

DSBs formed by I-SceI cleavage contain two double-stranded DNA ends (DSEs). Our data suggest that GamGFP binds at both DSEs next to each other and forms a single focus. By contrast a one-ended DSB is expected to result when replication encounters a ssDNA nick (Figure 2D) via fork collapse (Kuzminov, 2001), a postulated frequent occurrence. We mimicked such fork collapses using the constitutive ssDNA nicking that occurs in the E. coli F conjugative plasmid. F plasmids are constitutively nicked by TraI ssDNA endonuclease, at a specific site, oriT, to initiate conjugal DNA transfer (Traxler and Minkley, 1988). ssDNA nicks become single DSEs (one-ended DSBs) upon replication-fork collapse (Kuzminov, 2001) (Figure 2D). We observe a TraI-dependent, four-fold increase in GamGFP foci in F′-carrying cells compared with isogenic F− cells (Figure 2D,E), implying that GamGFP also labels one-ended DSBs, in addition to two-ended DSBs such as those created by double-strand endonuclease I-SceI.

DSB-detection efficiency

We used two known DSB-inducing treatments to quantify the efficiency of GamGFP focus formation relative to known efficiencies of DNA breakage by one of these agents, and to generalize our conclusions with the other. Gamma rays are widely used to induce DSBs, and the DSB load per gray (Gy) of ionizing radiation (IR) in E. coli is documented (Bonura and Smith, 1977). We find that focus formation is linearly related to gamma-ray dose over the range of 0–140 Gy (r2 = 0.991) (Figure 2F, Figure 2—figure supplement 2A). We observed 3.07 foci per cell given 140 Gy (3.12 foci/cell at 140 Gy less 0.043 foci/cell at 0 Gy), or 0.022 foci/cell/Gy. Comparing this with the figure obtained by sucrose sedimentation of 0.031 DSBs/cell/Gy for E. coli (Bonura and Smith, 1977), we infer an efficiency of detection of DSBs as GamGFP foci of 71% (0.022/0.031 = 0.71).

The 71% efficiency of detection should be considered a rough estimate because although we used identical growth medium and conditions to those used previously (Bonura and Smith, 1977), and the number of DSBs per E. coli cell per Gy is expected to be constant, we did not perform independent measurement of DSBs after IR by neutral sucrose gradients as per Bonura and Smith (1977). Therefore, some variation is possible. However, using an independent method below, we obtained a roughly similar estimate of efficiency (see GamGFP pinpoints subgenomic locations of DSBs in E. coli).

The smaller number of foci per cell with the zero dose (0.043) than observed in Figure 2C (spontaneous, 0.075), reflects the poorer growth medium used in these IR experiments: M9 0.4% glucose exactly as per Bonura and Smith (1977) vs rich LBH medium in Figure 2C. E. coli produces more chromosome copies per cell in LBH than M9 medium (Pennington, 2006), and so is expected to have more spontaneous DSBs per cell in rich medium than poor (also shown below).

Bleomycin also induces DSBs (Hecht, 2000). We see that log-phase cells treated with bleomycin show significantly increased foci. About 60% have one focus and ∼34% have ≥2 foci (94% of cells with foci total), about 14-fold higher than spontaneous focus levels (Figure 2—figure supplement 2B). These results generalize the DSB-labeling activity of GamGFP, and the results with gamma rays indicate that a high proportion, ∼71%, of DSBs are detected by GamGFP in E. coli.

GamGFP pinpoints subgenomic locations of DSBs in E. coli

We show that GamGFP foci indicate the subcellular/subgenomic locations of DSBs in E. coli using site-specific I-SceI cleavage combined with a fixed chromosomal tetracycline operator (tetO) array bound by a Tet repressor (TetR)-mCherry fusion protein, which forms a focus at a site near oriC (Figure 3A). In cells carrying this chromosomal-site label, we introduced an I-SceI cutsite (I-site) either 10 kb, 55 kb, 80 kb or 2.4 Mb away in different strains (Figure 3B,D,F,H) and quantified co-localization of GamGFP and TetR-mCherry (representative data, Figure 3C,E,G,I). We find that GamGFP foci co-localize with the TetR-mCherry focus, producing a yellow focus, about 80% of the time with the I-site 10 kb from the array (Figure 3C,J). The remaining 20% of cells had average interfocal distances of ∼0.3 μm (Figure 3K). With 55 kb, 80 kb, and 2 Mb separating the I-site and tetO array, the mean distances between green and red foci increased to 0.45 μm, 0.52 μm, and to 0.57 μm respectively (Figure 3K) and the number of cells with overlapping (yellow) foci decreased (Figure 3J). With the most distant I-site, most cells had one green (ter-proximal) focus and two red (ori-proximal) foci with the average distance ∼0.84 μm (2.4 Mb far, Figure 3K) and 0.57 μm (2.4 Mb near, Figure 3K) between the single green focus and each of the two red foci. The percentages of co-localization were significantly different for 10, 55 and 80 kb (p=0.00003, 0.00001, and 0.00006, Student’s t test) and not between 80 kb and 2.4 Mb (p=0.053). These data imply that sites farther than 80 kb apart are not necessarily further apart in space within the bacterial nucleoid (3-D chromosome structure), at least not after the nucleoid has suffered double-strand cleavage. Interfocal distances were more variable and less significantly different than the proportion of co-localization, probably reflecting the dynamic nature of the chromosome within the nucleoids of these living cells. Our data show that co-localization of GamGFP and TetR-mCherry foci occurs when the cutsite is near to and not when it is far from the array. These results indicate first, that GamGFP can diagnose subgenomic locations of DSBs. Second, the data imply that beyond 80 kb, genomic locations are roughly the same physical distance apart in cleaved bacterial nucleoids (shown previously for sites >200 kb apart in uncleaved nucleoids [Wang and Sherratt, 2010]). Third, the data support the conclusion (above) that GamGFP foci occur at DSB sites.

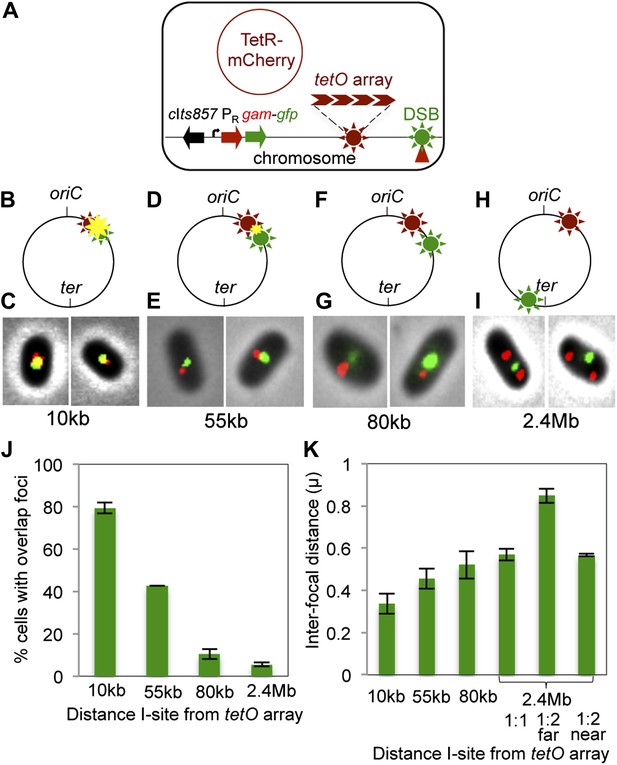

Figure 3
Download asset Open asset
Subcellular/subgenomic localization of DSBs in living E. coli.

(A) Strategy: we varied the location of I-SceI cleavage sites (I-sites) in different strains relative to a fixed-position chromosomal TetR-mCherry-bound tetO array, with GamGFP temperature inducibly produced from chromosomal λPR (cIts857 PRgam-gfp). Red circle, plasmid that produces TetRmCherry. (B–H) Diagrams of E. coli chromosomes with inducible I-SceI endonuclease and I-sites engineered (B) 10 kb, (D) 55 kb, (F) 80 kb, and (H) 2.4 Mb from the tetO array. Co-localization of TetR-mCherry () and GamGFP foci () results in a yellow focus (). (C, E, G, I) Representative fluorescence microscopy results show co-localization of mCherry and GamGFP (yellow foci) at 10 kb (C), and non-overlapping foci at 55 kb (E), 80 kb (G), 2.4 Mb (I) in strains SMR16600, SMR16711, SMR16713, and SMR16606. (J) Percentage of cells with yellow overlapped foci at each distance. (K) Mean interfocal distances. At 2.4 Mb, there were frequently two red foci per one green focus, reflecting more copies of ori- than ter-proximal DNA during replication. The greater interfocal distance (far) is plotted separately from the shorter (near), and cells with 1:1 ratios were counted separately. Data represent three independent experiments, error bars indicate SEM, with the number of cells counted in all three totaling: 298, 10 kb; 204, 55 kb; 333, 80 kb; and 1347, 2.4 Mb.

https://doi.org/10.7554/eLife.01222.009

These data also allow an independent (though equivocal) estimation of the efficiency of GamGFP focus formation at DSBs. Because red tetO-array foci label chromosomes, we can use the fraction of green (GamGFP) per red (chromosome) focus to approximate the efficiency of GamGFP focus formation at DSBs per chromosome. This method has the caveat that we do not know the efficiency of I-SceI cleavage of the chromosomes under our induction conditions. Nevertheless, using the construct in which the tetO array and I-site are nearby, at 55 kb away, we observe 0.82 ± 0.03 (mean ± SD, three experiments) green per red focus, indicating a rough efficiency of 82% of DSBs with a focus. This is similar to our estimate of ∼71% of DSBs with a focus, above.

Generation-dependence and rate of spontaneous DNA breakage in E. coli

Previously, we estimated the steady-state frequency of proliferating E. coli with one or more spontaneous DSBs to be between 0.5% and ∼2.1%, and from this derived rates of formation of break-carrying cells between 0.25% to ∼1% per generation (Pennington and Rosenberg, 2007). However, two problems cloud interpretation of the previous data. First, the previous method could not distinguish whether most spontaneous DSBs occur singly in cells or via multi-break catastrophes. Second, whether most spontaneous DSBs occur replication- and thus generation-dependently was unknown (reviewed in ‘Introduction’). GamGFP allowed solution of both problems.

First, time-lapse microfluidic imaging shows that most spontaneous DSBs form with precise correlation to numbers of cell divisions, and as above (e.g., Figure 2A–C) they form mostly 1 DSB per cell, not in multi-break catastrophes. In microfluidic chambers, we captured images of growing microcolonies from the 1-cell to ∼100-cell stage measuring divisions and appearance of spontaneous GamGFP foci while varying cell-division rates by withdrawal of glucose from the flowing medium (Figure 4, Figure 4—figure supplement 1). If spontaneous DSBs form independently of replication/generations, then the focus appearance might correlate with time not generations, whereas replication-dependent mechanisms of DSB formation predict correspondence with generations. In Figure 4A, cells that were kept dividing in log-phase for 9 hr, then shifted to no-glucose for an additional 18 hr, show severely slowed divisions after the shift, and a highly precise correspondence of the numbers of spontaneous DSB foci with numbers of cell divisions at all division rates (Figure 4A, Figure 4—figure supplement 1). To verify that the cells experiencing slow/no growth were still capable of forming GamGFP foci had breaks been present, we gave 20 μg/ml of DSB-producing agent phleomycin after 27 hr and found that 45 ± 5% (mean ± SEM) of cells then formed GamGFP foci (Figure 4—figure supplement 1, 32 hr). Thus, new DSBs could have been detected if they had formed. These results provide the first demonstration that most spontaneous DSBs in E. coli form generation-dependently and support replicative models for the origins of most spontaneous DSBs.

Figure 4 with 1 supplement see all
Download asset Open asset

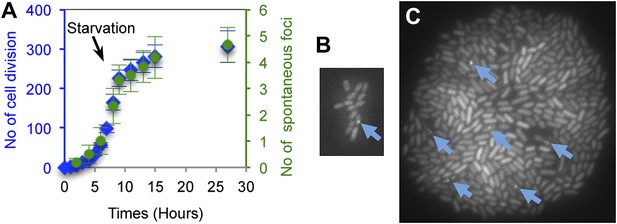

Generation-dependence of spontaneous GamGFP focus formation in proliferating E. coli.

Log-phase GamGFP-pre-induced cells were loaded into a microfluidic chamber in which single cells anchor then divide to form single-cell-layer microcolonies. The numbers of cell divisions and appearance of spontaneous foci were captured with time-lapse photography. Rapid growth in glucose during the first 9 hr was followed by washing cells in the same medium lacking glucose for 18 hr to slow and halt cell divisions. (A) Spontaneous DSB foci are correlated with numbers of cell divisions. Summary of data for six cells that became microcolonies. Blue (), number of cell divisions; green (), cumulative number of spontaneous foci that appear in each microfluidics micro-colony (mean ± SEM, six microcolonies). (B) Representative 2-hr micro-colony with a GamGFP focus (arrow). (C) Representative 15-hr micro-colony with GamGFP foci (arrows).

https://doi.org/10.7554/eLife.01222.010

Second, the microfluidic data provide the rate of DNA breakage per cell division directly, as follows. Figure 4A shows a constant frequency of cells with a single focus (mean 0.0145 ± 0.006 SEM per cell division; none had >1 focus) independently of cell-division rate. In all six experiments summarized in Figure 4A, one focus appeared per cell, and cells with a focus did not divide further (probably because GamGFP is a DSE ‘trap’ that prevents repair of the break (Figure 1F) and shown for native Mu Gam protein in phage λ repair assays, Thaler et al. [1987]). Therefore, 0.0145 ± 0.006 foci per cell division represents the rate of formation of foci per division. Correcting this rate for ∼71% efficiency of detection of DSBs as foci (above), provides a rate of 0.021 ± 0.008 DSBs per cell division.

Third, the data obtained here additionally allow accurate interpretation of previous data from experiments that used flow-cytometric detection of cells with one or more DSBs (Pennington and Rosenberg, 2007) for a separate rate measurement as follows: (i) we now know that most of these cells have one DSB, not multi-break catastrophes and so can estimate real DSB formation rates; (ii) whereas previously, we assumed generation-dependence, a point that was not known, here we showed that spontaneous breaks do form generation-dependently (Figure 4). Thus we can translate the previously estimated rate to real rates of DSBs per cell division. Previously, the rate of formation of cells with ≥1 DSB per generation was estimated to be 0.01 (Pennington and Rosenberg, 2007). We can correct this for the number of DSBs per cell by noting that under the same growth conditions (exponential growth in minimal glucose) we observed 108 foci in 98 cells with foci, or ∼1.1 foci per focus-carrying cell. Applying this function to an estimate of 0.01 of cells producing ≥1 DSBs per generation (Pennington and Rosenberg, 2007), we have 0.01 × 108/98 = 0.011 DSBs per cell division. This is similar to the 0.021 ± 0.008 DSBs per cell division obtained from the microfluidic data above, and both are far lower than initial estimates (Cox et al., 2000), discussed below.

These rates hold for log-phase cells grown in minimal 0.1% glucose medium, in which most cells possess two chromosomes (Pennington and Rosenberg, 2007), the growth medium and condition used by Pennington and Rosenberg (2007). When growing in rich LBH medium, as we did in Figure 2A–C, replication is faster, the number of chromosomes per cell is increased, and the frequency of cells with DSB(s) is higher (Pennington, 2006). Similarly, we observed the higher 0.075 foci per cell in rich medium (Figure 2C). In the moderately richer M9 0.4% glucose medium used in the zero-dose of the IR experiments (Figure 2F), we observed the moderately higher frequency of 0.043 foci per cell. These data support the correlation between growth rate/the number of chromosomes per cell and spontaneous focus/DSB frequency or rate.

GamGFP binds laser- and IR-induced breaks in mammalian cells and is inhibited by Ku

We find that HeLa cells expressing GamGFP, in which DNA is sheared by a laser beam across the nucleus, display recruitment of fluorescence signal to the laser line (Figure 5A, Figure 5—figure supplement 1A). GamGFP co-localized with 53BP1 visualized by immunofluorescence staining in the same laser-treated and fixed samples (Figure 5A). We observed less robust GamGFP localization at laser damage in living (Figure 5—figure supplement 1A) than fixed (Figure 5A) HeLa cells, perhaps because pre-extraction of soluble GamGFP during fixation increases the apparent signal from the bound GamGFP (Figure 5—figure supplement 1B). We tested whether competition with Ku for DNA end-binding might be a factor affecting Gam localization to DSBs, as seen in yeast (d’Adda di Fagagna et al., 2003). We found ∼three-fold better labeling of laser-induced DSBs in Ku-deficient cells (lacking Ku80, also known as Xrcc5−/−; in which Ku70 is also downregulated, Taccioli et al., 1994) compared with heterozygous Ku80-competent cells (Xrcc5+/−) or Lig4−/− (end-joining-defective but Ku-competent) mouse embryonic fibroblast cells (MEFs) (Figure 5B–D, Figure 5—figure supplement 2). Because GamGFP is inhibited by Ku even in end-joining-defective cells lacking LigIV (Figure 5—figure supplement 2), we infer that competition with Ku reduces GamGFP recruitment to DSBs independently of NHEJ, not that end-joining reduces the numbers of DSBs present for GamGFP to bind. These data indicate that GamGFP labels DSBs in mammalian cells.

Figure 5 with 2 supplements see all
Download asset Open asset

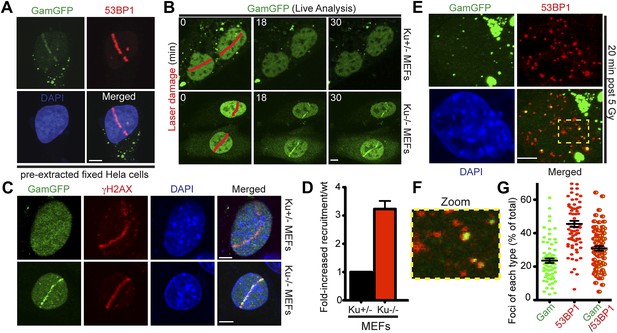

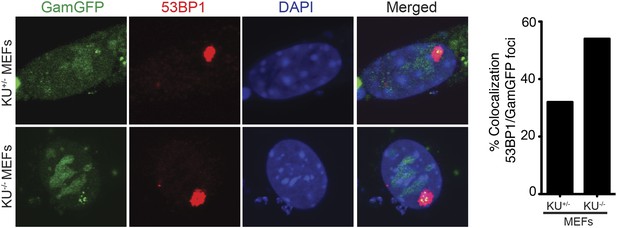

GamGFP marks DSBs in mammalian cells and is inhibited by Ku.

(A) GamGFP co-localizes with 53BP1 on laser-induced DNA breaks. (B) Ku inhibits recruitment of GamGFP to laser-induced damage, live cells. (C and D) Ku inhibits recruitment of GamGFP, fixed cells. Mean ± SEM of three experiments, n >25 cells each. (E) GamGFP forms IR-induced foci in Ku80-defective MEFs. (F) Zoomed image from E. (G) IR-induced foci containing Gam only, 53BP1 only or both Gam and 53BP1 (>2600 total foci counted in three independent experiments). Error bars, SEM. Scale bars = 5 μm.

https://doi.org/10.7554/eLife.01222.012

Incomplete 53BP1 co-localization with GamGFP

We examined co-localization of GamGFP with γ-H2AX and 53BP1 foci in Ku80-deficient MEFs, in which GamGFP binds DSBs efficiently, without inhibition by Ku (Figure 5B–D), as discussed above. We find that γ-H2AX labeling of laser damage co-localizes with GamGFP (Figure 5C). Interestingly, though both GamGFP and 53BP1 form foci on Gamma-irradiated Ku80-deficient MEFs, only ∼31% of foci per cell were coincident 53BP1 and GamGFP (Figure 5G). About 46% showed only 53BP1 and ∼23% showed only GamGFP (Figure 5G). The coincident foci of GamGFP with γ-H2AX (Figure 5C) and 53BP1 (Figure 5A,E–G) validate both of these markers, both indirect inferred DSB markers, as genuine DSB markers.

However, the data also imply that, as expected, some of the sites that 53BP1 binds might not, at the moment of binding, possess a frank DSE because 46% are not bound simultaneously by GamGFP (Figure 5G). This result is expected because, first, Gam is specific for flush DSEs with up to a four-base single-strand DNA overhang (Akroyd and Symonds, 1986), not the long single-strand DNA overhangs created by resection of DSBs by repair exonucleases (Symington and Gautier, 2011). Therefore, there are expected to be 53BP1 foci unoccupied by GamGFP, as we observe in Figure 5G, because GamGFP is a more specific reagent. Second, 53BP1 is expected to have a post-DSB-repair presence because it binds modified nucleosomes (Lukas et al., 2011b; Fradet-Turcotte et al., 2013) rather than DNA, which is also compatible with our data. The mechanism that predominates remains to be determined.

Similarly, the ∼23% of foci per cell with GamGFP alone indicates that some DSBs are present but not bound by sufficient 53BP1 to form a visible focus. These DSBs could lack DNA-damage-response signaling due to occlusion of the ends by GamGFP or exist in areas without the chromatin response that recruits 53BP1. At least in E. coli, GamGFP focus formation is very rapid, with 91 ± 0.5% (mean ± SEM, three independent experiments) of the foci resulting from a 10-min (pulse) exposure to 20 µg/ml phleomycin appearing at 10 min. Whether because of timing, location or signaling, the data suggest that a more accurate picture of the locations of current DSBs containing frank DSEs might be obtained with GamGFP than 53BP1.

GamGFP inhibits IR-induced end resection

We find that GamGFP appears to block resection. We quantified RAD51 foci (single-stranded DNA) (Raderschall et al., 1999) induced by IR, thus including DSBs, in S-G2 (CyclinA-positive) cells that either were or were not simultaneously transfected with the GamGFP vector. We observed an inverse correlation between RAD51 foci and GamGFP-positive cells. Most of the cells that produced GamGFP had few (0–5) RAD51 foci, in optically sectioned nuclei in which all or most foci are expected to have been detected (Figure 6). Those nuclei without GamGFP had increased RAD51 focus formation. These data indicate exclusivity of the presence of GamGFP and resection, implying that as in E. coli (Figure 1C–F), GamGFP blocks exonuclease activity at DSEs in mammalian cells.

Figure 6
Download asset Open asset

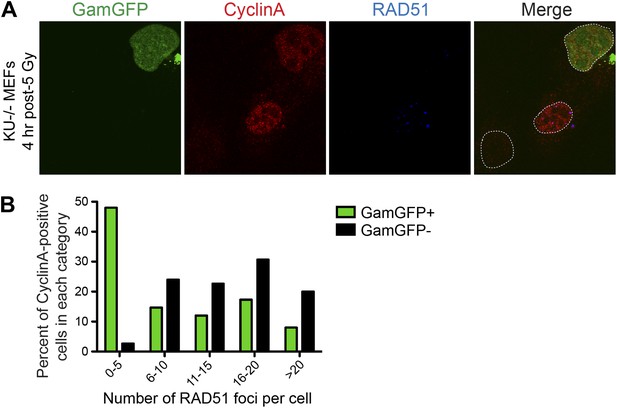

GamGFP inhibits IR-induced RAD51 foci, apparently blocking end resection.

We quantified RAD51 foci (single-stranded DNA) (Raderschall et al., 1999) induced by IR, so presumably at DSBs, in S-G2 (CyclinA-positive) cells that either did or did not produce GamGFP, from the same transfections. (A) The GamGFP-positive Ku80-defective MEFs display reduced RAD51 foci upon IR treatment in S/G2 cells. Cells were analyzed by immunofluorescence with the indicated antibodies. S/G2 cells were identified by positive staining of CyclinA. Dotted white lines mark cell nuclei. (B) Quantification of RAD51 foci in CyclinA-positive cells with or without GamGFP production (cumulative values from three experiments with >75 cells total). Each cell is ‘Z-stacked’ (optically sectioned) so that all RAD51 foci were examined. The data indicate that most GamGFP-positive cells have few (0–5) RAD51 foci per cell, and that those cells with more RAD51 foci (classes 6–10, 11–15, 16–20 and >20) are enriched among the GamGFP-negative cells. These data indicate a partial mutual exclusivity of GamGFP presence and RAD51 foci, as would be expected if Gam binding to DSEs blocks the resection that creates the ssDNA onto which RAD51 binds.

https://doi.org/10.7554/eLife.01222.015

APOBEC3A induces DSBs in human cells

APOBEC3A is one of the most potent members of a family of DNA cytosine deaminase enzymes (Carpenter et al., 2012). Induction of APOBEC3A, or the related enzyme APOBEC3B, results in both γ-H2AX and 53BP1 foci and frequent DNA breakage as determined by the comet assay (Landry et al., 2011; Shinohara et al., 2012; Taylor et al., 2013; Burns et al., 2013a). We expressed GamEmGFP (emerald GFP), one of the two forms we constructed in mammalian expression vectors. We find that GamEmGFP forms foci in ∼35% of cells when GamEmGFP and APOBEC3A are co-induced, and many of the GamEmGFP foci co-localize with 53BP1 (Figure 7). The appearance of foci requires the catalytic glutamate of ABOBEC3A, strongly implying that DNA cytosine deamination leads to DSBs in human cells. As in MEFs (Figure 5), incomplete localization of 53BP1 with GamEmGFP (Figure 7) implies that some 53BP1-bound sites may not have had Gam-recognizable DSBs, and some DSBs detectable by GamEmGFP did not possess sufficient 53BP1 to form a visible focus.

Figure 7
Download asset Open asset

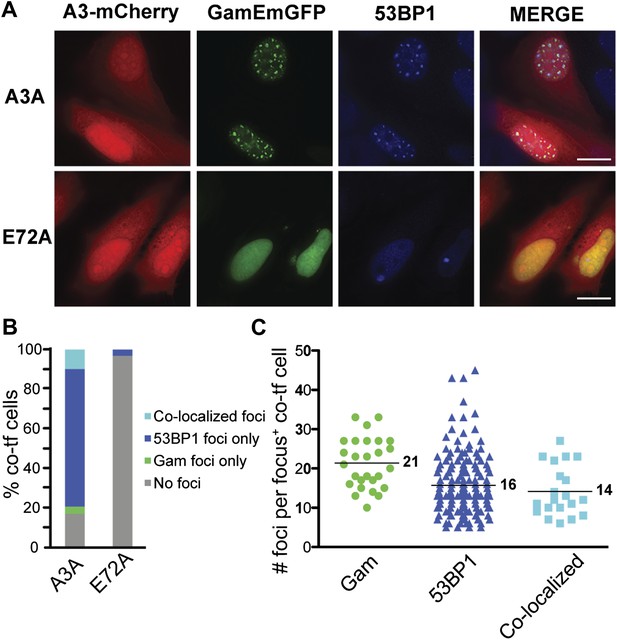

APOBEC3A induces DSBs in human cells.

(A) HeLa cells co-transfected with GamEmGFP and APOBEC3A-mCherry or catalytic mutant, APOBEC3A-E72A-mCherry. (B) Summary of foci observed in cells producing both GamEmGFP and A3A-mCherry or A3A-E72A-mCherry (two independent experiments; n = 100 per experiment). Data are percent of co-transfected cells. (C) Mean number of foci per focus-positive cell co-transfected with and expressing both GamEmGFP and A3A-mCherry.

https://doi.org/10.7554/eLife.01222.016

Spontaneous DSBs in G1 phase

Most spontaneous DSBs are thought to occur during S-phase, presumably by any of several possible DNA replication-dependent mechanisms (reviewed in ‘Introduction’). However, 53BP1 forms unusually large nuclear foci exclusively in a subset of undamaged G1 cells (Harrigan et al., 2011; Lukas et al., 2011a). The large foci in otherwise undamaged cells are only in G1, as shown by their CyclinA-negative state and tracking fluorescent 53BP1 throughout the cell cycle (Harrigan et al., 2011; Lukas et al., 2011a). Although this might suggest that some spontaneous DSBs might form outside of S phase, it has been argued that not all 53BP1 foci indicate DSBs because different types of DNA damage nucleate 53BP1 foci (Lukas et al., 2011a). In this study, we examined the large nuclear 53BP1 foci in undamaged cells, previously shown to form exclusively in G1 (Harrigan et al., 2011; Lukas et al., 2011a), and find that ∼60% of the 53BP1 foci in Ku80-deficient cells correspond to genuine GamGFP-detectable DSBs (Figure 8). Moreover, the GamGFP that coincides with 53BP1 foci contain multiple individual foci, implying that these DSBs may be in large multi-break clusters. Because GamGFP does not spread along DNA, it can resolve multiple nearby DSBs, which was not possible with 53BP1 (Harrigan et al., 2011; Lukas et al., 2011a). These data indicate that some spontaneous DSBs form outside of S phase, when most replication occurs, and do so in clusters.

Figure 8
Download asset Open asset
Spontaneous DNA breakage in G1-phase cells: GamGFP shows large spontaneous G1 53BP1 foci to contain multi-break clusters.

The large spontaneous 53BP1 foci in undamaged cells, which occur solely in G1 (Harrigan et al., 2011; Lukas et al., 2011a), contain multiple DSBs that are marked by GamGFP. The GamGFP-53BP1 co-localization is more apparent in the absence of Ku. Data are from three (Ku80-proficient) or four (Ku80-defective) independent experiments of >25 cells each with Z-stacked (optically sectioned) nuclei.

https://doi.org/10.7554/eLife.01222.017

Discussion

We showed that fluorescent-protein-fusion derivatives of the highly DSE-specific Gam protein of phage Mu allow direct identification of DSBs in bacterial and mammalian cells, and we used GamGFP to illuminate origins of spontaneous DSBs in both. In living E. coli, chromosomally encoded GamGFP forms foci at I-SceI endonuclease-produced two-ended DSBs (Figures 2A–C and 3), at one-ended DSBs made by replication-fork collapse (Figure 2D,E), and DSBs generated by gamma-irradiation and bleomycin (Figure 2F, Figure 2—figure supplement 2). GamGFP detects about 71–82% of DSBs, a robust efficiency. A single GamGFP focus occurs per two-ended DSB (Figures 2A–C and 3) or per one-ended DSB (Figure 2E). Either E. coli DNA-repair or other proteins, or GamGFP itself, might keep the two ends in close enough proximity that only a single focus forms (discussed in ‘Results’: GamGFP pinpoints subgenomic locations of DSBs in E. coli). GamGFP also allowed subcellular localization of site-specific DSBs relative to a chromosomal mCherry marker in E. coli, which are distinct even as close as 55 kb (Figure 3). Similarly, GamGFP and GamEmGFP protein fusions produced in mammalian cells showed localization at laser-induced DSBs (Figure 5), were inhibited by Ku in those cells (Figure 5B–D), and inhibited resection at DSBs (Figure 6), indicating that GamGFPs label DSBs also in mammalian cells. GamGFP and its derivatives also allowed important novel conclusions about the origins of spontaneous DNA breaks in E. coli and mammalian cells.

In mammalian cells, GamGFPs may have considerable utility as a marker for DSBs, particularly when levels of DNA insults/damage are high. However, we note that a failure to detect DSBs using Gam may be due to competition with Ku (Figure 5B,C) and/or to relatively low levels of DNA damage. Additionally, in mammalian cells GamGFP foci were more dramatic in fixed than living cells (Figure 5A, Figure 5—figure supplement 1), perhaps because depletion of background unbound GamGFP in the fixed cells improved contrast. Nevertheless, this tool can be extremely valuable for a number of studies. For instance, GamGFPs allowed us to validate indirect markers γ-H2AX and 53BP1 as genuine DSB markers by showing co-localization at laser and IR-induced DSBs (Figures 5A,C,E–G, 7, 8), and GamGFP inhibits DNA end exonucleolytic resection (Figure 6). Consistent with these results, we also demonstrate that 53BP1 foci in G1 contain DSBs that previously had been inferred only (Figure 8). We are working to develop Ku-resistant DSE-binding fusions currently.

In work published while this paper was in review, Britton et al. (2013) use Ku foci for detection of DSBs similarly to our use of GamGFP. They show that Ku interacts with chromatin via RNA and that foci can be seen in RNase-treated samples. An advantage of Ku is that competition with Ku is not a problem, whereas an advantage of GamGFP is its greater specificity for double-strand ends (reviewed in ‘Introduction’).

Second, one aspect of the incomplete co-localization of 53BP1 with GamGFPs is that there are DSBs identifiable with GamGFPs that are not seen with 53BP1 (Figures 5G and 7C). One possible explanation is that, particularly in the Ku-defective MEFs (Figures 5G and 8), GamGFPs may be more sensitive than 53BP1 to DSBs, and might make visible DSB foci before DNA-damage signaling has allowed sufficient 53BP1 accumulation to produce a visible focus. At least in E. coli GamGFP labels DSBs very rapidly, showing most foci by 10 min after phleomycin exposure. Thus, in some circumstances, GamGFPs may be more sensitive than 53BP1. Conversely, the presence of 53BP1 foci at sites that do not show GamGFP foci (Figures 5E–G, 7B,C), even in Ku80-deficient MEFs (Figure 5D), may indicate that some of the sites bound by 53BP1 may not possess frank DSEs, the Gam DNA substrate (Williams and Radding, 1981). This could be because either the DSB has been repaired, but the 53BP1 at the site has not yet dissipated, or because exonucleolytic ssDNA resection has created a long ssDNA overhang, which cannot be bound by Gam (Williams and Radding, 1981; Akroyd and Symonds, 1986; Abraham and Symonds, 1990). With either possibility, the data suggest that GamGFPs may be more selective and specific markers for DSBs. Given the widespread use of 53BP1 as a DSB marker, understanding its potential limitations of possibly lower specificity relative to GamGFPs is important.

Third, we demonstrate directly that primate-specific deaminase APOBEC3A caused GamGFP foci, and thus DSBs in human cells, indicating that DSBs result from DNA cytosine deamination. This supports previous, less specific evidence from the appearance of γ-H2AX (Landry et al., 2011; Burns et al., 2013a) and 53BP1 (Taylor et al., 2013) foci induced by APOBEC3A expression. A possible mechanism could be that removal of uracil from DNA after cytosine deamination followed by cleavage at the abasic site creates a ssDNA nick, which becomes a one-ended DSB either by replication-fork collapse (Figure 2D), or similar ssDNA nick creation on the opposing strand. DNA breaks occur upon uracil excision from DNA in E. coli (Kuzminova and Kuzminov, 2008). Regardless of the specific mechanisms, the data indicate that cytosine-deamination may be a general mechanism of DSB generation in mammalian cells. Cytosine deamination clearly contributes a significant part of the cancer genome mutational landscape (Nik-Zainal et al., 2012; Roberts et al., 2012; Taylor et al., 2013; Burns et al., 2013a, 2013b) and it is likely that some of this could be by DSB induction.

In E. coli, GamGFP allowed demonstration that, first and importantly, spontaneous DNA breakage is precisely correlated with the number of cell divisions (Figure 4), providing the first evidence that most spontaneous breakage results from DNA replication-based mechanisms. Previously, DNA replication has been implicated in several mechanisms of DSB formation. These include fork collapse in engineered lambda phage (Kuzminov, 2001), fork-regression or ‘chicken-foot’ formation, to produce one-ended DSBs, in cells with defective replication proteins (Michel et al., 1997), and DSBs created by collisions of replication forks with transcription complexes (Merrikh et al., 2012), and other proteins (Gupta et al., 2013). However, nearly all of the work required engineered constructs or situations (to maximize collisions, fork collapses, etc) or mutant proteins, and so did not address how spontaneous DSBs occur normally. Our results demonstrate the correspondence of spontaneous DSBs with the number of cell divisions and imply that some or all of these mechanisms, and replication generally, are in fact predominant causes of spontaneous DNA breakage normally in proliferating E. coli.

In separate work, we found that one particular replicative mechanism, in which RNA (R-loop)-primed replication-fork collapse produces DSBs, occurs spontaneously in stationary-phase (non-proliferating) E. coli (Wimberly et al., 2013).

Second, the demonstration that spontaneous DSBs are generation dependent (Figure 4A), and our finding that most spontaneous DSBs result as single events per cell, not multi-break catastrophes (Figures 2C and 4, Figure 4—figure supplement 1), allowed calculation of the first true rates of spontaneous DNA breakage. Our microfluidic data directly show rates of 0.021±0.008 spontaneous DSBs per cell division, and the use of our data to re-interpret and correct previous indirect, low-resolution data (Pennington and Rosenberg, 2007) indicates a roughly similar rate of 0.011 spontaneous DSBs per cell division (‘Results’). These true rates are 10–20-times lower than initial postulates (Cox et al., 2000), but in line with each other. Because genomic rearrangement frequencies remain the same regardless of estimations of DSB numbers, these rarer and more accurate break rates imply that each DSB is 10–20 times more genome destabilizing than had initially been postulated. Spontaneous DSBs are infrequent but dangerous, and now that their generation-dependence is unequivocal, their origins in replication are supported.

Whereas mechanisms underlying spontaneous DNA breakage have been elusive, our data support major roles for replication in E. coli, and for some DNA breakage outside of S phase, in G1 in human cells. Our results show a novel DNA breakage mechanism in human cells, and indicate the utility of fluorescent-Gam for interrogating DSB formation, location, and dynamics in living cells. Understanding the origins of spontaneous DNA breakage obtainable with improved synthetic reagents such as GamGFP will illuminate the underlying causes, and possible means of prevention, of important biological consequences of DNA breakage in living cells.

Materials and methods

Strains, media and growth

Request a detailed protocol

E. coli strains used are given in Supplementary file 1A. Bacteria were grown in LBH (Torkelson et al., 1997) or M9 minimal medium (Miller, 1992) supplemented with 10 μg/ml thiamine (vitamin B1) and 0.1% glucose as carbon source. Other additives were used at the following concentrations (μg/ml): ampicillin, 100; chloramphenicol, 25; kanamycin, 50; tetracycline, 10; gentamycin, 15; sodium citrate 20 mM. Human HeLa cells were grown in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% fetal bovine serum (FBS), 100 µg/ml penicillin, 100 mg/ml streptomycin and 2 mM L-glutamine. SV40 immortalized MEF cells lines (Ku80-defective Xrcc5+/−, Ku80-proficient Xrcc5−/−, Lig4−/−; kindly provided by the Lazzerini Denchi lab, Scripps Research Institute) were grown in the same medium containing 15% FBS.

Cloning and chromosomal expression cassettes encoding Gam and GamGFP in E. coli

Chromosomal doxycycline-inducible expression cassette

Request a detailed protocol

The bacteriophage Mu gam gene from plasmid pJA21 (Akroyd et al., 1986) was purified after EcoRI restriction enzyme digestion and subcloned into the EcoRI site of plasmid pRF3 (this study) downstream of the doxycylcine-inducible PN25tetO promoter (Nishihara et al., 1998). The plasmid pRF3 was constructed from pRF1 (this study) by linking the constitutive PN25 promoter sequence (Nishihara et al., 1998) with a chloramphenicol resistance (cat) cassette flanked by FRT sites, removed as a HindIII fragment from plasmid pKD3 (Datsenko and Wanner, 2000) and inserted into the pRF1 HindIII site. This makes the promoter-cat pair easily transferrable to the chromosome. The promoter PN25 sequence was amplified from the plasmid pGro11 (Nishihara et al., 1998) using primer P1 and P2 (Supplementary file 1B) and subcloned into the EcoRI/SacI sites of construction vector pMOD5 from Epicentre to create pRF1.

PN25tetO can be induced by tetracycline or doxycycline. The tetR gene, which is required to repress genes under control of PN25tetO, was cloned downstream of a constitutive PN25 promoter (Nishihara et al., 1998) to create PN25tetR. Part of the lacIq allele next to the PN25tetR fusion of the original construction was replaced with FRTKanFRT from pKD4 using the primers P3 and P4 (Supplementary file 1B). Subsequently, PN25tetR was placed downstream of yfeP in the E. coli chromosome by phage λ Red recombineering using primers P5 and P6 (Supplementary file 1B). In the absence of doxycycline or tetracycline (inducer), the constitutively produced TetR protein represses the PN25tetO promoter, keeping gam and gam-gfp tightly off in E. coli. Upon addition of doxycycline, TetR undergoes a conformational change causing release from tetO, relieving repression, and allowing transcription of the downstream gene. PN25tetOgam from the plasmid pRF3gam was transferred into the E. coli chromosome at the Tn7 attachment (attTn7) site by Red short-homology recombineering using primers P7 and P8 (Supplementary file 1B). Similarly, a GamGFP fusion was constructed by placing PN25tetOgam just upstream of the gfp coding region in strain SMR13957, linked with six alanines using primers P9 and P10 (Supplementary file 1B) at attTn7. Promoter-only and GFP-only control strains were constructed by Red short homology recombineering into attTn7 in the E. coli chromosome using primer P11–P12 and P13–P14 respectively (Supplementary file 1B).

Chromosomal temperature-inducible expression cassette

Request a detailed protocol

For experiments assaying GamGFP co-localization with TetR-mCherry on a chromosomal tetO array (Figure 3), we required and constructed a TetR-independent expression cassette for gam-gfp. We cloned gam-gfp (above) under the control of the phage λ PR promoter, next to the λcIts857 gene, encoding a temperature-sensitive CI transcriptional repressor protein that represses λ PR at ≤34°C and allows transcription from λ PR at ≥37°C. We first linked a FRT (FLP-recombinase site)-flanked chloramphenicol resistance (cat) cassette from plasmid pKD3 with cIts857 and the nearby λ PR promoter in the chromosome of E. coli λ-lysogen strain SMR16402. The newly constructed control region was placed upstream of gam-gfp in the E. coli chromosome in attTn7 to create attTn7::FRTcatFRT λcIts857 PRgam-gfp. At permissive temperature (≤34°C) the CI repressor protein binds PR and represses transcription of PRgam-gfp. At ≥37°C, the CI repressor breaks and GamGFP is produced.

Cloning and production of GamGFP and GamEmGFP for mammalian cells

Request a detailed protocol

gam-gfp was amplified from E. coli SMR14354 genomic DNA with 5′-NNN NAA GCT TGC CAC CAT GGC TAA ACC AGC AAA ACG-3′ and 5′-GCA GCC GGA TCC CTT ATT TGT ATA GTT C-3′, digested with HindIII and BamHI, and ligated into similarly cut pcDNA3.1(+) (Invitrogen, Carlsbad, CA, USA). gam-EmGFP was constructed by first amplifying gam from pcDNA3.1(+)-Gam-EGFP using 5′-NNN NAA GCT TGC CAC CAT GGC TAA ACC AGC AAA ACG-3′ and 5′-CCT CGC CCT TGC TCA CCA TAT GTA TAT CGG CGG CGG CGG C-3′. Second, EmGFP was amplified from plasmid pcDNA6.2-C-EmGFP-DEST (Invitrogen, Carlsbad, CA, USA) with 5′-GCC GCC GCC GCC GAT ATA CAT ATG GTG AGC AAG GGC GAG G-3′ and 5′-NNN NGG ATC CTT ACT TGT ACA GCT CGT CCA TGC CG-3′. Finally, these two fragments were used in an overlapping PCR with the 5′-Gam and 3′-EmGFP primers above to make a gam-EmGFP fusion gene, which was digested with BamHI and HindIII, and ligated into similarly cut pcDNA3.1(+) (Invitrogen, Carlsbad, CA, USA). The constructs were verified by restriction digestion and DNA sequencing prior to functional assays.

Expression and microscopy of Gam-EmGFP in mammalian cells

Request a detailed protocol

The APOBEC3A-mCherry construct and the catalytic mutant construct, APOBEC3A-E72A-mCherry, were previously described (Lackey et al., 2012). HeLa cells at 75% confluence were co-transfected transiently with 150 ng of gam-EmGFP and APOBEC3A-mCherry or APOBEC3A-E72A-mCherry constructs using TransIt-LT1 (Mirus, Madison, WI, USA) and fixed 20 hr later in 4% paraformaldehyde. 53BP1 foci were detected by rabbit anti-53BP1 (1:1000; Novus Biologicals, Littleton, CO, USA) followed by goat anti-rabbit Cy5 (1:500; Abcam, UK). Nuclei were stained with 0.1% Hoechst dye for imaging at 600X magnification using a DeltaVision deconvolution microscope (Applied Precision, Issaquah, WA, USA).

SDS-PAGE and western blot

Request a detailed protocol

Production of Gam and GamGFP in E. coli was determined by SDS-PAGE and western blot analysis. Saturated LBH cultures grown at 37°C were diluted 1:100 in a fresh medium and grown 4 hr with or without addition of 200 ng/ml doxycycline. Total proteins were extracted from 1-ml culture with BugBuster® master Mix extraction buffer (Novagen®, Madison, WI, USA). Samples were denatured with 6X SDS loading dye, heated to 95°C for 5 min and 10 μl of total proteins were loaded onto a 12% polyacrylamide gel. Sodium dodecyl sulfate-polyacrylamide gel (12%) electrophoresis (SDS-PAGE) under reducing conditions was performed as per Laemmli (1970). Relative molecular weights were determined using Precision Plus Protein Kaleidoscope Standards. Proteins were detected by staining the gel with 0.1% Coomassie brilliant blue R-250.

For western blot analysis of GFP and GamGFP, gels were transferred to PVDF membrane according to manufacturer’s specifications (Amersham, GE Healthcare, Piscataway, NJ, USA). The membranes were blocked with 5% non-fat dry milk in PBS-Tween and probed with primary rabbit anti-GFP polyclonal IgG antibodies from Santa Cruz Biotechnology (Santa Cruz, CA, USA). Bound antibodies were detected using secondary antibody ECL Plex goat-a-rabbit IgG conjugated with fluorescent dye Cy5 after 1000-fold dilution and visualized by scanning in multicolor imager Typhoon detection system.

Phage lambda red gam plaque assay for Mu Gam function

Request a detailed protocol

Functional validation of Mu Gam and GamGFP produced in E. coli was determined by a lambda (λ) plaque assay. A λred gam Chi0 strain was used to test the activity of Mu Gam and GamGFP in E. coli. Saturated tryptone broth (TB) cultures of E. coli were diluted 1:10 in fresh TB with 0.2% maltose, 5 mM MgSO4, 10 μg/ml thymine, 10 μg/ml vitamin B1 and grown for half an hour prior to the addition of 200 ng/ml of doxycycline to induce production of Gam and GamGFP. After 2 hr of induction by doxycycline shaking at 37°C, an equal volume of 10 mM Tris 10 mM Mg (TM) buffer, pH 7.5 was added and cells were mixed with an appropriate volume of λred gam Chi0 suspension, adsorbed without shaking for 10 min at room temperature, then plated with the addition of 2.5 ml molten 50°C soft BBL agar (1% BBL trypticase peptone, 0.1M NaCl, 0.7% agar, pH 7.5) onto BBL plates (same medium solidified with 1% agar) with or without 200 ng/ml doxycycline. The plates were incubated overnight at 37°C before scoring size of plaques.

UV-sensitivity test

Request a detailed protocol

Saturated LBH cultures of E. coli were diluted 1:100 in fresh LBH medium and grown shaking at 37°C for 90 min, at which time 200 ng/ml of doxycycline was added to induce Gam and GamGFP production. After 2 hr of induction by doxycycline at 37°C shaking, cells were plated on LBH solid medium containing 200 ng/ml doxycycline and the plated cells irradiated with different UV doses, then incubated in the dark over night at 37°C for colony quantification. Control cultures without doxycycline induction were treated otherwise identically.

Spontaneous and I-SceI–induced foci in E. coli

Request a detailed protocol

Saturated overnight cultures of E. coli carrying the chromosomal gam-gfp expression cassette were diluted 1:100 in fresh medium, 100 ng/ml doxycycline added to induce GamGFP, incubated for 1 hr shaking at 37°C, then 0.1% arabinose added to induce I-SceI production and incubated 3 hr more, then subjected to microscopic examination. Live cells were visualized using a Zeiss inverted fluorescence microscope with Axion vision software. Quantification of foci was done by Nick software.

Quantitative PCR

Request a detailed protocol

Genomic DNA was prepared from E. coli incubated as described above for the I-SceI induced DSB-associated GamGFP focus experiments using a CTAB preparation protocol (Porebski et al., 1997). Reactions containing 10 ng genomic DNA and 350 µM primers P21 (oriC specific) or P22 (terC specific) in 1X KAPA SYBR Fast ABI prism qPCR mix (20 µl total volume) were run in an Applied Biosystems (Foster City, CA, USA) 7900HT RT thermocycler in 96-well plates. Relative copy numbers of oriC and terC sequences were determined by the ΔCt method: the difference in amplification rates of oriC and terC (ΔCt) for each sample (average of four replicate reactions) were normalized to the ΔCt for a wild-type strain grown to saturation (stationary phase) shaking in LBH at 37°C for 28 hr, to contain equal numbers of oriC and terC sequences per cell.

DNA damaging agents and GamGFP foci

Request a detailed protocol

The saturated cultures of E. coli grown in LBH (for bleomycin experiments) or M9 0.4% glucose (for gamma irradiation) medium were diluted 1:100 into fresh LBH or M9 0.4% glucose, then grown 1 hr shaking at 37°C, then given 100 ng/ml doxycycline to induce GamGFP, grown an additional 1 hr, and treated with 20 µg/ml of bleomycin, or different doses of gamma radiation. A Cs137 or a Faxitron X-ray machine (Faxitron X-ray Corporation, Tucson, AZ, USA) was used for gamma irradiation (experiments in Figures 2 and 5, respectively). After treatment with DNA-damaging agents or irradiation, cells were incubated for an additional 3 hr before microscopic examination unless stated otherwise. Gamma irradiation was done in exponential cultures grown in M9 0.4% glucose with shaking at 37°C to mimic the identical growth medium and growth conditions used previously for quantification of DSBs/Gy IR in E. coli by Bonura and Smith (1977). Elsewhere in the paper, cultures are grown in M9 vitamin B1 0.1% glucose, or LBH, and gave different numbers of foci per cell (more in LBH, less in M9 B1 0.1% glucose) in these richer and poorer growth media.

Co-localization of GamGFP and TetR-mCherry

Request a detailed protocol

TetR mCherry was expressed from the arabinose inducible PBAD promoter in plasmid pDB340 in cells induced for GamGFP production at 37°C, at which temperature the chromosomal λcIts857-controlled PRgam-gfp cassette is transcribed. Estimation of average inter-focal distances and co-localization of GamGFP and TetR-mCherry was determined from cells that contained both green and red foci at a 1:1 ratio. In the case of cells with DSBs near ter, many cells had two red foci and one green focus. In this case, interfocal distances are plotted separately for cells that contained either a 1:1 or 1:2 ratio of green and red foci (Figure 3K, 2.4 Mb). In the case of two red foci, the longer and shorter interfocal distances between the red and green foci are plotted separately as ‘1:2 far’ and ‘1:2 near’, respectively (Figure 3K). Multicolor fluorescent beads on slides were used to align independent color channels. All images were acquired with a Zeiss Axio Imager Z1 microscope plus Hamamatsu Electron Multiplier charge-coupled device (CCD) camera.

Microfluidics and time-lapse fluorescence microscopy of E. coli

We followed the growth of single cells into microcolonies using the CellASIC ONIX Microfluidic Platform (Millipore, Billerica, MA, USA) including microfluidic perfusion system, microfluidic flow chamber for bacteria (BO4A plates) and FG software. All experiments were performed at 2psi (flow rate of 3 µl/hr). Time-lapse microscopy was performed using a Zeiss HAL100 inverted fluorescence microscope. Fields were acquired at 100× magnification with an EM-CCD camera (Hammamatsu, Japan). Bright field and fluorescence images (GFP cube = Chroma, #41017; X-Cite120 fluorescence illuminator, EXFO Photonic Solutions) were acquired and image analysis performed using AxioVision Rel. 4.6 (Zeiss, Germany). The microscope was housed in an incubation system consisting of Incubator XL-S1 (PeCon, Germany) controlled by TempModule S and Heating Unit XL S (Zeiss, Germany) to maintain a constant 37°C environment throughout the experiments.

Growth protocol

Request a detailed protocol

In these experiments, saturated cultures of SMR14350 were diluted 10,000-fold in M9 B1 0.1% glucose medium, grown to log phase shaking at 37°C, then GamGFP was induced by addition of 10 ng/ml doxycycline for 2 hr during shaking growth at 37°C prior to loading cells into the microfluidics chamber (time 0). For the next 9 hr, cells were bathed with M9 B1 glucose doxycylcine medium to allow division, then switched at 9 hr to the same medium without glucose, and bathed for an additional 18 hr. The number of cell divisions and the appearance of GamGFP foci were recorded using time-lapse microscopic photography throughout the experiment. After 27 hr, cells were treated with 20 μg/ml phleomycin to induce DSBs, to determine whether GamGFP foci could still form in the starved cells. We observed that 45 ± 5% of the non-dividing cells produced GamGFP at that time, confirming that the failure to see GamGFP foci in the cells starved prior to that time reflects lack of spontaneous DSBs, not inability of foci to form if their had been DSBs. The data presented in Figure 4A show the means ± SEM of results from six individual cells that grew into microcolonies in the microfluidic chamber.

Evidence that fluorescence exposure did not contribute to the spontaneous GamGFP foci scored

Request a detailed protocol

Because repeated exposures of samples to high doses of exitatory fluorescent light in time-lapse photomicroscopy has the potential to cause DNA damage (Ge et al., 2013), which might appear as foci at later time points, we used a low-dose of excitatory light for fluorescence with 30 ms at each exposure. Moreover, we show experimentally that the repeated low-dose exposures of the developing microcolonies did not cause an increase in GamGFP foci by scoring control experiments in which a set of six developing microcolonies were not exposed to the first 9 pulses of fluorescent light, during the initial 27 hr of growth, then were photographed for the first time at 27 hr, which corresponds the to tenth light pulse in experimental samples scored in Figure 4A. These previously unexposed samples showed 0.018 ± 0.005 foci per cell at 27 hr, a number that is not significantly different (p=0.611, student’s t test) from the repeatedly pulsed experimental samples at 27 hr, which showed 0.016 ± 0.002 foci per cell at 9 hr. These data demonstrate that the spontaneous DNA breaks measured in the microfludics experiments were not significantly augmented with DNA breaks induced by repeated fluorescence imaging, and rather reflect genuine spontaneous DSBs.

Laser microscopy of GamGFP foci in mammalian cells

Request a detailed protocol

For laser-induced damage, cells were grown on glass-bottomed dishes (Willco Wells, Netherlands) and pre-sensitized by adding 1.5 µM BrdU (5-bromo-2′-deoxyuridine) for >20 hr followed by laser micro-irradiation. DNA damage was created using a 405 nm solid-state laser focused through a 63X objective lens in the epifluorescence path of the microscope system on a Fluoview 1000 confocal microscope (Olympus, Japan). Laser settings (60% laser power, 150 scans at 20 ms/pixel) were used that generated DNA damage specifically along the laser path in a BrdU-dependent manner. The cells were analyzed in TimeScan mode using Zero-drift compensation for auto focusing at an interval of 1–2 min for up to 30 min post-laser damage for live analysis. Images were exported as TIFF files and analyzed in ImageJ.

Immunofluorescence in mammalian cells

Request a detailed protocol

After DNA damage induction, the cells were washed three times with cold 1× PBS, then pre-extracted by incubating the dishes in CSK buffer (10 mM PIPES pH 6.8, 100 mM NaCl, 300 mM sucrose, 3 mM MgCl2, 1 mM EGTA, 0.5% TritonX-100) for 1 to 5 min on ice. Cells were washed three times in room-temperature-PBS and fixed with 2% paraformaldehyde for 15 min at room temperature followed by three washes with 1× PBS, then blocked with 3%BSA in PBS for 15 min, and incubated with either 53BP1 (Novus, Littleton, CO, USA, NB100-304) or γ-H2AX (Millipore, Billerica, MA, USA, #05-636) for 1 hr at room temperature, or overnight at 4°C. The cells were washed three times in PBS followed by a 45 min incubation in PBS containing Alexa Fluor 594 or 647 goat-anti rabbit IgG to detect 53BP1 or Alexa Fluor 594 goat-anti mouse IgG to detect γ-H2AX. Hoechst dye (0.1%) was added to this incubation step to stain nuclear DNA, followed by washing three times in PBS and mounting on coverslips containing Vectashield. The cells were imaged using an inverted Fluoview 1000 confocal microscope (Olympus, Japan). To quantify laser recruitment of GamGFP, the cells were laser damaged and analyzed by immunofluorescence as described. Images from individual cells were taken and equal areas both in undamaged and damaged areas (as indicated by 53BP1 positive staining) were quantified for Gam signal using Fluoview software. The cells that showed a >30% increase in intensity of GamGFP at the damage site compared with the undamaged site were labeled positive. This analysis was performed in both Ku80-proficient and Ku80-defective MEFs for >50 cells and results are means ± SEM of three independent experiments. For quantification of GamGFP IR foci, cells were damaged and analyzed by immunofluorescence as indicated. Individual images were taken and foci counted that either contained GamGFP only, 53BP1 only, or both. The average total number of foci per cell 30 min post-5Gy IR was 34. For >2600 foci counted, the mean percentage of foci for each of the three categories is graphed for three independent experiments ± SEM.

For quantification of RAD51 foci in CyclinA-positive cells, Ku80-defective MEFs were transfected with GamGFP, treated with IR and analyzed 4 hr post-5 Gy IR. The cells were analyzed by immunofluorescence as described above except without pre-extraction with CSK buffer. RAD51 (Abcam, ab88572) and CyclinA (Santa Cruz, Santa Cruz, CA, USA, sc-751) antibodies were applied for 1 hr room temperature. AlexaFluor 594 goat anti-mouse and AlexaFluor 647 goat anti-rabbit IgG were used to fluorescently label RAD51 and CyclinA respectively and the cells were fixed as described. Z-stacked images were collected using a Fluoview FV1000 confocal microscope and RAD51 foci were counted in CyclinA-positive cells with or without GamGFP signal. Data from three independent experiments from >75 cells are graphed (Figure 6).

For detection of spontaneous/endogenous G1 foci, we followed the demonstration of Harrigan et al. (2011); Lukas et al. (2011a) that large 53BP1 foci in undamaged cells occur almost exclusively in G1 phase, as shown by their CyclinA-negative state and tracking of fluorescent 53BP1 throughout the cell cycle. We, therefore, used the criterion of large spontaneous 53BP1 foci to identify G1 cells.

References

    1. Abraham ZH
    2. Symonds N
    (1990)
    Purification of overexpressed gam gene protein from bacteriophage Mu by denaturation-renaturation techniques and a study of its DNA-binding properties
    Biochem J 269:679–684.
    1. Blier PR
    2. Griffith AJ
    3. Craft J
    4. Hardin JA
    (1993)
    Binding of Ku protein to DNA. Measurement of affinity for ends and demonstration of binding to nicks
    J Biol Chem 268:7594–7601.
    1. Bonura T
    2. Smith KC
    (1975)
    Enzymatic production of deoxyrobonucleic acid double-strand breaks and ultraviolet irradiation of Escherichia coli K12
    J Bacteriol 122:511–517.
    1. Maser RS
    2. Monsen KJ
    3. Nelms BE
    4. Petrini JH
    (1997)
    hMre11 and hRad50 nuclear foci are induced during the normal cellular response to DNA double-strand breaks
    Mol Cell Biol 17:6087–6096.
  50. Book
    1. Miller JH
    (1992)
    A short course in bacterial genetics
    Cold Spring Harbor, NY: Cold Spring Harbor Laboratory Press.
    1. Miranda A
    2. Kuzminov A
    (2003)
    Chromosomal lesion suppression and removal in Escherichia coli via linear DNA degradation
    Genetics 163:1255–1271.
    1. Nishihara K
    2. Kanemori M
    3. Kitagawa M
    4. Yanagi H
    5. Yura T
    (1998)
    Chaperone coexpression plasmids: differential and synergistic roles of DnaK-DnaJ-GrpE and GroEL-GroES in assisting folding of an allergen of Japanese cedar pollen, Cryj2, in Escherichia coli
    Appl Environ Microbiol 64:1694–1699.
    1. Paques F
    2. Haber JE
    (1999)
    Multiple pathways of recombination induced by double-strand breaks in Saccharomyces cerevisiae
    Microbiol Mol Biol Rev 63:349–404.
    1. Pennington JM
    (2006)
    On spontaneous DNA damage in single living cells. Ph.D. thesis, Baylor College of medicine
    Houston.
  72. Book
    1. Sambrook J
    2. Russell DW
    (2001)
    Molecular cloning - a laboratory manual
    Cold Spring Harbor, NY: Cold Spring Harbor Laboratory Press.
  76. Book
    1. Smith GR
    (1983)
    General recombination
    In: Hendrix R, Roberts J, Stahl F, Weisberg R, editors. InLambda II. Cold Spring Harbor, New York: Cold Spring Harbor Laboratory Press. pp. 175–209.
    1. Strathern JN
    2. Shafer BK
    3. McGill CB
    (1995)
    DNA synthesis errors associated with double-strand-break repair
    Genetics 140:965–972.
    1. Thaler DS
    2. Stahl MM
    3. Stahl FW
    (1987)
    Evidence that the normal route of replication-allowed Red-mediated recombination involves double-chain ends
    EMBO J 6:3171–3176.
    1. Willetts NS
    2. Clark AJ
    (1969)
    Characteristics of some multiply recombination-deficient strains of Escherichia coli
    J Bacteriol 100:231–239.
    1. Williams JG
    2. Radding CM
    (1981)
    Partial purification and properties of an exonuclease inhibitor induced by bacteriophage Mu-1
    J Virol 39:548–558.

Article and author information

Author details

  1. Chandan Shee

    1. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Department of Molecular Virology and Microbiology, Baylor College of Medicine, Houston, United States
    3. Dan L Duncan Cancer Center, Baylor College of Medicine, Houston, United States
    4. Department of Biochemistry, Molecular Biology, Baylor College of Medicine, Houston, United States
    Contribution
    CS, Drafting and revising the article, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  2. Ben D Cox

    Institute for Cellular and Molecular Biology, and Department of Molecular Biosciences, University of Texas, Austin, United States
    Contribution
    BDC, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  3. Franklin Gu

    1. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Department of Molecular Virology and Microbiology, Baylor College of Medicine, Houston, United States
    3. Dan L Duncan Cancer Center, Baylor College of Medicine, Houston, United States
    4. Department of Biochemistry, Molecular Biology, Baylor College of Medicine, Houston, United States
    Contribution
    FG, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  4. Elizabeth M Luengas

    Department of Biochemistry, Molecular Biology and Biophysics, Masonic Cancer Center, University of Minnesota, Minneapolis, United States
    Contribution
    EML, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  5. Mohan C Joshi

    1. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Department of Molecular Virology and Microbiology, Baylor College of Medicine, Houston, United States
    3. Dan L Duncan Cancer Center, Baylor College of Medicine, Houston, United States
    Contribution
    MCJ, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  6. Li-Ya Chiu

    Institute for Cellular and Molecular Biology, and Department of Molecular Biosciences, University of Texas, Austin, United States
    Contribution
    L-YC, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  7. David Magnan

    1. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Department of Molecular Virology and Microbiology, Baylor College of Medicine, Houston, United States
    3. Dan L Duncan Cancer Center, Baylor College of Medicine, Houston, United States
    Contribution
    DM, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  8. Jennifer A Halliday

    1. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Department of Molecular Virology and Microbiology, Baylor College of Medicine, Houston, United States
    3. Dan L Duncan Cancer Center, Baylor College of Medicine, Houston, United States
    Contribution
    JAH, Experimental design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  9. Ryan L Frisch

    1. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Department of Molecular Virology and Microbiology, Baylor College of Medicine, Houston, United States
    3. Dan L Duncan Cancer Center, Baylor College of Medicine, Houston, United States
    4. Department of Biochemistry, Molecular Biology, Baylor College of Medicine, Houston, United States
    Contribution
    RLF, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.

  10. Janet L Gibson

    1. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Department of Molecular Virology and Microbiology, Baylor College of Medicine, Houston, United States
    3. Dan L Duncan Cancer Center, Baylor College of Medicine, Houston, United States
    4. Department of Biochemistry, Molecular Biology, Baylor College of Medicine, Houston, United States
    Contribution
    JLG, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.

  11. Ralf Bernd Nehring

    1. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Department of Molecular Virology and Microbiology, Baylor College of Medicine, Houston, United States
    3. Dan L Duncan Cancer Center, Baylor College of Medicine, Houston, United States
    4. Department of Biochemistry, Molecular Biology, Baylor College of Medicine, Houston, United States
    Contribution
    RBN, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.

  12. Huong G Do

    Department of Experimental Radiation Oncology, the University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    HGD, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  13. Marcos Hernandez

    1. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Department of Molecular Virology and Microbiology, Baylor College of Medicine, Houston, United States
    3. Dan L Duncan Cancer Center, Baylor College of Medicine, Houston, United States
    4. Department of Biochemistry, Molecular Biology, Baylor College of Medicine, Houston, United States
    Contribution
    MH, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  14. Lei Li

    Department of Experimental Radiation Oncology, the University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    LL, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.

  15. Christophe Herman

    1. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Department of Molecular Virology and Microbiology, Baylor College of Medicine, Houston, United States
    3. Dan L Duncan Cancer Center, Baylor College of Medicine, Houston, United States
    Contribution
    CH, Experimental design, Interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.

  16. PJ Hastings

    1. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Dan L Duncan Cancer Center, Baylor College of Medicine, Houston, United States
    Contribution
    PJH, Experimental design, Interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.

  17. David Bates

    1. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Department of Molecular Virology and Microbiology, Baylor College of Medicine, Houston, United States
    3. Dan L Duncan Cancer Center, Baylor College of Medicine, Houston, United States
    Contribution
    DB, Conception and design, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.

  18. Reuben S Harris

    Department of Biochemistry, Molecular Biology and Biophysics, Masonic Cancer Center, University of Minnesota, Minneapolis, United States
    Contribution
    RSH, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    rsh@umn.edu
    Competing interests
    The authors declare that no competing interests exist.

  19. Kyle M Miller

    Institute for Cellular and Molecular Biology, and Department of Molecular Biosciences, University of Texas, Austin, United States
    Contribution
    KMM, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    kyle.miller@austin.utexas.edu
    Competing interests
    The authors declare that no competing interests exist.

  20. Susan M Rosenberg

    1. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    2. Department of Molecular Virology and Microbiology, Baylor College of Medicine, Houston, United States
    3. Dan L Duncan Cancer Center, Baylor College of Medicine, Houston, United States
    4. Department of Biochemistry, Molecular Biology, Baylor College of Medicine, Houston, United States
    Contribution
    SMR, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    smr@bcm.edu
    Competing interests
    The authors declare that no competing interests exist.

Funding

National Institute of Health Director’s Pioneer Award (DP1-CA174424)

  • Susan M Rosenberg

Cancer Prevention Research Institute of Texas (R1116)

  • Kyle M Miller

National Institutes of Health (R01-GM53158)

  • Susan M Rosenberg

National Institutes of Health (F32-GM095267)

  • Ryan L Frisch

National Institutes of Health (CA127945)

  • Lei Li

National Institutes of Health (CA097175)

  • Lei Li

National Institutes of Health (R01-GM88653)

  • Christophe Herman

National Institutes of Health (R01-GM102679)

  • David Bates

National Institutes of Health (R01-AI064046)

  • Reuben S Harris

National Institutes of Health (P01-GM091743)

  • Reuben S Harris

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful to NP Higgins for providing the Gam plasmid, E Hendrickson for advice and cell lines, Elazzerini Denchi for MEFs, C Brooks for technical help, G Ira for helpful comments, and E Rogers and H Zoghbi for improving the manuscript.

Copyright

© 2013, Shee et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 5,526
    views
  • 998
    downloads
  • 111
    citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Chandan Shee
  2. Ben D Cox
  3. Franklin Gu
  4. Elizabeth M Luengas
  5. Mohan C Joshi
  6. Li-Ya Chiu
  7. David Magnan
  8. Jennifer A Halliday
  9. Ryan L Frisch
  10. Janet L Gibson
  11. Ralf Bernd Nehring
  12. Huong G Do
  13. Marcos Hernandez
  14. Lei Li
  15. Christophe Herman
  16. PJ Hastings
  17. David Bates
  18. Reuben S Harris
  19. Kyle M Miller
  20. Susan M Rosenberg
(2013)
Engineered proteins detect spontaneous DNA breakage in human and bacterial cells
eLife 2:e01222.
https://doi.org/10.7554/eLife.01222

Share this article

https://doi.org/10.7554/eLife.01222

Categories and tags

Research organisms

Further reading

    1. Chromosomes and Gene Expression

    DNA Damage: Proteins pinpoint double strand breaks

    Michael M Cox
    Insight

    Combining green fluorescent protein with a protein that only binds to double strand breaks in DNA allows these breaks—which are an important form of DNA damage—to be detected with high efficiency in living bacteria.

    1. Chromosomes and Gene Expression

    Prolonged cell cycle arrest in response to DNA damage in yeast requires the maintenance of DNA damage signaling and the spindle assembly checkpoint

    Felix Y Zhou, David P Waterman ... James E Haber
    Research Article

    Cells evoke the DNA damage checkpoint (DDC) to inhibit mitosis in the presence of DNA double-strand breaks (DSBs) to allow more time for DNA repair. In budding yeast, a single irreparable DSB is sufficient to activate the DDC and induce cell cycle arrest prior to anaphase for about 12–15 hr, after which cells ‘adapt’ to the damage by extinguishing the DDC and resuming the cell cycle. While activation of the DNA damage-dependent cell cycle arrest is well understood, how it is maintained remains unclear. To address this, we conditionally depleted key DDC proteins after the DDC was fully activated and monitored changes in the maintenance of cell cycle arrest. Degradation of Ddc2ATRIP, Rad9, Rad24, or Rad53CHK2 results in premature resumption of the cell cycle, indicating that these DDC factors are required both to establish and maintain the arrest. Dun1 is required for the establishment, but not the maintenance, of arrest, whereas Chk1 is required for prolonged maintenance but not for initial establishment of the mitotic arrest. When the cells are challenged with two persistent DSBs, they remain permanently arrested. This permanent arrest is initially dependent on the continuous presence of Ddc2, Rad9, and Rad53; however, after 15 hr these proteins become dispensable. Instead, the continued mitotic arrest is sustained by spindle assembly checkpoint (SAC) proteins Mad1, Mad2, and Bub2 but not by Bub2’s binding partner Bfa1. These data suggest that prolonged cell cycle arrest in response to 2 DSBs is achieved by a handoff from the DDC to specific components of the SAC. Furthermore, the establishment and maintenance of DNA damage-induced cell cycle arrest require overlapping but different sets of factors.

    1. Chromosomes and Gene Expression
    2. Developmental Biology

    Unified bursting strategies in ectopic and endogenous even-skipped expression patterns

    Augusto Berrocal, Nicholas C Lammers ... Michael B Eisen
    Research Advance

    Transcription often occurs in bursts as gene promoters switch stochastically between active and inactive states. Enhancers can dictate transcriptional activity in animal development through the modulation of burst frequency, duration, or amplitude. Previous studies observed that different enhancers can achieve a wide range of transcriptional outputs through the same strategies of bursting control. For example, in Berrocal et al., 2020, we showed that despite responding to different transcription factors, all even-skipped enhancers increase transcription by upregulating burst frequency and amplitude while burst duration remains largely constant. These shared bursting strategies suggest that a unified molecular mechanism constraints how enhancers modulate transcriptional output. Alternatively, different enhancers could have converged on the same bursting control strategy because of natural selection favoring one of these particular strategies. To distinguish between these two scenarios, we compared transcriptional bursting between endogenous and ectopic gene expression patterns. Because enhancers act under different regulatory inputs in ectopic patterns, dissimilar bursting control strategies between endogenous and ectopic patterns would suggest that enhancers adapted their bursting strategies to their trans-regulatory environment. Here, we generated ectopic even-skipped transcription patterns in fruit fly embryos and discovered that bursting strategies remain consistent in endogenous and ectopic even-skipped expression. These results provide evidence for a unified molecular mechanism shaping even-skipped bursting strategies and serve as a starting point to uncover the realm of strategies employed by other enhancers.
