Homotypic or entotic cell-in-cell invasion is an integrin-independent process observed in carcinoma cells exposed during conditions of low adhesion such as in exudates of malignant disease. Although active cell-in-cell invasion depends on RhoA and actin, the precise mechanism as well as the underlying actin structures and assembly factors driving the process are unknown. Furthermore, whether specific cell surface receptors trigger entotic invasion in a signal-dependent fashion has not been investigated. In this study, we identify the G-protein-coupled LPA receptor 2 (LPAR2) as a signal transducer specifically required for the actively invading cell during entosis. We find that G12/13 and PDZ-RhoGEF are required for entotic invasion, which is driven by blebbing and a uropod-like actin structure at the rear of the invading cell. Finally, we provide evidence for an involvement of the RhoA-regulated formin Dia1 for entosis downstream of LPAR2. Thus, we delineate a signaling process that regulates actin dynamics during cell-in-cell invasion.https://doi.org/10.7554/eLife.02786.001
Entosis is the invasion of one cell by another and can be observed in aggressive cancers. Although the invading cell is usually killed, the surviving cell is sometimes left with the wrong number of chromosomes. This suggests that entosis may help cancer to progress because cells with an abnormal number of chromosomes are common in cancers.
For entosis to occur, the invading cell must be released from the tissue that surrounds it, so it can move towards and attach to the cell it is about to invade. Very little is currently known about the cellular and molecular events that enable these processes to occur.
Purvanov et al. studied entosis in cells grown in the laboratory and observed that invading cells produce bulges and projections at their rear end for invasion. These projections contain a protein called mDia1. This protein is involved in controlling the growth of the cytoskeleton—the structure that helps cells to both maintain their shape and to move.
Adding the signaling molecule lysophosphatidic acid, which is present in human serum, increased the likelihood that cells would invade others. From this, Purvanov et al. established the identities of the proteins involved in transmitting the lysophosphatidic acid signal that controls mDia1 activity during entosis. Changes to this signaling pathway have been associated with cancer and how it spreads between different organs and its involvement in entosis lends further support to the notion that there may be a link between cell-in-cell invasion and the advancement of cancer.https://doi.org/10.7554/eLife.02786.002
Entosis has been described as a specialized form of homotypic cell-in-cell invasion in which one cell actively crawls into another (Overholtzer et al., 2007). Frequently, this occurs between tumor cells such as breast, cervical, or colon carcinoma cells and can be triggered by matrix detachment (Overholtzer et al., 2007), suggesting that loss of integrin-mediated adhesion may promote cell-in-cell invasion. This is further supported by the fact that homotypic cell-in-cell structures can be regularly found when tumor cells are released into fluid exudates such as ascites or during pleural carcinosis (Overholtzer and Brugge, 2008). Although the consequence of entotic invasion is not well understood, the process may contribute to tumor progression by inducing aneuploidy in human cancers (Krajcovic et al., 2011). The ultimate outcome of an entotic event also depends on the fate of the invaded cell, which can remain viable or even divide inside or escape from the host cell or undergo vacuolar degradation (Florey et al., 2010; Krajcovic et al., 2011).
It was previously shown that for a cell to invade into a neighboring cell Rho-dependent signaling and actin are required (Overholtzer et al., 2007). However, potential extracellular ligands or cell surface receptors involved in this migratory process are entirely unknown. Furthermore, what type of actin structures and which actin polymerization factor triggers active cell-in-cell invasion in a signal-regulated fashion remained unclear. In this study, we investigated actin-mediated entotic invasion and delineate a signaling pathway downstream of the LPAR2 that ultimately targets the formin mDia1 for polarized actin assembly at the rear of the invading cell to drive cell-in-cell invasion.

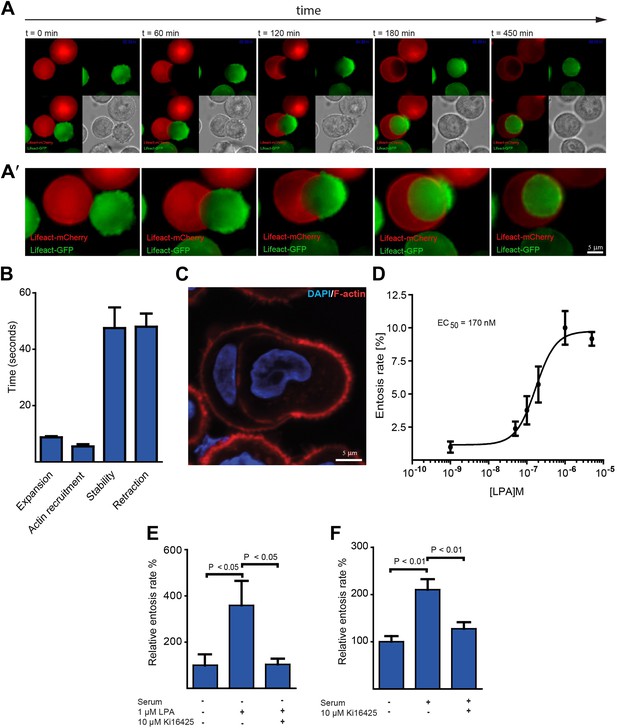

To monitor actin assembly during life cell-in-cell invasion over time, we generated MCF10A cells expressing either mCherry- or GFP-LifeAct. Red and green LifeAct-cell populations were mixed and plated on top of polyHEMA-coated coverslips to prevent matrix adhesion and to induce entotic incidences. Under these conditions, cell-in-cell invasion was confirmed to require ROCK as assessed using the ROCK-inhibitor Y-27632 (Video 1) (Overholtzer et al., 2007). Interestingly, imaging LifeAct-expressing cells over time, we consistently observed that specifically the actively invading cell displayed extensive blebbing early on during invasion followed by the formation of an actin-rich uropod-like structure at the rear of the invading cell (Figure 1A; Video 2). Plasma membrane blebbing was highly dynamic under these cell culture conditions with a bleb cycle lasting about 2 min (Figure 1B; Video 3) and the total number of blebs ranged from 60 to 100 blebs per cell depending on the MCF10A cell size. Notably, blebbing is a frequently observed phenomenon during amoeboid or rounded cancer cell invasion through 3-dimensional collagen requiring ROCK-dependent contractility (Sahai and Marshall, 2003; Kitzing et al., 2007). The presence of the polarized actin-rich cup at the rear of the entosing cell could be confirmed using phalloidin staining to visualize endogenous actin filaments (Figure 1C) or by confocal microscopy of LifeAct-expressing MCF10A cells (Figure 1—figure supplement 1).
We noticed that high fetal calf serum (FCS) concentrations enhance entosis (not shown). A ligand known to be present at micromolar concentrations in FCS is lysophosphatidic acid (LPA). Thus, we speculated that LPA might trigger entosis. Indeed, under serum-free conditions addition of LPA efficiently stimulated entotic events of MCF10A cells in a concentration-dependent manner already at nanomolar concentrations (Figure 1D). This ligand mediated cell-in-cell invasion was dependent on cell surface receptor activity since the LPA-receptor 1, 2 and 3 inhibitor Ki16425 completely blocked LPA-stimulated entosis (Figure 1E). Comparable results were obtained when entosis was triggered by serum (Figure 1F). These data identify the soluble extracellular ligand and serum component LPA as a mediator of cell-in-cell invasion.
LPA transduces its multiple cellular effects via binding to specific LPA-receptors, which belong to the large superfamily of G-protein-coupled receptors (GPCRs). As there are several different LPA-receptors present in human tissues (Choi et al., 2010), we set out to identify the receptor responsible for entotic invasion using an siRNA approach. Interestingly, silencing of LPAR2 resulted in a robust and significant reduction of entotic events, while LPAR5 suppression moderately affected entosis (Figure 2A).

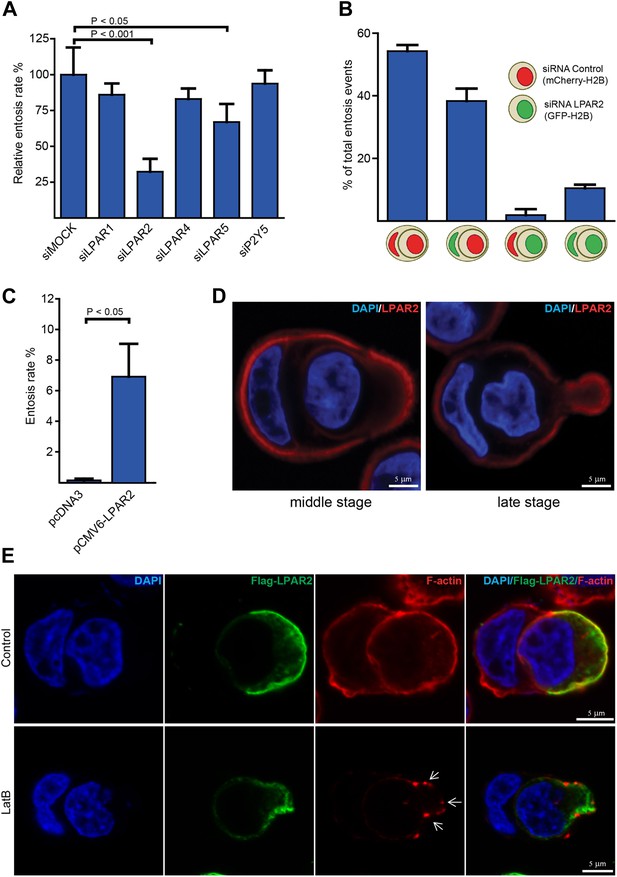

To investigate whether LPAR2 is specifically required for the actively invading cell and not for the host cell or both, we applied a two-color entosis assay by stably expressing either GFP- or mCherry-H2B and treated each cell population with siRNA against LPAR2. One phenotypic hallmark characterizing the host cell from the invading cell during cell-in-cell invasion is the typically half-moon-shaped nucleus (Figure 1C; Overholtzer and Brugge, 2008). Examination of entotic events using confocal fluorescence microscopy revealed that only cells silenced for LPAR2 failed to actively invade into another, while LPAR2 suppression did not inhibit the host cell during this process (Figure 2B). Notably, transient expression of LPAR2 in HEK293 cells significantly triggered entotic invasion (Figure 2C), suggesting that disease-associated overexpression or upregulation of LPAR2 as observed in various human cancers (Goetzl et al., 1999; Kitayama et al., 2004; Yun et al., 2005; Wang et al., 2007) may be instrumental for entosis.
Next, we assessed the endogenous localization of LPAR2 in entotic cells using immunofluorescence microscopy. Staining of cells with anti-LPAR2 antibodies showed a cortical signal that was distinctively increased at the rear of the invading cell in particular during more progressed phase of entotic invasion (Figure 2D), which could be confirmed on transiently expressed Flag-LPAR2 (Figure 2E), suggesting that LPAR2-signaling occurs in a defined and more polarized manner. Flag-LPAR2 polarization to the trailing cell rear was independent of downstream actin organization as assessed by addition of latrunculin B, which completely perturbed the cortical actin cytoskeleton (Figure 2E, lower panel).
These results establish the LPAR2 as a signal transducer at the cell surface for cell-in-cell invasion.

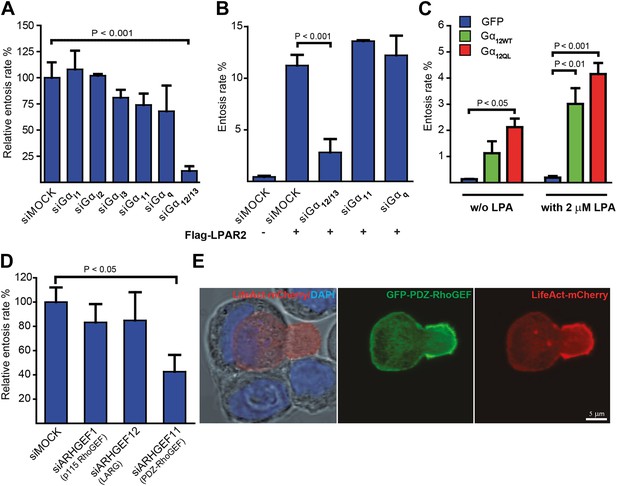

LPAR2 can initiate intracellular signaling via coupling to multiple Gα subunits from the Gi, Gq, and G12/13 family of heterotrimeric G-proteins (Choi et al., 2010). Silencing various Gα subunits by siRNA revealed that only suppression of Gα12/13 effectively and significantly blocked entosis (Figure 3A). Consistently, LPAR2-triggered entotic invasion specifically required Gα12/13, but not Gα11 or Gαq (Figure 3B), clearly demonstrating that LPAR2 signals through G12/13 heterotrimeric G-proteins to promote homotypic cell-in-cell invasion. Furthermore, expression of Gα12 or of a constitutively active mutant Gα12Q/L robustly induced entotic events in the absence of LPA, and this effect was further increased upon addition of 2 μM LPA (Figure 3C). Thus, a canonical LPAR2/ Gα12/13 module critically mediates entosis.
Gα12/13 proteins have been shown to directly relay receptor signal informations by binding to the RGS-domain containing RhoGEFs p115-rhoGEF, LARG, or PDZ-RhoGEF (Fukuhara et al., 2001) for activation of the small GTPase RhoA (Fukuhara et al., 2001). Therefore, we used siRNA to suppress each of the three RhoGEFs in cells. Interestingly, siRNA-mediated knock-down of PDZ-RhoGEF specifically inhibited entotic events (Figure 3D). Furthermore, analyzing ectopically expressed GFP-PDZ-RhoGEF during cell-in-cell invasion revealed a strikingly polarized distribution to the invading cell rear where it strongly colocalized with F-actin as determined by LifeAct (Figure 3E). Similar observations were made by staining for phosphorylated myosin-light-chain II (pMLC2) (Figure 3—figure supplement 1), a downstream target of the Rho-ROCK pathway, in agreement with previous findings (Wan et al., 2012). These data argue that PDZ-RhoGEF promotes localized actin assembly at the cell rear during entotic invasion.

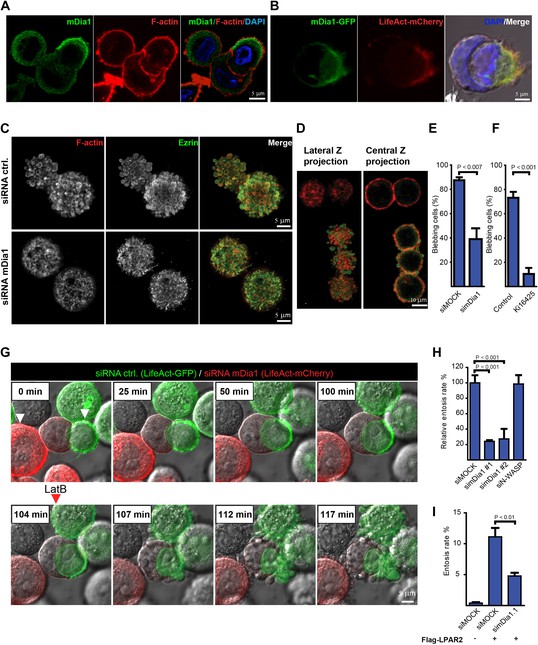

Our LifeAct or non-transfected cell analysis showed that during entosis the invading but not the receiving cells display rigorous membrane blebbing (Figure 1A; Video 2) reminiscent of bleb-associated cancer cell invasion (Fackler and Grosse, 2008). We have shown previously that bleb-associated cancer cell invasion through collagen matrices requires the activity of the Diaphanous formin mDia1 downstream of RhoA (Kitzing et al., 2007). We therefore hypothesized that the actin nucleation factor mDia1 may also be involved in entotic invasion. Interestingly, we found endogenous mDia1 to be enriched at the cell rear of the invading cell (Figure 4A), suggesting that mDia1 function spatially controls entosis. Indeed, ectopically expressed mDia1-GFP was localized to the actin-rich cup formed in HEK293 cells upon LPAR2 transfection to trigger entotic invasion (Figure 4B). This mDia1 localization is also in good agreement with our data showing that the RhoA activator PDZ-RhoGEF is strongly accumulated at the actin-rich cell rear (Figure 3E).

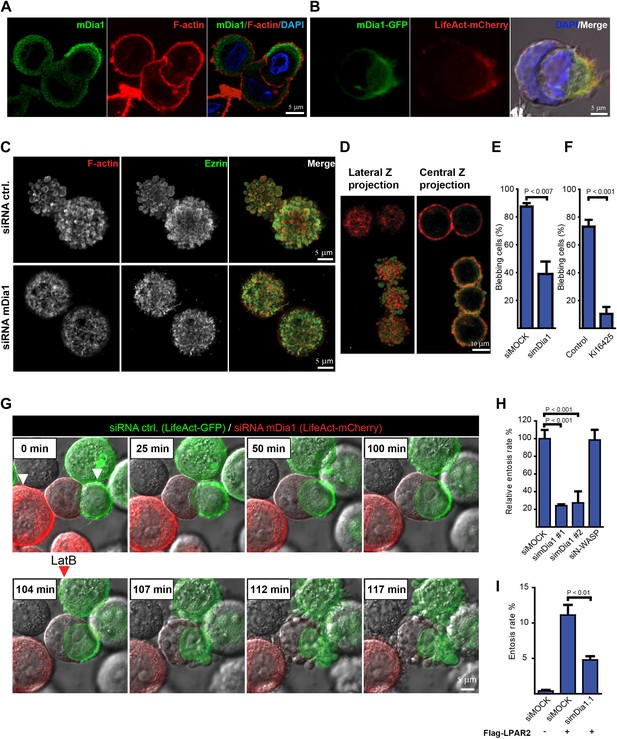

Analyzing the cells silenced for mDia1, we found that mDia1 was required for Ezrin-positive bleb formation as well as blebbing (Figure 4C,D,E, Figure 4—figure supplement 1; Video 3), while mDia1 was localized to cellular blebs in control silenced cells (Figure 4D). Similarly, blebbing was highly sensitive to LPAR inhibition with Ki16425 (Figure 4F; Video 4 and 5). Importantly, mDia1 knockdown MCF10A cells were strongly impaired to undergo entotic invasion as compared to control siRNA-treated cells (Figure 4G,H; Video 6). Under these conditions, when latrunculin B was added just before completion of entosis, we observed the rapid dispersion of the trailing actin-rich cup leading to failure of cell-in-cell invasion (Figure 4G; Video 6), pointing towards a crucial role for polarized actin assembly during final stages of entosis. Suppression of mDia1 by siRNA treatment also strongly and specifically inhibited LPAR2-triggered entosis (Figure 4I) in HEK293 cells, showing that mDia1 is an essential factor that acts downstream of LPAR2 during cell-in-cell invasion.
Homotypic cell-in-cell structures have been reported in metastatic carcinoma cells harvested from exudates or urine samples (Overholtzer and Brugge, 2008), corresponding to the non-adhesive experimental culture conditions on hydrogel. It is tempting to speculate that such active invasive and complex process may result in some survival advantage or even represent an escape mechanism for carcinoma cells, although often the inner cell undergoes a cell death process involving components of the autophagy machinery (Florey et al., 2011). In this study, we report on a cell surface receptor pathway that facilitates active invasion to produce a cell-in-cell structure. Interestingly, some of these components such as RhoA and mDia1 have been shown to function during rounded cancer cell invasion, which is similarly accompanied by cell blebbing (Sanz-Moreno and Marshall, 2010), although this processes can still depend on integrin-based matrix adhesions. Our findings suggest that entotic invasion, although independent of integrins, resembles at least in some aspects that of amoeboid and bleb-dependent motility. Indeed, actin filaments also coincide at the Ezrin-rich uropod in amoeboid blebbing thereby pushing cells through collagen-I (Lorentzen et al., 2011) and ezrin is further an essential component for non-apoptotic blebbing (Charras et al., 2006). It seems reasonably that Ezrin is potentially also required for entosis as we observed strong Ezrin localization at the invading cell uropod (Figure 4—figure supplement 1B), however, its precise role and regulation in this process remains a future task for investigations. The relevance of entosis for tumor progression in vivo is currently unclear. Nevertheless, our data uncover LPA and LPAR2 as important drivers of entotic invasion, both of which are also important factors during cancer metastasis, suggesting that entosis may be a phenomenon associated with advanced malignancy.
All cell lines were obtained from American Type Culture Collection. MCF10A cells were cultured as described (Debnath et al., 2003). MCF7 and HEK293 cells were cultured in Dulbecco's modified Eagle's medium (DMEM) plus 10% heat inactivated FBS. Cell Dissociation Buffer, enzyme-free, PBS-based (Life Technologies). Oligonucleotides of small interfering RNA (siRNA) for LPA receptors, G protein alpha subunits, and RhoGEFs were synthesized by QIAGEN. Oligonucleotides of siRNA for mDia1 were purchased from IBA GmbH. LPA (1-Oleoyl Lysophosphatidic Acid) and EDG family inhibitor Ki16425 were purchased from Cayman Chemical Company. Poly (2-hydroxyethyl methacrylate) (PolyHEMA) was purchased from Polysciences Inc. Antibodies against EDG4 were from Assay Biotechnology; LPAR receptors, Ezrin and LARG from Santa Cruz Biotechnology; PDZ-RhoGEF from IMGENEX; pMLC2 from Sigma and mDia1 from BD Biosciences. pCMV6-XL5 LPAR2 expression vector were purchased from OriGene (SC117226). pWPXL-based lentiviral expression vectors for H2B, LPAR2, Gα12, and Gα12Q/L were generated using standard PCR-based procedures or in the case of LifeAct-GFP were a kind gift from Oliver Fackler. Delipidized FCS was from Bio&SELL e.K.
MCF10A or MCF7 cells were transiently transfected with 10–50 nM siRNA oligonucleotides by using INTERFERin (Polyplus Transfection Inc) and knockdown was quantified by qPCR or confirmed by Western analysis (Figure 3—figure supplement 2). The following FlexiTube siRNA (QIAGEN) were used: GNAI1 SI00032256; GNAI2 SI02780505; GNAI3 SI00088942; GNAQ SI02780512; GNA11 SI0265947; GNA12 SI00096558; GNA13 SI00089761; GNA14 SI00062321; ARHGEF1 SI00302680; ARHGEF11 SI00108129; ARHGEF12 SI04352278; AKAP13 SI02224173; EDG1 SI00376229; EDG4 SI00067494; EDG7 SI00097545; GRP23 SI00075292; GPR92 SI00126231; P2RY5 SI00081116; The following siRNAs from IBA GmbH were used: mDia1.1 #97082N/97083N; mDia1.2 #97273/274N.
For general quantitative assessments monolayer cells were trypsinized (or subjected to Cell Dissociation Buffer in case of HEK293) to obtain a single-cell suspension before plating on Ultra Low Cluster Plate (costar cat. 3473) at densities of 300.000–400.000 cells per well. Cells processed for immunostaining were fixed in suspension by adding 1:1 vol/vol 8% formalin for 10 min. Cells were then rehydrated in PBS and centrifuged on to 12-mm cover slips using a Cytospin Cytofuge12 at 1500 rpm for 4 min by high acceleration. Fixed samples were washed in PBS and PBST and blocked in Blocking Buffer (PBS, 0.2% Triton X-100, 5% Goat Serum, 0.1% BSA, 0.4% Glycerol) before antibody addition. Nuclei were stained with DAPI and F-actin using Alexa-647-phalloidin or Alexa-488-phalloidin.
Time-lapse microscopy was performed on dishes coated with PolyHEMA as described (Overholtzer et al., 2007). Images were obtained using a Nikon Eclipse-Ti equipped with Perfect Focus under humidified conditions at 37°C (Tokai hit stage top incubator) using a Nikon 40x oil objective. Confocal microscopy was performed using a 63x objective on a ZEISS LSM-700. For all entosis quantifications more than 600 cells were counted per coverslip.
Reassembly of contractile actin cortex in cell blebsThe Journal of Cell Biology 175:477–490.https://doi.org/10.1083/jcb.200602085
LPA receptors: subtypes and biological actionsAnnual Review of Pharmacology and Toxicology 50:157–186.https://doi.org/10.1146/annurev.pharmtox.010909.105753
Distinctive expression and functions of the type 4 endothelial differentiation gene-encoded G protein-coupled receptor for lysophosphatidic acid in ovarian cancerCancer Research 59:5370–5375.
Over-expression of lysophosphatidic acid receptor-2 in human invasive ductal carcinomaBreast Cancer Research 6:R640–R646.https://doi.org/10.1186/bcr935
Positive feedback between Dia1, LARG, and RhoA regulates cell morphology and invasionGenes & Development 21:1478–1483.https://doi.org/10.1101/gad.424807
A non-genetic route to aneuploidy in human cancersNature Cell Biology 13:324–330.https://doi.org/10.1038/ncb2174
An ezrin-rich, rigid uropod-like structure directs movement of amoeboid blebbing cellsJournal of Cell Science 124:1256–1267.https://doi.org/10.1242/jcs.074849
The plasticity of cytoskeletal dynamics underlying neoplastic cell migrationCurrent Opinion in Cell Biology 22:690–696.https://doi.org/10.1016/j.ceb.2010.08.020
Regulation of myosin activation during cell-cell contact formation by Par3-Lgl antagonism: entosis without matrix detachmentMolecular Biology of the Cell 23:2076–2091.https://doi.org/10.1091/mbc.E11-11-0940
LPA2 receptor mediates mitogenic signals in human colon cancer cellsAmerican Journal of Physiology Cell Physiology 289:C2–C11.https://doi.org/10.1152/ajpcell.00610.2004
W James NelsonReviewing Editor; Stanford University, United States
eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.
Thank you for sending your work entitled “LPAR2 couples G12/13-mediated signaling and polarized actin assembly for homotypic cell-in-cell invasion” for consideration at eLife. Your article has been favorably evaluated by a Senior editor and 3 reviewers, one of whom is a member of our Board of Reviewing Editors.
The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.
The reviewers agreed that entosis (cell-in-cell invasion) is an interesting, and potentially important process in cancer, in which cells engulf each other. While the phenomenon itself is well-described, and a role for actin and autophagy has been shown to be important for events after engulfment, little is known about the receptor(s) that recognize cells for entosis. They noted that you describe the identification for a receptor and downstream pathway for entosis. You identify a requirement for LPA, and this led them to identify, by siRNA and ectopic expression, the G-protein coupled receptor LPAR2 as the critical receptor. You go on to show that the downstream pathway involves G12/13 family GPCRs, PDZ-RhoGEF and mDia1 that induce actin remodeling in the rear uropod of the engulfing cell.
The 3 reviewers found the work interesting and potentially important. However, all raised important questions about the relationship(s) between blebbing, RhoA signaling, mDia1 function, trailing uropod formation/function and entosis. These concerns will need further work and, if completed, another round of consultation. The major concerns are summarized below:
1) Figure 1D shows the effect of the LPAR inhibitor Ki16425 in the presence of added LPA, but this should also be tested in the presence of serum to show that the LPAR/LPA link is the “only” critical component in whole serum as well.
2) An increase in blebbing in the invading cells is mentioned throughout in the manuscript, and is used as a rationale for examining mDia1. The blebbing phenotype should be better characterized (number of blebs/membrane protrusions over time, changes in ERM protein expression/localization, etc.), and it would be important to test whether inhibiting signaling and knockdown of actin regulatory protein (particularly PDZ-RhoGEF and mDia1) affect entosis-associated blebbing.
3) What is the role of the uropod in entosis? Is it required for entosis, or is it a by-product of the entosis process? Linking the role of the uropod and the Rho/mDia1 signaling pathway could be addressed by testing whether inhibition of mDia1 (or RhoA signaling) blocks uropod formation and either the initiation of entosis (i.e., LPAR localization and binding to the recipient cell) or the final stage(s) of engulfment.
4) Is the localization of LPAR to the uropod dependent on an intact actin cytoskeleton, and is its distribution affected by the knockdown of expression of G12/13, RhoGEF or mDia1, or inhibition of ROCK? This information is important in the context of showing whether LPAR localization is independent or dependent of downstream effectors and actin organization.
5) Roles for Gα12/13 and PDZ-RhoGEF in entosis (Figure 3) are intriguing, but more work is needed to rigorously establish whether this leads to Rho activation. Activation could be measured using a Rho FRET sensor, and tested if and where RhoA is active at sites of entosis under both activating (LPA addition, LPAR overexpression, Gα12QL) and inhibiting (siRNA knockdown of Gα12/13, PDZ-RhoGEF) conditions.
6) The cellular localization of mDia1, both endogenous and GFP-tagged, appears cytoplasmic in the invading cell (Figure 4), and it is difficult to see the enrichment in the trailing uropod as the authors claim: for example, mDia1 appears to be excluded from the F-actin rich band in the trailing uropod (Figure 4A). The effects of mDia1 knockdown on actin cytoskeleton and membrane blebbing should be quantitatively analyzed to test whether mDia1 is inducing these changes.
1) The percent knockdown of different LPAR isoforms (Figure 2), GPCR isoforms (Figure 3), RhoGEFs (Figure 3) and mDia1 (Figure 4) should be shown by western blot so that the conclusion that one isoform is required and not others is based on equal degrees of loss expression.
2) It should be clearly stated in the text that localization of specific proteins (e.g. mDia in Figure 4) is by monitoring ectopically-expressed, GFP-labeled fusion proteins.
3) Statistical analysis:
- Student's t-test should only be employed when 2 conditions are being compared (e.g. Figure 2C). Where there are more than 2 groups, appropriate tests (e.g. one-way ANOVA followed by post-hoc test) should be used.
- Wherever possible, the true variance of the control group (e.g. Figure 2A) should be included, even when normalized to 100%. Including the variance would allow for robust statistical analysis, which currently is not the case since the variance has been removed.
4) The LPAR localization studies would benefit from the inclusion of general membrane and cytoplasmic markers (e.g. membrane-targeted and cytoplasmic GFP). This would help to demonstrate that LPAR2 is indeed clustered at the trailing edge. Examining the localization another LPAR (4 or 5) would be useful to show specificity of LPAR1 localization.https://doi.org/10.7554/eLife.02786.017
- Robert Grosse
- Manuel Holst
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
We thank Oliver Fackler for lentiviral LifeAct-mCherry and Andrea Wüstenhagen for technical assistance. MH was supported by a Mildred-Scheel-Doktorandenprogramm fellowship (# 110405) from the Deutsche Krebshilfe e.V. We thank laboratory members for discussions and the SFB 593 and SFB-TR17 for funding.
