Traditional cue combination models predict that the discrimination threshold in the combined condition should be smaller than that of either unimodal condition (Clark and Yuille, 1990). With a fixed stimulus duration, this prediction has been shown to hold for visual/vestibular heading discrimination in both human and animal subjects (Fetsch et al., 2009, 2011), consistent with optimal cue combination. In contrast, the discrimination thresholds of subjects in our reaction-time task appear to be substantially sub-optimal. For the example subject of Figure 2A, psychometric functions in the combined condition lie between the visual and vestibular functions. Correspondingly, discrimination thresholds for the combined condition are intermediate between visual and vestibular thresholds for this subject, and for high coherences, are substantially greater than the optimal predictions (Figure 2B).

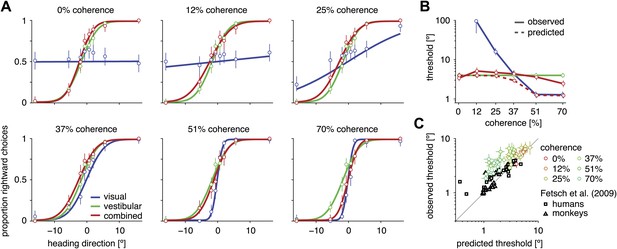

This pattern of results was consistent across subjects (Figure 2C, Figure 2—figure supplement 1). In no case did subjects feature a significantly lower discrimination threshold in the combined condition than the better of the two unimodal conditions (p>0.57, one-tailed, Supplementary file 2A). For the largest visual motion coherence (70%), all subjects except one showed thresholds in the combined condition that were significantly greater than visual thresholds and significant greater than optimal predictions of a conventional cue-integration scheme (p<0.05, Supplementary file 2A). These data lie in stark contrast to previous reports using fixed duration stimuli (Fetsch et al., 2009, 2011) in which combined thresholds were generally found to improve compared to the unimodal conditions, as expected by standard optimal multisensory integration models. To summarize this contrast, we compare the ratio of observed to predicted thresholds in the combined condition for our subjects to human and monkey subjects performing a similar task in a fixed duration setting (Fetsch et al., 2009). We found this ratio to be significantly greater for our subjects (Figure 2C; two-sample t test, t (77) = 3.245, p=0.0017). This indicates that, with respect to predictions of standard multisensory integration models, our subjects performed significantly worse than those engaged in a similar fixed-duration task.

A different picture emerges if we take not only discrimination thresholds but also reaction times into account. Short reaction times imply that subjects gather less information to make a decision, yielding greater discrimination thresholds. Longer reaction times may decrease thresholds, but at the cost of time. Consequently, if subjects decide more rapidly in the combined condition than the visual condition, they might feature higher discrimination thresholds in the combined condition even if they make optimal use of all available information. Thus, to assess if subjects perform optimal cue combination, we need to account for the timing of their decisions.

Average reaction times depended on stimulus condition, motion coherence, and heading direction. In general, reaction times were faster for larger heading magnitudes, and reaction times in the vestibular condition were faster than those in the visual condition (Figure 3 for subject D2, Figure 3—figure supplement 1 for other subjects). In the combined condition, however, reaction times were much shorter than those seen for the visual condition and were comparable to those of the vestibular condition (Figure 3). Thus, subjects spent substantially more time integrating evidence in the visual condition, which boosted their discrimination performance when compared to the combined condition. Note also that discrimination thresholds in the combined condition were substantially smaller than vestibular thresholds, especially at 70% coherence (Figures 2 and 3). Thus, adding optic flow to a vestibular stimulus decreased the discrimination threshold with essentially no loss of speed. A similar overall pattern of results was observed for the other subjects (Figure 3—figure supplement 1). These data provide clear evidence that subjects made use of both visual and vestibular information to perform the reaction-time task, but the benefits of cue integration could not be appreciated by considering discrimination thresholds alone.

Figure 3 with 2 supplements see all

Download asset Open asset

To investigate whether subjects accumulate evidence optimally across both time and sensory modalities, we built a model that integrates visual and vestibular cues optimally to perform the heading discrimination task, and we compare predictions of the model to data from our human subjects. The model builds upon the structure of diffusion models (DMs), which have previously been shown to account nicely for the tradeoff between speed and accuracy of decisions (Ratcliff, 1978; Ratcliff and Smith, 2004; Palmer et al., 2005). Additionally, DMs are known to optimally integrate evidence over time (Laming, 1968; Bogacz et al., 2006), given that the reliability of the evidence is time-invariant (such that, at any point in time from stimulus onset, the stimulus provides the same amount of information about the task variable). However, DMs have neither been used to integrate evidence from several sources, nor to handle evidence whose reliability changes over time, both of which are required for our purposes.

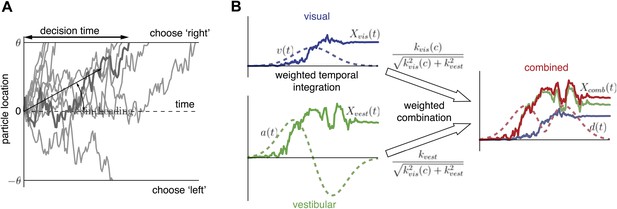

In the context of heading discrimination, a standard DM would operate as follows (Figure 4A): consider a diffusing particle with dynamics given by $\dot{x}=k\sin \left(h\right)+\eta \left(t\right)$, where h is the heading direction, k is a positive constant relating particle drift to heading direction, and η(t) is unit variance Gaussian white noise. The particle starts at x (0) = 0, drifts with an average slope given by ksin(h), and diffuses until it hits either the upper bound θ or the lower bound −θ, corresponding to rightward and leftward choices, respectively. The decision time is determined by when the particle hits a bound. Larger $\left|h\right|$'s lead to shorter decision times and more correct decisions because the drift rate is greater. Lower bound levels, $\left|\theta \right|$, also lead to shorter decision times but more incorrect decisions. Errors (hitting bound θ when h < 0, or hitting bound −θ when h > 0) can occur due to the stochasticity of particle motion, which is meant to capture the variability of the momentary sensory evidence. The Fisher information in x(t) regarding h, a measure of how much information x(t) provides for discriminating heading (Papoulis, 1991), is I_x(sin(h)) = k² per second, showing that k is a measure of the subject's sensitivity to changes in heading direction. This sensitivity depends on the subject's effectiveness in estimating heading from the cue, which in turn is influenced by the reliability of the cue itself (e.g., coherence).

Figure 4

Download asset Open asset

Now consider both a visual (vis) and a vestibular (vest) source of evidence regarding h, ${\dot{x}}_{vis}=k_{vis}\left(c\right)\sin \left(h\right)+{\eta }_{vis}\left(t\right)$ and ${\dot{x}}_{vest}=k_{vest}\sin \left(h\right)+{\eta }_{vest}\left(t\right)$, where k_vis(c) indicates that the sensitivity to the cue in the visual modality depends on motion coherence, c. Combining these two sources of evidence by a simple sum, ${\dot{x}}_{vis}+{\dot{x}}_{vest}$, would amount to adding noise to ${\dot{x}}_{vest}$ for low coherences (k_vis(c) ≈ 0), which is clearly suboptimal. Rather, it can be shown that the two particle trajectories are combined optimally by weighting their rates of change in proportion to their relative sensitivities (see Supplementary file 1 for derivation):

This allows us to model the combined condition by a single new DM, ${\dot{x}}_{comb}=k_{comb}\left(c\right)\sin \left(h\right)+{\eta }_{comb}\left(t\right)$, which is optimal because it preserves all information contained in both x_vis and x_vest (Figure 4B; see ‘Materials and methods’ and Supplementary file 1 for a formal treatment). The sensitivity (drift rate coefficient) in the combined condition,

is a combination of the sensitivities of the unimodal conditions and is therefore always greater than the largest unimodal sensitivity.

So far we have assumed that the reliability of each cue is time-invariant. However, as the motion velocity changes over time, so does the amount of information about h provided by each cue, and with it the subject's sensitivity to changes in h. For the vestibular and visual conditions, motion acceleration a(t) and motion velocity v(t), respectively, are assumed to be the physical quantities that modulate cue sensitivity (‘Materials and methods’ and ‘Discussion’). To account for these dynamics, the DMs are modified to ${\dot{x}}_{vest}=a\left(t\right)k_{vest}\sin \left(h\right)+{\eta }_{vest}\left(t\right)$ and ${\dot{x}}_{vis}=v\left(t\right)k_{vis}\left(c\right)\sin \left(h\right)+{\eta }_{vis}\left(t\right)$. Note that once the drift rate in a DM changes with time, it generally loses its property of integrating evidence optimally over time. For example, at the beginning of each trial when motion velocity is low, ${\dot{x}}_{vis}$ is dominated by noise and integrating ${\dot{x}}_{vis}$ is fruitless. Fortunately, weighting the momentary visual evidence, ${\dot{x}}_{vis}$, by the velocity profile recovers optimality of the DM (‘Materials and methods’). This temporal weighting causes the visual evidence to contribute more at high velocities, while the noise is downweighted at low velocities. Similarly, vestibular evidence is weighted by the time course of acceleration. The new, weighted particle trajectories are described by the DMs ${\dot{X}}_{vis}=v\left(t\right){\dot{x}}_{vis}$ and ${\dot{X}}_{vest}=a\left(t\right){\dot{x}}_{vest}$. The two unimodal DMs are combined as before, resulting in the combined DM given by ${\dot{X}}_{comb}=d\left(t\right){\dot{x}}_{comb}$, where the sensitivity profile d(t) is a weighted combination of the unimodal sensitivity profiles,

(Figure 4B; see Supplementary file 1 for derivation). These modifications to the standard DM are sufficient to integrate evidence optimally across time and sensory modalities, even as the sensitivity to the evidence changes over time.

The model assumes that subjects know their cue sensitivities, k_vis(c) and k_vest, as well as the temporal sensitivity profiles, a(t) and v(t), of each stimulus. In this respect, our model provides an upper bound on performance, since subjects may not have perfect knowledge of these variables, especially since stimulus modalities and visual motion coherence values are randomized across trials (‘Discussion’).

We tested whether subjects combined evidence optimally across both time and cues by evaluating how well the model outlined above could explain the observed behavior. The bounds, θ, of the modified DM, and the sensitivity parameters (k_vis, k_vest and k_comb), were allowed to vary between the visual, vestibular, and combined conditions. Varying the bound was essential to capture the deviation of the discrimination threshold in the combined condition from that predicted by traditional cue combination models (Figure 2). Indeed, this discrimination threshold is inversely proportional to bound and sensitivity (see Supplementary file 1). Since the sensitivity in the bimodal condition is not a free parameter (it is determined by Equation 2), the height of the bound is the only parameter that could modulate the discrimination thresholds.

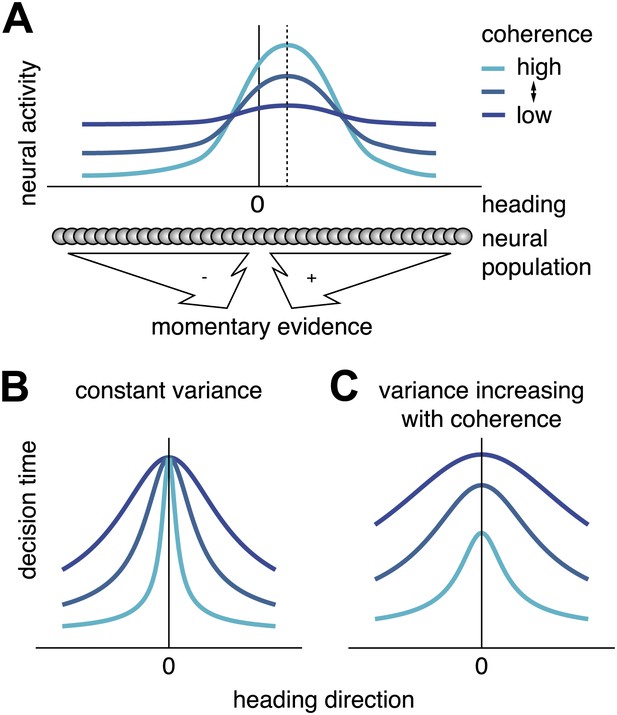

The noise terms η_vis and η_vest play crucial roles in the model, as they relate to the reliability of the momentary sensory evidence. To specify the manner in which such noise may depend on motion coherence, we relied on fundamental assumptions about how optic flow stimuli are represented by the brain. We assumed that heading is represented by a neural population code in which neurons have heading tuning curves that, within the range of heading tested in this experiment (±16°, Figure 5A), differ in their heading preferences but have similar shapes. This is broadly consistent with data from area MSTd (Fetsch et al., 2011), but the exact location of such a code is not important for our argument. For low coherence, motion energy in the stimulus is almost uniform for all heading directions, such that all neurons in the population fire at approximately the same rate (Figure 5A, dark blue curve). For high coherence, population neural activity is strongly peaked around the actual heading direction (Figure 5A, cyan curve) (Morgan et al., 2008; Fetsch et al., 2011).

Figure 5

Download asset Open asset

Based on this representation, and assuming that the response variability of the neurons belongs to the exponential family with linear sufficient statistics (Ma et al., 2006) (an assumption consistent with in vivo data [Graf et al., 2011]), heading discrimination can be performed optimally by a weighted sum of the activity of all neurons, with weights monotonically related to the preferred heading of each neuron. For a straight forward heading, h = 0, this sum should be 0, and for h > 0 (or h < 0) it should be positive (or negative), thus sharing the basic properties of the momentary evidence, $\dot{x}$, in our DM. This allowed us to deduce the mean and variance of the momentary evidence driving $\dot{x}$, based on what we know about the neural responses. First, the sensitivity, k_vis(c), which determines how optic flow modulates the mean drift rate of $\dot{x}$, scales in proportion with the ‘peakedness’ of the neural activity, which in turn is proportional to coherence. We assumed a functional form of k_vis(c) given by $a_{vis}{c}^{{\gamma }_{vis}}$, where a_vis and γ_vis are positive parameters. Second, the variance of $\dot{x}$ is assumed to be the sum of the variances of the neural responses. Since experimental data suggest that the variance of these responses is proportional to their firing rate (Tolhurst et al., 1983), the sum of the variances is proportional to the area underneath the population activity profile (Figure 5A). Based on the experimental data of Britten et al. (Heuer and Britten, 2007), this area was assumed to scale roughly linearly with coherence, such that the variance of $\dot{x}$ is proportional to $1+b_{vis}{c}^{{\gamma }_{vis}}$ with free parameters b_vis and γ_vis, the latter of which captures possible deviations from linearity. We further assumed the DM bound to be independent of coherence, and given by θ_σ,vis. Thus, the effect of motion coherence on the momentary evidence in the DM was modeled by four parameters: a_vis, γ_vis, b_vis, and θ_σ,vis.

The above scaling of the diffusion variance by coherence, which is a consequence of the neural code for heading, makes an interesting prediction: reaction times for headings near straight ahead should be inversely proportional to coherence in the visual condition, even though the mean drift rate, k_vis(c)sin(h), is very close to 0. This is indeed what we observed: subjects tended to decide faster for higher coherences even when h ≈ 0 (Figure 3, Figure 3—figure supplement 1). This aspect of the data can only be captured by the model if the DM variance is allowed to change with coherence (Figure 5B,C).

To summarize, in the combined condition, the diffusion variance was assumed to be proportional to $1+b_{comb}{c}^{{\gamma }_{comb}}$, while the bound was fixed at θ_σ,comb. By contrast, the diffusion rate (sensitivity) cannot be modeled freely but rather needs to obey $k_{comb}\left(c\right)=\sqrt{k_{vis}^2\left(c\right)+{k_{vest}}^2}$ in order to ensure optimal cue combination. The sensitivity k_vest and bound θ_σ,vest in the vestibular condition do not depend on motion coherence and were thus model parameters that were fitted directly.

Observed reaction times were assumed to be composed of the decision time and some non-decision time. The decision time is the time from the start of integrating evidence until a decision is made, as predicted by the diffusion model. The non-decision time includes the motor latency and the time from stimulus onset to the start of integrating evidence. As the latter can vary between different modalities, we allowed it to differ between visual, vestibular, and combined conditions, but not for different coherences, thus introducing the model parameters t_nd,vis, t_nd,vest, and t_nd,comb. Although the fitted non-decision times were similar across stimulus conditions for most subjects (Figure 3—figure supplement 2), a model assuming a single non-decision time resulted in a small but significant decrease in fit quality (Figure 7—figure supplement 2A). Overall, 12 parameters were used to model cue sensitivities, bounds, variances, and non-decision times in all conditions, and these 12 parameters were used to fit 312 data points for subjects that were tested with 6 coherences (168 data points for the three-coherence version). An additional 14 parameters (8 parameters for the three-coherence version; one bias parameter per coherence/condition, one lapse parameter across all condition) controlled for biases in the motion direction percept and for lapses of attention that were assumed to lead to random choices (‘Materials and methods’). Although these additional parameters were necessary to achieve good model fits (Figure 7—figure supplement 2A), it is critical to note that they could not account for differences in heading thresholds or reaction times across stimulus conditions. As such, the additional parameters play no role in determining whether subjects perform optimal multisensory integration. Alternative parameterizations of how drift rates and bounds depend on motion coherence yielded qualitatively similar results, but caused the model fits to worsen decisively (Supplementary file 1; Figure 7—figure supplement 2A).

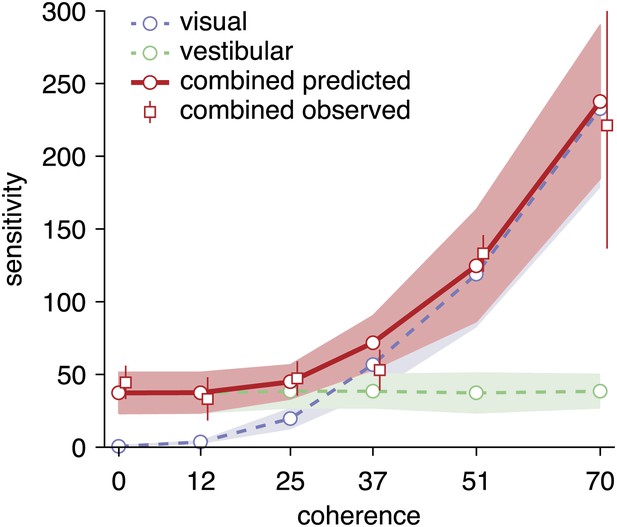

Critically, our model predicts that the unimodal sensitivities k_vis(c) and k_vest relate to the combined value by $k_{comb}^{predicted}\left(c\right)=\sqrt{k_{vis}{\left(c\right)}^2+k_{vest}^2}$, if subjects accumulate evidence optimally across cues. To test this prediction, we fitted separately the unimodal and combined sensitivities, k_vis(c), k_vest and k_comb to the complete data set from each individual subject using maximum likelihood optimization (‘Materials and methods’), and then compared the fitted values of k_comb to the predicted values, $k_{comb}^{predicted}\left(c\right)$. Predicted and observed sensitivities for the combined condition are virtually identical (Figure 6), providing strong support for near-optimal cue combination across both time and cues. Remarkably, for low coherences at which optic flow provides no useful heading information, the sensitivity in the combined condition was not significantly different from that of the vestibular condition (Figure 6). Thus, subjects were able to completely suppress noisy visual information and rely solely on vestibular input, as predicted by the model.

Figure 6

Download asset Open asset

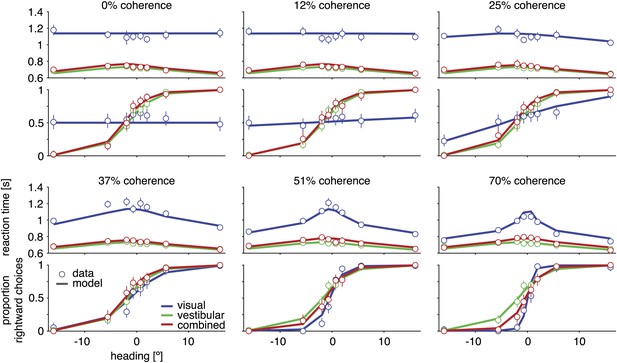

Having established that cue sensitivities combine according to Equation 2, the model was then fit to data from each individual subject under the assumption of optimal cue combination. Model fits are shown as solid curves for example subject D2 (Figure 3), as well as for all other subjects (Figure 3—figure supplement 1). Sensitivity parameters, bounds, and non-decision times resulting from the fits are also shown for each subject, condition, and coherence (Figure 3—figure supplement 2). For 8 of 10 datasets, the model explains more than 95% of the variance in the data (adjusted R² > 0.95), providing additional evidence for near-optimal cue combination across both time and cues (Figure 7A). The subjects associated with these datasets show a clear decrease in reaction times with larger $\left|h\right|$, and this effect is more pronounced in the visual condition than in the vestibular and combined conditions (Figure 3, Figure 3—figure supplement 1). The remaining two subjects (C and F) feature qualitatively different behavior and lower R² values of approximately 0.80 and 0.90, respectively (Figure 3—figure supplement 1). These subjects showed little decline in reaction times with larger values of $\left|h\right|$, and their mean reaction times were more similar across the visual, vestibular and combined conditions.

Figure 7 with 2 supplements see all

Download asset Open asset

Critically, the model nicely captures the observation that the psychophysical threshold in the combined condition is typically greater than that for the visual condition, despite near-optimal combination of momentary evidence from the visual and vestibular modalities (e.g., Figure 3, 70% coherence, Figure 2—figure supplement 1, Figure 3—figure supplement 1). Thus, the model fits confirm quantitatively that apparent sub-optimality in psychophysical thresholds can arise even if subjects combine all cues in a statistically optimal manner, emphasizing the need for a computational framework that incorporates both decision accuracy and speed.

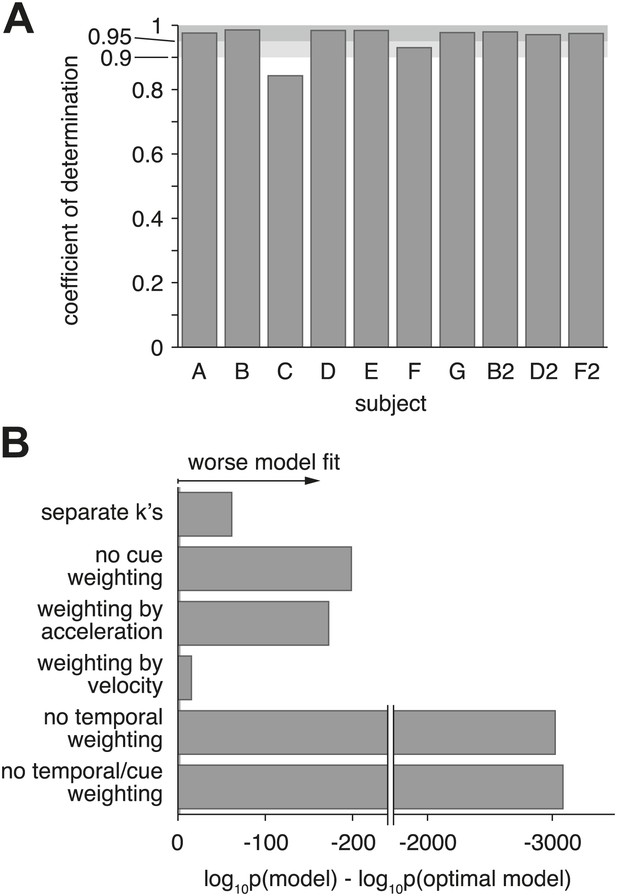

To further assess and validate the critical design features of our modified DM, we evaluated six alternative (mostly sub-optimal) versions of the model to see if these variants are able to explain the data equally well. We compared these variants to the optimal model using Bayesian model comparison, which trades off fit quality with model complexity to determine whether additional parameters significantly improve the fit (Goodman, 1999).

With regard to optimality of cue integration across modalities, we examined two model variants. The first variant (also used to generate Figure 6) eliminates the relationship, $k_{comb}\left(c\right)=\sqrt{k_{vis}^2\left(c\right)+k_{vest}^2}$ (Equation 2), between the sensitivity parameters in the combined and single-cue conditions. Instead, this variant allows independent sensitivity parameters for the combined condition at each coherence, thus introducing one additional parameter per coherence. Since this variant is strictly more general than the optimal model, it must fit the data at least as well. However, if the subjects' behavior is near optimal, the additional degrees of freedom in this variant should not improve the fit enough to justify the addition of these parameters. This is indeed what we found by Bayesian model comparison (Figure 7B, ‘separate k's’), which shows the optimal model to be ∼10⁷⁰ times more likely than the variant with independent values of k_comb(c). This is well above the threshold value that is considered to provide ‘decisive’ evidence in favor of the optimal model (we use Fisher's definition of decisive [Jeffreys, 1998] according to which a model is said to be decisively better if it is >100 times more likely to have generated the data). The second model variant had the same number of parameters as the optimal model, but assumed that the cues are always weighted equally. Evidence in the combined condition was given by the simple average, ${\dot{X}}_{comb}=\frac{1}{2}\left({\dot{X}}_{vis}+{\dot{X}}_{vest}\right)$, ignoring cue sensitivities. The resulting fits (Figure 7B, ‘no cue weighting’) are also decisively worse than those of the optimal model. Together, these model variants strongly support the hypothesis that subjects weight cues according to their relative sensitivities, as given by Equation 2. These effects were largely consistent across individual subjects (Figure 7—figure supplement 1A).

To test the other key assumption of our model—that subjects temporally weight incoming evidence according to the profile of stimulus information—we tested three model variants that modified how temporal weighting was performed without changing the number of parameters in the model. If we assumed that the temporal weighting of both modalities followed the acceleration profile of the stimulus while leaving the model otherwise unchanged, the model fit worsened decisively (Figure 7B, ‘weighting by acceleration’). Assuming that the weighting of both modalities followed the velocity profile of the stimulus also decisively reduced fit quality (Figure 7B, ‘weighting by velocity’), although this effect was not consistent across subjects (Figure 7—figure supplement 1A). If we completely removed temporal weighting of cues from the model, fits were dramatically worse than the optimal model (Figure 7B, ‘no temporal weighting’). Finally, for completeness, we also tested a model variant that neither performs temporal weighting of cues nor considers the relative sensitivity to the cues. Again, this model variant fit the data decisively worse than the optimal model (Figure 7B, ‘no cue/temporal weighting’). Thus, subjects seem to be able to take into account their sensitivity to the evidence across time as well as across cues. All of these model comparisons received further support from a more conservative random-effects Bayesian model comparison, shown in Figure 7—figure supplement 1B,C.

Finally, we also considered if a parallel race model could account for our data. The parallel race model (Raab, 1962; Miller, 1982; Townsend and Wenger, 2004; Otto and Mamassian, 2012) postulates that the decision in the combined condition emerges from the faster of two independent races toward a bound, one for each sensory modality. Because it does not combine information across modalities, the parallel race model predicts that decisions in the combined condition are caused by the faster modality. Consequently, choices in the combined condition are unlikely to be more correct (on average) than those of the faster unimodal condition. For all but one subject, the vestibular modality is substantially faster, even when compared to the visual modality at high coherence and controlling for the effect of heading direction (2-way ANOVA, p<0.0001 for all subjects except C). Critically, all of these subjects feature significantly lower psychophysical thresholds in the combined condition than in the vestibular condition (p<0.039 for all subjects except subject C, p=0.210, Supplementary file 2A). Furthermore, we performed standard tests (Miller's bound and Grice's bound) that compare the observed distribution of reaction times with that predicted by the parallel race model (Miller, 1982; Grice et al., 1984). These tests revealed that all but two subjects made significantly slower decisions than predicted by the parallel race model for most coherence/heading combinations (p<0.05 for all subjects except subjects F and B2; Supplementary file 2B), and no subject was faster than predicted (p>0.05, all subjects; Supplementary file 2B). Based on these observations, we can reject the parallel race model as a viable hypothesis to explain the observed behavior.

Seven subjects (3 males) aged 23–38 years with normal or corrected-to-normal vision and no history of vestibular deficits participated in the experiments. All subjects but one were informed of the purposes of the study. Informed consent was obtained from all participants and all procedures were reviewed and approved by the Washington University Office of Human Research Protections (OHRP), Institutional Review Board (IRB; IRB ID# 201109183). Consent to publish was not obtained in writing, as it was not required by the IRB, but all subjects were recruited for this purpose and approved verbally. Of these subjects, three (subjects B, D, F; 1 male) participated in a follow-up experiment roughly 2 years after the initial data collection, with six coherence levels instead of the original three. The six-coherence version of their data is referred to as B2, D2, and F2. Procedures for the follow-up experiment were approved by the Institutional Review Board for Human Subject Research for Baylor College of Medicine and Affiliated Hospitals (BCM IRB, ID# H-29411) and informed consent and consent to publish was given again by all three subjects.

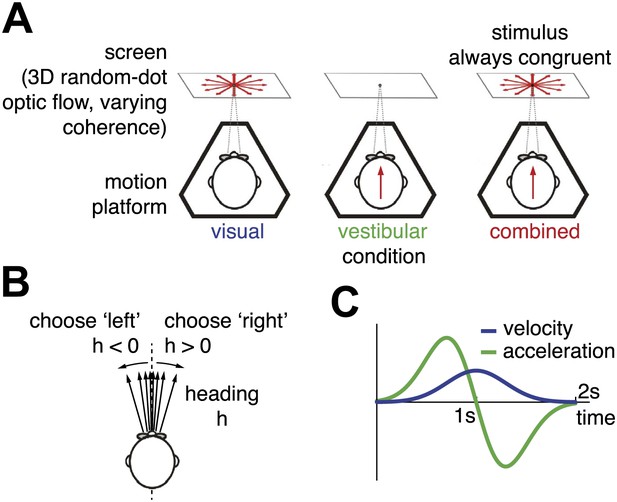

The apparatus, stimuli, and task design have been described in detail previously (Fetsch et al., 2009; Gu et al., 2010), and are briefly summarized here. Subjects were seated comfortably in a padded racing seat that was firmly attached to a 6-degree-of-freedom motion platform (MOOG, Inc). A 3-chip DLP projector (Galaxy 6; Barco, Kortrijk, Belgium) was mounted on the motion platform behind the subject and front-projected images onto a large (149 × 127 cm) projection screen via a mirror mounted above the subject’s head. The viewing distance to the projection screen was ∼70 cm, thus allowing for a field of view of ∼94° × 84°. Subjects were secured to the seat using a 5-point racing harness, and a custom-fitted plastic mask immobilized the head against a cushioned head mount. Seated subjects were enclosed in a black aluminum superstructure, such that only the display screen was visible in the darkened room. To render stimuli stereoscopically, subjects wore active stereo shutter glasses (CrystalEyes 3; RealD, Beverly Hills, CA) which restricted the field of view to ∼90° × 70°. Subjects were instructed to look at a centrally-located, head-fixed target throughout each trial. Sounds from the motion platform were masked by playing white noise through headphones. Behavioral task sequences and data acquisition were controlled by Matlab and responses were collected using a button box.

Visual stimuli were generated by an OpenGL accelerator board (nVidia Quadro FX1400), and were plotted with sub-pixel accuracy using hardware anti-aliasing. In the visual and combined conditions, visual stimuli depicted self-translation through a 3D cloud of stars distributed uniformly within a virtual space 130 cm wide, 150 cm tall, and 75 cm deep. Star density was 0.01/cm³, with each star being a 0.5 cm × 0.5 cm triangle. Motion coherence was manipulated by randomizing the three-dimensional location of a percentage of stars on each display update while the remaining stars moved according to the specified heading. The probability of a single star following the trajectory associated with a particular heading for N video updates is therefore (c/100)^N, where c denotes motion coherence (ranging from 0–100%). At the largest coherence used here (70%), there is only a 3% probability that a particular star would follow the same trajectory for 10 display updates (0.17 s). Thus, it was practically not possible for subjects to track the trajectories of individual stars. This manipulation degraded optic flow as a heading cue and was used to manipulate visual cue reliability in the visual and combined conditions. ‘Zero’ coherence stimuli had c set to 0.1, which was practically indistinguishable from c = 0, but allowed us to maintain a precise definition of the correctness of the subject's choice.

In all stimulus conditions, the task was a single-interval, two-alternative forced choice (2AFC) heading discrimination task. In each trial, human subjects were presented with a translational motion stimulus in the horizontal plane (Gaussian velocity profile; peak velocity, 0.403 m/s; peak acceleration, 0.822 m/s²; total displacement, 0.3 m; maximum duration, 2 s). Heading was varied in small steps around straight ahead (±0.686°, ±1.96°, ±5.6°, ±16°) and subjects were instructed to report (by a button press) their perceived heading (leftward or rightward relative to an internal standard of straight ahead) as quickly and accurately as possible. In the visual and combined conditions, cue reliability was varied across trials by randomly choosing the motion coherence of the visual stimulus from among either a group of three values (25%, 37%, and 70%, subjects A–G) or a group of six values (0%, 12%, 25%, 37%, 51%, and 70%, subjects B2, D2, F2). A coherence of 25% means that 25% of the dots move in a direction consistent with the subject's heading, whereas the remaining 75% of the dots are relocated randomly within the dot cloud. In the combined condition, visual and vestibular stimuli always specified the same heading (there was no cue conflict).

During the main phase of data collection, subjects were not informed about the correctness of their choices (no feedback). In the vestibular and combined conditions, platform motion was halted smoothly but rapidly immediately following registration of the decision, and the platform then returned to its original starting point. In the visual condition, the optic flow stimulus disappeared from the screen when a decision was made. In all conditions, 2.5 s after the decision, a sound informed the subjects that they could initiate the next trial by pushing a third button. Once a trial was initiated, the stimulus onset occurred following a randomized delay period (truncated exponential; mean, 987 ms). Prior to data collection, subjects were introduced to the task for 1–2 week ‘training’ sessions, in which they were informed about the correctness of their choices by either a low-frequency (incorrect) or a high-frequency (correct) sound. The training period was terminated once their behavior stabilized across consecutive training sessions. During training, subjects were able to adjust their speed-accuracy trade-off based on feedback. During subsequent data collection, we did not observe any clear changes in the speed-accuracy trade-off exhibited by subjects.

Analyses and statistical tests were performed using MATLAB R2013a (The Mathworks, MA, USA).

For each subject, discrimination thresholds were determined separately for each combination of stimulus modality (visual-only, vestibular-only, combined) and coherence (25%, 37%, and 70% for subjects A–G; 0%, 12%, 25%, 37%, 51%, and 70% for subjects B2, D2, F2) by plotting the proportion of rightward choices as a function of heading direction (Figure 2A). The psychophysical discrimination threshold was taken as the standard deviation of a cumulative Gaussian function, fitted by maximum likelihood methods. We assumed a common lapse rate (proportion of random choices) across all stimulus conditions, but allowed for a separate bias parameter (horizontal shift of the psychometric function) for each modality/coherence. Confidence intervals for threshold estimates were obtained by taking 5000 parametric bootstrap samples (Wichmann and Hill, 2001). These samples also form the basis for statistical comparisons of discrimination thresholds: two thresholds were compared by computing the difference between their associated samples, leading to 5000 threshold difference samples. Subsequently, we determined the fraction of differences that were below or above zero, depending on the directionality of interest. This fraction determined the raw significance level for accepting the null hypothesis (no difference). The reported significance levels are Bonferroni-corrected for multiple comparisons. All comparisons were one-tailed. Following traditional cue combination analyses (Clark and Yuille, 1990), the optimal threshold σ_pred,c in the combined condition for coherence c was predicted from the visual threshold σ_vis,c and the vestibular threshold σ_vest by ${\sigma }_{pred,c}^2={\sigma }_{vis,c}^2{\sigma }_{vest}^2/({\sigma }_{vis,c}^2+{\sigma }_{vest}^2)$. Confidence intervals and statistical tests were again based on applying this formula to individual bootstrap samples of the unimodal threshold estimates. Supplementary file 2A reports the p-values for all subjects and all comparisons.

For each dataset, we evaluated the absolute goodness-of-fit of the optimal model (Figure 7A) by finding the set of model parameters φ that maximized the likelihood of the observed choices and reaction times, and then computing the average coefficient of determination, $R^2\left(\text{D}\phi \right)=\frac{1}{2}\left(R_{psych}^2\left(\phi \right)+R_{chron}^2\left(\phi \right)\right)$. Here, $R_{psych}^2\left(\phi \right)$ and $R_{chron}^2\left(\phi \right)$ denote the adjusted R² values for the psychometric and chronometric functions, respectively, across all modalities/coherences. The value of $R_{psych}^2$ for the psychometric function was based on the probability of making a correct choice across all heading angles, coherences, and conditions, weighted by the number of observations, and adjusted for the number of model parameters. The same procedure, based on the mean reaction times, was used to find $R_{chron}^2$, but we additionally distinguished between mean reaction times for correct and incorrect choices, and fitted both weighted by their corresponding number of observations (see SI for expressions for $R_{psych}^2\left(\phi \right)$ and $R_{chron}^2\left(\phi \right)$).

We compared different variants of the full model (Figure 7B) by Bayesian model comparison based on Bayes factors, which were computed as follows. First, we found for each model $\mathcal{M}$ and subject s the set of parameters φ that maximized the likelihood, ${\phi }_{s,\mathcal{M}}^{*}=\arg {\max }_{\phi }p\left(\text{data\hspace{0.17em}of\hspace{0.17em}subj\hspace{0.17em}}s|\phi ,\mathcal{M}\right)$. Second, we approximated the Bayesian model evidence, measuring the model posterior probability while marginalizing over the parameters, up to a constant by the Bayesian information criterion, $\ln p\left(\mathcal{M}|s\right)\approx -\frac{1}{2}\text{BIC}\left(s,\mathcal{M}\right)$ with $\text{BIC}\left(s,M\right)=-2\ln p\left(s|{\phi }_{s,\mathcal{M}}^{*},\mathcal{M}\right)+k_{\mathcal{M}}\ln N_s$. Here, $k_{\mathcal{M}}$ is the number of parameters of model $\mathcal{M}$, and N_s is the number of trials for dataset s, respectively. Based on this, we computed the Bayes factor of model $\mathcal{M}$ vs the optimal model $\mathcal{M}$_opt by pooling the model evidence over datasets, resulting in ${\displaystyle {\sum }_s\left(\ln p\left(\mathcal{M}|s\right)-\ln p\left({\mathcal{M}}_{opt}|s\right)\right)}.$ These values, converted to a base-10 logarithm, are shown in Figure 7B. In this case, a negative log₁₀-difference of 2 implies that the optimal model is 100 times more likely given the data than the alternative model, a difference that is considered decisive in favor of the optimal model (Jeffreys, 1998).

To determine the faster stimulus modality for each subject, we compared reaction times for the vestibular condition with those for the visual condition at 70% coherence. We tested the difference in the logarithm of these reaction times by a 2-way ANOVA with stimulus modality and heading direction as the two factors, and we report the main effect of stimulus modality on reaction times. Although we performed a log-transform of the reaction times to ensure their normality, a Jarque–Bera test revealed that normality did not hold for some heading directions. Thus, we additionally performed a Friedman test on subsampled data (to have the same number of trials per modality/heading) which supported the ANOVA result at the same significance level. In the main text, we only report the main effect of stimulus modality on reaction time from the 2-way ANOVA. Detailed results of the 2-way ANOVA, the Jarque–Bera test, and the Friedman test are reported for each subject in Supplementary file 2C.

Here we outline the critical extensions to the diffusion model. Detailed derivations and properties of the model are described in the Supplementary file 1.

Discretizing time into small steps of size Δ allows us to describe the particle trajectory x(t) in a DM by a random walk, $x\left(t\right)={\displaystyle {\sum }_{n\in 1:t}\delta x_n}$, where each of the steps δx_n ∼ (ksin(h)Δ, Δ), called the momentary evidence, are normally distributed with mean ksin(h)Δ and variance Δ (1:t denotes the set of all steps up to time t). This representation is exact in the sense that it recovers the diffusion model, $\dot{x}=k\sin \left(h\right)+\eta \left(t\right)$, in the limit of Δ→0.

For the standard diffusion model, the posterior probability of sin(h) after observing the stimulus for t seconds, and under the assumption of a uniform prior, is given by Bayes rule

where δx_1:t is the momentary evidence up to time t. From this we can derive the belief that heading is rightward, resulting in

where $\Phi (·)$ denotes the standard cumulative Gaussian function. This shows that both the posterior of the actual heading angle, as well as the belief about ‘rightward’ being the correct choice, only depend on x(t) rather than the whole trajectory δx_1:t.

The above formulation assumes that evidence is constant over time, which is not the case for our stimuli. Considering the visual cue and assuming that its associated sensitivity varies with velocity v(t), the momentary evidence $\delta x_{vis,n}\sim N\left(v_n{k}_{vis}\left(c\right)\sin \left(h\right)\Delta ,\Delta \right)$ is Gaussian with mean v_nk_vis(c)sin(h)Δ, where v_n is the velocity at time step n, and variance Δ. Using Bayes rule again to find the posterior of sin(h), it is easy to shown that x_vis(t) is no longer sufficient to determine the posterior distribution. Rather, we need to perform a velocity-weighted accumulation, $X_{vis}\left(t\right)={\displaystyle {\sum }_{n\in 1:t}{v}_n\delta x_{vis,n}}$ to replace x_vis(t), and replace time t with $V\left(t\right)={\displaystyle {\sum }_{n\in 1:t}{v}_n^2\Delta }$, resulting in the following expression for the posterior

Consequently, the belief about ‘rightward’ being correct can also be fully expressed by X_vis(t) and V(t). This shows that optimal accumulation of evidence with a single-particle diffusion model with time-varying evidence sensitivity requires the momentary evidence to be weighted by its momentary sensitivity. A similar formulation holds for the posterior over heading based on the vestibular cue, however the vestibular cue is assumed to be weighted by the temporal profile of stimulus acceleration, instead of velocity.

When combining multiple cues into a single DM, ${\dot{X}}_{comb}=d\left(t\right)\left(d\left(t\right)k_{comb}\sin \left(h\right)+{\eta }_{comb}\left(t\right)\right)$, we aim to find expressions for k_comb and d(t) that keep the posterior over sin(h) unchanged, that is

δx_comb,1:t is the sequence of momentary evidence in the combined condition, following $\delta x_{comb,n}\sim N\left(d_n{k}_{comb}\left(c\right)\sin \left(h\right)\Delta ,\Delta \right)$. Expanding the probabilities reveals the equality to hold if the combined sensitivity is given by $k_{comb}^2\left(c\right)=k_{vis}^2\left(c\right)+{k_{vest}}^2$, and d(t) is expressed by Equation 3, leading to Equation 1 for optimally combining the momentary evidence (see Supplementary file 1 for derivation).

The model used to fit the behavioral data is described in the main text. We never averaged data across subjects as they feature qualitatively different behavior, due to different speed-accuracy tradeoffs. Furthermore, for subjects performing both the three-coherence and the six-coherence version of the experiment, we treated either version as a separate data set. For each modality/coherence combination (7 combinations for 3 coherences, 13 combinations for 6 coherences) we fitted one bias parameter that prevents behavioral biases from influencing model fits. The fact that performance of subjects often fails to reach 100% correct even for the highest coherences and largest heading angles was modeled by a lapse rate, which describes the frequency with which the subject makes a random choice rather than one based on accumulated evidence. This lapse rate was assumed to be independent of stimulus modality or coherence, and so a single lapse rate parameter is shared among all modality/coherence combinations.

All model fits sought to find the model parameters φ that maximize the likelihood of the observed choices and reaction times for each dataset. As in Palmer et al. (2005), we have assumed the likelihood of the choices to follow a binomial distribution, and the reaction times of correct and incorrect choices to follow different Gaussian distributions centered on the empirical means and spread according to the standard error. Model predictions for choice fractions and reaction times for correct and incorrect choices were computed from the solution to integral equations describing first-passage times of bounded diffusion processes (Smith, 2000). See Supplementary file 1 for the exact form of the likelihood function that was used.

To avoid getting trapped in local maxima of this likelihood, we utilized a three-step maximization procedure. First, we found a (possibly local) maximum by pseudo-gradient ascent on the likelihood function. Starting from this maximum, we used a Markov Chain Monte Carlo procedure to draw 44,000 samples from the parameter posterior under the assumption of a uniform, bounded prior. After this, we used the highest-likelihood sample, which is expected to be close to the mode of this posterior, as a starting point to find the posterior mode by pseudo-gradient ascent. The resulting parameter vector is taken as the maximum-likelihood estimate. All pseudo-gradient ascent maximizations were performed with the Optimization Toolbox of Matlab R2013a (Mathworks), using stringent stopping criteria (TolFun = TolX = 10⁻²⁰) to prevent premature convergence.

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Human subjects: Informed consent was obtained from all participants and all procedures were reviewed and approved by the Washington University Office of Human Research Protections (OHRP), Institutional Review Board (IRB; IRB ID# 201109183). Consent to publish was not obtained in writing, as it was not required by the IRB, but all subjects were recruited for this purpose and approved verbally. Of the initial seven subjects, three participated in a follow-up experiment roughly 2 years after the initial data collection. Procedures for the follow-up experiment were approved by the Institutional Review Board for Human Subject Research for Baylor College of Medicine and Affiliated Hospitals (BCM IRB, ID# H-29411) and informed consent and consent to publish was given again by all three subjects.
