RUNX1, a transcription factor mutated in breast cancer, controls the fate of ER-positive mammary luminal cells

  1. Maaike PA van Bragt
  2. Xin Hu
  3. Ying Xie
  4. Zhe Li  Is a corresponding author
  1. Brigham and Women's Hospital, United States
  2. Harvard Medical School, United States
  3. Jilin University, China
Research Article
  • Cited 34
  • Views 3,201
  • Annotations
Cite this article as: eLife 2014;3:e03881 doi: 10.7554/eLife.03881

Abstract

RUNX1 encodes a RUNX family transcription factor (TF) and was recently identified as a novel mutated gene in human luminal breast cancers. We found that Runx1 is expressed in all subpopulations of murine mammary epithelial cells (MECs) except the secretory alveolar luminal cells. Conditional knockout of Runx1 in MECs by MMTV-Cre led to a decrease in luminal MECs, largely due to a profound reduction in the estrogen receptor (ER)-positive mature luminal subpopulation, a phenotype that could be rescued by the loss of either Trp53 or Rb1. Mechanistically RUNX1 represses Elf5, a master regulatory TF gene for alveolar cells, and regulates mature luminal TF/co-factor genes (e.g., Foxa1 and Cited1) involved in the ER program. Collectively, our data identified a key regulator of the ER+ luminal lineage whose disruption may contribute to the development of ER+ luminal breast cancer when under the background of either TP53 or RB1 loss.

https://doi.org/10.7554/eLife.03881.001

eLife digest

Stem cells can develop into the many types of specialized cell found in the body. Several proteins regulate these transformations by switching on and off the expression of genes that are specific to different cell types. Disrupting these proteins can cause the development of cells to go awry and can lead to cancer.

A protein called RUNX1 controls gene expression to direct the development of blood cells. Mutations in the gene encoding this protein have been linked to blood cancers and a particular type of breast cancer, which begins in the cells that line the ducts that carry milk towards the nipple.

Mammary duct-lining cells develop from a pool of stem cells that produces breast tissue cells. Now van Bragt et al. have found that RUNX1 is expressed in the cells lining the ducts of the mammary glands, except those that produce milk. Deleting the gene for RUNX1 in mice reduced the number of duct-lining cells, especially a subgroup of cells that are the sensors for the hormone estrogen. Through experiments on breast cancer cells, van Bragt et al. found that RUNX1 is able to dictate the fate of duct-lining breast cells by controlling other protein regulators. RUNX1 boosts the activity of at least one regulator that encourages the cells to become duct-lining cells and represses another regulatory protein that turns cells into milk-producing cells.

Next, van Bragt et al. found that, in mice lacking the gene for RUNX1, reducing the amounts of certain proteins that normally suppress the formation of tumors restored the populations of estrogen-sensing duct-lining cells. This suggests that mutations in the gene encoding RUNX1, coupled with the loss of a tumor-suppressing protein, may contribute to the development of cancer in the cells that line the breast ducts.

The next challenge is to determine exactly how RUNX1 mutations work together with the loss of the tumor-suppressing protein to drive breast cancer development. This knowledge may translate into new approaches to prevent or treat this type of breast cancer.

https://doi.org/10.7554/eLife.03881.002

Introduction

RUNX1, RUNX2, and RUNX3, and their common non-DNA-binding partner protein CBFβ, form a small family of heterodimeric transcription factors (TFs) referred to as Core-Binding Factors (CBFs) (Speck and Gilliland, 2002). They are best known as master regulators of cell fate determination in blood, bone, and neuron, respectively (Chuang et al., 2013). RUNX1 is a master regulator of hematopoietic stem cells and multiple mature blood lineages. Translocations and mutations involving both RUNX1 and CBFB are frequently found in human leukemias (Speck and Gilliland, 2002). Recently, key roles of this family of TFs in epithelial cells and solid tumors also started to emerge (Taniuchi et al., 2012; Chuang et al., 2013; Scheitz and Tumbar, 2013). In particular, in breast cancer, recent whole-genome and whole-exome sequencing studies have consistently identified point mutations and deletions of RUNX1 in human luminal breast cancers (Banerji et al., 2012; Cancer Genome Atlas Network, 2012; Ellis et al., 2012). In addition, mutations in CBFB were also identified in luminal breast cancers from these studies. Its gene product CBFβ is critical for enhancing DNA-binding by RUNX TFs through allosteric regulation (Bravo et al., 2001; Tahirov et al., 2001). Thus, we hypothesized that RUNX1, together with CBFβ, might play a key role in mammary epithelial cell (MEC) lineage determination as a master regulatory TF and that the loss of this normal function might contribute to breast cancer development.

There are two major epithelial cell lineages in the mammary gland (MG), luminal lineage (including ductal and alveolar luminal cells), and basal lineage (the mature cell type in the basal lineage is myoepithelial cell) (Figure 1A). These two types of MECs are produced by multipotent mammary stem cells (MaSCs, which are basal cells) during embryonic development or upon MEC transplantation to cleared mammary fat pads (Shackleton et al., 2006; Stingl et al., 2006; Spike et al., 2012). In adult MGs, they appear to be maintained by both lineage-specific unipotent stem cells and multipotent basal MaSCs, based on lineage tracing studies (Van Keymeulen et al., 2011; van Amerongen et al., 2012; Rios et al., 2014; Tao et al., 2014; Wang et al., 2014). The gene regulatory network that must be in place to orchestrate lineage specification and differentiation of stem cells into mature MEC types remains largely elusive, although a number of key TFs have been identified in recent years, for example, GATA3 has been shown as a master regulator for both ductal and alveolar luminal cells (Kouros-Mehr et al., 2006; Asselin-Labat et al., 2007); ELF5 was identified as a master regulator of alveolar cells (Oakes et al., 2008; Choi et al., 2009); SLUG (SNAIL2) was shown as a master regulator of MaSCs, and it could reprogram differentiated MECs to transplantable MaSCs, together with another TF, SOX9 (Guo et al., 2012). In this work, we asked whether RUNX1 is an integral part of this transcription network and how its mutations contribute to breast tumorigenesis. By using genetic, cellular, and molecular approaches, we found that RUNX1 is a key regulator of estrogen receptor (ER)-positive mature ductal luminal cells, and that the loss of RUNX1 may contribute to the development of ER+ luminal breast cancer when under the background of either TP53 or RB1 loss.

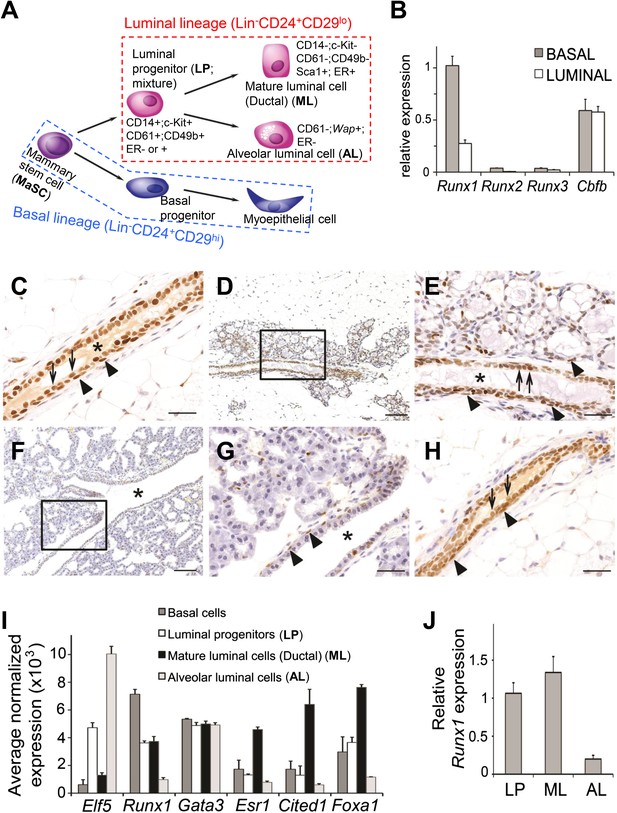

Figure 1 with 1 supplement see all
Expression pattern of Runx1 in murine MGs.

(A) Schematic diagram of a simplified version of the MEC hierarchy. MECs can be separated into the luminal and basal lineages. Major MEC subpopulations, their names and name abbreviations, as well as their marker expression patterns are shown. Note: ‘luminal progenitor (LP)’ has been used to refer to progenitor cells for the luminal lineage defined based on either CD61 (Asselin-Labat et al., 2007), or CD14 and c-Kit (Asselin-Labat et al., 2011), or CD49b (Li et al., 2009; Shehata et al., 2012), and is therefore a mixture of overlapping progenitor cell populations and may include common or separate progenitors for ductal and alveolar luminal cells. (B) qRT-PCR analysis of Runx1, Runx2, Runx3, and Cbfb transcripts isolated from luminal and basal cells of adult virgin female mice. (CH) IHC staining for RUNX1 on sections of MGs at different developmental stages: (C) adult virgin, (DE) mid-gestation (the region highlighted in D is shown in E), (FG) lactation (the region highlighted in F is shown in G), and (H) after involution. Arrows and arrowheads indicate RUNX1-expressing luminal and basal cells, respectively; * indicates lumen. Scale bars = 20 μm. (I) Relative expression values of indicated genes determined by microarray analysis of the indicated MEC subpopulations isolated from the MGs of adult virgin female mice. ALs were isolated as YFP+ cells from Wap-Cre;R26Y females (i.e., MECs genetically marked by the Wap-Cre transgene) during mid-gestation. Affymetrix probes used to estimate expression of each indicated gene are 1419555_at, 1422864_at, 1448886_at, 1435663_at, 1449031_at, and 1418496_at for Elf5, Runx1, Gata3, Esr1, Cited1, and Foxa1, respectively. (J) Runx1 expression levels were confirmed in sorted LPs, MLs, and ALs (as in I) by qRT-PCR.

https://doi.org/10.7554/eLife.03881.003

Results

Runx1 is expressed in all MEC subsets except in alveolar luminal cells

We first measured expression levels of all three Runx genes and their common co-factor gene Cbfb in freshly sorted basal epithelial cells (LinCD24+CD29hi) and luminal epithelial cells (LinCD24+CD29lo) (Figure 1A) from adult virgin female mice by quantitative RT-PCR (qRT-PCR). Results showed that Runx1 is the predominantly expressed Runx gene in both luminal and basal cells (Figure 1B). Immunohistochemical (IHC) staining further confirmed the expression of RUNX1 protein in these two major MEC types in adult virgin MGs (Figure 1C). However, RUNX1 expression is largely absent in alveolar luminal cells (ALs) that start to emerge during pregnancy (Figure 1D–E). In the lactating gland, the only MEC type that still expresses RUNX1 is the myoepithelial cell (Figure 1F–G). Upon involution, RUNX1 expression is restored to a pattern resembling that of the virgin gland (Figure 1H). Additionally, we performed microarray expression profiling of sorted subsets of MECs, including basal cells (LinCD24+CD29hi), luminal progenitors (LPs, LinCD24+CD29loCD61+), mature luminal cells (MLs, LinCD24+CD29loCD61, mainly represent ductal luminal cells in virgin MGs), and alveolar luminal cells (ALs, i.e., MECs genetically marked by Wap-Cre at mid-gestation; Wap-Cre is a transgenic mouse line with Cre expression under the control of the Whey acidic protein [Wap] promoter, a milk protein promoter [Wagner et al., 1997]). Estimation of Runx1 levels based on this microarray dataset confirmed its expression in all MEC subsets except in ALs (Figure 1I). We examined Runx1 expression levels in different subsets of MECs in several additional published microarray datasets (Asselin-Labat et al., 2010; Lim et al., 2010; Meier-Abt et al., 2013) and further confirmed this expression pattern (Figure 1—figure supplement 1A–C); in particular, in the pregnant MGs, Runx1 was also found expressed in basal MECs but not in luminal MECs (mainly ALs) (Figure 1—figure supplement 1C). Lastly, by qRT-PCR, we verified that Runx1 was indeed expressed in sorted LPs and MLs but not in Wap-Cre-marked ALs (Figure 1J).

Loss of Runx1 in MECs affects multiple MEC subsets

The RUNX1 mutations identified from the recent sequencing studies of human breast cancers include point mutations, frame-shift mutations, and deletions (Banerji et al., 2012; Cancer Genome Atlas Network, 2012; Ellis et al., 2012). We analyzed the breast cancer-associated missense mutations of RUNX1 to determine whether they lead to loss-of-function of RUNX1 (Figure 2A). Based on a previous alanine-scanning site-directed mutagenesis study (Li et al., 2003), we found that these missense mutations either affect amino acid residues in RUNX1 that directly contact DNA, or disrupt the overall fold of its DNA-binding RUNT domain or abolish its binding to CBFβ, both of which would also perturb its DNA-binding (Figure 2B). Thus, similar to RUNX1 deletions, the point mutations also lead to loss-of-function of RUNX1, due to disrupted DNA-binding ability. Therefore, we asked whether and how the loss of Runx1 could affect the development of normal MECs.

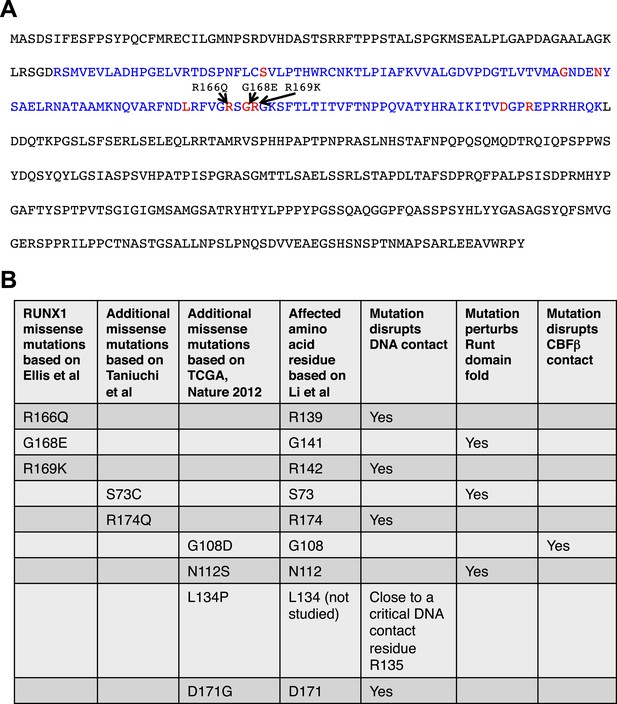

Analysis of RUNX1 mutations.

RUNX1 somatic missense mutations identified in human breast cancers disrupt its DNA-binding either directly (disrupting direct DNA contact) or indirectly (disrupting the overall protein fold of its DNA-binding RUNT domain or disrupting CBFβ binding). (A) RUNX1 full-length protein sequence; RUNT domain is highlighted in blue. The three amino acid residues affected by point mutations in luminal breast cancers (based on Ellis et al. (2012)) are shown in red. Several additional missense mutations (based on Cancer Genome Atlas Network (2012); Taniuchi et al. (2012)) are also highlighted with red font. (B) How these missense mutations affect RUNX1 DNA-binding is predicted based on a previous structural and biochemical analysis of the RUNT domain (Li et al., 2003).

https://doi.org/10.7554/eLife.03881.005

Runx1−/− mice died during mid-gestation mainly due to hemorrhages in the central nervous system and are thus not suitable to determine the effect of Runx1-loss on MG development (Okuda et al., 1996; Wang et al., 1996). We therefore used a conditional knockout allele of Runx1 (Runx1L/L) (Li et al., 2006b). To facilitate characterization of Runx1-null MECs, we bred in a conditional Cre-reporter, Rosa26-Stop-YFP (R26Y). Cross of the floxed Runx1 mice with the R26Y reporter mice and MMTV-Cre transgenic mice allowed us to simultaneously disrupt Runx1 in MECs and mark the targeted cells by Yellow Fluorescent Protein (YFP) (Figure 3A). Lineage analysis revealed that in virgin MGs, MMTV-Cre mainly targeted MECs in the luminal lineage, but it could also lead to Cre-mediated recombination in a portion of basal MECs (Figure 3B). By fluorescence-activated cell sorting (FACS), we isolated YFP+ MECs from MMTV-Cre;Runx1L/L;R26Y females and MMTV-Cre;Runx1L/+ and +/+;R26Y control females and by qRT-PCR, we confirmed the loss of Runx1 expression in YFP+ MECs from MMTV-Cre;Runx1L/L;R26Y females (Figure 3C). Whole-mount analysis of MGs from MMTV-Cre;Runx1L/L;R26Y virgin females or dams on lactation day-0 did not reveal any obvious gross morphological abnormalities, although a portion (3 out of 7) of MMTV-Cre;Runx1L/L;R26Y females exhibited a slight delay in expansion of their ductal trees during pubertal growth (Figure 3—figure supplement 1A). Surprisingly, however, none of the MMTV-Cre;Runx1L/L;R26Y dams were able to successfully nurse their pups (Figure 3—figure supplement 1B). Most of their pups died within 24 hr postpartum and no milk spots were observed in them compared to pups from MMTV-Cre;Runx1+/+(or L/+);R26Y dams. A closer examination of MGs of lactating MMTV-Cre;Runx1L/L;R26Y females revealed milk stasis and an increasing number of cytoplasmic lipid droplets (Figure 3—figure supplement 1C). Similar phenotypes have also been observed in Runx1 conditional knockout mice with Krt14-Cre (i.e., Cre-expressing transgenic mice under the control of the Keratin 14 promoter) (Krt14-Cre;Runx1L/L, data not shown) and in a number of genetically engineered mice with defects in myoepithelial cell contraction and milk ejection (Li et al., 2006a; Plante et al., 2010; Haaksma et al., 2011; Weymouth et al., 2012). Since Runx1 is only expressed in myoepithelial cells at this stage (Figure 1D–G,I, and Figure 1—figure supplement 1C), we reasoned that the nursing defects observed are most likely due to a disrupted function of RUNX1 in myoepithelial cells. Additional studies are required to determine this.

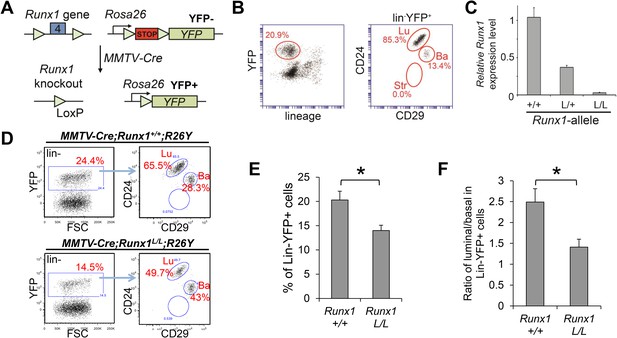

Figure 3 with 1 supplement see all
Runx1-loss leads to a reduction in the luminal MEC population.

(A) Schematic representation of the Runx1 conditional knockout allele in which its exon 4 is flanked by loxP sites, as well as the R26Y conditional Cre-reporter. STOP: transcriptional stopper cassette. Subsequent breeding with MMTV-Cre resulted in mice in which selected subsets of MECs express YFP and lack expression of functional RUNX1. (B) FACS gating strategy for detecting linYFP+ (lin: lineage markers) MECs, as well as YFP+ linCD24+CD29lo luminal (Lu), and linCD24+CD29hi basal (Ba) MECs in MMTV-Cre;R26Y females. Str: stromal cells. (C) qRT-PCR analysis confirming the loss of Runx1 expression in YFP+ MECs sorted from MMTV-Cre;Runx1L/L;R26Y females (L/L). (D) FACS analysis showing the reduced linYFP+ MEC population (left plots), as well as the reduced linYFP+ luminal population (right plots), in MMTV-Cre;Runx1L/L;R26Y female compared to those in MMTV-Cre;Runx1+/+;R26Y control female. (EF) The percentages of linYFP+ MEC population (E), as well as the ratios of luminal/basal subpopulations among the linYFP+ gate (F), are significantly reduced in MMTV-Cre;Runx1L/L;R26Y females (n = 9) (L/L) compared to those in MMTV-Cre;Runx1+/+;R26Y control females (n = 10) (+/+). p values: *: p ≤ 0.05; error bars represent mean ± S.E.M.

https://doi.org/10.7554/eLife.03881.006

In MMTV-Cre;Runx1L/L;R26Y virgin females, we found that the percentages of the YFP-marked MEC population (representing Runx1-null MECs) were significantly reduced when compared to those of the MMTV-Cre;Runx1+/+;R26Y control females (Figure 3D–E). Furthermore, the ratios of the YFP-marked luminal to basal subsets were also significantly reduced in MMTV-Cre;Runx1L/L;R26Y females (Figure 3D,F); this could be due to an expansion of the YFP-marked basal population or a reduction in the YFP-marked luminal population, or both. However, since the overall population of YFP+ MECs in MMTV-Cre;Runx1L/L;R26Y females was reduced (Figure 3D–E), the reduction in the YFP+ luminal/basal ratio was most likely due to a reduction in the YFP-marked Runx1-null luminal population.

Loss of Runx1 leads to a profound reduction in ER+ mature luminal cells

Recent studies suggest that most breast cancers, including both basal-like and luminal subtypes, may originate from luminal cells, rather than from basal MaSCs (Lim et al., 2009; Molyneux et al., 2010; Proia et al., 2011; Keller et al., 2012). Furthermore, RUNX1 and CBFB mutations have only been found in the luminal subtype of human breast cancers (Banerji et al., 2012; Cancer Genome Atlas Network, 2012; Ellis et al., 2012) and our data so far showed that the loss of Runx1 appeared to lead to a reduction in the luminal population (Figure 3D–F), we therefore examined the role of RUNX1 in luminal MECs (from which luminal breast cancers may originate).

To determine the overall defects of Runx1-null luminal MECs, we first profiled the transcriptomes of YFP+ Runx1-null luminal cells (sorted from MMTV-Cre;Runx1L/L;R26Y females) and control YFP+ Runx1-wild-type (WT) luminal cells (sorted from MMTV-Cre;Runx1+/+;R26Y) by microarray. By gene set enrichment analysis (GSEA [Subramanian et al., 2005]), we observed significant enrichment of a previously generated LP signature and downregulation of a ML signature in Runx1-null luminal cells (Figure 4A). These LP and ML signatures were generated previously based on subset-specific genes conserved in the corresponding human and mouse MEC subpopulations (Lim et al., 2010). Furthermore, we also observed significant enrichment of multiple gene sets related to p53 signaling in Runx1-null luminal cells in relation to Runx1-WT luminal cells (Figure 4—figure supplement 1A), possibly indicating a stress response in these mutant luminal cells in vivo. Lastly, we examined the expression levels of a number of TF/co-factor genes known to be part of the transcription network that regulates specification and maintenance of luminal MECs. In our microarray data, we found that Elf5, a TF gene critically required in the alveolar cell lineage and a LP marker (Oakes et al., 2008; Choi et al., 2009; Lim et al., 2010), was upregulated in Runx1-null luminal cells, whereas several ductal luminal TF/co-factor genes (e.g., Gata3, Foxa1, Esr1, Cited1) were downregulated (Figure 4—figure supplement 1B). Among these luminal TF/co-factor genes, Foxa1 encodes a pioneer factor that is a key determinant of ERα (encoded by Esr1) function (Bernardo et al., 2010; Hurtado et al., 2011); Cited1 encodes a selective co-activator for estrogen-dependent transcription, which potentially regulates the sensitivity of luminal cells to estrogen (Yahata et al., 2001; Howlin et al., 2006). When validated by qRT-PCR, we found that although the expression of Gata3 did not seem to be significantly affected in luminal cells upon Runx1-loss, expression levels of Foxa1, Esr1, and Cited1 were downregulated in Runx1-null luminal cells, whereas Elf5 expression was upregulated (Figure 4B).

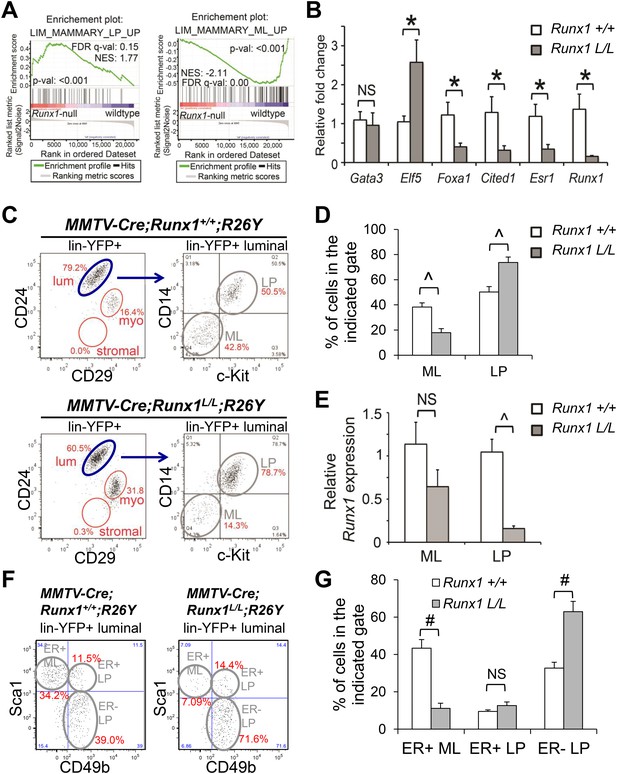

Figure 4 with 1 supplement see all
Runx1 disruption leads to a profound reduction in ER+ MLs.

(A) GSEA enrichment plots showing correlation of the expression profiles of Runx1-null or WT luminal MECs with previously published conserved human and mouse signatures of LPs (left) or MLs (right) (Lim et al., 2010). (B) qRT-PCR validation of TF/co-factor genes known to play roles in luminal lineage specification and maintenance. RNA was isolated from YFP+ Runx1-null and WT primary luminal MECs. (C) FACS plots of expression of CD14 and c-Kit, two LP markers (Asselin-Labat et al., 2011), in the gated YFP+ luminal MECs (LinCD24+CD29lo) of adult MMTV-Cre;Runx1L/L;R26Y virgin females and MMTV-Cre;Runx1+/+;R26Y control females. Note the CD14c-Kit mature luminal (ML) subpopulation was largely lacking in the lower right plot. (D) Quantification of the percentages of the ML and LP subpopulations as indicated in C, showing significant reduction in the ML subpopulation in MMTV-Cre;Runx1L/L;R26Y females (n = 13) compared to that in MMTV-Cre;Runx1+/+;R26Y control females (n = 10). (E) qRT-PCR analysis showing significantly reduced Runx1 expression in the LP subpopulation but not in the ML subpopulation in MMTV-Cre;Runx1L/L;R26Y females. (F) FACS plots of expression of CD49b, a LP marker, and Sca1, an ER+ ML marker (Shehata et al., 2012) in the gated YFP+ luminal MEC population. Note the CD49bSca1+ ER+ ML subpopulation was dramatically reduced, whereas the CD49b+Sca1 ER LP subpopulation was increased in MMTV-Cre;Runx1L/L;R26Y females. (G) Quantification of the percentages of the ER+ ML, ER+ LP, and ER LP subpopulations as indicated in F, showing significant reduction in the ER+ ML subpopulation in MMTV-Cre;Runx1L/L;R26Y females (n = 4) compared to those in MMTV-Cre;Runx1+/+;R26Y control females (n = 4). p values: *: p ≤ 0.05; #: p ≤ 0.005; ^: p ≤ 0.0005; NS = not significant; error bars represent mean ± S.E.M.

https://doi.org/10.7554/eLife.03881.008

Our microarray data for the entire luminal population suggested that Runx1-loss in luminal MECs might lead to either a global block in luminal differentiation or loss of a mature luminal MEC subpopulation. To determine this, we performed FACS analysis of the LinCD24+CD29lo luminal lineage. Intriguingly, we found that in both pubertal and adult virgin MMTV-Cre;Runx1L/L;R26Y females, the YFP+ Runx1-null ML subpopulation defined based on CD14 and c-Kit staining (LinCD24+CD29loCD14c-Kit, referred to as CD14c-Kit MLs hereafter) (Asselin-Labat et al., 2011) was significantly reduced, whereas the YFP+ Runx1-null LP subpopulation (LinCD24+CD29loCD14+c-Kit+, referred to as CD14+c-Kit+ LPs hereafter) was increased (Figure 4C–D, Figure 4—figure supplement 1C–D). The reduction in the ML subpopulation was further confirmed in adult virgin MMTV-Cre;Runx1L/L;R26Y females based on CD61 staining (MLs: LinCD29loCD61) (Asselin-Labat et al., 2007) (Figure 4—figure supplement 1E–F).

The residual YFP+ MECs in the ML gate in MMTV-Cre;Runx1L/L;R26Y virgin females could either represent a truly Runx1-null ML subpopulation (but reduced in percentage) or represent YFP-marked MLs that have escaped Cre-mediated disruption of the Runx1L allele (thus not truly Runx1-null). To determine this, we sorted YFP+ CD14c-Kit MLs from MMTV-Cre;Runx1L/L;R26Y virgin females and MMTV-Cre;Runx1+/+;R26Y control females; as an internal control, we also sorted YFP+ CD14+c-Kit+ LPs from the same animals. By qRT-PCR, we found that while Runx1 expression in YFP+ LPs from MMTV-Cre;Runx1L/L;R26Y females was significantly reduced, its expression in YFP-marked MLs was only slightly reduced (Figure 4E). This data suggested that many YFP+ MLs in MMTV-Cre;Runx1L/L;R26Y females might have escaped Cre-mediated excision in at least one copy of their Runx1L alleles (thus they were either Runx1+/+ or Runx1+/−). The data thus also suggests that RUNX1 is essential for the emergence or maintenance of the ML lineage.

A recent study demonstrated that the luminal cell compartment of the mouse MG could be further resolved into non-clonogenic ER+ MLs, as well as clonogenic ER+ LPs and ER LPs based on CD49b and Sca1 staining; the ER+ LPs may represent progenitors for ER+ MLs whereas the ER LPs probably represent alveolar progenitors (Shehata et al., 2012). We examined these luminal subpopulations in the YFP-gated luminal population in MMTV-Cre;Runx1L/L;R26Y virgin females. We found that compared to their corresponding subpopulations in MMTV-Cre;Runx1+/+;R26Y control females, the CD49bSca1+ ER+ ML subpopulation was significantly reduced in MMTV-Cre;Runx1L/L;R26Y females, whereas the CD49b+Sca1 ER LP subpopulation was significantly increased; the CD49b+Sca1+ ER+ LP subpopulation was not significantly altered (Figure 4F–G). Of note, since the overall YFP+ luminal population was significantly reduced in MMTV-Cre;Runx1L/L;R26Y females (Figure 3D–F), the increase in the ER LP subpopulation might be mainly due to a reduction in the ER+ ML subpopulation (thus proportionally increased the percentage of the ER LP subset), rather than a significant expansion of ER LPs per se; similarly, although the percentage of the ER+ LP subpopulation was not significantly changed, the absolute number of YFP+ ER+ LPs could still be reduced (due to an overall reduction in YFP+ luminal MECs). In support of this, we measured Runx1 expression in these three luminal MEC subpopulations. We found that whereas the YFP-marked ER LP subset had a profound reduction in Runx1 expression, the YFP+ ER+ LP subset exhibited a partial reduction in Runx1 transcripts, and the YFP+ ER+ ML subpopulation had almost no loss of Runx1 expression (Figure 4—figure supplement 1G), suggesting RUNX1 is required for both ER+ LPs and ER+ MLs. Collectively, our data suggest that RUNX1 is required for the development or maintenance of the ER+ luminal lineage, and it is particularly essential for the ER+ MLs.

Reduction in the ER+ luminal subpopulation upon Runx1 disruption can be rescued by the loss of either Trp53 or Rb1

From recent whole-genome/exome sequencing studies, RUNX1 and CBFB mutations were only identified in the luminal subtype of human breast cancers (Banerji et al., 2012; Cancer Genome Atlas Network, 2012; Ellis et al., 2012), which are typically ER+. Paradoxically our data so far in the murine model suggest that loss-of-function of Runx1 leads to a reduction in ER+ luminal MECs in vivo. Furthermore, we have followed MMTV-Cre;Runx1L/L;R26Y females for at least 18 months and have not observed any mammary tumor development in them. This can be explained by a possibility in which RUNX1-mutant breast cancer originates from ER+ luminal MECs and Runx1 disruption alone actually leads to the loss of the cell-of-origin of such cancer. We hypothesized that additional genetic events might be needed to cooperate with RUNX1-loss to promote the development of luminal breast cancer from ER+ luminal MECs.

Interestingly, one recent sequencing study unveiled that pathway signatures of RB1 mutation, TP53 mutation, and RUNX1 mutation are co-associated with human luminal B breast tumors (Ellis et al., 2012). Furthermore, by carefully examining luminal breast cancer cases with RUNX1 mutations, we noticed that >50% of them are accompanied by mutations or deletions in either TP53 or RB1 genes (Cancer Genome Atlas Network, 2012). Lastly, our microarray data for luminal MECs suggested that loss of Runx1 might lead to activation of the p53 pathway in luminal cells in general (Figure 4—figure supplement 1A). Based on these observations, we hypothesized that loss of Runx1 in luminal MECs perturbs the fate of ER+ MLs, possibly leading to a stress response and subsequently upregulation of the p53 pathway, which then triggers cell cycle arrest (or apoptosis); this would cause the Runx1-null (YFP+) MLs to be outcompeted by Runx1-WT (YFP) MLs. If this is the case, then either disruption of the p53 pathway or activation of cell cycle by Rb1-loss might rescue the phenotype of ER+ ML cell loss upon Runx1 disruption. To test this, we bred MMTV-Cre;Runx1L/L;R26Y mice to Trp53 or Rb1 conditional knockout mice (Trp53L/L or Rb1L/L). In the resulting compound mice, we were only able to follow MMTV-Cre;Runx1L/L;Trp53L/L;R26Y or MMTV-Cre;Runx1L/L;Rb1L/L;R26Y females for ∼4–5 months or ∼9–10 months, respectively, due to lethality possibly caused by hematopoietic malignancies (as MMTV-Cre has leaky expression in bone marrow hematopoietic cells). Nevertheless, we were able to analyze MEC subpopulations in their MGs. Upon MMTV-Cre-induced Trp53 or Rb1 loss alone, the percentages of YFP-marked MECs increased dramatically so that the majority of MECs in their MGs became YFP+ (Figure 5A, increased from ∼20–30% to ∼70–90%), suggesting a growth advantage for Trp53-null or Rb1-null MECs (in relation to their Trp53-WT or Rb1-WT YFP neighbors). However, the percentages of the YFP-marked luminal population were both reduced (Figure 5A, middle and bottom left plots compared to upper left plot, green circles). Interestingly, disruption of Runx1 either together with Trp53 or with Rb1 significantly increased the percentages of the YFP+ luminal population (Figure 5A–C, increased from ∼4% [Trp53-loss alone] to ∼11% [Runx1/Trp53-loss] [Figure 5B] and from ∼12% [Rb1-loss alone] to ∼23% [Runx1/Rb1-loss] [Figure 5C], respectively). Of particular note, the percentage of the YFP-marked ML subpopulation, which was dramatically reduced upon Runx1-loss alone (Figure 5A, upper right plot, red circle), was reverted back to almost the normal level upon simultaneous loss of Runx1 together with either Trp53 or Rb1 (Figure 5A, middle right plot for Trp53 [5B for quantification], bottom right plot for Rb1 [5C for quantification], red circles). To verify the presence of ER+ MECs in the MGs of these compound female mice, we performed IHC staining for ERα and could indeed detect abundant ERα+ luminal MECs in both MMTV-Cre;Runx1L/L;Trp53L/L;R26Y and MMTV-Cre;Runx1L/L;Rb1L/L;R26Y compound females (Figure 5—figure supplement 1A–B, since the majority of MECs in their MGs were YFP+, most of these ERα+ MECs should represent MECs with simultaneous loss of Runx1 and Trp53 or Rb1). As the residual YFP+ MECs in the ML gate from MMTV-Cre;Runx1L/L;R26Y females (Runx1-loss alone) appear to have escaped Cre-mediated excision in at least one Runx1L allele (Figure 4E), we wanted to determine whether YFP+ MLs in these compound mice had undergone (or escaped) Cre-mediated excision of their Runx1L alleles. By qRT-PCR analysis, we observed more than 50% reduction in the Runx1 expression level in the YFP-marked ML subpopulation sorted from MMTV-Cre;Runx1L/L;Rb1L/L;R26Y females (Figure 5D), suggesting a significant portion of these YFP+ MLs should have undergone biallelic excision of their Runx1L alleles.

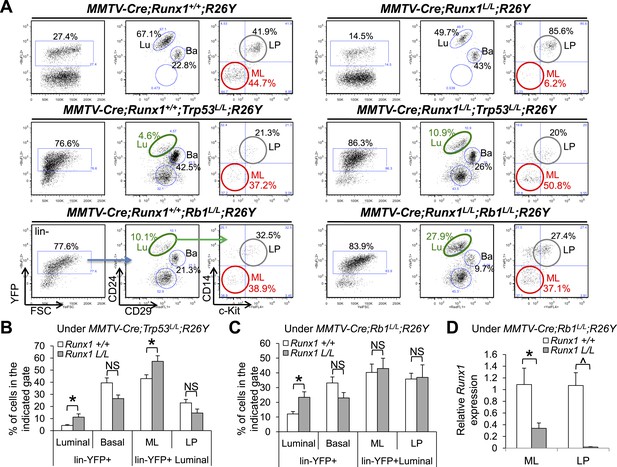

Figure 5 with 1 supplement see all
Reduction in ER+ MLs upon Runx1 disruption can be rescued by Trp53 or Rb1 loss.

(A) FACS analysis showing total linYFP+ MEC population, linYFP+ luminal population, and linYFP+ ML and LP subpopulations (from left to right for each genotype, an example of the gating strategy is indicated in the bottom left plots) in female mice with the indicated genotypes. Those highlighted in green show increased linYFP+ luminal populations upon the loss of both Runx1 and Trp53 or Rb1 (middle and bottom right plots, respectively) compared to those of Trp53 or Rb1 loss alone (middle and bottom left plots, respectively); those highlighted in red show increased linYFP+ ML subpopulations upon the loss of both Runx1 and Trp53 or Rb1 (middle and bottom right plots, respectively) compared to that of Runx1-loss alone (upper right plot). Lu: luminal; Ba: basal; LP: luminal progenitor; ML: mature luminal cell. (BC) Quantifications for the percentages of each indicated subpopulation in A under either the Trp53-loss (B) or Rb1-loss background (C); in (B) Trp53-loss alone (n = 5), Trp53/Runx1-loss (n = 3); in (C) Rb1-loss alone (n = 5), Rb1/Runx1-loss (n = 5). (D) qRT-PCR analysis showing significantly reduced Runx1 expression in both the YFP-marked ML and LP subpopulations in MMTV-Cre;Runx1L/L;Rb1L/L;R26Y females. p values: *: p ≤ 0.05; ^: p ≤ 0.0005; NS = not significant; error bars represent mean ± S.E.M.

https://doi.org/10.7554/eLife.03881.011

RUNX1 controls transcription of select target genes in vitro

Since Runx1-loss leads to a reduction in ER+ MLs and the residual MECs present in the CD14c-Kit or CD49bSca1+ ML gate appear to have escaped Cre-mediated disruption of Runx1 (Figure 4, Figure 4—figure supplement 1), it is technically challenging to study how RUNX1 controls the fate of ER+ luminal cells at the molecular level in this mouse model directly. Therefore, we first performed molecular studies in human breast cancer cell lines MCF7 and T47D. Although both cell lines are ER+ luminal breast cancer cell lines, a key difference between them at the molecular level is that MCF7 cells express WT p53, whereas T47D cells carry a TP53 missense mutation (nonfunctional p53) (Schafer et al., 2000). Interestingly, despite multiple attempts, we were only able to obtain RUNX1 knockdown (kd) stable lines from TP53-mutant T47D cells but not from TP53-WT MCF7 cells. This observation suggests that a similar genetic interaction between RUNX1-loss and TP53-loss may also operate in human ER+ luminal breast cells. We therefore used T47D cells as our cell line model to study how RUNX1 controls the fate of ER+ luminal breast epithelial cells. By Western blot, we found that upon RUNX1 kd, the protein level of ELF5 was increased, whereas the protein levels of both ERα and FOXA1 were reduced, and CITED1 protein level appeared unchanged (Figure 6A).

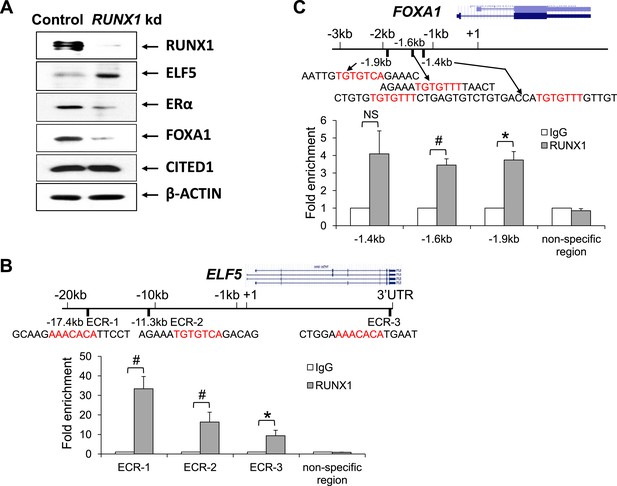

Figure 6 with 1 supplement see all
RUNX1 controls transcription of select target genes in human ER+ breast cancer cells.

(A) Western blot showing upregulation of ELF5 and downregulation of ERα and FOXA1 upon RUNX1 knockdown (kd) in T47D luminal breast cancer cells. (B) ChIP analysis showing significant binding of RUNX1 to multiple ECRs (evolutionarily conserved regions) with RUNX-binding sites in the ELF5 locus in T47D cells. (C) ChIP analysis showing significant binding of RUNX1 to the −1.6 kb and −1.9 kb regions of FOXA1 in T47D cells. RUNX1-binding to the −1.4 kb region is marginally significant (p = 0.08). In (BC), RUNX1-binding motifs (highlighted in red) and their flanking sequences are shown; note RUNX1-binding motifs in ECR-1 and ECR-3 of ELF5 (B) are in the reverse strand. p values: *: p ≤ 0.05; #: p ≤ 0.005; NS = not significant; error bars represent mean ± S.E.M.

https://doi.org/10.7554/eLife.03881.013

ELF5 is a master regulator of alveolar cells, a cell type in which Runx1 is not expressed (Figure 1D–J, Figure 1—figure supplement 1C). Interestingly, it was shown previously that RUNX1 is a direct target of ELF5 and is repressed by it, based on chromatin immunoprecipitation (ChIP) analysis (Kalyuga et al., 2012). In our microarray data for sorted MEC subsets, as well as those publicly available microarray datasets we analyzed, we could always observe a largely opposite expression pattern of Elf5 and Runx1 (Figure 1I, Figure 1—figure supplement 1). In both basal cells and MLs in which Runx1 is highly expressed, Elf5 is not; Elf5 expression is greatly elevated in ALs whereas Runx1 expression is repressed. This negative correlation in their expression levels could be further confirmed in the HC11 cell line model. While both Runx1 and Elf5 were expressed in uninduced HC11 cells, upon induction of alveolar differentiation, the ELF5 protein level was increased, whereas the RUNX1 protein level was reduced (Figure 6—figure supplement 1). To determine whether ELF5 is also a direct target of RUNX1, we performed ChIP analysis on T47D cells and identified significant binding of RUNX1 to multiple evolutionary conserved RUNX-binding sites in the ELF5 locus (Figure 6B). The RUNX1-binding was particularly profound in an enhancer region ∼17 kb upstream of the ELF5 transcription start site (ECR-1, Figure 6B).

Since RUNX1 kd in T47D cells led to downregulation of ERα and FOXA1 (Figure 6A), we asked whether ESR1 (encoding ERα) and FOXA1 are direct targets of RUNX1. We identified a RUNX-binding motif in the ESR1 control region ∼1.4 kb upstream of its transcription start site, as well as several RUNX-binding motifs in the FOXA1 control region ∼1.4–1.9 kb upstream of its transcription start site. By ChIP assay, we confirmed significant binding of RUNX1 to the −1.6 kb and −1.9 kb motifs in the FOXA1 locus (Figure 6C). Collectively, these data suggest that FOXA1 and ELF5 genes may be direct targets of RUNX1 positively and negatively regulated by it, respectively.

RUNX1 represses Elf5 and regulates mature luminal TF/co-factor genes involved in the ER program in vivo

To determine whether RUNX1 regulates the expression of these transcription regulators in primary cells in vivo, we took advantage of the rescue of Runx1-null ER+ luminal MECs by Trp53 or Rb1-loss (Figure 5) and measured expression of these genes in FACS-sorted YFP+ luminal MEC subsets. We used MMTV-Cre;Runx1L/L;Rb1L/L;R26Y double mutant and MMTV-Cre;Rb1L/L;R26Y single mutant females for this analysis, as MMTV-Cre;Runx1L/L;Trp53L/L;R26Y double mutant females often exhibit early lethality. When comparing double mutants (with Rb1/Runx1-loss) to single mutants (with Rb1-loss alone), we found that both Elf5 and Esr1 appeared upregulated in ER+ LPs and ER+ MLs (based on CD49 and Sca1 staining) from double mutants (Figure 7A–B, left plots), and Foxa1 and Cited1 were downregulated in the rescued double mutant ER+ MLs (Figure 7B, left plot). Since we cannot rule out a possibility in which Rb1-loss in MECs also affects expression of these genes, we compared their expression in double mutants to matched WT females as well. From this comparison, we found that both Elf5 and Esr1 were also upregulated and Foxa1 and Cited1 were slightly downregulated in ER+ LPs and ER+ MLs from double mutants (Figure 7A–B, right plots). Furthermore, as we showed above, in MMTV-Cre;Runx1L/L;R26Y females, although the YFP-marked ER+ MLs appeared to have escaped Cre-mediated disruption of the Runx1L allele, the YFP-marked ER+ LP subset did exhibit a partial reduction in Runx1 expression (Figure 4—figure supplement 1G). We therefore asked whether there is any correlation of reduced Runx1 expression to changes in expression of other genes in this MEC subset. Interestingly, we found that in Runx1-mutant ER+ LPs both Elf5 and Esr1 were upregulated and Foxa1 and Cited1 also appeared slightly upregulated (Figure 7—figure supplement 1A).

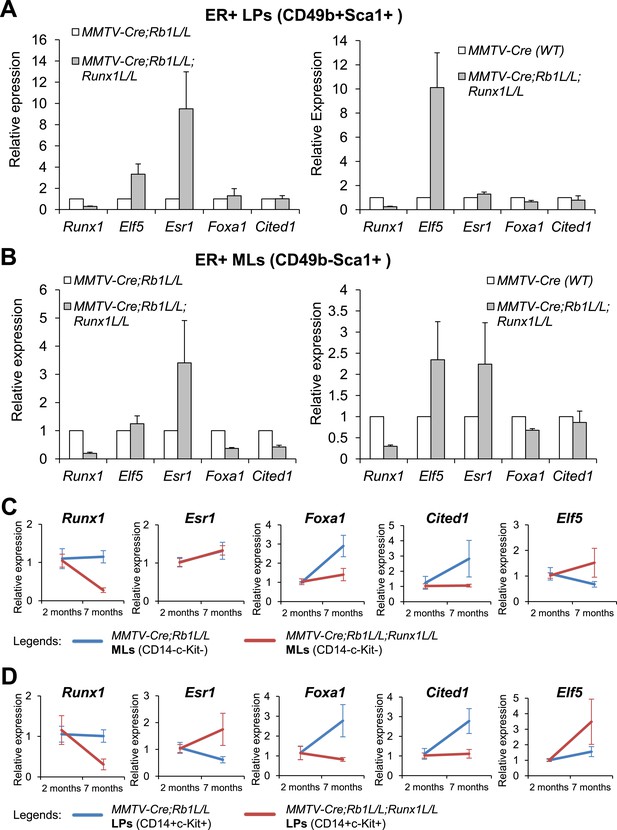

Figure 7 with 2 supplements see all
Target genes of RUNX1 in ER+ luminal MECs revealed by in vivo expression analysis.

(AB) qRT-PCR analysis showing changes in expression of the indicated genes in sorted YFP+ ER+ LPs (A) and ER+ MLs (B) (based on CD49b and Sca1 expression) from 4- to 5-month old MMTV-Cre;Rb1L/L;Runx1L/L;R26Y double mutant females, compared to those from either MMTV-Cre;Rb1L/L;R26Y single mutant females (left plots) or MMTV-Cre;R26Y WT females (right plots). (CD) qRT-PCR analysis comparing expression of the indicated genes in CD14c-Kit MLs (C) and CD14+c-Kit+ LPs (D) from 7-month to 2-month old MMTV-Cre;Rb1L/L;Runx1L/L;R26Y double mutant and MMTV-Cre;Rb1L/L;R26Y single mutant (control) females. Expression was normalized to those of the corresponding 2-month old double or single mutant females, respectively. Error bars: mean ± S.E.M.

https://doi.org/10.7554/eLife.03881.016

Thus, from both cell line and in vivo expression analyses, the gene that exhibits the most consistent change upon Runx1-loss is Elf5, which appears to be a target gene of RUNX1 repressed by it in ER+ luminal MECs. Intriguingly, we found that upregulation of Elf5 upon Runx1 disruption is not restricted to ER+ luminal cells and/or the Rb1-loss genetic background. In LPs defined based on either CD14+c-Kit+ or CD49b+Sca1 where Elf5 is abundantly expressed, loss of Runx1 further increased their Elf5 expression (Figure 7—figure supplement 1B). Strikingly, in basal MECs where Elf5 is normally not expressed (Figure 1I, Figure 1—figure supplement 1), loss of Runx1 led to its profound upregulation (Figure 7—figure supplement 1B). These data suggest that in normal MGs, RUNX1 represses expression of Elf5 in almost all MEC subsets in which Runx1 is expressed.

Our in vivo data showed that Esr1 is upregulated rather than downregulated (based on the in vitro data in T47D cells, Figure 6A) in ER+ luminal MECs upon Runx1-loss. This is most likely due to hyperproliferation of Runx1-null ER+ luminal MECs under the Rb1 (or Trp53)-null background, rather than de-repression of Esr1 expression caused by Runx1-loss. Several lines of evidence support this notion. First, in Runx1/Rb1-double mutant females, we not only observed a slight increase in the percentages of total YFP+ MECs (Figure 5A) but also an increase in both the YFP+ luminal subset and, in particular, the YFP-marked ER+ LP and ER+ ML subpopulations (Figure 5A–C, Figure 7—figure supplement 2A). In TP53-mutant T47D cells, we found that kd of RUNX1 leads to a significant increase in their proliferation (Figure 7—figure supplement 2B). Furthermore, we quantified ERα+ luminal MECs in MGs with either Runx1/Rb1-loss or Runx1/Trp53-loss and found that both double mutants contained significantly more ERα+ MECs than single Rb1-loss or Trp53-loss mutants (Figure 7—figure supplement 2C–D). Since our expression analysis was based on FACS-sorted MEC subsets (e.g., LP, ML) and each subset may represent a mixture of both ER+ and ER MECs (with different proportions), a change in this proportion, due to overrepresentation of the rescued ER+ luminal cells in the FACS-sorted MEC subpopulations from Rb1/Runx1-null double mutants, may contribute to the ostensibly higher Esr1 transcript signals in double mutant ER+ LPs and ER+ MLs (Figure 7A–B). Lastly, we found that Esr1 upregulation in vivo appears restricted to the Runx1-null ER+ luminal MECs; in ER LPs and ER basal MECs, we did not observe upregulation of Esr1 expression upon Runx1 disruption (Figure 7—figure supplement 1C). This is apparently different from negative regulation of Elf5 by RUNX1, in which loss of Runx1 leads to expression of Elf5 even in basal cells in which Elf5 is normally not expressed (Figure 7—figure supplement 1B). This is also different from a recent finding of repression of Esr1 by ID4, as loss of Id4 leads to widespread upregulation of Esr1 expression in both luminal and basal MECs (Best et al., 2014). Collectively, these data suggest that Esr1 is not a direct target repressed by RUNX1 in vivo; the downregulation of ERα in vitro in T47D cells upon RUNX1 kd is likely to be indirect (e.g., due to RUNX1 loss-induced upregulation of ELF5, as overexpression of ELF5 in T47D cells can also suppress ERα expression [Kalyuga et al., 2012]).

The higher Esr1 signal makes it challenging to accurately quantify any potential changes in expression levels of ER-related mature luminal genes upon Runx1 disruption, by simply comparing their expression in double to single mutants or to WT controls (as the matched MEC subsets based on FACS sorting may have different cell compositions, if Runx1-null ER+ luminal MECs become over-populated). Interestingly, we noticed that in YFP+ MLs from MMTV-Cre;Runx1L/L;Rb1L/L;R26Y females, Runx1 reduction became more profound in older females. We therefore similarly monitored changes in expression of other TF/co-factor genes over time in animals with the same genotype. This strategy may allow us to control for gene expression changes introduced by differences in cell populations or genetic backgrounds. By using this strategy, we found that in Rb1-null single mutants (controls), Esr1, Foxa1, and Cited1 were upregulated and Elf5 was downregulated in their YFP+ CD14c-Kit MLs when they aged; however, in YFP+ MLs from double mutants, following Runx1 reduction, although Esr1 was upregulated to a similar level (to that of single mutants), Foxa1 and Cited1 were not, and Elf5 was even further upregulated (Figure 7C). We also observed a similar trend of changes for Foxa1, Cited1, and Elf5 in YFP+ CD14+c-Kit+ LPs from the same animals (Figure 7D). Of note, Esr1 expression in these LPs appeared further upregulated in older females, possibly due to hyperproliferation of the rescued ER+ luminal cells within this largely ER LP subpopulation (the LP subset defined based on CD14+c-Kit+ contains a small number of ER+ cells [Shehata et al., 2012]). Overall, the data from this time course study further supports that in ER+ luminal cells, RUNX1 negatively and positively regulates the expression of Elf5 and mature luminal TF/co-factor genes (e.g., Foxa1 and Cited1), respectively.

As shown above, in YFP+ ER+ LPs from MMTV-Cre;Runx1L/L;R26Y females with partial Runx1 reduction, we observed an abnormal expression pattern of these TF/co-factor genes (i.e., upregulation of both Elf5 and Esr1 and slight upregulation of Foxa1 and Cited1, Figure 7—figure supplement 1A). This may be explained by a possibility in which a portion of them are committed for differentiation to ER+ MLs by upregulating Esr1; however due to Runx1-loss, Elf5 is not repressed and Foxa1 is not sufficiently upregulated in them, potentially leading to an abnormal population of Elf5+Esr1highFoxa1lowCited1low ML-like cells retained in the ER+ LP FACS gate. A small number of such abnormal Runx1-null ER+ ML-like cells may also be present in the ML FACS gate. These abnormal luminal MECs may be the target cells rescued for proliferation under the Rb1-loss background, and their hyperproliferation may contribute to the unusual Elf5+Esr1highFoxa1lowCited1low expression pattern (Figure 7C–D). As a further support to this notion, we measured expression levels of these TF/co-factor genes in the ER LP, ER+ LP, and ER+ ML subsets sorted from WT animals and found that Elf5 expression trends down, whereas expression of Esr1, Foxa1, and Cited1 similarly trends up, from ER LPs to ER+ LPs and then to ER+ MLs, and that Runx1 expression is also elevated from ER+ LPs to ER+ MLs (Figure 7—figure supplement 2E). This expression pattern suggests that differentiation of ER+ luminal MECs requires coordinated expression of these factors and Runx1-loss may disrupt their coordinated expression.

Collectively, our in vitro and in vivo expression analyses coupled with ChIP analysis suggest that Elf5 is a key target gene of RUNX1 repressed by it in MECs. RUNX1 also positively regulates the expression of mature luminal TF/co-factor genes involved in the ER program and among them, Foxa1 is a direct target of RUNX1, and RUNX1 does not appear to regulate transcription of Esr1 directly.

Discussion

Among TFs that control cell fates of the two subpopulations of luminal MECs, GATA3 has been shown as a common master regulator for both ER+ ductal luminal cells and ER alveolar luminal cells (Kouros-Mehr et al., 2006; Asselin-Labat et al., 2007), whereas ELF5 has been identified as a key regulatory TF specific for the alveolar luminal subset (Oakes et al., 2008; Choi et al., 2009). However, what is the TF that specifically controls the fate of the ER+ ductal luminal subset remained largely elusive. In this study, we identified RUNX1 as a key regulator of ER+ luminal MECs. RUNX1 controls the in vivo fate of this luminal subpopulation by repressing the program for an alternative cell fate choice (i.e., repressing the key TF gene for alveolar cells, Elf5) and by optimizing activation of the ML gene expression program (i.e., regulating key mature luminal TF/co-factor genes such as Foxa1) (Figure 8A). Loss of Runx1 impairs the fate of ER+ luminal cells, leading to a profound reduction in this luminal subpopulation. However, the loss of either Trp53 or Rb1 can rescue this defect, leading to hyperproliferation of Runx1-mutant ER+ luminal cells, which may eventually progress to ER+ luminal breast cancer, upon acquisition of additional mutations (Figure 8B). Our study thus provides a direct link between a somatically mutated lineage-specific TF, impaired cell fate, and development of luminal breast cancer.

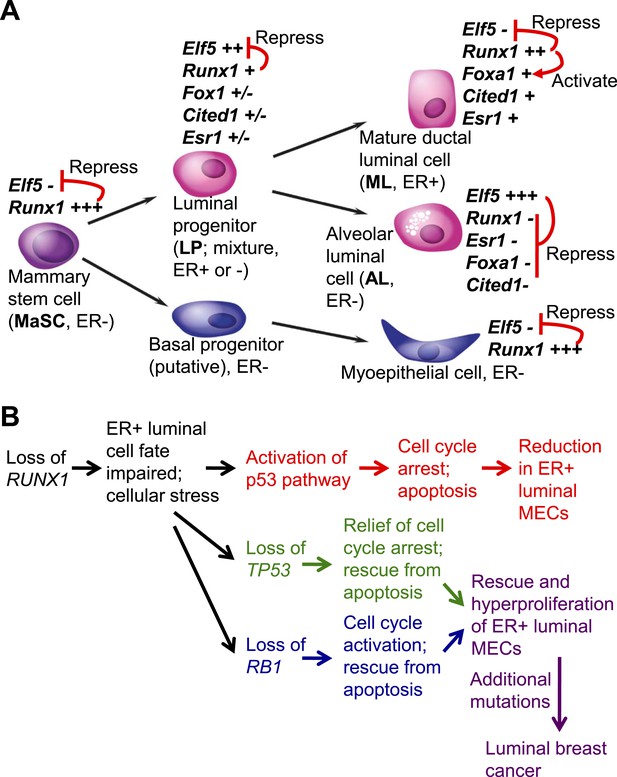

Model for the role of RUNX1 in ER+ mammary luminal cells and luminal breast cancer.

(A) Relative expression levels of key TFs in different subsets of MECs are indicated (‘+++’, ‘++’, ‘+’, ‘±’, ‘−’ indicate highest to low to no expression, based on [Figure 1I] and our single cell profiling data for sorted MECs [MPAvB and ZL, unpublished data]). RUNX1 or ELF5 controls the ductal or alveolar luminal cell fate, respectively, by antagonizing each other. RUNX1 further controls the fate of ER+ ductal luminal MECs by regulating the ER program via modulating FOXA1 expression. (B) Genetic interaction between the loss of RUNX1 and the loss of either TP53 or RB1 plays a key role in the development of RUNX1-mutant ER+ luminal breast cancer.

https://doi.org/10.7554/eLife.03881.019

Among RUNX1 target genes, the repressed Elf5 is of particular interest, as it encodes a master regulatory TF for the alternative cell fate of the milk-secreting alveolar lineage in which Runx1 is not expressed (Figure 1D–G,I–J). We showed that ELF5 is a direct target of RUNX1 and is repressed by it (Figures 6A–B and 7). Thus, combined with the previous observation in which RUNX1 was reciprocally shown as a direct target repressed by ELF5 (Kalyuga et al., 2012), these data suggest that RUNX1 and ELF5 are two master regulators for mutually exclusive cell fate choices (i.e., ductal vs alveolar fates) by antagonizing each other's transcription program (e.g., RUNX1 promotes the ER program [this study], whereas ELF5 suppresses it [Kalyuga et al., 2012]) (Figure 8A) in a way similar to the GATA1-PU.1 paradigm for regulating the choice between erythroid and myeloid fates (Huang et al., 2007).

Intriguingly, RUNX1 not only represses Elf5 expression in ER+ luminal cells but also in all other MEC subsets in which Runx1 is expressed (Figure 7—figure supplement 1B). The de-repression of Elf5 in basal MECs may also be of clinical relevance. Recently it was found that RUNX1 protein expression correlates with poor prognosis in ER breast cancer and more specifically in triple-negative breast cancer (TNBC) (Ferrari et al., 2014). Furthermore, RUNX1 was also found associated with super-enhancers in an ER breast cancer cell line (Hnisz et al., 2013). As super-enhancers often associate with key oncogenes in cancer cells (Loven et al., 2013), these recent findings suggest that RUNX1 may also play an oncogenic role in ER breast cancers. The link between RUNX1 and ELF5 in basal MECs may explain a potential oncogenic role of RUNX1 in ER breast cancer/TNBC, as it was shown previously that SNAI2 (encodes SLUG) is a target of ELF5 repressed by it (Chakrabarti et al., 2012). Thus, it is possible that RUNX1 expression in ER breast cancer cells may repress ELF5 expression, leading to de-repression (thus upregulation) of SNAI2 expression, which then promotes epithelial-mesenchymal transition (EMT) and aggressiveness of breast cancer cells. Interestingly, it was shown recently that Snai2-null mice exhibit a nursing defect, due to failed milk ejection caused by defects in basal/myoepithelial cell differentiation (Phillips et al., 2014). In Runx1-null mice, upregulation of Elf5 in basal MECs may lead to repression of Snai2, which may provide an explanation for the similar nursing defect we have observed in our Runx1 conditional knockout mice (Figure 3—figure supplement 1B–C).

In luminal breast cancer, our study provides strong evidence to support that RUNX1 plays a key role in this breast cancer subtype as a tumor suppressor in ER+ ductal luminal cells, which may be their cells of origin. All three RUNX TFs have been shown to play context-dependent roles in breast cancer development as either tumor suppressors or oncogenes (Chimge and Frenkel, 2013). Among them, RUNX3 is also a tumor suppressor as it is often inactivated in human breast cancers and loss of one copy of Runx3 led to spontaneous mammary tumor development in a portion of aged female mice (Huang et al., 2012). The tumor suppressor role of RUNX3 in breast cancer is explained by its ability to inhibit ERα-dependent transactivation by reducing the stability of ERα (Huang et al., 2012). In contrast, RUNX2 mainly exhibits oncogenic roles in breast cancer by promoting invasiveness and metastasis via its target, SNAI2 (Chimge et al., 2011); however it may also play a tumor suppressor role in breast cancer by antagonizing ERα (thus, similar to RUNX3) (Chimge et al., 2012). In this study, we showed that RUNX1, the most abundantly expressed RUNX TF in MECs, controls the fate of ER+ luminal cells in part by upregulating FOXA1 and repressing ELF5. Furthermore, RUNX1 has also been shown as a novel tethering factor for recruiting ERα to its genomic sites for ER-mediating transcriptional activation (Stender et al., 2010). Estrogen signaling has dual roles in MECs and breast cancer cells; on one hand it has an oncogenic role by promoting proliferation of ER+ luminal breast cancer cells, on the other hand it also has a tumor suppressor role by promoting MEC differentiation and inhibiting metastasis of breast cancer cells (Chimge and Frenkel, 2013). The tumor suppressor role of RUNX2 and RUNX3 mainly relates to the antagonism between RUNX2/3 and the cancer-promoting program of ER signaling, whereas the tumor suppressor role of RUNX1 largely correlates to its ability to positively regulate the tumor-suppression program of ER signaling. The tumor suppressor role of RUNX1 is also consistent with a previous observation in which RUNX1 was found among a 17-gene signature associated with metastasis as a gene downregulated in metastasis-prone solid tumors, including breast cancer (Ramaswamy et al., 2003).

Lastly, our study also provides an explanation for the paradox in which RUNX1 is a positive regulator of the ER program, yet its loss-of-function mutations and deletions are only present in ER+ human luminal breast cancers (often accompanied by mutations or copy number losses in TP53 or RB1 genes) (Cancer Genome Atlas Network, 2012; Ellis et al., 2012). We show that the loss of Runx1 does not appear to affect transcription of Esr1 directly (thus, the affected luminal cells remain phenotypically ER+) but may lead to a crippled ER program, in part due to de-repression of Elf5 and insufficient upregulation of Foxa1, which may reduce the sensitivity and output of ER signaling, respectively (Hurtado et al., 2011; Kalyuga et al., 2012). The impaired ER program in Runx1-mutant ER+ luminal cells may cause cellular stress, leading to activation of the p53 pathway and subsequently cell cycle arrest and/or apoptosis; as a result, abnormally differentiated Runx1-mutant ER+ luminal cells are outcompeted by their WT neighbors in vivo. However, the loss of Trp53 or Rb1 can relieve the cell cycle arrest or positively activate cell cycle, respectively, and/or rescue apoptosis in them, leading to rescue of the Runx1-mutant ER+ luminal cells. In humans, upon acquisition of additional mutations, the RUNX1/TP53-mutant or RUNX1/RB1-mutant ER+ premalignant luminal cells may progress to ER+ luminal breast cancer, upon acquisition of additional oncogenic events (Figure 8B). Of note, germline mutations of RUNX1 that result in haploinsufficiency of RUNX1 can lead to an autosomal dominant disorder referred to as familial platelet disorder with a propensity to acute myeloid leukemia (FPD/AML) (Song et al., 1999). Interestingly, in one study that characterized three FPD/AML pedigrees, it was found that one female patient with FPD/AML also developed a breast cancer 2 years after AML was diagnosed, and no other tumors were observed in all three pedigrees (Preudhomme et al., 2009). Although the sample size for this study was too small, it certainly raises an intriguing question as to whether germline mutations of RUNX1 predispose FPD/AML patients to luminal breast cancer, but only under a background of either TP53 or RB1 loss.

In summary, we identified RUNX1 as a key regulator of the ER+ luminal lineage. Loss of RUNX1 may contribute to the development of ER+ luminal breast cancer under a background of either TP53 or RB1 loss and upon cooperation with other additional oncogenic events.

Materials and methods

Mice

Mice carrying the floxed Runx1 allele (Runx1L/L) (Li et al., 2006b) were bred with mice carrying a conditional Cre-reporter, R26Y. Subsequently, these mice were bred with mice that drive expression of Cre recombinase under the control of the mouse mammary tumor virus (MMTV) promoter (MMTV-Cre) and with mice carrying the floxed Trp53 allele (Trp53L/L) or floxed Rb1 allele (Rb1L/L). For studying Runx1 disruption in basal MECs, Cre transgenic mice under the control of the Keratin 14 promoter (Krt14-Cre) were also used. Mice were obtained from JAX (R26Y: 006148; MMTV-Cre: 003553) or the MMHCC repository (Krt14-Cre: 01XF1; Wap-Cre: 01XA8) or were a generous gift from Dr Stuart Orkin (Trp53L/L and Rb1L/L [Walkley et al., 2008]). All animal experiments and procedures were approved by our Institutional Animal Care and Use Committee (IACUC).

Whole-mount, histology, and immunohistochemistry

Whole-mounts of MGs of pubertal, adult virgin, or lactation day-0 mice were fixed and processed as previously described (Jones et al., 1996). For histology and immunohistochemical staining, MGs were fixed in 10% formalin and embedded in paraffin. For RUNX1 or ERα detection, antigen retrieval (Citrate buffer pH 6.0, 20 min boil in microwave oven) was performed prior to incubation with an anti-RUNX1 antibody (2593-1, Epitomics, Burlingame, CA) or an anti-ERα antibody (SC-542, Santa Cruz Biotechnology, Dallas, TX). Signal was detected using the impress reagent kit and DAB substrate (MP-7401 and SK-4100, Vector Laboratories, Burlingame, CA).

Mammary gland cell preparation, flow cytometric analysis, and cell sorting

Thoracic and inguinal mammary glands were dissected from pubertal or adult virgin female mice and cell suspensions were prepared as previously described (Shackleton et al., 2006). Flow cytometric analysis was performed with a DXP11 analyzer (Cytek, Fremont, CA) or an Accuri C6 analyzer (BD Biosciences, San Jose, CA). FACS sorting was performed with a FACSAria sorter (BD Biosciences). Data were analyzed with FlowJo (Tree Star, Ashland, OR) or CFlow (BD Biosciences). Antibodies used for FACS were purchased from eBiosciences (San Diego, Ca) and included CD24-eFluor450, CD24-eFluor605, CD29-APC, CD61-PE, c-Kit-PE-CY7, CD14-PE, CD49b-PE, Sca1-APC and biotinylated CD31, CD45, and TER119 (i.e., lineage [Lin] markers), as well as Streptavidin-PerCP-CY5.5. We also used a Sca1-APC-CY7 antibody purchased from BD biosciences (San Jose, CA).

Microarray analysis and quantitative RT-PCR

Total RNA from sorted subsets of MECs was prepared by the RNeasy kit (Qiagen, Valencia, CA) and amplified with the Ovation RNA Amplification System V2 (Nugen, San Carlos, CA). YFP-marked luminal cells were sorted from adult virgin MMTV-Cre;Runx1L/L;R26Y or MMTV-Cre;Runx1+/+;R26Y littermates. Normal MEC subsets, including MaSCs, LPs, and MLs, were sorted from WT C57/B6 adult virgin females; alveolar luminal cells (ALs) were sorted as YFP+ cells from Wap-Cre;R26Y females at mid-gestation. Mouse Genome 430 2.0 Array (Affymetrix, Santa Clara, CA) was used to generate the expression profiles. All arrays were normalized by dCHIP and analyzed by GSEA as described (Subramanian et al., 2005), using MSigDB database v3.1 (http://www.broadinstitute.org/gsea/msigdb/index.jsp). For qRT-PCR, cDNA was generated with Omniscript (Qiagen) according to the manufacture's protocol and real-time PCR was performed using FastStart SYBR Green Master (Roche, Indianapolis, IN). ΔΔCt method was used for normalization to the control group and to the endogenous control (Hprt). Primers are listed in Supplementary file 1.

ChIP analysis

Cells were cross-linked with 1% formaldehyde at room temperature for 10 min, quenched with 0.125 M glycine for 5 min and washed with PBS, harvested by scraping and lysed in cell lysis buffer (0.1% SDS; 0.5% NP40; 1 mM EDTA; 10 mM Tris–HCl, pH 7.4; 0.5% NaDOC). 200–1000 bp DNA fragments were obtained after sonication. After 10 min centrifugation at max speed at 4°C, supernatant was used for IP overnight at 4°C. 30 μl Dynabeads Protein G beads (Invitrogen, Carlsbad, CA) and 1 μg antibody were used for each IP. One tenth of lysate was saved as input. The following antibodies were used: rabbit anti-RUNX1 (ab92336, Abcam, Cambridge, MA), rabbit IgG (sc-2027, Santa Cruz Biotechnology). The beads were washed twice with the following buffers, 3 min each: low-salt buffer (0.1% SDS; 1% Triton X-100; 1 mM EDTA; 10 mM Tris–HCl, pH 7.4; 300 mM NaCl; 0.1% NaDOC), high-salt buffer (0.1% SDS; 1% Triton X-100; 1 mM EDTA; 10 mM Tris–HCl, pH 7.4; 500 mM NaCl; 0.1% NaDOC), LiCl buffer (10 mM Tris–HCl, pH 8; 0.25M LiCl; 1 mM EDTA, pH 8; 1% NP-40; 1% NaDOC), and TE. Precipitated materials were eluted with 300 μl elution buffer (1% SDS; 0.1 M NaHCO3; 50 mM Tris–HCl, pH 8; and 10 mM EDTA). Chromatin was reverse-cross-linked by adding 12 μl of 5 M NaCl and incubated overnight at 65°C. DNA was obtained after RNaseA treatment, protease K treatment, phenol/chloroform extraction, and ethanol precipitation. DNA was analyzed by qPCR, normalized to the input DNA. Primers are listed in Supplementary file 1.

RUNX1 knockdown, Western blot, and proliferation assay

shRNAs for RUNX1 were purchased from Open Biosystems (Huntsville, AL; shRNA sequences are listed in Supplementary file 1, data from a pool of TRCN0000013659-D1 and TRCN0000013662-D4 were shown). After lentiviral infection and puromycin selection, stable shRNA-expressing cell lines were generated. For Western blotting, whole-cell extracts were prepared by boiling cells for 10 min at 95°C in SDS sample buffer (50 mM Tris [pH 6.8]; 100 mM DTT; 2% SDS; 0.1% bromophenol blue; 10% glycerol). Cell lysates were then resolved by SDS-PAGE. β-actin (Fisher Lab, Hampton, NH) was used as a loading control. Primary antibodies (RUNX1: Abcam ab92336, ELF5: Abcam ab77007, CITED1: Abcam ab92550, ERα: Santa Cruz Biotechnology sc-8002, FOXA1: Santa Cruz Biotechnology sc-6553) were detected using HRP-conjugated anti-rabbit antibodies and visualized using enhanced chemiluminescence detection (ECL reagents from Fisher Lab). Proliferation of T47D cells was determined by absorbance of alamarBlue, following manufacturer's protocol (Invitrogen Lot155363SA). 1 × 105 cells were seeded in a 96-well plate and were measured after 3 or 5 days in culture. 1/10 volume of alamarBlue reagent was directly added to cells in culture medium, incubated for 4 hr at 37°C. Absorbance of alamarBlue was monitored at 570 nm, using 600 nm as a reference wavelength (normalized to the 600 nm value).

Statistical analysis

The results were reported as mean ± S.E.M. unless otherwise indicated, and Student's t tests were used to calculate statistical significance.

Accession numbers

The microarray expression profiling datasets generated in this manuscript have been deposited to the GEO database under the following accession numbers: GSE47375 (for Runx1) and GSE47376 (for normal MEC subsets) or as SuperSeries GSE47377.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
    Heregulin induces in vivo proliferation and differentiation of mammary epithelium into secretory lobuloalveoli
    1. FE Jones
    2. DJ Jerry
    3. BC Guarino
    4. GC Andrews
    5. DF Stern
    (1996)
    Cell Growth & Differentiation 7:1031–1038.
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
    Rapid development of tamoxifen-stimulated mutant p53 breast tumors (T47D) in athymic mice
    1. JM Schafer
    2. ES Lee
    3. RM O'Regan
    4. K Yao
    5. VC Jordan
    (2000)
    Clinical Cancer Research 6:4373–4380.
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
    Purification and unique properties of mammary epithelial stem cells
    1. J Stingl
    2. P Eirew
    3. I Ricketson
    4. M Shackleton
    5. F Vaillant
    6. D Choi
    7. HI Li
    8. CJ Eaves
    (2006)
    Nature 439:993–997.
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
    Identification of multipotent mammary stem cells by protein C receptor expression
    1. D Wang
    2. C Cai
    3. X Dong
    4. QC Yu
    5. XO Zhang
    6. L Yang
    7. YA Zeng
    (2014)
    Nature, 10.1038/nature13851.
  63. 63
  64. 64
  65. 65

Decision letter

  1. Elaine Fuchs
    Reviewing Editor; Rockefeller University, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “RUNX1, a transcription factor mutated in breast cancer, controls the fate of ER-positive mammary luminal cells” for consideration at eLife. Your article has been favorably evaluated by Fiona Watt (Senior editor), a Reviewing editor, and 3 reviewers.

The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

This manuscript was submitted over a year ago, and after full review it was rejected by eLife. In that paper, the expression and role of Runx1 in mammary gland development and lineage formation was analyzed, and it was shown that Runx1 is expressed in most of the mammary lineages, and its knockout via MMTV-Cre and K14-Cre affects lactation. The authors showed that the number of mature ductal luminal cells (ML) is decreased while their progenitors upstream (luminal progenitor LP) are increased in Runx1 null relative to wild type (WT) controls. The authors concluded that Runx1 must play a role in mature luminal ductal cell formation and that its loss blocks differentiation. From there, the authors tried to understand the mechanisms of Runx1 action and found that in luminal cells the cells associated with LP are increased and the genes associated with ML are decreased. Moreover they showed by ChIP in a cancer cell line (MCF7) that Runx1 is bound to the promoters of Cited 1 (a ML gene) and Elf5 (a LP gene). These genes have been previously studied and the phenotypes described seem to match with the role uncovered here for Runx1, suggesting that Runx1 is directly targeting these genes in vivo.

The reviewers felt that in the first submission, the paper brought novel insight into the developmental role of Runx1 in breast biology, and felt that the association with breast cancer was intriguing. However, they also felt that the paper required significant editing and delineated specific suggestions to revise it. Additionally, the reviewers felt that neither the developmental nor the cancer side of the paper were sufficiently strong and necessitated experimental bolstering. The reviewers required more experiments to bolster these stories, including providing more statistical analyses and details of the methodology.

Two of the initial reviewers felt that the paper has changed significantly in the last year, and that the revised version is now much better focused. That said, none of the reviewers felt that the revised version is without problems. Since the paper was an initial rejection, and since the revised work is now quite different from the initial version, the reviewers and managing editor made the decision to treat this as a new submission.

The reviewers agree that since the only ML YFP+ cells detected are ones that still express Runx1, the authors are able to conclude that Runx1 is needed intrinsically for the formation of the ER+ ML lineage. The reviewers were also impressed by the authors' discovery that they discovered that the mutations found in human ER+ breast cancer are actually null mutations, as they liked their sleuthing that suggests that the cells most likely (not unequivocal) the origin of these types of cancer mutations require Runx1 in some way. The fact that the authors were able to rescue the phenotype with RbKO and p53KO makes a compelling link with cancer. These findings were deemed the strongest and a reasonable case for further consideration by eLife.

That said, the reviewers remain unconvinced by the transcriptional mechanisms provided, and do not feel that the authors have provided a compelling case for Runx1 being a master regulator of the luminal lineage. Although carrying out ChIP-seq analyses on in vivo material seems beyond the scope of current technology for the mammary epithelial field, RNA-seq or microarray on purified populations of in vivo material still seems within the grasp of what can be reasonable to request. The authors argue that they can't do this because the residual YFP-marked MECs in the ML gate are not truly Runx1-null MLs. And the population of LPs is a mixed population of progenitors for either alveolar luminal or ductal luminal cells. Therefore, they don't have evidence that the YFP-marked LPs are progenitors upstream of MLs in the luminal differentiation hierarchy and are blocked in differentiation to ER+ MLs. I agree that this poses a hurdle but it still does not address the caveat that at present the data are restricted to culture studies with a cell line. The authors are encouraged to explore other possible Cre lines in an effort to bolster the in vivo expression data. The inducible KO line does not have to be lineage-specific if coupled with cell surface markers to be used soon after the induction. The authors should expect to see the genes downregulated in the LP cells before the numbers of ML cells actually change. The data as they presently stand could be misleading.

If the authors fail to rectify this point, one alternative would be to remove or shorten and tone down the mechanistic data on how Runx1 regulates other transcription, and then look a bit more closely on how RB/p53 and Runx1 interact. Another possibility would be to look in the p53null Runx1nullYFP+ cells and explore their defects, if any. If these cells appear as normal ML cells, this would suggest that the Runx1 null defect is in proliferation/survival of the ML precursors. RB and p53 may not be directly related to the differentiation phenotype and the targets shown, but rather to survival with loss of function mutants. Even with only a small fraction of ML cells being knocked out efficiently in the p53null Runx1null or RBnull Runx1 null double mutant, if the authors can see Runx1 down in this mixed fraction, then they should be able to see other genes changed that came up in their in vitro data. They could at least try qRT-PCR, instead of microarray, on the genes they think are essential from in vitro data, and then see whether these genes are changed in the double mutant. This would strengthen their conclusions.

The authors either need to molecularly link this to differentiation or overcome the hurdles for bolstering the in vitro data with in vivo gene expression data. It would seem that one of these two avenues might be successful, which is needed to clear the path to publishing in eLife.

https://doi.org/10.7554/eLife.03881.021

Author response

The reviewers remain unconvinced by the transcriptional mechanisms provided, and do not feel that the authors have provided a compelling case for Runx1 being a master regulator of the luminal lineage. Although carrying out ChIP-seq analyses on in vivo material seems beyond the scope of current technology for the mammary epithelial field, RNA-seq or microarray on purified populations of in vivo material still seems within the grasp of what can be reasonable to request. The authors argue that they can't do this because the residual YFP-marked MECs in the ML gate are not truly Runx1-null MLs. And the population of LPs is a mixed population of progenitors for either alveolar luminal or ductal luminal cells. Therefore, they don't have evidence that the YFP-marked LPs are progenitors upstream of MLs in the luminal differentiation hierarchy and are blocked in differentiation to ER+ MLs. I agree that this poses a hurdle but it still does not address the caveat that at present the data are restricted to culture studies with a cell line. The authors are encouraged to explore other possible Cre lines in an effort to bolster the in vivo expression data. The inducible KO line does not have to be lineage-specific if coupled with cell surface markers to be used soon after the induction. The authors should expect to see the genes downregulated in the LP cells before the numbers of ML cells actually change. The data as they presently stand could be misleading.

We agree that an inducible Cre line [e.g., K8-CreER for luminal mammary epithelial cells (MECs)] combined with the Runx1 conditional knockout allele (Runx1L) and a conditional Cre-reporter [e.g., Rosa26-Stop-YFP (R26Y)] may allow us to characterize early molecular changes upon induced Runx1 disruption in ER+ luminal MECs. However, this would require extensive mouse breeding in order to put multiple alleles together in the same mouse; therefore it was not feasible for us to use this approach to obtain new in vivo data within two months or an even longer time window. We therefore decided to still focus on our existing MMTV-Cre-based mouse models and performed extensive in vivo expression analysis using sorted MEC subsets from these animals.

If the authors fail to rectify this point, one alternative would be to remove or shorten and tone down the mechanistic data on how Runx1 regulates other transcription, and then look a bit more closely on how RB/p53 and Runx1 interact. Another possibility would be to look in the p53null Runx1nullYFP+ cells and explore their defects, if any. If these cells appear as normal ML cells, this would suggest that the Runx1 null defect is in proliferation/survival of the ML precursors. RB and p53 may not be directly related to the differentiation phenotype and the targets shown, but rather to survival with loss of function mutants. Even with only a small fraction of ML cells being knocked out efficiently in the p53null Runx1null or RBnull Runx1 null double mutant, if the authors can see Runx1 down in this mixed fraction, then they should be able to see other genes changed that came up in their in vitro data. They could at least try qRT-PCR, instead of microarray, on the genes they think are essential from in vitro data, and then see whether these genes are changed in the double mutant. This would strengthen their conclusions.

We have mainly followed this suggestion to obtain our in vivo expression data for genes that have already been tested in our initial cell culture model. Our main strategy was to monitor levels of Runx1 reduction in different subsets of MECs sorted from our MMTV-Cre-based conditional knockout mice and then to determine whether there was any correlation of changes in expression of other genes to reduced Runx1 expression. Took advantage of the rescue of Runx1-null ER+ luminal MECs by Rb1-loss, we performed expression analysis in the rescued ER+ LPs and ER+ MLs from the Rb1/Runx1-null mice (we did not perform this experiment in p53/Runx1-null mice as they exhibited early lethality, which prohibited us from obtaining enough animals for expression analysis). In addition, we also performed expression analysis for these genes in the ER+ LP subset from the Runx1 conditional knockout mice (MMTV-Cre;Runx1L/L;R26Y), as ER+ LPs may represent the precursor population for ER+ MLs and our new Runx1 expression analysis data shows that this population has partial Runx1 reduction (Figure 4–figure supplement 1G). These in vivo expression analysis data are presented in several new figures, including Figure 7, Figure 7–figure supplement 1 and Figure 7–figure supplement 2, and are described in a new sub-section in the main text.

Below is a summary of key findings from our new expression analysis experiments:

A) Consistent with our in vitro data, we also obtained strong in vivo data to demonstrate that Elf5 is a key target gene repressed by RUNX1. In addition to its repression by RUNX1 in ER+ luminal MECs, we found Elf5 is repressed by RUNX1 in almost all other MEC subsets (including basal MECs) in which Runx1 is expressed. The de-repressed expression of Elf5 in basal cells also allows us to provide an explanation for the nursing defects observed in our Runx1 conditional knockout mice (via a potential Runx1-Elf5-Snail2 link in basal/myoepithelial cells). Since the main focus of this paper is to determine the role of RUNX1 in ER+ luminal MECs and luminal breast cancer, we did not pursue this further (but this certainly opens a new avenue for a future study).

B) Unexpectedly, from our in vivo expression analysis, we found that Esr1 is upregulated in ER+ luminal MECs. This is very different from our previous in vitro data in T47D cells in which we observed a reduction in ERα level upon RUNX1 knockdown. Although we showed previously that RUNX1 binds to a RUNX1-binding motif ∼1.4kb upstream of the ESR1 transcription start site, this binding is relatively weak (∼3-fold enrichment). We repeated the ChIP analysis for this site, as well as for all the other sites we tested previously for ELF5, FOXA1 and CITED1. By applying statistical analysis, we found that while RUNX1 binding to the control regions of ELF5, FOXA1 and CITED1 is all statistically significant, its binding to the -1.4kb site of ESR1 is not significant. Although we cannot rule out RUNX1 binding to other sites in the ESR1 locus, all these data suggest that RUNX1 may not regulate transcription of ESR1 directly. The downregulation of ERα in T47D cells upon RUNX1 knockdown is most likely indirect [e.g., due to RUNX1-loss-induced upregulation of ELF5, as overexpression of ELF5 in T47D cells can also suppress ER expression (Kalyuga et al., 2012)]. To explain why Esr1 appears upregulated in vivo upon Runx1 reduction, we discussed several possibilities and in particular, we provided evidence to support that the observed Esr1 upregulation may be in part due to hyperproliferation of the rescued Runx1-null ER+ luminal MECs (i.e., more Esr1-expressing cells present in a sorted MEC subpopulation compared to the same subpopulation from control mice).

C) We provided evidence to support that Foxa1 and Cited1 are target genes of RUNX1. Runx1-loss reduces their expression levels but does not abolish their expression entirely. Their downregulation is more profound in the rescued Runx1-null ER+ MLs (new Figure 7B-C), the subpopulation of luminal MECs that is affected by Runx1-loss the most. To strengthen this conclusion, we used multiple normalization approaches (i.e., normalized to Rb1-null single mutant control mice, to wild type control mice, and to younger mice with the same genotype) to control for gene expression changes introduced by differences in cell populations and/or genetic backgrounds.

The authors either need to molecularly link this to differentiation or overcome the hurdles for bolstering the in vitro data with in vivo gene expression data. It would seem that one of these two avenues might be successful, which is needed to clear the path to publishing in eLife.

Our new in vivo expression data, combined with our previous observations, allow us to propose the following revised model: In the ER+ luminal lineage, RUNX1 is mainly required during differentiation from ER+ LPs to ER+ MLs (this is also the stage during which Runx1 expression is notably elevated, Figure 7–figure supplement 2E, new data). Loss of Runx1 leads to abnormally differentiated ER+ MLs (i.e., Elf5+Esr1highFoxa1lowCited1low ML-like cells, due to de-repression of Elf5 and insufficient upregulation of Foxa1 and Cited1, all of which may impair the sensitivity and/or output of the ER program). This molecular defect may cause cellular stress and subsequently activation of the p53 pathway in these abnormal cells, leading to cell cycle arrest and/or apoptosis; as a result, abnormally differentiated Runx1-null ER+ luminal cells are outcompeted by their wild type neighbors in vivo. However, loss of p53 or Rb1 would relieve the cell cycle arrest or positively activate cell cycle, respectively, and/or rescue apoptosis in them, leading to rescue of these abnormal ER+ ML-like cells. Upon acquisition of additional mutations, these Runx1/p53-mutant or Runx1/Rb1-mutant ER+ premalignant luminal cells eventually progress to ER+ luminal breast tumors. We believe this revised model has provided important in vivo mechanistic advances to better explain why and how loss-of-function of RUNX1 leads to development of ER+ luminal breast cancer specifically.

https://doi.org/10.7554/eLife.03881.022
