The transforming growth factor beta signaling pathway is critical for the formation of CD4 T follicular helper cells and isotype-switched antibody responses in the lung mucosa

  1. Heather D Marshall
  2. John P Ray
  3. Brian J Laidlaw
  4. Nianzhi Zhang
  5. Dipika Gawande
  6. Matthew M Staron
  7. Joe Craft
  8. Susan M Kaech  Is a corresponding author
  1. Yale University School of Medicine, United States
  2. Howard Hughes Medical Institute, Yale University School of Medicine, United States
Research Article
  • Cited 21
  • Views 2,535
  • Annotations
Cite as: eLife 2015;4:e04851 doi: 10.7554/eLife.04851

Abstract

T follicular helper cells (Tfh) are crucial for the initiation and maintenance of germinal center (GC) reactions and high affinity, isotype-switched antibody responses. In this study, we demonstrate that direct TGF-β signaling to CD4 T cells is important for the formation of influenza-specific Tfh cells, GC reactions, and development of isotype-switched, flu-specific antibody responses. Early during infection, TGF-β signaling suppressed the expression of the high affinity IL-2 receptor α chain (CD25) on virus-specific CD4 T cells, which tempered IL-2 signaling and STAT5 and mammalian target of rapamycin (mTOR) activation in Tfh precursor CD4 T cells. Inhibition of mTOR allowed for the differentiation of Tfh cells in the absence of TGF-βR signaling, suggesting that TGF-β insulates Tfh progenitor cells from IL-2-delivered mTOR signals, thereby promoting Tfh differentiation during acute viral infection. These findings identify a new pathway critical for the generation of Tfh cells and humoral responses during respiratory viral infections.

https://doi.org/10.7554/eLife.04851.001

eLife digest

The influenza virus is thought to cause illness in up to 10% of adults and 30% of children each year worldwide. Most of these cases resolve on their own and don’t require treatment, but three to five million people are hospitalized and up to half a million people die each year.

Unfortunately, the vaccines currently available to protect against influenza only target particular varieties or “strains” of the virus. The strains that circulate vary from year-to-year so it is necessary to develop new influenza vaccines every year. However, it is difficult to correctly predict which strains will circulate, so a more effective solution would be to develop a new vaccine that can help the body defend itself against many, or ideally any influenza strain.

During a viral infection, a type of immune cell in the host can specialize into two different types of cells to help fight the virus: T helper 1 cells and CD4 T follicular helper cells. T helper 1 cells help to kill host cells that have become infected. CD4 T follicular helper cells promote the production of proteins called antibodies, which identify and neutralize the virus.

Here, Marshall et al. studied how T helper 1 cells and CD4 T follicular helper cells form in mice suffering from a lung infection similar to influenza. It was already known that a protein called transforming growth factor beta (TGF-β) helps the immune response to mount an effective defense against an infection without causing too much harm to the host. Marshall et al. show that TGF-β increases the number of CD4 T follicular helper cells in the mice by suppressing the production of another protein—called IL-2—on the surface of CD4 T cells. Treating mice lacking the ability to detect TGF-β with a drug that blocks a protein controlled by IL-2 also allows more CD4 T follicular helper cells to be produced.

Marshall et al.’s findings reveal that TGF-β is involved in controlling the balance of T helper 1 cells and CD4 T follicular helper cells produced during viral infections of the respiratory tract. Since TGF-β also has other roles in immune responses against viruses, it is now an attractive target for the development of a vaccine that may protect us against all strains of the influenza virus.

https://doi.org/10.7554/eLife.04851.002

Introduction

During acute viral infections, CD4 T cells differentiate into primarily T helper 1 (Th1) and T follicular helper (Tfh) effector cells (Marshall et al., 2011; Johnston et al., 2012; Hale et al., 2013). Similar to CD8 T cells, Th1 cells express the transcription factors (TF) T-bet and Blimp1, the effector molecules IFN-γ, TNFα, (and in many cases granzyme B [GrzB] and perforin) and migrate to sites of viral replication to eliminate infected cells. In contrast, Tfh cells primarily remain in secondary lymphoid tissues where they communicate with B cells in germinal centers (GC) to facilitate antibody affinity maturation and isotype switching. Tfh cells express substantially lower levels of T-bet, and instead of Blimp1 they express the TF Bcl6. Some pro-inflammatory cytokines induced during infection, such as IL-12, IFN-γ, IFN-αβ, and IL-2, promote Th1 differentiation; however, the signals required for Tfh differentiation during viral infection have not been as well characterized.

Tfh cells must first encounter their cognate peptide-MHC with proper costimulation from professional antigen presenting cells such as dendritic cells. Following activation, Tfh precursor cells start to express the TF Bcl6 and the chemokine receptor CXCR5, as they downregulate CCR7 and P-selectin glycoprotein ligand 1 (PSGL1) (Johnston et al., 2009; Poholek et al., 2010; Choi et al., 2011; Pepper et al., 2011). These events allow for the migration of activated Tfh precursor cells toward the interfollicular zone and T-B border where they again meet peptide-MHC as well as other costimulatory ligands such as Inducible T cell Costimulator ligand (ICOSL) from B cells (Breitfeld et al., 2000; Schaerli et al., 2000; Hardtke et al., 2005; Kerfoot et al., 2011). These interactions result in the further upregulation of Bcl6, migration into the GC, and ability to assist B cells in affinity maturation and proper isotype switching (Poholek et al., 2010; Baumjohann et al., 2011; Choi et al., 2011). In addition to these cell surface ligand-receptor pairings, cytokines play critical roles in the full differentiation of effector Tfh cells during infection. Cytokines utilizing STAT3 signaling pathways including IL-6, IL-21, and IL-27 have been implicated in driving Tfh differentiation, but may have overlapping or compensatory effects depending on the immunizing agent and inflammatory environment (Ma et al., 2012; Ray et al., 2014). For example, IL-6 appears to act on early anti-viral Tfh precursors (Choi et al., 2013a), and while it is not absolutely required for fully differentiated Tfh effector cells during acute lymphocytic choriomeningitis (LCMV) infection (Poholek et al., 2010; Eto et al., 2011), it does promote the sustained activation of Tfh cells during chronic LCMV infection (Harker et al., 2011). Further, IL-27 is required for Tfh differentiation during protein immunization (Batten et al., 2010), while IL-21 is sometimes also involved (Nurieva et al., 2008; Vogelzang et al., 2008; Eto et al., 2011; Karnowski et al., 2012). In addition to STAT3, STAT4 signaling via IL-12 may also promote early Tfh progenitor cells during infection (Nakayamada et al., 2011) and appears to be critical for the differentiation of human Tfh cells (Schmitt et al., 2009, 2013). However, STAT4 signals are absolutely required for the differentiation of Th1 cells, suggesting that additional signals are needed to repress the expression of the Th1 TFs T-bet and Blimp1 in Tfh progenitor cells.

Th1 and Tfh identities can be discerned within the first few days of viral infection indicating that early cytokine signals are involved in the initial stages of the Tfh/Th1 cell fate decision. Increased expression of the high affinity IL-2Rα chain CD25 on early effector CD4 T cells correlates with enhanced expression of the Th1 TFs T-bet and Blimp1 and lower levels of the Tfh TF Bcl6 and this is driven largely by IL-2-STAT5 signaling (Choi et al., 2011; Pepper et al., 2011; Choi et al., 2013b). In contrast, CD25lo early effectors have greater potential to generate Tfh cells (Ballesteros-Tato et al., 2012; Johnston et al., 2012; Nurieva et al., 2012; Choi et al., 2013b). Intriguingly, IL-2 signals are also important for the homeostasis of regulatory T cells (Treg). Therefore, understanding how effector and regulatory CD4 T cells listen to IL-2 will unveil pathways and targets to modulate CD4 T cell responses during infection, autoimmunity, and cancer.

Another important signal at the interface of balancing effector and regulatory CD4 T cells is the cytokine TGF-β. As an immune-suppressive factor, TGF-β promotes the differentiation of peripherally derived regulatory T cells (pTreg) and inhibits the development of autoreactive T cell responses. In contrast, TGF-β can also serve a pro-inflammatory role by inducing the differentiation of effector Th17 cells. T cell-specific ablation of TGF-β signaling, either via TGF-βRII deletion or expression of a dominant negative receptor, has demonstrated that direct TGF-β signals are important for both Treg homeostasis and suppression of effector T cell activation and proliferation (Li et al., 2006; Marie et al., 2006; Sanjabi et al., 2009). The aberrant activation of effector cells in the absence of TGF-β signals cannot be rescued by addition of Treg (Li et al., 2006), indicating that direct TGF-β signaling on effector CD4 T cells is required to maintain their homeostasis. Furthermore, TGF-β suppresses T-bet expression (Gorelik et al., 2002; Park et al., 2005) and the exuberant proliferation of T cells display Th1 attributes (Ishigame et al., 2013), demonstrating that TGF-β has the capacity to suppress Th1 differentiation.

In this study, we have identified a new role for TGF-β in balancing the development of Th1 and Tfh cells during acute viral infection. Specifically, we found that CD4 T cell-directed TGF-β was a critical signal for anti-viral Tfh differentiation, GC B cell reactions, and isotype-switched antibody response during influenza infection. TGF-β suppressed the expression of the high affinity IL-2Rα chain CD25, which restricted IL-2 signaling via STAT5 and mTOR in Tfh progenitor cells early during infection in vivo. Finally, we show that blockade of the mTOR signaling pathway can rescue Tfh differentiation of anti-viral CD4 T cells generated in the absence of TGF-β. Thus, we have identified that T cell-directed TGF-β insulates Tfh precursor cells from IL-2 signals and plays a critical role in the generation of effector Tfh cells and high affinity, class-switched antibodies—an essential source of protective immunity to this global health burden.

Results

TGF-β-associated gene expression signature in Tfh cells

To better understand the specification of diverse CD4 T cell subtypes during viral infection, we compared the gene expression profiles of Tfh and Th1 effector CD4 T cell subsets that formed during acute LCMV infection (Marshall et al., 2011). This analysis revealed a number of TGF-β-associated genes commonly found in Treg cells, including Nt5e (CD73), Folr4 (folate receptor 4), Foxp3, and Ikzf2 (Helios) (Hill et al., 2007), to be more highly expressed in PSLG1lo Ly6Clo T-betlo CXCR5hi Tfh cells relative to the PSGL1hi Ly6Chi T-bethi CXCR5lo Th1 cells (Marshall et al., 2011; Hale et al., 2013) (Figure 1A). We first sought to determine if these results indicated that T follicular regulatory (Tfr) cells, a recently described immune-suppressive Tfh population (Chung et al., 2011; Linterman et al., 2011; Wollenberg et al., 2011), formed during acute LCMV infection. To assess this, we infected B6 or TCR transgenic Smarta (Stg) chimeras with acute LCMV Armstrong and monitored Tfh and Treg properties in either GP66–77 tetramer+ or Stg CD4 T cells by flow cytometry. Although we detected enhanced FoxP3 mRNA in the Tfh cells from our microarray analysis, we did not identify any LCMV-specific CD4 T cells that expressed FoxP3 protein or other Treg-associated markers such as GITR, to the level of canonical CD25+ FoxP3+ Tregs (Figure 1B and Figure 1—figure supplement 1). This suggested that LCMV-specific CD4 T cells do not differentiate into Tfr cells (Marshall et al., 2011; Srivastava et al., 2014). However, in agreement with the differential mRNA expression, we did find enhanced expression of several of the TGF-β- or Treg-associated proteins including CD73, folate receptor 4, and Helios on Tfh cells relative to the Th1 cells (Figure 1C) (Hill et al., 2007; Iyer et al., 2013). These observations suggested that conventional Tfh cells bear some similarities in their gene expression profiles with Treg cells, despite having little-to-no FoxP3 expression.

Figure 1 with 1 supplement see all

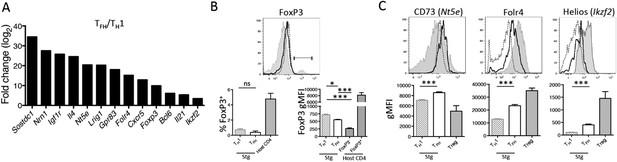

TGF-β-associated gene expression signature in Tfh cells.

(A) Bar graph shows a selected set of genes upregulated in d8 LCMV-specific Stg PSGL1lo Ly6Clo Tfh cells relative to PSGL1hi Ly6Chi Th1 cells isolated and sorted from the spleen as measured using Illumina DNA microarrays (Marshall et al., 2011) that have been described to be induced by TGF-β or associated with Treg cells (Hill et al., 2007). (B) Representative histogram plot (top) shows amount of intracellular FoxP3 in total host splenic CD4 T cells (shaded gray) and LCMV-specific Th1 (hatched line) and Tfh (black line) Stg CD4 T cells from the spleen at day 8 p.i. Region gated identifies FoxP3+ nTregs. Bar graphs (bottom) depict the cumulative frequency (left) of FoxP3+ CD4 T cells or gMFI averages (right) of the indicated CD4 T cell populations. (C) Expression of the indicated Treg-associated proteins in (A) was compared between LCMV-specific Th1 (hatched line) and Tfh cells (black line), and FoxP3+ Treg cells gated on total host CD4 T cells (shaded gray) from the spleen at day 8 p.i. Histogram plots (top) are representative examples of individual mice and bar graphs (bottom) depict the gMFI averages of each protein in the indicated CD4 T cell populations. Graphs in B and C are representative of one of five independent experiments (n = 4–5 mice/group/experiment). *p < 0.05, ***p < 0.0005.

https://doi.org/10.7554/eLife.04851.003

Direct TGF-β is a critical signal for Tfh differentiation during acute influenza virus infection

We hypothesized that the expression of these Treg-associated gene products may be an indication of TGF-β signaling in the virus-specific Tfh cells. In order to assess the contribution of direct TGF-β signals on the formation of anti-viral CD4 T cell subsets, we crossed TGF-βRIIf/f CD4-cre mice to the Stg TCR transgenic mice. Fixing the TCR delays the onset of autoimmunity in the TGF-βRIIf/f CD4-cre mice (Sanjabi and Flavell, 2010); however, activated CD44hi CD4 T cells do emerge over time (data not shown). Therefore, when making chimeras, we adoptively transferred naïve CD44lo TGF-βRII+/+ CD4-cre+ Stg cells (herein referred to as WT) or naïve CD44lo TGF-βRIIf/f CD4-cre+ Stg cells (KO) into congenic C57BL/6 recipients and 1 day later infected the mice with the acute Armstrong strain of LCMV. Intriguingly, we found that direct TGF-β promoted the differentiation of Tfh precursor cells at day 3 post infection (p.i.), such that there were about 1/3 fewer CD25lo CXCR5+ Tfh precursor cells in the absence of direct TGF-β signals (WT = 60.25% ± 4, KO = 42% ± 3.3) (Figure 2—figure supplement 1A). Additionally, the TGF-βRII KO early effector CD4 T cells expressed more Th1 proteins Ly6C and T-bet and slightly lower Tfh TF Bcl6 (Figure 2—figure supplement 1B). However, by day 8 there was no phenotypic difference between TGF-βRII WT and KO CD4 T cells in the spleen (Figure 2—figure supplement 1C–D). These data indicated that TGF-β played a role in the early specification of splenic Tfh progenitor cells, but that other signals compensated for TGF-β signaling over the course of a systemic LCMV infection.

Because TGF-β is a dominant regulator of T cells in mucosal tissues, we speculated that it may play a larger role in controlling anti-viral effector T cell responses during infection at mucosal sites, such as the lung. Moreover, respiratory influenza infection induces transcription of TGF-β and the influenza neuraminidase enzyme promotes the cleavage of latent TGF-β complex into its bioactive form in the lung mucosa (Schultz-Cherry and Hinshaw, 1996; Carlson et al., 2010; Roberson et al., 2012). To assess the contribution of TGF-β on the anti-viral CD4 T cell response during a respiratory infection, we infected TGF-βRII WT and KO Stg chimeras i.n. with a recombinant influenza virus expressing the LCMV GP66–77 epitope recognized by the Stg TCR (WSN-GP33/66) (Marsolais et al., 2008). First, we confirmed that the phenotypic properties of influenza-specific CD4 T cells closely mirrored that of LCMV-specific CD4 T cell populations, and importantly, verified that the influenza-specific Stg cells were neither FoxP3+ Treg nor Tfr cells (Figure 2—figure supplement 2). Moreover, we found that the proportion and total number of PSGL1lo Ly6Clo and PD-1hi CXCR5hi Tfh cells in the lung-draining mediastinal lymph node (MLN) were markedly reduced in the absence of direct TGF-β signals (Figure 2A). Furthermore, there was an increase in number of PSGL1hi Ly6Chi Th1 cells in all tissues examined (Figure 2A–C). Concomitant with the cell surface phenotypes, we found increased expression of the Th1 TF T-bet and reduced expression of the Tfh TF Bcl6 as well as increased production of IFN-γ and IL-2 in the TGF-βRII KO influenza-specific CD4 T cells compared to their WT counterparts (Figure 2D). Finally, and potentially most importantly given their function to help B cells in the GC, we also detected fewer TGF-βRII KO Stg cells localized in PNA+ GC in the MLN (Figure 2E), suggesting that TGF-β is important for optimal trafficking of Tfh cells to GCs. Together, these data suggest that direct TGF-β signaling was important for the generation of Tfh cells, while it suppressed Th1 differentiation during respiratory influenza virus infection.

Figure 2 with 2 supplements see all
Direct TGF-β is required for influenza-specific Tfh differentiation.

2 × 105 CD44lo TGF-βRII+/+ CD4-cre+ (WT) or TGF-βRIIf/f CD4-cre+ (KO) Stg cells were adoptively transferred into C57BL/6 congenic recipients infected with WSN-GP33/66 the following day. (AD) On day 8 p.i, Stg cells in the MLN, spleen, and lung were stained with antibodies against the indicated proteins to distinguish Th1 and Tfh cells. Cells were also stimulated with GP66-peptide for 6 hr to assess IFN-γ and IL-2 production by intracellular cytokine staining and flow cytometry. (E) Stg cells (blue, highlighted by white arrows) located within MLN PNA+ GCs (green) were assessed using immunofluorescent microscopy and their numbers were enumerated using Imaris software. Graphs in AD are representative of one of five independent experiments (n = 4–5 mice/group/experiment). Panel E shows representative microscopy images and the cumulative data from two independent experiments with 8 total mice/group were graphed. *p < 0.05, **p < 0.005, and colored asterisks correspond to the color in the stacked graphs.

https://doi.org/10.7554/eLife.04851.005

T cell-directed TGF-β signals are required for GC B cell and switched antibody responses

Due to the reduced Tfh differentiation in the absence of direct TGF-β signals, we sought to investigate whether this led to defects in B cell help and formation of antiviral antibodies. Our Stg CD4 T cell adoptive transfer model, as described above, was not suitable to examine GC B cell and antibody responses because the endogenous host-derived CD4 T cells could provide B cell help in these chimeric mice. Therefore, we set up a ‘B cell helpless system’ using OT-II TCR transgenic mice as recipients because they have a fixed non-influenza-specific CD4 T cell compartment that cannot provide help to GC B cells during the infection. We chose to adoptively transfer polyclonal CD4 T cells in this system to provide a broad repertoire of influenza-specific naïve precursors to provide B cell help. It should also be noted that we switched to the distal Lck-cre deletion strain, which is superior to the CD4-cre strain because of a small number of TGF-βR+ ‘escapees’ that differentiate into nTreg during neonatal development and prevent autoimmunity in these mice (Zhang and Bevan, 2012). Regardless, we set up the experiments similarly to previously described system by adoptively transferring polyclonal naïve CD44lo Thy1.2+ TGF-βRIIf/f Lck-cre (WT) or TGF-βRIIf/f Lck-cre+ (KO) CD4 T cells into congenic Thy1.1+ OT-II recipient mice and 1 day later infected mice with influenza WSN-GP33/66. First, we confirmed that the host-derived OT-II CD4 T cells remained naïve (CD44lo) throughout the influenza infection (Figure 3A–B). In accord with our findings for the TGF-βRII KO Stg cells, the donor (Thy1.2+) polyclonal activated (CD44hi) CD4 T cells lacking TGF-βRII also displayed impaired Tfh cell development. Specifically, in the MLN and spleen, there was a profound reduction in Ly6Clo CXCR5+ cells and a moderate reduction in PSGL1lo Ly6Clo Tfh cells in the TGF-βRII KO cells compared to the WT controls (Figure 3A–B). Conversely, there was a concomitant increase in Ly6Chi Th1 cells that lacked TGF-βRII relative to the WT controls.

Direct TGF-β signaling is required for polyclonal influenza-specific Tfh differentiation.

5 × 106 CD44lo Thy1.2+ CD4 T cells from TGF-βRIIf/f Lck-cre (WT) or TGF-βRIIf/f Lck-cre+ (KO) mice were adoptively transferred into congenic Thy1.1+ OT-II TCR transgenic mice and infected with WSN-GP33/66 the following day. 14 days p.i., host OT-II (Thy1.1+) and donor (Thy1.2+) CD4 T cells in the MLN (A) and spleen (B) were assessed for expression of CD44 (to distinguish activated T cells, see histogram plots left) and CXCR5, PSGL1, and Ly6C to distinguish Tfh and Th1 attributes. FACS plots are from representative mice and bar graphs are representative of one of four independent experiments (n = 4–5 mice/group/ experiment). *p < 0.05 and colored asterisks correspond to the color in the stacked graphs.

https://doi.org/10.7554/eLife.04851.008

Importantly, we found that the adoptive transfer of WT CD4 T cells largely restored B cell help in the OT-II recipient mice such that there was an enhanced number Fas+ GL7+ GC B cells and IgMlo B cells in the MLN 14 days p.i. However, the TGF-βRII KO CD4 T cells were unable to rescue the formation of GC B cells in these chimeric mice (Figure 4A). Further, WT CD4 T cells partially rescued GC B cell class switching to the IgG1 subtype, while the TGF-βRII KO CD4 T cells did so less efficiently, particularly in the spleen (Figure 4B). In addition to the enumeration of GC B cells by flow cytometry, we also observed fewer and smaller GCs from the spleens of mice receiving TGF-βRII KO CD4 T cells by fluorescent microscopy (Figure 4C). Finally, T cell-directed TGF-β was also important for influenza-specific IgG and IgA in the airways of infected mice (Figure 4D). Taken together, these data demonstrate a previously unappreciated requirement of intrinsic TGF-β signaling in antiviral T cells for Tfh cell function as B cell helpers, and thus, GC reactions and isotype-switched antibody responses during respiratory influenza virus infection.

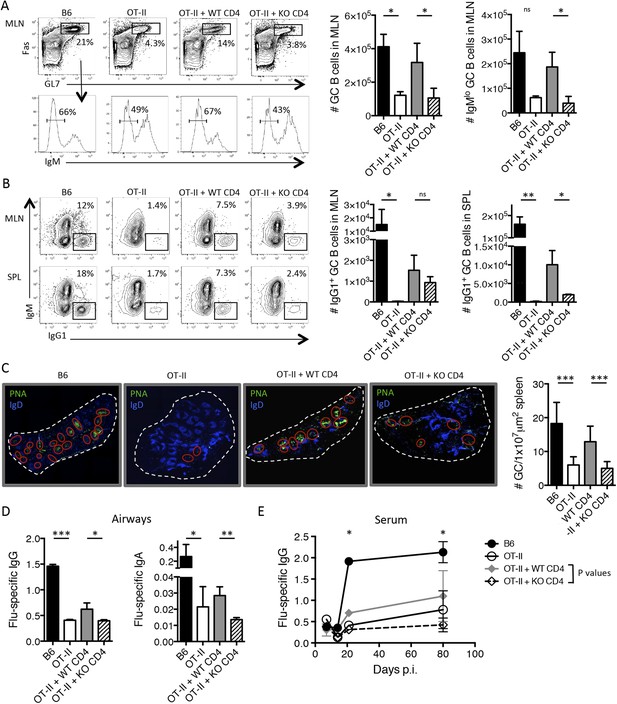

T cell-directed TGF-β is required for GC B cell and isotype-switched antibody responses during influenza infection.

5 × 106 CD44lo Thy1.2+ CD4 T cells from TGF-βRIIf/f Lck-cre (WT) or TGF-βRIIf/f Lck-cre+ (KO) mice were adoptively transferred into congenic Thy1.1+ OT-II TCR transgenic mice and infected with WSN-GP33/66 the following day. 14 days p.i., GC B cells (Fas+, GL7+ IgM) (A) and IgG1+ GC B cells (B) in the MLN and spleen (SPL) were assessed by flow cytometry (left plots) and enumerated in bar graphs (right). (C) Splenic PNA+ GCs (green, highlighted by red ellipses) were assessed by immunofluorescent microscopy of frozen sections and the numbers of GC/tissue section was calculated using Imaris software. (DE) Influenza-specific IgG and IgA were measured from bronchoaviolar lavage fluid (BAL) by ELISA at day 10 p.i. (D) or longitudinally at the indicated time points (E). Data in panels AB are representative of four independent experiments (n = 3–5 mice/group/experiment). The bar graphs in panels CD show cumulative data from two independent experiments (n = 3–5 mice/group/experiment), the images in panel C are from representative mice of these cohorts. *p < 0.05, **p < 0.005, ***p < 0.0005.

https://doi.org/10.7554/eLife.04851.009

Direct TGF-β suppresses the formation of Th1 precursors within days of viral infection

Because CD4 T helper subsets begin to diverge within the first few days of viral infection (Choi et al., 2013b) and we found fewer Tfh and more Th1 precursor cells in the absence of TGF-β signals during LCMV infection (Figure 2—figure supplement 1A), we questioned when TGF-β was required for Tfh differentiation during influenza virus infection. In order to assess this, we generated chimeras with 2 × 106 CD44lo TGF-βRII WT or KO Stg CD4 T cells, infected the mice 1 day later with WSN-GP33/66 i.n, and assessed the phenotypes of the early effector CD4 T cells in the lung-draining MLN at days 4–5 p.i. Although a difference in Bcl6 expression in the TGF-βRII KO CD4 T cells was not observed at this time point, the TGF-βRII KO CD4 T cells displayed enhanced Th1 attributes including enhanced expression of CD25, Ly6C, T-bet, IFN-γ, and IL-2 (Figure 5). These findings suggested that direct TGF-β suppressed Th1 precursor formation within the first few days of influenza virus infection.

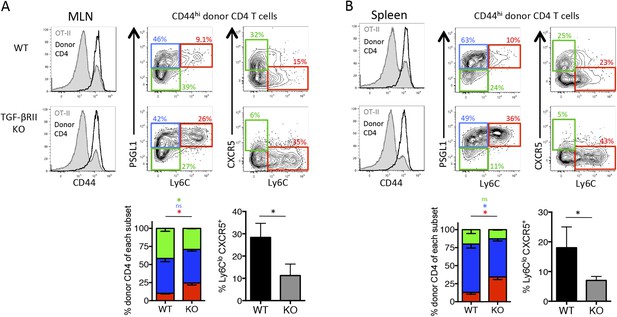

Direct TGF-β suppresses early influenza-specific Th1 precursor formation in the lung-draining MLN.

2 × 106 TGF-βRII+/+ CD4-cre+ (WT) or TGF-βRIIf/f CD4-cre+ (KO) Stg cells were adoptively transferred into C57BL/6 congenic recipients that were infected with WSN-GP33/66 the following day. On day 4–5 p.i., CD44hi Stg cells in the MLN were assessed for the indicated proteins (CD25, Ly6C, T-bet, IFN-γ, IL-2, Bcl6) by flow cytometry. Cells were stimulated with PMA and ionomycin for 4 hr to assess IFN-γ and IL-2. Bar graphs are representative of three independent experiments (n = 3–4 mice/group/experiment). *p < 0.05, **p < 0.005, ***p < 0.0005.

https://doi.org/10.7554/eLife.04851.010

Direct TGF-β restricts IL-2 responsiveness and insulates early Tfh progenitor cells from mTOR signaling

Due to the enhanced expression of CD25 in the absence of TGF-βRII signaling, we questioned whether TGF-β may modulate the IL-2 responsiveness of early effector CD4 T cells. Addition of recombinant TGF-β (10 ng/ml) to Stg CD4 T cell cultures stimulated with GP66 peptide in vitro did not inhibit T cell activation because the upregulation of CD25 and the proliferation rates of the CD4 T cells were comparable between cultures containing or lacking exogenous TGF-β (Figure 6A). However, TGF-β profoundly affected the ability of the activated CD4 T cells to sustain CD25 expression and IL-2 responsiveness. That is, at day 2 post activation, the amount of surface CD25 and intracellular phospho-STAT5 (pSTAT5) after IL-2 stimulation was the same whether or not TGF-β was present, but 1 day later, the T cells exposed to TGF-β displayed considerably less CD25 and lower IL-2 responsiveness compared with those that were not (Figure 6A). Next, we assessed whether TGF-β modulates CD25 expression and IL-2 signaling in virus-specific CD4 T cells in vivo by comparing CD25, pSTAT5, and pS6 levels in TGF-βRII WT and KO Stg CD4 T cells isolated directly ex vivo from day 3 post LCMV infection, a setting in which Th1 progenitor cells are more frequent to facilitate analysis (Figure 2—figure supplement 1A). We observed a considerably enhanced CD25+ pSTAT5+ population from TGF-βRII KO early effector cells relative to the WT cells (Figure 6B), suggestive of heightened IL-2 signaling in the TGF-βRII KO CD4 T cells in vivo during infection. Further, we also found enhanced ex vivo CD25+ pS6+ early effector cells (Figure 6B), indicating that both STAT5 and AKT/mTOR signaling arms are amplified in the absence of TGF-β signals. Together, these data demonstrate that TGF-β directly suppresses the expression of CD25 and phosphorylation of STAT5 and S6 in early effector CD4 T cells in vivo and thus, likely promotes Tfh cell differentiation by limiting IL-2 signaling in Tfh precursor cells.

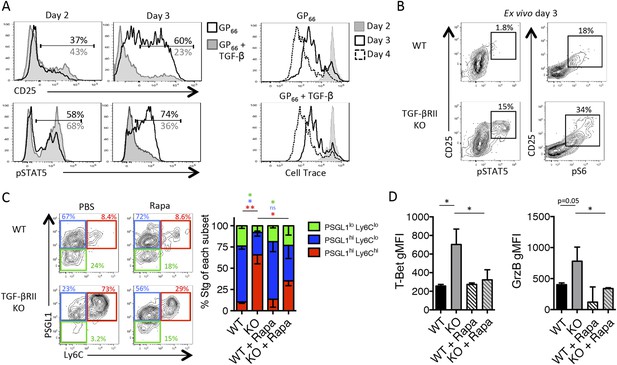

TGF-β restricts IL-2 responsiveness and insulates early Tfh progenitor cells from mTOR signaling.

(A) Stg CD4 T cells were labelled with Cell Trace dye and cultured in vitro with 0.1 μM GP66 peptide ± 10 ng/ml TGF-β and stained for surface expression of CD25 (top) or restimulated with IL-2 to assess pSTAT5 (bottom). Data are representative of four independent experiments. (B) Stg chimeric mice (1 × 106 CD44lo TGF-βRII+/+ CD4-cre+ (WT) or TGF-βRIIf/f CD4-cre+ (KO)) were infected with LCMV Armstrong and 3 days p.i., spleens were fixed immediately in 2% PFA and stained with antibodies to measure surface expression of CD25, Ly6C, and intracellular phosphorylation of STAT5 (pSTAT5) and pS6 directly ex vivo. Data are representative of three independent experiments including 3–5 total mice/group. (CD) 2 × 105 CD44lo TGF-βRII+/+ CD4-cre+ (WT) or TGF-βRIIf/f CD4-cre+ (KO) Stg cells were adoptively transferred into congenic C57BL/6 recipients infected with WSN-GP33/66 the following day. Mice were treated with PBS or 75 mg/kg rapamycin i.p. daily. On day 8 p.i, Stg cells in the MLN were assessed for expression of PSGL1 and Ly6C (C) or T-bet or GzmB (D). Data are representative of three independent experiments encompassing a total of 9–15 mice/group. *p < 0.05, **p < 0.005 and colored asterisks correspond to the color in the stacked graphs.

https://doi.org/10.7554/eLife.04851.011

Since we found enhanced pS6 directly ex vivo, we questioned whether we could rescue Tfh differentiation in the absence of TGF-βRII signaling by blocking mTOR activity. To do this, we treated WT and TGF-βRII KO Stg chimeric mice with the mTORC1 inhibitor rapamycin (Rapa) daily throughout influenza infection. It should be noted that IL-2 is not the sole factor that activates mTOR in T cells and that the TCR and a variety of other pro-inflammatory cytokines and costimulatory ligands also utilize this signaling pathway. Interestingly, we found that rapamycin treatment rescued the differentiation of PSGL1lo Ly6Clo Tfh cells and suppressed the aberrant expansion of the PSGL1hi Ly6Chi Th1 cells that arise in the absence of direct TGF-β signals (Figure 6C). Likewise, rapamycin suppressed the over-expression of T-bet and GrzB in the TGF-βRII KO CD4 T cells (Figure 6D). Taking into account that mTOR blockade with rapamycin affects many other cell types, these results suggest that TGF-β dampens mTOR activity in CD4 T cells to allow for Tfh cell differentiation. Together with the findings above, these data strongly support that direct TGF-βRII signaling restricts CD25 expression and IL-2 responsiveness in virus-specific CD4 T cells to maximize the development of Tfh cells, GC B cell reactions, and isotype-switched antibody responses during influenza virus infection.

Discussion

In this study, we demonstrate that T cell-directed TGF-β signals are critical for insulating early effector CD4 T cells from Th1-promoting IL-2 signals, thereby allowing for virus-specific Tfh cell differentiation. Consequently, T cell intrinsic TGF-βRII signaling is also required for GC reactions and isotype-switched antibody production during respiratory influenza virus infection. In support of these findings, TGF-β was also recently shown in human T cells to promote the differentiation of certain Tfh properties in vitro (Schmitt et al., 2014b). T cell-directed TGF-β restricted the expression of the high affinity IL-2Rα chain CD25 on early effector CD4 T cells in vitro and in vivo, while, early anti-viral effector cells generated in the absence of TGF-β signals displayed evidence of enhanced IL-2 signaling in vivo. Since IL-2 promotes Blimp1 expression and Th1 differentiation (Pepper et al., 2011; Ballesteros-Tato et al., 2012; Johnston et al., 2012; Nurieva et al., 2012; Oestreich et al., 2012), these data suggest that TGF-β works to insulate early effector CD4 T cells from IL-2 signals and may play a central role in limiting Blimp1 expression in Tfh progenitor cells. Interestingly, TGF-β signaling in B cells also promotes IgA class switching and mucosal immunity (Cazac and Roes, 2000; Borsutzky et al., 2004; Seo et al., 2013). Since TGF-β is important for the differentiation of both mucosal Tfh and B cells, which also must interact for proper antibody responses, this provides a unique example of a coordinated signaling pathway to maximize humoral immunity to respiratory influenza virus infection.

Cytokines utilizing the STAT3 signaling pathway including IL-6, IL-21, and IL-27 have been implicated in driving Tfh differentiation (Nurieva et al., 2008; Batten et al., 2010; Eto et al., 2011; Ma et al., 2012; Choi et al., 2013a; Harker et al., 2013; Ray et al., 2014), but due to their partially compensatory pathways, separating the requirements for individual signals throughout infection has proved challenging. Furthermore, it is unclear whether other signals induced locally or globally during viral infections may contribute to Tfh cell differentiation. Herein, we identify TGF-β as an additional signal that may restrict IL-2-induced Blimp1 and directly suppress T-bet expression to allow for Tfh cell differentiation. STAT3 signaling in the presence of TGF-β is also a well-described inducer of Th17 effector cells. In fact, a subset of human Tfh cells share multiple properties with that of Th17 cells including co-expression of Bcl6 and Rorγt and the ability to provide B cell help (Schmitt et al., 2014a, 2014b). However, we did not detect Rorγt expression in murine anti-viral effector CD4 T cells (data not shown). Moreover, addition of TGF-β to murine T cell cultures in the presence of IL-6 and IL-21 induced IL-17-producing T cells as expected, but actually suppressed Tfh properties including ICOS and IL-21 expression (Schmitt et al., 2014b). These data suggest that although TGF-β and STAT3 signals are required for murine Tfh differentiation during viral infection in vivo, they are not sufficient to induce this cell fate in vitro and that the specification of Tfh cells by these factors is under tight regulation in vivo. Since STAT4 signaling via IL-12 can promote early Tfh properties including Bcl6 expression (Nakayamada et al., 2011), it is possible that IL-12-STAT4 signaling is also required to induce a low level of T-bet in murine Tfh precursor cells to prevent Th17 development, but this will have to be formally evaluated.

In the absence of TGF-β, blocking mTOR with rapamycin during the first week of infection was sufficient to restore Tfh cell differentiation and suppress T-bet and GrzB expression. However, rapamycin treatment had no overt affect on the differentiation of WT Stg cells during this phase of influenza infection. Interestingly, rapamycin was recently reported to promote heterosubtypic immunity to influenza by reducing GC reactions and switched antibody responses, resulting in enhanced levels of protective influenza-specific IgM antibodies (Keating et al., 2013). This study showed that the protective effects of rapamycin depended on both CD4 T and B cells, and that B cell-intrinsic mTORC1 activity was responsible for enhancing Aicda expression and class switching. Although the generation of Tfh cells was not examined in this prior study, our new findings would suggest that suppression of mTOR in the virus-specific CD4 T cells would likely suppress Th1 in favor of Tfh cell differentiation, possibly contributing to the protective effects of rapamycin on heterosubtypic immunity to influenza.

Intriguingly, Treg cells appear to play a central role in anti-viral effector CD4 T cell fate decisions during viral infections due to their production of TGF-β and ability to consume IL-2. In support of this hypothesis, Treg cells were recently shown to be required for Tfh differentiation and GC reactions during influenza infection (Leon et al., 2014). Although this group did not find a role for TGF-β by treating mice with an anti-TGF-β blocking antibody, we have demonstrated a requirement for direct TGF-β using genetic ablation of the signaling receptor. Thus, Treg cells appear to play a central role in effector CD4 T cell fates during viral infection, likely by controlling the local bioavailability of both IL-2 and TGF-β. Another potential consideration is the differentiation of influenza-specific pTreg cells, which can temper pulmonary inflammation upon secondary or heterologous infections (Brincks et al., 2013; Kraft et al., 2013). Future studies will determine whether influenza-specific pTreg, naturally occurring nTreg cells, or other cell types altogether, are a physiologically relevant source of TGF-β to promote Tfh cell differentiation. Further, it is unclear at this time how TGF-β may be interpreted differently by anti-viral Tfh cells and Treg cells, which can suppress CD25 in the former context, but not in the latter. It is likely that IL-2 itself is playing an important role in this setting by initiating a dominant positive feedback loop involving IL-2, STAT5, Blimp1, and FoxP3 to maintain the full Treg program in pTreg cells (de la Rosa et al., 2004; Fontenot et al., 2005) and that TGF-β may only be required for the initial induction of FoxP3, but this remains to be addressed.

Infectious pathogens such as influenza virus are a global health burden, and despite annual modifications to seasonal flu vaccines that induce protective antibody responses, we have stumbled in our quest for a universal vaccine. Ideally, a universal flu vaccine would elicit broadly protective circulating and lung-resident memory T cells as well as circulating IgM, IgG, and mucosal IgA antibodies that target conserved viral structures to maximize the potential for immunological cross-reactivity to drift variants and different viral subtypes. Since TGF-β plays a critical role in mucosal tissues in the formation of tissue-resident memory CD8 T cells (Mackay et al., 2013; Zhang and Bevan, 2013), IgA-producing B cells (Cazac and Roes, 2000; Borsutzky et al., 2004), and as revealed here Tfh cells, it is an attractive target to consider in the development of a broadly protective universal influenza vaccine.

Materials and methods

Mice and infections

C57BL/6Ncr mice were purchased from the National Cancer Institute (Frederick, MD). TGF-βRIIf/f CD4-cre mice were obtained from R Flavell and crossed to Stg TCR transgenic mice. TGF-βRIIf/f Lck-cre mice were a gift from M Bevan. Mice were infected with 2 × 105 pfu LCMV i.p. or ∼50 pfu recombinant influenza WSN-GP33/66 provided by Dr Michael Oldstone (Marsolais et al., 2008) i.n. after anesthetizing with ketamine hydrochloride and xylazine. Rapamycin-treated mice were administered ∼75 mg/kg rapamycin i.p. daily. All animal experiments were done with approved Institutional Animal Care and Use Committee protocols.

Cell isolation and adoptive transfers

At various time points post infection, SPL, MLN, bronchoaviolar lavage (BAL), and lungs were dissected. SPL and LN were processed as previously described (Marshall et al., 2011). BAL samples were collected by flushing the lungs twice with PBS and collecting both the supernatant for antibody ELISA and cell fraction for flow cytometry. Lymphocyte isolation from the lung tissue was achieved with the Miltenyi Biotec MACSDissociator using their published protocols. Direct ex vivo phospho-staining was performed by homogenizing the spleen in 2% paraformaldehyde immediately after isolation and permeabilizing the splenocytes in ice-cold methanol. To make Stg chimeras, splenocytes were isolated from WT or TGF-βRII KO Stg mice. CD44hi cells were depleted by staining the cells with an anti-CD44 biotin antibody, followed by labeling with the EasySep Biotin selection reagent (Stem Cell Technologies, Vancouver, Canada). The CD44hi bead-bound fraction was removed by placement in a magnet. Purity of depletion was assessed by streptavidin staining, and cells were used only if the CD44hi fraction was <5%. 1 × 104 Stg cells were adoptively transferred via retro-orbital injection for day 8 LCMV infection, 1 × 106 for day 3 LCMV, 2 × 105 for day 8 influenza infection, or 2 × 106 for days 4–5 influenza infection. Polyclonal chimeras were made in the same fashion and 5 × 106 CD44lo CD4 T cells were adoptively transferred into OT-II recipient mice.

Surface and intracellular staining

Lymphocyte isolation and surface and intracellular staining were performed as described previously (Marshall et al., 2011). For in vitro stimulation, lymphocytes were stimulated with GP66–77 peptide (1 μg/ml) for 6 hr with Brefeldin A and 10 ng/ml IL-2 or 1 µg/ml PMA and ionomycin. GP66–77 MHC class II tetramer (NIH tetramer core facility, Emory University, Atlanta, GA) staining was performed at 37°C for 1.5 hr. CXCR5 staining was achieved by incubating the cells at 25°C for 1 hr. TF staining was performed after permeabilization with the FoxP3 fixation and permeabilization kit (eBioscience). Phospho-flow was conducted by stimulating lymphocytes with soluble rIL-2 for 25 min at 37°C, fixing cells in 2% paraformaldehyde, and permeabilizing with ice-cold methanol. Antibodies were purchased from Biolegend (San Diego, CA), BD Pharmingen (San Diego, CA), eBioscience (San Diego, CA), or Cell Signaling Technology (Danvers, MA). Flow cytometry was acquired with a BD LSRII with Diva software and analyzed with Flow Jo software (Treestar, San Carlos, CA).

In vitro CD4 T cell cultures

Total splenocytes from Stg mice were cultured in RPMI supplemented with 10% FCS, 1% L-glutamine, 1% pen-strep, and 50 μM β-mercaptoethanol plus 0.1 μg/ml GP66–77, 10 ng/ml recombinant human TGF-β (Peprotech) was added to specified wells.

Immunofluorescence microscopy

Tissues were fixed in 4% paraformaldehyde overnight, followed by sinking in sequentially greater sucrose solutions (10%, 20%, and 30%). Fixed tissues were embedded in OCT compound (Sakura), and tissue blocks were frozen in 2-methylbutane (Sigma–Aldrich) chilled by dry ice. Eight micrometer sections were cut with a cryostat, air-dried, and fixed with cold acetone. Sections were stained with 1–5 μg/ml antibodies against Ly5.1, CD4, PNA, IgD, and ProLong Gold antifade reagents (Invitrogen) was added after washing. Images were captured on a Zeiss LSM 510 Meta confocal microscope, mounted on an Axiovert 100 M with automated XYZ control equipped with an argon laser with emissions at 458, 488, and 514 nm and two HeNe lasers with emission wavelengths at 543 and 633 nm. Image analysis was performed using Imaris suite (Bitplane, South Windsor, CT).

Antibody ELISA

96-well Polysorp microtiter plates (Nunc) were coated overnight with UV-inactivated WSN-GP33/66 in carbonate buffer. AP-conjugated goat anti-mouse IgG and IgA secondary antibodies were used for detection (Southern Biotech). ODs were converted to units based on standard curves with sera from C57BL/6 mice infected with influenza (Softmax Pro 3.1 software; Molecular Devices).

Statistical analysis

Where indicated, p values were determined by two-tailed unpaired Student's t test. p values <0.05 were considered significant and denoted as *p < 0.05, **p < 0.005, and ***p < 0.0005. All error bars represent standard deviation.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
    Influenza virus neuraminidase activates latent transforming growth factor beta
    1. S Schultz-Cherry
    2. VS Hinshaw
    (1996)
    Journal of Virology 70:8624–8629.
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60

Decision letter

  1. Shimon Sakaguchi
    Reviewing Editor; Osaka University, Japan

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “TGF-β signaling is required for the formation of CD4 T follicular helper cells and isotype-switched antibody responses” for consideration at eLife. Your article has been favorably evaluated by Tadatsugu Taniguchi (Senior editor), a Reviewing editor, and 2 reviewers.

The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

How Tfh cells, which are a critical helper population in the induction and maintenance of germinal center responses, are controlled in their development is only poorly understood at this time. This makes the results in this report timely and of potentially significant interest to the field. In particular, the role of TGF-β and IL-2/CD25 in the formation of Tfh cells is interesting. However, the data demonstrating the role of TGF-β in CD25 downregulation may need to be strengthened, particularly given the well described role of TGF-β in induction of CD25 positive iTregs. As described below, specific issues including some caveats associated with use of the CD4-cre TGF-βRIIf/f mice need to be addressed in revising the manuscript.

1) Tgf-β is also well established as a factor important for the in vitro generation of Foxp3+CD25+ iTregs and in vivo pTregs from CD4+CD25- cells. In these conditions, Tgf-β is perhaps not directly responsible for inducing CD25 expression, but also does not suppress CD25 expression as iTregs and pTregs both express and are dependent on CD25 expression and IL-2 for their survival. However, in Figure 6, it is clear that CD25 expression is being suppressed by Tgf-β. This discrepancy between the role of Tgf-β in the induction of CD4+CD25+Foxp3+ T-cells and the blocking of CD25 expression seen here needs to be addressed. Is it due to the Stg TCR, which, as the authors demonstrate, is not amenable to induction of Foxp3 positive cells?

2) In Figure 6, does this loss of CD25 expression still occur if purified naive T-cells are used alone with polyclonal stimuli such as anti-CD3 and anti-CD28? It is obscure to what extent the effect of the TFGb is direct to the CD4 cells or via other cells in the culture, which includes total splenocytes. This is the most direct demonstration that the effect is due to downregulation of CD25 in particular and not more general changes to activation. Please also include the proliferation data, currently not shown, in Figure 6A, that Tgf-β is not affecting activation is a key point.

3) The authors describe the immunological events following viral infection in detail but do not describe any effect on the natural history of viral infection. Are OT-II mice transferred with TGFRII KO or WT CD4 more or less able to resolve infection? Given the recent finding that rapamycin decreases germinal center formation and IgG production but enhances protection from influenza, it is not necessarily clear if the observed effects would be beneficial or detrimental to protection from influenza. The authors suggest that part of the contribution of rapamycin to protection seen in the previous study may have been in enhancing Tfh function but it is hard to see how this matches with the reduction in IgG and GC formation. This will make it possible to make more secure statements regarding the in vivo importance of the work.

4) The authors interpret their data as evidence that Tgf-β signaling is “required” for Tfh. Can this be justified given that most of their data assesses the relative representation of Tfh versus Th1? Is the major phenomenon being observed that Tgf-β inhibits the Th1 response?

5) How do the authors explain the observation that “Tfh precursor cells” are impaired at d3 but normal by d8 (Figure 2–figure supplement 1)? Why do other signals compensate for Tgf-β in the setting of LCMV infection but not influenza?

6) The B cell analysis (Figure 4) is very clear, perhaps more striking than the Tfh data (particularly where PSGL1loLy6Clo cells are analyzed). Is there a defect not just in Tfh formation but also in their migration to interact with B cells?

7) CD4-cre TGF-bRIIf/f mice develop early aggressive autoimmunity and activated T cells appear to emerge over time. One concern is that the Tgf-βR deficient cells are being sort-purified from an activated environment prior to adoptive transfer and this may alter their subsequent responsiveness in vivo.

8) It also needs to be addressed whether the lack of Tgf-β signals during the thymic selection of T cells in CD4-cre TGF-bRIIf/f mice might alter their subsequent response to challenge in the periphery.

https://doi.org/10.7554/eLife.04851.012

Author response

1) Tgf-β is also well established as a factor important for the in vitro generation of Foxp3+CD25+ iTregs and in vivo pTregs from CD4+CD25- cells. In these conditions, Tgf-β is perhaps not directly responsible for inducing CD25 expression, but also does not suppress CD25 expression as iTregs and pTregs both express and are dependent on CD25 expression and IL-2 for their survival. However, in Figure 6, it is clear that CD25 expression is being suppressed by Tgf-β. This discrepancy between the role of Tgf-β in the induction of CD4+CD25+Foxp3+ T-cells and the blocking of CD25 expression seen here needs to be addressed. Is it due to the Stg TCR, which, as the authors demonstrate, is not amenable to induction of Foxp3 positive cells?

We’ve also thought about this issue at length and cannot fully rationalize how TGF-β can sustain (i.e., not suppress) CD25 in one setting, but restrict its expression in another. The most likely explanation is that it depends on the different combinations and doses of cytokines involved in specifying CD4 T cell fates. For example, it is known that T cell differentiation is highly sensitive to TGF-β concentrations and that different types of T cells form according to the concentration of TGF-β (e.g., Tregs vs TH17 cells, and Tfh cells) (Zhou, Nature 2008: Schmitt, Nat Immunol, 2014). Additionally, distinct signaling cascades downstream of TGF-βR (e.g., Smad vs. MAPK) may differ based on cell type or TGF-β concentrations (Park, Mol. Immunol., 2007; Giroux, Blood, 2011; Gu, PNAS 2012, among others), which could impact the expression of TGF-β target genes. Furthermore, the specific activity the commercially available recombinant TGF-β is likely to differ considerably between vendors and/or lots, and therefore it is difficult to directly compare one study to another simply based on amount of TGF-β used. Finally, rTGF-β requires activation (cleavage) in a 10mM citric acid solution and the efficiency of activation can be variable from lot-to-lot, not to mention lab-to-lab. For instance, the concentration of TGF-β (10ng/ml) used in our studies was insufficient on its own to maintain FoxP3 protein expression in the absence of exogenous IL-2 in vitro (Author response image 1), though it has been demonstrated to do so in other studies (Fantini, Nat Protocols, 2007).

Author response image 1

Further, we feel that IL-2 signaling is an important rheostat between these cell fates since it promotes Treg and suppresses Tfh. It is likely that CD25 expression on iTreg cells is sustained not by TGF-β, but by a dominant positive feed-back loop involving IL-2, STAT5, and Blimp1 (Fontenot et al., Nat Immunol, 2005). Therefore, cells that encounter relatively low amounts of TGF-β in the absence of high amounts of IL-2 will likely not sustain CD25 expression and develop into iTregs (as observed in our hands, see Author response image 1). We postulate that this would be an environment more conducive to TFH cell differentiation. It should also be noted that FoxP3 can be induced in activated Stg cells in vitro (as shown in the figure), but it is not expressed in LCMV or influenza-specific Stg cells in vivo. So it is not the TCR signal, per se, that prevents FoxP3 expression in these TCR Tg cells, but likely the combinatorial effects of viral antigen presentation and inflammatory cytokine milieu that is not amenable to induction of FoxP3+ Stg Treg cells in vivo. Thus, we do not have a conclusive answer to the reviewer’s question, but we suspect that during LCMV infection, TGF-β may not be produced at a level capable of inducing FoxP3+ virus-specific Tregs, but is able to promote TFH cells. We have amended our Discussion to include these important points, highlighted in yellow.

2) In Figure 6, does this loss of CD25 expression still occur if purified naive T-cells are used alone with polyclonal stimuli such as anti-CD3 and anti-CD28? It is obscure to what extent the effect of the TFGb is direct to the CD4 cells or via other cells in the culture, which includes total splenocytes. This is the most direct demonstration that the effect is due to downregulation of CD25 in particular and not more general changes to activation. Please also include the proliferation data, currently not shown, in Figure 6A, that Tgf-β is not affecting activation is a key point.

This is a great point raised by the reviewers. Because our in vivo analysis of TGF-βR KO CD4 T cells showed heightened CD25, pSTAT5, and pS6 (new addition to Figure 6B), we conclude that TGF-β is directly modulating CD25 expression on virus-specific CD4 T cells during infection in vivo. However, in vitro, it is possible that TGF-β was acting on APCs or other cells in the culture to regulate CD25 on the activated CD4 T cells; two situations that are also not mutually exclusive. To this end, we performed the experiment suggested by the reviewers and first purified the CD4 T cells prior to stimulation with anti-CD3+ anti-CD28+/- TGF-β for 2-3 days. In agreement with our in vivo findings, this experiment showed that TGF-β could suppress CD25 and IL-2 responsiveness (i.e., pSTAT5) over time (Author response image 2). Thus, we believe that TGF-β is acting directly on the CD4 T cells in vitro to modulate CD25 expression.

Author response image 2

3) The authors describe the immunological events following viral infection in detail but do not describe any effect on the natural history of viral infection. Are OT-II mice transferred with TGFRII KO or WT CD4 more or less able to resolve infection? Given the recent finding that rapamycin decreases germinal center formation and IgG production but enhances protection from influenza, it is not necessarily clear if the observed effects would be beneficial or detrimental to protection from influenza. The authors suggest that part of the contribution of rapamycin to protection seen in the previous study may have been in enhancing Tfh function but it is hard to see how this matches with the reduction in IgG and GC formation. This will make it possible to make more secure statements regarding the in vivo importance of the work.

We thank the reviewers for allowing us to address this point. We designed the experiments using OT-II recipients to specifically ask whether T cell-directed TGF-β was required for GC reactions and influenza-specific antibody, but we understand the desire to also assess the pathological outcomes of infection. We felt the experimental approach, while being suitable for comparing the ability of WT and Tgf-βRII KO CD4 T cells to help WT B cells, may present an unphysiological setting for comparing more general aspects of anti-influenza immunity, such as viral control. However, it is still worth examining if a general reduction overall in anti-influenza antibodies may affect the rates of viral clearance. Because our previous experiments went out to day 14 to measure influenza antibodies (and would likely be devoid of virus as influenza is typically cleared within 10 days), we repeated the experiment to examine viral titers at an earlier time point, day 6 p.i. At this relatively early time point, we found that the OT-II mice engrafted with WT T cells had lower amounts (∼10 fold) of influenza viral RNA in their lungs (Author response image 3). As this experiment was only done once, we hesitate to make any strong conclusions, and quite honestly, we were surprised to see any effects at all at day 6 because this is relatively early to see the effects of a primary adaptive immune response on control of an influenza A infection (Kamperschroer, J Immunol, 2006; Mozdzanowska, J Immunol, 2000). Nonetheless, this result supports the model that the Tgf-βRII KO cells are less efficient at eliciting anti-viral Ab responses and this correlates with delayed viral control.

Author response image 3

4) The authors interpret their data as evidence that Tgf-β signaling is “required” for Tfh. Can this be justified given that most of their data assesses the relative representation of Tfh versus Th1? Is the major phenomenon being observed that Tgf-β inhibits the Th1 response?

We thank the reviewers for highlighting this important point and allowing us to clarify the differences observed in the roles of TGF-β in Tfh cell formation and function. It is clear based on our data that T cell-directed TGF-β is a critical signal for optimal GC and antibody responses during influenza infection. And although the effect of TGF-β deletion on TFH cell formation and function is profound, as noted by the reviewers in point 6 below, the functional defects may be even stronger than the phenotypic defects. Thus, we conclude that TGF-β is a necessary component of Tfh cell function during influenza infection. Many of the attributes we use to detect Tfh cell formation (CXCR5, PD-1, Ly6C, PSGL1) were affected by deletion of Tgf-βRII, but they were not fully abrogated. Therefore, we agree that we should be more conservative in our description of the role of TGF-β in TFH cell formation. In support of this, TGF-β preferentially induced expression of CXCR5 and ICOS more than Bcl6 and IL-21 in human CD4 T cells (Schmitt et al., Nat Immunol, 2014), and suggests that TGF-β may contribute to part, but not all, of the Tfh cell program. We have revised the text accordingly. To better understand how TGF-β contributes to TFH cell development and function, we are preparing to compare the global gene expression profiles of the flu-specific WT and KO CD4 T cells via RNA-seq. This could help us identify which TFH signature genes are most affected by TGF-β signaling.

5) How do the authors explain the observation that “Tfh precursor cells” are impaired at d3 but normal by d8 (Figure 2–figure supplement 1)? Why do other signals compensate for Tgf-β in the setting of LCMV infection but not influenza?

We find this discrepancy particularly fascinating and would like to point out that this is not the first example of a signal that is required for a precursor population but not full effector T cell differentiation. Shane Crotty’s lab has found that IL-6 is an important signal for Tfh precursors (Choi et al., J. Immunol., 2013), but is dispensable for full Tfh effector cells during LCMV infection (Poholek, J. Immunol, 2010). We hypothesize that a determining factor between LCMV and influenza infections lies within the context of the viral infection (mucosal vs. systemic), and that TGF-β is more abundant in the lung and medLN and plays a more prominent role in mucosal immune responses, but we currently only have circumstantial evidence for this. Our future studies will examine this hypothesis more closely by comparing additional systemic and mucosal infections, as well as different mucosal tissues such as the gut.

6) The B cell analysis (Figure 4) is very clear, perhaps more striking than the Tfh data (particularly where PSGL1loLy6Clo cells are analyzed). Is there a defect not just in Tfh formation but also in their migration to interact with B cells?

This is a very important point, and we thank the reviewers for ensuring that we clarify this critical piece of data in our manuscript. As one can see in Figure 2E, we indeed find fewer TGF-βRII KO STg cells found within PNA+ GC. Because both the downregulation of PSGL1 (as well as CCR7) and the upregulation of CXCR5 are important for their migration and retention in the GC, we believe that the aberrant expression of these molecules may preclude them from getting into or staying in the GC to provide B cell help. Whether they traffic there but do not remain or are impaired in their homing is also an interesting question, but one that would be best addressed using intravital imaging which is an expertise not present in our lab.

7) CD4-cre TGF-bRIIf/f mice develop early aggressive autoimmunity and activated T cells appear to emerge over time. One concern is that the Tgf-βR deficient cells are being sort-purified from an activated environment prior to adoptive transfer and this may alter their subsequent responsiveness in vivo.

We agree with the reviewers on this point and we worked very hard to design our experiments appropriately in order to address this concern. When we first identified the TGF-β gene signature in WT Tfh cells, we sought advice from Richard Flavell at Yale who created these mice and has worked with this strain extensively to seek technical guidance on this exact point. They informed us to always sort on CD44lo naïve phenotype T cells, which we have done in all experiments. Furthermore, we crossed the TGF-βRIIf/f mice to the Smarta TCR transgenic (Stg) mice, which will slow the rate of any autoimmunity by restricting the repertoire (Sanjabi et al., J. Immunol. Methods, 2010). Additionally, for the experiments involving the adoptive transfer of polyclonal CD4 T cells (Figures 3 and 4) we used the TGF-βRIIf/f distal Lck-cre mice because it has been reported that while nearly all the conventional T cells (i.e., non-Treg cells) lack TGF-βRII in this model, a fraction of CD4 T cells do escape cre-mediated deletion and develop into Tregs with the TGF-βRII intact. As such, the TGF-βRIIf/f distal Lck-cre mice have no signs of autoimmunity during the first 18 weeks of life (Zhang, Nat Immunol, 2012).

8) It also needs to be addressed whether the lack of Tgf-β signals during the thymic selection of T cells in CD4-cre TGF-bRIIf/f mice might alter their subsequent response to challenge in the periphery.

TGF-β signaling in the thymus can indeed impact T cell selection, as demonstrated clearly by Ouyang et al. (Immunity, 2013). It appears that TGF-β signals regulate at least 2 facets of T cell homeostasis. First, TGF-β promotes the selection of low affinity T cells in the thymus, and second, TGF-β regulates peripheral survival of naïve CD4 T cells as well as Treg and Th17 cells (Ouyang, Immunity, 2013; Ouyang, Immunity, 2010; Li, Immunity, 2006). Although we did not go to the same lengths to assess these attributes for TGF-βRf/f CD4-cre Stg cells, we did not observe a survival defect for TGF-βRII KO Stg cells in the spleen or lymph nodes of young adult mice. Therefore, it appears that the overexpression of the high affinity Stg TCR bypasses any need for TGF-β signals for naïve T cell selection and survival and we believe that our comparisons of WT and TGF-βR KO naïve CD4 T cells are fair.

https://doi.org/10.7554/eLife.04851.013
