Actin dynamics tune the integrated stress response by regulating eukaryotic initiation factor 2α dephosphorylation

Research Article
Cited
11
Views
2,606
Comments
0
Cite as: eLife 2015;4:e04872 doi: 10.7554/eLife.04872

Abstract

Four stress-sensing kinases phosphorylate the alpha subunit of eukaryotic translation initiation factor 2 (eIF2α) to activate the integrated stress response (ISR). In animals, the ISR is antagonised by selective eIF2α phosphatases comprising a catalytic protein phosphatase 1 (PP1) subunit in complex with a PPP1R15-type regulatory subunit. An unbiased search for additional conserved components of the PPP1R15-PP1 phosphatase identified monomeric G-actin. Like PP1, G-actin associated with the functional core of PPP1R15 family members and G-actin depletion, by the marine toxin jasplakinolide, destabilised the endogenous PPP1R15A-PP1 complex. The abundance of the ternary PPP1R15-PP1-G-actin complex was responsive to global changes in the polymeric status of actin, as was its eIF2α-directed phosphatase activity, while localised G-actin depletion at sites enriched for PPP1R15 enhanced eIF2α phosphorylation and the downstream ISR. G-actin's role as a stabilizer of the PPP1R15-containing holophosphatase provides a mechanism for integrating signals regulating actin dynamics with stresses that trigger the ISR.

https://doi.org/10.7554/eLife.04872.001

eLife digest

For a cell to build a protein, it must first copy the instructions contained within a gene. A complex molecular machine called a ribosome then reads these instructions and translates them into a protein. This translation process involves a number of steps. Proteins called eukaryotic translation initiation factors (or eIFs for short) coordinate the first step in the process, which is known as ‘initiation’.

The eIFs also provide the cell with ways to control how quickly it makes proteins. For example, when a cell is stressed, either by starvation or toxins, it adds a phosphate group onto part of an eIF protein, called eIF2α. This modification makes this eIF protein less able to initiate translation, and so the cell builds fewer proteins and conserves more of its resources during times of stress.

Once the stressful conditions are over, the phosphate group is removed from eIF2α by an enzyme called a phosphatase. This phosphatase contains two subunits: one that recognizes eIF2α and another that removes the phosphate group. However, experiments that attempted to recreate this phosphatase activity using just these two subunits in a test tube failed to generate a working enzyme that specifically targeted the phosphate group of eIF2α. This suggests that in cells this enzyme contains an additional unknown subunit. Now, Chambers, Dalton et al. (and Chen et al.) report the identity of a ‘missing’ third subunit as a protein known as globular-actin or G-actin.

Chambers, Dalton et al. engineered human and fruit fly cells to add ‘molecular handles’ on the two known subunits of the phosphatase enzyme. These handles could then be used to essentially pull these proteins out of the mixture of molecules within a cell and see what other proteins came along too. Both of the known subunits ‘pulled’ G-actin along with them; this suggested that it could be the missing part of the phosphatase enzyme.

Further experiments confirmed that G-actin works together with the other two subunits to specifically remove the phosphate group from eIF2α in mouse cells that had been stressed using a harmful chemical. Individual G-actin proteins can bind together to form long filaments, and signals that encourage a cell to divide or move also trigger the formation of actin filaments. This reduces the activity of the phosphatase enzyme by depriving it of a crucial component, i.e., free G-actin proteins. As such, the new mechanism described by Chambers, Dalton et al. suggests how growth and movement signals might also change a cell's sensitivity to stress. These findings may hopefully enable stressed cells to be targeted by drugs to treat disease; but future work is needed to clarify under what circumstances the integration of such signals into the stress response is beneficial to the cell.

https://doi.org/10.7554/eLife.04872.002

Introduction

In eukaryotes, regulation of protein biosynthesis defends against proteotoxic stress and balances anabolic growth with nutrient availability (Jackson et al., 2010). The eukaryotic translation initiation factor 2 complex recruits the initiator methionyl-tRNA to ribosomes in a GTP-dependent catalytic cycle, but phosphorylation of its alpha subunit (eIF2α) by a family of stress-sensing kinases inhibits guanine nucleotide exchange, attenuating translation initiation and with it, global protein synthesis (Clemens, 1996; Jackson et al., 2010). During endoplasmic reticulum stress, the eIF2α kinase PERK triggers attenuation of protein synthesis (Harding et al., 1999), while other members of the family respond variously to amino acid deprivation, viral infection or heme deficiency (van 't Wout et al., 2014). This ability of eIF2α phosphorylation to integrate signals from multiple, apparently unrelated, stresses led this pathway to be named the ‘integrated stress response’ (ISR) (Harding et al., 2003). Attenuated global protein synthesis is cytoprotective early in the stress response. The ISR also involves the translational induction of the transcription factors ATF4 and CHOP, which activate a transcriptional programme that has pro-survival effects in the short term, whilst prolonged activation leads to a switch to apoptosis (Zinszner et al., 1998; Marciniak et al., 2004; Lu et al., 2014).

In metazoans, inactivation of the ISR is mediated by a catalytic, protein phosphatase 1 (PP1) subunit in complex with a regulatory subunit (PPP1R15) responsible for targeting eIF2α (He et al., 1998; Novoa et al., 2001; Jousse et al., 2003). In Drosophila, a single PPP1R15 has been described that is required for anabolic larval growth (Malzer et al., 2013), while in mammals, two PPP1R15 paralogues exist: a constitutively expressed isoform PPP1R15B (also known as CReP) and a stress-inducible isoform PPP1R15A (also GADD34) (Novoa et al., 2001; Jousse et al., 2003). PPP1R15 family members share significant homology in their C-terminal conserved PP1-interacting domain, constituting a core functional domain sufficient to dephosphorylate eIF2α when over expressed in cells (Novoa et al., 2001; Malzer et al., 2013). In contrast, the less well-conserved N-terminal portion of each PPP1R15 determines protein stability (Brush and Shenolikar, 2008) and subcellular localisation (Zhou et al., 2011), although the importance of these functions in the regulation of eIF2α phosphatase activity within the cell remains to be worked out.

The importance of eIF2α dephosphorylation is highlighted by PPP1R15 loss-of-function phenotypes. In Drosophila, ubiquitous RNAi-mediated depletion of dPPP1R15 leads to embryonic lethality, while failure of blastocyst implantation is seen in Ppp1r15a-Ppp1r15b double knockout mouse embryos (Harding et al., 2009; Malzer et al., 2013). Deficiency of PPP1R15B in isolation permits survival to gestation but leads to defects of haematopoiesis and death in the early neonatal period (Harding et al., 2009). In contrast, PPP1R15A-deficient mice are overtly healthy when raised in standard laboratory conditions and show increased resistance to ER stress-induced tissue damage (Marciniak et al., 2004).

PPP1R15A is regulated transcriptionally (Novoa et al., 2001), but relatively little is known about post-transcriptional regulation of its activity or the regulation of the constitutively expressed PPP1R15B or Drosophila dPPP1R15 (Jousse et al., 2003; Malzer et al., 2013). The literature offers numerous examples of proteins that associate with one or other of the PPP1R15 family members (Hasegawa et al., 2000a, 2000b; Wu et al., 2002; Hung et al., 2003; Shi et al., 2004), but these are largely single studies with no follow-up or physiological validation. In this study, we set out to characterise conserved elements of the PPP1R15 interactome and in doing so identified a novel mechanism for the regulation of eIF2α phosphatases that links the ISR with cytoskeletal dynamics.

Results

PPP1R15 selectively associates with monomeric G-actin in cells

Important regulators/components of the PPP1R15-PP1 holoenzyme are likely to be conserved between species and paralogues; therefore, we set out to identify proteins that interact with both mammalian paralogues, PPP1R15A and PPP1R15B, and their non-vertebrate homologue, Drosophila dPPP1R15. GFP-tagged human PPP1R15A and PPP1R15B were expressed in human embryonic kidney (HEK) 293T cells and subjected to GFP-Trap affinity purification followed by mass spectrometry (Figure 1A,B and Figure 1—figure supplements 1, 2), whereas V5-His-tagged dPPP1R15 was expressed in Drosophila Schneider 2 (S2) cells and subjected to affinity purification using anti-V5-His resin followed by mass spectrometry (Figure 1A). In addition to the anticipated association of PP1, we identified a number of other proteins that were bound to each PPP1R15 bait (as defined by >twofold enrichment over control and the detection of ≥5 identifiable peptides in the mass spectra; Figure 1—figure supplements 1, 2).

Figure 1 with 2 supplements see all

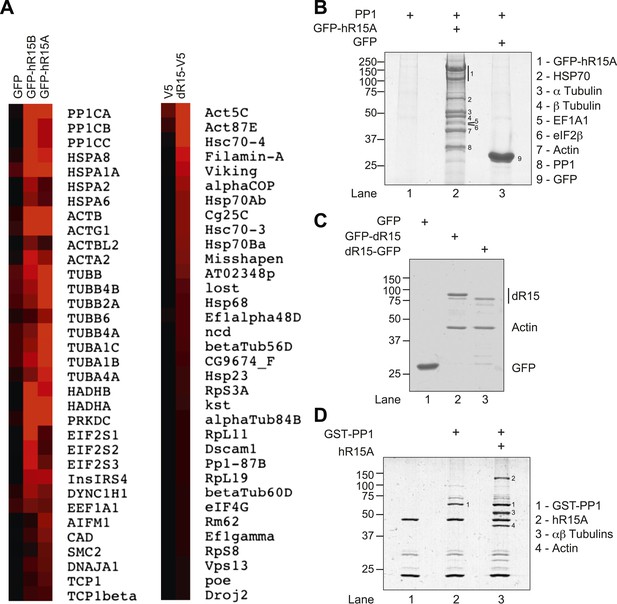

PPP1R15 associates with actin in mammalian and insect cells.

(A) Heat map of proteins associated with GFP, GFP-tagged human PPP1R15B (GFP-hR15B) and GFP-tagged human PPP1R15A (GFP-hR15A) affinity-purified from transiently transfected HEK293T cells (left panels); heat map of proteins associated with V5 and V5-tagged Drosophila PPP1R15 (dR15-V5) affinity purified from transiently transfected S2 cells (right panels). Samples were analysed by Orbitrap mass spectrometer. Intensity reflects total spectrum count of identified peptides. Proteins identified by at least five spectra and showing at least twofold enrichment over control are shown. (B) Coomassie-stained SDS-PAGE of GFP-affinity purified proteins from HEK293T cells expressing indicated proteins. Indicated bands were individually excised and identified by mass spectrometry. (C) Coomassie-stained SDS-PAGE of GFP-affinity purified proteins from HEK293T cells expressing indicated proteins. Bands were individually excised and identified by mass spectrometry. (D) Coomassie-stained SDS-PAGE of glutathione-affinity purified proteins from HEK293T cells. Indicated bands were individually excised and identified by mass spectrometry.

https://doi.org/10.7554/eLife.04872.003

Actin emerged as the prominent partner conserved across phyla (Figure 1A,B). Confidence in this association was bolstered by finding that Drosophila dPPP1R15 also associated with mammalian actin in stoichiometric amounts (Figure 1C). This association was observed regardless of which terminus of dPPP1R15 was tagged. Actin's presence in complex with PPP1R15 was also observed using other tag combinations: an N-terminal fusion of GST with the catalytic subunit PP1A expressed in HEK293T cells alongside PPP1R15A yielded a complex containing GST-PP1A, PPP1R15A, and actin upon glutathione-affinity chromatography (Figure 1D).

GFP-tagged PPP1R15A purified from HEK293T cells failed to associate with filamentous F-actin in a co-sedimentation assay (Figure 2A) suggesting selective interaction between PPP1R15 and monomers of soluble G-actin. The distribution of actin between its monomeric G or polymeric F form is influenced by physiological conditions and can be biased pharmacologically by small molecules that stabilise either form (White et al., 1983). Jasplakinolide, which stabilises F-actin filaments and depletes the cells of G-actin (Holzinger, 2009), abolished the interaction between PPP1R15A and actin (Figure 2B, lane 4). In contrast, latrunculin B, which binds to the nucleotide-binding cleft of actin, thus increasing the cytoplasmic pool of G-actin (Nair et al., 2008), potently enhanced the recovery of actin in complex with PPP1R15A (Figure 2B, lane 3). Cytochalasin D also increases the cellular pool of G-actin, but does so by engaging actin's barbed end, competing with several known G-actin-binding proteins (Miralles et al., 2003; Dominguez and Holmes, 2011; Shoji et al., 2012); exposure to cytochalasin diminished the recovery of actin in complex with PPP1R15A (Figure 2B lane 2).

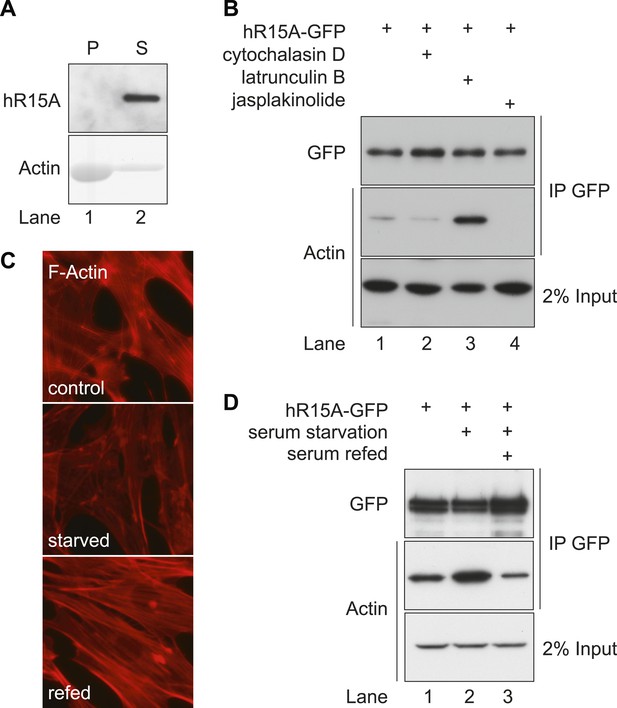

PPP1R15 selectively associates with monomeric G-actin in cells.

(A) Immunoblot (upper panel) and Coomassie-stained gel (lower panel) of affinity-purified GFP-tagged PPP1R15A and purified actin. Samples were incubated and centrifuged to pellet F-actin (lane 1), leaving G-actin in the supernatant (lane 2); pellet P, supernatant S. (B) Immunoblot for GFP and actin of GFP-affinity purified proteins (upper two panels) from HEK293T cells expressing GFP-tagged PPP1R15A (hR15A-GFP) treated with 2 µM of each indicated compound. Immunoblot for actin of 2% of input. (C) Fluorescence microscopy image of NIH-3T3 cell F-actin arrangement. NIH-3T3 cells were left untreated (control), cultured in serum-free medium for 24 hr (serum starved), cultured in serum-free medium for 18 hr, followed by addition of medium containing 10% vol/vol FBS for 6 hr (serum refed), then fixed and stained with Alexa-Fluor 568 phalloidin and imaged by confocal microscopy. (D) Immunoblot for GFP and actin of NIH-3T3 lysates from cells treated as in ‘C’ then subjected to GFP affinity purification (upper two panels). Immunoblot for actin of 2% of input.

https://doi.org/10.7554/eLife.04872.006

Actin polymerisation is sensitive to physiological growth cues (Sotiropoulos et al., 1999). Serum starvation, which resulted in the anticipated conversion of F to G-actin (Figure 2C) enhanced recovery of actin in complex with PPP1R15A in NIH-3T3 cell lysates (Figure 2D). On serum re-feeding, cables of F-actin re-formed within the cytoplasm and less actin was recovered in complex with PPP1R15A. The aforementioned confirm that both mammalian and insect PPP1R15 regulatory subunits engage G-actin and that the interaction between them is sensitive to physiological changes in the availability of G-actin.

Actin associates with the conserved C-terminal functional core of PPP1R15

Human PPP1R15A is a 674 amino acid protein, comprising an N-terminal domain required for membrane interaction, a region of proline, glutamate, serine, threonine (PEST) rich repeats of uncertain function, and a C-terminal functional core domain that interacts with the PP1 catalytic subunit (Figure 3A) and is sufficient for mediating substrate-specific dephosphorylation (Novoa et al., 2001; Kojima et al., 2003; Ma and Hendershot, 2003). Deletion analysis showed that the C-terminus of PPP1R15A (residues 501–674) was also sufficient for the association with actin (Figure 3B). Further deletion revealed that residues C-terminal to amino acid 615 were essential for actin association but not for PP1 binding, which was enfeebled but not abolished (Figure 3B,C). Incorporation of five residues (W616–R620 of human PPP1R15A) restored fully the recovery of actin in complex with PPP1R15A (Figure 3C lane 6), while the W616A and L619A double mutation strongly enfeebled actin recovery in complex with PPP1R15A (Figure 3D). A V556E mutation of the RVxF motif, which all but abolishes PP1 binding and eIF2α dephosphorylation in vivo (Novoa et al., 2001), also attenuated recovery of actin in complex with PPP1R15A, but failed to abolish it altogether (Figure 3C, lane 3).

Figure 3 with 2 supplements see all

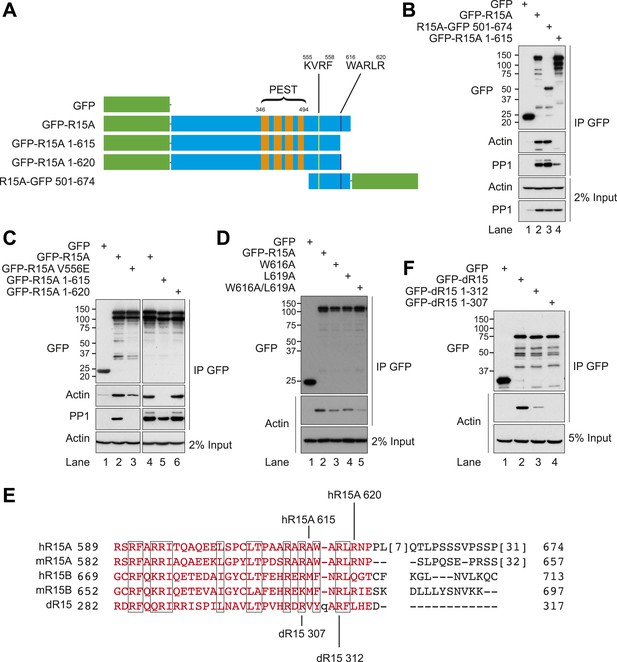

Actin associates with the conserved C-terminal portion of PPP1R15.

(A) Schematic diagram of human PPP1R15A (R15A) constructs used. Green indicates GFP. PEST repeats (between residues 346 and 494, orange), K555VRF558 (yellow), and W616ARLR620 (purple) sequences are identified. (B) Immunoblot for GFP, actin, and PP1 of HEK293T lysates from cells expressing indicated constructs and PP1, and subjected to GFP affinity purification (upper three panels). Immunoblot for actin and PP1 of 2% of input. (C) Immunoblot for GFP, actin, and PP1 of HEK293T lysates from cells expressing indicated constructs and PP1, and subjected to GFP affinity purification (upper three panels). Immunoblot for actin of 2% of input. (D) Immunoblot for GFP and actin of HEK293T lysates from cells expressing indicated constructs and subjected to GFP affinity purification (upper two panels). Immunoblot for actin of 5% of input (lower panel). (E) Sequence alignment of C-terminal portions of human (h) and murine PPP1R15A (mR15A) and PPP1R15B (mR15B) and Drosophila dPPP1R15 (dR15) with regions of homology boxed. Specific truncations are indicated. (F) Immunoblot for GFP and actin of HEK293T lysates from cells expressing indicated constructs and subjected to GFP affinity purification (upper two panels). Immunoblot for actin and PP1 of 2% of input.

https://doi.org/10.7554/eLife.04872.007

The quantities of actin and PP1 recovered in complex with PPP1R15A were sensitive to the salt concentration of the buffers used (Figure 3—figure supplement 1). Actin association with PPP1R15A dropped progressively with increasing salt (75% of the actin bound at 150 mM salt was lost at 350 mM), as did PP1 association, with no detectable binding at 350 mM. The complex was stable in non-denaturing detergents (triton X-100 and digitonin), but washes in a buffer containing the harsher detergents, sodium deoxycholate (0.5% vol/vol) and SDS (0.1% vol/vol), completely abolished interaction between PPP1R15A and both PP1 and actin (Figure 3—figure supplement 2).

Drosophila dPPP1R15 is half the size of the mammalian PPP1R15s. When aligned, mammalian PPP1R15A, PPP1R15B, and dPPP1R15 share significant homology within their C-termini, which drops off at residue 622 of human PPP1R15A (Figure 3E). We therefore truncated the Drosophila protein within and immediately N-terminal to this region of homology (Y307–H312). Partial truncations reduced the association of dPPP1R15 with actin, while deletion of the entire segment (at residue 307) completely abolished the interaction (Figure 3F). The interaction with actin, thus maps to the conserved portion of PPP1R15 family members and is favoured by a short stretch of hydrophobic residues at the extreme C-terminus of this core. Mutational analysis thus points to a measure of independent association of PP1 or actin with PPP1R15, but highlights the enhanced recovery of the three proteins in a ternary complex of PPP1R15, PP1, and actin.

Association of G-actin with PPP1R15 regulates eIF2α phosphatase activity in vivo

To examine the relevance of G-actin to the endogenous PPP1R15 complex, wild-type Ppp1r15a+/+ and mutant Ppp1r15amut/mut mouse embryonic fibroblasts (MEFs) were treated with the ER stress promoting agent tunicamycin to induce the ISR and expression of PPP1R15A. The Ppp1r15amut/mut cells express a C-terminal truncated PPP1R15A that is incapable of binding PP1 (Novoa et al., 2003) and served as a negative control. As expected, a robust PP1 signal was found associated with endogenous wild-type PPP1R15A in the stressed cells, whilst no signal was detected in PPP1R15A immunoprecipitates from the Ppp1r15amut/mut cells (Figure 4A, lanes 2 and 5). The poor reactivity of the available antisera to actin and tendency of actin to associate non-specifically with immunoprecipitation reactions frustrated our efforts to detect actin associated with endogenous PPP1R15A in MEFs; however, treatment with jasplakinolide, which depleted the soluble pool of actin led to a marked loss of PP1 association with PPP1R15A in the stressed cells (compare lanes 2 and 3, Figure 4A). To test the converse interaction, PP1 was affinity purified from MEF lysates using microcystin–agarose beads. Whilst the presence of other known PP1-actin complexes precludes meaningful interpretation of actin purified by microcystin affinity (Oliver et al., 2002; Kao et al., 2007), the PPP1R15A-PP1 interaction detected in stressed wild-type cells was attenuated by jasplakinolide-driven depletion of soluble actin (Figure 4B). Actin's role in the stability of the PPP1R15A-PP1 complex was confirmed in HEK293T cells (Figure 4C).

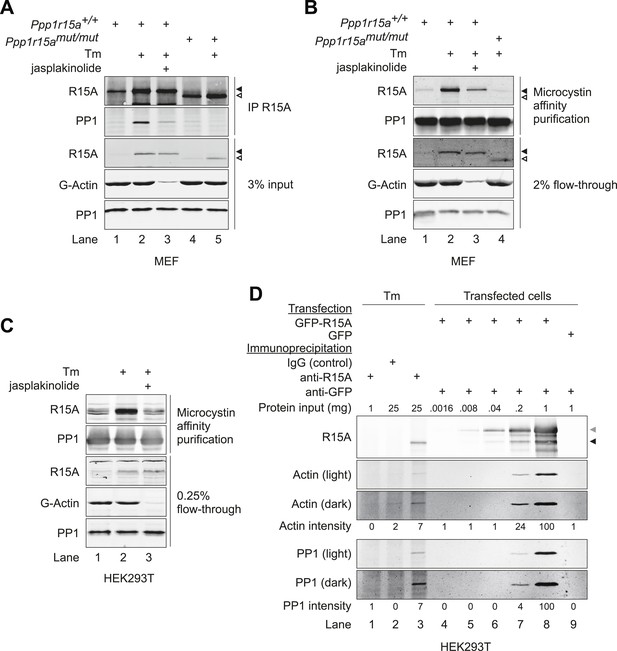

G-actin stabilises the PPP1R15A-PP1 complex in vivo.

(A) Immunoblots of endogenous PPP1R15A (R15A) and associated PP1 immunopurified from wild type (Ppp1r15a+/+) or mutant mouse embryonic fibroblasts homozygous for a C-terminal truncation of PPP1R15A that abolishes interaction with PP1 (Ppp1r15amut/mut) with an anti-PPP1R15A antiserum (IP R15A). Where indicated, cells were treated with tunicamycin 2 µg/ml (Tm) for 8 hr to induce PPP1R15A and jasplakinolide (1 µM) for 1.5 hr before harvest. The lower three panels are immunoblots of the input of the immunoprecipitation reactions analysed in the top two panels. Closed and open triangles mark, respectively, the wild type and mutant PPP1R15A lacking the C-terminal functional core. To assess G-actin content of the input, the sample was subjected to ultracentrifugation to remove F-actin. (B) PPP1R15A and PP1 immunoblots of PP1-containing complexes purified by microcystin affinity chromatography from cells as in ‘A’ above. The lower three panels report on the content of input material. (C) As in ‘B’, above, but reporting on PP1-continaing complexes purified by microcystin affinity chromatography from HEK293T cells. (D) Immunoblots of endogenous or over-expressed GFP-tagged PPP1R15A and associated endogenous PP1 and actin immunopurified with antiserum to PPP1R15A, non-immune rabbit IgG (as a control) or antiserum to GFP from lysates of tunicamycin-treated HEK293T cells (Tm, 2.5 µg/ml for 8 hr to induce endogenous PPP1R15A) or cells transfected with plasmids expressing GFP-PPP1R15A (GFP-R15A) or GFP. The protein content of the cell lysate applied to the immunoprecipitations is noted above the immunoblots (‘Protein input’). Endogenous PPP1R15A and the larger GFP-PPP1R15A are marked by black and grey arrowheads, respectively. Both heavy and light exposures of the actin and PP1 immunoblots are provided and the relative intensity of the signals is noted.

https://doi.org/10.7554/eLife.04872.010

In order to address the association of actin with endogenous PPP1R15A directly, we used HEK293T cells, which generated less background actin signal in control immunoprecipitation reactions. Purified GFP-tagged PPP1R15 was used as a standard to determine the minimum amount of PPP1R15 that permitted detection of associated actin (Figure 4D). Scaling of input material to immunopurify similar quantities of endogenous and overexpressed PPP1R15A led to recovery of similar amounts of associated endogenous actin (Figure 4D). This supports a role for the interaction in cell physiology.

A functional role for actin in PPP1R15 complexes was suggested by the observation that depletion of cellular G-actin by exposure to jasplakinolide promoted a rapid increase in the levels of phosphorylated eIF2α (Figure 5A,B). To extend these observations, cells were treated with the SERCA pump inhibitor thapsigargin, which depletes the ER of calcium and rapidly and transiently activates the ER stress-inducible kinase PERK. As expected, this led to a robust yet transient phosphorylation of eIF2α by PERK (Figure 5C lanes 1–6). The transient nature of this phosphorylation relates to the rectifying response of PERK on levels of ER stress, but also draws on the combined activities of constitutively expressed PPP1R15B and the induction of PPP1R15A that promote eIF2α dephosphorylation (Novoa et al., 2001; Jousse et al., 2003; Novoa et al., 2003). In the presence of jasplakinolide, the elevated levels of phosphorylated eIF2α induced by thapsigargin persisted (Figure 5C, lanes 7–12), while latrunculin B had no effect on the time course of eIF2α phosphorylation (Figure 5—figure supplement 1). It is noteworthy that peak levels of eIF2α phosphorylation were higher in cells treated with jasplakinolide (compare lanes 1–2 with 8–9 of Figure 5C). This occurred well before the induction of PPP1R15A suggesting that either an endogenous basally expressed phosphatase or the kinase was affected.

Figure 5 with 1 supplement see all

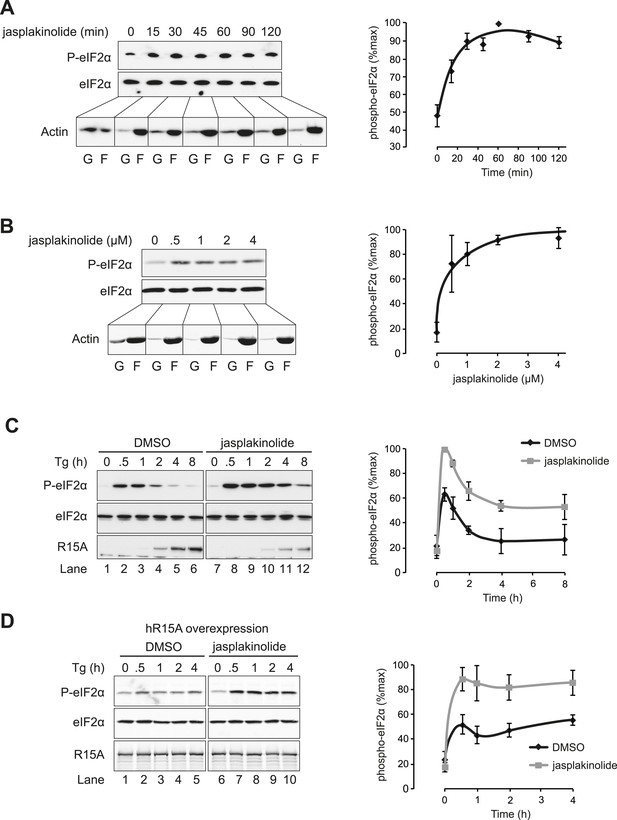

Association of G-actin with PPP1R15 regulates eIF2α phosphatase activity.

(A) Immunoblot for phosphorylated eIF2α (P-eIF2α), total eIF2α, and actin. Wild-type (WT) mouse embryonic fibroblasts (MEF) were treated with jasplakinolide 1 µM for the indicated times. Lysates were subjected to sedimentation assay and immunoblot for G-actin in the supernatant (G) or F-actin in the pellet (F). (B) Immunoblot for phosphorylated eIF2α (P-eIF2α), total eIF2α, and actin. WT MEFs were treated with the indicated concentrations of jasplakinolide for 1 hr. Lysates were analysed as in ‘A’. (C) Immunoblot for phosphorylated eIF2α (P-eIF2α), total eIF2α, and PPP1R15A. WT MEFs were treated with thapsigargin 400 nM for the indicated times, without or with jasplakinolide 1 µM. (D) Immunoblot for P-eIF2α and PPP1R15A (hR15A). GFP-hPPP1R15A Tet-On HeLa cells were treated with doxycycline to induce transgene expression and then with thapsigargin 400 nM for the indicated times. Cells were co-treated with jasplakinolide or latrunculin B 1 µM or vehicle as indicated. Accompanying graphs show means ±SEM of n = 3 independent repeats.

https://doi.org/10.7554/eLife.04872.011

Induction of PPP1R15A was observed in thapsigargin-treated cells from 2 hr onwards but was diminished in cells co-treated with jasplakinolide (likely, a consequence of profound attenuation of protein synthesis). To minimise the confounding effect of diminished PPP1R15A levels in jasplakinolide-treated cells at later time points, the regulatory subunit was conditionally over-expressed under the control of a tetracycline-responsive promoter. As expected, enforced expression of PPP1R15A abrogated the phosphorylation of eIF2α in response to thapsigargin; however, jasplakinolide reversed the inhibitory effect of PPP1R15A over-expression restoring elevated levels of phosphorylated eIF2α to thapsigargin-treated cells (Figure 5D).

To examine more closely the effects of the actin cytoskeleton on dephosphorylation of eIF2α within living cells, we sought to gain temporal control over the phosphorylation phase of the cycle. To this end, we made use of a small molecule eIF2α kinase inhibitor, GSK2606414A (Axten et al., 2012). At the concentration used, this inhibits the eIF2α kinases PERK and PKR, but not GCN2. Thus, application of GSK2606414A to Gcn2−/− fibroblasts rapidly abrogates eIF2α phosphorylation. To measure selectively the dephosphorylation phase of the stress response, PERK-mediated phosphorylation of eIF2α was induced by thapsigargin and further phosphorylation was then blocked with the kinase inhibitor GSK2606414A. In the absence of kinase activity, the subsequent decay of the phosphorylated eIF2α signal reflects its de-phosphorylation (degradation of the protein is not observed over this time scale), which was markedly attenuated by jasplakinolide (Figure 6A, compare lanes 1–5 with lanes 6–10 and Figure 6B).

Figure 6 with 1 supplement see all

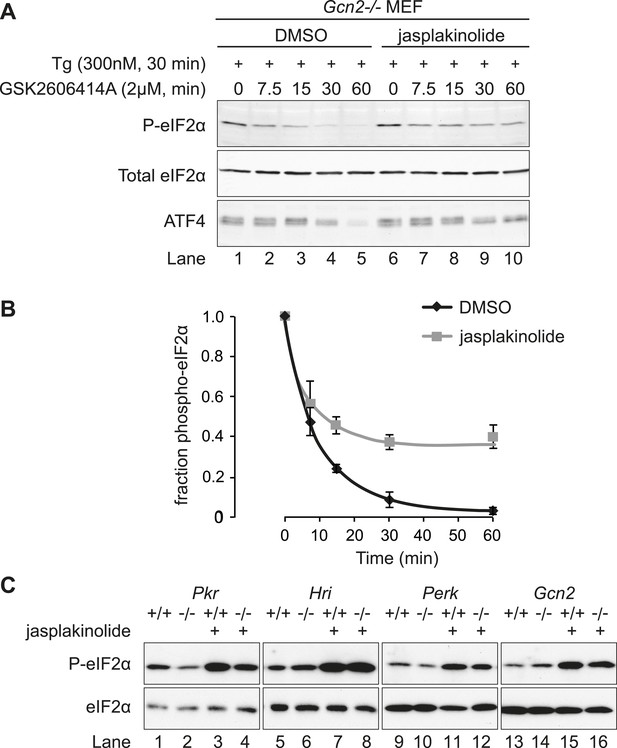

Jasplakinolide diminishes eIF2α phosphatase activity in vivo.

(A) Immunoblot for phosphorylated eIF2α (P-eIF2α), total eIF2α, and ATF4. Gcn2−/− MEFs were pre-treated with thapsigargin 300 nM for 30 min to induce eIF2α phosphorylation and ATF4 protein levels. GSK2606414A at 2 µM was then added for the indicated times. Protein lysates were analysed by SDS-PAGE and subjected to immunoblot. (B) Quantification of ‘A’ using ImageJ software. Mean ± SEM of n = 3 independent repeats. (C) Immunoblot for phosphorylated eIF2α (P-eIF2α) and total eIF2α. MEFs of the indicated genotypes were treated with or without jasplakinolide 1 µM for 1 hr. Protein lysates were analysed by SDS-PAGE and subjected to immunoblot.

https://doi.org/10.7554/eLife.04872.013

Jasplakinolide-mediated induction of ATF4 was abrogated in cells in which the serine 51 phosphorylation site of eIF2α had been mutated to alanine (Figure 6—figure supplement 1), thus validating ATF4 as an indicator of the effects of manipulation of the actin cytoskeleton on ISR activity. ATF4, whose levels decline rapidly upon GSK2606414A-mediated shutdown of kinase activity, was also stabilised by jasplakinolide (Figure 6A, lowest panel), reflecting the functional significance of the defect in eIF2α dephosphorylation imposed by the depletion of G-actin. Levels of phosphorylated eIF2α induced by jasplakinolide were undiminished in cells lacking any one of the four known eIF2α kinases (Figure 6C), suggesting that the compound's effects on levels of phosphorylated eIF2α reflect its workings on the dephosphorylation phase of the stress cycle and not to off-pathway stress culminating in kinase activation.

Actin was recovered in complex with both the inducible and constitutive mammalian PPP1R15 family members (Figures 1 and 7A). To determine if the effects of G-actin were preferentially mediated by complexes containing one or the other PPP1R15 subunit, we compared the effect of jasplakinolide on levels of phosphorylated eIF2α in wild-type MEFs and MEFs deficient in one or the other regulatory subunit. Enhanced levels of phosphorylated eIF2α in jasplakinolide-treated cells and the synergistic effects of depleting G-actin on the response to thapsigargin were observed in wild-type cells and in cells lacking either PPP1R15A or PPP1R15B-directed eIF2α dephosphorylation (Figure 7B–D). These observations indicate that G-actin plays a functional role in holophosphatases constituted with either regulatory subunit.

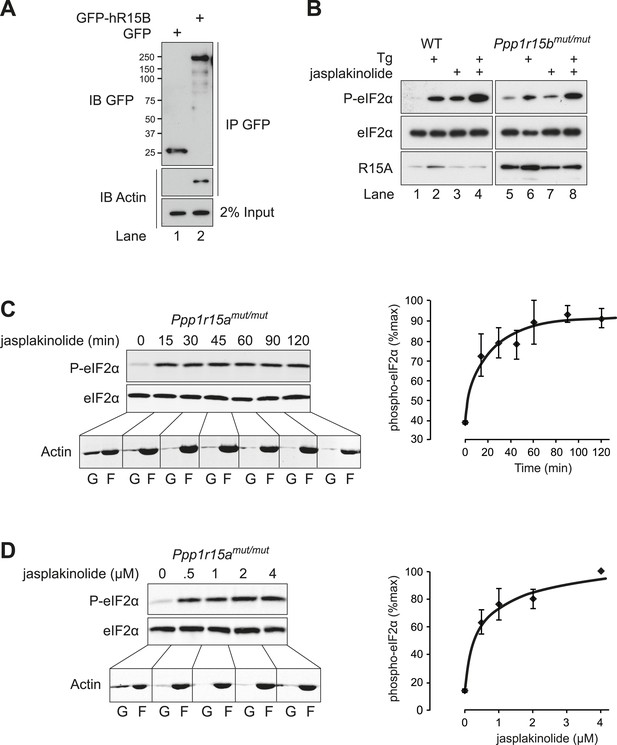

Actin associates with PPP1R15B to alter the level of eIF2α phosphorylation.

(A) Immunoblot for GFP and actin of HEK293T cell lysates expressing either GFP or GFP-PPP1R15B. Upper two panels indicate proteins immunoprecipitated by anti-GFP beads. Lower panel shows 2% of input lysate. (B) Immunoblot for P-eIF2α, total eIF2α, and PPP1R15A of lysates from WT or Ppp1r15btm1Dron/tm1Dron MEFs treated for 1 hr with thapsigargin 400 nM, jasplakinolide 1 µM or both. (C) Immunoblot for phosphorylated eIF2α (P-eIF2α), total eIF2α and actin. Ppp1r15atm1Dron/tm1Dron MEFs were treated with jasplakinolide 1 µM for the indicated times. Lysates were subjected to sedimentation assay and immunoblot for G-actin in the supernatant (G) or F-actin in the pellet (F). (D) Immunoblot for phosphorylated eIF2α (P-eIF2α), total eIF2α, and actin. Ppp1r15atm1Dron/tm1Dron MEFs were treated with the indicated concentrations of jasplakinolide for 1 hr. Lysates were analysed as in ‘C’. Accompanying graphs show mean ± SEM of n = 3 independent repeats.

https://doi.org/10.7554/eLife.04872.015

To explore in further detail the basis for the correlation between G-actin levels and eIF2α dephosphorylation, we compared in vitro eIF2α-directed phosphatase activity of PPP1R15A-containing complexes recovered from untreated and jasplakinolide-treated cells. PPP1R15A-GFP fusion protein was expressed transiently in HEK293T cells overnight. The following day, cells were treated either with vehicle or with 1 µM jasplakinolide for 1 hr, lysed and then subjected to GFP-affinity purification using GFP-Trap beads. The resulting complexes were divided between four tubes and incubated for the indicated times at 37°C with pre-phosphorylated recombinant eIF2α (see ‘Materials and methods’). Less actin and PP1 were recovered in complex with tagged PPP1R15A from jasplakinolide-treated cells (whilst HSP70 binding was unaffected) (Figure 8A), and the eIF2α-directed phosphatase activity of the purified complexes was likewise diminished (Figure 8A,B). Complex formation with PP1 contributes to dPPP1R15 stability; however, the decline in PPP1R15A levels in cells exposed to the translational inhibitor cycloheximide, was unaffected by the presence of jasplakinolide (Figure 8C,D) indicating that stabilisation of a complex between PPP1R15 and PP1 dominates G-actin's role in this experimental system.

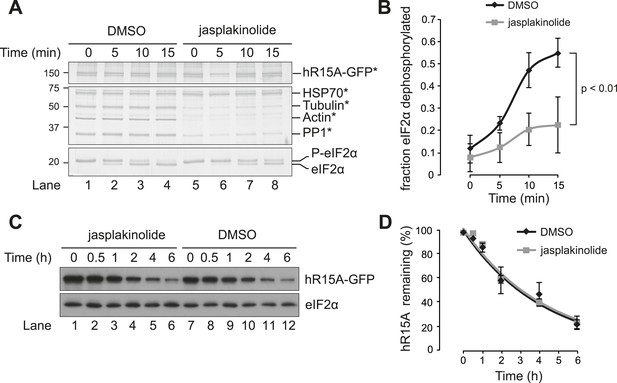

Association of actin with PPP1R15A promotes eIF2α phosphatase activity in vitro.

(A) Silver-stained SDS-PAGE or GFP-affinity purified PPP1R15A-GFP (hR15-GFP) and associated proteins. Asterisks signify identity confirmed by mass spectrometry. Purified complex incubated with phosphorylated recombinant eIF2α N-terminal lobe (eIF2α) for incubated time. Note size shift corresponds to dephosphorylation. (B) Quantification of ‘A’ using ImageJ software. Mean ± SEM. p value calculated by two-way ANOVA, n = 3. (C) Immunoblot for PPP1R15A and eIF2α of HEK293T cells expressing hPPP1R15A-GFP (hR15A-GFP). Treated with cycloheximide 50 µM for indicated times. (D) Quantification of ‘C’. Mean ± SEM, n = 3.

https://doi.org/10.7554/eLife.04872.016

Localised changes in the polymeric status of actin modulate the ISR

In the experiments described thus far, actin polymerisation was manipulated throughout the cell, whereas in vivo the actin cytoskeleton is subject to highly localised changes. In the context of eIF2α dephosphorylation, it seemed particularly relevant to examine the effects of actin polymerisation in the vicinity of the ER membrane, where the majority of PPP1R15 is located (Brush et al., 2003; Zhou et al., 2011; Malzer et al., 2013). Cells that conditionally expressed a constitutively active mutant of mDia2, a formin that stimulates localised polymerisation of F-actin (Pellegrin and Mellor, 2005), were generated. To direct mDia2 to the same membranous compartments as PPP1R15, we fused the membrane-targeting domain of PPP1R15B (residues 1–146, devoid of catalytic activity) to mDia2 and a GFP tag to facilitate visualisation of the fusion protein. Control cells were generated expressing a PPP1R15B (1–146)-GFP fusion protein lacking mDia2. Induction of eGFP-PPP1R15B (1–146)-mDia2 increased polymerisation of actin adjacent to the ER, as indicated by co-localisation of GFP fluorescence with phalloidin staining (Figure 9A). In control cells, the GFP and phalloidin signals showed little correlation, but as expected, these became strongly correlated (indicating co-localisation) on expression of the mDia2 construct (Figure 9—figure supplement 1). Immunoblot confirmed the expression of each fusion protein on treatment with doxycycline, but only the mDia2 construct led to the induction of ATF4 (Figure 9B compare lanes 4–6 with 13–15). ISRIB, a small molecule that renders cells unresponsive to eIF2α phosphorylation (Sidrauski et al., 2013), blocked formin-mediated induction of ATF4 (Figure 9B, compare lanes 15 and 16), validating ATF4 as an ISR marker in this assay.

Figure 9 with 1 supplement see all

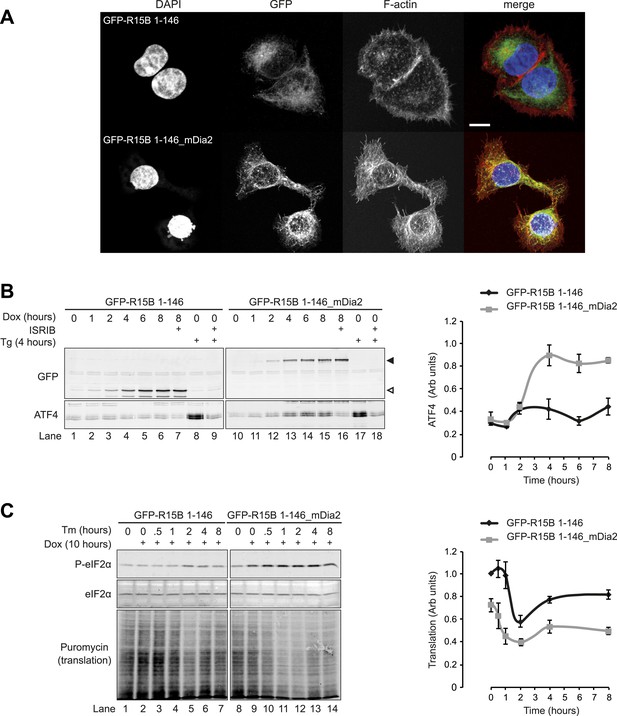

Localised changes in the polymeric status of actin modulate the sensitivity of the ISR.

(A) Fluorescence microscopy image of Flp-In T-REx HEK293 cells treated with 1 µg/ml doxycycline for 12 hr to express either ER membrane-localised GFP (GFP-R15B 1–146) or ER membrane-localised GFP-mDia2 fusion (GFP-R15B 1–146_mDia2) then fixed and stained with Alexa-Fluor 568 phalloidin and imaged by confocal microscopy. Bar = 5 µm. (B) Immunoblot for GFP and ATF4 in lysates of GFP-R15B 1–146 or GFP-R15B 1–146_mDia2 Flp-In T-REx HEK293 cells following treatment with doxycycline (Dox) 0.1 µg/ml for indicated times or with ISRIB 100 nM and or thapsigargin 300 nM for 4 hr. Immunoreactivity to ATF4 was quantified using ImageJ software (ATF4 Intensity). Proteins of the expected sizes are marked with a solid triangle GFP-R15B 1–146_mDia2 or an open triangle GFP-R15B 1–146. (C) Immunoblot for P-eIF2α, total eIF2α, and puromycin in lysates of GFP-R15B 1–146 or GFP-R15B 1–146_mDia2 Flp-In T-REx HEK293 cells following pre-treatment—if indicated with doxycycline (Dox) 0.1 µg/ml for 10 hr followed by treatment with tunicamycin 2.5 µg/ml for indicated times. 10 min prior to harvesting, puromycin was added to the culture medium at a final concentration of 10 µg/ml. Immunoreactivity to puromycin within lysates served as a marker of protein translation and was quantified using ImageJ software (Puromycin intensity). Accompanying graphs of mean ± SEM of n = 3 independent repeats.

https://doi.org/10.7554/eLife.04872.017

Actin polymerisation in the vicinity of the ER also altered the dynamics of the ISR in response to gradually accruing ER stress induced by the glycosylation inhibitor tunicamycin. During ER stress, phosphorylation of eIF2α by PERK attenuates protein translation to offload the ER (Harding et al., 1999). The degree of translational attenuation depends upon the intensity and the rapidity of ER stress (Novoa et al., 2001). Sudden and intense ER stress caused by depletion of ER calcium stores by thapsigargin induces marked inhibition of translation. In contrast, gradually escalating ER stress by the accumulation of unglycosylated proteins upon treatment with tunicamycin, attenuates translation less dramatically because induction of PPP1R15A limits the degree of eIF2α phosphorylation (Novoa et al., 2001). In control cells (expressing the bland eGFP-PPP1R15B [1–146] targeting fragment), tunicamycin induced a transient and minor decrease in translation with a nadir at 2 hr (Figure 9C, lane 5). By contrast, in cells expressing ER-targeted mDia2, tunicamycin led to a sustained drop in protein synthesis associated with a sustained increase in eIF2α phosphorylation (Figure 9C, compare lanes 8 and 9). These experiments are consistent with a pool of G-actin localised in the vicinity of PPP1R15 in promoting eIF2α dephosphorylation.

Discussion

Over the years multiple proteins have been noted to interact with the PPP1R15-PP1 core holoenzyme, but none has proved generalizable across experimental systems or successfully implicated in the genetically well-characterised role of the complex to promote eIF2α dephosphorylation (Hasegawa et al., 2000a, 2000b; Wu et al., 2002; Hung et al., 2003; Shi et al., 2004). In this study, an unbiased approach identified actin as a conserved binding partner of PPP1R15. The affinities of actin for PPP1R15 lay within a physiologically relevant range such that fluctuations of the G:F actin ratio affected the amount of actin recovered in the complex. Alterations to the ratio of G:F actin at the site of PPP1R15 action were seen to modulate cellular sensitivity to ISR stimuli via changes in eIF2α phosphatase activity. Collectively, these findings establish G-actin as an important regulator of PPP1R15-mediated eIF2α dephosphorylation in vivo.

Our proteomics analysis also identified other potential binding partners of PPP1R15. In mammalian cells, tubulin and HSP70 were consistently recovered in complex with overexpressed PPP1R15 and PPP1R15-containing fusion proteins. These interactions are less conserved across phyla than the PPP1R15-actin interaction. Furthermore, in vitro experiments in the accompanying manuscript demonstrate that addition of actin is sufficient to endow the PPP1R15-PP1 complex with selectivity towards eIF2α (Chen et al., 2015). Thus, while there is nothing in our observations to argue against tubulin or HSP70 joining the complex and modulating PPP1R15-directed phosphatase activity, the evidence at hand suggesting actin's relevance to the core activity of the eIF2α-directed phosphatase justifies the focus on actin.

With polymerisation and depolymerisation, the actin cytoskeleton is highly dynamic and levels of G-actin are subject to large fluctuations. Following polymerisation of actin to the barbed end of a filament, bound ATP is hydrolysed and eventually ADP-actin dissociates from the pointed end (Dominguez and Holmes, 2011). This dynamic is regulated by proteins that enhance depolymerisation, for example, ADF, or promote the recharging with ATP, which enhances the recycling of monomers, for example, profilin (Paavilainen et al., 2004). Capping proteins prevent the consumption of monomers and so increase free G-actin concentrations, while severing proteins can lead to filament disassembly or nucleate more filament formation depending upon the context (Wear and Cooper, 2004). In contrast, formins like mDia2 remain associated with the barbed end yet promote addition of actin monomers.

Other actin-binding proteins have functions unrelated to the cytoskeleton and it is now well recognised that free G-actin can function as a second messenger. For example, MAL, a cofactor of the transcription factor SRF, cycles dynamically between the nucleus and cytoplasm in a manner regulated by its binding to G-actin in quiescent cells (Miralles et al., 2003; Vartiainen et al., 2007). By depleting G-actin, growth signal-driven actin polymerisation releases MAL to enter the nucleus, bind SRF and activate target genes. Other examples include Phactr, a PP1 regulatory subunit whose cytoplasmic localisation depends upon G-actin binding (Wiezlak et al., 2012) and RNA polymerases II and III for whom actin forms a scaffold for the assembly of enzyme complexes (Hu et al., 2004; Kukalev et al., 2005).

Many actin-binding proteins including MAL interact with a hydrophobic target-binding cleft between subdomains I and III of the actin monomer (Mouilleron et al., 2008; Dominguez and Holmes, 2011; Shoji et al., 2012). This site is blocked by cytochalasin D, which inhibits such interactions. Latrunculin B increases the level of actin monomers by binding to a different site on G-actin, the nucleotide-binding cleft, and does not interfere with binding at the hydrophobic cleft. Our observation that cytochalasin D diminishes the recovery of actin in complex with PPP1R15, is consistent with interaction via the hydrophobic target-binding cleft. While the precise details remain to be worked out, structural and biochemical studies presented in the accompanying manuscript support this idea and further suggest the C-terminal most residues of the functional core of the PPP1R15 family members play an important role in actin engagement (Chen et al., 2015). A crystal structure obtained for the binary complex of PPP1R15B and PP1 demonstrated that the N-terminal half of PPP1R15's functional core extensively engages the surface of PP1 following an itinerary previously observed for the regulatory subunit PPP1R9/spinophilin (Ragusa et al., 2010; Chen et al., 2015). Interestingly, the C-terminal portion of PPP1R15's functional core, implicated here in actin binding, was not observed in a high-resolution crystal structure of the PPP1R15B-PP1 binary complex, suggesting that this portion of PPP1R15B remained unstructured in the absence of actin. The crystal structure obtained for the 1:1:1 ternary complex of PPP1R15B-PP1-actin was of too low a resolution to identify these C-terminal residues of PPP1R15's functional core, but unaccounted for density observed in the cleft between lobes I and III of actin suggests a mode of engagement of actin by this portion of PPP1R15B that would be sensitive to disruption by cytochalasin, which binds to the same region of G-actin.

Our in vivo findings reported here emphasize the importance of actin binding to the stability of the PPP1R15-PP1 complex and suggest that association of PP1 and actin with PPP1R15 may be cooperative. The accompanying manuscript provides further evidence for the direct binding of PPP1R15 and actin and reveals a role for actin in augmenting the specificity of the holophosphatase for eIF2α (Chen et al., 2015). These two mechanisms are likely to work in concert and suggest a crucial role for G-actin in establishing a biologically relevant route to eIF2α dephosphorylation.

It would appear that under normal circumstances G-actin is not limiting to eIF2α dephosphorylation in cultured MEFs, as latrunculin B, which enhances the pool of PPP1R15 binding-competent G-actin in some cell types, has no measurable effect on phosphorylated eIF2α (Figure 5—figure supplement 1). However, regulation of eIF2α phosphatases via the binding of G-actin might plausibly play a role in biological processes that are accompanied by changes in the ratio of G:F actin in other differentiated cell types, for example, in circumstances of cell migration, axonal guidance, or synaptic plasticity. The latter are particularly attractive given the evidence for crosstalk between the ISR and memory formation (Costa-Mattioli et al., 2007; Ma et al., 2013; Sidrauski et al., 2013).

The role of eIF2α phosphorylation in regulating rates of protein synthesis and the coupling of this phosphorylation event to the activation of a gene expression programme are conserved in eukaryotes. However, the mechanism for dephosphorylating eIF2α has diverged considerably. Yeasts rely on direct recruitment of the catalytic phosphatase subunit (Glc7p) to the eIF2 substrate, with no PPP1R15 intermediate (Rojas et al., 2014), while PPP1R15 family proteins are apparent only in complex animals: insects and vertebrates (Novoa et al., 2001; Jousse et al., 2003; Malzer et al., 2013). It is tempting to speculate that this more complex mode of regulating eIF2α dephosphorylation co-evolved with mechanisms for regulating the actin cytoskeleton and G-actin availability.

Current models suggest that PPP1R15B, which is expressed constitutively, provides a constant background of eIF2α phosphatase activity that is augmented by transcriptional induction of PPP1R15A during later stages of the ISR (Jousse et al., 2003). This study reveals that both PPP1R15 isoforms are poised to undergo post-translational regulation through changes in the polymeric status of actin. The focus here has been on the conserved functional core of PPP1R15, but there remains room for further modulation of both isoforms by their large, poorly characterised N-terminal regions. Our protein discovery effort has identified other interactors that may be unique to each isoform. Thus future studies to explore the possibility of differential regulation of eIF2α phosphatase activity by the different paralogues and their unique interactors seem warranted.

Materials and methods

Materials, plasmids, and primers

Jasplakinolide, thapsigargin, and tunicamycin were from Calbiochem (Millipore, Hertfordshire, UK), cytochalasin D was from Tocris (Bristol, UK), latrunculin B was from Enzo Life Sciences (Exeter, UK), Alexa Fluor 568 Phalliodin was from Life Technologies (Paisley, UK). PPP1R15ApEGFP-C3 and PPP1R15ApEGFP-N1 were kind gifts from S Shenolikar (Duke-NUS Graduate Medical School Singapore, Singapore) (Zhou et al., 2011). PerkKD-pGEX4T-1, dPPP1R15pEGFP, 2aOPTx3M(1–185)pET-30a(+), PPP1R15ApcDNA and dPPP1R15pEGFP have been described previously (Harding et al., 1999; Novoa et al., 2003; Ito et al., 2004; Malzer et al., 2013). PP1αpEBG was generated by ligating the human PP1α coding sequence into BamHI and NotI digested pEBG. For inducible HeLa cell lines, GFP-PPP1R15A was excised from PPP1R15ApEGFP-C3 with NheI and XhoI and ligated into NheI and SalI digested pTRE2Hyg (Clontech Laboratories, USA) to generate GFP-PPP1R15ApTRE2Hyg. PPP1R15A-GFP was excised from PPP1R15ApEGFP-N1 with BglII and NotI and ligated into BamHI and NotI digested pTRE2Hyg to generated PPP1R15A-GFPpTRE2Hyg. For PPP1R15B-GFP, PPP1R15BpEGFP-C1 was generated by ligating the human PPP1R15B coding sequence into BglII and SalI digested pEGFP-C1. For Flp-In T-REx HEK293 cell lines expressing GFP-R15B 1–146 and GFP-R15B 1–146_mDia2, the coding sequence for EGFP and residues 1–146 of human PPP1R15B was mobilized by digestion with NheI (partially repaired with Klenow-polymerase) and BamHI, before ligation into pcDNA5_TO_FRT (Life Technologies, USA) digested with HindIII (partially repaired with Klenow polymerase) and BamHI to generate EGFP_PPP1R15B_1–146pcDNA5_TO_FRT. PCR product encoding residues 532-1171 of mDia2 was ligated into BamHI and XhoI digested EGFP_PPP1R15B_1–146 pcDNA5_TO_FRT to generate EGFP_PPP1R15B_1–146_mDia2_532-1171pcDNA5_TO_FRT. Primers used in this study are listing in Table 1.

Table 1

Primers used in this study

https://doi.org/10.7554/eLife.04872.019
hPPP1R15A truncation or point mutation
 1–615ForCCTGCTGCCCGGGCCAGAGCCTGAGCACGCCTCAGGAACC
RevGGTTCCTGAGGCGTGCTCAGGCTCTGGCCCGGGCAGCAGG
 1–620ForCCTGGGCACGCCTCAGGTAGCCACCTTTAGCC
RevGGCTAAAGGTGGCTACCTGAGGCGTGCCCAGG
 501–654ForTAAGCTAGCACCATGGAAGCTGAGCCC
RevGTCGCGGCCGCTTTACTTGTACAGCTC
 V556EForCTAAAGGCCAGAAAGGAGCGCTTCTCCGAGAAGGTCACTG
RevCAGTGACCTTCTCGGAGAAGCGCTCCTTTCTGGCCTTTAG
 W616AForCCGGGCCAGAGCCGCGGCACGCCTCAGGAA
RevTTCCTGAGGCGTGCCGCGGCTCTGGCCCGG
 R618AForGCCAGAGCCTGGGCAGCCCTCAGGAACCCA
RevTGGGTTCCTGAGGGCTGCCCAGGCTCTGGC
 L619AForAGCCTGGGCACGCGCCAGGAACCCACCTTT
RevAAAGGTGGGTTCCTGGCGCGTGCCCAGGCT
 R620AForCCTGGGCACGCCTCGCGAACCCACCTTTAG
RevCTAAAGGTGGGTTCGCGAGGCGTGCCCAGG
 W616A/L619AForCGGGCCAGAGCCGCGGCACGCGCCAGGAACCC
RevGGGTTCCTGGCGCGTGCCGCGGCTCTGGCCCG
 mDia2 fusionForAATCCCGGATCCGTGCCTTGCCACCTGGTACA
RevAGCTCGCTCGAGTTATAAAGCTCGTAATCTTGCCAG
PPP1R15B fusion
 GFP fusionForAGATTAGATCTGCCACCATGGAGCCGGGGACAGG
RevGATCGTCGACACATTGCTTGAGAACATTAAGTCC
dPPP1R15 truncation
 1–307ForCCAGTTCACCGAGATCGTTAGTACCAAGCTCGATTCTTGCACG
RevCGTGCAAGAATCGAGCTTGGTACTAACGATCTCGGTGAACTGG
 1–312ForCGTGTCTACCAAGCTCGATAGTTGCACGAGGACGAGC
RevGCTCGTCCTCGTGCAACTATCGAGCTTGGTAGACACG

Site-directed mutagenesis

All truncations or point mutations in the PPP1R15A coding sequence were made as follows. Fifty nanograms of plasmid template DNA were mixed with 5 µl Pfu turbo DNA polymerase reaction buffer [10×], 1 µl Pfu turbo DNA polymerase (Agilent Technologies, Santa Clara, CA), 125 ng forward primer, 125 ng reverse primer, 1 µl of 25 mM dNTPs, made up to 50 µl with water. A PCR thermocycler was run using the following program parameters: 95°C for 30 s, 95°C for 30 s, 18 cycles (54°C for 1 min, 67°C for 20 min, 94°C for 1 min, 55°C for 1 min, 72°C for 10 min). Completed reactions were treated with 1 µl Dpn1 restriction enzyme, incubated at 37°C for 2 hr before using 5 µl of the reaction mix for a standard transformation into One Shot TOP10 chemically competent E. coli (Life Technologies, Paisley, UK).

Cell culture

Mammalian cells, HEK293T, MEF (Ppp1r15btm1Dron/tm1Dron, Ppp1r15atm1Dron/tm1Dron, Pkr−/−, Hri−/−, Perk−/−, Gcn2−/−, eIF2αAA), and NIH3T3, were maintained in DMEM supplemented with 10% vol/vol FBS and antibiotics (100U/ml Penicillin G and 100 µg/ml Streptomycin) and incubated at 37°C with 5% vol/vol CO2 (Yang et al., 1995; Harding et al., 2000; Han et al., 2001; Novoa et al., 2003; Scheuner et al., 2005; Harding et al., 2009). HeLa Tet-On Advanced cells were purchased from Clontech Laboratories (Saint-Germain-en-Laye, France) and maintained in DMEM with 10% vol/vol tetracycline-free FBS and transfected with the expression vectors PPP1R15A-GFPpTRE2Hyg and GFP-PPP1R15ApTRE2Hyg. Stable clones were selected with 600 µM hygromycin. Transgene expression proved optimal when clones were treated with 1 µg/ml doxycycline.

Immunoblots

Cell lysates were prepared in Harvest lysis buffer (HEPES pH 7.9, 10 mM; NaCl 50 mM; sucrose 0.5M; EDTA 0.1 mM; Triton X-100 0.5% vol/vol) supplemented with protease inhibitor cocktail (Roche, Welwyn Garden City, UK) and 1 mM PMSF. When analysing phospho-eIF2α, the lysis buffer was supplemented with phosphatase inhibitors (10 mM tetrasodium pyrophosphate, 15.5 mM β-glycerophosphate, 100 mM NaF). Cleared cell extracts were equalized by total cell protein using Bio-Rad protein assay (Bio-Rad, Hercules, CA, USA), boiled in SDS-loading buffer (25 mM Tris pH 6.8, 7.5% vol/vol glycerol, 1% wt/vol SDS, 25 mM DTT, 0.05% wt/vol bromophenol blue), subjected to reducing SDS-PAGE, and transferred to nitrocellulose membrane.

For GFP-Trap affinity purification, cells were lysed in the manufacturer's recommended buffers (Chromotek, Planegg-Martinsried, Germany) and incubated with GFP-Trap A beads according to manufacturer's instructions. Briefly, cells were lysed in GFP-Trap lysis buffer (150 mM NaCl, 10 mM Tris/Cl pH 7.5, 0.5 mM EDTA, 1 mM PMSF, and Protease Inhibitor Cocktail [Roche]) and post-nuclear supernatants were incubated with GFP-Trap beads at 4°C for 2 hr then washed four times in the same buffer. Proteins were eluted with SDS-PAGE loading buffer.

GST affinity purification was performed using Activated Thiol Sepharose 4B beads (GE Healthcare, Little Chalfont, UK). Briefly, cells were lysed with Harvest buffer, cleared by centrifugation and incubated with rotation with Activated Thiol Sepharose 4B beads for 2 hr at 4°C. Beads were then washed four times with lysis buffer and protein complexes then eluted by boiling with SDS-loading buffer or by addition of 20 mM glutathione.

For isolation of endogenous PPP1R15A by immunoprecipitation and PP1 by microcystin-affinity purification, MEF or HEK293T cells were lysed in lysis buffer (150 mM KCl, 20 mM HEPES pH 7.4, 2 mM MgCl2, 1 mM PMSF, and Protease Inhibitor Cocktail) supplemented with either 0.1% (wt/vol) digitonin (Calbiochem, MERK Millipore, Darmstadt, Germany) or 0.5% (vol/vol) triton X-100, respectively. Immunoprecipitation of PPP1R15A was carried out for 16 hr at 4°C prior to three washes with detergent supplemented lysis buffer and elution in SDS-PAGE sample buffer. PP1 isolation by microcystin affinity purification was carried out for 1 hr at 4°C in the presence of 1 mM latrunculin B prior to three washes with detergent-supplemented lysis buffer and elution in SDS-PAGE sample buffer. Lysates were centrifuged at 200,000×g for 30 min to remove contaminating F-actin in order that G-actin levels were reflected in input samples.

Primary antibodies used were: rabbit anti-PPP1R15A (10,449-1-AP, 1:1000; Proteintech, Manchester, UK) mouse anti-GFP antibody (ab1218, 1∶1000; Abcam, Cambridge, UK), rabbit anti-PP1α antibody (no. 2582, 1∶1000; Cell Signaling, Danvers, MA, USA), rabbit p-eIF2α (3597, Cell Signaling; 1∶1000), anti-actin (ab3280, 1∶1000; Abcam), rabbit anti-ATF4 (C-20, 1:500; SantaCruz, Santa Cruz, CA, USA), mouse anti-puromycin antiserum (PMY-2A4, Developmental Studies Hybridoma Bank, University of Iowa, USA), anti-total eIF2α mouse monoclonal (AHO0802,1:1000; Invitrogen, Thermo Fisher Scientific, Waltham, MA, USA).

Coomassie and silver stain

Gels were stained with InstantBlue Coomassie stain (Expedeon, San Diego, CA, USA) as directed by the manufacturer's instructions. For silver staining: gels were fixed (10% vol/vol methanol, 7.5% vol/vol acetic acid) for 20 min with agitation followed by two quick rinses with water. Gels were then incubated with 3.25 µM DTT in water for 20 min with agitation then 0.1% wt/vol AgNO3 in water for 30 min with agitation. Following a 1-min wash with water, gels were developed using 3% wt/vol Na2CO3, 0.02% wt/vol formaldehyde in water until bands became visible and the reaction was stopped with fixative.

F-actin sedimentation assay

HEK293T cells were transfected with PP1αpEBG and untagged PPP1R15ApcDNA. After 24 hr, cells were lysed in harvest buffer and subjected to GST affinity purification. Protein complexes were eluted with 20 mM reduced glutathione in 50 mM Tris pH 7.5. The eluate was mixed with 10 µM purified F-actin in actin binding buffer (20 mM Tris pH 8, 100 mM NaCl, 2 mM MgCl2, 1 mM ATP, 1 mM DTT, 0.1 mM CaCl2) in a total volume of 200 µl. Samples were centrifuged at 279,000×g for 15 min in a TLA120.1 rotor. The supernatant was removed and mixed with 50 µl of 4× SDS loading buffer, while the pellet was re-suspended in 250 µl of 1× SDS loading buffer. Samples were then boiled and analysed by SDS-PAGE.

In vitro eIF2α de-phosphorylation assay

Phosphorylated recombinant eIF2α N-terminal domain (NTD) was generated as described previously (Marciniak et al., 2006). The expression plasmid PerkKD-pGEX4T-1 encoding GST-PERK kinase domain fusion protein of mouse PERK residues 537–1114 wild type has previously been described (Harding et al., 1999). eIF2α-NTD encoding residues 1–185 of human eIF2α with three solubilizing mutations was bacterially expressed from codon optimized vector 2aOPTx3M(1–185)pET-30a(+) (Ito et al., 2004). Bacterially expressed GST-PERK immobilised on activated thiol sepharose beads was incubated with 10 µl of 1 mM ATP and bacterially expressed eIF2α-NTD at 37°C with shaking in 20 µl kinase buffer (5×: 100 mM TRIS pH 7.4, 250 mM KCl, 10 mM Mg(OAc)2, 10 mM MnCl2, and 5 mM DTT) made up to 100 µl total reaction volume. GST-PERK beads were removed by centrifugation and remaining ATP was removed by dialysis against reaction buffer. The resulting phosphorylation eIF2α-NTD was incubated with affinity-purified phosphatase in 20 mM Tris HCL pH 7.4, 50 mM KCl, 2 mM MgCl2, 0.1 mM EDTA, 0.8 mM ATP at 30°C for indicates times with shaking. Reactions were terminated by the addition of Laemmli buffer.

Immunofluorescence microscopy

Cells plated onto glass coverslips were washed twice with PBS and fixed with 4% formaldehyde for 20 min. Following a further two PBS washes, cells were then permeabilised with 0.5% vol/vol triton X-100 in PBS for 3 min then blocked with 1% wt/vol BSA in PBS for 1 hr. Cells were then incubated in the dark with Alexa-Fluor 568 phalloidin 1:40 for 1 hr. After three 5-min washes in PBS, the glass coverslips were mounted onto slides using ProLong Gold antifade reagent (Life Technologies) ready for visualisation.

References

  1. 1
  2. 2
  3. 3
  4. 4
    G-actin provides substrate-specificity to eukaryotic initiation factor 2α holophosphatase
    1. R Chen
    2. C Rato
    3. Y Yan
    4. A Crespillo-Casado
    5. HJ Clarke
    6. HP Harding
    7. SJ Marciniak
    8. RJ Read
    9. D Ron
    (2015)
    eLife, 4, 10.7554/eLife.04871.
  5. 5
    Protein kinases that phosphorylate eIF2 and eIF2B, their role in eukaryotic cell translational control
    1. M Clemens
    (1996)
    In: J Hershey, M Mathews, N Sonenberg, editors. Translational control. Cold Spring Harbor: Cold Spring Harbor Laboratory Press. pp. 139–172.
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
    Stimulation by chemotactic factor of actin association with the cytoskeleton in rabbit neutrophils. Effects of calcium and cytochalasin B
    1. JR White
    2. PH Naccache
    3. RI Sha'afi
    (1983)
    The Journal of Biological Chemistry 258:14041–14047.
  50. 50
  51. 51
  52. 52
    Deficient signaling in mice devoid of double-stranded RNA-dependent protein kinase
    1. YL Yang
    2. LF Reis
    3. J Pavlovic
    4. A Aguzzi
    5. R Schafer
    6. A Kumar
    7. BR Williams
    8. M Aguet
    9. C Weissmann
    (1995)
    The EMBO Journal 14:6095–6106.
  53. 53
  54. 54

Decision letter

  1. W James Nelson
    Reviewing Editor; Stanford University, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled ”Actin dynamics tune the integrated stress response by regulating eIF2α dephosphorylation“ for consideration at eLife. Your article has been evaluated by Vivek Malhotra (Senior editor), a Reviewing editor, and three reviewers, one of whom, Richard Treisman, has agreed to reveal his identity.

All three reviewers, with different degrees of enthusiasm, thought that the work in this manuscript was interesting and potentially important. The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

The work shows that G-actin interacts with various R15 isoforms, and the data in this paper together with the data in the accompanying paper (Chen et al., 2015, eLife) support a possible model where the inclusion of G-actin in a trimeric complex is important for substrate specificity. The work is based on a fairly straightforward workflow involving protein pull-down studies, protein identification by mass spectrometry, structure-function analysis to define regions and residues that interact, then a more functional set of studies where G to F-actin dynamics are manipulated in cells. Overall the study is technically solid and the results are of potential importance.

Substantive concerns:

1) The pull-down experiments identify the most abundant proteins in cells, and while a number of controls are included, there is a concern that the work relies on over-expression of proteins in model cell preparations. As the authors acknowledge in the Discussion, the artificial manipulations used to perturb G-actin, do not really inform upon any biological process where G- to F-actin dynamics are altered.

2) There is little information related to replication of experiments. Representative studies are presented but little cumulative data is analyzed and quantified.

3) A commercial GFP pull-down kit is used. It is important that the buffer conditions are included in the Methods section. In this regard, was G-actin binding sensitive to lysis or other buffer components including salt and detergent?

4) The mass spectrometry data is not presented.

5) Relative stability of trimeric complex: the authors’ assertion that the ternary complex is more stable than binary complexes (at the end of the subsection “Actin associates with the conserved C-terminal functional core of PPP1R15”) seems to be based on the analysis of the V556E mutant, but no evidence in this experiment that addresses this issue directly.

6) In Figure 1, tubulin also seems to be a conserved PPP15A/B interactor, and in Figure 7A the amount of tubulin associated w/ the PPP15A-GFP complex is also decreased when purified from jasplakinolide treated cells. It would be helpful to know (and potentially a great control) if eIF2α phosphorylation is altered in cells treated with drugs that alter levels of MT polymerization. In addition, some comment on the tubulin recovery in the experiments would be appropriate; what do the authors think is happening here?

7) Since jasplakinomide perturbs actin polymerization through a specific mechanism, it is important to use another method (for example phalloidin) to ensure that the effects are not specific to jasplakinomide.

8) Figure 4B: please indicate the time of treatment.

9) Figure 4C and D: while a control experiment is shown in Figure 4D, it is hard to make much of a conclusion since the result in Figure 4D appears to be fully explained by the level of induced expression of R15A. In addition, in Figure 4D an important control is not shown: overall levels of eIF2α. Its absence is conspicuous as this control is shown for other analyses, including panel 4C.

10) Figure 6C and D: the data for the R15A mutant cells seems non-informative since little R15A is expressed at baseline.

11) Figure 7: this experiment is not explained clearly in the text (subsection headed “Association of G-actin with PPP1R15 regulates eIF2α phosphatase activity in vivo”).

12) Figure 8: do the constructs with the membrane-targeting domain of R15b displace the ER location of R15B or R15A? In addition, the cells in appear significantly different in morphology in this figure. Please show more examples, and provide some quantitation of the extent of colocalization of F-actin and GFP.

13) Referencing: the use of the Sotiropoulos reference for MAL and actin is wrong. 1) Initial finding should be Miralles et al., Cell 2003 vol. 113, 329; 2) Rather than being held in the cytoplasm by actin and released for nuclear entry, MAL is actually dynamic, with the protein continually circulating through the nucleus (Vartiainen et al., 2007 Science vol. 316, 1749. 3. Structural analysis of binding to actin was initially done by Mouilleron et al., 2008 EMBO 27, 3198).

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled ”Actin dynamics tune the integrated stress response by regulating eukaryotic initiation factor 2α dephosphorylation“ for further consideration at eLife. Your revised article has been favorably evaluated by Vivek Malhotra (Senior editor) and a member of the Board of Reviewing Editors.

Two of the original three reviewers examined the revised manuscript and one of them, self-identified as Richard Treisman, found the revisions appropriate and had only one small criticism that you need to address.

The other reviewer had more substantive criticisms, many of which he/she felt were raised in the first round of reviews, that we have listed below. Specifically, he/she remains concerned about the stoichiometry of the PP1/R15 complex and actin. He/she notes that this interaction is at the core of the work and conclusions, and is not convinced from the data that the interaction is physiologically significant. This issue, therefore, remains a significant problem that needs addressing directly. The reviewer suggests, as did on the original reviews, that purified proteins would be a better basis for this analysis.

Reviewer #1 (Richard Treisman):

Point 6 in the rebuttal: “OK, but puzzled as to the effect on Tubulin recovery. The authors should add a comment as to what they think is going on here.”

Reviewer #2 (verbatim):

The authors have made a reasonable attempt to address the reviewers' points in the revised version of this manuscript. There were concerns that the approach used overexpression of proteins in model cell systems, that G-actin and the other proteins (tubulin, HSP70) were highly abundant and that the perturbations to G-actin/F-actin were non-physiological. While additional studies have been performed to examine endogenous PPP1R15 and PP1, the results raise some additional questions, and many of the original concerns remain.

Specific comments:

1) It is a concern that actin cannot be detected in the pulldown studies added in Figure 4. There is a vague comment about the antibody not being effective enough, but this does not make a lot of sense, given that there is a supposedly ”stoichiometric“ amount of actin coming down with the PP1/R15 complex (Figure 1C and Results). If this is the case, then it should be feasible through the use of internal standards to work out how much endogenous PP1 and R15 are isolated relative to the amounts of PP1 and R15 isolated following over-expression, then to set up an assay to measure comparable amounts of actin. Is there still tubulin and HSP70 pulled down with endogenous PP1 and R15? If so, and no actin can be detected, then how does one interpret the physiological significance of the proposed G-actin interaction.

2) Related to this point of stoichiometry, if there is a stoichiometric amount of G-actin bound to PP1/R15 then what does this say about how tubulin or HSP70 might also be binding to the complex?

3) The questions related to the binding between the different proteins really needs evidence using purified components, which is the topic of the accompanying paper (Chen et al., 2015, eLife). In isolation it is not easy to judge the potential physiological significance of the data presented in this paper, and the Discussion really needs to make it more clear how the structural data in the other paper help interpret the data in this paper.

4) Abstract: the data presented here are more supportive of G-actin being able to stabilize the PP1/R15 complex rather than being an ”activator”.

https://doi.org/10.7554/eLife.04872.020

Author response

1) The pull-down experiments identify the most abundant proteins in cells, and while a number of controls are included, there is a concern that the work relies on over-expression of proteins in model cell preparations. As the authors acknowledge in the Discussion, the artificial manipulations used to perturb G-actin, do not really inform upon any biological process where G- to F-actin dynamics are altered.

We have now immunoprecipitated endogenous PPP1R15A from cell lysates and demonstrated the striking dependence of PP1 binding to PPP1R15A on G-actin abundance within the cell (new Figure 4A). Due to poor sensitivity of the available antisera to actin we were unable to resolve associated actin from background, and so we depleted input lysate of F-actin by centrifugation in order to report G-actin in the input samples. It is clearly seen, that in samples depleted of soluble G-actin, less PP1 is recovered in complex with endogenous PPP1R15A (compare lanes 2 and 3, Figure 4A). As a complementary approach, we used microcystin-agarose matrix to purify endogenous PP1-containing complexes from cell lysates and observed that depletion of G-actin reduced the quantity of endogenous PPP1R15A associated with the catalytic subunit (new Figure 4B).

The following has been added to the main text of the manuscript:

“To examine the relevance of G-actin to the endogenous PPP1R15 complex, wild type Ppp1r15a+/+ and mutant Ppp1r15amut/mut mouse embryonic fibroblasts (MEFs) […] These findings are consistent with a role for G-actin in promoting association between endogenous PPP1R15A and PP1.”

And to the Abstract:

“Like PP1, G-actin associated with the functional core of PPP1R15 family members and G-actin depletion, by the marine toxin jasplakinolide destabilised the endogenous PPP1R15A-PP1 complex.”

2) There is little information related to replication of experiments. Representative studies are presented but little cumulative data is analyzed and quantified.

We now include the quantification of three independent replicates of Figure 5A-D, Figure 6A, Figure 7C and D, Figure 8A and C, Figure 9B and C.

3) A commercial GFP pull-down kit is used. It is important that the buffer conditions are included in the Methods section. In this regard, was G-actin binding sensitive to lysis or other buffer components including salt and detergent?

The Methods have be amended as follows:

“For GFP-Trap® affinity purification, cells were lysed in the manufacturer’s recommended buffers (Chromotek, Germany) and incubated with GFP-Trap® A beads according to manufacturer’s instructions. Briefly, cells were lysed in GFP-Trap lysis buffer [150mM NaCl, 10 mM Tris/Cl pH 7.5, 0.5 mM EDTA, 1 mM PMSF and Protease Inhibitor Cocktail (Roche)] and post-nuclear supernatants were incubated with GFP-Trap beads at 4°C for two hours then washed four times in the same buffer. Proteins were eluted with SDS-PAGE loading buffer.”

The lysis buffers routinely contained physiological levels of salt, but as suggested we have now analysed the interactions between PPP1R15A and either actin or PP1 (new Figure 3–figure supplement 1). Lysis buffers routinely contained no more than 1% v/v Triton X-100 and beads wash buffers were detergent-free. In new Figure 3–figure supplement 2, we demonstrate that the interaction between PPP1R15A and both actin and PP1 were sensitive to detergent. When lysates were subjected to anti-GFP immunoprecipitation and then washed either without detergent, with Triton X-100, RIPA (1% NP40, 0.5% sodium deoxycholate, 0.1% SDS) or with digitonin-containing buffers, all except RIPA preserved the R15A-actin and R15A-PP1 associations. This suggests that while the complex is stable in a number of non-denaturing detergents, denaturing detergents may not be compatible with it. The following has been added to the Results section:

“The quantities of actin and PP1 recovered in complex with PPP1R15A were sensitive to the salt concentration of the buffers used (Figure 3–figure supplement 1). […] RIPA, which contains the denaturing detergents sodium deoxycholate (0.5% v/v) and SDS (0.1% v/v), completely abolished interaction between PPP1R15A and both PP1 and actin (Figure 3–figure supplement 2).”

4) The mass spectrometry data is not presented.

We have included total spectra count, total unique peptides and percentage coverage for GFP, GFP-PPP1R15A, GFP-PPP1R15b, V5 and V5-dPPP1R15 in new Figure 1–figure supplements 1 and 2.

5) Relative stability of trimeric complex: the authors’ assertion that the ternary complex is more stable than binary complexes (at the end of the subsection “Actin associates with the conserved C-terminal functional core of PPP1R15”) seems to be based on the analysis of the V556E mutant, but no evidence in this experiment that addresses this issue directly.

We agree that while deletion and point mutants support a measure of independent binding of actin and PP1 to PPPR15 the new data from purification of endogenous PPP1R15A complexes indicate that manipulation of G-actin availability directly affects the association of endogenous PP1 with endogenous PPP1R15A (new Figure 4). It can also be seen that PPP1R15A isolated from jasplakinolide-treated cells binds far less PP1 and so is significantly less effective at dephosphorylating eIF2α in vitro (Figure 8A and B). Furthermore the new Figure 3–figure supplement 1 confirms that the V556E mutant of PPP1R15A, which is unable to engage PP1 stably, also interacts poorly with actin across a broad range of salt concentrations, in marked contrast to wild type PPP1R15A. We have therefore amended the text as follows:

“Mutational analysis thus indicates that, while independent association of PP1 or actin with PPP1R15 may exist, the ternary complex of wild type PPP1R15, actin and PP1 is more readily recoverable.”

6) In Figure 1, tubulin also seems to be a conserved PPP15A/B interactor, and in Figure 7A the amount of tubulin associated w/ the PPP15A-GFP complex is also decreased when purified from jasplakinolide treated cells. It would be helpful to know (and potentially a great control) if eIF2α phosphorylation is altered in cells treated with drugs that alter levels of MT polymerization. In addition, some comment on the tubulin recovery in the experiments would be appropriate; what do the authors think is happening here?

We agree that the potential for involvement of tubulin in mammalian PPP1R15-containing phosphatases is potentially interesting. However, in the current manuscript, we decided to focus on the phylogenetically conserved interaction of the R15s with actin, rather than on tubulin, which has a far less strong interaction with dPPP1R15.

In reference to the reviewers’ logical suggestions for further experimentation, we note that manipulation of microtubules to increase their polymerization (e.g. with taxanes) leads to increased eIF2α phosphorylation through effects on the kinase PERK (Swanton et al., 2007 Cancer Cell 11: 498-512). This imposes further challenges on isolation of effects of manipulating the microtubule network on the eIF2⍺ phosphatases and is an issue that may need to be addresses by future studies.

7) Since jasplakinomide perturbs actin polymerization through a specific mechanism, it is important to use another method (for example phalloidin) to ensure that the effects are not specific to jasplakinomide.

To avoid confounding off-pathways effects of small molecules, we generated stable cells conditionally expressing a construct comprising constitutively active mDia2 fused to the membrane-associating portion of PPP1R15B (residues 1-146). mDia2 is a formin that both nucleates and processively elongates actin filaments. In Figure 9A and Figure 9–figure supplement 1 it can be seen that expression of this construct led to a marked increase in F-actin within the cell in a central distribution rather than the cortical arrangement observed in control cells. This increase in F-actin, which showed significant co-localisation with GFP-R15B 1-146_mDia2 (Figure 9–figure supplement 1), was associated with induction of the integrated stress response effector ATF4. The complete abrogation of this by ISRIB confirmed that induction of ATF4 by expression of the mDia2 construct was mediated by phosphorylation of eIF2α (compare lanes 15 and 16 of Figure 9B). Moreover, induction of the mDia2 construct was sufficient to cause phosphorylation of eIF2α (compare lanes 8 and 9 of Figure 9C).

The reviewers’ suggestion that we exploit phalloidin to alter actin polymerization status is sensible. However, while this toxin indeed stabilizes filaments of F-actin, it is poorly membrane permeant and difficult to use in the bulk-based endpoint assays available to monitor the ISR, eIF2⍺ phosphorylation and PPP1R15 complex composition. Membrane disruption by scraping (“scrape loading”) has been described as a means to allow it to gain access to the cell (Serpinskaya et al., 1990, FEBBS Lett 17: 11-14). In our hands, when applied to the culture media, phalloidin failed to induce any morphological features of actin polymerization, while scrape loading alone induced significant confounding cellular stress. Phalloidin has also been introduced into cells by microinjection (Wehland and Weber, 1981, Eur J Cell Biol 24, 176–183), but this does not permit the analysis of sufficient numbers of cells for immunoblot. The cell permeant semi-synthetic derivative, phalloidin-oleate, is no longer commercially available.

8) Figure 4B: please indicate the time of treatment.

The incubation was for 1 hour and the legend has been amended as follows, and this figure is now Figure 5:

Figure 5. Association of G-actin with PPP1R15 regulates eIF2α phosphatase activity… (B) WT MEFs were treated with the indicated concentrations of jasplakinolide for 1 hour. Lysates were analysed as in (A)…”

9) Figure 4C and D: while a control experiment is shown in Figure 4D, it is hard to make much of a conclusion since the result in Figure 4D appears to be fully explained by the level of induced expression of R15A. In addition, in Figure 4D an important control is not shown: overall levels of eIF2α. Its absence is conspicuous as this control is shown for other analyses, including panel 4C.

As requested, we have now included the total eIF2α control (amended Figure 5D; note number change owing to new Figure 4).

We remain of the opinion that overexpression of PPP1R15A is a valid means to isolate the effect of jasplakinolide on eIF2α phosphorylation from its effects on PPP1R15A expression. Differences in R15A induction are likely to reflect differences in cap-dependent translation between the two conditions and so in Figure 5D (previously 4D) we over-expressed PPP1R15A from the outset of the experiment thus equalizing its levels between control and jasplakinolide-treated cells. In vehicle-treated cells, a substantial reduction of eIF2α phosphorylation was observed owing to increased eIF2α phosphatase activity, while in jasplakinolide-treated cells eIF2α phosphorylation was dramatically increased consistent with reduction of eIF2α phosphatase activity. We address and exclude the possibility of these effects resulting from altered eIF2α kinase activity elsewhere in the manuscript (Figure 6C). The main text has been amended as follows:

“In the presence of jasplakinolide, the elevated levels of phosphorylated eIF2α induced by thapsigargin persisted (Figure 5C lanes 7-12) […] However, jasplakinolide reversed the inhibitory effect of PPP1R15A over-expression restoring elevated levels of phosphorylated eIF2α to thapsigargin-treated cells (Figure 5D).”

10) Figure 6C and D: the data for the R15A mutant cells seems non-informative since little R15A is expressed at baseline.

Whilst at baseline there are low (but nonetheless detectable) levels of PPP1R15A (new Figure 4), to isolate the effect of PPP1R15B from PPP1R15A we conducted these experiments in a PPP1R15A functional null cell (Figure 7C and D, previously 6C and D). These experiments were important to establish the sensitivity of PPP1R15B to actin polymerization. We have amended the text as follows to clarify this point:

“Enhanced levels of phosphorylated eIF2α in jasplakinolide-treated cells and the synergistic effects of depleting G actin on the response to thapsigargin were observed in wildtype cells and in cells lacking either PPP1R15A or PPP1R15B-directed eIF2α dephosphorylation (Figure 6B-D). These observations indicate that G-actin plays a functional role in holophosphatases constituted with either regulatory subunit. Importantly, this is the first evidence that the activity of constitutively expressed PPP1R15B can be modulated.”

11) Figure 7: this experiment is not explained clearly in the text (subsection headed “Association of G-actin with PPP1R15 regulates eIF2α phosphatase activity in vivo”).

We have amended the text as follows (note that Figure 7 is now Figure 8 in the resubmitted manuscript):

“To explore in further detail the basis for the correlation between G-actin levels and eIF2α dephosphorylation […] indicating that stabilisation of a complex between PPP1R15 and PP1 dominates G-actin’s role in this experimental system.”

12) Figure 8: do the constructs with the membrane-targeting domain of R15B displace the ER location of R15B or R15A? In addition, the cells in appear significantly different in morphology in this figure. Please show more examples, and provide some quantitation of the extent of colocalization of F-actin and GFP.

As requested, we now include additional images of cells expressing each construct and quantification of the co- localization of F-actin and GFP (Figure 9–figure supplement 1).

Since both the control and mDia2 constructs were directed to endomembrane by the R15B N-terminal domain, the possibility that these might displace endogenous R15 exists. This requires the R15 binding site to be saturable, but we have no evidence for the latter. Indeed, overexpression of GFP-tagged N-terminal domain fails to affect mCherry-R15 localization (not shown). However, the hypothesis we set out to test in the experiments of Figure 9 was that depletion of a local pool of actin adjacent to the ER would enfeeble R15 activity. If the control construct were to deplete R15 from its normal location and if this were to impair its enzymatic activity, the observed effect of mDia2 induction would be minimized since eIF2α phosphatase activity would have been impaired similarly by the GFP-R15B 1-146 control construct (expressed at similar levels to the mDia2 construct on western blots). In this regard, our observation that GFP-R15B 1-146_mDia2 leads to activation of ATF4 is strengthened. We now address this in the Discussion as follows:

“In an effort to examine the effect of localized polymerization of actin, while simultaneously overcoming our concern of off-pathway effects […] our observation that GFP-R15B 1-146_mDia2 leads to activation of ATF4 is strengthened.”

13) Referencing: the use of the Sotiropoulos reference for MAL and actin is wrong. 1) Initial finding should be Miralles et al., Cell 2003 vol. 113, 329; 2) Rather than being held in the cytoplasm by actin and released for nuclear entry, MAL is actually dynamic, with the protein continually circulating through the nucleus (Vartiainen et al., 2007 Science vol. 316, 1749. 3. Structural analysis of binding to actin was initially done by Mouilleron et al., 2008 EMBO 27, 3198).

We thank the reviewer for the suggestions and have amended the citations accordingly.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

The other reviewer had more substantive criticisms, many of which he/she felt were raised in the first round of reviews, that we have listed below. Specifically, he/she remains concerned about the stoichiometry of the PP1/R15 complex and actin. He/she notes that this interaction is at the core of the work and conclusions, and is not convinced from the data that the interaction is physiologically significant. This issue, therefore, remains a significant problem that needs addressing directly. The reviewer suggests, as did on the original reviews, that purified proteins would be a better basis for this analysis.

The strongest functional evidence for the role of G-actin in regulating the phosphatase activity of PPP1R15 comes from the various experiments in which manipulation of the actin cytoskeleton in living cells is shown to modulate eIF2α dephosphorylation (Figures 5, 6, 7 and 9).These correlate with powerful negative effects of depletion of G-actin on the stability of the endogenous PPP1R15-PP1 complex recovered from cells (Figures 4 and 8). As the editor and reviewer 2 noted, the issue of stoichiometry is best addressed in vitro using purified components. This indeed has been done in the accompanying manuscript (Chen et al., 2015, eLife), revealing a 1:1:1 complex of PPP1R15-PP1-actin that co-purifies and crystalizes. This point and its significance are now discussed in detail in the revised version of manuscript (in the Discussion).

Because of its importance to this paper we have further probed the actin content of the endogenous complex of PPP1R15-PP1. We faced three challenges: (1) poor recovery of endogenous PPP1R15 by immunoprecipitation, (2) poor reactivity of the available anti-actin sera, and (3) actin contamination of reference immunoprecipitations (the controls). Problem 3 proved especially prominent in mouse fibroblasts (MEFs), but could be circumvented partially by using HEK293T cells. Therefore, we first confirmed the crucial role of the actin cytoskeleton on the stability of the PPP1R15-PP1 complex in HEK293T cells by comparing the recovery on microcystin beads of endogenous PPP1R15A from untreated and jasplakinolide-treated cells (an assay for the stability of the PPP1R15-PP1 complex, which associates with the microcystin via its PP1 component) (new Figure 4C). Then, following the reviewers’ suggestion, we scaled up the input material for the immunoprecipitation to recover endogenous PPP1R15A at a quantity comparable to that of the over-expressed PPP1R15A and assayed for the associated actin. As shown in new Figure 4D, comparable levels of actin were found, supporting the conclusion that actin is a functionally relevant constituent of the endogenous PPP1R15-containing complex.

Reviewer #1 (Richard Treisman):

Point 6 in the rebuttal: ”OK, but puzzled as to the effect on Tubulin recovery. The authors should add a comment as to what they think is going on here.

We have amended the Discussion as follows:

“Our proteomics analysis also identified other potential binding partners of PPP1R15. […] the evidence at hand suggesting actin’s relevance to the core activity of the eIF2α-directed phosphatase justifies the focus on actin.”

Reviewer #2 (verbatim):

1) It is a concern that actin cannot be detected in the pulldown studies added in Figure 4. There is a vague comment about the antibody not being effective enough, but this does not make a lot of sense, given that there is a supposedly ”stoichiometric“ amount of actin coming down with the PP1/R15 complex (Figure 1C and Results). If this is the case, then it should be feasible through the use of internal standards to work out how much endogenous PP1 and R15 are isolated relative to the amounts of PP1 and R15 isolated following over-expression, then to set up an assay to measure comparable amounts of actin.

We thank the reviewer for this suggestion. As noted previously, new Figure 4D presents an analysis of the recovery of endogenous actin in complex with endogenous PPP1R15A-PP1 and a side-by-side comparison to the recovery of actin in complex with over-expressed PPP1R15A. For this, it proved necessary to use HEK293T cells (rather than MEFs which had prohibitive non-specific binding of actin in the control immunopurification samples).

The new experiment reveals comparable association of actin with endogenous and over-expressed PPP1R15A and thus supports the extensive functional experiments documenting the dependence of eIF2α dephosphorylation on the availability of G-actin.

Two further points are worth making in regards to this experiment: (1) The exposure of cells to jasplakinolide markedly increased the non-specific recovery of actin in control immunoprecipitation samples therefore it was not possible to measure the effect of jasplakinolide on the recovery of actin in complex with PPP1R15A. (2) Similar considerations apply to the recovery of actin on microcystin beads, the latter may be due to the known existence of other PP1-actin complexes in the cell (Kao et al., 2007; Oliver et al., 2002).

The following new text has been added to the Results section under the subsection headed “Association of G-actin with PPP1R15 regulates eIF2α phosphatase activity in vivo”:

“Whilst the presence of other known PP1-actin complexes precludes meaningful interpretation of actin purified by microcystin affinity […] This supports a role for the interaction in cell physiology.”

Is there still tubulin and HSP70 pulled down with endogenous PP1 and R15? If so, and no actin can be detected, then how does one interpret the physiological significance of the proposed G-actin interaction.

As noted above, actin is detected in the endogenous complex and given the focus of this and the accompanying paper on actin’s role in eIF2α dephosphorylation (Chen et al., 2015, eLife), we consider the study of the other proteins noted in the PPP1R15 pull-downs to be better suited to future efforts.

2) Related to this point of stoichiometry, if there is a stoichiometric amount of G-actin bound to PP1/R15 then what does this say about how tubulin or HSP70 might also be binding to the complex?

The in vitro experiments presented in the accompanying manuscript (Chen et al., 2015, eLife), and discussed in detail in the revised version of this paper (see below), clearly document a 1:1:1 functional complex of PPP1R15-PP1-actin, which requires no further components for its selective ability to dephosphorylate eIF2α. While this does not exclude an ancillary role for tubulin or HSP70, parsimony justifies the focus on actin here. It is noteworthy however, that PPP1R15 proteins have extensive portions outside their functional core (which engages PP1 and actin and constitutes the specific eIF2αP-directed phosphatase). Thus there is nothing in our observations to argue against further component (tubulin, HSP70) joining the complex in high stoichiometry to regulate other aspects of its function.

We have amended the Discussion as follows:

“Our proteomics analysis also identified other potential binding partners of PPP1R15. […] the evidence at hand suggesting actin’s relevance to the core activity of the eIF2α-directed phosphatase justifies the focus on actin.”

3) The questions related to the binding between the different proteins really needs evidence using purified components, which is the topic of the accompanying paper (Chen et al., 2015, eLife). In isolation it is not easy to judge the potential physiological significance of the data presented in this paper, and the Discussion really needs to make it more clear how the structural data in the other paper help interpret the data in this paper.

We agree and have extended the Discussion as follows:

“A crystal structure obtained for the binary complex of PPP1R15B and PP1 demonstrated that the N-terminal half of PPP1R15’s functional core […] suggests a mode of engagement of actin by this portion of PPP1R15B that would be sensitive to disruption by cytochalasin, which binds to the same region of G-actin.”

4) Abstract: the data presented here are more supportive of G-actin being able to stabilize the PP1/R15 complex rather than being an ”activator”.

We have changed this word in the Abstract.

https://doi.org/10.7554/eLife.04872.021

Article and author information

Author details

  1. Joseph E Chambers

    1. Cambridge Institute for Medical Research, Department of Medicine, University of Cambridge, Cambridge, United Kingdom
    2. Wellcome Trust MRC Building, University of Cambridge, Cambridge, United Kingdom
    Contribution
    JEC, Performed experiments including generation and use of stables cells for tetracycline-inducible expression of mDia2 fusion proteins, in vivo assessment of eIF2α phosphatase activity by use of eIF2α kinase inhibition and contributed to the writing of the manuscript., Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Lucy E Dalton
    Competing interests
    No competing interests declared.
  2. Lucy E Dalton

    1. Cambridge Institute for Medical Research, Department of Medicine, University of Cambridge, Cambridge, United Kingdom
    2. Wellcome Trust MRC Building, University of Cambridge, Cambridge, United Kingdom
    Contribution
    LED, Performed experiments including GFP-affinity purification of PPP1R15A and mass spectroscopy, deletion mapping for in vivo actin interactions, manipulation of actin polymerisation status by drugs and serum, in vitro eIF2α phosphatase assay, generated stable cells for tetracycline-inducible expression of PPP1R15A, and contributed to the writing of the manuscript., Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Joseph E Chambers
    Competing interests
    No competing interests declared.
  3. Hanna J Clarke

    1. Wellcome Trust MRC Building, University of Cambridge, Cambridge, United Kingdom
    2. Cambridge Institute for Medical Research, University of Cambridge, Cambridge, United Kingdom
    Contribution
    HJC, Performed experiments including GFP-affinity purification of PPP1R15A for mass spectroscopy, examined effect of jasplakinolide in eIF2α kinase knockout lines, manipulation of actin polymerisation status by drugs and serum, and contributed to the writing of the manuscript., Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  4. Elke Malzer

    1. Cambridge Institute for Medical Research, Department of Medicine, University of Cambridge, Cambridge, United Kingdom
    2. Wellcome Trust MRC Building, University of Cambridge, Cambridge, United Kingdom
    Contribution
    EM, Perform affinity purification and deletion mapping experiments involving dPPP1R15, and contributed to the writing of the manuscript., Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  5. Caia S Dominicus

    1. Cambridge Institute for Medical Research, Department of Medicine, University of Cambridge, Cambridge, United Kingdom
    2. Wellcome Trust MRC Building, University of Cambridge, Cambridge, United Kingdom
    Contribution
    CSD, Performed experiments including GFP-affinity purification of PPP1R15B for mass spectroscopy, and contributed to the writing of the manuscript., Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  6. Vruti Patel

    1. Cambridge Institute for Medical Research, Department of Medicine, University of Cambridge, Cambridge, United Kingdom
    2. Wellcome Trust MRC Building, University of Cambridge, Cambridge, United Kingdom
    Contribution
    VP, Examined the effect of manipulating actin polymerisation status by drugs and contributed to the writing of the manuscript., Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  7. Greg Moorhead

    Department of Biological Sciences, University of Calgary, Calgary, Canada
    Contribution
    GM, Greg Moorhead synthesised and provided microcysin agarose. The labour-intensive production of this reagent (which is not available commercially) enabled a key experiment. He also contributed his expertise in phosphatase biology to review and approve the final version of the manuscript., Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    No competing interests declared.
  8. David Ron

    1. Wellcome Trust MRC Building, University of Cambridge, Cambridge, United Kingdom
    2. Cambridge Institute for Medical Research, University of Cambridge, Cambridge, United Kingdom
    Contribution
    DR, Contributed to experimental strategies, designed mDia2 constructs and contributed to the writing of the manuscript., Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    DR: Reviewing editor, eLife.
    ORCID icon 0000-0002-3014-5636
  9. Stefan J Marciniak

    1. Wellcome Trust MRC Building, University of Cambridge, Cambridge, United Kingdom
    2. Cambridge Institute for Medical Research, University of Cambridge, Cambridge, United Kingdom
    Contribution
    SJM, Conceived and oversaw the study as a whole, discovered the interaction between PPP1R15A and actin, and wrote the manuscript., Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    sjm20@cam.ac.uk
    Competing interests
    No competing interests declared.
    ORCID icon 0000-0001-8472-7183

Funding

Medical Research Council (MRC) (G1002610)

  • Stefan J Marciniak

Wellcome Trust (084812/Z/08/Z)

  • David Ron

British Lung Foundation (BLF) (APHD11-4)

  • Hanna J Clarke

June Hancock Mesothelioma Research Fund (JH09-2)

  • Lucy E Dalton

Wellcome Trust (100140)

  • David Ron

Diabetes UK (12/0004595)

  • Vruti Patel

Wellcome Trust (CIMR PhD programme)

  • Caia S Dominicus

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was funded by the Medical Research Council (UK) (MRC Ref G1002610) and a Wellcome Trust Strategic Award for core facilities to the Cambridge Institute for Medical Research (CIMR, Wellcome 100140). SJM holds a Senior Clinical Research Fellowship from the Medical Research Council (MRC Ref G1002610). DR is a Wellcome Trust Principal Research Fellow (Wellcome 084812/Z/08/Z). The June Hancock Mesothelioma Research Fund funded LED (JH09-2); the British Lung Foundation funded HJC (APHD11-4); CD is a member of the CIMR PhD programme funded by the Wellcome Trust; and VP holds a Diabetes UK Arthur and Sadie Pethybridge PhD Studentship. We are grateful to William Meadows and Roger B Dodd (University of Cambridge, UK) for advice and technical assistance in mammalian cell culture.

Reviewing Editor

  1. W James Nelson, Reviewing Editor, Stanford University, United States

Publication history

  1. Received: September 23, 2014
  2. Accepted: March 12, 2015
  3. Accepted Manuscript published: March 16, 2015 (version 1)
  4. Version of Record published: April 13, 2015 (version 2)

Copyright

© 2015, Chambers et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,606
    Page views
  • 715
    Downloads
  • 11
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry
    2. Cell Biology
    Matthew L Schwartz et al.
    Research Article
    1. Cell Biology
    Yi Liu et al.
    Research Article Updated
