Many of the most useful medicinal drugs—including antibiotics and cancer drugs—are derived from bacteria living in the soil that produce these chemicals as part of their natural life cycle. Many of these chemicals have been found by culturing bacteria in the laboratory, but this approach is limited because it only provides access to the chemicals produced by the small fraction of bacteria species that we can culture in this way. Also, many bacteria do not produce as many different chemicals when they are grown under these artificial conditions, instead of their natural environment. This suggests that bacteria living in the environment are likely to provide an additional source of new chemicals that could have medicinal benefits.

Here, Charlop-Powers et al. tackle this issue by employing a high-throughput genetic method for assessing the potential of soil-dwelling bacteria to make compounds with biological activity. They extracted DNA directly from soil samples collected from five continents, in part through the efforts of a citizen-science project called ‘Drugs from Dirt’ (drugsfromdirt.org). These samples came from many different environments, including rainforests, deserts, and coastal sediments.

After extracting the DNA from the soil samples, Charlop-Powers et al. focused on sequencing the genes that encode enzymes called NRPS and PKS. These enzymes are involved in the production of a range of diverse compounds, including many clinically useful antibiotics. By comparing the sequences of the genes found in the different soils, it was possible to estimate how common the genes were in each sample, and also to compare the collections of genes found in different soil types. This comparison revealed that the DNA sequences of the genes encoding NRPS and PKS vary widely among the soil samples, except for samples that came from similar environments in close proximity to each other.

These findings show that populations of soil-dwelling bacteria living in different locations are likely to produce related, but different and largely unexplored, natural compounds that could have the potential to be used in drug therapies or in other industries.

Soil-dwelling bacteria produce many of the most important members of our pharmacy, including the majority of our antibiotics as well as many of the cytotoxic compounds used in the treatment of cancers (Cragg and Newman, 2013). The traditional approach for characterizing the biosynthetic potential of environmental bacteria has been to examine metabolites produced by bacteria grown in monoculture in the lab. However, it is now clear that this simple approach has provided access to only a small fraction of the global microbiome's biosynthetic potential (Rappe and Giovannoni, 2003; Gilbert and Dupont, 2011; Rajendhran and Gunasekaran, 2011). In most environments uncultured bacteria outnumber their cultured counterparts by more than two orders of magnitude, and among the small fraction of bacteria that has been cultured (Torsvik et al., 1990, 1998), only a small subset of gene clusters found in these organisms is generally expressed in common fermentation broths (Bentley et al., 2002; Ikeda et al., 2003). The direct extraction and subsequent sequencing of DNA from environmental samples using metagenomic methods provides a means of seeing this ‘biosynthetic dark matter’ for the first time. Unfortunately, the genomic complexity of most metagenomes limits the use of the shotgun-sequencing and assembly approaches (Iverson et al., 2012; Howe et al., 2014) that are now routinely used to study individual microbial genomes (Donadio et al., 2007; Cimermancic et al., 2014). Although bacterial natural products represent an amazing diversity of chemical structures, the majority of bacterial secondary metabolites, including most clinically useful microbial metabolites, arise from a very small number of common biosynthetic themes (e.g., polyketides, ribosomal peptides, non-ribosomal peptides, terpenes, etc) (Dewick, 2002). Because of the functional conservation of enzymes used by these common systems, degenerate primers targeting the most common biosynthetic domains provide a means to broadly study gene cluster diversity in the uncultured majority in a way similar to what is now regularly done for bacterial species diversity using 16S rRNA gene sequences. Here we use this approach to conduct the first global examination of non-ribosomal peptide synthetase (NRPS) adenylation domain (AD) and polyketide synthase (PKS) ketosynthase (KS) domain biosynthetic diversity in soil environments. We chose to explore NRPS and PKS biosynthesis because the highly modular nature of these biosynthetic systems has provided a template for the production of a wide variety of gene clusters that give rise to a correspondingly diverse chemical repertoire, including many of the most clinically useful microbial metabolites (Cragg and Newman, 2013).

With the help of a citizen science effort (www.drugsfromdirt.org), soil samples were collected from five continents (North America, South America, Africa, Asia, Australia) and several oceanic islands (Hawaii, Dominican Republic), covering biomes that include multiple rainforests, temperate forests, deserts and coastal sediments. DNA was extracted directly from these soils as previously described (Brady, 2007) and 96 samples were chosen for analysis of NRPS/PKS diversity using 454 pyro-sequencing of AD and KS domain PCR amplicons. Samples were chosen on the basis of DNA quality and biome diversity; raw sequence reads from these samples were combined with existing amplicon datasets derived from other biomes using the same DNA isolation, PCR and sequencing protocols (Charlop-Powers et al., 2014). The entire dataset representing 185 biomes was clustered into operational taxonomic units (OTUs) at a sequence distance of 5%. Despite millions of unique sequencing reads yielding a predicted Chao1 OTU estimate of greater than 350,000 for each domain, rarefaction analysis suggests that we have not yet saturated the sequence space of either domain (Figure 1A,C).

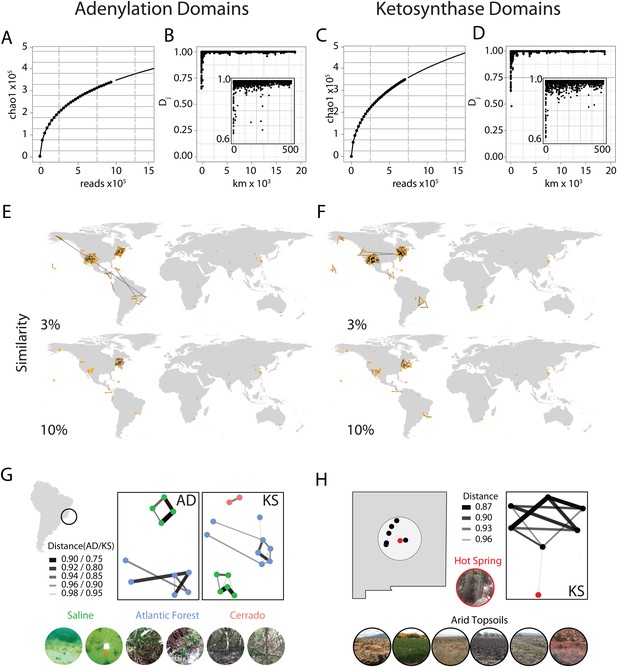

Figure 1

Download asset Open asset

The first question we sought to address with this data was how biosynthetic sequence composition varies by geographic distance. To do this we calculated the pairwise Jaccard distances between AD/KS sequence sets derived from each sampling site and used these metrics to compare samples. The Jaccard distance, a widely used metric for comparing the fraction of shared OTUs between samples, was chosen over alternative metrics due to its simplicity and to the lack of a comprehensive reference phylogenetic tree for AD and KS domains as exists for 16S analyses. Most Jaccard distances were found to be quite small (<3%), indicating large differences in secondary metabolite gene sequence composition between almost all sample collection sites (Figure 1B,D). Although the OTU overlap between our individual experimental samples is generally small, these relationships allow us to begin to develop a picture of how biosynthetic diversity varies globally. On a global level, the strongest biosynthetic sequence composition relationships are seen between samples collected in close physical proximity to one another (Figure 1B,D,E,F) as opposed to between samples from similar biomes in different geographic locations. For example, at a cutoff of even as low as 3% shared KS or AD OTUs, essentially all inter-sample relationships are observed between immediate geographic neighbors and not similar biomes in different global locations (Figure 1E,F). This likely explains the limited inter-sample relationships we observe between samples from the Eastern hemisphere as most samples from this part of the world were collected from sites at a significant geographic distance from one another. The only exception is the set of soil samples from South Africa, of which a number were collected in relatively close geographic proximity. These samples exhibit similar pairwise Jaccard metrics to those observed between geographically proximal samples collected in the Western hemisphere (Figure 1E,F).

Although differences in biosynthetic composition of microbiomes appear to depend at least in part on the geographic distance between samples, our data suggests that change in the biome type is an important additional factor for the differentiation of biosynthetic diversity on a more local level (Figure 1G,H). For example, at a cutoff of 3% shared OTUs, essentially all inter-sample relationships are observed between immediate geographic neighbors; when this is raised to 10% shared OTUs (Figure 1E,F), relationships are only seen between nearby samples belonging to the same biome. This phenomenon is highlighted by the two examples shown in Figure 1G,H. In the first example, Brazilian soils were collected from Atlantic rainforest, saline or cerrado (savanna-like) sites located only a few miles from one another. Our AD and KS data show these sample are (i) distinct from other globally distributed samples, (ii) most strongly related to the samples from the same Brazilian biome and (iii) only distantly related to the samples from other Brazilian biomes. In the second example, a sample collected from a New Mexican hot spring where the soil is heated continuously by subterranean water is compared with samples derived from the dry soils of the surrounding environment. Once again our amplicon data show that these samples are (i) distinct from other globally distributed samples, (ii) most strongly related to other samples from the same biome and (iii) only distantly related to samples from other nearby biomes. Although it is possible that at a much greater sampling depth all AD and KS domains will be found at all sites as predicted by Baas-Becking's ‘everything is everywhere but the environment selects’ hypothesis of global microbial distribution (O'Malley, 2007; de Wit and Bouvier, 2006), our PCR-based data suggest that both geography and ecology play a role in determining the major biosynthetic components of a microbiome.

The vast majority of AD and KS domain sequences coming from environmental DNA (eDNA) are only distantly related to functionally characterized NRP/PK gene clusters, precluding precise predictions about the specific natural products encoded by the gene clusters from which most amplicons arise. However, in cases where eDNA sequence tags show high sequence similarity to domains found in functionally characterized gene clusters, this information can be used to predict the presence of specific gene cluster families within a specific microbiome. This type of phylogenetic analysis is the basis of the recently developed eSNaPD program, a BLAST-based algorithm for classifying the gene cluster families that are associated with eDNA-derived sequence tags (Owen et al., 2013; Reddy et al., 2014). When an eDNA sequence tag clades with, but is not identical to, a reference sequence in an eSNaPD-type analysis, it is considered to be indicative of the presence of a gene cluster that encodes a congener (i.e., a derivative) of the metabolite encoded by the reference cluster.

Interestingly, eSNaPD analysis of the data from all sites reveals two distinct types of biomedically relevant natural product gene cluster ‘hot spots’ within our data (Figure 2A,B,D). These include ‘specific gene cluster hotspots’ and ‘gene cluster family hotspots’. Metagenomes from ‘specific gene cluster hotspots’ are predicted to be enriched for a gene cluster that encodes a congener of the target natural product, while metagenomes from ‘gene cluster family hotspots’ are predicted to encode multiple congeners related to the target natural product. Figure 2A shows several of the strongest examples of ‘specific gene cluster hotspots’ where reads falling into an OTU related to a specific biomedically relevant gene cluster or gene cluster family are disproportionately represented in the sequence data from individual microbiomes. These examples highlight the different enrichment patterns that we observe in the environment—hotspots are either local in nature, consisting of only one or two samples containing sequence reads mapping to the target (epoxomycin, oocydin); regional (tiacumicinB); or global with punctuated increases in diversity (glycopeptides). We would predict ‘specific gene cluster hotspots’ (Figure 2D) are naturally enriched for bacteria that encode congeners of the biomedically relevant target metabolites, thereby potentially simplifying the discovery of new congeners. Figure 2B shows examples of ‘gene cluster family hotspots’, where metagenomes having a disproportionately high number of OTUs mapping to a specific biomedically relevant target molecule family (e.g., nocardicin, rifamycin, bleomycin, and daptomycin families are shown) are highlighted. This analysis identifies specific sample sites, from among those surveyed, that are predicted to contain the most diverse collection of gene clusters associated with a target molecule of interest (Figure 2B). Both types of hotspots should represent productive starting points for future natural product discovery efforts aimed at expanding the structural diversity and potential utility of specific biomedically relevant natural product families.

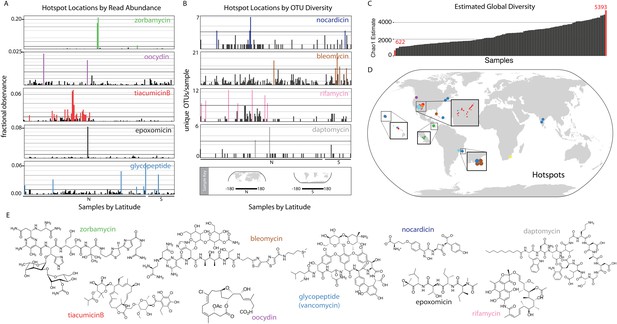

Figure 2

Download asset Open asset

Biosynthetic domain sequence tag data are not only useful for pinpointing environments that are rich in specific biosynthetic targets of interest but also as a metric for natural product biosynthetic diversity in general. As only a small fraction (5–10%) of total AD and KS sequences can be confidently assigned by the eSNaPD algorithm, samples showing the largest collection of unique OTUs (at a common sequencing depth) might be expected to contain the most diverse collection of novel biosynthetic gene clusters (Figure 2C) and therefore be the most productive sites to target for future novel molecule discovery efforts. Once normalized for sequencing depth, the number of unique KS and AD sequence tags observed per collection site differs by almost an order of magnitude between environments (Figure 2C), with the most diverse samples mapping to Atlantic forest and Desert environments (Figure 2C,D teal spots, Supplementary file 7).

The development of cost effective high-throughput DNA sequencing methodologies and powerful biosynthesis focused bioinformatics algorithms allow for the direct interrogation and systematic mapping of global microbial biosynthetic diversity. Our analyses of 100s of distinct soil microbiomes suggests that geographic distance and local environment play important roles in the sample-to-sample differences we detected in biosynthetic gene populations. As variations in biosynthetic gene content are expected to correlate with variations in the small-molecule producing capabilities of a microbiome, the broader implication of these observations from a drug discovery perspective is that the dominant biosynthetic systems of geographically distinct soil microbiomes are expected to encode orthogonal, largely unexplored collections of natural products. Taken together, our biosynthetic domain hotspot and OTU diversity analyses represent a starting point in the creation of a global natural products atlas that will use sequence data to guide natural product discovery in the future. Based on the historical success of natural products as therapeutics, microbial ‘biosynthetic dark matter’ is likely to hold enormous biomedical potential. The key will be learning how to harvest molecules encoded by the biosynthetic diversity we are now able to find through sequencing.
